NEC Computer Systems Division,

A Division of Packard Bell NEC, Inc.

DECLARATION OF CONFORMITY

We, the Responsible Party

NEC Computer Systems Division

Packard Bell NEC, Inc.

1414 Massachusetts Avenue

Boxboro, MA 01719

(978) 264-8000

declare that the product

NEC V6220/6230/6260

is in conformity with part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

PROPRIETARY NOTICE AND LIABILITY DISCLAIMER

The informa tion disc losed in this docu ment, inc luding a ll des igns a nd r ela t ed mat eri a ls, is t he valua ble pr oper ty of NEC Compu ter S yst ems Division, P acka r d Bell NE C, Inc. ( NEC CS D, PBNE C) and/ or it s licensors . NEC CS D and/or its lic ensors, as a ppr opr iate, reserve a ll pa tent, copyright and other proprietary rights to this document, including all design, manu f actur ing, r epr oduct ion, u se, a nd sa les r ight s ther eto, except to t he ext ent s aid r ights a re ex pr essly granted to others.

The NEC CSD produ ct(s) disc ussed in this document a re warr anted in acc ordance with t he terms of the Wa r ra nt y St at ement acc ompanying ea ch p rodu ct. However , a ct ua l p erfor manc e of each s uc h product is dep endent up on fa c t or s s u ch a s sys t em configuration, c us t omer da ta , and operator control. Since implementation by customers of each product may vary, the suitability of specific product configurations and applications must be determined by the customer and is not warranted by NECCSD.

To allow for design and specification improvements, the information in this document is subject to change at any time, without notice. Reproduction of this document or portions thereof without prior written approval of NECCSD is prohibited.

FaxFlash is a service mark of NEC Computer Systems Division (NECCSD), Packard Bell NEC, Inc. NEC is a registered trademark, Versa is a U.S. registered trademark, MiniDock, VersaBay, VersaGlide, and PortBar are trade-

marks, and UltraCare is a U.S. registered service mark of NEC Corporation, used under license.

All other product, brand, or trade names used in this publication are the property of their respective owners.

First Printing — January 1998

NEC Computer Systems Division, Packard Bell NEC, Inc.

1414 Massachusetts Avenue

Boxborough, MA 01719

Using this Guide

The NEC Versa® User’s Guide gives you the information you need to maximize the use of your NEC Versa notebook computer. Read this guide to familiarize yourself with the NEC Versa and its features. For specific information see

Chapter 1, “Getting Started,” to acquaint yourself with system hardware.



Chapter 2, “Introducing the Software,” for a concise summary of the



applications loaded on your system. We included software to let you experience the full spectrum of the system, from transferring files without cables to creating vivid presentations.

Chapter 3, “Using BIOS Setup,” to customize your notebook’s parame-



ter and power management settings.



Chapter 4, “Using Your NEC Versa,” for an understanding of NEC Versa features and functionality. You’ll also master procedures for connecting external options like an external monitor, headphones, a printer, or speakers.



Chapter 5, “Using Multimedia,” for steps on integrating video and sound clips into impressive presentations.



Chapter 6, “Traveling with Your NEC Versa,” for valuable tips for getting the most out of your system while on the road.



Chapter 7, “Solving Problems,” for simple solutions to common problems that may arise while operating your notebook.



Appendix A, “Setting Up a Healthy Work Environment,” for guidelines that help promote a healthy work setting.



Appendix B, “Specifications,” to review NEC Versa system specifications.



Appendix C, “Questions and Answers,” for a look at questions that users commonly ask and the answers to those questions.

Using this Guide ix

TEXT SETUP

To make this guide as easy to use as possible, text is set up as follows.

Warnings, cautions, and notes have the following format:



W arni ngs alert you to situati ons that could r esult in seri ous personal injury or loss of life.

Cauti ons i ndicate situations that can damage the system hardware or software.

WARNING

CAUTION

x Using this Guide

NOTE

Notes giv e particularly important inf ormation about whatever

is being described.



Names of keys are printed as they appear on the keyboard, for example,

Ctrl, Alt



Text that you must type or keys that you must press are presented in bold type. For example, type

, or

Enter

dir

and press

Enter

Getting Started

Prolonged or improper use of a computer workstation may pose a risk of serious injury. To reduce your risk of i njury, set up and use your comput er in the m anner described in Appendix A, “ S etting Up a Healthy Work Environment.”

After completing the steps in the quick setup sheet that comes with your computer, your NEC Versa 6200 Series notebook computer is ready to go! To get started, look at the following:



Read Appendix A, “Setting Up a Healthy Work Environment,” for guidelines that help you use your computer productively and safely. Information includes how to set up and use your computer to reduce your risk of developing nerve, muscle, or tendon disorders.



Take the online System Tour to get acquainted with the NEC Versa. The System Tour is part of the NEC Versa Help Center.

WARNING



View the online system Basics. Basics is part of the NEC Versa Help Center.



Read through this guide to familiarize yourself with the NEC Versa.

Getting Started 1-1

GETTING TO KNOW YOUR NEC VERSA

The NEC Versa 6200 Series notebook computer offers you a portable system filled with exciting resources for home, business or travel. Standard features include a powerful Intel MHz microprocessor that works together with the latest Peripheral Component Interconnect (PCI) architecture.

In addition, your system provides a high-performance hard disk drive, diskette drive or SuperDisk LS-120 drive, interchangeable 20X CD-ROM reader, and PC Card support. As a multimedia system, your NEC Versa also provides the tools needed to create and present impressive images using video clips and sound. See the online Versa Tools: Accessories and Solutions for more information.

To get comfortable with your notebook, read the following sections and take a tour around your system!

Pentium 200-MHz, 233-Mhz, or 266-

1-2 Getting Started

NEC Versa 6200 Series notebook computer

Around the Front of the System

The NEC Versa is compact with features on every side. First, look at the front of the NEC Versa. The following sections describe front features, beginning with the liquid crystal display (LCD) panel.

LCD Panel

The LCD panel on your system offers the features shown in the following figure. Features are described after the figure.

LCD panel features

LCD — a 13.3-inch color Thin Film Transistor (TFT) Extended



Graphics Array (XGA) display that you can easily adjust for comfortable viewing.



Power LED — a light that is visible with the LCD panel opened or closed. The Power LED indicates the following:

 Lights green when the system is powered on.  Blinks green when the system is in Suspend mode.  Slowly blinks amber to indicate that battery power is at 8% capacity

or less.

 Rapidly blinks green to indicate that battery power is at 4% capacity

or less.



Brightness Control — a slide switch that adjusts screen brightness.

Getting Started 1-3

Control Panel

The NEC Versa control panel provides the features shown in the following figure. These features are described after the figure.

Control panel



Stereo Speakers — provide stereo sound for your multimedia presentations or listening pleasure. The built-in sound system also supports 3D sound, which simulates the latest surround-sound technology.

1-4 Getting Started



LCD Status Bar — keeps you informed of your NEC Versa’s current operating status. Description of icons appear in the following section.



Suspend/Resume (S/R) Button — press the S/R button to put the unit in Suspend mode when you need to be away from your system for a short period of time and want to return to where you left off. Press the S/R button again to bring the NEC Versa out of Suspend mode.

Suspend mode shuts down all devices in the system while retaining data and system status. Use the

Fn Suspend

key combination to initiate a manual save-to-file. Use the Smart power Switch (power button) to resume from a save-to-file. You can find more detailed information on using Suspend mode in Chapter 3, “Using Setup.”

Status Icons

Power Button — slide the power button to the right to power on and



power off the computer. The Power button is a “smart” switch, meaning that it recognizes when

the system is in Suspend mode. If in Suspend mode, you cannot power off until you press the Suspend button again to bring it out of Suspend mode.

In addition, the Smart Power Switch invokes an orderly shutdown in the Windows 95 and Windows NT environments. If you use the Power button to turn off your system while applications are running, the Smart Power Switch alerts the operating system. The operating system prompts you to save all data and invokes an orderly shutdown procedure.

The NEC Versa 6200 Series uses LCD icons that communicate system status. See the following figure and list for each icon’s meaning.

Reviewing status icons



Suspend — appears when the system is in Suspend mode. Suspend mode conserves system power by shutting down all devices in the system while retaining data and system status.

Power Management — shows the current power management mode in



use, including Off, Custom, Low, or High.

Getting Started 1-5

Diskette Drive — appears when the NEC Versa writes data to or re-



trieves data from a diskette. Hard Disk — appears when the NEC Versa accesses either the hard disk



drive or the CD-ROM reader.



Caps Lock — appears when Caps Lock is in effect. Scroll Lock — shows that Scroll Lock is in effect.



Num Lock — appears when Num Lock mode is active.



Battery Status — displays the percentage of battery power available.



 Battery 1 appears when you have one or more batteries installed.  Battery 2 appears when you have an optional battery installed in the

VersaBay II.

 A number between the battery icons indicates the percentage of total

battery power remaining. Before the battery is charged, dashes appear instead of a percentage.

Keyboard Panel and Base Unit

The NEC Versa keyboard panel and base unit contain the following features, which are described after the figure.

1-6 Getting Started

Keyboard and base unit

NEC VersaGlide — The NEC VersaGlide works like a standard com-



puter mouse. Simply move your fingertip over the VersaGlide to control the position of the cursor. Use the selection buttons below the VersaGlide to select menu items. VersaGlide settings and features are described in detail in Chapter 4.

IR Port — The infrared (IR) port on the NEC Versa lets you send and



receive information from other IR-equipped devices such as printers or desktop computers. Using the LapLink

software, you can transmit, receive, and gain access to files on a remote system. See “LapLink” in Chapter 2.

NEC VersaBay II™ — A 1.44-MB diskette drive or SuperDisk LS-120



drive comes installed in the NEC VersaBay II on the front of your system. You can use the diskette or LS-120 drive, or remove it from the VersaBay II and replace it with the 20x CD-ROM reader that also ships with your system. It’s your choice!



The VersaBay II lets you add options, including an optional second Li-Ion battery, or an additional hard disk drive. See “Customizing Your System with the VersaBay II” in Chapter 4.

Microphone — A strategically positioned built-in microphone allows you



to record monophonic sound directly into your notebook computer. See Chapter 5, “Using Multimedia,” for details about recording.



Keyboard — 85 keys with the standard QWERTY-key layout. See Chapter 4 for complete details. (Models purchased outside of the U.S. ship with country-specific keyboard layouts.)

Getting Started 1-7

Around the Back of the System

You’ll find system ports for connecting optional devices (like printers, docking station, or external monitor) on the back of your NEC Versa. These ports are described following the figure.

Ports on the back of the system

1-8 Getting Started



Keyboard/Mouse Port — Use the standard PS/2 port to connect an external PS/2-style mouse or a PS/2-style keyboard to the system. With an optional Y-cable adapter, you can connect both a mouse and a keyboard at the same time.



Parallel Port — Use this port to connect a parallel printer or other parallel device. The port is an Enhanced Capabilities Port (ECP). The ECP standard provides you with a greater processing speed than the conventional parallel port. It also supports Enhanced Parallel Port (EPP) bi-directional and uni-directional protocols.



Expansion Port — This port (also called the Docking port) provides a connection for NEC Versa 6200 Series options including the NEC Docking Station 6000 Plus, the NEC PortBar 6000, the NEC MiniDock 6000, and the NEC Floppy Disk Drive (FDD) Connector.

Onl y dock the NEC Versa 6220, 6230, or 6260 on the NEC Docking Station 6000 Plus or the NEC MiniDock 6000. The cover of the docking station is specially designed to allow for proper system cooling.



External Monitor (Video) Port — Use this 15-pin port to attach an external monitor to your NEC Versa. You can run the LCD display and the external monitor simultaneously or run either alone.

Serial Port — Use this port to connect an external modem or other serial



device.

Around the Left Side of the System

The left side of your NEC Versa offers the following features, which are described after the figure.

CAUTION

Left side features

PC card slots — provides two slots for inserting two Type II PC cards or



one Type III PC card.



Battery bay and battery bay cover release latch. — Contains an eight-cell Lithium Ion (Li-Ion) battery that lets you run your system on DC power.

Getting Started 1-9

Audio ports and a volume control knob.



 Volume Control — Allows you to control the speaker volume.  Headphones — Lets you connect external headphones or speakers to

your NEC Versa. Plugging in headphones disables the built-in system speakers.

 Line-Out — Lets the NEC Versa act as an input source for another

audio system. Connect this port to a Line-In port on another audio system to play or record.

 Line-In — Lets you use another audio system, like a home stereo, as

an input source. Use a cable to connect to the Line-Out port on the other audio system to record or play.

 Microphone (MIC) — Allows you to connect an external micro-

phone for monophonic recording or amplification through the unit. Plugging in an external microphone disables the built-in microphone.

1-10 Getting Started

Around the Right Side of the System

The right-side of the NEC Versa offers the features shown in the following figure. Features are described after the figure.



AC Power Port — Use the power jack to attach the NEC Versa to a DC power source, such as the AC adapter or the optional DC car adapter.

Right side features



TV Out Port — Lets you use your television set as an external monitor. This port supports both NTSC and PAL signals.

NOTE

The TV Out port does not support the SECAM signal used in some countries. For proper display, vi deo mode must be set t o 640 x 480.



USB Port — The Universal Serial Bus (USB) port allows you to connect up to 127 USB equipped peripheral devices (printers, monitors, scanners, etc.) to your NEC Versa.

Fan Vents — Allow your system to cool properly and maintain a safe



operating temperature.

Getting Started 1-11

Always keep the fan vents clear to allow proper system cooling.

Kensington Lock — Lets you provide added security by installing an op-



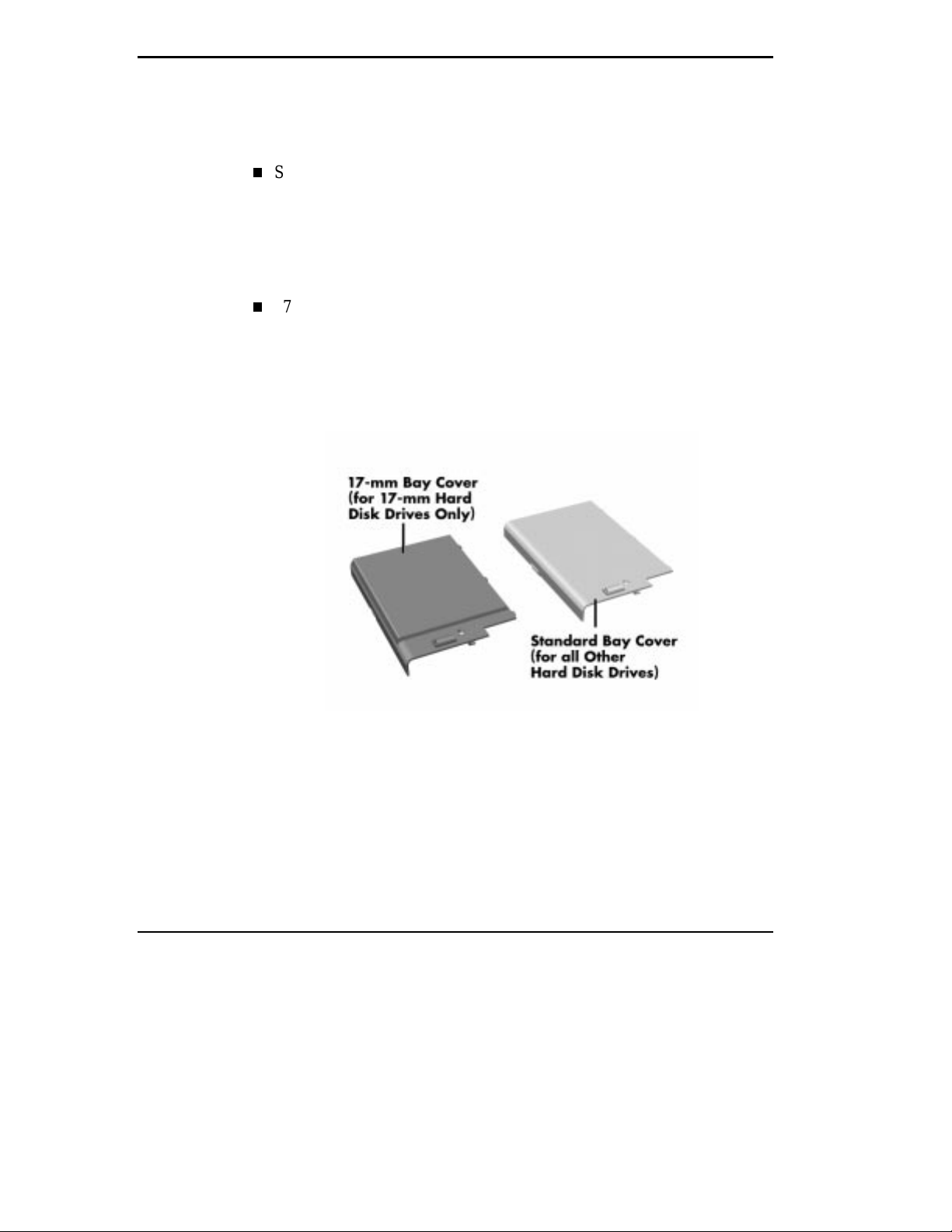

tional Kensington Lock. Hard Disk Drive Bay and Cover Release Latch — The hard disk drive



bay contains the removable hard disk drive. Your NEC Versa typically ships with either a 3.2 gigabyte (GB) or a 5.1 gigabyte (GB) hard disk drive (other capacities drives may be installed depending on your initial purchase configuration).

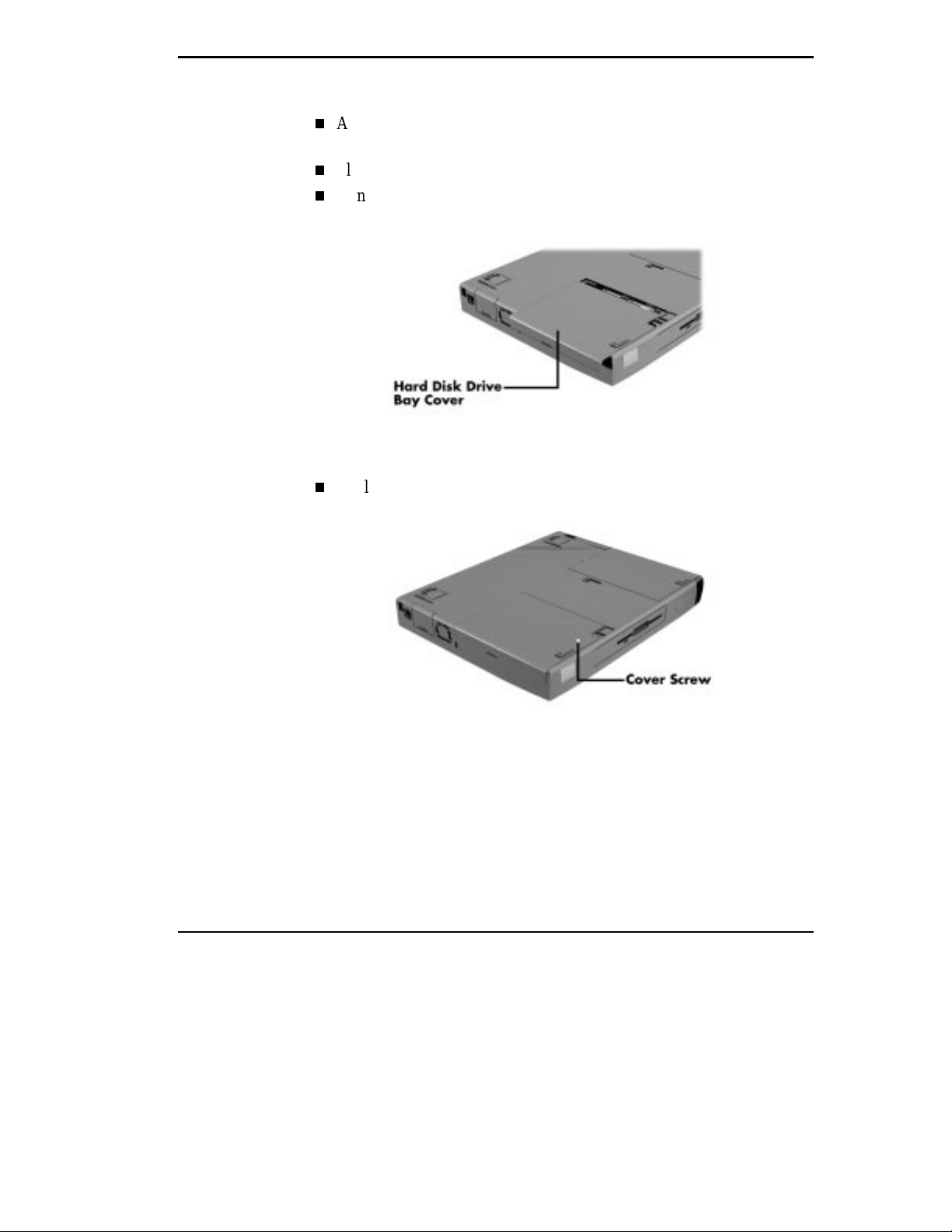

To access the hard disk drive, power off the system, turn the system over, remove the hard disk drive bay cover screw and lift up the hard disk drive bay cover release latch while pushing the cover away from the system.

Around the Bottom of the System

The bottom of the NEC Versa offers the features shown next. Descriptions of the features follow the figure.

CAUTION

1-12 Getting Started

Bottom features

Adjustable Feet — Allow you to modify the angle of the NEC Versa for



easier viewing and typing. Hard Disk Drive Bay — Contains the system’s hard disk drive.



NEC VersaBay II Release Latches — Lets you remove the option cur-



rently installed in the bay. Battery Bay — Contains the system’s main battery. It is an eight-cell,



Lithium-Ion (Li-Ion) battery.

POWER SOURCES FOR YOUR NEC VERSA

The NEC Versa can be powered using three different sources, making it a truly portable system. Operate your NEC Versa just about anywhere using one of the following power sources:

the AC adapter connected to an electrical wall outlet (using AC power).

 

the battery pack or an optional second battery pack.



the optional DC adapter connected to a car cigarette lighter



the optional PowerXtender Airplane and Auto adapter.

Read the following sections for specific steps on powering on the system.

Using the AC Adapter

Use the AC adapter and power cable that came with your NEC Versa to run your computer on alternating current (AC) power, or to recharge the battery pack. Use the AC adapter whenever a wall outlet is nearby.

Keep the adapter connected whenever possible. The AC adapter charges the battery whether or not you are using the NEC Versa or have the system powered on.

Getting Started 1-13

Do not att em pt t o di sassemble the A C adapt er. T he AC adapter has no user-replaceable or serviceabl e parts inside. Dangerous v oltage in the AC adapter can cause seri ous personal injury or death. T he AC adapter is intended for use with a computer. Both must meet EN609050 standards.

WARNING

Connect the AC adapter as follows:

1-14 Getting Started

AC adapter

NOTE

Check that the AC outlet volt age f al l s in the r ange of 100–240 Volts AC. Ver ify t hat the cord and pl ug are appropriate for your AC source.

Connect the AC adapter cable to the power port on the right side of your NEC Versa.

Plug one end of the AC power cable into the AC adapter and the other

end into a properly grounded 120- or 240-volt wall outlet.

NOTE

The AC power cable type t hat your system uses depends on the country where you are using it . Contact the l ocal dealer to purchase the correct power cable.

Powering On

Connecting the AC adapter

Do not cover or place objects on the AC adapter. Keeping the adapter clear of objects lets the adapter cool properly during use.

CAUTION

Power on the system as follows.

Locate the latch on the front of the LCD panel, slide it to the right, and raise the panel.

Locate the Power button and slide it to the right to turn on system power.

Getting Started 1-15

Using the Main Battery Pack

The NEC Versa comes with a rechargeable Lithium-Ion (Li-Ion) battery pack. You can run your system on battery power for approximately two to four hours with power management features enabled. It's easy to install and remove.

Your NEC Versa system provides two tools to help you keep track of the main (or an optional) battery's power level. These include the battery percentage status described earlier in this chapter under “Status Icons” and the Power Gauge utility. Both let you know how much battery power remains.

Powering on the system

When battery power is very low, the power LED flashes green. When battery power gets low, do either of the following:



You can also buy an optional NEC Versa battery charger to quickly charge your battery. See the online Versa Tools: Accessories and Solutions Catalog.

1-16 Getting Started

Press the Suspend button to put your system in Suspend mode, remove the battery pack, and replace it with a fully charged Li-Ion battery.

Leave the battery pack in the system and connect your NEC Versa to the AC adapter and a wall outlet. If you connect the system to AC power and keep the system within standard operating temperatures, the battery recharges in approximately 2 hours whether or not you use your system.

To prevent accidental battery ignition or explosion, adhere to the following:



Keep the battery away from extreme heat.



Keep metal object s away from t he batter y term inal s to prev ent a short circuit.



Make sure the battery is properly installed in the battery bay.



Read the precautions printed on the battery and in the online

Basics

Determining Battery Status

You can determine battery status via the battery icon in the status bar discussed earlier in this chapter. If you have one battery pack installed, one battery icon appears. If you have two battery icons, two battery packs appear.

A blinking battery icon indicates that the battery is charging. Two dashes in place of the percentage number appear in the following cases:

WARNING



when installing a new battery when battery status is unknown



when there is a problem with the battery.

To return the battery to its normal state, try the following:



remove and then reinstall the battery



reinstall the battery in your NEC Versa and fully recharge the battery (to 100%).

The battery percentage icon blinks when battery power is low.

Getting Started 1-17

When to Change the Battery

The following symptoms indicate that battery life is nearing an end. Replace batteries that display these symptoms.

Shorter work times.



Discoloration, warping.



Hot to the touch.



Strange odor.

Battery Handling

Keep the following in mind when removing or replacing a battery.

Use Li-Ion batteries only in the NEC Versa computer for which they are



designed. Use only the Li-Ion battery designed for your system in the NEC Versa.



Mixing other manufacturer’s batteries, or using a combination of very old and new batteries can deteriorate battery and equipment performance.



Turn off power to the system after use. Keeping system power on can degrade battery performance and shorten battery life.



Clean the battery terminals with a dry cloth when they get dirty.



Keep the battery out of the reach of children.

Replacing the Battery Pack

Replace the battery pack installed in your NEC Versa system as follows.

NOTE

Use Li-Ion batter ies in the NEC Ver sa computer for which they are designed. Also, i nstalli ng another manufacturer’s batt ery, or using a combination of very old and new batteries can deteriorate battery and equipment performance.

1-18 Getting Started

Save your files, exit Windows, and press the suspend button or turn off

system power. Close the LCD and turn the system over.

Release the battery cover latch and slide the battery bay cover away from

the system.

Removing the cover

Place a finger in the notch on the battery and lift the battery out of the

system. (The notch has an arrow next to it.)

Always li ft t he battery out of the system by the not ch. Fai lure t o do so can damage the battery terminals.

CAUTION

Getting Started 1-19

Removing the battery

Insert the new battery as follows:



Locate the alignment groove on the end of the battery opposite the terminals.



Locate the alignment tab inside the battery bay at the end opposite the terminals.

Fit the battery alignment groove over the tab inside the bay.



Lower the battery into the battery compartment, pressing gently to se-



cure the terminal connections.

1-20 Getting Started

Inserting the battery pack

Replace the battery bay cover as follows:

Align the tabs on the bay cover with the grooves on the system



chassis.

Lower the cover onto the bay and slide it into place.



Replacing the cover

Turn the system over.

Getting Started 1-21

Battery Precautions

To prevent accidental battery ignition, rupture, or explosion, adhere to the following precautions.

There i s a danger of expl osion if the battery is incorrect ly replaced. Replace only with t he same or equi val ent t ype recom m ended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

To av oid personal injury and property damage, read these battery precautions on handling, charging, and disposing Li-Ion batteries.



Keep the battery away from heat sources including direct sunlight, open f ires, micr owave ovens, and hi gh-volt age containers. Temperatures over 140º F (60ºC) may cause damage.



Do not drop or impact the battery.



Do not disassemble the battery.



Do not solder the battery.

WARNING

1-22 Getting Started



Do not puncture the battery.



Do not use a battery that appears damaged or deformed, has any rust on its casing, is discolored, overheats, or emi ts a foul odor.



Keep the battery dry and away from water.



Keep metal obj ects away f rom batt ery t erm i nal s. Metal obj ect s i n contact with the terminals can cause a short circuit and damage.

If the battery leaks:



If t he battery leak s onto skin or clothi ng, wash the area i mm ediately with clean water. Battery fluid can cause a skin rash and damage fabric.



If bat tery fluid gets into eyes, DO NOT rub; rinse with cl ear water immediately and consult a doctor.



Take extra precauti ons to keep a leaking batt ery away from fi re. There is a danger of ignition or explosion.

Recharging Battery Precautions

Adhere to the following precautions when recharging the Li-Ion battery.

Use only the NEC battery charger designed for your NEC Versa battery



type. Different NEC Versa models require different batteries and battery chargers.

Charge the battery for the specified charge time only.



During charging, keep the environmental temperature between 32°F and



104°F (0°C to 40°C). Read the instructions that came with the battery charger before charging



the battery.

Extending Battery Life

While on the road, it is important to be aware of the simple things you can do to extend the life of the system’s main battery. One way is to keep the LCD backlight setting to Standard instead of Full. You can toggle between these two settings by pressing the function keys light control to a dimmer level.

You will find an extensive explanation of how best to apply the power management tools that your system offers in Advanced Topics in the online Help Center (in some countries, the system ships with an online user’s guide instead of the Help Center). Other important topics to view in the online document include Maximizing Battery Life, Battery Charging and Disposal.

Fn+F5

. Or slide the back-

NEC VersaBay II Battery and Adapter Kit

The NEC VersaBay II Battery and Adapter Kit provides a second LithiumIon (Li-Ion) battery and adapter to use in your NEC Versa 6200 Series computer. Inserting a second fully charged battery increases battery life to approximately 4 to 5 hours.

See the online Versa Tools: Accessories and Solutions Catalog in the NEC Versa Help Center, or your authorized NECCSD dealer for details about the NEC VersaBay II Battery and Adapter Kit.

Getting Started 1-23

Using the DC Car Adapter

Another way to power your NEC Versa is via car battery power using the optional DC car adapter. Connect your system to the optional DC car adapter as follows.

Disconnect the AC adapter from the system if connected.

Plug the appropriate end of the car DC adapter into the power port on the

system. Plug the DC car adapter into a car cigarette lighter.

Internal Batteries

The eight-cell Lithium-Ion (Li-Ion) battery provides the main power source in your NEC Versa 6200 Series computer. See Appendix B for a list of LiIon battery specifications. In addition to this battery, the CMOS battery and bridge battery also provide system power.

CMOS Battery

This lithium battery provides battery backup and prevents data loss in the system’s complementary metal oxide semiconductor (CMOS) RAM. This memory area contains information on the system’s configuration, for example date, time, drives, and memory. The CMOS battery lasts approximately two years. An authorized NECCSD service technician can replace the CMOS battery for you.

1-24 Getting Started

Connecting the car DC adapter

Bridge Battery

The bridge battery saves your system status in Suspend mode for up to five minutes. This gives you time to install a fully charged battery or plug in AC power when your battery charge becomes low.

Only an authorized NECCSD dealer can change a bridge battery.

SYSTEM CARE

The NEC Versa is a durable, dependable system built for extensive use and travel. Follow these guidelines to maintain the condition and performance of your computer.

Connect your NEC Versa system to AC power for a full 24 hours before using it on battery power for the f irst ti me. Doing so insures that the bridge battery i s f ull y c harged and that no data i s lost dur ing a battery change.

CAUTION

Precautions

Im mediat ely turn off and unplug the NEC Versa under the f ollowing conditions:



The power cord is damaged or frayed.



Liquid spills on or into the NEC Versa.



Someone drops the system or damages the casing.

Follow these precautions when using your NEC Versa 6200 Series computer, AC adapter, and VersaBay II.

Always plug the AC adapter cord into an easily accessible outlet. It is



important to be able to easily shut off power to the computer by unplugging the AC adapter.

CAUTION

Getting Started 1-25

Avoid dropping or bumping the computer or the AC adapter.



Do not stack heavy objects on the computer, the AC adapter, or the bat-



tery packs. Avoid moving the NEC Versa during system operation, especially while



the hard disk or diskette drive is being accessed. When using the AC adapter, make sure the power source falls within the



system’s compatible range of 100–240 volts AC. Never use the AC adapter if the voltage falls outside of this range. (Watch for this when traveling to other countries.)

Turn computer power off before attaching or removing non-plug and



play devices. Do not push any foreign objects into the NEC Versa option bays, connec-



tors, and slots.



Avoid using the computer or AC adapter for extended periods in direct sunlight.



Do not use the system in humid or dusty environments.



Turn computer power off before cleaning it. Avoid exposing the NEC Versa or AC adapter to extreme changes in



temperature or humidity. If it is unavoidable, allow your NEC Versa to adjust to room temperature before use.



When cleaning the system, use a soft, clean, dry cloth. Avoid wiping the display surface with abrasive material, including rough fabric. Do not use a cleaning solution; this may damage the notebook’s plastic.



If the AC adapter becomes extremely hot, unplug the adapter and let it cool.



Keep the AC adapter away from the IR ports.

Storage Requirements

Store the computer and AC adapter in an environment that meets the following conditions:

Maintain storage temperatures between –4°F and 104°F (–20°C and



40°C).

1-26 Getting Started

If the temperature of the NEC Versa suddenly rises or falls (for exampl e, when you mov e the system from a warm place to a cold place), v apor condenses inside the system. Turni ng on the system under this condition can damage the internal system components.

Before turning on the system, wait until the system’s internal temperature equalizes with the new environment and any internal moisture can evaporate.

Keep the storage area free from vibration and magnetic fields.



Keep the system and its components away from organic solvents or cor-



rosive gases.



Avoid leaving the system and its components in direct sunlight or near heat sources.

Routine Cleaning

Clean or dust your system as follows.

CAUTION

Never

use harsh solutions, household cleaners, or spray cleaners

that contain caustic materials on the NEC Versa Series computer. These cleaners are usually high i n alkalinity which is measured in

pH. Using these cleaners can cause the pl astic surf ace to crack or discolor.



LCD screen — Carefully wipe the LCD screen with a soft cloth or a screen wipe designed for that purpose. Special screen wipes are available through your local computer dealer.

System case — NEC recommends that you carefully wipe the case with a



slightly damp, almost dry cloth.

CAUTION

Getting Started 1-27

Introducing the Software

This chapter introduces you to the software* that comes with the NEC Versa 6200 Series computer. The software* installed on your NEC Versa varies according to your operating system environment.

The software selections include:

the Windows 95, Windows NT®, or Windows for Workgroups operating



system Online Help



NEC Utilities



 BIOS Setup Utility  NEC Customize Utility  Power Gauge Utility  HDPREPEZ Utility

Other Software



 LapLink

File Transfer Software

 McAfee VirusScan and WebScan  MediaMatics Arcade™ MPEG Player  XingMPEG Player™  Intel’s LANDesk Client Manager  MindPath™ Presentation FX  CompuTrace™ Security Software  America Online  CompuServe

Introducing the Software 2-1

 AT&T WorldNet  Prodigy Internet Service Sampler  Microsoft Internet Explorer  Adobe Acrobat Reader  Official Airline Guide (OAG™)

The software listed here is current as of January 1998. The list is subject to change without notice.

WINDOWS INTRODUCTION

Your NEC Versa comes pre-installed with either Windows 95, Windows NT or the Windows for Workgroups operating system. These Microsoft operating systems provide a means of running applications, navigating through your file structure, and using your notebook computer. Each operating system offers its own look and tools through an easy-to-use graphical interface.

Windows 95

Windows 95 gives you the newest features offered by Microsoft, including a Desktop with room to maneuver, a Taskbar for quick navigation between open windows, plug and play features, online networking functions, and more.

When you choose to install Windows 95, the following icons are loaded on your desktop:



My Computer — Provides access to drives, printers, the control panel, and network features.



Inbox — Lets you access the Microsoft fax and mail software as well as Microsoft network services.



Recycle Bin — Gives you a trash container in which to put unwanted files.

The Internet —Provides the Internet Connection wizard that allows you



to automatically setup a new connection to the Internet or manually configure a new account for your NEC Versa.

2-2 Introducing the Software

The Microsoft Network —Provides a setup program that allows you to



sign-up for the Microsoft Network. If you already have an account, use this interface to sign-on to the Microsoft Network.



Network Neighborhood — Shows you the network, integrated LANs, and WANs (if your system is connected to a network).

My Briefcase — Allows easy transfer of files between the NEC Versa



and another system.



Online Services —Includes setup icons for the America Online, AT&T Worldnet, and CompuServe online services.

NEC Customize — Installs NEC-designed desktop features, including



custom wallpaper, the latest VersaGlide software controls, and the automatic running of McAfee antivirus software each time you boot.

MindPath FX —Launches the MindPath Presentation FX application.



NEC Versa Help Center — Includes online topics specific to the NEC Versa, NEC customer support, and Windows. (In some countries, the system ships with an online user’s guide instead of the Help Center.)



Start — Displays a pop-up menu with which to start programs and applications, open documents, access system settings, look at online help, and shut down your system.

Windows NT

See the online help for detailed instructions on using Windows 95.

Windows NT allows you to run applications created specially for Windows NT and Windows 95. You can also run applications created for other

®,

versions of Windows, MS-DOS

and character-based MS® OS/2® 1.x as

well as POSIX-compliant applications. Windows NT gives you the newest features offered by Microsoft, including

a desktop to maneuver, a taskbar for quick navigation between open windows, and more. The following icons/buttons appear on the desktop.



My Computer — Provides access to drives, printers, the Control Panel, and network features.

Introducing the Software 2-3

Network Neighborhood — Shows you the network, integrated LANs,



and WANs. Inbox — Lets you access the Microsoft mail software as well as



Microsoft services. Internet Explorer — Lets you browse Web pages on your local network



and on the Internet.



Recycle Bin — Gives you a trash container in which to put unwanted files.

NEC Versa Help Center — Includes online topics specific to the NEC



Versa, NEC customer support, and Windows. (In some countries, the system ships with an online user’s guide instead of the Help Center.)

NEC Utilities — Includes small programs written by NECCSD to help



you manage your NEC Versa computer.

Windows for Workgroups

Windows for Workgroups offers the well-established Windows interface. Application icons are placed in groups, which are represented by group icons. To start an application, highlight and double click or double tap the application icon.

The Program Manager contains the following groups.



Main — Includes programs and tools to help you control printing; set up printers, plotters, and modems; customize the desktop; and manage files.



Accessories — Includes desktop programs that come with Windows, such as a simple word processing program, a drawing program, a calendar, and a calculator.



Startup — Lets you add programs to start automatically when you enter Windows.



Games — Gives you a way to practice your VersaGlide skills or just relax.

Network — Includes network programs for configuring the network,



sending email, and scheduling appointments. Microsoft Tools — Provides Microsoft’s backup utility to ensure data



security.

2-4 Introducing the Software

Applications — Includes a variety of program groups for some of the



pre-installed applications on your NEC Versa. NEC Utilities — Includes small programs written by NEC to help you



manage your NEC Versa computer.

DOS INTRODUCTION

MS-DOS is the Microsoft disk operating system that runs the computer when Windows for Workgroups is loaded. DOS uses commands that every personal computer user needs to know at least a little about. The Windows environment makes it possible for you to manage your system and application programs without knowing DOS commands, but as you become more comfortable with computers you may want to begin learning DOS.

GUIDE TO ONLINE HELP

The NEC Versa has plenty of information for you online. The NEC Versa Help Center contains information about your NEC Versa, warranty coverage, and customer services.

NEC Versa Help Center

The NEC Versa Help Center contains several specific areas of information to help you. Animated examples make this an exciting learning experience. (In some countries, the system ships with an online user’s guide instead of the Help Center.)



System Tour

The NEC Versa System Tour gives you a complete tour of the system, pointing out components, switches, software and utilities. Take the tour to become comfortable with your new NEC Versa.



The Basics

Basics describes the NEC Versa main features, how to travel with the system, use power management, and care for the system.



Advanced Topics

Advanced Topics covers specific areas such as adding options, changing setup settings, and solving problems.

Introducing the Software 2-5

Questions and Answers



Questions and Answers provides frequently asked questions and answers about portable computers to help you solve common problems yourself.

Versa Tools: Accessories and Solutions Catalog



The Versa Tools: Accessories and Solutions Catalog lists tools such as memory cards, hard drives, carrying cases, and PC cards that you can purchase for use with the NEC Versa notebook computer.



Service and Support Service and Support includes the NEC Customer Support Guide and the

NEC UltraCare Guide.

 The NEC Customer Support Guide discusses the various levels of

support NEC offers you, our customer. We provide lots of information to help you become self-sufficient with your NEC Versa, but if you need help, we’re there for you. If you purchased the computer outside the U.S., please contact a local NEC office or dealer for the warranty program in your area.

 The NEC UltraCare Guide describes NEC’s three-year warranty

program to help you protect your investment in an NEC Versa Series computer. If you purchased the computer outside the U.S., please contact a local NECCSD office or dealer for the warranty program in your area.

NOTE

refer to the booklet , “Get ting Ser v ice and Support in Asia, Australi a, and Europe,” to f i nd out how to contact the l ocal of fic e in y our country.

2-6 Introducing the Software

If you pur chased your system outside of the U.S . or Canada,

GUIDE TO NECCSD UTILITIES

NECCSD provides several programs and routines designed to make your NEC Versa run more efficiently. These programs are called utilities.

BIOS Setup Utility

The BIOS Setup utility automatically configures your NEC Versa each time you start it up. This utility is not accessible from Windows. To change settings, press

to access BIOS Setup when the screen displays the following

prompt at boot-up:

Press <F2> to enter SETUP

See Chapter 3, “Using BIOS Setup,” and Advanced Topics for a discussion of the BIOS Setup utility. In addition, online help assists you in making appropriate settings.

NEC Customize Utility

In Windows 95 systems, the NEC Customize utility installs NECCSDdesigned desktop features, including custom wallpaper and the automatic running of McAfee antivirus software each time you boot.

Power Gauge Utility

The Power Gauge utility communicates the percentage of total battery power remaining for one or two batteries.

In Windows 95, double click the battery icon that appears on the right side of the taskbar to call up the power gauge. (If you are using AC power, the icon appears as a plug.) If you simply move your cursor over the icon, it indicates battery power percentage as balloon help.



Click on the VersaGlide or mouse button to open the battery meter dialog box that displays current power source, battery power remaining and options for status indicators.



Click on the right VersaGlide or mouse button and select Adjust Power Properties to customize the advanced power properties.

In Windows NT systems, double click the Power Profiler icon on the taskbar.

Click on the left VersaGlide or mouse button to open the battery page



that displays current status and alarm settings.

Introducing the Software 2-7

Click on the right VersaGlide or mouse button and select Battery Page to



customize the PowerProfiler.

In Windows for Workgroups systems, select the PowerProfiler program group under Program Manager. Select the Power Profiler icon and select Battery Page to customize the PowerProfiler.

HDPREPEZ Utility

NEC provides the HDPREPEZ utility to automatically configure your NEC Versa system hard disk space when you increase system memory. You only need to access this utility when your system memory total is greater than 96 MB.

NOTE

For more details about the HDPREPEZ utility, see the HDPREPEZ.TXT file in the NECUTILS/HDPREP directory.

Using HDPREPEZ in Windows 95

In Windows 95, use these steps to run the HDPREPEZ utility.

Power off and restart your NEC Versa.

At the statement “Starting Windows 95,” press F8.

From the Startup menu, select Option 6, “Safe Mode Command Prompt

Only.” Enter MS-DOS. At the c: prompt, type

4. Enter

Type

your NEC Versa for the newly installed memory. Power off your system and then power on. The newly installed system

memory is now reallocated to the appropriate resources.

2-8 Introducing the Software

cd \necutils\hdprep

to change to the \necutils\hdprep directory.

HDPREPEZ

and press

. The utility automatically prepares

Enter

and press

Using HDPREPEZ in Windows for Workgroups

In Windows for Workgroups, use these steps to run the HDPREPEZ utility.

Exit Windows.

At the c: prompt, type

the \necutils\hdprep directory.

Type

HDPREPEZ

and press

your NEC Versa for the newly installed memory.

OTHER SOFTWARE

Your NEC Versa comes with other programs that let you take full advantage of your system resources. The rest of this chapter discusses each program, including what it can do for you, how to get started, and how to use the program help.

LapLink file Transfer Software

LapLink helps you stay in touch with your home office system or get in touch with other systems through infrared port, modem, network, or cable. Use LapLink to transfer files, gain access to files on a remote system, or exchange written information with another user on a remote system.

LapLink offers the following features:



File Transfer — lets you move or copy files between computers. To speed file transfer, LapLink compares files being updated and transfers only the changed information.

cd \necutils\hdprep

. The utility automatically prepares

Enter

and press

Enter

to change to



Remote Control — gives you access and control over a remote computer. Activity you perform on a local system, such as keystrokes, file access and change, and program execution, actually occurs on the remote system.



Chat — provides a way for you to exchange information, instructions, or other messages with a user at a remote computer.

LapLink software must be loaded on both the sending (local) and receiving (remote) systems for communication between them to work properly.

Introducing the Software 2-9

How to Use LapLink

Follow these steps to get started using LapLink. Once you have LapLink up and running, refer to LapLink’s online help for more information.

Start the LapLink Traveling software as follows:

In Windows 95 or Windows NT, press

, slide the cursor over to

Start

Programs, and locate the LapLink folder. In the folder, highlight the LapLink line and press the VersaGlide selection button or tap the VersaGlide pad once.

If you do not have a port enabled, LapLink prompts you to enable one. Press port. Otherwise, press

Once your ports are configured, select your communication method by

to do so and follow the on-screen instructions to configure the

Yes

pressing the appropriate button. The buttons give you the following connection options. (Balloon help displays each button’s function.)



Connect over cable



Connect over wireless Connect over modem



Connect over network



Connect over dial-up network

Once communication is established between systems, the LapLink window is displayed.

Select the procedure you want to use by pressing one of the last three

buttons in the LapLink toolbar at the top of the screen. (Balloon help displays each button’s function.)



Press the file transfer button to transfer files between systems.



Press the Remote Control button to exercise control over a remote system.



Press the Chat button to converse with another user at the remote system.

When you finish, press the disconnect button to break the link between

the local and remote systems. Press

2-10 Introducing the Software

The other system is notified of the break in communications.

To find out more about LapLink capabilities and uses, refer to the online help that is available when you open LapLink.

McAfee VirusScan

When you run the NEC Customize utility, the McAfee VirusScan software is set up to scan your system daily. You can change these settings through the VShield Configuration Manager. Access the configuration manager as follows.

From the McAfee VirusScan program group, highlight the VShield

Configuration Manager, and open the configuration manager, or double click the Vshield icon on the right side of the taskbar and select Properties.

The configuration manager contains a set of four tabs with various con-

figuration features. The Detection tabs give you control over what is scanned and when scanning occurs.

McAfee WebScan

Scans data and files that you import from Web sites before loading the files onto your system. If the data or files contain viruses, WebScan warns you and lets you cancel the action.

WebScan is ready to install once you have installed a Web browser.

MediaMatics Arcade MPEG Player

Provides MPEG Playback software for Windows 95. See Chapter 5, “Using Multimedia,” for instructions on using this application.

XingMPEG Player

Provides MPEG Playback software for Windows NT and Windows for Workgroups. See Chapter 5, “Using Multimedia,” for instructions on using this application.

Introducing the Software 2-11

Intel’s LANDesk Client Manager

Intel’s LANDesk Client Manager provides the capability for managing a variety of components within a PC system. These components include network interface cards, memory modules, printers, and software applications. LANDesk Client Manager uses the Desktop Management Interface (DMI) standard established by the Desktop Management Task Force (DMTF).

Set up the LANDesk Client Manager software on your NEC Versa using the easy-to-follow setup program. To find out more about Intel’s LANDesk Client Manager capabilities and uses, refer to the online help that is available when you open Client Manager.

NOTE

Intel’s LANDesk Client Manager continuously monitors your system for optimal system performance. This monitoring function interrupt s the auto suspend featur e that inv okes aft er 30 minut es of inactivity.

If you install Intel’s LANDesk Client Manager the NEC Versa auto suspend feature is disabled.

MindPath Presentation FX

MindPath™ Presentation FX uses a remote control device and infrared technology that allows you to control your presentations from across the room. Add special effects and move through any presentation with the push of a button. (The remote control unit is available from MindPath™ Technologies; phone: 214-233-9296, fax: 214-233-9308.)

CompuTrace™

CompuTrace is designed to assist in the recovery of stolen computers. CompuTrace resides on your system’s hard disk using stealth technology to avoid detection. With CompuTrace you can register an electronic serial number with the CompuTrace Monitoring Center™. Once the number is registered, the system periodically dials into the Monitoring Center to reports it’s dialing location. If your system is reported stolen, the CompuTrace Monitoring Center notes the new location of the system and forwards the information to the proper authorities.

2-12 Introducing the Software

Online Services

Your NEC Versa comes with all the software you need to get started on the most popular online services available today.

modem t o your system. Your m odem must also be connected to a working telephone line.

If you are using this product outside of t he United Stat es, some online services may require a long-distance or international call.

For a fee, online services give you access to the Internet, e-mail, the World Wide Web, travel information, news reports, and more, depending on the service selected. Some online services give you a free trial period.

Before choosing and registering for an online service, make sure your modem is connected to a working phone. The line must be an analog line. If you are unsure what type of line you have, call your local telephone company.

Access online services preloaded on your system as follows:

NOTE

Before using online services, you must connect an optional

Connect an optional modem to your system and to a phone line.

Continue as follows:



In Windows 95 and Windows NT, press

, slide to the Programs

Start

group, slide to Online Services, and slide to the online service group that you want to open. In the group, highlight the service and release the mouse button.



From the Program Manager in Windows for Workgroups, locate and double click on the program group for the service you want to investigate. Double click on the program icon to open the program.

Follow the on-screen instructions to log onto the service.

Introducing the Software 2-13

America Online

If you subscribe to America Online, use the service to obtain information about NECCSD and its products. Use America Online to email technical questions to NECCSD’s Technical Support staff, post technical questions and messages on the Message Board, and access the NEC Software Library to download files.

Use the following steps to access America Online and NECCSD’s online information services.

NOTE

If you are using your NEC Versa computer outside North America, there may not be any local access points for this online service. It may require a long distance or international call.

Log onto America Online. At the opening screen, click on Go To in the Main Menu. At the Go To menu, click Keyword. At the prompt, type NEC, then either press

At the NEC menu, double-click on the topic of your choice and follow

the prompts. Exit anytime by double-clicking on the rectangle in the upper left corner

of the screen.

CompuServe

An installation program for CompuServe is part of your software. If you subscribe to CompuServe, you can use the service to obtain informa-

tion about NECCSD and its products. Use CompuServe to email technical questions to NECCSD’s Technical Support staff, post technical questions and messages on the Bulletin Board, and access NECCSD’s Bulletin Board.

2-14 Introducing the Software

or click on Go.

Enter

NOTE

You cannot download inform ation fr om the NECCSD Bull etin Board vi a CompuServ e. You m ust call t he NECCSD Bullet in Board directly to download information.

If you are using your NEC Versa com puter outside North Amer ica, there may not be any l ocal access points for thi s online servic e. It may require a long distance or international call.

Use the following steps to access CompuServe and NECCSD’s online information services.

Log onto CompuServe.

At the opening screen, click on Service, type in GO NECTECH at the

prompt, and click OK. At the NEC menu, double-click on the topic of your choice.

Exit anytime by double-clicking on the rectangle in the upper left corner

of the screen.

AT&T WorldNet

One of the world’s largest telephone service providers now offers internet access. Click on AT&T WorldNet Signup in the Online Services group to install this software, learn more about it, and sign up with this service.

Prodigy Internet Service Sampler

Prodigy Internet provides access to everything that the Internet has to offer – the World Wide Web, email, chat, newsgroups, and more. Click on the Prodigy Internet group to install this software, learn more about it, and sign up with this service.

Browsers/Viewers

Your NEC Versa comes preinstalled with software that allows you to view files from your local network and the Internet.

Microsoft Internet Explorer allows you to view HTML files.



Adobe Acrobat Reader allows you to view PDF files.



Introducing the Software 2-15

Official Airline Guide (OAG)

The Official Airline Guide is an online service that gives you access to flight details for all commercial airlines worldwide. NECCSD provides a sample of the monthly data that OAG provides. (You can call the software company for a free copy of the most current information.) OAG offers NEC Versa owners a special rate when they subscribe to OAG for monthly updates.

OAG is an invaluable service for anyone who travels on a regular basis. All you have to do is enter your departure city, destination city, and date. If you have a preferred airline, you can also enter its name. The service then lists all the flights available from the departure city, the times, and the flight numbers. You can also check on seat availability and prices.

Access OAG as follows.

Connect an optional modem to your system and to a phone line.

In Windows 95 and Windows NT, press

, slide to the Programs

Start

group, and open the OAG FlightDisk group. In the group, highlight “OAG FlightDisk Worldwide Edition” and release the mouse button.

The first time you open OAG, an agreement screen appears. Read the

agreement and press Continue to accept the agreement. Press Continue again to access the trip plan screen.

In the Trip Plan screen, fill in the fields with the trip information re-

quested. Press

after making selections from the available drop-

Enter

down lists. To retrieve seat availability and price information, press the appropriate

button and follow the on-screen instructions to register for a free trial of the OAG travel service.

2-16 Introducing the Software

HOW TO ENTER BIOS SETUP

Using BIOS Setup

Your NEC Versa 6200 Series computer comes with a hardware program called BIOS Set up that allows you to view and set system p ara meters. BIOS Setup also allows you to set password features that protect your system from unauthorized use.

Use BIOS Setup to

set the current time and date



customize your operating system to reflect your computer hardware



secure your system with a password



balance your performance needs with power conservation.

Access BIOS Setup at power-on. Just press F2 when the following prompt appears.

Press <F2> to enter Setup

When you press F2 to enter BIOS Setup, the system interrupts the PowerOn Self-Test (POST) and displays the current CMOS RAM settings.

If the system detects an error during POST, it prompts you with a double beep and a message: “Press <F1> to resume.” If you press enters BIOS Setup automatically. If you want to fix the error, carefully read the error message that appears above the prompt (taking notes if you want), and press

, the system

Using BIOS Setup 3-1

BIOS Setup Utility Main Menu

After you press F2, the system displays the BIOS Setup Main Menu screen, similar to the following.

AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.11

NEC Versa XXXX BIOS Version XXXXXX

Standard CMOS Setup

Advanced CMOS Setup

Power Management Setup

Boot Device Setup

Peripheral Setup

Change User Password

Change Supervisor Password

Auto Configuration with Defaults

Save Settings and Exit

Exit Without Saving

Advanced CMOS setup forconfiguring system options

ESC: Exit F3/F4: Color F10: Save & Exit| | : Sel

BIOS Setup Main Menu

Use the up and down arrow keys (located on the lower right corner of the keyboard) to toggle through the BIOS Setup menu items. (The Change User Password option is only available if a Supervisor Password is defined.)

HOW TO USE BIOS SETUP

The following sections describe how to use BIOS Setup, including these topics:



Looking at screens



Using keys



Checking and setting system parameters.

3-2 Using BIOS Setup

Looking at Screens

BIOS Setup screens have three areas as shown next.

AMIBIOS SETUP – ADVANCED CMOS SETUP

Plug and Play Aware O/S Auto

BootUp USB Configuration Disabled Docking Station Video Dock Stn. BootUp Num–Lock Auto LCD Panel View Expansion Off Password Check Setup PS/2 Port HotSwap Enabled Internal Mouse Enabled

Select the boot configuration of AMIBIOS. Yes indicates the system will boot to a Plug and Play aware Operating System such as Windows 95(tm). When set to Auto, the system will detect Plug and Play OS’s.

:Exit :Sel :Modify :Color

Advanced CMOS Setup menu



Parameters The left part of the screen. This area lists parameters and their current settings.

Available Options



The right part of the screen. This area lists alternate settings.



Key Legend The bottom right corner of the screen. These lines display the keys that move the cursor and select parameters.

Options that are grayed out are not available for the current selection.

Using BIOS Setup 3-3

Using Keys

The following table lists BIOS Setup keys and their functions.

BIOS Setup Key Functions

KEY

↑ ↓ PgUp/PgDn Modifies the current parameter settings. Tab For some parameter settings, moves the cursor between the

Esc Exits the current screen and returns to the Main Menu screen.

F3/F4 Changes the screen color.

WHAT IT DOES

Moves the cursor between the displayed parameters.

subfields. Also moves the cursor to the next line or selection. For example, for System Time, Tab moves the cursor from hour to minute to second.

From the Main Menu screen, displays the prompt “Quit without saving.”

Checking/Setting System Parameters

See the following table for a list of parameters, their factory default settings, and alternate settings. A description of each setting follows the table.

To reset all parameters to the default settings, select Auto Configuration with Defaults from the BIOS Setup Main Menu and press

and

Enter

3-4 Using BIOS Setup

BIOS Setup Parameters

PARAMETER Standard CMOS Setup

System Date System Time Diskette Drive A Diskette Drive B*

Internal Hard Disk Drive Internal Master

32-bit Mode Internal Slave 32-bit Mode Docking Station Hard

Drives* DS Master*

DS Slave* System Memory

Advanced CMOS Setup

Plug and Play Aware O/S Bootup Num-Lock LCD Panel View Expansion Password Check PS/2 Port Hot Swap Internal Mouse

DEFAULT SETTING

mm/dd/yy hh/mm/ss

1.44 MB, 3.5

1.44 MB, 3.5 Enabled

Auto On Auto On Enabled Auto Auto 32 MB

Auto Off Off

Setup Enabled Enabled

ALTERNATE SETTING(S)

Not installed/1.2 MB, 5.25 Not installed/1.2 MB, 5.25

Disabled User Defined/CD-ROM/LS-120/ Pre-defined types Off

User Defined/CD-ROM/LS-120 Pre-defined types Off

Disabled Not installed/User Defined

CD-ROM/LS-120 Not installed/User Defined CD-ROM/LS-120 (automatically detected)

No, Yes On On

Always Disabled Disabled

Power Management Setup

Power Management under AC Power Savings Level Hard Disk Timeout** Video Timeout** Peripheral Timeout** Audio Device Timeout** Standby Timeout** Auto Suspend Timeout**

Off Longest Life

2 min. 2 min. On On 4 min. 10 min.

On High Perform/Custom /Off

5/30/45 sec; 1/4/6/8/10/15 min.; Off 30/45 sec.; 1/4/6/8/10/15 min.; Off Off Off Off/1/2/6/8/10/15 min. Off/5/15/20/25/30 min.

Using BIOS Setup 3-5

BIOS Setup Parameters

PARAMETER Power Management Setup

(Cont'd)

Suspend Option Auto Save to File Panel Backlight Suspend Warning Tone Modem Ring Resume

Wake Up Alarm Resume Alarm Time

Boot Device Setup

Boot DS IDE*

1st Boot Device 2nd Boot Device

3rd boot Device 4th Boot Device Try Other Boot Devices Docking Station Video*

Peripheral Setup

Serial Port

Parallel Port

DEFAULT SETTING

Suspend Enabled Auto On On

Off

No LS-120

CD-ROM Floppy IDE-0 Yes Dock Stn.

Auto

ALTERNATE SETTING(S)

STF Disabled Full/Standard Off Off

On Set time in 5 min. increments when wake up is set to On.

Yes Floppy/CD-ROM/SCSI/Network Disabled/IDE-0/1/2/3 Floppy/LS-120/Disabled/IDE-0 LS-120/CD-ROM/Disabled/IDE-0 Floppy/CD-ROM/LS-120/Disabled No Portable

Disabled/(PnP OS Setup) COM1,IRQ4/COM2,IRQ3 COM3,IRQ4/COM4,IRQ3 Disabled/(PnP OS Setup) LPT1/LPT2

Parallel Mode IR Serial Port

TV Mode Sound Sound IRQ SB-compatible DMA Full Duplex Mode DMA Docking Station MIDI (MPU-401)* Docking Station Joystick*

** Can only be modified when power management is set to Custom. *** Default options when sound setup is set to User Defined. **** If the docking station joystick is set to Auto, use I/O Address 201.

3-6 Using BIOS Setup

Visible or available only when notebook is docked.

ECP Auto (PnP OS Setup)

NTSC Auto N/A N/A N/A Disabled

Disabled

Uni-Directional/Bi-Directional/EPP Disabled COM3 IRQ9 COM2/IRQ3,COM4/IRQ3 PAL Disabled/220h/240/260/280 IRQ5***/7/9/10/11 DMA #0/DMA #1*** DMA #0/DMA #3*** 300h/310h/320h/330h/Auto **** Auto

BIOS Setup Menus

Read the following descriptions for explanations of items that appear in the BIOS Setup menus, as listed in the preceding table. See the item-specific help that appears on the Setup screen for more details.

Standard CMOS Setup

When you select the Standard CMOS Setup screen you will see System Time and System Date parameters as well as drive parameters.



Date — Set your NEC Versa’s calendar month, day and year. The calendar clock is year 2000-compliant. These settings remain in memory even after you turn off system power.

To set the date use the Use the

Time — Set the time, enter the current hour, minute, and second in



hr/min/sec, 24-hour format. To set the time use the

Use the



Diskette Drives — Lets you designate the drive type for your diskette drives.

Internal Hard Disk Drive — Allows you to enable or disable the internal



hard drive in your system. You can also define internal master and slave drives.



Docking Station Drives — Enable and disable the hard drives installed in a docking station. (These options are only available when the NEC Versa is docked.)



System Memory — Displays the amount of system memory.

Advanced CMOS Setup

Advanced CMOS settings let you define the following functions.

PgUp

or arrow keys to move from field to field.

Tab

key to change the numbers within each field.

PgDn

or arrow keys to move from field to field.

Tab

key to change the numbers within each field.

PgDn

Plug and Play Aware O/S — Selects whether or not the system boots to a



Plug and Play operating system. Bootup NumLock — Specifies whether NumLock is On or Off at system



startup.

Using BIOS Setup 3-7

LCD Panel View Expansion — Specifies whether the panel view is re-



duced/off or expanded/on. Password Check — Specifies whether the system prompts you to enter a



password when entering BIOS setup, booting the system, and resuming from suspend.

PS/2 Port Hot Swap — Specifies whether or not you can swap a PS/2



device during system operation.



Internal Mouse — Specifies whether or not you can use both the internal and the external mouse.

Power Management Setup

Your NEC Versa uses the Advanced Configuration and Power Interface (ACPI) which enables the operating system to manage the power given to each attached device and to turn off a device when not in use. In addition, ACPI enables manufacturers to develop computers that automatically power up with a touch to the keyboard.

The Power Management Setup menu lets you balance high performance and energy conservation using parameters including the following.



3-8 Using BIOS Setup

Power Management Under AC — Specifies whether to enable power management features when AC power is in use. When AC power is connected to your NEC Versa system, power management is usually disabled. If you enable this parameter, the system automatically activates the power management profile you set, even when AC power is used.

Power Savings Level — Lets you choose one of four levels of power management.

 High Perform provides the greatest system performance with only

minimal power conservation.

 Longest Life provides the maximum amount of power savings.  Off disables power management and all device timeouts.  Custom lets you define your own power management configuration

by selecting values for specific device timeouts. Custom lets you set the following timeouts.

– Hard Disk Timeout — Allows you to select the amount of time

before your hard disk shuts down.

– Video Timeout — Allows you to select the amount of time before

your video shuts down.

– Peripheral Timeout — Lets you choose the amount of time be-

fore your peripherals are controlled by power management.

– Audio Device Timeout — Selects the amount of time before your

audio device shuts down.

– Standby Timeout — Allows you to select the system standby

timeout period.

– Auto Suspend Timeout — Defines how much time elapses before

the system automatically enters Suspend Mode.

Suspend Option — Allows you to specify either Suspend or Save to File



(STF) as the default power management mode. In Suspend, after a specified amount of inactivity, your NEC Versa shuts down all devices as you specified in Power Management Setup or applies default timeouts. All your data is automatically recovered from where you left off when you Resume.



Automatic STF — After 30 minutes in Suspend mode the current file is automatically saved to a special file on the hard disk and the system shuts down. To resume, you must press the power button. The system reads the saved file and sets up your system accordingly.

If Auto Save to File is set to Off and HDPREPEZ is present, pressing the

Fn-Suspend

Panel Backlight — Lets you select the LCD screen backlight intensity.



Suspend Warning Tone — Specifies whether the system warning tone

key combination puts the system into Save to File mode.

sounds when Suspend mode starts. It is best to keep this option enabled.



Modem Ring Resume — Lets you choose whether the system resumes automatically when an external modem receives a ring signal.



Wake Up from Suspend Alarm/Resume Alarm Time — Lets you set a resume time from Suspend mode.

Using BIOS Setup 3-9

Boot Device Setup

Boot Docking Station IDE — Specifies the docking station hard drive as



the boot drive. Boot Devices — Specifies the sequence of boot devices and whether or



not the system attempts to boot from a device other than those specified. Docking Station Video — Selects whether or not the Docking Station



video card is enabled at system boot.

Peripherals Setup

The Peripherals Setup menu displays the connection locations between the system and the Input/Output (I/O) ports. This menu also lets you specify different port assignments as needed.

NOTE

or assign it using the Windows 95 device manager. The device is not listed in t he W indows 95 dev ice l ist. T o control the dev ic e using the Windows 95 device manager, select any setting other than “Disable” in Peripheral Setup.

If you disable a device in Peripheral Setup, you cannot enable



3-10 Using BIOS Setup

Serial Port — Allows you to disable the port or change its address assignment.

Parallel Port/Parallel Mode — Lets you disable or reassign the parallel port and select a parallel port mode.

IR Serial Port — Allows you to disable or reassign the IR Serial port. TV Mode — Specifies the signal type used by the TV being connected to

the TV Out port. Sound/Sound IRQ/Sound SB-Compatible DMA/Full-Duplex Mode

DMA/Docking Station MIDI — Allows the system BIOS to assign a conflict free resource to the sound devices.

Docking Station Joystick — Enables or disables the docking station joystick.

Other BIOS Setup Options

BIOS Setup offers other options, including the following:

Change User Password — Allows you establish a user password once a



Supervisor password is set.



Change Supervisor Password — Allows you to establish password protection for entering the BIOS setup utility, booting the system, and resuming from suspend.

Auto Configuration with Defaults — Loads default settings.



Save Settings and Exit — Accepts changes made to current settings,



saves to CMOS, and exits BIOS Setup. Exit Without Saving — Reverts to previously selected settings and exits



Setup.

Password Protection

Your NEC Versa supports a password for system security on several levels. Once you set a password, you must enter it before you can enter BIOS Setup, access the system at startup, or resume from suspend, depending on your configuration selection.

You are not prompted to enter a password until you set a supervisor password. Your system is not protected until you set a user password.

NOTE

You must set the supervisor password before the BI OS Setup utility allows you to set a user password.

USING BIOS SETUP TO SET POWER MANAGEMENT

Power Management Setup allows you to use the factory-defined power savings level (Longest Life), or choose between High Perform, Custom, or Off. Each provides a special value to your current work effort. These power management levels were designed with you in mind. For example, you can use them under the following circumstances:



Longest Life — Provides best battery life and good performance. Use while traveling long distances.

Using BIOS Setup 3-11

High Perform — Provides best performance and good battery life. Use



while on the road or traveling short distances. Custom — Lets you decide! Set power management levels according to



your own needs and present environment. Off — Works well in an office environment while powering your NEC



Versa with AC power.

Using the Save to File (STF) Feature

STF protects the integrity of your working files. For example, if you are called away from your NEC Versa and Suspend mode is selected with auto Save to File active, your system automatically goes into Suspend mode. After 30 minutes, if you don’t return, your working environment is saved to a special file on your hard disk.

To configure your NEC Versa’s STF feature:

Access the BIOS setup utility.

Select Power Management from the Setup Main Menu.

Move the cursor down and highlight Suspend Mode.

There are two ways to invoke the NEC Versa’s STF feature, one automatic and one manual.



3-12 Using BIOS Setup

Press the

key and select STF.

PgUp

Save the settings and exit BIOS Setup.

After 30 minutes of inactivity, your NEC Versa automatically invokes STF, provided you have configured STF in the BIOS Setup utility.

You can manually invoke STF by pressing

Fn Suspend

simultaneously,

before you leave your NEC Versa.

NOTE

When the status bar reads that there is only 4% power remaining in the system, the NEC Versa automatically performs a Save to File.

STF Benefits

Using STF can benefit you in the following ways.

When in STF, there is minimum battery drain.



Preserves the life of your NEC Versa.



Saves you time. When you return from that urgent call or meeting, you



don’t have to reboot, just press the S/R button to resume system operation.

Using BIOS Setup 3-13

Using Your NEC Versa

The more you use your NEC Versa 6200 Series computer, the more proficient you will become at everything from using function keys, to setting up a presentation to accessing the speakerphone.

This chapter gives concise information on these and other important tasks, including how to use the:

LCD panel



Keyboard



NEC VersaGlide



NEC VersaBay II



20X CD-ROM reader



PC card slots

LCD PANEL



IR port USB port.



In addition, this chapter focuses on installing options, expanding hard disk space and memory, and (if appropriate) updating the system Basic Input/Output System (BIOS).

When you open your NEC Versa notebook LCD panel, you’ll notice the brightness control. Slide the brightness control right to make your screen brighter. Slide the brightness control left to make your screen darker and conserve energy.

Using Your NEC Versa 4-1

KEYBOARD

The NEC Versa keyboard is equipped with many features. These include:

Function keys



Window 95 keys



Cursor control keys



Typewriter keys



Numeric keypad Control keys.



Feature keys are located as shown in the following figure. Key operations are described after the figure.



Function keys — Twelve function keys, F1 through the NEC Versa keyboard. These keys work together with the activate special functions. Seven keys are preprogrammed with dual functions, six of which are printed in blue on the key. ( marked; it immediately puts the system into Standby mode.)

4-2 Using Your NEC Versa

Keyboard

are available on

F12,

key to

is un-

Fn-F4

Function keys are application-driven. See the specific application’s user guide for information about how each function key works within the application you are using.

The following function key combinations are preprogrammed for the

NEC Versa 6200 Series computer.

Two additional preprogrammed function keys include:



Fn-Left Cntl

— Simulates pressing the right control key for support

of IBM 327x connections.





Windows 95 keys — If you have Windows 95, you can use the following

— Expands 640 x 480 applications to fill the panel.

Fn-F8

two keys to facilitate your work.



Cursor Control keys — Cursor control keys let you position the cursor

Quick access to shortcut menus

Display the Start menu

on the screen where you want. On the screen, the cursor is a blinking underline, block, or vertical line depending on the application. The cursor indicates where the next text typed is inserted.

Using Your NEC Versa 4-3

Typewriter keys — The typewriter keys (also called alphanumeric keys)



are used to enter text and characters. Keys with blue printing on them behave differently when combined with control keys or the



Numeric keypad — Pressing NumLock on the keyboard activates the numeric keypad numbers and functions printed in blue on the keys.

The keypad lets you type numbers and mathematical operands (+, –) as you would on a calculator. The keypad is ideal for entering long lists of numbers.

When you press NumLock again, the keys revert to their normal functions as typewriter keys.



Control keys — with other keys to change their functions. To use control keys, press and hold the control key while pressing another key. For example, “press

combination works depends on the application you are running.

NEC VersaGlide

The NEC VersaGlide is an easy way to control the cursor with your finger. Lightly glide your finger across the NEC VersaGlide and the cursor follows. The NEC VersaGlide provides standard mouse functionality, plus more. VersaGlide features include a:

Ctrl, Alt, Fn

” means to hold down the

, and

key and type the letter c. How the key

Ctrl

are controls used in conjunction

Shift

key.

Ctrl



Single tap to the touchpad, equivalent to a click of the left mouse button. Double tap to the touchpad, a single tap with two fingers, or a double



click of the left VersaGlide selection button, equivalent to a double click of the left mouse button.



Single tap with three fingers, equivalent to a click of the right mouse button.



Two finger drag or a click and hold of the left VersaGlide button, equivalent to a click and hold of the left mouse button.

In addition, the VersaGlide is equipped with edge detection technology. When your finger reaches the border of the VersaGlide pad, the cursor continues in the direction your finger was traveling. To stop the cursor, gently move your finger away from the border, or simply lift your finger from the pad surface.

4-4 Using Your NEC Versa

VersaGlide features

Try all of the features and decide which you prefer. If you find the double tap or any of the other features difficult to use, go to the next section for general directions about adjusting the touchpad properties.

NOTE

If you i nstall another m ouse driver ov er t he shipping def ault,

some of the VersaGlide features such as double-tap may be lost.

Making VersaGlide Adjustments

The NEC VersaGlide offers a number of options that let you customize how it functions. To access these options, locate the Control Panel and double click on the mouse icon.

The options let you control the size and color of the cursor, the cursor speed, the accepted double-click speed, and selection button orientation.

For more details, see the help files that you can access through the mouse icon on the Control Panel.

Using Your NEC Versa 4-5

VersaGlide Tips

Follow these basic ergonomic tips while working:

Use a light touch on the VersaGlide surface.



Set up the NEC Versa with your keyboard and VersaGlide at a comfort-



able height. Keep your forearms parallel to the floor. Your wrists should be relaxed and straight.

While using the keyboard and VersaGlide, keep your shoulders and arms



as relaxed as possible. Take regular breaks from the computer to rest your eyes. Perform



stretching exercises to relax your fingers, hands, wrists, forearms, and shoulders.

See Appendix A, “Setting Up a Healthy Work Environment,” for more information.

NEC VersaBay II

The NEC VersaBay II is the drive bay located below the VersaGlide. Your NEC Versa ships with a standard 3.5 inch, 1.44-MB diskette drive or a SuperDisk LS-120 drive installed in the bay. However, if you choose, you can remove the diskette drive or LS-120 drive and install the 20X CD-ROM reader that also ships with your system.

4-6 Using Your NEC Versa

Locating the VersaBay II

In addition to the CD-ROM reader, the VersaBay II accepts the following options:

a second battery pack



a second hard disk drive



the LS-120 SuperDisk drive.



See the Versa Tools: Accessories and Solutions Catalog or your authorized NECCSD dealer for details about these VersaBay II options.

Removing a Device from the VersaBay II

Use the following steps to remove the standard diskette drive, SuperDisk LS-120 drive, or other device from the VersaBay II.

Make sure the NEC Versa is powered off , all options are disconnected,

and the LCD panel is closed.

CAUTION

Your system devices in the VersaBay II.

Turn the system upside down.

Locate the VersaBay II release latches on the bottom of the unit.

must

be powered off before removing or inserting

Using Your NEC Versa 4-7

VersaBay II release latches

Slide the front latch towards the hard disk drive side of the system and

hold it. Push the middle latch towards the front of the system until the drive pops

part way out of the unit. Continue to hold the latch near the front of the system and pull the device

the rest of the way out of the system.

NOTE

device, the device casing catches on the inside of the latch.

4-8 Using Your NEC Versa

If you release the fr ont latch bef ore completel y remov ing the

Releasing the device

Installing a Device in the VersaBay II

Use the following steps to install a device in the VersaBay II. These steps show how to install the 20X CD-ROM reader that ships standard with the system. Use these steps to install other devices as well.

NOTE

A CD-ROM reader install ed in t he VersaBay II m ust be specified as a slave device in the BIOS Setup utility. Check that the switch on the back of the reader is set to S for Slave.

If you install a hard disk driv e f rom a Versa m odel E, V, M, or P in the VersaBay II, it becomes the master driv e from which the system boots.

Your system must be powered off before removing or inserting devices in the VersaBay II.

NOTE

To use a hard disk driv e in the VersaBay II, the drive must be connected to the appr opriate adapter. See the or your authori zed NECCSD dealer for details about t he Hard Disk Drive Cradle Pak.

Versa Tools Catalog

Make sure the NEC Versa is powered off, all options are disconnected,

and the LCD panel is closed. Turn the system upside down.

Locate the VersaBay II release latches on the bottom of the unit.

Slide the front latch towards the hard disk drive side of the system and

hold it.

Using Your NEC Versa 4-9

Align the CD-ROM reader in the VersaBay II and push it in until it locks

into place.

Inserting the CD-ROM reader

Turn the system over and open the LCD panel.

Power on the system.

Customizing Your System with the VersaBay II

Customizing your NEC Versa is easy using the VersaBay II. If you find you require additional hard disk space or increased battery longevity, simply remove the standard device and plug in an optional hard disk drive or battery.

NOTE

If you i nstal l a second hard disk drive i n the VersaBay II, it

can be set to either master or slave. However , if you i nstall a hard disk dri ve f rom a Versa m odel E, V,

M, or P in the VersaBay II, it becomes the master driv e from which the system boots.

4-10 Using Your NEC Versa

Add another hard disk drive or second Li-Ion battery pack as follows.

Remove the standard diskette drive, LS-120 drive, or CD-ROM reader

from the VersaBay II as described in “Removing a Device from the VersaBay II.”

Prepare your option for installation as follows:

To install a battery pack, first connect it to the VersaBay adapter that



came with the battery. (Follow the instructions that come with the battery pack.)

To install a hard disk drive, first connect it to the appropriate Cradle



Pak. (Follow the instructions that come with the adapter.)

Holding the front VersaBay II release latch towards the hard disk drive

bay, align the option and its carrier in the VersaBay II. Push in the option until it clicks into place.

Turn the system over, open the LCD panel, and power on. The system

automatically recognizes the newly installed option.

20X CD-ROM READER

Your NEC Versa comes with a 20X CD-ROM reader that features the latest in CD-ROM technology. The CD-ROM reader is assigned an available drive letter.

Use the CD-ROM reader to load and start programs from a compact disc (CD). You can also use the CD-ROM reader to play your audio CDs (see “Audio CDs” in this chapter). The 20X CD-ROM reader is fully compatible with Kodak Multisession Photo CDs™ and standard audio CDs.

The CD-ROM reader operates at different speeds depending on whether the CD you are using contains data or music. This allows you to get your data faster and to see smoother animation and video.

CD-ROM reader features are shown in the following figure. Descriptions of these features follow.

Using Your NEC Versa 4-11

20X CD-ROM reader

Release Button — ejects the CD tray. Press this button when power is on



to insert a CD into or remove a CD from the reader. Emergency Eject Hole — allows you to manually remove a disc from the



CD-ROM reader if the eject function is disabled by software or a power failure occurs.

To remove a disc, insert the end of a paper clip into the eject hole, and push in until you hear a click. Manually open the drawer.



Status LED — lights during data read operations. Do not eject the CD or turn off the NEC Versa when the indicator is lit.

CD Loading

To insert a CD into the CD-ROM reader, follow these steps.

Press the Release button. The CD tray emerges a short way out of the

reader door. Gently pull the tray out until you can easily position a disc in the tray.

Put your CD, printed side up, into the circular impression in the tray.

Push the CD tray in until it clicks shut.

4-12 Using Your NEC Versa

CD Care

NOTE

Some CDs vibrate when playing. This does not effect the CD-ROM reader.

When handling CDs, keep the following guidelines in mind.

Always pick up the disc by its edges.



Holding a CD



Avoid scratching or soiling the side of the disc that has no printing or writing on it. This is the data side of the disc.



Do not write on or apply labels to either side of the disc.



Keep the disc away from direct sunlight or high temperatures.



Clean fingerprints or dust from the disc by wiping it with a soft cloth. Gently brush the cloth from the center of the disc toward the edge.

Using Your NEC Versa 4-13

Av oid using benzene, paint thi nner, record cleaner, static repell ent, or any other chemical on the disc. Chemicals and cleaners can damage the disc.

Changing the Auto Play Setting

Your system is not configured so that a CD inserted into the reader will automatically start playing. Although this feature makes using your CDs very convenient, it interferes with the system’s power management function.

Follow these instructions to enable or disable the Auto play feature.

From the Windows 95 Start menu, select Settings and Control Panel.

In the Control Panel, highlight and double-click on the System icon.

Select the Device Manager tab.

Locate and open the CD-ROM folder.

CAUTION

Highlight the Toshiba CD-ROM XM 1602B line.

Press the properties button at the bottom of the window and select the Settings tab.

Proceed as follows:



Select OK twice to accept the settings in the Settings tab and exit the Properties window.

To activate the new setting, reboot the system when prompted.

4-14 Using Your NEC Versa

To enable Auto Play, click to add a check mark next to the line “Auto insert notification.”

To disable Auto Play, click to remove the check mark next to the line “Auto insert notification.”

CARD BUS/PC CARD SLOTS

Your NEC Versa 6200 Series notebook integrates two card bus slots for inserting two Type II PC cards or one Type III PC card. The 32-bit card bus also has zoomed video support in the bottom slot only.

NOTE

The 32-bit Card Bus structure is backward compatible, but also accepts new Card Bus cards.

Using the system’s card bus slots, you can add optional PC cards and connect external devices to your NEC Versa. These devices include peripheral devices, such as modems, LAN cards, and storage cards. For details on how to obtain these options, see the online Versa Tools Catalog. Also, for more information about PC card technology, see the online Advanced Topics in the NEC Versa Help Center.

Inserting a PC Card

To insert a PC card, open the slot cover and follow these steps.

Align the card so that the 68-pin connector points towards the slot and

the arrow shows on the top face of the card. Slide the card into either slot. A low tone followed by a high tone lets you

know that the card is fully inserted and recognized. (If you turn off the sound through the function keys or volume control, no sound is emitted.)

Other tone sequences such as high, then low tones, indicate that the card is inserted, but the card type is unknown.

Using Your NEC Versa 4-15

Inserting a card

Use the software preinstalled on your system to check PC card slot

availability. To do so, look for the CardWizard™ SystemSoft icon on the Windows NT desktop or the Windows for Workgroups Program Manager. In Windows 95, look for the PC Card icon in the control panel or on the right side of the taskbar. It shows which slot contains a PC card (PCMCIA) and which is empty.

Removing a Card

Procedures for removing cards from Windows 95 and Windows NT are different from those procedures for Windows for Workgroups. See the instructions appropriate for your system.

Windows 95 and Windows NT

Remove PC cards from Windows 95 and Windows NT systems as follows.

From the screen, select “My Computer” and “Control Panel.” (Or, you

can also select the Taskbar PC card icon.) Select the PC card icon.

4-16 Using Your NEC Versa

Select the PC card to remove, and select “Stop.”

Windows 95 alerts you if any applications are still using the card. If all applications using the card are closed, services for that card are shut down. You receive a message saying that it is safe to remove the card.

Press the button on the side of the PC card in the slot.

Windows for Workgroups

Remove PC cards from Windows for Workgroups (Windows 3.11) systems as follows.

To remove the card, press the button on the side of the slot. A double

tone sounds. Pull the card firmly out of the slot.

NOTE

PC cards draw power even when not i n use. T o sav e ener gy, press the button to disconnect the card when it is not in use. You can leave the card in the slot while it is disconnected for easy storage.

PC Card Drivers and Enablers

Your NEC notebook computer is configured to support a variety of PC cards. In Windows for Workgroups, the AUTOEXEC.BAT and CONFIG.SYS files contain and load the PC card drivers. You can modify these files using a text editor to remove drivers in order to free needed memory.

Some PC cards come with software called Enablers to be used instead of Card Services. Before installing Enablers, try your PC card with the preloaded drivers. The NEC Versa Card and Socket Services works with many PC cards.

PC Card Drivers and Utilities

The following are the CardSoft drivers (for Windows for Workgroups systems only) and utilities used on your NEC Versa. Some of these drivers may be disabled in the system files to conserve memory.

Using Your NEC Versa 4-17

Card Socket Services (SSCBT1.SYS)



This driver manages the card socket services on your system.



Card Services (CS.SYS) This driver manages competition for system resources and manages

adapter and card resources and configuration.



Resource Allocation Utility (CSALLOC.EXE) CSALLOC is a DOS utility that scans the system for available memory,

I/O port, and IRQ resources, updates the file CSALLOC.INI with this information, and then displays the list of available resources that Card Services can use. In addition, keywords can be added to CSALLOC.INI to force CSALLOC to exclude resources from being scanned or include resources that are not detectable (due to security features or hardware design). Other keywords let you reserve resources that may be needed by a particular PC card or other system component.



IDE/ATA Support (ATADRV.EXE) ATADRV.EXE is a block device driver that supports ATA Type II

Flash Disk or ATA Type III Hard Disk PC cards. The ATAINIT.EXE utility places a hard disk partition table onto a blank ATA drive.

SRAM Driver (MTSRAM.EXE)



MTSRAM is a driver that supports SRAM cards. This file is remarked out to save memory.



Memory Technology driver (MTDDRV.EXE) This component must be installed to support Flash Memory cards. It

works in conjunction with card-specific MTDs to support a wide variety of Flash Memory cards. It also supports SRAM cards (providing MTSRAM.EXE is also installed) and allows sharing of drive letters between the different types of memory cards (Flash, SRAM, and ATA).



Card Identification (CARDID.SYS) This client device driver detects the insertion and removal of PC cards,

automatically determines the card type upon insertion, and then configures the card/slot adapter.

4-18 Using Your NEC Versa

Enablers

Card Services Power Management Enabler (CS_APM.EXE)



CS_APM.EXE is a DOS-based background task that enables Card Services to process system power management Suspend/Resume requests. When system power management software initiates a Suspend request, CS_APM notifies Card Services, which then verifies that the PC card slots are idle and can be powered down. Card Services passes this information back to CS_APM, which then notifies the power management software that the sockets can be powered off.

When CS_APM receives a Resume request, it informs Card Services, which powers on the sockets again.

Some PC cards have custom software written by the card manufacturer, known as Enablers, instead of Card and Socket Services. This custom software works well if only one or two PC cards are used on a particular system.

Although many of these were considered compliant with PCMCIA Release 2.0 specifications, they did not provide a truly compatible environment for exchanging and sharing PCMCIA operations. The following are some guidelines for using PC cards with Enablers.

Do not use more than one Enabler at once unless you know what system resources are used by each Enabler. One Enabler may crash another if there is a conflict.



Hot insert may not work with some Enablers. An Enabler may only work in Windows Standard Mode.



Enablers have minimal memory requirements. For example, they require as little as 4 KB for a modem, 16 KB for Ethernet, and 24 KB for Token Ring.

Know your system resources (see the CONFIG.SYS file) — command line arguments cannot use resources being used by other devices.

Using Your NEC Versa 4-19

CONFIG.SYS

You can disable all of the PCMCIA drivers that come preloaded in your NEC notebook computer. However, doing so limits some of the flexibility of PCMCIA. You can still use PC cards that have Enabler software, but you can install and run only one at a time. The card must rely on the software supplied by the card vendor (Enablers).

Disable the preloaded PCMCIA drivers by modifying the CONFIG.SYS file as follows (in Windows for Workgroups).

Select the File menu in Windows Program Manager.

Select Run, type

should take you to the System Configuration Editor. Click on the CONFIG.SYS window and scroll down to the following

line:

Type

drivers. This tells the operating system to ignore those lines. Save and exit the file.

Reboot the system for the changes to take effect.

NOTE

Most applications, such as communications software, are not PCMCIA aware. Make sure the card is inserted and ready before using an application.

CardWizard Services

CardWizard, a software interface, manages the automatic allocation of system resources in Windows NT and Windows for Workgroups systems. It detects when a PC card is installed or removed. CardWizard also provides an interface to other software in order to load any necessary hardware drivers.

sysedit

====== CardWizard PCMCIA Device Drivers ======

for "remark" in front of all lines showing PCMCIA device

rem

By default, MTSRAM.exe and MTDRAM are remarked out.

in the command line, and press

Enter

. This

4-20 Using Your NEC Versa

CardWizard provides Socket Services, a Basic Input Output System (BIOS) software interface that isolates driver software from the hardware. It provides a variety of system-specific functions, such as system slot and card detection while the system is operating.

Reinstalling PC Card Software

You can reinstall PC card software in one of two ways:

by downloading the latest version from the NECCSD Bulletin Board at



(978) 635-4706.



by installing an NEC PC card utility from diskette.

NOTE

If you ar e using this uni t outside of the Unit ed Stat es, cont act a local NECCSD dealer for the latest version of the PC card software.

Available PC Cards

A variety of PC cards are available on the market today. Some are used for communications and others for data storage.

Communications Cards

You can use both fax/modem and network PC cards with your NEC Versa. Here are some suggestions to help you get the best system performance.

NOTE

If you ar e using this uni t outside of the Unit ed Stat es, cont act a local NECCSD dealer for availability information.



Network Cards — You can use a network card with your system to gain access to a local area network (LAN).

You can insert a network card into either slot.

Using Your NEC Versa 4-21

Fax/Modem Cards — You can use a PC card modem with your system



to communicate with others via fax, e-mail, or connect to an online service or bulletin board.

NOTE

Outside the U.S. and Canada, you mi ght need a modem and telephone adapter approv ed f or the local tel ephone system. Check with your local dealer for details about purchasing this equipment.

You can insert a fax/modem in either slot. Always insert the fax/modem card before using your fax/modem soft-

ware application. If you start the application before inserting the fax/modem card, the application typically does not find the card.

NOTE

When using a modem outside the U.S. and Canada, you might need an inter national tel ephone adapter. You can buy thi s at an electronics supply store.

Storage Cards

When you insert a memory or storage card in an NEC notebook computer, it appears as a unique drive depending on the type of card and the slot you are using.

The following table provides sample drive designations.

Sample PCMCIA Drive Designations

DRIVE LETTER LOCATION/DEVICE

C: Internal hard disk D: Internal hard disk, 2nd partition E: Slot 0, IDE/ATA memory card F: Slot 1, IDE/ATA memory card G: Slot 0, high-speed memory card H: Slot 1, high-speed memory card

4-22 Using Your NEC Versa

Other Cards

IR PORT

Many other kinds of PC cards are available for notebook computers. They include the following cards:

Global Positioning System (GPS) — enables the tracking of remote units



(for example, delivery trucks) Serial — adds an extra serial communications port



Multimedia — combines animation and sound



Audio — enables the use of sound (for example, in voice mail)



The IR port on the front of your system lets your NEC Versa 6200 Series computer communicate with other devices that also use infrared technology. The IR port is Infrared Data Association (IrDA) compatible. You can easily transfer files between your NEC Versa and an IR-equipped desktop, or print to an IR-equipped printer without using cables.

IR transfer speed ranges from 2.4 Kbit/sec to 4.0 Mbit/sec. You can limit the IR transfer speed through the Infrared icon in the Windows 95 control panel. Double click the icon and select the options to access the speed parameter.

Your NEC Versa transfers data at the speed compatible with the receiving device.

For the infrared technology to work, you need to follow these guidelines:



Position the NEC Versa no more than three feet way from the IR peripheral device you are using.



Make sure there is no greater than a 30° angle between the computer and the device.

Using Your NEC Versa 4-23

Using the IR port

The LapLink software that ships with your NEC Versa system provides ways for you to use the IR port. Read the instructions in Chapter 2, “How to Use LapLink,” for steps on using the software with the IR port.

The MindPath™ software that ships with your NEC Versa system uses infrared technology and a remote control device that allows you to control your presentations from across the room. Launch the MindPath™ application and read the “Getting Started” information in the online help topic for steps on using the software with the IR port.

Installing IR Printer Drivers

To use the NEC Versa’s IR Port for printing , you must first install the printer drivers for your IR-enabled printer. Use the installation CD provided with the printer to install the necessary drivers.

Insert the CD into the CD-ROM reader.

Double click on SETUP.EXE and follow the on-screen instructions.

Select Custom Installation when the Method of Installation dialog box

appears. Select LPT3 when the Select Port dialog box appears, then press

Continue. Press the Skip button when the next dialog box appears. The printer

driver installation program may not allow you to configure LPT3 to be an Infrared Printing Port.

4-24 Using Your NEC Versa

Select the name of your printer from the list of printers in the Select

Printer dialog box and press Continue. Your printer driver software will be installed.

Press OK to restart Windows 95 and to complete the driver installation.

Configuring an IR-enabled Printer

Once your printer drivers are installed and your IR-enabled printer is listed in the Printer Control Panel, follow these steps to configure your printer.

NOTE

To configure your printer, set the default printer port to LPT3.

Click Start, highlight Settings, and click Control Panel.

Double click Printers and highlight your printer icon with a single click.

Use the right mouse button to click on the Infrared printer icon. A dropdown menu box appears.

Click Properties, then select the Details tab. Change the value in the Print

to the Following Port drop-down box from LPT1 (ECP printer Port) to LPT3 (Infrared Printing {LPT} Port).

USB PORT

Press Apply, then press OK to complete the configuration of your IR-

enabled printer.

You are now ready to use your NEC Versa’s infrared technology for printing!

The USB port on the right side of your system allows you to connect up to 127 USB equipped peripheral devices to your NEC Versa notebook computer. These peripherals may include digital cameras, scanners, printers, CD-ROM drives, modems, keyboards, telephones, and game devices.

USB devices called USB hubs can serve as connection ports for other USB peripherals. Only one device needs to be plugged into your NEC Versa. Additional peripherals can be connected in a daisy chain configuration where one device is connected to another in a series. Up to 127 devices can be connected together in this way.

Using Your NEC Versa 4-25

INCREASING SYSTEM STORAGE AND MEMORY

As your needs grow and change, you may need to add an optional hard disk drive with a greater capacity, or additional memory. Read the following sections to learn how to install an optional hard disk drive, or a memory module.

Hard Disk

You can increase the system’s storage capacity by replacing the standard hard disk drive or adding a second hard disk drive in the VersaBay II. (Adding a second hard disk drive is described in the section “Customizing Your System with the VersaBay II.”)

NOTE

NEC Versa hard disk driv es can be used in other NEC notebook computer s such as the NEC Versa 2000 and 4000 Seri es systems. However, hard disk drives from earlier models can only be used in the VersaBay II. Check t he top of the hard dri ve f or a blue dot. If t he dri v e c ase has the blue dot on i t , you can use t he dr ive in either the drive bay or the VersaBay II.

Replace the hard disk drive as follows.

Check that the NEC Versa power is off.

Turn the NEC Versa upside down.

Remove the drive cover as follows:



4-26 Using Your NEC Versa

Remove the Phillips-head screw that secures the drive cover.

Removing the screw that secures the cover

Locate and push up on the drive cover release latch while using some



pressure to slide the cover away from the system. Lift the cover up and off the system.



Removing the drive bay cover

Remove the hard disk drive as follows:



Using your fingers, press down on the hard disk drive at the end closest to the connector.



While maintaining pressure, slide the drive towards the front of the system.

Using Your NEC Versa 4-27

Do not l ift the dri ve out of t he system befor e releasing it from the system connector. Doing so can damage the connectors.



Once the drive is disconnected, lift the drive up and out of the system.

CAUTION

Removing the hard disk drive

Lower the new drive into the drive bay and align its connector with the hard disk drive connector in the system.

Slide the hard disk drive back and push firmly to secure the connection.

4-28 Using Your NEC Versa

Inserting the hard disk drive

Replace the cover as follows:



Align the three tabs on the drive cover with the three notches on the system chassis.



Slide the cover towards the center of the unit. Gently push the cover until it snaps into place.



Replacing the drive bay cover



Replace the screw that secures the bay cover.

Replacing the screw that secures the cover

Turn the system over, power on, and run Setup to check the new

configuration.

Using Your NEC Versa 4-29

Hard Disk Drive Bay Covers

Your NEC Versa 6200 Series computer ships with two hard disk drive bay covers to accommodate different hard disk drive heights..

Standard Bay Cover — This cover is already installed on your NEC



Versa system protecting the 12.7-mm hard disk drive installed (that may be 2.1 GB, 3.2 GB or another capacity). The 3.2-GB drive, for example is 12.7 mm in height and requires this bay cover. Use the standard bay cover with all 12.7-mm hard disk drives. If your hard disk drive does not have a label stating its size, use the standard bay cover.

17-mm Bay Cover — This cover is already installed on your NEC Versa



system protecting the 5.1-gigabyte (GB) 17-mm hard disk drive installed. The 5.1-GB drive is 17 mm in height and therefore requires this bay cover. Other drives may also be 17 mm. Check the label on the drive to determine if it is a 17-mm drive. Only use the 17-mm bay cover when you install a 17-mm hard disk drive in the drive bay.

4-30 Using Your NEC Versa

Onl y use the 17-m m cover when instal li ng a 17-mm hard di sk driv e. Check the drive for a label stating its size. If the dr ive does not have a label, use the sm aller standard hard disk dri ve bay cov er. Using the 17-mm cover with a smal ler driv e can result in damage to the drive.

Formatting the Hard Disk Drive

Your NEC Versa ships with a hard disk drive that is formatted into multiple partitions using the FAT 16 (File Allocation Table) file system.

The 3.2 GB drive is formatted into two partitions.



The 5.1 GB drive is formatted into three partitions.



If you want to reformat the hard disk drive into only one partition, follow the instructions below for “Using the Product Recovery CD.” The Product Recovery CD provides the option to format your hard disk drive into a single partition (drive) using the FAT 32 (File Allocation Table) file system in the Windows 95 environment only.

CAUTION

If you choose to ref orm at the har d disk driv e i nto onl y one partit ion, use the Product Recov ery CD t o setup your NEC Versa system. Do not follow the software setup instructions on the Quick Setup Sheet.

Some disk compression and defragmentation programs may not work with a hard disk drive formatted using FAT 32. Some older DOS applications and utilities may also be incompatible with FAT

32.

CAUTION

WARNING

Using Your NEC Versa 4-31

If you encounter any of these incompatibilities when using your NEC Versa computer, you can use the Product Recov er y CD to ref orm at your hard disk to the FAT 16 format.

Using the Product Recovery CD

The Product Recovery CD allows you reformat your hard drive into a single or into multiple partitions using the FAT 16 ot FAT 32 file format.

The procedure for reformatting your hard disk involves:



Inserting the Product Recovery CD Selecting parameters to reformat the hard drive



Removing the Product Recovery CD and setting up your Windows



environment

Inserting the Product Recovery CD

Follow these instructions to insert the Product Recovery CD.

Power on your NEC Versa, open the CD-ROM reader and insert the

Product Recovery CD. Wait until the “Welcome to Windows Setup” screen appears, click

Cancel, click Yes, then reboot your system when prompted to do so.

Selecting Parameters to Reformat the Hard Drive

Follow these instructions to select parameters to reformat the hard drive.

Select Full when the “Full System Restore Utility” screen appears.

Select Accept when the license agreement screen appears.

Select Custom when the “Restore Mode” screen appears.

Select Continue when the first warning screen appears.

The second warning screen provides options for formatting your hard

disk drive.

Select FAT 32 to format the hard disk drive into a single partition.



Select FAT 16 to format the hard disk drive into multiple partitions.



4-32 Using Your NEC Versa

Select Continue when the last warning screen appears. The hard disk

drive is reformatted according to your choice. This process may take several minutes.

Click OK when the reformatting is complete.

Your NEC Versa software is installed to your notebook computer. This process may take several minutes.

Click OK when the installation is complete.

Removing the Product Recovery CD

Follow these instructions to remove the Product Recovery CD.

Remove the Product Recovery CD from the CD-ROM reader and re-

boot your system. Follow the on-screen registration and setup instructions.

Reboot your system when prompted to do so.

WARNING

Reformatting the hard disk drive erases all pre-existing data.

Using Your NEC Versa 4-33

Nec VERSA 6230, VERSA 6260, VERSA 6220 user Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Using this Guide

Contents

Getting Started

Introducing the Software

Using BIOS Setup

Using Your NEC Versa
