NEC SP-P42P1 User Manual

Contents

1
2
3
4

4-1 System
4-2 Impedance
4-3 Rated Input
4-4 Maximum Input
4-5 Sound Pressure Level
4-6 Rated Frequency Range
4-7 Crossover Frequency
4-8 Dimensions
4-9 Net Weight
4-10 Material and Color

4-11 Packing
5
6
7
8
9
10

10-1 Sound Pressure Typical Characteristics

10-2 Impedance Typical Characteristics
11
12
13
14
15

Model Name
Applicable Monitor
Regulations
Speaker Spec

Environmental Condition
Serial Number Label
Accessory Table
Country of manufacture
Environmental Regulation

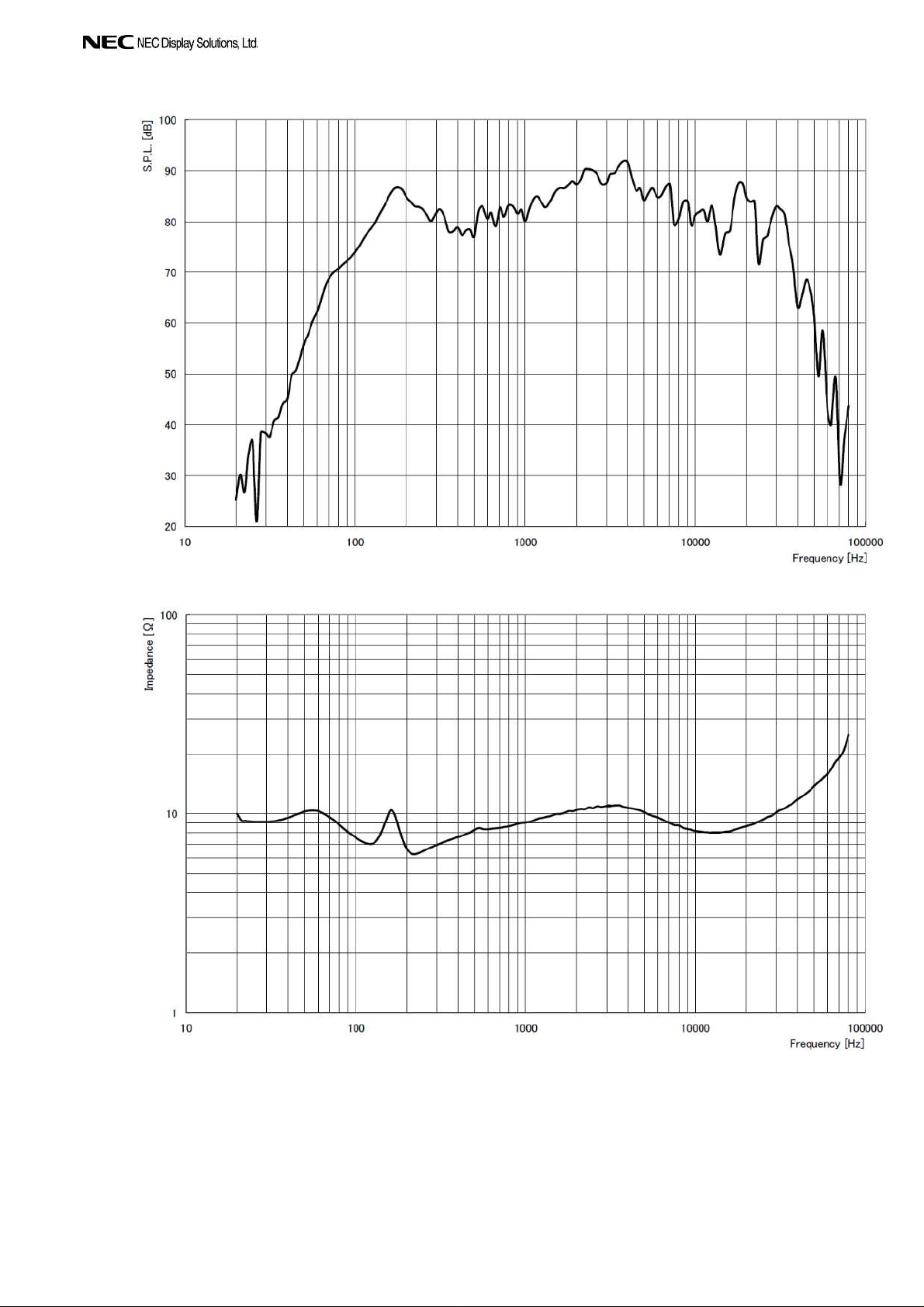

Characteristics

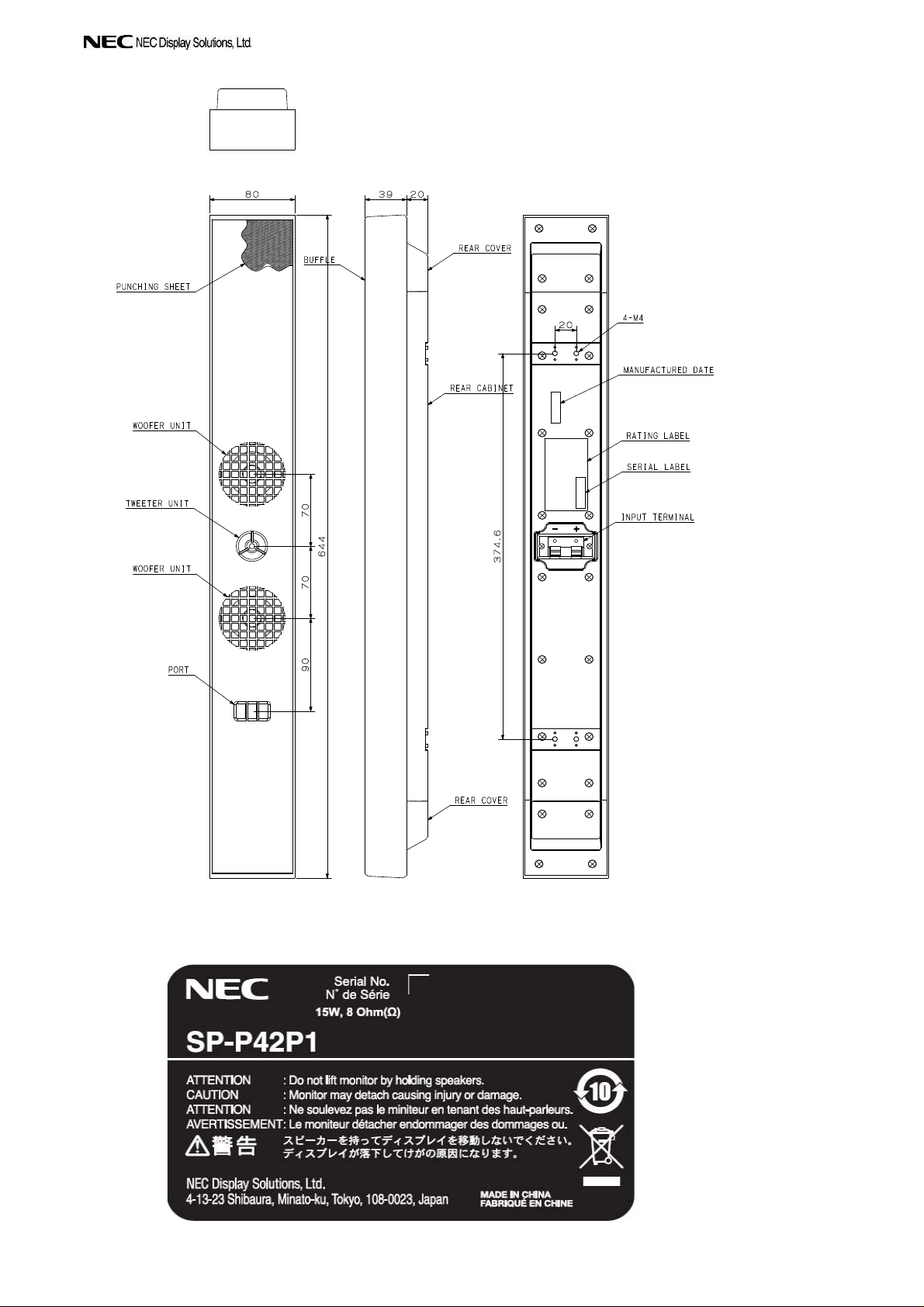

Outline Drawing
Labels

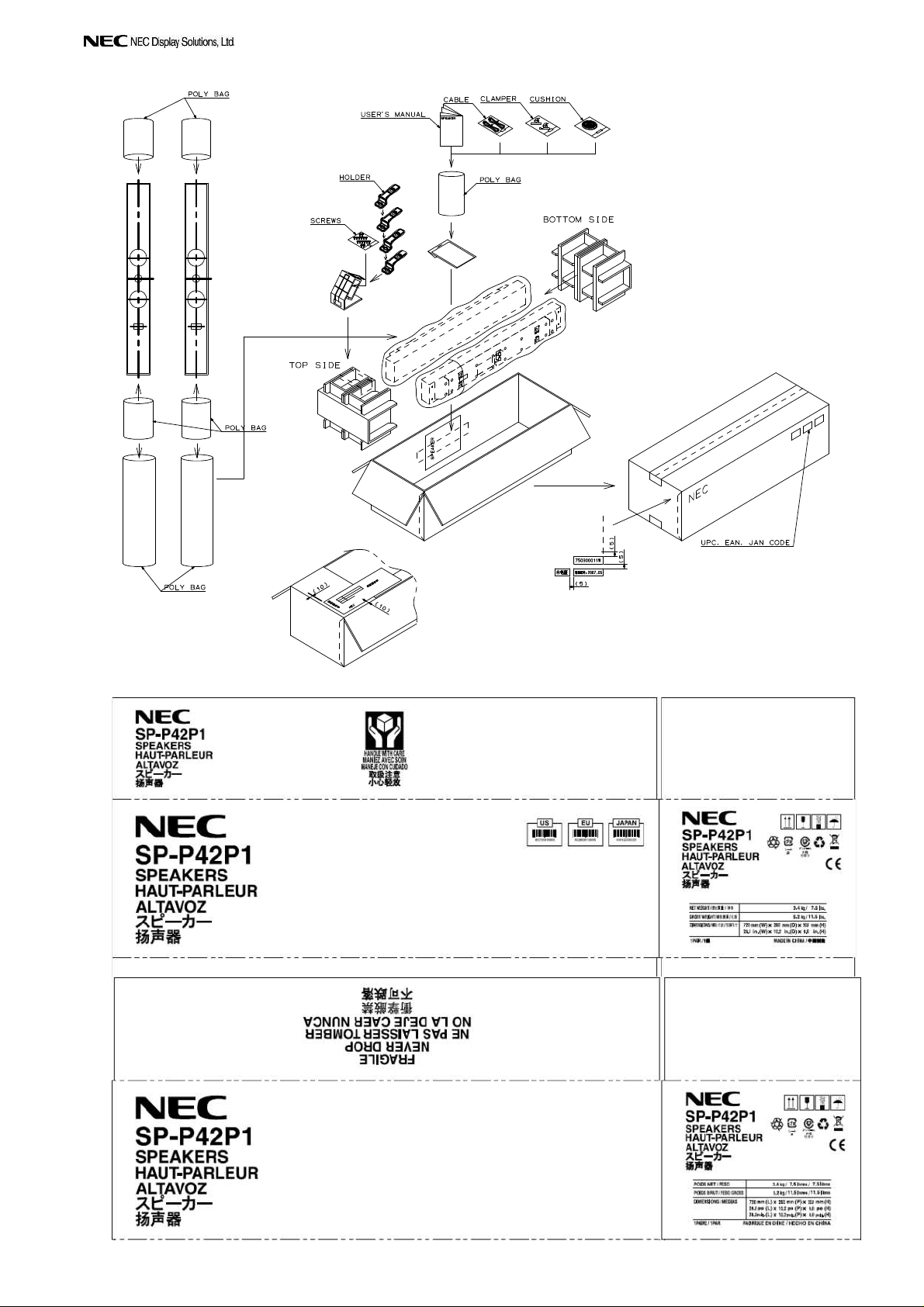

Package Specifications
Carton Box Artwork
Holder

Confidential

Page

4
4
4
4

4
5
5
5
5
6

7
7
8
8
9

SP-P42P1 3/9

Contents

1 Model Name

SP-P42P1

2 Applicable Monitor

P42XP10, P50XP10, P60XP10, P42XC10, P50XC10, P60XP10

3 Regulations

UL60950-1:2003, CAN/CSA-C22.2 No.60950-1-03
IEC60950-1:2001, EN60950-1:2001 + A11
UL60065 7th:2003 , CAN/CSA-C22.2 No.60065:03
IEC60065:2001, EN60065:2002
PSE (Denanho)

4 Speaker Spec

4-1 System Bass Reflex

4-2 Impedance

Rated Impedance 8 ohms

Minimum Impedance 6.9 ohms (at 20 to 20000 Hz)
4-3 Rated Input 15W
4-4 Maximum Input 40W
4-5 Sound Pressure Level 82dB (1m, 1W)
4-6 Rated Frequency Range 85Hz to 35000Hz
4-7 Crossover Frequency 6000Hz
4-8 Dimensions (W x H x D, each) 80mm x 644mm x 59mm / 3.27" x 25.35" x 2.32" (except Holder)
4-9 Net Weight (each) 1.8 kg / 3.97 lbs
4-10 Material and Color

Baffle PC+ABS, Matte Real Black paint (SB050) (PANETONE Hexachrome Black C)

Rear Cabinet PC+ABS, Matte Real Black paint (SB050) (PANETONE Hexachrome Black C)

Rear Cover PC+ABS, Matte Real Black paint (SB050) (PANETONE Hexachrome Black C)

Punching Net PBT sheet, Matte Real Black paint (SB050) (PANETONE Hexachrome Black C)

Holder Steel, Black paint
4-11 Packing

Dimensions (W x H x D) 260mm x 720mm x 203mm / 10.24" x 28.35" x 7.99"

Gross Weight 5.1 kg / 11.24 lbs

Maximum Stacking 10 Layers

Confidential

5 Environmental Condition

Operation 0℃ to 40℃ / 32F to 104F, 20%RH to 80%RH
Storage -10℃ to 50℃ / 14F to 122F, 10%RH to 90%RH

SP-P42P1 4/9

6 Serial Number Label

740312341J

7 Accessory

User's Manual 1 pc
Screws 16 pcs.
Speaker Codes (L1500mm) 2 pcs.
Code Clamper 2 pcs.
Cushion 2 pcs.

Confidential

J: Fixed
1: Fixed
Serial (1 to 9999) reset when 10000
Model Code (SP-P42P1: "3")
0: Fixed
Month (1 to 9, X, Y, Z)
Year (last digit)

8 Country of manufacture

9 Environmental Regulation

China

RoHS

SP-P42P1 5/9
