PlasmaSync Plasma Monitor

User’s Manual

NEC Technologies

Important Information

Precautions

Please read this manual carefully before using your NEC plasma monitor and keep the manual handy for future reference.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO PREVENT FIRE OR SHOCK HAZARDS , DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO DO NOT USE THIS UNIT'S POLARIZED PLUG WITH AN EXTENSION CORD RECEPT A CLE OR OTHER OUTLETS, UNLESS THE PRONGS CAN BE FULLY INSERTED. REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to P art 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns the user that uninsulated voltage within the unit may have suf f icient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside of this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

WARNING

Warnings and Safety Precaution

The NEC plasma monitor is designed and manufactured to provide long, trouble-free service. No maintenance other than cleaning is required. Use a soft dry cloth to clean the panel. Ne ver use solv ents such as alcohol or thinner to clean the panel surface. The plasma display panel consists of fine picture elements (cells). Although NEC produces the plasma display panels with more than 99.99 percent active cells , there may be some cells that do not produce light or remain lit. For operating saf ety and to av oid damage to the unit, read carefully and observe the following instructions. To avoid shock and fire hazards:

1. Provide adequate space for ventilation to avoid internal heat build-up. Do not cover rear vents or install in a closed cabinet or shelves. The unit is equipped with cooling fans. If you install the unit in an enclosure, be sure there is adequate space at the top of the unit to allow hot air to rise and escape. If the monitor becomes too hot, the overheat protector will be activated and the monitor will be turned off. If this happens, turn off the power to the monitor and unplug the power cord. If the room where the monitor is installed is particularly hot, move the monitor to a cooler location, and wait for the monitor to cool for 60 minutes. If the problem persists, contact your NEC dealer for service.

2. Do not use the power cord polarized plug with extension cords or outlets unless the prongs can be completely inserted.

3. Do not expose unit to water or moisture.

4. Av oid damage to the power cord, and do not attempt to modify the power cord.

5. Unplug unit during electrical storms or if unit will not be used over a long period.

6. Do not open the cabinet which has potentially dangerous high voltage components inside. If the unit is damaged in this way the warranty will be void. Moreover, there is a serious risk of electric shock.

7. Do not attempt to service or repair the unit. NEC is not liable for any bodily harm or damage caused if unqualified persons attempt service or open the back cover. Refer all service to authorized NEC Service Centers.

NOTE: When you connect a computer to this monitor, attach the supplied ferrite cores. If you do not do this, this monitor will not comform to mandatory FCC standards. Attaching the ferrite cores. Set the ferrite cores on the both ends of the DVI cable (not supplied), and the one end of the power cable (supplied). Close the lid tightly until the clamps click. Use the band to secure the ferrite core (supplied).

DVI cable (not supplied)

band

core (small)

band

Connector

core (small)

Recommendations to avoid or minimize phosphor b urn-in

Like all phosphor-based display devices and all other gas plasma displays, plasma monitors can be susceptible to phosphor burn under certain circumstances. Certain operating conditions, such as the continuous display of a static image over a prolonged period of time, can result in phosphor burn if proper precautions are not taken. To protect your investment in this NEC plasma monitor, please adhere to the following guidelines and recommendations for minimizing the occurrence of image burn:

* Always enable and use your computer's screen saver

function during use with a computer input source. * Display a moving image whenever possible. * Always power do wn the monitor when you are finished

using it.

Power cable (supplied)

core (large)

band

(Plasma Monitor side)

Set side

To avoid damage and prolong operating life:

1. Use only with 120V 50/60Hz AC power supply. Continued operation at line voltages greater than 120 Volts AC will shorten the life of the unit, and might even cause a fire hazard.

2. Handle the unit carefully when installing it and do not drop.

3. Locate set away from heat, excessive dust, and direct sunlight.

4. Protect the inside of the unit from liquids and small metal objects. In case of accident, unplug the unit and have it serviced by an authorized NEC Service Center .

5. Do not hit or scratch the panel surface as this causes flaws on the surface of the screen.

6. For correct installation and mounting it is strongly recommended to use a trained,authorized NEC dealer.

7. As is the case with any phosphor-based display (like a CRT monitor, for example) light output will gradually decrease over the life of a Plasma Display Panel.

If the plasma monitor is in long term use or continuous operation take the following measures to reduce the likelihood of phosphor burn:

* Lower the Brightness and Contrast levels as much as

possible without impairing image readability.

* Display an image with many colors and color gradations

(ie. photographic or photo-realistic images).

* Create image content with minimal contrast between light

and dark areas, for example white characters on black backgrounds. Use complementary or pastel color whenever possible.

* Avoid displaying images with few colors and distinct,

sharply defined borders between colors.

Contact NEC Technologies at 1-800-836-0655 for other recommended procedures that will best suit your particular application needs.

Précautions

V euillez lire ce manuel a vec attention a vant d'utiliser v otre moniteur PlasmaSync NEC et conserver ce manuel à portée de la main pour une consultation ultérieure.

ATTENTION

RISQUE D’ELECTROCUTION

NE PAS OUVRIR

MISE EN GARDE: AFIN DE REDUIRE LES RISQUES D’ELECTRO-

CUTION, NE P AS DEPOSER LE COUVERCLE, IL N’Y A AUCUNE PIECE UTILISABLE A L’INTERIEUR DE CET APPAREIL. NE CONFIER LES TRAVAUX D’ENTRETIEN QU’A UN PERSONNEL QUALIFIE.

Ce symbole a pour but de prévenir l’utilisateur de la présence d’une tension dangereuse, non isolée se trouvant à l’intérieur de l’appareil. Elle est d’une intensité suffisante pour constituer un risque d’électrocution. Eviter le contact avec les pièces à l’intérieur de cet appareil.

Ce symbole a pour but de prévenir l’utilisateur de la présence d’importantes instructions concernant l’entretien et le fonctionnement de cet appareil. Par conséquent, elles doivent être lues attentiv ement afin d’éviter des problèmes.

A VERTISSEMENT

AFIN DE REDUIRE LES RISQUES D’INCENDIE OU D’ELECTROCUTION, NE PAS EXPOSER CET APPAREIL A LA PLUIE OU A L’HUMIDITE. AUSSI, NE PAS UTILISER LA FICHE POLARISEE AVEC UN PR OLONGA TEUR OU UNE A UTRE PRISE DE COURANT SAUF SI CES LAMES PEUVENT ETRE INSEREES A FOND. NE PAS OUVRIR LE COFFRET, DES COMPOSANTS HAUTE TENSION SE TROUVENT A L’INTERIEUR. LAISSER A UN PERSONNEL QUALIFIE LE SOIN DE REPARER CET APPAREIL.

DOC avis de conformation

Cet appareil numérigue de la classe A respecte toutes les exigences du Réglement sur le Matériel Brouilleur du Canada.

Mises en garde et précautions de sécurité

Le moniteur PlasmaSync NEC a été conçu et fabriqué pour une utilisation fiable et durable. Il ne nécessite aucun entretien en dehors du nettoyage. Utiliser un chiffon doux et sec pour nettoy er la surface de l'écran. Ne jamais utiliser de solvant comme l'alcool ou le diluant. Le panneau à affichage plasma est constitué de fines particules d'images ou pixels (cellules). Bien que NEC produise des panneaux à affichage plasma avec plus de 99,99 % de cellules actives, il peut y avoir des cellules qui ne produisent pas de lumière ou qui restent allumées. Pour des raisons de sécurité et pour éviter d'endommager l'appareil, lire attentivement les instructions suivantes. Pour éviter les risques d'éléctrocution et d'incendie:

1. Laisser suffisament d'espace autour de l'appareil pour la ventilation et éviter toute augmentation excessi ve de la température interne. Ne pas couvrir les évents ou l'installer dans un endroit trop exigu. L'appareil est équipé de ventilateurs de refroidissement. Si vous installez l'appareil dans un espace clos, assurezvous qu'il y ait suffisamment d'espace au dessus pour permettre à l'air chaud de s'élever et de s'évacuer. Si la température du moniteur devient excessiv e, la protection contre les surchauffes entrera en action et coupera l'alimentation. Dans ce cas, éteindre l'appareil et débrancher le câble d'alimentation. Si la température de la pièce dans laquelle le moniteur est installé est particulièrement excessive, déplacer l'appareil dans un endroit plus frais et le laisser refroidir 60 minutes. Si le problème persiste, prendre contact avec le revendeur NEC pour le service après-vente.

2. Ne pas utiliser la fiche polarisée du cordon d’alimentation avec des prolongateurs ou des prises de courant, sauf si les lames peuvent être insérées à fond.

3. Ne pas exposer à L'eau ou à l’humidité.

4. Eviter d’endommager le cordon d’alimentation, et ne pas modifier le cordon d’alimentation.

5. Débrancher l’appareil pendant les tempêtes ou si l’appareil n’est pas utilisé pendant une longue période.

6. Ne pas ouvrir le coffret. Des composants de haute tension se trouvent à l’intérieur. Si l’appareil est endommagé de cette manière, la garantie devient caduque. De plus, il y a risque d’électrocution.

7. Ne pas essayer de réparer ou entretenir l’appareil soimême. NEC ne saura être tenu pour responsable pour toute blessure ou dommage causé par des personnes non qualifiées qui essayent de réparer ou d’ouvrir le couvercle arrière. Confier toute réparation à un centre de service agréé NEC.

REMARQUE: Lorsque vous branchez un micro-ordinateur sur ce moniteur, fixez les noyaux en ferrites fournis. Si vous ne le faîtes, le moniteur ne sera pas en conformité avec les exigences des standards FCC. Fixation des noyaux en ferrite. Installez les noyaux en ferrite sur chaque bout du câble DVI (non fourni), ainsi que sur un côté du câble d'alimentation électrique (founi). Fermez doucement le couvercle jusqu'à ce que les crans se clipsent. Utiliser les colliers pour fixer la tore en ferrite (fourni)

Câble DVI (non fourni)

Collier Collier

noyau (petit)

Câble d'alimentation électrique (fourni)

noyau (petit)

noyau (large)

Côté de l'appareil (côté du moniteur à plasma)

Connecteur

Collier

Pour éviter des dommages et prolonger la durée de service de l’appareil:

1. N’utiliser qu’une source d’alimentation de 120 V 50/ 60 Hz CA. Le fait d’utiliser l’appareil en continu à des tensions de ligne supérieures à 120 Volts CA réduit sa durée de vie et risque de provoquer un incendie.

2. Manipuler l’appareil avec soin pendant son déplacement et ne pas le faire tomber.

3. Eloigner l’appareil des endroits chauds, très poussiéreux et exposés en plein soleil.

4. Eviter que des liquides et des petits objets métalliques pénètrent à l’intérieur de l’appareil. En cas d’accident, débrancher l’appareil et le confier à un centre de service agréé NEC.

5. Ne pas frapper ou rayer la surface de la écran plasma, car des défauts risquent de se produire sur la surface de la écran plasma.

6. Pour effectuer une installation et un montage corrects, il est recommandé de faire appel au concessionnaire NEC autorisé et spécialisé.

7. Comme c'est le cas pour tout affichage à base de phosphore (comme un moniteur CRT, par exemple), la puissance de lumière baisse graduellement au cours de la vie du Panneau d'Affichage à Plasma.

Pour éviter le risque de combustion au phosphore, les mesures suivantes sont recommandées :

Comme tous les appareils d'affichage à base de phosphore et tous les autres affichages à gaz plasma, les moniteurs Plasmasync peuvent être sujets à la combustion au phosphore dans certaines circonsatnces. Certaines conditions d'utilisation, telles que l'affichage continu d'une image statique pour une durée prolongée, peuvent causer des brûlures au phophore si aucune précaution n'est prise. Pour protéger votre in vestissement dans ce moniteur PlasmaSync NEC, veuillez suivre les directi ves et les recommandations suivantes pour minimiser l'occurence de brûlure d'image :

• Assurez-vous de mettre en marche et d'utliser l'économisateur d'écran chaque fois que c'est possible lorsque vous l'utilisez avec une source d'entrée d'ordinateur.

• Affichez une image en mouvement aussi souvent que possible.

• Coupez toujours l'alimentation lorsque vous a vez terminé d'utiliser la moniteur.

Si le moniteur est en usage continu ou longue durée, prenez les mesures suivantes afin d'éviter l'occurence de combustion au phosphore :

• Abaissez le niveau de l'image (contraste, luminosité) autant que possible, sans faire perdre la lisibilité de l'image.

• Affichez une image avec de nombreuses couleurs et graduations de couleur (par ex. des images photographiques ou photo-réalistes).

• Créez un contenu d'image avec un contraste minimal entre les zones sombres et les zones claires, par exemple, des caractères blancs sur un fond noir. Utilisez des couleurs complémentaires ou pastels le plus souvent possible.

• Évitez d'afficher des images avec peu de couleurs et des limites nettes et clairement définies entre les couleurs.

Contactez NEC Technologies au 1-800-836-0655 pour d'autres procédures recommandées qui conviendront le mieux au besoin de votre appareil.

Limited Warranty Plasma Monitors

NEC T echnologies, Inc. (hereinafter NECTECH) warrants this product to be free from defects in material and workmanship under the following terms and, subject to the conditions set forth below, agrees to repair or replace (at NECTECH's sole option) any part of the enclosed unit which proves defective. Replacement parts or products may be new or refurbished and will meet specifications of the original parts or product.

HOW LONG IS THE WARRANTY?

Parts and labor are warranted for (1) One Year from the date of the first customer purchase.

WHO IS PROTECTED?

This warranty may be enforced only by the first purchaser .

WHA T IS CO VERED AND WHA T IS NOT CO VERED

Except as specified below, this warranty covers all defects in material or workmanship in this product. The following are not covered by the warranty:

1. Any product which is not distributed in the U.S.A. or Canada and Mexico by NECTECH or which is not purchased in the U.S.A. or Canada or Mexico from an authorized NECTECH dealer.

2. Any product on which the serial number has been defaced, modified or removed.

3. Damage, deterioration or malfunction resulting from: a.Accident, misuse, abuse, neglect, fire, water, light-

ning or other acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product.

b.Repair or attempted repair by anyone not authorized

by NECTECH.

c. Any shipment of the product (claims must be pre-

sented to the carrier). d.Removal or installation of the product. e.Any other cause which does not relate to a product

defect. f. Burns or residual images upon the phosphor of the

panel.

4. Cartons, carrying cases, batteries, external cabinets, magnetic tapes, or any accessories used in connection with the product.

5. Service outside of the U.S.A. and Canada.

HOW YOU CAN GET WARRANTY SERVICE

1. To obtain service on your product, consult the dealer from whom you purchased the product.

2. Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty coverage. Please also include in any mailing your name, address and a description of the problem(s).

3. For the name of the nearest NECTECH authorized service center, call NECTECH at 800-836-0655.

LIMITATIONS OF LIABILITY

Except for the obligations specifically set forth in this warranty statement, we will not be liable for any direct, indirect, special, incidental, consequential, or other types of damages, whether based on contract, tort, or any other legal theory, whether or not we have been advised of the possibility of such damages. This warranty is in lieu of all other warranties express or implied, including, but not limited to, the implied warranties of merchantability or fitness for a particular purpose.

EXCLUSION OF DAMAGES

NECTECH' s liability for any defective product is limited to the repair or replacement of the product at our option. NECTECH shall not be liable for:

1. Damage to other property caused by any defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss; or

2. Any other damages whether incidental, consequential or otherwise. Some states do not allow limitation on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

HOW STATE LAW RELATES TO THE WARRANTY

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

FOR MORE INFORMA TION, TELEPHONE 800-8360655 NEC TECHNOLOGIES, INC. 1250 N. Arlington Heights Road, Suite 500 Itasca, Illinois 60143-1248

WHAT WE WILL PAY FOR AND WHAT WE WILL NOT PAY FOR

W e will pay labor and material expenses for cov ered items, but we will not pay for the following:

1. Removal or installation charges.

2. Costs of initial technical adjustments (set-up), including adjustment of user controls. These costs are the responsibility of the NECTECH dealer from whom the product was purchased.

3. Payment of shipping charges.

Note:

MUST have prior approval. To get approval, call NEC Technologies at 800-836-0655.

All products r eturned to NECTECH for service

Contents

How to Attach Options to the Plasma Monitor

......... 1

Introduction ..................................................... 2

Introduction to the PlasmaSync 42MP2

Plasma Monitor ....................................................... 2

The features you'll enjoy include: .............................. 2

Contents of the Package ........................................... 2

Part Names and Function ................................. 3

Front View .............................................................. 3

Rear View / Terminal Board ..................................... 4

Remote Controller .................................................... 5

Battery Installation and Replacement ......................... 6

Using the wired remote control mode ........................ 7

Operating Range .................................................... 7

Handling the remote controller ................................. 7

Installation...................................................... 8

Connecting Your PC Or Macintosh Computer ............ 9

Connections with Equipment that has a Digital Interface

Connecting Your Document Camera.......................... 9

Connecting Your VCR Or Laser Disc Player ................ 9

Connecting Your DVD Player .................................... 9

External Speaker Connections ................................ 10

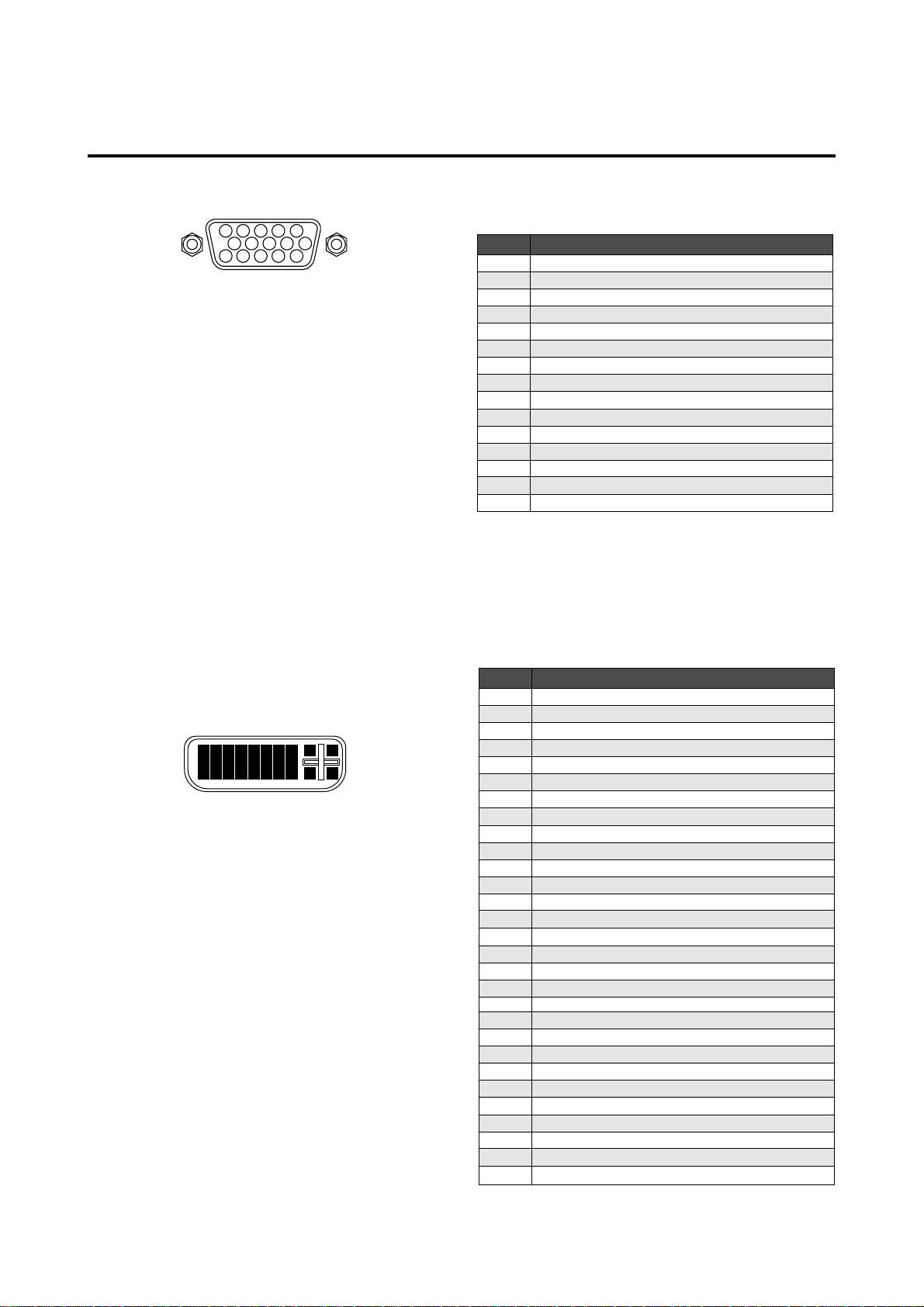

Pin Assignments and Signal Levels

for 15 pin RGB (Analog) ..................................... 11

Pin Configuration and Signal

of the RGB 3 IN Connector (DVI Connector) ......... 11

..... 9

Basic Operations ............................................ 12

POWER ................................................................ 12

To turn the unit ON and OFF: ................................... 12

VOLUME .............................................................. 12

To adjust the volume: ................................................ 12

MUTE ................................................................... 12

To cancel the sound:.................................................. 12

DISPLAY................................................................ 12

To check the settings: ................................................ 12

DIGITAL ZOOM .................................................... 12

OFF TIMER............................................................ 13

To set the off timer: ................................................... 13

To check the remaining time:.................................... 13

Canceling the off timer ............................................. 13

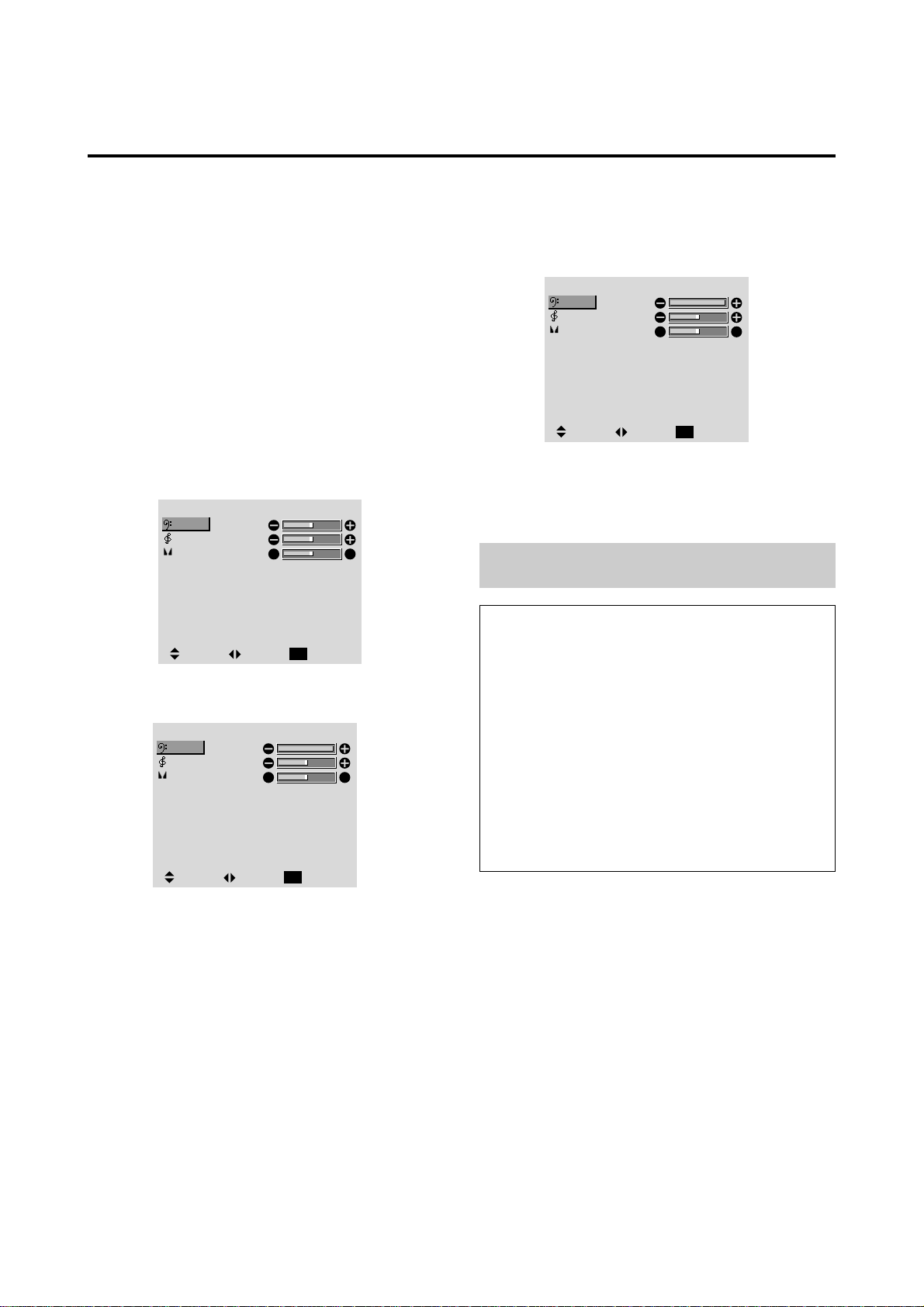

Sound settings menu .............................................. 23

Adjusting the treble, bass and left/right balance ....... 23

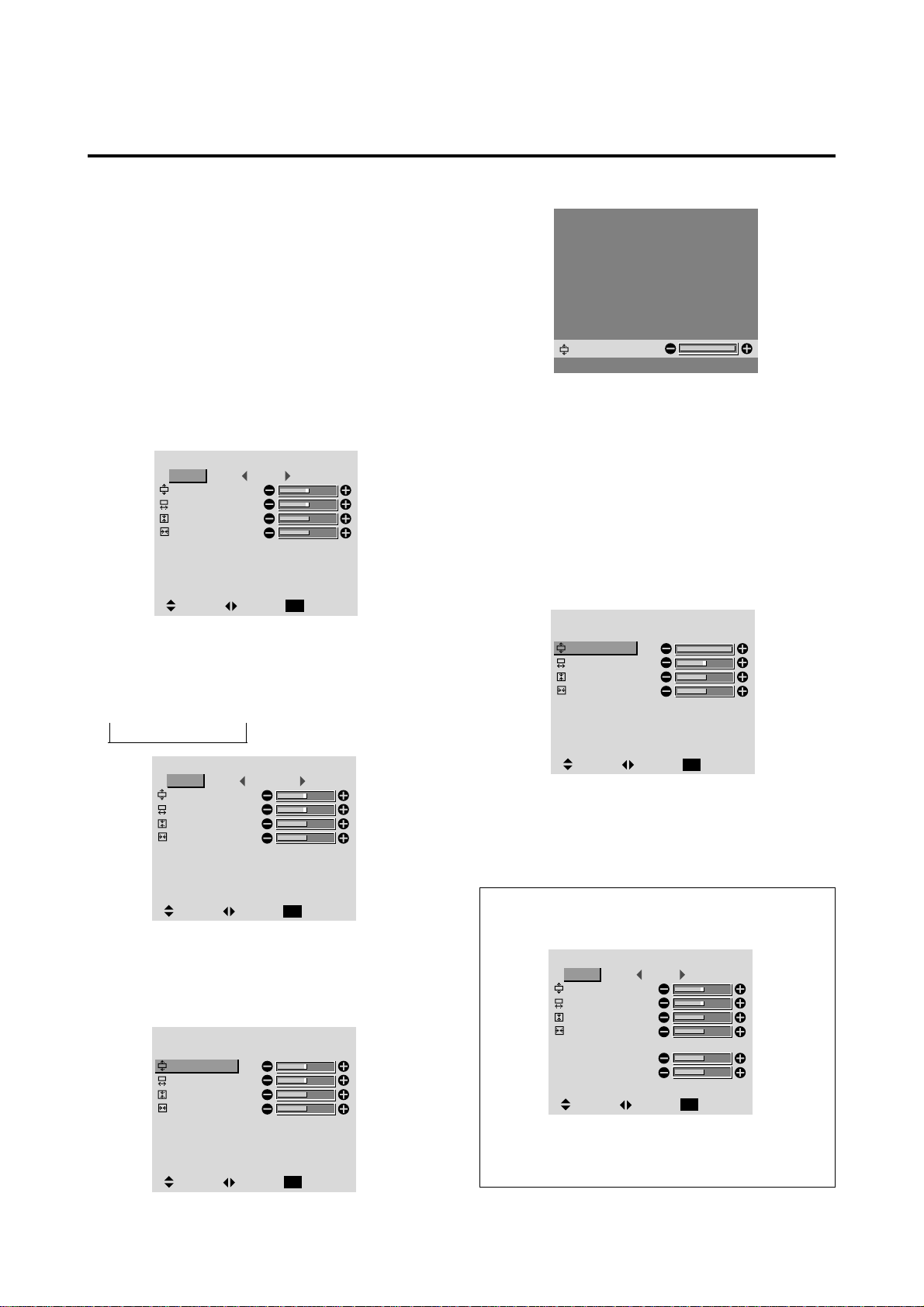

Screen Settings Menu............................................. 24

Adjusting the Position, Size, Fine Picture,

Picture Adj ................................................................ 24

Function Settings Menu .......................................... 25

Setting the on-screen display .................................... 25

Adjusting the position of the menu display .............. 26

Setting the power management for computer images

POWER/STANDBY indicator .................................. 28

Setting the gray level for the sides of the screen.......29

Setting the brightness level to the minimum.............29

Setting the picture to suit the movie ......................... 30

Resetting to the default values .................................. 30

Option setting menu .............................................. 31

Setting the allocation of the audio connectors .......... 31

Setting the BNC connectors...................................... 31

Setting a computer image to the correct RGB

select screen .............................................................. 32

Setting high definition image to the suitable

screen size ............................................................... 33

Adjusting the display position

in the RGB3 input mode ......................................... 33

Information Menu .................................................. 34

Checking the frequencies and polarities

of input signals.......................................................... 34

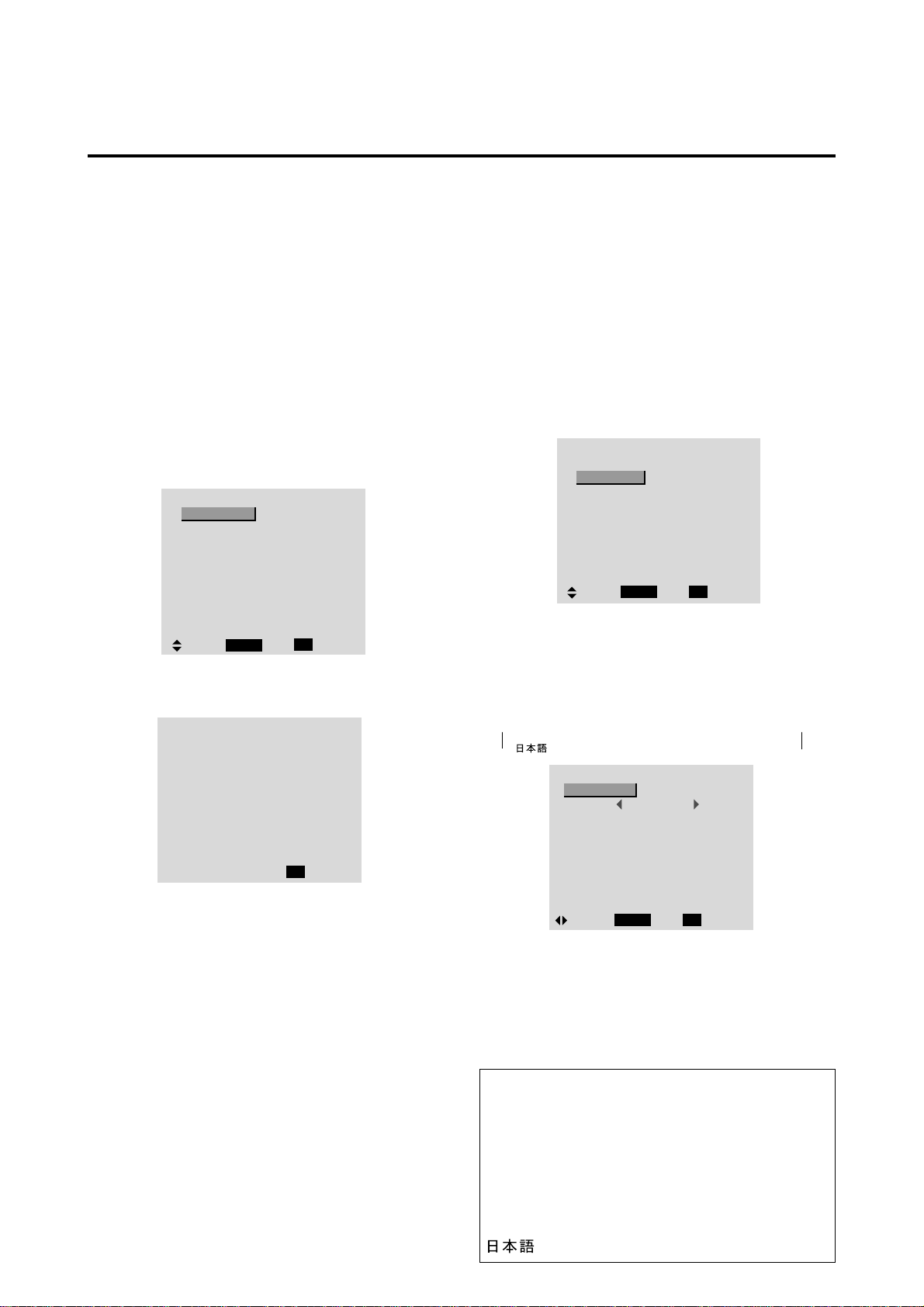

Setting the language for the menus ........................... 34

Setting the video signal format ................................. 35

....... 27

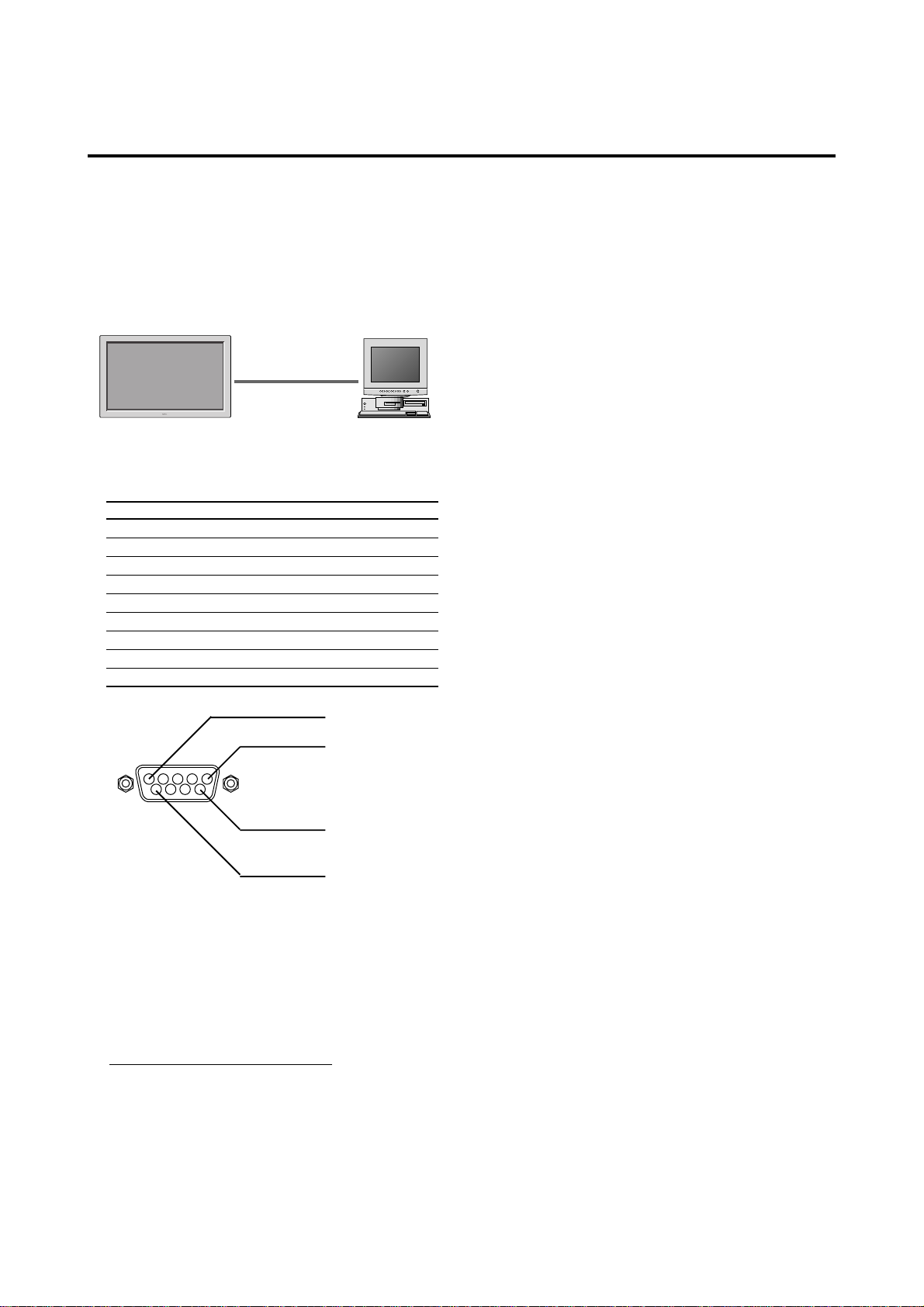

External Control ............................................ 36

Table for Signals Supported ............................ 44

Supported resolutions ............................................ 44

Troubleshooting ............................................. 45

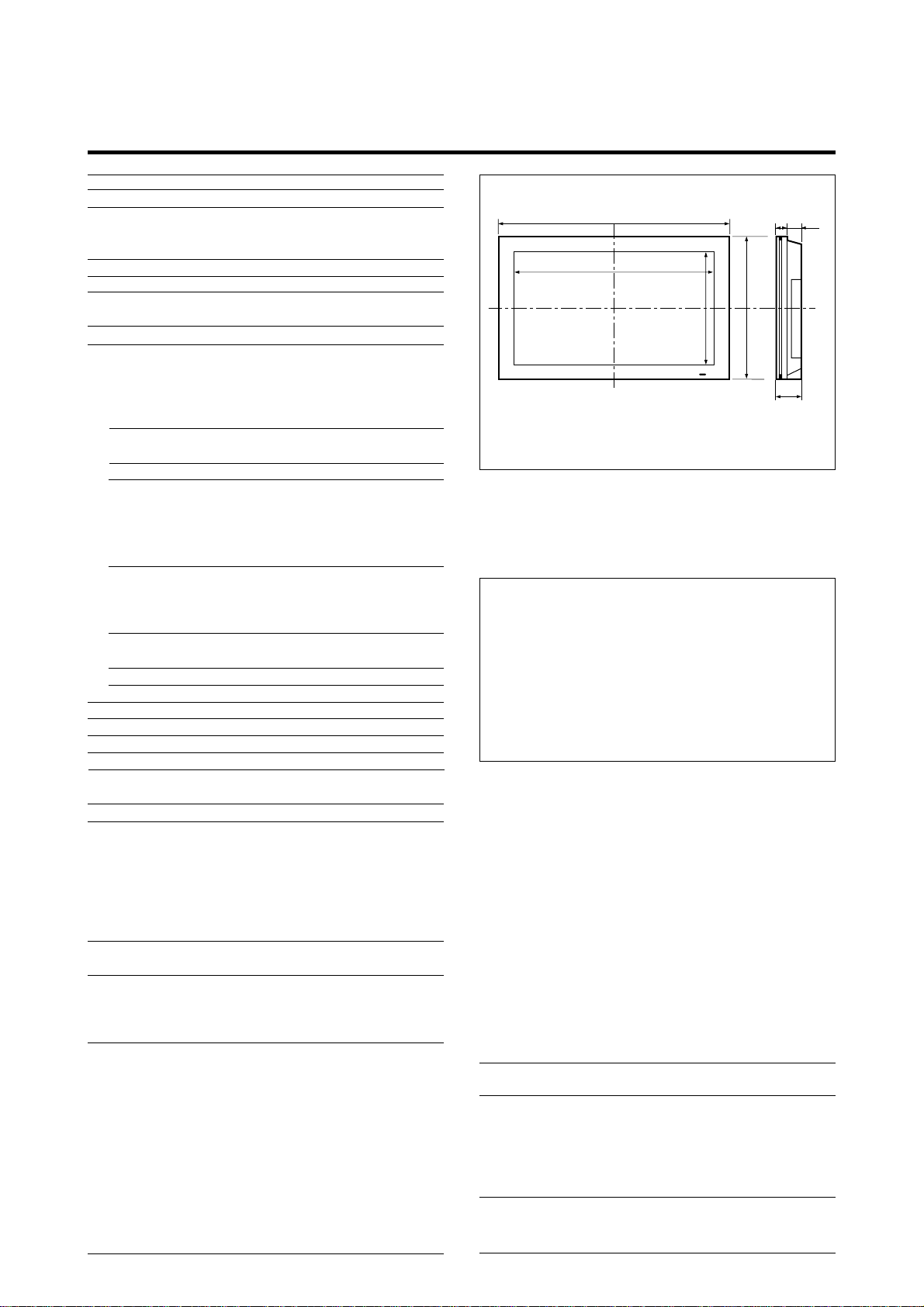

Specifications ................................................. 46

WIDE Operations ............................................ 14

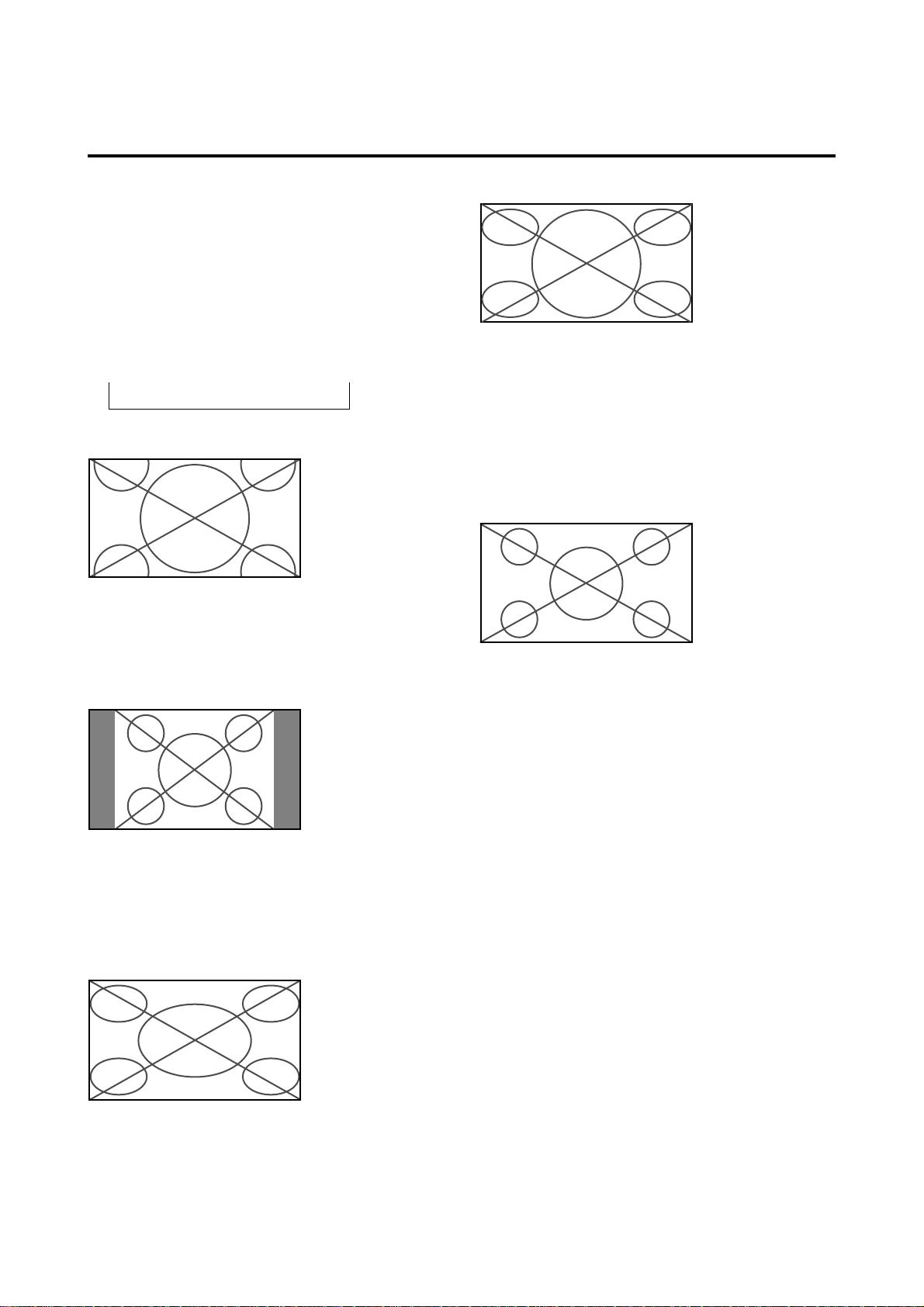

Watching with a wide screen (manual).................... 14

When watching videos or high definition

laser discs .................................................................. 14

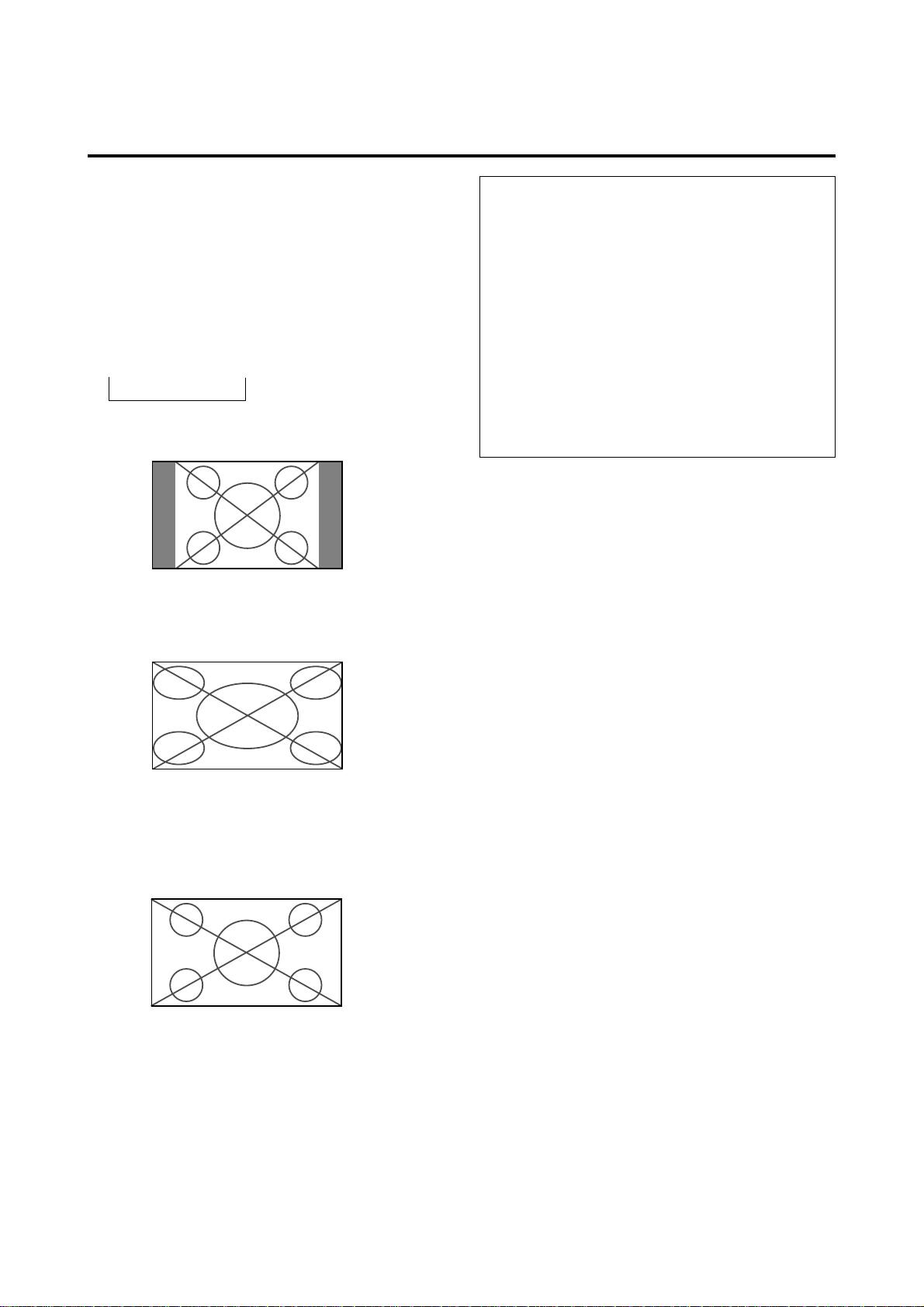

Watching computer images with a wide screen........ 15

OSM Controls ................................................. 16

Menu Operations .................................................. 16

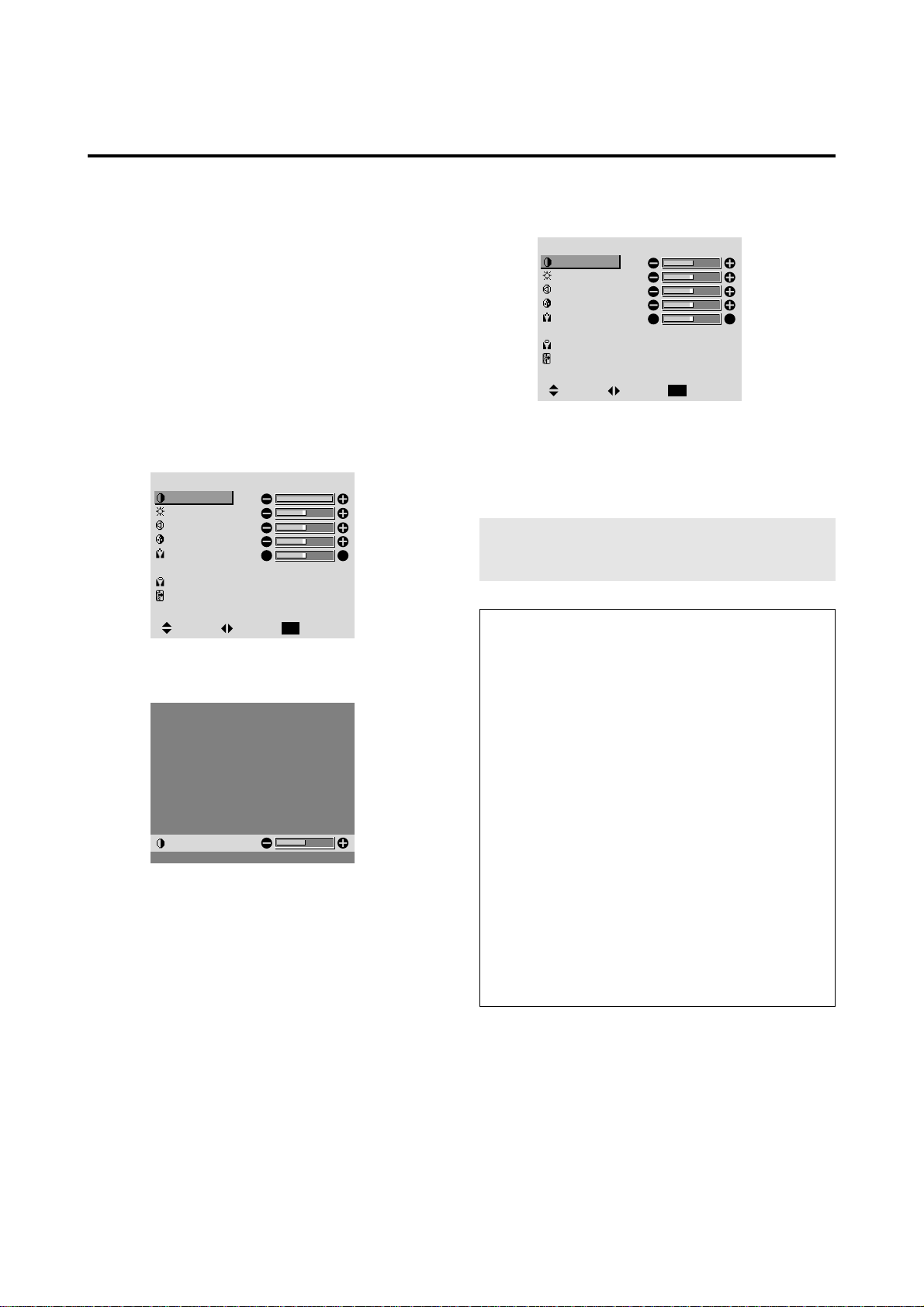

Picture Settings Menu ............................................. 18

Adjusting the picture................................................. 18

Setting the picture mode according to the

brightness of the room .............................................. 19

Setting the color temperature .................................... 20

Adjusting the color to the desired quality ................. 21

Reducting noise in the picture .................................. 22

How to Attach Options to the Plasma Monitor

Y ou can attach your optional mounts or stand to the plasma monitor in one of the following two ways:

* While it is upright. (See Drawing A) * As it is laid down with the screen face down (See Dra w-

ing B). Lay the protective sheet, which was wrapped around the monitor when it was packaged, beneath the screen surface so as not to scratch the screen face.

• This device cannot be installed on its own. Be sure to use a stand or original mounting unit. (Wall mount unit, Stand, etc) * See page 2.

• For correct installation and mounting it is strongly recommended to use a trained, authorized NEC dealer.

Failure to follow correct mounting procedures could result in damage to the equipment or injury to the installer.

Product warranty does not cover damage caused by improper installation.

Drawing A

Drawing B

Ventilation Requirements for enclosure mounting

To allow heat to disperse, leave space between surrounding objects as shown on the diagram below when installing.

31mm (1.22")

Wall

1110mm (43.7")

31mm (1.22")

(2")

(29.5")

748

(2") 50

Wall

Introduction

Introduction to the PlasmaSync 42MP2 Plasma Monitor

NEC's PlasmaSync™ is a seamless blend of cutting-edge visual technology and sophisticated design. At 42-inches, with a 16:9 aspect ratio, the PlasmaSync 42MP2 certainly makes a big impression. However, at a mere 3.5 inches/ 89mm thin, the monitor's sleek techno-art lines blend in well with your environment. PlasmaSync's crisp, vivid image quality will transform data from any graphic medium from PCs to DVD players- into art. And weighing only

70.6 lbs/ 32 kg, it actually can be hung almost anywhere. NEC has made sure that a host of multimedia resources can be easily connected and displayed as brilliantly as intended on the PlasmaSync™ monitor.

The features you'll enjoy include:

• 42-inch screen

• 16:9 aspect ratio

• Capsulated Color Filter (CCF) and black matrix

• 3.5 inch / 89 mm thin

• 70.6 lbs/ 32 kg light

• High-resolution screen: 853⳯480 pixels

• 160-degrees of off-axis viewing, horizontally and vertically.

• Flicker - and warp - free display provides excellent image geometry even in screen corners

• Not affected by magnetic fields, no color drift or edge distortion.

• VGA, SVGA, XGA, SXGA(60Hz), computer signal compatibility

• NTSC, PAL, SECAM, composite and S-Video signal compatibility

• 480P, 1080I, 720P and HDTV signal compatibility

• PCs, VCRs, Laser Disc and DVD player source compatibility

• AccuBlend™ scan conversion automatically converts VGA, SVGA and SXGA signals to the panel's native resolution

• RGB input (3*), Video input (3), DVD/HD input (2*), Audio input (3), External Control input (1)

• AccuColor control system provides user selectable onscreen color temperature settings

• New Drive Technology

• Component video input terminal for DVD, 15.75kHz (Y , CB, CR)

• NEC's OSM™ menu-driven on screen control system that makes image adjustments a snap

• Sev en languages (English, German, French, Italian, Spanish, Swedish, and Japanese)

Contents of the Package

䡺 PlasmaSync™ 42MP2 plasma monitor 䡺 Power cord 䡺 RGB cable (Mini D-Sub 15-pin to Mini D-Sub 15-

pin connector)

䡺 Adapter for Macintosh 䡺 Remote control unit with two AAA Batteries 䡺 User's manual 䡺 Wired Remote cable 䡺 Safety metal fitting* 䡺 Screw for safety metal fitting* 䡺 Ferrite core (small⳯2, large⳯1)

* These are fittings for fastening the unit to a wall to

prevent tipping due to external shock when using the stand (option). Fasten the safety fittings to the holes in the back of the monitor using the safety fitting mount screws.

Options

• Wall mount unit

• Ceiling mount unit

• Tilt mount unit

• T abletop stand

• Speakers

• Others

* You can select RGB source or Component source for

the 5BNC terminal. When selecting an RGB input, the source is switched to the RGB input (3); when selecting a component input, the source is switched to the DVD/ HD input (2).

Part Names and Function

Front View

INPUT SELECT VOLUME

PROCEED

VOLUME

DOWN LEFT/– RIGHT/+UP

1 PROCEED

Sets the on-screen display (OSM) mode and displays the main menu.

2 VOLUME Down and Up

Adjust the volume. Functions as the CURSOR (▲/▼) buttons in the On-screen display (OSM) mode.

3 LEFT/– and RIGHT/+

Enlarges or reduces the image. Functions as the CURSOR (䊴 / 䊳) buttons in the On-screen display (OSM) mode.

POWER/STANDBY

INPUT SELECT

/EXIT

POWER/STANDBY

5 POWER/STANDBY indicator

When the power is on.............................Lights green.

When the power is in the standby mode ... Lights red.

6 Power

Turns the monitor's power on and off.

7 Remote sensor window

Receives the signals from the remote control unit.

4 INPUT SELECT / EXIT

Switches the input, in the following order:

VIDEO1→→VIDEO2 RGB3←RGB2←RGB1

VIDEO3 DVD/HD

→

→

←

Functions as the EXIT buttons in the On-screen display (OSM) mode.

Rear View/ Terminal Board

SPEAKERS MUST HAVE MORE THAN 7WATT RATING IMPEDANCE 6 OHM

LEFT

RIGHT

EXTERNAL CONTROL

REMOTE CONTROL

CONTROL LOCK ON/ OFF

AC IN

C D

SPEAKERS MUST HAVE MORE THAN 7WATT RATING IMPEDANCE 6 OHM

LEFT

RIGHT

EXTERNAL CONTROL

REMOTE CONTROL

CONTROL LOCK ON/ OFF

AC IN

AUDIO 3 AUDIO 2 AUDIO 1 RGB2/ DVD2/ HD2

RGB 3

(Digital RGB)

RGB 3

(Digital RGB)

RGB 1

R/CR/PR

G/Y

B/CB/PB

L(MONO)

VIDEO 1

VIDEO 2

VIDEO 3

L(MONO)

CB/CR

PB/PR

L(MONO)

RGB 1

R/PR

R/C

G/Y

B/C

B/PB

L(MONO)

VIDEO 1

VIDEO 2

VIDEO 3

L(MONO)

B/PB

CR/P

L(MONO)

AUDIO 3 AUDIO 2 AUDIO 1 RGB2/ DVD2/ HD2

A EXT SPEAKER L and R

Connect speakers here.

B EXTERNAL CONTROL

This terminal is used when power ON/OFF, input selection and AUDIO MUTE and other controls are operated externally (by external control). See also page 36 for external control.

C REMOTE CONTROL

Connect the supplied remote cable here.

D CONTROL LOCK

When “CONTROL LOCK” is set “ON”, the b uttons on the set's control panel do not function.

E AC IN

Connect the included power cord here.

F RGB3 (DVI 29pin)

Inputs a digital RGB signal (TMDS).

G RGB1

Inputs the analog RGB signal of personal computer, etc.

H RGB2/ DVD2/ HD2

RGB2: Inputs the analog RGB signal. DVD2/ HD2: Connect DVD's, high def inition Laser

Discs, etc. here.

I VIDEO1, 2, 3

Connect VCR's, DVD's or LaserDiscs, etc. here.

J DVD1 / HD1

Connect DVD's high definition LaserDiscs, etc. here.

K AUDIO1, A UDIO2, A UDIO3

These are audio input terminals. The input is selectable. Set which video image to allot them to on the menu screen.

Remote Controller

POWER

OFF

RGB/PC DVD/HD

POSITION

/CONTROL

VIDEO

POINTER

ZOOM

VOLUME

–

MUTE

WIDE

OFF TIMER

PROCEED

EXIT

–

DISPLAY

C D

2 RGB/PC

Press this button to select RGB/PC as the source.

→ RGB1 → RGB2 → RGB3 

RGB/PC can also be selected using the INPUT SELECT button on the monitor. The input switches as follows each time the button is pressed:

VIDEO1→→VIDEO2 RGB3←RGB2←RGB1

VIDEO3 DVD/HD

→

→

←

3 VIDEO

Press this button to select VIDEO as the source.

→ VIDEO1 → VIDEO2 → VIDEO3 

VIDEO can also be selected using the INPUT SELECT button on the monitor. The input switches as follows each time the button is pressed:

VIDEO1→→VIDEO2 RGB3←RGB2←RGB1

VIDEO3 DVD/HD

→

→

←

4 DVD / HD

Press this button to select DVD/HD as the source. DVD/HD can also be selected using the INPUT SE-

LECT button on the monitor . The input switches as follows each time the button is pressed:

VIDEO1→→VIDEO2 RGB3←RGB2←RGB1

VIDEO3 DVD/HD

→

→

←

5 PROCEED

Press this button to access the OSM controls. Press this button during the display of the main menu to go to the sub menu.

REMOTE CONTROLLER

RD-337

1 POWER ON/OFF

Switches power on/off. (This does not operate when POWER/STAND BY indicator of the main unit is off.

6 EXIT

Press this button to exit the OSM controls in the main menu. Press this button during the display of the sub menu to return to the main menu.

7 CURSOR (▲ / ▼ / 䊴 / 䊳)

Use these buttons to select items or settings and to adjust settings.

8 POINTER

Press this button to display the pointer.

9 VOLUME (+ /–)

Adjust the volume.

0 ZOOM (+ /–)

Enlarges or reduces the image

A MUTE

Mutes the sound.

B WIDE

The type of broadcast is detected automatically, and the recommended wide screen mode is set.

C DISPLAY

Displays the source settings on the screen.

D OFF TIMER

Activates the off timer for the unit.

E Remote Jack

Insert the plug of the supplied remote cable when using the supplied remote control unit in the wired condition.

F Remote control signal transmitter

Transmits the remote control signals.

Battery Installation and Replacement

Insert the 2 "AAA" batteries, making sure to set them in with the proper polarity.

1.Press and open the cover.

2.Align the batteries according to the (+) and (–) indication inside the case.

3.Replace the cover.

REMOTE

CONTROL

EXTERNAL

CONTROL

Using the wired remote control mode

Connect the included remote control cable to the remote control unit's "REMOTE CONTROL" terminal.

When the cable is connected, the mode automatically switches to wired remote control.

When the wired remote control mode is used, the remote control unit can be operated even if no batteries are loaded.

SPEAKERS MUST HAVE MORE THAN 7WATT RATING IMPEDANCE 6 OHM

LEFT

RIGHT

EXTERNAL CONTROL

REMOTE CONTROL

CONTROL LOCK ON/ OFF

AC IN

Operating Range

* Use the remote controller within a distance of about 7 m

/ 23ft. from the front of the monitor's remote control sensor and at a horizontal angle of within 30°.

* The remote control operation may not function if the

monitor's remote control sensor is exposed to direct sunlight or strong artificial light, or if there is an obstacle between the sensor and the remote control unit.

DOWN UP

VOLUME

INPUT SELECT /EXITLEFT/– RIGHT/+

POWER/STANDBY

Remote Control Cable

To Remote Jack

CONTROL LOCK ON/ OFF

Approx. 7m/ 23ft

30˚ 30˚

Handling the remote controller

• Do not drop or mishandle the remote control unit.

• Do not get the remote control unit wet. If the remote gets wet, wipe it dry immediately.

• Avoid heat and humidity.

• When not using the remote control unit for a long period, remove the batteries.

• Do not use new and old batteries together, or use different types together.

• Do not take apart the batteries, heat them, or throw them into a fire.

• When using the remote control unit in the wireless condition, be sure to unplug the remote cable from the REMOTE CONTROL terminal on the monitor.

Installation

Personal computer with a digital RGB output

Signal cable (supplied) To Mini D-Sub 15 pin connector on the plasma monitor

RGB 3

(Digital RGB)

RGB 1

R/CR/PR

G/Y

B/C

B/PB

L(MONO)

VIDEO 1

VIDEO 2

VIDEO 3

L(MONO)

CB/PB

DVD1/HD1

CR/PR

L(MONO)

AUDIO 3 AUDIO 2 AUDIO 1 RGB2/ DVD2/ HD2

To video, S-video inputs on the plasma monitor

IBM VGA or Compatibles

Macintosh or Compatibles

(Desk top type)

Monitor adapter for Macintosh (supplied)

VCR or Laser Disc Player

Document Camera

DVD Player

Connecting Your PC Or Macintosh Computer

Connecting your PC or Macintosh computer to your plasma monitor will enable you to display your computer's screen image for an impressive presentation. The plasma monitor supports the signals described on page 44.

To connect to a PC, Macintosh or compatible graphics adapter, simply:

1. Turn off the power to your plasma monitor and computer.

2. If your PC does not support XGA/SVGA/VGA you will need to install an XGA/SVGA/VGA graphics board. Consult your computer's owner's manual for your XGA/SVGA/VGA configuration. If you need to install a new board, see the manual that comes with your new graphics board for installation instructions.

3. The plasma monitor provides signal compatibility up to VESA 1280⳯1024@60Hz (SXGA). However, it is not recommended to use this resolution due to image readability on the monitors 853⳯480 native pixel resolution panel.

4. Use the signal cable that's supplied to connect your PC or Macintosh computer to the plasma monitor. For Macintosh, use the supplied monitor adapter to connect to your computer's video port.

5. Turn on the plasma monitor and the computer.

6. If the plasma monitor goes blank after a period of inactivity, it may be caused by a screen saver installed on the computer you've connected to the plasma monitor.

When using a Macintosh with the plasma monitor, the following four display standards are supported using the included Macintosh adapter :

13" fixed mode 16" fixed mode 19" fixed mode 21" fixed mode

The 13" fixed mode is recommended for the plasma monitor.

Connecting Your Document Camera

You can connect your plasma monitor to a document camera. To do so, simply:

1. Turn off the power to your plasma monitor and document

2. Use a standard video cable to connect your document camera

3. Turn on the plasma monitor and the document camera.

Note:

more information about your camera's video output requirements.

Connecting Your VCR Or Laser Disc Player

Use common RCA cables (not provided) to connect your VCR or laser disc player to your plasma monitor. To make these connections, simply:

1. Turn off the power to your plasma monitor and VCR or laser

2. Connect one end of your RCA cable to the video output

3. Turn on the plasma monitor and the VCR or laser disc player .

Note:

for more information about your equipment's video output requirements.

camera.

to the Video input on your plasma monitor.

Refer to your document camera's owner's manual for

disc player.

connector on the back of your VCR or laser disc player, connect the other end to the Video input on your plasma monitor. Use standard RCA audio patch cords to connect the audio from your VCR or laser disc player to your plasma monitor (if your VCR or laser disc player has this capability). Be careful to keep your right and left channel connections correct for stereo sound.

Refer to your VCR or laser disc player owner's manual

Connections with Equipment that has a Digital Interface

Connections can be made with equipment that is equipped with a digital interface compliant with the DVI (Digital Visual Interface) standard. * Use a DVI 29-pin signal cable (available separately) and the

ferrite cores (supplied) when making connections to the RGB3 IN (DVI) connector of the main unit. Note that the RGB3 IN(DVI) terminal does not support analog RGB input source.

Note:

1. Input TMDS signals conforming to DVI standards. The TMDS input corresponds to 1 link.

2. To maintain display quality, use a cable with a quality prescribed by D VI standards that is within 5 meters in length.

Connecting Your DVD Player

You can connect your plasma monitor to a DVD player. To do so, simply:

1. Turn off the po wer to your plasma monitor and DVD player.

2. Use a standard video cable to connect your DVD player to the Y, Cb, and Cr inputs on your plasma monitor. Or use the DVD-player's S-Video output. Use a standard SVideo cable to connect to the S-Video input on the plasma monitor.

3. Turn on the plasma monitor and the DVD player.

External Speaker Connections

SPEAKERS MUST HAVE MORE THAN 7WATT RATING IMPEDANCE 6 OHM

LEFT

RIGHT

EXTERNAL CONTROL

REMOTE CONTROL

CONTROL LOCK ON/ OFF

AC IN

LEFT

RIGHT

RGB 3

(Digital RGB)

RGB 1

R/CR/PR

G/Y

B/CB/PB

L(MONO)

VIDEO 1

VIDEO 2

VIDEO 3

L(MONO)

CB/CR

PB/PR

L(MONO)

AUDIO 3 AUDIO 2 AUDIO 1 RGB2/ DVD2/ HD2

External speakers may be connected to the plasma monitor to reproduce sound from VIDEO, DVD or RGB signal sources.

External speakers may be connected directly to the SPEAKERS terminals or indirectly by connecting a stereo system amplifier to the audio outputs.

CAUTION:

Unplug the plasma monitor and all connected components before connecting external speakers. Use only speakers with 6-ohm impedance and a power output rating of 7 watts or more .

T o connect external speakers directly to the plasma monitor:

1. Strip the ends of the speaker wires.

2. Press down the tabs below the SPEAKERS terminals, insert the speaker wire and release the tab to secure the speaker wire connection:

[a] Connect the right speaker (located at right side

of the monitor when viewed from the front) positive (+) wire to RIGHT +.

[b] Connect the right speaker negative (–) wire to

RIGHT -.

[c] Connect the left speaker negative (–) wire to

LEFT–.

[d] Connect the left speaker positive wire (+) to

LEFT+.

Pin Assignments and Signal Levels for 15 pin RGB (Analog)

5 4 3 2 1

10 9 8 7 6

15 14 13 12 11

Pin No.

1 2 3 4 5 6 7 8 9

10 11 12 13 14 15

Red Green or sync-on-green Blue No connection Ground Red ground Green ground Blue ground No connection Sync signal ground No connection Bi-directional DATA (SDA) Horizontal sync Vertical sync SCL

Signal (Analog)

Pin Configuration and Signal of the RGB 3 IN Connector (DVI Connector)

The unit is equipped with a type of connector commonly used for both analog and digital. (Functionally, this cannot be used for analog input.) (TMDS can be used for one link only)

RGB 3

8 25 26

27 28

Pin No.

1 2 3 4 5 6 7 8 9

10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29

Signal (Digital)

T.M.D.S Data 2 T.M.D.S Data 2 + T.M.D.S Data 2 Shield No connection No connection DDC Clock DDC Data No connection T.M.D.S Data 1 T.M.D.S Data 1 + T.M.D.S Data 1 Shield No connection No connection +5V Power Ground Hot Plug Detect T.M.D.S Data 0 T.M.D.S Data 0 + T.M.D.S Data 0 Shield No connection No connection T.M.D.S Clock Shield T.M.D.S Clock + T.M.D.S Clock No connection No connection No connection No connection No connection

Basic Operations

POWER

To turn the unit ON and OFF:

1. Plug the power cord into an active AC power outlet.

2. Press the POWER ON button (on the remote controller) to turn on.

The monitor’s PO WER/ST ANDBY indicator will light up(green) when the unit is on.

3. Press the POWER OFF button (on the remote controller or the unit) to turn off.

The monitor’s PO WER/STANDBY indicator turns red and the standby mode is set (only when turning off the unit with the remote control).

VOLUME

To adjust the volume:

1. Press and hold the V OLUME ▲ b utton (on the remote controller or the unit) to increase to the desired level.

2. Press and hold the V OLUME ▼ b utton (on the remote controller or the unit) to decrease to the desired level.

MUTE

To cancel the sound:

Press the MUTE button on the remote controller to cancel sound; press again to restore.

DIGITAL ZOOM

Digital zoom specifies the picture position and enlarges the picture.

1. Press the pointer button to display the pointer. ( )

To change the size of the picture:

Press the ZOOM+ button and enlarge the picture.

The pointer will change to resemble a magnifying glass. ( )

A press of the ZOOM- button will reduce the picture and return it to its original size.

To change the picture position:

Select the position with the ▲▼䊴䊳 buttons.

2. Press the pointer button to delete the pointer.

DISPLAY

To check the settings:

1. The screen changes each time the DISPLAY button is pressed.

2. If the button is not pressed for approximately three seconds, the menu turns off.

OFF TIMER

To set the off timer:

The off timer can be set to turn the power off after 30, 60, 90 or 120 minutes.

1. Press the OFF TIMER button to start the timer at 30 minutes.

2. Press the OFF TIMER button to the desired time.

3. The timer starts when the menu turns off.

→ 30 → 60 → 90 → 120 → 0 

Canceling the off timer

1. Press the OFF TIMER button twice in a row.

2. The off timer is canceled.

OFF TIMER0

OFF TIMER30

To check the remaining time:

1. Once the off timer has been set, press the OFF TIMER button once.

2. The remaining time is displayed, then turns off after a few seconds.

3. When five minutes remain the remaining time appears until it reaches zero.

OFF TIMER28

Note:

After the power is turned off with the off timer ... A slight current is still supplied to the monitor. When you are leaving the room or do not plan to use the system for a long period of time, turn off the power of the monitor.

WIDE Operations

Watching with a wide screen (manual)

With this function, you can select one of four screen sizes.

When watching videos or digital video discs

1. Press the "WIDE" button on the remote controller.

2. Within 3 seconds ... Press the "WIDE" button again.

The screen size switches as follows:

→ ZOOM → NORMAL → FULL → STADIUM 

ZOOM size screen

The picture is expanded in the horizontal and vertical direction, maintaining the original proportions. * Use this for theater size (wide) movies, etc.

NORMAL size screen (4:3)

STADIUM size screen

The picture is expanded in the horizontal and vertical directions at different ratios. * Use this for watching normal video programs (4:3) with

a wide screen.

When watching high definition video source

1. Press the "WIDE" button on the remote controller.

FULL size screen (16 : 9)

The full size screen is displayed. * The picture has the same size as video pictures (16 : 9).

The normal size screen is displayed. * The picture has the same size as video pictures with a

4 : 3 aspect ratio.

FULL size screen

The image is expanded in the horizontal direction. * Images compressed in the horizontal direction ("squeezed

images") are expanded in the horizontal direction and displayed on the entire screen. (Normal images are expanded in the horizontal direction.)

Watching computer images with a wide screen

Switch to the wide screen mode to expand the 4 : 3 image to fill the entire screen.

1. Press the "WIDE" button on the remote controller.

2. Within 3 seconds ... Press the "WIDE" button again.

The screen size switches as follows:

→ NORMAL → FULL 

NORMAL size screen (4:3 or SXGA 5:4)

The picture has the same size as the normal computer image.

Information

䡵 Supported resolution

• See page 44 for details on the display output of the various VESA signal standards supported by the monitor.

• When 852 dot⳯480 line wide VGA (*) signals with a vertical frequency of 60 Hz and horizontal frequency of 31.72 kHz are input, select "WIDE" for the "RGB SELECT" setting. Since selecting an 848⳯480 signal automatically displays the image in correct size, it is not necessary to change the RGB SELECT setting.

* "IBM PC/AT" and "VGA" are registered trademarks

of IBM, Inc. of the United States.

FULL size screen

The image is expanded in the horizontal direction.

When using a graphic accelerator board that is capable of displaying 848⳯480.

FULL size screen

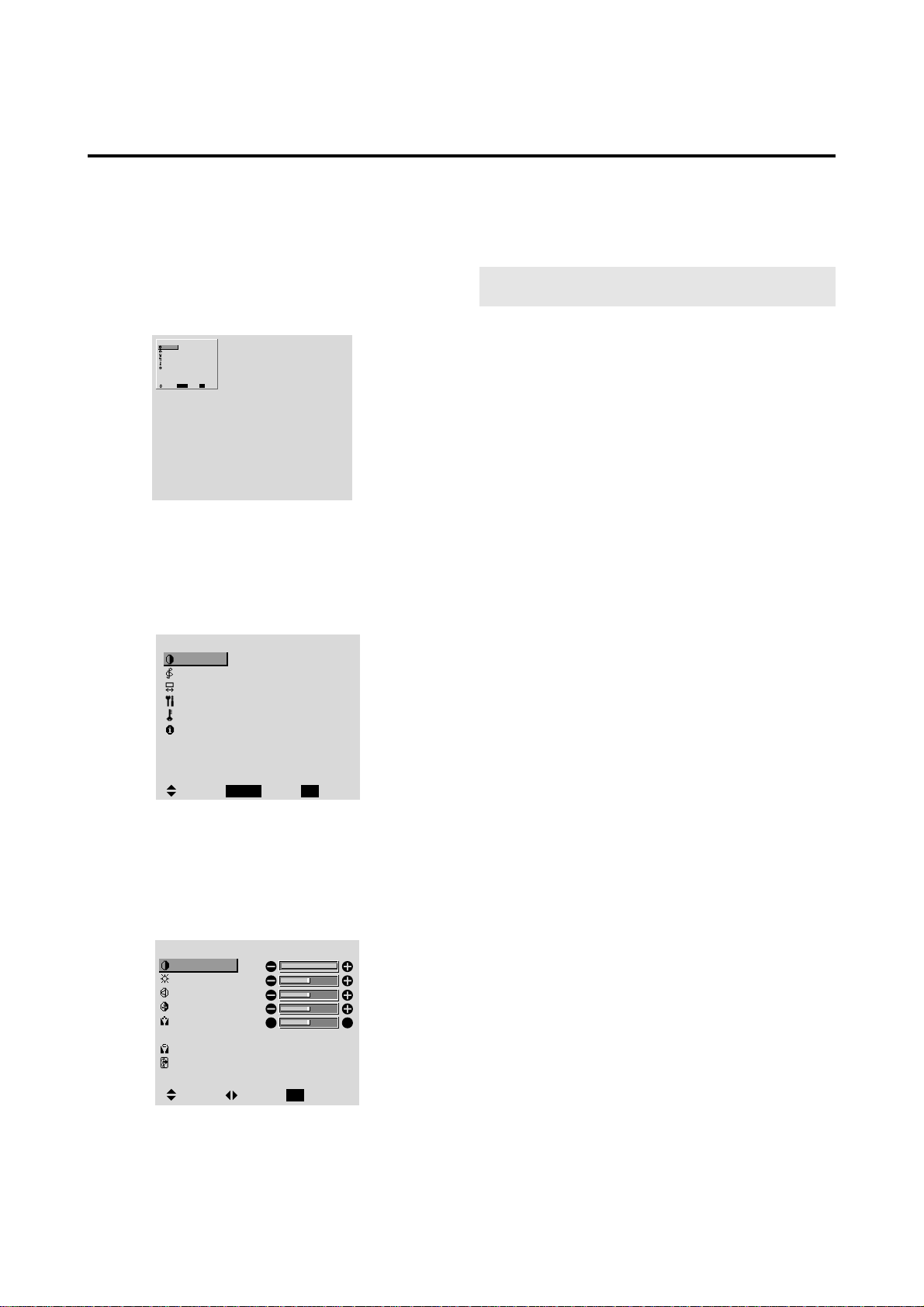

OSM(On Screen Menu) Controls

Menu Operations

The OSM window is displayed with respect to the screen as shown on the diagram.

* Depending on the screen's mode, the OSM may be dis-

played slightly differently. In the explanation, the OSM section is shown close up.

MAIN MENU PICTURE SOUND SCREEN FUNCTION OPTION INFORMATION

SEL. OK EXIT

EXITPROCEED

The following describes how to use the menus and the selected items.

1. Press the PROCEED button on the remote controller to display the MAIN MENU.

5. The change is stored until you adjust it again.

6. Repeat steps 2 – 5 to adjust an additional item, or press the EXIT button on the remote controller to return to the main menu.

Note:

The main menu disappears by pressing the EXIT

button.

MAIN MENU

PICTURE SOUND SCREEN FUNCTION OPTION INFORMATION

SEL. OK EXIT

EXITPROCEED

2. Press the cursor buttons ▲ ▼ on the remote controller

to highlight the menu you wish to enter.

3. Press the PROCEED button on the remote controller to select a submenu or item.


CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE COLOR TEMP. NR

MEMORY

NR-2

SEL. ADJ. RETURN

EXIT

4. Adjust the level or change the setting of the selected item by using the cursor buttons 䊴䊳 on the remote controller.

Main menu Sub menu Functions Default Reset

PICTURE CONTRAST Adjusts the contrast.

BRIGHTNESS Adjusts the brightness. SHARPNESS Adjusts the sharpness. COLOR Adjusts the color. TINT Adjusts the tint. PICTURE MODE Sets the picture mode according to the VIDEO environment and im-

Max Yes Center Yes Center Yes Center Yes Center Yes

MEMORY Yes

age software. COLOR TEMP Adjusts the color temperature and white balance. NR Reduces noise visible in image.

2Yes

OFF Yes

Main menu Sub menu Functions Default Reset

SOUND BASS Sets the bass.

TREBLE Sets the treble. BALANCE Sets the left/right balance.

Center Yes Center Yes Center Yes

Main menu Sub menu Functions Default Reset

SCREEN V-POSITION Adjusts the vertical position

H-POSITION Adjusts the horizontal position V-HEIGHT Adjusts the vertical size H-WIDTH Adjusts the horizontal size AUT O PICTURE Turn this on to have the monitor automatically adjust “FINE PICTURE”

Center Yes Center Yes

Min Yes Min Yes

OFF*

and “PICTURE ADJ” FINE PICTURE Adjusts for flickering on the computer image PICTURE ADJ. Adjusts for striped patterns on the computer image

Min*

Center*

Yes

Main menu Sub menu Functions Default Reset

FUNCTION OSM Turns the on-screen display (screen mode, etc.) off (when set to "OFF").

ON Yes

When set to "ON", the on-screen display is displayed. OSM ADJ. Adjusts the vertical and horizontal positions of the menu display. POWER MGT Sets the monitor for use as an energy-saving display when used with a

1Yes

OFF Yes

computer. GRAY LEVEL In case of 4 : 3, sets the luminance of both sides. PLE+INVERSE

Set the brightness level to the minimum in conjunction with the inverse function. CINEMA MODE Setting the picture to suit the movie. RESET Resets all the settings (PICTURE, SOUND, SCREEN, FUNCTION,

3Yes AUTO Y es AUTO Y es

–

etc.) to the factory default values.

Main menu Sub menu Functions Default Reset

OPTION AUDIO INPUT Setting the allocation of the audio connectors.

BNC SELECT Setting the BNC connectors. RGB SELECT Sets the appropriate mode for the computer image.

RGB Yes RGB Yes

Yes

RGB (VGA signals), VIDEO (Moving picture), WIDE (WIDE V GA) DTV. HD SELECT Sets the digital broadcasting (1080A,1080B) or the High Vision (1035I). RGB3 ADJ Adjusts the display position in the RGB3 input.

1080B No

1Yes

Main menu Sub menu Functions Default Reset

INFORMA TION FREQUENCY Used to check the frequency and synchronizing polarities of the signal

–

currently being inputted. LANGUA GE Sets the language of the men us (Japanese, English, German, French,

English No

Swedish, Italian or Spanish). COLOR SYSTEM Sets the VIDEO format (AUT O1, A UTO2, PAL, PAL-M, PAL-N, PAL60,

AUTO1 No

SECAM, 4.43 NTSC or 3.58 NTSC).

*1 RGB/PC only. *2 AUDIO1: RGB1 AUDIO2: VIDEO1 AUDIO3: HD/DVD1

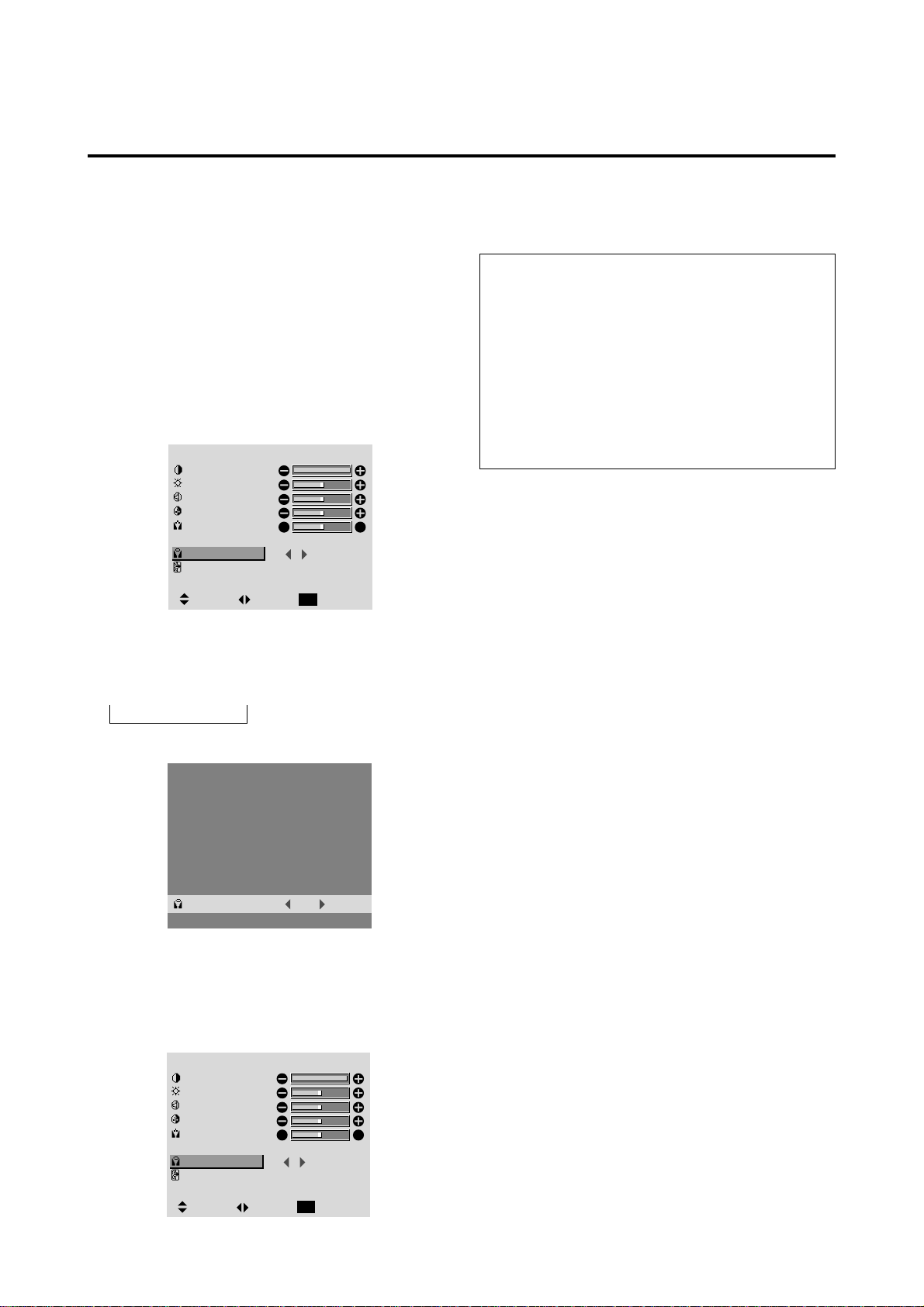

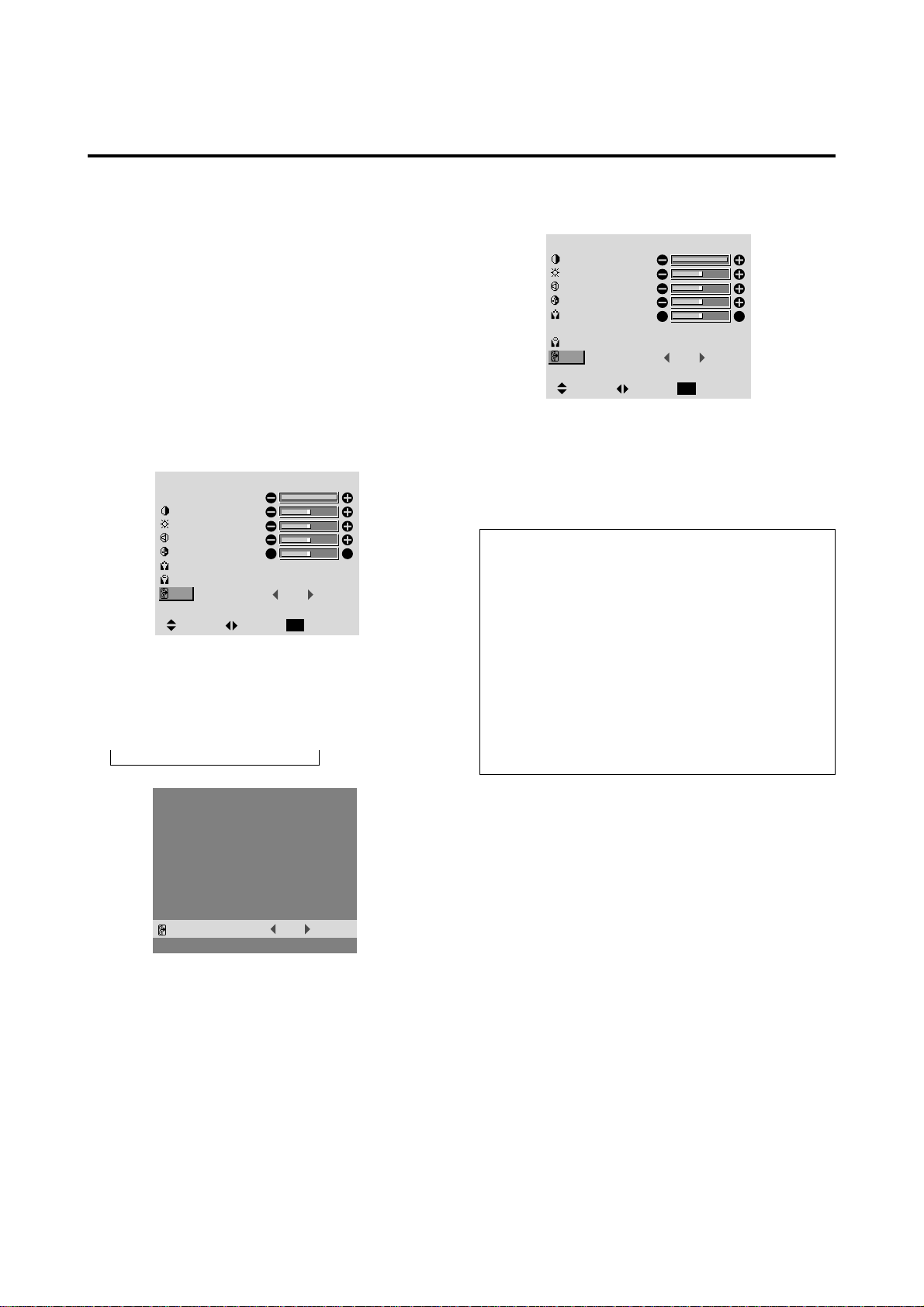

Picture Settings Menu

Adjusting the picture

The contrast, brightness, sharpness, color and tint can be adjusted as desired.

Example: Adjusting the contrast

Press the PROCEED button on the remote controller to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “PICTURE”, then

press the “PROCEED” button. The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “CONTRAST”.


CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE COLOR TEMP. NR

MEMORY

NR-2

4. Press the “PROCEED” button. The contrast adjustment is completed.


CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE COLOR TEMP. NR

SEL. ADJ. RETURN

MEMORY

NR-2

EXIT

5. Once the adjustment is completed ... Press the “EXIT” button to return to the main menu. T o delete the main menu, press the “EXIT” button once more.

Note:

If “CAN NOT ADJUST” appears ... When trying to enter the PICTURE submenu, make sure PICTURE MODE is set to MEMORY.

SEL. ADJ. RETURN

EXIT

3. Use the 䊴 and 䊳 buttons to adjust the picture.

CONTRAST

* If neither the 䊴 or 䊳 button is pressed within 5 sec-

onds, the current setting is set and the previous screen reappears.

Information

䡵 Picture adjustment screen

CONTRAST ....... Changes the picture’s contrast.

BRIGHTNESS....Changes the picture’s brightness.

SHARPNESS.....Changes the picture’s sharpness.

Adjusts picture detail of VIDEO display.

COLOR .............. Changes the color density.

TINT ...................Changes the picture’s tint. Adjust

for natural colored skin, background, etc.

䡵 Adjusting the computer image

Only the contrast and brightness can be adjusted when a computer signal is connected.

䡵 Restoring the factory default settings

Select “RESET” under the “PICTURE MODE” settings.

Setting the picture mode according to the brightness of the room

There are four picture modes that can be used effectively according to the environment in which you are viewing the display.

Example: Setting the “THEATER” mode

Press the PROCEED button on the remote controller to display the MAIN MENU on the screen, then...

4. Press the “PROCEED” button. The picture mode is set to “THEATER”.


CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE COLOR TEMP. NR

THEATER

NR-2

1. Use the ▲ and ▼ buttons to select “PICTURE”, then

press the “PROCEED” button. The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “PICTURE MODE”.


CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE COLOR TEMP. NR

SEL. ADJ. RETURN

MEMORY

NR-2

EXIT

3. To set to “THEATER” ... Use the 䊴 and 䊳 buttons to select “THEATER”. The mode switches as follows when the 䊴 and 䊳 buttons are pressed:

→ MEMORY ↔ THEA TER ↔ NORMAL ↔ RESET ←

SEL. ADJ. RETURN

EXIT

5. Once the adjustment is completed ... Press the “EXIT” button to return to the main menu. T o delete the main menu, press the “EXIT” button once more.

Information

䡵 Types of picture modes

MEMORY ......The last picture adjustments are stored

here.

THEATER ......Set this mode when watching video in

a dark room. This mode provides darker, finer pictures, like the screen in movie theaters. CONTRAST = 80% for RESET mode BRIGHTNESS = 95% for RESET mode

NORMAL.......Set this mode when watching video in

a bright room. This mode provides dynamic pictures with distinct differences between light and dark sections. CONTRAST = 96% for RESET mode

RESET ..........Use this to reset the picture to the fac-

tory default settings.

PICTURE MODE

THEATER:

* If neither the 䊴 or 䊳 button is pressed within 5 sec-

onds, the current selection is set and the previous screen reappears.

Setting the color temperature

Use this procedure to set color tone produced by the plasma display.

Example: Setting "1"

5. Once the setting is completed... Press the “EXIT” button to return to the main menu. T o delete the main menu, press the “EXIT” button once more.

Information

Press the PROCEED button on the remote controller to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “PICTURE”, then

press the “PROCEED” button. The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “COLOR TEMP.”.


CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE COLOR TEMP. NR

SEL. ADJ. RETURN

MEMORY

NR-2

EXIT

3. Use the 䊴 and 䊳 buttons to select "1". The mode switches as follows when the 䊴 and 䊳 buttons are pressed:

→ 1 ↔ 2 ↔ 3 ↔ PRO ←

* See page 21 to set "PRO".

䡵 Setting the color temperature

1 ......................... High (bluer)

2 ......................... Middle (Standard)

3 ......................... Low (redder)

䡵 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

COLOR TEMP.

If neither the 䊴 or 䊳 button is pressed within 5 seconds, the current selection is set and the previous screen reppears.

4. Press the “PROCEED” button. The “COLOR TEMP.” is set to “1”.


CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE COLOR TEMP. NR

SEL. ADJ. RETURN

MEMORY

NR-2

EXIT

Adjusting the color to the desired quality

Use this procedure to adjust the white balance for bright pictures and dark pictures to achieve the desired color quality.

4. Press the “PROCEED” button. The "WHITE BALANCE" screen appears.

5. Use the ▲ and ▼ buttons to select "RED-GAIN".

Example: Adjusting the "WHITE BALANCE"

Press the PROCEED button on the remote controller to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “PICTURE”, then

press the “PROCEED” button. The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “COLOR TEMP.”.


CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE COLOR TEMP. NR

SEL. ADJ. RETURN

MEMORY

NR-2

EXIT

3. Use the 䊴 and 䊳 buttons to select "PRO". The mode switches as follows when the 䊴 and 䊳 buttons are pressed:

→ 1 ↔ 2 ↔ 3 ↔ PRO ←

PRO:COLOR TEMP.

If neither the 䊴 or 䊳 button is pressed within 5 seconds, the current selection is set and the previous screen reppears.

WHITE BALANCE GAIN RED GREEN BLUE BIAS RED GREEN BLUE

SEL. ADJ. RETURN

EXIT

6. Adjusts the white balance using the 䊴 and 䊳 buttons.

R-GAIN

* If neither the 䊴 or 䊳 button is pressed within 5 sec-

onds, the current setting is set and the previous screen reappears.

7. Press the “PROCEED” button. The white balance has now been adjusted.

WHITE BALANCE GAIN RED GREEN BLUE BIAS RED GREEN BLUE

SEL. ADJ. RETURN

EXIT

8. Once the adjustment is completed... Press the “EXIT” button to return to the main menu. T o delete the main menu, press the “EXIT” button once more.

Information

䡵 Adjusting the white balance

RGB-GAIN ....White balance adjustment for signal

level

RGB-BIAS..... White balance adjustment for black

level

䡵 Restoring the factory default settings

Restoring the factory default settings Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

Reducing noise in the picture

Use these settings if the picture has noise due to poor reception or when playing video tapes on which the picture quality is poor.

Example: Setting “NR-3”

Press the PROCEED button on the remote controller to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “PICTURE”, then

press the “PROCEED” button. The “PICTURE” screen appears.

4. Press the “PROCEED” button. The noise reduction mode is set to “NR-3”.


CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE COLOR TEMP. NR

SEL. ADJ. RETURN

MEMORY

NR-3

EXIT

2. Use the ▲ and ▼ buttons to select “NR “.


CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE COLOR TEMP. NR

SEL. ADJ. RETURN

MEMORY

NR-2

EXIT

3. Use the 䊴 and 䊳 buttons to select “NR-3”. The mode switches as follows when the 䊴 and 䊳 buttons are pressed:

→ OFF ↔ NR–1 ↔ NR–2 ↔ NR–3 ←

5. Once the setting is completed ... Press the “EXIT” button to return to the main menu. T o delete the main menu, press the “EXIT” button once more.

Information

䡵 NR

* “NR” stands for Noise Reduction. * This function reduces noise in the picture.

䡵 Types of noise reduction

There are three types of noise reduction. Each has a different level of noise reduction.

The effect becomes stronger as the number increases (in the order NR-1 → NR-2 → NR-3).

OFF..........Turns the noise reduction function off.

NR-3

* If neither the 䊴 or 䊳 button is pressed within 5 sec-

onds, the current selection is set and the previous screen reappears.

Sound Settings Menu

Adjusting the treble, bass and left/right balance

The treble, bass and left/right balance can be adjusted to suit your tastes.

Example: Adjusting the bass

Press the PROCEED button on the remote controller to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “SOUND”, then

press the “PROCEED” button. The “SOUND” screen appears.

2. To adjust the bass ...

Use the ▲ and ▼ buttons to select “BASS”.

SOUND

BASS TREBLE BALANCE

To continue adjusting the sound ...

Repeat from step 2.

4. Press the “PROCEED” button. The bass has now been adjusted.

SOUND

BASS TREBLE BALANCE

SEL. ADJ. RETURN

EXIT

5. Once the adjustment is completed ... Press the “EXIT” button to return to the main menu. T o delete the main menu, press the “EXIT” button once more.

NOTE:

If “CAN NOT ADJUST” appears...

Set “AUDIO INPUT” on the OPTION menu correctly.

Information

SEL. ADJ. RETURN

EXIT

3. Adjust the bass using the 䊴 and 䊳 buttons.

SOUND

BASS TREBLE BALANCE

SEL. ADJ. RETURN

EXIT

* If neither the 䊴 or 䊳 button is pressed within 5 sec-

onds, the current selection is set and the previous screen reappears.

䡵 Sound settings menu

BASS .................Changes the level of low frequency

sound.

TREBLE .............Changes the level of high frequency

sound.

BALANCE .......... Changes the balance of the left and

right channels.

䡵 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

Screen Settings Menu

Adjusting the Position, Size, Fine Picture, Picture Adj

The position of the image can be adjusted and flickering of the image can be corrected.

Example: Adjusting the v ertical position in the normal mode

4. Adjust using the 䊴 and 䊳 buttons.

Press the PROCEED button on the remote controller to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “SCREEN”, then

press the “PROCEED” button. The “SCREEN” menu appears.

SCREEN

MODE V–POSITION H–POSITION V–HEIGHT H–WIDTH AUTO PICTURE

SEL. ADJ. RETURN

FULL:

ON:

EXIT

2. To adjust the normal mode ... Use the 䊴 and 䊳 buttons to select “NORMAL”. The mode switches as follows when the 䊴 and 䊳 buttons are pressed:

→ NORMAL ↔ FULL ←

SCREEN

MODE V–POSITION H–POSITION V–HEIGHT H–WIDTH AUTO PICTURE

NORMAL:

ON:

V–POSITION

* If neither the 䊴 or 䊳 button is pressed within 5 sec-

onds, the current adjustment is set and the previous screen reappears.

T o continue making other computer image adjustments ...

Repeat from step 3.

5. Press the "PROCEED" button. The vertical position of the computer's image has now been adjusted.

SCREEN

MODE V–POSITION H–POSITION V–HEIGHT H–WIDTH AUTO PICTURE

SEL. ADJ. RETURN

NORMAL:

ON:

EXIT

6. Once all adjustments are completed ... Press the “EXIT” button to return to the main menu. T o delete the main menu, press the “EXIT” button once more.

SEL. ADJ. RETURN

EXIT

* The mode can also be switched by pressing the

“WIDE” button on the remote controller.

3. To adjust the vertical position ...

Use the ▲ and ▼ buttons to select “V-POSITION”.

SCREEN

MODE V–POSITION H–POSITION V–HEIGHT H–WIDTH AUTO PICTURE

SEL. ADJ. RETURN

NORMAL:

ON:

EXIT

Information

䡵 When “AUTO PICTURE” is “OFF”

SCREEN

MODE V–POSITION H–POSITION V–HEIGHT H–WIDTH AUTO PICTURE FINE PICTURE PICTURE ADJ.

SEL. ADJ. RETURN

FULL:

OFF:

EXIT

When Auto Picture is off, the Fine Picture and the Picture ADJ items are displayed so that you can adjust them.

Information

䡵

Adjusting the Auto Picture

ON......................The Picture ADJ and Fine Picture

adjustments are made automatically.

OFF.................... The Picture ADJ and Fine Picture

adjustments are made manually.

Function Settings Menu

Setting the on-screen display

When using the monitor for presentations, etc., the monitor can be set so that the input source, screen mode, etc., do not appear.

Example: Turning the on-screen display mode off

䡵

Adjusting the position of the image

V-POSITION.......Adjusts the vertical position of the

image.

H-POSITION ...... Adjusts the horizontal position of

the image.

V-HEIGHT ..........Adjusts the vertical size of the im-

age. (Except for STADIUM mode)

H-WIDTH............Adjusts the horizontal size of the

image. (Except for STADIUM mode)

FINE PICTURE PICTURE ADJ

* ...Adjusts for flickering.

* ....Adjusts for striped patterns on the

image.

* The Picture ADJ and Fine Picture features are avail-

able only when the “Auto Picture” is off,.

* The AUTO PICTURE, FINE PICTURE and PIC-

TURE ADJ. are not available for VIDEO and HD/ DVD source.

䡵 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults also restores other settings to the factory defaults except that the Auto Picture is not reset.

Press the PROCEED button on the remote controller to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “FUNCTION”, then press the “PROCEED” button. The “FUNCTION” screen appears.

2. Use the ▲ and ▼ buttons to select “OSM”.

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL PLE+INVERSE CINEMA MODE RESET

SEL. ADJ. RETURN

: : : : :

1 OFF 3 AUTO AUTO

EXIT

3. To turn the on-screen display mode off ... Use the 䊴 and 䊳 buttons to select “OFF”. The mode switches as follows each time the 䊴 or 䊳 button is pressed:

ON ↔ OFF

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL PLE+INVERSE CINEMA MODE RESET

: : : : :

OFF

1 OFF 3 AUTO AUTO

SEL. ADJ. RETURN

EXIT

4. Once the setting is completed ... Press the “EXIT” button to return to the main menu. T o delete the main menu, press the “EXIT” button once more.

Information

䡵 OSM modes

ON.................The on-screen display appears.

OFF...............The on-screen display does not appear.

䡵 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

Adjusting the position of the menu display

Use these operations to adjust the position of the menus that appear on screen.

Example: Adjusting the position of the menu display

Press the PROCEED button on the remote controller to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “FUNCTION”, then

press the “PROCEED” button. The “FUNCTION” menu appears.

2. Use the ▲ and ▼ buttons to select “OSM ADJ.”

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL PLE+INVERSE CINEMA MODE RESET

: : : : :

OFF 3 AUTO AUTO

3. To adjust the position... Adjust using the 䊴 and 䊳 buttons.

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL PLE+INVERSE CINEMA MODE RESET

SEL. ADJ. RETURN

OSM OSM ADJ. POWER MGT GRAY LEVEL PLE CINEMA MODE RESET

SEL. ADJ. RETURN

: : : : : :

FUNCTION

OFF 3 AUTO AUTO

EXIT

OFF

AUTO

EXIT

SEL. ADJ. RETURN

FUNCTION

OSM

OSM ADJ.

POWER MGT

OFF

GRAY LEVEL

PLE

AUTO

CINEMA MODE

AUTO

RESET

SEL. ADJ. RETURN

EXIT

4. Once all adjustments are completed ... Press the “EXIT” button to return to the main menu. T o delete the main menu, press the “EXIT” button once more.

Information

䡵 Adjusting the position of the menu display

The position can be set be-

123

tween 1 and 9.

456

789

䡵 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

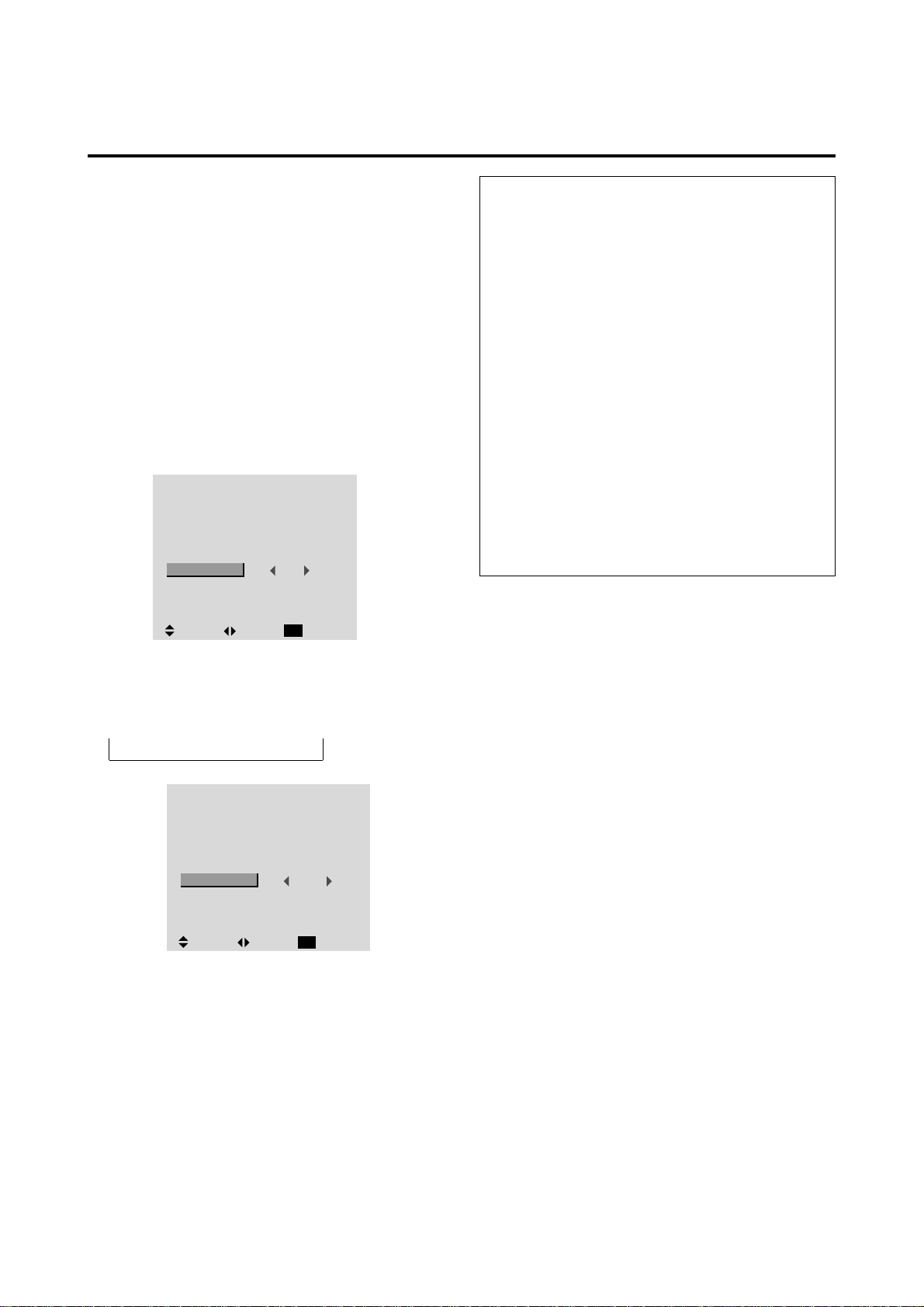

Setting the power management for computer images

This energy-saving (power management) function automatically reduces the monitor’s power consumption if no operation is performed for a certain amount of time.

Example: Turning the power management function on

Press the PROCEED button on the remote controller to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “FUNCTION”, then

press the “PROCEED” button. The “FUNCTION” screen appears.

2. Use the ▲ and ▼ buttons to select “POWER MGT”.

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL PLE+INVERSE CINEMA MODE RESET

SEL. ADJ. RETURN

: : : : :

ON 1

OFF

3 AUTO AUTO

EXIT

3. To turn the power management function on ... Use the 䊴 and 䊳 buttons to select “ON”. The mode switches as follows each time the 䊴 or 䊳 button is pressed:

ON ↔ OFF

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL PLE+INVERSE CINEMA MODE RESET

: : : : :

ON 1

3 AUTO AUTO

Information

䡵 Power management function

* The power management function automatically re-

duces the monitor’s power consumption if the computer’s keyboard or mouse is not operated for a certain amount of time. This function can be used when using the monitor with a computer conforming to the VESA DPMS format.

* If the computer’s po wer is not turned on or if the com-

puter and selector tuner are not properly connected, the system is set to the off state.

* For instructions on using the computer’ s po wer man-

agement function, refer to the computer’s operating instructions.

䡵 Power management settings

ON............In this mode the power management func-

tion is turned on.

OFF..........In this mode the power management func-

tion is turned off.

䡵 Power management function and POWER/ STANDBY indicator

The POWER/STANDBY indicator indicates the status of the power management function. See page 28 for indicator status and description.

䡵 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

SEL. ADJ. RETURN

EXIT

4. Once the setting is completed ... Press the “EXIT” button to return to the main menu. T o delete the main menu, press the “EXIT” button once more.

POWER/STANDBY indicator

Power management

mode

Standby

Suspend

Off Red Activated.

POWER/STANDBY

indicator

Green

Orange

Red

Not activated.

Power management

operating status

Horizontal and vertical synchronizing signals are present from the computer.

Activated.

No horizontal synchronizing signals are sent from the computer.

No vertical synchronizing signals are sent from the computer.

No horizontal or vertical synchronizing signals are sent from the computer.

Description

Turning the picture back on

Picture already on.

Operate the keyboard or mouse. The picture reappears immediately.

Operate the keyboard or mouse. The picture reappears, but more time is required than from the standby mode.

Operate the keyboard or mouse. The picture reappears, but more time is required than from the standby mode or suspend mode.

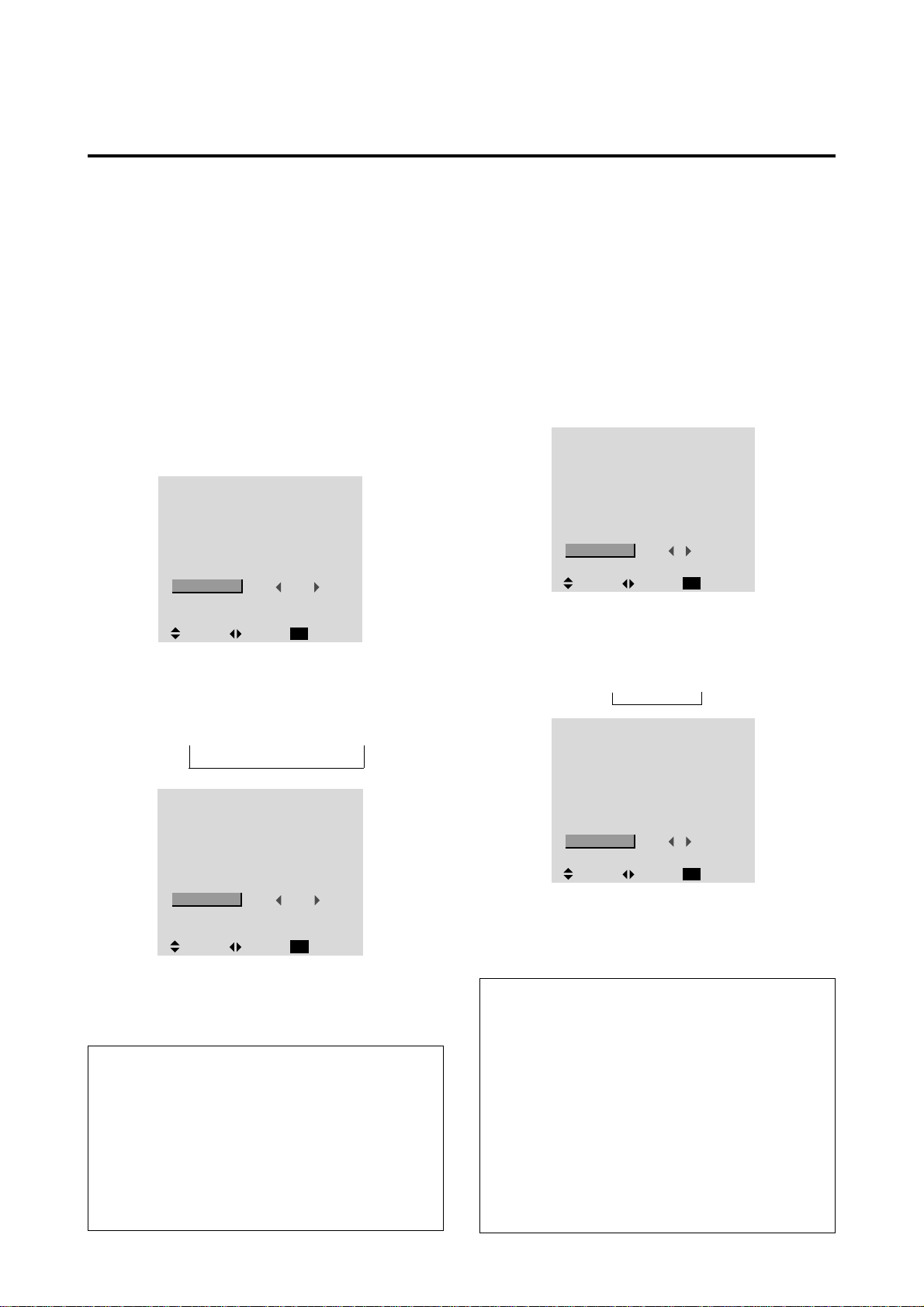

Setting the gray level for the sides of the screen

Use this procedure to set the gray level for the parts on the screen on which nothing is displayed when the screen is set to the 4:3 size.

Setting the brightness level to the minimum

Locking this mode allows you to dim the picture.

Example: Setting the “PLE+INVERSE” to “LOCK”

Example: Adjusting the "GRAY LEVEL"

Press the PROCEED button on the remote controller to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “FUNCTION”, then press the “PROCEED” button. The “FUNCTION” screen appears.

2. Use the ▲ and ▼ buttons to select “GRAY LEVEL”.

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL PLE+INVERSE CINEMA MODE RESET

SEL. ADJ. RETURN

: : : : :

ON 1 OFF

AUTO AUTO

EXIT

3. To adjust the "GRAY LEVEL"... Use the 䊴 and 䊳 buttons to adjust the GRAY LEVEL.

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL PLE+INVERSE CINEMA MODE RESET

: : : : :

ON 1 OFF

AUTO AUTO

Press the PROCEED button on the remote controller to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “FUNCTION”, then

press the “PROCEED” button. The “FUNCTION” screen appears.

2. Use the ▲ and ▼ buttons to select “PLE+INVERSE”.

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL PLE+INVERSE CINEMA MODE RESET

SEL. ADJ. RETURN

: : : : :

ON 1 OFF 3

AUTO

EXIT

3. To set the PLE+INVERSE to "LOCK" ... Use the 䊴 and 䊳 buttons to select “LOCK”. The mode switches as follows each time the 䊴 or 䊳 button is pressed:

 AUTO ↔ LOCK ↔ LOCK+ON ↔ AUTO+ON 

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL PLE+INVERSE CINEMA MODE RESET

: : : : :

ON 1 OFF 3

LOCK

AUTO

SEL. ADJ. RETURN

EXIT

5. Once the setting is completed ... Press the “EXIT” button to return to the main menu. The delete the main menu, press the “EXIT” button once more.

Information

䡵 GRAY LEVEL

This adjusts the brightness of the black (the gray level) for the sides of the screen. The standard is 0 (black). The level can be adjusted from 0 to 15. The factory setting is 3 (dark gray).

䡵 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

SEL. ADJ. RETURN

EXIT

4. Once the setting is completed ... Press the “EXIT” button to return to the main menu. The delete the main menu, press the “EXIT” button once more.

Information

䡵 PLE+INVERSE

AUTO ............Normally set to AUTO.

LOCK ............Sets the brightness level to the mini-

mum.

AUTO+ON ..... Turns on the inverse function.

LOCK+ON.....Turns on the inverse function as well

as the lock function.

䡵 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

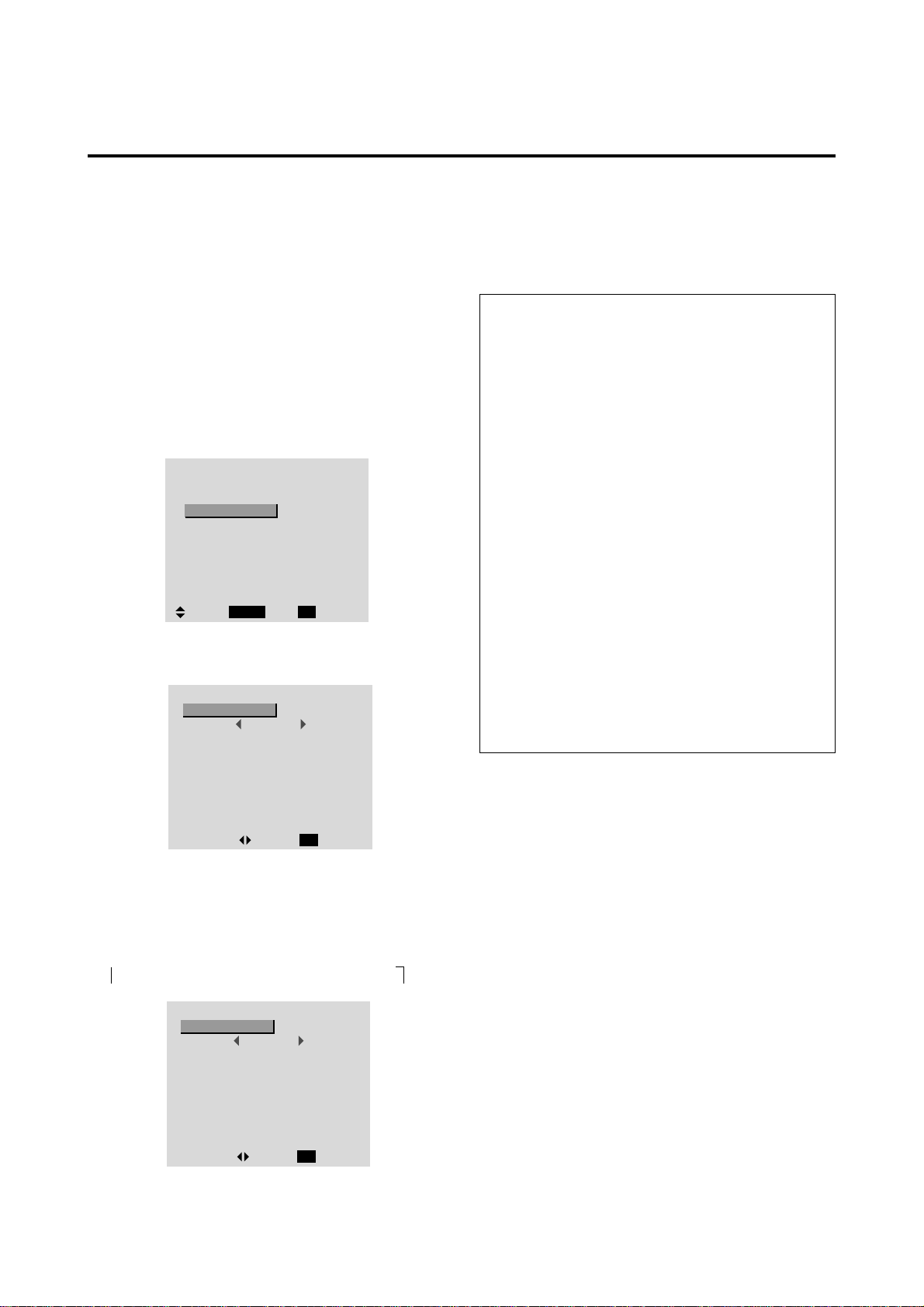

Setting the picture to suit the movie

The film image is automatically discriminated and projected in an image mode suited to the picture. [NTSC, PAL60, 480I(60Hz) only]

Resetting to the default values

Use these operations to restore all the picture adjustments, audio settings, to the factory default values. Refer to page 17 for items to be reset.

Example: Setting the “CINEMA MODE” to “ON”

Press the PROCEED button on the remote controller to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “FUNCTION”, then

press the “OK” button. The “FUNCTION” screen appears.

2. Use the ▲ and ▼ buttons to select “CINEMA MODE”.

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL PLE+INVERSE CINEMA MODE RESET

SEL. ADJ. RETURN

: : : : :

ON 1 OFF 3 AUTO

AUTO

EXIT

3. To set the CINEMA MODE to "ON" ... Use the 䊴 and 䊳 buttons to select “ON”. The mode switches as follows each time the 䊴 or 䊳 button is pressed:

→ AUTO ↔ ON ↔ OFF ←

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL PLE+INVERSE CINEMA MODE RESET

SEL. ADJ. RETURN

: : : : :

ON 1 OFF 3 AUTO

EXIT

4. Once the setting is completed ... Press the “EXIT” button to return to the main menu. T o delete the main menu, press the “EXIT” button once more.

Press the PROCEED button on the remote controller to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “FUNCTION”, then

press the “PROCEED” button. The “FUNCTION” screen appears.

2. Use the ▲ and ▼ buttons to select “RESET”, then press

the “PROCEED” button.

FUNCTION

: : : : :

ON 1 OFF 3 AUTO AUTO

EXIT

OSM OSM ADJ. POWER MGT GRAY LEVEL PLE+INVERSE CINEMA MODE RESET

SEL. RETURN

PROCEED

The “RESET” screen appears.

3. Use the ▲ and ▼ buttons to select “RESET”, then press

the “PROCEED” button.

RESET

RESET RETURN

OK RETURN

EXITPROCEED

RESET

SETTING NOW

Information

䡵 CINEMA MODE

AUTO ............Automatic discrimination of the image

and projection in cinema mode.

ON.................All images are projected in cinema

mode.

OFF ............... Cinema mode does not function.

䡵 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

When the "SETTING NOW" screen disappears, the screen will be restored to the previous "RESET" mode, then all the settings are restored to the default values.

4. Once the setting is completed ... Press the “EXIT” button. T o delete the main menu, press the “EXIT” button once more.

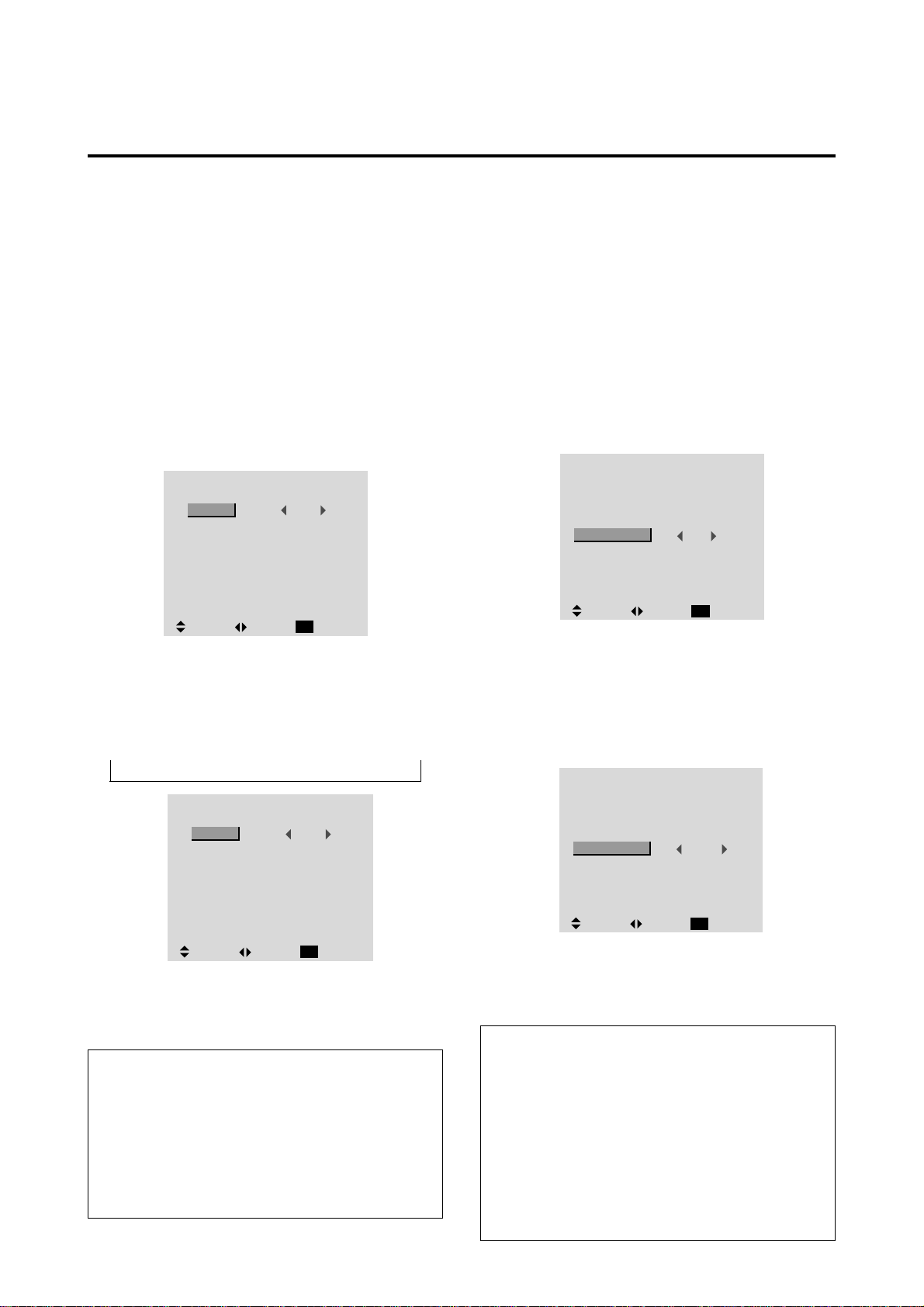

Option Setting Menu

Setting the allocation of the audio connectors

Setting the AUDIO 1, 2, and 3 connectors to the desired input.

Example: Set AUDIO 1 to RGB 2.

Press the “PR OCEED” button on the r emote controller to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “OPTION”, then

press the “PROCEED” button. The “OPTION” screen appears.

2. Use the ▲ and ▼ buttons to select “AUDIO 1”.

OPTION

AUDIO INPUT AUDIO1 AUDIO2 AUDIO3 BNC SELECT RGB SELECT HD SELECT RGB3 ADJ.

SEL. ADJ. RETURN

3. To set the AUDIO1 to “RGB2”...

Use the ▲ and ▼ buttons to select “AUDIO1”. Use the 䊴 and 䊳 buttons to select “RGB2”. The mode switches as follows each time the 䊴 or 䊳 button is pressed:

RGB1

VIDEO1

HD/DVD1

RGB

1080B

EXIT

Setting the BNC connectors

Select whether to set the input of the 5 BNC connectors to RGB or component.

Example: Set the BNC SELECT mode to “COMP.”

Press the “PR OCEED” b utton on the r emote contr oller to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “OPTION”, then press the “PROCEED” button. The “OPTION” screen appears.

2. Use the ▲ and ▼ buttons to select “BNC SELECT”.

OPTION

AUDIO INPUT AUDIO1 AUDIO2 AUDIO3 BNC SELECT RGB SELECT HD SELECT RGB3 ADJ.

SEL. ADJ. RETURN

RGB1

VIDEO1

HD/DVD1

RGB

1080B

EXIT

3. To set the BNC SELECT mode to “COMP”... Use the 䊴 and 䊳 buttons to select “COMP”. The mode switches as follows each time the 䊴 or 䊳 button is pressed:

RGB ↔ COMP.

→ VIDEO1 ↔ VIDEO2 ↔ VIDEO3 ↔ HD/DVD1 ↔ RGB1 ↔ RGB2 ↔ RGB3 ←

OPTION

AUDIO INPUT AUDIO1 AUDIO2 AUDIO3 BNC SELECT RGB SELECT HD SELECT RGB3 ADJ.

SEL. ADJ. RETURN

RGB2

VIDEO1

HD/DVD1

RGB

1080B

EXIT

4. Once setting is completed... Press the “EXIT” button to return to the main menu. T o delete the main menu, press the “EXIT” button once more.

Information

䡵 AUDIO INPUT

A single audio input cannot be selected as the audio channel for more than one input terminal.

䡵 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

OPTION

AUDIO INPUT AUDIO1 AUDIO2 AUDIO3 BNC SELECT RGB SELECT HD SELECT RGB3 ADJ.

SEL. ADJ. RETURN

RGB1

VIDEO1

HD/DVD1

COMP.

RGB

1080B

EXIT

4. Once setting is completed... Press the “EXIT” button to return to the main menu. T o delete the main menu, press the “EXIT” button once more.

Information

䡵 BNC SELECT

RGB ..............Uses the 5BNC terminal for RGB in-

put.

COMP. ...........Use the 3BNC terminal for component

input.

䡵 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

Setting a computer image to the correct RGB select screen

On the computer image select the RGB mode, moving image (video) mode, wide mode or digital broadcast.

Example: Setting the RGB SELECT mode to “VIDEO”

Press the PROCEED button on the remote controller to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “OPTION”, then

press the “PROCEED” button. The “OPTION” screen appears.

2. Use the ▲ and ▼ buttons to select “RGB SELECT”.

OPTION

AUDIO INPUT AUDIO1 AUDIO2 AUDIO3 BNC SELECT RGB SELECT HD SELECT RGB3 ADJ.

RGB1

VIDEO1

HD/DVD1

RGB

1080B

Information

䡵 RGB SELECT modes

One of these 4 modes must be selected in order to display the following signals correctly.

RGB .........VESA 640⳯480@60Hz (Use this mode

for normal computer images.)

VIDEO ......T o display the video signal that is converted

to the RGB signal, set this mode.

WIDE........When an 852 dot⳯ 480 line signal with a

horizontal frequency of 31.72 KHz is input, the image may be compressed horizontally. T o prev ent this, set RGB SELECT to WIDE.

DTV..........Set this model when watching digital broad

casting (480P).

䡵 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

SEL. ADJ. RETURN

EXIT

3. To set the RGB select mode to “VIDEO” ... Use the 䊴 and 䊳 buttons to select “VIDEO”. The mode switches as follows each time the 䊴 or 䊳 button is pressed:

→ RGB ↔ VIDEO ↔ WIDE ↔ DTV ←

OPTION

AUDIO INPUT AUDIO1 AUDIO2 AUDIO3 BNC SELECT RGB SELECT HD SELECT RGB3 ADJ.

SEL. ADJ. RETURN

RGB1

VIDEO1

HD/DVD1

RGB

VIDEO

1080B

EXIT

4. Once the setting is completed ... Press the “EXIT” button to return to the main menu. T o delete the main menu, press the “EXIT” button once more.

Setting high definition images to the suitable screen size

Use this procedure to set whether the number of vertical lines of the input high definition image is 1035 or 1080.

Example: Setting the "1080B" mode to "1035I"

Press the PROCEED button on the remote controller to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “OPTION”, then press the “PROCEED” button. The “OPTION” screen appears.

2. Use the ▲ and ▼ buttons to select “HD SELECT”.

OPTION

AUDIO INPUT AUDIO1 AUDIO2 AUDIO3 BNC SELECT RGB SELECT HD SELECT RGB3 ADJ.

SEL. ADJ. RETURN

RGB1

VIDEO1

HD/DVD1

RGB

1080B

EXIT

3. To set the HD SELECT mode to “1035I” ... Use the 䊴 and 䊳 buttons to select “1035I”. The mode switches as follows each time the 䊴 or 䊳 button is pressed:

 1080A ↔ 1080B ↔ 1035I 

OPTION

AUDIO INPUT AUDIO1 AUDIO2 AUDIO3 BNC SELECT RGB SELECT HD SELECT RGB3 ADJ.

SEL. ADJ. RETURN

RGB1

VIDEO1

HD/DVD1

RGB

1035I

EXIT

4. Once the setting is completed ... Press the “EXIT” button to return to the main menu. T o delete the main menu, press the “EXIT” button once more.

Information

䡵 HD SELECT modes

These 3 mode are not displayed in correct image automatically.

1080A ....... Special Digital broadcasts (for example :

DTC100)

1080B ....... Standard digital broadcasts

1035I.........Japanese "High Vision" signal format

Adjusting the display position in the RGB3 input mode

If the image is not stable when in the RGB3 input mode, switch the “RGB3 ADJ.” number to 2 or 3.

Example: Setting the “1” mode to “2”

Press the PROCEED button on the remote controller to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “OPTION”, then

press the “PROCEED” button. The “OPTION” screen appears.

2. Use the ▲ and ▼ buttons to select “RGB3 ADJ.”.

OPTION

AUDIO INPUT AUDIO1 AUDIO2 AUDIO3 BNC SELECT RGB SELECT HD SELECT RGB3 ADJ.

SEL. ADJ. RETURN

RGB1

VIDEO1

HD/DVD1

RGB

1080B

EXIT

3. To set RGB3 ADJ. mode to “2”... Use the 䊴 and 䊳 buttons to select “2”. The mode switches as follows when the 䊴 or 䊳 buttons are pressed:

→ 1 ↔ 2 ↔ 3 ←

OPTION

AUDIO INPUT AUDIO1 AUDIO2 AUDIO3 BNC SELECT RGB SELECT HD SELECT RGB3 ADJ.

SEL. ADJ. RETURN

RGB1

VIDEO1

HD/DVD1

RGB

1080B

EXIT

4. Once the adjustment is completed ... Press the “EXIT” button to return to the main menu. T o delete the main menu, press the “EXIT” button once more.

Information

䡵 RGB3 ADJ.

The display position will change when the number is changed; when using the unit with “AUTO PICTURE” ON, switch it OFF and then back ON again to return the display position to its original location. When using the unit with “AUTO PICTURE” OFF, please perform the display position adjustment again.

䡵 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

Information Menu

Checking the frequencies and polarities of input signals

Use this function to check the frequencies and polarities of the signals currently being inputted from a computer, etc.

Press the PROCEED button on the remote controller to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “INFORMA TION”,

then press the “PROCEED” button. The “INFORMATION” screen appears.

Setting the language for the menus

The menu display can be set to one of seven languages: Japanese, English, German, French, Swedish, Italian or Spanish.

Example: Setting the menu display to “DEUTSCH”

Press the PROCEED button on the remote controller to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “INFORMATION”, then press the “PROCEED” button. The “INFORMATION” screen appears.

2. Use the ▲ and ▼ buttons to select “LANGUAGE”, then press the “PROCEED” button.

2. Use the ▲ and ▼ buttons to select “FREQUENCY”,

then press the “PROCEED” button.

INFORMATION

FREQUENCY LANGUAGE COLOR SYSTEM

RETURN

EXIT

PROCEED

SEL.

3. The frequency is displayed.

FREQUENCY

H. FREQ V. FREQ

H. POL V. POL

37.5KHz

75.0Hz

NEG.

EXIT

RETURN

INFORMATION

FREQUENCY LANGUAGE COLOR SYSTEM

RETURN

EXIT

PROCEED

SEL.

The “LANGUAGE” screen appears.

3. To select “ DEUTSCH “ ... Use the 䊴 and 䊳 buttons to select “ DEUTSCH “. The mode switches as follows when the 䊴 and 䊳 buttons are pressed:

→ ENGLISH ↔ DEUTSCH ↔ FRANÇAIS ← → ↔ SVENSKA ↔ ITALIANO ↔ ESPAÑOL ←

LANGUAGE

DEUTSCH:



* Press the “EXIT” button to return to the previous

screen.

4. Once you have checked the frequency ... Press the “EXIT” button to return to the main menu. T o delete the main menu, press the “EXIT” button once more.

PROCEED

ADJ.

4. Press the “PROCEED” button. The display language is switched to Deutsch.

5. Once the setting is completed ... Press the “EXIT” button to return to the main menu. T o delete the main menu, press the “EXIT” button once more.

Information

䡵 Language settings

ENGLISH............. English

DEUTSCH ........... German

FRANÇAIS .......... French

ESPAÑOL ............ Spanish

ITALIANO ........... Italian

SVENSKA ........... Swedish

.................. Japanese

EXIT

RETURN

Setting the video signal format

Use these operations to set the video signal format.

Example: Setting the video signal format to “3.58 NTSC”

Press the PROCEED button on the remote controller to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “INFORMA TION”,

then press the “PROCEED” button. The “INFORMATION” screen appears.

2. Use the ▲ and ▼ buttons to select “COLOR SYSTEM”,

then press the “PROCEED” button.

INFORMATION

FREQUENCY LANGUAGE COLOR SYSTEM

RETURN

EXIT

PROCEED

SEL.

The “COLOR SYSTEM” screen appears.

COLOR SYSTEM

AUTO1:

4. Once the setting is completed ... Press the “EXIT” button to return to the main menu. T o delete the main menu, press the “EXIT” button once more.

The color system is set to “3.58 NTSC”.

Information

䡵 Video signal formats

Different countries use different formats for video signals. Set to the format used in your current country.

AUTO1/2 .......The video signals are automatically de-

tected and the format is set accordingly .

AUTO1: 3.58NTSC, 4.43NTSC, PAL, SECAM,

P AL60

AUTO2: PAL-M, PAL-N, 3.58NTSC

PAL(B.G) .......This is the standard format used mainly

in the United Kingdom and Germany.

SECAM .........This is the standard format used mainly

in France and Russia.

4.43 NTSC,

PAL60............This format is used for videos in coun-

tries using P AL and SECAM video signals.

3.58 NTSC ....This is the standard format used mainly

in Japan and the United States.

PAL-M............This is the standard format used mainly

in Brazil.

PAL-N ............This is the standard format used mainly

in Argentina.

ADJ. RETURN

EXIT

3. To select “3.58 NTSC” ... Use the 䊴 and 䊳 buttons to select “3.58 NTSC”. The mode switches as follows when the 䊴 and 䊳 buttons are pressed:

AUTO1↔→AUTO2

→

SECAM

↔ 3.58NTSC

PAL-M↔PAL-N

↔

COLOR SYSTEM

3.58NTSC:

ADJ. RETURN

↔

EXIT

4.43NTSC

PAL60

↔

←

PAL

←

External Control

Application

These specifications cover the communications control of the plasma monitor by external equipment.

Connections

Connections are made as described below.

plasma monitor

1) Connector on the plasma monitor side: EXTERNAL CONTROL connector.

Type of connector: D-Sub 9-pin male

No. Pin Name

1 No Connection 2 RXD (Receive data) 3 TXD (Transmit data) 4 DTR (DTE side ready) 5 GND 6 DSR (DCE side ready) 7 RTS (Ready to send) 8 CTS (Clear to send) 9 No Connection

External equipment e.g., Personal computer

Communication Parameters

(1) Communication system Asynchronous (2) Interface RS-232C (3) Baud rate 9600 bps (4) Data length 8 bits (5) Parity Odd (6) Stop bit 1 bit (7) Communication code Hex

1 5

2) Connector on the external equipment side: Serial port (RS-232C) connector See the specifications of the equipment that is to be connected for the type of connector and the pin assignment.

3) Wiring

Use a crossed (reverse) cable.

Wire the cable so that each pair of data lines cross between the two devices. These data line pairs are RXD (Receive data) and TXD (Transmit data), DTR (DTE side ready) and DSR (DCE side ready), and RTS (Ready to send) and CTS (Clear to send).

Communication Format

8 bit 8 bit 8 bit 8 bit 8 bit 8 bit 8 bit

8 bit

Command 1 Unit ID 1 Unit ID 2 Command 2 Data length Data Check sum

Command 1

Command 1, along with command 2, is a number used to distinguish each command. In the case of ACK, when the lower order 4 bits is FH (as in 3FH and 7FH), this indicates that the commands and data of the supported equipment have been receiv ed. When the lower order 4 bits is BH (as in 3BH and 7BH), this indicates that unsupported commands and data have been received.

○○

Check Sum Example

DFH 80H 60H 47H 01H 01H 08H Command 1 Unit ID 1 Unit ID 2 Command 2 Data Length Data Check Sum

▲

Total 208H

2) Error Processing

• When the communication interval is vacant for more than 4 ms, thereafter a received Command 1 will be recognized. If, at this time, meaningful data cannot be recognized, that data will not be recognized (as valid data).

• An ACK will not be returned unless the receive data error, the check sum error, and the receive data are all taken in.

Unit ID 1 and Unit ID 2

Unit ID 1 and unit ID 2 are numbers used to identify the equipment that is to be connected. 60H is used for the plasma monitor and 80H is used for external control equipment such as a personal computer.

1) Unit ID 1: Indicates the equipment sending the signal

2) Unit ID 2: Indicates the equipment receiving the signal

Command 2

Command 2, along with command 1, is a number used to distinguish each command.

Check Sum (CKS), Error Processing, and ACK

1) The check sum described below and RS-232C odd parity are used together for a check of the received data. The check sum is the lower order 8 bits of one frame of sent or received data comprising the sum total of Command 1, Unit ID 1 and 2, Command 2, Data Length, and Data.

Command Reference List

CMD1 CMD2 LEN

01. Power ON 9FH 4EH 00H

02. Power OFF 9FH 4FH 00H

03. Input Switch Change DFH 47H 01H

04. VOLUME Gain Data DFH 7FH 03H

05. SCREEN MODE Select DFH 51H 01H

06. AUDIO Mute On 9FH 3EH 00H

07. AUDIO Mute Off 9FH 3FH 00H

08. OSM Select DFH 58H 01H

09. Color Gain Data DFH 7FH 03H

10. TINT Gain Data DFH 7FH 03H

11. SHARPNESS Gain Data DFH 7FH 03H

12. CONTRAST Gain Data DFH 7FH 03H

13. BRIGHT Gain Data DFH 7FH 03H

14. Input MODE Request 1FH 41H 00H

15. RESET 1FH 54H 00H

16. COLOR TEMP SELECT DFH 00H 01H

17. RED Gain Data DFH 7FH 04H

18. GREEN Gain Data DFH 7FH 04H

19. BLUE Gain Data DFH 7FH 04H

20. VIDEO ADJ Request 1FH 45H 00H

21. Audio Select Set DFH 70H 02H

22. Audio Select Request 1FH 6FH 00H

23. PLE_INVERSE Set DFH 6AH 02H

24. Failure Mode Request 1FH 3FH 00H

01. Power ON

Function

The external control equipment switches on the power of the plasma monitor.

Transmission Data

9FH 80H 60H 4EH 00H CKS

ACK

The plasma monitor returns the following ACK when the power is switched on.

3FH 60H 80H 4EH 00H CKS

03. Input Switch Change

Function

The external control equipment switches the input of the plasma monitor.

Transmission Data

DFH 80H 60H 47H 01H DATA00 CKS

DATA00 : Input Select 01H: Video1

02H: Video2 03H: Video3 05H: HD (HD1 or DTV or DTV1) 06H: HD2 (DTV2) 07H: RGB1/PC1 08H: RGB2/PC2 0CH: RGB3/PC3

ACK

The plasma monitor returns the following ACK when the input is switched.

3FH 60H 80H 47H 00H CKS

04. VOLUME Gain Data

Function

The external control equipment changes the VOLUME gain data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H

DATA00 USER SOUND Gain Flag 05H DATA01 VOLUME Gain Flag 01H DATA02 VOLUME Gain 00H: Step 0

ACK

7FH 60H 80H 7FH 02H

DATA00 USER SOUND Gain Flag 05H DATA01 VOLUME Gain Flag 01H

DATA00 DATA01 DATA02

0AH: Step 10 (Default)

2AH: Step 42

DATA00 DATA01

CKS

02. Power OFF

Function

The external control equipment switches off the power of the plasma monitor.

Transmission Data

9FH 80H 60H 4FH 00H CKS

ACK

The plasma monitor returns the following ACK when the power is switched off.

3FH 60H 80H 4FH 00H CKS

05. SCREEN MODE Select

Function

The external control equipment switches the screen mode of the plasma monitor.

Transmission Data

DFH 80H 60H 51H 01H DATA00 CKS

DATA00 02H : STADIUM

03H : ZOOM 04H : NORMAL 05H : FULL

ACK

7FH 60H 80H 51H 01H DATA00 CKS

DATA00 02H : STADIUM

03H : ZOOM 04H : NORMAL 05H : FULL

06. AUDIO Mute On

Function

The external control equipment switches on AUDIO Mute of the plasma monitor.

Transmission Data

9FH 80H 60H 3EH 00H CKS

ACK

3FH 60H 80H 3EH 00H CKS

07. AUDIO Mute Off

Function

The external control equipment switches off AUDIO Mute of the plasma monitor.

Transmission Data

9FH 80H 60H 3FH 00H CKS

ACK

3FH 60H 80H 3FH 00H CKS

08. OSM Select

Function

The external control equipment switches on or off the on-screen display (OSM) of the plasma monitor.

Transmission Data

DFH 80H 60H 58H 01H DATA00 CKS

DATA00 01H : Screen display On

02H : Screen display Off

ACK

7FH 60H 80H 58H 01H DATA00 CKS

DATA00 01H : Screen display On

02H : Screen display Off

Screen display On/Off is equivalent to the screen display On/Off function of the convenient function settings.

*Operation is as described in the table below.

09. COLOR Gain Data

Function

The external control equipment changes the COLOR gain data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H

DATA00: USER PICTURE Gain Flag 01H DATA01: COLOR Gain Flag 04H DATA02: COLOR Gain EAH: -22

DATA00 DATA01 DATA02

FFH: -01 00H: 0 01H: +01

16H: +22

CKS

ACK

7FH 60H 80H 7FH 02H

DATA00: USER PICTURE Gain Flag 01H DATA01: COLOR Gain Flag 04H

DATA00 DATA01

CKS

10. TINT Gain Data

Function

The external control equipment changes the TINT gain data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H

DATA00: USER PICTURE Gain Flag 01H DATA01: TINT Gain Flag 05H DATA02: TINT Gain EAH: -22

ACK

7FH 60H 80H 7FH 02H

DATA00: USER PICTURE Gain Flag 01H DATA01: TINT Gain Flag 05H

DATA00 DATA01 DATA02

FFH: -01 00H: 0 01H: +01

16H: +22

DATA00 DATA01

CKS

On-Screen Display (OSD)

Operation

Remote control operation Yes Yes Yes No

Personal computer control operation No No Yes No

Display of items and adjustments on the menu

When screen display is ON

When screen display is OFF When screen display is ON When screen display is OFF

Volume display, input display, and screen size display

11. SHARPNESS Gain Data

Function

The external control equipment changes the SHARPNESS gain data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H

DATA00: USER PICTURE Gain Flag 01H DATA01: SHARPNESS Gain Flag 06H DATA02: SHARPNESS Gain F0H: -16

ACK

7FH 60H 80H 7FH 02H

DATA00: USER PICTURE Gain Flag 01H DATA01: SHARPNESS Gain Flag 06H

DATA00 DATA01 DATA02

FFH: -01 00H: 0 01H: +01

10H:+16

DATA00 DATA01

CKS

ACK

7FH 60H 80H 7FH 02H

DATA00: USER PICTURE Gain Flag 01H DATA01: BRIGHT Gain Flag 08H

DATA00 DATA01

CKS

14. Input MODE Request

Function

The display returns the current input information by the external control equipment’ s request.

Transmission Data

1FH 80H 60H 41H 00H CKS

ACK

7FH 60H 80H 41H 01H DATA00 CKS

DATA00: Input Select

01H: Video1 02H: Video2 03H: Video3 04H: HD (HD1 or DTV or DTV1) 05H: RGB1/PC1 06H: RGB2/PC2 0AH:DVD (DVD1) 0CH:HD2 (DTV2) 0DH:DVD2 0EH:RGB3/PC3

12. CONTRAST Gain Data

Function

The external control equipment changes the CONTRAST gain data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H

DATA00: USER PICTURE Gain Flag 01H DATA01: CONTRAST Gain Flag 07H DATA02: CONTRAST Gain 00H : 0

DATA00 DATA01 DATA02

34H: +52

CKS

ACK

7FH 60H 80H 7FH 02H

DATA00: USER PICTURE Gain Flag 01H DATA01: CONTRAST Gain Flag 07H

DATA00 DATA01

CKS

13. BRIGHT Gain Data

Function

The external control equipment changes the BRIGHT gain data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H

DATA00: USER PICTURE Gain Flag 01H DATA01: BRIGHT Gain Flag 08H DATA02: BRIGHT Gain E0H: -32

DATA00 DATA01 DATA02

FFH: -01 00H: 0 01H: +01

20H: +32

CKS

15. RESET

Function

The external control equipment resets the user adjustment of the plasma monitor.

Transmission Data

1FH 80H 60H 54H 00H CKS

ACK

3FH 60H 80H 54H 00H CKS

16. COLOR TEMP SELECT

Function

The external control equipment changes the COLOR TEMP of the plasma monitor. Transmission Data

DFH 80H 60H 00H 01H DATA00 CKS

DATA00 00H: 1 01H: 2 02H: 3 03H: PRO

ACK

7FH 60H 80H 00H 01H DATA00 CKS

DATA00: 00H: 1 01H: 2 02H: 3 03H: PRO

NOTE: Set so that at the selection of 1, 2, or 3 of COLOR TEMP change of the following R/G/B GAIN data cannot be accepted. (This must be operated in the same way as OSD menu.)

17. RED Gain Data

Function

The external control equipment changes the RED Gain Data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 04H DATA00 to DATA03 CKS

DATA00: USER PICTURE Gain Flag 01H

DATA01: RED Gain Flag 01H

19. BLUE Gain Data

Function

The external control equipment changes the BLUE Gain Data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 04H DATA00 to DATA03 CKS

DATA00: USER PICTURE Gain Flag 01H DATA01: BLUE Gain Flag 03H DATA02: BLUE Gain1(Bias) D8H:-40

DATA02: RED Gain 1 (Bias) D8H: -40

FFH: -1 00H: 0

28H: +40

DATA03:RED Gain 2 (Drive) D8H: -40

FFH: -1 00H: 0

28H: +40

ACK

7FH 60H 80H 7FH 02H

DATA00: USER PICTURE Gain Flag 01H DATA01: RED Gain Flag 01H

DATA00 DATA01

CKS

18. GREEN Gain Data

Function

The external control equipment changes the GREEN Gain Data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 04H DATA00 to DATA03 CKS

DATA00: USER PICTURE Gain Flag 01H DATA01: GREEN Gain Flag 02H DATA02: GREEN Gain 1 (Bias) D8H: -40

FFH:-1 00H: 0

28H: +40

DATA03: BLUE Gain2(Drive) D8H: -40

FFH:-1 00H: 0

28H:+40

ACK

7FH 60H 80H 7FH 02H

DATA00: USER PICTURE Gain Flag 01H DATA01: BLUE Gain Flag 03H

DATA00 DATA01

CKS

FFH: -1 00H: 0

28H: +40

DATA03: GREEN Gain2 (Drive) D8H: -40

FFH: -1 00H: 0

28H: +40

ACK

7FH 60H 80H 7FH 02H

DATA00: USER PICTURE Gain Flag 01H DATA01: GREEN Gain Flag 02H

DATA00 DATA01

CKS

20. VIDEO ADJ Request

Function

The display returns the video adjustments information by the external control equipment’s request.

Transmission Data

1FH 80H 60H 45H 00H CKS

ACK

7FH 60H 80H 45H 0CH DATA00 to DATA0B CKS

DATA00: RED Gain(Bias) D8H: -40

DATA05: SHARPNESS Gain F0H: -16

FFH: -01 00H: 0 01H: +01

10H: +16

DATA06: CONTRAST Gain 00H: 0

FFH: -1 00H: 0

28H: +40

DATA01: GREEN Gain(Bias) D8H: -40

FFH: -1 00H: 0

28H: +40

DATA02: BLUE Gain(Bias) D8H: -40

FFH: -1 00H: 0

28H: +40

DATA03: COLOR Gain EAH: -22

FFH: -01 00H: 0 01H: +01

34H: +52

DATA07: BRIGHT Gain E0H: -32

FFH: -01 00H: 0 01H: +01

20H: +32

DATA08: RED Gain(Drive) D8H: -40

FFH: -1 00H: 0

28H: +40

DATA09: GREEN Gain(Drive) D8H: -40

FFH: -1 00H: 0

28H: +40

DATA0A: BLUE Gain(Drive) D8H: -40

16H: +22

DATA04: TINT Gain EAH: -22

FFH: -01 00H: 0 01H: +01

16H: +22

FFH: -1 00H: 0

28H: +40

DATA0B: COLOR TEMP 00H: 1

01H: 2 02H: 3 03H: PRO

21. Audio Select Set

Function

The external control equipment sets combinations of audio and video inputs for the plasma monitor.

Transmission Data

DFH 80H 60H 70H 02H DATA00 DATA01 CKS

DATA00: AUDIO INPUT

01H: AUDIO 1 02H: AUDIO 2 03H: AUDIO 3

DATA01: VISUAL INPUT

01H: Video 1 02H: Video 2 03H: Video 3 05H: HD (HD1 or DTV or DTV1) 06H: HD2 (DTV2) 07H: RGB 1/ PC 1 08H: RGB 2/ PC 2 0CH: RGB 3/ PC 3

ACK

The plasma monitor returns the following ACK when the input is switched.

3FH 60H 80H 70H 00H CKS

* The plasma monitor returns “Not A v ailable” when selecting the video

input same as the one set at one of the AUDIO 01 to 3.

Example:

The plasma monitor returns “Not A v ailable” when selecting the VIDEO1 for AUDIO2 or VIDEO3 after VIDEO1 has been set to AUDIO1.

22. Audio Select Request

Function

The external control equipment inquires the current combinations of audio and video inputs for the plasma monitor.

Transmission Data

1FH 80H 60H 6FH 00H CKS

ACK

The plasma monitor returns the following ACK:

7FH 60H 80H 6FH 03H DATA00 DATA01 DATA02 CKS

DATA00: AUDIO 1 DATA01: AUDIO 2 DATA02: AUDIO 3

VISUAL INPUT DATA 01H: Video 1 02H: Video 2 03H: Video 3 05H: HD (HD1 or DTV or DTV 1) 06H: HD2 (DTV2) 07H: RGB 1 /PC 1 08H: RGB 2 /PC 2 0CH: RGB 3 /PC 3

23. PLE_INVERSE Set

Function

The external control equipment sets the PLE and INVERSE (inverse of image brightness) of the plasma monitor.

Transmission Data

DFH 80H 60H 6AH 02H DATA00 DATA01 CKS

DATA00 : PLE

01H: AUTO 02H: LOCK

DATA01 : INVERSE

01H: ON 02H: OFF

ACK

The plasma monitor returns the following ACK when setting the PLE and INVERSE (inverse of image brightness):

3FH 60H 80H 6AH 00H CKS

24. Failure Mode Request

Function

The external control equipment inquires the detection of failures of the plasma monitor.

Transmission Data

1FH 80H 60H 3FH 00H CKS

ACK

The plasma monitor returns the following ACK:

7FH 60H 80H 3FH 02H DATA00 DATA01 CKS

DATA00:FILURE MODE 1

Bit 0 : PDP MODULE

0: Abnormal

1: Normal Bit 1 : fixed (backup) Bit 2 : TEMPERATURE

0: Abnormal

1: Normal Bit 3 : FAN

0: Abnormal

1: Normal Bit 4 : fixed (backup) Bit 5 : fixed (backup) Bit 6 : fixed (backup) Bit 7 : fixed (backup)

DATA00:FILURE MODE 2

Bit 0–7 : fixed (backup)

Table for Signals Supported

Supported resolution

• When screen mode is NORMAL, each signal is converted to a 640 dots⳯480 lines signal. (Except for *3)

• When screen mode is FULL, each signal is converted to a 853 dots⳯480 lines signal. (Except for *2)

Computer input signals supported on this system

Model

*IBM PC/AT compatible computers

*Apple Macintosh

Dots ⳯ lines

640⳯400

640⳯480

848⳯480*

800⳯600

1024⳯768

1280⳯1024

640⳯480

832⳯624

1024⳯768

1152⳯870

Vertical

frequency (Hz)

70.1

59.9

72.8

75.0

85.0

100.0

120.0

60.0

56.3

60.3

72.2

75.0

85.0

100.0

120.0

60.0

70.0

75.0

85.0

100.0

60.0

66.6

74.6

74.9

75.1

Horizontal

frequency (kHz)

31.5

37.9

37.5

43.3

51.1

61.3

31.0

35.2

37.9

48.1

46.9

53.7

63.0

75.7

48.4

56.5

60.0

68.7

80.5

64.0

35.0

49.7

60.2

68.7

Screen mode

NORMAL FULL

YES*

YES

– –

YES

YES*

YES

YES*

YES

*1 Display only 400 lines with the screen center of the vertical orientation located at the center. *2 Only when using a graphic accelerator board that is capable of displaying 848⳯480. *3 Aspect ratio is 5:4. This signal is converted to a 600 dots⳯480 lines signal.

NOTE:

• With digital inputs some signals are not accepted.

• The sync may be disturbed when non standard signals other than the aforementioned are input.

• When connecting a composite sync signal, use the HD terminal.

* “IBM PC/AT” and “VGA” are a registered trademark of International Business Machines, Inc. of the United

States.

* “Apple Macintosh” is a registered trademark of Apple Computer, Inc. of the United States.

Troubleshooting

If the picture quality is poor or there is some other problem, check the adjustments, operations, etc., before requesting service.

Symptom Checks Remedy

Picture is disturbed. Sound is noisy. Remote control unit operates erroneously. The remote controller does not work.

Monitor’s power does not turn on when the remote controller’s power button is pressed.

Monitor does not operate when the remote controller’s buttons are pressed.

No sound or picture is produced.

Picture appears but no sound is produced.

Poor picture with VIDEO signal input.

Poor picture with RGB signal input.

Tint is poor or colors are weak.

• Is a connected component set directly in front or at the side of the display?

• Are the remote controller’s batteries worn out?

• Is the monitor’s power cord plugged into a power outlet?

• Are all the monitor’s indicators off?

• Are the remote controller’s batteries worn out?

• Is the remote controller pointed at the monitor, or is there an obstacle between the remote controller and the monitor?

• Is direct sunlight or strong artificial light shining on the monitor’s remote control sensor?

• Are the remote controller’s batteries worn out?

• The remote cable is plugged into the REMOTE IN terminal (Wired)

• The front panel buttons of the main unit do not function.

• Is the monitor’s power cord plugged into a power outlet?

• Is the volume set at the minimum?

• Is the mute mode set?

• Are the speakers properly connected?

• Is AUDIO INPUT set correctly?

• Improper control setting. Local interference. Cable interconnections. Input impedance is not correct level.

• Improper control setting. Incorrect 15 PIN connector pin connections.

• Are the tint and colors properly adjusted?

• Leave some space between the display and the connected components.

• Replace both batteries with new ones.

• Plug the monitor’s power cord into a power outlet.

• Press the power button on the monitor to turn on the power.

• Replace both batteries with new ones.

• Point the remote controller at the monitor’s remote control sensor when pressing buttons, or remove the obstacle.

• Eliminate the light by closing curtains, pointing the light in a different direction, etc.

• Replace both batteries with new ones.

• Unplung the remote cable from the monitor.

• The front panel buttons do not function during Control Lock.

• Plug the monitor’s power cord into a power outlet.

• Increase the volume.

• Press the remote controller’s mute button.

• Connect the speakers properly.

• Set AUDIO INPUT on the OPTION menu correctly.

• Adjust picture control as needed. Try another location for the monitor. Be sure all connections are secure.

• Adjust picture controls as needed. Check pin assignments and connections.

• Adjust the tint and color (under “PICTURE”).

Nothing appears on screen.

Part of picture is cut off or picture is not centered. Image is too large or too small.

Picture is unstable.

POWER/STANDBY indicator is lighted in orange or red.

POWER/STANDBY indicator is blinking in red.

POWER/STANDBY indicator is blinking in green.

*1 Overheat protector

If the monitor becomes too hot, the overheat protector will be activated and the monitor will be turned off. If this happens., turn off the power to the monitor and unplug the power cord. If the room where the monitor is installed is particularly hot, move monitor to a cooler location and w ait for the monitor to cool for 60 minutes. If the problem persists, contact your NEC dealer for service.

*2 In the following case, power off the monitor immediately and contact your dealer or authorized NEC Center.

The monitor turns off 5 seconds after powering on and then the POWER/STANDBY indicator blinks. It indicators that the power supply circuit or, one more fans have been damaged.

• Is the computer’s power turned on?

• Is a source connected?

• Is the power manager function in the standby or off mode?

• Is the position adjustment appropriate?

• Is the screen size adjustment appropriate?

• Is the computer’s resolution setting appropriate?

• Horizontal and / or vertical sync signal is not present when the Intelligent Power Manager control is on.

• The temperature inside the main unit has become too high and has activated the protector.

• Turn on the computer’s power.

• Connect source to the monitor.

•

Operate the computer (move the mouse, etc.).

• Adjust the “SCREEN” properly.

• Press the “WIDE” button on the remote controller and adjust properly.

• Set to the proper resolution.

• Check the input signal.

• Promptly switch off the power of the main unit and wait until the internal temperature drops. See*1.

• Prompty switch off the power of the main unit. See *2.

Specifications

Product Name Product Code Screen Size

Aspect Ratio Resolution Pixel Pitch

Color Reproduction Signals

Synchronization Range

Input Signals

Input Terminals

RGB

Visual 1 (Analog) Visual 2 (Analog) Visual 3 (Digital)

Video

Visual 1 Visual 2 Visual 3

DVD/HD/DTV

Visual

Audio

External Control Sound output Power Supply Current Rating Power Consumption Dimensions

Weight Environmental Considerations

Operating Temperature

Humidity Altitude

Storage Temperature

Humidity Altitude

Front Panel User Controls

Remote Control Functions

OSM Functions

PlasmaSync™ 42MP2 Plasma Monitor PX-42VM2A

36.3"(H)⳯20.4"(V) inches 921(H)⳯518.4(V) mm diagonal 42" 16 : 9 853(H)⳯480(V) pixels

0.04"(H)⳯0.04"(V) inches

1.08(H)⳯1.08(V) mm 256 levels, 16,770,000 colors

Horizontal : 15.5 to 80.5 kHz (automatic : step scan) Vertical : 50.0 to 120 Hz (automatic : step scan) RGB, NTSC (3.58/4.43), PAL (B,G,M,N), PAL60, SECAM, HD*1, DVD*1, DTV*

mini D-sub 15-pin⳯1 BNC (R, G, B, H/CS, V)⳯1 DVI-I 29-pin⳯1* (Not compatible with analog input)

RCA-pin⳯1 BNC⳯1 S-Video: DIN 4-pin⳯1

RCA-pin (Y, PB[CB], PR[CR]) Stereo RCA⳯3 D-sub 9-pin⳯1(RS-232C) 7W+7W at 6 ohm AC120V 50/60Hz

4.2A (maximum) 395W (typical)

41.3 (W)⳯25.5 (H)⳯3.5 (D) inch 1048 (W)⳯648 (H)⳯89 (D) mm

70.6 lbs / 32 kg

0°C to 40°C / 32°F to 104°F 20 to 80% 0 to 1900m / 0 to 6230ft

-10°C to 50°C / 14°F to 122°F 10 to 90% 0 to 3000m / 0 to 9840ft Power on/off, Input source select, Volume up/down/ OSM control Power on/off, Input source selct, OSM control, Volume up/down, Cursor (UP, DOWN, LEFT, RIGHT), Pointer, Zoom up/down, Off timer, Wireless/ Wired remote control Picture (Contrast / Brightness / Sharpness / Color / Tint / Picture mode/ Color temperature / Noise reductions), Sound (Bass / Treble / Balance),Screen (V-Position / H-Position / V-Height/ H-Width/ Auto Picture/ Fine picture/ Picture adjustment), Function (OSM/ OSM adjustment/ Power management/ Gray level/ PLE+INVERSE/ Cinema mode/ Reset)/ Option (Audio input/ BNC select/ RGB select/ HD select/ RGB3 Adjustment), Infor mation (Frequency / Language / Color system)

1.18"

41.3" (1048)

37.1" (942)

21.4" (542)

25.5" (648)

Units are in inch

(30)

3.5" (89)

2.32" (59)

(mm)

The features and specifications may be subject to change without notice.

*1HD/DVD/DTV input signals supported on this sys-

tem

480P (60 Hz) 480I (60 Hz) 525P (60 Hz) 525I (60 Hz) 625P (50 Hz) 625I (50 Hz) 720P (60 Hz) 1035I (60 Hz)

1080I (60 Hz)

It doesn't cope with copy protection.

Other Features

Accessories

Regulations

Power management, plug and play (DDC1, DDC2b, RGB3: DDC2b only), Control lock Remote controller with two AAA batteries, Wired Remote cable, Adapter for Macintosh, RGB cable (Mini D-Sub 15-pin to Mini D-Sub 15-pin connector), Power cord, User's Manual, Safty metal fitting, Screw for safty metal fitting, Ferrite core UL Approved (UL 1950/ CSA 950) DOC Canada requirements Meets FCC class A requirements

NEC T echnologies , Inc.

1250 N. Arlington Heights Road, Suite 500

Itasca, Illinois 60143-1248

Printed on recycled paper

Printed in Japan

7S800031
