NEC P553 PG User Guide

Download

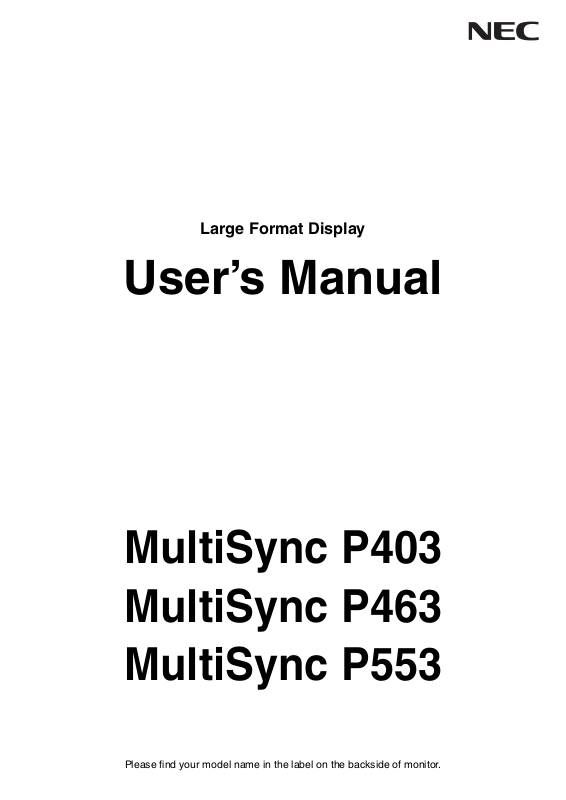

Large Format Display

User’s Manual

MultiSync P403 MultiSync P463 MultiSync P553

Please ﬁ nd your model name in the label on the backside of monitor.

Index

DECLARATION OF CONFORMITY .............................................................................................................English-1

Important Information ...................................................................................................................................English-2

WARNING ....................................................................................................................................... English-2

CAUTION ........................................................................................................................................ English-2

Safety Precautions, Maintenance & Recommended Use............................................................................. English-3

Safety Precautions and Maintenance ............................................................................................. English-3

Recommended Use ........................................................................................................................ English-3

Ergonomics ..................................................................................................................................... English-3

Cleaning the LCD Panel .................................................................................................................English-3

Cleaning the Cabinet ......................................................................................................................English-3

Contents ....................................................................................................................................................... English-4

Installation .................................................................................................................................................... English-5

Attaching Mounting Accessories ..................................................................................................... English-6

Parts Name and Functions ........................................................................................................................... English-8

Control Panel .................................................................................................................................. English-8

Terminal Panel ................................................................................................................................English-9

Wireless Remote Control ................................................................................................................ English-10

Operating Range for the Remote Control ....................................................................................... English-11

Setup ............................................................................................................................................................ English-12

Connections ................................................................................................................................................. English-14

Wiring Diagram ............................................................................................................................... English-14

Connecting a Personal Computer ................................................................................................... English-15

Connecting a DVD Player or Computer with HDMI out ..................................................................English-15

Connecting a Computer with DisplayPort ....................................................................................... English-15

Basic Operation ............................................................................................................................................ English-16

Power ON and OFF Modes ............................................................................................................English-16

Power Indicator ............................................................................................................................... English-17

Initial settings .................................................................................................................................. English-17

Using Power Management ............................................................................................................. English-17

Selecting a video source ................................................................................................................. English-17

Picture Aspect ................................................................................................................................. English-17

Information OSD ............................................................................................................................. English-18

Picture Mode ................................................................................................................................... English-18

OSD (On-Screen-Display) Controls.............................................................................................................. English-19

PICTURE ........................................................................................................................................ English-20

ADJUST .......................................................................................................................................... English-20

AUDIO ............................................................................................................................................ English-21

SCHEDULE .................................................................................................................................... English-22

PIP .................................................................................................................................................. English-22

OSD ................................................................................................................................................ English-23

MULTI DISPLAY ............................................................................................................................. English-24

DISPLAY PROTECTION ................................................................................................................ English-26

EXTERNAL CONTROL ...................................................................................................................English-26

ADVANCED OPTION1 ................................................................................................................... English-27

ADVANCED OPTION2 ................................................................................................................... English-29

Remote Control Function .............................................................................................................................. English-31

Multiple Monitors Connection ....................................................................................................................... English-32

Controlling the LCD monitor via RS-232C Remote Control.......................................................................... English-33

Controlling the LCD monitor via LAN Control ................................................................................................ English-35

Connecting to a Network ................................................................................................................ English-35

Network Setting by Using an HTTP Browser .................................................................................. English-35

POINT ZOOM ............................................................................................................................................... English-44

PROOF OF PLAY ......................................................................................................................................... English-44

INTELLIGENT WIRELESS DATA ................................................................................................................. English-45

Features ....................................................................................................................................................... English-46

Troubleshooting ............................................................................................................................................English-47

Speciﬁ cations - P403 ....................................................................................................................................English-48

Speciﬁ cations - P463 ....................................................................................................................................English-49

Speciﬁ cations - P553 ....................................................................................................................................English-50

Pin Assignment ............................................................................................................................................. English-51

PIP (Picture in Picture) matrix ......................................................................................................................English-51

Manufacturer’s Recycling and Energy Information .......................................................................................English-52

DECLARATION OF CONFORMITY

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

U.S. Responsible Party: NEC Display Solutions of America, Inc. Address: 500 Park Boulevard, Suite 1100 Itasca, Illinois 60143 Tel. No.: (630) 467-3000

Type of Product: Display Monitor Equipment Classiﬁ cation: Class B Peripheral Model: MultiSync P403 (P403)

MultiSync P463 (P463) MultiSync P553 (P553)

We hereby declare that the equipment speciÞ ed above

conforms to the technical standards as speciÞ ed in the FCC Rules.

FCC Information

1. Use the attached speciﬁ ed cables with this colour monitor so as not to interfere with radio and television reception. (1) Please use the supplied power cord or equivalent to ensure FCC compliance. (2) Please use the supplied shielded video signal cable.

2. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult your dealer or an experienced radio/TV technician for help.

English

If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions. The user may ﬁ nd the following booklet, prepared by the Federal Communications Commission, helpful: “How to Identify and Resolve Radio-TV Interference Problems.” This booklet is available from the U.S. Government Printing Ofﬁ ce, Washington, D.C., 20402, Stock No. 004-000-00345-4.

Windows is a registered trademark of Microsoft Corporation. NEC is a registered trademark of NEC Corporation. OmniColor is a registered trademark of NEC Display Solutions Europe GmbH in the countries of EU and Switzerland. DisplayPort and DisplayPort Compliance Logo are trademarks owned by the Video Electronics Standards Association in the United States and other countries. All other brands and product names are trademarks or registered trademarks of their respective owners.

The terms HDMI and HDMI High-Deﬁ nition Multimedia Interface and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Trademark PJLink is a trademark applied for trademark rights in Japan, the United States of America and other countries and areas.

CRESTRON and ROOMVIEW are registered trademarks of Crestron Electronics, Inc. in the United States and other countries.

GPL/LGPL Software Licenses The product includes software licensed under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), and others. For more information on each software, see “readme.pdf” inside the “about GPL&LGPL” folder on the supplied CD-ROM.

English-1

Important Information

WARNING

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED.

REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE POWER CORD IS UNPLUGGED FROM

WALL SOCKET. TO FULLY DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONNECT THE POWER CORD FROM THE AC OUTLET. DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION: Please use the power cord provided with this monitor in accordance with the table below. If a power cord is not supplied with this equipment, please contact your supplier. For all other cases, please use a power cord that matches the AC voltage of the power outlet and has been approved by and complies with the safety standard of your particular country.

This symbol warns user that uninsulated voltage within the unit may have sufﬁ cient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

Plug Type North America

Plug Shape

Region

Voltage

* When operating the MultiSync monitor with its AC 125-240V power supply, use a power supply cord that matches the power

supply voltage of the AC power outlet being used.

NOTE: This product can only be serviced in the country where it was purchased.

Use the power cord which has BSMI mark at both ends when you use this monitor in Taiwan.

• The intended primary use of this product is as an Information Technical Equipment in an ofﬁ ce or domestic environment.

• The product is intended to be connected to a computer and is not intended for the display of television broadcast signals.

U.S.A./

Canada

120*

Taiwan EU (except U.K.) U.K. China Japan

110

European

Continental

230 230 220 100

U.K. Chinese Japanese

English-2

Safety Precautions, Maintenance & Recommended Use

FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE

FOLLOWING WHEN SETTING UP AND USING

THE MULTI-FUNCTION MONITOR:

• DO NOT OPEN THE MONITOR. There are no user

serviceable parts inside and opening or removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing to qualiﬁ ed service personnel.

• Do not spill any liquids into the cabinet or use your monitor

near water.

• Do not insert objects of any kind into the cabinet slots,

as they may touch dangerous voltage points, which can be harmful or fatal or may cause electric shock, ﬁ re or equipment failure.

• Do not place any heavy objects on the power cord.

Damage to the cord may cause shock or ﬁ re.

• Do not place this product on a sloping or unstable cart, stand

or table, as the monitor may fall, causing serious damage to the monitor.

Do not mount this product upside down for an extended period

•

of time as it may cause permanent damage to the screen.

• The power supply cord you use must have been approved by

and comply with the safety standards of your country. (Type H05VV-F 3G 1mm

• In UK, use a BS-approved power cord with molded plug

having a black (13A) fuse installed for use with this monitor.

• Do not place any objects onto the monitor and do not use the

monitor outdoors.

• Do not bend, crimp or otherwise damage the power cord.

• If glass is broken, handle with care.

• Do not cover vent on monitor.

• Do not use monitor in high temperature, humid, dusty, or oily

areas.

• If monitor or glass is broken, do not come in contact with the

liquid crystal and handle with care.

• Allow adequate ventilation around the monitor, so that heat

can properly dissipate. Do not block ventilated openings or place the monitor near a radiator or other heat sources. Do not put anything on top of the monitor.

• The power cable connector is the primary means of detaching

the system from the power supply. The monitor should be installed close to a power outlet, which is easily accessible.

Do not move or mount this product by hanging a rope or wire

•

to the backside handle. Do not mount or secure this product by using the backside handle. It may fall and cause personal injury.

• Handle with care when transporting. Save packaging for

transporting.

• If using the cooling fan continuously, it is recommended to

wipe holes clean a minimum of once a month.

• Please clean the holes of back cabinet to reject dirt and dust

at least once a year because of set reliability.

• When using a LAN cable, do not connect to a peripheral

device with wiring that might have excessive voltage.

• Do not use monitor under rapid temperature and humidity

change condition or avoid cold air from air-conditioning outlet directly, as it may shorten the lifetime of the monitor or cause condensation. If condensation happens, let the monitor stand unplugged until there is no condensation.

Connecting to a TV*

• Cable distribution system should be grounded (earthed) in

accordance with ANSI/NFPA 70, the National Electrical Code (NEC), in particular Section 820.93, Grounding of Outer Conductive Shield of a Coaxial Cable.

• The screen of the coaxial cable is intended to be connected

to earth in the building installation.

should be used in Europe)

English-3

Immediately unplug your monitor from the wall outlet and refer servicing to qualiﬁ ed service personnel under the following conditions:

• When the power supply cord or plug is damaged. If liquid has been spilled, or objects have fallen into the monitor.

•

• If the monitor has been exposed to rain or water.

• If the monitor has been dropped or the cabinet damaged.

• If you notice any structural damage such as cracks or unnatural wobbling.

• If the monitor does not operate normally by following operating instructions.

Recommended Use

• For optimum performance, allow 20 minutes for warm-up.

• Rest your eyes periodically by focusing on an object at least 5 feet away. Blink often.

• Position the monitor at a 90° angle to windows and other light sources to minimize glare and reﬂ ections.

• Clean the LCD monitor surface with a lint-free, non-abrasive cloth. Avoid using any cleaning solution or glass cleaner!

• Adjust the monitor’s brightness, contrast and sharpness controls to enhance readability.

• Avoid displaying ﬁ xed patterns on the monitor for long periods of time to avoid image persistence (after image effects).

• Get regular eye checkups.

Ergonomics

To realize the maximum ergonomic beneﬁ ts, we recommend the following:

• Use the preset Size and Position controls with standard signals.

• Use the preset Color Setting.

• Use non-interlaced signals.

• Do not use primary color blue on a dark background, as it is difﬁ cult to see and may produce eye fatigue due to insufﬁ cient contrast.

• Suitable for entertainment purposes at controlled luminous environments, to avoid disturbing reﬂ ections from the screen.

Cleaning the LCD Panel

• When the liquid crystal panel is dusty, please gently wipe with a soft cloth.

• Please do not rub the LCD panel with hard material.

• Please do not apply pressure to the LCD surface.

• Please do not use OA cleaner as it will cause deterioration or discolor on the LCD surface.

Cleaning the Cabinet

• Unplug the power supply

• Gently wipe the cabinet with a soft cloth

• To clean the cabinet, dampen the cloth with a neutral detergent and water, wipe the cabinet and follow with a dry cloth.

NOTE: DO NOT clean with benzene thinner, alkaline detergent,

alcoholic system detergent, glass cleaner, wax, polish cleaner, soap powder, or insecticide. Rubber or vinyl should not be in contact with the cabinet for an extended period of time. These types of ﬂ uids and materials can cause the paint to deteriorate, crack or peel.

* The product you purchased may not have this feature.

English

Your new MultiSync monitor box* should contain the following:

• LCD monitor

• Power cord*

• Video Signal Cable

• Wireless Remote Control and AAA Batteries

• Setup Manual

Video Signal Cable

(DVI-D to DVI-D cable)

• Clamp x 1 (P403/P463)/x 3 (P553)

• Screw with washer (M4 x 10) x 1 (P403/P463)/x 3 (P553)

• Thumbscrew for optional stand x 2*

• CD-ROM

Power Cord*

CD-ROM

Screw with washer

(M4 x 10) x 1 (P403/P463)/

x 3 (P553)

Thumbscrew for

optional stand x 2*

Clamp x 1 (P403/P463)/

x 3 (P553)

Setup Manual

Wireless Remote Control

and AAA Batteries

* Remember to save your original box and packing material to transport or ship the monitor.

Type and number of power cords included will depend on the where the LCD monitor is to be shipped. When more than one

power cord is included, please use a power cord that matches the AC voltage of the power outlet and has been approved by and complies with the safety standard of your particular country.

P553 only.

English-4

Installation

This device cannot be used or installed without the Tabletop Stand or other mounting accessory for support. For proper installation it is strongly recommended to use a trained, NEC authorized service person. Failure to follow NEC standard mounting procedures could result in damage to the equipment or injury to the user or installer. Product warranty does not cover damage caused by improper installation. Failure to follow these recommendations could result in voiding the warranty.

Mounting

DO NOT mount the monitor yourself. Please ask dealer. For proper installation it is strongly recommended to use a trained, qualiﬁ ed technician. Please inspect the location where the unit is to be mounted. Mounting on wall or ceiling is the customer’s responsibility. Not all walls or ceilings are capable of supporting the weight of the unit. Product warranty does not cover damage caused by improper installation, remodelling, or natural disasters. Failure to comply with these recommendations could result in voiding the warranty.

DO NOT block ventilated openings with mounting accessories or other accessories.

For NEC Qualiﬁ ed Personnel:

To ensure safe installation, use two or more brackets to mount the unit. Mount the unit to at least two points on the installation location.

Please note the following when mounting on wall or ceiling

• When using mounting accessories other than those that are NEC approved, they must comply with the VESAcompatible (FDMlv1) mounting method.

No gap

under

φ 8.5 mm

Unit

No thread

4 mm

10-12 mm

• NEC strongly recommends using size M6 screws (10-12 mm + thickness of bracket and washers in length). If using screws longer than 10-12 mm, check the depth of the hole. (Recommended Fasten Force: 470 - 635N•cm). Bracket hole should be under φ 8.5 mm.

• NEC recommends mounting interfaces that comply with UL1678 standard in North America.

• Prior to mounting, inspect the installation location to insure that it is strong enough to support the weight of the unit so that the unit will be safe from harm.

• Refer to the instructions included with the mounting equipment for detailed information.

• Make sure there is no gap between the monitor and the bracket.

• When used in a video wall conﬁ guration for a longer time, slight expansion of the displays may happen due to temperature changes. Due to this it is recommended that over one millimeter gap is kept between adjacent display edges.

Mounting Bracket

Washers

Screw

Thickness of bracket and washers

Orientation

• When using the display in the portrait position, the monitor should be rotated clockwise so that the left side is moved to the top, right side is moved to the bottom. This will allow for proper ventilation and will extend the lifetime of the monitor. Improper ventilation may shorten the lifetime of the monitor.

LED Indicator

Mounting location

• The ceiling and wall must be strong enough to support the monitor and mounting accessories.

• DO NOT install in locations where a door or gate can hit the unit.

• DO NOT install in areas where the unit will be subjected to strong vibrations and dust.

• DO NOT install near where the main power supply enters the building.

• Do not install in where people can easily grab and hang onto the unit or the mounting apparatus.

• Allow adequate ventilation or provide air conditioning around the monitor, so that heat can properly dissipate away from the unit and mounting apparatus.

Mounting on ceiling

• Ensure that the ceiling is sturdy enough to support the weight of the unit and the mounting apparatus over time, against earthquakes, unexpected vibrations, and other external forces.

• Be sure the unit is mounted to a solid structure within the ceiling, such as a support beam. Secure the monitor using bolts, spring lock washers, washer and nut.

• DO NOT mount to areas that have no supporting internal structure. DO NOT use wood screws or anchor screws for mounting. DO NOT mount the unit to trim or to hanging ﬁ xtures.

Maintenance

• Periodically check for loose screws, gaps, distortions, or other problems that may occur with the mounting apparatus. If a problem is detected, please refer to qualiﬁ ed personnel for service.

• Regularly check the mounting location for signs of damage or weakness that may occur over time.

English

English-5

Attaching Mounting Accessories

The monitor is designed for use with the VESA mounting system.

1. Attach Mounting Accessories

Be careful to avoid tipping monitor when attaching accessories.

VESA Mounting Interface

300 mm

3. Installing and removing optional table

top stand

CAUTION: Installing and removing the stand must be done

by two or more people.

To install, follow those instructions included with the stand or mounting apparatus. Use only those devices recommended by the manufacturer.

NOTE: For P403/P463, use ONLY thumbscrews which

are included with the optional table top stand. For P553, use ONLY thumbscrews which are included in the monitor.

When installing the LCD monitor stand, handle the unit with care to avoid pinching your ﬁ ngers.

Optional table top stand

Mounting accessories can be attached with the monitor in the face down position. To avoid damaging the screen face, place the protective sheet on the table underneath the LCD. The protective sheet was wrapped around the LCD in the original packaging. Make sure there is nothing on the table that can damage the monitor.

When using mounting accessories other than NEC compliant and approved, they must comply with the VESA-compatible mounting method.

NOTE: Prior to installation, be sure to place the monitor

on a ﬂ at area with adequate space.

2. Using Option Board

1. Turn off the main power switch.

2. Remove the handle.*

3. Remove the attached slot cover by unscrewing the installed screws (Figure 1).

4. Insert option board in to the monitor. Attach the slot cover by using the removed screws.

5. Attach the handle.*

NOTE: Please contact your supplier for available option

boards. Do not apply excessive force to manipulate the optional board before ﬁ xing it with screws. Make sure that the board is inserted into the slot in the correct orientation.

Table

Protective Sheet

NOTE: Install the stand so the long end of the feet face

forward. Use the ST-322 for the P403/P463 and the ST-5220 for the P553.

4. Ventilation Requirements

When mounting in an enclosed space or recessed area, leave adequate room between the monitor and the enclosure to allow heat to disperse, as shown below.

Allow adequate ventilation or provide air conditioning around the monitor, so that heat can properly dissipate away from the unit and mounting apparatus; especially when you use monitors in multiple screen.

NOTE: The sound quality of the internal speakers will

differ according to the acoustics of the room.

Figure 1

*1: P403/P463 only.

(P403/P463 only)

English-6

5. Prevent Tipping

When using the display with the optional table top stand fasten the LCD to a wall using a cord or chain that can support the weight of the monitor in order to prevent the monitor from falling. Fasten the cord or chain to the monitor using the provided clamps and screws. For the P403/P463, the clamps and screws that are included with the optional table top stand.

English

100 mm

Clamp

Screw Holes

Cord or chain

Screw (M4)

Before attaching the LCD monitor to the wall, make sure that the wall can support the weight of the monitor.

Be sure to remove the cord or chain from the wall before moving the LCD.

English-7

Parts Name and Functions

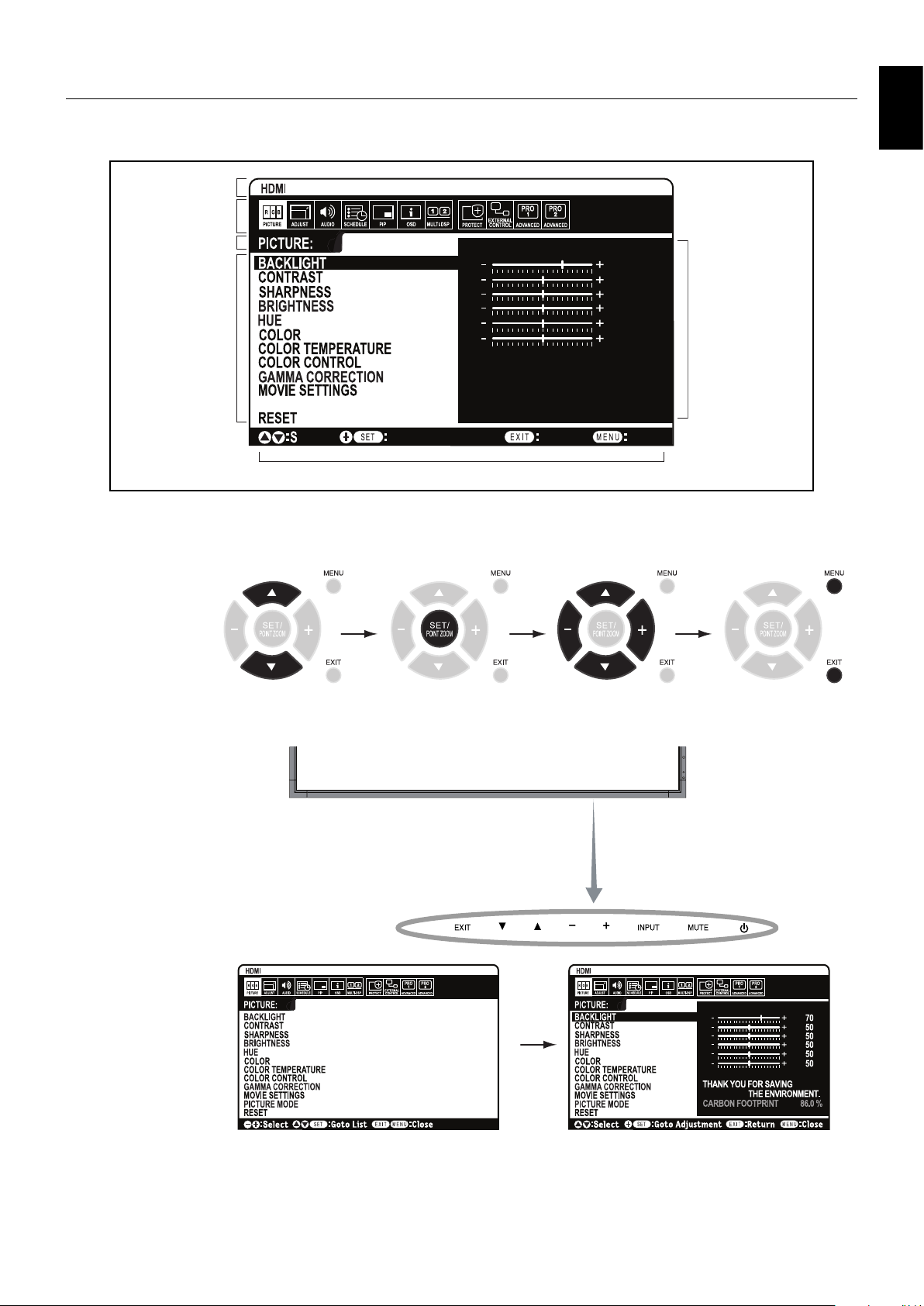

Control Panel

쐃 POWER button ( )

Switches the power on/off. See also page 16.

쐇 MUTE button (MUTE)

Switches the audio mute ON/OFF.

쐋 INPUT button (INPUT)

Acts as SET/POINT ZOOM button within OSD menu. (Toggle switches between [DVI], [DPORT], [HDMI], [VGA] or [Y/Pb/Pr], [SCART]*, [VIDEO]*, [S-VIDEO]*, [HDMI2]*, [HDMI3]*, [RGB/HV]* or [Y/Pb/Pr2]*). These are available input only, shown as their factory preset name.

쐏 PLUS button (+)

Acts as (+) button to increase the adjustment with OSD menu. Increases the audio output level when the OSD menu is turned off.

쐄 MINUS button (-)

Acts as (-) button to decrease the adjustment with OSD menu. Decreases the audio output level when the OSD menu is turned off.

쐂 UP button ( )

Activates the OSD menu when the OSD menu is turned-off. Acts as adjustment items within OSD menu.

button to move the highlighted area up to select

쐆 DOWN button ( )

Activates the OSD menu when the OSD menu is turned-off. Acts as adjustment items within OSD menu.

button to move the highlighted area down to select

쐊 EXIT button (EXIT)

Activates the OSD menu when the OSD menu is turned-off. Acts as EXIT button within the OSD to move to previous menu.

쐎 Remote control sensor and Power Indicator

Receives the signal from the remote control (when using the wireless remote control). See also page 11. Glows green when the LCD monitor is in active mode*. Glows red when the LCD is in POWER OFF mode. Glows amber when the monitor is in Power Save Mode. Green and Amber blink alternately while in Power Standby mode with the “SCHEDULE SETTINGS” function enabled. When a component failure is detected within the monitor, the indicator will blink red. * If “OFF” is selected in “POWER INDICATOR” (see page 25), LED will not light when the LCD monitor is in active mode.

쐅 Room light sensing sensor

Detects the level of ambient light, allowing the monitor to make automatic adjustments to the backlight setting, resulting in a more comfortable viewing experience. Do not cover this sensor. See page 29.

쐈 Intelligent wireless data sensor

Sensor for wireless communication of the monitor information and settings.

Control Key Lock Mode

This control completely locks out access to all Control Key functions. To activate the control key lock function, press

and and hold down simultaneously for more than

both 3 seconds. To resume user mode, press both hold simultaneously for more than 3 seconds.

and and

*: This function depends on which option board you use.

English-8

Terminal Panel

English

쐃 AC IN connector

Connects with the supplied power cord.

쐇 Main Power Switch

On/Off switch to turn main power ON/OFF.

쐋 EXTERNAL SPEAKER TERMINAL

To output the audio signal from AUDIO 1, DPORT and HDMI. Red terminal is plus (+). Black terminal is minus (-). NOTE: This speaker terminal is for 15 W + 15 W (8 ohm) speaker.

쐏 Internal/External speaker switch

: Internal speaker : External speaker. NOTE: Please power off the monitor when you use the Internal/External speaker switch.

쐄 AUDIO OUT

To output the audio signal from the AUDIO IN 1, 2, DPORT and HDMI to an external device (stereo receiver, ampliﬁ er, etc.). * This connector does not support Headphone terminal.

쐂 Service port

This USB slot is for future software upgrades.

쐆 LAN port (RJ-45)

LAN connection. See page 32 and 35. NOTE: Please give priority for use to LAN1.

 AUDIO IN 1, 2

To input audio signal from external equipment such as a computer or DVD player.

쐅 REMOTE IN

Use the optional sensor unit by connecting it to your monitor. NOTE: Do not use this connector unless speciﬁ ed.

쐈 VGA IN (mini D-Sub 15 pin)

To input analog RGB signals from a personal computer or from other RGB equipment. This input can be used with an RGB or COMPONENT source. Please select signal type in TERMINAL SETTING. See page 27. NOTE: When you use this connector for COMPONENT, please use a suitable signal cable. If you have any questions, please ask your dealer.

쐉 DisplayPort connectors

IN connector: To input DisplayPort signals. OUT connector: To output signal which is displayed.

See page 25 VIDEO OUT SETTING.

씈 HDMI IN

To input digital HDMI signals.

씉 DVI IN (DVI-D)

To input digital RGB signals from a computer or HDTV device having a digital RGB output. * This connector does not support analog input.

씊 Kensington Lock

For security and theft prevention.

씋 Option board slot

Slot 2 and slot 3 type accessories are available. Please contact your supplier for detailed information. NOTE: Please contact your supplier for available option board.

씌 Internal speaker

쐎 RS-232C (D-Sub 9 pin)

Connect RS-232C input from external equipment such as a PC in order to control RS-232C functions.

English-9

씍 Rating Label

Wireless Remote Control

쐄 AUDIO INPUT button

Selects audio input source [IN1], [IN2], [IN3]* [HDMI], [DPORT], [HDMI2]*2, [DPORT2]*2, [DPORT3]*2.

, [OPTION]*2,

쐃 POWER button

Switches the power on/standby.

쐂 OPTION MENU button*

쐆 KEYPAD

Press buttons to set and change passwords, change channel and set REMOTE ID.

쐊 ENT button*

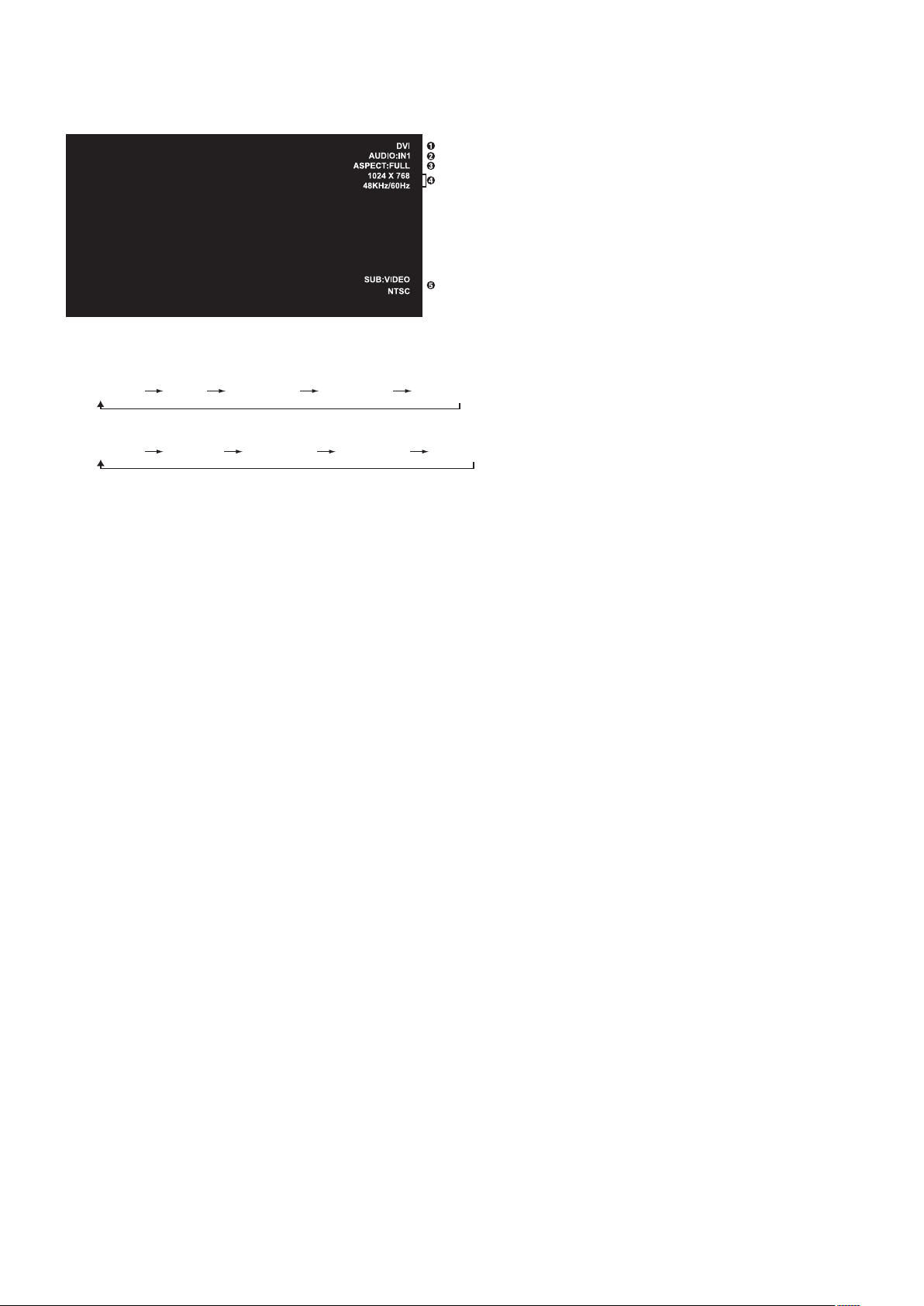

쐎 DISPLAY button

Turns on/off the information OSD. See page 18.

쐅 MENU button

Turns on/off the menu mode.

쐈 AUTO SET UP button

Enters auto setup menu. See page 20.

쐉 EXIT button

Returns to previous menu within OSD menu.

씈 UP/DOWN button ( / )

Acts as to select adjustment items within OSD menu. Small screen which adjusted “PIP” mode moves up or down.

button to move the highlighted area up or down

씉 MINUS/PLUS (-/+) button

Increases or decreases the adjustment level within OSD menu settings. Small screen which adjusted “PIP” mode moves left or right and increases or decreases the size.

쐇 INPUT button

Selects input signal. DVI: DVI HDMI: HDMI, HDMI2* DisplayPort: DPORT VGA: VGA Y/Pb/Pr: Y/Pb/Pr, SCART*2, Y/Pb/Pr2* RGB/HV*2: RGB/HV VIDEO*2: VIDEO, S-VIDEO OPTION: Depends on your connection

, HDMI3*

쐋 PICTURE MODE button

Selects picture mode, [HIGHBRIGHT], [STANDARD], [sRGB], [CINEMA], [CUSTOM1], [CUSTOM2]. See page 18.

HIGHBRIGHT: for moving images such as DVD. STANDARD: for images. sRGB: for text based images. CINEMA: for movies. CUSTOM1 and CUSTOM2: activate auto dimming function. See page 29.

쐏 ASPECT button

Selects picture aspect, [FULL], [WIDE], [DYNAMIC], [1:1], [ZOOM] and [NORMAL]. See page 17.

씊 SET/POINT ZOOM button

Makes selection. Activates POINT ZOOM function when OSD menu is not shown.

씋 VOLUME UP/DOWN button (VOL +/-)

Increases or decreases audio output level.

씌 CH/ZOOM UP/DOWN button (CH/ZOOM +/-)*

Increases or decreases POINT ZOOM level.

씍 GUIDE button*

씎 MUTE button

Turns on/off mute function.

씏 STILL button

ON/OFF button: Activates/deactivates still picture mode. STILL CAPTURE button: Captures still picture. NOTE: This function is released when activating IMAGE

FLIP.

IMAGE FLIP button

Toggle switches between H FLIP, V FLIP, 180° ROTATE and NONE. See page 21.

English-10

PIP (Picture In Picture) button

ON/OFF button: Toggle switches between PIP, POP,

PICTURE BY PICTURE-ASPECT and PICTURE BY PICTURE-FULL. See page 22.

INPUT button: Selects the “picture in picture” input signal. CHANGE button: Replaces to the main picture and sub

picture. NOTE: Enable to change the sub picture size by pressing SET/POINT ZOOM button during PIP mode.

For detail information, see “PIP (Picture in Picture) matrix” in page 51.

REMOTE ID button

Activates REMOTE ID function.

MTS button*

button*

Activates closed captioning.

NOTE: VIDEO*2, S-VIDEO*2 inputs only.

Operating Range for the Remote Control

Points the top of the remote control toward the LCD monitor’s remote sensor during button operation.

Uses the remote control within a distance of about 7 m (23 ft.) from remote control sensor or at a horizontal and vertical angle of within 30° within a distance of about 3.5 m (10 ft.).

English

*1: This button’s action depends on which option board you use. Refer to the option board’s manual for further information.

*2: This function depends on which option board you use.

Caution: Important, the remote control

system may not function when direct sunlight or strong illumination strikes the remote control sensor or when there is an object in the path.

Handling the remote control

• Do not subject to strong shock.

• Do not allow water or other liquid to splash the remote control. If the remote control gets wet, wipe it dry immediately.

• Avoid exposure to heat and steam.

• Other than to install the batteries, do not open the remote control.

English-11

Setup

1. Determine the installation location

CAUTION: Installing your LCD monitor must be done by a

qualiﬁ ed technician. Contact your dealer for more information.

CAUTION:

CAUTION: Do not mount or operate the monitor upside

CAUTION: This LCD has a temperature sensor and cooling

IMPORTANT: Lay the protective sheet, which was wrapped

MOVING OR INSTALLING THE LCD MONITOR MUST BE DONE BY TWO OR MORE PEOPLE. Failure to follow this caution may result in injury if the LCD monitor falls.

down.

fan, including a fan for the option board. If the LCD becomes too hot, the cooling fan will turn on automatically. The option board’s fan is active although the temperature is lower than normal operating temperature for cooling the option board. If the LCD becomes overheated while the cooling fan is running, a “Caution” warning will appear. If the “Caution” warning appears, discontinue use and allow the unit to cool. Using the cooling fan will reduce the likelihood of early circuit failure and may help reduce image degradation and “Image Persistance”. If the LCD is used in an enclosed area or if the LCD panel is covered with a protective screen, please check the inside temperature of the monitor by using the “HEAT STATUS” control in the OSD (see page 26). If the temperature is higher than the normal operating temperature, please turn the cooling fan to ON within the FAN CONTROL menu within the OSD (see page 26).

around the LCD monitor when it was packaged, beneath the LCD monitor so as not to scratch the panel.

NEC recommends the following battery use:

• Place “AAA” size batteries matching the (+) and (-) signs on each battery to the (+) and (-) signs of the battery compartment.

• Do not mix battery brands.

• Do not combine new and old batteries. This can shorten battery life or cause liquid leakage of batteries.

• Remove dead batteries immediately to prevent battery acid from leaking into the battery compartment.

• Do not touch exposed battery acid, it may injure skin.

NOTE: If you do not intend to use the Remote Control for

a long period of time, remove the batteries.

3. Connect external equipment

(See pages 14 and 15)

• To protect the external equipment; turn off the main power before making connections.

• Refer to your equipment user manual for further information.

NOTE: Do not connect/disconnect cables when turning

on the monitor or other external equipment as this may result in a loss of the monitor image.

4. Connect the supplied power cord

• The equipment should be installed close to an easily accessible power outlet.

• Please fasten power cord to the LCD monitor by attaching the screw and clamp.

• Fully insert the prongs into the power outlet socket. A loose connection may cause image degradation.

NOTE: Please refer to the “Safety Precautions and

Maintenance” section of this manual for proper selection of AC power cord.

2. Install the remote control batteries

The remote control is powered by two 1.5V AAA batteries. To install or replace batteries:

A. Press and slide to open the cover. B. Align the batteries according to the (+) and (–) indications

inside the case.

C. Replace the cover. CAUTION: Incorrect usage of batteries can result in leaks or

bursting.

English-12

Screw

Clamp

5. Switch on the power of all the attached external equipment

When connected with a computer, switch on the power of the computer ﬁ rst.

6. Operate the attached external equipment

Display the signal from the desired input source.

7. Adjust the sound

Make volume adjustments when required.

8. Adjust the screen (See pages 20 and 21)

Make adjustments of the screen display position when necessary.

9. Adjust the image (See page 20)

Make adjustments such as backlight or contrast when required.

10. Recommended Adjustments

To reduce the risk of the “Image Persistence”, please adjust the following items based on the application being used: “SCREEN SAVER”, “SIDE BORDER COLOR” (See page 26) “DATE & TIME”, “SCHEDULE SETTINGS” (See page 22). It is recommended that the “FAN CONTROL” setting (See page 26) be turned to ON also.

English

English-13

Connections

NOTE: Do not connect/disconnect cables when turning on the monitor or other external equipment as this may result in a

loss of the monitor image.

NOTE: Use an audio cable without a built-in resistor. Using an audio cable with a built-in resistor turns down the sound.

Before making connections:

* First turn off the power of all the attached equipment and make connections. * Refer to the user manual included with each separate piece of equipment.

Wiring Diagram

DVD Player

Stereo Ampliﬁ er

Computer (Analog) Computer (Digital)

*: Multiple monitors that are daisy-chained have a limit to the connectable monitors.

Connected equipment

*1: depend on signal type.

Connecting

terminal

DisplayPort RAW/EXPAND*

DVI (DVI-D) DVI-HD DVI AUDIO IN1/IN2 DVI

HDMI RAW/EXPAND*

Setting in terminal mode Input signal name

VGA (D-Sub) D-SUB MODE RGB VGA AUDIO IN1/IN2 RGB/HV VGA (D-Sub) D-SUB MODE COMPONENT COMPONENT AUDIO IN1/IN2 Y/Pb/Pr

Option RAW/EXPAND*

DisplayPort RAW/EXPAND*

DVI (DVI-D) DVI-PC DVI AUDIO IN1/IN2 DVI

HDMI RAW/EXPAND*

VGA (D-Sub) - VGA AUDIO IN1/IN2 RGB/HV

Option RAW/EXPAND*

Second monitor*

Solid lines = video signal Dotted lines = audio signal

Connecting

audio terminal

Input button

in remote control

DP DPORT DisplayPort

HDMI HDMI HDMI

OPTION OPTION OPTION

DP DPORT DisplayPort

HDMI HDMI HDMI

OPTION OPTION OPTION

English-14

Connecting a Personal Computer

Connecting your computer to your LCD monitor will enable you to display your computer’s screen image. Some display cards may not display an image correctly. Your LCD monitor displays proper image by adjusting the factory preset timing signal automatically.

Resolution

640 x 480 31.5 kHz 60 Hz

800 x 600 37.9 kHz 60 Hz 1024 x 768 48.4 kHz 60 Hz 1280 x 768 48 kHz 60 Hz 1360 x 768 48 kHz 60 Hz

1280 x 1024 64 kHz 60 Hz 1600 x 1200 75 kHz 60 Hz Compressed image 1920 x 1080 67.5 kHz 60 Hz Recommended resolution

• If you use with a Macintosh device, set “Mirroring” to Off on your device. Refer to your Macintosh’s owner’s manual for more information about your computer’s video output requirements and any

special identiﬁ cation or conﬁ guration your monitor’s image and monitor may require.

• Input TMDS signals conforming to DVI standards.

• To maintain display quality, use a cable that conforms to DVI standards.

Scanning frequency Remarks

Horizontal Vertical

Connecting a DVD Player or Computer with HDMI out

• Please use an HDMI cable with HDMI logo.

• It may take a moment for the signal to appear.

• Some display cards or drivers may not display an image correctly.

• When you use a computer with HDMI out, please set OVER SCAN to “OFF” (see page 27).

English

Connecting a Computer with DisplayPort

• Please use DisplayPort cable with DisplayPort compliance logo.

• It may take a moment for the signal to appear.

• Please note that when connecting a DisplayPort cable to a component with a signal conversion adapter, an image may not appear.

• Select DisplayPort cables feature a locking function. When removing this cable, hold down the top button to release the lock.

English-15

Basic Operation

Power ON and OFF Modes

The LCD monitor power indicator will turn green while powered on and will turn red or amber while powered off. NOTE: The Main Power Switch must be in the ON position in order to power up the monitor using the remote control or the

Power Button.

OFF

Main Power Switch

Power Button

Using the remote control

English-16

Power Indicator

Mode Status Indicator Light

Power ON Green* Power OFF and Power Save “AUTO

STANDBY” Power consumption under 0.5 W* Power Save “AUTO POWER SAVE” Power consumption under 2.5 W Power Standby when “SCHEDULE

SETTINGS” enabled Diagnosis (Detecting failure) Red Blinking

*1 If “OFF” is selected in POWER INDICATOR (page 25), the LED will not light when the LCD monitor is in active mode. *2 Without any option, with factory settings.

Red

Amber

Green and Amber blink alternately

(See Troubleshooting page 47)

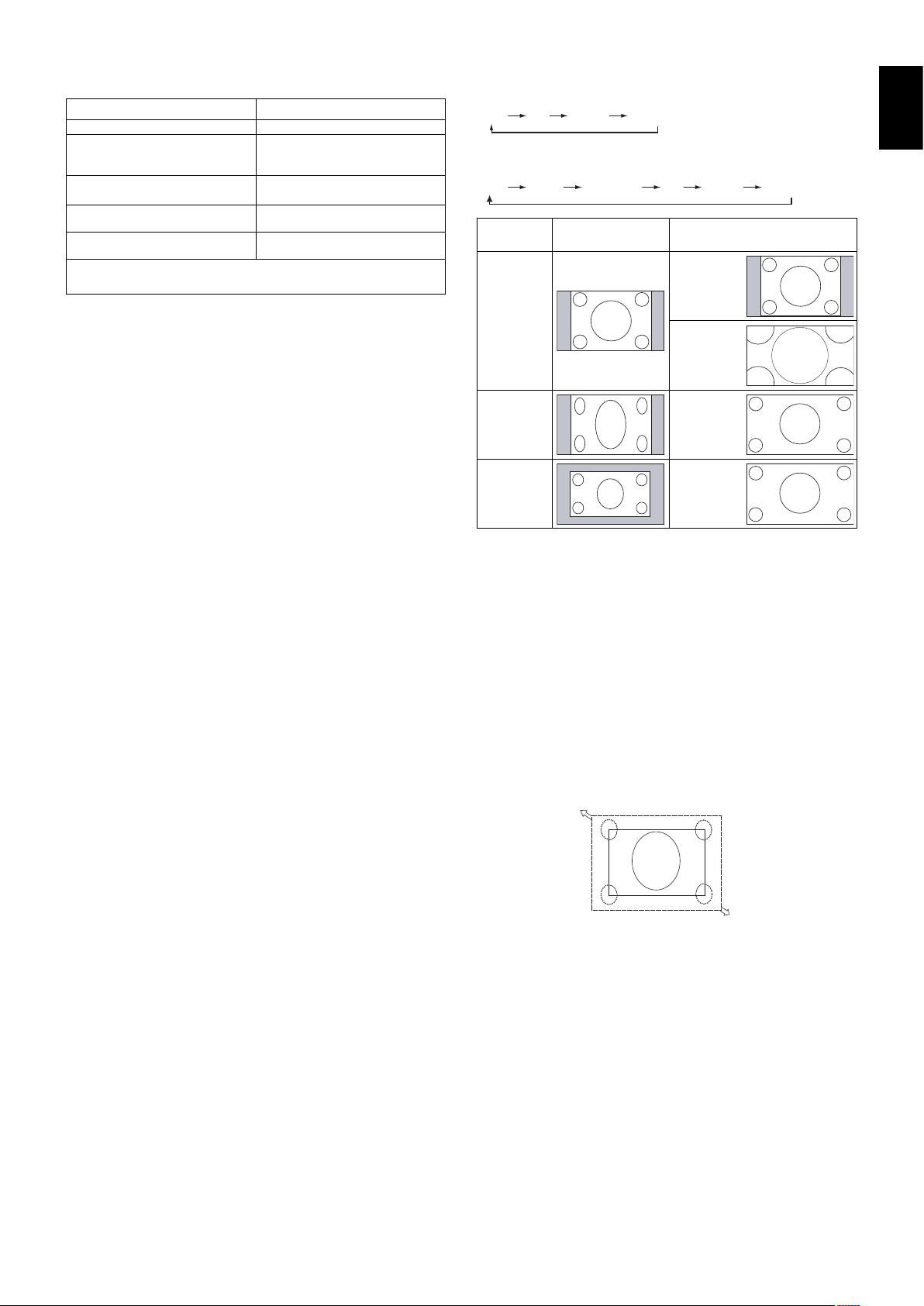

Picture Aspect

DVI, VGA, RGV/HV*4, DPORT

FULL 1:1 ZOOM NORMAL

HDMI, Y/Pb/Pr, SCART*4, VIDEO*4, S-VIDEO*4, HDMI2*4, HDMI3*4, Y/Pb/Pr2*

FULL WIDE DYNAMIC 1:1 ZOOM NORMAL

Aspect ratio

of image

Unchanged view*

Recommended selection

for picture aspect*

NORMAL

English

Initial settings

Setting LAN POWER (see page 26) and POWER SAVE (see page 26) windows appear the ﬁ rst time the power is on. These settings are only necessary upon initial setup. However, this message window appears when the power is on after FACTORY RESET is done.

Using Power Management

The LCD monitor follows the VESA approved DPM Display Power Management function. The power management function is an energy saving function that automatically reduces the power consumption of the display when the keyboard or the mouse has not been used for a ﬁ xed period. The power management feature on your new display has been set to the “AUTO STANDBY” mode. This allows your display to enter a Power Saving Mode when no signal is applied. This could potentially increase the life and decrease the power consumption of the display.

NOTE: Depending on the computer and display card

used, this function may not operate.

NOTE: The monitor automatically goes into OFF at the

preset time period after signal is lost.

Selecting a video source*

To view a video source:

Use the input button to set [VIDEO], [S-VIDEO]. Use the COLOR SYSTEM menu to set [AUTO], [NTSC],

[PAL], [SECAM], [PAL60], [4.43NTSC], according to your video format.

4:3

Squeeze

Letterbox

*3 Grey areas indicate unused portions of the screen.

DYNAMIC

FULL

WIDE

NORMAL: Displays the aspect ratio the same as it is sent from the source.

FULL: Fills entire screen. WIDE: Expands a 16:9 letter box signal to ﬁ ll entire screen. DYNAMIC: Expands a 4:3 pictures to ﬁ ll the entire screen

with non-linearity. Some of the outside image area will be cut off due to expansion.

1:1: Displays the image in a 1 by 1 pixel format.

ZOOM

The image can be expanded beyond the active display area. The image which is outside of active display area is not shown.

ZOOM

*4: This function depends on which option board you use.

English-17

Information OSD

The Information OSD provides information such as: Input Source, Picture Size, etc. Press the DISPLAY button on the remote to bring up the Information OSD.

쐃

Input Name

쐇

Audio input mode

쐋

Picture aspect

쐏

Input Signal Information



Sub picture information

Picture Mode

DVI, VGA, RGB/HV*, DPORT STANDARD sRGB CUSTOM1 CUSTOM2 HIGHBRIGHT

HDMI, Y/Pb/Pr, SCART*, VIDEO*, S-VIDEO*, HDMI2*, HDMI3*, Y/Pb/Pr2* STANDARD CINEMA CUSTOM1 CUSTOM2 HIGHBRIGHT

*: This function depends on which option board you use.

English-18

OSD (On-Screen-Display) Controls

NOTE: Some functions may not be available depending on the model or optional equipment.

Input source

Main Menu Icons

Main Menu Item

70 50 50 50

Sub Menu

50 50

THANK YOU FOR SAVING THE ENVIRONMENT.

PICTURE MODE

Select

Press UP or DOWN button to select sub-menu.

Goto Adjustment

Press SET/POINT ZOOM.

CARBON FOOTPRINT 86.0 %

Return Close

Key Guide

Press UP or DOWN, PLUS or MINUS to select the function or setting to be adjusted.

English

Adjustment Settings

Press MENU or EXIT.

Remote Control

Control Panel

OSD screen

Press UP or DOWN button to select.

Press INPUT button to decide.

Press UP or DOWN, PLUS or MINUS button to select.

Press EXIT

English-19

Setting Default


BACKLIGHT Adjusts the overall image and background brightness. Press + or - to adjust.

NOTE: When MODE1 or MODE2 is selected in ROOM LIGHT SENSING, this function cannot be changed.

CONTRAST Adjusts the image brightness in relationship to the input signal. Press + or - to adjust.

NOTE: When sRGB is selected in picture mode, this function cannot be changed.

SHARPNESS Adjusts the crispness of the image. Press + or - to adjust. 50*

BRIGHTNESS Adjusts the image brightness in relationship to the background. Press + or - to adjust.

NOTE: When sRGB is selected in picture mode, this function cannot be changed.

HUE Adjusts the hue of the screen. Press + or - to adjust.

NOTE: When sRGB is selected in picture mode, this function cannot be changed.

COLOR Adjusts the color depth of the screen. Press + or - to adjust.

NOTE: When sRGB is selected in picture mode, this function cannot be changed.

COLOR TEMPERATURE Adjusts the color temperature of the entire screen. A low color temperature will make the screen

reddish. A high color temperature will make the screen bluish. If TEMPERATURE needs further adjustment, the individual R/G/B/ levels of the white point can be adjusted. To adjust the R/G/B levels, CUSTOM must be showing as the COLOR TEMP selection. NOTE: When sRGB is selected in picture mode, predeﬁ ned 6500k is set so it cannot be changed. When PROGRAMMABLE1, PROGRAMMABLE2 or PROGRAMMABLE3 is selected in GAMMA CORRECTION, this function cannot be changed.

COLOR CONTROL Adjusts the hue of the Red, Yellow, Green, Cyan, Blue and Magenta.

NOTE: When sRGB is selected in picture mode, this function cannot be changed. When INPUT2 of SUPER is selected in INPUT CHANGE and displayed, this function cannot be changed.

GAMMA CORRECTION Select a display gamma for best picture quality.

NOTE: When sRGB is selected in picture mode, this function cannot be changed.

NATIVE Gamma correction is handled by the LCD panel.

2.2 Typical display gamma for use with a computer.

2.4 Good for video (DVD, etc.)

S GAMMA Special gamma for certain types of movies. Raises the dark parts and lowers the light parts of the

image (S-Curve).

DICOM SIM. DICOM GSDF curve simulated for LCD type.

PROGRAMMABLE1, 2, 3

A programmable gamma curve can be loaded using NEC optional software.

MOVIE SETTINGS NOTE: When INPUT2 of SUPER is selected in INPUT CHANGE and displayed, this function

cannot be changed.

NOISE REDUCTION*

VIDEO, S-VIDEO, SCART inputs only

TELECINE

HDMI, Y/Pb/Pr, SCART*1, VIDEO*1, S-VIDEO*1, HDMI2*1, HDMI3*1, Y/Pb/Pr2*1 inputs only

ADAPTIVE CONTRAST

HDMI, Y/Pb/Pr, SCART*1, VIDEO*1, S-VIDEO*1,

HDMI2*

, HDMI3*1, Y/Pb/Pr2*1 inputs only

Adjusts the amount of noise reduction. Press + or - to adjust. 0*

Automatically senses the sources frame rate for optimal picture quality. AUTO*

Sets the level of adjustment for dynamic contrast. OFF

PICTURE MODE Selects picture mode, [HIGHBRIGHT], [STANDARD], [sRGB], [CINEMA], [CUSTOM1] or

[CUSTOM2]. See page 18.

RESET Resets the following settings within the PICTURE menu back to factory setting: BACKLIGHT,

CONTRAST, SHARPNESS, BRIGHTNESS, HUE, COLOR, COLOR TEMPERATURE, COLOR CONTROL, GAMMA CORRECTION, MOVIE SETTINGS.

Depends on

destination

50*

10000K

NATIVE*

(except sRGB

setting)

Depends on

destination

ADJUST

AUTO SETUP

VGA, RGB/HV*1 inputs only

AUTO ADJUST

VGA, RGB/HV*1 inputs only

H POSITION

All inputs except DVI, HDMI, DPORT

V POSITION

All inputs except DVI, HDMI, DPORT

CLOCK

VGA, RGB/HV*1 inputs only

*1: This function depends on which option board you use. *2: Depends on signal input.

Automatically adjusts Screen Size, H position, V position, Clock, Phase and White Level. -

H Position, V Position and Phase are adjusted automatically when new timing is detected. OFF

Controls the horizontal position of the image within the Display area of the LCD. Press + to move right. Press - to move left.

Controls the vertical position of the image within the Display area of the LCD. Press + to move up. Press - to move down.

Press + to expand the width of the image on the right of the screen. Press - to narrow the width of the image on the left.

English-20

PHASE

VGA, RGB/HV*1, Y/Pb/Pr, SCART*1, Y/Pb/Pr2*1 inputs only

H RESOLUTION

VGA, RGB/HV*1 inputs only

V RESOLUTION

VGA, RGB/HV*1 inputs only

INPUT RESOLUTION

VGA, RGB/HV*1 inputs only

Adjusts the visual “noise” on the image. -

Adjusts the horizontal size of the image. -

Adjusts the vertical size of the image. -

If there is a problem with signal detection, this function forces the monitor to display the signal at

AUTO the desired resolution. After selection, execute “AUTO SETUP” if required. If no problem is detected, the only available option will be “AUTO”.

ASPECT Select the aspect ratio of the screen image.

FULL NOTE: When the ASPECT is DYNAMIC, WIDE or ZOOM, the image will be changed FULL image before IMAGE FLIP, then start to IMAGE FLIP. When the ASPECT is DYNAMIC or ZOOM, the image will be changed FULL image before TILE MATRIX, then start to TILE MATRIX. After TILE MATRIX, the ASPECT will be returned previous ASPECT or set ASPECT during TILE MATRIX. When the ASPECT is DYNAMIC or ZOOM, the image will be changed FULL image before POINT ZOOM, then start to POINT ZOOM. After POINT ZOOM, the ASPECT will be returned previous ASPECT. When the ASPECT is changed during POINT ZOOM, DYNAMIC and ZOOM will be FULL image.

NORMAL Displays the aspect ratio the same as it is sent from the source. -

FULL Fills entire screen. -

WIDE Expands a 16:9 letter box signal to ﬁ ll entire screen. -

DYNAMIC Expands a 4:3 pictures to ﬁ ll the entire screen with non-linearity. Some of the outside image area

will be cut off due to expansion. TILE MATRIX becomes invalid.

1:1 Display the image in a 1 by 1 pixel format. (If the input resolution is higher than a 1920 x 1080

resolution, the image will be scaled down to ﬁ t the screen). TILE MATRIX becomes invalid.

ZOOM The image can be expanded/reduced.

NOTE: The expanded image which is outside of active display area is not shown. The reduced image may have some image degradation.

ZOOM Maintains the aspect ratio while zooming. -

HZOOM Amount of horizontal zoom.

VZOOM Amount of vertical zoom.

H POS Horizontal position. NOTE: The image does not change upon a reduced image setting.

V POS Vertical position. NOTE: The image does not change upon a reduced image setting.

IMAGE FLIP NOTE: OVER SCAN is disabled when IMAGE FLIP is selected.

When the ASPECT is DYNAMIC, WIDE or ZOOM, the image will be changed FULL image before IMAGE FLIP, then start to IMAGE FLIP. When selecting IMAGE FLIP except for NONE, following functions are released: PIP MODE, TILE MATRIX, SUPER in INPUT CHANGE, STILL, POINT ZOOM.

IMAGE FLIP Display the inverse image right-left, up-down or rotation.

NONE

Press + or - to select.

NONE

H FLIP

V FLIP

180° ROTATE

OSD FLIP Determines the OSD display direction.

Normal mode.

The image inverts right-left.

The image inverts up-down.

The image rotates 180 degrees.

OFF

If “ON” is selected, OSD will invert depending on the image.

RESET Resets “ADJUST” settings back to factory settings. -

English

AUDIO

VOLUME Increases or decreases output volume level. 40

BALANCE

Select “STEREO” or “MONO” of audio output. If you select “STEREO”, adjust the balance of L/R volume. Press + button to move the stereo sound image to right. Press - button to move the stereo sound image to left.

*1: This function depends on which option board you use.

English-21

CENTER,

STEREO

TREBLE To accentuate or reduce the high frequency sound.

0 Press + button to increase TREBLE sound. Press - button to decrease TREBLE sound.

BASS To accentuate or reduce the low frequency sound.

0 Press + button to increase BASS sound. Press - button to decrease BASS sound.

SURROUND Artiﬁ cial surround sound.

OFF

NOTE: Audio out is disabled when this function is set to ON.

PIP AUDIO Selects source of PIP audio. MAIN AUDIO

LINE OUT Selecting “VARIABLE” enables control of the line out level with the VOLUME button.

FIXED

NOTE: Audio out is disabled when this function is set to ON.

AUDIO INPUT Selects audio input source [IN1], [IN2], [IN3]*

[HDMI3]*

AUDIO DELAY Enables to set the delay time to output the audio. DELAY TIME can be set between 0 and

100 milliseconds. “ON” activates this function.

, [OPTION]*1, [HDMI], [DPORT], [HDMI2]*1,

Depends on

signal input

ON,

37 MSEC.

RESET Resets “AUDIO” options back to factory settings except VOLUME. -

SCHEDULE

OFF TIMER

SCHEDULE SETTINGS Creates a working schedule for the monitor to use.

SCHEDULE LIST List of schedules. -

DATE & TIME Sets the date, time, and daylight saving region. Date & time must be set in order for the

YEAR Conﬁ gures the year for the real-time clock. -

MONTH Conﬁ gures the month for the real-time clock. -

DAY Conﬁ gures the day for the real-time clock. -

TIME Conﬁ gures the time for the real-time clock. -

DAYLIGHT SAVING Conﬁ gures daylight savings on or off. OFF

RESET Resets the following settings within the SCHEDULE menu back to factory setting: OFF TIMER,

Sets the monitor to power off after a length of time. A time between 1 to 24 hours is available.

NOTE: If your schedule is across date, please set ON time and OFF time individually at Settings.

“SCHEDULE” function to operate. See page 30.

SCHEDULE SETTINGS.

OFF

PIP

KEEP PIP MODE

PIP MODE Selects Picture-in-Picture mode.

OFF Normal mode.

PIP Picture in Picture mode.

POP Picture out Picture mode.

PICTURE BY PICTUREASPECT

PICTURE BY PICTURE FULL

SUB INPUT Selects sub picture input signal. Depends on

PIP SIZE Determines the size of the sub-picture used in Picture-in-Picture (PIP) mode.

PIP POSITION Determines the location where the PIP appears on the screen. X = 95, Y = 92

ASPECT Selects sub picture aspect, [FULL], [NORMAL] and [WIDE]. See page 17. FULL

*1: This function depends on which option board you use.

Allows the monitor to remain in “PIP” and “TEXT TICKER” mode after powering off. When Power is returned, PIP and TEXT TICKER appear without having to enter the OSD.

NOTE: This function is released when selecting IMAGE FLIP except for NONE.

Picture by picture (split screen) mode, with keep aspect.

Picture by picture (split screen) mode, with full screen.

Press the SET/POINT ZOOM button to adjust. Press + or CH+ to expand. Press - or CH- to reduce. It is also possible to change the sub-picture size by pressing the SET/POINT ZOOM button when the sub-picture is shown.

OFF

signal input

English-22

TEXT TICKER OFF

MODE Enables Text Ticker and allows you to set Horizontal or Vertical direction.

POSITION Selects the location of the Text Ticker on the screen.

SIZE Determines the size of the Text Ticker in relationship to the overall screen size.

BLEND Sets the transparency of the Text Ticker (0: transparent, 100: opaque).

DETECT Enables auto-detection of the Text Ticker.

FADE IN Enables fade-in of the text ticker.

RESET Resets PIP options back to factory settings except SUB INPUT and ASPECT. -

OSD

LANGUAGE Select the language used by the OSD. ENGLISH

ENGLISH

DEUTSCH

FRANÇAIS

ITALIANO

ESPAÑOL

SVENSKA

РУССКИЙ

(Depends on

destination)

English

MENU DISPLAY TIME Turns off the OSD after a period of inactivity. The preset choices are 10-240 seconds. 30 SEC.

OSD POSITION Determines the location where the OSD appears on the screen.

DOWN

RIGHT

LEFT

INFORMATION OSD Selects whether the information OSD is displayed or not. The information OSD will be displayed

when the input signal or source changes. The information OSD will also give a warning when there is no-signal or the signal is out-of range. An interval between 3 to 10 seconds for the Information OSD to appear is available.

MONITOR INFORMATION Indicates the model and serial number of your monitor and ﬁ rmware version.

CARBON SAVINGS: Display the estimated carbon saving information in kg-CO2. The carbon footprint factor in the carbon saving calculation is based on the OECD (2008 Edition). CARBON USAGE: Display the estimated carbon usage information in kg-CO2. This is the arithmetic estimation, not actual measurement value. This estimation is based without any options.

OSD TRANSPARENCY Set the transparency of the OSD. OFF

OSD ROTATION Determines the OSD display direction between landscape and portrait. LANDSCAPE

LANDSCAPE Display the OSD with landscape mode.

PORTRAIT Display the OSD with portrait mode.

INPUT NAME You can create a name for the INPUT currently being used.

Max: 8 characters, including Space, A-Z, 0-9, and some symbols.

MEMO Sets a title and message via HTTP server. See page 43. -

RESET Resets the following settings within the OSD menu back to factory setting:

MENU DISPLAY TIME, OSD POSITION, INFORMATION OSD, OSD TRANSPARENCY.

X = 128, Y = 225

ON, 3 SEC.

English-23

MULTI DISPLAY

ID CONTROL Sets the monitor ID number from 1-100 and group ID from A-J. DETECTED MONITORS shows

AUTO ID/IP SETTING When “SET” is selected, AUTO ID/IP SETTING window is shown.

SETTING ITEM Select an item from [MONITOR ID], [IP ADDRESS] and [ID and IP]. MONITOR ID

ID/IP SETTING START

MONITOR ID When “YES” is set, monitor ID numbers are set automatically to the all monitors.

IP ADDRESS Set the ﬁ rst octet to the third octet at “BASE ADDRESS”.

ID and IP Set “MONITOR ID” and “IP ADDRESS”.

DETECTED MONITORS

AUTO ID/IP RESET When “RESET” is selected, AUTO ID/IP RESET window is shown.

RESET ITEM Select a setting from [MONITOR ID], [IP ADDRESS], and [ID and IP]. MONITOR ID

ID/IP RESET START When “YES” is set, the setting of selected item at RESET ITEM returns to default setting.

COMMAND TRANSFER

IR LOCK SETTINGS Prevents the monitor from being controlled by the wireless remote control.

MODE SELECT Selects the mode UNLOCK, ALL LOCK or CUSTOM LOCK.

UNLOCK All buttons on the remote control are available for normal operations.

ALL LOCK Locks all remote control buttons.

CUSTOM LOCK Selects which buttons to be locked from POWER, VOLUME, and INPUT button.

*1: This function depends on which option board you use.

the number of all monitors which follow in the chain with LAN. NOTE: Group ID is made of multiple selections.

Do not connect network devices between the monitors connected with LAN.

When “YES” is set, selected item at SETTING ITEM is set.

The fourth octet is automatically set from “1” and counting up till the number of monitors connected with LAN. “BASE ADDRESS” is shown when “IP ADDRESS” or “ID and IP” is selected at SETTING ITEM.

This item is shown after “SETTING ITEM” is selected and “ID/IP ADDRESS START” is set to “YES”. The number of monitors which MONITOR ID is given is shown. If the shown number and actual monitor number which MONITOR ID is given are different, select “RETRY” to recount monitors. Select “CONTINUE” when “FINISH!!” is displayed. If “CONTINUE” is not selected after “FINISH!!” is displayed, the settings that have been made will be invalid and will not be reﬂ ected.

When the setting returns to default setting, “FINISH!!” is displayed. After “ID/IP RESET START” is activated, “MONITOR ID” and “IP ADDRESS” settings will be individual settings even though monitors are connected with LAN. NOTE: When the number of monitors connected with LAN was changed, please select the same item that you selected at “SETTING ITEM” and then run the “AUTO ID/IP RESET”.

When “ON” is set, command is sent to all the monitors which follow in the chain with LAN. NOTE: The all monitors connected with LAN should be “ON”. When executing this function in standby mode or power save mode, “LAN POWER” should be “ON”. Do not turn off the monitors while AUTO ID/IP SETTING or AUTO ID/IP RESET is activating.

When ACTIVATE is selected, all the settings are activated. NOTE: IR LOCK SETTINGS is a function intended only to the wireless remote control buttons. This function does not lock out access to all buttons at the back of the monitor. To return to normal operation, press the “DISPLAY” button on the remote control for 5 seconds.

Except for CUSTOM LOCK settings, other buttons on the remote control are locked. POWER: When LOCK is selected, POWER button is locked. VOLUME: When UNLOCK is selected, sets minimum and maximum volume between VOL.0 to VOL.100. VOLUME (+) button and VOLUME (-) buttons are only available from the minimum volume to the maximum volume you set. When LOCK is selected, VOLUME (+) button and VOLUME (-) buttons are locked. INPUT: When UNLOCK is selected, choose up to three buttons from DVI, DisplayPort, VGA, HDMI, Y/Pb/Pr, VIDEO*

, S-VIDEO*1, OPTION*1 which you prefer to be unlocked. The unselected buttons are locked. When LOCK is selected, all INPUT buttons are locked.

UNLOCK

English-24

TILE MATRIX Allows one image to be expanded and displayed over multiple screens (up to 100) through a

DPORT

DVI

HDMI

VGA

Y/Pb/Pr

OPTION

VIDEO

S-VIDEO

SCART

Y/Pb/Pr2

RGB/HV

HDMI2

HDMI3

Connector

DisplayPort

DVI-D

HDMI

D-Sub

SLOT2

SLOT3

DP OUT

Yes

— — Yes

— — —

—

(SB3-AB1)

Yes

(SB3-AB2)

Yes

—*2—*

*1:

Main picture in PIP (Picture in Picture) mode.

*2:

When you use HDMI OUT connector in SB3-DB1, multicple monitors connection is available.

When you use DPOUT for HDCP authentication signal, Input signal name should be DPORT. Multiple monitors that are daisy-chained have a limit to the connectable monitors.

distribution ampliﬁ er. NOTE: Low resolution is not suitable for tiling to a large number of monitors. You can operate without a distribution ampliﬁ er at a lower number of screens. NOTE: This function is released when selecting IMAGE FLIP except for NONE. Dynamic or Zoom will not work when Tile Matrix is activated. When “DYNAMIC” or “ZOOM” is selected in ASPECT while executing TILE MATRIX, the setting will be applied after completing of TILE MATRIX.

H MONITORS Number of monitors arranged horizontally.

V MONITORS Number of monitors arranged vertically.

POSITION Select which section of the tiled image to be displayed on the monitor.

TILE COMP Turns the TILE COMP feature on. NO

TILE MATRIX ENABLE Enables Tile Matrix. NO

FRAME COMP

(not adjustable)

V SCAN REVERSE

(not adjustable)

TILE MATRIX MEM When “INPUT” is selected, TILE MATRIX setting is applied to each signal input. COMMON

AUTO TILE MATRIX SETUP

Allows auto setting of multiple screens by inputting the number of monitors arranged horizontally and vertically on the primary monitor. Following settings are set automatically: MONITOR

DEACTIVATE

ID, TILE MATRIX, TILE MATRIX MEM, Input Signal, VIDEO OUT SETTING, DisplayPort in TERMINAL SETTING. NOTE: All monitors which follow in the chain with LAN should be ON. When executing this function while in standby mode or power save mode, “LAN POWER” should be set to ON. AUTO ID will be automatically executed. When you use this function, it is recommended that monitors are chained by DisplayPort cable.

Example of installation via LAN:

Primary monitor H MONITORS 3 V MONITORS 3

English

POWER ON DELAY Adjusts the delay time between being in “standby” mode and entering “power on” mode.

DELAY TIME “POWER ON DELAY” can be set between 0 and 50 seconds. 0 SEC.

LINK TO ID When “ON” selected, delay time is linked with Monitor ID. It takes more time as larger ID number. OFF

VIDEO OUT SETTING Enables the signal output from DPORT. See also page 27 “DisplayPort” in TERMINAL SETTING.

NOTE: When VGA or Y/Pb/Pr is selected as the main picture, nothing will be output from DPORT. When this function is ON, DPORT cannot be selected as the sub picture. When this function is ON, INPUT CHANGE is limited to be NORMAL or QUICK. When this function is ON and DPORT is selected as the main picture, PIP CHANGE button of remote control (see page 11) is disabled.

Input signal

name*

Connector

DP OUT

*1: *2:

DPORT

DVI

HDMI

VGA

Y/Pb/Pr

OPTION

VIDEO

S-VIDEO

DisplayPort

DVI-D

HDMI

D-Sub

SLOT2

Yes

Main picture in PIP (Picture in Picture) mode. When you use HDMI OUT connector in SB3-DB1, multicple monitors connection is available. When you use DPOUT for HDCP authentication signal, Input signal name should be DPORT. Multiple monitors that are daisy-chained have a limit to the connectable monitors.

Yes

SCART

—

(SB3-AB1)

Y/Pb/Pr2

SLOT3

Yes

(SB3-AB2)

RGB/HV

Yes

HDMI2

HDMI3

POWER INDICATOR Turns ON or OFF the LED located at the front of the monitor.

If “OFF” is selected, LED will not light when the LCD monitor is in active mode.

SETTING COPY In a daisy chain scenario, select the OSD menu categories that you want to copy over to the

other monitor. NOTE: When you use this function, monitors should be daisy chained by LAN. This function resets to default when power is off. This function has a limit depending on the cable you use.

COPY START Select “YES” and press the SET button to start copying.

ALL INPUT All input terminals settings are copied when you select this item. Default is off.

RESET Resets “MULTI DISPLAY” options back to factory settings except for POWER ON DELAY and

VIDEO OUT SETTING.

English-25

DISPLAY PROTECTION

POWER SAVE Sets how long the monitor waits to go into power save mode after the signal is lost.

AUTO POWER SAVE The monitor automatically goes into OFF at the preset time period after signal is lost.

AUTO STANDBY The monitor automatically goes into OFF at the preset time period after signal is lost.

DISABLE The monitor will not goes into OFF after signal is lost. -

HEAT STATUS Displays status of the FAN, BACKLIGHT and TEMPERATURE. -

FAN CONTROL Cooling fan reduces the temperature of the display to protect from overheating.

SCREEN SAVER Use the SCREEN SAVER function to reduce the risk of Image Persistence.

GAMMA

BACKLIGHT The brightness of backlight is decreased when “ON” is selected.

MOTION The screen image is slightly expanded and moves in 4 directions (UP, DOWN, RIGHT, LEFT) at

SIDE BORDER COLOR Adjusts the color of the side borders when a 4:3 image is displayed.

CHANGE PASSWORD Allows the security password to be changed.

SECURITY Locks the security password.

RESET Resets the following settings within the DISPLAY PROTECTION menu back to factory setting:

NOTE: When connecting DVI, the display card might not stop sending the digital data even though the image might have disappeared. If this occurs the monitor will not switch into power management mode. POWER SAVE is disabled when AUTO OFF or CUSTOM is selected in HUMAN SENSING.

The monitor will return to normal mode when signal is restarted.

Press the power button to return to normal mode.

If “AUTO” is selected, you can adjust the start temperature of the cooling fan and fan speed.

The display gamma is changed and ﬁ xed when “ON” is selected. OFF

NOTE: Do not select this function when ROOM LIGHT SENSING is MODE1 or MODE2.

user determined intervals. You can set interval time and zooming ratio. This function is disabled when PIP, STILL, TEXT TICKER or TILE MATRIX are enabled.

Press + button, the bar will become lighter. Press - button, the bar will become darker.

The factory preset password is 0000.

START-UP LOCK: Security password is required when the monitor power is on. CONTROL LOCK: Security password is required when the remote control button or control button on the monitor is pressed. BOTH LOCK: Security password is required when the monitor power is on, or the remote control button or control button on the monitor is pressed.

POWER SAVE, FAN CONTROL, SCREEN SAVER, SIDE BORDER COLOR.

AUTO

STANDBY

AUTO, HIGH

OFF

EXTERNAL CONTROL

IP ADDRESS SETTING NOTE: When changing the LAN SETTING, you need to wait several seconds until the LAN

IP SETTING Enabling this option automatically assigns an IP address to the monitor from your DHCP server.

IP ADDRESS Set your IP address of the network connected to the monitor when “MANUAL” is selected for

SUBNET MASK Set your subnet mask number of the network connected to the monitor when “MANUAL” is

DEFAULT GATEWAY

DNS Set for IP ADDRESS SETTING of DNS server.

DNS PRIMARY

DNS SECONDARY Set your secondary DNS settings of the network connected to the monitor.

MAC ADDRESS Displays the MAC ADDRESS. -

LAN POWER Selects LAN operation mode. When “ON” selected, allows to supply power to LAN during power

SETTING is applied.

Disabling this option allows you to register the IP address or subnet mask number obtained from your network administrator. NOTE: Consult your network administrator for the IP address when “AUTO” is selected for [IP SETTING].

[IP SETTING].

selected for [IP SETTING].

Set your default gateway of the network connected to the monitor when “MANUAL” is selected for [IP SETTING]. NOTE: Set as [0.0.0.0] to delete the setting.

AUTO: Automatically assign an IP address of DNS server connected to the monitor. MANUAL: Set your IP address of DNS server connected to the monitor.

Set your primary DNS settings of the network connected to the monitor. NOTE: Set as [0.0.0.0] to delete the setting.

NOTE: Set as [0.0.0.0] to delete the setting.

save mode or standby mode. NOTE: For enabling “AUTO ID” or “AUTO TILE MATRIX SETUP”, this function should be ON.

AUTO

192.168.0.10

255.255.255.0

0.0.0.0

AUTO

0.0.0.0

OFF

English-26

DDC/CI

PING

IP ADDRESS RESET

RESET

ENABLE/DISABLE: Turns ON or OFF the two way communication and control of the monitor. ENABLE

Conﬁ rm the response by communicating to the preset IP address. 192.168.0.10

Resets IP ADDRESS SETTING back to factory settings. NO

Resets the following setting within the EXTERNAL CONTROL menu back to factory settings: DDC/CI.

ADVANCED OPTION1

INPUT DETECT Selects the method of input detection the monitor uses when more than two input devices are

NONE

FIRST DETECT*

LAST DETECT*

VIDEO DETECT VIDEO inputs such as HDMI, HDMI2*

CUSTOM DETECT Set the priority of input signals.

LONG CABLE COMP*

(Analog input only)

ON/OFF

SOG PEAK

GAIN Adjusts gain value. 0

R-H.POSITION Adjusts the position of the red component of the image. 0

G-H.POSITION Adjusts the position of the green component of the image. 0

B-H.POSITION Adjusts the position of the blue component of the image. 0

SYNC TERMINATION Selects the terminate resistance for matching the cable impedance. HIGH

INPUT CHANGE Sets input change speed. When selected “SUPER”, allows to switch high-speed between set two

TERMINAL SETTING

DVI MODE

D-SUB MODE Selects the type of signal associated with the D-SUB input.

BNC MODE*

SCART MODE*

DisplayPort Selects DisplayPort mode [1.1a] or [1.2].

HDMI SIGNAL RAW: Disable the expanded feature.

*1: This function depends on which option board you use. *2: Only for DVI, DPORT, VGA, RGB/HV* *3: Multi-Stream Transport requires the corresponding display card. Contact your dealer for limitations of this function.

connected. NOTE: When SUPER is selected in INPUT CHANGE, this function cannot be changed.

The Monitor will not search the other video input ports.

When the current video input signal is not present, then the monitor searches for a video signal from the other video input port. If the video signal is present in the other port, then the monitor switches the video source input port to the new found video source automatically. The monitor will not look for other video signals while the current video source is present.

When the monitor is displaying a signal from the current source and a new secondary source is supplied to the monitor, the monitor will automatically switch to the new video source. When current video input signal is not present, the monitor searches for a video signal from the other video input port. If the video signal is present in the other port, then the monitor switches the video source input port to the new found video source automatically.

S-VIDEO*

will have priority over DVI, VGA, DPORT, RGB/HV*1. When one of the VIDEO input

, HDMI3*1, Y/Pb/Pr, Y/Pb/Pr2*1, SCART*1, VIDEO*1 or

signals is present the monitor will change and keep to the VIDEO input.

When CUSTOM DETECT is selected, monitor searches listed inputs only. NOTE: Priority of option input signal is only available in PRIORITY3 except for slot 2 type PC option.

Manually compensates for image degradation caused from using a long cable.

ON: Activates this function. OFF: Deactivates this function.

Adjusts the sensitivity of the Sync On Green input signals. Adjusts the slice level when separating synchronization from sync On Green signal input. Press “LEFT” or “RIGHT” to select.

signals. NOTE: When “QUICK” is selected, picture may be distorted when signal input is changed. “SUPER” is released when selecting IMAGE FLIP except for NONE. This function should be chosen after all adjustment options have been made for the input.

Selects the kind of DVI-D equipment which is connected to the DVI input. Select “DVI-HD” when DVD player or computer equipment, which requires HDCP authentication, is connected. Select “DVI-PC” when a computer equipment, which not requires HDCP authentication, is connected.

RGB: Analog input (R, G, B, H, V) COMPONENT: Component (Y, Cb/Pb, Cr/Pr)

Selects the kind of equipment which is connected to the BNC input. RGB: Analog input. COMPONENT: Component.

Input mode for devices using SCART connectors. OFF

[1.2] should be selected when using Multi-Stream Transport.*

EXPAND: Expand image contrast and increase detail in the dark and bright areas.

, HDMI, HDMI2*1, HDMI3*1 input.

English-27

English

NONE

OFF

NORMAL

DVD-HD

RGB

1.1a

Depends on

signal input

DEINTERLACE Selects the IP (Interlace to Progressive) conversion function.

NOTE: For DVI input “DVI-HD” needs to be enabled in the DVI mode menu. When INPUT2 of SUPER is selected in INPUT CHANGE and displayed, this function cannot be changed.

Converts interlaced signals to progressive. This is the default setting.

OFF Disables IP conversion. This setting is best suited for motion pictures, but increases the risk of

image retention.

COLOR SYSTEM*

VIDEO, S-VIDEO inputs only

The selected Color System depends on the video format of the input signal. AUTO

AUTO

NTSC Automatically chooses Color System setting based on input signal.

PAL

SECAM

4.43 NTSC

PAL-60

OVER SCAN

HDMI, Y/Pb/Pr, SCART*1, VIDEO*1, S-VIDEO*1, HDMI2*1, HDMI3*1 inputs only

Some video formats may require different scanning modes in order to best display the image. ON

Image size is larger than what can be displayed. The image edge will appear cropped. Approximately 95% of the image will be shown on the screen.

OFF Image size stays within the display area. The whole image is displayed on the screen.

NOTE: When you use a computer with HDMI out, please set “OFF”.

OPTION SETTING -

OPTION POWER Allow the monitor to supply power to Option board slot during power save mode or standby

mode. NOTE: This function should be set to ON when using power save management by slot 2 type option.

AUDIO*

Selects sound input signal according to slot2 type option’s speciﬁ cations. To activate DIGITAL,

ANALOG select OPTION for input signal and OPTION for AUDIO INPUT. NOTE: DIGITAL is activated only when OPTION is selected for input signal and OPTION for AUDIO INPUT.

INTERNAL PC*

The function is available for slot 2 type PC.

OFF WARNING If OPTION POWER is OFF, a warning message appears when monitor power is turned off.

NOTE: Warning message does not appear when monitor power is turned off by OFF TIMER setting or SCHEDULE setting.

AUTO OFF Monitor power is automatically “OFF” when connected PC is OFF or the monitor is in power save

mode. NOTE: Monitor power is not automatically “ON” when connected PC is ON.

START UP PC When ON is selected, connected PC start-up. NO

FORCE QUIT When ON is selected, it performs force-quit PC.

Please use this function only when the operating system cannot be shut down manually.

120Hz

(not adjustable) -

TOUCH PANEL

(not adjustable) -

RESET Resets the following settings within the ADVANCED OPTION menu back to factory setting:

INPUT DETECT (except the priority of input signals), INPUT CHANGE (except for INPUT1 and INPUT2), TERMINAL SETTING, DEINTERLACE, COLOR SYSTEM, OVER SCAN, AUDIO in OPTION SETTING.

*1: This function depends on which option board you use.

OFF

English-28

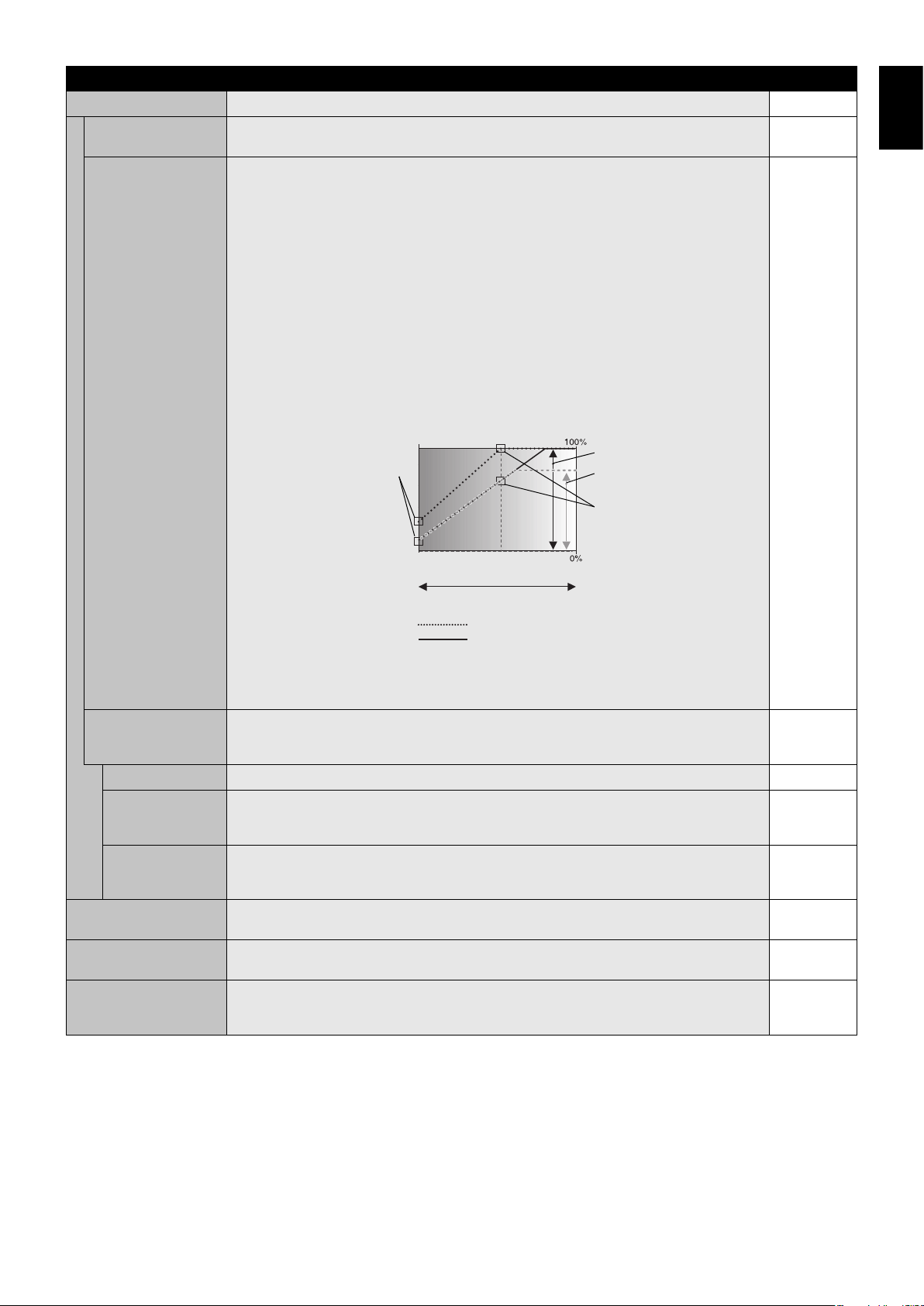

ADVANCED OPTION2

AUTO DIMMING Adjusts the backlight of the LCD automatically depending on the amount of ambient light. -

AUTO BRIGHTNESS

DPORT, DVI, VGA, RGB/HV*1 inputs only

ROOM LIGHT SENSING

Adjusts the brightness level according to the input signal. NOTE: Do not select this function when ROOM LIGHT SENSING is MODE1 or MODE2.

The backlight of the LCD screen can be set to increase or decrease depending on the amount of ambient light within the room. If the room is bright, the monitor becomes correspondingly bright. If the room is dim, then the monitor will dim accordingly. The purpose of this function is to make the viewing experience more comfortable to the eye in a variety of lighting conditions. NOTE: When ROOM LIGHT SENSING is set to MODE1 or MODE2, BACKLIGHT, AUTO BRIGHTNESS and BACKLIGHT in SCREEN SAVER function are disabled. Do not cover the room light sensing sensor when you use MODE1 or MODE2.

AMBIENT parameter setting ROOM LIGHT SENSING in OSD, select MODE1 or MODE2 and set MAX LIMIT, IN BRIGHT and IN DARK in each mode. MAX LIMIT: This is the max level of backlight which you set. IN BRIGHT: This is the backlight level that the monitor will go up to when the ambient light level is highest. IN DARK: This is the level of backlight that the monitor will go down to when the ambient light level is low. When the ROOM LIGHT SENSING is enabled the Backlight level of the screen changes automatically according to the lighting conditions of the room (see ﬁ gure below).

Factory Setting

BACKLIGHT range

BACKLIGHT level set for the monitor to use when ambient lighting level is low.

IN DARK IN BRIGHT

room bright condition

dark bright

Screen Backlight value by MODE1 Screen Backlight value by MODE2

BACKLIGHT range when set to MAX LIMIT.

BACKLIGHT level set for the monitor to use when ambient lighting level is high.

OFF

English

MAX LIMIT: BACKLIGHT level is limited to your set level. IN DARK: BACKLIGHT level set for the monitor to use when ambient lighting level is low. IN BRIGHT: BACKLIGHT level set for the monitor to use when ambient lighting level is high.

HUMAN SENSING*

HUMAN SENSING has three settings. NOTE: POWER SAVE is disabled when AUTO OFF or CUSTOM is selected in HUMAN SENSING.

DISABLE No human sensing. -

AUTO OFF At the preset time, when no person is detected, BACKLIGHT and VOLUME automatically go

into OFF. When a person comes near the monitor again, the monitor will automatically return to normal mode.

CUSTOM BACKLIGHT and VOLUME automatically shift to the set value when detecting no person. When

a person comes near the monitor again, the monitor automatically return to normal mode and display the input signal selected in INPUT SELECT.

INTELLI. WIRELESS DATA Select “ON” to activate INTELLIGENT WIRELESS DATA function (see page 45). A password is

required when using the function.

RESET Resets “ADVANCED OPTION 2” settings back to factory setting, except for INTELLI. WIRELESS

DATA .

FACTORY RESET All items are returned to factory shipment state.

NOTE: You can reset all items in all daisy chain displays. Please be careful to avoid resetting all items inadvertently.

*1: This function depends on which option board you use. *2: The function is available only when connecting the optional sensor unit.

DISABLE

English-29

NOTE 1: CREATING A SCHEDULE

The schedule function allows the display to be set to power on and off at different times. Up to seven different schedules can be programmed.

To program the schedule:

1. Enter the SCHEDULE menu. Highlight SCHEDULE SETTINGS using the up and down buttons. Press the SET/POINT ZOOM or the + button to enter the Settings menu. Highlight the desired schedule number and press SET/POINT ZOOM. The box next to the number will turn yellow. The schedule can now be programmed.

2. Use the down button to highlight the hours setting in the ON time slot. Use the + and - buttons to set the hour. Use the up and down buttons to highlight the minutes setting. Use the + and - buttons to set the minutes. Set the OFF time in the same manner.

3. Use the up and down arrows to highlight INPUT. Use the + and - buttons to choose the input source. Use the up and down arrows to highlight PIC. MODE. Use the + and - buttons to choose the picture mode.

4. Use the down button to select a day on which the schedule will be enabled. Push the SET/POINT ZOOM button to enable. If the schedule is to be ran every day, choose EVERY DAY and press the SET/POINT ZOOM button. The circle next to EVERY DAY will turn yellow. If a weekly schedule is desired, choose the days of the week using the up and down buttons and pressing SET/POINT ZOOM to select. Then highlight the EVERY WEEK option and press SET/POINT ZOOM.

5. After a schedule is programmed the remaining schedules can then be set. Press MENU to leave the OSD or press EXIT to go back to the previous menu.

NOTE: If schedules are overlapping then the schedule with the highest number will have

priority over the schedule with the lowest number. For example schedule #7 will have priority over schedule #1. If selected input or picture mode is not available now, disable input or picture mode is shown in red.

DVI

SCHEDULE:

OFF TIMER

SCHEDULE SETTINGS

SCHEDULE LIST DATE & TIME RESET

Choose Mark

(THU) JUN.18.2009 15:38

SETTINGS:

2 3 4 5 6 7

ON: – – : – – OFF: – – : – – INPUT: PIC. MODE: – – – –

EVERY DAY EVERY WEEK

MON TUE WED THU

– – – –

SAT SUNFRI

Return Close

NOTE 2: IMAGE PERSISTENCE

Please be aware that LCD Technology may experience a phenomenon known as Image Persistence. Image Persistence occurs when a residual or “ghost” image of a previous image remains visible on the screen. Unlike CRT monitors, LCD monitors’ image persistence is not permanent, but constant images being displayed for a long period of time should be avoided. To alleviate image persistence, turn off the monitor for as long as the previous image was displayed. For example, if an image was on the monitor for one hour and a residual image remains, the monitor should be turned off for one hour to erase the image. As with all personal display devices, NEC DISPLAY SOLUTIONS recommends displaying moving images and using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.

Please set “SCREEN SAVER”, “DATE &TIME” and “SCHEDULE SETTINGS” functions to further reduce the risk of Image persistence.

For long life use as Public Display

Image Sticking of LCD Panel

When an LCD panel is operated continuously for long hours, a trace of electric charge remains near the electrode inside LCD, and residual or “ghost” image of previous image may be observed. (Image Persistence) Image Persistence is not permanent, but when ﬁ xed image is displayed for long period, ionic impurities inside LCD are accumulated along the displayed image, and may be permanent. (Image Sticking)

Recommendations

To prevent Image Sticking, and for longer life usage of LCD, the following are recommended.

1. Fixed image should not be displayed for long period. Change ﬁ xed images after short intervals.

2. When not in use, please turn off the monitor by remote control, or use Power Management or use Schedule Functions.

3. Lower environmental temperatures prolong the lifespan of the monitor. When Protective surface (glass, acrylic) is installed over the LCD surface, the LCD surface is located in an enclosed space, the monitor are stacked, utilize the temperature sensors inside monitor. To reduce the environmental temperature, use the Cooling Fan, Screen Saver and Low Brightness.

4. Please use “Screen Saver Mode” of monitor.

English-30

Remote Control Function

REMOTE CONTROL ID FUNCTION

REMOTE CONTROL ID

The remote control can be used to control up to 100 individual MultiSync monitors using what is called the REMOTE CONTROL ID mode. The REMOTE CONTROL ID mode works in conjunction with the Monitor ID, allowing control of up to 100 individual MultiSync monitors. For example: if there are many monitors being used in the same area, a remote control in normal mode would send signals to every monitor at the same time (see Figure 1). Using the remote in REMOTE CONTROL ID mode will only operate one speciﬁ c monitor within the group (see Figure 2).

TO SET REMOTE CONTROL ID

While holding down the REMOTE ID SET button on the remote control, use the KEYPAD to input the Monitor ID (1-100) of the display to be controlled via remote. The remote can then be used to operate the monitor having that speciﬁ c Monitor ID number. When 0 is selected or when the remote control is in normal mode, all monitors will be operated.

TO SET/RESET REMOTE CONTROL MODE

ID Mode - To enter ID Mode press the REMOTE ID SET button and hold down for 2 seconds. Normal Mode - To return to Normal Mode press the REMOTE ID CLEAR button and hold down for 2 seconds.

In order for this feature to work properly, the display must be assigned a Monitor ID number.

The Monitor ID number can be assigned under the MULTI DISPLAY menu in the OSD (See page 24).

Point the remote control towards the remote sensor of the desired monitor and press the

REMOTE ID SET button. The MONITOR ID number is shown on the display when your remote control is in ID mode.

Monitor ID:1 Monitor ID:2 Monitor ID:3

Remote works Remote works Remote works

Figure 1

Remote in Normal mode or the REMOTE ID

is set to 0

Monitor ID:1 Monitor ID:2 Monitor ID:3

Remote does

not work

Figure 2

Remote set up

to use REMOTE

ID:3

Remote does

not work

Remote works

English

Use the remote control to operate a monitor that has a speciﬁ c MONITOR ID number assigned to it.

1. Set the MONITOR ID number for the display (See page 24). The MONITOR ID number can range from 1-100. This MONITOR ID number allows the remote control to operate this speciﬁ c monitor without affecting other monitors.

2. On the remote control, press and hold down the REMOTE ID SET button while using the keypad to input the REMOTE CONTROL ID number (1-100). The REMOTE ID NUMBER should match the MONITOR ID number of the display to be controlled. Choose “0” to simultaneously control all displays in range.

3. Point the remote control towards the remote sensor of the desired monitor and press the REMOTE ID SET button. The MONITOR ID number is shown in red on the display. If the REMOTE CONTROLID is “0”, then all displays in range will show their respective MONITOR ID number in red.

If the MONITOR ID number is shown in white on the display, the MONITOR ID number and the REMOTE CONTROL ID are not the same.

NOTE: GROUP ID cannot be speciﬁ ed via the remote control.

English-31

Multiple Monitors Connection

You can control multiple monitors by using RS-232C, REMOTE IN or LAN daisy-chain connection. NOTE: Multiple monitors that are daisy-chained have a limit to the connectable monitors.

When manually specify the ID number or control by the speciﬁ ed ID number, please execute AUTO ID (see page 24) previously.

Main Monitor Sub Monitors

Connector Connector

IN OUT IN OUT

RS-232C

LAN2 LAN1 LAN2REMOTE IN

LAN1

Connection

MultiSync MultiSync

LAN Cable

LAN1

LAN2 LAN1 LAN2

LAN Cable

MultiSync

English-32

Controlling the LCD monitor via RS-232C Remote Control

This LCD monitor can be controlled by connecting a personal computer with a RS-232C terminal. Functions that can be controlled by a personal computer are:

• Power ON or OFF.

• Switching between input signals.

• Sound Mute ON or OFF.

Connection

LCD Monitor + computer

MultiSync

Computer

RS-232C Cable

RS-232C

English

NOTE: If your computer is equipped only with a 25-pin serial port connector, a 25-pin serial port adapter is required.

Contact your dealer for details. For the pin assignment, please see page 51 “2) RS-232C input/output”.

To control a monitor, please use the control command. Instructions for the control command can be found on the CD included with the display. The ﬁ le is called “External_control.pdf”.

1) Interface

PROTOCOL RS-232C BAUD RATE 9600 [bps] DATA LENGTH 8 [bits] PARITY BIT NONE STOP BIT 1 [bit] FLOW CONTROL NONE

This LCD monitor uses RXD, TXD and GND lines for RS-232C control.

The reverse type cable (null modem cable) (not include) should be used for RS-232C control.

English-33

2) Control command diagram

For other commands, please see “External_Control.pdf” ﬁ le on the CD-ROM.

Function (Monitor ID = 1) Code Data

Power ON 01 30 41 30 41 30 43 02 43 32 30 33 44 36 30 30 30 31 03 73 0d Power OFF 01 30 41 30 41 30 43 02 43 32 30 33 44 36 30 30 30 34 03 76 0d Input Source Select DisplayPort 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 46 03 04 0d Input Source Select DVI 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 33 03 71 0d Input Source Select VGA 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 31 03 73 0d Input Source Select HDMI 01 30 41 30 45 30 41 02 30 30 36 30 30 30 31 31 03 72 0d Input Source Select Y/Pb/Pr 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 43 03 01 0d Input Source Select VIDEO 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 35 03 77 0d Input Source Select S-VIDEO 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 37 03 75 0d Input Source Select OPTION 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 44 03 06 0d Sound Mute ON 01 30 41 30 45 30 41 02 30 30 38 44 30 30 30 31 03 09 0d Sound Mute OFF 01 30 41 30 45 30 41 02 30 30 38 44 30 30 30 32 03 0a 0d

English-34

Controlling the LCD monitor via LAN Control

Connecting to a Network

Using a LAN cable allows you to specify the Network Settings and the Alert Mail Settings by using an HTTP server function. To use a LAN connection, you are required to assign an IP address.

Example of LAN connection:

Server

NOTE: Use a category 5 or higher LAN cable.

Hub

LAN cable

(not supplied)

English

Network Setting by Using an HTTP Browser

Overview

Connecting the monitor to a network allows for monitor control from a computer via the network. To perform the monitor control from a web browser, you must have an exclusive application installed on your computer. The IP address and subnet mask of the monitor can be set on the Network Setting screen of the web browser by using an HTTP

server function. Please be sure to use “Microsoft Internet Explorer 7.0” or a higher version for the web browser. (This device uses “JavaScript” and “Cookies” and the browser should be set to accept these functions. The setting method will vary depending on the version of browser. Please refer to the help ﬁ les and the other information provided in your software.)

Access is gained to the HTTP server function by starting the Web browser on the computer via the network connected to the monitor and entering the following URL.

Network Setting

http://<the Monitor’s IP address>/index.html TIP: The default IP address is assigned automatically to the monitor.

The exclusive application can be downloaded from our website.

NOTE: If the MONITOR NETWORK SETTINGS screen does not appear in the web browser, press the Ctrl+F5 keys to

refresh your web browser (or clear the cache).

The display or button’s response can be slowed down or operation may not be accepted depending the settings of your network. Should this happen, consult your network administrator.

The LCD monitor may not respond if its buttons are repeatedly pressed in rapid intervals. Should this happen, wait a moment and repeat. If you still can’t get a response, turn the monitor off and then back on.

To control a monitor please use the control command. See “Control command diagram” (page 34).

English-35

Preparation Before Use

Connect the monitor to a commercially available LAN cable before engaging in browser operations. Operation with a browser that uses a proxy server may not be possible depending on the type of proxy server and the setting

method. Although the type of proxy server will be a factor, it is possible that items that have actually been set will not be displayed depending on the effectiveness of the cache, and the contents set from the browser may not be reﬂ ected in operation. It is recommended that a proxy server not be used unless it is unavailable.

Handling of the Address for Operation via a Browser

The host name can be used under the following cases: If the host name corresponding to the IP address of the monitor has been registered to the domain name server (DNS) by the network administrator, you can then access the network settings of the display via that registered host name using a compatible browser. If the host name corresponding to the IP address of the monitor has been conﬁ gured in the “HOSTS” ﬁ le of the computer being used, you can then access the network settings of the display via that host name using a compatible browser.

Example 1: When the host name of the monitor has been set to “pd.nec.co.jp”, access is gained to the network setting by

specifying http://pd.nec.co.jp/index.html for the address or the entry column of the URL.

Example 2: When the IP address of the monitor is “192.168.73.1”, access is gained to the mail alert settings by specifying

http://192.168.73.1/index.html for the address or the entry column of the URL.

Operation

Access the following address to show HOME. Click each link on the left side of HOME. http://<the Monitor’s IP address>/index.html

REMOTE CONTROL

Enable to control equivalent as the remote control key.

OSD menu

Enable to set the following OSD menu. PICTURE, ADJUST, AUDIO, SCHEDULE, PIP, OSD, MULTI DISPLAY, DISPLAY PROTECTION, EXTERNAL CONTROL,

ADVANCED OPTION1, ADVANCED OPTION2. NOTE: Function of buttons which are shown on setting pages.

[APPLY]: Reﬂ ect your settings. [CANCEL]: Return to the previous settings. NOTE: CANCEL is disabled after clicking APPLY. [RELOAD]: Reload the settings. [RESET]: Resets to the initial setting.

English-36

Network Setting

Click “NETWORK” on the left side of HOME.

IP SETTING Set for IP ADDRESS setting.

AUTO: Automatically assign an IP address. MANUAL: Set your IP address of the network connected to the monitor. NOTE: Consult your network administrator for the IP address when [AUTO] is selected for [IP SETTING].

English

IP ADDRESS Set your IP address of the network connected to the monitor when [MANUAL] is selected for

[IP SETTING].

SUBNET MASK Set your subnet mask number of the network connected to the monitor when [MANUAL] is selected

for [IP SETTING].

DEFAULT GATEWAY Set your default gateway of the network connected to the monitor when [MANUAL] is selected for

[IP SETTING]. NOTE: Set as [0.0.0.0] to delete the setting.

DNS Set for IP ADDRESS setting of DNS server.

AUTO: Automatically assign an IP address of DNS server connected to the monitor. MANUAL: Set your IP address of DNS server connected to the monitor.

PRIMARY DNS Set your primary DNS settings of the network connected to the monitor.

NOTE: Set as [0.0.0.0] to delete the setting.

SECONDARY DNS Set your secondary DNS settings of the network connected to the monitor.

NOTE: Set as [0.0.0.0] to delete the setting.

NOTE: The following settings will reset back to the factory setting when “IP ADDRESS RESET” is selected by an EXTERNAL

CONTROL of OSD: [IP SETTING]: AUTO, [IP ADDRESS]: 192.168.0.10, [SUBNET MASK]: 255.255.255.0, [DNS]: AUTO [DEFAULT GATEWAY], [PRIMARY DNS] and [SECONDARY DNS] are blank.

English-37

Mail Setting

Click “MAIL” on the left side of HOME.

This option notiﬁ es your computer of an error message via e-mail when using wired LAN. An error message notiﬁ cation will be sent when an error occurs in the monitor.

ALERT MAIL Checking [ENABLE] will turn on the Alert Mail feature.

Checking [DISABLE] will turn off the Alert Mail feature.

STATUS MESSAGE Checking [ENABLE] will turn on the STATUS MESSAGE feature.

Checking [DISABLE] will turn off the STATUS MESSAGE feature.

SENDER’S ADDRESS Type in the senders address. Up to 60 alphanumeric and symbols characters can be used.

SMTP SERVER Type in the SMTP server name to be connected to the monitor.

Up to 60 alphanumeric characters can be used.

RECIPIENT’S ADDRESS 1 TO 3

AUTHENTICATION METHOD

POP3 SERVER This speciﬁ es the address of the POP3 server that is used in the authentication of the e-mail.

USER NAME This sets the user name for logging into the authentication server when authentication is required

PASSWORD This sets the password for logging into the authentication server when authentication is required for

TEST MAIL Click this button to send a test mail to check if your settings are correct.

NOTE: • If you execute a test, you may not receive an Alert mail.

Should this happen, check if the network settings are correct.

• If you entered an incorrect address in a test, you may not receive an Alert mail. Should this happen, check if the Recipient’s Address is correct.

Type in your recipient’s address. Up to 60 alphanumeric and symbols characters can be used.

This selects the authentication method of the e-mail transmission.

for the e-mail transmission. Up to 60 alphanumeric characters can be used.

the e-mail transmission. Up to 60 alphanumeric characters can be used.

TIP: For Control command diagram, please see ﬁ le “External_Control.pdf” on the CD-ROM.

English-38

Alert error message list

Error number

* ErrorCode

70h ~ 7Fh

80h ~ Fh The cooling fan has stopped. Cooling fan Abnormal Please contact your supplier.

90h ~ 9Fh

A0h ~ AFh The monitor is overheated. Temperature Abnormal Please contact your supplier.

A2h

B0h ~ BFh

D0h

E0h ~ EFh

The monitor’s power supply is not functioning normally.

The monitor’s back light unit is not functioning normally.

The monitor doesn’t have the input signal.

The remaining capacity of the error log decreased.

The system error occurred in the monitor.

Alert mail Message Explanation Measure

Standby power Abnormal Please contact your supplier.

Backlight abnormal Please contact your supplier.

SENSOR reached at the temperature that the user had speciﬁ ed.

*condition: DISPLAY PROTECTION-FAN CONTROL-COOLING FAN = AUTO

No signal Please check “No picture” in

Proof of Play log memory size is 1 more hour.

System error. Please contact your supplier.

Reconﬁ rm the setting condition from OSD (DISPLAY PROTECTION-FAN CONTROL) or please contact your supplier.

“Troubleshooting”. Please get a log by using PD external

command. See page 44.

Sample: The following examples are content of Alert Mail that informs the temperature anomaly of monitor.

English

Sample: The following examples are content of test mail by browser.

English-39

SNMP Setting

Click “SNMP” on the left side of HOME.

This function allows for getting status and controlling of a monitor via the network.

Version:

SNMP v1 Authenticated plaintext by community name, not return a conﬁ rmation message of Trap. SNMP v2c Authenticated plaintext by community name, return a conﬁ rmation message of Trap.

Community name:

The default setting of community name is “public”. It is read only. You can set community names for up to 3 settings.

Trap:

Sending error message to speciﬁ ed address when an error occurs in the monitor.

Check Box Explanation Error code Temperature Temperature abnormal 0xA0, 0xA1, 0xA2 Fan Cooling fan abnormal 0x80, 0x81 Power Power abnormal 0x70, 0x71, 0x72, 0x78 Inverter/Backlight Inverter or backlight abnormal 0x90, 0x91 No Signal No signal 0xB0 PROOF OF PLAY Lower the log storage 0xD0 System Error System error 0xE0

English-40

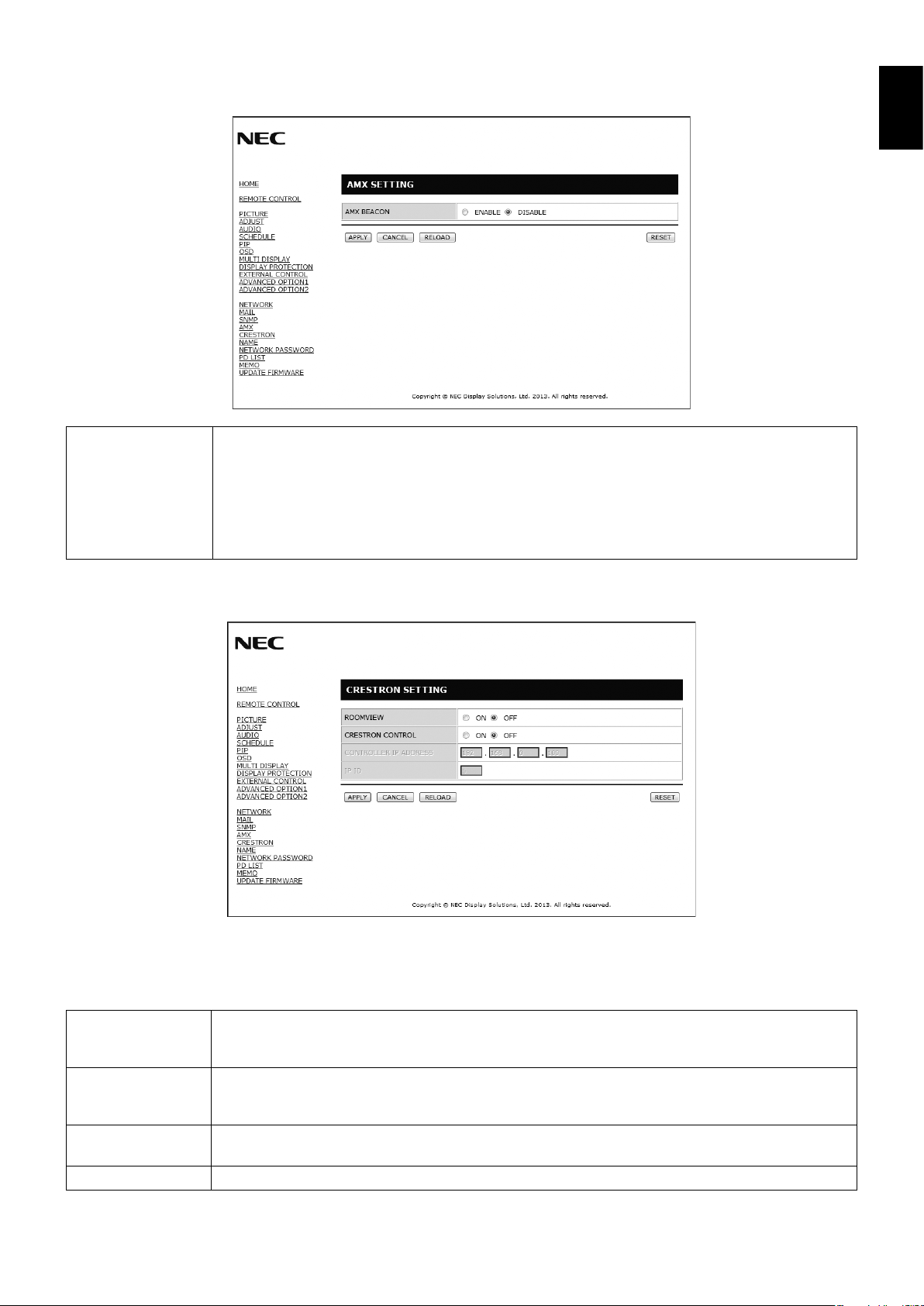

AMX Setting

Click “AMX” on the left side of HOME.

AMX BEACON Turn on or off for detection from AMX Device Discovery when connecting to the network supported by

AMX’s NetLinx control system.

TIP: When using a device that supports AMX Device Discovery, all AMX NetLinx control system will recognize the device and download the appropriate Device Discovery Module from an AMX server. Checking [ENABLE] will detect the device from AMX Device Discovery. Checking [DISABLE] will not detect the device from AMX Device Discovery.

English

CRESTRON Setting

Click “CRESTRON” on the left side of HOME.

CRESTRON ROOMVIEW compatibility The monitor supports CRESTRON ROOMVIEW, allowing multiple devices connected in the network to be managed and controlled from a computer or a controller. For more information, visit http://www.crestron.com

ROOMVIEW ROOMVIEW for managing from the computer.

ON: Enables ROOMVIEW. OFF: Disables ROOMVIEW.

CRESTRON CONTROL

CONTROLLER IP ADDRESS

IP ID Set your IP ID of CRESTRON SERVER.

CRESTRON CONTROL for managing from the controller. ON: Enables CRESTRON CONTROL. OFF: Disables CRESTRON CONTROL.

Set your IP address of CRESTRON SERVER.

TIP: The CRESTRON settings are required only for use with CRESTRON ROOMVIEW.

For more information, visit

http://www.crestron.com

English-41

Name Setting

Click “NAME” on the left side of HOME.

MONITOR NAME Set a monitor name. The name must be 16 characters or less. The default is model name.

HOST NAME Type in the hostname of the network connected to the monitor.

Up to 15 alphanumeric characters can be used.

DOMAIN NAME Type in the domain name of the network connected to the monitor.

Up to 60 alphanumeric characters can be used.

Network Password Setting

Click “NETWORK PASSWORD” on the left side of HOME.

PJLink PASSWORD Set a password for PJLink*. A password must be 32 characters or less. Do not forget your password.

However, if you forget your password, consult with your dealer. HTTP PASSWORD Set a password for HTTP server. A password must be 10 characters or less. HTTP PASSWORD

ENABLE

*What is PJLink? PJLink is a standardization of protocol used for controlling devices of different manufacturers. This standard protocol is established by Japan Business Machine and Information System Industries Association (JBMIA) in 2005. The device supports all the commands of PJLink Class 1.

HTTP PASSWORD is required when logging in HTTP server.

Set a monitor name as USER NAME when inputting the password.

English-42

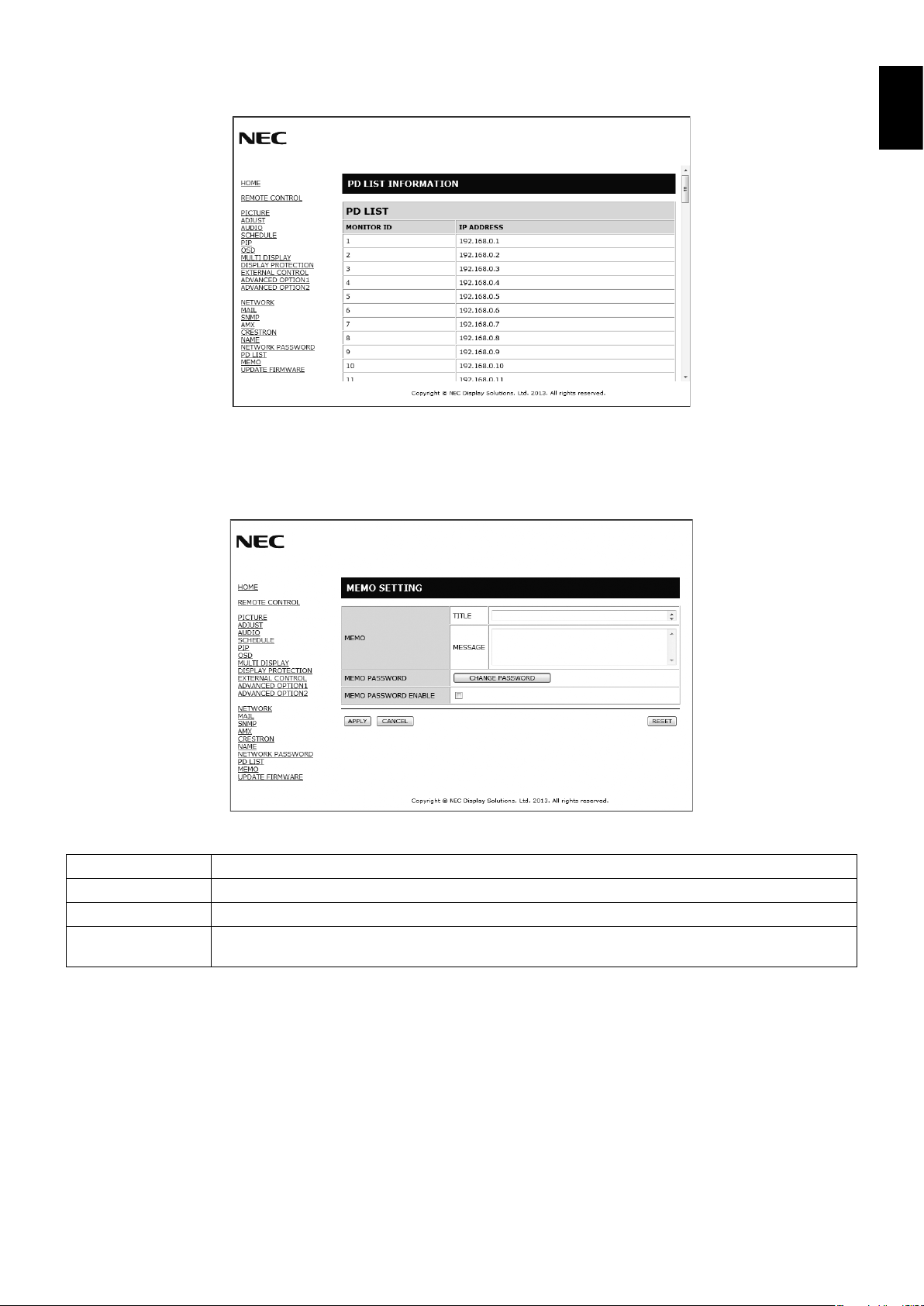

PD List Information

Click “PD LIST” on the left side of HOME.

Show the list of ID and IP address of multiple monitors that are daisy-chained. Only the master monitor can show the list.

Memo Setting

Click “MEMO” on the left side of HOME.

English

Set a title and meesage.

TITLE A title must be 24 characters or less. MESSAGE A message must be 240 characters or less. MEMO PASSWORD The default is “0000”. MEMO PASSWORD

ENABLE

MEMO PASSWORD is required when setting MEMO.

English-43

POINT ZOOM

Using “SET/POINT ZOOM” button on a remote control allows to enlarge a partial of image. Press CH+/- button to zoom up or down. The image can be expanded from 1 to 10 times.

1 Press [SET/POINT ZOOM] button on a remote control. An icon will be a magniﬁ er. 2 Move magniﬁ er icon by [ 3 Press [CH+] to zoom up. Press [CH-] to zoom down. 4 Press [SET/POINT ZOOM] to disappear the icon. 5 Press [EXIT] to return to a normal size. 6 Press [MENU] to display OSD menu.<Setting Procedure>

NOTE: • The image may be distorted during this function.

• This function does not work when set to PIP, POP, PBP, TILE MATRIX, SCREEN SAVER, SUPER in INPUT CHANGE, IMAGE FLIP.

• When selected DYNAMIC or ZOOM in ASPECT, the image will be changed FULL, then start to POINT ZOOM. After POINT ZOOM, the ASPECT will be returned previous ASPECT settings. When the ASPECT is changed during POINT ZOOM, DYNAMIC and ZOOM will be FULL image.

• The magniﬁ er icon does not move to no image area.

• POINT ZOOM will be released after changing input signal or power off.

• POINT ZOOM will be released when setting IMAGE FLIP or changing ASPECT setting during POINT ZOOM.

] [ ] [+] [-] button.

PROOF OF PLAY

This function allows to send message for the current status of monitor by self checking.

Check item Message

INPUT

①

Resolution ex. (H)1920, (V)1080 , (H)1360, (V)768 or No signal or Invalid signal

②

Audio INPUT IN1, IN2, IN3*, HDMI, DPORT, HDMI2*, HDMI3*, OPTION (analog)*, OPTION (digital)*

③

Audio signal Audio in or No Audio in or N/A (IN1, IN2, IN3*, OPTION (analog)*)

④

Picture Image Normal Picture or No Picture

⑤

Audio out Normal Audio or No Audio

⑥

Cumulative time (hour)/(minutes)/(second)

⑦

*: This function depends on which option board you use.

Sample:

HDMI

①

1920 x 1080

②

HDMI

③

Audio in

④

Normal Picture

⑤

Normal Audio

⑥

0h/0m/0s

⑦

NOTE: For Proof of Play function, please see “External_Control.pdf” on the CD-ROM.

DVI, VGA, Y/Pb/Pr, HDMI, DPORT, HDMI2*, HDMI3*, RGB/HV*, Y/Pb/Pr2*, SCART*, VIDEO*, S-VIDEO*, OPTION*

English-44

INTELLIGENT WIRELESS DATA

This function allows to get the data of monitor’s status by wireless communication even while the monitor is off. Some menu of OSD, you can set by this function.

NOTE: Sensor position: The upper left of the front side (when seen from the front). See page 8.

Please contact your supplier for detailed information.

Function name

Setting Copy Setting read and write function Display information Security Setting

English

English-45

Features

Reduced Footprint: Provides the ideal solution for environments with superior image quality. Color Control Systems: Allow you to adjust the colors on your screen and customize the color accuracy of your monitor to a

variety of standards. OmniColor: Combines Six-axis color control and the sRGB standard. Six-axis color control permits color adjustments via six

axes (R, G, B, C, M and Y) rather than through the three axes (R, G and B) previously available. The sRGB standard provides the monitor with a uniform color proﬁ le. This assures that the colors displayed on the monitor are exactly the same as on the color printout (with sRGB supporting operating system and sRGB printer). This allows you to adjust the colors on your screen and customise the color accuracy of your monitor to a variety of standards.

sRGB Color Control: A new optimized color management standard which allows for color matching on computer displays and other peripherals. The sRGB standard, which is based on a calibrated color space, allows for optimal color representation and backward compatibility with other common color standards.

OSD (On-Screen-Display) Controls: Allow you to quickly and easily adjust all elements of your screen image via simple to use on-screen menus.

Plug and Play: The Microsoft the monitor to send its capabilities (such as screen size and resolutions supported) directly to your computer, automatically optimizing display performance.

IPM (Intelligent Power Manager) System: Provides innovative power-saving methods that allow the monitor to shift to a lower power consumption level when on but not in use, saving two-thirds of your monitor energy costs, reducing emissions and lowering the air conditioning costs of the workplace.

FullScan Capability: Allows you to use the entire screen area in most resolutions, signiﬁ cantly expanding image size. VESA Standard (FDMIv1) Mounting Interface: Allows you to connect your LCD monitor to any VESA standard (FDMIv1) third

party mounting arm or bracket. NEC recommends using mounting interface that comply with TÜV-GS and/or UL1678 standard in North America.

DVI-D: The digital-only subset of DVI ratiﬁ ed by the Digital Display Working Group (DDWG) for digital connections between computers and displays. As a digital-only connector, analog support is not provided for a DVI-D connector. As a DVI-based digital only connection, only a simple adapter is necessary for compatibility between DVI-D and other DVI-based digital connectors such as DFP and P&D. The DVI interface of this display supports HDCP.

TILE MATRIX, TILE COMP: Shows one image over multiple screens with accuracy while compensating for bezel width. ZOOM: Expands/reduces image size for horizontal and vertical direction. Self-diagnosis: If an internal error should occur, a failure state will be indicated. HDCP (High-bandwidth Digital Content Protection): HDCP is a system for preventing illegal copying of video data sent

over a digital signal. If you are unable to view material via the digital input, this does not necessarily mean the display is not functioning properly. With the implementation of HDCP, there may be cases in which certain content is protected with HDCP and might not be displayed due to the decision/intention of the HDCP community (Digital Content Protection, LLC).

Option board slot: You can use an option board. Please contact your supplier for detailed information.

solution with the Windows® operating system facilitates setup and installation by allowing

English-46

Troubleshooting

No picture

• The signal cable should be completely connected to the display card/computer.

• The display card should be completely seated in its slot.

• Check the main Power Switch, it should be in the ON position.

• Power Switch and computer power switch should be in the ON position.

• Check to make sure that a supported mode has been selected on the display card or system being used. (Please consult display card or system manual to change graphics mode.)

• Check the monitor and your display card with respect to compatibility and recommended settings.

• Check the signal cable connector for bent or pushed-in pins.

• The monitor automatically goes into OFF at the preset time period after signal is lost. Press the power button.

• Check the DVI MODE setting when DVD player or computer equipment is connected to the DVI input.

Power Button does not respond

• Unplug the power cord of the monitor from the AC outlet to turn off and reset the monitor.

•

Check the monitor’s main Power Switch.

Snowy Picture, Black Screen in DVI input

• Check the DVI MODE setting when DVD player or computer equipment is connected to the DVI input.

Image persistence

• Please be aware that LCD Technology may experience a phenomenon known as Image Persistence. Image Persistence occurs when a residual or “ghost” image of a previous image remains visible on the screen. Unlike CRT monitors, LCD monitors’ image persistence is not permanent, but constant images being displayed for a long period of time should be avoided. To alleviate image persistence, turn off the monitor for as long as the previous image was displayed. For example, if an image was on the monitor for one hour and a residual image remains, the monitor should be turned off for one hour to erase the image.

NOTE: As with all personal display devices, NEC DISPLAY

Image is unstable, unfocused or swimming is apparent

• Signal cable should be completely attached to the computer.

• Use the OSD Image Adjust controls to focus and adjust display

• Check the monitor and your display card with respect to

• If your text is garbled, change the video mode to non-interlace

• The image may be distorted when turning the power on or

Image of component signal is greenish

• Check to see if the Y/Pb/Pr input connector is selected.

SOLUTIONS recommends displaying moving images and using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.

by increasing or decreasing the ﬁ ne adjustment. When the display mode is changed, the OSD Image Adjust settings may need to be re-adjusted.

compatibility and recommended signal timings.

and use 60Hz refresh rate.

changing the settings.

LED on monitor is not lit (no green or red color can be seen)

• Power Switch should be in the ON position and power cord should be connected.

• Check the main Power Switch, it should be in the ON position.

• Make certain the computer is not in a power-saving mode (touch the keyboard or mouse).

• Check to see that the power indicator option in the OSD is set to ON.

RED LED on monitor is blinking

• A certain failure might have occurred, please contact your nearest authorized NEC DISPLAY SOLUTIONS service facility.

• If the monitor is powered off by the inside temperature being higher than the normal operating temperature, a RED LED will blink six times. Power on the display again after conﬁ rming the inside temperature has been reduced to normal operation temperature.

Display image is not sized properly

• Use the OSD Image Adjust controls to increase or decrease the coarse adjustment.

• Check to make sure that a supported mode has been selected on the display card or system being used. (Please consult display card or system manual to change graphics mode.)

Selected resolution is not displayed properly

• Use OSD Display Mode to enter Information menu and conﬁ rm that the appropriate resolution has been selected. If not, select corresponding option.

No Sound

• Check to see if audio cable is properly connected.

• Check to see if mute is activated.

• Check to see if volume is set at minimum.

• Check to see if computer supports an audio signal through DisplayPort. If unsure, contact the computer manufacturer.

• Check to see if SURROUND is ON.

• Check Internal/External speaker switch.

Remote Control is not available

• Check the Remote Control’s batteries status.

• Check if batteries are inserted correctly.

• Check if the Remote Control is pointing at the monitor’s remote sensor.

• Check the IR LOCK SETTING status.

• The remote control system may not function when direct sunlight or strong illumination strikes the remote control sensor of the LCD monitor, or when there is an object in the path.

“SCHEDULE”/“OFF TIMER” function is not working properly

• The “SCHEDULE” function will be disabled when the “OFF TIMER” is set.

• If the “OFF TIMER” function is enabled and the power to the LCD monitor is turned off when the power supply is interrupted unexpectedly, then the “OFF TIMER” will be reset.

Snowy Picture, Poor Sound in TV

• Check antenna/cable connection. Use new cable if necessary.

Interference in TV

• Check components for shielding, move away from monitor if necessary.

RS-232C or LAN control is not available

• Check RS-232C or LAN cable connection.

English

Either light vertical or horizontal stripes may appear, depending on the speciﬁ c display pattern. This is no product fault or degradation.

English-47

Speciﬁ cations - P403

Product Speciﬁ cations

LCD Module

Pixel Pitch: Resolution:

Brightness:

Contrast Ratio:

Viewing Angle:

Frequency Horizontal:

Vertical:

Pixel Clock Analog: 13.5 MHz, 25.0 MHz - 195.0 MHz

Viewable Size 885.6 x 498.2 mm Input Signal

DVI DVI-D 24pin Digital RGB DVI (HDCP)

DisplayPort DisplayPort Connector Digital RGB DisplayPort Complies with Standard V1.2, applicable to HDCP V1.3

VGA*

15pin Mini D-sub Analog RGB 0.7 Vp-p/75 ohm

Sync Separate: TTL level (Pos./Neg.)

HDMI HDMI Connector Digital YUV

Digital RGB

Y/Pb/Pr*215pin Mini D-sub Component Y: 1.0 Vp-p/75ohm, Cb/Cr (Pb/Pr): 0.7 Vp-p/75 ohm

Output Signal

DisplayPort DisplayPort Connector Digital RGB DisplayPort Complies with Standard V1.2, applicable to HDCP V1.3

AUDIO

STEREO Mini Jack Analog Audio Stereo L/R 0.5 Vrms

Input

HDMI Connector Digital Audio PCM 32, 44.1, 48 KHz (16/20/24bit)

DisplayPort Connector Digital Audio PCM 32, 44.1, 48 KHz (16/20/24bit)

AUDIO

STEREO Mini Jack Analog Audio Stereo L/R 0.5 Vrms

Output

Speaker Output External Speaker Jack 15 W + 15 W (8 ohm)

Control RS-232C In:

Remote IN:

Service port USB service port for maintenance Power Supply 2.9 - 1.2 A @ 100-240V AC, 50/60Hz Operational Environment Temperature*

Humidity:

Altitude:

Storage Environment Temperature:

Humidity:

Dimension 920.6 (W) x 532.2 (H) x 69.3 (D) mm / 36.2 (W) x 21.0 (H) x 2.7 (D) inches (with handle)

Weight 17.0 kg (37.5 lbs) VESA compatible mounting interface 300 mm x 300 mm (M6, 4 Holes) Power Management VESA DPM Plug & Play VESA DDC2B, DDC/CI, DisplayPort Power supply for Slot 2 type OPTION 16V/3.6 A Accessories Setup manual, Power Cord, Video Signal cable, Remote Control, AAA Battery x 2, Clamp x 1,

NOTE: Technical speciﬁ cations are subject to change without notice. *1: Compressed image. *2: Common terminal. *3: When you use option board accessories, please contact your supplier for detailed information. *4: Displayed text may be blurred.

40”/101.6 cm diagonal

0.461 mm 1920 x 1080 Over 16 million colors (depending on display card used)

Color:

700 cd/m

(Max.) @25°C 4000:1 89° (typ) @ CR>10

15.625/15.734 kHz, 31.5 kHz - 91.1 kHz (Analog Input)

31.5 kHz - 91.1 kHz (Digital Input)

50.0 - 85.0 Hz

Digital: 25.0 MHz - 165.0 MHz (DVI), 25.0 MHz - 300.0 MHz (HDMI/DisplayPort)

VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60*

, 1920X1080 (60Hz), 1080p, 1080i

, WUXGA60*1, 1920x1080 (60 Hz),

1080p, 1080i, 720p@50Hz/60Hz, 576p@50Hz, 480p@60Hz, 3840x2160 (30Hz/24Hz)*

VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60*

, WUXGA60*1, 1920X1080 (60Hz)

Composite sync on Green Video: 0.3 Vp-p Neg. HDMI

VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60* 1080p, 1080i, 720p@50Hz/60Hz, 576p@50Hz, 480p@60Hz, 576i@50Hz, 480i@60Hz, 3840x2160 (30Hz/24Hz/25Hz)*

1, *4

, 4096x2160 (24Hz)*

, WUXGA60*1, 1920x1080 (60 Hz),

1, *4

HDTV/DVD: 1080p, 1080i, 720p@50Hz/60Hz, 576p@50Hz, 480p@60Hz, 576i@50Hz, 480i@60Hz

Internal Speaker 10 W + 10 W (Stereo) 9 Pin D-sub

RJ-45 10/100 BASE-T

LAN:

Stereo Mini jack 3.5

0 - 40°C / 32 - 104°F, 0 - 35°C / 32 - 95°F (Face up position/Face down position/with Slot 2 type PC) 20 - 80% (without condensation) 0 - 3000 m (Brightness may decrease with altitude)

-20 - 60°C / -4 - 140°F 10 - 90% (without condensation) / 90% - 3.5% x (Temp - 40°C) regarding over 40°C

920.6 (W) x 532.2 (H) x 66.5 (D) mm / 36.2 (W) x 21.0 (H) x 2.6 (D) inches (without handle)

Screw x 1, CD-ROM

1, *4

English-48

Speciﬁ cations - P463

Product Speciﬁ cations

LCD Module

Pixel Pitch:

Resolution:

Brightness:

Contrast Ratio:

Viewing Angle:

Frequency Horizontal:

Vertical:

Pixel Clock Analog: 13.5 MHz, 25.0 MHz - 195.0 MHz

Viewable Size 1018.1 x 572.7 mm Input Signal

DVI DVI-D 24pin Digital RGB DVI (HDCP)

DisplayPort DisplayPort Connector Digital RGB DisplayPort Complies with Standard V1.2, applicable to HDCP V1.3

VGA*

15pin Mini D-sub Analog RGB 0.7 Vp-p/75 ohm

Sync Separate: TTL level (Pos./Neg.)

HDMI HDMI Connector Digital YUV

Digital RGB

Y/Pb/Pr*215pin Mini D-sub Component Y: 1.0 Vp-p/75ohm, Cb/Cr (Pb/Pr): 0.7 Vp-p/75 ohm

Output Signal

DisplayPort DisplayPort Connector Digital RGB DisplayPort Complies with Standard V1.2, applicable to HDCP V1.3

AUDIO

STEREO Mini Jack Analog Audio Stereo L/R 0.5 Vrms

Input

HDMI Connector Digital Audio PCM 32, 44.1, 48 KHz (16/20/24bit)

DisplayPort Connector Digital Audio PCM 32, 44.1, 48 KHz (16/20/24bit)

AUDIO

STEREO Mini Jack Analog Audio Stereo L/R 0.5 Vrms

Output

Speaker Output External Speaker Jack 15 W + 15 W (8 ohm)

Control RS-232C In:

Remote IN:

Service port USB service port for maintenance Power Supply 3.2 - 1.3 A @ 100-240V AC, 50/60Hz Operational Environment Temperature*

Humidity:

Altitude:

Storage Environment Temperature:

Humidity:

Dimension 1055.4 (W) x 608.6 (H) x 69.3 (D) mm / 41.6 (W) x 24.0 (H) x 2.7 (D) inches (with handle)

Weight 21.4 kg (47.2 lbs) VESA compatible mounting interface 300 mm x 300 mm (M6, 4 Holes) Power Management VESA DPM Plug & Play VESA DDC2B, DDC/CI, DisplayPort Power supply for Slot 2 type OPTION 16V/3.6 A Accessories Setup manual, Power Cord, Video Signal cable, Remote Control, AAA Battery x 2, Clamp x 1,

46”/116.8 cm diagonal

0.530 mm 1920 x 1080 Over 16 million colors (depending on display card used)

Color:

700 cd/m

(Max.) @25°C 4000:1 89° (typ) @ CR>10

15.625/15.734 kHz, 31.5 kHz - 91.1 kHz (Analog Input)

31.5 kHz - 91.1 kHz (Digital Input)

50.0 - 85.0 Hz

Digital: 25.0 MHz - 165.0 MHz (DVI), 25.0 MHz - 300.0 MHz (HDMI/DisplayPort)

VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60*

, 1920X1080 (60Hz), 1080p, 1080i

, WUXGA60*1, 1920x1080 (60 Hz),

1080p, 1080i, 720p@50Hz/60Hz, 576p@50Hz, 480p@60Hz, 3840x2160 (30Hz/24Hz)*

VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60*

, WUXGA60*1, 1920X1080 (60Hz)

Composite sync on Green Video: 0.3 Vp-p Neg. HDMI

VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60* 1080p, 1080i, 720p@50Hz/60Hz, 576p@50Hz, 480p@60Hz, 576i@50Hz, 480i@60Hz, 3840x2160 (30Hz/24Hz/25Hz)*

1, *4

, 4096x2160 (24Hz)*

, WUXGA60*1, 1920x1080 (60 Hz),

1, *4

HDTV/DVD: 1080p, 1080i, 720p@50Hz/60Hz, 576p@50Hz, 480p@60Hz, 576i@50Hz, 480i@60Hz

Internal Speaker 10 W + 10 W (Stereo) 9 Pin D-sub

RJ-45 10/100 BASE-T

LAN:

Stereo Mini jack 3.5

0 - 40°C / 32 - 104°F, 0 - 35°C / 32 - 95°F (Face up position/Face down position/with Slot 2 type PC) 20 - 80% (without condensation) 0 - 3000 m (Brightness may decrease with altitude)

-20 - 60°C / -4 - 140°F 10 - 90% (without condensation) / 90% - 3.5% x (Temp - 40°C) regarding over 40°C

1055.4 (W) x 608.6 (H) x 64.5 (D) mm / 41.6 (W) x 24.0 (H) x 2.5 (D) inches (without handle)

Screw x 1, CD-ROM

1, *4

English

English-49

Speciﬁ cations - P553

Product Speciﬁ cations

LCD Module

Pixel Pitch: Resolution:

Brightness:

Contrast Ratio:

Viewing Angle:

Frequency Horizontal:

Vertical:

Pixel Clock Analog: 13.5 MHz, 25.0 MHz - 195.0 MHz

Viewable Size 1209.6 x 680.4 mm Input Signal

DVI DVI-D 24pin Digital RGB DVI (HDCP)

DisplayPort DisplayPort Connector Digital RGB DisplayPort Complies with Standard V1.2, applicable to HDCP V1.3

VGA*

15pin Mini D-sub Analog RGB 0.7 Vp-p/75 ohm

Sync Separate: TTL level (Pos./Neg.)

HDMI HDMI Connector Digital YUV

Digital RGB

Y/Pb/Pr*215pin Mini D-sub Component Y: 1.0 Vp-p/75ohm, Cb/Cr (Pb/Pr): 0.7 Vp-p/75 ohm

Output Signal

DisplayPort DisplayPort Connector Digital RGB DisplayPort Complies with Standard V1.2, applicable to HDCP V1.3

AUDIO

STEREO Mini Jack Analog Audio Stereo L/R 0.5 Vrms

Input

HDMI Connector Digital Audio PCM 32, 44.1, 48 KHz (16/20/24bit)

DisplayPort Connector Digital Audio PCM 32, 44.1, 48 KHz (16/20/24bit)

AUDIO

STEREO Mini Jack Analog Audio Stereo L/R 0.5 Vrms

Output

Speaker Output External Speaker Jack 15 W + 15 W (8 ohm)

Control RS-232C In:

Remote IN:

Service port USB service port for maintenance Power Supply 3.6 - 1.5 A @ 100-240V AC, 50/60Hz Operational Environment Temperature*

Humidity:

Altitude:

Storage Environment Temperature:

Humidity:

Dimension 1250.2 (W) x 721.0 (H) x 69.3 (D) mm / 49.2 (W) x 28.4 (H) x 2.7 (D) inches (with handle)

Weight 25.3 kg (55.8 lbs) VESA compatible mounting interface 300 mm x 300 mm (M6, 4 Holes) Power Management VESA DPM Plug & Play VESA DDC2B, DDC/CI, DisplayPort Power supply for Slot 2 type OPTION 16V/3.6 A Accessories Setup manual, Power Cord, Video Signal cable, Remote Control, AAA Battery x 2, Clamp x 3,

55”/138.8 cm diagonal

0.630 mm 1920 x 1080 Over 16 million colors (depending on display card used)

Color:

700 cd/m

(Max.) @25°C 4000:1 89° (typ) @ CR>10

15.625/15.734 kHz, 31.5 kHz - 91.1 kHz (Analog Input)

31.5 kHz - 91.1 kHz (Digital Input)

50.0 - 85.0 Hz

Digital: 25.0 MHz - 165.0 MHz (DVI), 25.0 MHz - 300.0 MHz (HDMI/DisplayPort)

VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60*

, 1920X1080 (60Hz), 1080p, 1080i

, WUXGA60*1, 1920x1080 (60 Hz),

1080p, 1080i, 720p@50Hz/60Hz, 576p@50Hz, 480p@60Hz, 3840x2160 (30Hz/24Hz)*

VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60*

, WUXGA60*1, 1920X1080 (60Hz)

Composite sync on Green Video: 0.3 Vp-p Neg. HDMI

VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60* 1080p, 1080i, 720p@50Hz/60Hz, 576p@50Hz, 480p@60Hz, 576i@50Hz, 480i@60Hz, 3840x2160 (30Hz/24Hz/25Hz)*

1, *4

, 4096x2160 (24Hz)*

, WUXGA60*1, 1920x1080 (60 Hz),

1, *4

HDTV/DVD: 1080p, 1080i, 720p@50Hz/60Hz, 576p@50Hz, 480p@60Hz, 576i@50Hz, 480i@60Hz

Internal Speaker 10 W + 10 W (Stereo) 9 Pin D-sub

RJ-45 10/100 BASE-T

LAN:

Stereo Mini jack 3.5

0 - 40°C / 32 - 104°F, 0 - 35°C / 32 - 95°F (Face up position/Face down position/with Slot 2 type PC) 20 - 80% (without condensation) 0 - 3000 m (Brightness may decrease with altitude)

-20 - 60°C / -4 - 140°F 10 - 90% (without condensation) / 90% - 3.5% x (Temp - 40°C) regarding over 40°C

1250.2 (W) x 721.0 (H) x 64.5 (D) mm / 49.2 (W) x 28.4 (H) x 2.5 (D) inches (without handle)

Screw x 3, CD-ROM, Thumbscrew for optional stand x 2

1, *4

English-50

DPORT

DVI

HDMI

VGA

Y/Pb/Pr

OPTION

VIDEO

S-VIDEO

SCART

Y/Pb/Pr2

RGB/HV

HDMI2

HDMI3

DisplayPort

DVI-D

HDMI

D-Sub

SLOT2

SLOT3

DPORT

DisplayPort

Yes

DVI

DVI-D

Yes

NoNoYes

Yes

HDMI

Yes

NoNoYes

Yes

VGA

D-Sub

Yes

Y/Pb/Pr

Yes

OPTION

SLOT2

Yes

VIDEO

SLOT3

Yes

NoNoNoNoNo

S-VIDEO

Yes

NoNoNoNoNo

SCART

Yes

NoNoNoNoNo

Y/Pb/Pr2

Yes

NoNoNoNoNo

RGB/HV

Yes

NoNoNoNoNo

HDMI2

Yes

NoNoNoNoNo

HDMI3

Yes

NoNoNoNoNo

Pin Assignment

1) Analog multi input (MiniDsub15p): VGA, Y/Pb/Pr

Pin No Name

1 Red, Y/Pb/Pr_Pr 2 Green, Y/Pb/Pr_Y 3 Blue, Y/Pb/Pr_Pb 4 GND 5 DDC-GND 6 Red-GND

7 Green-GND 8 Blue-GND 9 +5V (DDC)

GND

DDC-SDA

H-SYNC

V-SYNC

DDC-SCL

Mini D-SUB 15P (Monitor side)

2) RS-232C input/output

Pin No Name

1NC

D-SUB 9P (Monitor side)

2 RXD 3 TXD

4NC 5 GND 6NC

7NC 8NC 9NC

This LCD monitor uses RXD, TXD and GND lines for RS-232C control.

English

PIP (Picture in Picture) matrix

Main picture Connector

DPORT

DVI

HDMI

VGA

Y/Pb/Pr

OPTION

VIDEO

S-VIDEO

SCART Y/Pb/Pr2 RGB/HV

HDMI2 HDMI3

DisplayPort

DVI-D

HDMI

D-Sub

SLOT2

SLOT3

DPORT

DisplayPort

No Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes

DVI

DVI-D

Yes

Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes

HDMI

VGA

Y/Pb/Pr

HDMI

Yes Yes

YesNoNoNoNo YesNoNoNoNo Yes Yes Yes Yes Yes Yes Yes Yes

Yes Yes Yes

Yes Yes Yes Yes Yes Yes Yes Yes

D-Sub

Yes Yes Yes

Yes Yes Yes Yes Yes Yes Yes Yes

OPTION

SLOT2

Sub picture

VIDEO

Yes Yes Yes Yes Yes

No Yes Yes Yes Yes Yes Yes Yes

S-VIDEO

Yes Yes Yes Yes Yes Yes

SCART

Yes Yes Yes Yes Yes Yes

No No No No No No No

Y/Pb/Pr2

SLOT3

Yes Yes Yes Yes Yes Yes

No No No No No No No

RGB/HV

HDMI2

Yes

HDMI3

Yes Yes Yes Yes Yes Yes

No No No No No No No

English-51

Manufacturer’s Recycling and Energy Information

NEC DISPLAY SOLUTIONS is strongly committed to environmental protection and sees recycling as one of the company’s top priorities in trying to minimize the burden placed on the environment. We are engaged in developing environmentally-friendly products, and always strive to help deﬁ ne and comply with the latest independent standards from agencies such as ISO (International Organisation for Standardization) and TCO (Swedish Trades Union).

Disposing of your old NEC product

The aim of recycling is to gain an environmental beneﬁ t by means of re-use, upgrading, reconditioning or reclamation of material. Dedicated recycling sites ensure that environmentally harmful components are properly handled and securely disposed. To ensure the best recycling of our products, NEC DISPLAY SOLUTIONS offers a variety of recycling procedures and gives advice on how to handle the product in an environmentally sensitive way, once it has reached the end of its life.

All required information concerning the disposal of the product and country-speciﬁ c information on recycling facilities can be found on our following websites:

http://www.nec-display-solutions.com/greencompany/ (in Europe), http://www.nec-display.com (in Japan) or http://www.necdisplay.com (in USA).

Energy Saving

This monitor features an advanced energy saving capability. When a Display Power Management signal is sent to the monitor, the Energy Saving mode is activated. The monitor enters a single Energy Saving mode.

Mode Power consumption LED color

Normal Operation*

Energy Saving Mode*

*1: without any option, with factory settings. *2: depends on destination.

For additional information visit:

http://www.necdisplay.com/ (in USA) http://www.nec-display-solutions.com/ (in Europe) http://www.nec-display.com/global/index.html (Global)

For Energy Saving information: [Default setting: AUTO STANDBY] For ErP requirement/For ErP (Network standby) requirement:

Setting: DISPLAY PROTECTION EXTERNAL CONTROL LAN POWER OFF ADVANCED OPTION 1 INPUT DETECT NONE Power consumption: 0.5 W or less. Time for power management function: Approx. 5-600 sec.

(AUTO POWER SAVE) Less than 2.5 W Amber

Power Off Less than 0.5 W Red

1, *2

(AUTO STANDBY) Less than 0.5 W Red

POWER SAVE AUTO STANDBY

Approx. 105 W (P403) Approx. 115 W (P463) Approx. 150 W (P553)

Green

English-52

WEEE Mark (European Directive 2012/19/EU)

Disposing of your used product: In the European Union

EU-wide legislation as implemented in each Member State requires that used electrical and electronic products carrying the mark (left) must be disposed of separately from normal household waste. This includes monitors and electrical accessories, such as signal cables or power cords. When you dispose of such products, please follow the guidance of your local authority or ask the shop where you purchased the product, or if applicable, follow applicable legislation or agreement you may have. The mark on electrical and electronic products may only apply to the current European Union Member States.

Outside the European Union

If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local authority and ask for the correct method of disposal.

For EU: The crossed-out wheeled bin implies that used batteries should not be put to the general household waste! There is a separate collection system for used batteries, to allow proper treatment and recycling in accordance with legislation.

According the EU directive 2006/66/EC, the battery can’t be disposed improperly. The battery shall be separated to collect by local service.

English

English-53

NEC P553 PG User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Index

DECLARATION OF CONFORMITY

Important Information

WARNING

CAUTION

Safety Precautions, Maintenance & Recommended Use

Contents

Installation

Parts Name and Functions

Control Panel

Terminal Panel

Wireless Remote Control

Operating Range for the Remote Control

Setup

Connections

Wiring Diagram

Connecting a Personal Computer

Connecting a DVD Player or Computer with HDMI out

Connecting a Computer with DisplayPort

Basic Operation

OSD (On-Screen-Display) Controls

Remote Control Function

Multiple Monitors Connection

Controlling the LCD monitor via RS-232C Remote Control

Controlling the LCD monitor via LAN Control

POINT ZOOM

PROOF OF PLAY

INTELLIGENT WIRELESS DATA

Features

Troubleshooting

Pin Assignment

PIP (Picture in Picture) matrix

Manufacturer’s Recycling and Energy Information
