NEC A900 User Manual

NEC Advanced Series

MultiSync

™

User’s Manual

900

78133961.MultiL 9/10/98, 12:02 PM1

Index

Warning 1 Contents 2 Quick Start 3-4 Controls 5-6 Recommended Use 7-8 Specifications 9 Features 10 Troubleshooting 11 References 12 Limited Warranty 13

Avertissement 15 Contenu 16 Mise en marche rapide 17-18 Commandes 19-20 Usage recommandé 21-22 Caractérisitques techniques 23 Fonctions 24 Guide de dépistage des pannes Références 26 Garantie limitée 27

78133961.MultiL 9/10/98, 12:02 PM2

WARNING

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE THIS UNIT'S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED. REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK • DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This

symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause

electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

Canadian Department of Communications Compliance Statement

DOC: This Class B digital apparatus meets all requirements of the Canadian Interference-

Causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Règlement

sur le matériel brouiller du Canada.

C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations

according to C.S.A. 22.2 #950. Ce produit porte la marque ‘C-UL’ et se conforme aux règlements de sûrele

Canadiens selon CAN/CSA 22.2 No. 950.

FCC Information

Use the attached specified cables with the JC-1943UMW with radio and television reception. (1) Please use the supplied power cable or equivalent to ensure FCC compliance. (2) Shielded captive type signal cable.

Use of other cables and adapters may cause interference with radio and television reception.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult your dealer or an experienced radio/TV technician for help.

If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet, prepared by the Federal Communications Commission, helpful: ”How to Identify and Resolve Radio-TV Interference Problems.“ This booklet is available from the U.S. Government Printing Office, Washington, D.C., 20402, Stock No. 004-000-00345-4.

color monitor so as not to interfere

78133961.MultiL 9/10/98, 12:02 PM3

Contents

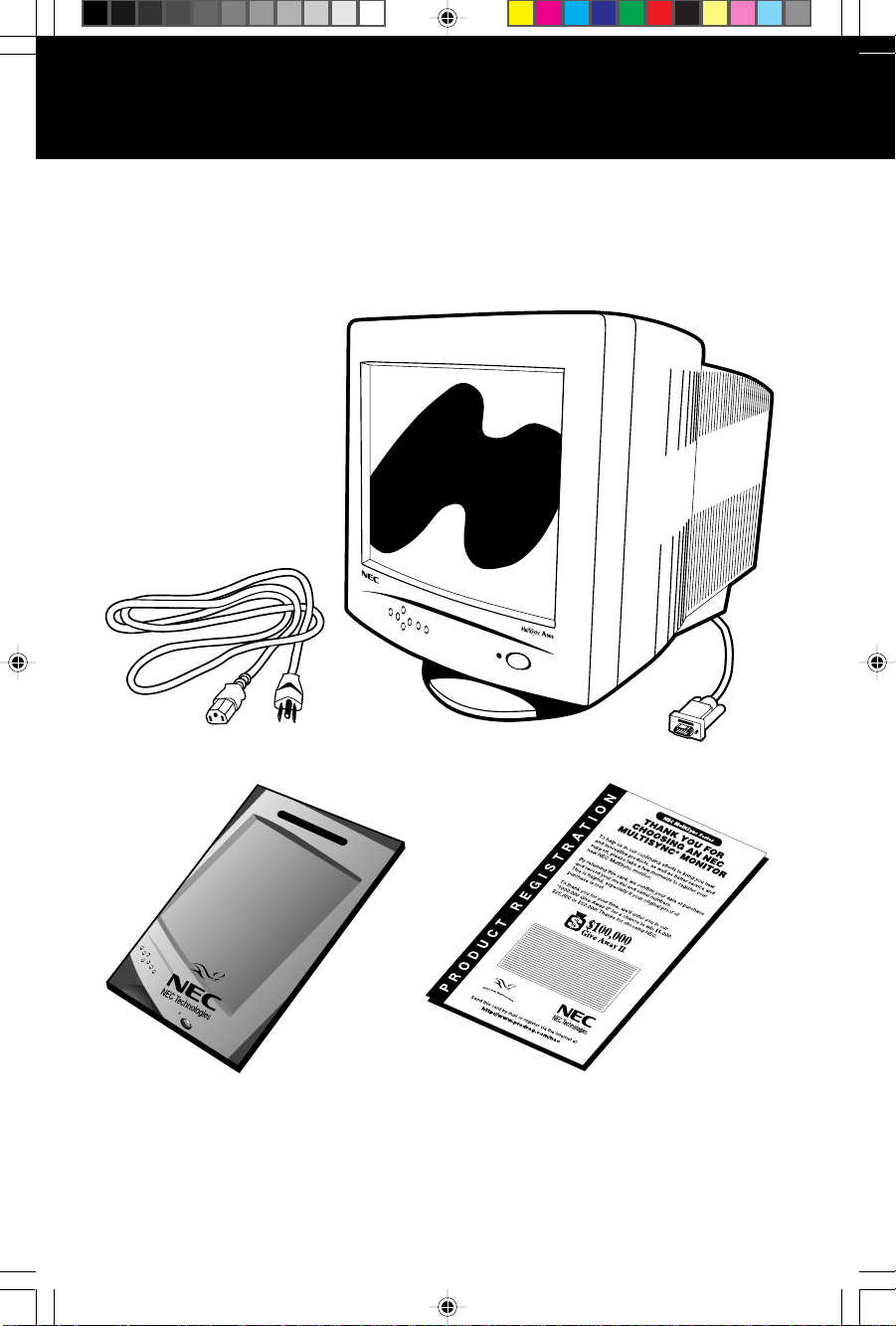

Your new NEC Technologies MultiSync® A900™ Monitor box* should contain the following:

• MultiSync A900 (JC-1943UMW) Monitor with tilt/swivel base

• Power Cord

• Captive Signal Cable

• User’s Manual

• Registration Card

Power Cord

NEC Advanced S

MultiSync

900

User’s Manual

User’s Manual Registration Card

eries

™

* Remember to save your original box

and packing material to transport or ship the monitor.

78133961.MultiL 9/10/98, 12:02 PM4

Captive Signal Cable

Note: You can register your product on the Internet at http://www.prodreg.com/nec

Quick Start

To attach the MultiSync® A900™ monitor to your system, follow these instructions:

1. Turn off the power to your computer.

2. If necessary, install the display card into your system. For more information, refer to the display card manual.

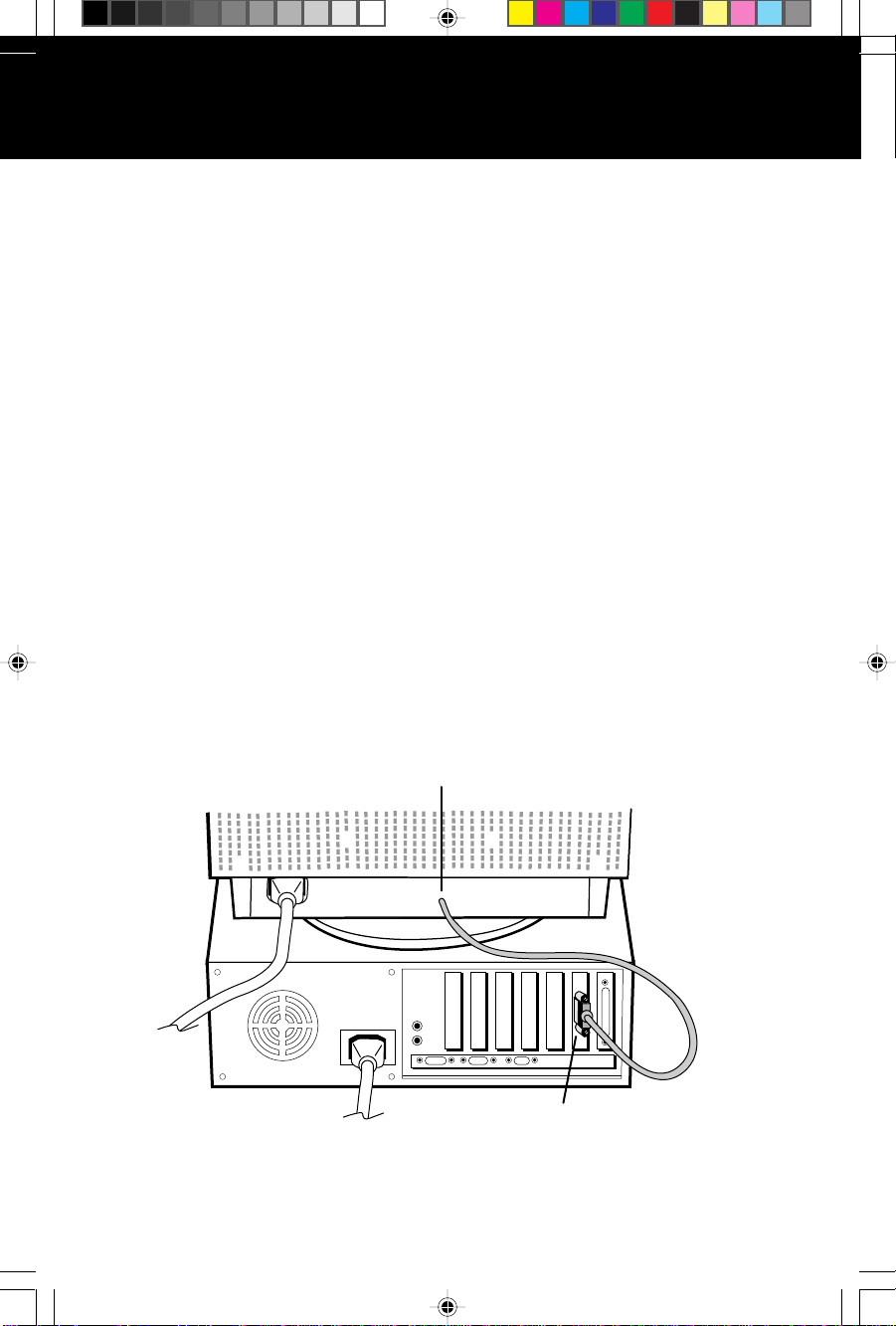

3. For the PC: Connect the 15-pin mini D-SUB of the captive signal cable to the connector of the display card in your system (Figure A.1). Tighten all screws.

For the Mac: Connect the MultiSync A900 Macintosh cable adapter (not included) to the monitor connector on the Macintosh (Figure B.1). Attach the 15-pin mini D-SUB end of the captive signal cable to the MultiSync A900 Macintosh cable adapter on the computer (Figure B.1). Tighten all screws.

NOTE: To obtain the MultiSync A900 Macintosh cable adapter, call

NEC Technologies at (800) 820-1230.

4. For download information on the Windows® 95/98 INF file for your MultiSync A900 monitor, refer to the References section of this User’s Manual.

5. Connect one end of the power cord to the MultiSync A900 monitor and the other end to the power outlet (Figure C.1).

6. Turn on the monitor (Figure D.1) and the computer.

NOTE: If you have any problems, please refer to the Troubleshooting section of

this User’s Manual.

78133961.MultiL 9/10/98, 12:02 PM5

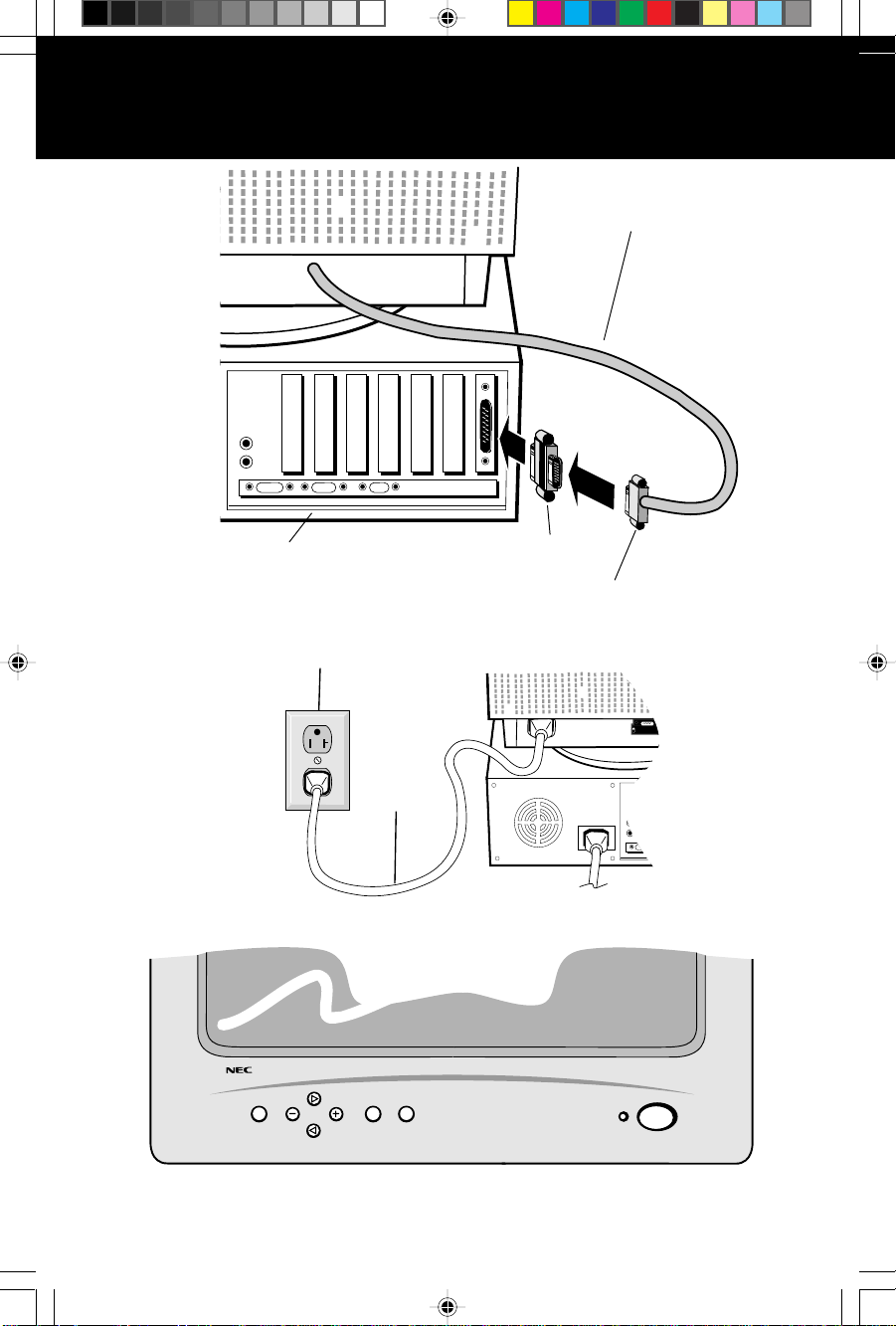

Captive Signal Cable

15-pin mini D-SUB

Figure A.1

Quick Start cont.

Captive Signal

Cable

Computer

Power Outlet

CONTROL

Power

Cord

RESETPROCEEDEXIT

Figure B.1

Figure C.1

Mac Adapter

(Not included)

15-pin mini D-SUB

MultiSync A

900

78133961.MultiL 9/10/98, 12:02 PM6

Figure D.1

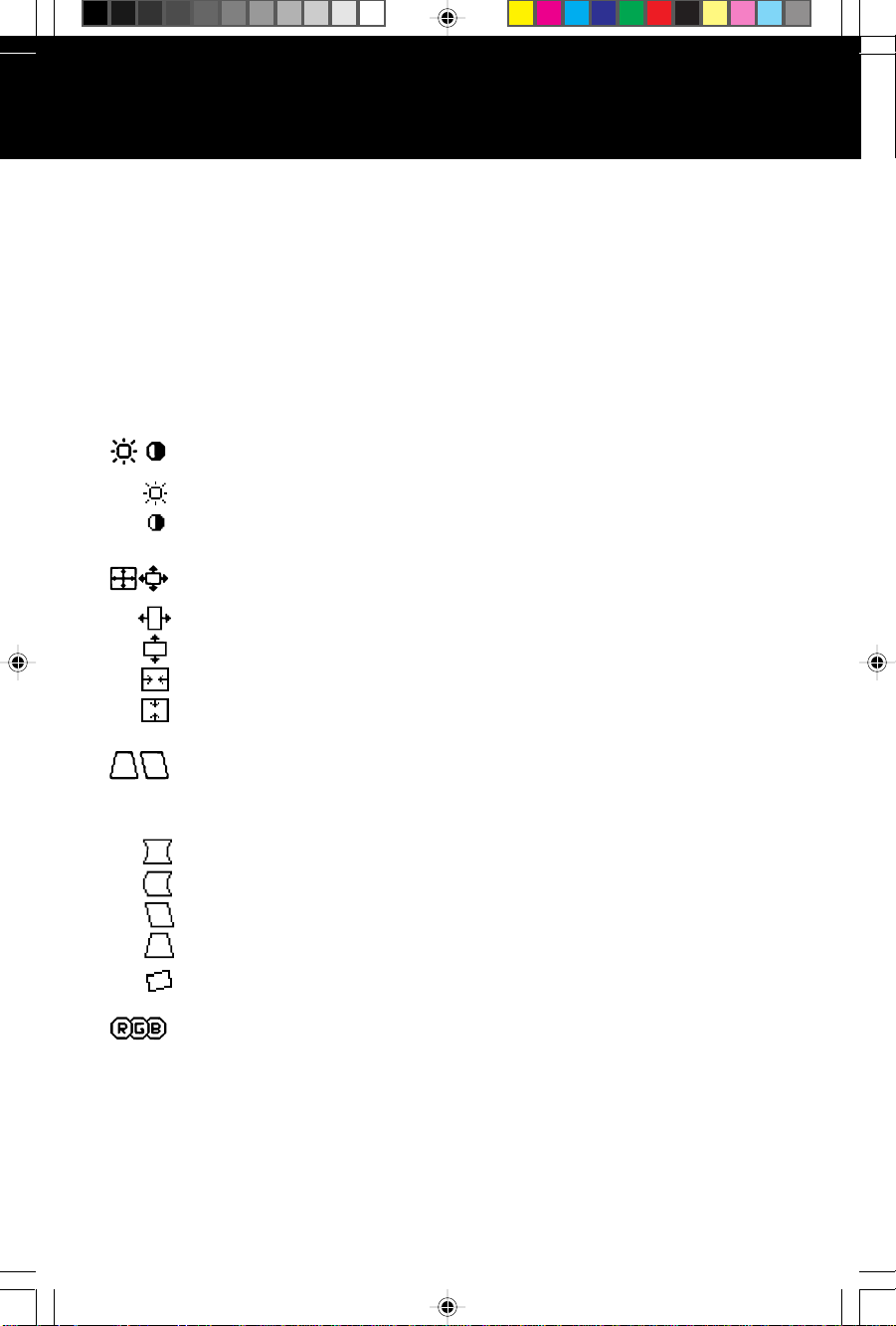

Controls

OSM™ (On-Screen Manager) control buttons on the front of the monitor function as follows:

EXIT Exits the OSM controls. CONTROL § / © CONTROL +/– Moves the bar in the + or – direction

PROCEED Enters OSM menu and selects icons at the top of the menu. RESET Resets the highlighted control to the factory setting.

Brightness/Contrast Controls

Adjusts the overall image and background screen brightness. Adjusts the image brightness in relation to the background.

Size and Position Controls

Moves the image horizontally (left or right). Moves the image vertically (up or down). Increases or decreases the horizontal size of the image. Increases or decreases the vertical size of the image.

Moves the highlighted area left/right to select one of the controls.

to increase or decrease

the adjustment.

Geometry Controls

The Geometry controls allow you to adjust the curvature or angle of the sides of your display.

Increases or decreases the curvature of the sides either inward or outward. Increases or decreases the curvature of the sides either to the left or right. Increases or decreases the tilt of the sides either to the left or right. Increases or decreases the top of the screen to be the same as the bottom. Rotates the entire display clockwise or counterclockwise

Color Control/AccuColor® Control System

Two color presets select the desired color setting. Each color setting is adjusted at the factory to the stated Kelvin.

78133961.MultiL 9/10/98, 12:02 PM7

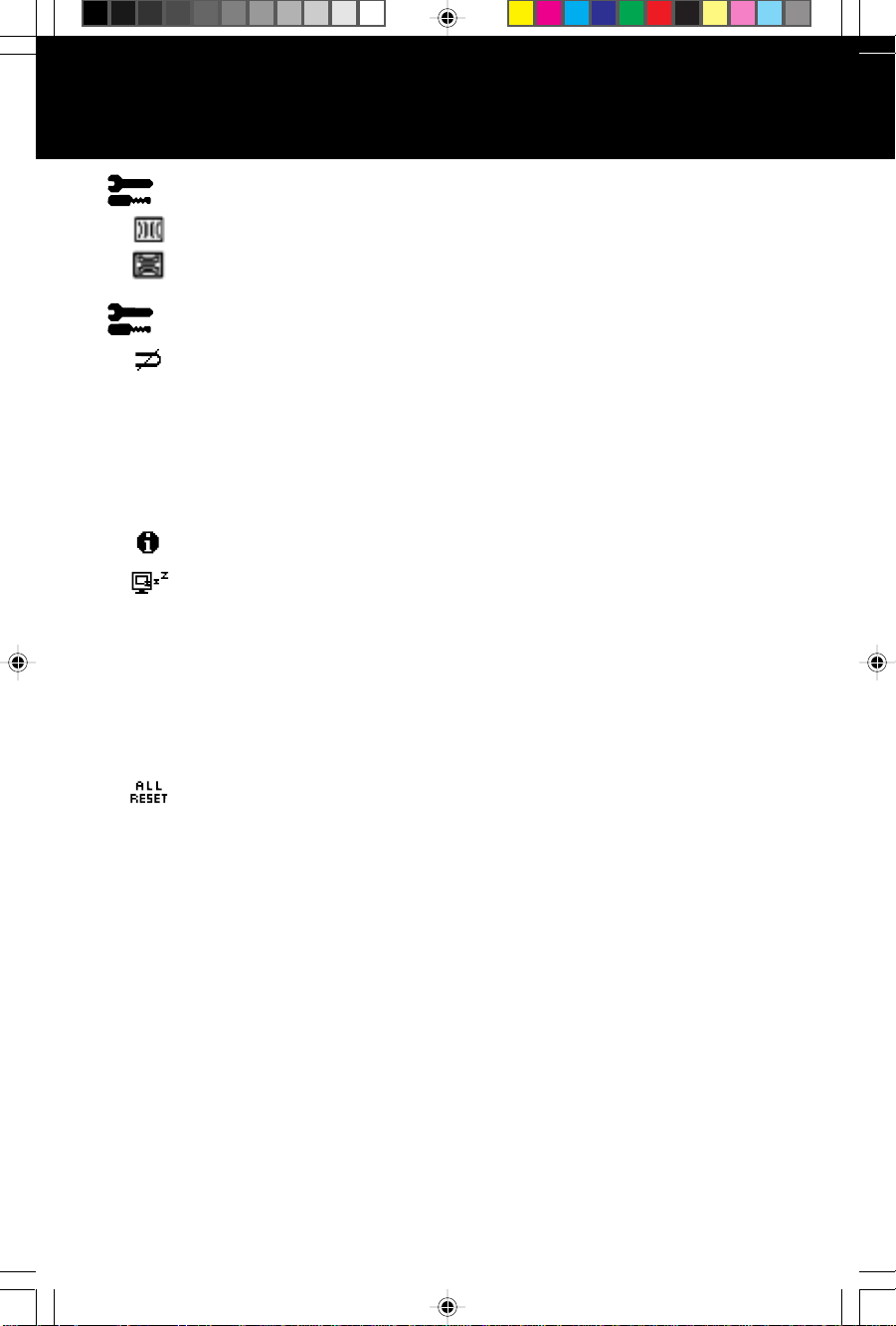

Controls cont.

Tools 1

Reduces horizontal moire patterns. Reduces vertical moire patterns.

Tools 2

Degauss Control: Eliminates the buildup of stray magnetic fields that alter the correct scan of the electron beams and affect the purity of the screen colors, focus and convergence. When activated, your screen image will jump and waver a bit as the screen is demagnetized.

Caution: Please allow a minimum of 20 minutes to elapse

between uses of the Degauss Control.

Indicates the frequency setting of the monitor. IPM™ System: On: The IPM System works normally and all stages

of energy savings are utilized.

Off: The Off Mode of the IPM System is not used.

NOTE: For standard systems and graphics boards, keep the

factory setting at ON.

Selecting ALL RESET allows you to reset all OSM™ control settings back to the factory settings except IPM System. Individual settings can be reset by highlighting the control to be reset and pressing the RESET button.

78133961.MultiL 9/10/98, 12:03 PM8

Recommended Use

Safety Precautions and Maintenance

FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE

FOLLOWING WHEN SETTING UP AND USING

THE MULTISYNC® A900™ COLOR MONITOR:

• DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and

opening or removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing to qualified service personnel.

• Do not spill any liquids into the cabinet or use your monitor near water.

• Do not insert objects of any kind into the cabinet slots, as they may touch danger-

ous voltage points, which can be harmful or fatal or may cause electric shock, fire or equipment failure.

• Do not place any heavy objects on the power cord. Damage to the cord may

cause shock or fire.

• Do not place this product on a sloping or unstable cart, stand or table, as the

monitor may fall, causing serious damage to the monitor.

• Keep the monitor away from high capacity transformers, electric motors and other

devices such as external speakers or fans, which may create strong magnetic fields.

• If possible, position the monitor so that it is facing the east to minimize the effects

of the earth’s magnetic field.

• Changing the direction of the monitor while it is powered on may cause image

discoloration. To correct this, turn the monitor off for 20 minutes before powering it back on.

• When operating the MultiSync A

supply, use a power supply cord that matches the power supply voltage of the AC power outlet being used. The power supply cord you use must have been approved by and comply with the safety standards of your country. (Type H05VV-F should be used except in UK)

• In UK, use a BS-approved power cord with molded plug having a black (5A) fuse

installed for use with this monitor. If a power cord is not supplied with this monitor, please contact your supplier.

Immediately unplug your monitor from the wall outlet and refer servicing to qualified service personnel under the following conditions:

• When the power supply cord or plug is damaged.

• If liquid has been spilled, or objects have fallen into the monitor.

• If the monitor has been exposed to rain or water.

• If the monitor has been dropped or the cabinet damaged.

• If the monitor does not operate normally by following operating instructions.

• Allow adequate ventilation around the monitor so that heat can properly

dissipate. Do not block ventilated openings or place the monitor near a radiator or other heat sources. Do not put anything on top of monitor.

• The power cable connector is the primary means of detaching the system

CAUTION

from the power supply. The monitor should be installed close to a power outlet which is easily accessible.

• Handle with care when transporting. Save packaging for transporting.

900 with its AC 220-240V worldwide power

78133961.MultiL 9/10/98, 12:03 PM9

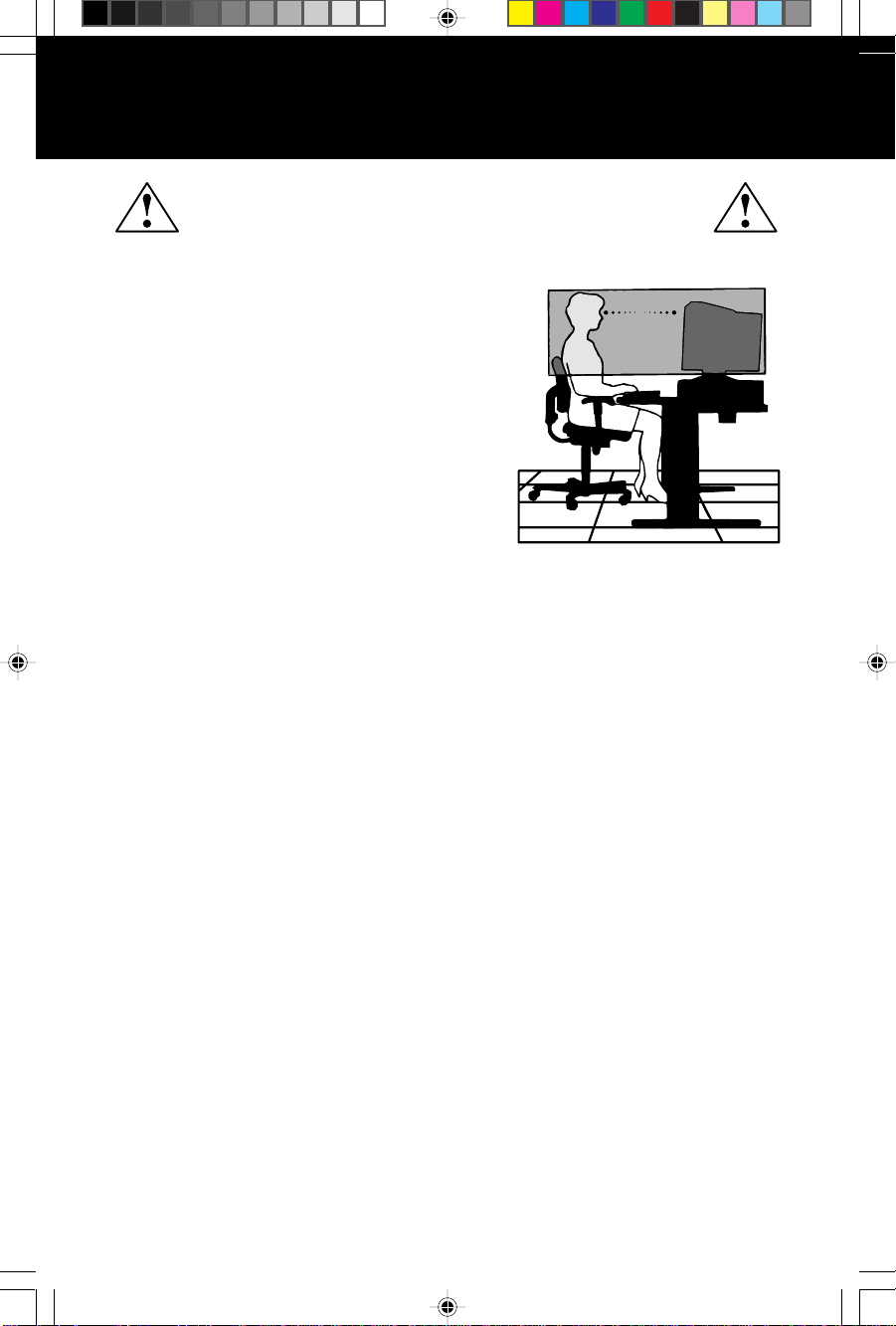

Recommended Use cont.

CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR

CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE

FOLLOWING WHEN YOU POSITION THE MONITOR:

• Adjust the monitor height so that the top of

the screen is at or slightly below eye level. Your eyes should look slightly downward when viewing the middle of the screen.

• Position your monitor no closer than 12 inches

and no further away than 28 inches from your eyes. The optimal distance is 18 inches.

• Rest your eyes periodically by focusing on

an object at least 20 feet away. Blink often.

• Position the monitor at a 90° angle to

windows and other light sources to minimize glare and reflections. Adjust the monitor tilt so that ceiling lights do not reflect on your screen.

• If reflected light makes it hard for you to see your screen, use an anti-glare filter.

• Clean your monitor regularly. Use a lint-free, non-abrasive cloth and a

non-alcohol, neutral, non-abrasive cleaning solution or glass cleaner to minimize dust.

• Adjust the monitor’s brightness and contrast controls to enhance readability.

• Use a document holder placed close to the screen.

• Position whatever you are looking at most of the time (the screen or

reference material) directly in front of you to minimize turning your head while you are typing.

• Get regular eye checkups.

Ergonomics

To realize the maximum ergonomics benefits, we recommend the following:

• Adjust the Brightness until the background raster disappears

• Do not position the Contrast control to its maximum setting

• Use the preset Size and Position controls with standard signals

• Use the preset Color Setting and Sides Left/Right controls

• Use non-interlaced signals with a vertical refresh rate between 75-160Hz

• Do not use primary color blue on a dark background, as it is difficult to see

and may produce eye fatigue due to insufficient contrast

For more detailed information on setting up a healthy work environment, call NEC at (800) 820-1230, NEC FastFacts document #900108 or write the American National Standard for Human Factors Engineering of Visual Display Terminal Workstations – ANSI-HFS Standard No. 100-1988 – The Human Factors Society, Inc. P.O. Box 1369, Santa Monica, California 90406.

™

information at (800) 366-0476 and request

78133961.MultiL 9/10/98, 12:03 PM10
