Navman TRACKER 5507, TRACKER 5607 Operation Manual

Download

w w w . n a v m a n . c o m

Installation and Operation Manual

Tracker

5507/ 5607

NAVMAN

Cha rtplot ters

FCC Statement

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a normal installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation bet ween the equipment and receiver.

Connect the equipment into an output on a circuit dif ferent from that to which the receiver is connected.

Consult the dealer or an experienced technician for help.

A shielded cable must be used when connecting a peripheral to the serial ports.

Industry Canada

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

IMPORTANT SAFETY INFORMATION

Please read carefully before installation and use.

CAUTION

DANGER

WARNING

This is the safety alert symbol. It is used to alert you to potential personal injury hazards, Obey all safety messages that follow this symbol to avoidpossible injury or death.

CAUTION

WARNING

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury

CAUTION

CAUTION indicates a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.

CAUTION

DANGER

WARNING

CAUTION used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may result in property damage.

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

It is your sole responsibility to install and use NAVMAN’s instrument and GPS antenna in a manner that will not cause accidents, personal injury or property damage. Always observe safe boating practices.

The choice, location, angle and installation of the instrument & GPS antenna are critical to performance of the system as intended. Follow instructions in this manual carefully. If in doubt, consult your NAVMAN dealer.

Ensure that any holes cut are in a safe position and will not weaken the boat’s structure. If in doubt, consult a qualiﬁed boat builder.

Global Position System: The global Position System (GPS) is operated by the U.S. Government which is solely responsible for its operation, accuracy and maintenance. The GPS is subject to changes which could aﬀect the accuracy and performance of all GPS equipment anywhere in the world, including the 5507/5607 and TRACKFISH. To reduce the risk of misusing or misinterpreting the 5507/5607 and TRACKFISH, you must read and understand all aspects of this Installation & Operation Manual. We also recommend that practice all operations using the built-in simulator before using the 5507/5607 or TRACKFISH.

Electronic Chart: The electronic chart used by 5507/5607 or TRACKFISH is an aid to navigation designed to supplement, not replace oﬃcial government charts. Only oﬃcial government charts supplemented by notices to mariners contain the information required for safe and prudent navigation, Always supplement the electronic information provided by 5507/5607 or TRACKFISH with other plotting sources such as observations, depth soundings, radar and hand compass bearings. Should the information not agree, the discrepancy must be resolved before proceeding any further.

AIS: The AIS features on this chart-plotter are designed as a safety aid only and do not guarantee safety at sea. AIS transmission is mandatory on some, but not all, vessels. You should check your local laws and regulations for requirements in your area. As a result of diﬀerent legal requirements, diﬀerent vessel sizes and uses, you should not assume that your AIS equipped chart-plotter will show the location of ALL vessels in your area. Careful prudence, judgement, and safe navigation practices should be always be exercised. AIS should be used to complement radar, but AIS is not a substitute for radar.

Fuel Computer: Do not rely on the fuel computer as the sole source of information regarding available fuel onboard. Fuel economy can change drastically depending on boat loading and sea conditions. Fuel Computer information should be supplemented by visual or other checks of the fuel load. This is necessary due to possible operator errors such as forgetting to reset the fuel used when ﬁlling the tank, running the engine with the Fuel Computer not switched on, or on other operator actions that may render the device inaccurate. Always carry adequate fuel onboard for the intended trip, plus a reserve to allow for unforeseen circumstances.

Failure to adhere to these warnings may lead to death, serious injury or property damage. NAVMAN disclaims all liability for installation or use of this product that causes or contributes to death, injury or property damage or that violates any law.

As NAVMAN is continuously improving this product we retain the right to make changes to the product at any time which may not be reﬂected in this version of the manual. Please contact your nearest NAVMAN oﬃce if you require any further assistance.

Governing Language: This statement, any instruction manuals, user guides and other information relating to the product (Documentation) may be translated to, or have been translated from, another language (Translation). In the event of conﬂict between any Translations of the Documentation, the English language version of the Documentation will be the oﬃcial version.

The 5507/5607 is set up with default units. To change the units, see section 15-9

Important

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

Contents

1 Introduction ..........................................................................................................................................9

1-1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-2 Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-3 Plug-in cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1-4 Removing and replacing the display unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

2 Basic Operation ....................................................................................................................................

2-1 Using the keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-2 Using the menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-3 Turning on and off / auto power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-4 Backlight and night mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

2-5 Man overboard (MOB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

2-6 Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-7 Simulate mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-8 The main windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3 Navigation: Chart .................................................................................................................................

3-1 Overview of navigating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-2 Chart window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

3-3 Distance and bearing calculator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-4 Projected course . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

3-5 Tracks and tracking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4 Navigation: Highway window ..............................................................................................................

5 Navigation: Waypoints .........................................................................................................................

5-1 Waypoints window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-2 Managing waypoints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

6 Navigation: Routes ..............................................................................................................................

6-1 Routes window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6-2 Managing routes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

7 Satellites .............................................................................................................................................

7-1 Satellite window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8 Gauges window ...................................................................................................................................

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

9 Data window ....................................................................................................................................... 33

10 Fuel functions and display ..................................................................................................................

10-1 What the fuel computer does . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10-2 Fuel window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

10-3 When you add or remove fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10-4 Low fuel alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

10-5 Boat speed sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

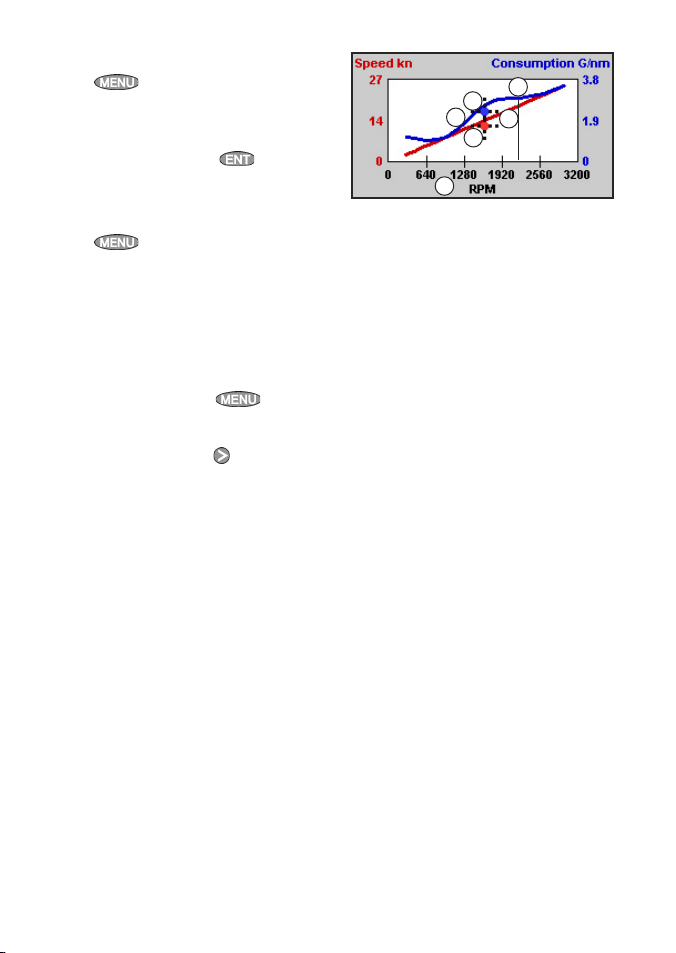

10-6 Fuel consumption curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10-7 Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

11 Tides window .....................................................................................................................................

12 User card window ...............................................................................................................................

13 AIS .....................................................................................................................................................

13-

1 Viewing AIS Vessels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

13-2 Dangerous Vessels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

-3 AIS Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

14 DSC/Buddy track windows ..................................................................................................................46

14-1 The windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

14-2 Using the windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

15 Setting up the 5507/5607 ...................................................................................................................

15-1 Setup > System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

15-2 Setup > Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

15-3 Setup > GPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

15-4 Setup > Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

15-5 Setup > Track . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

15-6 Setup > AIS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

15-7 Setup > Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

15-8 Setup > Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

15-9 Setup > Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

15-10 Setup > Comms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

15-11 Setup > Calibrate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

15-12 Setup > Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

15-13 Setup > Favorites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

15-14 Setup > Simulate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

16 Installation ........................................................................................................................................63

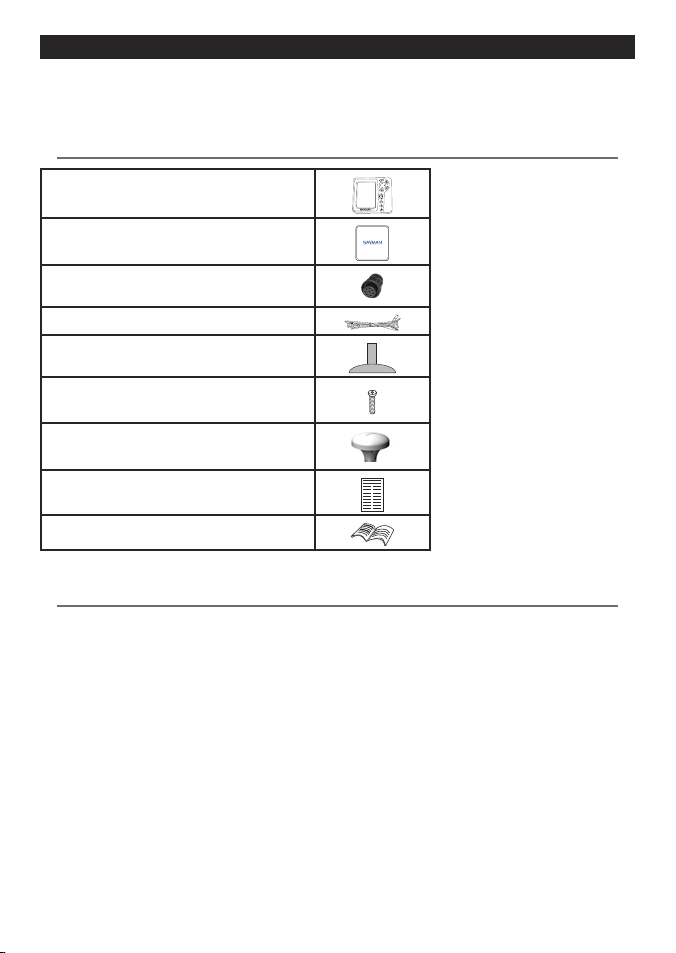

16-1 Installation: What comes with the 5507/5607 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

16-2 Installation: Options and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

16-3 Installation: The display unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

16-4 Installation: Power/Data cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

16-5 Installation: GPS antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

16-6 Installation:

NAVMAN petrol/gasoline sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

16-7 Installation: NAVMAN diesel sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

16-8 Installation: SmartCraft™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

16-9 Installation: Other NavBus instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

16-10 Installation: Other NMEA instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

16-11 Installation: Setup and test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Appendix A - Specifications .....................................................................................................................

Appendix B - Troubleshooting .................................................................................................................

B-1 General Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

B-2 GPS navigation problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

B-3 Fuel consumption problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75

Appendix C - Glossary and navigation data ..............................................................................................76

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

Quick reference

Feature Type See Requires

General How to use the keys and displays

Troubleshooting

Appendix B

Simulate mode

2-7

Glossary of special names

Appendix C

Speciﬁcations

Appendix A

MOB Man overboard key 2-5

Navigation Overview of how to navigate

3-1 GPS ﬁx

Finding the boat’s position on the chart

3-2

Navigate to any point or to a waypoint

3-1

Navigate along a route

3-1

Projected course: An estimate of progress

3-4

Tracks: records of where the boat has been

3-5

GPS receiver status

Saving and loading data with a user card

12 User card

Chart data Chart features (built in world chart)

3-2

Chart details

3-2-4 & 5 C-MAP™ chart

Tides at a port

11 C-MAP™ chart

AIS 13

Alarms Built in alarms

2-6

SmartCraft™ engine alarms

1-1 SmartCraft™

Boat data Data at top of main displays

2-8-3

Compass at top of main displays

2-8-4

Dedicated data window

Fuel Fuel computer, petrol/gasoline engine

10 Fuel sensors

Fuel computer, SmartCraft™ engines

10 SmartCraft™

Fuel computer, diesel engine 10 Diesel sensors

What to do when you add or remove fuel 10-3

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

1-2 Cleaning and maintenance

The 5507/5607 screen is covered by a proprietary anti-ref lection coating. To avoid damage, clean the screen only with a damp cloth and mild detergent when dirty or covered in sea salt. Avoid abrasive cleaners, petrol or other solvents. If a plug-in card gets dirt y or wet, clean it with a damp cloth or mild detergent.

To optimize performance, avoid walking on or jamming cables and connectors.

Push the dust cover over the display when the 5507/5607 is turned of f.

The NAVMAN 5507/5607 is a compact, rugged, highly integrated marine chartplotter. It is easy to use and has an easy to read color display. Complex functions can be performed with a few key presses, taking the hard work out of boating.

This manual covers:

5507/5607

Color display, external GPS antenna.

The available functions, displays and setup menus depend on the optional sensors and instruments that are installed:

1 The Fuel functions require optional

petrol/gasoline, diesel or Smar tCraft™ fuel sensors to be installed and set up.

2 SmartCraft™ engine functions require a

SmartCraft™ system to be installed. For information on using SmartCraft™, see the

1-1 Overview

SmartCra ft™ Gateway Installati on and Operatio n Manual.

3 The 5507/5607 can send data to other

instruments, such as an autopilot, and receive data from other instruments.

4 AIS functions require an optional AIS receiver

to be installed.

For information on installing options, see sec tion 16-2.

This manual describes how to install and operate the 5507/5607. Special terms are explained in Appendix C. For maximum benefit, please read this manual caref ully before installing and using the unit. For more information on this instrument and other NAVMAN products, go to our website, www.navman.com.

1-3 Plug-in cards

The 5507/5607 can use two kinds of plug-in card:

1 C-MAP™ chart cards have chart details

required for navigating in a particular region. When a chart card is plugged in, the extra details automatically appear on the 5507/5607 chart window.

The 5507/5607 can use NT, NT+, NT-MAX and

NT-MAX2 cards.

2 C-MAP™ user cards are used to store

navigation data. Each user card expands the 5507/5607 memory and allows the data to be transferred to another 5507/5607 easily (see section 12).

Note: The older 5 volt user cards are not supported.

1 Introduction

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

1-4 Removing and replaci ng the display unit

If the display unit is bracket mounted then the display unit can easily be removed and replaced for security or protection.

Removing the display unit:

1 Turn the display unit of f (see section 2-3) and

put the dust cover on.

2 Loosen the knob on the mounting bracket

and lift the unit off the bracket.

3 Unplug the connectors from from the

display unit, turning each locking collar anticlockwise. Push the attached dust covers over the connectors.

4 Store the display unit in a dry clean place,

such as the optional NAVMAN carry bag.

Replacing the display unit

1 Remove the dust covers from the connectors.

Plug the connec tors into the back of the display unit:

Match the connector’s color to the socket

color.

Insert each connector and turn the locking

collar clockwise until it is finger tight.

Handle plug-in cards carefully. Keep them in their protective cases when not plugged into the 5507/5607.

Keep the holder in place in the 5507/5607 at all times to prevent moisture from entering the card compartment.

Nothing will be damaged if a cable

is plugged into the wrong socket by mistake.

2 Hold the display unit in place on the

mounting bracket. Adjust the tilt of the display for best viewing, then hand tighten the knob on the mounting bracket. Remove the dust cover.

Card

Holder

Gold contacts under here

Knob

Mounting bracket

Turn the 5507/5607 off (see section 2-3).

Pull the card holder out of the 5507/5607 and pull any card out of holder.

Put the card in its case.

Push new card into holder. Ensure the gold contacts are on the outer edge and underneath (see above).

Keep the card’s case.

Push card holder fully into 5507/5607

Changing the plug-in card

CAUTION

DANGER

WARNING

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

2 Basic Operation

Overview of the keys

ESCAPE - Go back to an earlier menu or display. In chart mode,

centres chart at boat’s position.

DISPLAY - Show a menu of the main displays. To go to a display,

select it from the menu (see section 2-8).

CURSOR KEYS - to move the cursor or the selection highlight.

MENU - Show a menu of the options for the current window.

Press

again to display the Setup menu (see section 15).

ENTER - Start an action or accept a change.

ZOOM - Zoom in or out to display different areas and detail on

the chart.

WAYPOINT - Create an instant waypoint at the boat position

(see section 5-2-1).

MOB - (Man Overboard, see section 2-5).

POWER - Turn 5507/5607 on and off (see sec tion 2-3); adjust the

backlighting (see section 2-4).

2-1 Using the keys

In this manual:

Press means to push the key for less than a second.

Hold means to hold the key down.

The internal beeper beeps when a key is pressed (to disable or enable the beep, see section 15-1).

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

Operate the 5507/5607 by selecting items from menus. Items can be submenus, commands or data.

Selecting a submenu

A after a menu item indicates a submenu, for example

Chart . Press or to move the

highlight to the submenu, then press

Starting a command

Press

or to move the highlight to the

command, for example Goto cursor, then press

Changing data

First press

or to move the highlight to the

data to change, then:

a) To change a tick box

means On or Yes

means Off or No.

Press or to change the tick box.

b) To select an option

1 Press

to display the menu of options.

2 Press

or to move the highlight to the

option you want, then press

2-3 Turning on and off / auto power

Turning on manually

If the 5507/5607 is not wired for auto power, press

to turn the unit on. If necessary, adjust the

display to be easy to read (see section 2-4).

Note: If the 5507/5607 is not wired for auto power then the 5507/5607 does not record engine hours and might not record fuel consumption (see section 16-4).

Turning off manually

If the 5507/5607 is not wired for auto power or if

the ignition switch is off, hold down

until the

display turns off.

Auto power

If the 5507/5607 is wired for auto power (see section 16-4), then:

The 5507/5607 automatically turns on when

you turn the boat’s ignition switch on.

You can not turn the 5507/5607 off while the

ignition switch is on.

If Auto power off (see section 15-1)

is , the 5507/5607 automatically turns off when you turn the boat’s ignition switch off.

If Auto power off (see section 15-1)

, the 5507/5607 stays on when you turn the boat’s ignition switch of f. You can now turn the 5507/5607 off manually.

2-2 Using the menus

c) To change a name or number:

1 Press

to display the name or number:

2 Press or to select a letter or digit to

change. Press

or to change the letter or

digit.

Repeat this to change other letters or

numbers.

3 Press

to accept the new value. Or press

to ignore the changes.

d) To change a slider value

Press

to decrease the value or to increase

the value.

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

2-4 Backlight and night mode

To go to the Backlight display, press briefly. When you have finished, press

Backlight

The display and keys are backlit. To change the backlight level, select

Backlight, then press

to dim or to brighten.

Tip: Press twice to give the brightest screen,

with maximum backlight and Night mode off.

Night mode

Night mode sets the palette for all displays.

Normal palette, for daytime

A palette optimised for night time.

To change mode, select Night mode, then press

. To change only the char t palette, see section

15-2.

The MOB feature saves the boat’s position and then navigates back to this point.

1 Press

The 5507/5607 stores the boat’s position as a

waypoint called MOB.

2 The 5507/5607 changes to the chart window,

with the MOB waypoint at the centre of the chart.

The chart zooms in for accurate navigation.

If the chart can not show the required small scale, the 5507/5607 changes to plotter mode (a white display with crosshatching and no chart details, see section 15-2).

3 The 5507/5607 sets the MOB waypoint to be

the destination to navigate to.

If the NMEA output (autopilot) is off (see

section 15-10) use the 5507/5607 to manually navigate to the destination MOB waypoint (see sections 3-1-1 and 3-1-2).

2-5 Man overboard (MOB)

If the NMEA output (autopilot) is on,

the 5507/5607 asks if the autopilot is active. Select:

No: Use the 5507/5607 to manually navigate to

the destination MOB waypoint (see sections 3-1-1 and 3-1-2).

Yes: The 5507/5607 asks if the boat is to go to

the MOB waypoint.

Select:

Yes: to immediately star t navigating to the

MOB waypoint.

This might result in a sudden and dangerous turn.

CAUTION

WARNING

No: disengage the autopilot; then use

the 5507/5607 to manually navigate to the destination MOB waypoint (see sections 3-1-1 and 3-1-2).

To cancel MOB or set another MOB

1 Press

again to display a menu.

2 Select an option from the menu.

Tip: The MOB waypoint remains on the chart after the MOB has been cancelled. To delete the MOB waypoint, see section 5-2-5.

2-6 Alarms

When the 5507/5607 detects an alarm condition, it displays a warning message on the display, the internal beeper sounds and any external beepers or lights operate.

Press

to clear the alarm. The alarm will

sound again if the alarm condition occurs again.

The 5507/5607 has user settable alarms plus an alarm for loss of GPS fix (see sec tion 15-8).

MOB will not work if the 5507/5607 does not have a GPS fix.

CAUTION

WARNING

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

2-7 Simulate mode

In Simulate mode, the 5507/5607 ignores data from the GPS antenna and other transducers and sensors and the 5507/5607 generates this data itself. Otherwise, the 5507/5607 functions normally.

There are two simulate modes:

Norma l: Allows a user to become familiar

with the 5507/5607 off the water.

Demo: Simulates a boat moving along a

route and automatically displays dif ferent 5507/5607 functions.

To start and stop Simulate mode, and for more information, see section 15-13. In simulate mode,

Simulate or Demo flashes at the bottom of

the display.

2-8 The main win dows

CAUTION

WARNING

Never have Simulate mode on when the 5507/5607 is navigating on the water.

The display menu allows quick access to the main windows and favorites. Full-screen Chart is at the top of the menu followed by favorites. Other windows are available from the

More…

sub menu.

Note:

The windows available depend on the optional sensors and instruments that are installed (see section 1-1).

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

Note: The windows below the menu divider can only be shown full screen without a data header. (see section 2-8-3).

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

The 5507/5607 can show two windows at once.

Adding a window to the display

Press

, select Add window and select a window to add. T he 5507/5607 automatically rearranges the display to show the new window.

Changing window size

1 Press

and selec t Split ratio.

2 Press

to change the height of the windows. Note: Some windows are fixed in size.

3 Press

Exchanging two windows on the display

1 Press

twice to change the active

window.

2 Press

, select Replace and select the

second window.

The 5507/5607 exchanges the two windows.

Replacing a window on the display

1 Press

twice to change the active

window.

2 Press

, select Replace and select a new

window that is not currently visible.

Note: When some windows are small then not all the data is shown.

The active window

If there is more than one window displayed, the active window is indicated by a red border. Press

twice to change the active window.

2-8-1 Multi window displays

Pressing

will display the options menu for

the active window.

Chart is active

Red border

Gauges is active

Red border

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

Deleting a favorite display from the list

1 Press

twice then select Favorites.

2 Highlight the display to delete, press

and selec t Delete.

Changing the order of the favorites list

1 Press

twice then select Favorites.

2 Highlight the display to move, press

and selec t Move up or Move down.

The 5507/5607 has a list of commonly used displays, called favorite displays. There can be up to six favorite displays.

Chart, Gauges, Highway, Fuel, Data, and Tanks windows can be combined in a display. Each of these displays can have a data header (see section 2-8-3) and a compass (see section 2-8-4).

Selecting a favorite display

Press

and selec t a favorite from the menu.

Adding a favorite display to the list

1 Set up the display with the window or

windows you want in the new favorite (see sections 2-8-2 and 2-8-3).

2 Press

and selec t Save this display. The

5507/5607 displays the favorites list.

3 Select where in the list to add the new

favorite. If you select an existing favorite display then the new favorite will replace the existing favorite in the list.

2-8-2 Favorite displays

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

2-8-3 Data header

The displays can show data at the top, called the data header.

When you select a window from the display

menu (see section 2-8) the 5507/5607 displays an appropriate data header for the window.

Each favorite display (see section 2-8-2) has its

own data header. When you select a favorite display, the 5507/5607 recalls the data header for this favorite.

Setting the data header for a display

1 Press

and selec t Data header.

2 To turn the data header on or of f:

i Select Data.

ii Selec t

or .

3 To select the size of the data:

i Select Size.

ii Selec t the size to display.

4 To change the data displayed:

i Select Data setup.

ii Change a data field:

a Press the cursor keys to highlight the

field.

b Press

to display a menu of

data items.

c Select a data item that is available

on your system or select None to leave the field empty.

iii Repeat the above step to set the other

data fields.

Tip: If all fields in a line are None then the line will not be displayed and the data header will take less space on the display.

5 Press

Tip: The data header will change when you select another display. To set a data header that

you can recall later, set the header as par t of a favorites display (see below).

Favorites displays and data headers

To set a data header for a favorites display, follow the steps to add a favorite (see sec tion 2-8-2

- Adding a favorite display to the list). In step 1, set the data header for the favorite as described above.

Note: Only the Char t, Gauges, Highway, Fuel, Data, and Tanks windows can have a data header.

2-8-4 Compass

The chart, sonar and highway displays can show a compass at the top of the window.

The compass always shows the boat’s course over ground (COG), a black symbol in the middle. When the boat is navigating to a point, the compass also shows bearing to the destination (BRG), a red symbol.

In this example, BRG is 332°M and COG is 341°M.

To turn the compass of f or on:

1 Press

and selec t Data header.

2 Set Compass to or .

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

3-1-1 Navigating to a point

When the 5507/5607 is navigating to a point, the chart and highway windows show navigation data:

A The boat position

B The destination point marked with a circle.

C The boat’s plot ted course to the destination.

D Two CDI lines, parallel to the boat’s plotted

course, which indicate the maximum expected deviation from the plotted course.

For more information, see appendix C.

If the 5507/5607 is connected to an autopilot, the 5507/5607 will send data to the autopilot to steer the boat to the destination. Star t the autopilot before starting to navigate to the point.

If the 5507/5607 has no autopilot, steer the boat manually:

a use the boat position and destination on the chart or highway windows

b or use navigation data window on the data header (see section 2-8-3)

c or use COG and BRG on the compass (see section 2-8-4).

Note:

1 If the XTE alarm is enabled, an alarm will

sound if the boat deviates too much from its intended course (see section 15-8).

2 If the arrival radius alarm is enabled, then an

alarm will sound to show that the boat has reached the destination (see section 15-8).

3-1-2 Going to a waypoint or to a point on the char t

A waypoint is a position that you can set on the 5507/5607 chart, for example a fishing spot. (see section 5).

Going to a waypoint from the chart window

1 Go to the chart window.

2 Move the cursor to the waypoint: either use

the cursor keys or use Find (see section 3-2-5).

3 Press

and selec t Goto.

Going to a waypoint from the waypoints window

1 Go to the waypoints window.

2 Press

or to highlight the waypoint to

go to.

3 Press

and selec t Goto.

Going to a point on the chart

1 Switch to a chart window.

2 Move the cursor to the destination point:

either use the cursor keys or use Find (see section 3-2-5).

3 Press

and selec t Goto cursor.

CAUTION

WARNING

Make sure the course does not pass over land or dangerous waters.

Navigating

The 5507/5607 navigates to the point as described in section 3-1-1.

Cancelling navigating

Go to a Chart window, press

and selec t

Cancel goto.

Tip: Before starting, create waypoints at points of interest. Create a waypoint at the start of the trip for you to navigate back to (see section 5-2-1).

3 Navigation: Chart

3-1 Overview of navigating

The chart window shows the chart, the boat’s position course and navigation data.

The 5507/5607 has two ways of navigating, going straight to a point or following a route.

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

3-1-3 Following a route

Preparing

A route is a list of waypoints that the boat can follow (see section 6).

To create waypoints before creating the

route, see sec tion 5-2-1.

To create a route, see section 6-2-1.

Starting a route from the chart window:

1 Go to the chart window.

2 Press

and selec t Start Route.

3 Press or to highlight the route to

follow. Press

4 The 5507/5607 asks for the direction to

traverse the route.

Selec t

Forward (the order the route was

created) or

Reverse.

5 The 5507/5607 displays the chart with the route marked and starts navigating from the start of the route.

Starting a route from the routes window:

1 Go to the routes window.

2 Press

or to highlight the route to

follow. Press

and selec t Start.

3 The 5507/5607 asks for the direction to

traverse the route.

Select

Forward (the order the route was

created) or

Reverse.

4 The 5507/5607 displays a chart with the route

marked and starts navigating from the start of the route.

Navigating

The 5507/5607 navigates to each waypoint on the route in turn as described in section 3-1-1.

The 5507/5607 stops navigating to the waypoint at the end of the current leg and star ts the next leg of the route:

a when the boat comes within 0.025 nm of the

waypoint

b or when the boat passes the waypoint

c or if you skip the waypoint.

Skipping a waypoint

To skip a waypoint, go to a chart window, press

and selec t Skip. The 5507/5607 starts navigating straight towards the next waypoint on the route.

CAUTION

WARNING

Skipping a waypoint with the autopilot on might result in a sudden course change.

Cancelling a route

When the boat has reached the final waypoint, or to stop the boat following the route at any time, cancel the route. Go to a chart window, press

and selec t Cancel route.

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

A typical chart window shows:

3-2 Chart window

To go to the Chart window, press then selec t Chart.

A Data header. To turn the data of f or on or to change what data is displayed (see section 2-8-2)

B Compass (see section 2-8-3)

C Chart scale (see sec tion 3-2-3)

D Boat position (see section 3-2-1)

E Boat track (see section 3-5)

F Boat course and CDI lines (see Appendix C, CDI)

G Distance and bearing of cursor from boat

H Land

I Sea

J The cursor (see section 3-2-1)

K A typical waypoint (see sec tion 5)

Note: To change the types of information displayed on the char t (see section 15-2)

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

3-2-1 Chart modes

The Chart has two modes:

Centre on boat mode

To switch to centre on boat mode in the chart window, press

. The boat is at the centre of the chart. As the boat moves through the water, the chart automatically scrolls to keep the boat in the centre of the chart. The cursor (see below) is turned off.

Cursor mode

The keys and are called cursor keys. To switch to cursor mode in the chart window, hold down a cursor key. The cursor

appears

and moves away from the boat:

Press the key which points in the direc tion that the cursor will move, for example press

to move the cursor down.

Press midway between two of the cursor keys to make the cursor move diagonally.

Hold a cursor key down to make the cursor move continuously across the display.

In Cursor mode:

The distance (

DST) and bearing ( BRG) of the cursor from the boat are displayed at the bottom, left corner of the display.

The chart does not scroll as the boat moves.

If the cursor reaches the edge of the display, the chart will scroll.

For example, hold down

to move the cursor to the right side of the display and the chart will scroll to the left.

3-2-2 Latitude and longitude

Latitude and longitude can be displayed in the data header. The display is degrees and minutes to three decimal places, about 2 m (6 ft) resolution. Normally the position is the boat’s position, and the latitude and longitude has a boat symbol to show this:

36° 29.637’ N or S Latitude

175° 09.165’ E or W Longitude

If the cursor has been moved in the last ten seconds, then the position is the cursor’s position, and the latitude and longitude has a cursor symbol to show this:

36° 29.841’ N or S Latitude

175° 09.012’ E or W Longitude

CAUTION

WARNING

When reading the boat position, make sure the position is not the cursor position.

3-2-3 Chart scale

Press to zoom in and display a smaller area of the chart in more detail. Press

to zoom out

and display a bigger area in less detail.

The chart scale is displayed at the top left of the chart:

3-2-4 Chart symbols and info rmation

The chart will show symbols, such as waypoints and chart symbols (for example buoys, beacons, wrecks and marinas). When the cursor is placed over a symbol for at least two seconds, a data window appears at the bottom left of the display with information about the symbol.

To see stored information about a point on the chart (for example, a chart symbol):

1 Move the cursor to that point on the char t.

2 Press

and selec t Chart info.

3 A menu of objects is displayed:

i Select an object to display.

ii Press

to return to the menu. Select

other objects.

iii Finally, press

to return to the char t.

3-2-5 Finding a chart s ymbol

To find and display a char t symbol:

1 Press

and selec t Find.

2 Select the type of symbol: Waypoints, Routes,

Ports by name, Ports & services, Tide stations or AIS Vessels.

3 For Ports & services: select the type of service

to find.

For Ports by name: press

, , or to enter a name or letters contained in the port name, then press

4 A list of items is displayed. If there are more

items than will fit on the display, press

to page up and down.

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

3-3 Distance and bearing calculator

The distance and bearing calculator can plot a course of one or several legs and show the bearing and length of each leg, as well as the total distance along the course. The completed course can be converted into a route.

To use the distance and bearing calculator:

1 Press

until the chart window

is displayed. Press

and selec t

Distance.

2 Move the cursor to the start of the first leg. It

does not matter if this point is a waypoint or not. Press

3 To add a leg to the course, move the cursor

to the end of the leg. It does not matter if this point is a waypoint or not. The display shows the bearing and length of the leg, as well as the total distance along the course. Press

4 To remove the last leg from the course, press

and selec t Remove.

5 Repeat the above two steps to enter the

whole course.

6 To save the new course as a route, press

and selec t Save. This also saves any new points on the course as new waypoints, with default names. If necessary, edit the route later (see section 6-2-2) and edit any new waypoints later (see section 5-2-3).

7 Finally, press

to return to the char t

window.

For Ports by name: to search for a dif ferent

port name, press

. change the name,

then press

5 Select the item and press

. The chart window changes to show the item in the middle of the display.

To see stored information about the item,

press

(see section 3-2-4).

3-2-6 Perspective view

Perspective view shows the chart from an angle instead of from straight above. To turn perspective view on or off, press

and set

Perspective

to or .

If Projected course is turned on, then the 5507/5607 will display the projected position based on the course over ground (COG), speed and a specified time. To turn Projected course on and off and to set the time, see section 15-2.

A Projected position

B Boat’s projected course

C Boat position

3-4 Projec ted course

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

Tracking records the boat’s position to memory at regular intervals, which can be:

Time intervals.

Or distance intervals.

The track of where the boat has been can be displayed on the chart. The 5507/5607 can display one track while recording another.

To work with track s, see section 15-5.

The 5507/5607 can store five tracks:

Track 1 can hold up to 200 0 points and is intended to record the normal progress of the boat.

Tracks 2, 3, 4 and 5 can hold up to 500 points each and are intended to record sections to be retraced accurately, for example entering a river mouth.

Tip: Record the tracks in good conditions.

When recording is on and the track becomes full then recording continues and the oldest points in the track are deleted. The maximum length of a track depends on the selec ted track interval: a small interval will give a shorter, more detailed track and a long interval will give a longer, less detailed track, as shown in these examples:

The track lengths are in the current distance units, for example nm.

3-5 Tracks and tracking

Time intervals

Interval Track 1 Track 2, 3, 4

or 5

1 sec 33 minutes 8 minutes

10 sec 5.5 hours 1.4 hours

1 min 33 hours 8 hours

Distance inter vals

Interval Track 1 Track 2, 3, 4

or 5

0.01 20

1 2,000 500

10 20,000 5,000

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

4 Navigation: Highway window

The highway window has a bird’s eye view of the boat’s course to a destination. To go to the Highway window, press

, select Other,

then selec t

Highway.

The highway window shows:

A Optional data header (see section 2-8-3)

B Optional compass (see section 2-8-4)

C Destination waypoint

D Boat’s plotted course to destination

E CDI lines, parallel to the boat’s plotted course

(see Appendix C, CDI). The CDI lines are like a highway over the water where the boat will move.

F CDI scale

G The boat position is at the bottom, centre of

the display.

A B

5 Navigation: Waypoints

A waypoint is a position that you can set on the 5507/5607 chart for example a fishing spot or a point on a route. The 5507/5607 can have up to 3000 waypoints. A waypoint can be created, changed or deleted. A waypoint has:

A name (up to eight characters).

An icon showing what kind of waypoint it is.

The available icons are:

A position.

A color for the waypoint symbol and name

on the chart.

A type:

Normal: A normal waypoint can be

navigated to or included in a route.

Danger: A danger waypoint is a point to

avoid. If the boat comes within the danger radius of a danger waypoint the unit can sound an alarm (see section 15-8).

A display option:

Controls how the waypoint is displayed

when the

Waypoints setup option is set to

Selected (see section 15-2):

Off: The waypoint is not displayed.

Icon: The waypoint icon is displayed.

I+N (Icon and Name): The waypoint

icon and name are displayed.

If there are many waypoints, use this feature

to select which waypoints are displayed on the chart.

Note: The other choices for Waypoints are Hide all and Show all (see section 15-2).

CAUTION

WARNING

The highway window does not show land, dangerous waters or chart symbols.

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

5-1 Waypoints window

To go to the waypoints window, press , selec t Other, then select Waypoints. The waypoints window is a list of the waypoints that have been entered, each with waypoint symbol, name, latitude and longitude, distance and bearing from the boat, type and display option.

If there are more waypoints than will fit on the display, press

or to scroll up or down a

page at a time.

5-2 Managing waypoints

5-2-1 Creating a new waypoint

Creating and editing a new waypoint from the chart window

1 To create a waypoint at the boat position,

press

to switch the char t to centre on

boat mode (or press

, see above).

Or, to create a waypoint at a dif ferent point,

move the cursor to that point on the char t.

2 Press

3 A new waypoint, with the default name and

data is created.

4 Change the waypoint data if necessary (see

section 5-2-7). Select

Save.

Creating a new waypoint from the waypoints window

1 In the waypoints window, press

and

select

Create.

2 A new waypoint, with a default name and

data, is created at the boat position.

3 Change the waypoint data if necessary (see

section 5-2-7). Select

Save.

Note: Waypoints can also be created when a route is created (see section 6-2-1).

CAUTION

WARNING

Do not create a navigation waypoint on land or in dangerous water.

5-2-2 Moving a wayp oint

Moving a waypoint from the chart window

1 In the chart window, move the cursor to the

waypoint to move.

2 Press

and selec t Move.

3 Move the cursor to the new position and

press

Moving a waypoint from the waypoints window

To move a waypoint from the waypoints window, edit the waypoint (see section 5-2-3) and change the latitude and longitude.

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

5-2-3 Editing a waypoint

Editing a waypoint from the chart window

1 In the chart window, move the cursor to the

waypoint to edit.

2 Press

and selec t Edit.

3 Change the waypoint data (see section 5-2-7).

Select

Save.

Editing a waypoint from the waypoints window

1 In the waypoints window, press or to

highlight the waypoint to edit. Press and selec t

Edit.

2 Change the waypoint data (see section 5-2-7).

Select

Save.

5-2-4 Displaying a waypoint on the chart

This goes to the chart window, and shows the selected waypoint at the centre of the display.

1 In the waypoints window, press or

to highlight the waypoint to display. Press

and selec t Display.

Or, in the Chart window, press , select

Find, then select Waypoints. Select a

waypoint from the list.

2 The 5507/5607 switches to the chart window,

with the selected waypoint at the centre of the chart.

5-2-5 Deleting a waypo int

A waypoint can not be deleted if the boat is navigating to it or if the waypoint is used in more than one route. A waypoint that is used in one route can be deleted.

CAUTION

WARNING

When a waypoint is deleted from a route, check that the changed route does not cross land or dangerous waters.

Deleting a waypoint from the chart window

1 In the chart window, move the cursor to the

waypoint to delete.

2 Press

and selec t Delete.

3 Select Yes to confirm.

Deleting a waypoint from the waypoints window

1 In the waypoints window, press or

to highlight the waypoint to delete. Press

and selec t Delete.

2 Select Yes to confirm.

5-2-6 Deleting all waypoints

1 In the waypoints window and press

and selec t

Delete all.

2 Select Yes to confirm.

5-2-7 Changing a waypoint’s data

To change the waypoint data when it is displayed in a window:

1 Select the data to change.

Press

Use the cursor keys to change the data.

Press

2 If necessar y, repeat the above step to change other data.

3 Select

Save.

5-2-8 Sort Waypoints

To change how the waypoints list is displayed:

1 Press

and selec t Sort by.

2 Select how to display the list:

Name: In alphabetical order by name.

Icon: Grouped by icon type.

Distance: In order of distance from the

boat.

An arrow at at the top of a column indicates how the waypoints are sorted.

5-2-9 Navigating to a waypoint

See section 3-1-2.

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

6 Navigation: Routes

A route is a list of waypoints that the boat can navigate along. Routes can be created, changed and deleted.

The 5507/5607 can have up to 25 routes. Each route can have up to 50 waypoints.

A route can:

Start and stop at the same waypoint.

Include waypoints more than once.

The 5507/5607 can navigate along a route in either direc tion. Waypoints on the route can be skipped.

Routes are a powerful feature when the 5507/5607 is connected to an autopilot, allowing the vessel to be automatically guided along the route.

6-1 Routes window

The routes window is a list of the routes that have been entered, each with route name, start waypoint, end waypoint, number of legs and total distance.

To go to the routes window, press

, select

More, then select Routes.

If there are more routes than will fit on the display, press

or to scroll up or down a page at

a time.

CAUTION

WARNING

Make sure that routes do not cross land or dangerous water.

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

2 To insert a waypoint in the route by breaking

one leg into two:

i Move the cursor to the leg you want to

break.

ii Press

and select Insert.

iii Move the cursor to where the new route

waypoint will be.

iv Press

3 To move a waypoint in the route:

i Move the cursor to the waypoint to move.

ii Press

and select Move.

iii Move the cursor to where the waypoint

will be.

iv Press

4 To remove a waypoint from the route:

i Move the cursor to the waypoint to

remove from the route.

ii Press

and select Remove. The

waypoint is removed from the route, but the waypoint is not deleted.

5 To start navigating the route

i Press

and select Start

6 To end creating the route

i Press

and select End

7 To delete the route

i Press

and select Delete

ii Select yes to confirm.

Tip:

The distance and bearing calculator can also be used to enter a course and save it as a route (see section 3-3).

B. Creating a new route from the routes window

1 In the routes window, press

and select

Create.

2 A new route, with a default name and no

waypoints, is displayed.

3 To change the route name:

i Select the route name at the top of the

display and press .

ii Change the name if necessary.

iii Press

6-2 Managing r outes

6-2-1 Creating a new route

A. Creating a new route from the chart window

While creating the route:

Press or to change the range; scroll the chart by moving the cursor to the edge of the chart.

A data box at the bottom left of the display shows the route name and total distance. If the cursor is near a leg, it shows the length and bearing of the leg as well.

The legs of a route must start and end at waypoints. If a leg does not start or end at an existing waypoint then a new waypoint will be created automatically (to change the new waypoint data, see section 5-2-7).

You can not use a Danger waypoint in a route.

1 In the chart window, press

and select

New route.

2 The route is given a default name:

i Change the name if necessary.

ii Select

OK.

3 To enter the legs of the route:

i Move the cursor to the start of the route

and press .

ii A waypoint is created with a default name.

to save this waypoint press enter, to edit the waypoint refer to 5-2-7

iii Press

a dotted leg line is displayed

from the cursor to the previous waypoint

iv Move the cursor to the end of the first leg

and press .

v Repeat i to iv until the last waypoint in the

route is placed and saved

vi Press

to complete the route

Menu options while creating a route:

1 To add a waypoint to the route

i Press

and select Add.

CAUTION

WARNING

After creating or changing a route, display the route on the chart and check that it does not cross land or dangerous water.

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

4 To insert a waypoint in the route:

i Select where the waypoint will be:

To insert the first waypoint in a new

route, select Leg 1.

To insert a waypoint at the end of the

route, select the unused leg at the end of the list of waypoints.

Otherwise, select the waypoint to

insert the new waypoint in front of.

ii Press

. A list of waypoints is

displayed. Select the waypoint to use.

As waypoints are inserted, the distance

and bearing of each leg is shown automatically. If the route has more waypoints than will fit on the display, press

or to see them.

5 To remove a waypoint from the route:

i Select the waypoint to remove.

ii Press

and select

Remove.

6 Repeat this process until the route is finished.

7 Press

8 Display the route on the chart (see section

6-2-3) and check that the route does not cross land or dangerous water.

See section 3-1-3.

6-2-2 Editing a route

Editing a route from the chart

1 In the routes window, select the route to

edit. Press

and selec t Edit on

chart.

2 The selected route is displayed on the chart,

with a circle around the first waypoint.

3 Edit the route as described in section 6-2-1 A,

starting at step 4.

Editing a route from the routes window

1 In the routes window, press

or to

highlight the route to edit. Press

and

select

Edit.

2 The selected route is displayed: the route

name and a list of the waypoints.

3 Edit the route as described in section 6-2-1 B,

starting at step 3.

6-2-3 Displaying a route on the chart

To view the selected route at the centre of the display:

1 In the routes window, press

or to highlight the route to display. Press and selec t

Display.

Or, in the Chart window, press

, select

Find, then select Route. Select a route

from the list.

2 The 5507/5607 displays the selec ted route on

the chart.

6-2-4 Deleting a route

1 In the routes window, press or to

highlight the route to delete. Press and selec t

Delete.

2 Select Yes to confirm.

6-2-5 Deleting all routes

1 In the routes window, press and

select

Delete all.

2 Select Yes to confirm.

6-2-6 Navigating a route

See section 3-1-3.

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

GPS wo rldwide navigation

The US Government operates the GPS system. Twenty-four satellites orbit the earth and broadcast position and time signals. The positions of these satellites are constantly changing. The GPS receiver analyses the signals from the closest satellites and calculates exactly where it is on earth. This is called the GPS position.

The accuracy of the GPS position is t ypically better than 10 m (33 ft) for 95% of the time. A GPS antenna can receive signals from the GPS satellites when it is almost any where on earth.

DGPS

A DGPS system uses correction signals to remove some of the errors in the GPS position. The 5507/5607 can use one of two types of DGPS s ystem:

WAAS and EGNOS DGPS

WAAS and EGNOS are two satellite based

DGPS systems. The correction signals are broadcast by satellites and are received by the 5507/5607’s standard GPS antenna. The accuracy of the corrected GPS position is typically better than 5 m (15 ft) for 95% of the time.

WAAS covers all of the USA and most of

Canada. EGNOS will cover most of Western Europe when it b ecomes operational.

Differential beacon D GPS

Differential beacons are land based radio

transmitters that broadcast correction signals that can be received by a special receiver on the boat. Differential beacons are usually only installed near ports and impor tant waterways, and each beacon has a limited range. The accuracy of the corrected GPS position is ty pically better than 2 to 5 m (6 to 16 f t).

7 Satellites

GPS receive r

NAVMAN GPS units have a sensitive 12-channel receiver, which tracks signals from all GPS satellites visible above the horizon and uses measurements from all satellites more than 5° above the hori zon to calculate the position.

Each time a GPS receiver is turned on, it normally takes about 50 seconds before it outputs the first position. Under some circumstances it will take up to two minutes or longer.

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

8 Gauges window

The satellite window has information about the GPS satellites and GPS position.

To go to the satellite window, press

select

More, then select Satellite.

The satellite window shows:

7-1 Satellite window

A Status of GPS antenna, for example Acquiring,

GPS fix, No GPS. If the unit is in Simulate mode it displays Simulate (see section 2-7)

B Time and date from GPS satellites. Time is

local time (UTC [GMT] plus local offset, see section 15-12)

C HDOP: The error in the GPS position caused

by satellite geometry. A low value indicates a more precise fix, a high value a less precise fix

D Signal strengths of up to twelve visible GPS

satellites. The higher the bar the stronger the signal

E Boat position

F Positions of visible GPS satellites:

Outer circle is horizon

Inner circle is 45° elevation

Centre is directly above

North is at top of display

G If the boat is moving, COG is a line from

centre

The Gauges window shows boat data, such as water speed, as analog gauges. To select the Gauges window, press

, select More, then select Gauges. Before using the Gauges window, set Speed range, Max RPM and Max fuel flow (see section 15-4).

Selecting a gauges layout

To select a layout from the Gauges window, press

, select Layout, then select a layout from

the list.

Changing a gauge layout

You can change the data displayed on each gauge in a layout.

1 Select the layout to change (see above).

2 Press

and selec t Gauge setup.

3 Highlight the gauge to change. Press

and selec t the data to display in the gauge.

4 Repeat the above step to change other

gauges.

5 Press

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

9 Data window

The data window has large numeric data fields and a graph of depth and water temperature if available. To go to the data window, press , select More, then select Data.

To select what data is displayed:

1 Press

and selec t Data setup.

2 Change a data field:

i Press the cursor keys to highlight the

field.

ii Press

to display a menu of data

items.

iii Select a data item that is available on your

system or select

None to leave the field

empty.

3 Repeat the above step to set the other data

fields.

4 Press

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

10 Fuel functions and display

The Fuel functions require optional petrol/gasoline, diesel or SmartCraft™ fuel sensors to be installed and set up.

Each engine has a flow sensor installed to measure the engine’s fuel flow.

The 5507/5607 uses these flows, together with boat speed and engine RPM if available to estimate the fuel remaining in the tank(s), fuel used, range and fuel economy. This data is displayed on the fuel window (see section 10-2).

You can:

display the fuel used during a trip

(see section 10-2)

set low fuel alarms (see section 10-4)

make fuel consumption curves - graphs

of fuel consumption and boat speed as a function of engine RPM - to monitor and optimise boat performance. (see section 10-6)

10-2 Fuel window

To go to the Fuel window, press , select More, then select Fuel

The display differs according to the number of engines and tanks. If engine RPM is available and if you have made and selected a Fuel Consumption Cur ve (see section 10-6), press to switch between a Summary or a Fuel curve display.

The Fuel window shows

Speed

To select a boat speed sensor, see section 10-5-1.

RPM (if available)

If engine RPM is not available, the display shows depth.

Remaining

The fuel remaining in the tank(s) is shown as a vertical gauge on the right of the display. The height of the yellow bar(s) show how much fuel remains in the tank(s). If you have set a low fuel alarm (see section 10-4), a red bar shows the level at which the alarm will trigger. If there are two tanks, the left bar shows the port tank, the right bar shows the starboard tank .

10-1 What the fuel computer does

Used

The fuel used during a trip. On a multi-engine boat, the data for the port engine is on the left of the display.

When you want to start measuring how much fuel is used, go to the Fuel window and:

In a single engine boat, press and

select Clear used

In a multi-engine boat, the fuel used by each

engine and the total fuel used are shown. Press

, select Clear used and

select:

Port or Starboard to clear the fuel used

by one engine

Both to clear the total fuel used.

Fuel flow

The fuel f low for the engine(s). On a multi engine boat, the data for the port engine is on the left of the display. Use the f lows to check the load of each engine.

CAUTION

WARNING

To ensure the fuel data is accurate:

When you add or remove fuel from a

tank, tell the 5507/5607 (see section 10-3)

If the boat has petrol/gasoline sensors,

calibrate them during installation or if the fuel readings seem inaccurate (see section 10-7)

Choose an appropriate type of boat

speed sensor to calculate economy, range and the fuel consumption curve (see section 10-5)

If the boat uses a paddlewheel sensor

to measure speed, calibrate it during installation or if the speed readings seem inaccurate.

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

Fuel window Range

The estimated boat range at the current fuel flow. The value can depend on the type of speed sensor (see section 10-5).

Economy

The distance travelled per unit of fuel used. The value can depend on the type of speed sensor (see section 10-5). The larger the value, the better the fuel economy. Adjust the throttle and trim to achieve the best economy.

Fuel consumption curve

A graph of fuel consumption and boat speed as a function of engine RPM. Use the curve to monitor and optimise boat per formance (see section 10-6).

10-3 When you add or remove fuel

When you add or remove fuel, you must tell the 5507/5607, otherwise the fuel data will be meaningless.

A When you completely fill a tank

Go to the fuel window and press

Then:

On a single-tank boat, select Fill tank.

On a multi-tank boat, select Fill tank,

then selec t the tank you have filled.

Note: Underf loor fuel tanks are often difficult to refill to the same level twice, due to air pockets.

With underfloor fuel tanks:

Trim the boat to the same angle in the water

each time you follow procedure A.

Mostly use procedure B below when adding fuel, but completely fill the tank and follow procedure A about every tenth time you add fuel.

B When you partially fill a tank

1 Add fuel to a tank and write down how much

fuel you add.

2 From the Fuel window, press

and

select Add fuel.

3 On a multi-tank boat, select the tank that you

have added fuel to.

4 Change the number to the amount of fuel

that you added.

Note: If you follow procedure B every time you add fuel, then a small error will accumulate, because it is hard to measure exactly how much fuel you add. To avoid this, completely fill the tank and follow procedure A about ever y tenth time you add fuel.

C When you remove fuel

1 Before removing fuel, go to the Fuel window,

press

and selec t Set remai ning.

2 On a multi-tank boat, select the tank that you

are removing fuel from.

3 Write down the value of Remaining for the

tank; this is the amount of fuel originally in the tank.

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

To set a low fuel alarm for a tank:

1 Press

twice, select Fuel then select

Setup tank s.

2 On a multi-tank boat, select the tank to set

the alarm for.

3 Select Tank

alarm and enter a fuel level to

trigger the low fuel alarm.

10-4 Low fuel alarm

When a low fuel alarm is set, the alarm’s fuel level is shown on the fuel window tank levels as a red bar. The alarm can also be set using the Alarms setup menu (see section 15-8)

10-5-1 Selecting a boat speed sensor

The fuel calculations can use boat speeds from the GPS, or from a paddlewheel sensor or pitot sensor if these optional sensors are installed:

Paddlewheel and pitot sensors measure the

speed through the water; GPS speed is speed over ground; these sensors can give different values for Range, Economy and the fuel consumption cur ves (see section 10-5-2).

A pitot sensor is more accurate than a

paddlewheel sensor at high speeds but is not accurate at low speeds. A paddlewheel sensor is more accurate than a pitot sensor at low speeds.

10-5 Boat speed s ensors

To select an optional speed sensor

1 Press

twice, select Fuel and select

Speed source

2 To use a paddlewheel or pitot sensor, select

Water speed , otherwise select Ground speed to use GPS speed.

3 If you selected Water speed and you have

both a paddlewheel sensor and a pitot sensor:

i Press

, select SmartCraft and

select Speed type

ii Selec t Paddlewheel or Pitot

Tip: You can select a different speed sensor

during a trip.

4 Remove fuel from the tank and write down

how much fuel you remove.

5 Subtract the amount of fuel you removed

from the amount of fuel originally in the tank to calculate the amount of fuel now in the tank.

6 Change the number on the Set Remaining

menu to the amount of fuel that you calculated was now in the tank.

7 Press

Note: You can also use this procedure when you add fuel to a tank. In this case, add the fuel you have added to the amount of fuel originally in the tank to calculate the amount of fuel now in the tank.

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

Water speed 10 knots

Current 4 knots

Gives a ground speed of 6 knots

10-5-2 Water speed and gr ound speed

A paddlewheel sensor and a pitot sensor measure water speed, the boat speed through the water. A GPS measures ground speed, the boat speed over the bottom of the water. If there is a current, then these speeds will be different, and the log, trip log, economy and range will be different, as shown below.

Water speed is better for measuring the boat’s potential per formance, Ground speed is b etter for going to a destination because it takes currents into account. To select a speed sensor, see section 10-5-1.

When the current is from ahead, g round speed is less than water speed

For this example:

If the boat travels for one hour, uses 3 gallons of fuel per hour and has 50 gallons of fuel left:

Speed Log Economy Range

Using water speed: 10 knots 10 nm 3.3 nm / gal 165 nm

Using ground speed: 6 knots 6 nm 2.0 nm / gal 100 nm

Water speed 10 knots

Gives a ground speed of about 8 knots Current 4 knots at 45º

When the current is from behind , ground speed i s more than water s peed

Water speed 10 knots

Current

4 knots

Gives a ground speed of 14 knots

For this example:

If the boat travels for one hour, uses 3 gallons of fuel and has 50 gallons of fuel lef t:

Speed Log Economy Range

Using water speed: 10 knots 10 nm 3.3 nm / gal 165 nm

Using ground speed: 14 knots 14 nm 4.7 nm / gal 235 nm

Current 4

knots at 45º

Gives a ground speed of about 13 knots

Water speed 10 knots

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

7 The 5507/5607 then asks you to set the

throttle to achieve a vessel RPM. On a multi engine boat set all engines to about the vessel RPM. When the engine RPMs are correct, the Vessel RPM box will turn green. Now, do not change the engine speed. Wait for about 60 seconds for the boat to stabilise, ensuring the Vessel RPM box stays green. Then press . Wait while the fuel computer records the data.

8 The 5507/5607 repeats the above step to

record data up to the maximum RPM. Then the 5507/5607 asks if you want to save the curve. Select Yes. The fuel computer asks for a name for the cur ve. Change the default name if required. Then press . The 5507/5607 stores the new curve.

Note To interrupt making the curve at any time,

press

10-6-1 Making a fuel consumption curve

To make a fuel consumption curve you will need to run the boat in a straight line for about 15 minutes using the engine’s full RPM range. For your first curve, choose a calm day with light wind and lit tle current; have a typical load and a freshly cleaned hull. Later, you can make fuel consumption cur ves for different boat, weather or sea conditions. Compare these with your first cur ve to see how your boat’s per formance changes with conditions.

Making a curve

1 Star t running the boat in a straight line.

2 Choose a speed source for the curve (see

section 10-5-1). Normally choose Water speed to measure the boat ’s potential per formance.

3 Press

twice, then select Fuel.

4 Select Fuel consumption curve, then

select New

5 Enter the comfortable maximum RPM you

know you can achieve for the engine rather than the maker’s value.

6 The 5507/5607 then asks you to set the

minimum RPM. Set the throttle to idle; on a multi engine boat set all engines to about the same idle RPM. Now, do not change the engine speed. Wait for about 60 seconds for the boat to stabilise, then press . Wait while the fuel computer records the data.

10-6 Fuel consumption curves

A fuel consumption curve shows fuel consumption (fuel used per unit of distance travelled) and boat speed as a function of engine RPM. Fuel consumption curves require engine RPM, which requires SmartCraft™ or diesel sensors to be installed. Fuel consumption curves are power ful tools for assessing boat per formance in dif ferent conditions and for helping you to run at the most economical speed and trim for the conditions.

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

10-6-2 Managi ng fuel consumption curves

Renaming a curve

1 Press

twice, then select Fuel.

2 Select

Fuel consumption curve.

Select

Name and select the name of the

curve to rename.

3 Select

Rename and press . Change

the name.

10-6-3 Using f uel consumption curves

Deleting a curve

1 Press

twice, then select Fuel.

2 Select

Fuel consumption curve.

Select

Name and select the name of the

curve to delete.

3 Select

Delete.

Selecting a curve

1 You must make a f uel consumption cur ve

before you can use it (see section 10-6-1).

2 On the Fuel window, press

, select Fuel consumption curve and select the name of the curve to use.

3 On the fuel window, press

if necessar y to select Fuel curve and display the fuel consumption cur ve.

Note

a On a multi engine boat, keep the RPM of all

engines similar while using a curve.

b The shape of the curve depends on the type

of speed sensor you selec ted when making the curve (see sections 10-5-1 and 10-5).

c More information about fuel consumption

curves is available in NAVMAN’s

Diesel flow

sensors installation and operation manual.

Using a curve

Compare your boat’s performance now, at the current RPMs, with the boat’s per formance when you made the curve. You can compare your boat’s per formance now with a curve made under ideal conditions or with a curve made under similar conditions.

Inform ation in a curve

A RPM of the boat now. For a twin engine boat,

the RPM is the average of the two RPMs.

B Red curve: boat speeds at different

RPMs recorded when you made this fuel consumption cur ve.

C Red marker: the boat speed now. This marker

is below the red curve, showing that the boat speed now at this RPM is less than when you recorded the curve.

D Blue curve: fuel consumption at different

RPMs recorded when you made this fuel consumption cur ve.

E Blue marker: the fuel consumption now. This

marker is below the blue curve, showing that the fuel consumption now at this RPM is better than when you recorded the curve.

F If the blue cur ve has a dip, then running the

boat at this RPM will give the best speed for the least fuel consumption.

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

Calibrate petrol/gasoline fuel flow sensors during installation, or if the fuel readings seem inaccurate and the other troubleshooting suggestions do not help (see app endix B troubleshooting).

Note

SmartCraft™ fuel sensors and NAVMAN diesel

sensors are factory calibrated and should never need recalibrating.

On a multi engine boat, calibrate each

engine’s sensor. This can be done at the same time with a portable tank for each engine or at different times using one portable tank .

Calibrating a sensor requires accurate

measurement of the fuel consumption. This is best done using a small por table tank. At least 4 gallons (15 litres) of fuel should be used to ensure an accurate calibration.

It is often very difficult to fill under floor tanks

to the same level twice due to air pockets, so the more fuel used, the more accurate the calibration.

10-7 Calibration

To calibrate the sensor(s):

1 Record the level of the fuel in the tank(s).

2 Connect the por table tank(s) to the engine

through the fuel sensor(s).

3 Run the engine at normal cruising speed until

at least 4 gallons (15 litres) of fuel has been used per engine.

4 Check the actual amount of fuel used per

engine by refilling the portable tank(s) to the original level and noting the reading(s) of the fuel dispenser’s gauge.

5 Press

twice, select Fuel then select

Setup engines.

6 On a single engine boat, select Calibrate

and change the displayed value to be equal to the reading of the fuel dispenser ’s gauge, then press

On a multi-engine boat select the engine.

Select Calibrate and change the displayed value to be equal to the reading of the fuel dispenser’s gauge, then press

Repeat for the other engines.

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

11 Tides window

The tides window is available on C-MAP charts. The tides window shows tide information at a tide station for the selected date.

Note : The tides window requires the local time offset to be set to work correctly (see section 15-12)

To show the tides window for the tide station nearest to the boat, press

, select More,

then selec t

Tides.

To go to the tides window for any tide station:

1 From the chart window, press

and

select

Find.

2 Select Tide stations.

3 A list of tide stations are displayed. Select the

tide station to display. The chart redraws with the tide station centred.

4 Press

and selec t Chart info.

5 Select Tide height.

Choosing the date of t he tide chart

1 Press

2 Select

Today, Next day or Prev day.

To choose a different date from these, select

Set date, edit the date,

press

A Tide station name and distance from

boat

B Current time and chosen date for

display

C Tide chart

D Night

E Dawn

F Day

G Dusk

H Tide height

I Time cursor, a vertical dotted line.

Press

or to move cursor

sideways

J Time of cursor and tide height at that

time

K Data for the chosen date

L Tide height cursor, a horizontal

dotted line. Press

or to move

cursor up and down.

M Height of cursor on the tide chart

N Moon phase for moon at the current

time on the chosen date

The tides window shows data for the chosen date

CAUTION

DANGER

WARNING

The tides window requires the local time offset to be set to work correctly (see sec tion 15-12)

D D

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

12 User card window

A C-MAP™ user card is an optional plug-in card that can store data files (see section 1-3). There are three types of files: waypoints, routes or a track.

To go to the user card window, press , select More, then select User card.

Note:

1 Before using a user card, remove any chart

card and plug the user card in. When you have finished with the user card, remove the user card and replace the chart card (see section 1-3).

2 The older 5 volt cards are not supported.

The user card window has:

File list

A list of the files on any user card in the 5507/5607. If there are more files than will fit on the display, press or to scroll up or down a page at a time.

Waypts, Routes

The number of waypoints and routes currently in the 5507/5607.

Track 1 to Track 5

The number of points in tracks 1 to 5 currently in the 5507/5607.

Note:

1 To save 5507/5607 data onto the user card,

use the Save command (see below).

2 Data stored on the user card and shown on

the file list is not available to be used by the 5507/5607 until loaded into the 5507/5607 with the LOAD command (see below).

Saving data to the user card

This saves all the 5507/5607’s waypoints, all the 5507/5607’s routes or one of the 5507/5607’s tracks to one file on the user card.

1 Press

and select Save.

2 Select Waypts, Routes or Tracks.

3 For

Tracks, select the track number to

save.

4 The new file is created. Change the name if

required. The new file appears in the file list.

Loading data from the user card to the 5507/5607

This loads one file from the user card to the 5507/5607:

A waypoints file: The new waypoints are

added to any existing waypoints in the 5507/5607. If a new waypoint has the same name as an existing waypoint but has different data, the 5507/5607 displays both waypoints. Select:

Skip: Do not load the new waypoint.

Replace: Load the new waypoint and

replace the existing one.

Skip all: Do not load any new

waypoints which have the same names as existing waypoints.

Rplc. all: Load all new waypoints

which have the same names as existing waypoints; the new waypoints replace the existing waypoints.

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

13 AIS

A routes file: The new routes are added to

any existing routes in the 5507/5607. If a new route has the same name as an existing route but has different data then the 5507/5607 asks which route to keep.

A track file: The new track will replace the

existing track in the 5507/5607.

To load a file to the 5507/5607:

1 Select the file to load.

2 Press

and select Load.

Deleting a file from the user card

1 Select the file to delete.

2 Press

and select Delete.

3 Select Yes to confirm.

Reading the file information

This reads the file names from the user card and displays them. Reading does not load any file data into the 5507/5607.

1 Press

and select Card.

2 Select Read.

Formatting the user card

Formatting prepares a user card for use. Format the card if there is an error message saying that the card is not formatted. Any data files on the card are deleted.

1 Press

and select Card.

2 Select Format.

3 Select Yes to confirm.

Sorting the file names

This sorts the displayed file names.

1 Press

and select Sort.

2 Select sort by Name, Type or Time.

CAUTION

DANGER

WARNING

Before using a user card, remove any chart card and plug the user card in. When you have finished with the user card, remove the user card and replace the chart card (see section 1-3).

AIS is short for Automatic Identification System. The International Convention for Safety of Life At Sea (SOLAS) requires all vessels greater than 300 tons and all passenger vessels to be equipped with AIS Transponders. All vessels equipped with AIS permanently broadcast via one or more of the two dedicated VHF channels. This transmission may include information about the vessels MMSInumber, its call sign, name, position, course, heading, speed, rate of turn and type of vessel.

This unit can receive and display AIS information when connec ted to an AIS receiver. Available AIS vessels transmitting in the local area are show on the chart when this feature is enabled.

The following AIS receivers are supported by this unit:

• Comar SLR200 (external GPS).

• Weatherdock Two Channel AIS Receiver “EASY AIS”, Part No. 5-A-013 (external GPS).

• NASA Marine AIS Engine 2 channel Receiver (external GPS).

Other AIS receivers may work but have not been tested with this unit.

To enable AIS from the system menu check the AIS box. (see section 15-1)

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

13-1 Viewing AIS Vessels

A AIS Vessel

B Dangerous Vessel

C Projected Course

D Data Box

When the cursor is placed over an AIS vessel for at least two seconds, a data box appears at the bottom of the window with information about the AIS vessel.

For complete AIS information on the AIS vessel place the cursor over an AIS vessel for at least two seconds and press

Press either or to clear the information.

13-2 Dangerous Vessels

The 5507/5607 calculates the time of closest point of approach ( TCPA) and closest point of approach (CPA) for each AIS vessel.

This is used to determine potential dangerous vessels. If the TCPA and the CPA is below the trigger values then it will be considered dangerous. (See section 15-8 for set ting the dangerous vessel alarm)

A dangerous vessel is indicated on the chart by a red circle around the icon.

TCPA 15 min

CPA 0.5 nm

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

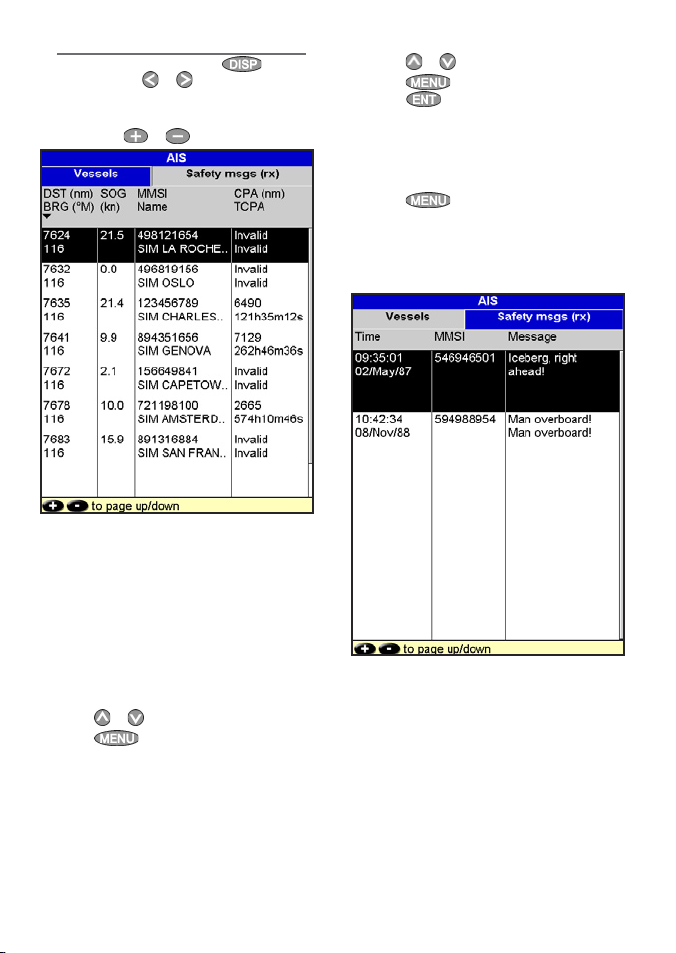

13-3 AIS Windows

To go to the AIS windows, press , select

More, then press or to select one of the

two windows: Vessels or Safety msgs (rx).

If there are more items than will fit on the window, press

or to see the others.

Vessels

This is a sorted list of vessels currently being received by the AIS receiver. The maximum number of vessels that the system will support is

250. Once maximum is reached, vessels furthest away from the current location will be replaced. A vessel will be removed from the list if no information is received within 6 minutes from the last message.

Display ing an AIS vessel on the chart

1 Press

to select a vessel.

2 Press

and selec t Display. The Instrument switches to chart window, with the selec ted vessel position in the middle.

Display ing Full AIS Details

1 Press

to select a vessel.

2 Press

and selec t More Info or

press .

This window displays all information for

the selected AIS vessel provided by the AIS receiver.

Sorting Vessels

Press , select Sort and select one of

the options.

This sorts the list based on the chosen

category.

Safety msgs (rx)

Safety msgs (rx) are broadcasted messages received by the AIS receiver. This window displays the date and time of message received, MMSI of AIS vessel that broadcasted the message, and the message itself. Safety msgs (rx) list will store up to 10 messages. The oldest message is replaced when the list is full.

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

14 DSC/Buddy track windows

Buddy track requires an optional NAVMAN DSC VHF radio (with NavBus functionality) to be installed. Buddy track tracks other boats which have DSC radios connected to their GPS receivers by NavBus and are in VHF range. For information on setting up and using the VHF radio for buddy track, see the radio’s operation manual.

Distress

Boats that have sent DSC distress messages and their positions.

14-1 The windows

Poll

Boats you have manually polled on the VHF radio, and their position at that time.

Buddy track

Buddy boats from your DSC radio. The radio regularly calls the boats and updates their positions.

When your DSC radio receives a distress message, the Instrument creates a distress waypoint at the boat position. Distress waypoints have default names like DSTRSS01. The Instrument displays a Distress warning.

Select:

OK to return to what you were doing.

Display to switch to Chart and display the

position of the boat sending the distress message.

Boat positions

The boat positions on the Instrument can differ from the true boat positions:

Distress: The position is the distress waypoint,

which is where the boat was when it sent the distress message.

Polled boats: The position is where the boat

was when you last polled the boat.

Buddy track: The position is where the boat

was when your radio last polled the boat.

To go to the DSC windows, press

, select

More, then press or to select one of the

three windows: Distress, Poll or Buddy track.

If there are more items than will fit on the window, press

or to see the others.

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

Display ing a boat on the char t

1 Press

to select a boat.

2 Press

and selec t Display. The Instrument switches to chart window, with the selec ted boat position in the middle (see Boat positions above).

Going to a boat

1 Press

to select a boat.

2 Press

and selec t Goto. The Instrument starts navigating to the boat’s position (see Boat positions above).

Creating a waypoint

Polled and buddy track boats are not waypoints. To create a waypoint at the position of a polled boat (see Boat positions above):

1 Press

to select a boat.

2 Press

and selec t Create waypoint. Edit the waypoint data if required (see section 5-2-7).

Editing a way point

A distress message creates a waypoint for the boat or you can create a waypoint at a polled boat’s position. To change the data of these waypoints:

1 Press

to select a boat.

2 Press

and selec t Edit waypoint. Edit the waypoint data if required (see section 5-2-7).

Deleting a boat

At the Distress or Poll windows:

1 Press

to select a boat.

2 Press

and selec t Delete. The boat is deleted from that window. Delete any boat waypoint manually (see section 5-2-5).

Buddy track boats automatically disappear from the Buddy track window when your DSC radio can not pick up their signal.

Deleting all boats

At the Distress or Poll windows:

1 Press

to select a boat.

2 Press

and selec t Delete all. All boats are deleted from that window and any boat waypoints are deleted.

14-2 Using the windows

On a chart window:

A Dis tress boats are distress waypoints

B Buddy track boats are buddy symbols

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

15 Setting up the 5507/5607

The 5507/5607 has a number of advanced features which are set up through the setup menu. We recommend that you become familiar with the operation of the unit using the default settings before making any changes to the data in these menus.

To go to a setup option menu, press twice, then select an option.

Note:

1 The Setup menu options are explained in the

following sections.

2 Section 2-1 describes how to set or change

data in the setup menus.

3 The setup data available will depend on the

optional sensors and instruments installed.

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

SmartCraft™

(see the SmartCraft™

Gateway Installation

and Operation Manual

)

Setup option menus

Factory default settings are shown. The setup data available will depend on the optional sensors and instruments installed.

System

(see 15-1)

Alarms

(see 15-8)

Water (see 15-2)

Other (see 15-2)

Land (see 15-2)

AIS

(see 15-6)

Calibrate

(see 15-11)

General (see 15-2)

Chart

(see 15-2)

Comms

(see 15-10)

Fuel

(see 15-4)

GPS

(see 15-3)

Logs

(see 15-7)

Simulate

(see 15-14)

Track

(see 15-5)

Time

(see 15-12)

Units

(see 15-9)

Favorites

(see 15-13)

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

Press twice, then select System:

Language

Select the language for the displays.

Tip: In case you can’t read the current language, the language setting is found at the top of the system menu.

Backlight

Select the backlight level for the keys and display (see also section 2-4).

Night mode

Night mode sets the palette for all displays.

Normal palette, for daytime.

All displays have a palette optimised for night

time.

See also section 2-4. To change only the chart palette, see section 14-2.

Key beep

Enables or disables the beep when a key is pressed.

Auto power off

See section 2-3.

Factory reset

This option returns all of the 6507 settings (except the language, waypoints and routes) to the default factory settings shown on the setup menus.

About win dow

The about window shows:

• The versions and dates.

• The world chart version.

• Any card fit ted.

15-1 Setup > System

• The number of waypoints, routes and tracks you have stored.

• Connector wiring information.

In the unlikely event of having to contact a NAVMAN dealer for ser vice, quote the software version number and date.

SmartCraft™

No SmartCraft™ gateway is fitted. Disable

SmartCraft™ functions.

SmartCraft™ gateway is fitted. Enable

SmartCraft™ operation.

See section 16-9.

AIS

No appropriate AIS receiver is fitted.

Disable AIS.

An appropriate AIS receiver is fitted.

Enable AIS.

See section 16-10.

Buddy track

No appropriate NAVMAN DSC VHF radio is

fitted. Disable Buddy track.

An appropriate NAVMAN DSC VHF radio is

fitted. Enable Buddy track.

See section 14.

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

Rotation

The options for chart rotation are:

North up: North is always at the top of

the chart window.

Track up: The char t is rotated so that

the boat direction is to the top of the display. This option is useful for navigating narrow harbours or rivers. The 5507/5607 asks for a course deviation; this is how much the boat direction needs to change to make the chart redraw.

Tip: If the chart redraws too frequently,

increase the course deviation setting.

15-2 Setup > Chart

Press twice, then select Chart:

Course up: This option is only available

if the boat is navigating to a destination. The chart is rotated so that the plotted course to the destination is vertical.

Palette

Select the color scheme for the LCD display. The options are:

Norma l: For viewing in normal conditions.

Sunlight: Brighter colors, more visible in

sunlight.

Night: Reversed colors for night, to

preserve night vision.

Map datum

5507/5607 GPS positions are based on a worldwide reference (datum) known as WGS

84. Most paper charts are based on WGS 84.

However, some paper charts are based on other datums In these cases, the latitude and longitude coordinates of objects on the 5507/5607 chart window are different to the latitude and longitude coordinates of these objects on the paper char t. This applies to all objects, such as the boat, waypoints, tracks, lines of latitude and longitude and cartographic features such as land, rocks, buoys and depth contours.

Use

Map datu m to select the 5507/5607 map

datum to match the datum of the paper chart. Then, the latitude and longitude coordinates of objects displayed on the 5507/5607 will change to match the corresponding coordinates on the paper char t.

Setting map datum

1 In the Chart setup menu, select

Map

datum.

2 Select the map datum for the paper chart you

are using.

3 If you selec t a datum other than WGS 84 the

5507/5607 asks if you want to apply the NMEA datum offset (see below).

CAUTION

WARNING

When you change to a chart with a dif ferent datum, change the 5507/5607 map datum again.

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

NMEA datum offset

If you selec t a map datum other than WGS 84, the map datum of fset can be applied to latitude and longitude coordinates sent on the 5507/5607 NMEA output:

Latitude and longitude coordinates

displayed on any NMEA repeater do not match the coordinates on the 5507/5607. Latitude and longitude coordinates broadcast on any NMEA VHF transmitter will be the same as the coordinates on a WGS 84 chart.

Latitude and longitude coordinates

displayed on any NMEA repeaters match the coordinates on the 5507/5607. However, latitude and longitude coordinates broadcast on any NMEA VHF transmitter will be slightly

offset from coordinates on a WGS 8 4 chart.

Map shif t

CAUTION

WARNING

Map shift is for eliminating minor offsets. It should not be used if the correct datum is available. Use map shift with caution: incorrect application will cause incorrec t boat positions.

Some charts have consistent position errors. To correct this, apply a map shift. After a map shift:

The positions of cartographic features (such

as land, rocks, buoys and depth contours) move on the 5507/5607 chart window to where they should be.

The positions of the boat, waypoints, tracks,

and lines of latitude and longitude on the 5507/5607 chart window remain unchanged.

Applying a map shift

1 Move the boat to a known point on the chart,

for example a marina berth.

2 In the Chart setup menu, select

Map

shift.

3 Move the cursor to the position on the chart

where the boat actually is.

4 Press

and selec t Set.

5 Press to set the new map shift. The

boat will now be displayed at its ac tual location.

Clearing the map shift

Clearing the map shift removes any map shift from the car tographic features on the 5507/5607 chart window.

1 In the Chart setup menu, select

Map

shift.

2 Press and selec t Clear.

3 Press

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

General submenu

Plotter mode

Normal: only scales available on the chart card can be displayed.

If you press or to select a chart scale which is not available, on the chart card, the chart window will change to this scale but will only display the boat position and track (if enabled). The rest of the display is white with black crosshatch lines and no chart information is displayed. This is useful to zoom to a small scale to track small boat movements or if there is no detailed chart for an area.

Anticlutter

Names and icons shown. Note: this is independent of the change in detail shown at diﬀerent

zoom levels.

Hides some less important names and icons to make the chart clearer.

Value added data

Non mari ne chart data sh own

Projected course

The 5507/5607 can estimate the course after a given time, based on the current speed and heading (see section 3-4). The options are 2 minutes, 10 minutes, 30 minutes, 1 hour, 2 hours or Off.

CDI scale See Appendix C. The options are 0.05, 0.1, 0.2, 0.5, 1.0, 2.0, 4.0 and 10.0 distance units.

Lat/lon grid

Displays a la titude and longit ude grid.

Boundaries Displays bou ndaries around areas w here more detailed c hart coverage is ava ilable: Auto

shows the ne xt four detail le vels; On

shows all.

Text/icon size Selec t the size of chart tex t and icons.

Water submenu

Water features

Displays marine sediment labels (for example, M shows areas of mud) and tide station icons

Bathymetrics Displays underwater depth contours between Bath & sndgs min and max.

Spot soundings Di splays depth soundi ngs between Bath & s ndgs min an d max.

Bath & sndgs min T he minimum depth for Bat hymetrics an d Spot soundin gs.

Bath & sndgs max The max imum depth for Bathy metrics

and Spot sou ndings.

Tidal flow

Displays d ynamic tide flow s: arrows on a chart sh owing the present tid e stream and

orientation (requires a GPS ﬁx and an NT-MAX card)

Other submenu

Waypoints Displays waypoint s: Hide all only displ ays waypoints on any s elected route; Se lected

displays wa ypoints with thei r display option set to Ico n or I+N (Icon and Name ) (see section 5).

Names

Displays p lace names.

Lights Displays lighthouses: No sector hides any light sectors; On shows all data.

Nav-aids Displays signals (fog , radar, radio statio ns) and bouys. Int and US se lect the icon form at;

Smpl

draws simp ler icons.

Attention areas

Displays at tention area bounda ries and informati on icons ; at tention areas are impo rtant areas, such as re stricted anch orages or shallow area s.

Land submenu

Land features

Displays land features, for example regions, rivers, roads, railways, airports.

Land elevation

Displays land contours, shaded like depths (requires an NT Max card)

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

Press twice, then select GPS:

GPS Source

• NMEA: Use an external GPS or DGPS source connected via NMEA (see section 16-10).

• NavBus: Use an ex ternal GPS or DGPS source connec ted via NavBus (see section 16-9).

DGPS Source

Enables or disables the satellite based DGPS correction (see section 7). The options are

None

or WAAS/EGNOS. Do not enable WAAS/EGNOS outside their coverage areas or the accuracy of the position might be degraded.

WAAS covers all of the USA and most of Canada. To use WAAS, the GPS antenna must have a clear view of the sk y towards the equator. EGNOS will cover most of Western Europe when it becomes operational.

Restar t GPS

Restar ts the internal GPS receiver for servicing or troubleshooting. The GPS receiver takes up to three minutes to restart. The satellite window shows the status of the GPS receiver (see section

7). Restar t the GPS if the receiver has not been

used for some time and is taking a long time to get a GPS fix.

15-3 Setup > GPS

Static Navig ation

When the boat stops or moves very slowly, the calculated GPS speed and course become erratic. Static navigation is a number, and the options are:

• 0.01 to 99.9:If the boat speed is slower than this, the speed is displayed as zero and the course stays unchanged.

• 0(Off): The calculated speed and course are always used.

Speed and Co urse Filter

Waves and wind cause the boat speed and course to fluctuate slightly. To give stabl e readings, the 5507/5607 calculates these values by tak ing several measurements and averaging them.

A lower value averages measurements over

a shorter period of time. This gives the most accurate value but has the most fluctuations.

A higher value averages measurements over

a longer period of time. This gives the most stable value but will ignore some true speed changes.

Set the Speed and Course filters to the lowest values which give stable readings. The range of each filter is 1 to 60 seconds or Off (0).

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

Fuel consumption can change drastically depending upon the boat loading and the sea conditions. Always carr y adequate fuel for the journey, plus a reserve.

CAUTION

WARNING

Fuel functions require optional fuel flow sensors to be installed. Press

twice, then select

Fuel:

Source

Select the fuel flow sensors to use if the boat has more than one set of fuel sensors. Normally select Auto

Num engines

Set the number of engines, or select

0 to disable the fuel functions. If there are two engines they are called port and starboard.

Num tanks

Set the number of fuel tanks. If there are two tanks they are called por t and starboard.

Setup engines

If the boat has more than one engine, select Engine and select each engine in turn.

For the selected engine, you can enter:

From tank: The fuel tank the engine is connected to.

15-4 Setup > Fuel

Flow filter: Most engines do not draw fuel from the tank at a steady rate. To give a stable fuel flow reading, the 5507/5607 calculates the flow by taking several measurements and averaging them. Use the Flow filter to set the period over which the fuel flow is averaged.

The Flow filter can be set from 0 to 30 seconds. Use the lowest value which gives a stable flow. Usually a value of 5 to 10 seconds will give a satisfactory result for two-stroke carburettor engines. Fuel injected or four-stroke engines may require a larger value.

This setting affects the Fuel flow and Fuel economy reading on the Fuel window but it does not affect the Fuel used reading.

Setup tanks

If the boat has more than one tank, select Tank and selec t each tank in turn.

For the selected tank, you can enter:

Add fuel, Fill tank, Set remaining:

See section 10-3.

Tank alarm: See section 10-4.

Tank size: The tank capacity. NAVMAN

recommends measuring tank size by draining the fuel tank, filling it to capacity and using the fuel dispenser’s reading. Beware of air pockets, especially in underfloor tanks.

Diesel sensors

If the boat has more than one diesel engine and has NAVMAN diesel sensors, set up the diesel sensors:

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

15-5 Setup > Track

Press t wice, then select Track:

Tracking records and displays the boat’s course on the chart (see section 3-5). Five different tracks can be recorded: track 1 has up to 2000 points and tracks 2, 3, 4 and 5 have up to 500 points each.

Record

Off: The 5507/5607 stops recording a track.

1 to 5 (select a track number): The 5507/5607

starts recording the boat’s course into the selected track.

Display

Off: No track is shown on the char t.

1 to 5 (select a track number): The

selected track is shown on the chart.

Plotting Interval

The options are Distance or

Time.

Distance

Select the distance plot ting interval : 0.01, 0.05, 0.1,

0.5, 1.0, 2.0, 5.0 or 10.0 distance units.

Time

Select the time plotting interval: 1, 5, 10 or 30 seconds or 1 minute.

Memory used

The percentage of memory used in the track being recorded.

Tip: Use the user card window to check the number of points recorded in each track (see section 12).

Send track

This option is included for compatibility with older units. For information, see your NAVMAN dealer.

Delete track

The data in the track selected for Record (see above) is deleted.

1 In the fuel setup menu, select Diesel

sensors. The display shows fuel flow and RPM for the engines.

2 Identify which line has data for a known

engine; for example vary the speed of one engine or have one engine running and the other(s) stopped.

3 Press

or to select the line with data for

the known engine. Press

, select the

known engine’s name and press

4 Repeat the above step for the other engines

in turn.

5 Press

Fuel consumption curve

See section 10-6.

Speed source

If both water speed and ground speed are available, select which to use for fuel calculations (see section 10-5-1).

Max fuel flow

The maximum fuel flow from a fuel tank to be displayed on an analog fuel flow gauge (see section 8)

Max RPM

The maximum engine RPM to be displayed on an analog RPM gauge. Required only if NAVMAN diesel flow sensors are installed. Enter the maximum RPM you know you can achieve for the engine rather than the maker’s value (see section 8)

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

15-6 Setup > AIS

Note: This feature requires an AIS receiver.

There are multiple methods to filter AIS vessels that are displayed onto the charts.

Filter by dis tance

Vessels outside the radius selected from our current position is filtered off the chart. Default value is set to 300 nm allowing all vessels to be displayed onto the chart within that distance.

Filter by speed

Vessels with speed below value selected by user is filtered off the charts. Default is set to 0 kn allowing all vessels to be displayed onto the chart.

Show Dangerous Only

Show vessels that have a TCPA/CPA below the trigger values. This filter will override any other filter option.

Dangerous Vessel Alarm

When enabled an alarm will activate when both the TCPA and CPA is less than the trigger values. Even when this setting is disabled the dangerous vessels will still be indicated on the chart.

TCPA Limit

Set the Time of Closest Point of Approach limit.

CPA Limit

Set the Closest Point of Approach limit.

Projec ted Course

Show the estimated course of all vessels based on their current SOG and COG.

15-7 Setup > Logs

Press twice, then select Logs:

The values can be changed independently of each other. These log values are saved when the unit is turned off.

Reset trip dist

This resets the trip distance to zero.

Reset total dist

This option resets the total distance to zero.

Reset engine hours

Use this option to reset the engine hours to zero. This can be useful after an engine service or to count the engine hours between service intervals.

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

15-8 Setup > Alar ms

Press twice, then select Alarms:

All alarms except Loss of GPS fix can be turned on (enabled) or of f (disabled).

For all alarms select

to turn the alarm on or

select

to turn the alarm off.

For most alarms there is a trigger value. The alarm will sound each time the alarm value equals the trigger value. For example, the

Danger

alarm will sound if the boat comes closer to a danger waypoint than the trigger value and the

Anchor alarm will sound if the boat moves by

more than the trigger value.

Icons for alarms that are on can be displayed in the data header (see section 2-8-2). An alarm icon is normally black and turns red when the alarm sounds.

Symbol Alarm Alarm sounds when it is on and the:

Arrival radius

boat is closer to the destination or to a waypoint than the alarm trigger value

Anchor alarm boat moves by more than the alarm trigger value

XTE

boat moves oﬀ course by more than the CDI scale (see section 15-2)

Danger

boat comes closer to a danger waypoint than the alarm trigger value

Loss of DGPS ﬁx

5507/5607 can not receive the DGPS signal (beacon, WAAS or EGNOS)

Loss of GPS ﬁx 5507/5607 can not receive the GPS signal (this alarm is always on)

Loss of AIS receiver communication

5507/5607 is no longer receiving communication from the AIS receiver (Alarm is on when AIS is enabled)

Dangerous vessel

The TCPA/CPA of another vessel is less than the trigger values (see section 13)

Low battery Battery voltage is less than the alarm trigger value

Low fuel

Low fuel remaining equals the alarm trigger value; on a multitank boat you can set separate alarms for each tank (see section 10-4)

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

15-9 Setup > Units

Press twice, then select Units:

The default units are shown above.

Distance

nm (nautical miles), mi (miles) or km (kilometres)

Distance small

ft (feet) or m (metres)

Speed

kn (knots), mph (miles per hour) or kph (kilometres per hour)

Depth

ft (feet), m (metres) or fa (fathoms)

Fuel

Litres, USGal (US gallons) or ImpGal (Imperial Gallons)

Compass

°T (True north) or °M (Magnetic north)

Temperature

°F (Fahrenheit) or °C (Celsius)

Wind (optional)

Requires a wind instrument: True or App (Apparent)

Note: that the units for wind speed are the speed units.

Pressur e

Requires Smar tCraft™: kPa or psi

Baro (Barometric pressure)

Requires a NAVMAN VHF receiver connected by NavBus: InHg or mB.

Use this feature when the 5507/5607 is connected to other NAVMAN instruments through NavBus or any compatible NMEA instrument.

Press

t wice, then selec t Comms:

NMEA out

NMEA is generally used with third party instruments (see section 16-10). Selec t this to transmit NMEA sentences, for example to an autopilot.

NMEA data

Use this to specify which NMEA sentences will be transmitted (see section 16-11 and Appendix A).

Lat/lon dps

Select the number of decimal points used for latitude and longitude transmitted in NMEA sentences.

NavBus

NavBus is the preferred method for connecting the 5507/5607 to other NAVMAN instruments. Select this if the instruments are connected using NavBus.

NavBus Grou p

Use this when a group of NAVMAN instruments are connected together using NavBus, to specify a group of instruments for backlighting, if required. Then, if the backlight setting on one instrument in the group is adjusted, the other instruments change automatically. Otherwise, select 0. See section 16-9.

15-10 Setup > Comms

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

15-11 Setup > Calibrate

Press twice, then select Calibrate:

Speed

This calibrates the speed from a paddlewheel sensor connected to the Instrument. Calibration may be required because different hull shapes have different flow characteristics. Obtain an accurate measurement of the boat’s speed from a GPS receiver; or by following another boat travelling at a known speed; or by making a timed run over a known distance.

Note: for accurate calibration:

• The speed from a GPS receiver should be greater than 5 knots.

• The speed from another paddlewheel transducer should be between 5 and 20 knots.

• Best results are achieved in calm conditions where there is minimal current (best at high or low tide).

Calibrating speed:

1 Travel at a constant, known speed.

2 In the Calibrate menu, select Speed.

3 Press

or to change the displayed speed

to the true value.

4 Press

Speed filter

Waves and wind cause the boat speed from the paddlewheel transducer to fluctuate slightly. To give stable readings, the Instrument calculates these values by taking several measurements and averaging them. Set the Speed filter to the lowest value which gives stable readings. The range is 1 to 30 seconds or Off (0).

Temperature

The factory settings should be sufficiently accurate for normal usage. To calibrate the temperature readout, first measure the water temperature with a thermometer known to be accurate.

Use the cursor keys to display the temperature readout box, then increase or decrease the value to match the measured temperature. The temperature can be set from 32° to 99.9°F (0° to

37.7°C) with a resolution of 0.1° unit.

To change the units between °F (Fahrenheit) or °C (Celsius), see section 15-9.

Temperature filter

Water turbulence and currents cause the water temperature to fluctuate slightly. To give stable readings, the Instrument calculates these values by taking several measurements and averaging them. Set the Temperature filter to the lowest value which gives stable readings. The range is 1 to 30 seconds or Off (0).

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

Press twice, then select Tim e:

Local of fset

The difference between local time and UTC (GMT). Change local of fset when daylight saving time star ts and ends. The range is 0 to ± 13 hours, in 30 minute steps.

Time format

The options are 24 hour or 12 hour.

Date format

The options are dd/MMM/y y, MMM/dd/yy, dd/MM/y y or MM/dd/yy.

15-12 Setup > Time

Keel Offset

A depth transducer measures depths below where the transducer is mounted on the boat, usually the bottom of the boat. The Instrument calculates the depths to display by adding the keel offset to all measured depths.

A Have a zero keel offset to display depths

below the transducer.

B Enter a positive keel offset to increase the

displayed depth. For example to display the total depths below the surface, enter the depth of the transducer below the surface.

C Enter a negative keel offset to decrease the

displayed depth. For example, to display the depths of clear water below the boat, enter minus the depth of the deepest part of the boat below the transducer.

Transducer;

depths measured below here

Depths measured below here

Speed range

The maximum reading to display on an analog boat speed gauge (see section 10-7). Choose a range suitable for your boat.

Fuel

See section 10-7, Calibration

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

Simulate mode is a way of becoming familiar with the 5507/5607 (see section 2-7).

Press

twice, then select Simulate:

Simulate

Turn simulate mode of f.

Turn simulate mode on.

CAUTION

WARNING

Never have simulate mode on when the 5507/5607 is navigating on the water.

Mode

There are two choices for Mod e:

1 Normal

Simulates the boat moving from the selected start point at the given speed and heading. The options required for Normal are:

Speed: The simulated boat speed to use.

Course: The simulated bearing for the boat

to follow.

Note: To select the star t point, go to the char t window before starting the simulation. Then:

• To start the simulation from the boat position, press to switch to centre on boat mode.

• To start the simulation from a different point, move the cursor to that point on the chart.

Tip: To calculate a course, use the cursor (see

section 3-3).

Tip: As the boat moves, vary Course to

simulate the boat moving off course.

2 Demo

Simulates a boat moving along a route and automatically displays different 5507/5607 functions.

The options required for Demo are:

Spee d: The simulated boat speed to use.

Route: The route to follow.

15-14 Setup > Simulate

15-13 Setup > Favorites

See section 2-8-2.

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

• C-MAP™ NT-MAX, NT+ or NT chart cards.

• C-MAP™ user cards (3 V) for storing data. (The older 5 volt cards are not supported)

• NAVMAN carry bag.

• NAVMAN NavBus junc tion boxes simplify wiring, particularly if several instruments are connected. For more information, see the Nav Bus Installation Manu al

Correct installation is critical to the performance of the unit. It is vital to read the entire installation section of this manual and the documentation that comes with the antenna and any other units before starting installation.

16 Installation

16-1 Installation: What comes with the 5507/5607

16-2 Installation: Options and Accessories

5507/5607 display unit

Dust cover fo r display unit

Blankin g caps for unused conne ctors

Power cable

Mounting b racket (screws inclu ded)

Flush mounti ng kit

NAVMAN 1240 GPS antenna for 5507 and 56 07

Warrant y registration ca rd

This Installation and Operation Manual

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

Black

Yellow

Optiona l sensors and instruments

Fuel sens ors: These optional fuel flow sensors can be fit ted to up to two engines:

• NAVMAN petrol/gasoline sensors (see section 16-6).

Engine types supported:

Outboard carburetted t wo stroke and EFI

petrol/gasoline engines: 50 hp to 30 0 hp.

Outboard four stroke petrol/gasoline

engines: 90 hp to 300 hp.

Inboard petrol/gasoline engines: 70 hp to

400 hp.

Flow rate (per engine):

Minimum: 5 litres per hour (1.3 U.S.

gallons per hour).

Maximum: 130 litres per hour (34 U.S.

gallons per hour).

• NAVMAN diesel sensors (see sec tion 16-7) Flow rate (per engine):

Minimum: 25 litres per hour (6.5 U.S.

gallons per hour).

Maximum: 4 00 litres per hour (104 U.S.

gallons per hour).

• SmartCraft™ fuel sensors (see sec tion 16-9)

Connections

GPS antenna (16-5)

Power (16-4)

External alarms (16-4)

NavBus instruments (16-10)

NMEA out to instruments (16-11)

Petrol/gasoline sensors (16-6), NMEA in (16-11), Diesel sensors (16-7)

Display unit

(16-3)

Power/data cable

Wire Function

1 Black Ground: - power in, NMEA ground. (The cable has two black wires which are

connected inside the cable and it does not matter which black wire you use)

2 Brown Not used

3 White NMEA out

4 Blue NavBus-

5 Red Power in, +10.5 to +30.5 V DC

6 Orange NavBus+

7 Yellow Auto power in

8 Green External alarm out, 30 V DC 200 mA maximum.

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

2 Bracket Mounting

Requires a panel for mounting the bracket. Ensure that the panel is not likely to deform and is not subject to excessive vibration. The bracket can be tilted and rotated. The display unit can be removed when it is not in use.

1 Hold the bracket in place and mark the screw

holes.

2 Drill the screw holes and screw the bracket in

place. Do not over tighten the screws or the display unit might not rotate.

3 Hold the display unit in place on the

mounting bracket shaft. Hand tighten the knob on the mounting bracket.

Select a position for the display unit:

• At least 4” (100 mm) away from the compass,

at least 12” (300 mm) away from any radio transmitter and at least 4 ft (1.2 m) away from any antenna.

• Easy to read and operate. If possible, mount

the display unit in front of the navigator or to the right of the navigator because the LCD display is more readable from these positions.

• Not exposed to the direct sun or water and

protected from physical damage during rough sea passages.

• Easy to access the 12/24 V DC power source

and convenient to route the transducer cables.

There are two mounting arrangements:

1 Flush Mounting

Requires a solid panel with access behind for wiring and mounting screws. After flush mounting, the display unit cannot be tilted or moved after installation to reduce any unwanted glare or reflections. Carefully select the best viewing position before installation. This would generally be in a shaded area.

1 Cut a hole in the bulkhead for the display unit

using the flush mount template.

2 Drill four holes for the mounting s tuds using

the flush mount template.

3 Screw the four studs into the brass inserts in

the back of the display unit.

4 Sit the display unit in place and fit the

washers and nuts to the studs.

16-3 Installation: The display unit

Knob

Mounting bracket

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

Black

Power/data cable

Red

Yellow

Black

External beepers or

lights

Main switch

12 /24V DC

Fuse 2A

The power/data cable has a black locking collar and flying leads.

1 Wire the 5507/5607 for auto power to have the 5507/5607 turn on with the boat’s ignition switch

or to record engine hours or to record the total fuel used. Otherwise wire for basic power (for more information, see section 2-3).

Basic power

Power/data cable

Yellow

Red

Black

Ignition

Ignition switch

Main switch

12/24 V DC

Fuses 2A

Power/data cable

Red

Green

2 Wire any external alarm beepers or lights.

The alarm output switches to ground to sound the alarm. If the current is more than 200 mA, fit a relay.

3 Connect the power/data cable to the black

display unit connector; turn the collar to lock the connector.

Black

16-4 Installation: Power/Data cable

Auto power

During setup, set up Auto power off (see sections 2-2 turning on and off and 14-1 Setup system)

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

Selecting an antenna

Fit one of these GPS antennas:

•

Normally use the GPS antenna supplied.

•

An optional differential beacon DGPS antenna

to give enhanced accuracy within range of land based differential beacons in areas where WAAS or EGNOS are not available. Such a DGPS antenna has both a GPS receiver and a beacon receiver, and it automatically applies the beacon correction to the GPS position.

•

A compatible GPS or DGPS instrument or

antenna connected by NavBus (see section 16-10) or NMEA (see section 16-11). In this case, the 5507/5607 does not need its own antenna.

Note:

• To configure the 5507/5607 for different antenna options, see section 16-5.

For more information, contact your NAVMAN dealer.

DGPS Source:

Enables or disablesthe satellite based DGPS correction (see section 7). The options are None or WAAS/EGNOS. Do not Enable WAAS/EGNOS outside their coverage areas or the accuracy of the position might be degraded.

WAAS covers all of the USA and most of Canada. To use WAAS, the GPS antenna must have a clear view of the sky towards the equator. EGNOS will cover most of Western Europe.

Restart GPS:

Restarts the GPS receiver, satellite reception will be lost until the receiver completes its restart and acquires the satellites.

Fit the optional petrol/gasoline fuel kit following the instructions supplied with the kit.

Note:

• Fit one kit for each engine, up to two engines.

• SmartCraft™ engines have fuel flow sensors, therefore NAVMAN fuel sensors are not required as well.

• Wire for auto power (see section 16-4).

During setup enter fuel setup data (see section 15-4)

16-5 Installation: GPS antenna

16-6 Insta llation: NAVMAN petrol /gasoline sensors

Yellow

GPS antenna (optional)

Fuel sensor cable

Yellow

GPS/fuel AIS cable

White

Select restart GPS and press

CAUTION

WARNING

MOB will not work if the Instrument does not have a GPS fix.

Installing an antenna

If an external antenna is required, install the antenna and fit the antenna cable back to the display unit. Follow the instructions in the manual supplied with the antenna. Fit an optional NAVMAN extension cable if required.

If a SmartCraft™ system or NAVMAN petrol/gasoline sensors are fitted as well, fit a AIS cable:

GPS antenna

Other connections

Yellow

GPS/fuel AIS cable

White

Otherwise:

GPS antenna

Yellow

During setup, configure the 5507/5607 for the chosen antenna, see section 16-5.

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

For information on installing, setting up and using SmartCraft™, see the SmartCraft™ Gateways Installation and Operation Manual.

16-7 Installatio n: NAVMAN diesel sensors

Fit the optional diesel fuel kit following the instructions supplied with the kit.

Note:

Fit one kit per engine, up to two engines. Wire

all diesel flow sensor cables in parallel.

SmartCraft™ engines have fuel flow sensors,

therefore NAVMAN diesel sensors are not required as well.

Normally, power the diesel sensors from the

boat ignition switch. Then the 5507/5607 does not need to be wired for auto power (see section 15-4).

The 5507/5607 can be connected to up to two SmartCraft™ capable Mercury petrol/gasoline engines. The 5507/5607 can display engine data and trim and can control troll speed.

Note:

Connect the 5507/5607 to the SmartCraft™

engines with a NAVMAN SmartCraf t™ gateway:

i For single engine fit a single gateway

ii For dual engines fit a dual gateway

SmartCraft™ engines have f uel flow sensors,

therefore NAVMAN fuel sensors are not required as well.

Wire the unit for auto power (see sec tion

16-4).

During setup

a Enter fuel setup data (see section 15-4)

b Set NavBus and SmartCraft™ to

(see section

15-1)

c Enter SmartCraft™ setup data (see the

SmartCraft™ Gateways Installation and Operation Manual)

16-8 Instal lation: SmartCraft™

During setup

a Enter fuel setup data (see section 15-4)

b Set NavBus to

(see section 15-1 setup

system)

Yellow

GPS antenna (optional)

Diesel sensor cable

Yellow

GPS/fuel AIS cable

White

Yellow

GPS antenna (optional)

SmartCraft™ Gateway

Yellow

GPS/fuel AIS cable

White

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

NavBus is NAVMAN’s system for connecting instruments together to interchange data and share transducers. When instruments are connected by NavBus:

If the units, alarms or calibration are changed

in one instrument, then the values will automatically change in all other instruments of the same type.

Each instrument can be assigned to a group

of instruments. If the backlight is changed in an instrument in group 1, 2, 3 or 4 then the backlight will automatically change in the other instruments in the same group.

If the backlight is changed in an instrument

in group 0 then no other instruments are affected.

If an alarm sounds, mute it by clearing the

alarm on any instrument which can display that alarm.

NavBus and the 5507/5607

The 5507/5607 can:

Display wind speed and direction from an

optional NAVMAN Wind instrument.

Receive and display depth from an optional

NAVMAN depth instrument.

Receive and display boat speed and water

temperature from a paddlewheel sensor on an optional Speed instrument.

Receive data from an optional NAVMAN

VHF radio (with NavBus functionalit y). The 5507/5607 can display:

Baro: barometric pressure

Baro history: barometer history

Weather: a predication, based on changes in

barometric pressure

Fish forecaster: a prediction based on

changes in barometric pressure

DSC/Buddy Track: (see section 14)

Receive data from an optional GPS or

GPS/DGPS source.

Send data to optional NAVMAN instruments,

for example to a repeater.

16-9 Installation: Other NavBus instruments

During setup for NavBus instruments, set NavBus to and assign the instrument a NavBus group number (see section 15-10)

Black

Power/data cable

Orange

Blue

Other NavBus instrument

16-9-1 Installation: NAVMAN VHF radio

Fit and set up the optional NAVMAN VHF radio (with NavBus functionalit y) following the instructions supplied with the radio.

Black

Power/data cable

Orange Blue

Blue Grey

Radio data cable

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

Setup and test

1 Put a blanking cap on any unused connector

on the back of the display unit. Ensure all connectors are plugged in and the display unit is in place.

2 If the display unit is bracket mounted, adjust

tilt and rotation for best viewing and hand tighten the knob.

3 Insert any required C-MAP chart card (see

section 1-3).

4 Turn the instrument on (see section 2-3).

When the 5507/5607 is turned on for the first time, it displays an installation menu:

i Select the language to use.

ii Change the data if necessary

(see section 2-1)

iii When the setup data is correct, press

This data can be changed later

(see section 15).

5 Enter setup data to set up the 5507/5607 to

your requirements and to set up any optional sensors or instruments (see section 15).

6 At the satellite window, check that it picks up

GPS satellites. Wait for the GPS receiver to start up and the fix type to change from ‘Acquiring’ to ‘GPS fix’. This should take less than two minutes (see section 7).

7 Go on a test run to check that the navigation

equipment works correctly, particularly when a radio transmitter or radar is used.

16-11 Installation: Setup and test

NMEA is an industry standard for interconnecting instruments. It is not as flexible or as easy to install as NavBus. The 5507/5607 can:

Receive and display wind speed and

direction from an optional compatible wind instrument.

Receive and display depth, paddlewheel

boat speed and water temperature from an optional compatible instrument.

Receive data from an optional compatible

GPS or GPS/DGPS source.

Send GPS position and other navigation

data to an autopilot or other instrument. An autopilot requires APB, APA and VTG sentences (see section 15-10).

Receive data from an optional AIS receiver.

For information on sending NMEA data to the 5507/5607, see your NAVMAN dealer.

During setup to send NMEA data to other instruments, set NMEA out to

and specif y

the NMEA data to send (see section 15-10).

16-10 Installation: Other NMEA instru ments

Black

Power/data cable

Yellow

White Fuel/Smartcraft

Black NMEA ground

GPS antenna

White NMEA in (requires Special Fuel Cable)

Yellow

GPS/fuel AIS cable

White

Red AIS/NMEA in

Black and Shield Ground

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

GENERAL

Size

5507:

5.9” H x 6.5” W x 2.6” D (150 mm H x 164 mm W x 65 mm D)

5607:

7” H x 7.7” W x 2.1” D (179 mm H x 195 mm W x 54 mm D)

Display

5507: 5” diagonal, TFT color, 480 x 640 pixels

5607: 6.4” diagonal, TFT color, 480 x 640 pixels

Backlight: Display and keys

Supply voltage

10.5 to 32 V DC.

Supply current: at 13.8 V

300 mA min - no backlighting

550 mA max - full backlighting

External beeper or light output: Switched

to ground to sound alarm, 30 V DC, 200 mA maximum.

Operating temperature

32°F to 122°F (0°C to 50°C)

ALARMS

User set: Arrival radius, anchor, XTE, danger,

dangerous AIS vessels, low fuel (optional), loss of DGPS fix

Fixed: Loss of GPS fix

GPS NAVIGATION

Chart card: C-MAP™

NT-MAX, NT+ or NT

User card: 3.3 V C-MAP™

Waypoints: Up to 3000, with default or

user-defined alphanumeric names up to eight characters.

Routes: 25 Routes, with up to 50 points each

Tracks: By time or distance, one track of 2000

points and four of 500 points.

Chart datums

121 Chart datums (see next page)

One user-defined map shift.

Chart scale: 0.05 to 4096 nm for chart (chart

dependent) down to 0.01 nm in plotter mode.

COMMUNICATIONS

NavBus

Connection to other NAVMAN instruments.

NMEA

NMEA 0183 ver 2 4800 baud

• Inputs from compatible instruments: DBT, DPT (preferred), GGA, GLL, GSA, GSV, MTW, MWV, RMC, VHW, VTG

Outputs, for compatible instruments: APA, APB,

BWR, GGA, GLL, GSA, GSV, RMB, RMC, VTG, XTE

STANDARDS COMPLIANCE

EMC:

USA: FCC Part 15 Class B.

Europe: (CE) EN301843-1:2004-06.

New Zealand and Australia: (C Tick) EN60945

9.2 & 9.3.

Environment: IPx6/IPx7/CFR46 (with card holder

and connections in place).

Appendix A - Specifications

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

List of datums

Adindan Afgooye AIN EL ABD 1970 American Samoa 1962 Anna 1 Astro 1965 Antigua Island Astro 1943 ARC 1950 ARC 1960 Ascension Island 1958 Astro Beacon ‘E’ 1945 Astro DOS 71/4 Astro Station 1952 Astro Tern Island (Frig) 1961 Australian Geodetic 1966 Australian Geodetic 1984 Ayabelle Lighthouse Bellevue (IGN) Bermuda 1957 Bissau Bogota Observatory Buk it Rimpah Camp Area Astro Campo Inchauspe 1969 Canton Astro 1966 Cape Cape Canaveral Carthage Chatham Island Astro 1971 Chua Astro Co-ord. Sys.1937 Estonia Corrego Alegre Dabola Deception Island Djakarta (Batavia) DOS 1968 Easter Island 1967 European 1950 European 1979 Fort Thomas 1955 Gan 1970 Geodetic Datum 1949 Graciosa Base Sw 1948 Guam 1963 Gunung Segara GUX 1 Astro Herat North Hermannskogel Hjorsey 1955 Hong Kong 1963 Hu-Tzu-Shan Indian Indian 1954 Indian 1960 Indian 1975 Indonesian 1974 Ireland 1965 ISTS 061 Astro 1968 ISTS 073 Astro 1969 Johnston Island 1961 Kandawala Kerguelen Island 1949 Kertau 1948 Kusaie Astro 1951 L. C. 5 Astro 1961 Leigon Liberia 1964 Luzon M’Poraloko Mahe 1971 Massawa Merchich Midway Astro 1961 Minna Montserrat Island Astro 1958 Nahrwan Masirah Is. Oman Nahrwan United Arab Emirates Nahrwan Saudi Arabia Naparima, BWI North American 1927 North American 1983 North Sahara 1959 Observatorio Meteorolog. 1939 Old Egyptian 1907 Old Hawaiian Oman Ord. Survey Great Britain 1936 Pico de las Nieves Pitcairn Astro 1967 Point 58 Pointe Noire 1948 Porto Santo 1936 Provis. South American 1956 Provis. South Chilean 1963 Puerto Rico Pulkovo 1942 Qatar National Qornoq Reunion Rome 1940 S-42 (Pulkovo 1942) Santo (DOS) 1965 Sao Braz Sapper Hill 1943 Schwarzeck Selvagem Grande 1938 Sierra Leone 1960 S-JTSK South American 1969 South Asia Tananarive Observatory 1925 Timbalai 1948 Tokyo Tristan Astro 1968 Viti Levu 1916 Voirol 1874 Voirol 1960 Wake Island Astro 1952 Wake-Eniwetok 1960 WGS 84 Yacare Zanderij

TRACKER 5507 TRACKER 5607













ESC

DISP

ENT

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

1-1 The 5507/5607 won’t turn on:

a The 5507/5607 is designed to operate on a

12/24 volt battery system, where the voltage may vary from 10.5 to 32 volts. If an excessive voltage is supplied, a fuse will be tripped, turning the display unit off. Check the fuse.

b Check that the power cable connector at the

back of the display unit is securely plugged in and the collar is locked in place. The collar must be secure for watertight connection.

c Measure the battery voltage while the battery

is under load - turn on some lights, radio or other elec trical equipment connected to the battery. If the voltage is less than 10 volts:

- the battery terminals or wiring on the terminals may be corroded.

- the battery may not be charging correctly or may need replacing.

d Inspect the power cable from end to end for

damage such as cuts, breaks, squashed or trapped sections.

e Ensure that the red wire is connected to the

positive battery terminal and the black wire to the negative battery terminal. If wired for the Auto Power option, ensure the yellow wire is connected to the ignition circuit. Also check the boat’s main switch circuit (see section 16-4).

This troubleshooting guide is written with the assumption that the user has read and understood the relevant sections in this manual.

It is possible in many cases to solve dif ficulties without having to send the display unit back to the manufacturer for repair. Please follow this troubleshooting section before contacting the nearest NAVMAN dealer.

There are no user serviceable parts. Specialized methods and testing equipment are required to ensure that the display unit is reassembled

correctly and is waterproof. Users who service the product themselves will void the warranty.

Repairs to the product may only be carried out by a service centre approved by NAVMAN. If the product must be sent into a service centre for repair, it is essential to send in the transducer(s) at the same time.

More information can be found on our Website: www.navman.com.

f Check for corrosion on the power cable

connector and clean or replace if required.

g Check fuses that are placed in line with the

power cable. A fuse can be blown despite appearing to be good or the fuse may be corroded. Test the fuse or replace it with a fuse known to be good.

1-2 The 5507/5607 won’t turn off:

The 5507/5607 may have been wired for

Auto power. In this case, the 5507/5607 cannot be turned off while the ignition power is on (see section 2-3).

1-3 If the 5507/5607 beeps when turned on but nothing is displayed:

The 5507/5607 may be operating, but the

backlight settings may have been set too low (see section 2-4).

1-4 The wrong language is displayed:

See section 15-1.

Appendix B - Troubleshooting

B-1 General Problems

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

2-1 No GPS fix or long time to get fix at startup:

a May occur occasionally if the antenna does

not have a clear view of the sky. The satellite positions are constantly changing.

b Antenna cable not connec ted to display unit.

c Restart the GPS (see section 15-3).

2-2 5507/5607 GPS position different from true position by more than 10 m (33 ft):

a 5507/5607 in simulate mode. Turn simulate

mode off (see section 15-12).

b The normal error in GPS position will exceed

10 m (33 ft) for about 5% of the time.

c Under special circumstances the US

Department of Defence may introduce a deliberate and changing error in the GPS positions of up to 300 m (1000 ft).

2-3 5507/5607 position different from same position on local charts:

a 5507/5607 in simulate mode. Turn simulate

mode off (see section 15-12).

b Incorrect chart datum. Select the correct

chart datum (see section 15-2).

c Map shift has been applied wrongly. Clear map

shift, then reapply if necessary (see section 15-2).

2-4 Can not see boat on chart:

Press

to switch to centre on boat

mode (see section 3-2-1).

2-5 The time or date on the satellite window is wrong or off:

a No GPS fix.

b In simulate mode. Turn simulate mode off

(see section 15-12).

c Local time offset is wrong (see section 15-11).

The Local T ime Offset must be changed when daylight saving time star ts or ends.

2-6 Autopilot not responding to 5507/5607; no NMEA output:

a NMEA output disabled or the required NMEA

sentences are not turned on. Check NMEA settings (see section 15-10).

b Check that the instrument is connected

correctly.

2-7 No DGPS fix or loss of DGPS fix:

a To receive a DGPS fix, WAAS/EGNOS must be

enabled or an optional DGPS antenna fitted (see section 7).

b With WAAS/EGNOS: Boat out of coverage

area (see sec tion 7).

c With WAAS: GPS antenna does not have a

clear view of the horizon towards the equator.

b With beacon DGPS: boat out of range of a

DGPS beacon.

B-2 GPS navigation problems

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

3-1 Number of engines or tanks is wrong

Check that the number of engines and tanks

is correct (see section 15-4).

3-2 Fuel flow(s) seem inaccurate:

a Check that the fuel setup data is correct (see

section 15-4).

b Check that the fuel cable connectors are

securely plugged in and the collar is locked in place. Check the fuel cable is not damaged or pinched.

c A fuel sensor may be blocked.

A fuel filter must be installed between the fuel transducer and the fuel tank as described in the sensor installation manual. Otherwise the warrant y is void.

d Recalibrate the fuel flow sensor(s) (see

section 10-7).

e Check that the fuel filter is clean.

f In rough seas, fuel may surge back and

forth through the fuel sensor(s), resulting in incorrect readings. Try installing a one-way valve between the fuel sensor(s) and the fuel tank.

3-3 Fuel remaining seems inaccurate:

a The 5507/5607 is not wired for auto power

(see section 15-4).

b You added or removed fuel but did not tell

the 5507/5607 (see section 10-3).

c The fuel tank may not refill to the same

capacit y each time due to air pockets. This is a particular problem with underfloor tanks.

3-4 Erratic fuel flow readings:

a The Flow filter value is not suitable for the

engine. Check that the value is not set to zero, then try increasing the value until a steady flow rate is shown (see section 15-4).

b The fuel f low sensor(s) may be too close to

the fuel pump or may be subject to excessive vibration. Refer to the fuel sensor installation manual.

c Check for leak s in the fuel line or in the fuel

pickup in the tank.

3-5 There is no reading for fuel economy:

a The boat must be travelling through the

water to have a reading.

b If you selected a paddlewheel sensor (see

section 10-5-1), check that the paddlewheel spins freely.

B-3 Fuel consum ption problems

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

Attent ion Area - An important area on a chart, such as a restricted anchorage or a shallow area (see section 15-2).

AIS - Automatic Identification System. A System where vessel information (location, course, speed, etc.) is broadcast by VHF radio, for use by other vessels in navigation and collision avoidance.

Ba thymet ric lin e - A depth contour line on the chart.

Chart card - A plug-in card that stores chart data for a region (see section 1-3).

C-MAP

™ chart c ard - See Chart card.

C-MAP

™ user card - See User card.

CPA - Closest Point of Approach. The closest

distance two vessels will come to each other based on their current course and speed.

Cursor

- A symbol on the display (see section

3-2).

DGPS - Dif ferential Global Positioning System. A navigation tool based on GPS with some errors corrected (see section 7).

DSC - Digital Selective Calling. A feature of marine radios enabling communication between specific vessels, as well as distress alerts.

Goto - A simple way of navigating straight to a waypoint or to the cursor position (see section 3-1).

GPS - Global Positioning System. A satellitebased navigation tool (see section 7).

Leg - The straight segments of a route between waypoints. A route with four waypoints has three legs.

MMSI - Maritime Mobile Ser vice Identity. Unique identification number for a vessel, for use in Digital Selective Calling.

MOB - Man overboard.

MOB function - Starts navigating back to the

place where someone fell overboard (see section 2-5).

NavBus - A way of connecting NAVMAN instruments together to share data (see section 16-9).

NMEA - National Marine Elec tronics Association.

NMEA 0183 - A standard for interfacing marine

electronic devices (see section 16-10).

Route - Two or more waypoints linked in sequence to form a course for the boat (see section 6).

Smart Craft - A feature of Mercury Marine engines for monitoring engine performance.

TCPA - Time to Closes t Point of Approach. Time until the closest point of approach for two vessels.

User car d - A plug-in card that stores waypoints, routes and tracks (see section 12).

UTC - Universal Time Coordinated or Coordinated Universal Time, which is a standard world time, formerly called Greenwich Mean Time (GMT).

VHF - Very High Frequency. The frequency range used by marine radios.

Waypoint - A position that you can set on the 5507/5607 chart, for example a fishing spot or a point on a route (see section 5).

Glossary

Appendix C - Glossary and navigation data

NAVMAN TRACKER 5507/5607 Installation and Operation Manual

Navigatio n data

BRG Bearing to Destination: Bearing to the destination from the boat.

BRG Bearing to cursor: Bearing to cursor from boat (cursor mode, see sec tion 3-2)

CDI Course Deviation Indicator: When the boat is navigating to a point, the chart and highway

windows show a parallel line on either side of the plotted course. These two lines are called the Course Deviation Indicator (CDI) lines. The distance from the plotted course to a CDI line is the CDI scale.

Set the CDI scale (see section 15-2) to the maximum distance that the boat should deviate

from the plotted course. The chart and highway windows show the CDI lines, which are like a highway over the water where the boat will move. The windows show how far the boat has deviated from the plotted course and if the boat is approaching a CDI line. If the XTE alarm is enabled (see section 15-7) an alarm will sound if the boat reaches a CDI line.

COG Course Over Ground: Direction in which the boat is moving over the ground.

CTS Course To Steer: Optimum course to steer to return to the plot ted course.

DTG Distance To Go: Distance from the boat to the destination.

ETA Expected Time of Arrival: At the destination, assuming that SOG and COG remain constant.

RNG Range to cursor: Distance from boat to cursor (cursor mode, see section 3-2)

SOG Speed Over Ground : Current boat speed over the ground. This is not necessarily the same as

the boat speed through the water nor the speed at which it is approaching the destination.

STR Steering: The diﬀerence between COG and C TS.

TTG Time To Go: The estimated time to reach the destination.

XTE Cross Track Error: The distance from the boat to the nearest point of the plotted course. XTE

may have a letter: R means steer to the right to return to the plotted course, L means steer to the left.

VMG Velocit y Made Good: The speed at which the boat is approaching the destination.

CTS

SOG (speed)

VMG (speed)

BRG

COG

Destination

Boat position

Start

STR

DTG (distance)

CDI scale (distance)

Plotted course

Start

Destination

XTE (distance)

Boat position

CDI scale (distance)

CDI line

Plotted course

CDI line

How to contact us ww w.navman.com

NORTH AMERICA

BNT - Marine Electronics 30 Sudbury Rd, Acton, MA 01720. Toll Free: +1 866 628 6261 Fax: +1 978 897 8264 e-mail: sales@navmanusa.com web: www.navman.com

OCEANIA Australia

Navman Australia Pty. Limited Suite 2, 408 Victoria Road Gladesville, NSW 2111, Australia. Ph: +61 2 9879 9000 Fax: +61 2 9879 9001 e-mail: sales@navman.com.au web: www.navman.com

New Zealand

Absolute Marine Ltd. Unit B, 138 Harris Road, East Tamaki, Auckland. Ph: +64 9 273 9273 Fax: +64 9 273 9099 e-mail: navman@absolutemarine.co.nz

Papua New Guinea

Lohberger Engineering, Lawes Road, Konedobu. PO Box 810, Port Moresby. Ph: +675 321 2122 Fax: +675 321 2704 e-mail: loheng@online.net.pg web: www.lohberger.com.pg

LATIN AMERICA Argentina

Costanera Uno S.A. Av Pte Ramón S. Castillo y Calle 13 Zip 1425 Buenos Aires, Argentina. Ph: +54 11 4312 4545 Fax +54 11 4312 5258 e-mail: purchase@costanerauno.com.ar web: www.costanerauno.ar

Brazil

Equinautic Com Imp Exp de Equip Nauticos Ltda. Rua Ernesto Paiva, 139 Clube dos Jangadeiros Porto Alegre - RS - Brasil CEP: 91900-200. Ph: +55 51 3268 6675 +55 51 3269 2975 Fax: +55 51 3268 1034 e-mail: equinautic@equinautic.com.br web: www.equinautic.com.br

REALMARINE Av Inf Dom Henrique s/nº - Loja 12 Marina da Glória - Rio de Janeiro - R.J. Brasil Cep: 2021-140 Ph: +55 21 3235-6222 Fax: +55 21 3235-6228 e-mail: vendas@realmarine.com.br website: www.realmarine.com.br

Chile

Equimar Manuel Rodrigurez 27 Santiago, Chile. Ph: +56 2 698 0055 Fax +56 2 698 3765 e-mail: mmontecinos@equimar.cl

Mera Vennik Colon 1148, Talcahuano, 4262798, Chile. Ph: +56 41 541 752 Fax +56 41 543 489 e-mail: meravennik@entel.chile.net

Mexico

Mercury Marine de Mexico Anastacio Bustamente #76 Interior 6 C olonia Fr ancisco Z arabia, Zapapan, Jalisco, C.P. 45236 Mexico. Ph: +52 33 3283 1030 Fax: +52 33 3283 1034 web: www.equinautic.com.br

Uruguay

Alvaro Burmudez , Nautica Puerto del Buceo 11300 Montevid eo, Uruguay. Phone & Fax +59 82 628 6562 e-mail : alvaro@ nautica.com.uy web: www.nauti ca.com.uy

ASIA China

Peaceful Marine Electronics Co. Ltd. Guangzhou, Hong Kong, Dalian, Qingdao, Shanghai 1701 Yanjiang Building 195 Yan Jiang Zhong Rd. 510115 Guangzhou, China. Ph: +86 20 3869 8839 Fax: +86 20 3869 8780 e-mail: sales@peaceful-marine.com web: www.peaceful-marine.com

India

Access India Overseas Pvt. Ltd. A-98, Sector 21, Noida - 201 301, India. Ph: +91 120 244 2697 TeleFax: +91 120 253 7881 Mobile: +91 98115 04557 e-mail: vkapil@del3.vsnl.net.in

Esmario Export Enterprises Block No. F-1, 3rd Floor, Surya Towers Sardar Patel Rd, Secunderbad 500 003. Ph: +91 40 2784 5163 Fax: +91 40 2784 0595 e-mail: gjfeee@hd1.vsnl.net.in web: www.esmario.com

Korea

Kumhomarine Technology Co. Ltd. #604-842, 2F, 1118-15, Janglim1-Dong, Saha-Gu, Busan, Korea. Ph: +82 51 293 8589 Fax: +82 51 265 8984 e-mail: info@kumhomarine.com web: www.kumhomarine.com

Japan

PlusGain Inc. 1-A 324-3 Matunoki-Tyou Takayama-City, Gifu-Ken, Japan Ph: +81 577 36-1263 Fax: +81 577 36-1296 email: info@plusgain.co.jp web: www.plusgain.co.jp

Maldives

Maizan Electronics Pte. Ltd. Henveyru, 08 Sosunmagu. Male', Maldives. Mobile: +960 78 24 44 Ph: +960 32 32 11 Fax: +960 32 57 07 e-mail: ahmed@maizan.com.mv

Singapore an d Malaysia, Brunei and Indonesi a

RIQ PTE Ltd. Blk 3007, 81 Ubi Road 1, #02-440, Singapore 408701. Ph: +65 6741 3723 Fax : +65 6741 3746 e-mail: email@riq.com.sg web: www.riq.com.sg

Taiwan

Seafirst International Corporation No. 281, Hou-An Road, Chien-Chen Dist. Kaohsiung, Taiwan R.O.C. Ph: +886 7 831 2688 Fax: +886 7 831 5001 e-mail: seafirst@seed.net.tw web: www.seafirst.com.tw

Thailand

PING Electric Co., Ltd. 2/80 Sreesutus Road, Russada Muang Phuket 83000 Thailand Tel: +66 (76) 224847 Fax: +66 (76) 252144 pingelectric@yahoo.com

Vietnam

HaiDang Co. Ltd. 763 Le Hong Phong St. Ward 12 District 10, Hochiminh City, Vietnam Ph: +84 8 863 2159 Fax: +84 8 863 2524 e-mail: haidang-co@hcm.vnn.vn web: www.haidangvn.com

MIDDLE EAST United Arab Emira tes Kuwait, Oman , Saudi Arabia, Ba hrain and Qatar

Abdullah Moh’d Ibrahim Trading, opp Creak Rd. Baniyas Road, Dubai. Ph: +971 4 229 1195 Fax: +971 4 229 1198 e-mail: sales@amitdubai.com

Egypt

18 Abou El-Ataheya St., via Abbas Al-Akkad St., Nasr City, Cairo Egypt Ph: +202 274 2911 +202 272 8493 Fax: +202 274 5219 e-mail: seet@internetegypt.com

Lebanon

Balco Stores Balco Building, Moutran Street, Tripoli (via Beirut). - Lebanon P.O. Box: 622. Ph: +961 6 624 512 Fax: +961 6 628 211 e-mail: balco@cyberia.net.lb

AFRICA South Africa

Pertec (Pty) Ltd (Coastal Division) 16 Paarden Eiland Road. Paarden Eiland, 7405 PO Box 527, Paarden Eiland, 7420 Cape Town, South Afric a. Ph: +27 2 1 508 4707 Fax: +27 21 508 4888 e-mail: info@kfa.c o.za web: www.pertec.co.za

EUROPE

Plastimo International 15, rue Ingénieur Verrière, BP435, 56325 Lorient Cedex. Ph: +33 2 97 87 36 36 Fax: +33 2 97 87 36 49 e-mail: plastimo@plastimo.fr web: www.plastimo.fr

OTHER COUNTRIE S IN EUROPE Norway

ProNav AS Fiskarvik Maritime Senter, Hovlandsveien 52, N-4370 Egersund, Norway. Ph: +47 51 494 300 Fax: +47 51 492 100 e-mail: mail@pronav.no web: www.pronav.no

Finland

Vator Oy Puuskarinne 8, 00850 Helsinki, Finland. Ph: +35 8 040 300 7212 Fax: +35 8 040 300 7200 e-mail: info@vator.com web: www.vator.com

Croatia

Meridian Projekt d.o.o. Savska 58, Ph: +38 5 1 617 6364 Fax: +38 5 1 617 6365 e-mail: navman@meridianprojekt.com web: www.meridianprojekt.com

HEADQUARTER S

Navman NZ Limited 7-21 Kawana St. Northcote. P.O. Box 68 155, Newton, Auckland, New Zealand. Ph: +64 9 481 0500 Fax: +64 9 481 0590 e-mail: marine.sales@navman.com web: www.navman.com

Lon 174° 44.535’E

Lat 36° 48.404’S

Made in New Zealand MN000652A-G

N AV MAN Tr ac ke r 5 5 07 /5 6 07 I n s ta l la t io n a n d O pe r a ti o n M an u al

Navman TRACKER 5507, TRACKER 5607 Operation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
