Msi B450M User Manual

Quick Start

Thank you for purchasing the MSI® B450M BAZOOKA PLUS motherboard. This Quick Start section provides demonstration diagrams about how to install your computer. Some of the installations also provide video demonstrations. Please link to the URL to watch it with the web browser on your phone or tablet. You may have even link to the URL by scanning the QR code.

Preparing Tools and Components

AMD® AM4 CPU

CPU Fan

Chassis

DDR4 Memory

Thermal Paste

Phillips Screwdriver

Power Supply Unit

SATA Hard Disk Drive

Graphics Card

SATA DVD Drive

A Package of Screws

Quick Start

Installing a Processor

https://youtu.be/Xv89nhFk1vc

Quick Start

Important

If you are installing the screw-type CPU heatsink, please follow the figure below to remove the retention module first and then install the heatsink.

Quick Start

Installing DDR4 memory

http://youtu.be/T03aDrJPyQs

Quick Start

DIMMB2 DIMMB2

DIMMA2 DIMMA2 DIMMA2

DIMMB1

DIMMA1

Connecting the Front Panel Header

RESET SW

POWER SW

POWER LED+

POWER LED-

HDD LED

http://youtu.be/DPELIdVNZUI

Power LED

JFP1

Power Switch

+++-

2 10 1

Reserved

HDD LED Reset Switch

1 HDD LED + 2 Power LED +

3 HDD LED - 4 Power LED -

5 Reset Switch 6 Power Switch

7 Reset Switch 8 Power Switch

9 Reserved 10 No Pin

HDD LED

POWER LED

HDD LED

HDD LED HDD LED +

POWER LED POWER LED +

Quick Start

RESET SW

JFP1

Installing the Motherboard

Quick Start

Installing SATA Drives

http://youtu.be/RZsMpqxythc

Quick Start

Installing a Graphics Card

http://youtu.be/mG0GZpr9w_A

Quick Start

Connecting Peripheral Devices

Ryzen™ with Radeon Vega

Graphics Processors

Quick Start

Connecting the Power Connectors

http://youtu.be/gkDYyR_83I4

Quick Start

ATX_PWR1

CPU_PWR1

Power On

Quick Start

Contents

Quick Start ............................................................................................................. 1

Preparing Tools and Components .......................................................................... 1

Installing a Processor ............................................................................................. 2

Installing DDR4 memory ........................................................................................ 4

Connecting the Front Panel Header ....................................................................... 5

Installing the Motherboard ..................................................................................... 6

Installing SATA Drives............................................................................................. 7

Installing a Graphics Card ...................................................................................... 8

Connecting Peripheral Devices .............................................................................. 9

Connecting the Power Connectors ....................................................................... 10

Power On............................................................................................................... 11

Safety Information ............................................................................................... 14

Specifications ....................................................................................................... 15

Package contents................................................................................................. 19

Block Diagram .................................................................................................... 20

Rear I/O Panel ...................................................................................................... 21

LAN Port LED Status Table................................................................................... 21

Realtek Audio Console ......................................................................................... 21

Overview of Components .................................................................................... 23

CPU Socket ........................................................................................................... 25

DIMM Slots ............................................................................................................ 26

PCI_E1~3: PCIe Expansion Slots .......................................................................... 27

JFP1, JFP2: Front Panel Connectors ................................................................... 27

M2_1: M.2 Slot (Key M) ......................................................................................... 28

JAUD1: Front Audio Connector ............................................................................28

CPU_PWR1, ATX_PWR1: Power Connectors ....................................................... 29

JUSB2, JUSB4: USB 2.0 Connectors .................................................................... 30

JUSB1, JUSB3: USB 3.1 Gen1 Connectors........................................................... 30

CPU_FAN1, SYS_FAN1~2: Fan Connectors ..........................................................31

JCOM1: Serial Port Connector ............................................................................. 31

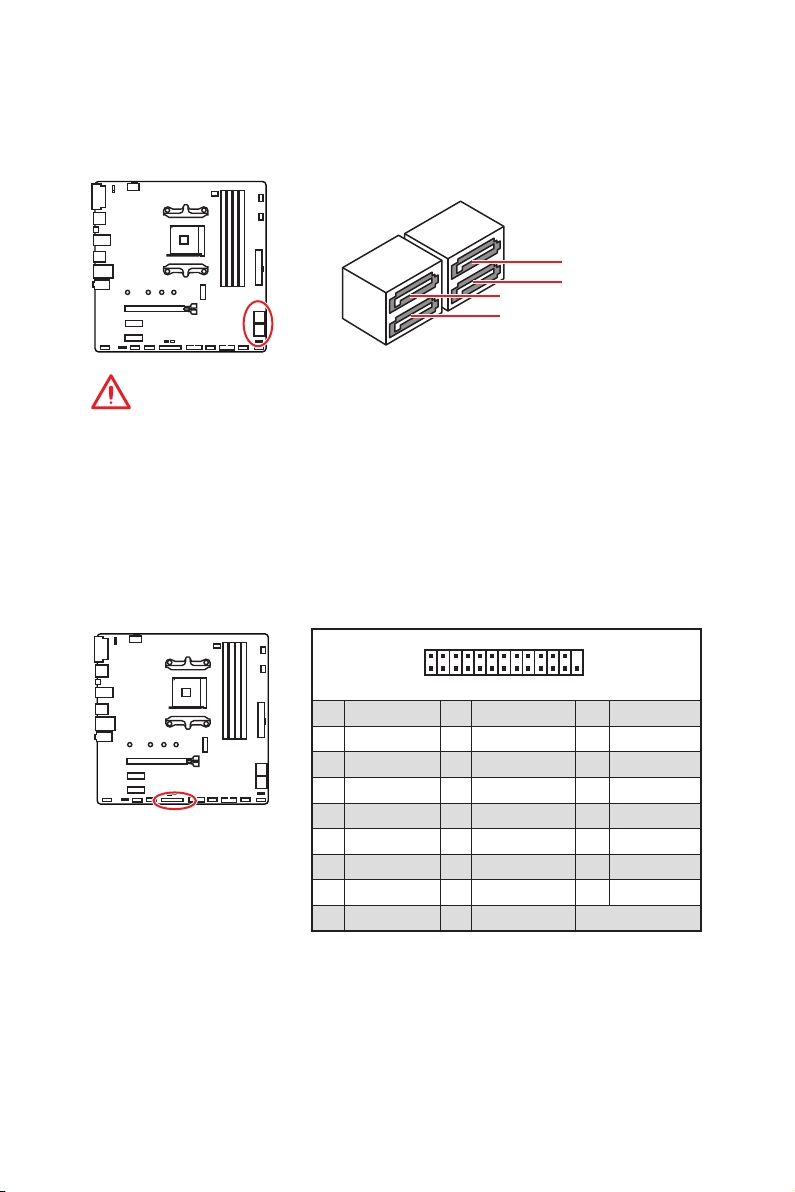

SATA1~4: SATA 6Gb/s Connectors ....................................................................... 32

JLPT1: Parallel Port Connector ........................................................................... 32

JCI1: Chassis Intrusion Connector ....................................................................... 33

JTPM1: TPM Module Connector ........................................................................... 33

JRGB1, JRGB2: RGB LED Connectors ................................................................. 34

EZ Debug LED ....................................................................................................... 34

JBAT1: Clear CMOS (Reset BIOS) Jumper ........................................................... 35

Contents

BIOS Setup ........................................................................................................... 36

Entering BIOS Setup ............................................................................................. 36

Resetting BIOS ...................................................................................................... 37

Updating BIOS ....................................................................................................... 37

EZ Mode ................................................................................................................ 39

Advanced Mode .................................................................................................... 41

SETTINGS .............................................................................................................. 42

Advanced ............................................................................................................... 42

Boot ....................................................................................................................... 47

Security ................................................................................................................. 48

Save & Exit ............................................................................................................ 49

OC .......................................................................................................................... 51

M-FLASH .............................................................................................................. 55

OC PROFILE .......................................................................................................... 56

HARDWARE MONITOR .......................................................................................... 57

Software Description ........................................................................................... 58

Installing Windows® 10 ......................................................................................... 58

Installing Drivers .................................................................................................. 58

Installing Utilities ................................................................................................. 58

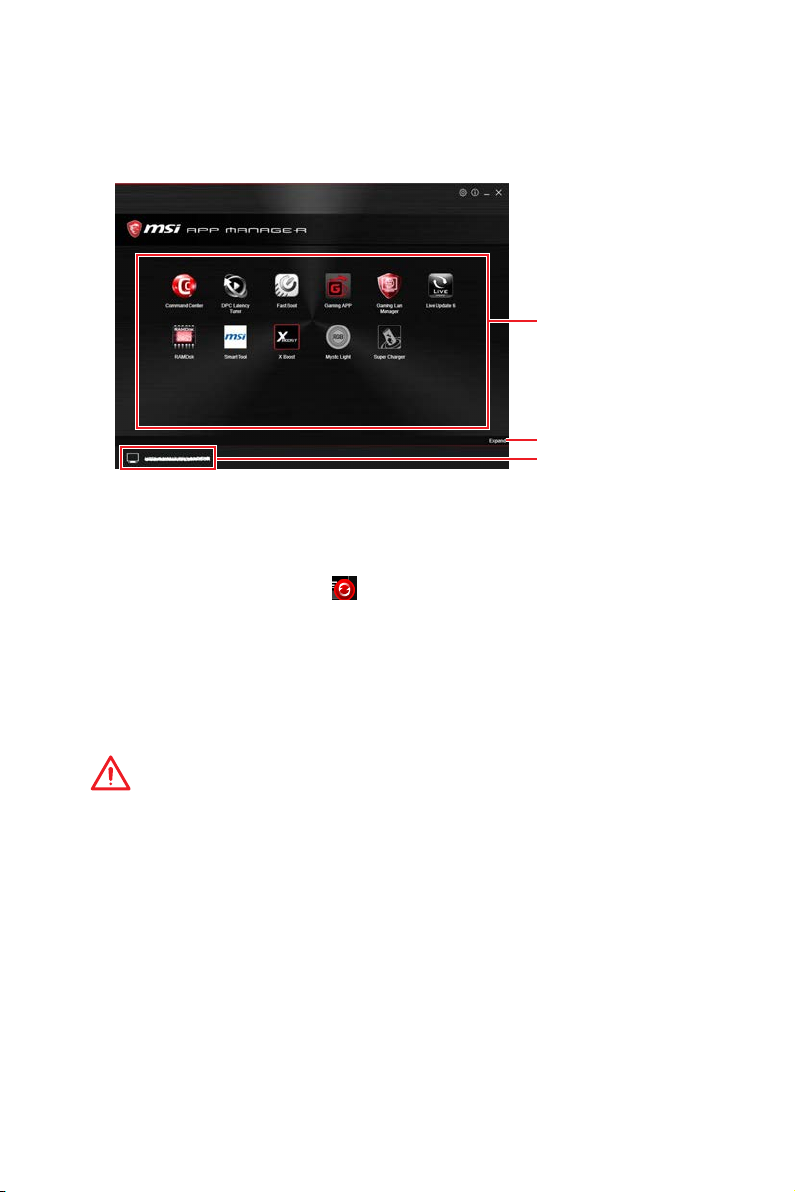

APP MANAGER ..................................................................................................... 59

LIVE UPDATE 6 ...................................................................................................... 60

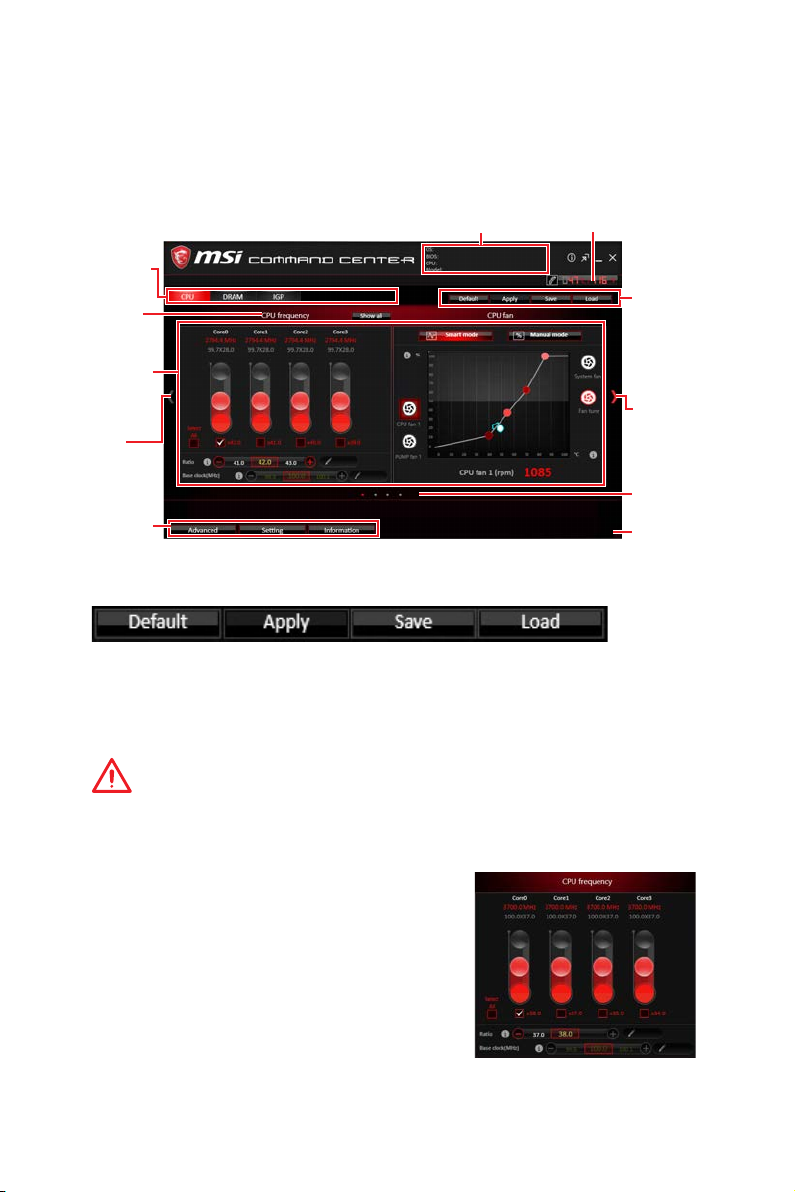

COMMAND CENTER ............................................................................................. 62

GAMING APP ......................................................................................................... 66

X-BOOST ............................................................................................................... 71

MYSTIC LIGHT ....................................................................................................... 73

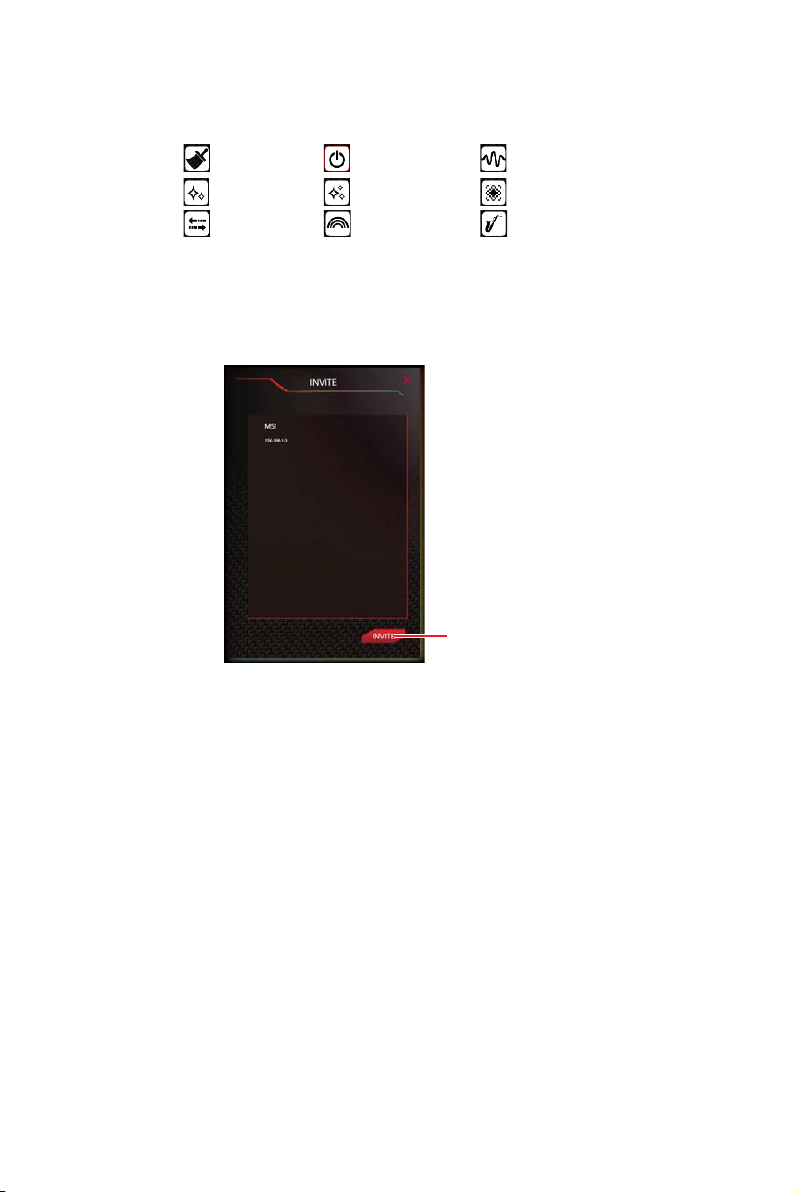

MYSTIC LIGHT PARTY ........................................................................................... 77

SMART TOOL ......................................................................................................... 81

RAMDISK............................................................................................................... 83

AMD RAID Configuration ..................................................................................... 84

Enabling RAIDXpert2 Configuration Utility .......................................................... 84

Initializing Disks ................................................................................................... 85

Creating Arrays ..................................................................................................... 86

Deleting Arrays ..................................................................................................... 87

Installing RAID Driver ........................................................................................... 88

Troubleshooting .................................................................................................. 89

Contents

Safety Information

y The components included in this package are prone to damage from electrostatic discharge (ESD). Please adhere to the following instructions to ensure successful computer assembly.

y Ensure that all components are securely connected. Loose connections may cause the computer to not recognize a component or fail to start.

y Hold the motherboard by the edges to avoid touching sensitive components.

y It is recommended to wear an electrostatic discharge (ESD) wrist strap when handling the motherboard to prevent electrostatic damage. If an ESD wrist strap is not available, discharge yourself of static electricity by touching another metal object before handling the motherboard.

y Store the motherboard in an electrostatic shielding container or on an anti-static pad whenever the motherboard is not installed.

y Before turning on the computer, ensure that there are no loose screws or metal components on the motherboard or anywhere within the computer case.

y Do not boot the computer before installation is completed. This could cause permanent damage to the components as well as injury to the user.

y If you need help during any installation step, please consult a certified computer technician.

y Always turn off the power supply and unplug the power cord from the power outlet before installing or removing any computer component.

y Keep this user guide for future reference.

y Keep this motherboard away from humidity.

y Make sure that your electrical outlet provides the same voltage as is indicated on the PSU, before connecting the PSU to the electrical outlet.

y Place the power cord such a way that people can not step on it. Do not place anything over the power cord.

y All cautions and warnings on the motherboard should be noted.

y If any of the following situations arises, get the motherboard checked by service personnel:

 Liquid has penetrated into the computer.  The motherboard has been exposed to moisture.  The motherboard does not work well or you can not get it work according to user

guide.

 The motherboard has been dropped and damaged.  The motherboard has obvious sign of breakage.

y Do not leave this motherboard in an environment above 60°C (140°F), it may damage the motherboard.

Safety Information

Specifications

CPU

Chipset AMD

Memory

Expansion Slots

Onboard Graphics

Support AMD Radeon™ Vega Graphics Processors for Socket AM4

* Please refer www.msi.com for more information on compatible memory.

@60Hz*

4096x2160 @30Hz, 2560x1600 @60Hz*

* Only support when using AMD® Ryzen™ with Radeon Vega Graphics Processors * Maximum shared memory of 2048 MB

Ryzen™ 1st and 2nd Generation/ Ryzen™ with

B450 Chipset

y 4x DDR4 memory slots, support up to 64GB*

 Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)  Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz

(by A-XMP OC MODE) y Dual channel memory architecture y Supports non-ECC UDIMM memory y Supports ECC UDIMM memory

y 1x PCIe 3.0 x16 slot

 Supports x16 speed with AMD

Ryzen™ 1st and 2nd

Generation processors

 Supports x8 speed with AMD

Ryzen™ with Radeon

Vega Graphics processors y 2x PCIe 2.0 x1 slots

y 1x DVI-D port, support a maximum resolution of 1920x1200

y 1x HDMI™ 1.4 port, supports a maximum resolution of

Storage

RAID

AMD

B450 Chipset

y 4x SATA 6Gb/s ports

AMD

CPU

y 1x M.2 slot (M2_1, Key M)

 Supports PCIe 3.0 x4 and SATA 6Gb/s 2242/ 2260 /2280/

22110 storage devices

AMD

B450 Chipset

y Supports RAID 0, RAID 1 and RAID 10 for SATA storage

devices

Continued on next page

Speciﬁcations

USB

Continued from previous page

B450 Chipset

AMD

y 8x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports

on the back panel, 4 ports available through the internal USB

3.1 Gen1 connectors) y 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the

back panel, 4 ports available through the internal USB 2.0 connectors)

LAN 1x Realtek

Audio

y Realtek y 7.1-Channel High Definition Audio

y 1x DVI-D port y 1x HDMI y 1x Flash BIOS Button

Back Panel Connectors

y 1x PS/2 keyboard/ mouse combo port y 2x USB 2.0 Type-A ports y 4x USB 3.1 Gen1 Type-A ports y 1x LAN (RJ45) port y 3x audio jacks

y 1x 24-pin ATX 12V power connector y 1x 8-pin ATX 12V power connector y 4x SATA 6Gb/s connectors y 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) y 2x USB 3.1 Gen1 connectors (support additional 4 USB 3.1

Gen1 ports)

y 1x 4-pin CPU fan connector y 2x 4-pin system fan connectors

Internal Connectors

y 2x 5050 RGB LED strip 12V connectors y 1x TPM module connector y 1x Front panel audio connector y 2x System panel connectors y 1x Chassis Intrusion connector y 1x Clear CMOS jumper y 1x Serial Port connector y 1x Parallel Port connector

Continued on next page

RTL8111H Gigabit LAN controller

ALC892 Codec

™

port

Speciﬁcations

Continued from previous page

I/O Controller NUVOTON NCT6797D Controller Chip

y CPU/System temperature detection

Hardware Monitor

y CPU/System fan speed detection y CPU/System fan speed control

Form Factor

BIOS Features

Software

y m-ATX Form Factor y 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

y 1x 128 Mb flash y UEFI AMI BIOS y ACPI 6.1, SM BIOS 2.8 y Multi-language

y Drivers y APP MANAGER y COMMAND CENTER y LIVE UPDATE 6 y MYSTIC LIGHT y SUPER CHARGER y GAMING APP y RAMDISK y X-BOOST y SMART TOOL y Open Broadcaster Software (OBS) y Norton™ Internet Security Solution y Google Chrome™, Google Toolbar, Google Drive y CPU-Z MSI GAMING

Continued on next page

Speciﬁcations

Special Features

Continued from previous page

y Audio

 Audio Boost  Voice Boost

y Storage

 Turbo M.2

y Fan

 Gaming Fan Control

y LED

 Mystic Light  Mystic Light Extension (RGB)  Mystic light SYNC  EZ DEBUG LED

y Protection

 PCI-E Steel Armor

y Performance

 DDR4 Boost  GAME Boost  CORE Boost

y VR

 VR Ready

y Gamer Experience

 GAMING HOTKEY  GAMING MOUSE Control

y BIOS

 Click BIOS 5

y Certification

 GAMING Certified

Speciﬁcations

Package contents

Please check the contents of your motherboard package. It should contain:

y Motherboard y Driver DVD y User Manual y Quick Installation Guide y I/O Shielding y SATA 6G Cable X2 y Case Badge y VIP card y M.2 Screw x1

Important

If any of the above items are damaged or missing, please contact your retailer.

Package contents

Block Diagram

HDMI DVI-D

2 Channel DDR4 Memory

CPU

PCIe x16

NCT6797D

Super I/O

PS/2 Mouse / Keyboard

1 x M.2

4x SATA 6Gb/s

6 x USB 2.0

PCI Express Bus

CHIPSET

8 x USB 3.1 Gen1

Realtek ALC892

Audio Jacks

PCIe x1

Block Diagram

Rear I/O Panel

USB 2.0

PS/2

LAN

Line-in

Line-out

DVI-D

Flash BIOS Button

USB 3.1 Gen1

Mic in

USB 2.0/ Flash BIOS Port

y Flash BIOS Button/ Port - Please refer to page 38 for Updating BIOS with Flash BIOS

Button.

LAN Port LED Status Table

Link/ Activity LED

Status Description

Off No link

Yellow Linked

Blinking Data activity

Speed LED

Status Description

Off 10 Mbps connection

Green 100 Mbps connection

Orange 1 Gbps connection

Realtek Audio Console

After Realtek Audio Console is installed. You can use it to change sound settings to get better sound experience.

Application Enhancement Advanced Settings

Device Selection

Connector Settings

Jack Status

Main Volume

Rear I/O Panel

y Device Selection - allows you to select a audio output source to change the related

options. The check sign indicates the devices as default.

y Application Enhancement - the array of options will provide you a complete guidance

of anticipated sound effect for both output and input device.

y Main Volume - controls the volume or balance the right/left side of the speakers that

you plugged in front or rear panel by adjust the bar.

y Advanced Settings - provides the mechanism to deal with 2 independent audio

streams.

y Jack Status - depicts all render and capture devices currently connected with your

computer.

y Connector Settings - configures the connection settings.

Audio 7.1-channel Configuration

To configure 7.1-channel audio, you have to connect front audio I/O module to JAUD1 connector and follow the below steps.

1. Click on the Realtek Audio Console > Advanced Settings to open the dialog below.

2. Select Mute the rear output device, when a front headphone plugged in.

3. Plug your speakers to audio jacks on rear and front I/O panel. When you plug into

a device at an audio jack, a dialogue window will pop up asking you which device is current connected.

Auto popup dialog

When you plug into a device at an audio jack, a dialogue window will pop up asking you which device is current connected.

Important

The pictures above for reference only and may vary from the product you purchased.

Rear I/O Panel

Overview of Components

JRGB2

CPU_PWR1

M2_1

CPU Socket

DIMMA1

DIMMA2

DIMMB1

DIMMB2

CPU_FAN1

SYS_FAN1

SYS_FAN2

ATX_PWR1

PCI_E1

PCI_E2

PCI_E3

JAUD1

JRGB1

JCOM1

JTPM1

JCI1

JLPT1

JBAT1

JUSB1

JUSB2

JUSB3

SATA▼3▲4

SATA▼1▲2

JFP2

JFP1

JUSB4

Overview of Components

Component Contents

Port Name Port Type Page

CPU_FAN1, SYS_FAN1~2 Fan Connectors 31

CPU_PWR1, ATX_PWR1 Power Connectors 29

CPU Socket AM4 CPU Socket 25

DIMMA1, DIMMA2, DIMMB1, DIMMB2

JAUD1 Front Audio Connector 28

JBAT1 Clear CMOS (Reset BIOS) Jumper 35

JCI1 Chassis Intrusion Connector 33

JCOM1 Serial Port Connector 31

JFP1, JFP2 Front Panel Connectors 27

JLPT1 Parallel Port Connector 32

JRGB1, JRGB2 RGB LED Connectors 34

JTPM1 TPM Module Connector 33

JUSB2, JUSB4 USB 2.0 Connectors 30

JUSB1, JUSB3 USB 3.1 Gen1 Connectors 30

M2_1 M.2 Slot (Key M) 28

PCI_E1~3 PCIe Expansion Slots 27

DIMM Slots 26

SATA1~4 SATA 6Gb/s Connectors 32

Overview of Components

CPU Socket

Distance from the center of the CPU to the nearest DIMM slot.

53.43 mm

Introduction to the AM4 CPU

The surface of the AM4 CPU has a yellow triangle to assist in correctly lining up the CPU for motherboard placement. The yellow triangle is the Pin 1 indicator.

Important

When changing the processor, the system configuration could be cleared and reset

BIOS to default values, due to the AM4 processor’s architecture.

Always unplug the power cord from the power outlet before installing or removing

the CPU.

When installing a CPU, always remember to install a CPU heatsink. A CPU heatsink

is necessary to prevent overheating and maintain system stability.

Confirm that the CPU heatsink has formed a tight seal with the CPU before booting

your system.

Overheating can seriously damage the CPU and motherboard. Always make sure the cooling fans work properly to protect the CPU from overheating. Be sure to apply an even layer of thermal paste (or thermal tape) between the CPU and the heatsink to enhance heat dissipation.

If you purchased a separate CPU and heatsink/ cooler, Please refer to the documentation in the heatsink/ cooler package for more details about installation.

This motherboard is designed to support overclocking. Before attempting to overclock, please make sure that all other system components can tolerate overclocking. Any attempt to operate beyond product specifications is not recommended. MSI operation beyond product specifications.

does not guarantee the damages or risks caused by inadequate

Overview of Components

DIMM Slots

DIMMA1 DIMMB1

Channel A Channel B

DIMMA2 DIMMB2

Memory module installation recommendation

DIMMB2 DIMMB2

DIMMA2 DIMMA2 DIMMA2

DIMMB1

DIMMA1

Important

Always insert memory modules in the DIMMA2 slot first.

Due to chipset resource usage, the available capacity of memory will be a little less

than the amount of installed.

Based on the processor specification, the Memory DIMM voltage below 1.35V is

suggested to protect the processor.

Some memory modules may operate at a lower frequency than the marked value when overclocking due to the memory frequency operates dependent on its Serial Presence Detect (SPD). Go to BIOS and find the DRAM Frequency to set the memory frequency if you want to operate the memory at the marked or at a higher frequency.

It is recommended to use a more efficient memory cooling system for full DIMMs installation or overclocking.

The stability and compatibility of installed memory module depend on installed CPU and devices when overclocking.

Due to AM4 CPU/memory controller official specification limitation, the frequency of memory modules may operate lower than the marked value under the default state. Please refer www.msi.com for more information on compatible memory.

Overview of Components

PCI_E1~3: PCIe Expansion Slots

PCI_E1: PCIe 3.0 x16*/ PCIe 3.0 x8**

PCI_E2: PCIe 2.0 x1

PCI_E3: PCIe 2.0 x1

* For Ryzen™ 1st and 2nd Generation processors ** For Ryzen™ with Radeon Vega Graphics processors

Important

If you install a large and heavy graphics card, you need to use a tool such as MSI Gaming Series Graphics Card Bolster to support its weight to prevent deformation of the slot.

When adding or removing expansion cards, always turn off the power supply and unplug the power supply power cable from the power outlet. Read the expansion card’s documentation to check for any necessary additional hardware or software changes.

JFP1, JFP2: Front Panel Connectors

These connectors connect to the switches and LEDs on the front panel.

JFP2

Power LED

JFP1

Power Switch

+++-

2 10 1

Reserved

HDD LED Reset Switch

1 HDD LED + 2 Power LED +

3 HDD LED - 4 Power LED -

5 Reset Switch 6 Power Switch

7 Reset Switch 8 Power Switch

9 Reserved 10 No Pin

Buzzer

++-

Speaker

1 Speaker - 2 Buzzer +

3 Buzzer - 4 Speaker +

Overview of Components

M2_1: M.2 Slot (Key M)

Installing M.2 SSD

1. Loosen the M.2 riser screw from the

motherboard.

2. Move and fasten the M.2 riser screw to the appropriate location for your M.2 SSD.

Video Demonstration

Watch the video to learn how to Install M.2 module.

http://youtu.be/JCTFABytrYA

3. Insert your M.2 SSD into the M.2 slot at a 30-degree angle.

4. Secure the M.2 SSD in place with the supplied M.2 screw.

Supplied M.2 screw

30°

JAUD1: Front Audio Connector

This connector allows you to connect audio jacks on the front panel.

2 10

1 MIC L 2 Ground

3 MIC R 4 NC

5 Head Phone R 6 MIC Detection

7 SENSE_SEND 8 No Pin

9 Head Phone L 10 Head Phone Detection

Overview of Components

CPU_PWR1, ATX_PWR1: Power Connectors

These connectors allow you to connect an ATX power supply.

8 4 1

1 Ground 5 +12V

2 Ground 6 +12V

3 Ground 7 +12V

4 Ground 8 +12V

1 +3.3V 13 +3.3V

2 +3.3V 14 -12V

3 Ground 15 Ground

ATX_PWR1

131

4 +5V 16 PS-ON#

5 Ground 17 Ground

6 +5V 18 Ground

7 Ground 19 Ground

8 PWR OK 20 Res

9 5VSB 21 +5V

10 +12V 22 +5V

11 +12V 23 +5V

12 +3.3V 24 Ground

CPU_PWR1

Important

Make sure that all the power cables are securely connected to a proper ATX power supply to ensure stable operation of the motherboard.

Overview of Components

JUSB2, JUSB4: USB 2.0 Connectors

These connectors allow you to connect USB 2.0 ports on the front panel.

2 10

1 VCC 2 VCC

3 USB0- 4 USB1-

5 USB0+ 6 USB1+

7 Ground 8 Ground

9 No Pin 10 NC

Important

Note that the VCC and Ground pins must be connected correctly to avoid possible

damage.

In order to recharge your iPad,iPhone and iPod through USB ports, please install

MSI

SUPER CHARGER utility.

JUSB1, JUSB3: USB 3.1 Gen1 Connectors

These connectors allow you to connect USB 3.1 Gen1 ports on the front panel.

1 10

1120

1 Power 11 USB2.0+

2 USB3_RX_DN 12 USB2.0-

3 USB3_RX_DP 13 Ground

4 Ground 14 USB3_TX_C_DP

5 USB3_TX_C_DN 15 USB3_TX_C_DN

6 USB3_TX_C_DP 16 Ground

Important

Note that the Power and Ground pins must be connected correctly to avoid possible damage.

7 Ground 17 USB3_RX_DP

8 USB2.0- 18 USB3_RX_DN

9 USB2.0+ 19 Power

10 NC 20 No Pin

Overview of Components

CPU_FAN1, SYS_FAN1~2: Fan Connectors

Fan connectors can be classified as PWM (Pulse Width Modulation) Mode or DC Mode. PWM Mode fan connectors provide constant 12V output and adjust fan speed with speed control signal. DC Mode fan connectors control fan speed by changing voltage. When you plug a 3-pin (Non-PWM) fan to a fan connector in PWM mode, the fan speed will always maintain at 100%, which might create a lot of noise. You can follow the instruction below to adjust the fan connector to PWM or DC Mode. However, with autodetection mode fan connectors, the system will auto detect the fan mode.

Default PWM Mode fan connectors

CPU_FAN1

Default DC Mode fan connectors

SYS_FAN1/ SYS_FAN2

Pin definition of fan connectors

PWM Mode pin definition

1 Ground 2 +12V

3 Sense 4 Speed Control Signal

1 Ground 2 Voltage Control

3 Sense 4 NC

DC Mode pin definition

Important

You can switch between PWM mode and DC mode and adjust fan speed in BIOS >

HARDWARE MONITOR.

Make sure fans are working properly after switching the PWM/ DC mode.

JCOM1: Serial Port Connector

This connector allows you to connect the optional serial port with bracket.

2 10

1 DCD 2 SIN

3 SOUT 4 DTR

5 Ground 6 DSR

7 RTS 8 CTS

9 RI 10 No Pin

Overview of Components

SATA1~4: SATA 6Gb/s Connectors

These connectors are SATA 6Gb/s interface ports. Each connector can connect to one SATA device.

SATA4

SATA3 SATA2 SATA1

Important

Please do not fold the SATA cable at a 90-degree angle. Data loss may result during

transmission otherwise.

SATA cables have identical plugs on either sides of the cable. However, it is recommended that the flat connector be connected to the motherboard for space saving purposes.

JLPT1: Parallel Port Connector

This connector allows you to connect the optional parallel port with bracket.

2 26

Overview of Components

1 RSTB# 2 AFD# 3 PRND0

4 ERR# 5 PRND1 6 PINIT#

7 PRND2 8 LPT_SLIN# 9 PRND3

10 Ground 11 PRND4 12 Ground

13 PRND5 14 Ground 15 PRND6

16 Ground 17 PRND7 18 Ground

19 ACK# 20 Ground 21 BUSY

22 Ground 23 PE 24 Ground

25 SLCT 26 No Pin

JCI1: Chassis Intrusion Connector

This connector allows you to connect the chassis intrusion switch cable.

Normal (default)

Trigger the chassis intrusion event

Using chassis intrusion detector

1. Connect the JCI1 connector to the chassis intrusion switch/ sensor on the chassis.

2. Close the chassis cover.

3. Go to BIOS > SETTINGS > Security > Chassis Intrusion Configuration.

4. Set Chassis Intrusion to Enabled.

5. Press F10 to save and exit and then press the Enter key to select Yes.

6. Once the chassis cover is opened again, a warning message will be displayed on

screen when the computer is turned on.

Resetting the chassis intrusion warning

1. Go to BIOS > SETTINGS > Security > Chassis Intrusion Configuration.

2. Set Chassis Intrusion to Reset.

3. Press F10 to save and exit and then press the Enter key to select Yes.

JTPM1: TPM Module Connector

This connector is for TPM (Trusted Platform Module). Please refer to the TPM security platform manual for more details and usages.

2 14

1 LPC Clock 2 3V Standby power

3 LPC Reset 4 3.3V Power

5 LPC address & data pin0 6 Serial IRQ

7 LPC address & data pin1 8 5V Power

9 LPC address & data pin2 10 No Pin

11 LPC address & data pin3 12 Ground

13 LPC Frame 14 Ground

Overview of Components

JRGB1, JRGB2: RGB LED Connectors

The JRGB1/JRGB2 connector allows you to connect the 5050 RGB LED strips 12V.

JRGB2

JRGB1

1 +12V 2 G

3 R 4 B

JRGB1/ JRGB2

JRGB1 JRGB2

Extension cable

5050 RGB LED strips 12V

Important

The JRGB1/ JRGB2 connector supports up to 2 meters continuous 5050 RGB LED

strips (12V/G/R/B) with the maximum power rating of 3A (12V).

Always turn off the power supply and unplug the power cord from the power outlet

before installing or removing the RGB LED strip.

Please use MSI’s software to control the extended LED strip.

EZ Debug LED

These LEDs indicate the debug status of the motherboard.

Overview of Components

CPU - indicates CPU is not detected or fail. DRAM - indicates DRAM is not detected or fail. VGA - indicates GPU is not detected or fail. BOOT - indicates the booting device is not detected

or fail.

JBAT1: Clear CMOS (Reset BIOS) Jumper

There is CMOS memory onboard that is external powered from a battery located on the motherboard to save system configuration data. If you want to clear the system configuration, set the jumpers to clear the CMOS memory.

Keep Data (default)

Resetting BIOS to default values

1. Power off the computer and unplug the power cord

2. Use a jumper cap to short JBAT1 for about 5-10 seconds.

3. Remove the jumper cap from JBAT1.

4. Plug the power cord and power on the computer.

Clear CMOS/ Reset BIOS

Overview of Components

BIOS Setup

The default settings offer the optimal performance for system stability in normal conditions. You should always keep the default settings to avoid possible system damage or failure booting unless you are familiar with BIOS.

Important

BIOS items are continuously update for better system performance. Therefore, the description may be slightly different from the latest BIOS and should be for reference only. You could also refer to the HELP information panel for BIOS item description.

The pictures in this chapter are for reference only and may vary from the product you purchased.

The BIOS items will vary with the processor.

Entering BIOS Setup

Press Delete key, when the Press DEL key to enter Setup Menu, F11 to enter Boot Menu message appears on the screen during the boot process.

Function key

F1: General Help list F2: Add/ Remove a favorite item F3: Enter Favorites menu F4: Enter CPU Specifications menu F5: Enter Memory-Z menu F6: Load optimized defaults F7: Switch between Advanced mode and EZ mode F8: Load Overclocking Profile F9: Save Overclocking Profile F10: Save Change and Reset* F12: Take a screenshot and save it to USB flash drive (FAT/ FAT32 format only). Ctrl+F: Enter Search page

* When you press F10, a confirmation window appears and it provides the modification information. Select between Yes or No to confirm your choice.

BIOS Setup

Resetting BIOS

You might need to restore the default BIOS setting to solve certain problems. There are several ways to reset BIOS:

y Go to BIOS and press F6 to load optimized defaults. y Short the Clear CMOS jumper on the motherboard.

Important

Be sure the computer is off before clearing CMOS data. Please refer to the Clear CMOS jumper section for resetting BIOS.

Updating BIOS

Updating BIOS with M-FLASH

Before updating: Please download the latest BIOS file that matches your motherboard model from MSI

website. And then save the BIOS file into the USB flash drive. Updating BIOS:

1. Press Del key to enter the BIOS Setup during POST.

2. Insert the USB flash drive that contains the update file into the computer.

3. Select the M-FLASH tab and click on Yes to reboot the system and enter the flash

mode.

4. Select a BIOS file to perform the BIOS update process.

5. After the flashing process is 100% completed, the system will reboot

automatically.

Updating the BIOS with Live Update 6

Before updating: Make sure the LAN driver is already installed and the internet connection is set

properly. Updating BIOS:

1. Install and launch MSI LIVE UPDATE 6.

2. Select BIOS Update.

3. Click on Scan button.

4. Click on Download icon to download and install the latest BIOS file.

5. Click Next and choose In Windows mode. And then click Next and Start to start

updating BIOS.

6. After the flashing process is 100% completed, the system will restart

automatically.

BIOS Setup

Updating BIOS with Flash BIOS Button

Before updating: Please download the latest BIOS file that matches your motherboard model from MSI

website and rename the BIOS file to MSI.ROM. And then, save the MSI.ROM file to the root of USB flash drive.

Important

Only the FAT32 format USB flash drive supports updating BIOS by Flash BIOS Button.

1. Connect power supply to CPU_PWR1 and ATX_PWR1. (No other components are

necessary but power supply.)

2. Plug the USB flash drive that contains the MSI.ROM file into the Flash BIOS Port

on rear I/O panel.

3. Press the Flash BIOS Button to flash BIOS, and the LED next to Flash BIOS Button

starts flashing.

4. After the flashing BIOS process is 100% completed, the LED would be off

simultaneously.

BIOS Setup

EZ Mode

At EZ mode, it provides the basic system information and allows you to configure the basic setting. To configure the advanced BIOS settings, please enter the Advanced Mode by pressing the Setup Mode switch or F7 function key.

A-XMP switch

GAME BOOST switch

Information display

M-Flash

Favorites

Hardware Monitor

Setup Mode switch

y GAME BOOST switch - click on it to toggle the GAME BOOST for OC.

Important

Please don’t make any changes in OC menu and don’t load defaults to keep the optimal performance and system stability after activating the GAME BOOST function.

y A-XMP switch (optional) - click on the inner circle to enable/ disable the A-XMP. Switch the outer circle to select the memory profile if any. This switch will only be available if the installed processor and memory modules support XMP function.

y Setup Mode switch - press this tab or the F7 key to switch between Advanced mode and EZ mode.

y Screenshot - click on this tab or the F12 key to take a screenshot and save it to USB flash drive (FAT/ FAT32 format only).

y Search - click on this tab or the Ctrl+F keys and the search page will show. It allows you to search by BIOS item name, enter the item name to find the item listing. Move the mouse over a blank space and right click the mouse to exit search page.

Important

In search page, only the F6, F10 and F12 function keys are available.

y Language - allows you to select the language of BIOS setup.

y System information - shows the CPU/ DDR speed, CPU/ MB temperature, MB/ CPU

type, memory size, CPU/ DDR voltage, BIOS version and build date.

y Boot device priority bar - you can move the device icons to change the boot priority. The boot priority from high to low is left to right.

Screenshot

Language

System

information

Boot device priority bar

Function buttons

BIOS Setup

y Information display - click on the CPU, Memory, Storage, Fan Info and Help buttons on left side to display related information.

y Function buttons - enable or disable the LAN Option ROM, HD audio controller, AHCI/RAID, CPU Fan Fail Warning Control, Windows 10 WHQL support and BIOS Log Review by clicking on their respective button.

y M-Flash - click on this button to display the M-Flash menu that provides the way to

update BIOS with a USB flash drive.

y Hardware Monitor - click on this button to display the Hardware Monitor menu that allows you to manually control the fan speed by percentage.

y Favorites menu - press the F3 key to enter Favorites menu. It allows you to create personal BIOS menu where you can save and access favorite/ frequently-used BIOS setting items.

 Default HomePage - allows you to select a BIOS menu (e.g. SETTINGS, OC...,etc)

as the BIOS home page.

 Favorite1~5 - allows you to add the frequently-used/ favorite BIOS setting items

in one page.

 To add a BIOS item to a favorite page (Favorite 1~5)

1. Move the mouse over a BIOS item not only on BIOS menu but also on search

page.

2. Right-click or press F2 key.

3. Choose a favorite page and click on OK.

 To delete a BIOS item from favorite page

1. Move the mouse over a BIOS item on favorite page (Favorite 1~5)

2. Right-click or press F2 key.

3. Choose Delete and click on OK.

BIOS Setup

Advanced Mode

Press Setup Mode switch or F7 function key can switch between EZ Mode and Advanced Mode in BIOS setup.

A-XMP switch

GAME BOOST switch

Setup Mode switch

Screenshot

Language

System information

Boot device priority bar

BIOS menu selection

Menu display

BIOS menu selection

y GAME BOOST switch/ Setup Mode switch/ Screenshot/ Language/ System information/ Boot device priority bar - please refer to the descriptions of EZ Mode Overview section.

y BIOS menu selection - the following options are available:

 SETTINGS - allows you to specify the parameters for chipset and boot devices.  OC - allows you to adjust the frequency and voltage. Increasing the frequency may

get better performance.

 M-FLASH - provides the way to update BIOS with a USB flash drive.  OC PROFILE - allows you to manage overclocking profiles.  HARDWARE MONITOR - allows you to set the speeds of fans and monitor voltages

of system.

 BOARD EXPLORER - provides the information of installed devices on this

motherboard.

y Menu display - provides BIOS setting items and information to be configured.

BIOS Setup

SETTINGS

System Status

f System Date

Sets the system date. Use tab key to switch between date elements. The format is <day> <month> <date> <year>. <day> Day of the week, from Sun to Sat, determined by BIOS. Read-only.

<month> The month from Jan. through Dec. <date> The date from 1 to 31 can be keyed by numeric function keys. <year> The year can be adjusted by users.

f System Time

Sets the system time. Use tab key to switch between time elements. The time format is <hour> <minute> <second>.

f SATA PortX

Shows the information of connected SATA device.

Important

If the connected SATA device is not displayed, turn off computer and re-check SATA cable and power cable connections of the device and motherboard.

f System Information

Shows detailed system information, including CPU type, BIOS version, and Memory (read only).

f DMI Information

Shows system information, desktop Board Information and chassis Information. (Read only).

Advanced

f PCI Subsystem Settings

Sets PCI, PCI express interface protocol and latency timer. Press Enter to enter the sub-menu.

BIOS Setup

fAbove 4G memory/ Crypto Currency mining [Disabled]

Enables or disables 64-bit capable devices to be decoded in above 4G address space. It is only available if the system supports 64-bit PCI decoding.

[Enabled] Allows you to utilize more than 4x GPUs. [Disabled] Disables this function.

fPCIe SlotX Lanes Configuration

PCIe lanes conﬁguration is for MSI M.2 Xpander / MSI M.2 Xpander-Z / Other M.2 PCIe storage card. The options in this item will vary with the installed processor.

f ACPI Settings

Sets ACPI parameters of onboard power LED behaviors. Press Enter to enter the submenu.

fPower LED [Blinking]

Sets shining behaviors of the onboard Power LED. [Dual Color] The power LED turns to another color to indicate the S3 state. [Blinking] The power LED blinks to indicate the S3 state.

f Integrated Peripherals

Sets integrated peripherals' parameters, such as LAN, HDD, USB and audio. Press

Enter to enter the sub-menu.

fOnboard LAN Controller [Enabled]

Enables or disables the onboard LAN controller.

fLAN Option ROM [Disabled]

Enables or disables the legacy network Boot Option ROM for detailed settings. This item will appear when Onboard LAN Controller is enabled.

[Enabled] Enables the onboard LAN Boot ROM. [Disabled] Disables the onboard LAN Boot ROM.

fNetwork Stack [Disabled]

Sets UEFI network stack for optimizing IPv4 / IPv6 function. This item is available when Onboard LAN Controller is Enabled.

[Enabled] Enables UEFI network stack. [Disabled] Disables UEFI network stack.

fIpv4 PXE Support [Enabled]

When Enabled, the system UEFI network stack will support Ipv4 protocol. This item will appear when Network Stack is Enabled.

[Enabled] Enables the Ipv4 PXE boot support. [Disabled] Disables the Ipv4 PXE boot support.

fIpv6 PXE Support [Enabled]

When Enabled, the system UEFI network stack will support Ipv6 protocol. This item will appear when Network Stack is enabled.

[Enabled] Enables the Ipv6 PXE boot support. [Disabled] Disables the Ipv6 PXE boot support.

BIOS Setup

fSATA Mode [AHCI Mode]

Sets the operation mode of the onboard SATA controller. [AHCI Mode] Specify the AHCI mode for SATA storage devices. AHCI (Advanced

[RAID Mode] Enables RAID function for SATA storage devices.

fSATAx Hot Plug [Disabled]

Allows user to enable or disable the SATA hot plug support. [Enabled] Enables hot plug support for the SATA ports. [Disabled] Disables hot plug support for the SATA ports.

fHD Audio Controller [Enabled]

Enables or disables the onboard High Deﬁnition Audio controller.

f Integrated Graphics Conﬁguration (optional)

Adjusts integrated graphics settings for optimum system. Press Enter to enter the sub-menu.

fInitiate Graphic Adapter [PEG] (optional)

Selects a graphics device as the primary boot device. [IGD] Integrated Graphics Display. [PEG] PCI-Express Graphics Device.

fIntegrated Graphics [Auto] (optional)

If set to Force, BIOS will enable the integrated graphics controller.

fUMA Frame Buffer Size [Auto] (optional)

Selects a ﬁxed amount of system memory allocated to the onboard graphics. This item will be available when Integrated Graphics is enabled.

f USB Conﬁguration

Sets the onboard USB controller and device function. Press Enter to enter the submenu.

Host Controller Interface) offers some advanced features to enhance the speed and performance of SATA storage device, such as Native Command Queuing (NCQ) and hot-plugging.

fXHCI Hand-off [Enabled]

Enables or disables XHCI hand-off support for the operating system without XHCI hand-off feature.

fLegacy USB Support [Enabled]

Sets Legacy USB function support. [Auto] The system will automatically detect if any USB device is connected

and enable the legacy USB support. [Enabled] Enable the USB support under legacy mode. [Disabled] The USB devices will be unavailable under legacy mode.

BIOS Setup

f Super IO Conﬁguration

Sets system Super I/O chip parameters including LPT and COM ports. Press Enter to enter the sub-menu.

fSerial (COM) Port 0 Configuration

Sets detailed conﬁguration of serial(COM) port 0. Press Enter to enter the submenu.

fSerial Port [Enabled]

Enables or disables serial port.

fSerial (COM) Port0 Settings [Auto]

Sets serial port 0. If set to Auto, BIOS will optimize the IRQ automatically or you can set it manually.

fParallel (LPT) Port Configuration

Sets detailed conﬁguration of parallel port (LPT/ LPTE). Press Enter to enter the sub-menu.

fParallel (LPT) Port [Enabled]

Enables or disables parallel(LPT/ LPTE) port.

fParallel (LPT) Port Settings [Auto]

Sets parallel port (LPT). If set to Auto, BIOS will optimize the IRQ automatically or you can set it manually.

fDevice Mode [STD Printer Mode]

Selects an operating mode for parallel port. [STD Printer Mode] Printer port mode [SPP] Standard Parallel Port mode [EPP-1.9 and SPP Mode] Enhanced Parallel Port-1.9 mode + Standard

Parallel Port mode.

f Power Management Setup

Sets system Power Management of ErP and AC Power Loss behaviors. Press Enter to enter the sub-menu.

fErP Ready [Disabled]

Enables or disables the system power consumption according to ErP regulation. [Enabled] Optimize the system power consumption according to ErP

regulation. It will not support S4 & S5 wake up by USB, PCI and PCIe

devices. [Disabled] Disables this function.

fRestore after AC Power Loss [Power Off]

Sets the system behaviors while encountering the AC power loss. [Power Off] Leaves the system in power off state after restoring AC power. [Power On] Boot up the system after restoring AC power. [Last State] Restores the system to the previous state (power on/ power off)

before AC power loss.

BIOS Setup

fSystem Power Fault Protection [Disabled]

Enables or disables the system to boot up when detecting abnormal voltage input. [Enabled] Protect the system from unexpected power operating and remain

[Disabled] Disables this function.

f Windows OS Conﬁguration

Sets Windows detailed conﬁguration and behaviors. Press Enter to enter the submenu.

fWindows 10 WHQL Support [Disabled]

Enables the supports for Windows 10 or disables for other operating systems. Before enabling this item, make sure all installed devices & utilities (hardware & software) should meet the Windows 10 requirements.

[Enabled] The system will switch to UEFI mode to meet the Windows

[Disabled] Disables this function.

fInternal GOP Configuration

Manages the onboard Graphics Output Protocol (GOP). Press Enter to enter the sub-menu. This sub-menu will appear when Windows 10 WHQL Support is enabled.

fSecure Boot

Sets the Windows secure boot to prevent the unauthorized accessing. Press Enter to enter the sub-menu. This sub-menu will appear when Windows 10 WHQL

Support is enabled.

f Wake Up Event Setup

Sets system wake up behaviors for different sleep modes. Press Enter to enter the sub-menu.

the shut down status.

requirement.

fWake Up Event By [BIOS]

Selects the wake up event by BIOS or operating system. [BIOS] Activates the following items, set wake up events of these items. [OS] The wake up events will be deﬁned by OS.

fResume By RTC Alarm [Disabled]

Disables or enables the system wake up by RTC Alarm. [Enabled] Enables the system to boot up on a scheduled time/ date. [Disabled] Disables this function.

fDate (of month) Alarm/ Time (hh:mm:ss) Alarm

Sets RTC alarm date/ Time. If Resume By RTC Alarm is set to [Enabled], the system will automatically resume (boot up) on a speciﬁed date/hour/minute/second in these ﬁelds (using the + and - keys to select the date & time settings).

BIOS Setup

fResume By PCI-E Device [Disabled]

Enables or disables the wake up function of installed PCI-E expansion cards, integrated LAN controllers or USB devices which are supported by third party integrated chips.

[Enabled] Enables the system to be awakened from the power saving modes

[Disabled] Disables this function.

fResume by USB Device [Disabled]

Disables or enables system wake up from S3/S4 by USB device. [Enabled] Enables the system to be awakened from sleep state when activity of

[Disabled] Disables this function.

fResume From S3/S4/S5 by PS/2 Mouse [Disabled]

Enables or disables the system wake up by PS/2 mouse. [Enabled] Enables the system to be awakened from S3/ S4/ S5 state when

[Disabled] Disables this function.

fResume From S3/S4/S5 by PS/2 Keyboard [Disabled]

Enables or disables the system wake up by PS/2 keyboard. [Any Key] Enables the system to be awakened from S3/ S4/ S5 state when

[Hot Key] Enables the system to be awakened from S3/ S4/ S5 state when

[Disabled] Disables this function.

fHot Key [Ctrl+Space]

Selects a combination of keys as a hot key to wake the system. This item appears when you set the Resume From S3/S4/S5 by PS/2 Keyboard to Hot Key.

f Secure Erase+

Enables or disables Secure Erase+ function. Secure Erase+ is the best way to effectively wipe all data from a SSD. Please note that data of SSD will be erased after enabling Secure Erase+.

when activity or input signal of PCIe device is detected.

USB device is detected.

activity of PS/2 mouse is detected.

activity of any key on PS/2 keyboard is detected.

activity of hot key on PS/2 keyboard is detected.

f Realtek PCIe GBE Family Controller

Shows driver information and configuration of the ethernet controller parameter.

Boot

Sets the sequence of system boot devices.

f Full Screen Logo Display [Enabled]

Enables or disables to show the full screen logo while system POST. [Enabled] Shows the logo in full screen.

[Disabled] Shows the POST messages.

BIOS Setup

f Bootup NumLock State [On]

Select the keyboard NumLock state upon bootup.

f Info Block effect [Unlock]

Sets the state of Help information block. [Unlock] Sliding effect.

[Lock] Fix the Help information block on the screen.

f POST Beep [Disabled]

Enables or disables POST beep.

f AUTO CLR_CMOS [Disabled]

Enables or disables the CMOS data to be resumed automatically when the system cannot boot to OS and reboot repeatedly.

f Boot Mode Select [LEGACY+UEFI]

Sets the system boot mode from legacy or UEFI architecture depending on OS installation requirement. This item will become un-selectable and will be configured automatically by BIOS when Windows 10 WHQL Support is enabled.

[UEFI] Enables UEFI BIOS boot mode support only. [LEGACY+UEFI] Enables both Legacy BIOS boot mode and UEFI BIOS boot

f FIXED BOOT ORDER Priorities/ UEFI USB Key Drive BBS Priorities/ USB Key Drive

BBS Priorities

Sets device priority for system boot.

f Boot Option Priorities

These items are used to prioritize the installed boot devices.

mode.

Security

f Administrator Password

Sets administrator password for system security. User has full rights to change the BIOS items with administrator password. After setting the administrator password, the state of this item will show Installed.

f User Password

Sets User Password for system security. User has limited rights to change the BIOS items with user password. This item will be available when administrator password is set. After setting the user password, the state of this item will show Installed.

f Password Check [Setup]

Selects a condition that will request the password. [Setup] A password will be requested for entering the BIOS Setup.

[Boot] A password will be requested for booting the system.

BIOS Setup

f Password Clear [Enabled]

Enables or disables the clear CMOS behavior to clear a set password. [Enabled] The password will be erased after clear CMOS.

[Disabled] The password will always be kept.

Important

When selecting the Administrator / User Password items, a password box will appear on the screen. Type the password then press Enter. The password typed now will replace any previous set password from CMOS memory. You will be prompted to confirm the password. You may also press Esc key to abort the selection.

To clear a set password, press Enter when you are prompted to enter a new password. A message will confirm the password is being disabled. Once the password is disabled, you can enter the setup and OS without authorization.

f Trusted Computing

Sets TPM (Trusted Platform Module) function.

fSecurity Device Support [Disabled]

Enables or disables the TPM function to build the endorsement key for accessing the system.

fAMD fTPM switch [AMD CPU fTPM]

Selects TPM device. This item will appear when Security Device Support is enabled.

[AMD CPU fTPM] Select it for AMD Firmware TPM. [AMD CPU fTPM Disabled] Select it for Discrete TPM.

fDevice Select [Auto]

Sets the version of the TPM device. The version must be identical with the device. Sets to Auto, system will detect the TPM 2.0 or TPM 1.2 model automatically.

f Chassis Intrusion Conﬁguration

Press Enter to enter the sub-menu.

fChassis Intrusion [Disabled]

Enables or disables recording messages while the chassis is opened. This function is ready for the chassis equips a chassis intrusion switch.

[Enabled] Once the chassis is opened, the system will record and issue a

warning message. [Reset] Clear the warning message. After clearing the message, please

return to Enabled or Disabled. [Disabled] Disables this funcion.

Save & Exit

f Discard Changes and Exit

Exit BIOS setup without saving any change.

BIOS Setup

f Save Changes and Reboot

Save all changes and reboot the system.

f Save Changes

Save current changes.

f Discard Changes

Discard all changes and restore to the previous values.

f Restore Defaults

Restore or load all default values.

f Boot Override

The installed boot-able devices will appear on this menu, you can select one of them to be the boot device.

BIOS Setup

Important

Overclocking your PC manually is only recommended for advanced users.

Overclocking is not guaranteed, and if done improperly, it could void your warranty or

severely damage your hardware.

If you are unfamiliar with overclocking, we advise you to use GAME BOOST function

for easy overclocking.

The BIOS items in OC menu will vary with the processor.

f OC Explore Mode [Normal]

Enables or disables to show the normal or expert version of OC settings. [Normal] Provides the regular OC settings in BIOS setup.

[Expert] Provides the advanced OC settings for OC expert to configure in BIOS

Note: We use * as the symbol for the OC settings of Expert mode.

setup.

f CPU Ratio [Auto]

Sets the CPU ratio that is used to determine CPU clock speed. This item can only be changed if the processor supports this function.

f Core Performance Boost [Auto]

Enables or disables the Core Performance Boost (CPB). This item appears when the installed CPU supports this function.

f Downcore Control [Auto] (optional)

Sets the number of processor cores to be used. This item appears when the installed CPU supports this function.

f A-XMP [Disabled]

Please enable A-XMP or select a profile of memory module for overclocking the memory. This item will be available when the installed processor, memory modules and motherboard support this function.

BIOS Setup

f DRAM Frequency [Auto]

Sets the DRAM frequency. Please note the overclocking behavior is not guaranteed.

f Adjusted DRAM Frequency

Shows the adjusted DRAM frequency. Read-only.

f Memory Try It ! [Disabled]

It can improve memory compatibility or performance by choosing optimized memory preset.

f Memory Retry Count [5]

Sets the count of memory retry. When memory retry fails reach the count, the memory will go back to the last available setting.

f Advanced DRAM Conﬁguration

Press Enter to enter the sub-menu. User can set the memory timing for each/ all memory channel. The system may become unstable or unbootable after changing memory timing. If it occurs, please clear the CMOS data and restore the default settings. (Refer to the Clear CMOS jumper section to clear the CMOS data, and enter the BIOS to load the default settings.)

f DigitALL Power

Press Enter to enter the sub-menu. Controls the digital powers related to CPU PWM.

fCPU Loadline Calibration Control [Auto]

The CPU voltage will decrease proportionally according to CPU loading. Higher load-line calibration could get higher voltage and good overclocking performance, but increase the temperature of the CPU and VRM. If set to Auto, BIOS will conﬁgure this setting automatically.

fCPU NB Loadline Calibration Control [Auto]

The CPU-NB voltage will decrease proportionally according to CPU-NB loading. Higher load-line calibration could get higher voltage and good overclocking performance, but increase the temperature. If set to Auto, BIOS will conﬁgure this setting automatically.

fCPU Over Voltage Protection [Auto]

Sets the voltage limit for CPU over-voltage protection. If set to Auto, BIOS will conﬁgure this setting automatically. Higher voltage provides less protection and may damage the system.

fCPU Under Voltage Protection [Auto]

Sets the voltage limit for CPU under-voltage protection. If set to Auto, BIOS will conﬁgure this setting automatically. Higher voltage provides less protection and may damage the system.

fCPU Over Current Protection [Auto]

Sets the current limit for CPU over-current protection. If set to Auto, BIOS will conﬁgure this setting automatically.

[Auto] This setting will be configured automatically by BIOS. [Enhanced] Extends the current range for over-current protection.

BIOS Setup

fVR 12VIN OCP Expander [Auto]

Expands the limitation of VR Over Current Protection with 12V input voltage. The higher expanding value indicates less protection. Therefore, please adjust the current carefully if needed, or it may damage the CPU/ VR MOS. If set to "Auto", BIOS will configure this setting automatically.

f CPU Voltages control [Auto]

These options allows you to set the voltages related to CPU. If set to Auto, BIOS will set these voltages automatically or you can set it manually.

f DRAM Voltages control [Auto]

These options allows you to set the voltages related to memory. If set to Auto, BIOS will set these voltages automatically or you can set it manually.

f Memory Changed Detect [Enabled]*

Enables or disables the system to issue a warning message during boot when the memory has been replaced.

[Enabled] The system will issue a warning message during boot and then you have

[Disabled] Disables this function and keeps the current BIOS settings.

f CPU Speciﬁcations

Press Enter to enter the sub-menu. This sub-menu displays the information of installed CPU. You can also access this information menu at any time by pressing [F4]. Read only.

fCPU Technology Support

Press Enter to enter the sub-menu. The sub-menu shows the key features of installed CPU. Read only.

f MEMORY-Z

Press Enter to enter the sub-menu. This sub-menu displays all the settings and timings of installed memory. You can also access this information menu at any time by pressing [F5].

to load the default settings for new devices.

fDIMMx Memory SPD

Press Enter to enter the sub-menu. The sub-menu displays the information of installed memory. Read only.

f CPU Features

Press Enter to enter the sub-menu.

fGlobal C-state Control [Enabled] (optional)

Enables/ disables IO based C-state generation and DF C-states.

fSimultaneous Multi-Threading [Enabled] (optional)

Enables/ disables the AMD Simultaneous Multi-Threading. This item appears when the installed CPU supports this technology.

fOpcache Control [Auto] (optional)

Enables/ disables Opcache. Opcache stores recent decode instruction to save the decoding time when the instruction is repeated. And it may increase the CPU performance and reduce the power consumption slightly.

BIOS Setup

fIOMMU Mode (optional)

Enables/disables the IOMMU (I/O Memory Management Unit) for I/O Virtualization.

fSpread Spectrum (optional)

This function reduces the EMI (Electromagnetic Interference) generated by modulating clock generator pulses.

[Enabled] Enables the spread spectrum function to reduce the EMI

[Disabled] Enhances the overclocking ability of CPU Base clock.

(Electromagnetic Interference) problem.

Important

If you do not have any EMI problem, leave the setting at [Disabled] for optimal system stability and performance. But if you are plagued by EMI, select the value of Spread Spectrum for EMI reduction.

The greater the Spread Spectrum value is, the greater the EMI is reduced, and the system will become less stable. For the most suitable Spread Spectrum value, please consult your local EMI regulation.

Remember to disable Spread Spectrum if you are overclocking because even a slight jitter can introduce a temporary boost in clock speed which may just cause your overclocked processor to lock up.

fRelaxed EDC throttling [Auto] (optional)

Relaxed EDC throttling reduces the amount of time the processor will throttle the cores.

[Auto] AMD's recommendation [Enabled] Reduce the amount of time the processor will throttle. [Disabled] Part-specific EDC throttling protection enabled.

fAMD Cool’n’Quiet [Enabled]

The Cool’n’Quiet technology can effectively and dynamically lower CPU speed and power consumption.

fSVM Mode [Enabled]

Enables/ disables the AMD SVM (Secure Virtual Machine) Mode.

fBIOS PSP Support [Enabled] (optional)

Enables/ disables the BIOS PSP support. It manages PSP sub-items including all C2P/P2C mailbox, Secure S3, fTPM support.

fPower Supply Idle Control [Auto] (optional)

It allows you to select the power-saving control mode for the CPU when all cores are in a non-CO state. If set to Auto, BIOS will conﬁgure these settings.

fCPU VDD_SoC Current Optimization [Auto] (optional)

Sets the currents of CPU VDD and SoC. If set to Auto, BIOS will conﬁgure this setting automatically.

[Auto] This setting will be configured automatically by BIOS. [Custom Setting] Allows you to set the currents manually.

BIOS Setup

M-FLASH

M-FLASH provides the way to update BIOS with a USB flash drive. Please download the latest BIOS file that matches your motherboard model from MSI website, save the BIOS file into your USB flash drive. And then follow the steps below to update BIOS.

1. Insert the USB flash drive that contains the update file into the computer.

2. Click on M-FLASH tab, a demand message will be prompted. Click on Yes to

reboot and enter the flash mode.

3. The system will enter the flash mode and a file selection menu will appear after

rebooting.

4. Select a BIOS file to perform the BIOS update process.

5. After the flashing process is 100% completed, the system will reboot

automatically.

BIOS Setup

OC PROFILE

f Overclocking Proﬁle 1/ 2/ 3/ 4/ 5/ 6

Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6 management. Press Enter to enter the sub-menu.

fSet Name for Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6

Name the current overclocking proﬁle.

fSave Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6

Save the current overclocking proﬁle.

fLoad Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6

Load the current overclocking proﬁle.

fClear Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6

Clear the current overclocking proﬁle.

f OC Proﬁle Load from ROM

Load OC profile from BIOS ROM.

f OC Proﬁle Save to USB

Save OC profile to the USB flash drive. The USB flash drive should be FAT/ FAT32 format only.

f OC Proﬁle Load from USB

Load OC profile from the USB flash drive. The USB flash drive should be FAT/ FAT32 format only.

BIOS Setup

HARDWARE MONITOR

Temperature & Speed

Fan Manage

Setting Buttons

Temperature/ Voltage display

f Temperature & Speed

Shows the current CPU temperature, system temperature and fans' speeds.

f Fan Manage

 PWM - allows you to select the PWM mode for fan operation.  DC - allows you to select the DC mode for fan operation.  Fan step up/ down time - allows you to set the period of fan step up/ down.  Smart Fan Mode field - allows you to drag the gradient points to configure

the fan target values for Smart Fan mode. Smart Fan can control the fan speed automatically depending on the CPU temperature to keep it with in a specific range. If the current CPU temperature reaches to the target value, the Smart Fan function will be activated.

Important

The changing will achieve after you save the changes and reboot the system.

Make sure fans are working properly after switching the PWM/ DC mode.

f Settings Buttons

 All Full Speed - configures all fans to run at full operating speed.  All Set Default - configures all fans to run at default operating speed.  All Set Cancel - discards current changes and restores previous operating fan

speeds .

f Temperature/ Voltage display

Shows CPU/ system temperature and the current voltages of CPU, system and memory.

BIOS Setup

Software Description

Please download and update the latest utilities and drivers at www.msi.com

Installing Windows® 10

1. Power on the computer.

2. Insert the Windows

3. Press the Restart button on the computer case.

4. Press F11 key during the computer POST (Power-On Self Test) to get into Boot

Menu.

5. Select the Windows

6. Press any key when screen shows Press any key to boot from CD or DVD...

message.

7. Follow the instructions on the screen to install Windows

Installing Drivers

1. Start up your computer in Windows® 10.

2. Insert MSI

3. Click the Select to choose what happens with this disc pop-up notification, then

select Run DVDSetup.exe to open the installer. If you turn off the AutoPlay feature from the Windows Control Panel, you can still manually execute the DVDSetup.exe from the root path of the MSI Driver Disc.

4. The installer will find and list all necessary drivers in the Drivers/Software tab.

5. Click the Install button in the lower-right corner of the window.

6. The drivers installation will then be in progress, after it has finished it will prompt

you to restart.

7. Click OK button to finish.

8. Restart your computer.

10 installation disc/USB into your computer.

10 installation disc/USB from the Boot Menu.

Driver Disc into your optical drive.

10.

Installing Utilities

Before you install utilities, you must complete drivers installation.

1. Open the installer as described above.

2. Click the Utilities tab.

3. Select the utilities you want to install.

4. Click the Install button in the lower-right corner of the window.

5. The utilities installation will then be in progress, after it has finished it will prompt

you to restart.

6. Click OK button to finish.

7. Restart your computer.

Software Description

APP MANAGER

APP MANAGER is a handy management application for integration of MSI applications and software interface. Providing easy shortcut entrance and real-time update information of all the MSI software and applications.

APP list

Total Install/ Update Motherboard Information

y APP list - shows all the applications and software be supported by this motherboard.

An icon represents a entrance to the application.

 Colorful icon - a colorful icon means that the application had have been installed successfully and it is available. Double click on desired icon to access the application. A refresh icon update version.

 Gray icon - the icon with gray painting means that the application is not available and you have to install it if necessary. Double click on the gray icon and the update information will show. Click on the INSTALL button to install the application.

y Motherboard Information - shows the model name of motherboard. y Total Install/ Update - click on this tab to update/ install all the applications.

shows to inform you that the application has a

Important

Please note that, once you uninstall the APP MANAGER, all the MSI applications and software will be uninstalled simultaneously.

Software Description

LIVE UPDATE 6

LIVE UPDATE 6 is an application for the MSI® system to scan and download the latest drivers, BIOS and utilities. With LIVE UPDATE 6, you don’t need to search the drivers on websites, and don’t need to know the models of motherboard and graphics cards. LIVE UPDATE 6 will download the appropriate drivers automatically.

Download Options

Download List

Scan / Download / Total Installer button

System Information

Last Scanned Date

There are Live Update, History, Setting and System Information tabs at the top. You can click the tab to switch the control panel.

y Live Update - When you launch LIVE UPDATE 6, you will see the Live update tab at first. This tab allows you to select files to download. You can also read the relevant information by clicking the information icon

y History - shows the downloading history.

y Setting - allows you to specify the frequency that LIVE UPDATE 6 remind you to

update.

y System Information - displays the information of the system.

y FAQ - shows Frequently Asked Questions.

y Online Help - shows Online Help information.

on the right of the item listed.

Updating The System

This section describes how to update your system with LIVE UPDATE 6. Please follow the steps below:

Software Description

1. Select the Live Update tab.

2. Choose Automatic scan, system will automatically scan all the items and search

for the latest update files. Or you can choose Manual scan and select the items you wish to scan.

3. Click the Scan button at the bottom. It may take several moments to complete the

process.

4. When the download list appears, please select the items you intend to update.

5. Click Download button at the bottom.

6. When Save Path prompt, you can specify a download directory.

7. When downloading you will see the screen below. It may take several moments to

complete the process.

8. To install the applications, simply unpack the packages and install.

Total Installer

Total Installer is a convenient feature to simplify frequent installing procedure. To use Total Installer:

1. Scan updates in Live Update tab.

2. Check the Select All check-box you intend to update.

3. Click the Total Installer button. LIVE UPDATE 6 will automatically install them.

4. When prompted, click OK to complete the Total Installer procedure

5. Reboot your system.

Software Description

COMMAND CENTER

COMMAND CENTER is an user-friendly software and exclusively developed by MSI, helping users to adjust system settings and monitor status under OS. With the help of COMMAND CENTER, making it possible to achieve easier and efficient monitoring process and adjustments than that under BIOS. In addition, the COMMAND CENTER can be a server for mobile remote control application.

CPU TemperatureSystem Information

Feature Menu

Feature Title

Feature Control Panel

Previous Feature

Option Buttons

Profile Buttons

y Default - load the default values for the current feature.

y Apply - apply your changes.

y Save - store values in the file with individual file extension.

y Load - load the values from the file.

Important

Every time you shut down the system, the configured setting will be restored to the factory default. If you want to use the saved settings, you have to load it every time by clicking the Load and Apply buttons.

Profile

Buttons

Next Feature

Page Indicator

Resize Corner

CPU Frequency

CPU Frequency control panel allows you to change CPU Ratio and Base clock. You can see the current frequency of each CPU core on the top of the panel.

Software Description

CPU Fan

CPU Fan control panel provides Smart mode and Manual Mode. You can switch the control mode by

clicking the Smart Mode and Manual Mode buttons on the top of the CPU Fan control panel.

y Manual Mode - allows you to manually control the CPU fan speed by percentage.

y Smart Mode - a linear fan speed control feature. The control panel contains 4 dots allows you to drag and adjust the Smart Speed slopes. The fan speed will be changed along these lines with CPU temperature. The white dot will create strip chart in real time.

y System Fan Button - to open the system fan control panel in new window.

y Fan Tune Button - to automatically optimize the smart fan setting.

CPU Voltage

CPU Voltage control panel allows you to control the CPU voltage.

Manual Mode

Smart Mode

DRAM Frequency & DRAM Voltage

y DRAM Frequency - Shows the DRAM clock, ratio

and frequency.

y DRAM Voltage - Allows you to adjust the DRAM voltage. The risky values are displayed in red.

IGP Frequency & GT Voltage

y IGP Frequency - Allows you to adjust the IGP ratio,

and shows the IGP clock, ratio and frequency.

y GT Voltage - Allows you to adjust the GT voltage. The risky values are displayed in red.

Software Description

Option Buttons - Advanced

When click the Advanced button, The Voltage, Fan and DRAM icons will appear.

y Voltage - allows you to adjust advanced voltage values of CPU and chipset.

Fan - allows you to control the system fans speed.

DRAM - shows the current Advanced DRAM parameters, and allows you to change

the settings by selecting values from the drop-down menu on the right hand side.

Option Buttons - Setting

When click the Setting button, The Record, Warning and Mobile Control icons will appear.

y Record - allows you to monitor the status of voltage, fan speed and temperature in real time.

 To filter record charts, select the check box next to the items.

 When click the Play button, the chart pane will start to show the recording chart. If you want to check the value of a specific spot on chart, please move the orange vertical line to the spot.

 History Record stores the data and names with date and time.

 To make a history record: Select items and click the Record button. When finished, click the Record button again. The data will be stored in the drop-down menu.

 To load a record, click the drop-down menu and select one from the list.

 To delete a record, select the record that you want to delete, and click the Trash

Can icon.

Software Description

y Warning - contains fields of voltage, fan speed and temperature for you to set the threshold values. When system detects the status over your settings, a warning message will pop-up.

y Mobile Control - is only available for the motherboard with the built-in WiFi module. It allows you to enable/disable the COMMAND CENTER Remote Server. Please refer to the instruction on the Mobile Control control panel.

y To start remote control: (optional)

1. Download and install MSI

COMMAND CENTER APP to your mobile device.

2. Enable COMMAND CENTER Remote Server on the Mobile Control panel.

3. Enable SoftAP Management.

4. Enter SSID and Password, and then click the Apply button.

5. Activate Wi-Fi

6. Run MSI

7. Find the IP address on the SoftAP Management Setting area, and enter the IP

address on your MSI

8. Press Refresh on the MSI

on your mobile device and connect to SoftAP with the SSID.

COMMAND CENTER APP on your mobile device.

COMMAND CENTER APP to link your system.

COMMAND CENTER APP to verify that monitoring and

OC functions are working properly.

Option Buttons - Information

When click the Information button, The Motherboard, CPU, Memory and HW monitor icons will appear.

You can click the icons to open the related information.

Gadget Mode

COMMAND CENTER provides a gadget mode to monitor the system status. You can switch between gadget mode and full mode by clicking the arrow icon

1. Click the Spanner icon

2. Select the check box next to the items.

3. Click the Close button.

on the top left.

y To arrange gadgets:

on the Gadget mode,

a configuration panel will slide out.

Software Description

GAMING APP

GAMING APP is an application designed to quickly control your system for improving gaming performance.

Remote Control Setting Button

Setting Button

Information Button

Cooler Boost

CPU Frequency

Control Mode Buttons

Gaming Function Buttons

GPU Frequency

Peripheral Device Function Buttons

y Setting Button - allows you to choose running GAMING APP when Windows starts or let GAMING APP to overwrite the VGA fan control function.

y Information Button - shows the information of this application.

y CPU Frequency - shows the current CPU frequency.

y GPU Frequency - shows the current GPU frequency.

y Control Mode Buttons

 OC Mode - apply turbo frequency to CPU and OC frequency to GPU.  Gaming Mode - automatically optimize the CPU ratio and the GPU clock.

 Silent Mode - reverts the CPU ratio and GPU clock to the default values. y Gaming Function Buttons - allows you to use OSD and Eye Rest functions. y Peripheral Device Function Buttons - allows you to set the Gaming Hotkey, Mouse

Master, VR Ready and Voice Boost functions.

y Remote Control Setting Button - available for the motherboards with built-in or

discrete WiFi module. It allows you to set up Name and Password to link the android device and the motherboard. Please follow the steps below to complete the remote control setting.

1. Download and install the MSI

GAMING APP APP to your android device.

2. Set up a set of Name and Password on the Remote Control Setting panel, and then click the Apply button.

3. Connect your android device and motherboard to the same local area network.

4. Run MSI

5. Press the Remote Control Setting icon on the MSI

GAMING APP APP on your android device.

GAMING APP APP to find the

paired device Name you set in the Remote Control Setting panel.

6. Enter the Password you set in the Remote Control Setting panel.

7. Finally, you can use the MSI

GAMING APP APP to control your motherboard with

the android device.

Software Description

Eye Rest

Eye Rest allows you to optimize the display on your monitor.

y EyeRest - reduces blue-light of your LED backlit screen, in order to protect your

eyes.

y Gaming - automatically increase contrast ratio of your screen. y Movie - automatically increase dynamic contrast ratio of your screen. y Customize - allows you to adjust gamma, contrast and color balance for your screen. y Default - loads the default settings.

Software Description

Gaming Hotkey

Gaming Hotkey provides instant control of the system through user defined hotkeys.

Categories Toggle

Hotkey Manager

Current Hotkeys

Gaming Hotkey ON/OFF

y Gaming Hotkey ON/OFF - allows you to turn ON/OFF the Gaming Hotkey function. y Categories Toggle - allows you to toggle over the Hotkey categories.

 Macro Genie - provides the keyboard and mouse macro record function and

allows you to define the hotkeys for the macro recorder.

1. Click on the Record button to start the keyboard and mouse macro recorder.

2. Click on the Stop button to stop the recorder.

3. Key-in a file name and set-up the parameter for the macro.

4. Finally, click on the Save button to save the recorded macro.

 Windows Keys - allows you to define hotkeys to replace Windows default

keyboard shortcuts.

 Login Keys - provides hotkey login function.

 MSI Smart Keys - allows you to define hotkeys for MSI Smart Keys. y Hotkey Manager - allows you to create, edit and delete hotkeys. y Current Hotkeys - shows all existing hotkeys.

Important

The Caps Lock, Num Lock, Scroll Lock, Window Home, Application and BackSpace

keys can not be used as Hotkeys.

Some key combinations are reserved for use by Microsoft Windows and can not be

assigned as a hotkey.

Software Description

Mouse Master

Mouse Master provides mouse macro function. You can also use it to change DPI of your mouse.

Delay Time

Macro Hot Key

Mouse Action

Action List

Edit Buttons Load Button

Save Button

DPI Setting Default Button

DPI Hot Key

Test Area

Clear Button

y Delay Time - allows you to apply a delay time in mouse macro. y Macro Hot Key - allows you to assign a hotkey from A to Z to activate the macro. y Mouse Action - assigns mouse actions to the macro.

 New - captures the mouse coordinate and add to the macro.

 Left - add a left-click to the macro.

 Middle - add a middle-click to the macro.

 Left - add a left-click to the macro. y Action List - shows the actions of the current macro. y Edit Buttons - there 3 buttons for editing the macro.

 Run - activates the macro.

 Delete - removes the selected action from the macro.

 Clear - removes all actions from the macro. y Load Button - allows you to load a macro. y Save Button - allows you to save the macro to a file. y DPI Setting - allows you select the mouse DPI from the drop-down menu. y Default Button - reverts to the default DPI setting. y DPI Hot Key - allows you to assign a hotkey from A to Z to activate the DPI setting.

Please note that you muse hold the hotkey to keep the DPI setting. When you release the hotkey, the DPI setting will be reverted to default.

y Test Area - allows you to test the mouse movement. y Clear Button - clears the test area.

Software Description

VR Ready

It will optimize the performance of your system to ensure everything is VR Ready.

VR ON/ OFF

Applications

y VR ON/ OFF -enables or disables VR settings. y Applications - appears when you turn on the VR support. It allows you to close some

applications to optimize the system for better VR experience.

Voice Boost

Voice Boost function allows you to boost volume in voice communication tools.

ON/ OFF toggle

VoIP Selection

VoIP Setting

y ON/ OFF toggle -enables or disables Voice Boost function. y VOIP Selection - selects your voice communication tool. y VOIP Setting - adjust the volume ratio in voice communication tool.

Important

The Voice Boost function is only available with Nahimic 2.5/ 3 and voice communication tools (TeamSpeak, Raidcall, Skype, SkypeHost and Discord).

Software Description

X-BOOST

The MSI X-BOOST allows you to select the system performance mode to meet your current system environment or support faster storage access speed for your external storage or memory cards.

Easy

In Easy page, you can select one system performance mode to meet the current system environment.

Setting

Performance mode

Performance information

y Performance mode - moves over the mouse to any one of performance mode and

click on the ON button to enable it.

Important

The Customize mode is the default of system performance.

y Performance information - displays the system performance diagram of enabled

mode.

y Setting - enables or disables Run X-BOOST when windows starts.

Software Description

Advance

In Advance page, you can enable the USB SPEED UP, the STORAGE BOOST and VR BOOST.

Setting

Device information

y Device information - displays the information and current transfer rates/ access

speeds of USB/ storage devices.

y Setting - enables or disables Run X-BOOST when windows starts. y USB SPEED UP - supports faster data transfer rates of the USB storage devices. y STORAGE BOOST - supports faster access speed of storage device.

Important

Please note that you can only select one mode at a time from Easy or Advance page

as MSI X-BOOST function.

The improved transfer rate/ access speed will vary with the USB/ storage device.

Software Description

MYSTIC LIGHT

MYSTIC LIGHT is an application allows you to control LED lights of MSI products. For some earlier products, you can go to product download page to download the applicable LED control software.

Main Screen

The Main screen is used to configure what devices need to be synchronized and LED light effect options.

ON/ OFF All LED

SYNC PROFILE

Right hand side panel

Apply Button Save Button

Live Preview

y ON/OFF All LED - By toggling Off/On here, you

disable/enable all the LED on supported gaming gear, memory, graphics card and motherboard etc.

y SYNC PROFILE - In this section, you may apply different LED setting to your device.

 All Sync - Default: All the Sync device bubble would appear red.

To change the LED color & effect, use the panel on the right hand side to switch to different settings.

Please noted that for light effect, the option would be more or less depending on the devices you have, it will only list the light effects which are available for all included devices.

For the color section, you can always select a different color but it won’t apply to the device that does not have such color.

Software Description

You can also change settings for single device. To do that, you have to click the sync bubble twice and make it turn gray as below.

Then you go to DEVICE SETTING and click SETTING.

click SETTING

After that, the computer will open a different windows and you can modify LED there individually.

Note: The motherboard picture and name may vary according to different models.

 Individual - Default: All the Sync device bubble would appear black.

To change color for individual device, use the device setting panel below to lock on any device and click SETTING to customize the LED color/effect on it.

Software Description

You can save the current settings by clicking Save.

click SETTING

If you wish to customize multiple device at the same time, click the bubble until it turn red like below.

Use the LIGHT EFFECT & COLOR section on the main menu to make change.

Note: Currently only GTX 1080 Ti Lightning -/X/Z and GTX 1080 Ti Gaming -/X Trio supports Light Speed/Brightness and no device supports Direction.

 Profile01~03 - Save Sync profile settings. y Save Button - saves sync device settings and lighting effect settings to the current

Sync Profile.

Software Description

Motherboard Screen

The motherboard screen is used to configure the LED light effect of the motherboard.

SYNC ALL

Return Button

ON/ OFF ALL LED

PROFILE

LED AREA

Apply Button

Save Button

Motherboard Name

Live Preview

Light Effect Options

Note: The motherboard picture and name may vary according to different models.

y Return Button - returns to the main screen. y ON/OFF ALL LED - allows you to turn ON/ OFF all LED lights of the motherboard. y SYNC ALL - allows you to synchronize all LED light effect of the motherboard. y Motherboard Name - shows the name of the motherboard. y Live Preview - gives you the full experience of your configuration’s look, feel while

you are editing it.

y Light Effect Options - allow you to customize lighting effect of the sync devices.

 LIGHT EFFECT - allows you to change LED light effect.

 LIGHT SPEED - allows you to change LED light speed.

 BRIGHTNESS - allows you to change LED light brightness.

Note:

Currently only Z370 GODLIKE GAMING, H370 GAMING PRO CARBON and B360 GAMING PRO CARBON support Light Speed/Brightness.

 COLOR - allows you to select the color for single light effects (Stack, Breathing,

Flashing etc.).

y Apply Button - applies lighting effect settings. y PROFILE - manages sets of motherboard LED light effect settings. y Save Button - saves sync device settings and lighting effect settings to the current

profile.

y LED AREA - switches to the other LED area on the motherboard.

Software Description

MYSTIC LIGHT PARTY

This section allows you to control LED across different platform. The pre-requisite is that the platforms should all be connected within the same local network. Refer to device support list web page. https://www.msi.com/Landing/Mystic-Light-Party.

PARTY

Upon clicking PARTY, this window would pop out. On your master platform, click + to create a host group.

Click + to create a host group

Enter the group name (3~15 characters) and group array (13~30 columns, 5~30 rows) and click the CREATE button.

Software Description

The group has been created. The other computers in the same local network are able to join the group with MYSTIC LIGHT software.

DELETE Group Button

Control Group Button

Invitation Status Indicator

Group In/Out Status

 DELETE Group Button - deletes the group.

 Control Group Button - enters the group control panel.

 Invitation Status Indicator - appears when receive an invitation to a group.

 Group In/Out Status - shows Group In/Out status.

Joining Group

On your slave platform, click PARTY to open MYSTIC LIGHT PARTY interface and click In to join the network.

Software Description

JOIN Button

Group Control Panel

If everything is set up properly, you can see your slave platform on master platform MYSTIC LIGHT PARTY window.

APPLY button

Group Members Icon

Light Effect Options

Invite Button

Color Selection

At the panel below, you may apply different LED settings and color to the selected platform.

Please be aware of certain limitation on the devices such as if you apply green color to a red-only device, the LED will stay off since it has on such color or if you apply rainbow to a no-rainbow mode device, the LED will stay on constantly.

y Group Member Icons - displays members status, and you can select a member to

delete it in the DELETE pop-up window.

Light Color Member Serial Number

Selected Indicator (The red border)

Wi-Fi Indicator (Indicates that the device is connected over Wi-Fi)

DELETE the member

Software Description

y Invite Button - enters the INVITE screen. y Light Effect Options - allow you to customize lighting effect.

Off

Flash

Marquee

y Color Selection - allows you to change color.

Always on

Double ﬂash

Rainbow Sound beat

Breathe

Random

Inviting Member

Click the Invite button in the Group Control Panel to enter the INVITE screen. Select the device you want to invite and click the INVITE button.

INVITE Button

Software Description

SMART TOOL

SMART TOOL is a convenient tool that can help you to create your Windows installation USB flash drive, and it can also create a super RAID.

Main menu

After installing and activating SMART TOOL, it will display a main menu for you to choose Smart Tool or SUPER RAID. Note that the SUPER RAID is only available when your system equipped with at least 3 hard-disk drives (1 system disk and 2 data disks).

SMART TOOL

Before you can create your Windows installation USB flash drive, you’ll need to have your Windows Installation DVD or ISO file, and also have a minimum of a 8GB USB flash drive to create your installer. Be sure to backup files on the USB drive, this process will erase it.

To create the Windows installation USB drive:

Step1. Choose source folder

y In the Source folder box, click Browse button and select the file from the dialog box.

(This option will copy all Windows installation files.)

y Add USB drivers to USB pan driver option allows you to add USB driver on the USB

pen drive. This option appears depend on the motherboard you purchased.

Step2. Choose Storage device

y Choose USB storage and select your USB flash drive in the drop-down list. In case

the USB flash drive is not listed, click the Refresh Drive button.

y If you want to install Windows on the RAID drive, select the RAID driver version from

the drop-down menu.

y If you want to add NVMe drive for your NVMe SSD drive, check the Add NVMe driver

checkbox.

Important

You can also create an installer ISO image file by selecting the ISO destination in Step2, and then burn it onto the DVD. However, this method does not support RAID

driver.

Step3. Click the Start buton.

Software Description

SUPER RAID

This utility allows you to create a super RAID in Windows system.

To create a super RAID:

1. Use checkboxs to select the disks you want included in your RAID.

2. Choose Speed Up or Backup for RAID type.

y Speed Up = RAID0 y Backup = RAID1

3. Click Start.

4. When prompt Finish!, click OK.

Important

SUPER RAID can't includ the system disk.

Software Description

RAMDISK

RAMDISK creates a virtual RAM drive using the available memory in your computer, the performance of the RAMDISK is faster than an SSD and hard drive. RAMDISK allows you to store any temporary information on it. Furthermore, using the RAMDISK will extend your SSD’s life by sparing it from excessive reading and writing.

Creating a RAM Disk

When RAMDISK is started, it will create a default RAM disk. If you want to change settings, refer to following instructions.

Setting

Backup

Management

Option

Apply Button

y Setting - specify Letter, Name, Size and Format of the RAM disk. y Option - select browser temporary files to save/load on the RAM disk. You can also

add software files to improve reading speed.

y Backup - specify backup and restore settings to prevent data loss. All files will be lost

each time the RAMDISK is stopped if you do not backup.

 Browse Button - set the path to the image file.

 Backup Right Now Button - manually backup files.

 Restore On Boot - check this box to have the image file loaded automatically when

RAMDISK starts.

 Auto Backup - check this box to backup automatically over a period of time. y Apply Button - allows you to apply changes. y Management - shows RAMDISK information and allows you to delete files.

Remove the RAM disk

Dislpay information Delete files in the RAM disk.

Software Description

AMD RAID Configuration

The following are the RAID levels supported by RAIDXpert2.

RAID 0 (Striping) breaks the data into blocks which are written to separate hard

RAID 1 (Mirroring) provides data redundancy by mirroring data between the hard

RAID 10 (Striped RAID1 Sets) uses four hard drives to create a combination of RAID 0

Volume (JBOD) provides the ability to link-together storage from one or several

RAIDABLE (also known as RAID Ready) allows the user to add more storage space or

RAID level comparison

drives. Spreading the hard drive I/O load across independent channels greatly improves I/O performance.

drives and provides enhanced read performance.

and 1 by forming a RAID 0 array from two RAID 1 arrays.

disks, regardless of the size of the space on those disks. Useful in scavenging space on disks unused by other disks in the array. Does not provide performance benefits or data redundancy.

create a redundant array after a system is installed.

RAID 0 RAID 1 RAID 10

Minimum # drives 2 2 4 Data protection None Excellent Excellent Read performance Excellent OK OK Write performance Excellent Good Good Capacity utilization 100% 50% 50%

Important

All the information/ volumes/ pictures listed in your system might differ from the illustrations in this appendix.

Enabling RAIDXpert2 Configuration Utility

To enter the RAIDXpert2 Configuration Utility menu

1. Power on and press Delete key to enter BIOS Setup menu.

2. Press F7 to switch to Advanced mode from EZ mode.

3. Go to BIOS > SETTINGS > Advanced > Integrated Peripherals > SATA Mode and change setting to RAID Mode.

4. Go to BIOS > SETTINGS > Advanced > Windows OS Configuration > Windows 10 WHQL Support and change setting to Enabled.

5. Press F10 to save configuration and exit, and then reboot and press Delete key to

enter BIOS Setup menu.

6. Go to BIOS > SETTINGS > Advanced > RAIDXpert2 Configuration Utility sub-menu.

AMD RAID Conﬁguration

Initializing Disks

New disks and legacy disks must be initialized before they can be used to create an AMD-RAID array. Initialization writes AMD-RAID configuration information (metadata) to a disk.

Important

If a disk is part of an AMD-RAID array, the disk cannot be selected for initialization. To initialize the disk anyway, delete the AMD-RAID array. Data on the disk is deleted during initialization so ensure the correct disks are chosen to initialize.

A legacy disk can contain valid data. When a legacy disk is initialized, all data on the disk is lost.

To initialize disks

1. As previously mentioned, enable RAIDXpert2 Configuration Utility.

2. Go to BIOS > SETTINGS > Advanced > RAIDXpert2 Configuration Utility > Physical

Disk Management > Select Physical Disk Operations > Initialize Disk sub-menu.

3. Select desired disks by changing the Physical Disk setting to Enabled.

4. Select OK, then press Enter.

5. Review the warning message, if you want to proceed, select YES, then press Enter.

6. Initialization takes 10 to 15 seconds per disk. During initialization, a complete

rescan of all channels is done automatically.

AMD RAID Conﬁguration

Creating Arrays

Arrays can be created after the disks are initialized.

Important

For redundant arrays, the Create process is not started until after the operating system and AMD-RAID OS drivers have been installed and the system has booted to the operating system. However, the arrays are immediately available to use for either a bootable array or a data array.

Array numbers are valid only for a given boot and might be different in the RAIDXpert2 Configuration Utility and RAIDXpert2. If a permanent label is required, use the RAIDXpert2 Web GUI Array Naming feature.

At any point in the procedure, return to a prior window by pressing ESC.

If the system is booted from an AMD-RAID bootable array, the first array in the Arrays section must be the bootable array. The system boots only from the first array in the Arrays section.

To create an array

1. As previously mentioned, enable RAIDXpert2 Configuration Utility.

2. Go to BIOS > SETTINGS > Advanced > RAIDXpert2 Configuration Utility > Array

Management > Create Array sub-menu.

3. Select the RAID level from the Select RAID Level drop down menu.

4. Enter Select Physical Disks sub-menu, select member disks by changing the

Physical Disk setting to Enabled.

5. Select Apply Changes, then press Enter to apply and go back to previous sub-

menu.

6. Change the Select CacheTagSize, Read Cache Policy and Write Cache Policy

settings according to your needs.

7. Select Create Array, then press Enter.

AMD RAID Conﬁguration

Deleting Arrays

Important

Deleting an array permanently destroys all data that is on the array. This action cannot be undone and it is very unlikely that the data can be recovered.

Do not delete the first array listed in the Arrays section, if it is the AMD-RAID bootable array. Doing this deletes the operating system and AMD-RAID files.

To delete an array

1. As previously mentioned, enable RAIDXpert2 Configuration Utility.

2. Go to BIOS > SETTINGS > Advanced > RAIDXpert2 Configuration Utility > Array

Management > Delete Array sub-menu.

3. Select the desired array and change the setting to Enabled.

4. Enter Delete Array(s) sub-menu.

5. Review the warning message, if you want to proceed, Select Confirm and change

the setting to Enabled.

6. Select YES then press Enter.

AMD RAID Conﬁguration

Installing RAID Driver

New Operating System Installation

The following details the installation of the drivers while installing operating system.

1. During the operating system installation, after selecting the location to install

Windows click on Load driver button to install a third party RAID driver.

2. When prompted, insert the USB flash drive with AMD RAID Drivers and then click

Browse.

 To make an AMD RAID Drivers USB flash drive. Insert the MSI Driver Disc into the optical drive. Copy all the contents in \\Chipset\Packages\Drivers\SBDrv\ RAID_AM4

3. Navigate to the directory containing the saved AMD RAID drivers, then click OK.

4. Select the (rcbottom.inf) driver, click Next.

5. When prompted, click OK.

6. Click Browse and navigate to the directory containing the saved AMD RAID drivers again, then click OK.

7. Select the (rcraid.inf) driver, click Next.

8. You have successfully installed the RAID driver, and Windows setup should

continue.

9. Leave the disk/ USB drive in the computer until the system reboots itself. Windows setup will need to copy the files after the RAID volume is formatted, and Windows setup starts copying files.

AMD RAIDXpert2 Management Suite Installation

1. Set the SATA Mode to RAID Mode in BIOS

2. Insert the MSI Driver Disc into the optical drive.

3. Click the Select to choose what happens with this disc pop-up notification, then

4. Under the Drivers/Software tab, check the AMD RAID Drivers check-box.

5. Click the Install button.

6. When prompt you to restart, click OK button to finish.

7. Restart your computer and enter the Windows operating system.

8. Double-click the RAIDXpert2 icon to open the RAIDXpert2 Web GUI.

 Default credentials are:

 Username - admin  Password - admin

9. Change the credentials:

 Create new username and password

10. Re-log into the RAIDXpert2 Web GUI with the new credentials.

AMD RAID Conﬁguration

Troubleshooting

Before sending the motherboard for RMA repair, try to go over troubleshooting guide first to see if your got similar symptoms as mentioned below.

The power is not on.

y Connect the AC power cord to an

electrical outlet securely.

y Check if all ATX power connectors like ATX_PWR1, CPU_PWR1 are connected from the power supply to the motherboard?

y Some power supply units have a power button on the rear side, make sure the button is turned on.

y Check if the power switch cable is connected to JFP1 pin header properly.

y Verify the Clear CMOS jumper JBAT1 is set to Keep DATA.

y Test with another known working power supply of equal or greater wattage.

The power is on, but no signal to monitor

y Connect the monitor power cord to a electrical outlet securely.

y Make sure the monitor is turned on.

y Select different inputs on the monitor.

y If 3 long beeps are heard, remove all memory modules and try to install only one memory module in the DIMMA2 slot first and then restart the computer.

y If 1 long 2 short beeps are heard, remove and reinstall the graphics card and then restart the computer.

y Test with another known working graphics card.

Lost BIOS password

y Clear the CMOS, but that will cause you to lose all customized settings in the BIOS.

There is no audio

y Adjust the volume.

y Connect the speakers/headphones to audio ports on the motherboard rear IO panel.

y Remove secondary speakers/ headphones, HDMI cables, USB audio devices.

y Test with another known working speaker or headphone.

There is no network

y Make sure the network chipset driver has been installed.

y Verify if the network cable is properly connected and make sure the LAN port LEDs are properly illuminated.

y Verify your TCP/IP settings.

y Restart or reset your router.

y Test with another known working LAN cable.

The USB device is not working

y Make sure your USB drive driver has been installed.

y Verify if USB device is listed in Windows

port on the motherboard rear IO panel.

Device Manager.

y Connect the USB device to other USB

The computer does not boot after updating the BIOS

y Clear the CMOS.

y Use the secondary BIOS to bootup the system (Only for motherboard with Dual BIOS)

Troubleshooting

Regulatory Notices

FCC Compliance Statement

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

y Reorient or relocate the receiving antenna. y Increase the separation between the equipment

and receiver.

y Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

y Consult the dealer or an experienced radio/TV

technician for help. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Tested to comply with FCC standards FOR HOME OR OFFICE USE

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CE Conformity

Products bearing the CE marking comply with one or more of the following EU

Directives as may be applicable: RED 2014/53/EU; Low Voltage Directive 2014/35/EU; EMC Directive 2014/30/EU; RoHS Directive 2011/65/EU. Compliance with these directives is assessed using applicable European Harmonized Standards. The point of contact for regulatory matters is MSI, MSI-NL Eindhoven 5706 5692 ER Son.

B급 기기 (가정용 방송통신기자재)

이 기기는 가정용(B급) 전자파적합기기로서 주 로 가정에서 사용하는 것을 목적으로 하며, 모 든 지역에서 사용할 수 있습니다.

クラスB情報技術装置

この装置は、クラスＢ情報技術装置です。この

装置は、家庭環境で使用することを目的として

いますが、この装置がラジオやテレビジョン受信機に近接して使用されると、受信障害を引き起こすことがあります。取扱説明書に従って正しい取り扱いをして下さい

VCCI-B

C-Tick Compliance

Battery Information

European Union:

Taiwan:

California, USA:

For further information please visit: http://www.dtsc.ca.gov/hazardouswaste/perchlorate/

CAUTION: There is a risk of explosion, if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.

Batteries, battery packs, and accumulators should not be disposed of as unsorted household waste. Please use the public collection system to return, recycle, or treat them in compliance with the local regulations.

廢電池請回收

For better environmental protection, waste batteries should be collected separately for recycling or special disposal.

The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California.

Chemical Substances Information

In compliance with chemical substances regulations, such as the EU REACH Regulation (Regulation EC No. 1907/2006 of the European Parliament and the Council), MSI provides the information of chemical substances in products at: http://www.msi.com/html/popup/csr/evmtprtt_pcm. html

Environmental Policy

y The product has been designed to

enable proper reuse of parts and recycling and should not be thrown away at its end of life.

y Users should contact the local

authorized point of collection for recycling and disposing of their end-of-life products.

y Visit the MSI website and locate a nearby distributor

for further recycling information.

y Users may also reach us at gpcontdev@msi.com for

information regarding proper Disposal, Take-back, Recycling, and Disassembly of MSI products.

WEEE (Waste Electrical and Electronic Equipment) Statement

ENGLISH To protect the global environment and as an environmentalist, MSI must remind you that... Under the European Union (“EU”) Directive on Waste Electrical and Electronic Equipment, Directive 2002/96/EC, which takes effect on August 13, 2005, products of “electrical and electronic equipment” cannot

be discarded as municipal wastes anymore, and manufacturers of covered electronic equipment will be obligated to take back such products at the end of their useful life. MSI will comply with the product take back requirements at the end of life of MSI-branded products that are sold into the EU. You can return these products to local collection points.

DEUTSCH Hinweis von MSI zur Erhaltung und Schutz unserer Umwelt Gemäß der Richtlinie 2002/96/EG über Elektro- und Elektronik-Altgeräte dürfen Elektro- und ElektronikAltgeräte nicht mehr als kommunale Abfälle entsorgt werden. MSI hat europaweit verschiedene Sammelund Recyclingunternehmen beauftragt, die in die Europäische Union in Verkehr gebrachten Produkte, am Ende seines Lebenszyklus zurückzunehmen. Bitte entsorgen Sie dieses Produkt zum gegebenen Zeitpunkt ausschliesslich an einer lokalen Altgerätesammelstelle in Ihrer Nähe.

FRANÇAIS En tant qu’écologiste et afin de protéger l’environnement, MSI tient à rappeler ceci... Au sujet de la directive européenne (EU) relative aux déchets des équipement électriques et électroniques, directive 2002/96/EC, prenant effet le 13 août 2005, que les produits électriques et électroniques ne peuvent être déposés dans les décharges ou tout simplement mis à la poubelle. Les fabricants de ces équipements seront obligés de récupérer certains produits en fin de vie. MSI prendra en compte cette exigence relative au retour des produits en fin de vie au sein de la communauté européenne. Par conséquent vous pouvez retourner localement ces matériels dans les points de collecte.

РУССКИЙ Компания MSI предпринимает активные действия по защите окружающей среды, поэтому напоминаем

вам, что....

В соответствии с директивой Европейского Союза (ЕС) по предотвращению загрязнения окружающей среды использованным электрическим и электронным оборудованием (директива WEEE 2002/96/EC), вступающей в силу 13 августа 2005 года, изделия, относящиеся к электрическому и электронному оборудованию, не могут рассматриваться как бытовой мусор, поэтому производители вышеперечисленного электронного оборудования обязаны принимать его для переработки по окончании срока службы. MSI обязуется соблюдать требования по приему продукции, проданной под маркой MSI на территории EC, в переработку по окончании срока службы. Вы можете вернуть эти изделия в специализированные пункты приема.

ESPAÑOL MSI como empresa comprometida con la protección del medio ambiente, recomienda: Bajo la directiva 2002/96/EC de la Unión Europea en materia de desechos y/o equipos electrónicos, con fecha de rigor desde el 13 de agosto de 2005, los productos clasificados como “eléctricos y equipos electrónicos” no pueden ser depositados en los contenedores habituales de su municipio, los fabricantes de equipos electrónicos, están obligados a hacerse cargo de dichos productos al termino de su período de vida. MSI estará comprometido con los términos de recogida de sus productos vendidos en

la Unión Europea al final de su periodo de vida. Usted debe depositar estos productos en el punto limpio establecido por el ayuntamiento de su localidad o entregar a una empresa autorizada para la recogida de estos residuos.

NEDERLANDS Om het milieu te beschermen, wil MSI u eraan herinneren dat…. De richtlijn van de Europese Unie (EU) met betrekking tot Vervuiling van Electrische en Electronische producten (2002/96/EC), die op 13 Augustus 2005 in zal gaan kunnen niet meer beschouwd worden als vervuiling. Fabrikanten van dit soort producten worden verplicht om producten retour te nemen aan het eind van hun levenscyclus. MSI zal overeenkomstig de richtlijn handelen voor de producten die de merknaam MSI dragen en verkocht zijn in de EU. Deze goederen kunnen geretourneerd worden op lokale inzamelingspunten.

SRPSKI Da bi zaštitili prirodnu sredinu, i kao preduzeće koje vodi računa o okolini i prirodnoj sredini, MSI mora da vas podesti da… Po Direktivi Evropske unije (“EU”) o odbačenoj ekektronskoj i električnoj opremi, Direktiva 2002/96/ EC, koja stupa na snagu od 13. Avgusta 2005, proizvodi koji spadaju pod “elektronsku i električnu opremu” ne mogu više biti odbačeni kao običan otpad i proizvođači ove opreme biće prinuđeni da uzmu natrag ove proizvode na kraju njihovog uobičajenog veka trajanja. MSI će poštovati zahtev o preuzimanju ovakvih proizvoda kojima je istekao vek trajanja, koji imaju MSI oznaku i koji su prodati u EU. Ove proizvode možete vratiti na lokalnim mestima za prikupljanje.

POLSKI Aby chronić nasze środowisko naturalne oraz jako firma dbająca o ekologię, MSI przypomina, że... Zgodnie z Dyrektywą Unii Europejskiej (“UE”) dotyczącą odpadów produktów elektrycznych i elektronicznych (Dyrektywa 2002/96/EC), która wchodzi w życie 13 sierpnia 2005, tzw. “produkty oraz wyposażenie elektryczne i elektroniczne “ nie mogą być traktowane jako śmieci komunalne, tak więc producenci tych produktów będą zobowiązani do odbierania ich w momencie gdy produkt jest wycofywany z użycia. MSI wypełni wymagania UE, przyjmując produkty (sprzedawane na terenie Unii Europejskiej) wycofywane z użycia. Produkty MSI będzie można zwracać w wyznaczonych punktach zbiorczych.

TÜRKÇE Çevreci özelliğiyle bilinen MSI dünyada çevreyi korumak için hatırlatır: Avrupa Birliği (AB) Kararnamesi Elektrik ve Elektronik Malzeme Atığı, 2002/96/EC Kararnamesi altında 13 Ağustos 2005 tarihinden itibaren geçerli olmak üzere, elektrikli ve elektronik malzemeler diğer atıklar gibi çöpe atılamayacak ve bu elektonik cihazların üreticileri, cihazların kullanım süreleri bittikten sonra ürünleri geri toplamakla yükümlü olacaktır. Avrupa Birliği’ne satılan MSI markalı ürünlerin kullanım süreleri bittiğinde MSI ürünlerin geri alınması isteği ile işbirliği içerisinde olacaktır. Ürünlerinizi yerel toplama noktalarına bırakabilirsiniz.

ČESKY Záleží nám na ochraně životního prostředí - společnost MSI upozorňuje... Podle směrnice Evropské unie (“EU”) o likvidaci elektrických a elektronických výrobků 2002/96/

EC platné od 13. srpna 2005 je zakázáno likvidovat “elektrické a elektronické výrobky” v běžném komunálním odpadu a výrobci elektronických výrobků, na které se tato směrnice vztahuje, budou povinni odebírat takové výrobky zpět po skončení jejich životnosti. Společnost MSI splní požadavky na odebírání výrobků značky MSI, prodávaných v zemích EU, po skončení jejich životnosti. Tyto výrobky můžete odevzdat v místních sběrnách.

MAGYAR Annak érdekében, hogy környezetünket megvédjük, illetve környezetvédőként fellépve az MSI emlékezteti Önt, hogy ... Az Európai Unió („EU”) 2005. augusztus 13-án hatályba lépő, az elektromos és elektronikus berendezések hulladékairól szóló 2002/96/EK irányelve szerint az elektromos és elektronikus berendezések többé nem kezelhetőek lakossági hulladékként, és az ilyen elektronikus berendezések gyártói kötelessé válnak az ilyen termékek visszavételére azok hasznos élettartama végén. Az MSI betartja a termékvisszavétellel kapcsolatos követelményeket az MSI márkanév alatt az EU-n belül értékesített termékek esetében, azok élettartamának végén. Az ilyen termékeket a legközelebbi gyűjtőhelyre viheti.

ITALIANO Per proteggere l’ambiente, MSI, da sempre amica della natura, ti ricorda che…. In base alla Direttiva dell’Unione Europea (EU) sullo Smaltimento dei Materiali Elettrici ed Elettronici, Direttiva 2002/96/EC in vigore dal 13 Agosto 2005, prodotti appartenenti alla categoria dei Materiali Elettrici ed Elettronici non possono più essere eliminati come rifiuti municipali: i produttori di detti materiali saranno obbligati a ritirare ogni prodotto alla fine del suo ciclo di vita. MSI si adeguerà a tale Direttiva ritirando tutti i prodotti marchiati MSI che sono stati venduti all’interno dell’Unione Europea alla fine del loro ciclo di vita. È possibile portare i prodotti nel più vicino punto di raccolta

日本JIS C 0950材質宣言

日本工業規格JIS C 0950により、2006年7月1日以降に販売される特定分野の電気および電子機器について、製造者による含有物質の表示が義務付けられます。

http://www.msi.com/html/popup/csr/cemm_jp.html http://tw.msi.com/html/popup/csr_tw/cemm_jp.html

India RoHS

This product complies with the “India E-waste (Management and Handling) Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and

0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

Türkiye EEE yönetmeliği

Türkiye Cumhuriyeti: EEE Yönetmeliğine Uygundur

Україна обмеження на наявність небезпечних речовин

Обладнання відповідає вимогам Технічного регламенту щодо обмеження використання деяких небезпечних речовин в електричному та електронному обладнані, затвердженого постановою Кабінету Міністрів України від 3 грудня 2008 № 1057.

Việt Nam RoHS

Kể từ ngày 01/12/2012, tất cả các sản phẩm do công ty MSI sản xuất tuân thủ Thông tư số 30/2011/TT-BCT quy định tạm thời về giới hạn hàm lượng cho phép của một số hóa chất độc hại có trong các sản phẩm điện, điện tử”

Wireless Radio Use

This device is restricted to indoor use when operating in the 2.4GHz, 5GHz frequency band.

Cet appareil doit être utilisé à l’intérieur.

당해 무선설비는 운용중 전파혼신 가능성이 있음. この製品は、周波数帯域 2.4GHz, 5GHz で動作していると

きは、屋内においてのみ使用可能です。

NCC無線設備警告聲明

工作頻率2.4GHz, 5GHz該頻段限於室內使用。經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。

Products with radio functionality (EMF)

This product incorporates a radio transmitting and receiving device. For computers in normal use, a separation distance of 20 cm ensures that radio frequency exposure levels comply with EU requirements. Products designed to be operated at closer proximities, such as tablet computers, comply with applicable EU requirements in typical operating positions. Products can be operated without maintaining a separation distance unless otherwise indicated in instructions specific to the product.

Restrictions for products with radio functionality

Liechtenstein), and most other European countries (e.g., Switzerland, Turkey, Republic of Serbia). Using this WLAN application outdoors might lead to interference issues with existing radio services.

Radio frequency bands and maximum power levels

Features :802.11 a/b/g/n/ac, BT Frequency Range :2.4GHz, 5GHz Modulation :FHSS, DSSS, OFDM Power Output :10, 20, 23 Channel Band Width :1, 5, 20 ,40 , 80MHz

CAUTION: IEEE 802.11x wireless LAN with

5.15–5.35 GHz frequency band is restricted for indoor use only in all European Union member states, EFTA (Iceland, Norway,

产品中有害物质的名称及含量

部件名称

印刷电路板组件* ╳ ○ ○ ○ ○ ○

铅

(Pb)汞(Hg)镉(Cd)

有害物质

六价铬

(Cr(VI))

多溴联苯

(PBB)

多溴二苯醚

(PBDE)

电池**

外部信号连接头 ╳ ○ ○ ○ ○ ○

线材 ╳ ○ ○ ○ ○ ○

本表格依据 SJ/T 11364 的规定编制。 ○: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要求以下。 ╳: 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限量要求，但所有部件都符合

欧盟RoHS要求。

* 印刷电路板组件: 包括印刷电路板及其构成的零部件。 ** 电池本体上如有环保使用期限标识，以本体标识为主。

■ 上述有毒有害物质或元素清单会依型号之部件差异而有所增减。

■ 產品部件本体上如有环保使用期限标识，以本体标识为主。

╳ ○ ○ ○ ○ ○

限用物質含有情況標示聲明書

單元

電路板 ○ ○ ○ ○ ○ ○

電子元件－ ○ ○ ○ ○ ○

金屬機構件－ ○ ○ ○ ○ ○

塑膠機構件 ○ ○ ○ ○ ○ ○

備考1. “超出0.1 wt %” 及 “超出0.01 wt %” 係指限用物質之百分比含量超出百分比含量基準值。備考2. “○” 係指該項限用物質之百分比含量未超出百分比含量基準值。備考3. “－” 係指該項限用物質為排除項目。

鉛

(Pb)汞 (Hg)鎘 (Cd)

Micro-Star Int’l Co.,Ltd.

The MSI logo used is a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners. No warranty as to accuracy or completeness is expressed or implied. MSI reserves the right to make changes to this document without prior notice.

限用物質及其化學符號

六價鉻

(Cr

多溴聯苯

)

(PBB)

Revision History

Version 1.0, 2018/06, First release Version 1.1, 2019/05, Update Flash BIOS

多溴二苯醚

(PBDE)

Technical Support

If a problem arises with your system and no solution can be obtained from the user guide, please contact your place of purchase or local distributor. Alternatively, please try the following help resources for further guidance.

y Visit the MSI website for technical guide, BIOS

updates, driver updates, and other information: http://www.msi.com

y Register your product at: http://register.msi.com

Msi B450M User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Quick Start

Preparing Tools and Components

Installing a Processor

Installing DDR4 memory

Connecting the Front Panel Header

Installing the Motherboard

Installing SATA Drives

Installing a Graphics Card

Connecting Peripheral Devices

Connecting the Power Connectors

Power On

Safety Information

Specifications

Package contents

Block Diagram

Rear I/O Panel

LAN Port LED Status Table

Realtek Audio Console

Overview of Components

CPU Socket

DIMM Slots

PCI_E1~3: PCIe Expansion Slots

JFP1, JFP2: Front Panel Connectors

M2_1: M.2 Slot (Key M)

JAUD1: Front Audio Connector

CPU_PWR1, ATX_PWR1: Power Connectors

JUSB2, JUSB4: USB 2.0 Connectors

JUSB1, JUSB3: USB 3.1 Gen1 Connectors

CPU_FAN1, SYS_FAN1~2: Fan Connectors

JCOM1: Serial Port Connector

SATA1~4: SATA 6Gb/s Connectors

JLPT1: Parallel Port Connector

JCI1: Chassis Intrusion Connector

JTPM1: TPM Module Connector

JRGB1, JRGB2: RGB LED Connectors

EZ Debug LED

JBAT1: Clear CMOS (Reset BIOS) Jumper

BIOS Setup

Entering BIOS Setup

Resetting BIOS

Updating BIOS

EZ Mode

Advanced Mode

SETTINGS

Advanced

Boot

Security

Save & Exit

M-FLASH

OC PROFILE

HARDWARE MONITOR

Software Description

Installing Windows® 10

Installing Drivers

Installing Utilities

APP MANAGER

LIVE UPDATE 6

COMMAND CENTER

GAMING APP

X-BOOST

MYSTIC LIGHT

MYSTIC LIGHT PARTY

SMART TOOL

RAMDISK

AMD RAID Configuration

Enabling RAIDXpert2 Configuration Utility

Initializing Disks

Creating Arrays

Deleting Arrays

Installing RAID Driver

Troubleshooting
