XBT HEADSET USER GUIDE
EN LAS BP FRA
RIGHT INDICATOR LIGHT
VOLUME UP BUTTON
VOLUME DOWN BUTTON
POWER BUTTON
CHARGING JACK
RIGHT SENS™
MICROPHONES

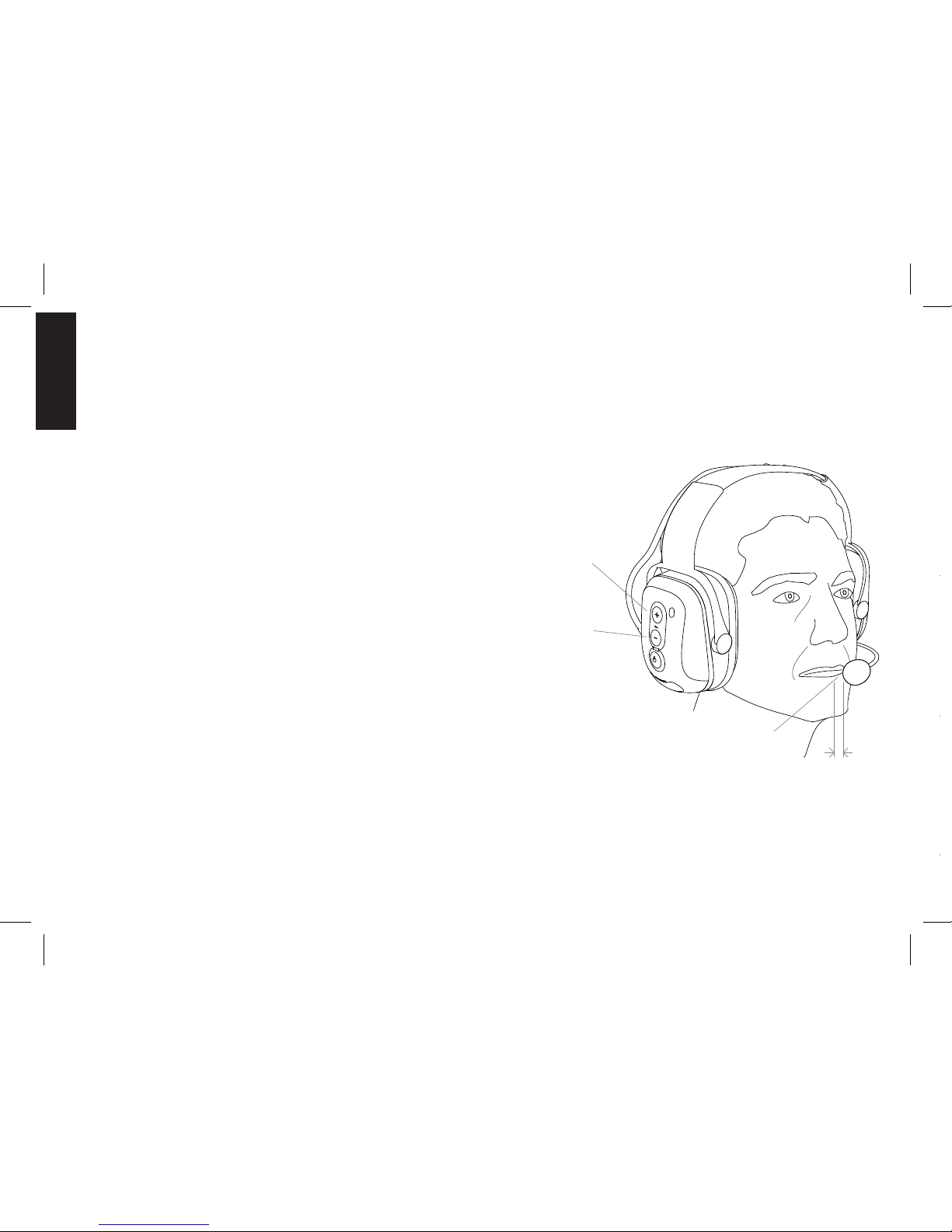

HEADSET ANATOMY
BOOM MICROPHONE
LEFT SENS™
MICROPHONES
LEFT INDICATOR LIGHT
PTT BUTTON
1
English

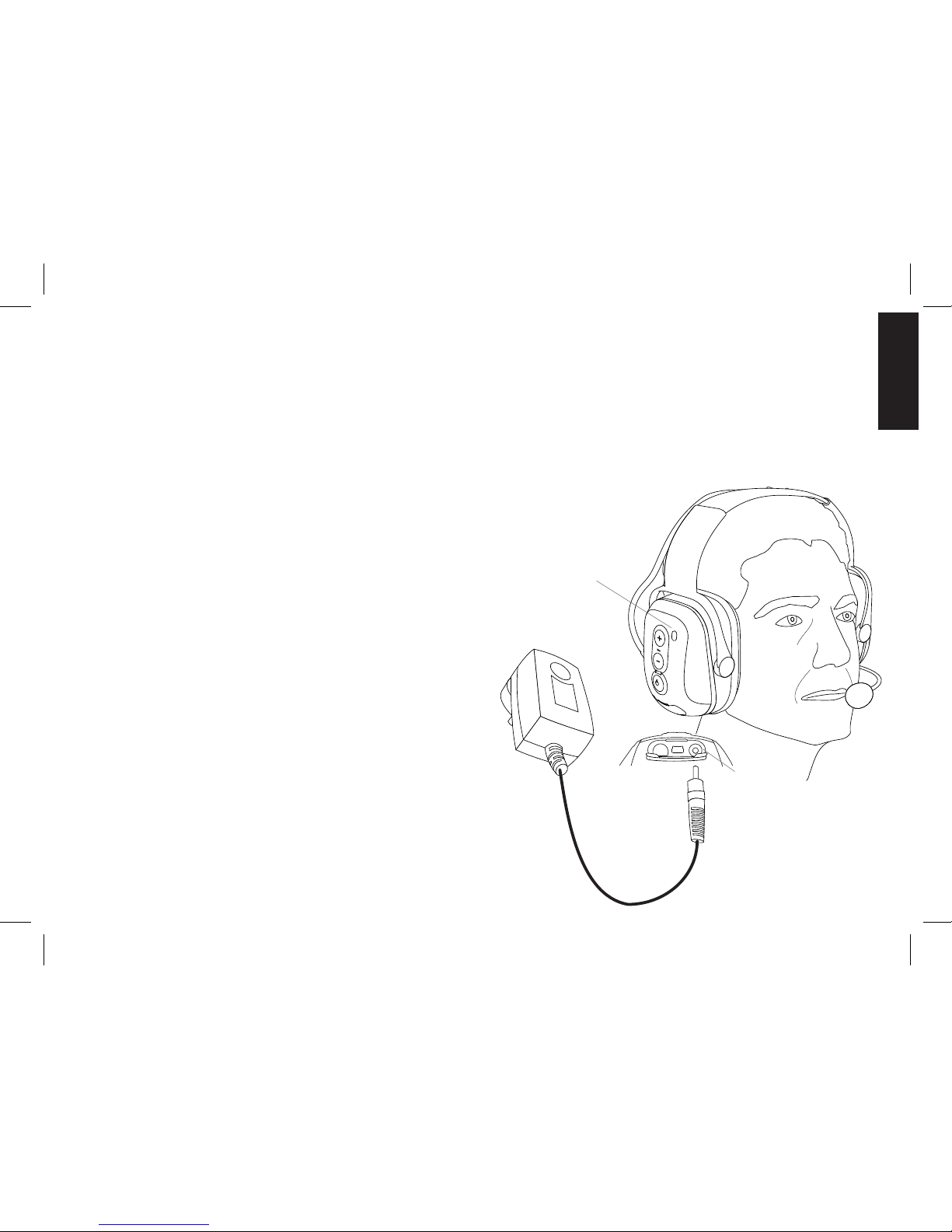

CHARGING
The headset is powered by a built-in high capacity lithium
ion battery.
To charge the headset connect the charger to the headset
and connect to the mains power.
The battery is designed to last the life of the headset and
should be returned to the manufacturer for replacement
and servicing. Any attempt to access the battery will
damage the headset.
Note: Be sure to charge the headset fully before first use.
Note: The headset will automatically power up when the
charger is connected to the headset.
RIGHT INDICATOR LIGHT
Red on: Charging in progress
Green on: Charge complete
RIGHT
INDICATOR
LIGHT
CHARGING JACK
2
English
GETTING STARTED
1. Charge headset
2. Power on / off headset
3. Pair headset with radio
4. Use the headset
POWER ON / OFF HEADSET
To turn on the headset press and release the power button
to turn off the headset press and hold the power buton
until the unit powers down.
SENS™ SITUATIONAL AWARENESS
The XBT headset features SENS™ situational awareness
technology. SENS™ allows audible contact with
surroundings while wearing the headset.
To toggle SENS™ situational awareness on or off
momentarily press and release the power button while the
headset is powered on.
RIGHT INDICATOR LIGHT
Green slow flash: Normal operation
Green fast flash: SENS
™
situational awareness active
Red slow flash: Battery low (<1 battery life hour left)
Off: Headset off
RIGHT
INDICATOR
LIGHT
POWER
BUTTON
3
English
PAIRING WITH RADIO
Before the XBT headset can be used it must be paired with
a radio.
1. Turn off any radios previously paired with the headset.
2. Ensure Bluetooth is enabled on the radio. Contact your
radio dealer if unsure.
3. Power up the headset.
4. Place the headset in pairing mode by pressing and
holding the volume up and down buttons together
for 5 seconds. The left indicator light will be blue and
momentarily flash off while pairing mode is active.
5. Follow radio pairing instructions to pair the XBT headset
with the radio. If prompted for a passkey enter 0000.
6. Once paired the headset will automatically connect
and the left indicator light will show a blue slow flash once
connected. Note: It may take up to 90 seconds to connect.
Note: When entering pairing mode the headset forgets all
previously paired devices.
LEFT INDICATOR LIGHT
Blue slow flash: Bluetooth connected
Blue momentary off: Headset in pairing mode
Blue on: PTT active
TESTING CONNECTION
While wearing the headset press and hold the PTT
button to communicate through the radio system.
RECONNECTING
When the headset is powered up it will automatically
attempt to reconnect to the last paired radio.
Note: If the bluetooth connection is lost press the PTT
button to initiate a reconnection from the headset. If
you have problems reconnecting, check the radio is
discoverable.
Note: You may exist pairing mode on the headset by
pressing the PTT button.
4
English
USING THE HEADSET
ADJUST THE VOLUME
To adjust the SENS™ and bluetooth volume press the
volume up or volume down button as desired.
POSITIONING THE BOOM MICROPHONE
1. The boom microphone must be positioned for optimal
performance.
2. Position the boom microphone 0.2in / 5mm in front of
the mouth.
3. The white marking on the boom microphone should be
pointed towards the mouth for optimal performance.
ACTIVATE PTT
Press and hold the PTT button while speaking to enable
communication through the radio system.
t
t
t
0.2in / 5mm
VOLUME UP
BUTTON
VOLUME DOWN
BUTTON
BOOM MICROPHONE
5
English
LIGHT INDICATOR HEADSET FUNCTION
Green slow flash
SENS
™
inactive
Green fast flash
SENS
™
active
Green on Charging complete
Red fast flash Battery low (<1 hour left)
Red on Charging
Blue slow flash Bluetooth connected
Blue momentary off flash Bluetooth pairing
Blue on PTT active
TROUBLESHOOTING
HAVING TROUBLE PAIRING THE HEADSET
Make sure any previously paired devices are powered off.
Make sure the radio is configured with bluetooth enabled.
HEADSET AND RADIO WILL NOT CONNECT
Make sure the radio and headset are paired together
and within range. Try pairing the headset and the radio
together again, Make sure the radio is not connected to
another headset.
HAVING TROUBLE HEARING
Check the headset is on. Make sure the radio and headset
are paired together and within range. Check the radio is
functioning by turning off the headset and listening through
the radio. If the radio is working, try turning up the volume
control on the headset.
HAVING TROUBLE BEING HEARD
Check the headset is on. Make sure the radio and headset
are paired together and within range. Check the radio is
functioning by turning off the headset and talking through
the radio. Make sure the boom microphone is positioned
correctly.
6
Note: XBT Headset Bluetooth range is 30ft / 10m
English
“O dispositivo bluetooth deste equipamento opera em caráter
secundário, isto é, não tem direito a proteção contra
interferência prejudicial, mesmo de estações do mesmo tipo,
e não pode causar interferência a sistemas operando em
caráter primário”
Xxx####A DOC00049 Rev 1.1
