PROFESSIONAL DIGITAL TWO-WAY RADIO

MOTOTRBO™ DM4600/DM4601 COLOUR DISPLAY MOBILE

USER GUIDE

EN FR IT ESDE PL RU ARTU

Contents

This User Guide contains all the information you need to use the MOTOTRBO Series Mobiles.

Important Safety Information . . . . . . . . . . . . . . . . viii

Product Safety and RF Exposure Compliance . .viii

Software Version . . . . . . . . . . . . . . . . . . . . . . . . . . viii

Computer Software Copyrights . . . . . . . . . . . . . . . ix

Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

How to Use This User Guide . . . . . . . . . . . . . . . . . . 1

What Your Dealer/System Administrator

Can Tell You . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Powering Up the Radio . . . . . . . . . . . . . . . . . . . . . . . 2

Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . 2

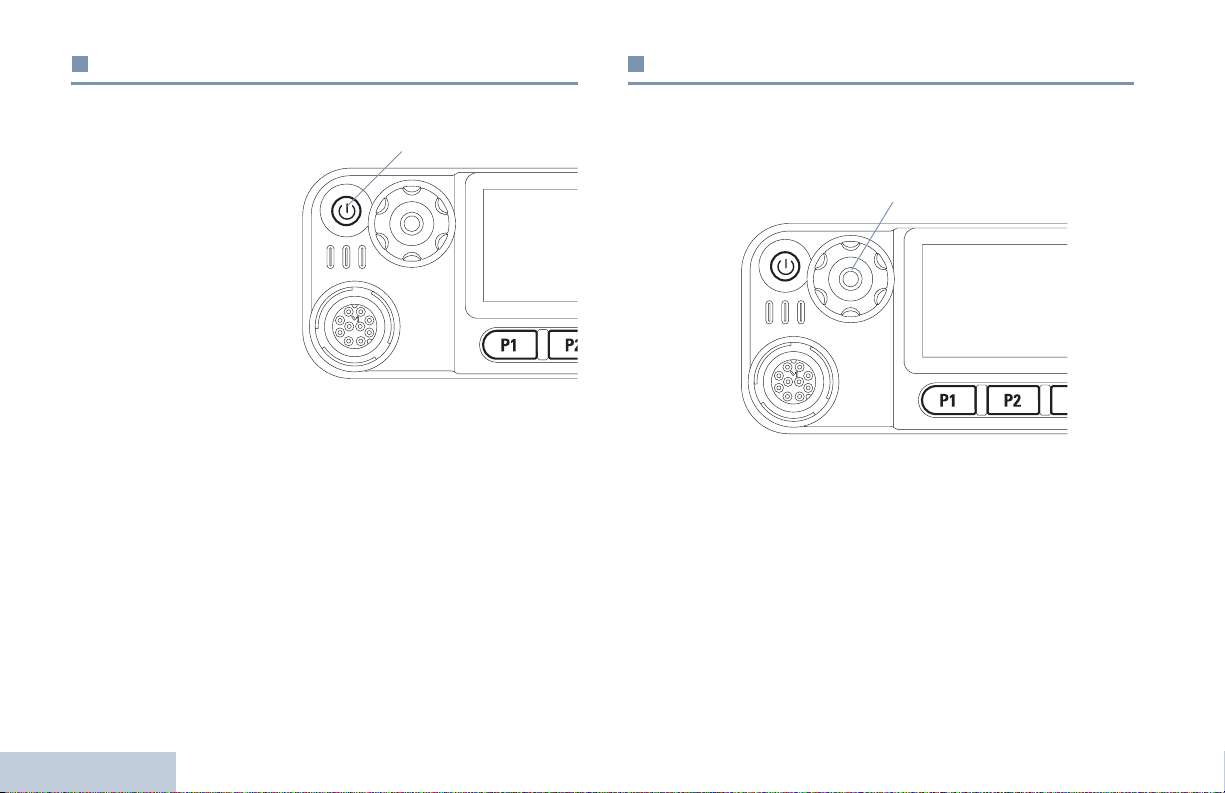

Identifying Radio Controls . . . . . . . . . . . . . . . . . . . . 3

Radio Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Programmable Buttons . . . . . . . . . . . . . . . . . . . . . . . 4

Assignable Radio Functions . . . . . . . . . . . . . . . . . 4

Assignable Settings or Utility Functions . . . . . . . . . 6

Accessing the Programmed Functions . . . . . . . . . . . 6

Push-To-Talk (PTT) Button . . . . . . . . . . . . . . . . . . . . 7

Switching Between Conventional Analog and

Digital Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Using the Volume/Channel Knob . . . . . . . . . . . . . . . 8

IP Site Connect . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Capacity Plus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Linked Capacity Plus . . . . . . . . . . . . . . . . . . . . . . . . 9

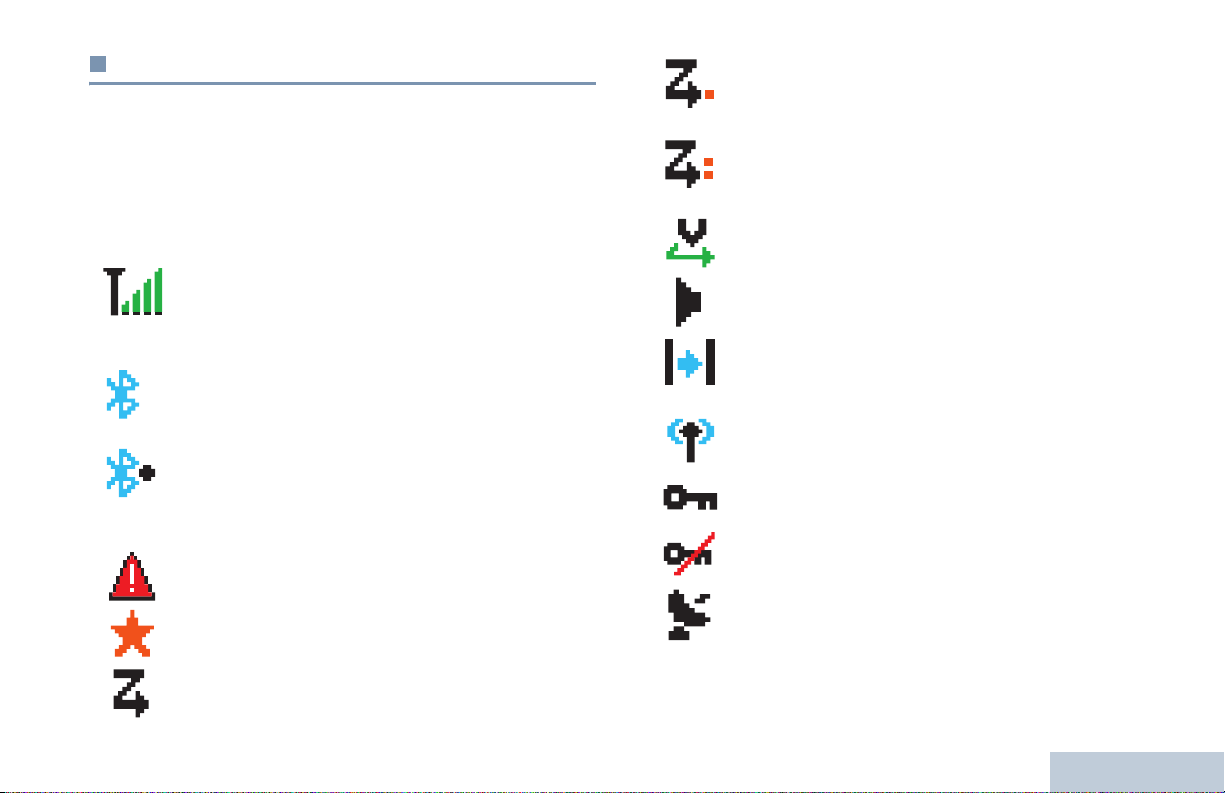

Identifying Status Indicators . . . . . . . . . . . . . . . . . . 10

Display Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Call Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Advanced Menu Icons . . . . . . . . . . . . . . . . . . . . . . 13

Mini Notice Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Sent Item Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Bluetooth Device Icons . . . . . . . . . . . . . . . . . . . . . . 14

LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Indicator Tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Audio Tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Receiving and Making Calls . . . . . . . . . . . . . . . . . . 17

Selecting a Zone . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Selecting a Channel . . . . . . . . . . . . . . . . . . . . . . . . 18

Receiving and Responding to a Radio Call . . . . . . 18

Receiving and Responding to a Group Call . . . . . 19

Receiving and Responding to a Private Call . . . 19

Receiving an All Call . . . . . . . . . . . . . . . . . . . . . . 20

Receiving and Responding to a Selective Call . . 20

Making a Radio Call . . . . . . . . . . . . . . . . . . . . . . . . 21

Making a Group Call . . . . . . . . . . . . . . . . . . . . . . 22

Making a Private Call . . . . . . . . . . . . . . . . . . . . . 22

Making an All Call . . . . . . . . . . . . . . . . . . . . . . . . 23

Contents

iii

English

Making a Selective Call . . . . . . . . . . . . . . . . . . . . 24

Stopping a Radio Call . . . . . . . . . . . . . . . . . . . . . . 24

Talkaround . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Permanent Monitor . . . . . . . . . . . . . . . . . . . . . . . . . 25

Advanced Features . . . . . . . . . . . . . . . . . . . . . . . . . 26

Radio Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Sending a Radio Check . . . . . . . . . . . . . . . . . . . 26

Remote Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Initiating Remote Monitor . . . . . . . . . . . . . . . . . . 27

Stopping Remote Monitor . . . . . . . . . . . . . . . . . . 28

Scan Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Viewing an Entry in the Scan List . . . . . . . . . . . . 29

Editing the Scan List . . . . . . . . . . . . . . . . . . . . . . 29

Adding a New Entry to the Scan List . . . . . . . . 29

Deleting an Entry from the Scan List . . . . . . . . 30

Setting and Editing Priority for

an Entry in the Scan List . . . . . . . . . . . . . . . . . 30

Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Starting and Stopping Scan . . . . . . . . . . . . . . . . 31

Responding to a Transmission During a Scan . . 32

Deleting a Nuisance Channel . . . . . . . . . . . . . . . 32

Restoring a Nuisance Channel . . . . . . . . . . . . . . 32

Vote Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Contents

Contacts Settings . . . . . . . . . . . . . . . . . . . . . . . . . 33

Making a Group Call from Contacts . . . . . . . . . . 34

Making a Private Call from Contacts . . . . . . . . . 34

Assigning an Entry to a Programmable

Number Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Removing the Association between Entry and

Programmable Number Key . . . . . . . . . . . . . . . 36

Setting Default Contact . . . . . . . . . . . . . . . . . . 36

Call Indicator Settings . . . . . . . . . . . . . . . . . . . . . . 37

Activating or Deactivating Call Ringers

for Call Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Activating or Deactivating Call Ringers

for Private Calls . . . . . . . . . . . . . . . . . . . . . . . . . 37

Activating or Deactivating Call Ringers

for Selective Call . . . . . . . . . . . . . . . . . . . . . . . . . 37

Activating or Deactivating Call Ringers

for Text Message . . . . . . . . . . . . . . . . . . . . . . . . 38

Activating or Deactivating Call Ringers

for Telemetry Status with Text . . . . . . . . . . . . . . 38

Assigning Ring Styles . . . . . . . . . . . . . . . . . . . . 39

Escalating Alarm Tone Volume . . . . . . . . . . . . . . 39

Call Log Features . . . . . . . . . . . . . . . . . . . . . . . . . 40

Viewing Recent Calls . . . . . . . . . . . . . . . . . . . . . 40

Deleting a Call from a Call List . . . . . . . . . . . . . . 40

Call Alert Operation . . . . . . . . . . . . . . . . . . . . . . . . 41

Receiving and Responding to a Call Alert . . . . . 41

Making a Call Alert from the Contacts List . . . . . 42

English

Making a Call Alert with

the One Touch Access Button . . . . . . . . . . . . . . 42

Emergency Operation . . . . . . . . . . . . . . . . . . . . . . . 43

Receiving an Emergency Alarm . . . . . . . . . . . . . 43

Responding to an Emergency Alarm . . . . . . . . . . 44

Sending an Emergency Alarm . . . . . . . . . . . . . . . 44

Sending an Emergency Alarm with Call . . . . . . . 45

Sending an Emergency Alarm with

Voice to Follow . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Reinitiating an Emergency Mode . . . . . . . . . . . . . 47

Exiting Emergency Mode . . . . . . . . . . . . . . . . . . . 48

Text Messaging Features . . . . . . . . . . . . . . . . . . . 48

Sending a Quick Text Message . . . . . . . . . . . . . . 48

Sending a Quick Text Message with

the One Touch Access Button . . . . . . . . . . . . . . . 49

Managing Text Messages in the Drafts Folder . .49

Viewing a Saved Text Message . . . . . . . . . . . . 49

Deleting a Saved Text Message from Drafts . . 50

Managing Fail-to-Send Text Messages . . . . . . . . 50

Resending a Text Message . . . . . . . . . . . . . . . 50

Forwarding a Text Message . . . . . . . . . . . . . . . 50

Managing Sent Text Messages . . . . . . . . . . . . . . 51

Viewing a Sent Text Message . . . . . . . . . . . . . 51

Sending a Sent Text Message . . . . . . . . . . . . . 51

Deleting All Sent Text Messages

from Sent Items . . . . . . . . . . . . . . . . . . . . . . . . 53

Receiving a Text Message . . . . . . . . . . . . . . . . . 53

Reading a Text Message . . . . . . . . . . . . . . . . . . . 53

Managing Received Text Messages . . . . . . . . . . 54

Viewing a Text Message from the Inbox . . . . . 54

Viewing a Telemetry Status Text Message

from the Inbox . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Replying to a Text Message with Quick Text . . 55

Deleting a Text Message from the Inbox . . . . . 56

Deleting All Text Messages from the Inbox . . . 56

Analog Message Encode . . . . . . . . . . . . . . . . . . . . 57

Sending MDC Message Encode to Dispatcher . . 57 Sending 5-Tone Message Encode to Contact . . . 57

Analog Status Update . . . . . . . . . . . . . . . . . . . . . . . 58

Sending Status Update to Predefined Contact . . 58

Viewing 5-Tone Status Details . . . . . . . . . . . . . . . 58

Privacy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Multi-Site Controls . . . . . . . . . . . . . . . . . . . . . . . . . 60

Starting an Automatic Site Search . . . . . . . . . . . . 60

Stopping an Automatic Site Search . . . . . . . . . . . 60

Starting a Manual Site Search . . . . . . . . . . . . . . . 61

Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Radio Disable . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Radio Enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Lone Worker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Turning Bluetooth On or Off . . . . . . . . . . . . . . . . . 65

Contents

English

Finding and Connecting to a Bluetooth Device . . 65

Disconnecting from a Bluetooth Device . . . . . . . 66

Switching Audio Route . . . . . . . . . . . . . . . . . . . . 66

Viewing Device Details . . . . . . . . . . . . . . . . . . . . 66

Notification List . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Accessing the Notification List . . . . . . . . . . . . . . 67

Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Turning the Radio Tones/Alerts On or Off . . . . . 67

Setting the Tone Alert Volume Offset Level . . . . 68

Turning the Talk Permit Tone On or Off . . . . . . . 68

Setting the Power Level . . . . . . . . . . . . . . . . . . . 68

Changing the Display Mode . . . . . . . . . . . . . . . . 69

Adjusting the Display Brightness . . . . . . . . . . . . 69

Turning Horns/Lights On or Off . . . . . . . . . . . . . . 70

Turning the Public Address System On or Off . . 70 Turning the External Public Address System

On or Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Setting the Squelch Level . . . . . . . . . . . . . . . . . 70

Turning the Introduction Screen On or Off . . . . . 71

Turning the LED Indicators On or Off . . . . . . . . . 71

Setting Dual Knob Operation Preference . . . . . . 72

Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Contents

Turning the Voice Operating Transmission (VOX)

Feature On or Off . . . . . . . . . . . . . . . . . . . . . . . . 72

Turning the Option Board Feature(s) On or Off . 73

Identifying Cable Type . . . . . . . . . . . . . . . . . . . . 73

Voice Announcement . . . . . . . . . . . . . . . . . . . . . 73

Call Forwarding . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Menu Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Analog Mic AGC . . . . . . . . . . . . . . . . . . . . . . . . . 74

Digital Mic AGC . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Intelligent Audio . . . . . . . . . . . . . . . . . . . . . . . . . 75

GPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Accessing General Radio Information . . . . . . . . 76

Checking the Radio Alias and ID . . . . . . . . . . 76

Checking the Firmware Version and Codeplug

Version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Checking the GPS Information . . . . . . . . . . . . . . 77

Keypad Microphone Features . . . . . . . . . . . . . . . . 78

Using the Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Turning Keypad Tones On or Off . . . . . . . . . . . . 80

Additional Advanced Features . . . . . . . . . . . . . . . . 80

Selecting a Zone by Alias Search . . . . . . . . . . . . 80

Initiating a Radio Check by Manual Dial . . . . . . 81

Initiating Remote Monitor by Manual Dial . . . . . 81

Making a Private Call by Manual Dial . . . . . . . . 82

Making a Group, Private or All Call with the

Programmable Number Key . . . . . . . . . . . . . . . 82

Making a Group, Private, Phone or All Call

by Alias Search . . . . . . . . . . . . . . . . . . . . . . . . . 83

English

Viewing an Entry in the Scan List by

Alias Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Editing the Scan List by Alias Search . . . . . . . . . 84

Adding a New Entry to the Scan List . . . . . . . . 84

Deleting an Entry from the Scan List . . . . . . . . 85

Setting and Editing Priority for

an Entry in the Scan List . . . . . . . . . . . . . . . . . . 86

Storing an Alias or ID from a Call List . . . . . . . . . 86

Making a Call Alert by Manual Dial . . . . . . . . . . . 87

Text Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Writing and Sending a Text Message . . . . . . . . . 87

Replying to Text Messages from the Inbox . . . . . 88

Editing a Quick Reply Message . . . . . . . . . . . . . . 89

Accessing the Drafts Folder . . . . . . . . . . . . . . . . . 89

Editing and Sending a Saved Text Message . . 90

Managing Fail-to-Send Text Messages . . . . . . . . 90

Forwarding a Text Message by Manual Dial . . 90

Editing a Text Message . . . . . . . . . . . . . . . . . . 91

Dual Tone Multi Frequency (DTMF) . . . . . . . . . . . . 91

Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Radio Disable via Manual Dial . . . . . . . . . . . . . . . 92

Radio Enable via Manual Dial . . . . . . . . . . . . . . . 92

Password Lock Features . . . . . . . . . . . . . . . . . . . . 93

Accessing the Radio from Password . . . . . . . . . . 93

Unlocking the Radio from Locked State . . . . . . . 94

Turning the Password Lock On or Off . . . . . . . . . 94

Changing the Password . . . . . . . . . . . . . . . . . . . . 94

Front Panel Programming (FPP) . . . . . . . . . . . . . . 95

Entering FPP Mode . . . . . . . . . . . . . . . . . . . . . . . 95

Editing FPP Mode Parameters . . . . . . . . . . . . . . 95

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Contents

English

vii

Important Safety Information

Software Version

Product Safety and RF Exposure Compliance

Before using this product, read the operating instructions for safe usage contained in the Product Safety and RF Exposure booklet enclosed with your radio.

ATTENTION!

This radio is restricted to occupational use only to satisfy FCC/ICNIRP RF energy exposure requirements. Before using this product, read the RF

energy awareness information and operating instructions in the Product Safety and RF Exposure booklet enclosed with your radio (Motorola Publication part number 6866537D37) to ensure compliance with RF energy exposure limits.

For a list of Motorola-approved antennas and other accessories, visit the following website:

http://www.motorolasolutions.com

Important Safety Information

All the features described in the following sections are supported by the radio's software version R02.04.00.

See Checking the Firmware Version and Codeplug Version on page 77 to determine your radio's software version.

Please check with your dealer or system administrator for more details of all the features supported.

viii

English

Computer Software Copyrights

The Motorola products described in this manual may include copyrighted Motorola computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola certain exclusive rights for copyrighted computer programs including, but not limited to, the exclusive right to copy or reproduce in any form the copyrighted computer program. Accordingly, any copyrighted Motorola computer programs contained in the Motorola products described in this manual may not be copied, reproduced, modified, reverse-engineered, or distributed in any manner without the express written permission of Motorola. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Motorola, except for the normal non-exclusive license to use that arises by operation of law in the sale of a product.

The AMBE+2 this product is protected by intellectual property rights including patent rights, copyrights and trade secrets of Digital Voice Systems, Inc.

This voice coding Technology is licensed solely for use within this Communications Equipment. The user of this Technology is explicitly prohibited from attempting to decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code into a human-readable form.

U.S. Pat. Nos. #5,870,405, #5,826,222, #5,754,974, #5,701,390, #5,715,365, #5,649,050, #5,630,011, #5,581,656, #5,517,511, #5,491,772, #5,247,579, #5,226,084 and #5,195,166.

voice coding Technology embodied in

Computer Software Copyrights

English

Computer Software Copyrights

Notes

English

Getting Started

Take a moment to review the following:

How to Use This User Guide . . . . . . . . . . . . . . . . . . . . . page 1

What Your Dealer/System Administrator

Can Tell You. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 1

Powering Up the Radio . . . . . . . . . . . . . . . . . . . . . . . . . page 2

Adjusting the Volume. . . . . . . . . . . . . . . . . . . . . . . . . . . page 2

How to Use This User Guide

For features that are available in both Analog and Digital modes, no icon is shown.

For features that are available in a conventional multi-site mode, see IP Site Connect on page 8 for more information.

Selected features are available in the single-site trunking mode, Capacity Plus. See Capacity Plus on page 9 for more information.

Selected features are also available in the multi-site trunking mode, Linked Capacity Plus. See Linked Capacity Plus on page 9 for more information.

Getting Started

This User Guide covers the basic operation of the MOTOTRBO Mobiles.

However, your dealer or system administrator may have customized your radio for your specific needs. Check with your dealer or system administrator for more information.

Throughout this publication, the icons below are used to indicate features supported in either the conventional Analog

mode or conventional Digital mode:

Indicates a conventional Analog Mode-Only feature.

Indicates a conventional Digital Mode-Only feature.

What Your Dealer/System Administrator

Can Tell You

You can consult your dealer or system administrator about the following:

• Is your radio programmed with any preset conventional

channels?

• Which buttons have been programmed to access other

features?

• What optional accessories may suit your needs?

• What are the best radio usage practices for effective

communication?

• What maintenance procedures will help promote longer radio

life?

English

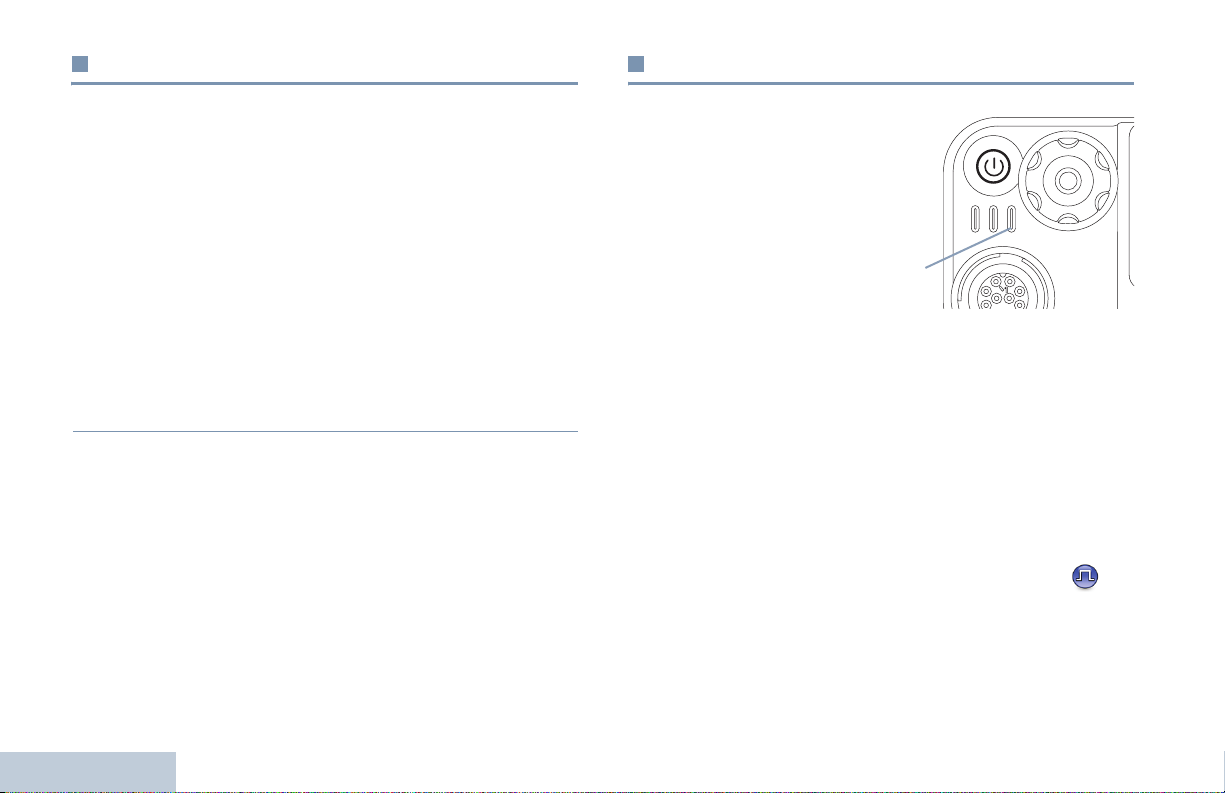

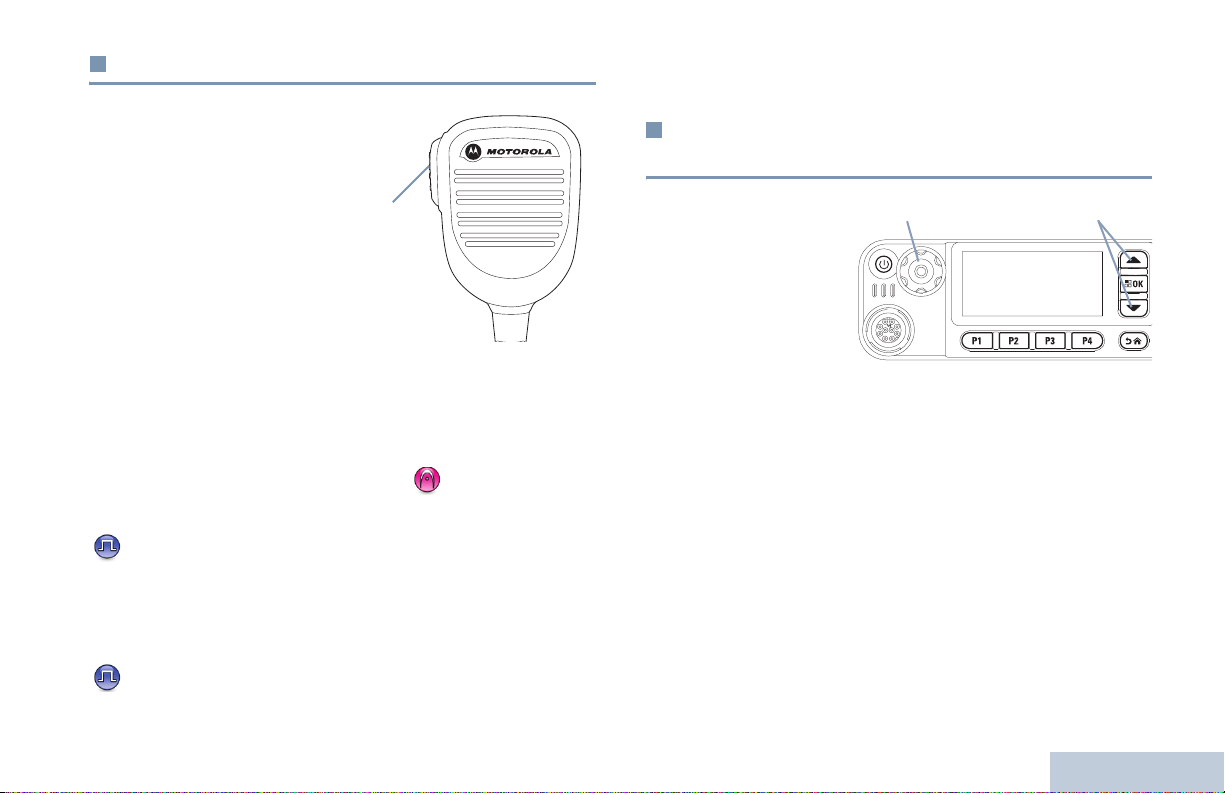

Powering Up the Radio

Adjusting the Volume

Press the On/Off Button briefly. You see

MOTOTRBO (TM) on the radio’s display momentarily, followed by a welcome message or welcome image.

The green LED lights up and the Home screen lights up.

A brief tone sounds, indicating that the power up test is successful.

NOTE: There is no power up tone if the radio tones/alerts

function is disabled (see Turning the Radio Tones/ Alerts On or Off on page 67).

If your radio does not power up, contact your dealer.

To turn off the radio, press and hold the On/Off Button until you see

Powering Down

Getting Started

NOTE: Your radio may take up to 7 seconds to completely turn

off.

on the radio’s display.

On/Off Button

To increase the volume, turn the Volume/Channel Knob clockwise.

Volume/Channel Knob

To decrease the volume, turn this knob counterclockwise.

NOTE: Your radio can be programmed to have a minimum

volume offset where the volume level cannot be turned past the programmed minimum volume. Check with your dealer or system administrator for more information.

English

Identifying Radio Controls

Take a moment to review the following:

Radio Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 3

Programmable Buttons . . . . . . . . . . . . . . . . . . . . . . . . . page 4

Accessing the Programmed Functions . . . . . . . . . . . . . page 6

Push-To-Talk (PTT) Button . . . . . . . . . . . . . . . . . . . . . . page 7

Using the Volume/Channel Knob. . . . . . . . . . . . . . . . . . page 8

Switching Between Conventional Analog and

Digital Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 7

IP Site Connect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 8

Capacity Plus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 9

Linked Capacity Plus . . . . . . . . . . . . . . . . . . . . . . . . . . . page 9

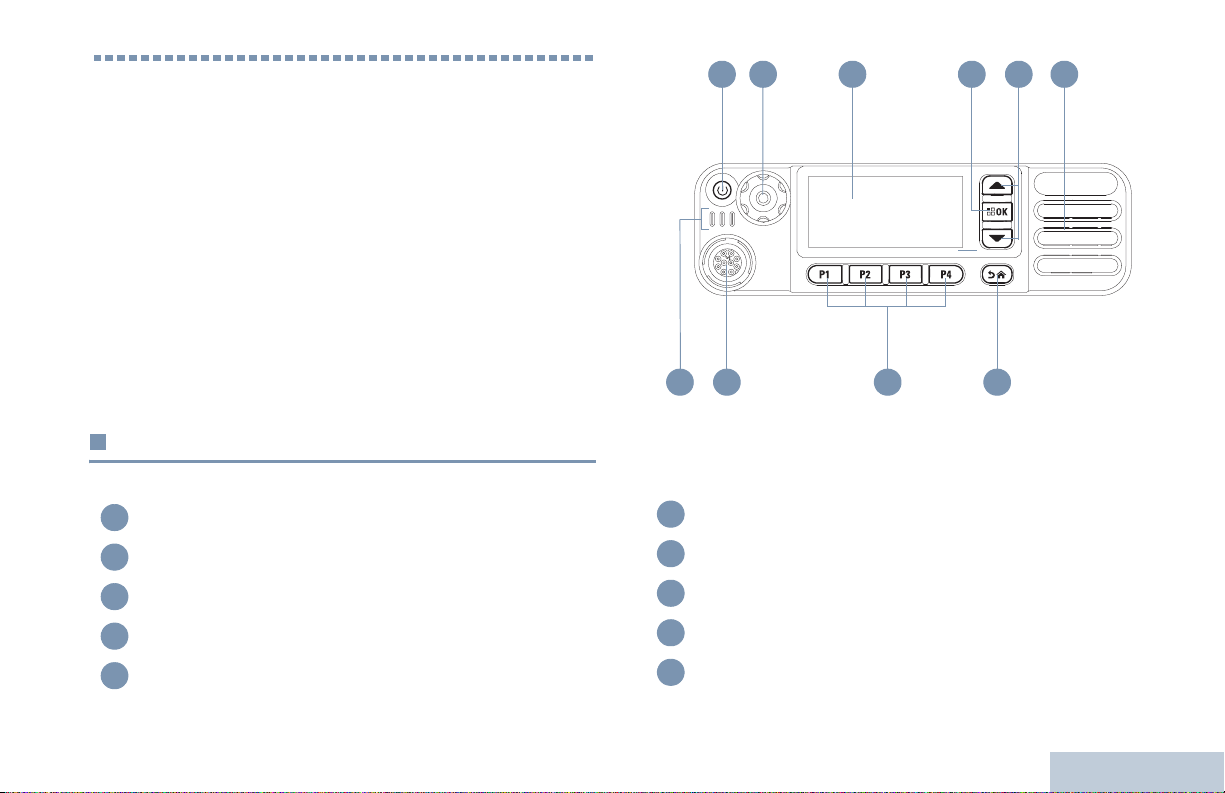

Radio Controls

2 643

10 9 78

Identifying Radio Controls

On/Off Button

Volume/Channel Knob

Display

OK/Menu Button

Scroll Up/Down

Speaker

Return/Home Button

Front Programmable Buttons

Accessory Connector

LED Indicators

English

Programmable Buttons

Your dealer can program the programmable buttons as shortcuts to radio functions or up to a maximum of six (6) preset channels/groups depending on the duration of a button press:

• Short press – Pressing and releasing rapidly.

• Long press – Pressing and holding for the programmed

duration.

• Hold down – Keeping the button pressed.

NOTE: The programmed duration of a button press is

applicable for all assignable radio/utility functions or settings. See Emergency Operation on page 43 for more information on the programmed duration of the

Emergency button.

Call Log

Voice Announcement for Channel – Plays zone and channel

announcement voice messages for the current channel. This function is unavailable when Voice Announcement is disabled.

Emergency

cancels an Emergency alarm or call.

Ext PA On/Off

connected public address (PA) loudspeaker amplifier and the radio’s internal public address (PA) system.

Intelligent Audio On/Off

Manual Dial – Initiates a call by keying in any subscriber

ID.

Manual Site Roam*

– Selects the call log list.

– Depending on the programming, initiates or

– Toggles the audio routing between the

– Toggles Intelligent Audio on or off.

‡

– Starts the manual site search.

Identifying Radio Controls

English

Assignable Radio Functions

BluetoothTM Audio Switch

internal radio speaker and external Bluetooth-enabled accessory.

Contacts

Call Alert

select a contact to whom a Call Alert can be sent.

Call Forwarding

– Provides direct access to the contacts list.

– Provides direct access to the contacts list for you to

– Toggles Call Forwarding on or off.

– Toggles audio routing between

Mic AGC On/Off gain control (AGC) on or off. Not applicable during a Bluetooth session.

Monitor

Nuisance Channel Delete*

unwanted channel, except for the Selected Channel, from the scan list. The Selected Channel refers to the user’s selected zone/channel combination from which scan is initiated.

– Monitors a selected channel for activity.

– Toggles the internal microphone automatic

‡

– Temporarily removes an

* Not applicable in Capacity Plus

‡

Not applicable in Linked Capacity Plus

One Touch Access – Directly initiates a predefined Private or Group Call, a Call Alert or a Quick Text message.

Option Board Feature – Toggles option board feature(s) on or off for option board-enabled channels.

PA On/Off

– Toggles the radio’s internal public address (PA)

system on or off.

Permanent Monitor*‡

– Monitors a selected channel for all

radio traffic until function is disabled.

Privacy – Toggles privacy on or off.

Radio Alias and ID

Radio Check

Radio Enable

– Provides radio alias and ID.

– Determines if a radio is active in a system.

– Allows a target radio to be remotely

enabled.

Radio Disable

– Allows a target radio to be remotely

disabled.

Site Lock On/Off*

– Toggles the automatic site roam on or

off.

Status – Selects the status list menu.

Telemetry Control – Controls the Output Pin on a local or

remote radio.

Text Message

Transmit Interrupt Remote Dekey

– Selects the text message menu.

– Stops the

transmission of a remote monitored radio without giving any indicators, or an ongoing interruptible call to free the channel.

Voice Announcement On/Off

– Toggles Voice Announcement

on or off.

Voice Operating Transmission (VOX)

– Toggles VOX on or

off.

Zone Toggle

– Allows radio to switch between zones.

Identifying Radio Controls

Remote Monitor

– Turns on the microphone of a target

radio without it giving any indicators.

Repeater/Talkaround*

‡

– Toggles between using a repeater

and communicating directly with another radio.

‡

Scan*

– Toggles scan on or off.

* Not applicable in Capacity Plus

‡

Not applicable in Linked Capacity Plus

English

Assignable Settings or Utility Functions

Accessing the Programmed Functions

All Tones/Alerts

Backlight – Adjusts the brightness level.

Channel Up/Down – Depending on the programming, changes

channel to previous or next channel.

Display Mode

Power Level

low.

Squelch normal.

– Toggles all tones and alerts on or off.

– Toggles the day/night display mode on or off.

– Toggles transmit power level between high and

– Toggles squelch level between tight and

Identifying Radio Controls

You can access various radio functions through one of the following ways:

• A short or long press of the relevant programmable buttons.

• Use the Menu Navigation Buttons as follows:

1 To access the menu, press the g button. Press the

appropriate Scroll Up/Down button (f or h) to access the menu functions.

2 To select a function or enter a sub-menu, press the g

button.

3 To go back one menu level, or to return to the previous

screen, press the return to the Home screen.

The Menu Navigation Buttons are also available on a keypad microphone (see Using the Keypad on page 79).

NOTE: Your radio automatically exits the menu after a period

of inactivity and returns to your Home screen.

e button. Long press the e button to

English

Push-To-Talk (PTT) Button

The PTT button on the side of the microphone serves two basic purposes:

• While a call is in progress,

the PTT button allows the

radio to transmit to other

radios in the call.

Press and hold down PTT

button to talk. Release the

PTT button to listen.

The microphone is activated when the PTT button is pressed.

PTT Button

• While a call is not in progress, the PTT button is used to make

a new call (see Making a Radio Call on page 21).

If the Talk Permit Tone (see Turning the Talk Permit Tone On

or Off on page 68) or the PTT Sidetone is enabled, wait

until the short alert tone ends before talking.

During a call, if the Channel Free Indication feature is enabled on your radio (programmed by your dealer), you

hear a short alert tone the moment the target radio (the radio that is receiving your call) releases the PTT button, indicating the channel is free for you to respond.

You will also hear a continuous talk prohibit tone, if your call is interrupted, indicating that you should release the

PTT button, for example when the radio receives an Emergency Call.

Switching Between Conventional Analog

and Digital Mode

Each channel in your radio can be configured as a conventional analog or conventional digital channel.

To switch between an analog or a digital channel, use the

Volume/Channel Knob

• Scroll Up/Down buttons, or

• Volume/Channel Knob, or

• programmed Channel Up or Channel Down buttons

When switching from digital to analog mode, certain features are unavailable. Icons for the digital features (such as Messages) reflect this change by appearing ‘greyed out’. Disabled features are hidden in the menu.

Your radio also has features available in both analog and digital mode. However, the minor differences in the way each feature works does NOT affect the performance of your radio.

Scroll Up/Down

Identifying Radio Controls

English

Identifying Radio Controls

English

NOTE: Your radio also switches between digital and analog

modes during a dual mode scan (see Scan on page 31).

To use the Scroll Up/Down buttons, while in the Home Screen of the required Zone, press

f or h to select

the required channel.

To use the programmed Channel Up or Channel Down buttons, while in the Home Screen of the required Zone, press Channel Up or Channel Down to select the required channel.

Using the Volume/Channel Knob

The Volume/Channel Knob can be programmed as dual purpose for both volume and channel or as a volume-only control.

To adjust volume, see Adjusting the Volume on page 2.

To change channels, push and hold the knob until channel selection screen is displayed, then turn the knob to the required channel.

To exit channel selection state, do any of the following.

• Push the Volume/Channel Knob again

• Press g

• Press e

• Wait for the menu timer to expire

IP Site Connect

This feature allows your radio to extend conventional communication beyond the reach of a single site, by connecting to different available sites which are connected via an Internet Protocol (IP) network.

When the radio moves out of range from one site and into the range of another, it connects to the new site's repeater to send or receive calls/data transmissions. Depending on your settings, this is done automatically or manually.

If the radio is set to do this automatically, it scans through all available sites when the signal from the current site is weak or when the radio is unable to detect any signal from the current site. It then locks on to the repeater with the strongest Received Signal Strength Indicator (RSSI) value.

In a manual site search, the radio searches for the next site in the roam list that is currently in range (but which may not have the strongest signal) and locks on to it.

NOTE: Each channel can only have either Scan or Roam

enabled, not both at the same time.

Channels with this feature enabled can be added to a particular roam list. The radio searches the channel(s) in the roam list during the automatic roam operation to locate the best site.

A roam list supports a maximum of 16 channels (including the Selected Channel).

NOTE: You cannot manually add or delete an entry to the roam

list. Check with your dealer or system administrator for more information.

Capacity Plus

Capacity Plus is a single-site trunking configuration of the MOTOTRBO radio system, which uses a pool of channels to support hundreds of users and up to 254 Groups. This feature allows your radio to efficiently utilize the available number of programmed channels while in Repeater Mode.

Icons of features not applicable to Capacity Plus are not available in the menu. You hear a negative indicator tone if you try to access a feature not applicable to Capacity Plus via a programmable button press.

Your radio also has features that are available in conventional digital mode, IP Site Connect, Capacity Plus and Linked Capacity Plus. However, the minor differences in the way each feature works does NOT affect the performance of your radio.

Check with your dealer or system administrator for more information on this configuration.

Linked Capacity Plus

Linked Capacity Plus is a multi-site multi-channel trunking configuration of the MOTOTRBO radio system, combining the best of both Capacity Plus and IP Site Connect configurations.

Linked Capacity Plus allows your radio to extend trunking communication beyond the reach of a single site, by connecting to different available sites which are connected via an Internet Protocol (IP) network. It also provides an increase in capacity by efficiently utilizing the combined available number of programmed channels supported by each of the available sites.

In a manual site search, the radio searches for the next site in the roam list that is currently in range (but which may not have the strongest signal) and locks on to it.

Any channel with Linked Capacity Plus enabled can be added to a particular roam list. The radio searches these channels during the automatic roam operation to locate the best site.

Identifying Radio Controls

English

NOTE: You cannot manually add or delete an entry to the roam

list. Check with your dealer or system administrator for more information.

Similar to Capacity Plus, icons of features not applicable to Linked Capacity Plus are not available in the menu. You hear a negative indicator tone if you try to access a feature not applicable to Linked Capacity Plus via a programmable button press.

Check with your dealer or system administrator for more information on this configuration.

Identifying Status Indicators

Your radio indicates its operational status through the following:

Display Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 11

Call Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 12

Sent Item Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 14

LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 15

Audio Tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 16

Indicator Tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 16

Identifying Status Indicators

English

Display Icons

The liquid crystal display (LCD) of your radio shows the radio status, text entries, and menu entries.

The following are icons that appear on the status bar at the top of the radio’s display. Icons are displayed on the status bar, arranged left-to-right, in order of appearance/usage and are channel specific.

Received Signal Strength Indicator (RSSI)

The number of bars displayed represents the radio signal strength. Four bars indicate the strongest signal. This icon is only displayed while receiving.

Bluetooth

The Bluetooth feature is enabled but there is no remote Bluetooth device connected.

Bluetooth Connected

The Bluetooth feature is enabled. The icon stays lit when one or more remote Bluetooth devices are connected.

Emergency

Radio is in Emergency mode.

Notification

Notification list is not empty.

‡

Scan

Scan feature is enabled.

Scan – Priority 1*

‡

Radio detects activity on channel/group designated as Priority 1).

Scan – Priority 2*

‡

Radio detects activity on channel/group designated as Priority 2.

Vote Scan

Vote scan feature is enabled.

Monitor

Selected channel is being monitored.

Talkaround*

‡

In the absence of a repeater, radio is currently configured for direct radio to radio communication.

Site Roaming*

The site roaming feature is enabled.

Secure

The Privacy feature is enabled.

Unsecure

The Privacy feature is disabled.

GPS Available

The GPS feature is enabled. The icon stays lit when a position fix is available.

* Not applicable in Capacity Plus

‡

Not applicable in Linked Capacity Plus

Identifying Status Indicators

English

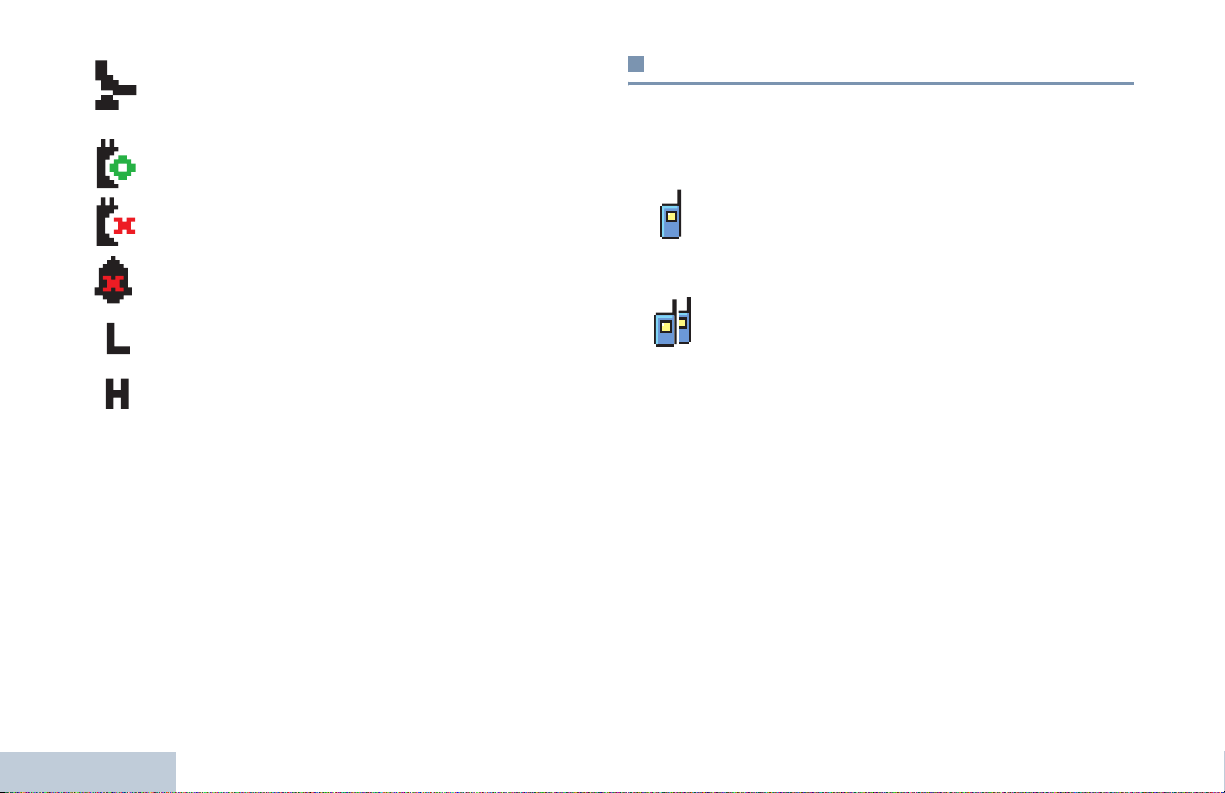

GPS Not Available/Out of Range

The GPS feature is enabled but is not receiving data from the satellite.

Option Board

The Option Board is enabled.

Option Board Non-Function

The Option Board is disabled.

Tones Disable

Tones are turned off.

Power Level

Radio is set at Low power.

Radio is set at High power.

* Not applicable in Capacity Plus

‡

Not applicable in Linked Capacity Plus

Call Icons

The following icons appear on the radio’s display during a call. These icons also appear in the Contacts list to indicate alias or ID type.

Private Call

Indicates a Private Call in progress. In the Contacts list, it indicates a subscriber alias

(name) or ID (number).

Group Call/All Call

Indicates a Group Call or All Call in progress. In the Contacts list, it indicates a group alias (name)

or ID (number).

Identifying Status Indicators

English

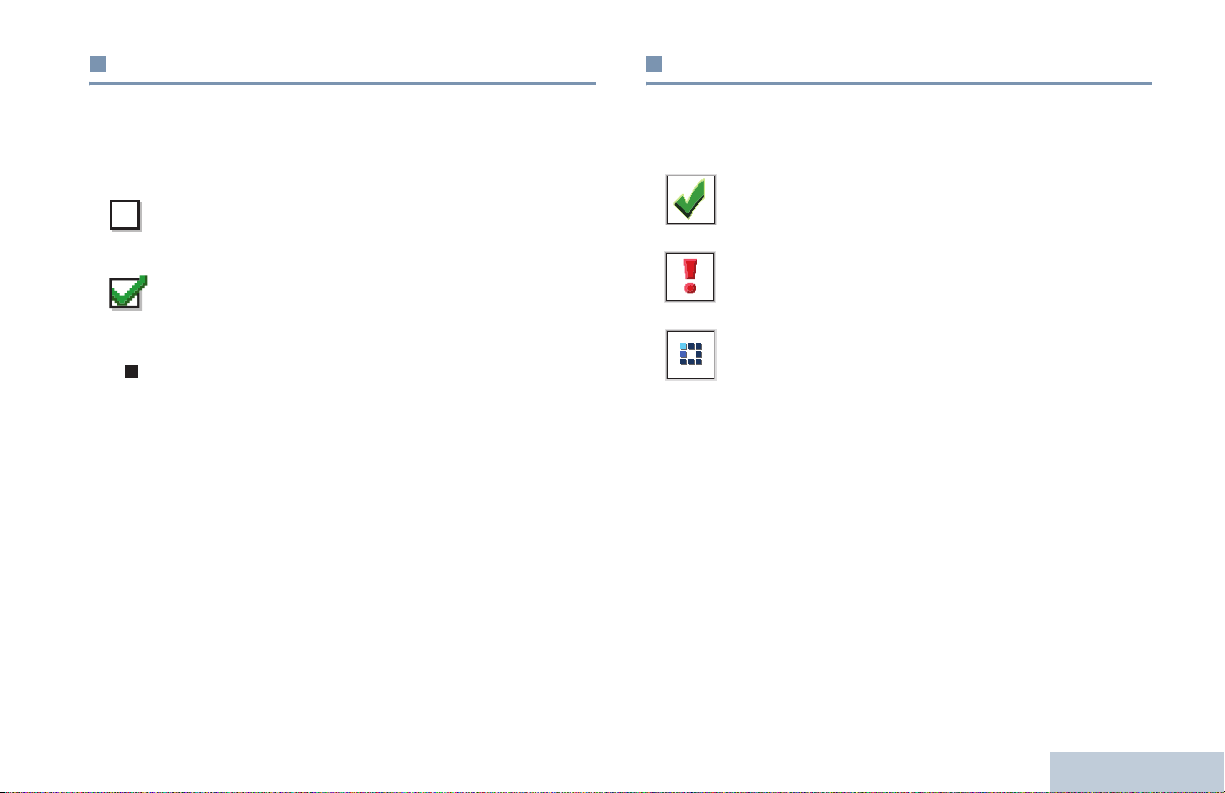

Advanced Menu Icons

Mini Notice Icons

The following icons appear beside menu items on the radio’s display that offer a choice between two options or as an indication that there is a sub-menu offering two options.

Checkbox (Empty)

Indicates the option is not selected.

Checkbox (Checked)

Indicates the option is selected.

Solid Black Box

Indicates the option selected for the menu item with a sub-menu.

The following icons appear momentarily on the radio’s display after an action to perform task is taken.

Successful Transmission (Positive)

Successful action taken.

Failed Transmission (Negative)

Failed action taken.

Transmission in Progress (Transitional)

Transmitting. This dynamic icon is seen before indication for Successful Transmission or Failed Transmission.

Identifying Status Indicators

English

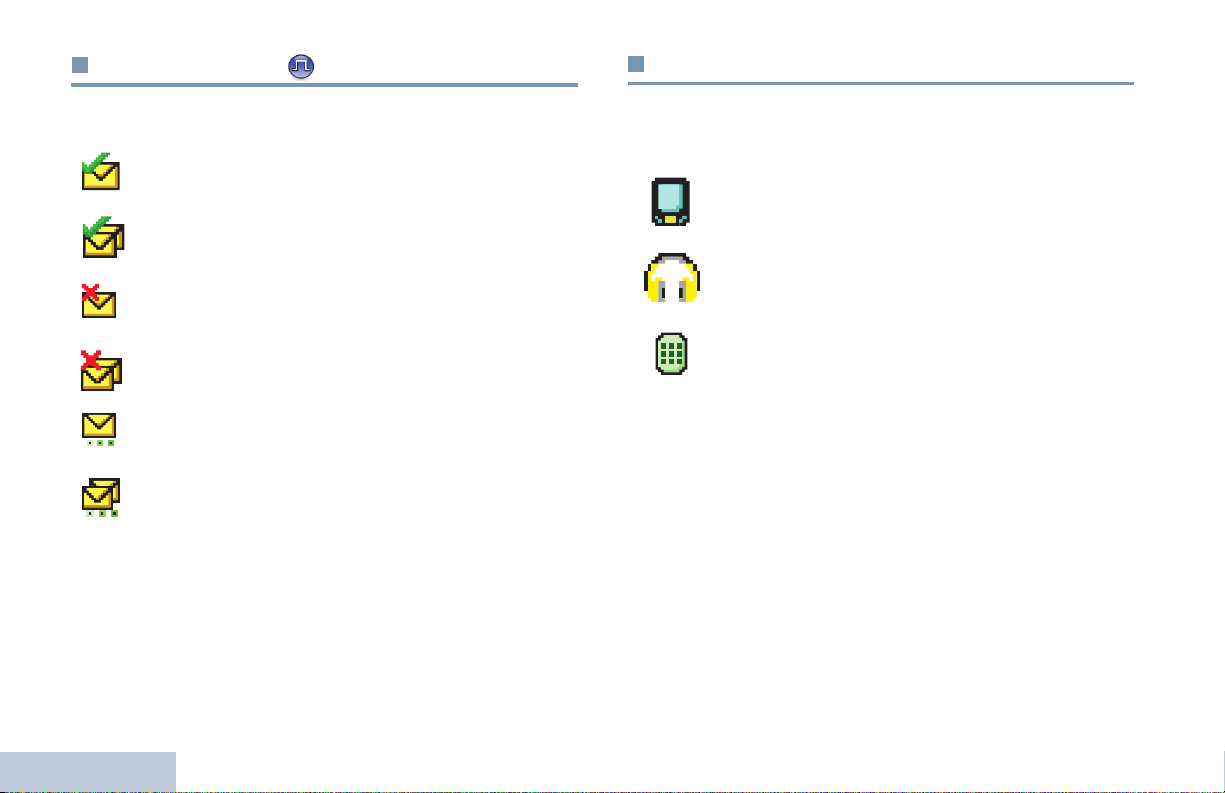

Sent Item Icons

Bluetooth Device Icons

The following icons appear in the Sent Items folder.

Sent Successfully

The text message is sent successfully.

Send Failed

The text message cannot be sent.

In-Progress

• The text message to a subscriber alias or ID is

pending transmission, followed by waiting for acknowledgement.

• The text message to a group alias or ID is pending

transmission.

Identifying Status Indicators

The following icons also appear next to items in the list of Bluetooth-enabled devices available to indicate the device type.

Bluetooth Data Device

Bluetooth-enabled data device, such as a scanner.

Bluetooth Audio Device

Bluetooth-enabled audio device, such as a headset.

Bluetooth PTT Device

Bluetooth-enabled PTT device, such as a PTT-Only Device (POD).

English

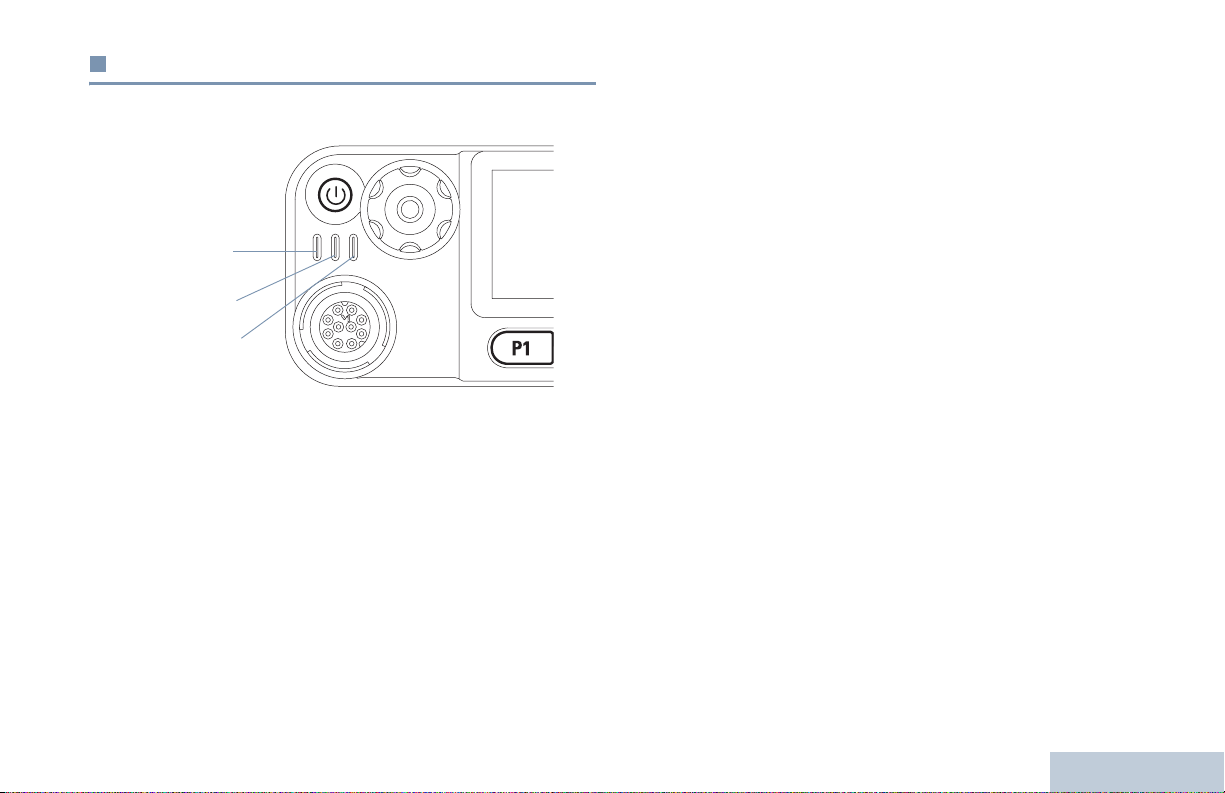

LED Indicators

LED indicators show the operational status of your radio.

Red

Yellow

Green

Double blinking yellow repeater while in Capacity Plus or Linked Capacity Plus, all Capacity Plus channels or Linked Capacity Plus channels are currently busy, Auto Roaming is enabled, radio is actively searching for a new site. Also indicates radio has yet to respond to a group call alert, or radio is locked.

NOTE: While in conventional mode, when the green LED

blinks, it indicates the radio detects activity over the air. Due to the nature of the digital protocol, this activity may or may not affect the radio's programmed channel.

For Capacity Plus and Linked Capacity Plus, there is no LED indication when the radio is detecting activity over the air.

– Radio is no longer connected to the

Identifying Status Indicators

Blinking red

or has failed the self-test upon powering up.

Solid green

Blinking green – Radio is receiving a non-privacy-enabled call

or data, or detecting activity over the air.

Double blinking green call or data.

Solid yellow

Blinking yellow

Call Alert, or all local Linked Capacity Plus channels are busy.

– Radio is receiving an emergency transmission

– Radio is powering up, or transmitting.

– Radio is receiving a privacy-enabled

– Radio is monitoring a conventional channel.

– Radio is scanning for activity or receiving a

English

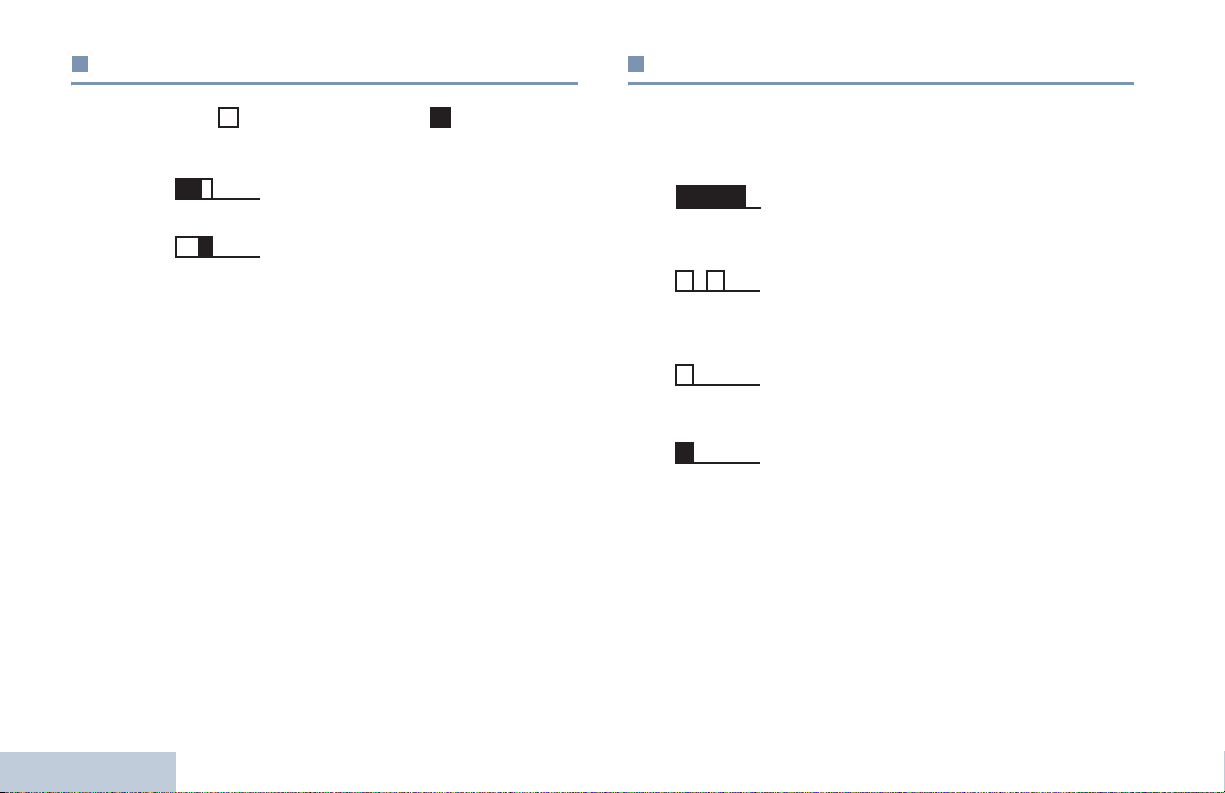

Indicator Tones

Audio Tones

High pitched tone Low pitched tone

Positive Indicator Tone

Negative Indicator Tone

Identifying Status Indicators

Alert tones provide you with audible indications of the radio’s status or the radio’s response to data received.

Continuous Tone A monotone sound. Sounds

continuously until termination.

Periodic Tone Sounds periodically depending on the

duration set by the radio. Tone starts, stops, and repeats itself.

Repetitive Tone A single tone that repeats itself until it is

terminated by the user.

Momentary Tone Sounds only once for a short period of

time defined by the radio.

English

Receiving and Making Calls

Once you understand how your MOTOTRBO Mobile is configured, you are ready to use your radio.

Use this navigation guide to familiarize yourself with the basic Call features:

Selecting a Zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 17

Selecting a Radio Channel, Subscriber Alias or ID,

or Group Alias or ID . . . . . . . . . . . . . . . . . . . . . . . . . page 18

Receiving and Responding to a Radio Call. . . . . . . . . page 18

Making a Radio Call . . . . . . . . . . . . . . . . . . . . . . . . . . page 21

Stopping a Radio Call . . . . . . . . . . . . . . . . . . . . . . . . . page 24

Talkaround . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 25

Permanent Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . page 25

Selecting a Zone

A zone is a group of channels. Your radio supports up to 99 channels and 2 zones, with a maximum of 99 channels per zone.

Use the following procedure to select a zone.

Procedure: Press the programmed Zone button and proceed to Step 3. OR

Follow the procedure below.

1 g to access the menu. 2 f or h to Zone and press g to select.

3 The current zone is displayed and indicated by a . 4 f or h to the required zone and press g to select.

5 The display shows <Zone> Selected momentarily and

returns to the selected zone screen.

Receiving and Making Calls

English

Selecting a Channel

Receiving and Responding to a Radio Call

Transmissions are sent and received on a channel. Depending on your radio's configuration, each channel may have been programmed differently to support different groups of users or supplied with different features. After selecting the required zone, select the channel you require to transmit or receive on.

Procedure:

Select a channel by using:

• Scroll Up/Down buttons, OR

• Volume/Channel Knob, OR

• The programmed Channel Up or Channel Down buttons

See Selecting a Zone on page 17 for more information on selecting your required zone.

See Switching Between Conventional Analog and Digital Mode on page 7 for information about Scroll Up/Down buttons.

See Using the Volume/Channel Knob on page 8 for information about using the Volume/Channel Knob.

See Programmable Buttons on page 4 for information about

Receiving and Making Calls

the Channel Up or Channel Down buttons.

Once the channel, subscriber alias or ID, or group alias or ID is displayed, you can proceed to receive and respond to

calls.

The green LED lights up while the radio is transmitting and blinks when the radio is receiving.

NOTE: The green LED lights up while the radio is transmitting

and double blinks when the radio is receiving a privacyenabled call.

To unscramble a privacy-enabled call, your radio must have the same Privacy Key, or the same Key Value and Key ID (programmed by your dealer) as the transmitting radio (the radio you are receiving the call from).

See Privacy on page 59 for more information.

Green LED

English

Receiving and Responding to a Group Call

To receive a call made to a group of users, your radio must be configured as part of that group.

Procedure:

When you receive a Group Call (while on the Home screen):

1 The green LED blinks.

2 The Group Call icon appears in the top right corner. The first

text line shows the caller alias. The second text line displays the group call alias. Your radio unmutes and the incoming call sounds through the radio's speaker.

3 If the Channel Free Indication feature is enabled, you

hear a short alert tone the moment the transmitting radio releases the PTT button, indicating the channel is free for you to respond. Press the PTT button to respond to the call.

If the Voice Interrupt feature is enabled, press the PTT

button to stop the current call from the transmitting radio and free the channel for you to talk/respond.

4 The green LED lights up.

5 Wait for the Talk Permit Tone to finish (if enabled) and speak

clearly into the microphone.

Wait for the PTT Sidetone to finish (if enabled) and

speak clearly into the microphone.

6 Release the PTT button to listen.

7 If there is no voice activity for a predetermined period of

time, the call ends.

See Making a Group Call on page 22 for details on making a Group Call.

Receiving and Responding to a Private Call

A Private Call is a call from an individual radio to another individual radio.

Procedure:

When you receive a Private Call:

1 The green LED blinks.

2 The Private Call icon appears in the top right corner. The

first text line shows the caller alias. Your radio unmutes and the incoming call sounds through the radio's speaker.

3 If the Channel Free Indication feature is enabled, you hear a

short alert tone the moment the transmitting radio releases the PTT button, indicating the channel is free for you to respond. Press the PTT button to respond to the call.

OR If the Voice Interrupt feature is enabled, press the PTT

Receiving and Making Calls

English

button to stop the current call from the transmitting radio and free the channel for you to talk/respond.

4 The green LED lights up.

5 Wait for the Talk Permit Tone to finish (if enabled) and speak

clearly into the microphone.

6 Release the PTT button to listen.

3 Once the All Call ends, the radio returns to the previous

screen before receiving the call. An All Call does not wait for a predetermined period of time before ending.

If the Channel Free Indication feature is enabled, you

hear a short alert tone the moment the transmitting radio releases the PTT button, indicating the channel is now available for use.

7 If there is no voice activity for a predetermined period of

time, the call ends.

8 You hear a short tone. The display shows Call Ended.

See Making a Private Call on page 22 for details on making a Private Call.

Receiving an All Call

An All Call is a call from an individual radio to every radio on the channel. It is used to make important announcements requiring the user’s full attention.

Procedure:

When you receive an All Call:

1 A tone sounds and the green LED blinks.

2 The Group Call icon appears in the top right corner. The first

Receiving and Making Calls

text line shows the caller alias. The second text line displays All Call. Your radio unmutes and the incoming call sounds through the radio's speaker.

English

You cannot respond to an All Call.

See Making an All Call on page 23 for details on making an All Call.

NOTE: The radio stops receiving the All Call if you switch to a

different channel while receiving the call. During an All Call, you are not able to continue with any menu navigation or editing until the call ends.

Receiving and Responding to a Selective Call

A Selective Call is a call from an individual radio to another individual radio. It is a Private Call on an analogue system.

Procedure:

When you receive a Selective Call:

1 The green LED blinks.

2 The Private Call icon appears in the top right corner. The

first text line shows the caller alias or Selective Call or

Alert with Call. Your radio unmutes and the incoming

call sounds through the radio's speaker.

3 If the Channel Free Indication feature is enabled, you hear a

short alert tone the moment the transmitting radio releases the PTT button, indicating the channel is free for you to respond. Press the PTT button to respond to the call.

4 The LED lights up solid green.

5 Wait for the Talk Permit Tone to finish (if enabled) and speak

clearly into the microphone.

6 Release the PTT button to listen.

7 If there is no voice activity for a predetermined period of

time, the call ends.

8 You hear a short tone. The display shows Call Ended.

NOTE: See Making a Selective Call on page 24 for details on

making a Selective Call.

Making a Radio Call

After selecting your channel, you can select a subscriber alias or ID, or group alias or ID by using:

• The Contacts list (see Contacts Settings on page 33)

• A programmed One Touch Access button

• The programmed number keys – This method is for Group,

Private and All Calls only and is used with the keypad microphone (see Making a Group, Private or All Call with

the Programmable Number Key on page 82).

• Manual Dial (via Contacts) – This method is for Private Calls

only and is dialed using a keypad microphone (see Making a

Private Call by Manual Dial on page 82)

NOTE: Your radio must have the Privacy feature enabled on

the channel to send a privacy-enabled transmission. Only target radios with the same Privacy Key as your radio are able to unscramble the transmission.

See Privacy on page 59 for more information.

The One Touch Access feature allows you to make a Group or Private Call to a predefined ID easily. This feature can be assigned to a short or long programmable button press.You can ONLY have one ID assigned to a One Touch Access button. Your

Receiving and Making Calls

English

radio can have multiple One Touch Access buttons programmed.

Making a Group Call

To make a call to a group of users, your radio must be configured as part of that group.

Procedure:

1 Select the channel with the active group alias or ID. See

Selecting a Channel on page 18.

OR Press the programmed One Touch Access button.

2 Press the PTT button to make the call. The green LED lights

up. The Group Call icon appears in the top right corner. The first text line shows the group call alias.

3 Wait for the Talk Permit Tone to finish (if enabled) and speak

clearly into the microphone.

Wait for the PTT Sidetone to finish (if enabled) and

speak clearly into the microphone.

4 Release the PTT button to listen. When the target radio

responds, the green LED blinks. You see the Group Call icon, the group alias or ID, and transmitting radio alias

Receiving and Making Calls

or ID on your display.

5 If the Channel Free Indication feature is enabled, you

hear a short alert tone the moment the target radio releases

the PTT button, indicating the channel is free for you to respond. Press the PTT button to respond.

If there is no voice activity for a predetermined period of time, the call ends.

6 Radio returns to the screen you were on prior to initiating the

call.

You can also make a Group Call via Contacts (see Making a Group Call from Contacts on page 34).

Making a Private Call

While you can receive and/or respond to a Private Call initiated by an authorized individual radio, your radio must be programmed for you to initiate a Private Call.

There are two types of Private Calls. The first type, where a radio presence check is performed prior to setting up the call, while the other sets up the call immediately.

Only one of these call types can be programmed to your radio by your dealer.

You hear a negative indicator tone, when you make a Private Call via the Menu, Call Log, Contacts list, One Touch Access button, the programmed number keys, Scroll Up/Down buttons, or the Volume/Channel Knob if this feature is not enabled.

English

Use the Text Message or Call Alert features to contact an individual radio. See Text Messaging Features on page 48 or Call Alert Operation on page 41 for more information.

Procedure:

1 Select the channel with the active radio alias or ID. See

Selecting a Channel on page 18.

OR Press the programmed One Touch Access button.

2 Press the PTT button to make the call. The green LED lights

up. The Private Call icon appears in the top right corner. The first text line shows the subscriber alias. The second text line displays the call status.

3 Wait for the Talk Permit Tone to finish (if enabled) and speak

clearly into the microphone.

4 Release the PTT button to listen. When the target radio

responds, the green LED blinks.

5 If the Channel Free Indication feature is enabled, you hear a

short alert tone the moment the target radio releases the PTT button, indicating the channel is free for you to respond. Press the PTT button to respond.

If there is no voice activity for a predetermined period of time, the call ends.

You can also make a Private Call via Contacts (see Making a Private Call from Contacts on page 34), manually dial a

Private Call (see Making a Private Call by Manual Dial on page 82) or perform a quick alphanumeric search for the required target alias via a keypad entry (see Making a Group, Private, Phone or All Call by Alias Search on page 83).

Making an All Call

This feature allows you to transmit to all users on the channel. Your radio must be programmed to allow you to use this feature.

Procedure:

1 Select the channel with the active group alias or ID. See

Selecting a Channel on page 18.

2 Press the PTT button to make the call. The green LED lights

up. The Group Call icon appears in the top right corner. The first text line shows All Call.

3 Wait for the Talk Permit Tone to finish (if enabled) and speak

clearly into the microphone.

Wait for the PTT Sidetone to finish (if enabled) and

speak clearly into the microphone.

Users on the channel cannot respond to an All Call.

Receiving and Making Calls

6 You hear a short tone. The display shows Call Ended.

English

Making a Selective Call

Stopping a Radio Call

Just like a Private Call, while you can receive and/or respond to a Selective Call initiated by an authorized individual radio, your radio must be programmed for you to initiate a Selective Call.

Procedure:

1 Select the channel with the active radio alias or ID. See

Selecting a Channel on page 18.

2 Press the PTT button to make the call. The green LED lights

up. The Private Call icon appears in the top right corner. The first text line shows the subscriber alias. The second text line displays the call status.

3 Wait for the Talk Permit Tone to finish (if enabled) and speak

clearly into the microphone.

4 Release the PTT button to listen. When the target radio

responds, the green LED blinks.

5 If the Channel Free Indication feature is enabled, you hear a

short alert tone the moment the target radio releases the PTT button, indicating the channel is free for you to respond. Press the PTT button to respond.

If there is no voice activity for a predetermined period of time, the call ends.

Receiving and Making Calls

6 You hear a short tone. The display shows Call Ended.

This feature allows you to stop an ongoing Group or Private Call to free the channel for transmission. For example, when a radio

experiences a “stuck microphone” condition where the PTT button is inadvertently pressed by the user.

Your radio must be programmed to allow you to use this feature.

Procedure:

While on the required channel:

1 Press the programmed Transmit Interrupt Remote Dekey

button.

2 The display shows Remote Dekey.

3 Wait for acknowledgment.

4 The radio sounds a positive indicator tone and the display

shows Remote Dekey Success, indicating that the channel is now free.

The radio sounds a negative indicator tone and the display shows Remote Dekey Failed.

On the interrupted radio, the display shows

Call Interrupted

tone until you release the PTT button, if it is transmitting an interruptible call that is stopped via this feature.

, and the radio sounds a negative indicator

English

Talkaround

Permanent Monitor

You can continue to communicate when your repeater is not operating, or when your radio is out of the repeater’s range but within talking range of other radios. This is called “talkaround”.

NOTE: This feature is not applicable in Capacity Plus and

Linked Capacity Plus.

Procedure:

Press the programmed Repeater/Talkaround button to toggle between talkaround and repeater modes.

Follow the procedure below.

1 g to access the menu. 2 f or h to Utilities and press g to select. 3 f or h to Radio Settings and press g to select. 4 f or h to Talkaround and press g to select. 5 Press g to enable Talkaround. The display shows

beside Enabled.

Press

g to disable Talkaround. The disappears from

beside Enabled.

6 The screen automatically returns to the previous menu.

Use the Permanent Monitor feature to continuously monitor a selected channel for activity.

NOTE: This feature is not applicable in Capacity Plus and

Linked Capacity Plus.

Procedure:

1 Press the programmed Permanent Monitor button.

2 Radio sounds an alert tone, the yellow LED lights up, and

the display shows Permanent Monitor On. The monitor icon appears on the status bar.

3 Press the programmed Permanent Monitor button to exit

Permanent Monitor mode.

4 Radio sounds an alert tone, the yellow LED turns off, and

display shows Permanent Monitor Off.

Receiving and Making Calls

The Talkaround setting is retained even after powering down.

English

Advanced Features

Use this navigation guide to learn more about advanced features available with your radio:

Radio Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 26

Remote Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 27

Scan Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 29

Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 31

Vote Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 33

Contacts Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 33

Call Indicator Settings . . . . . . . . . . . . . . . . . . . . . . . . . page 37

Call Log Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 40

Call Alert Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . page 41

Emergency Operation . . . . . . . . . . . . . . . . . . . . . . . . . page 43

Text Messaging Features . . . . . . . . . . . . . . . . . . . . . . page 48

Analog Message Encode . . . . . . . . . . . . . . . . . . . . . . page 57

Analog Status Update . . . . . . . . . . . . . . . . . . . . . . . . . page 58

Privacy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 59

Multi-Site Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . page 60

Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 62

Lone Worker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 64

Bluetooth. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 64

Advanced Features

Notification List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 67

Utilities. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 67

Radio Check

If enabled, this feature allows you to determine if another radio is active in a system without disturbing the user of that radio. No audible or visual notification is shown on the target radio.

This feature is only applicable for subscriber aliases or IDs.

Sending a Radio Check

Procedure: Use the programmed Radio Check button.

1 Press the programmed Radio Check button. 2 f or h to the required subscriber alias or ID and press

g to select.

3 The display shows transitional mini notice, indicating the

request is in progress. The LED lights up solid green.

4 Wait for acknowledgement.

5 If successful, a positive indicator tone sounds and the

display shows positive mini notice.

If unsuccessful, a negative indicator tone sounds and the display shows negative mini notice.

6 Radio returns to the subscriber alias or ID screen.

English

Procedure:

Use the menu.

1 g to access the menu. 2 f or h to Contacts and press g to select. 3 f or h to the required subscriber alias or ID and press

g to select.

Remote Monitor

Use the Remote Monitor feature to turn on the microphone of a target radio (subscriber IDs only). No audible or visual indication is given to the target radio. You can use this feature to monitor, remotely, any audible activity surrounding the target radio.

Your radio must be programmed to allow you to use this feature.

Advanced Features

4 f or h to Radio Check and press g to select.

5 The display shows transitional mini notice, indicating the

request is in progress. The green LED lights up.

6 Wait for acknowledgement.

7 If successful, a positive indicator tone sounds and the

display shows positive mini notice.

If unsuccessful, a negative indicator tone sounds and the display shows negative mini notice.

8 Radio returns to the subscriber alias or ID screen.

If the e button is pressed when the radio is waiting for

acknowledgement, a tone sounds, and the radio terminates all retries and exits Radio Check mode.

You can also initiate Radio Check via manual dial (see Initiating a Radio Check by Manual Dial on page 81).

Initiating Remote Monitor

Procedure: Use the programmed Remote Monitor button.

1 Press the programmed Remote Monitor button. 2 f or h to the required subscriber alias or ID and press

g to select.

3 The display shows transitional mini notice, indicating the

request is in progress. The green LED lights up.

4 Wait for acknowledgment.

5 If successful, a positive indicator tone sounds and the

display shows positive mini notice. Your radio starts playing audio from the monitored radio for a programmed duration and display shows Rem. Monitor. Once the timer expires, the radio sounds an alert tone and the LED turns off.

English

If unsuccessful, a negative indicator tone sounds and the display shows negative mini notice.

You can also manually select a target radio address (see Initiating Remote Monitor by Manual Dial on page 81).

Procedure:

Use the menu.

1 g to access the menu. 2 f or h to Contacts and press g to select. 3 f or h to the required subscriber alias or ID and press

g to select.

4 f or h to Remote Mon. and press g to select.

5 The display shows transitional mini notice, indicating the

request is in progress. The green LED lights up.

6 Wait for acknowledgment.

7 If successful, a positive indicator tone sounds and the

Advanced Features

If unsuccessful, the radio sounds a negative indicator tone the display shows negative mini notice.

Stopping Remote Monitor

Remote Monitor automatically stops after a programmed duration or when there is any user operation on the target radio.

Procedure:

1 Press the programmed Transmit Interrupt Remote Dekey

button.

2 The display shows transitional mini notice, indicating the

request is in progress. The green LED lights up.

3 Wait for acknowledgment.

4 If successful, a positive indicator tone sounds and the

display shows positive mini notice.

If unsuccessful, a negative indicator tone sounds and the display shows negative mini notice.

English

Scan Lists

Scan lists are created and assigned to individual channels/ groups. Your radio scans for voice activity by cycling through the channel/group sequence specified in the scan list for the current channel/group.

Your radio can support up to 250 scan lists, with a maximum of 16 members in a list. Each scan list supports a mixture of both analog and digital entries.

You can add, delete, or prioritize channels by editing a scan list.

You can attach a new scan list to your radio via Front Panel Programming.

NOTE: This feature is not applicable in Capacity Plus and

Linked Capacity Plus.

Viewing an Entry in the Scan List

Procedure:

1 g to access the menu. 2 f or h to Scan and press g to select. 3 f or h to Scan List and press g to select. 4 Use f or h to view each member on the list.

The priority icon appears left of the member’s alias, if set, to indicate whether the member is on a Priority 1 or Priority 2

channel list. You cannot have multiple Priority 1 or Priority 2 channels in a scan list.

There is no priority icon if priority is set to None.

Editing the Scan List

Adding a New Entry to the Scan List

Procedure:

1 g to access the menu. 2 f or h to Scan and press g to select. 3 f or h to Scan List and press g to select. 4 f or h to Add Member and press g to select. 5 f or h to the required alias or ID and press g to

select.

6 f or h to the required priority level and press g to

select.

7 The display shows positive mini notice, followed

immediately by Add Another?.

8 f or h to Yes and press g to select, to add another

entry, and repeat Steps 5 and 6.

f or h to No and press g to select to save the current

list.

Advanced Features

English

Deleting an Entry from the Scan List

Procedure:

1 g to access the menu. 2 f or h to Scan and press g to select. 3 f or h to Scan List and press g to select. 4 f or h to the required alias or ID and press g to

select.

5 f or h to Delete and press g to select. 6 At Delete Entry?, f or h to Yes and press g to

select, to delete the entry. The display shows positive mini notice.

f or h to No and press g to select to return to the

previous screen.

7 Repeat Steps 4 to 6 to delete other entries.

After deleting all required aliases or IDs, long press e to

return to the Home screen.

Advanced Features

Setting and Editing Priority for an Entry in the Scan

List

Procedure:

1 g to access the menu. 2 f or h to Scan and press g to select. 3 f or h to Scan List and press g to select. 4 f or h to the required alias or ID and press g to

select.

5 f or h to Edit Priority and press g to select. 6 f or h to the required priority level and press g to

select.

7 The display shows positive mini notice before returning to

the previous screen.

8 The priority icon appears left of the member’s name.

There is no priority icon if priority is set to None.

English

Scan

When you start a scan, your radio cycles through the programmed scan list for the current channel looking for voice activity.

The yellow LED blinks and the scan icon appears on the status bar.

During a dual mode scan, if you are on a digital channel, and your radio locks onto an analog channel, it automatically switches from digital mode to analog mode for the duration of the call. This is also true for the reverse.

There are two ways of initiating scan:

• Main Channel Scan (Manual): Your radio scans all the

channels/groups in your scan list. On entering scan, your

radio may – depending on the settings – automatically start

on the last scanned “active” channel/group or on the channel

where scan was initiated.

• Auto Scan (Automatic): Your radio automatically starts

scanning when you select a channel/group that has Auto

Scan enabled.

NOTE: This feature is not applicable in Capacity Plus and

Linked Capacity Plus.

Starting and Stopping Scan

Procedure:

Press the programmed Scan button to start or stop Scan. OR Follow the procedure below.

1 Use the Scroll Up/Down buttons to select a channel

programmed with a scan list.

2 g to access the menu. 3 f or h to Scan and press g to select. 4 f or h to Scan State and press g to select. 5 f or h to required scan state and press g to select.

6 The display shows Scan On when scan is enabled. The

yellow LED blinks and the scan icon appears.

The display shows Scan Off if scan is disabled. The LED turns off and the scan icon disappears.

While scanning, the radio can only accept data (e.g. text message, location, telemetry, or PC data) if received on its Selected Channel.

Advanced Features

English

Responding to a Transmission During a Scan

During scanning, your radio stops on a channel/group where activity is detected. The radio stays on that channel for a programmed time period known as “hang time”.

Procedure:

1 If the Channel Free Indication feature is enabled, you

hear a short alert tone the moment the transmitting radio releases the PTT button, indicating the channel is free for you to respond.

2 Press the PTT button during hang time. The green LED

lights up.

3 Wait for the Talk Permit Tone to finish (if enabled) and speak

clearly into the microphone.

Wait for the PTT Sidetone to finish (if enabled) and

speak clearly into the microphone.

4 Release the PTT button to listen.

5 If you do not respond within the hang time, the radio returns

to scanning other channels/groups.

Advanced Features

Deleting a Nuisance Channel

If a channel continually generates unwanted calls or noise (termed a “nuisance” channel), you can temporarily remove the unwanted channel from the scan list.

This capability does not apply to the channel designated as the Selected Channel.

Procedure:

1 When your radio “locks on to” an unwanted or nuisance

channel, press the programmed Nuisance Channel Delete button until you hear a tone.

2 Release the Nuisance Channel Delete button. The

nuisance channel is deleted.

Deleting a “nuisance” channel is only possible through the programmed Nuisance Channel Delete button. This feature is not accessible through the menu.

Restoring a Nuisance Channel

Procedure:

To restore the deleted nuisance channel, do one of the following:

• Turn the radio off and then power it on again, OR

• Stop and restart a scan via the programmed Scan button or

menu, OR

• Change the channel via the Scroll Up/Down buttons.

English

Vote Scan

Contacts Settings

Vote Scan provides you with wide area coverage in areas where there are multiple base stations transmitting identical information on different analog channels.

Your radio scans analog channels of multiple base stations and performs a voting process to select the strongest received signal. Once that is established, your radio unmutes to transmissions from that base station.

The yellow LED blinks and the vote scan icon appears on the status bar.

To respond to a transmission during a Vote Scan, follow the same procedures as Responding to a Transmission During a Scan on page 32.

Contacts provides “address-book” capabilities on your radio. Each entry corresponds to an alias or ID that you use to initiate a call.

Each entry, depending on context, associates with one of five types of calls: Group Call, Private Call, All Call, PC Call or Dispatch Call.

PC Call and Dispatch Call are data-related. They are only available with the applications. Refer to the data applications documentation for further details.

NOTE: If the Privacy feature is enabled on a channel, you can

make privacy-enabled Group Call, Private Call, and All Call on that channel. Only target radios with the same Privacy Key OR the same Key Value and Key ID as your radio are able to unscramble the transmission.

See Privacy on page 59 for more information.

Additionally, Contacts menu allows you to assign each entry to a programmable number key or more on a keypad microphone. If an entry is assigned to a number key, your radio can perform a

quick dial on the entry.

Your radio supports two Contacts lists, one for Analog contacts and one for Digital contacts, with a a maximum of 500 members for each Contacts list.

Advanced Features

English

Each entry within Contacts displays the following information:

• Call Type

• Call Alias

• Call ID

NOTE: You can add, or edit subscriber IDs for the Digital

Contacts list. Deleting subscriber IDs can only be performed by your dealer.

For the Analog Contacts list, you can only view the subscriber IDs, edit the subscriber IDs, and initiate a Call Alert. Adding and deleting capabilities can only be performed by your dealer.

Making a Group Call from Contacts

Procedure:

1 g to access the menu. 2 f or h to Contacts and press g to select.The entries

are alphabetically sorted.

4 Press the PTT button to make the call. The green LED lights

up.

5 Wait for the Talk Permit Tone to finish (if enabled) and speak

clearly into the microphone.

Wait for the PTT Sidetone to finish (if enabled) and

speak clearly into the microphone.

6 Release the PTT button to listen. When any user in the

group responds, the green LED blinks. You see the Group Call icon, the group alias or ID, and that user’s alias or ID on your display.

7 If the Channel Free Indication feature is enabled, you

hear a short alert tone the moment the target radio releases the PTT button, indicating the channel is free for you to respond. Press the PTT button to respond.

If there is no voice activity for a programmed period of time, the call ends.

3 f or h to the required group alias or ID.

Advanced Features

English

Making a Private Call from Contacts

Procedure:

1 g to access the menu. 2 f or h to Contacts and press g to select.The entries

are alphabetically sorted.

3 f or h to the required subscriber alias or ID.

4 Press the PTT button to make the call. The green LED lights

up. The display shows the destination alias.

5 Wait for the Talk Permit Tone to finish (if enabled) and speak

clearly into the microphone.

6 Release the PTT button to listen. When the target radio

responds, the green LED blinks and the display shows the transmitting user's alias or ID.

7 If the Channel Free Indication feature is enabled, you hear a

short alert tone the moment the target radio releases the PTT button, indicating the channel is free for you to respond. Press the PTT button to respond.

If there is no voice activity for a programmed period of time, the call ends.

8 You hear a short tone. The display shows Call Ended.

NOTE: If you release the PTT button while the radio is setting

up the call, it exits without any indication and returns to the previous screen.

Your radio may be programmed to perform a radio presence check prior to setting up the Private Call. If the target radio is not available, you hear a short tone and see negative mini notice on the display.

The radio returns to the menu prior to initiating the radio presence check.

Assigning an Entry to a Programmable

Number Key

Procedure:

1 g to access the menu. 2 f or h to Contacts and press g to select. The entries

are alphabetically sorted.

3 f or h to the required alias or ID and press g to

select.

4 f or h to Program Key and press g to select. 5 f or h to the desired number key and press g to

select.

If the number key is currently assigned to another entry, the display shows The Key is Already Used and then, the first line of the display shows Overwrite?.

f or h to Yes and press g to select.

6 The radio sounds a positive indicator tone and the display

shows positive mini notice.

7 The screen automatically returns to the previous menu.

Advanced Features

English

NOTE: Each entry can be associated to different number keys.

You see a checkmark before each number key that is assigned to an entry. If the checkmark is before Empty, you have not assign a number key to the entry.

5 f or h to Empty and press g to select.

6 The first line of the display shows Clear from all keys?. 7 f or h to Yes and press g to select.

If a number key is assigned to an entry in a particular mode, this feature is not supported when you long press the number key in another mode.

See Making a Group, Private or All Call with the Programmable Number Key on page 82 for details on making

a Group, Private or All Call with the programmed number keys.

Removing the Association between Entry and

Programmable Number Key

Procedure:

Long press the programmed number key to the required alias or ID, press g to select, and proceed to Step 4.

Follow the procedure below.

1 g to access the menu. 2 f or h to Contacts and press g to select. The entries

are alphabetically sorted.

3 f or h to the required alias or ID and press g to

Advanced Features

select.

4 f or h to Program Key and press g to select.

8 The radio sounds a positive indicator tone and the display

shows positive mini notice.

9 The screen automatically returns to the previous menu.

NOTE: When an entry is deleted, the association between the

entry and its programmed number key(s) is removed.

Setting Default Contact

Procedure:

Follow the procedure below.

1 g to access the menu. 2 f or h to Contacts and press g to select. 3 f or h to the required alias or ID and press g to

select.

4 f or h to Set as Default and press g to select.

5 The radio sounds a positive indicator tone and the display

shows positive mini notice.

6 A appears beside the selected default alias or ID.

English

Call Indicator Settings

Activating or Deactivating Call Ringers for Call

Alerts

You can select, or turn on or off ringing tones for a received Call Alert.

Procedure:

1 g to access the menu. 2 f or h to Utilities and press g to select. 3 f or h to Radio Settings and press g to select. 4 f or h to Tones/Alerts and press g to select. 5 f or h to Call Ringers and press g to select.

Procedure:

shows beside Enabled.

Press g to disable Private Call ringing tones. The disappears from beside Enabled.

Advanced Features

6 f or h to Call Alert and press g to select. The

current tone is indicated by a .

7 f or h to the required tone and press g to select.

appears beside selected tone.

Activating or Deactivating Call Ringers for Private

Calls

You can turn on or off the ringing tones for a received Private Call.

Activating or Deactivating Call Ringers for

Selective Call

You can select, or turn on or off ringing tones for a received Selective Call.

Procedure:

1 g to access the menu. 2 f or h to Utilities and press g to select. 3 f or h to Radio Settings and press g to select.

English

4 f or h to Tones/Alerts and press g to select. 5 f or h to Call Ringers and press g to select. 6 f or h to Selective Call and press g to select. The

current tone is indicated by a .

7 f or h to the required tone and press g to select.

appears beside selected tone.

Activating or Deactivating Call Ringers for

Telemetry Status with Text

You can turn on or off the alert tones for a received Telemetry Status with Text.

Procedure:

1 g to access the menu.

Activating or Deactivating Call Ringers for Text

Message

You can turn on or off the ringing tones for a received Text Message.

Procedure:

Advanced Features

current tone is indicated by a .

7 f or h to the required tone and press g to select.

appears beside selected tone.

English

2 f or h to Utilities and press g to select. 3 f or h to Radio Settings and press g to select. 4 f or h to Tones/Alerts and press g to select. 5 f or h to Call Ringers and press g to select. 6 f or h to Telemetry and press g to select. The

current tone is indicated by a .

7 f or h to the required tone and press g to select.

appears beside selected tone.

Assigning Ring Styles

You can program your radio to sound one of ten predefined ringing tones when receiving a Call Alert or a Text Message from a particular contact.

Procedure:

1 g to access the menu. 2 f or h to Contacts and press g to select.The entries

are alphabetically sorted.

3 f or h to the required alias or ID and press g to

select.

4 f or h to Edit and press g to select. 5 Press g until display shows Edit Ringtone menu.

6 A indicates the current selected tone. 7 f or h to the required tone and press g to select.

appears beside selected tone.

8 The display shows a positive mini notice.

The radio sounds out each ring style as you navigate through the list.

Escalating Alarm Tone Volume

You can program your radio to continually alert you when a radio call remains unanswered. This is done by automatically increasing the alarm tone volume over time. This feature is known as Escalert.

Procedure:

1 g to access the menu. 2 f or h to Utilities and press g to select. 3 f or h to Radio Settings and press g to select. 4 f or h to Tones/Alerts and press g to select. 5 f or h to Escalert. 6 Press g to enable Escalert. The display shows beside

Enabled.

Press

g to disable Escalert. The disappears from

beside Enabled.

Advanced Features

English

Call Log Features

Your radio keeps track of all recent outgoing, answered, and missed Private Calls. Use the call log feature to view and manage recent calls.

You can perform the following tasks in each of your call lists:

• Store alias or ID to Contacts

• Delete

• View Details

Deleting a Call from a Call List

Procedure:

1 g to access the menu. 2 f or h to Call Log and press g to select. 3 f or h to the required list and press g to select. 4 f or h to the required alias or ID and press g to

select.

5 f or h to Delete and press g to select.

Viewing Recent Calls

The lists are Missed, Answered, and Outgoing.

Procedure:

1 g to access the menu. 2 f or h to Call Log and press g to select. 3 f or h to preferred list and press g to select.

4 The display shows the most recent entry at the top of the

list.

5 f or h to view the list.

Advanced Features

Press the PTT button to start a Private Call with the current selected alias or ID.

English

6 Press g to select Yes to delete the entry. The display

shows positive mini notice.

f or h to No to return to the previous screen.

When you select a call list and it contains no entries, the display shows

List Empty

turned on (see Turning Keypad Tones On or Off on page 80).

, and sounds a low tone if Keypad Tones are

Viewing Details from a Call List

Procedure:

1 g to access the menu. 2 f or h to Call Log and press g to select. 3 f or h to the required list and press g to select. 4 f or h to the required alias or ID and press g to

select.

5 f or h to View Details and press g to select.

Display shows details.

Call Alert Operation

Call Alert paging enables you to alert a specific radio user to call you back when they are able to do so.

This feature is applicable for subscriber aliases or IDs only and is accessible through the menu via Contacts or manual dial.

Receiving and Responding to a Call Alert

When you receive a Call Alert page, you see the notification list listing a Call Alert with the alias or ID of the calling radio on the display.

Procedure:

1 You hear a repetitive tone. The yellow LED blinks.

2 Press the PTT button while the display still shows the Call

Alert in the Notification List to respond with a Private Call.

Press g to exit the Notification List. The alert is moved to the Missed Call Log.

See Notification List on page 67 for details about the Notification List.

See Call Log Features on page 40 for details about the Missed Call List.

Advanced Features

English

Making a Call Alert from the Contacts List

Procedure:

1 g to access the menu. 2 f or h to Contacts and press g to select. 3 f or h to the required subscriber alias or ID and press

g to select.

4 f or h to Call Alert and press g to select.

5 The display shows Call Alert and the subscriber alias or

ID, indicating that the Call Alert has been sent.

6 The green LED lights up when your radio is sending the Call

Alert.

7 If the Call Alert acknowledgement is received, the display

shows positive mini notice.

If the Call Alert acknowledgement is not received, the display shows negative mini notice.

You can also send a Call Alert by manually dialing the subscriber ID (see Making a Call Alert by Manual Dial on page 87).

Advanced Features

Making a Call Alert with the One Touch Access

Button

Procedure:

1 Press the programmed One Touch Access button to make

a Call Alert to the predefined alias or ID.

2 The display shows Call Alert and the subscriber alias or

ID, indicating that the Call Alert has been sent.

3 The green LED lights up when your radio is sending the Call

Alert.

4 If the Call Alert acknowledgement is received, the display

shows positive mini notice.

If the Call Alert acknowledgement is not received, the display shows negative mini notice.

English

Emergency Operation

An Emergency Alarm is used to indicate a critical situation. You are able to initiate an Emergency at any time on any screen display even when there is activity on the current channel.

Your dealer can set the duration of a button press for the programmed Emergency button, except for long press, which is similar with all other buttons:

• Short press – Between 0.05 seconds and 0.75 seconds

• Long press – Between 1.00 second and 3.75 seconds

The Emergency button is assigned with the Emergency On/ Off feature. Check with your dealer for the assigned operation of the Emergency button.

If short press the Emergency button is assigned to turn on the Emergency mode, then long press the Emergency button is assigned to exit the Emergency mode.

If long press the Emergency button is assigned to turn on the Emergency mode, then short press the Emergency button is assigned to exit the Emergency mode.

Your radio supports three Emergency Alarms:

• Emergency Alarm

• Emergency Alarm with Call

• Emergency Alarm with Voice to Follow

In addition, each alarm has the following types:

• Regular – Radio transmits an alarm signal and shows audio

and/or visual indicators.

• Silent – Radio transmits an alarm signal without any audio or

visual indicators. Radio receives calls without any sound through the radio’s speaker, until you press the PTT button to initiate the call.

• Silent with Voice – Radio transmits an alarm signal without

any audio or visual indicators, but allow incoming calls to sound through the radio’s speaker.

Only one of the Emergency Alarms above can be assigned to the programmed Emergency button or the Emergency footswitch.

Receiving an Emergency Alarm

Procedure:

1 The emergency icon appears, a tone sounds, the red LED

blinks, and the radio displays the Alarm List if there is more than one alarm listed. The emergency caller aliases are listed.

f or h to the required alias and press g to view

more details. Press

The emergency icon appears, a tone sounds, the red LED blinks, and the radio displays the emergency caller alias Press g to view more details. Press g again to view your action options.

g again to view your action options.

Advanced Features

English

Press e and select Yes to exit the Alarm List.

To revisit the Alarm List, press select Alarm List.

g to access the menu and

Group Call icon, the group alias or ID, and transmitting radio alias or ID on your display.

6 Your radio displays the Alarm List.

Responding to an Emergency Alarm

Procedure:

When receiving an Emergency Alarm:

1 In the Alarm List, f or h to the required alias.

2 If the Channel Free Indication feature is enabled, you

hear a short alert tone the moment the transmitting radio releases the PTT button, indicating the channel is free for you to respond.

3 Press PTT button to transmit non-emergency voice to the

same group that the Emergency Alarm was targeted to. The green LED lights up. Your radio remains in the Emergency mode.

4 Wait for the Talk Permit Tone to finish (if enabled) and speak

clearly into the microphone.

Wait for the PTT Sidetone to finish (if enabled) and

speak clearly into the microphone.

Advanced Features

5 Release the PTT button to listen. When the emergency

initiating radio responds, the green LED blinks. You see the

Emergency voice can only be transmitted by the emergency initiating radio. All other radios (including the emergency receiving radio) transmit non-emergency voice.

Sending an Emergency Alarm

This feature allows you to send an Emergency Alarm, a non-voice signal, which triggers an alert indication on a group of radios.

Procedure:

1 Press the programmed Emergency On button or the

Emergency footswitch.

2 The display shows Tx Alarm and the destination alias. The

green LED lights up and the Emergency icon appears.

The display shows Tx Telegram and the destination

alias. The LED lights up solid green and the Emergency icon appears.

3 When an Emergency Alarm acknowledgment is received,

the Emergency tone sounds and the green LED blinks. The display shows Alarm Sent.

If your radio does not receive an Emergency Alarm

English

acknowledgement, and after all retries have been exhausted, a tone sounds and the display shows Alarm Failed.

4 Radio exits the Emergency Alarm mode and returns to the

Home screen.

If your radio is set to Silent, it does not display any audio or visual indicators during Emergency mode.

Sending an Emergency Alarm with Call

This feature allows you to send an Emergency Alarm to a group of radios. Upon acknowledgement by a radio within the group, the group of radios can communicate over a programmed Emergency channel.

Procedure:

1 Press the programmed Emergency On button or the

Emergency footswitch.

2 The display shows Tx Alarm and the destination alias. The

green LED lights up and the Emergency icon appears.

The display shows Tx Telegram and the destination

alias. The LED lights up solid green and the Emergency icon appears.

3 When an Emergency Alarm acknowledgment is received,

the Emergency tone sounds and the green LED blinks. The display shows Alarm Sent.

4 Your radio enters the emergency call mode when the display

shows Emergency and the destination group alias.

5 Press PTT button to make the call. The green LED lights up

and the group icon appears on the display.

6 Wait for the Talk Permit Tone to finish (if enabled) and speak

clearly into the microphone.

Wait for the PTT Sidetone to finish (if enabled) and

speak clearly into the microphone.

7 Release the PTT button to listen.

When you receive a group call, the display shows the caller alias and group alias.

8 When the channel is free for you to respond, a short alert

tone sounds ( if the Channel Free Indication feature is enabled). Press the PTT button to respond.

Once your call ends, press Emergency Off button to exit the Emergency mode.

9 The radio returns to the Home screen.

If your radio is set to Silent, it does not display any audio or visual indicators during Emergency mode, or allow any received calls to sound through the radio’s speaker, until you press the PTT button to initiate the call.

Advanced Features

English

If your radio is set to Silent with Voice, it does not display any audio or visual indicators during Emergency mode, but allow incoming calls to sound through the radio’s speaker. The indicators only appear once you press the PTT button to initiate, or respond to, the call.

Sending an Emergency Alarm with Voice to

This feature allows you to send an Emergency Alarm to a group of radios. Your radio’s microphone is automatically activated, allowing you to communicate with the group of radios without pressing the PTT button.

This activated microphone state is also known as “hot mic”.

If your radio has Emergency Cycle Mode enabled, repetitions of hot mic and receiving period are made for a programmed duration.

NOTE: During Emergency Cycle Mode, received calls sound

through the radio’s speaker.

If you press the PTT button during the programmed receiving period, you will hear a prohibit tone, indicating that you should release the PTT button. The radio ignores the PTT press and remains in Emergency mode.

Advanced Features

NOTE: If you press the PTT button during hot mic, and

continue to press it after the hot mic duration expires,

the radio continues to transmit until you release the

PTT button.

Procedure:

1 Press the programmed Emergency On button or the

Emergency footswitch.

2 The display shows Tx Alarm and the destination alias. The

green LED lights up and the Emergency icon appears.

The display shows Tx Telegram and the destination

alias. The LED lights up solid green and the Emergency icon appears.

3 Once the display shows Alarm Sent, speak clearly into the

microphone. When hot mic has been enabled, the radio automatically transmits without a PTT press until the hot mic duration expires. While transmitting, the green LED lights up and the Emergency icon appears.

4 The radio automatically stops transmitting when:

Once the cycling duration between hot mic and receiving calls expires, if Emergency Cycle Mode is enabled.

Once the hot mic duration expires, if Emergency Cycle Mode is disabled.

5 To transmit again, press the PTT button.

English

Press the programmed Emergency Off button to exit the Emergency mode.

6 The radio returns to the Home screen.

If your radio is set to Silent, it does not display any audio or visual indicators during Emergency mode, or allow any received calls to sound through the radio’s speaker, until the programmed hot mic transmission period is over, and you press the PTT button.

If your radio is set to Silent with Voice, it does not display any audio or visual indicators during Emergency mode when you are making the call with hot mic, but allow sound through the radio’s speaker when the target radio responds after the programmed hot mic transmission period is over. The indicators only appear when you press the PTT button.

NOTE: If the Emergency Alarm request fails, the radio does

not retry to send the request, and enters the hot mic state directly.

Reinitiating an Emergency Mode

NOTE: This feature is only applicable to the radio sending the

Emergency Alarm.

There are two instances where this can happen:

• You change the channel while the radio is in Emergency

mode. This exits the Emergency mode. If Emergency Alarm is enabled on this new channel, the radio reinitiates Emergency.

• You press the programmed Emergency On button during an

Emergency initiation/transmission state. This causes the radio to exit this state, and to reinitiate Emergency.

Advanced Features

English

Exiting Emergency Mode

Text Messaging Features

NOTE: This feature is only applicable to the radio sending the

Emergency Alarm.

Your radio exits Emergency mode when one of the following occurs:

• Emergency Alarm acknowledgement is received (for

Emergency Alarm only), OR

• An Emergency Exit Telegram is received, OR

• All retries to send the alarm have been exhausted, OR

• The Emergency Off button is pressed.

NOTE: If your radio is powered off, it exits the Emergency

mode. The radio does not reinitiate the Emergency mode automatically when it is turned on again.

If you change channels when your radio is in Emergency mode to a channel that has no emergency system configured, No Emergency is shown on your display.

Advanced Features

Your radio is able to receive data, for example a text message, from another radio or an e-mail application.

Sending a Quick Text Message

Your radio supports a maximum of 50 Quick Text messages as programmed by your dealer.

NOTE: While Quick Text messages are programmed, you can

edit each message before sending it. Only available with a keypad microphone (see Editing a Quick Reply Message on page 89).

Procedure:

Press the programmed Text Message button and proceed to Step 3. OR Follow the procedure below.

1 g to access the menu. 2 f or h to Messages and press g to select. 3 f or h to Quick Text and press g to select. 4 f or h to the required Quick Text and press g to

select.

5 f or h to the required alias or ID and press g to

select.

English

6 The display shows transitional mini notice, confirming your

message is being sent.

7 If the message is sent, a tone sounds and the display shows

positive mini notice.

If the message is not sent, a low tone sounds and the display shows negative mini notice.

If the text message fails to send, the radio returns you to the

Resend

option screen (see Managing Fail-to-Send Text

Messages on page 50).

Sending a Quick Text Message with the One Touch

Access Button

1 Press the programmed One Touch Access button to send

a predefined Quick Text message to a predefined alias or ID.

If the text message fails to send, the radio returns you to the

Resend

option screen (see Managing Fail-to-Send Text

Messages on page 50).

Managing Text Messages in the Drafts Folder

The Drafts folder stores a maximum of ten (10) last saved messages. When the folder is full, the next saved text message automatically replaces the oldest text message in the folder. See Accessing the Drafts Folder on page 89 for more information.

NOTE: You can edit a saved text message before sending it.

Only available with a keypad microphone (see Editing and Sending a Saved Text Message on page 90).

Long press e at any time to return to the Home

screen.

Advanced Features

2 The display shows transitional mini notice, confirming your

message is being sent.

3 If the message is sent, a tone sounds and the display shows

positive mini notice.

If the message is not sent, a low tone sounds and the display shows negative mini notice.

Viewing a Saved Text Message

Procedure:

Press the programmed Text Message button and proceed to Step 3.

Follow the procedure below.

1 g to access the menu. 2 f or h to Messages and press g to select.

English

3 f or h to Drafts and press g to select. 4 f or h to the required message and press g to select.

Deleting a Saved Text Message from Drafts

Procedure:

Press the programmed Text Message button and proceed to Step 3.

Follow the procedure below.

1 g to access the menu. 2 f or h to Messages and press g to select. 3 f or h to Drafts and press g to select. 4 f or h to the required message and press g to select. 5 Press g again while viewing the message. 6 f or h to Delete and press g to delete the text

message.

Managing Fail-to-Send Text Messages

You can select one of the following options while at the Resend option screen:

Advanced Features

• Resend

• Forward

• Edit (Only available with a keypad microphone – see Editing

a Text Message on page 91 for more information)

NOTE: If the channel type (i.e. conventional digital or Capacity

Plus or Linked Capacity Plus) is not a match, you can only edit and forward a Fail-to-Send message.

Resending a Text Message

Procedure:

1 Press g to resend the same message to the same

subscriber/group alias or ID.

2 If the message is sent successfully, a tone sounds and the

display shows positive mini notice.

If the message cannot be sent, the display shows negative mini notice.

Forwarding a Text Message

Select Forward to send the message to another subscriber/ group alias or ID.

Procedure:

1 f or h to Forward and press g to select. 2 f or h to the required alias or ID and press g to

select.

English

3 The display shows transitional mini notice, confirming your

message is being sent.

4 If the message is sent, a tone sounds and the display shows

positive mini notice.

If the message is not sent, a low tone sounds and the display shows negative mini notice.

You can also manually select a target radio address (see Forwarding a Text Message by Manual Dial on page 90).

Follow the procedure below.

1 g to access the menu. 2 f or h to Messages and press g to select. 3 f or h to Sent Items and press g to select. 4 f or h to the required message and press g to select.

A subject line may be shown if the message is from an e-mail application.

Advanced Features

Managing Sent Text Messages

Once a message is sent to another radio, it is saved in Sent Items. The most recent sent text message is always added to the top of the Sent Items list.

The Sent Items folder is capable of storing a maximum of thirty (30) last sent messages. When the folder is full, the next sent text message automatically replaces the oldest text message in the folder.

NOTE: Long press

screen.

Viewing a Sent Text Message

Procedure:

Press the programmed Text Message button and proceed to Step 3.

e at any time to return to the Home

The icon beside each message indicates the status of the message (see Sent Item Icons on page 14).

Sending a Sent Text Message

You can select one of the following options while viewing a sent text message:

• Resend

• Forward

• Edit

• Delete

NOTE: If the channel type (i.e. conventional digital or Capacity

Plus or Linked Capacity Plus) is not a match, you can only edit, forward, or delete a Sent message.

English

Procedure:

1 Press g again while viewing the message. 2 f or h to Resend and press g to select.

3 The display shows transitional mini notice, confirming that

the same message is being sent to the same target radio.

4 If the message is sent, a tone sounds and the display shows

positive mini notice.

If the message is not sent, a low tone sounds and the display shows negative mini notice.

If the text message fails to send, the radio returns you to the

Resend

same subscriber/group alias or ID.

NOTE: Changing the volume, and pressing any button, except

Advanced Features

option screen. Press g to resend the message to the

for

g, f, or h, returns you to the message.

The radio exits the Resend option screen if you press the PTT button to initiate a Private or Group Call, or to respond to a Group Call. It also exits the screen when the radio receives a text or telemetry message, an emergency call or alarm, or a call alert.

The display returns to the Resend option screen if you press the PTT button to respond to a Private Call (except if the radio is displaying the Missed Call screen), and at the end of an All Call.

f or h to access the

Press option screen:

• Select

NOTE: If you exit the message sending screen while the

Forward

target radio (see Forwarding a Text Message on page 50). You can also manually select a target radio address using a keypad microphone (see Forwarding a Text Message by Manual Dial on page 90).

Edit

it (see Editing a Text Message on page 91). Only available with a keypad microphone.

Delete

message is being sent, the radio updates the status of the message in the Sent Items folder without providing any indication in the display or via sound.

If the radio changes mode or powers down before the status of the message in Sent Items is updated, the radio cannot complete any In-Progress messages and automatically marks it with a Send Failed icon.

The radio supports a maximum of five (5) In-Progress messages at one time. During this period, the radio cannot send any new message and automatically marks it with a Send Failed icon.

to send the selected text message to another

to edit the selected text message before sending

to delete the text message.

Forward, Edit

, or

Delete

English

Deleting All Sent Text Messages from Sent Items

Procedure:

Press the programmed Text Message button and proceed to Step 3.

Follow the procedure below.

1 g to access the menu. 2 f or h to Messages and press g to select. 3 f or h to Sent Items and press g to select. 4 f or h to Delete All and press g to select.

When your radio receives a message, the display shows the Notification List with the alias or ID of the sender and the message icon.

You can select one of the following options when receiving a text message:

• Read

• Read Later

• Delete

NOTE: The radio exits the Text Message alert screen and sets

5 f or h to Yes and press g to select. The display

shows positive mini notice

f or h to No and press g to return to the previous

screen.

When you select Sent Items and it contains no text messages, the display shows Keypad Tones are turned on (see Turning Keypad Tones On or Off on page 80).

List Empty

, and sounds a low tone if

Procedure:

1 f or h to Read and press g to select.

2 Selected message in the Inbox opens.

3 Press e to return to the Inbox.

Receiving a Text Message

Advanced Features

up a Private or Group Call to the sender of the message if the PTT button is pressed when the radio is displaying the alert screen.

Reading a Text Message

A subject line may be shown if the message is from an e-mail application.

Press g to reply, forward, or delete the text message.

English

Press f or h to access the screen:

• Select

Use the Inbox to manage your text messages. The Inbox is capable of storing a maximum of 30 messages.

Your radio supports the following options for text messages:

Read Later

to receiving the text message.

Delete

Managing Received Text Messages

to return to the screen you were on prior

to delete the text message.

Read Later

Delete

option

• Reply (via Quick Text)

• Forward

• Delete

• Delete All

NOTE: If the channel type (i.e. conventional digital or Capacity

Plus or Linked Capacity Plus) is not a match, you can only forward, delete, or delete all Received messages.

Viewing a Text Message from the Inbox

Procedure:

1 g to access the menu. 2 f or h to Messages and press g to select. 3 f or h to Inbox and press g to select. 4 f or h to view the messages.

A subject line may be shown if the message is from an e-mail application.

5 Press g to select the current message, and press g

again to reply, forward, or delete that message.

Long press e to return to the Home screen.

Viewing a Telemetry Status Text Message from the

Inbox

Procedure:

1 g to access the menu.

NOTE: Long press

Advanced Features

English

Text messages in the Inbox are sorted according to the most recently received.

e at any time to return to the Home

screen.

2 f or h to Messages and press g to select. 3 f or h to Inbox and press g to select. 4 f or h to the required message and press g to select.

5 The display shows Telemetry: <Status Text Message>.

6 Long press e to return to the Home screen.

You cannot reply to a Telemetry Status text message.

Replying to a Text Message with Quick Text

Procedure:

Press the programmed Text Message button and proceed to Step 3. OR Follow the procedure below.

1 g to access the menu. 2 f or h to Messages and press g to select. 3 f or h to Inbox and press g to select. 4 f or h to the required message and press g to select.

A subject line may be shown if the message is from an e-mail application.

5 Press g once more to access the sub-menu. 6 f or h to Reply and press g to select. 7 f or h to Quick Reply and press g to select. 8 f or h to the required message and press g to select.

10 If the message is sent successfully, a tone sounds and the

display shows positive mini notice.

If the message cannot be sent, the display shows negative mini notice.

If the text message fails to send, the radio returns you to the

Resend

option screen (see Managing Fail-to-Send Text

Messages on page 50).

NOTE: If you are using a keypad microphone, you can also

write and send a new message (see Writing and Sending a Text Message on page 87) or modify a Quick Text message before sending it (see Editing a Quick Reply Message on page 89).

Advanced Features

9 The display shows transitional mini notice, confirming your

message is being sent.

English

Deleting a Text Message from the Inbox

Procedure:

Press the programmed Text Message button and proceed to Step 3. OR Follow the procedure below.

1 g to access the menu.

Procedure:

Press the programmed Text Message button and proceed to Step 3. OR Follow the procedure below.

1 g to access the menu.

Deleting All Text Messages from the Inbox

2 f or h to Messages and press g to select. 3 f or h to Inbox and press g to select. 4 f or h to the required message and press g to select.

A subject line may be shown if the message is from an e-mail application.

5 Press g once more to access the sub-menu. 6 f or h to Delete and press g to select. 7 f or h to Yes and press g to select.

8 The display shows positive mini notice.

9 The screen returns to the Inbox.

Advanced Features

English

2 f or h to Messages and press g to select. 3 f or h to Inbox and press g to select. 4 f or h to Delete All and press g to select. 5 f or h to Yes and press g to select.

6 The display shows positive mini notice.

When you select the Inbox and it contains no text messages, the display shows Keypad Tones are turned on (see Turning Keypad Tones On or Off on page 80).

NOTE: Additional text messaging features are available with a

keypad-enabled microphone. Refer to Text Messaging on page 87 for more details.

List Empty

, and sounds a low tone if

Analog Message Encode

Your radio is able to send preprogrammed messages from the Message list to a radio alias or to the dispatcher.

Sending MDC Message Encode to Dispatcher

Procedure:

1 g to access the menu. 2 f or h to Message and press g to select. 3 f or h to Quick Text and press g to select. 4 f or h to the required message. Press g to send.

5 The display shows transitional mini notice, confirming your

message is being sent.

6 If the message is sent, a tone sounds and the display shows

positive mini notice.

If the message is not sent, a low tone sounds and the display shows negative mini notice.

Sending 5-Tone Message Encode to Contact

Procedure:

1 g to access the menu. 2 f or h to Message and press g to select. 3 f or h to Quick Text and press g to select. 4 f or h to the required message. Press g to select. 5 f or h to the required contact. Press g to select.

6 The display shows transitional mini notice, confirming your

message is being sent.

7 If the message is sent, a tone sounds and the display shows

positive mini notice.

If the message is not sent, a low tone sounds and the display shows negative mini notice.

Advanced Features

English

Analog Status Update

Your radio is able to send preprogrammed messages from the Status List indicating your current activity to a radio contact (for 5-Tone systems) or to the dispatcher (for MDC systems).

The last acknowledged message is kept at the top of the Status List. The other messages are arranged in alphanumeric order.

Sending Status Update to Predefined Contact

Procedure:

1 g to access the menu. 2 f or h to Status and press g to select. 3 f or h to the required status. Press g to select. 4 f or h to Set as Default. Press g to send the

status update.

5 The display shows transitional mini notice, confirming your

status update is being sent.

6 If the status update is acknowledged, a tone sounds and the

display shows positive mini notice. A appears beside the acknowledged status.

Advanced Features

If the status update is not acknowledged, a low tone sounds and the display shows negative mini notice. A remains beside the previous status.

For 5-Tone systems, see Setting Default Contact on page 36 for details on setting the default contact.

For 5-Tone systems, a PTT button press while in the status list sends the selected status update and returns to the Home screen to initiate a voice call.

Viewing 5-Tone Status Details

Procedure:

1 g to access the menu. 2 f or h to Status and press g to select. 3 f or h to the required status. Press g to select. 4 f or h to View Details. Press g to select.

5 The display shows details of the selected status.

NOTE: If you are using a keypad microphone, you can modify

the status details before sending it (see Editing a Quick Reply Message on page 89).

English

Privacy

If enabled, this feature helps to prevent eavesdropping by unauthorized users on a channel by the use of a softwarebased scrambling solution. The signaling and user identification portions of a transmission are not scrambled.

Your radio must have privacy enabled on the channel to send a privacy-enabled transmission, although this is not a necessary requirement for receiving a transmission. While on a privacyenabled channel, the radio is still able to receive clear (unscrambled) transmissions.

Your radio supports two types of privacy:

The green LED lights up while the radio is transmitting and double blinks when the radio is receiving an ongoing privacyenabled transmission.

NOTE: Some radio models may not offer this Privacy feature.

Check with your dealer or system administrator for more information.

Procedure:

Press the programmed Privacy button to toggle privacy on or off. OR Follow the procedure below.

1 g to access the menu.

Advanced Features

• Basic Privacy

• Enhanced Privacy.

Only ONE of the privacy types above can be assigned to the radio.

To unscramble a privacy-enabled call or data transmission, your radio must be programmed to have the same Privacy Key (for Basic Privacy), OR the same Key Value and Key ID (for Enhanced Privacy) as the transmitting radio.

If your radio receives a scrambled call that is of a different Privacy Key, OR a different Key Value and Key ID, you will either hear a garbled transmission (Basic Privacy) or nothing at all (Enhanced Privacy).

2 f or h to Utilities and press g to select. 3 f or h to Radio Settings and press g to select. 4 f or h to Privacy. 5 Press g to enable Privacy. The display shows beside

Enabled.

Press

g to disable Privacy. The disappears from beside

Enabled.

If the radio has a privacy type assigned, the secure or unsecure icon appears on the status bar, except when the radio is sending or receiving an Emergency call or alarm.

English

Multi-Site Controls

These features are applicable when your current radio channel is part of an IP Site Connect or Linked Capacity Plus configuration.

See IP Site Connect on page 8 and Linked Capacity Plus on

page 9 for more details about these configurations.

Procedure:

Use the menu.

1 g to access the menu. 2 f or h to Utilities and press g to select. 3 f or h to Radio Settings and press g to select. 4 f or h to Site Roaming and press g to select.

Starting an Automatic Site Search

NOTE: The radio only scans for a new site if the current signal

is weak or when the radio is unable to detect any signal from the current site. If the RSSI value is strong, the radio remains on the current site.

Procedure: Press the programmed Site Lock On/Off button.

1 A tone sounds and the display shows Site Unlocked.

2 The yellow LED blinks rapidly when the radio is actively

searching for a new site, and turns off once the radio locks on to a site.

3 The display shows the channel alias and the site roaming

icon appears.

Advanced Features

English

5 f or h to Unlock Site and press g to select. A tone

sounds and the display shows Site Unlocked.

6 The radio returns to the Home screen. The display shows

the channel alias and the site roaming icon appears.

7 The yellow LED blinks rapidly when the radio is actively

searching for a new site, and turns off once the radio locks on to a site.

The radio also performs an automatic site search (site is unlocked) during a PTT button press or data transmission if the current channel, a multi-site channel with an attached roam list, is out of range.

Stopping an Automatic Site Search

When the radio is actively searching for a new site:

Procedure: Press the programmed Site Lock On/Off button.

1 A tone sounds and the display shows Site Locked.

2 The LED turns off and the display shows the channel alias.

Procedure:

Use the menu.

1 g to access the menu.

to Step 6.

Follow the procedure below.

1 g to access the menu. 2 f or h to Utilities and press g to select. 3 f or h to Radio Settings and press g to select. 4 f or h to Site Roaming and press g to select. 5 f or h to Active Search and press g to select.

Advanced Features

2 f or h to Utilities and press g to select. 3 f or h to Radio Settings and press g to select. 4 f or h to Site Roaming and press g to select. 5 f or h to Lock Site State. 6 Press g to lock site. The display shows beside Enabled.

Press

g to unlock site. The disappears from beside

Enabled.

7 The LED turns off and the radio returns to the Home screen.

The display shows the channel alias.

Starting a Manual Site Search

Procedure: Press the programmed Manual Site Roam button and proceed

6 A tone sounds and the display shows Finding Site.

The green LED blinks.

7 If a new site is found, a tone sounds and the LED turns off.

The display shows Site <Alias> Found.

If there is no available site within range, a tone sounds and the LED turns off. The display shows Out of Range.

If a new site is within range, but the radio is unable to connect to it, a tone sounds and the LED turns off. The display shows Channel Busy.

8 The radio returns to the Home screen.

English

Security

You can enable or disable any radio in the system. For example, you might want to disable a stolen radio, to prevent the thief from using it, and enable that radio, when it is recovered.

NOTE: Performing Radio Disable and Enable is limited to

radios with these functions enabled.

Radio Disable

Procedure: Use the programmed Radio Disable button.

1 Press the programmed Radio Disable button. 2 f or h to the required subscriber alias or ID and press

g to select.

3 The display shows transitional mini notice, indicating the

request is in progress. The green LED blinks.

4 Wait for acknowledgment.

5 If successful, a positive indicator tone sounds and the

display shows positive mini notice.

If unsuccessful, a negative indicator tone sounds and the

Advanced Features

display shows negative mini notice.

Procedure:

Use the menu.

1 g to access the menu. 2 f or h to Contacts and press g to select. The entries

are alphabetically sorted.

3 f or h to the required subscriber alias or ID and press

g to select.

4 f or h to Radio Disable and press g to select.

5 The display shows transitional mini notice, indicating the

request is in progress. The green LED blinks.

6 Wait for acknowledgment.

7 If successful, a positive indicator tone sounds and the

display shows positive mini notice.

If unsuccessful, a negative indicator tone sounds and the display shows negative mini notice.

Do not press e during the Radio Disable operation as you will

not get an acknowledgement message.

You can also access this feature using manual dial (see Radio Disable via Manual Dial on page 92).

English

Radio Enable

Procedure: Use the programmed Radio Enable button.

1 Press the programmed Radio Enable button. 2 f or h to the required subscriber alias or ID and press

g to select.

3 The display shows Radio Enable and the subscriber alias

or ID. The green LED lights up.

4 Wait for acknowledgment.

5 If successful, the radio sounds a positive indicator tone and

the display shows positive mini notice.

If unsuccessful, the radio sounds a negative indicator tone and the display shows negative mini notice.

Procedure:

Use the menu.

1 g to access the menu. 2 f or h to Contacts and press g to select. The entries

are alphabetically sorted.

3 f or h to the required subscriber alias or ID and press

g to select.

4 f or h to Radio Enable and press g to select. The

green LED blinks.

5 The display shows Radio Enable and the subscriber alias

or ID. The green LED lights up.

6 Wait for acknowledgment.

7 If successful, a tone sounds and the display shows Radio

Enable Successful.

If not successful, a tone sounds and the display shows Radio Enable Failed.

Do not press not get an acknowledgement message.

You can also access this feature using manual dial (see Radio Enable via Manual Dial on page 92).

e during the Radio Enable operation as you will

Advanced Features

English

Lone Worker

Bluetooth

This feature prompts an emergency to be raised if there is no user activity, such as any radio button press or activation of the channel selector, for a predefined time.

Following no user activity for a programmed duration, the radio pre-warns the user via an audio indicator once the inactivity timer expires.

If there is still no acknowledgment by the user before the predefined reminder timer expires, the radio initiates an Emergency Alarm.

Only one of the following Emergency Alarms is assigned to this feature:

• Emergency Alarm

• Emergency Alarm with Call

• Emergency Alarm with Voice to Follow

The radio remains in the emergency state allowing voice messages to proceed until action is taken. See Emergency

Operation on page 43 on ways to exit Emergency.

NOTE: This feature is limited to radios with this function

Advanced Features

NOTE:

enabled. Check with your dealer or system administrator for more information.

This feature allows you to use your radio with a Bluetoothenabled device (accessory) via a Bluetooth connection. Your radio supports both Motorola and COTS (Commercially available Off-The-Shelf) Bluetooth-enabled devices.

Bluetooth operates within a range of 10 meters line of sight. This is an unobstructed path between your radio and your Bluetooth-enabled device.

It is not recommended that you leave your radio behind and expect your Bluetooth-enabled device to work with a high degree of reliability when they are separated.

At the fringe areas of reception, both voice and tone quality will

start to sound "garbled" or "broken". To correct this problem, simply position your radio and Bluetooth-enabled device closer to each other (within the 10-meter defined range) to re-establish clear audio reception. Your radio’s Bluetooth function has a maximum power of 2.5 mW (4 dBm) at the 10-meter range.

Your radio can support up to 3 simultaneous Bluetooth connections with Bluetooth-enabled devices of unique types. For example, a headset, a scanner, and a PTT-Only Device (POD). Multiple connections with Bluetooth-enabled devices of the same type are not supported.

Refer to your respective Bluetooth-enabled device’s user manual for more details on your Bluetooth-enabled device’s full capabilities.

English

Turning Bluetooth On or Off

Procedure:

1 g to access the menu. 2 f or h to Bluetooth and press g to select. 3 f or h to My Status and press g to select. 4 The display shows On and Off. f or h to On and press

g to enable Bluetooth. appears beside On. The

Bluetooth icon appears on the status bar.

The display shows On and Off. f or h to Off and press

g to disable Bluetooth. appears beside Off.

Finding and Connecting to a Bluetooth Device

Procedure:

1 Turn on your Bluetooth-enabled device and place it in

pairing mode. Refer to respective Bluetooth-enabled device’s user manual.

2 On your radio, press g to access the menu. 3 f or h to Bluetooth and press g to select. 4 f or h to Devices and press g to select.

f or h to Find Devices to locate available devices. f or h to the required device and press g to select.

Advanced Features

6 f or h to Connect and press g to select. Display

shows Connecting to <device>. Your Bluetooth-enabled device may require additional steps to complete the pairing. Refer to respective Bluetoothenabled device’s user manual.

7 If successful, the radio display shows <Device>

Connected. A tone sounds and appears beside the

connected device. The Bluetooth Connected icon appears on the status bar.

If unsuccessful, the radio display shows Connecting Failed.

Do not turn off your Bluetooth-enabled device or press e

during the finding and connecting operation as this cancels the operation.

NOTE: If pin code is required, use the same entry method as

Step 2 in Accessing the Radio from Password on page 93.

5 f or h to the required device and press g to select.

English

Disconnecting from a Bluetooth Device

Procedure:

1 On your radio, press g to access the menu. 2 f or h to Bluetooth and press g to select. 3 f or hto Devices and press g to select. 4 f or h to the required device and press g to select. 5 f or hto Disconnect and press g to select. Display

shows Disconnecting from <device>. Your Bluetooth-enabled device may require additional steps to disconnect. Refer to respective Bluetooth-enabled device’s user manual.

6 The radio display shows <Device> Disonnected. A

positive indicator tone sounds and disappears beside the connected device. The Bluetooth Connected icon disappears on the status bar.

Advanced Features

Switching Audio Route

You can toggle audio routing between internal radio speaker and external Bluetooth-enabled accessory.

Procedure:

1 Press the programmed Bluetooth Audio Switch button .

2 A tone sounds and display shows Route Audio to Radio.

A tone sounds and display shows Route Audio to Bluetooth.

Viewing Device Details

Procedure:

1 g to access the menu. 2 f or h to Bluetooth and press g to select. 3 f or h to Devices and press g to select. 4 f or h to the required device and press g to select.

5 f or h to View Details and press g to select.

English

Notification List

Utilities

Your radio has a Notification List that collects all your “unread” events on the channel, such as unread text messages, telegrams, telemetry messages, missed calls, and call alerts.

The Notification icon appears on the status bar when the Notification List has one or more events.

The list supports a maximum of forty (40) unread events. When it is full, the next event automatically replaces the oldest event.

After the events are read, they are removed from the Notification List.

NOTE: Your radio suspends Scan when the Notification List is

displayed. Scanning resumes when your radio exits the Notification List. Press or wait for the menu timer to expire.

e to exit the Notification List

Accessing the Notification List

Procedure:

1 g to access the menu. 2 f or h to Notification and press g to select. 3 f or h to the required event and press g to select.

Long press e to return to the Home screen.

Turning the Radio Tones/Alerts On or Off

You can enable and disable all radio tones and alerts (except for the incoming Emergency alert tone) if needed.

Procedure:

Press the programmed All Tones/Alerts button to toggle all tones on or off.

Follow the procedure below.

1 g to access the menu. 2 f or h to Utilities and press g to select. 3 f or h to Radio Settings and press g to select. 4 f or h to Tones/Alerts and press g to select. 5 f or h to All Tones and press g to select. 6 Press g to enable all tones. The display shows beside

Enabled.

Press g to disable all tones. The disappears from beside Enabled.

Advanced Features

English

Setting the Tone Alert Volume Offset Level

You can adjust the Tone Alert Volume Offset level if needed. This feature adjusts the volume of the tones/alerts, allowing it to be higher or lower than the voice volume.

Procedure:

1 g to access the menu. 2 f or h to Utilities and press g to select. 3 f or h to Radio Settings and press g to select. 4 f or h to Tones/Alerts and press g to select. 5 f or h to Vol. Offset and press g to select. 6 f or h to the required volume value. The radio sounds a

feedback tone with each corresponding volume value.

7 Press g to keep the required displayed volume value.

Repeat Step 6 to select another volume value.

e to exit without changing the current volume offset

settings.

Turning the Talk Permit Tone On or Off

Advanced Features

You can enable and disable the Talk Permit Tone if needed.

Procedure:

1 g to access the menu. 2 f or h to Utilities and press g to select. 3 f or h to Radio Settings and press g to select. 4 f or h to Tones/Alerts and press g to select. 5 f or h to Talk Permit and press g to select. 6 Press g to enable Talk Permit Tone. The display shows

beside Enabled.

Press

g to disable Talk Permit Tone. The disappears

from beside Enabled.

Setting the Power Level

You can customize your radio’s power setting to high or low for each channel.

Settings:

a considerable distance from you. Low enables communication with radios in closer proximity.

Procedure:

Press the programmed Power Level button to toggle transmit power level between high and low.

High enables communication with radios located at

English

Follow the procedure below.

1 g to access the menu. 2 f or h to Utilities and press g to select. 3 f or h to Radio Settings and press g to select.

3 f or h to Radio Settings and press g to select. 4 f or h to Day/Night and press g to select. 5 The display shows Day Mode and Night Mode. f or h

to the required setting and press beside selected setting.

g to enable. appears

Advanced Features

4 f or h to Power and press g to select. 5 f or h to the required setting and press g to select.

appears beside selected setting.

6 Screen returns to the previous menu.

Long press e to return to the Home screen. The power level

icon is visible.

Changing the Display Mode

You can change radio’s display mode between Day or Night, as needed. This affects the colour palette of the display.

Procedure:

Press the programmed Display Mode button to toggle the display mode settings.

Follow the procedure below.

1 g to access the menu. 2 f or h to Utilities and press g to select.

Adjusting the Display Brightness

You can adjust radio’s display brightness as needed.

Procedure:

Press the programmed Brightness button and proceed to Step 5.

Follow the procedure below.

1 g to access the menu. 2 f or h to Utilities and press g to select. 3 f or h to Radio Settings and press g to select. 4 f or h to Brightness and press g to select.

5 The display shows a progress bar. Decrease display

brightness by pressing brightness by pressing f. Press g to confirm your entry.

h or increase the display

English

Turning Horns/Lights On or Off

Your radio is able to notify you of an incoming call via the horns and lights feature. When activated, an incoming call sounds your vehicle's horn and turns on its lights.

This feature needs to be installed through your radio’s rear accessory connector by your dealer.

Procedure:

Press the programmed Horns/Lights button to toggle horns and lights feature on or off.

Follow the procedure below.

1 g to access the menu. 2 f or h to Utilities and press g to select. 3 f or h to Radio Settings and press g to select. 4 f or h to Horns/Lights and press g to select. 5 Press g to enable Horns/Lights. The display shows

beside Enabled.

Press

g to disable Horns/Lights. The disappears from

beside Enabled

Advanced Features

Turning the Public Address System On or Off

You can enable and disable the radio’s internal public address (PA) system.

Procedure:

Press the programmed PA On/Off button to toggle the feature on or off.

Turning the External Public Address System On

or Off

You can enable or disable the audio routing between the connected public address (PA) loudspeaker amplifier and the radio’s internal public address (PA) system.

Procedure:

Press the programmed Ext PA On/Off button to toggle the feature on or off.

Setting the Squelch Level

You can adjust your radio's squelch level to filter out unwanted calls with low signal strength or channels that have a higher than normal background noise.

Settings: Normal is the default. Tight filters out (unwanted) calls and/or background noise. However, calls from remote locations may also be filtered out.

Procedure: Press the programmed Squelch button to toggle squelch level

English

between normal and tight.

Follow the procedure below.

Press

g to disable Introduction Screen. The disappears

from beside Enabled.

Advanced Features

1 g to access the menu. 2 f or h to Utilities and press g to select. 3 f or h to Radio Settings and press g to select. 4 f or h to Squelch and press g to select. 5 The display shows Tight and Normal. f or h to the

required setting and press g to enable. appears besides selected setting.

6 Screen returns to the previous menu.

Turning the Introduction Screen On or Off

You can enable and disable the Introduction Screen if needed.

Procedure:

1 g to access the menu. 2 f or h to Utilities and press g to select. 3 f or h to Radio Settings and press g to select. 4 f or h to Intro Screen and press g to select. 5 Press g to enable Introduction Screen. The display shows

beside Enabled.

Turning the LED Indicators On or Off

You can enable and disable the LED Indicators if needed.

Procedure:

1 g to access the menu. 2 f or h to Utilities and press g to select. 3 f or h to Radio Settings and press g to select. 4 f or h to LED Indicator and press g to select. 5 Press g to enable LED indicator. The display shows

beside Enabled.

Press

g to disable LED indicator. The disappears from

beside Enabled.

English

Setting Dual Knob Operation Preference

Your radio has a dual-purpose Volume/Channel Knob. Disabling the dual-purpose option sets the knob to work as a Volume Knob only.

1 g to access the menu. 2 f or h to Utilities and press g to select. 3 f or h to Radio Settings and press g to select. 4 f or h to Dual Knob and press g to select.

5 The display shows Volume Only and Volume & Ch.

f or h to the required setting and press g to enable.

appears besides selected setting.

6 Screen returns to the previous menu.

Language

You can set your radio display to be in your required language.

Procedure:

1 g to access the menu. 2 f or h to Utilities and press g to select. 3 f or h to Language and press g to select.

Advanced Features

4 f or h to the required language and press g to

enable. appears beside selected language.

Turning the Voice Operating Transmission (VOX)

Feature On or Off

This feature allows you to initiate a hands-free voice activated call on a programmed channel. The radio automatically transmits, for a programmed period, whenever the microphone on the VOX-capable accessory detects voice.

NOTE: You may need to turn off the radio and power it up

again after detaching the VOX-capable microphone from it to allow the radio to switch to another valid accessory.

Pressing the PTT button during radio operation disables VOX. To re-enable VOX, do one of the following:

• Turn the radio off and power it on again, OR

• Change the channel via the Scroll Up/Down buttons, OR

• Change the channel via the Volume/Channel Knob, OR

• Follow the procedure below.

NOTE: Turning this feature on or off is limited to radios with

this function enabled. Check with your dealer or system administrator for more information.

English

Procedure:

Press the programmed VOX button to toggle the feature on or off.

Follow the procedure below.

1 g to access the menu. 2 f or h to Utilities and press g to select. 3 f or h to Radio Settings and press g to select.

Procedure:

Press the programmed Option Board Feature button to toggle the feature on or off.

Identifying Cable Type

You can select the type of cable your radio uses.

Procedure:

1 g to access the menu.

Advanced Features

4 f or h to VOX and press g to select. 5 Press g to enable VOX. The display shows beside

Enabled.

Press

g to disable VOX. The disappears from beside

Enabled.

If the Talk Permit Tone feature is enabled (see Turning the Talk Permit Tone On or Off on page 68), use a trigger word to

initiate the call. Wait for the Talk Permit Tone to finish before speaking clearly into the microphone.

Turning the Option Board Feature(s) On or Off

Option board capabilities within each channel and can be assigned to programmable buttons. Refer to your dealer or system administrator for more information.

2 f or h to Utilities and press g to select.

3 f or h to Radio Settings and press g to select.

4 f or h to Cable Type and press g to select.

5 The current cable type is indicated by a .

Voice Announcement

This feature enables the radio to audibly indicate the current Zone or Channel the user has just assigned, or programmable button press. This audio indicator can be customized per customer requirements. This is typically useful when the user is in a difficult condition to read the content shown on the display.

Use the following features to toggle Voice Announcement on or off.

Procedure:

English

Press the programmed Voice Announcement button. OR

Follow the procedure below.

1 g to access the menu. 2 f or h to Utilities and press g to select. 3 f or h to Voice Announcement. 4 Press g to enable Voice Announcement. The display

shows beside Enabled.

Press g to disable Voice Announcement. The disappears from beside Enabled.

Call Forwarding

You can enable your radio to automatically forward voice calls to another radio.

Procedure:

1 g to access the menu.

2 f or h to Utilities and press g to select.

3 f or h to Call Forward.

4 Press g to enable Call Forwarding. The display shows

Advanced Features

beside Enabled.

Press g to disable Call Forwarding. The disappears from beside Enabled.

Menu Timer

Set the period of time your radio stays in the menu before it automatically switches to the Home screen.

Procedure:

1 g to access the menu. 2 f or h to Utilities and press g to select. 3 f or h to Radio Settings and press g to select. 4 f or h to Menu Timer and press g to select. 5 f or h to the required setting and press g to enable.

Analog Mic AGC

This feature controls the your radio's microphone gain automatically while transmitting on an analog system. It suppresses loud audio or boosts soft audio to a preset value in order to provide a consistent level of audio.

Procedure:

1 g to access the menu. 2 f or h to Utilities and press g to select.

English

3 f or h to Radio Settings and press g to select. 4 f or h to Analog Mic AGC. 5 Press g to enable Analog Mic AGC. The display shows

beside Enabled.

Press

g to disable Analog Mic AGC. The disappears

from beside Enabled.

Intelligent Audio

Your radio automatically adjusts its audio volume to overcome current background noise in the environment, inclusive of both stationary and non-stationary noise sources. This feature is a Receive-only feature and does not affect Transmit audio.

NOTE: This feature is not applicable during a Bluetooth

session.

Advanced Features

Digital Mic AGC

This feature controls the your radio's microphone gain automatically while transmitting on an digital system. It suppresses loud audio or boosts soft audio to a preset value in order to provide a consistent level of audio.

Procedure:

1 g to access the menu. 2 f or h to Utilities and press g to select. 3 f or h to Radio Settings and press g to select. 4 f or h to Digital Mic AGC. 5 Press g to enable Digital Mic AGC. The display shows

beside Enabled.

Press

g to disable Digital Mic AGC. The disappears

from beside Enabled.

Use the following features to toggle Intelligent Audio on or off.

Procedure:

Press the programmed Intelligent Audio button to toggle the feature on or off.

Follow the procedure below.

1 g to access the menu. 2 f or h to Utilities and press g to select. 3 f or h to Radio Settings and press g to select. 4 f or h to Intelligent Audio. 5 Press g to enable Intelligent Audio. The display shows

beside Enabled.

Press g to disable Intelligent Audio. The disappears from beside Enabled.

English

GPS

Global Positioning System (GPS) is a satellite navigation system that determines the radio’s precise location.

Your radio contains information on the following:

• Radio Alias and ID

Procedure:

Press the programmed GPS button to toggle the feature on or off.

• Firmware and Codeplug Versions

• GPS Information

NOTE: Press

1 g to access the menu. 2 f or h to Utilities and press g to select. 3 f or h to Radio Settings and press g to select. 4 f or h to GPS. 5 Press g to enable GPS. The display shows beside

Enabled.

Press

g to disable GPS. The disappears from beside

Enabled.

See Checking the GPS Information on page 77 for details on retrieving GPS information.

Displays the ID of your radio.

Procedure:

Press the programmed Radio Alias and ID button to check your radio alias and ID. You hear a positive indicator tone.

Follow the procedure below.

1 g to access the menu. 2 f or h to Utilities and press g to select.

Accessing General Radio Information

e at any time to return to the previous screen

or long press radio exits the current screen once the inactivity timer expires.

Checking the Radio Alias and ID

e to return to the Home screen. The

Advanced Features

English

3 f or h to Radio Info and press g to select. 4 f or h to My Number and press g to select.

5 The first line of the display shows the radio alias. The

second line of the display shows the radio ID.

You can also press the programmed Radio Alias and ID button to return to the previous screen.

Checking the Firmware Version and Codeplug

Version

Displays the firmware and codeplug versions on your radio.

Procedure:

1 g to access the menu. 2 f or h to Utilities and press g to select. 3 f or h to Radio Info and press g to select. 4 f or h to Versions and press g to select.

The display shows the current firmware and codeplug versions.

Checking the GPS Information

Displays the GPS information on your radio, such as values of:

• Latitude

• Longitude

• Altitude

• Direction

• Velocity

• Horizontal Dilution of Precision (HDOP)

• Satellites

• Version

Procedure:

1 g to access the menu. 2 f or h to Utilities and press g to select. 3 f or h to Radio Info and press g to select. 4 f or h to GPS Info and press g to select. 5 f or h to the required item and press g to select.

6 The display shows the requested GPS information.

Advanced Features

See GPS on page 76 for details on GPS.

English

Keypad Microphone Features

The following additional features for your radio are available with a keypad-enabled microphone:

Using the Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 79

Additional Advanced Features . . . . . . . . . . . . . . . . . . page 80

Text Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 87

Dual Tone Multi Frequency (DTMF) . . . . . . . . . . . . . . page 91

Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 92

Password Lock Features. . . . . . . . . . . . . . . . . . . . . . . page 93

Front Panel Programming (FPP). . . . . . . . . . . . . . . . . page 95

Keypad Microphone Features

English

Using the Keypad

You can use the 3 x 4 alphanumeric keypad on the 4-Way Navigation Keypad Microphone (Motorola part number RMN5127_) to access your radio’s features. You can use the keypad to enter subscriber aliases or IDs, and text messages. Many characters require that you press a key multiple times. The table below shows the number of times a key needs to be pressed to generate the required character.

Number of Times Key is Pressed

Key 1 2 3 4 5 6 7 8 9 10 11 12 13

1 2

3 4

5 6 7 8 9

0 * #

1 . , ? ! @ & ‘ % - : * #

A B C 2

D E F 3

G H I 4

J K L 5

M N O 6

P Q R S 7

T U V 8

W X Y Z 9

* or del

# or space

NOTE: Press to enter “0” and long press to activate the CAPS lock. Another long press to turn off the CAPS lock.

NOTE: Press during text entry to delete the character. Press during numeric entry to enter a “*”.

NOTE: Press during text entry to insert a space. Press during numeric entry to enter a “#”.

Keypad Microphone Features

English

Turning Keypad Tones On or Off

You can enable and disable Keypad Tones if needed.

Procedure:

1 g to access the menu. 2 f or h to Utilities and press g to select. 3 f or h to Radio Settings and press g to select. 4 f or h to Tones/Alerts and press g to select. 5 f or h to Keypad Tones and press g to select. 6 Press g to enable keypad tones. The display shows

beside Enabled.

Press

g to disable keypad tones. The disappears from

beside Enabled.

Keypad Microphone Features

Additional Advanced Features

Selecting a Zone by Alias Search

Procedure:

1 g to access the menu. 2 f or h to Zone and press g to select.

3 The current zone is displayed and indicated by a . 4 f or h to the required zone and proceed to Step 7.

Key in the first character of the required zone.

5 A blinking cursor appears.

Use the keypad to type the required zone. Press < to move one space to the left.

Press > to move one space to the right. Press the *DEL key to delete any unwanted characters.

6 The first line of the display shows the characters you keyed

in. The next lines of the display show the shortlisted search results. The alias search is case-insensitive. If there are two or more zones with the same name, the radio displays the zone that is listed first in the zone list.

7 Press g to select.

English

8 The display shows <Zone> Selected momentarily and

returns to the selected zone screen.

Initiating a Radio Check by Manual Dial

Procedure:

1 g to access the menu. 2 f or h to Contacts and press g to select. 3 f or h to Manual Dial and press g to select.

4 If there was previously dialed ID, the ID appears along with

a blinking cursor. Use the keypad to edit the ID. Press select.

Key in the subscriber alias or ID and press g.

g to

5 f or h to Radio Check and press g to select.

6 The display shows transitional mini notice, indicating the

request is in progress. The green LED lights up.

7 Wait for acknowledgement.

8 If successful, a positive indicator tone sounds and the

display shows positive mini notice.

If unsuccessful, a negative indicator tone sounds and the display shows negative mini notice.

9 Radio returns to the subscriber alias or ID screen.

If the e button is pressed when the radio is waiting for

acknowledgement, a tone sounds, and the radio terminates all retries and exits Radio Check mode.

Initiating Remote Monitor by Manual Dial

Procedure:

1 g to access the menu. 2 f or h to Contacts and press g to select. 3 f or h to Manual Dial and press g to select.

4 If there was previously dialed ID, the ID appears along with

a blinking cursor. Use the keypad to edit the ID. Press select.

Key in the subscriber alias or ID and press g.

g to

5 f or h to Remote Mon. and press g to select.

6 The display shows transitional mini notice, indicating the

request is in progress. The green LED lights up.

7 Wait for acknowledgment.

8 If successful, a positive indicator tone sounds and the

display shows positive mini notice. Your radio starts playing audio from the monitored radio for a programmed duration and display shows Rem. Monitor.

Keypad Microphone Features

English

Once the timer expires, the radio sounds an alert tone and the LED turns off.

If unsuccessful, the radio sounds a negative indicator tone the display shows negative mini notice.

Making a Private Call by Manual Dial

Procedure:

1 g to access the menu. 2 f or h to Contacts and press g to select.The entries

are alphabetically sorted.

3 f or h to Manual Dial and press g to select.

4 If there is a previously dialed subscriber ID, the ID appears

along with a blinking cursor. Use the keypad to edit the subscriber ID.

Use the keypad to enter a new subscriber ID.

5 Press the PTT button to make the call. The green LED lights

up. The display shows the destination alias.

6 Wait for the Talk Permit Tone to finish (if enabled) and speak

clearly into the microphone.

7 Release the PTT button to listen. When the target radio

Keypad Microphone Features

responds, the green LED blinks.

8 If the Channel Free Indication feature is enabled, you hear a

short alert tone the moment the target radio releases the PTT button, indicating the channel is free for you to respond. Press the PTT button to respond.

If there is no voice activity for a programmed period of time, the call ends.

9 You hear a short tone. The display shows Call Ended.

Making a Group, Private or All Call with the

Programmable Number Key

The Programmable Number Key feature allows you to make a Group, Private or All Call to a predefined alias or ID easily. This feature can be assigned to all the available number keys on a keypad microphone.

You can ONLY have one alias or ID assigned to a number key, but you can have more than one number key associated to an alias or ID.

Procedure:

When you are on the Home screen:

1 Long press the programmed number key to make a Group,

Private or All Call to the predefined alias or ID. If the number key is not associated to an entry, a negative indicator tone sounds.

English

2 Press the PTT button to make the call. The green LED lights

up. The Group/Private Call icon appears in the top right corner. The first text line shows the caller alias. The second text line displays either the call status for a Private Call or All Call for All Call.

3 Wait for the Talk Permit Tone to finish (if enabled) and speak

clearly into the microphone.

For Group Call only: Wait for the PTT Sidetone to

finish (if enabled) and speak clearly into the microphone.

4 Release the PTT button to listen. When the target radio

responds, the green LED blinks. The display shows the destination alias.

5 If the Channel Free Indication feature is enabled, you hear a

short alert tone the moment the target radio releases the PTT button, indicating the channel is free for you to respond. Press the PTT button to respond.

If there is no voice activity for a predetermined period of time, the call ends.

6 Radio returns to the screen you were on prior to initiating the

call.

For a Private Call, you hear a short tone when the call ends.

See Assigning an Entry to a Programmable Number Key on page 35 for details on assigning an entry to a number key on the keypad.

Making a Group, Private, Phone or All Call by Alias

You can also use alias or alphanumeric search to retrieve the required subscriber alias.

This feature is only applicable while in Contacts.

Procedure:

1 g to access the menu. 2 f or h to Contacts and press g to select. The entries

are alphabetically sorted.

3 Key in the first character of the required alias.

4 A blinking cursor appears.

Use the keypad to type the required alias.

Press

< to move one space to the left.

Press > to move one space to the right. Press the *DEL key to delete any unwanted characters.

5 The first line of the display shows the characters you keyed

in. The next lines of the display show the shortlisted search results. The alias search is case-insensitive. If there are two or more aliases with the same name, the radio displays the alias that is listed first in the Contacts list.

Keypad Microphone Features

English

6 Press the PTT button to make the call. The green LED lights

up. The first line displays the target radio’s ID.

7 Wait for the Talk Permit Tone to finish (if enabled) and speak

clearly into the microphone

8 Release the PTT button to listen. When the target radio

responds, the green LED blinks. The display shows the destination alias.

9 If the Channel Free Indication feature is enabled, you hear a

short alert tone the moment the target radio releases the PTT button, indicating the channel is free for you to respond. Press the PTT button to respond.

If there is no voice activity for a programmed period of time, the call ends.

5 A blinking cursor appears.

Use the keypad to type the required alias.

Press

< to move one space to the left. > to move one space to the right.

Press Press the *DEL key to delete any unwanted characters.

6 The first line of the display shows the characters you keyed

in. The next lines of the display show the shortlisted search results.

The alias search is case-insensitive. If there are two or more entries with the same name, the radio displays the entry that is listed first in the scan list.

Editing the Scan List by Alias Search

10 You hear a short tone. The display shows Call Ended.

NOTE: Press

Viewing an Entry in the Scan List by Alias Search

Procedure:

e button or g to exit alias search.

1 g to access the menu. 2 f or h to Scan and press g to select.

Keypad Microphone Features

3 f or h to Scan List and press g to select.

4 Key in the first character of the required alias.

English

Adding a New Entry to the Scan List

Procedure:

1 g to access the menu. 2 f or h to Scan and press g to select. 3 f or h to Scan List and press g to select. 4 f or h to Add Member and press g to select.

5 Key in the first character of the required alias.

6 A blinking cursor appears.

Use the keypad to type the required alias.

Press < to move one space to the left.

> to move one space to the right.

Press Press the *DEL key to delete any unwanted characters.

7 The first line of the display shows the characters you keyed

8 Press g to select. 9 f or h to the required priority level and press g to

select.

10 The display shows positive mini notice, followed

immediately by Add Another?.

11 f or h to Yes and press g to select, to add another

entry, and repeat Steps 5 to 9.

f or h to No and press g to select to save the current

list.

Deleting an Entry from the Scan List

Procedure:

1 g to access the menu.

2 f or h to Scan and press g to select. 3 f or h to Scan List and press g to select.

4 Key in the first character of the required alias.

5 A blinking cursor appears.

Use the keypad to type the required alias. Press < to move one space to the left.

Press > to move one space to the right. Press the *DEL key to delete any unwanted characters.

6 The first line of the display shows the characters you keyed

in. The next lines of the display show the shortlisted search results. The alias search is case-insensitive. If there are two or more entries with the same name, the radio displays the entry that is listed first in the scan list.

7 Press g to select. 8 f or h to Delete and press g to select. 9 At Delete Entry?, f or h to Yes and press g to

select, to delete the entry. The display shows positive mini notice.

f or h to No and press g to select to return to the

previous screen.

10 Repeat Steps 4 to 9 to delete other entries.

Keypad Microphone Features

English

After deleting all required aliases or IDs, long press e to

return to the Home screen.

Setting and Editing Priority for an Entry in the Scan List

Procedure:

1 g to access the menu.

9 f or h to the required priority level and press g to

select.

10 The display shows positive mini notice before returning to

the previous screen.

11 The priority icon appears left of the member’s name.

There is no priority icon if priority is set to None.

2 f or h to Scan and press g to select. 3 f or h to Scan List and press g to select.

4 Key in the first character of the required alias.

5 A blinking cursor appears.

Use the keypad to type the required alias.

Press

< to move one space to the left. > to move one space to the right.

Press Press the *DEL key to delete any unwanted characters.

6 The first line of the display shows the characters you keyed

Keypad Microphone Features

7 Press g to select. 8 f or h to Edit Priority and press g to select.

English

Storing an Alias or ID from a Call List

Procedure:

1 g to access the menu. 2 f or h to Call Log and press g to select. 3 f or h to the required list and press g to select. 4 f or h to the required alias or ID and press g to

select.

5 f or h to Store and press g to select.

6 A blinking cursor appears. If needed, key in the alias for that

ID and press g.

7 The display shows positive mini notice.

You can also store an ID without an alias.

Making a Call Alert by Manual Dial

Text Messaging

Procedure:

1 g to access the menu. 2 f or h to Contacts and press g to select. 3 f or h to Manual Dial and press g to select.

4 A blinking cursor appears. Enter the subscriber ID you want

to send the Call Alert to and press g.

5 f or h to Call Alert and press g to select.

6 The display shows Call Alert and the subscriber alias or

ID, indicating that the Call Alert has been sent.

7 The green LED lights up when your radio is sending the Call

Alert.

8 If the Call Alert acknowledgement is received, the display

shows positive mini notice.

If the Call Alert acknowledgement is not received, the display shows negative mini notice.

The maximum length of characters for a text message, including the subject line (seen when receiving message from an e-mail application), is 140, whereas to receive would be a maximum of 280 characters.

The radio exits the current screen once the inactivity timer expires. Any text message in the writing/editing screen is automatically saved to the Drafts folder.

NOTE: Long press

screen.

Writing and Sending a Text Message

Procedure:

Press the programmed Text Message button and proceed to Step 3.

Follow the procedure below.

e at any time to return to the Home

1 g to access the menu. 2 f or h to Messages and press g to select. 3 f or h to Compose and press g to select.

4 Use the keypad to type your message.

Press

< to move one space to the left.

Keypad Microphone Features

English

Press > or the # key to move one space to the right. Press the * key to delete any unwanted characters.

5 Press g once message is composed. 6 f or h to the required alias or ID and press g to

select.

f or h to Manual Dial and press g to select.

Key in the subscriber ID and press

e to edit the message. e again to discard the message or save it to the Drafts

folder.

7 The display shows transitional mini notice, confirming your

message is being sent.

8 If the message is sent, a tone sounds and the display shows

positive mini notice.

If the message is not sent, a low tone sounds and the display shows negative mini notice.

If the text message fails to send, the radio returns you to the

Resend

Messages on page 50 and page 90).

option screen (see Managing Fail-to-Send Text

Keypad Microphone Features

Replying to Text Messages from the Inbox

Procedure:

Press the programmed Text Message button and proceed to Step 3.

Follow the procedure below.

1 g to access the menu. 2 f or h to Messages and press g to select. 3 f or h to Inbox and press g to select. 4 f or h to the required message and press g to select.

A subject line may be shown if the message is from an e-mail application.

5 Press g once more to access additional options. 6 f or h to Reply and press g to select.

A blinking cursor appears. Use the keypad to type your message.

Press < to move one space to the left.

> or the # key to move one space to the right.

Press Press the * key to delete any unwanted characters.

7 Press g once message is composed.

8 The display shows transitional mini notice, confirming your

message is being sent.

English

9 If the message is sent, a tone sounds and the display shows

positive mini notice.

If the message is not sent, a low tone sounds and the display shows negative mini notice.

Press

< to move one space to the left. > or the # key to move one space to the right.

Press

Press the * key to delete any unwanted characters.

6 Press g once message is composed.

Keypad Microphone Features

If the text message fails to send, the radio returns you to the

Resend

option screen (see Managing Fail-to-Send Text

Messages on page 50 and page 90).

NOTE: If a subject line is present (for messages received from

an e-mail application), you cannot edit it.

Editing a Quick Reply Message

Procedure:

Press the programmed Text Message button and proceed to Step 3.

Follow the procedure below.

1 g to access the menu. 2 f or h to Messages and press g to select. 3 f or h to Quick Reply and press g to select. 4 f or h to the required Quick Text and press g to

select.

5 A blinking cursor appears. Use the keypad to edit the

message.

7 The display shows transitional mini notice, confirming your

message is being sent.

8 If the message is sent, a tone sounds and the display shows

positive mini notice.

If the message is not sent, a low tone sounds and the display shows negative mini notice.

If the text message fails to send, the radio returns you to the

Resend

option screen (see Managing Fail-to-Send Text

Messages on page 50 and page 90).

Accessing the Drafts Folder

You can save a text message to send it at a later time.

If a PTT button press or a mode change causes the radio to exit the text message writing/editing screen while you are in the process of writing or editing a text message, your current text message is automatically saved to the Drafts folder.

The most recent saved text message is always added to the top of the Drafts list. See Managing Text Messages in the Drafts Folder on page 49 for more information.

English

NOTE: Long press e at any time to return to the Home

screen.

Editing and Sending a Saved Text Message

Procedure:

1 Press g again while viewing the message.

If the text message fails to send, it is moved to the Sent Items folder and marked with a Send Failed icon.

Managing Fail-to-Send Text Messages

if the message fails to send, the radio returns you to the Resend option screen.

2 f or h to Edit and press g to select.

A blinking cursor appears. Use the keypad to edit your message.

Press < to move one space to the left.

> or the # key to move one space to the right.

Press Press the *DEL key to delete any unwanted characters. Press g once message is composed.

3 f or h to the required alias or ID and press g to

select.

f or h to Manual Dial and press g to select.

Key in the subscriber alias or ID and press g.

4 The display shows transitional mini notice, confirming your

message is being sent.

5 If the message is sent, a tone sounds and the display shows

Keypad Microphone Features

positive mini notice.

If the message is not sent, a low tone sounds and the display shows negative mini notice.

English

Forwarding a Text Message by Manual Dial

Select Forward to send the message to another subscriber/ group alias or ID.

Procedure:

1 f or h to Forward and press g to select. 2 f or h to Manual Dial and press g to select.

Key in the subscriber ID and press g.

3 The display shows transitional mini notice, confirming your

message is being sent.

4 If the message is sent, a tone sounds and the display shows

positive mini notice.

If the message is not sent, a low tone sounds and the display shows negative mini notice.
