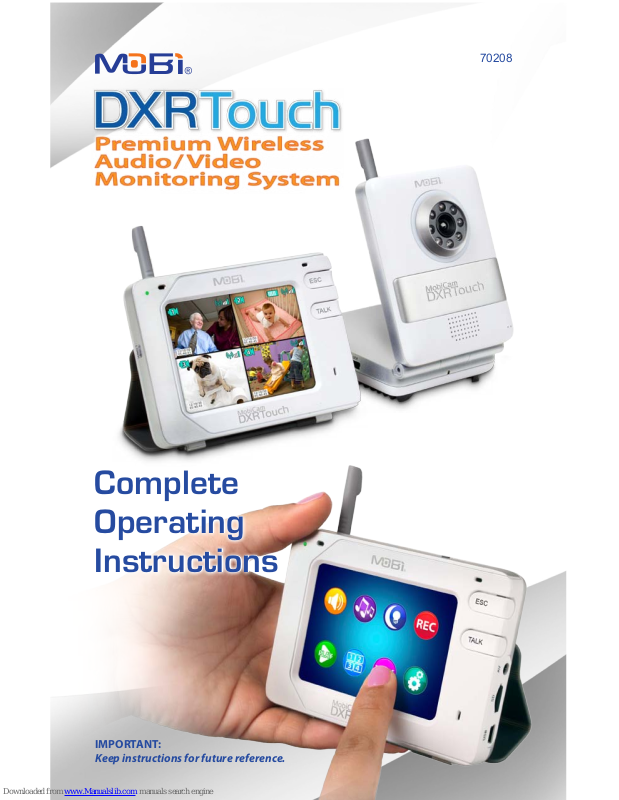

Mobi Technologies DXR Touch Operating Instructions

IMPORTANT:

Keep instructions for future reference.

70208

Complete
Operating
Instructions

Complete
Operating
Instructions

Complete
Operating
Instructions

TABLE OF CONTENTS

Introduction 1

Radio Interferece Parameters 1
Package Contents 2
Monitor/Receiver 2
Camera/Transmitter 3

To Start
Charging/Powering On 4
Locking the Screen 4
Set to Another Language 4

Pairing Camera and Monitor 5

Main Menu 6

Touch Navigation
Volume/Display 7
Lullabys 7
Night Light 7
Record 8
Play 9
Quad and Channel View 10

VOX (Voice Activation) 10

Settings
Monitor Settings 11-14

Camera Settings 15

Per Camera and Convenience Icons 16

Webcam Use • Data/File Transfers 17
Audio/Video Out 18
Troubleshooting 18
Factory Default Settings 19
Battery Replacement 20
Product Safety 20
Proper Disposal 21
Limited Warranty 21
Addendum: Focusing Camera Lens 21
About Mobi® / Contact Mobi® 22

1

INTRODUCTION

Congratulations on the purchase of this MobiCam® DXR Touch Monitoring
System, which incorporates the latest advanced technology. To fully maximi­ze and benet from this product’s avanced features we hightly recommend
you review these instructions. This 2.4 GHz Digital monitor enables you to
transmit picture and sound signals cordlessly, which is ideal for many situa­tions suchs as monitoring a baby, young children or the elderly or used as
oce or warehouse monitoring system.

RADIO INTERFERENCE PARAMETERS

FCC Statement

15.19: This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful inter­ference and (2) This device must accept any interference received, including
interference that may cause undesired operation.

15.21: Changes or modications not expressly approved by the party respon­sible for compliance could void the user’s authority to operate the equipment.

FCC Radiation Exposure Statement

This equipment has been tested and complies with Federal Communications
Commission radiation exposure limits as set forth for uncontrolled environ­ments. This equipment should be installed and operated with minimum
distance 20cm between the radiator and your body. This Camera must not
be co-located or operating in conjunction with any other antenna or Cam­era. This equipment complies with FCC RF radiation exposure limits set forth
for an uncontrolled environment. This device and its antenna must not be
co-located or operating in conjunction with any other antenna or Camera.
This device has been tested for compliance with FCC RF Exposure (SAR) limits
in the typical laptop computer conguration and this device can be used in
desktop or laptop computers via side mounted USB slots. This device and its
antenna must not be co-located or operated in conjunction with any other
antenna or Camera.

IC Statement

Operation of this device is subject to the following two conditions: 1. This
device may not cause interference, and 2. This device must accept any inter­ference, including interference that may cause undesired operation of the
device.

IMPORTANT: Use ONLY a ngertip or other NON-SHARP object to select touch screen
options. Using sharp objects can damage the screen and void the warranty.

2

MONITOR

PACKAGE CONTENTS

• 1 Monitor/Receiver • 1 Camera/Transmitter

• 2 AC/DC Adaptors 5V 800mAh • 1 Li-Ion Rechargeable Battery (for monitor only)

• 1 Attachable Strap Mount • 1 Door/Drawer Attachable Hook

• 1 Wall Anchor Mount with Screw • 1 USB to Mini USB Data Cord

• 1 AV-Out Cable • 1 User Manual

Monitor / Receiver Unit

features:

• 3.5” QVGA resolution TFT touch panel screen

• VGA resolution (640*480) up to 25 frames per

second

• up to 250-300m range

• 2-way communication

• MENU/ESCAPE button

• PAIR Button

• TALK Button

• Lock Screen Button for disabling touch screen

• SD Card Slot up to 32 Gb (not included)

• Mini USB Output port (for connection to a PC

and charging)

Power ON
LED Indicator

Retractable
Antenna

2-Way Talk

Speaker

ON/OFF

Button

Lock Screen

Button

Battery
Compartment

PAIR

Button

Combo

Screen Cover /

Fold-back Stand

Escape/Menu

Button

2-Way Talk

Button

AV
Output

DC Power Input /

Mini USB Output

2-Way Talk

Microphone

SD Card Slot

(card not included)

• A/V Output port

• DC Input (AC/DC adaptor included)

• Two-Color LED: solid green for power on;

ashing red for charging

• Quad-View split screen (up to 4 camera

capability)

• Main Menu color icon display

• Rechargeable Li-ion Battery 3.7V 1200 mAh

(included for monitor only)

3

CAMERA

PAIR

Button

Strap Mount
(underneath)

Power ON
LED Indicator

Camera

Lens

Focus
Ring

(Note: See

Addendum
on page 21
for focusing
instructions)

Night

Light

Night Vision

IR LEDs

DC Power
Input

2-Way Talk /
Lullaby Speaker

Microphone

ON / OFF

Button

Battery
Compartment

Retractable
Antenna

Ridge-Grip
Surface Stand

Positioning/Mounting Options

A. Horizontal to Slightly Angled Surfaces - Built-in Ridge-Grip Feet… B. Wall Mount Screw with

Drywall Anchor (included)… C. Door or Drawer Hook Mount / Stand (included)… D. Horizontal

Rails / Drawer Handles - Attachable Strap Mount (included)

Camera / Transmitter Unit

features:

• PAIR Button

• LED for Power ON / Pairing (ashes)

• Microphone & Speaker

• DC Input (AC/DC adaptor included)

• Night Vision

• Temperature Sensor and Alarm

• VOX (Hi/Mid/Lo/O) with receiver control

• Adjustable Volume from receiver

• Adjustable TX Power (High-Low) from receiver

• 4 Lullaby choices

• Night Light

• Rechargeable Battery 3.7V 1500 mAh

(not included - sold separately)

• 2.4GHz Digital FHSS, 100% secure with full

privacy and interference free

A. B.

C. D.

A. B.

C. D.

WARNING: To prevent strangulation never place a power cord within reach of a child.

TO START

A. Plug one of the AC/DC adapters (they are interchangeable) into the monitor and allow it to

charge the Monitor Battery for at least 5-1/2 hours.

B. Plug the other AC/DC adapter into the camera. Turn the Camera On by holding the ON/OFF
Button down for several seconds. The green “Power On” Indicator lights when powered up.

C. Turn the Monitor On by holding its ON/OFF Button down for several seconds. Its “Power On”

Indicator will light up (green on battery power, red when charging) and the Mobi logo will

appear on the screen.
D. Press ESC Button to go to the Main Menu.

NOTE: While viewing the Main Menu, if no

buttons are pressed, or the screen is not
touched after 30 seconds, the monitor will
automatically exit the Main Menu mode.

E. Press ESC Button once again to go to the
Camera View. Along the top and bottom

of the screen, small “Per Camera” Icons (ex-

plained on page 16) will appear over the
view from the camera, which should be on
and paired with the monitor.

4

LOCKING THE SCREEN: If you press the Lock Screen Button a LOCK icon will appear and the

touch-screen function will be disabled. Pressing the Lock Screen Button again will revert it back to

normal touch-screen function.

TO SET TO ANOTHER LANGUAGE: The monitor is set to English by default. The MobiCam®

DXR Touch can also display in French, German, Portuguese, Spanish, or Italian. To change the
language follow this sequence: press the ESC Button
touch Setting icon
touch System Setting
touch slider to See More List
select Language from the list
select a new Language
press the ESC Button

Main Menu

Camera View

IMPORTANT: Use ONLY
a ngertip or other NON­SHARP object to select
touch screen options.
Using sharp objects can
damage the screen and
void the warranty.

5

PAIRING: The monitor and camera are paired (wirelessly linked) by the manufacturer at the fac-

tory. If you ever need to relink the camera, or you want to pair Additional Cameras (sold separately)

you need to pair each following this sequence:

NOTE: Before pairing be sure the camera and monitor are both turned on and both are

within 10 feet of each other.

1. Power On the Monitor and Camera

2. Press and hold the Pair Button on the back of the Monitor until the Pair Screen is displayed,

then release the button.

3. Press and release the Pair Button on the Monitor and select a camera number (1-4) to be

paired. The word “Pairing” appears below the icon of the selected camera as it waits to be
paired.

4. You have 10 seconds to press and hold the Pair Button on the back of the Camera to com-

plete Pairing, otherwise restart from step 2 above.

5. The word “OK” or “Failed” will be displayed on screen.

6. Press the ESC Button or the Return icon to go back. To pair additional cameras repeat

the steps above.

6

MAIN MENU ... touch the ESC Button to open the Main Menu on screen

VOLUME / DISPLAY

adjust

• Sound Volume

• Screen Contrast

• Screen Brightness

PLAY

select / play

• Recorded Video

• Recorded Photo

• Delete Files

LULLABYS

select

• Camera Number

• Lullaby Choice

• Lullaby Volume

QUAD / CHANNEL

select

• Quad View

• Specic CAMs

• Switch CAMs

NIGHT LIGHT

select

• Camera Number

• Night Light On

• Night Light O

VOX (Voice Activation)

select

• Camera Number

• VOX On/O

• Sound Sensitivity

• Auto Record On/O

RECORD

select

• Record Video

• Take Photo

• Format SD Card

• SD Information

• Time/Date Stamp

• 6 Languages

• Reset to Default

• About / Version

• Date/Time

• Date/Time

• Time Alarm

• Auto Switch Time

• AV Out Format

• Zoom/Pan/Tilt

• Screen Timeout

• Touch Calibration

• SD Card Update

SETTINGS

for the Camera

• Temperature Alarm

• TX Power/Volume

SETTINGS

for the Monitor

• USB Output

• Recording Schedule

Touch the appropriate icon to access all Settings and Options.

IMPORTANT: Use ONLY a ngertip or other NON-SHARP object to select touch screen
options. Using sharp objects can damage the screen and void the warranty.
