Introduction
Congratulations on the purchase of the MobiCam® Digital Wireless Video Monitoring System, which incorporates the latest in wireless technology. We are sure
that you will be pleased with the quality and features of this product. We recommend that you read these instructions carefully before use.
The MobiCam® Digital Wireless Video Monitor enables you to transmit picture
and sound wirelessly, which is ideal for many situations such as monitoring
babies, young children, pets, or the elderly. It can also be used for household
security or as an ofce or warehouse surveillance system.
Package Contents...
• 1 x Camera Unit (additional cameras, item # 70063, sold separately)
• 1 x Monitor Unit
• 2 x AC/DC adaptors
• 1 x Li-ion Rechargeable Batteries
• 1 x Instruction Manual
• 1 x Troubleshooting guide
• 1 x AV cable
Note: If you nd any of the above items are missing or need to order replacement parts, please contact the manufacturer or visit www.getmobi.com.
1
Page 4
Features
• DigiLock™ Wireless with (FHSS) technology for private and secure, noise-free
performance
• No installation needed, ready to use out of the box
• Compact design for easy portability
• Transmission range up to 900 ft. outdoors and 450 ft. indoors
Note: Actual range can vary depending on the environment.
• Automatic Night Vision mode with 30 ft. range for viewing in total darkness
• Extra-wide camera viewing angle lets you see more of the room
• Expandable up to 3 cameras with automatic camera scanning option
• Voice-activated picture & sound (VOX) with Auto Mute allowing better sleep
• Audio-only mode
• Audio/Video output for connection to TV, recorder, or optional Internet Kit
• 8 hr built-in rechargeable Lithium Ion battery in monitor
• Ideal for nursery, home, or ofce.
• Built-in Night Light on camera unit with automatic or manual modes
• 2.4 inch high resolution color TFT LCD display
• LCD screen tilts for versatile viewing
2
Page 5
FCC Regulation
This equipment has been tested and found to comply with the requirements of
the FCC. These requirements are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used
in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the affected equipment and the Colour Wire-
less Monitor.
• Connect the equipment into an outlet on a main circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
In order to maintain compliance with FCC, special shielded cables are used
within this equipment. Operation with non-approved equipment or unshielded
cables is likely to result in interference to radio or TV reception. You are advised
that changes and modications made to the equipment without the approval of
manufacturer could void your authority to operate this equipment.
3
Page 6
Monitor Features & Controls

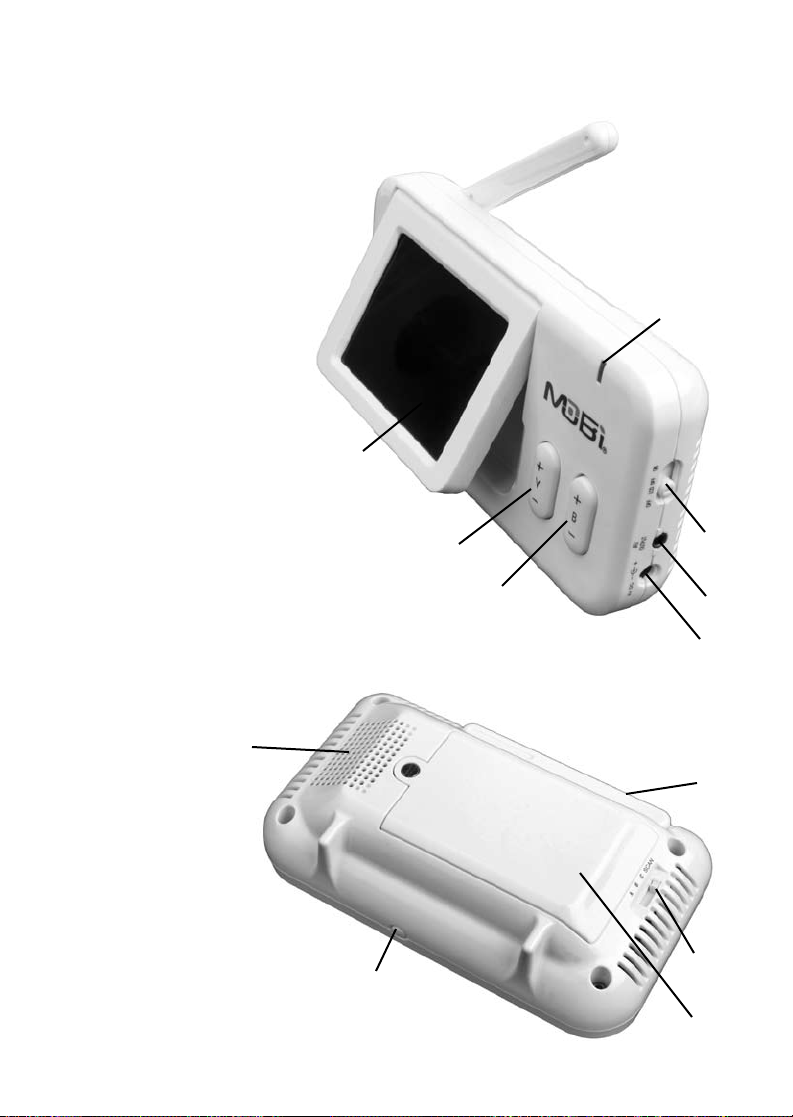

Monitor Unit Front
1 - 2.4” Color LCD Screen
2 - Volume Control
3 - Brightness Control
4 - Power ON LED Indicator
5 - LCD and Power ON/OFF
6 - AV Output
7 - DC Power input
1
4
8
Monitor Unit Rear
8 - Speaker
9 - Tilt Screen Release
10 - Antenna
11 - Channel Selector/Scan Mode
12 - Battery Door
2
3
9
4
5
6
7
10
11
12
Page 7
Camera Features & Controls

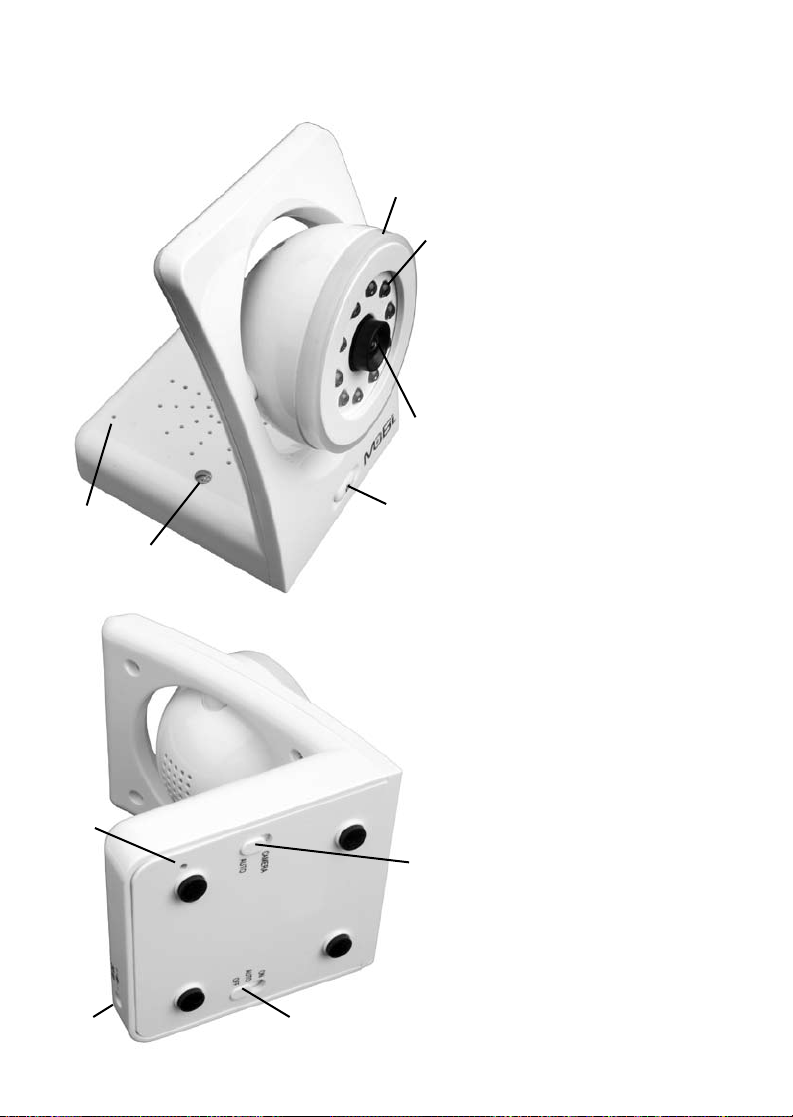

13
14
Camera Unit Front
13 - Night Light
14 - IR Night Vision LED’s
15 - Lens
16 - Microphone
15
17 - Light Sensor
18 - Power ON/OFF with LED
16
19
20
17
21
18
Camera Unit Bottom
19 - Link/Code Key
22
20 - DC Power Input
21 - Night Light Mode Switch
22 - Voice Activation (VOX)
Switch
5
Page 8
Important Safety Instructions
Please read this instruction manual before using your MobiCam® Digital Wireless Monitor. When using electrical appliances, basic safety precautions should
always be followed. Please keep this information for future reference.
• Periodically examine this product for damage to the cord, housing or other
parts that may result in the risk of re, electric shock or injury. Do not operate
any product with a damaged cord or plug. If your MobiCam® Digital System
malfunctions or is damaged in any manner return it to an authorized service
facility for examination and repair to avoid a hazard.
• Never use transmitter and receiver near water (i.e. bathtub, sink, etc.).
• The AC adaptors are not toys. Please keep units out of reach of children.
• Always use transmitter and receiver where there is adequate ventilation. To
prevent overheating, keep away from heat sources such as radiators, heat reg isters, stoves, or other appliances that produce heat.
• Use only a dry cotton cloth to keep the Camera and Monitor units free of dust.
Do no use a dampened cloth, water, or liquid cleaner of any kind.
6
Page 9
• Remove the battery from the Monitor during long periods of non-use.
• Unplug the AC adaptors from the Monitor and Camera during periods of non
use. To disconnect from the power supply, grip the transformer and pull from
the power socket. Never pull by the cord.
• Replace battery with the same equivalent type. Please dispose of old, defective
batteries in an environmentally friendly manner in accordance with the rel evant legislation.
• Only use the Monitoring System with the supplied power adaptors.
Battery Installation & Setup
The MobiCam® Digital Wireless Monitor is designed to be powered by either
batteries or the provided AC/DC adaptor. Reconnect the monitor to the adaptor
whenever possible to maintain battery life. The LED power indicator (4) on the
monitor will be illuminated when the monitor is turned on.
Note: We recommend that you charge the Monitor for at least 8 hours before
operating your Color Wireless Monitor.
Using AC/DC Adaptor
• Check that only the approved Li-ion rechargeable battery is installed in the
monitor.
• Plug the connector of the AC adaptor to the socket on the unit (7 & 20).
• Plug the adaptor into a household electrical socket.
• Switch on the power switch of the unit.
Battery Charge Remaining (when not connected to a charger)
• GREEN = fully charged (4).
• AMBER = low battery, recharge for continuous operation (4).
We recommend that you charge battery for 5-6 hours to fully charge. Battery
will last approximately 4-4.5 hours when unit is constantly on. In VOX mode
unit will last approximately 8-10 hours.
WARNING: The monitor of your MobiCam® Digital Wireless System has a
built-in recharging circuit. Before plugging in either AC adaptors, please make
sure only the approved rechargeable Li-ion batteries (or no batteries) are inside
the battery compartment.
7
Page 10
Camera Operation & Installation
Power ON/OFF
To turn ON the camera unit, press the ON/OFF button located at the front of the
camera (18) for about 1 second or until back lighting of the switch is turned on.
CAMERA MODES:
Voice Activation Mode (VOX)
Voice Activation (VOX) mode allows your camera to go to sleep when there is
no sound in the room. The monitor will automatically turn on when the camera
detects noise– subject to the preset sound level. This feature allows you to conserve battery power.
NOTE: The Monitor will automatically display “NoLink/VOX” on screen if no
signal is received from the Camera.
To Activate slide the VOX switch (22) to the “ON” position on the Camera.
When the sound level reaches the preset level within the surrounding area, the
Camera will begin transmitting the image and sound to the Monitor.
To Deactivate slide the VOX switch (22) to the “OFF” position on the Camera.
The camera will then transmit picture and sound continuously.
Infrared Night Vision Mode (Automatic)
The infrared night vision mode will switch on automatically during darkness
or periods of low light levels. In this mode only monochromatic images will be
displayed on the monitor.
Nightlight Mode
The camera features a handy glowing nightlight around the front edge. To chose
the preferred nightlight setting slide the Nightlight Mode Switch (21) on the
camera bottom to the desired indicator:
ON – The Nightlight will be turned on and remain on continuously.
AUTO – The Nightlight will be set to turn on automatically whenever the cam-
era senses low levels of light. The Nightlight will automatically turn off when
the camera again senses sufcient light in the area.
OFF – The Nightlight will always remain off.
Note: When the nightlight is set to AUTO, the automatic Night Vision light level
feature determines when the nightlight switchs on and off.
8
Page 11
Monitor Operation & Installation
NOTE: For best performance it is recommended to keep units at least 7-8 feet
away from other wireless devices.
Power ON/OFF
To turn on the monitor unit, slide the LCD Power On/Off switch (5), located on
the right side of the monitor, to the “ON” position.
LCD Off
When the LCD Power On/Off switch (5) is set to the center, LCD OFF position,
the unit can be used as an audio-only monitor. This feature enables the monitor
to use less power and remain operational, but without using the LCD screen.
The monitor screen image will return with a clear picture whenever the switch is
moved to the “ON” position.
Channel Selection Mode
The monitor allows you to monitor up to 3 cameras (additional cameras sold
separately). Select the desired channel, either A, B, or C, (11). Both the Monitor and Camera will be initially set to channel A. Your monitor will display the
selected channel at the top left corner of the screen.
NOTE: If the picture continues to switch between cameras, the Automatic Channel Scan mode is activated.
Automatic Channel Scan
This option allows the Monitor unit to scan through all 3 channels automatically
and stops at each channel for about 5-7 seconds. Slide the Channel Selector
switch (11) to the “SCAN” position to activate this feature. The receiver will
automatically skip channels that are not linked to a camera.
Channel Matching (Pairing & Un-pairing)
This product is designed to allow monitoring different areas with up to 3 cam-
eras (Channel A, B, or C). The Monitor and Camera will be initially set on channel A. If you need to use another Camera for monitoring you need to “pair” the
new camera with a new Channel on the monitor. You can disable this feature by
selecting only the camera you want to use by using the Channel Selector (11).
To Pair A New Camera
• Turn OFF both the Monitor and the NEW Camera. Place them not more than
10 feet apart.
• Turn ON the NEW Camera. Press the hidden PAIRING button through the
small hole at the bottom of the Camera by using a pin (19). The Night Light
will start blinking rapidly to indicate pairing mode.
9
Page 12
• Slide the channel selection switch (11) to select the desired Channel (A, B, C).
• Press and hold the “+” brightness button marked B (3) and turn the monitor
ON (5) simultaneously.
• The monitor will display the word “PAIRED”
• Turn off both the Camera and Monitor, then turn both units back on and the
pairing process is completed.
• Repeat the same process to pair a new camera.
To Disconnect the Paired Camera
• Turn the monitor OFF.
• Select the Channel/Camera you want to de-link on the monitor (11).
• Press and hold the “-” on the brightness control button (3) and ALSO the “+”
on the volume control button (2) while simultaneously turning the unit ON.
• The LCD will display the word “DONE” when the units are successfully
unpaired.
• Turn OFF both the camera and the monitor to complete the process.
Audio/Video Output Link
The Audio/Video Output Link allows you to link the monitor to a TV, computer,
DVR or other video recording device, so you can capture video and sound from
the camera transmission. The A/V Output Jack (6) is located on the right side
of the monitor. Simply connect the supplied AV Connector Cord to the jack and
connect the other ends (three RCA connectors) to the Audio and Video input
jacks on your TV, VCR or other AV device and select the appropriate input on
your device. The monitor screen will automatically turn off once you plug in the
AV cord to the monitor. (Please refer to your device manual for input selection
& operation.)
Tilt Screen
The monitor screen can be set at an angle for improved viewing. To angle the
monitor press the release button (9) located on the base of the monitor and gently lift the screen forward to the desired angle. DO NOT force the screen as this
may cause the screen to be damaged. The screen does not move beyond 90º.
NOTE: Do not press directly on the LCD screen. To close, gently push the
framed edge of the screen until it latches. Only when latched will the release
button pop the screen out in order to angle it further from there.
10
Page 13
Brightness Control & Volume Control
The brightness control of the LCD can be adjusted by pressing the Brightness
Control Button (“B”) located on the front of the Monitor (3). Press the “+” to
increase and “–” to decrease the brightness of the LCD.
The volume control of the LCD can be adjusted by pressing the Volume Control
Button (“V”) located on the front of the Monitor (2). Press the “+” to increase
and “–” to decrease the volume on your monitor.
11
Page 14
Troubleshooting
PROBLEM
Screen turns on and off
No reception at Monitor
No picture display but can
hear sound
Only Black & White picture
displayed
Batteries cannot be recharged
NORMAL SOLUTIONS
• The “VOX” mode is selected on the camera,
when there is no noise detected by the camera
it stops transmitting to save power. To turn off
select “OFF” under the “VOX” settings
switch.
• Unit has not been switched on.
• AC/DC adaptor has not been connected.
• Adjust the position of the Camera or Monitor.
• No Battery Power (check LED indicator)
• The transmitter may not be transmitting.
(either not powered on or in VOX mode)
• Wrong Channel is selected on Monitor
• Check if the LCD on/off switch.
• Low Power (Check the LED indicator)
• Check to make sure units are linked properly
• Check if transmitter has switched to night
vision mode.
• AC/DC adaptor has not been connected.
• Non-rechargeable battery has been used.
• Only special designed rechargeable batteries
can be recharged. Please contact the manufac-
turer if you have any questions.
Camera will not link
Channels Keep Switching
Back and Forth
• Unit has not been switched on.
• AC/DC adaptor has not been connected.
• Check to make sure you are making contact
with the link button.
• Check to make sure you are selecting the cor
rect channel
• Check to make sure you are not in scan mode.
To stop this feature use the channel selection
switch on the monitor and select the desired
channel
12
Page 15
Limited Warranty
Mobi Technologies, Inc. warrants this product to be free from defects in
material and workmanship for a period of ninety (90) days from the date of
purchase. Should this product prove to be defective at any time during the
warranty period, Mobi Technologies, Inc. will, at its option, either replace
or repair it without charge. After the warranty period, a service charge will be
applied for replacement of parts or labor for repair. To obtain warranty ser-
vice, please return the product to Mobi® along with a dated sales receipt
from the place of purchase. Purchaser is responsible for shipping the product
to Mobi Technologies, Inc. at the address indicated below and for all associ-
ated freight and insurance cost. This warranty does not cover damage caused
by accident, misuse, abuse, improper maintenance, or unauthorized modica tion. A charge will be made for repair of such damage. This warranty ex-
cludes all incidental or consequential damages and any liability other than
what is stated above.
Mobi Technologies, Inc.
5913 Blackwelder St
Culver City CA 90232
www.getmobi.com
© 2009 Mobi Technologies, Inc. All Rights Reserved.
Mobi Technologies, Inc.
Please register your product at: www.getmobi.com/registerproduct.php
13
Page 16
CAM-1
CAM-2
CAM-3
Expand Your Monitoring Possibilities...
The available MobiCam® Digital
Additional Camera (#70063, sold
separately) can be added to your
system (for a total of 2 or 3) so
you can switch between them,
either automatically, or at the
touch of a button.
And you can monitor picture and
sound remotely on your computer
or other Internet device from anywhere in the world with the avail-
able MobiCam® Internet Kit (item
Look for these accessories at your favorite retailer or online at www.getmobi.com
# 70168, sold separately) with such
features as motion-triggered email
or text alerts and time-stamped
recording to your PC.
Loading...
