Miele W 3831 WPS Operating instructions

Operating instructions for Washing machine W 3831 WPS
To avoid the risk of accidents or damage to the machine, it is essential to read these instructions before it is installed and used for the first time.
en - AU, NZ
Caring for the environment
Disposal of the packing material
The transport and protective packing has been selected from materials which are environmentally friendly for disposal and can normally be recycled.
Ensure that any plastic wrappings, bags, etc. are disposed of safely and kept out of the reach of babies and young children. Danger of suffocation.
Rather than just throwing these materials away, please ensure they are offered for recycling.
Disposal of your old appliance or machine
Electrical and electronic appliances / machines often contain materials which, if handled or disposed of incorrectly, could be potentially hazardous to human health and to the environment. They are, however, essential for the correct functioning of your appliance or machine. Therefore, please do not dispose of your old machine or appliance with your household waste.
Please dispose of it at your local community waste collection / recycling centre and ensure that it presents no danger to children while being stored for disposal.
It should be unplugged or disconnected from the mains electricity supply by a competent person. The plug must be rendered useless and the cable cut off directly behind the appliance or the machine to prevent misuse.
2
Contents
Caring for our environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Description of the machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Control panel .....................................................10
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Washing environmentally and economically . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Energy and water consumption ....................................13
Detergent .....................................................13
Degree of soiling................................................13
When drying with a tumble dryer ...................................13
How to wash correctly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Brief instructions ..................................................14
Degree of soiling, Water plus, Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Light ............................................................19
Normal ..........................................................19
Heavy...........................................................19
Water plus .......................................................19
Buzzer ..........................................................19
Spinning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Final spin speed ..................................................20
Rinse and interim spin ...........................................20
To omit the final spin (Rinse hold) ..................................20
To omit rinse and interim spin and the final spin .......................20
Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Programme sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Garment care label symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
3
Contents
Changing the programme sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Cancelling a programme ............................................26
Interrupting a programme ...........................................26
Altering a programme ..............................................26
Adding or removing laundry after a programme has started ................27
Safety lock .......................................................27
System lock ......................................................28
Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
The correct detergent ..............................................29
Water softeners ...................................................30
Washing with several components ....................................30
Fabric conditioners and liquid starch ..................................31
Automatic dispensing of fabric conditioner or liquid starch to laundry
at the end of a programme ........................................31
Colour run and dye removers / dyes ...................................31
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
External casing and fascia panel .....................................32
Extra cleaning ..................................................32

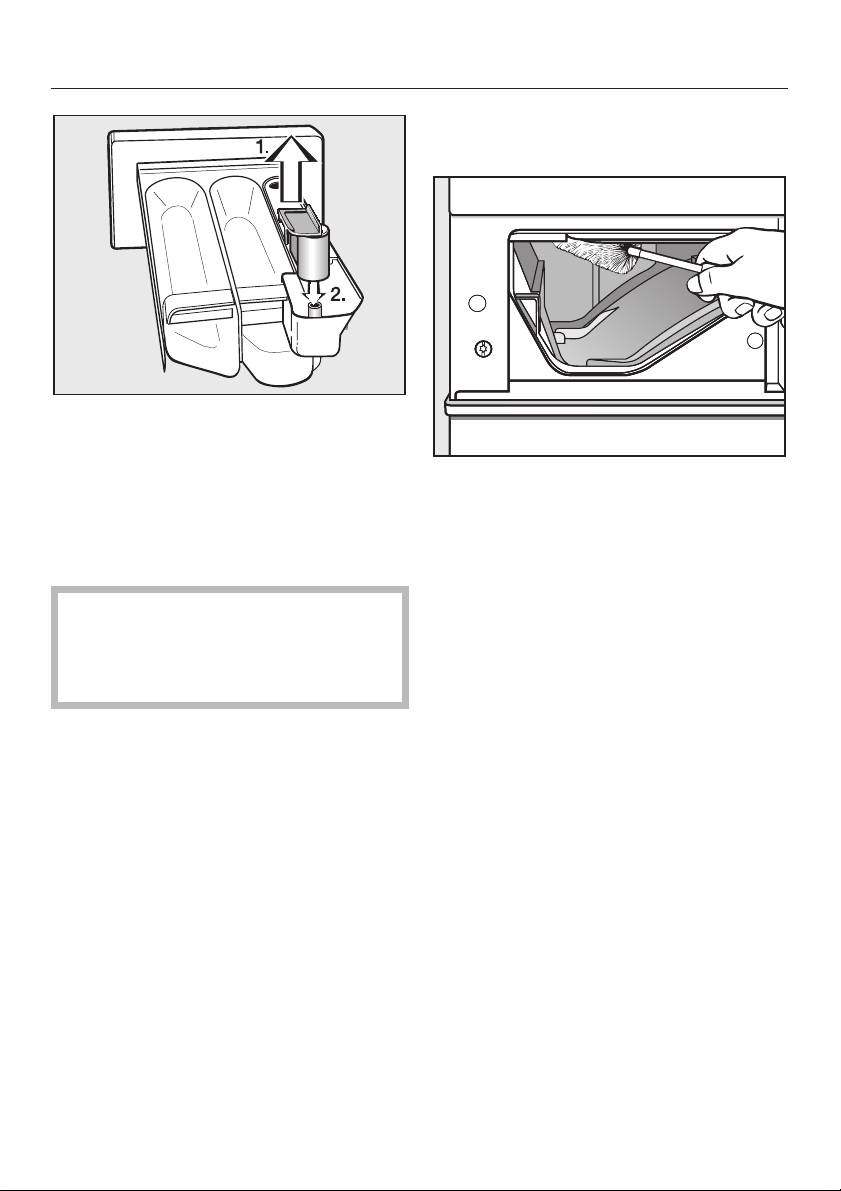

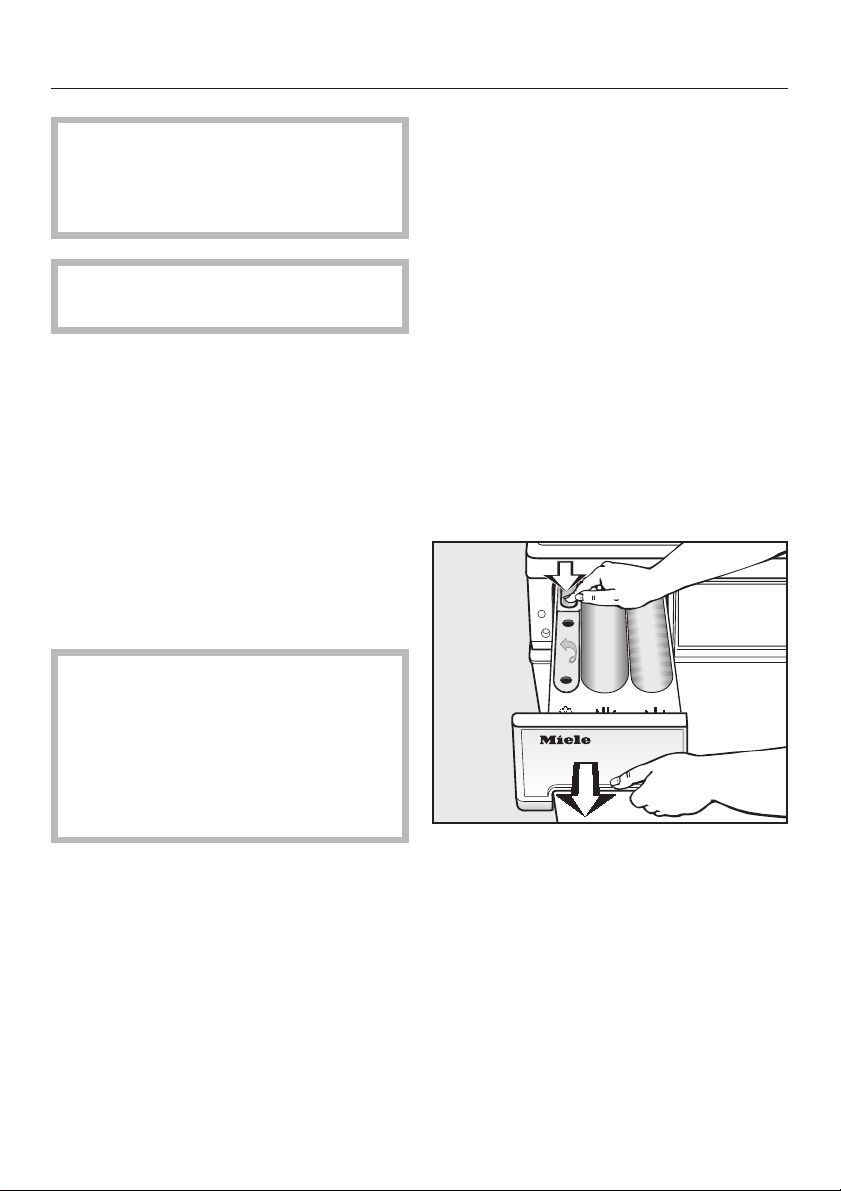

Cleaning the detergent dispenser drawer...............................32

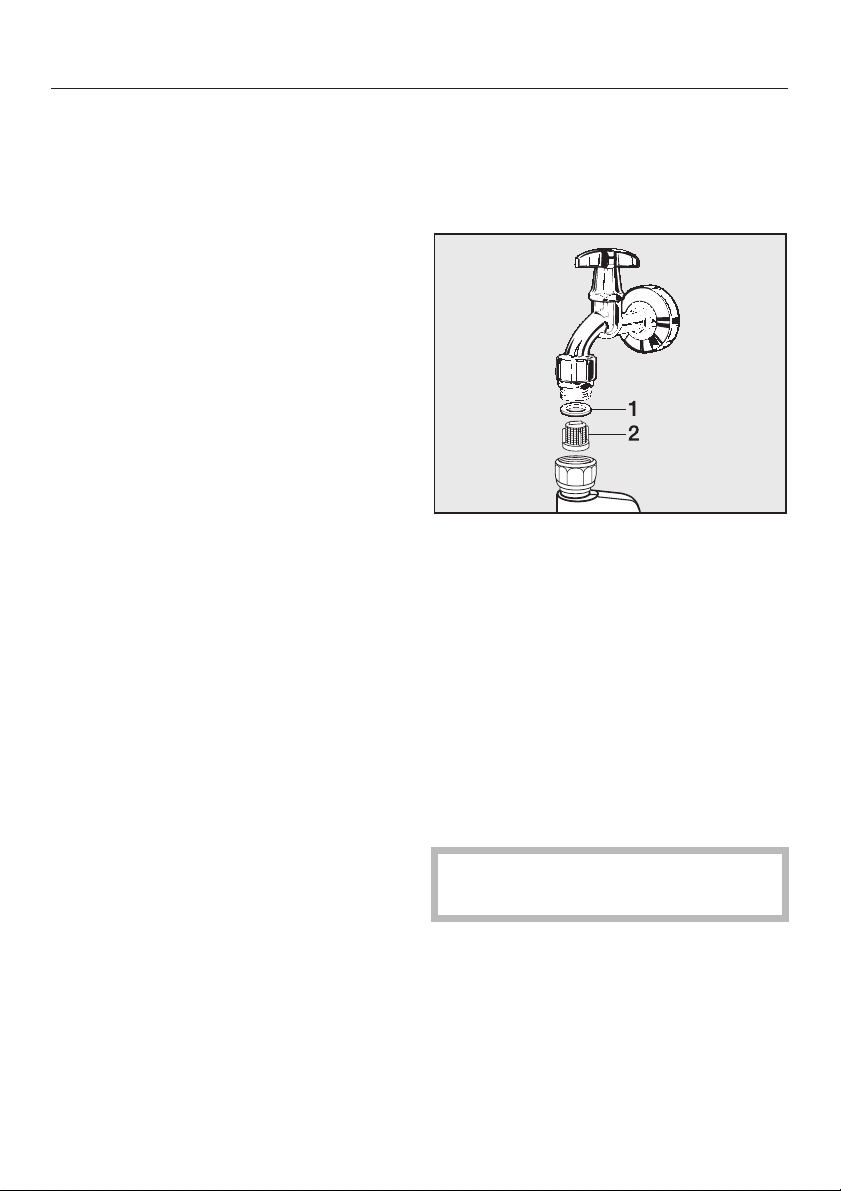

Cleaning the filter in the water inlet ....................................34
Problem solving guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
What to do, if.....................................................35
The programme does not start .......................................35
The wash programme stops and a fault indicator light comes on. ............36
General problems .................................................37
An unsatisfactory wash result ........................................38
The drum door cannot be opened by pressing the Door button..............39

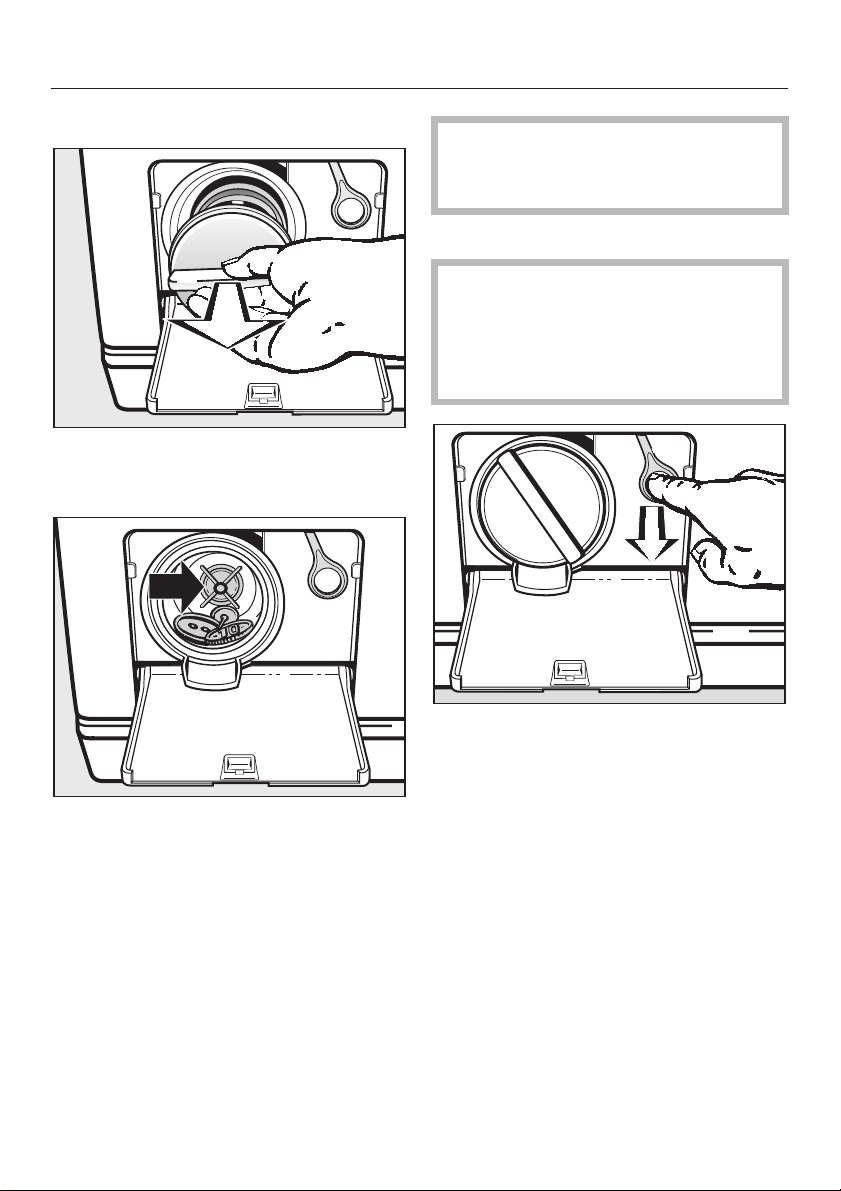

Opening the drum door in the event of a blocked drain outlet and/or power failure . 40
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Future updates (PC) .............................................42
Appliance guarantee ............................................42
Optional accessories ............................................42
4
Contents
Installation and connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Front view........................................................43

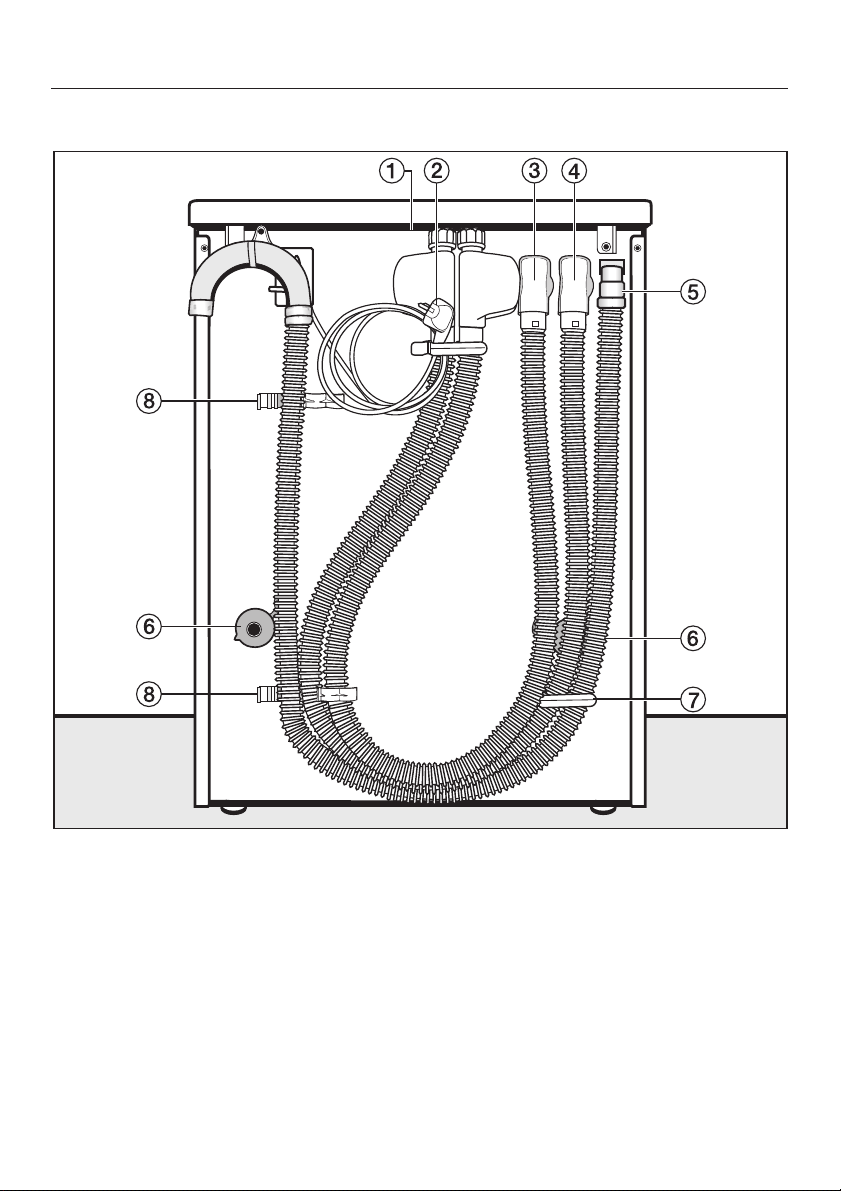

Rear view ........................................................44
Installation surface.................................................45
Installing the washing machine ....................................45

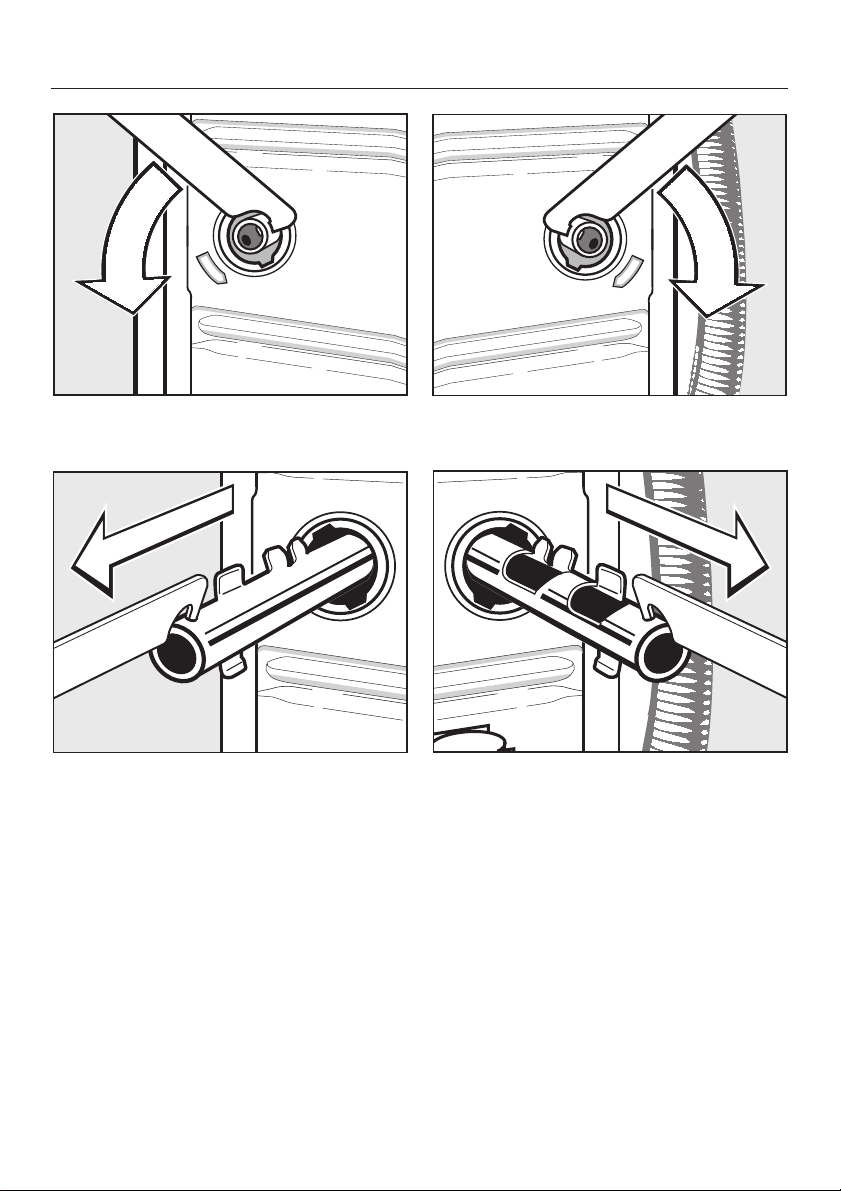

Removing the transit fittings .........................................45
Re-fitting the transit bars ............................................47
Levelling the machine ..............................................48
Screwing out and adjusting the feet .................................48
Building under a continuous worktop / in a kitchen run ..................49

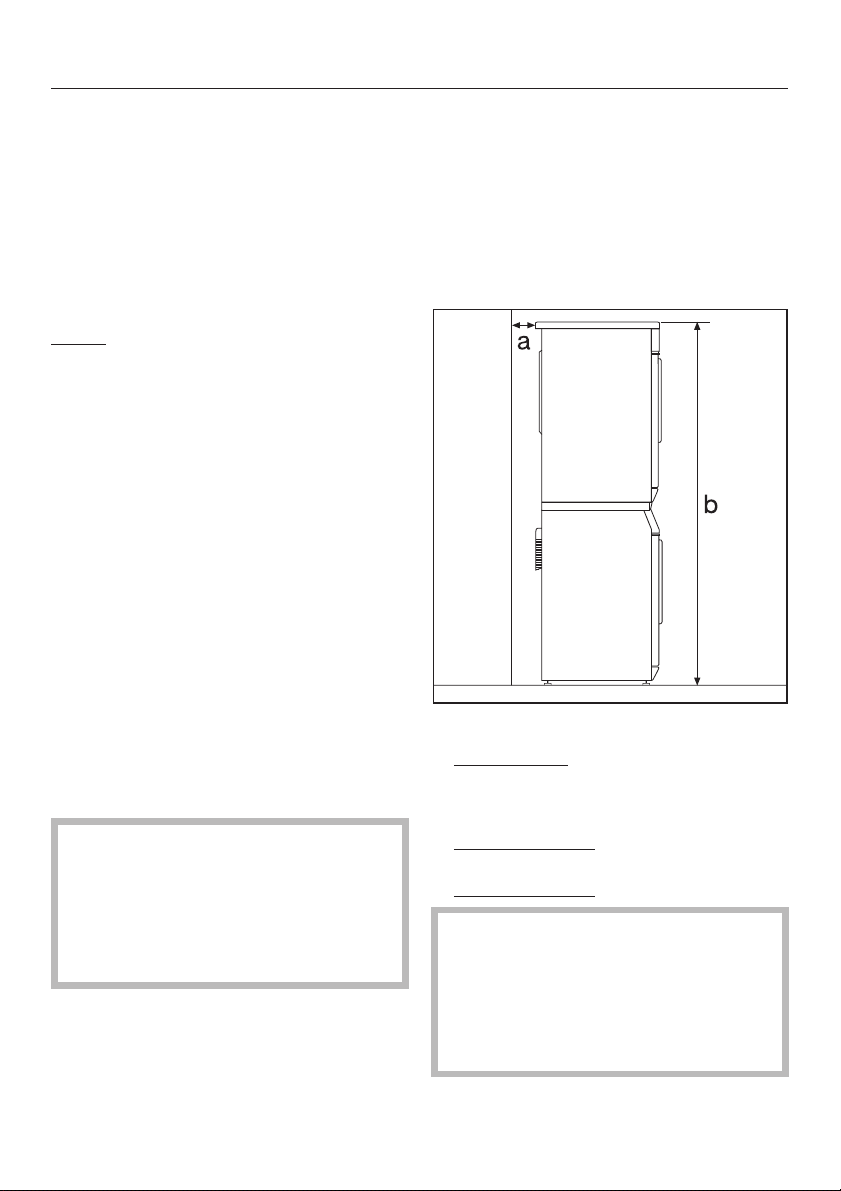

Washer and Dryer stack ..........................................49
The Miele Waterproof system ........................................50
Connection to the water supply .......................................51
Connection to the water supply .......................................52
Cold water connection (mains water supply) ..........................52
Hot water connection ............................................52

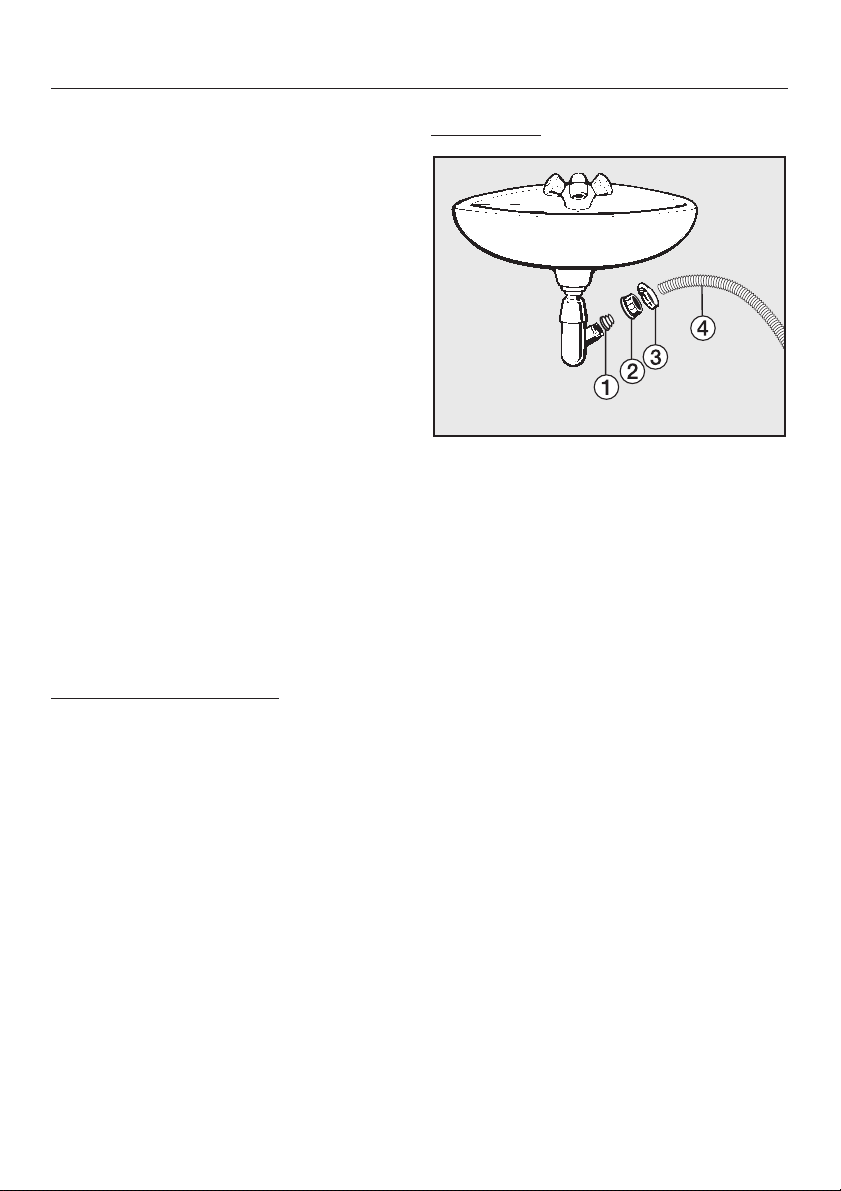

Connection to the drainage system....................................53
Electrical connection ...............................................54
Consumption data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Consumption data for AS/NZ 2040.2:2005 Standard ......................55
Notes for test institutes: ..........................................55
Consumption with hot water connection (55°C) ..........................56
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Programmable functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Water plus system .................................................59
Gentle action .....................................................60
Suds cooling in the Cottons programme ................................61
Increase the duration of the main wash.................................62
Buzzer ..........................................................63
Keypad tones.....................................................64
Memory function ..................................................65
Pre-wash with the Heavy Degree of soiling option ........................66
5
Warning and Safety instructions
This washing machine is not This washing machine conforms to current safety requirements. Inappropriate use can, however, lead to personal injury and damage to property.
To avoid the risk of accidents and damage to the washing machine, please read these instructions carefully before using it for the first time. They contain important information on its installation, safety, use and maintenance. Keep these instructions in a safe place and ensure that new users are familiar with the content. Pass them on to any future owner.
Correct application
Only use the washing machine to
~
wash items which are specified by the manufacturer to be machine-washable on the wash-care label, and textiles composed of hand-washable wool or wool blend fabrics as well as satin, lace, silk and other hand-washable garments. Any other applications may be dangerous. The manufacturer cannot be held liable for damage resulting from incorrect or improper use or operation.
~
intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning its use by a person responsible for their safety.
Safety with children
Keep children away from the
~
washing machine at all times. It is not a toy! To avoid the risk of injury do not allow children to play on or near it or to play with its controls. Supervise children whilst you are using it.
Older children may only use the
~
washing machine if its operation has been clearly explained to them and they are able to use it safely, recognising the dangers of misuse.
For machines with a 'porthole' door,
~
remember that the porthole glass will be hot when washing at very high temperatures. Do not let children touch it.
6
Warning and Safety instructions
Technical safety
Before setting up the washing
~
machine, check it for any externally visible damage. Do not install or use a damaged washing machine.
Before connecting the washing
~
machine, ensure that the connection data on the data plate (voltage and connected load) match the mains electricity supply. If in any doubt, consult a qualified electrician.
The electrical safety of this washing
~
machine can only be guaranteed when continuity is complete between it and an effective earthing system which complies with current local and national safety regulations. It is most important that this basic safety requirement is present and regularly tested, and where there is any doubt the household wiring system should be inspected by a qualified electrician. The manufacturer cannot be held liable for the consequences of an inadequate earthing system (e.g. electric shock).
Do not connect the washing
~
machine to the mains electricity supply by an extension lead. Extension leads do not guarantee the required safety of the appliance (e.g. danger of overheating).
Faulty components must only be
~
replaced by genuine Miele original spare parts. Only when these parts are fitted can the safety standards of the machine be guaranteed.
Unauthorised repairs could result in
~
unforeseen dangers for the user, for which Miele cannot accept liability. Repairs should only be undertaken by a Miele approved service technician. Ensure current is not supplied to the machine until after maintenance or repair work has been carried out.
If the connection cable is faulty it
~
must only be replaced by a Miele approved service technician to protect the user from danger.
In the event of a fault or for cleaning
~
purposes, the washing machine is only completely isolated from the electricity supply when: – it is switched off at the wall socket
and the plug is withdrawn, or – it is switched off at the mains, or – the mains fuse is withdrawn, or the
screw-out fuse is removed (in
countries where this is applicable).

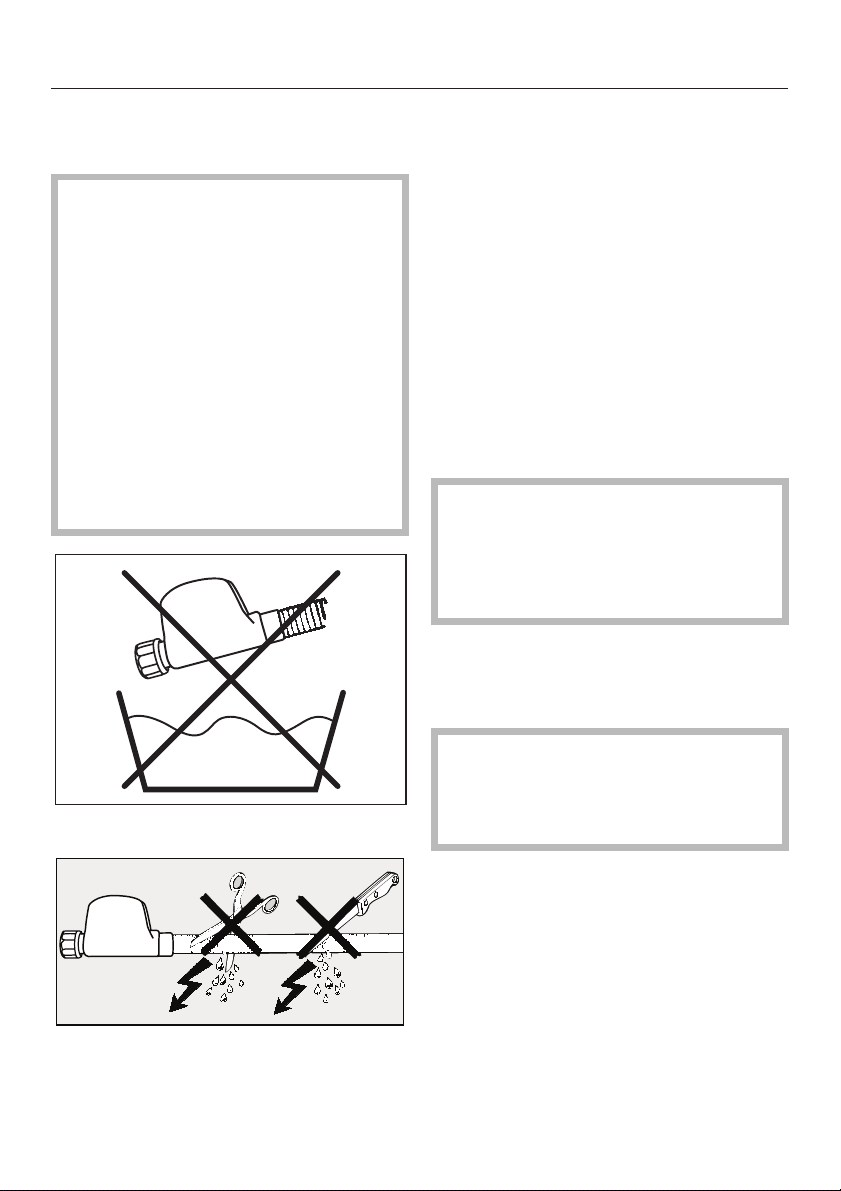

The Miele "Water protection system"
~
protects from water damage provided the following conditions have been met: –
the machine is correctly plumbed in
and connected to the electricity
supply. –
if a fault has been identified, the
machine must be examined by a
competent person before further use,
and repaired if necessary.
In areas which may be subject to
~
infestation by cockroaches or other vermin, pay particular attention to keeping the machine and its surroundings in a clean condition at all times. Any damage which may be caused by cockroaches or other vermin will not be covered by the machine guarantee.
7
Warning and Safety instructions
This washing machine may only be
~
used in mobile installations such as ships if a risk assessment of the installation has been carried out by a suitably qualified engineer.
Do not make any alterations to the
~
washing machine, unless authorised to do so by Miele.
Correct use
Do not install your washing machine
~
in rooms where temperatures below freezing may occur. Frozen hoses may burst or split. The reliability of the electronic control unit may be impaired at temperatures below freezing point.
Before using the washing machine
~
for the first time, check that the transit bars at the rear of the machine have been removed (see section on "Installation"). During spinning, a transit bar which is still in place may result in damage to both the machine and adjacent furniture or appliances.
Turn off the tap if the machine is to
~
be left for any length of time (e.g. holi day), especially if there is no floor drain (gully) in the immediate vicinity.
Flooding danger.
~
If hooking the drain hose into a wash basin, check that the water can drain off quickly enough to prevent the sink from overflowing. Make sure the drain hose is secure, so that the force of the water flowing out of the hose does not dislodge it.
Take care to ensure that foreign
~
objects (e.g. nails, pins, coins, paper clips) do not find their way into the machine with the laundry. These may damage components of the machine (e.g. suds container, drum), which in turn can result in damage to the laundry.
If the correct amount of detergent is
~
dispensed, the machine should not need to be descaled. If, however, you do wish to descale the machine only use proprietary non-corrosive descaling agents and strictly observe the instructions on the packaging. If in doubt contact the Miele Customer Ser vice Department or your Miele Chartered Agent.
-
-
8
Warning and Safety instructions
Textiles which have been
~
pre-treated in solvent based cleaning agents must be thoroughly rinsed in clean water before being washed in the machine.
Never use solvent based cleaning
~
agents, e.g. those containing benzene, in this machine, as this may result in damage to component parts and create toxic fumes. Such agents also pose a fire and explosion hazard.
Never use solvent based cleaning
~
agents, e.g. those containing benzene, to clean the outside surfaces of this machine. They can cause damage to plastic surfaces.
Only use dyes specified by the
~
manufacturer as being suitable for use in a domestic washing machine. Always observe the manufacturer's instructions carefully.
Colour run and dye removers
~
contain sulphur compounds which can cause damage such as corrosion. Do not use these products in this machine.
Only remove laundry from the
~
washing machine once the drum has stopped turning. Reaching into a moving drum is extremely dangerous and could result in injury.
Accessories
Accessory parts may only be fitted
~
when expressly approved by Miele. If other parts are used, guarantee, performance and product liability claims will be invalidated.
Miele cannot be held liable for damage caused by non-compliance with these Warning and Safety instructions.
If liquid detergent comes into
~
contact with the eyes, rinse them thoroughly with lukewarm water imme diately. If swallowed, seek medical assistance immediately and retain the packaging or label for reference. Those with skin problems or sensitive skin should avoid their skin coming into contact with liquid detergent.
-
9
Description of the machine
Control panel
a Programme buttons e-
For selecting a washing programme.
b Soiling button
For specifying the degree of soiling of the laundry.
Water plus button
For increasing the water level.
c Temperature button
For selecting a temperature.
d Spin speed button
For selecting a final spin speed.
e PC / Optical interface
This is used by service technicians to run diagnostic checks on your machine and can also be used to update programming data in the future.
f Sequence indicator lights
Show which section of the wash
programme has been reached.
g Buzzer button
h Check lights
i Delay start button
For delaying the start of a
programme.
j Start/Stop button
For starting the programme selected
and cancelling a programme once it
has started.
k I-On/0-Off button
For switching the machine on or off.
l Door button
Opens the machine door.
m Display (h min)
The display fulfills several functions.
See next page for details.
10
Description of the machine
Display
The display shows:
the programme duration (Time left
display)
delay start
the programmable functions
Programme duration
After the start of a programme, the estimated programme duration will appear in the display in hours and minutes.
When delay start is being used, the programme duration will appear after the delay start time has elapsed.
During the first 10 minutes the washing machine measures how much water is being absorbed by the laundry and uses this to calculate the load. The programme duration may be longer or shorter depending on this absorbency rate.
Delay start
The delay start time selected will appear in the display.
After the machine has started, the delay start time counts down. If the delay start time is more than 10 hours, it will count down by the hour. If it is less than 9 hours and 59 minutes it will count down minute by minute.
Once the delay start time has finished, the programme begins and the estimated programme duration shows in the display.
Programmable functions
The programmable functions can be used to tailor washing programmes to suit your individual requirements. In programming mode, the display will show the function selected.
11
Before using for the first time
Before using the machine for the first time ensure that it is correctly installed and connected. See "Installation and connection". Also check that the drain filter is securely tightened to prevent the risk of water leaks during use.
This washing machine has completed a comprehensive functional test. A small quantity of water remains in the drum as a result.
For safety reasons, spinning is not possible until the machine has been prepared for using for the first time. To activate the spinning function you must run a wash programme without laundry and without detergent.
Using detergent could result in an excessive build-up of foam.
This also activates the ball valve. The ball valve prevents detergent escaping from the suds container into the sump during a wash programme, thus making maximum use of the detergent.
^
Open the tap.
^
Press the I-On/0-Off button in.
The indicator light for the Automatic programme will come on.
^
Press the H programme button to select the Cottons programme.
^
Press the Start/Stop button.
The programme will begin. When it has finished, your machine is ready for using for the first time.
12
Washing environmentally and economically
Energy and water consumption
Water consumption and energy
usage are determined by the size of the load. To make the most out of your machine, load the maximum dry load for the programme you are using.
Use the Automatic and Express
programmes for small loads.
When smaller amounts of laundry are
washed using the Cottons programme, the automatic load recognition system will reduce the amount of water, time and energy used. This may mean that the time left shown in the display is adjusted during the course of the wash programme.
– Using the Cottons Normal 40°C
program is recommended for a normally soiled load and is the program used in energy/water consumption tests to AS/NZS 2040 (refer to Consumption Data)
Hot and cold water connection is standard on this machine. Hot water connection offers the following advantages: – decreased running time – increased energy savings with
greenhouse-friendly hotwater such as solar-heated systems
Detergent
Do not exceed the amounts of
detergent recommended by the
manufacturer on the packaging.
Reduce the amount of detergent with
smaller loads (approx.
1
/3less than the amount recommended can be used when washing a half load).
Degree of soiling
With most of the programmes you can specify the degree of soiling of the laundry. The washing machine will then adjust the programme to suit the degree of soiling.
Light
No visible dirt or stains.
Normal
Visibly dirty and/or just a few slight stains.
Heavy
Visible dirt and stains as well as soiling that has dried on or been left unwashed for a while.
When drying with a tumble dryer
Selecting the highest possible spin speed for the wash programme will save energy when drying in a tumble dryer afterwards.
13
How to wash correctly
Brief instructions
The headings numbered A, B, C,... show the operating sequence and can be used as brief instructions.
A Sort the laundry
If you use a solvent-based
,
cleaning agent (e.g. one containing benzene) to pre-treat a stain, make sure that any plastic parts (e.g. buttons) are protected, and that the cleaning agent is rinsed off before washing the garment in the machine.
Do not use solvent-based
,
cleaning agents in this machine.
Sort the laundry by colour and by
^
care label. Most garments have a textile care label in the collar or side seam.
^ Empty all pockets.
,
Foreign objects (e.g. nails, coins, paper clips, etc.) can cause damage to garments and components in the machine.
^
Badly soiled areas, stains etc. should be cleaned as soon as possible, preferably whilst still fresh. Spillages should be carefully dabbed off using a soft colourfast cloth. Do not rub!
Badly soiled areas can be pre-treated with liquid detergent, stain removers etc. first, following the manufacturer's instructions. With particularly stubborn stains ask your dry cleaner for advice.
Dark textiles often contain excess dye and should be washed separately several times first. Always wash whites and coloureds separately.
– Curtains: Remove lead weights first
or place in a laundry bag.
Underwiring and collar stiffeners: Any loose wiring in bras, shirt collar stiffeners, etc. should be removed or sewn in.
Close any zips, fasten hooks and eyes etc before washing.
Fasten duvet covers etc. to prevent small items from being rolled up inside them.
Do not wash any items in this machine which are specified by the manufacturer as not washable on the care label. (h symbol)
14
How to wash correctly
B Switch on the washing machine
C Load the drum
Press the Door button to open the
^
drum door.
Unfold the laundry and load loosely
^
in the drum. Mixing both large and small items gives better wash results and also helps distribute the load evenly during spinning.
The most efficient use of energy and water is achieved when a full load is washed. However, do not overload as this causes creases and reduces cleaning efficiency.
Make sure that no garments are caught between the drum door and seal.
D Select a programme
Press the e or - button repeatedly
^
until the indicator light for the programme you want lights up.
^
Shut the door with a gentle swing.
15
How to wash correctly
Specify the degree of soiling of the laundry
Press the top button to select the degree of soiling. Normal is the default setting.
Use the lower button to select the Water plus option.
^ Press the top button repeatedly until
the degree of soiling you want lights up.
^
Press the Water plus button if you want to activate this function.
You cannot select the degree of soiling or Water plus for every programme.
You can change the pre-set temperature or spin speed by pressing the Temperature or Spin button.
In some programmes the maximum temperature and spin speed is limited. The machine will not allow a higher value to be selected.
^ Press the Temperature or Spin
button repeatedly until the indicator light for the value you want comes on.
^
Press the Buzzer button if you want to be reminded when the programme is finished.
16
E Add detergent
It is important to dispense the correct amount, because...
. . . too little detergent results in:
Laundry not getting properly clean
and with time it may become grey and hard to the touch.
Greasy particles clinging to the
laundry.
Limescale deposits on the heater
elements.
. . . too much detergent results in:
– Excessive foam which causes a low
level of agitation and poor wash, rinse and spin results.
– Higher water consumption (an
additional rinse cycle will automatically switch in).
– A burden to the environment.
How to wash correctly
Pull out the detergent drawer and
^
place detergent in the compartments as follows:
i
Detergent for the pre-wash (if the
Degree of soiling has been set as Heavy, add
2
and
/3to compartment j).
j
Detergent for the main wash
1
/3to compartment i
§
Fabric conditioner or liquid starch.
^
Close the detergent drawer.
See "Detergent" for further information.
17
How to wash correctly
F Select Delay Start, if wished
Remove the laundry.
^
Delay start allows you to delay the start of a programme from 30 minutes up to a maximum of 24 hours, allowing you to make use of night-time economy electricity rates, for example.
Press the Delay start button. Each
^
press on the button increases the delay start time:
by 30 minutes up to 10 hours,
by 1 hour from 10 hours upwards.
To cancel Delay start
^ Press the Delay start button once
when 24 ^ is showing in the display.
To cancel Delay start after you have pressed the Start button:
^ You will have to cancel the
programme. See relevant section later in this booklet.
G Start the programme
^
Press the flashing Start/Stop button.
Only remove laundry from the machine once the drum has stopped turning. Reaching into a moving drum is extremely dangerous and could result in injury.
Check that all items have been removed from the drum. Items left in the drum could discolour other items in the next wash or become discoloured themselves.
The estimated programme duration will then show in the display. This will count down in one minute steps. During the first 10 minutes the machine measures how much water is being absorbed by the laundry. The programme duration may be longer or shorter depending on this absorbency rate.
H Remove the laundry when the
programme as finished
The Finish and Anti-crease Sequence indicator lights will come on when the programme is finished.
^
Press the Door button to open the drum door.
18
^
Check the folds in the door seal for any small articles, e.g. buttons which might be lodged there.
^
Switch the washing machine off with I-On/0-Off button.
To avoid the build-up of mildew, it is recommended that the door is left ajar when the machine is not in use.
Degree of soiling, Water plus, Buzzer
The washing machine will adjust the programme to suit the degree of soiling selected.
Light
No visible dirt or stains.
The duration of the main wash is reduced.
Normal
Visibly dirty and/or just a few slight stains.
The standard wash programme will be carried out.
Heavy
Visible dirt and stains and/or dried on soiling.
A fifteen minute pre-wash will be carried out and the duration of the main wash will be increased by 15 minutes.
Water plus
If the Water plus button is pressed, the water level in the main wash and rinses is increased.
You can also alter the setting allocated to the Water plus button. See "Programmable functions".
Buzzer
The buzzer will sound at the end of the programme or when Rinse hold has been reached.
The buzzer will sound repeatedly until the machine is switched off.
Once switched on, the buzzer is active in all programmes until it is switched off again.
You can also change the volume of the buzzer or deactivate the buzzer button. See "Programmable functions".
The buzzer will always sound when there is a fault, even if it has been deactivated.
The Pre-wash Sequence indicator light will flash. Add the appropriate amount of powder detergent to compartment i.
You can also deactivate the Pre-wash and increase the duration of the main wash by 30 or 60 minutes instead of the standard default increase of 15 minutes. See "Programmable functions".
19
Spinning
Final spin speed
Programme rpm
Automatic 1200
Cottons 1400
Minimum iron/Delicates 1200
Woollens 1200
Silks 400
Express 1400
Dark garments 1200
Shirts 600
Denim 900
Drain/Spin 1400
You can reduce the final spin speed. However, you cannot select a final spin speed higher than that shown in the chart above.
Rinse and interim spin
There is a spin after the main wash and between the rinses. A reduction in the final spin speed will also reduce the interim spin speed. If a spin speed of less than 700 rpm is selected for a Cottons programme, an additional rinse is introduced.
To omit the final spin (Rinse hold)
Select the Rinse hold setting. The
^
laundry will not be spun and will remain suspended in the final rinse water. This reduces creasing if the laundry is not going to be removed from the drum immediately after the end of the programme.
To start the final spin
:
The Rinse hold indicator light will illuminate. Select the spin speed you want by pressing the spin speed button until the indicator light next to the spin speed you want illuminates. The washing machine will then start the final spin.
– To end the programme
:
Press the Door button. The water will drain away. Press the Door button again to open the door.
To omit rinse and interim spin and the final spin
Select the Without spin setting. The laundry is not spun after the final rinse. The water will drain away and the machine will go straight into the anti-crease stage. An additional rinse is introduced if this settnig is selected with the Automatic, Cottons, Minimum iron/Delicates and Express programmes.
20
Programme chart
Automatic 40°C to cold Max. load 3.5 kg
Fabric Mixed loads of garments suitable for the Cottons and Minimum iron
programmes. Sort according to colour.
Note The wash parameters (e.g. water level, wash rhythm and spin
speed) are adjusted automatically in this programme to ensure the best possible care and wash result for each item.
Cottons 95°C to 30°C Max. load 6.5 kg
Fabric Cotton and linen fabrics, e.g. bed linen, table linen, towelling, jeans,
underwear, T-shirts, nappies.
Note Only use the Cottons 95°C programme for heavily soiled laundry.
Minimum iron/ Delicates
Fabric Synthetic fibres, mixed fibres, rayon and easy care cottons.
Curtains, including net curtains, specified as machine-washable by the manufacturer.
Notes – Due to the large amount of fine dust in curtains, we recommend
selecting the Heavy Degree of soiling setting and also the Water plus option. Only wash a maximum load of 2 kg.
– For curtains which crease easily, reduce the spin speed or select
Without spin.
Woollens / 40°C to cold Max. load 3.0 kg
Fabric Machine-washable or hand-washable wool or wool blend fabrics. If
the care label does not specify a temperature wash using the cold setting.
60°C to cold Max. load 3.0 kg
21
Programme chart
Silks / 30°C to cold Max. load 2.0 kg
Fabric Hand-washable fabrics with no wool content, e.g. satin, lace and
silk.
Note Place socks, tights, bras etc. in a washing bag.
Express 40°C to cold Max. load 3.0 kg
Fabric Small loads of items which require freshening up and which can be
washed in a Cottons programme.
Note This programme can be used for rinsing individual items. Select the
cold setting, and do not add any detergent.
Dark garments 40°C to cold Max. load 3.0 kg
Fabric Dark garments made from cotton or mixed fibres.
Note Wash inside out.
Shirts 60°C to cold Max. load 2.0 kg
Notes – Pre-treat collars and cuffs if necessary.
– Wash silk garments in the Silks programme.
Denim 60°C to cold Max. load 3.0 kg
Notes – Wash denim inside out.
– Denim often contains excess dye and will run during the first few
washes. Wash light and dark coloured items separately.
Drain/Spin Max. load 6.0 kg
Notes
Make sure you select the appropriate spin speed.
Drain only: Select Without spin. Do not use for woollens.
22
Programme sequence
Main wash Rinses Spinning
Water
level
Automatic ( abc e 2-3 Cottons d a ( 2-3
Minimum iron/
e d e 2-3
Delicates Woollens e e e 2 LL Silks e e e 2 L Dark garments ( b d 3 LL Shirts e c e 2 L Express d b d 2-3 Demin ( c e 3 L
Drain/Spin –– –––L
d = Low water level ( = Medium water level e = High water level
See the following page for more information about the programme sequences.
Wash
rhythm
Water
Rinses Interim
level
2)
1)
2)
2)
a= Intensive rhythm b= Normal rhythm c= Gentle rhythm d= Sensitive rhythm e= Handwash rhythm
Final
spin
spin
LL
LL
LL
LL
23
Programme sequence
This machine has fully electronic controls with automatic load recognition. It takes in the right amount of water required for the programme depending on the amount of laundry and its absorbency rate. This means that programme cycles and durations can vary.
The programme sequences outlined in the chart are based on the basic programme with a full load. Extra options which can be selected have not been taken into account.
The programme sequence display shows the stage the programme has reached.
Special features in the programme sequences:
Anti-crease
:
At the end of every programme, with the exception of the Cottons and Woollens programme, the drum continues to turn at intervals for up to 30 minutes to help prevent creasing. The door can be opened and laundry removed at any time during the anti-crease phase.
1)
A third rinse is carried out if:
there is too much foam in the drum
– a spin speed lower than 700 rpm has
been selected
Without spin has been selected
2)
A third rinse is carried out if:
Without spin has been selected
24
Garment care label symbols
Washing
The figure quoted in the bucket is the maximum temperature the garment can be washed at. The number of bars under the symbol indicates the level of agitation permitted.
9 No bar under the symbol: =
normal agitation
4 One bar under the symbol: =
reduced agitation
c Two bars under the symbol: =
much reduced agitation
/ Hand wash (if no temperature
is specified use the lowest temperature or cold)
h Do not wash
Examples for programme selection
Programme Care label
Cottons 9ö8E76 Minimum iron 54321 Delicates ac Woollens / Silks / Express 76
Drying
The number of dots indicates the drying temperature
q Normal temperature r Low temperature s Do not tumble dry
Ironing
The number of dots indicates the ironing temperature
I Hot iron (max sole plate temp.
approx. 200°C)
H Medium hot iron (max sole
plate temp. approx. 150°C)
G Cool iron (max sole plate
temp. approx. 110°C). Do not steam iron garments carrying this symbol.
J Do not iron
Professional cleaning
f
p
w Professional Wet Clean only
D Do not dry clean
Dry clean only. The letters indicate the type of cleaning agent required.
Automatic 7621
Bleaching
x Any oxidising bleaching
agent can be used
{ Only use an oxygen based
bleach or a non-chlorine bleach
z Do not bleach
25
Changing the programme sequence
Cancelling a programme
You can cancel a programme at any time after it has started.
Press the Start/Stop button briefly.
^
The suds will be pumped away and the programme is cancelled.
If you want to remove the laundry:
Press the Door button.
^
If you want to select a different programme:
Switch the washing machine off with
^
I-On/0-Off button.
^ Switch the washing machine back on
again.
^ Select a different programme.
Interrupting a programme
^ Switch the washing machine off with
I-On/0-Off button.
To continue with the same programme:
^
Switch the machine back on with the I-On / 0-Off button.
Altering a programme
Wash programme
After the start of a programme it is no longer possible to select a different programme.
You will need to cancel the current programme before you can select a new one.
Temperature
It is possible to alter the temperature up to 5 minutes after the start of a programme.
Spin speed
You can select a different spin speed up until the final spin begins.
Degree of soiling
The degree of soiling setting cannot be altered after the start of a programme.
Water plus and Buzzer
The buzzer can be switched on or off at any time.
26
Water plus cannot be selected or deselected after the programme has started.
Please note that no changes are possible if the safety lock has been activated.
Changing the programme sequence
Adding or removing laundry after a programme has started
Press the Door button to open the
^
drum door.
Add or remove items.
^
Close the drum door.
^
The programme will continue automatically.
Please note:
Once a programme has started the machine cannot recognise any adjustment to the load.
For this reason, if laundry is added or removed after the start of a programme, the machine will always complete the programme cycle assuming a full load which can lead to an increase in the programme duration shown in the display.
The door cannot be opened, if:
the suds temperature is above 55°C.
the water is above a certain level.
the programme has reached the Final spin stage.
Safety lock
The safety lock prevents the machine from being opened or the programme cancelled or the temperature or spin speed being altered during a wash programme.
To activate the safety lock
Once the programme has started,
^
press the Start/Stop button for at least 4 seconds until the Locked check light appears to the left of the display.
The safety lock is now activated.
The machine will now not accept any changes and the programme will proceed through to the end.
The safety lock is deactivated automatically at the end of the programme.
To deactivate the safety lock
Once the programme has started, press the Start/Stop button for at least 4 seconds until the Locked check light to the left of the display goes out.
the safety lock has been activated.
The Locked check light will come on if the Door button is pressed when the above conditions are present.
27
Changing the programme sequence
System lock
The system lock prevents your machine being used without your knowledge.
If the system lock has been activated it is not possible to start a programme.
To activate the system lock
Before you begin, first ensure that:
The washing machine is switched off.
The drum door is closed
A Press the Water plus and
Temperature buttons at the same
time and hold them pressed in until you reach step D.
B Switch the machine on with the I-On/
0-Off button.
C Press the Degree of soiling light/
normal/heavy button three times
.
D Then release the Water Plus and
Temperature buttons.
The Locked check light will flash.
E Switch off the washing machine.
To deactivate the system lock
Repeat steps A to D. The Locked check light will go out.
28
Detergent
The correct detergent
All modern detergents produced for automatic Front loading washing machines are suitable. Use dispensing aids, e.g. balls, if these are supplied with the detergent. Tablets are suitable for full loads, but note that it may be impractical to reduce tablets for smaller loads. Some tablets do not dissolve as rapidly as others, and may not be suitable for programmes with short durations.
Do not use biological detergents on silk as the enzymes may damage the silk! Instructions for use and recommended dosage amounts are given on the detergent packaging.
For programmes without pre-wash or time delay start, liquid detergent can either be dispensed placing a ball shaped container (commonly provided by the detergent manufacturer) straight onto the laundry load or alternatively dispensed through the detergent dispenser drawer. For programmes with pre-wash or delay start facility (where applicable), an additional liquid detergent dispenser insert (Material number 5077370) is available from the Miele Spare Parts Department.
All purpose
detergent for
whites*
Detergent for
coloured
fabrics*
Detergent for
delicates
Automatic X X
Cottons X X
Minimum iron/Delicates X X
Woollens Liquid detergent for machine-washable woollens
Silks X
Express X X X
Dark garments X
1)
Shirts X X
Denim X
1)
Only use liquid detergent
2)
Only use powder detertent or detergent specifically designed for washing
1)
curtains
*Powder detergent, tablet detergent, liquid detergent and liquid tab detergent.
29
Detergent
The right amount to dispense will depend on the following:
The quantity of laundry.
The soiling level of the laundry.
Lightly soiled No visible dirt or stains. Possibly slight body odour.
Normally soiled Visibly dirty and/or just a few slight stains.
Heavily soiled Stains and soiling clearly visible.
– The water hardness level.
– Check with your local water supplier
if you do not know the water hardness level in your area.
Water softeners
A water softener can be used to cut down on the use of detergents in hard water areas. Dispense according to the amount specified on the packaging. First add detergent and then the water softener.
Use a quantity of detergent as for soft water.
Washing with several components
If you wash using several components (e.g. special application detergents), dispense them into compartment j in the following order:
1. Detergent
2. Water softener
3. Stain remover
This way the agents are distributed more efficiently.
30
Fabric conditioners and liquid starch
Fabric conditioners make garments soft to handle and help prevent static cling when tumble drying.
Starch stiffens and gives body to items of laundry, e.g. shirts, tablecloths and bed linen.
Automatic dispensing of fabric conditioner or liquid starch to laundry at the end of a programme
Detergent
If starching frequently, clean the dispenser compartment, especially the siphon tube, regularly. See "Cleaning the detergent dispenser drawer". Do not use powder starch formulations or viscous liquid starch in the § compartment as it will clog up.
Colour run and dye removers / dyes
Do not use
^
removers in this machine.
^ Dyes suitable for use in domestic
washing machines can be used. However, please note that the salt used in the dyeing process can cause corrosion to stainless steel components in the machine if you dye frequently. Always observe the manufacturer's instructions carefully.
colour run or dye
^

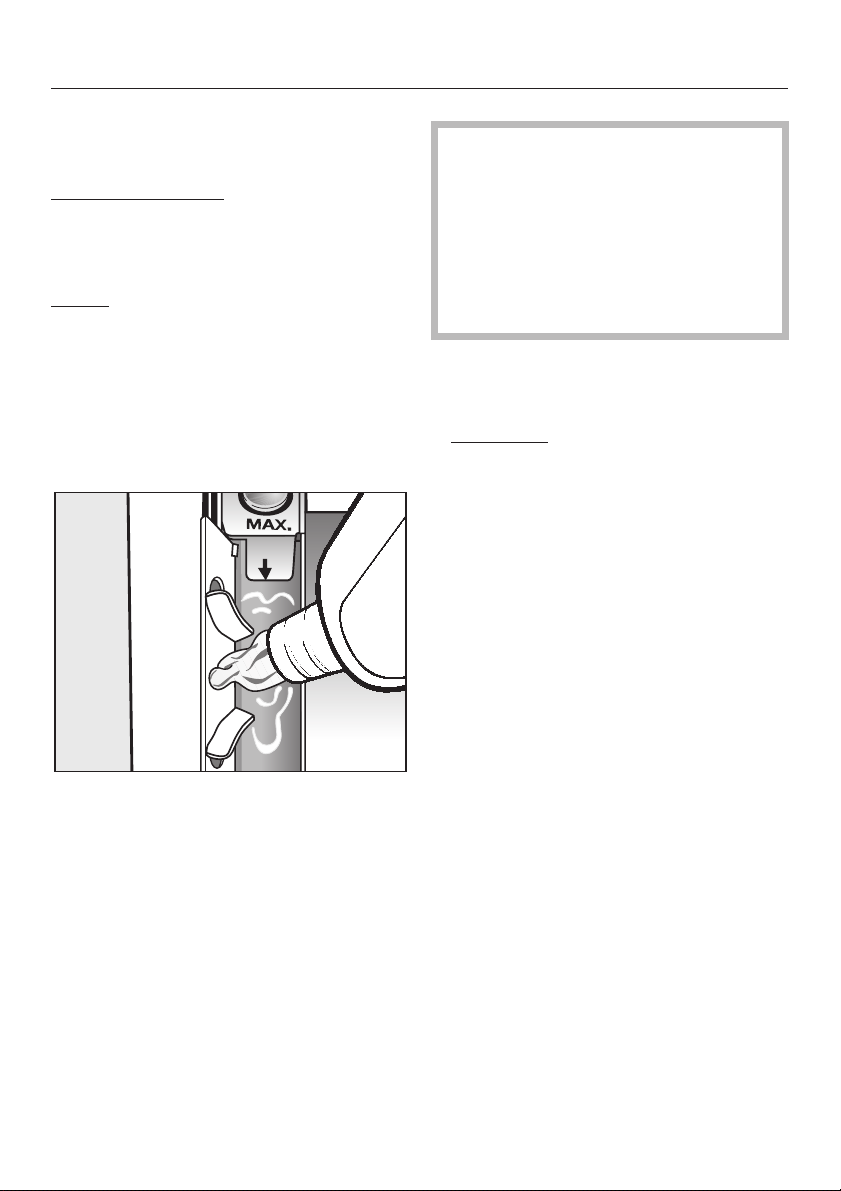

Add the fabric conditioner or liquid starch to compartment §. Do not
exceed the maximum level mark.
It will be automatically dispensed in the last rinse. At the end of the programme a small amount of water remains in the fabric conditioner compartment §.
31
Cleaning and care
Disconnect the machine from the
,
mains electricity supply and withdraw the plug from the socket before cleaning the machine.
The washing machine must not
,
be hosed down.
External casing and fascia panel
Clean the casing with a mild
^
non-abrasive cleaning agent or soap and water using a well wrung-out cloth. Wipe dry with a soft cloth.
^ The drum can be cleaned using a
suitable proprietary stainless-steel cleaning agent following the manufacturer's instructions on the packaging.
Extra cleaning
Carry out a hot wash (70°C or above) with powder detergent approx. every 6 weeks to help prevent deposits building up in the machine. These can occur when washing is mainly done at low temperatures, and also lead to unpleasant smells. If you have no reason to wash occasionally at this high temperature, then run a Cottons 95°C programme with detergent but no laundry at regular intervals.
Cleaning the detergent dispenser drawer
Remove detergent residues regularly.
,
Do not use solvents, abrasive cleaners, glass cleaners or all-purpose cleaning agents. These might damage plastic surfaces and other components because of the chemicals they contain.
32
^

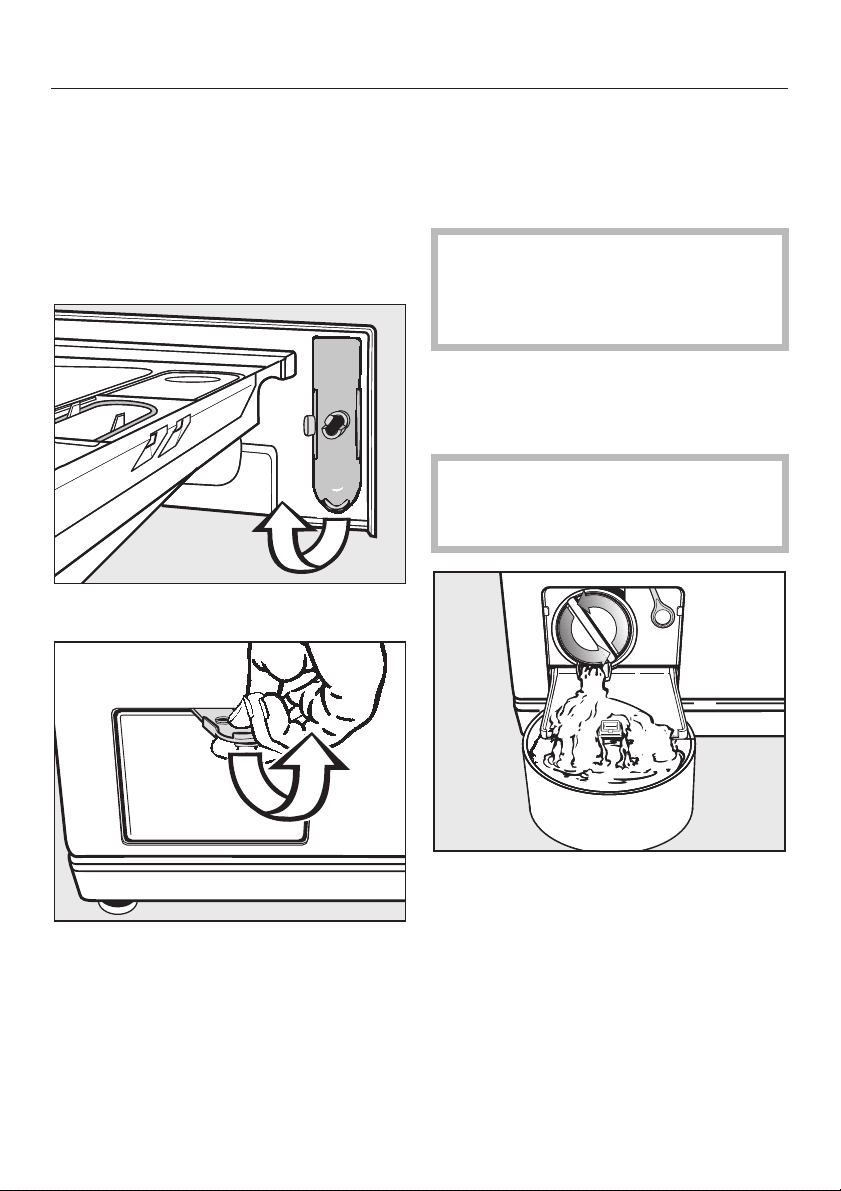

Pull out the detergent dispenser drawer until a resistance is felt. Press down the release catch and at the same time pull the drawer right out of the machine.
^
Clean the detergent drawer with warm water.
Clean the siphon.
^
1. Remove the siphon from
compartment § and rinse under warm running water. Clean the siphon tube in the same way.
2. Replace the siphon.
If starching frequently, thoroughly clean the siphon and siphon tube regularly. A build-up of starch will cause them to get clogged.
Cleaning and care
Cleaning the detergent dispenser drawer housing
^ Use a bottle brush to remove
detergent residues and limescale from the jets inside the detergent dispenser drawer housing.
33
Cleaning and care
Cleaning the filter in the water inlet
The washing machine has a filter to protect the water inlet valve.
The accessible filter in the union in the open end of the inlet hose should be checked every six months, or more often if there are frequent interruptions to the external water supply.
First turn off the tap.
^
Unscrew the threaded union
^
connecting the free end of the inlet hose to the tap.
^ Remove the rubber seal 1 from the
recess.
^ Using pointed pliers, take hold of the
plastic filter bar 2 and remove.
^ Clean the plastic filter.
^ Put the filter and seal back in the
reverse order and reconnect the hose.
34
Turn on the tap and check the connection is watertight. If water drips out, tighten the connection.
Never forget to put the filter back in place after cleaning.
Problem solving guide
What to do, if...
With the help of the following notes, minor faults in the performance of the appliance, some of which may result from incorrect operation, can be put right without contacting the Service Department.
Repair work to electrical appliances should only be carried out by a
,
suitably qualified person in accordance with local and national safety regulations. Repairs and other work by unqualified persons could be dangerous. The manufacturer cannot be held liable for unauthorised work.
The programme does not start
Problem Possible cause Remedy
The display remains dark and no indicator lights are lit up.
The Locked Check light is flashing.
The programme does not start when Drain/ Final spin has been selected.
The programme does not start when the Start/Stop button is pressed.
There is no power to the machine.
The electronic system lock has been activated.
The washing machine has not been prepared for using for the first time.
The drum door is not properly closed.
Check whether – the mains plug is plugged
in and switched on.
– the fuse or circuit breaker
has tripped.
De-activate the electronic system lock.
Prepare the machine as described in "Before using for the first time".
Close the drum door.
35
Problem solving guide
The wash programme stops and a fault indicator light comes on.
Problem Possible cause Remedy A
The buzzer sounds and the Drain check light flashes. "– – –" appears in the display.
The buzzer sounds and the Water inlet check light flashes. "– – –" appears in the display.
The buzzer sounds and the Water inlet and Drain check lights flash. "– – –" appears in the display.
The buzzer sounds and the Pre-wash or the Rinse hold Sequence indicator light flashes. "– – –" appears in the display.
The water outlet is blocked or restricted.
The drain hose has been fixed too high.
The water inlet is blocked or restricted.
The filter in the water inlet hose is dirty.
The Miele Waterproof system has reacted.
There is a fault. Start the programme again.
Clean the drain filter and the drain pump as described in "Problem solving guide – Opening the drum door in the event of a blocked water outlet and/or a power failure".
The maximum drain height is 1m.
Check whether – the tap has been opened
properly.
– the inlet hose is kinked.
Clean the filter.
Call the Service Department
If the fault message appears again, contact the Service Department.
A To switch off the fault message: Switch the washing machine off with I-On/0-Off
button.
36
General problems
Problem Possible cause Remedy
The Excess detergent check light comes on.
The Rinses Sequence indicator light flashes.
The machine shakes during the spin cycle.
The laundry has not been spun properly and is still wet.
The pump makes strange noises.
Large amounts of detergent residue remain in the detergent dispenser drawer.
Fabric conditioner is not completely dispensed or too much water remains in the § compartment.
When laundry is dry it feels hard to the touch.
Problem solving guide
Excessive foam has built up during washing.
There is a fault. Start the programme again.
The machine feet are not level.
The machine detected an imbalance during the final spin and reduced the spin speed automatically.
This is not a fault! These noises occur at the end of a pump sequence as a normal part of the operation.
The water pressure is too low.
Powder detergent used with water softeners can be sticky.
The siphon tube is not correctly positioned or is clogged up.
Too vigorous a wash action.
Not enough detergent used.
No fabric conditioner used.
Use less detergent next time and follow the manufac turer's instructions on dos age given on the packaging.
If the fault message appears again, contact the Service Department.
Level the machine (see "In stallation and connection").
Include both large and small items in the load as this will give better distribution.
– Clean the filter in the water
inlet. – Select Water plus. Add washing powder and
then add the water softener.
Clean the siphon, (see "Cleaning and care ­Cleaning the detergent dis penser drawer").
Programme in gentle action and more water.
Increase detergent dose to prevent limescale build up in laundry.
Use fabric conditioner in last rinse.
-
-
-
-
37
Problem solving guide
An unsatisfactory wash result
Problem Possible cause Remedy
Liquid detergent does not give the required result.
Grey, greasy particles cling to washed laundry.
A stale smell is in the drum and on laundry.
White residues which look like powder detergent are seen on dark textiles after washing.
Clothes are coming out creased.
Liquid detergents usually contain no bleaching agents. They do not remove fruit, coffee and tea stains.
Insufficient amounts of detergent were used to break down the particles of grease in heavily soiled laundry.
Low temperature washing.
The detergent contained compounds (zeolites) to aid water softening which are not soluble in water. They have ended up on the laundry.
Programme was overloaded.
The wrong programme was used.
Use a general purpose
detergent containing a bleaching agent.
Pour stain removers into
compartment j of the dispenser drawer and liquid detergent into a dispenser ball.
Never put stain removers and
liquid detergent together in the dispenser drawer.
– Use more detergent. – Before washing the next load
run a Cottons 60°C programme with liquid detergent but without a load.
Before washing the next load run a Cottons 95°C programme with powder detergent but without a load.
Try and brush off the residues with a soft brush once the laundry is dry.
Wash dark textiles using a detergent which contains no zeolites. Liquid detergents usually contain no zeolites.
Use the Dark garments programme.
Reduce quantity of clothes in drum.
Check care labels and the programme chart.
Use easy iron conditioners.
38
Problem solving guide
The drum door cannot be opened by pressing the Door button
Possible cause Remedy
The machine is not connected to the electricity supply.
The machine is not switched on.
The safety lock has been activated.
The system lock is activated.
Power cut Open the drum door as described in “Opening the
The door was not correctly engaged.
There is still water in the drum and the machine is unable to drain.
For safety reasons the drum door cannot be opened when the suds temperature is higher than 55°C.
Insert the plug in the socket and switch on.
Switch the machine on with the I-On/0-Off button.
Deactivate the safety lock as described in "Changing the programme sequence - Safety lock".
Deactivate the system lock as described in "Changing the programme sequence - System lock".
door in the event of blocked drain outlet and/or power failure”.
Press hard against the lock side of the drum door and then press the Door button.
Clean the fluff filter and drain pump as described in the next section.
39
Problem solving guide
Opening the drum door in the event of a blocked drain outlet and/or power failure
Switch the washing machine off.
^
There is a filter flap opener behind the detergent drawer facia panel.
^ Remove the opener.
Blocked drain outlet
If the drain outlet is clogged, more water will be retained in the machine (up to 25 litres).
Caution: If laundry has been
,
washed at a high temperature, water draining out of the machine will still be hot. Danger of scalding!
Procedure for draining the machine
Place a suitable container under the
^
access flap.
When draining water from the machine, do not unscrew the drain filter completely or take it right out.
^
Use it to open the access flap.
40
^
Turn the drain filter lid round, until water runs out.
To interrupt the flow of water:
^
Tighten the drain filter back up again.
Once the flow of water ceases:
Remove the drain filter completely.
^
^ Clean the drain filter thoroughly.
Problem solving guide
Make sure the drain filter is
,
securely tightened. Otherwise there is a risk of water leakage during use.
Opening the drum door
Always make sure that the drum
,
is stationary before reaching into the machine to remove laundry. Reaching into a moving drum is extremely dangerous.
^
Remove any foreign objects (e.g. buttons, coins, etc.) and fluff. Turn the impeller by hand to check that it rotates freely. Any foreign object causing an obstruction should be removed.
^
Put the drain filter back in place and secure.
^
Pull the emergency release downwards (see illustration). The drum door will open.
41
After sales service
In the event of any faults which you cannot remedy yourself, please contact:
your Miele Chartered Agent or
the Miele Service Department (see
back cover for contact details).

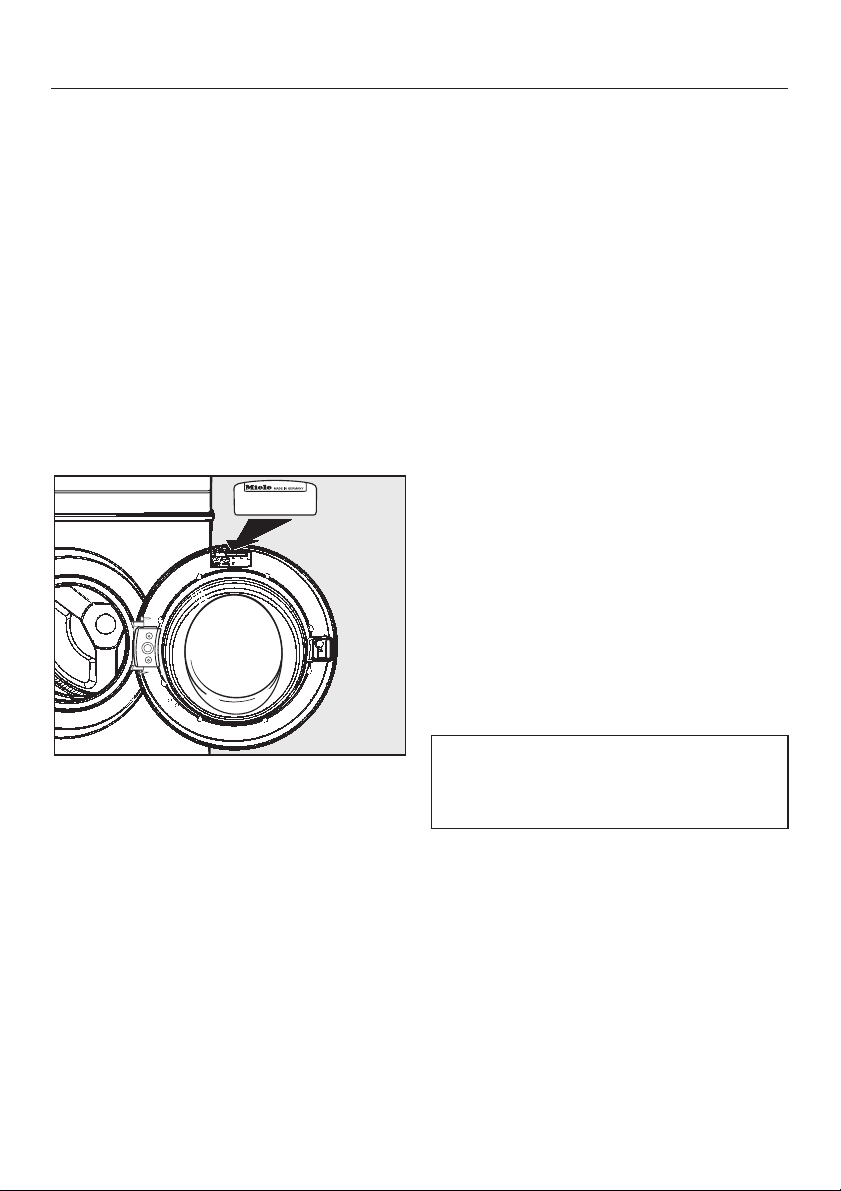

When contacting the Service Department, please quote the model and serial number of your appliance, both of which are shown on the data plate visible at the top inside of the door above the porthole glass when the door is open.
Future updates (PC)
The indicator light marked PC allows a service technician to update your machine in future years.
If, for example, new programmes are developed or new fabrics are introduced, a Miele service technician will be able to modify existing programme cycles accordingly.
Miele will provide information when such developments become available.
Appliance guarantee
The appliance is guaranteed for a period of 2 years.
See the guarantee card supplied with the machine for further details.
Optional accessories
Optional accessories for these washing machines are available from your Miele Chartered Agent or from the Miele Spare Parts Department.
42
Please note that telephone calls may be monitored and recorded to improve our service.

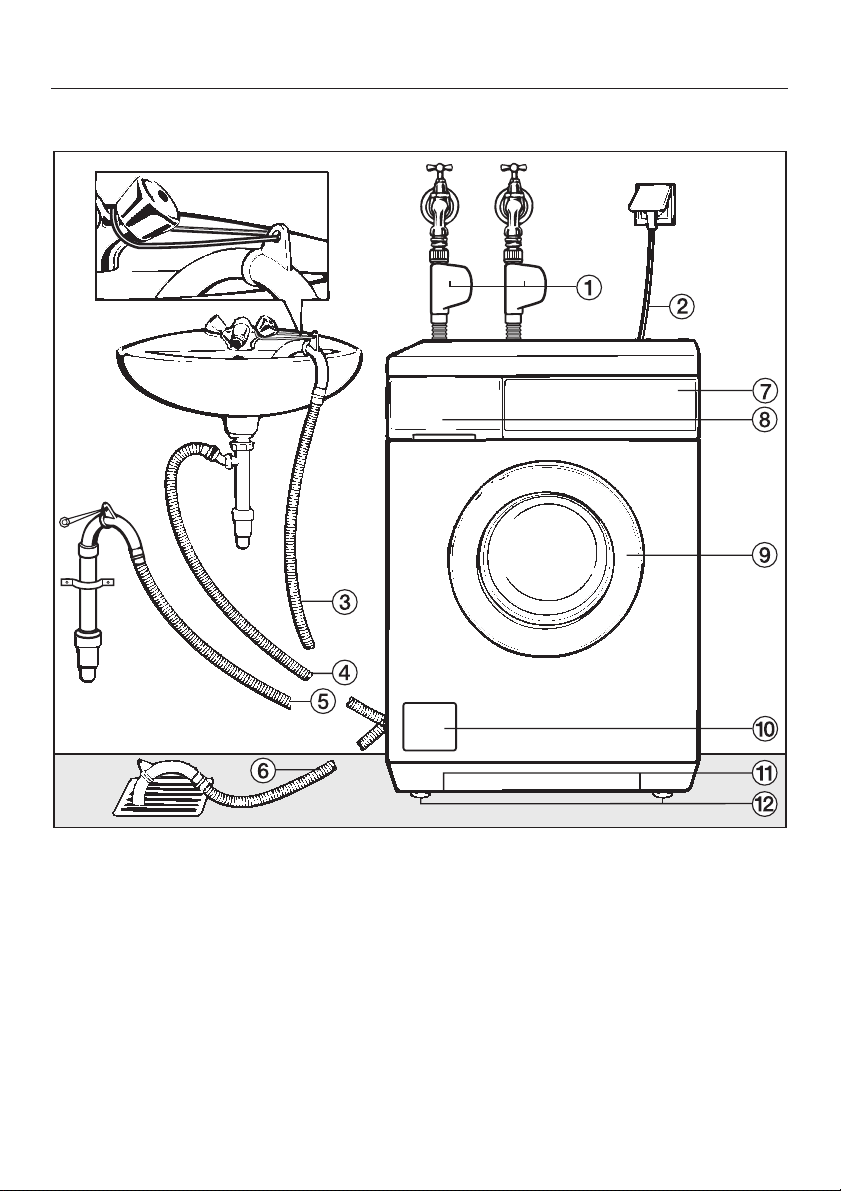

Front view
Installation and connection
a Inlet hoses with "Waterproof system"
for cold water and hot water connection
b Electrical connection
c - f Flexible drain hose (with
detachable swivel elbow)
g Facia panel with controls
h Detergent dispenser drawer
i Drum door
j Flap for fluff filter, drain pump and
emergency release
k Handle recesses for moving the
machine
l Four height adjustable screw feet
43
Installation and connection
Rear view
a Protruding lid for holding when
moving the machine
b Electricity supply cable
c Inlet hose with "Waterproof" system
for hot water connection
d Inlet hose with "Waterproof" system
for mains cold water connection
44
e Drain hose
f Transit bar covers
g Restraining clip for inlet hose and
drain hose
h Restraining clips for transit bars
when removed
Installation and connection
Installation surface
A concrete floor is the most suitable installation surface for a washing machine, being far less prone to vibration during the spin cycle than wooden floorboards or a carpeted surface.
Please note the following points:
The machine must be level and
^
securely positioned.
To avoid vibrations during spinning,
^
the machine should not be installed on soft floor coverings.
If installing on a wooden joist floor:
^ we recommend a plywood base
(at least 59x52x3 cm). The base should span several joists and be bolted to the joists and not only to the floorboards. Check for the presence of pipes and cables.
If possible, install the machine in a corner, as this is usually the most stable part of the floor.
Installing the washing machine
To manoeuvre the machine out of its packing case to its installation site hold it by the edge of the lid where it protrudes to the rear of the washing machine as well as by the handle recesses at the front.
Ensure that the machine feet and
,
the floor are dry to prevent the machine from slipping during the spin cycle.
Removing the transit fittings
,
If the machine is installed on a
raised plinth, it has to be secured against slippage during spinning using retaining clips (available from the Miele Spare Parts Dept).
^

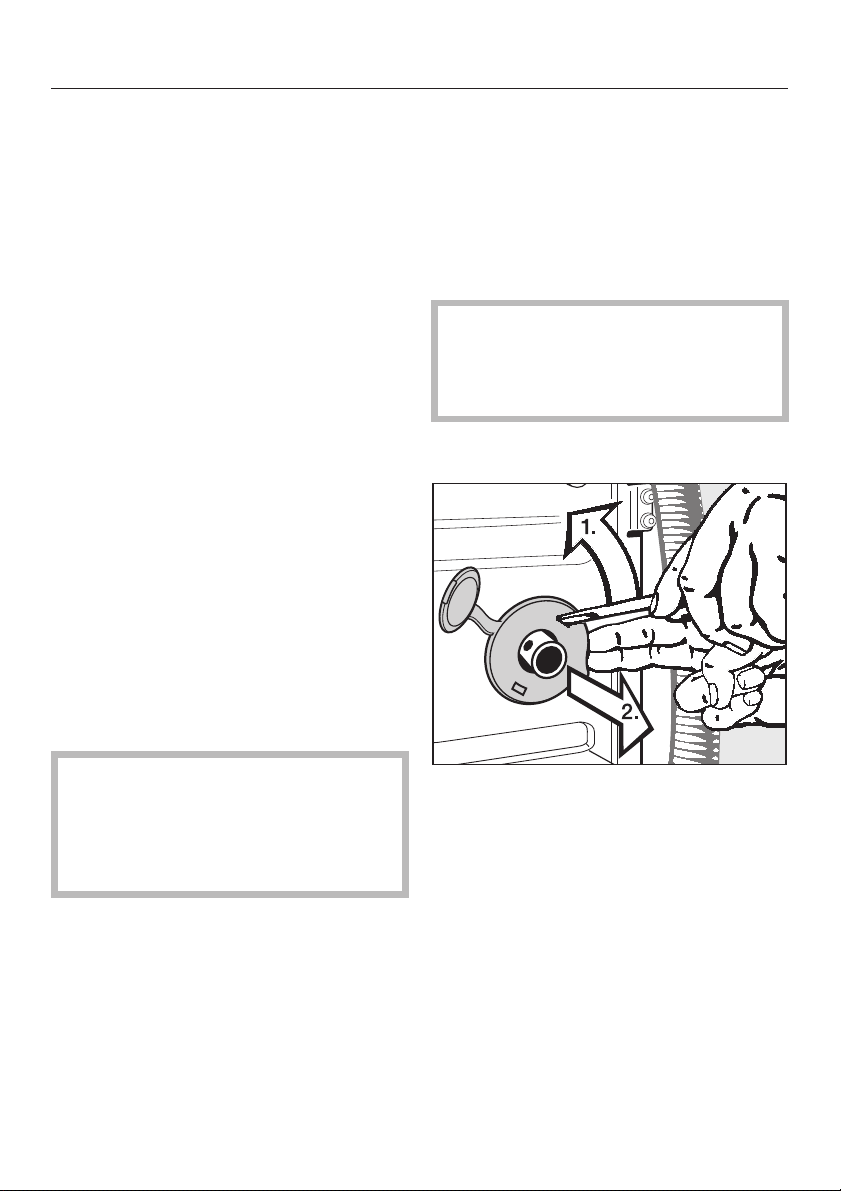

To remove the left and right covers
1. Use a screwdriver to prise out the
cover as illustrated.
2. Pull the cover forwards to remove.
45
Installation and connection
Using the spanner supplied turn the
^
left-hand transit bar 90°, then
^
withdraw the transit bar.
Turn the right-hand transit bar 90°,
^
then
^
withdraw the transit bar.
46
To avoid the risk of injury the
,
holes for the transit bars must be covered after the transit bars have been removed.
^ Fit the covers on to the two holes.
Then plug the holes as shown with the caps.
Installation and connection

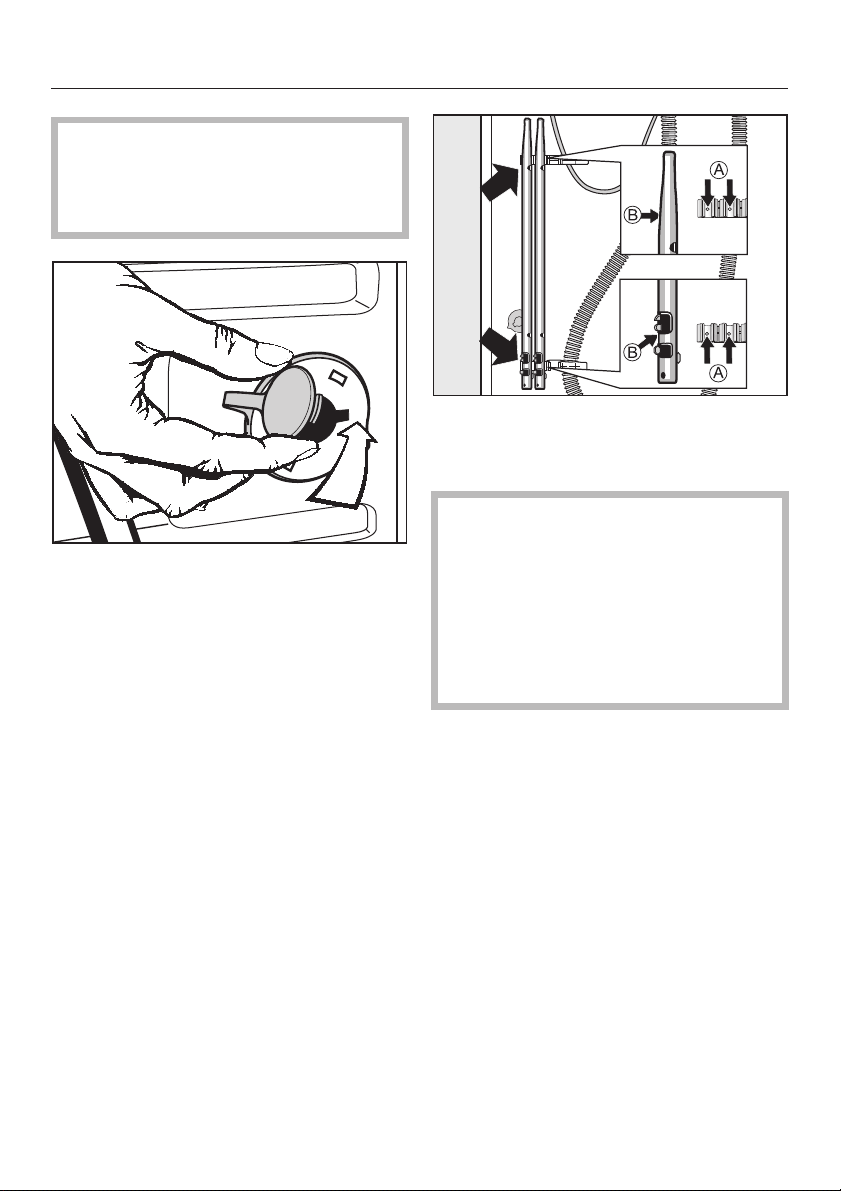

Secure the transit bars to the back of
^
the washing machine. Make sure that holes b are fitted over retainers a.
The washing machine must not
,
be moved without the transit bars in place. Store the transit bars as shown or keep them in a safe place for future use. They must be re-fitted if the machine is to be moved again (e.g.when moving house).
Re-fitting the transit bars
Re-fitting is carried out by reversing the procedure.
47
Installation and connection
Levelling the machine
The machine must stand perfectly level on all four feet to ensure safe and proper operation.
Failure to level the machine can result in the machine "banging" in the spin cycle or "walking" across the floor during operating.

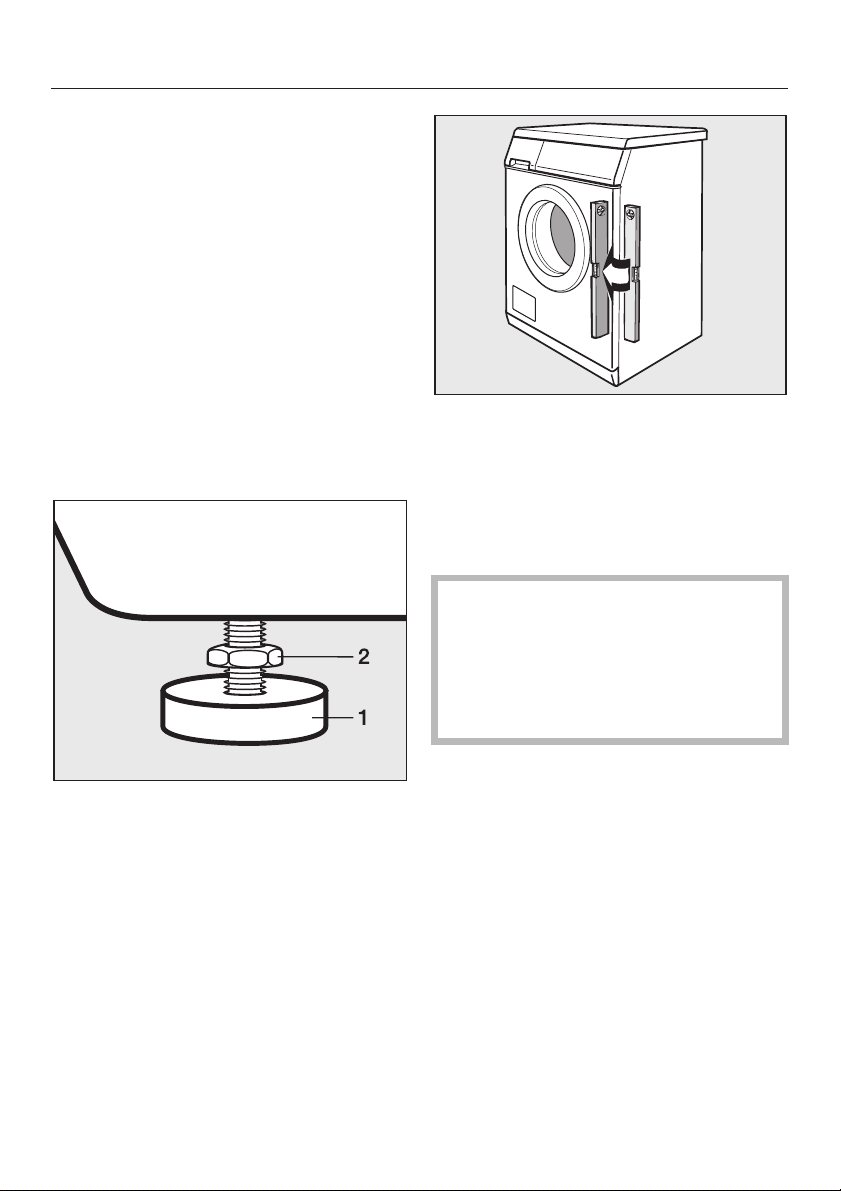

Screwing out and adjusting the feet
The four adjustable screw feet are used to level the machine. All four feet are screwed in when the machine is delivered.
Use a spirit level to check the
^
machine is standing level.
^ Hold foot 1 securely with a pipe
wrench. Turn counter nut 2 again using the spanner supplied until it sits firmly up against the housing.
,
All four counternuts must be firmly up against the housing. Please also check this for the feet which did not need adjustment. Otherwise there is the danger of the machine moving about.
^
Using the spanner supplied turn counter nut 2 in a clockwise direction. Then turn counter nut 2 together with foot 1 to unscrew.
48
Installation and connection
Building under a continuous worktop / in a kitchen run
A special building under conversion
kit* is required. The machine lid must be replaced by a cover plate. To ensure electrical safety the cover plate must be fitted. **
N.B.**
If you wish to push your machine under a worktop and there is space to do this without removing the lid, the conversion kit is not necessary. Otherwise the conversion kit is essential.
– For installation under a work surface
900/910 mm from the floor, a raising kit* is required.
– Connections for electricity, water and
drainage should be installed in such a way that they remain accessible when the machine is in place.
Washer and Dryer stack
A Miele tumble dryer can be stacked with the washing machine. A stacking kit* is necessary and can be purchased from the Miele Spare Parts Department.
Please note
Fitting instructions are supplied with the conversion kit.
All parts marked* are available from the Miele Spare Parts or Sales Department.
The fitting of cover plates and stacking kits must only be undertaken by qualified and competent persons, in accordance with the instructions supplied with the kit.
a Safety distance to wall:
at least 2 cm
b Height:
Stacking kit with pull-out shelf: approx. 169 cm Stacking kit without pull-out shelf: approx. 170 cm
,
A washer and dryer should never be stacked without using the proper stacking kit. Doing so is extremely dangerous, as the dryer may vibrate off of the washing machine during use.
49
Installation and connection
The Miele Waterproof system
The Miele Waterproof system protects all parts of the washing machine from water damage.
The system consists of three main components:
1) the inlet hoses
2) the electronic unit and the washing machine housing
3) the drain hose
1) Inlet hoses
– The inlet hoses are fitted with
additional electrical safety valves which work like automatic taps and are housed in the inlet hose connection boxes.
– They are pressure proof to between
7000 and 10000 kPa.
– The inlet hoses have a protective
sleeve.
2) Electronic unit and washing machine housing
Sump
Any leaking water is collected in a sump in the base of the appliance. A float switches off the water inlet valves, preventing water flowing into the machine and water in the suds container is pumped away.
Overflow protection
This prevents the washing machine taking in too much water. If the water level exceeds a certain level, the drain pump switches on and pumps the water away.
3) Drain hose
The drain hose is protected by a ventilation system which prevents the washing machine from being emptied completely.
Any leaking water from the inlet hose is fed into the sump through the protective covering which surrounds the inlet hose as a "second skin". The float switches off the safety valves, preventing water flowing into the machine and water in the suds container is pumped away.
50
Installation and connection
Connection to the water supply
The plastic casing of the safety
,
valve contains electrical components. The Waterproof system must only be connected to its own tap. It must not be connected to mixer taps or similar and must not be fitted in areas where there is the risk of water or other liquids reaching it. A flexible metal extension hose, available from your Miele Chartered Agent or the Miele Spare Parts Department as an optional extra, should be used if necessary.
The machine should be connected to a mains water supply in accordance with local and national safety regulations. Connection to a household water softener is not recommended.
The machine is designed to operate with a flow pressure of between 100 and 1000 kPa. If it is higher than 1000 kPa it is essential to fit a reducer valve.
Connection to the mains water supply should incorporate a mains tap with thread. The tap should be fitted by a qualified plumber.
The connection points are
,
subject to mains water pressure. Turn on the taps slowly and check for leaks. Correct the position of the washer and union if appropriate.
Maintenance and care
Only use a Miele Waterproof system hose should you need a replacement.
3
/4"
Do not dip into any liquid.
The protective sleeve of the hose must not be damaged or kinked.
In order to protect the water inlet valve, the dirt filter in the water inlet valve connection must not be removed.
Extension hose
A 1.5 metre long (metal) extension hose is available from the Miele Spare Parts Department as an optional extra.
This hose is tested to withstand pressures of up to 14000 kPa and can be used as a flexible extension to the water supply.
51
Installation and connection
Connection to the water supply
The washing machine must always be connected to the mains water supply (inlet hose with blue dots).
Cold water connection (mains water supply)
The inlet hose with blue dots is used for mains water connection.
Hot water connection
The inlet hose with red dots is used for connection to the hot water supply.
Useful hints when connecting to the hot and cold water supply.
The maximum temperature at the tap
must not exceed 60C. The ideal temperature is 55C.
When connected to the hot (and
cold) water supply, after some time the washing machine will switch over to the mains (cold) water supply if no hot water is being supplied.
The conditions for connection are described on preceding pages.
This appliance incorporates backflow protection complying with AS/NZS 3500.1.2. No further backflow protection required for connection to the water supply.
52
Installation and connection
Connection to the drainage system
The machine drains via a drain pump with a delivery head of 1 metre*. The drain hose must not be kinked as this restricts drainage. The swivel elbow at the end of the hose can be turned in either direction, or can be detached if required, with a sharp twist and pull.
If required, the drain hose can be extended to a length of 5 m. The necessary parts can purchased from the Miele Spare Parts Department.
* For a delivery head of more than 1 m (up to a max. of 1.8 m) a second duo-drain pump is available with the corresponding kit from the Miele Spare Parts Department.
Drain hose connection:
1. Direct into a sink or basin:
Please note the following:
Please note:
a Adapter
b Nut
c Hose clip
d End of the hose
^ Fit adapter a to the sink drain outlet
using nut b.
^ Attach the end of the hose d to
adapter a.
Hook the hose over the edge and secure.
Make sure that the water can drain away freely without hindrance. Otherwise there is a risk of water overflowing or of some of the drained water being sucked back into the machine.
2. Connected securely to a plastic
drain pipe with a rubber nipple. There is no need to use a non-return valve.
3. Connected securely to a standpipe.
4. Connected securely to a floor gully.
^
Use a screwdriver to tighten hose clip c up close to the nut.
53
Installation and connection
Electrical connection
The washing machine is supplied with a mains cable with moulded plug for connection to a 230V mains supply. The voltage, rated load and plug rating are given on the data plate. Please ensure these match the household mains supply.
The accesibility of the plug must be always ensured, in order to separate the washing machine from the mains.
All electrical work should be carried out only by a suitably qualified and competent person, in strict accordance with national and local safety regulations.
For extra safety it is advisable to install a residual current device (RCD), with a trip current of 30 mA.
Ensure power is not supplied to the appliance until after installation work has been carried out.
Connection should be made via a suitable switching socket which is easily accessible after installation, in order to separate the washing machine from the mains.
Do not connect via an extension lead. Extension leads do not guarantee the required safety of the appliance (e.g. danger of overheating).
WARNING: THIS APPLIANCE MUST BE EARTHED
54
Consumption data
Consumption data for AS/NZ 2040.2:2005 Standard
Max. load Consumption data
Energy Water Duration
in kWh in litres Normal soil
Cold water
connect
Cottons 40°C 6.5 kg 0.62 54 1 h 51 min
Notes for test institutes:
Detergent must be dispensed via the detergent dispenser drawer.
Consumption data can vary from the nominal values given depending on water pressure, water hardness, water inlet temperature, room temperature, type and volume of load, fluctuations in the electricity supply and any additional options selected.
55
Consumption data
Consumption with hot water connection (55°C)
Max. load Consumption data
Energy Water Degree of soiling
in kWh in litres Light Normal
Automatic 40°C 3.5 kg 0.35 - 0.50 40 - 55 1 h 03 min 1 h 18 min
Cottons 95°C 6.5 kg 1.45 47 1 h 28 min 1 h 53 min
60°C 6.5 kg 0.55 47 40 min 1 h 33 min
60°C 3.0 kg 0.73 39 40 min
40°C 6.5 kg 0.30 54 40 min 1 h 51 min.
1)
40°C
Minimum iron/ Delicates
Woollens / 30°C 2.0 kg 0.23 39 39 min Silks / 30°C 1.0 kg 0.25 39 36 min
Express 40°C 3.0 kg 0.30 34 30 min
Dark garments 40°C 3.0 kg 0.15 60 1 h 00 min 1 h 10 min
Shirts 60°C 2.0 kg 0.15 59 1 h 03 min 1 h 13 min
Denim 40°C 3.0 kg 0.15 52 50 min 1 h 00 min
40°C 3.0 kg 0.25 49 59 min 1 h 19 min
3.0 kg 0.36 39 40 min.
Notes for test institutes:
1)
Short programme for test institutes; the Degree of Soiling must be set to Light.
56
Technical data
Height 850 mm
Width 595 mm
Depth 580 mm
Depth with door open 975 mm
Height for building under 820 mm
Width for building under 600 mm
Depth for building under 600 mm
Weight 94 kg
Maximum floor load 1600 Newton (ca. 160 kg)
Capacity 6.5 kg dry laundry
Voltage see data plate
Rated load see data plate
Fuse rating see data plate
Consumption data see "Consumption data"
Water flow pressure minimum 100 kPa (1 bar)
Water flow pressure maximum 1000 kPa (10 bar)
Inlet hose length 1.60 m
Drain hose length 1.50 m
Connection cable length 1.60 m
Drain pump head max. 1.00 m
Drain pump length max. 5.00 m
Test certificates awarded Electrical safety, Typetest Mark, C-Tick
Mark
57
Programmable functions for changing default settings
The programmable functions can be used to tailor washing programmes to suit your individual requirements.
Programmable functions
Water plus system
This is used to select the water intake setting for the Water plus button.
There are three different options:
Setting 1 this option selected)
The water intake is increased in the wash and rinse stages.
Setting 2:
An extra rinse is carried out.
Setting 3:
The water intake is increased in the wash and rinse stages and an extra rinse is carried out.
Follow steps A to F to programme and store in memory.
Before you begin, first ensure that
– The washing machine is switched off.
The drum door is properly closed.
(the machine is delivered with
:
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
B Press the I-On/0-Off button in.
C Wait until the indicator light for the
Start/Stop button comes on...
D . . . and then release the Start/Stop
button.
The Buzzer indicator light will flash
on and off once.
A P will flash in the display
alternating with the number 1, 2 or 3.
E Each subsequent press of the Start/
Stop button will select a different
setting.
The number alternating with the P in the display refers to the settings as follows:
1 = Setting 1
2 = Setting 2
3 = Setting 3
F Switch the washing machine off with
I-On/0-Off button.
is selected
is selected
is selected
The Water plus button has now been allocated the setting you have chosen. This setting will remain in memory until another setting is programmed.
59
Programmable functions
Gentle action
Activating gentle action reduces the drum action and is suitable for washing slightly soiled articles more gently.
Gentle action can be activated for the Cottons programme.
If Gentle action is programmed into the machine, every wash cycle in this programme will be carried out with gentle action rhythm.
The washing machine is delivered with the Gentle action setting deactivated.
Follow steps A to G to programme and store in memory.
Before you begin, first ensure that
– The washing machine is switched off.
– The drum door is properly closed.
:
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
B Press the I-On/0-Off button in.
C Wait until the indicator light for the
Start/Stop button comes on...
D . . . and then release the Start/Stop
button.
E Press the Buzzer button once
The Buzzer indicator light will flash
twice.
A P will flash in the display
alternating with the number 0 or 1.
0 = Gentle action is deactivated.
1 = Gentle action is activated.
F Press the Start/Stop button to
change the display from 0 to 1 or from 1 to 0.
G Switch the machine off with the I-On/
0-Off button.
.
60
The setting you have selected is now stored in memory and will remain so until you alter it.
Programmable functions
Suds cooling in the Cottons programme
When this is activated, additional water flows into the drum at the end of the main wash to cool the suds down. Hot suds can damage plastic drainage pipes.
Suds cooling takes place when temperatures of 95°C and 75°C are selected.
Suds cooling should be activated:
to prevent the danger of scalding if
the drain hose is hooked over the edge of a sink or basin.
– where the drainage pipes do not
comply with DIN 1986.
The washing machine is delivered with Suds cooling for the Cottons programme deactivated.
Follow steps A to G to programme and store in memory.
Before you begin, first ensure that
The washing machine is switched off.
:
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
B Press the I-On/0-Off button in.
C Wait until the indicator light for the
Start/Stop button comes on...
D . . . and then release the Start/Stop
button.
E Press the Buzzer button twice
The Buzzer indicator light will flash
three times.
A P will flash in the display alternating with the number 0 or 1.
0 = Suds cooling is deactivated.
1 = Suds cooling is activated.
F Press the Start/Stop button to
change the display from 0 to 1 or from 1 to 0.
G Switch the machine off with the I-On/
0-Off button.
The setting you have selected is now stored in memory and will remain so until you alter it.
.
The drum door is properly closed.
61
Programmable functions
Increase the duration of the main wash
This setting is used to select the length of time (15, 30 or 60 minutes) by which the main wash is increased when the Heavy Degree of soiling option is selected.
The washing machine is delivered with the increase for the duration of the main wash set at 15 minutes.
Follow steps A to G to programme and store in memory.
Before you begin, first ensure that
– The washing machine is switched off.
– The drum door is properly closed.
:
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
B Press the I-On/0-Off button in.
C Wait until the indicator light for the
Start/Stop button starts comes on...
D . . . and then release the Start/Stop
button.
E Press the Buzzer button three times
The Buzzer indicator light will flash
four times.
A P will flash in the display
alternating with the number 1, 2 or 3.
F Each subsequent press of the Start/
Stop button will select a different
setting.
The number alternating with the P in the display refers to the settings as follows:
1 = 60 minutes
2 = 30 minutes
.
62
3 = 15 minutes (factory default setting)
G Switch the machine off with the I-On/
0-Off button.
The setting you have chosen for the increase in the duration of the main wash has now been allocated to the Heavy Degree of soiling option. This setting will remain in memory until another setting is programmed.
Programmable functions
Buzzer
When the buzzer function has been activated, an audible tone sounds at the end of a programme or when Rinse hold is reached.
There are three different options:
Setting 1
The Buzzer button is deactivated.
Setting 2
The buzzer sounds at the end of a programme or when Rinse hold is reached (default setting)
Setting 3
The buzzer sounds louder at the end of a programme or when Rinse hold is reached
Follow steps A to G to programme and store in memory.
Before you begin, first ensure that
The washing machine is switched off.
The drum door is properly closed.
= off
= normal
= loud
:
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B - C.
B Press the I-On/0-Off button in.
C Wait until the indicator light for the
Start/Stop button comes on...
D . . . and then release the Start/Stop
button.
E Press the Buzzer button four times
The Buzzer indicator light will flash
five times.
A P will flash in the display
alternating with the number 1, 2 or 3.
F Each subsequent press of the Start/
Stop button will select a different
setting.
The number alternating with the P in the display refers to the settings as follows:
1 = off
2 = normal (default setting)
3 = loud
G Switch the machine off with the
I-On/0-Off button.
.
The setting you have selected is now stored in memory and will remain so until you alter it.
63
Programmable functions
Keypad tones
An audible tone sounds each time a button is pressed.
The washing machine is delivered with the keypad tone switched off.
Follow steps A to G to programme and store in memory.
Before you begin, first ensure that
The washing machine is switched off.
The drum door is properly closed.
:
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B - C.
B Press the I-On/0-Off button in.
C Wait until the indicator light for the
Start/Stop button comes on...
D . . . and then release the Start/Stop
button.
E Press the Buzzer button five times
The Buzzer indicator light will flash
six times.
A P will flash in the display alternating with the number 0 or 1.
0 = keypad tone is deactivated.
1 = keypad tone is activated.
F Pressing the Start/Stop button will
change the display message from 0 to 1 (activated) or from 1 to 0 (deactivated).
G Switch the machine off with the
I-On/0-Off button.
.
64
The setting you have selected is now stored in memory and will remain so until you alter it.
Programmable functions
Memory function
If an Extra(s) is selected for a programme, and / or the spin speed is altered, the machine stores these changes in memory at the start of a programme.
When that particular programme is chosen again, the display will show the Extra(s) and / or spin speed which have been stored for that programme in the memory.
The washing machine is delivered with the memory function deactivated.
Follow steps A to G to programme and store in memory.
Before you begin, first ensure that
– The washing machine is switched off.
– The drum door is properly closed.
:
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B - C.
B Press the I-On/0-Off button in.
C Wait until the indicator light for the
Start/Stop button comes on...
D . . . and then release the Start/Stop
button.
E Press the Buzzer button six times
The Buzzer indicator light will flash
seven times.
A P will flash in the display alternating with the number 0 or 1.
0 = the memory function is
deactivated.
1 = the memory function is
activated.
F Pressing the Start/Stop button will
change the display message from 0 to 1 (activated) or from 1 to 0 (deactivated).
.
G Switch the machine off with the
I-On/0-Off button.
The setting you have selected is now stored in memory and will remain so until you alter it.
65
Programmable functions
Pre-wash with the Heavy Degree of soiling option
This setting is used to activate or deactivate an automatic pre-wash whenever the Heavy Degree of soiling option is selected.
The machine is delivered with the auto matic pre-wash activated.
Follow steps A to G to programme and store in memory.
Before you begin, first ensure that
– The washing machine is switched off.
– The drum door is properly closed.
:
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
B Press the I-On/0-Off button in.
C Wait until the indicator light for the
Start/Stop button comes on...
D . . . and then release the Start/Stop
­button.
E Press the Buzzer button seven times
The Buzzer indicator light will flash
eight times.
A P will flash in the display alternating with the number 0 or 1.
0 = the automatic pre-wash is
deactivated.
1 = the automatic pre-wash is
activated.
F Press the Start/Stop button to
change the display from 0 to 1 or from 1 to 0.
.
66
G Switch the machine off with the I-On/
0-Off button.
The setting you have selected is now stored in memory and will remain so until you alter it.
67
Alteration rights reserved/3208
M.-Nr. 06 920 690 / 04
Loading...
