Miele W 3725 Operating instructions

Operating instructions
for Washing machine
W 3725

To avoid the risk of accidents
or damage to the machine,
it is essential to read these
instructions before it is installed
and used for the first time.

en - AU, NZ

M.-Nr. 07 655 950

Caring for the environment

Disposal of the packing
material

The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.

Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.

Rather than just throwing these
materials away, please ensure they are
offered for recycling.

Disposal of your old appliance
or machine

Electrical and electronic appliances /
machines often contain materials
which, if handled or disposed of
incorrectly, could be potentially
hazardous to human health and to the
environment. They are, however,
essential for the correct functioning of
your appliance or machine. Therefore,
please do not dispose of your old
machine or appliance with your
household waste.

Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.

It should be unplugged or disconnected
from the mains electricity supply by a
competent person.
The plug must be rendered useless
and the cable cut off directly behind the
appliance or the machine to prevent
misuse.

2

Contents

Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Operating the machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Control panel .....................................................10

Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Washing environmentally and economically . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Energy and water consumption ....................................13

Detergent .....................................................13

How to wash correctly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Brief instructions ..................................................14

Spinning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Final spin speed ..................................................19

Rinse and interim spin ...........................................19

To omit the final spin (Rinse hold/e)...............................19

To omit rinse and interim spin and the final spin (No u).................19

Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Programme sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Garment care label symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Changing the programme sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Cancelling a programme ............................................26

Interrupting a programme ...........................................26

Changing a programme ............................................26

Adding or removing laundry after a programme has started ................27

Safety lock .......................................................27

3

Contents

Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

The correct detergent ..............................................28

Water softeners ...................................................29

Washing with several components ....................................29

Fabric conditioners and liquid starch ..................................30

Automatic dispensing of fabric conditioner or liquid starch to laundry

at the end of a programme ........................................30

Colour run and dye removers / dyes ...................................30

Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

External casing and fascia panel .....................................31

Extra cleaning ..................................................31

Cleaning the detergent dispenser drawer...............................31

Cleaning the water inlet filters ........................................33

Problem solving guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

What to do if......................................................34

The programme does not start .......................................34

Fault messages in the display ........................................35

General problems .................................................36

An unsatisfactory wash result ........................................37

The drum door does not open when you press the Door button..............38

Opening the drum door in the event of a blocked drain outlet

and/or power failure................................................39

After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Future updates (PC) .............................................41

Appliance guarantee ............................................41

Optional accessories ............................................41

Installation and connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Front view........................................................42

Rear view ........................................................43

Installation surface.................................................44

Installing the washing machine ....................................44

Removing the transit fittings .........................................44

Re-fitting the transit bars ............................................46

4

Contents

Levelling the machine ..............................................47

Screwing out and adjusting the feet .................................47

Building under a continuous worktop / in a kitchen run ..................48

Washer and Dryer stack ..........................................48

The Miele water protection system ....................................49

Connection to the water supply .......................................50

Connection to the drainage system....................................51

Electrical connection ...............................................52

Consumption data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Consumption data for AS/NZ 2040.2:2005 Standard ......................53

Notes for test institutes: ..........................................53

Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Programmable functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

To access programmable functions .................................55

To select a programmable function .................................55

To alter a programmable function ..................................55

To come out of programmable functions .............................55

Language

Water plus .......................................................56

Gentle action .....................................................56

Suds cooling .....................................................56

Code ...........................................................57

Temperature unit ..................................................58

Buzzer ..........................................................58

Keypad tone .....................................................58

Brightness .......................................................58

Contrast .........................................................58

Standby display ...................................................59

Memory .........................................................59

Anti-crease.......................................................59

! ......................................................55

Optional accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Care Collection ...................................................60

5

Warning and Safety instructions

This washing machine is not
This washing machine conforms to
current safety requirements.
Inappropriate use can, however,
lead to personal injury and damage
to property.

To avoid the risk of accidents and
damage to the washing machine,
please read these instructions
carefully before using it for the first
time. They contain important
information on its installation, safety,
use and maintenance.
Keep these instructions in a safe
place and ensure that new users are
familiar with the content. Pass them
on to any future owner.

Correct application

The washing machine is designed

~

exclusively for domestic purposes and
must only be used to wash garments
which have been declared suitable for
washing by the manufacturer indicated
on the garment care label.
Any other use may be dangerous. The
manufacturer cannot be held liable for
damage resulting from incorrect or
improper use or operation.

~

intended for use by persons (including
children) with reduced physical,
sensory or mental capabilities, or lack
of experience and knowledge, unless
they have been given supervision or
instruction concerning its use by a
person responsible for their safety.

Safety with children

Keep children away from the

~

washing machine at all times. It is not a
toy! To avoid the risk of injury do not
allow children to play on or near it or to
play with its controls. Supervise
children whilst you are using it.

Older children may only use the

~

washing machine if its operation has
been clearly explained to them and
they are able to use it safely,
recognising the dangers of misuse.

For machines with a 'porthole' door,

~

remember that the porthole glass will
be hot when washing at very high
temperatures.
Do not let children touch it.

6

Warning and Safety instructions

Technical safety

Before setting up the washing

~

machine, check it for any externally
visible damage.
Do not install or use a damaged
washing machine.

Before connecting the washing

~

machine, ensure that the connection
data on the data plate (voltage and
connected load) match the mains
electricity supply. If in any doubt,
consult a qualified electrician.

The electrical safety of this washing

~

machine can only be guaranteed when
continuity is complete between it and
an effective earthing system which
complies with current local and national
safety regulations. It is most important
that this basic safety requirement is
present and regularly tested, and
where there is any doubt the household
wiring system should be inspected by a
qualified electrician. The manufacturer
cannot be held liable for the
consequences of an inadequate
earthing system (e.g. electric shock).

Do not connect the washing

~

machine to the mains electricity supply
by an extension lead. Extension leads
do not guarantee the required safety of
the appliance (e.g. danger of
overheating).

Faulty components must only be

~

replaced by genuine Miele original
spare parts. Only when these parts are
fitted can the safety standards of the
machine be guaranteed.

Unauthorised repairs could result in

~

unforeseen dangers for the user, for
which Miele cannot accept liability.
Repairs should only be undertaken by a
Miele approved service technician.
Ensure current is not supplied to the
machine until after maintenance or
repair work has been carried out.

If the connection cable is faulty it

~

must only be replaced by a Miele
approved service technician to protect
the user from danger.

In the event of a fault or for cleaning

~

purposes, the washing machine is only
completely isolated from the electricity
supply when:

– it is switched off at the wall socket

and the plug is withdrawn, or

– it is switched off at the mains, or

– the mains fuse is withdrawn, or the

screw-out fuse is removed (in
countries where this is applicable).

This washing machine must only be

~

connected to the on-site water supply
using a new hose kit. Old hoses must
not be re-used.

In areas which may be subject to

~

infestation by cockroaches or other
vermin, pay particular attention to
keeping the machine and its
surroundings in a clean condition at all
times. Any damage which may be
caused by cockroaches or other vermin
will not be covered by the machine
guarantee.

7

Warning and Safety instructions

This washing machine may only be

~

used in mobile installations such as
ships if a risk assessment of the
installation has been carried out by a
suitably qualified engineer.

Do not make any alterations to the

~

washing machine, unless authorised to
do so by Miele.

Correct use

Do not install your washing machine

~

in rooms where temperatures below
freezing may occur. Frozen hoses may
burst or split. The reliability of the
electronic control unit may be impaired
at temperatures below freezing point.

Before using the washing machine

~

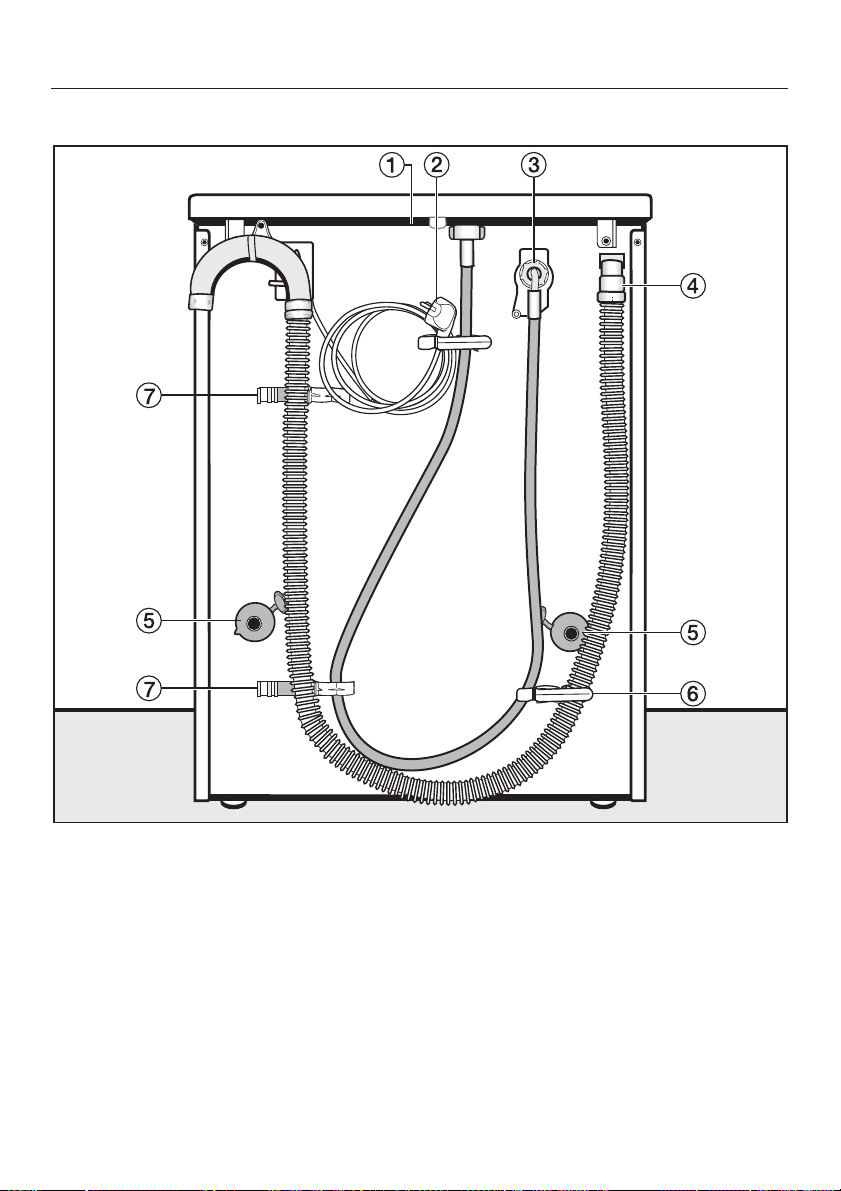

for the first time, check that the transit
bars at the rear of the machine have
been removed (see section on
"Installation"). During spinning, a transit
bar which is still in place may result in
damage to both the machine and
adjacent furniture or appliances.

Turn off the tap if the machine is to

~

be left for any length of time (e.g. holi
day), especially if there is no floor drain
(gully) in the immediate vicinity.

Flooding danger.

~

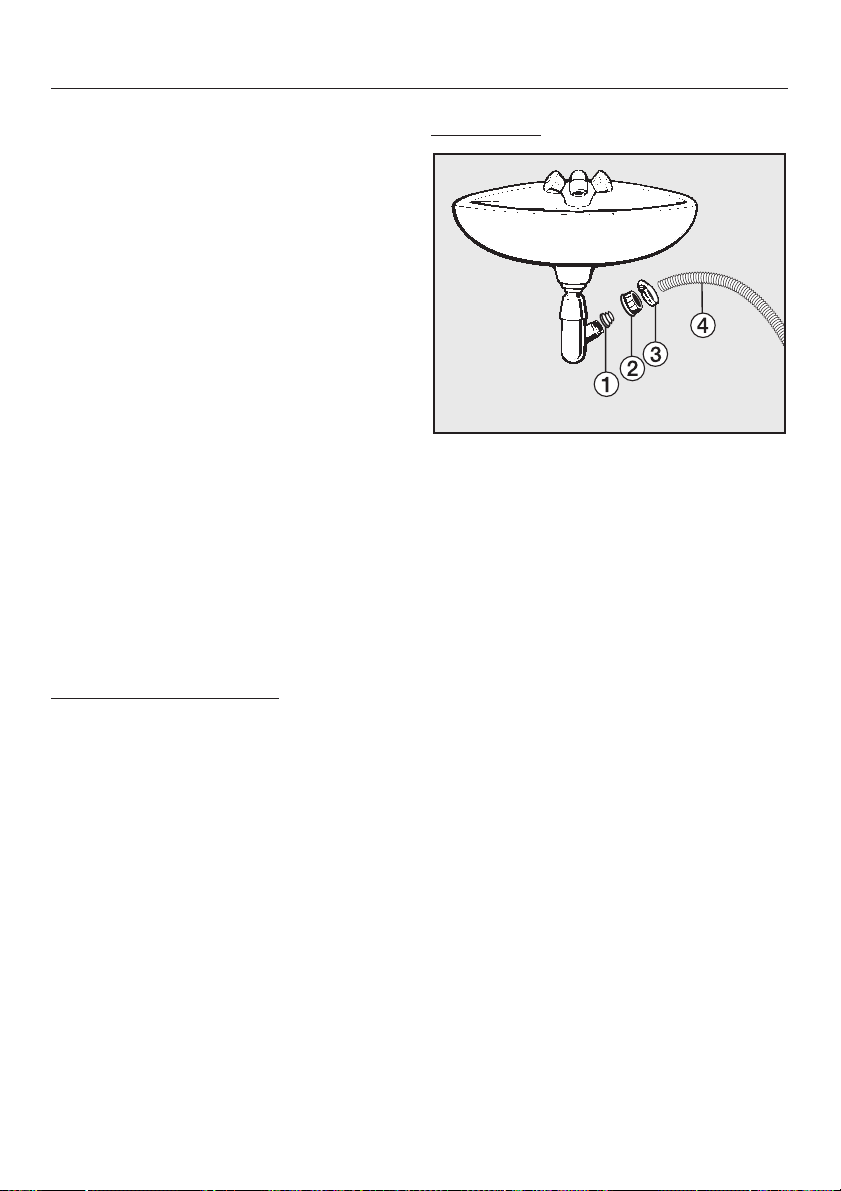

If hooking the drain hose into a wash
basin, check that the water can drain
off quickly enough to prevent the sink
from overflowing. Make sure the drain
hose is secure, so that the force of the
water flowing out of the hose does not
dislodge it.

Take care to ensure that foreign

~

objects (e.g. nails, pins, coins, paper
clips) do not find their way into the
machine with the laundry. These may
damage components of the machine
(e.g. suds container, drum), which in
turn can result in damage to the
laundry.

If the correct amount of detergent is

~

dispensed, the machine should not
need to be descaled. If, however, you
do wish to descale the machine only
use proprietary non-corrosive descaling
agents and strictly observe the
instructions on the packaging. If in
doubt contact the Miele Customer Ser
vice Department or your Miele
Chartered Agent.

-

-

8

Warning and Safety instructions

Textiles which have been pre-

~

treated in solvent based cleaning
agents must be thoroughly rinsed in
clean water before being washed in the
machine.

Never use solvent based cleaning

~

agents, e.g. those containing benzene,
in this machine, as this may result in
damage to component parts and create
toxic fumes. Such agents also pose a
fire and explosion hazard.

Never use solvent based cleaning

~

agents, e.g. those containing benzene,
to clean the outside surfaces of this
machine. They can cause damage to
plastic surfaces.

Only use dyes specified by the

~

manufacturer as being suitable for use
in a domestic washing machine. Always
observe the manufacturer's instructions
carefully.

Colour run and dye removers

~

contain sulphur compounds which can
cause damage such as corrosion. Do
not use these products in this machine.

Only remove laundry from the

~

washing machine once the drum has
stopped turning. Reaching into a
moving drum is extremely dangerous
and could result in injury.

Accessories

Accessory parts may only be fitted

~

when expressly approved by Miele. If
other parts are used, guarantee,
performance and product liability
claims will be invalidated.

Miele cannot be held liable for
damage caused by non-compliance
with these Warning and Safety
instructions.

If liquid detergent comes into

~

contact with the eyes, rinse them
thoroughly with lukewarm water imme
diately. If swallowed, seek medical
assistance immediately and retain the
packaging or label for reference. Those
with skin problems or sensitive skin
should avoid their skin coming into
contact with liquid detergent.

-

9

Operating the machine

Control panel

a Extra option buttons

Various extra options can be added
to the washing programmes.

b Display

See the following page for more
information.

c Temperature button

For selecting a temperature.

d Spin speed button

For selecting the final spin speed or
e (Rinse hold) or No u (Without
spin).

e PC / Optical interface

This is used by service technicians
to run diagnostic checks on your
machine and can also be used to
update programming data in the
future.

f Start/Stop button

For starting the programme selected
and cancelling a programme once it
has started.

g Programme selector

For selecting a programme. The
indicator light next to the selected
programme will come on. The
programme selector can be turned
clockwise or anti-clockwise.

h K button

For switching the washing machine
on and off.
To save energy the dryer will switch
off automatically 15 minutes after
programme end/Anti crease or if no
other function is selected after
switching on.

i Door button

Opens the machine door.

10

The following are selected via the
display:

– wash temperature

– spin speed

– programmable functions

– cancellation of a programme

– safety lock

Operating the machine

Programme duration

After the start of a programme, the
estimated programme duration will
appear in the display in hours and
minutes.

During the first 8 minutes the washing
machine measures how much water is
being absorbed by the laundry and
uses this to calculate the load. The
programme duration may be longer or
shorter depending on this absorbency
rate.

Programmable functions

The programmable functions can be
used to tailor washing programmes to
suit your individual requirements. In
programming mode, the display will
show the function selected.

The display also shows:

– the programme duration

–

the programme sequence

11

Before using for the first time

Before using the machine for the first
time ensure that it is correctly
installed and connected. See
"Installation and connection". Also
check that the drain filter is securely
tightened to prevent the risk of water
leaks during use.

This washing machine has
completed a comprehensive
functional test. A small quantity of
water remains in the drum as a result.

For safety reasons, spinning is not
possible until the machine has been
prepared for using for the first time. To
activate the spinning function you must
run a wash programme without laundry
and without detergent.

Using detergent could result in an
excessive build-up of foam.

This also activates the ball valve. The
ball valve prevents detergent escaping
from the suds container into the sump
during a wash programme, thus making
maximum use of the detergent.

^

Press the K button in.

If the washing machine is being
switched on for the first time, the
welcome screen will appear.

Setting the language

You will be asked to select the
language you require for the display. It
is possible to change the language at
any time via the programmable
functions.

! english

Select the language you require by

^

turning the programme selector.
Confirm your selection by pressing
the Start/Stop button.

Reminder to remove transport struts

To avoid the risk of damage, the
transport struts must be removed
before the machine is used for the
first time. See "Installation and
connection" for instructions on how
to do this.

^ After removing the transport struts (if

this has not already been done by
your fitter), press the Start/Stop
button.

Running your first programme

Run a Cottons 60°C programme without
any laundry and without detergent.

^

Open the tap.

^

Press the Start/Stop button.

The welcome screen will not appear
again once a programme lasting
longer than 1 hour has been
completed.

12

^

At the end of the programme switch
the machine off.

The machine is now ready for use.

Washing environmentally and economically

Energy and water consumption

Water consumption and energy

–

usage are determined by the size of
the load.
To make the most out of your
machine, load the maximum dry load
for the programme you are using.

Use the Automatic and Express

–

programmes for small loads.

When smaller amounts of laundry are

–

washed using the Cottons
programme, the automatic load
recognition system will reduce the
amount of water, time and energy
used. This may mean that the time
left shown in the display is adjusted
during the course of the wash
programme.

– Using the Cottons 40°C program is

recommended for a normally soiled
load and is the program used in
energy/water consumption tests to
AS/NZS 2040 (refer to Consumption
Data)

Detergent

Do not exceed the amounts of

–

detergent recommended by the
manufacturer on the packaging.

Adjust the dosage to the degree of

–

soiling of the laundry.

Reduce the amount of detergent with

–

smaller loads (approx.

1

/3less than
the amount recommended can be
used when washing a half load).

Choosing the correct extra option
(Short and Pre-wash)

Select:

– A wash programme together with the

Short extra option for light to normal
soiling where there are no obvious
marks.

– A wash programme without any extra

options for normal to heavy soiling
with visible staining.

– The Pre-wash extra option for laundry

with large amounts of dirt (e.g. dust,
sand).

When drying with a tumble dryer

Selecting the highest possible spin
speed for the wash programme will
save energy when drying in a tumble
dryer afterwards.

13

How to wash correctly

Brief instructions

The headings numbered A, B, C,...
show the operating sequence and can
be used as brief instructions.

A Sort the laundry

If you use a solvent-based

,

cleaning agent (e.g. one containing
benzene) to pre-treat a stain, make
sure that any plastic parts (e.g.
buttons) are protected, and that the
cleaning agent is rinsed off before
washing the garment in the
machine.

Do not use solvent-based

,

cleaning agents in this machine.

Sort the laundry by colour and by

^

care label. Most garments have a
textile care label in the collar or side
seam.

^ Empty all pockets.

,

Foreign objects (e.g. nails,
coins, paper clips, etc.) can cause
damage to garments and
components in the machine.

^

Badly soiled areas, stains etc. should
be cleaned as soon as possible,
preferably whilst still fresh. Spillages
should be carefully dabbed off using
a soft colourfast cloth. Do not rub!

Badly soiled areas can be pre-treated
with liquid detergent, stain removers
etc. first, following the manufacturer's
instructions. With particularly stubborn
stains ask your dry cleaner for advice.

Dark textiles often contain excess dye
and should be washed separately
several times first. Always wash whites
and coloureds separately.

– Curtains: Remove lead weights first

or place in a laundry bag.

–

Underwiring and collar stiffeners:
Any loose wiring in bras, shirt collar
stiffeners, etc. should be removed or
sewn in.

–

Close any zips, fasten hooks and
eyes etc before washing.

–

Fasten duvet covers etc. to prevent
small items from being rolled up
inside them.

Do not wash any items in this machine
which are specified by the
manufacturer as not washable on the
care label. (h symbol)

14

How to wash correctly

B Switch on the washing machine

C Load the drum

Press the Door button to open the

^

drum door.

Unfold the laundry and load loosely

^

in the drum. Mixing both large and
small items gives better wash results
and also helps distribute the load
evenly during spinning.

The most efficient use of energy and
water is achieved when a full load is
washed. However, do not overload as
this causes creases and reduces
cleaning efficiency.

Make sure that no garments are
caught between the drum door and
seal.

D Select a programme

^ Turn the programme selector

clockwise or anti-clockwise to the
required programme. The
programme indicator light for the
programme selected will come on.

E Select a temperature / spin speed

The suggested temperature and/or spin
speed can be changed.

1:49 40°C 1300

^

Shut the door with a gentle swing.

^

Press the Temperature button to alter
the temperature and press the Spin
speed button to alter the spin speed.

15

How to wash correctly

F Select an extra option(s)

^ Select any extra options by pressing

the appropriate button. The relevant
indicator light will come on to show
which extra option has been
selected.

Not all the extra options are suitable for
use with every programme.

You can only select extra options which
are compatible with the basic
programme being used.

Water plus

The water level in the main wash and
the rinses will be increased if the Water
plus option is selected.

However, you can select other settings
for Water plus. These are described in
"Programmable functions".

Pre-wash

For laundry with large amounts of dirt
e.g. dust, sand.

Buzzer

An audible tone sounds repeatedly at
the end of a programme and when
Rinse hold is reached. The buzzer will
sound repeatedly until the machine is
switched off. The volume of the buzzer
can be changed, see "Programmable
functions".

Short

For light to nomal soiling with no visible
staining.

The duration of the main wash is
reduced.

16

G Add detergent

It is important to dispense the correct
amount, because...

. . . too little detergent results in:

Laundry not getting properly clean

–

and with time it may become grey
and hard to the touch.

Greasy particles clinging to the

–

laundry.

Limescale deposits on the heater

–

elements.

. . . too much results in:

– Excessive foam which causes a low

level of agitation and poor wash,
rinse and spin results.

– Higher water consumption (an

additional rinse cycle will
automatically switch in).

– A burden to the environment.

How to wash correctly

Pull out the detergent drawer and

^

place detergent in the compartments
as follows:

i

Detergent for the pre-wash (divide
the total recommended amount as
follows: add

2

and

/3to compartment j).

j

Detergent for the main wash

1

/3to compartment i

§

Fabric conditioner or liquid starch

^

Close the detergent drawer.

See "Detergent" for further information.

17

How to wash correctly

H Start the programme

Press the flashing Start/Stop button.

^

The estimated programme duration will
appear in the display once the
programme has started. During the first
8 minutes the machine measures how
much water is being absorbed by the
laundry. The programme duration may
be longer or shorter depending on this
absorbency rate.

The programme sequence is also
shown in the display. The washing
machine shows you when each section
of the programme is reached.

I Remove the laundry when the

programme has finished

In the anti-crease phase after the
programme has finished, the following
will appear in the display:

0:00 Finish

^ Press the Door button to open the

drum door.

The machine will switch off
automatically 15 minutes after the
end of the Anti-crease phase. Push
the K button to switch the machine
back on.

Check that all items have been
removed from the drum. Items left in
the drum could discolour other items
in the next wash or become
discoloured themselves.

^ Check the folds in the door seal for

any small articles, e.g. buttons which
might be lodged there.

^ Switch the machine off with the

K button.

To avoid the build-up of mildew, it is
recommended that the door is left
ajar when the machine is not in use.

^

Remove the laundry.

18

Spinning

Final spin speed

Programme rpm

Cottons 1300

Minimum iron 1200

Delicates 600

Woollens 1200

Silks 400

Express 1300

Automatic 1200

Shirts 600

Denim 900

Outerwear 800

Dark garments 1200

Spin 1300

You can reduce the final spin speed.
However, you cannot select a final spin
speed higher than that shown in the
chart above.

Rinse and interim spin

There is a spin after the main wash and
between the rinses. A reduction in the
final spin speed will also reduce the
interim spin speed. If a spin speed of
less than 700 rpm is selected for a
Cottons programme, an additional rinse
is introduced.

To omit the final spin (Rinse hold/
e)

Select the e setting using the Spin

^

speed button. The laundry will not be
spun and will remain suspended in
the final rinse water. This reduces
creasing if the laundry is not going to
be removed from the drum immedi
ately after the end of the programme.

To start the final spin

–

:

The washing machine will display the
maximum spin speed possible. You
can select a spin speed lower than
this. Start the final spin by pressing
the Start/Stop button.

– To end the programme

:

Press the Door button. The water will
drain away. Press the Door button
again to open the door.

To omit rinse and interim spin and
the final spin (No u)

^

Select the setting No u using the
Spin speed button. The laundry is not

spun after the final rinse. The water
will drain away and the machine will
go straight into the anti-crease stage.
An additional rinse is introduced if
this setting is selected with the

Cottons, Minimum iron, Express and
Automatic programmes.

-

19

Programme chart

Cottons 30°C to 95°C Max. load 6.5 kg

Fabric Cottons, linens or cotton mix fabrics, e.g. table linen, towelling,

underwear, T-shirts etc.

Extra options Short, Water plus, Pre-wash

Minimum iron 30°C to 60°C Max. load 3.0 kg

Fabric Synthetics, mixed fibres and easy care cottons. If fabrics have a

high proportion of man-made fibres it is advisable to programme
the machine for "Gentle action". See "Programmable functions".

Note Reduce the spin speed for fabrics which crease easily.

Extra options Short, Water plus, Pre-wash

Delicates cold to 60°C Max. load 2.0 kg

Fabric For delicate garments made of synthetic fibres, mixed fibres,

rayon and easy care cottons.
Curtains, including net curtains, specified as machine-washable

by the manufacturer.

Notes – Dust in curtains usually makes using a programme with pre-

wash advisable.

– For curtains which crease easily, reduce the spin speed or

deselect the spin.

Extra options Short, Pre-wash

Woollens cold to 40°C Max. load 2.0 kg

Fabric Machine-washable or hand-washable wool or wool blend fabrics.

If the care label does not specify a temperature, wash using the
cold setting.

20

Programme chart

Silks cold to 30°C Max. load 1.0 kg

Fabric Silks and other handwashable fabrics with no wool content, e.g.

satin, lace and silk.

Note Place tights, bras etc. in a washing bag.

Extra option Water plus

Express cold to 40°C Max. load 3.0 kg

Fabric Small loads of items which require freshening up and which can

be washed in a Cottons programme.

Note This programme can be used for rinsing individual items. Select

the cold setting, and do not add any detergent.

Extra option Water plus

Automatic cold to 40°C Max. load 3.5 kg

Fabric Mixed loads of garments suitable for the Cottons and Minimum

iron programmes. Sort according to colour.

Note The wash parameters (e.g. water level, wash rhythm and spin

speed) are adjusted automatically in this programme to ensure
the best possible care and wash result for each item.

Shirts cold to 60°C Max. load 2.0 kg

Notes – Pre-treat collars and cuffs if necessary.

– Wash silk garments in the Silks programme.

Extra options Short, Water plus

Denim cold to 60°C Max. load 3.0 kg

Notes

Extra options Short, Pre-wash

–

Wash denim inside out.

–

Denim often contains excess dye and will run during the first
few washes. Wash light and dark coloured items separately.

21

Programme chart

Outerwear cold to 40°C Max. load 2.0 kg

®

Garment Outerwear made from micro-fibres such as Gore-Tex

®

, WINDSTOPPER®etc.

Notes

SYMPATEX

Zip up jackets before washing.

–

Do not use fabric conditioner.

–

Extra options Short, Water plus, Pre-wash

Dark garments cold to 40°C Max. load 3.0 kg

Item Black and dark garments made from cotton or mixed fibres.

Note Wash inside out.

Extra option Short

Spin

Notes – Drain only: Select No u.

– Make sure you select the appropriate spin speed.

,

22

Programme sequence

Main wash Rinses Spinning

Water

level

Cottons d a ( 2-3
Minimum iron ( c e 2-3
Delicates e d e 3 – L
Woollens e e e 2 LL
Silks e e e 2 – L
Express d b d 2-3
Automatic ( abc e 2-3
Shirts e c e 2 – L
Denim ( c e 3 – L
Outerwear e d e 3 L
Dark garments ( b d 3 LL

Spin – – –––L

Wash

rhythm

Water

level

Rinses Interim

spin

1)

2)

2)

2)

LL

LL

LL

LL

3)

Final

spin

L

d = Low water level
( = Medium water level
e = High water level

a= Intensive rhythm
b= Normal rhythm
c= Gentle rhythm
d= Sensitive rhythm
e= Handwash rhythm

See the following page for more information about the programme sequences.

23

Programme sequence

This machine has fully electronic
controls with automatic load
recognition. It takes in the right amount
of water required for the programme
depending on the amount of laundry
and its absorbency rate. This means
that programme cycles and durations
can vary.

The programme sequences outlined in
the chart are based on the basic
programme with a full load. Extra
options which can be selected have not
been taken into account.

The display shows the stage the
programme has reached.

Special features in the programme
sequences:

Anti-crease:

For instructions how to activate 'anti­crease', please refer to "programmable
functions" in the last section of these
instructions. (user-selectable
Programmable Feature. Default as
delivered is OFF)

At the end of every programme, with
the exception of the Woollens
programme, the drum continues to turn
at intervals for up to 30 minutes to help
prevent creasing. The door can be
opened and laundry removed at any
time during the anti-crease phase.

1)

A third/fourth rinse is carried out if:

– there is too much foam in the drum

– a spin speed lower than 700 rpm has

been selected

– No u has been selected

2)

A third rinse takes place
automatically if:

24

No u has been selected

3)

In the Outerwear programme,
laundry is only spun after the main
wash.

Garment care label symbols

Washing

The figure quoted in the bucket is the
maximum temperature the garment
can be washed at. The number of
bars under the symbol indicates the
level of agitation permitted.

9 No bar under the symbol: =

normal agitation

4 One bar under the symbol: =

reduced agitation

c Two bars under the symbol: =

much reduced agitation

/ Hand wash (if no temperature

is specified use the lowest
temperature or cold)

h Do not wash

Examples for programme selection

Programme Care label

Cottons 9ö8E76
Minimum iron 54321
Delicates ac
Woollens /
Silks /
Express 76

Drying

The number of dots indicates the
drying temperature

q Normal temperature
r Low temperature
s Do not tumble dry

Ironing

The number of dots indicates the
ironing temperature

I Hot iron (max sole plate temp.

approx. 200°C)

H Medium hot iron (max sole

plate temp. approx. 150°C)

G Cool iron (max sole plate

temp. approx. 110°C). Do not
steam iron garments carrying
this symbol.

J Do not iron

Professional cleaning

f

p

w Professional Wet Clean only

D Do not dry clean

Dry clean only. The letters
indicate the type of cleaning
agent required.

Automatic 7621

Bleaching

x Any oxidising bleaching

agent can be used

{ Only use an oxygen based

bleach or a non-chlorine
bleach

z Do not bleach

25

Changing the programme sequence

Cancelling a programme

You can cancel a programme at any
time after it has started.

Press the Start/Stop button.

^

Cancel programme

Press the flashing Start/Stop button

^

again.

The suds will be pumped away.

If you want to remove the laundry:

Press the Door button.

^

If you want to select a different
programme:

^ Switch the machine off with the

K button.

^ Switch the washing machine back on

again.

^ Select and start a new programme.

Interrupting a programme

^

Switch the machine off with the
K button.

To continue with the same programme:

Changing a programme

After the start of a programme it is no
longer possible to select a different
programme.

Temperature

It is possible to select a different
temperature up to 5 minutes after the
programme has started.

Press the Temperature button.

^

Spin speed

It is possible to change the spin speed
up until the final spin begins.

^ Press the Spin speed button.

Extra options

It is possible to select or deselect the
Short and Water plus extra options up
to five minutes after the programme has
started.

A programme cannot be cancelled
or changed if the safety lock has
been activated.

^

Switch the machine back on with the
K button.

26

Changing the programme sequence

Adding or removing laundry
after a programme has started

Press the Door button to open the

^

drum door.

Add or remove items.

^

Close the drum door.

^

The programme will continue
automatically.

Please note:

Once a programme has started the
machine cannot recognise any
adjustment to the load.

For this reason, if laundry is added or
removed after the start of a programme,
the machine will always complete the
programme cycle assuming a full load
which can lead to an increase in the
programme duration shown in the
display.

The door cannot be opened, if:

–

the suds temperature is above 55°C.

–

the water is above a certain level.

–

the programme has reached the
Final spin stage.

–

the safety lock has been activated.

If you press the Door button when the
above conditions are present, the
following will appear in the display:

Safety lock

The safety lock prevents the machine
from being opened, the programme
from being cancelled or the machine
from being switched off during a
wash programme.

To activate the safety lock

Press and hold in the Start/Stop

^

button after the programme has
started.

Stop or in 3 secs 0

^ Keep the Start/Stop button pressed in

until the time has elapsed and the
following appears in the display:

Locked 0

The safety lock is now activated. It is
deactivated automatically at the end of
the programme.

To deactivate the safety lock

^

Press and hold in the Start/Stop
button after the programme has
started.

Unlock in 3 secs 0

^

Keep the Start/Stop button pressed in
until the time has elapsed and the
following appears in the display:

Unlocked 1

: Door locked

27

Detergent

The correct detergent

All modern detergents produced for automatic Front loading washing machines
are suitable. Use dispensing aids, e.g. balls, if these are supplied with the
detergent. Tablets are suitable for full loads, but note that it may be impractical to
reduce tablets for smaller loads. Some tablets do not dissolve as rapidly as
others, and may not be suitable for programmes with short durations.

Do not use biological detergents on silk as the enzymes may damage the silk!
Instructions for use and recommended dosage amounts are given on the
detergent packaging.

For programmes without pre-wash or time delay start, liquid detergent can either
be dispensed placing a ball shaped container (commonly provided by the
detergent manufacturer) straight onto the laundry load or alternatively dispensed
through the detergent dispenser drawer. For programmes with pre-wash or delay
start facility (where applicable), an additional liquid detergent dispenser insert
(Material number 6134691) is available from the Miele Spare Parts Department.

All purpose

detergent for

Detergent for

coloured fabrics*

Detergent for

delicates

whites*

Cottons X X

Minimum iron X X

Delicates X

Woollens Liquid detergent for machine-washable woollens

Silks X

Express X X

Automatic X X

Shirts X X

Denim X

1)

Outerwear X

Dark garments X

1)

Only use liquid detergent

1)

*Powder detergent, tablet detergent, liquid detergent and liquid tab detergent.

28

Detergent

The right amount to dispense will
depend on the following:

The quantity of laundry.

–

The soiling level of the laundry.

–

Lightly soiled
No visible dirt or stains. Possibly
slight body odour.

Normally soiled
Visibly dirty and/or just a few slight
stains.

Heavily soiled
Stains and soiling clearly visible.

– The water hardness level.

– Check with your local water supplier

if you do not know the water
hardness level in your area.

Water softeners

A water softener can be used to cut
down on the use of detergents in hard
water areas. Dispense according to the
amount specified on the packaging.
First add detergent and then the water
softener.

Use a quantity of detergent as for soft
water.

Washing with several
components

If you wash using several components
(e.g. special application detergents),
dispense them into compartment j in
the following order:

1. Detergent

2. Water softener

3. Stain remover

This way the agents are distributed
more efficiently.

29

Detergent

Fabric conditioners and liquid
starch

Fabric conditioners
make garments soft to handle and help
prevent static cling when tumble
drying.

Starch
stiffens and gives body to items of
laundry, e.g. shirts, tablecloths and bed
linen.

Automatic dispensing of fabric
conditioner or liquid starch to
laundry at the end of a programme

If starching frequently, clean the
dispenser compartment, especially
the siphon tube, regularly. See
"Cleaning the detergent dispenser
drawer". Do not use powder starch
formulations or viscous liquid starch
in the § compartment as it will clog
up.

Colour run and dye removers /
dyes

Do not use

^

removers in this machine.

^ Dyes suitable for use in domestic

washing machines can be used.
However, please note that the salt
used in the dyeing process can
cause corrosion to stainless steel
components in the machine if you
dye frequently. Always observe the
manufacturer's instructions carefully.

colour run or dye

^

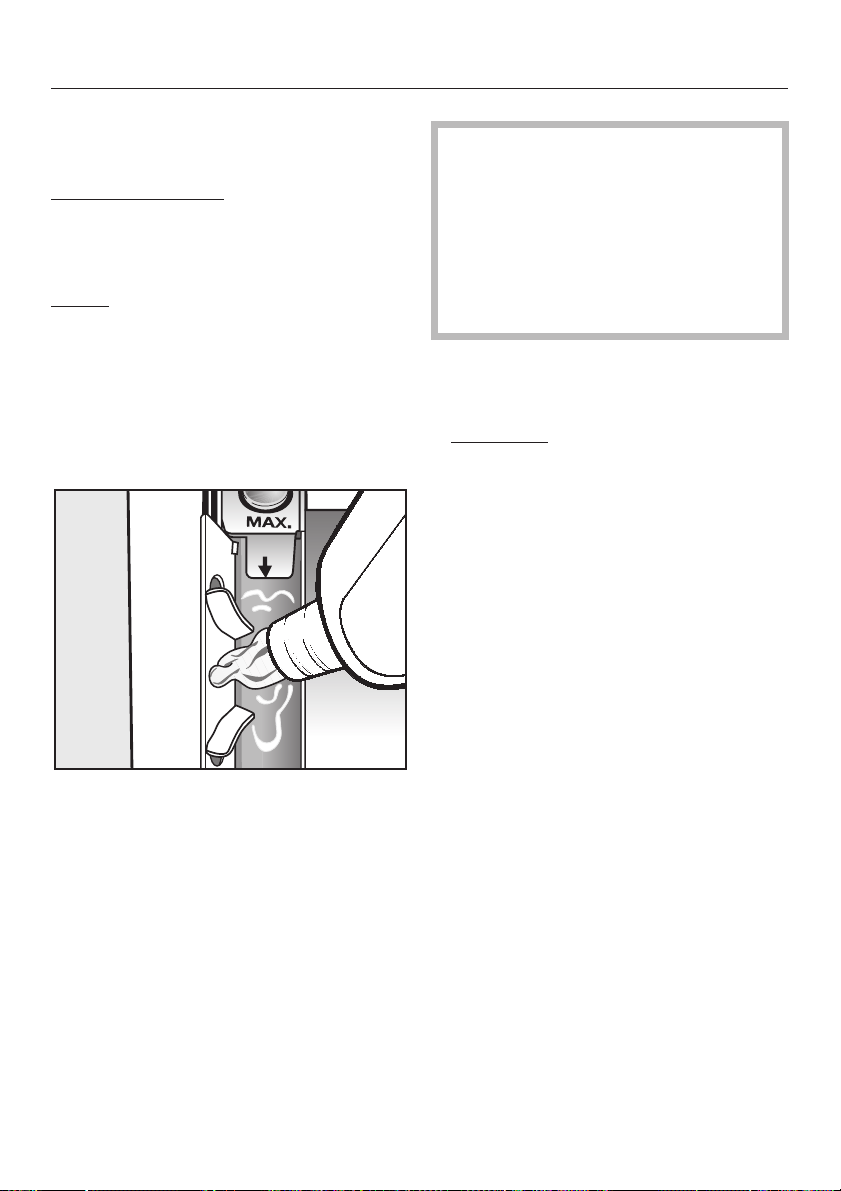

Add the fabric conditioner or liquid
starch to compartment §. Do not

exceed the maximum level mark.

It will be automatically dispensed in the
last rinse. At the end of the programme
a small amount of water remains in the
fabric conditioner compartment §.

30

Disconnect the machine from the

,

mains electricity supply and
withdraw the plug from the socket
before cleaning the machine.

The washing machine must not

,

be hosed down.

External casing and fascia
panel

Clean the casing with a mild non-

^

abrasive cleaning agent or soap and
water using a well wrung-out cloth.
Wipe dry with a soft cloth.

^ The drum can be cleaned using a

suitable proprietary stainless-steel
cleaning agent following the
manufacturer's instructions on the
packaging.

Cleaning and care

Extra cleaning

Carry out a hot wash (70°C or above)
with powder detergent approx. every 6
weeks to help prevent deposits building
up in the machine. These can occur
when washing is mainly done at low
temperatures, and also lead to
unpleasant smells. If you have no
reason to wash occasionally at this high
temperature, then run a Cottons 95°C
programme with detergent but no
laundry at regular intervals.

Cleaning the detergent
dispenser drawer

Remove detergent residues regularly.

,

Do not use solvents, abrasive
cleaners, glass cleaners or all­purpose cleaning agents.
These might damage plastic
surfaces and other components
because of the chemicals they
contain.

^

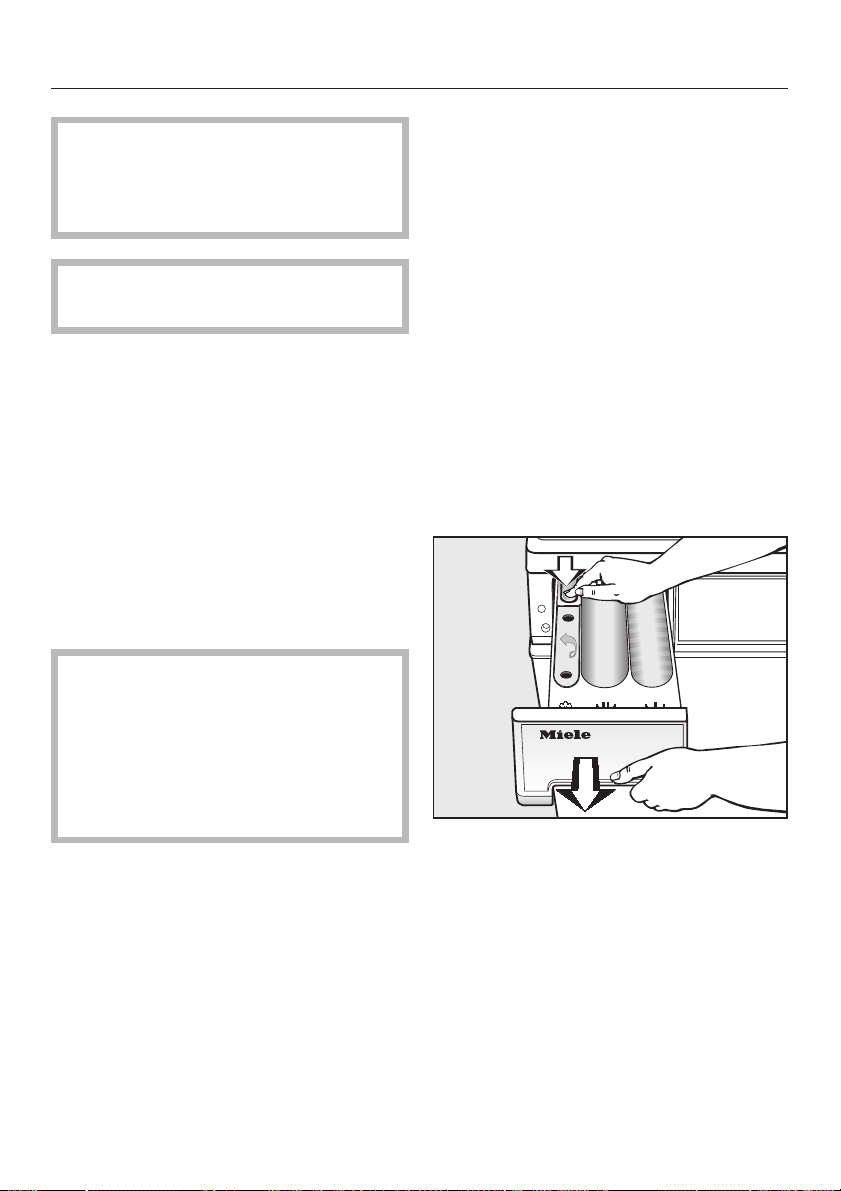

Pull out the detergent dispenser
drawer until a resistance is felt. Press
down the release catch and at the
same time pull the drawer right out of
the machine.

^

Clean the detergent drawer with
warm water.

31

Cleaning and care

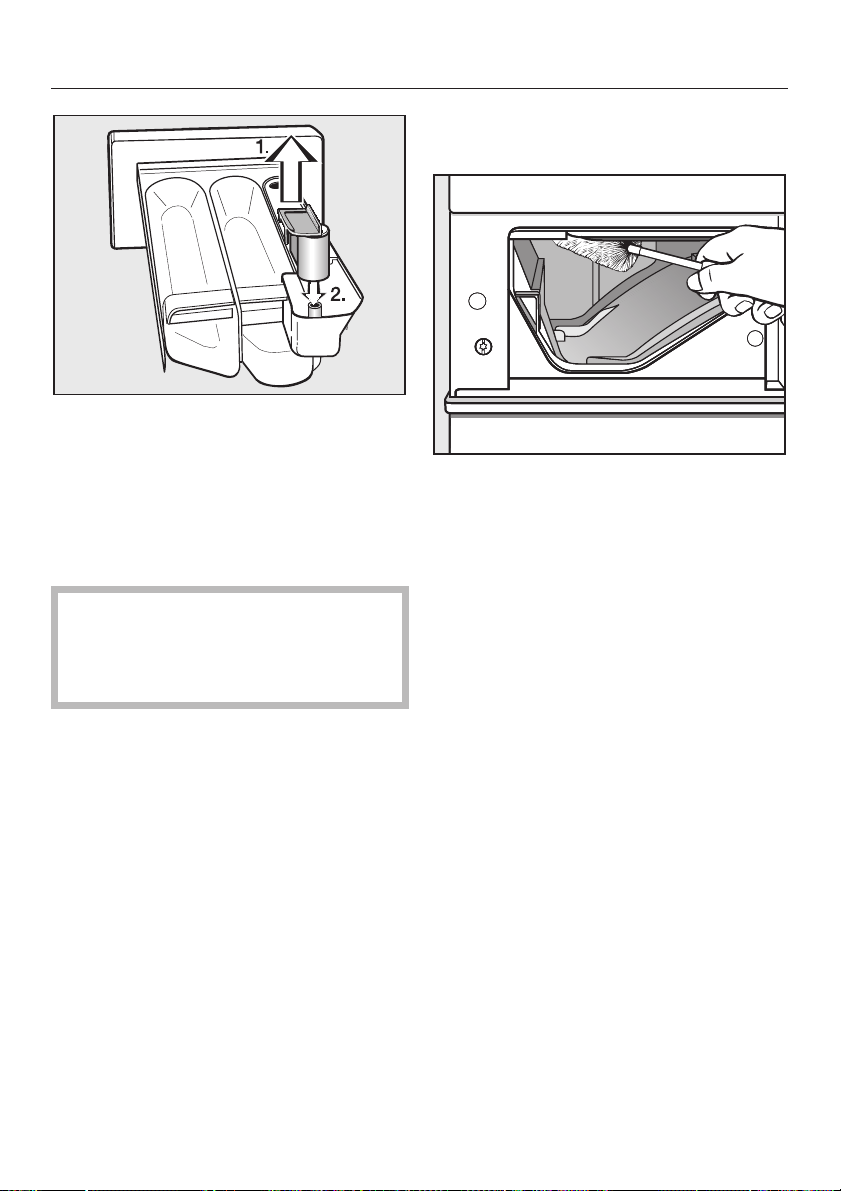

Clean the siphon.

^

1. Remove the siphon from

compartment § and rinse under
warm running water. Clean the
siphon tube in the same way.

2. Replace the siphon.

If starching frequently, thoroughly
clean the siphon and siphon tube
regularly. A build-up of starch will
cause them to get clogged.

Cleaning the detergent dispenser
drawer housing

^ Use a bottle brush to remove

detergent residues and limescale
from the jets inside the detergent
dispenser drawer housing.

32

Cleaning and care

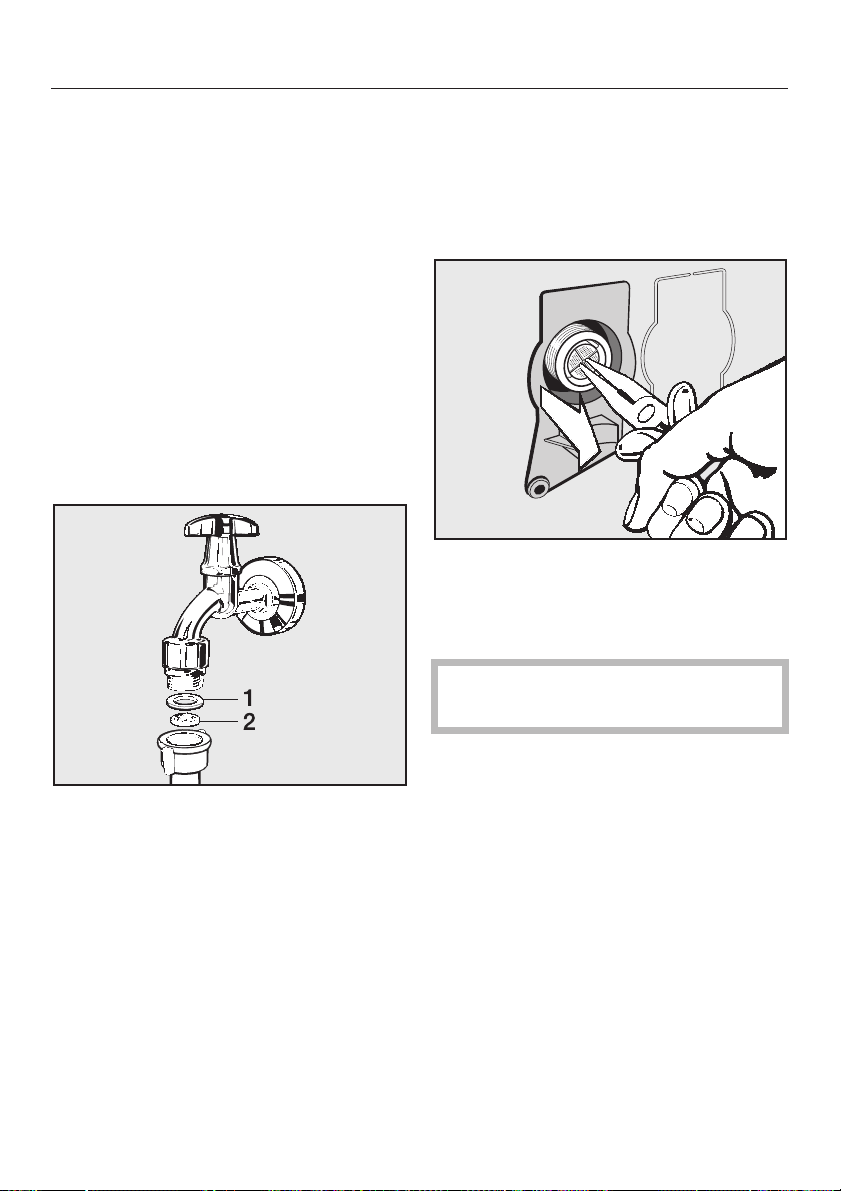

Cleaning the water inlet filters

The washing machine has two filters to
protect the inlet valves.

These filters should be checked every
six months or so, or more often if there
are frequent interruptions to the water
supply.

To clean the filter in the union in the
open end of the inlet hose:

First turn off the tap.

^

Unscrew the threaded union

^

connecting the free end of the inlet
hose to the tap.

To clean the filter in the water inlet
valve

Using pliers, carefully loosen the

^

ribbed plastic nut on the inlet valve
and unscrew.

^ Use water pump pliers to withdraw

the plastic filter by the bar (see
illustration). Clean, put back and
secure.

The two filters must be put back in
place after cleaning.

^

Remove the rubber seal 1 from the
recess.

^

Using pointed pliers, take hold of the
plastic filter bar 2, remove the filter
and clean.

^

Put the filter and seal back in the
reverse order and reconnect the
hose.

^

Turn on the tap and check the
connection is watertight.

33

Problem solving guide

What to do if...

With the help of the following notes, minor faults in the performance of the
machine, some of which may result from incorrect operation, can be put right
without contacting the Service Department. You should, however, note the
following:

Repair work to electrical appliances should only be carried out by a

,

suitably qualified person in accordance with current local and national safety
regulations. Repairs and other work by unqualified persons could be
dangerous. The manufacturer cannot be held liable for unauthorised work.

The programme does not start

Problem Possible cause Remedy

The display remains
dark, and the Start/
Stop button indicator
light does not come
on.

You are asked to enter
a code.

The display is dark. The display has

There is no power to
the machine.

Access via a code has
been activated.

switched off
automatically to save
energy (Standby
mode).

Check whether
– the mains plug is plugged

in and switched on.

– the fuse or circuit breaker

has tripped.

Enter the code and confirm
the entry. Deactivate the code
if you do not wish this
message to appear in the
display the next time the
machine is switched on.

Press a button. Standby
comes to an end.

34

Fault messages in the display

Problem Possible cause Remedy A

Problem solving guide

; lights up in the

display and

Drain fault

flashes.

; lights up in the

display and

Water inlet
fault

flashes.

; lights up in the

display and

Waterproof
fault

flashes.

; lights up in the

display and

Technical
fault

flashes.

Anti-crease
Chk detergent

flashes in the display.

The water outlet is

–

blocked or
restricted.

The drain hose has

–

Clean the drain filter and

–

the drain pump.
The maximum delivery

–

head is 1 m.

been fixed too high.

The water inlet is
blocked or restricted.

Check whether

the tap is opened properly.

–

the inlet hose is kinked.

–
– the water pressure is too

low.

The water protection

Call the Service Department.

system has reacted.

There is a fault. Start the programme again.

If the fault message appears
again, contact the Service
Department.

Excessive foam has
built up during
washing.

Use less detergent next time
and follow the manufacturer's
instructions on dosage given
on the packaging.

A To switch off the fault message: Switch the machine off with K button.

35

Problem solving guide

General problems

Problem Possible cause Remedy

The machine shakes
during the spin cycle.

The laundry has not
been spun properly
and is still wet.

The laundry has not
spun satisfactorily.

The pump makes
strange noises.

There is a lot of
detergent residue in
the detergent drawer.

Fabric conditioner is
not completely
dispensed or too much
water remains in the §
compartment.

The display is in a
different language.

When laundry is dry, it
feels hard to the touch.

Power cut Once power has been restored to the appliance push

The machine feet are
not level.

The machine detected
an imbalance during the
final spin and reduced
the spin speed
automatically.

The spin speed
selected was too low.

This is not a fault! These noises occur at the end of a
pump sequence as a normal part of the operation.

The water pressure is
too low.

Powder detergent used
with water softeners can
be sticky.

The siphon tube is not
correctly positioned or is
clogged up.

A different language has
been selected in the
Programmable functions

- Language

Too vigorous wash
action.

Not enough detergent
used.

No fabric conditioner
used

the K button to continue the programme.

! menu.

Level the machine (see
"Installation").

Include both large and small
items in the load as this will
give better distribution.

Select a higher spin speed
next time.

– Clean the water inlet filter.
– Select Water plus.

Add washing powder and
then add the water softener.

Clean the siphon, (see
"Cleaning and care ­Cleaning the detergent
dispenser drawer").

Set the language you want.
The flag symbol will guide
you.

Programme in gentle action
and more water.

Increase detergent dose to
prevent limescale build-up in
laundry.

Use fabric conditioner in last
rinse.

36

Problem solving guide

An unsatisfactory wash result

Problem Possible cause Remedy

Liquid detergent
does not give the
required result.

Grey, greasy
particles cling to
washed laundry.

A stale smell is in
the drum and on
laundry.

White residues
which look like
powder detergent
are seen on dark
textiles after
washing.

Clothes are coming
out creased.

Liquid detergents
usually contain no
bleaching agents.
They do not remove
fruit, coffee and tea
stains.

Insufficient amounts of
detergent were used
to break down the
particles of grease in
heavily soiled laundry.

Low temperature
washing.

The detergent
contained compounds
(zeolites) to aid water
softening which are
not soluble in water.
They have ended up
on the laundry.

Programme was
overloaded.

The wrong
programme was used.

Use a general purpose

–

detergent containing a
bleaching agent.

Pour stain removers into

–

compartment j of the
dispenser drawer and liquid
detergent into a dispenser ball.

Never put stain removers and

–

liquid detergent together in the
dispenser drawer.

– Use more detergent.
– Before washing the next load

run a Cottons 60°C programme
with liquid detergent but without
a load.

Before washing the next load run
a Cottons 95°C programme with
powder detergent but without a
load.

–

Try and brush off the residues
with a soft brush once the
laundry is dry.

–

Wash dark textiles using a
detergent which contains no
zeolites. Liquid detergents
usually contain no zeolites.

–

Use the Dark garments
programme.

Reduce quantity of clothes in
drum.

–

Check care labels and the
programme chart.

–

Use easy iron conditioners.

37

Problem solving guide

The drum door does not open when you press the Door button

Possible cause Remedy

The machine is not
connected to the
electricity supply and/or is
not switched on.

The safety lock has been
activated.

Access via a code has
been activated.

Power cut. Open the drum door as described in the next

The door was not correctly
engaged.

There is still water in the
drum and the machine is
unable to drain.

For safety reasons the drum door cannot be opened if the suds temperature is
higher than 55°C.

Insert the plug in the socket and switch on and/or
switch the machine on with the K button.

Deactivate the safety lock as described in
"Changing the programme sequence - Safety
lock".

Deactivate the code as described in
"Programmable functions - Code".

section.

Press hard against the lock side of the drum door
and then press the Door button.

Clean the drain filter and drain pump as described
in the next section.

38

Problem solving guide

Opening the drum door in the
event of a blocked drain outlet
and/or power failure

Switch the washing machine off.

^

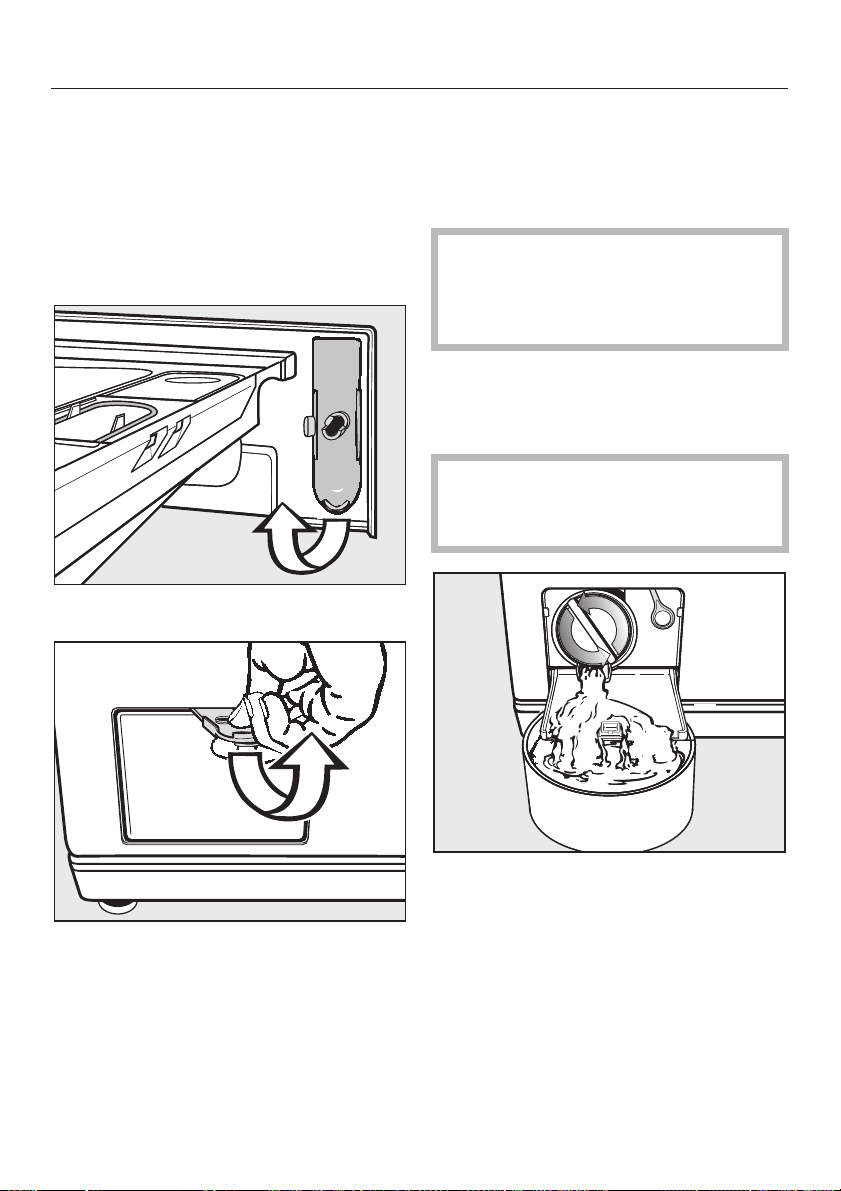

There is a filter flap opener behind the
detergent drawer facia panel.

^ Remove the opener.

Blocked drain outlet

If the drain outlet is clogged, more
water will be retained in the machine
(up to 25 litres).

Caution: If laundry has been

,

washed at a high temperature, water
draining out of the machine will still
be hot. Danger of scalding!

Procedure for draining the machine

Place a suitable container under the

^

access flap.

When draining water from the
machine, do not unscrew the drain
filter completely or take it right out.

^

Use it to open the access flap.

^

Turn the drain filter lid round, until
water runs out.

To interrupt the flow of water:

^

Tighten the drain filter back up again.

39

Problem solving guide

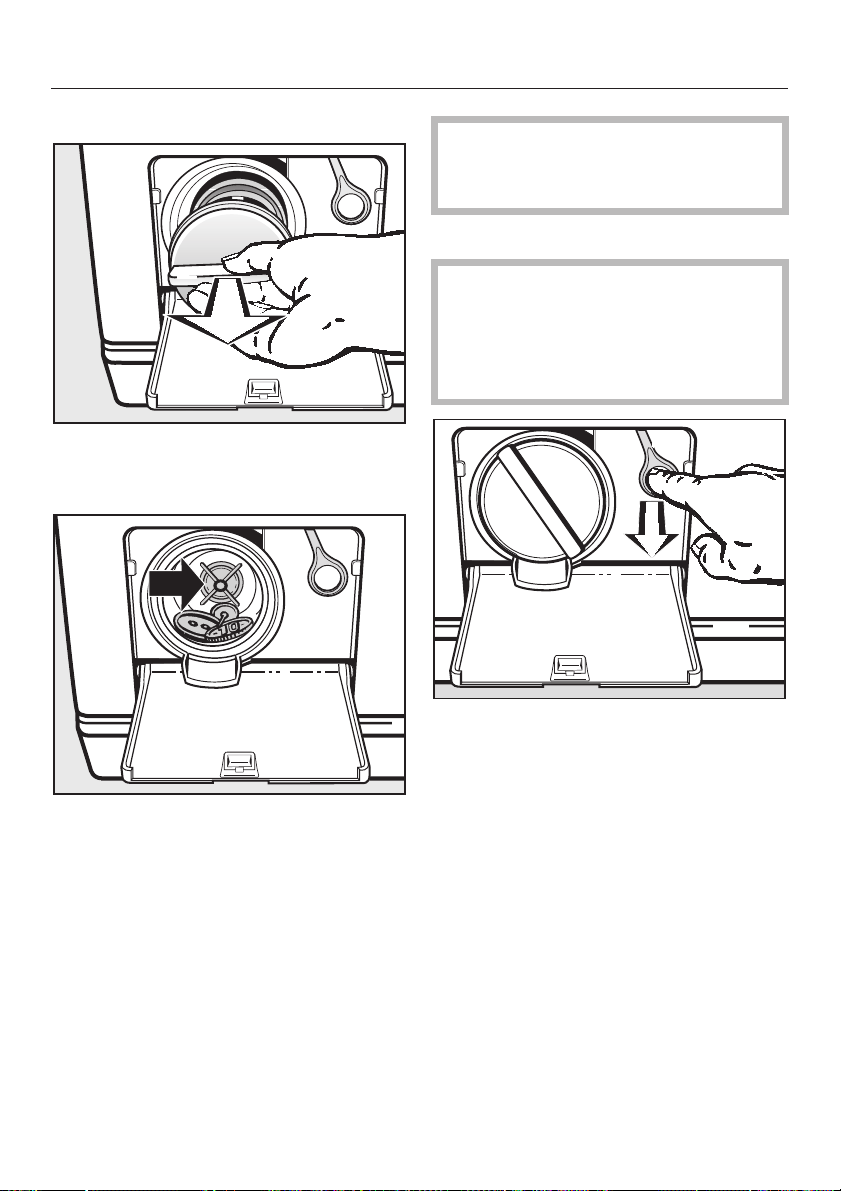

Once the flow of water ceases:

Remove the drain filter completely.

^

^ Clean the drain filter thoroughly.

Make sure the drain filter is

,

securely tightened. Otherwise there
is a risk of water leakage during use.

Opening the drum door

Always make sure that the drum

,

is stationary before reaching into the
machine to remove laundry.
Reaching into a moving drum is
extremely dangerous.

^

Remove any foreign objects (e.g.
buttons, coins, etc.) and fluff. Turn
the impeller by hand to check that it
rotates freely. Any foreign object
causing an obstruction should be
removed.

^

Put the drain filter back in place and
secure.

40

^

Pull the emergency release
downwards (see illustration). The
drum door will open.

After sales service

In the event of any faults which you
cannot remedy yourself, please
contact:

your Miele Chartered Agent or

–

the Miele Service Department (see

–

back cover for contact details).

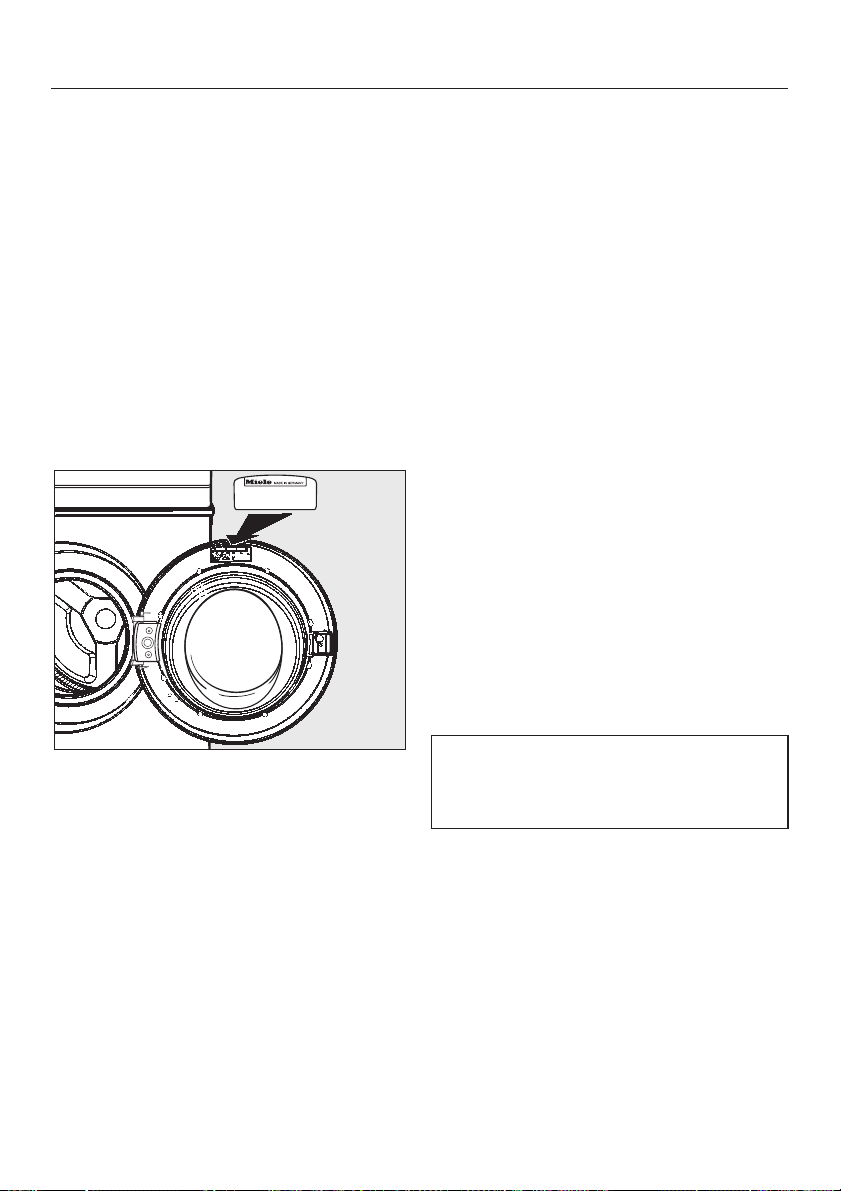

When contacting the Service
Department, please quote the model
and serial number of your appliance,
both of which are shown on the data
plate visible at the top inside of the
door above the porthole glass when the
door is open.

Future updates (PC)

The indicator light marked PC allows a
service technician to update your
machine in future years.

If, for example, new programmes are
developed or new fabrics are
introduced, a Miele service technician
will be able to modify existing
programme cycles accordingly.

Miele will provide information when
such developments become available.

Appliance guarantee

The appliance is guaranteed for a
period of 2 years.

See the guarantee card supplied with
the machine for further details.

Optional accessories

Optional accessories for these washing
machines are available from your Miele
Chartered Agent or from the Miele
Spare Parts Department.

Please note that telephone calls may
be monitored and recorded to
improve our service.

41

Installation and connection

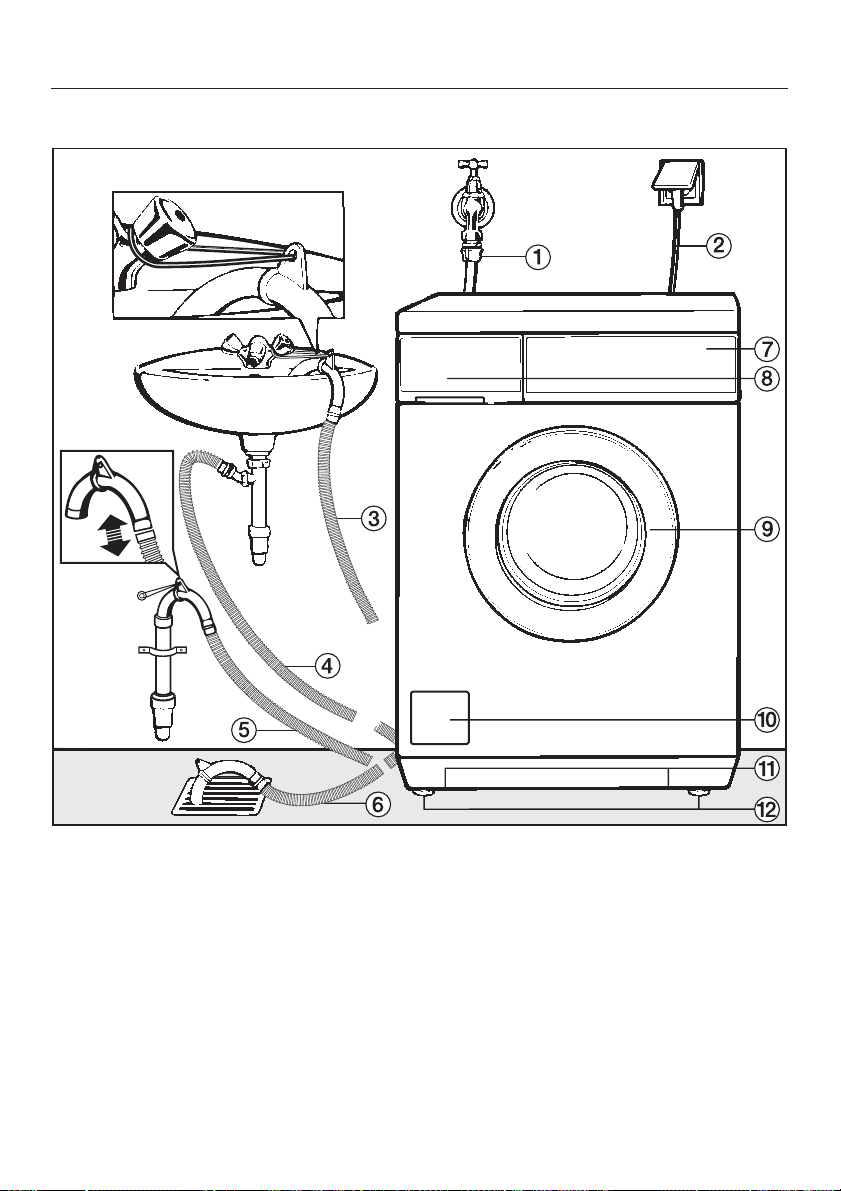

Front view

a Inlet hose (tested to withstand

pressure of at least 7000 kPa)

b Electricity supply cable

c - f Flexible drain hose (with

detachable swivel elbow)

g Facia panel with controls

42

h Detergent dispenser drawer

i Drum door

j Flap for fluff filter, drain pump and

emergency release

k Handle recesses for moving the

machine

l Four height adjustable feet

Rear view

Installation and connection

a Protruding lid for holding when

moving the machine

b Electricity supply cable

c Inlet hose (tested to withstand

pressure of at least 7,000 kPa)

d Drain hose

e Transit bar covers

f Restraining clip for inlet hose and

drain hose

g Restraining clips for transit bars

when removed

43

Installation and connection

Installation surface

A concrete floor is the most suitable
installation surface for a washing
machine, being far less prone to
vibration during the spin cycle than
wooden floorboards or a carpeted
surface.

Please note the following points:

The machine must be level and

^

securely positioned.

To avoid vibrations during spinning,

^

the machine should not be installed
on soft floor coverings.

If installing on a wooden joist floor:

^ we recommend a plywood base

(at least 59x52x3 cm). The base
should span several joists and be
bolted to the joists and not only to the
floorboards. Check for the presence
of pipes and cables.

If possible, install the machine in a
corner, as this is usually the most stable
part of the floor.

Installing the washing machine

To manoeuvre the machine out of its
packing case to its installation site hold
it by the edge of the lid where it
protrudes to the rear of the washing
machine as well as by the handle
recesses at the front.

Ensure that the machine feet and

,

the floor are dry to prevent the
machine from slipping during the
spin cycle.

Removing the transit fittings

,

If the machine is installed on a
raised plinth, it has to be secured
against slippage during spinning
using retaining clips (available from
the Miele Spare Parts Dept).

44

^

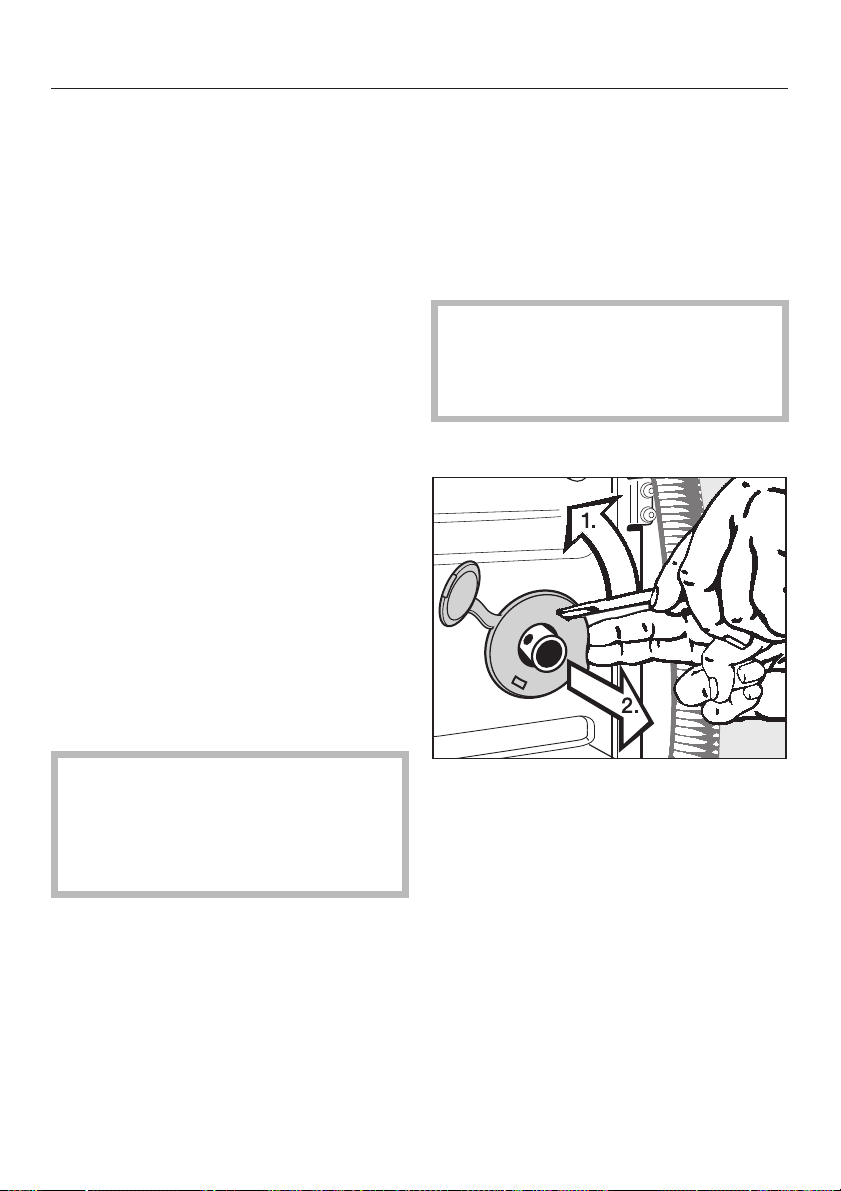

To remove the left and right covers

1. Use a screwdriver to prise out the

cover as illustrated.

2. Pull the cover forwards to remove.

Installation and connection

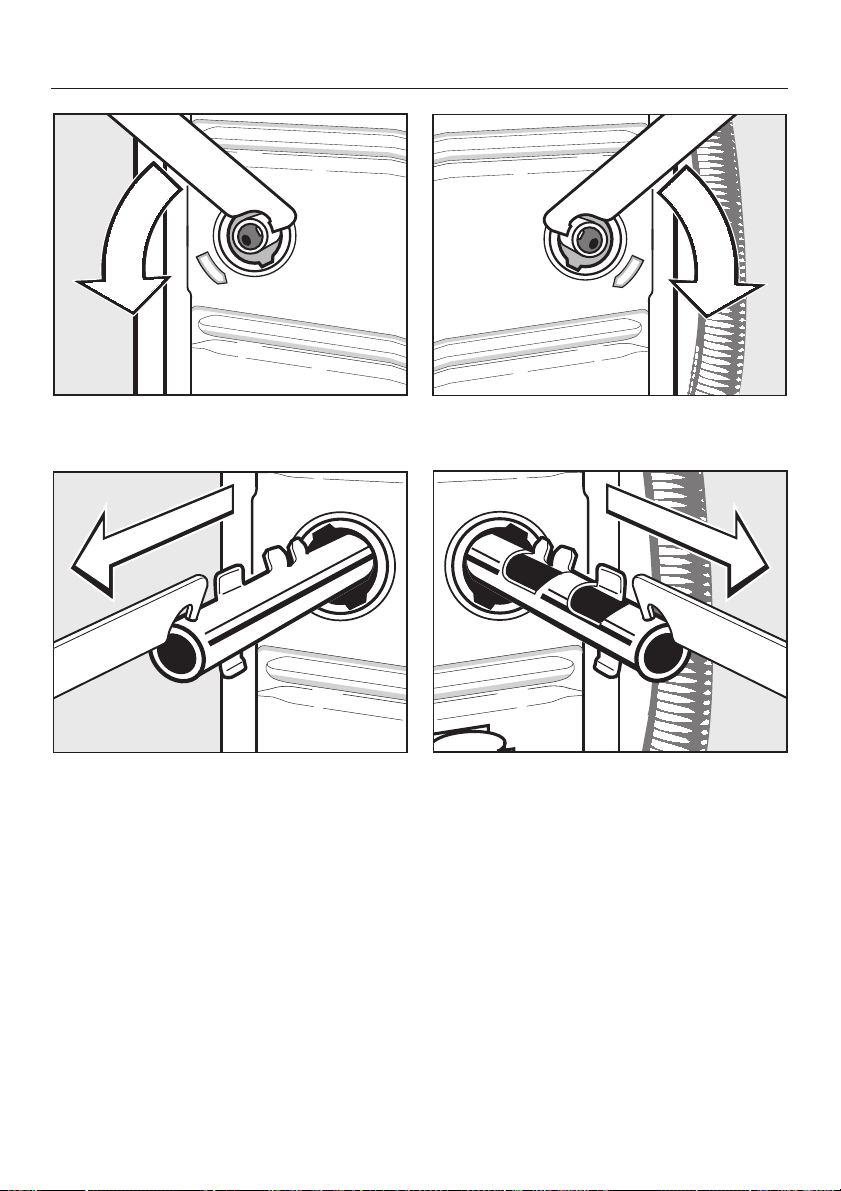

Using the spanner supplied turn the

^

left-hand transit bar 90°, then

^

withdraw the transit bar.

Turn the right-hand transit bar 90°,

^

then

^

withdraw the transit bar.

45

Installation and connection

To avoid the risk of injury the

,

holes for the transit bars must be
covered after the transit bars have
been removed.

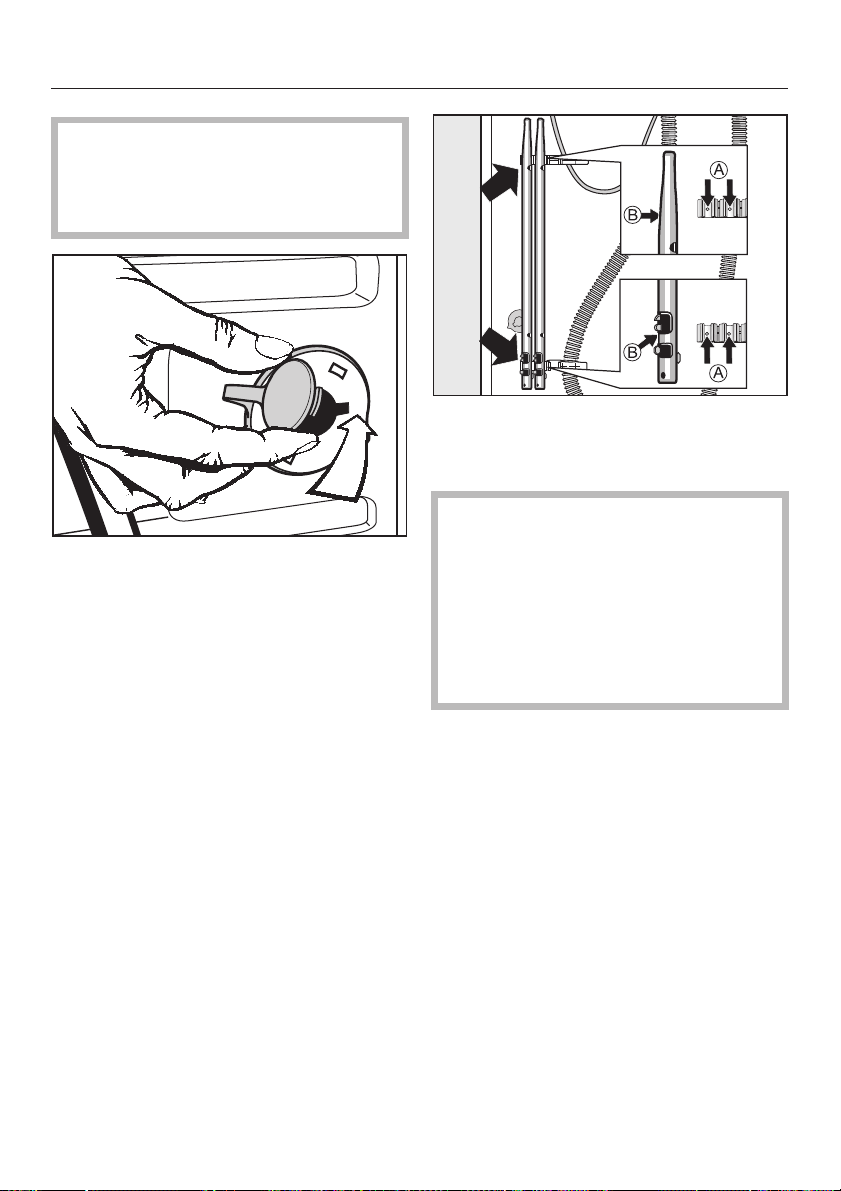

^ Fit the covers on to the two holes.

Then plug the holes as shown with
the caps.

Secure the transit bars to the back of

^

the washing machine. Make sure that
holes b are fitted over retainers a.

The washing machine must not

,

be moved without the transit bars in
place.
Store the transit bars as shown or
keep them in a safe place for future
use. They must be re-fitted if the
machine is to be moved again
(e.g.when moving house).

46

Re-fitting the transit bars

Re-fitting is carried out by reversing the
procedure.

Levelling the machine

The machine must stand perfectly level
on all four feet to ensure safe and
proper operation.

Failure to level the machine can result
in the machine "banging" in the spin
cycle or "walking" across the floor
during operating.

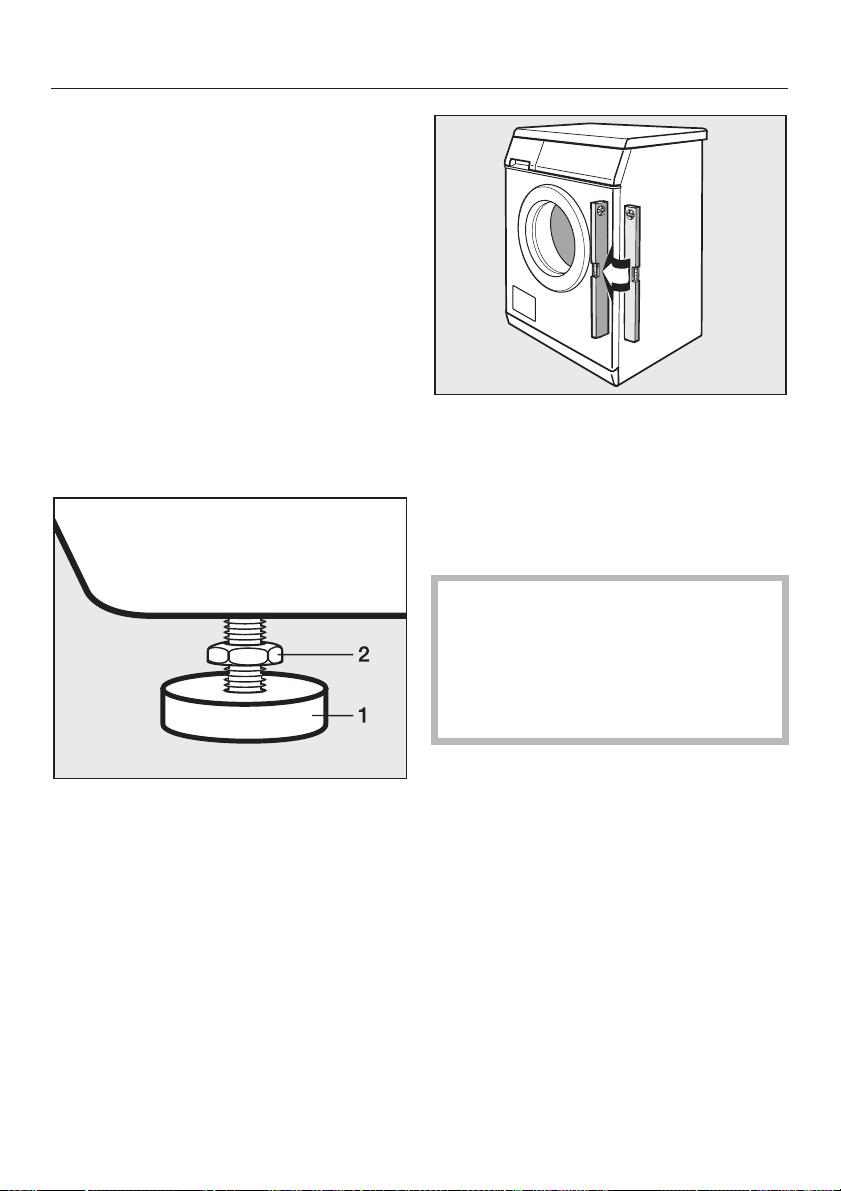

Screwing out and adjusting the feet

The four adjustable screw feet are used
to level the machine. All four feet are
screwed in when the machine is
delivered.

Installation and connection

Use a spirit level to check the

^

machine is standing level.

^ Hold foot 1 securely with a pipe

wrench. Turn counter nut 2 again
using the spanner supplied until it
sits firmly up against the housing.

,

All four counternuts must be
firmly up against the housing. Please
also check this for the feet which did
not need adjustment. Otherwise
there is the danger of the machine
moving about.

^

Using the spanner supplied turn
counter nut 2 in a clockwise
direction. Then turn counter nut 2
together with foot 1 to unscrew.

47

Installation and connection

Building under a continuous
worktop / in a kitchen run

A special building under conversion

–

kit* is required.
The machine lid must be replaced by
a cover plate. To ensure electrical
safety the cover plate must be
fitted. **

N.B.**

If you wish to push your machine under
a worktop and there is space to do this
without removing the lid, the
conversion kit is not necessary.
Otherwise the conversion kit is
essential.

– For installation under a work surface

900/910 mm from the floor, a raising
kit* is required.

– Connections for electricity, water and

drainage should be installed in such
a way that they remain accessible
when the machine is in place.

Washer and Dryer stack

A Miele tumble dryer can be stacked
with the washing machine. A stacking
kit* is necessary and can be purchased
from the Miele Spare Parts Department.

Please note

Fitting instructions are supplied with the
conversion kit.

All parts marked* are available from the
Miele Spare Parts or Sales Department.

The fitting of cover plates and
stacking kits must only be
undertaken by qualified and
competent persons, in accordance
with the instructions supplied with
the kit.

48

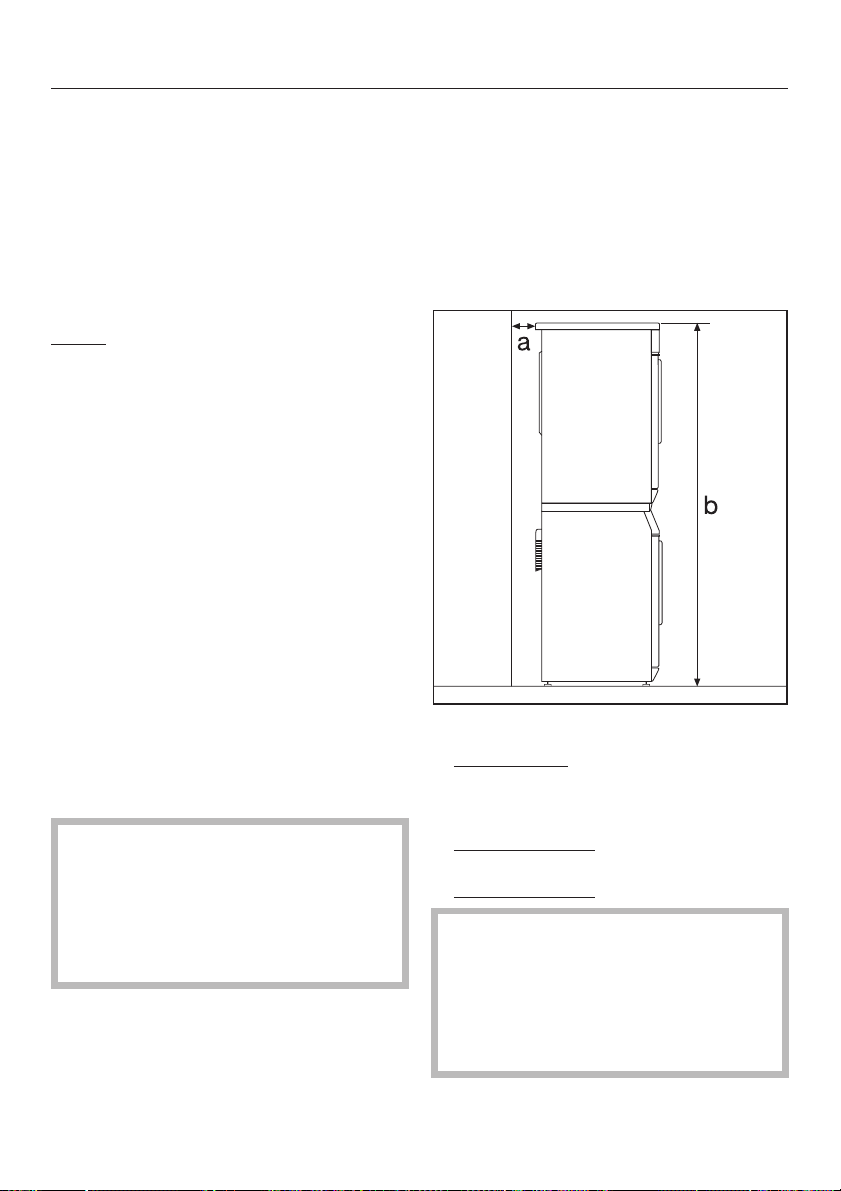

a Safety distance to wall:

at least 2 cm

b Height:

Stacking kit with pull-out shelf:
approx. 169 cm
Stacking kit without pull-out shelf:
approx. 170 cm

,

A washer and dryer should
never be stacked without using the
proper stacking kit. Doing so is
extremely dangerous, as the dryer
may vibrate off of the washing
machine during use.

Installation and connection

The Miele water protection
system

The Miele water protection system
protects all parts of the washing
machine from water damage.

The system consists of three main
components:

1) the inlet hose

2) the electronic unit and the washing
machine housing

3) the drain hose

1) Inlet hose

– The inlet hose can withstand

pressure of more than 7000 kPa.

2) Electronic unit and washing
machine housing

– Sump

Any leaking water is collected in a
sump in the base of the machine. A
float switches off the safety valves,
preventing any more water flowing
into the machine and water in the
suds container is pumped away.

Overflow protection

–

This prevents the washing machine
taking in too much water. If the water
level exceeds a certain level, the
drain pump switches in and pumps
the excess water away.

3) Drain hose

The drain hose is protected by a
ventilation system which prevents the
washing machine from being
emptied completely.

49

Installation and connection

Connection to the water
supply

The machine should be connected to a
mains water supply in accordance with
current local and national safety
regulations.

The machine is designed to operate
with a flow pressure of between
100 kPa and 1000 kPa. If it is higher
than 1000 kPa it is essential to fit a
pressure reducing valve.

In order to protect the water inlet
valve, the two dirt filters - one in the
open end of the inlet hose, one at
the inlet point in the machine, must
not be removed.

Extension hose

Longer hoses 2.5 or 4.0 m in length

–

are available from the Miele Spare
Parts Department as optional extras.

Connection to the mains water supply
should incorporate a mains tap with
thread. The tap should be fitted by a
qualified plumber.

The connection point is subject

,

to mains water pressure. Turn on the
tap slowly and check for leaks.
Correct the position of the washer
and union if appropriate.

The washing machine is not suitable
for connection to a hot water supply,
and connection to a household
water softener is not recommended.

Maintenance and care

Only use a genuine Miele hose should
you ever need a replacement or
extension. These are tested to
withstand pressure of at least 7000 kPa.

3

/4"

50

Installation and connection

Connection to the drainage
system

The machine drains via a drain pump
with a delivery head of 1 metre*. The
drain hose must not be kinked as this
restricts drainage. The swivel elbow at
the end of the hose can be turned in
either direction, or can be detached if
required, with a sharp twist and pull.

If required, the drain hose can be
extended to a length of 5 m. The
necessary parts can purchased from
the Miele Spare Parts Department.

* For a delivery head of of more than 1
m (up to a max. of 1.8 m) a second
duo-drain pump is available with the
corresponding kit from the Miele Spare
Parts Department.

Drain hose connection:

1. Direct into a sink or basin:

Please note the following:

Please note:

a Adapter

b Nut

c Hose clip

d End of the hose

^ Fit adapter a to the sink drain outlet

using nut b.

^ Attach the end of the hose d to

adapter a.

–

Hook the hose over the edge and
secure.

–

Make sure that the water can drain
away freely without hindrance.
Otherwise there is a risk of water
overflowing or of some of the drained
water being sucked back into the
machine.

2. Connected securely to a plastic
drain pipe with a rubber nipple.
There is no need to use a non-return
valve.

3. Connected securely to a standpipe.

4. Connected securely to a floor gully.

^

Use a screwdriver to tighten hose
clip c up close to the nut.

51

Installation and connection

Electrical connection

The washing machine is supplied with a
mains cable with moulded plug for
connection to a 230V mains supply.
The voltage, rated load and plug rating
are given on the data plate. Please
ensure these match the household
mains supply.

The accesibility of the plug must be
always ensured, in order to separate
the washing machine from the mains.

All electrical work should be carried out
only by a suitably qualified and
competent person, in strict accordance
with national and local safety
regulations.

For extra safety it is advisable to install
a residual current device (RCD), with a
trip current of 30 mA.

Ensure power is not supplied to the
appliance until after installation work
has been carried out.

Connection should be made via a
suitable switching socket which is
easily accessible after installation, in
order to separate the washing machine
from the mains.

Do not connect via an extension lead.
Extension leads do not guarantee the
required safety of the appliance (e.g.
danger of overheating).

WARNING: THIS APPLIANCE
MUST BE EARTHED

52

Consumption data

Consumption data for AS/NZ 2040.2:2005 Standard

Max. load Consumption data

Energy Water Degree of

in kWh in litres Normal

Cottons 40°C 6.5 kg 0.55 54 1 h 51 min

Notes for test institutes:

Detergent must be despensed via the detergent dispenser drawer.

Consumption data can vary from the nominal values given depending on water
pressure, water hardness, water inlet temperature, room temperature, type and
volume of load, fluctuations in the electricity supply and any additional options
selected.

Load Consumption data

Energy Water Duration

in kWh in litres Short Normal

Cottons 95°C 6.5 kg 1.99 47 1 h 38 min 2 h 03 min

60°C 6.5 kg 1.02 47 50 min 1 h 43 min

1)

60°C

40°C 6.5 kg 0.55 54 40 min 1 h 51 min

40°C

Minimum iron 40°C 3.0 kg 0.50 55 42 min 1 h 03 min

Delicates 30°C 2.0 kg 0.35 69 49 min 59 min
Woollens / 30°C 2.0 kg 0.23 39 – 39 min
Silks / 30°C 1.0 kg 0.25 39 – 36 min

Express 40°C 3.0 kg 0.30 34 – 30 min

Automatic 40°C 3.5 kg 0.35 - 0.50 40 - 55 – 1 h 18 min

Shirts 60°C 2.0 kg 1.00 59 1 h 02 min 1 h 12 min

Denim 40°C 3.0 kg 0.50 52 50 min 1 h 00 min

Outerwear 40°C 2.0 kg 0.45 59 53 min 1 h 03 min

Dark garments 40°C 3.0 kg 0.60 60 1 h 05 min 1 h 15 min

3.0 kg 0.73 39 50 min

1)

3.0 kg 0.36 39 40 min

soiling

Notes for test institutes:

1)

Short programme for test institutes; the Short extra option must be selected.

53

Technical data

Height 850 mm

Width 595 mm

Depth 580 mm

Depth with door open 975 mm

Height for building under 820 mm

Width for building under 600 mm

Depth for building under 600 mm

Weight 93 kg

Capacity 6.5 kg dry laundry

Voltage see data plate

Rated load see data plate

Fuse rating see data plate

Consumption data see "Consumption data"

Water flow pressure minimum 100 kPa (1 bar)

Water flow pressure maximum 1000 kPa (10 bar)

Inlet hose length 1.60 m

Drain hose length 1.50 m

Connection cable length 1.60 m

Drain pump head max. 1.00 m

Drain pump length max. 5.00 m

Test certificates awarded Electrical safety, Typetest Mark, C-Tick Mark

54

The programmable functions are
used to alter the machine's
electronics to suit changing
requirements. Programmable
functions can be altered at any time.

To access programmable functions

The programmable functions are
accessed via the Start/Stop button
and the programme selector.

Before you begin, first ensure that:

The washing machine is switched off.

–

– The machine is properly closed.

A Press the Start/Stop button and keep

it pressed in whilst carrying out steps
B-C.

Programmable functions

To alter a programmable function

You can see the different options
available for a programmable function
by turning the programme selector.

The option which is currently set will
have a tick L beside it.

F Turn the programme selector until

the option you want appears in the
display.

G Press the Start/Stop button to

activate this option.

To come out of programmable
functions

H Turn the programme selector until

Back

A appears in the display.

I Press the Start/Stop button.

B Press the K button in.

C As soon as...

Language !...

. . . appears in the display, release
the Start/Stop button.

To select a programmable function

D Turn the programme selector until

the programmable function you
require appears in the display.

E Press the Start/Stop button to confirm

your selection.

Language !

The display can be set to appear in
one of several different languages.

The flag
as a guide to prevent a language which
will not be understood from being set.

The language selected is saved to
memory.

! after the word Language acts

55

Programmable functions

Water plus

This programmable function is used
to select the water intake setting for
the Water plus extra option.

There are three different options:

Water +

(the machine is delivered with this
option selected)

The water level is increased in the wash
and rinse stages.

Extra rinse

An extra rinse is introduced.

Water + and Extra rinse

The water intake is increased in the
wash and rinse stages and an extra
rinse is carried out.

Gentle action

Activating gentle action reduces the
drum action and is suitable for
washing slightly soiled items more
gently. It should be activated for
garments with a single bar under the
care label and for articles which feel
too hard after they have been dried.

Gentle action can be activated for the
Cottons and the Minimum iron
programmes.

The washing machine is delivered with
the Gentle action setting deactivated.

Suds cooling

When this is activated, additional
water flows into the drum at the end
of the main wash to cool the suds
down. Hot suds can damage plastic
drainage pipes.

Suds cooling takes place when
temperatures of 95°C and 75°C are
selected.

56

Suds cooling should be activated:

–

to prevent the danger of scalding if
the drain hose is hooked over the
edge of a sink or basin.

–

where the drainage pipes do not
comply with DIN 1986.

The machine is delivered with Suds
cooling deactivated.

Code

A code can be used to lock the
electronics on the washing machine
to prevent it being used without your
knowledge.

When the code has been activated, you
have to enter a code after switching the
washing machine on. Otherwise the
washing machine cannot be operated.

Programmable functions

125

Press the Start/Stop button.

^

The following will appear in the display:

Code activated

Once the machine is switched off, it
can only be used again if the code is
entered.

Code ...

Press the Start/Stop button.

^

To activate the code

Activate

^ Press the Start/Stop button.

The display will now request that a
code is entered.

To enter the code

The code is 125 and cannot be altered.

O __ __

^

Turn the programme selector until the
first number appears in the display.

^

Confirm your selection of the number
by pressing the Start/Stop button.

^

Repeat the process until all three
numbers have been entered.

To use the washing machine when
the code is activated

When the machine is switched on
again, the display will request the code.

^ Enter code 125 as described above

and confirm the entry.

The washing machine is now unlocked
and ready for use.

To deactivate the code

Make sure the washing machine is
switched off and the door is properly
closed. Press the Start/Stop button and
keep it pressed in whilst you press the
K button in.

As soon as...

O __ __

. . . appears in the display, release

the Start/Stop button.

^

Now enter the code and press the
Start/Stop button.

^

Select Code and confirm Deactivate.

57

Programmable functions

Temperature unit

You can chose for the temperature to
be displayed as °C/Celsius or
°F/Fahrenheit.

The machine is delivered with
°C/Celsius as the default setting.

Buzzer

When the buzzer function has been
activated, an audible tone sounds at
the end of a programme or when
Rinse hold is reached.

There are two volumes:

Normal

(the machine is delivered with this
option as the default setting.)

The buzzer sounds at the end of a
programme or when Rinse hold is
reached.

Loud

The buzzer sounds at maximum volume
Loud at the end of a programme or
when Rinse hold is reached.

Keypad tone

An audible tone sounds each time a
button is pressed.

The machine is delivered with the
keypad tone deactivated.

Brightness

There are ten different display
brightness settings.

The bar chart shows you the setting.

The machine is delivered with the
display brightness on setting 5.

This will change as soon as a different
setting is chosen.

Contrast

There are ten different display
contrast settings.

The bar chart shows you the setting.

The machine is delivered with the
display contrast on setting 5.

This will change as soon as a different
setting is chosen.

58

Programmable functions

Standby display

To save energy, the display goes out
after 10 minutes and the indicator
light for the Start/Stop button will start
flashing slowly.

There are two options:

On

Standby is activated:

if a programme is not selected within

–

10 minutes of the machine being
switched on.

– after a programme has started.

– at the end of a programme.

Not in current prog.

(the machine is delivered with this
option selected)

Standby is activated:

– if a programme is not selected within

10 minutes of the machine being
switched on.

–

at the end of a programme.

Memory

If an extra option has been selected
for a programme, or the
recommended temperature or spin
speed has been altered, the machine
will store the changes in memory at
the start of a programme.

When this programme is chosen again
these settings will appear in the
display.

The machine is delivered with the
memory function deactivated.

Anti-crease

Anti-crease helps prevent creasing if
laundry is not normally removed im­mediately after the end of a
programme.

The drum will turn at intervals for up to
30 minutes after the programme has
finished.

The door can be opened and laundry
removed at any time during the anti­crease phase.

Pressing one of the buttons switches
the display back on again.

On

Anti-crease is activated.

Off

(the machine is delivered with this
option selected)

Anti-crease is deactivated.

59

Optional accessories

Miele washing machines offer perfect
care for your laundry and feature a
wide range of special programmes
designed to suit the fabric being
washed. And now Miele have
developed a range of specialist Care
Collection detergents and conditioning
products to offer you a complete
package for cleaning and caring for
your laundry.

The Miele Care Collection detergents
and conditioning products are listed
below. You can order these and many
other useful products via the internet at:

All the products can also be ordered
via the Miele Customer Contact Centre
(see back cover for contact details).

Care Collection

Miele specialist detergents

Fabric Softener

Miele's fabric softener will give your
laundry a fresh, natural fragrance. It
makes garments soft to handle and
prevents static build-up during tumble
drying.

For Delicates

This liquid detergent is ideal for the
gentle treatment of delicate fabrics,
such as wool and silk. Its special
formulation cleans effectively at
temperatures as low as 20°C, while
protecting the colour of your delicate
garments.

For Whites

This multi-purpose powder detergent
has excellent stain removal properties
and is suitable for white and light
coloured laundry as well as heavily
soiled coloured items.

60

Sensitive

Miele’s sensitive laundry detergent has
been specifically tested and formulated
for consumers with sensitive skin and
allergies. This detergent is powerful
and deep cleaning for optimal stain
removal, even at 40°C, leaving your
laundry with a fresh, mild fragrance.

For colours

Available in a liquid and powder form,
this detergent is particularly suitable for
cleaning coloured and dark garments.
The special formulation offers effective
stain removal, even at low
temperatures, while helping to prevent
colours fading.

Sportswear

The Miele sportswear detergent is
designed to clean sportswear whilst
taking care of the special microfibres
used in these garments. It will help to
neutralise and remove odours whilst
protecting the colour of the fabric and
preventing static build-up.

Down Items

This special-purpose detergent
contains a mild tenside and has been
specially formulated to keep down-filled
items supple and to give them bounce.

Optional accessories

616263

Alteration rights reserved/4209

M.-Nr. 07 655 950 / 00
