Operating instructions
for Washing machine
Prestige Plus
To avoid the risk of accidents or
damage to the machine it is
essential to read these instructions
before it is installed and used for the
first time.
en-GB
M.-Nr. 06 761 400
Caring for our environment
Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!
Rather than just throwing these
materials away, please ensure they are
offered for recycling.
Disposal of your old appliance
or machine
Electrical and electronic appliances /
machines often contain materials
which, if handled or disposed of
incorrectly, could be potentially
hazardous to human health and to the
environment. They are, however,
essential for the correct functioning of
your appliance or machine. Please do
not therefore dispose of your old
machine or appliance with your
household waste.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or disconnected
from the mains electricity supply by a
competent person.
2
Contents
Caring for our environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Description of the machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Special programmes ...............................................10
Delicates and Silks / programmes ................................10
Water plus system ..............................................10
Time left display ................................................11
Future updates (PC) .............................................11
Control panel .....................................................12
Important control panel features ......................................14
Programme selector .............................................14
Additional option buttons .........................................14
"Spin" button with indicator lights ...................................14
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Washing environmentally and economically . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Energy and water consumption ....................................16
Detergent .....................................................16
Additional options (Short, Soak, Pre-wash) ...........................16
When drying with a tumble dryer ...................................16
How to wash correctly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Brief instructions ..................................................17
Programme chart ...............................................18
Garment care label symbols.......................................21
How to wash correctly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Before washing ...................................................22
Selecting a programme .............................................23
Additional options ...............................................24
At the end of a programme ..........................................26
Adding or removing laundry after a programme has started ................27
3
Contents
Interrupting a programme ...........................................28
Altering a programme once selected ..................................28
Skipping a programme stage ........................................28
To cancel or select a different programme ..............................28
Programme sequence ..............................................29
Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Water softeners ...................................................31
Washing with several components ....................................31
Fabric conditioners and liquid starch ..................................32
Automatic dispensing of fabric conditioner or liquid starch to laundry
at the end of a programme ........................................32
Adding fabric conditioner separately ................................32
Adding starch separately .........................................32
Colour run and dye removers/dyes ....................................32
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
External casing and fascia panel .....................................33
E-Cloth .......................................................33
Extra cleaning ..................................................33
Cleaning the detergent dispenser drawer...............................33
Descaling the machine .............................................34
Cleaning the water inlet filters ........................................35
Problem solving guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
The programme does not start. .......................................36
The wash programme stops and a fault indicator light comes on ............37
A fault indicator light comes on but the wash programme continues as normal. . 38
General problems or an unsatisfactory wash result .......................39
The drum door does not open when you press the Door button. .............41
Opening the drum door in the event of a blocked drain outlet and/or
power failure .....................................................42

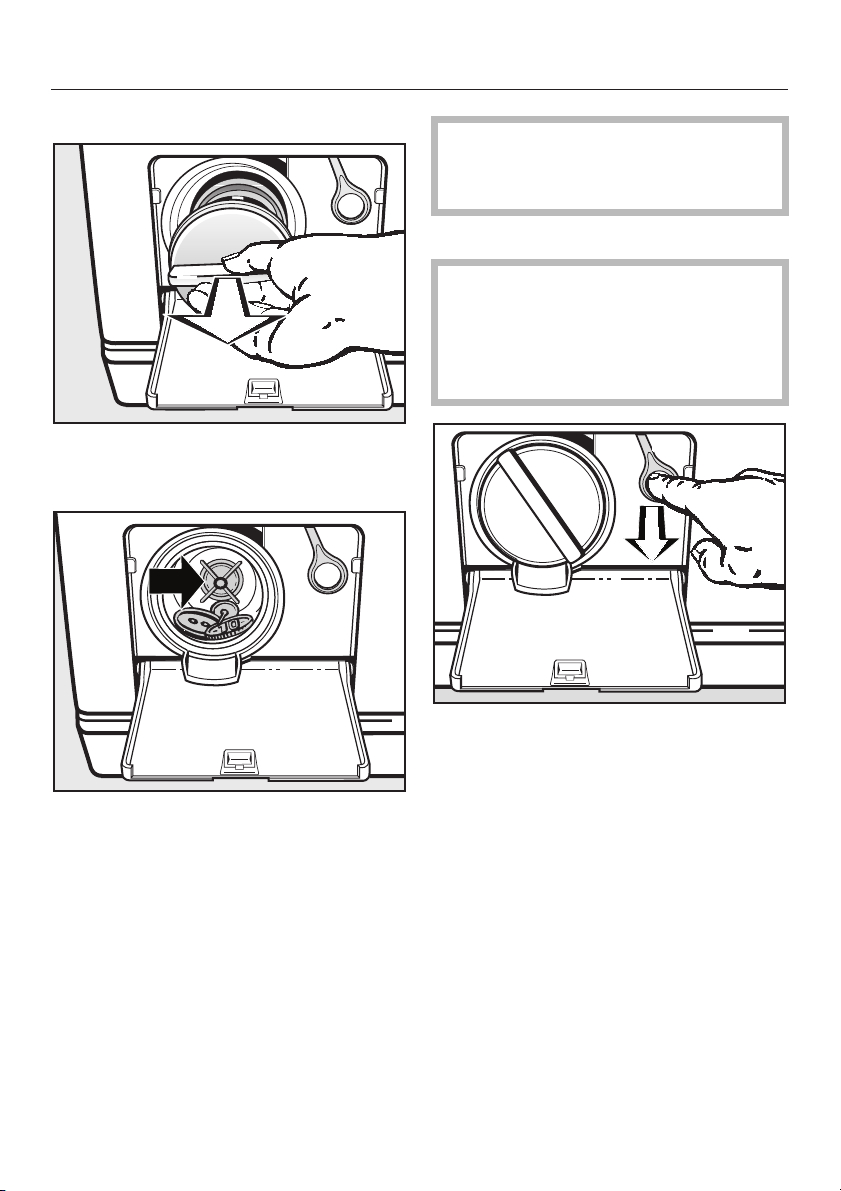

Blocked drain outlet .............................................42
Customer contact .................................................44
Optional accessories ............................................44
4
Contents
Installation and connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Front view........................................................45
Rear view ........................................................46
Installation surface.................................................47
Installing the washing machine ....................................47
Removing the transit bars ...........................................47
Re-fitting the transit bars ............................................49
Levelling the machine ..............................................50
Screwing out and adjusting the feet .................................50
Building under a continuous worktop/in a kitchen run ...................51
Washer and Dryer stack ..........................................51
The Miele water protection system ....................................52
Connection to the water supply .......................................53
Connection to the drainage system....................................54
Electrical connection U.K. ...........................................55
Consumption data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Programmable functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Water plus system .................................................60
Gentle action .....................................................62
Top-up rinse for Cottons ............................................63
Memory Function ..................................................64
Soak ............................................................65
5
Warning and Safety instructions
This washing machine is not
This washing machine conforms to
current safety requirements.
Inappropriate use can, however,
lead to personal injury and damage
to property.
To avoid the risk of accidents and
damage to the washing machine,
please read these instructions
carefully before using it for the first
time. They contain important
information on its installation, safety,
use and maintenance.
Keep these instructions in a safe
place and ensure that new users are
familiar with the content. Pass them
on to any future owner.
Correct application
Only use the washing machine to
~
wash items which are specified by the
manufacturer to be machine-washable
on the wash-care label, and textiles
composed of hand-washable wool or
wool blend fabrics as well as satin,
lace, silk and other hand-washable
garments. Any other applications may
be dangerous. The manufacturer
cannot be held liable for damage
resulting from incorrect or improper use
or operation.
~
intended for use by persons (including
children) with reduced physical,
sensory or mental capabilities, or lack
of experience and knowledge, unless
they have been given supervision or
instruction concerning its use by a
person responsible for their safety.
Safety with children
Keep children away from the
~
washing machine at all times. It is not a
toy! To avoid the risk of injury do not
allow children to play on or near it or to
play with its controls. Supervise
children whilst you are using it.
Older children may only use the
~
washing machine if its operation has
been clearly explained to them and
they are able to use it safely,
recognising the dangers of misuse.
For machines with a 'porthole' door,
~
remember that the porthole glass will
be hot when washing at very high
temperatures.
Do not let children touch it.
6
Warning and Safety instructions
Technical safety
Before setting up the washing
~
machine, check it for any externally
visible damage.
Do not install or use a damaged
washing machine.
Before connecting the washing
~
machine, ensure that the connection
data on the data plate (voltage and
connected load) match the mains
electricity supply. If in any doubt,
consult a qualified electrician.
The electrical safety of this washing
~
machine can only be guaranteed when
continuity is complete between it and
an effective earthing system which
complies with current local and national
safety regulations. It is most important
that this basic safety requirement is
present and regularly tested, and
where there is any doubt the household
wiring system should be inspected by a
qualified electrician. The manufacturer
cannot be held liable for the
consequences of an inadequate
earthing system (e.g. electric shock).
Do not connect the washing
~
machine to the mains electricity supply
by an extension lead. Extension leads
do not guarantee the required safety of
the appliance (e.g. danger of
overheating).
Faulty components must only be
~
replaced by genuine Miele original
spare parts. Only when these parts are
fitted can the safety standards of the
machine be guaranteed.
Unauthorised repairs could result in
~
unforeseen dangers for the user, for
which Miele cannot accept liability.
Repairs should only be undertaken by a
Miele approved service technician.
Ensure current is not supplied to the
machine until after maintenance or
repair work has been carried out.
If the connection cable is faulty it
~
must only be replaced by a Miele
approved service technician to protect
the user from danger.
In the event of a fault or for cleaning
~
purposes, the washing machine is only
completely isolated from the electricity
supply when:
– it is switched off at the wall socket
and the plug is withdrawn, or
– it is switched off at the mains, or
– the mains fuse is withdrawn, or the
screw-out fuse is removed (in
countries where this is applicable).
This washing machine must only be
~
connected to the on-site water supply
using a new hose kit. Old hoses must
not be re-used.
In countries where there are areas
~
which may be subject to infestation by
cockroaches or other vermin, pay
particular attention to keeping the
machine and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches or other vermin will not be
covered by the machine guarantee.
7
Warning and Safety instructions
This washing machine may only be
~
used in mobile installations such as
ships if a risk assessment of the
installation has been carried out by a
suitably qualified engineer.
Correct use
Do not install your washing machine
~
in rooms where temperatures below
freezing may occur. Frozen hoses may
burst or split. The reliability of the
electronic control unit may be impaired
at temperatures below freezing point.
Before using the washing machine
~
for the first time, check that the transit
bars at the rear of the machine have
been removed (see section on
"Installation"). During spinning, a transit
bar which is still in place may result in
damage to both the machine and
adjacent furniture or appliances.
Turn off the stopcock if the machine
~
is to be left for any length of time (e.g.
holiday), especially if there is no floor
drain (gully) in the immediate vicinity.
Flooding danger.
~
If hooking the drain hose into a wash
basin, check that the water can drain
off quickly enough to prevent the sink
from overflowing. Make sure the drain
hose is secure, so that the force of the
water flowing out of the hose does not
dislodge it.
Take care to ensure that foreign
~
objects (e.g. nails, pins, coins, paper
clips) do not find their way into the
machine with the laundry. These may
damage components of the machine
(e.g. suds container, drum), which in
turn can result in damage to the
laundry.
If the correct amount of detergent is
~
dispensed, the machine should not
need to be descaled. If, however, you
do wish to descale the machine only
use proprietary non-corrosive descaling
agents and strictly observe the
instructions on the packaging. A
special descaling agent is available to
order from the Miele Spare Parts
Department or via the internet on
www.miele.co.uk.
8
Warning and Safety instructions
Textiles which have been
~
pre-treated in solvent based cleaning
agents must be thoroughly rinsed in
clean water before being washed in the
machine.
Never use solvent based cleaning
~
agents, e.g. those containing benzene,
in this machine, as this may result in
damage to component parts and create
toxic fumes. Such agents also pose a
fire and explosion hazard.
Never use solvent based cleaning
~
agents, e.g. those containing benzene,
to clean the outside surfaces of this
machine. They can cause damage to
plastic surfaces.
Only use dyes specified by the
~
manufacturer as being suitable for use
in a domestic washing machine. Always
observe the manufacturer's instructions
carefully.
Colour run and dye removers
~
contain sulphur compounds which can
cause damage such as corrosion. Do
not use these products in this machine.
Only remove laundry from the
~
washing machine once the drum has
stopped turning. Reaching into a
moving drum is extremely dangerous
and could result in injury.
Accessories
Accessory parts may only be fitted
~
when expressly approved by Miele. If
other parts are used, guarantee,
performance and product liability
claims will be invalidated.
Miele cannot be held liable for
damage caused by non-compliance
with these Warning and Safety
instructions.
If liquid detergent comes into
~
contact with the eyes, rinse them
thoroughly with lukewarm water imme
diately. If swallowed, seek medical
assistance immediately and retain the
packaging or label for reference. Those
with skin problems or sensitive skin
should avoid their skin coming into
contact with liquid detergent.
-
9
Description of the machine
Your machine has the following special
programmes in addition to the standard
Cottons and Minimum iron
programmes.
Special programmes
Silks
–
–
– Quick wash
/
Hand-washable fabrics which crease
easily and do not contain wool can
be washed in the Silks /
programme (30°C temperature only).
Woollens
Hand-washable or machinewashable wool or wool blend fabrics
can be washed in the Woollens /
programme. If the garment care
label does not specify a temperature,
wash using the cold setting.
This is a Cottons programme for
small loads of very lightly soiled
fabrics.
/
Delicates and Silks / programmes
In these programmes, the laundry is
washed and spun very gently to reduce
creasing and the amount of ironing
required, thus providing "Easy care" for
your laundry.
Water plus system
The water level for washing and/or
rinsing is increased. For Cottons and
Minimum iron programmes an
additional rinse can also be selected.
–
Automatic
Suitable for small loads of garments
made from man-made fibres and
cotton garments which can be
washed together. Sort according to
colour.
–
Separate rinse
Suitable for rinsing and spinning
articles which have been hand
washed.
10
Description of the machine
Time left display
After the start of a programme, the
duration of the programme selected will
be shown in the display counting down
in hours and minutes and finally in
minutes. At some points during the
wash, the time shown can change. This
is normal.
Future updates (PC)
The indicator or check light marked PC
is the interface used by Miele service
technicians during servicing work for
testing purposes and for updating the
machine's programme data.
11
Description of the machine
Control panel
a Display
See the following page for more
information.
b Start button
Starts the wash programme
c Additional option buttons
Additional options can be added to
the basic programme.
Use the top button to select either
the Short, the Pre-wash or the Soak
option. Use the lower button to select
the Water plus option.
Indicator light on = option selected
Indicator light off = option not
selected
d Indicator lights for spin speed,
Rinse hold or Without spin
e Spin button
For selecting the final spin speed,
Rinse hold or Without spin
f Programme selector
For selecting the wash programme
and temperature for that programme.
The programme selector can be
turned clockwise or anti-clockwise
g Programme sequence indicator
lights
Show which section of the wash
programme has been reached
h Check lights
i I-On/0-Off button
For switching the machine on or off
or interrupting a programme
j Door button
Opens the machine door
12
Programme duration
After a programme has started, the
maximum programme duration (wash
time) will appear in the display in hours
and minutes.
Description of the machine
In the Cottons, Minimum iron and Auto
matic programmes, the machine
measures the amount of water
absorbed by the laundry and uses this
to calculate the load during the first 10
minutes. If the machine recognises a
smaller load it will shorten the
programme time.
Programme Max. time reduction
short normal
Cottons 37 min 52 min
Minimum iron 12 min 13 min
Automatic 13 min 18 min
Soak
If the Soak additional option has been
selected, the soak time is added to the
programme duration in the display to
give a total running time.
-
13
Description of the machine
Important control panel
features
Programme selector
The programme selector is used to set
the basic wash programme and the
temperature for that programme.
Additional option buttons
Additional options can be added to the
basic programme.
Use the top button to select either the
Short, the Pre-wash or the Soak option.
Use the lower button to select the Water
plus option.
The indicator light will come on to show
that the additional option has been
selected. If an additional option is
chosen, which is incompatible with the
basic programme, it cannot be
selected.
"Spin" button with indicator lights
Selecting the spin speed
Press the "Spin" button to select a
different spin speed. However, you
cannot select a spin speed higher than
the maximum allowed for the basic
wash programme chosen.
The indicator lights show the speed
selected.
Wash programme rpm
Cottons 1300
Minimum iron 900
Delicates 600
Silks 400
Woollens 1200
Quick wash 1300
Automatic 900
Separate rinse 1200
Starch 1300
Drain/spin 1300
You can also omit the final spin
^ Press the "Spin" button to reach:
– Rinse hold
The laundry is not spun and remains
suspended in the final rinse water.
This reduces creasing if the laundry
is not going to be removed from the
drum immediately after the end of
the programme.
To continue the programme select a
spin speed. When the programme is
finished the Anti-crease/Finish light
will come on. Turn the programme
selector to the Finish position and
press the Door button to open the
door and remove the laundry.
–
Without spin
The laundry is not spun. After the
water has been drained away the
machine goes straight into the
anti-crease stage. Spinning between
the rinses is also omitted in this
setting.
14
Before using the machine for the first
time ensure that it is correctly
installed and connected. See
"Installation and connection". Also
check that the drain filter is securely
tightened. Otherwise there is a risk
of water leakage during use.
For safety reasons spinning is not
possible until the machine has been
prepared for using for the first time. To
activate the spinning function you must
run a wash programme without laundry
and without detergent.
Using detergent could result in an
excessive build-up of foam.
This also activates the ball valve. The
ball valve prevents detergent escaping
from the suds container into the sump
during a wash programme, thus making
maximum use of the detergent.
Before using for the first time
^ Open the stopcock.
^
Press the I-On/0-Off button in.
^
Turn the programme selector to
Cottons 60°C.
^
Press Start.
When this programme has finished turn
the programme selector to Finish. Your
washing machine is ready for using for
the first time.
15
Washing environmentally and economically
Energy and water consumption
Water consumption and energy
–
usage are determined by the size of
the load.
To make the most out of your
machine, load the maximum dry load
for the programme you are using.
Use the Automatic or the Quick wash
–
programmes for small loads.
When smaller amounts of laundry are
–
washed using the Cottons
programmes, the automatic load
recognition system will reduce the
amount of water, time and energy
used. This may mean that the
programme duration is adjusted
during the course of the wash
programme.
– Instead of using the Cottons 95°C
programme, use the Cottons 60°C
programme. This will give an energy
saving of between 35% and 45%.
This combination is sufficient for
most levels of soiling. For stubborn or
old stains, use the Soak option.
Detergent
Do not exceed the amounts of
–
detergent recommended by the
manufacturer on the packaging.
Reduce the amount of detergent with
–
smaller loads (approx.
1
/3less than
the amount recommended can be
used when washing a half load).
Additional options
(Short, Soak, Pre-wash)
Select:
A wash programme together with the
Short option for light to normal soiling
where there are no obvious marks.
A wash programme without any
additional options for normal to
heavy soiling with visible staining.
A wash programme together with the
Soak option for heavily soiled
laundry.
– Use the additional option Soak
instead of Pre-wash. If Soak is
followed immediately by a main wash
the same suds are used.
16
When drying with a tumble dryer
–
Selecting the highest possible spin
speed for the wash programme will
save energy when drying in a tumble
dryer afterwards.
How to wash correctly
Brief instructions
Please note:
To help familiarise yourself with how to
use your washing machine please read
the sections "Before washing",
"Selecting a programme" and "At the
end of a programme" in detail.
A Sort the laundry into colours and
fabric types
Selecting a programme:
B Switch on the washing machine
C Open the drum door
D Load the drum
E Close the drum door
F Select a programme
G Select a spin speed
H Select any additional option required
I Add detergent
See the "Programme chart" in the next
section for information on which
programmes to use for different fabric
types.
J Press the Start button
At the end of a programme:
K Open the drum door
L Remove the laundry
M Switch off the washing machine
N Turn the programme selector to the
Finish position
O Close the drum door
17
How to wash correctly
Programme chart
Cottons 9ö8761)30°C to 95°C Max. load 5.0 kg
Fabric Cottons and linen fabrics, e.g. bed linen, table linen,
towelling, jeans, underwear, T-shirts, nappies.
Additional options Short, Pre-wash, Soak, Water plus
Notes
Detergent Powder detergent, detergent for coloured fabrics, liquid
Note for test institutes:
Programme setting for testing according to EN 60456 standard: Cottons 60°C
Minimum iron
4321 876
Fabric For garments made of synthetic fibres, mixed fibres and for
Additional options Short, Pre-wash, Soak, Water plus
Notes For heavily soiled laundry and/or soiling which has been left
Detergent Powder detergent, detergent for coloured fabrics, liquid
Only use the Cottons 95°C programme for heavily soiled
–
laundry.
For heavily soiled laundry and/or soiling which has been
–
left unwashed for some time, select the Soak additional
option.
For laundry with large amounts of dirt (e.g. dust, sand)
–
use the Pre-wash additional option.
– For lightly soiled laundry select the Short additional
option.
– For dark coloured fabrics use a detergent for coloured
fabrics, or liquid detergent.
detergent, tablet detergent and liquid tab detergent.
30°C to 60°C Max. load 2.5 kg
1)
easy care cotton shirts and blouses.
unwashed for some time, select the Soak additional option.
detergent, detergent for delicates, tablet detergent and liquid
tab detergent.
18
How to wash correctly
Delicates 21ac
1)
cold to 40°C Max. load 1.0 kg
Fabric For delicate garments made of synthetic fibres, mixed fibres
and for easy care cotton shirts and blouses.
Curtains, including net curtains, specified as
machine-washable by the manufacturer.
Additional options Short, Pre-wash, Soak
Notes
Laundry remains relatively crease-free for easier ironing.
–
Dust in curtains usually makes using a programme with
–
Pre-wash advisable.
For curtains made from delicate fabrics reduce the spin
–
speed or select Without spin.
Detergent Liquid detergent for delicates.
Silks /c
1)
30°C Max. load 1.0 kg
Fabric Hand-washable fabrics with no wool content, e.g. satin, lace
and silk.
Additional option Water plus
Notes – Laundry remains relatively crease-free for easier ironing.
– Place socks, tights, bras etc. in a washing bag.
Detergent Liquid detergent for delicates.
Woollens2)/ac
1)
cold to 40°C Max. load 2.0 kg
Fabric Machine-washable or hand-washable wool or wool blend
fabrics. If the care label does not specify a temperature,
wash using the cold setting. Please note hand-washable
garments will not shrink, stretch, matt or felt beyond the
accepted tolerance of the item.
Detergent Liquid detergent for machine washable woollens.
19
How to wash correctly
Quick wash 7
1)
40°C Max. load 2.5 kg
Fabric Very lightly soiled fabrics, which can be washed in the
Cottons programme.
Notes
Use less detergent (as for a half load).
–
If fabrics have a high proportion of man-made fibres it is
–
advisable to programme the machine for "Gentle Action".
See "Programmable functions". Note that this programme
is not suitable for delicate items.
Detergent Powder detergent, detergent for coloured fabrics, liquid
detergent.
Automatic 72
1)
40°C Max. load 3.0 kg
Fabric Small loads of garments made from man-made fibres and
cotton garments which can be washed together. Sort
according to colour.
Additional options Short, Pre-wash, Soak
Detergent Powder detergent, detergent for coloured fabrics, liquid
detergent.
Starch Max. load 5.0 kg
Fabric Table cloths, napkins, overalls, aprons.
Notes The laundry should be washed but not treated with fabric
conditioner.
Separate rinse
2)
Max. load 5.0 kg
Fabric Articles which have been washed by hand and only need to
be rinsed and spun in the machine.
Drain/Spin Max. load 5.0 kg
Notes Drain only: Select Without spin. Do not use for Woollens.
1)
Please note that the "buckets" represent garment care label symbols. See
"Garment care label symbols".
2)
During the final spin the 1300 rpm indicator light will come on. However, to
protect the laundry, the machine will only spin at 1200 rpm during this spin.
20
Garment care label symbols
Washing
The figure quoted in the bucket is the
maximum temperature the garment
can be washed at. The number of
bars under the symbol indicate the
level of agitation permitted.
9 No bar under the symbol:
= normal agitation
4 One bar under the symbol:
= reduced agitation
c Two bars under the symbol:
= much reduced agitation
/ Hand wash (if no temperature
is specified use the lowest
temperature or cold)
h Do not wash
How to wash correctly
Ironing
The number of dots indicates the
ironing temperature
I Hot iron (max sole plate temp.
approx. 200°C)
H Medium hot iron (max sole
plate temp. approx. 150°C)
G Cool iron (max sole plate
temp. approx. 110°C). Do not
steam iron garments carrying
this symbol.
J Do not iron
Professional cleaning
f Dry clean only. The letters
indicate the type of cleaning
p
agent required.
w
Professional Wet Clean only
Drying
The number of dots indicates the
drying temperature
q Normal temperature
r Low temperature
s Do not tumble dry
D
Do not dry clean
Bleaching
x Any oxidising bleaching
agent can be used
{ Only use an oxygen based
bleach or a non-chlorine
bleach
z Do not bleach
21
How to wash correctly
Before washing
A Sort the laundry
^ Empty all pockets.
Foreign objects (e.g. nails,
,
coins, paper clips, etc.) can cause
damage to garments and
components in the machine.
^ Badly soiled areas, e.g. collars and
cuffs, and water soluble stains can
be pre-treated with bar soap, liquid
detergent or detergent mixed into a
solution or paste.
With particularly stubborn stains ask
your dry cleaner for advice.
Do not use solvent-based
,
cleaning agents in this machine.
Sort the laundry by colour and by
^
care label symbol. Most garments
have a textile care label in the collar
or side seam.
Dark textiles often contain excess dye
and should be washed separately
several times before being washed
together with other garments. Always
wash whites and coloureds separately.
Delicate textiles should be washed
separately in a delicates programme
(use a washing bag where
appropriate).
– Curtains:
Remove lead weights and strips or
place in a laundry bag.
– Underwiring and collar stiffeners:
Any loose wiring in bras, shirt collar
stiffeners, etc. should be removed or
sewn in.
–
Knitted garments, trousers and
jeans, T-shirts and sweat shirts:
Turn inside out, if recommended by
the manufacturer.
22
–
Close any zips, fasten hooks and
eyes etc before washing.
–
Fasten duvet covers to prevent
smaller items rolling up inside them.
,
Do not wash any items in this
machine which are specified by the
manufacturer as not washable on
the care label. (h symbol)
How to wash correctly
Selecting a programme
B Switch on the washing machine
Press in the I-On/0-Off button.
^
C Open the drum door
Press the Door button and open the
^
drum door.
D Load the drum
Unfold the laundry and load loosely
^
in the drum. To achieve best results it
is advisable to make up mixed loads
consisting of both large and small
items. This improves the washing
effect and helps distribute the load
evenly to keep the machine stable
and reduce the noise level during
spinning.
To save energy and water try to load
the maximum amount for the
programme selected.
However, be careful not to overload the
machine. Overloading reduces the
wash result and causes more creasing.
F Select a programme
Turn the programme selector to the
^
required programme.
The maximum duration for the
programme will appear in the display.
G Select a spin speed
E Close the drum door with a gentle
swing
Make sure that no garments are caught
between the drum door and seal.
^
Press the "Spin" button repeatedly
until the indicator light for the spin
speed you want comes on.
In some programmes the maximum
spin speed is limited. The machine will
not allow a higher spin speed to be
selected.
23
How to wash correctly
Additional options
H Select additional option(s) if
required.
Additional options can be selected as
long as they are compatible with the
basic programme being used.
Each press of the top button selects the
additional option in the following order:
Short, Pre-wash, Soak, no selection.
Use the lower button to select or
deselect the Water plus option
^
Press the appropriate additional
option button. Press the top button
repeatedly until the indicator light for
the additional option you want comes
on.
Short
Pre-wash
For heavily soiled laundry and items
with dried on stains.
Soak
For heavily soiled and stained items
with protein stains (e.g. blood, fats
and oils, cocoa).
A length of time of between 30
–
minutes and 2 hours can be
programmed in 30 minute
increments for the soak process.
– The machine is set ex-works with a
soak period of 2 hours.
To programme in a different soak
period see "Programmable functions Soak".
Water plus
If you want to increase the water level
for a wash process you can choose one
of the four options for the Water plus
button. The options are explained in the
section on "Programmable functions Water plus system".
The machine is set at the factory so that
the water level in the main wash and
rinses will be increased if the Water
plus button is pressed.
For lightly soiled items.
The programme duration will be
shorter.
24
I Adding detergent
It is important to dispense the correct
amount, because. . .
. . . too little detergent results in:
Laundry not getting properly clean
–
and with time it may become grey
and hard to the touch.
Greasy particles clinging to the
–
laundry.
Limescale deposits on the heater
–
elements.
. . . too much detergent results in:
– Excessive foam, which causes a low
level of agitation and poor wash,
rinse and spin results.
– higher water consumption because
an extra rinse is automatically
activated
– A burden to the environment.
How to wash correctly
Pull out the detergent drawer and
^
place detergent in the compartments
as follows:
i
Detergent for the pre-wash (divide
the total recommended amount as
follows: add
2
and
/3to compartment j). This
compartment is also used for starch
formulations when starching
separately.
1
/3to compartment i
j
Main wash including the Soak period
if selected
§
Fabric conditioner or liquid starch.
^
Close the detergent drawer.
See section on "Detergent" for further
information on detergent and the
amount to dispense.
J Press the Start button
This starts the programme. The
maximum programme duration will then
show in the display.
25
How to wash correctly
At the end of a programme
When the Anti-crease/Finish indicator
light comes on the laundry can be
removed from the drum. (This light
stays on at the end of the programme
and remains on until the selector is
turned back to the Finish position).
K Open the drum door
Press the Door button.
^
L Remove the laundry.
Check that all items have been
removed from the drum. Items left in
the drum could discolour other items
in the next wash or become
discoloured themselves.
M Switch off the washing machine.
Press and release the I-On/0-Off
^
button and turn the programme
selector to Finish. The Anti-crease/
Finish light will then go out.
Only remove laundry from the
,
machine once the drum has
stopped turning. Reaching into a
moving drum is extremely
dangerous and could result in injury.
^
Check the folds in the door seal for
any small articles, e.g. buttons which
may be lodged there.
N Close the drum door
Otherwise there is the danger of
objects being placed inadvertently in
the drum. If these remained unnoticed
and were washed in the next load, they
could damage the laundry.
26
How to wash correctly
Adding or removing laundry
after a programme has started
Laundry can be added or removed
after the programme has started when
using the following programmes:
Cottons
–
Minimum iron
–
Quick wash
–
Automatic
–
Starch
–
Press the Door button in and hold it
^
until the door springs open.
^ Add or remove items.
^ Close the door.
The programme will continue
automatically.
Please note:
Once a programme has started the
machine cannot recognise any
adjustment to the load. For this reason
if laundry is added or removed after the
start of a programme, the machine will
always complete the programme cycle
assuming a full load which can lead to
an increase in the time remaining for
the programme shown in the display.
The door cannot be opened, if:
the suds temperature is above 55°C.
–
the water is above a certain level.
–
the programme has reached the
–
Final spin stage.
27
How to wash correctly
Interrupting a programme
Switch the washing machine off with
^
the I-On/0-Off button.
To continue with the same programme:
Switch the washing machine back on
^
again with the I-On/0-Off button.
Altering a programme once
selected
The machine will accept the following
changes after a programme has
started:
– at any time
speed can be changed within the
limits for the programme.
– up to 6 minutes after the start
Water plus additional option can be
selected or de-selected and a
different temperature can be
selected for the programme in use.
After the start of a programme it is no
longer possible to select a different
programme.
If the programme selector is moved, the
indicator light Anti-crease/Finish will
start flashing. However, the programme
sequence remains unaffected. The
indicator light will go out again when
the programme selector is moved back
to the programme previously chosen.
after the start, the spin
, the
Skipping a programme stage
Turn the programme selector to
^
Finish.
As soon as the programme sequence
indicator light for the programme stage
you want the programme to continue at
starts flashing:
Turn the programme selector back
^
again to the appropriate programme
within 4 seconds
.
To cancel or select a different
programme
^ Switch the washing machine off with
the I-On/0-Off button.
^ Turn the programme selector to
Finish.
The programme has now been
cancelled.
^ Switch the washing machine back on
with the I-On/0-Off button.
^
Select a different programme.
^
Press the Start button.
28
How to wash correctly
Programme sequence
Main wash Rinses Spinning
Water
level
Cottons d a ( 2-3
Minimum iron d a e 2-3
Delicates e b e 3 – L
Silks ( d ( 2 – L
Woollens ( c ( 2 L
Quick wash d a ( 2 L
Automatic d a e 2 L
Starch ––d 1 – L
Separate rinse ––e 2 – L
Wash
rhythm
Water
level
No of
rinses
1)
3)
Rinse and
interim
spin
2)
L
2)
L
2)
2)
2)
Final spin
L
L
L
L
L
d = Low water level
( = Medium water level
e = High water level
a= Normal wash rhythm
b= Gentle action
c= Woollens
d= Silks
Please continue reading for further details about the programme sequences.
29
How to wash correctly
This washing machine has fully
electronic controls with automatic load
recognition. This machine takes in the
right amount of water required for the
programme depending on the amount
of laundry and its absorbency rate. This
means that programme cycles and
durations shown in the display can
vary.
The programme sequences outlined
below are based on the basic
programme with a full load. Additional
options which can be selected have not
been taken into account.
The programme sequence indicator
lights show the stage the programme
has reached.
Special features in the programme
sequences:
Anti-crease:
At the end of every programme, with
the exception of the Woollens
programme, the anti-crease action
switches on for a maximum of 30
minutes. The door can be opened and
laundry removed at any time during the
anti-crease phase.
1)
A third rinse takes place
automatically if:
there is too much foam in the drum
–
– a spin speed of lower than 700 rpm
has been selected.
– Without spin has been selected
2)
Rinse and interim spin:
There is a spin between the rinses.
3)
A third rinse takes place
automatically if:
30
–
Without spin has been selected
Omitting rinse and interim spin:
Select Without spin.
Detergent
All modern detergents produced for
automatic washing machines are
suitable, including liquid, compact
(concentrated), tablets, liquid tablets
and special application detergents.
Use dispensing aids, e.g. balls, if these
are supplied with the detergent. Tablets
are suitable for full loads but note that it
may be impractical to reduce tablets for
smaller loads. Some tablets do not
dissolve as rapidly as others and may
not be suitable for Quick wash
programmes.
Woollens and knitwear containing wool
mixtures and hand-washable garments
should be washed using a detergent
specifically designed for washing
woollens.
Silk should be washed using a liquid
detergent specifically designed for
washing woollens. Do not use
biological detergents on silk as the
enzymes may damage the silk!
Instructions for use and recommended
amounts for a full load are given on the
detergent packaging.
Liquid detergent
Liquid detergent should be dispensed
using a ball provided by the manufac
turer for programmes without a
pre-wash.
For programmes with a pre-wash you
will need to purchase a special con
tainer from the Miele Spare Parts de
partment which sits in the main wash
compartment j of the detergent dis
penser drawer. Add liquid detergent to
this container for the main wash and to
compartment i for the pre-wash.
-
-
-
-
The right amount to dispense will
depend on the following:
The quantity of laundry.
–
The soiling level of the laundry.
–
Lightly soiled
No visible dirt or stains. Possibly
slight body odour.
Normally soiled
Visibly dirty and/or just a few slight
stains.
Heavily soiled
Stains and soiling clearly visible.
The water hardness level.
–
Check with your local water supplier
if you do not know the water
hardness level in your area.
Water softeners
A water softener can be used to cut
down on the use of detergents in
extremely hard water areas. Dispense
according to the amount specified on
the packaging. First add detergent and
then the water softener.
Use a quantity of detergent as for soft
water.
Miele do not recommend connecting
the machine to a household water
softener.
Washing with several
components
If you wash using several components
(e.g. special application detergents),
dispense them into compartment j in
the following order:
1. Detergent
2. Water softener
3. Stain remover
This way the agents are distributed
more efficiently.
31
Detergent
Fabric conditioners and liquid
starch
Fabric conditioners make garments soft
to handle and help prevent static cling
when tumble drying.
Starch stiffens and gives body to items
of laundry, e.g. shirts, tablecloths and
bed linen.
Dispense according to the amount
^
specified on the packaging.
Automatic dispensing of fabric
conditioner or liquid starch to
laundry at the end of a programme
^
Add the fabric conditioner or liquid
starch to compartment §. Do not
exceed the maximum level mark.
The conditioner or liquid starch is
automatically dispensed in the last
rinse. At the end of the programme a
small amount of water remains in the
fabric conditioner compartment §.
If starching frequently, the dispenser
compartment and especially the
siphon tube and conditioner channel
will need regular cleaning to remove
any residual starch. See "Cleaning
the detergent dispenser drawer".
Do not add starch formulations or
viscous liquid starch to the §
compartment as it will clog it up. See
"Adding starch separately".
Adding fabric conditioner separately
Add fabric conditioner to
^
compartment §.
^ Turn the programme selector to Starch.
^ Select a spin speed.
^ Press the Start button.
Adding starch separately
Use the separate Starch programme
when using starch formulations or
viscous liquid starch.
^ Prepare and measure the starch in
accordance with the manufacturer’s
instructions.
^
Add starch to compartment i.
^
Turn the programme selector to Starch.
^
Select a spin speed.
^
Press the Start button.
Colour run and dye removers/
dyes
^
Do not use
removers in this washing machine.
^
Dyes suitable for use in domestic
washing machines can be used.
However, please note that the salt
used in the dyeing process can
cause corrosion to stainless steel
components in the machine if you
dye frequently. Always observe the
manufacturer's instructions carefully.
colour run or dye
32
Disconnect the machine from the
,
mains electricity supply and
withdraw the plug from the socket
before cleaning the machine.
The washing machine must not
,
be hosed down.
External casing and fascia
panel
Clean the casing with a mild
^
non-abrasive cleaning agent or soap
and water using a well wrung-out
cloth. Wipe dry with a soft cloth.
^ The drum can be cleaned using a
suitable proprietary stainless-steel
cleaning agent following the
manufacturer's instructions on the
packaging.
Cleaning and care
Extra cleaning
Carry out a hot wash (70°C or above)
with powder detergent approx. every 6
weeks to help prevent deposits building
up in the machine. These can occur
when washing is mainly done at low
temperatures, and also lead to
unpleasant smells. If you have no
reason to wash occasionally at this high
temperature, then run a Cottons 95°C
programme with detergent but no
laundry at regular intervals.
Cleaning the detergent
dispenser drawer
Remove detergent residues regularly.
,
Do not use solvents, abrasive
cleaners, glass cleaners or
all-purpose cleaning agents.
These might damage plastic
surfaces and other components
because of the chemicals they
contain.
E-Cloth
A microfibre "E-Cloth" is available from
the Miele UK Spare Parts Department
or via the internet on www.miele.co.uk,
which is suitable for cleaning surfaces
such as stainless steel, glass, plastic
and chrome without the use of
chemicals. It can be washed 300 times.
^
Pull out the detergent dispenser
drawer until a resistance is felt. Press
down the release catch and at the
same time pull the drawer right out of
the machine.
^
Clean the detergent drawer with
warm water.
33
Cleaning and care
Clean the siphon.
^
1. Remove the siphon from
compartment § and rinse under
warm running water. Clean the
siphon tube in the same way.
2. Replace the siphon.
Cleaning the detergent dispenser
drawer housing
^ Use a bottle brush to remove
detergent residues and limescale
from the jets inside the detergent
dispenser drawer housing.
If starching frequently, thoroughly
clean the siphon and siphon tube
regularly. A build-up of starch will
cause them to get clogged.
34
Descaling the machine
If the correct amount of detergent is
dispensed, the machine should not
need to be descaled. If, however, you
do wish to descale the machine only
use proprietary non-corrosive descaling
agents and strictly observe the
instructions on the packaging. A
special descaling agent is available to
order from the Miele Spare Parts
Department or via the internet on
www.miele.co.uk.
Cleaning and care
Cleaning the water inlet filters
The washing machine has two filters to
protect the inlet valves.
These filters should be checked every
six months or so, or more often if there
are frequent interruptions to the water
supply.
To clean the filter in the union in the
open end of the inlet hose:
First turn off the stopcock.
^
Unscrew the threaded union
^
connecting the free end of the inlet
hose to the stopcock.
To clean the filter in the water inlet
valve:
Using pliers, carefully loosen the
^
ribbed plastic nut on the inlet valve
and unscrew.
^ Use pointed nose pliers to withdraw
the plastic filter by the bar (see
illustration). Clean, put back and
secure.
The two filters must be put back in
place after cleaning.
^
Remove the rubber seal 1 from the
recess.
^
Using pointed pliers, take hold of the
plastic filter bar 2, remove the filter
and clean it.
^
Put the filter and seal back in the
reverse order and reconnect the
hose.
^
Turn on the stopcock and check the
connection is watertight. If it leaks,
tighten the connection.
35
Problem solving guide
With the help of the following notes minor faults in the performance of the
appliance, some of which may result from incorrect operation, can be put right
without contacting the Service Department.
Repair work to electrical appliances should only be carried out by a
,
suitably qualified person in strict accordance with local and national safety
regulations. Unauthorised repairs could be dangerous.
The programme does not start.
Problem Possible cause Remedy
The Anti-crease/Finish
indicator light is not
on, or the Start
indicator light is not
flashing.
The programme does
not start when Drain/
Spin has been
selected.
There is no power. Check that
the mains plug is plugged
–
in and switched on.
– the fuse or circuit breaker
has not tripped.
– the drum door is closed
properly.
The washing machine
has not been prepared
for using for the first time.
Prepare the machine as
described in "Before using
for the first time".
36
Problem solving guide
The wash programme stops and a fault indicator light comes
on
Problem Possible cause Remedy A
The Check drain light
flashes. "– – –" appears
in the display.
The Check inlet light
flashes. "– – –" appears
in the display.
The Check inlet and
Check drain lights are
flashing. "– – –"
appears in the display.
The Soak/Pre-wash or
Rinses indicator light is
flashing. "– – –"
appears in the display.
The water outlet is
blocked.
The drain hose has
been fixed too high.
The water inlet is
blocked.
The filter in the water
inlet hose is dirty.
The water protection
system has reacted.
There is a fault. Start the programme again.
Clean the drain filter and the
drain pump as described in
"Problem solving guide Opening the drum door in
the event of a blocked drain
outlet and/or power failure".
The maximum delivery head
is1m.
Open the stopcock.
Clean the filter.
Call the Service Department.
If the fault indicators occur
again, contact the Service
Department.
A To switch off the fault indicator: switch the washing machine off with the
I-On/0-Off button and turn the programme selector to Finish.
37
Problem solving guide
A fault indicator light comes on but the wash programme
continues as normal
Problem Possible cause Remedy A
The Check drain light
flashes.
The Check inlet light
flashes.
The Excess detergent
check light comes on.
The Main wash
indicator light is
flashing.
The Anti-crease/Finish
indicator light is
flashing.
The drain outlet is
restricted.
The water inlet is
restricted.
The filter in the
water inlet hose is
dirty.
Excessive foam
has built up
during washing.
There is a fault. Start the programme again.
The position of the programme selector was altered
after the start of the programme. Turn the programme
selector back to the programme previously chosen.
Clean the drain filter and the drain
pump as described in "Problem
solving guide - Opening the drum
door in the event of a blocked
drain outlet and/or power failure".
Check whether
the stopcock is opened wide
–
enough.
– the inlet hose is kinked.
Clean the filter.
Use less detergent next time and
follow the manufacturer’s
instructions on dosage given on
the packaging.
If the fault indicator occurs again,
contact the Service Department.
A To switch off the fault indicator: switch the washing machine off with the
I-On/0-Off button and turn the programme selector to Finish.
38
Problem solving guide
General problems or an unsatisfactory wash result
Problem Possible cause Remedy
The machine shakes
during the spin cycle.
The laundry has not
been spun properly and
is still wet.
The laundry has not
been spun satisfactorily.
The pump makes
strange noises.
There is a lot of
detergent residue in the
detergent drawer.
Fabric conditioner is not
completely dispensed or
too much water remains
in the § compartment.
When laundry is dry it
feels hard to the touch.
The machine feet are not
level.
The machine detected an
imbalance during the final
spin and reduced the
spin speed automatically.
The spin speed selected
was too low.
This is not a fault! These noises occur at the end of
a pump sequence as a normal part of the operation.
The water pressure is too
low.
Powder detergent used
with water softeners can
be sticky.
The siphon is either
incorrectly positioned or
clogged.
Too vigorous wash
action.
Not enough detergent
used.
No fabric conditioner
used.
Level the machine (see
"Installation").
Include both large and
small items in the load as
this will give better
distribution.
Select a higher spin
speed next time.
– Clean the water inlet
filter.
– Select Water plus.
Add washing powder
and then add the water
softener.
Clean the siphon, see
"Cleaning and care Cleaning the detergent
drawer".
Programme in gentle
action and more water.
Increase detergent dose
to prevent limescale
build up in laundry.
Use fabric conditioner in
last rinse.
39
Problem solving guide
Problem Possible cause Remedy
Liquid detergent
does not give the
required result.
Grey, greasy
particles cling to
washed laundry.
A stale smell is
in the drum and
on laundry.
There are white
residues which
look like powder
detergent on
dark coloured
laundry.
Machine is
constantly over
foaming/excess
detergent light is
on.
Clothes are
coming out
creased.
Liquid detergents do
not contain bleaching
agents. They do not
remove fruit, coffee
and tea stains.
Insufficient amounts of
detergent were used
to break down the
particles of grease in
heavily soiled laundry.
Low temperature
washing.
The detergent
contained compounds
(zeolites) to aid water
softening which are
not soluble in water.
These have ended up
on the laundry.
Machine connected to
-
a water softener.
Too much detergent
was used.
Too little detergent
was used.
Programme was
overloaded.
The wrong
programme was used.
Use a general purpose washing
–
machine powder containing a
bleaching agent.
Pour stain removers into compart
–
ment j of the dispenser drawer
and liquid detergent into a
dispenser ball.
Never put stain removers and
–
liquid detergent together in the
dispenser drawer.
Add more detergent.
–
Before washing the next load run
–
a Cottons 95°C programme with
powder detergent but without a
load.
Before washing the next load run a
Cottons 95°C programme with
powder detergent but without a load.
– Try and brush off the residues with
a soft brush once the laundry is
dry.
– Use a liquid detergent to wash
dark coloured textiles. Liquid
detergents usually contain no
zeolites.
Connect machine to mains water
and dose detergent for hard water.
Reduce detergent.
Increase detergent slightly to bring
back foam suppressant ingredients.
Reduce quantity of clothes in drum.
–
Check care labels with section
"How to wash correctly".
–
Use easy iron conditioners.
-
40
Problem solving guide
The drum door does not open when you press the Door button.
Problem Remedy
The machine is not
connected to the
electricity supply.
The washing machine is
not switched on.
Power cut. Open the drum door as described in the section
The door was not
correctly engaged.
There is still water in the
drum and the machine is
unable to drain.
For safety reasons the drum door cannot be opened if the suds temperature is
higher than 55°C.
Put the plug in the socket and switch on.
Switch the machine on with the I-On/0-Off button.
"Opening the door in the event of a power failure".
Press hard against the lock side of the drum door
and then press the Door button.
Clean the drain filter and the drain pump.
41
Problem solving guide
Opening the drum door in the
event of a blocked drain outlet
and/or power failure
Switch the washing machine off.
^
There is a lever behind the detergent
drawer fascia panel.
^ Remove the lever.
Blocked drain outlet
If the drain outlet is blocked, up to
25 litres of water will be retained in the
machine.
Caution: if laundry has been
,
washed at a high temperature, water
draining out of the machine will still
be hot. Danger of scalding!
Procedure for draining the machine
Place a suitable container under the
^
access flap.
When draining water from the
machine, do not unscrew the drain
filter completely or take it right out.
^
Use it to open the access flap.
42
^
Unscrew the drain filter lid until water
runs out.
To interrupt the flow of water:
^
Tighten the drain filter back up again.
Once the flow of water ceases:
Remove the drain filter completely.
^
^ Clean it thoroughly.
Problem solving guide
Make sure the drain filter is
,
securely tightened. Otherwise there
is a risk of water leakage during use.
Opening the drum door
Always make sure that the drum
,
is stationary before reaching into the
machine to remove laundry.
Reaching into a moving drum is
extremely dangerous.
^
Remove any foreign objects (e.g.
buttons, coins, etc.) and fluff from the
filter housing. Turn the impeller by
hand to check that it rotates freely.
Any foreign object causing an
obstruction should be removed.
^
Put the drain filter back in place and
secure.
^
Pull the emergency release
downwards (see illustration). The
drum door will open.
43
Problem solving guide
Customer contact
In the event of any faults which you
cannot remedy yourself please contact
Your Miele dealer or
–
Your nearest Miele Service
–
Department (see back cover for the
address).
When contacting your Dealer or the
Service Department, please quote the
model and serial number of your
appliance, both of which are shown on
the data plate visible at the top inside of
the door above the porthole glass when
the door is open.
Optional accessories
Optional accessories for this washing
machine are available from your Miele
Dealer, the Miele Spare Parts
Department or via the internet on
www.miele.co.uk.
Please note that telephone calls may
be monitored and recorded for
training purposes.
44
Front view
Installation and connection
a Inlet hose (tested to withstand
pressure of at least 7,000 kPa)
b Electricity supply cable
c - f Flexible drain hose (with
detachable swivel elbow)
g Control panel
h Detergent dispenser drawer
i Drum door
j Access to drain filter, drain pump
and emergency release
k Handle recesses for moving the
machine
l Four height adjustable feet
45
Installation and connection
Rear view
a Protruding lid for holding when
moving the machine
b Electricity supply cable
c Inlet hose (tested to withstand
pressure of at least 7,000 kPa)
d Drain hose
46
e Transit bar covers
f Restraining clip for inlet hose and
drain hose
g Restraining clips for transit bars
when removed
Installation and connection
Installation surface
A concrete floor is the most suitable
installation surface for a washing
machine, being far less prone to
vibration during the spin cycle than
wooden floorboards or a carpeted
surface.
Please note the following points:
The machine must be level and
^
securely positioned.
To avoid vibrations during spinning,
^
the machine should not be installed
on soft floor coverings.
If installing on a wooden joist floor:
^ We recommend a plywood base
(at least 59x52x3 cm). The base
should span several joists and be
bolted to the joists and not only to the
floorboards. Check for the presence
of pipes and cables.
If possible, install the machine in a
corner, as this is usually the most stable
part of the floor.
Installing the washing machine
To manoeuvre the machine out of its
packing case to its installation site hold
it by the edge of the lid where it
protrudes to the rear of the washing
machine as well as by the handle
recesses at the front.
Ensure that the machine feet and
,
the floor are dry to prevent the
machine from slipping during the
spin cycle.
Removing the transit bars
,
If the machine is installed on a
raised plinth, it has to be secured
against slippage during spinning
using retaining clips (available from
the Miele Spare Parts Dept).
^
To remove the left and right covers
1. Use a screwdriver to prise out the
cover as illustrated.
2. Pull the cover forwards to remove.
47
Installation and connection
Using the spanner supplied turn the
^
left-hand transit bar 90°, then
Turn the right-hand transit bar 90°,
^
then
^
withdraw the transit bar.
48
^
withdraw the transit bar.
To avoid the risk of injury the
,
holes for the transit bars must be
covered after the transit bars have
been removed.
^ Fit the covers on to the two holes.
Then plug the holes as shown with
the caps.
Installation and connection
Secure the transit bars to the back of
^
the washing machine. Make sure that
holes b are fitted over retainers a.
The washing machine must not
,
be moved without the transit bars in
place.
Store the transit bars as shown or
keep them in a safe place for future
use. They must be re-fitted if the
machine is to be moved again
(e.g.when moving house).
Re-fitting the transit bars
Re-fitting is carried out by reversing the
procedure.
49
Installation and connection
Levelling the machine
The machine must stand perfectly level
on all four feet to ensure safe and
proper operation.
Incorrect installation may increase
electricity and water consumption and
may cause the machine to move about.
Screwing out and adjusting the feet
The four adjustable screw feet are used
to level the machine. All four feet are
screwed in when the machine is
delivered.
Use a spirit level to check the
^
machine is standing level.
^ Hold foot 1 securely with a pipe
wrench. Turn counter nut 2 again
using the spanner supplied until it
sits firmly up against the housing.
,
All four counternuts must be
firmly up against the housing. Please
also check this for the feet which did
not need adjustment. Otherwise
there is the danger of the machine
moving about.
^
Using the spanner supplied turn
counter nut 2 in a clockwise
direction. Then turn counter nut 2
together with foot 1 to unscrew.
50
The fitting of building under kits and
stacking kits must only be
undertaken by qualified and
competent persons, in accordance
with the instructions supplied with
the kit.
Installation and connection
Washer and Dryer stack
A Miele tumble dryer can be stacked
with the washing machine. A "WTV"
stacking kit* is necessary and can be
purchased from the Miele Spare Parts
Department.
Building under a continuous
worktop/in a kitchen run
If you wish to push your machine under
a worktop and there is space to do this
without removing the lid, the
conversion kit is not necessary.
Otherwise the conversion kit is
essential.
– A special building under conversion
kit* is required.
To ensure electrical safety, the
washing machine lid must be
replaced by the cover plate supplied
with the conversion kit.
– For installation under a work surface
900/910 mm from the floor, a raising
kit* is required.
–
Connections for electricity, water and
drainage should be installed in such
a way that they remain accessible
when the machine is in place.
Fitting instructions are supplied with the
conversion kit.
All parts marked* are available from
your Dealer or the Miele Spare Parts
Department.
Please note
a Safety distance to wall:
at least 2 cm
b Height:
Stacking kit with pull-out shelf:
approx. 169 cm
Stacking kit without pull-out shelf:
approx. 170 cm
Replacing the lid
If the lid has been removed in order to
fit a stacking kit or cover plate, ensure
that, if the lid is replaced, it fits securely
into the rear holders. Otherwise, it is not
properly secure for transport.
51
Installation and connection
The Miele water protection
system
The Miele water protection system
protects the washing machine from
water damage.
The system consists of three main
components:
1) the inlet hose
2) the electronic unit and the washing
machine housing
3) the drain hose
1) Inlet hose
The inlet hose can withstand
pressure of more than 7,000 kPa.
2) Electronic unit and washing
machine housing
– Sump
Overflow protection
–
This prevents the washing machine
taking in too much water. If the water
level exceeds a certain level, the
drain pump switches in and pumps
the excess water away.
3) Drain hose
The drain hose is protected by a
ventilation system which prevents the
washing machine from being
emptied completely.
Any leaking water is collected in a
sump in the base of the machine. A
float switches off the safety valves,
preventing any more water flowing
into the machine and water in the
suds container is pumped away.
52
Installation and connection
Connection to the water
supply
The machine should be connected to a
mains water supply in accordance with
local and national safety regulations.
The German authorities do not require it
to have a non-return valve as the
washing machine has been designed
to comply with DIN regulations.
The machine is designed to operate
with a flow pressure of between
100 kPa and 1,000 kPa. If it is higher
than 1,000 kPa it is essential to fit a
pressure reducing valve.
Connection to the mains water supply
should incorporate a mains stopcock
3
with
/4" thread. The stopcock should
be fitted by a qualified plumber.
,
The connection point is subject
to mains water pressure. Turn on the
stopcock slowly and check for leaks.
Correct the position of the washer
and union if appropriate.
In order to protect the water inlet
valve, the two dirt filters - one in the
open end of the inlet hose, one at
the inlet point in the machine must
not be removed.
Extension hose
Longer hoses 2.5 or 4.0 m in length
–
are available from your Miele dealer
or the Miele Spare Parts Department
as optional extras.
The washing machine is not suitable
for connection to a hot water supply
and connection to a household
water softener is not recommended.
Maintenance and care
Only use a genuine Miele hose should
you ever need a replacement or
extension. These are tested to
withstand pressure of at least
7,000 kPa.
53
Installation and connection
Connection to the drainage
system
The machine drains via a drain pump
with a delivery head of 1 metre*.
The drain hose must not be kinked as
this restricts drainage. The swivel elbow
at the end of the hose can be turned in
either direction, or can be detached if
required, with a sharp twist and pull.
If required, the drain hose can be
extended to a length of 5 m. The
necessary parts can be purchased
from the Miele Spare Parts Department
or your Miele dealer.
* For a delivery head of more than 1 m
(up to a maximum of 1.8 m) a second
duo-drain pump is available with the
corresponding kit from the Miele Spare
Parts Department or your Miele Dealer.
Drain hose connection:
1. Direct into a sink or basin:
Please note the following
Hook the hose over the edge and
–
secure.
Make sure that the water can drain
–
away freely without hindrance.
Otherwise there is a risk of water
overflowing or of some of the drained
water being sucked back into the
machine.
2. Connected securely to a plastic
drain pipe with a rubber nipple.
There is no need to use a non-return
valve.
3. Connected securely to a standpipe.
4. Connected securely to a floor gully.
54
Installation and connection
Electrical connection U.K.
All electrical work should be carried out
by a suitably qualified and competent
person, in strict accordance with
current national and local safety
regulations (BS 7671 in the UK).
Ensure power is not supplied to the
appliance until after installation work
has been carried out.
The appliance is supplied with a mains
cable with moulded plug ready for
connection to a 230-240V mains
supply.
Please ensure the connection data
quoted on the data plate match the
household mains supply.
Connection should be made via a
suitable switched socket which is easily
accessible after installation.
For extra safety it is advisable to install
a residual current device (RCD), with a
trip current of 30 mA (in accordance
with DIN VDE 0664, VDE 0100 Section
739).
Non-rewireable plugs BS 1363
The fuse cover must be refitted when
changing the fuse, and if the fuse cover
is lost, the plug must not be used until a
suitable replacement is obtained. The
colour of the correct replacement cover
is that of the coloured insert in the base
of the plug, or the colour that is
embossed in words on the base of the
plug (as applicable to the design of
plug fitted).
Replacement fuses should be ASTA
approved to BS 1362 and have the
correct rating. Replacement fuses and
fuse covers may be purchased from
your local electrical supplier.
WARNING: THIS APPLIANCE
MUST BE EARTHED
Do not connect via an extension lead.
Extension leads do not guarantee the
required safety of the appliance (e.g.
danger of overheating).
55
Consumption data
Load Consumption data
Energy Water Duration
in kWh in litres Short Normal
Cottons 95°C 5.0 kg 1.70 45 1 h 42 min 1 h 57 min
Minimum iron 40°C
Delicates 30°C 1.0 kg 0.35 65 49 min 59 min
Silks / 30°C 1.0 kg 0.24 39 – 37 min
Woollens / 30°C 2.0 kg 0.23 37 – 40 min
Quick wash 40°C 2.5 kg 0.35 35 – 31 min
Automatic 40°C 3.0 kg 0.30 - 0.60 30 - 50 54 min 1 h 09 min
1)
EN 60456 test programme
Consumption data can vary from the nominal values given depending on water
pressure, water hardness, water inlet temperature, room temperature, type and
volume of load, fluctuations in the electricity supply and any additional options
selected.
1)
60°C
60°C 5.0 kg 0.85 45 1 h 26 min 1 h 56 min
40°C
40°C 5.0 kg 0.50 45 1 h 26 min 1 h 56 min
5.0 kg 0.85 45 – 1 h 56 min
1)
5.0 kg 0.50 45 – 1 h 56 min
1)
2.5 kg 0.45 49 1 h 01 min 1 h 16 min
56
Technical data
Height 85.0 cm
Width 59.5 cm
Depth 58.0 cm
Depth with door open 97.5 cm
Weight 93 kg
Maximum floor load 1600 Newton (approx. 160 kg)
Capacity 5 kg dry laundry
Voltage see data plate
Rated load see data plate
Fuse rating see data plate
Consumption data see "Consumption data"
Water flow pressure minimum 100 kPa (1 bar)
Water flow pressure maximum 1000 kPa (10 bar)
Inlet hose length 1.60 m
Drain hose length 1.50 m
Connection cable length 1.60 m
Delivery head max. 1.00 m
Drain pump length max. 5.00 m
Test certificates awarded see data plate
57
58
Programmable functions
for changing standard settings
Programmable functions
The programmable functions can be
used to tailor washing programmes to
suit your individual requirements.
The programmable functions are
activated with the help of the Start
button and the programme selector.
Water plus system
Selecting the Water plus additional
option increases the water intake in
the programmes listed below.
The water intake is increased in the
wash and rinse stages and in the
Cottons and Minimum iron programmes
an extra rinse cycle is introduced.
There are four different settings which
can be programmed to alter the water
intake for the following programmes:
– Cottons
– Minimum iron
– Quick wash
The settings are as follows:
Setting 1:
an increase in the rinse water level for
the programmes listed.
Setting 2:
an increase in the water level in the
main wash and
programmes listed (the washing
machine is delivered with setting 2
programmed as standard).
Setting 3:
an extra rinse cycle in the Cottons and
Minimum iron programmes.
Setting 4:
an increase in the water level in the
main wash and
programmes listed and
rinse cycle in the Cottons and Minimum
iron programmes. This setting should
be programmed in if laundry is too hard
after drying and if someone in the
household suffers from a detergent
allergy.
rinses for the
rinses for the
also an extra
–
Automatic
–
Silks
The programmed setting is then
activated by pressing the Water plus
additional option button.
60
Programmable functions
Follow steps A to G to programme
and store a setting in memory.
Before you begin, first ensure that:
The washing machine is switched off.
–
The machine is properly closed.
–
The programme selector is at Finish.
–
A Press the Start button and keep it
pressed in whilst carrying out steps
B to C.
B Switch the machine on with the
I-On/0-Off button.
C Wait until the Start indicator light
comes on . . .
D . . . and then release the Start
button.
E Turn the programme selector to the
Cottons 75°C position:
A P will flash in the display alternating
with the number 1, 2, 3 or 4.
F Each subsequent press on the Start
button selects a different setting.
The number alternating with the P in the
display refers to the settings as follows:
1 = Setting 1
(increased water level in the
rinses)
2 = Setting 2
(increased water level in the main
wash and in the rinses)
3 = Setting 3
(extra rinse in the Cottons and
Minimum iron programmes)
4 = Setting 4
(increase in the water level in the
main wash and rinses and also an
extra rinse in the Cottons and
Minimum iron programmes).
is selected
is selected
is selected
is selected
G Switch the washing machine off with
the I-On/0-Off button.
The Water plus button has now been
allocated the setting you have chosen.
This setting will remain in memory until
another setting is programmed.
61
Programmable functions
Gentle action
Activating gentle action reduces the
drum action and is suitable for
washing slightly soiled items more
gently. It should be activated for
garments with a single bar under the
care label and for articles which feel
too hard after they have been dried.
Gentle action can be used with the
Cottons, Quick wash, Starch and Auto
matic programmes.
If "Gentle action" is programmed into
the machine, every wash cycle in these
programmes will be carried out with
gentle action rhythm.
The washing machine is delivered with
"Gentle action" de-activated.
Follow steps A to G to programme
and store in memory.
Before you begin, first ensure that:
–
The washing machine is switched off.
–
The machine is properly closed.
–
The programme selector is at Finish.
A Press the Start button and keep it
pressed in whilst carrying out steps
B to C.
B Switch the machine on with the
I-On/0-Off button.
C Wait until the Start indicator light
comes on . . .
D . . . and then release the Start
button.
-
E Turn the programme selector to the
Cottons 60°C position:
A P will flash in the display alternating
with the number 0 or 1.
0 = Gentle action is deactivated.
1 = Gentle action is activated
F Press the Start button to change from
one to the other. The display will
change accordingly from 0 to 1 or
from 1 to 0.
G Switch the washing machine off with
the I-On/0-Off button.
The setting you have selected is now
stored in memory and will remain so
until you alter it.
62
Programmable functions
Top-up rinse for Cottons
When this is activated, additional
water flows into the drum at the end
of the main wash to cool the suds
down. Hot suds can damage plastic
drainage pipes.
Top-up rinse takes place when
temperatures of 95°C and 75°C are
selected.
Top-up rinse should be activated:
to prevent the danger of scalding if
–
the drain hose is hooked over the
edge of a sink or basin.
– where the drainage pipes do not
comply with DIN 1986.
The washing machine is delivered with
the Top-up rinse for Cottons
de-activated.
Follow steps A to G to programme
and store in memory.
Before you begin, first ensure that:
–
The washing machine is switched off.
–
The machine is properly closed.
A Press the Start button and keep it
pressed in whilst carrying out steps
B to C.
B Switch the machine on with the
I-On/0-Off button.
C Wait until the Start indicator light
comes on . . .
D . . . and then release the Start
button.
E Turn the programme selector to the
Cottons 40°C position:
A P will flash in the display alternating
with the number 0 or 1.
0 = Top-up rinse is deactivated
1 = Top-up rinse is activated
F Press the Start button to change from
one to the other. The display will
change accordingly from 0 to 1 or
from 1 to 0.
G Switch the washing machine off with
the I-On/0-Off button.
The setting you have selected is now
stored in memory and will remain so
until you alter it.
–
The programme selector is at Finish.
63
Programmable functions
Memory Function
If an additional option(s) is selected
for a programme, and / or the spin
speed is altered, the machine stores
these changes in memory at the start
of a programme.
When that particular programme is
chosen again, the display will show the
additional option(s) and / or spin speed
which have been stored for that
programme in the memory.
The washing machine is delivered with
the memory function de-activated.
Follow steps A to G to programme
and store in memory.
Before you begin, first ensure that:
– The washing machine is switched off.
– The machine is properly closed.
– The programme selector is at Finish.
A Press the Start button and keep it
pressed in whilst carrying out steps
B to C.
B Switch the machine on with the
I-On/0-Off button.
C Wait until the Start indicator light
comes on . . .
D . . . and then release the Start
button.
E Turn the programme selector to the
Cottons 30°C position:
A P will flash in the display alternating
with the number 0 or 1.
0 = Memory function is deactivated
1 = Memory function is activated
F Press the Start button to change from
one to the other. The display will
change accordingly from 0 to 1 or
from 1 to 0.
G Switch the washing machine off with
the I-On/0-Off button.
64
The setting you have selected is now
stored in memory and will remain so
until you alter it.
Programmable functions
Soak
A length of time of between 30 minutes
and 2 hours can be programmed in 30
minute increments for the soak
process.
If the soak option is pressed the
selected soak time will be carried out
for the period selected before the wash
programme is run.
The machine is set as standard to a two
hour soak time.
Follow steps A to G to programme
and store in memory.
Before you begin, first ensure that:
– The washing machine is switched off.
– The machine is properly closed.
– The programme selector is at Finish.
A Press the Start button and keep it
pressed in whilst carrying out steps
B to C.
B Switch the machine on with the
I-On/0-Off button.
C Wait until the Start indicator light
comes on . . .
D . . . and then release the Start
button.
E Turn the programme selector to the
Minimum iron 60°C position:
A P will flash in the display alternating
with the number 1, 2, 3 or 4.
F Each subsequent press on the Start
button selects a different setting.
The number alternating with the P in the
display refers to the settings as follows:
1 = the soak time is 2 hours
(default setting)
2 = the soak time is 1 hour 30 minutes
3 = the soak time is 1 hour
4 = the soak time is 30 minutes
G Switch the washing machine off with
the I-On/0-Off button.
The setting you have selected is now
stored in memory and will remain so
until you alter it.
656667
