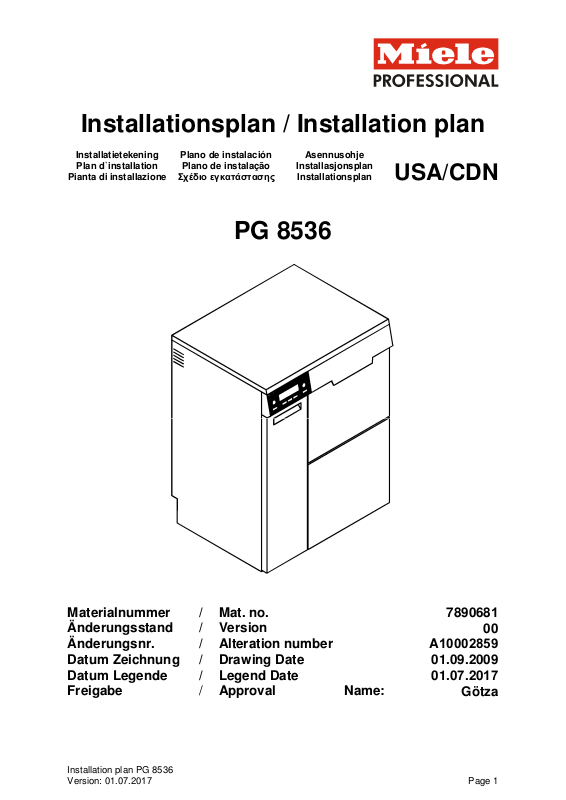

Miele PG 8536 Installation diagram

Installationsplan / Installation plan

Installatietekening Plano de instalación Asennusohje
Plan d`installation Plano de instalação Installasjonsplan

Pianta di installazione Σχέδιο εγκατάστασης Installationsplan

USA/CDN

PG 8536

Materialnummer / Mat. no.
Änderungsstand / Version
Änderungsnr. / Alteration number
Datum Zeichnung / Drawing Date
Datum Legende / Legend Date

/

Freigabe

Installation plan PG 8536
Version: 01.07.2017

Approval Name:

7890681

00

A10002859

01.09.2009

01.07.2017
Götza

Page 1

Technical datasheet

Compact disinfector PG 8536

Legend: Abbreviations in bold type:

The unit should only be transported using a palletiser or fork-lift truck if securely positioned on
Miele transportation pallet.

Electrical

connection

Connection required

Abbreviations in circle with dashes:
Connection optional or required depending on model version

1. Voltage V/Hz 3N AC 400/50

Rated load kW 10,2
Fuse rating A 3 × 16
Connection cable, min. cross-section mm² 5 × 2.5
Length of supply lead (H05(07)RN-F) with plug m 1.5

Country variations:

2. Voltage (as supplied) V/Hz 3N AC 400/50
Rated load kW 7.8
Fuse rating A 3 × 16
Connection cable, min. cross-section mm² 5 × 2,5
Length of supply lead (H05(07)RN-F) without

plug

Voltage

Rated load kW 7.8
Fuse rating A 3 × 20
Connection cable, min. cross-section mm² 5 × 2,5
Length of supply lead (H05(07)RN-F) without

plug

m 1.7

V/Hz 3 AC 230/50

m 1.7

Convertible

EN

3. Voltage (as supplied) V/Hz 3 AC 230/50
Rated load kW 7,8
Fuse rating A 3 × 20
Connection cable, min. cross-section mm² 5 × 2.5
Length of supply lead (H05(07)RN-F) without

plug

Voltage
Rated load kW 7.8
Fuse rating A 3 × 16
Connection cable, min. cross-section mm² 5 × 2,5
Length of supply lead (H05(07)RN-F) without

plug

4. Voltage V/Hz 3 AC 208/60
Rated load kW 6.6
Fuse rating A 3 × 20
Connection cable, min. cross-section AWG 4 × 12
Length of supply lead without plug m 1.9

5. Voltage V/Hz 3 AC 200/50
Rated load kW 6.2
Fuse rating A 3 × 20
Connection cable, min. cross-section mm² 5 × 2,5
Length of supply lead (H05(07)RN-F) without

plug

m 1.7

V/Hz 3N AC 400/50

m 1.7

Convertible

m 2.3

Installation plan PG 8536
Version: 01.07.2017

Page 2

6. Voltage V/Hz 3 AC 200/60
Rated load kW 6.2
Fuse rating A 3 × 20
Connection cable, min. cross-section mm² 5 × 2,5
Length of supply lead (H05(07)RN-F) without

plug

7. Voltage (as supplied) V/Hz 3N AC 380/60
Rated load kW 7.2
Fuse rating A 3 × 16
Connection cable, min. cross-section mm² 5 × 2.5
Length of supply lead (H05(07)RN-F) without

plug

m 2.3

m 2.3

Voltage
Rated load kW 7.2
Fuse rating A 3 × 20
Connection cable, min. cross-section mm² 5 × 2.5
Length of supply lead (H05(07)RN-F) without

plug

8. Voltage (as supplied) V/Hz 3 AC 220/60
Rated load kW 7.2
Fuse rating A 3 × 20
Connection cable, min. cross-section mm² 5 × 2.5
Length of supply lead (H05(07)RN-F) without

plug

Voltage
Rated load kW 7.2
Fuse rating A 3 × 16
Connection cable, min. cross-section mm² 5 × 2.5
Length of supply lead (H05(07)RN-F) without

plug

Plug and socket connection recommended to facilitate
accessibility for electrical safety tests.
Socket must be accessible after installation.
In the case of hard-wired connections, an all-pole mains
switch must be provided.
Contact gap: 3 mm. In the case of multiple units, main
switches should be properly labelled.
Protect supply lead against damage through heat.
Installation must be CAT II grade.
Max. permissible supply fluctuation +/- 10%
Connection to electrical supply should be in accordance with
valid regulations and safety standards.

V/Hz 3 AC 220/60

m 2.3

Convertible

m 2.3

V/Hz 3N AC 380/60

m 2.3

Convertible

Equipotential
bonding and
protective earth
conductor

Network/
printer connection

Pin with external thread, washer and nut provided
with machine, size

Connect equipotential bonding and protective earth
conductor!

The following machine interfaces are available for the
transmission and printing of process data.

Ethernet interface:
A RJ45 plug is available on the rear of the compact
disinfector.
Install RJ45 socket in vicinity of machine. Cable supplied on
site.

Connections/installation must comply with IEC 60950.

M 8x1.25

Installation plan PG 8536
Version: 01.07.2017

Page 3

(Optional)

Connection

module

Output signals

TA OPERATION Contact closed during drying block V/A/Hz 200-240/1/50-60
PRG RUNNING Contact closed during washing, drying and cool-down V/A/Hz 200-240/1/50-60
OPERATION Contact closed while machine is running V/A/Hz 200-240/1/50-60
FAULT Contact closed when fault occurs V/A/Hz 200-240/1/50-60
PRG END Contact closed between end of programme and door opening V/A/Hz 200-240/1/50-60
PAUSE w.
WASH
DRAINAGE Contact closed during drainage V/A/Hz 200-240/1/50-60
User-defined Contact activated during drainage if plug ST 6.1 to ST 6.5 is

COLD Contact closed during cold water intake V/A/Hz 200-240/1/50-60
HOT Contact closed during hot water intake V/A/Hz 200-240/1/50-60
AD Contact closed during de-mineralised water intake V/A/Hz 200-240/1/50-60
Cold delayed Output according to parameters V/A/Hz 200-240/1/50-60
Hot delayed Delay switch-off valve: V/A/Hz 200-240/1/50-60
De-min. delayed a. Delayed (start of water intake) V/A/Hz 200-240/1/50-60

DOS1­EXTERNAL
DOS2-EXT Control signal for external dispenser pump 2 V/A/Hz 200-240/1/50-60
DOS3-EXT Control signal for external dispenser pump 3 V/A/Hz 200-240/1/50-60
DOS4-EXT Control signal for external dispenser pump 4 V/A/Hz 200-240/1/50-60
DOS5-EXT Control signal for external dispenser pump 5 V/A/Hz 200-240/1/50-60
DOS6-EXT Control signal for external dispenser pump 6 V/A/Hz 200-240/1/50-60
DOS7-EXT Control signal for external dispenser pump 7 V/A/Hz 200-240/1/50-60
DOS8-EXT Control signal for external dispenser pump 8 V/A/Hz 200-240/1/50-60
DOS9-EXT Control signal for external dispenser pump 9 V/A/Hz 200-240/1/50-60
Information DOS 1 Contact activated when appropriate pump is activated during

Information DOS 2 Contact activated when appropriate pump is activated during

Information DOS 3 Contact activated when appropriate pump is activated during

Information DOS 4 Contact activated when appropriate pump is activated during

Information DOS 5 Contact activated when appropriate pump is activated during

Potential-free contacts (NO contacts)
A maximum of 9 contacts are available, Possible
assignment:

Contact closed during 'Pause with wash action' stage V/A/Hz 200-240/1/50-60

V/A/Hz 200-240/1/50-60

programmed in 'External contact - Drainage' block.

b. Brought forwards (end of water intake) V/A/Hz 200-240/1/50-60
Control signal for external dispenser pump 1 V/A/Hz 200-240/1/50-60

V/A/Hz 200-240/1/50-60

the programme

V/A/Hz 200-240/1/50-60

the programme

V/A/Hz 200-240/1/50-60

the programme

V/A/Hz 200-240/1/50-60

the programme

V/A/Hz 200-240/1/50-60

the programme

Contact load
Max.:

Connection
module
Input signals

SLA HZG Peak-load negotiation - Heating V/Hz 200-240/50-60
DOS-EXT Fill level of external dispenser canister V/Hz 200-240/50-60
MEDIUM Medium dispensing active, signal for flow and volume control V/Hz 200-240/50-60
EXT TEXT External text V/Hz 200-240/50-60

Cold water Two cold water connections required

on models with steam condenser (DK).
Second cold water inlet hose can be connected using
Y-piece supplied.

Max. temperature °C 20
Max. water hardness °dH 60
Min. flow pressure kPa 250
Max. pressure kPa 1000
Throughput l/min 10
On-site connection thread according to DIN 44 991 Inch 3/4" external thread

Length of connection hose (supplied) mm 1500
Length of steam condenser inlet hose
(supplied with DK version)

DVGW certification
Direct connection without fuse box permissible.

mm 1500

Control voltage

(USA: 11.5 NH)

Installation plan PG 8536
Version: 01.07.2017

Page 4
