Miele KM6350, KM6383, KM6382, KM6354, KM6351 User Manual

Operating and installation instructions

Ceramic hobs with induction
KM 6350 / 6351 / 6352 / 6354
KM 6380 / 6382 / 6383

To avoid the risk of accidents or
damage to the appliance it is
essential to read these
instructions before it is installed
and used for the first time.

en-GB

M.-Nr. 07 799 000

Contents

Guide to the appliance .............................................4

Models ...........................................................4

KM 6350 / KM 6351 / KM 6352......................................4

KM 6354 .......................................................5

KM 6380 .......................................................6

KM 6382 / KM 6383 ..............................................7

Control panel ......................................................8

Cooking zones ....................................................10

Special feature....................................................12

Warning and Safety instructions ....................................13

Caring for the environment.........................................19

Before using for the first time.......................................20

Cleaning for the first time............................................20

Before using for the first time.........................................20

Induction........................................................21

The induction principle .............................................21

Noises ..........................................................22

Pans ............................................................23

Use ............................................................24

How the appliance is operated .......................................24

Switching on .....................................................25

Power level range .................................................26

Auto heat-up .....................................................27

Booster function...................................................29

Keeping warm function .............................................31

Switching off and residual heat indicators...............................32

Tips on saving energy ............................................33

Timer ...........................................................34

Minute minder ....................................................35

To switch a cooking zone off automatically ..............................38

To use both timer functions at the same time ............................39

Safety features ...................................................40

Safety lock / System lock ...........................................40

Stop and Go......................................................42

Safety switch-off...................................................43

Overheating protection .............................................44

2

Contents

Cleaning and care ................................................45

Programming ....................................................47

Problem solving guide ............................................50

Optional accessories..............................................54

Con|ctivity and Miele|home.......................................58

Signing on the hob.................................................58

Signing off the hob.................................................59

Safety instructions for installation...................................60

Hob with frame or bevelled edge ....................................66

Building-in dimensions .............................................66

KM 6350 ......................................................66

KM 6354 ......................................................67

KM 6380 ......................................................68

KM 6382 ......................................................69

Installing the hob ..................................................70

Flush-fitted hobs .................................................71

Building-in dimensions .............................................71

KM 6351 ......................................................71

KM 6352 ......................................................72

KM 6383 ......................................................73

Installing the hob ..................................................74

Electrical connection..............................................78

Wiring diagram ...................................................79

After sales service, data plate, guarantee .............................80

3

Guide to the appliance

Models

KM 6350 / KM 6351 / KM 6352

ac Cooking zone with TwinBooster

bd Cooking zones with Booster

e Control panel

4

KM 6354

Guide to the appliance

ac Cooking zone with TwinBooster

b Cooking zones with Booster

d Control panel

5

Guide to the appliance

KM 6380

a Cooking zone with TwinBooster

bc Cooking zones with Booster

d Control panel

6

KM 6382 / KM 6383

Guide to the appliance

ac Cooking zones with TwinBooster

bde Cooking zones with Booster

f Control panel

7

Guide to the appliance

Control panel

8

Guide to the appliance

Sensor controls

a For switching the hob on and off

b Safety lock

c For setting the power level

d Booster/TwinBooster

e Keeping warm function

f - For setting the time

- For setting the power level for the middle rear cooking zone, if present

g Stop and Go

h - For selecting the timer

- For switching between the timer functions

- For selecting the switch-off time (see "Switching off a cooking zone
automatically")

i Hour function

Indicator lamps

j Safety lock

k Indicator lamp for relevant zone, e.g. the rear right cooking zone

l Indicator lamp for half hours with a minute minder time of more than 99 minutes

m Residual heat indicators

n TwinBooster

¤ Level 1
¥ Level 2

o Timer display

00 to 99 = Time in minutes

0.^ to 9^ = Time in hours

9

Guide to the appliance

Cooking zones

Cooking

zone

y 18 - 28 Normal

w 10 - 16 Normal

x 14-20/

z 14 - 20 Normal

Cooking

zone

y 16 - 23 Normal

w 10 - 16 Normal

x 14-20/

z 14 - 20 Normal

Minimum to maximum

C in cm*

20x30

KM 6351 / KM 6352

Minimum to maximum

C in cm*

20x30

KM 6350

Rating in watts for 230 V**

2600
TwinBooster level 1
TwinBooster level 2

Booster

Normal
TwinBooster level 1
TwinBooster level 2
Normal
TwinBooster level 1
TwinBooster level 2

Booster

Total: 7400

Rating in watts for 230 V**

TwinBooster level 1
TwinBooster level 2

Booster

Normal
TwinBooster level 1
TwinBooster level 2
Normal
TwinBooster level 1
TwinBooster level 2

Booster

Total: 7400

3000

3700

1400

2200

1850

2500

3000

2300

3000

3700

1850

3000

2300

3000

3700

1400

2200

1850

2500

3000

2300

3000

3700

1850

3000

10

Guide to the appliance

Cooking

zone

f 18 - 28 Normal

b 10 - 16 Normal

a 14-20/

Cooking

zone

f 18 - 28 Normal

b 10 - 16 Normal

a 14 - 20 Normal

Minimum to maximum

C in cm*

20x30

Minimum to maximum

C in cm*

KM 6354

Rating in watts for 230 V**

2600
TwinBooster level 1
TwinBooster level 2

Booster

Normal
TwinBooster level 1
TwinBooster level 2
Normal
TwinBooster level 1
TwinBooster level 2

Total: 7400

KM 6380

Rating in watts for 230 V**

TwinBooster level 1
TwinBooster level 2

Booster

Booster

Total: 7400

3000

3700

1400

2200

1850

2500

3000

2300

3000

3700

2600

3000

3700

1400

2200

1850

3000

* Pans of any diameter within the given range may be used.

** The wattage quoted may vary depending on the size and material of the pans

used.

11

Guide to the appliance

Cooking

zone

y 16 - 23 Normal

w 10 - 16 Normal

b 18 - 28 Normal

x 14 - 20 Normal

z 14 - 20 Normal

* Pans of any diameter within the given range may be used.

** The wattage quoted may vary depending on the size and material of the pans

used.

Minimum to maximum

C in cm*

KM 6382 / KM 6383

Rating in watts for 230 V**

TwinBooster level 1
TwinBooster level 2

Booster

TwinBooster level 1
TwinBooster level 2

Booster

Booster

Total: 11,000

2300

3000

3700

1400

1800

2400

3000

3700

1850

2900

1850

2900

Special feature

Hobs bearing the < symbol in the top left-hand corner are suitable for connecting
to the Miele|home system (see "Optional accessories").

12

Warning and Safety instructions

This hob complies with all relevant
local and national safety
requirements. Inappropriate use
can, however, lead to personal injury
and damage to property.

To avoid the risk of accidents and
damage to the hob, please read
these instructions carefully before
installation and before using it for
the first time. They contain important
notes on installation, safety, use and
maintenance.

Keep these instructions in a safe
place and ensure that new users are
familiar with the content. Pass them
on to any future owner.

Correct application

This hob is not designed for

~

commercial use. It is intended for use in
domestic households and in similar
working and residential environments
such as:

Shops

–

Offices and showrooms

–

and by residents in establishments
such as:

Hostels and guest houses.

–

This hob is intended for domestic

~

use only to cook food and keep it warm.
Any other use is not supported by the
manufacturer and could be dangerous.
Miele cannot be held liable for damage
resulting from incorrect or improper use
or operation.

This hob is not intended for outdoor

~

use.

This hob is not intended for use by

~

people with reduced physical, sensory
or mental capabilities, or lack of
experience and knowledge, unless they
are supervised whilst using it, or have
been shown how to use it by a person
responsible for their safety.

13

Warning and Safety instructions

Safety with children

Use the safety lock to prevent

~

children operating the hob or altering
the settings.

Keep children away from the hob at

~

all times. It is not a toy! To avoid the risk
of injury, do not allow them to play with
it or use the controls. They will not
understand the potential dangers
posed by it. They should be supervised
whenever you are working in the
kitchen.

Older children may use the hob only

~

when its operation has been clearly
explained to them and they are able to
use it safely, recognising the dangers
of misuse.

The hob gets hot when in use and

~

remains hot for quite a while after being
switched off. To safeguard against
burning, keep children well away from
the appliance at all times.

Packaging, e.g. cling film,

~

polystyrene and plastic wrappings,
must be kept out of the reach of babies
and young children. Danger of
suffocation. Dispose of or recycle all
packaging safely as soon as possible.

Do not store anything which might

~

arouse a child's interest in storage
areas above or next to the hob.
Otherwise they could be tempted into
climbing onto the appliance with the
risk of burning themselves.

Keep all pans out of reach of

~

children. Turn pan handles inwards
away from the edge of the hob. Danger
of burning or scalding. Special hob
guards are available from good retail
outlets.

14

Warning and Safety instructions

Technical safety

Before installation, check the hob for

~

visible signs of damage. Do not install
and use a damaged appliance. It could
be dangerous.

The electrical safety of this hob can

~

only be guaranteed if correctly earthed.
It is most important that this basic
safety requirement is observed and
regularly tested, and where there is any
doubt, the electrical system in the
house should be inspected by a
qualified electrician. Miele cannot be
held liable for the consequences of an
inadequate earthing system (e.g.
electric shock).

Before connecting the hob, make

~

sure that the connection data on the
data plate (voltage and frequency)
match the mains electricity supply.
This data must correspond in order to
avoid the risk of damage to the
appliance. Consult a qualified
electrician if in any doubt.

For safety reasons, this hob may

~

only be used after it has been built in.

Do not open the casing of the hob.

~

Tampering with electrical connections
or components and mechanical parts is
highly dangerous to the user and can
cause operational faults.

Installation, maintenance and

~

repairs may only be carried out by a
suitably qualified and competent
person in strict accordance with current
national and local safety regulations.
Repairs and other work by unqualified
persons could be dangerous. Miele
cannot be held liable for unauthorised
work.

During installation, maintenance and

~

repair work, the hob must be
disconnected from the mains electricity
supply.
Ensure that power is not supplied to the
appliance until after it has been
installed or until after any maintenance
or repair work has been carried out.

If the hob is fitted with a

~

communication module, in addition to
disconnecting the hob, this module
must also be disconnected from the
mains electricity during installation and
maintenance of the hob as well as while
any repair work is being carried out.
Ensure that power is not supplied to the
hob or the communication module until
the hob has been installed or until after
any maintenance or repair work has
been carried out.

While the hob is under guarantee,

~

repairs should only be undertaken by a
service technician authorised by Miele.
Otherwise the guarantee is invalidated.

15

Warning and Safety instructions

Faulty components must only be

~

replaced by genuine Miele original
spare parts. The manufacturer can only
guarantee the safety of the hob when
Miele replacement parts are used.

If the connection cable is damaged,

~

it must be replaced by a suitably
qualified electrician with a specialist
connection cable of type H 05 V V-F
(pvc insulated), available from Miele.

Do not connect the hob to the mains

~

electricity supply by a multi-socket
adapter or an extension lead. These do
not guarantee the required safety of the
appliance (e.g. danger of overheating).

Do not use the hob if it is faulty, or if

~

the ceramic surface is cracked,
chipped or damaged in any way.
Switch it off immediately, and
disconnect it from the mains electricity
supply. Danger of electric shock.

In areas which may be subject to

~

infestation by cockroaches or other
vermin, pay particular attention to
keeping the hob and its surroundings in
a clean condition at all times. Any
damage caused by cockroaches or
other vermin will not be covered by the
guarantee.

Correct use

For people fitted with a heart

~

pacemaker:
Please note that the area immediately
surrounding the hob is
electromagnetically charged. It is
unlikely to affect a pacemaker.
However, if in any doubt, consult the
manufacturer of the pacemaker or your
doctor.

To prevent damage to items which

~

are susceptible to magnetic fields, e.g.
credit cards, diskettes, pocket
calculators etc, do not leave them in the
immediate vicinity of the hob.

The hob gets hot when in use and

~

remains hot for quite a while after being
switched off. There is a danger of
burning until the residual heat
indicators go out.

Do not leave the hob unattended

~

whilst it is in use.
Pans that have boiled dry can cause
damage to the ceramic surface for
which Miele cannot be held liable.
Boiling fat or oil could ignite and cause
a fire.

If oil or fat does catch fire, do not

~

attempt to put out the flames with water.
Use a suitable fire blanket, saucepan
lid, damp towel or similar to smother the
flames.

16

Use heat-resistant pot holders or

~

gloves when using the hob. Do not let
them get damp or wet, as this causes
heat to transfer through the material
more quickly with the risk of scalding or
burning yourself.

Warning and Safety instructions

Do not flambé under a cooker hood.

~

The flames could set the cooker hood
on fire.

Do not use the hob as a resting

~

place for anything.
Take particular care never to place
cutlery or other metal objects on the
appliance. When the appliance is
switched on either deliberately or by
mistake, or when there is residual heat
present, there is the risk of metal
objects heating up, with a danger of
burning.
Depending on the material, other
objects left on the hob could also melt
or catch fire.
Damp pan lids might adhere to the
ceramic surface and be difficult to
dislodge.
Switch the cooking zones off after use.

Do not cover the hob, e. g. with a

~

hob cover, a cloth or protective foil.
This could present a fire hazard if the
appliance is switched on by mistake or
it is still warm.

Do not use plastic or aluminium foil

~

containers. These melt at high
temperatures and could catch fire.

Do not heat up unopened tins of

~

food on the hob, as pressure will build
up in the tin, causing it to explode. This
could result in injury and scalding or
damage.

Never heat an empty pan unless the

~

manufacturer of the pan expressly
states that you can do so. Because
induction heating works extremely
quickly the base of the pan could heat
up to the temperature at which oil or fat
self-ignites within a very short time.

Keep the hob clean. Grains of salt,

~

sugar and sand (e.g. from cleaning
vegetables) can cause scratches.

Never place hot pans on the area

~

around the controls. The electronic unit
underneath could get damaged.

Do not drop anything on the ceramic

~

surface. Even a light object could
cause damage in certain
circumstances.

Do not allow either solid or liquid

~

sugar, or pieces of plastic or aluminium
foil to get onto the cooking zones when
they are hot. If this should occur, switch
off the hob, and carefully scrape off all
the sugar, plastic or aluminium residues
from the hob whilst they are still hot,
using a shielded scraper blade.
Take care not to burn yourself.
If residues are allowed to cool before
being removed, the ceramic surface
would be susceptible to pitting or even
cracking.
Clean the appliance once it has cooled
down.

Do not use pots and pans on the

~

ceramic hob with bases with
pronounced edges or ridges, e.g. cast
iron pans. These could scratch or scour
the hob surface permanently.

17

Warning and Safety instructions

When using an electrical appliance,

~

e.g. a hand-held food blender, near the
hob, ensure that the cable of the
electrical appliance cannot come into
contact with the hot hob. The insulation
on the cable could become damaged,
giving rise to an electric shock hazard.

This hob is fitted with a cooling fan.

~

If a drawer is fitted directly underneath
the hob, ensure that there is sufficient
space between the drawer and its
contents and the underside of the
appliance in order to ensure sufficient
ventilation for the hob. Do not store
pointed or small items or paper in the
drawer. They could get in through the
ventilation slots or be sucked into the
housing by the fan and damage the fan
or impair cooling.

Spray canisters, aerosols and other

~

inflammable substances should not be
stored in a drawer under the hob.
Cutlery inserts must be heat-resistant.

Do not use two pans on a

~

cooking/extended zone at the same
time.

If the hob is installed behind a

~

kitchen furniture door, it may only be
used with the furniture door open.
Do not close the door whilst the hob in
use or whilst there is any residual heat
left in the appliance.

If the hob is installed behind a

~

kitchen furniture door, it may only be
used with the furniture door open.
Only close the door when the appliance
is switched off and the residual heat
indicators have gone out.

Miele cannot be held liable for
damage caused by non-compliance
with these Warning and Safety
instructions.

Metal utensils stored in a drawer

~

under the hob can become hot if the
induction hob is used intensively for a
long time.

Always ensure that food is

~

sufficiently cooked or reheated. Some
foods may contain micro-organisms
which are only destroyed by thorough
cooking at a sufficiently high
temperature for long enough.
Therefore, when cooking or reheating
food such as poultry, it is particularly
important that the food is completely
cooked through. If in doubt, select a
longer cooking or reheating time.

18

Caring for the environment

Disposal of the packing
material

The transport and protective packing
has been selected from materials which
are environmentally friendly for
disposal, and should be recycled.

Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.

Disposal of your old appliance

Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of it
with your household waste.

Please dispose of it at your local
community waste collection/recycling
centre or contact your dealer for
advice. Ensure that it presents no
danger to children while being stored
for disposal.

19

Before using for the first time

Please stick the extra data plate for the appliance supplied
with this documentation in the space provided in the "After
sales service, data plate" section of this booklet.

Cleaning for the first time

Remove any protective wrapping and adhesive labels.

^

Before using for the first time, clean the appliance with a

^

damp cloth only and then wipe dry.

Before using for the first time

On hobs with bevelled glass edges, a small gap may be
visible between the hob and the worktop during the first
few days after installation. This gap will reduce with time as
the appliance is used and will not affect the electrical
safety of your appliance.

When the appliance is used for the first time, it may give off a
slight smell and some vapours. This smell will be less
noticeable with each subsequent use before dissipating
completely.

The smell and any vapours given off do not indicate a faulty
connection or appliance and they are not hazardous to
health.

20

Please note that the heating up time on induction hobs is
very much shorter than on conventional hobs.

The induction principle

An induction coil is located under each cooking zone. When
a cooking zone is switched on, this coil creates a magnetic
field which impacts directly on the base of the pan and heats
it up. The cooking zone itself is heated up indirectly by the
heat given off by the pan.

An induction cooking zone only works when a ferromagnetic
pan is placed on it (see "Pans").

Induction automatically recognises the size of the pan, i.e.
heat is only generated in the area covered by the base of the
pan.

The cooking zone will not work:

– if it is switched on without a pan in place, or if the pan is

unsuitable (non-magnetic base).

– if the diameter of the base of the pan is too small.

– if the pan is taken off the cooking zone when it is switched

on.

If this happens, the numbers 1 to 9 will flash on the keypad
concerned.

Induction

If a suitable pan is placed on the cooking zone within
3 minutes, the numbers will light up constantly, and you can
continue as normal.

If no pan or an unsuitable pan is placed on the cooking zone,
the cooking zone and the hob will switch off automatically
after 3 minutes.

Take particular care never to place cutlery or other metal
objects on the hob. When the appliance is switched on
either deliberately or by mistake, or when there is residual
heat present, there is the risk of metal items heating up
with the danger of burning.
Switch the cooking zones off after use.

21

Induction

Noises

When using an induction cooking zone, the following noises
can occur in the pan, depending on what it is made of and
how it has been constructed.

On the higher power settings, it might buzz. This will

–

decrease or cease altogether when the power setting is
reduced.

If the pan base is made of layers of different materials (e.g.

–

in a sandwiched base), it might emit a cracking sound.

Whistling might occur if linked zones (see "Booster

–

function") are being used at the same time, and the pans
also have bases made of layers of different materials.

– You might hear a clicking sound from the electronic

switches, especially on lower settings.

The appliance has a cooling fan to help extend the life of the
electronics. When the hob is being used intensively, this will
come on and you will hear a whirring sound. The fan may
continue to run after the appliance has been switched off.

22

Pans

Induction

Suitable pans include:

stainless steel pans with a magnetic base

–

enamelled steel pans

–

cast iron pans

–

Unsuitable pans:

stainless steel pans without a magnetic base

–

aluminium and copper pans

–

glass, ceramic or earthenware pots and pans

–

To test whether a pot or pan is suitable for use on an
induction hob, hold a magnet to the base of the pan. If the
magnet sticks, the pan is suitable.

Please be aware that the properties of the pan base can
affect the eveness with which food heats up in the pan.

To make optimum use of the cooking zones, choose pans
with diameters larger than the innermost markings but smaller
than the outermost markings. If the diameter of the pan is
smaller than the innermost marking, the induction heating will
not work. The zone will behave as if it had no pan on it.

Please note that the maximum diameter quoted by
manufacturers often refers to the diameter of the top rim of
the pot or pan. The diameter of the base (generally smaller) is
more important.

Make sure that pans are placed centrally on the cooking
zone.
If a pan is placed only partially on a zone, there is a risk
that the handle could get very hot.

23

Use

How the appliance is operated

The hob is equipped with electronic sensor controls which
react to finger contact.

When the hob is switched off only the symbols for the sensors
for switching the hob on and off and the safety lock are
visible.

When the hob is switched on all the other sensors light up as
well. On each of the numerical keypads, "0" lights up at
brightness level 2, and numbers 1-9 at brightness level 1.
If a power level is selected, the numbers from "0" to the level
set will light up in brightness level 2.

If the booster or keeping warm function is selected, the
relevant sensor will light up at brightness level 2.

To operate the hob, touch the relevant sensor. Each time you
touch a sensor, an audible tone sounds.

Take care to keep the control panel clean and do not
place anything on top of it. The sensors may fail to react or
they could mistake the article or any dirt for a fingertip
contact, thereby activating a function or even causing the
hob to switch off automatically (see "Safety switch-off".)

24

Never place hot pans on the sensors. The electronic unit
underneath could get damaged.

Switching on

The hob must be switched on before any of the zones can be
used.

Do not leave the appliance unattended whilst it is being
used.

To switch the hob on

Touch the s sensor.

^

All of the sensors will light up. If no other setting is selected,
the hob will switch off after a few seconds for safety reasons.

Activating the cooking zones

A cooking zone is not active if only the "0" is lit up in the
numerical keypad. Touch the "0" to activate the zone. All the
power levels will light up.

Setting the power level

Standard power level range

^ Touch the appropriate number on the numerical keypad of

the cooking zone you wish to use.

Use

Extended power level range

(see "Power level range")

^

Touch the area between the numbers.

For example, if you have selected power level 7+, the
numbers 7 and 8 will light up more brightly than the other
numbers.

Altering the power level

^

Touch the appropriate number on the numerical keypad of
the cooking zone you wish to use.

25

Use

Power level range

The appliance is delivered with 9 power levels programmed in. If you wish to
fine-tune a setting, you can extend the power level range (see "Programming").

Settings

Standard
factory settings
(9 power levels)

Melting butter
Dissolving gelatine

Making milk puddings 2 2 to 2+

Warming small quantities of liquid
Cooking rice

Defrosting frozen vegetables 3 2+ to 3

Making porridge 3 2. to 3.

Warming liquid and semi-solid foods
Making omelettes and lightly frying eggs
Steaming fruit

Cooking dumplings 4 4 to 5+

Steaming vegetables and fish 5 5

Defrosting and heating frozen food 5 5 to 5+

Bringing large quantities of food to the boil, e.g. casseroles
Thickening custard and sauces, e.g. hollandaise

Gentley frying eggs (without overheating the fat) 6 5+ to 6+

Gently braising meat, fish and sausages (without overheating
the fat)

Frying pancakes etc. 7 6+ to 7

Cooking stew 8 8 to 8+

Boiling large quantities of water
Bringing to the boil

1to2 1to2+

3 3 to 3+

4 4 to 4+

6 5+to6

7 6+to7+

99

Extended

settings

(17 power levels)

These settings should only be taken as a guide.
The power of the induction coils will vary depending on the size and material of the pan. For this
reason it is possible that the settings will need to be adjusted slightly to suit your pans. As you use the
hob, you will get to know which settings suit your pans best.

26

Auto heat-up

When Auto heat-up has been activated, the cooking zone
switches on automatically at the highest power setting and
then switches to the continued cooking setting selected. The
heat-up time depends on which continued cooking setting
has been chosen (see chart).

To activate Auto heat-up

Touch the number of the continued cooking setting you

^

require until a tone sounds and the continued cooking
setting selected starts flashing.

The continued cooking setting selected will flash during the
heat-up time.

Altering the continued cooking setting will deactivate auto
heat-up.

If the range of power settings has been extended (see
"Programming") and one of the intermediate continued
cooking settings has been selected (e.g. 3+) the power level
before and after the intermediate setting will flash (e.g. 3 and

4).

Use

To deactivate Auto heat-up

You can switch off Auto heat-up before the Auto heat-up time
has finished.

^

Touch the continued cooking setting which has been
selected until the display lights up constantly or select a
different power setting.

27

Use

Continued

cooking setting*

1 0:15

1+ 0:15

2 0:15

2+ 0:15

3 0:25

3+ 0:25

4 0:50

4+ 0:50

5 2:00

5+ 5:50

6 5:50

6+ 2:50

7 2:50

7+ 2:50

8 2:50

Heat-up time

in minutes and seconds (approx.)

28

8+ 2:50

9-

* The continued cooking settings with + after the number are

only available if the power level range has been extended
(see "Programming").

Booster function

Use

The cooking zones are equipped with a Booster or
TwinBooster (see "Guide to the appliance").

When activated, the power is boosted for 15 minutes so that
large quantities can be heated quickly, e.g. when boiling
water for cooking pasta.

The Booster function can only be used on two cooking zones
at the same time, one on the left and one on the right.

If the Booster function is switched on when

no setting has been selected, the cooking zone will revert

–

automatically to setting 9 at the end of the Booster time or
if the Booster function is switched off before this.

– a setting has been selected, the cooking zone will revert

automatically to the setting selected at the end of the
Booster time or if the Booster function is switched off
before this.

Taking a pan off the zone whilst the Booster is in operation
interrupts the Booster function. It will resume if a pan is
placed back on the zone within 3 minutes.

The extra boost of energy is only available by taking a
proportion of energy away from another cooking zone. For
this reason, the cooking zones are networked in pairs.
Example:

When selecting the Booster/TwinBooster level 1 for a zone,
the following happens within the pairs:

–

If Auto heat-up is activated on the other zone within the
pair, this will be switched off.

–

If the other zone within the pair is set at power level 9, the
power level on that zone will be reduced.

If TwinBooster level 2 is selected, the other zone within the
networked pair will be switched off.

29

Use

Whilst the booster is switched on, the B sensor and all of the
numbers in the relevant numerical keypad are lit up at
brightness level 2.

To switch on the Booster

Touch the "0" on the numerical keypad of the cooking zone

^

you wish to use.

Select a power level if you wish.

^

Touch the B sensor.

^

To switch on the TwinBooster

Level 1

Touch the "0" on the numerical keypad of the cooking zone

^

you wish to use.

^ Select a power level if you wish.

^ Touch the B sensor.

The indicator lamp for TwinBooster level 1 ¤ lights up.

Level 2

^ Touch the "0" on the numerical keypad of the cooking zone

you wish to use.

^

Select a power level if you wish.

^

Touch the B sensor twice.

The indicator lamp for TwinBooster level 2 ¥ lights up.

To switch off the Booster/TwinBooster

^

Touch the B sensor

- once (for the Booster)

- repeatedly until the indicator lamps go out
(for the TwinBooster).

or

^

Select a different power level.

30

Keeping warm function

Each cooking zone has a keeping warm function.

If the keeping warm function has been activated, the cooking
zone will switch off automatically after a maximum of 2 hours.

This function is for keeping food that has just been cooked
warm, i.e. food that is still hot. It is not for reheating food
that has gone cold.

To switch the keeping warm function on/off

Touch the 2 sensor for the cooking zone you want.

^

Useful tips

Only use pans for keeping food warm. Cover the pan with a
lid.

You do not have to stir food while it is being kept warm.

Nutrients are lost when food is cooked, and this will continue
when food is kept warm. The longer food is kept warm for, the
greater the loss of nutrients. Try to ensure that food is kept
warm for as short a time as possible.

Use

31

Use

Switching off and residual heat indicators

Switching off a cooking zone

Touch the "0" on the numerical keypad of the cooking zone

^

you wish to use.

The numbers 1 to 9 will go out after a few seconds. If the
cooking zone is still hot, residual heat will then be indicated in
the display.

Switching off the hob

Touch the s sensor.

^

This switches off all cooking zones. All the sensors will go out.

If there is any residual heat, the numbers 1 to 9 in the
numerical keypads will go out after a few seconds. The
residual heat indicator will appear in the display of any
cooking zone which is still hot.

The lines of the residual heat indicator go out one after
another as the cooking zone cools down. The "0" will go out at
the same time as the last line.

32

Do not touch or place any heat-sensitive objects on the
cooking zones while the residual heat indicators are on.
Danger of burning.

Tips on saving energy

Use a pan lid whenever possible to minimise heat loss.

–

uncovered covered

Select a smaller pan when cooking small quantities. A

–

smaller pan uses less energy than a larger pan with very
little in it.

Cook with as little water as possible.

–

Once food has come to the boil or the pan is hot for frying,

–

reduce the heat to a lower setting.

– Cooking times are greatly reduced when using a pressure

cooker.

33

Timer

h

The hob must be switched on to use the timer.

The timer can be used for two different functions:

to set the minute minder

–

to set a cooking zone to switch off automatically.

–

You can select a time from 1 minute (01) to 9 hours (9^).

A time of up to 99 minutes is set and displayed in minutes.
Example:

To set a time of more than 99 minutes, the timer must be set
to hours (h). The time is then set in half hour stages. The half
hour is indicated by a dot after the number.
Example (2 h 30 min):

When the set time has elapsed 00 will appear in the timer
display. At the same time an audible tone will sound for a few
seconds.

34

Minute minder

h

h

h

To set the minute minder time

Minutes

Example: You want to set 15 minutes.

Switch the hob on.

^

Touch the m sensor.

^

The m indicator lamp will flash. 00 will appear in the timer
display. The 0 on the right will flash.

Enter the tens first and then the units.

^ Touch the number on the numerical keypad which

corresponds to the tens position (1 in this case).

The timer display will change and 1 will start flashing.

Timer

^

Touch the number on the numerical keypad which
corresponds to the units position (5 in this case).

The timer display will change. The 1 moves to the left and 5
appears on the right.

After a few seconds the m sensor will light up constantly and
the minute minder time will begin to count down.

35

Timer

hhh

Hours

Whole hours are set by touching the relevant number on the
numerical keypad.
Half hours are set by touching the area between the relevant
two numbers.
Example: You want to set 2 hours 30 minutes.

Switch the hob on.

^

Touch the m sensor.

^

The m indicator lamp will flash. 00 will appear in the timer
display. The 0 on the right will flash.

^ Touch the h sensor, to change the display to show the

hours.

^

Touch the area between the numbers 2 and 3 on the
numerical keypad.

After a few seconds the m sensor and the timer display will
light up constantly. The minute minder time will begin to count
down.

36

To change the minute minder time

Touch the m sensor.

^

Set the time you want, as described above.

^

To delete the minute minder time

Touch the m sensor.

^

Touch 0 on the numerical keypad.

^

Timer

37

Timer

To switch a cooking zone off automatically

You can set a time at the end of which a cooking zone will
switch off automatically.
All the cooking zones can be programmed at the same time.

If the time programmed is longer than the maximum
operational time allowed, the cooking zone will switch off
after the maximum time allowed (see "Safety switch-off").

Select a power level for the cooking zone you want.

^

Touch the m sensor repeatedly until the indicator lamp for

^

this cooking zone flashes.

If more than one cooking zone is switched on, the indicator
lamps will flash clockwise beginning with the front left zone.

^ Set the time you want.

The time set will then count down in minutes. The time
remaining will be shown in the timer display. You can change
this at any time.

If you want to set another cooking zone to switch off
automatically, follow the same steps as described above.

38

If more than one switch-off time is programmed, the shortest
time remaining will show in the display, and the
corresponding indicator lamp will flash. All the other indicator
lamps will light up constantly. If you want to check on the time
remaining for another zone, touch the m sensor repeatedly
until the indicator lamp for the zone you want flashes.

To use both timer functions at the same time

The minute minder and automatic switch-off functions can be
used at the same time.

If you have programmed in one or more switch-off times, and
would like to use the minute minder as well:
Touch the m sensor repeatedly until the indicator lamps for
the cooking zones you have programmed light up constantly
and 00 appears in the timer display.

If you are using the minute minder, and would like to
programme in one or more switch-off times as well:
Touch the m sensor repeatedly until the indicator lamp for
the cooking zone you want flashes.

Shortly after the last entry, the timer display switches to the
function with the shortest remaining time.
If you want to show the times remaining which are counting
down in the background, touch the m repeatedly until

- the indicator lamp for the cooking zone you want flashes
(automatic switch-off).

- only the timer display is flashing (minute minder).

Starting with the shortest time remaining which is shown in
the display, all cooking zones which are switched on and the
minute minder are selected clockwise.

Timer

39

Safety features

Safety lock / System lock

Keep children away from the hob for their own safety.

Your appliance is equipped with a safety lock to prevent the
hob and the cooking zones being switched on or any settings
being altered.

The safety lock is set with the hob switched on. When
activated:

The cooking zone power levels and the timer settings

–

cannot be changed.

The cooking zones, the hob and the timer can be switched

–

off, but once switched off cannot be switched on again.

The system lock is set with the hob switched off. When
activated, the hob cannot be switched on and the timer
cannot be used.

The default setting for activating the system lock is manual.
The system lock can also be set for manual and automatic
activation, in which case it will be activated automatically five
minutes after the hob has been switched off, unless you set it
manually (see "Programming").

40

If an unavailable sensor is touched whilst the safety lock or
system lock is activated, the safety lock indicator will light up
and LC will appear in the timer display for a few seconds.

The hob is programmed at the factory for three-finger
operation. You can alter the setting from three-finger to
one-finger operation (see "Programming").

If there is an interruption to the power supply, the safety
lock and the system lock will be deactivated.

Activating

Deactivating

Safety features

Three-finger operation (standard default setting)

Touch the $ sensor and the "0" setting of both right-hand

^

cooking zones at the same time until the safety lock
indicator lights up and LC appears in the timer display.

The safety lock indicator and LC will go out after a short while.

One-finger operation

Touch the $ sensor until the safety lock indicator lights up

^

and LC appears in the timer display.

The safety lock indicator and LC will go out after a short while.

Three-finger operation (standard default setting)

^ Touch the $ sensor and the "0" setting of both right-hand

cooking zones at the same time until the safety lock
indicator and LC in the timer display go out.

One-finger operation

^ Touch the $ sensor until the safety lock indicator and LC in

the timer display go out.

41

Safety features

Stop and Go

Your appliance has a Stop and Go feature which, when
activated, reduces the power of all cooking zones in use to
power level 1. When Stop and Go activated, the cooking zone
power levels and the setting of the timer cannot be altered
and the hob can only be switched off.

When Stop and Go is deactivated, the cooking zones resume
at the power level which was last set.
If Stop and Go is not deactivated, the hob switches off after 1
hour.

When Stop and Go is activated

- the countdown of a time programmed in for automatic

- the minute minder will continue without interruption.

Activating

^ Touch the  sensor.

The power of the cooking zones in use will be reduced to
power level 1.

switch-off will be interrupted. When deactivated, the time
will continue to run.

Deactivating

42

^ Touch the  sensor.

The cooking zones will resume operating at the power levels
previously set.

Safety switch-off

Safety switch-off with an over-long cooking time

If one of the cooking zones is heated for an unusually long
period of time (see chart) and the power level is not altered,
the hob will switch itself off automatically and the relevant
residual heat indicator will light up.

To use the cooking zone again, switch it back on in the usual
way.

Power level* Maximum operating time in hours

1/1+ 10

2/2+ 5

3/3+ 5

4/4+ 4

5/5+ 3

6/6+ 2

7/7+ 2

Safety features

8/8+ 2

91

* The continued cooking settings with + after the number are

only available if the power level range has been extended
(see "Programming").

Safety switch-off if the sensors are covered

Your hob will switch off automatically if one or several of the
sensors remain covered for more than about 10 seconds, for
example by finger contact, food boiling over, or by an object
such as an oven glove or a tea towel.
An F will flash in the timer display.

^

Clean the control panel or remove the obstruction.

F will go out. You can now use the hob again.

43

Safety features

Overheating protection

All the induction coils and the cooling elements for the
electronics are fitted with an overheating protection
mechanism. Before the induction coils or cooling elements
get too hot, the overheating protection mechanism cuts in in
one of the following ways:

Induction coils

If the booster function is being used, this will be switched

–

off.

The power level will be reduced.

–

The cooking zone will switch off automatically.

–

"FE" will flash in the time display alternately with "44".

You will be able to use the cooking zones again as usual
when the fault message has gone out.

Cooling elements

– If the booster function is being used, this will be switched

off.

44

– The power level will be reduced.

– The cooking zones switch off automatically.

The affected cooking zones can only be used again as usual
once the cooling element has cooled down to a safe level.

Overheating can be caused by:

–

Heating up an empty pan.

–

Fats or oils being heated up on the highest power setting.

–

There being insufficient ventilation to the underside of the
appliance.

–

a hot cooking zone being switched on after a power cut.

If the overheating protection mechanism triggers again,
contact the Service department.

Cleaning and care

For Miele branded cleaning and conditioning products see
"Optional accessories".

Do not use a steam cleaning appliance to clean this

,

appliance. The steam could reach electrical components
and cause a short circuit.

The appliance should be cleaned after each use. Let it cool
down to room temperature before cleaning.
To avoid water marks and limescale deposits, use a soft cloth
to dry surfaces that have been cleaned with water.

To avoid damaging the surface of your appliance, do not
use:

washing-up liquid,

–

– cleaning agents containing soda, alkalines, ammonia,

acids or chlorides,

– cleaning agents containing descaling agents,

– stain or rust removers,

– abrasive cleaning agents, e.g. powder cleaners and cream

cleaners,

– solvent-based cleaning agents,

–

dishwasher cleaner,

–

grill and oven cleaners,

–

glass cleaning agents,

–

hard, abrasive brushes or sponges, e.g. pot scourers,
brushes or sponges which have been previously used with
abrasive cleaning agents,

–

melamine eraser blocks,

–

sharp, pointed objects which could damage the seal
between the ceramic surface and the surrounding frame,
and between the frame and the worktop.

45

Cleaning and care

Do not use washing-up liquid to clean the ceramic surface.
Washing-up liquid will not remove all soiling and deposits.
It will form an invisible coating which will cause permanent
discolouration of the ceramic surface.
Clean the hob regularly with a suitable ceramic hob
cleaner.

Wipe all coarse soiling off using a damp cloth. Stubborn
soiling may need to be removed with a shielded scraper
blade.

Then clean the hob with Miele ceramic and stainless steel
hob cleaner (see "Optional accessories") applied with kitchen
paper or a clean cloth. Do not apply cleaner whilst the hob is
still hot, as this could result in marking. Please follow the
manufacturer's instructions.

Finally, wipe the hob with a damp cloth, then polish with a
soft, dry cloth. Ensure that all cleaner residues are removed.
Residues can burn onto the hob the next time it is used, and
cause damage to the ceramic surface.

Spots caused by limescale, water and aluminium residues
(spots with a metallic appearance) can be removed using
Miele's ceramic and stainless steel hob cleaner.

46

Should any sugar, plastic or aluminium foil spill or fall onto
a hot cooking zone while it is in use, first switch off the
appliance. Then carefully scrape off all the sugar, plastic or
aluminium residues from the hob whilst they are still hot,
using a shielded scraper blade. Take care not to burn
yourself.
Allow the appliance to cool down, and then clean as
described above.

You can change the default settings of the programme
options (see chart). Several settings can be altered in
succession.

After the programming mode has been called up, P
(Programme) and S (Status) will appear in the timer display.
On hobs with 3 cooking zones, an additional indicator will
appear at the rear left.

The programme is shown in the numerical keypad displays at
the front left and rear left. Example:
Programme 3 = front left 3, rear left 0
Programme 14 = front left 4, rear left 1

The status is shown in the numerical keypad display at the
front right.

Once you have left the programming mode, the hob will be
reset automatically. This is completed when an indicator
above the s sensor lights up briefly.

Do not switch the hob on again until the reset process is
completed.

To call up the programming mode

Programming

^ With the hob switched off, touch the s and $ sensors at

the same time until the safety lock indicator lamp flashes.

To set the programme setting

^

To set the units position touch the relevant number on the
front left numerical keypad.

^

To set the tens position touch the relevant number on the
rear left numerical keypad.

To set the status setting

^

Touch the appropriate number on the front right numerical
keypad.

To save settings

^

Touch the s sensor until all the displays go out.

To not save settings

^

Touch the $ sensor until all the displays go out.

47

Programming

Programme* Status** Setting

P0Demonstration mode and

factory default settings

P2Power level range S0 9 power levels/settings

P3Induction warning tone

when there is no pan or
the pan is unsuitable

P4Keypad tone when a

sensor is touched

P5Audible tone for the timer S 0 Off

S 0 Demonstration mode on

S1 Demonstration mode off

S 9 Factory default settings reinstated

(1, 2, 3 ... to 9)

S 1 17 power levels/settings

(1, 1+, 2, 2+, 3 ... to 9)

S0 Off

S 1 Quiet

S 2 Medium

S 3 Loud

S 0 Off

S 1 Quiet

S2 Medium

S 3 Loud

S 1 Quiet audible tone on for 10

seconds

S2 Medium audible tone on for 10

seconds

S 3 Loud audible tone on for 10

seconds

P6Safety lock S 0 One-finger locking using $

S1 Three-finger locking using $ and

"0" on the two right-hand cooking
zones

* Programme /Status numbers not shown here have no allocation.

** The factory default settings are shown in bold.

48

Programming

Programme* Status** Setting

P7 System lock S0 Manual activation of the system

lock only

S 1 Manual and automatic activation

of the System lock

P8 Auto heat-up S 0 Off

S1 On

P10Miele|home

- only on
communication-enabled
appliances fitted with a
communication module.

P15Audible tone if a sensor

is covered

P16Sensor reaction speed S 0 Slow

* Programmes not shown here have no allocation.

** The factory default settings are shown in bold.

S0 Feature not fitted

S 1 Signed off

S 2 Signed on

S0 Off

S1 On

S1 Normal

S 2 Rapid

49

Problem solving guide

With the help of the following notes, minor faults in the performance of the
appliance, some of which may result from incorrect operation can be put right
without contacting the Service Department.

Installation work and repairs to electrical appliances should only be carried

,

out by a suitably qualified person in strict accordance with current local and
national safety regulation. Repairs and other work by unqualified persons could
be dangerous. The manufacturer cannot be held liable for unauthorised work.

Problem Possible cause Remedy

The hob or cooking
zones cannot be
switched on.

The mains fuse has tripped. Reset the trip switch in the

mains fuse box (minimum
fuse rating - see data
plate).

There may be a technical
fault.

Disconnect the appliance
from the electricity supply
for approx. 1 minute.

– switch off at the wall

socket and withdraw the
plug, or switch off at the
isolator, or

–

disconnect the mains
fuse.

Reset the trip switch in the
mains fuse box, and switch
the appliance back on. If it
still will not switch on,
contact a qualified
electrician or the Miele
Service Department.

50

Problem solving guide

Problem Possible cause Remedy

There is a strange
smell or vapours
when a new appliance
is being used.

The power levels 1 to
9 flash.

After the hob is
switched on "LC"
appears in the timer
display for a few
seconds.

After the hob is
switched on "dE"
appears in the timer
display for a few
seconds.
The cooking zones do
not heat up.

A cooking zone or the
whole hob switches
off automatically.

There is no pan on the
cooking zone, or the pan is
unsuitable.

The system lock is
activated.

The appliance is in
demonstration mode.

A cooking zone has been
in use for too long.

The smell and any vapours
will dissipate after a short
time. They are not harmful
and do not indicate a faulty
connection or appliance.

Use a suitable pan (see
"Pans").

Deactivate the system lock
(see "Safety lock / System
lock").

Deactivate demonstration
mode (see
"Programming").

You can use the cooking
zone again by switching it
back on (see "Safety
switch-off").

The Booster has
deactivated early
automatically.

The cooking zone is
not working in the
usual way at the
power level set.

The overheating protection
mechanism has triggered.

The overheating protection
mechanism has triggered.

See "Overheating
protection".

See "Overheating
protection".

51

Problem solving guide

Problem Possible cause Remedy

Power level 9 is
automatically reduced if
you select power level 9
on two linked cooking
zones or extended zones
at the same time.

The hob switches off
while it is in use, an F
flashes in the timer
display and a tone
sounds.

The food in the pan
hardly heats up or does
not heat up at all when
the Auto heat-up
function is switched on.

The cooling fan
continues to run even
after the appliance has
been switched off.

Operating both zones
at power level 9
would exceed the
permitted maximum
power level for the
two zones.

One or more of the
sensors have been
covered, e.g. by
finger contact, food
boiling over or by an
object such as an
oven glove.

There is too much
food in the pan.

The pan is not
conducting heat
properly.

The fan will continue
running until the
appliance has cooled
down. It will then
switch itself off
automatically.

Clean the control panel or
remove the obstruction (see
"Safety switch-off").

Start cooking at the highest
power level and then turn
down to a lower one
manually later on.

52

Problem solving guide

Problem Possible cause Remedy

The sensors are
over-sensitive or do not
react at all.

FE flashes alternately
with numbers in the
timer display.

FE 44 The overheating

FE 47 The fan is either

FE 48

The sensitivity level of
the sensors has
changed.

protection mechanism
has triggered.

blocked or faulty.

Make sure that there is no
direct light (from the sun or
from an artificial source)
falling onto the hob and that
the surrounding area is not
too dark.

Make sure that there is
nothing covering the sensors
or the hob. Take any pans off
the hob and wipe away any
food deposits.

Interrupt the power supply to
the hob for approx. 1 minute.

If this does not solve the
problem, please call the
Miele Service department.

See "Overheating protection".

Make sure it has not been
blocked by something like a
fork. Remove the cause of
the blockage. If the fault
message appears again, call
the Miele Service
Department.

Other fault messages

FE..

A fault with the
electronics has
occurred.

Interrupt the power supply to
the hob for approx. 1 minute.

If the problem persists after
reconnecting the appliance
to the power supply, please
contact the Miele Service
department.

53

Optional accessories

Miele offer a comprehensive range of useful accessories as
well as cleaning and conditioning products for your
appliance.

These products can be ordered online:

or from Miele (see back cover for contact details)

Saucepans and frying pans

Miele offer a wide range of saucepans and frying pans which
are perfect for Miele hobs. Please refer to the Miele website
for more details on individual products.

Pans in various sizes

Frying pan with lid

Anti-stick pans

Wok

Gourmet oven dish

Cleaning products

Ceramic and stainless steel hob cleaner
250 ml

Removes heavy soiling, limescale deposits and aluminium
residues.

E-cloth (microfibre cloth)

Removes finger marks and light soiling.

54

Miele|home system

The Miele{home system allows communication-enabled
appliances to send operating and status information to a
display appliance via the household electrical supply system
(Powerline Technology).

SuperVision appliances can display status information from
other domestic appliances. For your hob, the main status
displayed is: On, Off, Fault

Status information for domestic appliances can be displayed
and some controls operated within the home network area on
a PC, Notebook or iPod* / iPhone* (mobile terminals) via a
Miele|home Gateway.
For your hob, for example, the following information is
displayed: Setting of each cooking zone, minute minder,
switching off time for each cooking zone. The only available
control command is "switch hob off".

* * iPod und iPhone are registered trade marks of Apple Inc.

Con{ctivity is the communication between the hob and the
cooker hood. Operation of the cooker hood occurs
automatically in conjunction with the hob.
The hob sends information on its operating status via the
household electrical supply.

Optional accessories

XKM 2100 KM

XGW 2000

To enjoy the benefits of this feature, your appliance needs to
be fitted with a communication module.

Please contact your dealer for detailed information about the
Miele|home system.

Communication module including installation accessories

- for Miele hobs -

Miele|home Gateway
The gateway is the bridge between the Powerline
communication of the appliances and your home network..

55

Optional accessories

Miele|home

a Communication enabled appliances (examples)

56

b Communication module

c SuperVision appliance

d Electrical supply (Powerline)

e Miele|home Gateway

f (WLAN) Router

Possible connections (optional)

g PC, Notebook

h iPod* or iPhone*

i Connection with a domestic bus system display

j Possible internet connection

* iPod und iPhone are registered trade marks of Apple Inc.

Con|ctivity

Optional accessories

a Communication module XKM 2000 DA

b Communication module XKM 2100 KM

c Electrical supply (Powerline)

57

Con|ctivity and Miele|home

Signing on the hob

If you want to sign the hob

on to the Miele{home system, first prepare the signing on

–

procedure on the master appliance (see the "Miele|home"
fitting and installation instructions)

on to the Con|ctivity system, first sign on the cooker

–

hood (see the "Con|ctivity" fitting and installation
instructions).

With the hob switched off, touch the s and $ sensors at

^

the same time until the safety lock indicator lamp flashes.

After programming mode has been called up, P (Programme)
and S (Status) will appear in the timer display.

The programme number will appear on the left of the
numerical keypads and the status currently set will appear on
the right of the numerical keypads.

^ Touch number 1 on the rear left numerical keypad (set

Programme 10).

^ Touch number 2 on the front right numerical keypad (set

Status 2 = Signed on).

58

The signing on process will begin and the number 2 will flash
in the front right numerical keypad. The signing on process
will take a few minutes. The number 2 will light up constantly
when the process has been completely successfully.

^

To save the setting, touch the s sensor until all the
displays go out.

^

Proceed as described in the "Miele|home" or Con|ctivity
fitting and installation instructions.

Signing off the hob

If you want to sign off from the Miele{home system, first
prepare the signing off procedure on the master appliance
(see the "Miele|home" fitting and installation instructions).

^

After programming mode has been called up, P (Programme)
and S (Status) will appear in the timer display.

The programme number will appear on the left of the
numerical keypads and the status currently set will appear on
the right of the numerical keypads.

^

^ Touch number 1 on the front right numerical keypad (set

The signing off process will begin and the number 1 will flash
in the front right numerical keypad. The signing off process
will take a few minutes. The number 1 will light up constantly
when the process has been completely successfully.

Con|ctivity and Miele|home

With the hob switched off, touch the s and $ sensors at
the same time until the safety lock indicator lamp flashes.

Touch number 1 on the rear left numerical keypad (set
Programme 10).

Status 1 = Signed off).

^ To save the setting, touch the s sensor until all the

displays go out.

^

Proceed as described in the "Miele|home" or Con|ctivity
fitting and installation instructions.

59

Safety instructions for installation

After installing the hob, ensure that
The appliance must only be installed
and connected to the electricity
supply by a suitably qualified and
competent person in strict
accordance with current national
and local safety regulations.

Fit the wall units and extractor hood
before fitting the hob to avoid
damaging the appliance.

The veneer or laminate coatings of

~

worktops (or adjacent kitchen units)
must be treated with 100 °C
heat-resistant adhesive which will not
dissolve or distort.
Any backmoulds must be of
heat-resistant material.

This appliance must not be used in

~

a non-stationary location (e.g. on a
ship).

~

the connection cable cannot come into
contact with the underside of the
appliance. Make sure that there is no
mechanical obstruction, such as a
drawer, which could damage it.

Observe carefully the safety

~

distances given on the following pages.

All dimensions in this instruction booklet
are given in mm.

The hob may not be built in over a

~

fridge, fridge-freezer, freezer,
dishwasher, washing machine or
tumble dryer.

This hob must not be installed

~

above ovens or cookers unless these
have a built-in cooling down fan.

60

Safety instructions for installation

Safety distance above the appliance

A minimum safety distance must be
maintained between the appliance and
the cooker hood above it. See the
cooker hood manufacturer’s operating
and installation instructions for details.

If the manufacturer’s instructions are
not available for the cooker hood, a
minimum safety distance of at least
760 mm must be maintained. For any
flammable objects, e.g. utensil rails,
wall units etc. a minimum distance of at
least 760 mm must be maintained
between them and the appliance
below.

When two or more appliances are
installed together below a cooker
hood, e.g. a gas wok and a ceramic
hob, which have different safety
distances given in the installation
instructions, you should select the
greater distance of the two.

61

Safety instructions for installation

Safety distances to the sides and
back of the hob

Ideally the hob should be installed with
plenty of space on either side. There
may be a wall at the rear and a tall unit
or wall on one side (right or left) (see
illustrations).

a Minimum distance of 50 mm

between the back of the worktop
cut-out and the rear edge of the
worktop.

b Minimum distance of 50 mm

between the right of the worktop
cut-out and the nearest piece of
furniture (e.g. tall unit) or a wall.

c Minimum distance of 50 mm

between the left of the worktop
cut-out and the nearest piece of
furniture (e.g. tall unit) or a wall.

Not allowed

Recommended

Not recommended

62

Not recommended

Safety instructions for installation

Safety distances underneath the hob

To ensure sufficient ventilation to the
hob, a minimum gap must be left
between the underside of the hob and
any oven, interim shelf or drawer.

The minimum gap between the
underside of the hob and

the top of an oven is 15 mm.

–

the top of an interim shelf is 15 mm.

–

the base of a drawer must be

–

75 mm.

Interim shelf

It is not necessary to fit an interim shelf
underneath the hob, but one may be
fitted if you wish.

A ventilation gap of 10 mm at the back
of the hob is necessary to
accommodate the cabling.
We recommend a ventilation gap at the
front of the hob of 20 mm to ensure
good ventilation.

63

Safety instructions for installation

Safety distance when installing the appliance near a wall with additional
niche cladding

A minimum safety distance must be maintained between the worktop cut-out and
any niche cladding to protect it from heat damage.

If the niche cladding is made from a combustible material (e. g. wood) a
minimum safety distance e of 50 mm must be maintained between the cut-out
and the cladding.

If the niche cladding is made from a non-combustible material (e. g. metal,
natural stone, ceramic tiles) a minimum safety distance e of 50 mm less the
thickness of the cladding must be maintained between the cut-out and the
cladding.
Example: 15 mm niche cladding
50 mm - 15 mm = minimum safety distance of 35 mm

Flush-fitted hobs Hob with frame or bevelled edges

a Masonry

b Niche cladding

Dimension x = thickness of niche cladding material

c Worktop

d Worktop cut-out

e Minimum safety distance

for combustible materials is 50 mm
for non-combustible materials is 50 mm less dimension x

64

Safety instructions for installation

Hob with frame or bevelled
edges

Seal between the hob and the
worktop

The sealing strip under the edge of the
top part of the appliance provides a
sufficient seal for the worktop.

The hob must not be sealed with
sealant (e.g. silicone).
This could result in damage to the
hob or the worktop if the hob ever
needs to be removed for servicing.

Tiled worktop

Grout lines a and the hatched area
underneath the hob frame must be
smooth and even. If they are not the
hob will not sit flush with the worktop
and the sealing strip underneath the
hob will not provide a good seal
between the hob and the worktop.

65

Hob with frame or bevelled edge

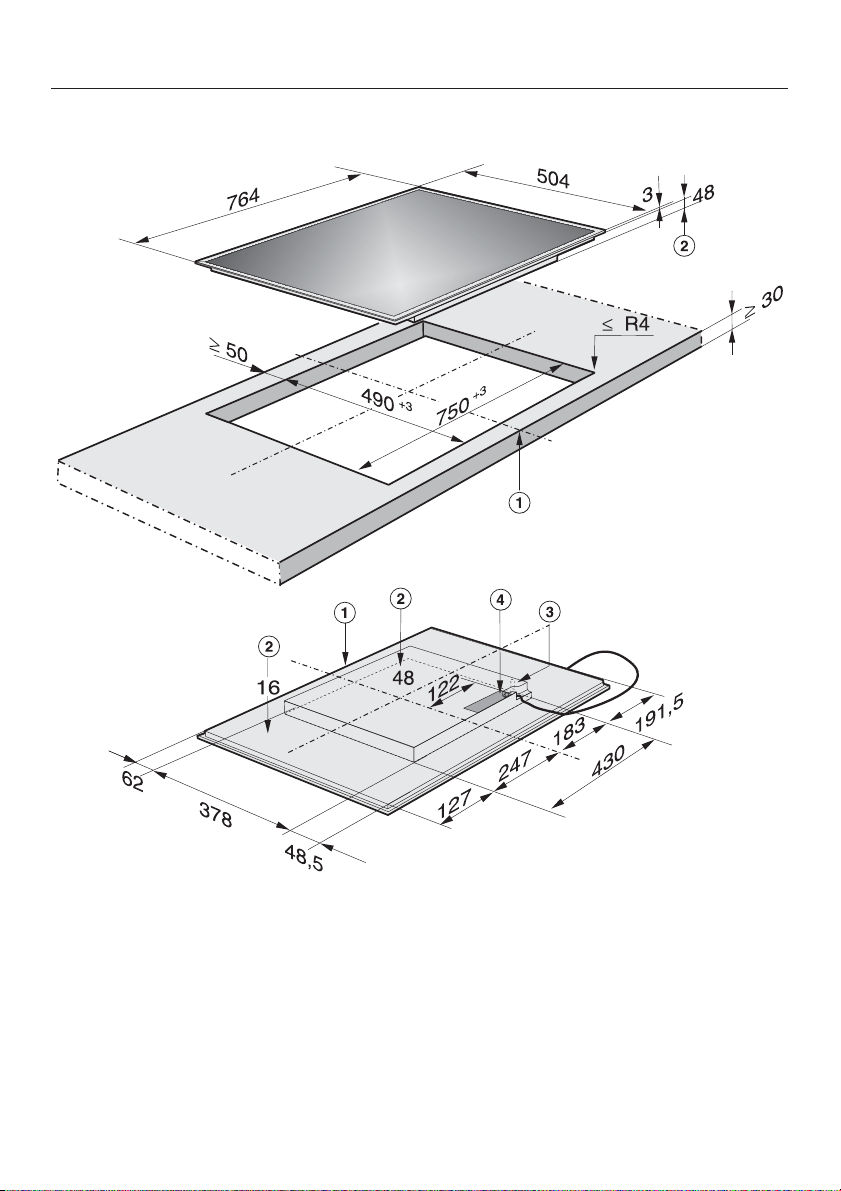

Building-in dimensions

KM 6350

a Front

b Casing depth

c Connection for Miele|home

d Mains connection box

The mains connection cable (1440 mm long) is supplied separately.

66

KM 6354

Hob with frame or bevelled edge

a Front

b Casing depth

c Connection for Miele|home

d Mains connection box

The mains connection cable (1440 mm long) is supplied separately.

67

Hob with frame or bevelled edge

KM 6380

a Front

b Casing depth

c Connection for Miele|home

d Mains connection box

The mains connection cable (1440 mm long) is supplied separately.

68

KM 6382

Hob with frame or bevelled edge

a Front

b Casing depth

c Casing depth, including mains connection cable

d Mains connection cable,

L = 1440 mm

e Connection for Miele|home

Casing depth, including Miele|home connection cable = 54 mm

69

Hob with frame or bevelled edge

Installing the hob

Preparing the worktop

Make the worktop cut-out according

^

to the dimensions given in the
building-in diagram. Remember to
maintain the minimum safety
distances (see "Safety instructions
for installation").

Seal the cut surfaces of

^

wood/laminated worktops with a
suitable heat-resistant sealant to
avoid swelling caused by moisture.

Make sure that the sealant does not
come into contact with the top of the
worktop.

No spring clamps are needed to
install the hob. The sealing strip
underneath the hob positions it
securely in the cut-out.
Any gap between the frame and
worktop will reduce with time.

Installing the hob

Feed the mains connection cable

^

down through the cut-out.

Place the hob centrally in the cut-out.

^

When doing this, make sure that the
seal under the hob sits flush with the
worktop on all sides. This is important
to ensure an effective seal all round.
Do not use sealant (e.g. silicone).

If the corners of the frame are not
flush with the worktop surface, the
corner radius (ß R4) can be carefully
scribed to fit.

^ Connect the hob to the mains.

^ Check that the hob works.

Connecting the mains cable to the
appliance

The mains cable must only be
connected to the appliance by a
qualified and competent electrician
in strict accordance with current
local and national safety regulations
(BS 7671 in the UK).

^

Follow the instructions in the wiring
diagram (see "Electrical connection ­Wiring diagram").

70

Building-in dimensions

KM 6351

Flush-fitted hobs

a Front
b Casing depth
c Connection for Miele|home
d Stepped cut-out for granite or marble

worktops

e Mains connection box

The mains connection cable (1440 mm
long) is supplied separately.

Please take careful note of the
detailed diagrams for the cut-out
dimensions in granite and marble
worktops.

71

Flush-fitted hobs

KM 6352

- suitable for installing in a glass worktop -

a Front
b Casing depth
c Connection for Miele|home
d Stepped cut-out for granite or marble

worktops

e Mains connection box

The mains connection cable (1440 mm
long) is supplied separately.

72

Please take careful note of the
detailed diagrams for the cut-out
dimensions in granite and marble
worktops.

KM 6383

Flush-fitted hobs

a Front
b Casing depth
c Casing depth including cable

exit

d Stepped cut-out for granite or marble

worktops

e Mains connection cable,

L = 1440 mm

f Connection for Miele|home

Casing depth including
connection cable for
Miele|home=61mm

Please take careful note of the
detailed diagrams for the cut-out
dimensions in granite and marble
worktops.

73

Flush-fitted hobs

Installing the hob

Flush fit hobs are only suitable for
installation in granite, marble, tiled or
solid wood worktops.
When using a worktop made from
any other material, please check first
with the worktop manufacturer that it
is suitable for installing a flush fit
hob.
Certain models are suitable for
building into glass worktops - please
see advice under "Building-in
dimensions".

The internal width of the base unit
must be at least as wide as the
internal cut-out width for the hob
(see "Building-in dimensions"). This
is to ensure that the casing can be
easily removed for maintenance.
If the underside of the hob is not
freely accessible after installation,
any sealant used to plug the gaps
around the appliance must be
removed to enable the hob to be
lifted out of the cut-out should this
be necessary.

The hob can be installed

in a suitable cut-out in a granite or

–

marble worktop.

in a suitable cut-out in a tiled or solid

–

wood worktop or a glass worktop
with a wooden support frame. The
frame must be provided on site, and
is not supplied with the appliance.

74

Flush-fitted hobs

Granite and marble worktops

Preparing the worktop

KM 6383

Make the worktop cut-out as shown

^

in "Building-in dimensions".
Observe the safety distances (see
"Safety instructions for installation").

Connecting the mains cable to the
appliance

The mains cable must only be
connected to the appliance by a
qualified and competent electrician
in strict accordance with current
local and national safety regulations
(BS 7671 in the UK).

^ Follow the instructions in the wiring

diagram (see "Electrical connection ­Wiring diagram").

Installing the hob

^ Feed the mains connection cable

down through the cut-out.

^ Centre the hob b in the cut-out.

a Worktop

b Hob

c Gap

As the ceramic glass and the
worktop cut-out have a certain
dimensional tolerance, the size of
gap c can vary (min. 1 mm).

^ Connect the hob to the mains.

^

Check that the hob works.

^

Seal the remaining gap c with a
silicone sealant that is heat-resistant
to at least 160 °C.

For granite and marble worktops,
only use silicone sealant that is
especially formulated for granite and
marble, and observe the sealant
manufacturer's instructions.

75

Flush-fitted hobs

Solid wood, tiled and glass
worktops

Preparing the worktop

KM 6383

As the ceramic glass and the
worktop cut-out have a certain
dimensional tolerance, the size of
gap c can vary (min. 1 mm).

Make the worktop cut-out as shown

^

in "Building-in dimensions".
Observe the safety distances (see
"Safety instructions for installation").

Fix the wooden frame d 7 mm below

^

the top edge of the worktop (see
diagram).

Connecting the mains cable to the
appliance

The mains cable must only be
connected to the appliance by a
qualified and competent electrician
in strict accordance with current
local and national safety regulations
(BS 7671 in the UK).

a Worktop

b Hob

c Gap

d Wooden frame 13 mm

KM 6383 = 7.5 mm

Wooden frame to be provided on
site.

76

^ Follow the instructions in the wiring

diagram (see "Electrical connection ­Wiring diagram").

Installing the hob

Feed the mains connection cable

^

down through the cut-out.

Centre the hob b in the cut-out.

^

Connect the hob to the mains.

^

Check that the hob works.

^

Seal the remaining gap c with a

^

silicone sealant that is heat-resistant
to at least 160 °C.

For granite and marble tiles, only
use silicone sealant that has been
especially formulated for granite and
marble.
Observe the silicone sealant
manufacturer's instructions.

Flush-fitted hobs

77

Electrical connection

All electrical work should be carried
out by a suitably qualified and
competent person, in strict
accordance with current local and
national safety regulations (BS 7671
in the UK).

Installation, repairs and other work
by unqualified persons could be
dangerous. The manufacturer
cannot be held liable for
unauthorised work.

A damaged cable must be replaced
by a suitably qualified electrician
with a special connection cable of
type H 05 VV-F, available from
Miele.

Connection should be made via a
suitable isolator which complies with
national and local safety regulations,
and the On/Off switch should be easily
accessible after the appliance has
been built in.

If the switch is not accessible after
installation (depending on country) an
additional means of disconnection must
be provided for all poles.

For extra safety it is advisable to protect
the appliance with a residual current
device (RCD). Please contact a
qualified electrician for advice.

When switched off there must be an
all-pole contact gap of at least 3 mm in
the isolator switch (including switch,
fuses and relays).

Ensure power is not supplied to the
appliance until after installation or
repair work has been carried out.

The appliance must only be
operated when built-in. This is to
ensure that all electrical parts are
shielded. Live parts must not be
exposed.

Do not connect the appliance to the
mains electricity supply by an
extension lead. These do not
guarantee the required safety of the
appliance.

Please make sure that the connection
data quoted on the data plate match
the household mains supply.

78

Important U.K.

The appliance is supplied for
connection to a 230-240 V, 50 Hz
supply with a 3-core cable.

The wires in the mains lead are
coloured in accordance with the
following code:

Green/yellow = earth

Blue = neutral

Brown = live

WARNING
THIS APPLIANCE MUST BE
EARTHED

Electrical connection

The electrical safety of this appliance
can only be guaranteed when
continuity is complete between it and
an effective earthing system, which
complies with current local and national
safety regulations. It is most important
that this basic safety requirement is
present and regularly tested and where
there is any doubt, the electrical wiring
in the home should be inspected by a
qualified electrician. The manufacturer
cannot be held liable for the
consequences of an inadequate
earthing system such as an electric
shock.

The manufacturer cannot be held
liable for damage which is the direct
or indirect result of incorrect
installation or connection.

Wiring diagram

N.B. This appliance is supplied
single phase only in the U.K. / AUS /
NZ

79

After sales service, data plate, guarantee

In the event of any faults which you cannot remedy yourself, or if the appliance is
under guarantee, please contact:

Your Miele dealer, or

–

the Miele Service Department (see back cover for address).

–

Please note that telephone calls may be monitored and recorded to improve
our service.

When contacting Miele, please quote the model and serial number of your
appliance. These are given on the data plate.

N.B. A call-out charge will be applied for service visits where the problem
could have been resolved as described in these instructions.

Space in which to stick the extra data plate supplied with the appliance. Ensure
that the model number is the same as the one on the front of these instructions.

Guarantee

For information on the appliance guarantee specific to your country please
contact Miele. See back cover for contact details.

In the U.K. your appliance is guaranteed for 2 years from the date of purchase.
However, you must activate your cover by calling 0845 365 6640 or registering
online at www.miele.co.uk.

808182

83

Alteration rights reserved / 4911

M.-Nr. 07 799 000 / 07
