Operating and installation instructions
Ceramic cooktops with induction
To prevent the risk of accidents or damage to the appliance, it is
essential to read these instructions before it is installed and used for
the first time.
en-AU, NZ M.-Nr. 10 459 990
Contents
Warning and Safety instructions.......................................................................... 4
Caring for the environment ................................................................................ 14
Overview............................................................................................................... 15
Cooktop................................................................................................................. 15
KM 6080 ........................................................................................................... 15
KM 6090 ........................................................................................................... 16
KM 6092 ........................................................................................................... 17
KM 6093 ........................................................................................................... 18
Control symbols .................................................................................................... 19
Cooktop display symbols...................................................................................... 19
Cooking zone data ................................................................................................ 20
Before using for the first time ............................................................................ 23
Cleaning the cooktop for the first time.................................................................. 23
Switching on the cooktop for the first time ........................................................... 23
Induction .............................................................................................................. 24
The induction principle.......................................................................................... 24
Noises.................................................................................................................... 25
Pans....................................................................................................................... 26
Tips on saving energy ........................................................................................ 27
Power level range................................................................................................ 28
Operation.............................................................................................................. 29
Cooking zone rotary controls ................................................................................ 29
Switching on.......................................................................................................... 29
Switching off.......................................................................................................... 29
Residual heat indicator.......................................................................................... 29
PowerFlex cooking area ........................................................................................ 30
Auto heat-up ......................................................................................................... 31
Booster.................................................................................................................. 32
Keeping warm ....................................................................................................... 34
Safety features..................................................................................................... 35
System lock........................................................................................................... 35
Safety switch-off ................................................................................................... 35
Overheating protection.......................................................................................... 36
Cleaning and care ............................................................................................... 37
Problem solving guide ........................................................................................39
2
Contents
Optional accessories ..........................................................................................42
Safety instructions for installation..................................................................... 43
Safety distances .................................................................................................. 44
Installation notes ................................................................................................. 46
Building-in dimensions .......................................................................................47
KM 6080 ................................................................................................................ 47
KM 6090 ................................................................................................................ 48
KM 6092/6093....................................................................................................... 49
Installation............................................................................................................ 50
Electrical connection ..........................................................................................51
Service.................................................................................................................. 52
Contact in case of fault ......................................................................................... 52
Data plate: ............................................................................................................. 52
Warranty ................................................................................................................ 52
3
Warning and Safety instructions
This appliance conforms to current safety requirements.
Inappropriate use can, however, lead to personal injury and
damage to property.
To avoid the risk of accidents and damage to the appliance,
please read these instructions carefully before using it for the first
time. They contain important notes on installation, safety, use and
maintenance.
Miele cannot be held liable for non-compliance with these
instructions.
Keep these instructions in a safe place and ensure that new users
are familiar with the contents. Pass them on to any future owner.
4
Warning and Safety instructions
Correct application
This cooktop is designed for domestic use and for use in similar
environments by guests in hotel or motel rooms, bed & breakfasts
and other typical living quarters. This does not include common/
shared facilities or commercial facilities within hotels, motels or bed
& breakfasts.
This cooktop is not suitable for outdoor use.
It is intended only to cook food and keep it warm. Any other use is
not supported by Miele and could be dangerous.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning its use by a person responsible
for their safety, and are able to recognise the dangers of misuse.
5
Warning and Safety instructions
Safety with children
Young children must not be allowed to use this appliance.
Older children may only use the appliance when its operation has
been clearly explained to them and they are able to use it safely,
recognising the dangers of misuse.
Cleaning may only be carried out by older children under the
supervision of an adult.
Please supervise children in the vicinity of the cooktop and do not
let them play with it.
The cooktop gets hot when in use and remains hot for a while
after being switched off. Keep children well away from the cooktop
until it has cooled down and there is no danger of burning.
Danger of burning!
Do not store anything which might arouse a child's interest in
storage areas above or next to the cooktop. Otherwise they could be
tempted into climbing onto the appliance.
Danger of burning or scalding!
Place pots and pans on the cooking zone in such a way that children
cannot pull them down and burn themselves.
Danger of suffocation! Children may be able to wrap themselves in
packing material or pull it over their head with the risk of suffocation.
Keep children away from any packing material.
Activate the system lock to ensure that children cannot switch on
the cooktop inadvertently.
6
Warning and Safety instructions
Technical safety
Repairs and other work by unqualified persons could be
dangerous. Installation, maintenance work and repairs to electrical
appliances must only be carried out by a Miele approved service
technician.
A damaged appliance is dangerous. Check it for any visible
damage. Never install or attempt to use a damaged appliance.
Reliable and safe operation of this cooktop can only be assured if
it has been connected to the mains electricity supply.
The electrical safety of this appliance can only be guaranteed
when continuity is complete between it and an effective earthing
system which complies with local and national safety regulations. It
is most important that this basic safety requirement is present and
tested regularly and, where there is any doubt, the household wiring
system should be inspected by a qualified electrician.
Before connecting the appliance to the mains supply, ensure that
the connection data on the data plate (voltage and frequency)
matches the mains electricity supply. This data must correspond in
order to avoid the risk of damage to the appliance.
The cooktop may only be installed in combination with those
ovens quoted by Miele as being suitable to ensure trouble-free
operation and in order to avoid a possible hazard. If the cooktop is
used in combination with other appliances, the warranty will be
invalidated.
For safety reasons, this cooktop may only be used after it has
been built in.
This appliance must not be installed and operated in mobile
installations (e.g. on a ship).
7
Warning and Safety instructions
Never open the casing of the cooktop.
Touching or tampering with electrical connections or components
and mechanical parts is highly dangerous to the user and can cause
operational faults.
The manufacturer's warranty will be invalidated if the appliance is
not repaired by a Miele approved service technician.
Faulty components must only be replaced by genuine Miele spare
parts. The manufacturer can only guarantee the safety of the
appliance when Miele replacement parts are used.
The cooktop must be connected to the oven by a qualified
electrician in strict accordance with current national and local safety
regulations (see "Electrical connection").
During installation, maintenance and repair work, the appliance
must be disconnected from the mains electricity supply. It is only
completely isolated from the electricity supply when the mains circuit
breaker is switched off.
Danger of electric shock!
Do not use the cooktop if it is faulty, or if the ceramic surface is
cracked, chipped or damaged in any way. Switch it off immediately,
disconnect it from the mains electricity supply and contact Miele.
If the cooktop is installed behind a furniture panel (e.g. a door),
ensure that the door is never closed whilst the cooktop is in use.
Heat and moisture can build up behind a closed furniture panel and
cause subsequent damage to the cooktop, the housing unit and the
floor. Do not close the door until the residual heat indicators have
gone out.
In areas which may be subject to infestation by cockroaches or
other vermin, pay particular attention to keeping the appliance and
its surroundings clean at all times. Any damage caused by
cockroaches or other vermin will not be covered by the warranty.
DO NOT MODIFY THIS APPLIANCE.
8
Warning and Safety instructions
This cooktop must only be connected to Miele oven H2265I, type
HIKK6010, in order to avoid a possible hazard.
9
Warning and Safety instructions
Correct use
The cooktop gets hot when in use and remains hot for a while
after being switched off. There is a danger of burning until the
residual heat indicators go out.
Oil and fat can overheat and catch fire. Do not leave the cooktop
unattended when cooking with oil and fat. If it does ignite, do not
attempt to put the flames out with water.
Switch off the cooktop and use a suitable fire blanket, saucepan lid,
damp towel or similar to smother the flames.
Flames could set the grease filters of a rangehood on fire. Do not
flambé under a rangehood.
Spray canisters, aerosols and other inflammable substances can
ignite when heated. Therefore do not store such items or substances
in a drawer under the cooktop. Cutlery inserts must be heatresistant.
Do not heat an empty pan.
Do not heat up food in closed containers e.g. tins or sealed jars
on the cooktop, as pressure can build up in the containers, causing
them to explode.
Do not cover the cooktop, e.g. with a cooktop cover, a cloth or
protective foil. The material could catch fire, shatter or melt if the
cooktop is switched on by mistake or if residual heat is still present.
When the appliance is switched on either deliberately or by
mistake, or when there is residual heat present, there is the risk of
any metal items left on the cooktop heating up, with the danger of
burning. Depending on the material, other items left on the cooktop
could also melt or catch fire. Damp pan lids might adhere to the
ceramic surface and be difficult to dislodge. Do not use the
appliance as a resting place. Switch the cooking zones off after use
and do not rely on the pan detector.
10
Warning and Safety instructions
You could burn yourself on the hot cooktop. Protect your hands
with heat-resistant pot holders or gloves when handling hot pots and
pans. Do not let them get wet or damp, as this causes heat to
transfer through the material more quickly with the risk of scalding or
burning yourself.
When using an electrical appliance, e.g. a hand-held food mixer,
near the cooktop, ensure that the cable of the electrical appliance
cannot come into contact with the hot cooktop. The insulation on the
cable could become damaged.
Grains of salt, sugar and sand (e.g. from cleaning vegetables) can
cause scratches if they get under pan bases. Make sure that the
ceramic surface is clean before placing pans on it.
Even a light object can cause damage in certain circumstances.
Do not drop anything on the ceramic surface.
Hot pans on the display can cause damage to the electronics
underneath. Do not place hot pans on the display or on the area
around the display.
Do not allow solid or liquid sugar, or pieces of plastic or aluminium
foil to get onto the cooking zones when they are hot, as they can
damage the ceramic surface when it cools down. If this should
occur, switch off the appliance and scrape off all the sugar, plastic or
aluminium residues whilst still hot, using a shielded scraper blade.
Wear oven gloves. Allow the cooking zones to cool down and clean
them with a suitable ceramic cooktop cleaning agent.
Pans which boil dry can cause damage to the ceramic glass. Do
not leave the cooktop unattended whilst it is being used.
Only use pots and pans with smooth bases. Rough bases will
scratch the ceramic glass.
Lift pans into position on the cooktop. Sliding them into place can
cause scuffs and scratches.
11
Warning and Safety instructions
Induction heating works extremely quickly. Therefore, the base of
the pan could heat up to the temperature at which oil or fat selfignites within a very short time. Do not leave the cooktop unattended
whilst it is being used.
Heat oil or fat for a maximum of one minute. Do not use the
Booster function to heat oil or fat.
For people fitted with a heart pacemaker: Please note that the
area immediately surrounding the cooktop is electromagnetically
charged. It is very unlikely to affect a pacemaker. However, if in any
doubt, consult the manufacturer of the pacemaker or your doctor.
To prevent damage to items which are susceptible to
electromagnetic fields, e.g. credit cards, digital storage devices,
pocket calculators, etc., do not leave them in the immediate vicinity
of the cooktop.
Do not use two pans on a cooking zone, extended zone or
PowerFlex zone at the same time.
If the pan only partially covers the cooking zone, the handle could
become very hot.
Ensure that you always place the pan in the middle of the cooking
zone.
12
Warning and Safety instructions
Cleaning and care
Do not use a steam cleaning appliance to clean this appliance.
The steam could reach the electrical components and cause a short
circuit.
If the cooktop is built in over a pyrolytic oven, the cooktop should
not be used whilst the pyrolytic process is being carried out, as this
could trigger the overheating protection mechanism on the cooktop
(see relevant section).
13
Caring for the environment
Disposal of the packing material
The transport and protective packaging
has been selected from materials which
are environmentally friendly for
disposal, and can normally be recycled.
Recycling the packaging reduces the
use of raw materials in the
manufacturing process and also
reduces the amount of waste in landfill
sites. Ensure that any plastic
wrappings, bags etc. are disposed of
safely and kept out of the reach of
babies and young children. Danger of
suffocation.
Disposing of your old appliance
Electrical and electronic appliances
often contain valuable materials. They
also contain specific materials,
compounds and components, which
were essential for their correct function
and safety. These could be hazardous
to human health and to the environment
if disposed of with your domestic waste
or if handled incorrectly. Please do not,
therefore, dispose of your old appliance
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre for electrical and electronic
appliances. You are also responsible for
deleting any personal data that may be
stored on the appliance prior to
disposal. Please ensure that your old
appliance poses no risk to children
while being stored prior to disposal.
14
Overview
Cooktop
Not all models are available in your country. Please contact Miele in your country
for more information.
KM 6080
a
Cooking zone with TwinBooster
b
Cooking zone with Booster
c
Cooking zone with Booster
d
Cooking zone with Booster
e
Display with cooking zone indicators
15
Overview
KM 6090
a
Cooking zone with TwinBooster
b
Cooking zone with Booster
c
Cooking zone with TwinBooster
d
Cooking zone with Booster
e
Display with cooking zone indicators
16
KM 6092
Overview
a
Cooking zone with Booster
b
Cooking zone with Booster
c
PowerFlex cooking zone with TwinBooster
d
PowerFlex cooking zone with TwinBooster
cd
can be combined to form PowerFlex cooking area
e
Display with cooking zone indicators
17
Overview
KM 6093
a
PowerFlex cooking zone with TwinBooster
b
PowerFlex cooking zone with TwinBooster
ab
can be combined to form PowerFlex cooking area
c
PowerFlex cooking zone with TwinBooster
d
PowerFlex cooking zone with TwinBooster
cd
can be combined to form PowerFlex cooking area
e
Display with cooking zone indicators
18
Overview
Control symbols
Symbol Description
0 Cooking zone off
Switching on the keeping warm function (depending on
model)
Switching on the keeping warm function or PowerFlex
cooking area (depending on model)
B I Switching on the Booster/TwinBooster
Incremental scale (depending on model)
or Activating Auto heat-up (depending on model)
Cooktop display symbols
Symbol Description
Keeping warm function
to Power level
Auto heat-up
Level 1 TwinBooster/WaterBoost
Booster/Level 2 TwinBooster/WaterBoost
No pan on cooking zone or pan unsuitable (see "Induction")
Residual heat
The system lock has been activated
Demonstration mode activated
Demonstration mode deactivated
19
Overview
Cooking zone data
Cooking zone KM 6080
Øin cm* Rating in watts for 230 V**
16–23 Normal
TwinBooster, level 1
TwinBooster, level 2
10–16 Normal
Booster
14–20 Normal
Booster
14–20 Normal
Booster
Total 7300
* Cookware of any diameter may be used within the specified range.
** The wattage quoted may vary depending on the size and material of the pans used.
Cooking zone KM 6090
Øin cm* Rating in watts for 230 V**
16–23 Normal
TwinBooster, level 1
TwinBooster, level 2
10–16 Normal
Booster
2300
3000
3650
1400
2200
1850
3000
1850
3000
2300
3000
3650
1400
2200
14–20 Normal
TwinBooster, level 1
TwinBooster, level 2
20 x 30 Normal
TwinBooster, level 1
TwinBooster, level 2
14–20 Normal
Booster
Total 7300
* Cookware of any diameter may be used within the specified range.
** The wattage quoted may vary depending on the size and material of the pans used.
20
1850
2500
3000
2300
3000
3650
1850
3000
Cooking zone KM 6092
Øin cm* Rating in watts for 230 V**
Overview
14–20 Normal
Booster
10–16 Normal
Booster
15–23 Normal
TwinBooster, level 1
TwinBooster, level 2
15–23 Normal
TwinBooster, level 1
TwinBooster, level 2
+ 22–23 /
15 x 23 – 23 x 39
* Cookware of any diameter may be used within the specified range.
** The wattage quoted may vary depending on the size and material of the pans used.
Normal
TwinBooster, level 1
TwinBooster, level 2
Total 7300
1850
3000
1400
2200
2100
3000
3650
2100
3000
3650
3400
4800
7300
21
Overview
Cooking zone KM 6093
Øin cm* Rating in watts for 230 V**
15–23 Normal
TwinBooster, level 1
TwinBooster, level 2
15–23 Normal
TwinBooster, level 1
TwinBooster, level 2
15–23 Normal
TwinBooster, level 1
TwinBooster, level 2
15–23 Normal
TwinBooster, level 1
TwinBooster, level 2
+ 22–23 /
15 x 23 – 23 x 39
+ 22–23 /
15 x 23 – 23 x 39
* Cookware of any diameter may be used within the specified range.
** The wattage quoted may vary depending on the size and material of the pans used.
Normal
TwinBooster, level 1
TwinBooster, level 2
Normal
TwinBooster, level 1
TwinBooster, level 2
Total 7300
2100
3000
3650
2100
3000
3650
2100
3000
3650
2100
3000
3650
3400
4800
7300
3400
4800
7300
22
Before using for the first time
Please stick the extra data plate for
the appliance supplied with this
documentation in the space provided
in the "Service" section of this
booklet. Alternatively, the additional
label can be stuck near the appliance
if the appliance markings are not
visible after installation.
Remove any protective wrapping and
stickers.
Cleaning the cooktop for the first time
Before using for the first time, clean
the cooktop with a damp cloth only
and then wipe dry.
Switching on the cooktop for the first time
The metal components have a
protective coating which may give off a
slight smell when heated up for the first
time. The induction coils may also give
off a slight smell for the first few hours
of operation. This smell will be less
noticeable with each subsequent use
before dissipating completely.
The smell and any vapours given off do
not indicate a faulty connection or
appliance and they are not hazardous
to health.
Please note that the heating up time
on induction cooktops is very much
shorter than on conventional
cooktops.
23
Induction
The induction principle
An induction coil is located under each
cooking zone. When a cooking zone is
switched on, this coil creates a
magnetic field which impacts directly
on the base of the pan and heats it up.
The cooking zone itself is heated up
indirectly by the heat given off by the
pan.
An induction cooking zone only works
when a ferromagnetic pan is placed on
it (see "Pans"). The induction cooking
zone automatically recognises the size
of the pan.
The symbol flashes alternately with
the power setting selected in one of the
cooking zones
– if it is switched on without a pan in
place, or if the pan is unsuitable (nonmagnetic base),
– if the diameter of the base of the pan
is too small,
When the appliance is switched
on either deliberately or by mistake,
or when there is residual heat
present, there is the risk of any metal
items placed on the cooktop (e.g.
cutlery) heating up.
Danger of burning!
Do not use the cooktop as a resting
place for items. Switch the cooking
zones off after use by turning the
control to "0".
– if the pan is taken off the cooking
zone when it is switched on.
If a suitable pan is placed on the
cooking zone within 3minutes, will go
out and you can continue as normal.
If no pan or an unsuitable pan is placed
on the cooking zone, the cooking zone
will switch off automatically after
3minutes.
24
Noises
When using an induction cooking zone,
the following noises can occur in the
pan, depending on what it is made of
and how it has been constructed.
On the higher power settings, it might
buzz. This will decrease or cease
altogether when the power setting is
reduced.
If the pan base is made of layers of
different materials (e.g. in a sandwiched
base), it might emit a cracking sound.
Whistling might occur if linked zones
(see "Booster") are being used at the
same time, and the pans also have
bases made of layers of different
materials.
You might hear a clicking sound from
the electronic switches, especially on
lower power settings.
Induction
You might hear a whirring sound when
the cooling fan switches on. It switches
on to protect the electronics when the
cooktop is being used intensively. The
fan may continue to run after the
appliance has been switched off.
25
Induction
Pans
Suitable pans:
– Stainless steel pans with a base that
can be magnetised.
– Enamelled steel pans.
– Cast iron pans.
Unsuitable pans:
– Stainless steel pans without a
magnetic base.
– Aluminium and copper pans.
– Glass, ceramic or earthenware pots
and pans.
To test whether a pot or pan is suitable
for use on an induction cooktop, hold a
magnet to the base of the pan. If the
magnet sticks, the pan is suitable. If an
unsuitable pan is used, the symbol
will flash alternately with the power
setting selected.
Please be aware that the properties of
the pan base can affect the evenness
with which food heats up in the pan.
– Lift pans into position on the
cooktop. Sliding them into place can
cause scuffs and scratches.
– Often the maximum diameter quoted
by manufacturers refers to the
diameter of the top rim of the pot or
pan. The diameter of the base
(generally smaller) is more important.
– Where possible, use pans with
vertically straight sides. If a pan has
angular sides, induction also acts on
the sides of the pan. The sides of the
pan may discolour or the coating
may peel off.
– To make optimum use of the cooking
zones, choose pans with diameters
larger than the innermost markings
but smaller than the outermost
markings (see "Cooking zone data").
If the diameter of the pan is smaller
than the innermost marking, the pan
will not be recognised and will flash
alternately with the power setting
selected.
– Do not use pots and pans with bases
with pronounced edges or ridges.
These could scratch or scour the
cooktop surface permanently.
26
– Use a lid whenever possible to
minimise heat loss.
– Select a smaller pan when cooking
small quantities. A smaller pan uses
less energy than a larger pan with
very little in it.
– Cook with as little water as possible.
– Once food has come to the boil or
the oil in the pan is hot enough for
frying, reduce the heat to a lower
setting.
– Use a pressure cooker to reduce
cooking times.
Tips on saving energy
27
Power level range
Settings
Keeping warm h
Melting butter
Dissolving gelatine
Melting chocolate
Making milk puddings 2
Warming small quantities of liquid
Cooking rice
Defrosting frozen vegetables (blocks) 3
Making porridge 3
Warming liquid and semi-solid foods
Making omelettes or lightly fried eggs
Steaming fruit
Cooking pasta/dumplings 4
Steaming vegetables and fish 5
Defrosting and reheating frozen food 5
Gently frying eggs (without overheating the fat) 6
Bringing large quantities of food to the boil, e.g. casseroles.
Thickening custard and sauces, e.g. hollandaise
Gentle braising (without overheating the fat) of fish, schnitzel and
sausages
Frying pancakes, potato fritters etc. 7
Braising for stews 8
Boiling large quantities of water
Bringing to the boil
1-2
3
4
6-7
6-7
9
These settings should only be taken as a guide. The power of the induction coils will vary
depending on the size and material of the pan. For this reason, it is possible that the
settings will need to be adjusted slightly to suit your pans. As you use the cooktop, you will
get to know which settings suit your pans best. When using new pans that you are not
familiar with, set the power level below the one specified.
28
Operation
Fire hazard!
Do not leave the cooktop unattended
whilst it is being used.
Please note that the heating up time
on induction cooktops is very much
shorter than on conventional
cooktops.
Cooking zone rotary controls
The cooking zone rotary controls must
not be turned past BI to or or to
0.
Switching on
Turn the cooking zone rotary control
clockwise until the setting you want
appears in the display.
Switching off
Turn the rotary control anti-clockwise
to 0.
The power setting will go out in the
display.
Residual heat indicator
If a cooking zone is still hot, the residual
heat indicator will light up after it has
been switched off.
The lines of the residual heat indicator
go out one after another as the cooking
zone cools down. The last horizontal
line only goes out when the cooking
zone is safe to touch.
29
Operation
PowerFlex cooking area
(depending on model, see "Overview Cooktop").
The PowerFlex cooking zones can be
combined to form a PowerFlex cooking
area (see "Overview - Cooktop").
Settings for the cooking area are
controlled by the front PowerFlex
cooking zone.
Switching on
Turn the rotary control for the rear
cooking zone clockwise to.
will light up in the display for the rear
cooking zone.
Turn the rotary control for the front
cooking zone clockwise until the
power setting you require lights up in
the cooking zone display.
If the front cooking zone already has a
power level set when the cooking area
is activated, you need to turn the
rotary control to "0" before you can
set the power level for the PowerFlex
cooking area.
Switching off
Turn both rotary controls anti-
clockwise to 0.
30
Operation
Auto heat-up
When Auto heat-up has been activated,
the cooking zone switches on
automatically at the highest setting and
then switches to the continued cooking
setting which you have previously
selected. The heat-up time depends on
which continued cooking setting has
been chosen (see chart).
Activating
Turn the rotary control anti-clockwise
to or (depending on model) and
hold until flashes once in the
cooking zone display.
Now turn the rotary control clockwise
until the continued cooking setting
lights up in the cooking zone display.
The continued cooking setting selected
will flash alternating with during the
heat-up time (see chart).
Changing the continued cooking
setting while the cooking zone is
heating up deactivates Auto heat-up.
Continued
cooking setting
1 approx. 0: 15
2 approx. 0: 15
3 approx. 0: 25
4 approx. 0: 50
5 approx. 2: 00
6 approx. 5: 50
7 approx. 2: 50
8 approx. 2: 50
9 –
Heat-up time
[min : sec]
Deactivating
Select a different power setting.
31
Operation
Booster
The cooking zones are equipped with a
one stage Booster, two stage
WaterBoost or TwinBooster (see
"Overview - Cooktop").
When activated, the power is boosted
for a maximum of 15minutes so that
large quantities can be heated quickly,
e.g. water for cooking pasta.
The Booster function can only be used
on two cooking zones at the same time.
The cooking zone will automatically
revert to power setting 9 at the end of
the booster time.
The cooking zones are connected in
pairs in order to provide sufficient
power for the Booster.
When the Booster function is selected,
a proportion of energy is taken away
from the linked cooking zone and the
following happens within the pairs:
– Auto heat-up is deactivated,
– the power setting is reduced,
– the linked cooking zone is switched
off.
32
Operation
Switching on the Booster
Turn the rotary control clockwise
gently past the point of resistance to
BI and back to the point of
resistance.
will appear in the cooking zone
display.
Switching on the TwinBooster, level 1
Turn the rotary control clockwise
gently past the point of resistance to
BI and back to the point of
resistance.
will appear in the cooking zone
display.
Switching on the TwinBooster, level 2
Turn the rotary control clockwise
gently past the point of resistance to
BI and back to the point of
resistance.
Turn the rotary control again gently
past the point of resistance to BI and
back to the point of resistance.
Switching off the Booster / TwinBooster
Select a different power setting.
The Booster symbol will go out.
will appear in the cooking zone
display.
33
Operation
Keeping warm
The keeping warm function is not
designed to reheat food from the cold
state. It is only for keeping food warm
directly after cooking.
If the keeping warm function has been
activated, the cooking zone will switch
off automatically after a maximum of 2
hours.
– Only use pans for keeping food
warm. Cover the pan with a lid.
– You do not have to stir food while it is
being kept warm.
– Nutrients are lost when food is
cooked, and continue to diminish
when food is kept warm. The longer
food is kept warm for, the greater the
loss of nutrients. Try to ensure that
food is kept warm for as short a time
as possible.
Setting the keeping warm function
Turn the rotary control clockwise to
or (depending on model).
will appear in the cooking zone
display.
34
Safety features
System lock
The system lock is deactivated if
there is an interruption to the power
supply.
The system lock can only be activated
if all the cooking zones are switched
off.
Your cooktop is equipped with a system
lock to prevent the cooking zones being
switched on inadvertently.
If a power level is selected when the
system lock is activated, appears in
the display for approx. 3 seconds.
Activating
Turn the rotary controls for both front
cooking zones anti-clockwise to the
point of resistance at the same time
and hold until appears.
Deactivating
Turn the rotary controls for both front
cooking zones anti-clockwise to the
point of resistance at the same time
and hold until goes out.
Safety switch-off
Safety switch-off with an overlong cooking time
The safety switch-off mechanism is
triggered automatically if one of the
cooking zones is heated for an
unusually long period of time. This
period of time depends on the power
setting selected. Once exceeded, the
cooking zone switches off and the
residual heat indicators appear. The
cooking zone can be operated again
after it has been switched off and back
on.
35
Safety features
Overheating protection
All the induction coils and cooling
elements for the electronics are fitted
with an overheating protection
mechanism. Before the induction coils
or cooling elements get too hot, the
overheating protection mechanism cuts
in in one of the following ways:
– Any Booster function in operation will
be switched off.
– The selected power setting will be
reduced.
– One or more cooking zones switches
off automatically.
Turn the rotary controls for all the
affected cooking zones to "0". The
affected cooking zones can only be
used again as usual once the induction
coils or cooling elements have cooled
down to a safe level.
Overheating can be caused by:
– heating up an empty pan,
– fat or oil being heated on a high
power setting,
– insufficient ventilation to the
underside of the appliance,
– a hot cooking zone being switched
on after an interruption to the power
supply.
If, despite removing the cause, the
overheating protection mechanism
triggers again, contact Miele.
36
Cleaning and care
Danger of burning!
The cooking zones must be switched
off. The cooktop needs to cool
down.
Danger of injury!
The steam from a steam cleaning
appliance could reach electrical
components and cause a short
circuit.
Do not use a steam cleaner to clean
the cooktop.
The use of unsuitable cleaning
agents can cause the surfaces to
discolour or alter.
The external surfaces of this
appliance are all susceptible to
scratching.
Remove any cleaning agent residues
immediately.
Allow the cooktop to cool down
before cleaning.
Clean the cooktop after every use.
Dry the cooktop thoroughly after
every cleaning to avoid limescale
residue.
Unsuitable cleaning agents
To avoid damaging the surfaces of your
appliance, do not use:
– washing-up liquid,
– cleaning agents containing soda,
alkalines, ammonia, acids or
chlorides,
– cleaning agents containing descaling
agents,
– stain or rust removers,
– abrasive cleaning agents, e.g.
powder cleaners and cream cleaners,
– solvent-based cleaning agents,
– dishwasher cleaner,
– grill and oven cleaners,
– glass cleaning agents,
– hard, abrasive brushes or sponges,
e.g. pot scourers, or sponges which
have been previously used with
abrasive cleaning agents,
– dirt erasers.
37
Cleaning and care
Cleaning the glass ceramic surface
Risk of damage from pointed
objects!
Do not clean the area between the
glass ceramic surface and the frame
or the frame and the worktop with
sharp, pointed objects.
Not all soiling and residues can be
removed using a solution of
washing-up liquid.
An invisible film can develop that can
lead to discolouration of the ceramic
glass. This discolouration cannot be
removed.
Clean the glass ceramic surface
regularly with a suitable ceramic
cooktop cleaning agent.
Remove any coarse soiling with a
damp cloth and more stubborn
soiling with a glass scraper.
Spots caused by limescale, water
and aluminium residues (spots with a
metallic appearance) can be removed
using Miele's ceramic and stainless
steel cooktop cleaner.
Danger of burning!
Wear oven gloves when removing
residues of sugar, plastic or
aluminium foil from a hot cooktop a
glass scraper.
Should any sugar, plastic or
aluminium foil spill or fall onto a hot
cooking zone while it is in use, first
switch off the appliance.
Then carefully scrape off these
residues immediately whilst they are
still hot, using a shielded scraper
blade.
Afterwards, clean the glass ceramic
surface in its cooled state, as
described above.
Then clean the ceramic glass surface
with the Miele ceramic and stainless
steel cooktop cleaner (see "Optional
accessories") or with a proprietary
ceramic glass cleaner applied with a
paper towel or a clean cloth. Do not
apply the cleaner while the cooktop is
still hot, as this can result in marking.
Please follow the detergent
manufacturer's instructions.
Finally wipe the cooktop with a damp
cloth and dry it with a soft, dry cloth.
Residues can burn onto the cooktop
the next time it is used and cause
damage to the glass ceramic surface.
Ensure that all cleaner residues are
removed.
38
Problem solving guide
With the help of the following guide, minor faults in the performance of the
appliance, some of which may result from incorrect operation, can be remedied
without contacting Miele. This will save you time and money because you won't
need a service call.
Please note that a call-out charge will be applied to unnecessary service visits
where the problem could have been rectified as described in these operating
instructions.
Problem Possible cause and remedy
The cooking zones do
not heat up.
A smell and vapours are
given off when the new
appliance is being used.
In the display for a
cooking zone the
symbol flashes
alternately with the
selected power setting
or .
There is no power to the cooktop.
Check if the circuit breaker has tripped. Contact
an electrician or Miele (for the minimum fuse
rating, see data plate).
There may be a technical fault.
Turn the rotary control to 0.
Disconnect the appliance from the electricity
supply for approx. 1 minute. To do this:
– switch off at the wall socket and withdraw the
plug, or
– switch off the mains circuit breaker.
Reset the trip switch in the mains fuse box, and
switch the appliance back on. If it still will not
switch on, contact a qualified electrician or Miele.
The metal components have a protective coating.
When the appliance is used for the first time, this
causes a smell and possibly also vapour. The material
from which the induction coils are made also gives off
a smell in the first few hours of operation. This smell
will be less noticeable with each subsequent use
before dissipating completely. The smell and any
vapour given off do not indicate a faulty connection or
appliance and they are not hazardous to health.
There is no pan on the cooking zone, or the pan is
unsuitable.
Use a suitable pan (see "Pans").
39
Problem solving guide
Problem Possible cause and remedy
After switching on a
cooking zone, appears
in the front left cooking
zone display and
appears in the front
right cooking zone
display for a few
seconds.
After switching on a
cooking zone,
appears in the front left
cooking zone display
and appears in the
front right cooking zone
display for a few
seconds.
The cooking zones do
not heat up.
A cooking zone
switches itself off
automatically.
The Booster has
automatically switched
off early.
The cooking zone is not
working in the usual
way on the power
setting selected.
Power setting 9 is
automatically reduced if
you select power
setting 9 on two linked
cooking zones or
extended zones at the
same time.
The system lock has been activated.
You need to deactivate the system lock (see
"System lock").
The demonstration mode has been switched on.
Turn the rotary control for the front left cooking
zone anti-clockwise and hold.
Turn the rotary control for the front right cooking
zone twice briefly anti-clockwise and then turn
anti-clockwise and hold until appears in the
display.
A cooking zone might have been operated for too
long.
You can use the cooking zone again by switching
it back on (see "Safety switch-off").
The overheating protection mechanism has been
activated.
See "Overheating protection".
The overheating protection mechanism has been
activated.
See "Overheating protection".
Operating both zones at power setting 9 would
exceed the permitted maximum power for the
cooktop.
Use another cooking zone which is not linked.
40
Problem solving guide
Problem Possible cause and remedy
The food in the pan
hardly heats up or does
not heat up at all when
the Auto heat-up
function is switched on.
A noise can be heard
after the appliance is
switched off.
is flashing in the
display of one or more
cooking zones.
The rotary control is not
at "0", a power level has
been set for the
cooking zone. The
cooking zone is not
heating up.
appears in the display
or flashes alternately
with .
flashes in the display
alternating with
numbers.
There is too much food in the pan.
Start cooking at the highest power setting and
then turn down to a lower one manually later on.
The pan is not conducting heat properly.
Use a different pan which is better able to conduct
heat on an induction cooktop.
The fan will continue running until the appliance has
cooled down. It will then switch itself off
automatically.
The rotary control for the cooking zone has been
turned to the point of resistance clockwise or anticlockwise for longer than 30 seconds.
Turn the rotary control to 0. If the fault message
does not go out, there could be a technical fault.
Call Miele.
There was an interruption to the power supply during
operation.
The cooking zone was switched on more than 3
minutes ago without a suitable pan being placed on it.
The maximum operating time for the cooking zone
has been exceeded.
Turn the rotary control to 0.
The cooking zone can now be used again.
There is a fault with the electronics.
Interrupt the power supply to the cooktop for
approx.1minute. If the problem persists after
power is restored, please contact Miele.
41
Optional accessories
Miele offers a range of useful
accessories, as well as cleaning and
conditioning products for your
appliance.
These products can be ordered from
the Miele online shop.
They can also be ordered directly from
Miele (see end of this booklet for
contact details).
Saucepans and frying pans
Miele offer a wide range of pans which
are perfect for Miele cooktops. Please
refer to the Miele website for more
details on individual products.
– Pans in various sizes
– Frying pan with lid
– Non-stick pan
– Wok
– Gourmet oven dishes
Cleaning and care products
Original Miele ceramic and stainless steel cooktop cleaner 250 ml
Removes heavy soiling, limescale
deposits and aluminium residues.
Original Miele all purpose microfibre cloth
Removes finger marks and light soiling.
42
Safety instructions for installation
Installation of the cooktop may only be performed by a qualified technician.
The cooktop may only be connected to the oven by a qualified electrician in
strict accordance with current national and local safety regulations.
Fit the wall units and rangehood before fitting the cooktop to avoid damaging
the cooktop.
The veneer or laminate coatings of worktops (or adjacent kitchen
units) must be treated with 100°C heat-resistant adhesive which will
not dissolve or distort. Any splashbacks must be of heat-resistant
material as well.
The cooktop is fitted with a cooling fan. To guarantee sufficient
ventilation of the cooling fan, the worktop must be at least 29mm
thick.
Once the cooktop has been installed, the electrical connection
cable must not be subject to mechanical stress.
Observe carefully the safety clearances listed on the following
pages.
All dimensions in this instruction booklet are given in mm.
43
Safety distances
Safety distance above the cooktop
A minimum safety distance must be
maintained between the cooktop and
the rangehood above it. See the
rangehood manufacturer's operating
and installation instructions for details.
If the manufacturer's instructions are
not available for the rangehood, a
minimum safety distance of 600mm
must be maintained.
For any flammable objects, e.g. utensil
rails, wall units etc., a minimum safety
distance of 600mm must be
maintained between these objects and
the highest part of the cooktop below.
When two or more appliances which
have different safety distances are
installed together below a
rangehood, you should observe the
greatest safety distance.
44
Safety distances to the sides and back of the appliance
Ideally the cooktop should be installed
with plenty of space on either side.
There may be a wall at the rear or a tall
unit or wall on one side (right or left),
taking into account the distances
below. On the other side, however, no
tall unit or wall should stand closer than
300mm to the edge of the cooktop.
Before installing the cooktop, check
that the below clearance requirements
are met.
Minimum horizontal distance from the
back edge of the cooktop to a
combustible surface:
50mm.
Minimum horizontal distance from the
right edge of the cooktop to a
combustible surface:
50mm.
Safety distances
Minimum horizontal distance from the
left edge of the cooktop to a
combustible surface:
50mm.
45

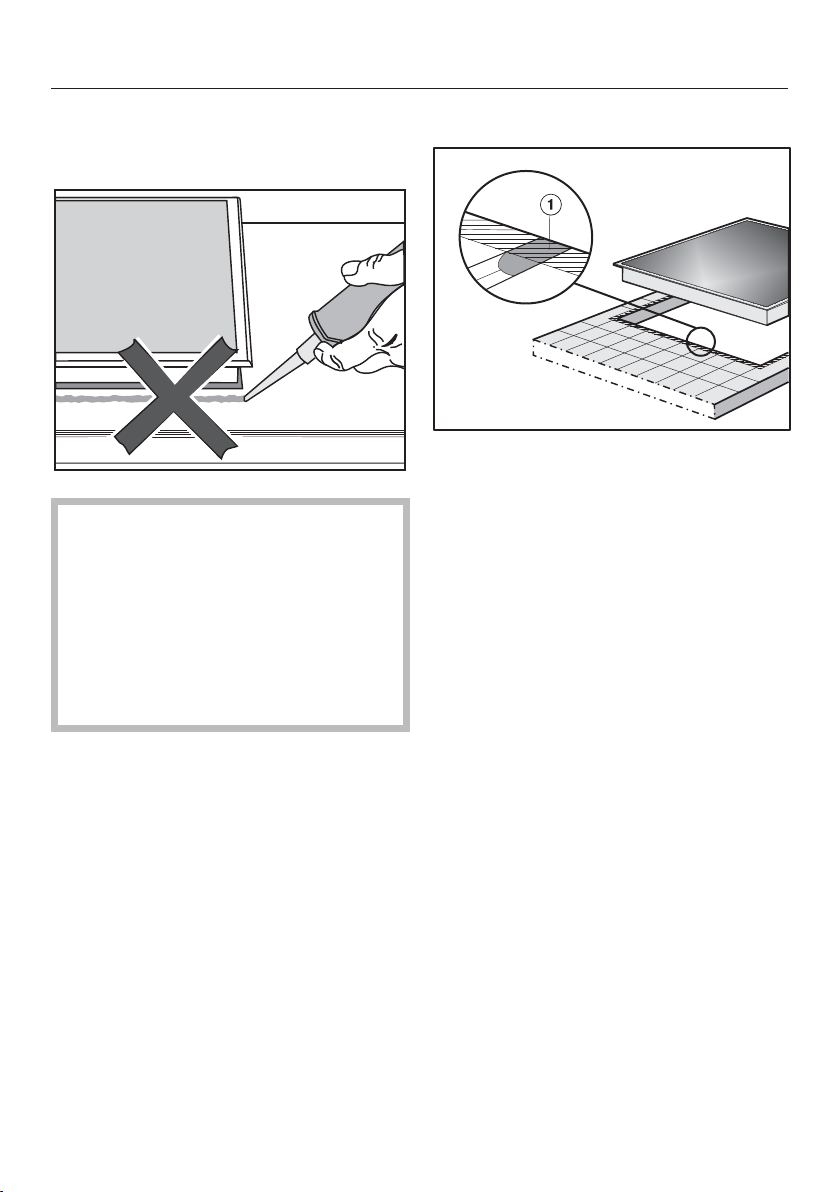

Installation notes
Seal between the cooktop and the worktop
Do not use sealant between the
cooktop and the worktop. This could
result in damage to the cooktop or
the worktop if the cooktop ever
needs to be removed for servicing.
The sealing strip under the edge of
the top part of the appliance
provides a sufficient seal for the
worktop.
Tiled worktop
Grout lines and the hatched area
underneath the cooktop frame must be
smooth and even. If they are not, the
cooktop will not sit flush with the
worktop and the sealing strip
underneath the cooktop will not provide
a good seal between the cooktop and
the worktop.
46
KM 6080
a
Front
b
Installation height
Building-in dimensions
47
Building-in dimensions
KM 6090
a
Front
b
Installation height
48
KM 6092/6093
Building-in dimensions
a
Front
b
Installation height
49
Installation
Preparing the worktop
Create the worktop cut-out as shown
in the cooktop diagram. Remember
to maintain the minimum safety
distances (see "Safety distances").
Wooden worktops
Seal the cut surfaces with a suitable
heat-resistant sealant to avoid
swelling caused by moisture. The
sealant must be temperatureresistant.
Make sure the sealant does not
come into contact with the top
surface of the worktop.
The sealing strip ensures that the
cooktop will sit securely in the cut-out
without slipping. Any gap between the
trim and worktop will become smaller
over time.
Installing the cooktop
Feed the cooktop electrical
connection cable down through the
worktop cut-out.
Connecting the cooktop
Insert the plug housing at the end of
the connection cable into the socket
on the oven.
The plug housing and plug connector
are designed so that only one
connection alignment is possible. Do
not use force to insert the plug. The
protective earth wire is integrated in
the plug housing.
Check that the cooktop works.
Place the cooktop centrally in the
cut-out. When doing this, make sure
that the seal under the cooktop sits
flush with the worktop on all sides.
This is important to ensure an
effective seal all round.
Do not use any additional sealant
(e.g. silicone).
If the seal does not meet the worktop
correctly on the corners, the corner
radii (≤R4) can be carefully scribed to
suit.
50
Electrical connection
Danger of injury!
Incorrect installation, maintenance or
repair work is dangerous to users.
Miele cannot be held liable for
damage or injury caused by incorrect
installation, maintenance or repair
work, or by an inadequate or faulty
earthing system (e.g. electric shock).
The cooktop may only be connected
to the oven by a qualified and
competent electrician in strict
accordance with current local and
national safety regulations.
After installation, ensure that all
electrical components are shielded
and cannot be accessed by users.
Connection
The voltage and rated load are given on
the data plate. Please ensure these
match the household mains supply.
Residual current device
For extra safety, it is advisable to
protect the appliance with a suitable
residual current device (RCD) with a trip
range of 30 mA.
51
Service
Contact in case of fault
In the event of any faults which you cannot remedy yourself, please contact Miele.
Contact information for Miele can be found at the end of this document.
Please quote the model and serial number of your appliance when contacting
Miele. This information can be found on the data plate.
Data plate:
Adhere the extra data plate supplied with the appliance in the space below. Make
sure that the model number matches the one specified on the back cover of this
document.
Warranty
The manufacturer's warranty for this appliance is 2years.
For further information, please refer to your warranty booklet.
52
