Operating and Installation Instructions
H 6100 BM
H 6200 BM
Speed Oven
To prevent accidents and machine damage, read these instructions
before installation or use.
en – US, CA M.-Nr. 09 786 880
Page 2
Technical Service
After sales service
In the event of a fault which you cannot
easily correct yourself, please contact:
– your Miele dealer, or
– the Miele Technical Service
Department.
See back cover for contact details.
Please quote the model and serial
number of your appliance when
contacting Miele.
This information is given on the data
plate, visible on the front frame of the
oven, with the door fully open.
Warranty
For further information, please refer to
your warranty booklet.
92
Page 3
Caring for the environment
Disposal of the packing
material
The cardboard box and packing
materials protect the appliance during
shipping. They have been designed to
be biodegradable and recyclable.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of children.
Danger of suffocation!
Disposal of your old appliance
Do not dispose of this appliance with
your household waste.
Old appliances may contain materials
that can be recycled. Please contact
your local recycling authority about the
possibility of recycling these materials.
Before discarding an old appliance
ensure that it presents no danger to
children while being stored for disposal.
Unplug it from the outlet, cut off its
power cord and remove any doors to
prevent hazards.
93
Page 4
Electrical connection
NEMA 14-30P, L1, L2, N, G, 20 amp
208/240VAC
CAUTION:
Before servicing, disconnect the
power supply by either removing the
fuse, shutting off the power main or
manually "tripping" the circuit
breaker.
Installation, repair and maintenance
work must be performed by a Miele
authorized service technician. Work
by unqualified persons could be
dangerous and may void the
warranty.
Before connecting the appliance to
the power supply, make sure that the
voltage and frequency listed on the
data plate correspond with the
household electrical supply. This
data must correspond to prevent
machine damage. Consult an
electrician if in doubt.
Only operate the appliance after it
has been installed into cabinetry.
The voltage can be adjusted (see
"Settings - ").
SAVE THESE INSTRUCTIONS FOR
THE ELECTRICAL INSPECTOR'S
USE.
The plug must be plugged into an
appropriate outlet that is installed
and grounded in accordance with all
local codes and ordinances.
WARNING: THIS APPLIANCE MUST
BE GROUNDED
Installer: Please leave these
instructions with the consumer.
94
Page 5
Installation diagrams
BAB
A
7/8" (22*/23** mm)
22 1/16"
(560 mm)
17 1/2" (445 mm)
21 9/16" (549 mm)
23 7/16"
(595 mm)
17 15/16"
(455 mm)
22 1/16"
(560 mm)
4"
(100 mm)
17 3/4" - 17 13/16"
(450-452 mm)
21 5/8"
( 550 mm)

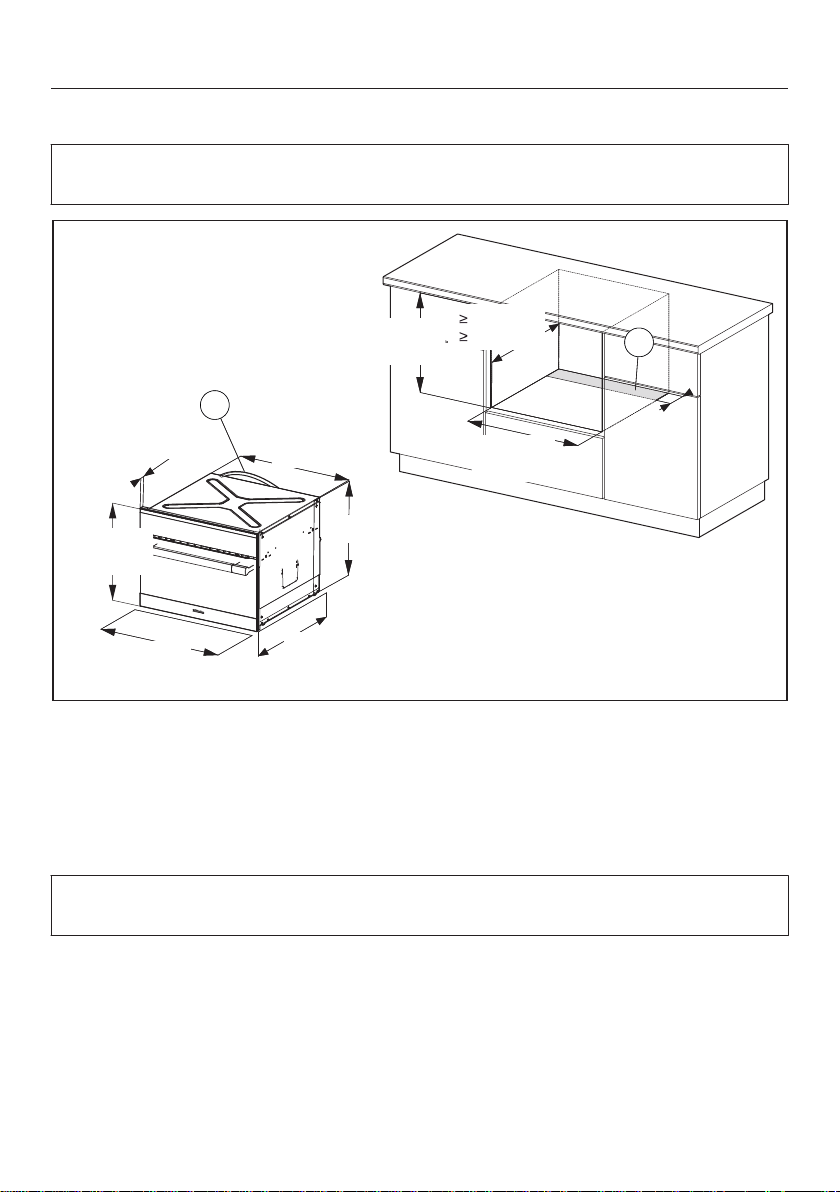

Appliance and cut-out dimensions
Miele ovens can be installed flush or proud. Discuss your installation
requirements with your architect, designer and installer.
Installation into a tall cabinet
Cut-out (4" x 22" / 100 mm x 560 mm) in the bottom of the cabinet for power
cord and ventilation
Power cord with plug
* Oven with glass front
** Oven with metal front
Front design may vary depending on model. For the more current specifications
please visit the Miele website.
95
Page 6
Installation diagrams
BAB
A
7/8" (22*/23** mm)
22 1/16"
(560 mm)
17 1/2" (445 mm)
21 9/16" (549 mm)
23 7/16"
(595 mm)
17 15/16"
(455 mm)
22 1/16"
(560 mm)
4"
(100 mm)
18 1/8" - 18 5/16"
(460-465 mm)
21 5/8"
( 550 mm)
Undercounter installation
If installed underneath a cooktop, the installation instructions for the cooktop
must also be taken into account.
Cut-out (4" x 22" / 100 mm x 560 mm) in the bottom of the cabinet for power
cord and ventilation
Power cord with plug
* Oven with glass front
** Oven with metal front
Front design may vary depending on model. For the more current specifications
please visit the Miele website.
96
Page 7
Installation diagrams
7/8"
(22*/23** mm)
22 1/16"
(560 mm)
17 1/2"
(445 mm)
21 9/16"
(549 mm)
23 7/16"
(595 mm)
17 15/16"
(455 mm)
7/8"
(22*/23** mm)
16" (407 mm)
21 11/16"
(551 mm)
22 11/16"
(577 mm)
20 1/16"
(510 mm)
21 1/2" (546 mm)
23 7/16"
(595 mm)
23 7/16"
(596 mm)
AA
4"
(100 mm)
4"
(100 mm)
20 7/8"
( 530 mm)
22 1/16"
(560 mm)
23 1/4"-23 7/16"
(590-595 mm)
17 3/4"-17 13/16"
(450-452 mm)
Installation in a tall cabinet in combination with an oven
Cut-out (4" x 22" / 100 mm x 560 mm) in the bottom of the cabinet for power
cord and ventilation
* Oven with glass front
** Oven with metal front
Front design may vary depending on model. For the more current specifications
please visit the Miele website.
97
Page 8
Installation diagrams
A
17 1/2"
(445 mm)
3/16"
(4 mm)
13 1/8"
(333 mm)
4 3/8"
(111 mm)
17 3/4"
(451 mm)
17 15/16"
(455 mm)
B
- 1/16"
(-2 mm)
Front dimensions
A H61xx: 2 5/16" (59 mm)
H62xx: 1 5/8" (42 mm)
B Speed Oven with glass front: 1/16" (2.2 mm)
98
Speed Oven with metal front: 1/16 (1.2 mm)
Page 9
The oven must not be operated
until it has been properly installed
within cabinetry.
If there are side handles, please
remove them.
Connect the power cord to the
electrical supply.
Push the oven into the cabinetry up
to the oven trim and align it.
Installation
Open the door and use the screws
supplied to secure the oven to the
side walls of the cabinetry through
the holes in the oven trim.
99
Page 10
9 Independence Way
Princeton, NJ 08540
Phone:
Fax:
www.mieleusa.com
U.S.A.
Miele, Inc.
National Headquarters
Please have the model and serial number
of your appliance available before
contacting Technical Service.
Canada
Importer
Miele Limited
Headquarters and Miele Centre
800-843-7231
609-419-9898
609-419-4298
Technical Service & Support
Nationwide
Phone:
Fax:
T
echnicalService@mieleusa.com
161 Four Valley Drive
Vaughan, ON L4K 4V8
www.miele.ca
800-999-1360
888-586-8056
Customer Care Centre
Phone:
customercare@miele.ca
800-565-6435
905-532-2272
Germany
Manufacturer
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
100
