Operating instructions
Double Oven H 283 B2
It is essential to read these operating instructions before installing or using the machine, to avoid the risk of accident, or damage to the machine. M.-Nr. 05 043 320
Q\@ä}
Contents
Contents
Description of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safety feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Before using for the first time
To set the time of day. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Cleaning the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Description of the systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Oven - use
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Function selector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Selecting an oven setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Temperature selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Using the oven. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Interrupting the process / switching off the oven . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Pre-heating the oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Entering a short time (minute minder) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Accessories
Baking tray, roasting / grill pan and rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Roasting filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Anti-splash tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Using the clock / timer
Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Push buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Time of day . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Programming cooking time for the lower oven . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Switching the cooking process off automatically . . . . . . . . . . . . . . . . . . . . . . . . . . 22
To delay cooking time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Delaying the end of cooking time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Delaying the start of cooking time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Checking, altering times or cancelling times entered . . . . . . . . . . . . . . . . . . . . . . 24
To cancel programmed processes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Contents
Baking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Baking chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Roasting in the oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Oven roasting chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Casseroles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Grilling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Grilling chart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Cleaning and care
Appliance front and control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Oven interior. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
"Clean-Enamel" . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Catalytic Enamel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Cleaning each type of enamel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
To remove the oven door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
To remove the runners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
To remove the catalytic side panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
To remove the interior rear panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
To lower the upper heating element . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Correcting minor faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Extra accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Electrical connection Electrical connection
Installing the oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Q\}
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Description of the appliance
Description of the appliance
4
Description of the appliance
General notes
Control panel
e
-
:
:
b Upper oven
Oven function selector, Oven heating indicator light, Temperature control
c Clock and timer for the lower oven d Lower oven
Oven function selector, Oven heating indicator light, Temperature control
Oven interior
e Heating element for top heat
and grilling with guard plate
f Side rails g Oven door h Air inlet for fan i Door contact switch
Accessories
The following accessories are supplied with this oven:
– 3 baking trays – dual purpose grill pan / oven tray –2 racks
e
– roasting filter –timer
Depending on model, your appliance may also be fitted with
–a handle. – an anti-splash tray.
5
Caring for the environment
Caring for the environment
Disposal of the packing material
The transport and protective packing has been selected from materials which are environmentally friendly for disposal and can normally be recycled.
Rather than just throwing these ma­terials away, please ensure they are of­fered for recycling.
Disposal of your old machine
Old machines contain materials which can be reclaimed or recycled. Please contact your dealer, your local waste collection centre or scrap merchant about potential recycling schemes, before disposing of the appliance.
Ensure that the machine presents no danger to children while being stored for disposal. See the appropriate ad­vice in the "Warning and Safety instruc­tions".
6
Warning and Safety instructions
This appliance complies with all rele­vant legal safety requirements. Im­proper use of the appliance can, however, present a risk of both per­sonal injury and material damage.
Before installation and before using the appliance for the first time, read the operating instructions carefully. They contain important notes on safety, on the installation, operation and care of the appliance. This way you will avoid the risk of accidents and damage to the appliance. Do not let children access the ap­pliance or its controls. Supervise its use by the elderly or infirm.
Keep these instructions in a safe place and pass them on to any fu­ture user.
Warning and Safety instructions
Technical safety
Before connecting the appliance to
the mains supply make sure that the voltage and frequency correspond to the rating on the data plate, other­wise the appliance could be damaged. Consult a competent person if in doubt.
The electrical safety of this ap-
pliance can only be guaranteed when continuity is complete between the appliance and an effective earthing system, which complies with local and national regulations. It is most import­ant that this basic safety requirement is tested by a qualified electrician. The manufacturer cannot be held respon­sible for the consequences of an inade­quate earthing system.
This appliance must only be oper-
ated as a built-in appliance. This is necessary to ensure that all electrical components are shielded.
Correct usage
The appliance is intended for do-
mestic use to cook food, and in particular to bake, roast, defrost, cook, dry fruit etc, and to grill. Any other usage is at the owners risk and could be dangerous. The manufac­turer cannot be held responsible for damage caused by improper use of the appliance.
Never open the casing of the ap-
pliance. Tampering with electrical connections or components and mechanical parts is highly dangerous to the user and can cause operational faults.
7
Warning and Safety instructions
Installation work and repairs may
only be carried out by suitably qualified and competent persons to en­sure safety. Repairs and other work by unqualified persons could be dan­gerous. The manufacturer cannot be held responsible for unauthorized work.
The appliance is only completely
isolated from the electricity supply when:
it is switched off at the wall socket or the mains fuse is withdrawnor the screw-out fuse is removed (in
countries where this is applicable).
Do not connect the appliance to
the mains electricity supply by an extension lead. Extension leads do not guarantee the required safety of the appliance, (e.g. danger of overheating).
Use
Caution, danger of burning. High temperatures are produced by the oven.
Great care should be taken to en-
sure that small children do not touch the appliance when it is being used. The oven and also external parts of the oven such as the door glass, vents and control panel can become quite hot.
Use of heat-resistant oven gloves
is recommended when placing food in the oven, turning or removing it.
When working with "Conventional" heat­ing or when grilling, the element in the roof of the oven and the guard plate become very hot, and there is a danger of being burnt.
Wait until the grill element has
cooled down before lowering it for cleaning, to avoid the danger of burn­ing.
Do not use force to pull it down as
this can cause the element to break.
8
Warning and Safety instructions
Do not use plastic containers. They may melt at high tempera-
tures. The oven could be damaged.
Do not heat up unopened tins or
jars of food in the oven, as press­ure can build up and they may ex­plode. This could result in injury or damage.
Do not push pots and pans around
on the oven floor as this could damage the surface.
Do not lean or sit on the open oven
door, or place heavy items on it. This could damage the appliance. Take care in the region of the hinges. The oven door can support a maximum load of 10 kg.
Cover any food which is left in the
oven to be kept hot. This avoids the food drying out. It also prevents steam condensing and possibly lead­ing to moisture damage in the oven.
If food is left in the oven after cook-
ing, e.g. to take advantage of the residual heat, select the lowest tem­perature available. Leave the function selector switch at the position set. Do not switch the appliance off until the food has been removed. Otherwise there may be a build-up of condensa­tion which could adversely affect the oven interior, and externally the control panel, the worktop surface or surround­ing kitchen furniture.
Put any deep frozen products such
as pizza on baking paper on the rack. Do not place them on the baking tray or grill pan. This could cause the metal to distort to such an extent that it might be difficult to remove the tray/pan from the oven. The distortion would increase with subsequent use.
General notes
Do not leave the appliance unat-
tended when cooking with oils and fats as these can be a fire hazard if allowed to overheat.
Do not use the oven to heat up the
room. Due to the high tempera­tures radiated, objects left near the oven could catch fire.
Under no circumstances use a
steam cleaner to clean this ap­pliance. Pressurised steam could give rise to a short circuit.
9
Warning and Safety instructions
Always ensure that food is suffi-
ciently cooked or reheated. Many factors will affect the overall cooking time, including the size and amount of food, its temperature, changes to the recipe and the shape and size of cook­ing container. Some foods may contain micro organisms which are only de­stroyed by thorough cooking, therefore when cooking or reheating foods, e.g. poultry, it is particularly important that food is fully cooked through. If in doubt select a longer cooking or reheating time. It is important that the heat is allowed to spread evenly throughout the food being cooked. This can be achieved by stirring and/or turning the food, and by observing a sufficiently long standing time, which should be added to the time needed for cooking, reheating or defrosting.
When using kitchen appliances
connected to sockets near the oven, ensure that the cable cannot get trapped in a hot oven door, which could melt the cable insulation and be dangerous. Danger of electric shock.
Using alcohol in your recipes
Often alcoholic drinks such as rum, cognac, wine etc. are used when preparing dishes and oven-cooking them. The high temperatures can cause the alcohol to separate out. Please take note that under adverse cir­cumstances the alcohol can catch light on the hot elements.
In countries which may be subject
to infestation by cockroaches or other vermin, pay particular attention to keeping the appliance and its surround­ings in a clean condition at all times. Any damage which might be caused by cockroaches or other vermin will not be covered by the appliance guarantee.
Disposal of your old machine
Before discarding an old machine
switch off and disconnect it from the power supply. This should be done by a competent person. Cut off and render any plug useless. Cut off the cable directly behind the machine to prevent misuse.
The manufacturer cannot be held liable for damage caused by non­compliance with safety instructions.
10
Safety feature
Operating lock for the lower oven
The operating lock prevents the lower oven being switched on unintentionally.
The operating lock is activated as fol­lows:
The function selector must be set to the "0" position.
Press the "f" button until the key symbol appears in the display field.
Safety feature
To cancel the operating lock:
It does not matter which oven function has been selected.
Press the "f" button until the key symbol disappears from the display field.
After a power cut the operating lock has to be reset.
Now the lower oven cannot be switched on.
11
Before using for the first time
Before using for the first time
To set the time of day
When the appliance is first connected to the power supply, or after a power cut "12:00" and the symbols "f" and ")" flash in the display.
Cleaning the appliance
Oven interior
Wipe out the oven interior using warm water and a little washing up liquid. Polish dry with a clean cloth.
Do not close the oven door until the oven interior is dry.
Press the buttons "f" und ")" at the same time.
The following light up:
"12:00" in the display,the "+/" button indicator light.
While the light between the "+" and "–" buttons is still lit up, enter the time of day in hours:minutes using the "+" or "–" button.
When the indicator light for the "+/–" but­ton goes out. the time of day has been set, and the display will change at one minute intervals. The colon flashes.
Rinse the accessories.
New appliances have a slight smell on first use. Running the oven for at least an hour at a high temperature will dissi­pate this more quickly.
Turn the oven function selector to "Fan Heat D" (lower oven) or to "Con- ventional (Top and bottom heat) A" (upper oven).
Select the highest temperature.
Depending on the model the timer can also be used to set the finish time.
Ensure the room is well ventilated during this process.
12
Description of the systems
Fan Heat D
This system works by the circulation of heated air.
A fan situated on the back wall of the oven sucks in the air, heats it over a ring element and blows the heated air through the carefully spaced openings in the rear panel of the oven.
The oven does not usually need to be pre-heated as the heated air reaches the food straight away. Exception: Pre-heat the oven when roasting meat or baking bread made with dark flour.
Using the fan heating system you can bake and roast on different levels at the same time.
The heated air used by this system is of a lower temperature than that used with the Conventional heating system.
Auto Roast E
This setting offers the fan heat with Auto Roast. The oven heats initially to a high temperature which seals the meat to keep it succulent and tasty.
As soon as the high temperature has been reached, the oven temperature is automatically returned to the pre-se­lected setting.
Description of the systems
Conventional heating A
With this conventional method of heat­ing, radiant heat is directed on the food from above and below.
Pre-heating the oven is only necessary when – baking biscuits or cakes with a short
cooking time (up to approx. 30 minutes).
baking some types of doughs.baking bread made with dark flour.roasting a joint of meat.
Defrost G
No heating is used. At this setting air at room temperature
is circulated by the fan, for gentle de­frosting.
Grill ,
The inner part of the upper heating ele­ment acts as the grill. This will glow red a few minutes after switching it on and is then ready for use.
Pre-heat the grill for 5 minutes with the oven door closed, before placing the food on the rack.
13
Oven - use
Oven - use
The double oven has a choice of two ovens with differing heating systems.
The upper oven - uses a top and bot­tom heating system.
It is suitable for preparing thinner items of food (e.g. tray baking, "flat" cakes, grilling slices of fish).
The lower oven e has both Fan Heat and Top and Bottom heating systems, and offers a wide range of options.
Controls
Each oven is controlled by its own func­tion selector and a temperature selec­tor.
The version of the controls depends on the model.
The following symbols identify the con­trols for each oven:
Function selector
With this control you select the oven function required.
The function selector can be turned clockwise or anti-clockwise.
Upper oven
Lower oven e
-
-
Upper oven
e Lower oven
14
Oven - use
Selecting an oven setting
The following functions are available for either one or both ovens:
– Light H
Turns on the oven light inde­pendently.
– Fan Heat D
For baking or roasting on several le­vels at the same time.
– Auto Roast E
Initial high temperature to seal meat followed by normal roasting tempera­ture. Not suitable for baking, except for baking freshly prepared wholemeal or rye doughs, (not packet mixes).
– Top Heat C
For browning dishes, finishing dishes with a cheese topping.
– Conventional A
Top and bottom heat for baking / roasting traditional recipes, for soufflés.
– Bottom heat B
Use this setting towards the end of baking, to brown the base of a cake.
– Defrost G
For gentle defrosting of deep frozen foods.
– Grill ,
For grilling fish and cuts such as chops, steaks, poultry pieces, and kebabs . Grill with the oven door shut.
Temperature selector -e
Each oven has its own temperature se­lector. Select the appropriate tempera­ture for the food to be cooked. The tem­perature can be freely selected within the given range.
Turn the temperature selector only in a clockwise direction, until you feel a resistance, and back, other­wise the control could be damaged. Defrost G: Do not set a tempera­ture when selecting "Defrosting".
When the temperature selector is turned to a temperature, the indicator light above this selector comes on.
When the temperature chosen is reached, the heating element switches itself off. However, as soon as the tem­perature falls below that selected, the heating switches on again automati­cally.
15
Oven - use
Using the oven
Place food to be cooked in the oven. Turn the oven selector to the re-
quired oven function. Use the temperture selector to set
the required temperature. The oven starts to heat up. With the lower oven e heating is auto-
matically interrupted as soon as the oven door is opened. This operates the door contact switch which switches off the heating systems, and the fan with "Fan heat".
You can also delay the start of cooking processes in the lower oven e, (see "Programming cooking time for the lower oven").
Interrupting the process / switching off the oven
Turn the function selector and the tem­perature selector to "0".
The oven is switched off; all processes/ symbol displays are can­celled.
Pre-heating the oven
This is only necessary in a few cases.
With "Fan Heat D" – for baking bread made with dark
flour,
– for roast beef and beef fillet. With "Conventional A"
– for baking biscuits and cakes with a
short cooking time (up to approx. 30 minutes).
for baking some doughs.for baking bread made with dark
flour,
– for roasting sirloin.
Pre-heating
Turn the oven selector to the re­quired function.
Set the temperature selector to the required temperature.
When the indicator light above the temperature goes out for the first time, put the food to be roasted or baked into the oven.
16
Entering a short time (minute minder)
Entering a short time (minute minder)
The minute minder can be used to time any activity in the kitchen, e.g. boiling eggs.
At the end of the short time:
– an audible tone sounds for approx.
5 seconds.
A short time can only be entered when the function selector is at "0". A short time entered will be can­celled as soon as an operating mode is selected.
To enter / to change the short time
(1 min. - 23 hrs. 59 mins.)
Press the "g" button.
Enter the required time in hours and
minutes with the "+" button. When the "+/–" button indicator light goes
out, the time set starts counting down in minutes.
– At the same time the "g" symbol
also flashes for approx. 1 minute.
The audible tone and the flashing sym­bol can be cancelled at any time by pressing the "g" button.
To cancel the minute minder
Press the "g" button.
Use the "–" button to set the short time to "0:00".
17
Accessories
Accessories
Baking tray, roasting / grill pan and rack
The baking tray, roasting / grill pan and rack are fitted with non-tip safety not­ches which prevent them being pulled right out when they only need to be par­tially pulled out.
When pushing the tray, pan and rack back in, always ensure that the safety notches are at the rear of the oven. (See illustration).
Roasting filter
When roasting on the rack, in an open pot or using "Fan Heat D" or "Auto Roast E" make sure that you fit the roasting filter in front of the fan opening.
The droplets of fat caught up in the circulating air are deposited on the roasting filter. This helps to keep the oven and the area behind the interior back panel cleaner.
The tray, pan and rack can then only be taken out of the oven by raising them upwards and then pulling out.
18
Accessories
Handle
(depending on model)
To take the baking trays or the roast­ing / grill pan out of the oven, or to put them into it.
Anti-splash tray
(depending on model)
To be placed in the grill pan when grilling.
The juices from the food being grilled are gathered under the anti-splash tray, rather than being dried out, and they can then be used in sauces etc.
19
Using the clock / timer
Using the clock / timer
Functions
The timer can:
show the time of day,switch the lower oven e off, or on
and off automatically.
Push buttons
With the push buttons you can
A corresponding symbol for each push button appears in the display when ap­propriate.
The symbol lights up when an oven function has been selected and the relevant button pressed in.
All data input or alteration is done with the "+" or "–" button.
Changes to the start, duration or end of cooking time, or time of day are effected in 1 minute steps.
As soon as one of the (f, g, )) buttons is operated the indicator light
between the "+" and "–" buttons lights up.
While the indicator light at the centre of the "+/–" button is lit up, a time can be entered or altered.
set the time of day.
enter the start of a cooking process.
enter the duration of a cooking
process.
– enter end of a cooking process.
20
Each time the "+" or "–" or another but­ton is pressed, this gives more time for data input.
When the indicator light goes out the data input or alteration has been regis­tered.
Using the clock / timer
Time of day
(24 hour display) When the appliance is first connected
to the power supply, or after a power cut "12:00" and the symbols "f" and ")" flash in the display.
Press the buttons "f" and ")" at
the same time. The following light up
"12:00" in the display,the indicator light for the "+/" button.
While the indicator light between the
"+" and "–" buttons is lit, the time of
day can be entered in hours:minutes
with the "+" or "–" button. When the indicator light for the "+/–" but-
ton goes out, the time of day has been set and the display will change at one minute intervals.The colon flashes.
To cancel the time of day display
The time of day display can be switched off to save energy.
Press the buttons "f" and ")" twice in succession.
The time of day continues to run un­seen.
If a programme has been pre-pro­grammed, the time of day display cannot be switched off.
To bring back the visible time display
Press buttons "f" and ")" together once.
If a process has been pre-pro­grammed, the time of day cannot be altered or cancelled.
21
Using the clock / timer
Programming cooking time for the lower oven e
With the timer it is possible for the lower oven to be switched off automati­cally, or set to come on at a later time and then also be switched off.
If a cooking process is pre-selected the time of day appears in the timer dis­play and the symbols for types of time entered (f, g, )) flash.
If a cooking process is in progress the time of day and the symbols for types of time entered (f, g, )) appear in the display.
When the end of cooking time has been reached – an audible tone sounds for approx.
5 seconds. – the ")" symbol flashes at the same
time.
Press the ")" button. The audible tone and the symbol are
switched off.
If the audible tone is not switched off it will continue to sound at 5 minute inter­vals as a reminder that cooking time as finished. This reminder continues for up to an hour.
Switching the cooking pro­cess off automatically
Select the required function and tem­perature.
Press the "g" button.
"0:00" appears in the display.
With the "+" button enter the required cooking time in hours : minutes. (1 min. – 23 hours. 59 min.)
As soon as the indicator light for the "+/–" button goes out, the cooking process starts.
The end of cooking time is automati­cally calculated from the time entered.
As well as the options given, you can also enter the end of a process only, using the relevant buttons.
As soon as the ")" button is pressed and the indicator light for the "+/–" button goes out, the oven heating starts again. Therefore always switch the oven off when the food is fully cooked.
If the food is not cooked to your taste, a new cooking time can be entered.
Finally turn the temperature and func­tion selectors to "0".
22
Using the clock / timer
To delay cooking time
There are several ways of delaying the start of a cooking process.
You can delay either the end or the be­ginning of cooking time.
Delaying the end of cooking time
Select the function and temperature
required. First enter the cooking time:
Press the "g" button. "0:00" appears in the display.
With the "+" button enter cooking
time in hours : minutes.
(1 min. – 23 hours. 59 min.) Immediately, while the "+/–" indicator
light is lit up postpone the end of cook­ing time:
Press the ")" button. The time of day plus the cooking time
entered appears in the display.
Use the "+" button to delay the end
of cooking time. The time of day appears first.
Delaying the start of cooking time
Select the function and temperature required.
First enter the cooking time:
Press the "f" button.
"0:00" appears in the display.
Use the "+" button to postpone the
start of cooking time. The time of day appears first. Immediately, while the "+/–" indicator
light is lit up enter the cooking time:
Press the "g" button. "0:00" appears in the display.
With the "+" button enter cooking
time in hours : minutes.
(1 min. – 23 hours. 59 min.) If only a start time is entered cooking starts straight away.
Please note the following:
Do not pre-programme with too long a delay. Cake mixtures will dry out and the raising agent will work less effec­tively.
23
Using the clock / timer
Checking, altering times or cancelling times entered
Times which have been entered for a process can be called up at any time. Press the relevant button for the time you wish to check, alter or cancel.
Checking the time
Press the button for the time to be checked.
"f" The starting time of the cooking pro­cess appears. This starting time disap­pears as soon as the process begins.
"g" The cooking time which has been en­tered or the time remaining of a pro­cess which is currently running ap­pears.
")" The end time for the cooking process appears.
Altering the time
Press the relevant button. The indicator light in the "+/–" button
lights up. Use the "+/–" buttons to enter the time
you require. The "+/–" button indicator light goes out
when the newly selected time has been accepted. The current time of day ap­pears in the display.
Please note the following
If you press a button for which the time has not been programmed but rather calculated by the system the "+/–" but­ton indicator light does not come on and it is not possible to alter this time.
24
Using the clock / timer
Cancelling the time
Press the "g" button. Use the "–" button to set the time to
"0:00"
Cancelling a cooking time also cancels the beginning and end of the cooking time and vice versa.
As soon as the indicator light be­tween the "+" and "–" buttons goes out the oven heating switches on. Therefore always switch the oven off when the food is fully cooked.
To cancel programmed processes
Press the "g" button.
Use the "–" button to set the time to
"0:00" Cancelling a cooking time also cancels
the beginning and end of the cooking time and vice versa.
As soon as the indicator light be­tween the "+" and "–" buttons has gone out the oven heating switches on. Therefore always switch the oven off when the food is fully cooked.
Turn the function selector and the
temperature selector to "0". If there is a power cut all programmes
entered will be deleted.
25
Baking
Baking
When choosing which oven to use take into account both the height of the baking tin and the height that the baking will reach once it has risen.
The following settings are recom­mended for baking:
Fan Heat DConventional A
"Fan Heat D"
Several levels can be used at the same time for baking. The recommended po­sitions are:
1 tray = 1st runner from the bottom 2 trays = 1st and 3rd runners
from the bottom
3 trays = 1st, 2nd and 5th runners
from the bottom
Bakin tins and dishes
for the best baking results make sure that you choose baking tins or dishes of a material suitable for the particular heatin system.
– "Fan Heat D"
Most types of heat-resistant tins or dishes are suitable, including thin­walled and bright, non-reflective met­al moulds.
"Conventional A"
The following baking tins give an evenly browned result: Dark metal or enamel tins with a matt finish are preferable. Heat resistant glass or thermoplastic trays dishes can be used. Avoid thin-walled and bright, non-re­flective metal moulds. These will give uneven browning results.
When baking moist biscuits, cakes or bread, do not bake on more than two levels.
Remember to remove the roasting (grease) filter from in front of the fan opening. Otherwise the baking time will be longer.
With the "Fan Heat D" setting lower baking temperatures are needed than with the "Conventional A" setting. See the baking charts.
26
Baking
"Conventional A" setting
Avoid thin-walled and bright, non-re­flective metal moulds. These will give uneven browning results.
Pre-heat the oven only for: – cakes / biscuits with a very short bak-
ing time (up to 30 minutes),
victoria sponge and similar mixtures.bread made with dark flour.
Select runner height, according to height of the item:
Upper oven tray baking, biscuits and "flat" cakes
= 1st runner (from floor) – Lower oven e large (deep) cakes = 1st or 2nd runner
tray baking, biscuits and "flat" cakes
= 1st or 2nd runner.
-
General notes
Deep-frozen products such as pizzas
should be placed on baking paper on the rack.
Use the deeper roasting tray for moist fruit cakes and multi-layer cakes, to minimize splashes in the oven.
The Baking Chart gives sugges­tions for temperature, runner height and timing.
For even browning ­– in general select the middle tem-
perature.
Increasing the temperature and re­ducing the time can have an adverse effect on even browning.
– Select the runner height according
to the recipe and the setting chosen.
– Just before the end of baking time
test to see if the cake is done. Insert a metal or wooden skewer into the centre. If it comes out clean, without dough or crumbs sticking to it, the cake is ready.
Place oblong tins in the oven as shown in the illustration.
27
Baking chart
Baking chart
Fan Heat D
Temperatu re
in °C
Creamed mixture
Sand cake Dried fruit cake Nut cake (tray)
1)
Nut cake (tin) Fresh fruit cake with topping (tray) Fresh fruit cake (tray) Fresh fruit cake (tin) Flan base Small cakes
Whisked mixture
Ta rt Flan base Swiss roll
1)
1)
1)
1)
1)
150-170 150-170 150-170 150-170 150-170 150-170 150-170 150-170 150-170
160-180 160-180 160-180
Rubbed-in mixture
Tart / flan base Nut ring Crumble cake Small cakes Cheesecake Apple pie Apricot flan with topping Savoury pastry
1)
1)
2)
Meat pie
150-170 150-170 150-170 150-170 150-170 150-170 150-170 190-210 170-190
Yeast mixtures
Crumble cake Fresh fruit cake (tray) Stollen White bread Wholemeal bread Pizza (tray)
1) 3)
1)
Onion cakes Apple turnovers
Choux pastry
1)
150-170 160-180 150-170 160-180 190-210 170-190 160-180 150-170
Eclairs 160-180 1, 3 25-30
Flaky pastry Meringues
1)
1)
170-190 1, 3 20-25
Macaroons 120-140 1, 2, 5 30-50 The times given are calculated on the basis of an oven which has not been pre-heated.
With a pre-heated oven shorten times by approx. 10 minutes.
rec. runner
from bottom
1 1 1 1 1 1 1 1
1, 2, 5
1 1 1
1 1 1
1, 2, 5
1 1 1 1 1
1 1 1 1 1 1 1
1, 3
Time
in mins.
50-60 70-80 20-25 60-70 45-50 35-45 45-55 25-30 20-25
25-30 20-25 15-20
20-25 40-50 40-50 15-25 70-80 45-55 40-60 25-35 60-70
35-45 40-50 45-65 40-50 60-70 40-50 30-35 25-30
1) Pre-heat the oven with "Conventional A" heat.
2) Pre-heat the oven with "Fan Heat D" and "Conventional A" heat.
3) Instead of "Fan Heat D" select "Auto Roast E". Pre-heat the oven with "Auto Roast E".
28
Baking in the oven
Temperature
in °C
Conventional heat A
rec. runner
from bottom
Baking chart
Time
in mins.
160-180 160-180 180-200 160-180 180-200 180-200 160-180 180-200 180-200
180-200 180-200 190-210
180-200 180-200 180-200 180-200 180-200 180-200 180-200 230-250 190-200
180-200 180-200 170-190 190-210 210-230 190-210 190-210 170-190
1/2
1/2 1/2
1/2
1/2
1/2
1/2
1/2
1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2
1 1
1
1
2
1 2
2
2 1 2 1
1
50-60 70-80 15-20 60-70 45-50 35-45 45-55 15-20 12-15
20-25 15-20 12-15
15-20 40-50 40-50 10-15 70-80 40-50 40-60 25-35 60-70
35-45 40-50 45-65 40-50 60-70 40-50 25-30 20-25
190-210 1/2 25-35 200-220 1/2 15-20
130-150 2 30-50
Data given are for guidelines only. Values obtained from a machine designed for the German market.
29
Roasting in the oven
Roasting in the oven
The lower oven is normally more ap­propriate for roasting. The upper oven is not so suitable, ex­cept for small roasts, preferably covered.
We recommend the following settings for roasting in the oven:
Auto roast E Conventional A
Auto roast E: When roasting on the rack or in an open tin make sure the roasting (grease) filter is fitted in front of the fan in the back of the oven interior before starting.
We recommend roasting in a covered pot L:
– This ensures that sufficient stock re-
mains for making gravy.
– The oven stays cleaner, too.
The meat should be put into a cold oven. Exception: Pre-heat the oven to the tem­perature recommended in the recipe when cooking roast beef or beef fillet.
Use shelf position 1 for roasting. Exception: Use shelf position 2 when roasting poultry weighing up to 1 kg, a cut of meat, or fish.
The "Auto roast E" system uses an ap­proximately 40°C lower roasting tem- perature than the "Conventional" heat­ing system.
The bigger the quantity to be roasted, the lower the temperature. When roasting more than 3 kg select a temperature about 10°C lower than the one given in the "Roasting" chart. The roasting process will take a bit longer, but the meat will be cooked evenly and the exterior will become crisp.
For roasting directly on the rack K the temperature needs to be about 20°C lower than for roasting in a covered pot L.
Roasting pots with a lid, made from earthenware, cast iron, ovenproof china or glass, and roasting foil are suitable.
Make sure that the pot and lid have heat-resistant handles.
Place the covered pot on the rack.
30
When roasting directly on the rack re­member to always put the roasting pan into the oven together with the rack.
The roasting time will depend on the type of meat, the size and thickness of the cut.
Roasting in the oven
Calculating roasting time:
The traditional British method is to allow 15 to 20 minutes to the lb, according to type of meat, plus approx. 20 minutes, adjusting length of time as roasting pro­ceeds, to obtain the required result.
Alternatively, multiply the height of the joint by the time per cm for the type of meat, (see the roasting chart).
Type of meat time per cm
height of meat
Beef / Venison Pork / Veal / Lamb Sirloin / Fillet
Example: Beef roast, 8 cm high 8 x 15 mins. per cm = 120 mins. roast­ing time
15-18 mins. 12-15 mins.
8-10 mins.
Please note:
Do not select a roasting temperature which is higher than that recom­mended.The meat will become brown, but will not be cooked properly.
Roasting in the oven
Useful hints
Roasting in a covered pot L
Season the meat and place in the pot. Add some knobs of butter or margarine or a little oil or cooking fat. Add about 1/8 litre of water when roasting a big lean joint of meat (2-3 kg) or roasting poultry with a high fat content.
Roasting on the rack K
Place a little water in the tray. Add a little fat or oil to very lean meat or place a few strips of bacon on the top. Do not add too much liquid to the tray during cooking as this will hinder the browning process.
Roasting poultry
For a crisp finish, baste the poultry ten minutes before the end of cooking time with slightly salted water.
Roasting deep frozen meat
Deep frozen meat should be defrosted beforehand.
Browning only occurs towards the end of the roasting time. Remove the lid about halfway through the roasting time if a more intensive browning effect is desired.
After the roasting process is finished take the roast out of the oven, wrap in aluminium foil and leave to stand for about 10 minutes. This helps retain juices when the meat is carved.
31
Oven roasting chart
Oven roasting chart
rec.
runner
from
bottom
Auto Roast E
Temp.
2)
in °C
1)
Time
in mins.
Conventional A
Temp.
2)
in °C
Time
in mins.
Rib of beef (apprx. 1 kg) 1 180-200 100-120 220-240 100-120 Sirloin, steak
3)
(apprx. 1 kg) 1
4)
190-210 35-45 240-260 35-45 Venison/game (apprx. 1 kg) 1 180-200 90-120 220-240 90-120 Leg of pork, (apprx. 1 kg) 1 170-190 100-120 210-230 100-120 Rolled pork (apprx. 1 kg) 1 170-190 100-120 200-220 110-130 Meat loaf (apprx. 1 kg) 1 170-190 50-60 200-220 50-60 Veal (apprx. 1 kg) 1 170-190 100-120 210-230 100-120 Shoulder of lamb (ca. 1.5 kg) 1 170-190 90-120 210-230 90-120 Poultry (0.8-1 kg) 1 Poultry (apprx. 2 kg)
ditto (stuffed)
4)
170-190 50-60 200-220 50-60
1 1
170-190
170-190
90-110
120-150
200-220 200-220
90-110
120-150 Poultry (apprx. 4 kg) 1 160-180 150-180 190-210 150-180 Whole fish (apprx. 1.5 kg) 1
4)
160-180 35-55 200-220 35-55
Unless otherwise stated, the times given are for an oven which has not been pre-heated.
1) Fit the roasting (grease) filter in place when using "Auto Roast E".
2) Roasting in a pot L
When roasting on the rack K, set the temperature 20°C lower than given.
3) Pre-heat the oven when using "Auto Roast E" and "Conventional A" settings.
4) 2nd runner from the bottom when using the "Conventional A" setting
The information given in this chart is intended only as a guide.
32
Defrosting
Turn the oven function selector to "Defrost G".
Do not select any temperature set­ting.
– Where possible remove the packa-
ging and put the food to be de­frosted on a baking tray or into a dish.
– All meat and poultry should be fully
defrosted before cooking. Do not use the liquids from defrosting.
– When defrosting poultry put it on the
rack, one level higher than a tray put in to catch the defrosted liquid, so that the meat is not lying in this liquid.
It is particularly important to ob­serve food hygiene rules when de­frosting poultry. Do not use the liq­uid from the defrosted poultry. Pour it away, and wash the tray, the sink and your hands.
Defrosting
Do not refreeze food once it has thawed.
The time needed for defrosting de­pends on the type and weight of the food, and at what temperature it was deep frozen.
N.B. Put the tray back in the oven if roasting on the rack.
– Fish does not need to be fully de-
frosted before cooking. Defrost so that the surface is sufficiently soft to take herbs and seasoning.
33
Casseroles
Casseroles
When choosing which oven to use, take into account the size of the casserole dish with its lid.
Casseroles
The following oven settings are recom­mended:
Please note:
Cover dishes which are to be cooked
in their own juice and/or steam, eg du­chesse potatoes or vegetables, so that they do not dry out. If there is no lid use aluminium foil or damp cooking parch­ment.
Fan Heat DConventional A
The following dishes are suitable for this type of slower cooking: covered pots made of ovenproof glass and china, and earthenware pots, which could also be used as serving dishes. They should have heat-resistant handles and knobs.
Put the rack in at the 1st runner height from the bottom, and place the prepared casserole with the food for braising or stewing on this.
Select the oven setting and the tem- perature.
Fan Heat D . . . . . . . . . . . . . 170-190°C
Conventional A . . . . . . . . . . 190-210°C
Cooking times
Consult your cook book.
Cook without a lid when a crusty fin­ish or topping is required, eg for meat or au gratin dishes.
Useful hint
One dish can be placed on top of the other. Invert the lid of the bottom dish. Put dishes to be browned at the top.
Poaching
Fish or fruit can be poached in the oven in a covered dish.
Bottling
Bottling should only be undertaken by an experienced cook who has received proper training in this method of pres­erving fruit and vegetables, and under­stands the implications of the chemical reactions involved.
Instructions for bottling in this oven are available from the Miele Home Econo­mist.
34
Grilling
When choosing which oven to use take into account the height of the food to be grilled.
Pre-heat the grill for approx. 5 minutes with the oven door shut.
Grilling with the oven door shut saves energy and minimizes cook­ing smells.
Preparing food for grilling
Clean, wipe and season. Do not salt slices of meat beforehand as this de­tracts from the taste.
Add a little oil if necessary. Other fats quickly become black or cause the food to smoke. A little butter can be added to chicken if desired.
Clean flat fish and slices of fish in the normal way. To enhance the taste add a little salt or squeeze a little lemon juice over the fish.
Grilling
Grilling on the rack
Assemble the grill pan, anti-splash tray (if available) and rack as shown.
Place the food on the rack. Turn the oven function selector to the
"Grill ," setting.
Select the oven for grilling accord­ing to the size of the food to be grilled. Use the upper oven for flat­ter items of food.
Set the temperature:
Food to be grilled temperature Thin cuts
such as chops, steak 275°C
Thicker cuts
such as chicken, kebabs 240°C
To grill thicker pieces of food more gradually after an initial high tempera­ture, continue grilling at a lower tem­perature setting to allow the food to cook through to the centre.
35
Grilling
Pre-heat the grill for approx. 5 minutes with the oven door shut.
Place the food to be grilled in the grill pan and then the oven.
Insert the grill pan at the appropriate level for the height of the food to be grilled:
Upper oven
thin cuts = level 2 or 3
Lower oven e
thin cuts = level 4 or 5 thicker cuts = level 1 or 2
Grilling time
Flat pieces of fish and meat usually need about 5-6 minutes a side depend­ing on their texture. Thicker pieces need longer.
With rolled meat allow approx. 10 minutes per cm diameter.
-
Useful grilling hints
It is best to grill food of a similar thick­ness at the same time so that the grill- ing time for each item does not vary too greatly.
Most items should be turned half way through cooking.
One way of finding out how far through a piece of meat has been cooked is to press down on it with a spoon.
– If there is very little resistance to the
pressure of the spoon, it is still red on the inside ("rare").
– If there is some resistance, the inside
will be pink ("medium").
– If there is great resistance, it is
thoroughly cooked through ("well done").
36
Grilling chart
Grilling chart
Chart for using the grill in the lower oven e
Pre-heat the grill for about 5 minutes with the door shut before using.
Food to be grilled Runner
from bottom
Flat items of food
Beef steaks 3 or 4 290 3-5 Kebabs 3 or 4 260 8-12 Escalope 3 or 4 290 10-12 Liver slices 3 or 4 275 8-12 Burgers 3 or 4 210 10-15 Sausages 3 or 4 240 8-10 Chops 3 or 4 275 12-18 Fish fillet 3 or 4 250 10-15 Small trout/mackerel 3 or 4 275 16-20 Toast 3 or 5 240 3-6 Open toasted sandwich 3 or 4 240 4-6 Tomatoes 3 or 4 240 6-10 Bananas 3 or 4 240 6-10 Peach halves 2 or 3 230 6-8
Thicker grilling cuts
Chicken pieces (approx. 1 kg) 1 or 2 240 50-60
Piece of pork, Ø 7 cm (approx. 1 kg) 1 240 70-80
Mixed grill 1 260 20-25 * Turn half way through the grilling time.
Temperatu re
in °C
Grilling
time (mins) *
All times given are approximate and will vary according to personal taste.
37
Cleaning and care
Cleaning and care
Appliance front and control panel
Use a mild cleaning agent or a dash of washing up liquid in hot water. Wipe dry with a soft cloth.
Glass front
Do not use a scouring agent, as this would scratch the glass front.
For ovens with a white finish we recom­mend after each use wiping:
the oven door handle andthe control panel
with a damp cloth and some washing up liquid. This will avoid spillages being burnt on and becoming im­possible to remove.
Accessories
Runners
Wash in hot water with washing up liquid, or clean with a stainless steel cleaner.
Baking tray, roasting/grill pan, rack:
wash and dry after each use. Remove stubborn residues that do not
wash away – from stainless steel:
with a stainless steel cleaner.
– from enamel:
Soften residues by soaking with hot water, then brushing with a soft nylon brush or sponge.
Stainless steel front
Never use cleaners containing sand, soda or scouring agents, These will leave scratches.
Use a non-scouring stainless steel cleaner. Apply with an even pressure. Wipe over with a damp cloth and rub dry with a soft cloth.
38
Roasting filter
Clean in washing up liquid and hot water, or in the dishwasher.
Cleaning and care
Oven interior
The oven interior surfaces have been designed to make cleaning easier.
Cleaning and care
If an oven spray is used on the "Clean-Enamel", follow the manufac­turer’s instructions carefully.
The oven cavity and door interior are finished in "Clean-Enamel". The rear panel which protects the fan is more subject to oil and fat splashes and has a catalytic enamel coating.
With some models, side panels with catalytic coating are fitted and the re­movable guard plate above the grill has a catalytic coating. With this ar­rangement most of the interior "Clean­Enamel" is protected, except for the floor and the door, which should be cleaned after each use.
"Clean-Enamel"
This is a specially hardened enamel with an extremely smooth surface.
Most baking and roasting residues can be easily removed using a sponge cloth, washing up liquid and hot water.
If something bakes on harder, it can be loosened with a shielded blade scraper and cleaned off with a sponge and a proprietary non-scouring cream. It is ea­sier to remove splashes of fruit or cake mixture from the oven and racks while they are still warm.
Important: Oven spray must not come into contact with catalytic ena­mel. It can damage the enamel.
Catalytic Enamel
Because circulating air in the oven de­posits oil and fat splashes predomi­nantly on the rear wall, this is coated in catalytic enamel.
With some models, side panels with catalytic coating are also fitted, and the removable guard plate above the grill has a catalytic coating.
When this catalytic enamel is heated to temperatures above 200°C, oil and grease deposits are removed, except for deposits of spices, syrups and simi­lar substances. The higher the tempera­ture the more effective the process.
Do not use an oven spray on the catalytic enamel. Do not wash the panels in a dishwasher. Any mech­anical handling would damage the catalytic enamel.
Fruit juice may cause lasting discolour­ation.
Dull patches may remain permanently in the oven tray after roasting or grilling.
Do not wait too long between cleaning sessions as further baking and roasting will cause oil and grease deposits to burn on even harder.
39
Cleaning and care
Cleaning each type of enamel
Allow the oven to cool down before cleaning. Danger of burning.
Clean the oven floor ("Clean-Ena­mel) after each use. The oven should also be cleaned regularly, preferably after each use. Waiting too long will make cleaning very difficult and in extreme cases not very effective.
Never use hard brushes, scouring cloths, steel wool, knives or other abrasive materials. The enamel would be damaged.
Remove the accessories and the run­ners from the oven. (See following pages for release).
Clean the "Clean-Enamel" surfaces. A mild proprietary cleaner, without sand or scouring agents, may be used.
Normally the catalytic liners can be left in place and wiped over. Use a solution of warm water and a little washing up liquid and a soft brush to clean catalytic surfaces. The catalytic liners should rarely need to be removed. See following pages for procedure.
In addition, heating the oven to a high temperature will help remove soiling on the catalytic surfaces which has been caused by grease and oil splashes.
Turn the oven function selector to "Fan heat D" or "Conventional heat A".
Turn the temperature selector to the highest setting.
Let the oven operate for about one hour. The length of time will depend on the degree of soiling. It is a good idea to set the finish time for the process with the "g" button. This way you will not forget to switch the oven off at the end.
Every time the oven is used at high tem­peratures any remaining soiling will gradually disappear.
Should the catalytic coating on the back panel or any other catalytic panels fitted become ineffective through improper use or heavy soil­ing, for example, a replacement can be obtained from your Miele dealer or Miele Spare Parts dept.
Do not use oven spray or abrasive cleaning agents on the catalytic sur­faces. Do not wash the panels in a dishwasher. Any mechanical hand­ling would damage the catalytic en­amel.
40
Cleaning and care
To make cleaning easier on both ovens you can
take off the oven door,remove the side runners,remove the interior rear panel,lower the upper heating element into
the oven interior,
– take out the guard plate (if fitted). Although only the lower oven is illus-
trated in the diagrams below, in general the procedure is the same for the upper oven as for the lower oven.
Any steps which differ are described in detail.
Please note : the oven door is quite heavy. It should be gripped firmly at the sides when being removed or re-fitted.
To remove the oven door
Please note : the oven door is quite heavy. It should be gripped firmly at the sides when being removed or re­fitted.
Cleaning and care
Flip down the locking clamps on each door hinge. This locks the hinges.
Open the door fully.
Before the door can be removed, the door hinges need to be locked so that they do not damage the door when it is taken out.
Lift up the door until the hinges disengage. Remove the door.
41
Cleaning and care
Re-fitting the oven door
Hold the door as shown on the pre­vious page, and carefully put the locked hinges into the guide holes until they engage. Open the door fully.
Still supporting the door flip the lock­ing clamps up.
It is essential that the locking clamps are flipped up when the door is re-fitted after cleaning. Otherwise on closing the door, the hinges could work loose from the guide holes and this could result in damage to the door.
To remove the runners
Select the "Light H" setting.
The oven heater elements must be switched off, to avoid the danger of burning.
Pull on the fixing knob to release it.
42
Take the runners out of the oven.
Reassemble in the reverse order, care­fully ensuring all parts are correctly in place.
Cleaning and care

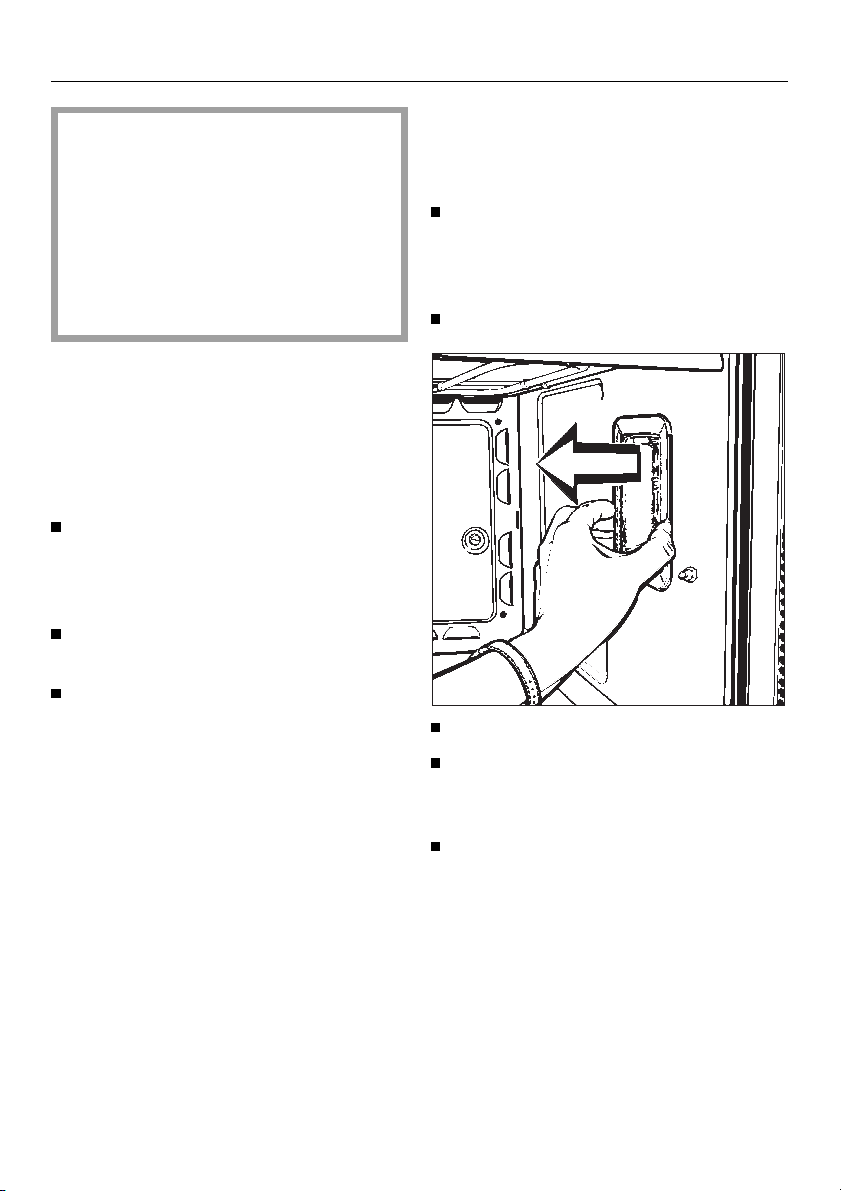

To remove the catalytic side panels
Upper oven
Select the "Light H" setting.
The oven heater elements must be switched off, to avoid the danger of burning.
Take the runners out of the oven. Remove the catalytic side panels.
Reassemble in the reverse order, care­fully ensuring all parts are correctly in place.
Lower oven e
Select the "Light H" setting.
The oven heater elements must be switched off, to avoid the danger of burning.
Take the runners out of the oven.
-
When reassembling the catalytic side panels, ensure they sit correctly.
Ease the back lug into the opening in the rear wall panel.
Gently lift and pull out the catalytic side panels.
Reassemble in the reverse order, care­fully ensuring all parts are correctly in place.
Lift the front locating hole on to the guide pin behind the collar.
43
Cleaning and care
To remove the interior rear panel
Lower oven e
Loosen the screws in the interior rear panel and take it out.
The oven must not be used without the interior rear panel fitted. This could lead to injuries.
Put the runners back into place.
Reassemble in the reverse order, care­fully ensuring all parts are correctly in place.
44
Reassemble in the reverse order, care­fully ensuring all parts are correctly in place.
Upper oven -
Take the runners out of the oven. Remove the catalytic side panels. Remove the interior rear panel.
The rear wall is only held in place by the side runners.
Reassemble in the reverse order, care­fully ensuring all parts are correctly in place.

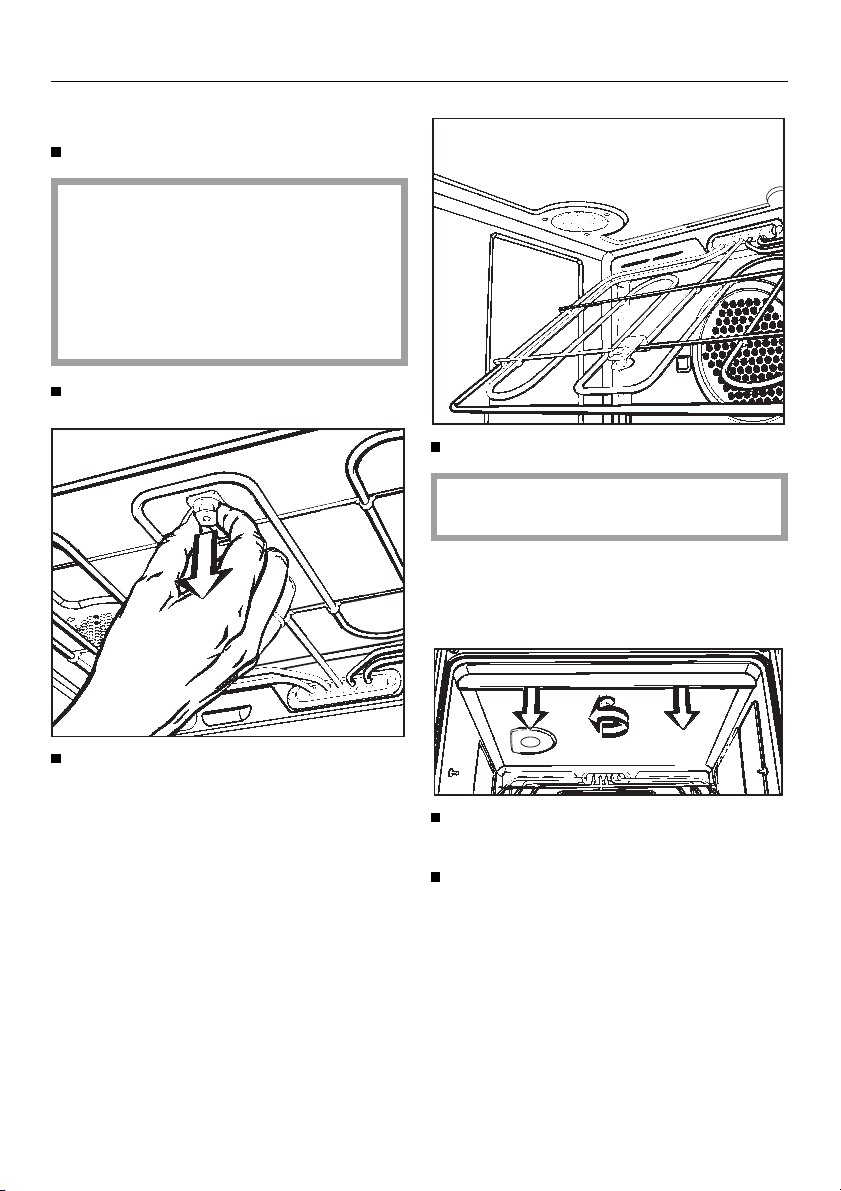

To lower the upper heating element
Select the "Light H" setting.
The oven heating elements must be switched off, to avoid the danger of burning.
Wait until the grill element has cooled down enough to touch. Otherwise you could be burnt.
Take out the runners.
Cleaning and care
Gently lower the grill element.
Do not use force to lower it, as this could cause damage.
If the guard plate is dirty it can also be removed for cleaning:
Pull (and turn if necessary) on the fix­ing knob on the grill element to re­lease it.
Hold the guard plate firmly and un­screw the knurled knob.
Take out the guard plate.
Reassemble in the reverse order, care­fully ensuring all parts are correctly in place.
45
Correcting minor faults
Correcting minor faults
Installation, maintenance and re­pairs to the electrical components of this appliance should only be car­ried out by a fully competent person to ensure safety. Repairs and other work by unqualified persons could be dangerous. The manufacturer cannot be held responsible for un­authorized work.
Some minor problems however can be dealt with as follows:
What to do if . . .
. . . the oven does not heat up.
the selector switch is set to the func­tion required, and the temperature control is set at the correct tempera­ture.
the operating lock is activated (lower oven).
. . . the heating works, but not the oven lighting.
The bulb needs changing:
Disconnect the appliance from the electricity supply: Switch off at the isolator or the mains fuse box.
Remove the runners.
the main fuse has blown. Contact a qualified electrician or the Miele Ser­vice Department.
. . . "12:00" flashes in the timer dis­play.
This is not a fault. There has been an interruption to the power supply.
After a power cut – the time of day has to be entered
again,
– the operating lock has to be reacti-
vated.
46
Lift the lamp cover from its retainers. Change the bulb:
12 V, 20 W, G4 socket, Osram heat resistant to 300°C, Type 64428.
Press the lamp cover back in its retainers and put the runners back.
Reassemble in the reverse order, care­fully ensuring all parts are correctly in place.
Correcting minor faults
. . . no noise is heard when the oven door is opened during operation.
This is not a fault. If the door is opened during operation, the door contact switch causes the oven heating, and the fan if on "Fan" setting, to be switched off.
. . . a noise can be heard after bak­ing, roasting or grilling.
This is not a fault. The cooling fan continues to run for a short time after the oven has switched off to prevent any humidity building up in the oven, on the control panel or in the housing unit. When the temperature has fallen sufficiently the fan switches off automatically. The temperature will fall faster when the oven door is opened partially or fully.
. . . the cakes and biscuits are not cooked after following the times given in the chart.
Check whether,
the correct temperature was set. there has been a change to the
recipe. The addition of more liquid or more eggs makes a moister mix which would need longer to cook.
the roasting filter had been left in place in front of the fan when cook­ing with "Fan D" heat, or was in place for "Auto roast E". In this case baking times might be leng­thened by 10 to 15 minutes.
. . . The browning effect is uneven.
There will always be a slight uneven­ness. Product information sheets give a percentage result for standard brown­ing tests. These refer to results for one tray.
If the item being baked is browning very unevenly, check:
– when baking with "Fan Heat D":
whether the temperature was set too high,
whether the roasting filter was in place.
– when baking with the "Conventional
setting A": the colour and composition of the
baking tins being used. Light col­oured, shiny, or thin walled tins are less suitable.
. . . spots like rust appear on the inte­rior walls.
When roasting on the rack, the circulat­ing air sometimes picks up spices, which are then deposited on the oven interior walls. Such residues are not removed by catalytic cleaning, they are best removed while fresh with a mild washing up liquid solution and a soft brush.
47
After sales service
After sales service
In the event of faults which you cannot easily remedy yourself, please contact:
– your Miele Dealer or – the nearest Miele Service Depart-
ment, (see address on the back page).
When contacting the Service dept, please quote the Model and Serial num­ber of your appliance, both of which are shown on the data plate, visible on the oven trim, with the oven door open.
48
Extra accessories
(May come as standard items with some appliances.)
The following accessories are available at extra cost from your Dealer or the Miele Domestic Sales dept.
Handle
To take the baking trays or the roast­ing / grill pan out of the oven, or to put them into it.
Anti-splash tray
Extra accessories
Telescopic carriage
The telescopic carriage with 5 levels of runners can be drawn right out of the oven. This gives a good overview of all the cooking in progress.
Catalysor
To be placed in the grill pan when grilling.
The juices from the food being grilled are gathered under the anti-splash tray, rather than being dried out, and they can then be used in sauces etc.
A catalysor can be built into the cooling system of the upper oven to filter fatty vapours and reduce food smells.
49
Electrical connection
Electrical connection
All electrical work should be under­taken by a suitably trained and com­petent person in strict accordance with national and local safety regula­tions.
Q\}
Q\}
Important U.K.
The appliance is supplied with a 3-core cable for connection to a single phase 230-240 volt 50 Hz supply, with 30 amp fusing.
The voltage and rated load are given on the data plate, located underneath the oven control panel, visible when the oven door is open. Please ensure that these match the household mains sup­ply. Please quote these data, and the model and serial number when contact­ing the Miele Service dept.
Connection of this appliance should be made via a suitable isolator (rated load over 3000 W), which complies with na­tional and local regulations, and which is accessible after the appliance has been built in.
The wires are coloured in accordance with the following code:
Green/yellow = earth Blue = neutral Brown = live
WARNING THIS APPLIANCE MUST BE EARTHED.
In other countries check these details with your supplier.
50
Electrical connection
Q\}
\
The voltage and rated load are given on the data plate, visible when the oven door is open. Please ensure that these match the household mains sup­ply.
The appliance is supplied with a 3-core cable for connection to a 230-240 volt 50 Hz supply.
The fuse rating is 20 amps. The wires are coloured in accordance
with the following code: Green/yellow = earth Blue = neutral Brown = live
WARNING THIS APPLIANCE MUST BE EARTHED.
}
Data relating to electrical connection will be found on the data plate, visible when the oven door is open. Make sure that these figures comply with the main voltage. Connection should be made via a suitable isolator which complies with national and local regulations.
The appliance is supplied with a 3-core cable for connection to a 230-240 volt 50 Hz supply.
The fuse rating is 19 amps. The wires are coloured in accordance
with the following code: Green/yellow = earth Blue = neutral Brown = live
WARNING THIS APPLIANCE MUST BE EARTHED.
51
Electrical connection
Electrical connection
All electrical work should be under­taken by a competent person in strict accordance with national and local safety regulations.
The voltage and rated load are given on the data plate, visible when the oven door is open. Please ensure that these match the household mains sup­ply. Please quote these data, and the model and serial number when contact­ing the Miele Service dept.
Connection of this appliance should be made via a suitable isolator which com­plies with national and local regula­tions, and which is accessible after the appliance has been built in.
@
Wall oven
The wall oven is suitable for connection to a single phase 240 V, 50 Hz elec­tricity supply. The fuse rating is 16 A.
ä
Wall oven
The wall oven is suitable for connection to a single phase 230 V, 50 Hz elec­tricity supply. The fuse rating is 16 A.
WARNING THIS APPLIANCE MUST BE EARTHED.
Test marks . . . . . . . . . . Electrical Safety
. . . . . . . . . . . . . . . . . . . . . . C-Tick Mark
Electrically suppressed
according to. . . . . . . . . . . AS/NZS 1044
52
Installing the oven
Turn off the mains electricity supply to the isolator.
Connect the oven to the electricity supply by the isolator.
Place the oven into the oven housing unit as far as the oven trim and align.
Installing the oven
Open the oven door and using four screws secure the oven to the side walls of the housing unit through the holes in the oven trim.
The appliance must only be oper­ated when it has been built in.
535455
Alteration rights reserved / 22 / 001 GB / IRL / AUS / NZ / ZA – 2398
M.-Nr. 05 043 320 (H 283 B2)
This paper consists of cellulose which has been bleached without the use of chlorine.
Loading...
