Operating instructions
for dishwashers
It is essential to read the operating and installation instructions before installing, commissioning or using the machine, to avoid the risk of accidents or damage to the machine.
G
M.-Nr. 07 028 590
Contents
Description of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Appliance overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Disposal of the packing material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Disposal of your old appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Energy saving washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Before using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Before using the appliance for the first time you require: . . . . . . . . . . . . . . . . . . . 12 To open the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 To close the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Water softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Programming the water hardness level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Checking the programmed water hardness level. . . . . . . . . . . . . . . . . . . . . . . 16 Filling the salt reservoir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Salt indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Adding rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Rinse aid indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Setting the rinse aid dosage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Loading the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Upper basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Flap up rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Positioning rail. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Adjusting the upper basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Lower basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Hinged spikes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Removable spiked insert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Bottle holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Cutlery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Dishwashers with a cutlery basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Dishwashers with a cutlery tray (SC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Items not suitable for dishwashers: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
2
Contents
Operating the dishwasher. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Adding detergent. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Programme selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Switching on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Starting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Programme sequence indicator lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 At the end of a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Switching off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Interrupting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Changing a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Additional option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Drying fan running time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Unloading the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Cleaning the filters in the wash cabinet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Cleaning the spray arms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Cleaning the wash cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Cleaning the door and the door seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Cleaning the control panel and door front panel . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Solving problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 Cleaning the water inlet filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 Cleaning the drain pump and non-return valve. . . . . . . . . . . . . . . . . . . . . . . . . . . 54
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Comparison tests. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Optional accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
3
Description of the appliance

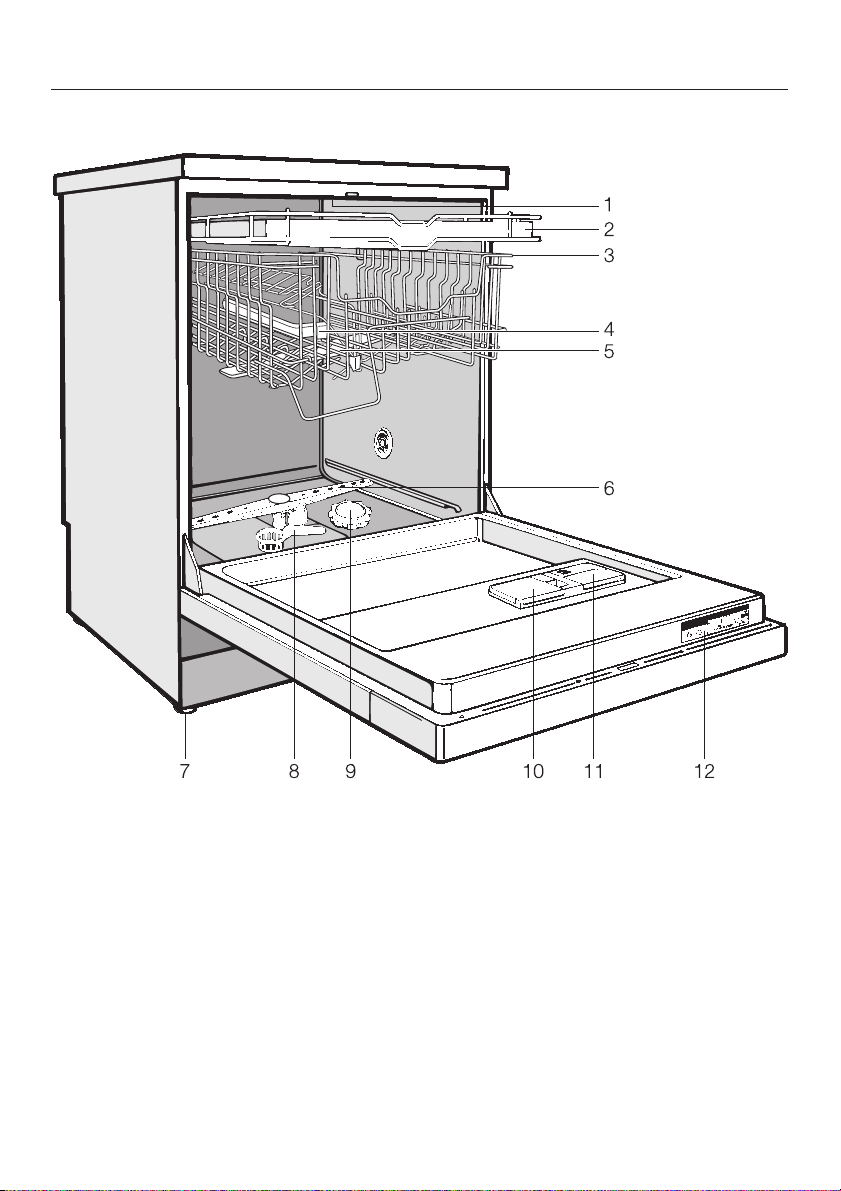

Appliance overview
1 |
Upper spray arm (not visible) |
7 |
Four height adjustable screw feet |
2 |
Cutlery tray |
8 |
Filter combination |
|
(depending on model) |
9 |
Salt reservoir |
|
|
||
3 |
Upper basket |
10 |
Dual compartment detergent |
|
|
||
4 |
Water feed for middle spray arm |
|
dispenser |
5 |
Middle spray arm |
11 |

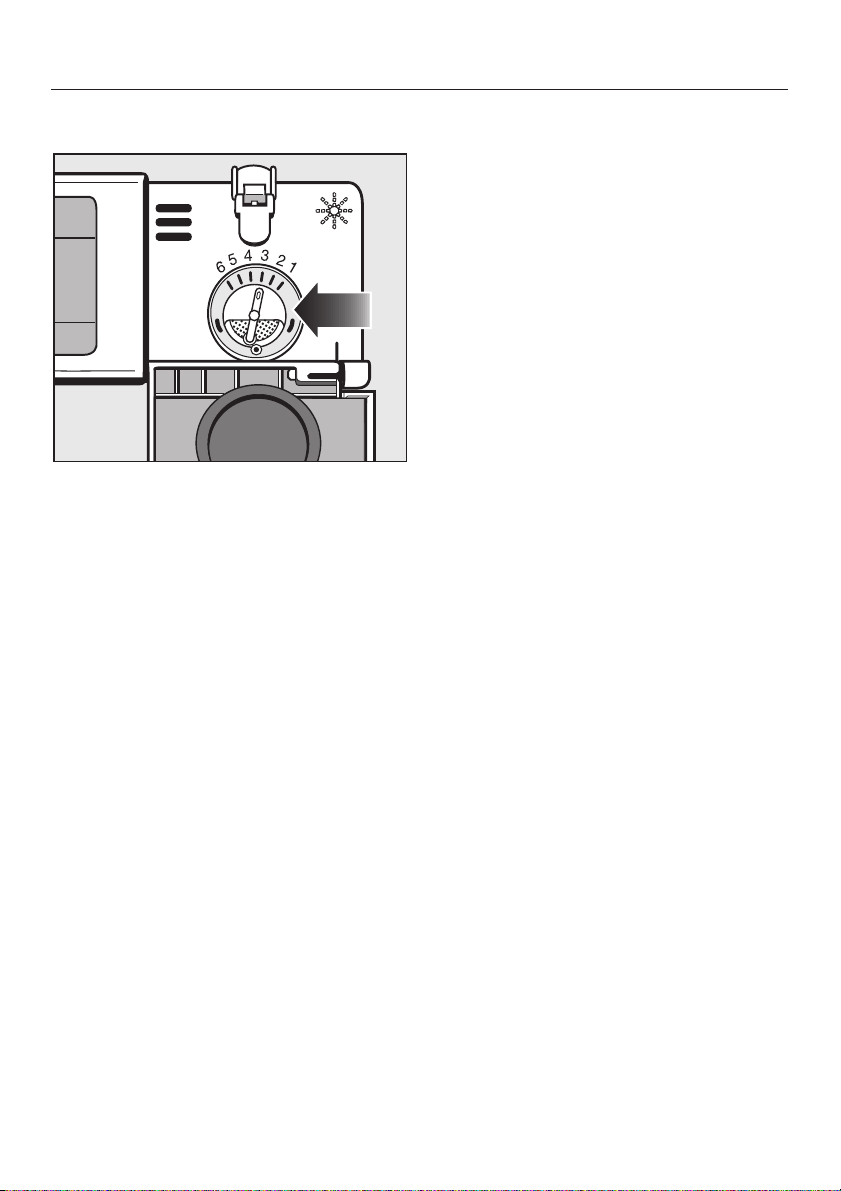

Rinse aid reservoir |
6 |
Lower spray arm |
|
(with dosage selector) |
|
|
||
|
|
12 |
Data Plate |
4
Description of the appliance

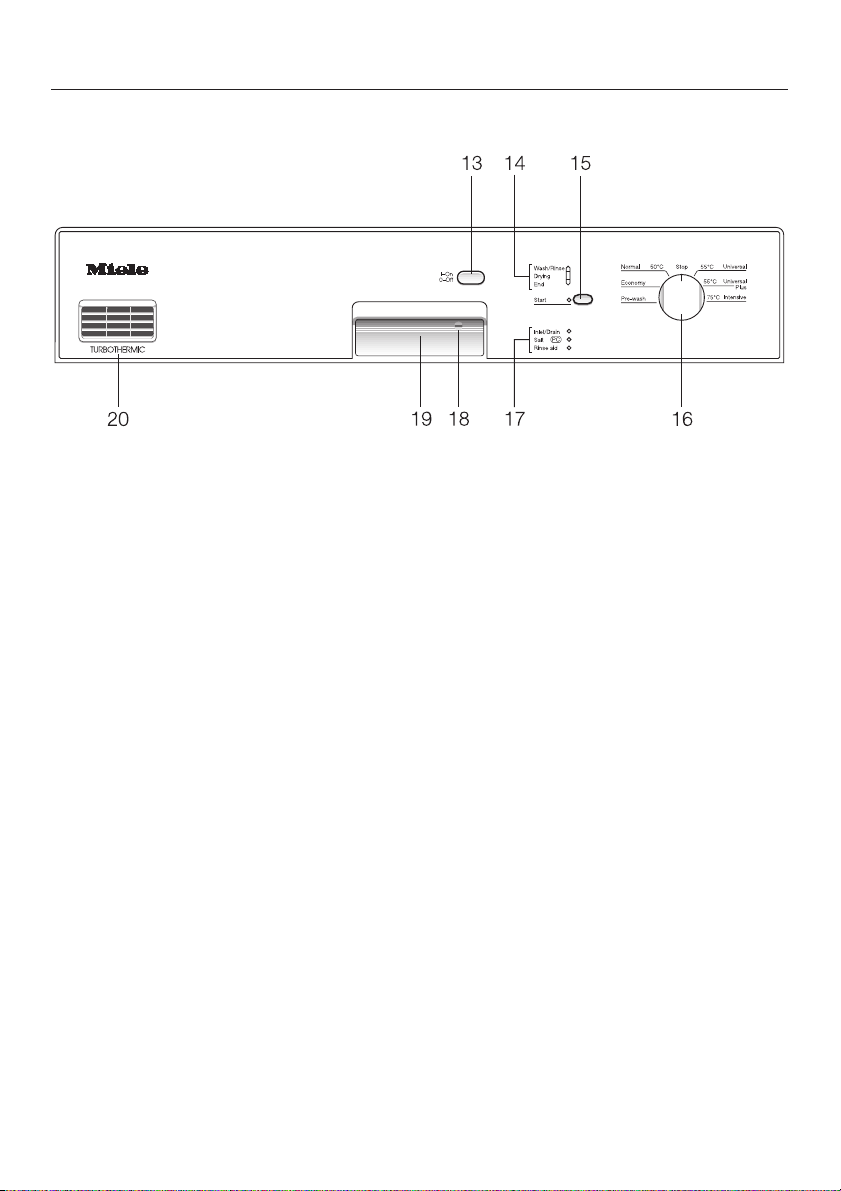

Control panel
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
13 |
"On/Off" button |
17 |
|
Check/Refill indicators |
|||||||||||||||||
14 |
Programme sequence display |
18 |
|
Child safety lock |
|||||||||||||||||
15 |
"Start" button |
19 |
|
Door release |
|||||||||||||||||
16 |
Programme selector |
20 |
|
Ventilation outlet for drying fan |
|||||||||||||||||
5
Warning and Safety instructions
This appliance conforms to current safety requirements. Inappropriate use can, however, lead to personal injury and damage to property.
To avoid the risk of accidents and damage to the appliance, please read these instructions carefully before using it for the first time. They contain important information on its safety, use and maintenance. Keep these instructions in a safe place and pass them on to any future owner.
Correct application
This dishwasher is intended exclusively for cleaning domestic
crockery and cutlery in a domestic household. Using it for purposes other than those for which it was designed, as well as any alterations or conversions to the appliance, would be unauthorised and could cause harm. The manufacturer cannot be held liable for damage resulting from improper or incorrect use of the appliance.
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Safety with children
This appliance is not a toy! To avoid the risk of injury, keep
children well away and do not allow them to play in or around the dishwasher, or to use the controls. They will not understand the potential dangers posed by it. They should be supervised whenever you are working in the kitchen. There is also a danger that children playing might shut themselves in the dishwasher.
Older children may only use the appliance if its operation has been
clearly explained to them and they are able to use it safely, recognising the dangers of misuse.
Keep children away from detergents. Dishwasher detergents
contain irritant and corrosive ingredients which can cause burning in the mouth, nose and throat if swallowed, or inhibit breathing. Keep children away from the dishwasher when the door is open. There could still be detergent residues in the cabinet. Consult a doctor immediately if your child has swallowed or inhaled detergent.
6
Warning and Safety instructions
Technical safety
Before setting up the appliance, check it for any externally visible
damage. Under no circumstances should you use a damaged appliance. A damaged appliance could be dangerous.
The dishwasher must only be plugged into the electricity supply
via a suitable switched socket. The electrical socket must be easily accessible after the dishwasher is installed so that it can be disconnected from the electricity supply at any time. (See "Electrical connection").
There must be no electrical sockets behind the dishwasher.
Danger of overheating and fire risk if the dishwasher were to be pushed up against a plug.
The dishwasher must not be installed under a hob. The high
radiant temperatures which are sometimes generated by a hob could damage the dishwasher. For the same reason it should not be installed next to open fires or other appliances which give off heat, such as heaters etc.
Do not connect the dishwasher to the mains supply until it has been
fully installed.
Before connecting the appliance, check that the connection data on the data plate (voltage and connected
load) match the mains electricity supply. If in any doubt, consult a qualified electrician.
The electrical safety of this appliance can only be guaranteed
when continuity is complete between it and an effective earthing system. It is most important that this basic safety requirement is present and regularly tested and where there is any doubt the electrical system in the house should be checked by a qualified electrician. The manufacturer cannot be held liable for the consequences of an inadequate earthing system (e.g. electric shock).
This equipment may only be installed in mobile installations
such as ships if a risk assessment of the installation has been carried out by a suitably qualified engineer.
7
Warning and Safety instructions
The plastic housing of the water connection contains an electrical component. The housing must not be
dipped in water.
There are live wires in the water inlet hose. Never cut the water inlet
hose, even if it is too long.
Do not connect the appliance to the mains electricity supply by an
extension lead. Extension leads do not guarantee the required safety of the appliance (e.g. danger of overheating).
The integrated Waterproof System offers protection from water
damage, provided the following conditions are met:
–The dishwasher is correctly installed and plumbed in.
–The dishwasher is properly maintained and parts are replaced where it can be seen that this is necessary.
–The stopcock has been turned off when the appliance is not used for a longer period of time (e.g. during holidays).
The Waterproof system will work even if the appliance is switched off. However, the appliance must remain connected to the electricity supply.
A damaged dishwasher may be dangerous. If the dishwasher gets
damaged, switch it off at the mains and call your Miele Dealer or the Miele Service Department.
Repairs may only be carried out by suitably qualified and competent
technicians in strict accordance with local and national safety requirements. Repairs and other work by unqualified persons could be dangerous.
Always disconnect the dishwasher from the electrical supply for
maintenance work (switch off at the wall socket and remove the plug).
If the connection cable is damaged it must be replaced with a Miele
cable by a Miele approved service technician only.
In countries where there are areas which may be subject to infestation
by cockroaches or other vermin, pay particular attention to keeping the appliance and its surroundings in a clean condition at all times. Any damage which may be caused by cockroaches or other vermin will not be covered by the guarantee.
8
Warning and Safety instructions
Installation
The dishwasher must be installed and connected in compliance with
the installation instructions.
The dishwasher must be correctly aligned to ensure problem-free
operation.
In order to ensure stability, built-under and integrated dishwashers must only be installed under a continuous worktop which is
secured to adjacent cabinetry.
If you want to convert your freestanding dishwasher to a
built-under ("U") model, you will need to order the appropriate conversion kit. If you remove the existing plinth, you must replace it with a U-model plinth. This is necessary to avoid the risk of injury caused by protruding metal parts.
Correct use
Do not use solvents in the dishwasher. Danger of explosion.
Do not inhale or ingest dishwasher detergent. Dishwasher detergents contain irritant or corrosive ingredients
which can cause burning in the nose, mouth and throat if swallowed, or inhibit breathing. Consult a doctor immediately if detergent has been swallowed or inhaled.
Avoid leaving the door open unnecessarily, as you could trip
over it.
Do not sit or lean on the opened door. This could cause the
dishwasher to tip and be damaged, and you could get injured.
Only use detergent and rinse aid formulated for domestic
dishwashers. Do not use washing-up liquid.
Do not use commercial or industrial detergents as these may cause
damage, and there is a risk of severe chemical reaction.
Do not fill the rinse aid reservoir with powder or liquid detergent.
This will cause serious damage to the reservoir.
9
Warning and Safety instructions
Inadvertently filling the salt reservoir with powder or liquid
dishwasher detergent always leads to serious damage to the water softener. Make sure you have picked up the correct packet of dishwasher salt before filling the salt reservoir!
Please only use special coarse grained dishwasher salt for
reactivation, as other salts may contain insoluble additives which can impair the functioning of the softener.

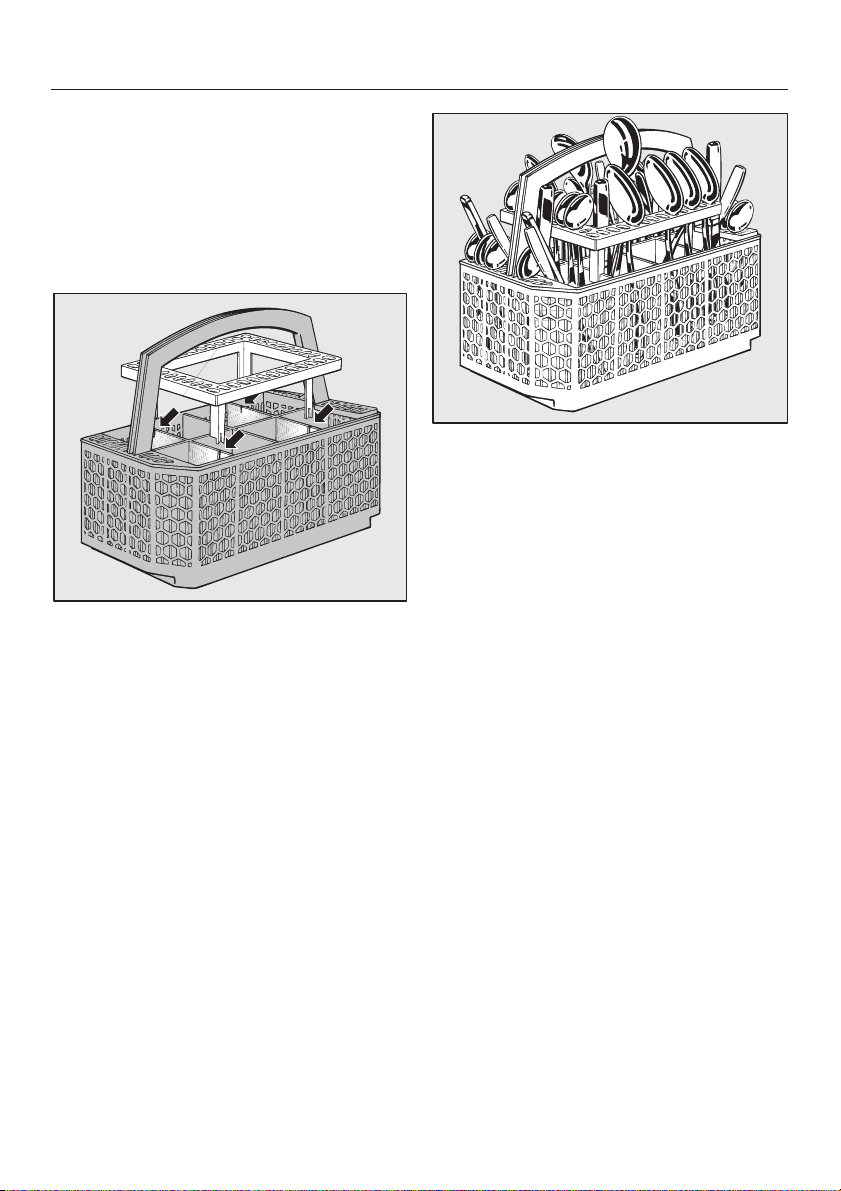

In an appliance with a cutlery basket (depending on model) cutlery is cleaned and dried more
efficiently if placed in the basket with the handles downwards. However, to avoid the risk of injury, place knives and forks etc. with the handles upwards.
Plastic items which cannot withstand being washed in hot
water, such as disposable plastic containers, or plastic cutlery and crockery should not be cleaned in the dishwasher. The high temperatures in the dishwasher may cause them to melt or lose shape.
On models with "Delay start", make sure that the dispenser is dry before
adding detergent. Wipe dry if necessary. Detergent will clog if poured into a damp dispenser and may not be thoroughly dispersed.
Disposal of your old dishwasher
When disposing of an old dishwasher, first make it unusable.
Disconnect, cut off the cable and the plug from the cable.
Make the door lock inoperative, so that children cannot accidentally shut themselves in. Make appropriate arrangements for the disposal of the appliance.
The manufacturer cannot be held liable for damage caused by non-compliance with these Warning and Safety instructions.
10
Caring for the environment
Disposal of the packing material
The transport and protective packing has been selected from materials which are environmentally friendly for disposal and can normally be recycled. Ensure that any plastic wrappings, bags etc. are disposed of safely and kept out of the reach of babies and young children. Danger of suffocation!
Rather than just throwing these materials away, please ensure that they are recycled.
Disposal of your old appliance
Electrical and electronic appliances often contain materials which, if handled or disposed of incorrectly, could be potentially hazardous to human health and to the environment. They are, however, essential for the correct functioning of your appliance. Please do not therefore dispose of your old appliance with your household waste.
Please dispose of it at your local community waste collection / recycling centre and ensure that it presents no danger to children while being stored for disposal.
It should be unplugged or disconnected from the mains electricity supply by a competent person. The plug must be rendered useless and the cable cut off directly behind it to prevent misuse. See the "Warning and Safety" section of this booklet for further details.
Energy saving washing
This dishwasher is exceptionally economical in its use of water and electricity. You can make the most of your appliance by following these tips:
^If your household water system is suitable, this dishwasher can be connected to a hot water supply, for further economies. If the water is heated by for example, solar panels, this would be energy efficient. However, if your water is heated by electricity we would recommend connection to cold water.
^For most economical dishwashing make full use of the baskets without overloading the dishwasher.
^Choose the programme to suit the type of crockery being washed and the degree of soiling.
^Select the Economy programme for energy-saving dishwashing.
^Follow the detergent manufacturer’s recommendations on detergent dosage.
^When using powder or liquid detergent you can use 1/3 less detergent if baskets are only half full.
11
Before using for the first time
Before using the appliance for the first time you require:
–approx. 2 litres of water,
–approx. 2 kg dishwasher reactivation salt,
–domestic dishwasher detergent,
–rinse aid formulated for domestic dishwashers.
Every dishwasher is tested at the factory.
There will be residual water in the appliance from this test. It is not an indication that it has been previously used.
12
Before using for the first time
To open the door |
Child safety lock |
^Press the release catch inside the door grip and pull forward.
If the door is opened during operation all functions are automatically interrupted.
To close the door
^Push the baskets right in, lift the door and push until it clicks into position.
The yellow key for the child safety lock is on one of the spikes at the front of the upper basket.
Remove the key before switching on the dishwasher and keep it in a safe place away from the dishwasher.
To prevent children opening the dishwasher door during operation, use the key to lock the door:
Horizontal setting:
The door is locked.
Vertical setting:
The door can be opened.
13
Before using for the first time
Water softener
In order to achieve good cleaning results, the dishwasher needs to operate with soft water. Hard water results in the build-up of calcium deposits on crockery and in the dishwasher.
Mains water with a hardness level higher than 0.7 mmol/l (4 °d - German scale) needs to be softened. This takes place automatically in the integrated water softener.
–The water softener must be filled with dishwasher salt for reactivation.
–The dishwasher must be programmed to correspond to the water hardness in your area.
–Your local water authority will be able to advise you of the water hardness level in your area.
Where the water hardness fluctuates e.g. between 1.4 - 3.1 mmol/l (8 - 17 °d German scale) always programme the dishwasher to the higher value
(3.1 mmol/l in this example).
In the event of a fault, it will help the service technician if you know the hardness of your local water supply.
^ Enter the water hardness below:
mmol/l or °d
14
Before using for the first time
Programming the water hardness level
^Switch the dishwasher off using the "On/Off" button.
^Turn the programme selector to the "Stop" position.
^Press the "Start" button in and whilst holding it in switch the dishwasher on using the "On/Off" button. Release the "Start" button within two seconds.

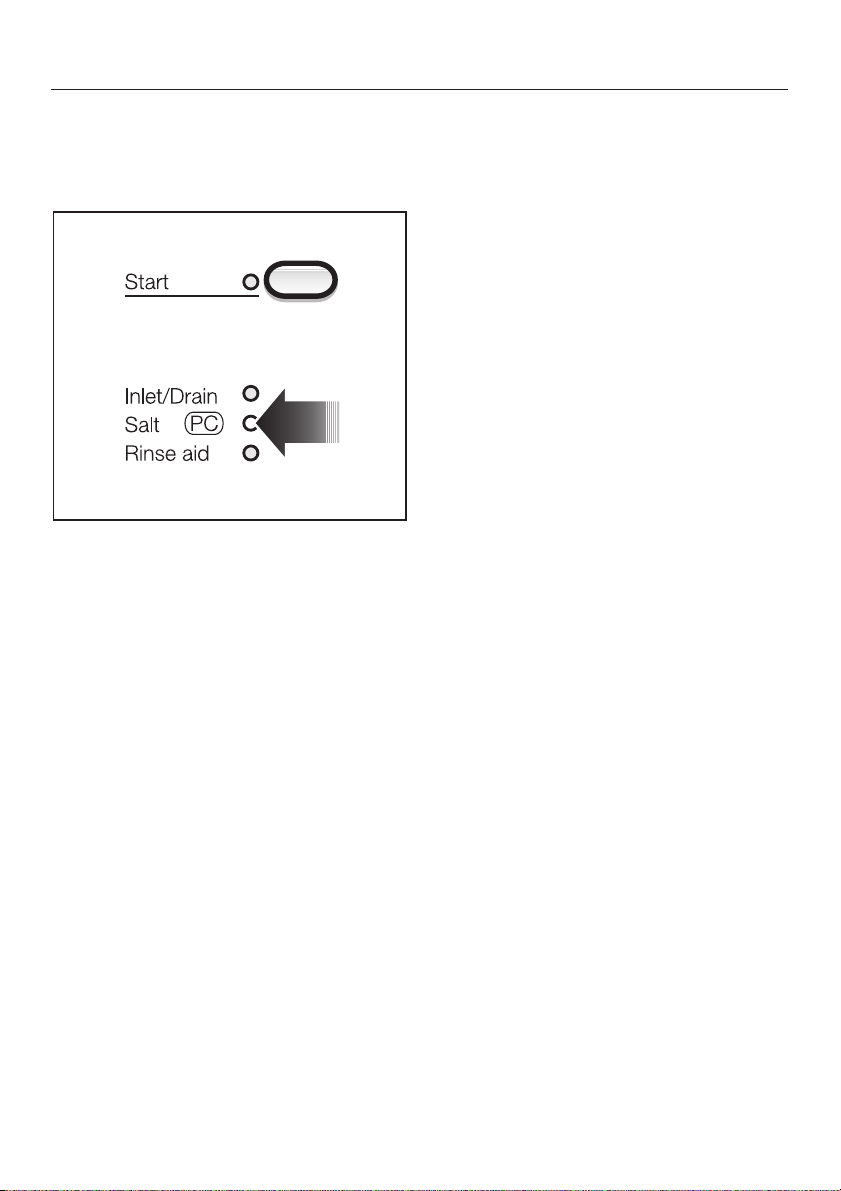

The "Salt" indicator light will flash.
Warning:
If a different indicator light comes on or flashes, the process must be repeated.
Exception:
The "Rinse aid" indicator light will come on if you have not yet added rinse aid or if rinse aid needs replenishing.
^Turn the programme selector to the position that corresponds to your water hardness level (see chart below).
°d |
|
mmol/l |
Programme selector |
||
German |
|
|
setting |
||
scale |
|
|
|
|
|
|
|
|
|
|
|
1 |
- |
4 |
0.2 - |
0.7 |
"1 o’clock"position |
|
|
|
|
|
|
5 |
- |
7 |
0.9 - |
1.3 |
"2 o’clock"position |
|
|
|
|
|
|
8 |
- 10 |
1.4 - |
1.8 |
"3 o’clock" position |
|
|
|
|
|
|
|
11 |
- 13 |
2.0 - |
2.3 |
"4 o’clock" position |
|
14 - 16 |
2.5 - |
2.9 |
"5 o’clock" position |
17 - 22 |
3.1 - |
4.0 |
"6 o’clock" position |
|
|
|
|
23 - 35 |
4.1 - |
6.3 |
"7 o’clock" position |
|
|
|
|
36 - 70 |
6.5 -12.6 |
"8 o’clock" position |
|
The dishwasher is set at the factory for a hardness level of 2.5 -2.9 mmol/l (14 -16 °d ).
Example:
For a water hardnesss of 3.5 mmol/l, turn the programme selector to the "6 o’clock" position.
15
Before using for the first time
^ Press the "Start" button.
The "Start" indicator light will come on.
^Turn the programme selector to the "Stop" position.
^Switch the dishwasher off using the "On/Off" button.
The water hardness level is now stored in memory.
Checking the programmed water hardness level
^Switch the dishwasher off using the "On/Off" button.
^Turn the programme selector to the "Stop" position.
^Press the "Start" button in and whilst holding it in switch the dishwasher on using the "On/Off" button. Release the "Start" button within two seconds.
The "Salt" indicator light will flash.
Warning:
If a different indicator light comes on or flashes, the process must be repeated.
Exception:
The "Rinse aid" indicator light will come on if you have not yet added rinse aid or if rinse aid needs replenishing.
^Click the programme selector from the "1 o’clock" position as far as the "8 o’clock" position.
When the programme selector is at the position which corresponds to the water hardness setting already programmed, the "Start" indicator light will come on (see chart "Programming and setting the water hardness level").
^Turn the programme selector to the "Stop" position.
^Switch the dishwasher off using the "On/Off" button.
16
Before using for the first time
Filling the salt reservoir
If the water in your area is very soft and constantly lower than 0.7 mmol/l (4 °d) you do not need to add dishwasher salt.
The water softener must, however, still be programmed to correspond to the water hardness level in your area. (The salt indicator light will still come on, but should be ignored).
Important: Before filling the salt reservoir with dishwasher salt for the first time, you must fill it with approx. 2 litres of water to enable the salt to dissolve. Once the dishwasher has been used, there is always sufficient water in the reservoir.
,Inadvertently filling the salt reservoir with powder or liquid dishwasher detergent always leads to serious damage to the water softener. Make sure you have picked up the correct packet of dishwasher salt before filling the salt reservoir!
,Only use special coarse grained dishwasher salt for reactivation. Do not use other salts such as cooking salt, agricultural grade or gritting salt. These may contain insoluble additives which can impair the functioning of the water softener.
^Remove the lower basket and unscrew the salt reservoir cap.
^Fill the reservoir with approx. 2 litres of water (first use).
^Place the funnel provided over the salt reservoir and carefully fill with salt until the reservoir is full. The salt reservoir holds approx. 2 kg of salt depending on the brand used.
As the salt reservoir is filled, displaced water will overflow.
^Clean any excess salt from around the reservoir opening and then screw the cap on again firmly.
^Run the "Pre-wash" programme immediately to remove any traces of salt water from the cabinet.
17
Before using for the first time
Salt indicator
The salt indicator light comes on to notify you that the reservoir is empty.
^The reservoir should then be refilled with dishwasher salt for reactivation. (See: Filling the salt reservoir).
After the reservoir has been filled, the water softener is automatically reactivated the next time the dishwasher is run. The salt indicator light may still be illuminated during this process. It will go out once the salt concentration has reached the correct level.
Note
If the water in your area is very soft and constantly lower than 0.7 mmol (4 °d) you do not need to add salt to the reservoir. The salt indicator light, however, will still come on, but should be ignored.
(See "After sales service" for definition of "PC").
18
Before using for the first time
Rinse aid
Rinse aid is necessary to ensure water does not cling and leave marks on crockery during the drying phase. Rinse aid is poured into the storage reservoir and the amount set is dispensed automatically.
,Inadvertently filling the rinse aid reservoir with powder or liquid dishwasher detergent always causes serious damage to the reservoir. Only pour rinse aid formulated for domestic dishwashers into the reservoir.
Alternatively, it is possible to use
–Household vinegar with a max. 5% acid content
or
–Liquid citric acid up to 10% acid content.
The resulting rinsing and drying quality will not, however, be as good as when rinse aid is used.
,Do not use vinegar with a higher acid content (e.g. vinegar essence 25% acid). This must not be used as its use would damage the dishwasher.
Adding rinse aid
^Press the button in the direction of the arrow until the flap springs open.
19
Before using for the first time
Rinse aid indicator
The Rinse aid indicator light on the fascia comes on when the rinse aid reservoir needs to be replenished.
^ Add rinse aid only until it is visible on the surface of the filter in the opening.
The rinse aid reservoir holds approx.
130ml.
^Close the flap firmly so that it clicks into place. Otherwise water would enter the rinse aid reservoir during a programme.
^Wipe up any spilled rinse aid. This prevents over-foaming occurring during the next programme.
When the light comes on the reservoir still contains sufficient rinse aid for 2 - 3 programmes.
^ Add rinse aid in plenty of time.
20
Loading...
