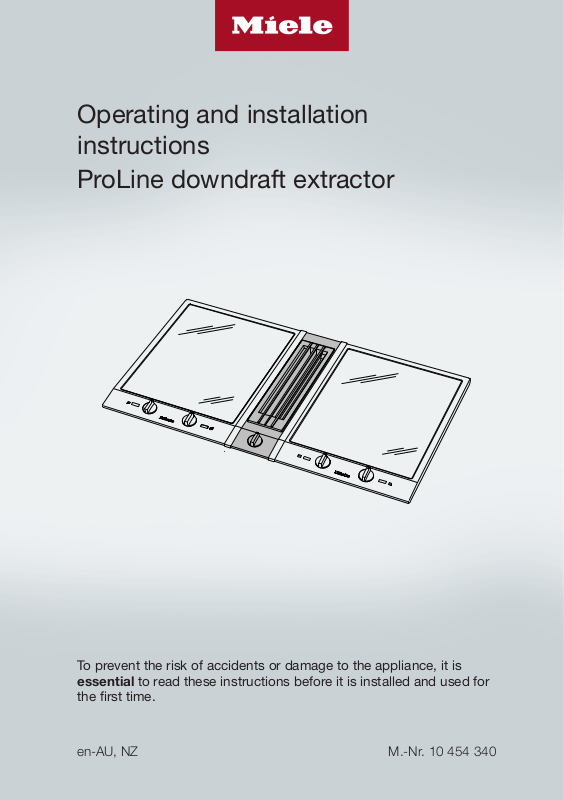

Operating and installation
instructions
ProLine downdraft extractor
To prevent the risk of accidents or damage to the appliance, it is
essential to read these instructions before it is installed and used for
the first time.
en-AU, NZ M.-Nr. 10 454 340
Contents
Warning and Safety instructions...................................................................... 3
Caring for the environment .............................................................................. 12
Description of the functions............................................................................. 13
Guide to the appliance...................................................................................... 14
Operation............................................................................................................ 17
Switching the fan on/off ...................................................................................... 17
Run-on time......................................................................................................... 17
Energy saving tips ............................................................................................. 18
Cleaning and care ............................................................................................. 19
Downdraft extractor housing............................................................................... 19
Important information for appliances with stainless steel surfaces ............... 19
Moisture collection tray .................................................................................. 20
Grease filter and extraction grille......................................................................... 20
Recirculation mode ............................................................................................. 22
Problem solving guide ...................................................................................... 23
Installation.......................................................................................................... 24
Before installation................................................................................................ 24
Assembly parts.................................................................................................... 24
Appliance dimensions ......................................................................................... 25
Building-in dimensions........................................................................................ 27
Changing the exhaust direction/fan position ...................................................... 29
Installation notes ................................................................................................. 32
Fixing screws.................................................................................................. 32
Installing the downdraft extractor........................................................................ 33
Installing the ProLine appliances......................................................................... 36
Fitting the cover strips......................................................................................... 37
Lifting out the ProLine appliances....................................................................... 37
Connection for air extraction ........................................................................... 38
Electrical connection ........................................................................................ 39
After sales service and warranty ..................................................................... 40
Position of the data plate .................................................................................... 40
Warranty .............................................................................................................. 40
2
Warning and Safety instructions
This downdraft extractor complies with all relevant safety
requirements. However, inappropriate use can lead to personal
injury and damage to property.
Please read these operating and installation instructions carefully
before using the downdraft extractor for the first time. They
contain important information on safety, installation, use and
maintenance of the appliance. This prevents both personal injury
and damage to the downdraft extractor.
In accordance with standard IEC 60335-1, Miele expressly and
strongly advises that you read and follow the instructions in
"Installation" and in "Warning and Safety instructions".
Miele cannot be held liable for injury or damage caused by noncompliance with these instructions.
Keep these instructions in a safe place and pass them on to any
future owner.
For safe operation, please also refer to the operating and
installation instructions for the ProLine appliances installed
adjacent to the downdraft extractor.
Correct application
This downdraft extractor is designed for domestic use and for use
in similar environments by guests in hotel or motel rooms, bed &
breakfasts and other typical living quarters. This does not include
common/shared facilities or commercial facilities within hotels,
motels or bed & breakfasts.
The downdraft extractor is not suitable for outdoor use.
3
Warning and Safety instructions
The downdraft extractor must only be used to extract vapours and
remove odours from cooking.
Any other usage is at the owner's risk. Miele cannot be held liable for
damage resulting from incorrect or improper use or operation.
This downdraft extractor is not intended for use by persons
(including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they are
supervised whilst using it or have been given instruction concerning
its use by a person responsible for their safety.
They must be able to recognise the dangers of misuse.
Safety with children
Young children must be kept away from the downdraft extractor.
Older children may only use the downdraft extractor without
supervision if they have been shown how to use it in a safe manner.
They must be aware of the potential dangers caused by incorrect
operation.
Cleaning work may only be carried out by older children under the
supervision of an adult.
Please supervise children in the vicinity of the downdraft extractor
and do not let them play with it.
Danger of suffocation! Whilst playing, children may become
entangled in packaging material (such as plastic wrapping) or pull it
over their head with the risk of suffocation. Keep packaging material
away from children.
Technical safety
Unauthorised installation, maintenance and repairs (including
removal of any cover) can cause considerable danger for the user.
Installation, maintenance and repairs must only be carried out by a
Miele authorised technician.
4
Warning and Safety instructions
The downdraft extractor must only be installed and operated in
combination with those ProLine appliances specified by Miele.
Important: This downdraft extractor must not be used in
combination with a gas cooktop.
A damaged appliance is dangerous. Check it for any visible
damage. Never install or attempt to use a damaged appliance.
The electrical safety of this appliance can only be guaranteed
when continuity is complete between it and an effective earthing
system. It is most important that this basic safety requirement is
present and tested regularly and, where there is any doubt, the
household wiring system should be inspected by a qualified
electrician.
Reliable and safe operation of this downdraft extractor can only
be assured if it has been connected to the mains electricity supply.
Before connecting the appliance to the mains electricity supply,
make sure that the rating on the data plate (voltage and frequency)
corresponds to that of the household supply.
This data must correspond in order to avoid risk of damage to the
appliance. Consult a qualified electrician if in any doubt.
Do not connect the downdraft extractor to the mains electrical
supply by a multi-socket adapter or extension lead. These are a fire
hazard and do not guarantee the required safety of the appliance.
For safety reasons, this appliance may only be used after it has
been built in.
This downdraft extractor must not be installed and operated in
mobile installations (e.g. on a ship).
5
Warning and Safety instructions
Touching or tampering with electrical connections or components
and mechanical parts is highly dangerous to the user and can cause
operational faults.
Only open the housing as described in the installation instructions
and in the Cleaning and care section of this booklet. Under no
circumstances should any other parts of the housing be opened.
The manufacturer's warranty will be invalidated if the appliance is
not repaired by a Miele authorised service technician.
Faulty components must only be replaced by genuine Miele spare
parts. The manufacturer can only guarantee the safety of the
appliance when Miele replacement parts are used.
If the mains connection cable is damaged, it must only be
replaced by a Miele authorised service technician or suitably
qualified and competent electrician in order to avoid a hazard.
During installation, maintenance and repair work, the appliance
must be disconnected from the mains electricity supply. It is only
completely isolated from the electricity supply when:
- the mains circuit breaker has been switched off, or
- the screw-out fuse is removed (in countries where this is
applicable), or
- it is switched off at the wall socket and the plug is withdrawn from
the socket. Do not pull the mains connection cable but the mains
plug to disconnect your appliance from the mains electricity
supply.
6
Warning and Safety instructions
Using at the same time as other heating appliances that depend on the air from the room
Warning - danger of toxic fumes!
Great care should be taken when using the downdraft extractor at
the same time and in the same room or area of the house as
another heating appliance which depends on the air in the room.
Such appliances include gas, oil, wood or coal-fired boilers and
heaters, continuous flow or other water heaters, gas cooktops, or
ovens which draw air in from the room and duct exhaust gases out
through a chimney or extraction ducting.
When used in extraction mode, with or without an external motor
fitted, or in recirculation mode with a recirculation box installed
outside the room, the downdraft extractor draws air in from the
room in which it is installed and from neighbouring rooms.
If there is insufficient air, an underpressure will occur. The heating
appliance will be starved of oxygen, impairing combustion.
Harmful gases could be drawn out of the chimney or extraction
ducting back into the room, with potentially fatal consequences.
7
Warning and Safety instructions
In order to ensure safe operation, and to prevent gases given off
by the heating appliances from being drawn back into the room
when the downdraft extractor and the heater are in operation
simultaneously, an underpressure in the room of 0.04 mbar (4 pa)
is the maximum permissible.
Ventilation can be maintained by air inlets which cannot be
blocked, in windows, doors or outside wall vents, or by other
technical measures, such as ensuring that the downdraft extractor
can only be switched on when the heating appliance is switched
off or vice versa. A ventilation brick alone is not generally sufficient
to ensure safe ventilation.
The overall ventilation condition of the dwelling must be taken into
account. If in any doubt, the advice of a competent builder or, for
gas, a qualified gas fitter (registered with an official gas safety
body in accordance with national safety regulations) must be
sought.
If the downdraft extractor is used in recirculation mode, where the
air is directed back into the room in which it is located, operating a
heating appliance which depends on the room air at the same time
is not hazardous.
8
Warning and Safety instructions
Correct use
Open flames are a fire hazard!
Never use an open flame beside the downdraft extractor. To avoid
the danger of fire, do not flambé or grill over an open flame. When
switched on, the downdraft extractor could draw flames into the
filter. Kitchen grease deposits could ignite.
Overheated oil and fat can ignite, causing fire damage to the
downdraft extractor.
When cooking with oil or fat, chip pans and deep fat fryers etc., do
not leave the pans unattended. Similarly, never leave an open grill
unattended when grilling.
Do not use the downdraft extractor without the filter in place. This
way you will avoid the risk of grease and dirt getting into the
appliance and hindering its smooth operation.
There is a risk of fire if cleaning is not carried out as described in
these operating instructions.
The downdraft extractor can get very hot during cooking due to
the heat from the cooktop.
Do not touch the housing or the grease filter until the downdraft
extractor has cooled down.
Do not use the downdraft extractor for resting objects on.
Do not cover the grille when in use.
Keep liquids away from the downdraft extractor.
Liquids can damage the extractor if they get into it.
Light objects can be drawn into the downdraft extractor and
impair its operation.
Do not place any light objects (e.g. paper towels) within close
proximity of the downdraft extractor.
9
Warning and Safety instructions
Correct installation
Please refer to the “Installation” section of this booklet when
fitting the downdraft extractor.
All pipework, ducting and fittings must be of non-flammable
material and comply with all relevant national and local building
regulations.

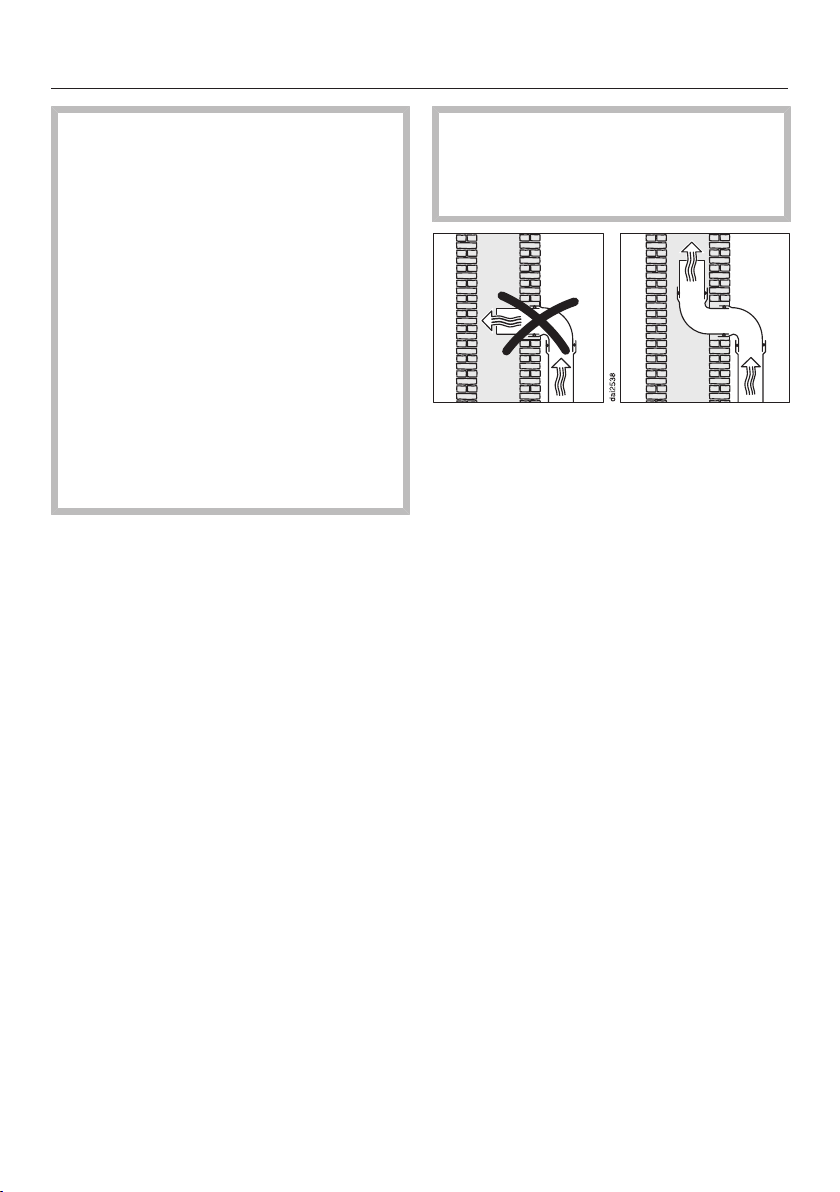

The appliance must not be connected to a chimney or vent flue
which is in current use for exhausting fumes from appliances burning
gas or other fuels. Neither should it be connected to ducting which
ventilates rooms with fireplaces.
If exhaust air is to be extracted into a chimney or ventilation duct
no longer used for other purposes, seek professional advice.
10
Warning and Safety instructions
Cleaning and care
Do not use a steam cleaning appliance to clean this appliance.
Pressurised steam could reach the electrical components and cause
a short circuit.
In areas which may be subject to infestation by cockroaches or
other vermin, pay particular attention to keeping the machine and its
surroundings in a clean condition at all times. Any damage which
may be caused by cockroaches or other vermin will not be covered
by the machine warranty.
Accessories
Use only genuine original Miele spare parts. If spare parts or
accessories from other manufacturers are used, the warranty will be
invalidated, and Miele cannot accept liability.
11
Caring for the environment
Disposal of the packing material
The transport and protective packing
has been selected from materials which
are environmentally friendly for
disposal, and can normally be recycled.
Recycling the packaging reduces the
use of raw materials in the
manufacturing process and also
reduces the amount of waste in landfill
sites. Ensure that any plastic
wrappings, bags etc. are disposed of
safely and kept out of the reach of
babies and young children. Danger of
suffocation.
Disposing of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Therefore, please do not dispose of
your old appliance with your household
waste.
Please dispose of it at your local
community waste collection / recycling
centre.
Ensure that your old appliance presents
no danger to children while being
stored for disposal.
12
Depending on the model of the
downdraft extractor, the following
options are available:
Air extraction mode
The air is drawn in and cleaned by the
grease filter and directed outside.
Recirculation mode
(DUU 1000(-1) conversion kit required)
The air is drawn in and cleaned by the
grease filter. The air is then directed into
the recirculation box where it is also
cleaned by the charcoal filter. The
cleaned air is then recirculated back
into the kitchen.
Description of the functions
13
Guide to the appliance
14
Guide to the appliance
Further building-in examples
15
Guide to the appliance
a
Extraction grille
b
Grease filter
c
Cover strips
d
Control for selecting the fan power setting
e
Motor unit
f
Removable moisture collection tray This collects any moisture that is drawn
through the extraction grille.
g
Exhaust connection
h
DUU 1000(-1) recirculation box
Optional accessory for recirculation mode
The diagrams show building-in examples. For possible variations in the position of
the fan and the exhaust connection, refer to “Appliance dimensions”.
16
Switching the fan on/off
Switch the fan on as soon as you start
cooking. This is to ensure that vapours
are captured right from the start.
For light to heavy cooking vapours and
odours, select from power levels 1 to 3.
For short periods of cooking food with
intensive vapours and a strong aroma,
e.g. when searing meat, select Booster
settingB.
Turn the dial from 0 to the required
power level.
Turn the dial back to 0 to switch the
appliance off.
Run-on time
It is advisable to run the fan for a few
minutes after cooking has finished.
This helps to remove any lingering
vapours and odours from the air.
Operation
It also reduces the risk of residues
accumulating in the rangehood and any
resultant odours.
17
Energy saving tips
This downdraft extractor operates very
efficiently and economically. The
following will help you to save even
more energy when using it:
- Ensure that there is sufficient
ventilation in the kitchen when
cooking. In extraction mode if there is
insufficient air flow, the downdraft
extractor cannot operate efficiently
and this causes increased operating
noise levels.
- Always cook with the lowest possible
setting. This produces fewer cooking
vapours, so you can use a lower
downdraft extractor power level and
therefore benefit from reduced
energy consumption.
- Check the power level selected on
the downdraft extractor. A lower
power level is generally sufficient for
the majority of cooking. Only use the
Booster setting when necessary.
- When a large volume of cooking
vapours are being produced, switch
to a high power level in good time.
This is more efficient than operating
the downdraft extractor for longer to
try to capture cooking vapours which
have already been distributed
throughout the kitchen.
- Make sure that you switch the
downdraft extractor off after use.
- Clean or change the filters at regular
intervals. Heavily soiled filters reduce
performance, increase the risk of fire
and are unhygienic.
18
Cleaning and care
Before cleaning, the downdraft
extractor and the ProLine appliances
must be switched off and the
ProLine appliances need to have
cooled down.
For instructions on how to clean the
ProLine appliances, please refer to their
separate operating instructions.
Downdraft extractor housing
General
The surfaces and controls are
susceptible to scratches and
abrasion.
Please observe the following
cleaning instructions.
All external surfaces and controls can
be cleaned using warm water with a
small amount of washing-up liquid
applied with a well wrung-out soft
sponge or cloth.
Important information for appliances with stainless steel surfaces
Stainless steel surfaces can be cleaned
with a non-abrasive cleaning agent
designed specifically for use on
stainless steel.
To prevent the surfaces from quickly
becoming dirty again, we recommend
treating them with a stainless steel care
product (available from Miele).
Do not use a ceramic and stainless
steel cleaner or stainless steel
conditioning agent on the printing.
This would rub the printing off.
These areas should only be cleaned
with a solution of warm water and a
little washing-up liquid applied with a
soft sponge.
After cleaning, wipe the surfaces dry
using a soft cloth.
Do not use:
- cleaning agents containing soda,
acids, chlorides or solvents,
- abrasive cleaning agents, e.g.
powder cleaners or cream cleaners
and abrasive sponges, as well as pot
scourers or sponges which have
been used previously with abrasive
cleaning agents. These will damage
the surface material.
19
Cleaning and care
Moisture collection tray
The moisture collection tray should be
cleaned if liquids boil over or are spilled
into the grille of the downdraft extractor.
Remove and clean the grease filter as
described later in this section.
Undo the latches while holding the
moisture collection tray. Carefully
remove the tray from the housing,
making sure it is kept horizontal.
Pour away the liquid.
Grease filter and extraction grille
Fire hazard!
An oversaturated grease filter is a fire
hazard.
Clean the grease filter at regular
intervals.
The extraction grille and the reusable
metal grease filter collect solid matter
from kitchen vapours (grease, dust etc.)
and therefore prevent soiling of the
downdraft extractor.
The grease filter and the extraction grille
must be cleaned at regular intervals.
A heavily soiled grease filter hinders
air extraction and will lead to
increased levels of soiling in the
downdraft extractor and in the kitchen.
Grease filter cleaning intervals
The extraction grille and the grease filter
should be cleaned regularly (at least
every 3-4 weeks) to avoid a build-up
and hardening of grease.
Clean and dry the tray.
Also clean and dry the accessible
inside of the downdraft extractor.
Reattach the moisture collection tray
to the housing, insert the grease filter
and refit the extraction grille.
20
Cleaning and care

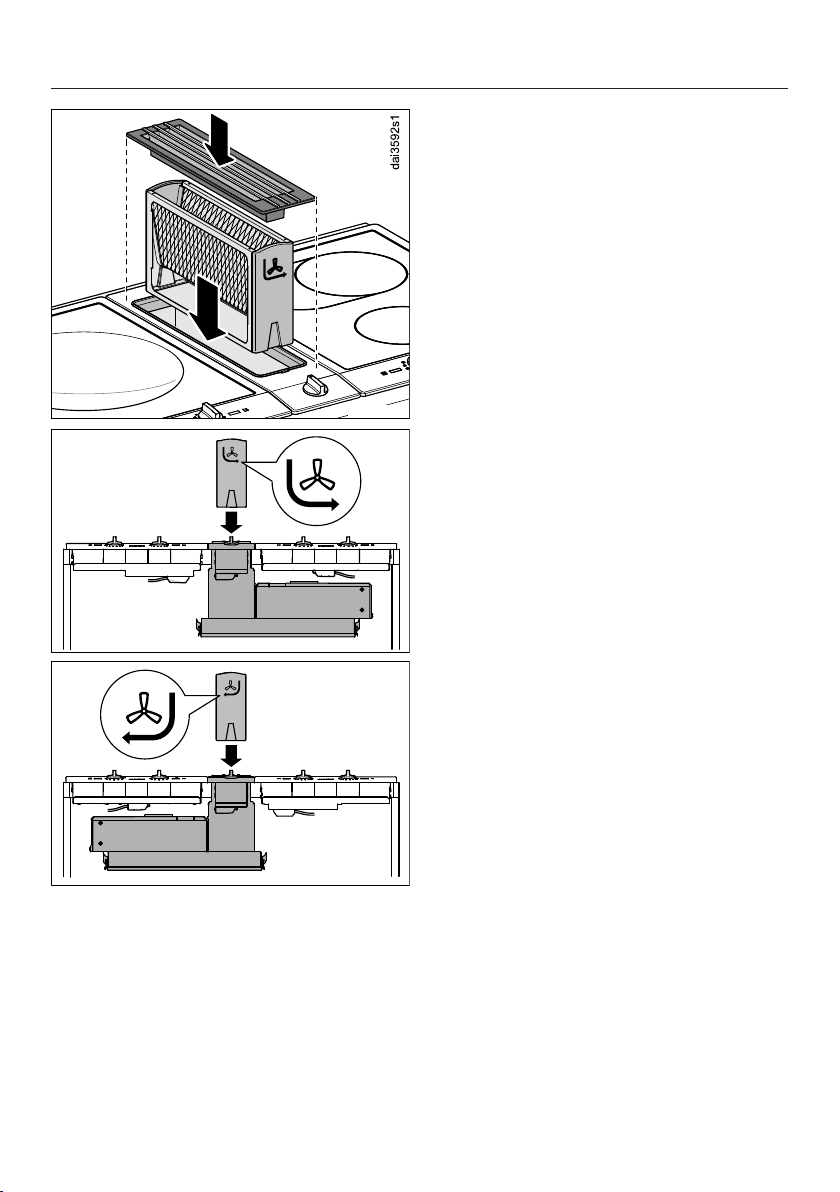

Removing the extraction grille and grease filter
Lift up the extraction grille.
Carefully lift out the grease filter and
try not to tilt it.
Pour out any liquid which has
collected at the bottom of the grease
filter.
Cleaning the extraction grille and grease filter by hand
Clean the extraction grille and the
grease filter with a soft nylon brush in
a mild solution of hot water and a
small amount of washing-up liquid.
Do not use undiluted washing-up
liquid.
Unsuitable cleaning agents
Unsuitable cleaning agents can cause
damage to the surface of the filters if
used regularly.
Do not use:
- aggressive all-purpose cleaning
agents or spray cleaners for grease,
- oven sprays.
Cleaning the extraction grille and grease filter in a dishwasher
Place the extraction grille as upright
as possible and the grease filter with
its base facing upwards in the lower
basket. Ensure the spray arm is not
obstructed.
Use a standard household
dishwasher detergent.
Select a dishwasher programme with
a wash temperature between 50°C
and 65°C.
Depending on the cleaning agent
used, cleaning the grease filter in a
dishwasher can cause permanent
discolouration to the internal surfaces
of the filter. However, this will not
affect the functioning of the filter in
any way.
After cleaning
When removing the extraction grille
and the grease filter for cleaning, also
clean off any residues of oil or fat
from the now accessible housing to
prevent the risk of these catching fire.
- cleaning agents containing descaling
agents,
- powder cleaners or cream cleaners,
21
Cleaning and care
Recirculation mode
If you intend to use recirculation mode
with the separate recirculation box,
ensure you read the corresponding
operating instructions supplied with the
recirculation box.
Fit the grease filter in the downdraft
extractor. Depending on model, the
grease filter has a marking on it. Fit
the grease filter so that the arrow
faces in the direction of the fan.
Install the extraction grille. Ensure it is
correctly aligned at the front and rear.
22
Problem solving guide
Problem Possible cause and remedy
Liquid has entered the
downdraft extractor.
Extraction performance
has decreased. The
extraction noise has
increased.
Due to boiling over or spillage, liquid has made its
way through the extraction grille into the downdraft
extractor.
The base of the grease filter can hold approx. 250ml
of liquid. The moisture collection tray underneath the
housing can hold a further 250ml of liquid.
Switch off the downdraft extractor.
Clean the grease filter, the moisture collection tray
and the inside of the housing (see “Cleaning and
care”).
Objects (e.g. a tea towel) have been drawn into the
downdraft extractor through the extraction grille.
Switch off the downdraft extractor.
Remove the extraction grille and lift out the grease
filter (see “Cleaning and care”).
Remove any objects from inside the grease filter
and reassemble all of the components.
23
*INSTALLATION*
Installation
Before installation
Before installation, it is important
to read the information given on the
following pages as well as the
“Warning and Safety instructions” at
the beginning of this booklet.
The veneer or laminate
coatings of worktops (or
adjacent kitchen units) must be
treated with 100°C heatresistant adhesive which will not
dissolve or distort. Any
splashbacks must be of heatresistant material.
The ProLine appliance must
not be installed over a fridge,
fridge-freezer, freezer,
dishwasher, washing machine,
washer-dryer or tumble dryer.
All dimensions in this instruction
booklet are given in mm.

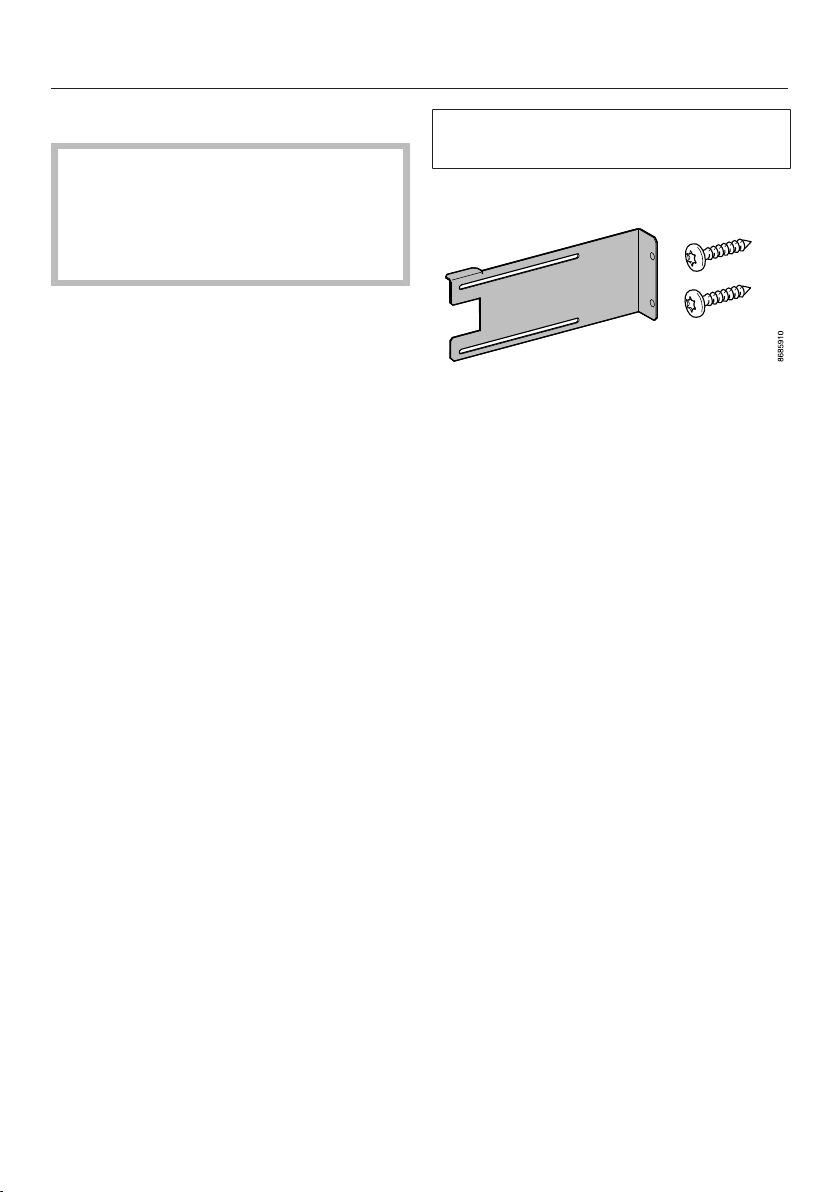

Assembly parts
1 fixing plate and
2 screws 4 x 15mm
for securing the downdraft extractor to
the furniture cabinet.
Induction ProLine appliances
must not be installed above
ovens unless they have a built-in
cooling fan.
After installation, the mains
connection cable of the ProLine
appliance must not come into
contact with any moving kitchen
component (e.g. a drawer) or be
subject to mechanical loads
which could damage it.
Carefully observe the safety
clearances listed on the following
pages.
24
*INSTALLATION*
Appliance dimensions
Installation
25
*INSTALLATION*
Installation
a
Fan on right-hand side, exhaust connection at rear (default position).
b
Fan on right-hand side, exhaust connection on the right (conversion necessary).
c
Fan on left-hand side, exhaust connection on the left (conversion necessary).
d
Centre of cut-out
e
Exhaust connection
f
Removable moisture collection tray. This collects any liquids that make their
way through the extraction grille.
The moisture collection tray must be accessible after installation.
* Cut-out dimensions
26
*INSTALLATION*
Building-in dimensions
Installation
The drawing is not to scale.
a
Safety distance from the back edge of the ProLine to a vertical surface.
b
Safety distance right or left from the edge of the ProLine to a wall, tall unit or
combustible niche cladding:
40mm for the induction cooktop (CS 1222)
50mm for the TepanYaki (CS1327)
A tall unit or wall located on both sides is not allowed.
A tall unit or wall located directly beside the ProLine is not recommended.
27
*INSTALLATION*
Installation
c
Maximum building-in depth of the ProLine:
CS 1222 (induction cooktop): 73 mm (see e)
CS 1327 (TepanYaki): 78 mm
d
To ensure sufficient ventilation, a minimum safety distance is required between
the underside of an induction cooktop and an oven, interim shelf or a drawer
below it.
Safety distance to an oven or interim shelf: 15mm
Safety distance to the bottom of a drawer: 75mm
e
In order to be able to remove the moisture collection tray, a minimum distance
is required between the underside of the downdraft extractor and an oven,
interim shelf or a drawer.
f
A cabinet wall or partition wall is required to secure the fan.
g
When positioning built-in appliances or partition walls, ensure the latches on
the moisture collection tray are able to be opened.
h
If a partition wall is to be installed, a ventilation gap at the front and space for
the mains connection cable at the rear are recommended.
Safety distance above to easily combustible materials (e.g. rack):
For details of the minimum overhead safety distance above the downdraft
extractor, refer to the operating and installation instructions for the Proline
appliances used with the downdraft extractor. If the two ProLine appliances
installed with the downdraft extractor have different safety distances, select the
greater of the two safety distances.
More detailed information about the dimensions of the ProLine can be found in
the relevant operating and installation instructions.
28
*INSTALLATION*
Installation
Changing the exhaust direction/fan position
By modifying the downdraft extractor, it
is possible to change the position of the
fan and the exhaust connection.
Rotating the fan
Pull the connection cable through the
holder a little to allow the fan to be
rotated unhindered.
a
Fan on right-hand side, exhaust
direction to the rear (factory default
position).
b
Fan on right-hand side, exhaust
direction to the right (fan rotated).
c
Fan on left-hand side, exhaust
direction to the left (fan and housing
rotated).
Place the downdraft extractor on a
soft surface.
Open the four latches and detach the
downdraft extractor from the moisture
collection tray.
29
*INSTALLATION*
Installation
Unscrew the four screws from the
fan, lift off the fan and rotate it 90°.
Feed through the cable and screw the
fan back on.
Position the cable again so that it is
not stretched or kinked.
Place the downdraft extractor onto
the moisture collection tray again and
secure the tray using the latches.
30
*INSTALLATION*
dai3592h
Rotating the housing
If the fan is to be positioned on the lefthand side, the housing also needs to be
rotated.
Remove the fan as described
previously and place to one side.
Feed through the cable.
Installation
Rotate the upper housing 180°, insert
it into the lower housing again, and
screw it into place.
Unscrew the four screws from the
lower housing and remove it from the
upper housing.
Screw the fan into place in the
required position.
Position the connection cable as
described previously and secure the
downdraft extractor to the top of the
housing again.
31
*INSTALLATION*
Installation
Installation notes
Sealing between the ProLine appliance and the worktop
The ProLine appliance and the
worktop may be damaged if the
appliance needs to be removed after
it has been sealed with a sealant. Do
not use any sealant between the
ProLine appliance and the worktop.
The sealing strip under the edge of
the top part of the appliance
provides a sufficient seal for the
worktop.
Tiled worktop
Grout lines and the hatched area
underneath the ProLine appliance frame
must be smooth and even. If they are
not, the ProLine appliance will not sit
flush with the worktop and the sealing
strip underneath the top part of the
appliance will not provide a good seal
between the appliance and the
worktop.
Fixing screws
The fixing screws supplied are suitable
for installation in a wooden worktop. If
the appliance is being installed in a
stone worktop, for example, use a
strong adhesive or double-sided tape
(not supplied) to secure the spacer bars
and spring clamps. Use silicone, for
example, around these components as
an additional means of securing them
to the worktop.
32
*INSTALLATION*
Installation
Preparing the worktop
Make the worktop cut-out as shown
in the “Building-in dimensions”.
Observe the safety distances in all of
the applicable ProLine operating and
installation instructions.
Wooden worktops
Seal the cut surfaces on wooden
worktops with a suitable sealant to
avoid swelling caused by moisture.
The sealant must be heat-resistant.
Make sure the sealant does not
come into contact with the top
surface of the worktop.
Installing the downdraft extractor
Install the downdraft extractor first and
then the ProLine cooking appliances.
Undo the relevant housing screws on
the front of the downdraft extractor
and loosely attach the fixing plate.
Depending on the building-in
position, bend the guide tab at the
top and the plate's side fixing tab
90°:
a Right-mounted fan,
b Left-mounted fan.
33
*INSTALLATION*
Installation
The downdraft extractor is secured in
the cut-out with two spacer bars.
Initially only the bar on the fan side is
installed in the cut-out:
Remove the covers from the spacer
bars.
Right-mounted fan: Install the bar to the
right of the centre of the cut-out.
Left-mounted fan: Install the bar to the left
of the centre of the cut-out.
Position the spacer bar so that its top
edge is flush with the top of the cutout, and secure it in the cut-out with
the screws supplied. Ensure the
spacer bar is installed with the
marking at the front of the cut-out.
Hold the spacer bar for the other side
underneath the top of the downdraft
extractor. Ensure the spacer bar is
installed with the marking at the front
of the cut-out.
34
*INSTALLATION*
If the exhaust ducting is to run
downwards, the required bend should
be attached to the exhaust
connection before installation if
possible. See “Connection for air
extraction” for further instructions on
fitting the ducting.
Installation
Press the downdraft extractor onto
the spacer bar, align it and secure it
to the cabinet with the fixing plate.
Feed the mains connection cable
down through the worktop cut-out.
Tilt and lower the downdraft extractor
into the cut-out and hook it onto the
spacer bar.
Push the second spacer bar against
the downdraft extractor and secure it
on the cut-out using two of the
screws supplied at the front and two
at the rear.
35
*INSTALLATION*
Installation
See “Connection for air extraction”
for further instructions on fitting the
ducting.

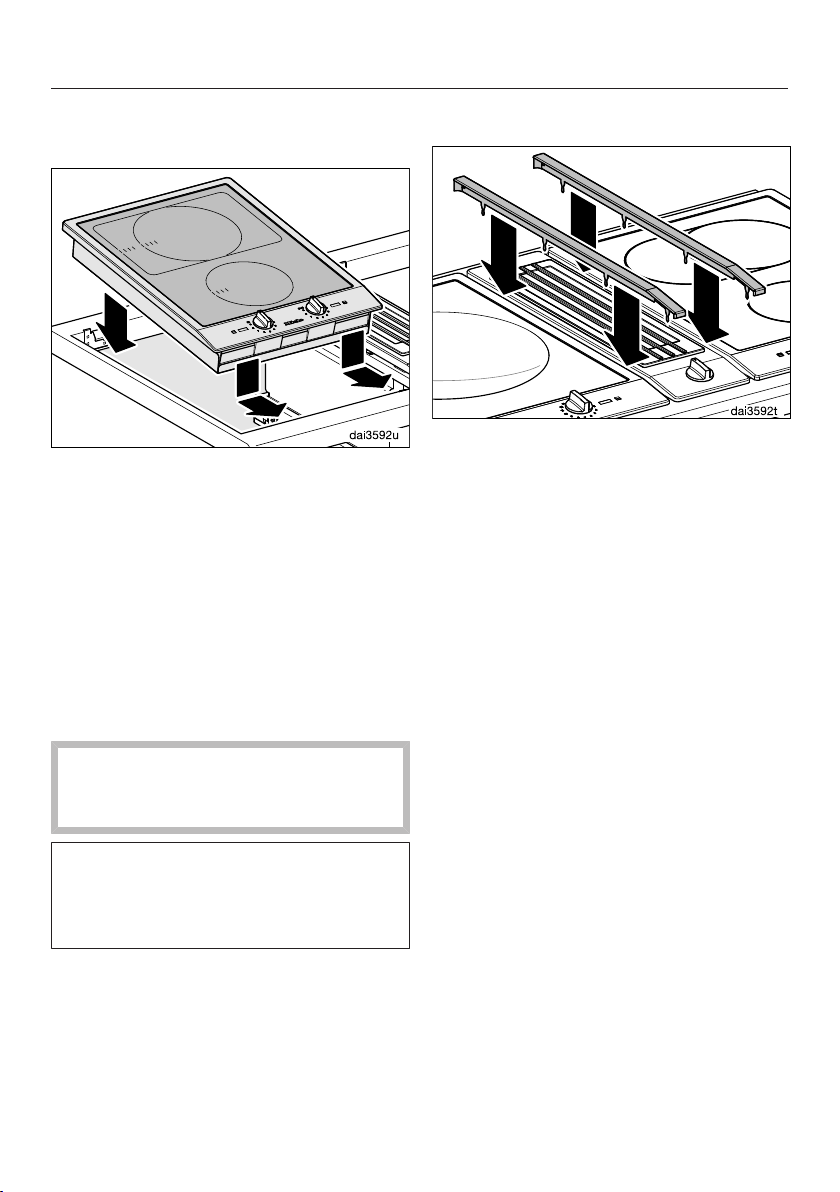

Installing the ProLine appliances
Please note that, due to the required
building-in depth, the wok cannot be
installed above the fan of the
downdraft extractor. The wok must
be installed on the opposite side to
the fan.

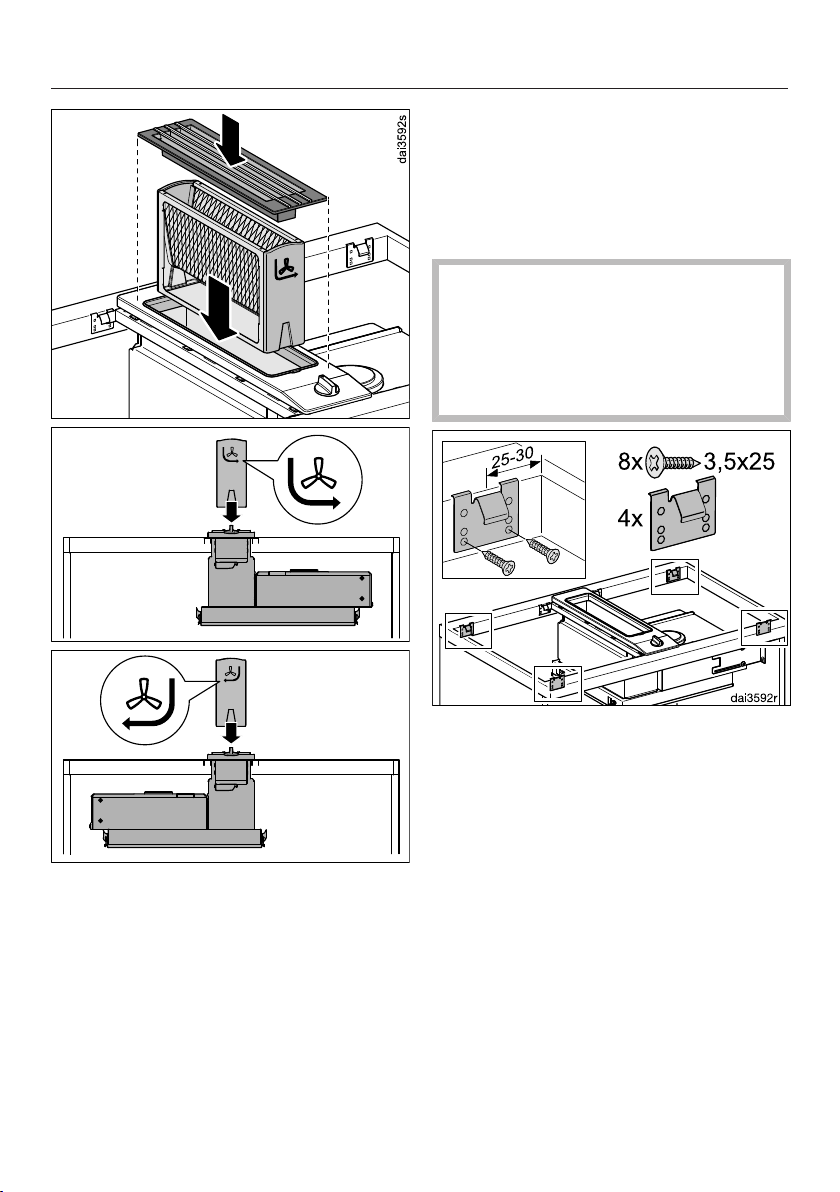

Remove the protective foil from
around the edge of the grease filter.
Fit the grease filter in the downdraft
extractor. Depending on model, the
grease filter has a marking on it. Fit
the grease filter so that the arrow
faces in the direction of the fan.
Install the extraction grille. Ensure it is
correctly aligned at the front and rear.
36
Secure the four outer spring clamps
in the cut-out.
*INSTALLATION*
Installation
Feed the mains connection cable
down through the worktop cut-out.
Starting at the front, position the
ProLine appliance in the worktop cutout.
Using both hands, press down evenly
on the sides of the ProLine appliance
until it clicks into position. When
doing this, make sure that the seal of
the appliance sits flush with the
worktop on all sides. This is
important to ensure an effective seal
with the worktop.
Do not use sealant (e.g. silicone) as
an additional means for sealing the
ProLine appliances.
If the seal does not meet the worktop
correctly on the corners, the corner
radii (≤R4) can be carefully scribed to
suit.
Fitting the cover strips
Push the cover strips between the
ProLine appliances and click them
into place.
Please refer to the operating
instructions for the ProLine
appliances before using them for the
first time.
Connecting the ProLine appliance
Connect the ProLine appliance/
appliances to the electricity supply
and, if applicable, to the gas supply
(see “Electrical connection” and “Gas
connection”).
Check that each ProLine appliance is
working.
Lifting out the ProLine appliances
Push the ProLine appliances out from
below. Push the back of the
appliances out first.
37
Connection for air extraction
Before installation, it is important
to read the following information.
This is particularly crucial when using
the downdraft extractor at the same
time as a heating appliance that
relies on oxygen from the same
room, which could result in the buildup of toxic fumes.
It is particularly important that the
“Warning and Safety instructions”
are observed.
The downdraft extractor should be
installed according to local and
national building regulations. Seek
approval from the building inspector
where necessary.
The downdraft extractor has an exhaust
connection of 222x89mm.
Only use smooth pipes or flexible
hoses made from non-flammable
materials that comply with all relevant
national and local building regulations
for the extraction ducting.
To achieve the greatest possible air
extraction with the lowest noise level,
please note the following:
- The cross-section of the exhaust
ducting must not be smaller than the
cross-section of the exhaust
connection (see “Appliance
dimensions”).
Remember that any constriction of
the airflow will reduce extraction
performance and increase operating
noise.
If the exhaust air is to be ducted into
a vent flue, the ducting must be
directed in the flow direction of the
flue.
When ducting is horizontal it must be
laid to slope away at at least 1cm per
metre. This is to ensure that
condensate cannot drain back into
the downdraft extractor.
If the exhaust ducting is to run
through rooms, ceiling space etc.
where there may be great variations
in temperature between the different
areas, the problem of condensation
will need to be addressed. The
exhaust ducting will need to be
suitably insulated.
- The exhaust ducting should be as
short and straight as possible.
- Only use wide radius bends.
- The exhaust ducting should not be
kinked or compressed.
- Ensure that all connections are
strong and airtight.
38
*INSTALLATION*
Electrical connection
Risk of damage from incorrect
connection.
Danger of injury! Miele cannot be
held liable for unauthorised
installation, maintenance and repair
work as this can be dangerous to
users.
Miele cannot be held liable for
damage or injury (e.g. electric shock)
caused by incorrect installation,
maintenance or repair work, or by an
inadequate or faulty earthing system.
If the plug has been removed or the
connection cable is not supplied with
a plug, the ProLine appliance must
be connected to the electricity
supply by a suitably qualified and
competent electrician.
If the appliance is to be hard-wired,
an additional means of
disconnection must be provided for
all poles in accordance with the
wiring rules. When switched off,
there must be an all-pole contact
gap of at least 3 mm in the switch
(including switch, fuses and relays).
Connection data is shown on the
data plate. It must match the mains
electricity supply.
After installation, ensure that all
electrical components are shielded
and cannot be accessed by users.
We recommend connecting to the
mains electricity supply via a switched
socket. This will make it easier for
service technicians should the
appliance need to be repaired.
Three sockets are required to connect
the two ProLine appliances and the
downdraft extractor. The sockets must
be easily accessible after the ProLine
appliances have been installed.
Total power output
See data plate.
Connection
AC 230 V, 50 Hz
The voltage and rated load are given on
the data plate. Please ensure these
match the household mains supply.
Residual current device
For extra safety, it is advisable to
protect the ProLine appliance with a
suitable residual current device (RCD)
with a trip range of 30 mA.
39
After sales service and warranty
In the event of a fault which you cannot
remedy yourself, please contact Miele.
The contact details for Miele are given
at the back of these instructions.
When contacting Miele, please quote
the model and serial number of your
appliance.
These can be found on the data plate.
Position of the data plate
The data plate is visible on the front of
the housing.
Warranty
AU, NZ:
The manufacturer's warranty for this
appliance is 2 years.
For further information, please refer to
your warranty booklet.
Other countries:
For information on the appliance
warranty specific to your country please
contact Miele. See the end of this
booklet for contact details.
40
Miele (Hong Kong) Limited
41/F - 4101, Manhattan Place
23 Wang Tai Road
Kowloon Bay
Hong Kong
Tel.: (852) 2610 1025
Fax: (852) 3579 1404
E-mail: customerservices@miele.com.hk
Website: www.miele.hk
Singapore
Miele Pte. Ltd.
163 Penang Road
# 04 - 03 Winsland House II
Singapore 238463
Tel.: +65-67351191
Fax: +65-67351161
E-mail: info@miele.com.sg
Internet: www.miele.sg
Malaysia
Miele Sdn Bhd
Suite 12-2, Level 12
Menara Sapura Kencana Petroleum
Solaris Dutamas No. 1, Jalan Dutamas 1
50480 Kuala Lumpur, Malaysia
Phone: +603-6209-0288
Fax: +603-6205-3768
Miele Australia Pty. Ltd.
ACN 005 635 398
ABN 96 005 635 398
Miele Experience Centre and
Head Office Melbourne:
1 Gilbert Park Drive
Knoxfield, VIC 3180
www.miele.com.au
Miele New Zealand Limited
IRD 98 463 631
Head Office:
8 College Hill
Freemans Bay, Auckland 1011
Miele Global Headquarters Germany
Miele & Cie. KG
Carl-Miele-Straße 29, 33332 Gütersloh, Federal Republic of Germany
Thailand
BHIRAJ TOWER at EmQuartier
43rd Floor Unit 4301-4303
689 Sukhumvit Road
North Klongton Sub-District
Vadhana District
Bangkok 10110, Thailand
1300 464 353 (1300 4 MIELE)
0800 464 353 (0800 4 MIELE)
www.miele.co.nz
CSDA 1000,
CSDA 1010, CSDA 1020
M.-Nr. 10 454 340 / 02en-AU, NZ
Loading...
