Digitale Kamera
Digital Camera
Bedienungsanleitung
User Manual
MD 85830
i Preface
English
Preface
About this Manual
Copyright
Federal Communications Commission (FCC) Compliance
This manual is designed to assist you in using your new digital camera. All
information presented is as accurate as possible but is subject to change without
notice.
This manual contains proprietary information protected by copyright. All rights are
reserved. No part of this manual may be reproduced by any mechanical, electronic
or other means, in any form, without prior written permission of the manufacturer.
© Copyright 2007
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Warning: A shielded-type power cord is required in order to meet FCC emission limits and to
prevent interference to radio and television reception. Use only shielded cable to connect I/O
devices to this equipment. Any changes or modifications not expressly approved by the manufacturer may void your warranty and service agreement.
Declaration of Conformity
This device complies with Part 15 of the FCC rules. Operation is subject to the
following conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that
may cause undersired operation.
About this Manual
Preface ii
Trademark Recognition
Windows XP/Vista are registered trademarks of Microsoft Corporation in the
United States and/or other countries. Windows is an abbreviated term referring to
the Microsoft Windows Operation System. Adobe is a trademark of Adobe
Corporation. ArcSoft is the trademark of ArcSoft System, Inc. All other companies
or product names are trademarks or registered trademarks of their respective
companies.
Safety and Handling Precautions
Camera Information
• Do not take apart or attempt to service the camera yourself.
• Do not expose the camera to moisture, or extreme temperatures.
• Allow the camera to warm up when moving from cold to warm temperatures.
• Do not touch the camera lens.
• Do not expose the lens to direct sunlight for extended periods.
English
• Do not use abrasive chemicals, cleaning solvents or strong detergents to clean
the product. Wipe the product with a slightly damp soft cloth.
Battery Information
• Turn off the camera before installing or removing the battery.
• Use only the type of battery. Using other types of battery may damage the
equipment and invalidate the warranty.
• Inserting the battery upside down can cause damage to the product and
possibly start a fire.
• Download all pictures and remove the battery from the camera if you are going
to store the camera for long periods.
Safety and Handling Precautions
English
Table of Contents
Preface .................................................................................................... i
Introduction ........................................................................................... 1
About this Manual ..............................................................................................i
Copyright ............................................................................................................................ i
Federal Communications Commission (FCC) Compliance ................................................ i
Declaration of Conformity ................................................................................................... i
Trademark Recognition ......................................................................................................ii
Safety and Handling Precautions ....................................................................ii
Camera Information ............................................................................................................ii
Battery Information .............................................................................................................ii
System Requirements ......................................................................................1
Package Contents .............................................................................................1
Main Features ....................................................................................................1
Camera Views ...................................................................................................2
Front View ......................................................................................................................... 2
Back View .......................................................................................................................... 2
Top View ............................................................................................................................ 2
Bottom View ...................................................................................................................... 3
Left / Right View ................................................................................................................ 3
LED Indicators ..................................................................................................3
Camera Buttons ................................................................................................4
Navigation Buttons ............................................................................................................ 4
The Scene Button .............................................................................................................. 6
Function Buttons ................................................................................................................ 7
LCD screen ........................................................................................................8
Capture/Video Mode Display ............................................................................................. 8
Camera Setup ...................................................................................... 13
Attaching the Wrist Strap ...............................................................................13
Inserting the Batteries ....................................................................................13
Inserting an SD/MMC/SDHC Memory Card ...................................................14
Turning On ......................................................................................................14
First Time Use .................................................................................................15
Getting Started .................................................................................... 16
Taking your First Photo .................................................................................16
Using Macro Mode .......................................................................................................... 16
Setting the Flash Mode .................................................................................................... 16
Using the Zoom in/out Function ....................................................................................... 17
Using the Self-timer and Burst Photography ................................................................... 17
Setting the Scene Mode .................................................................................................. 17
Face Detection AF/AE Function ...................................................................................... 18
Recording your First Video ............................................................................18
Recording Voice Memos ................................................................................19
Capture Settings .................................................................................. 20
The Capture Menu ..........................................................................................20
Image Resolution ............................................................................................................. 20
Image Quality ..................................................................................................................21
Focus Zone ...................................................................................................................... 21
EV Compensation ............................................................................................................ 21
M-Burst Interval ...............................................................................................................22
White Balance ................................................................................................................. 22
ISO Speed ....................................................................................................................... 22
AE Metering ..................................................................................................................... 23
Color ................................................................................................................................ 23
Sharpness ....................................................................................................................... 23
Saturation ........................................................................................................................ 23
Contrast ........................................................................................................................... 24
Setup ............................................................................................................................... 24
Video Capture Menu .......................................................................................24
Video Resolution ............................................................................................................. 24
White Balance ................................................................................................................. 24
Color ................................................................................................................................ 24
Saturation ........................................................................................................................ 24
Contrast ........................................................................................................................... 25
Setup ............................................................................................................................... 25
English
Photo & Video Playback ..................................................................... 26
Playback Mode Display ..................................................................................26
Viewing Photos/Videos on the LCD Screen .................................................28
Viewing M-Burst Photos .................................................................................................. 28
Listening to Voice Memo ................................................................................................. 28
Viewing Photos/Videos on your TV ..............................................................29
Zooming In During Playback .........................................................................30
Deleting Photos/Videos ..................................................................................30
Using the Playback Menu ..............................................................................30
DPOF ............................................................................................................................... 30
Slideshow ........................................................................................................................ 32
Resize .............................................................................................................................. 32
Rotate .............................................................................................................................. 33
Protect ............................................................................................................................. 33
Red-Eye Compensation .................................................................................................. 34
Move ................................................................................................................................ 34
Transferring Photos/Videos to your PC .......................................................35
Camera Settings .................................................................................. 36
The Setup Menu ..............................................................................................36
File Number ..................................................................................................................... 36
English
Digital Zoom .................................................................................................................... 36
Quick View ....................................................................................................................... 37
Camera Sound ................................................................................................................ 37
Auto LCD Off ...................................................................................................................37
Auto Power Off ................................................................................................................ 37
Video Out ......................................................................................................................... 38
USB Mode .......................................................................................................................38
Date Stamp ...................................................................................................................... 38
Date and Time ................................................................................................................. 39
Language ......................................................................................................................... 39
Image Storage ................................................................................................................. 39
Format ............................................................................................................................. 40
Reset ............................................................................................................................... 40
Voice Memo .....................................................................................................................40
PictBridge Print (PTP) ....................................................................................41
Image Storage ................................................................................................................. 41
This Image ....................................................................................................................... 42
Index Print ....................................................................................................................... 43
DPOF Image .................................................................................................................... 43
All Images ........................................................................................................................ 44
Specifications ...................................................................................... 45
Troubleshooting .................................................................................. 48
Introduction 1
Introduction
Congratulations on the purchase of your new digital camera. This manual provides
step-by-step instructions on how to use your camera, and is intended for your
reference only.
System Requirements
In order to get the most ou t of your camera, your comp uter must meet the following system requirements:
• OS: Windows XP/Vista
• Memory: 128MB or above
• HDD space: 40 MB or above
• USB port
English
Package Contents
Check the contents of your camera package. It should contain:
• Digital camera
• USB/AV 3-in-1 cable
• Wrist strap
• Two AA batteries
• Camera pouch
• Quick start guide for all regions
• Bundled AP-CD (Application Software, Driver and User’s Manual for all regions)
Main Features
• 7.1 mega pixels resolution
• 15x zoom (Up to 3x optical zoom and 5x digital zoom)
• 1/2.5 inch CCD image sensor
• 2.4 inch LTPS TFT LCD monitor
• 10.5 MB internal flash memory with optional external SD/MMC/SDHC card
(supported up to 8G)
• Sleek and slim design
• Easy-to-use button interface
• PictBridge compatibility
• Slideshow feature to review your pictures and movies
• A/V output to view your pictures and movies on your TV
• USB port to transfer photos and movies to your PC
System Requirements
2 Introduction
English
Camera Views
Front View
Back View
Wrist strap loop
Flash
Self-timer LED
Zoom Lens
Microphone
LCD screen
Top View
Zoom Lens
Zoom button
Playback button
Four-way
navigation
buttons
OK button
Scene button
Menu button
Shutter
button
Power button
Camera Views
Bottom View
Introduction 3
Battery/SD card
compartment
Left / Right View
Wrist strap
loop
LED Indicators
English
Tri po d m oun t
Speaker
USB/AV port
LED LED Status Camera Status
Off Power Off.
Green (steady) Ready to take pictures.
Power/Flash LED
Green (blinking) Camera busy.
Red (blinking) Fail to focus.
Off Self-timer off.
Self-timer LED/
Assist Lamp
Red (blinking) (1Hz)
Red (blinking) (4Hz)
Self-timer count down, flashes
during last 8 seconds.
Self-timer count down, flashes
during last 2 seconds.
LED Indicators
4 Introduction
English
Camera Buttons
Navigation Buttons
The four-way navigation buttons and the OK button allow you to access the various
options available from the On Screen Display (OSD) menu. You can configure a wide
range of settings to ensure maximum results from your photos and videos.
Icon Button Function
1. Confirms a selection when using the OSD
menus.
2. In Capture mode:
• Press to enable AF area selection when
Selected Area is selected in Focus Zone
submenu
OK OK
3. In Playback mode:
• Press to start and pause the video playback
• Press to stop the voice memo playback
Up/Flash/Delete
4. In USB mode:
• MSDC: N/A
• PTP: Press to confirm the selection
1. Moves up in the OSD menus.
2. In Capture mode:
• Scroll through the flash mode options (Auto,
Off, Fill, and Anti Red-eye.)
• Press to pan up in AF area selection
3. In Playback mode:
• Press to pan up in magnify/crop mode
• Press to move up in the thumbnail display
• Press to delete images.
4. In USB mode:
• MSDC: N/A
• PTP: Press to scroll up through a menu
Camera Buttons
Icon Button Function
1. Moves right in the OSD menus.
2. In Capture mode:
• Press to scroll through the Self-timer/Burst/
Multi-Burst mode
• Press to pan right in AF area selection
3. In Video mode:
• Press to scroll through the Self-timer options
Introduction 5
English
Right/Self-timer/
Burst mode
Down/Screen
4. In Playback mode:
• Press to pan right in magnify/crop mode
• Press to move right in the thumbnail display
• Press to navigate to next image in single up
• Press to fast forward video playback
5. In USB mode:
• MSDC: N/A
• PTP: Press to select the next image in This
Image submenu
1. Moves down in the OSD menus.
2. In Capture mode:
• Press to turn off extra icons on the LCD
screen, press again to turn all icons back on
the LCD screen
• Press to pan down in AF area selection
3. In Video mode:
• Press to turn off extra icons on the LCD
screen, press again to turn all icons back on
the LCD screen
4. In Playback mode:
• Press to pan down in magnify/crop mode
• Press to move down in the thumbnail display
• Press to show the file information
5. In USB mode:
• MSDC: N/A
• PTP: Press to scroll down through a menu
Camera Buttons
6 Introduction
English
Icon Button Function
1. Moves left in the OSD menus.
2. Goes up to the previous level in the OSD
menus.
3. In Capture mode:
• Press to enable Macro mode. Macro icon dis-
plays on the LCD screen
• Press to pan left in AF area selection
4. In Video mode:
• Press to display the first frame of the last
video recorded
Left/Macro
5. In Playback mode:
• Press to pan left in magnify/crop mode
• Press to move left in the thumbnail display
• Press to navigate to previous image in single
up
• Press to fast rewind video playback
6. In USB mode:
• MSDC: N/A
• PTP: Press to select the previous image in
This Image submenu
The Scene Button
The camera is equipped with a convenient Scene button that takes you to the
Scene Menu where you can scroll between different modes and choose different
scene options. Use the Up/Down navigation buttons to scroll and use the OK button to select. Use the Scene button to:
Mode Type Icon Function
Auto Scroll to Auto mode.
P-Mode
(Program Mode)
Portrait Scroll to Portrait mode.
Night Portrait Scroll to Night Portrait mode.
Scroll to Program mode.
Landscape Scroll to Landscape mode.
Sport Scroll to Sport mode.
Camera Buttons
Night Landscape Scroll to Night Landscape mode.
Backlight Scroll to Backlight mode.
Introduction 7
Museum Scroll to Museum mode.
Snow Scroll to Snow mode.
Sunset Scroll to Sunset mode.
Fireworks Scroll to Fireworks mode.
Party Scroll to Party mode.
Beach Scroll to Beach mode.
Copy Scroll to Copy mode.
Video Scroll to Video mode.
Function Buttons
English
Icon Button Function
MENU Menu Press to display the Menu options.
Playback
Zoom in
Zoom out
Press to review photos/videos clips saved in the
internal memory or on the memory card.
In Capture mode:
• Press to zoom in on subject to be taken
In Playback mode:
• Press to zoom in on saved photos
In Capture mode:
• Press to zoom out from the subject to be
taken
In Playback mode:
• Press to zoom out of saved photos
• Press to view thumbnails of all current saved
media
Camera Buttons
8 Introduction
99 99
-1 .0 E V
F3 .5
1/ 12 5
00 :0 0 : 0 0
640
English
LCD screen
Capture/Video Mode Display
The high resolution 2.4” TFT LCD screen shows all important information regarding
camera settings as well as the visual image for your photo or video.
Use the Scene button to switch between screen modes. Press the Down/Screen
button to switch between a Full display (all icons are displayed), or a Simple
display (only mode icon and focus area are shown while other icons are hidden).
Capture Mode
123 456 8
23
22
21
7
9999
9999
9
TT
20
10
19
18
Video Mode
12 5 67
21
20
19
640
640
1/125
WW
-1.0EV
-1.0EVF3.5
F3.51/125
121314151617
00:00:00
00:00:00
TT
WW
11
9
LCD screen
13
Introduction 9
No. Name Scene Icon
1 Scene indicator
Auto
P-Mode
Portrait
Night Portrait
Landscape
Sport
Night Landscape
Backlight
Museum
English
2 Image Resolution
Snow
Sunset
Fireworks
Party
Beach
Copy
Video
7M
5M
3M
2M
VGA
LCD screen
10 Introduction
English
3 Image Quality
4Flash
5 Self-timer/
Burst mode
Best
Better
Good
Auto Flash
Fill Flash
Flash Off
Anti Red-eye
M-Burst
Burst Mode
2 Seconds
Self Timer
10 Seconds
6 Macro indicator Macro Mode
7 Image Counter Capture Mode Quantity 9999
Video Mode Timer 00:00:00
8 Memory Interface
9 Date Stamp -
10 Zoom Bar
11
EV
Compensation
SD Card
Internal Memory
TTT
-
W
- -1.0EV
12 Aperture Value - F3.5
13 Shutter Speed - 1/125
14 Battery Indicator
LCD screen
Battery Low
Battery Insufficient
Introduction 11
15 AF Frame - -
16 ISO Speed
17 Focus Zone
18 Sharpness
Auto
ISO 80
English
ISO 100
ISO 200
ISO 400
ISO 800
Multi-Zone
Center
Selected Area
High
19 Contrast
20 Saturation
Normal
Low
High
Normal
Low
High
Normal
Low
LCD screen
12 Introduction
English
21 White Balance
22
23 AE Metering
Camera Steady
Warning
Auto
Sunny
Tungsten
Fluorescent
Cloudy
-
Average
Matrix
Spot
LCD screen
Camera Setup
Camera Setup 13
Attaching the Wrist Strap
Follow these instructions to attach the wrist strap to your camera to
facilitate easy carrying:
1. Insert the short loop of the strap in the strap eyelet.
2. String the larger loop of the strap though the short loop and
pull tight to attach the strap to the camera.
Inserting the Batteries
Follow these instructions to insert the two AA batteries into the battery compartment.
1. Open the battery compartment at the bottom
of the camera.
English
2. Insert the batteries into
the compartment
observing the correct
polarity.
3. Close the battery
compartment.
Note:
The AA batteries should be fully charged before using for the first time.
Attaching the Wrist Strap
14 Camera Setup
English
Inserting an SD/MMC/SDHC Memory Card
The camera features 10.5 MB internal flash memory but you may also use an
optional SD/MMC/SDHC memory card for additional storage.
Follow these instructions to insert the SD/MMC/SDHC card.
1. Open the battery compartment at the bottom
of the camera.
2. Insert the SD/MMC/SDHC
card into the memory
card slot as shown.
3. Close the battery compartment.
To remove the SD/MMC/SDHC card, gently push the card until it pops out. Pull out
the card carefully.
Turning On
Press and hold the Power button to turn on the camera. To turn off the camera,
press the Power button again.
Inserting an SD/MMC/SDHC Memory Card
First Time Use
Press the Power button as described in “Turning
On” on page 14, a welcome screen displays on the
LCD screen.
Camera Setup 15
English
If the camera is turned on for the first time, the
Language menu pops up automatically after powering on the camera.
After the desired language is selected, the Date
and Time menu pops up. Use the navigation buttons to toggle each field and adjust the value.
Press the OK button to confirm.
Note:
If the Date and Time is reset (when running out the battery and not in use for a long period),
the Date and Time setup screen displays automatically.
LANGUAGE
ENGLISH
DEUTSCH
FRANCAIS
ITALIANO
ESPANOL
DATE & TIME
(Year)
2007 / 01 / 01 12 : 30
Press OK when done
First Time Use
16 Getting Started
English
Getting Started
Taking your First Photo
Using Macro Mode
Now that you are familiar with the layout of your camera, you are ready to start
taking photos and movies.
Taking a photo with the camera is very simple.
Turn the camera on and press the Scene button to access the Auto mode.
1. Frame the shot on the LCD screen and press the Shutter button halfway. The
camera automatically adjusts the focus and exposure. The focus bracket turns
green when ready.
2. Press fully and hold the Shutter button to capture the image.
When a camera steady warning icon appears, hold the camera as still as possible, as a longer exposure time (more than 1/30 second) is required.
Macro mode is designed for close-up photography and can capture all detail even
when your subject is very close to the camera. Press the Left/Macro naviga-
tion button. The Macro icon displays on the LCD screen.
Setting the Flash Mode
You can choose from four flash modes to suit various lighting conditions.
Press the Up/Flash/Delete navigation button to scroll through the four
modes on the LCD screen. The flash setting remains the same for subsequent photos until you change it as described above.
Auto flash: The flash fires automatically when needed.
Fill flash: The flash always fires.
Flash off: The flash is turned off.
Anti Red-eye: The flash fires twice so as to reduce the red-eye effect.
Taking your First Photo
Getting Started 17
Using the Zoom in/out Function
The camera comes equipped with 3x optical zoom and 5x digital zoom that allows
you to zoom in on your subject.
To use the zoom:
1. Press the right side of the Zoom switch to zoom in on your subject.
2. Press the lefts side of the Zoom switch to zoom out from your subject.
Using the Self-timer and Burst Photography
The camera comes equipped with a self-timer which allows you to take photos after
a pre-defined delay. The burst photography feature allows you to take multiple consecutive photos by pressing and holding the Shutter button. The multi-burst photography feature allows you to take multiple (16) consecutive VGA photos by
pressing the Shutter button once.
To set the self-timer/burst mode:
English
1. Press the Right/Self-timer/Burst mode navigation button to cycle
through the self-timer( or ) and burst photography options ( or )
on the LCD screen.
2. Once you have selected an option, frame and take your shot. In self-timer
mode, the icon will flash until the time expires and the photo is taken.
3. After taking a photo, the Self-timer automatically exit. If you want to use these
functions for the next photo, press the Right/Self-timer/Burst mode
navigation button again to activate the function.
Setting the Scene Mode
The camera supports various preset modes for shooting in different environments
and conditions. Each setting is configured automatically by the camera.
To select scene modes:
Press the Scene button to access Scene
menu which displays the Scene menu options.
Use the Up/Down navigation buttons to scroll
through the modes.
• Portrait
SCENE
Auto
P-Mode
Portrait
Night Portrait
• Night Portrait
• Landscape
•Sport
• Night Landscape
Landscape
Taking your First Photo
18 Getting Started
F 3 . 5
1 / 1 2 5
English
Face Detection AF/AE Function
• Backlight
• Museum
• Snow
• Sunset
• Fireworks
•Party
• Beach
• Copy
4. Press OK to confirm your selection.
This function is only available in Portrait and
Night Portrait capture modes. When the
Shutter button is pressed halfway, the face
detection function is activated. When the subject’s
face is detected, the green focus frames appear on
the LCD screen. Then the camera automatically
adjusts the focus point and exposure to the
optimized value.
1/125
F3.5
F3.51/125
However, when the camera fails to detect your subject’s face, the camera will set
the focus to Multi-Zone with a green or red focus frame.
Recording your First Video
You can also record video clips with the camera.
To record a video clip:
1. Turn the camera on and press the Scene button. Use the Up/Down navigation
buttons to locate Video mode. Press the OK button to select.
2. Frame your subject using the LCD screen and press the Shutter button to start
recording. The self-timer LED is steady on to indicate recording is in progress.
3. Press the Shutter button again to stop recording. If not, recording will continue
until all free memory space is used.
4. In playback mode, press the OK button to playback the recording. Press the
Up/Flash/Delete navigation button to delete the recording if needed.
Recording your First Video
Getting Started 19
Recording Voice Memos
You can add a 1-minute voice memo to an image right after it’s taken.
To record a voice memo:
1. Hold the Shutter button to start recording and release the Shutter button to
stop recording.
2. While recording, the selected image is shown on the LCD screen.
3. The elapsed time screen shows the length of a voice memo.
Note:
A Voice Memo can also be added in Playback mode.
English
Recording Voice Memos
20 Capture Settings
English
Capture Settings

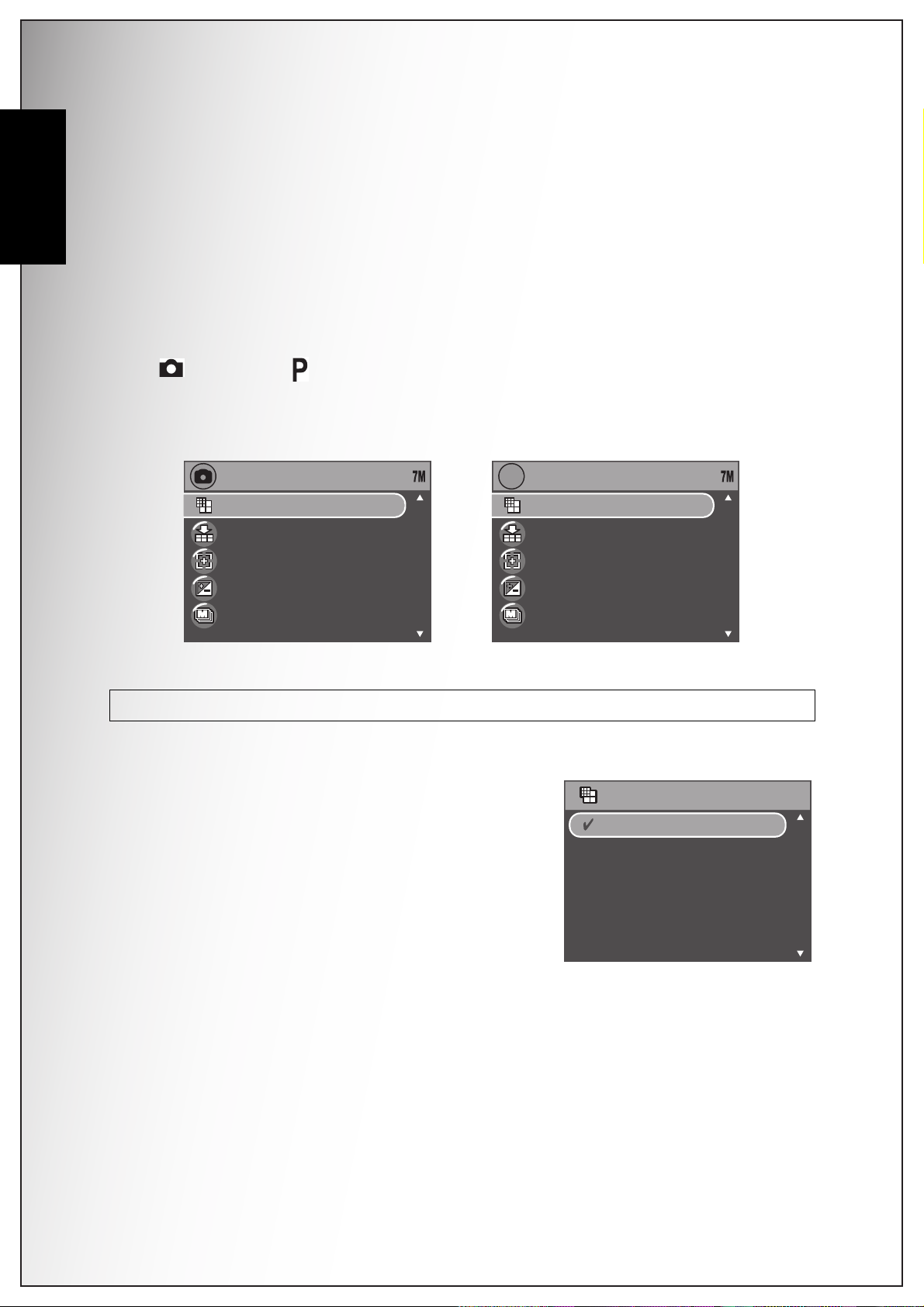

The Capture Menu
This section describes the various settings you can modify to get better results
when taking photos and video clips.
To access the Capture menu:
1. Press the Scene button. Use the Up/Down navigation buttons to select Auto
or P-Mode .
2. Press the MENU button to display menu options.
3. Press the Up/Down navigation buttons to highlight an option and press the
OK button to confirm.
P
IMAGE RESOLUTION
IMAGE QUALITY
FOCUS ZONE
IMAGE RESOLUTION
IMAGE QUALITY
FOCUS ZONE
EV COMPENSATION
M-BURST INTERVAL
Refer to the following sections for more detailed information about each setting.
Note: All the options in this section may vary accoring to the different modes.
EV COMPENSATION
M-BURST INTERVAL
Image Resolution
The Image Resolution setting refers to the size
of the image in pixels. Use the Up/Down navigation buttons to select from the options. Six settings
for image resolution are available:
• 7M (3072 x 2304)
• 5M (2576 x 1932)
• 3M (2048 x 1536)
• 2M (1600 x 1200)
• VGA (640 x 480)
IMAGE RESOLUTION
7M
5M
3M
2M
VGA
The Capture Menu
Image Quality
Capture Settings 21
The Image Quality setting refers to the compression ratio of the JPG. The higher the image quality,
the less the image compression ratio but more
memory space is required. Use the Up/Down
navigation buttons to select from the options.
Three settings for image quality are available:
• Best (default)
•Better
•Good
Focus Zone
The Focus Zone setting allows you to select the
number of zones the camera will focus on when
taking a photo. Use the Up/Down navigation buttons to select from the options. Three settings for
focus zone are available:
• Multi-Zone (default)
• Center
• Selected Area: The new setting is applied to the
Live View image each time the Up/Down navigation buttons are pressed. Press the OK button to return to the Capture
menu and save the current setting, which will take effect until it is changed
again.
IMAGE QUALITY
BEST
BETTER
GOOD
FOCUS ZONE
MULTI-ZONE
CENTER
SELECTED AREA
English
EV Compensation
The EV Compensation menu allows you to adjust
the exposure or amount of light that enters the
lens while capturing photos or videos. Use this feature to lighten or darken the image when the
brightness between the subject and background is
not balanced or when the subject occupies only a
small part of the photograph. Use a positive (+) EV
compensation for spotlit subjects, especially
against dark backgrounds or scenes with low
reflectivity, such as green or dark foliage.
Use the Up/Down navigation buttons to modify the value. This setting can be
modified from -2.0 to +2.0 in a 0.3 increment/decrement.
EV COMPENSATION
0.0 EV
The Capture Menu
22 Capture Settings
English
M-Burst Interval
White Balance
The M-Burst Interval setting allows you to adjust
the burst interval when the multi-burst function is
enabled.Use the Up/Down navigation buttons to
select from the options.
• 1/30 Sec (default)
• 1/15 Sec
• 1/7.5 Sec
The White Balance setting allows you to adjust
the camera setting according to the ambient white
light when shooting. White balance represents the
degree of coolness of the light. If the light has a
yellowish or reddish tinge, it is said to be warm; if it
has a bluish tinge, it is said to be cool. You can
select the setting and preview it on screen before
confirming your choice. Use the Up/Down navigation buttons to select from the options. Five white
balance settings are available:
M-BURST INTERVAL
1/30 SEC
1/15 SEC
1/7.5 SEC
WHITE BALANCE
AUTO
SUNNY
TUNGSTEN
FLUORESCENT
CLOUDY
• Auto (default)
• Sunny
• Tungsten
• Fluorescent
• Cloudy
ISO Speed
The ISO Speed setting allows you to adjust the
CCD light-sensitivity. Use the Up/Down navigation
buttons to select from the options. Seven ISO settings are available:
• Auto (default)
•ISO 80
• ISO 100: For outdoor photography in bright
sunlight.
• ISO 200: For outdoor or indoor photography in
bright light.
• ISO 400: For indoor photography or low light environments.
• ISO 800: For moving object photography or low light environments without
using flash.
ISO SPEED
AUTO
AUTO
ISO 80
ISO 100
ISO 200
ISO 400
The Capture Menu
AE Metering
Capture Settings 23
AE Metering allows you to select the area of the
subject or frame by which the camera measures
light. Use the Up/Down navigation buttons to
select from the options. Three AE metering settings
are available:
• Matrix (default): Camera metering is set for
evaluating 16 zones of objects with intelligent
weighting in the frame.
• Spot: Camera metering is set for the brightness
of a single object in the center of the frame.
• Average: Camera metering is set for the average brightness of objects in the
frame.
AE METERING
MATRIX
SPOT
AVERAGE
Color
The Color setting allows you to take photos and
apply different colors or color tones for an artistic
effect. Use the Up/Down navigation buttons to
select from the options. Four color settings are
available:
• Vivid
• Color (default)
• Black & White
• Sepia
COLOR
VIVID
COLOR
BLACK & WHITE
SEPIA
English
Sharpness
The Sharpness setting allows you to enhance the
finer details of your photos. Use a higher setting for
very sharp photos and a lower setting for a
soft-toned photo. Use the Up/Down navigation
buttons to select from the options. Three sharpness
settings are available:
•High
• Normal (default)
• Low
Saturation
The Saturation setting allows you to adjust the
saturation of the colors in your photos. Use a high
saturation setting for rich colors and a lower
saturation setting for more natural tones. Use the
Up/Down navigation buttons to select from the
options. Three saturation settings are available:
•High
• Normal (default)
• Low
SHARPNESS
HIGH
NORMAL
LOW
SATURATION
HIGH
NORMAL
LOW
The Capture Menu
24 Capture Settings
English
Contrast
Setup
Video Capture Menu
The Contrast setting allows you to adjust the contrast of your photos. Use the Up/Down navigation
buttons to select from the options. Three contrast
settings are available:
•High
• Normal (default)
• Low
See “The Setup Menu” on page 36 for more details on the setup menu options.
To access the video menu:
1. Press the Scene button and scroll to Video
mode.
2. Press the MENU button to display the menu
options.
3. Use the Up/Down navigation buttons to highlight an option and press the OK button to confirm. Refer to the following sections for more
detailed information about each setting.
CONTRAST
HIGH
NORMAL
LOW
320X240
VIDEO RESOLUTION
WHITE BALANCE
COLOR
SATURATION
CONTRAST
Video Resolution
The Video Resolution setting allows you to adjust
the resolution at which your videos are recorded. Two
video size settings are available:
• 640X480
• 320X240
VIDEO RESOLUTION
640X480
320X240
White Balance
See “White Balance” on page 22 for more details on the setup menu options.
Color
See “Color” on page 23 for more details on the setup menu options.
Saturation
See “Saturation” on page 23 for more details on the setup menu options.
Video Capture Menu
Capture Settings 25
Contrast
See “Contrast” on page 24 for more details on the setup menu options.
Setup
See “The Setup Menu” on page 36 for more details on the setup menu options.
English
Video Capture Menu
26 Photo & Video Playback
1/ 14 0
F2 .8
1/ 60
-0 .3 E V
12 34 5 6 7 8 . JP G
20 05 / 1 2 / 1 2
00 :0 0 : 0 0
-0 .3 E V
00 0_ 0 0 0 5 . AV I
20 05 / 1 2 / 1 2
12 :2 3 : 4 0
2/ 30
640
00 :0 0 : 0 0
English
Photo & Video Playback
Playback Mode Display
Photo Playback
123456 7 8
25
24
23
22
21
F2.8
F2.8
1/60
1/60
-0.3EV
-0.3EV
20
19
18
1/140
1/140
2005/12/12
2005/12/12
00:00:00
00:00:00
9
10
11
Video Playback
22
21
19
18
17
1516
12
1314
123456 78
640
640
-0.3EV
-0.3EV
16
00:00:00
00:00:00 2/30
121314
2/30
000_0005.AVI
000_0005.AVI
2005/12/12
2005/12/12
12:23:40
12:23:40
10
11
Playback Mode Display
No. Name Icon
1 Playback mode
Photo & Video Playback 27
2 Image resolution
3 Sharpness
4Protect
5 Color mode
6 Flash mode
7 Quantity 1/140, 2/30
8 SD card / Internal memory
9 Histogram
Photo mode:
Video mode:
640 (640x480), 320 (320x240)
Photo mode:
Video mode: 00:00:00
(Length of the video clip.)
English
10 File Name Photo mode: XXX-0000.JPG
Video mode: 000_0005.AVI
11 Date and Time 2005/12/12
00:00:00
12 Next Move to next item.
13 Battery status
14 Previous Move to previous item.
15 Voice memo
16 Mode icons Please see “Capture/Video Mode Dis-
17 ISO Speed
18 Contrast
play” on page 8 for detailed information.
19 White balance
Playback Mode Display
28 Photo & Video Playback
English
Viewing Photos/Videos on the LCD Screen
20 AE Metering
21 Saturation
22 EV Compensation -0.3EV
23 Shutter speed 1/60
24 Aperture value F2.8
25 Image quality
To view your photos and video files on the LCD screen:
1. Press the Playback button . The most recent photo or video clip is displayed.
2. Use the Right/Left navigation buttons to scroll through photos and video
clips.
3. Press the OK button to begin playback of a video clip.
4. Press the Left/Right navigation buttons at any time during playback to skip to
the previous/next photo or video.
5. Press the OK button and press the Left/Right navigation buttons to
fast-rewind/fast-forward during video playback.
6. Press the OK button at any time during playback to pause the video.
7. After the video clip finishes playing, the LCD screen displays the first frame of
the clip.
Viewing M-Burst Photos
To view your multi-burst photos on the LCD screen:
1. Press the Playback button . The most recent photo or video clip is displayed.
2. Use the Right/Left navigation buttons to scroll through photos.
3. When reviewing a multi-burst image, it will be displayed from the 1st frame to
the 16th frame at 2 frames/per second like a slideshow.
4. To stop the M-Burst slideshow, press the Left/Right navigation buttons and
skip to the previous/next image.
Listening to Voice Memo
A voice memo plays simultaneously when playing a saved image with voice memo.
To stop a voice memo while reviewing an image, press the OK button.
To skip to previous/next image, press the Left/Right navigation buttons.
Viewing Photos/Videos on the LCD Screen
Photo & Video Playback 29
Audio
Video
Viewing Photos/Videos on your TV
To view images stored on the camera on your TV, you must connect via the A/V
port on the side of the camera. To connect your camera to a TV:
1. Turn on the camera and make sure that the camera’s video out format is set to
the same as that of the TV. See “Video Out” on page 38 for more information.
2. Connect the USB/AV 3-in-1 cable to the USB port on the camera.
3. Connect the other end of the cable to the TV’s AV input port.
English
4. The LCD screen turns blank and all images and video clips are displayed on the
TV screen. Follow the same steps described in “Viewing Photos/Videos on the
LCD Screen” on page 28.
Viewing Photos/Videos on your TV
30 Photo & Video Playback
2/1 4 0
English
Zooming In During Playback
Deleting Photos/Videos
The camera’s zoom feature can also be used during Playback. This allows you to
view photos in greater detail.
To zoom in on saved photos:
1. Press on the right side of the Zoom button to zoom in and on the left side
of the Zoom button to zoom out of the photo/video.
2. Use the navigation buttons to pan across the image.
3. When zoomed in on a photo, press the OK button to crop the image. When
zoomed out to the maximum, the LCD screen will display all photos and videos
as a series of thumbnails.
The Delete function allows you to remove
unwanted files stored on internal memory or a
memory card.
To delete a photo/video:
1. In Playback mode, press the Up/Flash/
DELETE
CANCEL
THIS IMAGE
ALL IMAGES
Delete navigation button to display the
Delete menu.
2. Press the Up/Down navigation buttons and
the OK button to select from the three available options:
• Cancel: Select to cancel the action and exit to the main menu.
•This Image: Select to delete the current image.
•All Images: Select to delete all images.
Using the Playback Menu
Access the Playback menu to view further information, configure printing settings, view a slideshow,
or delete photos or movies.
To access the Playback menu:
1. Press the Playback button .
2. Press the MENU button to display the menu
options.
3. Use the Up/Down navigation buttons to highlight an option and press the OK button to confirm.
DPOF
SLIDESHOW
RESIZE
ROTATE
PROTECT
2/140
2/140
DPOF
DPOF (Digital Print Order Format) allows you to specify the number of copies of a
certain image that you want to print at a later date.
Zooming In During Playback
Photo & Video Playback 31
N u m b e r o f c o p i e s
Use this function to tag pictures stored in your memory card with print information.
You can tag all pictures to be printed or just the current picture. You can also select
how many copies print and whether to include the date and time.
When all images to be printed are tagged, remove the memory card and take it to
a photographic shop for printing, or use it with a DPOF compatible printer.
To s e t DP O F:
1. Press the MENU button to select DPOF from
the menu.
2. Press the Up/Down navigation buttons and
the OK button to select from the available
DPOF
THIS IMAGE
ALL IMAGES
EXIT
options:
• This Image: Select to print the current image.
• All Images: Select to print all images.
• Exit: Select to exit to the main menu.
3. Use the Up/Down navigation buttons to set
the number of copies you wish to print.
Number of copies
Number of copies
English
2
Using the Playback Menu
32 Photo & Video Playback
English
Slideshow
Resize
The Slideshow function allows you to view all
stored photos in a continuous sequence.
To view a slideshow:
SLIDESHOW
START
INTERVAL:5 SEC
1. Press the MENU button to select Slideshow
from the menu.
2. Press the Up/Down navigation buttons and
LOOP:OFF
EXIT
the OK button to select from the available
options:
• Start: Select to start the slideshow.
• Interval: Select to set the interval time between each photo during the slide-
show. Use the Up/Down navigation buttons to set a value in seconds. The
default setting is 5 seconds.
• Loop: Select to enable/disable a continuous loop of the slideshow. Select On
or Off (default) from the submenu.
• Exit: Select to exit to the main menu.
The Resize function allows you to change the
image resolution.
To r e si z e a p h oto :
RESIZE
4M
2M
1. Press the MENU button to select Resize from
the menu.
2. Press the Up/Down navigation buttons and
the OK button to select the resize ratio you
1M
VGA
EXIT
require: 4M, 2M, 1M, and VGA.
3. Select Exit to return to the main menu.
Note: It is only possible to scale-down image resolutions. If the current image resolution is
VGA, this menu item is disabled in the Resize submenu. The ratio of the image (4:3 or 3:2)
remains unchanged after resizing.
• This function only supports native pictures
• Cropped images cannot be resized
• If there is not sufficient storage space, images cannot be resized
• If the SD/MMC/SDHC card is locked, images cannot be resized
• VGA images cannot be resized
Using the Playback Menu
Rotate
1/1 4 0
1/1 4 0
The Rotate function allows you to change the
orientation of a saved photo.
To rotate an image:
1. Press the MENU button to select Rotate from
the menu.
2. Press the Left/Right navigation buttons and
the OK button to rotate the select image.
• OK: Select to rotate the image.
• Exit: Select to exit to the main menu.
Photo & Video Playback 33
English
OK
EXIT
Protect
You can lock a photo or video to protect it from being accidentally erased.
To lock a photo or video:
1. Press the MENU button to select Protect from the menu.
2. Press the OK button to confirm.
3. A key icon displays at the top of the screen to indicate the photo/video is
now locked.
1/140
1/140 1/140
1/140
Using the Playback Menu
34 Photo & Video Playback
English
Red-Eye Compensation
Move
The Red-Eye Compensation function allows you
to perform red-eye reduction on a saved photo.
To remove red-eye from a photo:
RED-EYE COMPENSATION
OVERWRITE
NEW FILE
1. Press the MENU button to select Red-Eye
Compensation from the menu.
CANCEL
2. The camera starts processing. Press the Up/
Down navigation buttons and the OK button
to select from the three available options:
• Overwrite: Select to overwrite the original image.
• New file: Select to save the fixed image to a new file.
• Cancel: Select to discard the changes to the image and return to the main
menu.
Note:
1. If the image is protected, the fixed image will be saved as a new file directly without asking.
2. If a failure occurs, the message “Cannot Processing Correctly” appears on the screen.
The Move function allows you to move images
stored in internal memory to a memory card.
To move an image:
MOVE
THIS IMAGE
ALL IMAGES
1. Press the MENU button to select Move from
the menu.
EXIT
2. Press the Up/Down navigation buttons and
the OK button to select from the three available options:
• This Image: Select to move the current image to a memory card.
• All Images: Select to move all images to a memory card.
• Exit: Select to exit to the main menu.
Note: The Move function is only available when you choose internal memory as the storage
media and an SD card has been inserted into the camera.
Using the Playback Menu
Photo & Video Playback 35
Transferring Photos/Videos to your PC
To transfer photos and videos to your PC:
Use the software CD to install the camera driver. Follow the on-screen instructions
to complete the installation.
Connect the camera’s USB port to a free USB port on your PC using the USB cable.
English
The camera’s internal memory and/or SD/MMC/SDHC card appear as removable
drives in the file manager. Copy the files from the drives to the directory on your
PC.
Use ArcSoft PhotoImpression and ArcSoft VideoImpression (provided on the software CD) to view or edit the photos and videos respectively.
Transferring Photos/Videos to your PC
36 Camera Settings
English
Camera Settings
The Setup Menu
File Number
The setup menu, available in capture and playback modes, allows you to configure
the camera’s general settings according to your preferences.
To access the setup menu:
1. Press the MENU button when in Playback or
any of the capture modes.
2. Select Setup from the menu. The submenu
appears.
3. Use the Up/Down navigation buttons to scroll
through the options and press the OK button to
enter further submenus and to confirm your
selection. Refer to the following sections for
more detailed information about each setting.
FILE NO.
DIGITAL ZOOM
QUICK VIEW
CAMERA SOUND
AUTO LCD OFF
CONTINUE
The File No. setting allows you to reset all file
numbers assigned to each of the files on your camera. Select Reset to reset or Continue to set the
file numbers in continuous order.
Digital Zoom
The Digital Zoom setting allows you to turn the
digital zoom function on or off. Select On to enable
the function or Off (default) to disable it.
FILE NO.
RESET
CONTINUE
DIGITAL ZOOM
ON
OFF
The Setup Menu
Quick View
Camera Settings 37
The Quick View setting allows you to view the
photo that you have just taken. Once you have
taken your photo, it displays on the LCD screen. If
you are not satisfied with the result, you can press
the button to delete the photo immediately.
Select On (default) to enable the function or Off to
disable it.
Note:
The Quick View function is not available in Burst and M-Burst modes.
Camera Sound
The Camera Sound setting allows you to adjust
the camera sound level. Three options are available:
•Off
• Low (default)
•High
QUICK VIEW
ON
OFF
CAMERA SOUND
OFF
LOW
HIGH
English
Auto LCD Off
The Auto LCD Off setting allows you to adjust the
length of time that the LCD screen will remain lit
before turning off to save battery power. Three
options are available:
• Off (default)
• 30 sec
•1 min
Auto Power Off
The Auto Power Off setting allows you to adjust
the length of time after which the camera will power
down when inactive. Use the Up/Down navigation
buttons to select from the menu options. Two
options are available:
• 5 min (default)
•2 min
AUTO LCD OFF
OFF
30 SEC
1 MIN
AUTO POWER OFF
5 MIN
2 MIN
The Setup Menu
38 Camera Settings
English

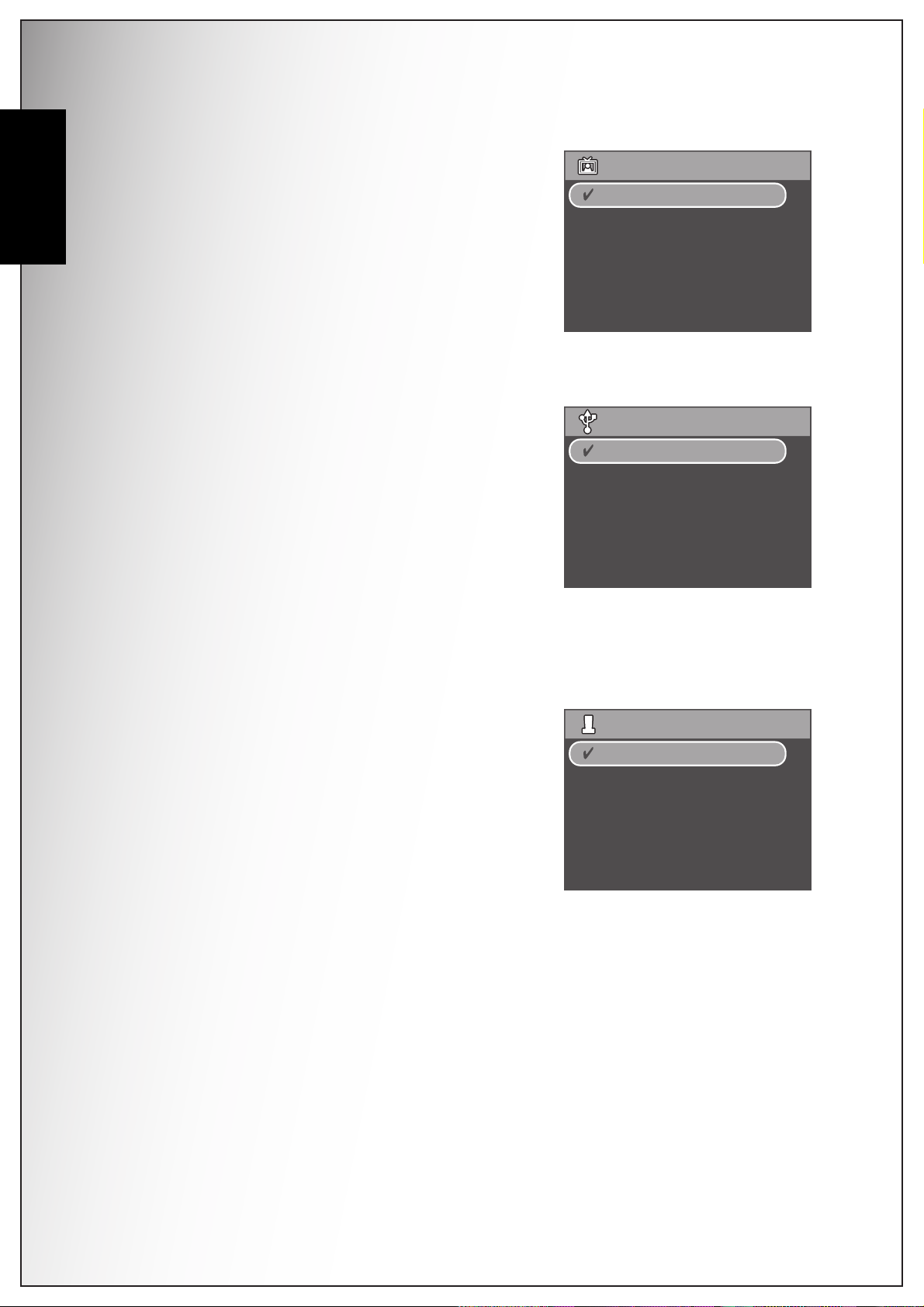

Video Out
USB Mode
The Video Out setting allows you to adjust the
video output, depending on the type of your TV.
Use the Up/Down navigation buttons to select
from the menu options. Two options are available:
• NTSC (default)
•PAL
The USB Mode setting allows you to select the
transfer method between your camera and your
PC. Two options are available:
• PTP (PictBridge Print): When the camera is
connected to a printer by a USB cable which
supports Pictbridge, it can directly print images
stored on the media. For details on PTP function, please See “PictBridge Print (PTP)” on
page 41.
VIDEO OUT
NTSC
PAL
USB MODE
PTP
MSDC
• MSDC (default): The camera is set up to act as a mass storage device,
allowing only for transfer of files between your camera and PC.
Date Stamp
The Date Stamp setting allows you to adjust the
format in which the date will appear on each photo
or video. You can also deactivate this function if
you wish. Setting a date stamp allows for easy sorting and the date will appear on the photo when
printed. Use the Up/Down navigation buttons to
select from the menu options. Four options are
available:
• Off (default)
• YYYY MM DD: year-month-date format
• MM DD YYYY: month-date-year format
• DD MM YYYY: date-month-year format
DATE STAMP
OFF
YYYY MM DD
MM DD YYYY
DD MM YYYY
The Setup Menu
Date and Time
Camera Settings 39
The Date and Time setting allows you to set or
adjust the date and time on your camera. To set or
adjust the date and time:
• Press the Left/Right navigation buttons to
select the Year field.
• Press the Up/Down navigation buttons to
adjust the Year value.
• In the same way, select the Month, Date,
Hour and Minute fields and adjust them
accordingly.
Language
The Language setting allows you to choose which
language the OSD menu uses. Scroll down the list
and select your language.Use the Up/Down navigation buttons to select from the menu options.
DATE & TIME
(Year)
2007 / 01 / 01 12 : 30
Press OK when done
LANGUAGE
ENGLISH
DEUTSCH
FRANCAIS
ITALIANO
ESPANOL
English
Image Storage
The Image Storage setting allows you to specify
where photos and video clips will be stored. The
camera features 10.5 MB internal memory but you
can also insert an SD/MMC/SDHC card (See
“Inserting an SD/MMC/SDHC Memory Card” on
page 14 for more details). Two options are available:
• Auto (default): When selected, the camera
chooses the storage medium automatically. If
an SD/MMC/SDHC card is inserted in the camera, all photos and videos are
stored on the card. If an external card is not detected, all photos and videos are
stored in the internal memory.
• Internal Memory: All photos and videos are stored in the internal memory.
IMAGE STORAGE
AUTO
INTERNAL MEMORY
The Setup Menu
40 Camera Settings
Y E S
English
Format
Reset
The Format setting allows you to erase all data in
the internal memory or on the SD/MMC/SDHC
card. Use the Up/Down navigation buttons to
select from the menu options. Three options are
available:
• Memory Card (default): All data on the SD/
MMC/SDHC will be formatted.
• Internal Memory: All data in the internal memory will be formatted.
• Exit: Cancel format action.
The Reset setting allows you to reset the camera
to the original factory default settings. This means
all modifications you have made to the camera settings will be cleared.
Once selected, the Reset screen displays a confirmation message. Select Yes to proceed with the
reset or Exit (default) to cancel.
FORMAT
MEMORY CARD
INTERNAL MEMORY
EXIT
RESET
Reset to camera
default setting?
EXIT
YES
YES
Voice Memo
The Voice Memo setting allows you to record a
voice memo when a photo is taken. Select On to
enable the Voice Memo function or Off (default) to
disable it.
VOICE MEMO
ON
OFF
The Setup Menu
Camera Settings 41
C o n n e c t i n g f a i l !
P r i n t e r C o n n e c t i n g . . .
2/1 4 0
PictBridge Print (PTP)
The PTP function allows you to print images captured by the camera directly without connecting the camera to a PC.
If the camera is not connected to a PTP compliant
printer, an error message displays on the LCD
screen.To enable PTP function, see “USB Mode”
on page 38 for detailed information. If the USB
mode is not set at PTP, an error message displays
on the LCD screen.
When a PTP compliant printer is connected to the
camera, the Printer Connecting screen displays
on the LCD screen.The Print menu pops up automatically.
Use the Up/Down navigation buttons to select an
option and press the OK button to confirm.
Connecting fail!
Connecting fail!
Printer Connecting...
Printer Connecting...
2/140
2/140
IMAGE STORAGE
THIS IMAGE
English
Image Storage
See “Image Storage” on page 39 for detailed information.
INDEX PRINT
DPOF IMAGE
ALL IMAGES
PictBridge Print (PTP)
42 Camera Settings
2/1 4 0
N u m b e r o f c o p i e s
English
This Image
Print the selected image with the current setting.
1. Use the Up/Down navigation buttons to select
This Image from the options and press the OK
button to confirm. Use the Left/Right navigation buttons to select previous/next file.
2. Press the Up/Down navigation buttons to set
the number of copies.
IMAGE STORAGE
THIS IMAGE
INDEX PRINT
DPOF IMAGE
ALL IMAGES
Number of copies
Number of copies
3
2/140
2/140
3. Press the Up/Down navigation buttons again
to select the paper size.
• Default Size
•4” x 6”
• Letter
•A4
4. Press the Up/Down navigation buttons to
Continue or Cancel the action.
PAPER SIZE
DEFAULT SIZE
4" X 6"
LETTER
A4
Copies:3
Prints:3
Size:Default
CONTINUE
CANCEL
PictBridge Print (PTP)

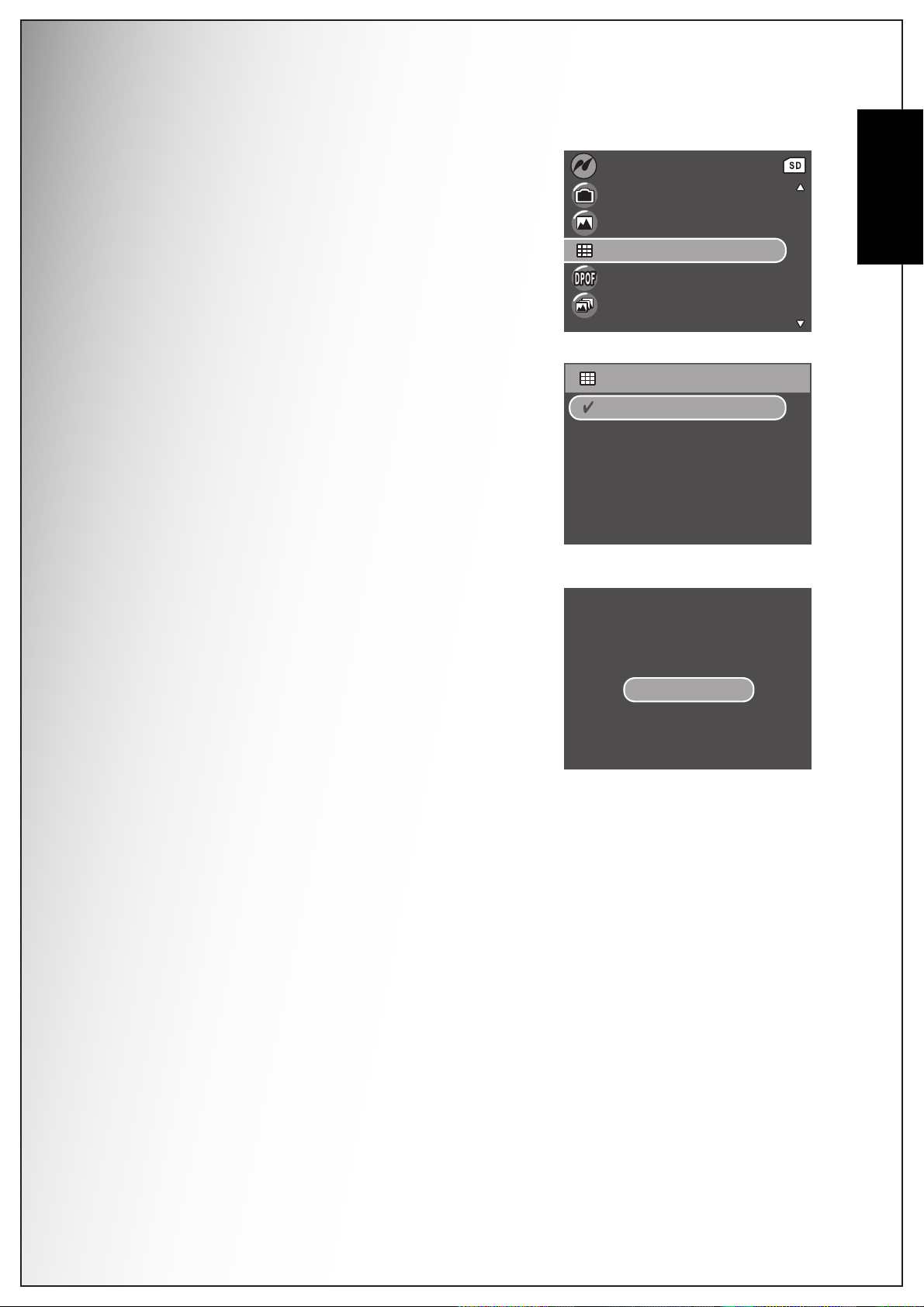

Index Print
2/1 4 0
Camera Settings 43
Use this function to print all images in index format.
1. Press the Up/Down navigation buttons to
select the Paper size.
• Default Size
• Letter
•A4
2. Press the Up/Down navigation buttons to set
the number of copies. After the number of copies is set, press the Up/Down navigation buttons again to continue or cancel the action.
IMAGE STORAGE
THIS IMAGE
INDEX PRINT
DPOF IMAGE
ALL IMAGES
INDEX PRINT
DEFAULT SIZE
LETTER
A4
Copies:1
Prints:--
Size:Default
CONTINUE
2/140
2/140
English
DPOF Image
See “DPOF” on page 30 for detailed information.
CANCEL
PictBridge Print (PTP)
44 Camera Settings
2/1 4 0
N u m b e r o f c o p i e s
English
All Images
Print all images saved in memory.
1. Use the Up/Down navigation buttons to select
All Images from the options and press the OK
button to confirm.
2. Press the Up/Down navigation buttons to set
the number of copies.
IMAGE STORAGE
THIS IMAGE
INDEX PRINT
DPOF IMAGE
ALL IMAGES
Number of copies
Number of copies
2
2/140
2/140
3. Press the Up/Down navigation buttons to
select the Paper size.
• Default Size
•4” x 6”
• Letter
•A4
4. Press the Up/Down navigation buttons to
select Continue or Cancel this action.
PAPER SIZE
DEFAULT SIZE
4" X 6"
LETTER
A4
Copies:2
Prints:20
Size:Default
CONTINUE
CANCEL
PictBridge Print (PTP)
Specifications 45
Specifications
General Resolution / Image Type 7M Pixels / 1/2.5” CCD
Dimensions 92.9(W)x60.4(H)x22.2(D)mm
Exterior Casing Plastic Housing
Optics Aperture Wide: F2.8
Tele: F4.9
Optical Zoom Up to 3x
Digital Zoom Up to 5x
Focal Length Wide(W): 35mm,
Tele(T): 105mm
Focus Mode Normal: 50cm to infinity
Macro: 15cm ~ 50cm
Shutter Speed 8 ~ 1/1500 Sec.
Viewfinder None
Field of View 99% by LCD
Camera Features Auto Power Off / Time Out Yes
slexiP 000,011 ,TFT”4.2DCL
English
ISO Equivalent Auto, ISO80/100/200/400/800
Internal Memory 10.5 MB internal, SD/MMC/
SDHC removable card slot
(supported up to 8G)
Flash Modes Auto, Fill, Anti Red-eye, Off
Tripod Mount 1/4” Standard
Preset Scene Auto, P-Mode,Portrait, Night
Portrait, Landscape, Sport, Night
Landscape, Backlight,
Museum,Snow, Sunset,
Fireworks, Party,Beach, Copy.
Video, and Macro
46 Specifications
English
Resolution
Capture Features DPOF Version 1.1
Image File Formats Still Image: JPEG (Exif2.2)
Image Quality Mode Still Image:
3072x2304, 2576x1932,
2048x1536, 1600x1200,
640x480
Movie Mode:
640x480@28fps,
320x240@30fps
Quality Levels Best, Better, Good
Erase Protection Yes
Exposure Compensation Selectable +/-2.0EV with
0.3 EV steps
Sharpness High, Normal, Low
Color B&W, Sepia, Vivid, Color
Metering Average, Matrix, Spot
Focus Multi-Zone
Single-Zone: Center, Selected
area
Flash Range 2.5m@wide
Lens Thread None
Anti-Shake No
Aperture Priority No
Shutter Priority No
Drive Mode Single Mode, Burst Mode, Multi-
Burst (VGA@16 shots)
Quick Delete Yes
Quick View Yes
Quick Review No
Self Timer 2 or 10 seconds
Playback Magnify Up to 8X (11 steps)
White Balance Auto, Sunny, Tungsten,
Fluorescent, Cloudy
Video Video Out PAL, NTSC
Specifications 47
Stream to SD/MMC/
SDHC
Speaker Yes, Mono
Movie File Format AVI
Movie Length Unlimited as long as space is
Microphone Yes, Mono
Power Battery AA NiMH/Alkaline/Rechargeable
Battery Life (Alkaline) CIPA 100 images
Capability Camera Interface USB 2.0 full speed
Host Platform Windows XP/Vista
Standards Operating Temperature
Language English, German, French,
Yes
available on the SD/MMC/SDHC
card
batteries x 2
0°C ~ 40°C
Italian, Spanish, Portuguese,
Simplified Chinese, Traditional
Chinese, Russian, Arabic,
Turkish, Japanese, Dutch,
Czech, Polish, Thai
English
48 Troubleshooting
English
Troubleshooting
Problem Action
Camera does not turn on • The batteries may be exhausted. Charge or replace
the batteries.
• The batteries are installed incorrectly. Re-insert the
batteries observing the correct polarity.
Camera turns off
automatically
LCD turns off automatically Press any button to turn on the LCD.
Empty battery icon is
displayed on the LCD after
which camera turns off
LCD screen displays ‘Card
Requires Formatting’
LCD screen displays ‘Card
is Full’
Press any button to turn on the camera.
Batteries are exhausted. Replace the batteries.
Memory card format not recognized. Re-format the
memory card.
Memory card is full. Replace the memory card with a
new one or delete unnecessary images from the
existing card.
LCD screen displays ‘Card
is locked’
Insufficient memory space
to complete request
No image displays on the
TV screen
Insufficient space on the
card
The card is protected by a protect switch
mechanism. Move the switch to the unlock position.
Insufficient space in memory to rotate an image.
Delete unnecessary images.
Incorrect TV-out type was selected. Set correct
TV-out type to match your TV system.
Delete unnecessary images.
Restricted Warranty
I. General Conditions of Warranty
1. General
This warranty covers defects relating to workmanship and manufacture in MEDION
products. The period during which this warranty is valid and during which claims against
the warranty can be made to MEDION must be in accordance with the following terms in
order to be considered eligible:
• Is effective from the date of purchase or receipt of the MEDION product from an
authorised seller of MEDION products; and
• expires at the end of the warranty period specified on the warranty card provided
with the product.
For the warranty to be valid, you must:
• provide suitable evidence of purchase, a copy of the original purchase receipt from
an authorised seller of MEDION products is preferred; or
• register your product within 28 days of purchase either online at
www.MEDION.co.uk or by completing and returning the pre-paid registration card
included with the product.
Please keep the original purchase receipt and the warranty card in a safe place.
MEDION and its authorised sellers reserve the right to refuse a repair under warranty or
a warranty confirmation if a proof of purchase [or registration of purchase] cannot be
established, or has not been, submitted.
When it is necessary to return your product for repair please ensure that your product is
suitably packed for transportation.
Provided that your product is still within warranty (please check the duration of the warranty period as described above) and is eligible for repair or replacement under the terms
of the warranty, to return your product, please telephone MEDION on the service hotline
number. You will be sent a pre-paid transportation box suitable for returning your product
to MEDION. PLEASE MAKE SURE THAT YOU HAVE A BACKUP COPY OF ALL DATA
ON THE PRODUCT BEFORE RETURNING THE PRODUCT TO MEDION. MEDION
shall bear the costs of postage and packaging for returning the product and the transportation risk. However, if following examination of the defective product in question,
MEDION, in its reasonable opinion, considers that the defect has been caused by:
• your operating and/or using the product other than as instructed in the accompanying documentation;
• damage caused in transit as a result of your negligence in packaging of the product; and/or
• otherwise than in accordance with the terms of this warranty;
This warranty shall be void and you may be required by MEDION to reimburse MEDION
for the reasonable costs of postage and packaging before MEDION will return the product to you. If so and you would still like MEDION to repair or replace the product,
MEDION may do so but you will be charged MEDION’s standard rates for repair and
replacement for this service.
Before returning the product, please contact MEDION via the service hotline or via the
internet (www.MEDION.co.uk). You will receive a reference number (RMA No.) on the
warranty card. Please mark the outside of your package to ensure that this reference
number is clearly visible. Please submit a letter containing as much detailed information
as possible and, a full description of the defect or fault.
This should include:
• a description of the fault;
• when it occurred, how long it has been evident and how frequently it occurs ;
• any errors message(s) displayed when using the product;
• a description of the circumstance(s) and conditions in which the fault occurs; and
• whether it is an intermittent or persistent fault;
This will greatly assist MEDION in identifying the defect, when submitted together with
the defective product.
Unless otherwise instructed by a MEDION representative in all cases, the product must
be returned complete with all parts which were included with the original product. Incomplete contents of the returned package may lead to a delay in the repair or replacement.
MEDION does not accept any liability for any additionally submitted material(s) which
were not supplied with the original MEDION product.
This warranty does not affect your statutory rights in any way and is subject to the applicable legal statutes of the country where the product was sold to you by an authorised
MEDION seller.
2. Scope
Subject to any exclusions set out within this warranty, where there is a defect in your
MEDION product covered by this warranty, MEDION will repair or replace the MEDION
product. The decision whether to repair or replace the product will be made solely at the
discretion of MEDION. MEDION may, in its own discretion, replace the product returned
for repair under warranty with a replacement product that is either identical or, in the
event that such product(s) are no longer available, a product of equal or superior specification and quality.
No warranty is given for batteries or rechargeable batteries or for consumable materials
subject to wear and tear, i.e. for parts which have to be replaced periodically during the
normal use of the product, such as video-projector lamp.
Non critical failures that fall within industry specified tolerances e.g. noise, LCD pixels are
not covered by this warranty. Please consult the appropriate section in your user or
instruction manual for this product for exact specifications and tolerances.
To the extent which is permitted under law, MEDION will accept no liability for burnt-in
images on plasma or LCD products as a result of normal wear and tear during the operation of the product. Please refer to your user or instruction manual for this product for
detailed operating instructions for your plasma or LCD product.
The warranty does not cover errors relating to the playback of data media in an incompatible format or created with unsuitable software.
If it is found during repair or assessment that the defect concerned is not covered under
warranty, MEDION reserves the right to invoice you for all reasonable costs incurred by
MEDION. These costs will be in relation to the return of the product, including reasonable
administration costs, plus reasonable costs for materials used and labour provided when
repairing or replacing the product. This is subject to MEDION providing you with an
estimate for carrying out such work prior to costs being incurred and that you have
accepted the estimate.
You are entitled to seek independent advice or consultation relating to your product or
any of MEDION’s findings. MEDION will not be liable for any costs incurred to you when
doing so.
3. Exclusion from warranty
To the extent permitted by law, this warranty shall be void in the event that defects or
loss caused by:
a. failure and damage resulting from the operation of the product in an environment
other than that recommended in the accompanying user or instruction manual (e.g. in
direct sunlight or in a damp room);
b. accidental damage;
c. use other than in accordance with the accompanying user or instruction manual;
d. modifications, conversions, expansions, maintenance and/or repairs made to the
MEDION product by unauthorised repairers or use of unauthorised third party parts;
e. negligence;
f. virus attack or software errors; or
g. improper transportation or packaging during return of the product.
This warranty will also be considered void if labels or serial numbers of the product or of
a component of the product are modified or made illegible.
To the extent permitted by law, MEDION shall; only be responsible for losses which are a
reasonably foreseeable consequence of the relevant defect in the product; MEDION will
not be responsible for any costs incurred in relation to software configuration; economic
loss; loss of opportunity; loss of income; or loss of data or software arising out of its
repair or replacement of a MEDION product under this warranty
4. Service Hotline
Before returning the product to MEDION you must contact us using the service hotline or
via the internet (www.MEDION.co.uk). You will receive further instructions for making
your claim under warranty when you call.
The service hotline is available on 362 days in the year, including Sundays and bank
holidays but excluding Christmas day, New Years Day and Easter day. The service
hotline is subject to [national rate] telephone call charges. These charges are subject to
change. The price of your call will be stated at the beginning of the call.
II. Special warranty conditions for MEDION PC, notebook,
pocket PC (PDA) and navigation devices (PNA)
The following terms apply to MEDION PC, notebook, desktop, pocket PC and laptop
products and optional items included with such products. If one of these items has a fault,
you also have a warranty claim for its repair or replacement, from MEDION. The warranty
covers the costs of materials and labour for repairing or replacing the defective MEDION
product or the optional item in question.
Hardware connected to your product that was not produced or marketed by MEDION can
invalidate the warranty if MEDION can reasonably demonstrate that damage to the
MEDION product or of the optional item included with the delivery was caused by such
hardware. You are entitled to seek independent advice or consultation relating to your
product or any of MEDION’s findings. MEDION will not be liable for any costs incurred to
you when doing so.
This warranty is restricted in relation to any pre-installed operating system as well as to
application programme software that is included with the MEDION product in question.
This warranty is restricted as follows:
For pre-installed operating system as well as to application programme software included
in the MEDION product, MEDION only guarantees the data media (e.g. the diskettes and
CD-ROMs) upon which this software is delivered and warrants that such data media shall
be free from material and processing defects for a period of 90 days from the date of
purchase of the MEDION product from an authorised seller of MEDION. MEDION will
replace defective data media free of charge.
Any claims in respect of defective pre-installed operating system as well as to application
programme software are hereby expressly excluded and you should contact the relevant
licensor or copyright owner of the defective software in question. MEDION does not
guarantee that any software supplied with MEDION products will function without interruption, will be free from errors or that it will fulfil your requirements. MEDION does not
guarantee the 100% accuracy of the maps provided with the Navigation device.
It may be necessary to delete all data in the product in order to repair the MEDION product. PLEASE MAKE SURE THAT YOU HAVE A BACKUP COPY OF ALL DATA ON THE
PRODUCT BEFORE RETURNING THE PRODUCT TO MEDION. To the extent permitted by law, MEDION excludes all liability for loss of data and MEDION recommends in all
cases that you back up all data on your MEDION product before returning the product to
MEDION.
III. Special warranty conditions for repair on site or replacement on site
If a claim for repair or replacement on site is included within the terms of the warranty
card provided with the product, the special warranty conditions for repair or replacement
of your MEDION product on site apply.
The following provisions must be made by you for carrying out repairs or replacements
on site:
• MEDION or its authorised personnel must have unrestricted, safe and immediate
access to the products.
• Telecommunication facilities required by MEDION or its authorised personnel for
proper execution of your order, for testing and diagnostic purposes and for remedying
faults are provided by you at your own expense.
• You are responsible yourself for restoring the application software after the repair
services have been carried out by MEDION or its authorised personnel.
• You must take all other necessary steps to enable MEDION or its authorised
personnel to carry out your order properly.
• You are responsible yourself for connecting and configuring any existing external
peripheral products after MEDION or its authorised personnel have carried out their
repairs.
• The free cancellation period for repairs or replacements on site is 24 hours, thereafter our reasonable costs resulting from late or missing cancellation shall be invoiced at
your expense.
GB
Medion Electronics Ltd.
120 Faraday Park, Faraday Road, Dorcan
Swindon SN3 5JF, Wiltshire
United Kingdom
Hotline: 0871 37 61 020
Fax: 01793 715716
www.medion.co.uk
D
MTC - Medion Technologie Center
D-45467 Mülheim / Ruhr
Deutschland
Hotline: 01805 / 633 466
(0,14 Euro/Min. aus dem deutschen Festnetzes der Telekom,
Fax: 01805 / 654 654
abweichende Mobilfunknetzpreise möglich.)
Servicebereich der Homepage:
www.medion.de/service
03/08
