Medion MD 8341 CODE LIST

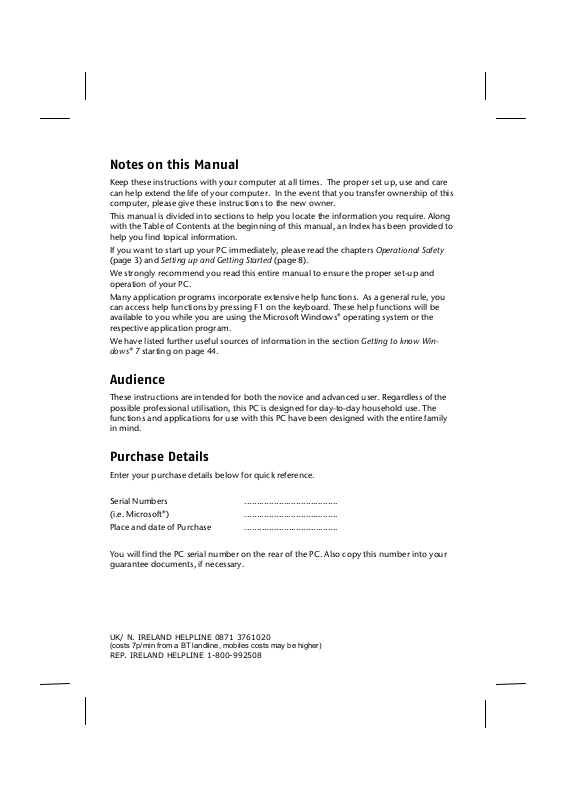

Notes on this Manual
Keep these instructions with your computer at all times. The proper set up, use and care
can help extend the life of your computer. In the event that you transfer ownership of this
computer, please give these instructions to the new owner.
This manual is divided into sections to help you locate the information you require. Along
with the Table of Contents at the beginning of this manual, an Index has been provided to
help you find topical information.
If you want to start up your PC immediately, please read the chapters Operational Safety
(page 3) and Setting up and Getting Started (page 8).
We strongly recommend you read this entire manual to ensure the proper set-up and
operation of your PC.
Many application programs incorporate extensive help functions. As a general rule, you
can access help functions by pressing F1 on the keyboard. These help functions will be
available to you while you are using the Microsoft Windows® operating system or the
respective application program.
We have listed further useful sources of information in the section Getting to know Windows® 7 starting on page 44.
Audience
These instructions are intended for both the novice and advanced user. Regardless of the
possible professional utilisation, this PC is designed for day-to-day household use. The
functions and applications for use with this PC have been designed with the entire family
in mind.
Purchase Details
Enter your purchase details below for quick reference.
Serial Numbers ......................................
(i.e. Microsoft®) ......................................
Place and date of Purchase ......................................
You will find the PC serial number on the rear of the PC. Also copy this number into your
guarantee documents, if necessary.
UK/ N. IRELAND HELPLINE 0871 3761020
(costs 7p/min from a BT landline, mobiles costs may be higher)
REP. IRELAND HELPLINE 1-800-992508
Quality
Medion has selected the components in this computer for their high level of functionality,
ease of use, safety and reliability.
Through balanced hardware and software design we are able to provide you with an innovative personal computer useful for applications relating to both work and leisure.
We are pleased to welcome you as our newest customer. Thank you for choosing our
products.
Making Copies of this Manual
This manual contains information protected by law. All rights reserved. Duplicating this
information in mechanical, electronic, or any other form, without the written approval by
the manufacturer, is prohibited by copyright law.
© 2010 Medion®. All rights reserved. Microsoft®, MS-DOS®, and Windows are registered trademarks of
Microsoft Corporation in the U.S. and other countries. Pentium® is a registered trademark of Intel
Corporation. The names of actual companies and products mentioned herein may be the trademarks
of their respective owners.
Information in this document is subject to change without notice.
- ii -
(costs 7p/min from a BT landline, mobiles costs may be higher)
UK/ N. IRELAND HELPLINE 0871 3761020
REP. IRELAND HELPLINE 1-800-992508
Table of Contents
Safety ............................................................................................................ 1
Operational Safety ....................................................................................................... 3
Data Security ............................................................................................................ 4
Setting Up & Getting Started ........................................................................ 5
Included with your PC ................................................................................................. 7
Setting Up ................................................................................................................... 8
Set-up Location ........................................................................................................ 8
Ambient Temperature .............................................................................................. 8
Ergonomics .............................................................................................................. 9
Connecting ............................................................................................................... 11
Cabling .................................................................................................................. 11
Front Connectivity ................................................................................................. 13
Connecting the Monitor ......................................................................................... 13
Connecting USB Devices ........................................................................................ 14
Connecting Devices with mini USB Ports ................................................................ 15
Connecting IEEE 1394 (Fire Wire) Devices .............................................................. 15
Connecting eSATA Devices .................................................................................... 16
Remove eSATA Devices ....................................................................................... 16
LAN Connection ..................................................................................................... 16
Connecting Headphones ....................................................................................... 17
Connecting a Microphone ..................................................................................... 17
Connecting a Sound Source/Audio Input ............................................................... 18
Connecting Speakers/Audio Output ...................................................................... 18
PCs with Surround Sound ................................................................................... 18
Connecting HDMI Devices ..................................................................................... 19
Connecting PS/2 Devices ....................................................................................... 19
Connecting the Power Supply ............................................................................... 19
Getting Started .......................................................................................................... 20
Step 1: Power On ................................................................................................... 20
Switch ................................................................................................................ 20
On/off Switch ..................................................................................................... 20
Step 2: Starting Initial Setup ................................................................................... 21
Step 3: Finalising .................................................................................................... 21
Short Description of the Windows® Desktop ........................................................ 22
UK/ N. IRELAND HELPLINE 0871 3761020
(costs 7p/min from a BT landline, mobiles costs may be higher)
REP. IRELAND HELPLINE 1-800-992508
- iii -
Operation ................................................................................................... 25
The Mouse ................................................................................................................ 27
The Keyboard ............................................................................................................ 28
The Alt and Ctrl Keys .............................................................................................. 28
The Hard Drive .......................................................................................................... 29
Important Directories ............................................................................................. 30
Connecting an External Hard Drive ........................................................................ 31
The Optical Drive ...................................................................................................... 32
Loading a Disc: ....................................................................................................... 32
How to Remove a Disc ........................................................................................ 32
Playing Back and Retrieving Data from Discs .......................................................... 33
Regional Playback Information for DVD .................................................................. 33
Subjects Concerning the CD/DVD-Rewriter ............................................................ 34
The Card Reader ........................................................................................................ 35
The Graphics Card ..................................................................................................... 36
Appearance and Personalization ............................................................................ 36
The Sound System ..................................................................................................... 37
IEEE 1394 (Fire Wire).................................................................................................. 39
Application Options for IEEE 1394 .......................................................................... 39
Technical Specifications ......................................................................................... 39
USB Port .................................................................................................................... 40
The Network ............................................................................................................. 41
What is a Network? ................................................................................................ 41
Wireless LAN .......................................................................................................... 42
Safety Note ......................................................................................................... 42
Conditions .......................................................................................................... 42
Troubleshooting within the Network ..................................................................... 43
Software .................................................................................................................... 44
Getting to Know Windows® 7 ................................................................................. 44
Windows® 7 - News ............................................................................................. 44
Windows® 7 - Help and Support .......................................................................... 46
Windows® 7 – Getting Started ............................................................................. 47
Windows® 7 - User Account Control .................................................................... 48
Windows® 7 – Control Panel ................................................................................ 49
Windows Media Center .......................................................................................... 50
Installation of Software .......................................................................................... 53
How to Install your Software ............................................................................... 53
Software Uninstallation ....................................................................................... 54
Windows Activation ............................................................................................... 55
Product Activation on your PC ............................................................................ 55
- iv -
(costs 7p/min from a BT landline, mobiles costs may be higher)
UK/ N. IRELAND HELPLINE 0871 3761020
REP. IRELAND HELPLINE 1-800-992508
BIOS Setup ............................................................................................................. 55
Execution of the BIOS Setup ............................................................................... 55
BullGuard Internet Security .................................................................................... 56
Customer Service & Self Help ..................................................................... 59
Data and System Security .......................................................................................... 61
Data Security .......................................................................................................... 61
Maintenance Programs .......................................................................................... 61
System Restore .......................................................................................................... 62
Correction .............................................................................................................. 62
Windows® Update .................................................................................................. 63
Windows Update Information for Data Security .................................................. 64
System Restore .......................................................................................................... 65
Limits of the Recovery ............................................................................................ 65
Carrying out a Restore ............................................................................................ 65
FAQ – Frequently Asked Questions ............................................................................ 66
Customer Service ...................................................................................................... 67
Troubleshooting .................................................................................................... 67
Localise the Cause .................................................................................................. 67
Errors and Possible Causes ..................................................................................... 68
Additional Support ................................................................................................. 69
Driver Support ....................................................................................................... 69
Transporting the PC ............................................................................................... 69
Cleaning and Care ................................................................................................. 70
Upgrades and Repairs ............................................................................................ 70
Notes for Service Engineers ................................................................................. 70
Notes on Laser Radiation ..................................................................................... 71
Recycling and Disposal ........................................................................................... 71
Battery Treatment ............................................................................................... 72
Appendix .................................................................................................... 73
Standards .................................................................................................................. 75
Electromagnetic Compatibility ............................................................................... 75
Electrical Safety ...................................................................................................... 75
Ergonomics ............................................................................................................ 75
Noise Emission ....................................................................................................... 76
Information about the Regulatory Compliance according to R&TTE ...................... 76
Ecodesign Guideline............................................................................................... 76
FCC Compliance Statement ................................................................................... 77
Index ......................................................................................................................... 78
UK/ N. IRELAND HELPLINE 0871 3761020
(costs 7p/min from a BT landline, mobiles costs may be higher)
REP. IRELAND HELPLINE 1-800-992508
- v -
- vi -
(costs 7p/min from a BT landline, mobiles costs may be higher)
UK/ N. IRELAND HELPLINE 0871 3761020
REP. IRELAND HELPLINE 1-800-992508
Safety Connecting Operation Help Appendix
Chapter 1
Safety
Subject Page
Operational Safety .......................................................... 3
Data Security ................................................................... 4
UK/ N. IRELAND HELPLINE 0871 3761020
(costs 7p/min from a BT landline, mobiles costs may be higher)
REP. IRELAND HELPLINE 1-800-992508
- 2 -
(costs 7p/min from a BT landline, mobiles costs may be higher)
UK/ N. IRELAND HELPLINE 0871 3761020
REP. IRELAND HELPLINE 1-800-992508
Operational Safety
Please read this chapter carefully and observe all listed notes.
This ensures a reliable operation and long life expectancy of your PC.
Do not allow children to play unattended with electrical equipment. Children are
incapable of judging potential risks properly.
Keep the packing materials, such as plastic sheeting away from children. The dan-
ger of suffocation could arise in the case of misuse.
Do not open the PC casing or use the PC with the casing removed. When the casing
is open there is a danger to life from electric shock.
Optical drives are Laser Class 1 devices. These lasers must remain in their sealed PC
casing. Do not remove the drive covers, as exposure to the lasers may prove harmful.
Do not insert objects through the slots and openings of the PC. This may lead to
electric shock, electrical short-circuit or fire that will damage your PC.
Do not cover the slots and openings in the PC casing. These openings are for venti-
lation purposes. Covering these vents may lead to overheating. Please keep free a
minimum distance of 20 cm on all sides when setting up the PC.
Do not subject the device to drops of water or spray or place any containers filled
with liquid, such as vases, on the device. Liquid penetrating can impair electrical
safety.
Switch off your PC immediately or do not switch it on at all and contact customer
service …
… if the power cord or the connectors attached to it are burnt or damaged. Replace
the defective power cord with an original power cord. Under no circumstances may
a defective power cord be repaired.
... if the housing of the PC is damaged or fluids have leaked into it. Have the PC
checked by customer service first, because the PC may not be safely operated otherwise and there may be a life-threatening risk of electrocution!
Safety Connecting Operation Help Appendix
UK/ N. IRELAND HELPLINE 0871 3761020
(costs 7p/min from a BT landline, mobiles costs may be higher)
REP. IRELAND HELPLINE 1-800-992508
- 3 -
Data Security
Attention!
Every time you update your data make back-up copies on an external storage medium. The supplier does not assume liability for data loss or damage
to data storage units, and no claims can be accepted for damages resulting
from the loss of data or consequential losses.
- 4 -
(costs 7p/min from a BT landline, mobiles costs may be higher)
UK/ N. IRELAND HELPLINE 0871 3761020
REP. IRELAND HELPLINE 1-800-992508
Safety Connecting Operation Help Appendix
Chapter 2
Setting Up & Getting Started
Subject Page
Included with your PC ...................................................... 7
Setting Up ........................................................................ 8
Connecting ....................................................................... 9
Getting Started .............................................................. 20
UK/ N. IRELAND HELPLINE 0871 3761020
(costs 7p/min from a BT landline, mobiles costs may be higher)
REP. IRELAND HELPLINE 1-800-992508
- 6 -
(costs 7p/min from a BT landline, mobiles costs may be higher)
UK/ N. IRELAND HELPLINE 0871 3761020
REP. IRELAND HELPLINE 1-800-992508
Included with your PC
Please check that the contents listed below are supplied with your package. You MUST
provide your PC’s serial number when contacting a customer service representative.
Your PC bundle should include the following components:
PC and power cord
Windows keyboard and mouse
OEM Version of Operating System
Application-/ Support Disc
Documentation
Note
Keep the original packing, in case the device ever requires shipment.
Safety Connecting Operation Help Appendix
UK/ N. IRELAND HELPLINE 0871 3761020
(costs 7p/min from a BT landline, mobiles costs may be higher)
REP. IRELAND HELPLINE 1-800-992508
- 7 -
Setting Up
Remember that choosing the proper location for your PC is just as important as connecting it correctly.
Set-up Location
Keep your PC and all units connected to it away from moisture, dust, heat and di-
rect sunlight. Failure to observe these instructions can lead to malfunctions or damage to the PC.
To prevent damage to your PC from a fall, place and operate the PC and all con-
nected units on a stable, balanced and vibration-free surface.
Ambient Temperature
The PC can be operated at an ambient temperature of between 10° and 35°C
(+41° and +95°F) and at a relative humidity of between 30% and 70% (without
condensation).
When powered off, the PC can be stored at temperatures between -20° and 50°C
(–40° and +158°F).
Unplug the cable during thunderstorms and make especially sure to remove the an-
tenna cables, if present. We recommend the use of a surge protector for additional
safety, in order to protect your PC from being damaged by power peaks or lightning strikes through the power network.
Delay operating a PC after transport until the device has adjusted to the ambient
temperature. In situations of large temperature or humidity differences condensation may build up moisture inside the PC, which might cause an electrical short circuit.
- 8 -
(costs 7p/min from a BT landline, mobiles costs may be higher)
UK/ N. IRELAND HELPLINE 0871 3761020
REP. IRELAND HELPLINE 1-800-992508
Ergonomics
Note
Ensure that the monitor is set up in such a way that reflections, glare and
light/darkness contrast are avoided.
You should not position the monitor in close proximity to a window as this is usually the
brightest area of the room and may cause visual impairments during daylight hours.
Always position the monitor in a line of sight that runs parallel to the window front (see
picture).
You should also apply a parallel line of sight with respect to artificial lighting. This means
that in a room lit by artificial light essentially the same criteria and objectives apply. Should
it not be possible to arrange the monitor as outlined above, the following measures might
be helpful:
Turn, lower or incline the monitor.
Place horizontal or vertical shades at the windows.
Work in Comfort
Safety Connecting Operation Help Appendix
Note
Take regular breaks from the work at your screen to prevent tenseness and
exhaustion.
Sitting in one position for long periods can be uncomfortable. To minimize the potential
for physical discomfort or injury, it’s important that you maintain proper posture.
UK/ N. IRELAND HELPLINE 0871 3761020
(costs 7p/min from a BT landline, mobiles costs may be higher)
REP. IRELAND HELPLINE 1-800-992508
- 9 -
Overall:
Change your position frequently and take regular breaks to avoid fatigue.
Back:
While sitting at your work surface, make sure your back is supported by the chair’s backrest. This should be in an erect position or angled slightly backwards.
Legs:
Your thighs should be horizontal or angled slightly downward. Your lower legs should be
near a right angle to your thighs. Your feet should rest flat on the floor. If necessary, use a
footrest, but double check that you have your seat height adjusted correctly before getting
a footrest.
Arms:
Your arms should be relaxed and loose, elbows close to your sides, with forearms and
hands approximately parallel to the floor.
Wrists:
Your wrists should be as straight as possible while using the keyboard, mouse or trackball.
They should not be bent sideways, or more than 10 degrees up or down.
Head:
Your head should be upright or tilted slightly forward. Avoid working with your head or
neck twisted.
Hand rest:
2” – 4”
Viewing distance:
20” – 27.5”
Legroom (vertical):
minimum 25.5”
Legroom (horizontal): minimum
23.6”
Top line of screen at eye level or
slightly below.
- 10 -
UK/ N. IRELAND HELPLINE 0871 3761020
(costs 7p/min from a BT landline, mobiles costs may be higher)
REP. IRELAND HELPLINE 1-800-992508
Connecting
For a better guidance, open up the left inner page of the cover with the diagrams to
find the location of the described connections.
Note
The devices listed are not necessarily included with your PC.
All the connections listed are optional and will not inevitably be available
on your PC.
Cabling
Please follow the instructions below in order to correctly connect your PC:
Arrange cables in such a way that no one can tread on or trip over them.
Do not place objects on the cables.
Do not allow any great forces to be exerted on the plug-in connections, from the
side, for example. This might lead to damage on and in your device.
Do not use any force when connecting cable and plugs and pay attention to the
correct alignment of the plugs.
Pull it out at the plug and do not pull the cable, if you separate a connection cable
from your device.
Avoid short-circuits and breaks in the cable by not squashing or bending the cable
sharply.
To avoid damage to your PC, connect your peripherals (e.g., keyboard, mouse and
monitor) whilst your PC is powered off. Some devices can be connected whilst your
PC is in use. These devices usually have a USB connector. Please follow the appropriate instructions for each device.
Keep the PC at least one meter (approximately three feet) away from high fre-
quency and magnetic interference sources (e.g., televisions, loudspeaker cabinets,
mobile telephones, etc.) in order to avoid malfunctions and/or loss of data.
Please note that only shielded cables shorter than 3 meters (9.84 ft) should be used
for the external interfaces. Please only use double screened cables for printer cables.
Do not replace the cables supplied with the machine by any others. Use the cables
belonging to the scope of the delivery exclusively, because they will have been
tested extensively in our laboratories.
Also only use the connection cable supplied with the devices for the connection of
your peripheral devices.
Safety Connecting Operation Help Appendix
UK/ N. IRELAND HELPLINE 0871 3761020
(costs 7p/min from a BT landline, mobiles costs may be higher)
REP. IRELAND HELPLINE 1-800-992508
- 11 -
Make sure that all connection cables have been connected to the peripheral devices
associated with them, in order to avoid disruptive radiation. Remove unneeded cables.
The connection of devices is limited to equipment that complies with EN60950
“Safety of information technology equipment” or EN60065 “Audio, video and similar electronic apparatus. Safety requirements”.
In the first hours of operation, new devices may emit a typical, unavoidable but
completely harmless smell, which will decline increasingly in the course of time.
We recommend that you ventilate the room regularly, in order to counteract the
formation of the smell. During the development of this product, we have made
sure that the applicable limits are clearly decreased.
Note
You only need to connect those components to your computer that you require. If you do not have the described device available you may carry out
the connection later.
- 12 -
(costs 7p/min from a BT landline, mobiles costs may be higher)
UK/ N. IRELAND HELPLINE 0871 3761020
REP. IRELAND HELPLINE 1-800-992508
Front Connectivity
Diagram reference: H
Some connections are located behind the front flap. This offers you the great advantage of
creating frequently used connections quickly and conveniently, without turning the PC
round. The flap, which can be slid, also protects the connections.
Connecting the Monitor
Diagram reference: Q
Your PC is equipped with a VGA and a DVI and a connector.
Note
Always only connect one data cable, in order to avoid problems with the
signal allocation, if your monitor has several inputs (e.g. VGA and DVI).
Note
Take care that the connector and the socket fit exactly to avoid damaging
the contacts. Because of its asymmetric form the plug only fits into the
socket in one position.
1. Connect the data cable of the monitor to the socket on the graphics card (reference
Q). If necessary, remove the white guard-ring on the monitor plug
2. Hand-tighten the screws on the monitor cable.
Safety Connecting Operation Help Appendix
UK/ N. IRELAND HELPLINE 0871 3761020
(costs 7p/min from a BT landline, mobiles costs may be higher)
REP. IRELAND HELPLINE 1-800-992508
- 13 -
Connecting USB Devices
Diagram reference: A
Warning!
Connect your USB devices after initial set-up of your new PC. This will pre-
vent unnecessary confusion during installation. These devices can generally
be connected during operation. Read the manual for your peripheral device
first.
The voltage outputs of your PC for USB are protected by a fuse (limited power
source according to EN60950). This ensures that a malfunction of the PC will not
damage the peripheral devices connected to the respective jacks.
You have a choice of several connection sockets. It does not matter which you use.
Note
Take care that the connector and the socket fit exactly to avoid damaging
the contacts. Because of its asymmetric form the plug only fits into the
socket in one position.
1. If you wish to use a printer, scanner or other device with a USB port, connect the
cable to the USB socket on your PC.
Note
Connect your devices always to the same port otherwise your operating system will give a new ID and asks for driver installation.
- 14 -
(costs 7p/min from a BT landline, mobiles costs may be higher)
UK/ N. IRELAND HELPLINE 0871 3761020
REP. IRELAND HELPLINE 1-800-992508
Connecting Devices with mini USB Ports
Diagram reference: P
Your PC is equipped with an expandable Mini USB 2.0 plug where to connect devices with
mini USB ports such as MP3 player, mobile phones or digital cameras.
Note
Take care that the connector and the socket fit exactly to avoid damaging
the contacts. Because of its asymmetric form the plug only fits into the
socket in one position.
Connecting IEEE 1394 (Fire Wire) Devices
Diagram reference: J
Warning!
Connect your IEEE 1394 devices after initial set-up of your new PC. This
will prevent unnecessary confusion during installation. These devices can
generally be connected during operation. Read the manual for your peripheral device first.
The voltage outputs of your PC for IEEE 1994 are protected by a fuse (limited power
source according to EN60950). This ensures that a malfunction of the PC will not
damage the peripheral devices connected to the respective jacks.
Safety Connecting Operation Help Appendix
Note
Take care that the connector and the socket fit exactly to avoid damaging
the contacts. Because of its asymmetric form the plug only fits into the
socket in one position.
1. Connect the IEEE 1394 cable to the IEEE 1394 port of your PC.
UK/ N. IRELAND HELPLINE 0871 3761020
(costs 7p/min from a BT landline, mobiles costs may be higher)
REP. IRELAND HELPLINE 1-800-992508
- 15 -
Connecting eSATA Devices
Diagram reference: F
eSATA stands for "external Serial ATA" and is used for connecting external hard disks.
Unlike common USB standards, the transmission speed of an eSATA connection is higher
than that of external USB hard disks.
Note
Take care that the connector and the socket fit exactly to avoid damaging
the contacts. Because of its asymmetric form the plug only fits into the
socket in one position.
1. Connect the cable to the eSATA socket in the front of your PC.
Remove eSATA Devices
1. Before removing an eSATA hard disk from your PC, click on the icon "Safely remove
hardware" in the task bar and then on the hard disk to be removed.
LAN Connection
Diagram reference: K
Your PC is equipped with a network connection, in order to prepare it for network operation.
The network cable usually has two RJ45 plugs so that it is unimportant which plug is connected to which jack.
1. Connect the one plug of the cable to the PC jack.
2. Connect the other plug to the other PC or hub/switch.
For further information refer to chapter “The Network” starting at page 39.
- 16 -
(costs 7p/min from a BT landline, mobiles costs may be higher)
UK/ N. IRELAND HELPLINE 0871 3761020
REP. IRELAND HELPLINE 1-800-992508
Connecting Headphones
Diagram reference: B
Here you connect headphones/earphones.
1. Connect the cable with the 3.5 mm stereo jack plug in the green socket at the
front of your PC (diagram reference B).
Caution!
The use of headphones/earphones with a high volume can lead to lasting
damage to your hearing. Set the volume to the lowest level before reproducing any sound. Start the sound reproduction and increase the volume to the
level that is comfortable for you. Changing the basic settings of the equalizer
can also cause damage to the hearing of the listener.
It can cause damage to the hearing ability of the
listener if a device is operated through earphones with
an increased volume for a long period.
Connecting a Microphone
Diagram reference: C
1. You can use the pink socket to connect a microphone with a 3.5 mm mono jack
plug.
2. Position the microphone in such a way that it does not point directly at the speakers. If you hear feedback, characterised by loud whistling noises, reposition the microphone until the sound stops.
Safety Connecting Operation Help Appendix
Note
You can also connect a sound system to the audio socket. For further information, read the section beginning on page 37.
UK/ N. IRELAND HELPLINE 0871 3761020
(costs 7p/min from a BT landline, mobiles costs may be higher)
REP. IRELAND HELPLINE 1-800-992508
- 17 -
Connecting a Sound Source/Audio Input
Diagram reference: S
This port is used to accommodate a connecting cable for external analogue audio sources
(i.e. stereo system, keyboard/synthesizer).
1. Connect the cable with the 3.5 mm stereo jack plug to the light-blue coloured
socket (reference S).
Note
You can also connect a sound system to the audio socket. For further information, read the section beginning on page 37.
Connecting Speakers/Audio Output
Diagram reference: L
Here you can connect your active speakers for replaying or audio connection cables for
recording. Please refer to the user's guide of your stereo installation for information about
which connector you should use (usually Line In or Aux).
1. Connect the cable with the 3.5 mm stereo jack plug into the green socket front
out on the rear of your PC.
PCs with Surround Sound
Diagram reference: L
Connect your surround equipment as follows:
1. Connect the front speaker to the green socket marked with front out.
2. Attach the rear loudspeakers to the connector surr-1.
3. Your centre speaker or subwoofer can be connected to the socket cen bass.
4. Connect to the optional surr-2 socket two more speakers for the back surround.
A digital audio output (SPDIF) can be connected using an optical cable.
Diagram reference: R
1. Connect the optical cable to the socket SPDIF.
2. Connect the other end of the cable to an audio device with a corresponding digital
input.
- 18 -
(costs 7p/min from a BT landline, mobiles costs may be higher)
UK/ N. IRELAND HELPLINE 0871 3761020
REP. IRELAND HELPLINE 1-800-992508
Connecting HDMI Devices
Diagram reference: M
HDMI is the abbreviation for "High Definition Multimedia Interface" which is a digital interface to transfer image and sound signals.
1. To this port you can connect a TV device, a monitor or a projector, if these devices
also have a corresponding connector.
Connecting PS/2 Devices
Diagram reference: T
You can omit this step if you want to connect a USB mouse or keyboard.
1. Connect the mouse cable to the right, green PS/2 port.
2. Connect the keyboard to the left, blue PS/2 port.
Connecting the Power Supply
Diagram reference: N
Finally, connect the power supply to your PC and monitor.
1. Plug the main connection cable into the plug socket and connect it with the main
cable connection (N) of your PC.
Observe the following safety precautions:
Please note
Safety Connecting Operation Help Appendix
Even with the power switch switched off some parts of the device receive
current. You must unplug the power plug from the socket, if you want to
interrupt the power supply to your PC or cut off your device from current
entirely.
The power socket must be in the vicinity of the PC and within reach of the power
cables. Do not stretch the power cables tightly to reach a power socket.
Only operate the PC on grounded plugs of the domestic power net.
Use only the supplied power cord.
To provide additional protection against electric shock, power surges, lightning
strikes, or other electrical damage to your PC, we recommend the use of a surge
protector.
The power supply unit has an On/Off switch that can be used to power off the PC.
When the switch is Off (0) no power is being consumed.
Do not start your PC yet!
First, read the following section to find out what you need to know in order to get started.
UK/ N. IRELAND HELPLINE 0871 3761020
(costs 7p/min from a BT landline, mobiles costs may be higher)
REP. IRELAND HELPLINE 1-800-992508
- 19 -
Getting Started
The software on this PC comes fully pre-installed. You do not have to load any of the
CD's/DVD’s supplied.
With many programs (e.g., telephone-CD's or encyclopaedias), however, it is necessary to
insert the corresponding CD/DVD in order to call up the data which is stored on it. The
software will ask you to do this as necessary. Once you have made all the connections and
secured the necessary connectors you can turn on the monitor, the other peripherals and
finally the PC itself.
Step 1: Power On
1. Power on the monitor and your peripherals.
Switch
Diagram reference: N
2. Provide power to your PC by pressing the switch to
position [I].(You will stop the flow of current to the PC
by pressing the switch to position [0])
On/off Switch
Diagram reference: I
3. Press the On/off switch briefly to start loading the operating system.
You can program the function of the main switch in the power management of Windows®
(please refer to on-line help). The PC will always be switched off, if the main switch is
pressed for more than 4 seconds.
Warning!
If the operating system is not shut down properly (through
), then there is a risk of data loss.
- 20 -
(costs 7p/min from a BT landline, mobiles costs may be higher)
UK/ N. IRELAND HELPLINE 0871 3761020
REP. IRELAND HELPLINE 1-800-992508
Loading...
