McIntosh C500, C500P, C500T Connection Diagrams

C500 Controller / C500P or C500T Preamplifier Input and Control Connection Diagram

3A

McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: [phone] FAX: [phone] Part No. 04106800

McIntosh
Sensor

McIntosh Audio/Video Player

McIntosh AM/F M Tuner

McIntosh D/A Converter

Turntable

Server

Processor

Left

Right

Right Left

Note: Refer to the C500 Owner’s Manual page 12 for additional connection infor mation.

Connection Legen d:

Data Cable*- Digital Signal Cable ­ Sensor/Keypa d Cable - RS232 Cable ­ Power Control Cable* - Groun d Wire ­ Audio Signal Cable - AC Power Cords -
Video Signal Cable - Loudspeaker Cable ­ RF Signal Cable -
*

2 conductor shield ed with 1/8 inch stereo mini phone plug on ea ch end.

or

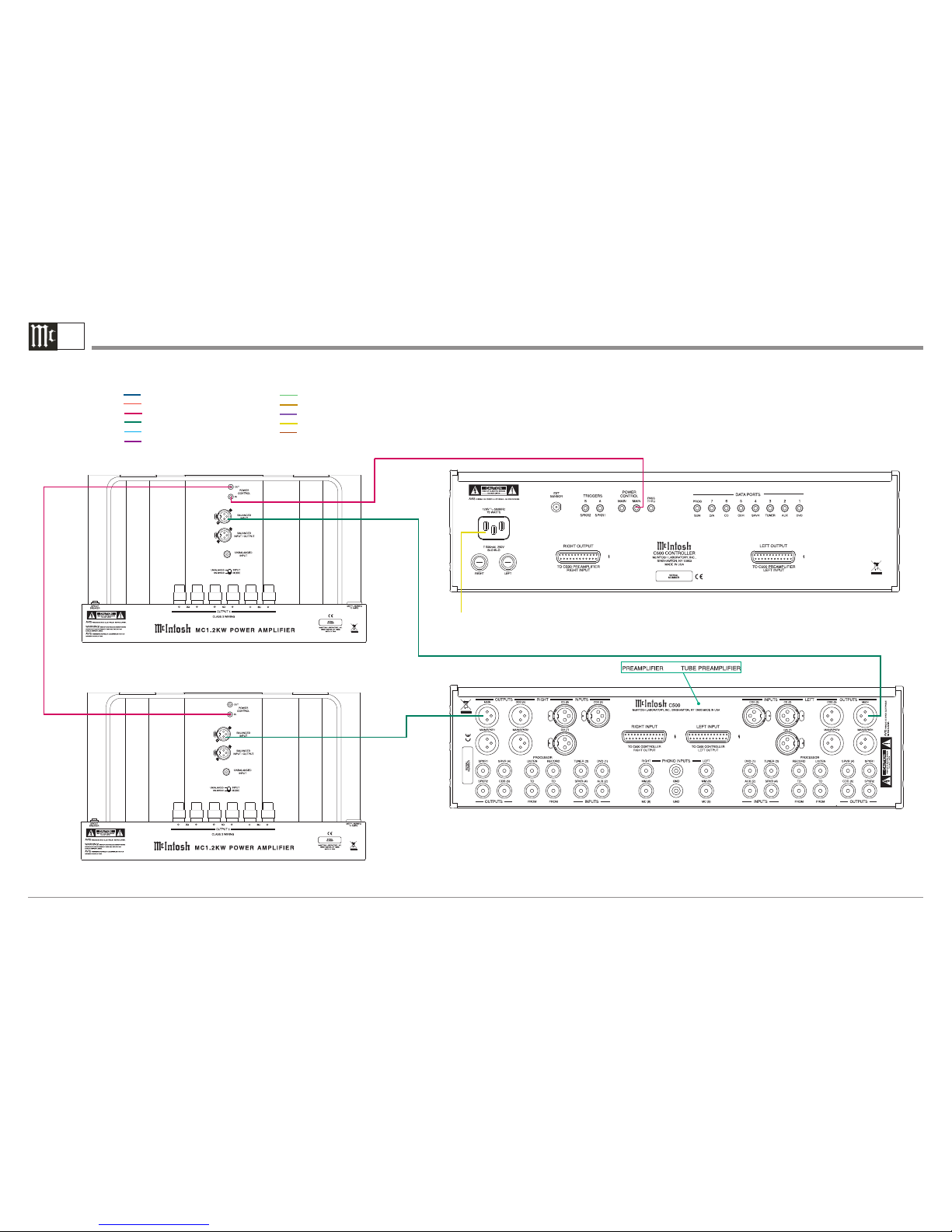

C500 Controller / C500P or C500T Preamplifier Output and Control Connect ion Diagram

3B

McIntosh Left Chan nel Power Amplifier

Connect to
AC Outlet

McIntosh Right Chan nel Power Amplifier

Note: Refer to the C500 Owner’s Manual page 12 for additional connection infor mation.

Connection Legen d:

Data Cable*- Digital Signal Cable ­ Sensor/Keypa d Cable - RS232 Cable ­ Power Control Cable* - Groun d Wire ­ Audio Signal Cable - AC Power Cords -
Video Signal Cable - Loudspeaker Cable ­ RF Signal Cable -
*

2 conductor shield ed with 1/8 inch stereo mini phone plug on ea ch end.

or
