McIntosh C50 User Manual

McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: 607-723-3512 www.mcintoshlabs.com

C50

Audio Preamplifier

Owner’s Manual

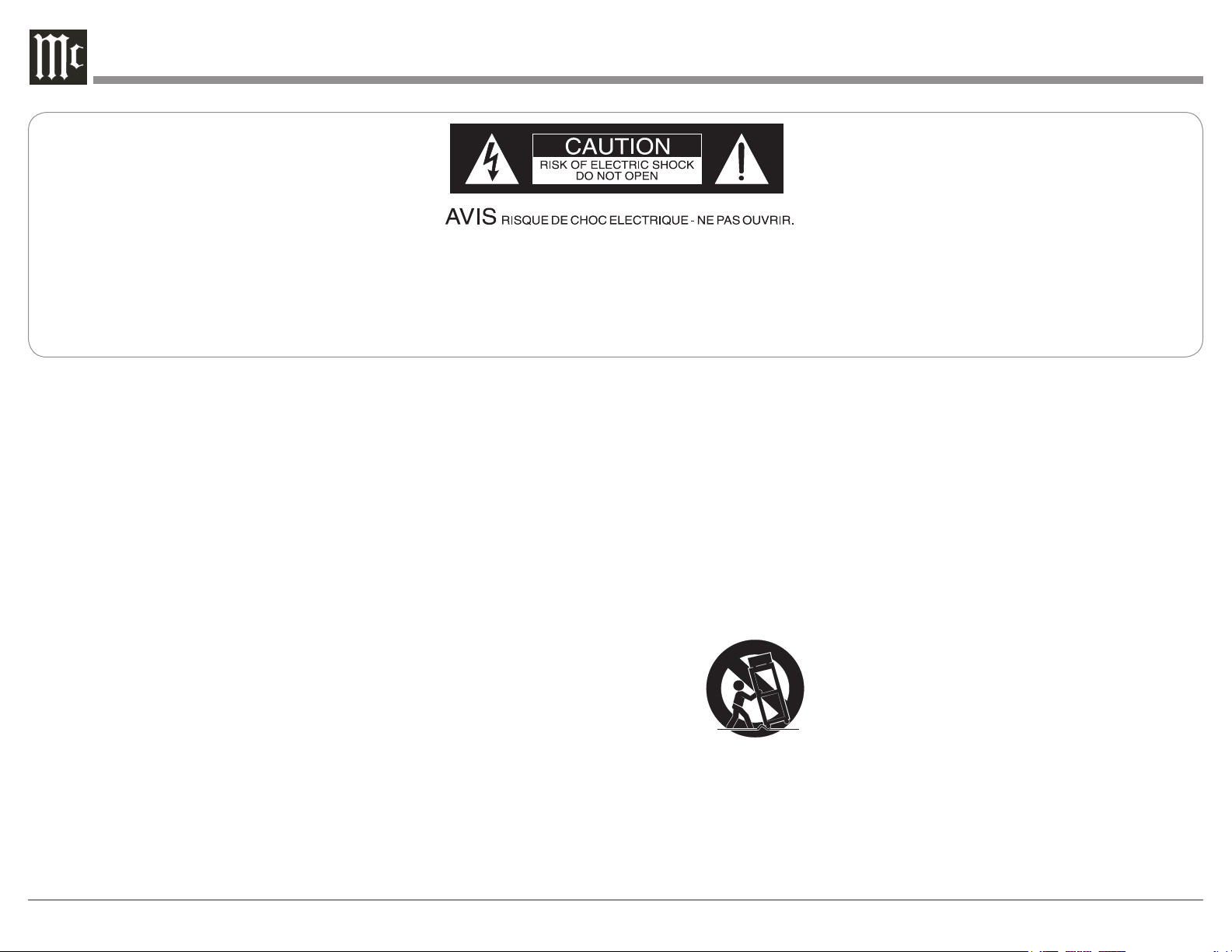

The lightning ash with arrowhead, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufcient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING - TO REDUCE RISK

OF FIRE OR ELECTRICAL

SHOCK, DO NOT EXPOSE

THIS EQUIPMENT TO RAIN OR

MOISTURE.

IMPORTANT SAFETY

INSTRUCTIONS!

PLEASE READ THEM BEFORE OPERATING THIS EQUIPMENT.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other appa-

ratus (including ampliers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a

NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO

QUALIFIED PERSONNEL.

third grounding prong. The wide blade or the third prong are provided for your safety. If

the provided plug does not t into your outlet,

consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specied by

the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-

To prevent the risk of electric

shock, do not remove cover or

back. No user-serviceable parts

inside.

supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Do not expose this equipment to dripping or

splashing and ensure that no objects lled

with liquids, such as vases, are placed on the equipment.

16. To completely disconnect this equipment from the a.c. mains, disconnect the power supply cord plug from the a.c. receptacle.

17. The mains plug of the power supply cord shall remain readily operable.

18. Do not expose batteries to excessive heat such

as sunshine, re or the like.

19. Connect mains power supply cord only to a mains socket outlet with a protective earthing connection.

Thank You

Your decision to own this McIntosh C50 Audio Preamplifier ranks you at the very top among discriminating music listeners. You now have “The Best.” The McIntosh dedication to “Quality,” is assurance that you will receive many years of musical enjoyment from this unit. Please take a short time to read the information in this manual. We want you to be as familiar as possible with all the features and functions of your new McIntosh.

Please Take A Moment

The serial number, purchase date and McIntosh Dealer name are important to you for possible insurance claim or future service. The spaces below have been provided for you to record that information:

Serial Number: _______________________________

Purchase Date: _______________________________

Dealer Name: ________________________________

Technical Assistance

If at any time you have questions about your McIntosh product, contact your McIntosh Dealer who is familiar with your McIntosh equipment and any other brands that may be part of your system. If you or your Dealer wish additional help concerning a suspected problem, you can receive technical assistance for all McIntosh products at:

Customer Service

If it is determined that your McIntosh product is in need of repair, you can return it to your Dealer. You can also return it to the McIntosh Laboratory Service Department. For assistance on factory repair return procedure, contact the McIntosh Service Department at:

McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903 Phone: 607-723-3515 Fax: 607-723-1917

Table of Contents

Safety Instructions ..................................................... 2

Thank You and Please Take a Moment ...................... 3

Technical Assistance and Customer Service ............. 3

Table of Contents ....................................................... 3

General Information .................................................. 4

Connector and Cable Information ............................. 4

Introduction ................................................................ 5

Performance Features ................................................ 5

Dimensions ................................................................ 6

Installation ................................................................. 7

Connections:

Rear Panel Connections .............................................. 8

(Separate Sheet) .................................................. Mc2B

Connecting Components ............................................. 9

Connection Diagrams

(Separate Sheets) .................. Mc1A, Mc1B and Mc2A

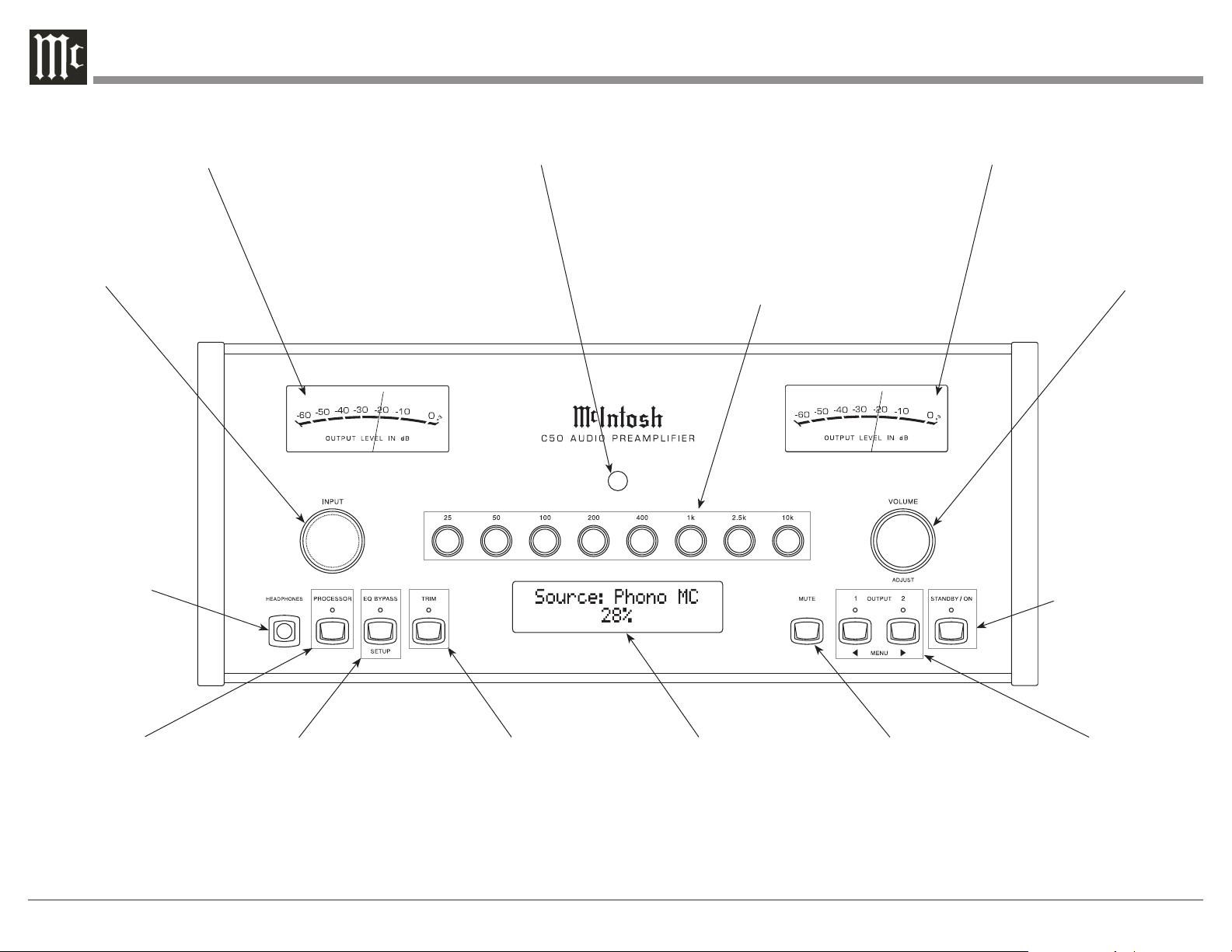

Front Panel:

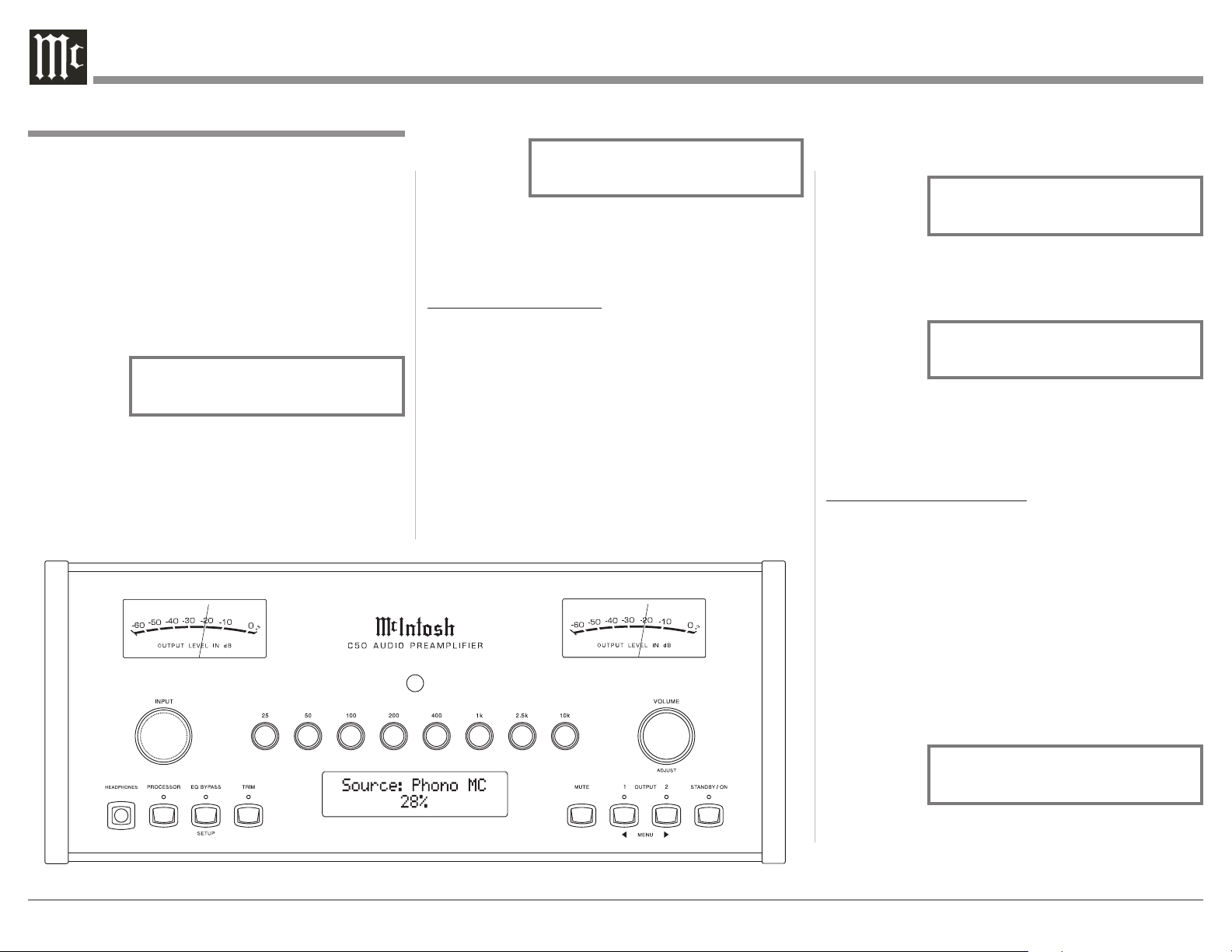

Front Panel Displays, Controls, Push-buttons

and Jack ..................................................................... 12

Setup:

How to Operate the Setup Mode .............................. 13

Default Settings......................................................... 13

Firmware Version ...................................................... 13

Source Inputs Reassignment ..................................... 13

Input Level Adjustment ............................................ 14

Display Brightness .................................................... 15

Passthru ..................................................................... 15

Power Control Triggers 1 and 2 ................................ 16

Comm Port Baud Rate .............................................. 17

Remote Control Codes .............................................. 17

Operation:

How to Operate the C50 ......................................18-23

Trim Functions ..................................................... 18-20

Processor Loop ......................................................... 21

Equalizer Bypass ...................................................... 21

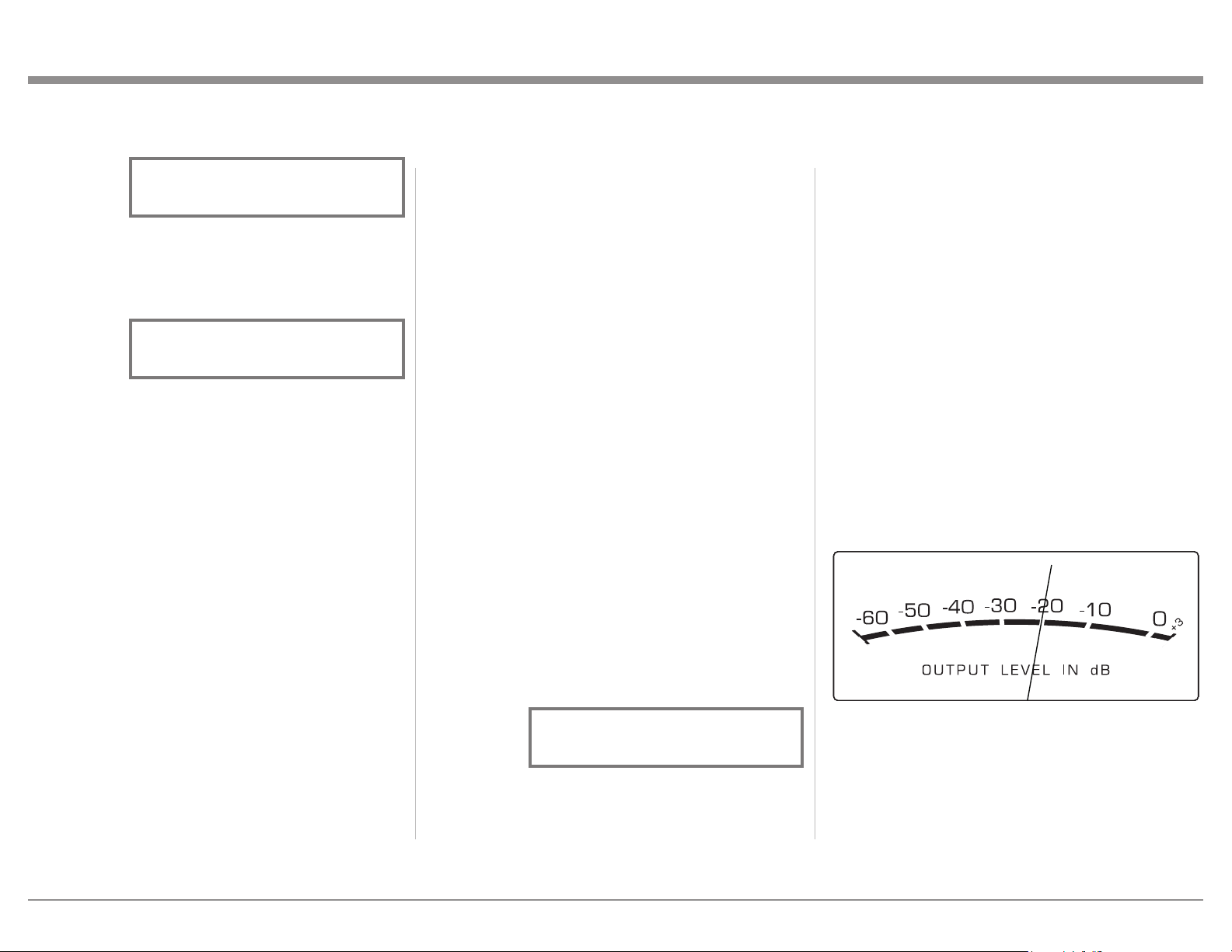

Output Meters ........................................................... 21

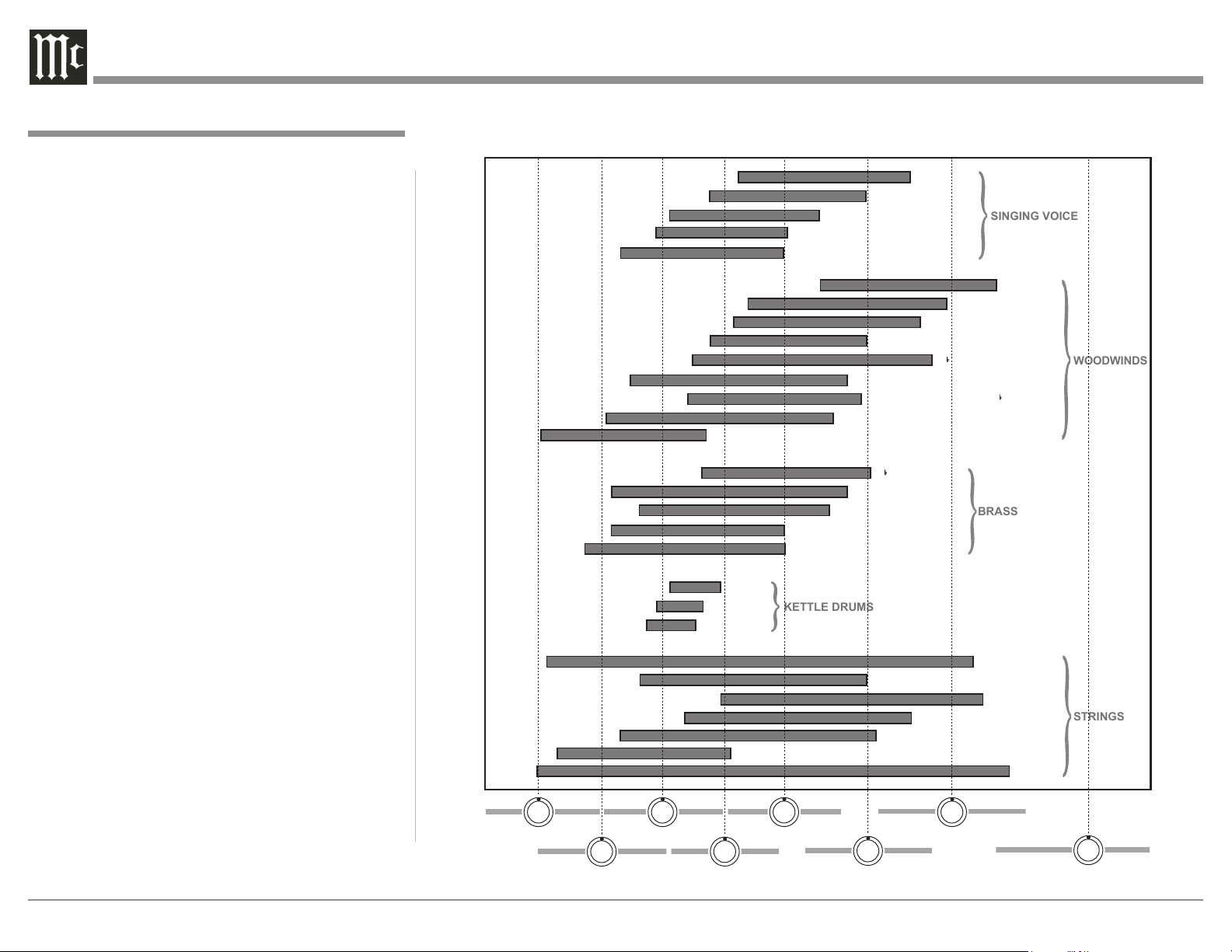

Equalizer Controls .................................................... 22

Passthru ..................................................................... 22

Optical and Digital Inputs ......................................... 23

USB Input Operation with a Computer .................... 23

Additional Information:

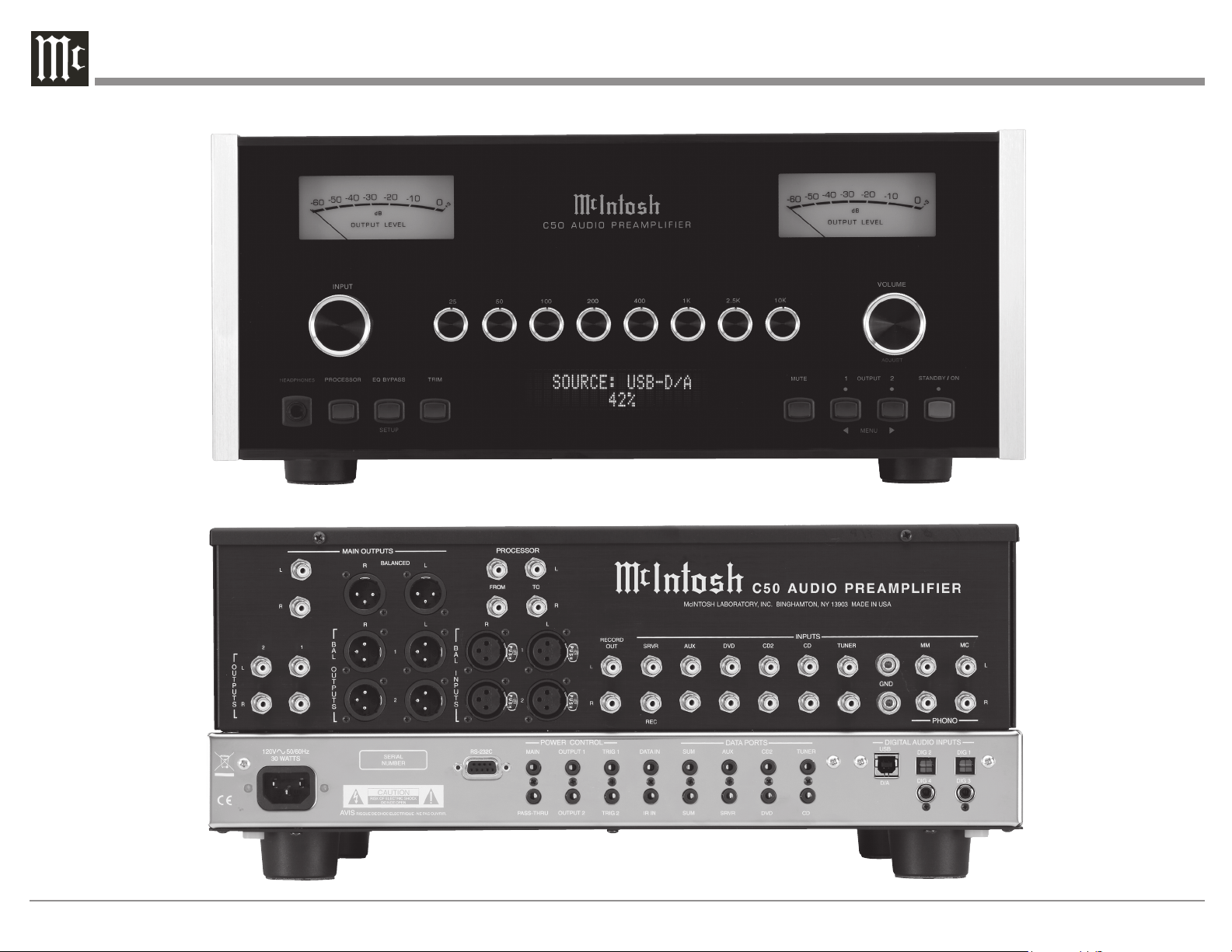

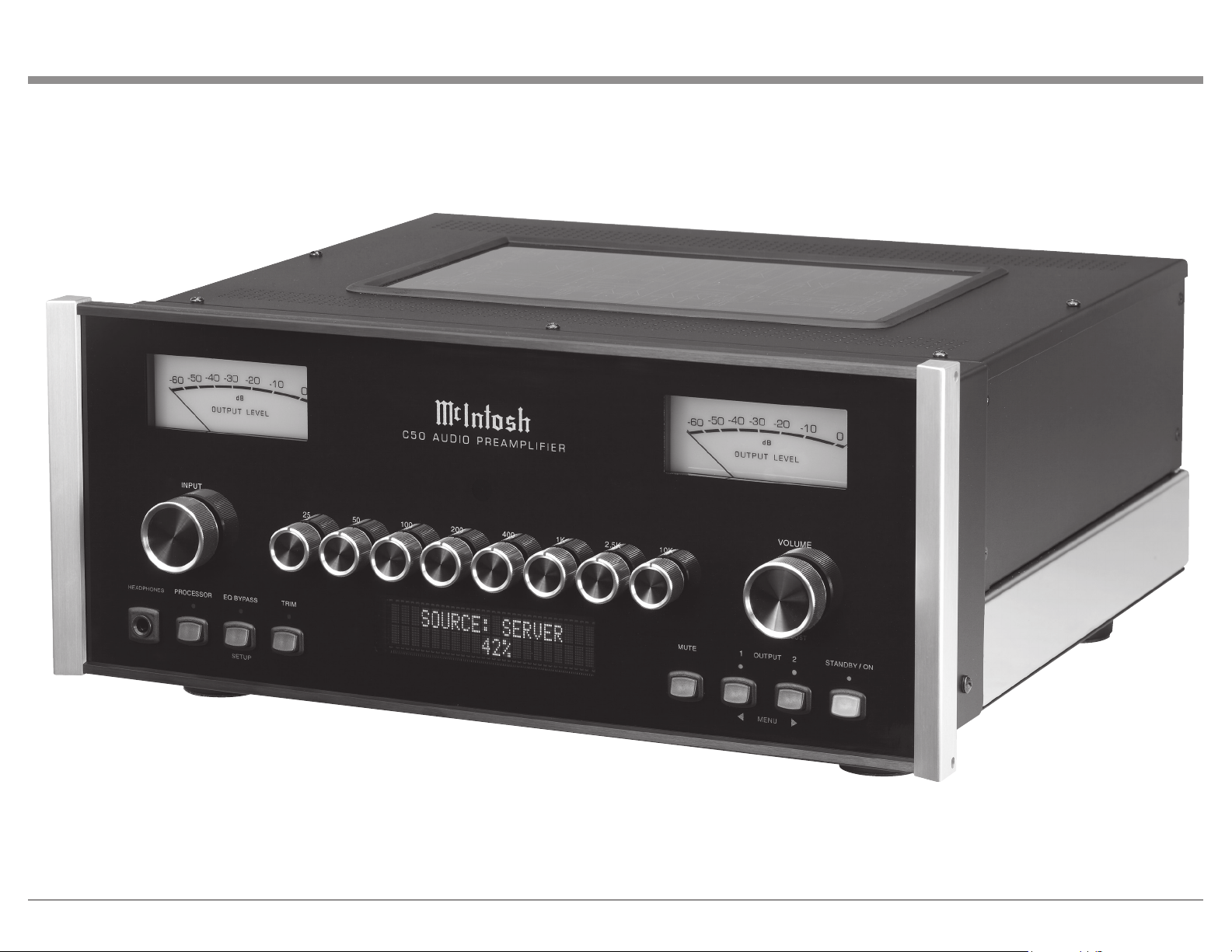

Photos ................................................................... 24-25

Specifications ............................................................ 26

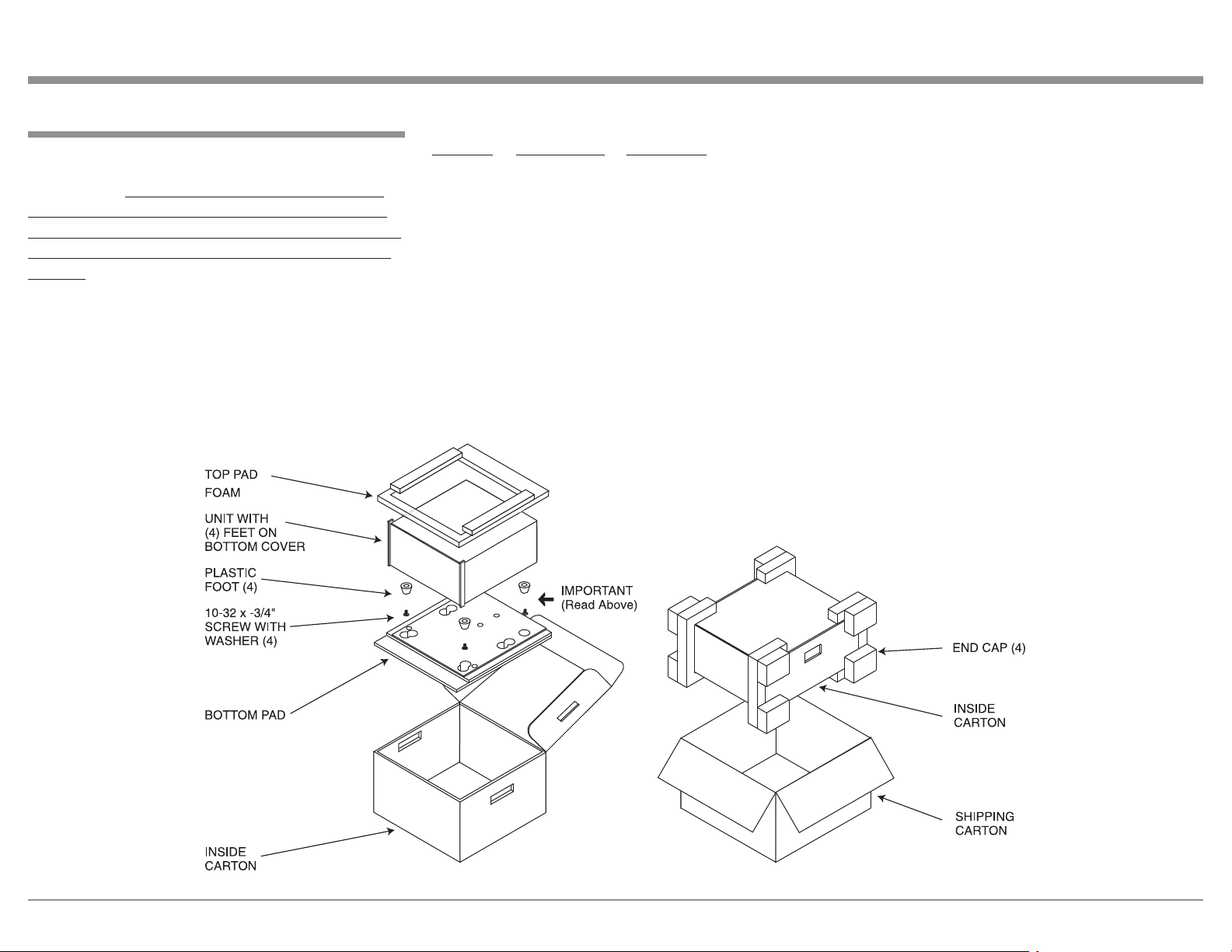

Packing Instruction ................................................... 27

McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903 Phone: 607-723-3512 Fax: 607-724-0549

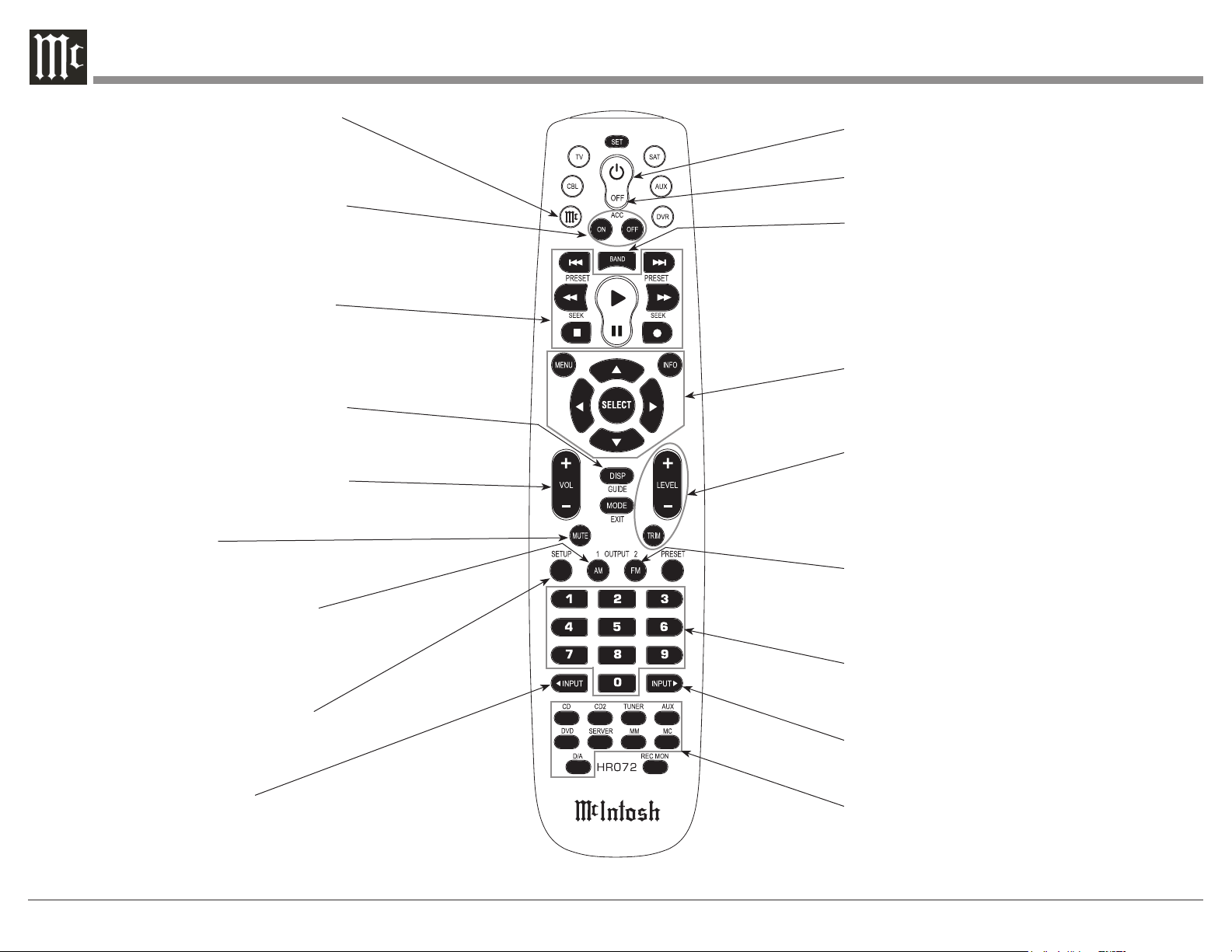

Remote Control:

Remote Control Push-buttons ................................... 10

How to use the Remote Control .................................11

Data Signal

N/C

Data Ground

PIN 2 PIN 1

PIN 3

PIN 1

PIN 2

PIN 3

General Information

Power Control

Meter Illumination Control

Ground

1. For additional connection information, refer to the

owner’s manual(s) for any component(s) connected

to the C50 Audio Preamplifier.

2. The Main AC Power going to the C50 and any

other McIntosh Component(s) should not be applied

until all the system components are connected together. Failure to do so could result in malfunctioning of some or all of the system’s normal operations. When the C50 and other McIntosh Components are in their Standby Power Off Mode, the Microprocessor’s Circuitry inside each component is active and communication is occurring between them.

3. Balanced and Unbalanced Inputs and Outputs can be mixed. For example, you may connect signal sources to Unbalanced Inputs and send signals from the Balanced Outputs. You can also use Balanced and Unbalanced Outputs simultaneously, connected to different Power Amplifiers.

4. The C50 internal Digital to Analog Converter

Circuitry is designed to decode 2-channel PCM

(Pulse Code Modulation) Digital Signal present at

the Coaxial and Optical Digital Audio Inputs. Other Digital Audio Signal Format Types will cause the Audio Outputs of the C50 to be muted and the Front Panel Information Display will indicate an error message.

5. The Remote Control Supplied with the C50 In-

tegrated Amplifier is capable of operating other components. For additional information go to www. mcintoshlabs.com.

6. When discarding the unit, comply with

local rules or regulations. Batteries should never be thrown away or incinerated but disposed of in accordance with the local regulations concerning battery disposal.

General Information and Connector Information

7. For additional information on the C50 and other McIntosh Products please visit the McIntosh Web Site at www.mcintoshlabs.com.

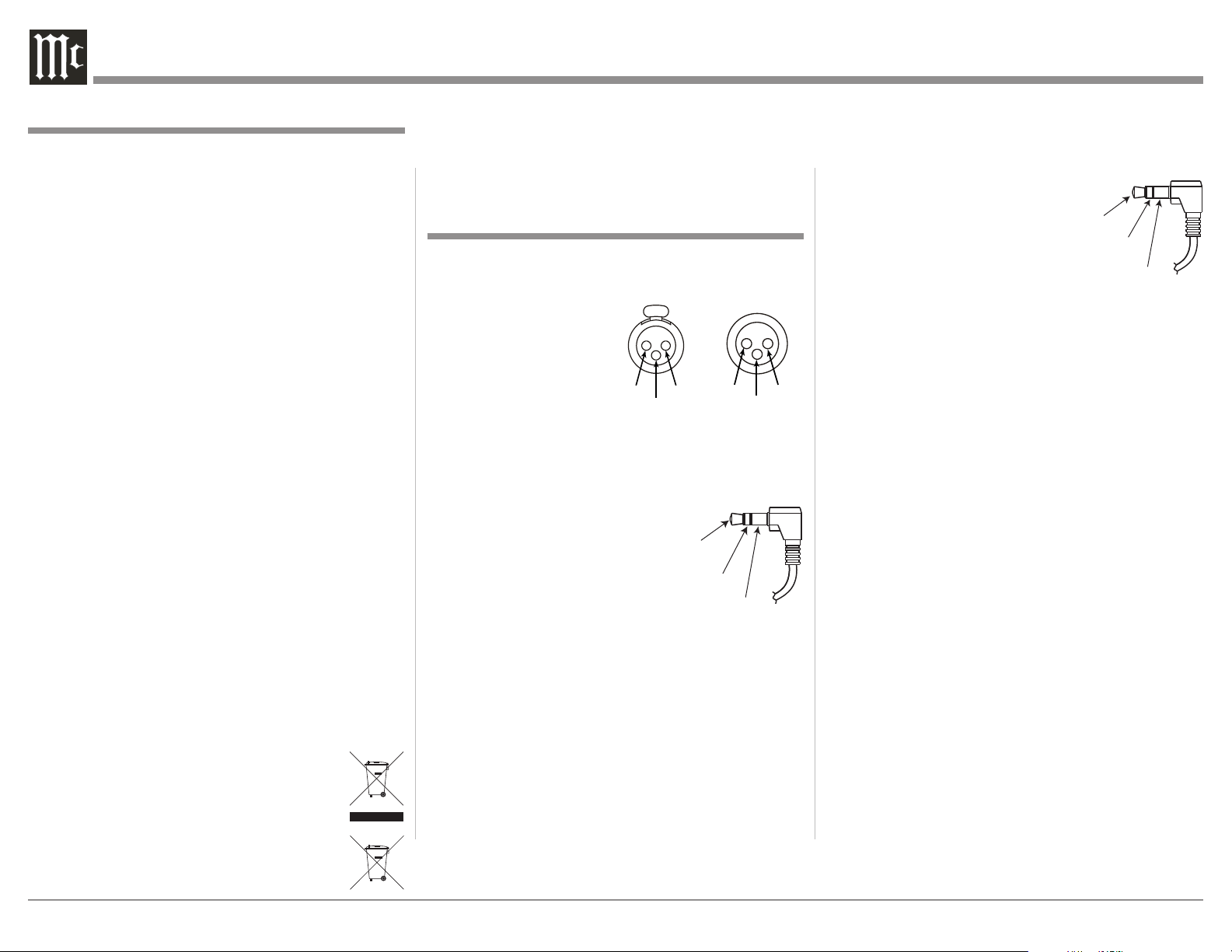

Connector and Cable Information

XLR Connectors

Below is the Pin configuration for the XLR Balanced Input and Output Connectors on the C50. Refer to the diagrams for connections: PIN 1: Shield/Ground PIN 2: + Output PIN 3: - Output

Power Control and Trigger Connectors

The C50 Power Control Out, Trigger and Pass-Thru Output Jacks send Power On/Off

Signals (+12 volt/0 volt) when

connected to other Components. An additional connection is for controlling the illumination of the Power Output Meters on McIntosh Power Amplifiers. A 1/8 inch stereo mini phone plug is used for connection to the Power Control, Trigger and Pass-Thru Outputs on the C50.

Note: The Power Control, Trigger, Pass-Thru and Data

Connecting Cable is available from the McIntosh Parts Department:

Power Control, Trigger, Pass-Thru and Data Cable Part No. 170-202

Six foot, shielded 2 conductor, with 1/8 inch stereo mini phone plugs on each end.

Main, Output 1&2,

Trig 1&2

and Pass-Thru

Data Port Connectors

The C50 Data Out Ports send Remote Control Signals to Source Components. A 1/8 inch stereo mini phone plug is used for connection.

Introduction

The McIntosh C50 Audio Preamplifier is one of the finest Preamplifiers ever created with connections for both analog and digital sources. The C50 Outputs have the ability to drive multiple Power Amplifiers. The C50 reproduction is sonically transparent and absolutely accurate. The McIntosh Sound is “The Sound of the Music Itself.”

Performance Features

• Electromagentic Input Switching with Level Trim

Adjustment

Digital Logic integrated circuits drive Electromagnetic Switches on all Inputs and operating functions for reliable, noiseless, distortion free switching. All eight Inputs on the C50 can be matched in level, so there are no abrupt changes in volume levels between the different Inputs.

• Moving Coil and Moving Magnet Phono Inputs

The C50 contains two different precision Phono Preamplifier Circuits. One for low output Moving Coil Phono Cartridges with selectable resistance loading, the other is for Moving Magnet Cartridges with selectable capacitive loading. Both circuits use the latest designs to provide the lowest possible noise and distortion. The RIAA Correction Equalization Circuitry utilizes close tolerance resistors and capacitors for an extremely flat frequency response.

• Digital Audio Inputs

The C50 has Coaxial, Optical and USB Digital Inputs to Decode PCM Signals from an external source. The C50 Up Samples the Digital Signal to 192kHz with 32Bit resolution before the Digital to Analog process begins. The USB Input sends basic commands (e.g.

Play/Pause, Next, Back, etc.) to the computer by using

the C50 Remote Control.

• Balanced Inputs

The Balanced Inputs allow the connection of a source component using long cable lengths without a loss in sound quality.

• Precision Tracking Volume Control

Volume levels are controlled by a new Multi-Stage Precision Digitally Controlled Attenuator System with a tracking accuracy of 0.1dB.

• Variable Rate Volume and Balance Controls

The C50 Preamplifier’s Volume and Balance Control Circuitry provides an ideal rate of change with control rotation.

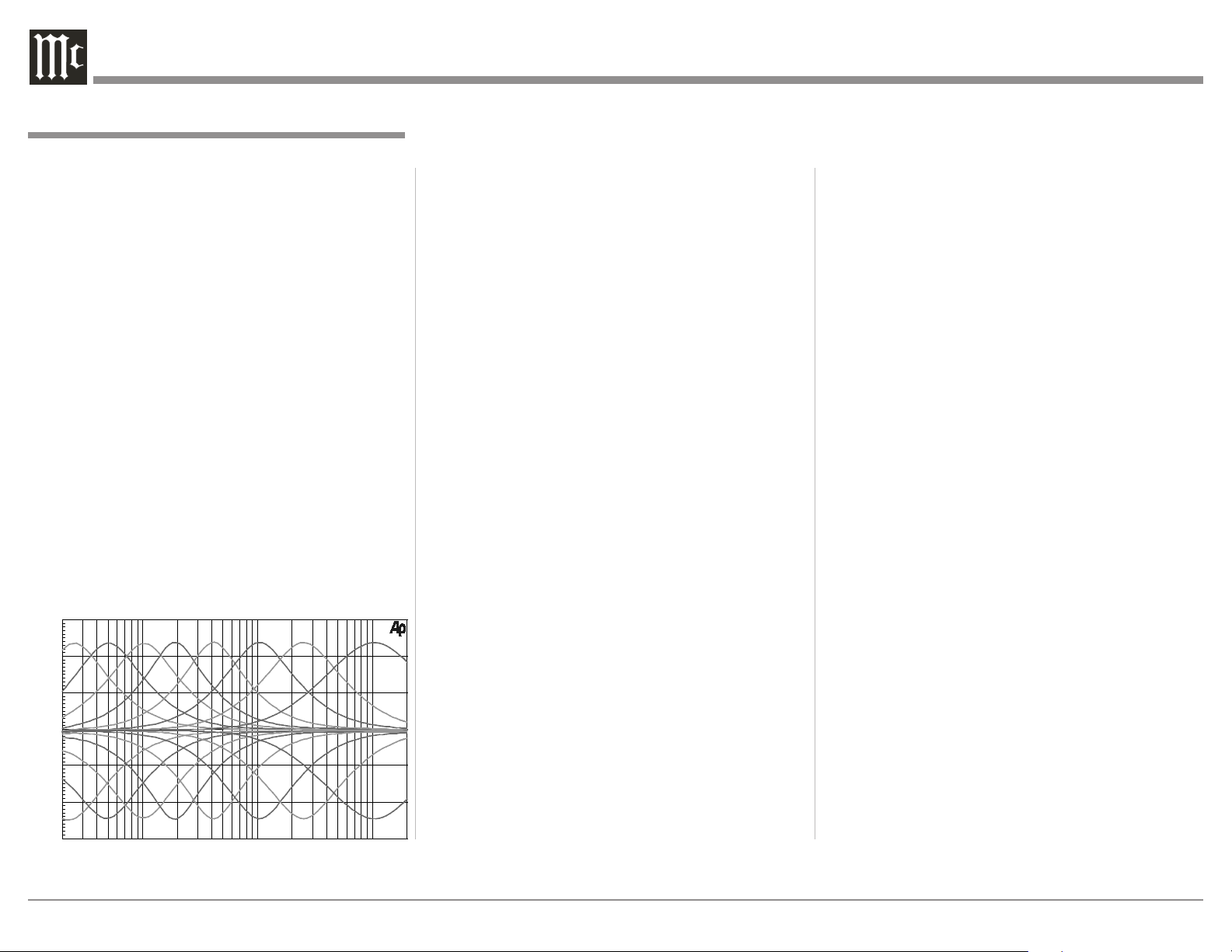

• Equalizer Controls with Bypass

The Equalizer Circuitry provides 12dB of boost or cut at eight different center frequencies. When an Equalizer Control is in the center position, all Circuit Components are removed from the Signal Path. The C50 remembers the Equalizer Circuitry Bypass Option for each input.

• Alphanumeric Fluorescent Display

The Front Panel Information Display indicates the Source Selection, Volume/Balance Levels and Setup Mode Selections. The display intensity is adjustable.

• Processor Loop

A Processor Loop is provided for connection of an external analog signal processor. The Processor Loop can be switched in or out of the signal path of any assigned Input.

• Pass-Thru Mode

The Automatic Pass-Thru Mode allows the C50 to be-

Introduction and Performance Features

come part of a Multichannel Sound System for DVDAudio, SACD and Home Theater Movies.

• Remote Control with External Sensor Input

The Remote Control provides control of the C50 operating functions and McIntosh Source Components connected to it. Enjoy your McIntosh System from another room in your home by connecting an external sensor.

• Power Control Output and Trigger Assignment

A Power Control connection for convenient Turn-On of Power Amplifiers, Source Components and Accessories is included. The Power Control Trigger Ouputs may be assigned to activate when a given Input is selected.

• Special Power Supply

Fully regulated Power Supplies and a special R-Core Power Transformer ensure stable noise free operation even though the power line varies.

• Fiber Optic Solid State Front Panel Illumination

The even Illumination of the Front Panel is accomplished by the combination of custom designed Fiber Optic Light Diffusers and extra long life Light Emit-

ting Diodes (LEDs).

• Glass Front Panel and Super Mirror Chassis

Finish

The famous McIntosh Illuminated Glass Front Panel and the Stainless Steel Chassis with Super Mirror Finish ensures the pristine beauty of the C50 will be retained for many years.

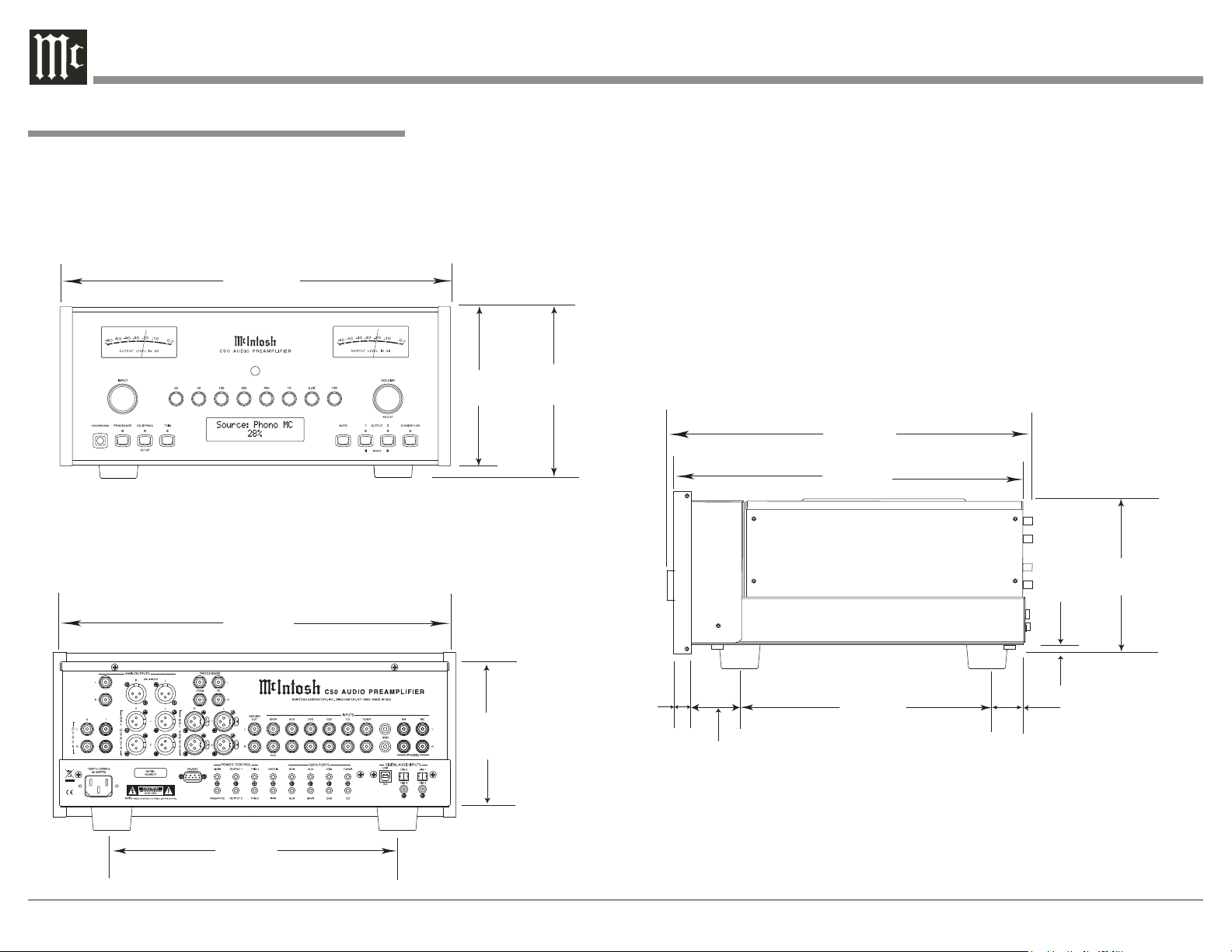

Dimensions

17-1/2"

44.45cm

6-3/8"

16.19cm

7-5/8"

19.37cm

13 -1/4"

33.66cm

17-1/8"

43.50cm

7-1/8"

18.10cm

16-1/2"

41.91cm

3/16"

0.48cm

13/16"

2.06cm

6-9/16"

16.67cm

10-9/16"

26.83cm

14-1/2"

36.83cm

5.08cm

1-15/16"

4.92cm

Front View of the C50

Rear View of the C50

Side View of the C50

The following dimensions can assist in determining the best location for your C50. There is additional information on the next page pertaining to installing the C50 into cabinets.

Dimensions

Installation

6-5/8"

16.84cm

17-3/16"

43.66cm

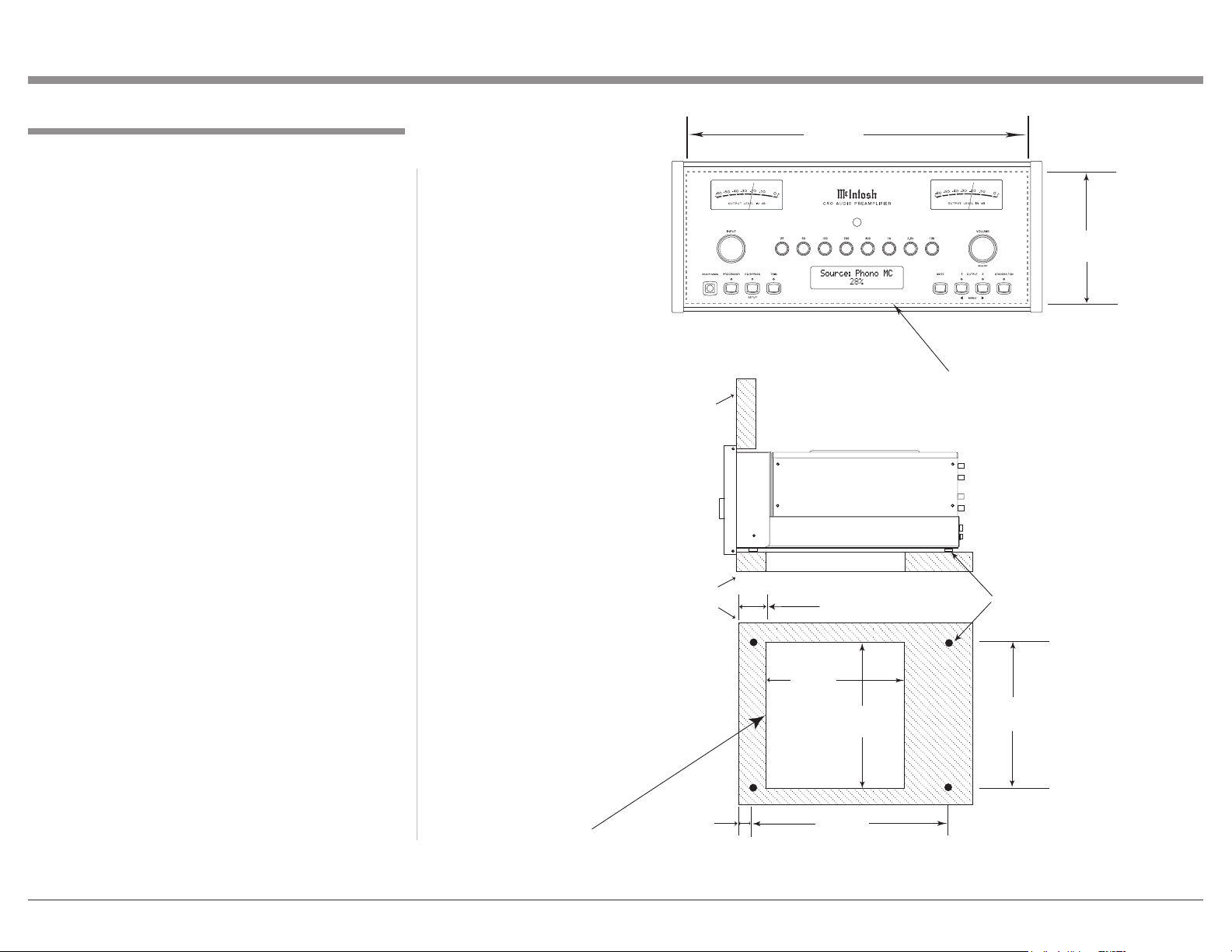

Cutout Opening for Custom Mounting

C50 Front Panel Custom Cabinet Cutout

Cutout

Opening

for

Ventilation

Cutout Opening for Ventilation

Support Shelf

Chassis Spacers

C50 Side View in Custom Cabinet

12-5/16"

31.27cm

Cabinet Front Panel

Note: Center the cutout Horizontally on the unit. For purposes of clarity, the above illustration is not drawn to scale.

C50 Bottom View in Custom Cabinet

15"

38.10cm

9-1/8"

23.18cm

2-1/4"

5.72cm

15"

38.10cm

1-1/16"

2.70cm

The C50 can be placed upright on a table or shelf, standing on its four feet. It also can be custom installed in a piece of furniture or cabinet of your choice. The four feet may be removed from the bottom of the C50 when it is custom installed as outlined below. The four feet together with the mounting screws should be retained for possible future use if the C50 is removed from the custom installation and used free standing. The required panel cutout, ventilation cutout and unit dimensions are shown.

Always provide adequate ventilation for your C50. Cool operation ensures the longest possible operating life for any electronic instrument. Do not install the C50 directly above a heat generating component such as a high powered amplifier. If all the components are installed in a single cabinet, a quiet running ventilation fan can be a definite asset in maintaining all the system components at the coolest possible operating temperature.

A custom cabinet installation should provide the following minimum spacing dimensions for cool operation.

Allow at least 2 inches (5.08cm) above the top, 2 inches (5.08cm) below the bottom and 1 inch (2.54cm)

on each side of the Preamplifier, so that airf low is not

obstructed. Allow 20 inches (50.8cm) depth behind the front panel. Allow 1-7/16 inch (3.66cm) in front of the

mounting panel for knob clearance. Be sure to cut out a ventilation hole in the mounting shelf according to the dimensions in the drawing.

Installation

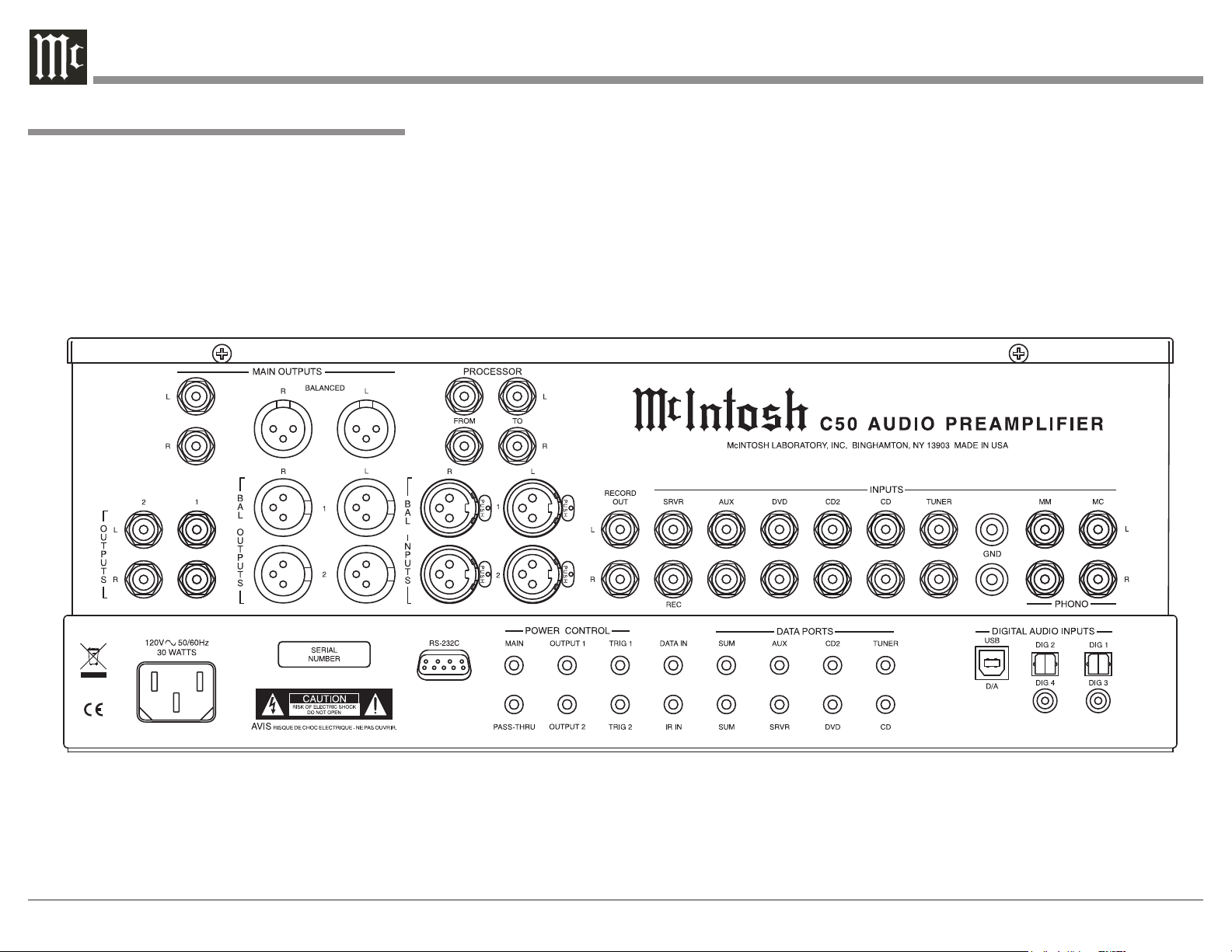

Rear Panel Connections

The identification of Rear Panel Connections for the C50 Audio Preamplifier is located on a separate folded sheet contained in the Owner’s Manual Packet. Refer to separate sheet “Mc2B” for the Rear Panel Connections.

Rear Panel Connections

C50 Audio Preamplifer Rear Panel

Connecting Components

The C50 has the ability to automatically switch power On/Off to Source Components via the Power Control connections. The Data Port Connections allow for the remote operation of basic functions using the C50 Remote Control. With an external sensor connected to the C50, remote control operation of the system is possible from another room and/or when the C50 is located in a cabinet with the doors closed.

The connection instructions below, together with the C50 Input/Output/Control Connection Diagrams located on the separate folded sheets “Mc1A/1B and Mc2A”, are an example of a typical audio system. Your system may vary from this, however the actual components would be connected in a similar manner. For additional information refer to “Connector and Cable Information” on page 4.

Note: Source components may be connected to the

C50 Balanced Inputs or Digital Inputs instead of Unbalanced Inputs. Refer to Setup “Reassigning Inputs” to activate them on page 13.

Power Control Connections:

1. Connect a Control Cable from the C50 POWER CONTROL MAIN Jack to the Power Control In on the Turntable.

2. Connect a Control Cable from the Turntable Power Control Out Jack to the SACD/CD Player Power Control In Jack.

3. Connect a Control Cable from the SACD/CD Player Power Control Out Jack to the Tuner Power Control In Jack.

4. Connect a Control Cable from the Tuner Power Control Out Jack to the Music Server Power Control In Jack.

5. Connect a Control Cable from the C50 POWER CONTROL OUTPUT 1 Jack to the Power Amplifier Power Control In Jack.

Note: If two Power Amplifiers are used, connect the

Power Control Output of the first Amplifier to the Power Control Input on the second Amplifier.

6. Optionally connect a Control Cable from the C50 POWER CONTROL OUTPUT 2 Jack to the

Power Amplifier (Secondary Room) Power Control

In Jack.

7. Connect any additional Components in a similar manner, as outlined in steps 1 thru 4.

Data Control Connections:

8. Connect a Control Cable from the C50 TUNER

DATA PORTS Jack to the TUNER Data In Jack.

9. Connect a Control Cable from the C50 CD DATA

PORT Jack to the SACD/CD Player Data In Jack.

10. Connect a Control Cable from the C50 SRVR DATA PORT Jack to the Music Server Data In Jack.

11. Connect any additional McIntosh Components in a

similar manner, as outlined in steps 8 thru 10.

Sensor Connection:

12. Connect a Control Cable from the C50 IR Input

Connector to the external Sensor.

Audio Connections:

13. Connect an Audio Cable from the C50 TUNER

INPUT Jacks to the Tuner (Fixed) Output Jacks.

14. Connect an Audio Cable from the C50 CD IN-

PUT Jacks to the SACD/CD Player (Fixed) Output

Jacks.

15. Connect an Audio Cable from the C50 SRVR IN-

PUT Jacks to the Music Server Output Jacks.

16. Connect an Audio Cable from the C50 RECORD

OUTPUT Jacks to the Music Server Input 3 Jacks.

17. Connect the Audio Cables coming from the Turn-

table to the C50 MC PHONO INPUT Jacks.

Connecting Components

Note: If the Turntable has a Moving Magnet Car-

tridge connect the audio cables to the C50 MM PHONO INPUT instead of the MC Input.

18. Connect Balanced Cables from the C50 BALanced OUTPUT 1 connectors to the Power Amplifiers

Balanced (Left and Right) Inputs.

19. Optionally Connect an Audio Cable from the C50 BALanced OUTPUT 2 connectors to the Power

Amplifier (Secondary) Inputs.

20. Connect any additional McIntosh Components in a similar manner, as outlined in steps 14 thru 18.

Optional “PassThru” Connections:

21. Connect Balanced Cables from the A/V Control Center Front Left and Right Channel Balanced Output connectors to the BALanced 2 Input connectors.

Note: Refer to Setup “PassThru” on page 15 to activate

the BALanced 2 Input.

22. Connect a Control Cable from the C50 PASSTHRU to A/V Control Center Zone ZA Power Control Output.

Optional USB Connection:

23. Connect a USB cable with (type A to type B) connectors from the C50 USB D/A Input to an available USB connector.

Ground Connections:

24. Connect the Ground Cable coming from the Turntable to the C50 GND Binding Post.

AC Power Cords Connections:

25. Connect the C50 and any remaining components’ AC Power Cords to a live AC outlet as illustrated.

Remote Control Push-Buttons

LED illuminates during the time a remote command is sent to the C50

Switches the Trigger 1 and/or 2

Power Control Jack(s) On/Off, refer

to “Setup, Power Control TRIG 1 and TRIG 2” on page 15 for additional information

Selects a Disc Player, Music Server or Recorder Function. Seek Stations Up or Down the AM/FM Dial. Select AM/FM Station Presets and performs various functions on a variety of McIntosh Components

Displays On Screen Functions on the McIntosh Music Server and a variety of other McIntosh Components

Adjusts the volume level up or down

Mutes the audio

Selects AM Tuner Operating Functions and Disc Selection on certain McIntosh Disc Players

Selects Functions as a “shift” key when used with the AM or FM push-buttons to select Output 1 or 2

Press to Power the C50 ON

Press to Power the C50 OFF

Press to change broadcast bands on an external McIntosh Tuner connected. Select certain functions on a variety of McIntosh Components

Selects On Screen Functions on a variety of McIntosh Components

Press TRIM and then the LEVEL Push-buttons to select and adjust various functions

Selects FM Tuner Operating Functions and Track Selection on certain McIntosh CD Players

Use to select tuner presets, disc tracks or any numbered operation

Scrolls through the available C50 Inputs

Selects one of the eight available Audio Sources

Note: Push-buttons whose function is not identified above are for use with other McIntosh Products.

How to use the Remote Control

The supplied HR072 Remote Control is capable of directly controlling the functions of contemporary Source Components connected to the C50 via the Data Ports.

Note: If at any time the C50 seems unresponsive to

HR072 Remote Control Commands press the Push-button first.

How to use the Remote Control

Tuner Push-buttons

Press the AM or FM Push-button to select the desired broadcast band. Press and release the Channel Up p or Down q Push-button to seek the next available station. Press and hold a Channel Up p or Down q Push-button to seek continuously from station to station.

Input Source Selection

Press the appropriate Source Push-button to select the desired program source.

Note: When the C50 is Off, pressing one of the Source

Push-buttons will switch the C50 On and it will go to that Input.

Mute

Press the MUTE Push-button to mute the audio in all outputs except the REC OUTPUT. The word MUTE will appear on the Front Panel Information Display. To un-mute the audio, press the MUTE Push-button again.

Disc, Server and Tape Functions

Use these push-buttons to operate a DVD Player, CD Player, CD Changer, Music Server or Recorder.

Numbered Push-buttons

Press Push-buttons 0 through 9 to access tuner station presets, tracks on discs or selections on a Music Server.

Disc and Track

Use the AM (disc) and FM (track) Push-buttons when

a Disc Player or Music Server is being used.

Volume

Press the Up p or Down q VOLUME Push-button to raise or lower the listening volume level.

Note: The Record Signals present at REC OUTPUTS are

not affected by volume changes.

Pause

Press the Pause Push-button to perform various functions on a variety of McIntosh Components. It will also pause the playing of a disc or tape player.

Trim

Press the TRIM Push-button until the desired Trim

function (Balance, Trim Level, etc.) appears on the

Front Panel Information display, then press the LEVEL Up p or Down q Push-button to adjust the Trim setting.

Note: Press the TRIM Push-button to recall the last Trim

function selected. For additional information on the Trim Functions refer to pages 18, 19 and 20.

Amplifier Selection

Press the BLUE (Setup) Push-button followed by the AM (Output 1) or FM (Output 2) Push-button, to control the rear panel Audio OUTPUTS 1, 2 (ON or OFF)

and Power Control OUTPUT 1 / OUTPUT 2. These OUTPUTS provide signals to a Power Amplifier or other accessory component.

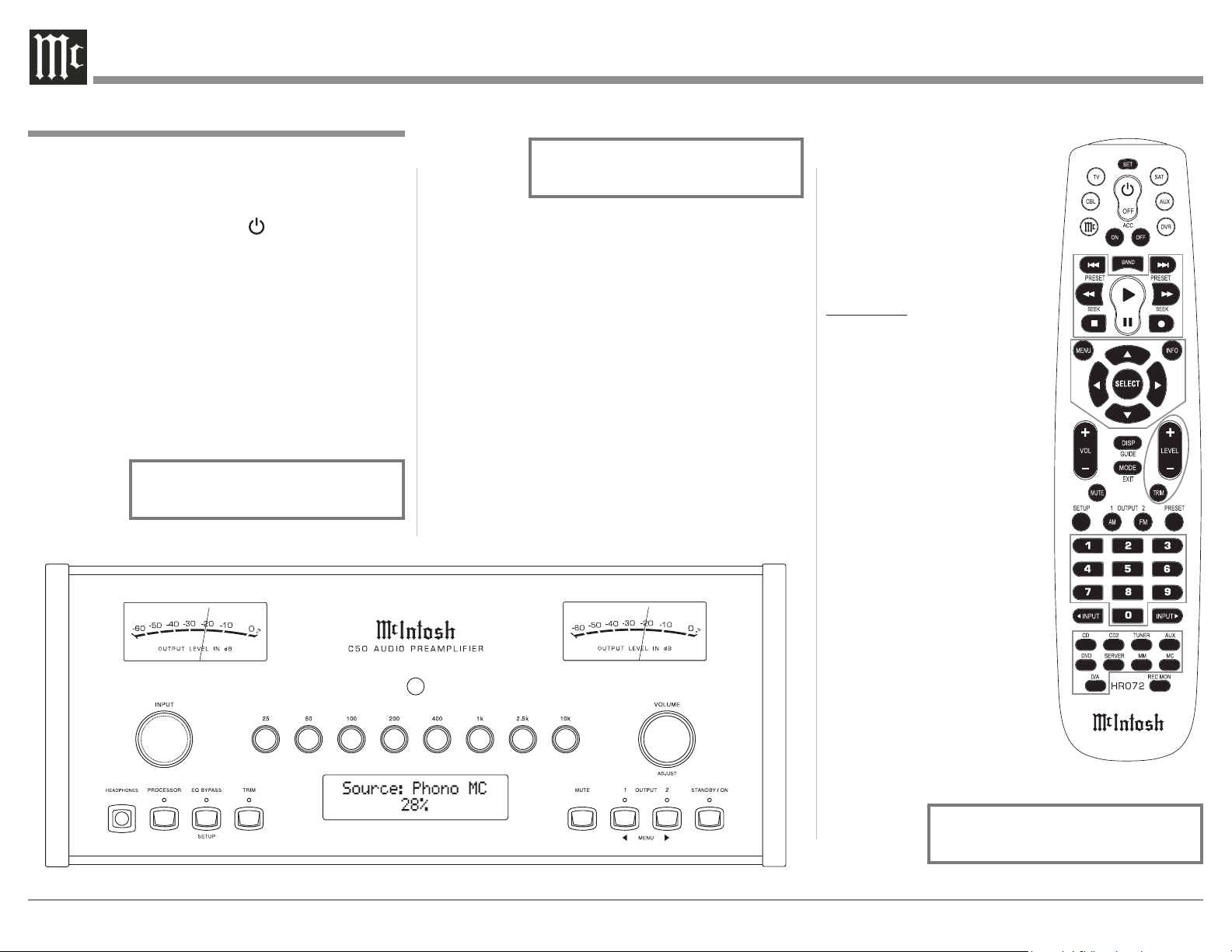

Front Panel Displays, Controls, Push-buttons and Jack

Meter indicates the Left Channel Output of the Preamplifier

INPUT Control allows the selection of various sources for listening and recording

Connection for low impedance dynamic headphones, for private listening

IR Sensor receives commands from a Remote Control

EQUALIZER Controls increase or decrease the volume levels at the Center Frequencies of 25Hz, 50Hz, 100Hz, 200Hz, 400Hz, 1,000Hz, 2,500Hz and 10,000Hz

Meter indicates the Right Channel Output of the Preamplifier

VOLUME Control allows adjustment of the listening level for both channels

STANDBY/ON Push-button with indicator, switches the C50 ON or OFF

(Standby) and resets

the microprocessors

PROCESSOR Pushbutton with indicator, when activated places an externally connected signal processor in the listen signal path

EQualizer BYPASS Push-button with indicator, when activated the audio signal bypasses the Equalizer Controls, also used to enter and exit the Setup Mode

TRIM Push-button with indicator, allows selection of various types of settings

INFORMATION DISPLAY indicates the Sources, Volume, other Audio Settings, Operational Functions and Setup Mode Settings

MUTE Push-button mutes the audio from the Loudspeakers and Headphones

OUTPUT 1 and 2 Push-buttons with indicators, switch the Preamplifier Outputs 1 and 2 On or Off

Setup

McIntosh C50 V1.00 - 1.0

SOURCE: TUNER 15%

SETUP: SOURCE INPUT TUNER : RCA

How to Operate the Setup Mode

Your McIntosh C50 has been factory configured for default operating settings that will allow immediate enjoyment of superb audio without the need for further adjustments. If you wish to make changes to the factory default settings, a Setup Feature is provided to customize the operating settings using the Front Panel Information Display. Refer to the C50 Front Panel Illustration on the previous page while performing the following steps.

Note: If the C50 is currently On, proceed to step 2.

1. Press the STANDBY/ON Push-button on the Front

Panel or press the (Power) Push-button on the

Remote Control to switch On the C50. The C50 will go through a brief startup intialization with the Front Panel Information Display indicating the last used source and volume setting, this is followed by the volume setting indication starting at zero and then increasing to the last used volume setting. Refer to figure 1.

Figure 1

2. Press and hold the EQ BYPASS/SETUP Pushbutton until the Front Panel Information Display indicates “McIntosh C50, V1.00 - 1.0 “or higher Firmware. Refer to figure 2. At this time the LED

Figure 2

above the TRIM Push-button will be illuminated.

3. Press the OUTPUT 2 / MENU ► Push-button to

select the next Setup Mode Menu item, “SETUP: SORCE INPUT, TUNER : RCA”. With each

additional press of the OUTPUT 2 / MENU ►

Push-button the Setup Menu will advance to the next Menu Selection. Refer to figure 3.

Figure 3

4. To exit from the Setup Mode, press the EQ BYPASS/SETUP Push-button. The LED above the TRIM Push-button will extinguish and the Front Panel Display will revert back to its normal display. Refer to figure 1.

Default Settings

The Default Settings Chart below indicates the Function Name, Default Setting and the Page Number for additional information.

Default Settings

Function Name Setting Page No.

McIntosh C50 V_._ _ - _._ 13

SOURCE INPUT

(connector type)

LEVEL

(Tr im)

DISPLAY (Bright-

ne ss)

PASS TH RU OFF 15

TRIG 1 Output

(Act ion)

TRIG 2 Output

(Act ion)

COMM PORT

(Baud Rate)

REMOTE

(Codes)

RCA 13

0.0dB 14

3 15

MAIN 16

11520 0 17

NORM 17

Firmware Version

The C50 functionality is controlled by internal software that is know as Firmware. The Version of the Firmware in the C50 can be identified at any time by utilizing the Setup Mode.

1. Press and hold the C50 Front Panel EQ BYPASS/ SETUP Push-button to enter the Setup Mode.

3. The number after the character “V” is the Firmware number. Refer to figure 2.

4. To exit the Setup Mode, press the EQ BYPASS/ SETUP Push-button.

Source Inputs Reassignment

The C50 provides the ability to reassign the nonPhono Inputs (High Level) to either one of two Balanced Inputs or one of the four Digital Inputs. In the first example, the CD2 Input will be reassigned

from the unbalanced CD2 (RCA Jacks) to the BALANCED 1 (XRL Connector).

Notes: 1. Any one of the Default Inputs may be swiched

Off. If any input is switched Off its name will no longer appear on the Front Panel Information Display when using the INPUT Control, nor is it accessible with the Remote Control.

2. The Phono MC (Moving Coil) and MM (Moving Magnet) Input are designed for connection of a turntable only and thus non-reassignable. However, the Phono Inputs may be switched Off.

3. Only one Input may be assigned at a time to a Balanced (1 & 2) or Digital (1 thru 4) Connector. If an already assigned Balanced or Digital connector is to be reassigned to a different Input, the Input currently assigned to the connector first needs to be changed. It can be set to a RCA connector or to another available Balanced or Digital connector.

Reassign Source Inputs, con’t

SETUP: SOURCE INPUT CD2 : BALANCED 1

SETUP: SOURCE INPUT CD2 : RCA

SETUP: SOURCE INPUT SRVR : RCA

SETUP: SOURCE INPUT SRVR : DIGITAL 1

LEVEL: CD 0.0dB Min Max

SETUP: SOURCE INPUT TUNER : RCA

1. Press and hold the EQ BYPASS/SETUP Pushbutton until the Setup Mode is active. Then press

the OUTPUT 2 / MENU ► Push-button to select

the Setup Menu item “SETUP: SOURCE INPUT, TUNER :RCA”. Refer to figure 4.

Figure 4

2. Rotate the INPUT Control until “CD2 : RCA” appears on the Front Panel Information Display. Refer to figure 5.

Figure 5

3. Rotate the VOLUME/ADJUST Control until “CD2 : BALANCED 1” appears on the Front Panel Information Display. Refer to figure 6.

Figure 6

The second example will illustrate reassigning the

SRVR (Server) Input from SRVR/REC Input (RCA Jacks) to the DIGital 1 Optical Input.

4. Rotate the INPUT Control until “SRVR : RCA” appears on the Front Panel Information Display. Refer to figure 7.

5. Rotate the VOLUME/ADJUST Control until “SRVR : DIGITAL 1” appears on the Front Panel Information Display. Refer to figure 8. Record

Figure 8

any changes made to the various inputs from the default settings in the “Input and Power Control Settings” chart for future reference.

6. To exit from the Setup Mode, press the EQ BYPASS/SETUP Push-button.

Input Level Adjustment

Source Components can have slightly different volume levels resulting in the need to readjust the C50 Volume Control when switching between different sources. The C50 allows the adjustment of levels for each of the Source Inputs for the same relative volume. The CD and SERVER Inputs are used in the following example.

Note: The range of adjustment is ± 6dB. The signal Level

present at the RECORD OUT Jacks is unaffected by any changes in the Setup Level adjustment. The level adjustments made are retained in permanent memory. They can be changed during operation of the C50 by performing a Trim Level Procedure, refer to page 19 for additional information.

1. Rotate the INPUT Control to select the CD Input and adjust the VOLUME Control to the desired listening level.

2. Press and hold the EQ BYPASS/SETUP Pushbutton until the Setup Mode is active. Then press

the OUTPUT 2 / MENU ► Push-button until the

Setup Menu item “LEVEL: CD 0.0dB” appears on the Front Panel Information Display. Refer to figure 9.

Figure 9

Note: The CD Input is serving as a reference level

or choose another source frequently listened to. The Input Source should be set to a reference Level (Trim) of 0.0dB.

Figure 7

Setup, con’t

LEVEL: SRVR -2.5dB Min Max

¦ ¦

SETUP: PASSTHRU Source: OFF

3. Rotate the INPUT Control until “LEVEL: SRVR

0.0dB” appears on the Front Panel Information Display. If necessary, rotate the VOLUME/ADJUST Control to obtain the same volume level as the CD Input by switching between the two Inputs using the INPUT Control.

4. Rotate the INPUT Control until “LEVEL: SRVR _._” appears on the Front Panel Information Display. The illustration in figure 10 indicates a

Figure 10

-2.5dB decrease in the SRVR Level to match the volume level of the CD Input.

5. Repeat step 4 for other Inputs with component sources connected until they all have the same relative volume levels. Record any changes made to the various inputs from the default settings in the “Input and Power Control Settings” chart bel ow.

6. To exit from the Setup Mode, press the EQ BYPASS/SETUP Push-button.

Input and Power Control Settings

Input Name

TUNER

CD2

DVD

AUX

SRVR (Rec)

PHONO MC

PHONO MM

Connection

Typ e

New Level

(Tri m)

Triggers

1 2

Display Brightness

The Front Panel Information Display Brightness may be changed from the default setting. The C50 will remember two brightness preferences, one with the Meters Illuminated and one without Meter Illumination. For each preference there are four brightness settings for the Information Display. The Display Brightness

setting may be varied 1 (Dim) to 4 (Bright). Follow the

steps below for reducing the Display Brightness (with

the Meter Illumination On).

1. Press and hold the EQ BYPASS/SETUP Pushbutton until the Setup Mode is active. Then press

the OUTPUT 2 / MENU ► Push-button until the

Setup Menu item “SETUP: DISPLAY” appears on the Front Panel Information Display. Refer to figure 11.

Figure 11

2. Rotate the VOLUME/ADJUST Control until “BRIGHTNESS: 1” appears on the Front Panel Information Display. Refer to figure 12.

Figure 12

Note: To change the Display Brightness preference

with Meter Illumination Off, first switch off the Meter Illumination (refer to page 19) and change the Display Brightness Setting.

3. To exit from the Setup Mode, press the EQ BYPASS/SETUP Push-button.

Passthru

The C50 can be part of a Multichannel Sound System for SACD, DVD-Audio and Home Theater. The Right and Left Front Channels from an Audio/Video Control Center or Surround Decoder can “Passthru” the C50

and onto its associated Power Amplifier(s). The Setup

Mode allows the activation of the Passthru Mode and the selection of the specified C50 Input Connector to be used for the Right and Left Front Channels. In the example below, the Right and Left Front Channels from the Audio/Video Control Center will be connected to the BALanced 2 Input Connectors on the C50. Refer to page 9 for additional connection information.

Notes: 1. The Phono Input Connectors and Digital Input

Connectors are not assignable as a Passthru Input.

2. If Balanced Input Connectors 1 and/or 2 are already reassigned to a given Input, they will not appear in the list of available Inputs for the Passthru Mode.

3. When one of the RCA Inputs is selected as a Passthru Input, it is advisable to remove it from the list of available Inputs by switching it Off. Refer to “Source Inputs Reassignment” starting on page 13.

1. Press and hold the EQ BYPASS/SETUP Pushbutton until the Setup Mode is active. Then press

the OUTPUT 2 / MENU ► Push-button until the

Setup Menu item “SETUP: PASSTHRU, Source: OFF” appears on the Front Panel Alphanumeric Display. Refer to figure 13.

Figure 13

SETUP: TRIG1 OUTPUT Action: SOURCE

SETUP: TRIG1 OUTPUT Source: Tuner OFF

SETUP: TRIG1 OUTPUT Source: Tuner ON

SETUP: TRIG1 OUTPUT Action: MAIN

SETUP: TRIG1 OUTPUT Action: REMOTE

Passthru, con’t

SETUP: PASSTHRU Source: BALANCED 2

2. Rotate the VOLUME/ADJUST Control until “SETUP: PASSTHRU, Source: BALANCED 2” appears on the Front Panel Alphanumeric Display. Refer to figure 14.

Figure 14

3. Press the EQ BYPASS/SETUP Push-button to exit the Setup Mode.

Power Control Triggers 1 and 2

By default the Power Control TRIGger 1 and TRIGger 2 Outputs function the same as the MAIN Power Control Jack, switching On/Off with the C50. Trigger 1 and 2 are also reassignable to activate when the ACC ON/OFF Push-buttons on the Remote Control are used or when a given Input or Inputs are selected.

In the first example, the Power Control Trigger 1 Output will be set to function via the Remote Control ACC Push-buttons.

1. Press and hold the EQ BYPASS/SETUP Pushbutton until the Setup Mode is active. Then press

the OUTPUT 2 / MENU ► Push-button until the

Setup Menu item “SETUP: TRIG1 OUTPUT, Action: MAIN” appears on the Front Panel Information Display. Refer to figure 15.

Figure 15

2. Rotate the VOLUME/ADJUST Control until “Action: REMOTE” appears. Refer to figure 16.

5. Rotate the VOLUME/ADJUST Control until “Action: SOURCE” appears. Refer to figure 17.

Figure 17

6. Then press the OUTPUT 2 / MENU ► Push-

button until the Setup Menu item “SETUP: TRIG1 OUTPUT, Source: _ _ _ _ _ _ _ _ OFF” appears on the Front Panel Information Display. Refer to figure 18.

Figure 18

Notes: 1. By default all the Source Inputs are set to

Off.

2. Any combination of Source Inputs from one to all may be assigned to either Trigger (1 or 2) or both Triggers.

7. Rotate the INPUT Control to select the Tuner as the source. Refer to figure 18.

8. Rotate the VOLUME/ADJUST Control until “Source: Tuner ON” appears. Refer to figure 19.

Figure 16

3. Press the EQ BYPASS/SETUP Push-button to exit the Setup Mode.

The second example will use selection of the Tuner Input to switch the Trigger 1 Output On.

4. Press and hold the EQ BYPASS/SETUP Pushbutton until the Setup Mode is active. Then press

the OUTPUT 2 / MENU ► Push-button until the

Setup Menu item “SETUP: TRIG1 Output, Action: MAIN” appears on the Front Panel Information Display. Refer to figure 15.

Figure 19

9. Press the EQ BYPASS/SETUP Push-button to exit the Setup Mode.

Setup, con’t

SETUP: COMM PORT BAUD RATE: 115200

SETUP: REMOTE CODES: NORM

SETUP: REMOTE CODES: ALT

Comm Port Baud Rate

The C50 may be remotely controlled from other equipment connected to the Rear Panel RS232C connector. The speed at which the C50 communicates (8 bit, no parity and 1 stop bit) with other equipment is adjustable from 9,600 bits per second to 115,200 bits per second. To change from the default speed of 115,200 bits per second, perform the following steps:

1. Press and hold the EQ BYPASS/SETUP Pushbutton until the Setup Mode is active. Then press

the OUTPUT 2 / MENU ► Push-button until the

Setup Menu item “SETUP: COMM PORT BAUD RATE: 115200” appears on the Front Panel Information Display. Refer to figure 20.

Figure 20

2. Rotate the VOLUME/ADJUST Control to select the desired speed.

3. Press the EQ BYPASS/SETUP Push-button to

exit the Setup Mode.

Remote Control Codes

The Remote Control included with the C50 utilizes the NORMal McIntosh Control Codes. The Second Set of Control Codes the C50 will respond to is referred to as the ALTernate Codes. The ALTernate Codes are used when the C50 is used in the same location as another McIntosh Preamplifier and/or A/V Control Center. This will prevent the Remote Control from affecting the operation of both units at the same time. To activate the Remote Control ALTernate Codes perform the following steps:

1. Press and hold the EQ BYPASS/SETUP Pushbutton until the Setup Mode is active. Then press

the OUTPUT 2 / MENU ► Push-button until the

Setup Menu item “SETUP: REMOTE, CODES: NORM” appears on the Front Panel Information Display. Refer to figure 21.

Figure 21

2. Rotate the VOLUME/ADJUST Control until “CODES: ALT” appears on the Front Panel Information Display. Refer to figure 22.

C. Press the 3, 2, 4, 2 and 9 Push-buttons within 5

seconds.

D. The “Mc” Push-button flashes twice.

Note: To reset the Remote Control to normal

codes perform steps A and B then enter 3, 2, 4, 2 and 8 for step C.

5. Press the VOLUME UP/DOWN Push-button on the Remote Control to verify proper operation.

Figure 22

3. Press the EQ BYPASS/SETUP Push-button to exit the Setup Mode.

4. To change the C50 Remote Control to the Alternate Codes perform the following steps:

A. Press the “Mc” Push-button. B. Press the SET Push-button until the “Mc” Push-

button flashes twice.

How to Operate the C50

SOURCE: CD1 15%

SOURCE: SERVER 30%

Power On and Off

The Red LED above the STANDBY/ON Push-button lights to indicate the C50 is in Standby mode. To switch ON the C50, press the STANDBY/ON Push-

button on the Front Panel or the (Power On)

Push-button on the Remote Control. The C50 will go through a brief startup initialization with the Front Panel Information Display indicating the last used source and volume setting, this is followed by the volume setting indication starting at zero and then increasing to the last used volume setting. Refer to figures 50, 51, 52 and 53. To switch OFF the C50 press the STANDBY/ON Push-button on the Front Panel or the OFF Push-button on the Remote Control.

Note: For an explanation of the Remote Control

Push-button functions, refer to pages 10 and 11.

Figure 51

Figure 52

Source Selection

Rotate the INPUT Control to select the desired source or press the appropriate push-button on the Remote Control. Refer to figures 50 and 53.

Volume Control

Rotate the Front Panel VOLUME Control or use the VOLUME Upp or Downq Push-buttons on the Re- mote Control for the desired listening level. Refer to figures 50 and 53.

Trim Functions

The C50 has seven different Trim Selections with Adjustments. The Trim Selections include Balance, Trim Level, Meter Backlight, External Processor, Equalizer Mode, Mono/Stereo Mode and Digital Audio Display

Info. The Trim Settings are stored in memory independently for each Input Source Selected, the only exception being Meter Illumination setting of On or Off, which is the same for all inputs.

BALANCE Listening balance varies with different program sources, room acoustics and listening positions relative to the Loudspeakers. Use the Balance

(Trim Function) as needed to

achieve approximately equal listening volume levels in each Loudspeaker. To adjust the Balance perform the following:

1. Press the TRIM Pushbutton repeatedly on the Remote Control until “BALANCE 0 dB” appears on the Front Panel Information Display. Refer to figure 54.

Note: The Front Panel TRIM

Push-button together with the OUTPUT 1/

OUTPUT 2 / ◄ MENU

► Push-buttons may

also be used.

Figure 53

Figure 50

Figure 54

How to Operate the C50

¦ ¦ ¦ ¦ ¦

¦ ¦ ¦

¦ ¦ ¦ ¦ ¦

TRIM LEVEL: 0.0dB Min Max

TRIM LEVEL: -2.5dB Min Max

¦ ¦

METER BACKLIGHT Lights: On

METER BACKLIGHT Lights: Off

EXTERNAL PROCESSOR TUNER : Bypass

EXTERNAL PROCESSOR TUNER : Enable

2. Rotate the VOLUME/ADJUST Control or press the LEVEL + / - Push-buttons on the Remote Control

to emphasize the Right Channel (refer to figure 55) or the Left Channel (refer to figure 56).

Figure 55

Figure 56

The Front Panel Display indicates the Balance changes in steps from 0 to 50dB. After approximately 4 seconds the Information Display returns to indicate the Source Selection and Volume Level. To verify the Balance setting without changing it, use the TRIM Push-button and select Balance.

TRIM LEVEL The Trim Level adjustments allow for making fine adjustments to the previously performed Trim Level Adjustments (refer to the Setup Section of this Own-

er’s Manual on page 14 for additional information). To

make a fine adjustment to the currently selected Input Source perform the following:

1. Press the TRIM Push-button repeatedly until “TRIM LEVEL” appears on the Front Panel Information Display. Refer to figures 50, 53 and 57.

Figure 57

2. Rotate the VOLUME/ADJUST Control or press the LEVEL + / - Push-buttons on the Remote Control to adjust the Trim Level to -2.5dB. Refer to figure 58.

Figure 58

After approximately 4 seconds the Information Display returns to indicate the Source Selection and Volume Level.

METER ILLUMINATION The C50 Front Panel Meter Illumination may be switched On or Off by performing the following:

1. Press the TRIM Push-button repeatedly until “METER BACKLIGHT, Lights: On” appears on the Front Panel Information Display. Refer to figures 50, 53 and 59.

Figure 59

2. Rotate the VOLUME/ADJUST Control or press the LEVEL + / - Push-buttons on the Remote Control to switch On or Off the Meter Illumination. Refer to figure 60.

Figure 60

After approximately 4 seconds the Information Display returns to indicate the Source Selection and Volume Level.

Notes: 1. For information on how the Front Panel

Information Display Brightness can change with the Meter Illumination On/Off Setting, refer to page 15 Setup “Display Brightness”.

2. Meter Illumination of recent McIntosh Power Amplifiers will also switch On/Off when con-

nected to the C50 via a power control cable.

EXTERNAL PROCESSOR The C50 Preamplifier has a Processor Loop for connecting an external sound processor. The Processor may be assigned to be active for only those Inputs desired. To activate the Processor Loop and assign it to Inputs, perform the following steps:

Notes: 1. If the Processor is set active for a given Input

and no external Processor is connected to the C50, no sound will be heard when selected.

2. The audio signal present at the RECORD OUT Jacks is unaffected by the external processor loop.

1. Press the TRIM Push-button repeatedly until “EXTERNAL PROCESSOR, ____ __: Bypass” appears on the Front Panel Information Display. Refer to figure 61.

Figure 61

2. Rotate the VOLUME/ADJUST Control or press the LEVEL + / - Push-buttons to activate the external Processor Loop. Refer to figure 62.

Figure 62

After approximately 4 seconds the Information Display returns to indicate the Source Selection and Volume Level.

EQUALIZER MODE The built-in eight band Frequency Equalizer provides more precise adjustment of sound than Bass and Treble Controls. By default the Equalizer is active for all Input Sources however, any Input Source may be

EQUALIZER MODE TUNER : Enable

EQUALIZER MODE TUNER : Bypass

MONO / STEREO MODE TUNER : Stereo

MONO / STEREO MODE TUNER : Mono

DIGITAL AUDIO Display Info : Off

How to Operate the C50, con’t

assigned to bypass the Equalizer. To bypass the Equalizer for a given Input Source, perform the following steps:

Note: The audio signal present at the RECORD OUT

Jacks is unaffected by the Equalizer settings.

1. Select the Input Source to switch off the Equalizer Mode.

2. Press the TRIM Push-button repeatedly until “EQUALIZER MODE, ______: Enable” appears on the Front Panel Information Display. Refer to figure 63.

Figure 63

3. Rotate the VOLUME/ADJUST Control or press the LEVEL + / - Push-buttons to Bypass the Equalizer Mode. Refer to figure 64.

Figure 64

After approximately 4 seconds the Information Display returns to indicate the Source Selection and Volume Level.

MONO/STEREO MODE By default the Stereo Mode is active for all Input Sources however, any Input Source may be assigned to Mono Mode. To change Stereo Mode to Mono for a given Input Source, perform the following steps:

Note: The audio signal present at the RECORD OUT

Jacks is unaffected by the Stereo/Mono setting.

1. Select the Input Source to switch from Stereo Mode to Mono.

2. Press the TRIM Push-button repeatedly until “MONO/STEREO MODE, ____ __: Stereo”

appears on the Front Panel Information Display. Refer to figure 65.

Figure 65

3. Rotate the VOLUME/ADJUST Control or press the LEVEL + / - Push-buttons to Bypass the Equalizer Mode. Refer to figure 66.

Figure 66

After approximately 4 seconds the Information Display returns to indicate the Source Selection and Volume Level.

DIGITAL AUDIO DISPLAY By default the Digital Audio Display is switched Off. To display information about the type of digital signal present when any one of the five digital inputs is selected, perform the following steps:

1. Select one of the Inputs assigned to an active digital source.

Note: The USB-D/A Input may also be selected when

the C50 is connected to a computer.

2. Press the TRIM Push-button repeatedly until “DIGITAL AUDIO, Display Info: Off” appears on the Front Panel Information Display. Refer to figure 67.

Figure 67

3. Rotate the VOLUME/ADJUST Control or press the LEVEL + / - Push-buttons to switch On the

Figure 50

How to Operate the C50, con’t

DIGITAL AUDIO Display Info : On

SOURCE: CD1 MUTE

Display Info. Refer to figure 68.

Figure 68

After approximately 4 seconds the Information Display will return to indicate the Source Selection, Volume Level and the Digital Information. Refer to figure 69.

Figure 69

Processor Loop

Press the Front Panel PROCESSOR Push-button to activate the C50 Processor Loop for the currently selected Input Source. The LED above the PROCESSOR Push-button will illuminate. Refer to figure 50. The C50 remembers for each selected Input whether the Processor Loop is active. To remove the Processor Loop for the currently selected Input Source press the PROCESSOR Push-button.

Notes: 1. If the Processor Loop is active and no exter-

nal Processor is connected to the C50, sound will not be heard.

2. The audio signal present at the RECORD OUT Jacks is unaffected by the external processor loop.

lected Input whether the Equalizer Circuitry is deactivated. To reactivate the Equalizer for the currently selected Input Source press the EQ BYPASS Pushbutton.

Note. The audio signal present at the RECORD OUT

Jacks is unaffected by the Equalizer Circuitry.

Trim

Press the Front Panel TRIM Push-button to activate the C50 Trim Functions. Use the Front Panel OUT-

PUT 1/ OUTPUT 2 / ◄ MENU ► Push-buttons to

select the desired Trim Function and then use the VOLUME/ADJUST Control to vary or make changes. Refer to figure 50. The Remote Control TRIM and LEVEL +/- Push-buttons may also be used. The LED above the TRIM Push-button will illuminate during Trim selection and adjustment. Approximately four seconds after Trim Function Selection and/or adjustments have stopped the C50 will switch off the Trim Mode.

Mute

Press the MUTE Push-button, on the C50 Front Panel or on the Remote Control, to Mute the Audio in all

outputs (Main, Output 1, Output 2 and Headphones)

except the REC OUTPUT. The Front Panel Information Display will indicate the Source Name and the word MUTE in place of the actual volume setting.

Output 1 and 2

Press the Front Panel OUTPUT 1 / OUTPUT 2 Push-button or use the Remote Control and press the SETUP/BLUE Push-button followed by the OUTPUT 1 / OUTPUT 2 Push-button to send audio to separate Power Amplifiers connected to the rear panel OUTPUT 1 or 2 Jacks. It also activates the POWER CONTROL OUTPUT 1 / OUTPUT 2 Jacks on the rear panel of the C50. To stop the Audio and Power Control Signals from going to the separate Power Amplifiers,

press the same Push-button(s) a second time.

Output Meters

The C50’s Output Meters indicate the Output Level in Decibels (dB) available at the MAIN and OUTPUT 1 & 2 Jacks to drive Power Amplifiers. Refer to

figure 71. The Meters are calibrated in dB (decibels)

and respond to all the peaks contained in the musical information. A meter reading of 0dB indicates the C50 is delivering its rated output.

Figure 71

Equalizer Bypass

Press the Front Panel EQ BYPASS Push-button to remove the C50 Equalizer Circuitry from the signal path for the currently selected Input Source. The LED above the EQ BYPASS Push-button will illuminate. Refer to figure 50. The C50 remembers for each se-

Figure 70

Refer to figure 70.

Pressing the Mute Push-button a second time or

adjusting the volume control (either the Front Panel or

Remote Control) will un-mute the C50.

Headphones Jack

Connect a pair of dynamic headphones to the Head-

phones Jack with a 1/4” (0.635cm) stereo phone type

plug for private listening. Press OUTPUT 1 and/or 2 Push-buttons to mute the Loudspeakers.

Note: The Headphone Output is optimized for imped-

ances ranging from 100 to 600 ohms.

How to Operate the C50, con’t

SOPRANO

CONTRALTO

TENOR

BARITONE

BASS

PICCOLO

FLUTE

OBOE

ENGLISH HORN

B CLARINET

BASS CLARINET

ALTO SAXOPHONE IN B

BASSOON

CONTRABASSOON

B TRUMPET

FRENCH HORN IN F

TENOR TROMBONE

BASS TROMBONE IN F

TUBA

MEDIUM

SMALL

LARGE

HARP

GUITAR

VIOLIN

VIOLA

CELLO

BASS

PIANO

STRINGS

KETTLE DRUMS

BRASS

WOODWINDS

SINGING VOICE

50Hz

200Hz

1kHz

10kHz

25Hz

100Hz

400Hz

2.5kHz

How To Make a Recording

1. Select the desired signal source you wish to record by using the Front Panel INPUT Control or the appropriate Source Push-button on the Remote Control.

2. Adjust the record level using the recorder level control and proceed with the recording process.

3. Listen to the playback of the program source just recorded by selecting the Input Source connected to the recorder component output.

Equalizer Controls

The C50 Equalizer has eight Frequency Controls which will raise or lower by 12dB, the amplitude of the band of frequencies centered at the frequency marked above the controls. The center frequencies of these controls are at 25Hz, 50Hz, 100Hz, 200Hz, 400Hz, 1,000Hz, 2,500Hz and 10,000Hz. Both Left and Right Channels are affected. At the center detent or flat position of the controls, the tone circuit components are removed from the signal path.

The illustration to the right shows the fundamental frequency range of acoustical musical instruments and the human voice. It also shows the range of adjustment of frequencies for each of the Equalizer Controls of the C50 at the +6dB and -6dB points.

Passthru

When the C50 is connected together with a McIntosh Multichannel A/V Control Center or Surround Decoder and has the PASSTHRU MODE activated, it will automatically turn-on when the A/V Control Center or Surround Decoder is turned On. It will indicate on the Front Panel Alphanumeric Display “PASSTHRU”. Refer to figure 74.

Fundamental Frequencies of Acoustical Musical Instruments and the Human Voice

FACTORY RESET

How to Operate the C50, con’t

FACTORY RESET

-COMPLETE-

SOURCE: USB-D/A 15% 16/44.1k

Figure 74

The C50 OUTPUT 1 / OUTPUT 2 Front Panel Pushbuttons are active when in the Passthru Mode. The other of the Front Panel Controls and Push-buttons are deactivated as long as the Passthru Mode is active

Optical and Digital Inputs

When a Digital Input (Optical or Coxial Connection)

on the C50 is selected the Front Panel Information Display will indicate when a signal is present “2CH PCM”. Refer to figure 72. During the time there is no

Figure 72

Digital Signal present the display will indicate “SILENT”. Refer to figure 73.

Figure 73

USB Input Operation with a Computer

The C50 USB-D/A Input provides the capability to playback music from a computer, when the computer is connected to the rear panel USB D/A connector. The C50 USB Input is compatible with both PC Computers using Microsoft® Windows® (XP with Service Pack

3, Vista with Service Pack 1 and Windows 7) and the

Apple® Macintosh® Computers using OS-X with the latest update. McIntosh has verified proper playback operation using Windows Media Player version 11 and iTunes version 10.

When a disc in the computer is playing back,

the PLAY, PAUSE , NEXT TRACK: , BACK TRACK 9 and Stop < Push-buttons on the McIntosh HR072 will control playback of the disc.

Note: When computer application programs and vari-

ous computer hardware components conform to the Microsoft® Windows® and Apple® Macintosh®

standards they should also work well when used in conjunction with the C50 USB Input. If you are experiencing difficulty with a specific computer hardware component or computer application program, contact the manufacturer of the product.

The C50 Preamplifier Front Panel Information Display will indicate the Bit and Sampling Rate of the incoming digital signal. Refer to figure 75.

Figure 75

Reset of Microprocessors

In the unlikely event the controls of the C50 stop functioning, the microprocessors can be reset by performing the following:

1. Press and hold the STANDBY/ON Push-button for approximately ten seconds and then release.

2. To switch the C50 back on press the cycles On STANDBY/ON Push-button

Note: This can be performed with the C50 On or in the

Standby Mode.

Resetting the C50 to default settings

If it becomes desirable to reset all the adjustable set-

tings (Setup and Trim Settings) to the factory default

values, perform the following:

1. Press both the PROCESSOR and OUTPUT 2 Push-buttons until the Front Panel Display indi-

cates “FACTORY RESET” (refer to figure 76),

Figure 76

then release the two push-buttons. Several seconds later the Front Panel Display will indicate “FACTORY RESET, -COMPLETE-” and the C50 will switch Off. Refer to figure 77.

Figure 77

2. Press the STANDBY/ON Push-button and the C50 will resume operation.

Photos

Specifications

20 50 100 200 500 1k 2k 5k 10k 20k

FREQUENCY IN HERTZ

- 5

P L

I T U D E

I N

D E C

I B E L S

-10

-15

+ 5

+10

+15

Specifications

Frequency Response

+0, -0.5dB from 20Hz to 20,000Hz +0, -3dB from 15Hz to 100,000Hz

Total Harmonic Distortion

0.002% from 20Hz to 20,000Hz

Rated Output (Main)

2.5V Unbalanced, 5V Balanced

Maximum Voltage Output

8V RMS Unbalanced, 16V RMS Balanced

Sensitivity (for rated output)

High Level, 450mV unbalanced, 900mV balanced Phono MM, 4.5mV Phono MC, 0.45mV

Signal To Noise Ratio (A-Weighted)

High Level, 100dB Phono, 88dB

Equalizer Controls

Input Impedance

High Level, 22K ohms unbalanced, 44k ohms balanced Phono MM, 47K ohms; 50 to 750pF, in 50pF steps Phono MC, 25, 50, 100, 200, 500 or 1,000 ohms; 100pF

Maximum Input Signal

High Level, 5V Unbalanced, 10V Balanced Phono MM, 50mV Phono MC, 5mV

Voltage Gain

High Level to Record Output: 0dB High Level to Main Output: 15dB Phono MM to Record Output: 40dB Phono MC to Record Output: 60dB

Output Impedance

220 ohms

Headphone Load Impedance

100 ohms to 600 ohms

Power Requirements

Field AC Voltage conversion of the C50 is not possible. The C50 is factory configured for one of the following AC Voltages:

100 Volts, 50/60Hz at 30 watts 110 Volts, 50/60Hz at 30 watts 120 Volts, 50/60Hz at 30 watts 220 Volts, 50/60Hz at 30 watts 230 Volts, 50/60Hz at 30 watts 240 Volts, 50/60Hz at 30 watts Standby Power, less than 0.5 watts

Note: Refer to the rear panel of the C50 for the correct

voltage.

Overall Dimensions

Width is 17-1/2 inches (44.45cm) Height is 7-5/8 inches (19.37cm) including feet Depth is 18 inches (45.72cm) including the Front

Panel, Knobs and Cables

Weig ht

28.5 pounds (12.9 kg) net, 44 pounds (20.0 kg) in shipping carton

Digital Input Sample Rates

Optical: 16Bit, 24Bit - 32kHz to 96kHz Coaxial: 16Bit, 24Bit - 32kHz to 96kHz USB: 16Bit, 24Bit - 32kHz to 192kHz 24Bit, 32Bit - 32kHz to 96kHz

Power Control and Trigger Output

12VDC, 25mA

Shipping Carton Dimensions

Width is 27 inches (68.6cm) Height is 14 inches (35.6cm) Depth is 25 inches (63.5cm)

Packing Instructions

( )

Packing Instructions

In the event it is necessary to repack the equipment for shipment, the equipment must be packed exactly as shown below. It is very important that the four plastic feet are attached to the bottom of the equipment. This will ensure the proper equipment location on the bottom pad. Failure to do this will result in shipping damage. Use the original shipping carton and interior parts only if they are all in good serviceable condition. If

a shipping carton or any of the interior part(s) are

needed, please call or write Customer Service Department of McIntosh Laboratory. Refer to page 3. Please see the Part List for the correct part numbers.

Quantity Part Number Description 1 033888 Shipping carton only 4 033887 End cap

1 033697 Inside carton only

1 034414 Top pad (foam)

1 034301 Bottom pad

4 017937 Plastic foot 4 400159 #10-32 x 3/4” screw 4 404080 #10-7/16” Flat washer

McIntosh Laboratory, Inc.

2 Chambers Street Binghamton, NY 13903 www.mcintoshlabs.com

The continuous improvement of its products is the policy of McIntosh Laboratory Incorporated who reserve the right to improve design without notice. Printed in the U.S.A.

McIntosh Part No. 04122700

McIntosh C50 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
