Notebook Belinea o.book 5.1
User's Manual
o5.1UK1.1
2
3Belinea o.book 5.1
Contents
Note 5
Information on the return of electrical and electronic waste in EU countries.................... 8
Important Safety Information 9
Wireless LAN ...................................................................................................................11
Additional safety notes for units with wireless LAN ....................................................... 12
CE-labeling for devices with wireless LAN and Bluetooth .......................................... 13
Restrictions ..................................................................................................................... 14
France ......................................................................................................................... 14
Italy ............................................................................................................................. 14
Netherlands ................................................................................................................ 14
Radio frequencies for units with wireless LAN ............................................................... 15
Legal requirements - exception clauses .......................................................................... 16
Shipping Contents 17
Preparation 1
9

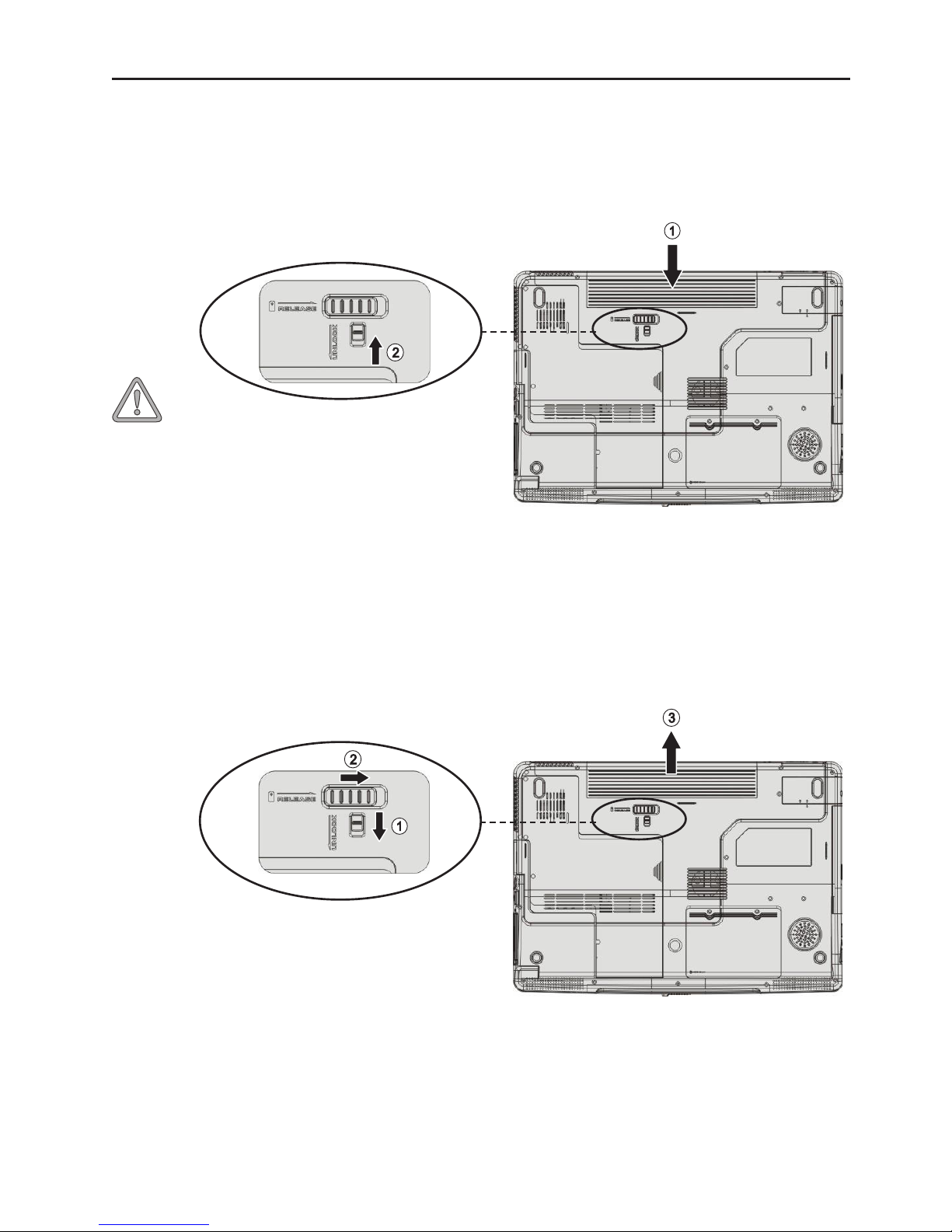

Inserting the Battery ........................................................................................................ 20
Removing the Battery ...................................................................................................... 20

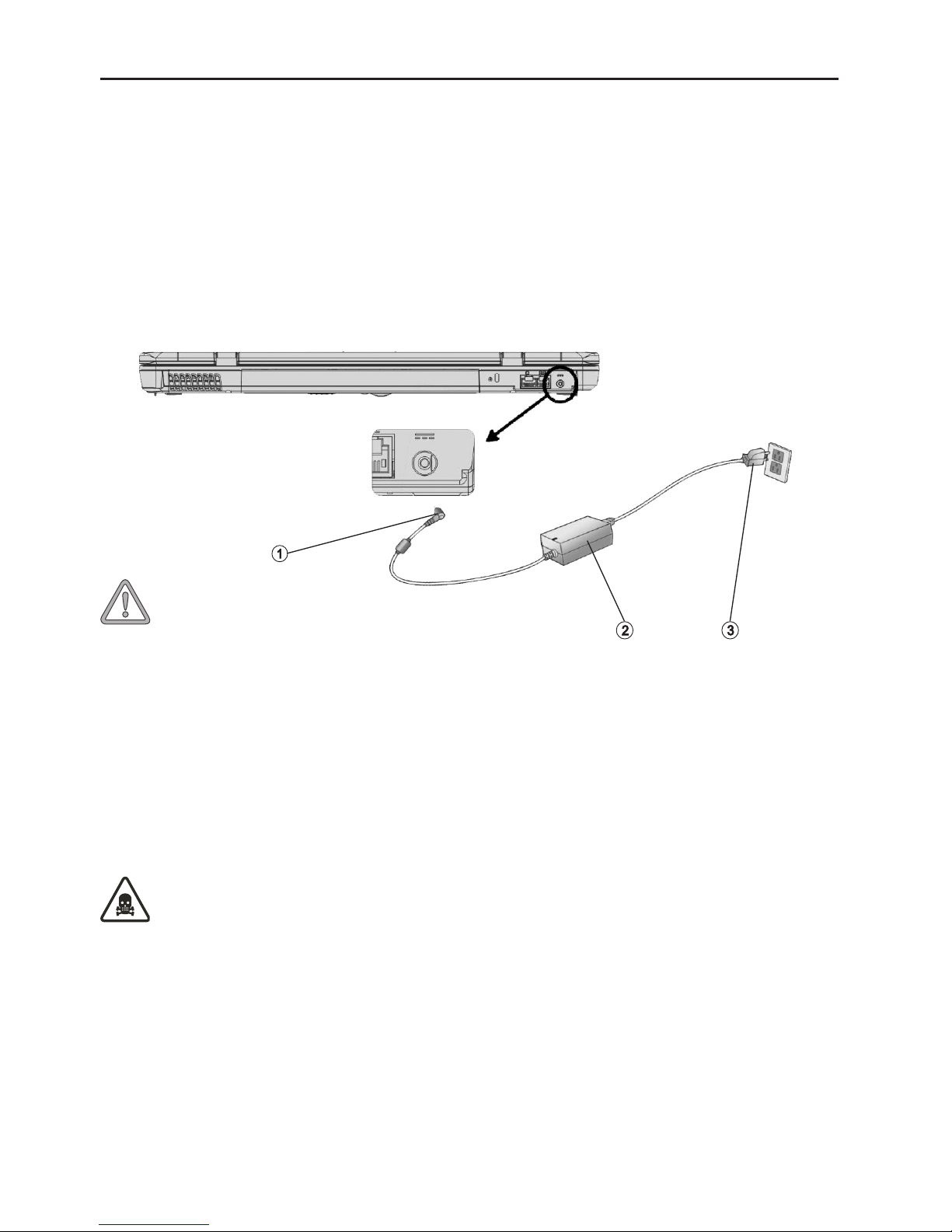

Power Supply ................................................................................................................... 21

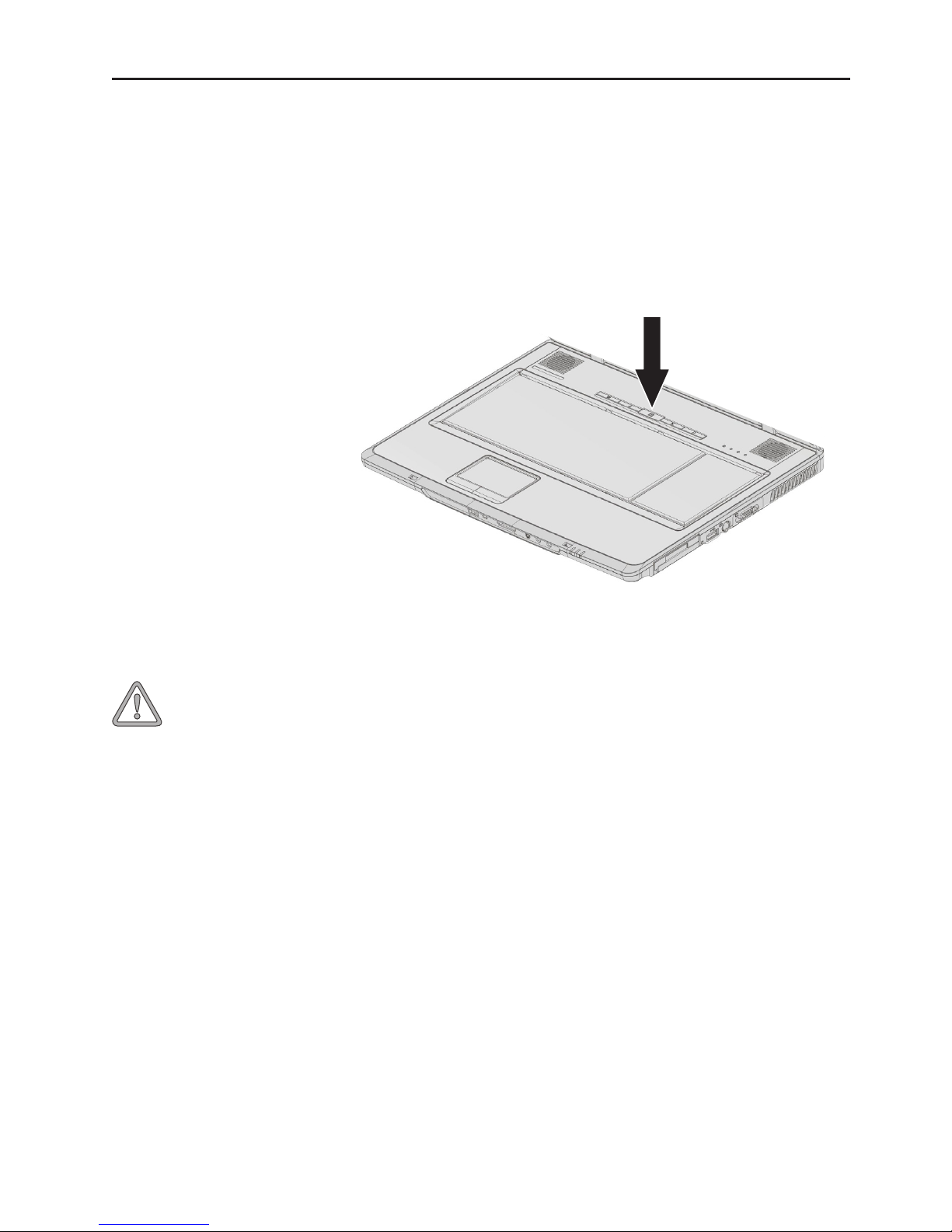

Switching the Notebook On ............................................................................................ 22
Power Management ........................................................................................................ 23
System Overview 25

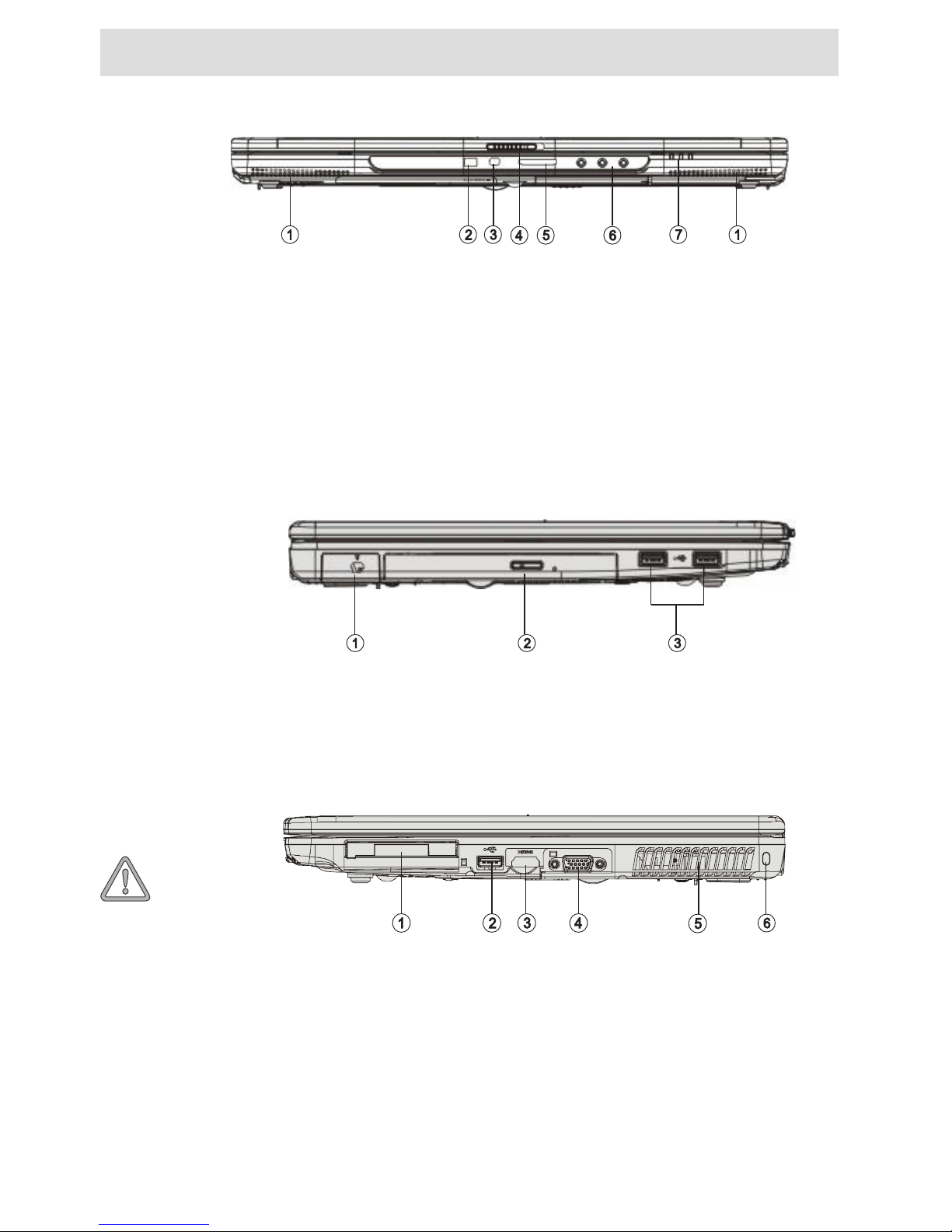

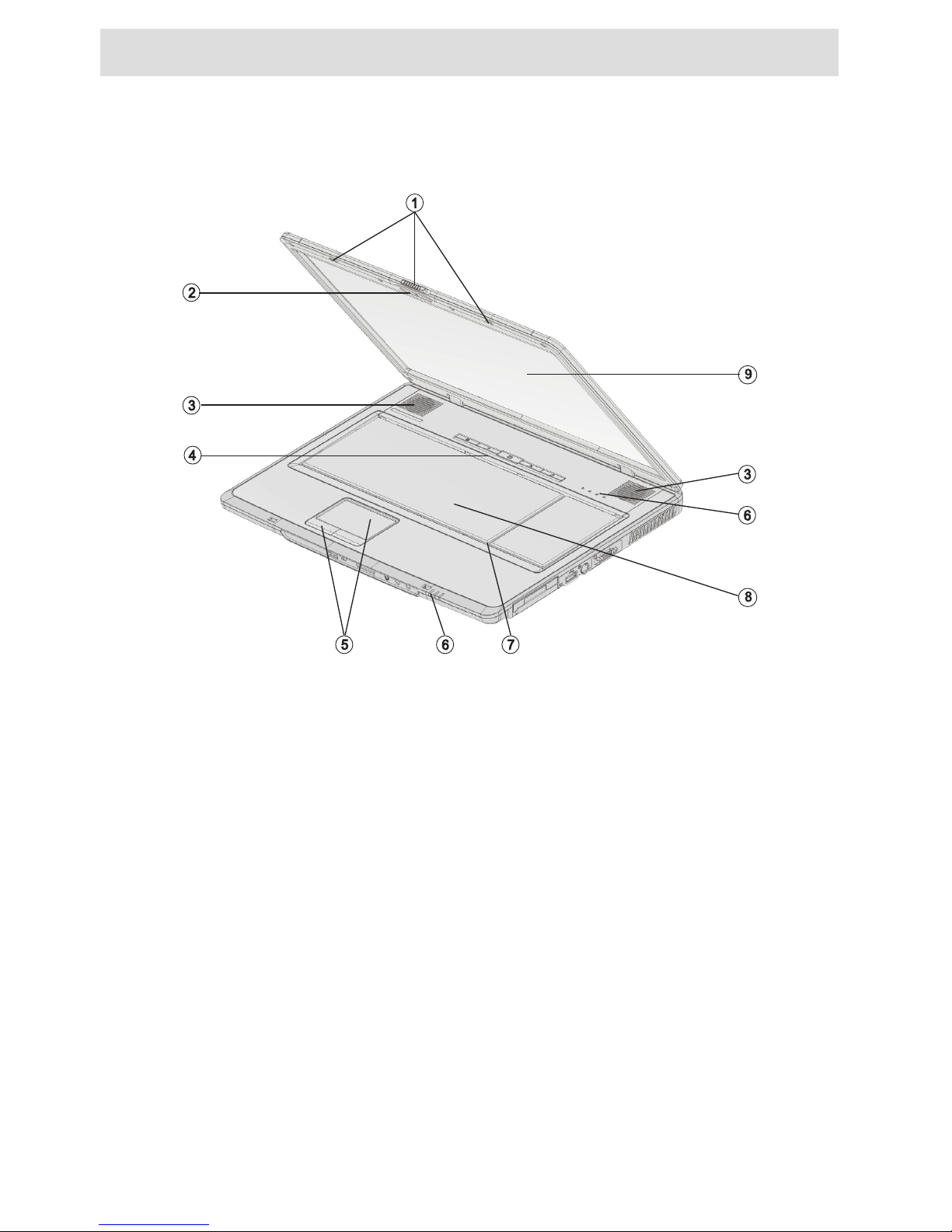

Front View ........................................................................................................................ 25
Left Side .......................................................................................................................... 25
Right Side ........................................................................................................................ 25

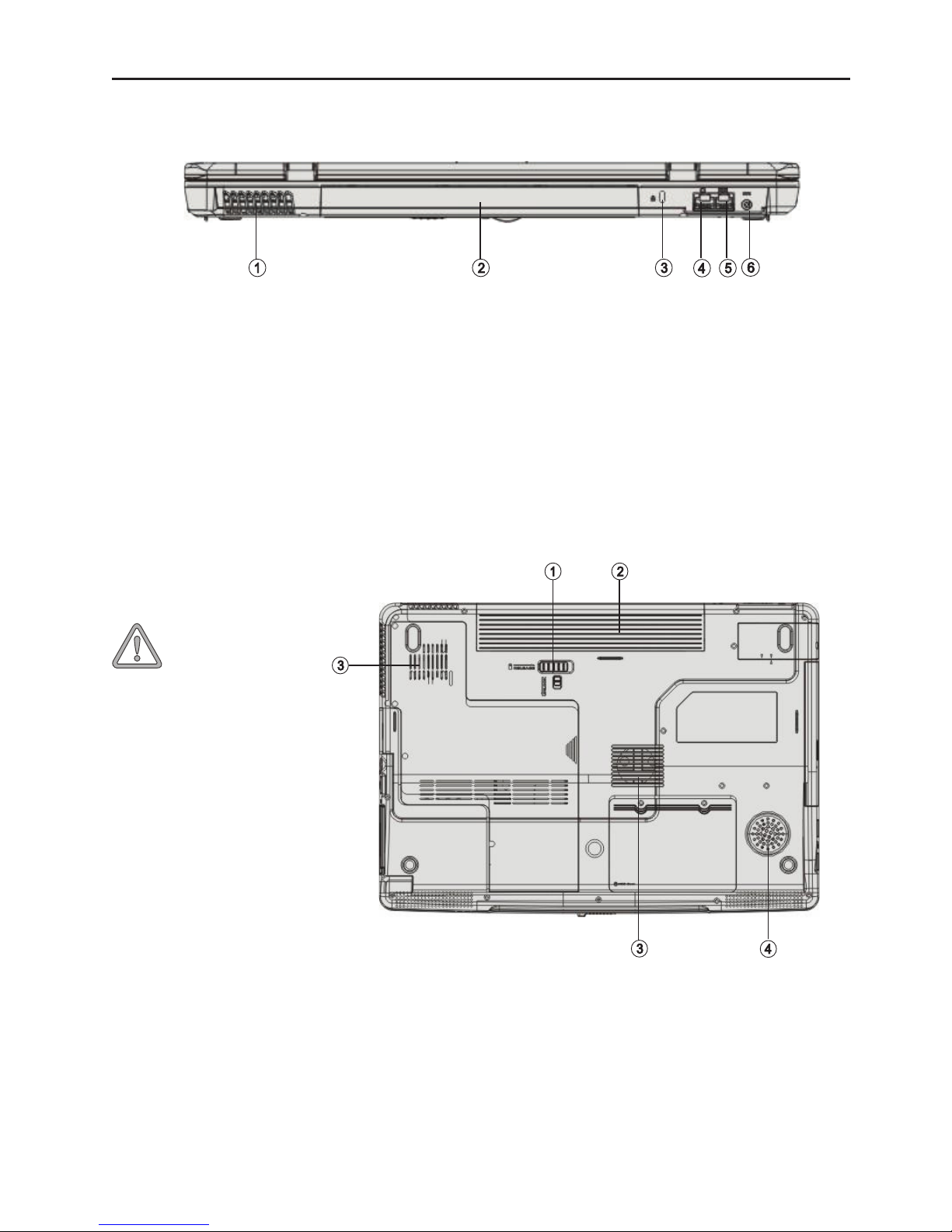

Rear View ........................................................................................................................ 26
Underside ........................................................................................................................ 26

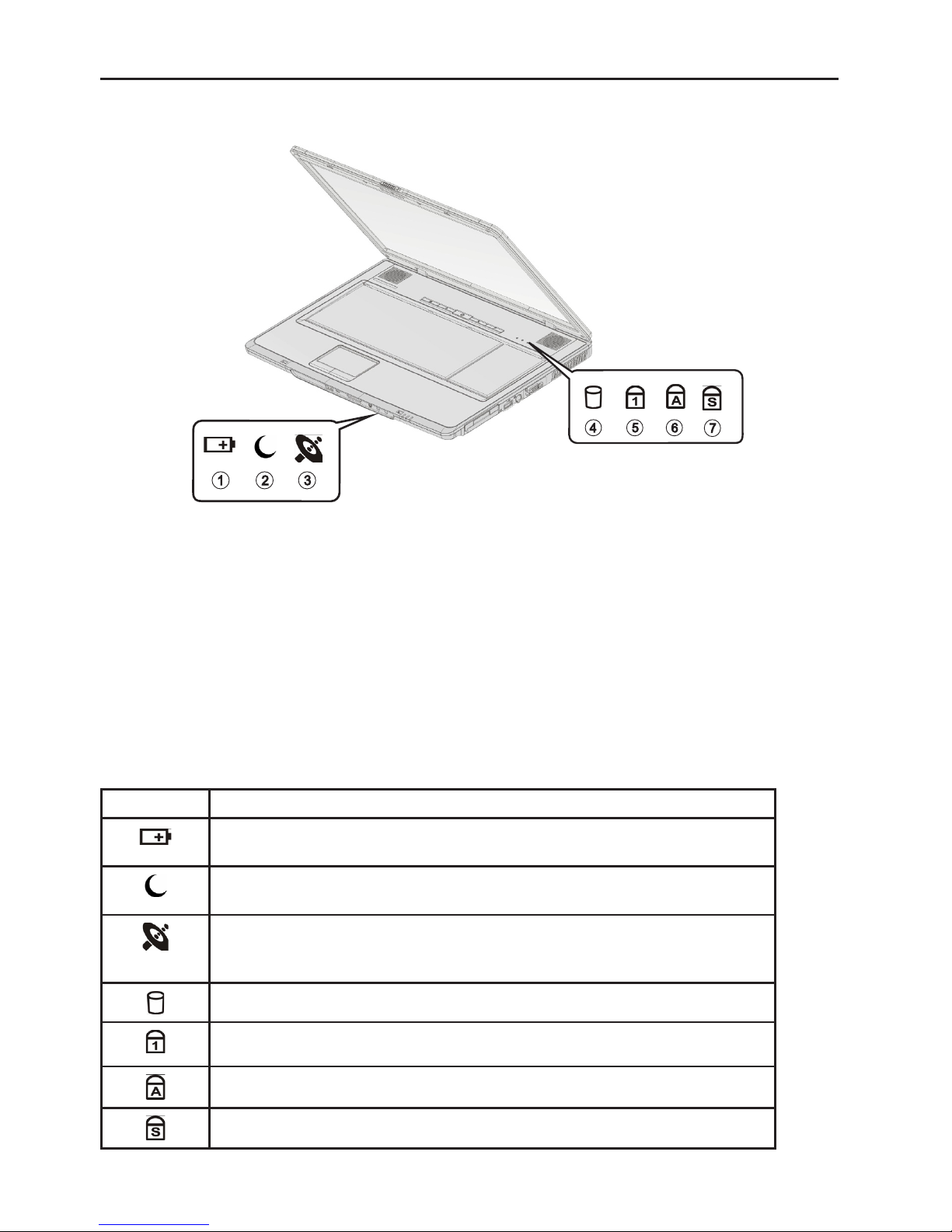

Explanation of LED Displays ............................................................................................ 27
Hot Keys .......................................................................................................................... 28

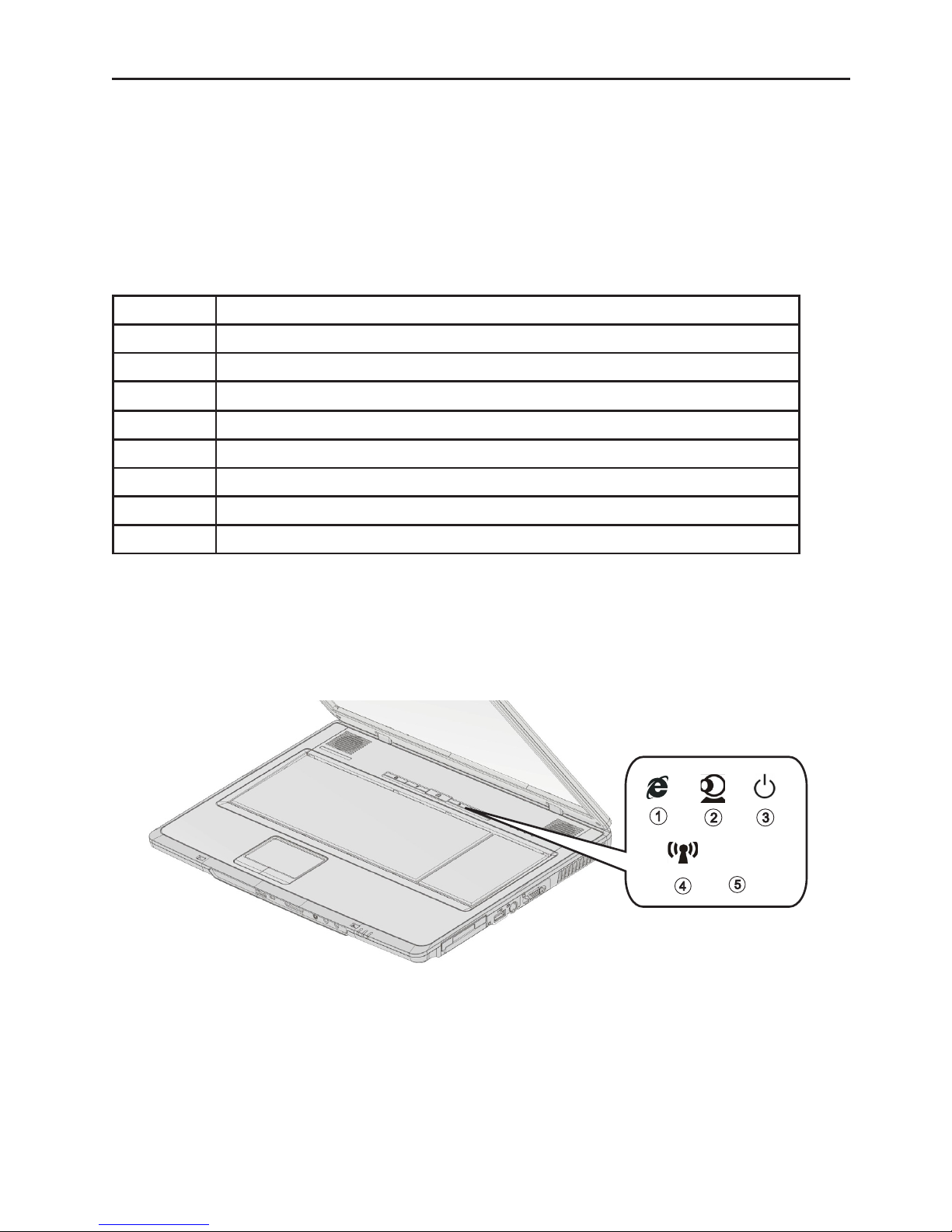

The Quick Launch Buttons ............................................................................................... 28

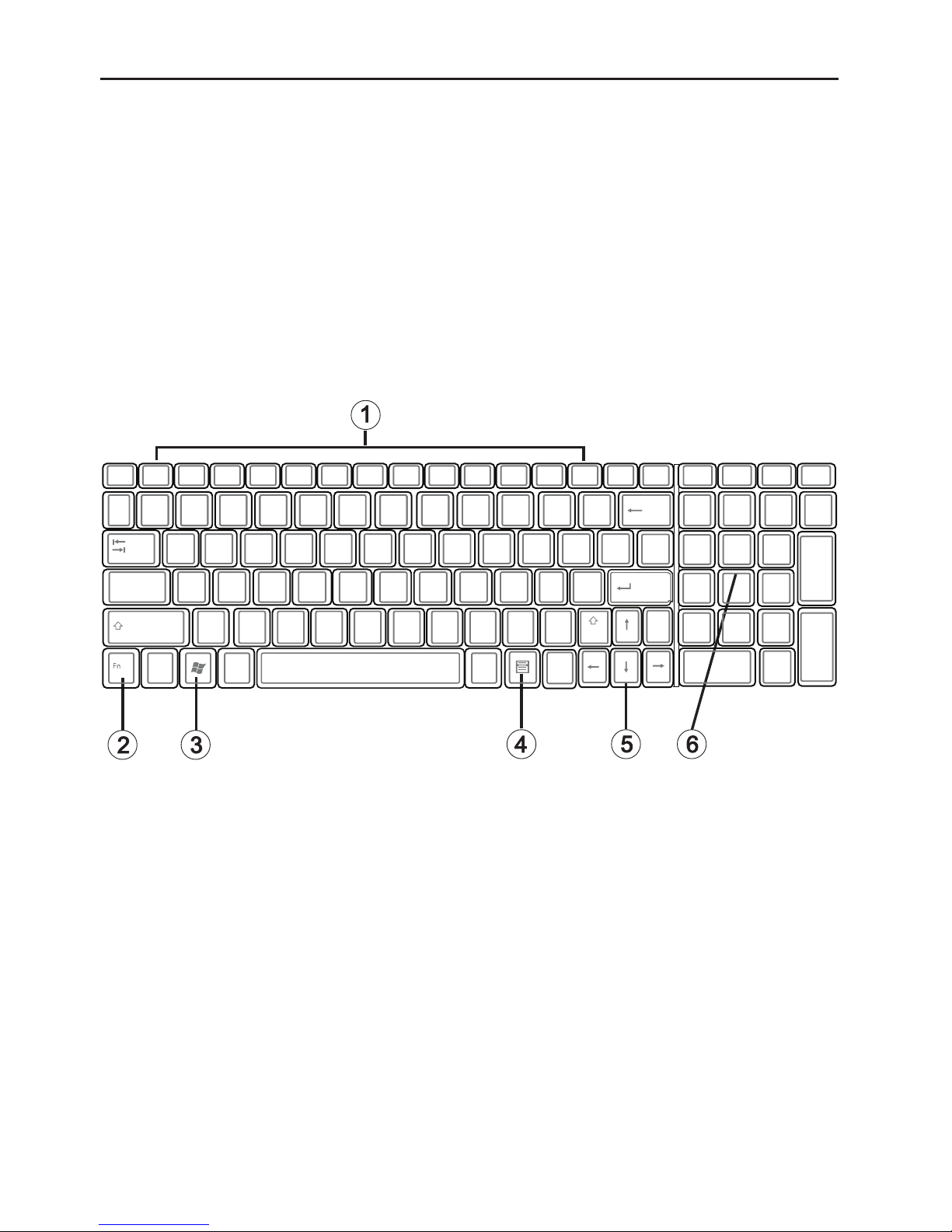

The Keyboard ................................................................................................................... 29

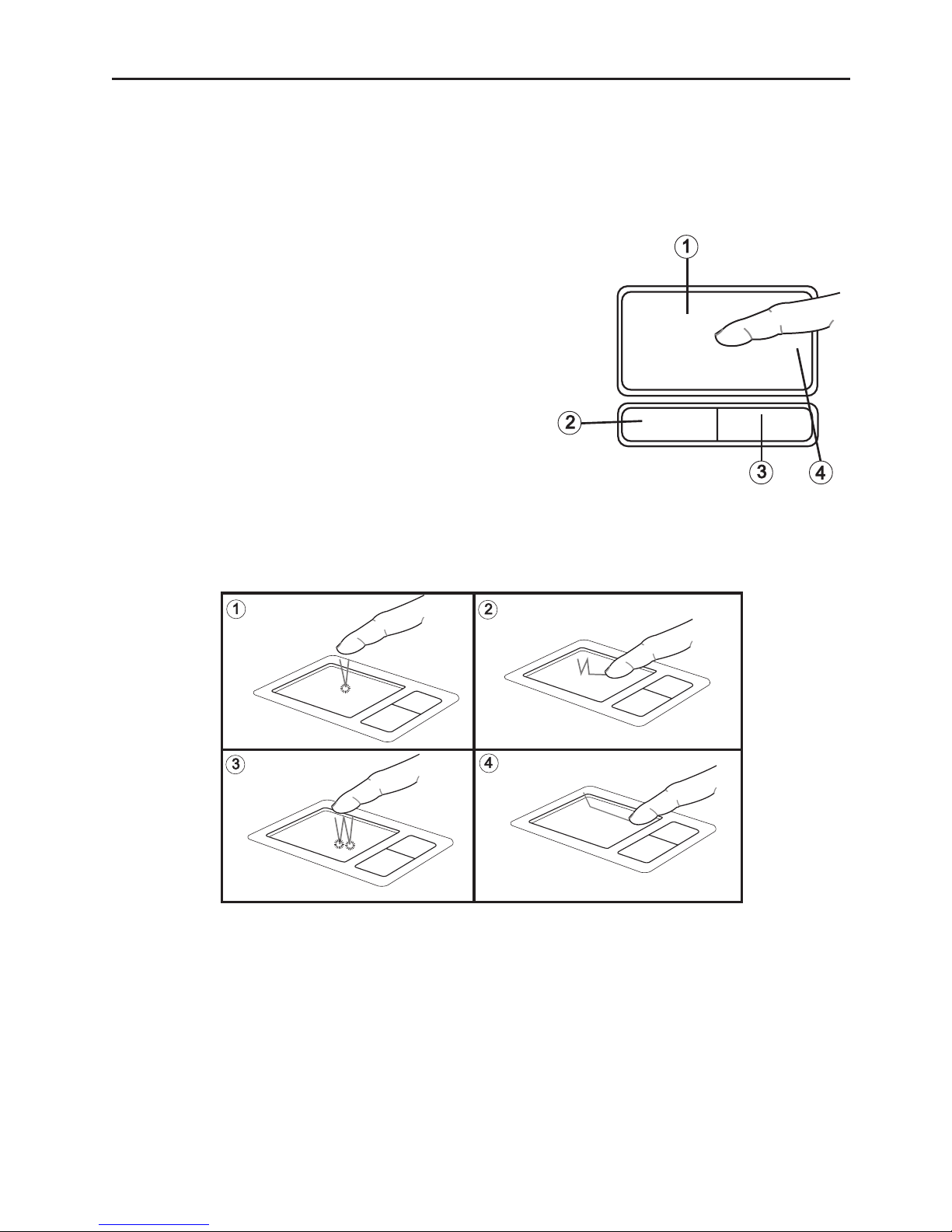

The TouchPad ................................................................................................................... 30
The TouchPad - Operation ................................................................................................ 30

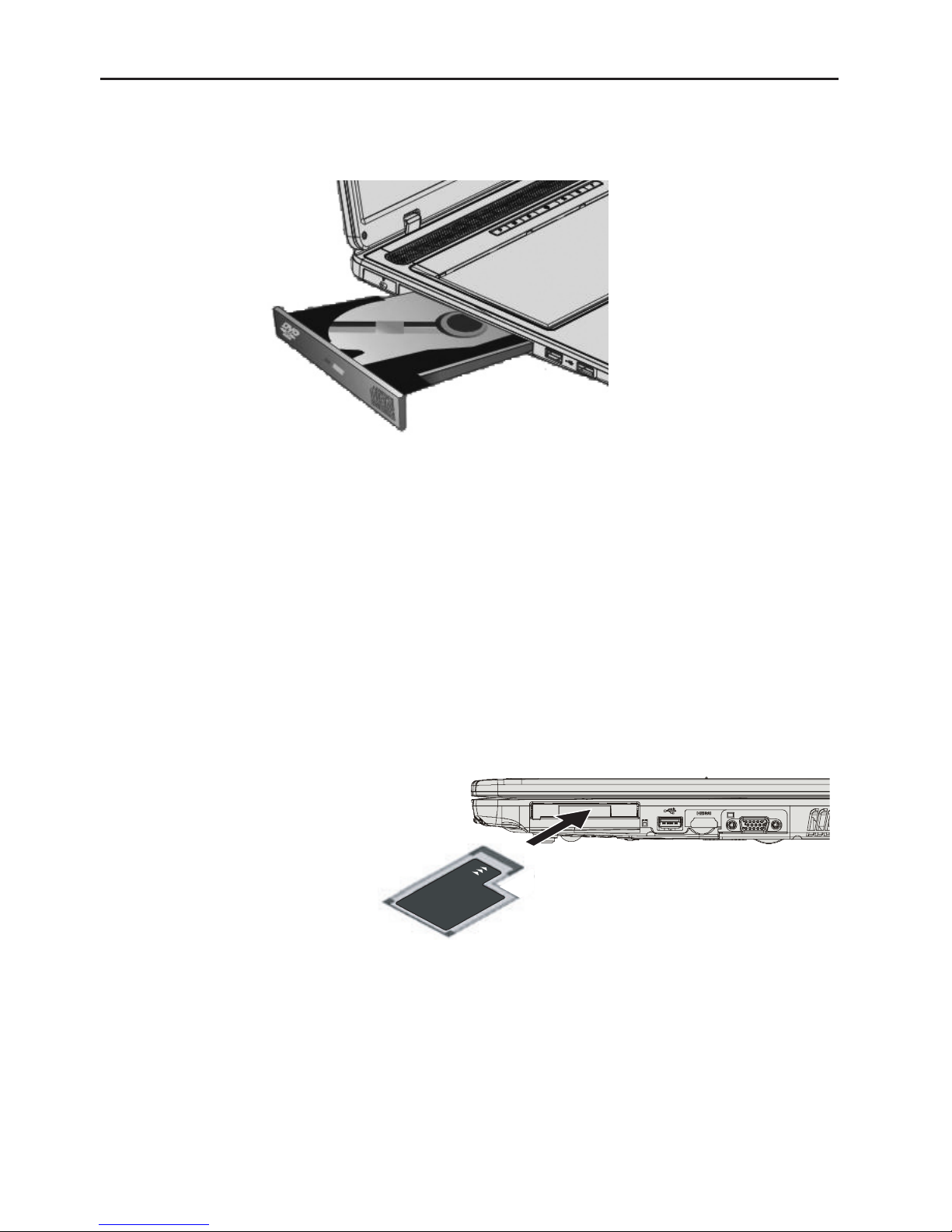

The Optical Drive ............................................................................................................. 31
The ExpressCard Slot ...................................................................................................... 31

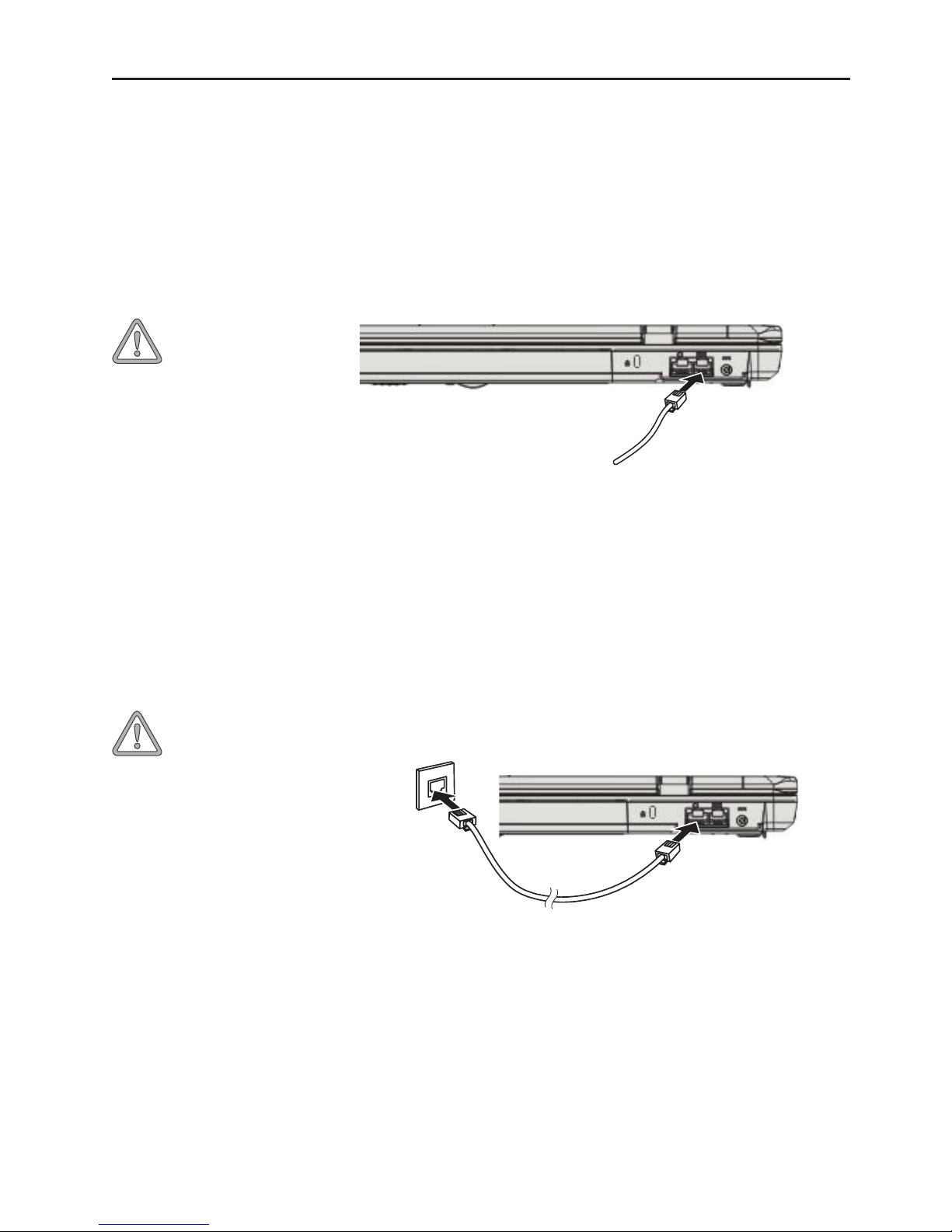

The Data/Fax Modem ...................................................................................................... 32
The LAN Port ................................................................................................................... 32
4
Installation Instructions 33
Restoring the Drivers ....................................................................................................... 33
The Utility CD .................................................................................................................. 33
Setting the Resolution ..................................................................................................... 33
Specifications 35
Fault Diagnosis and Troubleshooting 3
9
Index 4
1
Contents
5Belinea o.book 5.1
Note
The company reserves the right to make unadvertised modifications to this document.
Information contained in this document is intended solely for reference purposes and in no
way constitutes a basis for asserting obligations on the part of the manufacturer or vendor.
Neither the manufacturer nor the vendor accept liability for any errors or inaccuracies that
this document may contain. Nor is liability accepted for damages or losses that arise from
the incorrect application of this guide. No part of this document and the accompanying
software may be copied, translated, or distributed without the prior permission of the dealer,
manufacturer, or authors. Archive copies for private use are excepted from this rule. Brand
or product names mentioned in this document may be names protected by copyright law or
registered trademarks of other companies. These are mentioned only for identification purposes and have no recommendatory character in regard to the product or manufacturer.
© MAXDATA 2008
Legal Information
Acrobat and the Acrobat Logo are trademarks of Adobe Systems Incorporated or its subsidiaries. In certain jurisdictions these trademarks may be registered.
Intel®, Pentium® and Celeron® are registered trademarks of Intel Corporation. MS-DOS®,
Microsoft® Windows®, Microsoft® Windows® 95, Microsoft® Windows® 98, Microsoft®
Windows® Me, Microsoft® Windows® 2000, Microsoft® Windows® XP, and Microsoft®
Windows® NT are registered trademarks of Microsoft.
Application and References
This user’s manual offers an introduction and is intended to provide instructions for your first
steps with your new notebook.All references refer to the accompanying Utility CD, which
contains the drivers and special utilities for your notebook. If you wish to use an operating
system that is not mentioned in these documents, consult the ReadMe files on the CDROM for the relevant information. Please also consult your dealer to make sure that it is
possible to run your chosen operating system on your notebook. The operating system is
not provided on the Utility CD.
Note: Some or all system configurations may have been made already.
6
Declaration:
This device meets the EN 55022 product standard for interference emissions, the EN 50082-1
basic standard for interference, and the EN 60950 low voltage directive standard.
If any modification that has not been agreed upon with the manufacturer is made to the
device, adherence to these standards can no longer be guaranteed.
To ensure electromagnetic compatibility (EMC), please observe the information given in
the handbook.
Sound Power Level
The workplace-based sound power level is less than 55 dB A.
Federal Communications Commission (FCC) Note
This device has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules.
Warranty
The standard warranty period for the device is 12 months.* Further information can be found
in the system sheet and extended warranty certificates. In the case of damage occurring
outside the scope of the warranty, it is the intention to offer repair of the devices through
original replacement parts or exchange of modules or devices with cost for at least 5 years
(from end of production).
* The standard guarantee for “Select” models may differ from the standard service.
Operator Note:
This device has been carefully RF suppressed and tested to avoid radio interference. However, please pay attention to the following concerning external data cables:
If it becomes necessary to replace a data cable specified by the manufacturer, the operator
must ensure that replacement cables also match the original cable in terms of screening
quality for correct radio interference suppression.
Use only screened cables and external devices that are identical with this product in terms
of safety level and EMC behavior.
In the event of non-observance, compliance with the standards mentioned above is no
longer guaranteed!
Optical Disk Drive (ODD):
Built-in ODDs are Class 1 laser products. Do not open the device and do not look into the
beam, even using optical instruments.
Unless the drive is expressly designated for the simultaneous use of more than one CD,
never insert more than one CD into the drive.
Note
7
Belinea o.book 5.1
Returning the Device/Battery
We accept the return of all our products after they have been used if the
condition corresponds to standard proper usage. Returned devices are either slated for further use or dismantled and recycled in an environmentally
sound manner. The return is handled through your dealer.
Rechargeable and disposable batteries containing heavy metals should not be thrown in
with household waste. They are accepted free of charge by manufacturers, dealers or their
representatives for recycling or disposal.
The outside packaging and all inner parts of the box can be disposed of as waste paper.
8
Information on the return of electrical and electronic waste
in EU countries according to Directive 2002/96/EC, and its implementation in respective national regulations
a) Reason and Purpose of Separate Collection
Users of electrical and electronic equipment are required to dispose of used devices separately. Electrical and electronic equipment must not be disposed of together with unsorted
municipal solid waste (domestic refuse), as it contains a range of dangerous elements that
cause problems for waste management. Separate collection from regular municipal waste
is a prerequisite for the special treatment and appropriate recycling of electrical and electronic waste. This is essential, as many components of electrical and electronic devices are
damaging to the environment if they are not disposed of professionally. Disposing of the
devices along with unsorted municipal waste can cause harmful substances to enter the
waste flow. The consequence would be a considerable burden on the environment.
b) Significance the ‘Crossed-Out Wheelie Bin’
The crossed-out wheelie bin is the symbol for separate collection.
Electrical and electronic equipment marked with this symbol must not be
disposed of to-gether with municipal sorted waste (domestic refuse). Such
items can be handed in free of charge at public collection points.
c) Reuse, Recycling and Recovery
Electrical and electronic waste contains valuable raw materials such as iron, aluminum
and copper. These components must be treated selectively. A separate collection and a
selec-tive treatment are the basis for environmentally-friendly disposal and protection of
human health.
According to the particular terms, manufacturers are obligated to assume the costs associated with disposing of these devices as well as other obligations. This is to promote the
chief objectives of reuse and recycling. For this to be possible, consumers must dispose of
used devices that are no longer needed at communal collection points. Actively using these
return and collection systems contributes to the reuse, recycling and recovery of electrical
and electronic equipment and protects the environment.
d) Weight
Information on the weight of the acquired product can be found on the item list as well as
on the packaging.
Note
9
Belinea o.book 5.1
Important Safety Information
Although the notebook is highly robust, it is not indestructible. To prevent damage from
occurring, please pay attention to the following:
• Avoid exposing the notebook to strong
shocks or vibrations.
• Keep it away from intense heat (radiators, direct
sunlight).
• Protect the notebook from electromagnetic interference. This will also prevent data
loss.
• Don’t expose it to
moisture. This is an electrical device!
• Be sure to use the correct
power supply.
• Always use an approved
power adapter.
The power adapter requires a fluctuation-free and
uninterrupted power supply. If you have any questions,
consult your local electricity supply company.
Never pull on the cable to unplug the power supply
– always pull the plug itself.
Disconnect the external power supply (poswer adapter
or car adapter) before cleaning the notebook.
• Notes on Using Batteries
Only use batteries designed exclusively for use with
this notebook.
Recharge batteries via the notebook.
Do not attempt to repair faulty batteries yourself. Entrust repairs to your dealer or qualified service personnel.
Keep damaged batteries away from children and dispose of them properly as soon as possible. Exercise
caution in handling damaged batteries. Batteries may
explode if exposed to fire or improperly handled or
disposed of.
The notebook is provided with a battery. The battery
is recyclable. It is prohibited by law to dispose of the
battery in ordinary household waste. If you have questions concerning proper disposal, consult your garbage
collection service.
10
• Note on the System Clock Battery
Caution: There is a risk of explosion if batteries are
replaced incorrectly. Replace the battery only with a
battery recommended by the manufacturer or with a
battery of the same type. Dispose of the battery according to the manufacturer’s instructions.
• Servicing
Do not service the notebook yourself! You could invalidate your warranty
rights and expose yourself and the device to the risk of electrical shock. If
servicing is required, consult qualified service personnel. Disconnect the
notebook from the power supply.
If the following problems occur, consult qualified service personnel:
• Cleaning
Never apply cleaning agents directly to the notebook. Use only a soft, lintfree cloth. Never use volatile (petroleum distillates) or scouring cleaning
agents.
- Power adapter or
power cable is damaged or frayed.
- Liquid has entered the notebook.
- Despite operating it correctly, the notebook is not func
-
tioning properly.
- The notebook has been dropped or damaged.
Important Safety Information
11Belinea o.book 5.1
Wireless LAN
(wireless network - abbreviation = WLAN)
Your notebook may contain a Wireless LAN module (optional). This module allows you to set
up a wireless-based network, and to connect with an existing wireless network. It works
according to the IEEE802.11a+b+g (n) standard.
WLAN technology allows users to set up wireless connections inside a local area (e.g. in
a company or campus building, or in a public building such as an airport). WLANs can be
used in temporary offices, in locations where it is not possible to set up extensive cable
installations, or to extend an existing LAN so that users in different parts of a building can
work at different times.
There are two different ways to operate a WLAN.
In fixed WLANs, wireless stations (devices with radio network cards or external modems)
set up connections with wireless access points, which act as bridges between the stations
and the existing network backbone. In Peer-to-Peer (ad hoc) WLANs several users can set
up a temporary network within a limited area such as a conference room, without using
access points, and providing there is no need to use network resources.
In 1997 the IEEE confirmed the standard 802.11 for WLANs; this set a data transfer rate of 1
to 2 Mbit/s (Megabits per second). Under 802.11a+b+g (n), the new governing standard,
the maximum data transfer rate is 54 (300) Mbit/s over a frequency band of 2.4 or 5 GHz
(Gigahertz).
12
Additional safety notes for units with wireless LAN
A wireless LAN component is integrated into your Notebook. For this reason you must make
sure that you comply with the following notes on safety:
• Switch off the Notebook when you are in an aircraft or
while driving a car.
• If you are in a hospital, an operating room or close to an
electronic medical system, switch off the wireless components in the Notebook! The radio waves which are transmitted could disrupt the working of the medical equipment.
• Keep the Notebook at least 20 cm away from a heart pace
maker, otherwise there is a risk that the radio waves could
disrupt the normal working of the pacemaker.
• The radio waves which are transmitted could give rise to
interference noise in hearing aids.
• When its radio components are switched on, do not place
the Notebook close to inflammable gases or in an environment which could be at risk of explosion (e.g. paint shop),
since the radio waves which are transmitted could set of a
fire or an explosion.
• The range of the wireless connection depends on the envi
-
ronmental and other ambient conditions.
• When transferring data over a wireless connection, unau
-
thorized Third Parties can also receive the data.
MAXDATA International GmbH is not responsible for disruptions to radio or television reception which are caused by unauthorized alterations to this unit. MAXDATA also accepts no
responsibility for the replacement or the exchange of connecting cables and units which
were not specified by MAXDATA International GmbH. The user alone is responsible for the
elimination of disruptions caused by this type of unauthorized alteration; he is also responsible for the replacement or the exchange of the units.
Important Safety Information
13Belinea o.book 5.1
CE-labeling for devices with wireless LAN and Bluetooth
As delivered, this device complies with the requirements of the Guideline 1999/5/EG of the
European Parliament and of the Council dated the 9. March 1999 concerning radio equipment
and telecommunications facilities, and the mutual recognition of conformity.
This notebook may be used in Belgium, Germany, France, Great Britain, Italy Luxembourg,
the Netherlands, Austria, Switzerland, Spain and Poland.
Current information on any possible restrictions in its operation can be obtained from the
appropriate authorities in each country. If your country is not included in the above list, then
please contact the appropriate supervising authority, in order to check whether the use of
this product is permitted in your country.
Belgium - www.bipt.be
Denmark - www.tst.dk
Germany - www.regtp.de
Finland - www.ficora.fi
France - www.art-telecom.fr
Greece - www.eett.gr
England - www.oftel.gov.uk
Ireland - www.comreg.ie
Italy - www.agcom.it
Luxembourg - www.etat.lu/ILT
Netherlands - www.opta.nl
Austria - www.rtr.at
Portugal - www.urt.gov.pt
Sweden - www.pts.se
Switzerland - www.bakom.ch
Spain - www.cmt.es
Iceland - www.pta.is
Liechtenstein - www.ak.li
Norway - www.npt.no
14
Restrictions
France
Restricted frequency range: In France, you may only use channels 10 to 11 (2457 MHz or
2462 MHz). It is forbidden to use the unit outside of enclosed areas.
Info: www.art-telecom.fr
Italy
An official authorization is also required to use the unit in internal areas. For more detailed
information about the necessary procedure to do this, please contact your provider.
It is forbidden to use the unit outside of enclosed areas.
Info: www.agcom.it
Netherlands
A licence is required to use the unit in the open. For more detailed information about the
procedure to be followed for this, please contact your provider.
Info: www.opta.nl
Important Safety Information
15Belinea o.book 5.1
Radio frequencies for units with wireless LAN
The following information was correct at January 2002. You can obtain current information
from the appropriate authorities in your country (e.g. www.regtp.de).
FREQUENCIES
Radio network cards and adapters are designed in accordance with IEEE-Standard 802.11b+g
(+n, optional) for use in the ISM frequency band (Industrial, Scientific, Medical) between
2.4 and 2.4835 GHz. Because of the DSSS-procedure (Direct Sequence Spread Spectrum),
each of the 11 usable radio channels takes up a width of 22 MHz; this means that up to
three, independent channels are available (e.g. 3, 8 and 11). The following table lists the
authorised channels in your country:
Channel MHz Europe, R&TTE France, R&TTE
1 2412 X
2 2417 X
3 2422 X
4 2427 X
5 2432 X
6 2437 X
7 2442 X
8 2447 X
9 2452 X
10 2457 X X
11 2462 X X
In addition, the integrated radio network card supports the standard 802.11a. For more
information regarding 5 GHz band frequencies authorized in your country, please contact
your respective appropriate authority.
16
Legal requirements - exception clauses
EXCEPTION CLAUSES FOR UNITS WITH WIRELESS LAN
The installation and use of an unit with Wireless LAN may only take place when in accordance
with the instructions contained in the user documents. The user documents are included
in the material supplied with the product. All alterations or modifications made to this unit
which are not expressly authorised by the manufacturer may lead to cancellation of the right
of the user to operate the unit. The manufacturer is not liable for radio disruptions during
the reception of radio and television signals which are due to non-authorised alterations
to the unit or to the exchange or connection of cables and accessories, where these are
not in accordance with the recommendations of the manufacturer. It is the responsibility
of the user to remove any interference which may arise as a result of any non-authorised
alterations, or the addition or replacement of components. Neither the manufacturer nor
his authorised dealer and wholesaler are liable for damages or breaches of legal regulations
which result from an infringement of these guidelines.
Important Safety Information
17Belinea o.book 5.1
Shipping Contents
Before you begin installing your notebook, make sure that all components are present.
If any item listed in the shipping contents is missing from your notebook package, please
contact your dealer immediately.
• Notebook
•
Battery
• Utility CD
• Power adapter
• Power cable
• Quick start guide
• Modem cable
•
Infrared remote control and external TV antenna (optional)
Please retain the original packaging in case you need to send the device for repairs or upgrades. Please store the packaging safely.
18
19Belinea o.book 5.1
Fig. 1
Preparation
Before first using the computer, make sure you are familiar with the individual components
of your system.
Slide the release catch to the right and open the display.
(1) LC display catch
(2) Webcam
(3) Loudspeakers
(4) Quick launch buttons and on/off button
(5) TouchPad and TouchPad buttons
(6) Status LEDs
(7) Integrated microphone
(8) Keyboard
(9) LC display
20
(1) Slide the battery release catch forwards.
(2) Push the spring-loaded catch to the right.
(3) Remove the
battery from the holder.
You can now operate the notebook using the power adapter alone.
Fig. 3
Removing the Battery
Fig. 2
Inserting the Battery
The battery is included in the notebook’s shipping contents. This battery is only partially
charged.
Note that the charging time for the battery is about 3 hours if the computer is switched off,
or about 4 hours if the computer is switched on.
It is absolutely essential to fully charge
the battery for initial
operation! Do not
unplug the power
adapter until the battery is fully charged.
Preparation
(1) Insert the battery into the battery slot in the direction of
the arrow.
(2) Gently push the battery until it locks into place.
(3) Slide the battery release catch backwards.
The battery can now be charged.
21Belinea o.book 5.1
Power Supply
The notebook is supplied with a power cable and a universal, self-adjusting power adapter.
The power adapter can operate with any constant voltage between 100 and 240 volts.
To use the power adapter:
1. Connect the power adapter to the DC IN socket located on the side of the notebook.
2. Connect the
power cable to the power adapter.
3. Connect the
power cable to a power outlet.
You can choose to run the notebook via
battery or power supply.
The first time you use the computer, you
need to use the power adapter. Use only
the supplied power adapter. Using the
wrong power adapter can cause damage
to the notebook.
The power adapter contains no serviceable parts.
NEVER OPEN THE POWER ADAPTER!
DANGER OF DEATH!
22
Fig. 4
Switching the Notebook On
You’ve now completed the preparations. Now press the on/off button to switch on the
notebook.
Tip:
If you experience a
program or system
crash, press the keys:
Ctrl + Alt + Del at the
same time. In most
cases, this will enable
you to end only the
task that has crashed
and restart the notebook (warm start).
If this does not work,
hold down the on/off
button for more than
four seconds – this will
switch off the notebook.s You can now
start up the computer
as normal (cold start).
Please note that with
Microsoft® Windows
operating systems you
should always switch
off the notebook as
follows:
Click the Start button.
Select Shut Down.
Click OK.
This avoids any problems with the hard disk
and operating system.
The operating system is installed the first time you switch on
the computer. Please follow the operating system’s installation instructions here.
After installation and restarting, the notebook is ready to
use.
The basic graphics functions allow you to modify the resolution, the color depth and the desktop appearance.
You can find more detailed information on this point in the
installation instructions.
Once the notebook is switched on, the on/off button can perform several functions depending on the energy settings.
In the standard setting, pressing the on/off button again will
switch off the notebook.
Preparation
23Belinea o.book 5.1
Power Management
Your system is compatible with the ACPI power saving system.
The basic power management settings can be found under the following in Windows operating systems: <Settings> <Power Options>. If you have questions, use the Windows
Help function.
Here you can set the behavior separately for various battery charge levels.
Standby: – low energy consumption –
The display is dimmed and the hard disk remains unchanged. The power LED flashes. By
pressing the on/off button, the notebook returns to the normal operating state. The user
must log on again.
Sleep: – Without power adapter no energy consumption –
The current operating state is saved to the hard disk; the notebook is switched off. All open
documents or applications become available again when the computer is switched on.
Switching off the notebook and disconnecting it from the power supply (pulling the plug of
the power adapter) can prevent any energy consumption.
• Notes on the ExpressCard:
Never remove an ExpressCard when the system is in
sleep mode. This deactivates the slot, thus changing
the system configuration. This can lead to problems the
next time the computer is started.
24
25Belinea o.book 5.1
Right Side
System Overview
Left Side
All air intake and
ventilation openings
must be kept free
from obstructions at
all times. If not, the
device is liable to
overheat.
Front View
Fig. 6
Fig. 7
(1) TV antenna port
(2) Optical disk drive with eject button
(3) USB ports
(1) ExpressCard slot
(2) USB port
(3) HDMI port
(4) VGA output
(5) Ventilation slots
(6) Kensington Lock anti-theft device
Fig. 5
(1) Loudspeakers
(2) Infrared sensor for remote control
(3) IEEE 1394 port
(4) Catch
(5) Memory card slot
(6) Audio output sockets
(7) Status LEDs
26
Underside
All air intake and ventilation openings must
be kept free from obstructions at all times.
If not, the device is
liable to overheat.
System Overview
Rear View
(1) Ventilation slots
(2) Battery slot
(3) Kensington Lock anti-theft device
(4) Ethernet/LAN port
(5) Modem port
(6) Power adapter socket
Fig. 8
Fig. 9
(1) Battery release
(2) Battery slot
(3) Ventilation slots
(4) Loudspeakers
27Belinea o.book 5.1
Fig. 10
Explanation of LED Displays
(1) Battery level
(2) Power LED
(3) WLAN and Bluetooth
(4) Hard disk
(5) Num Lock
(6) Caps Lock
(7) Scroll Lock
Table 1
Symbol Meaning
Lights green when the battery is charging. Lights orange when the
battery is almost empty. Flashes orange when the battery is empty.
Lights orange when the notebook is switched on. Flashes orange in
power save mode.
Lights green when the wireless LAN function (wireless network) is on.
Lights blue when the Bluetooth function is on. Both light (green and
blue) when both functions are on.
Flashes red when the hard disk is being accessed.
Lights green when Num Lock is on.
Lights green when Caps Lock is on.
Lights green when Scroll Lock is on.
28
Hot Keys
(Shortcut key combinations with special functions)
To activate the hot keys, press and hold down the Fn key and then press the desired additional key. For certain functions it may be necessary to install a driver or additional software.
Please refer to the ‘Installation Instructions’ section.
System Overview
Table 2
Keys Meaning
Fn + F2 Switches between LC display/monitor/both.
Fn + F3 Activates/deactivates the TouchPad.
Fn + F4 Reduces LCD brightness.
Fn + F5 Increases LCD brightness.
Fn + F7 Turns down the volume.
Fn + F8 Turns up the volume.
Fn + F9 Switches the loudspeakers on/off.
Fn + F12 Switches to power save mode.
The Quick Launch Buttons
The quick launch buttons are located just above the keyboard. You can use these to launch
frequently used applications.
Fig. 11
(1) Internet Explorer button
(2) Webcam activation/deactivation button
(3) On/off button
(4) WLAN activation/deactivation button
(5) Windows® Media Player button
P1
29Belinea o.book 5.1
Fig. 12
The Keyboard
Your notebook’s keyboard has all the functions of a normal AT-compatible keyboard plus
some extras:
Typewriter
These keys correspond to a typewriter’s keys.
Function keys
In many operating systems (and applications), special functions are available via these keys.
You can find more detailed information on this in the relevant handbooks.
Special keys
These keys (and key combinations) are used for controlling various hardware functions.
(1) Function keys – For the functions, see Table 2 – Hot Keys
(2) Fn key
(3) Microsoft® Windows® key (position may vary for different layouts)
(4) Microsoft® Windows® key (position may vary for different layouts)
(5) Arrow keys
(6) Numerical keypad (press Num Lock key to activate this keypad)
30
The TouchPad
Fig. 13
The TouchPad - Operation
(1) Sensor field
(2) Left “mouse” button
(3) Right “mouse” button
(4) Scrolling area: works like a mouse wheel
Note for left-handed users: most operating systems
enable reversal of the mouse buttons.
The system automatically sets up the integrated TouchPad. If you are using Microsoft®
Windows®, no driver needs to be installed for the basic functions.
(1) Select
(2) Select, move and release (Drag & Drop)
(3) Double-click to run/open files
(4) Scroll
When using the TouchPad, make sure it as well as your finger are clean and dry. The TouchPad
reacts to finger movements. The lighter it is touched, the better it reacts. Pressing hard will
not increase its accuracy.
System Overview
31Belinea o.book 5.1
Place the CD/DVD onto the spindle with the label facing up and push it gently down onto
the spindle.
Press the drive tray back until it snaps into place. The CD/DVD is now ready to read.
Some CDs have an autostart function. This means that installation programs or music CDs
automatically run after you place them in the drive.
The Optical Drive
To insert a CD, press the eject button on the front side of the drive.
The ExpressCard Slot
The notebook is equipped with an ExpressCard slot. The slot is 54 mm wide and is suitable
for ExpressCard/34 and ExpressCard/54 expansion cards.
To insert an ExpressCard, push
it into the slot until it locks into
place. Establish the required
connection (for ex ample, a
network connection). Also consult the documentation for the
relevant card.
To remove the ExpressCard,
first push it gently inward. This
releases the catch, allowing the
ExpressCard to be removed.
Fig. 14
Fig. 15
32
Fig. 17
Fig. 16
The Data/Fax Modem
The system automatically sets up the integrated analog modem. To use the modem functions, connect the modem socket to an analog telephone socket (not ISDN) using the
telephone cable.
Proper use:
The modem can be connected to all analog sockets in Europe.
It is to be used solely for data communication purposes.
Do not attempt to
connect the modem
to an ISDN telephone
socket! This would result in serious damage
to the device.
The LAN Port
The built-in network adapter enables your computer to connect to the Internet via a
10/100/1000 Mbps network or DSL.
The connection is made via an Ethernet network cable and RJ-45 connectors. These are
connected to the notebook and to an available network hub or DSL socket.
Under no circumstances
should you confuse a
network cable RJ-45
connector with an ISDN
connector! NEVER attempt to connect the
LAN adapter to an ISDN
telephone socket!
This would result in
serious damage to the
device.
System Overview
33Belinea o.book 5.1
Installation Instructions
Restoring the Drivers
Your system is supplied in a preloaded condition. This means that all the data and drivers
that the system requires are already on the hard disk. In case you erase and/or format your
hard disk drive, the system drivers are stored on the Utility CD supplied with the computer.
After reinstalling the operating system (for example, with the Recovery CD), this allows you
to restore your notebook to a usable condition.
The Utility CD
The Utility CD will run automatically after you place it in the drive. If this is not the case,
you can run the CD as follows: select <My Computer”> <CD Drive> and then the “utility.
exe” file.
You can select the driver that you want to install in the “Drivers” section. Recommended:
Install all listed drivers from top to bottom.
In addition, you can later install the advanced functions you require in the “Utility” section.
When using the Utility CD, please follow the menu instructions.
Setting the Resolution
After installation of the graphics driver, you can set the resolution to the desired size (e.g.
1440 × 900).
You do this in the following way:
Right-click on any free area of the desktop. Select <Properties>.
In the Display Properties window, click the Settings tab.
Here you can set the slider to a resolution you find comfortable.
Click <Apply> to set the resolution.
34
35Belinea o.book 5.1
Specifications
Processor and Platform
• Intel® Core™ 2 Duo Mobile Processor up to T7500 (up to 2.2 GHz)
• µFC-PGA package (Socket P)
• Intel
®
965PM & ICH8-M
RAM
• Main memory expandable to 2 GB DDR2 SDRAM
(Only allow qualified service personnel to expand the main memory)
• Two PC2-4200/5300 SODIMM sockets (DDR2-533/667, 267/333 MHz)
Display and Video
• 17 inch WXGA+ TFT display,
Supported resolution: 1440 × 900 with up to 16.7 million colours
• Graphics adapter: NVIDIA GeForce 8600M GT
• Simultaneous LCD/external monitor
• External monitor:
Supports up to 1600 × 1200, 16.7 million colors
• Webcam with 1.3 megapixel
• MiniCard for digital TV (DVB-T)
Storage Capacity
• One SATA hard disk (2.5“, 9.5 mm)
• One internal optical drive
• One memory card slot for MultimediaCard (MMC), SecureDigital Card (SD),
Memory Stick (MS), and MS Pro
Audio
• Intel® DirectSound 3D
• Built-in stereo loudspeakers
36
Communications
• Gigabit Ethernet function for 10/100/1000 Mbps, built in
• MiniCard for 802.11a+b+g (+n) wireless network (optional)
• Bluetooth 2.0 (optional)
• High-speed 56 Kbps V.90 fax/data software modem (MDC)
Input Devices
• 103-key Microsoft® Windows® keyboard
• Ergonomically positioned
TouchPad
• Quick launch buttons
Ports
• One 15-pin VGA port
• One HDMI output
• One TV antenna port
• One stereo output socket / SPDIF
• One microphone input socket
• One line-in socket
• Three USB ports (v2.0)
• One standard telephone socket (RJ-11)
• One standard network port (RJ-45)
• One DC IN socket
• One ExpressCard slot (54 mm)
• One CIR receiver (infrared sensor for remote control)
Power Supply
• Main battery Li-Ion 4400 mAh
• AC power adapter 100-240 V, AC 50-60 Hz, 90 W.
• Recharging System OFF: about 3 hours (95 %)
System ON: about 4 hours (95 %)
• Fully-supported ACPI Power Management, suspend to Disk, suspend to RAM
Specifications
37Belinea o.book 5.1
Operating System
• Microsoft® Windows Vista™
Other Data
• Dimensions: 278 (D) × 395 (W) × 26.5–34.9 (H) mm
• Weight 3.6 kg (depending on model)
• Operating temperature: 5 to 35 °C
• Operating humidity: 20 to 80 % RH
• Storage temperature: -15 to +50 °C
38
39Belinea o.book 5.1
Fault Diagnosis and Troubleshooting
If a problem occurs while working with your notebook, first of all try using the following
information to solve the problem. If the problem persists, switch off the system for several
minutes and then restart it. You will lose all unsaved data, but the system may work properly
again. Subsequently contact your dealer or customer support agent.
Despite pressing the on/off button, the notebook remains switched off.
Possible cause of the problem:
• The battery is missing or is incorrectly installed.
Note:
• The power on LED is not lit.
Troubleshooting:
• Make sure that the battery is in the battery compartment and is inserted properly.
• Check that the battery terminals are making direct contact.
• Connect your notebook to the
power adapter so that the battery (if present) can
recharge.
Possible cause of the problem:
• Battery level low.
Note:
• The battery display LED flashes.
Troubleshooting:
• Operate the notebook using the power adapter. If the system does not immediately
start up, switch off the notebook and then restart it.
The screen is not working.
Possible cause of the problem:
• The energy saving mode is activated.
Note:
• The suspend LED flashes.
Troubleshooting:
• Press the on/off button.
Possible cause of the problem:
• The screen settings are incorrect.
Troubleshooting:
• Press the spacebar, several times if necessary.
• If an
external monitor is connected, switch it on.
40
Possible cause of the problem:
• In the System Settings, a screen type other than the existing one has been set.
Troubleshooting:
• Press the Fn + F2 key combination.
• If an
external monitor is connected, connect this to a power source and switch it on.
Also check the brightness and contrast settings.
The system stops working.
Possible cause of the problem:
• An energy saving function has been activated.
Note:
• The screen switches itself off.
Troubleshooting:
• Press any key, or press the on/off button if none of the status LEDs are lit.
Possible cause of the problem:
• A software error has caused a system crash.
Troubleshooting:
• Additional information is available in the operating system handbook.
• If you cannot remedy the problem, restart the system. You will lose any unsaved data!
If this doesn‘t work either, briefly switch off the notebook and then switch it back on
again.
Each time the system starts, it carries out a self-test
(POST). If an error occurs, an error message appears,
briefly describing the problem.
Fault Diagnosis and Troubleshooting
41Belinea o.book 5.1
A
Accuracy .................................................30
ACPI power saving system .....................23
Antenna ..................................................25
Arrow keys ..............................................29
Audio output ...........................................25
B
Battery .................... 7, 10, 17, 20, 26, 27, 39
Battery or power supply .........................21
Bluetooth ................................................27
C
Charging times .......................................20
Cleaning ..................................................10
Cold start ................................................22
Color depth .............................................22
Ctrl + Alt + Del .......................................22
D
Data/Fax Modem ....................................32
Desktop appearance ...............................22
Disk .........................................................27
Disk drive ................................................25
Display ..............................................23, 39
Drive .......................................................25
E
Energy consumption ...............................23
Ethernet ..................................................26
ExpressCard ...........................................25
External monitor ...............................39, 40
F
Finger movements .................................30
Fn key ...............................................28, 29
Function keys ..........................................29
G
Garbage collection service .......................9
Graphics functions, basic ........................22
Index
H
Hard disk .................................................27
HDMI ......................................................25
Hot Keys .................................................28
Household waste .................................. 7, 9
I
IEEE 1394 port ........................................25
Infrared sensor .......................................25
Instructions .............................................22
Internet Explorer .....................................28
ISDN connector ......................................32
K
Kensington Lock ...............................25, 26
Keyboard .....................................19, 29, 36
Keys ........................................................28
L
LAN .........................................................26
LAN Port .................................................32
LC display ...............................................19
LEDs .................................................19, 25
Loudspeakers .............................19, 25, 26
M
Media Player ...........................................28
Memory card ..........................................25
Microphone ............................................19
Modem ...................................................26
Modem socket ........................................32
Moisture ...................................................9
N
Network ............................................ 11, 32
Network adapter .....................................32
O
On/off button ....................................19, 28
Operating system .............................22, 30
Optical disk drive ....................................25
Original packaging...................................17
42
P
Power .....................................................27
Power adapter ......9, 20, 21, 23, 26, 36, 39
Power cable ......................................10, 21
Power supply ......................................9, 36
Q
Qualified service personnel ..........9, 10, 35
Quick launch buttons ..............................19
R
Release catch .........................................19
Resolution ...................................22, 33, 35
S
Shipping contents ...................................17
Shocks/Vibrations .....................................9
Sleep .......................................................23
Standby ...................................................23
Status LEDs ......................................19, 25
Sunlight .....................................................9
Switch on ................................................22
System crash ..........................................40
T
TouchPad ....................................19, 30, 36
TV antenna ..............................................25
Typewriter ...............................................29
U
USB ports ...............................................25
V
Ventilation .........................................25, 26
VGA .........................................................25
Voltage ................................................6, 21
W
Warranty ...................................................6
Webcam ...........................................19, 28
Wireless LAN .........................................11
WLAN ............................................... 27, 28
Loading...
