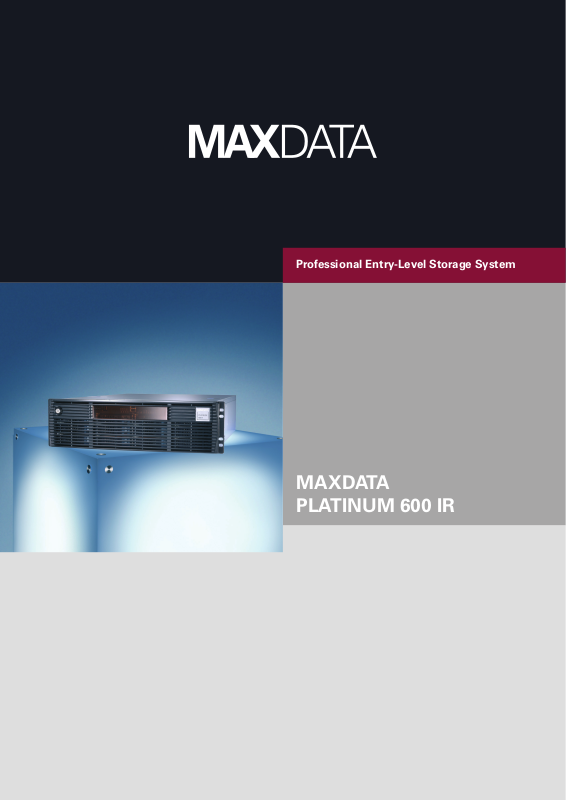

Page 1
Professional Entry-Level Storage System
MAXDATA
PLATINUM 600 IR
Page 2

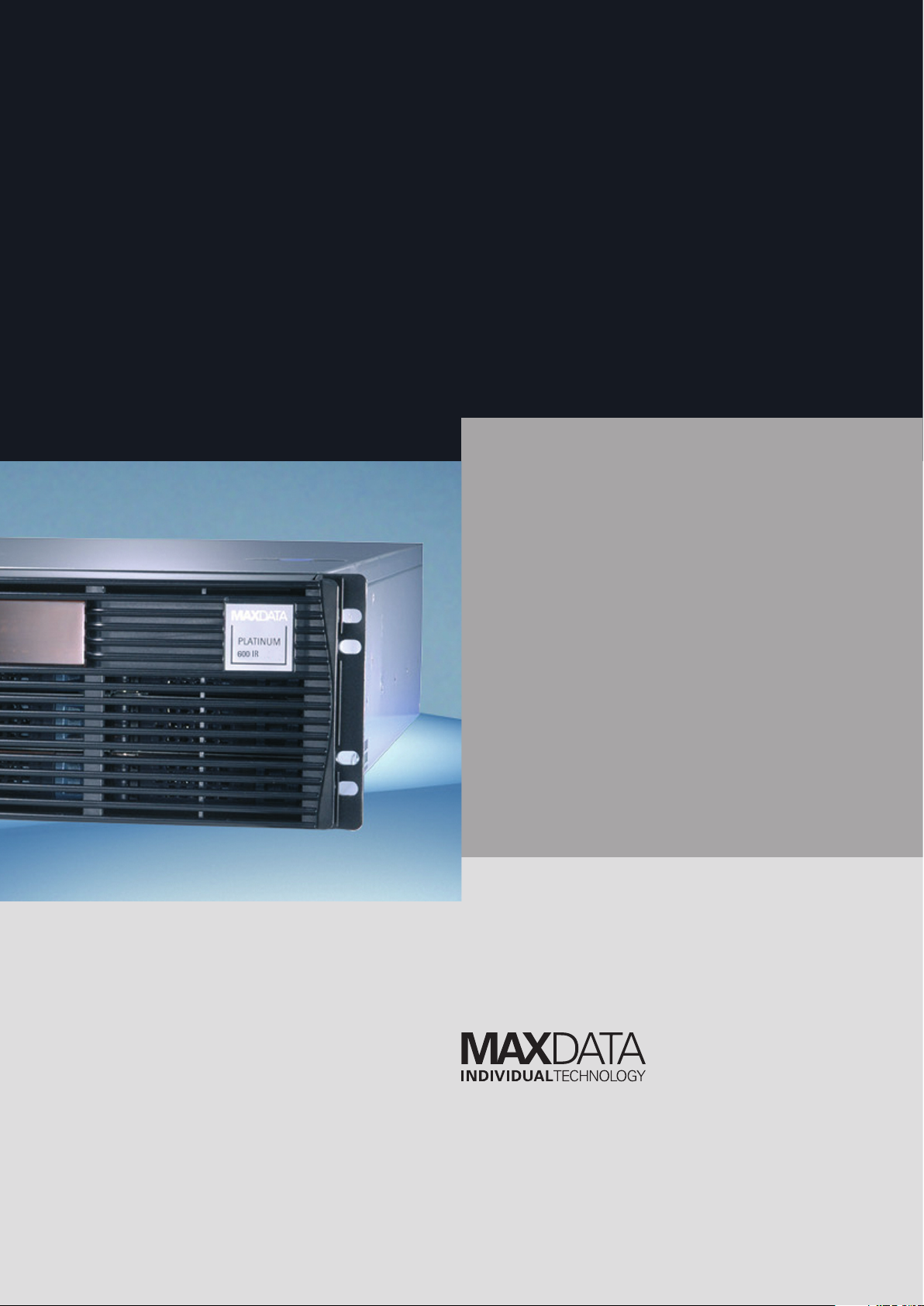

MAXDATA PLATINUM 600 IR:
Professional Entry-Level Storage System
Product characteristics
Those wanting to optimise or extend their storage
resources efficiently and affordably will find the NAS
(Network Attached Storage) an attractive alternative. Fitted
with an Intel® Pentium® D processor, the Microsoft®
Windows® Storage Server 2003 Standard Edition operating
system, hard disks in the RAID network and a high-
performance network card, the MAXDATA PLATINUM NAS
server provides applications with an affordable high-speed
memory.
This technology allows mainly small and medium companies,
but also larger departments, to expand their storage
volume in a particularly uncomplicated way. Although the
NAS systems, as well as the Storage Area Network (SAN),
separate memory from each server, they are otherwise
directly connected to the existing local network as SAN
systems.
The MAXDATA PLATINUM 600 IR server is based on the
Microsoft® Windows® Storage Server 2003 and thus offers
a simple and flexible solution for all the requirements of a
modern storage structure. With the assistance of a browser,
both systems can be configured within a few minutes and
integrated into the network. The NAS solutions do not only
have to be used as a ‘central distributor’ in a network , they
can also be used as a stand-alone solution.
The PLATINUM 600 IR has an optional fibre channel and
can therefore be integrated into a SAN. Furthermore, the
MPL 600 IR offers the optional connection of an external
tape drive. These additional features and high scalability up
to 6 Terabytes makes the PLATINUM 600 IR the first choice
for expanding companies.
A problem-free network integration means NAS systems
allow fast extension of partially required storage space –
without alteration to the existing client/server architecture.
Furthermore, NAS installations can be carried out smoothly
in heterogeneous operation system environments. Typical
applications are file and print services.
Key features
RAID security
Microsoft® Active Directory® compliant
High Investment security
Optimal expandability
Low purchase and operation costs
Simple, centralised administration
Simple integration in every IT environment
Page 3
Key facts
Additional technology – SAN and NAS
NAS and SAN technology are not fundamentally exclusive.
Smaller companies can, in the case of growing demands,
integrate existing NAS resources into a SAN. Even without
a SAN combination, the advantages of network attached
storage are very persuasive.
Microsoft® Windows® Storage Server 2003
Windows® Storage Server 2003 is a dedicated file and
print server based on the Windows Server™ 2003, which
was developed to enable optimum reliability, smooth
integration and high cost efficiency within storage networks.
Windows® Storage Server 2003 is integrated into existing
infrastructures and supports heterogeneous data services
as well as file security and replication of saved data.
Furthermore, the Windows® Storage Server 2003 presents
a singular and ideal solution for the consolidation of several
file servers. This reduces costs and enables directive-based
management of storage space resources.
As Windows® Storage Server 2003 is pre-configured to
the MAXDATA NAS solutions, it is ready for operation in
a matter of minutes. Furthermore, the web-based user
interface allows easy management. Windows® Storage
Server 2003 is integrated into existing infrastructures,
allowing companies full use of conventional network
environments and standard management software such
as Active Directory®. Solutions are available in sizes of a
few hundred Gigabytes to several Terabytes with the pre-
configured Windows® Storage Server 2003.
Page 4
The facts: MAXDATA PLATINUM 600 IR
Processor(s)
CPU Intel® Pentium® D processor,
3.6 GHz,
Intel
3.8 GHz
L2 cache 2 x 2 MB
Number of processors (max.) 1 piece
Front side bus (FSB) 800 MHz
System
Chip set Intel® E7230
1.44 MB Floppy /
USB Memory Stick 128 MB optional
DVD-ROM •
Remote management
via on-board LAN •
Remote management
via modem •
Hardware monitoring •
System memory
RAM (max.) 4 GB, populated with
1, 2 or 4 modules
Storage capacities 80 GB to 6 TB (brutto)
Memory type DDR2 SDRAM with ECC
ECC support •
DIMM sockets / minimum 4 / 1
Slots
PCIe x8 1
PCIe x8 (x4) 1
PCIe x4 (x1) 1
PCI 32/33 2
PCI slots /
of which hot-plug capable
Interfaces
USB 2.0 (rear / internal / front) 2 / – / 2
PS/2 keyboard / PS/2 mouse 1 / 1
Serial / parallel 1 / –
Hard disk
Hot-swap support •
Hard disk plug-in modules 12
Back planes (max.) 3
Hard disk rotational speed (max.)
On-board ATA/SATA
ATA / SATA ports 1 / 4
On-board RAID controller
SATA II / SAS • / –
RAID level 0 / 1 / 5 / 10
®
Pentium® 4 processor,
5 / –
7,200 rpm
RAID controller
SATA II •
RAID level 0 / 1 / 5 / 6 / 10 / 50 / JBOD
On-board network components
1. Network card: 10/100/1,000 Mbit/s
2. Network card: 10/100/1,000 Mbit/s
Chip set (network controller) Dual Intel
®
82541 EB
On-board graphics components
Graphics chip ATI ES 1000
Graphics memory size 16 MB SDRAM
Colour depth (max.) 32 bit
Max. resolution (True Color)
1,600 x 1,200
Casing features
Casing form factor Rack casing, 3 U
Front USB •
Installation shafts: 3.5“ / 5,25” 1 / 0
HDD plug-in module (1”) 12
Number of power supplies 1-2
PFC supplies •
Supply voltage 230 Volt
Power input of power supply 460 W (max.)
Power supply convertible /
optionally with 2 redundant
upgradeable 500 W power supplies
Dimensions (W x H x D) 430 x 132 x 660 mm
Weight 15.1 kg
Environmental conditions
Temperature (operating) +10°C to +30°C
Humidity 95 % (no condensation)
Quality mark / Certificate / Standards
CE mark in accordance with
EU directives •
Safety tested •
EN55022/B interference emission •
EN55024 interference resistance
•
EN60950 & 73/23/EEC
Product safety •
Software
Operating system Microsoft® Windows®
Storage Server 2003,
Microsoft
®
Windows®
Server 2003,
Microsoft
®
Windows®
Small Business Server 2003
MAXDATA Server Management
MAXDATA PLATINUM Server CDs
•
•
Accessories
German manual •
(also available in other languages)
Service
36 months return-to-base warranty
•
12 months on-site service •
Page 5
Software Details and Service
News –
Microsoft® Windows® Storage Server 2003
Volume Shadow Copy Services
(VSS) for extended data protection through highly
reliable data backups, quiYck data recovery and data
transport.
Improved performance of data services
for faster SMB (Server Message Block) and NFS
(Network File System) data services.
Improved integration with SANs
(Storage Area Networks), including gateway function for
SANs with several manufacturers.
iSCSI support
(Internet Small Computer System Interface), to enable
connectivity between IP targets and IP SANs.
Web-based user interface
for simple and efficient management of storage devices.
On-site service
The MAXDATA PLATINUM 600 IR includes a standard one-
year on-site service with response on the next working day.
However, the modular service model enables expansive
extension options:
3 year on-site service with response on the next
working day, Monday to Friday, 8 am to 5 pm.
3 year on-site service with a 4 hour response time,
Monday to Friday, 8 am to 5 pm.
3 year on-site service with a 4 hour response time,
Monday to Sunday, round the clock.
4 year on-site service with response on the next
working day, Monday to Friday, 8 am to 5 pm.
4 year on-site service with a 4 hour response time,
Monday to Friday, 8 am to 5 pm.
4 year on-site service with a 4 hour response time,
Monday to Sunday, round the clock.
Areas of application
The MAXDATA PLATINUM 600 IR is the
ideal server for small and medium sized
companies (for example, solicitors, GP practices,
departments) where a large amount of storage
is required. Some areas of application are
listed here, such as
File server
Client storage
Print server
Backup to disk server
:
