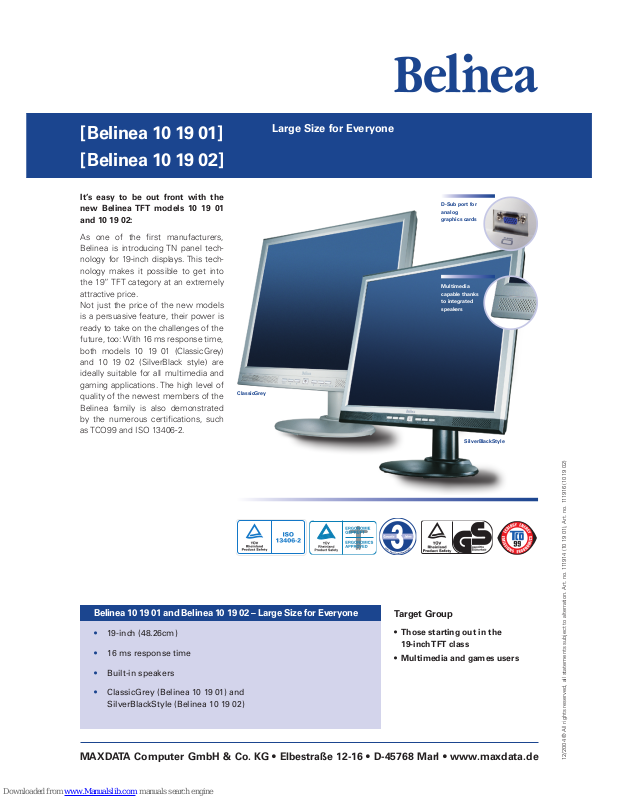

MAXDATA Belinea 10 19 01, Belinea 10 19 02 Technical Manual
12/2004 ® All rights reserved, all statements subject to alterration. Art. no. 111914 (10 19 01), Art. no. 111916 (10 19 02)
[Belinea 10 19 01]
[Belinea 10 19 02]
MAXDATA Computer GmbH & Co. KG • Elbestraße 12-16 • D-45768 Marl • www.maxdata.de
• 19-inch (48.26cm)
• 16 ms response time
• Built-in speakers
• ClassicGrey (Belinea 10 19 01) and
SilverBlackStyle (Belinea 10 19 02)
Target Group
• Those starting out in the
19-inch TFT class
• Multimedia and games users
Multimedia
capable thanks
to integrated
speakers
Large Size for Everyone
It’s easy to be out front with the
new Belinea TFT models 10 19 01
and 10 19 02:
As one of the first manufacturers,
Belinea is introducing TN panel technology for 19-inch displays. This technology makes it possible to get into
the 19” TFT category at an extremely
attractive price.
Not just the price of the new models
is a persuasive feature, their power is
ready to take on the challenges of the
future, too: With 16 ms response time,
both models 10 19 01 (ClassicGrey)
and 10 19 02 (SilverBlack style) are
ideally suitable for all multimedia and
gaming applications. The high level of
quality of the newest members of the
Belinea family is also demonstrated
by the numerous certifications, such
as TCO99 and ISO 13406-2.
Belinea 10 19 01 and Belinea 10 19 02 – Large Size for Everyone
D-Sub port for
analog
graphics cards
SilverBlackStyle
ClassicGrey
Belinea 10 19 01 and Belinea 10 19 02 – Technical Data
Properties
Diagonal measurement 19”
Visible diagonal in inches/cm 19” / 48.26
Max. image size (W x H) in mm 376 x 301
Physical resolution 1280 x 1024
Pixel distance in mm 0.294
Active matrix, TFT •
Panel technology TN
Colors supported (max) 16.7 million
Brightness in cd/m2 250
Contrast (typical) 500:1
Contrast (min.) 400:1
Viewing angle, horizontal/vertical (CR > 10:1) 150° / 130°
Viewing angle, horizontal/vertical (CR > 5:1) 170° / 170°
Anti-glare •
Response time: rise/fall in ms 6 / 10
Background lighting 4 CCFLs
Electrical Data
Horizontal frequency in kHz 31 - 83
Vertical frequency in Hz 56 - 75
Video bandwidth in MHz 135
Voltage 100-240V, 50-60 Hz •
Power consumption in watts (on/sleep) 45 / 1
Input signal (VGA card) analog/digital • / Output power, audio amplifier 2 x 1 watt
Features
Disk space preset/user 15 / 17
OSD •
Integrated microphone Integrated speakers •
Lift/pivot - / Power supply in the device/in the foot/external • / - / Tilt angle, back/forward 22° / 5°
Pivotable, right/left - / Color ClassicGrey (10 19 01), SilverBlackStyle (10 19 02)
Setting Options
Brightness/contrast • / •
Image position (horizontal/vertical) • / •
Automatic image adjustment/color calibration • / •
Color temperature •
Fine adjustment, horizontal/vertical • / •
Image display with lower resolutions: 1:1 / full picture - / •
Zoom/frequency display - / •
Recall/video signal switching • / OSD status/OSD languages • / 5
Mute option •
Volume •
Max. image refresh rates in Hz with resolution
analog / digital
640 x 480 75 / 800 x 600 75 / 1024 x 768 75 / 1152 x 864 75 / 1280 x 1024 75 / -
Certifications / Standards
Plug & Play, DDC1/2B •
Power Management:
Energy Star/Energy Label • / •
TCO03 •
TÜV GS mark/TÜV Ergonomics • / •
DIN 29241/ISO 9241-3, -7, -8/ISO 13406-2 • / • / •
Compatible with holders following the VESA standard •
Mac compatible •
Connections
D-SUB port (15 pol.) •
DVI-D port (24-pin) Headphone jack Audio input •
Accessories
Manual (languages) 14
Power cord •
Video cable 15 pol. Mini D-SUB •
Video cable 24-pin DVI-D (optional) Audio cable •
Microphone cable Pivot software (optional) -
Dimensions
Measurements (W x H x D) in mm 426 x 437 x 198
Net/gross weight in kg 5.0 / 6.6
Service
3-year warranty •
including the panel and backlight
