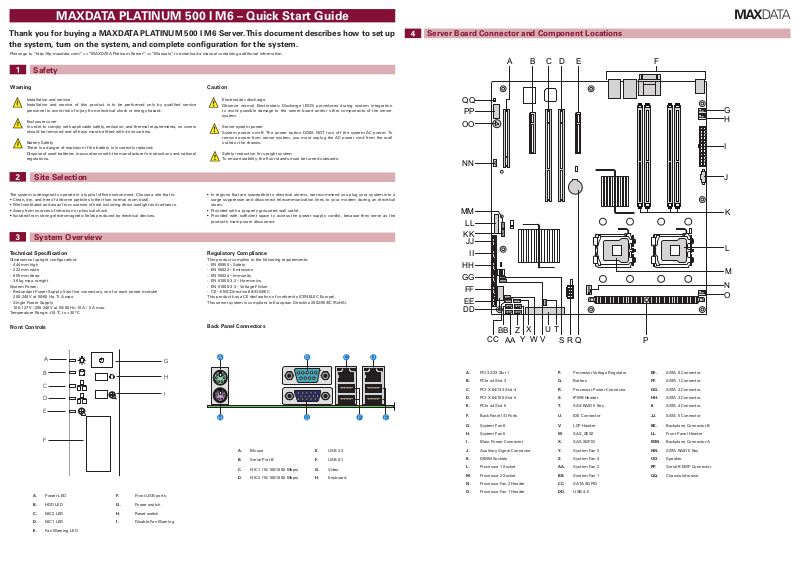

MAXDATA PLATINUM 500 I M6 – Quick Start Guide
G
H
I
A
B
C
D
E
F
C DBA
H G EF
A C DB E F
I
H
G
MM
OO
NN
QQ
LL
KK
JJ
II
HH
GG
PP
N
J
K
L
M
R
O
P
Q
S
FF
DD
BB
CC
Z
Y
V
U
T
AA
X
EE
W
Thank you for buying a MAXDATA PLATINUM 500 I M6 Server. This document describes how to set up
the system, turn on the system, and complete configuration for the system.
Please go to “http://ftp.maxdata.com/” >> “MAXDATA Platinum Server” >> “Manuals” to download a manual containing additional information.
Safety
Warning
Installation and service
Installation and service of this product is to be performed only by qualified service
personnel to avoid risk of injury from electrical shock or energy hazard.
Enclosure cover
In order to comply with applicable safety, emission, and thermal requirements, no covers
should be removed and all bays must be fitted with drive carriers.
Battery Safety
There is a danger of explosion if the battery is incorrectly replaced.
Dispose of used batteries in accordance with the manufacturer’s instructions and national
regulations.
Caution
Electrostatic discharge
Observe normal Electrostatic Discharge (ESD) procedures during system integration
to avoid possible damage to the server board and/or other components of the server
system.
Server system power
System power on/off: The power button DOES NOT turn off the system AC power. To
remove power from server system, you must unplug the AC power cord from the wall
outlet or the chassis.
Safety instruction for upright system
To ensure stability, the floor stands must be turned outwards.
Site Selection
The system is designed to operate in a typical office environment. Choose a site that is:
• Clean, dry, and free of airborne particles (other than normal room dust).
• Well-ventilated and away from sources of heat including direct sunlight and radiators.
• Away from sources of vibration or physical shock.
• Isolated from strong electromagnetic fields produced by electrical devices.
• In regions that are susceptible to electrical storms, we recommend you plug your system into a
surge suppresser and disconnect telecommunication lines to your modem during an electrical
storm.
• Provided with a properly grounded wall outlet.
• Provided with sufficient space to access the power supply cord(s), because they serve as the
product’s main power disconnect.
Server Board Connector and Component Locations
System Overview
Technical Specification
Dimensions (upright configuration):
- 444 mm high
- 222 mm wide
- 655 mm deep
- 36 kg max. weight
System Power:
- Redundant Power Supply (two line connectors, one for each power module)
200-240 V at 50/60 Hz; 11 A max.
- Single Power Supply
100-127 V / 200-240 V at 50/60 Hz; 10 A / 5 A max.
Temperature Range: +10 °C to +30 °C
Front Controls
A. Power LED F. Front USB ports
B. HDD LED G. Power switch
C. NIC2 LED H. Reset switch
D. NIC1 LED I. Disable Fan Warning
E. Fan Warning LED
Regulatory Compliance
This product complies to the following requirements:
- EN 60950 – Safety
- EN 55022 – Emissions
- EN 55024 – Immunity
- EN 61000-3-2 – Harmonics
- EN 61000-3-3 – Voltage Flicker
- CE – EMC Directive 89/336/EEC
This product has a CE declaration of conformity (CENELEC Europe).
This server system is compliant to European Directive 2002/95/EC (RoHS).
Back Panel Connectors
A. PCI 32/33 Slot 1 P. Processor Voltage Regulator EE. SATA 0 Connector
B. PCIe x4 Slot 3 Q. Battery FF. SATA 1 Connector
C. PCI-X 64/133 Slot 4 R. Processor Power Connector GG. SATA 2 Connector
A. Mouse E. USB 2-3
B. Serial Port B F. USB 0-1
C. NIC 1 (10/100/1000 Mbps) G. Video
D. NIC 2 (10/100/1000 Mbps) H. Keyboard
D. PCI-X 64/100 Slot 5 S. IPMB Header HH. SATA 3 Connector
E. PCIe x4 Slot 6 T. SAS RAID 5 Key II. SATA 4 Connector
F. Back Panel I/O Ports U. IDE Connector JJ. SATA 5 Connector
G. System Fan 6 V. LCP Header KK. Backplane Connector B
H. System Fan 5 W. SAS_SES2 LL. Front Panel Header
I. Main Power Connector X. SAS SGPIO MM. Backplane Connector A
J. Auxiliary Signal Connector Y. System Fan 3 NN. SATA RAID 5 Key
K. DIMM Sockets Z. System Fan 4 OO. Speaker
L. Processor 1 Socket AA. System Fan 2 PP. Serial B EMP Connector
M. Processor 2 Socket BB. System Fan 1 QQ. Chassis Intrusion
N. Processor Fan 2 Header CC. SATA SGPIO
O. Processor Fan 1 Header DD. USB 4-5
