Maxdata 3200 I M5 user manual

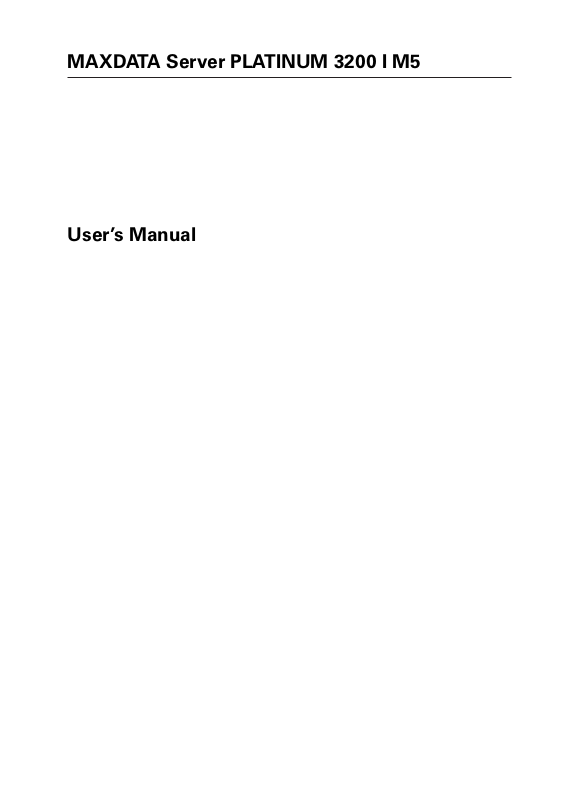

MAXDATA Server PLATINUM 3200 I M5
User’s Manual
2 3MAXDATA Server PLATINUM 3200 I M5Contents
Contents
1 Setting up the System 7
Server Position ........................................................................................................................................7
Connecting the System ...........................................................................................................................8
Front Panel Controls and Indicators ........................................................................................................9
2 Chassis Description 11
Feature Summary ..................................................................................................................................11
Chassis Front View ................................................................................................................................12
Base Chassis Rear View ........................................................................................................................13
Base Redundant Power Chassis Rear View ..........................................................................................14
Peripherals .............................................................................................................................................14
5.25inch Halfheight Peripheral Bays .................................................................................................14
3 Setting up the Chassis 15
Warnings and Cautions .........................................................................................................................15
Remove Primary Access Cover .............................................................................................................16
Remove Bezel Assembly ......................................................................................................................16
Install 3.5-inch Floppy, DVD or CD-ROM Drive .....................................................................................17
Install Fixed Hard Drive(s) ......................................................................................................................18
Install Hot Swap Drive(s) .......................................................................................................................20
4 Server Board Features 23
Connector and Header Locations ..........................................................................................................25
Configuration Jumpers ..........................................................................................................................26
Hardware Requirements .......................................................................................................................27
5 Hardware Installations and Upgrades 29
Before You Begin ..................................................................................................................................29
Tools and Supplies Needed ...................................................................................................................29
Installing and Removing Memory ..........................................................................................................29
Installing or Replacing the Processor ....................................................................................................30
Installing or Removing a PCI Card .........................................................................................................32
Replacing the Backup Battery ...............................................................................................................32
6 Server Utilities 35
Using the BIOS Setup Utility .................................................................................................................35
7 Troubleshooting 37
BIOS POST Beep Codes .......................................................................................................................37
BIOS Recovery Beep Codes .................................................................................................................38
8 Technical Reference 39
Power Supply Specifications .................................................................................................................39
System Environmental Specifications ...................................................................................................40
9 Regulatory and Integration Information 41
Product Regulatory Compliance ............................................................................................................41
Product EMC Compliance ....................................................................................................................41
Product Regulatory Compliance Markings ............................................................................................41
Electromagnetic Compatibility Notices .................................................................................................42
Installation Precautions .........................................................................................................................42
Installation Requirements ......................................................................................................................43
Use Only for Intended Applications .......................................................................................................43
4 5MAXDATA Server PLATINUM 3200 I M5Contents
Figures
1. Back Panel Connectors .....................................................................................................................8
2. Pedestal Controls and Indicators ....................................................................................................... 9
3. MAXDATA PLATINUM 3200 I Base Front View ............................................................................12
4. MAXDATA PLATINUM 3200 I Base Chassis Rear View ................................................................13
5. MAXDATA PLATINUM 3200 I Redundant Power Chassis Rear View ............................................14

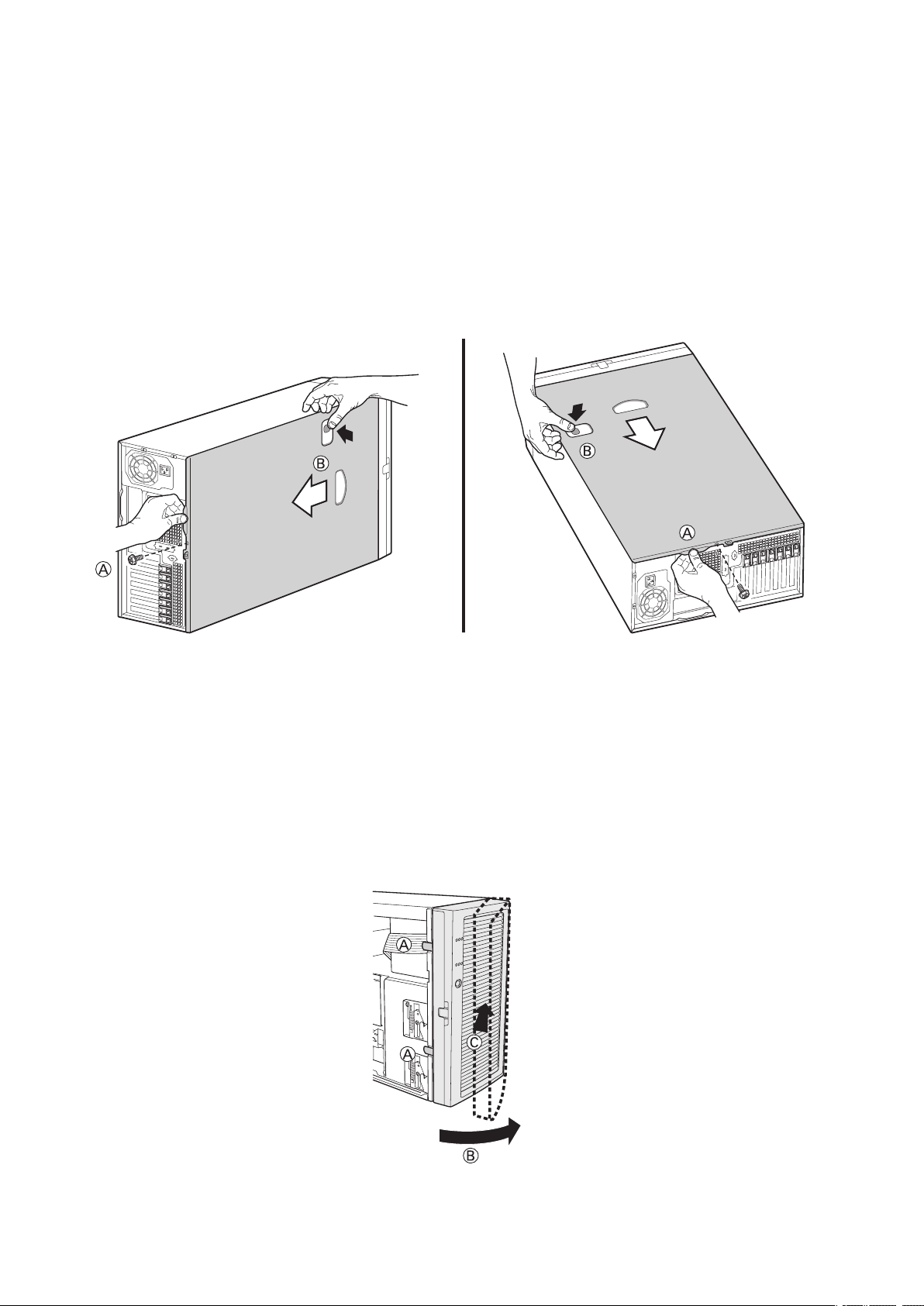

6. Removing the Access Cover ...........................................................................................................16
7. Removing Bezel Assembly ..............................................................................................................16

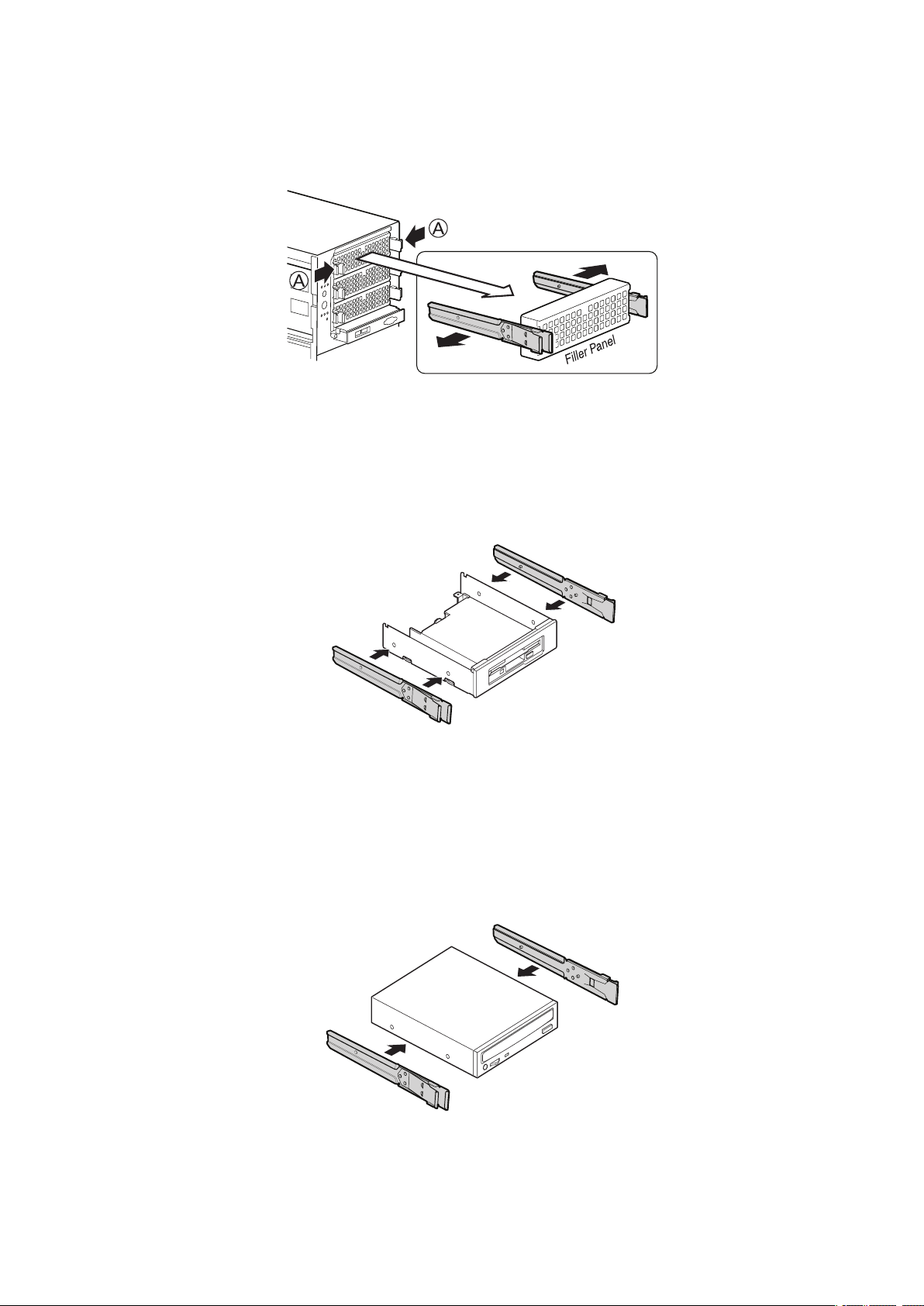

8. Removing Slide/Filler Panel Assembly from Upper Device Bay ...................................................... 17
9. Installing Slides on 3.5-inch Floppy Drive ........................................................................................17
10. Installing a DVD or CD-ROM Drive ..................................................................................................17

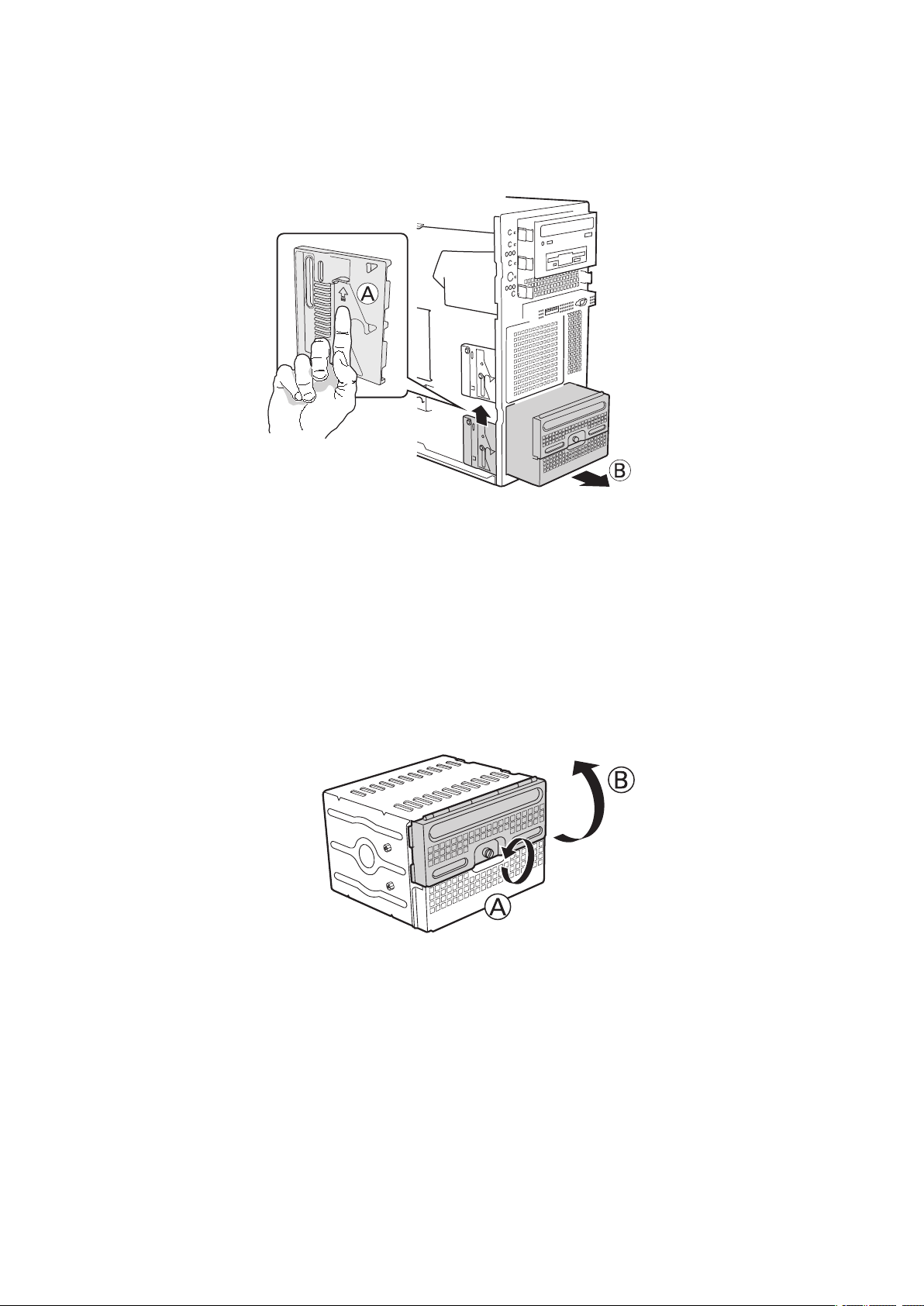

11. Removing Six-drive Fixed Drive Cage from Chassis .......................................................................18
12. Unlocking and Opening Upper Drive Cage Door .............................................................................18

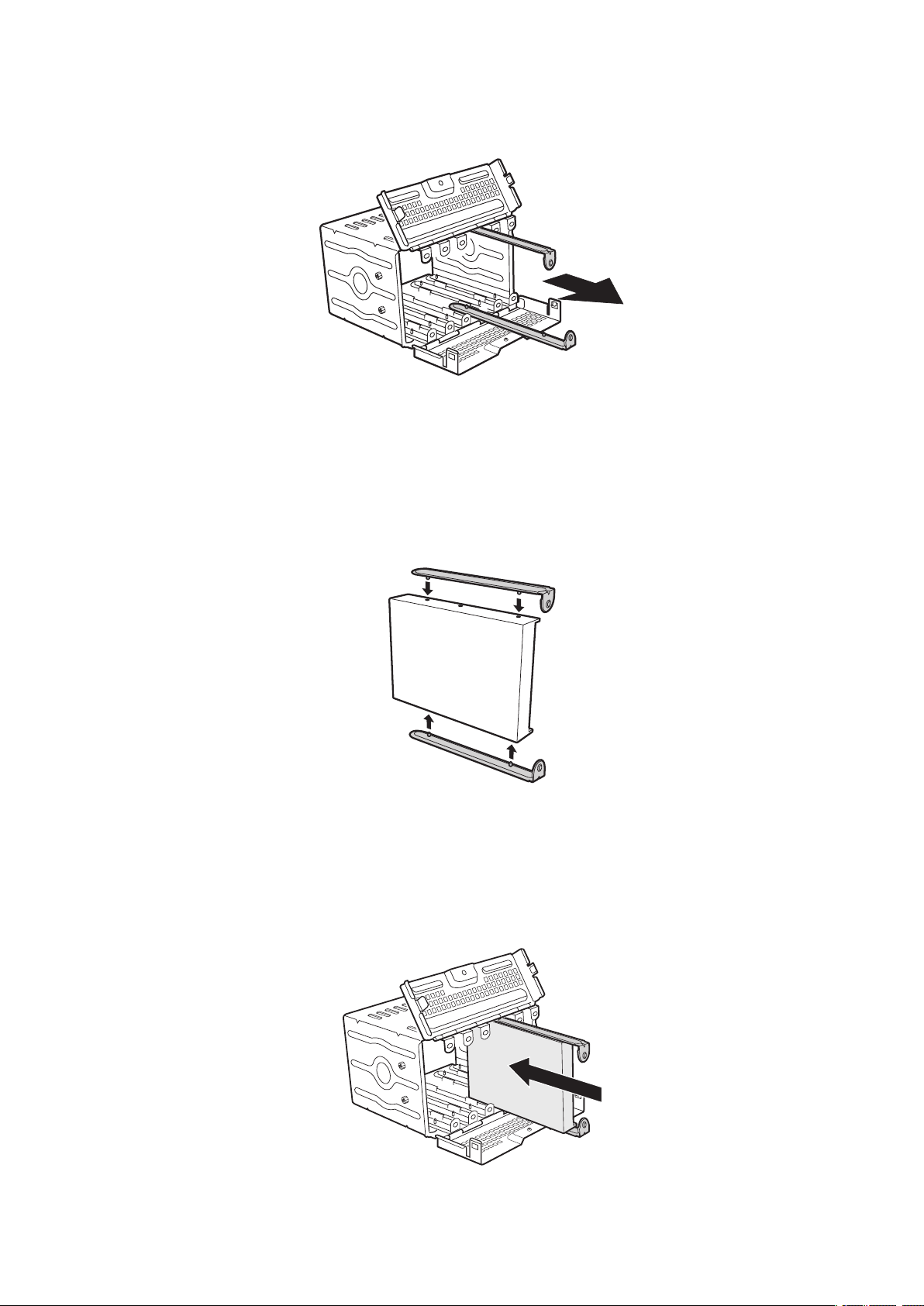

13. Remove Slides from Drive Cage Door ............................................................................................19
14. Installing Device Slides to Hard Drive .............................................................................................19
15. Inserting Drive/Slide Assembly into Drive Cage ..............................................................................19

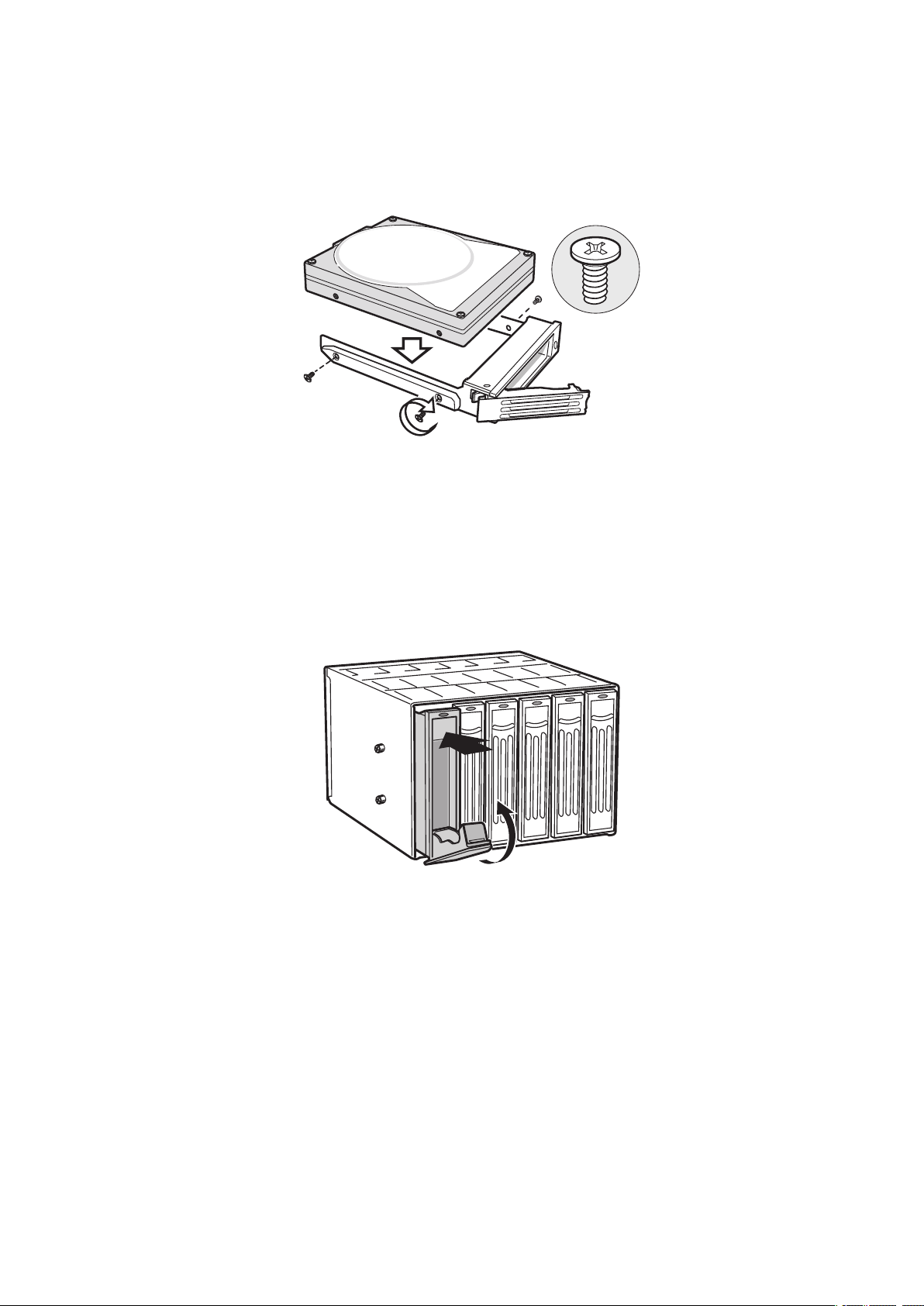

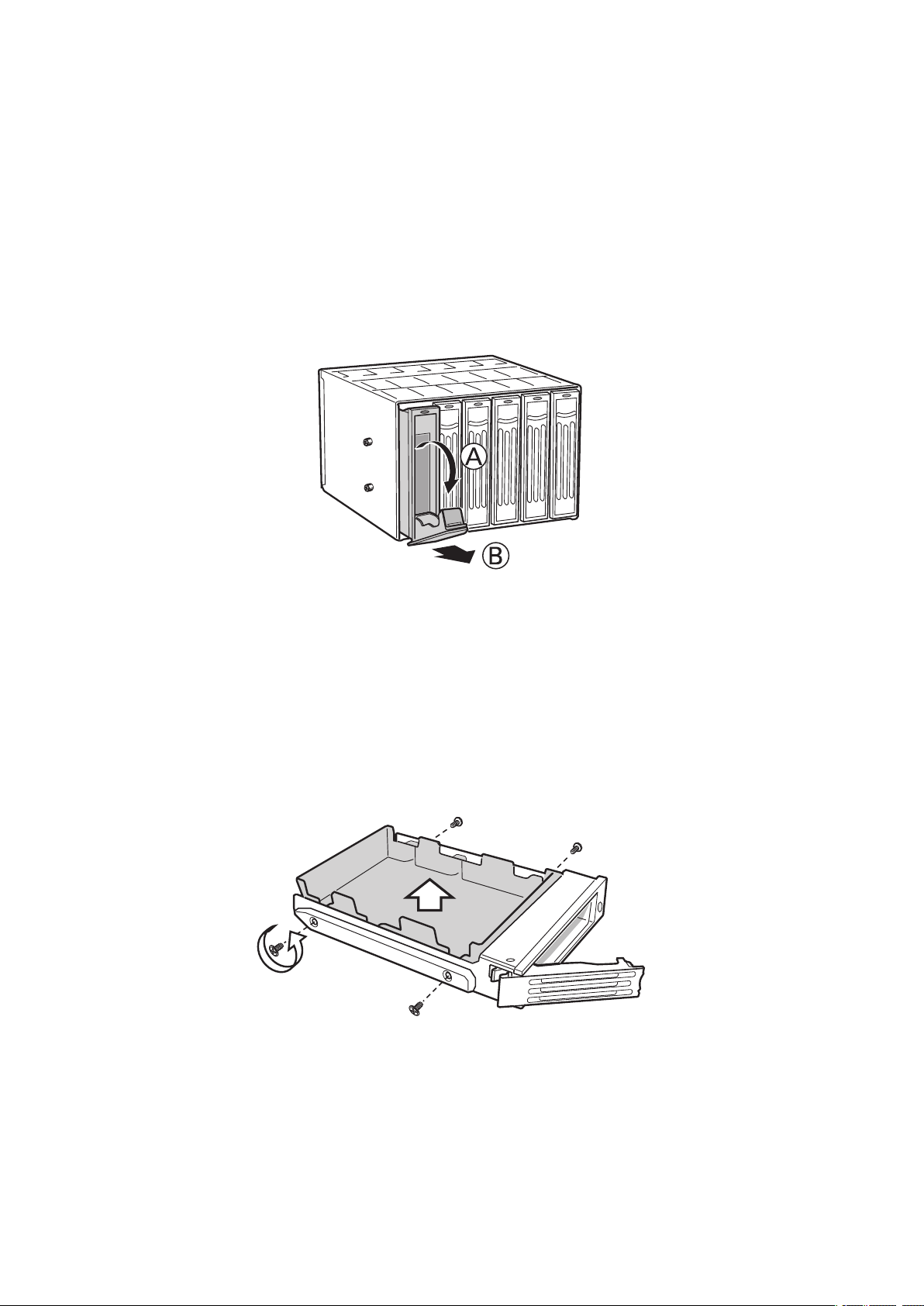

16. Releasing Drive Carrier from Hot Swap Cage .................................................................................20
17. Removing Plastic Retention Device ................................................................................................20
18. Securing Hard Drive to Drive Cage ..................................................................................................21
19. Inserting Drive Carrier into Drive Cage ............................................................................................21

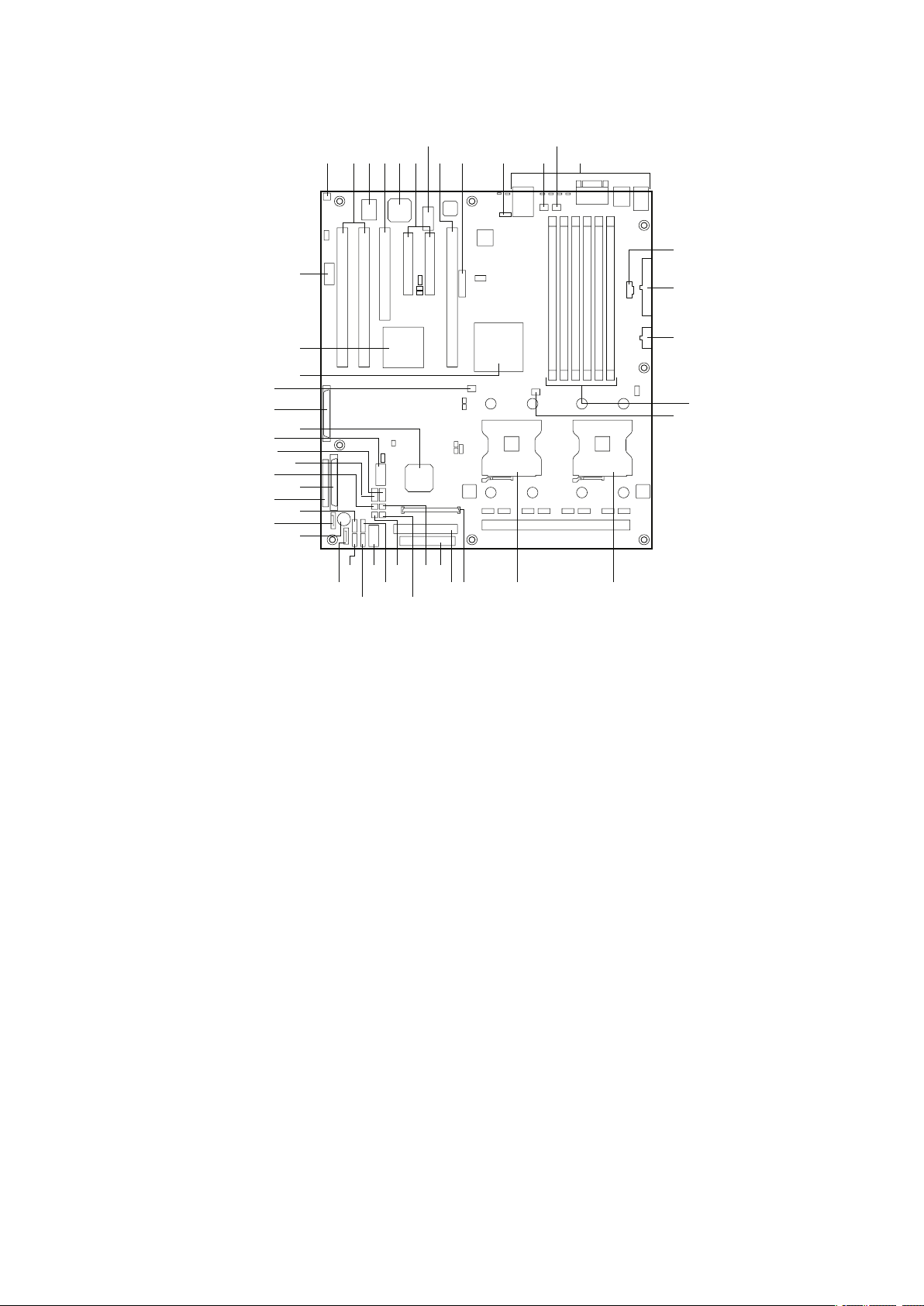

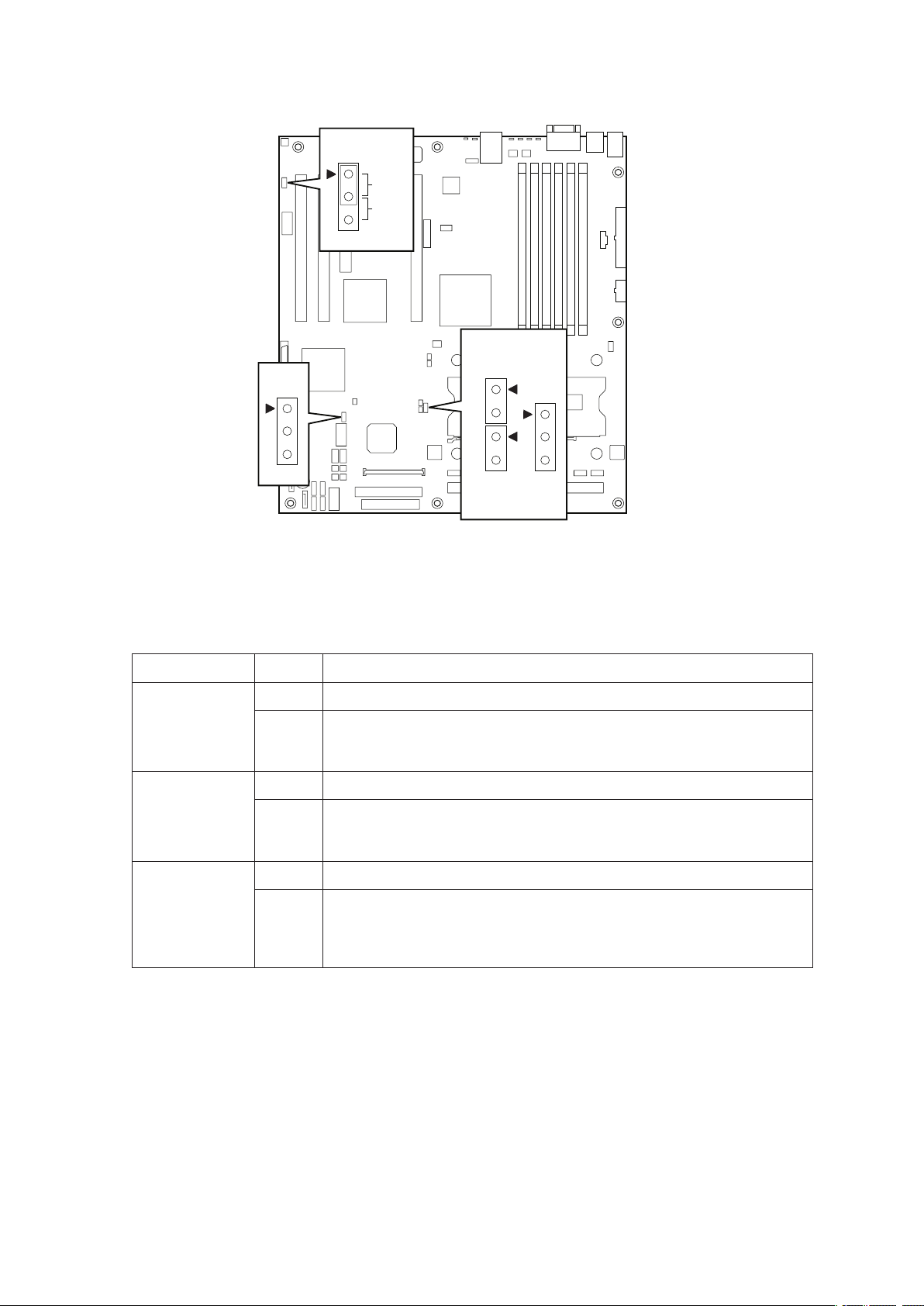

20. MAXDATA PLATINUM 3200 I Server Board Connector and Header Locations ..............................25
21. Configuration Jumper Location .......................................................................................................26

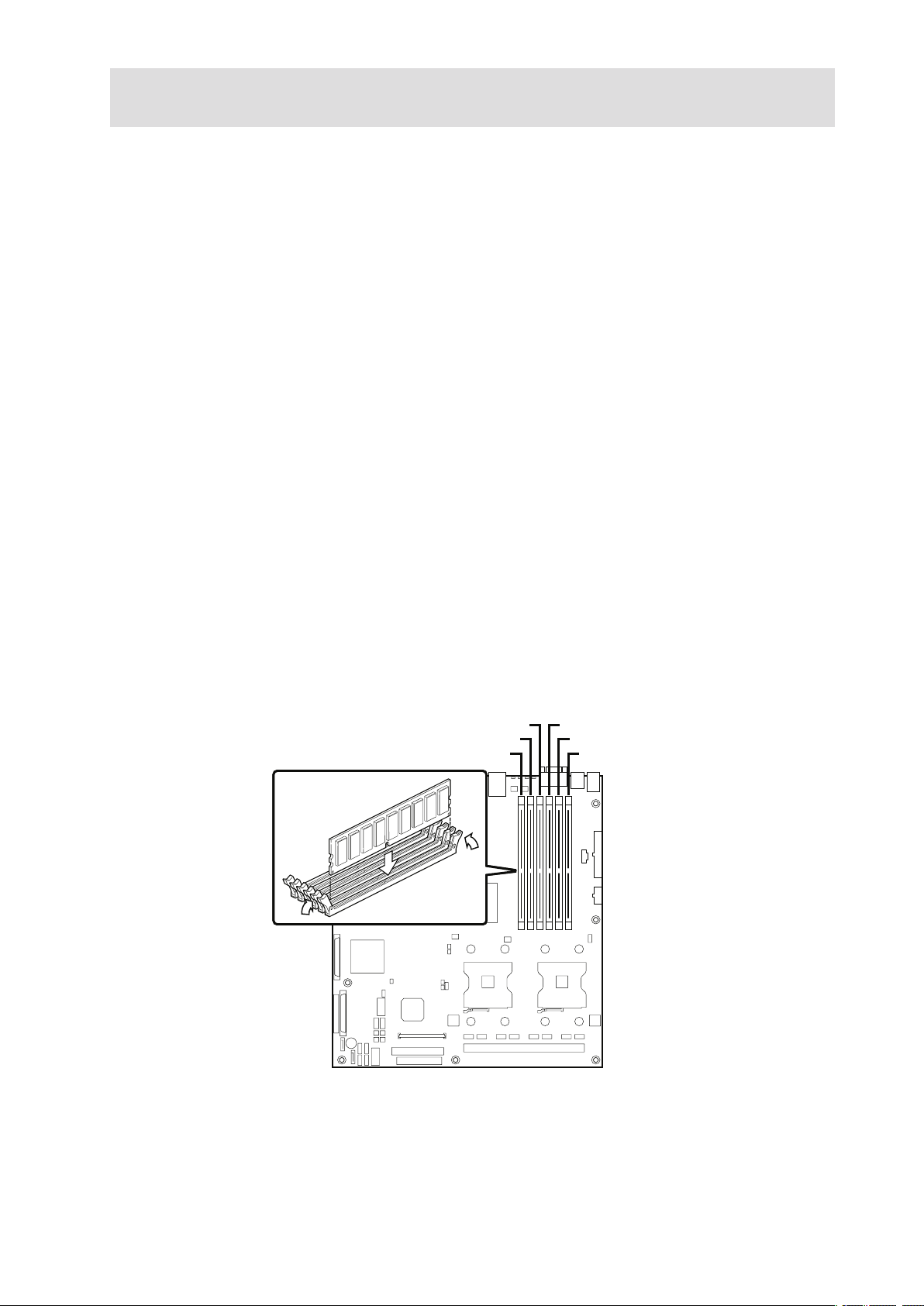

22. Installing Memory ............................................................................................................................29

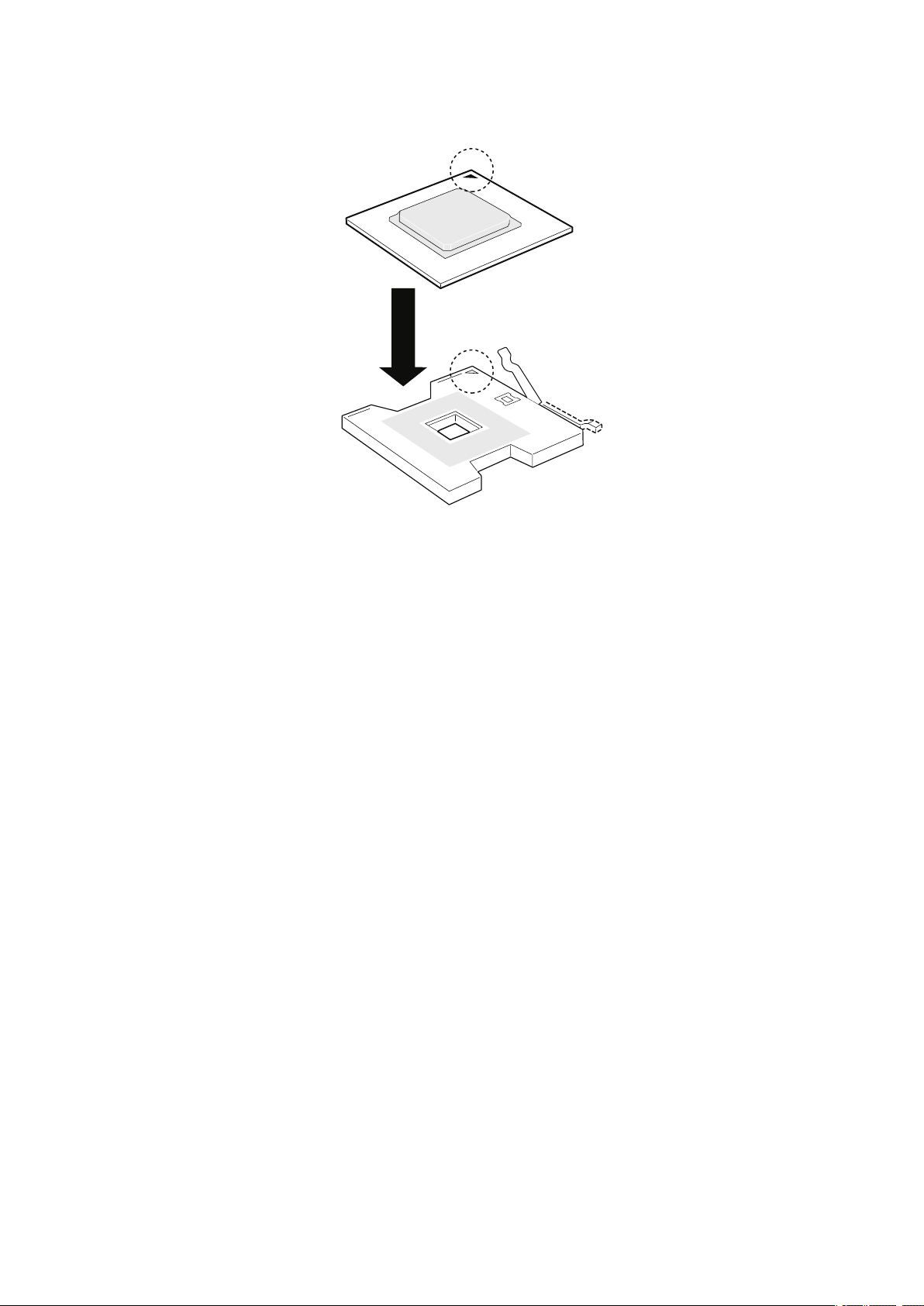

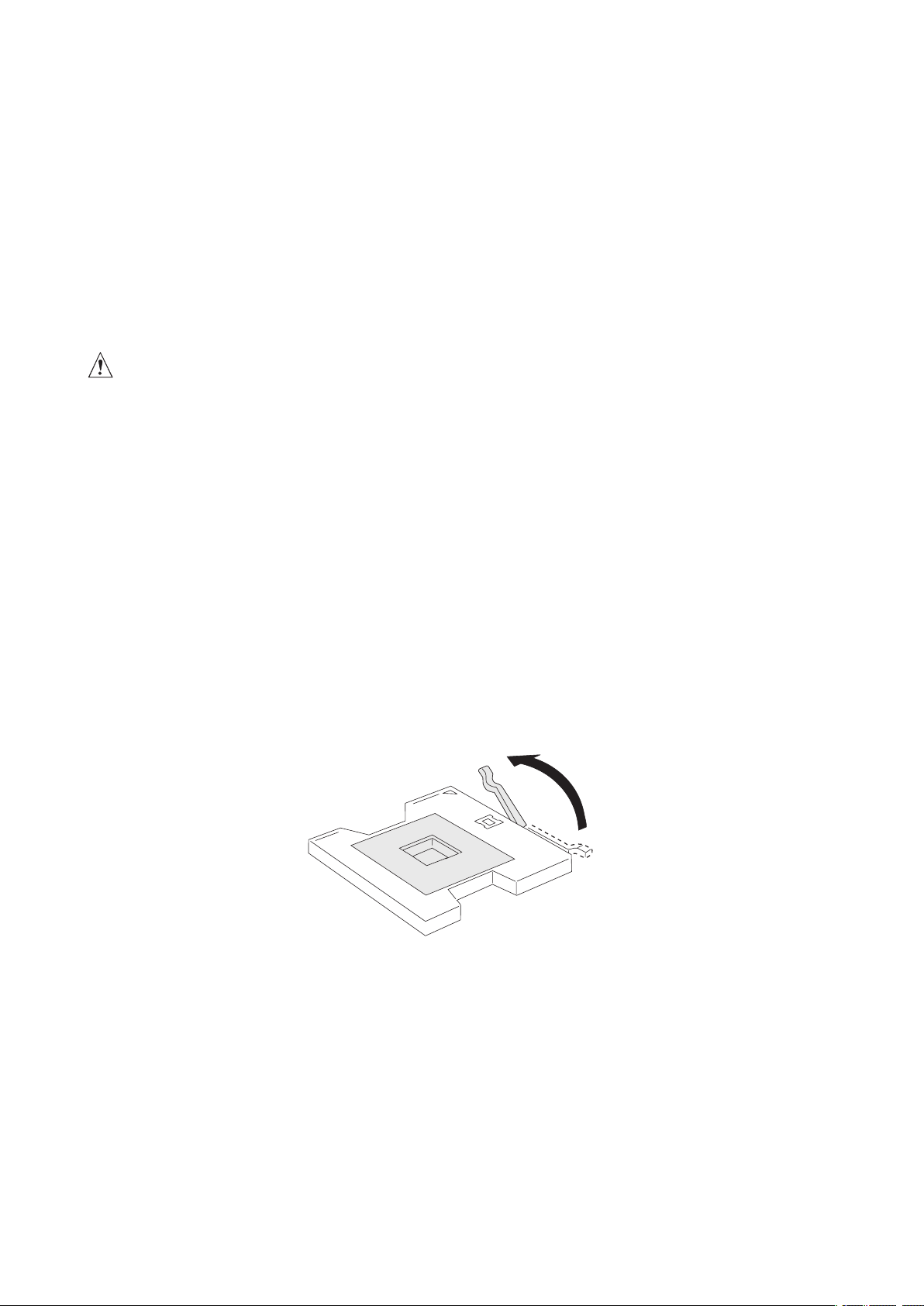

23. Opening Socket Lever .....................................................................................................................30
24. Inserting Processor ........................................................................................................................31

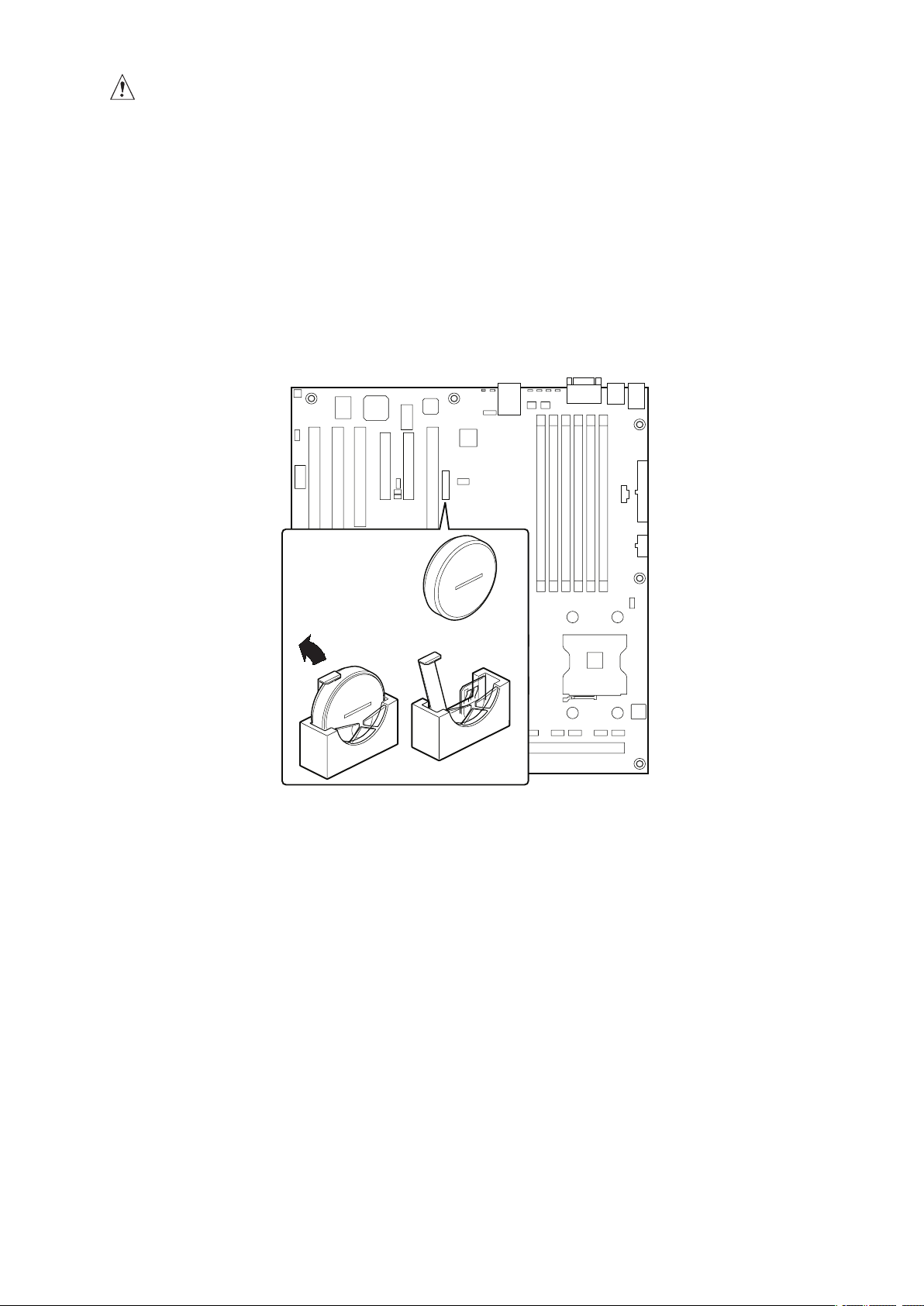

25. Replacing the Backup Battery .........................................................................................................33
Tables
1. NIC LED’s ..........................................................................................................................................8
2. Description of Front Panel LEDs .....................................................................................................10
3. Feature Summary ............................................................................................................................11
4. MAXDATA PLATINUM 3200 I Server Board features overview .....................................................23
5. Server Board Features .....................................................................................................................23
6. Configuration Jumpers ....................................................................................................................26
7. Keyboard Commands ......................................................................................................................36
8. POST Error Beep Codes ..................................................................................................................37
9. BIOS Recovery Beep Codes ...........................................................................................................38
10. 600-W Power Supply System Output Capability .............................................................................39
11. 730-W Power Supply System Output Capability .............................................................................39
12. Environmental Specifications ..........................................................................................................40
13. Product Certification Markings ........................................................................................................41
6
1 Setting up the System
Server Position
Please take note of the following criteria for creating a practical and safe workplace when setting up your computer:
The system can be used anywhere the temperature is suitable for people. However, rooms
with humidity over 70 %, and dusty or dirty areas are not appropriate. In addition, do not expose the server to any temperatures over +30 °C or under +10 °C.
Make sure that the cables connecting the server to peripheral devices are not tight.
Make sure that all power and connection cables are positioned so that they are not trip
hazards.
When you save data to your server‘s hard disks or to a floppy disk, they are stored as
magnetic information on the media. Make sure that they are not damaged by magnetic or electromagnetic fields.
Because the electronics in your computer can be damaged by jarring, no mechanical devices
should be placed on the same surface as the server. This is especially important for impact printers whose vibrations could damage the hard disk.
Please take care to ensure a free air flow to the server at all times. Do not block the ventilation
slots of the server case and particularly the power supplies. An insufficient air flow may damage the server and / or it’s components.
ATTENTION
In order to fully separate the server from current, the power cord must be removed from the wall outlet.
7MAXDATA Server PLATINUM 3200 I M5
Connecting the System
Back Panel Connectors
a
Figure 1. Back Panel Connectors
A. USB 1 D. Mouse G. Video
USB 2 E. Keyboard H. NIC 1
B.
C. USB 3* F. Serial A I. NIC 2
*USB3 not available on MAXDATA PLATINUM 3200 I Server Board
The NIC LEDs at the right and left of NIC 1 provide the following information.
Table 1. NIC LED’s
LED Color LED State Description
Left LED Off
Solid Green
Blinking Green Transmit/receive activity
Right LED Off 10 Mbps connection (if left LED is on or
Solid Green 100 Mbps connection
Solid Amber 1000 Mbps connection
No network connection is in place
Network connection is in place
blinking)
8 Setting up the System
Front Panel Controls and Indicators
a
Figure 2. Pedestal Controls and Indicators
A. ID Toggle Switch G. Power/Sleep LED (green)
B. Reset Button
C. NIC 1 Activity LED (green) I. ID LED (blue)
D. Sleep Button J.
E. Power Button K. NMI Button
F. Hard Drive Activity LED (bi-color)
H. NIC 2 Activity LED (green)
Status LED (bi-color)
9MAXDATA Server PLATINUM 3200 I M5
Descriptions of the front panel LEDs are listed in the following table.
Table 2. Description of Front Panel LEDs
LED Name Color Condition Description
Power/Sleep LED Green
Green
Status Green
Green
Amber ON Critical alarm: Critical power module failure, critical fan
Amber BLINK Non-critical failure: Redundant fan failure, redundant power
Hard Drive Activity
NIC 1 Activity Green
NIC 2 Activity Green
ID LED (rack only)
Green
Amber ON Fault
Green
Green
Blue BLINK Server identification; Toggled by ID button or software
ON Power On
BLINK Standby/Sleep (S1)
OFF Off (also Sleep S4)
ON System Ready
BLINK System ready, but degraded: some CPU fault, DIMM killed
failure, voltage (power supply), voltage and thermal fault
failure, non-critical power and voltage
OFF System not ready: Post error / NMI event / PCI or terminator
missing
BLINK Hard drive activity
OFF No activity
ON Linked
BLINK LAN activity
OFF Idle
ON Linked
BLINK LAN activity
OFF Idle
OFF Server identification; Toggled by ID button or software
10 Setting up the System
2 Chassis Description
Feature Summary
Table 3. Feature Summary
Feature P3200 I Description
Peripheral Bays
Drive Bays (6 + 4) bay layout
Expansion Slots Six full-length PCI expansion slots are available.
Form Factor 5U Tower, convertible to rack mount
Power Delivery a) P3200 I base: One fixed 600-W power supply with an integrated
Cooling is spooling Two fixed, non-redundant chassis fans:
3 multi-mount 5.25 peripheral bays
One fixed drive bay for up to six drives (P3200 I base). Optional hot-swap drive bays (P3200 I redundant):
• Six-drive SCSI
• Four-drive SCSI An optional four-drive fixed drive bay is also available. Supports up to 10 drives.
cooling fan.
b) P3200 I redundant power: Two redundant 730-W power supplies with
an integrated cooling fan.
• x1 120-mm fan
• x1 92-mm fan
11MAXDATA Server PLATINUM 3200 I M5
Chassis Front View
a
Figure 3. MAXDATA PLATINUM 3200 I Base Front View
A. Power supply
B. PCI Add-in Card Panel
C. I/O Ports
D.
Air duct
E. Chassis fans
F. Drive cage release mechanisms
G. Front panel controls and indicators
H. Three 5.25-inch removable media drive bays
I. Front Panel USB / Serial B
J. Fixed Drive Cage – 4 drive (optional)
K. Fixed Drive Cage – 6 drive
L. ICBM or SCSI Knockout
12 Chassis Description
Base Chassis Rear View
a

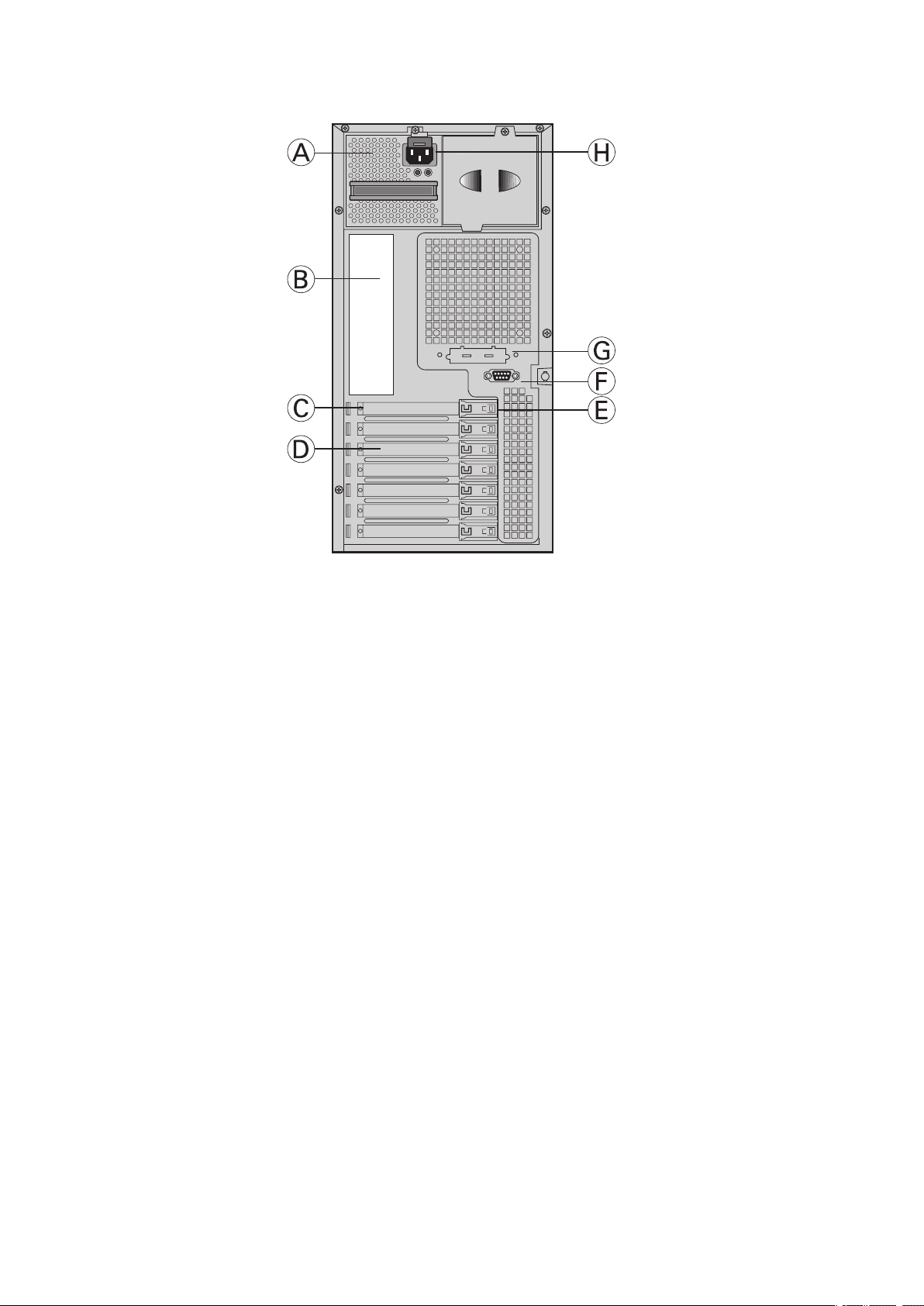

Figure 4. MAXDATA PLATINUM 3200 I Base Chassis Rear View
A. Power supply
B. I/O Ports
C. Expansion Slot Covers
D. PCI Add-in Card Panel
E. PCI Card Latch
F. Rear Serial B Connector
G. ICBM or SCSI Knockout
H. AC Power Connector
13MAXDATA Server PLATINUM 3200 I M5
