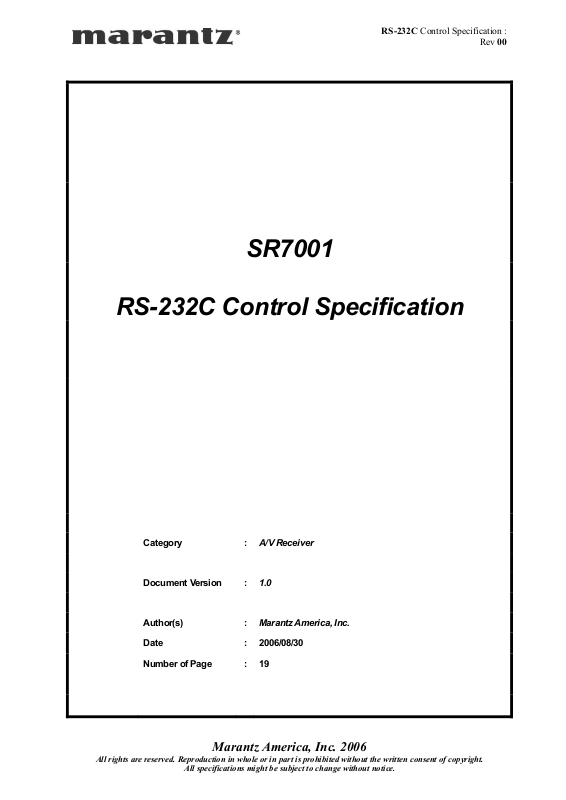

SR-7001-RS-232C
RS-232C Control Specification :
Rev 00
Marantz America, Inc. 2006
All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of copyright.
All specifications might be subject to change without notice.
SR7001
RS-232C Control Specification
Category :
A/V Receiver
Document Version :
1.0
Author(s) :
Marantz America, Inc.
Date : 2006/08/30
Number of Page : 19
SR7001 RS-232C Control Specification Page: 2 / 19
Document Version [1.0]
Company Restricted
Table of Contents
1.
Introduction............................................................................................................................................................ 3
1-1. Purpose ............................................................................................................................................................ 3
1-2. Scope................................................................................................................................................................ 3
1-3. Abbreviations ...................................................................................................................................................3
1-4. References....................................................................................................................................................... 3
2. Global Description ................................................................................................................................................ 3
2-1. Overview...........................................................................................................................................................3
2-2. Block Diagram.................................................................................................................................................. 3
2-3. Interface connection specification of the product...........................................................................................3
2-4. Assumptions and Dependencies.................................................................................................................... 3
3. Detailed Description.............................................................................................................................................. 4
3-1. Connection format ...........................................................................................................................................4
3-1-1. Physical connection................................................................................................................................. 4
3-1-1-1. Data transmission sequence from Host to Slave ..........................................................................4
3-1-1-2. Data transmission sequence from Slave to Host ..........................................................................4
3-2. Transmission data format................................................................................................................................ 5
3-2-1. Transmission data format from Host to Slave........................................................................................ 5
3-2-1-1. Form1: Command ........................................................................................................................... 5
3-2-1-2. Form2: Status request ..................................................................................................................... 5
3-2-2. Transmission data format from Slave to Host........................................................................................5
3-2-2-1. Form1: ACK/NAK ............................................................................................................................ 5
3-2-2-2. Form2: Status answer and Auto status feedback.......................................................................... 5
3-3. The transaction sequences and the regulations............................................................................................ 6
3-3-1. The transaction sequences..................................................................................................................... 6
3-3-2. The transaction regulations..................................................................................................................... 6
3-3-3. Specification of Auto status feedback ..................................................................................................... 6
3-3-4. Example of the transactions.................................................................................................................... 6
3-3-5. Examples of the handshaking flowchart ................................................................................................7
3-3-5-1. Example of successful handshaking.............................................................................................. 7
3-3-5-2. Examples of handshaking error...................................................................................................... 7
4. Recommendations of Command, Status and Layer definition..................................................................... 8
5. Definitions of Command, Status and Layer......................................................................................................9
5-1. Normal Command List .................................................................................................................................... 9
5-1-1. Main function contents............................................................................................................................. 9
5-1-2. Display and Menu contents...................................................................................................................10
5-1-3. Surround contents ................................................................................................................................. 11
5-1-4. Tuner contents ....................................................................................................................................... 12
5-1-5. XM Contents ..........................................................................................................................................12
5-1-6. Multi Room contents.............................................................................................................................. 13
5-2. Specific Commands....................................................................................................................................... 14
5-3. Status request and Status answer list...........................................................................................................15
5-3-1. Normal Status request and Status (answer and feedback) list........................................................... 15
5-3-2. Layer of the statuses .............................................................................................................................18
6. Revision history...................................................................................................................................................19
SR7001 RS-232C Control Specification Page: 3 / 19
Document Version [1.0]
Company Restricted
1. Introduction
1-1. Purpose
This document was written as a reference specification of products that are controled by the host
controller.
1-2. Scope
This document would be using by software or hardware engineers for production of the product.
1-3. Abbreviations
Abbreviation Description
1-4. References
- Hardware Software Interface Specification ver. 1.02 / author: N.Sakamoto
-
2. Global Description
2-1. Overview
A Host controller can control or watch out the product as a Slave very easily via the communication cable.
2-2. Block Diagram
* The product connector is using D-SUB 9pin male.
* RS232C cable must use D-SUB 9pin female to connect the products.
2-3. Interface connection specification of the product
uP Interface Signal name Connection device D-Sub Pin Connecter
- N.C. - 1
TxD (output) 2
UART
RxD (input)
RS232C
Level shift driver
3
- N.C. - 4
-
GND GND 5
- N.C. - 6
- N.C. - 7
- N.C. - 8
- N.C. - 9
<The product connector>
RS232C D-SUB (9pin,Male)
2-4. Assumptions and Dependencies
HOST
(Controller)
SLAVE
(The product)
RS232C cable (straight)
Connector
D-SUB (9pin, male)
SR7001 RS-232C Control Specification Page: 4 / 19
Document Version [1.0]
Company Restricted
3. Detailed Description
The interface specification between the product and a Host controller is described below.
3-1. Connection format
3-1-1. Physical connection
Host (Controller) Slave (the product)
(Serial setting <RS232C basic>)
Baud Rate : 9600bps
Data Bits : 8bit
Parity : None
Stop bit : 1bit
Handshaking : None
3-1-1-1. Data transmission sequence from Host to Slave
Host (Controller) Slave (The product)
TxD → RxD
RxD ← TxD
1. Host starts a data transmission from TxD.
2. Host performs the data transmission of the number of required bytes, and ends a transmission.
3-1-1-2. Data transmission sequence from Slave to Host
Host (Controller) Slave (The product)
TxD → RxD
RxD ← TxD
1. Slave starts a data transmission from TxD.
2. Slave performs the data transmission of the number of required bytes, and ends a transmission.
TxD
RxD
GND
RxD
TxD
GND
SR7001 RS-232C Control Specification Page: 5 / 19
Document Version [1.0]
Company Restricted
3-2. Transmission data format
3-2-1. Transmission data format from Host to Slave
There are two kinds of transmission data form from Host shown below.
3-2-1-1. Form1: Command
Command is a data that requests some status change.
Start character : ’@’
COMMAND : see “Command list”
End character (CR) : 0Dh
3-2-1-2. Form2: Status request
Status request is a data that requests a answer of some status.
Start character : ’@’
Request status : see “Status request list”
Request character : ‘?’
End character (CR) : 0Dh
3-2-2. Transmission data format from Slave to Host
There are two kinds of transmission data form from Slave shown below.
3-2-2-1. Form1: ACK/NAK
ACK is a reply data from Slave when Slave got an acceptable command data from Host.
(ACK is sent to Host when Slave has no related status by the Command.)
Start character : ’@’, ACK : 06h, End character (CR) : 0Dh
NAK is a reply data from Slave when Slave got an incorrect Command data, Status request data or
some other data from Host.
Start character : ’@’, NAK : 15h, End character (CR) : 0Dh
3-2-2-2. Form2: Status answer and Auto status feedback
Status answers are reply data when Slave got an acceptable Request status or Command data from
Host. Auto status feedbacks are send to Host data when a Slave’s status is changed.
Start character : ’@’
Answer character : see “Status list”
End character (CR) : 0Dh
A
CK
06h
CR
0Dh
r
‘
@
’
NA
K
15h
CR
0Dh
r
‘
@
’
start
‘@’
command
“xxx:”+”...”
end
0Dh
start
‘@’
request status
“xxx:?”+”...”
end
0Dh
start
‘@’
status
“xxx:”+”...”
end
0Dh
SR7001 RS-232C Control Specification Page: 6 / 19
Document Version [1.0]
Company Restricted
3-3. The transaction sequences and the regulations
3-3-1. The transaction sequences
The transactions have three kinds of sequence.
*A transaction is a Command from Host then Slave will be an answer by Status answer, ACK or NAK.
*A transaction is a Status request from Host then Slave will be an answer by Status answer or NAK.
*A transaction is Auto status feedback from Slave when a Slave’s status changed. (If the auto status
feedback is enabled.)
3-3-2. The transaction regulations
The transactions have some kinds of regulation.
* An answer (ACK, NAK or Status answer) transmittion by Slave has to finish within 500ms when got a
Command or a Status request from Host.
* Host must not transmit an another Command or Status request until "it receives a answer by a
previous Command or Status request" or "it passes a term of waitinng time from a finishing of previous
transmission of a Command or a Status request ".
* Slave has to finish a transaction under 500ms when it sends Auto status feedback data.
3-3-3. Specification of Auto status feedback
There are some specific regulations about Auto status feedback.
* The product status has segmented into four layers of 1, 2, 3 and 4.
* The status of layer 1 are assigned most kindly status to Host. (The statuses of layer 2 are assigned kindly status,
the statuses of layer 3 are not so need status to Host and the statuses of layer 4 are probably no wished statuses.)
* Each layer status can control transmit enable or disable by Host command. (The product default
would be all disables.)
* Slave sends auto status feedback by itself when the status is changed and if the status feedback is
enabled.
* The product defined and segmentationed layers are takeing in status list.

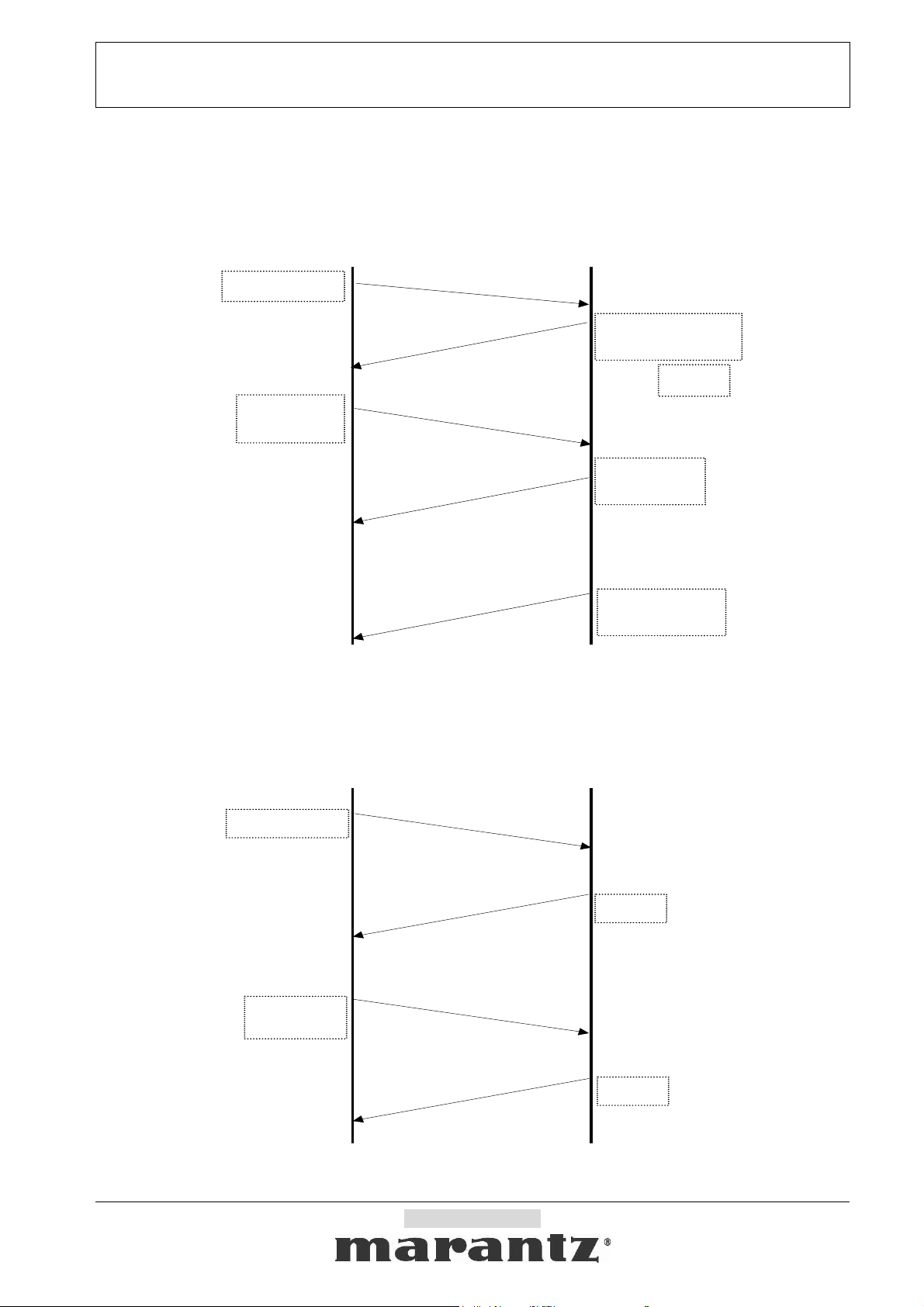

3-3-4. Example of the transactions
<Host> <Slave>
TxD RxD
RxD TxD
Example of the transactions
max. 0.5sec
a transaction a transaction
Command
Status answer ,
ACK or NAK
Status
request
Status answer
max. 0.5sec
