Model MV8300 User Guide

D-VHS Digital Recorder

MTP

NTSC

2 EN

Dear Customer,

Thank you for purchasing the Marantz D-VHS video cassette recorder. Before use, please read the safety information and precautions contained in the following pages to ensure safe use of your new VCR.

CAUTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

CAUTION:

This video cassette recorder should be used with AC 120V`, 60Hz only.

To prevent electric shocks and fire hazards, DO NOT use any other power source.

CAUTION:

TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION:

POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU'AU FOND.

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

NOTE:

Change or modifications not approved by the party responsible for compliance could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient

or relocate the receiving antenna.

Increase the separation between the equipment and

receiver.



Connect the equipment into an outlet on a circuit

different

from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

When the equipment is installed in a cabinet or a shelf, make sure that it has sufficient space on all sides to allow for ventilation (10 cm or more on both sides, on top and at the rear.)

When discarding batteries, environmental problems must be considered and the local rules or laws governing the disposal of these batteries must be followed strictly.

VCR Plus+, C3 and PlusCode are registered trademarks of Gemstar Development Corporation.

The VCR Plus+ system is manufactured under license from Gemstar Development Corporation.

DSSTM is an official trademark of DIRECTV, Inc., a unit of GM Hughes Electronics. DISH NetworkTM is a trademark of Echostar Communications Corporation.

D-Theater is a technical specification based on D-VHS standards that was developed for HD content. Commercial D-Theater titles can only be played back on D-VHS digital recorders bearing the D-Theater logo.

MTP

NTSC

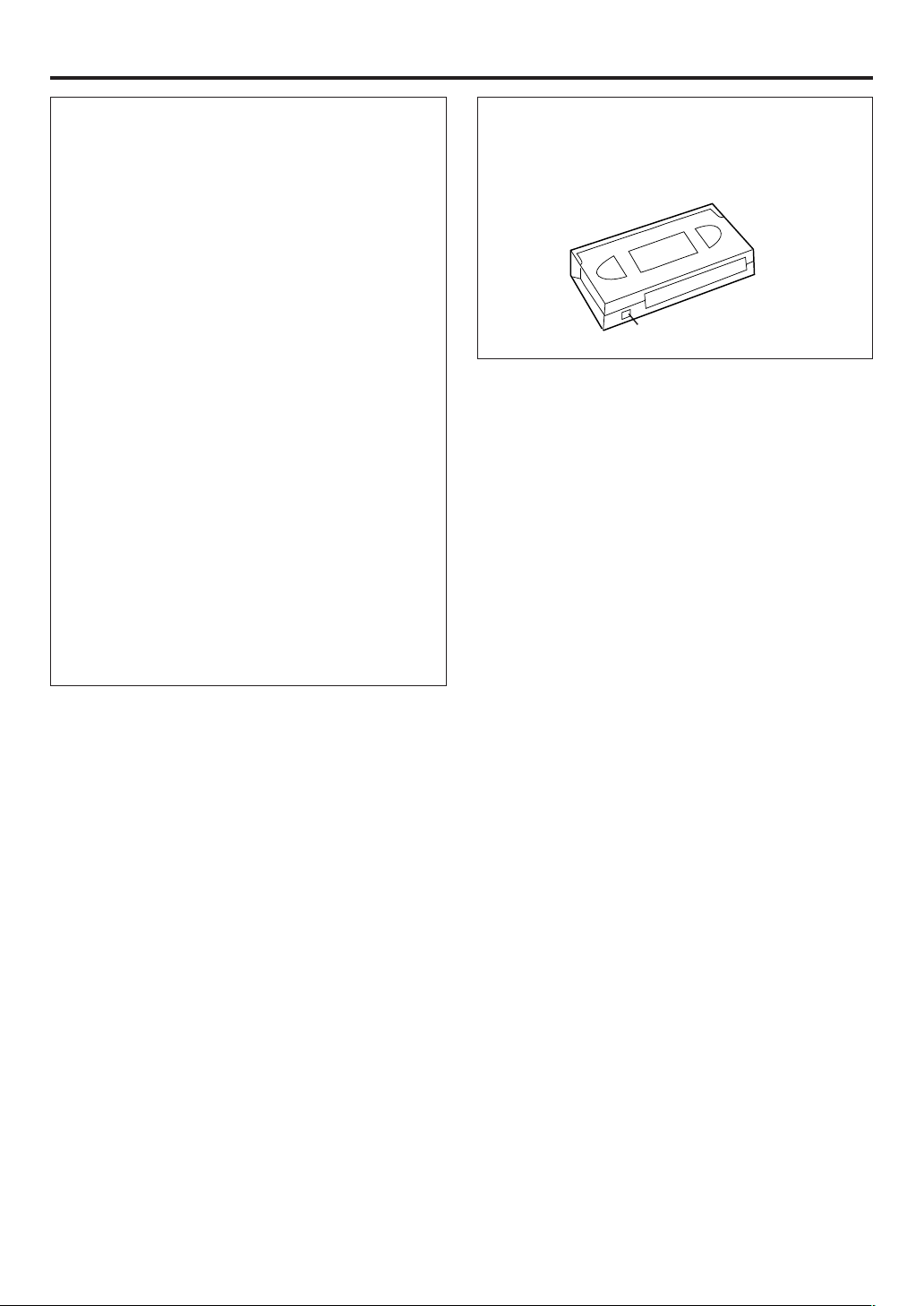

Cassettes marked "D-VHS", "S-VHS" and "VHS" can be used with this video cassette recorder. However, D-VHS recordings are possible only with cassettes marked "D-VHS".

By using S-VHS ET it is possible to record and play back with S-VHS picture quality on VHS cassettes with this VCR.

D-VHS is a new digital memory system that uses D-VHS tapes. D-VHS was developed as a memory system for multimedia applications that require storage for large volumes of information, such as for digital video.

Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic", and the double-D symbol are trademarks of Dolby Laboratories. Confidential unpublished works. Copyright 1992-1997 Dolby Laboratories. All rights reserved.

EN 3

IMPORTANT PRODUCT SAFETY INSTRUCTIONS

Electrical energy can perform many useful functions. But improper use can result in potential electrical shock or fire hazards. This product has been engineered and manufactured to assure your personal safety. In order not to defeat the built-in safeguards, observe the following basic rules for its installation, use and servicing.

ATTENTION:

Follow and obey all warnings and instructions marked on your product and its operating instructions. For your safety, please read all the safety and operating instructions before you operate this product and keep this booklet for future reference.

INSTALLATION

1. Grounding or Polarization

(A)Your product may be equipped with a polarized alternatingcurrent line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature.

If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

(B)Your product may be equipped with a 3-wire grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature.

If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.

2. Power Sources

Operate your product only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. If your product is intended to operate from battery power, or other sources, refer to the operating instructions.

3. Overloading

Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

4. Power Cord Protection

Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

5. Ventilation

Slots and openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered.

Do not block the openings by placing the product on a bed, sofa, rug or other similar surface.

Do not place the product in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

6. Wall or Ceiling Mounting

The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

ANTENNA INSTALLATION

INSTRUCTIONS

1. Outdoor Antenna Grounding

If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding connectors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

2. Lightning

For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

3. Power Lines

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL CODE, ANSI/NFPA 70

ANTENNA

LEAD IN WIRE

GROUND CLAMP

ANTENNA DISCHARGE UNIT (NEC SECTION

ELECTRIC SERVICE 810-20) EQUIPMENT

GROUNDING CONDUCTORS

(NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250. PART H)

NEC – NATIONAL ELECTRICAL CODE

4 EN

USE

1. Accessories

To avoid personal injury:

Do not place this product on an unstable cart, stand, tripod, bracket, or table. It may fall, causing serious injury to a child or adult, and serious damage to the product.

Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product.

Use a mounting accessory recommended by the manufacturer and follow the manufacturer’s instructions for any mounting of the product.

Do not try to roll a cart with small casters across thresholds or deep-pile carpets.

2.Product and Cart Combination

A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

3.Water and Moisture

PORTABLE CART WARNING (Symbol provided by RETAC)

Do not use this product near water—for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement, or near a swimming pool and the like.

4. Object and Liquid Entry

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or shortout parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

5. Attachments

Do not use attachments not recommended by the manufacturer of this product as they may cause hazards.

6. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

7. Heat

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

SERVICING

1. Servicing

If your product is not operating correctly or exhibits a marked change in performance and you are unable to restore normal operation by following the detailed procedure in its operating instructions, do not attempt to service it yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

2. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power supply cord or plug is damaged.

b.If liquid has been spilled, or objects have fallen into the product.

c. If the product has been exposed to rain or water.

d.If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

e.If the product has been dropped or damaged in any way.

f.When the product exhibits a distinct change in performance—this indicates a need for service.

3. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or which have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

4. Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in safe operating condition.

HOW TO USE THIS INSTRUCTION MANUAL

The Index on pages 79 – 86 lists frequently-used terms, and the number of the page on which they are used or explained in the manual. This section also illustrates the controls and connections on the front and rear panel, the front display panel and the Remote.

The mark signals a reference to another page for instructions or related information.

Operation buttons necessary for the various procedures are clearly indicated through the use of illustrations at the beginning of each major section.

BEFORE YOU INSTALL YOUR NEW VCR . . .

. . . please read the sections/literature listed below.

“CAUTIONS” on page 2.

“IMPORTANT PRODUCT SAFETY INSTRUCTIONS” on the previous page.

EN 5

Failure to heed the following precautions may result in damage to the VCR, Remote or video cassette.

1.DO NOT place the VCR…

in an environment prone to extreme temperatures or humidity.

in direct sunlight.

in a dusty environment.

in an environment where strong magnetic fields are generated.

on a surface that is unstable or subject to vibration.

2.DO NOT block the VCR’s ventilation openings or holes.

(If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

3.DO NOT place heavy objects on the VCR or Remote.

4.DO NOT place anything which might spill on top of the VCR or Remote.

(If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)

5.DO NOT expose the apparatus to dripping or splashing.

6.DO NOT use this equipment in a bathroom or places with water. Also DO NOT place any containers filled with water or liquids (such as cosmetics or medicines, flower vases, potted plants, cups, etc.) on top of this unit.

7.DO NOT place any naked flame sources, such as lighted candles, on the apparatus.

8.AVOID violent shocks to the VCR during transport.

ABOUT HEAD CLEANING

After an extended period of use, the video heads can become dirty, resulting in a loss of picture or sound during playback. If this happens, clean the video heads by using the optional cleaning tapes.

The heads get dirty in the following cases:

in an environment prone to extreme temperature or humidity

in a dusty environment

flaw, dirt or mold on video tapes

continuous usage for a long time

Symptoms of dirty video heads:

The picture is not clear, or does not appear. There is no sound.

Mosaic (block) noise appears in the picture.

Black or mosaic horizontal stripes appear in the picture.

The picture stops (as if the tape is paused).

A blank black or blue screen appears.

The picture is fuzzy. (VHS playback)

VHS playback

Early symptom

D-VHS playback

Late symptom

Block noise

Still image

Black screen

Use a cleaning tape designed specifically for D-VHS video heads (JVC D-VHS video head cleaner DFC-2) to clean the video heads.

In order to avoid misoperation, set "NAVIGATION" to "OFF" ( pg. 43).

Follow the instructions that are provided with the cleaning tape.

If you still do not get a clear picture after using a cleaning tape:

The heads may be worn. Contact your nearest JVC dealer.

During VHS playback, if there is a tracking problem, the picture may appear fuzzy. Adjust the tracking manually ( pg. 23).

ATTENTION:

To mobile phone users:

Using a mobile phone in the vicinity of the VCR may cause picture vibration on the TV screen or change the screen to a blue back display.

On placing the VCR:

Some TVs or other appliances generates strong magnetic fields. Do not place such appliance on top of the VCR as it may cause picture disturbance.

6 EN

CONTENTS

INSTALLING YOUR NEW VCR

7

Connections ..................................................

7

INITIAL SETTINGS

9

Plug & Play Setting .......................................

9

Auto Clock Set/Auto Tuner Set ...................................

9

Clock Setting...............................................

10

Preparations .............................................................

10

Setting clock semiautomatically



— Semiauto Clock Set ..........................................

11

Setting clock manually — Manual Clock Set ...........

12

Tuner Setting ..............................................

13

Setting channels automatically



— Auto Channel Set .............................................

13

Setting channels manually



— Manual Channel Set ........................................

14

Cable Box Control Setting ...........................

15

Installing Controller .................................................

15

Setting cable box input channel & brand .................

16

DBS Receiver Control Setting .......................

18

Installing Controller .................................................

18

Setting DBS receiver input channel & brand ............

19

BASIC PLAYBACK AND RECORDING

21

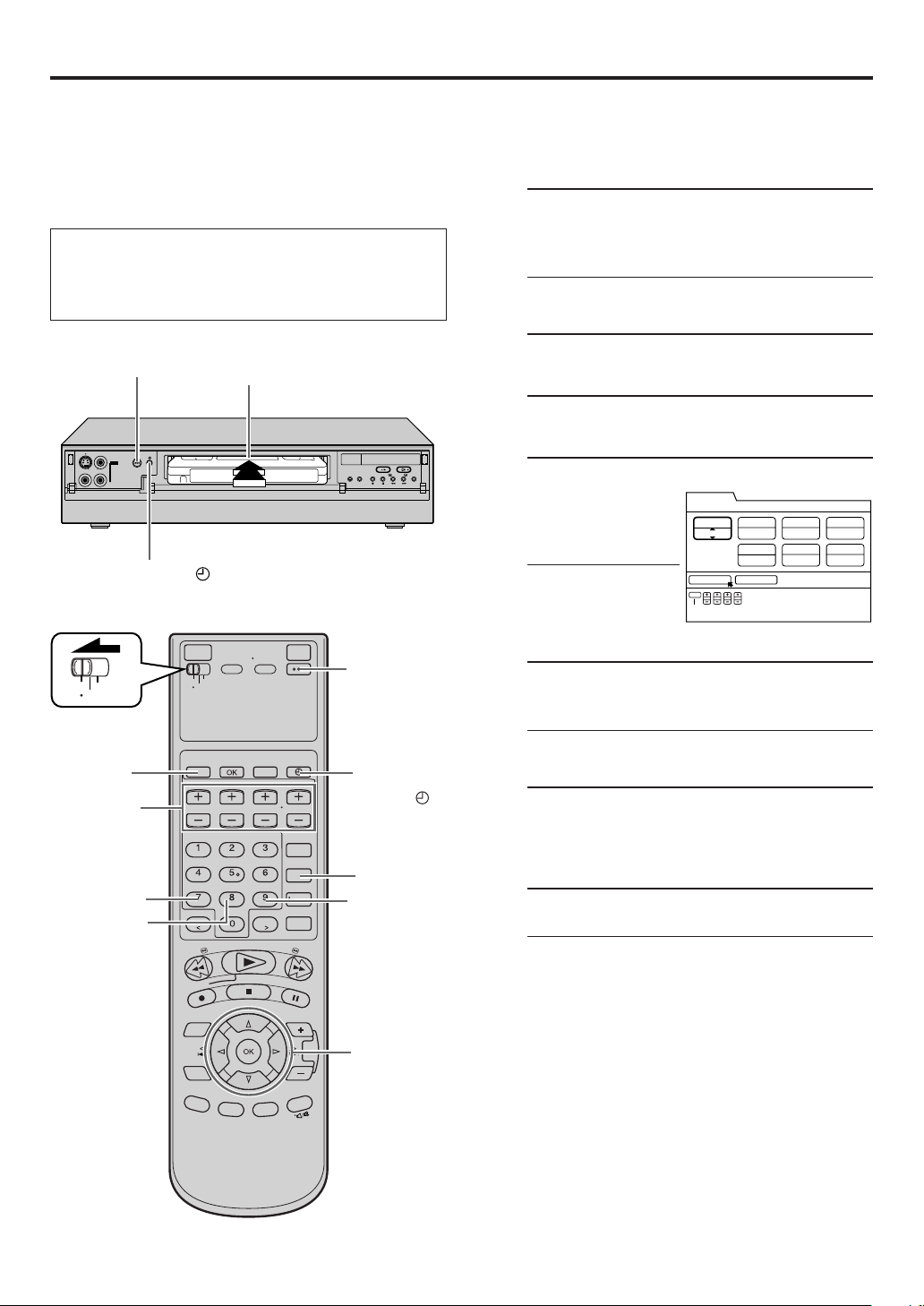

Basic Playback ...........................................

21

Basic Playback Features .............................

22

Checking tape position ............................................

22

Playing back tape repeatedly — Repeat Playback ....

22

Adjusting tracking condition



— Tracking Adjustments .......................................

23

Selecting monitor sound — Audio Monitor ..............

23

Automatic operations after rewinding



— Next Function Memory ....................................

24

Locating beginning of recordings — Index Search ...

24

Skipping unwanted portions — Skip Search .............

24

Basic Recording ..........................................

26

D-VHS Recording ....................................................

26

S-VHS/VHS Recording .............................................

27

Basic Recording Features ............................

28

Changing display information ..................................

28

Specifying recording length



— Instant Timer Recording (ITR) ...........................

28

Watching one program while recording another ......

29

Showing on-screen display ......................................

29

SPECIAL EFFECT PLAYBACK

31

Special Effect Playback ...............................

31

Locating particular scene rapidly



— Picture Search ..................................................

31

7 High-Speed Picture Search ...............................

31

7 Variable-Speed Picture Search ..........................

31

Viewing still picture — Still Picture Playback ...........

32

Viewing still picture frame by frame



— Frame-by-Frame Playback ...............................

32

Viewing slow motion picture



— Slow Motion Playback .....................................

33

TIMER RECORDING

34

VCR Plus+® Timer Programing .....................

34

Changing VCR Plus+ Setting ........................

36

Express Timer Programing ..........................

38

Checking program settings .......................................

40

Canceling or changing program settings ..................

40

VIDEO NAVIGATION

42

Navigation Playback ..................................

42

Deactivating Video Navigation ................................

43

Finding Tapes .............................................

44

Finding by tape number ...........................................

44

Finding by program title ...........................................

45

Finding by category .................................................

45

Finding by recording date ........................................

46

Finding blank space .................................................

47

Editing Titles ...............................................

48

Editing tape title .......................................................

48

Entering or Editing program title ...............................

50

Editing program category .........................................

50

Deleting tape information ........................................

51

Deleting program information ..................................

52

Checking memory ...................................................

52

OTHER USEFUL FUNCTIONS

53

Useful Function Settings ..............................

53

i.LINK Set Up ..............................................

60

Satellite Auto Recording ..............................

62

JLIP ID Number Setting ...............................

63

EDITING

64

i.LINK/DV Connections ................................

64

S-VIDEO/VIDEO Connections .......................

66

MULTI-BRAND REMOTE CONTROL

68

TV Brand Setting .........................................

68

Cable Box Brand Setting .............................

69

DBS Receiver Brand Setting .........................

70

Changing Remote Control Code ...................

71

TROUBLESHOOTING

72

Error Codes and Messages .......................................

78

Questions and answers ............................................

79

INDEX

80

Glossary ..................................................................

80

List of terms .............................................................

81

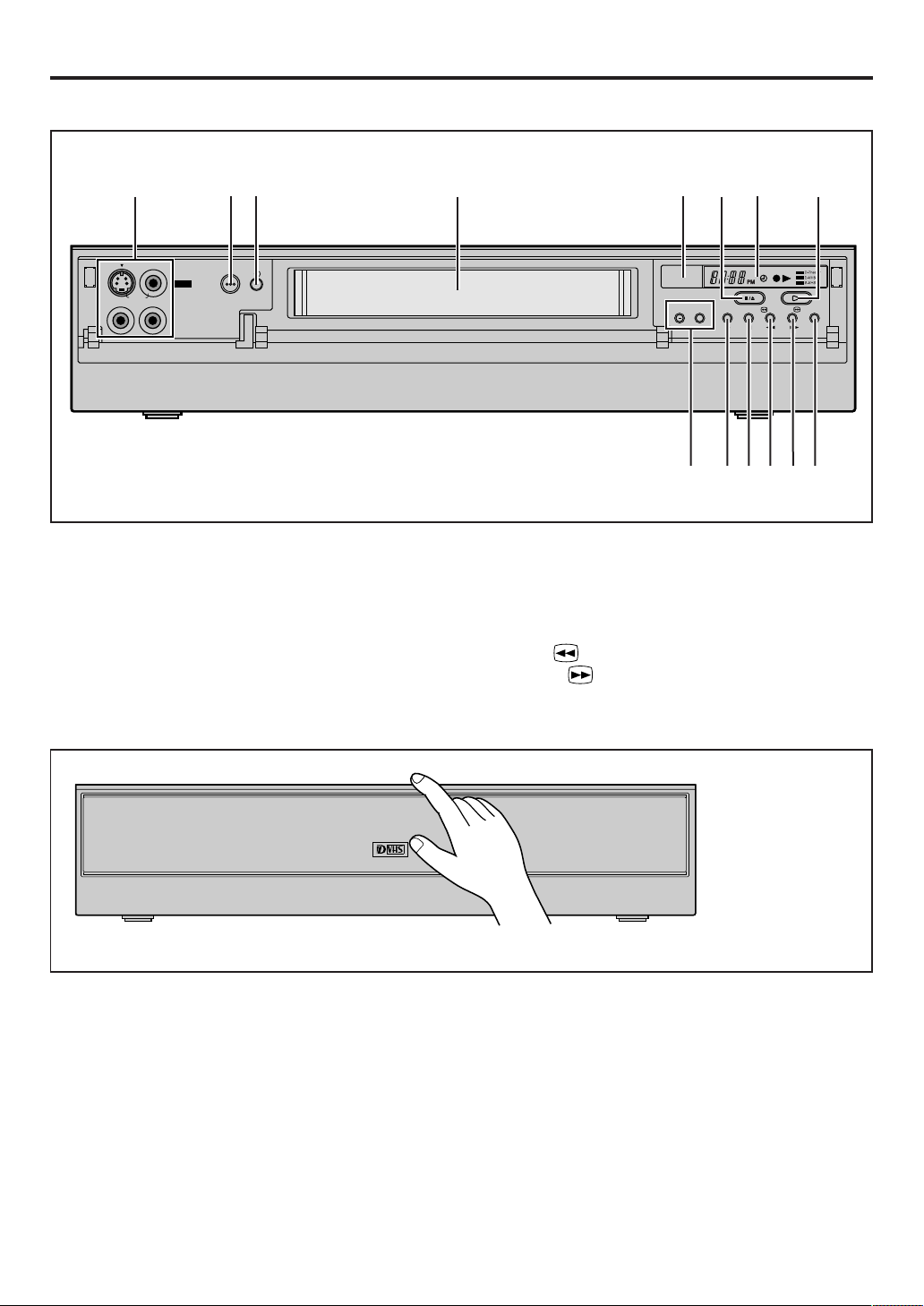

Front panel ..............................................................

82

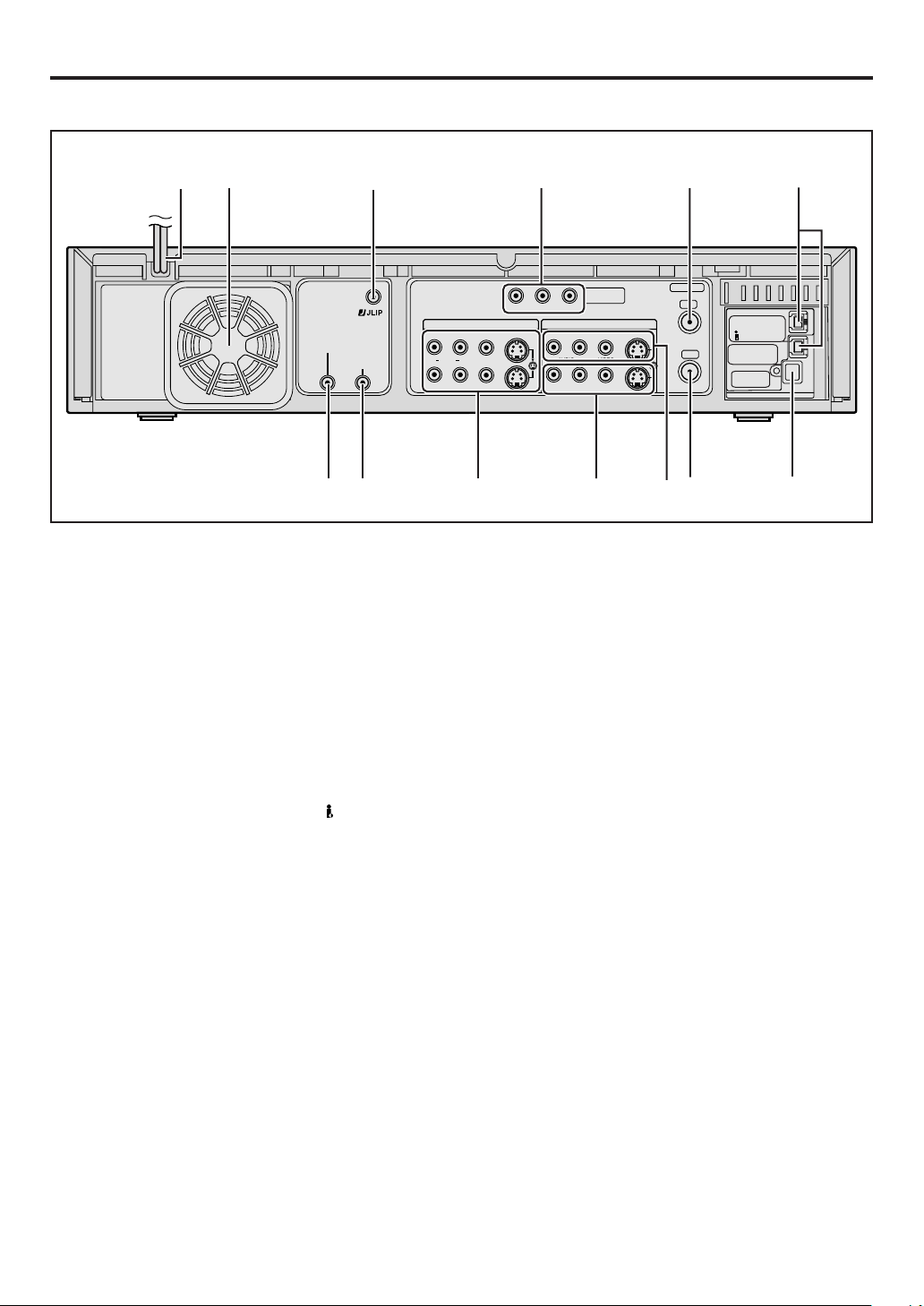

Rear panel ...............................................................

83

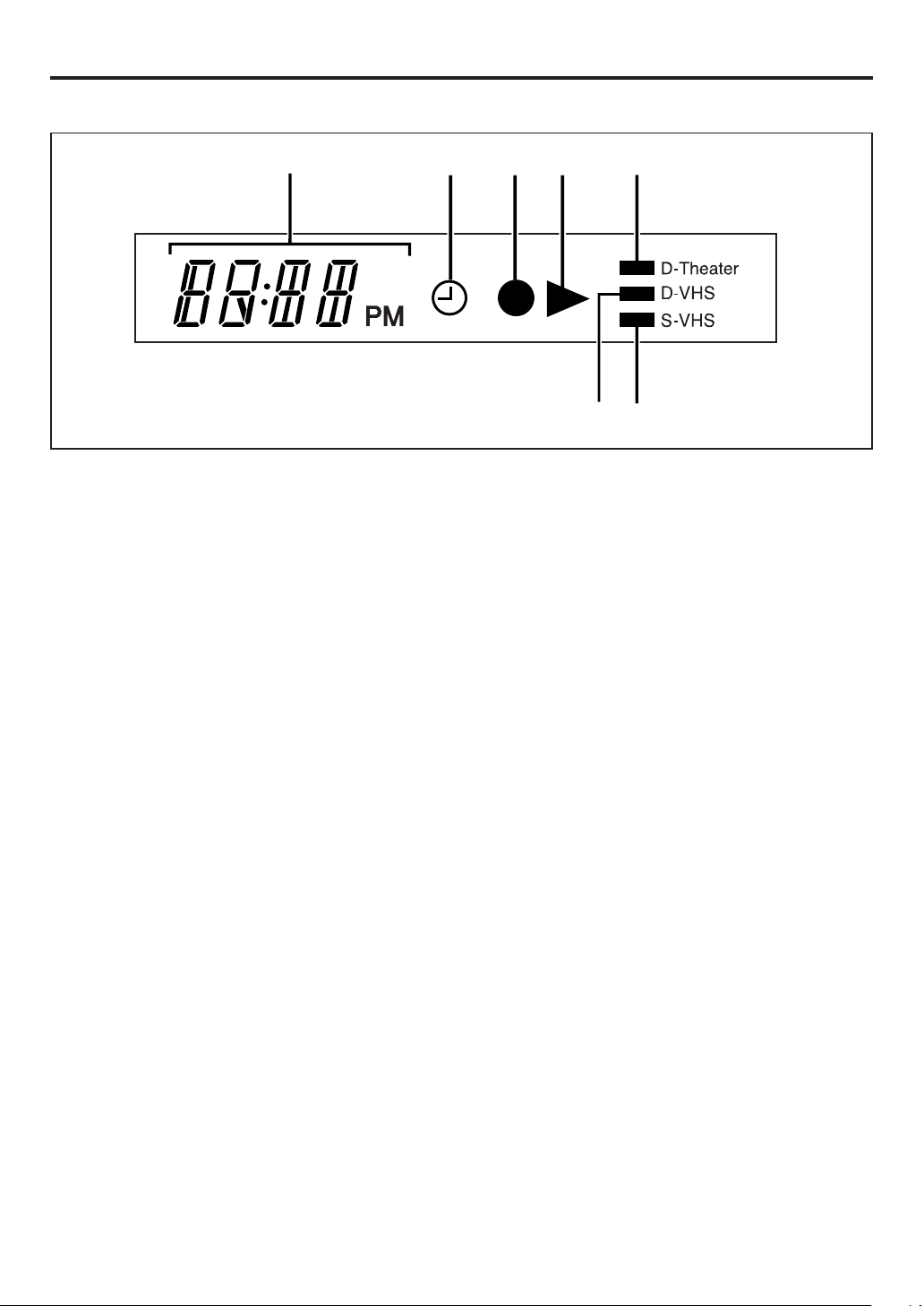

Front display panel ..................................................

84

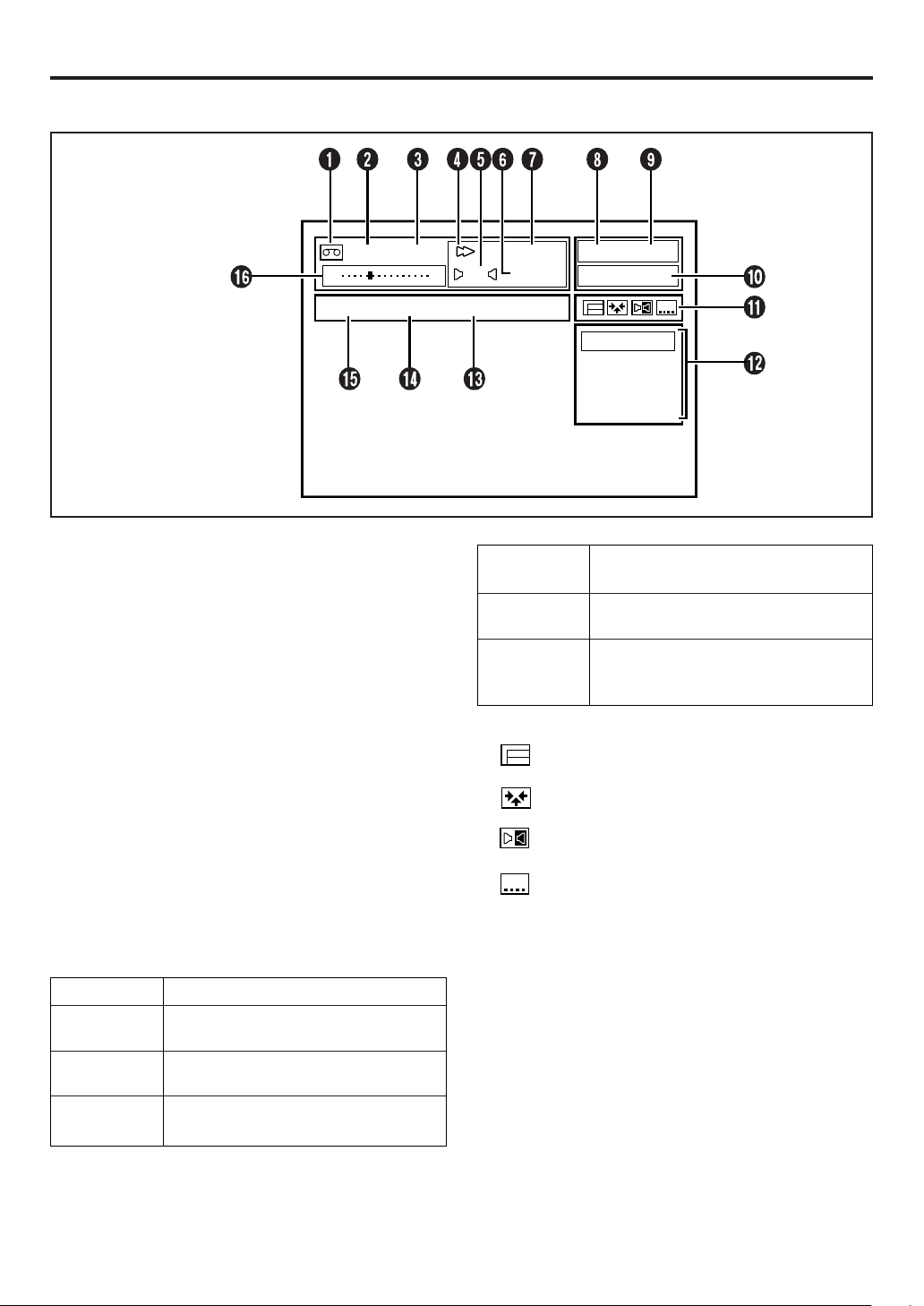

On-screen display ....................................................

85

Remote ....................................................................

86

SPECIFICATIONS

87

FOR SERVICING (Only in U.S.A.)

88

WARRANTY (Only in U.S.A.)

89

Make sure the package contains all of the accessories listed in “SPECIFICATIONS” ( pg. 87).
Situate VCR
Place the VCR on a stable, horizontal surface.

INSTALLING YOUR NEW VCR EN 7

Connections

Basic Connection





1





Check contents

Antenna or Cable







ANTENNA IN









(Antenna or cable input)



Coaxial Cable











Flat Feeder













Matching









AC Outlet

Transformer









(not supplied)



















AC Power











Cord



















COMPONENT

VHF/UHF









ANTENNA









VIDEO OUT







Y PB/CB

PR/CR



IN







OUT



IN



i.LINK IN/OUT









DV IN





S VIDEO

IN(L-1)

S VIDEO



S400



CABLE BOX







ANTENNA

DIGITAL OUT



REMOTE PAUSE/

R AUDIO L VIDEO

R AUDIO L

VIDEO

OUT

OPTICAL





PCM/DOLBY DIGITAL



AV COMPULINK























D THEATER







IN(L-2)





REGION 1

Back of VCR





AUDIO OUT

VIDEO OUT

ANTENNA

OUT



2

3 Connect VCR to TV

The following connections are required. 1Disconnect the TV antenna from the TV. 2Connect the TV antenna cable to the

ANTENNA IN terminal on the rear of the VCR. 3Connect the supplied RF cable between the

ANTENNA OUT terminal on the rear of the VCR and the TV’s antenna input terminal.

4Connect an audio/video cable between the AUDIO/VIDEO OUT connectors on the rear of the VCR and the audio/video input connectors on the TV.

S-VIDEO Connection

If you have a TV with S-VIDEO input terminals, see “S-VIDEO Connection” on page 8.

Component Video Connection

Audio Cable



If you have a TV with component video input



terminals, see “Component Video Connection” on

(supplied)

Video Cable

page 8.



To Audio

(not



Input

supplied)

Connect VCR to power source

Connectors



To Video



4 Connect the AC power plug to the AC outlet.

Input





Connectors



● The clock and tuner channels will automatically



RF Cable

be set when the antenna is connected and when



the AC power cord is first connected to an AC



(supplied)



power outlet ( pg. 9).





To 75 Ω terminal

(If “Auto” or channel numbers are displayed on the

front display panel before the VCR is turned on, the









clock and tuner channels are being set automatically.

TV



Wait until the clock time is displayed on the front





display panel before turning on the VCR.)





Final preparation for use





5 Turn on the VCR.





● You can now perform basic playback





( pg. 21) or basic recording ( pg. 26).





NOTES:





Your TV must have audio/video input connector for the





connection to the VCR.





Even if you are using audio/video cables to connect your VCR





to your TV, you must also connect it using the RF cable. This





will ensure that you can record one show while watching





another ( pg. 29).





For full identification of the VCR’s rear panel, refer to the





Index ( pg. 83).





If you cannot see the pictures on the TV screen when you





play back a tape, set “TV OUTPUT 1” to the appropriate





mode ( pg. 56).

8 EN

INSTALLING YOUR NEW VCR (cont.)

S-VIDEO Connection

CONNECT VCR TO TV

a– Connect both the RF cable and the AV cables to the TV as explained in step 3 of “Basic Connection” ( pg. 7).

b– Connect the S-Video cable between the S VIDEO OUT terminal on the rear of the VCR and the S-VIDEO input connector on the TV.

Antenna or Cable







ANTENNA IN









(Antenna or cable input)





Coaxial Cable









Flat Feeder













Matching







AC Outlet



Transformer









(not supplied)

















AC Power

S VIDEO OUT









Cord



















COMPONENT

VHF/UHF









VIDEO OUT

ANTENNA







Y

PB/CB PR/CR



IN







OUT



IN



i.LINK IN/OUT









DV IN





S VIDEO

IN(L-1)

S VIDEO



S400



CABLE BOX







ANTENNA

DIGITAL OUT



REMOTE PAUSE/

R AUDIO L VIDEO

R AUDIO L

VIDEO

OUT

OPTICAL





PCM/DOLBY DIGITAL



AV COMPULINK























D THEATER







IN(L-2)





REGION 1

Back of VCR

AUDIO

ANTENNA

OUT

OUT

Audio Cable (supplied)

S-Video Cable (supplied)

S-VIDEO IN

RF Cable (supplied)

TV

Component Video Connection

CONNECT VCR TO TV

a– Connect both the RF cable and the AV cables to the TV as explained in step 3 of “Basic Connection” ( pg. 7).

b– Connect the component video cable between the Component video output terminals on the rear of the VCR and the component video input terminals on the TV.

Antenna or Cable

ANTENNA IN

(Antenna or cable input)



Coaxial Cable



Flat Feeder



Matching



Transformer

AC Outlet

(not supplied)



Component

AC Power Video Output

Cord





COMPONENT

VHF/UHF





ANTENNA





VIDEO OUT

Y

PB/CB

PR/CR

IN





OUT



IN

i.LINK IN/OUT







DV IN





S VIDEO

IN(L-1)

S VIDEO

S400

CABLE BOX







ANTENNA

DIGITAL OUT

REMOTE PAUSE/

R AUDIO L



R AUDIO L

OUT

OPTICAL

VIDEO

VIDEO

PCM/DOLBY DIGITAL

AV COMPULINK





















D THEATER







IN(L-2)



REGION 1

Back of VCR



AUDIO

ANTENNA

OUT



OUT

Audio Cable (supplied)

Component Video Cable (not supplied)

RF Cable (supplied)

TV

NOTES:

To make the most of the Super VHS picture performance we recommend that you use the supplied S-VIDEO cable to connect your VCR to a TV with an S-VIDEO input connector.

To operate the VCR with your TV using the S-VIDEO connection, set your TV to the AV mode using the TV's Remote.

You can also use the TV/VCR button on the VCR’s Remote to set your TV to the AV mode ( pg. 68).

If you cannot see the pictures on the TV screen when you play back a tape, set “TV OUTPUT 1” to the appropriate mode ( pg. 56).

NOTES:

To change the settings or set the timer program on the menu screen, switch the TV’s input mode for the connection with Audio cable.

To view the picture of 480i image format on the TV, or to select and view TV broadcast, connect the component video cable to the TV’s Y/CB/CR connectors. If your TV has only the Y/PB/PR connectors, connect also the S-VIDEO or VIDEO connectors between the VCR and TV.

INITIAL SETTINGS

EN 9

Plug & Play

Setting

Auto Clock Set/Auto Tuner Set

ATTENTION

If you use a cable box, Plug & Play will not function; set the clock and tuner channels separately. ( pg.10 – 14)

It takes several minutes for the VCR to complete the Plug & Play setting.

Do not press any buttons on the front panel or on the Remote while Plug & Play is in progress.

IN F-1

+

This VCR sets the clock and tuner channels automatically when AC power cord is first connected to an AC outlet. The antenna cable must be connected for the Plug & Play setting.

The time and date can be set automatically by the clock setting data transmitted from one of the regular TV broadcast channels. We call this TV channel the “host channel” and it is a PBS channel in your area.

1 Perform Plug & Play setup

Connect the antenna cable to the VCR

( pg. 7). Then connect the AC power cord to an AC outlet. Do not turn on the VCR.

The clock and tuner channels will be set automatically.

NOTES:

When the AC power cord is connected to an AC outlet, “LOAD” appears on the front display panel. It takes some time until VCR completes its set up.

Auto Clock Set is performed first.

“Auto” blinks on the front display panel during Auto Clock Set.

Auto Channel Set is performed next. Auto Channel Set scans all the channels that are receivable by your VCR. During Auto Channel Set, the channel numbers are displayed as they are scanned and set.

When Plug & Play setting has been complete successfully, the correct clock time is displayed. If you perform Plug & Play setting successfully, there is no need to perform the clock ( pg. 10) and tuner ( pg. 13) settings. If, however, you want to add or delete channels, refer to Manual Channel Set on page 14.



















During Initial Auto Clock Set

During Auto Channel Set

Plug & Play Completed

The channel numbers are displayed

The current time is

“Auto” blinks.

as they are scanned and set.

displayed. (“PM” lights up



















during the afternoon.)

*If an incorrect clock time or “– –:– –” appears on the display panel, see “What to do if Plug & Play setting failed” below.

INFORMATION

If “AUTO CLOCK” is set to “ON” on the Clock Set screen on page 11, the clock will be adjusted automatically by the host channel every hour (except 11:00 PM, midnight, 1:00 AM and 2:00 AM) using the incoming PBS channel clock setting data. (This automatic clock adjustment can only be performed when the VCR is turned off. The clock will be adjusted just on these hours — on the time displayed on the front display panel, not on the actual real time.)

The default setting of “AUTO CLOCK” is “ON”.

If the memory backup fails, because a power outage occurs or because the AC power cord is unplugged, Auto Clock Set will be performed when power is restored to the VCR.

Poor antenna or cable signal may prevent the VCR from receiving the Auto clock setting data from a PBS channel. If this function is taking a considerable amount of time, it may be necessary to perform the Semiauto or Manual Clock Set procedure ( pg. 12).

What to do if Plug & Play setting failed

If an incorrect time is displayed on the front display panel, you may be receiving the clock setting data of a PBS channel from an adjacent time zone, or an incorrect PBS channel from a cable TV system. In this case, perform the Semiauto ( pg. 11) or Manual Clock Set ( pg. 12) procedure.

If “– –:– –” appears on the front display panel, your antenna cable may not be connected to the VCR or there may not be a Host PBS signal available in your area. Ensure that the antenna cable is connected correctly. Then turn on and off the VCR; the Plug & Play setting will be automatically reactivated.

If Plug & Play setting is not performed though the antenna cable is connected correctly, perform Manual Clock Set ( pg. 12) and Auto Channel Set or Manual Channel Set ( pg. 13 or 14).

10 EN

INITIAL SETTINGS (cont.)

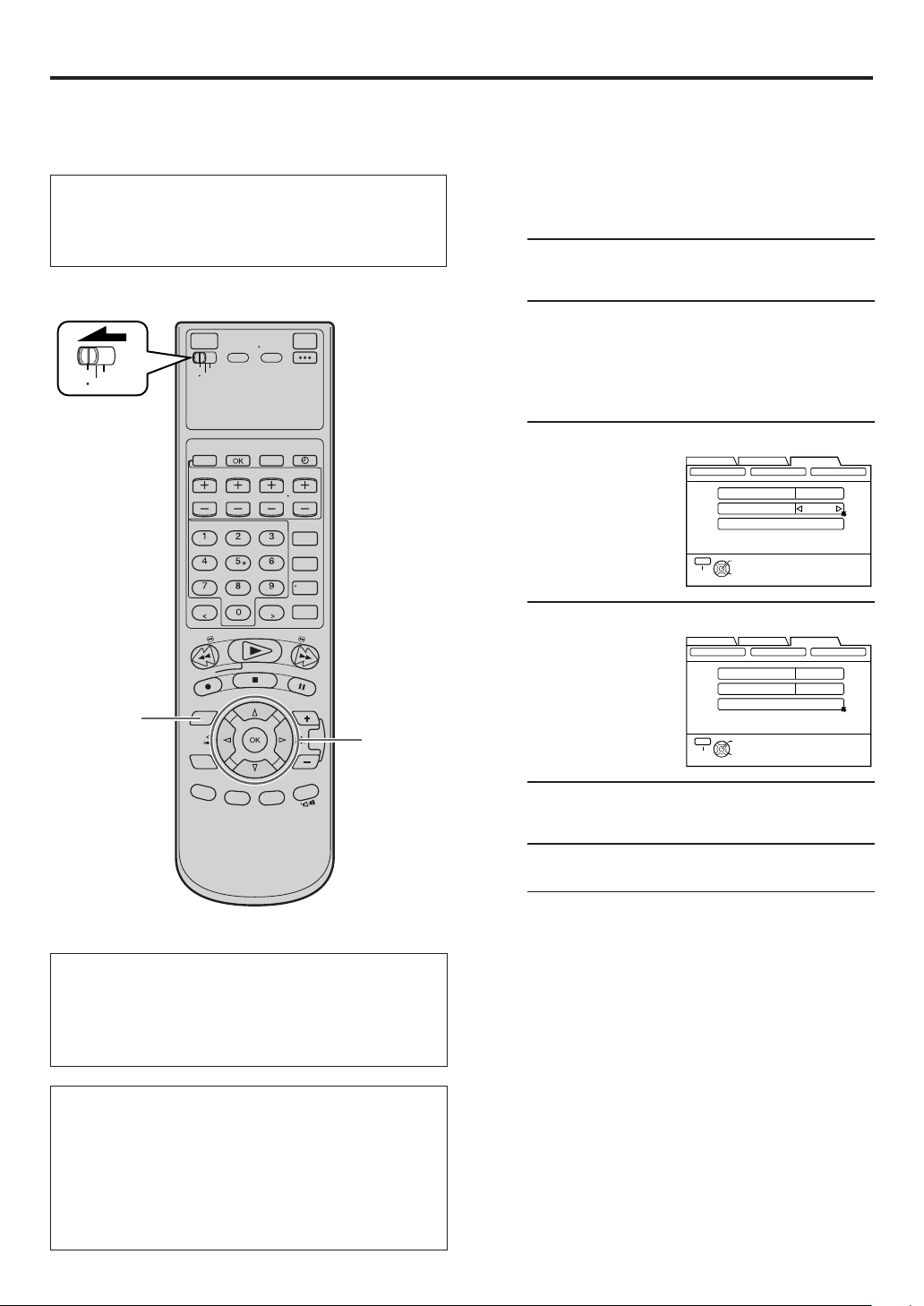

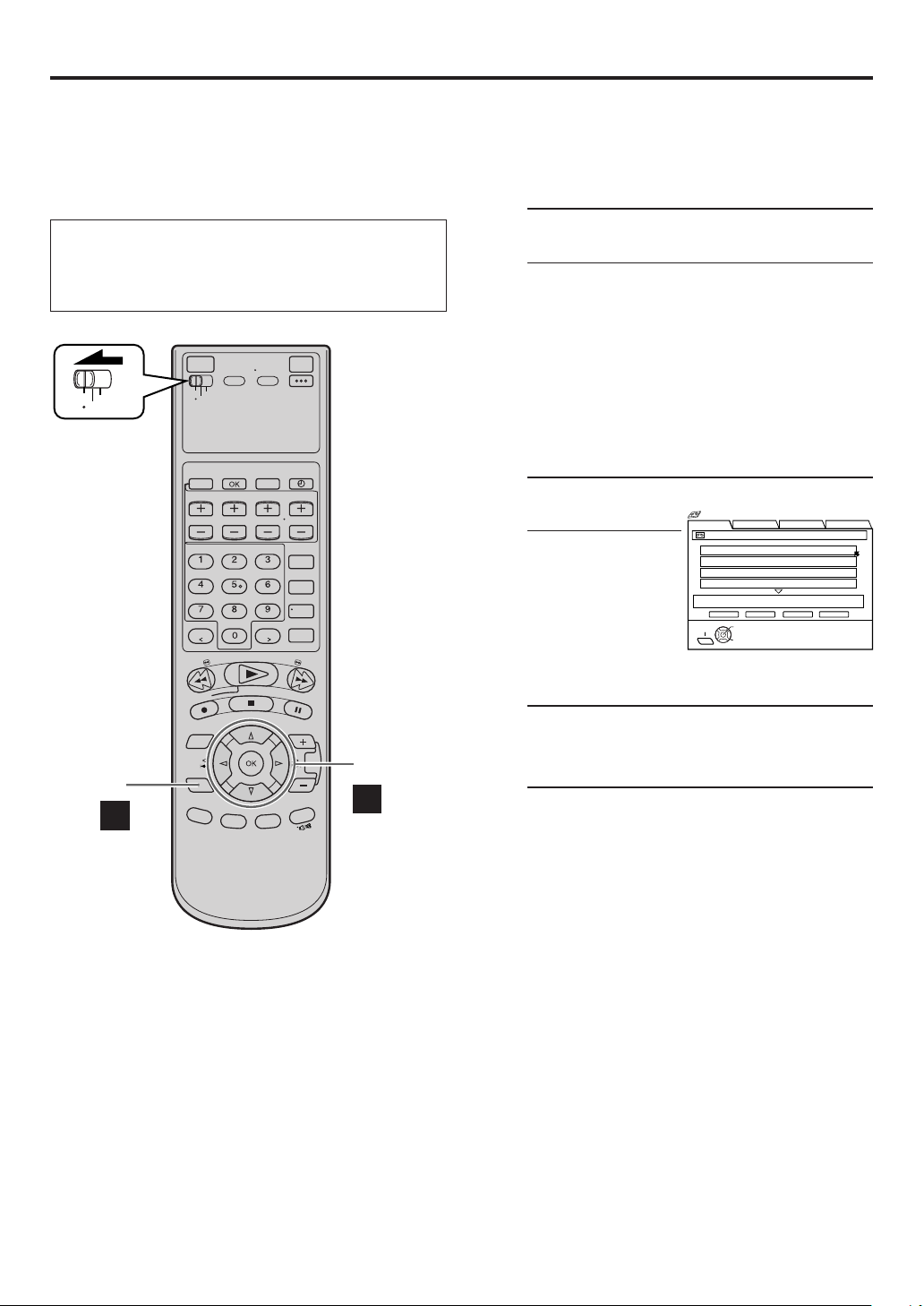

Clock Setting

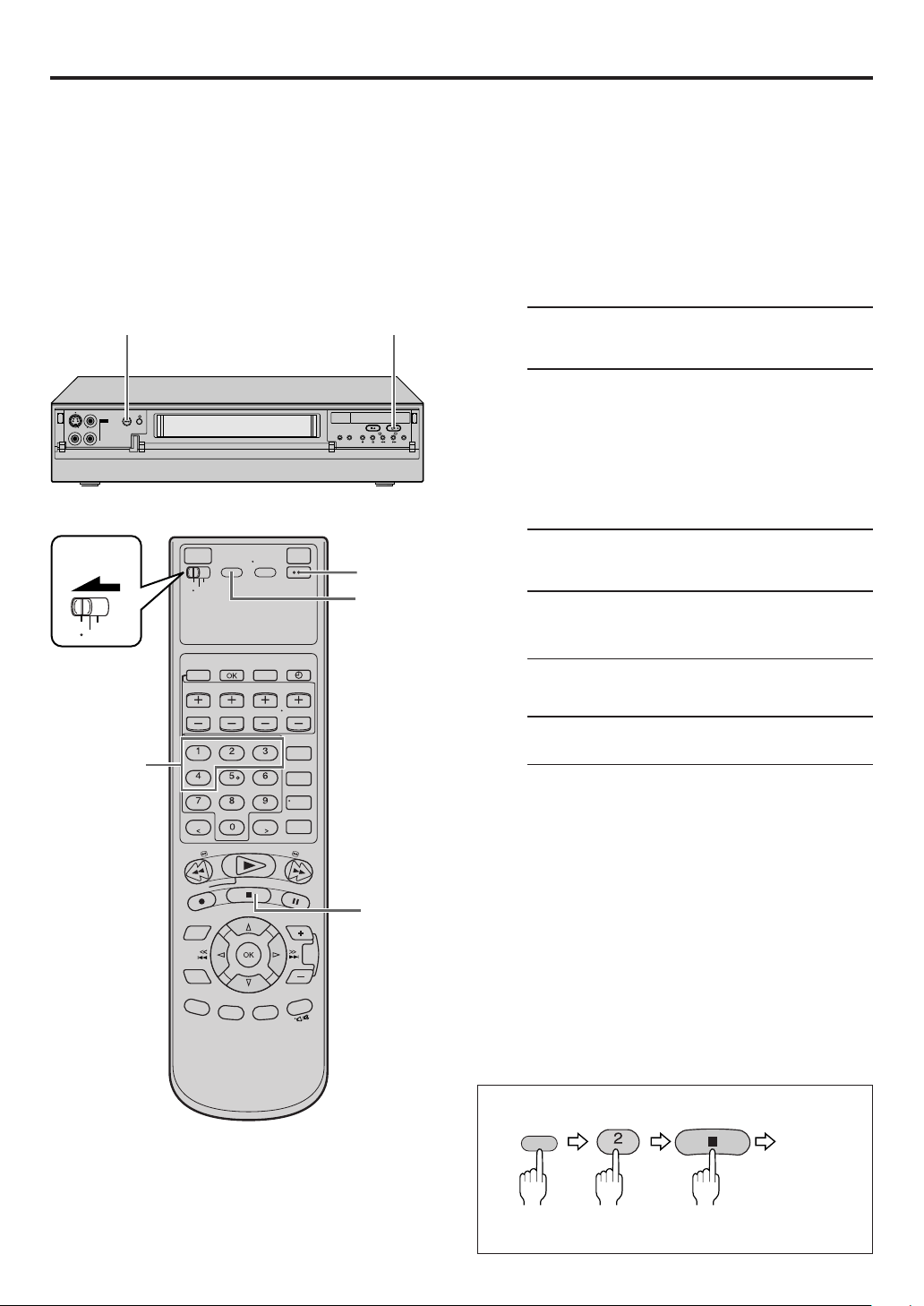

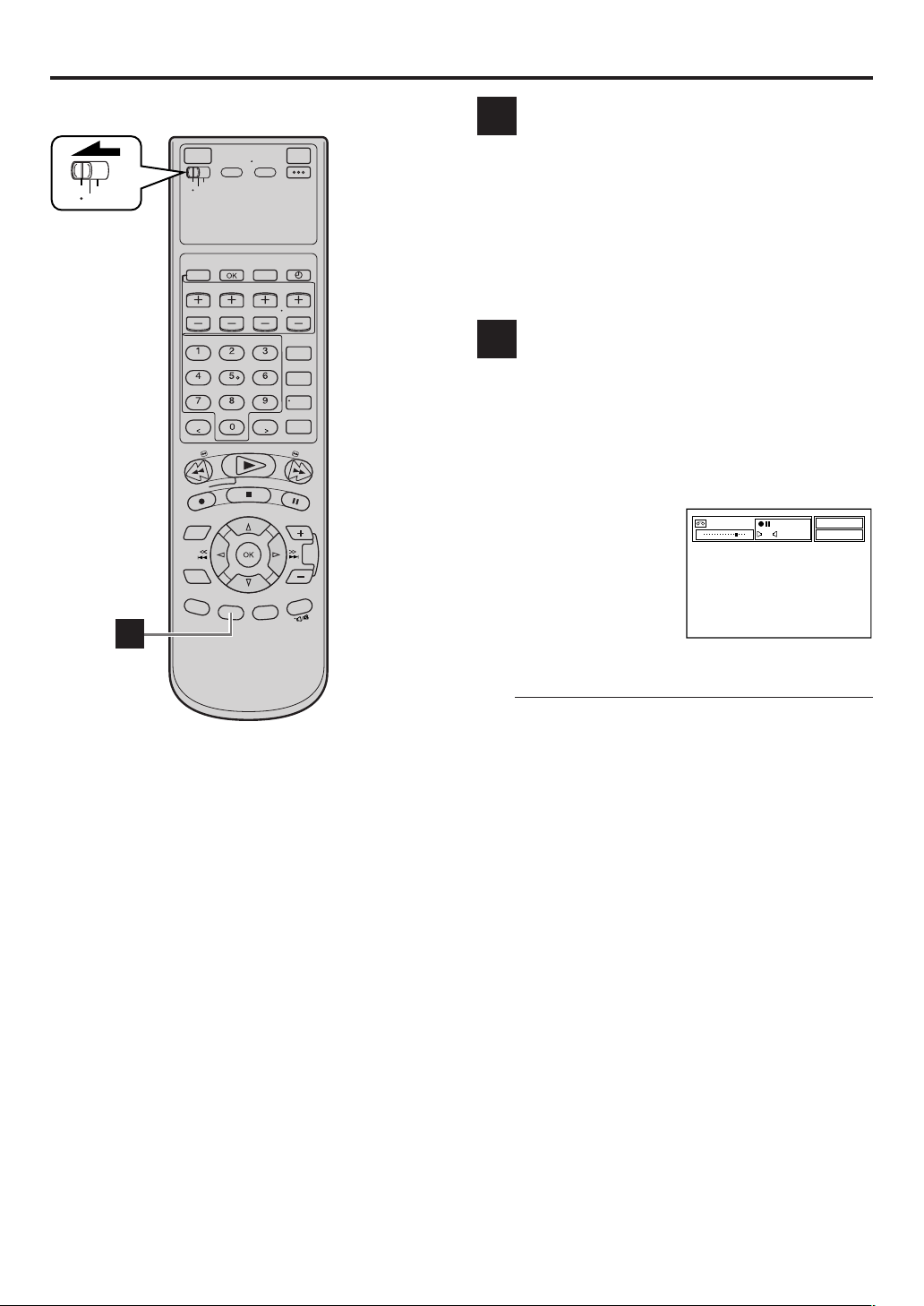

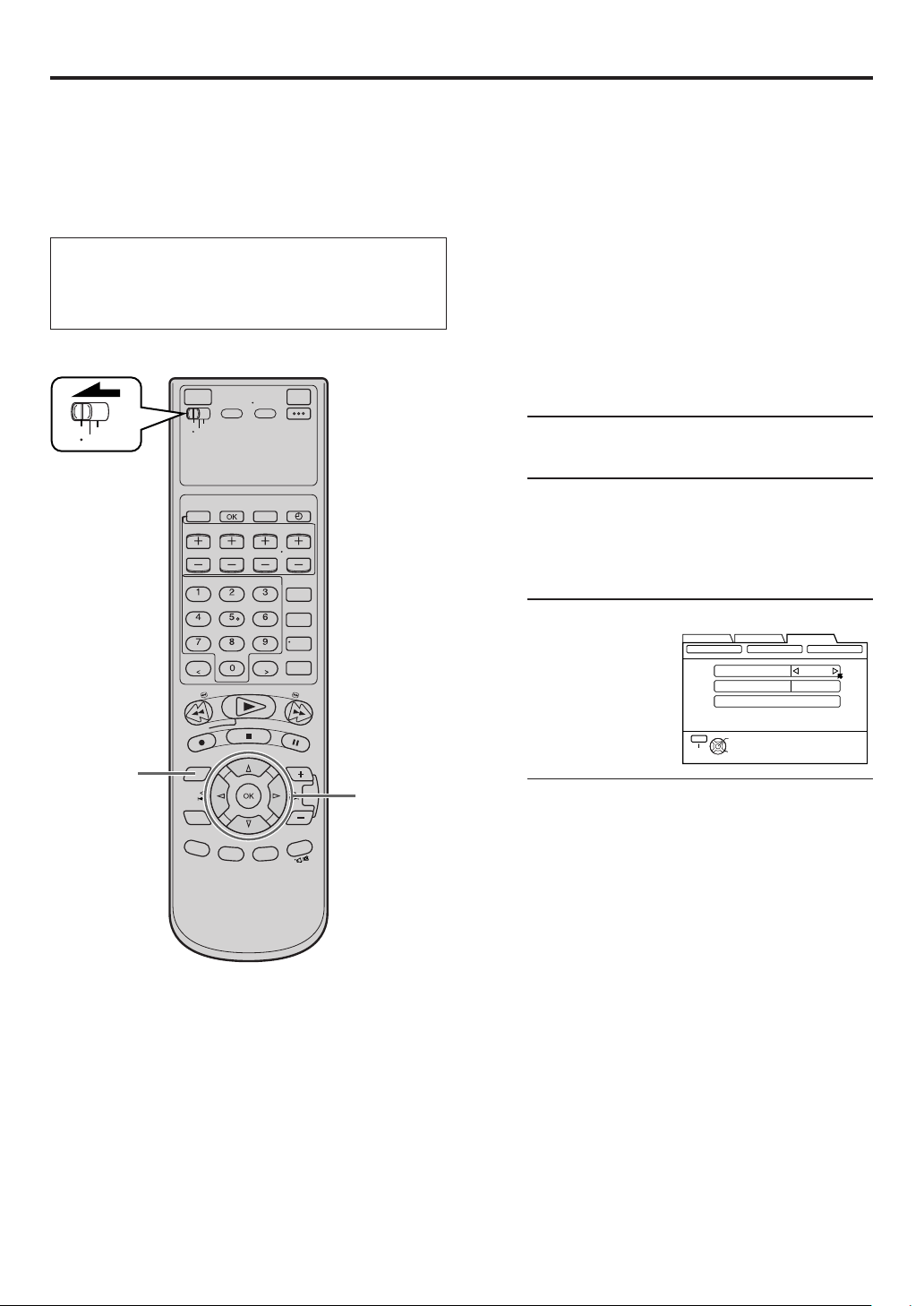

Turn on the VCR and the TV, and select the AV mode on the TV.

Set the VCR/TV/CABLE/DBS selector on the Remote to “VCR”.

VCR CABLE

TV /DBS

172– 6

Perform clock setting only if the clock has not been set correctly by the Plug & Play setting or if you use a cable box.

Access the Clock Set screen to perform the Semiauto or Manual Clock Set. Each procedure starts from step 3 after preparation steps below are finished.

If you use a cable box, set the clock manually. ( pg. 12)

Preparations

1 Access Main Menu screen

Press MENU.

2

Access Clock Set screen







1 Press @ # to move

FUNCTION SET UP

TUNER SET UP INITIAL SET UP



the arrow to

CLOCK SET

GUIDE CHANNEL

OTHER













“INITIAL SET

AUTO CLOCK SET





MANUAL CLOCK SET





UP”, then press fi





AUTO CLOCK



OFF



or OK.











2 Press @ # to move

MENU

OK SELECT WITH ARROW KEYS



the arrow to

EXIT

SELECT

THEN PRESS [OK]

















“CLOCK SET”, then press fi or OK.

If “CABLE BOX USERS SET CLOCK MANUALLY” appears on the screen, press OK to access the Clock Set screen. (Even if you do not press OK, the Clock Set screen disappears after 5 seconds, then the Clock Set screen appears automatically).

EN 11

Setting clock semiautomatically

— Semiauto Clock Set

You can change the host channel/D.S.T. /time zone setting manually.

First follow steps 1 to 2 on page 10, then go to the following steps.

Access Auto Clock Set screen





3 Press %fi to move

FUNCTION SET UP

TUNER SET UP INITIAL SET UP

the arrow to “AUTO

CLOCK SET

GUIDE CHANNEL

OTHER

CLOCK SET”, then

AUTO CLOCK SET







press OK.

MANUAL CLOCK SET



AUTO CLOCK



ON







MENU

OK SELECT WITH ARROW KEYS



EXIT

SELECT

THEN PRESS [OK]







Then;

To select the host channel — go to step 4. To select the D.S.T. mode — go to step 5. To select the time zone — go to step 6.

NOTE:

The time set previously will be erased when “AUTO CLOCK SET” is selected.

4 Select host channel

You can either select “AUTO” or enter a PBS channel number. Press %fi to move the arrow to “HOST CH”, then press @ # until “AUTO” or the desired PBS channel number is selected.

FUNCTION SET UP

TUNER SET UP

INITIAL SET UP

AUTO CLOCK SET

TIME – –:– – AM DATE 1/1 (WED) 2003

HOST CH

[TV]

AUTO

D.S.T



AUTO

TIME ZONE



AUTO

RETURN





MENU

OK

SELECT WITH ARROW KEYS

EXIT

SELECT

THEN PRESS [OK]





NOTE:

Some PBS channels do not transmit clock setting data.

* Auto Daylight Saving Time

This function enables automatic adjustment of the VCR’s clock at the start and end of Daylight Saving Time.

With Auto DST activated, . . .

. . . on the first Sunday of April at 2:00 AM, the clock is adjusted to 3:00 AM.

. . . on the last Sunday of October at 2:00 AM, the clock is adjusted to 1:00 AM.

5 Select D.S.T. mode

You have three choices:

AUTO– Select if you want to adjust your VCR’s clock automatically by the incoming signal from the host channel. (Auto Daylight Saving Time*)

ON– Adjustment will be made by the built-in clock itself.

OFF– Select when Daylight Saving Time does not apply to you.

Press %fi to move the arrow to “D.S.T.”, then press @ # repeatedly until the desired setting is selected.

6 Select time zone

You can select the time zone automatically or manually.

Press %fi to move the arrow to “TIME ZONE”, press @ # repeatedly until “AUTO” or the desired time zone is selected.

Each time you press the button, the time zone changes as follows:

O AUTO O ATLANTIC O EASTERN

O CENTRAL O MOUNTAIN O PACIFIC

O ALASKA O HAWAII O (back to the beginning)

NOTE:

If an incorrect clock time is displayed by the Plug & Play setting, you may be receiving the clock setting data of a PBS channel from an adjacent time zone or from an incorrect PBS channel from a cable TV system. If you selected “AUTO” for the host channel in step 4, be sure to select the correct time zone manually.

7 Return to normal screen

Press MENU.

IMPORTANT

Turn off the VCR after performing Semiauto Clock Set. “Auto” will appear on the front display panel while the clock is being set. The current clock time will appear automatically when the clock setting is complete.

12 EN

INITIAL SETTINGS (cont.)

VCR CABLE TV /DBS

Setting clock manually

— Manual Clock Set

First follow steps 1 to 2 on page 10, then go to the following steps.

3 Access Manual Clock Set screen

Press %fi to move the arrow to “MANUAL CLOCK SET”, then press OK.

4 SetPresstime@ # until the desired time appears, then press fi.

Holding @ # changes the time in 30-minute intervals.

FUNCTION SET UP TUNER SET UP

INITIAL SET UP

MANUAL CLOCK SET







TIME

– –:– –

DATE

1/1 (WED)

YEAR

2003

D.S.T

OFF

RETURN



MENU

OK

SELECT WITH ARROW KEYS

EXIT

SELECT

THEN PRESS [OK]



5

8 3– 7

6 7

Set date

Press @ # until the desired date appears, then press fi.

Holding @ # changes the date in 15-day intervals.

Set year

Press @ # until the desired year appears.

Select D.S.T. mode

Press %fi to move the highlight bar to “D.S.T.”, then press @ # to select “ON” or “OFF”.

ON– Adjustment will be made by the built-in clock itself.

OFF– Select when Daylight Saving Time does not apply to you.

8 StartPress MENUclock and normal screen appears.

To make corrections any time during the process

Press %fi to select the item you want to change, then press @ #.

EN 13

Tuner Setting

Turn on the VCR and the TV, and select the AV mode on the TV.

Set the VCR/TV/CABLE/DBS selector on the Remote to “VCR”.

VCR CABLE

TV /DBS

1423

Setting channels automatically

— Auto Channel Set

Use Auto Channel Set only if channels have not been set correctly by the Plug & Play setting. If you want to add or delete channels, use Manual Channel Set ( pg. 14).





Access Main Menu screen

1 Press MENU.

2







Access Tuner Set Up screen

1 Press @ # to move FUNCTION SET UP TUNER SET UP INITIAL SET UP

the arrow to

TUNER SET

CABLE SET UP

DBS SET UP









“TUNER SET UP”,



BAND

TV











then press fi or



AUTO CH SET





MANUAL CH SET



OK.













2 Press @ # to move

MENU

OK

SELECT WITH ARROW KEYS

the arrow to

EXIT

SELECT

THEN PRESS [OK]







“TUNER SET”, then press fi or OK.

Perform Auto Channel Set









3 You can automatically FUNCTION SET UP



TUNER SET UP

INITIAL SET UP

set the receivable

TUNER SET





CABLE SET UP

DBS SET UP













channels in your area

BAND





TV



AUTO CH SET





in the order of their





MANUAL CH SET





frequencies.

















Press %fi to move the

MENU

OK



SELECT WITH ARROW KEYS

arrow to “AUTO CH



EXIT

SELECT

THEN PRESS [OK]









SET”, then press OK.













NOTES:

FUNCTION SET UP



TUNER SET UP

INITIAL SET UP

TUNER SET





CABLE SET UP

DBS SET UP













When Auto Channel





AUTO CHANNEL SET









SCANNING...



Set is complete,













PRESS [MENU] TO END



“SCAN COMPLETED”



















appears on screen.

MENU

OK



SELECT WITH ARROW KEYS

If the scan was



EXIT

SELECT

THEN PRESS [OK]









unsuccessful, “SCAN

COMPLETED – NO SIGNAL FOUND –” appears on screen. Check the connections, then select “RETRY” to start again, or select “EXIT”.

4 Return to normal screen

Press MENU.

INFORMATION

The VCR selects the correct band (TV or CATV) automatically during Auto Channel Set.

The selected band will be displayed on the right side of “BAND” on the Tuner Set Up screen.

TUNER SET UP
INITIAL SET UP
FUNCTION SET UP
RETURN
ADD/SKIP
MANUAL CH SET
CH
TUNER SET UP
FUNCTION SET UP
ADD
45
[TV]
INITIAL SET UP

14 EN

INITIAL SETTINGS (cont.)

VCR CABLE TV /DBS

Access Manual Channel Set screen

3 Press %fi to move

FUNCTION SET UP

TUNER SET UP INITIAL SET UP

the arrow to

TUNER SET



CABLE SET UP DBS SET UP









“MANUAL CH SET”,



BAND



TV



AUTO CH SET

then press OK.





MANUAL CH SET



MENU

OK



SELECT WITH ARROW KEYS



EXIT

SELECT

THEN PRESS [OK]





4 Add or skip desired channels

To add channels

4

152– 4

1Press %fi to move the arrow to “CH”, then press the

Number keys to input a channel

number you want

MENU

OK

SELECT WITH ARROW

EXIT

SELECT

OR NUMBER KEYS

to add.







2Press %fi to move the arrow to “ADD/SKIP”, then press @ # to set to “ADD”.

3Repeat 1 and 2 to add other channels.

To skip channels

1Press %fi to move

the arrow to “CH”,

MANUAL CH SET







CH

[TV]

46

then press the





ADD/SKIP



SKIP

Number keys or



RETURN





@ # to input a









channel number

MENU

OK

SELECT WITH ARROW

you want to skip.

EXIT

SELECT

OR NUMBER KEYS













2Press %fi to move

the arrow to “ADD/SKIP”, then press @ # to set to “SKIP”.

3Repeat 1 and 2 to skip other channels.

Setting channels manually

Return to normal screen

— Manual Channel Set

5 Press MENU.



You can add the channels you want or delete the



channels you do not want manually.



1

2

Access Main Menu screen

Press MENU.

Access Tuner Set Up screen

1 Press @ # to move the arrow to “TUNER SET UP”, then press fi or OK.

2Press @ # to move the arrow to “TUNER SET”, then press fi or OK.

Controller (suggested locations)
Cable box

EN 15

Cable Box

Control

Setting

Suggested location

Place the cable box on top of the VCR. Attach the VCR’s Controller to the top of the VCR with the Controller’s transmitter pointed towards the cable box’s remote sensor.

ATTENTION:

The Controller can also control a DBS receiver. If both a cable box and a DBS receiver are used, position the Controller so its signal reaches the remote sensors on both the cable box and DBS receiver.

Your VCR

Cable box

Controller

To

To

RF output

Audio/video

(supplied)



output



Transmitter







or



To

To



ANTENNA

AUDIO/



IN

VIDEO IN

Your VCR

CABLE

BOX

The following procedure is required if you receive your TV channels through a cable box (descrambler). The Controller allows the VCR to automatically switch the cable box channel during timer recording. The Controller is effective for recording broadcasts that have been programed using VCR Plus+ ( pg. 34) or Express timer programing ( pg. 38).

Installing Controller

1 Situate Controller

Place the Controller so that its transmitter is facing the cable box’s remote sensor.

Make sure the path between the Controller and the cable box’s remote sensor is not blocked.

2 Attach Controller

Fix securely using the adhesive strip attached on the back of the Controller.

3Connect cable box to VCR

If your cable box does not have audio/video

output connectors

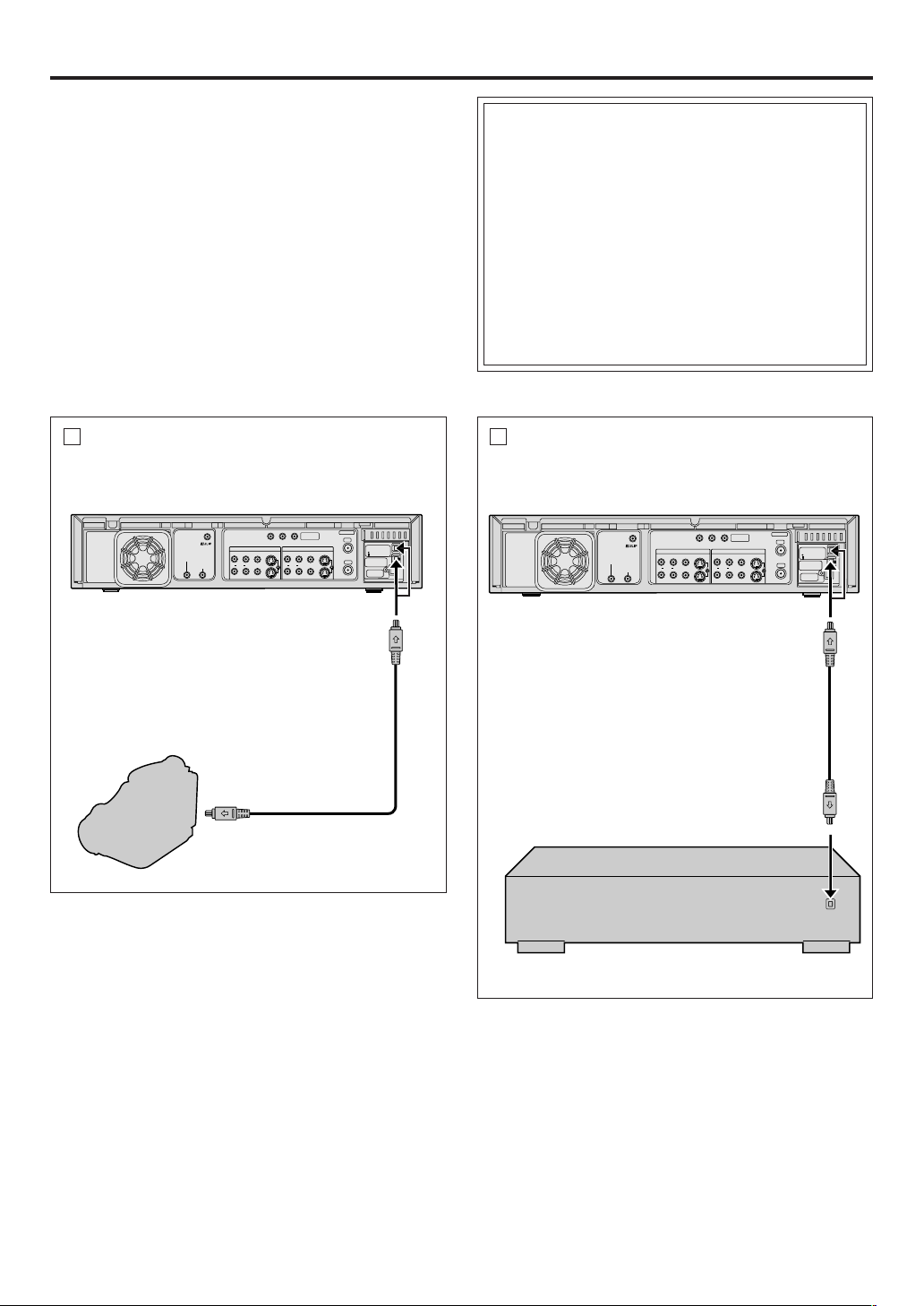

Connect the RF output terminal on the cable box to the ANTENNA IN terminal on the rear of your VCR.

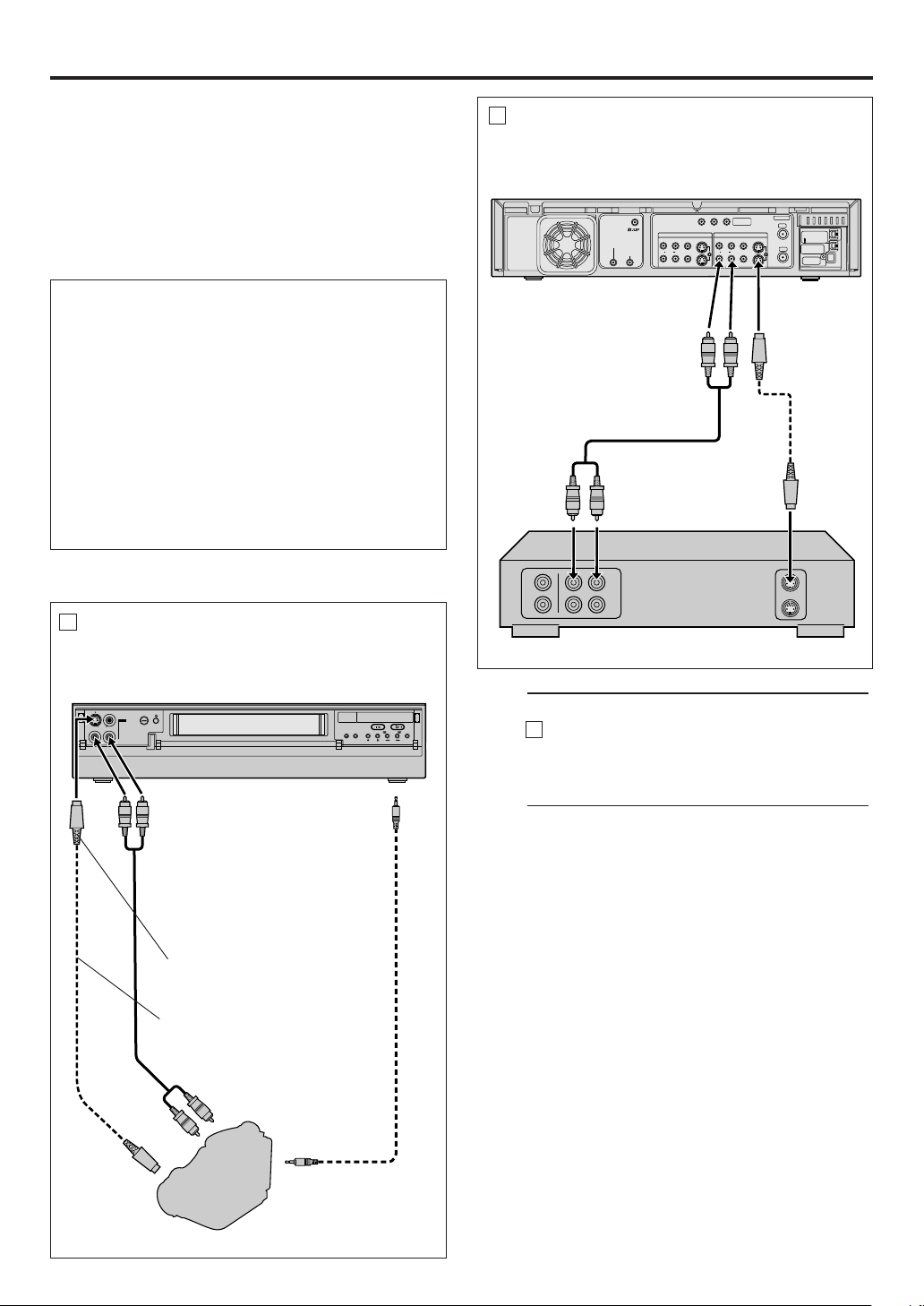

If your cable box has audio/video output connectors

Connect an audio/video cable between the AUDIO/VIDEO IN connectors on the rear of the VCR and the audio/video output connectors on the cable box.

NOTE:

When connecting your cable box, refer to its instruction manual.

4 Connect Controller to VCR

Connect the Controller to the CABLE BOX Controller connector on the rear panel.

How to control the cable box

This VCR has two separate methods to control your cable box.

The VCR’s wireless Remote can control your cable box. This eliminates the need for a separate cable box’s Remote.

The VCR’s Controller can also control your cable box. This allows the VCR to change your cable box’s channel number during timer recording.

Each method must be set up separately. To set up the VCR’s Remote, refer to page 69. To set up the Controller, go to page 16.

16 EN

INITIAL SETTINGS (cont.)

Turn on the VCR and the TV, and select the AV mode on the TV.

Set the VCR/TV/CABLE/DBS selector on the Remote to “VCR”.

VCR CABLE

TV /DBS

27 3– 6

Setting cable box input channel & brand

After installation, set the cable box input channel and its brand correctly; otherwise, the Controller cannot work correctly.



Turn on cable box







1 Select a channel other than channel 9 on your



cable box.









Access Main Menu screen on VCR

2 Press MENU.







3

Access Cable Set Up screen



1 Press @ # to move

FUNCTION SET UP

TUNER SET UP INITIAL SET UP



the arrow to

TUNER SET



CABLE SET UP DBS SET UP











“TUNER SET UP”,

INPUT CH

OFF







then press fi or

BRAND

1



TEST MODE





OK.









2 Press @ # to move

MENU

OK

SELECT WITH ARROW KEYS



the arrow to

EXIT

SELECT

THEN PRESS [OK]







“CABLE SET UP”,









then press fi or OK.







Select cable box input channel

4 Press %fi to move

FUNCTION SET UP

TUNER SET UP INITIAL SET UP



the arrow to “INPUT

CABLE SET UP





CH”.

INPUT CH

OFF



BRAND

1



Your selection



TEST MODE





depends on how your









cable box is

MENU

OK

SELECT WITH ARROW KEYS



connected to your

EXIT

SELECT

THEN PRESS [OK]





VCR.

If your cable box is connected to your VCR’s ANTENNA IN terminal on the rear panel

Press @ # until the channel number representing the cable box’s output (ON CH2 – ON CH9) appears on the screen.

If your cable box is connected to your VCR’s AUDIO/VIDEO IN connectors on the front panel

Press @ # until “ON F-1” appears on the screen.

If your cable box is connected to your VCR’s AUDIO/VIDEO IN (L-1) or AUDIO/VIDEO IN (L-2) connectors on the rear panel

Press @ # until “ON L-1” or “ON L-2” appears on the screen.

If you do not use a cable box

Press @ # until “OFF” appears on the screen.

EN 17

Enter cable box brand





5 Press %fi to move

FUNCTION SET UP

TUNER SET UP INITIAL SET UP

the arrow to

CABLE SET UP









“BRAND”.

INPUT CH

OFF

BRAND

1

Press @ # to enter the

TEST MODE



brand code from the







list shown to the

MENU

OK

SELECT WITH ARROW KEYS

right.

EXIT

SELECT

THEN PRESS [OK]









6 Engage test mode

Press %fi to move the arrow to “TEST MODE”, then press OK.

NOTE:

If you do not engage the test mode in step 6, “INPUT CH” and “BRAND” are not set.

If the cable box’s

FUNCTION SET UP TUNER SET UP INITIAL SET UP

channel changes

CABLE SET UP





INPUT CH

OFF

to 9, setting is





BRAND

1

complete



DID YOUR CABLE BOX CHANGE TO



TEST MODE CHANNEL 09?

Press @ # to move



YES

NO







the arrow to

MENU

OK

SELECT WITH ARROW KEYS

“YES”, then press

EXIT

SELECT

THEN PRESS [OK]









OK and “CABLE

BOX CONTROL IS ON” appears on the screen for about 5 seconds.

If the cable box’s channel does not change to 9

1 Press @ # to move the arrow to “NO”. 2 Press OK.

3 Repeat step 5 until the cable box’s channel changes to 9 by entering another code.

4 If the channel does not change after going through all the code numbers listed for your model of cable box, then try all the other numbers.

7 Return to normal screen

Press MENU.

If the VCR’s clock has not been set (with AUTO CLOCK set to ON)

“CABLE BOX USERS SET CLOCK MANUALLY” appears for about 5 seconds when you press OK in step 3, then the Clock Set screen appears.

Perform Manual Clock Set on page 12. If you press MENU after the clock has been set, the Cable Box Input Channel screen in step 4 appears.

CABLE BOX BRAND LIST

BRAND

CODE





ARCHER

1, 5, 17

CABLETENNA

1, 17

CABLEVIEW

15, 16, 17, 21, 25

CITIZEN

15, 16, 17, 21, 25

CURTIS

2, 8

DIAMOND

1, 17

GC BRAND

15, 16, 17, 21, 25

GEMINI

15

GENERAL INSTRUMENTS

1, 4, 6, 11, 12, 15, 28

HAMLIN

10, 18, 23

JASCO

15

JERROLD

1, 4, 6, 11, 12, 15, 28

NOVAVISION

2, 8

OAK

7, 20

PANASONIC

13, 14

PULSER

15, 16, 17, 21, 25

RCA

13, 14

REGAL

10, 18, 23

REMBRANDT

1, 16, 17

SAMSUNG

5, 16, 24

SCIENTIFIC ATLANTA

2, 8

SIGMA

7, 20

SL MARX

5, 16, 17, 24, 25

SPRUCER

13, 14

STARGATE

5, 15, 16, 17, 21, 24, 25

TELEVIEW

5, 16, 24

TOCOM

1, 4, 16

UNIKA

1, 17

UNIVERSAL

16, 17, 25

VIDEOWAY

3, 9, 22

ZENITH

3, 9, 22





NOTES:

The Controller may not work with all types of cable box.

If your cable box does not respond to any code, you cannot use the Controller to change cable box channels. In this case, make sure to leave the cable box turned on and tuned to the proper channel before the scheduled start time of timer recording.

Contact your cable company about the possibility of exchanging your current cable box with the one compatible with your VCR.

The VCR can only change the cable box channel through the Controller during timer recording.

If your cable box cannot be operated with a Remote (because it has no remote sensor), you cannot use the Controller to change its channels. Make sure to leave the cable box turned on and tuned to the proper channel before the scheduled start time of timer recording.

If the VCR’s memory backup expires because of a power failure, set the cable box input channel and brand again.

For customers in U.S.A.: If you are unable to set the Controller, contact your Marantz authorized dealer.

18 EN

INITIAL SETTINGS (cont.)

DBS Receiver

Control Setting

The following procedure is required if you receive satellite channels through a DBS (Direct Broadcast Satellite) receiver. The Controller allows the VCR to automatically switch the DBS receiver’s channels during timer recording.

NOTES:

Suggested location

Place the DBS (Direct Broadcast Satellite) receiver on top of the VCR. Attach the VCR’s Controller to the top of the VCR with the Controller’s transmitter pointed towards the DBS receiver’s remote sensor.

ATTENTION:

The Controller can also control a cable box. If both a DBS receiver and a cable box are used, position the Controller so its signal reaches the remote sensors on both the DBS receiver and cable box.

DBS receiver

Controller

Your VCR (suggested

locations)

DBS receiver

Controller



(supplied)



To

To

RF output

Audio/Video

Transmitter

output

or

To

To

AUDIO/

ANTENNA IN

VIDEO IN

Your VCR

CABLE

BOX

The VCR can automatically change the DBS receiver channels using the Controller when the VCR has been programed using Express timer programing ( pg. 38). Because satellite programing does not use PlusCode, the Controller cannot change the DBS receiver channels during VCR Plus+ timer recording.

(You can also use “Satellite Auto Recording” ( pg. 62) if your DBS receiver is equipped with a timer.)

If a cable box is also used, it is recommended that you connect the DBS receiver to your VCR’s audio/video input connectors and the cable box to your VCR’s antenna input terminal.

Installing Controller

1 Situate Controller

Place the Controller so that its transmitter is facing the DBS receiver’s remote sensor.

Make sure the path between the Controller and the DBS receiver’s remote sensor is not blocked.

2 Attach Controller

Fix securely using the adhesive strip attached on the back of the Controller.

3Connect DBS receiver to VCR

If your DBS receiver does not have audio/

video output connectors

Connect the RF output terminal on the DBS receiver to the ANTENNA IN terminal on the rear of your VCR.

If your DBS receiver has audio/video output connectors

Connect an audio/video cable between the AUDIO/VIDEO IN connectors on the rear of the VCR and the audio/video output connectors on the DBS receiver.

NOTE:

When connecting your DBS receiver, refer to its instruction manual.

4 Connect Controller to VCR

Connect the Controller to the CABLE BOX Controller connector on the rear panel.

How to control the DBS receiver

This VCR has two separate methods to control your DBS receiver.

The VCR’s wireless Remote can control your DBS receiver. This eliminates the need for a separate DBS receiver’s Remote.

The VCR’s Controller can also control your DBS receiver. This allows the VCR to change your DBS receiver’s channel number during timer-recording.

Each method must be set up separately. To set up the VCR’s Remote, refer to page 70. To set up the Controller, go to page 19.

EN 19

Turn on the VCR and the TV, and select the AV mode on the TV.

Set the VCR/TV/CABLE/DBS selector on the Remote to “VCR”.

VCR CABLE

TV /DBS

2 34

Setting DBS receiver input channel & brand

After installation, set the DBS receiver’s input channel and its brand correctly; otherwise, the Controller cannot work correctly.



Turn on DBS receiver

1 Select a channel other than channel 100 or 205



on your DBS receiver.



Access Main Menu screen on VCR

2 Press MENU.

3

Access DBS Receiver Set screen

1 Press @ # to move FUNCTION SET UP TUNER SET UP INITIAL SET UP

the arrow to

TUNER SET

CABLE SET UP DBS SET UP







“TUNER SET UP”,



INPUT CH

OFF



BRAND

40

then press fi or





TEST MODE



OK.











2 Press @ # to move

MENU

OK

SELECT WITH ARROW KEYS

the arrow to “DBS

EXIT

SELECT

THEN PRESS [OK]

SET UP”, then







press fi or OK.







Select DBS receiver input channel

4 Press %fi to move

FUNCTION SET UP

TUNER SET UP INITIAL SET UP

the arrow to

DBS SET UP











“INPUT CH”.

INPUT CH

OFF

BRAND

40

Your selection

TEST MODE



depends on how









your DBS receiver

MENU

OK

SELECT WITH ARROW KEYS

is connected to

EXIT

SELECT

THEN PRESS [OK]



your VCR.

If your DBS receiver is connected to your VCR’s ANTENNA IN terminal on the rear panel

Press @ # until the channel number representing the DBS receiver’s output (ON CH3 or ON CH4) appears on the screen.

If your DBS receiver is connected to your VCR’s AUDIO/VIDEO IN connectors on the front panel

Press @ # until “ON F-1” appears on the screen.

If your DBS receiver is connected to your VCR’s AUDIO/VIDEO IN (L-1) or AUDIO/VIDEO IN (L-2) connectors on the rear panel

Press @ # until “ON L-1” or “ON L-2” appears on the screen.

If you do not use a DBS receiver

Press @ # until “OFF” appears on the screen.

CONTINUED ON NEXT PAGE \

20 EN

INITIAL SETTINGS (cont.)

VCR CABLE TV /DBS

Enter DBS Receiver’s brand



5 Press %fi to move

FUNCTION SET UP

TUNER SET UP INITIAL SET UP

the arrow to

DBS SET UP





“BRAND”.

INPUT CH

OFF

BRAND

40

Press @ # to enter the

TEST MODE



brand code from the







following list.

MENU

OK

SELECT WITH ARROW KEYS



EXIT

SELECT

THEN PRESS [OK]





BRAND





CODE

JVC (DISH Network)





51

ECHOSTAR (DISH Network)



51

SONY (DSS)





41

RCA (DSS)





40

6 Engage test mode

Press %fi to move the arrow to “TEST MODE”, then press OK.

The program currently received through the DBS receiver appears for about 10 seconds.

7 NOTE:

56

If you do not engage the test mode in step 6, “INPUT





CH” and “BRAND” are not set.







If the DBS receiver’s channel changes to 205,

setting is complete





Press @ # to move

FUNCTION SET UP

TUNER SET UP INITIAL SET UP





the arrow to “YES”,





DBS SET UP

































































then press OK and





INPUT CH



OFF



























“DBS RECEIVER





DID YOUR DBS RECEIVER CHANGE TO



















CHANNEL 205?











CONTROL IS ON”







YES



NO























































appears on the





















MENU

OK

SELECT WITH ARROW KEYS





screen for about 5



EXIT

SELECT

THEN PRESS [OK]











































seconds.























If the DBS receiver’s channel does not change





as shown above



















NOTES:



1 Press @ # to move the arrow to “NO”.



2 Press OK.



















The Controller may not work with all types of DBS receiver.



3 Re-enter the correct code.











If your DBS receiver does not respond to the code, you



























Return to normal screen













cannot use the Controller to change satellite channels. In this















case, make sure to leave the DBS receiver turned on and

7 Press MENU.



















tuned to the proper channel before the scheduled start time of timer recording. In addition, if your DBS receiver is equipped with a timer, you can also use “Satellite Auto Recording”

( pg. 62).

The VCR can only change the satellite channel through the Controller during timer recording.

If your DBS receiver cannot be operated with a Remote (because it has no remote sensor), you cannot use the Controller to change its channels. Make sure to leave the DBS receiver turned on and tuned to the proper channel before the scheduled start time of timer recording.

For customers in U.S.A.: If you are unable to set the Controller, contact your Marantz authorized dealer.

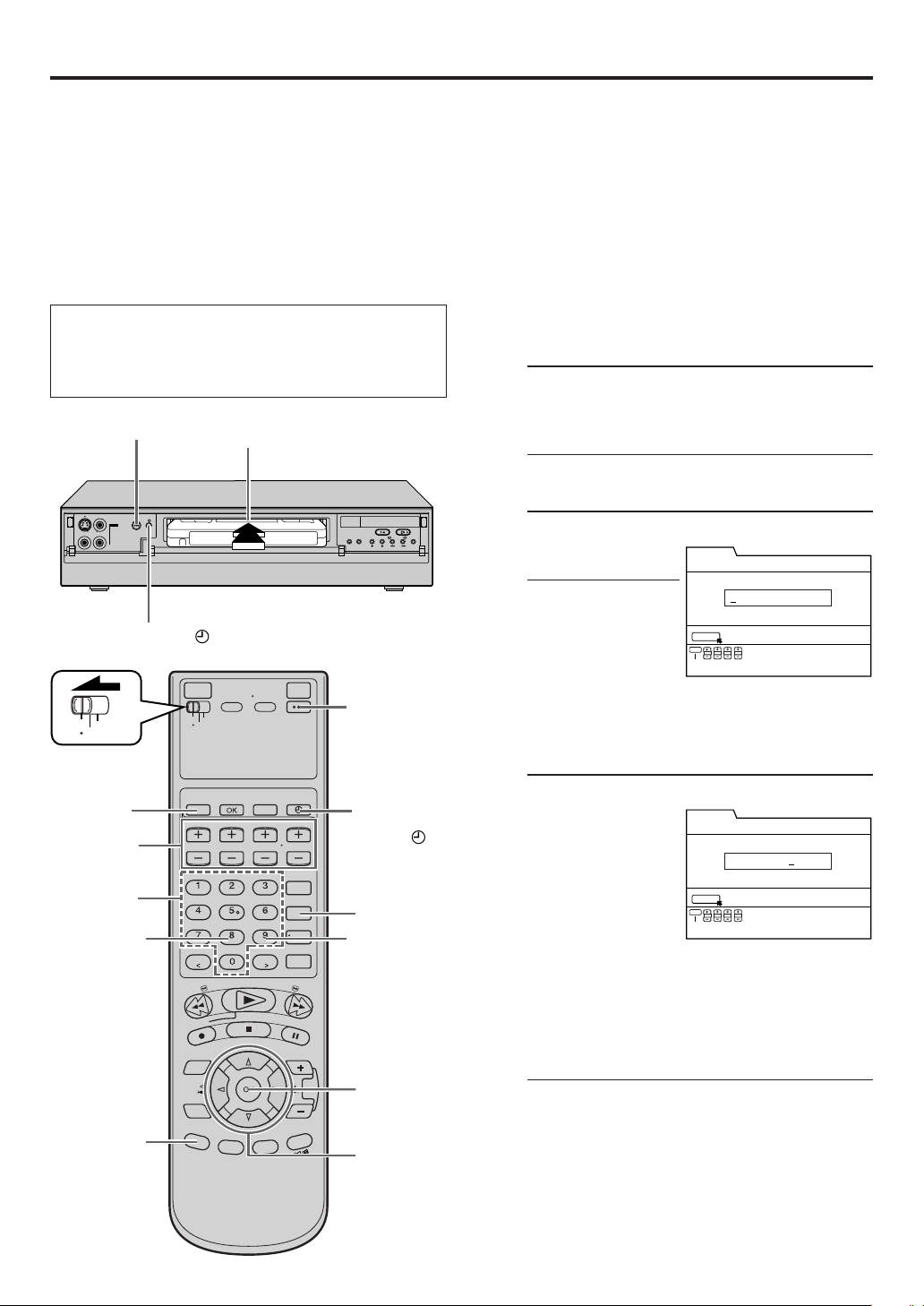

BASIC PLAYBACK AND RECORDING

EN 21

Basic

Playback

Turn on the VCR and the TV, and select the AV mode on the TV.

Set the VCR/TV/CABLE/DBS selector on the Remote to “VCR”.

STOP/EJECT POWER 1 (7/0) 2

IN F-1

+

REW ()

FF ()

POWER

VCR CABLE

TV /DBS

2

REW(1) FF(¡)

STOP(7)

NOTES:

When you use the Video Navigation function, operate the VCR only after the tape number is detected; otherwise, you cannot use the Video Navigation function.

It takes a moment until the image appears on the TV screen when you play back a program recorded in LS5 mode. The picture may pause or the block noise may appear.

It will take a moment until the image appears when you play back cut segments (segments for which recording was continued after stopping or pausing) or segments for which recording was switched from VHS mode (SP or EP) to D-VHS mode.

This VCR can check the tape condition during playback (and recording), and realizes the best possible pictures.

This VCR can play back tapes that have been recorded in D-VHS (MTP), S-VHS, S-VHS ET and VHS formats.

When playing back a tape, this VCR automatically identifies the recording format (D-VHS, S-VHS, S-VHS ET or VHS).

When you play back a tape recorded on this VCR, you can use the Video Navigation function ( pg. 42).

1 Load a cassette

Make sure the window side is up, the rear label side is facing you and the arrow on the front of the cassette is pointing towards the VCR.

Do not apply too much pressure when inserting.

The VCR turns on automatically.

The tape will run for a few seconds while the VCR searches for the tape number. If the tape number is found, it will be shown on the TV screen if “SUPERIMPOSE” is set to “ON”

( pg. 57).

The counter is reset automatically, however, it is not completely reset to “0:00:00”.

If the cassette’s record safety tab has been removed, playback begins automatically.

2 Start playback

Press PLAY ( 3 ).

Recording speed is automatically detected.

If “V. CALIBRATION” is set to “ON” (default setting) and “PICTURE CONTROL” is set to “AUTO”: ( pg. 54), “VIDEO CALIBRATION” appears on the screen, and this VCR checks the tape condition during automatic tracking (only cassettes recorded in the S-VHS, S-VHS ET or VHS mode).

To stop playback

Press STOP ( 7 ) on the Remote or STOP/EJECT ( 7/0 ) on the front panel.

To rewind the tape (when it is not running)

Press REW ( 1 ).

To fast-forward (when it is not running)

Press FF ( ¡ ).

To eject the tape

Press STOP/EJECT ( 7/0 ) on the front panel when the tape is not running.

You can also eject the cassette when the VCR is turned off.

To turn off the VCR

Press POWER.

22 EN

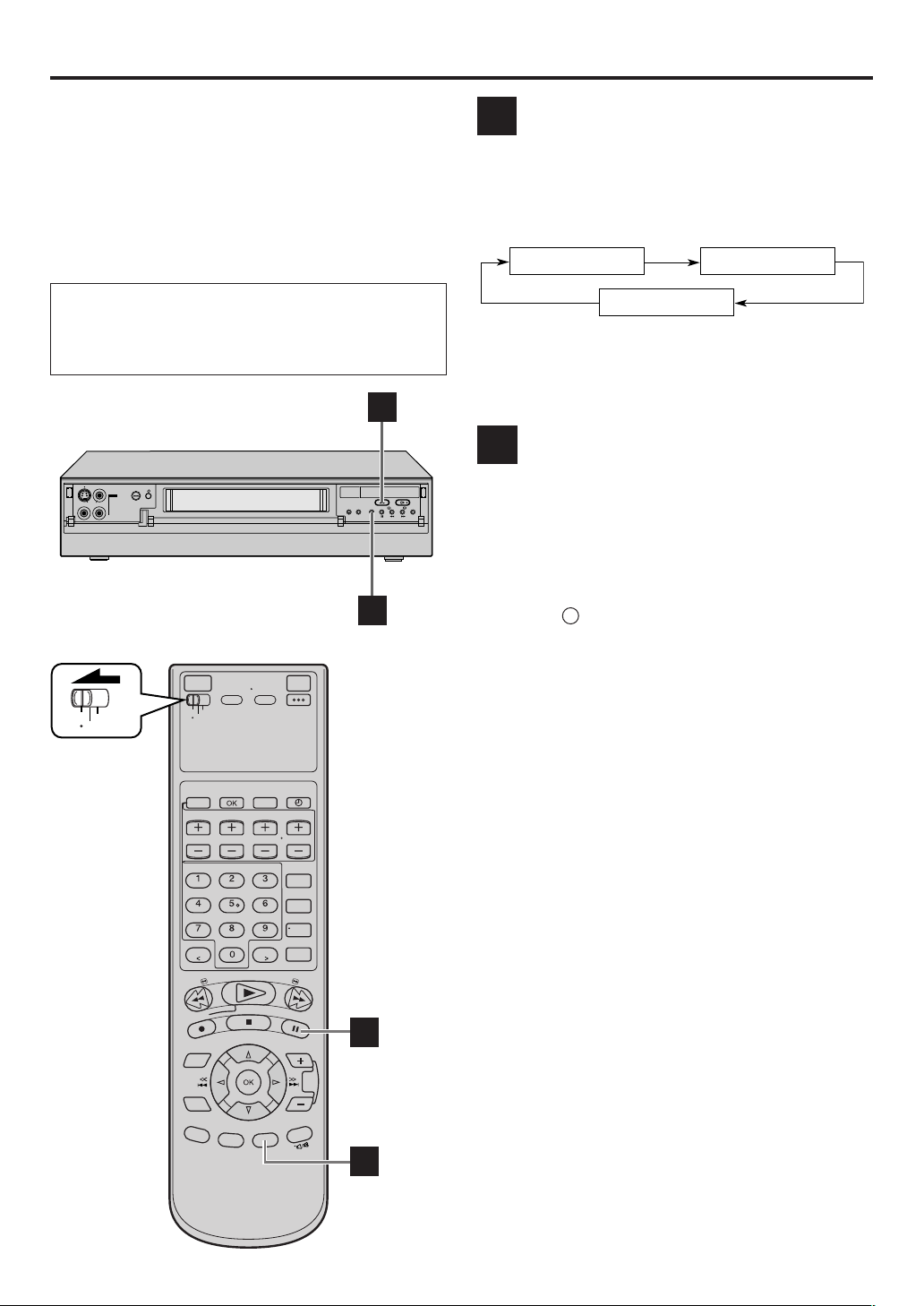

BASIC PLAYBACK AND RECORDING (cont.)

Basic

Playback

Features

Turn on the VCR and the TV, and select the AV mode on the TV.

Set the VCR/TV/CABLE/DBS selector on the Remote to “VCR”.

B

IN F-1

+

A Checking tape position

The tape position indicator appears on the screen in the following cases:

When you change the VCR operation mode from the stop mode to fast forward or rewind mode.

When you perform an Index Search ( pg. 24).

B

E

The position of “ ” in relation to “B” (Beginning) or “E” (End) shows you where you are on the tape.

NOTES:

“SUPERIMPOSE” must be set to “ON”, or the indicator will not appear ( pg. 57).

It may take a few seconds for the tape position indicator to be displayed.

To reset the time counter, press C. RESET on the Remote. The counter reading becomes “0:00:00”. It is also reset when a tape is inserted.

VCR CABLE TV /DBS





B

Playing back tape repeatedly

C







— Repeat Playback





You can play back a tape repeatedly (50 times).





While playing back a tape, press and hold PLAY ( 3 )





for more than 5 seconds.





The play indicator ( # ) on the front display panel starts





flashing slowly, and a tape will be played back 50 times.





To stop playback, press STOP ( 7 ) on the Remote or





STOP/EJECT ( 7/0 ) on the front panel.

C

NOTE:



For a cassette recorded in D-VHS mode, Repeat Playback is not



possible if the cassette was recorded in LS3 or LS5 mode.

B

D

EN 23

C Adjusting tracking condition

— Tracking Adjustments

Automatic tracking adjustment

This VCR automatically adjusts the tracking condition. Whenever you insert a tape and start playback, automatic tracking starts working and continuously analyzes the signal to enable optimum picture quality during playback.

Manual tracking adjustment

If automatic tracking cannot eliminate noises well during playback, use the manual tracking following the procedures below.

You can also use the manual tracking during slow motion playback ( pg. 33). During slow motion playback, simply press CHANNEL + or on the VCR (or TV/VCR CH + or on the Remote) to adjust tracking.

1 Activate manual tracking

Press CHANNEL + and on the front panel at the same time during playback.

2 Eliminate the noises on the TV screen

Press CHANNEL + or .

Press it briefly for a fine adjustment, or press and hold for a coarse adjustment. Watch the screen and continue adjustment until optimum picture and sound quality are achieved.

To reactivate automatic tracking, press CHANNEL + and on the front panel at the same time. The automatic tracking becomes active again.

D Selecting monitor sound

— Audio Monitor

You can select the desired monitor sound.

While playing back a tape on which stereo sound or SAP sound is recorded, press A. MONITOR on the Remote.

Each time you press the button, sound changes as follows:

S-VHS/VHS



















L R



















L







R































































































































MIX















NORMAL

























































































































L R



: Normally select this.



































































Hi-Fi sound is played back.





















L:







Sound on the left Hi-Fi channel is played































back.





























R



:









Sound on the right Hi-Fi channel is played



























back.





























NORMAL: Sound on the normal track is played back.

MIX:

Both sounds on the Hi-Fi track and



normal track are mixed and played back.

D-VHS

L R

L

R

L R : Normally select this.

L: Sound on the left channel is played back. R : Sound on the right channel is played back.

NOTES:

The above indication appears when “SUPERIMPOSE” is set to “ON” ( pg. 57), though the monitor sound changes in sequence.

If the tape being played back has no Hi-Fi sound track, the normal sound track will be heard regardless of this setting.

24 EN

BASIC PLAYBACK AND RECORDING (cont.)

E Automatic operations after

rewinding — Next Function Memory

The Next Function Memory “tells” the VCR what to do after rewinding is complete.

● Ensure that the VCR is in stop mode.

a– For Automatic Playback Start

Press REW ( 1 ), then press PLAY ( 3 ) within 2 seconds.

b– For Automatic Power Off

Press REW ( 1 ), then press POWER within 2 seconds.

c– For Automatic Timer Standby

Press REW ( 1 ), then press TIMER () within 2 seconds.

NOTE:

It is not possible to select the Automatic Timer Standby function if the cassette’s record safety tab is removed.

G Skipping unwanted portions

— Skip Search

You can skip over (view at high speed) unwanted portions of the tape.

Press SKIP SEARCH on the Remote once to 4 times during playback.

Each press initiates a 30-second period of high speed playback (up to 2 minutes). When the specified portion of the tape is skipped, normal playback resumes automatically.

To return to normal playback during Skip Search, press PLAY ( 3 ).

NOTE:

It is not possible to perform the Skip Search when you play back a D-VHS tape recorded in LS5 mode.

F Locating beginning of

recordings — Index Search

When recording on this VCR, index codes are placed on the tape at the beginning of each recording. You can find and automatically play back from the beginning of any recording using the Index Search function.

1 Start search

While the tape is not running, press 4 or ¢ on the Remote.

2 Access distant code

To access a recording of 2 to 9 index codes away, press 4 or ¢ repeatedly until the correct number is displayed on the screen (only if “SUPERIMPOSE” is set to “ON” ( pg. 57)). Playback begins automatically when the desired recording is located.

Beginning of the current







Current position

Beginning of the 2nd next

program recorded











on the tape





program recorded

















Previous













Next











program













program

2nd

next





recorded













recorded











–2

–1







1



2



3



















4



¢

































































If you want to find the very beginning of the

desired program, press REW ( ) or FF ( ) after playback starts.

NOTE:

An index code is not placed on the tape when recording is

Other Useful functions for playback (S-VHS/VHS only)

You can also use the following functions for playback.

Video Calibration ( pg. 54)

When this function is set to “ON”, this VCR checks the condition of the tape in use during playback and recording, and compensates to provide the highestpossible pictures.

Picture Control ( pg. 54)

This function helps you to adjust the playback picture quality according to your preference.

Digital R3 ( pg. 54)

This function applies edge correction to the luminance signal to enhance details and provides clear pictures.

Video Stabilizer ( pg. 54)

You can automatically correct vertical vibrations in the picture when playing back unstable recordings made on another VCR.

resumed from recording pause.

EN 25

How to read the Video Navigation screen for D-Theater tape*

If you insert a D-Theater tape and then press NAVI, the following screen appears. Press %fi to move the arrow to the item that you want to watch, then press OK.

Playback starts automatically after the selected item is located. The D-Theater indicator lights up when playing back a D-Theater tape.

*D-Theater is a technical specification based on D-VHS standards that was developed for HD content. Commercial D-Theater titles can only be played back on D-VHS digital recorders bearing the D-Theater logo.

Chapter Navigation



TAPE TITLE: WORLD SOCCER

1 / 4

Chapter

Title



1. CHAPTER 1







2. CHAPTER 2









3. CHAPTER 3









4. CHAPTER 4









SECTOR 4-1









SECTOR 4-2





Section

EXIT

OK

SELECT WITH ARROW KEYS









NAVI

SELECT

THEN PRESS [OK]



Some D-Theater tapes or D-VHS tapes may contain the multiple programs, angles, sounds or subtitles. If a tape contains them, the icons appear on the top right corner of the TV screen when you press OSD.

Program Selection

Sound Selection

















































PROG. 1

PROG. 2

1.STEREO

2.Dolby D

During normal playback, press TV/VCR CH +/– on the Remote to select the desired program.

It is impossible to select the program if the tape does not contain the multiple programs.

Angle Selection

VIDEO 1

VIDEO 2

VIDEO 3

During normal playback, press the number key "4" on the Remote to select the desired angle.

It is impossible to select the angle if the tape does not contain the multiple angles.

During normal playback, press A. MONITOR on the Remote to select the desired sound.

It is impossible to select the sound if the tape does not contain the multiple sounds.

Subtitle Selection

OFF

CC1

CC2

CC3

CC4

During normal playback, press SUBTITLE (number key "6") on the Remote to select the desired subtitle.

It is impossible to select the subtitle if the tape does not contain the multiple subtitles.

NOTE:

When you record multiple programs or programs with multiple angles, it is impossible to change program on multiple program channel and angles with the control of this VCR. Select the desired program or angle with the control of the TV.

26 EN BASIC PLAYBACK AND RECORDING (cont.)

Basic





This VCR can check the tape condition during recording













(and playback), and realizes the best possible pictures.

Recording











locate the programs you have recorded on a tape.









In addition, this VCR is equipped with the Video









Navigation function, which allows you to quickly









When recording on this VCR, the tapes are

● Turn on the VCR and the TV, and select the AV



automatically numbered so that every tape recorded

mode on the TV.







on this VCR has a different tape number. With this

● Set the VCR/TV/CABLE/DBS selector on the



function, the program information such as recording

Remote to “VCR”.







date, start time, channel number, and recording







speed are also automatically stored in the VCR’s



















1

2



memory.

POWER



● For the Video Navigation function, see page 42.





To memorize the recording date and start time for









the Video Navigation function, the date and clock









must be set correctly.











IN F-1

D-VHS Recording

+





Load a D-VHS cassette

4

1 Make sure the record safety tab is intact. If not,

cover the hole with adhesive tape before

STOP/EJECT (7/0)

inserting the cassette.

POWER

VCR CABLE





TV /DBS



2







2-a



2-b

3

3





REW (1)

1



FF (

)

4

PAUSE (8)

STOP (7)

The D-VHS indicator lights on the front display panel and the D-VHS recording mode is selected automatically.

Select recording channel

On the front panel:

Press CHANNEL + or .

On the Remote:

a– Press TV/VCR CH + or . or

b– Press the Number keys.

Set recording speed

Press REC SPEED to set the recording speed.

The recording speed changes each time REC SPEED is pressed.

HS: When picture quality and sound quality is important.

STD: When picture quality and recording time are important.

LS3: To record for three times longer than in STD mode, with picture quality that is equal to or better than S-VHS.

LS5: When recording time is important. To record for five times longer than in

STD mode.

4 Start recording

On the front panel:

Press REC ( ).

On the Remote:

While holding REC ( ), press PLAY ( 3 ).

EN 27

S-VHS/VHS Recording

1 Load a cassette

Make sure the record safety tab is intact. If not, cover the hole with adhesive tape before inserting the cassette.

2 Select recording channel

On the front panel:

Press CHANNEL + or .

On the Remote:

a– Press TV/VCR CH + or . or

b– Press the Number keys.

3 Set recording speed

Press REC SPEED to set the recording speed.

4 Start recording

On the front panel:

Press REC ( ).

On the Remote:

While holding REC ( ), press PLAY ( 3 ).

If “V. CALIBRATION” is set to “ON” (default setting: pg. 54), this VCR checks the tape condition for about seven seconds, then starts recording. This means that the first seven seconds of the program will not be recorded. If this is inconvenient for you, follow the steps below:

1 Press REC ( ) and PAUSE ( 8 ) to start

Video Calibration.

2Then press PLAY ( 3 ) to start recording after Video Calibration is complete.

It may be unlawful to record or play back copyrighted material without the consent of the copyright owner.

To pause recording

Press PAUSE ( 8 ). To resume recording, press PLAY ( 3 ).

To stop recording

Press STOP ( 7 ) on the Remote or STOP/EJECT ( 7/0 ) on the front panel.

To rewind the tape (when it is not running)

Press REW ( 1 ).

To fast-forward the tape (when it is not running)

Press FF ( ¡ ).

To eject the tape

Press STOP/EJECT ( 7/0 ) on the front panel when the tape is not running.

You can also eject the cassette when the VCR is turned off.

To turn off the VCR

Press POWER.

Compatibility Of Cassettes And Recording Mode





Recording Mode



Cassette









D-VHS

S-VHS



VHS















D-VHS

Yes

Yes



Yes











S-VHS

No

Yes



Yes











VHS

No

Yes*



Yes











*To record on the VHS cassette with S-VHS quality, use the S-VHS ET function ( pg. 59).

NOTES:

The D-VHS (MTP), S-VHS, S-VHS ET and VHS mode recordings are possible with this VCR.

To record in the D-VHS mode, use a D-VHS cassette.

To record in the S-VHS/VHS mode, you can use a D-VHS, S-VHS or VHS cassette.

To record in S-VHS mode on D-VHS tapes:

Press D-VHS to turn off the D-VHS indicator. Then, set “S-VHS MODE” to “ON” ( pg. 58).

To record in VHS mode on D-VHS tapes:

Press D-VHS to turn off the D-VHS indicator. Then, set “S-VHS MODE” to “OFF” ( pg. 58).

28 EN

BASIC PLAYBACK AND RECORDING (cont.)

Basic

Recording

Features

Turn on the VCR and the TV, and select the AV mode on the TV.

Set the VCR/TV/CABLE/DBS selector on the Remote to “VCR”.

B

IN F-1

+

B

VCR CABLE

TV /DBS

B

A Changing display information

Press DISPLAY during recording or recording pause.

Each time you press the button, the front display panel shows the channel number, clock time, and the recording speed in sequence.

Channel No.





Clock Time



















Recording Speed

To display the VCR status including the time counter, the channel number and the clock time on the TV screen, see “Showing on-screen display” ( pg. 29).

B Specifying recording length

— Instant Timer Recording (ITR)

You can easily specify the recording length from 30 minutes to 8 hours and the VCR shuts off after recording is finished.

During recording, press REC ( ) on the front panel repeatedly until the recording length you want appears on the front display panel.

The record () indicator starts flashing.

Each time you press the button, recording length increases in 30-minute intervals (up to 8 hours).

To cancel an ITR, press STOP ( 7 ) on the Remote or

STOP/EJECT ( 7 / 0 ) on the front panel.

A

VCR CABLE TV /DBS

D

EN 29

C Watching one program while recording another

1 Engage TV mode

During recording...

● Change the TV’s input mode from AV to TV.

2 Select channel for viewing

Select the channel you want to watch, on the TV.

D Showing on-screen display

When “SUPERIMPOSE” is set to “ON” ( pg. 57), you can see the current VCR status on the TV screen.

For more detailed information about the on-screen display, see page 85.

1 Display VCR status on TV screen







During recording or























recording pause, press



B

E

L R

12:00 AM



SAP STEREO













D-VHS INDEX -9



D-VHS STD



HD CH 123







OSD on the Remote.























All indications























corresponding to the

















current VCR status are displayed for 5 seconds.

The time counter remains on the screen indicating the elapsed time.

● The indications are not recorded.

2 Exit on-screen display

Press OSD again.

NOTES:

The subtitles does not appear while the on-screen display is displayed.

If the VCR is in recording pause mode, “¶8” is always displayed.

The VCR status can be also displayed during playback.

Even if “SUPERIMPOSE” is set to “OFF” ( pg. 57), the onscreen display appears when the VCR plays back the blank portion of a tape and the VCR receives the channel which has no broadcast. However, on-screen display does not appear when the input location is selected and no signal is input.

30 EN

BASIC PLAYBACK AND RECORDING (cont.)

Other useful functions for recording

You can also use the following functions for recording.

Video Calibration (S-VHS/VHS only) ( pg. 54)

When this function is set to “ON”, this VCR checks the condition of the tape in use during playback and recording, and compensates to provide the highestpossible pictures.

Second Audio Recording ( pg. 55)

This VCR’s built-in MTS decoder enables reception of Multichannel TV Sound broadcast.

To record a SAP program received, set “2ND AUDIO REC” to “ON” using the menu screen.

NOTES:

When the channel is changed on the VCR;

The “STEREO” indication appears on the screen for about 5 seconds if the program is a stereo broadcast.

The “SAP” indication appears on the screen for about 5 seconds if the program is a SAP broadcast.

The “SAP STEREO” indication appears when a stereo program is accompanied by SAP sound.

S-VHS Recording Mode ( pg. 58)

This VCR allows you to record on a D-VHS and S-VHS tape with VHS picture quality.

S-VHS ET ( pg. 59)

This function allows you to record on VHS tapes with S-VHS picture quality. Tapes recorded using this function can be played back on a VCR equipped with the S-VHS ET function.

Accidental erasure prevention

To prevent accidental recording on a recorded cassette, remove its record safety tab.

To record on it later, cover the hole with adhesive tape.

Record safety tab

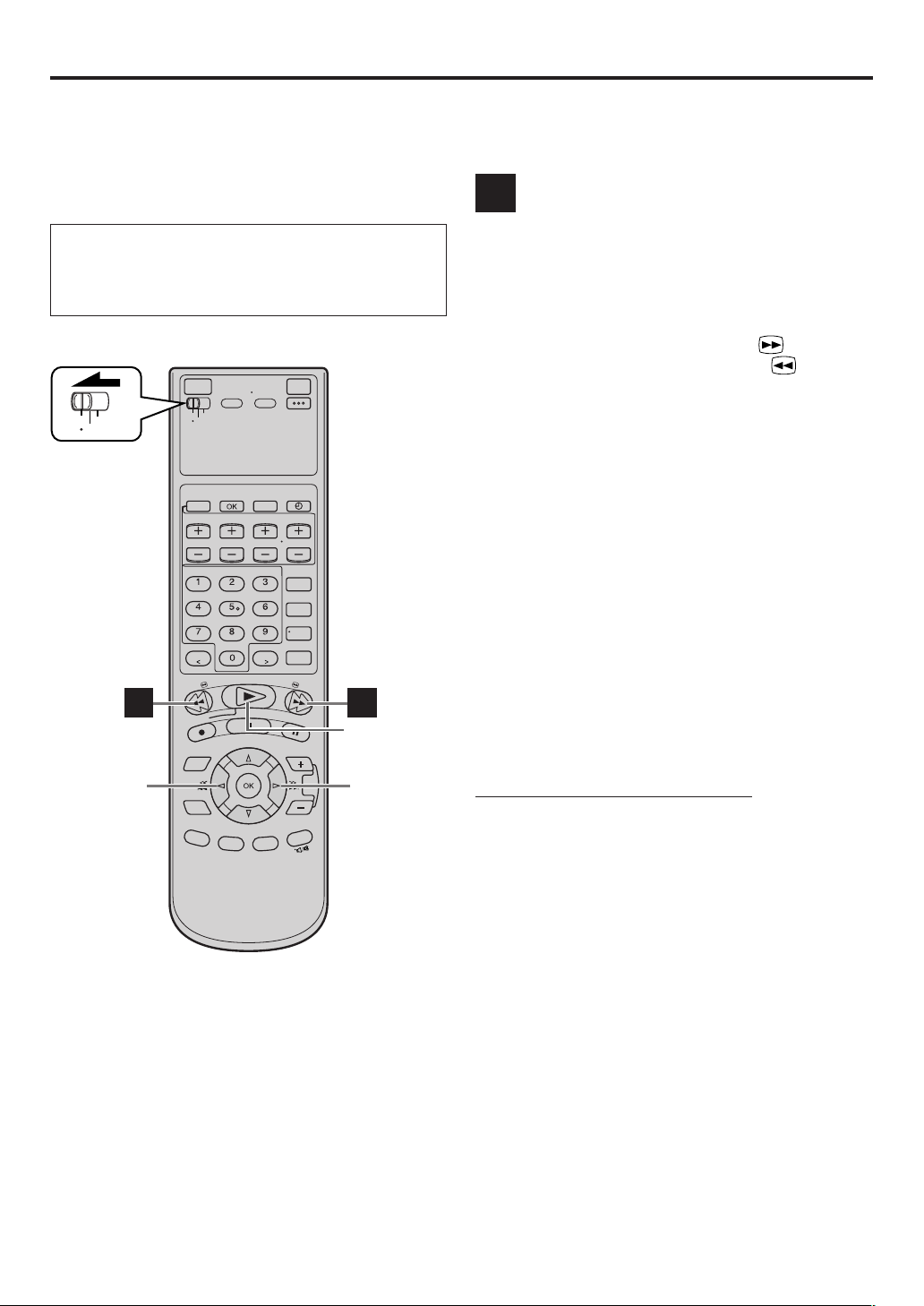

SPECIAL EFFECT PLAYBACK

Special Effect

Playback

Turn on the VCR and the TV, and select the AV mode on the TV.

Set the VCR/TV/CABLE/DBS selector on the Remote to “VCR”.

VCR CABLE

TV /DBS

A A

PLAY (3)

4

4

EN 31

With this VCR, you can enjoy special effect playback such as high-speed search, variable-speed search, and still playback and so on.

A Locating particular scene

rapidly — Picture Search 7 High-Speed Picture Search:

Possible during normal playback or still picture playback.

You can rapidly locate a particular scene on the tape.

To do forward picture search, press FF (). To do reverse picture search, press REW ().

If you press and hold the button for more than 2 seconds, simply releasing it cancels the picture search, and normal playback resumes.

To resume normal playback, press PLAY ( 3 ).

NOTES:

The high-speed picture search speed of the D-VHS recording is 6 times normal playback speed in HS mode, 12 times in STD mode, 36 times in LS3 mode, 60 times in LS5 mode. The high-speed picture search speed of the S-VHS/VHS recording is 11 times normal playback speed in SP mode, 31 times in EP mode.

The picture may be distorted at the part where the playback speed is changed.

The still picture may appear during the high-speed picture search of a tape recorded in D-VHS format on other devices.

7 Variable-Speed Picture Search (S-VHS/VHS only):

You can change the speed of picture search.

How to use the buttons on the Remote:

To do forward picture search, press ¢ repeatedly. Each time you press the button, the search speed increases.

To decrease the speed during forward picture search (toward normal playback, then reverse picture search), press 4 repeatedly.

To do reverse picture search, press 4 repeatedly. Each time you press the button, the search speed increases during reverse picture search.

To decrease the speed during reverse picture search (toward normal playback, then forward picture search), press ¢ repeatedly.

To resume normal playback, press PLAY ( 3 ).

Frame-by-Frame Playback

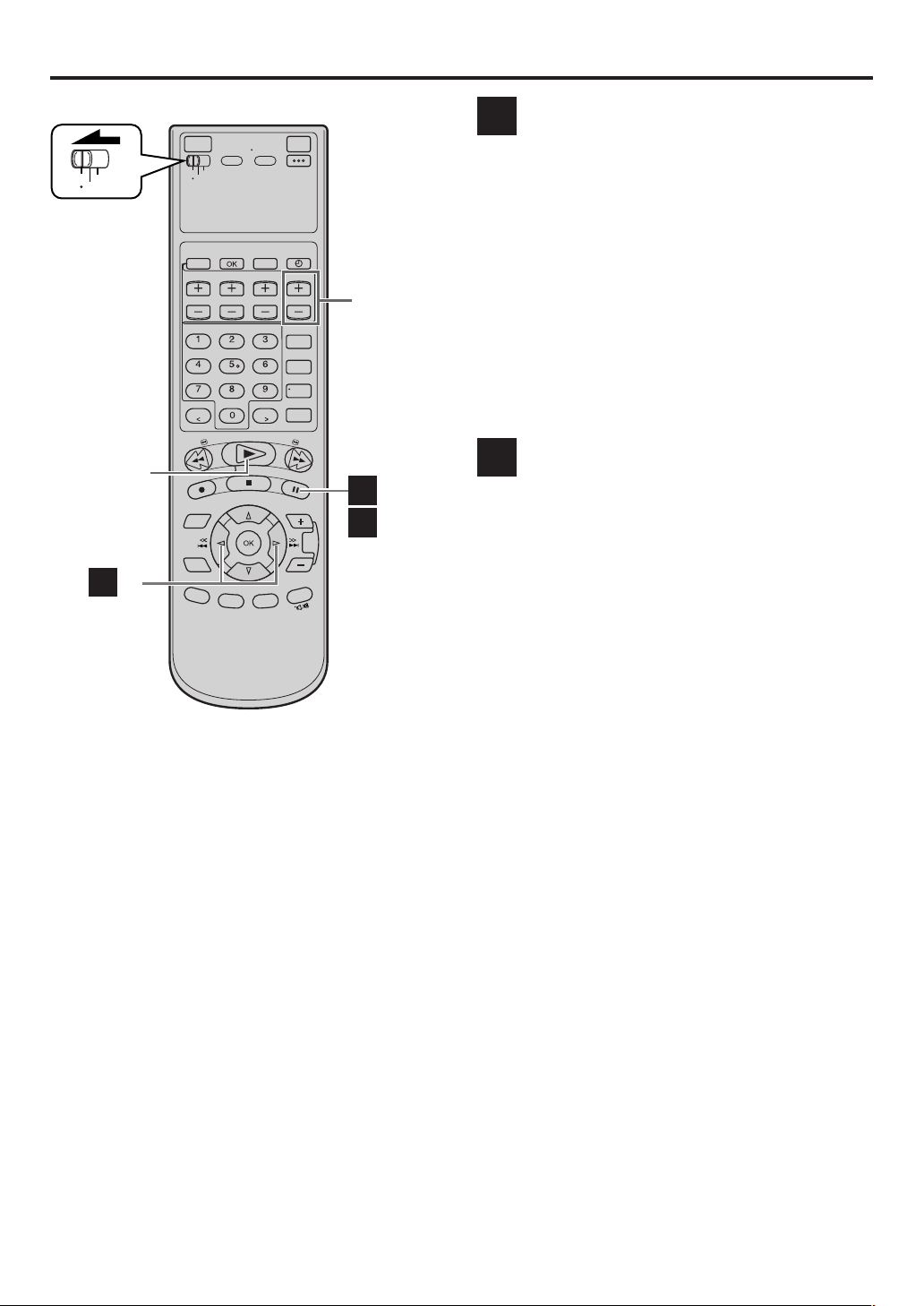

32 EN

SPECIAL EFFECT PLAYBACK (cont.)

VCR CABLE TV /DBS

TV/VCR

CH +/–

B Viewing still picture

— Still Picture Playback

Press PAUSE ( 8 ) during normal playback.

Playback is freezed and a still picture appears.

To resume normal playback, press PLAY ( 3 ).

NOTES:

To obtain a noiseless still picture, it may be necessary to adjust tracking in slow motion playback before starting still picture playback.

Manual tracking is possible during still picture playback. During still picture playback, simply press CHANNEL + or on the VCR (or TV/VCR CH + or on the Remote) to adjust tracking.

PLAY (3)

B

C -1,-2

C -2

C Viewingframe still picture frame by

(S-VHS/VHS only)

1 Pause during playback

Press PAUSE ( 8 ).

Playback is freezed and a still picture appears.

2 Advance or reverse still picture

To advance a still picture, press ¢ (or PAUSE ( 8 )) repeatedly.

To reverse a still picture, press 4 repeatedly.

To resume normal playback, press PLAY ( 3 ).

VCR CABLE

TV /DBS

TV/VCR

CH +/–

PLAY (3)

PAUSE (8)

4

4

EN 33

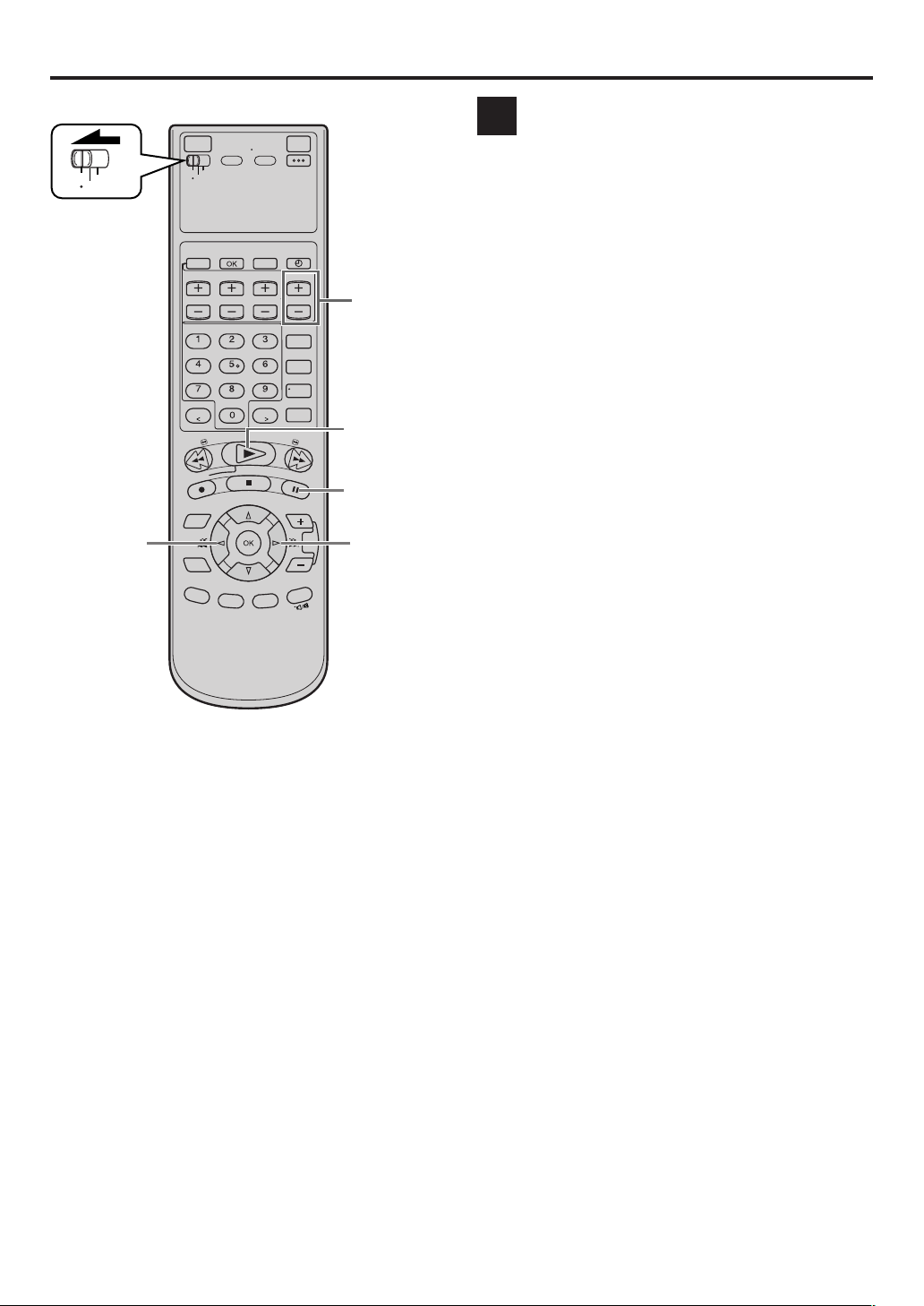

D Viewing slow motion picture

— Slow Motion Playback (S-VHS/VHS only)

During normal playback:

Press 4 to decrease the playback speed.

Each time you press the button, the speed decreases (toward reverse slow motion playback, then reverse picture search).

Holding PAUSE ( 8 ) for more than 2 seconds also starts forward slow motion playback. If you press PAUSE ( 8 ) again, still picture resumes.

To resume normal playback, press PLAY ( 3 ).

During still picture playback:

Press and hold ¢ to start forward (or 4 to start reverse) slow motion playback. When you release the button, slow motion playback stops and a still picture appears.

Holding PAUSE ( 8 ) for more than 2 seconds also starts forward slow motion playback. If you press PAUSE ( 8 ) again, still picture resumes.

To resume normal playback, press PLAY ( 3 ).

NOTE:

Manual tracking is possible during slow motion playback. During slow motion playback, simply press CHANNEL + or on the VCR (or TV/VCR CH + or on the Remote) to adjust tracking.

PLUSCODE NUMBER SET

34 EN

TIMER RECORDING

VCR Plus+®

Timer

Programing

Turn on the VCR and the TV, and select the AV mode on the TV.

Set the VCR/TV/CABLE/DBS selector on the Remote to “VCR”.

POWER 1

Timer recording allows you to program the VCR to automatically record a broadcast at some future time. Up to 24 timer recording programs can be made using VCR Plus+ timer programing or Express timer programing method ( pg. 38) as far as a year in advance.

The VCR Plus+ timer programing system eliminates the need to input channel, date, start and stop time data when programing timer recording settings. Simply key in the PlusCode number for the TV broadcast you wish to record and the VCR’s timer will be automatically programed. (The PlusCode programing numbers are the numbers next to the program in most TV listing.)

1 Load a cassette

Make sure the record safety tab is intact. If not, cover the hole with adhesive tape, then load it into the VCR.

The VCR turns on, and the counter is reset, automatically.

IN F-1



2



+





TIMER ()

POWER

VCR CABLE

TV /DBS

Access VCR Plus+ screen

Press PROGRAM on TIMER PROGRAM

the Remote.

The clock must be set to access the

VCR Plus+ screen.



SET

If you have not set

PROG.

PRESS NUMBER KEYS [0-9] OR



the clock, the Main

EXIT START STOP DATE CH PRESS [+/–] TO SET EXPRESS PROGRAMMING





Menu screen

appears after an error message is displayed. Refer to page 10 for the clock setting procedure.







Enter PlusCode number



2

8



3 Press the appropriate

TIMER PROGRAM

PLUSCODE NUMBER SET

5

TIMER (

)

Number keys to input





the PlusCode number











1 2 3 4 5







printed in the TV





3

6



listings for the TV

SET





broadcast you wish





PROG.

PRESS NUMBER KEYS [0-9] OR





to record, then press

EXIT START STOP DATE CH PRESS [+/–] TO SET EXPRESS PROGRAMMING

DAILY

WEEKLY









OK.















BACK

34

7

Then;

If the Guide Channel Set screen appears

— go to step 4.

If the VCR Plus+ Program screen appears

go to step 5.

To make corrections, press CANCEL and input the correct PlusCode number.

If an incorrect PlusCode number or the one for a broadcast already finished has been inputted, “PLUSCODE NO. ERROR CONFIRM PLUSCODE NO. THEN RETRY” is displayed for about 5 seconds, then the VCR Plus+ screen reappears.

SELECT WITH ARROW KEYS THEN PRESS [OK]
EXIT
SELECT
MENU
OK
GUIDE CH VCR CH
CLOCK SET
GUIDE CHANNEL
FUNCTION SET UP TUNER SET UP
– –
12
INITIAL SET UP

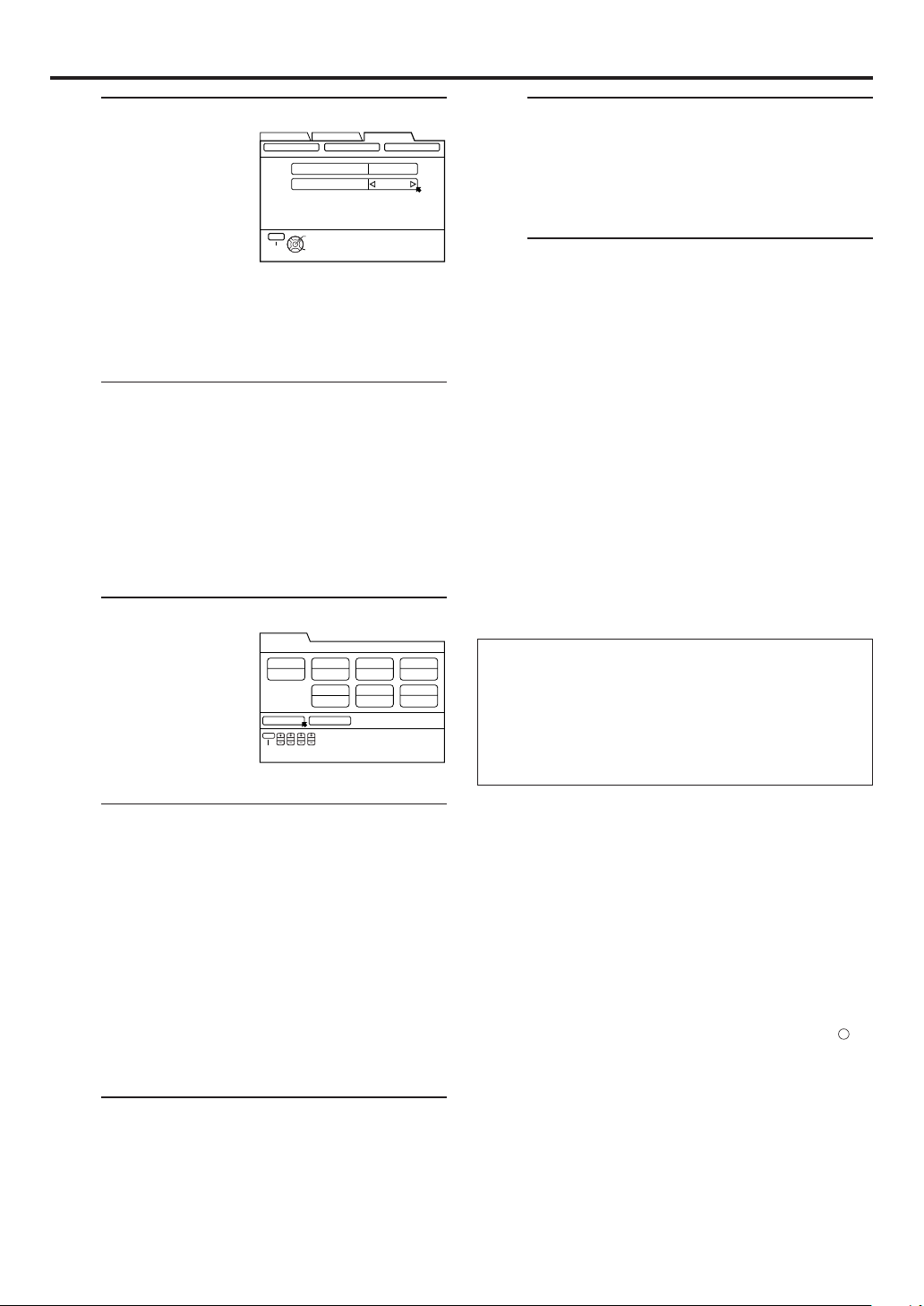

EN 35

4 Input receiving channel number

The guide channel

OTHER

number, which is assigned to the TV or

cable station for the PlusCode number

that you entered in step 3, will appear automatically on the

Guide Channel Set Up screen.

Press @ # to input the number of the channel on which the broadcast for the PlusCode number is received on the VCR or cable box, then press

OK.

The Guide Channel Set screen appears only when you input the PlusCode number of a station for which the guide channel number has not been set previously.

If you receive your channels with a cable box and if you have properly set your Controller, “CABLE CH” appears in place of “VCR CH”. If not, refer to pages 15 – 17.

In that case, it is possible to change the channel by 10 channels by pressing and holding @ #.

5 Check program data

The PlusCode TIMER PROGRAM

number you entered

PLUSCODE NO. 12345



START TIME

STOP TIME

DATE

CH

and the

8:00 PM

10:00 PM

12/24/03(WED)

12 CH

corresponding timer



REC SPEED

DAILY/WEEKLY

SOURCE

recording program is



STD (SP)

EVERY WED

CATV

CONFIRM

CANCEL





displayed on the





PROG.

SET PROGRAM WITH [+/–, REC SPEED,



Program screen.



8=DAILY, 9=WEEKLY] THEN PRESS "CONFIRM"

EXIT START STOP DATE CH







Check to make sure it









is accurate.









To change the start/stop time, date or channel setting, press the corresponding buttons to change the settings; START +/–, STOP +/–, DATE +/–, TV/VCR CH +/–.

To timer-record daily or weekly serials, press DAILY (number “8”) or WEEKLY (number “9”). “MON – FRI”, “MON – SAT”, “SUN – SAT” or “EVERY _ _ _” appears on the Program screen. Pressing the button again makes each corresponding display disappear.

For the “SOURCE” setting, refer to page 39.

If you made a mistake, press BACK to access the VCR Plus+ screen again and input the correct PlusCode number.

6 Set recording speed

Press REC SPEED to set the recording speed.

7 Return to normal screen

Press @ # to move the arrow to “CONFIRM”, then press OK.

“PROGRAM COMPLETED PRESS [TIMER] TO ENTER TIMER STANDBY MODE” appears on the screen, then press OK to return to normal screen.

8 Engage timer recording standby mode

Press TIMER ().

The VCR turns off automatically and “‰” is displayed on the front display panel.

To use the VCR while it is in timer recording standby mode

Press TIMER () to cancel the timer recording standby mode, then press POWER to turn on the VCR.

DO NOT forget to put the VCR into timer recording standby mode again by pressing TIMER () after you use the VCR; otherwise, you cannot record the broadcasts you want.

When “AUTO TIMER” ( pg. 57) is set to “ON”, the timer recording standby mode is automatically engaged when the VCR is turned off. It is temporarily canceled when the VCR is turned on. You do not have to press TIMER () to engage or disengage the timer recording standby mode.

IMPORTANT

If you have moved to a different area or if a broadcasting station’s channel number has been changed, the wrong VCR CH or CABLE CH number will be displayed on the Program screen in step 5. When this happens, set the correct guide channel number for that station. ( pg. 36, “Changing VCR Plus+ Setting”)

NOTES:

Even if a power failure occurs, the VCR keeps your timer programs. However, the clock time is lost if it lasts for more than 10 minutes.

As a result, when the power is supplied again to this VCR after the power failure, the following will take place.

1.This VCR starts Auto Clock Set automatically to restore the clock time.

2.If the clock time is restored correctly and “AUTO TIMER” is set to “ON”, each timer program you have made will start at its start time unless its end time has elapsed.

If the tape reaches its end during timer recording, “”, “”, and “ #” blink.

To timer-record cable channels received through a cable box, be sure to keep the cable box turned on.

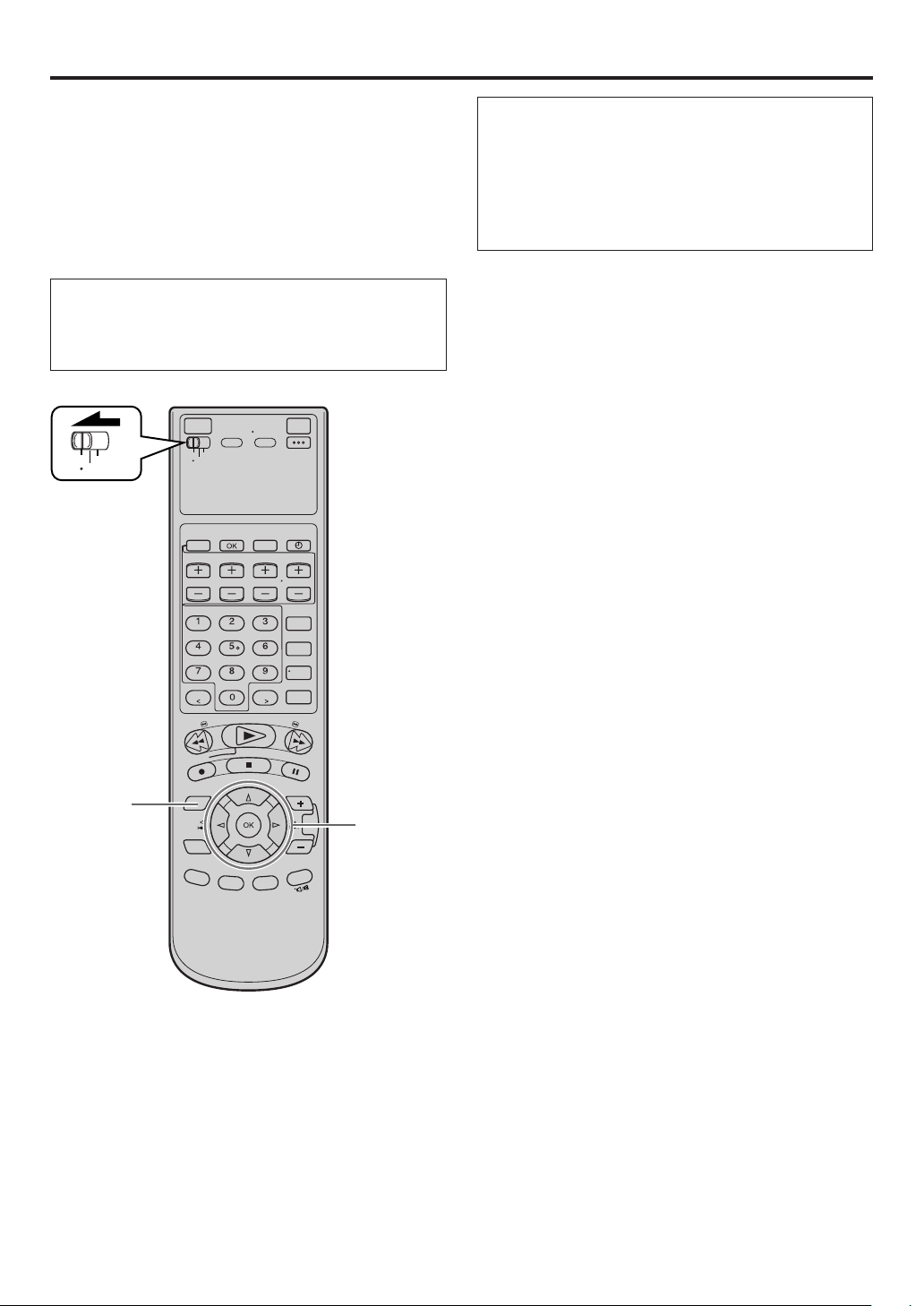

36 EN

TIMER RECORDING (cont.)

Changing

VCR Plus+

Setting

Turn on the VCR and the TV, and select the AV mode on the TV.

Set the VCR/TV/CABLE/DBS selector on the Remote to “VCR”.

VCR CABLE

TV /DBS

15 2-4

IMPORTANT

If you have moved to a different area or if a broadcasting station’s channel number has been changed, the wrong VCR CH or CABLE CH number will be displayed on the Program screen ( step 5 on page 35). When this happens, perform the following steps to set the correct guide channel number for that station.

To ensure that VCR Plus+ timer recording operates correctly, it is necessary to set the VCR Plus+ “Guide Channel Set” for each station. Read the following information carefully.

VCR Plus+ guide channel matching

The VCR Plus+ programing system assigns a VCR Plus+ guide channel to the TV channels and the cable channels. These guide channel numbers are also called the VCR Plus+ channel codes. TV listings often have a section in chart form, indicating the guide channel number assigned to each station. For accurate VCR Plus+ programing, the VCR Plus+ guide channel number for each station should match the channel number on which it is received in your area.

NOTES:

In many instances, the VCR Plus+ guide channel numbers for cable and broadcast TV stations DO NOT match the channel number on which it is received by your VCR or cable box.

Check your TV listing, or contact your cable supplier for details.

Many TV stations can be viewed on cable. Check your TV listing, or contact your cable supplier for details.

EN 37



Access Main Menu screen





1 Press MENU.









2

Access Guide Channel Set screen



1 Press @ # move

FUNCTION SET UP

TUNER SET UP INITIAL SET UP



the arrow to

CLOCK SET



GUIDE CHANNEL

OTHER













“INITIAL SET

GUIDE CH

6





VCR CH

– –





UP”, then press fi















or OK.











2 Press @ # to move

MENU

OK

SELECT WITH ARROW KEYS



the arrow to

EXIT

SELECT

THEN PRESS [OK]



















“GUIDE

CHANNEL”, then press fi or OK.

Input guide channel number





3 Press @ # to input the

(Ex.) When inputting the

VCR Plus+ guide

guide channel number 6

channel number as

for WNJU(Ind.)



shown in the TV

FUNCTION SET UP

TUNER SET UP INITIAL SET UP

CLOCK SET



GUIDE CHANNEL

OTHER

listing.



GUIDE CH





● If you receive your

6



VCR CH

– –



channels with a









cable box and if









you have properly

MENU

OK

SELECT WITH ARROW KEYS

EXIT

SELECT

THEN PRESS [OK]







set your Controller,

“CABLE CH” appears in place of “VCR CH”. If not, refer to pages 15 – 17 and re-perform the procedure.

In that case, it is possible to change the channel by 10 channels by pressing and holding @ # in steps 3 and 4.

Input receiving channel number



4 Press %fi to move

(Ex.) If WNJU(Ind.) is

the arrow to “VCR

received on channel 47

CH”, then press @ #

FUNCTION SET UP

TUNER SET UP INITIAL SET UP

to input the number

CLOCK SET



GUIDE CHANNEL

OTHER









of the channel on

GUIDE CH

6



VCR CH

47



which the guide











channel’s broadcasts









are received.

MENU

OK

SELECT WITH ARROW KEYS



EXIT

SELECT

THEN PRESS [OK]



● Repeat steps 3 and 4 for each instance.

5 Return to normal screen

Press MENU.

38 EN

TIMER RECORDING (cont.)

Express Timer

Programing

Turn on the VCR and the TV, and select the AV mode on the TV.

Set the VCR/TV/CABLE/DBS selector on the Remote to “VCR”.

POWER 1

IN F-1

+

TIMER ()

POWER

VCR CABLE

TV /DBS

20

3

-7

TIMER ( )







8

DBS

WEEKLY

DAILY

9

You can directly program the VCR’s timer to record up to 24 broadcasts, as far as a year in advance. Remember, the clock must be set before you can program the timer ( pg. 10).

1 Load a cassette

Make sure the record safety tab is intact. If not, cover the hole with adhesive tape, then load it into the VCR.

The VCR turns on, and the counter is reset, automatically.



Access VCR PLUS+ screen









2 Press PROGRAM.

















Access Program screen









3 Press START +/– once.

















Set program start time









4 Press START +/–

TIMER PROGRAM











repeatedly to enter



















START TIME



STOP TIME

DATE

CH



the time you want







8:00 PM

– –:– – AM

– –/– –/– –

– – –



recording to start.







REC SPEED

DAILY/WEEKLY

SOURCE













STD (SP)

EVERY SUN







● Press and hold

















CONFIRM

CANCEL









START +/– to

PROG.

SET PROGRAM WITH [+/–, REC SPEED













8=DAILY, 9=WEEKLY] THEN PRESS "CONFIRM"

EXIT START STOP DATE CH

increase the time in 30-minute intervals.

5 Set program stop time

Press STOP +/– repeatedly to enter the time you want recording to stop.

Press and hold STOP +/– to increase the time in 30-minute intervals.

6 Set program date

Press DATE +/–. (The current date is displayed on the screen. The date you enter appears in its place.)

7 Set channel number

Press TV/VCR CH +/–.

If you are using a DBS receiver, see “ATTENTION FOR DBS RECEIVER USERS” on next page.

Holding down TV/VCR CH +/– rapidly changes the channel numbers.

EN 39

8 Set recording speed

Press REC SPEED to set the recording speed.

9 Return to normal screen

Press @ # to move the arrow to “CONFIRM”, then press OK.

“PROGRAM COMPLETED PRESS [TIMER] TO ENTER TIMER STANDBY MODE” appears on the screen, then press OK to return to normal screen.

0 Engage timer recording standby mode

Press TIMER ().

The VCR turns off automatically and “‰” is displayed on the front display panel.

To timer-record daily or weekly serials

Press DAILY (number “8”) or WEEKLY (number “9”) anytime during steps 4 through 8.

“MON – FRI”, “MON – SAT”, “SUN – SAT” or “EVERY _ _ _” appears on the Program screen.

Pressing the button again makes the corresponding indication disappear.

To use the VCR while it is in timer recording standby mode

Press TIMER () to cancel the timer recording standby mode, then press POWER to turn on the VCR.

DO NOT forget to put the VCR into timer recording standby mode again by pressing TIMER () after you use the VCR; otherwise, you cannot record the broadcast you want.

When “AUTO TIMER” ( pg. 57) is set to “ON”, the timer recording standby mode is automatically engaged when the VCR is turned off. It is temporarily canceled when the VCR is turned on. You do not have to press TIMER () to engage or disengage the timer recording standby mode.

NOTES:

Even if a power failure occurs, the VCR keeps your timer programs. However, the clock time is lost if it lasts for more than 10 minutes.

As a result, when the power is supplied again to this VCR after the power failure, the following will take place.

1.This VCR starts Auto Clock Set automatically to restore the clock time.

2.If the clock time is restored correctly and “AUTO TIMER” is set to “ON”, each timer program you have made will start at its start time unless its end time has elapsed.

Programs that start after midnight must have the next day’s date.

After timer recording is completed, the VCR turns off automatically.

You can program the timer recording while a regular recording is in progress; the menu screens will not be recorded.

If the tape reaches its end during timer recording, “”, “”, and “ #” blink.

To timer-record cable or satellite channels, be sure to keep the cable box or DBS receiver turned on.

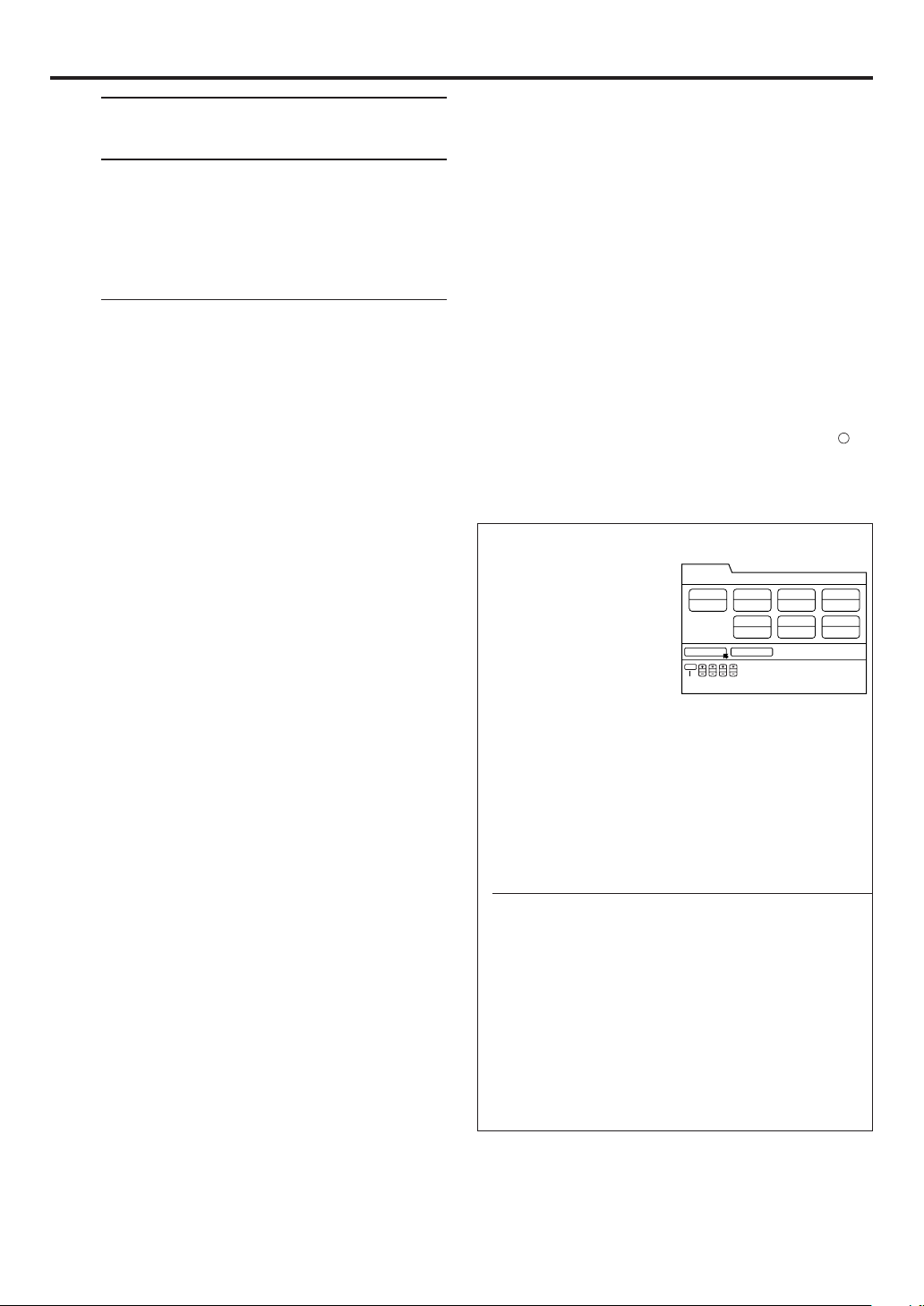

ATTENTION FOR DBS RECEIVER USERS

If you are using a DBS

TIMER PROGRAM







receiver (unless “INPUT













START TIME

STOP TIME

DATE

CH

CH” is set to “OFF” on





8:00 PM

10:00 PM

12/24/03(WED)

110 CH











DBS Receiver Set screen





REC SPEED

DAILY/WEEKLY

SOURCE





STD (SP)

EVERY WED

DBS

pg. 19), the band













CONFIRM

CANCEL





indication (TV, CATV or

PROG.

SET PROGRAM WITH [+/–, REC SPEED,7=DBS,

DBS) appears under the





8=DAILY, 9=WEEKLY] THEN PRESS "CONFIRM"

EXIT START STOP DATE CH

















channel number











indication (SOURCE).











TV

:To timer-record a regular TV broadcast





received on the VCR.







CATV

:To timer-record a cable TV broadcast





received on the VCR, or through a cable box



(unless “INPUT CH” is set to “OFF” on





Cable Set Up screen pg. 16).





DBS

:To timer-record a satellite broadcast





received through a DBS receiver.





NOTE:

If “BAND” is set to “TV” on the Tuner Set Up Screen

( pg. 14) and “INPUT CH” is set to “OFF” on Cable Set Up screen ( pg. 16), “CATV” will not be displayed on the Program screen; If “BAND” is set to “CATV” or “INPUT CH” is set to “ON” on Cable Set Up screen, “TV” will not be displayed.

If the channel number entered requires that the band be set, “7=DBS” is displayed on the screen.

If this happens, press the Number key “7 (DBS)” to select “DBS”.

12/27/03 (SAT) 11:00PM – 11:45PM MON–FRI VCR47CH STD (SP) 12/28/03 (SUN) 10:30PM – 11:45PM MON–FRI DBS110CH STD (SP)
12/24/03 (WED) 8:00PM – 10:00PM TUE CATV12CH STD (SP)
START – STOP DAILY/WEEKLY CH REC SPEED

40 EN

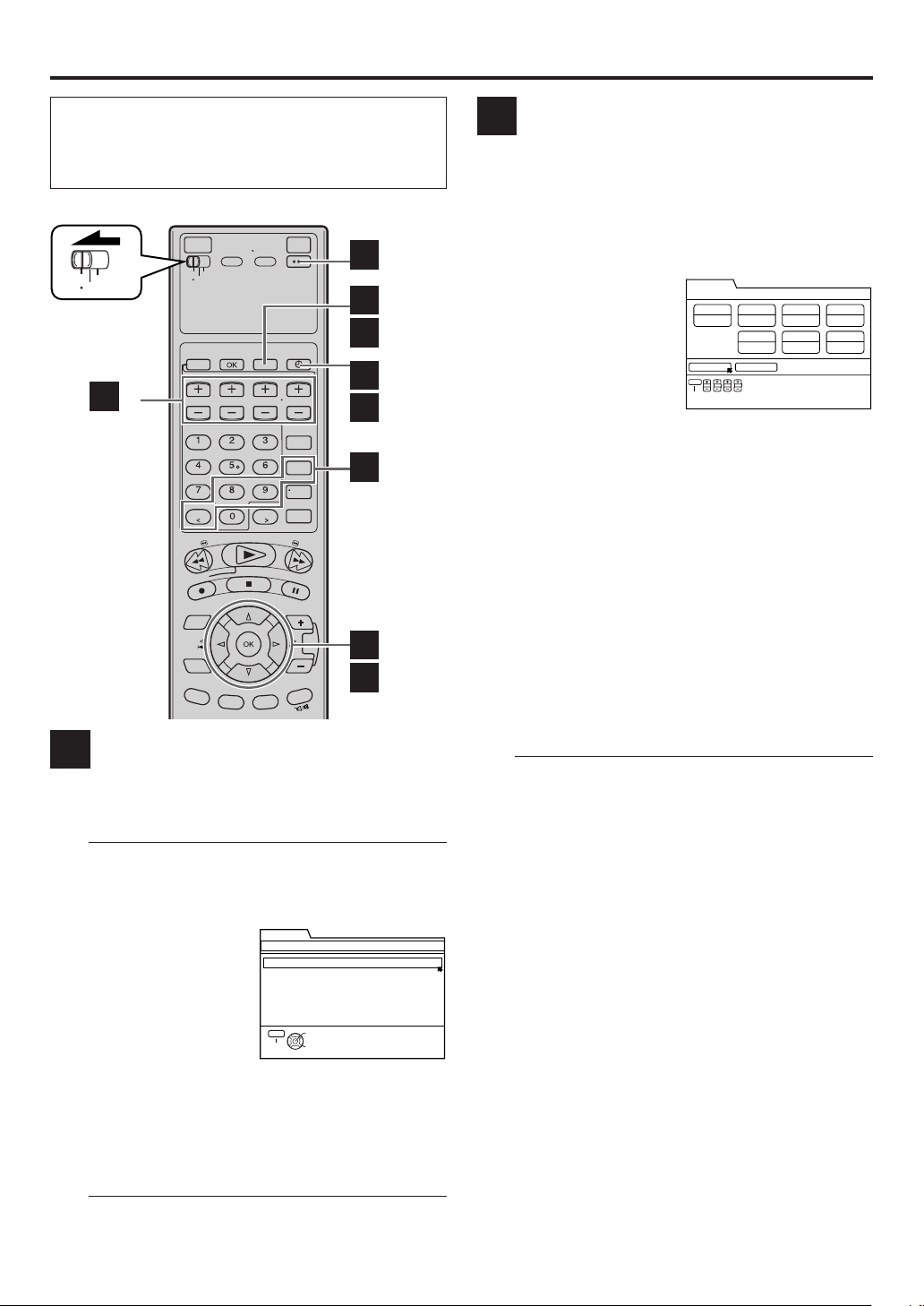

TIMER RECORDING (cont.)

Turn on the VCR and the TV, and select the AV mode on the TV.

Set the VCR/TV/CABLE/DBS selector on the Remote to “VCR”.

A -1

VCR CABLE

A -2,3

TV /DBS





B -3

B -2

A -1

B -4





B -2

A -3

B -2

A Checking program settings

1 Disengage timer

Press TIMER (), then press POWER.

When “AUTO TIMER” ( pg. 57) is set to “ON”, you do not have to press TIMER ().

2 Access Program List screen

Press PROG. CHECK.

PROGRAM CHECK

● The clock must be set

DATE







to access the program





list.





If you have not set the





clock, the Main Menu

PROG.CHECK

OK

screen appears after

EXIT

SELECT





an error message is

displayed. Refer to page 10 for the procedure.

SELECT WITH ARROW KEYS THEN PRESS [OK]

clock setting

3 Access Program screen

Press %fi to select a program, then press OK to check more detailed information.

To return to the normal screen, press PROG.

CHECK.

B Cancelingsettings or changing program

1 Access Program screen

Repeat steps 1 to 3 in the left column.

2 Cancel or change program setting

To cancel a program,

TIMER PROGRAM







press OK with the

START TIME

STOP TIME

DATE

CH

arrow on “CANCEL”,

8:00 PM

10:00 PM

12/24/03(WED)

12 CH

then press OK with the



REC SPEED

DAILY/WEEKLY

SOURCE





arrow on “CONFIRM”.



STD (SP)

WED

CATV

CONFIRM

CANCEL











OR

PROG.

SET PROGRAM WITH [+/–, REC SPEED,





8=DAILY, 9=WEEKLY] THEN PRESS "CONFIRM"

EXIT START STOP DATE CH

press CANCEL, then press OK.

“PROGRAM CANCELED” appears on the screen, then press OK to return to the program list.

To change a program, press the appropriate button:

START+/–, STOP+/–, DATE+/–, TV/VCR CH+/–,

DAILY (number “8”), WEEKLY (number “9”) and/or REC SPEED, then press OK.

“PROGRAM COMPLETED PRESS [TIMER] TO ENTER TIMER STANDBY MODE” appears on the screen, then press OK to return to the program list.

3 Return to normal screen

Press PROG. CHECK.

4 Reengage timer recording standby mode

Press TIMER ().

When “AUTO TIMER” ( pg. 57) is set to “ON”, the timer recording standby mode automatically resumes when you turn off the VCR.

EN 41

ATTENTION

If there is a conflict in the timer schedule and one program overlaps with another, only the parts shown below in gray will be recorded.

Pattern 1: The program with the lower program number will be recorded.

10:00

11:00

12:00

Program 1



CH10









Program 2













Not recorded





CH40







Pattern 2:

The program starting earlier will be





recorded.



















10:00

11:00





12:00

Program 1



CH10











Program 2







Not recorded





CH40





Pattern 3:

The program starting earlier will be





recorded, followed by the remaining portion





of the other program.







10:00

11:00







12:00



Program 1





CH10













Program 2



























CH40

Not recorded

Other Useful functions for timer recording

You can also use the following functions for timer recording.

Auto Timer ( pg. 57)

When “AUTO TIMER” is set to “ON”, the timer recording standby mode is automatically engaged when the VCR is turned off. It is temporarily canceled when the VCR is turned on. You do not have to press TIMER () to engage or disengage the timer recording standby mode.

Auto SP = EP Timer (S-VHS/VHS only) ( pg. 57)

If there is not enough tape to record the entire broadcast for recording in SP mode, the VCR automatically switches to EP mode to allow complete recording. This feature is especially handy when recording a broadcast of more than 2 hours in length.

42 EN

VIDEO NAVIGATION

Navigation

Playback

Turn on the VCR and the TV, and select the AV mode on the TV.

Set the VCR/TV/CABLE/DBS selector on the Remote to “VCR”.

VCR CABLE

TV /DBS

This function is useful when you want to quickly find programs you have recorded on a tape using this VCR. This function allows you to select a program to watch, and then automatically search for the beginning of the program.

1 Load a cassette

Insert a tape recorded on this VCR.

The VCR turns on automatically.

The tape will run for a few seconds while the VCR searches for the tape number recorded. If tape number is found, it will be shown on the TV screen if “SUPERIMPOSE” is set to “ON” ( pg. 57).

The counter is reset automatically, however, it is not completely reset to “0:00:00”.

If the cassette’s record safety tab has been removed, playback begins automatically.

Access Video Navigation screen





2 Press NAVI.

Navigation









SEARCH

LIBRARY

BLANK

NAVI. SET UP

● After pressing

0107 ALL SPORTS TAPE



BLANK 2:00 (LS3) 1 / 3



1. SYDNEY OLYMPIC



NAVI, it may take a







2. FOOTBALL







3. EURO 96 ENGLAND



few seconds to







4. PROJECT XYZ















access the Title

SYDNEY OLYMPIC



[SHOW]



12/21/02 SAT 6:30 AM – 5:53 PM

DBS 256CH LS3

PLAY

STOP



DELETE

EDIT

screen while the



EXIT

OK

SELECT WITH ARROW KEYS

VCR searches for

NAVI

SELECT

THEN PRESS [OK]













the Video

Navigation information.

3- 4 2

A -2,3

A -1,4

3

4

Select program

Press %fi to select the program you want to watch, then press OK.

Start playback

Press @ # to move the arrow to “PLAY”, then press OK.

Playback starts automatically after the selected program is located.

NOTES:

If you press NAVI while Video Navigation is deactivated, the Navigation Set Up screen appears. Set "NAVIGATION" to "ON" ( pg. 43).

Video Navigation playback is possible only with the tape recorded on this VCR.

To record the date and time as the program title in this VCR's memory, make sure the VCR’s clock is set correctly before recording.

To record the program information in this VCR’s memory, you must record each program for over the minimum recording time; 5 min for the D-VHS (HS) mode, 10 min for the D-VHS (STD) mode, 30 min for the D-VHS (LS3) mode, 50 min for the D-VHS (LS5) mode, 5 min for the S-VHS/VHS (SP) mode and 15 min for S-VHS/VHS (EP) mode.

Video Navigation may not work properly for some tapes.

During playback or when searching for the beginning of a program, a VCR might find two different tape numbers recorded on a tape. After you remove this tape, the tape will be assigned just one tape number (the smaller one). After this, the higher tape number will be missing from the memory’s tape number list.

Tape program information is stored in this VCR’s memory. If this VCR’s memory is damaged and the program information is lost, it is impossible to restore that information.

After recording a tape on this VCR, write the tape number on a label and affix the label to the tape in order to allow you to find the tape by its number.

The on-screen display is output to the TV with S-VIDEO, VIDEO, COMPONENT VIDEO signal in 480i image format.

EN 43

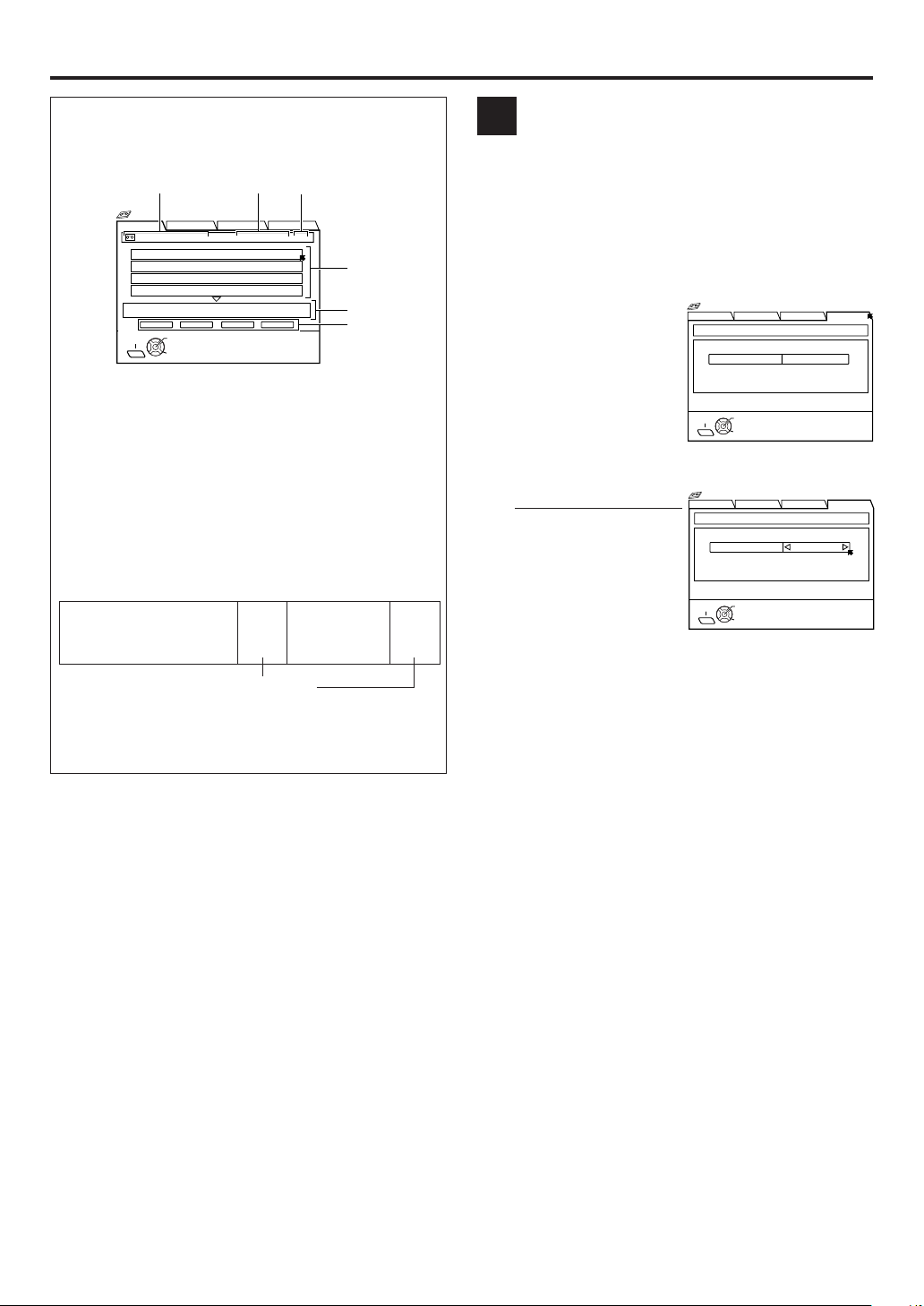

How to read the Video

Navigation screen

12 3

Navigation







SEARCH

LIBRARY

BLANK

NAVI. SET UP

0107 ALL SPORTS TAPE

BLANK 2:00 (LS3) 1 / 3



1. SYDNEY OLYMPIC

4



2. FOOTBALL



3.EURO 96 ENGLAND

4.PROJECT XYZ







SYDNEY OLYMPIC







[SHOW]









5









12/21/02 SAT 6:30 AM – 5:53 PM





DBS 256CH LS3







































6











PLAY

STOP



DELETE



EDIT















EXIT

OK

SELECT WITH ARROW KEYS



















NAVI

SELECT

THEN PRESS [OK]













































1

Tape number and tape title













2

Maximum blank time on the tape



3

[Page No./Total Page No.] (only 4 programs can be



shown at a time)



























4

Program title included on a tape













5

The detailed program information currently





selected (date, channel, category, start time, end



time, recording speed)





















6

Operational commands





















Example































SYDNEY OLYMPIC



BLANK







EURO 96

BLANK







2:00





ENGLAND

1:00





8:00 (LS3)





















(LS3)







4:00 (LS3)

(LS3)











































































































































Blank part*

*“BLANK” appears for non-recorded part, the part whose information has been deleted manually ( pg. 52), or the part where new program has been recorded.

A Deactivating Video Navigation

If you do not want to store program information, you can deactivate the Video Navigation function.

1 Access Video Navigation screen

Press NAVI.

2 Access Navigation Set Up screen

Press %fi @ # to move

Navigation





the arrow to “NAVI. SET

SEARCH

LIBRARY

BLANK NAVI. SET UP

NAVIGATION SET UP



USED MEMORY 66%

UP”, then press fi or

NAVIGATION



OFF

OK.













EXIT

OK

SELECT WITH ARROW KEYS



NAVI

SELECT

THEN PRESS [OK]

3 Deactivate Video Navigation

Press @ #.

Navigation

SEARCH

LIBRARY

BLANK

NAVI. SET UP

● Each time you press

NAVIGATION SET UP

USED MEMORY 66%

@ #, Video Navigation



NAVIGATION

OFF

turns “ON” or “OFF”.









EXIT

OK

SELECT WITH ARROW KEYS



NAVI

SELECT

THEN PRESS [OK]

4 Return to normal screen

Press NAVI.

NOTE:

If you press NAVI when a cassette is not loaded, “NO TAPE!” appears on the TV screen. If the VCR does not recognize the tape number of the loaded cassette, “UNRECOGNIZED TAPE NUMBER!” appears on the TV screen.

44 EN

VIDEO NAVIGATION (cont.)

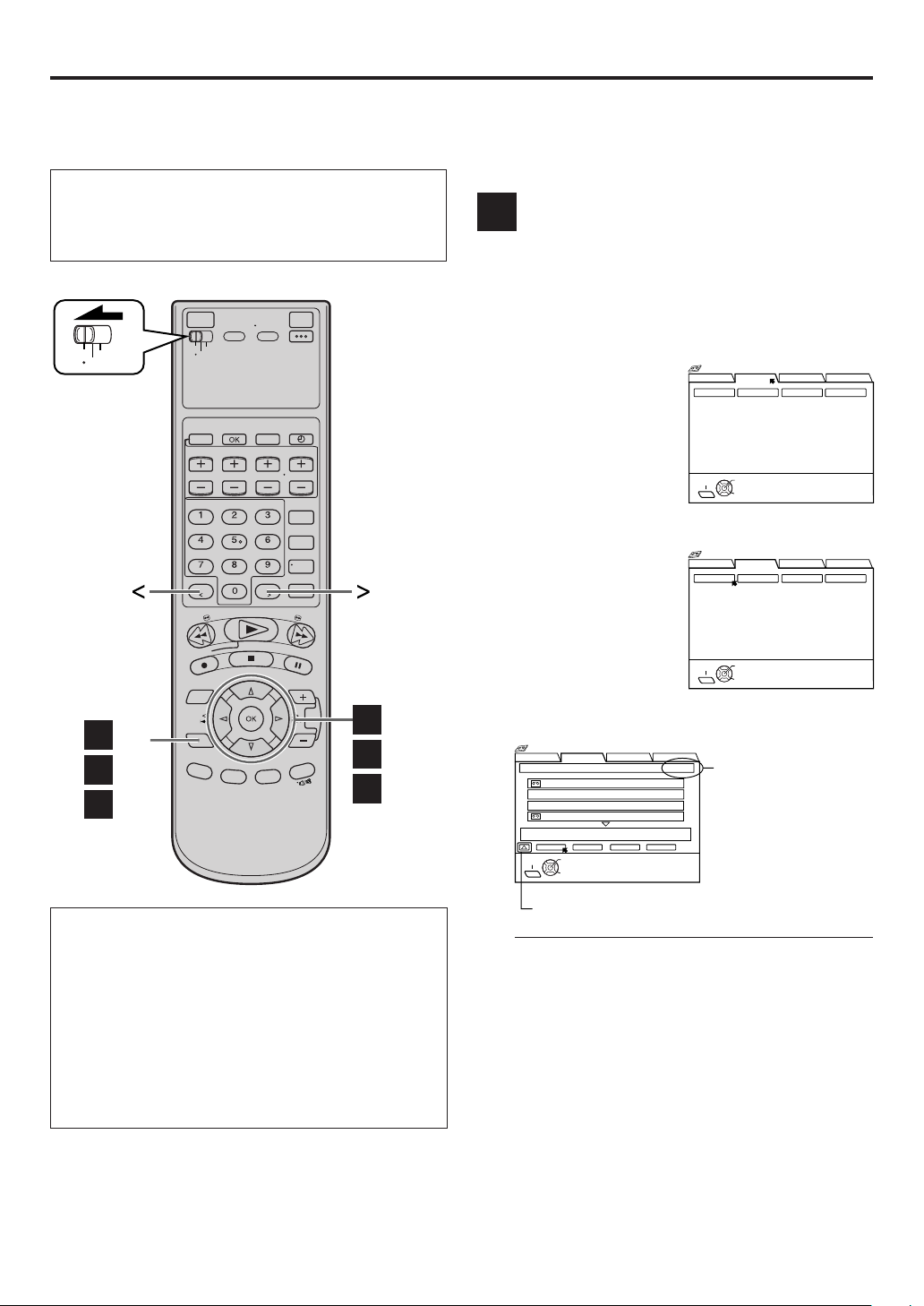

Finding Tapes

Turn on the VCR and the TV, and select the AV mode on the TV.

Set the VCR/TV/CABLE/DBS selector on the Remote to “VCR”.

VCR CABLE

TV /DBS

A -1,5

A -2–4

B -4

B -2,3

C -4

C -2,3

To play back a selected program on the list screen

1Select the program that you want to watch, then press OK.

2 Insert the corresponding tape.

3 Press OK again with the arrow on “SEARCH”.

4Confirm that the desired program is highlighted, then press OK.

Playback starts automatically after the selected program is located.

You can find a tape you want using Video Navigation. You have four methods to find tapes; by tape number, by program title, by category, by recording date, and by tape remaining time.

A Finding by tape number

Use the Remote to do the following operations.

1 Access Video Navigation screen

Press NAVI.

2 Access Library screen

Press %fi @ # to move

SEARCH

LIBRARY BLANK

NAVI. SET UP



Navigation





the arrow to “LIBRARY”,

TAPE NUMBER

TITLE

CATEGORY

DATE

then press fi or OK.











EXIT

OK

SELECT WITH ARROW KEYS



NAVI

SELECT

THEN PRESS [OK]



3 Access tape number list screen

Press @ # to move the arrow to “TAPE NUMBER”, then press

OK.

The tape number list screen appears, being sorted by the tape numbers.

Navigation







SEARCH

LIBRARY

BLANK

NAVI. SET UP

TAPE NUMBER

TITLE

CATEGORY

DATE

EXIT

OK

SELECT WITH ARROW KEYS

NAVI

SELECT

THEN PRESS [OK]

4 Confirm tape number lists

Navigation











SEARCH

LIBRARY

BLANK

NAVI. SET UP

1st page (out of 3

TAPE NUMBER LIST







1 / 3

0017*

SOCCER









pages in this











0017* 1. JAPAN VS KOREA







example) of the tape

0017*

2. ENGLAND VS BRAZIL





0016

EURO 2000









number lists is

SOCCER





[SPORT]





RETURN

EDIT

LS3

shown.

SEARCH

DELETE

12/21/02 SAT

6:30 AM – 5:53 PM

DBS 256CH



EXIT

OK

SELECT WITH ARROW KEYS



NAVI

SELECT

THEN PRESS [OK]







Switch for changing the order

*” is displayed beside the tape number of the loaded cassette.

The cassette mark is displayed on the left of the tape title. The items without the cassette marks are the program titles included in the tape.

To go to another page of the lists, press < or >.

To play back the desired program, refer to “To play back a selected program on the list screen” in the left column.

5 Return to normal screen

Press NAVI.

Navigation
Navigation

EN 45

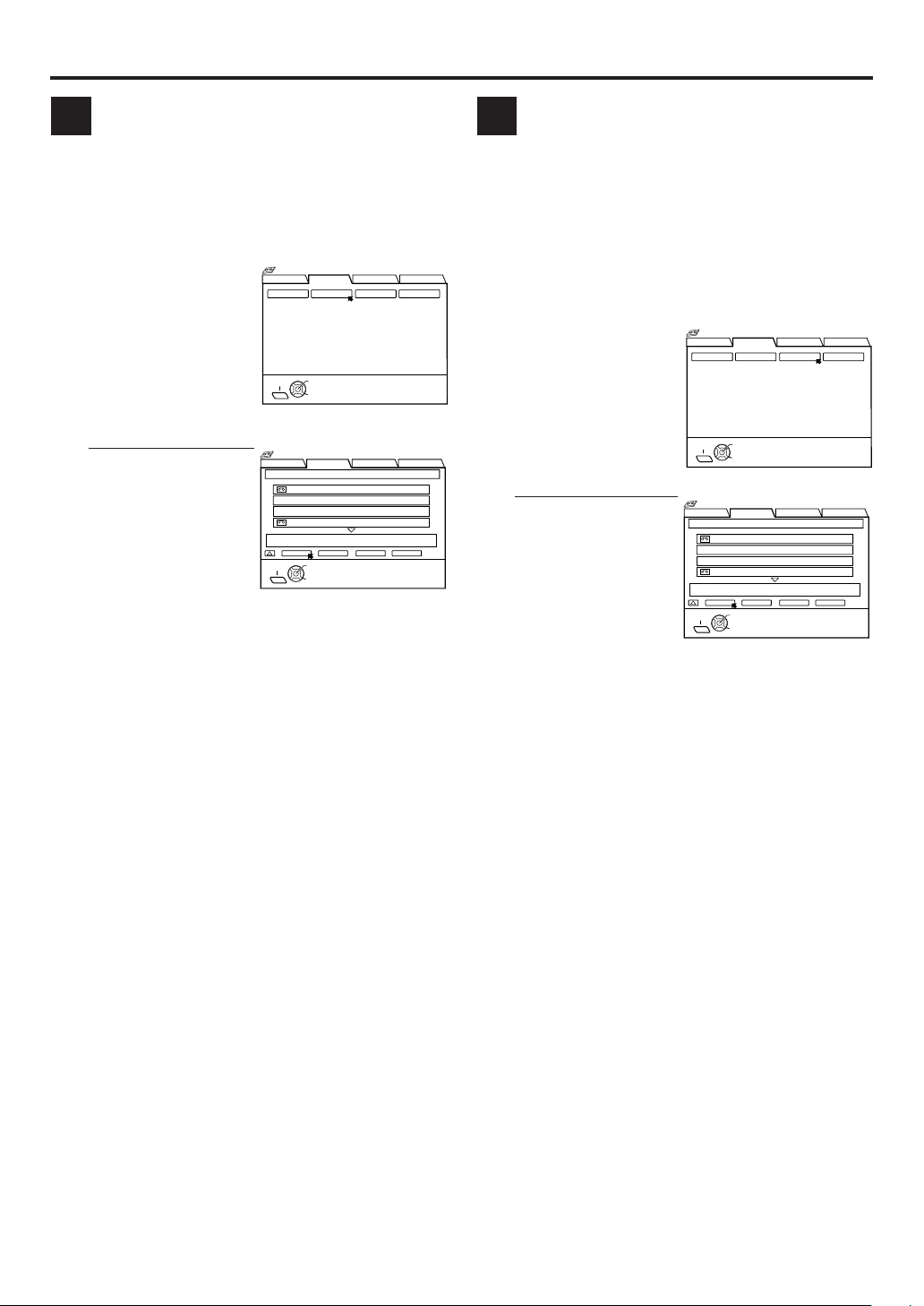

B Finding by program title

Use the Remote to do the following operations.

1 Follow steps 1 to 2 on page 44, then go to the following steps

2 Access title screen

Press @ # to move the

arrow to “TITLE”, then

SEARCH

LIBRARY

BLANK

NAVI. SET UP

TAPE NUMBER

TITLE



CATEGORY

DATE

press OK.













EXIT

OK

SELECT WITH ARROW KEYS



NAVI

SELECT

THEN PRESS [OK]



3 Confirm lists











● “ ” is displayed

Navigation







SEARCH

LIBRARY

BLANK

NAVI. SET UP

*

TITLE LIST







1 / 3

beside the tape

0017*

SOCCER







number of the loaded







0017*

1. JAPAN VS KOREA





cassette.

0017* 2. ENGLAND VS BRAZIL



0016

EURO 2000







● The cassette mark is

SOCCER





[SPORT]



12/21/02 SAT

6:30 AM – 5:53 PM

DBS 256CH LS3

displayed on the left

SEARCH

RETURN

DELETE

EDIT

EXIT

OK

SELECT WITH ARROW KEYS

of the tape title. The

NAVI

SELECT

THEN PRESS [OK]













items without the

cassette marks are the program titles included in the tape.

To go to another page of the lists, press < or >.

To play back the desired program, refer to “To play back a selected program on the list screen” on page 44.

4 Return to normal screen

Press NAVI.

C Finding by category

Use the Remote to do the following operations.

To find a program by category, be sure to select program category in advance ( pg. 50).

1 Follow steps 1 to 2 on page 44, then go to the following steps

2 Access category screen

Press @ # to move the

arrow to “CATEGORY”,

SEARCH

LIBRARY

BLANK

NAVI. SET UP

TAPE NUMBER

TITLE



CATEGORY

DATE

then press OK.













EXIT

OK

SELECT WITH ARROW KEYS

3 Confirm lists

NAVI

SELECT

THEN PRESS [OK]













● “ ” is displayed

Navigation







SEARCH

LIBRARY

BLANK

NAVI. SET UP

*

CATEGORY LIST





1 / 3

beside the tape

0017*

SOCCER







number of the loaded







0017*

1. JAPAN VS KOREA





cassette.

0017* 2. ENGLAND VS BRAZIL



0016

EURO 2000







● The cassette mark is

SOCCER





[SPORT]



12/21/02 SAT 6:30 AM – 5:53 PM

DBS 256CH LS3

displayed on the left

SEARCH

RETURN

DELETE

EDIT

EXIT

OK

SELECT WITH ARROW KEYS

of the tape title. The

NAVI

SELECT

THEN PRESS [OK]









items without the

cassette marks are the program titles included in the tape.

To go to another page of the lists, press < or >.

To play back the desired program, refer to “To play back a selected program on the list screen” on page 44.

4 Return to normal screen

Press NAVI.

NAVI
EXIT
SEARCH
Navigation

46 EN

VCR CABLE

TV /DBS

D -4

E -1

VIDEO NAVIGATION (cont.)

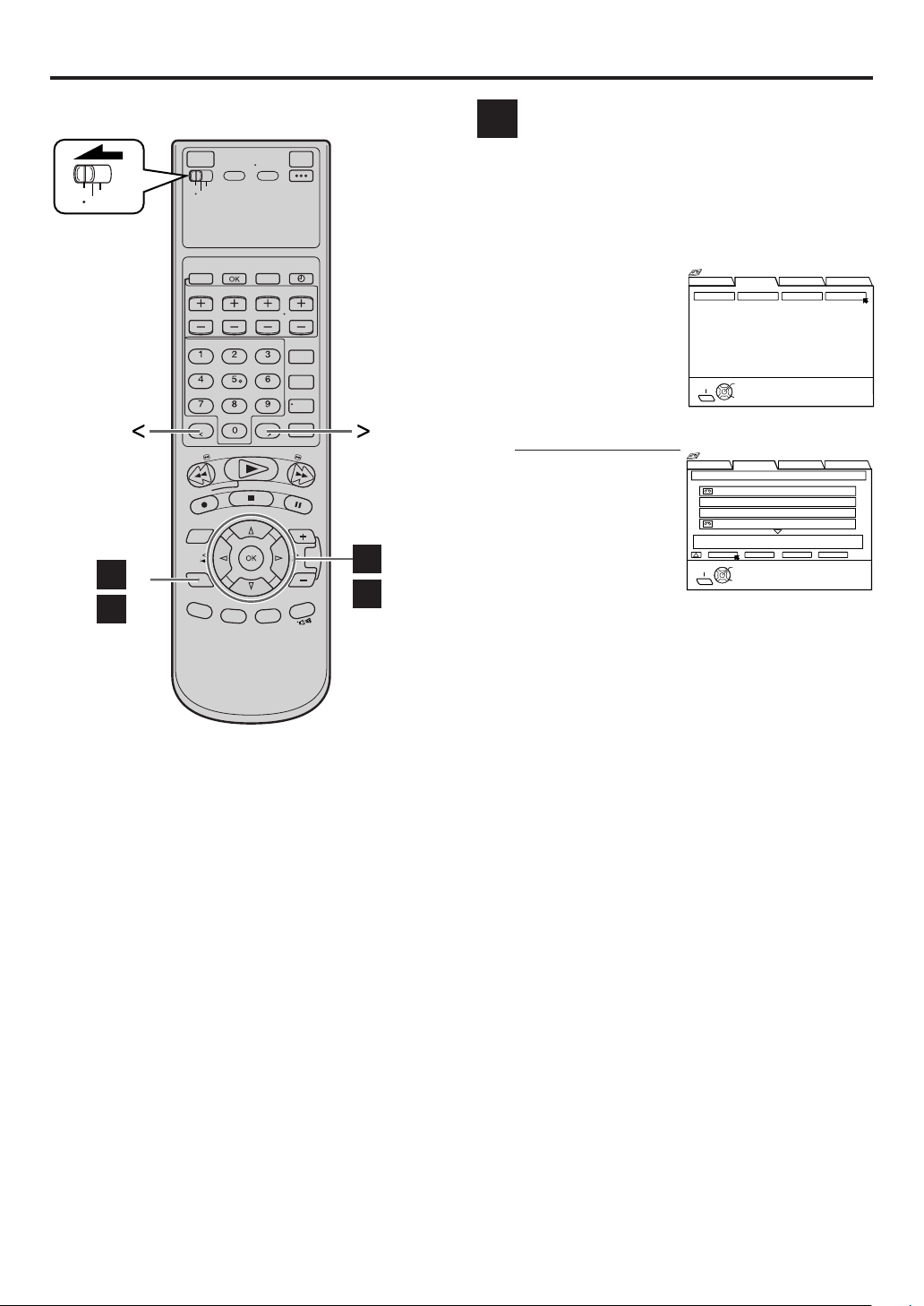

D Finding by recording date

Use the Remote to do the following operations.

1 Follow steps 1 to 2 on page 44, then go to the following steps

2 Access date screen

Press @ # to move the arrow to “DATE”, then press OK.

The list screen appears, being sorted by the recording date.



LIBRARY

BLANK

NAVI. SET UP

TAPE NUMBER

TITLE

CATEGORY

DATE

OK

SELECT WITH ARROW KEYS

SELECT

THEN PRESS [OK]

3 Confirm lists



● “ ” is displayed

Navigation









SEARCH

LIBRARY

BLANK

NAVI. SET UP



*

DATE LIST







1 / 3



beside the tape

0017*

SOCCER









number of the loaded









0017* 1. JAPAN VS KOREA







0017* 2. ENGLAND VS BRAZIL





cassette.





0016

EURO 2000









● The cassette mark is

SOCCER





[SPORT]



D -2,3

12/21/02 SAT

6:30 AM – 5:53 PM

DBS 256CH LS3

displayed on the left

SEARCH

RETURN

DELETE

EDIT

EXIT

OK

SELECT WITH ARROW KEYS

E -2–4,6

of the tape title. The

NAVI

SELECT

THEN PRESS [OK]













items without the











cassette marks are the program titles included in the tape.

● To go to another page of the lists, press < or >. ● To play back the desired program, refer to “To

play back a selected program on the list screen” on page 44.

4 Return to normal screen

Press NAVI.

EN 47



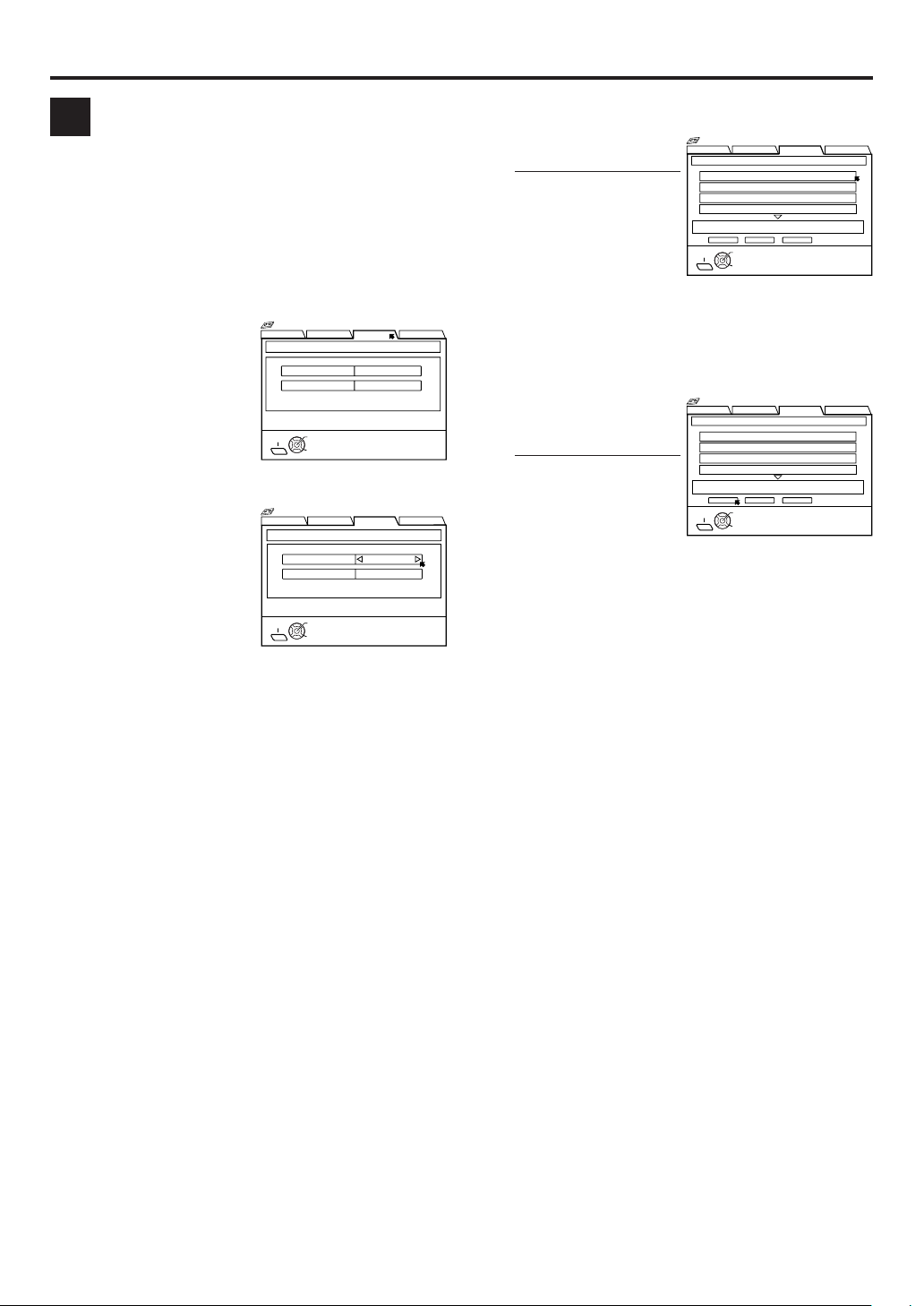

Finding blank space

4

E

You can find a tape whose remaining time is enough for a program you want to record.

Use the Remote to do the following operations.

1 Access Video Navigation screen

Press NAVI.









5

2 Access Blank Space List screen





Press %fi @ # to move

Navigation







the arrow to “BLANK”,

SEARCH LIBRARY

BLANK

NAVI. SET UP

BLANK SPACE LIST

RECORDING CONDITION

then press fi or OK.



RECORDING MODE

LS3

6





BLANK TIME



2:00



EXIT

OK

SELECT WITH ARROW KEYS



NAVI

SELECT

THEN PRESS [OK]



3 Set condition

Press %fi to move the arrow to “RECORDING MODE”, then press @ # to select the recording speed.

Navigation







SEARCH

LIBRARY

BLANK

NAVI. SET UP

BLANK SPACE LIST RECORDING CONDITION

RECORDING MODE

LS3

7

BLANK TIME

2:00

Press %fi to move the

EXIT

OK SELECT WITH ARROW KEYS

arrow to “BLANK

NAVI

SELECT

THEN PRESS [OK] TO LIST

TIME”, then press @ # to select the blank time. Then press OK.

Select tape number

Press %fi, then press

OK.

To go to another page of the lists, press < or >.

Navigation







SEARCH

LIBRARY

BLANK

NAVI. SET UP

BLANK SPACE LIST

10:00 LS5



1 / 3

0003

10:00

BLANK





0002

12:00

BLANK





0001

17:00

BLANK





0004

23:00

BLANK





TITLE









11/01/29 MON 11:34 AM





STOP



SEARCH

RETURN



EXIT

OK

SELECT WITH ARROW KEYS

NAVI

SELECT THEN PRESS [OK]



Load a cassette

Insert the cassette whose number you have found in step 4.

Select blank

Press @ # to move the arrow to “STOP”, then press OK.

The VCR will start search for the beginning of the blank part, then stop.

Navigation







SEARCH

LIBRARY

BLANK

NAVI. SET UP

BLANK SPACE LIST

10:00 LS5



1 / 3

0003

10:00

BLANK





0002

12:00

BLANK





0001

17:00

BLANK





0004

23:00

BLANK





TITLE









11/01/29 MON 11:34 AM





STOP



SEARCH

RETURN



EXIT

OK

SELECT WITH ARROW KEYS

NAVI

SELECT THEN PRESS [OK]



Prepare for recording

See page 26 for recording.

48 EN

VIDEO NAVIGATION (cont.)

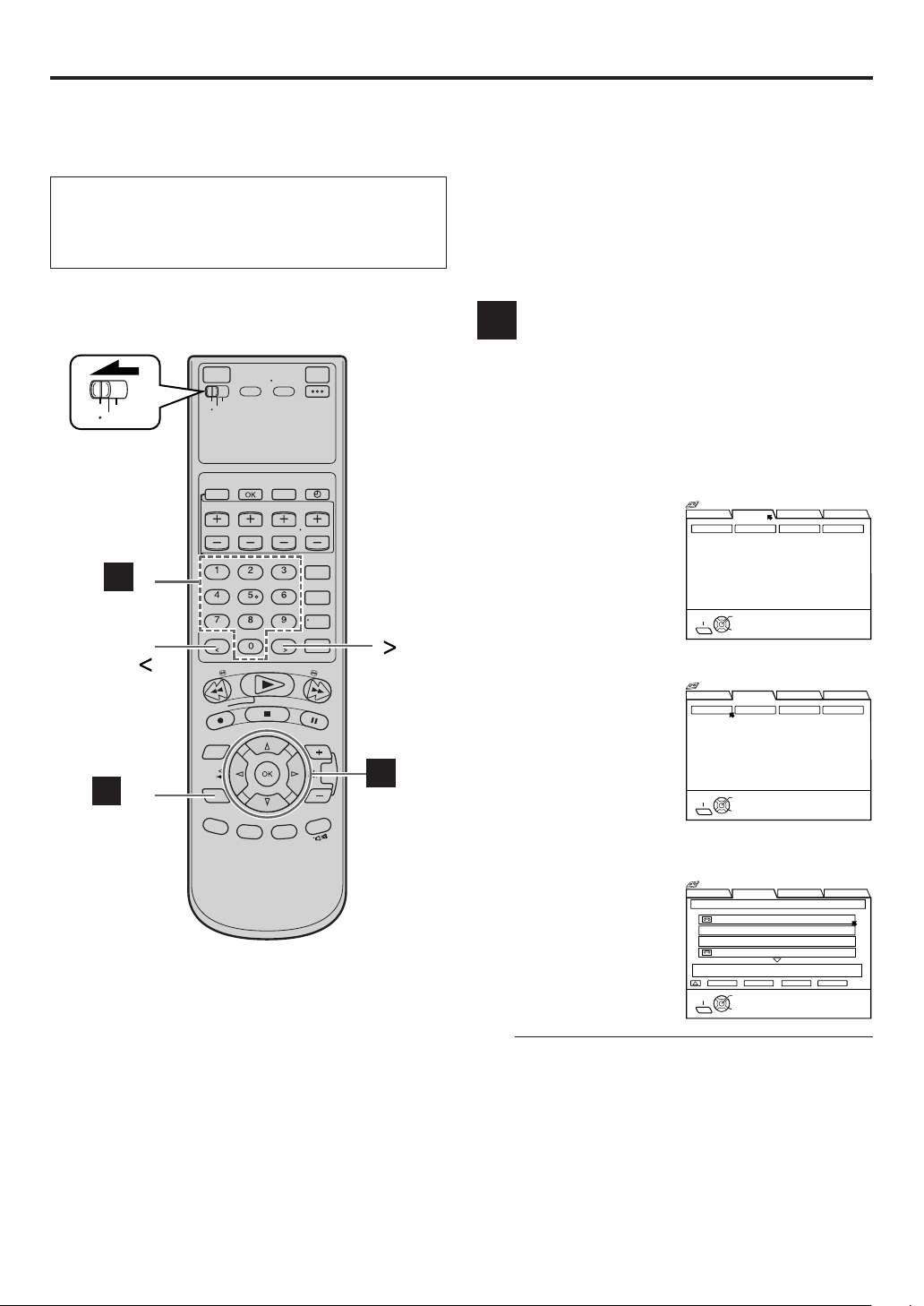

Editing Titles

Turn on the VCR and the TV, and select the AV mode on the TV.

Set the VCR/TV/CABLE/DBS selector on the Remote to “VCR”.

VCR CABLE

TV /DBS

A -6

Number keys

CANCEL

A -2–6 A -1,7

When you record a TV program on this VCR, the VCR automatically records the recording start time, date, and channel in each program title. If the tape is recorded for the first time, the tape number and the date and time are recorded in the tape title. You can then edit the tape title and the program titles as you like. You can also edit the category in the program title.

In short, you can use the Video Navigation function to create your own video tape library.

A Editing tape title

When you want to edit the tape title, follow the procedure below by using the Remote.

1 Access Video Navigation screen

Press NAVI.

2 Access Library screen

Press %fi @ # to move

Navigation







the arrow to

SEARCH

LIBRARY

BLANK

NAVI. SET UP

TAPE NUMBER

TITLE



CATEGORY

DATE

“LIBRARY”, then press











fi or OK.













EXIT

OK

SELECT WITH ARROW KEYS



NAVI

SELECT

THEN PRESS [OK]



3 Access tape number

SEARCH

LIBRARY

BLANK

NAVI. SET UP



Navigation







list screen

TAPE NUMBER

TITLE



CATEGORY

DATE

Press @ # to move the











arrow to “TAPE











NUMBER”, then press











OK.

EXIT

OK

SELECT WITH ARROW KEYS

The tape number list

NAVI

SELECT

THEN PRESS [OK]



screen appears, being sorted by the tape numbers.

4 Select tape number

Press %fi to select the tape number for which you want to edit the title, then press OK.

Navigation







SEARCH

LIBRARY

BLANK

NAVI. SET UP

TAPE NUMBER LIST





1 / 3

0017*

SOCCER







0017* 1. JAPAN VS KOREA





0017* 2. ENGLAND VS BRAZIL



0016

EURO 2000







SOCCER





[SPORT]



12/21/02 SAT

6:30 AM – 5:53 PM

DBS 256CH LS3

SEARCH

RETURN

DELETE

EDIT

EXIT

OK

SELECT WITH ARROW KEYS

NAVI

SELECT

THEN PRESS [OK]



*” is displayed beside the tape number of the loaded cassette.

The cassette mark is displayed on the left of the tape title. The items without the cassette marks are the program titles included in the tape.

To go to another page of the lists, press < or >.

EN 49

5 Access edit screen

Press @ # to move the arrow to “EDIT”, then press OK.

Navigation







SEARCH

LIBRARY

BLANK

NAVI. SET UP

TAPE NUMBER LIST





1 / 3

0017*

SOCCER







0017* 1. JAPAN VS KOREA





0017* 2. ENGLAND VS BRAZIL



0016

EURO 2000







SOCCER





[SPORT]



12/21/02 SAT

6:30 AM – 5:53 PM

DBS 256CH LS3

SEARCH

RETURN

DELETE

EDIT

EXIT

OK

SELECT WITH ARROW KEYS

NAVI

SELECT

THEN PRESS [OK]



6 Enter title













1 Press %fi @ # to

Navigation









move the arrow on

EDIT TITLE











SYDNEY OLYMPIC







the desired











ALL ERASE

ERASE

NEXT >

< BACK



character or













symbol, then press

SYDNEY OLYMPIC





[SHOW]



OK.







12/21/02 MON 6:30 AM - 5:53 PM



DBS 256CH

LS3



RETURN

ENTER

EDIT CATEGORY



OR

EXIT

OK

SELECT WITH ARROW KEYS



Press the Number

NAVI

SELECT THEN PRESS [OK]















keys to enter the title.













For entering the characters as the title, refer to “How to enter the characters and symbols”

on the right column. (In this example, enter “JVC NEWS”.)

2Press %fi @ # to move the arrow to “ENTER”, then press OK.

7 Return to normal screen

Press NAVI.

How to enter the characters and symbols with the number keys on the Remote

Press the Number keys, then press > to enter each character.

Refer to the example below.

(Ex.) Enter “JVC NEWS”.

1

Press 5 (JKL) once to enter “J”, then press >.

2

Press 8 (TUV) three times to enter “V”, then press >.

3

Press 2 (ABC) three times to enter “C”, then press >.

4

Press 0 ( ) twice to enter “ (space)”, then press >.

5

Press 6 (MNO) twice to enter “N”, then press >.

6

Press 3 (DEF) twice to enter “E”, then press >.

7

Press 9 (WXYZ) once to enter “W”, then press >.

8

Press 7 (PQRS) four times to enter “S”, then press >.





NUMBER KEY

CHARACTERS









1

. , ? – + * / [ ] 1



2



A B C a b c 2









3

D E F d e f 3









4

G H I g h i 4









5

J K L j k l 5









6

M N O m n o 6









7

P Q R S p q r s 7









8

T U V t u v 8









9

W X Y Z w x y z 9









0

0 _(space)

NOTES:

If you want to delete a character, select the character, then press CLEAR or press OK with the arrow on “ERASE”.

If you want to delete all characters, press OK with the arrow on “ALL ERASE”.

50 EN



VIDEO NAVIGATION (cont.)



Entering or Editing program



Editing program category

B

C



title











When you want to edit the program title, follow the procedure below by using the Remote.

When you want to change the program category, follow the procedure below by using the Remote.

1

2

3

4

5

6

Load a cassette

Insert a tape on which there is a program you want to edit.

Access Video Navigation screen

Press NAVI.

Select program

Press %fi to select the program you want to edit, then press OK.

Access edit screen

Press @ # to move the arrow to “EDIT”, then press OK.

Navigation







SEARCH

LIBRARY

BLANK

NAVI. SET UP

0107 ALL SPORTS TAPE

BLANK 2:00 (LS3) 1 / 3

1. SYDNEY OLYMPIC

2.FOOTBALL

3.EURO 96 ENGLAND

4.PROJECT XYZ



SYDNEY OLYMPIC





[SHOW]





12/21/02 SAT 6:30 AM – 5:53 PM



DBS 256CH LS3





PLAY

STOP

DELETE

EDIT













EXIT

OK

SELECT WITH ARROW KEYS

NAVI

SELECT

THEN PRESS [OK]



Navigation







SEARCH

LIBRARY

BLANK

NAVI. SET UP

0107 ALL SPORTS TAPE



BLANK 2:00 (LS3) 1 / 3

1.SYDNEY OLYMPIC

2.FOOTBALL

3.EURO 96 ENGLAND

4.PROJECT XYZ

SYDNEY OLYMPIC



[SHOW]

12/21/02 SAT 6:30 AM – 5:53 PM

DBS 256CH LS3

PLAY

STOP

DELETE

EDIT

EXIT

OK

SELECT WITH ARROW KEYS

NAVI

SELECT

THEN PRESS [OK]

Enter title















1 Press %fi @ # to

Navigation











move the arrow on

EDIT TITLE













SYDNEY OLYMPIC









the desired

ALL ERASE

ERASE

NEXT >

< BACK



character or















symbol, then press

SYDNEY OLYMPIC







[SHOW]



OK.

12/21/02 MON

6:30 AM - 5:53 PM



DBS 256CH

LS3

RETURN



ENTER

EDIT CATEGORY



OR

EXIT

OK



SELECT WITH ARROW KEYS

NAVI

SELECT

THEN PRESS [OK]



Press the Number















keys to enter the title.















For entering the characters as the title, refer to “How to enter the characters and symbols”

on page 49. (In this example, enter “JVC NEWS”.)

2Press %fi @ # to move the arrow to “ENTER”, then press OK.

Return to normal screen

1 Load a cassette

Insert a tape on which there is a program you want to edit.

2 Access Video Navigation screen

Press NAVI.

3 Select program

Press %fi to select the program you want to edit, then press OK.

4 Access edit screen

Press @ # to move the arrow to “EDIT”, then press

OK.

5 Access category screen

Press %fi @ # to move

Navigation





the arrow to “EDIT

EDIT TITLE







SYDNEY OLYMPIC





CATEGORY”, then

ALL ERASE ERASE

NEXT > < BACK



press OK.











SYDNEY OLYMPIC



[SHOW]



12/21/02 MON

6:30 AM - 5:53 PM

DBS 256CH LS3



RETURN

ENTER

EDIT CATEGORY



EXIT

OK

SELECT WITH ARROW KEYS



NAVI

SELECT

THEN PRESS [OK]

6 Select category

Press %fi@ # to select the category you want, then press OK.

Navigation

EDIT CATEGORY

MOVIES



SOAPS

SPORTS

NEWS

CHILD



EDUCATION

SERIES

SPECIAL

MUSIC



COMEDY

CLASSIC

SHOPPING

RELIGION



OTHERS

MISCELLANY



SYDNEY OLYMPIC



[SHOW]



12/21/02 MON

6:30 AM - 5:53 PM

DBS 256CH

LS3

RETURN

EDIT TITLE





EXIT

OK

SELECT WITH ARROW KEYS

NAVI

SELECT THEN PRESS [OK]



7 Return to normal screen

Press NAVI.

Press NAVI.

EN 51

VCR CABLE

TV /DBS

B -5

B -3–5

B -2,6

C -3–6

C -2,7

D -2–4

D -5

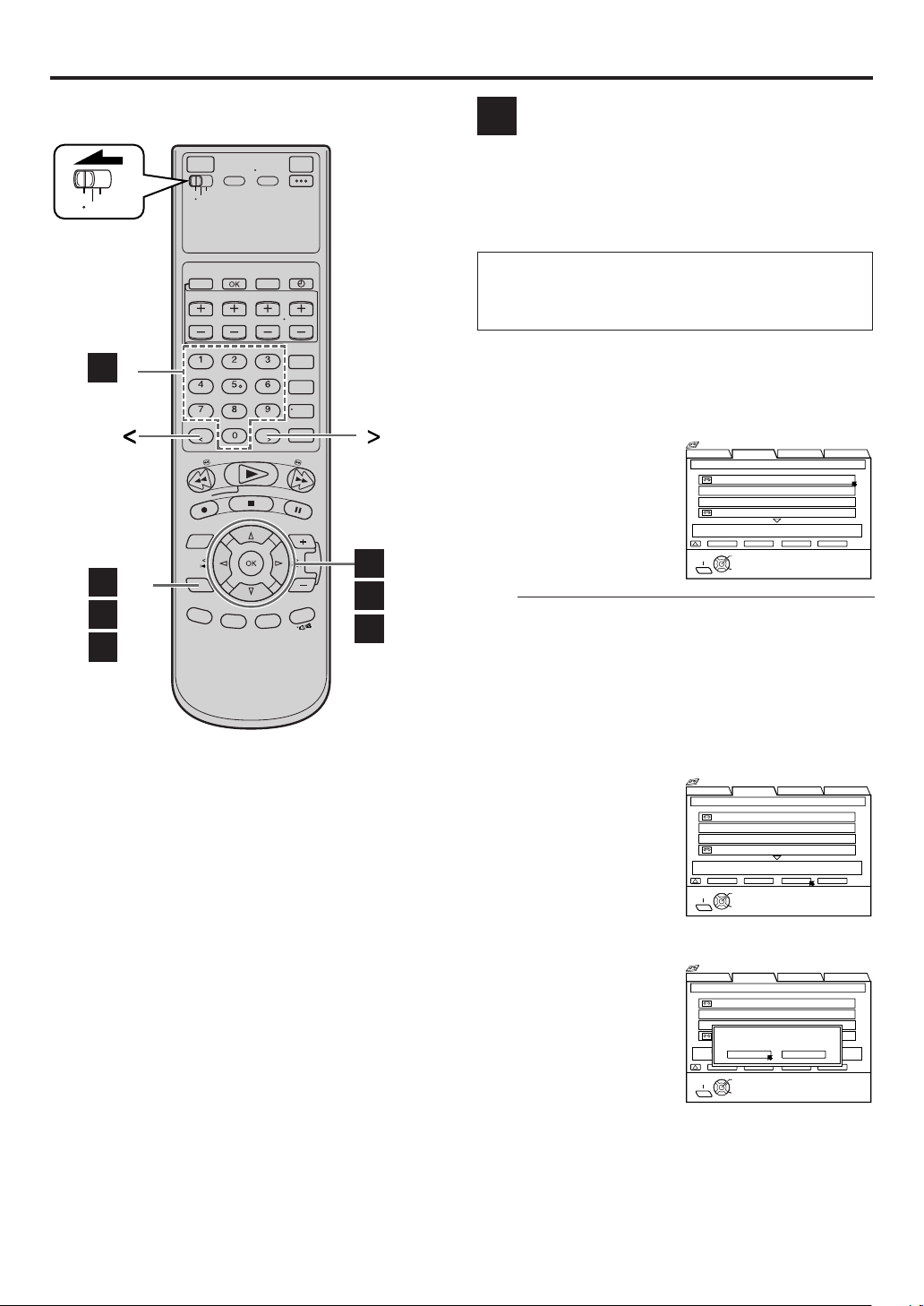

D Deleting tape information

When you want to delete the entire tape information (information for all recorded programs on the tape), follow the procedure below by using the Remote.

Tape information for the Video Navigation function is deleted, but the recorded programs will not be erased.

ATTENTION

Once the information is deleted, it is impossible to restore that information.

1 Follow steps 1 to 3 on page 48, then go to the following steps

2 Select tape number

Press %fi to select the

SEARCH

LIBRARY

BLANK

NAVI. SET UP



Navigation







tape number for which

TAPE NUMBER LIST





1 / 3

you want to edit the

0017*

SOCCER







0017*

1. JAPAN VS KOREA





title, then press OK.

0016

EURO 2000









0017*

2. ENGLAND VS BRAZIL





SOCCER





[SPORT]





12/21/02 SAT

6:30 AM – 5:53 PM

DBS 256CH LS3



SEARCH

RETURN

DELETE

EDIT



EXIT

OK

SELECT WITH ARROW KEYS



NAVI

SELECT

THEN PRESS [OK]



*” is displayed beside the tape number of the loaded cassette.

The cassette mark is displayed on the left of the tape title. The items without the cassette marks are the program titles included in the tape.

To go to another page of the lists, press < or >.

3

4

5

Access delete screen

Press @ # to move the

SEARCH

LIBRARY

BLANK

NAVI. SET UP



Navigation







arrow to “DELETE”,

TAPE NUMBER LIST





1 / 3

then press OK.

0017*

SOCCER







0017*

1. JAPAN VS KOREA







0017* 2. ENGLAND VS BRAZIL





0016

EURO 2000









SOCCER





[SPORT]





12/21/02 SAT

6:30 AM – 5:53 PM

DBS 256CH LS3



SEARCH

RETURN

DELETE

EDIT



EXIT

OK

SELECT WITH ARROW KEYS



NAVI

SELECT

THEN PRESS [OK]



Delete tape information

Press @ # to move the highlight bar to “YES”, then press OK.

Navigation







SEARCH

LIBRARY

BLANK

NAVI. SET UP

TAPE NUMBER LIST





1 / 3

0017* SOCCER

0017* 1. JAPAN VS KOREA

0017* 2. ENGLAND VS BRAZIL





0016

EURO 2000PROGRAM INFO









DELETE?







SOCCER



NO

YES[SPORT]

LS3

12/21/02 SAT

6:30 AM – 5:53 PM



DBS 256CH

SEARCH



RETURN

DELETE

EDIT



EXIT

OK

SELECT WITH ARROW KEYS

NAVI

SELECT THEN PRESS [OK]

Return to normal screen

Press NAVI.

52 EN

VIDEO NAVIGATION (cont.)

E Deleting program information

When you want to delete the stored information for each recorded program, follow the procedure below by using the Remote.

Program information for the Video Navigation function is deleted, but the recorded program will not be erased.

ATTENTION

Once the information is deleted, it is impossible to restore that information.

1 Load a cassette

Insert a tape on which there is a program you want to edit.

2 Access Video Navigation screen

Press NAVI.

3 Select program

Press %fi to select the

Navigation







program you want to

SEARCH



LIBRARY

BLANK

NAVI. SET UP

0107 ALL SPORTS TAPE

BLANK 2:00 (LS3) 1 / 3

edit, then press OK.





1. SYDNEY OLYMPIC







2. FOOTBALL











3. EURO 96 ENGLAND









4. PROJECT XYZ







SYDNEY OLYMPIC



[SHOW]





12/21/02 SAT 6:30 AM – 5:53 PM

DBS 256CH LS3



PLAY



STOP

DELETE

EDIT



EXIT

OK

SELECT WITH ARROW KEYS



NAVI

SELECT THEN PRESS [OK]



*” is displayed beside the tape number of the loaded cassette.

The cassette mark is displayed on the left of the tape title. The items without the cassette marks are the program titles included in the tape.

To go to another page of the lists, press < or >.

4 Access delete screen

Press @ # to move the arrow to “DELETE”, then press OK.

Navigation







SEARCH

LIBRARY

BLANK

NAVI. SET UP

0107 ALL SPORTS TAPE

BLANK 2:00 (LS3) 1 / 3

1.SYDNEY OLYMPIC

2.FOOTBALL

3.EURO 96 ENGLAND

4.PROJECT XYZ

SYDNEY OLYMPIC



[SHOW]

12/21/02 SAT 6:30 AM – 5:53 PM

DBS 256CH LS3

PLAY

STOP

DELETE

EDIT

EXIT

OK

SELECT WITH ARROW KEYS

NAVI

SELECT

THEN PRESS [OK]

5 Delete program information

Press @ # to move the

Navigation





highlight bar to “YES”,

SEARCH

LIBRARY

BLANK NAVI. SET UP

0107 ALL SPORTS TAPE

BLANK 2:00 (LS3) 1 / 3

then press OK.

1. SYDNEY OLYMPIC







2. FOOTBALL



3. EURO 96 ENGLAND







PROGRAM INFO







4. PROJECT XYZ









DELETE?







SYDNEY OLYMPIC

NO

YES[SHOW]

LS3

12/21/02 SAT 6:30 AM – 5:53 PM



DBS 256CH

PLAY

STOP

DELETE

EDIT



EXIT

OK

SELECT WITH ARROW KEYS

NAVI

SELECT

THEN PRESS [OK]

6 Return to normal screen

F Checking memory

You can check the amount of recorded information in the VCR’s memory.

1 Access Video Navigation screen

Press NAVI.

2 Access Navigation Set Up screen

Press %fi @ # to move the arrow to “NAVI. SET UP”.

3 Check memory

The percentage of the

Navigation





used memory is

SEARCH

LIBRARY

BLANK NAVI. SET UP

NAVIGATION SET UP



USED MEMORY 66%

displayed.











NAVIGATION



OFF



EXIT

OK

SELECT WITH ARROW KEYS



NAVI

SELECT

THEN PRESS [OK]

4 Return to normal screen

Press NAVI.

If memory is full, you have to delete unwanted information to store more information in the VCR’s memory.

Press NAVI.

OTHER USEFUL FUNCTIONS

EN 53

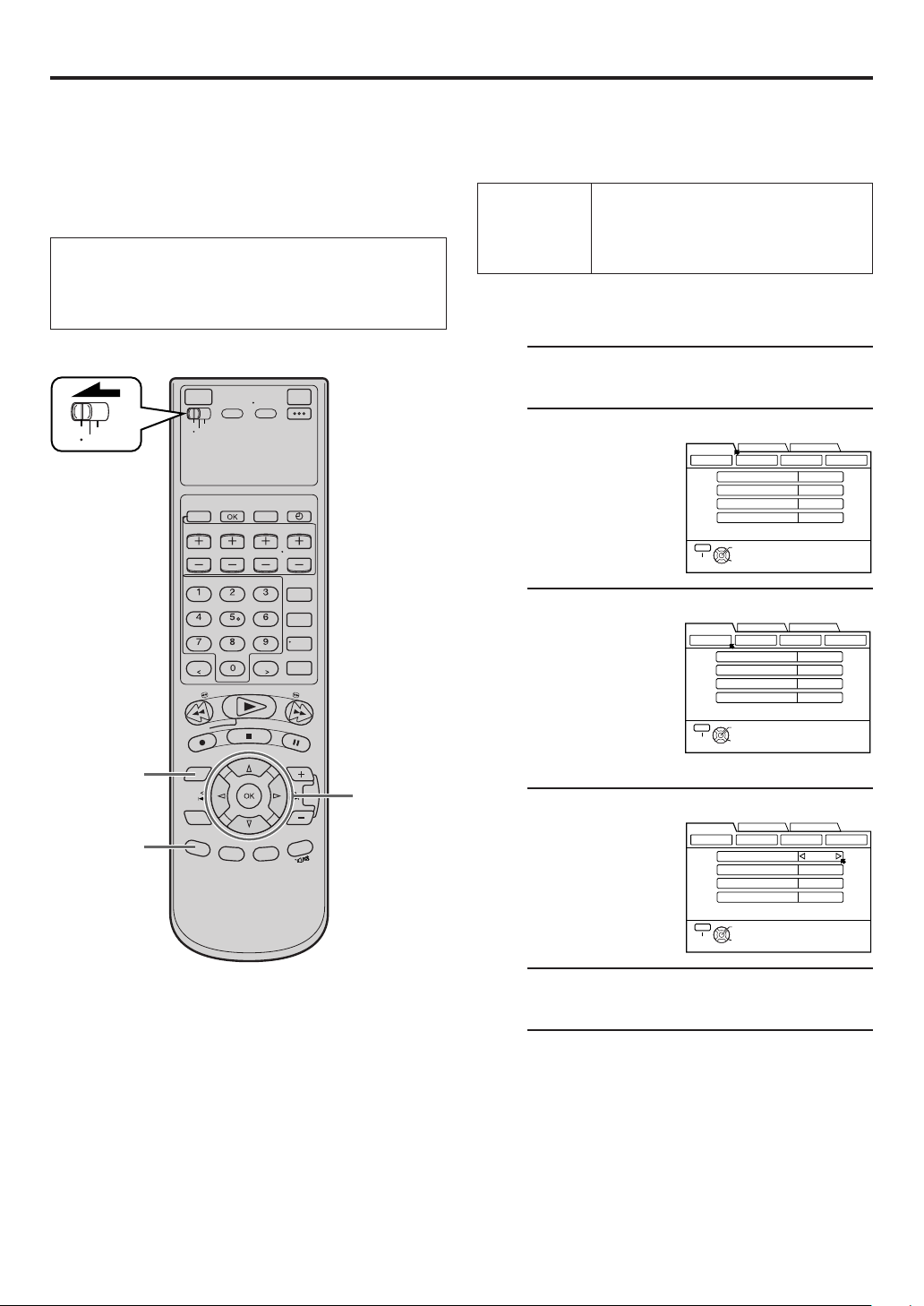

Useful Function

Settings

Turn on the VCR and the TV, and select the AV mode on the TV.

Set the VCR/TV/CABLE/DBS selector on the Remote to “VCR”.

VCR CABLE

TV /DBS

16

2- 5



BACK



You can use the other useful function settings on the Function Set Up screens by following the procedure described below.

The table below shows the structure of the menu system.



VIDEO FUNCTION ( pg. 54)

FUNCTION

AUDIO FUNCTION ( pg. 55)

SET UP

IN/OUT FUNCTION ( pg. 56)



ADDITIONAL ( pg. 57)





For the functions you can set on the Function Set Up screen, see pages 54 to 59.

Access Main Menu screen









1 Press MENU.













Access Function Set Up screen





2 Press @ # to move the

FUNCTION SET UP

TUNER SET UP

INITIAL SET UP

arrow to

VIDEO FUNCTION AUDIO FUNCTION

IN/OUT FUNCTION

ADDITIONAL



“FUNCTION SET



V. CALIBRATION

ON





PICTURE CONTROL

AUTO



UP”, then press fi or



DIGITAL R3



ON



OK.



VIDEO STABILIZER

OFF

















MENU

OK



SELECT WITH ARROW KEYS



EXIT

SELECT

THEN PRESS [OK]











Select Function Menu











3 Press @ # to move

FUNCTION SET UP

TUNER SET UP

INITIAL SET UP

the arrow to the

VIDEO FUNCTION AUDIO FUNCTION

IN/OUT FUNCTION

ADDITIONAL

menu of the function



V. CALIBRATION

ON





PICTURE CONTROL

AUTO



you want to set, then



DIGITAL R3



ON



press fi or OK.



VIDEO STABILIZER

OFF

















MENU

OK



SELECT WITH ARROW KEYS



EXIT

SELECT

THEN PRESS [OK]











4 Select Function

Press %fi to move the arrow to the function you want to set.

FUNCTION SET UP

TUNER SET UP

INITIAL SET UP

VIDEO FUNCTION

AUDIO FUNCTION

IN/OUT FUNCTION ADDITIONAL

V. CALIBRATION

ON

PICTURE CONTROL

AUTO

DIGITAL R3



ON

VIDEO STABILIZER

OFF

MENU

OK



SELECT WITH ARROW KEYS

EXIT

SELECT

THEN PRESS [OK]





5 Change setting

Press @ #.

6 Return to normal screen

Press MENU.

NOTE:

To go back to a previous screen during settings, press BACK.

54 EN

OTHER USEFUL FUNCTIONS (cont.)

Video settings [VIDEO FUNCTION]

* The default setting is bold in the table below.

V. CALIBRATION

When this function is set to “ON”, this VCR checks the condition of the

(S-VHS/VHS only)

tape in use during playback and recording, and compensates to provide

the highest-possible pictures. This takes place whenever you play back a

ON

tape or start recording after inserting a tape.

OFF

NOTES:









During playback, this function is always working even though



“VIDEO CALIBRATION” appears just at the beginning of automatic tracking.



During recording, this function works only for the first SP recording and the first



EP recording on an inserted tape.



For timer recording, this function checks the tape condition both for the SP



recording and the EP recording before the first timer recording starts.



When you play back rental tapes or tapes recorded on other VCRs, set this



function either “ON” or “OFF” whichever gives you the best picture.





PICTURE CONTROL

This function helps you to adjust the playback picture quality according

(S-VHS/VHS only)

to your preference.

AUTO:

Normally select this. Picture quality is adjusted

AUTO (NORM)

(NORM)

automatically.

EDIT



When “V. CALIBRATION” is “OFF”, “NORM” will appear

SOFT





instead of “AUTO”. The quality is not adjusted

SHARP





automatically when “NORM” appears.







EDIT:

Minimizes picture degradation during editing (recording





and playback).



SOFT:

Reduces image coarseness when viewing overplayed tapes





containing much noise.



SHARP: Clearer, sharper-edged picture when viewing images with





much flat, same-colored surfaces such as cartoons.



NOTES:





When you select “EDIT”, “SOFT” or “SHARP”, the selected mode will not



change until you select again.



Select “EDIT” when you are editing tapes ( pg. 67). After you finish editing the



tapes, select “AUTO” (“NORM” when “V. CALIBRATION” is “OFF”.)





DIGITAL R3 (S-VHS/VHS only)

When this function is set to “ON”, edge correction to the luminance signal

ON

is performed to enhance details. Normally set this function to “ON”.

OFF

NOTES:









Depending on the type of tape being used, picture quality may be better with



“DIGITAL R3” set to “OFF”.



If you use this VCR as the playback VCR for editing, be sure to set “DIGITAL



R3” to “OFF” before starting.





VIDEO STABILIZER

When this function is set to “ON”, you can correct vertical vibrations in

(S-VHS/VHS only)

the picture when playing back unstable recordings made on another

VCR.



ON



This function is available only when playing back tapes recorded in EP mode.

OFF

NOTES:









When you finish viewing a tape, be sure to set this function to “OFF”.



Regardless of the setting, this function has no effect during recording and during



special effects playback.



To watch recordings with close-caption, set this function to “OFF”.



When this function is set to “ON”, the vertical vibrations may occur. Press



CHANNEL + or on the VCR (or TV/VCR CH + or on the Remote) to



eliminate vibration.







EN 55

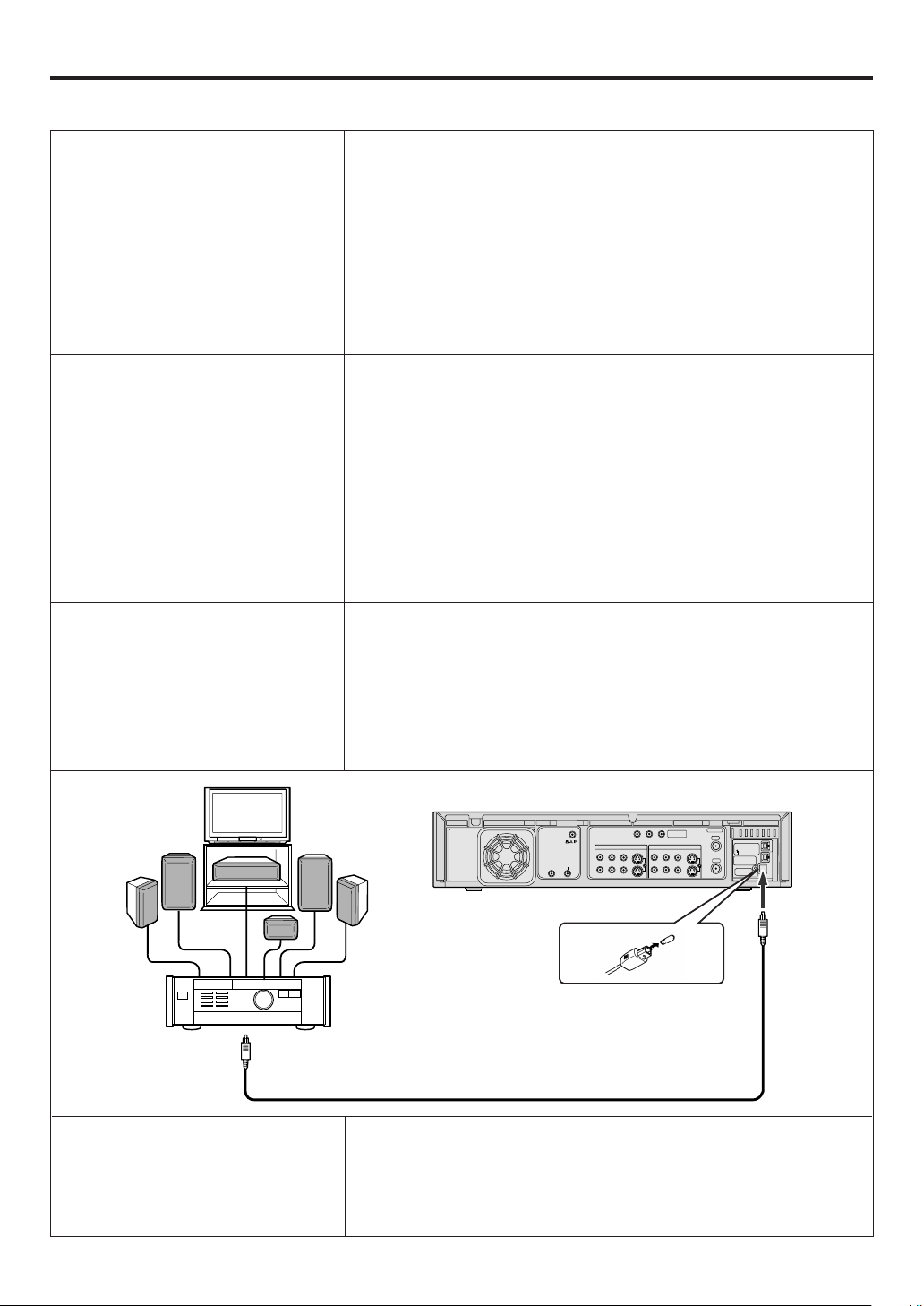

Audio settings [AUDIO FUNCTION]

* The default setting is bold in the table below.

STD AUDIO REC MODE

You can select the audio format when you record a program or

STANDARD

analog signal from connected devices in STD mode. When this

function is set to “PCM&STANDARD”, you can obtain high-quality

PCM&STANDARD



audio sound.













STANDARD:

Select this when the picture quality is important





and when you record in MP2 format.



PCM&STANDARD: Select this when the sound quality is important.





When you record the analog signals or DV signals





from the camcorder in STD mode, PCM audio is





also recorded in addition to MP2 audio. In HS





mode, PCM audio is automatically recorded.

DV AUDIO REC

Up to four audio signal channels can be input from a DV camcorder

AUDIO1

through the DV IN connector (i.LINK). This VCR allows you to select

AUDIO2

and record two of these channels. This setting is used to specify which

two channels to record.









1+2MIX























When there are four DV audio channels (32kHz):







AUDIO1: Records the two channels (L/R) of DV AUDIO 1.



AUDIO2: Records the two channels (L/R) of DV AUDIO 2.



1+2MIX: Mixes and records both DV AUDIO 1 and 2.



When there are two DV audio channels (48kHz):







Because there are only two channels, those two channels are recorded



regardless of the DV sound setting.









OPTICAL OUT

This VCR can send the Dolby Digital bitstream or PCM Audio to external

Dolby D

devices.











2CH-PCM

When you play back a tape including the Dolby Digital bitstream, and if

you have a device equipped with Dolby Digital decoder, set this

STREAM

function to “Dolby D”.

























If not, set this function to “2CH-PCM”.











“STREAM” will be used when playing back and receiving a audio signals



in other new formats.















This VCR













COMPONENT

VHF/UHF









VIDEO OUT

ANTENNA







Y

PB/CB PR/CR



IN







OUT



IN



i.LINK IN/OUT









DV IN





S VIDEO

IN(L-1)

S VIDEO



S400





CABLE BOX





ANTENNA

DIGITAL OUT





REMOTE PAUSE/ R AUDIO L VIDEO

R AUDIO L

VIDEO

OUT

OPTICAL







PCM/DOLBY DIGITAL





AV COMPULINK





















D THEATER







IN(L-2)





REGION 1

Amplifier equipped

Note for connection:

with Dolby Digital

decoder

Remove the protection



cap from the cable.

2ND AUDIO REC

When this function is set to “ON”;



ON

● If a SAP program is received, the SAP audio is recorded on both the

normal and Hi-Fi tracks. The main audio is not recorded.

OFF

● If a non-SAP program is received, the main audio is recorded on both





the Hi-Fi and normal tracks.



When this function is set to “OFF”, the SAP audio cannot be recorded.









CONTINUED ON NEXT PAGE \

56 EN

OTHER USEFUL FUNCTIONS (cont.)

Input/Output settings [IN/OUT FUNCTION]

* The default setting is bold in the table below.

TV OUTPUT 1

Select the apppropriate mode when receiving signals via i.LINK connector or

720to1080

playing back a D-VHS tape containing a recording of an HD (High Definition)

NO CONV.

signal:











ALLto480i

720to1080:

720p is up-converted to 1080i and output to the TV. 1080i,







480p, and 480i image formats are output to the TV without





being converted. Select this when the 720p image played





back is distorted.



NO CONV.:

1080i, 720p, 480p, and 480i image formats are output to





the TV just as they are.



ALLto480i:

All images will be output to the TV in 480i image format.



NOTE:







When you receive signals via i.LINK connector or play back the picture of 1080i, 720p,



480p image format, the signal is not output from the S-VIDEO or VIDEO output connector



if “TV OUTPUT 1” is set to “720to1080” or “NO CONV.”.





TV OUTPUT 2

Select the apppropriate mode depending on the type of TV you have.

WIDE 16:9

WIDE 16:9:

Select this for a wide TV set with 16:9 screen image size.

NORMAL 4:3

NORMAL 4:3: Select this for a TV set with 4:3 screen image size.





NOTES:







When “TV OUTPUT 2” is set to “WIDE 16:9”, sometimes the screen image may be



stretched vertically.







When “TV OUTPUT 2” is set to “NORMAL 4:3”, sometimes subtitles may not be visible



or the ends of the screen image may be cut off. Normally select “WIDE16:9”.



In order to let the equipment determine the screen image size, it is recommended that



you connect the VCR and TV using the component video output connectors or S VIDEO



OUT connector.









FRONT AUX F-1

You have to select which terminal — either VIDEO (composite) or S-VIDEO (Y/C

VIDEO

separate signals) to use as the video input terminal on the front panel.







S-VIDEO

Make sure to select the correct terminal; otherwise, you may fail in recording



(editing) on this VCR.







REAR AUX L-1

You have to select which terminal — either VIDEO (composite) or S VIDEO (Y/C

VIDEO

separate signals) to use as the video input terminal (L-1) on the rear panel.







S-VIDEO

Make sure you select the correct terminal; otherwise, you may fail in recording



(editing) on this VCR.







REAR AUX L-2

You have to select which terminal — either VIDEO (composite) or S VIDEO (Y/C

separate signals) to use as the video input terminal (L-2) on the rear panel.

VIDEO







S-VIDEO

Make sure you select the correct terminal; otherwise, you may fail in recording



(editing) on this VCR.











EN 57

Additional settings [ADDITIONAL]

* The default setting is bold in the table below.

AUTO SP = EP TIMER

When this function is set to “ON”, the VCR automatically switches to EP mode to

(S-VHS/VHS only)

allow complete recording if there is not enough tape to record the entire program

ON

while timer-recording in SP mode.





OFF

For Example . . .







Recording a program of 140 minutes in length onto a 120-minute tape





Approximately 110 minutes

Approximately 30 minutes















SP mode

EP mode





Make sure you set this function to “ON” before the timer-recording starts.



NOTES:







If you have programed the VCR to timer-record 2 or more programs, the second program and



those thereafter may not fit on the tape with this function set to “ON”. In this case, do not use



this function, but change the recording speed manually during timer programing.



In order to ensure that the recording fits on the tape, this function may leave a slight non-



recorded portion at the end of the tape.







There may be some noise and sound disturbance where the recording speed switches from SP



to EP mode on the tape.







This function is not available during ITR (Instant Timer Recording), and will work properly on



the following tapes: T(ST)-30, T(ST)-60, T(ST)-90, and T(ST)-120.









AUTO TIMER

When this function is set to “ON”:





ON

The timer recording standby mode is automatically engaged when the VCR is turned

OFF

off. It is temporarily canceled when the VCR is turned on. You do not have to press



TIMER () to engage or disengage the timer recording standby mode.



When this function is set to “OFF”:







You have to press TIMER () to engage or disengage the timer recording standby



mode.





SUPERIMPOSE

When this function is set to “ON”, various VCR status information (on-screen display)

ON

appears on the screen.





OFF

NOTES:













When you use this VCR as the playback VCR for editing a tape, be sure to set this function to



“OFF”; otherwise, the VCR status information (on-screen display) will be recorded on the



edited tape.







If you select a channel on which no signal is received, the channel number is displayed



regardless of this function setting.





GRAY BACK

When this function is set to “ON”, the VCR changes the screen into the gray back

ON

screen automatically after/while the input signals do not come into.

OFF



















POWER SAVE

When this function is set to “ON”, you can reduce the power consumption. While the

ON

VCR is turned off, the front display panel does not show the clock.

OFF

When this function is set to “ON”, an i.LINK device cannot be recognized. As a



result, it is not possible to record a program using the digital tuner’s* timer function.



In addition the device does not pass along data if it is in a branched connection.



* For details of a digital tuner, refer to the instruction manual of the digital tuner.



NOTE:







It takes some time until VCR completes its set up when you turn on the VCR.











CONTINUED ON NEXT PAGE \

58 EN

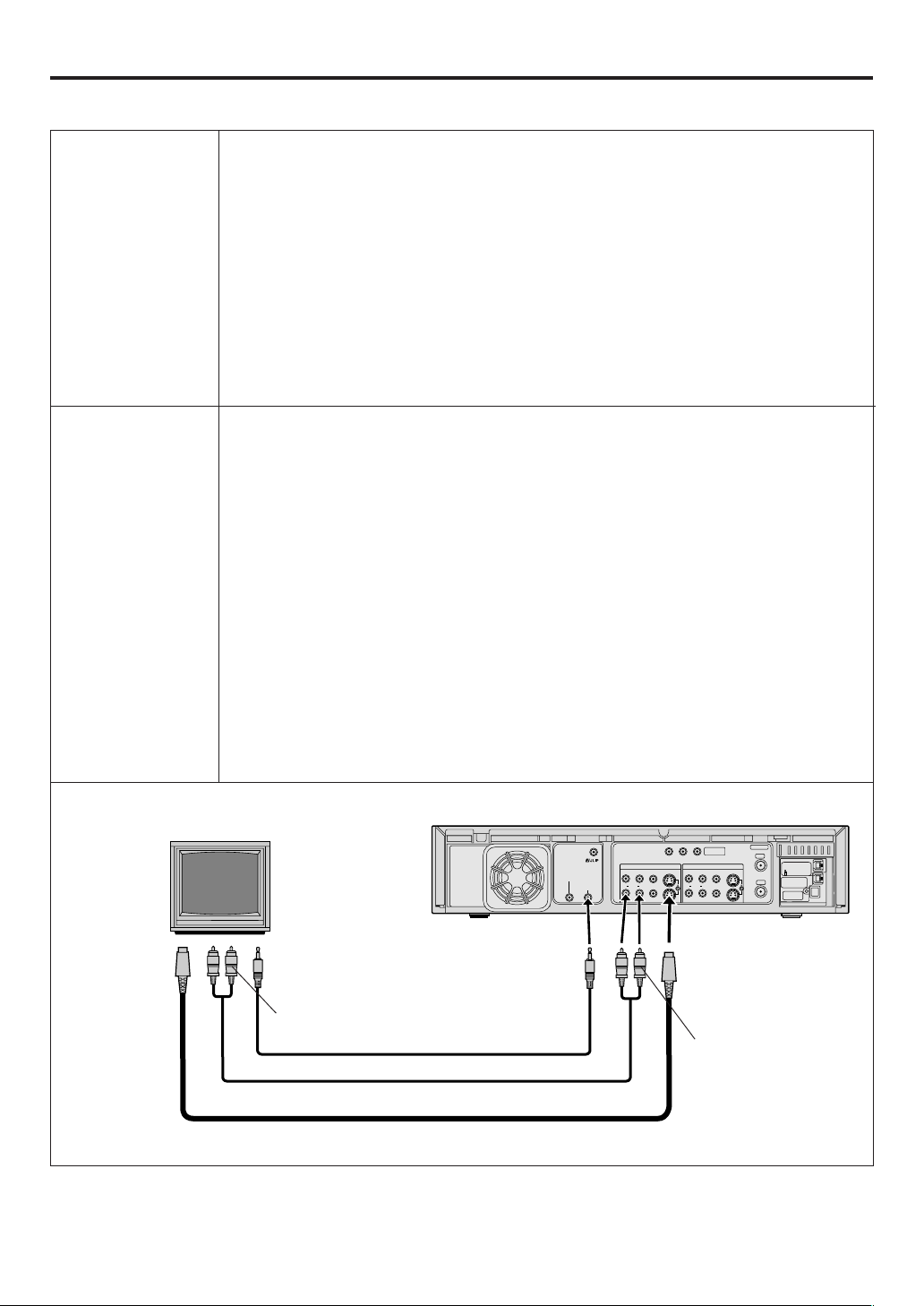

OTHER USEFUL FUNCTIONS (cont.)



* The default setting is bold in the table below.





S-VHS MODE

You can determine which recording mode — either S-VHS mode or VHS mode — is

ON

used for recording on D-VHS and S-VHS tapes.

When this function is set to “ON”, you can record on D-VHS and S-VHS tapes with

OFF

S-VHS picture quality.





When this function is set to “OFF”, you can record on D-VHS and



S-VHS tapes with VHS picture quality.



NOTES:



To record in S-VHS/VHS mode on D-VHS tape, press D-VHS to turn off the D-VHS indicator.



S-VHS mode allows you to make high quality video recordings with horizontal resolution of 400



lines, comparing with the 230 lines of resolution of conventional VHS recordings. To achieve the



highest quality picture we recommend to record in S-VHS mode. (But remember that a



conventional VHS VCR without SQPB cannot play back S-VHS tapes recorded in S-VHS mode.)



S-VHS MODE setting does not affect recording on VHS tapes. Recording on VHS tapes is always



performed in VHS mode except when using S-VHS ET mode ( pg. 59).





AV COMPU-LINK

The REMOTE PAUSE/AV COMPULINK terminal on the rear panel can be used as either

ON

the REMOTE PAUSE terminal or the AV COMPULINK terminal.



OFF

When this function is set to “ON”, you can use this terminal as the AV COMPULINK



terminal.



By connecting JVC’s AV COMPULINK components (see the diagram below), including



amplifiers (or receivers) and televisions, one touch control of the audio and video



components linked via their AV COMPULINK connectors becomes possible.



For example: simply load a cassette in the VCR and press PLAY ( 3 ) so that the AV COMPULINK



components automatically turn on, the TV’s AV mode is selected and the VCR starts playback. (You



do not have to press PLAY ( 3 ) if the cassette’s record safety tab is removed.)



When this function is set to “OFF”, you can use this terminal as the REMOTE PAUSE



terminal ( pg. 67).

NOTES:

When the remote control code is set to “C” or “D”, the connector cannot be used as AV COMPULINK terminal even if “AV COMPU-LINK” is set to “ON”. It is recommended to set the remote control code to “A” when you use this function. ( pg. 71).

Connection varies depending on the type of JVC TV you have. Refer to the TV’s instruction manual when making this connection.

AV COMPU LINK



This VCR









Television



















COMPONENT

VHF/UHF











VIDEO OUT

ANTENNA









Y

PB/CB PR/CR

IN









OUT

IN



i.LINK IN/OUT







S VIDEO

DV IN







S VIDEO

IN(L-1)

S400





CABLE BOX





ANTENNA

DIGITAL OUT





REMOTE PAUSE/

R AUDIO L VIDEO

R AUDIO L VIDEO

OUT

OPTICAL







PCM/DOLBY DIGITAL





AV COMPULINK





















D THEATER









IN(L-2)



REGION 1



To AV COMPU

To REMOTE



To S VIDEO



To S-VIDEO IN

PAUSE/



OUT





LINK II









(VCR ONLY)

AV COMPULINK























To AUDIO IN



















To AUDIO





Mini-plug cable (not supplied)



OUT





Audio cable (supplied)

S-video cable (supplied)



EN 59



* The default setting is bold in the table below.





S-VHS ET

This function allows you to record on VHS tapes with S-VHS picture quality. Tapes

ON

recorded using this function can be played back on a VCR equipped with the S-VHS ET

OFF

function. The S-VHS indicator lights up on the front display panel when “S-VHS ET” is set



to “ON”.

NOTES:

Before recording, make sure that “V. CALIBRATION” is set to “ON” ( pg. 54).

You cannot activate the S-VHS ET function...

while recording is in progress.

while timer-recording or Instant Timer Recording ( pg. 28) is in progress.

while Video Calibration ( pg. 54) is in progress.

S-VHS ET does not work with S-VHS tapes.

To keep the highest quality recording and playback pictures over a long period of time, S-VHS recording on S-VHS tapes is recommended.

Use of high grade tapes are recommended for S-VHS ET recordings.

On some tapes, picture quality will not improves even if the S-VHS ET function is used. Check the recording quality before you start important recordings.

You can play back S-VHS ET recordings on most of S-VHS VCRs and of VHS VCR equipped with SQPB (S-VHS QUASI PLAYBACK) function. (Notice some VCRs are not compatible with this function.)

While playing back a tape recorded with this function on some tapes, noise may appear. (If playback picture becomes blurred or interrupted, use a cleaning cassette.)

During special effect playback ( pg. 31), noise may appear. If special effect playback is performed frequently on a tape recorded with this function, the tape may be damaged and picture may be deteriorated.

DISPLAY

When this function is set to “OFF”, only “:” appears on the front display panel.

ON

NOTE:

OFF

Even if you set “DISPLAY” to “OFF”, each item appears on the front display panel in the following





cases;



when the timer-recording is in progress/in the timer standby mode ( pg. 34 – 41)



in the satellite Auto Recording standby mode ( pg. 62)



during Plug & Play setting ( pg. 9)



when you press REC ( ) twice for the ITR ( pg. 28)



when you set the remote control code ( pg. 71)



when you press DISPLAY, the current status appears for a few seconds.

60 EN

OTHER USEFUL FUNCTIONS (cont.)

i.LINK Set Up

Turn on the VCR and the TV, and select the AV mode on the TV.

Set the VCR/TV/CABLE/DBS selector on the Remote to “VCR”.

VCR CABLE

TV /DBS

15

2- 4



ATTENTION

If the i.LINK setting does not work, press D-VHS and STOP/EJECT ( 7/0 ) simultaneously for more than 5 seconds to reset the settings. The cassette is automatically ejected.

LINC

You can control one of the i.LINK-compatible devices connected to this VCR with the i.LINK cable. “LINC” means to select one of the connected devices. After establishing a LINC with an i.LINK-compatible device, you're ready to control the i.LINK device.

LINC (Logical Interface Connection) involves establishing a logical connection, as the abbreviation implies.

i.LINK set up for connected device

When you connect i.LINK compatible devices to this VCR, an i.LINK device number is assigned to each device in the order of connection.

If you want to change the number, follow the procedure below.

1 Access Main Menu screen

Press MENU.

2 Access i.LINK Set Up screen

1 Press @ # to move the arrow to “INITIAL SET UP”, then press fi or OK.

2Press @ # to move the arrow to “OTHER”, then press fi or OK.

Confirm LINC setting







3 Check that “LINC” is

FUNCTION SET UP

TUNER SET UP INITIAL SET UP

set to “AUTO”. If not,

CLOCK SET



GUIDE CHANNEL

OTHER









press %fi to move

JLIP ID

1



LINC

AUTO



the arrow to “LINC”,



RESET NUMBER



then press @ # to set









to “AUTO”.

MENU

OK

SELECT WITH ARROW KEYS



EXIT

SELECT

THEN PRESS [OK]









4 Reset Number

Press %fi to move the arrow to “RESET NUMBER”, then press OK.

FUNCTION SET UP

TUNER SET UP

INITIAL SET UP

CLOCK SET



GUIDE CHANNEL

OTHER

JLIP ID



1



LINC



AUTO



RESET NUMBER





MENU

OK

SELECT WITH ARROW KEYS

EXIT

SELECT

THEN PRESS [OK]









5 Return to normal screen

Press MENU.

6 Set Number again

Connect the external devices one by one.

Make sure to connect the VCR's AC power plug to the AC outlet and turn on the external device before connection.

Each device will be numbered in the order of connection.

NOTES:

If you do not want to set i.LINK device number, set “LINC” to “OFF” in step 3.

You cannot use the i.LINK connection depending on the types of camcorder equipped with the DV connector. In this case, set “LINC” to “OFF” in step 3.

EN 61

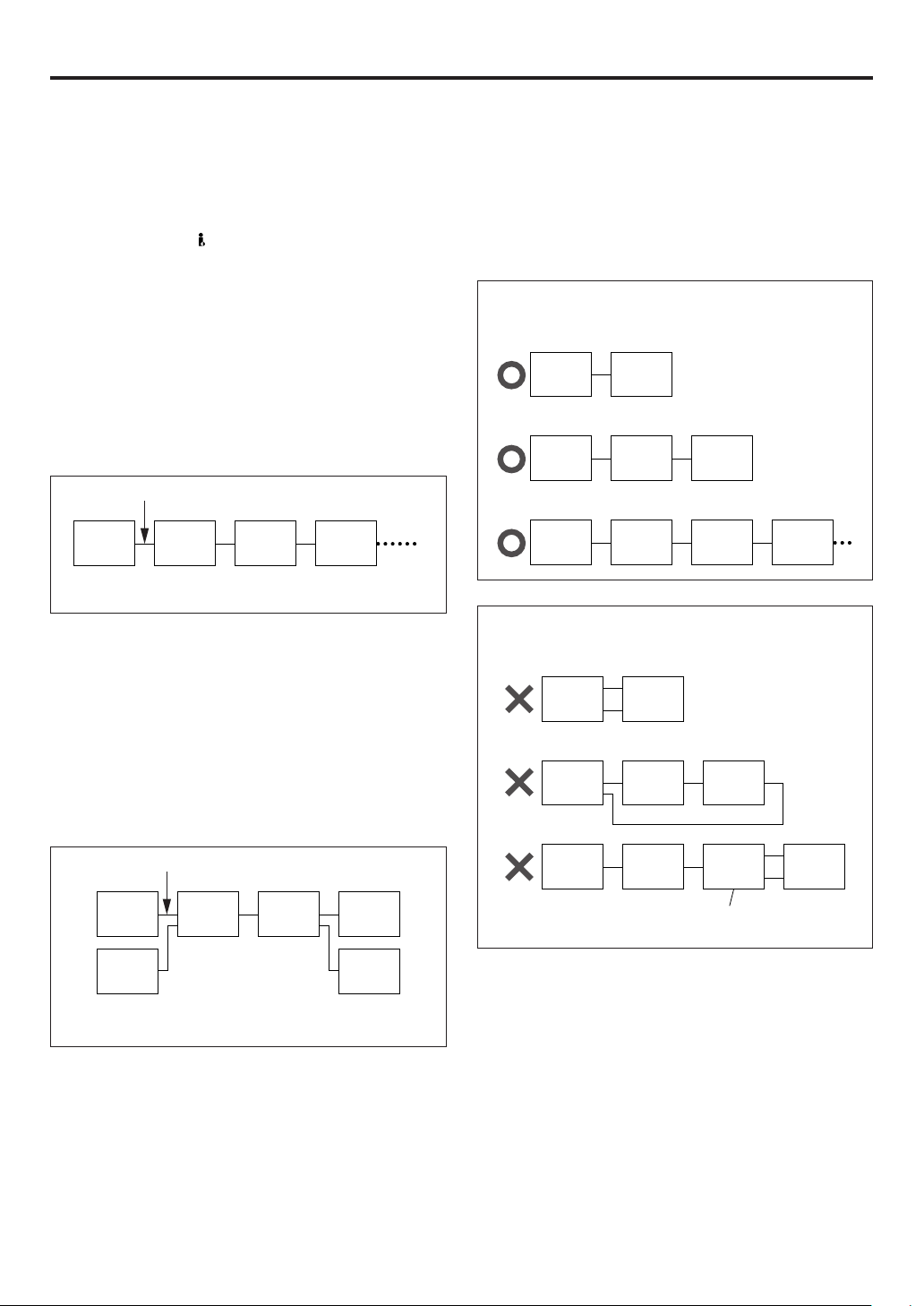

What is “i.LINK”?

“i.LINK” is a digital serial interface that allows devices equipped with an i.LINK connector to exchange digital video signals, digital audio signals, and device control signals bi-directionally over a single cable.

i.Link refers to the IEEE1394-1995 industry specification and extensions thereof. Thelogo is used for products compliant with the i.Link standard.

i.LINK Connection Examples

Examples of good i.LINK connections and bad i.LINK connections are shown below. The digital signals flow to all connected devices. When connecting i.LINK devices, make sure that the devices are connected in such a way that digital signals do not return (loop back) to the device that output them. Looped connection is not permitted.

This VCR uses a four-pin i.LINK connector to input and output MPEG2 video signals, audio signals, and control signals. The i.LINK connector is also used as an input for DV compressed signals from the DV output of a digital video camera.

i.LINK Connection

i.LINK-compatible devices can be connected in daisy chain fashion using i.LINK cables.

i.LINK cable







A

B

C

D





A to D: i.LINK-compatible







devices

Any two devices in the daisy chain can exchange data bi-directionally, even if there are other devices connected between them.

i.LINK also supports a “repeater function” that passes input MPEG2 and DV signals through to the next device in the chain.

i.LINK Branched Connection

If you are connecting a device that is equipped with three or more i.LINK connectors, you can also branch the i.LINK connection.

i.LINK cable



















A





B



C





D











































































E















F

































A to F: i.LINK-compatible devices

B, C: Devices with three or more i.LINK connectors

NOTES:

Good connection examples

(A to D: i.LINK-compatible devices)

The connections below do not form a loop.

A



B









A



B



C















A



B



C



D





















Bad connection examples

(A to D: i.LINK-compatible devices) The connections below form a loop.

A



B















A





B



C































A



B



C



D







































C: Device with three i.LINK connectors

You can connect as many as 63 devices (including this VCR) through an i.LINK connection. If you use a branched i.LINK connection, however, the maximum path length on a branch is 17 devices.

In the case of a personal computer and some other devices, data is not passed along by those devices if the device power is off. For details, refer to the instruction manual for the connected device.

Furthermore, data is not passed along by this VCR when "POWER SAVE" is set to "ON" on this VCR ( pg. 57) and the VCR is turned off.

The maximum data transfer speed supported by the i.LINK connector on this VCR is 400Mbps (approximately 400 megabits per second). The maximum data transfer speed that is actually attained may be slower depending on how this VCR is used or if a device with a slower transfer speed is connected to this VCR.

Use the S400 i.LINK cable.

62 EN

OTHER USEFUL FUNCTIONS (cont.)

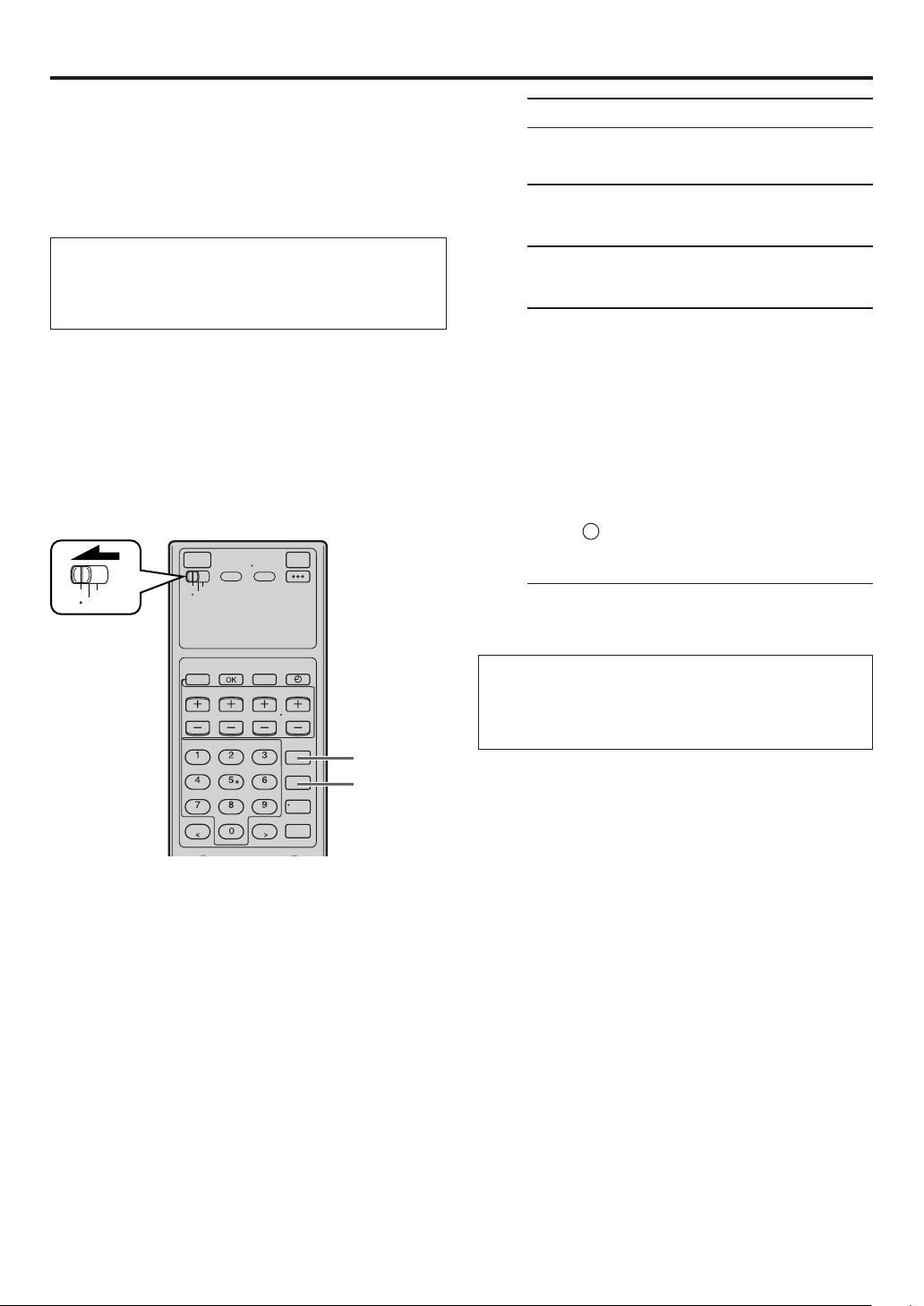

Satellite Auto

Recording

Turn on the VCR and the TV, and select the AV mode on the TV.

Set the VCR/TV/CABLE/DBS selector on the Remote to “VCR”.

This function allows you to automatically record a satellite program which is timer-programed on your DBS receiver.

Preparation: Connect a DBS receiver to the AUDIO/ VIDEO IN or S VIDEO IN (L-1) connectors* on the rear; otherwise, you cannot use this function.

• You can also connect the cable box if it has a timer.

*To use these connectors, you have to select which one to use ( pg. 56).

VCR CABLE

TV /DBS

4 3

1Set timer program on DBS receiver

For timer programing method, refer to the manual supplied with the DBS receiver.

2 Load a cassette

Make sure the record safety tab is intact.

3 Set recording speed

Press REC SPEED to set the recording speed.

4 Engagemode Satellite Auto Recording standby

Turn off the DBS receiver.

Press and hold REC LINK on the Remote for more than 2 seconds.

The VCR turns off automatically and the “L-1” and “‰” appears on the front display panel (Satellite Auto Recording standby mode).

When the DBS receiver outputs a signal, the VCR starts recording and the “L-1” blinks and the record () indicator lights. The VCR stops recording and powers off when the DBS receiver stops outputting a signal.

Each time you press the button, Satellite Auto Recording standby mode turns on and off. When it is off, “L-1” disappears.

IMPORTANT: Be sure not to turn on the DBS receiver before the program starts broadcasting; otherwise, the VCR will start recording when the DBS receiver is turned on.

NOTES:

While the Satellite Auto Recording standby mode or after Satellite Auto Recording is finished, the VCR will not enter the timer recording standby mode even though “AUTO TIMER” is set to “ON” ( pg. 57).

If you turn off this VCR while Satellite Auto Recording is in progress, recording stops.

Video Calibration ( pg. 54) does not work while Satellite Auto Recording is in progress.

Auto Clock ( pg. 11) does not work while in the Satellite Auto Recording standby mode.

The VCR may not record a short portion at the beginning of the program or may record slightly longer than the actual length of the program when Satellite Auto Recording method is used.

If you engage the Satellite Auto Recording standby mode while the DBS receiver is turned on, the VCR will not start Satellite Auto Recording, and “L-1” and “” blink on the front display panel. When you turn off the DBS receiver, “L-1” and “” light up and the VCR enters the Satellite Auto Recording standby mode.

If you have connected another component other than a DBS receiver (or cable box) to the AUDIO/VIDEO IN or S VIDEO IN (L-1) connectors, be sure not to engage the Satellite Auto Recording standby mode; otherwise, the VCR will start recording when the connected component is turned on.

Satellite Auto Recording and timer-recording cannot be performed at the same time.

If the “L-1” blinks quickly on the front display panel in the Satellite Auto Recording standby mode (even though your DBS receiver is turned off), Satellite Auto Recording will not work properly.

If this is the case, perform “Express Timer Programing” ( pg. 38) to timer-record a satellite program.

(Some DBS receivers output signals even if the power is off. Satellite Auto Recording is not possible with those DBS receivers.)

EN 63

JLIP ID Number

Setting

Turn on the VCR and the TV, and select the AV mode on the TV.

Set the VCR/TV/CABLE/DBS selector on the Remote to “VCR”.

VCR CABLE

TV /DBS

14

23



The JLIP (Joint Level Interface Protocol) terminal is used to connect the VCR to a personal computer or similar device. By connecting through the JLIP terminals, you can control the VCR during editing and certain other operations, from the connected personal computer or similar device.

When connecting this VCR to another device using the JLIP terminals, each device must have a different JLIP ID number.

The JLIP ID number of this VCR is preset to “1” when shipped from the factory. You can change this number to any other number between 1 to 99.

To change the JLIP ID number of this VCR, follow the procedure below.

1 Access Main Menu screen

Press MENU.

2 Select JLIP ID Set Up screen

1 Press @ # to move the arrow to “INITIAL SET UP”, then press fi or OK.

2Press @ # to move the arrow to “OTHER”, then press fi or OK.

Set JLIP ID Number









3 Press %fi to move

FUNCTION SET UP TUNER SET UP INITIAL SET UP

the arrow to

CLOCK SET

GUIDE CHANNEL

OTHER









“JLIP ID”.



JLIP ID

1









Press @ # to enter the



LINC

AUTO





RESET NUMBER



desired ID number.











MENU

OK

SELECT WITH ARROW KEYS



EXIT

SELECT

THEN PRESS [OK]









4 Return to normal screen

Press MENU.

NOTE:

For further details on the JLIP system, consult your Marantz authorized dealer or visit our website www.marantz.com.

64 EN

EDITING

i.LINK/DV Connections

NOTES:

You cannot use the i.LINK connection depending on the type

of camcorder equipped with the DV connector. In this case, set “LINC” to “OFF” ( pg. 60)

If the 44.1 kHz PCM audio signal is input via DV connector, recording cannot be performed properly.

AYou can use a camcorder as the playback device and your VCR as the recording VCR.

This VCR (for recording)









COMPONENT

VHF/UHF











VIDEO OUT

ANTENNA







Y

PB/CB

PR/CR



IN







OUT





IN



i.LINK IN/OUT











DV IN





S VIDEO



IN(L-1)

S VIDEO



S400

CABLE BOX











ANTENNA

DIGITAL OUT

REMOTE PAUSE/

R AUDIO L

VIDEO



AUDIO L

VIDEO

OUT

OPTICAL

R



PCM/DOLBY DIGITAL

AV COMPULINK





























D THEATER









IN(L-2)





REGION 1



To DV IN



connector

DV camcorder

DV cable

(for playback)

(not supplied)



To DV output

This VCR supports the copy protection technologies of DTLA (Digital Transmission Licensing Administrator). These technologies are admitted by DTLA (Digital Transmission Licensing Administrator).

It is impossible to dub copy-limited signals between the devices which supports copy protection technologies of DTLA. It is impossible to dub to other tapes the program which only one recording is permitted.

When connecting to other devices, only the operation of the devices which supports DTLA is guaranteed. The operation of non-DTLA-supported devices is not guaranteed.

BYou can use your VCR as the playback or recording VCR.

Ex. When using this VCR as the recording VCR

This VCR (for recording)





COMPONENT

VHF/UHF





VIDEO OUT

ANTENNA

Y

PB/CB

PR/CR

IN





OUT



IN





S VIDEO

IN(L-1)

S VIDEO

CABLE BOX







ANTENNA

REMOTE PAUSE/

R AUDIO L



R AUDIO L

OUT

VIDEO

VIDEO

AV COMPULINK









IN(L-2)

To i.LINK IN/

OUT connector

i.LINK cable (not supplied)

To i.LINK IN/

OUT connector

Another VCR (for playback)

EN 65

1 Make connections

A Connection with the camcorder

Connect a DV cable between the camcorder’s DV connector and your VCR’s DV IN connector.

B Connection with the VCR

Connect an i.LINK cable between the playback VCR’s i.LINK input/output connector and the recording VCR’s i.LINK input/output connector.

NOTES:

Depending on the devices equipped with the i.LINK connector which is connected to the VCR, picture noise on this VCR may differ from the noise on the connected devices. It is caused by the difference of the data processing method.

Connection with certain product(s) may not be supported. ( “ATTENTION” on the back cover.)

2 Load a cassette

Insert the cassette to be recorded on into this VCR (for recording).

3 Select input location on this VCR

On the front panel:

Press CHANNEL +/– to select "I-1 etc.".

On the Remote:

Press TV/VCR CH +/– to select "I-1 etc.".

5 Start playback

Press PLAY ( 3 ) on the connected device.

NOTE:

If the connected device is equipped with a superimpose/OSD disable feature then set it to “OFF” before starting playback.

6 Start recording

On the front panel:

Press REC ( ).

On the Remote:

Press REC ( ) and PLAY ( 3 ) at the same time.

NOTE:

If "108 REC BY HS MODE" appears on the TV screen, refer to "Error Codes and Messages" on page 77.

Do not connect this VCR to the PC with the i.LINK cable. The operation is not guaranteed.

4 Set recording speed

Press REC SPEED to set the recording speed.

For more details, refer to "About Recording Speed" below.

About Recording Speed

Input Source



Selectable Recording Speed

(Playback device)

(Recording device: This VCR)









D-VHS

Auto (HS/STD/LS3/LS5)*, HS, STD, LS3, LS5

i.Link/





DV camcorder

HS, STD, LS3, LS5

DV input







Others

Auto (HS/STD)*, HS







* Auto mode: The recording speed will be selected automatically according to the amount of data input (the transfer rate) from the i.LINK connector.

NOTES:

When dubbing using the i.LINK connector, set the recording speed on the recording VCR to the same speed as the source tape on the playback VCR.

When "AUTO" is selected for the recording speed, "AUTO" and the selected speed appear on the front display panel in turn.

66 EN

EDITING (cont.)

S-VIDEO/ VIDEO Connections

Various connection for editing tapes

The following three methods can be used for editing tapes.

VHS to S-VHS editing (VIDEO-VIDEO connection):

Although the picture quality is inherently limited by the original VHS quality, the edited tape has better picture quality than those made by VHS-to-VHS editing.

S-VHS to VHS editing (VIDEO-VIDEO connection):

Since the original source is recorded in S-VHS mode, the edited tape has better picture quality than those made by VHS-to-VHS editing.

S-VHS to S-VHS editing (S-VIDEO connection): Original picture quality of S-VHS made can be duplicated with minimal picture degradation. This is the best editing method you can use on S-VHS VCRs.

AYou can use a camcorder as the playback device and your VCR as the recording VCR.

This VCR (for recording)

IN F-1

+

To AUDIO

Input

Audio cable (supplied)

To S-VIDEO

Input

S-video cable (supplied)

To rear panel REMOTE PAUSE/ AV COMPULINK

connector

Mini-plug cable (not supplied)

(JVC camcorder only)



To Audio output



To EDIT

To S-video

Camcorder

output

(for playback)



BYou can use your VCR as the playback or recording VCR.

Ex. When using this VCR as the recording VCR

This VCR (for recording)









COMPONENT

VHF/UHF











VIDEO OUT

ANTENNA







Y

PB/CB

PR/CR



IN







OUT





IN



i.LINK IN/OUT











DV IN





S VIDEO



IN(L-1)

S VIDEO



S400

CABLE BOX











ANTENNA

DIGITAL OUT

REMOTE PAUSE/

R AUDIO L

VIDEO



AUDIO L

VIDEO

OUT

OPTICAL

R



PCM/DOLBY DIGITAL

AV COMPULINK





























D THEATER









IN(L-2)





REGION 1



To Audio

To S-video



Input

Input



Audio cable

S-video



(supplied)

cable





(supplied)

To AUDIO

To S VIDEO

OUT



OUT

Another VCR (for playback)

1 Make connections

A Connection with the camcorder

Connect an audio/S-video cable between the camcorder’s audio/S-video output connectors and your VCR’s audio/S-video input connectors.

When the JVC camcorder is equipped with the Master Edit Control, you can control the VCR from the camcorder. Connect the mini-plug cable (not supplied with this VCR) as illustrated on the left.

When using a camcorder with a monaural output, connect the audio output connector on the camcorder to the left audio input connector on this VCR.

NOTE:

If the camcorder does not have S-video output connector, use a video cable.

EN 67

B Connection with the VCR

Connect an audio/S-video cable between the playback VCR’s audio/S-video output connectors and the recording VCR’s audio/S-video input connectors.

When using this VCR as the recording VCR, connect this VCR’s audio/S-video input connectors to the audio/S-video output connectors on the other VCR.

If the playback VCR is monaural, connect the audio output connector on the playback VCR to the left audio input connector on this VCR.

NOTE:

If another VCR does not have S-video input/output connectors, use a video cable.

2 Load a cassette

Insert the cassette to be recorded on into this VCR (for recording).

3 Select input location on this VCR

L-1 or L-2 — when connecting the device to the audio/video or audio/S-video input connectors on the rear panel.

F-1 — when connecting the device to the audio/video or audio/S-video input connectors on the front panel.

On the front panel:

Press CHANNEL +/–.

On the Remote:

Press the Number key “0 (AUX)” or

TV/VCR CH +/–.

NOTES:

When using this VCR as the recording VCR, set the video input terminal setting correctly ( pg. 56).

When using this VCR as the playback VCR for editing, set “DIGITAL R3” to “OFF” ( pg. 54).



Set recording speed

4 Press REC SPEED to set the tape speed.

Input Source

Selectable Recording Speed

(Playback device)

(Recording device: This VCR)









Analog

D-VHS

HS, STD, LS3, LS5





input



S-VHS/VHS

SP, EP













5 Select video input terminal

Access the “IN/OUT FUNCTION” screen ( pg. 56).

When using S VIDEO terminal, set “FRONT AUX F-1” (or “REAR AUX L-1 (or L-2)” if you use the connectors on the rear) to “S-VIDEO”.

When using VIDEO terminal, set “FRONT AUX F-1” (or “REAR AUX L-1 (or L-2)” if you use the connectors on the rear) to “VIDEO”.

6 Set “PICTURE CONTROL” to “EDIT”

Access the “VIDEO FUNCTION” screen ( pg. 54).

7 Start playback

Press PLAY ( 3 ) on the connected device.

NOTE:

If the connected device is equipped with a superimpose/OSD disable feature then set it to “OFF” before starting playback.

8 Start recording

On the front panel:

Press REC ( ).

On the Remote:

Press REC ( ) and PLAY ( 3 ) at the same time.

To use a Master Edit Control-equipped JVC camcorder

1Access the “ADDITIONAL” screen ( pg. 57), then set “AV COMPU-LINK” to “OFF” after performing step 6.

The REMOTE PAUSE/AV COMPULINK connector works as a Remote Pause connector when “AV COMPU-LINK” is set to “OFF”.

For details, refer to the camcorder’s instruction manual.

2 Engage the VCR’s recording pause mode.

NOTES:

Be sure to select “AUTO” for “PICTURE CONTROL” (or “NORM” when “V. CALIBRATION” is set to “OFF”) after you finish dubbing the tapes ( pg. 54).

It is impossible to perform dubbing properly only with an audio cable. Connect also the video or S-video cable.

68 EN

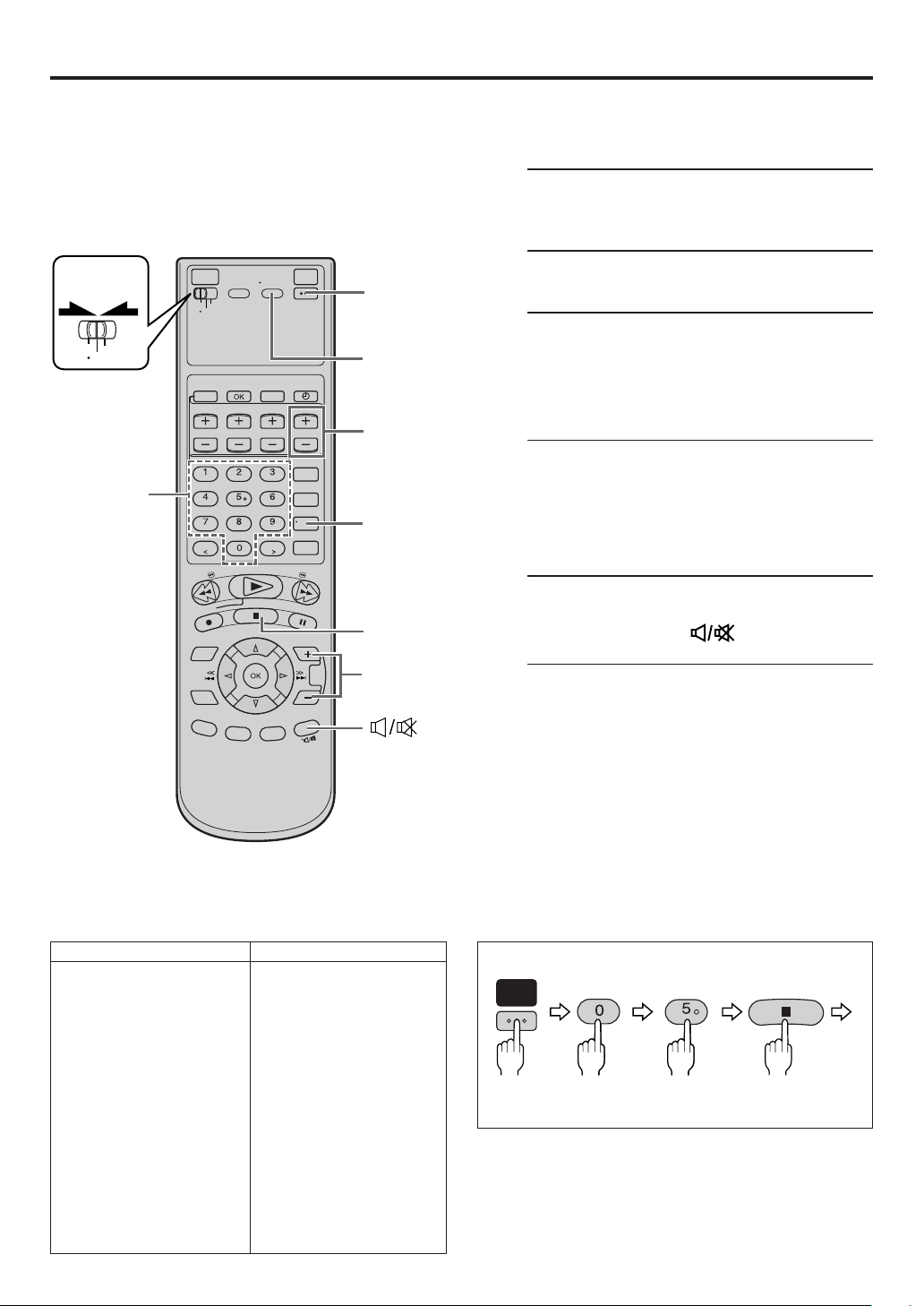

MULTI-BRAND REMOTE CONTROL

TV Brand

Setting

When programed (set) with a manufacturer’s (brand’s) code, this Remote can perform some of the remote control functions of the listed TVs.

1 Turn on the TV

Turn on the TV using the Power button on the TV or its Remote.

23- 1,3

4

VCR CABLE

TV/VCR

TV /DBS

4

3- 24

Number keys

ENTER

3- 3

TV VOL +/–

2 Set remote operation mode

Set the VCR/TV/CABLE/DBS selector to “TV”.

3 Set TV brand code

Follow the example shown below. 1 Press and hold POWER.

2Press the Number keys to enter your TV’s brand code by referring to the table below.

3 Press STOP ( 7 ), and release POWER.

Once you have set the Remote to operate a TV, you do not have to set it again until you replace the Remote’s batteries.

JVC and PANASONIC have two codes. If the TV does not function with one code, try entering the other.

Operate TV



4 Press one of the following buttons: POWER, TV/

VCR, TV/VCR CH +/–,

(TV Muting), TV

VOL +/–, and Number keys.



For some brands, you must press ENTER after having pressed the Number keys to enter a channel number.

To operate the VCR, set the VCR/TV/CABLE/ DBS selector back to “VCR”.

NOTES:

Depending on the type of TV, some or all functions cannot be operated using this Remote.

It is impossible to control a TV that does not have a remote sensor.

TV BRAND NAME

BRAND CODE

JVC

01, 03

HITACHI

10

MAGNAVOX

02

MITSUBISHI

03

PANASONIC

04, 11

RCA

05

SHARP

06

SONY

07

SAMSUNG

12

SANYO

13

SEARS

13

TOSHIBA

08

ZENITH

09





(Ex.) To set Remote to RCA 05:

POWER

AUX

STOP





JKL

Hold

Press in succession

Release

down





EN 69

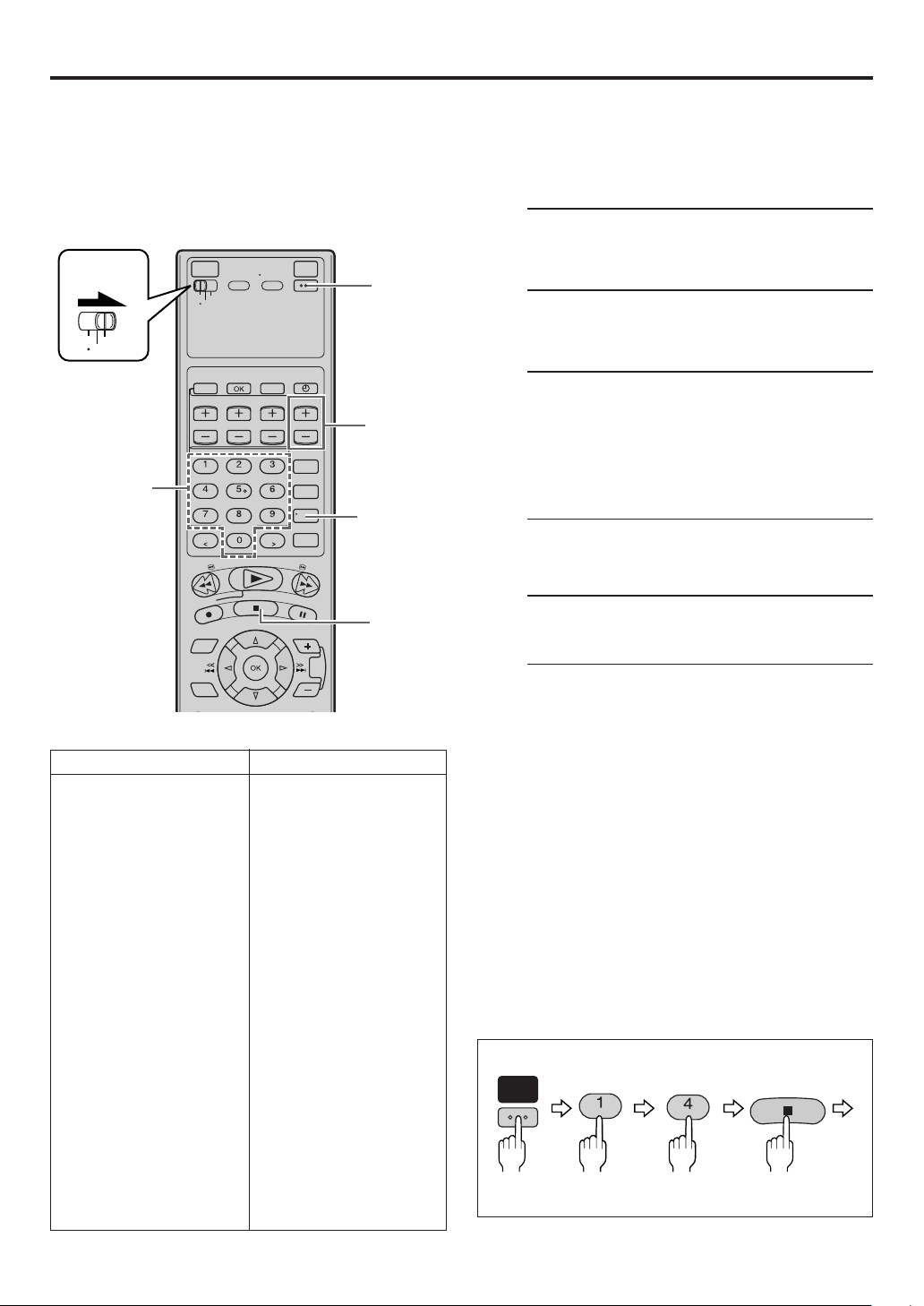

Cable Box

Brand Setting

2

3- 1,3



VCR CABLE

4



TV /DBS





4



TV/VCR

3- 24

CH +/–

ENTER

Number keys

3- 3

CABLE BOX BRAND NAME

BRAND CODE





ARCHER

01, 05, 17

CABLETENNA

01, 17

CABLEVIEW

15, 16, 17, 21, 25

CITIZEN

15, 16, 17, 21, 25

CURTIS

02

DIAMOND

01, 17

GC BRAND

15, 16, 17, 21, 25

GEMINI

15

GENERAL INSTRUMENTS

01, 04, 06, 11, 12, 15, 28

HAMLIN

10, 18, 23

JASCO

15

JERROLD

01, 04, 06, 11, 12, 15, 28

NOVAVISION

02

OAK

07

PANASONIC

13, 14

PULSER

15, 16, 17, 21, 25

RCA

13, 14

REGAL

10, 18, 23

REMBRANDT

01, 16, 17

SAMSUNG

05, 16, 24

SCIENTIFIC ATLANTA

02

SIGMA

07

SL MARX

05, 16, 17, 24, 25

SPRUCER

13, 14

STARGATE

05, 15, 16, 17, 21, 24, 25

TELEVIEW

05, 16, 24

TOCOM

01, 04, 16

UNIKA

01, 17

UNIVERSAL

16, 17, 25

VIDEOWAY

03, 09, 22

ZENITH

03, 09, 22





When programed (set) with a manufacturer’s (brand’s) code, this Remote can perform some of the remote control functions of the listed cable boxes. If your cable box does not function with a specified code, try other codes.

1 Turn on the cable box

Turn on the cable box using the Power button on the cable box or its Remote.

2 Set remote operation mode

Set the VCR/TV/CABLE/DBS selector to “CABLE/ DBS”.

3 Enter cable box brand code

Follow the example shown below. 1 Press and hold POWER.

2Press the Number keys to enter your cable box’s brand code by referring to the table

below.

3 Press STOP ( 7 ), and release POWER.

Once you have set the Remote to operate a cable box, you do not have to set it again until you replace the Remote’s batteries.

4 Operate cable box

Press one of the following buttons: POWER, TV/ VCR CH +/–, and Number keys.

For some brands, you must press ENTER after having pressed the Number keys to enter a channel number.

To change the cable box’s channels, press

TV/VCR CH +/– or the Number keys.

To operate the VCR, set the VCR/TV/CABLE/ DBS selector back to “VCR”.

NOTES:

Depending on the type of cable box, some or all functions cannot be operated using this Remote.

It is impossible to control a cable box that does not have a remote sensor.

It’s not possible to set the Remote for both your cable box and a DBS receiver at the same time. You can only set the Remote to operate one of these units at a time.

(Ex.) To set the Remote to RCA 14:

POWER



STOP



. , ?

GHI





Hold

Press in succession

Release

down

70 EN



MULTI-BRAND REMOTE CONTROL (cont.)

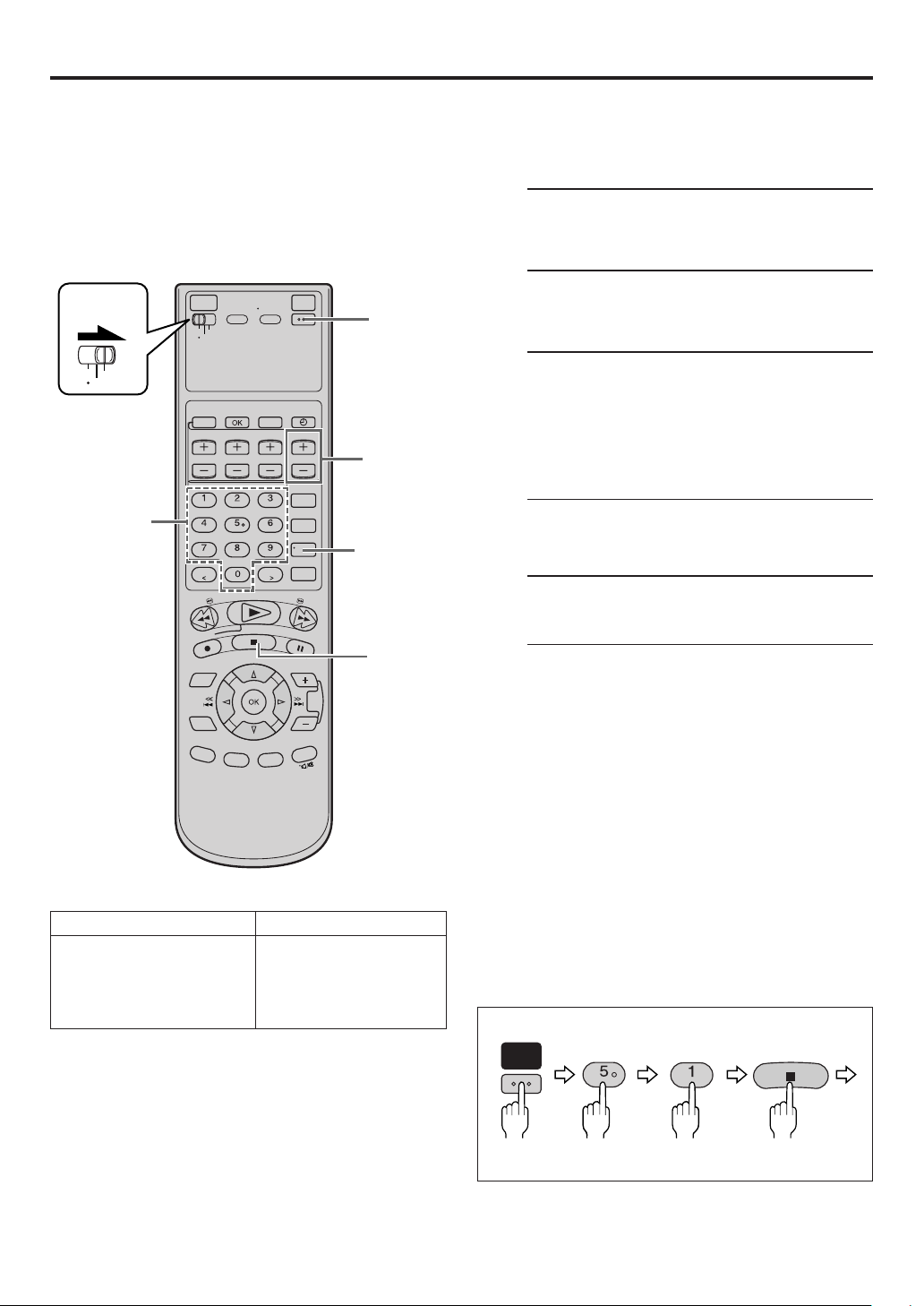

DBS Receiver

control functions of the listed DBS (Direct Broadcast





When programed (set) with a manufacturer’s (brand’s)

Brand Setting

code, this Remote can perform some of the remote

Turn on the DBS receiver





Satellite) receivers.





1 Turn on the DBS receiver using the Power button





on the DBS receiver or its Remote.

2



Set remote operation mode

3- 1,3

2 Set the VCR/TV/CABLE/DBS selector to “CABLE/



DBS”.

VCR CABLE

4

Enter DBS receiver brand code



3 Follow the example shown below.

TV /DBS







1 Press and hold POWER.





2 Press the Number keys to enter your DBS



4

receiver’s brand code by referring to the table



below.



TV/VCR

3 Press STOP ( 7 ), and release POWER.

3- 24

CH +/–

● Once you have set the Remote to operate a



ENTER

DBS receiver, you do not have to set it again

Number keys

until you replace the Remote’s batteries.





Operate DBS receiver





4 Press one of the following buttons: POWER, TV/





VCR CH +/–, and Number keys.







3- 3







● For some brands, you must press ENTER after





































having pressed the Number keys to enter a



















channel number.



















● To change the DBS receiver’s channels, press



















TV/VCR CH +/– or the Number keys.



















● To operate the VCR, set the VCR/TV/CABLE/



















DBS selector back to “VCR”.

DBS BRAND NAME

BRAND CODE





JVC (DISH Network)

51

ECHOSTAR (DISH Network)

51

SONY (DSS)

41

RCA (DSS)

40





NOTES:

Depending on the type of DBS receiver, some or all functions cannot be operated using this Remote.

It is impossible to control a DBS receiver that does not have a remote sensor.

It's not possible to set the Remote for both your DBS receiver and a cable box at the same time. You can only set the Remote to operate one of these units at a time.

(Ex.) To set the Remote to JVC 51:

POWER

STOP

JKL

. , ?

Hold

Press in succession

Release

down





EN 71

Changing

Remote Control

Code

POWER

PLAY (3)

IN F-1

+

1 5

2- 1

VCR CABLE

TV /DBS

2- 2

2- 3

NOTE:

When “POWER SAVE” is set to “ON”, you can not change the remote control code. Before changing the code, set “POWER SAVE” to “OFF” ( pg. 57).

The Remote is capable of controlling four JVC video recorders independently. Each of VCRs can respond to one of four codes (A, B, C or D).

This Remote control is preset to send A code signals because your VCR is initially set to respond to A code signals. You can easily change your Remote and the VCR to send and respond to B, C or D code signals.

When using four JVC VCRs, set four VCRs and their Remotes to different codes, so that the Remotes can operate these VCRs separately.

1 Set remote operation mode

Set the VCR/TV/CABLE/DBS selector to “VCR”.

2 Set remote control code for Remote

1 Press and hold A/B/C/D.

2Press the Number key “1” for A code control signals, “2” for B code control signals, “3” for C code control signals, “4” for D code control signals.

3 Press STOP ( 7 ), and release A/B/C/D.

3 Turn off VCR

Press POWER on the VCR.

4 Check remote control code for VCR

Press PLAY (3) on the VCR for more than 5 seconds.

The code currently set appears on the front display panel.

5 Turn on VCR

Press POWER on the Remote.

The code transmitted from the Remote blinks for a few seconds on the front display panel.

After the code disappears on the front display panel, make sure that the VCR is turned on by pressing POWER on the Remote.

To control four VCRs with the same Remote

You can control four JVC VCRs by switching the remote control code for the Remote between A, B, C and D ( step 2), keeping four VCRs to different control codes.

Press the Number key “1” for A code control signals, “2” for B code control signals, “3” for C code control signals, “4” for D code control signals. (To change only the remote control code for the Remote, DO NOT perform steps 3 to 5.)

(Ex.) To set Remote to B code:

STOP

A/B/C/D

Release



ABC

Hold

Press in succession

down



72 EN

TROUBLESHOOTING

Before requesting service, use this chart and see if you can repair the trouble yourself. Small problems are often easily corrected, and this can save you the trouble of sending your VCR off for repair.

POWER

SYMPTOM

1.The power will not come on.

2.The clock works, but the VCR’s power will not come on.

3.The Remote will not function.

TAPE TRANSPORT

SYMPTOM

1.The cassette gets stuck partway during loading, and is ejected.

PLAYBACK

SYMPTOM

1.The tape is running but the picture will not appear.

2.Breaks are noticeable in Hi-Fi sound track.

3.The playback picture is blurred or interrupted, even though TV broadcasts are clear.

4.The picture stops, or the black or mosaic noise appears when playing back a program recorded in D-VHS mode.

5.The Hi-Fi sound cannot be heard.

6.The D-VHS indicator does not light up when playing back a D-VHS cassette.

7.The mosaic noise appears when receiving the scenes with fast action or switching the display.

POSSIBLE CAUSE

The AC power cord is disconnected.

The VCR is in the timer recording standby mode with “AUTO TIMER” set to “OFF” ( pg. 57).

The batteries are discharged.

POSSIBLE CAUSE

● The cassette was inserted incorrectly.

POSSIBLE CAUSE

The TV receiver is set to the wrong mode.

Automatic tracking is engaged.

The video heads may be dirty.

The video heads may be dirty.

The digital program is not recorded in D-VHS mode.

Audio Monitor setting is incorrect.

The program is not recorded in D-VHS mode.

This occurs when receiving the program with the low transfer rate.

CORRECTIVE ACTION

Connect the AC power cord.

Press TIMER () to disengage.

Replace the dead batteries with new ones.

CORRECTIVE ACTION

Make sure the cassette’s window is facing up, the rear label side is facing you and the arrow on the front of the cassette is pointing towards the VCR. Then insert the cassette.

CORRECTIVE ACTION

Select the AV mode on the TV.

Disengage auto tracking and adjust the tracking manually ( pg. 23).

The heads must be cleaned. Use an optional dry cleaning cassette, or consult your Marantz authorized dealer.

The heads must be cleaned. Use an optional dry cleaning cassette, or consult your Marantz authorized dealer.

To record in the D-VHS mode, use a D-VHS cassette.

Set Audio Monitor to “ L R ” ( pg. 23).

To record the program in D-VHS mode, press D-VHS so that the D-VHS indicator lights up, then perform the recording ( pg. 26).

This noise already appears in the broadcast station, and this is not a malfunction of your VCR.













EN 73

















RECORDING































SYMPTOM



POSSIBLE CAUSE



CORRECTIVE ACTION





1.

Recording will not start, and



● There is no cassette loaded.



Insert a cassette.







“CASS” blinks on the front display



● The loaded cassette has had its



Remove the cassette and cover the







panel for about 5 seconds.



record safety tab removed.



hole with adhesive tape, or load a















cassette on which the record safety















tab is intact.





















2.

TV broadcasts will not be recorded



● The VCR has been set to “L-1”,



Select the appropriate channel on the







properly.



“L-2”, “F-1” or “I-1 etc.” input



VCR.











location by mistake.

























3.

Tape-to-tape editing will not work.



● The components have been



Connect the components correctly











incorrectly connected, or correct



( pg. 64, 66) or check “REAR AUX











video connector (S VIDEO, VIDEO



L-1 (or L-2)” and “FRONT AUX F-1”











or DV) is not selected.



setting ( pg. 56).











● The power to one or more of the



Make sure the power to all units is on.











units has not been turned on.















● The recording VCR’s input location



Select the appropriate input location











has been set incorrectly.



on the recording VCR.



















TIMER RECORDING































SYMPTOM



POSSIBLE CAUSE



CORRECTIVE ACTION





1.

Timer recording will not work.



● The clock and/or the timer have



Set the clock and/or timer correctly.











been set incorrectly.















● The timer is not engaged.



Press TIMER () and check to make















sure that ‰ appears on the front















display panel.











● The VCR has not been set up properly.



Re-perform the set-up procedures.















Make sure you have compensated for















guide channel and VCR or cable box















channel number mismatches















( pg. 36).





















2.

Timer programing will not work.



● Timer recording is in progress.



Timer programing cannot be performed















when timer recording is in progress.















Wait until it finishes.





















3.

“CASS” blinks on the front display



● The timer is engaged but there is no



Load a cassette with the record safety







panel.



cassette loaded.



tab intact, or with the hole covered















with adhesive tape.



















4. The cassette stops automatically,



● The loaded cassette has had its



Remove the cassette and cover its







and ‰, Q and $ on the front



record safety tab removed.



hole with adhesive tape, or replace it







display panel will not stop







with a cassette on which the safety







blinking.







tab is intact.











● The tape reaches its end during



The program may not have been











timer recording.



recorded in its entirety. Next time be















sure you have enough time on the















tape to record the entire broadcast.





















5.

‰ blinks for 10 seconds and the



TIMER () has been pressed when



Check the programed data and set







timer mode is disengaged.



there are no programs in memory, or



again if necessary, then press TIMER











the timer recording program has not



() again.











been set correctly.























6. Cable channels are not automatically



● The Controller is not properly



Connect the Controller correctly







switched during timer recording.



connected to the VCR.



( pg. 15).











● The input channel selected on the



After confirming your cable box’s











Cable Set Up screen is incorrect.



input channel number, re-access the















Cable Set Up screen and select the















correct number ( pg. 16).











● The cable box is turned off.



Make sure the power is on before















timer recording starts.



















CONTINUED ON NEXT PAGE \

74 EN



TROUBLESHOOTING (cont.)



















TIMER RECORDING



































SYMPTOM



POSSIBLE CAUSE





CORRECTIVE ACTION





7. Satellite channels are not



● The Controller is not properly





Connect the Controller correctly







automatically switched during timer



connected to the VCR.





( pg. 18).







recording.



● The input channel selected on the





After confirming your DBS receiver’s











DBS Receiver Set screen is incorrect.





input channel number, re-access the

















DBS Receiver Set screen and select

















the correct number ( pg. 19).











● The VCR is not set correctly to control





Set the correct DBS receiver brand











the DBS receiver.





code ( pg. 20).











● The DBS receiver is turned off.





Make sure the power is on before

















timer recording starts.























8.

Timer recording begins as



● Even though you do not use an





Set “INPUT CH” to “OFF”







scheduled, but the channel is



external cable box or DBS receiver,





( pg. 16, 19).







always incorrect.



on the Cable Set Up screen or DBS

















Receiver Set screen, “INPUT CH” is

















set to “ON”.





























9.

You moved, and now VCR Plus+



● The receivable stations in the new





Re-perform the Changing VCR Plus+







system does not work properly.



area are received on different





Setting procedure ( pg. 36).











channels than those in the previous

















area.



























10.“PROGRAM FULL” is displayed on



● All 24 programs of the VCR’s timer





Wait until a space in memory clears,







the screen.



memory are used.





or cancel unnecessary program

















information ( pg. 40).

































EN 75

















VIDEO NAVIGATION















SYMPTOM



POSSIBLE CAUSE



CORRECTIVE ACTION





1. Tape information screen does not



● The current tape inserted has not



Tape information cannot be shown if







appear for the currently inserted



been recorded on this VCR.



it has not been recorded on this VCR.







tape.





























2.

The VCR cannot search for the



● Two (or more) tape numbers are



Video Navigation cannot work







desired program.



recorded on one tape.



correctly on a tape if it has more than















one tape number. If this happens, fast-















forward the tape up to its end, eject it,















and try it again.











● The inserted program is not



It is impossible to search the desired











recorded on this VCR.



program which is not recorded on















this VCR using Video Navigation.





















3.

“MEMORY FULL” appears on the



● The VCR’s memory for Video



Check the remaining memory







screen when you try to start



Navigation is fully recorded.



( pg. 52). If it is full, delete







recording.







unnecessary Video Navigation















information ( pg. 51, 52).





















4.

The information data for Video



● The VCR’s memory for Video



Check the remaining memory







Navigation is not registered.



Navigation is fully recorded.



( pg. 52). If it is full, delete















unnecessary Video Navigation















information ( pg. 51, 52).











● “NAVIGATION” is set to “OFF”.



Set “NAVIGATION” to “ON”















( pg. 43).











● The recording time is not enough.



For details on the recording time for















Video Navigation, refer to “NOTES”















on page 42.































CONTINUED ON NEXT PAGE \

76 EN



TROUBLESHOOTING (cont.)



















OTHER PROBLEMS



































SYMPTOM



POSSIBLE CAUSE





CORRECTIVE ACTION





1.

When scanning channels, some of



● Those channels have been preset to





If you need the skipped channels,







them are skipped over.



be skipped.





restore them ( pg. 14).























2.

The channel cannot be changed.



● Recording is in progress.





Press PAUSE ( 8 ) to pause the

















recording, change channels, then

















press PLAY ( 3 ) to resume recording.























3.

The Remote will not operate your



● The brand codes are set incorrectly.





Reset the correct brand codes







TV or cable box or DBS receiver.









( pg. 68 – 70 ).























4.

Even though Auto or Semiauto



● The clock setting data received from





Select a different host channel during







Clock Set has been performed, the



the host channel is incorrect.





Semiauto Clock Set ( pg. 11), or







clock is incorrect.









perform Manual Clock Set ( pg. 12).























5.

“PM” blinks on the front display



● The VCR do not work properly.





Unplug the AC power plug once, then







panel.









plug it again.























6.

The subtitles and the menu screen



● The subtitle display on the TV is set





Set it to off.







are overlapped.



to on.



























MOISTURE CONDENSATION

Moisture in the air will condense on the VCR when you move it from a cold place to a warm place, or under extremely humid conditions—just as water droplets form on the surface of a glass filled with cold liquid. Moisture condensation on the head drum will cause damage to the tape. In conditions where condensation may occur, keep the VCR turned on for a few hours to evaporate the moisture before inserting a tape.

ABOUT HEAD CLEANING

Accumulation of dirt and other particles on the video heads may cause the playback picture to become blurred or interrupted. Be sure to contact your Marantz authorized dealer if such troubles occur.

ATTENTION

This VCR contains microcomputers. External electronic noise or interference can cause microcomputer to malfunction. If the VCR does not operate correctly switch its power off and unplug the AC power cord from the AC supply. Wait for a while and then plug the power back in. Eject and check the condition of the cassette. If everything appears normal, you can operate the VCR as usual.

MARANTZ EXPRESSLY DISCLAIMS ALL WARRANTIES, EXPRESS OR IMPLIED, AND SHALL NOT BE LIABLE FOR ANY AND ALL DAMAGES, CLAIMS OR LIABILITIES, DIRECT OR INDIRECT, ARISING FROM OR RELATING TO THE USE OF THIS PRODUCT WITH ANY OTHER PRODUCT, DEVICE, COMPONENT, PART OR MATERIAL THAT IS NON-CONFORMING OR NON-COMPATIBLE WITH THIS PRODUCT.

THE i.LINK/DV CONNECTION OF THIS PRODUCT CONFORMS TO IEC61883-1; IEC61883-2; IEC61883-4; IEEE STD 1394-1995; IEEE STD 1394A-2000; 1394 INTERFACE IMPLEMENTATION GUIDELINE FOR D-VHS VERSION 1.00 AND DTCP (DIGITAL TRANSMISSION CONTENT PROTECTION) SPECIFICATION VERSION 1.1

(THE “SPECIFICATIONS”). USE OF THIS PRODUCT WITH ANOTHER PRODUCT, DEVICE, COMPONENT, PART OR MATERIAL THAT IS NOT IN CONFORMITY OR COMPLIANT WITH THE SPECIFICATIONS, OR THAT IMPLEMENT THE SPECIFICATIONS IN A NON-CONFORMING OR NON-COMPATIBLE MANNER WITH THIS PRODUCT, MAY NOT BE SUPPORTED AND MAY CAUSE DAMAGE TO OR MALFUNCTION OF THIS PRODUCT. ANY USE OF THIS PRODUCT WITH A NON-CONFORMING OR NON-COMPATIBLE PRODUCT, DEVICE, COMPONENT, PART OR OTHER MATERIAL SHALL BE AT THE USER’S SOLE AND EXCLUSIVE RISK.

EN 77

The following conditions are product features and do not indicate mechanical problems.

Playback of tapes recorded in D-VHS mode

You may see a mosaic (block) noise, grayed images, or a still image in cases of excessive distortion caused when playing back a damaged tape or when the heads are momentarily dirty.

It takes a moment after you press PLAY (3) until the image appears and sound is heard.

It takes a moment after you switch playback speeds (when switching from special effect playback to normal playback, for example) until the image appears and sound is heard. For a few seconds, the image may be played back out of synch with the sound.

Searching images on D-VHS tapes

The images appear frame by frame.

Block noise may appears on the bottom half of images.

When the blank portion is reached, a still scene of the last recorded image is displayed.

The picture stops/There is no sound

When two or more devices are connected to this VCR with the i.LINK cable (a camcorder and another i.LINK-compatible device), do not turn on the camcorder if you record a program from an another i.Link-compatible device. Turning on and off the camcorder may cause momentary still images and loss of sound.

Image or sound is distorted

When recording from a camcorder connected to this VCR with the i.LINK cable, the image or sound may be distorted. If this occurs, insert a D-VHS cassette in the VCR and turn off and on the VCR, then start recording again. If the problem is not fixed, record using the audio/video input connectors instead of i.LINK connector.

Recording from camcorders and other devices via i.LINK connector

You may see a mosaic (block) noise.

For scenes with fast action, the image may jitter. This does not affect recording, which will proceed as usual.

When you watch the camcorder’s, search images through this VCR, the block noise may appear.

When you record audio-dubbed DVC cassettes (tapes which have four recorded channels), sound may not be heard for the first few seconds.

When you eject and insert D-VHS cassettes, the sound may be interrupted for an instant.

When you press REC SPEED to switch recording speed, the sound may be interrupted for an instant.

Incorrect image formatting for wide TVs

If you have connected two different devices using the S-video output connectors on the back of the VCR, the sensing signal for wide TVs may not be output correctly depending on the connected devices. If this occurs, use the TV controls to switch the screen size.

78 EN

TROUBLESHOOTING (cont.)

Error Codes and Messages

Some error codes and messages may appear on the TV screen when operating the VCR. Refer to the chart below for the solution.

CODE

MESSAGE

DESCRIPTION







102

REC PROHIBITED

● An attempt was made to make a D-VHS recording of a program for





which only the analog information is copy protected.





● While making a D-VHS recording of a program, a signal in which





only the analog information is copy protected was input to this VCR.







103

REC PROHIBITED

● An attempt was made to dub a D-VHS recording of a digitally copy





protected program.





● While dubbing a D-VHS recording, digitally copy protected





information was input to this VCR.





● This VCR supports copy protection technologies such as DTLA, and





cannot record programs that employ digital copy protection.







104

CAN NOT DECODE VIDEO OR AUDIO

● A signal that is not compatible with this VCR was input.



USE SET TOP BOX OR HDTV TUNER

● Switch to the analog input for recording. (It may be possible to play





back the material if using a digital tuner*, etc.)







105

CAN NOT REC DIGITAL INPUT BY

● An attempt was made to make an S-VHS/VHS recording of a signal



S-VHS/VHS

from an i.LINK device other than a digital tuner*.



CHOOSE ANALOG INPUT

● The i.LINK connector on this VCR is intended only for D-VHS





recording. This VCR does not convert a digital signal into an analog





signal for recording. Switch to the analog input for recording.







107

CAN NOT REC DIGITAL INPUT BY

● An attempt was made to make an S-VHS/VHS recording using the



S-VHS/VHS

timer function with “i.LINK” selected on the digital tuner* side.



USE ANALOG TIMER PROGRAMMING

● The i.LINK connector on this VCR is intended only for D-VHS





recording. This VCR does not convert a digital signal into an analog





signal for recording. Also, it is not possible to make a D-VHS





recording on VHS tape. Switch to the analog input for recording.







108

REC BY HS MODE

● When 720p, 1080i signals are recorded in STD/LS3/LS5 mode, select





HS mode to record program properly.







200

CAN NOT DECODE VIDEO OR AUDIO

● An attempt was made to play back a signal that is not supported by



USE SET TOP BOX OR HDTV TUNER

this VCR.





● To play back the signal, use the digital tuner*, etc., that was used to





record the signal.







201

WAIT A MINUTE

● Normal playback is being prevented by mosaic noise, etc.



CALIBRATING. . .

● Wait while the VCR calibrates itself so that it can output a normal





image.







202

COPY RESTRICTED PROG OUTPUT

● When playing back a program that was copy protected in 1080i,



480i VIDEO

720p, or 480p mode, the VCR down-converts to 480i mode for output.







203

COPY RESTRICTED PROG CAN NOT

● An attempt was made to play back a tape containing a copy protected



PLAY BACK

program.





● Even if you record a copy protected program, this VCR cannot play it





back.







205

CAN NOT PLAY BACK THIS TAPE

● An attempt was made to play back a tape containing an invalid





D-VHS recording.







300

CAN NOT DECODE VIDEO OR AUDIO

● A signal format that is not supported by this VCR was input.



USE SET TOP BOX OR HDTV TUNER

● Use a digital tuner*, etc.







301

TOO MANY i.LINK INSTRUMENTS

● A signal containing too much data was input to the i.LINK connector



READ INST.BOOK

on this VCR.





● There are too many devices with i.LINK connectors, such as digital





tuners and digital video cameras, connected to the i.LINK connector





on this VCR. Turn off any devices that are not in use.







302

COPY RESTRICTED PROG OUTPUT

● When playing back a program that was copy protected in 1080i,



480i VIDEO

720p, or 480p mode, the VCR down-converts to 480i mode for output.







* For details of a digital tuner, refer to the instruction manual of the digital tuner.

EN 79

Questions and answers

PLAYBACK

Q. What happens if the tape reaches its end during playback or search?

A. The VCR automatically rewinds it to the beginning.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Q.Can the VCR indefinitely remain in still mode?

A.No. It stops automatically after 5 minutes to protect

the heads.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Q.During picture search, still picture playback and frame-by-frame playback, the picture is intermittent. What’s the cause?

A.Picture loss occurs when these types of playback are attempted with a tape recorded in LP mode. Pressing PLAY ( 3 ) to return to normal playback will restore

the picture.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Q. When returning from variable-speed picture search to normal playback, the picture is disturbed. Should I be concerned about this?

A. No, it is normal.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Q. When playing back programs that have been timerrecorded consecutively (such one program from 8:00 to 9:00 and another one from 9:00 to 10:00), the picture and sound become momentarily distorted where the first program ends and the second program begins. Is this a malfunction?

A. No. This is normal.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Q.Other than preventing further recording, what effect does removing the safety tab have?

A.It disables marking of index codes and tape numbers

for Video Navigation.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Q. Sometimes, during index search, the VCR cannot find the program I want to see. Why not?

A. There may be index codes too close together.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Q.During playback, on-screen display sometimes jitters. Why does this happen?

A.If the condition of the tape being played back is not good, jittering of the video (including on-screen display) may occur.

RECORDING

Q.When I pause and then resume a recording, the end of the recording before the pause is overlapped by the new recording. Why does this happen?

A.This is normal. It reduces distortion at the pause and

resume points.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Q.Can the VCR indefinitely remain in the recording pause mode?

A.No. The VCR automatically stops after 5 minutes to protect the heads. When paused during Instant Timer Recording (ITR), the VCR shuts off automatically after

5 minutes.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Q.What happens if the tape reaches its end during recording?

A.The VCR stops, then “” and “#” blink on the front display panel.

TIMER RECORDING

Q.” and “‰” remain lit on the front display panel.

Is there a problem?

A.No. This is a normal condition for a timer recording

in progress.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Q.Can I program the timer while I’m watching a tape or a TV broadcast?

A.Yes, but while you are setting the timer you will not see the tape’s or broadcast program’s picture as it is replaced by the on-screen menu. (The sound from the tape or broadcast program will be heard during the timer setting.)

80 EN

INDEX

Glossary

Digital Broadcasts and D-VHS

Great changes in the entertainment and media industries are transforming the way we use VHS, and digital broadcasting is a good example of what the future holds. Digital broadcasting now allows more efficient use of the limited broadcast spectrum besides delivering highdefinition video, outstanding sound quality, multiple channels, and multiple features.

Meanwhile, VHS has evolved with the advances in broadcasting in response to the need for continued use of existing VHS resources and the trend toward digital broadcasts.

Digital broadcasting is not limited to transmissions of audio and video content. A variety of other data can be sent as well. As the means to record all of these digital signals while supporting playback of the extensive VHS library of analog tapes, D-VHS was developed.

This VCR is equipped with an MPEG-2 encoder and decoder (codec) for digital recording and playback of analog signals.

D-VHS is the key to a smooth transition from analog to digital formats. This next-generation home video technology lets us continue to enjoy home video entertainment as popularized in the last century well into the next.

Linear PCM Audio

Conventional D-VHS recording uses MPEG-1 Layer 2 compression to record analog audio digitally.

For recording without compression, this VCR also features PCM recording (pulse code modulation: 48 kHz, 16-bit, 1536 kbps).

Used with high-resolution HS/STD mode, it offers outstanding high-fidelity recording and playback. (Recording from audio input alone is not supported.)

Dolby Digital

A form of digital audio coding developed by Dolby Laboratories to deliver surround sound with 5.1 channels (front left and right, center, rear left and right, and a channel for LFE (low-frequency effects).

When you play back a digital tape encoded in Dolby Digital format, the Dolby Digital bistream is sent from the DIGITAL OUT OPTICAL connector.

Set “OPTICAL OUT” to “Dolby D” ( pg. 55).

Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic", and the double-D symbol are trademarks of Dolby Laboratories. Confidential unpublished works. Copyright 19921997 Dolby Laboratories. All rights reserved.

i.LINK

“i.LINK” is a digital serial interface that allows devices equipped with an i.LINK connector to exchange digital video signals, digital audio signals, and device control signals bi-directionally over a single cable.

i.Link refers to the IEEE1394-1995 industry specification and extensions thereof. The logo is used for products compliant with the i.Link standard.

MPEG2

Abbreviation for Moving Picture Experts Group, Phase 2. Unlike previous compression methods, MPEG-2 uses an extremely efficient compression method that supports high-definition video. Based on the principle that much video data remains unchanged from one frame to the next, predictive coding is performed to eliminate redundant data.

Specifically, compression is applied between frames (based on the correlation of frame data) and within frames (based on DCT, or discrete cosine transform) for an extremely efficient compression technique.

EN 81

List of terms

This guide serves as a quick way to locate frequently used terms and on-screen display names.

A

Accidental erasure prevention 30 Audio Monitor 23

Auto Daylight Saving Time 11 AUTO SP→ EP TIMER 57 AUTO TIMER 57

Automatic tracking 23 AV COMPU-LINK 58

C

Cable box setting Brand 16

Input channel 16 Installing Controller 15

Channel No. indication 28 Clock setting

Manual setting 12 Preparations 10 Semiauto setting 11

Clock time 28 Connection 7

Connection to TV 7 Component Video Connection 8 S-VIDEO connection 8

Contents 6

Counter reset 22, 85

D

DBS receiver setting

Brand 19

Input channel 19

Installing Controller 18

DIGITAL R3 54

DISPLAY 59

DV AUDIO REC 55

E

Editing

i.LINK/DV Connections 64 Remote Pause function 58 S-VIDEO/VIDEO Connections 66

Express timer programing 38

F

FRONT AUX F-1 56

G

GRAY BACK 57

Guide channel 36

Glossary 80

H

Host channel 9

I

Index

Front display panel 84 Front panel 82

Rear panel 83 Remote 86 On-screen display 85

Index Search 24

Instant Timer Recording (ITR) 28 i.LINK Setting 60

J

JLIP ID Number Setting 63

M

Manual tracking 23 Multi-Brand Remote

Controlling four JVC VCRs 71 Setting Cable Box brand 69 Setting DBS receiver brand 70 Setting TV brand 68

N

Next Function Memory 24

O

On-screen display 29, 85 OPTICAL OUT 55

P

PBS channel 9

PICTURE CONTROL 54

Playback 21

Plug & Play 9

POWER SAVE 57

R

REAR AUX L-1 56

REAR AUX L-2 56 Recording

D-VHS Recording 26 S-VHS/VHS Recording 27

Recording speed 26, 27, 65 Repeat playback 22

S

Satellite Auto Recording 62 Skip Search 24

Special effect playback Frame-by-Frame Playback 32 High-Speed Picture Search 31 Picture Search 31

Slow Motion Playback 33

Still Picture Playback 32 Variable-Speed Picture Search 31

Specifications 87

STD AUDIO REC MODE 55 SUPERIMPOSE 57

S-VHS ET 59 S-VHS MODE 58

T

Tape position indicator 22 Tape remaining time 85 Time counter 22, 85 Time zone selection 11 Timer recording

Canceling 40

Changing 40

Checking 40 Express 38

Guide channel setting 36 Overlap 41

VCR Plus+ 34 Tracking 23 Troubleshooting 72 Tuner setting

Adding channels 14 Auto Channel Set 13 Manual Channel Set 14 Skipping channels 14

TV OUTPUT 1 56

TV OUTPUT 2 56

V

VCR Plus+ Setting 36

VCR Plus+ Timer programing 34 V. CALIBRATION 54

Video Navigation Checking memory 52 Editing titles 48 Finding tapes 44 Playback 42

VIDEO STABILIZER 54

2ND AUDIO REC 55

82 EN

INDEX (cont.)

Front panel

1



23

4

5 6 7

8

S-VIDEO

VIDEO

TIMER

























IN F-1









MENU







STOP/

PLAY







EJECT

(MONO) L—AUDIO—R













— CHANNEL + REC

PAUSE

REW FF D-VHS

















+













9 0!@#$

1 S-VIDEO/VIDEO/AUDIO input connectors (F-1)

8 PLAY ( 3 ) button : pg. 21

: pg. 66

9 CHANNEL + and – buttons : pg. 23, 26, 27

2 POWER button : pg. 21, 27

0 REC ( ¶ ) button : pg. 26, 27

3 TIMER ‰ button : pg. 35, 39, 40

! PAUSE ( 8 ) button : pg. 27, 32

4 Cassette loading slot

@ REW (

1 ) button : pg. 21, 31

5 Remote sensor

# FF ( ¡

) button : pg. 21, 31

6 STOP/EJECT ( 7/0 ) button : pg. 21, 27

$ D-VHS button : pg. 27

7 Front display panel : pg. 84



































































































































































































To access covered buttons/connectors, pull and open the cover.

EN 83

Rear panel

1

2

3









4





5

6



















COMPONENT

VHF/UHF





















ANTENNA





















VIDEO OUT





















IN















Y

PB/CB

PR/CR



































OUT





IN



i.LINK IN/OUT

















S VIDEO

DV IN













S VIDEO



IN(L-1)

S400



























CABLE BOX















ANTENNA

DIGITAL OUT



















OUT

OPTICAL





REMOTE PAUSE/



AUDIO







AUDIO L







R

L

VIDEO

R

VIDEO



PCM/DOLBY DIGITAL





AV COMPULINK









































D THEATER

















IN(L-2)



REGION 1

























7 8







9





0

!@

#

1 AC power cord : pg. 7

2 Cooling fan

This prevents the temperature from rising inside the VCR. Do not remove it.

Install the VCR so as not to block the area around the cooling fan.

3 JLIP terminal : pg. 63

4 Component video output connectors : pg. 8

5 ANTENNA IN terminal : pg. 7

6 i.LINK IN/OUT, DV IN Connector (i.Link*) :pg. 64

*i.Link refers to the IEEE1394-1995 industry specifi-

cation and extensions thereof. Thelogo is used for products compliant with the i.Link standard.

7 CABLE BOX Controller connector :pg. 15, 18

8 REMOTE PAUSE/AV COMPULINK terminal

REMOTE PAUSE terminal : pg. 67

AV COMPULINK terminal : pg. 58

9 S VIDEO/AUDIO/VIDEO OUT connectors :pg. 7, 8, 66

0 S VIDEO/AUDIO/VIDEO IN connectors (L-2):pg. 66

!S VIDEO/AUDIO/VIDEO IN connectors (L-1):pg. 66

@ ANTENNA OUT terminal : pg. 7

# DIGITAL OUT OPTICAL terminal : pg. 55

84 EN

INDEX (cont.)

Front display panel

1

2

3

4

5









6 7

1 Channel and auxiliary input (“L-1”, “L-2”, “F-1”



5 D-Theater indicator : pg. 25

and “I-1” etc.)



6 D-VHS indicator : pg. 26, 27

Clock time : pg. 28



7 S-VHS indicator : pg. 58, 59

2 Timer mode indicator : pg. 35, 39









3 Record mode indicator : pg. 26 – 28









4 Play mode indicator : pg. 21, 22









EN 85

On-screen display



D-VHS INDEX -9



D-VHS STD

HD

CH 123

B

E

L R

12:59 AM



SAP

D-VHS MARANTZ MV8300

OFF

CC1

CC2

CC3

CC4

1 Cassette indication

2 Cassette type indication : pg. 26

3 Index no. indication : pg. 24

4 VCR operation mode indication

5 Audio monitor indications : pg. 23

6 Clock time Time counter*

Tape remaining time (When “REMAIN” appears)**

*To reset the time counter, press C. RESET on the Remote. The counter reading becomes “0:00:00”. It is also reset when a tape is inserted.

**The tape remaining time is calculated based on the recording speed being used. The indicated remaining time is only an estimate.

7 Recording mode indication : pg. 26, 27 Recording speed indication

8 Image format (HD/SD)

9 Channel and auxiliary input (“L-1”, “L-2”, “F-1” and “I-1” etc.)

0 Audio Indications

STEREO

When receiving the stereo broadcast





SAP

When receiving SAP (Second Audio



Program) broadcast





SAP STEREO

When receiving stereo and SAP



broadcast





Dolby D

When playing back and receiving a



Dolby Digital signals





STREAM

When playing back and receiving a



audio signals in other new formats





PCM

When playing back and receiving a



PCM audio signals





AUDIO 1

Depends on the “DV AUDIO REC”

AUDIO 2

setting ( pg.55)

1+2 MIX







! Icons : pg. 25

: appears when a D-VHS cassette contains the multiple programs

: appears when a D-VHS cassette contains the multiple angle

: appears when a D-VHS cassette contains the audio in multiple language

: appears when a D-VHS cassette contains the subtitle in multiple language

NOTE:

The subtitles does not appear while the on-screen display is displayed.

@ Selections of the selected icon (!)

#Model name of the device connected to the i.LINK connector

$Brand name of the device connected to the i.LINK connector

%Type of device connected to the i.LINK connector

^ Tape position indicator : pg. 22

86 EN

INDEX (cont.)

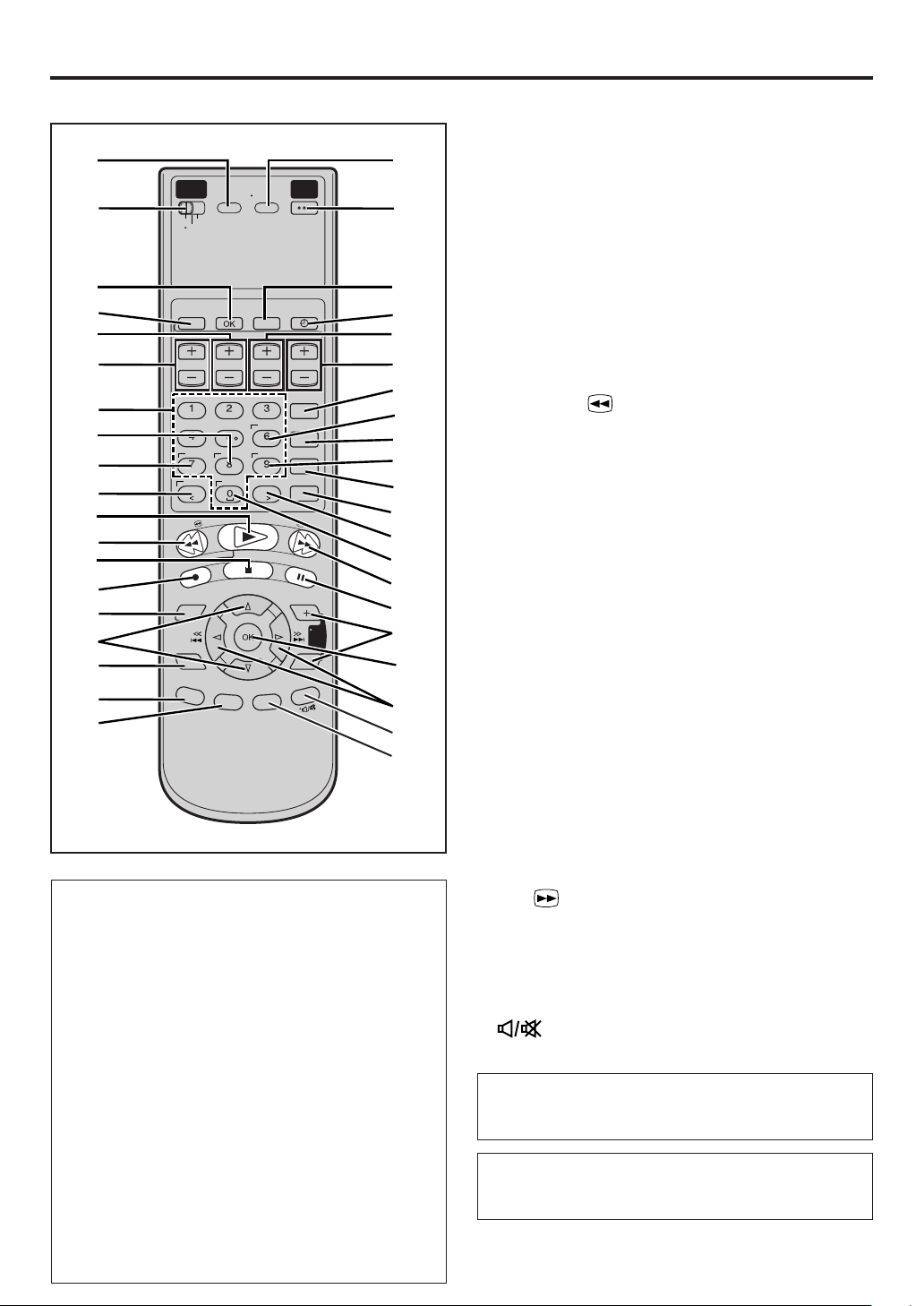

Remote













1











)



REMOTE





POWER





CODE





q

2

A/B/C/D TV/VCR





VCR CABLE











TV /DBS











3











w

4

PROGRAM



PROG.CHECK TIMER

e











5











r

6

START

STOP

DATE

TV/VCR CH

t











7











y









REC

u

. , ?

ABC

DEF



LINK

8





SUBTITLE













REC

i

GHI

JKL

MNO

SPEED



DBS

DAILY

WEEKLY





9

PQRS

TUV

WXYZ

ENTER

o





0

C. RESET

AUX







p

CANCEL







SKIP







SEARCH

!

REW

PLAY



FF

Q

@











W

#



STOP

PAUSE

E

REC





$











R

%

MENU









T











^









TV

Y









VOL











U

&

NAVI

















TOR





















ONI



*

BA

ENTER



A.M















CK

OSD

DISPLAY





I











(





















O













P

How to use the Remote

Before use, insert two AA size batteries into the Remote with the polarity (ª and ·) matched correctly as indicated on the battery compartment or on the lid.

The Remote can operate most of your VCR’s functions, as well as basic functions of TV sets, cable boxes and DBS receivers.

Point the Remote toward the remote sensor on the target component.

The maximum operating distance of the remote control is about 8 m.

NOTES:

If the Remote does not work properly, remove its batteries, wait for a few seconds, replace the batteries and then try again.

If the batteries of the Remote are discharged, the Remote will not be able to control the TV, cable box or DBS receiver. Replace the batteries.

1 A/B/C/D button : pg. 71

2 VCR/TV/CABLE/DBS selector : pg. 68 – 71

3 OK Button

4 PROGRAM button : pg. 34, 38 5 STOP +/– button : pg. 35, 38 6 START +/– button : pg. 35, 38 7 Number keys : pg. 26, 27, 34

Character input buttons : pg. 49 8 DAILY button : pg. 35, 39

9 DBS button : pg. 39

0 CANCEL button : pg. 34, 40

C. (Counter) RESET button : pg. 85

< button : pg. 49

!PLAY ( 3 ) button: pg. 21

@ REW ( 1 ) button : pg. 21, 31

# STOP ( 7 ) button : pg. 21, 27 $ REC ( ¶ ) button : pg. 26, 27 % MENU button: pg. 10

^ %fi buttons: pg. 11 & NAVI button : pg. 42

* BACK button : pg. 35, 53

(OSD button : pg. 29 ENTER button : pg. 68 – 70

) TV/VCR button : pg. 68

q POWER button : pg. 21, 27

w PROG. CHECK button : pg. 40 e TIMER ‰ button : pg. 35, 39, 40 r DATE +/– button : pg. 35, 38

t TV/VCR CH +/– buttons : pg. 26, 38, 68 – 70 y REC LINK button : pg. 62

u SUBTITLE button : pg. 25

i REC SPEED button : pg. 26, 27 o WEEKLY button : pg. 35, 39 p ENTER button

Q SKIP SEARCH button : pg. 24 W > button : pg. 49

E AUX button : pg. 67

R FF ( ¡ ) button : pg. 21, 31 T PAUSE ( 8 ) button : pg. 27, 32 Y TV VOL +/– button : pg. 68

U OK Button

I 4 ¢ (@ #) button : pg. 24

O A. (Audio) MONITOR button : pg. 23 (TV Muting) button : pg. 68

P DISPLAY button : pg. 28

The glow-in-the-dark buttons shown in white on the illustration on the left column are helpful when using the Remote in darkened rooms.

Buttons with a small dot on the left side of the name can also be used to operate your TV after setting the VCR/TV/CABLE/DBS selector to “TV”. ( pg. 68).

SPECIFICATIONS

EN 87

GENERAL

Power requirement

: AC 120 V`, 60 Hz

Power consumption



Power on

: 42 W

Power off

: 18 W

Temperature



Operating

: 5°C to 40°C (41°F to 104°F)

Storage

: –20°C to 60°C (–4°F to140°F)

Operating position

: Horizontal only

Dimensions (W x H x D) : 435 mm x 94 mm x 383 mm (17-3/16" x 3-3/4" x 15-1/8")

Weight

: 5.5 kg (12.2 lbs)

Maximum recording time



D-VHS (HS)

: 210 min. with DF-420 video



cassette

D-VHS (STD)

: 420 min. with DF-420 video



cassette

D-VHS (LS3)

: 1260 min. with DF-420 video



cassette

D-VHS (LS5)

: 2100 min. with DF-420 video



cassette

S-VHS/VHS (SP)

: 210 min. with ST-210 video



cassette

S-VHS/VHS (EP)

: 630 min. with ST-210 video



cassette

VIDEO/AUDIO (D-VHS)



Video format

: MPEG2 standard

Audio format

: Encode MPEG1 Layer2



Decode MPEG1 Layer2/



Dolby Digital

Track composition

LINEAR PCM (HS/STD)



Tape speed

: 33.4 mm/sec (HS mode)



16.67 mm/sec (STD mode)



5.55 mm/sec (LS3 mode)



3.33 mm/sec (LS5 mode)

Head azimuth

: ±30 deg

Drum rotation

: 1800 rpm

Tracking system

: CTL track system

Recording specification



Main data input rate : 28.2 Mbps (HS mode)



14.1 Mbps (STD mode)



4.7 Mbps (LS3 mode)



2.8 Mbps (LS5 mode)

Interface

: IEEE1394 compliant



DTCP digital copy protection



compatible

VIDEO/AUDIO (S-VHS/VHS)

Format

: S-VHS/VHS NTSC standard

Signal system

: NTSC-type color signal and



EIA monochrome signal,

Recording/

525 lines/60 fields



Playback system

: DA-4 (Double Azimuth) head



helical scan system

Signal-to-noise ratio

: 45 dB

Frequency range



Normal audio

: 70 Hz to 10,000 Hz

Hi-Fi audio

: 20 Hz to 20,000 Hz

TUNER

Tuning system

: Frequency-synthesized tuner

Channel coverage



VHF

: Channels 2–13

UHF

: Channels 14–69

CATV

: 113 Channels

TIMER



Clock reference

: Quartz

Program capacity

: 1-year programmable timer/



24 programs

Memory backup time

: Approx. 10 min.

CONNECTORS



Input/Output

: i.LINK IN/OUT (DV IN) x 2



(4-pin, S400)



RCA connectors



(IN x 3, OUT x 2)



S-video connectors



(IN x 3, OUT x 2)



Component video OUT



(Y, PB/CB, PR/CR) x 1



Digital OUT



(optical) x 1

ACCESSORIES



Provided accessories

: Infrared remote control unit,



“AA” battery x 2,



Audio cable,



RF cable (F-type),



S-video cable (4-pin),



Controller

Specifications shown are for SP mode unless specified otherwise.

E. & O.E. Design and specifications subject to change without notice.

www.marantz.com

You can find your nearest authorized distributor or dealer on our website.

JAPAN

Marantz Japan, Inc.

35-1 Sagami Ohno 7-Chome, Sagamihara-shi, Kanagawa 228-8505, Japan

U.S.A.

Marantz America, Inc.

1100 Maplewood Drive, Itasca, IL 60143, U.S.A.

EUROPE

Marantz Europe B.V.

P.O. Box 8744, 5605 LS Eindhoven, The Netherlands











is a registered trademark.

Printed in Japan

2003/03 LPT0790-001A
