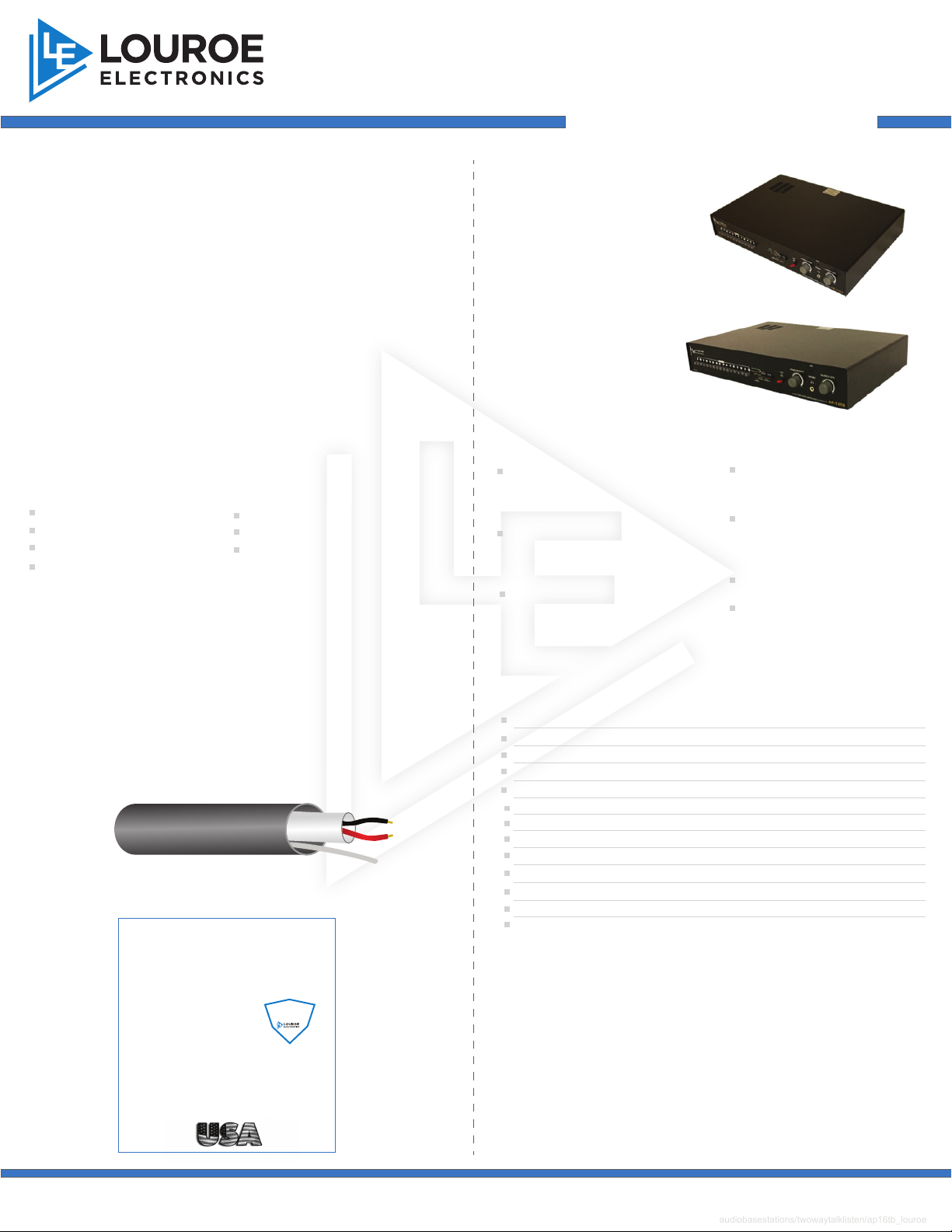

DESCRIPTION
The AP-12TB and AP-16TB are twelve and sixteen zone audio
monitoring base stations designed for either one-way listen or two-way
listen/talkback. As a complete system, any zone can be monitored by
manually pressing the button switch for the desired zone. It has
input/output to a DVR/VCR for recording and playback. In addition,
each zone has an audio output for connection to a DVR with multiple
audio inputs. Special equalizing filters enhance playback from a VCR.
Each zone has a switch closure for activating a camera, etc., when
zone switch is pressed. A 24 Vdc power supply is included. For
one-way listen-only monitoring, Louroe microphones Model A, B, C, D,
D-V, E, K and L-DT) are compatible. For two-way listen/talkback,
Louroe Speaker/Microphones (TLI, TLO, TLM or TLSP) are
compatible.
AUDIO BASE STATIONS
AP-12TB/ AP-16TB
TECHNICAL DATA SHEET
AP12-TB
AP16-TB
APPLICATION
The AP-12TB and AP-16TB Base Station can be used in situations
such as:
Observation Rooms
Classrooms
Storage Facilities
Warehouses
Maintenance Yards
Building Peripherals
Anywhere CCTV Cameras Are
Installed
WIRING REQUIREMENTS
20 Conductor shielded cable, 22 gauge with a 24 gauge drain wire.
Note: Unshielded cable is not satisfactory for audio systems.
IMPORTANT NOTICE
When this equipment is used as part of an audio
monitoring system, the law requires that the
public be given notice of AUDIO MONITORING
ON THE PREMISES. A decal notice is included
with each microphone shipped.
FEDERAL LAW REFERENCES:
Federal Regulations, US Code, Title 18. Crime
and Criminal Procedure, Sec 2510.
MANUFACTURED
IN THE
AUDIO
MONITORING
On
These Premises
®
FEATURES
3" speaker for monitoring live audio
Built-in amplification for playback
from DVR/VCR
Has multliple audio outputs 12 to16
for connection to a DVR with
multiple audio inputs
Provides two-way listen/talkback to
remote speaker/microphone
Built-in microphone for talkback to
remote speaker
Switch closure (each zone) for
camera activationor other
annunciations (100mA max)
Auxiliary microphone for talkback
Can be 19" rack mounted.
Requested RM-1907, AP-16tb
rack mount kit.
SPECIFICATIONS
Input sensitivity (from remote mic)
Input sensivity (talk-back microphone)
Monitoring power output
Talkback power output
Audio line output impedance
Audio input impedance
Audio frequency response
Audio frequency response (enhanced)
Headphone impedance
Switch Clousure Rating
Power input
Dimensions
Weight
0.78Vrms
-45dB
1.5W @8Ω
1.5W @70V line
600W or higher
10kΩ
100 Hz to 10 kHz
-20dB @200Hz to +5dB @3kHz
8 to 600Ω
100mA Ω
2Vdc, 1A
15”W x 12 1/2”D x 2 3/4”H
10 lbs (4.5 kg)
WARRANTY
LOUROE ELECTRONICS® warrants that at the time of shipment products manufactured
by LOUROE ELECTRONICS to be free of defects in material and workmanship. Should a
defect appear within one year (12 months) from date of shipment, LOUROE
ELECTRONICS will, at its sole discretion, repair or replace the defective equipment. This
equipment shall not be accepted for repair or return without prior notification by LOUROE
ELECTRONICS .
This warranty does not extend to any Louroe product that has been subjected to improper
or incorrect installation, misuse, accident, or in violation of installation instructions provided
by LOUROE ELECTRONICS.
Returned shipments to LOUROE ELECTRONICS shall be at customer’s expense.
LOUROE ELECTRONICS will return the equipment prepaid via best way.
LOUROE ELECTRONICS 6955 VALJEAN AVENUE | VAN NUYS, CA 91406 | TEL (818) 994-6498 FAX (818)994-6458
®
www.louroe.com | e-mail: sales@louroe.com / techsupport@louroe.com
