VERIFACT ® D / D-V
MICROPHONES
INSTALLATION AND OPERATING INSTRUCTIONS
DESCRIPTION
The Verifact® Models D and D-V are omnidirectional, low impedance, electret condenser microphones with built-in preamp. They can pick up normal sounds approximately 15’ away if mounted to a wall, or within a 30’ circle if ceiling mounted. The Verifact ® D microphone is mounted to the back of a single gang stainless face plate. Verifact® D-V is designed for correctional facilities, or areas where vandalism is a concern. It contains the identical electronics as the Verifact® D
Microphones but is mounted to a 16 gauge stainless steel face plate. Microphone opening of
Verifact ® D-V is a hooded audio port for providing
protection to the microphone. Tamper proof screws Verifact ® D Verifact® D-V are included with the Verifact ® D-V.
Both Verifact ® D and D-V fit into a standard single gang electrical box (not supplied).
M
ACT F U AN
URE
D
IN
T
H
E
SPECIFICATIONS
<Sensitivity |
-45 dBV/Pa |
|
1 Pa = 94 dB SPL |
|
|
<Frequency Response |
50 Hz to 15 kHz |
|
|
<Output |
Line Level (0 dBV, 600W@ 1kHz) |
|
|
<Current Drain |
10mA |
|
|
<Supply Voltage |
12 Vdc |
|
|
<Microphone Housing |
Stainless faceplate |
|
|
<Dimensions (Faceplate) |
2 3/4” W x 4 1/2” H |
|
|
<Weight |
D 2.5 oz DV 4 oz |
Shipping Weight |
1 lb |
|
|
|
WARRANTY |
IMPORTANT NOTICE
When this equipment is used as part of an audio monitoring system, the law requires that the public be given notice of AUDIO MONITORING ON THE PREMISES. A decal notice is included with each
microphone shipped.
AUDIO
MONITORING
On
These Premises
Federal Law References:
Federal Regulations, US Code, Title 18.
Crime and Criminal Procedure, Sec 2510.
LOUROE ELECTRONICS® warrants that at the time of shipment products manufactured by LOUROE ELECTRONICS® to be free of defects in material and workmanship.
Should a defect appear within one year (12 months) from date of shipment, LOUROE ELECTRONICS will, at its sole discretion, repair or replace the defective equipment. This equipment shall not be accepted for repair or return without prior notification by LOUROE ELECTRONICS®.
This warranty does not extend to any Louroe product that has been subjected to improper or incorrect installation, misuse, accident, or in violation of installation
®
instructions provided by LOUROE ELECTRONICS.
Returned shipments to LOUROE ELECTRONICS® shall be at customer’s expense. LOUROE ELECTRONICS®will return the equipment prepaid via best way.
LOUROE ELECTRONICS® 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX (818)994-6458 website: www.louroe.com e-mail: sales@louroe.com
Page 1 of 4
D/D-V-inst_12/14
INSTALLATION AND OPERATING INSTRUCTIONS
MECHANICAL INSTALLATION:
Verifact® D and D-V microphones are designed to be installed in a single gang electrical box for flush or surface mounting to a wall or ceiling. It should be positioned 3 to 6 ft. from the area of desired coverage. Ceiling heights in excess of 10 ft. should be avoided.
MICROPHONE CONNECTION:
Verifact® D and D-V Microphones connect directly to any Louroe Audio Base Station or to a Louroe Audio Interface (Model IF-1, IF-2, IF-4 and IF-8). A small terminal block is located on the microphone pre-amp, and marked A, B, C.
Using recommended cable, connect as follows:
Red wire connects to terminal A (+12Vdc)
Black wire connects to terminal B (audio output)
Bare wire connects to terminal C (ground)
If using cable from other manufacturers, color code may vary.

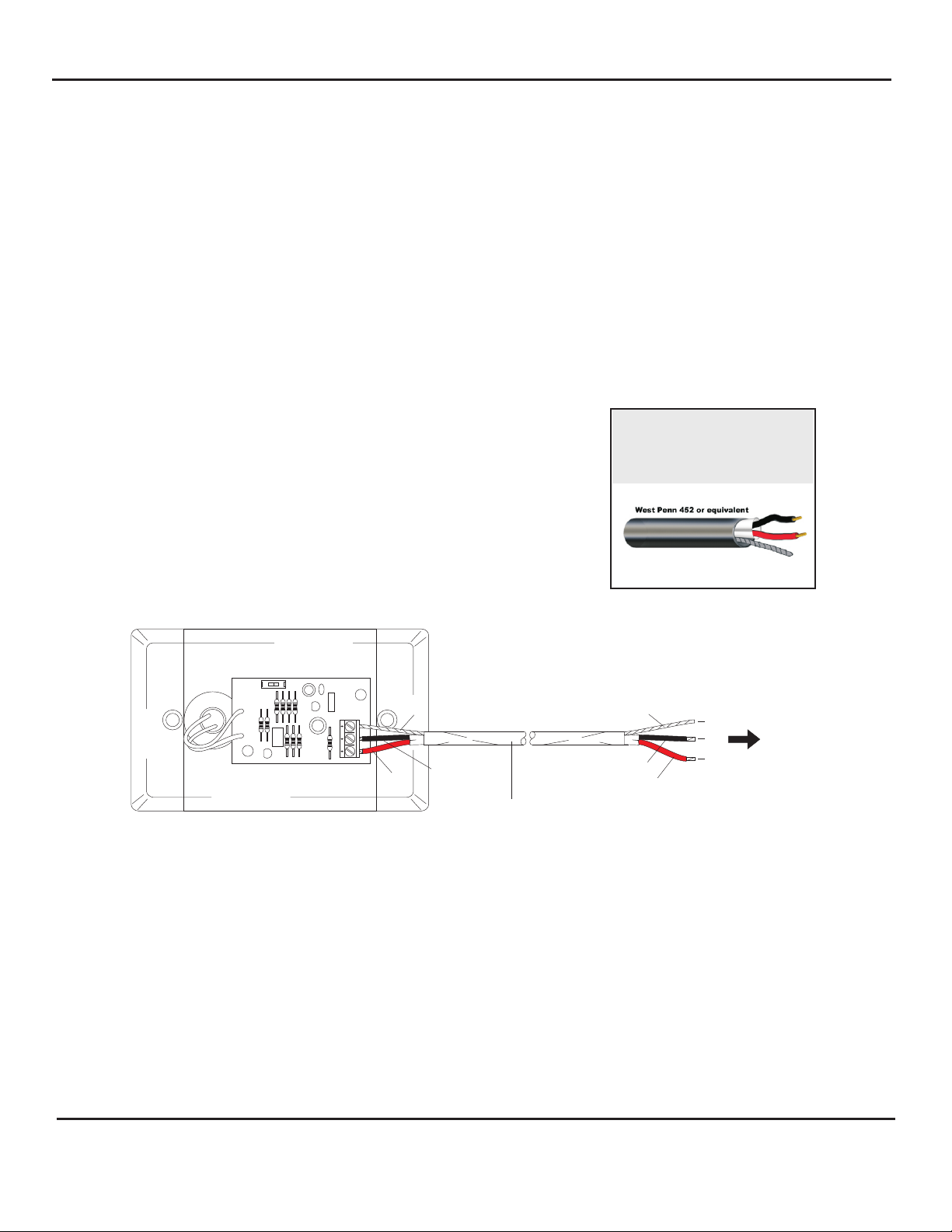

WIRING REQUIREMENTS
2 Conductor shielded cable,
22 gauge with a 24 gauge drain wire
MODEL D OR D-V MICROPHONE
BARE |
BARE |
C |
|
||
C |
|
|
B |
|
B |
|
|
|
A |
BLACK |
A |
BLACK |
||
RED |
RED |
|
2 CONDUCTOR SHIELDED
22 GAUGE, with a 24 gauge drain wire WEST PENN
452 OR EQUIVALENT
TO LOUROE BASE STATION OR
AUDIO
INTERFACE
ADAPTER
CONNECTING VERIFACT ® D OR D-V MICROPHONE TO A LOUROE BASE STATION OR AUDIO INTERFACE ADAPTER (IF-1, IF-4 or IF-8)
All Louroe base stations and audio interface adapters have a corresponding terminal block marked A, B C for each audio zone. Bring in other end of cable from the microphone and connect to the terminal block (or blocks) matching
A to A
B to B C to C
Maximum cable run between microphone and base station/interface adapter is 1,000 ft.
