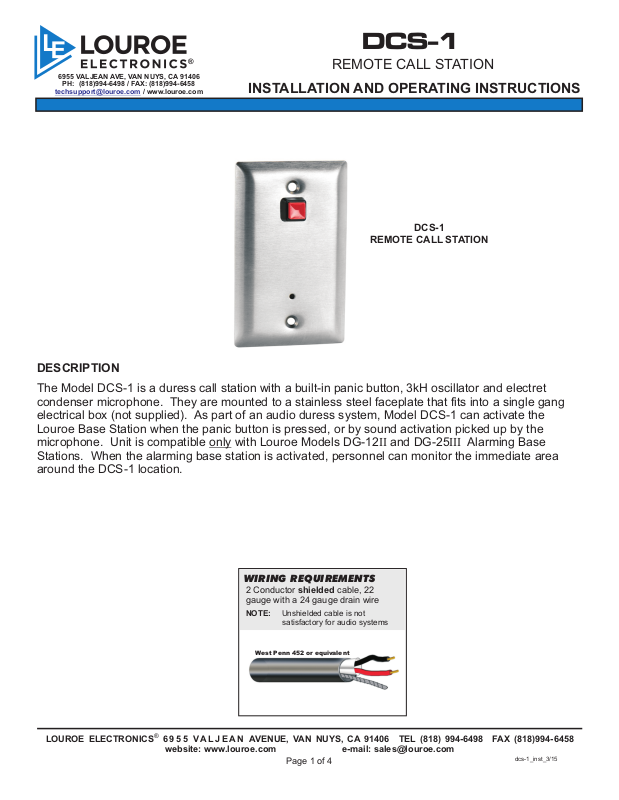

DCS-1
REMOTE CALL STATION
INSTALLATION AND OPERATING INSTRUCTIONS
DCS-1
REMOTE CALL STATION
DESCRIPTION
The Model DCS-1 is a duress call station with a built-in panic button, 3kH oscillator and electret
condenser microphone. They are mounted to a stainless steel faceplate that fits into a single gang
electrical box (not supplied). As part of an audio duress system, Model DCS-1 can activate the
Louroe Base Station when the panic button is pressed, or by sound activation picked up by the
microphone. Unit is compatible only with Louroe Models DG-12II and DG-25III Alarming Base
Stations. When the alarming base station is activated, personnel can monitor the immediate area
around the DCS-1 location.
WIRING REQUIREMENTS
2 Conductor shielded cable, 22
gauge with a 24 gauge drain wire
NOTE: Unshielded cable is not
satisfactory for audio systems
West Penn 452 or equivalent
LOUROE ELECTRONICS 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458
®
website: www.louroe.com e-mail: [email protected]
Page 1 of 4
(818)
dcs-1_inst_3/15
Page 2
INSTALLATION AND OPERATING INSTRUCTIONS
WIRE COLOR CODE OF WEST PENN 452
RED
- 12Vdc
BLACK - Audio Output
BARE
- Ground
If using wiring from other manufacturers,
color code may vary.
WIRING CONNECTION TO DCS-1 DURESS CALL STATION
The PC board of DCS-1 contains a barrier block with four terminals marked 1, 2, 3 and 4.
1 - Ground or common
2 - Jumper (installed by factory). This terminal not used with DCS-1
3 - Output of Oscillator
4 - +12Vdc Power
MODEL DCS
TO TERMINAL BLOCK OF
LOUROE DG SERIES BASE
STATION
REFER TO THE SPECIFIC BASE
STATION
INSTALLATION INSTRUCTIONS
FOR PROPER
CONNECTIONS
C
B
A
BARE
BLACK
RED RED
WIRING REQUIREMENTS
2 Conductor shielded cable, 22
gauge with a 24 gauge drain wire
NOTE: Unshielded cable is not
satisfactory for audio systems
West Penn 452 or equivalent
BARE
4
3
2
1
BLACK
CONNECTION TO MODEL DG-12II OR DG-25III ALARMING BASE STATION
Located on rear panel are 12 or 25 sets of 5-pin headers marked A, B, C, SP and G. Connect:
Red wire to pin A
Black wire to pin B
Bare wire to pin C
Pins SP and G are not used with this application
Refer to installation/operation instructions of ALA-4/ALA-8 and
DG-12II/DG-25III for additional information
LOUROE ELECTRONICS 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458
®
website: www.louroe.com e-mail: [email protected]
Page 2 of 4
(818)
dcs-1_inst_3/15
Page 3
INSTALLATION AND OPERATING INSTRUCTIONS
DCS-1 DURESS CALL STATION
SENSITIVITY SWITCH OF MICROPHONE
For special installations that require less microphone sensitivity, a sensitivity switch has been added
to the microphone pre-amp (PC board) and has two positions - N and L:
N represents normal sensitivity (0dB output into 1KW)
NOTE: Louroe Verifact microphones are always shipped with the sensitivity switch in
Should an adjustment be necessary, locate the small red switch on the PC board mounted behind the
back side of the stainless face plate. Using a small tool, move the slide switch from N to L
L represents low sensitivity (-6dB output into 1 KW)
normal (N) position. Do not change unless required.
SPECIFICATIONS
Output
Sensitivity
Frequency response 50 Hz to 15 kHz
Current drain
Tone output 3 Vrms into 10K
Supply voltage
Dimensions
Weight
Shipping Weight
Line Level (0 dBV, 600W @ 1kHZ)
-45 dB
10 mA
load @ 3 kHz
12 Vdc
4 1/2“ L x 2 3/4“ W
4 oz
1 lb
LOUROE ELECTRONICS 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458
®
website: www.louroe.com e-mail: [email protected]
Page 3 of 4
(818)
dcs-1_inst_3/15
Page 4
INSTALLATION AND OPERATING INSTRUCTIONS
MANUFACTURED
IN THE
IMPORTANT NOTICE
When this equipment is used as part of an
audio monitoring system, the law requires
that the public be given notice of AUDIO
MONITORING ON THE PREMISES. A
deca l noti ce is includ ed with each
microphone shipped.
Federal Law References:
Federal Regulations, US Code, Title 18.
Crime and Criminal Procedure, Sec 2510.
