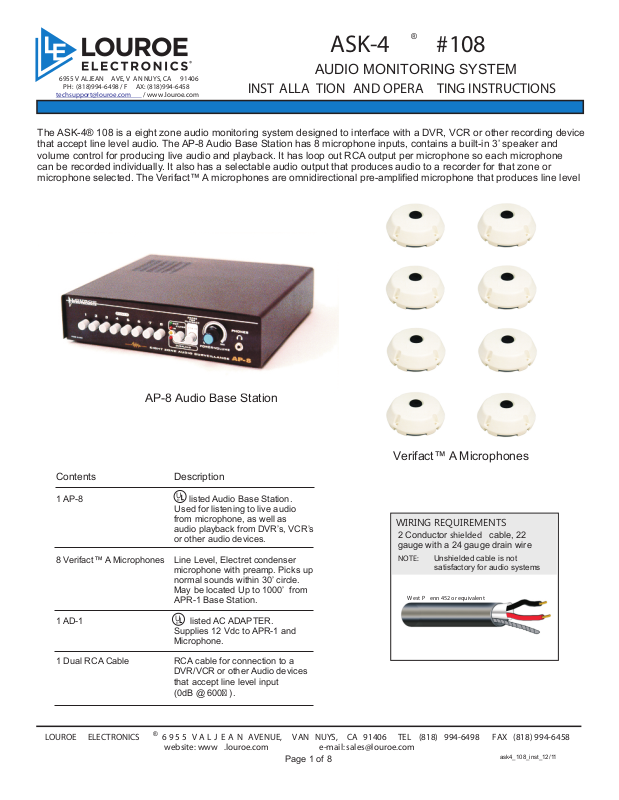

ASK-4
AUDIO MONITORING SYSTEM
INST ALLA TION AND OPERA TING INSTRUCTIONS
#108
The ASK-4® 108 is a eight zone audio monitoring system designed to interface with a DVR, VCR or other recording device
that accept line level audio. The AP-8 Audio Base Station has 8 microphone inputs, contains a built-in 3’ speaker and
volume control for producing live audio and playback. It has loop out RCA output per microphone so each microphone
can be recorded individually. It also has a selectable audio output that produces audio to a recorder for that zone or
microphone selected. The Verifact™ A microphones are omnidirectional pre-amplified microphone that produces line level

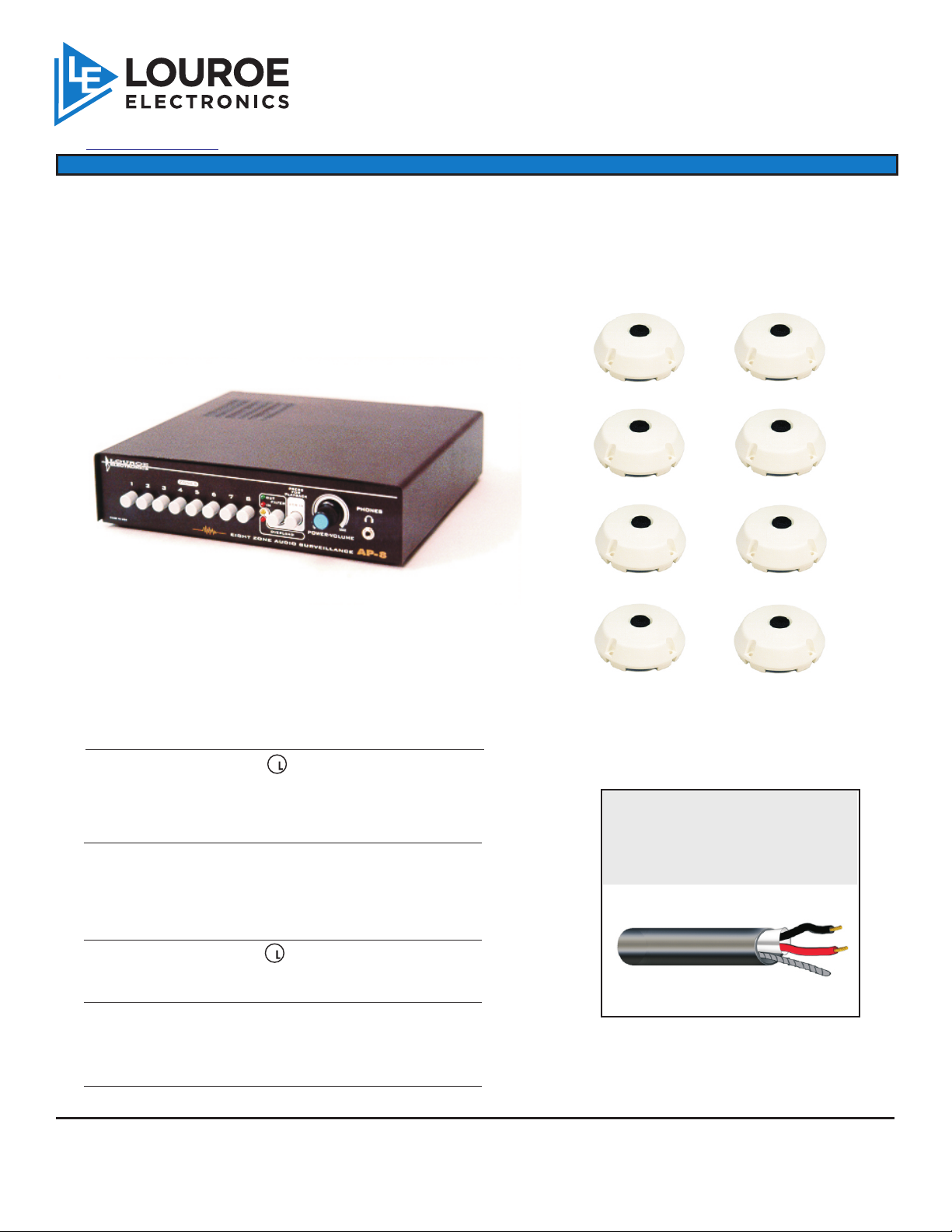

AP-8 Audio Base Station
Contents Description
U
1 AP-8 listed Audio Base Station.
Used for listening to live audio
8 Verifact™ A Microphones Line Level, Electret condenser
1 AD-1 listed AC ADAPTER.
1 Dual RCA Cable RCA cable for connection to a
®
from microphone, as well as
audio playback from DVR’s, VCR’s
or other audio devices.
microphone with preamp. Picks up
normal sounds within 30’ circle.
May be located Up to 1000’ from
APR-1 Base Station.
U
®
Supplies 12 Vdc to APR-1 and
Microphone.
DVR/VCR or other Audio devices
that accept line level input
(0dB @ 600 ).
Verifact™ A Microphones
WIRING REQUIREMENTS
2 Conductor shielded cable, 22
gauge with a 24 gauge drain wire
NOTE: Unshielded cable is not
satisfactory for audio systems
W est P enn 452 or equivalent
LOUROE ELECTRONICS 6 9 5 5 V A L J E A N AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458
®
website: www .louroe.com e-mail: [email protected]
Page 1 of 8
