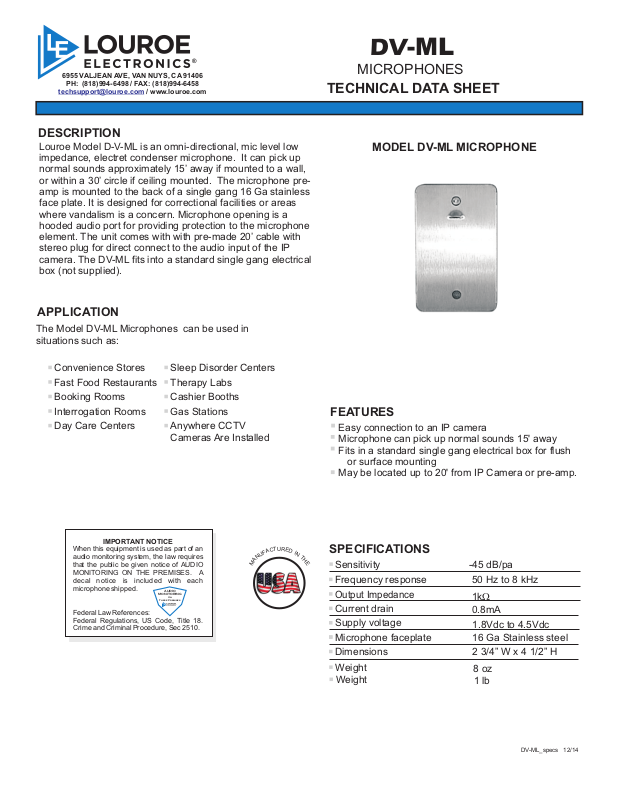

Louroe Electronics DV-ML Specsheet

®
6955 VALJEAN AVE, VAN NUYS, CA 91406
PH: (818)994-6498 / FAX: (818)994-6458
/ www.louroe.comtechsupport@louroe.com
DESCRIPTION
Louroe Model D-V-ML is an omni-directional, mic level low impedance, electret condenser microphone. It can pick up normal sounds approximately 15’ away if mounted to a wall, or within a 30’ circle if ceiling mounted. The microphone pre­amp is mounted to the back of a single gang 16 Ga stainless face plate. It is designed for correctional facilities or areas where vandalism is a concern. Microphone opening is a hooded audio port for providing protection to the microphone element. The unit comes with with pre-made 20’ cable with stereo plug for direct connect to the audio input of the IP camera. The DV-ML fits into a standard single gang electrical box (not supplied).
APPLICATION
The Model DV-ML Microphones can be used in situations such as:
DV-ML
MICROPHONES
TECHNICAL DATA SHEET
MODEL DV-ML MICROPHONE
Convenience Stores Fast Food Restaurants Booking Rooms Interrogation Rooms
Day Care Centers Anywhere CCTV
Cameras Are Installed
IMPORTANT NOTICE
When this equipment is used as part of an audio monitoring system, the law requires that the public be given notice of AUDIO MONITORING ON THE PREMISES. A deca l noti ce is includ ed with each microphone shipped.
Federal Law References: Federal Regulations, US Code, Title 18. Crime and Criminal Procedure, Sec 2510.
AUDIO
MONITORING
On
These Premises
®
FEATURES
Easy connection to an IP camera Microphone can pick up normal sounds 15' away Fits in a standard single gang electrical box for flush
or surface mounting
May be located up to 20' from IP Camera or pre-amp.
R
U
T
E
D
C
A
I
F
U
N
A
M
N
SPECIFICATIONS
T
H
E
Sensitivity
Frequency response Output Impedance Current drain Supply voltage Microphone faceplate 16 Ga Stainless steel Dimensions
Weight
Weight
-45 dB/pa
50 Hz to 8 kHz
1kW
0.8mA
1.8Vdc to 4.5Vdc
2 3/4” W x 4 1/2” H
8 oz 1 lb
DV-ML_specs 12/14
