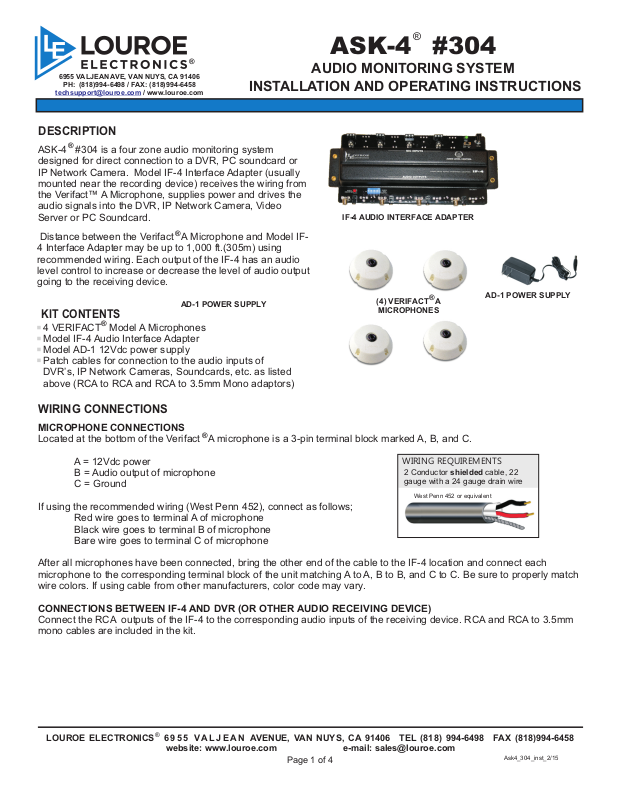

INSTALLATION AND OPERATING INSTRUCTIONS
DESCRIPTION
®
ASK-4 #304 is a four zone audio monitoring system
designed for direct connection to a DVR, PC soundcard or
IP Network Camera. Model IF-4 Interface Adapter (usually
mounted near the recording device) receives the wiring from
the Verifact™ A Microphone, supplies power and drives the
audio signals into the DVR, IP Network Camera, Video
Server or PC Soundcard.
Distance between the Verifact A Microphone and Model IF-
®
4 Interface Adapter may be up to 1,000 ft.(305m) using
recommended wiring. Each output of the IF-4 has an audio
level control to increase or decrease the level of audio output
going to the receiving device.
AD-1 POWER SUPPLY
KIT CONTENTS
4 VERIFACT Model A Microphones
Model IF-4 Audio Interface Adapter
Model AD-1 12Vdc power supply
Patch cables for connection to the audio inputs of
DVR’s, IP Network Cameras, Soundcards, etc. as listed
above (RCA to RCA and RCA to 3.5mm Mono adaptors)
®
®
ASK-4
#304
AUDIO MONITORING SYSTEM
IF-4 AUDIO INTERFACE ADAPTER
(4) VERIFACT A
MICROPHONES
®
AD-1 POWER SUPPLY
WIRING CONNECTIONS
MICROPHONE CONNECTIONS
Located at the bottom of the Verifact A microphone is a 3-pin terminal block marked A, B, and C.
A = 12Vdc power
B = Audio output of microphone
C = Ground
If using the recommended wiring (West Penn 452), connect as follows;
Red wire goes to terminal A of microphone
Black wire goes to terminal B of microphone
Bare wire goes to terminal C of microphone
After all microphones have been connected, bring the other end of the cable to the IF-4 location and connect each
microphone to the corresponding terminal block of the unit matching A to A, B to B, and C to C. Be sure to properly match
wire colors. If using cable from other manufacturers, color code may vary.
CONNECTIONS BETWEEN IF-4 AND DVR (OR OTHER AUDIO RECEIVING DEVICE)
Connect the RCA outputs of the IF-4 to the corresponding audio inputs of the receiving device. RCA and RCA to 3.5mm
mono cables are included in the kit.
®
WIRING REQUIREMENTS
2 Conductor shielded cable, 22
gauge with a 24 gauge drain wire
West Penn 452 or equivalent
LOUROE ELECTRONICS 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458
®
website: www.louroe.com e-mail: [email protected]
Page 1 of 4
(818)
Ask4_304_inst_2/15
Page 2
APPLYING POWER TO THE IF-4
Included with the IF-4 is a power supply (120V/12Vdc). Connect the small end of the 90° female plug
into the 12Vdc jack, located on the input side. Then connect the two-prong large end into a standard
110/120V electrical outlet.
Turn ON/OFF power switch, located behind green power LED to ON position. The green LED will
illuminate, indicating power to the system. The system will now provide audio to the DVR, Soundcard
Module, IP Network Camera, etc.
AUDIO LEVEL ADJUSTMENT
Located on the input side are potentiometers (round, with adjustment arrow) for each microphone.
This is for adjusting the audio gain and to prevent overdriving or underdriving the audio signal.
The adjustment arrows are shipped in the straight-up position. Turn slowly counterclockwise to lower
the gain, and clockwise to increase. This will provide the desired level of audio signal into the Audio
Receiving Device (DVR, Soundcard Module, etc.). A full turn clockwise increases the gain to 10dB. A
full turn counterclockwise will decrease the gain -30dB.
AUDIO TEST SWITCH
The purpose of this switch is to indicate the presence of audio and to assure the user that the IF-4 is
driving the audio signals into the audio input of receiving device (DVR, IP Network Camera, Video
Server, Soundcard module, etc.)
INSTALLATION AND OPERATING INSTRUCTIONS
Located on the audio output side of IF-4 is a DIP switch labeled Audio Test Switch. To the left of the
switch is a red LED marked Audio Indicator.
For testing:
1) Select a zone that has a microphone connected to the microphone terminal block.
IF-4 utilizes pins 1-4.
2) Push pin to the ON position. The red LED will illuminate, indicating audio is present.
With short bursts of audio, the LED will flicker and with continuous flow of audio LED
illumination is constant. Only one microphone can be tested at a time
NOTE: When testing is complete, all pins of the DIP switch must be in
the OFF (down) position.
LOUROE ELECTRONICS 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458
®
website: www.louroe.com e-mail: [email protected]
Page 2 of 4
(818)
Ask4_304_inst_2/15
Page 3
INSTALLATION AND OPERATING INSTRUCTIONS

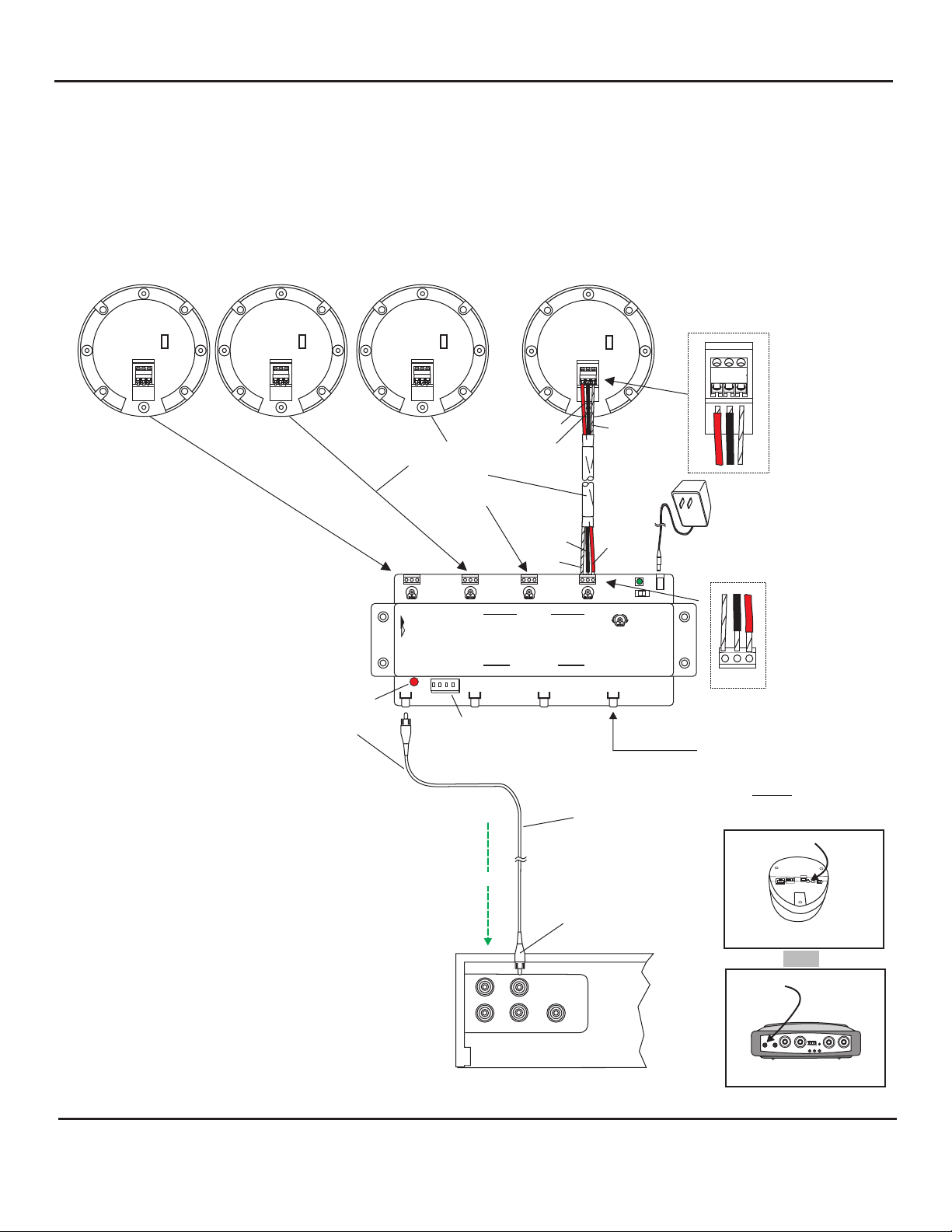

INTERCONNECTION DIAGRAM
FOR
CONNECTING LOUROE VERIFACT MICROPHONES
TO A DVR WITH MULTIPLE AUDIO INPUTS USING
LOUROE MODEL IF-4 AUDIO INTERFACE ADAPTER
®
Verifact A Microphone shown as an example
®
with IF-4 Interface Adapter
VE RIF ACT A
All Louroe microphones
VERIFACT A, B, C, D, D-V, E, K, L-DT
A B C
N
L
®
VE RIF ACT A
A B C
N
L
are compatible with Louroe IF-2,
IF-4 and IF-8 Audio Interface Adapters
Audio Indicator Light
Audio Out
LOUROE MODEL IF-4
AUDIO INTERFACE ADAPTER
IF-4 will accommodate up to
4 Louroe microphones
VE RIF ACT A
A B C
N
L
2 CONDUCTOR
SHIELDED
22 GAUGE
WEST PENN
452 OR EQUIV.
OUROE
L
LECTRONICS
E
ON RS
1 2 3 4
1
Verifact A Microphone Shown
BLACK
BLACK
BARE
MIC INPUTS
AUDIO OUTPUTS
2
Audio Test Switch
RCA CABLE CONNECTS FROM
“AUDIO OUT” OF IF-4 TO
“AUDIO IN” OF DVR, ETC.
Back side of
®
VE RIF ACT A
A B C
RED
FOUR ZONE AUDIO INTERFACE ADAPTER
3
N
L
BARE
R
RED
AUDIO LEVEL CONTROL
A
C
B
+12 Vdc POWER
SUPPLY (INCLUDED)
IF-4
B
C
11 1 1
4
A
RCA output
Use 3.5mm adaptor of IF-4
for connection to
IP Camera or Video Server
audio input
Audio Path
Audio In
IP NETWORK CAMERA
OR
audio input
AUDIO OUT
AUDIO IN
DVR WITH RCA TYPE AUDIO INPUTS
LOUROE ELECTRONICS 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458
®
(818)
1 2 3 4
VIDEO SERVER
website: www.louroe.com e-mail: [email protected]
Page 3 of 4
Ask4_304_inst_2/15
Page 4
INSTALLATION AND OPERATING INSTRUCTIONS
SPECIFICATIONS (IF-4 Interface Adapter)
Input (3-pin terminal block)
Audio Input Impedance
Audio Output Impedance
Audio Output Gain
Power Requirements +12 Vdc, 500mA
Dimensions
Weight
SPECIFICATIONS (Microphone - Model A)
Type
Output
Line Level (0dB@1KΩ)
17.5kΩ
600Ω @ 1kHz
Up to +10dB
11½”L x 4¾”W x 1¼”H
12.5 oz
Electret Condenser
Line Level (0 dB 600W @ 1 kHZ)
Frequency response
Current drain
Supply voltage
Dimensions
Weight
Weight of the kit
When this equipment is used as part of an audio monitoring
system, the law requires that the public be given notice of AUDIO
MONITORING ON THE PREMISES. A decal notice is included
with each microphone shipped.
Federal Law References:
Federal Regulations, US Code, Title 18. Crime and Criminal
Procedure, Sec 2510.
50 Hz to 15 kHz ± 1 dB
10 mA
12Vdc
4"Dia x 1 ½"H
3.5 oz
IMPORTANT NOTICE
4 lbs
AUDIO
MONITORING
On
These Premises
®
LOUROE ELECTRONICS warrants that at the time of shipment products manufactured by LOUROE ELECTRONICS to be free of defects in material and workmanship.
Should a defect appear within one year (12 months) from date of shipment, LOUROE ELECTRONICS will, at its sole discretion, repair or replace the defective equipment.
This equipment shall not be accepted for repair or return without prior notification by LOUROE ELECTRONICS .
This warranty does not extend to any Louroe product that has been subjected to improper or incorrect installation, misuse, accident, or in violation of installation
instructions provided by LOUROE ELECTRONICS.
Returned shipments to LOUROE ELECTRONICS shall be at customer’s expense. LOUROE ELECTRONICS will return the equipment prepaid via best way.
LOUROE ELECTRONICS 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458
®
®
®
®
WARRANTY
®
®
®
(818)
website: www.louroe.com e-mail: [email protected]
Page 4 of 4
Ask4_304_inst_2/15
