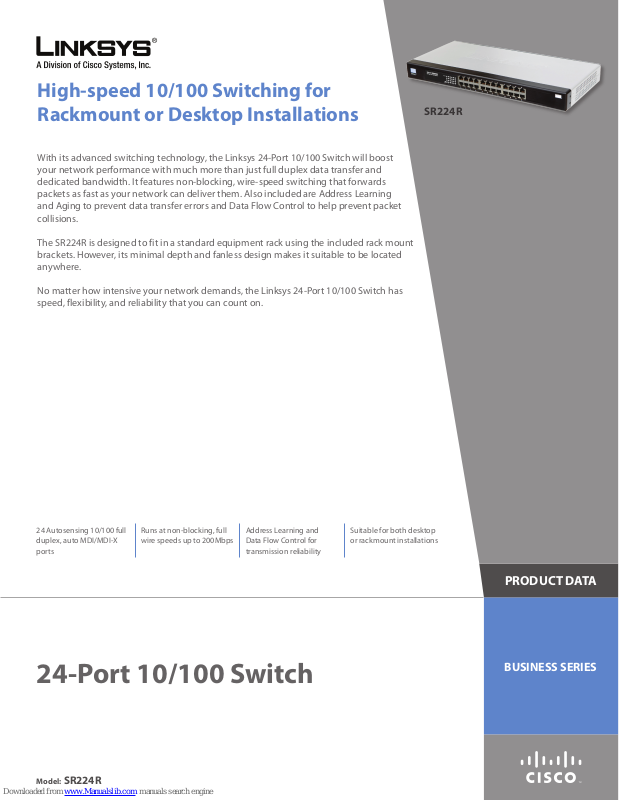

Linksys SR224R Product Data

High-speed 10/100 Switching for
Rackmount or Desktop Installations

With its advanced switching technology, the Linksys 24-Port 10/100 Switch will boost
your network performance with much more than just full duplex data transfer and
dedicated bandwidth. It features non-blocking, wire-speed switching that forwards
packets as fast as your network can deliver them. Also included are Address Learning
and Aging to prevent data transfer errors and Data Flow Control to help prevent packet
collisions.

The SR224R is designed to fit in a standard equipment rack using the included rack mount
brackets. However, its minimal depth and fanless design makes it suitable to be located
anywhere.

No matter how intensive your network demands, the Linksys 24-Port 10/100 Switch has
speed, flexibility, and reliability that you can count on.

SR224R

24 Autosensing 10/100 full
duplex, auto MDI/MDI-X
ports

Runs at non-blocking, full
wire speeds up to 200Mbps

24-Port 10/100 Switch

Model: SR224R

Address Learning and
Data Flow Control for
transmission reliability

Suitable for both desktop
or rackmount installations

PRODUCT DATA

BUSINESS SERIES

Features

Ideal for integrating your

•
10BaseT and 100BaseTX
network hardware

24 10/100 Ports provide

•
dedicated bandwidth in Half
or Full-Duplex Modes

Switched 10/100 ports

•
run at up to 200Mbps in
Full-Duplex mode

Each port supports Auto

•
MDI/MDI-X cable detection

Compatible with all major

•
network operating systems

Advanced Store-and-

•
Forward packet switching
optimizes data transfers

Auto partitioning protects

•
PCs from downed network
lines

Signal regeneration ensures

•
data transfer Integrity

Free Technical Support—24

•
Hours a Day, 7 Days a Week,
Toll-Free US Calls

Limited lifetime warranty

•

24-Port 10/100 Switch

Specifications

Model SR224R
Standards IEEE 802.3, IEEE 802.3u
Ports 24 10/100 RJ-45 Ports
Cabling Type Category 5 or better
LEDs System, 1-24
Switching Capacity 4.8 Gbps, non-blocking
Security features Security lock slot

Environmental

Dimensions 16.93" x 1.75" x 7.97"
W x H x D (430 x 44.5 x 202.5 mm)
Unit Weight 4.41 lb (2 kg)
Power 100V ~ 240V AC, Internal 3.3V/5A
Certification FCC Class A, CE
Operating Temp. 32 to 104ºF (0 to 40ºC)
Storage Temp. -40 to 158ºF (-40 to 70ºC)
Operating Humidity 20% to 95% relative humidity, noncondensing
Storage Humidity 5% to 90% noncondensing

Package Contents

SR224R 24 Port 10/100 Switch

•
User Guide

•
AC Power Cord

•
Online Registration Card

•
