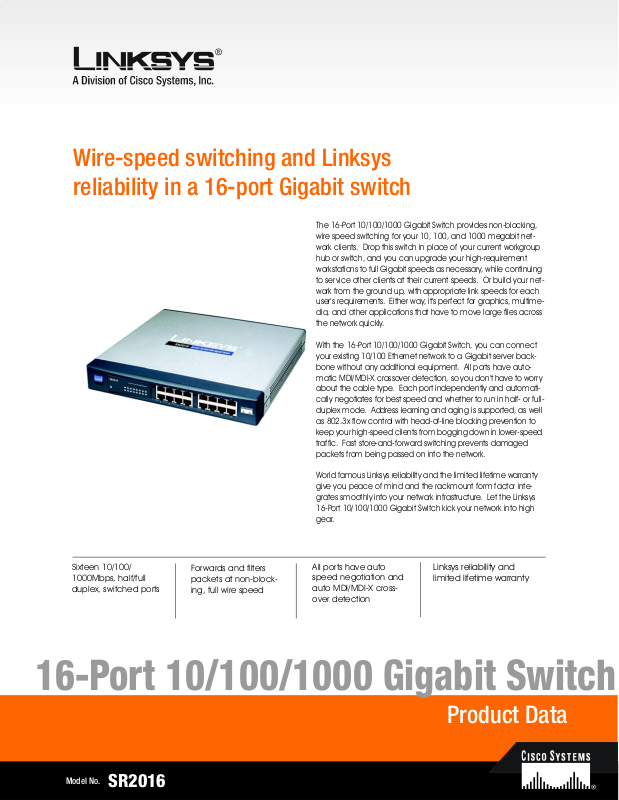

Wire-speed switching and Linksys
reliability in a 16-port Gigabit switch

The 16-Port 10/100/1000 Gigabit Switch provides non-blocking,
wire speed switching for your 10, 100, and 1000 megabit net­work clients. Drop this switch in place of your current workgroup
hub or switch, and you can upgrade your high-requirement
workstations to full Gigabit speeds as necessary, while continuing
to service other clients at their current speeds. Or build your net­work from the ground up, with appropriate link speeds for each
user's requirements. Either way, it's perfect for graphics, multime­dia, and other applications that have to move large files across
the network quickly.

With the 16-Port 10/100/1000 Gigabit Switch, you can connect
your existing 10/100 Ethernet network to a Gigabit server back­bone without any additional equipment. All ports have auto­matic MDI/MDI-X crossover detection, so you don't have to worry
about the cable type. Each port independently and automati­cally negotiates for best speed and whether to run in half- or full­duplex mode. Address learning and aging is supported, as well
as 802.3x flow control with head-of-line blocking prevention to
keep your high-speed clients from bogging down in lower-speed
traffic. Fast store-and-forward switching prevents damaged
packets from being passed on into the network.

World famous Linksys reliability and the limited lifetime warranty
give you peace of mind and the rackmount form factor inte­grates smoothly into your network infrastructure. Let the Linksys
16-Port 10/100/1000 Gigabit Switch kick your network into high
gear.

Sixteen 10/100/
1000Mbps, half/full
duplex, switched ports

Forwards and filters
packets at non-block­ing, full wire speed

All ports have auto
speed negotiation and
auto MDI/MDI-X cross­over detection

Linksys reliability and
limited lifetime warranty

16-Port 10/100/1000 Gigabit Switch

Product Data

Model No.

SR2016

16-Port 10/100/1000 Gigabit Switch

Features

• 16 RJ-45 ports for 10BASE-T/
100BASE-TX/1000BASE-TX con­nections

• Supports half duplex and full
duplex modes auto-negotia­tion for all ports.

• Auto MDI/MDI-X support on all
ports for easy cable detec­tion

• Efficient MAC Address learn­ing engine supports up to 32K
MAC Addresses

• Provides store-and-forward
forwarding scheme.

• Standard width and mounting
kit (included) make it easy to
be installed into a rack

Specifications

Model Number SR2016

Standards IEEE 802.3, 802.3u, 802.3x, 802.3ab

Ports 16 RJ-45 10/100/1000

Cabling Type Category 5e or better

LEDs System, 1 through 16

Environmental

Dimensions 279 mm x 45 mm x 240 mm

(W x D x H) (11" x 1.75" x 9.45")

Unit Weight 4.75 lb. (2.155 kg)

Power Input 12V DC / 500mA

Certifications FCC Class B, CE

Linksys
A Division of Cisco Systems, Inc.
18582 Teller Avenue
Irvine, CA 92612 USA

E-mail: [e-mail]

[e-mail]

Web: http://www.linksys.com

Linksys products are available in more than 50
countries, supported by 12 Linksys Regional Offices
throughout the world. For a complete list of local
Linksys Sales and Technical Support contacts, visit
our Worldwide Web Site at www.linksys.com.

Operating Temp. 32ºF to 122ºF (0ºC to 50ºC)

Storage Temp. -40ºF to 158ºF (-40ºC to 70ºC)

Operating Humidity 20% to 95%, Non-Condensing

Storage Humidity 5% to 95%, Non-Condensing

Package Contents

• One 16-Port 10/100/1000 Gigabit Switch

• One AC Power Cord

• One User Guide with Registration Card

• One Set of Rack Mounting brackets

Specifications are subject to change without notice. Linksys and EtherFast are registered trademarks of Cisco Systems, Inc. Other brands and product names are trademarks or registered trademarks of
their respective holders. Copyright © 2003 Cisco Systems, Inc. All rights reserved.

SR2016-DS-30717NC KL
