Quick Coupling
Systems
Areas of application
No matter whether in road construction, dismantling operations or in pipe-laying and sewer
construction, a competent well-established team is an important prerequisite for economical
and prompt implementation of challenging projects. Another requirement is the use of efficient
multi-purpose construction machinery and the appropriate working tools.
Dismantling
The application of more stringent legislation in respect of dismantling operations has led to
increased demands on the tools implemented in this sector. Aside from traditional hydraulic
hammers, depending on the type of dismantling job, demolition and sorter grabs, hydraulic
cutters, demolition pincers, shears and pulverisers are also used. Targeted tool deployment
thus permits economical and safe demolition of existing buildings and appropriate material
sorting.

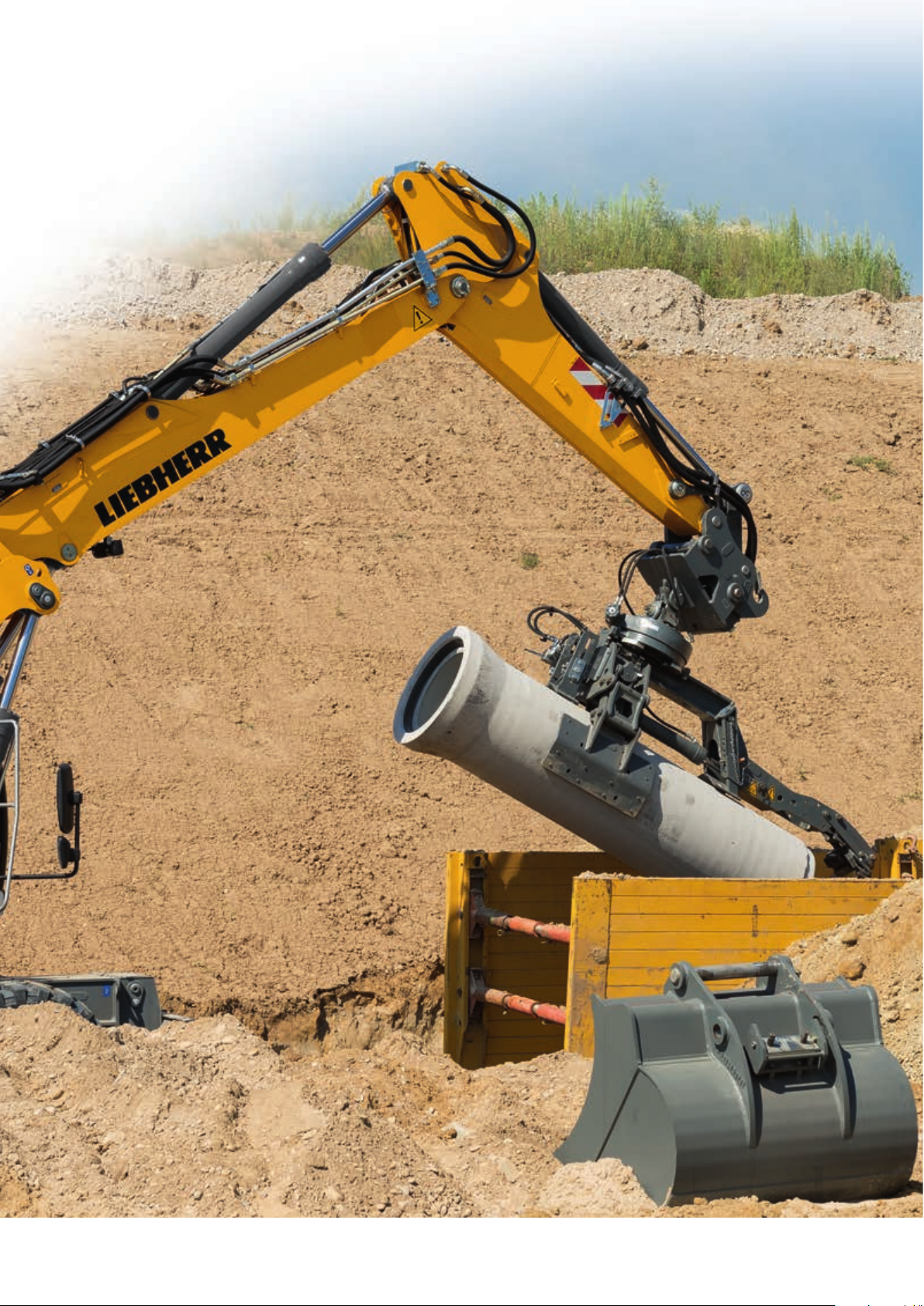

Pipe-laying and sewer construction
In the course of sewer construction drivers must repeatedly master various tasks in quick
succession with their hydraulic excavators: excavation, foundation work, pipe-laying,
sand back-filling, filling, lining and compacting. The use of a hydraulic excavator with a
quick coupling system is essential for executing pipe-laying and sewer construction projects economically and competitively.
With its quick coupling systems and working tools Liebherr offers practical economical solutions for virtually all construction and dismantling operations. For increased productivity,
efficiency and safety on the building site.
Liebherr Quick Coupling Systems
2
Liebherr Quick Coupling Systems
3
Mechanical quick
coupling system
• manual opening and closing of the quick coupling system
• manual connecting and disconnecting of hydraulic lines
Liebherr’s mechanic quick coupling system is the perfect solution when aiming to increase
the flexibility and productivity of machinery while keeping investment costs to a minimum.
The sturdy construction, proven over many years, impresses with its straightforward, safe
and reliable mechanical design. After releasing the screw fastening pin, the two locking pins
with internal double threading are manually retracted from one side and then inserted following tool attachment.
A safety latch on the load hook of the quick coupling system affords additional safety as
it prevents unintentional unhooking of the load. The safety latches on the load hook of the
Liebherr quick coupling system offer additional safety. They can bear 100 % of the maximum
permissible hook load (basic safety) - and thus considerably more than the 10% required
by EN 474.
Features and customer benefits
• straightforward sturdy design for a long service life and low maintenance costs
• increased machine utilization due to faster tool changing at a low investment cost
• high standard of safety with additional screw fastening pins
• locking pins with double threading for fast manual releasing and locking from one side
• load hook equipped as standard with heavy-duty safety latches for increased safety when
lifting loads
Areas of application
• for infrequent tool changes
• for deployment in the toughest conditions (e.g. tunnel construction)
Liebherr Quick Coupling Systems
4
Liebherr Quick Coupling Systems
5
