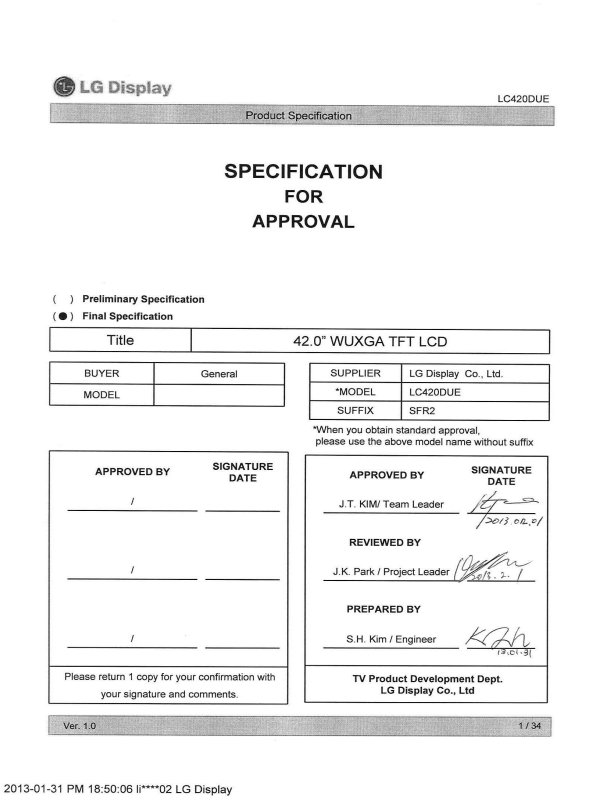

LG Display LC420DUE-SFR2 Specification
( ) Preliminary Specification
( ● ) Final Specification
Title 42.0” WUXGA TFT LCD
LC420DUE
Product Specification
SPECIFICATION
FOR
APPROVAL
BUYER General
MODEL
APPROVED BY
/
/
/
SIGNATURE
DATE
SUPPLIER LG Display Co., Ltd.
*MODEL LC420DUE
SUFFIX SFR2
*When you obtain standard approval,
please use the above model name without suffix
APPROVED BY
J.T. KIM/ Team Leader
REVIEWED BY
J.K. Park / Project Leader
PREPARED BY
S.H. Kim / Engineer
SIGNATURE
DATE
Please return 1 copy for your confirmation with
your signature and comments.
Ver. 1.0
TV Product Development Dept.
LG Display Co., Ltd
1 / 34
Product Specification
CONTENTS
LC420DUE
Number ITEM
COVER
CONTENTS
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION
2 ABSOLUTE MAXIMUM RATINGS
3 ELECTRICAL SPECIFICATIONS
3-1 ELECTRICAL CHARACTERISTICS
3-2 INTERFACE CONNECTIONS
3-3 SIGNAL TIMING SPECIFICATIONS

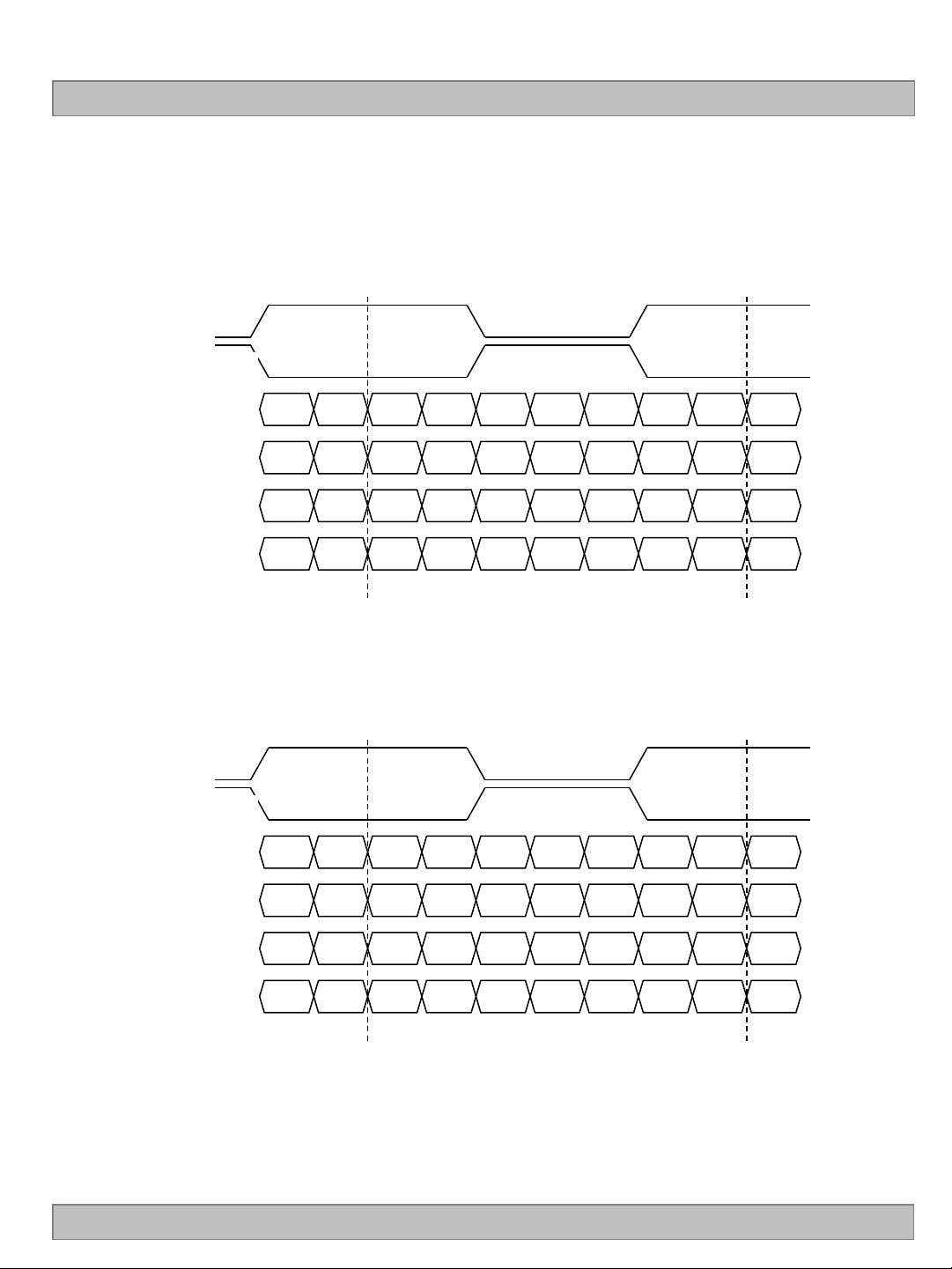

3-4 SIGNAL TIMING WAVEFORMS 11-13
3-5 COLOR DATA REFERENCE
3-6 POWER SEQUENCE
4 OPTICAL SPECIFICATIONS
5 MECHANICAL CHARACTERISTICS
6 RELIABILITY
Page
1
2
4
5
6
6
8
10
14
15
16-19
20-22
23
7 INTERNATIONAL STANDARDS
7-1 SAFETY
7-2 EMC 24
7-3 ENVIRONMENT 24
8 PACKING

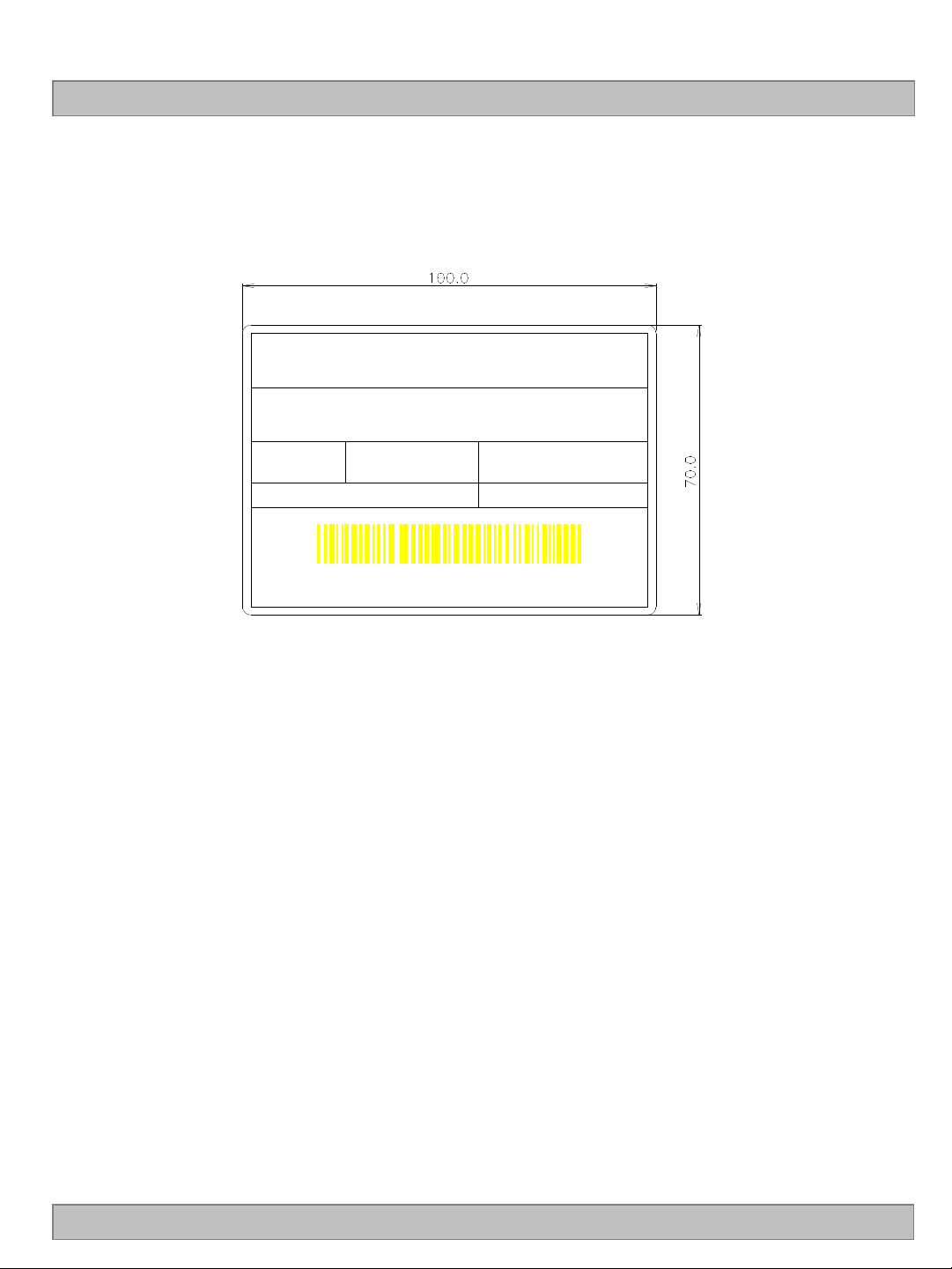

8-1 DESIGNATION OF LOT MARK
8-2 PACKING FORM
9 PRECAUTIONS
9-1 MOUNTING PRECAUTIONS 26
9-2 OPERATING PRECAUTIONS 26
9-3 ELECTROSTATIC DISCHARGE CONTROL 27
9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE 27
9-5 STORAGE 27
9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM 27
Ver. 1.0
24
25
25
2 / 34
Product Specification
RECORD OF REVISIONS
Revision No. Revision Date Page Description
1.0 Jan, 28, 2013 Final Specification.
LC420DUE
Ver. 1.0
3 / 34
LC420DUE
Product Specification
1. General Description
The LC420DUE is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED)
backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive display type which is operating in the normally black mode. It has a 42.02 inch diagonally
measured active display area with WUXGA resolution (1080 vertical by 1920 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arrayed in vertical stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot.
Therefore, it can present a palette of more than 16.7Million colors.
It has been designed to apply the 8-bit 2-port LVDS interface.
It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important.
EPI(RGB)
Control
Signals
Power Signals
LVDS
2Port
LVDS
Select
+12.0V
LED Anode
LED Cathode
LED Anode
LED Cathode
CN1
(51pin)
LVDS 1,2
Option
signal
I2C
EEPROM
SCL
Timing Controller
LVDS Rx + DGA
Power Circuit
SDA
Integrated
Block
CN1 (7pin)
General Features
Active Screen Size 41.92 inches(1064.67mm) diagonal
Outline Dimension 955.8(H) X 554.4(V) X 35.0(B) mm (Typ.)
Source Driver Circuit
S1 S1920
G1
TFT - LCD Panel
(1920 × RGB × 1080 pixels)
[Gate In Panel]
G1080
Back light Assembly
Pixel Pitch 0.4833 mm x 0.4833 mm
Pixel Format 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement
Color Depth 8bit, 16.7Million colors
Luminance, White 300 cd/m2 (Center 1point ,Typ.)
Viewing Angle (CR>10) Viewing angle free ( R/L 178 (Min.), U/D 178 (Min.))
Power Consumption Total 76.6W [Logic= 6.3W, LED Driver=70.3W (IF_cathode=380mA))
Weight 6.3 kg (TBD.)
Display Mode Transmissive mode, Normally black
Surface Treatment Hard coating(3H), Anti-glare treatment of the front polarizer (Haze 1%(Typ.))
Ver. 1.0
4 / 34
LC420DUE
Product Specification
2. Absolute Maximum Ratings
The following items are maximum values which, if exceeded, may cause faulty operation or permanent damage
to the LCD module.
Table 1. ABSOLUTE MAXIMUM RATINGS
Parameter Symbol
Unit Notes
Min Max
LCD Circuit VLCD -0.3 +14.0 VDC
Power Input Voltage
Driver VBL -0.3 + 27.0 VDC
Value
ON/OFF VOFF / VON -0.3 +5.5 VDC
1
Driver Control Voltage
Brightness EXTVBR-B -0.3 +4.0 VDC
T-Con Option Selection Voltage VLOGIC
Operating Temperature TOP 0 +50
-0.3 +4.0 VDC
°C
2,3
Storage Temperature TST -20 +60
Panel Front Temperature TSUR
- +68
°C
°C
4
Operating Ambient Humidity HOP 10 90 %RH
2,3
Storage Humidity HST 10 90 %RH
Note
1. Ambient temperature condition (Ta = 25 2 °C )
2. Temperature and relative humidity range are shown in the figure below.
Wet bulb temperature should be Max 39°C, and no condensation of water.
3. Gravity mura can be guaranteed below 40°C condition.
4. The maximum operating temperatures is based on the test condition that the surface temperature
of display area is less than or equal to 68°C with LCD module alone in a temperature controlled chamber.
Thermal management should be considered in final product design to prevent the surface temperature of
display area from being over 68℃. The range of operating temperature may be degraded in case of
improper thermal management in final product design.
90%
Ver. 1.0
Wet Bulb
Temperature [°C]
20
10
0
10 20 30 40 50 60 70 80 0 -20
Dry Bulb Temperature [°C]
30
40
50
60
60%
40%
10%
Storage
Operation
Humidity [(%)RH]
5 / 34
LC420DUE
Product Specification
3. Electrical Specifications
3-1. Electrical Characteristics
It requires two power inputs. One is employed to power for the LCD circuit. The other Is used for the LED
backlight .
Table 2. ELECTRICAL CHARACTERISTICS
Parameter Symbol
Unit Note
Min Typ Max
Circuit :
Power Input Voltage VLCD 10.8 12.0 13.2 VDC
- 530 690 mA 1
Power Input Current ILCD
- 770 1000 mA 2
Power Consumption PLCD 6.4 8.3 Watt 1
Rush current IRUSH - - 5.0 A 3
Value
Note
1. The specified current and power consumption are under the V
=12.0V, Ta=25 2°C, fV=60Hz
LCD
condition, and mosaic pattern(8 x 6) is displayed and fV is the frame frequency.
2. The current is specified at the maximum current pattern.
3. The duration of rush current is about 2ms and rising time of power input is 0.5ms (min.).
4. Ripple voltage level is recommended under ±5% of typical voltage
Ver. 1.0
White : 255 Gray
Black : 0 Gray
Mosaic Pattern(8 x 6)
6 / 34
Product Specification
Table 3. ELECTRICAL CHARACTERISTICS (Continue)
LC420DUE
Parameter Symbol
Backlight Assembly :
Forward Current
(one array)
Forward Voltage
Power Consumption P
Burst Dimming Duty On duty
Burst Dimming Frequency 1/T
LED Array : (APPENDIX-V)
Life Time 30,000 Hrs 6
Notes :
The design of the LED driver must have specifications for the LED array in LCD Assembly.
Anode I
Cathode I
F (anode)
F (cathode)
V
F1
V
F2
BL
Min Typ Max
361 380 399 mAdc
102 111 120
68 74 80
- 70.3 76 W 5
1 100 %
95 182 Hz 7
Values
380 mAdc
Unit Note
Vdc
The electrical characteristics of LED driver are based on Constant Current driving type.
The performance of the LED in LCM, for example life time or brightness, is extremely influenced by the
characteristics of the LED Driver. So, all the parameters of an LED driver should be carefully designed.
When you design or order the LED driver, please make sure unwanted lighting caused by the mismatch of the
LED and the driver (no lighting, flicker, etc) has never been occurred. When you confirm it, the LCD–
Assembly should be operated in the same condition as installed in your instrument.
1. Electrical characteristics are based on LED Array specification.
2. Specified values are defined for a Backlight Assembly. (IBL :10 LED array/LCM)
3. Each LED array has 1 anode terminal and 1 cathode terminal.
The forward current (IF) of the anode terminal is 380mA and it supplies 380mA into one string, respectively
1string(30 LED PKG)
Anode1
380mA
° ° °
380mA
Cathode
6 Array (1 String)
1string(20 LED PKG)
Anode2
380mA
° ° °
380mA
Cathode
4 Array (1 String)
4. The forward voltage (VF) of LED array depends on ambient temperature (Appendix-VI)
5. Maximum level of power consumption is measured at initial turn on.
Typical level of power consumption is measured after 1hrs aging at 25 2°C.
6. The life time (MTTF) is determined as the time at which brightness of the LED is 50% compared to that of
initial value at the typical LED current on condition of continuous operating at 25 2°C, based on duty 100%.
7. The reference method of burst dimming duty ratio.
It is recommended to use synchronous V-sync frequency to prevent waterfall
(Vsync * 2 =Burst Frequency)
Though PWM frequency is over 182Hz (max252Hz), function of backlight is not affected.
Ver. 1.0
±5%
2, 3
4
7 / 34
LC420DUE
Product Specification
3-2. Interface Connections
This LCD module employs two kinds of interface connection, a 51-pin connector is used for the module
electronics and 2pin,2pin connector is used for the integral backlight system.
3-2-1. LCD Module
- LCD Connector(CN1): FI-RE51S-HF(manufactured by JAE) or GT05P-51S-H38(manufactured by LSM)
or IS050-C51B-C39(manufactured by UJU)
- Mating Connector : FI-R51HL(JAE) or compatible
Table 4. MODULE CONNECTOR(CN1) PIN CONFIGURATION
No Symbol Description No Symbol Description
1
2
3
4
5
6
7
8
9
10
11 GND
12 R1AN
13 R1AP
14 R1BN
15
16 R1CN
17 R1CP
18 GND
19 R1CLKN
20
21 GND
22 R1DN
23 R1DP
24
25
26
NC
NC
NC
NC
NC
NC
LVDS Select
NC
NC
NC
R1BP
R1CLKP
NC
NC
NC or GND
No Connection (Note 4)
No Connection (Note 4)
No Connection (Note 4)
No Connection (Note 4)
No Connection (Note 4)
No Connection (Note 4)
‘H’ =JEIDA , ‘L’ or NC = VESA
No Connection (Note 4)
No Connection (Note 4)
No Connection (Note 4)
Ground
FIRST LVDS Receiver Signal (A-)
FIRST LVDS Receiver Signal (A+)
FIRST LVDS Receiver Signal (B-)
FIRST LVDS Receiver Signal (B+)
FIRST LVDS Receiver Signal (C-)
FIRST LVDS Receiver Signal (C+)
Ground
FIRST LVDS Receiver Clock Signal(-)
FIRST LVDS Receiver Clock Signal(+)
Ground
FIRST LVDS Receiver Signal (D-)
FIRST LVDS Receiver Signal (D+)
No Connection
No Connection
No Connection or Ground
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
- - -
NC
R2AN
R2AP
R2BN
R2BP
R2CN
R2CP
GND
R2CLKN
R2CLKP
GND
R2DN
R2DP
NC
NC
NC or GND
NC or GND
GND Ground
GND Ground
GND Ground
NC No connection
VLCD Power Supply +12.0V
VLCD Power Supply +12.0V
VLCD Power Supply +12.0V
VLCD Power Supply +12.0V
No Connection
SECOND LVDS Receiver Signal (A-)
SECOND LVDS Receiver Signal (A+)
SECOND LVDS Receiver Signal (B-)
SECOND LVDS Receiver Signal (B+)
SECOND LVDS Receiver Signal (C-)
SECOND LVDS Receiver Signal (C+)
Ground
SECOND LVDS Receiver Clock Signal(-)
SECOND LVDS Receiver Clock Signal(+)
Ground
SECOND LVDS Receiver Signal (D-)
SECOND LVDS Receiver Signal (D+)
No Connection
No Connection
No Connection or Ground
No Connection or Ground
Note
1. All GND(ground) pins should be connected together to the LCD module’s metal frame.
2. All VLCD (power input) pins should be connected together.
3. All Input levels of LVDS signals are based on the EIA 644 Standard.
4. #1~#6 & #8~#10 NC (No Connection): These pins are used only for LGD (Do not connect)
5. Specific pin No. #44 is used for “No signal detection” of system signal interface.
It should be GND for NSB(No Signal Black) during the system interface signal is not.
If this pin is “H”, LCD Module displays AGP(Auto Generation Pattern).
Ver. 1.0
8 / 34
Product Specification
3-2-2. Backlight Module
[ CN201 ]
1) LED Array ass`y Connector (Plug)
: SMH200-07
(black color, manufactured by Yeonho)
2) Mating Connector (Receptacle)
: SMAW200A-H07AA(Dip Type)
20037WR-H07AA(SMD Type)
(black color, manufactured by Yeonho)
Table 5. BACKLIGHT CONNECTOR PIN CONFIGURATION(CN201)
LC420DUE
No Symbol(CN201)
1 Cathode2
2 N.C
3 Anode2
4 N.C
5 Cathode1
6 N.C
7 Anode1
◆ Rear view of LCM
Description
LED output Current
Open
LED input Current
Open
LED output Current
Open
LED input Current
2block
1block
LPB
1 3 5 7
CN201
Ver. 1.0
2block
9 / 34
LC420DUE
Product Specification
3-3. Signal Timing Specifications
Table 6 shows the signal timing required at the input of the LVDS transmitter. All of the interface signal
timings should be satisfied with the following specification for normal operation.
Table 6. TIMING TABLE (DE Only Mode)
ITEM Symbol Min Typ Max Unit Note
Horizontal
Vertical
Frequency
Display
Period
Blank tHB 100 140 240 tCLK 1
Total tHP 1060 1100 1200 tCLK
Display
Period
Blank tVB
Total tVP
ITEM Symbol Min Typ Max Unit Note
DCLK fCLK 63.00 74.25 78.00 MHz
Horizontal fH 57.3 67.5 70 KHz 2
Vertical fV
tHV 960 960 960 tCLK 1920 / 2
tVV 1080 1080 1080 Lines
20
(228)
1100
(1308)
57
(47)
45
(270)
1125
(1350)
60
(50)
69
(300)
1149
(1380)
63
(53)
Lines 1
Lines
Hz
NTSC : 57~63Hz
(PAL : 47~53Hz)
2
Note: 1. The input of HSYNC & VSYNC signal does not have an effect on normal operation (DE Only Mode).
If you use spread spectrum of EMI, add some additional clock to minimum value for clock margin.
2. The performance of the electro-optical characteristics may be influenced by variance of the vertical
refresh rate and the horizontal frequency
※ Timing should be set based on clock frequency.
Ver. 1.0
10 / 34
3-4. LVDS Signal Specification
3-4-1. LVDS Input Signal Timing Diagram
LC420DUE
Product Specification

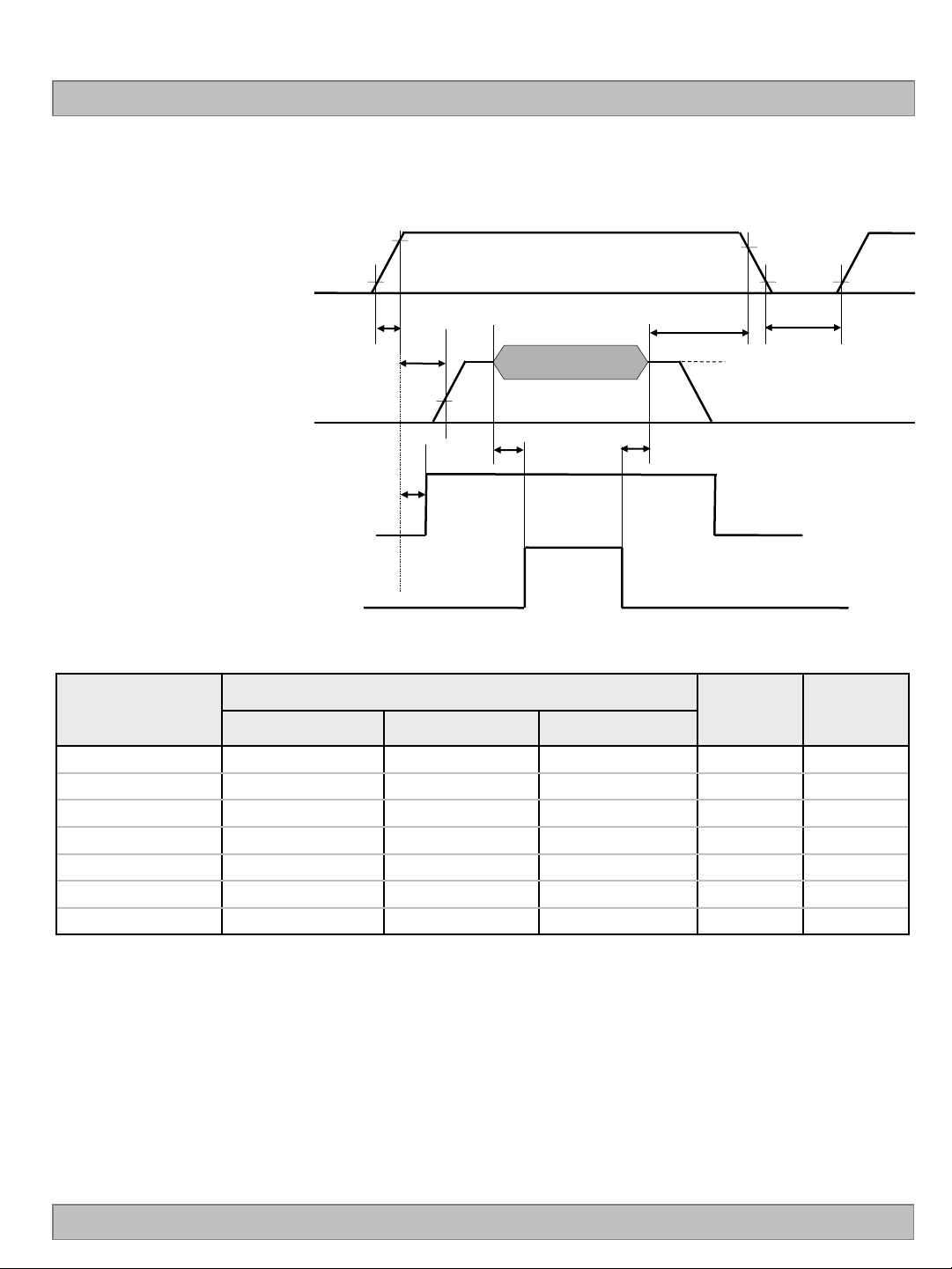

DE, Data
DCLK
First data
Second data
0.7VDD
0.3VDD
tCLK
DE(Data Enable)
0.5 VDD
Invalid data
Invalid data
Valid data
Pixel 0,0 Pixel 2,0
Valid data
Pixel 1,0 Pixel 3,0
tHP
Invalid data
Invalid data
tHV
DE(Data Enable)
Ver. 1.0
1 1080
tVV
tVP
11 / 34
Loading...
