LG Display LC320EUN-SEM1 Specification

( ● ) Preliminary Specification
( ) Final Specification

Title 32.0” WUXGA TFT LCD

LC320EUN

Product Specification

SPECIFICATION

FOR

APPROVAL

BUYER

MODEL

APPROVED BY

/

/

/

SIGNATURE

DATE

SUPPLIER LG Display Co., Ltd.

*MODEL LC320EUN

SUFFIX SEM1 (RoHS Verified)

*When you obtain standard approval,

please use the above model name without suffix

APPROVED BY

J.T. Kim / Team Leader

REVIEWED BY

B.P. Choi / Project Leader

PREPARED BY

K.S. Kim / Engineer

SIGNATURE

DATE

Please return 1 copy for your confirmation with

your signature and comments.

Ver. 0.0

TV Product Development Dept.

LG Display Co., Ltd.

1 /37

Product Specification

CONTENTS

LC320EUN

Number ITEM

COVER 1

CONTENTS

RECORD OF REVISIONS

1 GENERAL DESCRIPTION

2 ABSOLUTE MAXIMUM RATINGS

3 ELECTRICAL SPECIFICATIONS

3-1 ELECTRICAL CHARACTERISTICS

3-2 INTERFACE CONNECTIONS

3-3 SIGNAL TIMING SPECIFICATIONS

3-4 LVDS SIGNAL SPECIFICATIONS

3-5 COLOR DATA REFERENCE

3-6 POWER SEQUENCE

4 OPTICAL SPECIFICATIONS

5 MECHANICAL CHARACTERISTICS

Page

2

3

4

5

6

6

8

10

11

14

15

17

21

6 RELIABILITY

7 INTERNATIONAL STANDARDS

7-1 SAFETY

7-2 EMC

7-3 ENVIRONMENT

8 PACKING

8-1 INFORMATION OF LCM LABEL

8-2 PACKING FORM

9 PRECAUTIONS

9-1 MOUNTING PRECAUTIONS

9-2 OPERATING PRECAUTIONS

9-3 ELECTROSTATIC DISCHARGE CONTROL

9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

9-5 STORAGE

9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM

Ver. 0.0

24

25

25

25

25

26

26

26

27

27

27

28

28

28

28

2 /37

Product Specification

RECORD OF REVISIONS

Revision No. Revision Date Page Description

0.0 July, 19, 2011 - Preliminary Specification (First Draft)

LC320EUN

Ver. 0.0

3 /37

LC320EUN

Product Specification

1. General Description

The LC320EUN is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED)
backlight s ystem. The mat rix employs a- Si T hin Film Transistor as the acti ve element.
It is a transmissive display type which is operating in the normally black mode. It has a 31.55 inch diagonally
measured active display area with WUXGA resolution (1080 vertical by 1920 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arrayed in vertical stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot.
Therefore, it can present a palette of more than 16.7Milion colors.
It has been designed to apply the 8-bit 2-port LVDS interface.
It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut,

high color depth and fast response time are important.

LVDS

EEPROM

Mini-LVDS(RGB)

Source Driver Circuit

2Port

LVDS
Select

OPC
Enable

ExtVBR-B

+12.0V

PWM_OUT

1~3

+24.0V, GND, On/Off

CN1

(51pin)

CN2

(8 pin)

LVDS 1,2

Option
signal

I2C

PWM_OUT

1~3

SCL

SDA

Timing Controller

LVDS Rx + OPC + DGA

Integrated

Power Circuit

Block

LED Driver

G1

Control
Signals

G1080

Power Signals

S1 S1920

TFT - LCD Panel

(1920 × RGB × 1080 pixels)

[Gate In Panel]

Scanning Block 1

Scanning Block 2

Scanning Block 3

General Features

Active Screen Size 31.55 inches(801.31mm) diagonal

Outline Dimension
Pixel Pitch 0.36375 mm x 0.36375 mm
Pixel Format 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement
Color Depth 8bit, 16.7Million colors
Luminance, White 360 cd/m2 (Center 1point ,Typ.)
Viewing Angle (CR>10) Viewing angle free ( R/L 178 (Min.), U/D 178 (Min.))

Power Consumption

Weight
Display Mode Transmissive mode, Normally black
Surface Treatment Hard coating(3H), Anti-glare treatment of the front polarizer (Haze 10%)

Ver. 0.0

727.4(H) × 429.0 (V) X 9.9 (B)/22.7 mm(D) (Typ.)

Total 37.94W(TBD)(Typ.) [Logic= 6.04W, LED Driver=31.9(TBD)W
(ExtVbr_B=100% )]

5.4 Kg (Typ.)[TBD]

4 /37

LC320EUN

Product Specification

2. Absolute Maximum Ratings

The following items are maximum values which, if exceeded, may cause faulty operation or permanent damage
to the LCD module.

Table 1. ABSOLUTE MAXIMUM RATINGS

Parameter Symbol

Unit Note

Min Max

LCD Circuit VLCD -0.3 +14.0 VDC

Power Input Voltage

Driver VBL -0.3 + 27.0 VDC

Value

ON/OFF VOFF / VON -0.3 +5.5 VDC

1

Driver Control Voltage

Brightness EXTVBR-B 0.0 +3.6 VDC

T-Con Option Selection Voltage VLOGIC

-0.3 +4.0 VDC

Operating Temperature TOP 0 +50 °C

2,3

Storage Temperature TST -20 +60 °C

Panel Front Temperature TSUR

- +68 °C 4

Operating Ambient Humidity HOP 10 90 %RH

2,3

Storage Humidity HST 10 90 %RH

Note

1. Ambient temperature condition (Ta = 25  2 °C )

2. Temperature and relative humidity range are shown in the figure below.
Wet bulb temperature should be Max 39°C, and no condensation of water.

3. Gravity mura can be guaranteed below 40°C condition.

4. The maximum operating temperatures is based on the test condition that the surface temperature

of display area is less than or equal to 68°C with LCD module alone in a temperature controlled chamber.
Thermal management should be considered in final product design to prevent the surface temperature of
display area from being over 68℃. The range of operating temperature may be degraded in case of
improper thermal management in final product design.

90%

Ver. 0.0

Wet Bulb
Temperature [°C]

20

10

0

10 20 30 40 50 60 70 80 0 -20
Dry Bulb Temperature [°C]

30

40

50

60

60%

40%

10%

Storage

Operation

Humidity [(%)RH]

5 /37

LC320EUN

Product Specification

3. Electrical Specifications

3-1. Electrical Characteristics

It requires two power inputs. One is employed to power for the LCD circuit. The other Is used for the LED
backlight and LED Driver circuit.

Table 2. ELECTRICAL CHARACTERISTICS

Parameter Symbol

Min Typ Max

Circuit :

Power Input Voltage VLCD 10.8 12.0 13.2 VDC

Value

Unit Note

Power Input Current ILCD

Power Consumption PLCD 6.04[TBD] 7.85 Watt 1

Rush current IRUSH - - 5.0 A 3

ExtV

Brightness Adjust for Back Light

ExtV

Frequency

Pulse Duty Level
(PWM)

Note

1. The specified current and power consumption are under the V

High Level

Low Level

BR-B

BR-B

- 503[TBD] 654 mA 1

- 734[TBD] 954 mA 2

5 - 100 %

1 - 100 %

40 50/60 80 Hz

2.5 - 3.6 Vdc

0 - 0.8 Vdc

=12.0V, Ta=25  2°C, fV=60Hz

LCD

condition, and mosaic pattern(8 x 6) is displayed and fV is the frame frequency.

2. The current is specified at the maximum current pattern.

3. The duration of rush current is about 2ms and rising time of power input is 0.5ms (min.).

4. ExtV
After Driver ON signal is applied, ExtV
After that, ExtV

signal have to input available duty range and sequence.

BR-B

1% and 100% is possible

BR-B

should be sustained from 5% to 100% more than 500ms.

BR-B

For more information, please see 3-6-2. Sequence for LED Driver.

5. Ripple voltage level is recommended under ± 5% of typical voltage

On Duty

4

HIGH : on

duty

LOW : off duty

Ver. 0.0

White : 255 Gray

Black : 0 Gray

Mosaic Pattern(8 x 6)

6 /37

Product Specification

Table 3. ELECTRICAL CHARACTERISTICS (Continue)

LC320EUN

Parameter Symbol

Values

Unit Notes

Min Typ Max

LED Driver :

Power Supply Input Voltage VBL

Power Supply Input Current IBL

Power Supply Input Current (In-Rush) In-rush - - 3 A

Power Consumption PBL

Input Voltage for

Control System

Signals

LED :

Life Time 30,000 50,000 Hrs 2

On/Off

On V on 2.5 - 5.0 Vdc

Off V off -0.3 0.0 0.7 Vdc

22.8 24.0 25.2 Vdc 1

-

-

1.33

[TBD]

31.9

[TBD]

1.45

34.8

A 1

W 1

VBL = 22.8V
ExtV

BR-B

= 100%

3

Notes :

1. Electrical characteristics are determined after the unit has been „ON‟ and stable for approximately 60
minutes at 25± 2°C. The specified current and power consumption are under the typical supply Input voltage
24Vand VBR (ExtVBR-B : 100%), it is total power consumption.

2. The life time (MTTF) is determined as the time which luminance of the LED is 50% compared to that of initial
value at the typical LED current (ExtVBR-B :100%) on condition of continuous operating in LCM state at
25± 2°C.

3. The duration of rush current is about 200ms. This duration is applied to LED on time.

4. Even though inrush current is over the specified value, there is no problem if I2T spec of fuse is satisfied.

Ver. 0.0

7 /37

Product Specification

3-2. Interface Connections

This LCD module employs two kinds of interface connection, 51-pin connector is used for the module
electronics and 14-pin connector is used for the integral backlight system.

3-2-1. LCD Module

- LCD Connector(CN1): FI-R51S-HF(manufactured by JAE) or compatible
Refer to below and next Page table

- Mating Connector : FI-R51HL(JAE) or compatible

Table 4. MODULE CONNECTOR(CN1) PIN CONFIGURATION

No Symbol Description No Symbol Description

1
2
3
4

5
6

7
8

9

10
11 GND

12 R1AN
13 R1AP
14 R1BN
15
16 R1CN
17 R1CP
18 GND
19 R1CLKN
20
21 GND
22 R1DN
23 R1DP
24

25
26

NC
NC
NC
NC

NC
NC

LVDS Select

ExtVBR-B

NC

OPC Enable „H‟ = Enable , „L‟ or NC = Disable

R1BP

R1CLKP

NC
NC

NC or GND

No Connection (Note 4)
No Connection (Note 4)
No Connection (Note 4)
No Connection (Note 4)

No Connection (Note 4)
No Connection (Note 4)

‘H’ =JEIDA , ‘L’ or NC = VESA
External PWM (from System)

No Connection (Note 4)

Ground
FIRST LVDS Receiver Signal (A-)

FIRST LVDS Receiver Signal (A+)
FIRST LVDS Receiver Signal (B-)
FIRST LVDS Receiver Signal (B+)
FIRST LVDS Receiver Signal (C-)
FIRST LVDS Receiver Signal (C+)

Ground
FIRST LVDS Receiver Clock Signal(-)

FIRST LVDS Receiver Clock Signal(+)
Ground

FIRST LVDS Receiver Signal (D-)
FIRST LVDS Receiver Signal (D+)

No Connection
No Connection
No Connection or Ground

27
28

29
30

31
32

33
34
35
36
37
38
39

40
41
42
43
44
45
46

47
48
49
50
51

- - -

NC
R2AN
R2AP
R2BN

R2BP
R2CN

R2CP

GND

R2CLKN

R2CLKP

GND
R2DN
R2DP

NC

NC
NC or GND
NC or GND

GND Ground
GND Ground
GND Ground

NC No connection

VLCD Power Supply +12.0V
VLCD Power Supply +12.0V
VLCD Power Supply +12.0V

VLCD Power Supply +12.0V

No Connection
SECOND LVDS Receiver Signal (A-)

SECOND LVDS Receiver Signal (A+)
SECOND LVDS Receiver Signal (B-)

SECOND LVDS Receiver Signal (B+)
SECOND LVDS Receiver Signal (C-)

SECOND LVDS Receiver Signal (C+)
Ground

SECOND LVDS Receiver Clock Signal(-)
SECOND LVDS Receiver Clock Signal(+)

Ground
SECOND LVDS Receiver Signal (D-)

SECOND LVDS Receiver Signal (D+)
No Connection

No Connection
No Connection or Ground
No Connection or Ground

LC320EUN

Note

Ver. 0.0

1. All GND(ground) pins should be connected together to the LCD module‟s metal frame.

2. All VLCD (power input) pins should be connected together.

3. All Input levels of LVDS signals are based on the EIA 644 Standard.

4. #1~#6 & #9 NC (No Connection): These pins are used only for LGD (Do not connect)

5. Specific pins(pin No. #10) are used for Scanning function of the LCD module.

If not used, these pins are no connection. (Please see the Appendix VI for more information.)

6. Specific pin No. #44 is used for “No signal detection” of system signal interface.
It should be GND for NSB(No Signal Black) during the system interface signal is not.
If this pin is “H”, LCD Module displays AGP(Auto Generation Pattern).

8 /37

Product Specification

3-2-2. Backlight Module

Master

-LED Driver Connector
: 20022WR - H14B2(Yeonho) or compatible

- Mating Connector
: 20022HS - 14B2 or compatible

Table 5. LED DRIVER CONNECTOR PIN CONFIGURATION

Pin No Symbol Description Note

LC320EUN

1

2

3

4

5

6

7

8

9

10

11

12

13

14

VBL Power Supply +24.0V

VBL Power Supply +24.0V

VBL Power Supply +24.0V

VBL Power Supply +24.0V

VBL Power Supply +24.0V

GND

GND

GND

GND

GND

Status

ON/OFF

V

NC Don‟t care

NC Don‟t care

Backlight Ground

Backlight Ground

Backlight Ground

Backlight Ground

Backlight Ground

Back Light Status

Backlight ON/OFF control

Notes :1. GND should be connected to the LCD module‟s metal frame.

2. Normal : Low (under 0.7V) / Abnormal : Open

3. Each impedance of pin #12 is over TBD [KΩ] .

1

2

◆ Rear view of LCM

1

Ver. 0.0

PCB

1

14

14

…

…

<Master>

9 /37

LC320EUN

Product Specification

3-3. Signal Timing Specifications

Table 6 shows the signal timing required at the input of the LVDS transmitter. All of the interface signal
timings should be satisfied with the following specification for normal operation.

Table 6. TIMING TABLE (DE Only Mode)

ITEM Symbol Min Typ Max Unit Note

Horizontal

Vertical

Frequency

Display

Period

Blank tHB 100 140 240 tCLK 1

Total tHP 1060 1100 1200 tCLK

Display

Period

Blank tVB

Total tVP

ITEM Symbol Min Typ Max Unit Note

DCLK fCLK 63.00 74.25 78.00 MHz

Horizontal fH 57.3 67.5 70 KHz 2

Vertical fV

tHV 960 960 960 tCLK 1920 / 2

tVV 1080 1080 1080 Lines

20

(228)

1100

(1308)

57

(47)

45

(270)

1125

(1350)

60

(50)

69

(300)

1149

(1380)

63

(53)

Lines 1

Lines

2

Hz

NTSC : 57~63Hz
(PAL : 47~53Hz)

Note: 1. The input of HSYNC & VSYNC signal does not have an effect on normal operation (DE Only Mode).
If you use spread spectrum of EMI, add some additional clock to minimum value for clock margin.

2. The performance of the electro-optical characteristics may be influenced by variance of the vertical
refresh rate and the horizontal frequency

※ Timing should be set based on clock frequency.

Ver. 0.0

10 /37

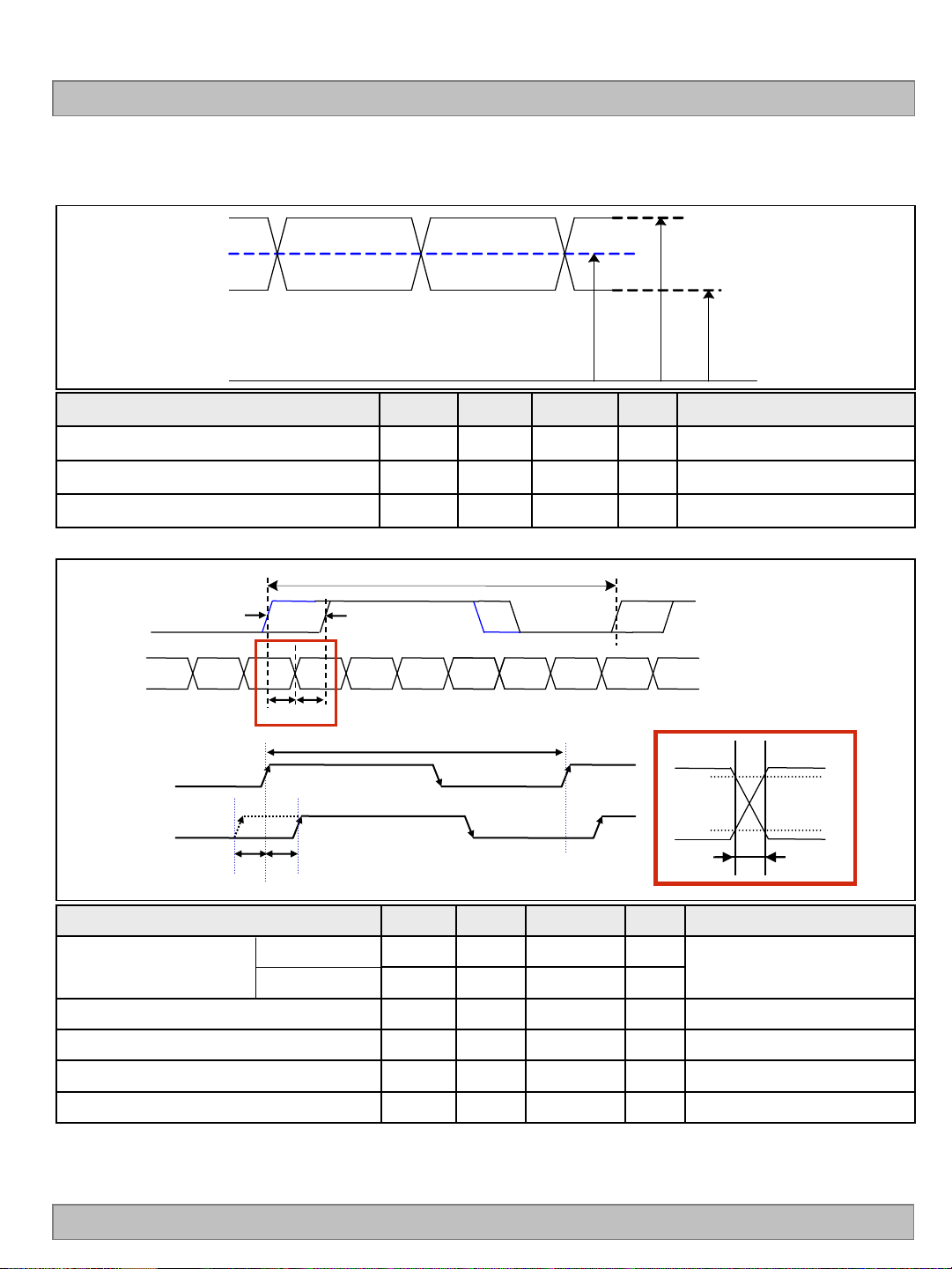

3-4. LVDS Signal Specification

3-4-1. LVDS Input Signal Timing Diagram

LC320EUN

Product Specification

DE, Data

DCLK

First data

Second data

0.7VDD

0.3VDD

tCLK

DE(Data Enable)

0.5 VDD

Invalid data

Invalid data

Valid data

Pixel 0,0 Pixel 2,0

Valid data

Pixel 1,0 Pixel 3,0

tHP

Invalid data

Invalid data

tHV

DE(Data Enable)

Ver. 0.0

1 1080

tVV

tVP

11 /37

3-4-2. LVDS Input Signal Characteristics

1) DC Specification

LVDS -

LVDS +

LC320EUN

Product Specification

0 V

# V

= { ( LVDS +) + ( LVDS - ) } / 2

CM

V

CM

V

IN _ MAX V IN _ MIN

Description Symbol Min Max Unit Note

LVDS Common mode Voltage V

LVDS Input Voltage Range V

CM

IN

1.0 1.5 V -

0.7 1.8 V -

Change in common mode Voltage ΔVCM 250 mV -

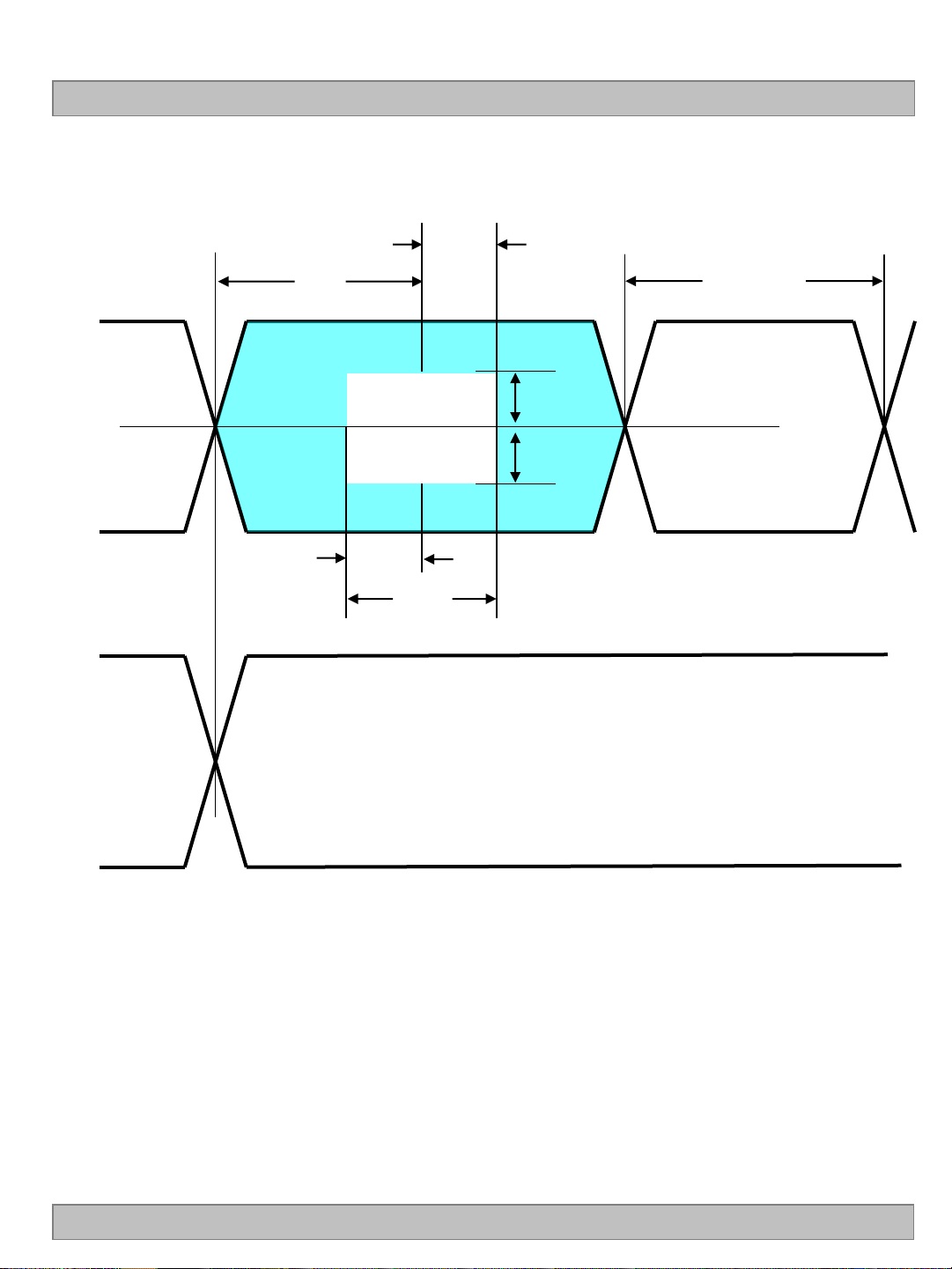

2) AC Specification

T

clk

LVDS Clock

A

LVDS Data

( F

= 1 / T

)

clk

A

LVDS 1‟st Clock

LVDS 2nd / 3rd / 4th Clock

tSKEW

tSKEW

t

SKEW_min tSKEW_max

clk

T

clk

80%

20%

t

RF

Description Symbol Min Max Unit Note

LVDS Differential Voltage

High Threshold

Low Threshold

LVDS Clock to Data Skew t

LVDS Clock/DATA Rising/Falling time t

Effective time of LVDS t

LVDS Clock to Clock Skew (Even to Odd) t

1. All Input levels of LVDS signals are based on the EIA 644 Standard.

Note

2. If tRF isn‟t enough, t

should be meet the range.

eff

3. LVDS Differential Voltage is defined within t

Ver. 0.0

VTH 100 300 mV

VTL -300 -100 mV

SKEW

RF

eff

SKEW_EO

- |(0.25*T

260 |(0.3*T

|± 360|

- |1/7* T

eff

)/7| ps

clk

)/7| ps 2

clk

- ps

| ps -

clk

3

-

-

12 /37

Product Specification

360ps

LC320EUN

V+
data

Vcm

V­data

V+
clk

Vcm

0.5tui

tui

VTH

VTL

360ps

teff

tui : Unit Interval

V­clk

Ver. 0.0

13 /37

LC320EUN

Product Specification

3-5. Color Data Reference

The brightness of each primary color(red,green,blue) is based on the 8bit gray scale data input for the color.

The higher binary input, the brighter the color. Table 7 provides a reference for color versus data input.

Table 7. COLOR DATA REFERENCE

Input Color Data

Basic

Color

RED

Color

RED

MSB LSB

MSB LSB

GREEN

BLUE

MSB LSB

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Red (255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Green (255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

Blue (255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Cyan 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Magenta 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

RED (000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED (001) 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

... ... ... ...

RED (254) 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED (255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

GREEN (000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

GREEN

BLUE

Ver. 0.0

GREEN (001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0

... ... ... ...

GREEN (254) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0

GREEN (255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

BLUE (000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

BLUE (001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

... ... ... ...

BLUE (254) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0

BLUE (255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

14 /37

3-6. Power Sequence

3-6-1. LCD Driving circuit

LC320EUN

Product Specification

Power Supply For LCD
V

LCD

Interface Signal (Tx_clock)

0V

0V

10%

User Control Signal
(LVDS_select, OPC Enable, ExtVBR-B)

Power for LED

Table 8. POWER SEQUENCE

Parameter

Min Typ Max

90%

T1

T6

T2

30%

100%

T7

Value

Valid Data

T3 T4

LED ON

90%

10%

T8

T5

Vcm : LVDS Common mode Voltage

Unit Notes

10%

Note :

Ver. 0.0

T1 0.5 - 20 ms 1

T2 0 - - ms 2

T3 200 - - ms 3

T4 200 - - ms 3

T5 1.0 - - s 4

T6 - - T2 ms 5

T7 0.5 - - s 6

T8 100 - - ms 7

1. Even though T1 is over the specified value, there is no problem if I2T spec of fuse is satisfied.

2. If T2 is satisfied with specification after removing LVDS Cable, there is no problem.

3. The T3 / T4 is recommended value, the case when failed to meet a minimum specification,
abnormal display would be shown. There is no reliability problem.

4. T5 should be measured after the Module has been fully discharged between power off and on period.

5. If the on time of signals (Interface signal and user control signals) precedes the on time of Power (V

it will be happened abnormal display. When T6 is NC status, T6 doesn‟t need to be measured.

6. If there is no abnormal display, no problem.

7. It is recommendation specification that T8 has to be 100ms as a minimum value.

※ Please avoid floating state of interface signal at invalid period.
※ When the power supply for LCD (VLCD) is off, be sure to pull down the valid and invalid data to 0V.

LCD

),

15 /37

3-6-2. Sequence for LED Driver

Power Supply For LED Driver

VBL

0V

10%

Product Specification

24V (typ.)

90%

LC320EUN

90%

T1 T2

VON/OFF

ExtVBR-B

3-6-3. Dip condition for LED Driver

VBL(Typ.) x 0.8

Table 9. Power Sequence for LED Driver

T4 T6

LED ON

T5

T3

V

0 V

BL

: 24V

Parameter

T1 20 - - ms 1
T2 500 - - ms
T3 10 - - ms

T4 0 - - ms

T5 - - 10 ms VBL(Typ) x 0.8

T6 500 - - ms 2

Min Typ Max

Values

Units Remarks

Notes : 1. T1 describes rising time of 0V to 24V and this parameter does not applied at restarting time.
Even though T1 is over the specified value, there is no problem if I2T spec of fuse is satisfied.

2. In T6 section, ExtVBR-B should be sustained from 5% to 100% .

Ver. 0.0

16 /37

LC320EUN

Product Specification

4. Optical Specification

Optical characteristics are determined after the unit has been „ON‟ and stable in a dark environment at 25± 2°C.

The values are specified at 50cm from the LCD surface at a viewing angle of  and  equal to 0 °.

FIG. 1 shows additional information concerning the measurement equipment and method.

Optical Stage(x,y)

LCD Module

Pritchard 880 or
equivalent

50cm

FIG. 1 Optical Characteristic Measurement Equipment and Method

Ta= 25± 2°C, V

Table 10. OPTICAL CHARACTERISTICS

Parameter Symbol

Min Typ Max

Contrast Ratio CR 1000 1400 - 1

Surface Luminance, white L

Luminance Variation

Response Time

Variation G to G

Gray to Gray (BW) G to G BW



WHITE

RED

GREEN

Color Coordinates
[CIE1931]

BLUE

WHITE

WH

5P - - 1.3 3

σ

Rx

Ry TBD

Gx TBD

Gy TBD

Bx TBD

By TBD

Wx 0.279

Wy 0.292

290 360 - cd/m

Typ

-0.03

Color Temperature 10,000 K

Color Gamut 68 %

Viewing Angle (CR>10)

x axis, right(=0°) r

x axis, left (=180°) l

y axis, up (=90°) u

y axis, down (=270°) d

89 - -

89 - -

89 - -

89 - -

Gray Scale - - - 7

Value

TBD

=12.0V, fV=60Hz, Dclk=74.25MHz,

LCD

EXTVBR-B =100%

Unit Note

2

6 9 ms 4

8 12 5

Typ

+0.03

degree 6

2

Ver. 0.0

17 /37

LC320EUN

Product Specification

Note : 1. Contrast Ratio(CR) is defined mathematically as :
Surface Luminance with all white pixels

Contrast Ratio =
Surface Luminance with all black pixels

It is measured at center 1-point.

2. Surface luminance are determined after the unit has been „ON‟ and 1 Hour after lighting the
backlight in a dark environment at 25± 2°C. Surface luminance is the luminance value at center
1-point across the LCD surface 50cm from the surface with all pixels displaying white.
For more information see the FIG. 2.

3. The variation in surface luminance ,  WHITE is defined as :
 WHITE(5P) = Maximum(L

Where L

on1

to L

are the luminance with all pixels displaying white at 5 locations .

on5

on1,Lon2

For more information, see the FIG. 2.

4. Response time is the time required for the display to transit from any gray to white (Rise Time, TrR)
and from any gray to black (Decay time, TrD). For additional information see the FIG. 3.
※ G to GBW Spec stands for average value of all measured points.
Photo Detector : RD-80S / Field : 2 °

5. G to G σ is Variation of Gray to Gray response time composing a picture

G to G (σ) =

6. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are

√

determined for the horizontal or x axis and the vertical or y axis with respect to the z axis which
is normal to the LCD module surface. For more information, see the FIG. 4.

7. Gray scale specification
Gamma Value is approximately 2.2. For more information, see the Table 11.

, L

Σ(Xi- u)2

N

on3

, L

, L

on4

) / Minimum(L

on5

Xi = Individual Data
u = Data average

N : The number of Data

on1,Lon2

, L

on3

, L

on4

, L

on5

)

Table 11. GRAY SCALE SPECIFICATION

Gray Level Luminance [%] (Typ)

L0 0.07
L15 0.28
L31 1.05
L47 2.50
L63 4.69
L79 7.67
L95 11.47

L111 16.11
L127 21.64
L143 28.07
L159 35.43

L175 43.73

L191 52.99
L207 63.23
L223 74.47

L239 86.72

L255 100

Ver. 0.0

18 /37

Product Specification

Measuring point for surface luminance & measuring point for luminance variation.

H

A

③ ②

LC320EUN

V

①

B

A : H / 4 mm

④

FIG. 2 5 Points for Luminance Measure

Response time is defined as the following figure and shall be measured by switching the input signal for
“Gray(N)” and “Gray(M)”.

TrR

100

90

⑤

TrD

B : V / 4 mm
@ H,V : Active Area

Ver. 0.0

Optical
Response

10

0

Gray(N)

Gray(M)

N,M = Black~White, N<M

FIG. 3 Response Time

Gray(N)

19 /37

Dimension of viewing angle range

Normal

Y

E







= 0, Right



= 180, Left



= 270, Down



= 90, Up

LC320EUN

Product Specification

FIG. 4 Viewing Angle

Ver. 0.0

20 /37

Product Specification

5. Mechanical Characteristics

Table 12 provides general mechanical characteristics.

Table 12. MECHANICAL CHARACTERISTICS

Item Value

LC320EUN

727.4 mm

429.0 mm

9.9 mm

705.6 mm

400.1 mm

698.4 mm

392.9 mm

Outline Dimension

Bezel Area

Active Display Area

Weight

Horizontal

Vertical

Depth

Horizontal

Vertical

Horizontal

Vertical

5.4 Kg (Typ.), 5.9 kg (Max.) [TBD]

Note : Please refer to a mechanical drawing in terms of tolerance at the next page.

Ver. 0.0

21 /37

[ FRONT VIEW ]

LC320EUN

Product Specification

Set : Top

Set : Down

Ver. 0.0

22 /37

[ REAR VIEW ]

LC320EUN

Product Specification

Set : Top

Set : Down

Ver. 0.0

23 /37

Product Specification

6. Reliability

Table 13. ENVIRONMENT TEST CONDITION

No. Test Item Condition

1 High temperature storage test Ta= 60°C 240h

2 Low temperature storage test Ta= -20°C 240h

3 High temperature operation test Ta= 50°C 50%RH 240h

4 Low temperature operation test Ta= 0°C 240h

Wave form : random

Vibration test

5

(non-operating)

Shock test

6

(non-operating)

Vibration level : 1.0Grms

Bandwidth : 10-300Hz

Duration : X,Y,Z,
Each direction per 10 min

Shock level : 50Grms
Waveform : half sine wave, 11ms
Direction : ± X, ± Y, ± Z
One time each direction

LC320EUN

7 Humidity condition Operation Ta= 40 °C ,90%RH

Altitude operating

8

storage / shipment

0 - 15,000 ft
0 - 40,000 ft

Note : Before and after Reliability test, LCM should be operated with normal function.

Ver. 0.0

24 /37

Product Specification

7. International Standards
7-1. Safety

a) UL 60065, Seventh Edition, Underwriters Laboratories Inc.
Audio, Video and Similar Electronic Apparatus - Safety Requirements.

b) CAN/CSA C22.2 No.60065:03, Canadian Standards Association.
Audio, Video and Similar Electronic Apparatus - Safety Requirements.

c) EN 60065:2002 + A11:2008, European Committee for Electrotechnical Standardization (CENELEC).
Audio, Video and Similar Electronic Apparatus - Safety Requirements.

d) IEC 60065:2005 + A1:2005, The International Electrotechnical Commission (IEC).

Audio, Video and Similar Electronic Apparatus - Safety Requirements.

(Including report of IEC60825-1:2001 clause 8 and clause 9)

Notes

1. Laser (LED Backlight) Information

Class 1M LED Product

IEC60825-1 : 2001

Embedded LED Power (Class 1)

LC320EUN

2. Caution
: LED inside.

Class 1 laser (LEDs) radiation when open.

Do not open while operating.

7-2. EMC

a) ANSI C63.4 “American National Standard for Methods of Measurement of Radio-Noise
Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz.”
American National Standards Institute (ANSI), 2003.
b) CISPR 22 “Information technology equipment – Radio disturbance characteristics – Limit and
methods of measurement." International Special Committee on Radio Interference
(CISPR), 2005.
c) CISPR 13 “Sound and television broadcast receivers and associated equipment – Radio disturbance
characteristics – Limits and method of measurement." International Special Committee on Radio
Interference (CISPR), 2006.

7-3. Environment

a) RoHS, Directive 2002/95/EC of the European Parliament and of the council of 27 January 2003

Ver. 0.0

25 /37

Product Specification

8. Packing
8-1. Designation of Lot Mark

a) Lot Mark

A B C D E F G H I J K L M

A,B,C : SIZE(INCH) D : YEAR
E : MONTH F ~ M : SERIAL NO.

Note

1. YEAR

LC320EUN

Year

Mark

C B A

2014 E 2015

D

2013 2012 2011

2016 G 2017 H 2018 J 2019

F

2. MONTH

Month

Mark

Apr 5 May

4

Jun 7 Jul 8 Aug 9 Sep

6

b) Location of Lot Mark

Serial No. is printed on the label. The label is attached to the backside of the LCD module.
This is subject to change without prior notice.

8-2. Packing Form

8-2-1. PJ/GZ/NJ

a) Package quantity in one Pallet : 6 pcs

b) Pallet Size : 1140 mm X 870 mm X 1161 mm.

2020

K

Oct

A

Nov

B

Dec Mar Feb Jan

C 3 2 1

8-2-2. WR

a) Package quantity in one Pallet : 4 pcs

b) Pallet Size : 1200 mm X 870 mm X 1133 mm.

Ver. 0.0

26 /37

LC320EUN

Product Specification

9. Precautions

Please pay attention to the followings when you use this TFT LCD module.

9-1. Mounting Precautions

(1) You must mount a module using specified mounting holes (Details refer to the drawings).
(2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to
the
module. And the case on which a module is mounted should have sufficient strength so that external
force is not transmitted directly to the module.
(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.
Transparent protective plate should have sufficient strength in order to the resist external force.
(4) You should adopt radiation structure to satisfy the temperature specification.
(5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former
generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break
by electro-chemical reaction.
(6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB
pencil lead. And please do not rub with dust clothes with chemical treatment.
Do not touch the surface of polarizer for bare hand or greasy cloth.(Some cosmetics are detrimental

to the polarizer.)

(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like
chamois soaks with petroleum benzine. Normal-hexane is recommended for cleaning the adhesives
used to attach front / rear polarizers. Do not use acetone, toluene and alcohol because they cause
chemical damage to the polarizer
(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes
deformations and color fading.
(9) Do not open the case because inside circuits do not have sufficient strength.

9-2. Operating Precautions

(1) The spike noise causes the mis-operation of circuits. It should be lower than following voltage :
V=± 200mV(Over and under shoot voltage)
(2) Response time depends on the temperature.(In lower temperature, it becomes longer.)

(3) Brightness depends on the temperature. (In lower temperature, it becomes lower.)

And in lower temperature, response time(required time that brightness is stable after turned on)
becomes longer
(4) Be careful for condensation at sudden temperature change.Condensation makes damage to polarizer or
electrical contacted parts. And after fading condensation, smear or spot will occur.
(5) When fixed patterns are displayed for a long time, remnant image is likely to occur.
(6) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be
done by system manufacturers. Grounding and shielding methods may be important to minimized the
interference.
(7) Please do not give any mechanical and/or acoustical impact to LCM. Otherwise, LCM can‟t be operated
its full characteristics perfectly.

(8) A screw which is fastened up the steels should be a machine screw.

(if not, it can causes conductive particles and deal LCM a fatal blow)
(9) Please do not set LCD on its edge.
(10) The conductive material and signal cables are kept away from LED driver inductor to prevent abnormal
display, sound noise and temperature rising.

Ver. 0.0

27 /37

LC320EUN

Product Specification

9-3. Electrostatic Discharge Control

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that

treatment persons are connected to ground through wrist band etc. And don‟t touch interface pin directly.

9-4. Precautions for Strong Light Exposure

Strong light exposure causes degradation of polarizer and color filter.

9-5. Storage

When storing modules as spares for a long time, the following precautions are necessary.

(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the temperature
between 5°C and 35°C at normal humidity.
(2) The polarizer surface should not come in contact with any other object.
It is recommended that they be stored in the container in which they were shipped.
(3) Storage condition is guaranteed under packing conditions.
(4) The phase transition of Liquid Crystal in the condition of the low or high storage temperature will be
recovered when the LCD module returns to the normal condition.

9-6. Handling Precautions for Protection Film

(1) The protection film is attached to the bezel with a small masking tape.
When the protection film is peeled off, static electricity is generated between the film and polarizer.
This should be peeled off slowly and carefully by people who are electrically grounded and with well ion-
blown equipment or in such a condition, etc.
(2) When the module with protection film attached is stored for a long time, sometimes there remains a very
small amount of glue still on the bezel after the protection film is peeled off.
(3) You can remove the glue easily. When the glue remains on the bezel surface or its vestige is recognized,
please wipe them off with absorbent cotton waste or other soft material like chamois soaked with normal­ hexane.

Ver. 0.0

28 /37

# APPENDIX-I-1

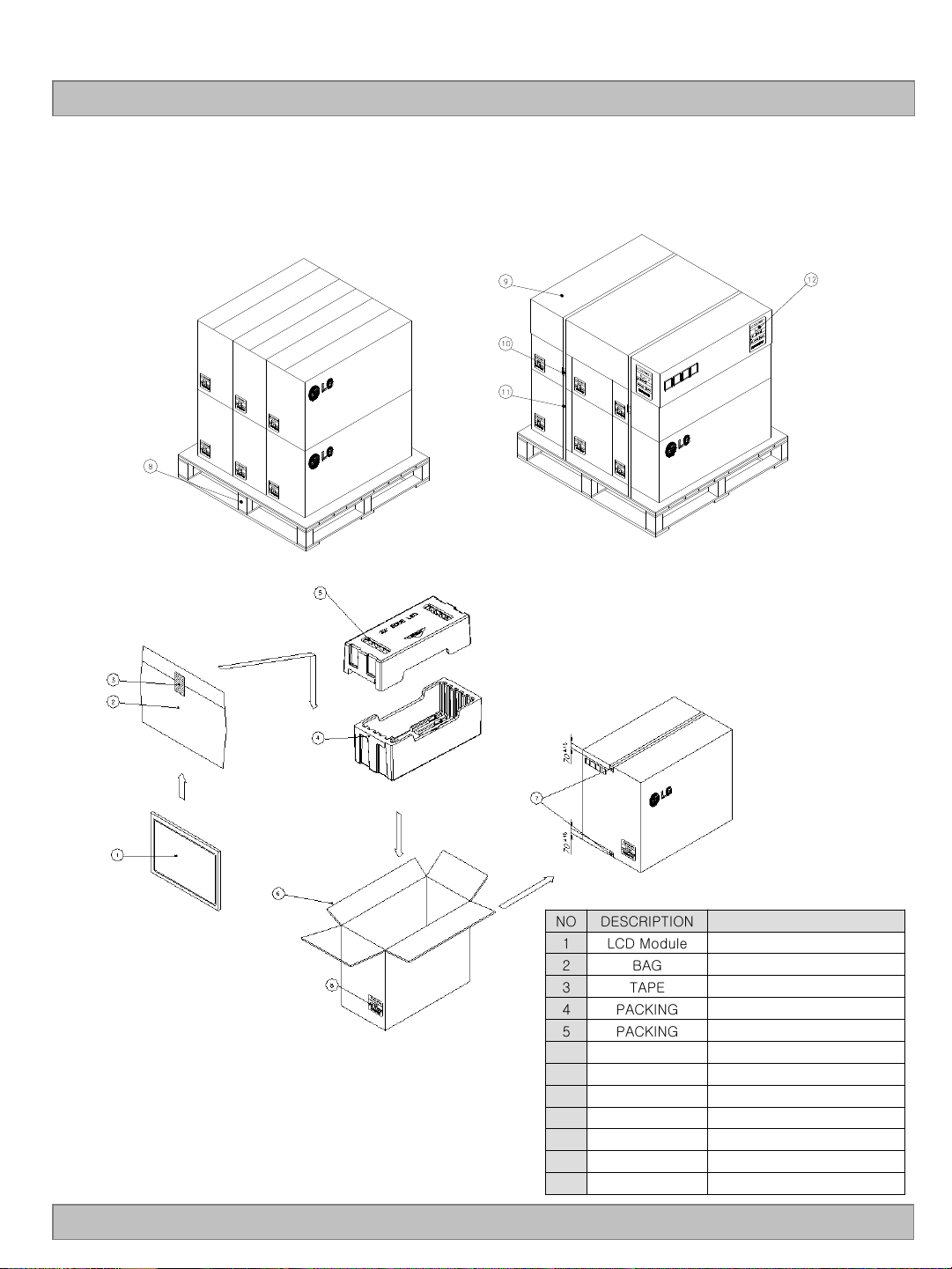

■ Pallet Ass‟y

LC320EUN

Product Specification

Ver. 0.0

NO DESCRIPTION MATERIAL

1 LCD Module ­2 BAG 32INCH
3 TAPE
4 PACKING EPS
5 PACKING EPS
6 BOX PAPER
7 TAPE
8 PALLET

9 ANGLE COVER PAPER
10 BAND,CLIP STEEL
11 BAND PP
12 LABEL

MASKING 20MM X 50M

OPP

Plastic (1140X870X120)

YUPO PAPER 80G 100X100

29 /37

# APPENDIX-II-1

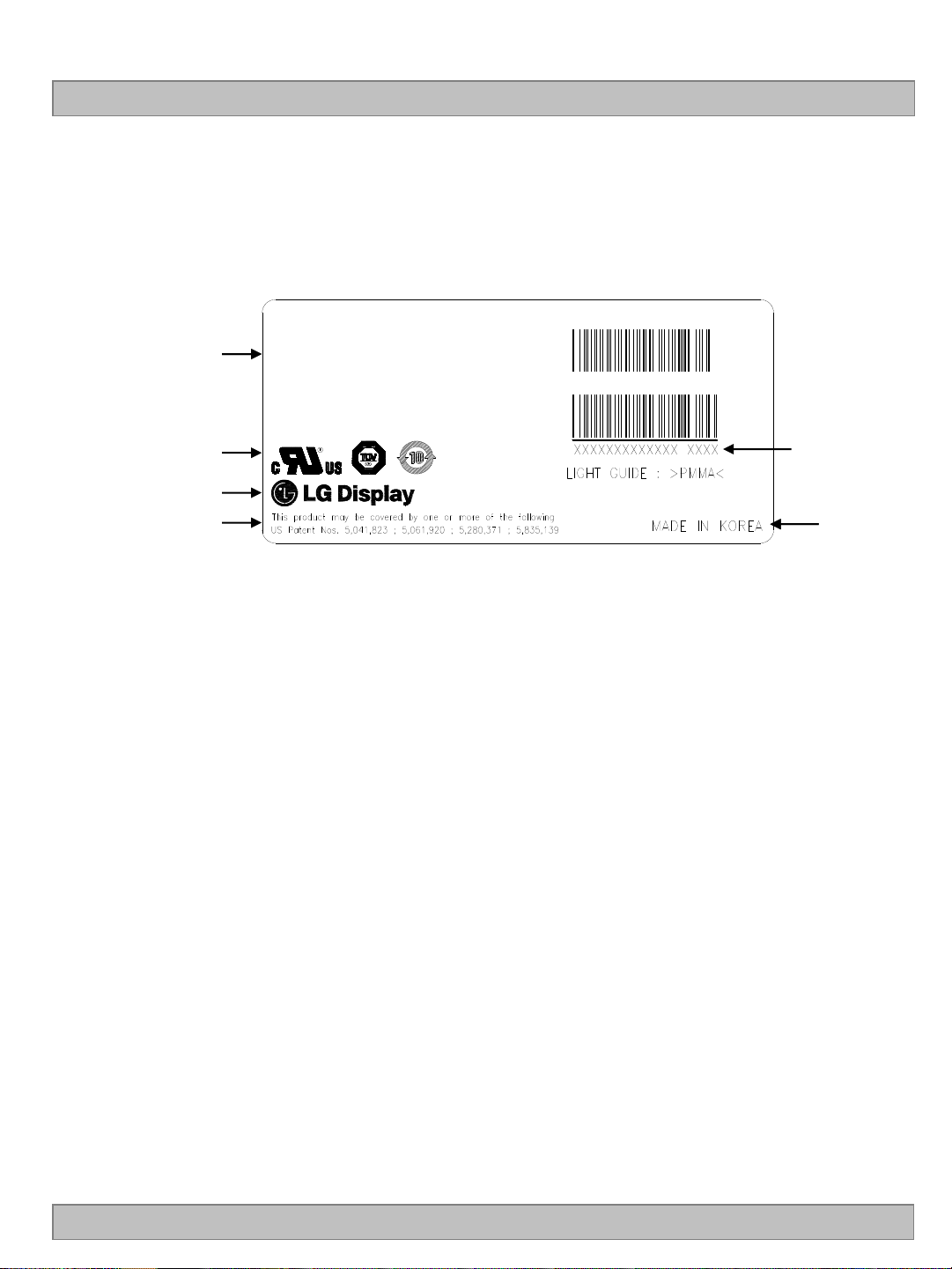

■ LC320EUN-SEM1 - LCM Label

LC320EUN

Product Specification

Model

UL, TUV Mark

LGD Logo

US PATENT No.

LC320EUN

(SE)(M1)

RoHS Verified

Serial No.

Origin

Ver. 0.0

30 /37

# APPENDIX-II-2

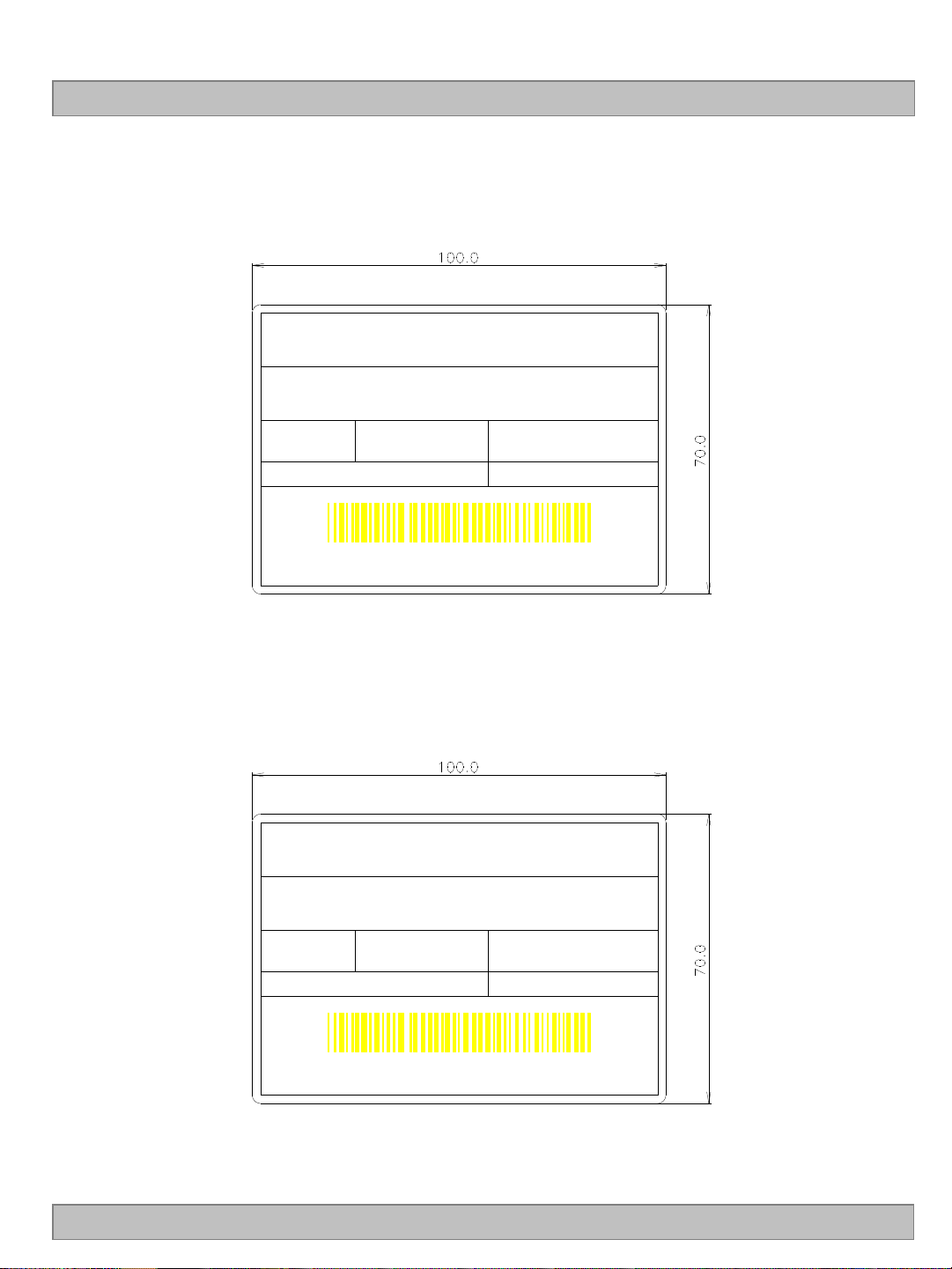

■ Box Label

LC320EUN

Product Specification

LC320EUN

SEM1

■ Pallet Label

6 PCS

MADE IN KOREA

001/01-01

XXXXXXXXXXXXX XXX

LC320EUN

SEM1

36 PCS

MADE IN KOREA

001/01-01

RoHS Verified

RoHS Verified

Ver. 0.0

XXXXXXXXXXXXX XXX

31 /37

Product Specification

# APPENDIX- III-1

■ Required signal assignment for Flat Link (Thine : THC63LVD103) Transmitter(Pin7=“L” or “NC”)

LC320EUN

Host System

30 Bit

RED0
RED1
RED2
RED3
RED4
RED5
RED6
RED7
RED8

RED9
GREEN0
GREEN1
GREEN2
GREEN3
GREEN4
GREEN5
GREEN6
GREEN7
GREEN8
GREEN9

BLUE0
BLUE1
BLUE2
BLUE3
BLUE4
BLUE5
BLUE6
BLUE7
BLUE8
BLUE9

Hsync

Vsync

Data Enable

CLOCK

THC63LVD103

or Compatible

33
34
35
36
37
38
59
61
4
5
40
41
42
44
45
46
62
63
6
8
48
49
50
52
53
54
64
1
9
11
55
57
58
12

TA-

TA+

TB-

TB+

TC-

TC+

TCLK-

TCLK+

TD-

TD+

Timing

Controller

FI-RE51S-HF

31
30

29
28

25

24

23
22

21
20

12
13

14
15

16
17

19
20

22

23

100Ω

100Ω

100Ω

100Ω

100Ω

RO0N
RO0P

RO1N
RO1P

RO2N
RO2P

ROCLKN
ROCLKP

RO3N

RO3P

VESA/ JEIDA

7

GND

LCM Module

Note: 1. The LCD module uses a 100 Ohm[Ω] resistor between positive and negative lines of each receiver
input.

2. Refer to LVDS Transmitter Data Sheet for detail descriptions. (THC63LVD103 or Compatible)

3. „9‟ means MSB and „0‟ means LSB at R,G,B pixel data.

Ver. 0.0

32 /37

Product Specification

# APPENDIX- III-2

■ Required signal assignment for Flat Link (Thine : THC63LVD103) Transmitter(Pin7=“H”)

LC320EUN

Host System

30 Bit

RED0

RED1

RED2

RED3

RED4

RED5

RED6

RED7

RED8

RED9
GREEN0
GREEN1
GREEN2
GREEN3
GREEN4
GREEN5
GREEN6
GREEN7
GREEN8
GREEN9

BLUE0
BLUE1
BLUE2
BLUE3
BLUE4
BLUE5
BLUE6
BLUE7
BLUE8
BLUE9

Hsync

Vsync

Data Enable

CLOCK

THC63LVD103

or Compatible

33
34
35
36
37
38
59
61
4
5
40
41
42
44
45
46
62
63
6
8
48
49
50
52
53
54
64
1
9
11
55
57
58
12

TA-

TA+

TB-

TB+

TC-

TC+

TCLK-

TCLK+

TD-

TD+

Timing

Controller

FI-RE51S-HF

31
30

29
28

25

24

23
22

21
20

12
13

14
15

16
17

19
20

22

23

100Ω

100Ω

100Ω

100Ω

100Ω

RO0N
RO0P

RO1N
RO1P

RO2N
RO2P

ROCLKN
ROCLKP

RO3N

RO3P

VESA/ JEIDA

7

VCC

LCM Module

Note :1. The LCD module uses a 100 Ohm[Ω] resistor between positive and negative lines of each receiver
input.

2. Refer to LVDS Transmitter Data Sheet for detail descriptions. (THC63LVD103 or Compatible)

3. „9‟ means MSB and „0‟ means LSB at R,G,B pixel data.

Ver. 0.0

33 /37

Product Specification

# APPENDIX- IV

■ LVDS Data-Mapping Information (8 Bit )

1) LVDS Select : “H” Data-Mapping (JEIDA format)

RCLKP

RCLKM

LC320EUN

RAP

RBP

RCP

RDP

R17 R16 R15 R14 G12 R13 R12’ R12 R13’ G12”

B12 G17 G16 G15 B13 G14 G13’ G13 G14’ B13”

V

SYNC HSYNC

B17 B16 DE B15 B14’ B14 B15’ DE”

B11 B10 G11 G10 X R11 R10’ R10 R11’ X”

2) LVDS Select : “L” Data-Mapping (VESA format)

RCLKP

RCLKM

RAP

RBP

R15 R14 R13 R12 G10 R11 R10’ R10 R11’ G10”

B10 G15 G14 G13 B11 G12 G11’ G11 G12’ B15”

Ver. 0.0

RCP

RDP

V

SYNC HSYNC

B15 B14 DE B13 B12’ B12 B13’ DE”

B17 B16 G17 G16 X R17 R16’ R16 R17’ X”

34 /37

Product Specification

# APPENDIX- V

■ Option Pin Circuit Block Diagram

1) Circuit Block Diagram of LVDS Format Selection pin

LVDS Select Pin : Pin 7

1KΩ

LVDS Select

(Pin 7)

50KΩ

LVDS Select

ASIC

(TCON)

LC320EUN

System Side LCM Side

2) Circuit Block Diagram of OPC Enable Selection pin

OPC Enable Pin : Pin 10

VCC

OPEN

R1

OPC _Enable

(Pin 10)

System Side

R1 ≤ 1KΩ

1KΩ

LCM Side

50kΩ

OPC _Enable

ASIC

(TCON)

Ver. 0.0

35 /37

Product Specification

# APPENDIX- VI

■ Scanning and OPC Design Guide

◊ When OPC Enable is “L", OPC Output = System Dimming.
OPC Output( PWM Signal) is synchronized with V-Sync Freq. of System in T-Con Board.

(4pin)
#1 : PWM_OUT #1
#2 : PWM_OUT #2
#3 : PWM_OUT #3
#4 : GND

#1

#4

LCM T-con Board

T-Con

(51pin)

#8 : Ext_PWM
#10 : OPC_EN

#1 51

CNT1 51pin

LC320EUN

#4

B/L Signal

Generation

#1

Block

LED

Driver

14pin

◊ PWM Specification ( VDD = 3.3V ) @ OPC

1. PWM High Voltage Range : 2.5V~3.6V

2. PWM Low Voltage Range : 0.0V~0.8V

EXTVBR-B

Frequency

50 Hz for PAL
60 Hz for NTSC

CNT4

System
Main IC

(PWM Generator)

<With Driver Model>

VDD

VDD*0.9

OPC On

3.3V

OPC Off

Chassis

Rising Time

Rising Time MAX 10.0 μs

Falling Time MAX 10.0 μs

Ver. 0.0

Falling Time

VDD*0.1

0

36 /37
