OWNER’S MANUAL
REFRIGERATOR
MANUEL D’UTILISATION
Merci de lire attentivement ce manuel d’instructions ainsi que les consignes de sécurité avant de faire fonctionner votre réfrigérateur. Conservez ce manuel pour une utilisation future.
P/NO : MFL62227206
|
CONTENTS |
|
|
|
Page No. |
1. |
Identification of parts ................................................................. |
3 |
2. |
Important Safety Information ...................................................... |
4 |
3. |
Warning ...................................................................................... |
4-7 |
4. |
Caution ....................................................................................... |
8 |
5. |
Installation ................................................................................... |
8 |
6. |
Features .................................................................................. |
9-11 |
7. |
Power Cut Evercool ...................................................................... |
11 |
8. |
Identification of Control ................................................................ |
12 |
9. |
Operating Procedure ................................................................... |
12 |
10. |
Identification of Control (With Button) ........................................... |
13 |
11. |
Disposal of Your Old Appliance .................................................... |
13 |
12. |
LED Replacement ......................................................................... |
14 |
13. |
Suggestions on Food Storage .................................................. |
14-16 |
14. |
Suggestions ............................................................................... |
16 |
15. |
Before Calling for Service ........................................................... |
17 |
2
Identification of Parts
Door Freeze Room |
F PCM (Optional) |
Freezer Knob Setting |
|
(Optional) |
|
Dura Chill/R PCM |
|
(Optional) |
|
Freezer
Compartment
Freezer shelf |
Freezer Door Basket |
|
Double twist Ice Tray |
|
|
Ice Bank |
|
|
Door Switch |
|
|
Deodorizer |
Beauty & Care (Optional) |
|
Salad Box |
Egg Store Shelf |
|
(Optional) |
Decor, Duct Door Cooling/ |
|
Refrigerator Temp. |
||
GIDC (Optional) |
||
Control knob/Button |
||
|
Refrigerator Shelves
Compartment
Temperature Controller
(Meat/Veg) |
|
Convertible Veg. Box |
Door Basket |
(Optional) |
|
Humidity Controller |
|
Tray Vegetable |
|
|
Cell, Fresh Crisper |
TE NO
• Due to continuous improvements at LG, specifications of refrigerator are subject to change without prior notice. • If you find out some parts which are not in your unit, the parts are applied to other models.
• Except during transportation & maintenance, the shelves must be considered as fixed when in normal use.
<![endif]>ENGLISH
3
Important Safety Information
This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that may kill or hurt you or others or cause damage to the product. All safety messages will be preceded by the safety alert symbol and the hazard signal word DANGER, WARNING or CAUTION. These words mean:

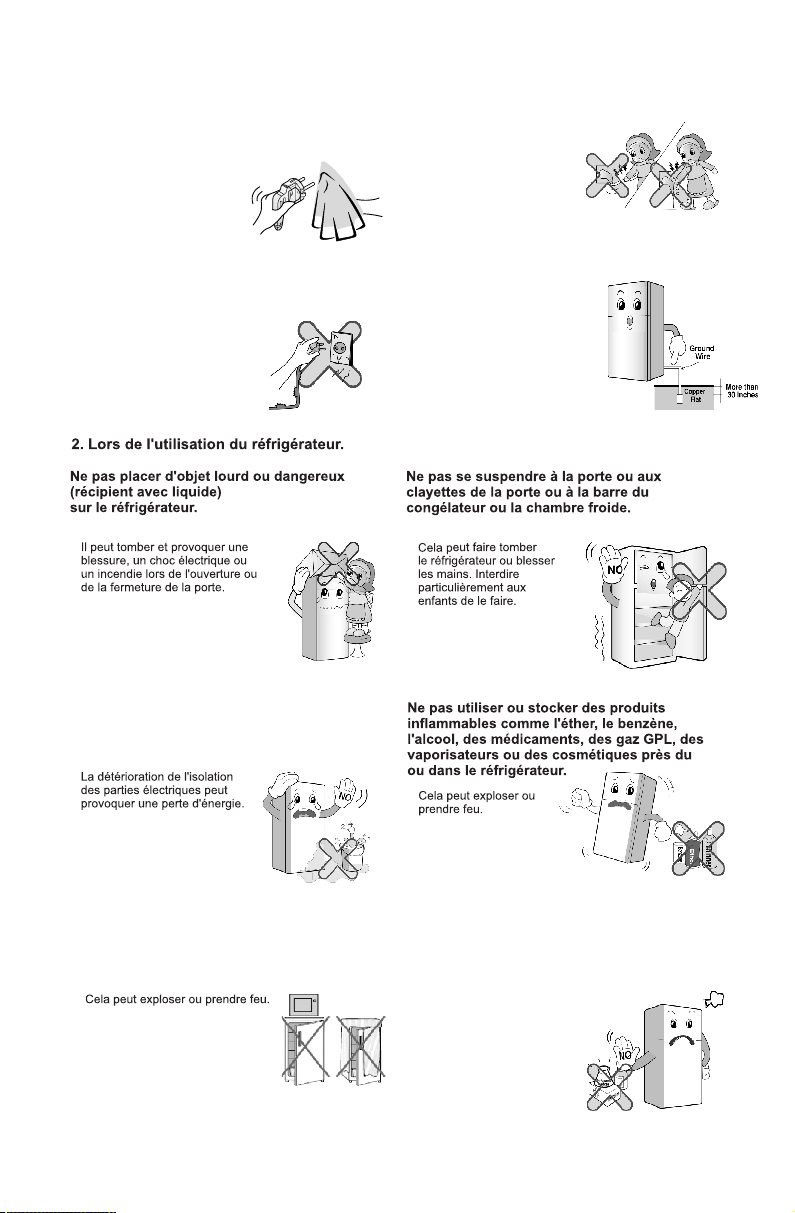

WARNING
Power supply cord should not be bent or pressed under heavy object.
power cord
power supply cord.
4
loosen
Do not keep any other electrical appliance
on top and inside of refrigerator such as TV, in Cooler, Temple, Decoration Lighting, Harmful
Chemicals, Cloth Top etc.
It may cause explosion or fire.
5
Avoid the heating devices near the refrigerator.
top and inside
It may cause explosion or fire.
remove the door gasket
6
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
If the supply cord is damaged, it
must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
When you want to dispose the refrigerator,
contact to the down-block office.
When you want to dispose |
Customer Care |
Centre |
|
the large living waste such |
|
as electric home appliance |
|
and furniture, you should |
|
better contact the local |
|
down-block office. |
|
Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
This appliance is intended to be used in household and similar applications such as
– staff kitchen areas in shops, offices and other working environment;
–farm houses and by clients in hotels, motels and other residential type environment;
–bed and breakfast type environment;
–catering and similar non-retail applications.
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
Keep the ventilation openings, in the appliance enclosure or in the built - in structure, clear of obstruction.
7
CAUTION
Violating this direction may cause injury or damage house or furniture. Please always be careful.
Do not put Glass bottle in the freezer.
It may cause death of that living animal.
Because opening or closing the door of the refrigerator may cause injury to the person around it. Please be careful.
Carry the refrigerator from bottom of
the front and the top of the rear.
Installation
Always remove Gasket when discarding Refrigerator.
As marked for 2 Star Section, only store Item which need temperature or minimum -12 deg. C of warmer temperature.
Refrigerator should be located properly in ventilated area.
10 |
Levelling of refrigerator should be |
30cm |
done with front leg. Refrigerator |
|
|
30cm |
should be levelled with front to back |
|
30cm |
|
inclination for base. |
Front Leg
Do not install refrigerator where the front surface area is higher than back surface area by 2 deg.
8
Features
Deodorizer
By using a catalyst, deodorizing performance is guaranteed.
bad odour molecule
Unpleasant odour of food in fresh food compartment is deodorized with no harm to you and the food.
How to use
•As Deodorizer is located in cooling air path for circulating air in fresh food compartment, there is no need for any handling.
•Do not prick the cooling air inlet with a sharp tip because Deodorizer may be damaged.
•When storing food with a strong odour, wrap it or store it in a container with a lid because odour may be passed on to other foods.
Re-Using of Deodorizer
• Keep distance as odour is strong, Deodorizer can be revived and re-used.
• Separate Deodorizer in ceiling of refrigerator compartment, using hair drier to remove moisture or odour and oxidize under sunlight to decomposing odour by ultraviolet.
• Don't try to remove the deodorizer cover, as you may break the catalyst.
Green Ion Door Cooling (Optional)
Cool air vent is placed on the refrigerator door to provide cool air to the Door Shelves.
If foreign substances enter the cool air vent while cleaning, efficiency will be lowered. In addition, if gasket is damaged, efficiency may be lowered due to the escape of cool air. So care should be taken during cleaning.
The green catechin deodorizer purifies the air and helps stored foods remain fresh longer.
For better effectiveness deodorizer is placed on return path of air in Refrigerator Compartment.
9
Beauty and Care (Optional)
It is placed in the refrigerator compartment and can be
used for storing medicines and cosmetics.
Only those medicines which are supposed to be stored
in refrigerator.
Door Alarm (Optional)
When the door of refrigerator is opened for 1 minute, an alarm will sound.
Egg-cum-Ice Tray
It is used for storing the eggs. It can also be used for making the ice.
Dura Chill (Optional)
Keeps your items cooler even when there is power off condition
in freezer compartment.
Pull Out Tray (Optional)
Pull out tray is placed in refrigerator compartment
to store chopped raw vegetables & salad & keeps them fresh for
longer duration.
Pull Out Tray
Cell Fresh Crisper
It keeps your vegetables fresh by holding moisture & prevents them from getting rotten.
Absorb |
Release |
moisture |
moisture |
Overly |
Humid |
humid |
deficiency |
10
Convertible Vegetable Box (Optional)
When the door is opened, the warmer air can't incluence in the fresh zone.
So you can store food more fresh in it.
Inserted convertible room must be placed at its position. If drawer is opened, it can't perform the role.
Position of the knob to be adjusted as per type of food to be stored.
HIGH |
TEMP. CONTROL |
LOW |
Less cooling in box for Veg / Fruits. |
High cooling in box for Fish / Meat / Dairy. |
|
Humidity Controller |
|
Humidity |
|
|
Controller |
Humidity Controller is for controlling the humidity inside the vegetable box. |
||
OPERATIONS
STARTING
When your refrigerator first time installed, allow 24 hours for the temperature to stabilize prior to filling it with fresh or frozen foods.
POWER CUT EVERCOOL (OPTIONAL)
Power Cut Ever Cool is a unique cooling retention function |
|
which retain temperature of freezer and refrigerator |
TM |
compartment during the power cut off condition. |
|
This function is a patented technology of LG Electronics. |
|
CAUTION
During "Power Cut EverCool" functioning, dew formation may happen on the inner walls of the refrigerator. This is a normal phenomena and will not harm the product functioning in anyway.
When the Power will resume, the dew on the inner walls will be automatically removed. Incase, excess dew is formed. Please remove the same with the help of a soft cloth. During Power ON/OFF, Valve gets activated and will make a one time sound.
•Do not open the valve cover.
•Do not disassemble the PCM tank (mounted on the top side) in freezer compartment.
• When your refrigerator is first time installed, allow 24 hours for the temperature to stabilize prior to filling it with fresh or frozen foods. In the event of power cut after stabilization. It must be powered for at least 8 hours after power cut to have the maximum cool air retention capability.
Important point for Better performance of Evercool
1.Evercool performance may be deteriorated if the PCM is not freezed properly.
2.In order to maintain Evercool Performance, Don't keep Freezer & Refrigerator knob at warm setting (Freezer 1, Refrigerator 1, 2).
3.Use Seasonal recommended knob setting.
4.Do not open the Door frequently during Power cut off to maintain long time retention (Cooling effect).
11
Identification of Control
TEMPERATURE
CONTROL
Refrigerator and Freezer Compartment
Temperature is controlled by Refrigerator
Temperature Control Knob and Freezer Control
Knob respectively.
Initially set the Refrigerator Temperature Control Medium/Normal and the Freezer Temperature Control at Normal.
Leave it operating for 8 hours to stabilize.
|
Model |
|
with 1 to 4 |
FOR LESS COOLING |
'1' |
NORMAL COOLING |
'2' |
FOR MORE COOLING |
'4’ |
Best Performance For All Seasons - Set Knob at '2'
Dots on freezer knob can be used for testing and to control the temperature.
FREEZER KNOB SETTING
REFRIGERATOR TEMPERATURE CONTROL KNOB
CONTROL
EFFECTS
For better use : Please follow the instructions given in the sticker on your product.
Best Performance For All
Seasons Set Knob at '4'
Operating Procedure
DEFROSTING
Defrosting takes place automatically.
The defrosted water flows down to the evaporating tray which is located in the lower back side of the refrigerator and is evaporated automatically.
SUPER COOLING
In refrigerator compartment coldest setting in Refrigerator Knob is used for super cooling.
LOCKING / UNLOCKING
Press & turn the lock with key for locking/ unlocking
12
Identification of Control (with button)
|
|
Model |
TEMPERATURE CONTROL |
|
with 1 to 4 |
FOR LESS COOLING |
'1' |
|
TEMPERATURE CONTROL |
NORMAL COOLING |
'2' |
FOR MORE COOLING |
'4’ |
|
(with Display Button) |
Best Performance For All Seasons |
|
|
- Set Knob at '2' |
|
Refrigerator and Freezer Compartment Temperature is controlled by Refrigerator Temperature Control display button and Freezer Control Knob respectively.
Initially set the Refrigerator Temperature Control Display at ‘4’ level and the Freezer Temperature Control at Normal.
Leave it operating for 8 or 12* (Evercool model) hours to stabilize.
CONTROL EFFECTS
For better use : Please follow the instructions given in the sticker on your product.
OPERATION (with button)
CONTROLS FOR REFRIGERATOR COMPARTMENT
Method of Operation
The temperature of Refrigeration Room is automatically controlled by software. Pressing the arrow key sets the temperature, designated to a selected notch .
Operation Indicator
Each time the temperature button is pressed, the LED glows in sequence shown and the temperature is selected accordingly by the software. And if no more pressure detected for 10 seconds, then the selected temperature is applied to system (Comp. ON / OFF control).
MEMORY BACK-UP
In case of power failure, your refrigerator will keep previous setting in memory and as soon as the power ON, your last refrigerator settings will be restored.
SUPERCHILL
If the SUPERCHILL button is pressed SUPERCHILL feature is activated.
Dots on freezer knob can be used for testing and to control the temperature.
FREEZER KNOB SETTING
REFRIGERATOR TEMPERATURE CONTROL
SUPERCHILL
REF TEMP
1 2 3 4 5 6 7
LED ON
LED OFF
|
SUPERCHILL |
|
REF TEMP |
Level |
Display |
1 |
Cold |
2
3
4
5
6
7
Coldest (
: ON,
: OFF)
SUPERCHILL
REF TEMP
Disposal of Your Old Appliance
1. When this crossed-out wheeled bin symbol is attached to a product it means, the product is covered by the European Directive 2002/96/EC.
2. All electrical & electronics products should be disposed off separately from the municipal waste stream via designated collection facilities appointed by the government of local authorities.
3.The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4.For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.
5.This product contains fluorinated greenhouse gases covered by the Kyoto Protocol.
13
ICE MAKING
Double Twist Ice Tray
To make ice cubes, fill the ice tray with water and insert in its position.
To remove ice cubes, hold the lever of the tray and turn gently. Then, ice cubes drop into the ice cube box.
Fill the water upto water level mark in the ice tray.
Instruction for Bank Ice
Use Bank Ice Only To Store Ice Cubes. Do not Make Ice In It, As It May Break.
LED Replacement
This product applies LED Lamp which can not be replaced by the user. Please contact authorized service centre for the lamp replacement.
Suggestions on Food Storage
When storing the food, cover it with vinyl wrap or store in a container with a lid. This prevents moisture from evaporating and helps food to keep its taste and nutrients.
Don't keep hot milk or hot food in your refrigerator. This will result in an increased temperature and increase in power consumption.
Never overload your refrigerator or cover the shelves with paper or plastic sheets as it will reduce its efficiency.
Do not open the door frequently. Opening the door lets warm air enter the refrigerator, and cause temperature to rise.
14
Close the door properly, make sure that there is no gap between the gasket and the cabinet of your LG refrigerator.
Wipe excessive moisture on food or place it inside containers or plastic bags.
This will help in retaining its freshness for a longer period of time.
Do not store food which goes bad easily at low temperatures. Such as bananas, pineapples, etc.
Do not store glass bottles in the freezer compartment - they may break when frozen.
Loading for Freezing - It is recommended to load newly introduced foods on the following position for freezing.
Avoid placing moist food on deep interior refrigerator shelves. It could freeze upon direct contact with chilled air. To avoid this it is better to store food in the covered container.
It is desirable to store moist food (especially vegetable and fruit) in the vegetable storage compartment. If it is necessary to store on a shelf of the refrigerator, put it close to the door
away from the back wall of the refrigerator to avoid being frozen by the cool circulating in the refrigerator.
15
When storing eggs in their storage tray, ensure that they are fresh, and always store them in a upright position, which keeps them fresh longer.
Feel free to call your LG Customer Information Centre (CIC) / Branch / LG Representative in case your refrigerator has suffered a damage in transit.
It is recommended to use Voltage Stabilizer (0.5kVA) if power fluctuations are frequent and out of specified voltage range (135-290V)**, Stabilizer usage increases the refrigerator life.
Suggestions
Cleaning
Cleaning of Interior Parts is recommended. Wash all compartments with a mild baking soda solution, then rinse and dry the compartment. Use a lukewarm solution of mild soap or detergent to clean the exterior finish of your refrigerator. Wipe with a clean, damp cloth and then dry.
During Vacations
During average length vacations, you will probably find it best to leave the refrigerator in operation. Place freezable items in freezer for longer life. When you plan to be away for an extended period, remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door OPEN to prevent odour formation. To operate again, let the refrigerator run for 6-8 hrs. for stabilization.
Shifting
While shifting the refrigerator, four people should carry it for its safety. Fasten the door with tape or lock to prevent opening of the refrigerator.
AdhesiveT
ape
16
Loading...
