OWNER'S MANUAL

FRIDGE&

FREEZER

Read this owner's manual thoroughly before operating the appliance and keep it handy for reference at all times.

EN ENGLISH

FR FRANÇAIS

AR ةيبرعلا

www.lg.com

TABLE OF CONTENTS	This manual may contain images or
	content different from the model you
	purchased.
	This manual is subject to revision by the
	manufacturer.
SAFETY INSTRUCTIONS..........................................................		3
IMPORTANT SAFETY INSTRUCTIONS....................................................		3
INSTALLATION........................................................................		12
Compartments...........................................................................................		12
Notes for Movement and Transport...........................................................		13
Notes for Installation.................................................................................		13
Dimensions and Clearances.....................................................................		14
Ambient Temperature................................................................................		14
Removing the Door...................................................................................		15
Refitting the Doors....................................................................................		16
Adjusting the Height of the Door...............................................................		16
Adjusting a Tilted Appliance......................................................................		18
OPERATION.............................................................................		19
Parts and Functions..................................................................................		19
Notes for Operation...................................................................................		23
Control Panel............................................................................................		25
Extra Space (Optional)..............................................................................		27
In & Out Basket.........................................................................................		27
Tilting Fresh Basket...................................................................................		28
Door Mullion..............................................................................................		28
Door in Door (Optional).............................................................................		29
Moving Basket (Optional)..........................................................................		29
Mini Table (Optional).................................................................................		30
Icemaker...................................................................................................		30
Fresh Zone (Optional)...............................................................................		32
Other Functions.........................................................................................		32
SMART FUNCTIONS...............................................................		33
Using LG SmartThinQ Application............................................................		33
Using Smart Diagnosis™..........................................................................		35
MAINTENANCE........................................................................		36
Notes for Cleaning....................................................................................		36
Cleaning the Shelf.....................................................................................		37
Cleaning the Vegetable Box......................................................................		37
Cleaning the Fridge/Freezer Basket.........................................................		38
Cleaning the Door in Door.........................................................................		39
Cleaning the Mini Table.............................................................................		40
Cleaning the Freezer Tray/Drawer............................................................		41
Cleaning the Easy Icemaker.....................................................................		41

TROUBLESHOOTING..............................................................

SAFETY INSTRUCTIONS

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance.

The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as described below.

This symbol is displayed to indicate matters and

operations that can cause risk. Read the part with this symbol carefully and follow the instructions in order to avoid risk.

WARNING

This indicates that the failure to follow the instructions can cause serious injury or death.

CAUTION

This indicates that the failure to follow the instructions can cause the minor injury or damage to the product.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of explosion, fire, death, electric shock, injury or scalding to persons when using this product, follow basic precautions, including the following:

Children in the Household

••This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

••If the appliance is equipped with a lock (some models only), keep the key out of reach of children.

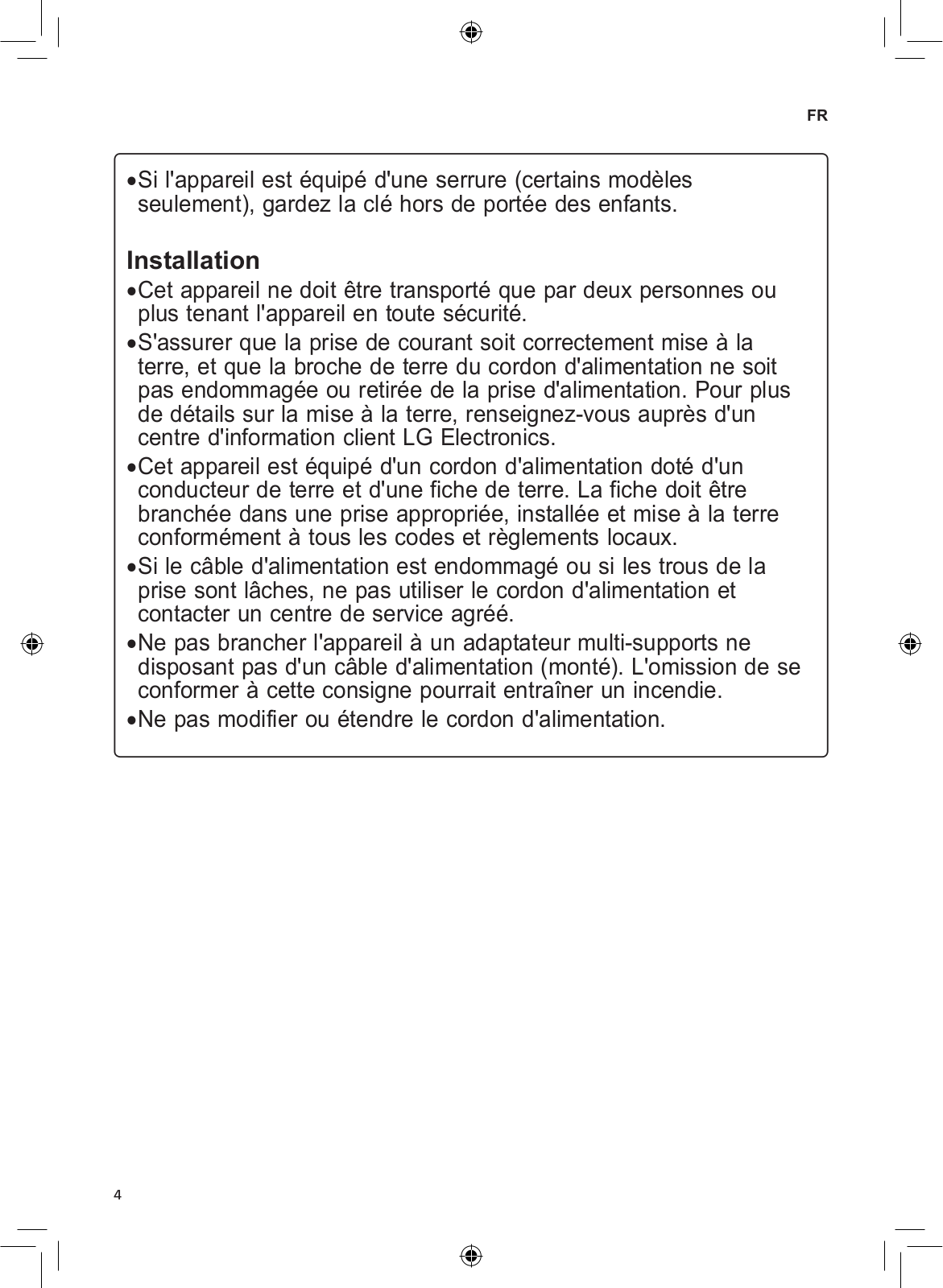

Installation

••This appliance should only be transported by two or more people holding the appliance securely.

••Ensure that the socket outlet is properly grounded, and that the earth pin on the power cord is not damaged or removed from the power plug. For more details on grounding, inquire at an LG Electronics customer information centre.

••This appliance is equipped with a power cord having an equipment-grounding conductor and a grounding power plug. The power plug must be plugged into an appropriate socket outlet that is installed and grounded in accordance with all local codes and ordinances.

••If the power cord is damaged or the hole of the socket outlet is loose, do not use the power cord and contact an authorized service centre.

••Do not plug the appliance into a multi socket adapter which does not have a power cable (mounted).

••Do not modify or extend the power cable.

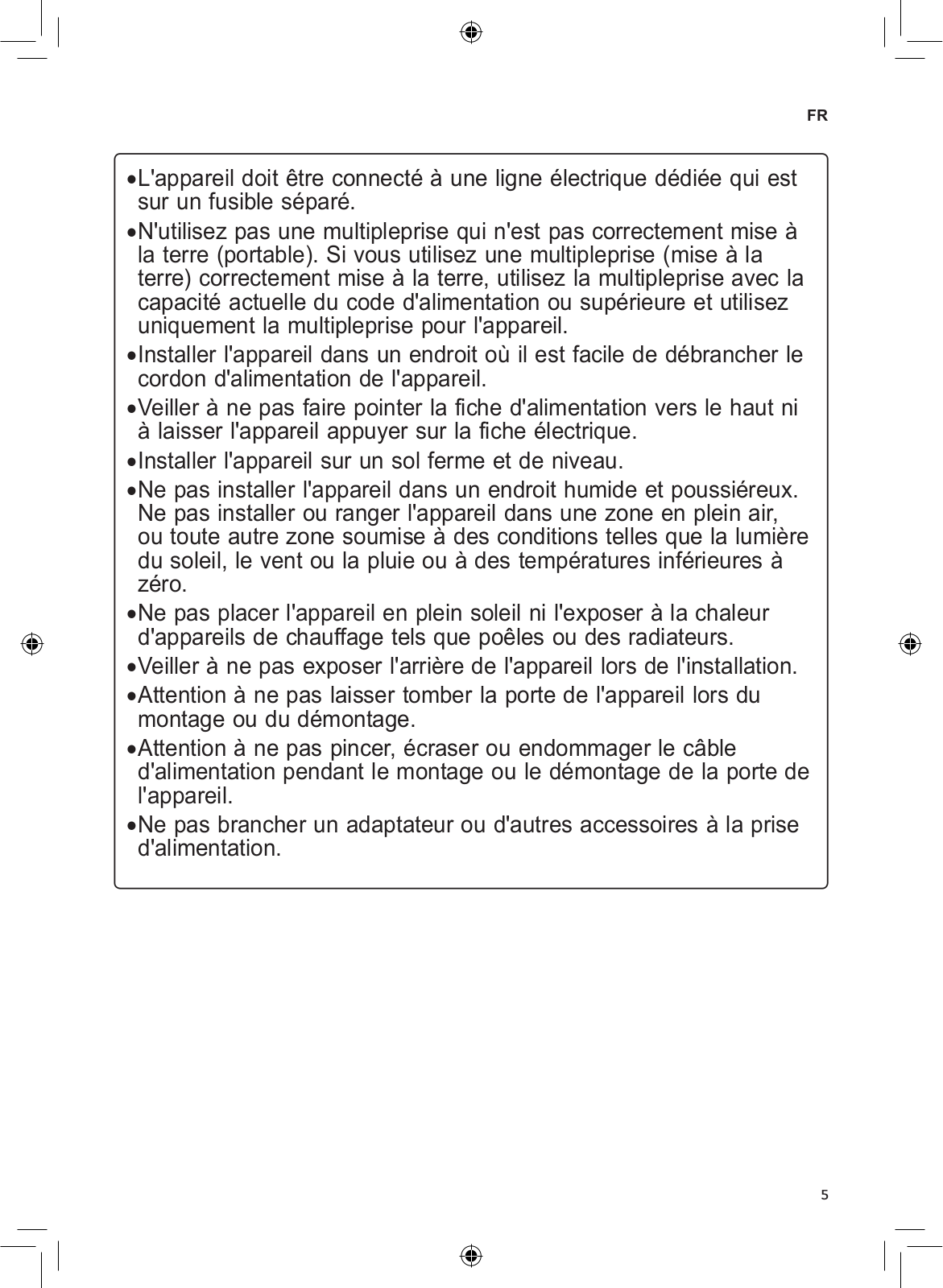

••The appliance should be connected to a dedicated power line which is separately fused.

••Do not use a multi socket outlet which is not properly grounded (portable). In case of using a properly-grounded multi socket outlet (portable), use the multi socket outlet with the current capacity of the power code rating or higher and use the multi socket outlet only for the appliance.

••Install the appliance in a place where is easy to unplug the power plug of the appliance.

••Be careful not to point the power plug up or let the appliance lean against the power plug.

••Install the appliance on a firm and level floor.

••Do not install the appliance in a damp and dusty place. Do not install or store the appliance in any outdoor area, or any area that is subject to weathering conditions such as direct sunlight, wind, rain, or temperatures below freezing.

••Do not place the appliance in direct sunlight or expose it to the heat from heating appliances such as stoves or heaters.

••Be careful not to expose the rear of the appliance when installing.

••Be careful not to let the appliance door fall during assembly or disassembly.

••Be careful not to pinch, crush, or damage the power cable during assembly or disassembly of the appliance door.

••Do not connect a plug adapter or other accessories to the power plug.

Operation

••Do not use the appliance for any purpose (storage of medical or experimental materials or shipping) other than any domestic household food storage use.

••Unplug the power plug during a severe thunderstorm or lightening or when not in use for a long period of time.

••Do not touch the power plug or the appliance controls with wet hands.

••Do not bend the power cable excessively or place a heavy object on it.

••If water penetrates electrical parts of the appliance, disconnect power plug and contact an LG Electronics customer information centre.

••Do not place hands or metallic objects inside the area emitting the cold air, cover or heat releasing grille on the back.

••Do not apply excessive force or impact to the back cover of the appliance.

••Do not put animals, such as pets into the appliance.

••Be careful of nearby children when you open or close the appliance door. The door may bump the child and cause injury.

••Avoid the danger of children getting trapped inside the appliance. A child trapped inside the appliance can cause suffocation.

••Do not place heavy or fragile objects, containers filled with liquid, combustible substances, flammable objects (such candles, lamps, etc.), or heating devices (such as stoves, heaters, etc.) on the appliance.

••If there is a gas leakage (isobutane, propane, natural gas, etc.), do not touch the appliance or power plug and ventilate the area immediately. This appliance uses a refrigerant gas (isobutane,R600a). Although it uses a small amount of the gas, it is still combustible gas. Gas leakage during appliance transport, installation or operation can cause fire, explosion or injury if sparks are caused.

••Do not use or store flammable or combustible substances (ether, benzene, alcohol, chemical, LPG, combustible spray, insecticide, air freshener, cosmetics, etc.) near the appliance.

••Immediately unplug the power plug and contact an LG Electronics customer information centre if you detect a strange sound, odour, or smoke coming from the appliance.

••Fill with potable water only into icemaker or dispenser water tank.

••Do not damage the refrigerant circuit.

••Do not place any electronic appliance (such as heater and mobile phone) inside the appliance.

Maintenance

••Disconnect the power cord before cleaning the appliance or replacing the inside lamp (where fitted).

••Securely plug the power plug in the socket outlet after completely removing any moisture and dust.

••Never unplug the appliance by pulling on the power cable. Always grip the power plug firmly and pull straight out from the socket outlet.

••Do not spray water or inflammable substances (toothpaste, alcohol, thinner, benzene, flammable liquid, abrasive, etc.) over the interior or exterior of the appliance to clean it.

••Do not clean the appliance with brushes, cloths or sponges with rough surfaces or which are made of metallic material.

••Only qualified service personnel from LG Electronics service centre should disassemble, repair, or modify the appliance. Contact an LG Electronics customer information centre if you move and install the appliance in a different location.

••Do not use a hair drier to dry the inside of the appliance or place a candle inside to remove the odours.

••Do not use mechanical devices or other means to accelerate the defrosting process.

Disposal

••When discarding the appliance, remove the door gasket while leaving the shelves and baskets in place and keep children away from the appliance.

••Dispose of all packaging materials (such as plastic bags and styrofoam) away from children. The packaging materials can cause suffocation.

Technical Safety

••Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

••Do not use electrical appliances inside the refrigerator.

••The refrigerant and insulation blowing gas used in the appliance require special disposal procedures. Consult with service agent or a similarly qualified person before disposing of them.

••Refrigerant leaking out of the pipes could ignite or cause an explosion.

••The amount of refrigerant in your particular appliance is shown on the identification plate inside the appliance.

••Never start up an appliance showing any signs of damage. If in doubt, consult your dealer.

••This appliance is intended to be used in household and similar applications only. It should not be used for commercial, or catering purposes, or in any mobile application such as a caravan or boat.

••Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Risk of Fire and Flammable Materials

This symbol alerts you to flammable materials that can ignite and cause a fire if you do not take care.

••This appliance contains a small amount of isobutane refrigerant (R600a), but it is also combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged.

••If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes. In order to avoid the creation of a flammable gas air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance is used should correspond to the amount of refrigerant used. The room must be 1 m² in size for every 8 g of R600a refrigerant inside the appliance.

••When positioning the appliance, ensure the supply cord is not trapped or damaged.

••Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

CAUTION

To reduce the risk of minor injury to persons, malfunction, or damage to the product or property when using this product, follow basic precautions, including the following:

Installation

••Do not tilt the appliance to pull or push it when transporting.

••Make sure not to get a body part such as a hand or foot stuck while moving the appliance.

Operation

••Do not touch frozen food or the metal parts in the freezer compartment with wet or damp hands. It may cause frostbite.

••Do not place glass containers, bottles or cans (especially those containing carbonated drinks) in the freezer compartment, shelves or ice bin that will be exposed to temperatures below freezing.

••The tempered glass on the front side of the appliance door or the shelves can be damaged by an impact. If it is broken, do not touch it with hands, as this may result in injury.

••Do not place heavy objects on top of the door in door.

••Do not use the door in door as a chopping board and ensure it is not scratched by a sharp tool, as this may cause appliance damage.

••Do not hang from the appliance door, storage room, shelf or fridge door in door or climb up into it.

••Do not store an excessive amount of water bottles or containers for side dishes on the door baskets.

••Prevent animals from nibbling on the power cable or water hose.

••Do not open or close the appliance door with excessive force.

••If the hinge of the appliance door is damaged or operates improperly, stop using the appliance and contact an authorized service centre.

••Do not clean glass shelves or covers with warm water when they are cold. They may break if exposed to sudden temperature changes.

••Never eat frozen foods immediately after they have been taken out in the freezer compartment.

••Make sure not to get a hand or foot stuck upon opening or closing the appliance door.

••Do not open the door of the appliance with the door in door open, or do not open the door in door while the door of the appliance is open. The door in door may be struck by the edge of the appliance and damaged.

Maintenance

••Do not insert the shelves upside down. The shelves may fall.

••To remove frost from the appliance, contact an LG Electronics customer information centre.

••Dispose of the ice inside the ice bin in the freezer compartment during an extended power outage.

INSTALLATION

Compartments

Spanner Type 1

Spanner Type 2

Owner's Manual

Egg Box (Optional) Ring Sheet Cleaning Cloth

••The appearance or components of the appliance may differ from model to model.

Notes for Movement and Transport

••Remove all food from inside the appliance. Then, transport the appliance only after fixing fragile parts such as shelves and the door handle with tape. Failure to do so may cause appliance damage.

••Pull the power plug out, insert and fix it into the power plug hook at the rear or on top of the appliance. Failure to do so may cause damage to the power plug or floor scratch.

••When transporting the appliance, more than two people should transport the appliance carefully. Dropping the appliance, which is extremely heavy, may cause personal injury or appliance failure.

••When transporting the appliance over a long distance, keep the appliance upright. The appliance may fall over, causing malfunctions. Never transport the appliance laying down as it can cause a refrigerant circulation malfunction when it is turned back on again.

Notes for Installation

••Install the appliance on a solid and flat area.

−−If the appliance is installed on an uneven floor, it can cause vibration and noise causing the appliance to fall resulting in injury. It could also cause the doors not to close correctly and introduce moisture inside the unit during operation.

−−If the appliance front or rear is not level, adjust the front feet so that it can be corrected. Severe cases may need the floor to be packed out with strips of thin timber.

••Avoid placing the unit near heat sources, direct sunlight or moisture.

••Connect the power supply cord (or plug) to the outlet. Don't double up with other appliances on the same outlet.

••After connecting the power supply cord (or plug) to the outlet, Wait two or three hours before you put food into the appliance. If you add food before the appliance has cooled completely, your food may spoil.

••After installing the appliance, connect the power plug into a socket outlet. Before moving and discarding the appliance, disconnect the plug from the socket outlet.

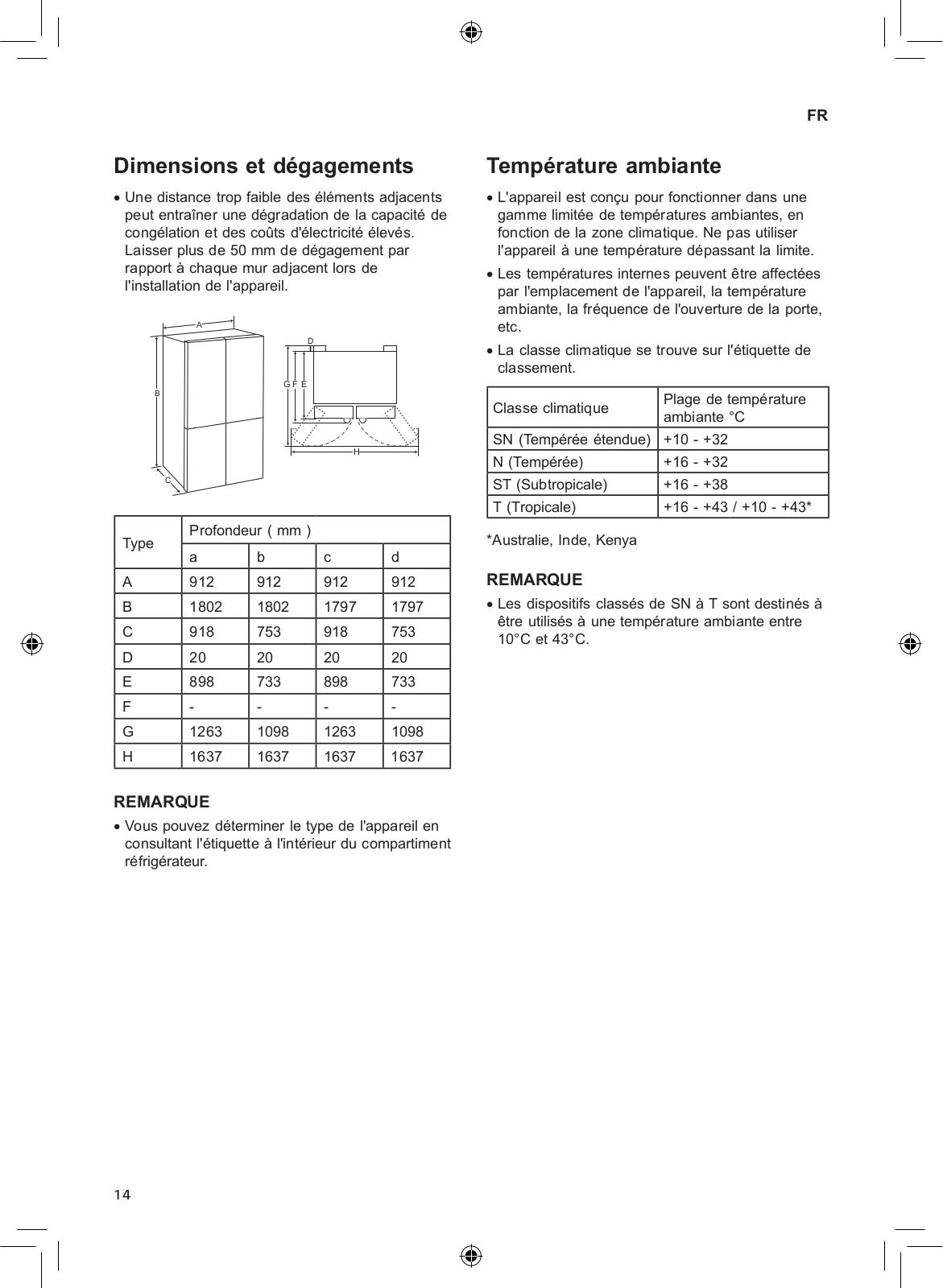

Dimensions and Clearances

••Too small of a distance from adjacent items may result in the degradation of freezing capability and increased electricity costs. Allow over 50 mm of clearance from each adjacent wall when installing the appliance.

G F E

Type	Depth (mm)

	a	b	c	d
A	912	912	912	912

B	1802	1802	1797	1797
C	918	753	918	753

D	20	20	20	20
E	898	733	898	733

F	-	-	-	-
G	1263	1098	1263	1098
H	1637	1637	1637	1637

NOTE

••You can determine what type of appliance it is by looking at the label inside the fridge compartment.

Ambient Temperature

••The appliance is designed to operate within a limited range of ambient temperatures, depending on the climate zone. Do not use the appliance at a temperature exceeding the limit.

••The internal temperature could be affected by the location of the appliance, the ambient temperature, the frequency of door opening and so on.

••The climate class can be found on the rating label.

Climate Class	Ambient Temperature
Climate Class	Range ºC
	Range ºC
SN (Extended	+10	- +32
Temperate)	+10	- +32
Temperate)
N (Temperate)	+16	- +32
ST (Subtropical)	+16	- +38
T (Tropical)	+16	- +43 / +10 - +43*

*Australia, India, Kenya

NOTE

••The appliances rated from SN to T are intended to be used at an ambient temperature between 10 ºC and 43 ºC.

Removing the Door

When it is necessary to move the appliance through a narrow opening, removing the doors is the recommended procedure.

WARNING

•Disconnect the power cord, house fuse or circuit breaker before installing or servicing the appliance. Failure to follow these instructions may result in death, fire or electric shock.

Removing the Fridge Door

1	Open the door. Remove the top hinge cover
	screw (1) and the hinge cover (2).

Hinge cover

2 Disconnect all the wire harnesses.

3 Rotate the hinge lever counterclockwise.

Lift the top hinge free of the hinge lever latch.

Hinge lever latch

CAUTION

•When removing the upper hinge, be sure to support the door as it will fall forwards. It is recommended that two or more people carry out the door removal and refitting.

•When lifting the hinge free of the latch, be careful that the door does not fall forward.

•Place the door, inside facing up, on a non-scratching surface.

4 Lift the upper hinge fixed between the appliance and the appliance door and then remove it.

Upper hinge

	Door
5	Lift the door from the middle hinge pin and
	remove the door.

CAUTION

•Place the door on a non-scratching surface with the inner side facing up.

Removing the Freezer Door

1 Remove the two hinge bolts.

2	Twist the hinge to raise the pivoting end so
	that the door can be lifted off.

Lift the door off the lower hinge pin and remove it.

Adjusting the Height of the Door

If the door is too low, lift the door up and screw on a door hinge bolt in the manner shown below using a spanner and a pair of long nose pliers.

Adjusting the Fridge Door

Left Door

Open the fridge door and use the spanner type 1 to rotate the door hinge bolt as shown below.

3	Remove the door by lifting it off the lower
	hinge pin.

Lower Hinge

Refitting the Doors

Mount the doors in the reverse sequence of their removal once the appliance has been passed through all access doors.

Height difference

Fridge door

Freezer door

Right Door

<Type1>

If the door is too low, use the spanner type 1 to rotate the door hinge bolt as shown below.

<Type2>

If the door is too low, lift the right door up and insert use a pair of long nose pliers to insert ring sheets until both doors are level.

<Type1>

Height difference

Fridge door

Freezer door

<Type2>

Fridge door

Freezer door

Adjusting the Freezer Door

If the door of the appliance is not level, adjust the difference in the height of appliance door using the following method.

NOTE

••Because the hinge pin may falll out, do not adjust the height of the appliance door more than 3 mm.

*Reference

	EN
1	Loosen the keeper nut by rotating it
	counterclockwise using a 19 mm spanner.

To loosen the nut

2 Adjust the difference in the height of the appliance door by rotating the adjustment hinge pin clockwise or counterclockwise with an 8 mm spanner.

	Down
	Up
3	After adjusting the difference in the height
	of the appliance door, fasten the keeper nut

by rotating it clockwise.

To tighten the nut

If it is impossible to adjust the height of the appliance door through the above method, level the door according to the following guide.

Keeper nut

Spanner	Adjustment hinge pin

Adjusting a Tilted Appliance

If the door of the appliance is not level, adjust the difference in the height of appliance door using the following method.

NOTE

••Because the hinge pin may falll out, do not adjust the height of the appliance door more than 3 mm.

Adjustment nut

Door Up

Spanner

Door Down

Height difference

Open the door and use the supplied spanner type 2 to adjust the level of the lower side, using the nut on the adjustable round foot as per the below diagram.

OPERATION

Parts and Functions

1Control Panel

To set the freezer and fridge temperatures.

2Door in Door (Optional)

The Door in Door is a double layered door system. It can be opened individually or together with the main door. You can conveniently locate and access your favourite snacks or food items.

3Door in Door Lever (Optional)

This lever opens Door in Door.

••The appearance or components of the appliance may differ from model to model.

	2	1
		1
	3
5	4

3 3

1Smart Diagnosis Unit

Use this function when contacting LG Electronics customer information centre to help make an accurate diagnosis when the appliance operates abnormally or a failure occurs.

2Bluetooth Sound Bar (Optional)

You can connect your smart device to a bluetooth sound bar. Please see the enclosed guide in the appliance for more details.

3LED Lamp

The LED lamps inside the appliance light up when you open the door.

4Hygiene Fresh

This function minimizes bacteria and odor inside the appliance.

5Fridge Shelf

This is where refrigerated foods and other items are stored.

••The shelf height can be adjusted by inserting the shelf in another groove of different height.

••Store the foods with higher moisture content at the front of the shelf.

••The actual number of shelves will differ from model to model.

6Folding Shelf

Shelf is adjustable to meet individual storage needs.

7Vegetable Box

This is where fruits and vegetables are stored to remain fresh for as long as possible.

13 10

12 8

8Extra Space (Optional)

This is where small food items such as cheese and ham can be stored.

9Door Mullion

This prevents cold air from leaking from the appliance.

10Fridge Door Basket

This is where small packages of refrigerated foods, drinks and sauce containers are stored.

11In & Out Basket

This is where cooking condiments can be stored.

If necessary, the in & out basket may be taken out separately.

12Tilting Fresh Basket

This is where fresh vegetables that should be eaten soon can be stored.

13Dairy Basket

This is where dairy foods such as butter and cheese can be stored.

14Door in Door (Optional)

This is where foods which are taken out frequently such as beverages and snacks are stored.

15Mini Table (Optional)

The mini table provides a space that is convenient to place and use small items while opening the door in door.


3		4




1	5
	5
2	6	2
	6

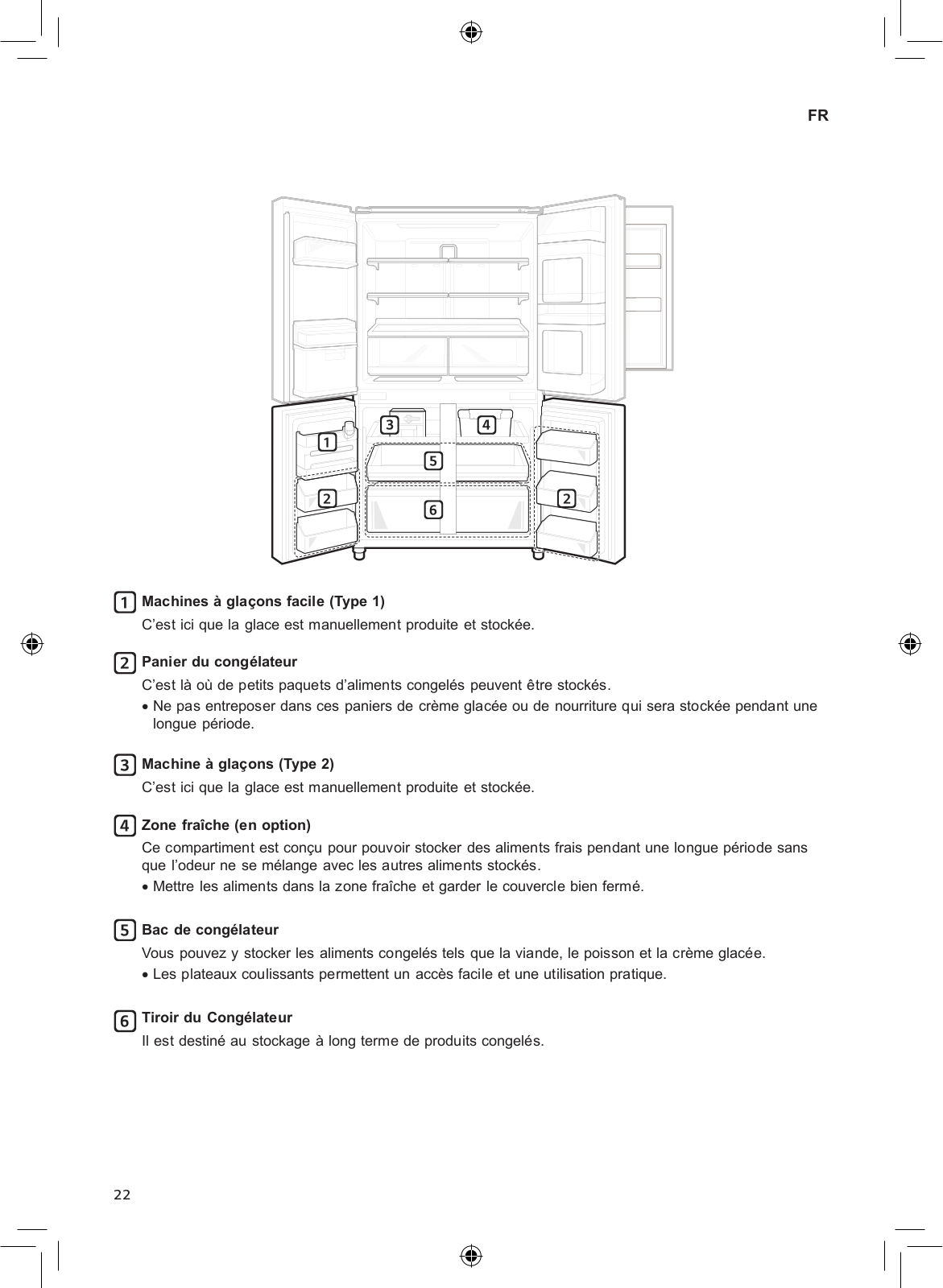

1Easy Icemaker (Type 1)

This is where ice is manually produced and stored.

2Freezer Basket

This is where small packages of frozen food can be stored.

••Do not store ice cream or food which will be stored for a long period of time within these baskets.

3Icemaker (Type 2)

This is where ice is manually produced and stored.

4Fresh Zone (Optional)

This compartment is designed to be able to store fresh food for a long time without the odour mixing with other stored food.

••Put food in the fresh zone and keep the lid tightly closed.

5Freezer Tray

This is where frozen foods such as meat, fish, and ice cream can be stored.

••The sliding trays allow easy access and convenience of use.

6Freezer Drawer

This is for long-term storage of frozen items.

Notes for Operation

••Do not use the ice water dispenser tank for beverages other than drinking water.

••Users should keep in mind that frost can form. If the door is not closed completely, if the humidity is high during the summer, or if the freezer door is opened frequently.

••Ensure there is sufficient space between food stored on the shelf or door basket to allow the door to close completely.

••Opening the door lets warm air enter the appliance, and may cause the internal temperature to rise.

••Do not open or close the appliance door excessively.

••The LED lamp is only intended for use in domestic appliances and is not suitable for household room illumination.

••If you are leaving the appliance turned off for an extended period of time, remove all food and unplug the power cord. Clean the interior, and leave the doors slightly ajar to prevent mold from growing in the appliance.

Suggestion for Energy Saving

••Ensure there is sufficient space between stored foods. This allows cold air to be circulated evenly and lowers electricity bills.

••Store hot food only after it has cooled in order to prevent dew or frost.

••When storing food in the freezer compartment, set the freezer temperature lower than the temperature indicated on the appliance.

••Do not set the temperature of the appliance lower than needed. For ice making in normal climates, the freezer temperatures should be set to -18 °C or colder.

••Do not put food near the temperature sensor of the fridge compartment. Keep a distance of at least 3 cm from the sensor.

••Please note that a temperature rise after defrosting has a permissible range in the appliance specifications. If you wish to minimise the impact this may have on the food storage due to a temperature rise, seal or wrap the stored food in several layers.

••The automatic defrosting system in the appliance ensures that the compartment remains free of ice buildup under normal operating conditions.

Storing Foods Effectively

••Store frozen food or refrigerated food inside sealed containers.

••Check the expiration date and label (storage instructions) before storing food in the appliance.

••Do not store food for a long period of time (more than four weeks) if it spoils easily at a low temperature.

••Place the refrigerated food or frozen food in each fridge or freezer compartment immediately after purchasing.

••Avoid refreezing any food which has been completely thawed. Freezing any food which has been completely thawed again will lower its taste and nutrition.

••Do not wrap and store vegetables with newspaper. Printing material of newspaper or other foreign substances may smear and contaminate food.

••Do not overfill the appliance. Fill less than 70 % of the space. Cold air can not circulate properly if the appliance is overfilled.

••Cool hot food before storing. If too much hot food is placed inside, the internal temperature of the appliance can increase and negatively affect other foods stored in the appliance.

••If you set an excessively low temperature for food, it may become frozen. Do not set a temperature lower than the required temperature for the food to be stored correctly.

••Always keep the appliance clean.

••If there are chill compartments in the appliance, do not store vegetables and fruits with higher moisture content in the chill compartments as they may freeze due to the lower temperature.

••In the event of a blackout, call the electricity company and ask how long it is going to last.

−−You should avoid opening the doors, while the power is off.

−−When the power supply gets back to normal, check the condition of the food.

Max Freezing Capacity

••The Express Freeze function will allow the freezer to its maximum freezing capacity. This generally takes up to 24 hours, however, it will automatically turn off after a given time and can also be turned off manually at any given time.

••To get better air circulation, insert all inner parts like baskets, drawers, and shelves.

Maximum Storage

••To get better air circulation, insert all drawers.

••If large quantities of food are to be stored, all the freezer drawers shall be taken out of the appliance except the bottom one and the food shall be stacked directly on the freezer shelves in the freezer compartment.

NOTE

••To remove the drawers, first pick the food out of drawers. Then use the handle of drawers, pull out the drawers carefully. It may cause injury.

••The shape of each drawer may be different, insert in the right position.

Control Panel

Units and Functions

Hygiene

Fresh

Power

1Fridge Temperature

••This sets the fridge target temperature.

2Freezer Temperature

••This sets the freezer target temperature.

3Hygiene Fresh

••This sets the Hygiene Fresh function.

4Express Freeze

••This sets Express Freeze functions.

5* Wi-Fi

••This sets the appliance to connect to your home’s Wi-Fi network.

6* Lock

••This locks the buttons on the control panel.

−−The actual control panel may differ from model to model.

Notes for Using the Control Panel

••The control panel will turn on in any of the following cases.

−−When the power is turned on

−−When a button is pressed

−−When the appliance door (fridge compartment, freezer compartment, door in door) is opened

••The control panel will turn off automatically for energy saving in any of the following cases.

−−When one minute has passed after turning on the power

−−When no button operation is carried out for 20 seconds after a desired button is pressed

−−When 20 seconds has passed after the appliance door (fridge compartment, freezer compartment, door in door) is opened and closed

••If there is any finger or skin contact to the control panel while cleaning it, the button function may operate.

Setting the Temperature

This sets the fridge temperature or freezer temperature.

••Press the Fridge button or Freezer button to adjust the temperature.

••The initial temperature is set. −−Fridge : 3 °C

−−Freezer : -18 °C

••The temperature can be adjusted. −−Fridge : from 0 °C to 6 °C −−Freezer : from -24 °C to -16 °C

••The actual inner temperature varies depending on the food status, as the indicated setting temperature is a target temperature, not actual temperature within the appliance.

NOTE

••The default temperature setting may vary depending on the appliance.

••Wait until two or three hours have passed after connecting the appliance to the outlet before storing food in the appliance.

Setting Hygiene Fresh

Bacteria and odor inside the appliance can be minimized with the Hygiene Fresh function. However, the function is only effective for bacteria floating in the appliance, not bacteria adsorbed onto food.

••Each time you press the Hygiene Fresh button, the Hygiene Fresh function mode will change to Auto → Power → Off → Auto alternatively.

Setting Express Freeze

The function can quickly freeze a large amount of ice or frozen foods.

••When you press the Express Freeze button, the Express Freeze icon lights on the control panel.

••The function is enabled and disabled in turn each time you press the button.

••The Express Freeze function automatically terminates after a specific period has passed.

Setting and Resetting Lock

This locks the buttons on the control panel.

••Press and hold the Lock button for 3 seconds

. When the Lock function is set, all buttons are locked.

••When you press the Lock button for 3 seconds, the Lock/Unlock icon on the control panel lights. The function is enabled and disabled in turn each time you press the button.

••If you press a button other than lock when the lock is set, the button will not function.

••When you press a button other than lock when the lock is set, the Lock/Unlock icon on the control panel will flash 3 times.

••To change a setting, first press the Lock button for three seconds to disable the function.

Extra Space (Optional)

Store small food items like cheese, ham, cheese, etc.

Open and close by pushing or pulling the grips.

Extra space supporter

CAUTION

••Be careful when handling and storing larger eggs. They can break if the drawer is pushed in while the cover is not completely closed.

••Observe the above diagrams when removing and refitting the extra space supporter after cleaning.

••Store all moist and easily-frozen food such as tofu, sesame leaves, etc. on the front of the shelves.

In & Out Basket

This is meant to be used to store and carry multiple items to and from the fridge compartment.

••When needed, the in & out carrier can be taken out separately. It can be used to move required condiments, drinks, snacks, etc. for cooking at the same time.

In & out basket

In & out carrier

NOTE

••This basket must only be used for items stored in the fridge. Do not place near any heat sources.

Tilting Fresh Basket

This is ideal for storing vegetables that must be eaten soon.

1	To open, press the latch and gently pull the
	basket back.

2	To close, push the basket in until a “click”
	sound is heard.

••To avoid damaging the drawer, do not overload it or apply excessive force when opening or closing.

CAUTION

••Do not allow children to hang from the basket when it is open or closed.

Door Mullion

This door mullion prevents cold air from leaking from the appliance.

CAUTION

••The door alarm will sound every 30 seconds if the door remains open longer than one minute. Ensure that the folding mullion is folded in before closing the left-hand door.

••To reduce the risk of door scratches and breaking the centre door mullion, make sure that the appliance door mullion is always folded in.

Door in Door (Optional)

Pull the lever at the bottom of the door upwards until the door in door opens.

There is plenty of storage space inside the door in door and its surrounding baskets, allowing you to store food in an organized manner.

Removing the Case from the Door in Door

Hold the case from inside the door in door with both hands and remove it by lifting it upward.

Refitting the Door in Door Case

Mount them in the reverse order of the removal process.

Moving Basket (Optional)

Easily move moving basket up and down as necessary.

•Remove all items from the moving basket before moving it up or down.

•Adjusting the moving basket allows taller food items to be stored more conveniently.

1	To raise the moving basket, hold the basket
	in the centre and push the basket up until it

clicks into place.

2	To lower moving basket, press up to release
	the levers at the side of the basket and

lower the basket until it clicks into place.

CAUTION

•To avoid personal injury or damage to the basket or its contents, empty the moving basket bin before moving it up or down.

Mini Table (Optional)

The mini table provides a space that is convenient to place and use small items while opening the door in door.

CAUTION

••Do not apply excessive force or impact to the mini table. It may cause damage to the appliance and result in injury.

••Do not place heavy objects on top of the mini table. It may cause damage to the appliance and result in injury.

••Do not allow children to hang on the mini table. It may result in injury.

••Do not insert your fingers between the bottom of the mini table and appliance. It may result in injury.

Icemaker

This is where ice is manually produced and stored.

Easy Icemaker (Type 1)

Filling the Ice Tray with Water Using the Water Tank

1	Remove the water tank from the top easy
	icemaker.

2	Open the cover of the water tank and fill it
	with water to the water level line.
	Water level line	2

3	Refit the cover and place the filled water
	tank back into the easy icemaker.
	Water tank	2
		Ice tray
		Ice storage bin

+ 126 hidden pages
