LG 43UF680T-TA, 43UF680Y-TA Schematic

Internal Use Only

North/Latin America http://aic.lgservice.com
Europe/Africa http://eic.lgservice.com
Asia/Oceania http://biz.lgservice.com

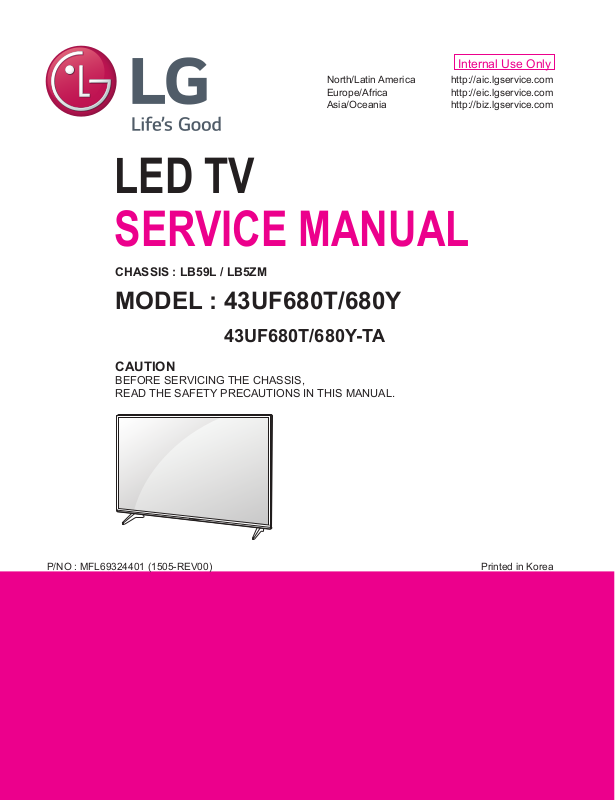

LED TV

SERVICE MANUAL

CHASSIS : LB59L / LB5ZM

MODEL : 43UF680T/680Y

43UF680T/680Y-TA

CAUTION

BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

Printed in KoreaP/NO : MFL69324401 (1505-REV00)

CONTENTS

CONTENTS .............................................................................................. 2

SAFETY PRECAUTIONS ........................................................................ 3

SERVICING PRECAUTIONS .................................................................... 4

SPECIFICATION ....................................................................................... 6

ADJUSTMENT INSTRUCTION .............................................................. 10

BLOCK DIAGRAM .................................................................................. 18

EXPLODED VIEW .................................................................................. 25

SCHEMATIC CIRCUIT DIAGRAM ........................................... APPENDIX

TROUBLE SHOOTING GUIDE ................................................. APPENDIX

Only for training and service purposes

- 2 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

SAFETY PRECAUTIONS

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.

It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1 W), keep the resistor 10 mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩ and 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.
Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to

0.5 mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.

Leakage Current Hot Check circuit

Only for training and service purposes

- 3 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

SERVICING PRECAUTIONS

CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conict between the

following servicing precautions and any of the safety precautions
on page 3 of this publication, always follow the safety precau­tions. Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power
source before;

a. Removing or reinstalling any component, circuit board

module or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug

or other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an explo­sion hazard.

2. Test high voltage only by measuring it with an appropriate
high voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its
assemblies.

4. Unless specied otherwise in this service manual, clean

electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10 % (by volume) Acetone and 90 %
(by volume) isopropyl alcohol (90 % - 99 % strength)

CAUTION: This is a ammable mixture.
Unless specied otherwise in this service manual, lubrication

of contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks
are correctly installed.

7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.

8. Use with this receiver only the test xtures specied in this

service manual.

CAUTION: Do not connect the test xture ground strap to any

heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged eas­ily by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES

devices are integrated circuits and some eld-effect transistors

and semiconductor “chip” components. The following techniques
should be used to help reduce the incidence of component dam­age caused by static by static electricity.

1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground. Alter­natively, obtain and wear a commercially available discharg­ing wrist strap device, which should be removed to prevent
potential shock reasons prior to applying power to the unit
under test.

2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or expo­sure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder
ES devices.

4. Use only an anti-static type solder removal device. Some sol-

der removal devices not classied as “anti-static” can generate
electrical charges sufcient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate

electrical charges sufcient to damage ES devices.

6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads elec­trically shorted together by conductive foam, aluminum foil or
comparable conductive material).

7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective mate­rial to the chassis or circuit assembly into which the device will
be installed.
CAUTION: Be sure no power is applied to the chassis or cir­cuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replace­ment ES devices. (Otherwise harmless motion such as the
brushing together of your clothes fabric or the lifting of your

foot from a carpeted oor can generate static electricity suf­cient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropri­ate tip size and shape that will maintain tip temperature within
the range or 500 °F to 600 °F.

2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wire­bristle (0.5 inch, or 1.25 cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique

a. Allow the soldering iron tip to reach normal temperature.

(500 °F to 600 °F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature

(500 °F to 600 °F)

b. First, hold the soldering iron tip and solder the strand

against the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there
only until the solder ows onto and around both the compo­nent lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

Only for training and service purposes

- 4 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent at against the cir­cuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by
gently prying up on the lead with the soldering iron tip as the
solder melts.

2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing
the IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and
solder it.

3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor
Removal/Replacement

1. Remove the defective transistor by clipping its leads as close
as possible to the component body.

2. Bend into a "U" shape the end of each of three leads remain­ing on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.

Power Output, Transistor Device
Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit
board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as pos­sible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit
board.

3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and
if necessary, apply additional solder.

3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed when­ever this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC connec­tions).

1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the
good copper pattern. Solder the overlapped area and clip off
any excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.

1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly con­nected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the
lead of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.

Fuse and Conventional Resistor
Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.

2. Securely crimp the leads of replacement component around
notch at stake top.

Only for training and service purposes

- 5 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

.

1. Application range

This specification is applied to the LED TV used LB59L /
LB5ZM chassis.

2. Requirement for Test

Each part is tested as below without special notice

1) Temperature: 25 °C ± 5 °C(77 °F ± 9 °F), CST: 40 °C ± 5 °C

2) Relative Humidity: 65 % ± 10 %

3) Power Voltage
: Standard input voltage (AC 100-240 V~, 50/60 Hz)
* Standard Voltage of each products is marked by models.

4) Specification and performance of each parts are followed

each drawing and specification by part number in
accordance with BOM.

5) The receiver must be operated for about 20 minutes prior to

the adjustment.

3. Test method

1) Performance: LGE TV test method followed

2) Demanded other specification

- Safety : CE, IEC specification

- EMC : CE, IEC specification

- Wireless : Wireless HD Specification (Option)

4. Model General Specification

No. Item Specication Remarks

1 Market Asia, Oceania, Africa, Middle East(PAL/DVB Market)

2 Television system

3 Channel Storage ATV / DTV - 1500EA

4 Receiving system

5 Video Input RCA PAL, SECAM, NTSC 4 System : PAL, SECAM, NTSC, PAL60

6 Component Input Y/Pb/Pr

7 Head phone out

8 HDMI Input HDMI1-DTV,HDMI2-DTV, *HDMI3-DTV PC(HDMI Ver. 1.4), Support HDCP, * HDMI3 : UF77/UF83

9 Audio Input DVI Audio, Component, AV1

10 SPDIF out SPDIF out

11 USB Input For My Media(Movie/Photo/Music List) or For SVC

1) PAL-BG/DK/I/I’

2) SECAM L/L’, DK, BG, I

3) DVB-T/T2, C, S/S2

Analog : Upper Heterodyne
Digital : COFDM(DVB-T) Only DVB-T Model
Digital : COFDM(DVB-T/T2) Only DVB-T2 Model
Digital : QAM

Antenna, AV1, Component, HDMI1(6G), HDMI2(3G),
HDMI3(3G), USB1, USB2, USB3
(HDMI1(6G), HDMI2(3G), USB1 for UF68, UF64)

► DVB-T

- Guard Interval(Bitrate_Mbit/s): 1/4, 1/8, 1/16, 1/32

- Modulation : Code Rate
QPSK : 1/2, 2/3, 3/4, 5/6, 7/8
16-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
64-QAM : 1/2, 2/3, 3/4, 5/6, 7/8

► DVB-T2

- Guard Interval(Bitrate_Mbit/s)
1/4, 1/8, 1/16, 1/32, 1/128, 19/128, 19/256,

- Modulation : Code Rate
QPSK : 1/2, 2/5, 2/3, 3/4, 5/6
16-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
64-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
256-QAM : 1/2, 2/5, 2/3, 3/4, 5/6

► DVB-C

- Symbolrate : 4.0Msymbols/s to 7.2Msymbols/s

- Modulation : 16QAM, 64-QAM, 128-QAM and 256-QAM

► DVB-S/S2

- Symbolrate
DVB-S2 (8PSK / QPSK) : 2 ~ 45Msymbol/s
DVB-S (QPSK) : 2 ~ 45Msymbol/s

- Viterbi
DVB-S mode : 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2 mode: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

Only for training and service purposes

- 6 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5. External Input Support Format

5.1. 2D

(1) CVBS input

No. Resolution H-freq(kHz) V-freq(Hz) Pixel clock(MHz) Proposed Remarks

1 720*480i 15.73 59.94 13.50 SDTV, DVD 480I(525I) NTSC-M

2 720*480i 15.73 60.00 13.51 SDTV, DVD 480I(525I) NTSC-M

3 720*576i 15.63 50.00 13.50 SDTV, DVD 576I(625I) 50Hz PAL-BDGHI

(2) Component (Y, CB/PB, CR/PR)

No. Resolution H-freq(kHz) V-freq(Hz) Pixel clock(MHz) Proposed

1 720*480i 15.73 59.94 13.50 SDTV, DVD 480I(525I)

2 720*480i 15.73 60.00 13.51 SDTV, DVD 480I(525I)

3 720*576i 15.63 50.00 13.50 SDTV, DVD 576I(625I) 50Hz

4 720*480p 31.47 59.94 27.00 SDTV 480P

5 720*480p 31.50 60.00 27.03 SDTV 480P

6 720*576p 31.25 50.00 27.00 SDTV 576P 50Hz

7 1280*720 44.96 59.94 74.18 HDTV 720P

8 1280*720 45.00 60.00 74.25 HDTV 720P

9 1280*720 45.00 50.00 74.25 HDTV 720P 50Hz

10 1920*1080 28.13 50.00 74.25 HDTV 1080I 50Hz,

11 1920*1080 33.72 59.94 74.18 HDTV 1080I

12 1920*1080 33.75 60.00 74.25 HDTV 1080I

13 1920*1080 56.25 50.00 148.50 HDTV 1080P

14 1920*1080 67.50 60.00 148.50 HDTV 1080P

Only for training and service purposes

- 7 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

(3) HDMI (DTV)

No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed Remarks

1 640*480 31.46 59.94 25.13 SDTV 480P

2 640*480 31.50 60.00 25.13 SDTV 480P

3 720*480 15.73 59.94 13.50 SDTV, DVD 480I(525I)

Spec. out but display4 720*480 15.75 60.00 13.51 SDTV, DVD 480I(525I)

5 720*576 15.63 50.00 13.50 SDTV, DVD 576I(625I) 50Hz

6 720*480 31.47 59.94 27.00 SDTV 480P

7 720*480 31.50 60.00 27.03 SDTV 480P

8 720*576 31.25 50.00 27.00 SDTV 576P

9 1280*720 44.96 59.94 74.18 HDTV 720P

10 1280*720 45.00 60.00 74.25 HDTV 720P

11 1280*720 37.50 50.00 74.25 HDTV 720P

12 1920*1080 28.12 50.00 74.25 HDTV 1080I

13 1920*1080 33.72 59.94 74.18 HDTV 1080I

14 1920*1080 33.75 60.00 74.25 HDTV 1080I

15 1920*1080 26.97 23.97 63.30 HDTV 1080P

16 1920*1080 27.00 24.00 63.36 HDTV 1080P

17 1920*1080 33.71 29.97 79.12 HDTV 1080P

18 1920*1080 33.75 30.00 79.20 HDTV 1080P

19 1920*1080 56.25 50.00 148.50 HDTV 1080P

20 1920*1080 67.43 59.94 148.35 HDTV 1080P

21 1920*1080 67.50 60.00 148.50 HDTV 1080P

22 3840*2160 53.95 23.98 297.00 UDTV 2160P

23 3840*2160 54.00 24.00 297.00 UDTV 2160P

24 3840*2160 56.25 25.00 297.00 UDTV 2160P

25 3840*2160 61.43 29.97 297.00 UDTV 2160P

26 3840*2160 67.50 30.00 297.00 UDTV 2160P

27 3840*2160 112.50 50.00 594.00 UDTV 2160P 8 bit / YCbCr 4:2:0

28 3840*2160 135.00 59.94 593.41 UDTV 2160P 8 bit / YCbCr 4:2:0

29 3840*2160 135.00 60.00 594.00 UDTV 2160P 8 bit / YCbCr 4:2:0

30 4096*2160 53.95 23.98 297.00 UDTV 2160P

31 4096*2160 54.00 24.00 297.00 UDTV 2160P

32 4096*2160 56.25 25.00 297.00 UDTV 2160P

33 4096*2160 61.43 29.97 297.00 UDTV 2160P

34 4096*2160 67.50 30.00 297.00 UDTV 2160P

35 4096*2160 112.50 50.00 594.00 UDTV 2160P 8 bit / YCbCr 4:2:0

36 4096*2160 135.00 59.94 593.41 UDTV 2160P 8 bit / YCbCr 4:2:0

37 4096*2160 135.00 60.00 594.00 UDTV 2160P 8 bit / YCbCr 4:2:0

Only for training and service purposes

- 8 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

(4) HDMI Input (PC)

No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed Remarks

1 640*350 31.46 70.09 25.17 EGA

2 720*400 31.46 70.08 28.32 DOS

3 640*480 31.46 59.94 25.17 VESA(VGA)

4 800*600 37.87 60.31 40.00 VESA(SVGA)

5 1024*768 48.36 60.00 65.00 VESA(XGA)

6 1152*864 54.34 60.05 80.00 VESA

7 1360*768 47.71 60.01 84.75 VESA(WXGA)

8 1280*1024 63.98 60.02 109.00 SXGA

9 1920*1080 67.50 60.00 158.40 WUXGA(Reduced Blanking)

10 3840*2160 54.00 24.00 297.00 UDTV 2160P

11 3840*2160 56.25 25.00 297.00 UDTV 2160P

12 3840*2160 67.50 30.00 297.00 UDTV 2160P

13 4096*2160 53.95 23.97 297.00 UDTV 2160P

14 4096*2160 54.00 24.00 297.00 UDTV 2160P

Only for training and service purposes

- 9 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

ADJUSTMENT INSTRUCTION

1. Application Range

This specification sheet is applied to all of the LED TV with
LB59L / LM5ZM chassis.

2. Designation

(1) Because this is not a hot chassis, it is not necessary to

use an isolation transformer. However, the use of isolation

transformer will help protect test instrument.
(2) Adjustment must be done in the correct order.
(3) The adjustment must be performed in the circumstance of

25 °C ± 5 °C of temperature and 65 % ± 10 % of relative

humidity if there is no specific designation.
(4) The input voltage of the receiver must keep AC 100-240

V~, 50/60 Hz.
(5) The receiver must be operated for about 5 minutes prior to

the adjustment when module is in the circumstance of over

15 °C.

In case of keeping module is in the circumstance of 0 °C, it
should be placed in the circumstance of above 15 °C for 2
hours.

In case of keeping module is in the circumstance of below

-20 °C, it should be placed in the circumstance of above 15
°C for 3 hours.

[Caution]
When still image is displayed for a period of 20 minutes or
longer (Especially where W/B scale is strong. Digital pattern
13ch and/or Cross hatch pattern 09ch), there can some
afterimage in the black level area.

3.2. LAN Inspection

3.2.1. Equipment & Condition

▪ Each other connection to LAN Port of IP Hub and Jig

3.2.2. LAN inspection solution

▪ LAN Port connection with PCB
▪ Network setting at MENU Mode of TV
▪ Setting automatic IP
▪ Setting state confirmation

- If automatic setting is finished, you confirm IP and MAC
Address.

3.2.3. WIDEVINE key Inspection

- Confirm key input data at the "IN START" MENU Mode.



3. Automatic Adjustment

3.1. MAC address D/L, CI+ key D/L(Option),
Widevine key D/L, ESN D/L, HDCP20 D/L

Connect: USB port
Communication Prot connection

▪ Com 1,2,3,4 and 115200(Baudrate)

Mode check: Online Only

▪ Check the test process

: DETECT→MAC→ESN→Widevine→CI(option)→HDCP20
▪ Play: Press Enter key
▪ Result: Ready, Test, OK or NG
▪ Printer Out (MAC Address Label)

3.3. LAN PORT INSPECTION(PING TEST)

Connect SET → LAN port == PC → LAN Port

SET PC

3.3.1. Equipment setting

(1) Play the LAN Port Test PROGRAM.
(2) Input IP set up for an inspection to Test Program.

*IP Number : 12.12.2.2

3.3.2. LAN PORT inspection(PING TEST)

(1) Play the LAN Port Test Program.

(2) Connect each other LAN Port Jack.

(3) Play Test (F9) button and confirm OK Message.
(4) Remove LAN cable.

Only for training and service purposes

- 10 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

3.4. Model name & Serial number Download

3.4.1. Model name & Serial number D/L

▪ Press "P-ONLY" key of service remote control.

(Baud rate : 115200 bps)

▪ Connect RS-232C Signal to USB Cable to USB.
▪ Write Serial number by use USB port.
▪ Must check the serial number at Instart menu.

3.4.2. Method & notice

(1) Serial number D/L is using of scan equipment.
(2) Setting of scan equipment operated by Manufacturing

Technology Group.

(3) Serial number D/L must be conformed when it is produced

in production line, because serial number D/L is mandatory
by D-book 4.0.

* Manual Download (Model Name and Serial Number)

If the TV set is downloaded by OTA or service man, sometimes

model name or serial number is initialized.(Not always)

It is impossible to download by bar code scan, so It need

Manual download.

1) Press the "Instart" key of Adjustment remote control.

2) Go to the menu "7.Model Number D/L" like below photo.

3) Input the Factory model name(ex 47LB650V-ZA) or Serial
number like photo.

4) Check the model name Instart menu. → Factory name

displayed. (ex 47LB650V-ZA)

5) Check the Diagnostics.(DTV country only) → Buyer

model displayed. (ex 47LB650V-ZA)

3.5. CI+ Key checking method

(Check the Section 3.1)
Check whether the key was downloaded or not at ‘In Start’
menu. (Refer to below).

=> Check the Download to CI+ Key value in LGset.

3.5.1. Check the method of CI+ Key value

(1) Check the method on Instart menu
(2) Check the method of RS232C Command

1) Into the main ass’y mode(RS232: aa 00 00)

CMD 1 CMD 2 Data 0

A A 0 0

2) Check the key download for transmitted command
(RS232: ci 00 10)

CMD 1 CMD 2 Data 0

C I 1 0

3) Result value

- Normally status for download : OKx

- Abnormally status for download : NGx

3.5.2. Check the method of CI+ key value(RS232)

1) Into the main ass’y mode(RS232: aa 00 00)

CMD 1 CMD 2 Data 0

A A 0 0

2) Check the mothed of CI+ key by command
(RS232: ci 00 20)

CMD 1 CMD 2 Data 0

C I 2 0

3) Result value
i 01 OK 1d1852d21c1ed5dcx

CI+ Key Value

Only for training and service purposes

3.6. WIFI MAC ADDRESS CHECK

(1) Using RS232 Command

H-freq(kHz) V-freq.(Hz)

Transmission [A][I][][Set ID][][20][Cr] [O][K][X] or [NG]

(2) Check the menu on in-start

- 11 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

4. Manual Adjustment

4.1. EDID(The Extended Display Identification
Data)/DDC(Display Data Channel) download

4.1.1. Overview

It is a VESA regulation. A PC or a MNT will display an optimal
resolution through information sharing without any necessity
of user input. It is a realization of "Plug and Play".

4.1.2. Equipment

- Since embedded EDID data is used, EDID download JIG,

HDMI cable and D-sub cable are not need.

- Adjustment remote control

4.1.3. Download method

(1) Press "ADJ" key on the Adjustment remote control, then

select "12.EDID D/L", By pressing "Enter" key, enter EDID
D/L menu.

For HDMI EDID

DVI-D to HDMI or HDMI to HDMI

(2) Select "Start" button by pressing "Enter" key, HDMI1/

HDMI2/ HDMI3/ HDMI4 are writing and display OK or NG.

4.1.4. EDID DATA

▪ Reference

- HDMI1 ~ HDMI3

- In the data of EDID, bellows may be different by Input mode.

0 1 2 3 4 5 6 7 8 9 A B C D E F

0x00 00 FF FF FF FF FF FF 00 1E 6D

ⓒ

0x01
0x02 0F 50 54 A1 8 00 31 40 45 40 61 40 71 40 81 80
0x03 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
0x04 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30
0x05 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
0x06 3E 1E 53 10 00 0A 20 20 20 20 20 20
0x07
0x00 02 03 3A F1 4E 10 9F 04 13 05 14 03 02 12 20 21
0x01 22 15 01 29 3D 06 C0 15 07 50
0x02
0x03
0x04 2D 40 58 2C 45 00 40 84 63 00 00 1E 01 1D 80 18
0x05 71 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 01 1D
0x06 00 72 51 D0 1E 20 6E 28 55 00 40 84 63 00 00 1E
0x07 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26

ⓓ

ⓕ

10 28 10 E3 05 03 01 02 3A 80 18 71 38

ⓕ

ⓐ Product ID
ⓑ Serial No: Controlled on production line.
ⓒ Month, Year: Controlled on production line:

ex) Monthly : ‘01’ → ‘01’, Year : ‘2015’ → ‘19’

ⓓ Model Name(Hex): LGTV
ⓔ Checksum(LG TV): Changeable by total EDID data.
ⓕ Vendor Specific(HDMI)

ⓐ ⓑ

ⓕ

ⓓ

ⓔ1

01

ⓔ2

(1) HDMI Deep Color OFF

# HDMI 1(C/S: E6 1D)
EDID Block 0, Bytes 0-127 [00H-7FH]

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 01 19 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
40 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30
50 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 E6

EDID Block 1, Bytes 128-255 [80H-FFH]

0 1 2 3 4 5 6 7 8 9 A B C D E F
80 02 03 38 F1 54 10 9F 04 13 05 14 03 02 12 20 21
90 22 15 01 5D 5E 5F 62 63 64 29 3D 06 C0 15 07 50

A0 09 57 07 6E 03 0C 00 10 00 B8 3C 20 00 80 01 02
B0 03 04 E5 0E 60 61 65 66 01 1D 80 18 71 1C 16 20
C0 58 2C 25 00 40 84 63 00 00 9E 01 1D 00 72 51 D0
D0 1E 20 6E 28 55 00 40 84 63 00 00 1E 00 00 00 00
E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 1D

# HDMI2 (C/S: E6 0D)
EDID Block 0, Bytes 0-127 [00H-7FH]

0 1 2 3 4 5 6 7 8 9 A B C D E F
00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 01 19 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
40 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30
50 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 E6

EDID Block 1, Bytes 128-255 [80H-FFH]

0 1 2 3 4 5 6 7 8 9 A B C D E F

80 02 03 38 F1 54 10 9F 04 13 05 14 03 02 12 20 21
90 22 15 01 5D 5E 5F 62 63 64 29 3D 06 C0 15 07 50
A0 09 57 07 6E 03 0C 00 10 00 B8 3C 20 00 80 01 02
B0 03 04 E5 0E 60 61 65 66 01 1D 80 18 71 1C 16 20
C0 58 2C 25 00 40 84 63 00 00 9E 01 1D 00 72 51 D0
D0 1E 20 6E 28 55 00 40 84 63 00 00 1E 00 00 00 00
E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 0D

(2) HDMI Deep Color ON

# HDMI1 (C/S : A0 C7)
EDID Block 0, Bytes 0-127 [00H-7FH]

0 1 2 3 4 5 6 7 8 9 A B C D E F

00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 01 19 01 03 80 A0 5A 78 0 A EE 91 A3 54 4C 99 26
20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58
40 8 A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40
50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0 A 20 20 20 20 20 20 20 01 A0

Only for training and service purposes

- 12 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

EDID Block 1, Bytes 128-255 [80H-FFH]

0 1 2 3 4 5 6 7 8 9 A B C D E F
80 02 03 47 F1 58 10 9F 04 13 05 14 03 02 12 20 21
90 22 15 01 60 61 5D 5E 5F 65 66 62 63 64 29 3D 06
A0 C0 15 07 50 09 57 07 6E 03 0C 00 10 00 B8 3C 20
B0 00 80 01 02 03 04 67 D8 5D C4 01 78 80 03 E3 05
C0 C0 00 E4 0F 00 C0 18 66 21 50 B0 51 00 1B 30 40
D0 70 36 00 40 84 63 00 00 1E 01 1D 00 72 51 D0 1E
E0 20 6E 28 55 00 40 84 63 00 00 1E 00 00 00 00 00
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 C7

* Checksum (HDMI 1/2)

Input

HDMI Deep Color On

FFh (Checksum)

HDMI Deep Color Off

FFh (Checksum)

HDMI1 A0 C7 E6 1D

HDMI2 E6 D E6 D

4.2. V-COM Adjust (Only for EPI model)

4.2.1. Overview

▪ V-COM adj. Objective & How-it-works

- Objective: To reduce each Panel’s V-COM voltage deviation

- How-it-works: When V-COM gain in the adjust-OSD of each
SET is at default value, each SET can have flicker by each
Panel’s V-COM voltage deviation. In order to prevent flicker
of each SET, find the desired each Panel’s V-COM voltage
value.

- Adj. condition: normal temperature

1) Surrounding Temperature: 25 ± 5 °C

2) Warm-up time: About 5 Min

3) Surrounding Humidity: 20% ~ 80%

4.2.2. Equipment

(1) Color Analyzer: CA-310(LED Module : CH 14) or CM-H505
(2) Adj. Computer (During auto adj., RS-232C protocol is

needed)
(3) Adjust Remocon
(4) Signal : internal flicker Pattern in SET

▪ Color Analyzer Matrix should be calibrated using CS-100

4.2.3. Equipment connection MAP

Probe

USB to RS-232C

* If you want to use Signal Source,
you use TV internal Flicker pattern.

Flicker Analyzer

RS-232C

Computer

4.2.4. Adj. Command (Protocol)

<Command Format>

CMD ID DATA CR RF

-. CMD: Command

-. ID : Command

-. Data : Command

Ex) [Send: va 00 00\r\n]

▪ RS-232C Command used during auto-adjustment.

RS-232C COMMAND

[CMD ID DATA]

va 00 00 V-com pattern

vb 00 00 ~ FE V-com adj.(internal Flicker pattern)

wb 00 FF V-com adj. completed

Explanation

4.2.5. Adj. method

(1) Auto adj. method

1) Set TV in adj. mode using POWER ON key.

2) Zero calibrate probe then place it on the center of the
Display.

3) Connect Cable.(RS-232C to USB)

4) Select Model in “V-com adj. Program” and begin “V-com
adj.”

5) When V-com adj. is complete (OK)

6) Remove probe and RS-232C cable to complete adj.

▪ V-com Adj. must begin as start command “va 00 00” , and

finish as end command “wb 00 ff”.

▪ V-com adjust data

- 43 inch

V-com Data

hex dec

Max B4 180

Default 96 150

Min 78 120

- 49 inch

V-com Data

hex dec

Max 8B 139

Default 6D 109

Min 4F 79

- 55 inch

V-com Data

hex dec

Max 85 133

Default 68 104

Min 49 73

- 65 inch

V-com Data

hex dec

Max AB 171

Default 8D 141

Min 6F 111

Only for training and service purposes

- 13 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

4.3. White Balance Adjustment

4.3.1. Overview

▪ W/B adj. Objective & How-it-works

(1) Objective: To reduce each Panel's W/B deviation
(2) How-it-works : When R/G/B gain in the OSD is at 192, it

means the panel is at its Full Dynamic Range. In order to
prevent saturation of Full Dynamic range and data, one
of R/G/B is fixed at 192, and the other two is lowered to
find the desired value.

(3) Adjustment condition : normal temperature

1) Surrounding Temperature : 25 °C ± 5 °C

2) Warm-up time: About 5 Min

3) Surrounding Humidity : 20 % ~ 80 %

4.3.2. Equipment

(1) Color Analyzer: CA-210 (LED Module : CH 14)
(2) Adjustment Computer(During auto adj., RS-232C protocol

is needed)
(3) Adjustment Remote control
(4) Video Signal Generator MSPG-925F 720p/216-Gray

(Model: 204, Pattern: 49)

→ Only when internal pattern is not available

• Color Analyzer Matrix should be calibrated using CS-100.

4.3.3. Equipment connection MAP

Color Analyzer

Probe

RS- 232C

Signal Source

* If TV internal pattern is used, not needed

Pattern Generator

4.3.4. Adj. Command (Protocol)

<Command Format>

START 6E A 50 A LEN A 03 A CMD A 00 A VAL A CS STOP

- LEN: Number of Data Byte to be sent

- CMD: Command

- VAL: FOS Data value

- CS: Checksum of sent data

- A: Acknowledge

Ex) [Send: JA_00_DD] / [Ack: A_00_okDDX]

▪ RS-232C Command used during auto-adjustment.

RS-232C COMMAND

[CMD ID DATA]

wb 00 00 Begin White Balance adjustment

wb 00 10 Gain adjustment(internal white pattern)

wb 00 1f Gain adjustment completed

wb 00 20 Offset adjustment(internal white pattern)

wb 00 2f Offset adjustment completed

wb 00 ff

End White Balance adjustment
(internal pattern disappears)

Explanation

RS-232C

Computer

RS-232C

Ex) wb 00 00 → Begin white balance auto-adj.

wb 00 10 → Gain adj.
ja 00 ff → Adj. data

jb 00 c0
...
...

wb 00 1f → Gain adj. completed
*(wb 00 20(Start), wb 00 2f(end)) → Off-set adj.
wb 00 ff → End white balance auto-adj.

▪ Adj. Map

Cool

Medium

Warm

Command

Adj. item

R Gain j g 00 C0

G Gain j h 00 C0

B Gain j i 00 C0

R Cut

G Cut

B Cut

R Gain j a 00 C0

G Gain j b 00 C0

B Gain j c 00 C0

R Cut

G Cut

B Cut

R Gain j d 00 C0

G Gain j e 00 C0

B Gain j f 00 C0

R Cut

G Cut

(lower case ASCII)

CMD1 CMD2 MIN MAX

Data Range

(Hex.)

4.3.5. Adj. method

(1) Auto adj. method

1) Set TV in adj. mode using POWER ON key.

2) Zero calibrate probe then place it on the center of the
Display.

3) Connect Cable.(RS-232C to USB)

4) Select mode in adj. Program and begin adj.

5) When adj. is complete (OK Sign), check adj. status pre
mode. (Warm, Medium, Cool)

6) Remove probe and RS-232C cable to complete adj.

▪ W/B Adj. must begin as start command “wb 00 00” , and

finish as end command “wb 00 ff”, and Adj. offset if need.

(2) Manual adjustment. method

1) Set TV in Adj. mode using POWER ON.

2) Zero Calibrate the probe of Color Analyzer, then place it
on the center of LCD module within 10 cm of the surface.

3) Press ADJ key → EZ adjust using adj. R/C → 7. White­Balance then press the cursor to the right(key ►).

(When right key(►) is pressed 216 Gray internal pattern

will be displayed)

4) One of R Gain / G Gain / B Gain should be fixed at 192,
and the rest will be lowered to meet the desired value.

5) Adjustment is performed in COOL, MEDIUM, WARM 3
modes of color temperature.

Default

(Decimal)

Only for training and service purposes

- 14 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

** G-fix adjustment
Adjust modes (Cool), Fix the G gain to 172 (default data)
and change the others (G/B Gain).
Adjust two modes(Medium / Warm), Fix the one of R/G/B
gain to 192 (default data) and decrease the others.

▪ If internal pattern is not available, use RF input. In EZ Adj.

menu 7.White Balance, you can select one of 2 Test­pattern: ON, OFF. Default is inner(ON). By selecting OFF,
you can adjust using RF signal in 216 Gray pattern.

▪ Adjustment condition and cautionary items

1) Lighting condition in surrounding area
Surrounding lighting should be lower 10 lux. Try to
isolate adj. area into dark surrounding.

2) Probe location
: Color Analyzer(CA-210) probe should be within 10 cm

and perpendicular of the module surface (80° ~ 100°)

3) Aging time

- After Aging Start, Keep the Power ON status during 5

Minutes.

- In case of LCD, Back-light on should be checked

using no signal or Full-white pattern.

4.3.6. Reference (White balance Adj. coordinate and
color temperature)

▪ Luminance : 206 Gray
▪ Standard color coordinate and temperature using CS-1000

(over 26 inch)

Mode

Cool 0.271 0.270 13000 K 0.0000

Medium 0.286 0.289 9300 K 0.0000

Warm 0.313 0.329 6500 K 0.0000

Coordinate

x y

Temp ∆uv

▪ (Normal line) White balance table

Model : (normal line) LGD

Aging

time

(Min)

1 0-2 282 289 297 308 324 348

2 3-5 281 287 296 306 323 346

3 6-9 279 284 294 303 321 343

4 10-19 277 280 292 299 319 339

5 20-35 275 277 290 296 317 336

6 36-49 274 274 289 293 316 333

7 50-79 273 272 288 291 315 331

8 80-119 272 271 287 290 314 330

9 Over 120 271 270 286 289 313 329

Cool Medium Warm

x y x y x y

271 270 286 289 313 329

▪ AUO, INX, Sharp, CSOT, BOE (Cool is 13000 K)

Cool Medium Warm

x y x y x y

271 270 285 293 313 329

Target 278 280 293 299 320 339

4.4. Local Dimming Function Check

(1) Turn on TV.
(2) At the Local Dimming mode, module Edge Backlight

moving right to left Back light of IOP module moving.
(3) Confirm the Local Dimming mode.
(4) Press “exit” Key.

▪ Standard color coordinate and temperature using CA-210(CH 14)

Mode

Cool 0.271 ± 0.002 0.270 ± 0.002 13000 K 0.0000

Medium 0.286 ± 0.003 0.289 ± 0.003 9300 K 0.0000

Warm 0.313 ± 0.002 0.329 ± 0.002 6500 K 0.0000

Coordinate

x y

Temp ∆uv

4.3.7. LED White balance table

▪ Edge & ALEF LED module change color coordinate because

of aging time.

▪ Apply under the color coordinate table, for compensated

aging time.

4.5. Magic Motion Remote control test

- Equipment : RF Remote control for test, IR-KEY-Code

Remote control for test

- You must confirm the battery power of RF-Remote control

before test(recommend that change the battery per every lot)

- Sequence (test)

1) If you select the ‘start key(OK)’ on the Adjustment remote
control, you can pairing with the TV SET.

2) You can check the cursor on the TV Screen, when select
the "OK" key on the Adjustment remote control.

3) You must remove the pairing with the TV Set by select
‘Mute + OK Key’ on the Adjustment remote control.

(2) When 3D OSD appear automatically, then select green key.
(3) Don't wear a 3D Glasses, Check the picture like below.

Only for training and service purposes

- 15 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

4.6. Option selection per country

4.6.1. Overview

- Option selection is only done for models in AJ/JA/IL

4.6.2.Method

(1) Press "ADJ" key on the Adjustment remote control, then

select Country Group Menu.

(2) Depending on destination, select Country Group Code or

Country Group then on the lower Country option, select

US, CA, MX. Selection is done using +, - or ►◄ KEY.

4.7. HDMI ARC Function Inspection

(1) Test equipment

- Optic Receiver Speaker

- MSHG-600 (SW: 1220 ↑)

- HDMI Cable (for 1.4 version)

(2) Test method

1) Insert the HDMI Cable to the HDMI ARC port from the
master equipment. (HDMI 2)

5. GND and Internal Pressure check

5.1. Method

(1) GND & Internal Pressure auto-check preparation

- Check that Power Cord is fully inserted to the SET. (If
loose, re-insert)

(2) Perform GND & Internal Pressure auto-check

- Unit fully inserted Power cord, Antenna cable and A/V
arrive to the auto-check process.

- Connect D-terminal to AV JACK TESTER

- Auto CONTROLLER(GWS103-4) ON

- Perform GND TEST

- If NG, Buzzer will sound to inform the operator.

- If OK, changeover to I/P check automatically.

(Remove CORD, A/V form AV JACK BOX.)

- Perform I/P test

- If NG, Buzzer will sound to inform the operator.

- If OK, Good lamp will lit up and the stopper will allow the
pallet to move on to next process.

5.2. Checkpoint

▪ TEST voltage

- GND: 1.5 KV / min at 100 mA

- SIGNAL: 3 KV / min at 100 mA

▪ TEST time: 1 second
▪ TEST POINT

- GND TEST = POWER CORD GND & SIGNAL CABLE

METAL GND

- Internal Pressure TEST = POWER CORD GND & LIVE &

NEUTRAL

▪ LEAKAGE CURRENT: At 0.5 mArms

2) Check the sound from the TV Set.

3) Check the Sound from the Speaker or using AV & Optic

TEST program (It’s connected to MSHG-600)

4.8. Ship-out mode check (In-stop)

- After final inspection, press In-Stop key of the Adjustment
remote control and check that the unit goes to Stand-by
mode.

6. Audio

No. Item Min Typ Max Unit

Audio practical max

1

Output, L/R (Distortion

=10% max Output)

Speaker

2

(6 Ω Impedance)

Measurement condition:
(1) RF input: Mono, 1 KHz sine wave signal, 100 % Modulation
(2) CVBS, Component: 1 KHz sine wave signal 0.5 Vrms

10 12 W

8.10 10.8 Vrms

10 12 W

EQ Off

AVL Off

Clear Voice Off

EQ On

AVL On

Clear Voice On

Only for training and service purposes

- 16 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

7.

USB S/W Download(Service only)

(1) Put the USB Stick to the USB socket.
(2) Automatically detecting update file in USB Stick.

- If your downloaded program version in USB Stick is
Older, it didn't work. But your downloaded version is
Newer, USB data is automatically detecting.(Download

Version High & Power only mode, Set is automatically

Download)

(3) Show the message "Copying files from memory".

(4) Updating is starting.
(5) Updating Completed, The TV will restart automatically.

8. Tool Option selection

▪ Method: Press Adj. key on the Adjustment remote control,

then select Tool option.

(6) If your TV is turned on, check your updated version and

Tool option. (explain the Tool option, next stage)

* If downloading version is more new than your TV have, TV

can lost all channel data. In this case, you have to channel
recover. if all channel data is cleared, you didn't have a
DTV/ATV test on production line.

* After downloading, have to adjust TOOL OPTION again.

1) Push "IN-START" key in service remote control.

2) Select "Tool Option 1" and push "OK" key.

3) Punch in the number. (Each model has their number.)

Only for training and service purposes

- 17 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

1. LM14A

BLOCK DIAGRAM

4b’1010

Chip Config

z

SUB

ASSY

X_TAL

32.768KH

(8GB)

eMMC

P_TS

EEPROM(NVRAM)

I2C 1

(256Kb)

(HW Port)

CVBS

S_TS for JP

60P X2

I2C 6

EPI

B-CAS

Mstar

LM14A

USB

OCP

OCP

P_TS

P_TS

B

A

DDR3 1866 X 32

IF (+/-)

(512MB X 2EA)

(512MB X 2EA)

DDR3 1866 X 32

X_TAL

24MHz

CI Slot

(NTP7515)

MAIN Audio AMP

I2C 4

I2S Out

HDMI

IR / KEY

WIFI/BT Combo

LOGO LIGHT(Ready)

USB_WIFI

CVBS/YPbPr

CVBS/RGB

SPDIF OUT

(RENESAS

Sub Micom

I2C 3

R5F100GEAFB)

(HW Port)

ETHERNET

T2/C/S2 W/O AD

Air/

Only for training and service purposes

SMARTCARD_I/F

USB2 (2.0)

USB3 (2.0)

USB1 (3.0)

(S2)

DEMOD

TUNER

Cable

R

(S2)

TUNER

(T2/C/A)

DVB-S

E

A

R

B-CAS

(JAPAN)

LNB

HDMI2(ARC)

HDMI3(External EDID)

HDMI1(MHL) HDMI 2.0

- 18 -

H/P

RS232C

SCART

(IN/OUT)

AV/COMP

LAN

OPTIC

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

2. I2C

LM14A

MSTAR

+3.3V_TU

1.8KΩ

I2C_SCL/SDA2(HW)

TUNER

TU6702

33Ω

+3.3V_NORMAL

GPIO30 / SCK4

GPIO31 / SDA4

IC101

NVRAM

33Ω

1.8KΩ

+3.3V_LNA_TU

I2CSCL/SDA1(HW)

DDCR_CK/ SCK3 / GPIO54

DDCR_DA / SDA3 / GPIO53

TUNER

TU6702

33Ω

1.8KΩ

I2CSCL/SDA5(HW)

GPIO32 / SCK5 / GPIO87

GPIO33 / SDA5 / GPIO88

I2C SCL/SDA4(SW)

1.8KΩ

+3.3V_NORMAL

Only for training and service purposes

GPIO19 / [LED0] / GPIO74

GPIO20 / [LED1] / GPIO75

+3.3V_NORMAL

100Ω

33pF

IC5800

NTP7515(Main AMP)

I2C SCL/SDA3(HW)

GPIO29 / SDA0 /GPIO84

GPIO28 / SCK0 / GPIO83

1.8KΩ

33Ω

IC3000

MICOM

RENESAS

- 19 -

I2C_SCL/SDA6(SW)

1.8KΩ

+3.3V_NORMAL

DIM2 / TX4 / GPIO112

DIM3 / RX4 / GPIO113

33Ω

IC7700

SW5094A (PMIC)

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

3. Tuner/CI

TDJM-G305D

[+3.3V_LNA_TU] 1

[+3.3V_TUNER] 11

[3.3V_Demod_TU] 26

[+2.5V_DEMOD] 38

[1,1V_D_Demod_Core] 28

[I2C_SCL2_TU] 27

[I2C_SDA2_TU] 30

[I2C_SCL5_TU] 4

[I2C_SDA5_TU] 5

[FE_DEMOD1_TS_ERROR_TU] 12

[FE_DEMOD1_1_TS_CLK] 14

[FE_DEMOD1_TS_SYNC] 15

[FE_DEMOD1_TS_VAL] 16

FE_DEMOD1_TS_DATA[0] 17
FE_DEMOD1_TS_DATA[1] 18
FE_DEMOD1_TS_DATA[2] 19
FE_DEMOD1_TS_DATA[3] 20
FE_DEMOD1_TS_DATA[4] 21
FE_DEMOD1_TS_DATA[5] 22
FE_DEMOD1_TS_DATA[6] 23
FE_DEMOD1_TS_DATA[7] 24

+3.3V_TUNER

+2.5V_NORMAL

Demod_Core

+3.3V_LNA_TU

I2C_SCL5

I2C_SDA5

FE_DEMOD1_TS_ERROR

+3.3V_TU

1.8KΩ

I2C_SCL2
I2C_SDA2

33 Ω

1.8KΩ

33 Ω

FE_DEMOD1_TS_CLK
FE_DEMOD1_TS_SYNC
FE_DEMOD1_TS_VAL

FE_DEMOD1_TS_DATA [0-7]

LM14A

GPIO30/SCK4/GPIO85
GPIO31/SDA4/GPIO86

GPIO32/SCK5/GPIO87
GPIO33/SDA5/GPIO88

TS1_CLK/GPIO172
TS1_SYNC/GPIO173
TS1_VLD/GPIO174

GPIO [175~182]
TS1_D[0-7]

[RF_SWITCH_CTL] 2

[/TU_RESET1_TU] 25

[IF_P] 6

[IF_N] 7

[TU_SIF_TU] 8

[TU_CVBS_TU] 9

[IF_AGC_TU] 3

Only for training and service purposes

RF_SWITCH_CTL

/TU_RESET1

IF_P

IF_N

FILTER

TUNER_SIF

TU_CVBS

IF_AGC

- 20 -

ADC_I_INP

ADC_I_INN

SPI1_CK/GPIO106

PM_SPI_CZ/GPIO0

AL2 [VIFP]

AM2 [VIFM]

AK1[SIFP]

AC6[CVBS0]

AK3[IF_AGC]

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

4. Video/Audio In

LM14A

SoC

Side

Jack Side

[GIN1P]

COMP1_Y

COMP1_Y

[BIN1P]

COMP1_Pb

COMP1_Pb

[RIN1P]

COMP1_Pr

COMP1_Pr

[CVBS1]

AV1_CVBS_IN AV1_CVBS_IN

[LINEIN_L0]

COMP1/AV1/DVI_L_IN

COMP1/AV1/DVI_L_IN

[LINEIN_R0]

COMP1/AV1/DVI_R_IN

COMP1/AV1/DVI_R_IN

[CVBS0]

TU_CVB S

TU_CVB S_TU

[SIFP,VIFP/VIFM]

[TS1_CLK, VLD,SYNC]

TU_SIF,IF_P/ N

FE_DEMOD1/ 2_TS_CLK,SYNC,VA L

FE_DEMOD1/ 2_TS_CLK,SYNC,VA L

TU_SIF,IF_P/ N_TU

JK3802

Only for training and service purposes

- 21 -

Tuner

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5. Audio Out

LM14A

SoC

Side

Jack Side

[GIN1P]

COMP1_Y

COMP1_Y

[BIN1P]

COMP1_Pb

COMP1_Pb

[RIN1P]

COMP1_Pr

COMP1_Pr

[CVBS1]

AV1_CVBS_IN AV1_CVBS_IN

[LINEIN_L0]

COMP1/AV1/DVI_L_IN

COMP1/AV1/DVI_L_IN

[LINEIN_R0]

COMP1/AV1/DVI_R_IN

COMP1/AV1/DVI_R_IN

[CVBS0]

TU_CVB S

TU_CVB S_TU

[SIFP,VIFP/VIFM]

[TS1_CLK, VLD,SYNC]

TU_SIF,IF_P/ N

FE_DEMOD1/ 2_TS_CLK,SYNC,VA L

FE_DEMOD1/ 2_TS_CLK,SYNC,VA L

TU_SIF,IF_P/ N_TU

JK3802

Only for training and service purposes

- 22 -

Tuner

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

6. HDMI

CEC_REMOTE

Q3001

HDMI2&ARC

HDMI1.4

HDMI_CEC_MICOM

HDMI1&HDMI2.0

RENESAS

MICOM(IC3000)

32.768kHz

X-Tal(X3000)

C

DDC_SCL_1

DDC_SDA_1

TMDS Link 8bits

DDC_SCL_2

DDC_SDA_2

HDMI_AR

TMDS Link 8bits

[DDCDA_DA/GPIO39]

[DDCDA_CK/GPIO38]

Only for training and service purposes

LM14A

- 23 -

[DDCDB_CK/GPIO40]

[ARC0/GPIO6]

[DDCDB_DA/GPIO41]

* TMDS Link 8bits = TMDS DATA 6bits(DATA0,1,2)+ TMDS CLK 2bits

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

7. USB / WIFI / M-REMOTE / UART

USB2.0

OCP

IC2302

WIFI Combo

RS232C_Debug(4P wafer)

+5V_USB_3

USB3

USB_DP3

USB_DM3

[DP_P2]

[DM_P2]

USB_CTL3

/USB_OCD3

[TGPIO0/GPIO157]

[TGPIO1/GPIO158]

LM14A

WIFI_DP

WIFI_DM

[DM_P0]

[DP_P0]

M_Module_RESET

SOC_TX

SOC_RX

[GPIO4/RX1]

[GPIO3/TX1/GPIO58]

[GPIO_PM[10]/[SPI-CZ2N]/GPIO20]

RENESAS MICOM(IC3000)

Only for training and service purposes

- 24 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

400

EXPLODED VIEW

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.

(Option)

LV1 LV2

521

200

800

820

540

530

500

120

121

570

401

A22

A10

900

Stand screw

Only for training and service purposes

- 25 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

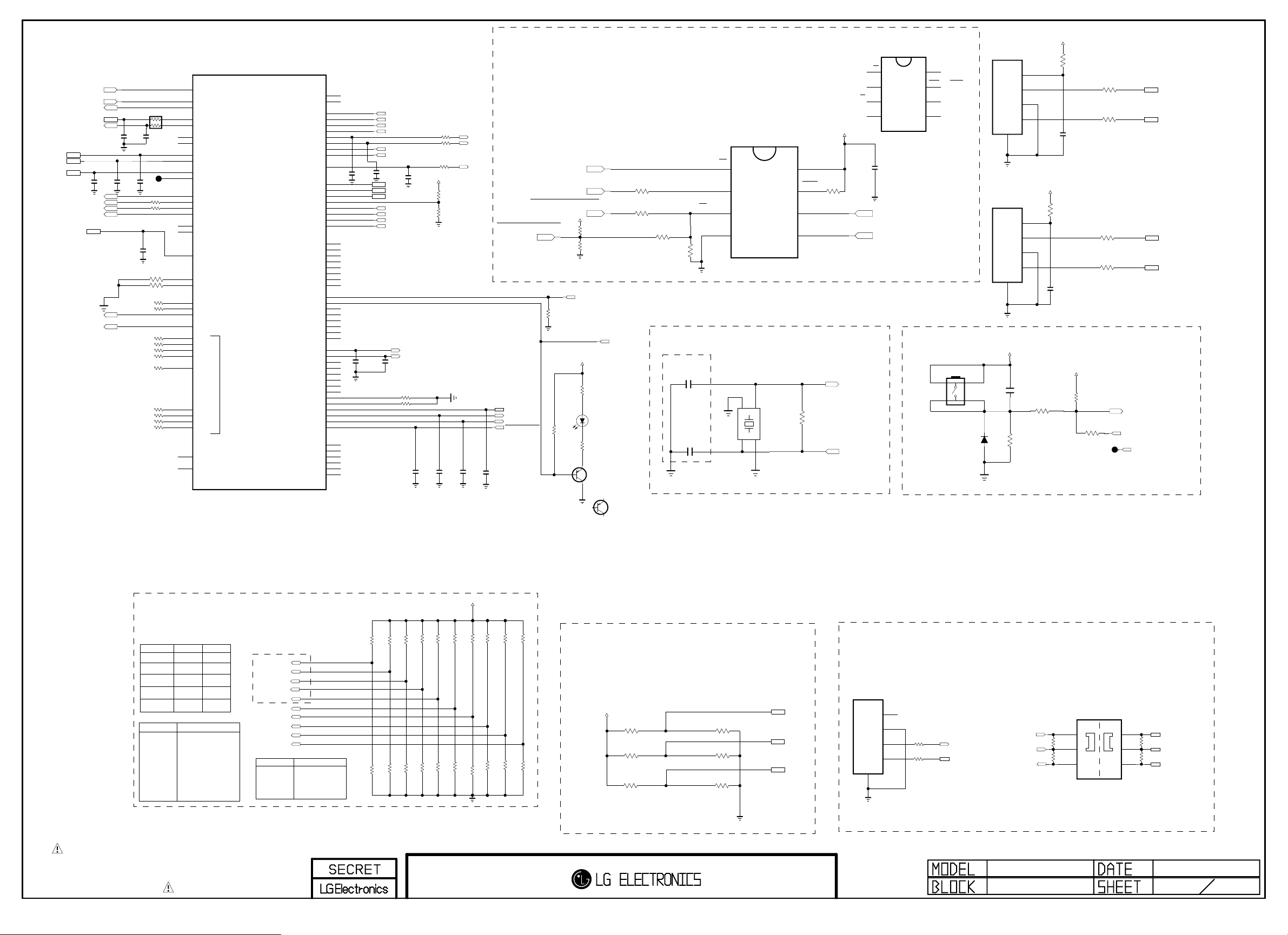

LM14A

Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

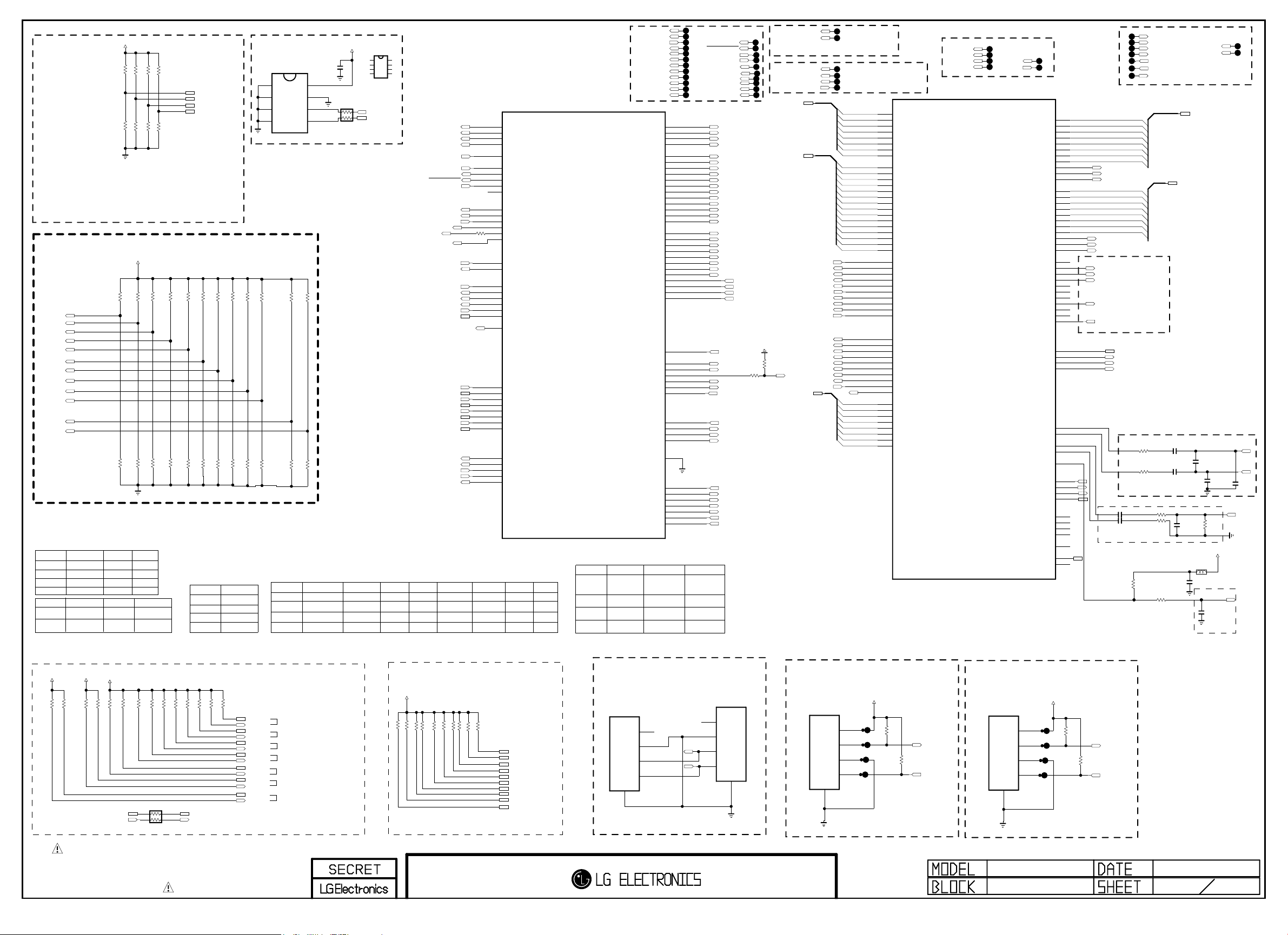

CHIP CONFIG

Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

CHIP_CONFIG[3:0]
{LED1, SPI_DI,LED0, PWM_PM}

Value Mode Description
4’b1000 SB51_ExtSPI 51 boot from SPI
4’b1001 HEMCU_ExtSPI ARM boot from SPI
4’b1010 HEMCU_ROM_EMMC ARM boot from ROM; outer storage is eMMC
4’b1011 HEMCU_ROM_NAND ARM boot from ROM; outer storage is NAND
4’b1100 DBUS for test only
4’b0000 SB51_ExtSPI + Authentication 51 boot from SPI with ARM authentication
4’b0001 SB51_ExtSPI + Authentication HEMCU_ExtSPI + Authentication
4’b0011 HEMCU_ROM_NAND + Authentication ARM boot from ROM with authentication;

+3.3V_NORMAL

OPT

R108 4.7K

R110 4.7K

OPT

R109 4.7K

R111 4.7K

OPT

R115 4.7K

R122 4.7K

OPT

R116 4.7K

R123 4.7K

LED1
SPI_DI_SOC
LED0
PWM_PM

LM14 HW Option

+3.3V_NORMAL

10K

BIT2_1

BIT0
BIT1

BIT2

BIT3

BIT4

BIT5

BIT6

BIT7

BIT8

BIT9

BIT10

BIT11

20150123 version

BIT(0/1)

00

TW/COL

CN/HK

01

10

11

Display

BIT4

Resolution

BIT5

DVB

EU

AJJA

BIT0_0

ATSC

KR

BR

CI

Low

LCD

FHD

BIT0_1

R105 10K

R106 10K

US

BIT1_1

R112

10K

BIT1_0

R113

JP

JP

OLED

High

UHD

R119 10K

BIT2_0

R120 10K

BIT3_1

BIT3_0

BIT5_1

BIT6_1

BIT4_1

R132 10K

R128 10K

BIT4_0

R129 10K

BIT5_0

R133 10K

BIT(6/7)

00

01

10

11

R135 10K

BIT6_0

R136 10K

LM14A+URSA11
4K@60Hz
LM14A+URSA11
4K@120Hz

R125 10K

R126 10K

BIT8_1

BIT7_1

R138 10K

BIT8_0

BIT7_0

R139 10K

B/E(FRC)

LM14A only

N/A

BIT9_1

R140 10K

BIT9_0

R141 10K

NVRAM

Atmel_NVRAM

IC101

AT24C256C-SSHL-T

EAN61133501

ATMEL CORPORATION

A0

1

A1

A2

GND

R142 10K

R143 10K

8

2

7

A0’h

3

6

4

5

BIT10_1

BIT11_1

R146 10K

R148 10K

BIT10_0

BIT11_0

R147 10K

R149 10K

BIT(2/3)

T2/C/S2 PIP

00

10

11 OS(DDR)

+3.3V_NORMAL

C100

0.1uF

VCC

Write Protection

WP

- Low : Normal Operation

- High : Write Protection

SCL

SDA

EU/CIS

T2/C/S2

T/C

33

AR101

AJJA

T2/C PIP

T2/C/S2

T

T2

Rohm_NVRAM

IC101-*1

BR24G256FJ-3

EAN62389502

ROHM Semiconductor KOREA CORPORATION

A0

VCC

1

8

WP

A1

7

2

SCL

A2

6

3

GND

SDA

4

5

I2C_SCL1

I2C_SDA1

M_RFModule_RESET

TW/COL KR

T2/C PIP

T2/C

T/C

PWM_DIM

PWM_DIM2

FAN_ON

AMP_RESET_N

PWM_PM

/USB_OCD2

USB_CTL2

FRC_FLASH_WP

DDTS_TX

SPI_CK_SOC
SPI_DI_SOC
SPI_DO_SOC

/TU_RESET1

/SPI_CS

DDCA_CK
DDCA_DA

SOC_TX

SOC_RX

FRC_FLASH_SEL_SOC

/TU_RESET2

I2C_SCL6
I2C_SDA6

I2C_SCL3
I2C_SDA3

I2C_SCL1

I2C_SDA1
I2C_SCL2
I2C_SDA2

I2C_SCL5

I2C_SDA5

CPU_VID0

CORE_VID0

LED0
LED1

WOL_WAKE_UP_SOC

CN/HK

ATSC NIM+T2

Default

ATSC+T201

ATSC

ATSC PIP

CPU_VID1

R167

D9

PWM0/GPIO152

F10

PWM1/GPIO153

F8

PWM2/GPIO154

E9

PWM3/GPIO155

N5

PWM_PM/GPIO7

F4

SAR0/GPIO46

G5

SAR1/GPIO47

E5

SAR2/GPIO48

E4

SAR3/GPIO49

G4

SAR5

W5

PM_SPI_CK/GPIO1

V4

PM_SPI_DI/GPIO2

V5

PM_SPI_DO/GPIO3

Y6

PM_SPI_CZ/GPIO0

0

Y4

GPIO_PM[6]/[SPI-CZ1N]/GPIO16

Y5

OPT

GPIO_PM[10]/[SPI-CZ2N]/GPIO20

AL8

DDCA_CK/GPIO8

AK8

DDCA_DA/GPIO9

AH28

GPIO3/TX1/GPIO58

AH29

GPIO4/RX1

AA4

GPIO23/[TX3]/GPIO78

W6

GPIO24/[RX3]/GPIO79

F14

DIM2/TX4/GPIO112

F12

DIM3/RX4/GPIO113

AJ27

GPIO2/GPIO57

AJ7

GPIO28/SCK0/GPIO83

AH8

GPIO29/SDA0/GPIO84

E11

DDCR_CK/SCK3/GPIO54

E10

DDCR_DA/SDA3/GPIO53

AJ6

GPIO30/SCK4/GPIO85

AG8

GPIO31/SDA4/GPIO86

AH7

GPIO32/SCK5/GPIO87

AJ8

GPIO33/SDA5/GPIO88

L6

VID0/GPIO50

M6

VID1/GPIO51

AD5

LED0/GPIO29

AD4

LED1/GPIO30

AB5

WOL_INT_OUT/[GPIO]/GPIO52

North.AM

ISDB PIP

Default

ISDB EXT

ISDB INT

BR

IC100

LGE5332(LM14A)

JP

Default

SPI_CK_SOC
SPI_DI_SOC
SPI_DO_SOC

LVSYNC/[VX1_0-]
LHSYNC/[VX1_0+]

LDE/[VX1_1-]
LCK/[VX1_1+]

R_ODD[7]/LVB0N/[VX1_2-]
R_ODD[6]/LVB0P/[VX1_2+]
R_ODD[5]/LVB1N/[VX1_3-]
R_ODD[4]/LVB1P/[VX1_3+]
R_ODD[3]/LVB2N/[VX1_4-]

R_ODD[2]/LVB2P/[VX1_4+]
R_ODD[1]/LVBCLKN/[VX1_5-]
R_ODD[0]/LVBCLKP/[VX1_5+]

G_ODD[7]/LVB3N/[VX1_6-]

G_ODD[6]/LVB3P/[VX1_6+]

G_ODD[5]/LVB4N/[VX1_7-]

G_ODD[4]/LVB4P/[VX1_7+]

G_ODD[3]/LVA0N/[OSD_0-]

G_ODD[2]/LVA0P/[OSD_0+]

G_ODD[0]/LVA1P/[OSD_1+]

G_ODD[1]/LVA1N/[OSD_1-]

B_ODD[7]/LVA2N/[OSD_2-]

B_ODD[6]/LVA2P/[OSD_2+]
B_ODD[5]/LVACLKN/[OSD_3-]
B_ODD[4]/LVACLKP/[OSD_3+]

B_ODD[3]/LVA3N/[LOCKN]

B_ODD[2]/LVA3P/[HTPDN]
B_ODD[1]/LVA4N/[OSD_LOCKN]
B_ODD[0]/LVA4P/[OSD_HTPDN]

GPIO_PM[0]/GPIO10

GPIO_PM[3]/GPIO13
GPIO_PM[4]/GPIO14
GPIO_PM[7]/GPIO17
GPIO_PM[8]/GPIO18
GPIO_PM[9]/GPIO19

GPIO_PM[13]/GPIO23

GPIO_PM[1]/PM_UART1/GPIO11
GPIO_PM[5]/PM_UART1/GPIO15

GPIO_PM[11]/PM_UART0/GPIO21
GPIO_PM[12]/PM_UART0/GPIO22

SPI1_DI/GPIO107
SPI1_CK/GPIO106
SPI2_DI/GPIO109
SPI2_CK/GPIO108

VSYNC_LIKE/GPIO105

DIM0/GPIO110
DIM1/GPIO111

T-con I2C

BIT8

Protocol

BIT9

Division

Interface

BIT10

BIT11

/SPI_CS

TXOSD_3P
TXOSD_3N
TXOSD_2P
TXOSD_2N
TXOSD_1P
TXOSD_1N
TXOSD_0P
TXOSD_0N

V-BY-ONE

AF32
AF31
AG32
AG31

AH31
AH30
AJ31
AJ32
AK32
AK31
AL32
AL31
AK30
AL30
AK29
AL29

AK28
AM28
AL28
AK27
AK26
AL26
AM26
AK25
AL25
AK24
AL24
AK23

AE2

U6
P4
U5
AE5
AJ5
AG6

P5
P6
AJ4
AH4

G7

TESTPIN

E13
D12
F11
D11
E12
D14
E14

Low

16Kbit

NON_Division

EPI

WebOS Lite WebOS

LM14A+URSA9

FRC_FLASH_SEL_SOC

FRC_FLASH_WP

LOCKAn_OSD
URSA9_CONNECT
Data_Format_1

Data_Format_0

URSA_RESET_SoC
L/D_VSYNC_SOC

L/D_CLK_SOC

L/D_DI_SOC

TXVBY1_0N
TXVBY1_0P
TXVBY1_1N
TXVBY1_1P

TXVBY1_2N
TXVBY1_2P
TXVBY1_3N
TXVBY1_3P
TXVBY1_4N
TXVBY1_4P
TXVBY1_5N
TXVBY1_5P
TXVBY1_6N
TXVBY1_6P
TXVBY1_7N
TXVBY1_7P

TXOSD_0N
TXOSD_0P
TXOSD_1N
TXOSD_1P
TXOSD_2N
TXOSD_2P
TXOSD_3N
TXOSD_3P

COMP1_DET

DDTS_RX

PCM_5V_CTL

PMIC_RESET

COMPENSATION_DONE

URSA9_CONNECT

/USB_OCD1
USB_CTL1

DATA_FORMAT_0_SOC
DATA_FORMAT_1_SOC

HP_DET

RF_SWITCH_CTL

L/D_DI_SOC

L/D_CLK_SOC
L/D_VSYNC_SOC
SC_DET
AV1_CVBS_DET

High

32Kbit

4_Division

Vx1

LOCKAn_Video
HTPDAn_Video
LOCKAn_OSD
HTPDAn_OSD

R175
22

COMPENSATION_DONE

DATA_FORMAT_1_SOC

DATA_FORMAT_0_SOC

HTPDAn_OSD

HTPDAn_Video

EB_DATA[0-7]

EB_ADDR[0-14]

SM_Vsel

SM_CLK

SM_RST

SM_IO

SM_VCC

SM_CD

1K

R176

TCON_I2C_EN

EMMC_DATA[0-7]

FAN_ON

CAM_IREQ_N

EB_OE_N
EB_BE_N1
/PCM_CE1

EB_WE_N

CAM_CD1_N
PCM_RESET
CAM_REG_N

EB_BE_N0

CAM_WAIT_N

EMMC_CMD

EMMC_CLK

EMMC_RST

EMMC_STRB

BIT0
BIT1

BIT2

BIT3

BIT4

EB_DATA[0]
EB_DATA[1]
EB_DATA[2]
EB_DATA[3]
EB_DATA[4]
EB_DATA[5]
EB_DATA[6]
EB_DATA[7]

EB_ADDR[0]
EB_ADDR[1]
EB_ADDR[2]
EB_ADDR[3]
EB_ADDR[4]
EB_ADDR[5]
EB_ADDR[6]
EB_ADDR[7]
EB_ADDR[8]
EB_ADDR[9]
EB_ADDR[10]
EB_ADDR[11]
EB_ADDR[12]
EB_ADDR[13]
EB_ADDR[14]

BIT5

EMMC_DATA[6]
EMMC_DATA[7]
EMMC_DATA[2]
EMMC_DATA[1]
EMMC_DATA[0]
EMMC_DATA[3]
EMMC_DATA[4]
EMMC_DATA[5]

OLED

LM14A_ONLY

AH14

PCM_D[0]/GPIO147

AG13

PCM_D[1]/GPIO148

AG12

PCM_D[2]/GPIO149

AK22

PCM_D[3]/GPIO119

AK21

PCM_D[4]/GPIO120

AL21

PCM_D[5]/GPIO121

AM23

PCM_D[6]/GPIO122

AH20

PCM_D[7]/GPIO123

AG14

PCM_A[0]/GPIO146

AL20

PCM_A[1]/GPIO145

AG15

PCM_A[2]/GPIO143

AH15

PCM_A[3]/GPIO142

AM19

PCM_A[4]/GPIO141

AJ17

PCM_A[5]/GPIO139

AJ16

PCM_A[6]/GPIO138

AH17

PCM_A[7]/GPIO137

AM20

PCM_A[8]/GPIO131

AH19

PCM_A[9]/GPIO129

AJ20

PCM_A[10]/GPIO125

AK20

PCM_A[11]/GPIO127

AG17

PCM_A[12]/GPIO136

AJ19

PCM_A[13]/GPIO132

AG18

PCM_A[14]/GPIO133

AH18

PCM_IRQA_N/GPIO135

AM22

PCM_OE_N/GPIO126

AG20

PCM_IORD_N/GPIO128

AL22

PCM_CE_N/GPIO124

AK19

PCM_WE_N/GPIO134

AG21

PCM_CD_N/GPIO151

AH16

PCM_RESET/GPIO150

AJ14

PCM_REG_N/GPIO144

AG19

PCM_IOWR_N/GPIO130

AG16

PCM_WAIT_N/GPIO140

C7

EMMC_IO15/[GPIO]/GPIO189

C6

EMMC_IO17/[GPIO]/GPIO188

C8

EMMC_IO9/[EMMC_CMD]/GPIO183

B8

EMMC_IO14/[GPIO]/GPIO185

A9

EMMC_IO10/[EMMC_CLK]/GPIO186

B7

EMMC_IO16/[GPIO]/GPIO187

B9

EMMC_IO11/[EMMC_RSTN]/GPIO190

A8

EMMC_IO12/[GPIO]/GPIO184

C9

EMMC_IO8/[NAND-DQS]/GPIO191

B6

EMMC_IO13/[GPIO]/GPIO217

C10

EMMC_IO6/[EMMC_D6]/GPIO221

B11

EMMC_IO7/[EMMC_D7]/GPIO220

A11

EMMC_IO2/[EMMC_D2]/GPIO219

C11

EMMC_IO1/[EMMC_D1]/GPIO218

A12

EMMC_IO0/[EMMC_D0]/GPIO194

B12

EMMC_IO3/[EMMC_D3]/GPIO193

C12

EMMC_IO4/[EMMC_D4]/GPIO192

B13

EMMC_IO5/[EMMC_D5]/GPIO222

GST_A
GCLK_A
MCLK_A

EO_A

IC100

LGE5332(LM14A)

LM14A UF74

PMIC_RESET

LOCKOUT12

TS1_D0/GPIO182
TS1_D1/GPIO181
TS1_D2/GPIO180
TS1_D3/GPIO179
TS1_D4/GPIO178
TS1_D5/GPIO177
TS1_D6/GPIO176

TS1_D7/GPIO175
TS1_CLK/GPIO172
TS1_VLD/GPIO174

TS1_SYNC/GPIO173

TS0_D0/GPIO161

TS0_D1/GPIO162

TS0_D2/GPIO163

TS0_D3
TS0_D4/GPIO165
TS0_D5/GPIO166
TS0_D6/GPIO167
TS0_D7/GPIO168

TS0_CLK/GPIO171
TS0_VLD/GPIO169

TS0_SYNC/GPIO170

TS3_D0/GPIO206
TS3_D1/GPIO207
TS3_D2/GPIO208
TS3_D3/GPIO209
TS3_D4/GPIO210
TS3_D5/GPIO211
TS3_D6/GPIO212
TS3_D7/GPIO213

TS3_CLK/GPIO216
TS3_VLD/GPIO214

TS3_SYNC/GPIO215

GPIO8/[TS4_D[0]]/GPIO63

GPIO5/[TS4_CLK]/GPIO60
GPIO7/[TS4_VLD]/GPIO62

GPIO6/[TS4_SYNC]/GPIO61

VIFP
VIFM

SIFP
SIFM

IFAGC

TGPIO0/GPIO157
TGPIO1/GPIO158

TGPIO2/SCK1/GPIO159
TGPIO3/SDA1/GPIO160

NC_1
NC_2
NC_3
NC_4

NC_5

GPIO34/GPIO89

NC_6

AH13
AG11
AG10
AJ11
AH10
AJ13
AG9
AH9
AH11
AJ10
AH12

AK17
AL18
AK18
AL15
AL16
AK15
AM16
AK16
AL19
AM17
AL17

AH23
AH27
AJ23
AG27
AH24
AH26
AJ25
AG26
AH25
AJ26
AG24

AJ28
AG28
AJ29
AG29

AL2
AM2

AK1
AK2

AK3

AJ1
AJ2
R4
R5

AM7
AL7
AM8
AK7

AL5

AM5
M7

FE_DEMOD1_TS_DATA[0]
FE_DEMOD1_TS_DATA[1]
FE_DEMOD1_TS_DATA[2]
FE_DEMOD1_TS_DATA[3]
FE_DEMOD1_TS_DATA[4]
FE_DEMOD1_TS_DATA[5]
FE_DEMOD1_TS_DATA[6]
FE_DEMOD1_TS_DATA[7]

FE_DEMOD1_TS_CLK
FE_DEMOD1_TS_VAL
FE_DEMOD1_TS_SYNC

TPI_DATA[0]
TPI_DATA[1]
TPI_DATA[2]
TPI_DATA[3]
TPI_DATA[4]
TPI_DATA[5]
TPI_DATA[6]
TPI_DATA[7]

TPI_CLK
TPI_VAL
TPI_SOP

POL

GST_A

GST

GCLK

GCLK_A

MCLK

MCLK_A

OPT_P

SOE

FB

EO_A

E/O

HCONV

DPM

LOCKOUT12

LOCK

FE_DEMOD3_TS_DATA
FE_DEMOD3_TS_CLK
FE_DEMOD3_TS_VAL
FE_DEMOD3_TS_SYNC

Close to MSTAR

/USB_OCD3
USB_CTL3

I2C_SCL7
I2C_SDA7

C101 0.1uF
C102 0.1uF

ANALOG SIF
Close to MSTAR

CORE_VID1

TXVBY1_0N
TXVBY1_0P
TXVBY1_1N
TXVBY1_1P

R183 100

R184 100

R182
10K

5V_DET_HDMI_1
/USB_OCD3
USB_CTL3

EPI

C103 0.1uF

C104 0.1uF

R185 47

R186 47

PZ1608U121-2R0TF

R187

0

LM14A UF68/64

/TU_RESET2

WOL_WAKE_UP_SOC

FE_DEMOD1_TS_DATA[0-7]

TPI_DATA[0-7]

OPT
C107

100pF

OPT
C109
33pF

R188

C105

300

1000pF

OPT

OPT

+3.3V_NORMAL

L100

C106

0.1uF

C108

0.047uF
25V

DTV_IF

IF_P

IF_N

OPT
C110
33pF

TU_SIF

IF_AGC

R100

1.8K

R101

1.8K

+3.3V_LNA_TU

+3.3V_NORMAL

R102

1.8K

R104

1.8K

R103

1.8K

I2C_SDA_MICOM
I2C_SCL_MICOM

R107

1.8K

R114

1.8K

I2C PULL UP

R124

1.8K

R127

1.8K

R130

1.8K

R121

1.8K

AR100
33

R131

I2C_SDA3
I2C_SCL3

1.8K

R134

1.8K

+3.3V_TU

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

R137

1.8K

I2C_SDA7
I2C_SCL7

I2C_SDA6
I2C_SCL6
I2C_SDA1
I2C_SCL1
I2C_SDA3
I2C_SCL3

I2C_SDA4
I2C_SCL4

I2C_SDA5
I2C_SCL5

I2C_SDA2
I2C_SCL2

I2C for URSA9 (URSA9 Only)

I2C for LCD Module

I2C for NAVRAM

I2C for Micom

I2C for Main Amp / Woofer AMP

I2C for tuner

I2C for tuner&LNB

GPIO PULL UP

+3.3V_NORMAL

OPT

R152 10K

R154 10K

R164 10K

R156 10K

R157 10K

R161 10K

Mstar Debug

MSTAR_DEBUG_OLD

MSTAR_DEBUG_NEW

P100

12507WS-04L

OPT

R165 10K

R170 10K

R166 10K

R168 10K

/TU_RESET1

RF_SWITCH_CTL

AMP_RESET_N

TCON_I2C_EN

/USB_OCD3

USB_CTL3

/USB_OCD2

USB_CTL2

M_RFModule_RESET

PCM_5V_CTL

1

2

DDCA_CK

3

DDCA_DA

4

5

P101

12505WS-04A00

1

2

3

4

5

RS232C_Debug

UART_4PIN_WAFER

P102

12507WS-04L

5

+3.3V_NORMAL

1

2

3

4

OPT

DDTS_Debug

DDTS_Debug

P103

12507WS-04L

R178 10K

SOC_RX

OPT

R179 10K

SOC_TX

5

+3.3V_NORMAL

1

2

3

4

OPT

R180 10K

DDTS_RX

OPT

R181 10K

DDTS_TX

BSD-15Y-LM14A-001_00-HD

2015-01-23LM14A

MAIN1_SYSTEM

01

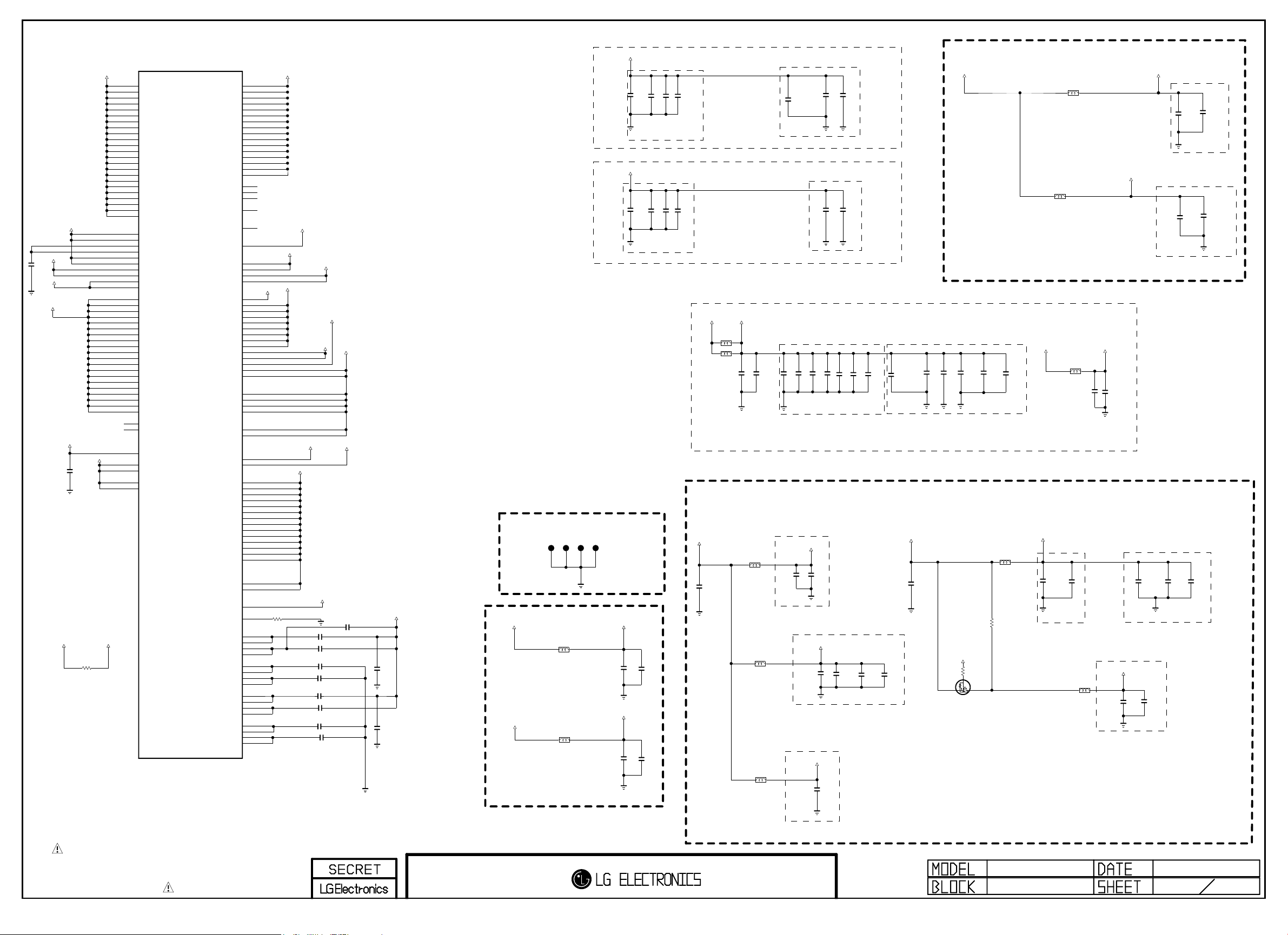

AVDDL_MOD11

Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

AVDD15_MOD

C227 0.1uF

DVDD_DDR11

+1.1V_VDDC_CPU

DVDD_NODIE

5V_HDMI_1

C200

1uF
25V

+1.1V_VDDC

DVDD_DDR11

AVDD5V_MHL

R200

10

AD29
AD30

AA13
AF11

AA22
AA23
AA24
AA25
AB24
AB25

AE16
AF16

J9
J10
J11
J12
J13

K9
K10
K11
K12
K13

L9
L10
L11
L12
R11
R12
R13
T11
T12
T13
U11
U12
U13

W21
Y21

W20
Y20
U19
V19

U21
U22
U23
U24
U25
V23
V24
V25
W23
W24
W25
Y23
Y24
Y25

L13

K21
N21

M21
L21

VDDC_1
VDDC_2
VDDC_3
VDDC_4
VDDC_5
VDDC_6
VDDC_7
VDDC_8
VDDC_9
VDDC_10
VDDC_11
VDDC_12
VDDC_13
VDDC_14
VDDC_15
VDDC_16
VDDC_17
VDDC_18
VDDC_19
VDDC_20
VDDC_21
VDDC_22
VDDC_23

AVDDL_PREDRV_1
AVDDL_PREDRV_2
AVDDL_PREDRV_3
AVDDL_MOD_1
AVDDL_MOD_2
AVDDL_MOD_3
AVDD15_MOD_1
AVDD15_MOD_2
AVDDL_USB3_1
AVDDL_USB3_2

VDDC_CPU_1
VDDC_CPU_2
VDDC_CPU_3
VDDC_CPU_4
VDDC_CPU_5
VDDC_CPU_6
VDDC_CPU_7
VDDC_CPU_8
VDDC_CPU_9
VDDC_CPU_10
VDDC_CPU_11
VDDC_CPU_12
VDDC_CPU_13
VDDC_CPU_14
VDDC_CPU_15
VDDC_CPU_16
VDDC_CPU_17
VDDC_CPU_18
VDDC_CPU_19
VDDC_CPU_20

MCP_VDDC_1
MCP_VDDC_2

DVDD_NODIE

DVDD_DDR_1
DVDD_DDR_2

DVDD_DDR_3
DVDD_DDR_4

IC100

LGE5332(LM14A)

AVDD3P3_MHL3_1
AVDD3P3_MHL3_2

AVDD3P3_DADC_1
AVDD3P3_DADC_2

AVDD3P3_USB3_1
AVDD3P3_USB3_2

VDDP_3318_A/[3.3V/1.8V]
VDDP_3318_C/[3.3V/1.8V]

AVDD_DDR_LDO_A
AVDD_DDR_LDO_B

AVDD_HDMI_5V_PA

AVDD_DDR_VBP_A_1
AVDD_DDR_VBP_A_2
AVDD_DDR_VBP_A_3
AVDD_DDR_VBP_A_4

AVDD_DDR_VBN_A_1
AVDD_DDR_VBN_A_2
AVDD_DDR_VBN_A_3
AVDD_DDR_VBN_A_4

AVDD_DDR_VBP_B_1
AVDD_DDR_VBP_B_2
AVDD_DDR_VBP_B_3
AVDD_DDR_VBP_B_4

AVDD_DDR_VBN_B_1
AVDD_DDR_VBN_B_2
AVDD_DDR_VBN_B_3
AVDD_DDR_VBN_B_4

VDDC_24
VDDC_25
VDDC_26
VDDC_27
VDDC_28
VDDC_29
VDDC_30
VDDC_31
VDDC_32
VDDC_33
VDDC_34
VDDC_35
VDDC_36
VDDC_37
VDDC_38
VDDC_39

VDD_SRAM_1
VDD_SRAM_2
VDD_SRAM_3

CTRL_SRAMLDO

EMMC_CTRL

AVDD_NODIE

AVDDL_MHL3_1
AVDDL_MHL3_2

AVDD3P3_ETH

AVDD3P3_ADC_1
AVDD3P3_ADC_2
AVDD3P3_USB_1
AVDD3P3_USB_2

AVDD_AU33

AVDD_EAR33

AVDD3P3_DMPLL

VDDP_1
VDDP_2

AVDD_MOD_1

AVDD_MOD_2
AVDD_LPLL_1
AVDD_LPLL_2

AVDD_PLL_A

AVDD_PLL_B

AVDD_DDR_A_1
AVDD_DDR_A_2
AVDD_DDR_A_3
AVDD_DDR_A_4
AVDD_DDR_A_5
AVDD_DDR_A_6
AVDD_DDR_A_7
AVDD_DDR_B_1
AVDD_DDR_B_2
AVDD_DDR_B_3
AVDD_DDR_B_4
AVDD_DDR_B_5
AVDD_DDR_B_6
AVDD_DDR_B_7

GND_EFUSE

AC17
AC18
AC19
AC20
AC21
AC22
AD17
AD18
AD19
AD20
AD21
AD22
AE19
AE20
AE21
AE22

AE31
AC24
AD23

AE30

A6

V7

L7
N12
R7
T7

AVDD_DMPLL

Y7
AB7
AB8
AA7
AA8
G9
G10
AB15
AF13
AD7
AE7
AF8
AE15
AF15

V17
V18
W19
Y19

N15
N16

H16
K16

J21
K17
K18
K19
L17
L19
L20
J23
K22
K23
M22
N22
N23
P23

L18
L22

H7

G8

C14
B14
J17
J18

B15
C15
J19
J20

AC30
AC31
K24
L24

AD31
AD32
L23
M24

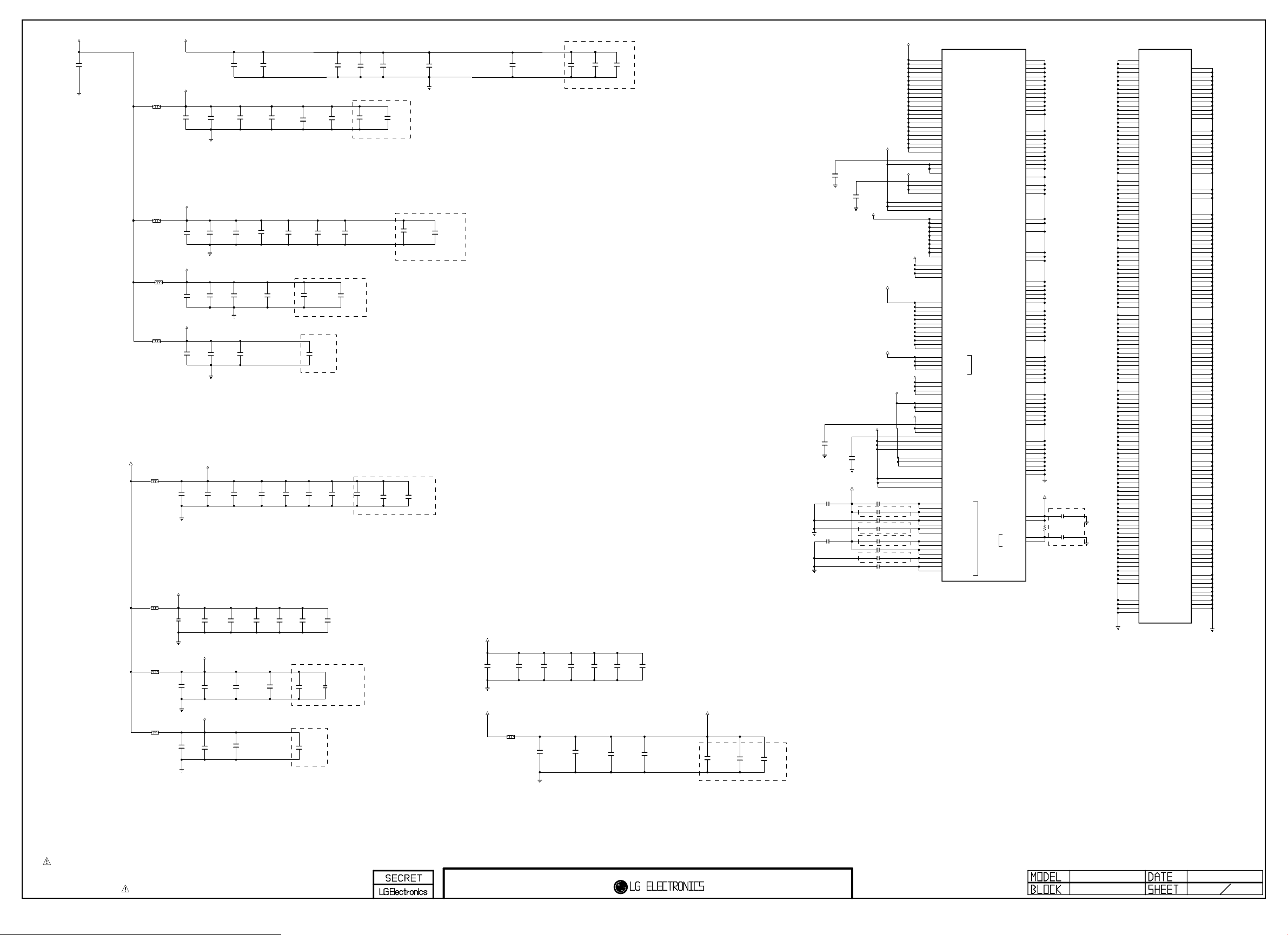

+1.1V_VDDC

DVDD_DDR11

AVDD33_ADC

R201

0

AVDD_DMPLL

VDDP_NAND_A

AVDD_DDR

AVDDP3P3_MHL

AVDD_DMPLL

AVDD_AU33

AVDD5V_MHL

C2100.47uF

C2110.47uF

C2120.47uF

C2130.47uF

C2140.47uF

C2150.47uF

C216

0.47uF

0.47uF

C220

AVDDP3P3

VDDP_NAND_C

0.1uF
C229

C219

C221

AVDD_DDR

0.1uF

0.1uF

GND JIG POINT

+3.3V_NORMAL

+1.8V

JP204

JP202

JP203

L208

PZ1608U121-2R0TF

2A

L209

PZ1608U121-2R0TF

2A

+1.1V_VDDC_CPU

+1.1V_VDDC

JP205

VDDP_NAND_C

VDDP_NAND_A

C260
10uF
10V

C236
10uF
10V

C263
10uF
10V

C205
10uF
10V

1st layer

0.1uF

C276

C278

Close to chip side

1st layer

0.1uF

C230

C234

Close to chip side

C266

0.1uF

C239

0.1uF

0.1uF

C299

0.1uF

C235

0.1uF

0.1uF

+1.5V_DDR

PZ1608U121-2R0TF

PZ1608U121-2R0TF

+3.3V_NORMAL

C268
10uF
10V

+1.5V_Bypass Cap

AVDD_DDR

L227

L200

C207

4A

10uF
10V

C209 0.1uF

L213

PZ1608U121-2R0TF

2A

L221

PZ1608U121-2R0TF

2A

L219

PZ1608U121-2R0TF

2A

C208
10uF
10V

Close to chip side

Close to chip side

1st layer

C201
10uF
10V

C224 0.1uF

Close to chip side

4th layer

AVDD_DMPLL

0.1uF

C269

Close to chip side

4th layer

AVDD33_ADC

Close to chip side

4th layer

AVDD_AU33

C322

C250

C225 0.1uF

C293

0.47uF

6.3V

C292

0.47uF

6.3V

4th layer

10uF

4th layer

10uF

C226 0.1uF

C294
1uF
10V

C295
1uF
10V

C323

0.1uF
16V

C261

0.1uF
16V

C203 0.1uF

C204 0.1uF

C251

0.47uF

6.3V

C287 0.1uF

C247

0.47uF

6.3V

C252

0.47uF

6.3V

+3.3V_NORMAL

+1.1V_Bypass Cap(CLOSE TO CHIP SIDE)

+1.1V_VDDC

4th layer

C223

C316

0.47uF
10uF

10uF

10V

10V

C314

Close to chip side

+3.3V_Bypass Cap

C222
10uF
10V

+5V_NORMAL

R206
10K

G

S

D

RUE003N02

Q200

OPT

C248

C249

0.47uF

0.47uF

6.3V

6.3V

L215

PZ1608U121-2R0TF

2A

0

R207

OPT

L202

PZ1608U121-2R0TF

2A

AVDD_DDR

PZ1608U121-2R0TF

AVDDP3P3

1st layer

C256
10uF
10V

Close to chip side

L226

PZ1608U121-2R0TF

2A

AVDD15_MOD

2A

L224

0.1uF

C274

L201

PZ1608U121-2R0TF

Close to chip side

AVDDL_MOD11

C307 0.1uF

C308 0.1uF

Close to chip side

4th layer

AVDDP3P3_MHL

C240

0.1uF

DVDD_DDR11

4th layer

0.47uF

C311

C241

0.47uF

6.3V

4th layer

C324

0.47uF

6.3V

Close to chip side

4th layer

C238

0.47uF

6.3V

Close to chip side

0.1uF

C253

C217
10uF
10V

C257

0.47uF

6.3V

C320

0.47uF

6.3V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

Close to chip side

LM14A

MAIN2_POWER

2014-11-06

2

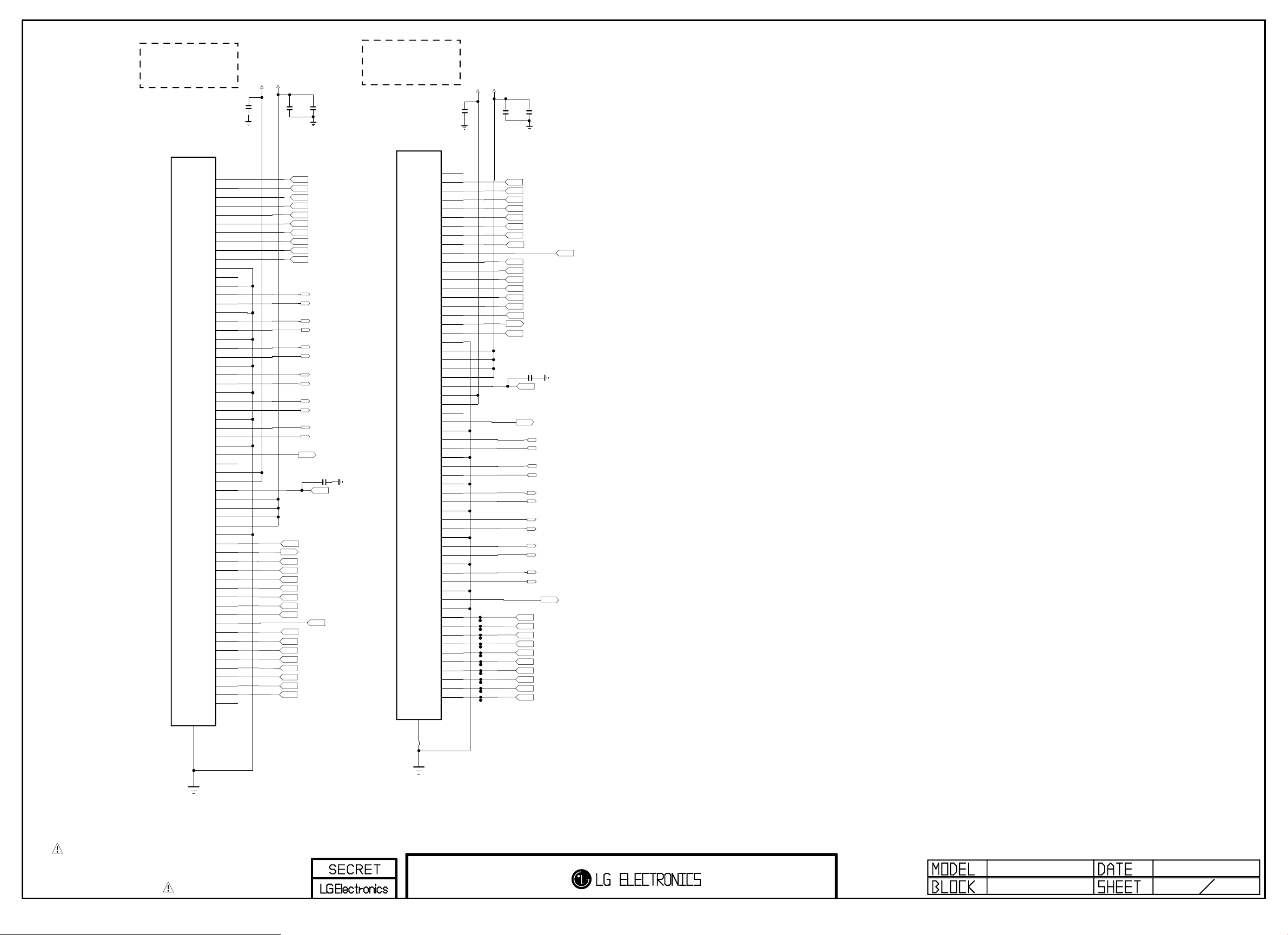

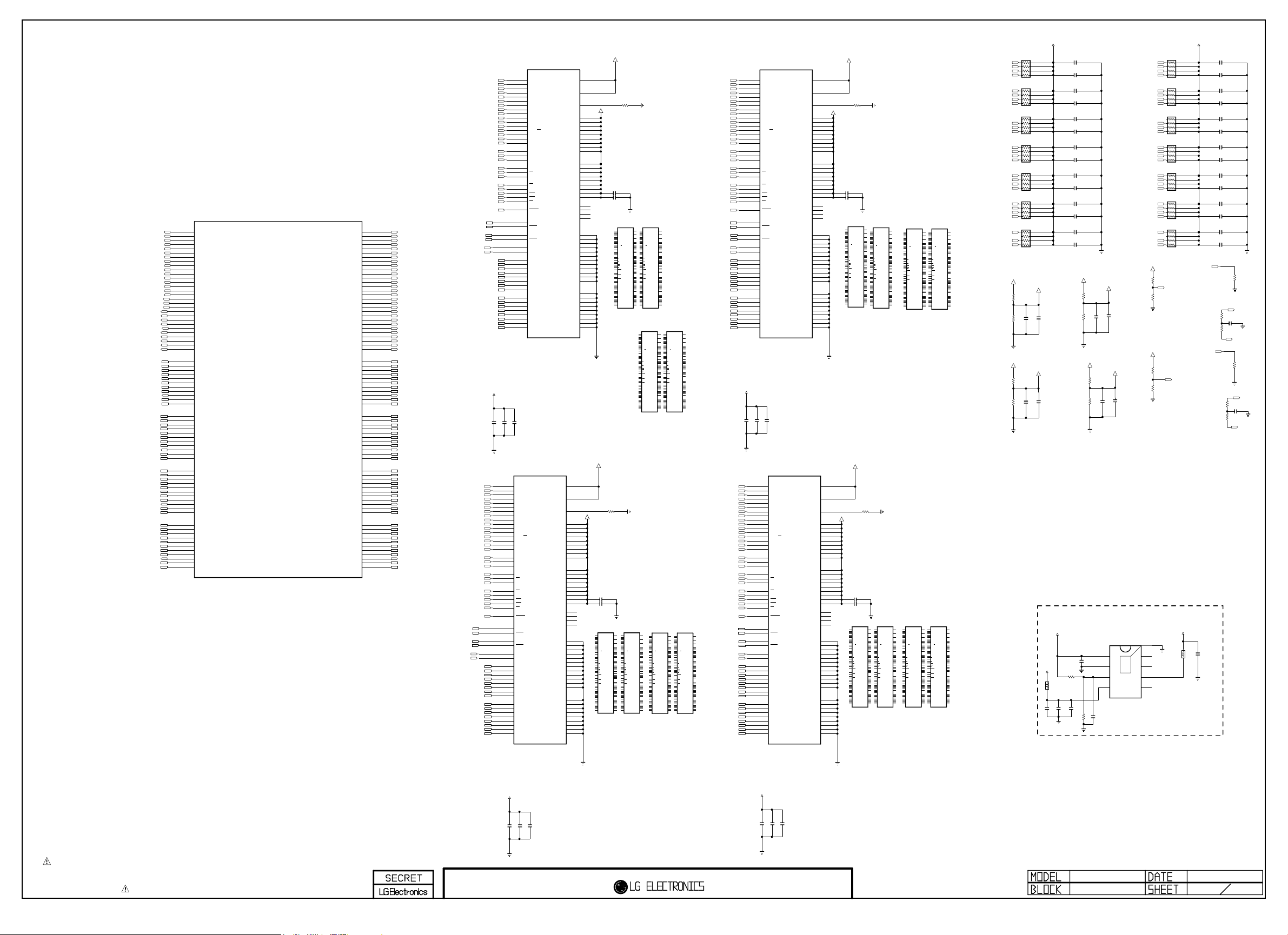

M0_DDR_A0

Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

M0_DDR_A1
M0_DDR_A2
M0_DDR_A3
M0_DDR_A4
M0_DDR_A5
M0_DDR_A6
M0_DDR_A7
M0_DDR_A8

M0_DDR_A9
M0_DDR_A10
M0_DDR_A11

M0_DDR_A12
M0_DDR_A13
M0_DDR_A14

M0_DDR_A15

M0_DDR_BA0
M0_DDR_BA1

M0_DDR_BA2
M0_DDR_RASN
M0_DDR_CASN

M0_DDR_WEN
M0_DDR_ODT

M0_DDR_CKE

M0_DDR_RESET_N

M0_D_CLK

M0_D_CLKN

M0_DDR_CS1
M0_DDR_CS2

M0_DDR_DQ0

M0_DDR_DQ1

M0_DDR_DQ2

M0_DDR_DQ3

M0_DDR_DQ4

M0_DDR_DQ5

M0_DDR_DQ6

M0_DDR_DQ7

M0_DDR_DM0

M0_DDR_DQS0

M0_DDR_DQS_N0

M0_DDR_DQ8

M0_DDR_DQ9
M0_DDR_DQ10
M0_DDR_DQ11
M0_DDR_DQ12
M0_DDR_DQ13
M0_DDR_DQ14
M0_DDR_DQ15

M0_DDR_DM1
M0_DDR_DQS1

M0_DDR_DQS_N1

M0_DDR_DQ16
M0_DDR_DQ17
M0_DDR_DQ18
M0_DDR_DQ19
M0_DDR_DQ20
M0_DDR_DQ21
M0_DDR_DQ22
M0_DDR_DQ23

M0_DDR_DM2
M0_DDR_DQS2

M0_DDR_DQS_N2

M0_DDR_DQ24
M0_DDR_DQ25
M0_DDR_DQ26
M0_DDR_DQ27
M0_DDR_DQ28
M0_DDR_DQ29
M0_DDR_DQ30
M0_DDR_DQ31

M0_DDR_DM3
M0_DDR_DQS3

M0_DDR_DQS_N3

F17

IO[3]/A-A0[AB-A0]/A-A6

C17

IO[2]/A-A1[AB-A1]/A-A5

E17

IO[8]/A-A2[AB-A2]/A-A8

F18

IO[12]/A-A3[AB-A3]/A-A4

B18

IO[11]/A-A4[AB-A4]/A-BA1

E18

IO[14]/A-A5[AB-A5]/A-A0

A17

IO[10]/A-A6[AB-A6]/A-A1

D17

IO[13]/A-A7[AB-A7]/A-A2

C16

IO[0]/A-A8[AB-A8]/A-A9

E16

IO[5]/A-A9[AB-A9]/A-A11

B19

IO[9]/A-A10[AB-A10]/A-RASZ

B17

IO[6]/A-A11[AB-A11]/A-A7

D20

IO[26]/A-A12[AB-A12]/A-BG0

F16

IO[4]/A-A13[AB-A13]/A-PARITY

B16

IO[7]/A-A14[AB-A14]/A-A13

E20

IO[19]/A-A15[AB-A15]/A-A3

E19

IO[24]/A-BA0[AB-BA0]/A-A10

C18

IO[20]/A-BA1[AB-BA1]/A-CASZ

F19

IO[21]/A-BA2[AB-BA2]/A-BA0

G22

IO[15]/A-RASZ[AB-RASZ]/A-ODT

F21

IO[17]/A-CASZ[AB-CASZ]/A-WEZ

E21

IO[16]/A-WEZ[AB-WEZ]/A-A12

F20

IO[25]/A-ODT[AB-ODT]/A-ACTZ

C19

IO[18]/A-CKE[AB-CKE]/A-CKE

F15

IO[1]/A-RST[AB-RST]/A-RST

A20

IO[28]/A-MCLK[AB-MCLK]/A-MCLKZ

B20

IO[27]/A-MCLKZ[AB-MCLKZ]/A-MCLK

E15

IO[23]/A-CSB1[AB-CSB1]/A-CSB1

D15

IO[22]/A-CSB2[AB-CSB2]/A-CSB2

C23

IO[47]/A-DQ[0][A-DQL0]/A-DQ[0]

B22

IO[31]/A-DQ[1][A-DQL1]/A-DQ[1]

B24

IO[48]/A-DQ[2][A-DQL2]/A-DQ[2]

C21

IO[29]/A-DQ[3][A-DQL3]/A-DQ[3]

B25

IO[50]/A-DQ[4][A-DQL4]/A-DQ[6]

C20

IO[30]/A-DQ[5][A-DQL5]/A-DQ[7]

C24

IO[49]/A-DQ[6][A-DQL6]/A-DQ[4]

B21

IO[32]/A-DQ[7][A-DQL7]/A-DQ[5]

C22

IO[33]/A-DQM[0][A-DML]/A-DQM[0]

A23

IO[42]/A-DQS[0][A-DQSL]/A-DQS[0]

B23

IO[41]/A-DQSB[0][A-DQSLB]/A-DQSB[0]

D23

IO[35]/A-DQ[8][A-DQU0]/A-DQ[15]

D26

IO[45]/A-DQ[9][A-DQU1]/A-DQ[10]

E22

IO[38]/A-DQ[10][A-DQU2]/A-DQ[13]

D27

IO[46]/A-DQ[11][A-DQU3]/A-DQM[1]

F23

IO[36]/A-DQ[12][A-DQU4]/A-DQ[9]

E26

IO[43]/A-DQ[13][A-DQU5]/A-DQ[12]

D22

IO[34]/A-DQ[14][A-DQU6]/A-DQ[11]

E25

IO[44]/A-DQ[15][A-DQU7]/A-DQ[8]

E24

IO[37]/A-DQM[1][A-DMU]/A-DQ[14]

D24

IO[40]/A-DQS[1][A-DQSU]/A-DQS[1]

E23

IO[39]/A-DQSB[1][A-DQSUB]/A-DQSB[1]

C28

IO[69]/A-DQ[16][B-DQL0]/A-DQ[16]

C26

IO[53]/A-DQ[17][B-DQL1]/A-DQ[17]

B29

IO[70]/A-DQ[18][B-DQL2]/A-DQ[18]

A26

IO[54]/A-DQ[19][B-DQL3]/A-DQ[19]

C29

IO[72]/A-DQ[20][B-DQL4]/A-DQ[22]

C25

IO[52]/A-DQ[21][B-DQL5]/A-DQ[23]

A29

IO[71]/A-DQ[22][B-DQL6]/A-DQ[20]

B26

IO[51]/A-DQ[23][B-DQL7]/A-DQ[21]

B27

IO[55]/A-DQM[2][B-DML]/A-DQM[2]

B28

IO[64]/A-DQS[2][B-DQSL]/A-DQS[2]

C27

IO[63]/A-DQSB[2]/[B-DQSLB]/A-DQSB[2]

E29

IO[58]/A-DQ[24][B-DQU0]/A-DQ[31]

C31

IO[67]/A-DQ[25][B-DQU1]/A-DQ[26]

E27

IO[56]/A-DQ[26][B-DQU2]/A-DQ[29]

D31

IO[66]/A-DQ[27][B-DQU3]/A-DQM[3]

D29

IO[59]/A-DQ[28][B-DQU4]/A-DQ[25]

D30

IO[65]/A-DQ[29][B-DQU5]/A-DQ[28]

E28

IO[57]/A-DQ[30][B-DQU6]/A-DQ[27]

C30

IO[60]/A-DQ[31][B-DQU7]/A-DQ[24]

B31

IO[68]/A-DQM[3][B-DMU]/A-DQ[30]

A31

IO[62]/A-DQS[3][B-DQSU]/A-DQS[3]

B30

IO[61]/A-DQSB[3][B-DQSUB]/A-DQSB[3]

IC100

LGE5332(LM14A)

IO[75]/B-A0[CD-A0]/B-A6
IO[80]/B-A1[CD-A1]/B-A5
IO[83]/B-A2[CD-A2]/B-A8
IO[79]/B-A3[CD-A3]/B-A4

IO[87]/B-A4[CD-A4]/B-BA1

IO[86]/B-A5[CD-A5]/B-A0
IO[90]/B-A6[CD-A6]/B-A1
IO[78]/B-A7[CD-A7]/B-A2
IO[77]/B-A8[CD-A8]/B-A9

IO[73]/B-A9[CD-A9]/B-A11

IO[93]/B-A10[CD-A10]/B-RASZ

IO[84]/B-A11[CD-A11]/B-A7

IO[85]/B-A12[CD-A12]/B-BG0

IO[74]/B-A13[CD-A13]/B-PARITY

IO[81]/B-A14[CD-A14]/B-A13

IO[96]/B-A15[CD-A15]/B-A3

IO[88]/B-BA0[CD-BA0]/B-A10

IO[92]/B-BA1[CD-BA1]/B-CASZ

IO[82]/B-BA2[CD-BA2]/B-BA0
IO[97]/B-RASZ[CD-RASZ]/B-ODT
IO[94]/B-CASZ[CD-CASZ]/B-WEZ

IO[89]/B-WEZ[CD-WEZ]/B-A12

IO[95]/B-ODT[CD-ODT]/B-ACTZ

IO[91]/B-CKE[CD-CKE]/B-CKE

IO[76]/B-RST[CD-RST]/B-RST

IO[101]/B-MCLK[CD-MCLK]/B-MCLKZ

IO[100]/B-MCLKZ[CD-MCLKZ]/B-MCLK

IO[99]/B-CSB1[CD-CSB1]/B-CSB1
IO[98]/B-CSB2[CD-CSB2]/B-CSB2

IO[120]/B-DQ[0][C-DQL0]/B-DQ[0]
IO[104]/B-DQ[1][C-DQL1]/B-DQ[1]
IO[121]/B-DQ[2][C-DQL2]/B-DQ[2]
IO[102]/B-DQ[3][C-DQL3]/B-DQ[3]
IO[123]/B-DQ[4][C-DQL4]/B-DQ[6]
IO[105]/B-DQ[5][C-DQL5]/B-DQ[7]
IO[122]/B-DQ[6][C-DQL6]/B-DQ[4]
IO[103]/B-DQ[7][C-DQL7]/B-DQ[5]

IO[106]/B-DQM[0][C-DML]/B-DQM[0]

IO[115]/B-DQS[0][C-DQSL]/B-DQS[0]

IO[114]/B-DQSB[0][C-DQSLB]/B-DQSB[0]

IO[109]/B-DQ[8][C-DQU0]/B-DQ[15]

IO[116]/B-DQ[9][C-DQU1]/B-DQ[10]
IO[107]/B-DQ[10][C-DQU2]/B-DQ[13]
IO[119]/B-DQ[11][C-DQU3]/B-DQM[1]

IO[111]/B-DQ[12][C-DQU4]/B-DQ[9]
IO[117]/B-DQ[13][C-DQU5]/B-DQ[12]
IO[108]/B-DQ[14][C-DQU6]/B-DQ[11]

IO[118]/B-DQ[15][C-DQU7]/B-DQ[8]

IO[110]/B-DQM[1][C-DMU]/B-DQ[14]
IO[113]/B-DQS[1][C-DQSU]/B-DQS[1]

IO[112]/B-DQSB[1][C-DQSUB]/B-DQSB[1]

IO[145]/B-DQ[16][D-DQL0]/B-DQ[16]
IO[126]/B-DQ[17][D-DQL1]/B-DQ[17]
IO[143]/B-DQ[18][D-DQL2]/B-DQ[18]
IO[127]/B-DQ[19][D-DQL3]/B-DQ[19]
IO[142]/B-DQ[20][D-DQL4]/B-DQ[22]
IO[124]/B-DQ[21][D-DQL5]/B-DQ[23]
IO[144]/B-DQ[22][D-DQL6]/B-DQ[20]
IO[125]/B-DQ[23][D-DQL7]/B-DQ[21]

IO[128]/B-DQM[2][D-DML]/B-DQM[2]
IO[137]/B-DQS[2][D-DQSL]/B-DQS[2]

IO[136]/B-DQSB[2][D-DQSLB]/B-DQSB[2]

IO[131]/B-DQ[24][D-DQU0]/B-DQ[31]
IO[141]/B-DQ[25][D-DQU1]/B-DQ[26]

IO[130]_/B-DQ[26][D-DQU2]/B-DQ[29]

IO[140]/B-DQ[27][D-DQU3]/B-DQM[3]
IO[129]/B-DQ[28][D-DQU4]/B-DQ[25]
IO[139]/B-DQ[29][D-DQU5]/B-DQ[28]
IO[132]/B-DQ[30][D-DQU6]/B-DQ[27]
IO[138]/B-DQ[31][D-DQU7]/B-DQ[24]

IO[133]/B-DQM[3][D-DMU]/B-DQ[30]
IO[135]/B-DQS[3][D-DQSU]/B-DQS[3]

IO[134]/B-DQSB[3][D-DQSUB]/B-DQSB[3]

DDR_VTT

AR400

M0_DDR_A14

M0_DDR_A8

M0_DDR_A11

M0_DDR_A6

M0_DDR_A1

M0_DDR_A4
M0_DDR_A12
M0_DDR_BA1

M0_DDR_A13

M0_DDR_A9

M0_DDR_A7

M0_DDR_A2

M0_DDR_A5

M0_DDR_A3

M0_DDR_A0

M0_DDR_BA0
M0_DDR_BA2
M0_DDR_A15
M0_DDR_A10

M0_DDR_WEN

M0_DDR_CASN

M0_DDR_ODT

M0_DDR_RASN

M0_DDR_CKE

M0_D_CLKN

M0_D_CLK

AVDD_DDR

R410

R411

AVDD_DDR

R408

R409

56
1/16W

AR401
56
1/16W

AR402
56
1/16W

AR403
56
1/16W

AR404
56
1/16W

AR405
56
1/16W

AR406
56
1/16W

1K 1%

1K 1%

1K 1%

1K 1%

M0_DDR_VREFDQ

C472

0.1uF
C474
1000pF
50V

M1_DDR_VREFDQ

C516

0.1uF
C517
1000pF
50V

DDR_VTT

AVDD_DDR

C414
10uF
10V

CIS2 1J121

C424 0.1uF

C425 0.1uF

C426 0.1uF

C427 0.1uF

C428 0.1uF

C429 0.1uF

C430 0.1uF

C431 0.1uF

C432 0.1uF

C433 0.1uF

C434 0.1uF

C435 0.1uF

C436 0.1uF

C437 0.1uF

* DDR_VTT

R443
10K

1/16W
1%

L400

C417
10uF
10V

C535
10uF
10V

AVDD_DDR

R416

R417

1%

1/16W

1K 1%

1K 1%

AVDD_DDR

R414

R415

C421
10uF
10V

10K

R444

M0_1_DDR_VREFDQ

C479

0.1uF

M1_1_DDR_VREFDQ

1K 1%

C518

0.1uF

1K 1%

AP2303MPTR-G1

VIN

GND

VREFEN

VOUT

C543

0.1uF
16V

C483
1000pF
50V

1

2

3

4

C519
1000pF
50V

IC402

THERMAL

9

M1_DDR_A14

M1_DDR_A8

M1_DDR_A11

M1_DDR_A6

M1_DDR_A1

M1_DDR_A4
M1_DDR_A12
M1_DDR_BA1

M1_DDR_A13

M1_DDR_A9

M1_DDR_A7

M1_DDR_A2

M1_DDR_A5

M1_DDR_A3

M1_DDR_A0

M1_DDR_BA0
M1_DDR_BA2
M1_DDR_A15
M1_DDR_A10

M1_DDR_WEN

M1_DDR_CASN

M1_DDR_ODT

M1_DDR_RASN

M1_DDR_CKE

M1_D_CLKN

M1_D_CLK

AVDD_DDR

[EP]

NC_3

8

NC_2

7

VCNTL

6

NC_1

5

AVDD_DDR

R446

10K

1K

1%
10K

R445

1K

M8

H1

L8

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

AVDD_DDR

AVDD_DDR

C410
C411

M1_DDR_VREFDQ

R404

C468

0.1uF

C469

0.1uF

SS_DDR3_4Gb_25n

IC403-*1

K4B4G1646D-BCMA

EAN63391401

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

M0_DDR_VREFDQ

R400

240

0.1uF

0.1uF

DDR3 1.5V bypass Cap - Place these caps near Memory

SS_DDR3_4Gb_25n

Hynix_DDR3_4Gb_25n

IC400-*1

IC400-*2

K4B4G1646D-BCMA

H5TQ4G63CFR_RDC

EAN63391401

EAN63053202

N3

M8

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

M8

VREFCA

A0

VREFCA

P7

A1

P3

A2

N2

H1

H1

A3

VREFDQ

VREFDQ

P8

A4

P2

A5

R8

L8

L8

A6

ZQ

ZQ

R2

A7

T8

A8

R3

B2

B2

A9

VDD_1

VDD_1

L7

D9

D9

A10/AP

VDD_2

VDD_2

R7

G7

G7

A11

VDD_3

VDD_3

N7

K2

K2

A12/BC

VDD_4

VDD_4

T3

K8

K8

A13

VDD_5

VDD_5

T7

N1

N1

A14

VDD_6

VDD_6

N9

M7

N9

VDD_7

NC_5

VDD_7

R1

R1

VDD_8

VDD_8

R9

R9

M2

VDD_9

VDD_9

BA0

N8

BA1

M3

BA2

A1

A1

VDDQ_1

VDDQ_1

A8

A8

J7

VDDQ_2

VDDQ_2

CK

C1

K7

C1

VDDQ_3

VDDQ_3

CK

C9

K9

C9

VDDQ_4

CKE

VDDQ_4

D2

D2

VDDQ_5

VDDQ_5

E9

E9

L2

VDDQ_6

VDDQ_6

CS

F1

F1

K1

VDDQ_7

VDDQ_7

ODT

H2

H2

J3

VDDQ_8

VDDQ_8

RAS

H9

H9

K3

VDDQ_9

VDDQ_9

CAS

L3

WE

J1

J1

NC_1

NC_1

J9

J9

T2

NC_2

NC_2

RESET

L1

L1

NC_3

NC_3

L9

L9

NC_4

NC_4

T7

F3

NC_6

DQSL

G3

DQSL

A9

A9

C7

VSS_1

VSS_1

DQSU

B3

B3

B7

VSS_2

VSS_2

DQSU

E1

E1

VSS_3

VSS_3

G8

G8

E7

VSS_4

VSS_4

DML

J2

J2

D3

VSS_5

VSS_5

DMU

J8

J8

VSS_6

VSS_6

M1

M1

E3

VSS_7

VSS_7

DQL0

M9

M9

F7

VSS_8

VSS_8

DQL1

P1

P1

F2

VSS_9

VSS_9

DQL2

P9

P9

F8

VSS_10

VSS_10

DQL3

T1

T1

H3

VSS_11

VSS_11

DQL4

T9

T9

H8

VSS_12

VSS_12

DQL5

G2

DQL6

H7

DQL7

B1

B1

VSSQ_1

VSSQ_1

B9

B9

D7

VSSQ_2

VSSQ_2

DQU0

D1

D1

C3

VSSQ_3

VSSQ_3

DQU1

D8

D8

C8

VSSQ_4

VSSQ_4

DQU2

E2

E2

C2

VSSQ_5

VSSQ_5

DQU3

E8

E8

A7

VSSQ_6

VSSQ_6

DQU4

F9

F9

A2

VSSQ_7

VSSQ_7

DQU5

G1

G1

B8

VSSQ_8

VSSQ_8

DQU6

G9

G9

A3

VSSQ_9

VSSQ_9

DQU7

Hynix_DDR3_2Gb

SS_DDR3_2Gb

IC400-*4

IC400-*3

H5TQ2G63FFR-RDC

K4B2G1646Q-BCMA

EAN63648701

EAN63667401

M8

N3

N3

VREFCA

A0

A0

P7

P7

A1

A1

P3

P3

A2

A2

H1

N2

N2

VREFDQ

A3

A3

P8

P8

A4

A4

P2

P2

A5

A5

R8

R8

L8

A6

A6

ZQ

R2

R2

A7

A7

T8

T8

A8

A8

R3

R3

B2

A9

A9

VDD_1

L7

L7

D9

A10/AP

A10/AP

VDD_2

R7

R7

G7

A11

A11

VDD_3

K2

N7

N7

A12/BC

A12/BC

VDD_4

K8

T3

T3

VDD_5

A13

A13

T7

N1

A14

VDD_6

N9

M7

M7

VDD_7

NC_5

NC_5

R1

VDD_8

R9

M2

M2

VDD_9

BA0

BA0

N8

N8

BA1

BA1

M3

M3

BA2

BA2

A1

VDDQ_1

A8

J7

J7

VDDQ_2

CK

CK

C1

K7

K7

VDDQ_3

CK

CK

C9

K9

K9

VDDQ_4

CKE

CKE

D2

VDDQ_5

E9

L2

L2

VDDQ_6

CS

CS

F1

K1

K1

VDDQ_7

ODT

ODT

H2

J3

J3

VDDQ_8

RAS

RAS

H9

K3

K3

VDDQ_9

CAS

CAS

L3

L3

WE

WE

J1

NC_1

J9

T2

T2

NC_2

RESET

RESET

L1

NC_3

L9

NC_4

T7

F3

F3

NC_6

DQSL

DQSL

G3

G3

DQSL

DQSL

A9

C7

C7

VSS_1

DQSU

DQSU

B3

B7

B7

VSS_2

DQSU

DQSU

E1

VSS_3

G8

E7

E7

VSS_4

DML

DML

J2

D3

D3

VSS_5

DMU

DMU

J8

VSS_6

M1

E3

E3

VSS_7

DQL0

DQL0

M9

F7

F7

VSS_8

DQL1

DQL1

P1

F2

F2

VSS_9

DQL2

DQL2

P9

F8

F8

VSS_10

DQL3

DQL3

T1

H3

H3

VSS_11

DQL4

DQL4

T9

H8

H8

VSS_12

DQL5

DQL5

G2

G2

DQL6

DQL6

H7

H7

DQL7

DQL7

B1

VSSQ_1

B9

D7

D7

VSSQ_2

DQU0

DQU0

D1

C3

C3

VSSQ_3

DQU1

DQU1

D8

C8

C8

VSSQ_4

DQU2

DQU2

E2

C2

C2

VSSQ_5

DQU3

DQU3

E8

A7

A7

VSSQ_6

DQU4

DQU4

F9

A2

A2

VSSQ_7

DQU5

DQU5

G1

B8

B8

VSSQ_8

DQU6

DQU6

G9

A3

A3

VSSQ_9

DQU7

DQU7

240

DDR3 1.5V bypass Cap - Place these caps near Memory

Hynix_DDR3_4Gb_25n

SS_DDR3_2Gb

IC403-*2

IC403-*3

H5TQ4G63CFR_RDC

K4B2G1646Q-BCMA

EAN63053202

EAN63667401

M8

M8

N3

VREFCA

A0

P7

A1

P3

A2

H1

N2

VREFDQ

A3

P8

A4

P2

A5

R8

L8

A6

ZQ

R2

A7

T8

A8

R3

B2

A9

VDD_1

L7

D9

A10/AP

VDD_2

R7

G7

A11

VDD_3

K2

N7

A12/BC

VDD_4

K8

T3

VDD_5

A13

T7

N1

A14

VDD_6

N9

M7

VDD_7

NC_5

R1

VDD_8

R9

M2

VDD_9

BA0

N8

BA1

M3

BA2

A1

VDDQ_1

A8

J7

VDDQ_2

CK

C1

K7

VDDQ_3

CK

C9

K9

VDDQ_4

CKE

D2

VDDQ_5

E9

L2

VDDQ_6

CS

F1

K1

VDDQ_7

ODT

H2

J3

VDDQ_8

RAS

H9

K3

VDDQ_9

CAS

L3

WE

J1

NC_1

J9

T2

NC_2

RESET

L1

NC_3

L9

NC_4

T7

F3

NC_6

DQSL

G3

DQSL

A9

C7

VSS_1

DQSU

B3

B7

VSS_2

DQSU

E1

VSS_3

G8

E7

VSS_4

DML

J2

D3

VSS_5

DMU

J8

VSS_6

M1

E3

VSS_7

DQL0

M9

F7

VSS_8

DQL1

P1

F2

VSS_9

DQL2

P9

F8

VSS_10

DQL3

T1

H3

VSS_11

DQL4

T9

H8

VSS_12

DQL5

G2

DQL6

H7

DQL7

B1

VSSQ_1

B9

D7

VSSQ_2

DQU0

D1

C3

VSSQ_3

DQU1

D8

C8

VSSQ_4

DQU2

E2

C2

VSSQ_5

DQU3

E8

A7

VSSQ_6

DQU4

F9

A2

VSSQ_7

DQU5

G1

B8

VSSQ_8

DQU6

G9

A3

VSSQ_9

DQU7

M8

N3

VREFCA

VREFCA

A0

P7

A1

P3

A2

H1

H1

N2

VREFDQ

VREFDQ

A3

P8

A4

P2

A5

L8

R8

L8

ZQ

A6

ZQ

R2

A7

T8

A8

B2

R3

B2

VDD_1

A9

VDD_1

D9

L7

D9

VDD_2

A10/AP

VDD_2

G7

R7

G7

VDD_3

A11

VDD_3

K2

K2

N7

VDD_4

A12/BC

VDD_4

K8

K8

T3

VDD_5

VDD_5

A13

N1

N1

VDD_6

VDD_6

N9

N9

M7

VDD_7

VDD_7

NC_5

R1

R1

VDD_8

VDD_8

R9

R9

M2

VDD_9

VDD_9

BA0

N8

BA1

M3

BA2

A1

A1

VDDQ_1

VDDQ_1

A8

A8

J7

VDDQ_2

VDDQ_2

CK

C1

C1

K7

VDDQ_3

VDDQ_3

CK

C9

C9

K9

VDDQ_4

VDDQ_4

CKE

D2

D2

VDDQ_5

VDDQ_5

E9

E9

L2

VDDQ_6

VDDQ_6

CS

F1

F1

K1

VDDQ_7

VDDQ_7

ODT

H2

H2

J3

VDDQ_8

VDDQ_8

RAS

H9

H9

K3

VDDQ_9

VDDQ_9

CAS

L3

WE

J1

J1

NC_1

NC_1

J9

J9

T2

NC_2

NC_2

RESET

L1

L1

NC_3

NC_3

L9

L9

NC_4

NC_4

T7

F3

NC_6

DQSL

G3

DQSL

A9

A9

C7

VSS_1

VSS_1

DQSU

B3

B3

B7

VSS_2

VSS_2

DQSU

E1

E1

VSS_3

VSS_3

G8

G8

E7

VSS_4

VSS_4

DML

J2

J2

D3

VSS_5

VSS_5

DMU

J8

J8

VSS_6

VSS_6

M1

M1

E3

VSS_7

VSS_7

DQL0

M9

M9

F7

VSS_8

VSS_8

DQL1

P1

P1

F2

VSS_9

VSS_9

DQL2

P9

P9

F8

VSS_10

VSS_10

DQL3

T1

T1

H3

VSS_11

VSS_11

DQL4

T9

T9

H8

VSS_12

VSS_12

DQL5

G2

DQL6

H7

DQL7

B1

B1

VSSQ_1

VSSQ_1

B9

B9

D7

VSSQ_2

VSSQ_2

DQU0

D1

D1

C3

VSSQ_3

VSSQ_3

DQU1

D8

D8

C8

VSSQ_4

VSSQ_4

DQU2

E2

E2

C2

VSSQ_5

VSSQ_5

DQU3

E8

E8

A7

VSSQ_6

VSSQ_6

DQU4

F9

F9

A2

VSSQ_7

VSSQ_7

DQU5

G1

G1

B8

VSSQ_8

VSSQ_8

DQU6

G9

G9

A3

VSSQ_9

VSSQ_9

DQU7

N3
P7
P3
N2
P8
P2
R8
R2
T8
R3
L7
R7
N7
T3
T7
M7

M2
N8
M3

J7
K7
K9

L2
K1
J3
K3
L3

T2

F3
G3

C7
B7

E7
D3

E3
F7
F2
F8
H3
H8
G2
H7

D7
C3
C8
C2
A7
A2
B8
A3

VREFCA

VREFDQ

ZQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

NC_1
NC_2
NC_3
NC_4

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

Hynix_DDR3_2Gb

IC403-*4

H5TQ2G63FFR-RDC

EAN63648701

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12/BC
A13
A14
NC_5

BA0
BA1
BA2

CK
CK
CKE

CS
ODT
RAS
CAS
WE

RESET

DQSL
DQSL

DQSU
DQSU

DML
DMU

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7

DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

M0_DDR_A0
M0_DDR_A1
M0_DDR_A2
M0_DDR_A3
M0_DDR_A4
M0_DDR_A5
M0_DDR_A6
M0_DDR_A7
M0_DDR_A8

M0_DDR_A9
M0_DDR_A10
M0_DDR_A11
M0_DDR_A12
M0_DDR_A13
M0_DDR_A14
M0_DDR_A15

M0_DDR_BA0
M0_DDR_BA1
M0_DDR_BA2

M0_D_CLK

M0_D_CLKN
M0_DDR_CKE

M0_DDR_CS2
M0_DDR_ODT

M0_DDR_RASN
M0_DDR_CASN

M0_DDR_WEN

M0_DDR_RESET_N

M0_DDR_DQS2

M0_DDR_DQS_N2

M0_DDR_DQS3

M0_DDR_DQS_N3

M0_DDR_DM2
M0_DDR_DM3

M0_DDR_DQ16
M0_DDR_DQ17
M0_DDR_DQ18
M0_DDR_DQ19
M0_DDR_DQ20
M0_DDR_DQ21
M0_DDR_DQ22
M0_DDR_DQ23

M0_DDR_DQ24
M0_DDR_DQ25
M0_DDR_DQ26
M0_DDR_DQ27
M0_DDR_DQ28
M0_DDR_DQ29
M0_DDR_DQ30
M0_DDR_DQ31

M8

H1

L8

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

M1_DDR_A10
M1_DDR_A11
M1_DDR_A12
M1_DDR_A13

M1_DDR_A14

M1_DDR_A15

M1_DDR_BA0
M1_DDR_BA1

M1_DDR_BA2

M1_DDR_CKE

M1_DDR_CS2

M1_DDR_ODT
M1_DDR_RASN
M1_DDR_CASN

M1_DDR_WEN

M1_DDR_RESET_N

M1_DDR_DQS2

M1_DDR_DQS_N2

M8

VREFCA

H1

VREFDQ

M1_DDR_DQS3

L8

ZQ

M1_DDR_DQS_N3

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

M1_DDR_DM2

VDD_7

R1

VDD_8

R9

VDD_9

M1_DDR_DM3

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

M1_DDR_DQ16

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

M1_DDR_DQ17

J1

NC_1

J9

NC_2

L1

M1_DDR_DQ18

NC_3

L9

NC_4

M1_DDR_DQ19

A9

VSS_1

B3

VSS_2

M1_DDR_DQ20

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

M1_DDR_DQ21

VSS_6

M1

VSS_7

M9

VSS_8

P1

M1_DDR_DQ22

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

M1_DDR_DQ23

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

M1_DDR_DQ24

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

M1_DDR_DQ25

G9

VSSQ_9

M1_DDR_DQ26
M1_DDR_DQ27
M1_DDR_DQ28
M1_DDR_DQ29
M1_DDR_DQ30
M1_DDR_DQ31

Hynix_DDR3_4Gb_29n

IC400

H5TQ4G63AFR-RDC

EAN63053201

N3

M0_DDR_A0
M0_DDR_A1
M0_DDR_A2
M0_DDR_A3
M0_DDR_A4
M0_DDR_A5
M0_DDR_A6
M0_DDR_A7
M0_DDR_A8

M0_DDR_A9
M0_DDR_A10
M0_DDR_A11
M0_DDR_A12
M0_DDR_A13
M0_DDR_A14
M0_DDR_A15

M0_DDR_BA0
M0_DDR_BA1
M0_DDR_BA2

M0_D_CLK

M0_D_CLKN
M0_DDR_CKE

M0_DDR_CS1
M0_DDR_ODT

M0_DDR_RASN
M0_DDR_CASN

M0_DDR_WEN

M0_DDR_RESET_N

M0_DDR_DQS0

H28
K31
J29
K27
K30
J28
K32
H31
J32
G30
L30
J30
L29
G31
J31
M28
L28
L31
K28
N28
N27
L27
M27
M31
G32
N32
M30
G29
F32

T31
P30
T30
P31
U30
N31
U31
N30
R31
T32
R30

P27
U29
P28
U27
R28
V28
P29
U28
T28
T27
R27

AA31
W31
AA30
W32
AB31
V31
AB32
V30
W30
Y30
Y31

Y28
AB27
V27
AB29
W28
AB28
W27
AA27
Y27
AA28
Y29

M1_DDR_A0
M1_DDR_A1
M1_DDR_A2
M1_DDR_A3
M1_DDR_A4
M1_DDR_A5
M1_DDR_A6
M1_DDR_A7
M1_DDR_A8
M1_DDR_A9
M1_DDR_A10
M1_DDR_A11
M1_DDR_A12
M1_DDR_A13
M1_DDR_A14
M1_DDR_A15
M1_DDR_BA0
M1_DDR_BA1
M1_DDR_BA2
M1_DDR_RASN
M1_DDR_CASN
M1_DDR_WEN
M1_DDR_ODT
M1_DDR_CKE
M1_DDR_RESET_N
M1_D_CLK
M1_D_CLKN
M1_DDR_CS1
M1_DDR_CS2

M1_DDR_DQ0
M1_DDR_DQ1
M1_DDR_DQ2
M1_DDR_DQ3
M1_DDR_DQ4
M1_DDR_DQ5
M1_DDR_DQ6
M1_DDR_DQ7
M1_DDR_DM0
M1_DDR_DQS0
M1_DDR_DQS_N0

M1_DDR_DQ8
M1_DDR_DQ9
M1_DDR_DQ10
M1_DDR_DQ11
M1_DDR_DQ12
M1_DDR_DQ13
M1_DDR_DQ14
M1_DDR_DQ15
M1_DDR_DM1
M1_DDR_DQS1
M1_DDR_DQS_N1

M1_DDR_DQ16
M1_DDR_DQ17
M1_DDR_DQ18
M1_DDR_DQ19
M1_DDR_DQ20
M1_DDR_DQ21
M1_DDR_DQ22
M1_DDR_DQ23
M1_DDR_DM2
M1_DDR_DQS2
M1_DDR_DQS_N2

M1_DDR_DQ24
M1_DDR_DQ25
M1_DDR_DQ26
M1_DDR_DQ27
M1_DDR_DQ28
M1_DDR_DQ29
M1_DDR_DQ30
M1_DDR_DQ31
M1_DDR_DM3
M1_DDR_DQS3
M1_DDR_DQS_N3

M0_DDR_DQS_N0

M0_DDR_DQS_N1

M1_DDR_RESET_N

M1_DDR_DQS0

M1_DDR_DQS_N0

M1_DDR_DQS1

M1_DDR_DQS_N1

M1_DDR_DM0
M1_DDR_DM1

M0_DDR_DQS1

M0_DDR_DM0
M0_DDR_DM1

M0_DDR_DQ0
M0_DDR_DQ1
M0_DDR_DQ2
M0_DDR_DQ3
M0_DDR_DQ4
M0_DDR_DQ5
M0_DDR_DQ6
M0_DDR_DQ7

M0_DDR_DQ8
M0_DDR_DQ9

M0_DDR_DQ10
M0_DDR_DQ11
M0_DDR_DQ12
M0_DDR_DQ13
M0_DDR_DQ14
M0_DDR_DQ15

+1.5V_Bypass Cap
Close to DDR Power Pin

AVDD_DDR

C400 0.1uF

C401 0.1uF

Hynix_DDR3_4Gb_29n

M1_DDR_A0
M1_DDR_A1
M1_DDR_A2
M1_DDR_A3
M1_DDR_A4
M1_DDR_A5
M1_DDR_A6
M1_DDR_A7
M1_DDR_A8

M1_DDR_A9
M1_DDR_A10
M1_DDR_A11
M1_DDR_A12
M1_DDR_A13
M1_DDR_A14
M1_DDR_A15

M1_DDR_BA0
M1_DDR_BA1
M1_DDR_BA2

M1_D_CLK

M1_D_CLKN
M1_DDR_CKE

M1_DDR_CS1
M1_DDR_ODT

M1_DDR_RASN
M1_DDR_CASN

M1_DDR_WEN

M1_DDR_DQ0
M1_DDR_DQ1
M1_DDR_DQ2
M1_DDR_DQ3
M1_DDR_DQ4
M1_DDR_DQ5
M1_DDR_DQ6
M1_DDR_DQ7

M1_DDR_DQ8
M1_DDR_DQ9

M1_DDR_DQ10
M1_DDR_DQ11
M1_DDR_DQ12
M1_DDR_DQ13
M1_DDR_DQ14
M1_DDR_DQ15

N3
P7
P3
N2
P8
P2
R8
R2
T8
R3
L7
R7
N7
T3
T7
M7

M2
N8
M3

J7
K7
K9

L2
K1
J3
K3
L3

T2

F3
G3

C7
B7

E7
D3

E3
F7
F2
F8
H3
H8
G2
H7

D7
C3
C8
C2
A7
A2
B8
A3

DDR3

A0

P7

4Gbit

A1

P3

(x16)

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

C402 0.1uF

IC403

H5TQ4G63AFR-RDC

EAN63053201

DDR3

A0

4Gbit

A1

(x16)

A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12/BC
A13
A14
NC_5

BA0
BA1
BA2

CK
CK
CKE

CS
ODT
RAS
CAS
WE

RESET

DQSL
DQSL

DQSU
DQSU

DML
DMU

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7

DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

VREFCA

VREFDQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

VREFCA

VREFDQ

ZQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

NC_1
NC_2
NC_3
NC_4

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

M8

H1

L8

ZQ

B2

D9

G7

K2

K8

N1

N9

R1

R9

A1

A8

C1

C9

D2

E9

F1

H2

H9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

A9

B3

E1

G8

J2

J8

M1

M9

P1

P9

T1

T9

B1

B9

D1

D8

E2

E8

F9

G1

G9

Hynix_DDR3_4Gb_29n

IC401

H5TQ4G63AFR-RDC

EAN63053201

N3

DDR3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

+1.5V_Bypass Cap
Close to DDR Power Pin

4Gbit
(x16)

VREFCA

VREFDQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

AVDD_DDR

C403 0.1uF

C404 0.1uF

C405 0.1uF

Hynix_DDR3_4Gb_29n

IC404

H5TQ4G63AFR-RDC

EAN63053201

N3

M1_DDR_A0
M1_DDR_A1
M1_DDR_A2
M1_DDR_A3
M1_DDR_A4
M1_DDR_A5
M1_DDR_A6
M1_DDR_A7
M1_DDR_A8
M1_DDR_A9

M1_D_CLK

M1_D_CLKN

DDR3

A0

P7

4Gbit

A1

P3

(x16)

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

M0_1_DDR_VREFDQ

M8

H1

L8

R403

ZQ

AVDD_DDR
B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

240

C440

0.1uF

C441

0.1uF

DDR3 1.5V bypass Cap - Place these caps near Memory

SS_DDR3_4Gb_25n

Hynix_DDR3_4Gb_25n

N3
P7
P3
N2
P8
P2
R8
R2
T8
R3
L7
R7
N7
T3

M7

M2
N8
M3

J7
K7
K9

L2
K1
J3
K3
L3

T2

F3
G3

C7
B7

E7
D3

E3
F7
F2
F8
H3
H8
G2
H7

D7
C3
C8
C2
A7
A2
B8
A3

IC401-*1

K4B4G1646D-BCMA

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12/BC
A13

NC_5

BA0
BA1
BA2

CK
CK
CKE

CS
ODT
RAS
CAS
WE

RESET

DQSL
DQSL

DQSU
DQSU

DML
DMU

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7

DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

IC401-*2

H5TQ4G63CFR_RDC

EAN63391401

EAN63053202

M8

VREFCA

N3

M8

A0

VREFCA

P7

A1

P3

H1

A2

VREFDQ

N2

H1

A3

VREFDQ

P8

A4

P2

L8

A5

ZQ

R8

L8

A6

ZQ

R2

A7

T8

B2

A8

VDD_1

R3

B2

D9

A9

VDD_1

VDD_2

L7

D9

G7

A10/AP

VDD_2

VDD_3

R7

G7

K2

A11

VDD_3

VDD_4

N7

K2

K8

A12/BC

VDD_4

VDD_5

T3

K8

N1

A13

VDD_5

VDD_6

T7

N1

N9

A14

VDD_6

VDD_7

M7

N9

R1

NC_5

VDD_7

VDD_8

R1

R9

VDD_8

VDD_9

R9

M2

VDD_9

BA0

N8

BA1

M3

A1

BA2

VDDQ_1

A1

A8

VDDQ_1

VDDQ_2

A8

J7

C1

VDDQ_2

CK

VDDQ_3

K7

C1

C9

VDDQ_3

CK

VDDQ_4

K9

C9

D2

CKE

VDDQ_4

VDDQ_5

D2

E9

VDDQ_5

VDDQ_6

E9

L2

F1

VDDQ_6

CS

VDDQ_7

F1

K1

H2

VDDQ_7

ODT

VDDQ_8

H2

J3

H9

VDDQ_8

RAS

VDDQ_9

H9

K3

VDDQ_9

CAS

L3

J1

WE

NC_1

J1

J9

NC_1

NC_2

J9

T2

L1

NC_2

RESET

NC_3

L1

L9

NC_3

NC_4

L9

T7

NC_4

NC_6

F3

DQSL

G3

DQSL

A9

VSS_1

A9

C7

B3

VSS_1

DQSU

VSS_2

B3

B7

E1

VSS_2

DQSU

VSS_3

E1

G8

VSS_3

VSS_4

G8

E7

J2

VSS_4

DML

VSS_5

J2

D3

J8

VSS_5

DMU

VSS_6

J8

M1

VSS_6

VSS_7

M1

E3

M9

VSS_7

DQL0

VSS_8

M9

F7

P1

VSS_8

DQL1

VSS_9

P1

F2

P9

VSS_9

DQL2

VSS_10

P9

F8

T1

VSS_10

DQL3

VSS_11

T1

H3

T9

VSS_11

DQL4

VSS_12

T9

H8

VSS_12

DQL5

G2

DQL6

H7

B1

DQL7

VSSQ_1

B1

B9

VSSQ_1

VSSQ_2

B9

D7

D1

VSSQ_2

DQU0

VSSQ_3

D1

C3

D8

VSSQ_3

DQU1

VSSQ_4

D8

C8

E2

VSSQ_4

DQU2

VSSQ_5

E2

C2

E8

VSSQ_5

DQU3

VSSQ_6

E8

A7

F9

VSSQ_6

DQU4

VSSQ_7

F9

A2

G1

VSSQ_7

DQU5

VSSQ_8

G1

B8

G9

VSSQ_8

DQU6

VSSQ_9

G9

A3

VSSQ_9

DQU7

N3
P7
P3
N2
P8
P2
R8
R2
T8
R3
L7
R7
N7
T3

M7

M2
N8
M3

J7
K7
K9

L2
K1
J3
K3
L3

T2

F3
G3

C7
B7

E7
D3

E3
F7
F2
F8
H3
H8
G2
H7

D7
C3
C8
C2
A7
A2
B8
A3

SS_DDR3_2Gb

K4B2G1646Q-BCMA

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12/BC
A13

NC_5

BA0
BA1
BA2

CK
CK
CKE

CS
ODT
RAS
CAS
WE

RESET

DQSL
DQSL

DQSU
DQSU

DML
DMU

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7

DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

Hynix_DDR3_2Gb

IC401-*4

IC401-*3

H5TQ2G63FFR-RDC

EAN63648701

EAN63667401

M8

M8

N3

VREFCA

VREFCA

A0

P7

A1

P3

A2

N2

H1

H1

A3

VREFDQ

VREFDQ

P8

A4

P2

A5

R8

L8

L8

A6

ZQ

ZQ

R2

A7

T8

A8

R3

B2

B2

A9

VDD_1

VDD_1

L7

D9

D9

A10/AP

VDD_2

VDD_2

R7

G7

G7

A11

VDD_3

VDD_3

K2

K2

N7

A12/BC

VDD_4

VDD_4

K8

K8

T3

VDD_5

VDD_5

A13

T7

N1

N1

A14

VDD_6

VDD_6

N9

N9

M7

VDD_7

VDD_7

NC_5

R1

R1

VDD_8

VDD_8

R9

R9

M2

VDD_9

VDD_9

BA0

N8

BA1

M3

BA2

A1

A1

VDDQ_1

VDDQ_1

A8

A8

J7

VDDQ_2

VDDQ_2

CK

C1

C1

K7

VDDQ_3

VDDQ_3

CK

C9

C9

K9

VDDQ_4

VDDQ_4

CKE

D2

D2

VDDQ_5

VDDQ_5

E9

E9

L2

VDDQ_6

VDDQ_6

CS

F1

F1

K1

VDDQ_7

VDDQ_7

ODT

H2

H2

J3

VDDQ_8

VDDQ_8

RAS

H9

H9

K3

VDDQ_9

VDDQ_9

CAS

L3

WE

J1

J1

NC_1

NC_1

J9

J9

T2

NC_2

NC_2

RESET

L1

L1

NC_3

NC_3

L9

L9

NC_4

NC_4

T7

F3

NC_6

DQSL

G3

DQSL

A9

A9

C7

VSS_1

VSS_1

DQSU

B3

B3

B7

VSS_2

VSS_2

DQSU

E1

E1

VSS_3

VSS_3

G8

G8

E7

VSS_4

VSS_4

DML

J2

J2

D3

VSS_5

VSS_5

DMU

J8

J8

VSS_6

VSS_6

M1

M1

E3

VSS_7

VSS_7

DQL0

M9

M9

F7

VSS_8

VSS_8

DQL1

P1

P1

F2

VSS_9

VSS_9

DQL2

P9

P9

F8

VSS_10

VSS_10

DQL3

T1

T1

H3

VSS_11

VSS_11

DQL4

T9

T9

H8

VSS_12

VSS_12

DQL5

G2

DQL6

H7

DQL7

B1

B1

VSSQ_1

VSSQ_1

B9

B9

D7

VSSQ_2

VSSQ_2

DQU0

D1

D1

C3

VSSQ_3

VSSQ_3

DQU1

D8

D8

C8

VSSQ_4

VSSQ_4

DQU2

E2

E2

C2

VSSQ_5

VSSQ_5

DQU3

E8

E8

A7

VSSQ_6

VSSQ_6

DQU4

F9

F9

A2

VSSQ_7

VSSQ_7

DQU5

G1

G1

B8

VSSQ_8

VSSQ_8

DQU6

G9

G9

A3

VSSQ_9

VSSQ_9

DQU7

M1_1_DDR_VREFDQ

M8

VREFCA

H1

VREFDQ

L8

R419

240

C490

0.1uF

C491

0.1uF

DDR3 1.5V bypass Cap - Place these caps near Memory

Hynix_DDR3_4Gb_25n

SS_DDR3_4Gb_25n

IC404-*2

IC404-*1

H5TQ4G63CFR_RDC

K4B4G1646D-BCMA

EAN63053202

EAN63391401

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

M8

M8

N3

N3

VREFCA

VREFCA

A0

P7

P7

A1

P3

P3

A2

H1

H1

N2

N2

VREFDQ

VREFDQ

A3

P8

P8

A4

P2

P2

A5

R8

L8

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

R8

A6

ZQ

R2

R2

A7

T8

T8

A8

R3

R3

B2

A9

VDD_1

L7

L7

D9

A10/AP

VDD_2

R7

R7

G7

A11

VDD_3

K2

N7

N7

A12/BC

VDD_4

K8

T3

T3

VDD_5

A13

T7

N1

A14

VDD_6

N9

M7

M7

VDD_7

NC_5

R1

VDD_8

R9

M2

M2

VDD_9

BA0

N8

N8

BA1

M3

M3

BA2

A1

VDDQ_1

A8

J7

J7

VDDQ_2

CK

C1

K7

K7

VDDQ_3

CK

C9

K9

K9

VDDQ_4

CKE

D2

VDDQ_5

E9

L2

L2

VDDQ_6

CS

F1

K1

K1

VDDQ_7

ODT

H2

J3

J3

VDDQ_8

RAS

H9

K3

K3

VDDQ_9

CAS

L3

L3

WE

J1

NC_1

J9

T2

T2

NC_2

RESET

L1

NC_3

L9

NC_4

F3

F3

DQSL

G3

G3

DQSL

A9

C7

C7

VSS_1

DQSU

B3

B7

B7

VSS_2

DQSU

E1

VSS_3

G8

E7

E7

VSS_4

DML

J2

D3

D3

VSS_5

DMU

J8

VSS_6

M1

E3

E3

VSS_7

DQL0

M9

F7

F7

VSS_8

DQL1

P1

F2

F2

VSS_9

DQL2

P9

F8

F8

VSS_10

DQL3

T1

H3

H3

VSS_11

DQL4

T9

H8

H8

VSS_12

DQL5

G2

G2

DQL6

H7

H7

DQL7

B1

VSSQ_1

B9

D7

D7

VSSQ_2

DQU0

D1

C3

C3

VSSQ_3

DQU1

D8

C8

C8

VSSQ_4

DQU2

E2

C2

C2

VSSQ_5

DQU3

E8

A7

A7

VSSQ_6

DQU4

F9

A2

A2

VSSQ_7

DQU5

G1

B8

B8

VSSQ_8

DQU6

G9

A3

A3

VSSQ_9

DQU7

SS_DDR3_2Gb

K4B2G1646Q-BCMA

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12/BC
A13

NC_5

BA0
BA1
BA2

CK
CK
CKE

CS
ODT
RAS
CAS
WE

RESET

DQSL
DQSL

DQSU
DQSU

DML
DMU

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7

DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

Hynix_DDR3_2Gb

IC404-*4

IC404-*3

H5TQ2G63FFR-RDC

EAN63648701

EAN63667401

M8

M8

N3

VREFCA

VREFCA

A0

P7

A1

P3

A2

H1

H1

N2

VREFDQ

VREFDQ

A3

P8

A4

P2

A5

R8

L8

L8

A6

ZQ

ZQ

R2

A7

T8

A8

R3

B2

B2

A9

VDD_1

VDD_1

L7

D9

D9

A10/AP

VDD_2

VDD_2

R7

G7

G7

A11

VDD_3

VDD_3

K2

K2

N7

A12/BC

VDD_4

VDD_4

K8

K8

T3

VDD_5

VDD_5

A13

T7

N1

N1

A14

VDD_6

VDD_6

N9

N9

M7

VDD_7

VDD_7

NC_5

R1

R1

VDD_8

VDD_8

R9

R9

M2

VDD_9

VDD_9

BA0

N8

BA1

M3

BA2

A1

A1

VDDQ_1

VDDQ_1

A8

A8

J7

VDDQ_2

VDDQ_2

CK

C1

C1

K7

VDDQ_3

VDDQ_3

CK

C9

C9

K9

VDDQ_4

VDDQ_4

CKE

D2

D2

VDDQ_5

VDDQ_5

E9

E9

L2

VDDQ_6

VDDQ_6

CS

F1

F1

K1

VDDQ_7

VDDQ_7

ODT

H2

H2

J3

VDDQ_8

VDDQ_8

RAS

H9

H9

K3

VDDQ_9

VDDQ_9

CAS

L3

WE

J1

J1

NC_1

NC_1

J9

J9

T2

NC_2

NC_2

RESET

L1

L1

NC_3

NC_3

L9

L9

NC_4

NC_4

T7

F3

NC_6

DQSL

G3

DQSL

A9

A9

C7

VSS_1

VSS_1

DQSU

B3

B3

B7

VSS_2

VSS_2

DQSU

E1

E1

VSS_3

VSS_3

G8

G8

E7

VSS_4

VSS_4

DML

J2

J2

D3

VSS_5

VSS_5

DMU

J8

J8

VSS_6

VSS_6

M1

M1

E3

VSS_7

VSS_7

DQL0

M9

M9

F7

VSS_8

VSS_8

DQL1

P1

P1

F2

VSS_9

VSS_9

DQL2

P9

P9

F8

VSS_10

VSS_10

DQL3

T1

T1

H3

VSS_11

VSS_11

DQL4

T9

T9

H8

VSS_12

VSS_12

DQL5

G2

DQL6

H7

DQL7

B1

B1

VSSQ_1

VSSQ_1

B9

B9

D7

VSSQ_2

VSSQ_2

DQU0

D1

D1

C3

VSSQ_3

VSSQ_3

DQU1

D8

D8

C8

VSSQ_4

VSSQ_4

DQU2

E2

E2

C2

VSSQ_5

VSSQ_5

DQU3

E8

E8

A7

VSSQ_6

VSSQ_6

DQU4

F9

F9

A2

VSSQ_7

VSSQ_7

DQU5

G1

G1

B8

VSSQ_8

VSSQ_8

DQU6

G9

G9

A3

VSSQ_9

VSSQ_9

DQU7

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

ZQ

AVDD_DDR
B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

AR407
56
1/16W

AR408
56
1/16W

AR409
56
1/16W

AR410
56
1/16W

AR411
56
1/16W

AR412
56
1/16W

AR413
56
1/16W

OPT

R405

M0_DDR_RESET_N

OPT

R422

1%

+3.3V_NORMAL

M1_DDR_RESET_N

CIS2 1J121

DDR_VTT

M0_DDR_CKE

M1_DDR_CKE

C544
10uF

L401

10V

C453 0.1uF

C454 0.1uF

C455 0.1uF

C456 0.1uF

C457 0.1uF

C458 0.1uF

C459 0.1uF

C460 0.1uF

C461 0.1uF

C462 0.1uF

C463 0.1uF

C464 0.1uF

C465 0.1uF

C466 0.1uF

R412
56
1%

R413
56
1%

R427
56
1%

R428
56
1%

C477

0.01uF
50V

1K

M0_D_CLK

M0_D_CLKN

1K

C497

0.01uF
50V

M1_D_CLKN

R418

R433

M1_D_CLK

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

+1.5V_Bypass Cap
Close to DDR Power Pin

AVDD_DDR

C446 0.1uF

C444 0.1uF

C445 0.1uF

+1.5V_Bypass Cap
Close to DDR Power Pin

AVDD_DDR

C475 0.1uF

C480 0.1uF

C476 0.1uF

LM14A

LM14A DDR

BSD-15Y-LM14A-004_00-HD

2014-12-30

04

COMPENSATION_DONE_1

Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

DPC_CTRL

12V_ON

OLED

TDI0

TDI0_1

R602
0

R603
0
OPT

+3.3V_NORMAL

Jtag I/F

JTAG

1K

R614

For Main

JTAG

1K

R616

TRST_N0
TDI0
TDO0
TMS0
TCK0
SOC_RESET

C600

0.1uF

SW600

JS2235S

1

OPT

2

3

JTAG

6

5

4

R604
0

R605
0
OPT

TDO0

OPT

TDO0_1

JTAG

P600

12505WS-10A00

JTAG

11

1

2

3

4

5

6

7

8

9

10

JTAG

1K

R612

1K

JTAG

R609

Clock for MSD808KWD

MAIN Clock(24Mhz)

5pF

C614

5pF

C615

System Clock for Analog block(24Mhz)

GND_1

2

3

X-TAL_2

X-TAL_1

1

4

GND_2

X600

24MHz

R635

1M

XIN_MAIN

XOUT_MAIN

HDMI 1.4b &2.0

MHL OPT

D0-_HDMI1
D0+_HDMI1
D1-_HDMI1
D1+_HDMI1
D2-_HDMI1
D2+_HDMI1
CK-_HDMI1
CK+_HDMI1
DDC_SCL_1
DDC_SDA_1

HDMI_HPD_1

5V_DET_HDMI_1

D0-_HDMI2
D0+_HDMI2
D1-_HDMI2
D1+_HDMI2
D2-_HDMI2
D2+_HDMI2
CK-_HDMI2
CK+_HDMI2
DDC_SCL_2
DDC_SDA_2

HDMI_HPD_2

5V_DET_HDMI_2

D0-_HDMI3
D0+_HDMI3
D1-_HDMI3
D1+_HDMI3
D2-_HDMI3
D2+_HDMI3
CK-_HDMI3
CK+_HDMI3
DDC_SCL_3
DDC_SDA_3

HDMI_HPD_3

5V_DET_HDMI_3

TMS0

TDI0_1

R600

0

SPDIF_OUT

JTAG
R601

URSA_RESET_SoC

BIT6
BIT7
BIT8
BIT9

JTAG

0

LGE5332(LM14A)

T2

A_RX0N

T3

A_RX0P

U1

A_RX1N

V2

A_RX1P

V3

A_RX2N

W2

A_RX2P

R1

A_RXCN

R2

A_RXCP

R6

DDCDA_CK/GPIO38

T5

DDCDA_DA/GPIO39

Y2

HOTPLUGA

V6

CEC0/GPIO5

U4

HOTPLUGA_HDMI20_5V/GPIO34

L1

B_RX0N

M2

B_RX0P

M3

B_RX1N

N2

B_RX1P

P2

B_RX2N

P1

B_RX2P

K2

B_RXCN

K3

B_RXCP

L4

DDCDB_CK/GPIO40

L5

DDCDB_DA/GPIO41

M4

HOTPLUGB/GPIO31

M5

HOTPLUGB_HDMI20_5V/GPIO35

D2

C_RX0N

D3

C_RX0P

E2

C_RX1N

E3

C_RX1P

F2

C_RX2N

F1

C_RX2P

C3

C_RXCN

D1

C_RXCP

H6

DDCDC_CK/GPIO42

H5

DDCDC_DA/GPIO43

K6

HOTPLUGC/GPIO32

J6

HOTPLUGC_HDMI20_5V/GPIO36

G2

D_RX0N

G3

D_RX0P

H2

D_RX1N

H3

D_RX1P

J2

D_RX2N

J1

D_RX2P

F3

D_RXCN

G1

D_RXCP

J4

DDCDD_CK/GPIO44

K5

DDCDD_DA/GPIO45

H4

HOTPLUGD/GPIO33

J5

HOTPLUGD_HDMI20_5V/GPIO37

B5

SPDIF_IN/GPIO96

A5

SPDIF_OUT/GPIO97

IC100

LINEIN_L0
LINEIN_R0
LINEIN_L1
LINEIN_R1
LINEIN_L2
LINEIN_R2

MICCM0

MICIN0
LINEOUT_L2
LINEOUT_R2

EARPHONE_OUTL
EARPHONE_OUTR

ARC0/GPIO6

AVSS_VRM_ADC

I2S_IN_BCK/GPIO94

I2S_IN_SD/GPIO95
I2S_IN_WS/GPIO93

I2S_OUT_BCK/GPIO100

I2S_OUT_MCK/GPIO99

I2S_OUT_WS/GPIO98

I2S_OUT_SD/GPIO101
I2S_OUT_SD1/GPIO102
I2S_OUT_SD2/GPIO103
I2S_OUT_SD3/GPIO104

GPIO_PM[14]/GPIO24

GPIO_PM[15]/GPIO25

GPIO_PM[16]/GPIO26

IC100

LGE5332(LM14A)

0.047uF

0.047uF

0.047uF

0.047uF

0.047uF

0.047uF

0.047uF

0.047uF
1000pF

C620

C621

C622

C624

C627
C628
C629

C631
C632

0.047uF

C616
C617 0.047uF
C618 0.047uF

AA2
AA1

AA6
AA5

AA3
AC1
AC2

AB2
AB3

AD3
AD2
AD1

AC3

AD6

AC6
AC5
AB6

AC4

Y3

Y1

RIN0P
GIN0M
GIN0P

BIN0P

HSYNC0
VSYNC0

RIN1P
GIN1M
GIN1P

BIN1P
SOGIN1

RIN2P
GIN2M
GIN2P

BIN2P

VCOM

CVBS0
CVBS1
CVBS2

CVBS_OUT1

GPIO19/[LED0]/GPIO74
GPIO20/[LED1]/GPIO75

RESET

XTAL_IN

XTAL_OUT

IRIN/GPIO4

DM_P0
DP_P0
DM_P1
DP_P1
DM_P2

DP_P2
SSUSB_TXP
SSUSB_TXN

DM_PSS

DP_PSS
SSUSB_RXP
SSUSB_RXN

SSUSB_TXP1
SSUSB_TXN1

DM_PSS1

DP_PSS1
SSUSB_RXP1
SSUSB_RXN1

TN
TP
RN
RP

B1
C1
A2
B2

D4
T6

D5

AM4
AK4

F5

A4
B4
C4
B3
AL6
AK6
AM14
AL14
AM13
AK13
AK12
AL13
AK9
AL10
AM10
AK10
AM11
AL11

BIT11

C633 0.1uF
C634 0.1uF

EPHY_TDN
EPHY_TDP
EPHY_RDN
EPHY_RDP

I2C_SCL4
I2C_SDA4

SOC_RESET

XIN_MAIN
XOUT_MAIN

WIFI_DM
WIFI_DP

USB_DM3

USB_DP3
SSUSB_TXP
SSUSB_TXN
USB_DM1
USB_DP1
SSUSB_RXP
SSUSB_RXN

USB_DM2

USB_DP2

AC-coupling CAP

Place near by MST

C612

1000pF

OPT

R624 33

R625

R626

R628 33

50V

33

R630 33
R631
R632

R634 33

R619 68

68

68
33

C613 0.047uF

R620 33
R621 33
R622 33

AF6
AE6
AF2
AF1
AG5
AG4

AF3
AG1
AH2
AH3

AF4
AF5

P3

AG3

VAG

AG2

D8

0

JTAG

D6

R606

C5

G6
E6
F6
E8
F9
E7
F7

R6440

AG7
AH6
AH5

C601

2.2uF
C602

2.2uF
C603

2.2uF
C604

2.2uF

C605 1uF

TCK0

JTAG

BIT10

DPC_CTRL
12V_ON

MHL_DET_LM15
COMPENSATION_DONE_1
/MHL_OCP

C606
10uF
10V

1K

R608

R610
22

R611
22

22pF

COMP1/AV1/DVI_L_IN
COMP1/AV1/DVI_R_IN
SC_L_IN
SC_R_IN

SCART_Lout
SCART_Rout

HP_LOUT
HP_ROUT

HDMI_ARC

1uF

C609

+3.3V_NORMAL

R618
22

C607

C608
22pF

JTAG

R613
0

L60 0

PZ1 608U 121- 2R0T F

47K

R615

JTAG

C611
22pF

TDO0_1

TRST_N0

AUD_SCK

AUD_LRCK
AUD_LRCH

SC_R

SC_G

SC_B

SC_ID
SC_FB

COMP1_Pr

COMP1_Y

COMP1_Pb

TU_CVBS

AV1_CVBS_IN

SC_CVBS_IN

DTV/MNT_V_OUT

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LM14A

MAIN4_EXT_IN/OUTPUT

BSD-15Y-LM14A-006_00-HD

2015-01-08

06
