LG 43UH603V, 49UH603V Schematic

Internal Use Only

LED TV

SERVICE MANUAL

CHASSIS : UD65S

MODEL : 43/49UH603V 43/49UH603V-ZE

CAUTION

BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

P/NO : MFL69506706 (1607-REV00)

CONTENTS

CONTENTS ..............................................................................................	2
SAFETY PRECAUTIONS .........................................................................	3
SERVICING PRECAUTIONS....................................................................	4
SPECIFICATION........................................................................................	6

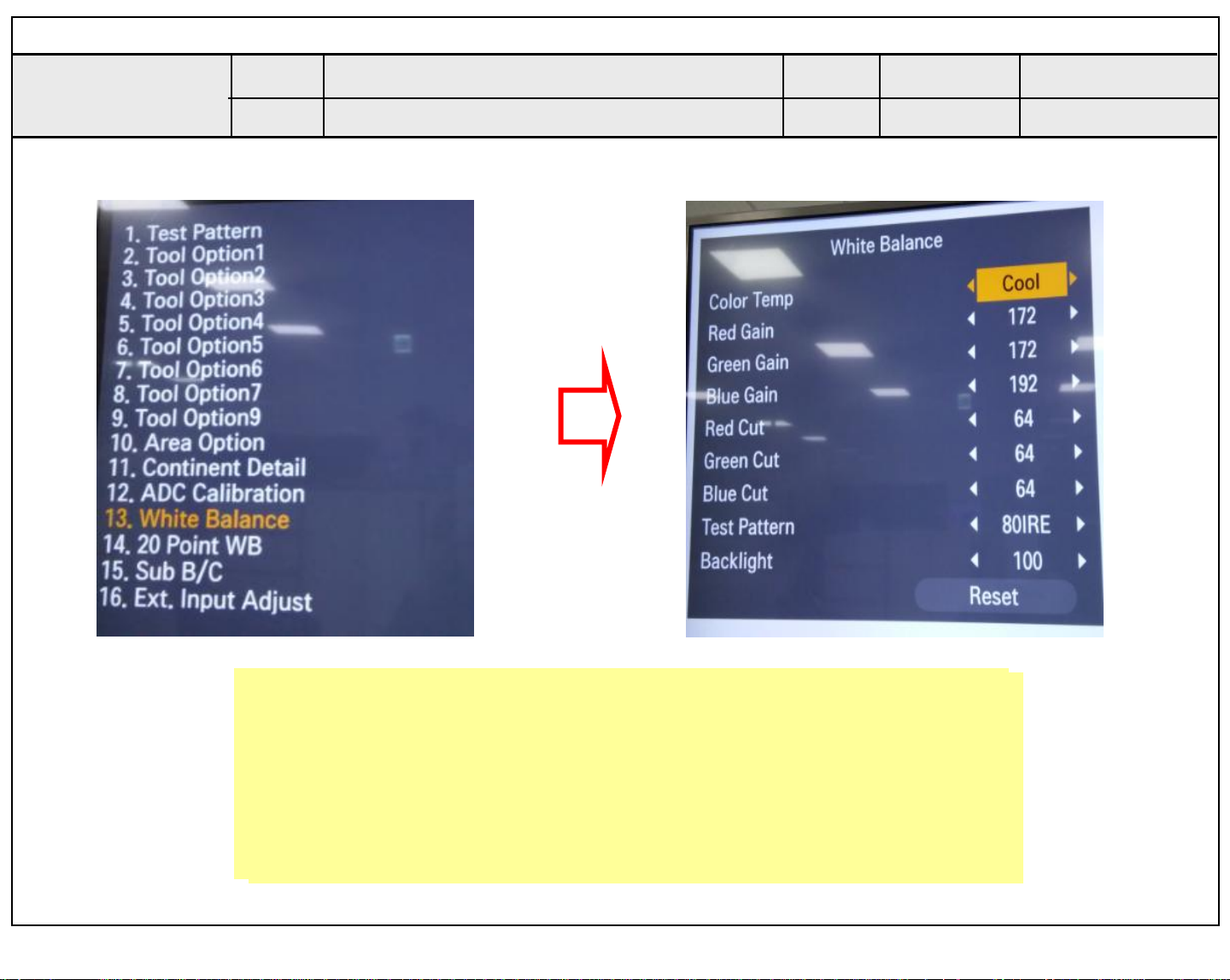

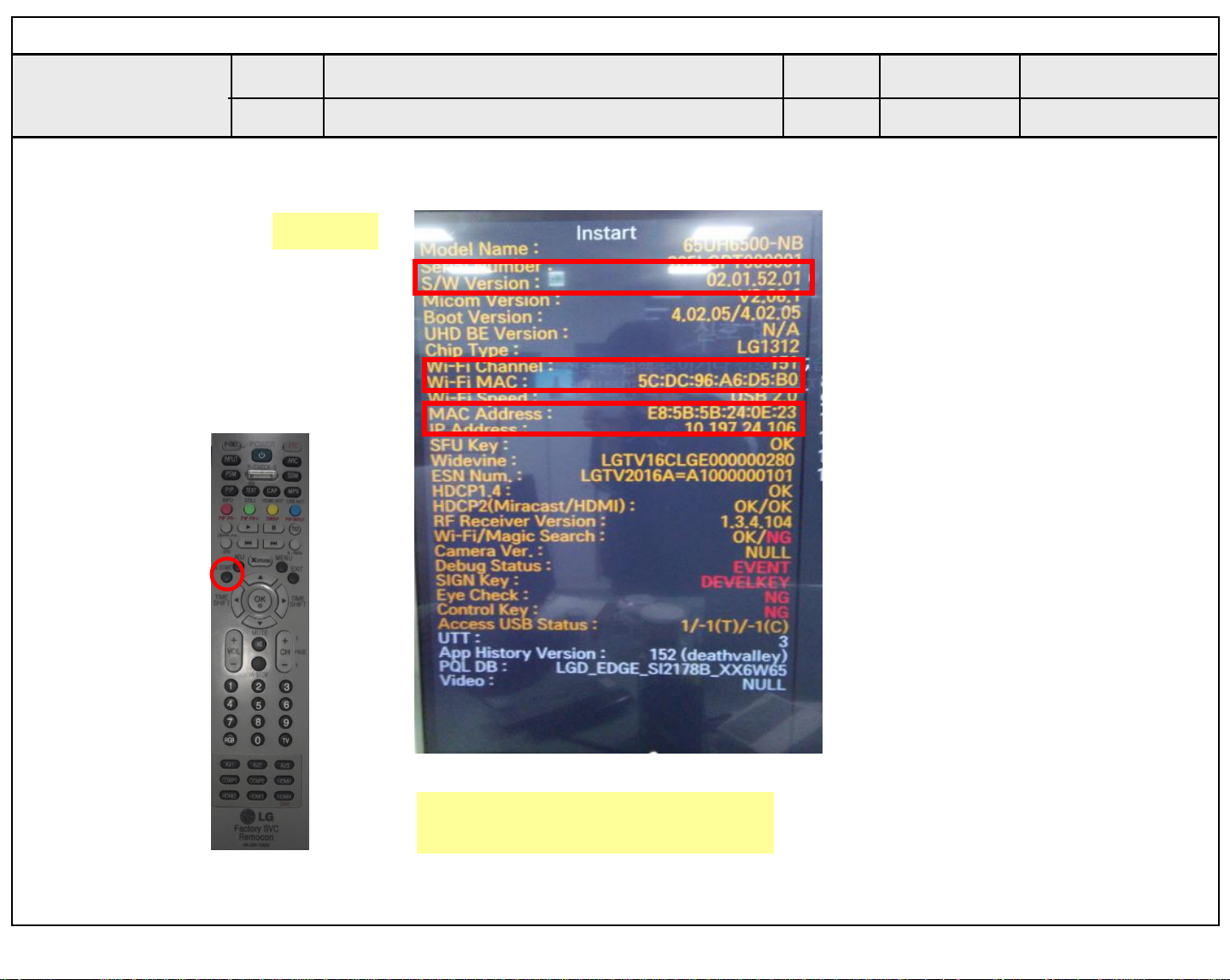

ADJUSTMENT INSTRUCTION...............................................................	11

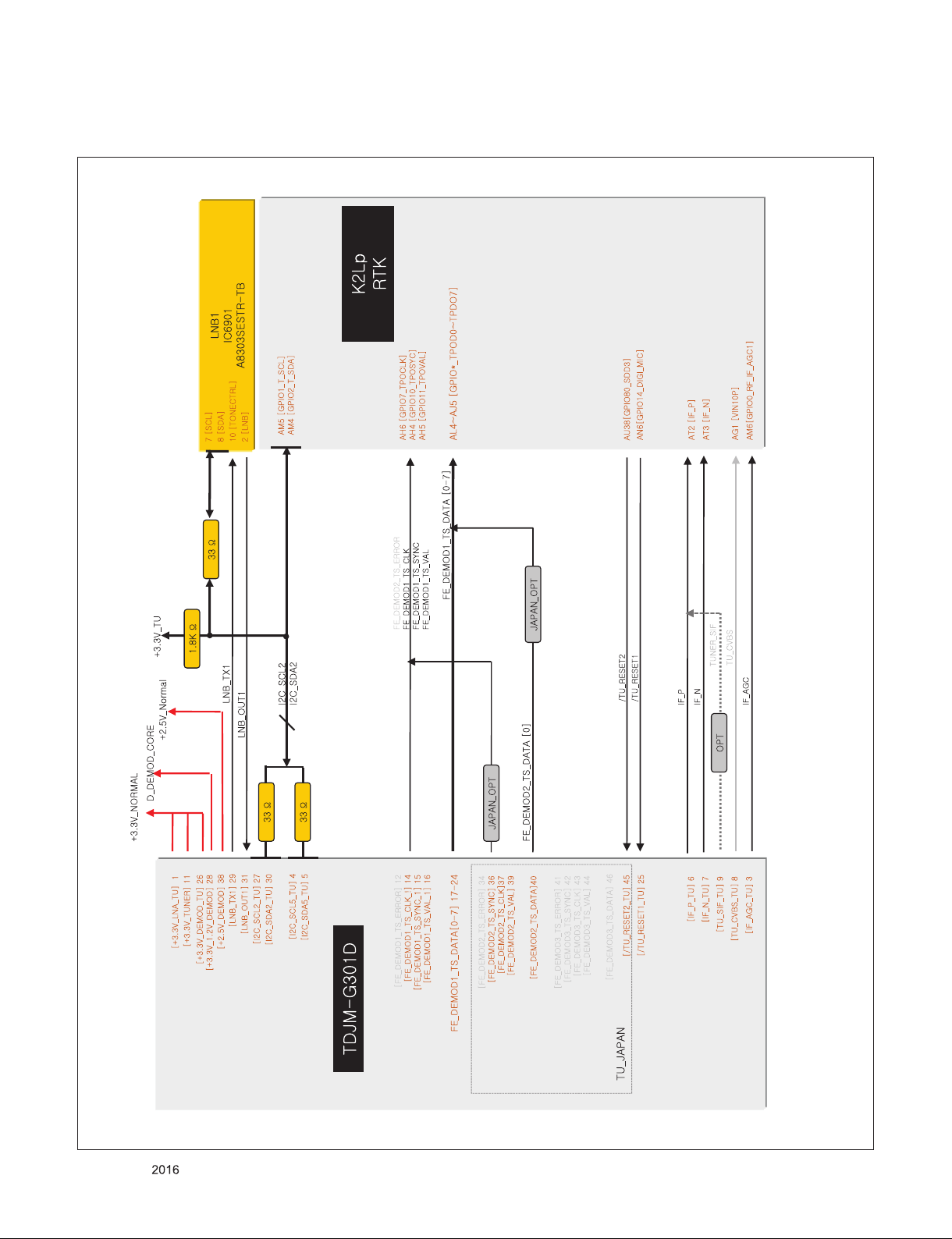

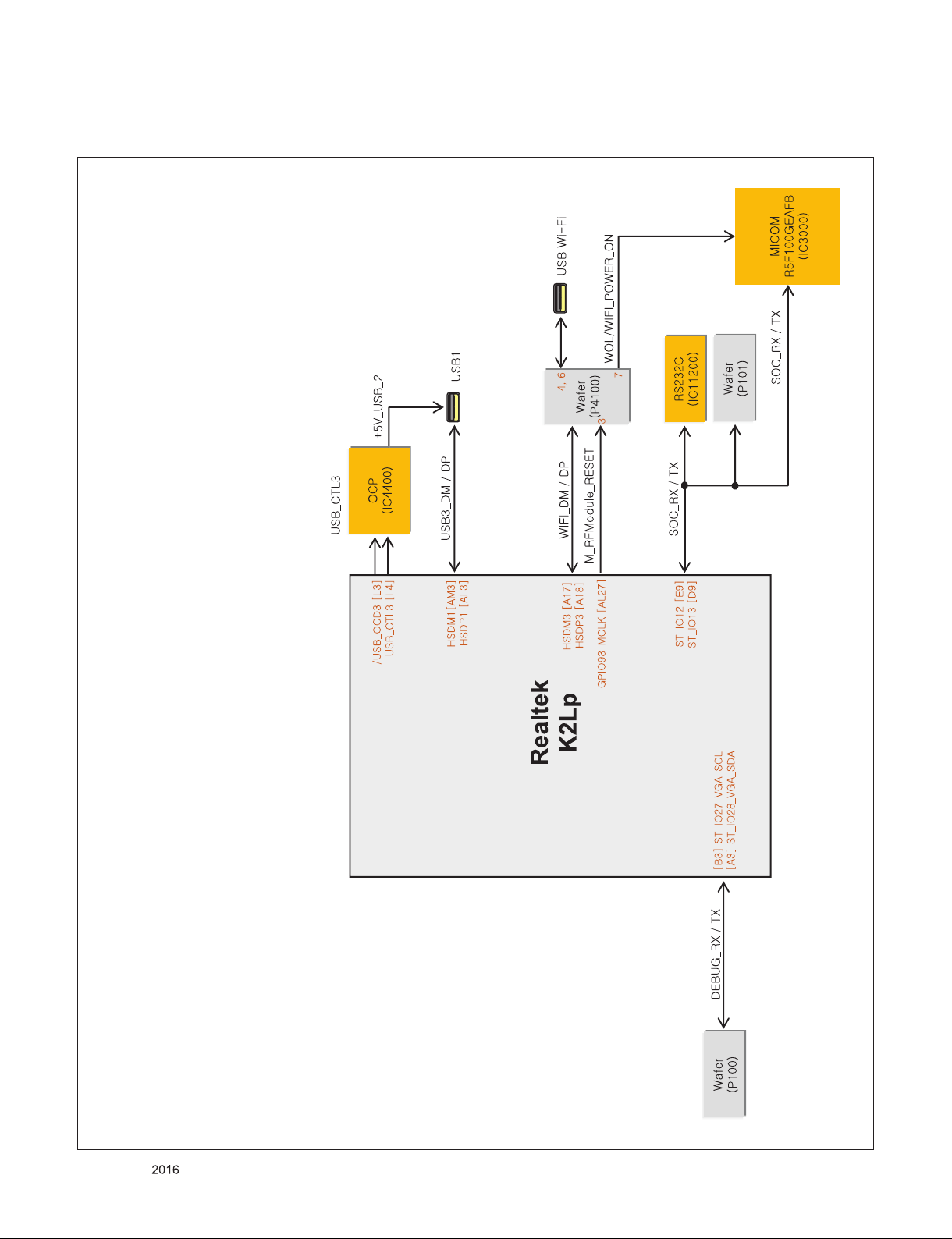

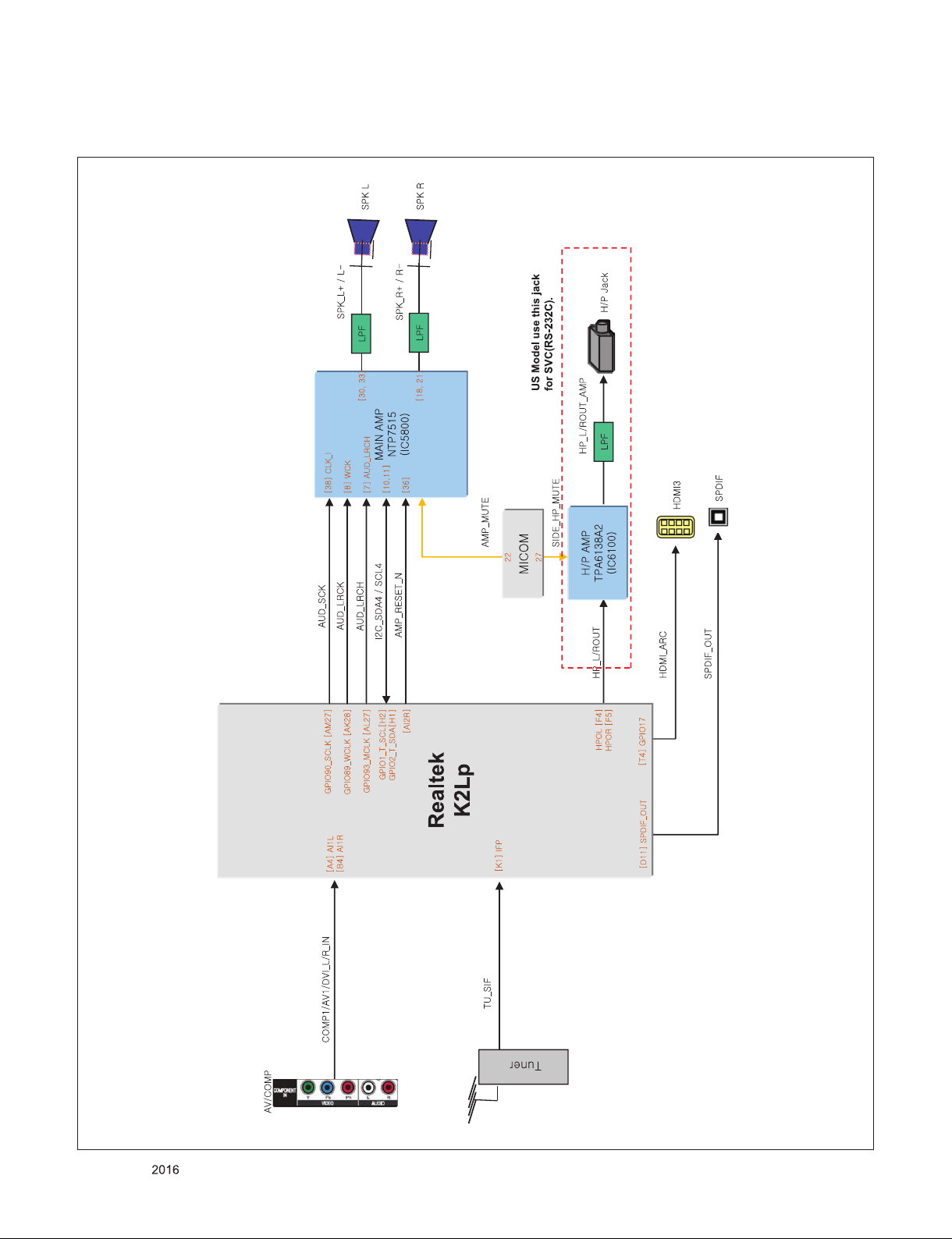

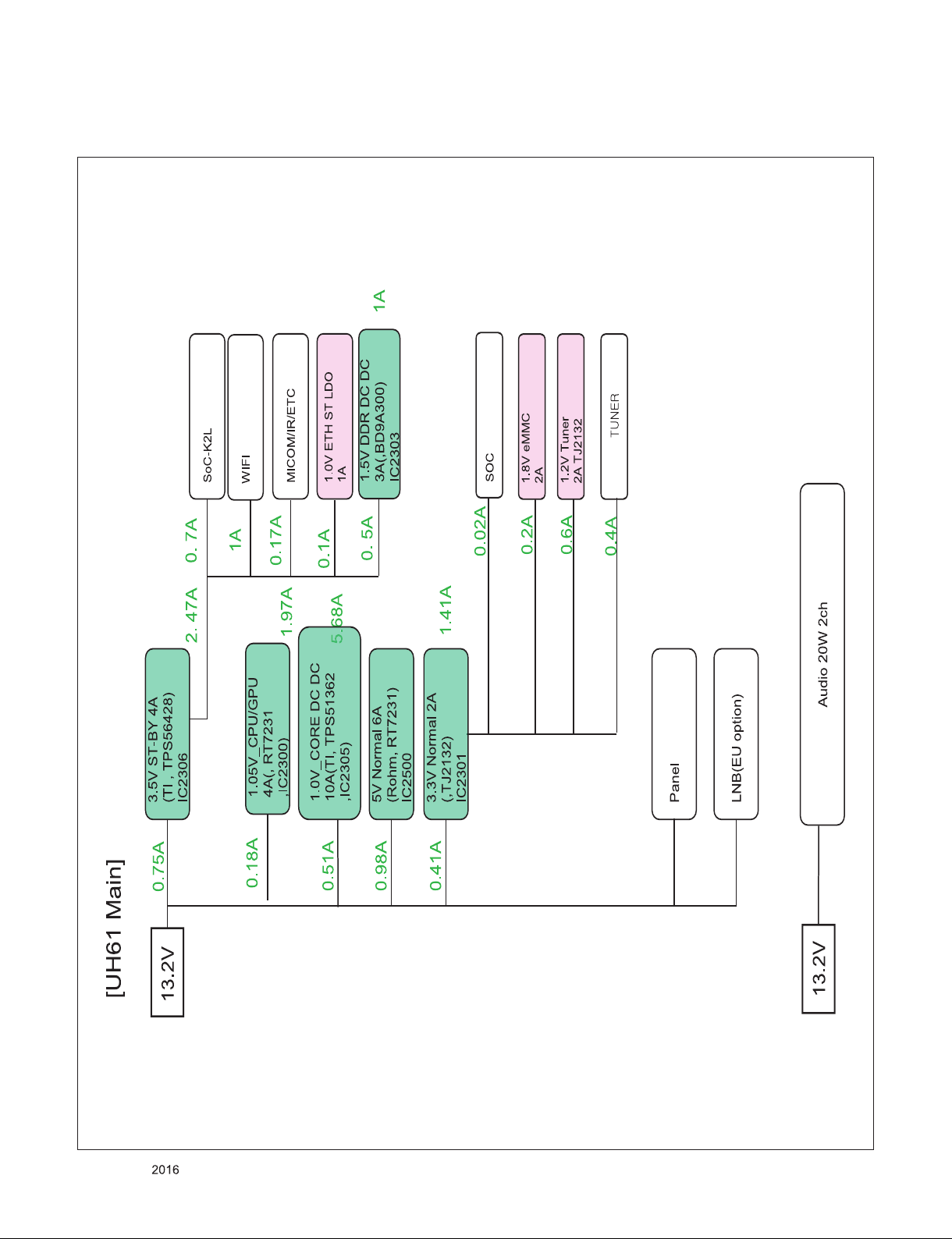

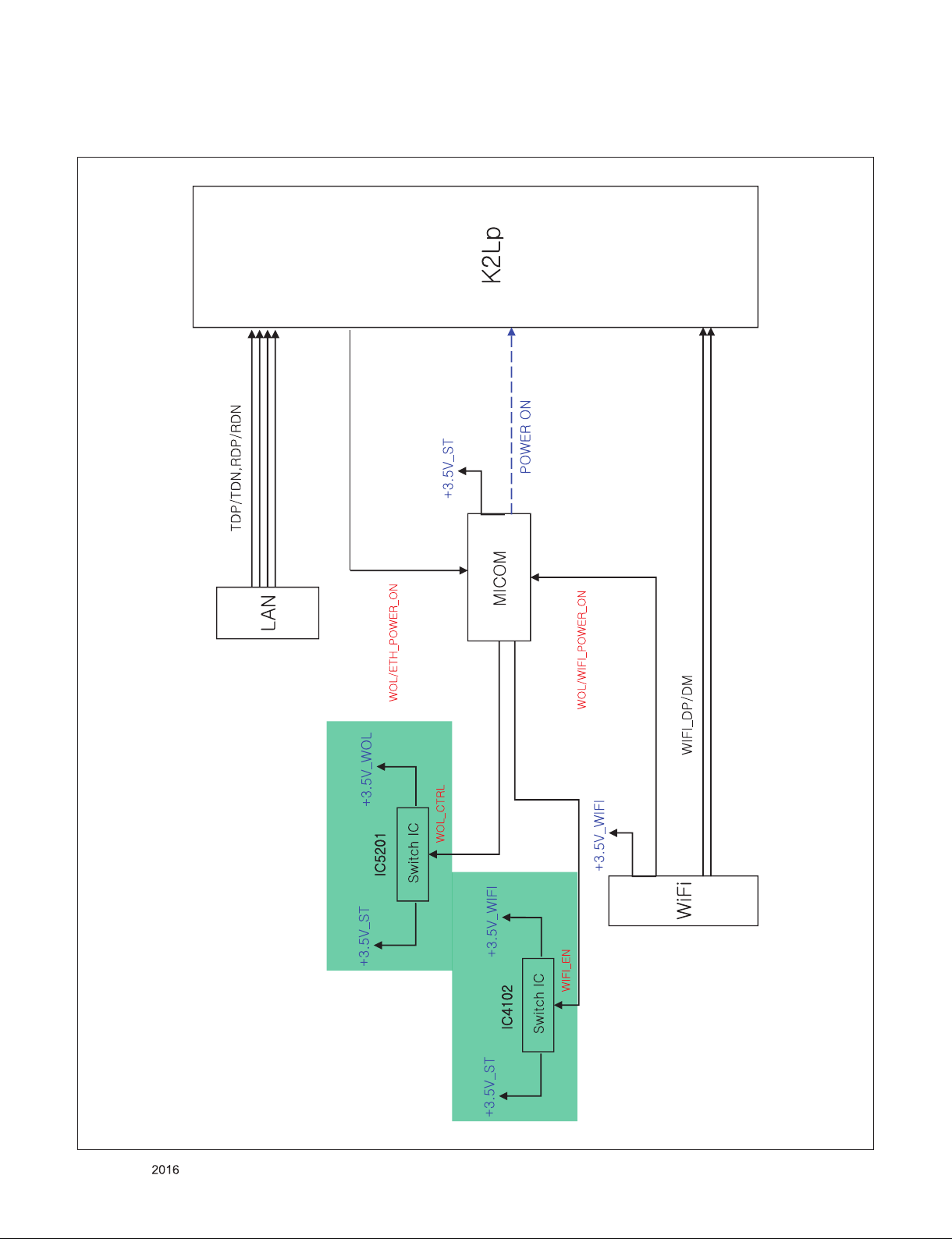

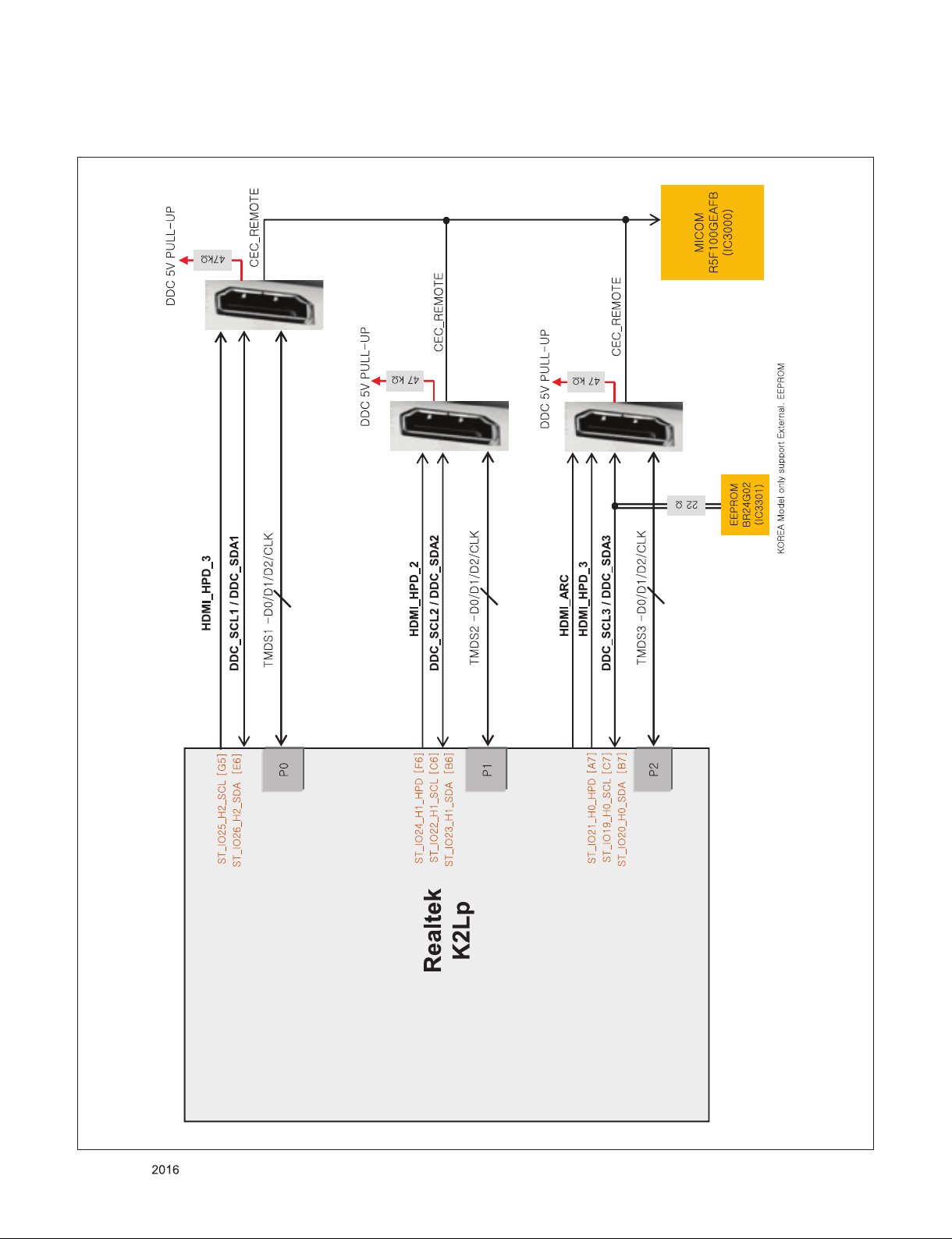

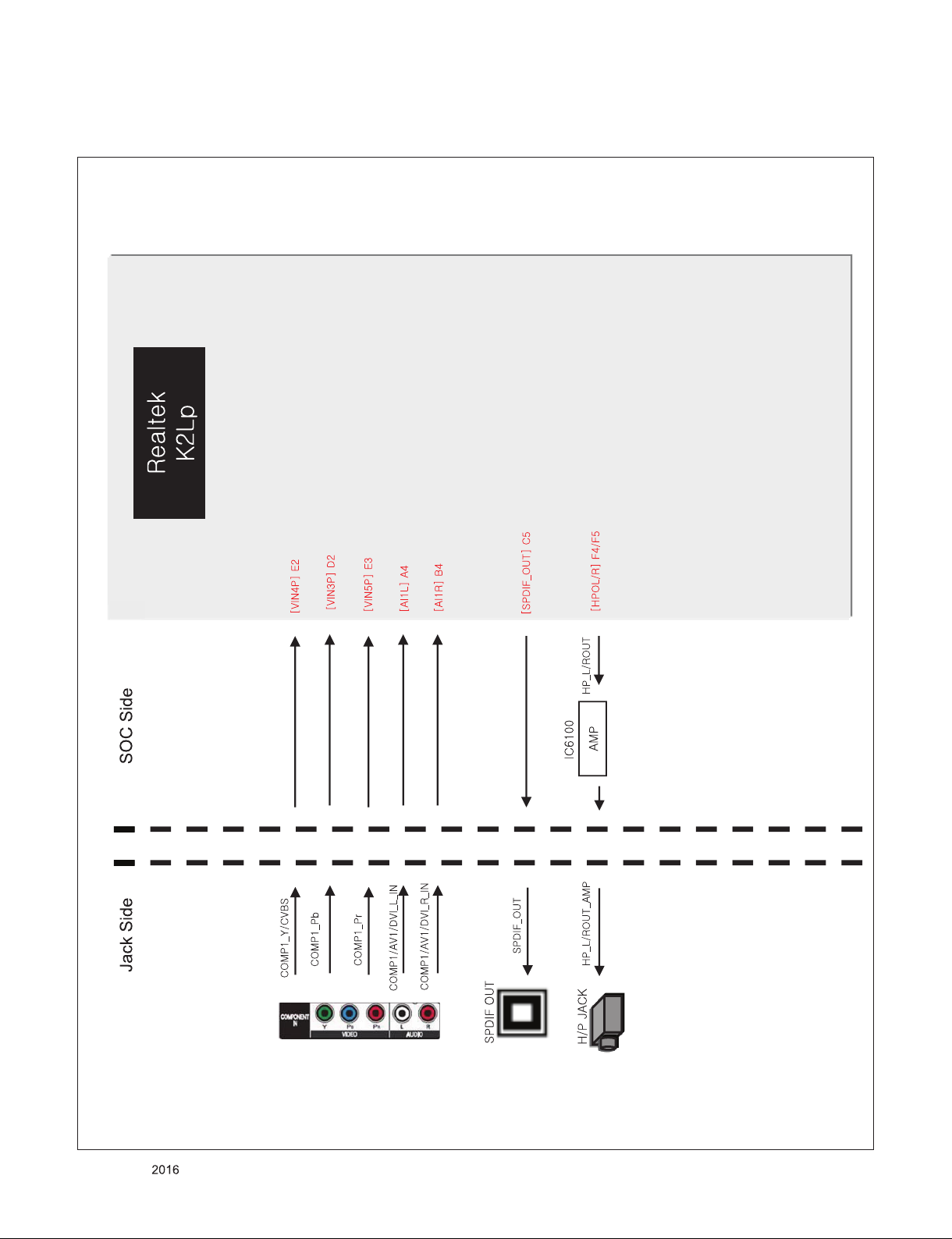

BLOCK DIAGRAM..................................................................................	21

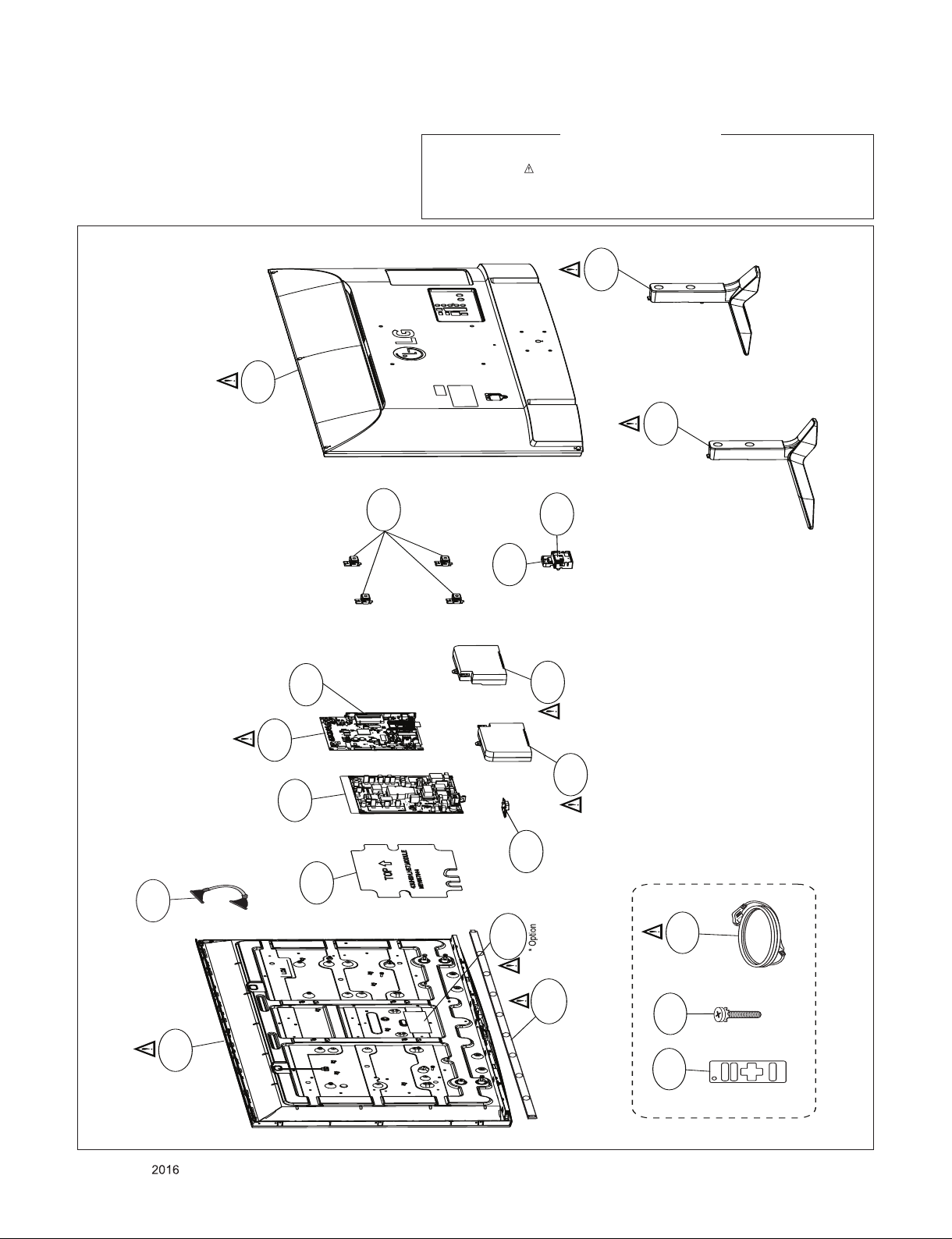

EXPLODED VIEW ...................................................................................	31

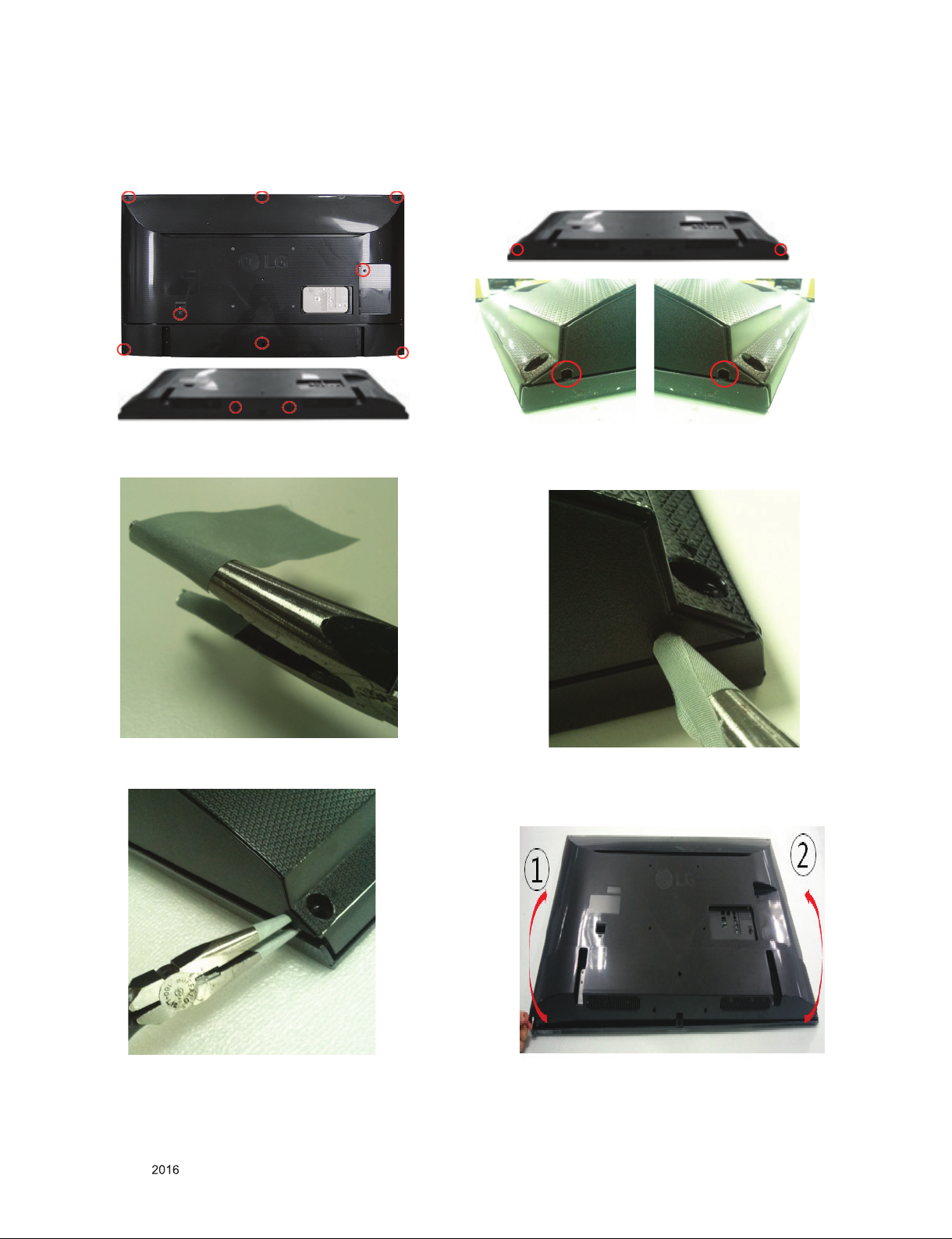

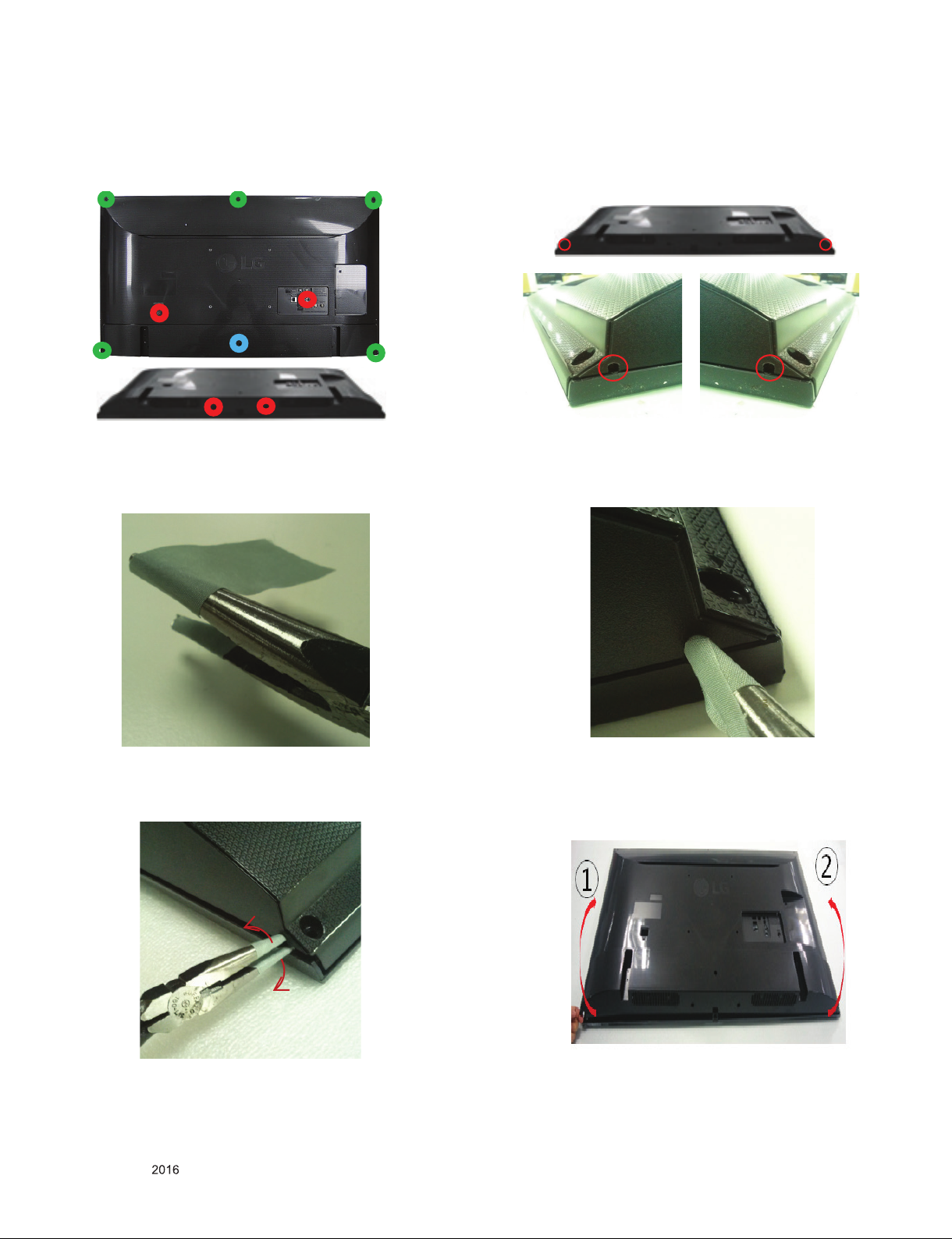

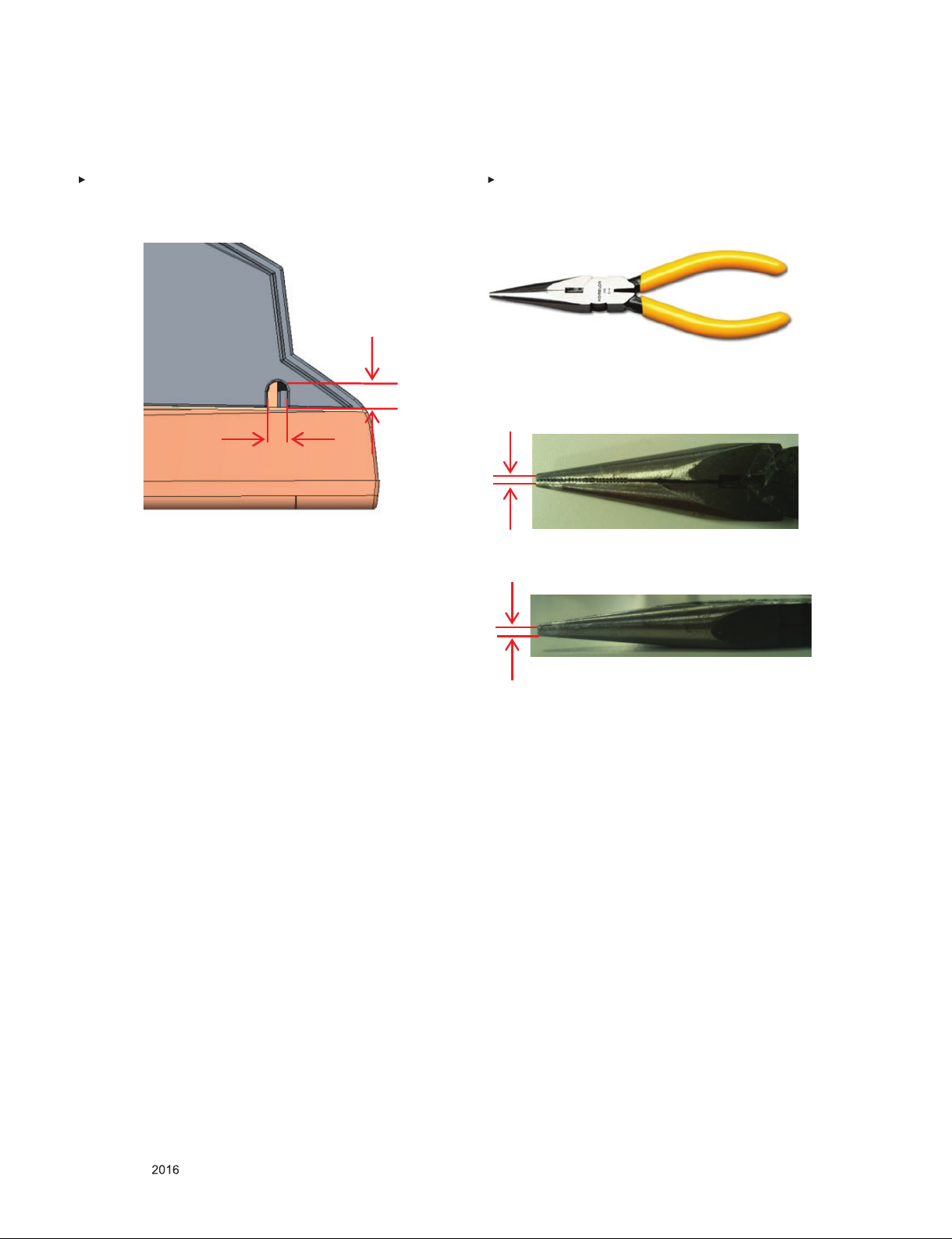

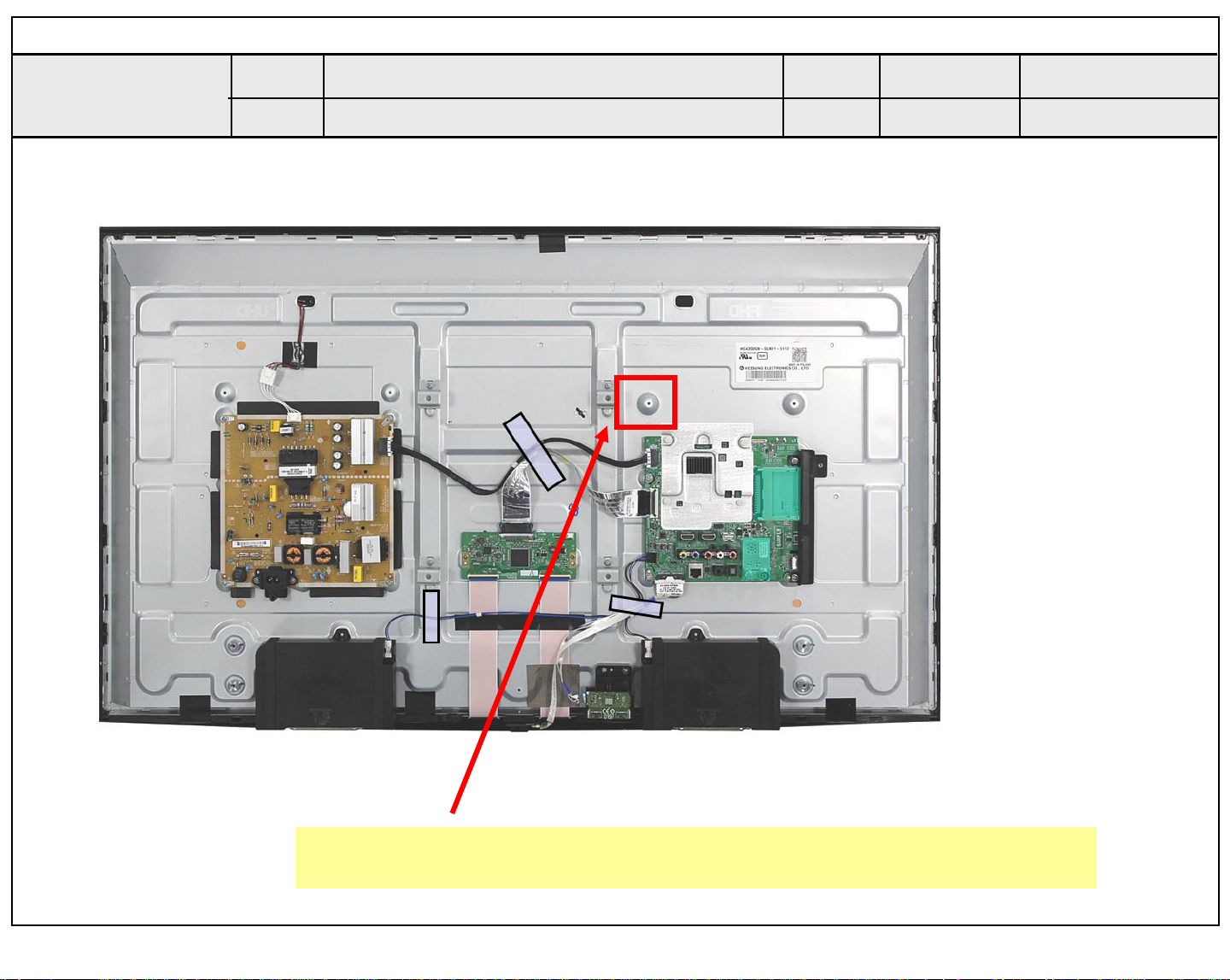

DISASSEMBLY........................................................................................	32

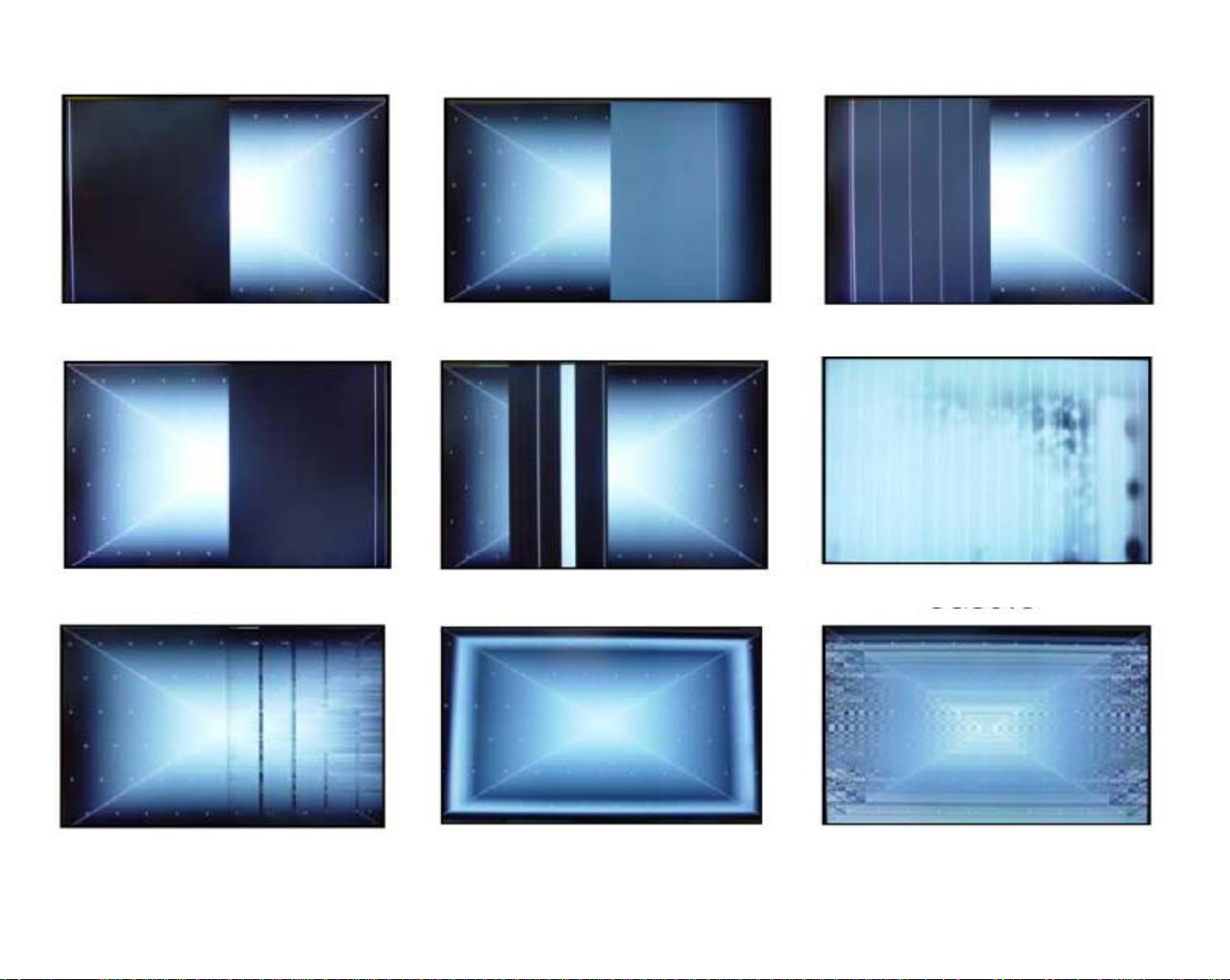

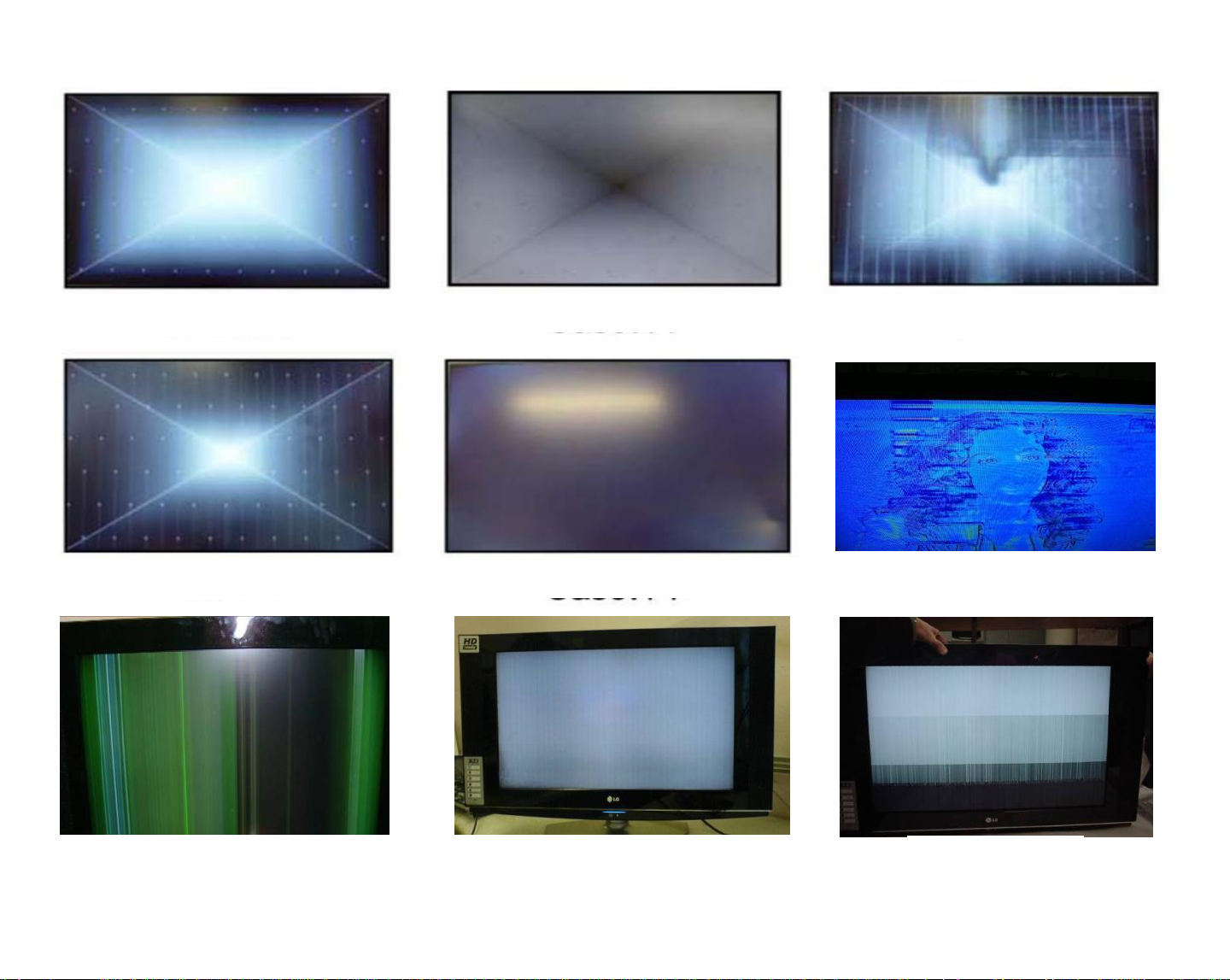

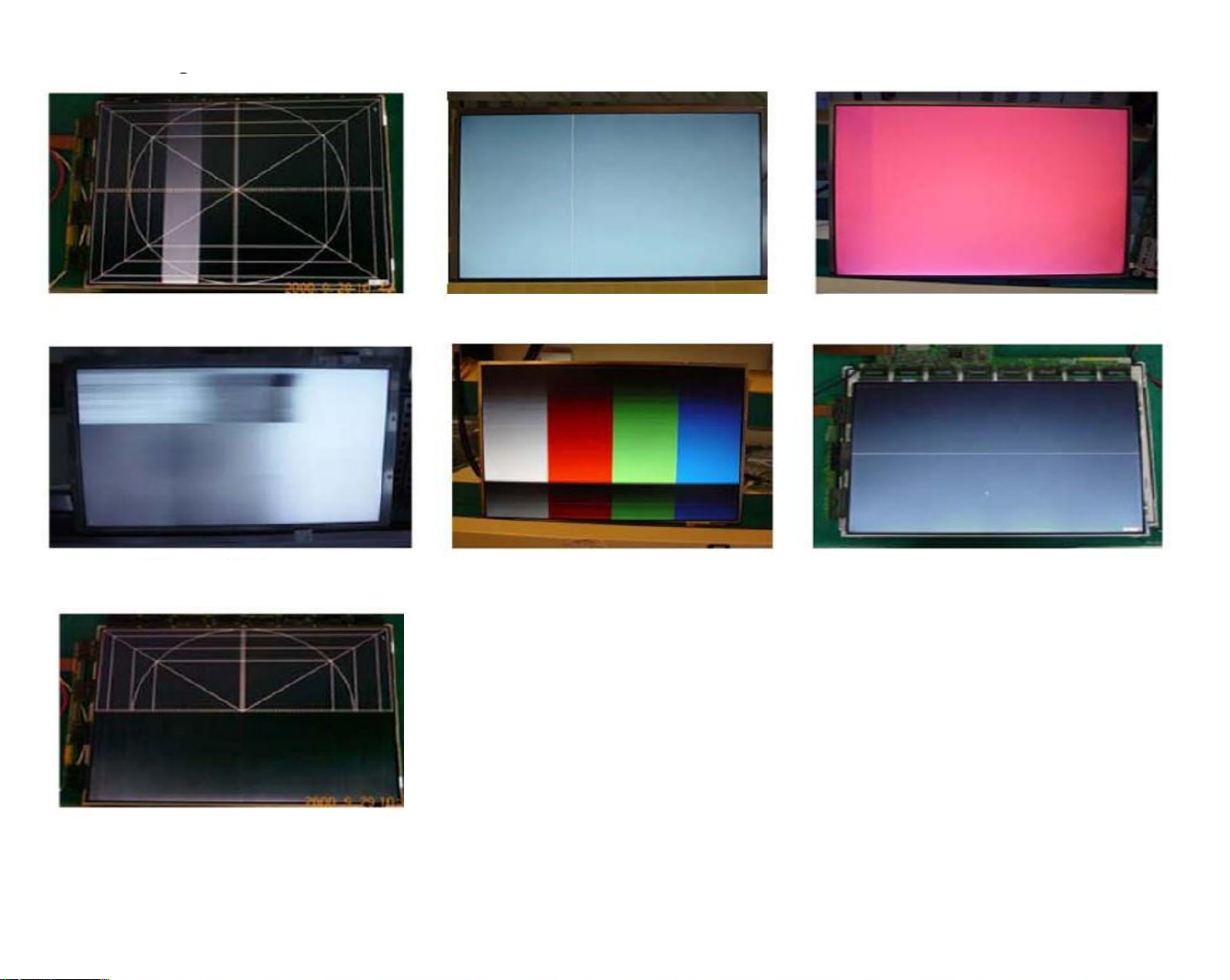

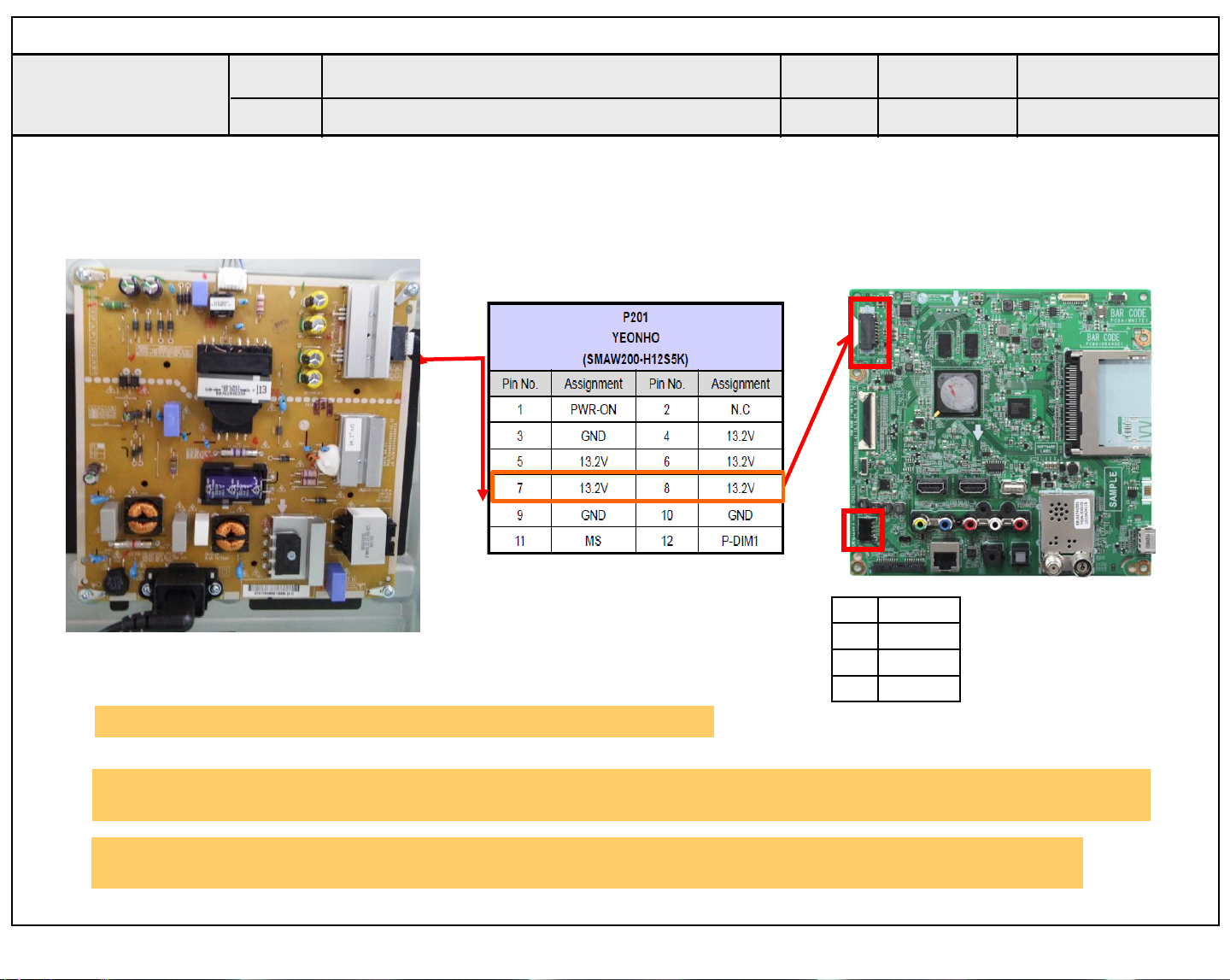

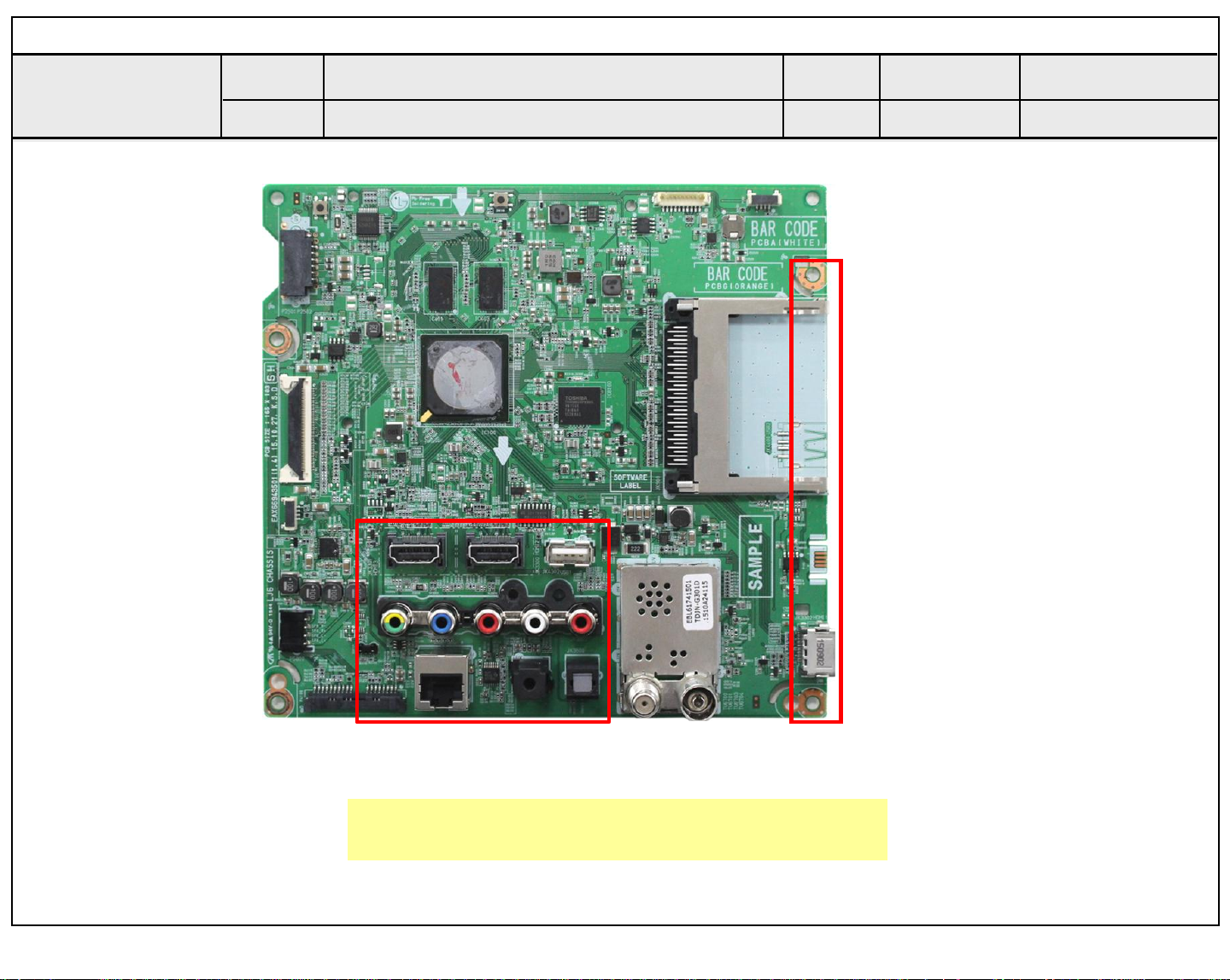

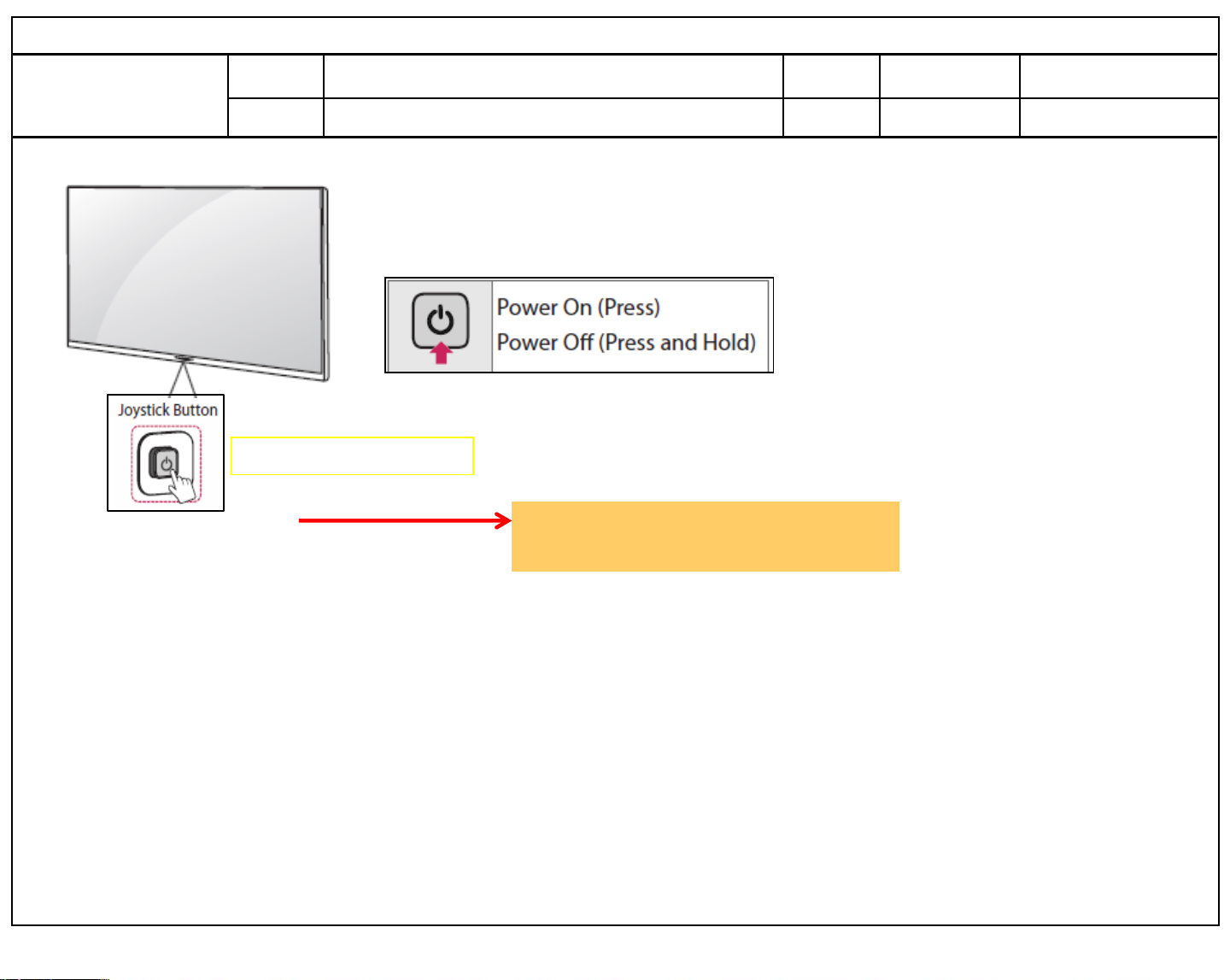

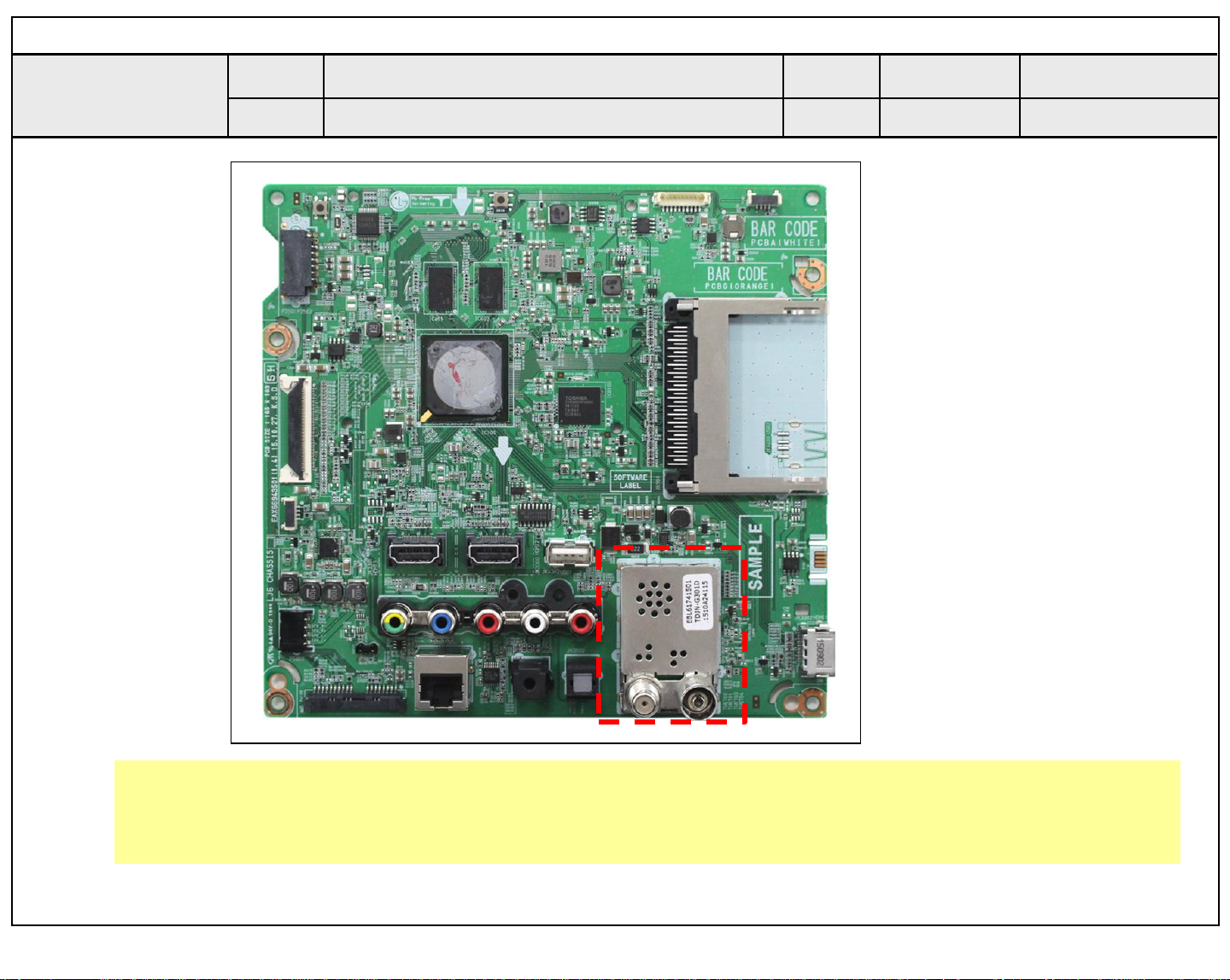

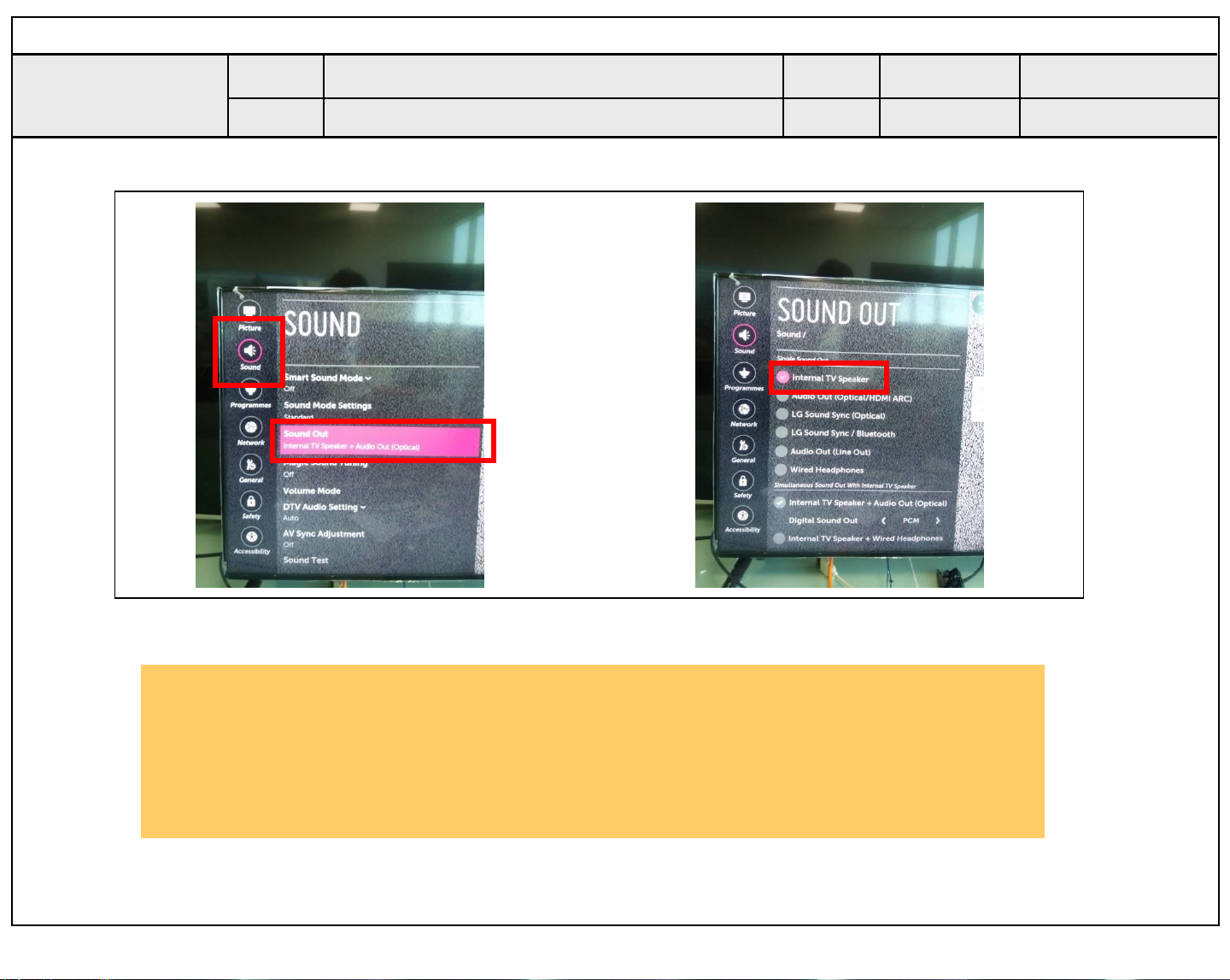

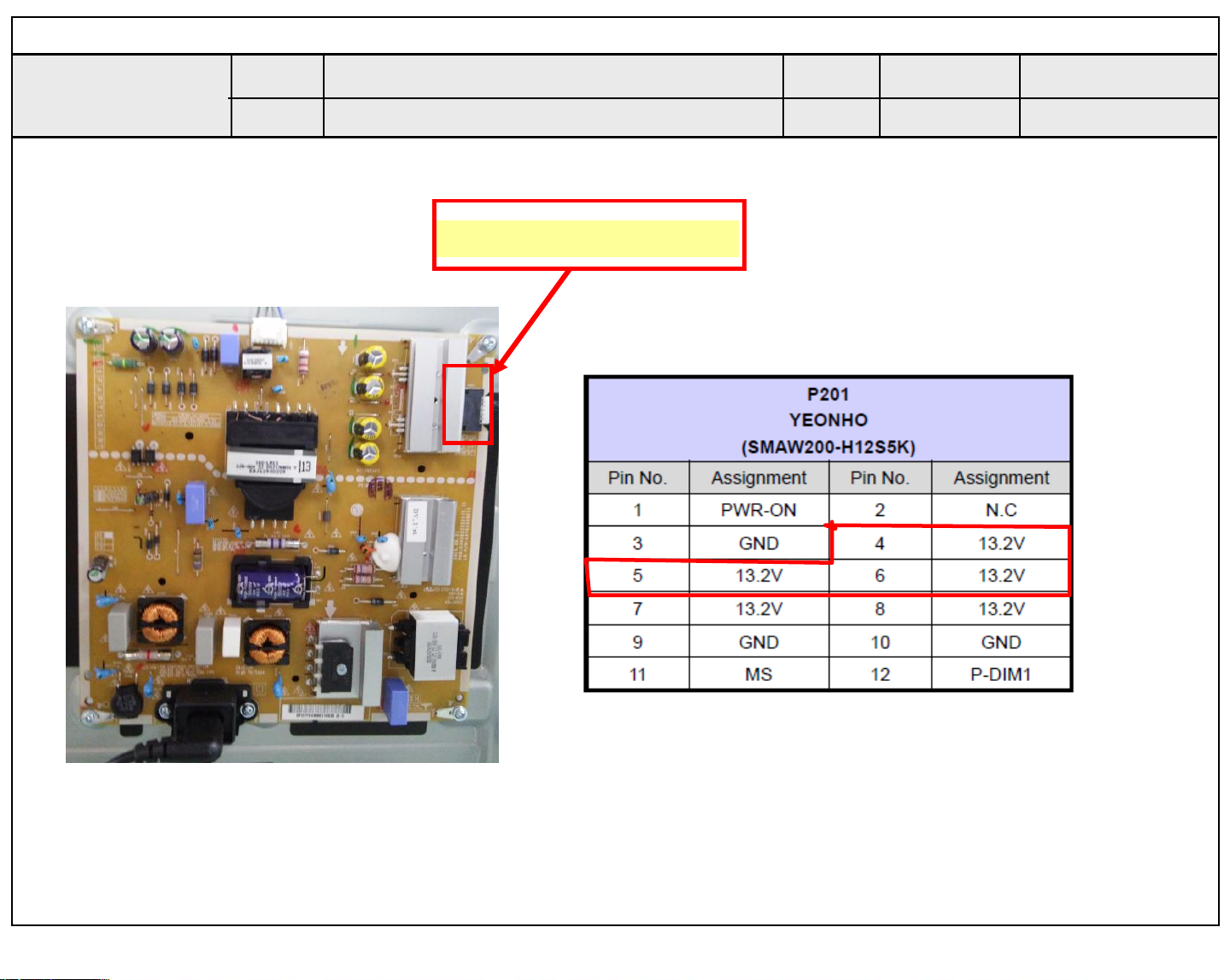

TROUBLE SHOOTING GUIDE ................................................	APPENDIX

Copyright ©	LG Electronics. Inc. All rights reserved.	- 2 -	LGE Internal Use Only
Only for training and service purposes

SAFETY PRECAUTIONS

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Exploded View.

It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards.

Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks.

It will also protect the receiver and it's components from being damaged by accidental shorts of the circuitry that may be inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown, replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1 W), keep the resistor 10 mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc.

If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1 MΩ and 5.2 MΩ.

When the exposed metal has no return path to the chassis the reading must be infinite.

An other abnormality exists that must be corrected before the receiver is returned to the customer.

Leakage Current Hot Check (See below Figure) Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.

Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts.

Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity.

Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to 0.5 mA.

In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer.

Leakage Current Hot Check circuit

Copyright ©	LG Electronics. Inc. All rights reserved.	- 3 -	LGE Internal Use Only
Only for training and service purposes

SERVICING PRECAUTIONS

CAUTION: Before servicing receivers covered by this service manual and its supplements and addenda, read and follow the SAFETY PRECAUTIONS on page 3 of this publication.

NOTE: If unforeseen circumstances create conflict between the following servicing precautions and any of the safety precautions on page 3 of this publication, always follow the safety precautions. Remember: Safety First.

General Servicing Precautions

1.Always unplug the receiver AC power cord from the AC power source before;

a.Removing or reinstalling any component, circuit board module or any other receiver assembly.

b.Disconnecting or reconnecting any receiver electrical plug or other electrical connection.

c.Connecting a test substitute in parallel with an electrolytic capacitor in the receiver.

CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explosion hazard.

2.Test high voltage only by measuring it with an appropriate high voltage meter or other voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage probe.

Do not test high voltage by "drawing an arc".

3.Do not spray chemicals on or near this receiver or any of its assemblies.

4.Unless specified otherwise in this service manual, clean electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or comparable non-abrasive applicator; 10 % (by volume) Acetone and 90 % (by volume) isopropyl alcohol (90 % - 99 % strength)

CAUTION: This is a flammable mixture.

Unless specified otherwise in this service manual, lubrication of contacts in not required.

5.Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this service manual might be equipped.

6.Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed.

7.Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead.

Always remove the test receiver ground lead last.

8.Use with this receiver only the test fixtures specified in this service manual.

CAUTION: Do not connect the test fixture ground strap to any heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor “chip” components. The following techniques should be used to help reduce the incidence of component damage caused by static by static electricity.

1.Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the unit under test.

2.After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3.Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4.Use only an anti-static type solder removal device. Some solder removal devices not classified as “anti-static” can generate electrical charges sufficient to damage ES devices.

5.Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6.Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7.Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed.

CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8.Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to damage an ES device.)

General Soldering Guidelines

1.Use a grounded-tip, low-wattage soldering iron and appropriate tip size and shape that will maintain tip temperature within the range or 500 °F to 600 °F.

2.Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead.

3.Keep the soldering iron tip clean and well tinned.

4.Thoroughly clean the surfaces to be soldered. Use a mall wirebristle (0.5 inch, or 1.25 cm) brush with a metal handle.

Do not use freon-propelled spray-on cleaners.

5.Use the following unsoldering technique

a.Allow the soldering iron tip to reach normal temperature. (500 °F to 600 °F)

b.Heat the component lead until the solder melts.

c.Quickly draw the melted solder with an anti-static, suctiontype solder removal device or with solder braid. CAUTION: Work quickly to avoid overheating the circuit board printed foil.

6.Use the following soldering technique.

a.Allow the soldering iron tip to reach a normal temperature (500 °F to 600 °F)

b.First, hold the soldering iron tip and solder the strand against the component lead until the solder melts.

c.Quickly move the soldering iron tip to the junction of the component lead and the printed circuit foil, and hold it there only until the solder flows onto and around both the component lead and the foil.

CAUTION: Work quickly to avoid overheating the circuit board printed foil.

d.Closely inspect the solder area and remove any excess or splashed solder with a small wire-bristle brush.

Copyright ©	LG Electronics. Inc. All rights reserved.	- 4 -	LGE Internal Use Only
Only for training and service purposes

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through which the IC leads are inserted and then bent flat against the circuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in paragraphs 5 and 6 above.

Removal

1.Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts.

2.Draw away the melted solder with an anti-static suction-type solder removal device (or with solder braid) before removing the IC.

Replacement

1.Carefully insert the replacement IC in the circuit board.

2.Carefully bend each IC lead against the circuit foil pad and solder it.

3.Clean the soldered areas with a small wire-bristle brush. (It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor

Removal/Replacement

1.Remove the defective transistor by clipping its leads as close as possible to the component body.

2.Bend into a "U" shape the end of each of three leads remaining on the circuit board.

3.Bend into a "U" shape the replacement transistor leads.

4.Connect the replacement transistor leads to the corresponding leads extending from the circuit board and crimp the "U" with long nose pliers to insure metal to metal contact then solder each connection.

Power Output, Transistor Device

Removal/Replacement

1.Heat and remove all solder from around the transistor leads.

2.Remove the heat sink mounting screw (if so equipped).

3.Carefully remove the transistor from the heat sink of the circuit board.

4.Insert new transistor in the circuit board.

5.Solder each transistor lead, and clip off excess lead.

6.Replace heat sink.

Diode Removal/Replacement

1.Remove defective diode by clipping its leads as close as possible to diode body.

2.Bend the two remaining leads perpendicular y to the circuit board.

3.Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board.

4.Securely crimp each connection and solder it.

5.Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder.

Fuse and Conventional Resistor

Removal/Replacement

1.Clip each fuse or resistor lead at top of the circuit board hollow stake.

2.Securely crimp the leads of replacement component around notch at stake top.

3.Solder the connections.

CAUTION: Maintain original spacing between the replaced component and adjacent components and the circuit board to prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The following guidelines and procedures should be followed whenever this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the following procedure to install a jumper wire on the copper pattern side of the circuit board. (Use this technique only on IC connections).

1.Carefully remove the damaged copper pattern with a sharp knife. (Remove only as much copper as absolutely necessary).

2.carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern.

3.Bend a small "U" in one end of a small gauge jumper wire and carefully crimp it around the IC pin. Solder the IC connection.

4.Route the jumper wire along the path of the out-away copper pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern at connections other than IC Pins. This technique involves the installation of a jumper wire on the component side of the circuit board.

1.Remove the defective copper pattern with a sharp knife. Remove at least 1/4 inch of copper, to ensure that a hazardous condition will not exist if the jumper wire opens.

2.Trace along the copper pattern from both sides of the pattern break and locate the nearest component that is directly connected to the affected copper pattern.

3.Connect insulated 20-gauge jumper wire from the lead of the nearest component on one side of the pattern break to the lead of the nearest component on the other side.

Carefully crimp and solder the connections.

CAUTION: Be sure the insulated jumper wire is dressed so the it does not touch components or sharp edges.

Copyright ©	LG Electronics. Inc. All rights reserved.	- 5 -	LGE Internal Use Only
Only for training and service purposes

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement.

1. Application range

This specification is applied to the LED TV used UD65S chassis.

2. Requirement for Test

Each part is tested as below without special notice.

1)Temperature: 25 °C ± 5 °C(77 °F ± 9 °F), CST: 40 °C ± 5 °C

2)Relative Humidity: 65 % ± 10 %

3)Power Voltage

: Standard input voltage (AC 100-240 V~, 50/60 Hz)

*Standard Voltage of each products is marked by models.

4)Specification and performance of each parts are followed each drawing and specification by part number in accordance with BOM.

5)The receiver must be operated for about 20 minutes prior to the adjustment.

3.Test method

1)Performance: LGE TV test method followed

2)Demanded other specification

-Safety : CE, IEC specification

-EMC : CE, IEC specification

-Wireless : Wireless HD Specification (Option)

4. Model General Specification

No.	Item	Specification	Remarks
			DTV & Analog (Total 37 countries)
			DTV (MPEG2/4, DVB-T) : 26 countrie
			Germany, Netherland, Switzerland, Hungary, Austria, Slovenia, Bulgaria,
			France, Spain, Belgium, Luxemburg, Greece, Czech, Turkey, Morocco,
			Ireland, Latvia, Estonia, Lithuania, Poland, Portugal, Romania, Albania,
			Bosnia, Slovakia, Belarus
			DTV (MPEG2/4, DVB-T2) :11 countries
			UK(Ireland), Sweden, Denmark, Finland, Norway, Ukraine, Kazakhstan,
			Russia, Italy, Croatia, Serbia

DTV (MPEG2/4, DVB-C) : 37 countries

Germany, Netherland, Switzerland, Hungary, Austria, Slovenia, Bulgaria, France, Spain, Italy, Belgium, Russia, Luxemburg, Greece, Czech, Croatia, Turkey, Morocco, Ireland, Latvia, Estonia, Lithuania, Poland, Portugal, Romania, Albania, Bosnia, Serbia, Slovakia, Belarus, UK, Sweden, Denmark, Finland, Norway, Ukraine, Kazakhstan

1

Market

EU/CIS(PAL Market-37Countries)

DTV (MPEG2/4,DVB-S) : 37 countries

Germany, Netherland, Switzerland, Hungary, Austria, Slovenia, Bulgaria,

France, Spain,Belgium, Luxemburg, Greece, Czech, Turkey, Morocco,

Ireland, Latvia, Estonia, Lithuania, Poland, Portugal, Romania, Albania,

Bosnia, Slovakia, Belarus, UK(Ireland), Sweden, Denmark, Finland,

Norway, Ukraine, Kazakhstan,Russia, Italy, Croatia, Serbia

Supported satellite : 35 satellites

ABS1 75.0E, AMOS 4.0W, ASIASAT3S 105.5E, ASTRA 19.2E, ASTRA 23.5E, ASTRA 28.2E, ASTRA 4.8E, ATLANTIC BIRD2 8.0W, ATLANTIC BIRD3 5.0W, BADR 26.0E, DIRECTV-1R 56.0E, EUROBIRD 9A 9.0E, EUROBIRD3 33.0E, EUTELSAT 36 A/B 36.0E,EUTELSAT W2A 10.0E, EUTELSAT W3A 7.0E, EUTELSAT7WA 7.3WEUTELSAT 16.0E, EXPRESS AM1 40.0E, EXPRESS AM3 140.0E, EXPRESS AM33 96.5E, HELLASSAT 39.0E, HISPASAT 1CDE 30.0WHOTBIRD 13.0E, INTELSAT10&7 68.5E, INTELSAT15 85.2E, INTELSAT1R 50.0W, INTELSAT903 33.5W, INTELSAT904 60.0E, NILESAT 7.0W, NSS12 57.0E, THOR 0.8W, TURKSAT 42.0E,YAMAL201 90.0E, OTHER

Copyright ©	LG Electronics. Inc. All rights reserved.	- 6 -	LGE Internal Use Only
Only for training and service purposes

	No.	Item	Specification			Remarks
	2	Broadcasting system	(1)PAL/SECAM B/G/I/D/K, SECAM L/L’	*For the manual, refer the below table. [Table 4.1.]
			(2)DVB-T/T2, C, S/S2
			(1) Digital TV
			- VHF, UHF
			- C-Band, Ku-Band
	3	Program coverage	(2) Analogue TV	*For the manual, refer the below table. [Table 4.1.]
			-VHF : E2 to E12
			-UHF : E21 to E69
			-CATV : S1 to S20
			-HYPER : S21 to S47
				► DVB-T
				- Guard Interval(Bitrate_Mbit/s) : 1/4, 1/8, 1/16, 1/32
				- Modulation	: Code Rate
				QPSK	: 1/2, 2/3, 3/4, 5/6, 7/8
				16-QAM	: 1/2, 2/3, 3/4, 5/6, 7/8
				64-QAM	: 1/2, 2/3, 3/4, 5/6, 7/8
				► DVB-T2
				- Guard Interval(Bitrate_Mbit/s)
				1/4, 1/8, 1/16, 1/32, 1/128, 19/128, 19/256,
				- Modulation : Code Rate
				QPSK	: 1/2, 2/5, 2/3, 3/4, 5/6
			Analog : Upper Heterodyne	16-QAM	: 1/2, 2/5, 2/3, 3/4, 5/6
	4	Receiving system		64-QAM	: 1/2, 2/5, 2/3, 3/4, 5/6
			Digital : COFDM, QAM
				256-QAM	: 1/2, 2/5, 2/3, 3/4, 5/6
				► DVB-C
				- Symbolrate : 4.0 Msymbols/s to 7.2 Msymbols/s
				- Modulation : 16QAM, 64-QAM, 128-QAM and 256-QAM
				► DVB-S/S2
				- symbol rate :
				DVB-S2 (8PSK / QPSK) : 2 ~ 45 Msymbol/s
				DVB-S (QPSK) : 2 ~ 45 Msymbol/s
				- viterbi
				DVB-S mode		: 1/2, 2/3, 3/4, 5/6, 7/8
				DVB-S2 mode		: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10
	5	Input Voltage	AC 100-240 V~, 50/60Hz

4.1. Broadcast receiver specification for Manual

		Digital TV		Analogue TV
	Satellite	Terrestrial	Cable	Terrestrial / Cable
Television system	DVB-S/S2*	DVB-T	DVB-C	PAL/SECAM B/G,
		DVB-T2*		D/K, I,
				SECAM L
Channel coverage	950 ~ 2150 Mhz	VHF III : 174 ~ 230 Mhz	46 ~862 Mhz	46 ~ 862 Mhz
(Band)		UHF IV : 470 ~ 606 Mhz
		UHF V : 606 ~ 862 Mhz
		S Band II : 230 ~ 300 Mhz
		S Band III : 300 ~ 470 Mhz
Maximum number of	6,000		3,000
storable programmes
External antenna		75 Ω
impedance

Copyright ©	LG Electronics. Inc. All rights reserved.	- 7 -	LGE Internal Use Only
Only for training and service purposes

5. External Input Format

5.1.2D Mode

(1)Component (Y, CB/PB, CR/PR)

No.	Resolution	H-freq(kHz)	V-freq(Hz)	Pixel clock	Proposed
1	720*480	15.73	59.94	13.5	SDTV ,DVD 480i
2	720*480	15.75	60	13.5135	SDTV ,DVD 480i
3	720*576	15.62	50	13.5	SDTV 576i
4	720*480	31.47	59.94	27.0	SDTV 480p
5	720*480	31.50	60	27.027	SDTV 480p
6	720*576	31.25	50	27.0	SDTV 576p
7	1280*720	44.96	59.94	74.175	HDTV 720p
8	1280*720	45.00	60.00	74.250	HDTV 720p
9	1280*720	37.50	50.00	74.250	HDTV 720p
10	1920*1080	28.12	50	74.250	HDTV 1080i
11	1920*1080	33.72	59.94	74.175	HDTV 1080i
12	1920*1080	33.75	60.00	74.250	HDTV 1080i
13	1920*1080	56.25	50	148.50	HDTV 1080p
14	1920*1080	67.43	59.94	148.350	HDTV 1080p
15	1920*1080	67.50	60	148.50	HDTV 1080p

Copyright ©	LG Electronics. Inc. All rights reserved.	- 8 -	LGE Internal Use Only
Only for training and service purposes

(2) HDMI Input (DTV)

No.	Resolution	H-freq(kHz)	V-freq.(Hz)	Pixel clock(MHz)	Proposed	Remarks
1	640*480	31.46	59.94	25.13	SDTV 480P
2	640*480	31.50	60.00	25.13	SDTV 480P
3	720*480	15.73	59.94	13.50	SDTV, DVD 480I(525I)
4	720*480	15.75	60.00	13.51	SDTV, DVD 480I(525I)	Spec. out but display
5	720*576	15.62	50.00	13.50	SDTV, DVD 576I(625I) 50Hz
6	720*480	31.47	59.94	27.00	SDTV 480P
7	720*480	31.50	60.00	27.03	SDTV 480P
8	720*576	31.25	50.00	27.00	SDTV 576P
9	1280*720	44.96	59.94	74.18	HDTV 720P
10	1280*720	45.00	60.00	74.25	HDTV 720P
11	1280*720	37.50	50.00	74.25	HDTV 720P
12	1920*1080	28.12	50.00	74.25	HDTV 1080I
13	1920*1080	33.72	59.94	74.18	HDTV 1080I
14	1920*1080	33.75	60.00	74.25	HDTV 1080I
15	1920*1080	26.97	23.97	63.30	HDTV 1080P
16	1920*1080	27.00	24.00	63.36	HDTV 1080P
17	1920*1080	33.71	29.97	79.12	HDTV 1080P
18	1920*1080	33.75	30.00	79.20	HDTV 1080P
19	1920*1080	56.25	50.00	148.50	HDTV 1080P
20	1920*1080	67.43	59.94	148.35	HDTV 1080P
21	1920*1080	67.50	60.00	148.50	HDTV 1080P
22	3840*2160	53.95	23.98	297.00	UDTV 2160P	UHD only
23	3840*2160	54.00	24.00	297.00	UDTV 2160P	UHD only
24	3840*2160	56.25	25.00	297.00	UDTV 2160P	UHD only
25	3840*2160	61.43	29.97	297.00	UDTV 2160P	UHD only
26	3840*2160	67.50	30.00	297.00	UDTV 2160P	UHD only
27	3840*2160	112.50	50.00	594.00	UDTV 2160P(DVB)	UHD only
28	3840*2160	134.86	59.94	593.41	UDTV 2160P	UHD only
29	3840*2160	135.00	60.00	594.00	UDTV 2160P	UHD only
30	4096*2160	53.95	23.98	297.00	UDTV 2160P	UHD only
31	4096*2160	54.00	24.00	297.00	UDTV 2160P	UHD only
32	4096*2160	56.25	25.00	297.00	UDTV 2160P	UHD only
33	4096*2160	61.43	29.97	297.00	UDTV 2160P	UHD only
34	4096*2160	67.50	30.00	297.00	UDTV 2160P	UHD only
35	4096*2160	112.50	50.00	594.00	UDTV 2160P(DVB)	UHD only
36	4096*2160	134.86	59.94	593.41	UDTV 2160P	UHD only
37	4096*2160	135.00	60.00	594.00	UDTV 2160P	UHD only

Copyright ©	LG Electronics. Inc. All rights reserved.	- 9 -	LGE Internal Use Only
Only for training and service purposes

(3) HDMI Input (PC)

No.	Resolution	H-freq(kHz)	V-freq.(Hz)	Pixel clock(MHz)	Proposed	Remarks
1	640*350	31.46	70.09	25.17	EGA
2	720*400	31.46	70.08	28.32	DOS
3	640*480	31.46	59.94	25.17	VESA(VGA)
4	800*600	37.87	60.31	40.00	VESA(SVGA)
5	1024*768	48.36	60.00	65.00	VESA(XGA)
6	1152*864	54.34	60.05	80.00	VESA
7	1360*768	47.71	60.01	85.00	VESA(WXGA)
8	1280*1024	63.98	60.02	109.00	VESA(SXGA)	FHD, UHD only
9	1920*1080	67.50	60.00	158.40	WUXGA(CEA 861D)	FHD, UHD only
10	3840*2160	54.00	24.00	297.00	UDTV 2160P	UHD only
11	3840*2160	56.25	25.00	297.00	UDTV 2160P	UHD only
12	3840*2160	67.50	30.00	297.00	UDTV 2160P	UHD only
13	4096*2160	53.95	23.97	296.703	UDTV 2160P	UHD only
14	4096*2160	54.00	24.00	297.00	UDTV 2160P	UHD only

5.2.3D Mode

(1)RF Input

No.	Resolution	H-freq(kHz)	V-freq.(kHz)	Pixel clock(MHz)	Proposed	Remarks
1	1280*720	37.50	50	74.25	HDTV 720P	2D to 3D, Side by Side, Top & Bottom
2	1920*1080	28.13	50	74.25	HDTV 1080I	2D to 3D, Side by Side, Top & Bottom

Copyright ©	LG Electronics. Inc. All rights reserved.	- 10 -	LGE Internal Use Only
Only for training and service purposes

ADJUSTMENT INSTRUCTION

1. Application Range

This specification sheet is applied to all of the LED TV with UD65S chassis.

2.Designation

(1)Because this is not a hot chassis, it is not necessary to use an isolation transformer. However, the use of isolation transformer will help protect test instrument.

(2)Adjustment must be done in the correct order.

(3)The adjustment must be performed in the circumstance of 25 °C ± 5 °C of temperature and 65 % ± 10 % of relative humidity if there is no specific designation.

(4)The input voltage of the receiver must keep AC 100-240 V~, 50/60 Hz.

(5)The receiver must be operated for about 5 minutes prior to the adjustment when module is in the circumstance of over 15.

In case of keeping module is in the circumstance of 0 °C, it should be placed in the circumstance of above 15 °C for 2 hours.

In case of keeping module is in the circumstance of below -20 °C, it should be placed in the circumstance of above 15 °C for 3 hours.

[Caution]

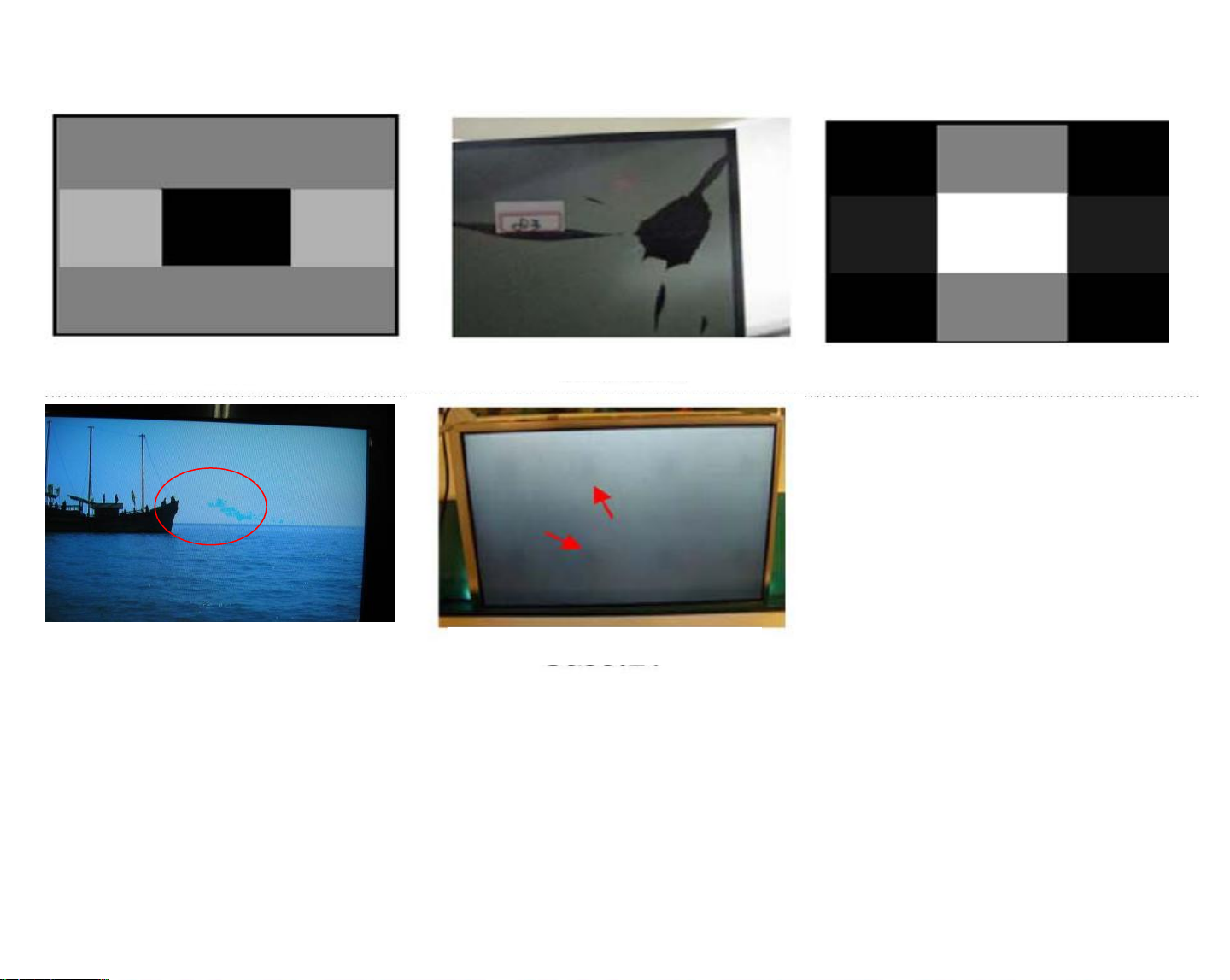

When still image is displayed for a period of 20 minutes or longer (Especially where W/B scale is strong. Digital pattern 13ch and/or Cross hatch pattern 09ch), there can some afterimage in the black level area.

3.2. LAN Inspection

3.2.1. Equipment & Condition

▪ Each other connection to LAN Port of IP Hub and Jig

3.2.2. LAN inspection solution

▪LAN Port connection with PCB

▪Network setting at MENU Mode of TV

▪setting automatic IP

▪Setting state confirmation

-If automatic setting is finished, you confirm IP and MAC Address.

3.2.3. WIDEVINE key Inspection

- Confirm key input data at the "IN START" MENU Mode.

3. Automatic Adjustment

3.1. MAC address D/L, CI+ key D/L, Widevine key D/L, ESN D/L, HDCP2.0 D/L

Connect: USB port Communication Prot connection

▪Com 1,2,3,4 and 115200(Baudrate)

Mode check: Online Only

▪Check the test process

:DETECT → MAC → ESN → Widevine → CI → HDCP20

▪Play: Press Enter key

▪Result: Ready, Test, OK or NG

▪Printer Out (MAC Address Label)

Copyright ©	LG Electronics. Inc. All rights reserved.	- 11 -	LGE Internal Use Only
Only for training and service purposes

3.3. LAN PORT INSPECTION(PING TEST)

Connect SET → LAN port == PC → LAN Port

SET PC

3.3.1. Equipment setting

(1)Play the LAN Port Test PROGRAM.

(2)Input IP set up for an inspection to Test Program. *IP Number : 12.12.2.2

3.3.2. LAN PORT inspection(PING TEST)

(1)Play the LAN Port Test Program.

(2)Connect each other LAN Port Jack.

(3)Play Test (F9) button and confirm OK Message.

(4)Remove LAN CABLE.

3.4. Model name & Serial number Download

3.4.1. Model name & Serial number D/L

▪Press "P-ONLY" key of service remote control. (Baud rate : 115200 bps)

▪Connect RS-232C Signal to USB Cable to USB.

▪Write Serial number by use USB port.

▪Must check the serial number at Instart menu.

3.4.2. Method & notice

(1)Serial number D/L is using of scan equipment.

(2)Setting of scan equipment operated by Manufacturing Technology Group.

(3)Serial number D/L must be conformed when it is produced in production line, because serial number D/L is mandatory by D-book 4.0.

*Manual Download (Model Name and Serial Number)

If the TV set is downloaded by OTA or service man, sometimes model name or serial number is initialized.(Not always)

There is impossible to download by bar code scan, so It need Manual download.

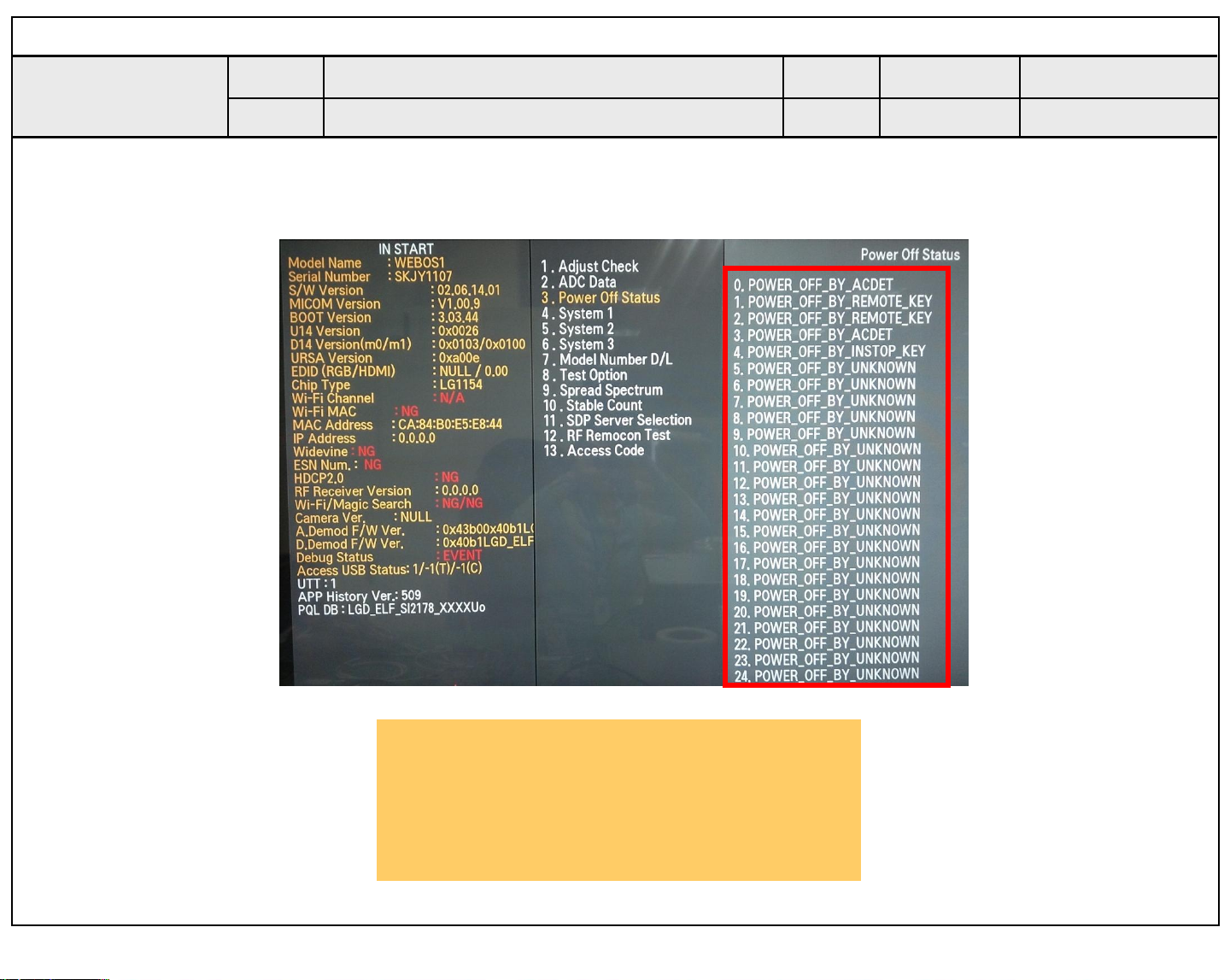

1)Press the "Instart" key of Adjustment remote control.

2)Go to the menu "7.Model Number D/L" like below photo.

3)Input the Factory model name(ex 65UG870V-ZA) or Serial number like photo.

4)Check the model name Instart menu. → Factory name displayed. (ex 65UG870V-ZA)

5)Check the Diagnostics.(DTV country only) → Buyer model displayed. (ex 65UG870V-ZA)

3.5. CI+ Key checking method(Only EU Model)

Check whether the key was downloaded or not at ‘In Start’ menu. (Refer to below).

=> Check the Download to CI+ Key value in LGset.

3.5.1. Check the method of CI+ Key value

(1) Check the method on Instart menu

(2) Check the method of RS232C Command

1)	Into the main ass’y mode(RS232: aa 00 00)
	CMD 1	CMD 2	Data 0
		A	0		0
2)	Check the key download for transmitted command
	(RS232: ci 00 10)
	CMD 1	CMD 2	Data 0
	C	I	1		0
3)	Result value

- Normally status for download : OKx

- Abnormally status for download : NGx

3.5.2.Check the method of CI+ key value(RS232)

1)Into the main ass’y mode(RS232: aa 00 00)

	CMD 1	CMD 2	Data 0
	A	A	0		0
2) Check the methed of CI+ key by command
	(RS232: ci 00 20)
	CMD 1	CMD 2	Data 0
	C	I	2		0

3)Result value

i01 OK 1d1852d21c1ed5dcx

CI+ Key Value

3.6. WIFI MAC ADDRESS CHECK

(1) Using RS232 Command

	H-freq(kHz)	V-freq.(Hz)
Transmission	[A][I][][Set ID][][20][Cr]	[O][K][X] or [NG]

(2) Check the menu on in-start

Copyright ©	LG Electronics. Inc. All rights reserved.	- 12 -	LGE Internal Use Only
Only for training and service purposes

4.Manual Adjustment

*ADC adjustment is not needed because of OTP(Auto ADC adjustment)

4.1. EDID(The Extended Display Identification Data)/DDC(Display Data Channel) download

4.1.1. Overview

It is a VESA regulation. A PC or a MNT will display an optimal resolution through information sharing without any necessity of user input. It is a realization of "Plug and Play".

4.1.2. Equipment

-Since embedded EDID data is used, EDID download JIG,

HDMI cable and D-sub cable are not need.

-Adjustment remote control

4.1.3. Download method

(1)Press "ADJ" key on the Adjustment remote control, then select "12.EDID D/L", By pressing "Enter" key, enter EDID D/L menu.

For HDMI EDID

DVI-D to HDMI or HDMI to HDMI

(2)Select "Start" button by pressing "Enter" key, HDMI1/ HDMI2/ HDMI3/ HDMI4 are writing and display OK or NG.

4.1.4. EDID DATA

▪Reference

-HDMI1 ~ HDMI3

-In the data of EDID, bellows may be different by Input mode.

	0		1	2	3	4	5	6		7		8	9	A		B	C		D		E	F
0x00	00		FF	FF	FF	FF	FF	FF		00		1E	6D
0x01				01	03	80	A0	5A		78		0A	EE	91		A3	54		4C		99	26
0x02	0F		50	54	A1	8	00	31		40		45	40	61		40	71		40		81	80
0x03	01		01	01	01	01	01	02		3A		80	18	71		38	2D		40		58	2C
0x04	45		00	40	84	63	00	00		1E		66	21	50		B0	51		00		1B	30
0x05	40		70	36	00	40	84	63		00		00	1E	00		00	00		FD		00	3A
0x06	3E		1E	53	10	00	0A	20		20		20	20	20		20
0x07																					01	1
0x00	02		03	3A	F1	4E	10	9F		04		13	05	14		03	02		12		20	21
0x01	22		15	01	29	3D	06	C0		15		07	50
0x02
0x03					10	28	10	E3		05		03	01	02		3A	80		18		71	38
0x04	2D		40	58	2C	45	00	40		84		63	00	00		1E	01		1D		80	18
0x05	71		1C	16	20	58	2C	25		00		40	84	63		00	00		9E		01	1D
0x06	00		72	51	D0	1E	20	6E		28		55	00	40		84	63		00		00	1E
0x07	00		00	00	00	00	00	00		00		00	00	00		00	00		00		00	2

Product ID

Serial No: Controlled on production line.Month, Year: Controlled on production line:

ex) Monthly : ‘01’ → ‘01’, Year : ‘2016’ → ‘1A’

Model Name(Hex): LGTV

Checksum(LG TV): Changeable by total EDID data.Vendor Specific(HDMI)

(1)EDID for 2D Model

1)DTS

#HDMI 1(C/S : 9F 49) - HDMI UHD Deep On Case EDID Block 0, Bytes 0-127 [00H-7FH]

	0	1	2	3	4	5	6	7	8	9	A	B	C	D	E	F
00	00	FF	FF	FF	FF	FF	FF	00	1E	6D	01	00	01	01	01	01
10	01	1A	01	03	80	A0	5A	78	0A	EE	91	A3	54	4C	99	26
20	0F	50	54	A1	08	00	31	40	45	40	61	40	71	40	81	80
30	01	01	01	01	01	01	08	E8	00	30	F2	70	5A	80	B0	58
40	8A	00	40	84	63	00	00	1E	02	3A	80	18	71	38	2D	40
50	58	2C	45	00	40	84	63	00	00	1E	00	00	00	FD	00	3A
60	3E	1E	88	3C	00	0A	20	20	20	20	20	20	00	00	00	FC
70	00	4C	47	20	54	56	0A	20	20	20	20	20	20	20	01	9F

EDID Block 1, Bytes 128-255 [80H-FFH]

	0	1	2	3	4	5	6	7	8	9	A	B	C	D	E	F
80	02	03	4B	F1	58	61	60	10	1F	04	13	05	14	03	02	12
90	20	21	22	15	01	5D	5E	5F	65	66	62	63	64	29	3D	06
A0	C0	15	07	50	09	57	07	6E	03	0C	00	10	00	B8	3C	20
B0	00	80	01	02	03	04	67	D8	5D	C4	01	78	80	03	E3	05
C0	C0	00	E4	0F	03	00	18	E3	06	05	01	01	1D	80	18	71
D0	1C	16	20	58	2C	25	00	40	84	63	00	00	9E	66	21	50
E0	B0	51	00	1B	30	40	70	36	00	40	84	63	00	00	1E	00
F0	00	00	00	00	00	00	00	00	00	00	00	00	00	00	00	49

#HDMI 1(C/S : 9F 7B) - HDMI UHD Deep Off Case EDID Block 0, Bytes 0-127 [00H-7FH]

	0	1	2	3	4	5	6	7	8	9	A	B	C	D	E	F
00	00	FF	FF	FF	FF	FF	FF	00	1E	6D	01	00	01	01	01	01
10	01	1A	01	03	80	A0	5A	78	0A	EE	91	A3	54	4C	99	26
20	0F	50	54	A1	08	00	31	40	45	40	61	40	71	40	81	80
30	01	01	01	01	01	01	08	E8	00	30	F2	70	5A	80	B0	58
40	8A	00	40	84	63	00	00	1E	02	3A	80	18	71	38	2D	40
50	58	2C	45	00	40	84	63	00	00	1E	00	00	00	FD	00	3A
60	3E	1E	88	3C	00	0A	20	20	20	20	20	20	00	00	00	FC
70	00	4C	47	20	54	56	0A	20	20	20	20	20	20	20	01	9F

EDID Block 1, Bytes 128-255 [80H-FFH]

	0	1	2	3	4	5	6	7	8	9	A	B	C	D	E	F
80	02	03	3C	F1	54	5D	10	1F	04	13	05	14	03	02	12	20
90	21	22	15	01	5E	5F	62	63	64	29	3D	06	C0	15	07	50
A0	09	57	07	6E	03	0C	00	10	00	B8	3C	20	00	80	01	02
B0	03	04	E5	0E	60	61	65	66	E3	06	05	01	01	1D	80	18
C0	71	1C	16	20	58	2C	25	00	40	84	63	00	00	9E	66	21
D0	50	B0	51	00	1B	30	40	70	36	00	40	84	63	00	00	1E
E0	00	00	00	00	00	00	00	00	00	00	00	00	00	00	00	00
F0	00	00	00	00	00	00	00	00	00	00	00	00	00	00	00	7B

# HDMI 2(C/S : 9F 39) - HDMI UHD Deep On Case EDID Block 0, Bytes 0-127 [00H-7FH]

	0	1	2	3	4	5	6	7	8	9	A	B	C	D	E	F
00	00	FF	FF	FF	FF	FF	FF	00	1E	6D	01	00	01	01	01	01
10	01	1A	01	03	80	A0	5A	78	0A	EE	91	A3	54	4C	99	26
20	0F	50	54	A1	08	00	31	40	45	40	61	40	71	40	81	80
30	01	01	01	01	01	01	08	E8	00	30	F2	70	5A	80	B0	58
40	8A	00	40	84	63	00	00	1E	02	3A	80	18	71	38	2D	40
50	58	2C	45	00	40	84	63	00	00	1E	00	00	00	FD	00	3A
60	3E	1E	88	3C	00	0A	20	20	20	20	20	20	00	00	00	FC
70	00	4C	47	20	54	56	0A	20	20	20	20	20	20	20	01	9F

EDID Block 1, Bytes 128-255 [80H-FFH]

	0	1	2	3	4	5	6	7	8	9	A	B	C	D	E	F
80	02	03	4B	F1	58	61	60	10	1F	04	13	05	14	03	02	12
90	20	21	22	15	01	5D	5E	5F	65	66	62	63	64	29	3D	06
A0	C0	15	07	50	09	57	07	6E	03	0C	00	20	00	B8	3C	20
B0	00	80	01	02	03	04	67	D8	5D	C4	01	78	80	03	E3	05
C0	C0	00	E4	0F	03	00	18	E3	06	05	01	01	1D	80	18	71
D0	1C	16	20	58	2C	25	00	40	84	63	00	00	9E	66	21	50
E0	B0	51	00	1B	30	40	70	36	00	40	84	63	00	00	1E	00
F0	00	00	00	00	00	00	00	00	00	00	00	00	00	00	00	39

Copyright ©	LG Electronics. Inc. All rights reserved.	- 13 -	LGE Internal Use Only
Only for training and service purposes

#HDMI 2(C/S : 9F 6B) - HDMI UHD Deep Off Case EDID Block 0, Bytes 0-127 [00H-7FH]

	0	1	2	3	4	5	6	7	8	9	A	B	C	D	E	F
00	00	FF	FF	FF	FF	FF	FF	00	1E	6D	01	00	01	01	01	01
10	01	1A	01	03	80	A0	5A	78	0A	EE	91	A3	54	4C	99	26
20	0F	50	54	A1	08	00	31	40	45	40	61	40	71	40	81	80
30	01	01	01	01	01	01	08	E8	00	30	F2	70	5A	80	B0	58
40	8A	00	40	84	63	00	00	1E	02	3A	80	18	71	38	2D	40
50	58	2C	45	00	40	84	63	00	00	1E	00	00	00	FD	00	3A
60	3E	1E	88	3C	00	0A	20	20	20	20	20	20	00	00	00	FC
70	00	4C	47	20	54	56	0A	20	20	20	20	20	20	20	01	9F

EDID Block 1, Bytes 128-255 [80H-FFH]

	0	1	2	3	4	5	6	7	8	9	A	B	C	D	E	F
80	02	03	3C	F1	54	5D	10	1F	04	13	05	14	03	02	12	20
90	21	22	15	01	5E	5F	62	63	64	29	3D	06	C0	15	07	50
A0	09	57	07	6E	03	0C	00	20	00	B8	3C	20	00	80	01	02
B0	03	04	E5	0E	60	61	65	66	E3	06	05	01	01	1D	80	18
C0	71	1C	16	20	58	2C	25	00	40	84	63	00	00	9E	66	21
D0	50	B0	51	00	1B	30	40	70	36	00	40	84	63	00	00	1E
E0	00	00	00	00	00	00	00	00	00	00	00	00	00	00	00	00
F0	00	00	00	00	00	00	00	00	00	00	00	00	00	00	00	6B

#HDMI 3(C/S : 9F 29) - HDMI UHD Deep Off Case EDID Block 0, Bytes 0-127 [00H-7FH]

	0	1	2	3	4	5	6	7	8	9	A	B	C	D	E	F
00	00	FF	FF	FF	FF	FF	FF	00	1E	6D	01	00	01	01	01	01
10	01	1A	01	03	80	A0	5A	78	0A	EE	91	A3	54	4C	99	26
20	0F	50	54	A1	08	00	31	40	45	40	61	40	71	40	81	80
30	01	01	01	01	01	01	08	E8	00	30	F2	70	5A	80	B0	58
40	8A	00	40	84	63	00	00	1E	02	3A	80	18	71	38	2D	40
50	58	2C	45	00	40	84	63	00	00	1E	00	00	00	FD	00	3A
60	3E	1E	88	3C	00	0A	20	20	20	20	20	20	00	00	00	FC
70	00	4C	47	20	54	56	0A	20	20	20	20	20	20	20	01	9F

EDID Block 1, Bytes 128-255 [80H-FFH]

	0	1	2	3	4	5	6	7	8	9	A	B	C	D	E	F
80	02	03	4B	F1	58	61	60	10	1F	04	13	05	14	03	02	12
90	20	21	22	15	01	5D	5E	5F	65	66	62	63	64	29	3D	06
A0	C0	15	07	50	09	57	07	6E	03	0C	00	30	00	B8	3C	20
B0	00	80	01	02	03	04	67	D8	5D	C4	01	78	80	03	E3	05
C0	C0	00	E4	0F	03	00	18	E3	06	05	01	01	1D	80	18	71
D0	1C	16	20	58	2C	25	00	40	84	63	00	00	9E	66	21	50
E0	B0	51	00	1B	30	40	70	36	00	40	84	63	00	00	1E	00
F0	00	00	00	00	00	00	00	00	00	00	00	00	00	00	00	29

#HDMI 3(C/S : 9F 5B) - HDMI UHD Deep Off Case EDID Block 0, Bytes 0-127 [00H-7FH]

	0	1	2	3	4	5	6	7	8	9	A	B	C	D	E	F
00	00	FF	FF	FF	FF	FF	FF	00	1E	6D	01	00	01	01	01	01
10	01	1A	01	03	80	A0	5A	78	0A	EE	91	A3	54	4C	99	26
20	0F	50	54	A1	08	00	31	40	45	40	61	40	71	40	81	80
30	01	01	01	01	01	01	08	E8	00	30	F2	70	5A	80	B0	58
40	8A	00	40	84	63	00	00	1E	02	3A	80	18	71	38	2D	40
50	58	2C	45	00	40	84	63	00	00	1E	00	00	00	FD	00	3A
60	3E	1E	88	3C	00	0A	20	20	20	20	20	20	00	00	00	FC
70	00	4C	47	20	54	56	0A	20	20	20	20	20	20	20	01	9F

EDID Block 1, Bytes 128-255 [80H-FFH]

	0	1	2	3	4	5	6	7	8	9	A	B	C	D	E	F
80	02	03	3C	F1	54	5D	10	1F	04	13	05	14	03	02	12	20
90	21	22	15	01	5E	5F	62	63	64	29	3D	06	C0	15	07	50
A0	09	57	07	6E	03	0C	00	30	00	B8	3C	20	00	80	01	02
B0	03	04	E5	0E	60	61	65	66	E3	06	05	01	01	1D	80	18
C0	71	1C	16	20	58	2C	25	00	40	84	63	00	00	9E	66	21
D0	50	B0	51	00	1B	30	40	70	36	00	40	84	63	00	00	1E
E0	00	00	00	00	00	00	00	00	00	00	00	00	00	00	00	00
F0	00	00	00	00	00	00	00	00	00	00	00	00	00	00	00	5B

* Checksum(HDMI 1/2/3)

	Input	HDMI Deep Color On		HDMI Deep Color Off
		FFh (Checksum)		FFh (Checksum)
	HDMI1	9F	49	9F	7B
	HDMI2	9F	39	9F	6B
	HDMI3	9F	29	9F	5B

2)AC3

#HDMI 1(C/S : 9F 52) - HDMI UHD Deep On Case EDID Block 0, Bytes 0-127 [00H-7FH]

	0	1		2	3	4	5	6	7	8	9	A	B	C	D	E	F
00	00	FF		FF	FF	FF	FF	FF	00	1E	6D	01	00	01	01	01	01
10	01	1A		01	03	80	A0	5A	78	0A	EE	91	A3	54	4C	99	26
20	0F	50		54	A1	08	00	31	40	45	40	61	40	71	40	81	80
30	01	01		01	01	01	01	08	E8	00	30	F2	70	5A	80	B0	58
40	8A	00		40	84	63	00	00	1E	02	3A	80	18	71	38	2D	40
50	58	2C		45	00	40	84	63	00	00	1E	00	00	00	FD	00	3A
60	3E	1E		88	3C	00	0A	20	20	20	20	20	20	00	00	00	FC
70	00	4C		47	20	54	56	0A	20	20	20	20	20	20	20	01	9F
			EDID Block 1, Bytes 128-255 [80H-FFH]
	0	1		2	3	4	5	6	7	8	9	A	B	C	D	E	F
80	02	03		48	F1	58	61	60	10	1F	04	13	05	14	03	02	12
90	20	21		22	15	01	5D	5E	5F	65	66	62	63	64	26	15	07
A0	50	09		57	07	6E	03	0C	00	10	00	B8	3C	20	00	80	01
B0	02	03		04	67	D8	5D	C4	01	78	80	03	E3	05	C0	00	E4
C0	0F	03		00	18	E3	06	05	01	01	1D	80	18	71	1C	16	20
D0	58	2C		25	00	40	84	63	00	00	9E	66	21	50	B0	51	00
E0	1B	30		40	70	36	00	40	84	63	00	00	1E	00	00	00	00
F0	00	00		00	00	00	00	00	00	00	00	00	00	00	00	00	52

#HDMI 1(C/S : 9F 84) – HDMI UHD Deep Off Case EDID Block 0, Bytes 0-127 [00H-7FH]

	0	1	2	3	4	5	6	7	8	9	A	B	C	D	E	F
00	00	FF	FF	FF	FF	FF	FF	00	1E	6D	01	00	01	01	01	01
10	01	1A	01	03	80	A0	5A	78	0A	EE	91	A3	54	4C	99	26
20	0F	50	54	A1	08	00	31	40	45	40	61	40	71	40	81	80
30	01	01	01	01	01	01	08	E8	00	30	F2	70	5A	80	B0	58
40	8A	00	40	84	63	00	00	1E	02	3A	80	18	71	38	2D	40
50	58	2C	45	00	40	84	63	00	00	1E	00	00	00	FD	00	3A
60	3E	1E	88	3C	00	0A	20	20	20	20	20	20	00	00	00	FC
70	00	4C	47	20	54	56	0A	20	20	20	20	20	20	20	01	9F

EDID Block 1, Bytes 128-255 [80H-FFH]

	0	1	2	3	4	5	6	7	8	9	A	B	C	D	E	F
80	02	03	39	F1	54	5D	10	1F	04	13	05	14	03	02	12	20
90	21	22	15	01	5E	5F	62	63	64	26	15	07	50	09	57	07
A0	6E	03	0C	00	10	00	B8	3C	20	00	80	01	02	03	04	E5
B0	0E	60	61	65	66	E3	06	05	01	01	1D	80	18	71	1C	16
C0	20	58	2C	25	00	40	84	63	00	00	9E	66	21	50	B0	51
D0	00	1B	30	40	70	36	00	40	84	63	00	00	1E	00	00	00
E0	00	00	00	00	00	00	00	00	00	00	00	00	00	00	00	00
F0	00	00	00	00	00	00	00	00	00	00	00	00	00	00	00	84

# HDMI 2(C/S : 9F 42) - HDMI UHD Deep On Case EDID Block 0, Bytes 0-127 [00H-7FH]

	0	1	2	3	4	5	6	7	8	9	A	B	C	D	E	F
00	00	FF	FF	FF	FF	FF	FF	00	1E	6D	01	00	01	01	01	01
10	01	1A	01	03	80	A0	5A	78	0A	EE	91	A3	54	4C	99	26
20	0F	50	54	A1	08	00	31	40	45	40	61	40	71	40	81	80
30	01	01	01	01	01	01	08	E8	00	30	F2	70	5A	80	B0	58
40	8A	00	40	84	63	00	00	1E	02	3A	80	18	71	38	2D	40
50	58	2C	45	00	40	84	63	00	00	1E	00	00	00	FD	00	3A
60	3E	1E	88	3C	00	0A	20	20	20	20	20	20	00	00	00	FC
70	00	4C	47	20	54	56	0A	20	20	20	20	20	20	20	01	9F

Copyright ©	LG Electronics. Inc. All rights reserved.	- 14 -	LGE Internal Use Only
Only for training and service purposes

EDID Block 1, Bytes 128-255 [80H-FFH]

	0	1	2	3	4	5	6	7	8	9	A	B	C	D	E	F
80	02	03	48	F1	58	61	60	10	1F	04	13	05	14	03	02	12
90	20	21	22	15	01	5D	5E	5F	65	66	62	63	64	26	15	07
A0	50	09	57	07	6E	03	0C	00	20	00	B8	3C	20	00	80	01
B0	02	03	04	67	D8	5D	C4	01	78	80	03	E3	05	C0	00	E4
C0	0F	03	00	18	E3	06	05	01	01	1D	80	18	71	1C	16	20
D0	58	2C	25	00	40	84	63	00	00	9E	66	21	50	B0	51	00
E0	1B	30	40	70	36	00	40	84	63	00	00	1E	00	00	00	00
F0	00	00	00	00	00	00	00	00	00	00	00	00	00	00	00	42

#HDMI 2(C/S : 9F 74) - HDMI UHD Deep off Case EDID Block 0, Bytes 0-127 [00H-7FH]

	0	1	2	3	4	5	6	7	8	9	A	B	C	D	E	F
00	00	FF	FF	FF	FF	FF	FF	00	1E	6D	01	00	01	01	01	01
10	01	1A	01	03	80	A0	5A	78	0A	EE	91	A3	54	4C	99	26
20	0F	50	54	A1	08	00	31	40	45	40	61	40	71	40	81	80
30	01	01	01	01	01	01	08	E8	00	30	F2	70	5A	80	B0	58
40	8A	00	40	84	63	00	00	1E	02	3A	80	18	71	38	2D	40
50	58	2C	45	00	40	84	63	00	00	1E	00	00	00	FD	00	3A
60	3E	1E	88	3C	00	0A	20	20	20	20	20	20	00	00	00	FC
70	00	4C	47	20	54	56	0A	20	20	20	20	20	20	20	01	9F

EDID Block 1, Bytes 128-255 [80H-FFH]

	0	1	2	3	4	5	6	7	8	9	A	B	C	D	E	F
80	02	03	39	F1	54	5D	10	1F	04	13	05	14	03	02	12	20
90	21	22	15	01	5E	5F	62	63	64	26	15	07	50	09	57	07
A0	6E	03	0C	00	20	00	B8	3C	20	00	80	01	02	03	04	E5
B0	0E	60	61	65	66	E3	06	05	01	01	1D	80	18	71	1C	16
C0	20	58	2C	25	00	40	84	63	00	00	9E	66	21	50	B0	51
D0	00	1B	30	40	70	36	00	40	84	63	00	00	1E	00	00	00
E0	00	00	00	00	00	00	00	00	00	00	00	00	00	00	00	00
F0	00	00	00	00	00	00	00	00	00	00	00	00	00	00	00	74

#HDMI 3(C/S : 9F 32) - HDMI UHD Deep off Case EDID Block 0, Bytes 0-127 [00H-7FH]

	0	1	2	3	4	5	6	7	8	9	A	B	C	D	E	F
00	00	FF	FF	FF	FF	FF	FF	00	1E	6D	01	00	01	01	01	01
10	01	1A	01	03	80	A0	5A	78	0A	EE	91	A3	54	4C	99	26
20	0F	50	54	A1	08	00	31	40	45	40	61	40	71	40	81	80
30	01	01	01	01	01	01	08	E8	00	30	F2	70	5A	80	B0	58
40	8A	00	40	84	63	00	00	1E	02	3A	80	18	71	38	2D	40
50	58	2C	45	00	40	84	63	00	00	1E	00	00	00	FD	00	3A
60	3E	1E	88	3C	00	0A	20	20	20	20	20	20	00	00	00	FC
70	00	4C	47	20	54	56	0A	20	20	20	20	20	20	20	01	9F

EDID Block 1, Bytes 128-255 [80H-FFH]

	0	1	2	3	4	5	6	7	8	9	A	B	C	D	E	F
80	02	03	48	F1	58	61	60	10	1F	04	13	05	14	03	02	12
90	20	21	22	15	01	5D	5E	5F	65	66	62	63	64	26	15	07
A0	50	09	57	07	6E	03	0C	00	30	00	B8	3C	20	00	80	01
B0	02	03	04	67	D8	5D	C4	01	78	80	03	E3	05	C0	00	E4
C0	0F	03	00	18	E3	06	05	01	01	1D	80	18	71	1C	16	20
D0	58	2C	25	00	40	84	63	00	00	9E	66	21	50	B0	51	00
E0	1B	30	40	70	36	00	40	84	63	00	00	1E	00	00	00	00
F0	00	00	00	00	00	00	00	00	00	00	00	00	00	00	00	32

#HDMI 3(C/S : 9F 64) - HDMI UHD Deep off Case EDID Block 0, Bytes 0-127 [00H-7FH]

	0	1	2	3	4	5	6	7	8	9	A	B	C	D	E	F
00	00	FF	FF	FF	FF	FF	FF	00	1E	6D	01	00	01	01	01	01
10	01	1A	01	03	80	A0	5A	78	0A	EE	91	A3	54	4C	99	26
20	0F	50	54	A1	08	00	31	40	45	40	61	40	71	40	81	80
30	01	01	01	01	01	01	08	E8	00	30	F2	70	5A	80	B0	58
40	8A	00	40	84	63	00	00	1E	02	3A	80	18	71	38	2D	40
50	58	2C	45	00	40	84	63	00	00	1E	00	00	00	FD	00	3A
60	3E	1E	88	3C	00	0A	20	20	20	20	20	20	00	00	00	FC
70	00	4C	47	20	54	56	0A	20	20	20	20	20	20	20	01	9F

EDID Block 1, Bytes 128-255 [80H-FFH]

	0	1	2	3	4	5	6	7	8	9	A	B	C	D	E	F
80	02	03	39	F1	54	5D	10	1F	04	13	05	14	03	02	12	20
90	21	22	15	01	5E	5F	62	63	64	26	15	07	50	09	57	07
A0	6E	03	0C	00	30	00	B8	3C	20	00	80	01	02	03	04	E5
B0	0E	60	61	65	66	E3	06	05	01	01	1D	80	18	71	1C	16
C0	20	58	2C	25	00	40	84	63	00	00	9E	66	21	50	B0	51
D0	00	1B	30	40	70	36	00	40	84	63	00	00	1E	00	00	00
E0	00	00	00	00	00	00	00	00	00	00	00	00	00	00	00	00
F0	00	00	00	00	00	00	00	00	00	00	00	00	00	00	00	64

* Checksum(HDMI 1/2/3)

	Input	HDMI Deep Color On		HDMI Deep Color Off
		FFh (Checksum)		FFh (Checksum)
	HDMI1	9F	52	9F	84
	HDMI2	9F	42	9F	74
	HDMI3	9F	32	9F	64

3) PCM

#HDMI 1(C/S : 9F C4) - HDMI UHD Deep On Case EDID Block 0, Bytes 0-127 [00H-7FH]

	0	1	2	3	4	5	6	7	8	9	A	B	C	D	E	F
00	00	FF	FF	FF	FF	FF	FF	00	1E	6D	01	00	01	01	01	01
10	01	1A	01	03	80	A0	5A	78	0A	EE	91	A3	54	4C	99	26
20	0F	50	54	A1	08	00	31	40	45	40	61	40	71	40	81	80
30	01	01	01	01	01	01	08	E8	00	30	F2	70	5A	80	B0	58
40	8A	00	40	84	63	00	00	1E	02	3A	80	18	71	38	2D	40
50	58	2C	45	00	40	84	63	00	00	1E	00	00	00	FD	00	3A
60	3E	1E	88	3C	00	0A	20	20	20	20	20	20	00	00	00	FC
70	00	4C	47	20	54	56	0A	20	20	20	20	20	20	20	01	9F

EDID Block 1, Bytes 128-255 [80H-FFH]

	0	1	2	3	4	5	6	7	8	9	A	B	C	D	E	F
80	02	03	45	F1	58	61	60	10	1F	04	13	05	14	03	02	12
90	20	21	22	15	01	5D	5E	5F	65	66	62	63	64	23	09	57
A0	07	6E	03	0C	00	10	00	B8	3C	20	00	80	01	02	03	04
B0	67	D8	5D	C4	01	78	80	03	E3	05	C0	00	E4	0F	03	00
C0	18	E3	06	05	01	01	1D	80	18	71	1C	16	20	58	2C	25
D0	00	40	84	63	00	00	9E	66	21	50	B0	51	00	1B	30	40
E0	70	36	00	40	84	63	00	00	1E	00	00	00	00	00	00	00
F0	00	00	00	00	00	00	00	00	00	00	00	00	00	00	00	C4

#HDMI 1(C/S : 9F F6) - HDMI UHD Deep off case EDID Block 0, Bytes 0-127 [00H-7FH]

	0	1	2	3	4	5	6	7	8	9	A	B	C	D	E	F
00	00	FF	FF	FF	FF	FF	FF	00	1E	6D	01	00	01	01	01	01
10	01	1A	01	03	80	A0	5A	78	0A	EE	91	A3	54	4C	99	26
20	0F	50	54	A1	08	00	31	40	45	40	61	40	71	40	81	80
30	01	01	01	01	01	01	08	E8	00	30	F2	70	5A	80	B0	58
40	8A	00	40	84	63	00	00	1E	02	3A	80	18	71	38	2D	40
50	58	2C	45	00	40	84	63	00	00	1E	00	00	00	FD	00	3A
60	3E	1E	88	3C	00	0A	20	20	20	20	20	20	00	00	00	FC
70	00	4C	47	20	54	56	0A	20	20	20	20	20	20	20	01	9F

EDID Block 1, Bytes 128-255 [80H-FFH]

	0	1	2	3	4	5	6	7	8	9	A	B	C	D	E	F
80	02	03	36	F1	54	5D	10	1F	04	13	05	14	03	02	12	20
90	21	22	15	01	5E	5F	62	63	64	23	09	57	07	6E	03	0C
A0	00	10	00	B8	3C	20	00	80	01	02	03	04	E5	0E	60	61
B0	65	66	E3	06	05	01	01	1D	80	18	71	1C	16	20	58	2C
C0	25	00	40	84	63	00	00	9E	66	21	50	B0	51	00	1B	30
D0	40	70	36	00	40	84	63	00	00	1E	00	00	00	00	00	00
E0	00	00	00	00	00	00	00	00	00	00	00	00	00	00	00	00
F0	00	00	00	00	00	00	00	00	00	00	00	00	00	00	00	F6

Copyright ©	LG Electronics. Inc. All rights reserved.	- 15 -	LGE Internal Use Only
Only for training and service purposes

#HDMI 2(C/S : 9F B4) - HDMI UHD Deep On Case EDID Block 0, Bytes 0-127 [00H-7FH]

	0	1	2	3	4	5	6	7	8	9	A	B	C	D	E	F
00	00	FF	FF	FF	FF	FF	FF	00	1E	6D	01	00	01	01	01	01
10	01	1A	01	03	80	A0	5A	78	0A	EE	91	A3	54	4C	99	26
20	0F	50	54	A1	08	00	31	40	45	40	61	40	71	40	81	80
30	01	01	01	01	01	01	08	E8	00	30	F2	70	5A	80	B0	58
40	8A	00	40	84	63	00	00	1E	02	3A	80	18	71	38	2D	40
50	58	2C	45	00	40	84	63	00	00	1E	00	00	00	FD	00	3A
60	3E	1E	88	3C	00	0A	20	20	20	20	20	20	00	00	00	FC
70	00	4C	47	20	54	56	0A	20	20	20	20	20	20	20	01	9F

EDID Block 1, Bytes 128-255 [80H-FFH]

	0	1	2	3	4	5	6	7	8	9	A	B	C	D	E	F
80	02	03	45	F1	58	61	60	10	1F	04	13	05	14	03	02	12
90	20	21	22	15	01	5D	5E	5F	65	66	62	63	64	23	09	57
A0	07	6E	03	0C	00	20	00	B8	3C	20	00	80	01	02	03	04
B0	67	D8	5D	C4	01	78	80	03	E3	05	C0	00	E4	0F	03	00
C0	18	E3	06	05	01	01	1D	80	18	71	1C	16	20	58	2C	25
D0	00	40	84	63	00	00	9E	66	21	50	B0	51	00	1B	30	40
E0	70	36	00	40	84	63	00	00	1E	00	00	00	00	00	00	00
F0	00	00	00	00	00	00	00	00	00	00	00	00	00	00	00	B4

#HDMI 2(C/S : 9F E6) - HDMI UHD Deep off case EDID Block 0, Bytes 0-127 [00H-7FH]

	0	1	2	3	4	5	6	7	8	9	A	B	C	D	E	F
00	00	FF	FF	FF	FF	FF	FF	00	1E	6D	01	00	01	01	01	01
10	01	1A	01	03	80	A0	5A	78	0A	EE	91	A3	54	4C	99	26
20	0F	50	54	A1	08	00	31	40	45	40	61	40	71	40	81	80
30	01	01	01	01	01	01	08	E8	00	30	F2	70	5A	80	B0	58
40	8A	00	40	84	63	00	00	1E	02	3A	80	18	71	38	2D	40
50	58	2C	45	00	40	84	63	00	00	1E	00	00	00	FD	00	3A
60	3E	1E	88	3C	00	0A	20	20	20	20	20	20	00	00	00	FC
70	00	4C	47	20	54	56	0A	20	20	20	20	20	20	20	01	9F

EDID Block 1, Bytes 128-255 [80H-FFH]

	0	1	2	3	4	5	6	7	8	9	A	B	C	D	E	F
80	02	03	36	F1	54	5D	10	1F	04	13	05	14	03	02	12	20
90	21	22	15	01	5E	5F	62	63	64	23	09	57	07	6E	03	0C
A0	00	20	00	B8	3C	20	00	80	01	02	03	04	E5	0E	60	61
B0	65	66	E3	06	05	01	01	1D	80	18	71	1C	16	20	58	2C
C0	25	00	40	84	63	00	00	9E	66	21	50	B0	51	00	1B	30
D0	40	70	36	00	40	84	63	00	00	1E	00	00	00	00	00	00
E0	00	00	00	00	00	00	00	00	00	00	00	00	00	00	00	00
F0	00	00	00	00	00	00	00	00	00	00	00	00	00	00	00	E6

#HDMI 3(C/S : 9F A2) - HDMI UHD Deep off case EDID Block 0, Bytes 0-127 [00H-7FH]

	0	1	2	3	4	5	6	7	8	9	A	B	C	D	E	F
00	00	FF	FF	FF	FF	FF	FF	00	1E	6D	01	00	01	01	01	01
10	01	1A	01	03	80	A0	5A	78	0A	EE	91	A3	54	4C	99	26
20	0F	50	54	A1	08	00	31	40	45	40	61	40	71	40	81	80
30	01	01	01	01	01	01	08	E8	00	30	F2	70	5A	80	B0	58
40	8A	00	40	84	63	00	00	1E	02	3A	80	18	71	38	2D	40
50	58	2C	45	00	40	84	63	00	00	1E	00	00	00	FD	00	3A
60	3E	1E	88	3C	00	0A	20	20	20	20	20	20	00	00	00	FC
70	00	4C	47	20	54	56	0A	20	20	20	20	20	20	20	01	9F

EDID Block 1, Bytes 128-255 [80H-FFH]

	0	1	2	3	4	5	6	7	8	9	A	B	C	D	E	F
80	02	03	45	F1	58	61	60	10	1F	04	13	05	14	03	02	12
90	20	21	22	15	01	5D	5E	5F	65	66	62	63	64	23	09	57
A0	07	6E	03	0C	00	30	00	B8	3C	20	00	80	01	02	03	04
B0	67	D8	5D	C4	01	78	80	03	E3	05	C0	00	E4	0F	03	00
C0	18	E3	06	05	01	01	1D	80	18	71	1C	16	20	58	2C	25
D0	00	40	84	63	00	00	9E	66	21	50	B0	51	00	1B	30	40
E0	70	36	00	40	84	63	00	00	1E	00	00	00	00	00	00	00
F0	00	00	00	00	00	00	00	00	00	00	00	00	00	00	00	A4

#HDMI 3(C/S : 9F D6) - HDMI UHD Deep off case EDID Block 0, Bytes 0-127 [00H-7FH]

	0	1	2	3	4	5	6	7	8	9	A	B	C	D	E	F
00	00	FF	FF	FF	FF	FF	FF	00	1E	6D	01	00	01	01	01	01
10	01	1A	01	03	80	A0	5A	78	0A	EE	91	A3	54	4C	99	26
20	0F	50	54	A1	08	00	31	40	45	40	61	40	71	40	81	80
30	01	01	01	01	01	01	08	E8	00	30	F2	70	5A	80	B0	58
40	8A	00	40	84	63	00	00	1E	02	3A	80	18	71	38	2D	40
50	58	2C	45	00	40	84	63	00	00	1E	00	00	00	FD	00	3A
60	3E	1E	88	3C	00	0A	20	20	20	20	20	20	00	00	00	FC
70	00	4C	47	20	54	56	0A	20	20	20	20	20	20	20	01	9F

EDID Block 1, Bytes 128-255 [80H-FFH]

	0	1	2	3	4	5	6	7	8	9	A	B	C	D	E	F
80	02	03	36	F1	54	5D	10	1F	04	13	05	14	03	02	12	20
90	21	22	15	01	5E	5F	62	63	64	23	09	57	07	6E	03	0C
A0	00	30	00	B8	3C	20	00	80	01	02	03	04	E5	0E	60	61
B0	65	66	E3	06	05	01	01	1D	80	18	71	1C	16	20	58	2C
C0	25	00	40	84	63	00	00	9E	66	21	50	B0	51	00	1B	30
D0	40	70	36	00	40	84	63	00	00	1E	00	00	00	00	00	00
E0	00	00	00	00	00	00	00	00	00	00	00	00	00	00	00	00
F0	00	00	00	00	00	00	00	00	00	00	00	00	00	00	00	D6

* Checksum(HDMI 1/2/3)

	Input	HDMI Deep Color On		HDMI Deep Color Off
		FFh (Checksum)		FFh (Checksum)
	HDMI1	9F	C4	9F	F6
	HDMI2	9F	B4	9F	E6
	HDMI3	9F	A4	9F	D6

Copyright ©	LG Electronics. Inc. All rights reserved.	- 16 -	LGE Internal Use Only
Only for training and service purposes

4.1.5.Green Eye Inspection Guide

(Only use Germany and CIS, Spec out other EU country, but UF690 model only

for Germany)

Step 1) Turn on the TV set.

Step 2). Press “EYE” button on the Adjustment remote control.

Step 3) Block the Intelligent Sensor module on the front C/A about 6 seconds. When the “Sensor Data” is lower than 20, you can see the “OK” message

→ If it doesn’t show “OK” message, the Sensor

Module is defected one.

You have to replace that with a good one.

Step 4) After check the “OK” message come out, take out your hand from the Sensor module.

→ Check “Backlight” value change from “0” to “100” or not. If it doesn’t change the value, the sensor is also defected one. You have to replace it.

4.2. White Balance Adjustment

4.2.1. Overview

▪W/B adj. Objective & How-it-works

(1)Objective: To reduce each Panel's W/B deviation

(2)How-it-works : When R/G/B gain in the OSD is at 192, it means the panel is at its Full Dynamic Range. In order to prevent saturation of Full Dynamic range and data, one of R/G/B is fixed at 192, and the other two is lowered to find the desired value.

(3)Adjustment condition : normal temperature

1)Surrounding Temperature : 25 °C ± 5 °C

2)Warm-up time: About 5 Min

3)Surrounding Humidity : 20 % ~ 80 %

4.2.2. Equipment

(1)Color Analyzer: CA-210 (LED Module : CH 14)

(2)Adjustment Computer(During auto adj., RS-232C protocol is needed)

(3)Adjustment Remote control

(4)Video Signal Generator MSPG-925F 720p/216-Gray (Model: 204, Pattern: 49)

→ Only when internal pattern is not available

• Color Analyzer Matrix should be calibrated using CS-100.

4.2.3. Equipment connection MAP

j Gh¡ G

w G	yzTYZYjG

j G

|ziG GyzTYZYjG

yzTYZYjG

G w Gn G

z Gz

p G{}G G G G SG G

4.2.4. Adj. Command (Protocol)

<Command Format>

START 6E A 50 A LEN A 03 A CMD A 00 A VAL A CS STOP

-LEN: Number of Data Byte to be sent

-CMD: Command

-VAL: FOS Data value

-CS: Checksum of sent data

-A: Acknowledge

Ex) [Send: JA_00_DD] / [Ack: A_00_okDDX]

▪ RS-232C Command used during auto-adjustment.

	RS-232C COMMAND			Explanation
	[CMD	ID	DATA]
	wb	00	00	Begin White Balance adj.
	wb	00	10	Gain adj.(internal white pattern)
	wb	00	1f	Gain adj. completed
	wb	00	20	Offset adj.(internal white pattern)
	wb	00	2f	Offset adj. completed
	wb	00	ff	End White Balance adj.
				(internal pattern disappears)

Ex) wb 00 00 → Begin white balance auto-adj. wb 00 10 → Gain adj.

ja 00 ff → Adj. data jb 00 c0

...

...

wb 00 1f -> Gain adj. complete

*(wb 00 20(Start), wb 00 2f(end)) → Off-set adj. wb 00 ff -> End white balance auto-adj.

▪ Adj. Map

	Adj	Command		Data Range
		(lower caseASCII)			(Hex.)
		CMD1	CMD2	MIN		MAX
Cool	R Gain	j	g	00		C0
	G Gain	j	h	00		C0
	B Gain	j	i	00		C0
Medium	R Gain	j	a	00		C0
	G Gain	j	b	00		C0
	B Gain	j	c	00		C0
Warm	R Gain	j	d	00		C0
	G Gain	j	e	00		C0
	B Gain	j	f	00		C0

Copyright ©	LG Electronics. Inc. All rights reserved.	- 17 -	LGE Internal Use Only
Only for training and service purposes

4.2.5. Adj. method

(1)Auto adj. method

1)Set TV in adj. mode using POWER ON key.

2)Zero calibrate probe then place it on the center of the Display.

3)Connect Cable.(RS-232C to USB)

4)Select mode in adj. Program and begin adj.

5)When adj. is complete (OK Sign), check adj. status pre mode.(Warm, Medium, Cool)

6)Remove probe and RS-232C cable to complete adj.

▪W/B Adj. must begin as start command “wb 00 00”, and finish as end command “wb 00 ff”, and Adj. offset if need.

(2)Manual adjustment method

1)Set TV in Adj. mode using POWER ON.

2)Zero Calibrate the probe of Color Analyzer, then place it on the center of LCD module within 10 cm of the surface.

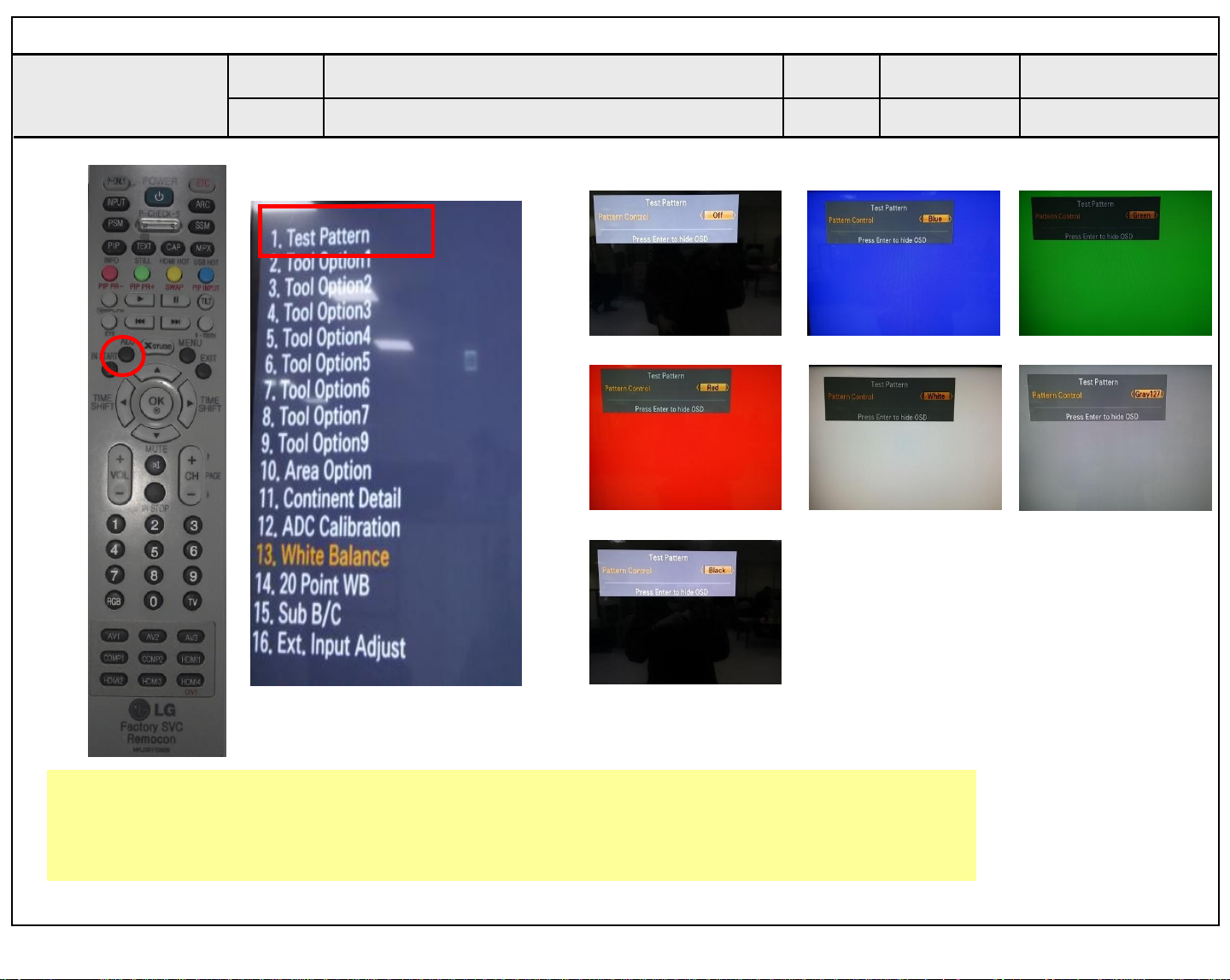

3)Press ADJ key → EZ adjust using adj. R/C → 7. WhiteBalance then press the cursor to the right(key ►). (When right key(►) is pressed 216 Gray internal pattern will be displayed)

4)One of R Gain / G Gain / B Gain should be fixed at 192, and the rest will be lowered to meet the desired value.

5)Adjustment is performed in COOL, MEDIUM, WARM 3 modes of color temperature.

** G-fix adjustment

Adjust modes (Cool), Fix the G gain to 172 (default data) and change the others (G/B Gain).

Adjust two modes(Medium / Warm), Fix the one of R/G/B gain to 192 (default data) and decrease the others.

If internal pattern is not available, use RF input. In EZ Adj. menu 7.White Balance, you can select one of 2 Testpattern: ON, OFF. Default is inner(ON). By selecting OFF, you can adjust using RF signal in 216 Gray pattern.

▪ Adjustment condition and cautionary items

1) Lighting condition in surrounding area

Surrounding lighting should be lower 10 lux. Try to isolate adj. area into dark surrounding.

2)Probe location

-PDP: Color Analyzer (CA-100, CA-100+, CA210) probe should be firmly attached to the Module

-LCD: Color Analyzer (CA-210) probe should be within 10cm and perpendicular of the module surface (80°~ 100°)

3)Aging time

-After Aging Start, Keep the Power ON status during 5 Minutes.

-In case of LCD, Back-light on should be checked using no signal or Full-white pattern.

4.2.6. Reference(White balance adjusmtment coordinate and color temperature)

▪ Luminance : 206 Gray

▪ Standard color coordinate and temperature using CS-1000

(over 26 inch)

	Mode	Coordinate		Temp	∆uv
		x	y
	Cool	0.271	0.270	13000K	0.0000
	Medium	0.286	0.289	9300K	0.0000
	Warm	0.313	0.329	6500K	0.0000

▪ Standard color coordinate and temperature using CA-210(CH 14)

	Mode	Coordinate		Temp	∆uv
		x	y
	Cool	0.271±0.002	0.270±0.002	13000K	0.0000
	Medium	0.286±0.002	0.289±0.002	9300K	0.0000
	Warm	0.313±0.002	0.329±0.002	6500K	0.0000

4.2.7. EDGE & IOL LED White balance table

▪Apply under the color coordinate table, for compensated aging time.

-gumi & Global

Model : (normal line)LGD

	Aging		Cool		Medium		Warm
	time	x		y	x	y	x	y
	(Min)	271		270	286	289	313	329
1	0-2	282		289	297	308	324	348
2	3-5	281		287	296	306	323	346
3	6-9	279		284	294	303	321	343
4	10-19	277		280	292	299	319	339
5	20-35	275		277	290	296	317	336
6	36-49	274		274	289	293	316	333
7	50-79	273		272	288	291	315	331
8	80-119	272		271	287	290	314	330
9	Over 120	271		270	286	289	313	329

(*)AUO, INX, Sharp, CSOT, BOE model (Cool spec : 13000K)

–40UH63**-Z*/55UH65**-Z*

webOS	Cool			Medium			Warm
	x		y	x	y	x		y
	271		270	285	293	313		329
Target	278		280	293	299	320		339

Copyright ©	LG Electronics. Inc. All rights reserved.	- 18 -	LGE Internal Use Only
Only for training and service purposes

4.3. Magic Motion Remote control test

-Equipment : RF Remote control for test, IR-KEY-Code Remote control for test

-You must confirm the battery power of RF-Remote control before test(recommend that change the battery per every lot)

-Sequence (test)

1)If you select the ‘start key(OK)’ on the Adjustment remote control, you can pairing with the TV SET.

2)You can check the cursor on the TV Screen, when select the "OK" key on the Adjustment remote control.

3)You must remove the pairing with the TV Set by select ‘Mute + OK Key’ on the Adjustment remote control.

4.4. Option selection per country

4.4.1. Overview

- Option selection is only done for models in AJ/JA/IL

4.4.2.Method

(1)Press ADJ key on the Adj. R/C, then select Country Group

Menu.

(2)Depending on destination, select Country Group Code or Country Group then on the lower Country option, select

US, CA, MX. Selection is done using +, - or ►◄ KEY.

4.5.HDMI ARC Function Inspection

(1)Test equipment

-Optic Receiver Speaker

-MSHG-600 (SW: 1220 ↑)

-HDMI Cable (for 1.4 version)

(2)Test method

1)Insert the HDMI Cable to the HDMI ARC port from the master equipment. (HDMI2)

2)Check the sound from the TV Set.

3)Check the Sound from the Speaker or using AV & Optic TEST program (It’s connected to MSHG-600)

4.6.Ship-out mode check (In-stop)

-After final inspection, press In-Stop key of the Adjustment remote control and check that the unit goes to Stand-by mode.

5. GND and Internal Pressure check

5.1.Method

(1)GND & Internal Pressure auto-check preparation

-Check that Power Cord is fully inserted to the SET. (If loose, re-insert)

(2)Perform GND & Internal Pressure auto-check

-Unit fully inserted Power cord, Antenna cable and A/V arrive to the auto-check process.

-Connect D-terminal to AV JACK TESTER

-Auto CONTROLLER(GWS103-4) ON

-Perform GND TEST

-If NG, Buzzer will sound to inform the operator.

-If OK, changeover to I/P check automatically.

(Remove CORD, A/V form AV JACK BOX.)

-Perform I/P test

-If NG, Buzzer will sound to inform the operator.

-If OK, Good lamp will lit up and the stopper will allow the pallet to move on to next process.

5.2.Checkpoint

▪TEST voltage

-GND: 1.5 KV / min at 100 mA

-SIGNAL: 3 KV / min at 100 mA

▪TEST time: 1 second

▪TEST POINT

-GND TEST = POWER CORD GND & SIGNAL CABLE

METAL GND

-Internal Pressure TEST = POWER CORD GND & LIVE &

NEUTRAL

▪LEAKAGE CURRENT: At 0.5 mArms

6.Audio

	No.	Item	Typ	Max	Unit
		Audio practical max Output,	10	12	W	EQ Off
	1	L/R (Distortion=10% max	8.10	10.8	Vrms	AVL Off
		Output)				Clear Voice Off
		Speaker				EQ On
	2		10	12	W	AVL On
		(6/8Ω Impedance)
						Clear Voice On

Measurement condition:

(1)RF input: Mono, 1 KHz sine wave signal, 100 % Modulation

(2)CVBS, Component: 1 KHz sine wave signal 0.5 Vrms

Copyright ©	LG Electronics. Inc. All rights reserved.	- 19 -	LGE Internal Use Only
Only for training and service purposes

7.USB S/W Download (option, Service only)

(1)Put the USB Stick to the USB socket.

(2)Automatically detecting update file in USB Stick

-If your downloaded program version in USB Stick is Lower, it didn’t work.

But your downloaded version is Higher, USB data is automatically detecting (Download Version High & Power only mode, Set is automatically Download)

(3) Show the message “Copying files from memory”.

(4) Updating is starting.

(5) Updating completed, the TV will restart automatically

(6)If your TV is turned on, check your updated version and Tool option. (explain the Tool option, next stage)

*If downloading version is more high than your TV have, TV can lost all channel data. In this case, you have to channel recover. if all channel data is cleared, you didn’t have a DTV/ATV test on production line.

*After downloading, have to adjust Tool Option again.

(1)Push "IN-START" key in service remote control.

(2)Select "Tool Option 1" and push "OK" key.

(3)Punch in the number. (Each model has their number)

Copyright ©	LG Electronics. Inc. All rights reserved.	- 20 -	LGE Internal Use Only
Only for training and service purposes

BLOCK DIAGRAM

1. K2Lp

Copyright ©

LG Electronics. Inc. All rights reserved.

- 21 -

LGE Internal Use Only

Only for training and service purposes

2. K2Lp (Internal)

Copyright ©	LG Electronics. Inc. All rights reserved.	- 22 -	LGE Internal Use Only
Only for training and service purposes

3. K2Lp I2C

Copyright ©

LG Electronics. Inc. All rights reserved.

- 23 -

LGE Internal Use Only

Only for training and service purposes
