LG 43UH610 Schematic

Internal Use Only

LED TV

SERVICE MANUAL

CHASSIS : UA65S

MODEL : 43UH610* 43UH610*-U*

MODEL : 49UH610* 49UH610*-U*

CAUTION

BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

P/NO : MFL69413319 (1602-REV00)

CONTENTS

CONTENTS .............................................................................................. 2

SAFETY PRECAUTIONS ........................................................................ 3

SERVICING PRECAUTIONS ................................................................... 4

SPECIFICATION ...................................................................................... 6

ADJUSTMENT INSTRUCTION .............................................................. 14

BLOCK DIAGRAM .................................................................................. 26

EXPLODED VIEW .................................................................................. 34

DISASSEMBLY. ...................................................................................... 35

SCHEMATIC CIRCUIT DIAGRAM ........................................... APPENDIX

TROUBLE SHOOTING GUIDE ................................................ APPENDIX

Only for training and service purposes

- 2 -

SAFETY PRECAUTIONS

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Exploded View. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks.

It will also protect the receiver and it's components from being damaged by accidental shorts of the circuitry that may be inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown, replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1 W), keep the resistor 10 mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1 MΩ and 5.2 MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check. Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to

0.5 mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer.

Leakage Current Hot Check circuit

Only for training and service purposes

- 3 -

SERVICING PRECAUTIONS

CAUTION: Before servicing receivers covered by this service manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication. NOTE: If unforeseen circumstances create conict between the

following servicing precautions and any of the safety precautions on page 3 of this publication, always follow the safety precautions. Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power source before;

a. Removing or reinstalling any component, circuit board mod-

ule or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug or

other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver. CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explosion hazard.

2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage probe. Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its assemblies.

4. Unless specied otherwise in this service manual, clean

electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or comparable non-abrasive applicator; 10 % (by volume) Acetone and 90 % (by volume) isopropyl alcohol (90 % - 99 % strength)

CAUTION: This is a ammable mixture. Unless specied otherwise in this service manual, lubrication of

contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed.

7. Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead. Always remove the test receiver ground lead last.

8. Use with this receiver only the test xtures specied in this

service manual.

CAUTION: Do not connect the test xture ground strap to any

heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES

devices are integrated circuits and some eld-effect transistors

and semiconductor “chip” components. The following techniques should be used to help reduce the incidence of component damage caused by static by static electricity.

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static type solder removal device. Some solder

removal devices not classied as “anti-static” can generate electrical charges sufcient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate

electrical charges sufcient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your

foot from a carpeted oor can generate static electricity sufcient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate tip size and shape that will maintain tip temperature within the range or 500 °F to 600 °F.

2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wirebristle (0.5 inch, or 1.25 cm) brush with a metal handle. Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique

a. Allow the soldering iron tip to reach normal temperature.

(500 °F to 600 °F) b. Heat the component lead until the solder melts. c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal temperature

(500 °F to 600 °F)

b. First, hold the soldering iron tip and solder the strand against

the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there only until the solder ows onto and around both the component lead and the foil. CAUTION: Work quickly to avoid overheating the circuit board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

Only for training and service purposes

- 4 -

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through which the IC leads are inserted and then bent at against the circuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts.

2. Draw away the melted solder with an anti-static suction-type solder removal device (or with solder braid) before removing the IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and solder it.

3. Clean the soldered areas with a small wire-bristle brush. (It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board and crimp the "U" with long nose pliers to insure metal to metal contact then solder each connection.

Power Output, Transistor Device Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit board.

3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder.

3. Solder the connections. CAUTION: Maintain original spacing between the replaced component and adjacent components and the circuit board to prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The following guidelines and procedures should be followed whenever this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the following procedure to install a jumper wire on the copper pattern side of the circuit board. (Use this technique only on IC connections).

1. Carefully remove the damaged copper pattern with a sharp knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern at connections other than IC Pins. This technique involves the installation of a jumper wire on the component side of the circuit board.

1. Remove the defective copper pattern with a sharp knife. Remove at least 1/4 inch of copper, to ensure that a hazardous condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern break and locate the nearest component that is directly connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the nearest component on one side of the pattern break to the lead of the nearest component on the other side. Carefully crimp and solder the connections. CAUTION: Be sure the insulated jumper wire is dressed so the it does not touch components or sharp edges.

Fuse and Conventional Resistor Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow stake.

2. Securely crimp the leads of replacement component around notch at stake top.

Only for training and service purposes

- 5 -

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

.

1. Application range

This spec sheet is applied to the LED TV used UA65S chassis

2. Test condition

Each part is tested as below without special notice.

(1) Temperature : 25 ºC ± 5 ºC(77±9ºF), CST : 40 ºC±5 ºC (2) Relative Humidity: 65 % ± 10 % (3) Power Voltage

Standard input voltage (100~240V@ 50/60Hz) * Standard Voltage of each products is marked by models.

(4) Specification and performance of each parts are followed

each drawing and specification by part number in accordance with BOM.

(5) The receiver must be operated for about 20 minutes prior

to the adjustment.

3. Test method

(1) Performance: LGE TV test method followed (2) Demanded other specification

- Safety : UL, CSA, CE, IEC specification

- EMC : FCC, ICES, CE, IEC specification

- Wireless : Wireless HD Specification (Option)

4. General Specification

4.1. Model Specification

No Item Specication Remark

1 Market North America

2 Broadcasting system ATSC / NTSC-M, 64 & 256 QAM

3 Available Channel VHF : 2~13

UHF : 14~69

DTV : 2-69

CATV : 1 ~ 135

CADTV : 1 ~ 135

4 Receiving system Digital : ATSC, 64 & 256 QAM

Analog : NTSC-M

5 Video Input NTSC-M Rear RCA

6 Component Input Y/Cb/Cr, Y/ Pb/Pr Rear RCA

7 HDMI Input HDMI 3 DTV format, Support HDCP2.2/ PC

(HDMI version 1.4)

HDMI 2 DTV format, Support HDCP2.2/ PC

(HDMI version 1.4/2.0)

HDMI 1 DTV format, Support HDCP2.2/ PC

(HDMI version 1.4/2.0)

8 Audio Input Component / AV Audio L/R Input ; Rear

9 SPDIF out(1EA) Optical Audio out Rear (1EA),

10 USB Input(3EA) EMF, DivX HD, For SVC (download) Side(1)/Rear(2) :JPEG, MP3, DivX HD

Side,

Side, Support ARC only HDMI2

Side,

Component and av use same jack ; Rear

(Exception, UA65S: USB 1EA)

Only for training and service purposes

- 6 -

4.2. Module Specification

No Item Specication Remark

1 Display Screen Device 65” wide color display module LC650EGE-FJM1 (2D,T120)

LC650EGE-DJM2 (2D,T120) LC650EGE-FJM3

60” wide color display module HC700EQF-VHEQ1 (2D,M120)

58” wide color display module LC650EQF-FHM1 (2D,T240)

LC650EQF-FHM2 (2D,T240) LC650EQF-PHF1 (3D,T240) LC650VQF-FHF1 (3D,T240,Curved)

55” wide color display module LC600EQF-FHM1 (2D,T240)

LC600EQF-PHF1 (3D,T240)

50” wide color display module LC550EQE-FHM1 (2D,T120)

LC550EQE-FHM2 (2D,T120) LC550EQE-PHF1 (3D,T120) LC550VQF-FHF1 (3D,T240,Curved)

49” wide color display module LC490EQE-FHM1 (2D,T120)

LC490EQE-FHM2 (2D,T120) LC490EQE-XHF1 (3D,T120)

43” wide color display module LC430EQE-FHM1 (2D,T120)

LC430EQE-FHM2 (2D,T120)

40” wide color display module V400DK1-KE1(2D,T120)

2 Aspect Ratio 16:9 All

4 Operating Environment TFT 1) Temp. : 0 ~ 40 deg

2) Humidity : 0 ~ 85%

ALEF Temp. : 0 ~ 50 deg

Humidity : 20 ~ 90%

5 Storage Environment TFT Temp. : -20 ~ 60 deg

Humidity : 10 ~ 90%

ALEF Temp. : -20 ~ 60 deg

Humidity : 10 ~ 90%

6 Input Voltage AC100 ~ 240V, 50/60Hz

7 Display Colors 1.07 B (10-bit) LGD

1.07G colors (8-bit+FRC) V580DJ2-KS5

1.067G V500DJ2-KS5

Surface Treatment Hard coating (2H), Anti-glare

LGE SPEC

Only for training and service purposes

- 7 -

5. External input format

5.1. 2D Mode

5.1.1. Component input(Y, CB/PB, CR/PR)

No

1 720*480 15.73 60 13.5135 SDTV ,DVD 480I

2 720*480 15.73 59.94 13.5 SDTV ,DVD 480I

3 720*480 31.50 60 27.027 SDTV 480P

4 720*480 31.47 59.94 27.0 SDTV 480P

5 1280*720 45.00 60.00 74.25 HDTV 720P

6 1280*720 44.96 59.94 74.176 HDTV 720P

7 1920*1080 33.75 60.00 74.25 HDTV 1080I

8 1920*1080 33.72 59.94 74.176 HDTV 1080I

9 1920*1080 67.500 60 148.50 HDTV 1080P

10 1920*1080 67.432 59.94 148.352 HDTV 1080P

Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed

5.1.2. HDMI Input (PC/DTV)

No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed

HDMI-PC DDC

1 640*350 31.46 70.09 25.17 EGA Х

2 720*400 31.46 70.08 28.32 DOS O

3 640*480 31.46 59.94 25.17 VESA(VGA) O

4 800*600 37.87 60.31 40.00 VESA(SVGA) O

5 1024*768 48.36 60.00 65.00 VESA(XGA) O

6 1152*864 54.34 60.05 80.00 VESA O

7 1280*1024 63.98 60.02 108.00 VESA (SXGA) O

8 1360*768 47.71 60.01 85.50 VESA (WXGA) O

9 1920*1080 67.5 60 148.5

10 3840*2160 67.5 30 297.00

11 3840*2160 56.25 25.00 297.00

12 3840*2160 54 24 297.00

13 4096*2160 53.95 23.97 297

14 4096*2160 54 24 297 Only UD Model O

WUXGA(Reduced Blanking)

Only UD Model

O

Only for training and service purposes

- 8 -

HDMI-DTV

1 640 * 480 31.46 59.94 25.125 SDTV 480P

2 640 * 480 31.5 60 25.125 SDTV 480P

3 720 * 480 31.5 60 27.027 SDTV 480P

4 720 * 480 31.47 59.94 27.00 SDTV 480P

5 1280*720 45.00 60.00 74.25 HDTV 720P

6 1280*720 44.96 59.94 74.176 HDTV 720P

7 1920*1080 33.75 60.00 74.25 HDTV 1080I

8 1920*1080 33.72 59.94 74.176 HDTV 1080I

9 1920*1080 67.50 60 148.50 HDTV 1080P

10 1920*1080 67.43 59.94 148.35 HDTV 1080P

11 1920*1080 27.00 24.00 74.25 HDTV 1080P

12 1920*1080 26.97 23.97 74.176 HDTV 1080P

13 1920*1080 33.75 30.00 74.25 HDTV 1080P

14 1920*1080 33.71 29.97 74.176 HDTV 1080P

15 3840*2160 67.5 30.00 297.00 UDTV 2160P

16 3840*2160 61.43 29.97 296.703 UDTV 2160P

17 3840*2160 56.25 25.00 297.00 UDTV 2160P

18 3840*2160 54.0 24.00 297.00 UDTV 2160P

19 3840*2160 53.95 23.98 296.703 UDTV 2160P

20 3840*2160 135 59.94 594 UDTV 2160P

21 3840*2160 135 60 594 UDTV 2160P

22 4096*2160 53.95 23.98 296.703 UDTV 2160P

23 4096*2160 54 24.00 297 UDTV 2160P

24 4096*2160 56.25 25.00 297 UDTV 2160P

25 4096*2160 61.43 29.97 296.703 UDTV 2160P

26 4096*2160 67.5 30.00 297 UDTV 2160P

27 4096*2160 135 59.94 594 UDTV 2160P

28 4096*2160 135 60.00 594 UDTV 2160P

Only for training and service purposes

- 9 -

5.2. 3D Mode

5.2.1. HDMI Input 1.4b (3D supported mode automatically)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock

(MHz)

1 640*480 31.46 / 31.5 59.94/ 60 25.17/25.2 1 Top-and-Bottom

62.93 / 63 59.94/ 60 50.35/50.4 1 Frame packing

31.46 / 31.5 59.94/ 60 50.35/50.4 1 Side-by-side(Full) (SDTV 480P)

2 720*480 31.46 / 31.5 59.94 / 60 27.00/27.03 2,3 Top-and-Bottom

62.93 / 63 59.94 / 60 54/54.06 2,3 Frame packing

31.46 / 31.5 59.94 / 60 54/54.06 2,3 Side-by-side(Full) (SDTV 480P)

3 1280*720 44.96 / 45 59.94 / 60 74.18/74.25 4 Top-and-Bottom

89.91 / 90 59.94 / 60 148.35/148.5 4 Frame packing

44.96 / 45 59.94 / 60 148.35/148.5 4 Side-by-side(Full) (HDTV 720P)

4 1920*1080 33.72 / 33.75 59.94 / 60 74.18/74.25 5 Top-and-Bottom

67.43 / 67.5 59.94 / 60 148.35/148.5 5 Frame packing

33.72 / 33.75 59.94 / 60 148.35/148.5 5 Side-by-side(Full) (HDTV 1080I)

26.97 / 27 23.97 / 24 74.18/74.25 32 Top-and-Bottom

43.94 / 54 23.97 / 24 148.35/148.5 32 Frame packing

26.97 / 27 23.97 / 24 148.35/148.5 32 Side-by-side(Full) (HDTV 1080P)

28.125 25 74.25 33 Top-and-Bottom

56.25 25 148.5 33 Frame packing

28.125 25 148.5 33 Side-by-side(Full) (HDTV 1080P)

33.716 / 33.75 29.976 / 30.00 74.18/74.25 34 Top-and-Bottom

67.432 / 67.5 29.976 / 30.00 148.35/148.5 34 Frame packing

33.716 / 33.75 29.976 / 30.00 148.35/148.5 34 Side-by-side(Full) (HDTV 1080P)

67.43 / 67.5 59.94 / 60 148.35/148.50 16 Top-and-Bottom

VIC 3D input proposed

mode

Side-by-side(half)

Line alternative

Side-by-side(half)

Line alternative

Side-by-side(half)

Line alternative

Side-by-side(half)

Field alternative

Side-by-side(half)

Line alternative

Side-by-side(half)

Line alternative

Side-by-side(half)

Line alternative

Side-by-side(half)

Proposed

Secondary(SDTV 480P) Secondary(SDTV 480P)

Secondary(SDTV 480P) (SDTV 480P)

Secondary(SDTV 480P) Secondary(SDTV 480P)

Secondary(SDTV 480P) (SDTV 480P)

Primary(HDTV 720P) Primary(HDTV 720P)

Primary(HDTV 720P) (HDTV 720P)

Secondary(HDTV 1080I) Primary(HDTV 1080I)

Primary(HDTV 1080I) (HDTV 1080I)

Primary(HDTV 1080P) Primary(HDTV 1080P)

Primary(HDTV 1080P) (HDTV 1080P)

Secondary(HDTV 1080P) Secondary(HDTV 1080P)

Secondary(HDTV 1080P) (HDTV 1080P)

Primary(HDTV 1080P) Secondary(HDTV 1080P)

Primary(HDTV 1080P) (HDTV 1080P)

Primary(HDTV 1080P) Secondary(HDTV 1080P)

Only for training and service purposes

- 10 -

5.2.2. HDMI 1.4/2.0(3D Supported mode manaually)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock

(MHz)

1. 720*480 31.5 60 27.03 SDTV 480P 2D to 3D, Side by Side(Half),

2. 1280*720 45.00 60.00 74.25 HDTV 720P

3. 1920*1080 33.75 60.00 74.25 HDTV 1080I 2D to 3D, Side by Side(Half),

4. 1920*1080 27.00 24.00 74.25 HDTV 1080P 2D to 3D, Side by Side(Half),

5. 1920*1080 28.12 25 74.25 HDTV 1080P

6. 1920*1080 33.75 30.00 74.25 HDTV 1080P

7. 1920*1080 67.50 60.00 148.5 HDTV 1080P 2D to 3D, Side by Side(Half),

8. 3840*2160 53.95 23.976 296.703 HDTV 2160P

9. 3840*2160 54 24.00 297.00 HDTV 2160P

10. 3840*2160 56.25 25.00 297.00 HDTV 2160P

11. 3840*2160 61.43 29.970 296.703 HDTV 2160P

12. 3840*2160 67.5 30.00 297.00 HDTV 2160P

13. 4096*2160 53.95 23.976 296.703 HDTV 2160P

14. 4096*2160 54 24.00 297.00 HDTV 2160P

15. 4096*2160 56.25 25.00 297.00 HDTV 2160P

16. 4096*2160 61.43 29.970 296.703 HDTV 2160P

17. 4096*2160 67.5 30.00 297.00 HDTV 2160P

18. 3840*2160 135 60 594 HDTV 2160P 2D to 3D, Top & Bottom(half),

19. 4096*2160 135 60 594 HDTV 2160P 2D to 3D, Top & Bottom(half),

Proposed 3D input proposed mode

Top & Bottom, Checker Board, Frame Sequential, Row Interleaving, Column Interleaving

Top & Bottom

Top & Bottom, Checker Board, Row Interleaving, Column Interleaving

Top & Bottom, Checker Board, Single Frame Sequential, Row Interleaving, Column Interleaving

Side by Side(half), Port3 Only

5.2.3. HDMI-PC Input (3D) (3D Supported Mode Manually)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock

1. 1024*768 48.36 60 65 HDTV 768P 2D to 3D,

2. 1360*768 47.71 60 85.5 HDTV 768P 2D to 3D,

3. 1920*1080 67.500 60 148.50 HDTV 1080P 2D to 3D,

4. 3840*2160 4096*2160

5. 3840*2160 4096*2160

6. Others - - - 640*350

54 24.00 296.703 HDTV 2160P 2D to 3D,

56.25 25.00 297

67.5 30.00 296.703

135 60 594 HDTV 2160P 2D to 3D,

(MHz)

Proposed 3D input proposed mode

Side by Side(half), Top & Bottom

Side by Side(half), Top & Bottom, Checker Board, Single Frame Sequential, Row Interleaving, Column Interleaving

Top & Bottom(half), Side by Side(half),

Top & Bottom(half), Side by Side(half), Port3 Only

720*400 640*480 800*600

1152*864

2D to 3D, Side by Side(half), Top & Bottom

- 11 -

Only for training and service purposes

5.2.4. RF Input(3D supported mode manually)

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode

1 1280*720 37.500 50 74.25 HDTV 720P 2D to 3D, Side by Side, Top & Bottom

2 1920*1080 28.125 50 74.25 HDTV 1080I 2D to 3D, Side by Side, Top & Bottom

5.2.5. RF Input (3D supported mode automatically)

No. Signal 3D input proposed mode

1 Frame Compatible Side by Side(Half), Top & Bottom

5.2.6. USB, DLNA (Movie) Input (3D supported mode manually)

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode

1 Under 704x480 - - - 2D to 3D

2 Over 704x480

interlaced

3 Over 704x480

progressive

4 Over 704x480

progressive

5 Over 2160P - 24/25/30/60 - 2D to 3D, Side by Side(Half),

- - - 2D to 3D, Side by Side(Half), Top & Bottom

- 60 - 2D to 3D, Side by Side(Half), Top & Bottom, Checker Board, Row Interleaving, Column Interleaving, Frame Sequential

- others - 2D to 3D, Side by Side(Half), Top & Bottom, Checker Board, Row Interleaving, Column Interleaving

Top & Bottom, USB Only

5.2.7. USB, DLNA (Photo) Input (3D supported mode manually)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode

1 USB(Photo) - - - 2D to 3D, Side by Side(Half), Top & Bottom

5.2.8. USB, DNLA Input (3D supported mode automatically)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode

1 1080P 33.75 30 - Side by Side(Half), Top & Bottom, Checker Board,

2 2160p 67.5 30 297 MPO(Photo), JPS(Photo)

MPO(Photo)

Only for training and service purposes

- 12 -

5.2.9. Component Input(3D supported mode manually)

R

L

R

L

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark

1 1280*720 45.00 60.00 74.25 HDTV 720P 2D to 3D,

2 1280*720 37.500 50 74.25 HDTV 720P

3 1920*1080 33.75 60.00 74.25 HDTV 1080I

4 1920*1080 28.125 50.00 74.25 HDTV 1080I

5 1920*1080 27.00 24.00 74.25 HDTV 1080P

6 1920*1080 28.12 25 74.25 HDTV 1080P

7 1920*1080 33.75 30.00 74.25 HDTV 1080P

8 1920*1080 67.50 60.00 148.5 HDTV 1080P

9 1920*1080 56.250 50 148.5 HDTV 1080P

10 Others - - - SDTV

Side by Side(Half), Top & Bottom

5.2.10. Miracast, Widi (3D supported mode manually)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode

1 1024X768p - 30 / 60 - 2D to 3D, Side by Side(Half), Top & Bottom

2 1280x720p - 30 / 60 -

3 1920X1080p 30 / 60

4 Others - 2D to 3D

**Remark: 3D Input mode

No. Side by Side Top & Bottom Checkerboard Single Frame

Sequential

1

Frame Packing Line

Interleaving

Column

Interleaving

Only for training and service purposes

- 13 -

ADJUSTMENT INSTRUCTION

1. Application Range

This spec. sheet applies to UA65S Chassis applied LED TV all models manufactured in TV factory

2. Specification.

(1) Because this is not a hot chassis, it is not necessary to use

an isolation transformer. However, the use of isolation

transformer will help protect test instrument (2) Adjustment must be done in the correct order. (3) The adjustment must be performed in the circumstance of

25 ±5ºC of temperature and 65±10% of relative humidity if

there is no specific designation (4) The input voltage of the receiver must keep 100~240V,

50/60Hz (5) The receiver must be operated for about 5 minutes prior to

the adjustment when module is in the circumstance of over

15ºC

▪ In case of keeping module is in the circumstance of 0°C, it

should be placed in the circumstance of above 15°C for 2 hours

▪ In case of keeping module is in the circumstance of below

-20°C, it should be placed in the circumstance of above 15°C for 3 hours

* (Caution) When still image is displayed for a period of 20

minutes or longer (especially where W/B scale is strong. Digital pattern 13ch and/or Cross hatch pattern 09ch), there can some afterimage in the black level area.

3. Adjustment items

3.1. Main PCB check process

▪ MAC Address Download ▪ ADC adjustment : 480i Comp1, 1920*1080 Comp1 ▪ EDID/DDC download

Above adjustment items can be also performed in Final Assembly if needed. Both Board-level and Final assembly adjustment items can be check using In-Start Menu 1.ADJUST CHECK.

3.2. Final assembly adjustment

▪ White Balance adjustment ▪ RS-232C functionality check ▪ PING Test ▪ Factory Option setting per destination ▪ Ship-out mode setting (In-Stop)

4. Automatic Adjustment

4.1. ADC Adjustment

ADC adjustment is needed to find the optimum black level and gain in Analog-to-Digital device and to compensate RGB deviation.

4.1.1. Equipment & Condition

(1) USB to RS-232C Jig (2) MSPG-925 Series Pattern Generator(MSPG-925FA,

pattern -65)

- Resolution : 480i Comp1 1080P Comp1

- Pattern : Horizontal 100% Color Bar Pattern

- Pattern level : 0.7±0.1 Vp-p

- Image

4.1.2. Adjustment method

▪ Using USB, adjust items listed in 3.1 in the other shown in

“4.1.3.3”

4.1.3. Adj. protocol

Protocol Command Set ACK

Enter adj. mode aa 00 00 a 00 OK00x

Source change xb 00 40

xb 00 60

Begin adj. ad 00 10

Return adj. result

Read adj. data (main)

ad 00 20

(sub ) ad 00 21

Conrm adj. ad 00 99 NG 03 00x (Fail)

End adj. ad 00 90 a 00 OK90x

(Ref.) ADC Adj. RS232C Protocol_Ver1.0

b 00 OK04x (Adjust 480i, 1080p Comp1 ) b 00 OK06x (Adjust 1920*1080 RGB)

OKx (Case of Success) NGx (Case of Fail)

(main) 000000000000000000000000007c007b006dx

(Sub) 000000070000000000000000007c00830077x

NG 03 01x (Fail) NG 03 02x (Fail) OK 03 03x (Success)

3.3. Etc.

▪ Ship-out mode ▪ Service Option Default ▪ USB Download(S/W Update, Option, Service only) ▪ ISP Download (Option)

Only for training and service purposes

- 14 -

Adj. order

▪ aa 00 00 [Enter ADC adj. mode] ▪ xb 00 04 [Change input source to Component1(480i&1080p)] ▪ ad 00 10 [Adjust 480i&1080p Comp1] ▪ xb 00 06 [Change input source to RGB(1024*768)] ▪ ad 00 10 [Adjust 1920*1080 RGB] ▪ aa 00 90 End adj.

4.2. MAC address, ESN, Widevine, HDCP2.0 key D/L

4.2.1. Equipment & Condition

(1) Play file: keydownload.exe

4.2.2. Communication Port connection

(1) Key Write: Com 1,2,3,4 and 115200 (Baudrate) (2) Barcode: Com 1,2,3,4 and 9600 (Baudrate)

4.2.3. Download process

(1) Select the download items. (2) Mode check: Online Only (3) Check the test process : DETECT -> MAC -> Widevine (4) Play: START (5) Check of result: Ready, Test, OK or NG

4.2.4. Communication Port connection

(1) Connect: PCBA Jig -> RS-232C Port == PC -> RS-232C

Port

4.3. LAN Inspection

4.3.1. Equipment & Condition

▪ Each other connection to LAN Port of IP Hub and Jig

4.3.2. LAN inspection solution

▪ LAN Port connection with PCB ▪ Network setting at MENU Mode of TV ▪ Setting automatic IP ▪ Setting state confirmation

- If automatic setting is finished, you confirm IP and MAC Address.

4.2.5. Download

(1) Models(MAC + Widevine + ESN): Korea model(K2Lp)

4.3.3. LAN PORT INSPECTION (PING TEST)

(1) Play the LAN Port Test PROGRAM. (2) Input IP set up for an inspection to Test Program.

* IP Number : 12.12.2.2.

Only for training and service purposes

- 15 -

4.3.4. LAN PORT inspection (PING TEST)

(1) Play the LAN Port Test Program. (2) connect each other LAN Port Jack. (3) Play Test (F9) button and confirm OK Message. (4) remove LAN CABLE

4.4. Model name & Serial number Download

4.4.1. Model name & Serial number D/L

▪ Press “Power on” key of service remocon.(Baud rate :

115200 bps)

▪ Connect RS-232C Signal to USB Cable to USB. ▪ Write Serial number by use USB port. ▪ Must check the serial number at Instart menu.

* Manual Download (Model Name and Serial Number)

If the TV set is downloaded By OTA or Service man, Sometimes model name or serial number is initialized. ( not always) It is impossible to download by bar code scan, so It need Manual download.

a. Press the ‘INSTART’ key of ADJ remote controller. b. Go to the menu ‘7. Model Number D/L’ like below photo. c. Input the Factory model name or Serial number like

below photo.

d. Check the model name INSTART menu -> Factory name

displayed

e. Check the Diagnostics (DTV country only) -> Buyer

model displayed

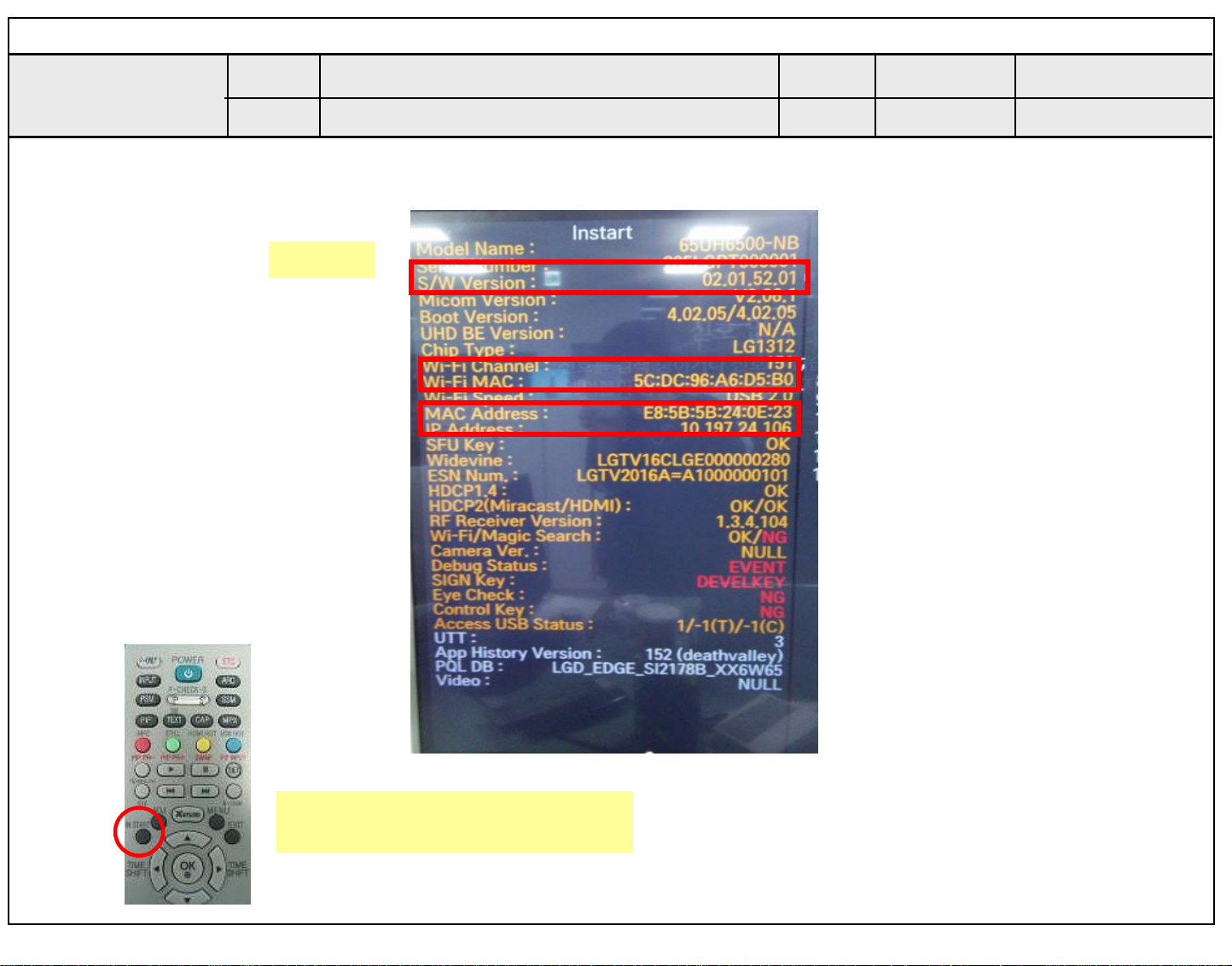

4.5. WIFI MAC ADDRESS CHECK

4.5.1. Using RS232 Command

Command Set ACK

Transmission [A][l][][Set ID][][20][Cr] [O][K][x] or [N][G]

■ Check the menu on in-start

■ Method & Notice

A. Serial number D/L is using of scan equipment. B. Setting of scan equipment operated by Manufacturing

Technology Group.

C. Serial number D/L must be conformed when it is produced

in production line, because serial number D/L is mandatory by D-book 4.0

Only for training and service purposes

- 16 -

5. Manual Adjustment

DVI-D to HDMI or HDMI to HDMI

5.1. ADC adjustment is not needed because of OTP (Auto ADC adjustment)

5.2. EDID

(The Extended Display Identification Data) / DDC (Display Data Channel) download

5.2.1. Overview

It is a VESA regulation. A PC or a MNT will display an optimal resolution through information sharing without any necessity of user input. It is a realization of “Plug and Play”.

5.2.2. Equipment

▪ Since embedded EDID data is used, EDID download JIG,

HDMI cable and D-sub cable are not need.

▪ Adjust remocon

5.2.3. Download method

(1) Press Adj. key on the Adjust remocon, then select “12.EDID

D/L”.

By pressing Enter key, enter EDID D/L menu

(2) Select [Start] button by pressing Enter key, HDMI1 / HDMI2

/ HDMI3 / HDMI4 are Writing and display OK or NG.

For HDMI EDID

5.2.4. EDID DATA

▪ Reference

- HDMI1 ~ HDMI3

- In the data of EDID, bellows may be different by Input mode

0 1 2 3 4 5 6 7 8 9 A B C D E F

0x00 00 FF FF FF FF FF FF 00 1E 6D

0x01

0x02 0F 50 54 A1 8 00 31 40 45 40 61 40 71 40 81 80

0x03 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C

0x04 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30

0x05 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A

0x06 3E 1E 53 10 00 0A 20 20 20 20 20 20

0x07

0x00 02 03 3A F1 4E 10 9F 04 13 05 14 03 02 12 20 21

0x01 22 15 01 29 3D 06 C0 15 07 50

0x02

0x03

0x04 2D 40 58 2C 45 00 40 84 63 00 00 1E 01 1D 80 18

0x05 71 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 01 1D

0x06 00 72 51 D0 1E 20 6E 28 55 00 40 84 63 00 00 1E

0x07 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ᐗ2

01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26

ཱྀ

ྂ

10 28 10 E3 05 03 01 02 3A 80 18 71 38

྄

ⓐ Product ID ⓑ Serial No: Controlled on production line. ⓒ Month, Year: Controlled on production line:

ex) Monthly : ‘01’ -> ‘01’ Year : ‘2016’ -> ‘1A'

ⓓ Model Name(Hex): LGTV ⓔ Checksum(LG TV): Changeable by total EDID data. ⓕ Vendor Specific(HDMI)

ཿ ྀ

ྂ

01

྄

ᐗ1

5.2.4.1. EDID # DTS HDMI1 (C/S: 9F,B6)_6G_UHD Deep Color ON EDID Block 0, Bytes 0-127

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 02 03 3A F1 50 61 90 22 20 05 04 03 02 01 5D 5E 10 5F 66 62 63 64 29 3D 06 C0 15 07 50 09 57 07 6E 20 03 0C 00 10 00 B8 3C 20 00 80 01 02 03 04 67 D8 30 5D C4 01 78 80 03 E3 05 C0 00 E3 0F 01 10 E3 06 40 07 01 01 1D 80 18 71 1C 16 20 58 2C 25 00 40 84 50 63 00 00 9E 66 21 50 B0 51 00 1B 30 40 70 36 00 60 40 84 63 00 00 1E 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 B6

Only for training and service purposes

- 17 -

#DTS HDMI1 (C/S: 9F, 11)_3G_UHD Deep Color OFF EDID Block 0, Bytes 0-127

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F

#DTS HDMI3 (C/S: 9F, 96 )_6G_UHD Deep Color ON EDID Block 0, Bytes 0-127

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F

EDID Block 1, Bytes 128-255

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 02 03 36 F1 50 61 90 22 20 05 04 03 02 01 5D 5E 10 5F 66 62 63 64 29 3D 06 C0 15 07 50 09 57 07 6E 20 03 0C 00 10 00 B8 3C 20 00 80 01 02 03 04 E3 0E 30 61 66 E3 06 07 01 01 1D 80 18 71 1C 16 20 58 2C 40 25 00 40 84 63 00 00 9E 66 21 50 0 51 00 1B 30 50 40 70 36 00 40 84 63 00 00 1E 00 00 00 00 00 00 60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 11

#DTS HDMI2 (C/S: 9F,A6)_6G_UHD Deep Color ON EDID Block 0, Bytes 0-127

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 02 03 3A F1 50 61 90 22 20 05 04 03 02 01 5D 5E 10 5F 66 62 63 64 29 3D 06 C0 15 07 50 09 57 07 6E 20 03 0C 00 20 00 B8 3C 20 00 80 01 02 03 04 67 D8 30 5D C4 01 78 80 03 E3 05 C0 00 E3 0F 01 10 E3 06 40 07 01 01 1D 80 18 71 1C 16 20 58 2C 25 00 40 84 50 63 00 00 9E 66 21 50 B0 51 00 1B 30 40 70 36 00 60 40 84 63 00 00 1E 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 A6

#DTS HDMI2 (C/S: 9F 01)_3G_UHD Deep Color OFF EDID Block 0, Bytes 0-127

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F

EDID Block 1, Bytes 128-255

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 02 03 36 F1 50 61 90 22 20 05 04 03 02 01 5D 5E 10 5F 66 62 63 64 29 3D 06 C0 15 07 50 09 57 07 6E 20 03 0C 00 20 00 B8 3C 20 00 80 01 02 03 04 E3 0E 30 61 66 E3 06 07 01 01 1D 80 18 71 1C 16 20 58 2C 40 25 00 40 84 63 00 00 9E 66 21 50 0 51 00 1B 30 50 40 70 36 00 40 84 63 00 00 1E 00 00 00 00 00 00 60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 01

EDID Block 1, Bytes 128-255

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 02 03 3A F1 50 61 90 22 20 05 04 03 02 01 5D 5E 10 5F 66 62 63 64 29 3D 06 C0 15 07 50 09 57 07 6E 20 03 0C 00 30 00 B8 3C 20 00 80 01 02 03 04 67 D8 30 5D C4 01 78 80 03 E3 05 C0 00 E3 0F 01 10 E3 06 40 07 01 01 1D 80 18 71 1C 16 20 58 2C 25 00 40 84 50 63 00 00 9E 66 21 50 B0 51 00 1B 30 40 70 36 00 60 40 84 63 00 00 1E 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 96

#DTS HDMI3 (C/S: 9F F1)_3G_UHD Deep Color OFF EDID Block 0, Bytes 0-127

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F

EDID Block 1, Bytes 128-255

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 02 03 36 F1 50 61 90 22 20 05 04 03 02 01 5D 5E 10 5F 66 62 63 64 29 3D 06 C0 15 07 50 09 57 07 6E 20 03 0C 00 30 00 B8 3C 20 00 80 01 02 03 04 E3 0E 30 61 66 E3 06 07 01 01 1D 80 18 71 1C 16 20 58 2C 40 25 00 40 84 63 00 00 9E 66 21 50 0 51 00 1B 30 50 40 70 36 00 40 84 63 00 00 1E 00 00 00 00 00 00 60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F1

# AC3 HDMI1 (C/S: 9F,BF)_6G_UHD Deep Color ON

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 02 03 37 F1 50 61 90 22 20 05 04 03 02 01 5D 5E 10 5F 66 62 63 64 26 15 07 50 09 57 07 6E 03 0C 00 20 10 00 B8 3C 20 00 80 01 02 03 04 67 D8 5D C4 01 30 78 81 03 E3 05 C0 00 E3 0F 01 10 E3 06 07 01 01 40 1D 80 18 71 1C 16 20 58 2C 25 00 40 84 63 00 00 50 9E 66 21 50 B0 51 00 1B 30 40 70 36 00 40 84 63 60 00 00 1E 00 00 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 BF

Only for training and service purposes

- 18 -

# AC3 HDMI1 (C/S: 9F,1A)_ 3G_UHD Deep Color OFF

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 02 03 33 F1 50 61 10 22 20 05 04 03 02 01 5D 5E 10 5F 66 62 63 64 26 15 07 50 09 57 07 6E 03 0C 00 20 10 00 B8 3C 20 00 80 01 02 03 04 E3 0E 61 66 E3 30 06 07 01 01 1D 80 18 71 1C 16 20 58 2C 25 00 40 40 84 63 00 00 9E 66 21 50 B0 51 00 1B 30 40 70 36 50 00 40 84 63 00 00 1E 00 00 00 00 00 00 00 00 00 60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 1A

# AC3 HDMI3 (C/S: 9F,03)_ 6G_UHD Deep Color ON

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 01 10 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 26 20 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 80 30 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 58 40 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 40 50 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 3A 60 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC FC 70 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F 9F

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 02 03 37 F1 50 61 90 22 20 05 04 03 02 01 5D 5E 10 5F 66 62 63 64 26 15 07 50 09 57 07 6E 03 0C 00 20 10 00 B8 3C 20 00 80 01 02 03 04 67 D8 5D C4 01 30 78 81 03 E3 05 C0 00 E3 0F 01 10 E3 06 07 01 01 40 1D 80 18 71 1C 16 20 58 2C 25 00 40 84 63 00 00 50 9E 66 21 50 B0 51 00 1B 30 40 70 36 00 40 84 63 60 00 00 1E 00 00 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 9F

# AC3 HDMI2 (C/S: 9F,AF)_ 6G_UHD Deep Color ON

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 02 03 37 F1 50 61 90 22 20 05 04 03 02 01 5D 5E 10 5F 66 62 63 64 26 15 07 50 09 57 07 6E 03 0C 00 20 10 00 B8 3C 20 00 80 01 02 03 04 67 D8 5D C4 01 30 78 81 03 E3 05 C0 00 E3 0F 01 10 E3 06 07 01 01 40 1D 80 18 71 1C 16 20 58 2C 25 00 40 84 63 00 00 50 9E 66 21 50 B0 51 00 1B 30 40 70 36 00 40 84 63 60 00 00 1E 00 00 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 AF

# AC3 HDMI2 (C/S: 9F,0A)_3G_UHD Deep Color OFF

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 02 03 33 F1 50 61 10 22 20 05 04 03 02 01 5D 5E 10 5F 66 62 63 64 26 15 07 50 09 57 07 6E 03 0C 00 20 20 00 B8 3C 20 00 80 01 02 03 04 E3 0E 61 66 E3 30 06 07 01 01 1D 80 18 71 1C 16 20 58 2C 25 00 40 40 84 63 00 00 9E 66 21 50 B0 51 00 1B 30 40 70 36 50 00 40 84 63 00 00 1E 00 00 00 00 00 00 00 00 00 60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 0A

# AC3 HDMI3 (C/S: 9F,FA)_3G_UHD Deep Color OFF

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 02 03 33 F1 50 61 10 22 20 05 04 03 02 01 5D 5E 10 5F 66 62 63 64 26 15 07 50 09 57 07 6E 03 0C 00 20 30 00 B8 3C 20 00 80 01 02 03 04 E3 0E 61 66 E3 30 06 07 01 01 1D 80 18 71 1C 16 20 58 2C 25 00 40 40 84 63 00 00 9E 66 21 50 B0 51 00 1B 30 40 70 36 50 00 40 84 63 00 00 1E 00 00 00 00 00 00 00 00 00 60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 FA

# PCM HDMI1 (C/S: 9F,31)_6G_UHD Deep Color ON

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 02 03 34 F1 50 61 90 22 20 05 04 03 02 01 5D 5E 10 5F 66 62 63 64 23 09 57 07 6E 03 0C 00 10 00 B8 20 3C 20 00 80 01 02 03 04 67 D8 5D C4 01 78 80 03 30 E3 05 C0 00 E3 0F 01 10 E3 06 07 01 01 1D 80 18 40 71 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 66 21 50 50 B0 51 00 1B 30 40 70 36 00 40 84 63 00 00 1E 60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 31

Only for training and service purposes

- 19 -

# PCM HDMI1 (C/S: 9F,8C)_3G_UHD Deep Color OFF

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 02 03 30 F1 50 61 10 22 20 05 04 03 02 01 5D 5E 10 5F 66 62 63 64 23 09 57 07 6E 03 0C 00 10 00 B8 20 3C 20 00 80 01 02 03 04 E3 0E 61 66 E3 06 07 01 30 01 1D 80 18 71 1C 16 20 58 2C 25 00 40 84 63 00 40 00 9E 66 21 50 B0 51 00 1B 30 40 70 36 00 40 84 50 63 00 00 1E 00 00 00 00 00 00 00 00 00 00 00 00 60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 8C

# PCM HDMI3 (C/S: 9F,11)_6G_UHD Deep Color ON

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 02 03 34 F1 50 61 90 22 20 05 04 03 02 01 5D 5E 10 5F 66 62 63 64 23 09 57 07 6E 03 0C 00 30 00 B8 20 3C 20 00 80 01 02 03 04 67 D8 5D C4 01 78 80 03 30 E3 05 C0 00 E3 0F 01 10 E3 06 07 01 01 1D 80 18 40 71 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 66 21 50 50 B0 51 00 1B 30 40 70 36 00 40 84 63 00 00 1E 60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 11

# PCM HDMI2 (C/S: 9F,21)_6G_UHD Deep Color ON

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 02 03 34 F1 50 61 90 22 20 05 04 03 02 01 5D 5E 10 5F 66 62 63 64 23 09 57 07 6E 03 0C 00 20 00 B8 20 3C 20 00 80 01 02 03 04 67 D8 5D C4 01 78 80 03 30 E3 05 C0 00 E3 0F 01 10 E3 06 07 01 01 1D 80 18 40 71 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 66 21 50 50 B0 51 00 1B 30 40 70 36 00 40 84 63 00 00 1E 60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 21

# PCM HDMI2 (C/S: 9F,7C)_3G_UHD Deep Color OFF

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 02 03 30 F1 50 61 10 22 20 05 04 03 02 01 5D 5E 10 5F 66 62 63 64 23 09 57 07 6E 03 0C 00 20 00 B8 20 3C 20 00 80 01 02 03 04 E3 0E 61 66 E3 06 07 01 30 01 1D 80 18 71 1C 16 20 58 2C 25 00 40 84 63 00 40 00 9E 66 21 50 B0 51 00 1B 30 40 70 36 00 40 84 50 63 00 00 1E 00 00 00 00 00 00 00 00 00 00 00 00 60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 7C

# PCM HDMI3 (C/S: 9F,6C)_3G_UHD Deep Color OFF

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 01 10 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 26 20 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 80 30 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 58 40 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 40 50 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 3A 60 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC FC 70 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F 9F

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 02 03 30 F1 50 61 10 22 20 05 04 03 02 01 5D 5E 10 5F 66 62 63 64 23 09 57 07 6E 03 0C 00 30 00 B8 20 3C 30 00 80 01 02 03 04 E3 0E 61 66 E3 06 07 01 30 01 1D 80 18 71 1C 16 20 58 2C 25 00 40 84 63 00 40 00 9E 66 21 50 B0 51 00 1B 30 40 70 36 00 40 84 50 63 00 00 1E 00 00 00 00 00 00 00 00 00 00 00 00 60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 6C

* Checksum (HDMI 1/2/3/4)

2D ONLY PCM

3G 6G

HDMI1 0x9F, 0x8C 0x9F, 0x31

HDMI2 0x9F, 0x7C 0x9F, 0x21

HDMI3 0x9F, 0x6C 0x9F, 0x11

2D ONLY AC3

3G 6G

HDMI1 0x9F, 0x1A 0x9F, 0xBF

HDMI2 0x9F, 0x0A 0x9F, 0xAF

HDMI3 0x9F, 0xFA 0x9F, 0x9F

2D ONLY DTS

3G 6G

HDMI1 0x9F, 0x11 0x9F, 0XB6

HDMI2 0x9F, 0x01 0x9F, 0XA6

HDMI3 0x9F, 0xF1 0x9F, 0x96

Only for training and service purposes

- 20 -

5.3. Camera Port Inspection

(1) Objective : To check how it connects between Camera and

PCBA normally, and their Function

(2) Test Method : This Inspection is available only Power-Only

Status.

1) Push Camera Up

2) Camera’s Preview picture appears on TV Set

3) Push Camera Down

(3) RS-232C Command

RS-232C COMMAND

CMD D ATA ID

Ai 00 23 Camera Function Start.

Ai 00 24 Camera Function End.

Explanation

5.4. V-COM Adjust

(ONLY FOR EPI model, 43/49/55UH6600, 43/49/55UH6500)

5.4.1. Overview

▪ V-COM adj. Objective & How-it-works

- Objective: To reduce each Panel’s V-COM voltage deviation

- How-it-works: When V-COM gain in the adjust-OSD of each SET is at default value, each SET can have flicker by each Panel’s V-COM voltage deviation. In order to prevent flicker of each SET, find the desired each Panel’s V-COM voltage value.

- Adj. condition: normal temperature

1) Surrounding Temperature: 25

2) Warm-up time: About 5 Min

3) Surrounding Humidity: 20% ~ 80%

ºC

± 5

ºC

5.4.4. Adj. Command (Protocol)

<Command Format> CMD ID DATA CR RF

- CMD: Command

- ID : Command

- Data : Command

(Ex) [Send: va 00 00\r\n]

(1) RS-232C Command used during auto-adj.

RS-232C COMMAND

CMD D ATA ID

va 00 00 V-com pattern

vb 00 00 ~ FE V-com adj.(internal Flicker pattern)

wb 00 FF V-com adj. completed

Explanation

5.4.5. Adjustment method

(1) Set TV in POWER-ONLY mode using POWER ONLY key (2) Zero calibrate probe then place it on the center of the

Display (3) Connect Cable (RS-232C to USB) (4) Select Model in “V-com adj. Program” and begin “V-com

adj.” (5) When V-com adj. is complete (OK) (6) Remove probe and RS-232C to USB cable to complete adj.

▪ V-com Adj. must begin as start command “va 00 00” , and

finish as end command “wb 00 ff”

▪ V-com adjust data

43” inch 49” inch 55” inch 65” inch

V-com Data

hex dec hex dec hex dec hex dec

Max B4 180 8B 139 85 133 AB 171

Default 96 150 6D 109 68 104 8D 141

Min 78 120 4F 79 49 73 6F 111

5.4.2. Equipment

(1) Color Analyzer: CA-310 (LED Module : CH 14) or CM-H505 (2) Adj. Computer (During auto adj., RS-232C protocol is

needed) (3) Adjust Remocon (4) Signal : internal flicker Pattern in SET

▪ Color Analyzer Matrix should be calibrated using CS-100

5.4.3. Equipment connection MAP

Color Analyzer

Probe

RS-232C

Pattern Generator

Signal Source

* If TV internal pattern is used, not needed

Only for training and service purposes

RS-232C

Computer

RS-232C

5.4.5.1 Manual adj. method TBD

- 21 -

5.5. White Balance Adjustment

* If TV internal pattern is used, not needed

5.5.1. Overview

5.5.1.1. W/B adj. Objective & How-it-works (1) Objective: To reduce each Panel’s W/B deviation (2) How-it-works: When R/G/B gain in the OSD is at 192, it

means the panel is at its Full Dynamic Range. In order to prevent saturation of Full Dynamic range and data, one of R/G/B is fixed at 192, and the other two is lowered to find the desired value.

(3) Adj. condition: normal temperature

- Surrounding Temperature: 25±5 °C

- Warm-up time: About 5 Min

- Surrounding Humidity: 20% ~ 80%

5.5.2. Equipment

(1) Color Analyzer: CA-210 (LED Module : CH 14) (2) Adj. Computer (During auto adj., RS-232C protocol is

needed) (3) Adjust Remocon (4) Video Signal Generator MSPG-925F 720p/204-Gray

(Model: 217, Pattern: 49) ※ Color Analyzer Matrix should be calibrated using CS-1000

5.5.3. Equipment connection MAP

Color Analyzer

Probe

RS-232C

Pattern Generator

Signal Source

5.5.4. Adj. Command (Protocol)

START 6E A 50 A LEN A 03 A CMD A 00 A VAL A CS A STOP

RS-232C

Computer

RS-232C

(Ex) wb 00 00 -> Begin white balance auto-adj.

wb 00 10 -> Gain adj. ja 00 ff -> Adj. data jb 00 c0 ... ... wb 00 1f -> Gain adj. complete * (wb 00 20(start), wb 00 2f(endc)) -> Off-set adj. wb 00 ff -> End white balance auto adj.

(2) Adjustment Map Applied Model : ALL MODELS

Adj. item

Cool R Gain j g 00 C0 TBD

G Gain j h 00 C0 TBD

B Gain j i 00 C0 TBD

R Cut TBD

G Cut TBD

B Cut TBD

Medium R Gain j a 00 C0 TBD

G Gain j b 00 C0 TBD

B Gain j c 00 C0 TBD

R Cut TBD

G Cut TBD

B Cut TBD

Warm R Gain j d 00 C0 TBD

G Gain j e 00 C0 TBD

B Gain j f 00 C0 TBD

R Cut TBD

G Cut TBD

Command (lower caseASCII)

CMD1 CMD2 MIN MAX

Data Range (Hex.)

Default (Decimal)

- LEN: Number of Data Byte to be sent

- CMD : Command

- VAL : FOS Data value

- CS : Checksum of sent data

- A : Acknowledge

(Ex) [Send: JA_00_DD] / [Ack: A_00_okDDX]

(1) RS-232C Command used during auto-adj.

RS-232C COMMAND

CMD D ATA ID

wb 00 00 Begin White Balance adj.

wb 00 10 Gain adj.(internal white pattern)

wb 00 1f Gain adj. completed

wb 00 20 Offset adj.(internal white pattern)

wb 00 2f Offset adj. completed

wb 00 ff End White Balance adj.

(internal pattern disappears )

Only for training and service purposes

Explanation

5.5.5. Adjustment method

5.5.5.1. Auto WB calibration (1) Set TV in adj. mode using POWER ONNY key (2) Zero calibrate probe then place it on the center of the

Display (3) Connect Cable (RS-232C to USB) (4) Select mode in adj. Program and begin adj. (5) When adj. is complete (OK Sign), check adj. status pre

mode(Warm, Medium, Cool) (6) Remove probe and RS-232C to USB cable to complete adj.

▪ W/B Adj. must begin as start command “wb 00 00” , and

finish as end command “wb 00 ff”, and Adj. offset if need

- 22 -

5.5.5.2. Manual adj. method (1) Set TV in Adj. mode using POWER ON (2) Zero Calibrate the probe of Color Analyzer, then place it on

the center of LCD module within 10cm of the surface..

(3) Press ADJ key -> EZ adjust using adj. R/C -> 7. White-

Balance then press the cursor to the right (KEY►).

(When KEY(►) is pressed 216 Gray internal pattern will be

displayed)

(4) One of R Gain / G Gain / B Gain should be fixed at 192,

and the rest will be lowered to meet the desired value.

(5) Adj. is performed in COOL, MEDIUM, WARM 3 modes of

color temperature.

** R-fix adjustment Adjust modes (Cool), Fix the R gain to 210 (default data) and change the others (G/B Gain ).

- Adjust the R gain more than 210 ( If G gain or B gain is less

than 0 , R gain can adjust more than 210 ) and change the others ( G/B Gain ).

- Adjust two modes (Medium / Warm), Fix the one of R/G/B

gain to 192 (default data) and decrease the others.

▪ If internal pattern is not available, use RF input. In EZ Adj.

menu 7.White Balance, you can select one of 2 Test-pattern: ON, OFF. Default is inner(ON). By selecting OFF, you can adjust using RF signal in 216 Gray pattern.

▪ Adj. condition and cautionary items

(1) Lighting condition in surrounding area Surrounding lighting should be lower 10 lux. Try to isolate

adj. area into dark surrounding.

(2) Probe location

- LCD : Color Analyzer (CA-210) probe should be within 10cm and perpendicular of the module surface (80°~ 100°)

(3) Aging time

- After Aging Start, Keep the Power ON status during 5

Minutes.

- In case of LCD, Back-light on should be checked using no

signal or Full-white pattern.

5.5.6. Reference (White Balance Adj. coordinate and color temperature)

▪ Luminance: 206 Gray ▪ Standard color coordinate and temperature using CS-1000

(over 26 inch)

Mode

Cool 0.271 0.270 13,000K 0.0000

Medium 0.283 0.289 9,300K 0.0000

Warm 0.313 0.329 6,500K 0.0000

Coordinate

X Y

Temp △uv

5.5.7. EDGE & IOL LED White balance table

▪ Edge & ALEF LED module change color coordinate because

of aging time

▪ apply under the color coordinate table, for compensated

aging time

▪ Luminance: 204 Gray, 80IRE

** Except Gumi winter season(Jan~Feb) and except for winter

season (Mar ~ Dec) & Global are same as the table below

▪ Standard color coordinate and temperature using

CA-210(CH-14) – by aging time

Aging time

(Min)

1 0-2 282 289 297 308 324 348

2 3-5 281 287 296 306 323 346

3 6-9 279 284 294 303 321 343

4 10-19 277 280 292 299 319 339

5 20-35 275 277 290 296 317 336

6 36-49 274 274 289 293 316 333

7 50-79 273 272 288 291 315 331

8 80-119 272 271 287 290 314 330

9 Over 120 271 270 286 289 313 329

Cool Medium Warm

X Y X Y X Y

271 270 286 289 313 329

* Use only AUO, INX, Sharp, CSOT, BOE (Cool temp Spec is 13000K)

cool med warm

x y x y x y

spec 271 270 286 289 313 329

target 278 280 293 299 320 339

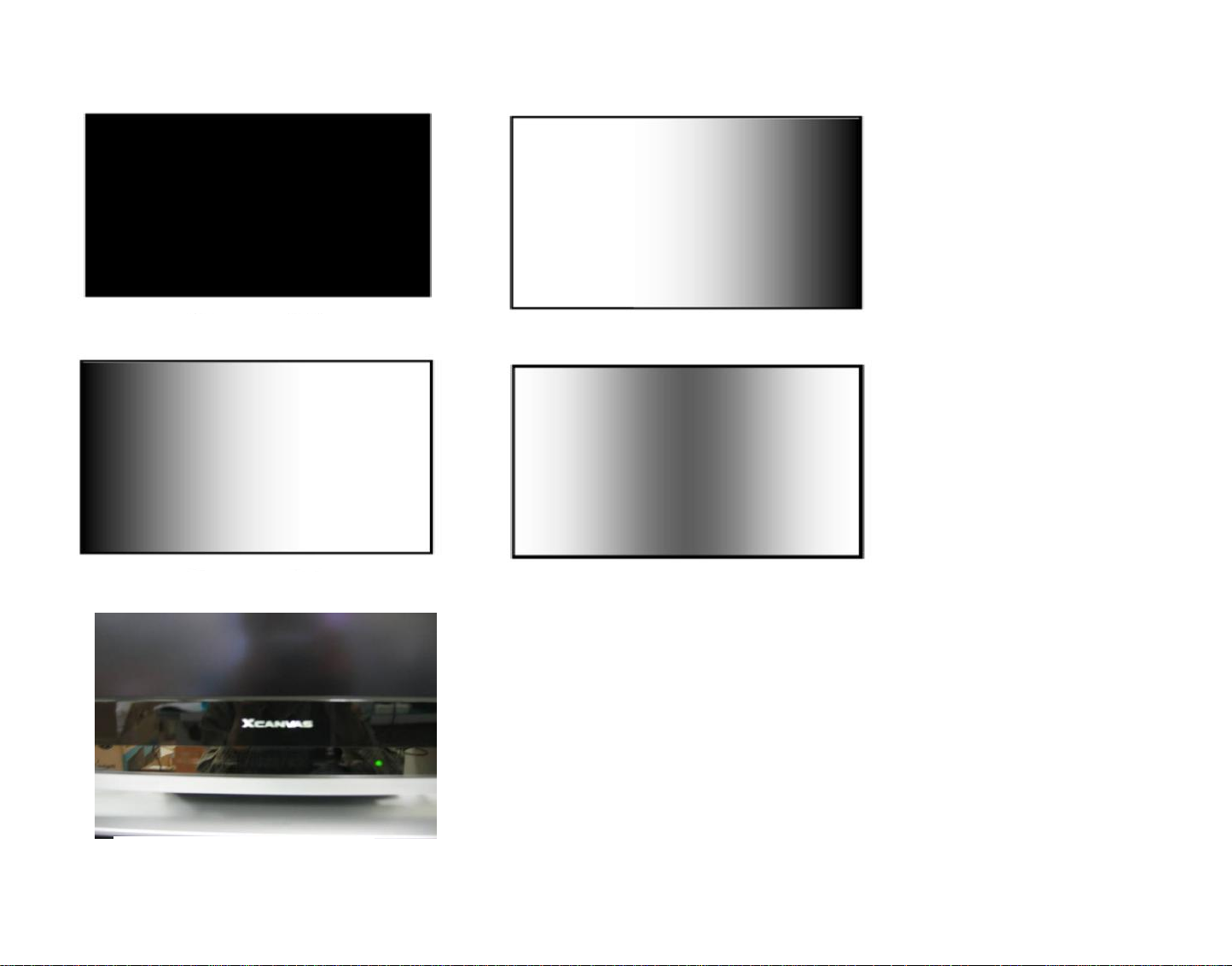

5.6. Local Dimming Function Check

(Step 1) Turn on TV (Step 2) At the Local Dimming mode, module Edge Backlight

moving right to left Back light of IOP module moving (Step 3) confirm the Local Dimming mode (Step 4) Press “exit” Key

▪ Standard color coordinate and temperature using CA-210

(CH 14)

Mode

Cool 0.271±0.002 0.270±0.002 13000K 0.0000

Medium 0.286±0.002 0.289±0.002 9300K 0.0000

Warm 0.313±0.002 0.329±0.002 6500K 0.0000

Only for training and service purposes

Coordinate

X Y

Temp △uv

- 23 -

5.7. Magic Motion Remocon test

- Equipment : RF Remocon for test, IR-KEY-Code Remocon for test

- You must confirm the battery power of RF-Remocon before

test

(recommend that change the battery per every lot)

- Sequence (test)

a) if you select the ‘start key(OK)’ on the controller, you can

pairing with the TV SET.

b) You can check the cursor on the TV Screen, when select

the ‘OK Key’ on the controller

c) You must remove the pairing with the TV Set by select

‘Mute + OK Key’ on the controller

5.8. 3D function test

(Pattern Generator MSHG-600, MSPG-6100 [SUPPORT HDMI1.4])

* HDMI mode NO. 872 , pattern No.83

5.9 HDMI ARC Function Inspection

5.9.1. Test equipment

- Optic Receiver Speaker

- MSHG-600 (SW: 1220 ↑)

- HDMI Cable (for 1.4 version)

5.9.2. Test method

(1) Insert the HDMI Cable to the HDMI ARC port from the

master equipment (HDMI2)

(2) Check the sound from the TV Set

(1) Please input 3D test pattern like below (HDMI mode NO.

872 , pattern No.83)

(2) When 3D OSD appear automatically , then select green

button

(3) Check the Sound from the Speaker or using AV & Optic

TEST program (It’s connected to MSHG-600)

5.10. EYE-Q Green Function Inspection

(Step 1) Turn on the TV. (Step 2) Press 'EYE button' on the adjustment remote-

controller.

(Step 3) Cover 'Eye Q sensor' on the front of set with your

hands, hold it for 6 seconds.

(Step 4) Check "the Sensor Data" on the screen, make certain

that Data is below 10. If Data isn’t below 10 in 6 seconds, Eye Q sensor would be bad. You should change Eye Q sensor.

(Step 5) Uncover your hands from Eye Q sensor, hold it for 6

seconds.

(Step 6) Check "Back Light(xxx)" on the screen, check data

increase . You should change Eye Q sensor

(3) Don’t wear a 3D Glasses, Check the picture like below

Only for training and service purposes

5.11. Ship-out mode check (In-stop)

▪ After final inspection, press In-Stop key of the Adj. R/C and

check that the unit goes to Stand-by mode.

- 24 -

6. GND and Internal Pressure check

6.1. Method

(1) GND & Internal Pressure auto-check preparation

- Check that Power Cord is fully inserted to the SET. (If loose, re-insert)

(2) Perform GND & Internal Pressure auto-check

- Unit fully inserted Power cord, Antenna cable and A/V arrive to the auto-check process.

- Connect D-terminal to AV JACK TESTER

- Auto CONTROLLER(GWS103-4) ON

- Perform GND TEST

- If NG, Buzzer will sound to inform the operator.

- If OK, changeover to I/P check automatically.

(Remove CORD, A/V form AV JACK BOX)

- Perform I/P test

- If NG, Buzzer will sound to inform the operator.

- If OK, Good lamp will lit up and the stopper will allow the pallet to move on to next process.

6.2. Checkpoint

(1) Test voltage

- GND: 1.5KV/min at 100mA

- SIGNAL: 3KV/min at 100mA

(2) TEST time: 1 second (3) TEST POINT

- GND Test = POWER CORD GND and SIGNAL CABLE

GND.

- Hi-pot Test = POWER CORD GND and LIVE & NEUTRAL.

(4) LEAKAGE CURRENT: At 0.5mArms

8. USB S/W Download (optional, Service only)

(1) Put the USB Stick to the USB socket (2) Automatically detecting update file in USB Stick

- If your downloaded program version in USB Stick is lower than that of TV set, it didn’t work. Otherwise USB data is automatically detected.

(3) Show the message “Copying files from memory”

(4) Updating is staring

(5) Updating Completed, The TV will restart automatically

7. AUDIO output check

No Item Min Typ Max Unit Remark

1 Audio practical

max Output, L/R (Distortion=10% max Output)

2

Speaker

(8Ω Impedance)

*Measurement condition: (1) RF input: Mono, 1KHz sine wave signal, 100% Modulation (2) CVBS, Component: 1KHz sine wave signal (0.4Vrms) (3) RGB PC: 1KHz sine wave signal (0.7Vrms)

10.0

12.0

8.10

10.8WVrms

10 12 W EQ On

EQ Off AVL Off Clear Voice Off

AVL On Clear Voice On

(6) If your TV is turned on, check your updated version and

Tool option.

* If downloading version is more high than your TV have, TV

can lost all channel data. In this case, you have to channel recover. If all channel data is cleared, you didn’t have a DTV/ ATV test on production line.

* After downloading, TOOL OPTION setting is needed again. (1) Push "IN-START" key in service remote controller. (2) Select "Tool Option 1" and Push “OK” button. (3) Punch in the number. (Each model has their number.)

Only for training and service purposes

- 25 -

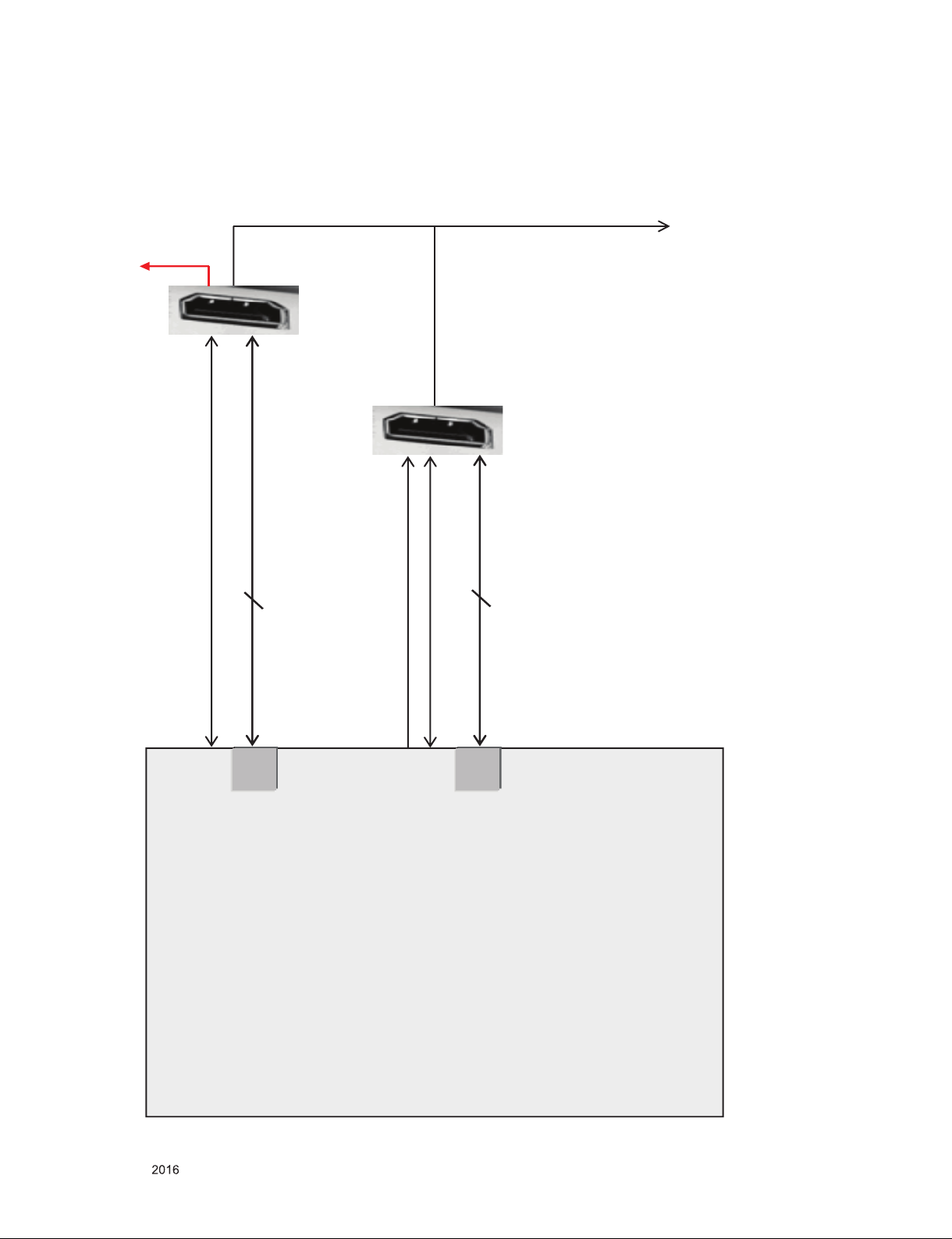

Block Diagram

Realtek

K2Lp

DDR3 2133 X 32

(512MB X 2EA)

(external)

DDR3 1866 X 32

(128MB X 2EA)

(internal)

eMMC (4GB)

CI Slot

OCP

USB1 (2.0)

HDMI3(ARC)

HDMI2

HDMI1

Air/

Cable

TUNER

(T2/C/A)

TUNER

(S2)

DVB-S

DEMOD

(S2)

LNB

T2/C/S2 W/O AD

REAR(H)

IF (+/-)

P_TS

P_TS_OUT

P_TS_IN

Sub Micom

(RENESAS

R5F100GEAFB)

X_TAL

32.768KHz

I2C_MICOM

(HW Port)

IR / KEY

WIFI 11n only

USB_WIFI

X_TAL

24MHz

Sub Assy

LAN

ETHERNET

OPTIC

AV/COMP

CVBS/YPbPr

SPDIF OUT

RS-232

MAX323

MAIN Audio AMP

(NTP7515)

I2S Out

I2C 4

Vx1 51P (8 lane)

Vx1

I2C 6

M0 M1

P_TS_IN

IF

NVRAM (256Kb)

I2C 4

I2C 2

EU ONLY

1. K2Lp Circuit Block Diagram

Only for training and service purposes

- 26 -

2. K2Lp I2C Block Diagram

B 3 [VSYNC]

I2C_SDA6

P7100

Vx1 51P

I2C_SCL6

1.8k Ω

E10[ST_IO10]

F10 [ST_IO09]

I2C_SDA

I2C_SCL

Realtek

K2Lp

33

34

B 2 [HSYNC]

1.8k Ω

+3.3V_NOR

1.8k Ω

+3.3V_NOR

IC3000

R5F100GEAFB

MICOM

1

2

H2[GPIO_T_SCL]

H1[GPIO_T_SDA]

I2C_SDA4

I2C_SCL4

IC101

NVRAM

IC5800

NTP7515

AMP

E13[ST_IO03]

F13[ST_IO02]

I2C_SDA2

I2C_SCL2

IC6901

A8303SESTR-T

LNB

TU6701

TDJM-G301D

27 [SCL_DEMOD]

30 [SDA_DEMOD]

7

8

1.8 k Ω

+3.3V_TU

4 [SCL_RF]

5 [SDA_RF]

1.8k Ω

+3.3V_NOR

33 Ω

TCON_I2C_EN

33 Ω

100Ω

33 Ω

첵TU6700(TDJS-H301F): US

Only for training and service purposes

- 27 -

3. K2Lp Power Block

13.2V

[UH61 Main]

Audio 20W 2ch

13.2V

1.05V_CPU/GPU 4A(, RT7231 ,IC2300)

1.0V ETH ST LDO 1A

SoC-K2L

3.5V ST-BY 4A (TI , TPS56428) IC2306

0.75A

0.18A

0.51A

0.98A

0.41A

0. 7A

5V Normal 6A (Rohm, RT7231) IC2500

WIFI

Panel

LNB(EU option)

MICOM/IR/ETC

0.1A

1A

0.17A

SOC

0.02A

1.97A

5.68A

1.2V Tuner 2A TJ2132

0.6A

1.8V eMMC 2A

0.2A

1.41A

2. 47A

0. 5A

5.6

1.0V_CORE DC DC 10A(TI, TPS51362 ,IC2305)

1.5V DDR DC DC 3A(,BD9A300)

IC2303

1A

3.3V Normal 2A (,TJ2132) IC2301

TUNER

0.4A

Only for training and service purposes

- 28 -

4. Tuner/CI Block Diagram

TDJM-G301D

K2Lp

RTK

[+3.3V_TUNER] 11

[+3.3V_DEMOD_TU] 26

[+3.3V_1.2V_DEMOD] 28

[IF_P_TU] 6

[IF_N_TU] 7

[TU_SIF_TU] 9

[TU_CVBS_TU] 8

[IF_AGC_TU] 3

[FE_DEMOD1_TS_ERROR] 12

[FE_DEMOD1_TS_CLK_!] 14

[FE_DEMOD1_TS_SYNC_1] 15

[FE_DEMOD1_TS_VAL_1] 16

AH6 [GPIO7_TPOCLK]

AH4 [GPIO10_TPOSYC]

AH5 [GPIO11_TPOVAL]

FE_DEMOD2_TS_ERROR

FE_DEMOD1_TS_CLK

FE_DEMOD1_TS_SYNC

FE_DEMOD1_TS_VAL

FE_DEMOD1_TS_DATA[0- 7] 17 -24

FE_DEMOD1_TS_DATA [0-7]

AL4~AJ5 [GPIO*_TPOD0~TPDO7]

[+2.5V_DEMOD] 38

+2.5V_Normal

[/TU_RESET1_TU] 25

/TU_RESET1

AN6[GPIO14_DIGI_MIC]

[+3.3V_LNA_TU] 1

[LNB_TX1] 29

[LNB_OUT1] 31

[I2C_SCL2_TU] 27

[I2C_SDA2_TU] 30

I2C_SCL2

I2C_SDA2

+3.3V_TU

+3.3V_NORMAL

IF_P

IF_N

TUNER_SIF

TU_CVBS

IF_AGC

AT2 [IF_P]

AT3 [IF_N] AG1 [VIN10P]

AM6[GPIO0_RF_IF_AGC1]

[I2C_SCL5_TU] 4

[I2C_SDA5_TU] 5

D_DEMOD_CORE

LNB1

IC6901

A8303SESTR- TB

LNB_TX1

LNB_OUT1

1.8K Ω

7 [SCL]

8 [SDA]

10 [TONECTRL]

2 [LNB]

33 Ω

[FE_DEMOD3_TS_ERROR] 41

[FE_DEMOD3_TS_SYNC] 42

[FE_DEMOD3_TS_CLK] 43

[FE_DEMOD3_TS_VAL] 44

[FE_DEMOD3_TS_DATA] 46

[/TU_RESET2_TU] 45

/TU_RESET2

AU38[GPIO80_SDD3]

33 Ω

AM5 [GPIO1_T_SCL]

AM4 [GPIO2_T_SDA]

OPT

[FE_DEMOD2_TS_ERROR] 34

[FE_DEMOD2_TS_SYNC] 36

[FE_DEMOD2_TS_CLK]37

[FE_DEMOD2_TS_VAL] 39

JAPAN_OPT

[FE_DEMOD2_TS_DATA]40

FE_DEMOD2_TS_DATA [0]

JAPAN_OPT

TU_JAPAN

Only for training and service purposes

- 29 -

5. Video/Audio In Block Diagram

Realtek

K2Lp

COMP1_Y/CVBS

[VIN4P] E2

Jack Side SOC Side

SPDIF_OUT

SPDIF OUT

H/P JACK

HP_L/ROUT_AMP

[SPDIF_OUT] C5

[HPOL/R] F4/F5

HP_L/ROUT

AMP

IC6100

[VIN3P] D2

[VIN5P] E3

[AI1L] A4

COMP1_Pb

COMP1_Pr

[AI1R] B4

COMP1/AV1/DVI_L_IN

COMP1/AV1/DVI_R_IN

US Model use this jack

for SVC(RS-232C).

Only for training and service purposes

- 30 -

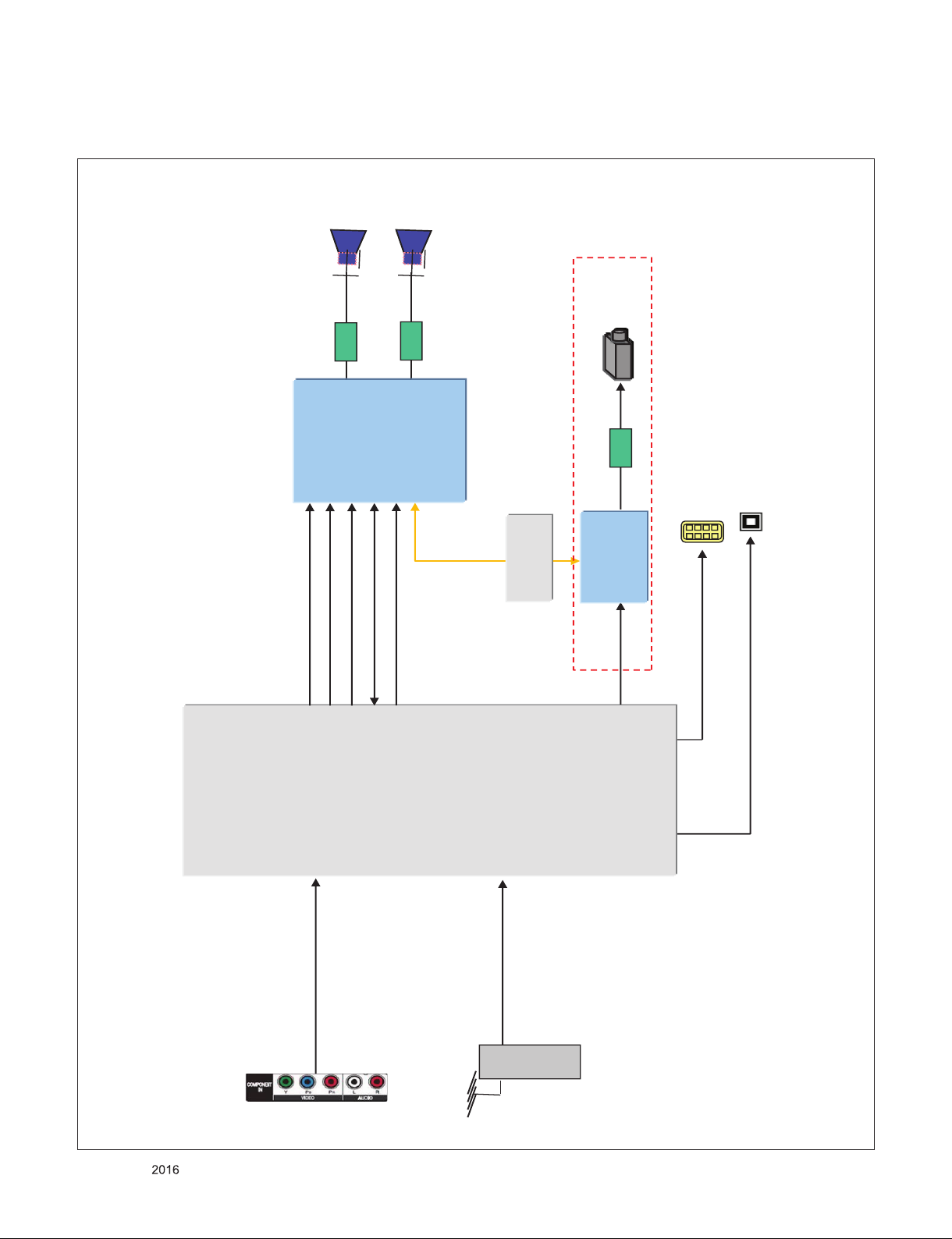

6. Audio Out Block Diagram

HDMI_ARC

[T4] GPIO17

[K1] IFP

I2C_SDA4 / SCL4

AUD_SCK

AMP_RESET_N

HP_L/ROUT

H/P Jack

SIDE_HP_MUTE

GPIO90_SCLK [AM27]

GPIO89_WCLK [AK28]

GPIO93_MCLK [AL27]

HPOL [F4]

HPOR [F5]

TU_SIF

GPIO1_T_SCL[H2]

GPIO2_T_SDA[H1]

H/P AMP

TPA6138A2

(IC6100)

LPF

[AI2R]

SPDIF_OUT

COMP1/AV1/DVI_L/R_IN

[A4] AI1L

[B4] AI1R

HP_L/ROUT_AMP

LPF

Realtek

K2Lp

Tuner

[D11] SPDIF_OUT

AUD_LRCH

AUD_LRCK

AMP_MUTE

SPK_R+ / R-

SPK_L+ / L-

MAIN AMP

NTP7515

(IC5800)

MICOM

SPK L

SPK R

22

27

[38] CLK_I [8] WCK [7] AUD_LRCH [10,11] [36]

[30, 33]

[18, 21]

AV/COMP

HDMI3

SPDIF

US Model use this jack

for SVC(RS-232C).

Only for training and service purposes

- 31 -

7. HDMI

HPD/DDC

H0, H1

DDC

H2

Realtek

K2Lp

P1

TMDS2 -D0/D1/D2/CLK

HDMI_HPD_2

DDC_SCL2 / DDC_SDA2

ST_IO24_H1_HPD [F6]

ST_IO22_H1_SCL [C6]

ST_IO23_H1_SDA [B6]

CEC_REMOTE

P0

TMDS1 -D0/D1/D2/CLK

ST_IO25_H2_SCL [G5]

ST_IO26_H2_SDA [E6]

DDC_SCL1 / DDC_SDA1

Only for training and service purposes

- 32 -

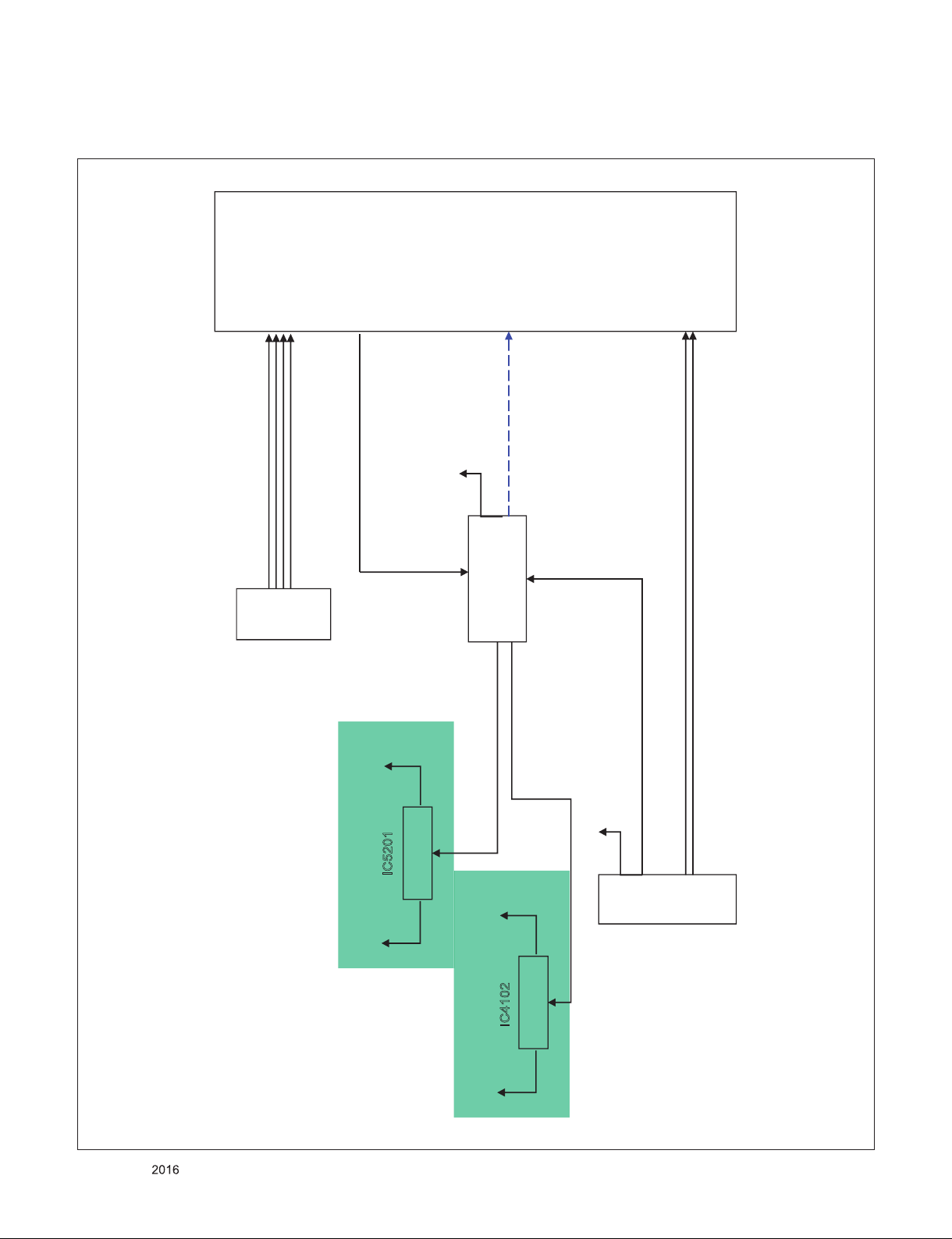

8. USB / WIFI / UART

+3.5V_ST

Switch IC

+3.5V_WOL

+3.5V_ST

Switch IC

+3.5V_WIFI

K2Lp

MICOM

POWER ON

WIFI_DP/DM

WiFi

TDP/TDN,RDP/RDN

LAN

WOL_CTRL

+3.5V_WIFI

WOL/ETH_POWER_ON

WOL/WIFI_POWER_ON

+3.5V_ST

WIFI_EN

IC4102

I

C5201

Only for training and service purposes

- 33 -

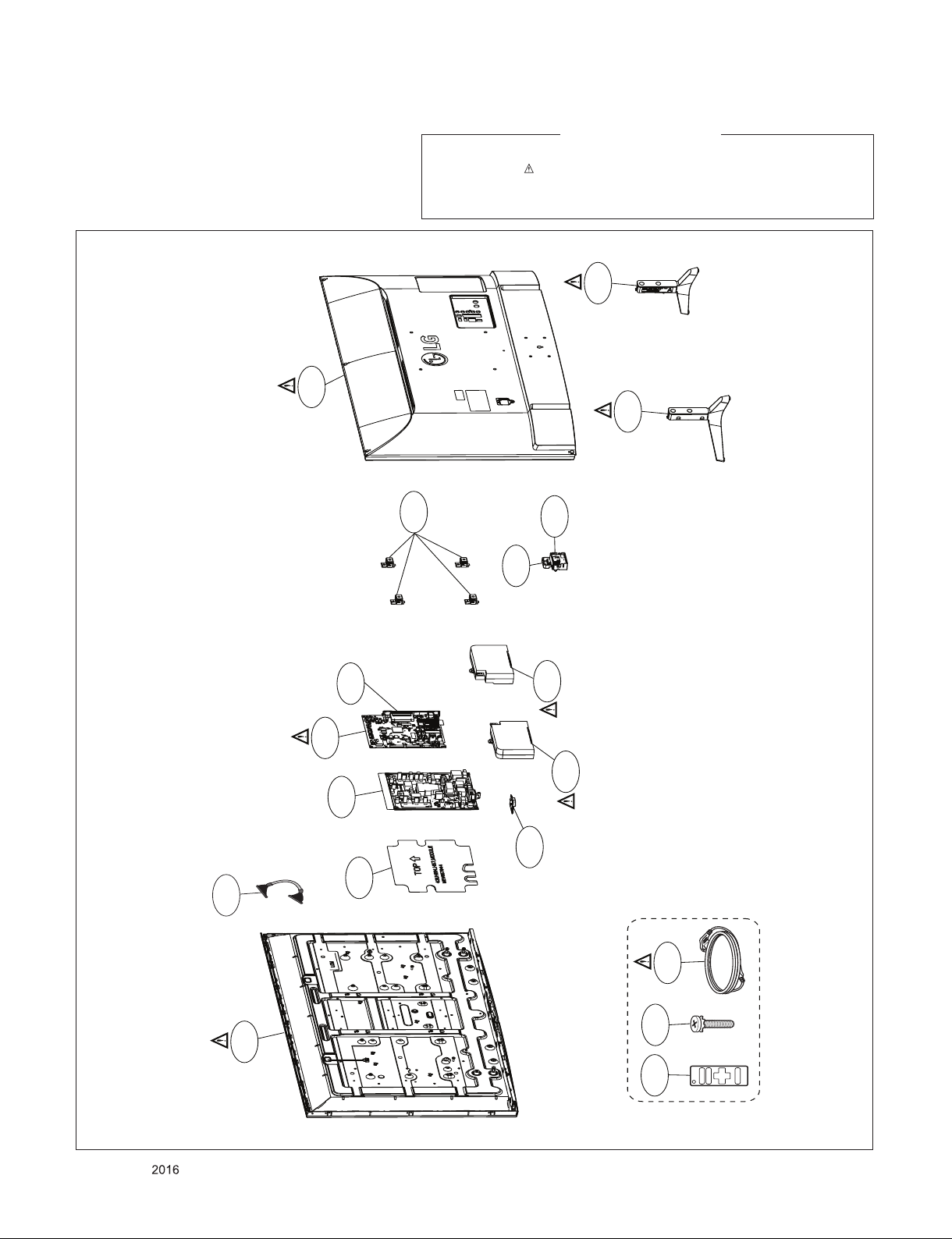

902

901

A2

700

Set + Stand

A10

400

200

540

530

521

120

800

121

500

570

571

820

LV1

EXPLODED VIEW

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and EXPLODED VIEW. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

Only for training and service purposes

- 34 -

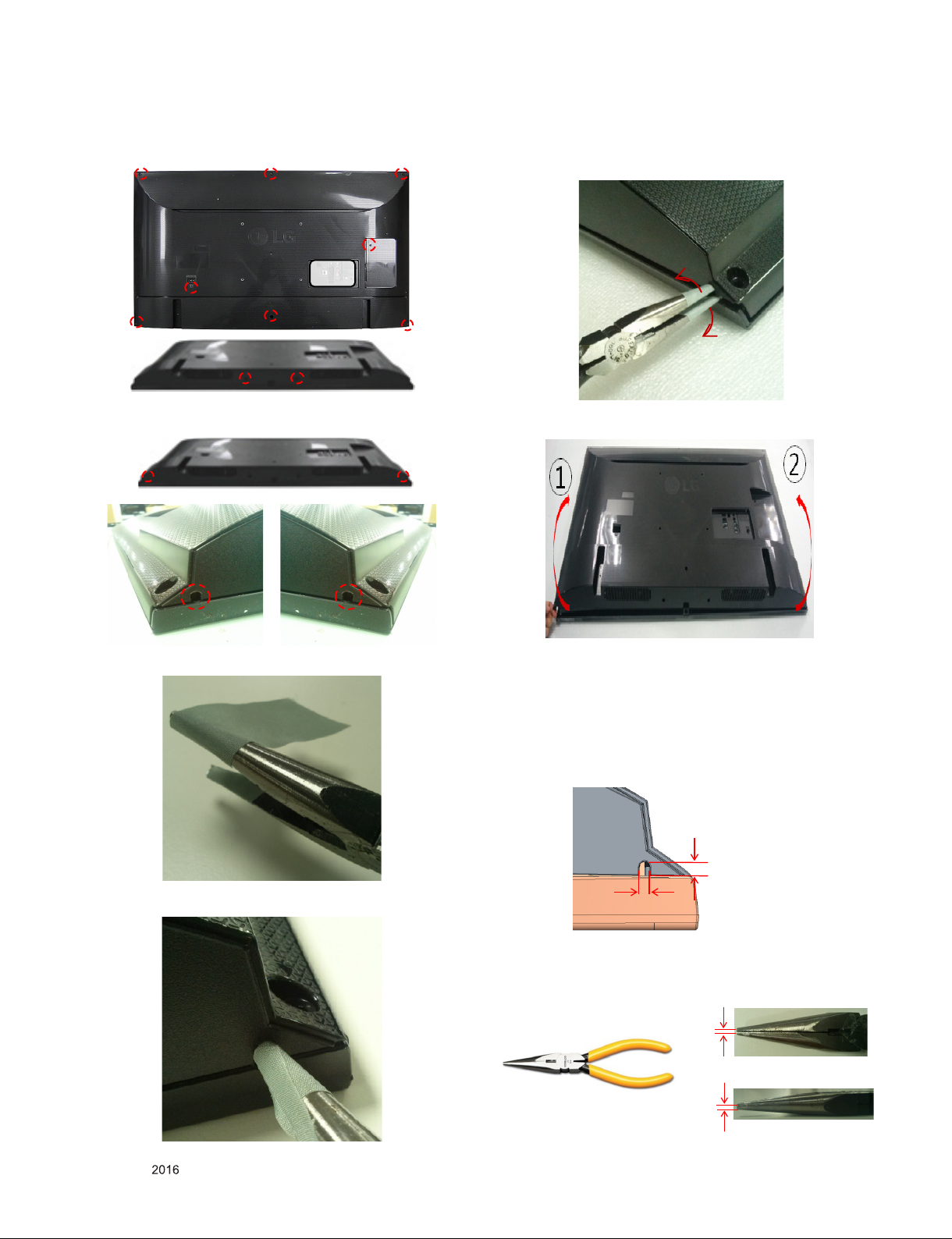

1. Disassembly of Back cover

▶ Tool spec

- Long nose pliers

- Needle nose pliers

w

t

W < 4.0mm

t< 3.0mm

w 4.6

t 3 .5

▶ B/C Hole size

- w : 4.6 mm

- t : 3.5 mm

(1) Remove screw in the set

DISASSEMBLY

(5) Open B/C with push/pulling long nose to upper and lower

sides.

(2) Check both right/left hole

(3) Attach tape to ‘Long nose pliers’

(6) Disassemble Back cover

* Disassemble it from left to right for top side hook on Back

cover

2. Back cover hole size & Long nose spec

(4) Put ‘long nose’ into the hole

Only for training and service purposes

- 35 -

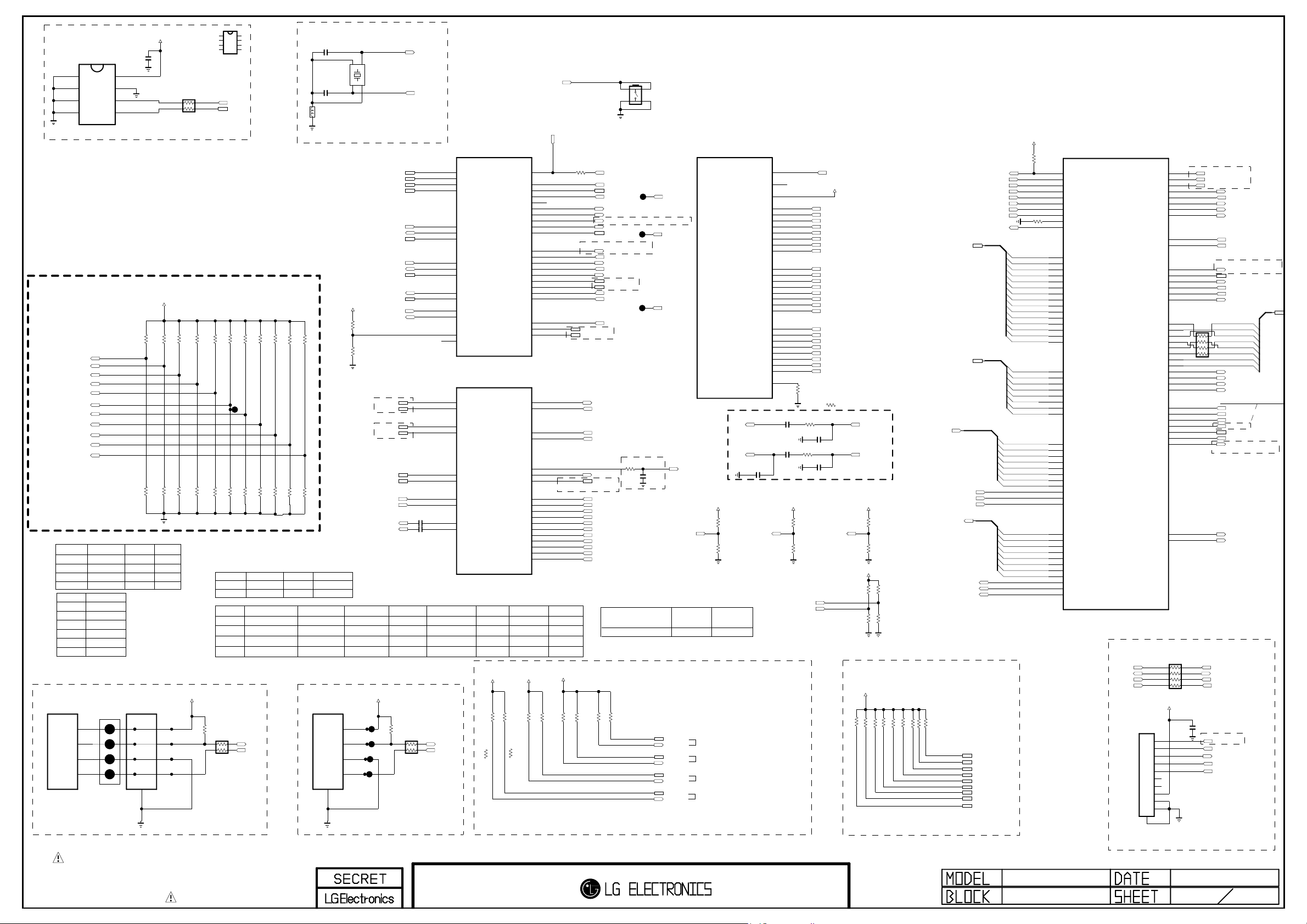

NVRAM

AT24C256C-SSHL-T

A0

A1

A2

GND

IC101

EAN61133501

1

NVRAM_ATMEL

2

A0’h

3

4

IC101-*1

BR24G256FJ-3

VCC

GND

A0

A1

A2

NVRAM_ROHM

1

2

3

4

I2C_SCL4 I2C_SDA4

8

WP

7

SCL

6

SDA

5

+3.3V_NORMAL

C100

0.1uF

VCC

8

WP

7

SCL

6

SDA

5

Write Protection

- Low : Normal Operation

- High : Write Protection

AR100 33 1/16W

Clock for Main

8pF

C103

C104

L100

PZ1608U121-2R0TF

1

2

FLOAT_1

4

3

8pF

IN/OUT_2

IN/OUT_1

X101

27.0MHz

FLOAT_2

XIN_MAIN

XOUT_MAIN

SOC_RESET_SW

DEBUG_SOC_RESET_SW

SW100

JTP-1127WEM

12

4 3

BIT0 BIT1

BIT2

BIT10

20150307 version

BIT(0/1)

00 TW/COL

01

10

11

BIT(6/7/8)

000

001

010

011

100

101

OPT P102

12525HS-04A(1.2T)

1

2

3

4

K2H HW Option

BIT3

BIT4

BIT5

BIT6

BIT7

BIT8

BIT9

DVB

CN/HK

EU

AJJA

B/E(FRC)

Vx1_60Hz_RGBW

Vx1_60Hz_RGB

EPI_V16_RGBW

EPI_V16_RGB

EPI_V15_RGBW

EPI_V15_RGB

RS232C_Debug

VCC

RX

JP109

GND

TX

BIT00_1

R101 10K

BIT00_0

R100 10K

ATSC

US

KR

BR

CI

P100

12507WS-04L

5

+3.3V_NORMAL

10K

BIT01_1

R104

10K

BIT01_0

R103

JP

1

2

3

4

BIT02_1

R107 10K

BIT02_0

R106 10K

+3.5V_ST

BIT03_1

R111 10K

BIT03_0

R110 10K

BIT04_1

BIT05_1

R113 10K

R115 10K

BIT05_0

BIT04_0

R114 10K

R112 10K

BIT4

BIT5

BIT(2/3)

00

01

10 T2/C/S2_EX_ATV

11

AR103 100 1/16W

R102 10K

IC100

LGE6551-CA1

A13

EPHY_TDN EPHY_TDP EPHY_RDN EPHY_RDP

HDMI_HPD_3 DDC_SCL_3

DDC_SDA_3

HDMI_HPD_2 DDC_SCL_2

DDC_SDA_2

DDC_SCL_1

+3.3V_NORMAL

BIT07_1

BIT08_1

BIT06_1

R119 10K

R117 10K

JP104

BIT07_0

BIT06_0

R116 10K

R118 10K

Display OLEDLCD

15/16 Tuner 16_Tuner

T2/C/S2 PIP_EX_ATV Default

T2/C/S2_IN_ATV

R121 10K

BIT08_0

R120 10K

BIT09_1

R123 10K

BIT09_0

R122 10K

15_Tuner

BIT10_1

R125 10K

BIT10_0

R124 10K

Low

AJJA

T_IN_ATV

T2/C/S2_IN_ATV

T2/C/S2_EX_ATV

T2_EX_ATV

High

DDC_SDA_1

DEBUB_RX DEBUG_TX

10K

MICOM_5KEY_JOG_TYPE

R131

10K

MICOM_KEY_ONE_KEY

R136

USB_Control 1

USB_DM1 USB_DP1

USB_Control 2

USB3_DM0 USB3_DP0

WIFI_DM WIFI_DP

USB3_RXM0 USB3_RXP0

USB3_TXM0 USB3_TXP0

TW/COL

T2_IN_ATV

C102 0.1uF

CN/HKEU/CIS

IN_ATV

C101

0.1uF

RS232C_for DDTS

+3.5V_ST

1

2

3

4

AR102 100 1/16W

R128 10K

SOC_RX SOC_TX

DEBUG_UART_DDTS

P101

12507WS-04L

5

MDIN0

B13

MDIP0

A12

MDIN1

B12

MDIP1

A7

ST_IO21_H0_HPD

C7

ST_IO19_H0_SCL

B7

ST_IO20_H0_SDA

F6

ST_IO24_H1_HPD

C6

ST_IO22_H1_SCL

B6

ST_IO23_H1_SDA

G5

ST_IO25_H2_SCL

E6

ST_IO26_H2_SDA

B3

ST_IO27_VGA_SCL

A3

ST_IO28_VGA_SDA

A10

RTC_XI

B10

RTC_XO

AM2

HSDM0

AM1

HSDP0

AM3

HSDM1

AL3

HSDP1

A17

HSDM3

A16

HSDP3

AL1

HSIN

AL2

HSIP

AJ3

HSON

AJ2

HSOP

KR

ATSC+T2_IN_ATV

DEBUB_RX DEBUG_TX

IC100

LGE6551-CA1

GPIO0_RF_IF_AGC1

GPIO1_T_SCL GPIO2_T_SDA

GPIO9_TP0D0 GPIO13_TP0D1 GPIO12_TP0D2

GPIO3_TP0D4

GPIO5_TP0D5

GPIO8_TP0D7 GPIO7_TP0CLK

GPIO10_TP0SYC GPIO11_TP0VAL

North.AM

IN_ATVEXT_ATV

+3.3V_TU_I2C

R132

1.8K

TU_NON_EU

R132-*1

1.2K

TU_EU_1.2K

RST

ST_IO02 ST_IO03 ST_IO04 ST_IO05 ST_IO06 ST_IO07 ST_IO08 ST_IO09 ST_IO10

ST_IO11 ST_IO12 ST_IO13 ST_IO14 ST_IO15 ST_IO16 ST_IO17 ST_IO18 ST_IO30

LS0 LS1 LS2

XIN

XOUT

IFN IFP

GPIO4_TPD3

GPIO6_TPD6

ISDB_IN_ATV

R133

1.8K

TU_NON_EU

R133-*1

1.2K

A9

F13 E13 F12 E12 F11 E11 D11 F10 E10

F9 E9 D9 F8 E8 F7 E7 D7 G4

B9 C9 B8

AG1 AG2

K2 K1

J2 H2 H1

L4 L5 M4 M5 N4 N5 P4 P5 J4 K4 J5

BR

+3.5V_WOL_ST

R138

1.8K

R137

1.8K

TU_EU_1.2K

SOC_RESET_SW

R109 100

must be pull-up PLL_EN option pin

JP

+3.3V_NORMAL

R139

1.8K

R146

1.8K

ACTIVE LOW RESET

SOC_RESET

I2C_SCL2 I2C_SDA2 LOCKOUT12

WOL/ETH_POWER_ON PMIC_RESET

SPDIF_OUT I2C_SCL1 I2C_SDA1

ST_IO11 for POL_Test_En

POL_TEST_EN SOC_RX SOC_TX AV1_CVBS_DET SMARTCARD_PWR_SEL /USB_OCD3_0

USB_CTL3_0

AV2_CVBS_DET

COMP1_DET

HP_DET

/USB_OCD1

USB_Control 1

USB_CTL1

XIN_MAIN XOUT_MAIN

IF_N IF_P

Closed to SOC R130

10K

1/16W

I2C_SCL4

5%

I2C_SDA4

FE_DEMOD1_TS_DATA[0] FE_DEMOD1_TS_DATA[1] FE_DEMOD1_TS_DATA[2] FE_DEMOD1_TS_DATA[3] FE_DEMOD1_TS_DATA[4] FE_DEMOD1_TS_DATA[5] FE_DEMOD1_TS_DATA[6] FE_DEMOD1_TS_DATA[7] FE_DEMOD1_TS_CLK FE_DEMOD1_TS_SYNC FE_DEMOD1_TS_VAL

EXTERNAL EDID

BIT9 NON_EXTERNAL

BIT10

LOCKOUT12

port changed (SPDIF noise issue)

PMIC_RESET

USB_Control 2

AV2_CVBS_DET

C109

0.01uF 50V

POL_EJTEG_EN

Support

FOR HDMI2.0

Division

NON_Division

IF_AGC

EXTERNAL

I2C PULL UP

R150

1.8K

R149

1.8K

I2C_SDA6 I2C_SCL6

I2C_SDA4 I2C_SCL4

I2C_SDA1 I2C_SCL1 USB_CTL1

I2C_SDA2 I2C_SCL2

IC100

LGE6551-CA1

POL_EJTAG_EN# 0x0h : Enable 0x1h : Disable

+3.3V_NORMAL

R105 4.7K

R108 4.7K

4_Division

I2C for LCD Module & EPI

I2C for Main Amp / NVRAM

I2C for MICOM

I2C for tuner&LNB

AF3

CBUS_RX

C8

VOCEC

H5

MHL5V

AB1

P0_BN

AC1

P0_BP

AA3

P0_CKN

AB3

P0_CKP

AD1

P0_GN

AD2

P0_GP

AE1

P0_RN

AE2

P0_RP

U1

P1_BN

V1

P1_BP

T3

P1_CKN

U3

P1_CKP

W1

P1_GN

W2

P1_GP

Y1

P1_RN

Y2

P1_RP

M1

P2_BN

N1

P2_BP

L3

P2_CKN

M3

P2_CKP

P1

P2_GN

P2

P2_GP

R1

P2_RN

R2

P2_RP

AA5

REXT

IF_P

IF_N

TU_ALL_IntDemod

C111 100pF

TU_EXT_ATV

POL_RBOOT_EN# 0x0h : don’t boot from Rom 0x1h : ROM boot

DEBUG_T32_NON

AUD_LRCK

DEBUG_T32

R155

C105

0.1uF

C106

0.1uF

+3.3V_NORMAL

OPT

AUD_LRCH

5V_HDMI_1

D0-_HDMI1 D0+_HDMI1 CK-_HDMI1 CK+_HDMI1 D1-_HDMI1 D1+_HDMI1 D2-_HDMI1 D2+_HDMI1

D0-_HDMI2 D0+_HDMI2 CK-_HDMI2 CK+_HDMI2 D1-_HDMI2 D1+_HDMI2 D2-_HDMI2 D2+_HDMI2

D0-_HDMI3 D0+_HDMI3 CK-_HDMI3 CK+_HDMI3 D1-_HDMI3 D1+_HDMI3 D2-_HDMI3 D2+_HDMI3

6.2K

1/16W

1%

TU_ExtDemod R129-*1

TU_ALL_IntDemod

R129

100

TU_ALL_IntDemod

C107

100pF

R127

TU_ALL_IntDemod

100

C108

100pF

Place Near to Main SoC

R134 1K

POL_TEST_EN

R135 4.7K

FLASH_TYPE_bit0

AUD_SCK

FLASH_TYPE_bit1

Boot FLASH_TYPE[1:0] 0x0h : SPI 0x1h : SPI-NAND 0x2h : NAND 0x3h: eMMC

HDMI_HPD_CBUS_1

0

IF_P_MAIN

IF_N_MAIN

IF FILTER

POL_TEST_EN# 0x0h : Enable 0x1h : Disable

+3.5V_ST

OPT

+3.3V_NORMAL

OPT

GPIO PULL UP

+3.3V_NORMAL

OPT

R156 10K

R157 10K

+3.3V_NORMAL

R126

10K

R143 0

AK5

GPIO18_PC_CD1_N

AJ10

GPIO29_PC_CE1_1_N

AJ11

GPIO31_PC_OE_N

AL11

GPIO32_PC_IORD_N

AK12

GPIO34_PC_IOWR_N

AK19

GPIO61_PC_REG_N

AK17

GPIO55_PC_RST

AL15

GPIO43_PC_WE_N

AM17

GPIO59_PC_INPACK_N

AK18

GPIO57_PC_WAIT_N

AK20

GPIO66_PC_A0

AM20

GPIO64_PC_A1

AL18

GPIO62_PC_A2

AJ18

GPIO60_PC_A3

AM19

GPIO58_PC_A4

AJ17

GPIO56_PC_A5

AL17

GPIO54_PC_A6

AM16

GPIO52_PC_A7

AM13

GPIO37_PC_A8

AJ12

GPIO35_PC_A9

AK11

GPIO30_PC_A10

AM12

GPIO33_PC_A11

AK16

GPIO50_PC_A12

AJ13

GPIO39_PC_A13

AM14

GPIO41_PC_A14

AM21

GPIO68_PC_D0

AK21

GPIO70_PC_D1

AL21

GPIO72_PC_D2

AJ5

GPIO19_PC_D3

AJ6

GPIO21_PC_D4

AJ7

GPIO23_PC_D5

AJ8

GPIO25_PC_D6

AJ9

GPIO27_PC_D7

AJ20

GPIO67_TP1_D0

AL19

GPIO69_TP1_D1

AJ21

GPIO71_TP1_D2

AK6

GPIO20_TP1_D3

AK7

GPIO22_TP1_D4

AK8

GPIO24_TP1_D5

AK9

GPIO26_TP1_D6

AK10

GPIO28_TP1_D7

AM18

GPIO53_TP1_CLK

AL20

GPIO63_TP1_VAL

AJ19

GPIO65_TP1_SYC

AK13

GPIO38_TPO_D0

AL13

GPIO40_TPO_D1

AK14

GPIO42_TPO_D2

AM15

GPIO44_TPO_D3

AJ14

GPIO45_TPO_D4

AJ15

GPIO47_TPO_D5

AL16

GPIO49_TPO_D6

AJ16

GPIO51_TPO_D7

AL14

GPIO48_TPO_CLK

AK15

GPIO46_TPO_VAL

AL12

GPIO36_TPO_SYC

CAM_CD1_N

/PCM_CE1

EB_OE_N EB_BE_N1 EB_BE_N0

CAM_REG_N PCM_RESET

EB_WE_N

CAM_WAIT_N

EB_ADDR[0-14]

EB_DATA[0-7]

TPI_DATA[0-7]

TPI_CLK TPI_VAL TPI_SOP

R165 10K

OPT

R167 10K

TPO_DATA[0-7]

OPT

R170 10K

R168 10K

TPO_CLK TPO_VAL TPO_SOP

/TU_RESET1

AMP_RESET_N

TCON_I2C_EN

/USB_OCD1

/USB_OCD3_0

USB_CTL3_0

M_RFModule_RESET

PCM_5V_CTL

R172 4.7K

R173 4.7K

R158 1K

R161 1K

OPT

R159 4.7K

R162 4.7K

OPT

R163 10K

R160 10K

R164 10K

EB_ADDR[0] EB_ADDR[1] EB_ADDR[2] EB_ADDR[3] EB_ADDR[4] EB_ADDR[5] EB_ADDR[6] EB_ADDR[7] EB_ADDR[8] EB_ADDR[9] EB_ADDR[10] EB_ADDR[11] EB_ADDR[12] EB_ADDR[13] EB_ADDR[14]

EB_DATA[0] EB_DATA[1] EB_DATA[2] EB_DATA[3] EB_DATA[4] EB_DATA[5] EB_DATA[6] EB_DATA[7]

TPI_DATA[0] TPI_DATA[1] TPI_DATA[2] TPI_DATA[3] TPI_DATA[4] TPI_DATA[5] TPI_DATA[6] TPI_DATA[7]

TPO_DATA[0] TPO_DATA[1] TPO_DATA[2] TPO_DATA[3] TPO_DATA[4] TPO_DATA[5] TPO_DATA[6] TPO_DATA[7]

IC100

LGE6551-CA1

GPIO15_AMP_I2C_SCL GPIO16_AMP_I2C_SDA

TDI0

TDO0

TMS0 TCK0

GPIO73_SDCMD GPIO74_SDCLK

GPIO75-SDWP GPIO76_SCCD GPIO77_SDD0 GPIO78_SDD1 GPIO79_SDD2 GPIO80_SDD3

GPIO81 GPIO82

GPIO83_SPI_WP

GPIO86_SPI_DI0 GPIO87_SPI_CS_N GPIO84_SPI_HOLD GPIO85_SPI_SCLK

GPIO88_SPI_DO0

EMMC_D0 EMMC_D1 EMMC_D2 EMMC_D3 EMMC_D4 EMMC_D5 EMMC_D6 EMMC_D7

EMMC_DS EMMC_CLK EMMC_CMD

EMMC_RST_N

GPIO90_SCLK GPIO89_WCLK GPIO93_MCLK

GPIO92_D0 GPIO91_D1

GPIO14_DIGI_MIC

GPIO17

P1

12505WS-10A00

DEBUG_T32

RESET

1

TDIO

2

TDO0

3

TMS0

4

TCK0

5

N.C

6

N.C

7

3.3V

8

GND

9

GND

10

11

@cirPi

AL25 AM25 AL22 AM23 AM22 AM24 AL24 AL23

AK22 AJ22

AK23 AJ24 AK25 AJ23 AK24 AJ25

AL8 AM9 AL9 AL7 AM8 AM7 AL10 AM10 AL6 AL5 AM6 AM5

R5 T5 AM27 AK28 AL27 AL28 AK27

R4 T4

DEBUG_T32

AR1 33 1/16W

+3.3V_NORMAL

C1

0.1uF

DEBUG_T32

HDMI detection port

5V_DET_HDMI_1 5V_DET_HDMI_2 5V_DET_HDMI_3

TCON_I2C_EN BIT10 PWM_DIM PWM_DIM2

/TU_RESET2

BIT3 BIT4

PCM_5V_CTL

SMARTCARD_DATA

SMARTCARD_RST

CAM_IREQ_N

SMARTCARD_DET SMARTCARD_CLK

AR101

EMMC_DATA[0]

0

EMMC_DATA[1] EMMC_DATA[2] EMMC_DATA[3] EMMC_DATA[4] EMMC_DATA[5] EMMC_DATA[6] EMMC_DATA[7]

EMMC_STRB EMMC_CLK EMMC_CMD EMMC_RST

GPIO_89 for POL_Boot_Mode

BIT1 BIT2 AUD_SCK AUD_LRCK

M_RFModule_RESET

AUD_LRCH

POL_EJTEG_EN

GPIO91 for POL_EJTAG_En

/TU_RESET1

HDMI_ARC

EB_BE_N1 EB_OE_N EB_BE_N0

EB_ADDR[11]

TRST_N0

EB_ADDR[10] TDI0 TDO0 TMS0 TCK0

SMARTCARD VCC

EMMC_DATA[0-7]

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

MAIN1_SYSTEM

Jtag I/F For Main

2015-01-08K2L

01

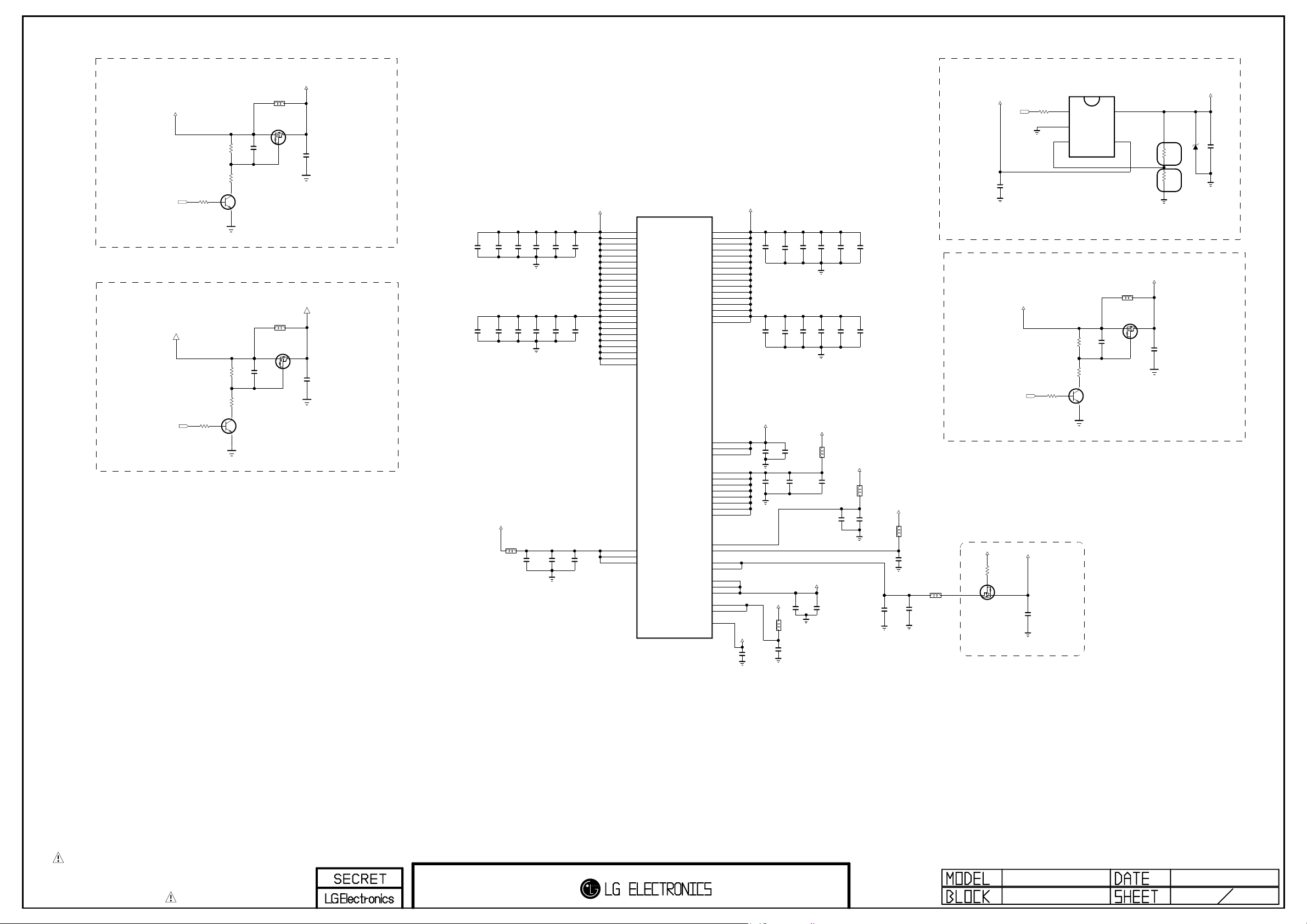

WOL&Instant ON

+3.5V_ST

R208

30K

R209

5.1K

C

INSTANT_BOOT

R207

B

E

10K

DDR power for Instant ON

+1.5V_DDR

R211

30K

R212

100

C

DDR_CS_ON_OFF

R210

B

E

10K

UBW2012-121F

Q204

SSM3J332R

S

C248 10uF

10V

Q203 MMBT3904(NXP)

UBW2012-121F

C250 10uF

10V

Q205 MMBT3904(NXP)

+3.5V_WOL_ST

OPT

L202

D

G

C249 10uF

10V

+1.5V_DDR_INSTANTBOOT

OPT

L203

Q206

SSM3J332R

D

S

G

C251 10uF

10V

C243 10uF 10V

C244 10uF 10V

C202

0.1uF

C200 10uF 10V

C203

0.1uF

C201 10uF 10V

D1V0

BLM18PG121SN1D

L200

C204 10uF 10V

C205

C206

0.1uF

C208

0.1uF

C209

0.1uF

C207

0.1uF 16V

C211

0.1uF

C212

0.1uF

C210

0.1uF 16V

D1V0

AA14 AB14 AC14 AD14 AD15 AD16 AD17 AD18 AD19 AD20 AD21 AD22 AD23 AE26 AE27 AE28 AE29 AE30

AF22 AF23 AF24

P19 P20 P21 P22 P23

IC100

LGE6551-CA1

CO1V0_1 CO1V0_2 CO1V0_3 CO1V0_4 CO1V0_5 CO1V0_6 CO1V0_7 CO1V0_8 CO1V0_9 CO1V0_10 CO1V0_11 CO1V0_12 CO1V0_13 CO1V0_14 CO1V0_15 CO1V0_16 CO1V0_17 CO1V0_18 CO1V0_19 CO1V0_20 CO1V0_21 CO1V0_22 CO1V0_23

LV1V0_1 LV1V0_2 LV1V0_3

CPU1V0_1 CPU1V0_2 CPU1V0_3 CPU1V0_4 CPU1V0_5 CPU1V0_6 CPU1V0_7 CPU1V0_8

CPU1V0_9 CPU1V0_10 CPU1V0_11 CPU1V0_12 CPU1V0_13 CPU1V0_14 CPU1V0_15 CPU1V0_16

D3V3_1 D3V3_2 D3V3_3

A3V3_1 A3V3_2 A3V3_3 A3V3_4 A3V3_5 A3V3_6 A3V3_7 A3V3_8

RTC3V3 STB3V3

HDRX3V3_1 HDRX3V3_2

GHA1V0 GHD1V0 GHP1V0

HDRX1V0_1 HDRX1V0_2

EMMC1V8

A14 A15 B14 B15 C13 C14 C15 D13 D14 D15 N16 N17 N18 P16 P17 P18

AF19 AF20 AF21

M10 N10 P10 AE9 AE10 AF8 AF9 AF10

A11 H10

AB8 AB9

P14 N14 R14

Y8 Y9

AG16

CPU_1V0

+3.5V_WOL_ST

DVDD18_EMMC

C213

0.1uF

C215 10uF 10V

C216 10uF 10V

C217

ST_A1V0

0.1uF

C221

0.1uF

L201

C214

0.1uF

C218

0.1uF

C245 10uF 10V

C219

0.1uF

C246 10uF 10V

C220

0.1uF L208

C227

0.1uF

ST_A1V0

C226

0.1uF

BLM18PG121SN1D

C222

C224

0.1uF

C225

C223

0.1uF

+3.5V_WOL

BLM18PG121SN1D

C242 10uF 10V

C235 10uF 10V

C230

10uF

10V

C228

0.1uF

C229

0.1uF

+3.3V_NORMAL

L205

BLM18PG121SN1D

C233

0.1uF

+3.5V_WOL_ST

L207

BLM18PG121SN1D

C234

0.1uF

C232

0.1uF

L204

BLM18PG121SN1D

C236 10uF 10V

+1.0V LDO Eth STDBY

IC200

ADJ/NC

R201

10K

EN

GND

R202

R203

B

AP7361-Y-13

1

2

3

30K

5.1K

5

4

1A

C238 10uF

10V

C

Q201 MMBT3904(NXP)

E

UBW2012-121F

+3.5V_ST

R204 10K

WOL_CTL

C231 10uF

10V

Vout=0.8*(1+R1/R2)=1.004V

WOL switch

+3.5V_ST

WOL_CTL

PANEL_VCC

D

SSM3K324R

HDMI Power 3.3V separate

Q200

+3.3V_NORMAL

R200

10K

G

S

C237

0.1uF 16V

OUT

IN

OPT

L206

Q202

SSM3J332R

S

G

+3.5V_WOL

D

C239 10uF

10V

R205

5.1K 1%

R206

ST_A1V0

C241 10uF 10V

2.5V

ZD200

R1

20K

1%

R2

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

11/05/31

K2L

K2L POWER

2015-01-08

02

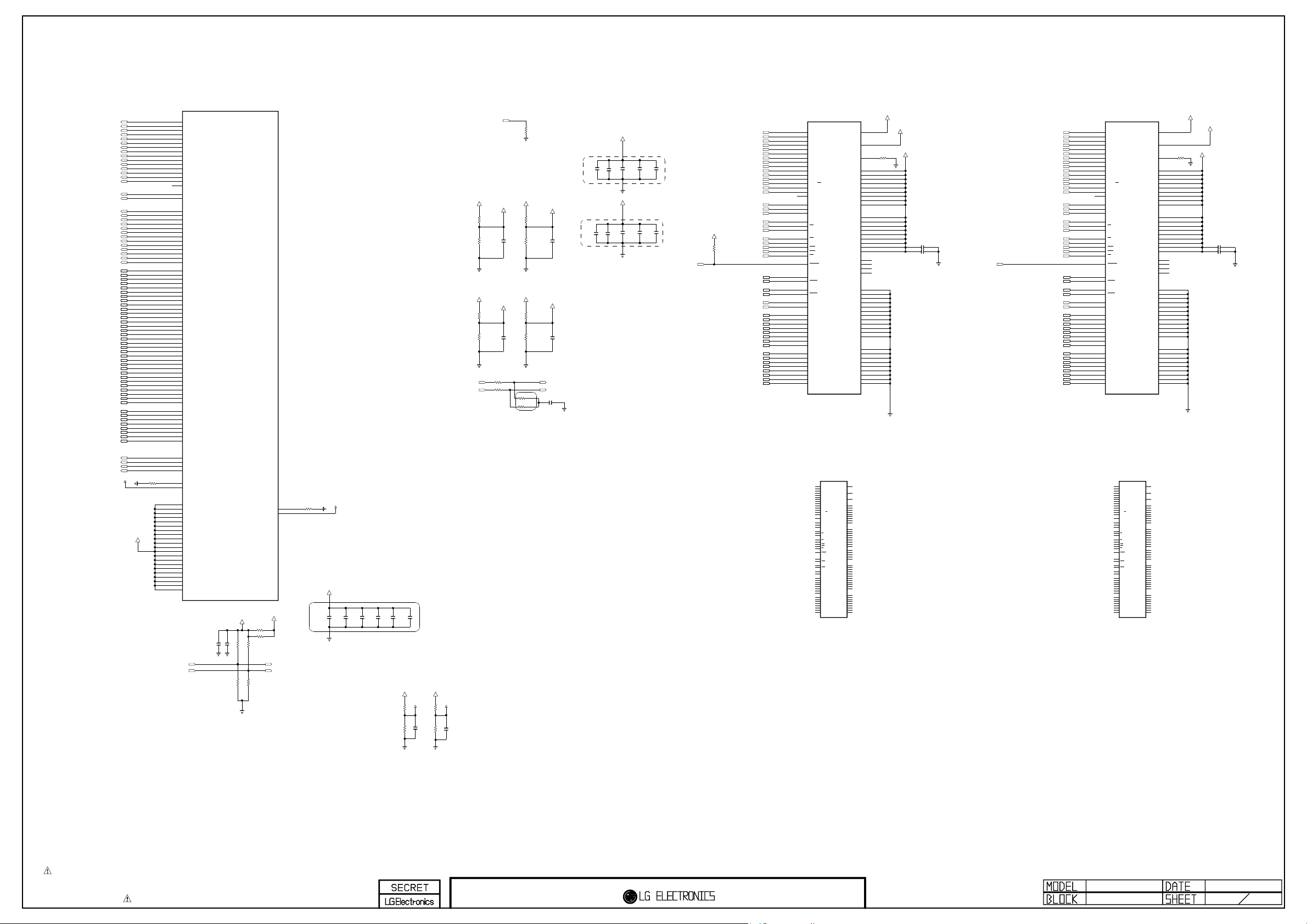

M0_DDR_A0 M0_DDR_A1 M0_DDR_A2 M0_DDR_A3 M0_DDR_A4 M0_DDR_A5 M0_DDR_A6 M0_DDR_A7 M0_DDR_A8

M0_DDR_A9 M0_DDR_A10 M0_DDR_A11 M0_DDR_A12 M0_DDR_A13 M0_DDR_A14

M0_DDR_A4_1 M0_DDR_A5_1

M0_DDR_BA0 M0_DDR_BA1 M0_DDR_BA2

M0_DDR_CASN

M0_DDR_CKE

M0_CLK

M0_CLKN

M0_CS0_N

M0_CS1_N

M0_DDR_ODT

M0_DDR_RASN

M0_DDR_RESET_N

M0_DDR_WEN

M0_DDR_DQ0 M0_DDR_DQ1 M0_DDR_DQ2 M0_DDR_DQ3 M0_DDR_DQ4 M0_DDR_DQ5 M0_DDR_DQ6 M0_DDR_DQ7 M0_DDR_DQ8 M0_DDR_DQ9

M0_DDR_DQ10 M0_DDR_DQ11 M0_DDR_DQ12 M0_DDR_DQ13 M0_DDR_DQ14 M0_DDR_DQ15 M0_DDR_DQ16 M0_DDR_DQ17 M0_DDR_DQ18 M0_DDR_DQ19 M0_DDR_DQ20 M0_DDR_DQ21 M0_DDR_DQ22 M0_DDR_DQ23 M0_DDR_DQ24 M0_DDR_DQ25 M0_DDR_DQ26 M0_DDR_DQ27 M0_DDR_DQ28 M0_DDR_DQ29 M0_DDR_DQ30 M0_DDR_DQ31

M0_DDR_DQS0

M0_DDR_DQS_N0

M0_DDR_DQS1

M0_DDR_DQS_N1

M0_DDR_DQS2

M0_DDR_DQS_N2

M0_DDR_DQS3

M0_DDR_DQS_N3

M0_DDR_DM0 M0_DDR_DM1 M0_DDR_DM2 M0_DDR_DM3

VREF_M0

+1.5V_DDR

IC100

LGE6551-CA1

G28

DC1_A0

J31

DC1_A1

F30

DC1_A2

E28

DC1_A3

L28

DC1_A4

F27

DC1_A5

K27

DC1_A6

F28

DC1_A7

J28

DC1_A8

G31

DC1_A9

M27

DC1_A10

H28

DC1_A11

L27

DC1_A12

G30

DC1_A13

J30

DC1_A14

L31

DC1_A15

K29

DC1_A4_EXT

G27

DC1_A5_EXT

E27

DC1_BA0

K30

DC1_BA1

H27

DC1_BA2

H30

DC1_CASN

M28

DC1_CKE

M30

DC1_CLK

L30

DC1_CLKB

M29

DC1_CSN

AD26

DC1_CSN_1

E30

DC1_ODT

J27

DC1_RASN

F29

DC1_RST

H29

DC1_WEN

U31

DC1_DQ0

P29

DC1_DQ1

U30

DC1_DQ2

R30

DC1_DQ3

T29

DC1_DQ4

P30

DC1_DQ5

T30

DC1_DQ6

R31

DC1_DQ7

N28

DC1_DQ8

U28

DC1_DQ9

N27

DC1_DQ10

U27

DC1_DQ11

P27

DC1_DQ12

T27

DC1_DQ13

P28

DC1_DQ14

T28

DC1_DQ15

AC31

DC1_DQ16

Y29

DC1_DQ17

AC30

DC1_DQ18

AA30

DC1_DQ19

AB29

DC1_DQ20

Y30

DC1_DQ21

AB30

DC1_DQ22

AA31

DC1_DQ23

W28

DC1_DQ24

AC28

DC1_DQ25

W27

DC1_DQ26

AC27

DC1_DQ27

Y27

DC1_DQ28

AB27

DC1_DQ29

Y28

DC1_DQ30

AB28

DC1_DQ31

V30

DC1_DQS0

V29

DC1_DQS0B

R27

DC1_DQS1

R28

DC1_DQS1B

AD30

DC1_DQS2

AD29

DC1_DQS2B

AA27

DC1_DQS3

AA28

DC1_DQS3B

N30

DC1_DM0

U26

DC1_DM1

W30

DC1_DM2

AD27

DC1_DM3

1%

R400

D30

240

DDR1_ZQ

D31

DC1_VREF

A18 A19 B18 B19 C18 C19 D18 D19 N19 N20 N21 N22 N23 N24 P24 R24 T24 U24 V24 W24 Y24

M0_CS0_N

M0_CS1_N

DDR_1V5_1 DDR_1V5_2 DDR_1V5_3 DDR_1V5_4 DDR_1V5_5 DDR_1V5_6 DDR_1V5_7 DDR_1V5_8 DDR_1V5_9 DDR_1V5_10 DDR_1V5_11 DDR_1V5_12 DDR_1V5_13 DDR_1V5_14 DDR_1V5_15 DDR_1V5_16 DDR_1V5_17 DDR_1V5_18 DDR_1V5_19 DDR_1V5_20 DDR_1V5_21

+1.5V_DDR_INSTANTBOOT

C440

0.1uF 16V

C438

0.1uF 16V

D28

+1.5V_DDR

M0_CS0_N

M0_CS1_N

240

D27

DDR2_ZQ

DC2_VREF

OPT

R422 0

R423 0

OPT

1%

120

R450

R446

1%

120

R451

R447

VREF_M1

1%

R401

+1.5V_DDR

C427

C424

0.1uF 16V

C425

0.1uF 16V

C426

0.1uF 16V

C428

0.1uF 16V

C429

0.1uF 16V

Place Near SoC

+1.5V_DDR

VREF_M1

VREF_M0

R402

R404

1K 1%

M0_CLK

M0_CLKN

+1.5V_DDR

R409

R410

+1.5V_DDR

R407

R408

M0_DDR_CKE

M0_DDR_VREFCA

1K 1%

M0_DDR_VREFDQ

1K 1%

C400

0.1uF 16V

C401

0.1uF 16V

R426 1K

+1.5V_DDR

C407

C405

C404

C443

C441

0.1uF

10uF

16V

10V

0.1uF 16V

Place M0 POWER PLANE

+1.5V_DDR

R428

R429

1K 1%

M0_1_DDR_VREFCA

C402

0.1uF 16V

+1.5V_DDR

C434

0.1uF 16V

C436

0.1uF 16V

+1.5V_DDR

C432

C442

C444

0.1uF

10uF

16V

10uF

10V

Place M0 POWER PLANE

M0_DDR_RESET_N

+1.5V_DDR

M0_1_DDR_VREFDQ

R424

1K 1%

C403

0.1uF 16V

R425

1K 1%

R416

0

R417

0

M0_U_CLK

M0_U_CLKN

R420

27

C431

R421

27

0.1uF 16V

M0_DDR_A0 M0_DDR_A1 M0_DDR_A2 M0_DDR_A3 M0_DDR_A4

M0_DDR_A6 M0_DDR_A7 M0_DDR_A8

M0_DDR_A9 M0_DDR_A10 M0_DDR_A11 M0_DDR_A12 M0_DDR_A13 M0_DDR_A14

M0_DDR_BA0 M0_DDR_BA1 M0_DDR_BA2

M0_U_CLK

M0_U_CLKN M0_DDR_CKE

M0_CS0_N

M0_DDR_ODT

R436

M0_DDR_RASN

1K

M0_DDR_CASN

M0_DDR_WEN

M0_DDR_DQS0

M0_DDR_DQS_N0

M0_DDR_DQS1

M0_DDR_DQS_N1

M0_DDR_DM0 M0_DDR_DM1

M0_DDR_DQ0 M0_DDR_DQ1 M0_DDR_DQ2 M0_DDR_DQ3 M0_DDR_DQ4 M0_DDR_DQ5 M0_DDR_DQ6 M0_DDR_DQ7

M0_DDR_DQ8 M0_DDR_DQ9

M0_DDR_DQ10 M0_DDR_DQ11 M0_DDR_DQ12 M0_DDR_DQ13 M0_DDR_DQ14 M0_DDR_DQ15

DDR_HYNIX

IC401

H5TQ4G63CFR-TEC

DDR3 4Gbit

N3

A0

P7

(x16)

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

DDR_MICRON

IC401-*1

MT41K256M16LY-093:N

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

LDQS

G3

LDQS

C7

UDQS

B7

UDQS

E7

LDM

D3

UDM

E3

DQ0

F7

DQ1

F2

DQ2

F8

DQ3

H3

DQ4

H8

DQ5

G2

DQ6

H7

DQ7

D7

DQ8

C3

DQ9

C8

DQ10

C2

DQ11

A7

DQ12

A2

DQ13

B8

DQ14

A3

DQ15

M0_DDR_VREFCA

M0_DDR_VREFDQ

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

A14

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

+1.5V_DDR

R439

240 1%

0.1uF

C412

0.1uF

C413

M0_DDR_RESET_N

M0_DDR_A0 M0_DDR_A1 M0_DDR_A2

M0_DDR_A3 M0_DDR_A4_1 M0_DDR_A5_1M0_DDR_A5

M0_DDR_A6

M0_DDR_A7

M0_DDR_A8

M0_DDR_A9

M0_DDR_A10 M0_DDR_A11 M0_DDR_A12 M0_DDR_A13 M0_DDR_A14

M0_DDR_BA0 M0_DDR_BA1 M0_DDR_BA2

M0_U_CLK

M0_U_CLKN

M0_DDR_CKE

M0_CS1_N

M0_DDR_ODT M0_DDR_RASN M0_DDR_CASN

M0_DDR_WEN

M0_DDR_DQS2

M0_DDR_DQS_N2

M0_DDR_DQS3

M0_DDR_DQS_N3

M0_DDR_DM2

M0_DDR_DM3

M0_DDR_DQ16 M0_DDR_DQ17 M0_DDR_DQ18 M0_DDR_DQ19 M0_DDR_DQ20 M0_DDR_DQ21 M0_DDR_DQ22 M0_DDR_DQ23

M0_DDR_DQ24 M0_DDR_DQ25 M0_DDR_DQ26 M0_DDR_DQ27 M0_DDR_DQ28 M0_DDR_DQ29 M0_DDR_DQ30 M0_DDR_DQ31

DDR_HYNIX

IC403

H5TQ4G63CFR-TEC

DDR3

N3

4Gbit

A0

P7

(x16)

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

DDR_MICRON

IC403-*1

MT41K256M16LY-093:N

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

LDQS

G3

LDQS

C7

UDQS

B7

UDQS

E7

LDM

D3

UDM

E3

DQ0

F7

DQ1

F2

DQ2

F8

DQ3

H3

DQ4

H8

DQ5

G2

DQ6

H7

DQ7

D7

DQ8

C3

DQ9

C8

DQ10

C2

DQ11

A7

DQ12

A2

DQ13

B8

DQ14

A3

DQ15

M0_1_DDR_VREFCA

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

A14

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

M0_1_DDR_VREFDQ

+1.5V_DDR

R443

240 1%

0.1uF

C416

0.1uF

C417

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

R403

R405

0.1uF

16V

C418

1K 1%

0.1uF

16V

C419

1K 1%

K2L

K2L DDR

2015-04-27

03

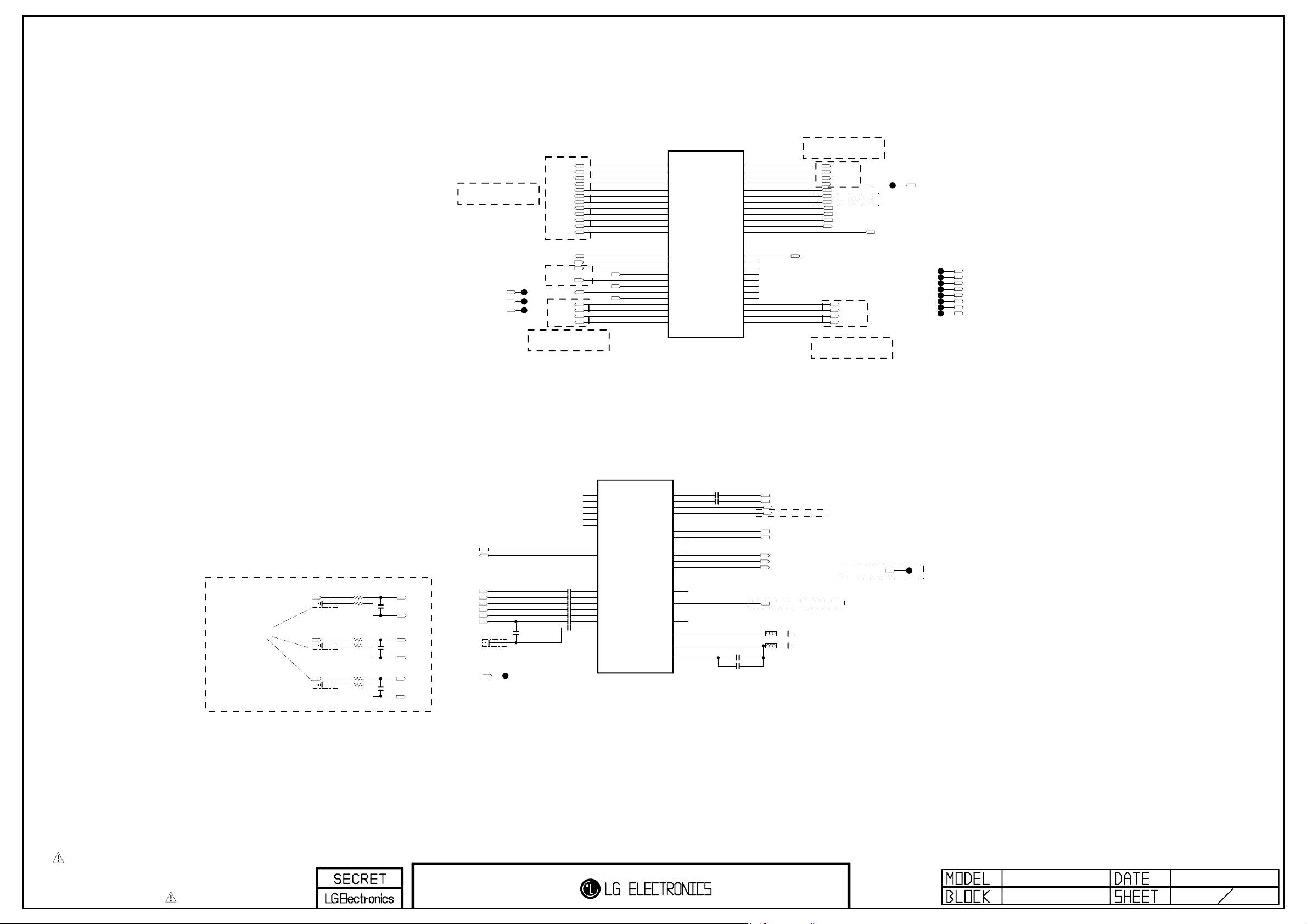

EPI Share Lane For 51p location

TXDBN2_L TXDBP2_L TXDBN3_L TXDBP3_L TXDBN4_L TXDBP4_L TXDBN5_L TXDBP5_L TXDBN6_L TXDBP6_L TXDBN7_L TXDBP7_L

B25

LVDS_AAN

A25

LVDS_AAP

B24

LVDS_ABN

A24

LVDS_ABP

B23

LVDS_ACN

A23

LVDS_ACP

B22

LVDS_ADN

A22

LVDS_ADP

B21

LVDS_AEN

A21

LVDS_AEP

B20

LVDS_AFN

A20

LVDS_AFP

IC100

LGE6551-CA1

LVDS_CAN LVDS_CAP LVDS_CBN LVDS_CBP LVDS_CCN LVDS_CCP LVDS_CDN LVDS_CDP LVDS_CEN LVDS_CEP LVDS_CFN LVDS_CFP

B29 A29 B28 A28 AJ30 AJ29 AK31 AK30 AL31 AK29 AL30 AL29

EPI Lane For 41p location

TXDAN2_L TXDAP2_L TXDAN3_L TXDAP3_L

MCLK_A

L/D_VSYNC GCLK_A

L/D_DO L/D_CLK

VID_CPU

DATA_FORMAT_1

Level Shifter

GCLK_A

VID_CORE

Close to Main chip

GND pattern should be connected with 75ohm reg of Component Jack

COMP1_Pb

COMP1_Y/CVBS

COMP1_Pr

R610 100 R611 100

R612 100 R613 100

R614 100 R615 100

COMP1_PbP

C603 5pF 50V

COMP1_YPbPrN

COMP1_Y/CVBSP

C604 5pF 50V

COMP1_YPbPrN

COMP1_PrP

C605 5pF 50V

COMP1_YPbPrN

I2C_SDA6 I2C_SCL6

COMP1_PbP

COMP1_Y/CVBSP

COMP1_PrP

COMP1_YPbPrN

TU_CVBS

SC_CVBS_IN

Level Shifter

EO_A

GST_A

MCLK_A

C606 5pF 50V

GND pattern should be connected with 75ohm reg of SCART Jack

LOCKAn HTPDAn

EO_A

GST_A

DATA_FORMAT_0

TXDBN0_L TXDBP0_L TXDBN1_L TXDBP1_L

EPI Share Lane For 41p location

C629

0.047uF C630

0.047uF C631

0.047uF C632

0.047uF C633

0.047uF C634

0.047uF C635

0.047uF

BIT0

BIT6

BIT5

LGE6551-CA1

C1

VINRP

D1

VINRN

B1

VINGP

C2

VINGN

A1

VINBP

C3

VINBN

B2

VSYNC

A2

HSYNC

D2

VIN3P

E2

VIN4P

E3

VIN5P

D3

VINY0N

F3

VIN10P

F1

VIN13P

F2

VINA0N

IC100

AF28 AF27 AG28 AG27 AH28 AH27 AJ28 AJ27

B27 A27 B26 A26

AI1L AI1R AI2L AI2R

AI4L

AI4R AIO2L AIO2R

HPOL

HPOR

VDACOUT

FSW0

SPDIF_OUT

MICBAIS

ADCG

VCMBB

BBG

LVDS_BAN LVDS_BAP LVDS_BBN LVDS_BBP LVDS_BCN LVDS_BCP LVDS_BDN LVDS_BDP LVDS_BEN LVDS_BEP LVDS_BFN LVDS_BFP

A4 B4 A5 B5

D4 D5 E4 E5 F4 F5 G2

G3

C5

C4

AB5

AG5

AF5

2.2uF

LVDS_DAN LVDS_DAP LVDS_DBN LVDS_DBP LVDS_DCN LVDS_DCP LVDS_DDN LVDS_DDP LVDS_DEN LVDS_DEP LVDS_DFN LVDS_DFP

C654 C655

C657

0.1uF 16V

C656 1uF

AF31 AF30 AF29 AG30 AG29 AH31 AH30 AH29 B31 A31 B30 A30

COMP1/AV1/DVI_L_IN COMP1/AV1/DVI_R_IN

VX1_MSE AMP_RESET_N

BIT7 BIT8

HP_LOUT HP_ROUT DTV/MNT_V_OUT

port changed

BIT9

(SPDIF noise issue)

L600 PZ1608U121-2R0TF

L601 PZ1608U121-2R0TF

AGP_CTRL

Default Low Set!

EPI Lane For 41p location

Internal Analog Demod Test Point

TXDAN0_L TXDAP0_L TXDAN1_L TXDAP1_L

DTV/MNT_V_OUT

TXDAN2_L TXDAP2_L TXDAN3_L TXDAP3_L TXDAN0_L TXDAP0_L TXDAN1_L TXDAP1_L

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

K2L

MAIN4_EXT_IN/OUTPUT

15/04/27

04

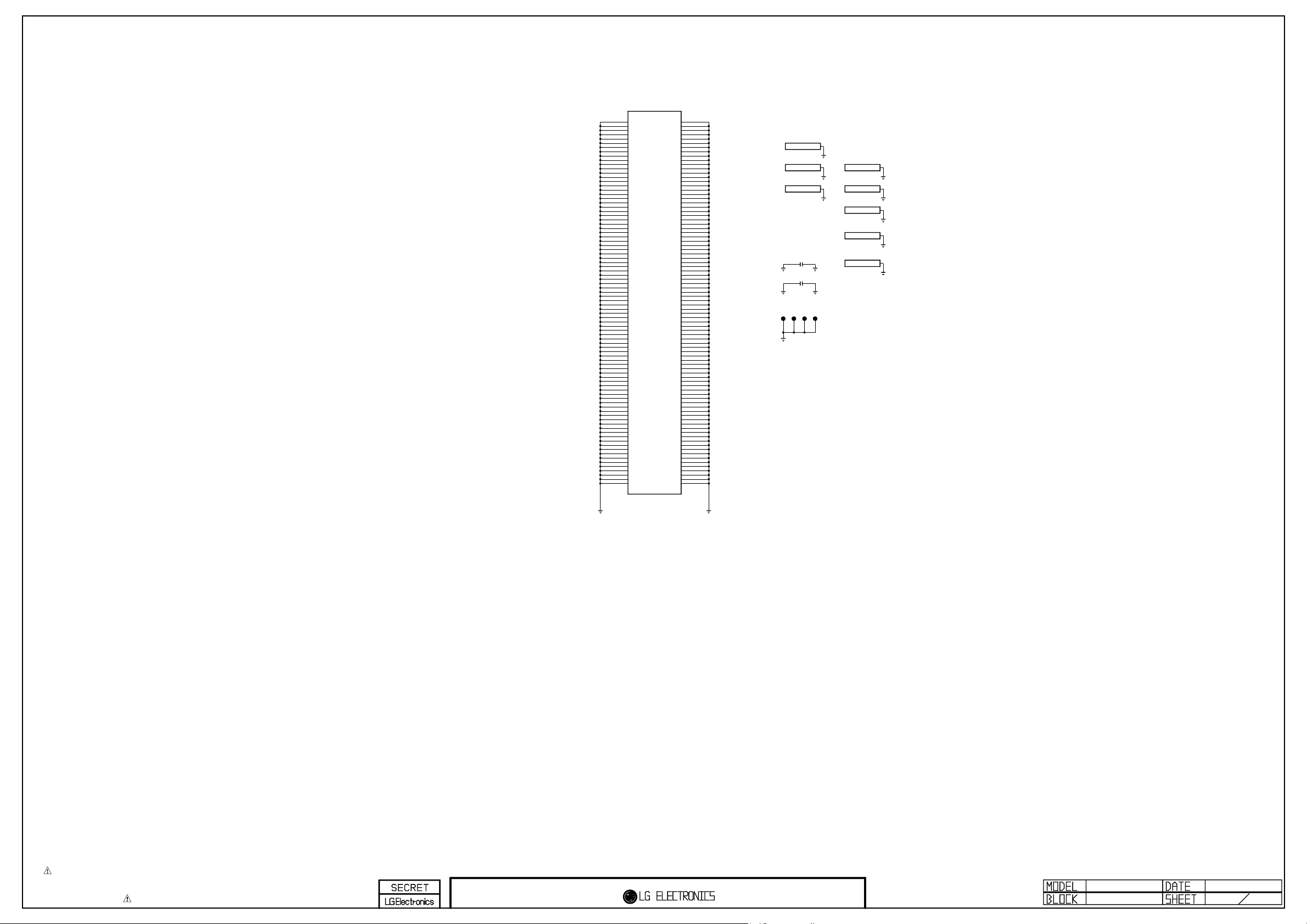

B11

DGND_1

B16

DGND_2

B17

DGND_3

C10

DGND_4

C11

DGND_5

C12

DGND_6

D26

DGND_7

D29

DGND_8

E26

DGND_9

E29

DGND_10

F26

DGND_11

G26

DGND_12

G29

DGND_13

H3

DGND_14

H4

DGND_15

H26

DGND_16

J3

DGND_17

J26

DGND_18

J29

DGND_19

K3

DGND_20

K5

DGND_21

K26

DGND_22

K28

DGND_23

L26

DGND_24

L29

DGND_25

M2

DGND_26

M26

DGND_27

N2

DGND_28

N15

DGND_29

N26

DGND_30

N29

DGND_31

N31

DGND_32

P3

DGND_33

P15

DGND_34

P26

DGND_35

R3

DGND_36

R15

DGND_37

R16

DGND_38

R17

DGND_39

R18

DGND_40

R19

DGND_41

R20

DGND_42

R21

DGND_43

R22

DGND_44

R23

DGND_45

R26

DGND_46

R29

DGND_47

T15

DGND_48

T16

DGND_49

T17

DGND_50

T18

DGND_51

T19

DGND_52

T20

DGND_53

T21

DGND_54

T22

DGND_55

T23

DGND_56

T26

DGND_57

U2

DGND_58

U4

DGND_59

U5

DGND_60

U15

DGND_61

U16

DGND_62

U17

DGND_63

U18

DGND_64

U19

DGND_65

U20

DGND_66

U21

DGND_67

U22

DGND_68

U23

DGND_69

U29

DGND_70

V2

DGND_71

V4

DGND_72

V5

DGND_73

V15

DGND_74

V16

DGND_75

V17

DGND_76

V18

DGND_77

V19

DGND_78

V20

DGND_79

V21

DGND_80

V22

DGND_81

V23

DGND_82

V26

DGND_83

V27

DGND_84

V28

DGND_85

W3

DGND_86

IC100

LGE6551-CA1

DGND_87 DGND_88 DGND_89 DGND_90 DGND_91 DGND_92 DGND_93 DGND_94 DGND_95 DGND_96 DGND_97 DGND_98

DGND_99 DGND_100 DGND_101 DGND_102 DGND_103 DGND_104 DGND_105 DGND_106 DGND_107 DGND_108 DGND_109 DGND_110 DGND_111 DGND_112 DGND_113 DGND_114 DGND_115 DGND_116 DGND_117 DGND_118 DGND_119 DGND_120 DGND_121 DGND_122 DGND_123 DGND_124 DGND_125 DGND_126 DGND_127 DGND_128 DGND_129 DGND_130 DGND_131 DGND_132 DGND_133 DGND_134 DGND_135 DGND_136 DGND_137 DGND_138 DGND_139 DGND_140 DGND_141 DGND_142 DGND_143 DGND_144 DGND_145 DGND_146 DGND_147 DGND_148 DGND_149 DGND_150 DGND_151 DGND_152 DGND_153 DGND_154 DGND_155 DGND_156 DGND_157 DGND_158 DGND_159 DGND_160 DGND_161 DGND_162 DGND_163 DGND_164 DGND_165 DGND_166 DGND_167 DGND_168 DGND_169 DGND_170 DGND_171 DGND_172

W4 W5 W9 W15 W16 W17 W18 W19 W20 W21 W22 W23 W26 W29 W31 Y3 Y4 Y5 Y15 Y16 Y17 Y18 Y19 Y20 Y21 Y22 Y23 Y26 AA4 AA15 AA16 AA17 AA18 AA19 AA20 AA21 AA22 AA23 AA26 AA29 AB2 AB4 AB15 AB16 AB17 AB18 AB19 AB20 AB21 AB22 AB23 AB26 AC2 AC3 AC4 AC15 AC16 AC17 AC18 AC19 AC20 AC21 AC22 AC23 AC26 AC29 AD3 AD4 AD28 AE3 AE4 AF4 AG3 AG4 AH2 AH3 AH4 AJ4 AK2 AK3 AK4 AL4 AL26 AM4 AM11 AM26

M700

MDS62110222

M701

MDS62110222

M702

MDS62110222

C700

2.2uF

TOOL_UH70

C701

2.2uF

TOOL_UH70_NOT

JP700

JP701

10V

JP702

JP703

M705

MDS62110213

M706

MDS62110213

M707

MDS62110213

M708

MDS62110237

M709

MDS62110213

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

K2L

K2L_GND

2015-01-18

07

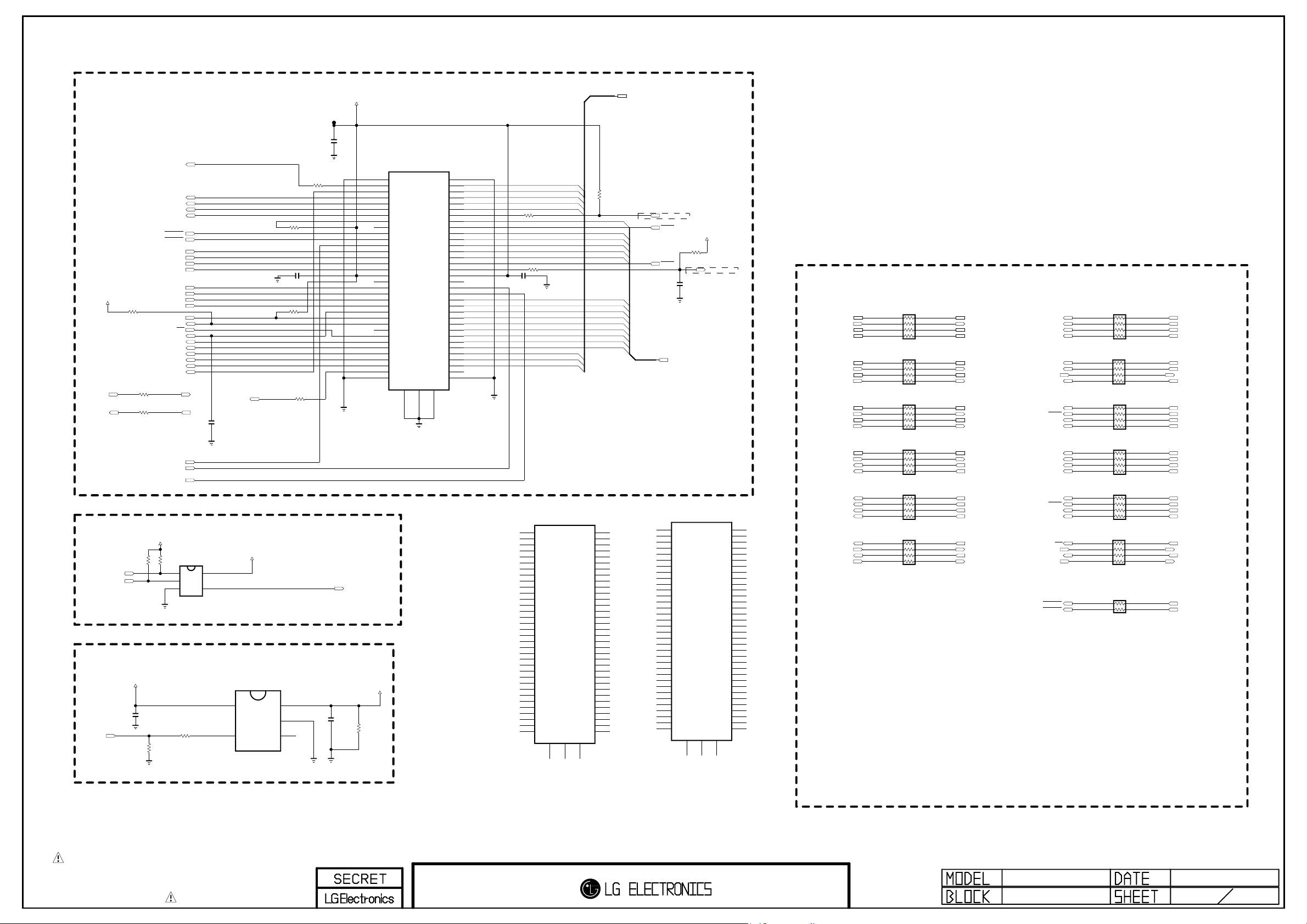

CI Region

CI SLOT

+5V_NORMAL

PCM_RESET

TPI_CLK

CI DETECT

/CI_CD2

/CI_CD1

CI POWER ENABLE CONTROL

+5V_NORMAL

PCM_5V_CTL

R900 10K

CI_SLOT

R901

R903 33

CI_SLOT

R907

10K

CI_SLOT

TPI_DATA_CI[4] TPI_DATA_CI[5] TPI_DATA_CI[6] TPI_DATA_CI[7]

CI_MDI[0] CI_MDI[1] CI_MDI[2] CI_MDI[3]

CI_MDI[4] CI_MDI[5] CI_MDI[6] CI_MDI[7]

PCM_RESET_CI

CAM_WAIT_N_CI

TPI_CLK_CI TPI_VAL_CI

TPI_SOP_CI TPI_DATA_CI[0] TPI_DATA_CI[1] TPI_DATA_CI[2]

TPI_DATA_CI[3]

CI_SLOT

33

CI_SLOT

CI_MISTRT

CI_MIVAL_ERR

CI_MCLKI

+5V_NORMAL

C905

0.1uF 16V

R921 10K

CI_SLOT

/CI_CD1

CI_IORD CI_IOWR

CI_SLOT R906 10K

REG

IC900

74LVC1G32GW

1B 5 VCC

3GND2A4 Y

CI_SLOT

R922 100

PCM_RESET_CI

TPI_CLK_CI

CI_SLOT

/CI_CD2

CI_SLOT

C900 2pF 50V

+3.3V_NORMAL

IN

EN

AP2151WG-7

5

CI_SLOT

4

CI_SLOT

IC901

CI_SLOT

R908 10K

CI_SLOT

GND

OUT

1

GND

2

FLG

3

C901

0.1uF

R909

R910

CI_SLOT

* Option name of this page : CI_SLOT

(because of Hong Kong)

+5V_CI_ON

CI_SLOT

C902

10uF

10V

METAL CI SLOT ONLY FOR 43/49UH61

CI_SLOT_METAL_43_49UH61_ONLY

JK900

+5V_CI_ON

10067972-000LF

EAG41860102

35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59

65 66 67 68

GND

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 2660 2761 2862 2963 3064 31 32 33 34

69

G1G2

R914

R915

C903

0.1uF

CI_SLOT

GND

CI_SLOT

33

100

CI_SLOT

GND

CI_SLOT_MOLD_FCI/SPG

10125901-015LF

35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59

65 66 67 68

CI_DATA[3] CI_DATA[4] CI_DATA[5] CI_DATA[6] CI_DATA[7]

CI_DATA[0] CI_DATA[1] CI_DATA[2]

EAG63217207

JK900-*2

69

CI_SLOT

R912

100

10K

100

GND

CAM_CD1_N

C906 1uF

R923

10V

CI_SLOT

10K

CI_SLOT

CI_DATA[0-7]

CI_ADDR[10]

CI_ADDR[11]

CI_ADDR[9]

CI_ADDR[8] CI_ADDR[13] CI_ADDR[14]

CI_ADDR[12]

CI_ADDR[7]

CI_ADDR[6]

CI_ADDR[5]

CI_ADDR[4]

CI_ADDR[3]

CI_ADDR[2]

CI_ADDR[1]

CI_ADDR[0]

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 2660 2761 2862 2963 3064 31 32 33 34

G1G2

CI_DATA[0-7]

R916

10K

/PCM_CE1

CI_OE

CI_SLOT

CI_WE

C904

0.1uF

CI_SLOT

GND

CI_ADDR[0-14]

CI_SLOT_MOLD_HONGLIN

HONGLIN...

35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59

65 66 67 68

+5V_NORMAL

R917 10K

CAM_IREQ_N

EAG63217210

JK900-*1

69

CI HOST I/F

CI_DATA[0]

TPI_DATA_CI[1]

CI_DATA[1] CI_DATA[2]

CI_DATA[3]

TPI_DATA_CI[3]

CI_DATA[4]

TPI_DATA_CI[4]

CI_DATA[5]

TPI_DATA_CI[5]

CI_DATA[6]

TPI_DATA_CI[6]

CI_DATA[7]

TPI_DATA_CI[7]

CI_MIVAL_ERR

CI_MDI[5]

CI_MCLKI

CI_MDI[7] CI_ADDR[7] CI_ADDR[4]

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 2660 2761 2862 2963 3064 31 32 33 34

G1G2

CI_ADDR[2]

TPI_VAL_CI

CI_ADDR[1]

TPI_DATA_CI[0]

AR902

AR903

AR905

AR906

AR904

AR907

1/16W

33

CI_SLOT

EB_DATA[0]

TPI_DATA[1] EB_DATA[1] EB_DATA[2]

EB_DATA[3]

TPI_DATA[3] EB_DATA[4] TPI_DATA[4]

EB_DATA[5] TPI_DATA[5]

EB_DATA[6] TPI_DATA[6]

EB_DATA[7] TPI_DATA[7]

TPO_VAL

TPO_DATA[5]

TPO_CLK

TPO_DATA[7] EB_ADDR[7] EB_ADDR[4]

EB_ADDR[2]

TPI_VAL

EB_ADDR[1]

TPI_DATA[0]

CI_MDI[3] CI_MDI[4]

CI_ADDR[12]

CI_MDI[6]

CI_ADDR[6] CI_ADDR[5]

CAM_WAIT_N_CI

CI_ADDR[3]

CI_ADDR[14]

CI_MDI[1] CI_MDI[2]

CI_MISTRT

CI_ADDR[8]

CI_ADDR[13]

CI_MDI[0]

CI_ADDR[10]

CI_ADDR[11]

CI_ADDR[9]

TPI_SOP_CI

CI_ADDR[0]

TPI_DATA_CI[2]

CI_IORD CI_IOWR

CI_WE

CI_OE

CI_SLOT

1/16W

33

AR911

CI_SLOT

1/16W

33

AR910

CI_SLOT

1/16W

33

AR908

CI_SLOT

1/16W

33

AR909

CI_SLOT

1/16W

33

AR912

REG

CI_SLOT

1/16W

33

AR901

AR900 33 1/16W

CI_SLOT

TPO_DATA[3] TPO_DATA[4]

EB_ADDR[12]

TPO_DATA[6]

EB_ADDR[6] EB_ADDR[5]

CAM_WAIT_N

EB_ADDR[3]

EB_ADDR[14] EB_WE_N

TPO_DATA[1] TPO_DATA[2]

TPO_SOP

EB_ADDR[8]

EB_ADDR[13]

TPO_DATA[0]

EB_ADDR[10]

EB_OE_N EB_ADDR[11] EB_ADDR[9]

CAM_REG_N

TPI_SOP

EB_ADDR[0]

TPI_DATA[2]

EB_BE_N1

EB_BE_N0

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

PCMCI

K2L / K2Lp

PCMCI

2015-01-10

9

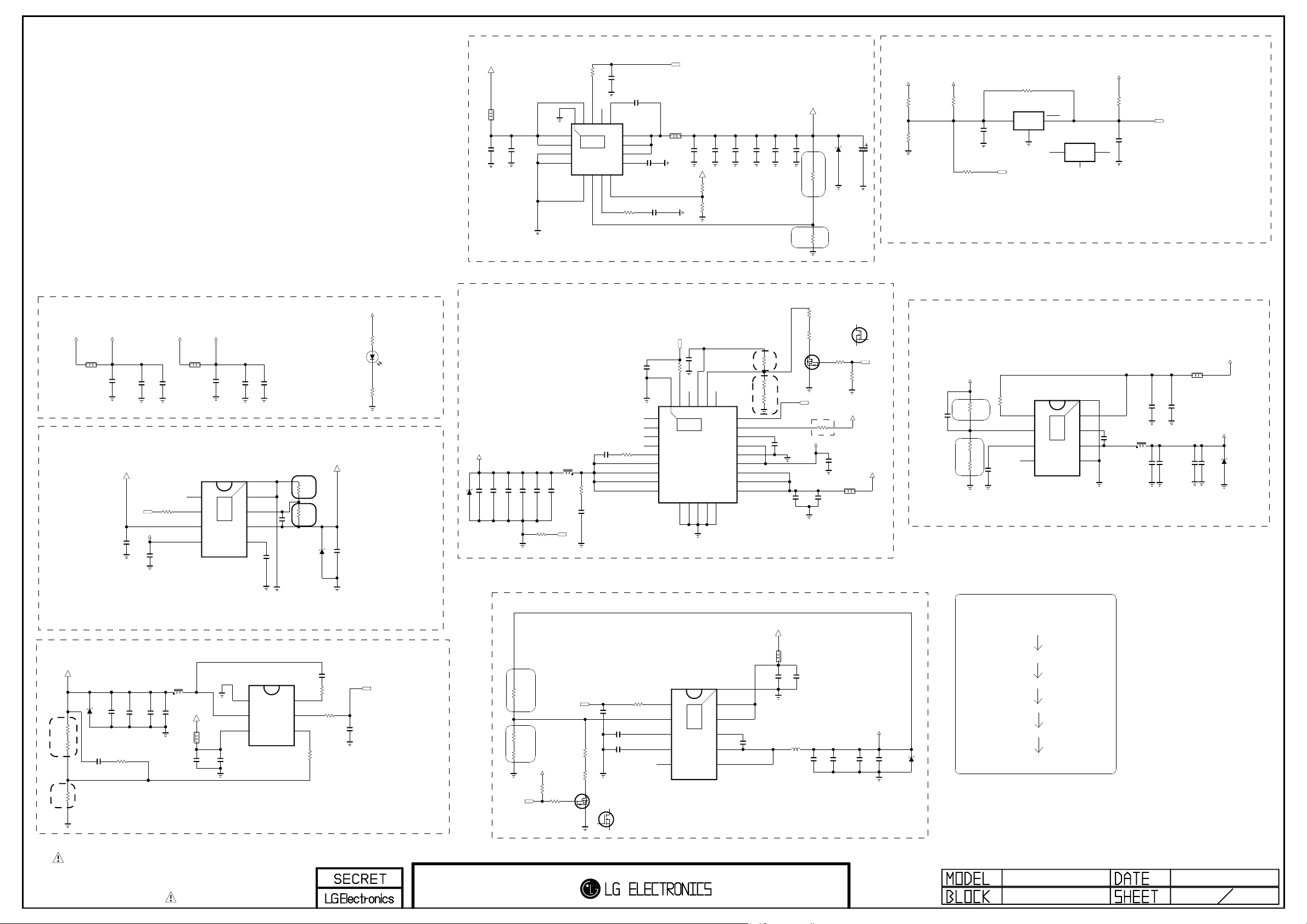

+3.5V_ST

L2306

C2324 10uF 10V

C2366

0.1uF 16V

+1.5V DDR

OPT

10K

C2335

R2322

0.1uF 16V

C2338

0.1uF

16V

[EP]FIN

PVIN_1

1

PVIN_2

2

PGND_1

3

PGND_2

4

Vout=0.8*(1+R1/R2)

BOOT14PGD15EN16AVIN

13

THERMAL

17

EAN62870501

IC2303

BD9A300MUV

3A

5

6

7

FB

ITH

AGND8MODE

3A

SW_3

12

SW_2

11

SW_1

10

SS

9

R2323

8.2K 1/16W1%

C2339

0.01uF 50V

+3.5V_ST

C2342

2700pF50V

POWER_ON/OFF2_3

NR5040T2R2N L2309

2.2uH

C2348 10uF 10V

C2350 10uF 10V

330K

R2349

R2326

C2354 10uF 10V

OPT

C2361 10uF 10V

C2326 10uF

10V

C2328 10uF 10V

R1

R2

+1.5V_DDR

1%

1/1 6W

1%

1/1 6W

Power_DET

+13V

OPT

6.3V

2.5V C2365

150uF

ZD2302

16K

R23 28

18K

R23 29

PD_+12V R2331 14K 1%

PD_+12V R2332

5.1K 1%

+3.5V_ST

PD_+3.5V R2333 0 5%

R2341

OPT

NON_OLED

0

NON_OLED

R2335 100K

PD_RESET_IC_APX803-MAIN

IC2304

APX803L

VCC

3

EAN61829903

C2356

0.1uF

GND

16V

POWER_DET_1

RESET

2

1

PD_RESET_IC_7529M2-SUB

VCC

IC2304-*1 KIC7529M2

3

EAN63491301

+3.5V_ST

R2336 10K

OPT

POWER_DET

PD_RESET_IC

C2358

0.1uF

OUT

16V

2

1

GND

not to RESET at 8kV ESD

+3.3V - eMMC

+3.3V_NORMAL

3.3V_EMMC

L2304

PZ1608U121-2R0TF

C2308

0.1uF 16V

+1.8V - K2L, eMMC & Vx1 pull-up

+3.3V_NORMAL

POWER_ON/OFF2_2

+5V_NORMAL

C2310 10uF

10V

Vout=0.6*(1+R1/R2)=1.8V

+3.3V_NORMAL

R1

R2304

1.2K 1%

R2305

R2

R2306

7.5K 1%

2.7K 1%

C2301

10uF

5V

10V

ZD2300

OPT

C2300

1500pF 50V

1/1 6W

C2302 10uF 10V

OPT

R2311

20K

C2303

10uF

10V

+1.8V

DVDD18_EMMC

L2305

PZ1608U121-2R0TF

TJ2132GDP

POK

EN

IN

L2301 UBW2012-121F

C2305 10uF 25V

C2307

0.1uF 16V

IC2301

1

2

3

2A

4

EAN63492001

9

THERMAL

C2306

0.1uF 50V

GND

C2309 10uF 10V

C2311 1uF 10V

C2304 10uF 10V

C2323 10uF 10V

R2307 10K

L2300

4.7uH

BIAS

+13V

Vout=0.8*(1+R1/R2)

C2312 10uF 10V

[EP]GND

8

GND

7

FB

6

OUT

5

SS

C2359

2700pF

50V

MP1471AGJ-C667

1

SW

2

IN

3

C2327 10uF 10V

IC2302

C2333

0.01uF 25V OPT

+3.3V_NORMAL

33

R2310

DEBUG_LED

LD2300

DEBUG_LED

EAV60793101

R2315

5.6K

1/16W

5%

DEBUG_LED

+1.8V

R2308

R2

10K 1%

R1

20K

1%

R2309

C2341 10uF 10V

2.5V

ZD2304

C2313 1uF 25V

R2347 22

5%

BST

6

EN

5

4

R2342

10K

FB

1%

75K

R2348

1/16W

POWER_ON/OFF2_1

C2331

0.1uF 16V

OPT

+1.0V CORE

VID_CORE Low : 0.970V VID_CORE High : 1.0V

D1V0

2.5V

ZD2303

C2330 10uF 10V

C2332 10uF 10V

C2325 10uF 10V

C2336 10uF 10V

R2319

R1

R2300

6.8K 1%

R2301

22K

1%

R2302 0

5%

+3.3V_NORMAL

R2303

10K

VID_CPU

C2345

0.1uF

OPT

16V

PGOOD_1

LP#

MODE

NC

R2321

CMLB065T-1R0MS

L2307

1uH

C2340 10uF 10V

C2337 10uF 10V

0

OPT

GSNS

R2320

3.3 OPT

1/8W

C2343 470pF 50V

C2344

5%

0.1uF

4.7

25V

BST

5%

SW_1

SW_2

SW_3

SW_4

+1.05V_CPU_GPU

VID_CPU High : 1.03V VID_CPU Low : 1.00V

POWER_ON/OFF2_2

R2

R2313

0 5%

G

2K

R23 25

180 K

R23 34

OPT 16V

1%

D

FET_TOSHIBA Q2302 T2N7002AK

S

G

C2314

0.1uF

C2315

10V

C2316

D

S

R2343

1uF

4700pF50V

FET_KEC

2N7002KA

Q2302-*1

10K

POWER_ON/OFF2_2

C2346

0.1uF 16V

1K

R2327

[EP]GND

1

THERMAL

2

3

4

TPS51362RVER

5

6

7

8

9

10

PGND_511PGND_412PGND_313PGND_214PGND_1

VREF27RA28EN

29

IC2305

REFIN2

REFIN

24

25

26

GSNS

23

VSNS

22

SLEW

21

TRIP

20

GND

19

V5

18

VIN_1

17

VIN_2

16

VIN_3

15

Vout=2*R2/(R1+R2)=1.054V

PZ1608U121-2R0TF

VREG5

PGOOD

IC2300

RT7231GQW

EN

1

FB

2

3

SS

4

5

11

THERMAL

10

9

8

7

6

[EP]PGND

VIN_2

VIN_1

BOOT

SW_2

SW_1

C2317

0.1uF 25V

Vout=0.765*(1+R1/R2)

1%

47K

R1

R23 30

1/1 6W

1%

47K

R23 37

1/1 6W

R2

5%

0

1/1 6W

R23 38

C2347

0.01uF 25V

+13V

L2302

C2318 10uF 25V

L2303

Epoxy-SDES053T-1R0MS

1%

430 K

R23 14

5%

330 K

R23 17

T2N7002AK

Q2300

FET_TOSHIBA

D

G

S

GSNS

debugging point

R2339

0

+5V_NORMAL

C2351

C2349

10uF

25V

C2319

0.1uF 16V OPT

1.0uH

C2320 10uF 10V

R2318

C2352

2.2uF 10V

C2321 10uF 10V

FET_KEC

2N7002KA

Q2300-*1

05%

D1V0

L2308

D

S

R2324 10K

G

+13V

CPU_1V0

C2322 10uF 10V

VID_CORE

C2329 10uF 10V

2.5V

ZD2301

C2353

50V

+3.5V_ST

R1

240K

R2340

47K

R2344

1/16W

10K

R2346

R2

C2355

1%

0.47uF 25V

1%

5pF

1/16W

1%

1/16W

R2345

3.6K

K2L Power SEQUENCE

POWER_ON/OFF1(5V)

POWER_ON/OFF2_1(3.3V)

POWER_ON/OFF2_2(1.05V / 1.0V / 1.8V)

POWER_ON/OFF2_3(1.5V)

POWER_ON/OFF2_4

+3.5V_ST

IC2306

TPS56428DDAR

EN

1

VFB

2

VREG5

3

PG

4

SOC_RESET

4A

9

THERMAL

8

7

6

5

[EP]GND

VIN

VBST

VLS6045EXT-4R7M(125)

C2357

L2312

0.1uF

SW

GND

4.7uH

50V

10V

10uF

C2367

Vout=0.6*(1+R1/R2)

C2360 10uF 25V

C2368 10uF 10V

BLM18PG121SN1D

L2313

C2363

0.1uF 25V

C2370

10uF

10V

C2369 10uF 10V

+13V

+3.5V_ST

5V

ZD2305

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

K2H

PWR_1

2015-01-10

07

+3.5V_ST

R2502

1

10K

R2500

RL_ON

+3.3V_NORMAL

PSU_MODE_SELECT_NON

INV_CTL

MODE_SELECT

L/D_VSYNC

JP-BLOCK-1POWER_13V

+13V

D13V

10K

R2501

GND

1K

JP2505

2

Q2500 2N3906S-RTK

3

PSU_MODE_SELECT_NON

R2503100

D-GND

P/ON

D-GND

A-GND INVON

VSINC

D13 A13

GND

P2502

GND

SMAW200-H18S5

PSU_18P

D-GND PDIM2 D13 D13 A13 A-GND PDIM1 SCLK SIN

P2501 SMAW200-H12S5K(BK)(LTR)

PSU_12P

’15 UHD 12.5V sole out power ’Net name +12V means 12.5V power output

MLB-201209-0120P-N2

L2503

A13V

R2512 100 R2513 100R2514 100

C25 05

0.1 uF 25V

+13V

L2502

A13V

C2511 10uF 25V

55INCH_BOE_M+_MODULE R2507 100

55/60/65INCH_LGD_M+_MODULE R2506 0

LGD_M+_MODULE

R2508 100 BOE_M+_MODULE

R2509 100

C2508 10uF 25V

PWM_DIM2

PWM_TCON_OUT

PWM_DIM

L/D_CLK L/D_DO

+13V

C2512 10uF 25V

+13V

PANEL_CTL

PANEL_POWER

Q2302 Change: Diodes --> NXP, 131118

Q2504

C2522

0.1uF 50V

SSM3J332R

D

S

G

L2504

UBW2012-121F

OPT

ADUC 20S 02 010L

R2518

10K

R2517

VA2500

C2521

4.7uF 10V

OPT

C2520

0.1uF 50V

R2519

R2520

150K

B

36K

C

Q2503 MMBT3904(NXP)

E

R2521

3.3K

LVDS_DISCHARGE

C2523 10uF 25V

PANEL_VCC

C2524 10uF 25V

+5.0V normal & USB

R1

POWER_ON/OFF1

R2504

C2516

12K

150pF

1%

R2505

1.6K 1%

R2510 560

1%

50V

R2

C2500

OPT 16V

0.1uF

C2501

10V

C2502

R2511

10K

1uF

4700pF50V

PZ1608U121-2R0TF

VREG5

PGOOD

IC2500

RT7231GQW

EN

1

FB

2

3

SS

4

5

11

THERMAL

10

9

8

7

6

[EP]PGND

VIN_2

VIN_1

BOOT

SW_2

SW_1

C2503

0.1uF 25V

Vout=0.765*(1+R1/R2)

L2500

+13V

C2504 10uF 25V

SPM6530T-3R3M

L2501

3.3uH

C2506

0.1uF 16V OPT

C2509 10uF 10V

C2513 10uF 10V

+5V_NORMAL

C2514 10uF 10V

C2515 10uF 10V

5V

ZD2500

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

K2H

PWR_2

2015-01-10

08

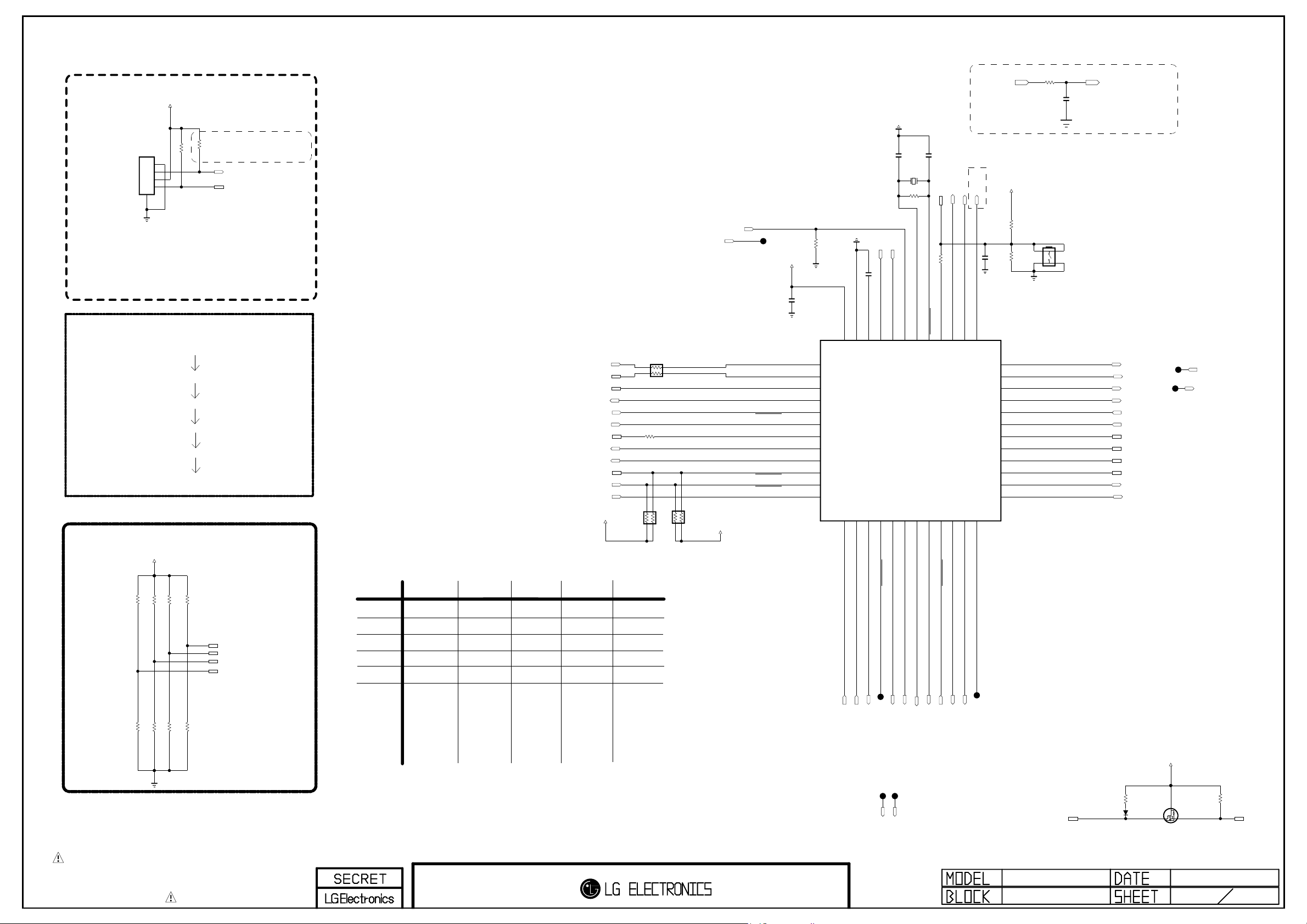

Renesas MICOM

For Debug

+3.5V_ST

MODE_SELECT(PWM1)

MICOM_MODE_SELECT

R3000 10K

MODE_SELECT

C3005

2.2uF 10V

MICOM_MODE_SELECT

MICOM_DEBUG

P3000

12507WS-04L

5

1

2

3

4

Don’t remove R3016, not making float P40

R3016 1K

R3014 10K

MICOM_DEBUG

K2L Power SEQUENCE

POWER_ON/OFF1(5V)

POWER_ON/OFF2_1(3.3V)

POWER_ON/OFF2_2(1.05V / 1.0V / 1.8V)

POWER_ON/OFF2_3(1.5V)

POWER_ON/OFF2_4

SOC_RESET

MICOM MODEL OPTION

+3.5V_ST

R3010 10K

R3006 10K

R3008 10K

R3004 10K

MICOM_DEBUG

MICOM_RESET

MODEL1_OPT_0(AM0) MODEL1_OPT_1(AM1)

MODEL1_OPT_2(AM2)

MODEL1_OPT_3(AM3)

MICOM MODEL OPTION

MODEL_OPT_0

MODEL_OPT_1

MODEL_OPT_2

MODEL_OPT_3

(FHD)

MODEL_OPT_3

(UHD)

0.72V 2.27V

NON LOGO / LCD LOGO / OLED

TV

FHD

M16

1.53V

LOGO / LCD

50V

18pF

15pF

C3002

C3003

X3000

+3.5V_ST

WIFI_EN

10K

R3030

C3004

0.1uF 270K

R3031

16V

P120/ANI19

37

P140/PCLBUZ0/INTP6

36

P00/TI00/TXD1

35

P01/TO00/RXD1

34

P130

33

P20/ANI0/AVREFP

32

P21/ANI1/AVREFM

31

P22/ANI2

30

P23/ANI3

29

P24/ANI4

28

P25/ANI5

27

P26/ANI6

26

P27/ANI7

25

24

MICOM_RESET_SW

JTP-1127WEM

OPT

4 3

SW3000

12

RL_ON

INSTANT_BOOT

POWER_ON/OFF2_4

POWER_ON/OFF2_1

KEY2

KEY1

MODEL1_OPT_0(AM0)

MODEL1_OPT_1(AM1)

MODEL1_OPT_2(AM2)

MODEL1_OPT_3(AM3)

SIDE_HP_MUTE

DDR_CS_ON_OFF

RETENTION_DISABLE

POWER_ON/OFF2_4

I2C_SCL1

I2C_SDA1

3D&L_DIM_EN

INV_CTL

MODE_SELECT(PWM1)

HDMI_CEC

POWER_ON/OFF2_2

POWER_ON/OFF2_3

EYE_SDA

EYE_SCL

WOL/WIFI_POWER_ON

+3.5V_ST

32.768KHz

T_CON_SYS_POWER_OFF

AR3001 33 1/16W

T_CON_SYS_POWER_OFF

P60/SCLA0

+3.5V_ST

C3000

0.1uF

R3039

10K

MICOM_LCD

P61/SDAA0

P62 P63

P31/TI03/TO03/INTP4

IR

R3038 100

P75/KR5/INTP9/SCK01/SCL01

P74/KR4/INTP8/SI01/SDA01

P73/KR3/SO01 P72/KR2/SO21

P71/KR1/SI21/SDA21

P70/KR0/SCK21/SCL21

P30/INTP3/RTC1HZ/SCK11/SCL11

AR3000

3.3K

AR3002

3.3K

OPT

MICOM_EYE_Q

+3.3V_NORMAL

1/16W

5%

1 2 3 4 5 6 7 8 9 10 11 12

GND

C3001 0.47uF

REGC

VSS

VDD

46

47

48

R5F100GEAFB#30

13

14

15

RETENTION_DISABLE

POWER_DET_1

P137/INTP0

P122/X2/EXCLK

P121/X1

43

44

45

IC3000

16

17

18

MICOM_RESET

R3028

4.7M OPT

P123/XT1

42

19

MICOM_DEBUG

R3029 33

P41/TI07/TO07

P40/TOOL0

RESET

P124/XT2/EXCLKS

39

40

41

20

21

22

LED_R

38

23

P146

P147/ANI18

3.0V

NON LOGO / OLED

BOX

RTK

TV

UHD

A5LR

H15

BOX

8K

M2

P17/TI02/TO02

P51/INTP2/SO11

P50/INTP1/SI11/SDA11

P16/TI01/TO01/INTP5

P13/TXD2/SO20

P14/RXD2/SI20/SDA20

P12/SO00/TXD0/TOOLTXD

P15/PCLBUZ1/SCK20/SCL20

P11/SI00/RXD0/TOOLRXD/SDA00

P10/SCK00/SCL00

OPT

R3011 10K

OPT

R3007 10K

R3009 10K

R3005 10K

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

POWER_DET

WOL/ETH_POWER_ON

WOL_CTL

POWER_ON/OFF1

check WOL power K2H

LED_R

WOL_CTL

SOC_RESET

PANEL_CTL

SOC_TX

SOC_RX

EDID_WP

AMP_MUTE

CEC_REMOTE

K2L / K2Lp

MICOM

BAT54_TSC

D3000

For CEC

R3033 27K

+3.5V_ST

G

S

D

EBK63231501

SSM3K56FS

Q3001

2015-06-13

30

R3034

120K

HDMI_CEC

MICOM MODEL OPTION

MODEL_OPT_0(AM0)

MODEL_OPT_1(AM1)

MODEL_OPT_2(AM2)

MODEL_OPT_3(AM3)

(FHD)

MODEL_OPT_3(AM3)

(UHD)

0.72V

(2.7K)

NON LOGO / LCD

FHD

M16

1.53V

(8.2K) (20K) (75K)

LOGO / LCD

BOX_NON_EPITV_NON_EPI

2.27V

NON LOGO / OLED LOGO / OLED

TV_EPI BOX_NON_EPI

UHD

A5LR M2

RTK

H15

3.0V

8K

MODEL_OPT_0(AM0)

MODEL_OPT_1(AM1)

MODEL_OPT_2(AM2)

MODEL_OPT_3(AM3)

(FHD)

MODEL_OPT_3(AM3)

(UHD)

0.72V

(2.7K)

MICOM_NON_LOGO/LCD R3005-*1 2.7K

MICOM_TV_NON_EPI

R3007-*1 2.7K

MICOM_FHD R3009-*1 2.7K

MICOM_M16

R3011-*1 2.7K

1.53V

(8.2K)

MICOM_LOGO/LCD

R3005-*2 8.2K

MICOM_RTK R3011-*2 8.2K

2.27V

(20K)

MICOM_NON_LOGO/OLED

R3005-*3 20K

MICOM_TV_EPI

R3007-*3 20K

MICOM_UHD

R3009-*3 20K

MICOM_H15/A5LR

R3011-*3 20K

3.0V

(75K)

MICOM_LOGO/OLED

R3005-*4 75K

MICOM_8K

R3009-*4 75K

MICOM_M2

R3011-*4 75K

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

K2H

MODEL OPTION

2015-01-10

30

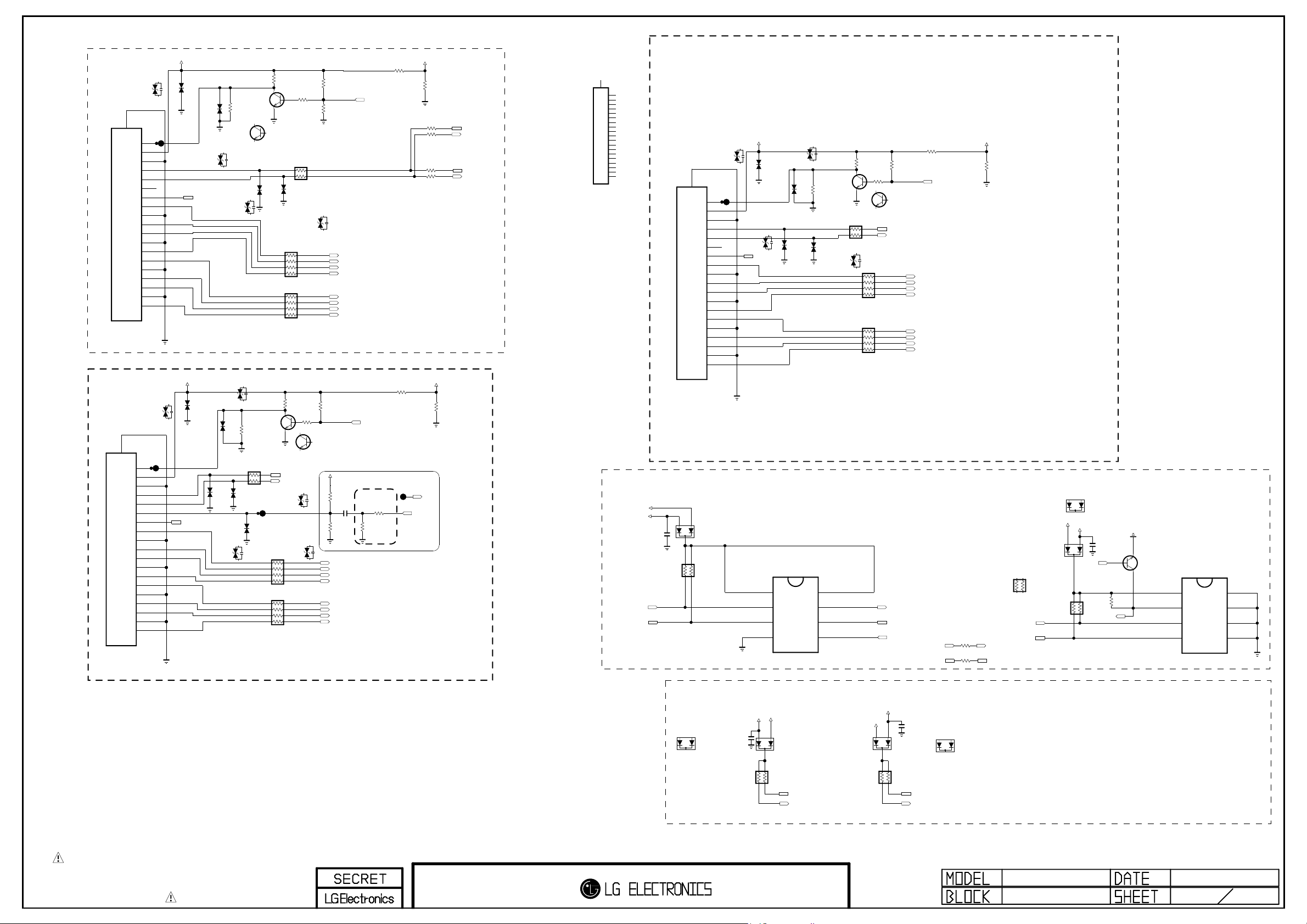

SHIELD

20

YKF45-7058V

JK3301

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

YKF45-7058V

JK3300

VA3300-*1

ADMC 5M 02 200L

EAF61530101

ESD_HDMI_AMOTECH_2

19

18

+5V_POWER

17

DDC/CEC_GND

16

SDA

15

SCL

14

NC

13

CEC

12

CLK-

11

CLK_SHIELD

10

CLK+

9

DATA0-

8

DATA0_SHIELD

7

DATA0+

6

DATA1-

5

DATA1_SHIELD

4

DATA1+

3

DATA2-

2

DATA2_SHIELD

1

DATA2+

VA3301-*1

ADUC 20S 02 010L

ESD_HDMI_AMOTECH_2

EAF61530301

+5V_POWER

DDC/CEC_GND

SDA

SCL

NC

CEC

CLK-

CLK_SHIELD

CLK+

DATA0-

DATA0_SHIELD

DATA0+

DATA1-

DATA1_SHIELD

DATA1+

DATA2-

DATA2_SHIELD

DATA2+

5V_HDMI_3

HPD

5V_HDMI_2

HPD

CEC_REMOTE

VA3300

ESD_HDMI

EAF61530102

CEC_REMOTE

VA3301

ESD_HDMI

EAF61530301

EAF61630102

0TRKE80046A

BJT_KEC_1 R3300 100K

VA3302

ESD_HDMI

EAF61630102

VA3302-*1

ADUC 20S 02 010L

ESD_HDMI_AMOTECH_2

VA3306-*1

ADUC 20S 02 010L

ESD_HDMI_AMOTECH_2

EAF61530301

VA3303-*1

ADMC 5M 02 200L

EAF61530101

ESD_HDMI_AMOTECH_2

R3301 100K

VA3303

ESD_HDMI

EAF61530102

AR3303 33 1/16W

VA3304

VA3305

ESD_HDMI

EAF61630102

VA3304-*1

ADUC 20S 02 010L

ESD_HDMI_AMOTECH_2

EAF61530301

R3302

1K

C

Q3300

2N3904S

E

C

B

Q3300-*1 MMBT3904(NXP) BJT_NXP_2

E

VA3306

ESD_HDMI

EAF61630102

C

Q3301

2N3904S

BJT_KEC_1

E

DDC_SCL_2

EAF61530301

ESD_HDMI_AMOTECH_2

ADUC 20S 02 010L

EAF61630102

VA3314

ESD_HDMI

EAF61530102

AR3310

5.1 1/16W

AR3311

5.1 1/16W

R3303 1K

B

AR3304 33 1/16W

VA3307

ESD_HDMI

EAF61630102

VA3307-*1

ADUC 20S 02 010L

ESD_HDMI_AMOTECH_2

EAF61530301

AR3306

5.1 1/16W

AR3307

5.1 1/16W

R3304

1K

R3309 1K

B

C

B

Q3301-*1 MMBT3904(NXP) BJT_NXP_2

E

DDC_SDA_2

VA3305-*1

VA3314-*1

ADMC 5M 02 200L

EAF61530101

ESD_HDMI_AMOTECH_2

R3315

R3307

4.7K

HDMI_EXT_EDID_NON

HDMI_EXT_EDID R3312

4.7K

CK-_HDMI3 CK+_HDMI3 D0-_HDMI3 D0+_HDMI3

D1-_HDMI3 D1+_HDMI3

D2-_HDMI3 D2+_HDMI3

1.8K

HDMI_HPD_3

HDMI3 with EEPROM

R3313

1.8K

R3311

4.7K

HDMI_HPD_2

+5V_NORMAL

10K

39K

R3321

C3303

R3323

0.01uF

50V

R3332

ARC

100

R3334 180

1%

5%

Close to SOC

CK-_HDMI2 CK+_HDMI2 D0-_HDMI2 D0+_HDMI2

D1-_HDMI2 D1+_HDMI2

D2-_HDMI2 D2+_HDMI2

HDMI2 with ARC

5V_DET_HDMI_3

R3317

3.3K

HDMI_EXT_EDID R3337 0

0 R3338 HDMI_EXT_EDID

HDMI_EXT_EDID_NON R3336 0

0 R3335 HDMI_EXT_EDID_NON

5V_DET_HDMI_2

R3314

HDMI_ARC

3.3K

DDC_BUFFER_SDA DDC_BUFFER_SCL

DDC_SDA_3

DDC_SCL_3

BODY_SHIELD

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

5501-56219

JK3302-*1

HDMI_JACK_CNPLUS

DDC_BUFFER_SDA

HOT_PLUG_DETECT

VDD[+5V]

DDC/CEC_GND

SDA

SCL

RESERVED

CEC

TMDS_CLK-

TMDS_CLK_SHIELD

TMDS_CLK+

TMDS_DATA0-

TMDS_DATA0_SHIELD

TMDS_DATA0+

TMDS_DATA1-

TMDS_DATA1_SHIELD

TMDS_DATA1+

TMDS_DATA2-

TMDS_DATA2_SHIELD

TMDS_DATA2+

+5V_NORMAL

5V_HDMI_3

HDMI_EXT_EDID

DDC_BUFFER_SCL

FROM HDMI PORT

5V_HDMI_1

R3326

R3308

4.7K

1.8K

CK-_HDMI1 CK+_HDMI1 D0-_HDMI1 D0+_HDMI1

D1-_HDMI1 D1+_HDMI1

D2-_HDMI1 D2+_HDMI1

HDMI_HPD_CBUS_1

BODY_SHIELD

HDMI_JACK_DEV

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

05008WR_H19C

JK3302

VA3309-*1

ADUC 20S 02 010L

ESD_HDMI_AMOTECH_2

EAF61530301

HOT_PLUG_DETECT

VDD[+5V]

DDC/CEC_GND

SDA

SCL

RESERVED

CEC

TMDS_CLK-

TMDS_CLK_SHIELD

TMDS_CLK+

TMDS_DATA0-

TMDS_DATA0_SHIELD

TMDS_DATA0+

TMDS_DATA1-

TMDS_DATA1_SHIELD

TMDS_DATA1+

TMDS_DATA2-

TMDS_DATA2_SHIELD

TMDS_DATA2+

VA3309

ESD_HDMI

EAF61630102

VA3310-*1

ADUC 20S 02 010L

ESD_HDMI_AMOTECH_2

EAF61530301

CEC_REMOTE

VA3311-*1

ADMC 5M 02 200L

EAF61530101

ESD_HDMI_AMOTECH_2

0TRKE80046A

R3320 100K OPT

VA3311

EAF61530102

ESD_HDMI

VA3310

VA3313

ESD_HDMI

EAF61630102

C

Q3302

2N3904S

BJT_KEC_1

E

AR3305 33 1/16W

VA3313-*1

ADUC 20S 02 010L

ESD_HDMI_AMOTECH_2

EAF61530301

R3305 1K

AR3308

5.1 1/16W

AR3309

5.1 1/16W

B

R3306 1K

C

E

B

Q3302-*1 MMBT3904(NXP) BJT_NXP_2

DDC_SDA_1

DDC_SCL_1

EDID external EEPROM & DDC BUFFER for HDMI3

A2CA1

1/16W

47K

HDMI_EXT_EDID MMBD6100 D3310

DEV_PCA9517_EXTEDID

IC3302

PCA9517DGKR

VCCA

1

SCLA

2

SDAA

3

GND

4

VCCB

8

SCLB

7

SDAB

6

EN

5

DDC_SCL_3_1

DDC_SDA_3_1

DDC_BUFFER_SW

DDC_SCL_3_1

DDC_SDA_3_1

C3304

0.1uF 16V

AR3312

5V_DET_HDMI_1

R3331

HDMI_EXT_EDID

HDMI_EXT_EDID R3339 0

HDMI_EXT_EDID

R3340 0

3.3K

AR3301-*1

1/16W

DDC_SCL_3

DDC_SDA_3

HDMI_PULLUP_KEC_2

10K

HDMI_EXT_EDID_NON

DDC_SCL_3

DDC_SDA_3

D3308-*1

KDS184

0DD184009AA

+5V_NORMAL

MMB D610 0

D33 08

HDMI_PULLUP_1

AR3301

1/16W

47K

A2CA1

5V_HDMI_3

A2

C

A1

EDID_WP

DDC_BUFFER_SW

C3302

0.1uF 16V

B

HDMI_EXT_EDID R3330

4.7K

E

C

Q3303

2N3904S

HDMI_EXT_EDID

VCC

WP

SCL

SDA

HDMI_EXT_EDID

IC3301

BR24G02FJ-3GTE2

8

7

6

5

A0

1

A1

2

A2

3

GND

4

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

HDMI

DDC pull-up

5V_HDMI_2

KDS184

C3300

0.1uF

A2CA1

D3305-*1

0DD184009AA

HDMI_PULLUP_KEC_2

16V

AR3300

47K

1/16W

+5V_NORMAL

A1

A2 MMBD6100 D3305 HDMI_PULLUP_1

C

DDC_SDA_2

DDC_SCL_2

+5V_NORMAL

5V_HDMI_1

A1

A2

C

C3301

0.1uF 16V

MMBD6100 D3309 HDMI_PULLUP_1

AR3 302

47K

1/1 6W

DDC_SDA_1

DDC_SCL_1

A2CA1

D3309-*1

KDS184

0DD184009AA

HDMI_PULLUP_KEC_2

K2L

HDMI

2015-01-10

33

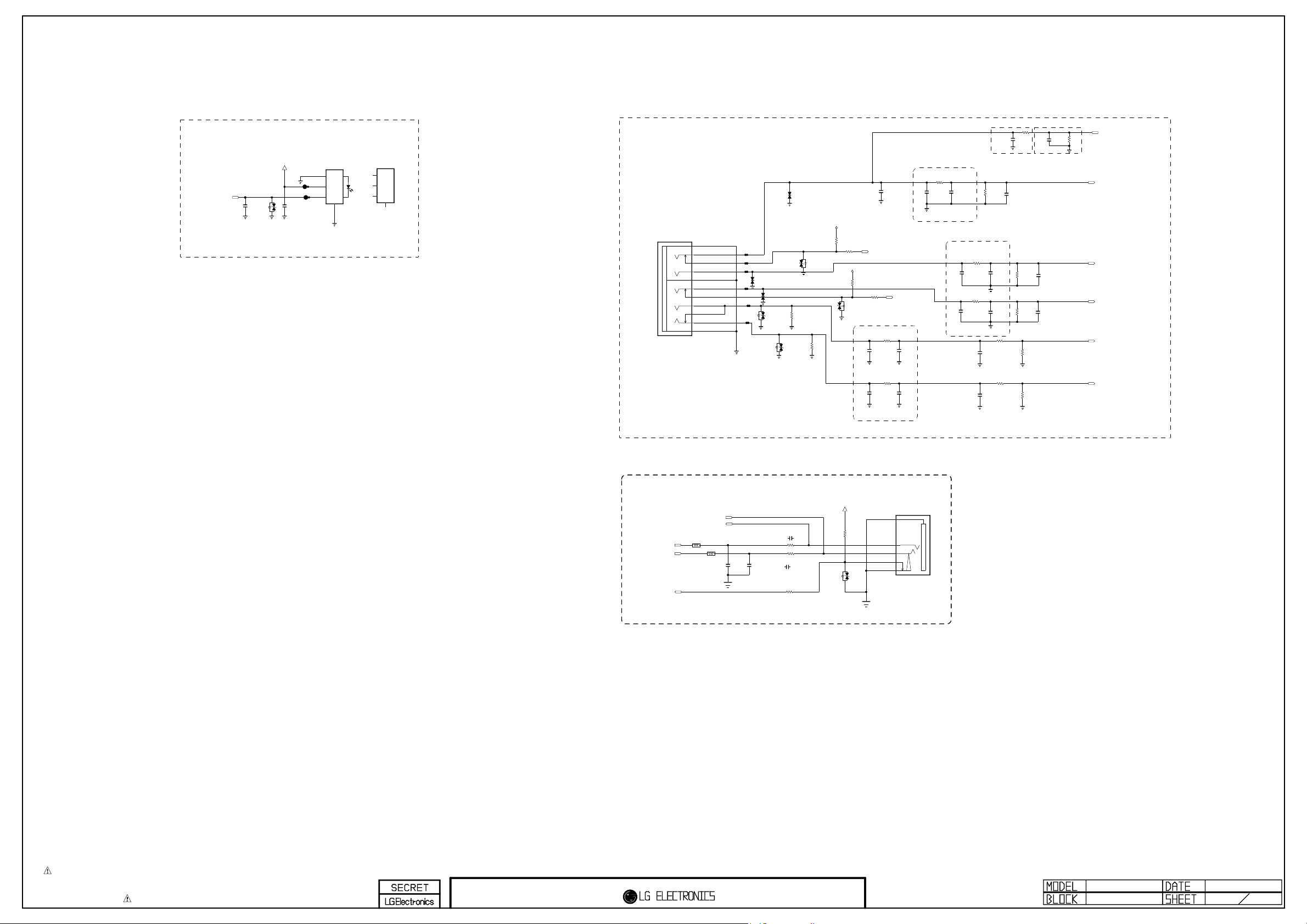

SPDIF OUT

SPDIF_OUT

+3.3V_NORMAL

VA3807

C3800

5.5V

47pF 50V

OPT

C3818

0.1uF

PLACE CLOSE TO JACK

R3821

C3819

0

FOR EMI

R3808751/4W

R3811

R3809

C3807 1000pF 50V OPT

C3808 1000pF 50V OPT

1%

C3812 27pF 50V OPT

C3813 27pF 50V OPT

R3812

6.8K 1%

R3813

6.8K 1%

390pF

50V OPT

C3811 47pF 50V

AV/COMPONENT REAR

VINPUT

OPTIC_SOLTEAM

JK3800-*1

JST1223-001

GND

VCC

1

2

3

Fiber Optic

4

FIX_POLE

JK3802

PPJ245-31

[GN/YL]E-LUG

6A

5A

[GN/YL]O-SPRING

4A

[GN/YL]CONTACT

5B

[BL]O-SPRING

7C

[RD1]E-LUG-S

5C

[RD1]O-SPRING

4C

[RD1]CONTACT

5D

[WH]O-SPRING

4E

[RD2]CONTACT

5E

[RD2]O-SPRING

6E

[RD2]E-LUG

VA3804

5.5V

VA3805

5.5V

VA3801

5.6V

SIGN380008

R3800

470K

VA3802

5.6V

VA3806

5.5V

R3801

Place JACK Side

1608 sizs For EMI

R3832

C3803 100pF 50V OPT

C3804 100pF 50V OPT

0

C3805

C3806

27pF

100pF

50V

OPT

1608 sizs For EMI

C3810 27pF 50V OPT

1608 sizs For EMI

C3809 27pF 50V OPT

C3822 150pF OPT

+3.3V_NORMAL

R3807 10K

R3803 1K

VA3803

5.6V

470K

+3.3V_NORMAL

R3810 10K

VA3800

5.6V

AV1_CVBS_DET

R3802 1K

1608 sizs For EMI

R3805

0

C3801 560pF 50V

OPT

1608 sizs For EMI

R3806

0

C3802 560pF 50V

OPT

COMP1_DET

OPTIC_FOXCONN

JK3800

2F01TC1-CLM97-4F

GND

1

VCC

2

VIN

3

Fiber Optic

16V

4

SHIELD

R3816 75

R3817 75

PLACE CLOSE TO SOC

0

OPT

C3820

390pF

R3822751/4W

50V

OPT

C3815 10pF 50V

1%

C3814 10pF 50V

1%

R3814 10K

1%

R3815 10K

1%

DTV/MNT_V_OUT

1%

COMP1_Y/CVBS

COMP1_Pb

COMP1_Pr

COMP1/AV1/DVI_L_IN

COMP1/AV1/DVI_R_IN

HP_ROUT_AMP HP_LOUT_AMP

HP_DET

HP OUT

RS232C

L3800

BLM18PG121SN1D

HP_OUT

BLM18PG121SN1D

DOUT1

L3801

HP_OUT

RIN1

HP_OUT C3816

0.22uF 25V

HP_OUT C3817

0.22uF 25V

R3818

HP_AMP

R3819 150

HP_AMP

R3804 1K

HP_OUT

R3818-*1 22uF 16V

HP_AMP_NON

150

R3819-*1 22uF 16V

HP_AMP_NON

+3.3V_NORMAL

R3820

10K

HP_OUT

VA3808

5.6V

HP_OUT

E_SPRING

R_SPRING

T_SPRING

B_TERMINAL2

T_TERMINAL2

JACK_HP_OUT/RS232C

EAG60841811

JK3801

PEJ034-01

3

4

5

7B

6B

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

UF71/7500

JACK_COMMON_H

2014-07-24

38

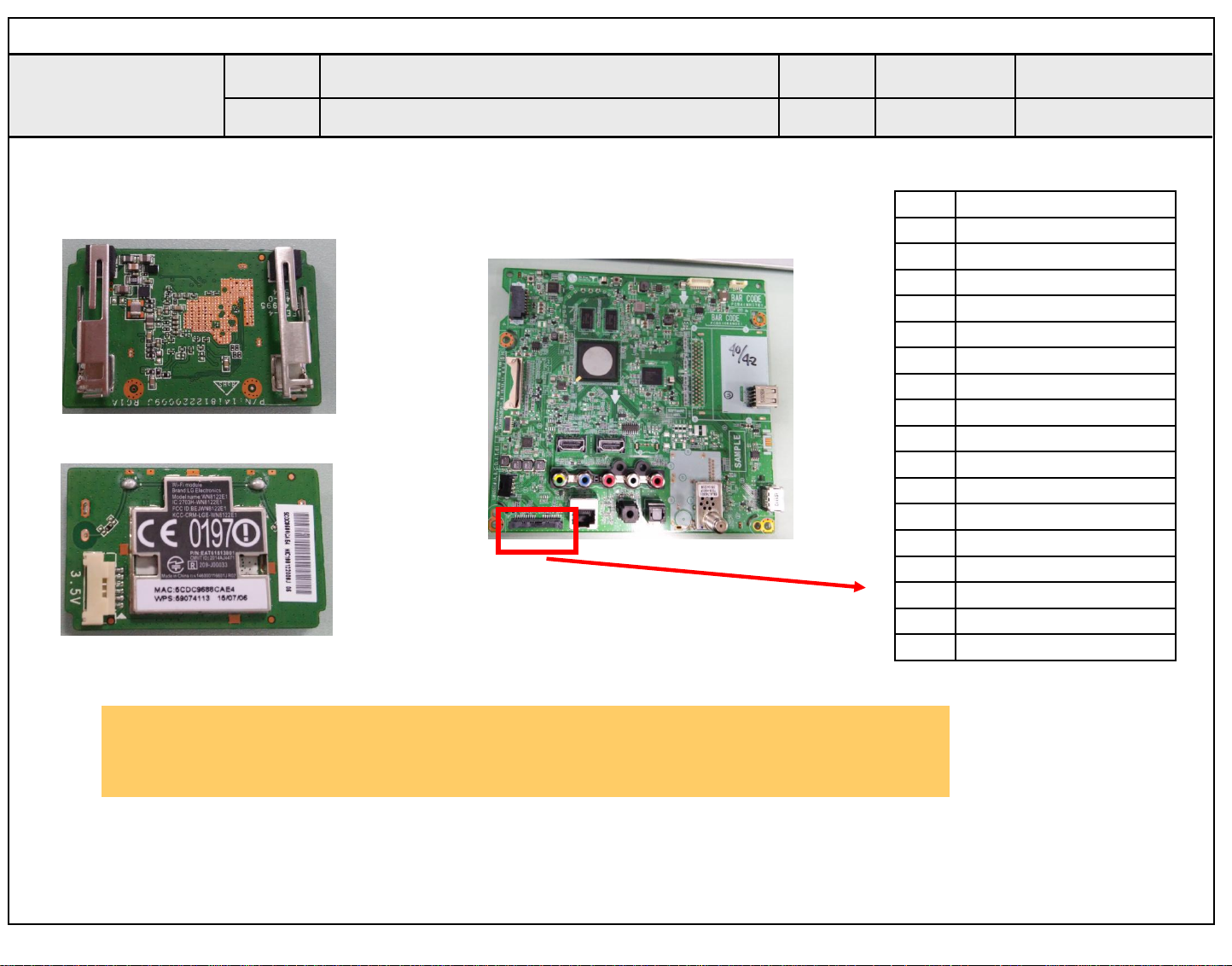

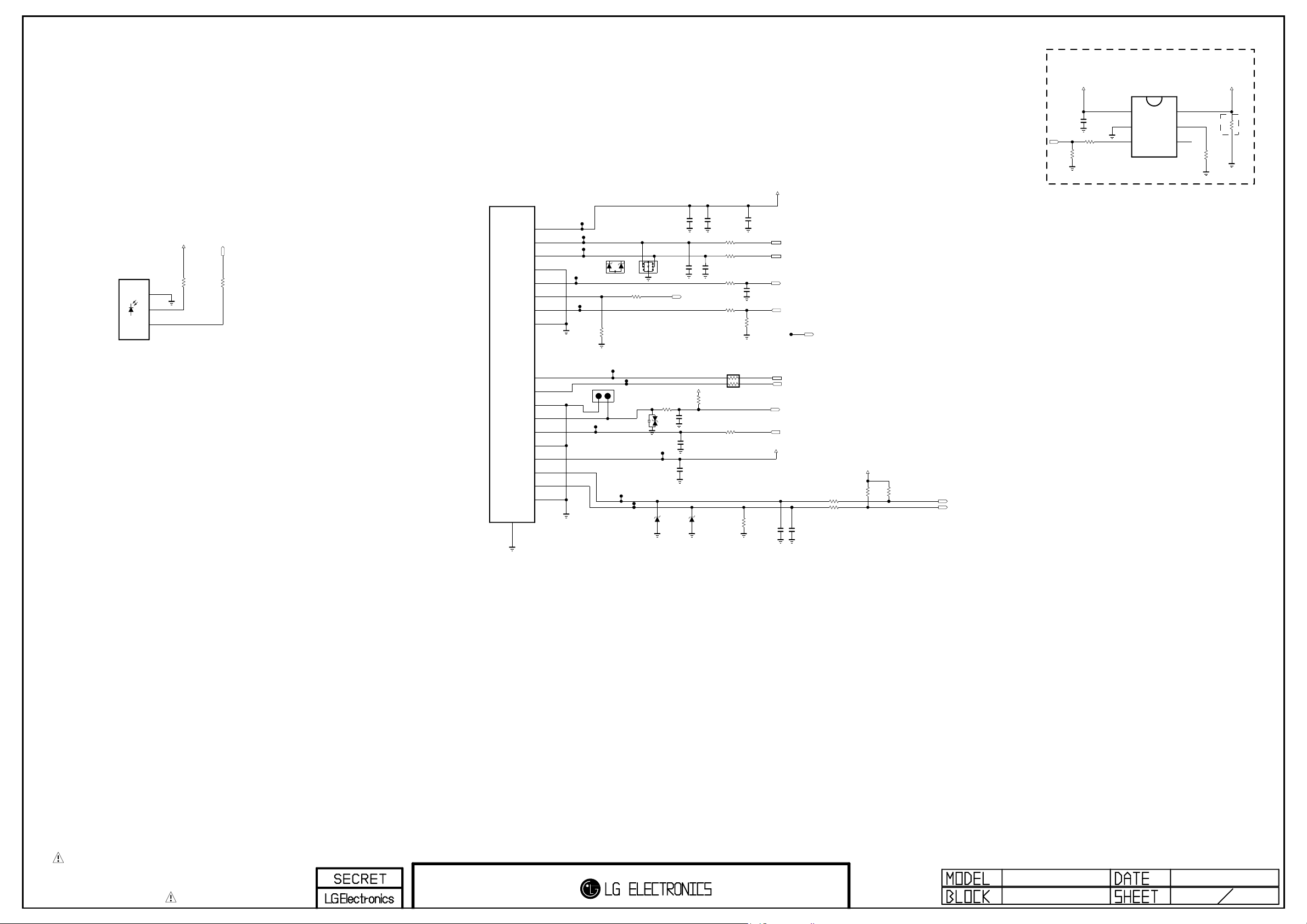

WIFI POWER ENABLE CONTROL

+3.5V_ST

IC4101

AO-R123C7G-LG

R4103

330

GND

G

DEBUG_IR_PROTO

VS

V

OUT

O

DEBUG_IR_PROTO

1/16W

5%

IR

R4105471/10W

5%

DEBUG_IR_PROTO

P4100

12507WR-H21L2B(BK)

1

2

3

4

5

6

7

8

12

13

14

15

16

17

18

19

20

21

22

GND

VCC

USB D-

USB D+

GND

WL_HOST_WAKE

GND

BT_REG_ON

GND

SDA

SCL

GND

IR

LED

GND

3.5v_ST

KEY2

KEY1

GND

D4100-*1

WIFI_DIODE_SEMTECH

EAH61515101

1/16W

0

R4119

WIFI_11N_ONLY

JP-BLOCK-IR

IR

GND

D4100

WIFI_DIODE_TOSHIBA

EAH62735601

R4118 0

1/16W

OPT

5%

JP4101

VA4110

ESD_READY

C4108

0.1uF NON_EASY_TV

C4107 5pF 50V

OPT

+3.5V_ST

R4121 100

ESD_READY

ZD4110

5V

3D_SYNC

C4105 100pF

50V

OPT

C4102

0.1uF

C4106 1000pF 50V

OPT

R4110

16V

ESD_READY ZD4111

5V

C4110

10uF 10V

NON_EASY_TV

C4109 5pF 50V OPT

NON_EASY_TV

10K

5%

R4113

2.2

R4114

2.2

R4112 510

R4111 510

AR4101

1/16W

R4109

1.8K

100

R4117

R4107

0

2K

+3.5V_WIFI

C4113 10uF 10V NON_EASY_TV

C4104

0.1uF NON_EASY_TV

OPT

C4111

0.1uF OPT

WIFI_DM

WIFI_DP

WOL/WIFI_POWER_ON

M_RFModule_RESET

EYE_SDA EYE_SCL

IR

LED_R

+3.5V_ST

MICOM_5KEY_JOG_TYPE

C4112

0.1uF OPT

3D_SYNC

R4104 100

R4106

100

R4115

10K

1%

+3.5V_ST

R4116

10K 1%

KEY2 KEY1

+3.5V_ST

WIFI_EN

C4100

0.1uF

R4101 33

R4100 10K

OPT

IC4100

TAEJIN TECHNOLOGY CO., LTD.

IN

1

EAN64148901

GND

2

EN

3

Current Limit : 2.0A

OUT

6

ILIMIT

5

FLAG

4

6.8K

R4120

+3.5V_WIFI

1/16W

1%

R4102

3.3K

Discharge Resistor

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

MICOM_KEY_ONE_KEY

UF71/7500

IR/KEY

2014-05-19

12

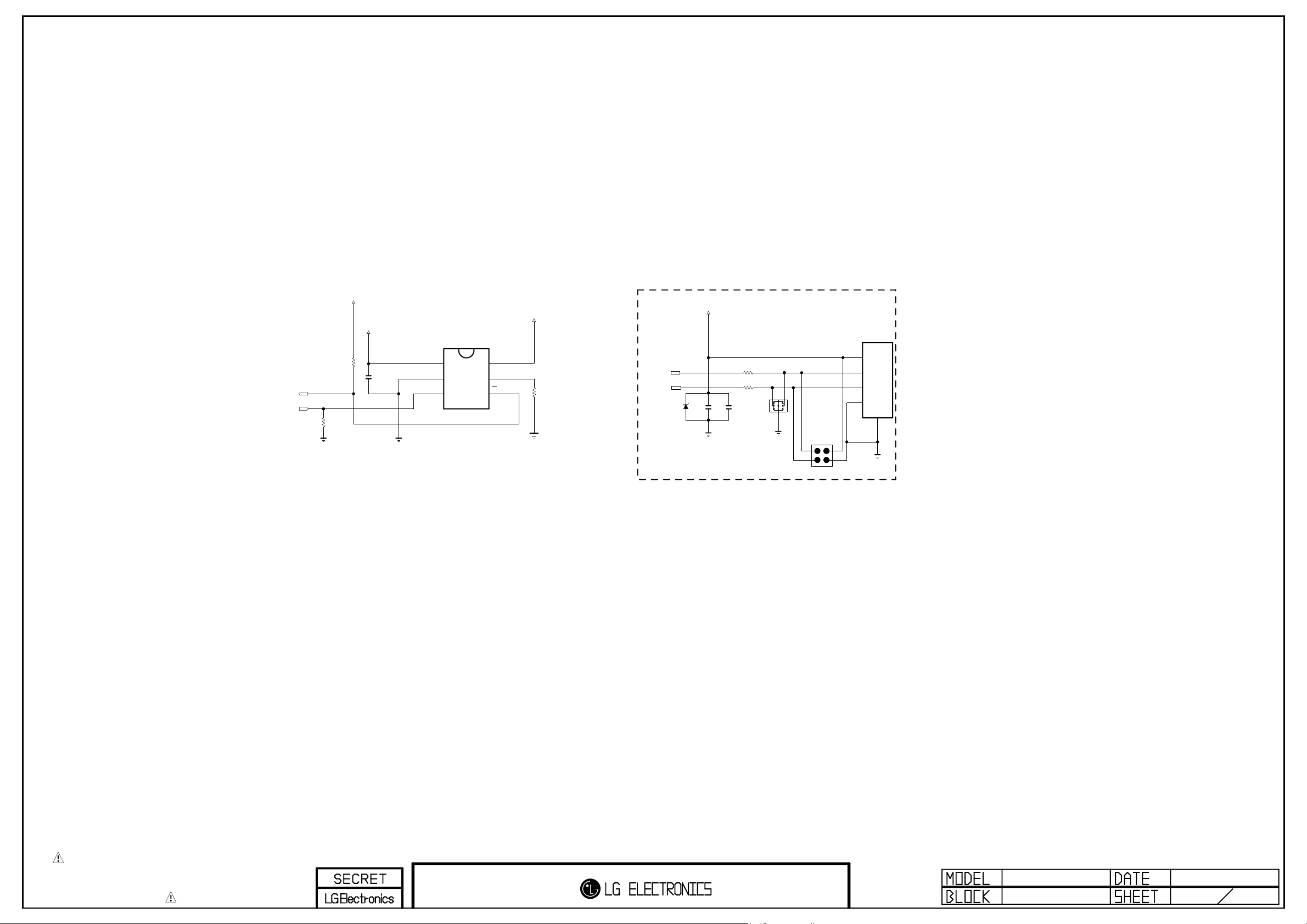

10K(2.63V) --> 4.7K(2.97V)

value change

/USB_OCD1

USB_CTL1

R4301

10K

USB_REAR

+3.3V_NORMAL

+5V_NORMAL

USB_REAR

R4303

4.7K

OCP USB2_2.0

USB_REAR

C4301

0.1uF 16V

IC4301

VIN

1

GND

2

EN

3

EAN62871401

USB_REAR

BD2242G

USB2.0 2Port

+5V_USB_1

VOUT

6

ILIM

5

OC

4

1%

14K

R4305

USB_REAR

USB_DM1

USB_DP1

+5V_USB_1

C4322

10uF

5V

10V

D4301

USB_REAR

USB_REAR_ESD_DIODE

USB_REAR

R4309 2.2

USB_REAR

R4308 2.2

C4323

10uF

10V

USB_REAR

USB1

MAX 1.0A

D4302

DF3D6.8MS

USB_REAR

JP4300

JP-BLOCK-USB

DP GND

USB-STRAIGHT (Rear Jack)

JK4302

US-04A-VSD

USB_REAR

2

1

3

4

5

VBUSDM

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

K2L

USB2.0 jack

2015-04-27

13

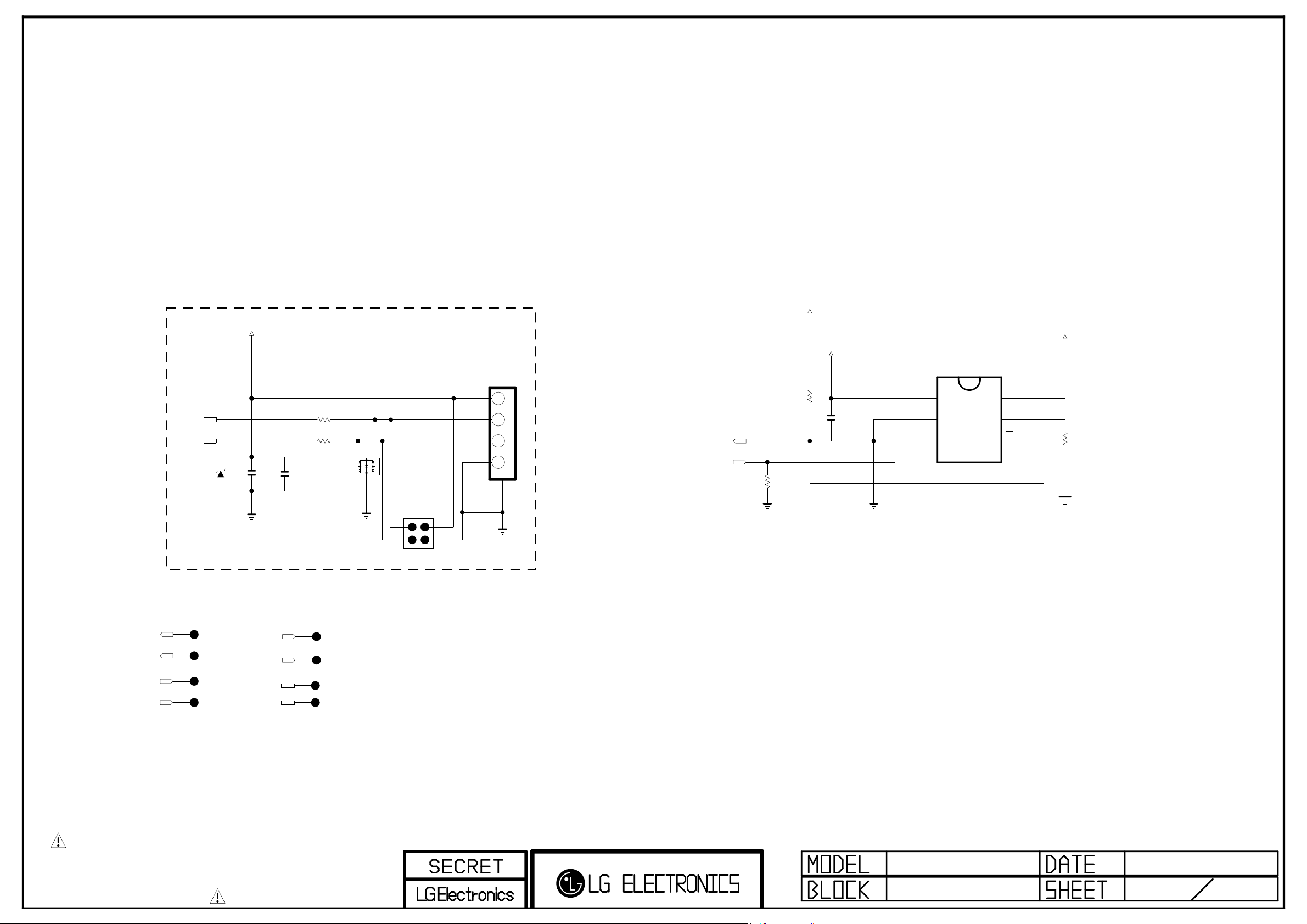

+3.3V_NORMAL

USB3_RXM0

USB3_DM0

USB3_DP0

+5V_USB_2

C4400

10uF

5V

10V

ZD4400

USB_SIDE_ESD_DIODE

/USB_OCD1

C4401

10uF

10V

USB_SIDE

R4400 2.2

USB_SIDE

R4401 2.2

USB2

MAX 1.0A

D4400

DF3D6.8MS

USB_SIDE

DP GND

M4400

JP-BLOCK-USB

VBUSDM

USB_SIDE

1234

5

JK4400

USB DOWN STREAM

3AU04S-305-ZC-(LG)

value change

10K(2.63V) --> 4.7K(2.97V)

/USB_OCD3_0

USB_CTL3_0

R4402

10K

USB_SIDE

R4403

4.7K

+5V_NORMAL

USB_SIDE

C4402

0.1uF

USB_SIDE

16V

IC4400

VIN

1

GND

2

EN

3

USB_SIDE

BD2242G

+5V_USB_2

VOUT

6

ILIM

5

OC

4

1%

USB_SIDE

14K

R4404

USB3_RXP0

USB3_TXM0

USB3_TXP0

USB_CTL1

USB_DM1 USB_DP1

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

043.sht

K2H

USB 2 & 3 26

2015.02.11 15

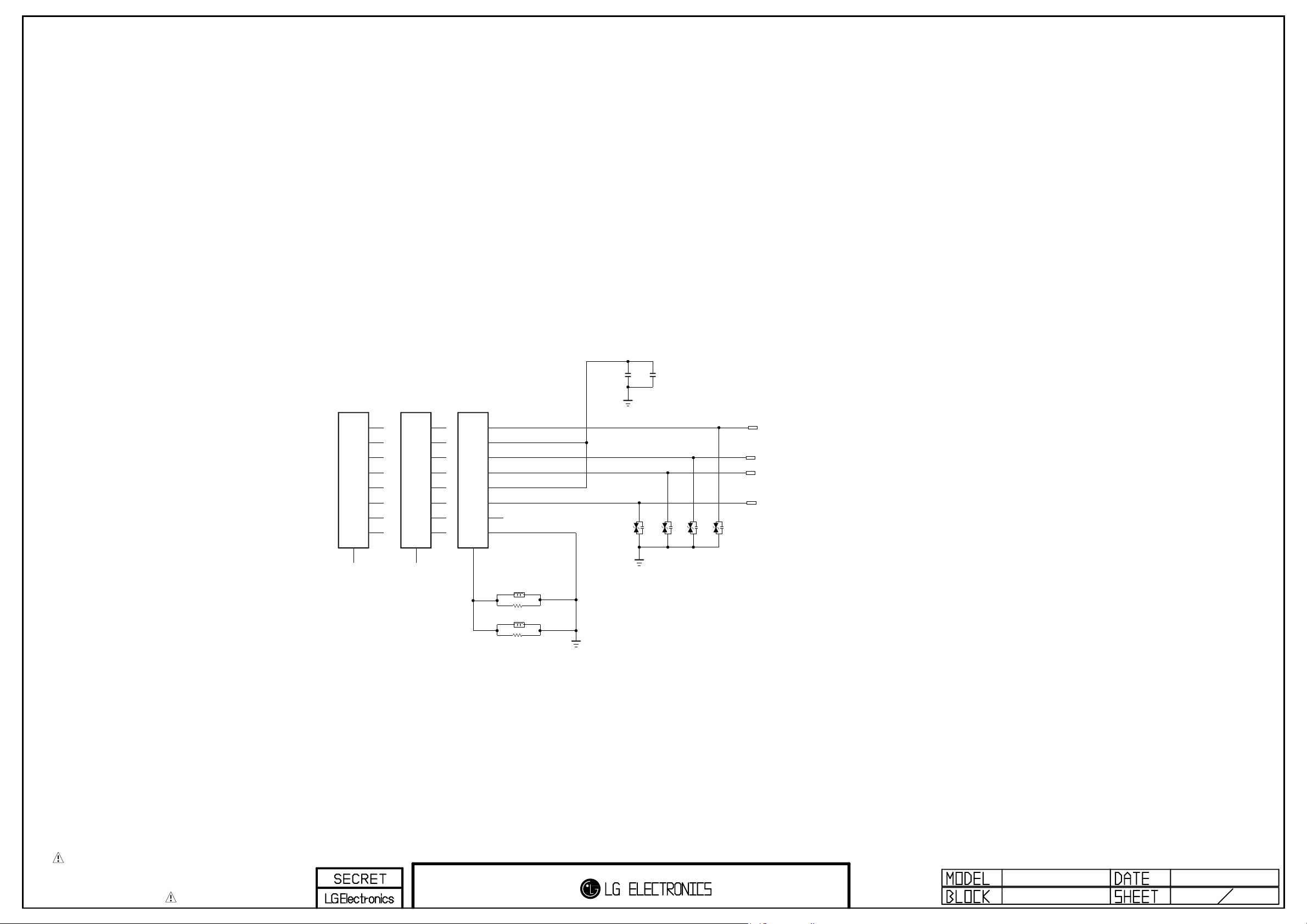

Ethernet Block

EAG35781018

LANJACK_HONGLIN_SUB2

JK5000-*2

B50(512-10)F4-03A-A013-B52

1

2

3

4

5

6

7

8

9

EAG35781016

LANJACK_FREEPORT_SUB1

JK5000-*1

26TM9G-30100-02HF

1

2

3

4

5

6

7

8

9

EAG35781010

LANJACK_UDE_MAIN

JK5000

RJ45VT-01SN002

1

2

3

4

5

6

7

8

9

1

2

3

4

5

6

7

8

NON_EASY_TV

OPT

NON_EASY_TV

OPT

L5000

PZ1608U121-2R0TF

R5000 0

L5001

PZ1608U121-2R0TF

R5001 0

NON_EASY_TV

VA5000

5.5V

C5000

0.1uF

16V

NON_EASY_TV

C5001

0.01uF 50V

NON_EASY_TV

VA5001

5.5V

NON_EASY_TV

VA5002

5.5V

VA5003

5.5V

EPHY_TDP

EPHY_TDN

EPHY_RDP

EPHY_RDN

NON_EASY_TV

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

K2H

LAN_H

2014-12-15

50

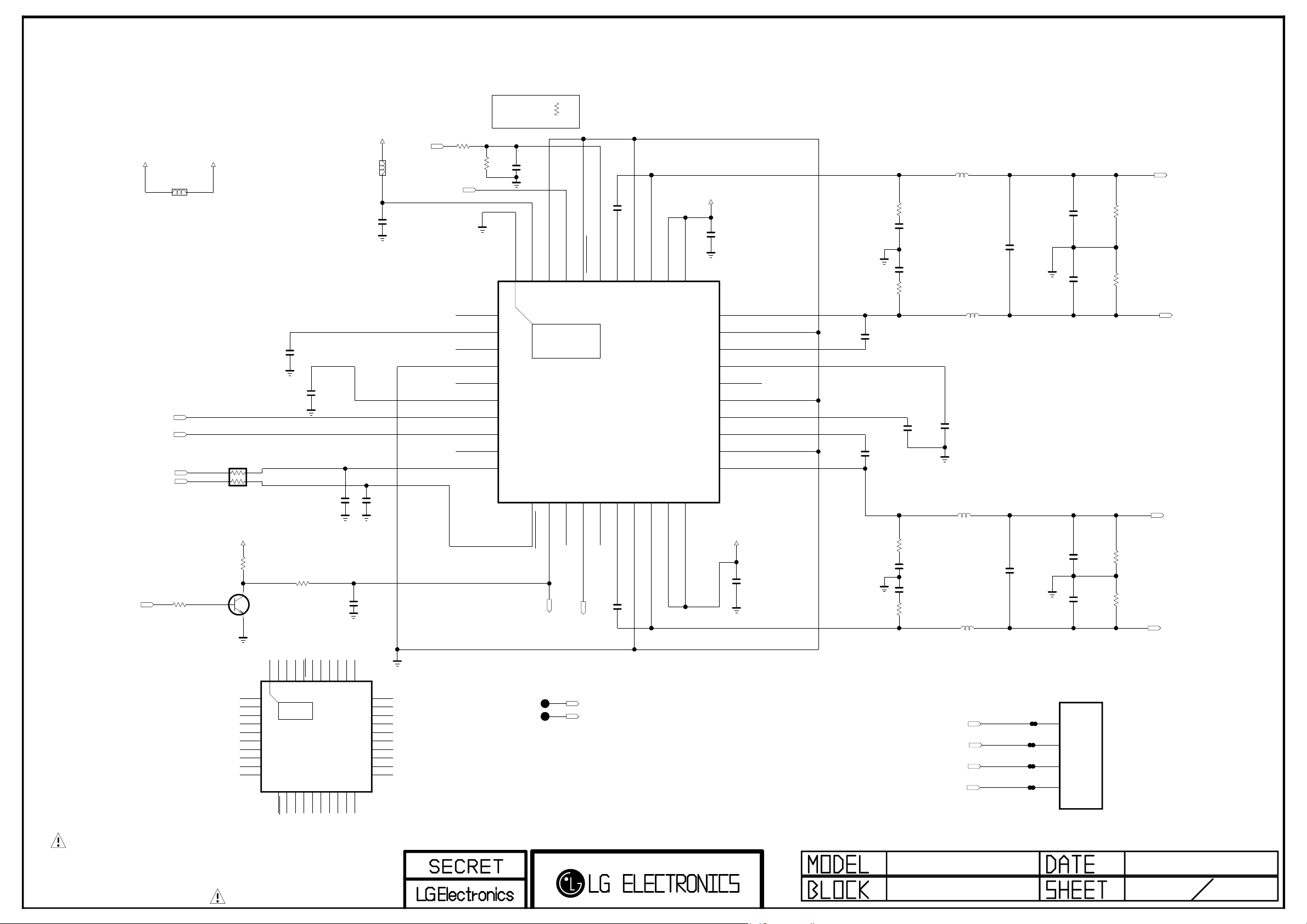

AUDIO AMP(NTP7515)

AMP_MUTE

A13V

AUD_LRCH

AUD_LRCK

I2C_SDA4 I2C_SCL4

UBW2012-121F

L5800

R5800

10K

+13V_AMP

+3.3V_NORMAL

AR5800

100

B

R5801

10K

C

Q5800

2N3904S

E

PZ1608U121-2R0TF

C5800

1uF

10V

C5801 1uF 10V

C5802 33pF 50V

R5804

100

1000pF

C5803

50V

+3.3V_NORMAL

L5801

C5805

0.1uF 16V

C5804 33pF 50V

AMP_RESET_N

AUD_SCK

VDD_PLL

R5805 100

1/16W

SPK_WOOFER_NON

NC_1

NC_2

GND NC_3 DVDD

SDATA

WCK NC_4

SDA

R5806

4.7K

[EP]GND

1 2 3 4 5 6 7 8 9 10

R5806-*1

3K

SPK_WOOFER

C5806 1000pF 50V

VDD_IO

40

THERMAL

11

SCL

AD

CLK_I

GND_IO

37

38

39

41

IC5800

NTP7515

AMP_NTP7515

12

13

14

FAULT

MONITOR_0

MONITOR_1

22000pF

I2S_AMP

WOOFER_MUTE

50V

C5807

22000pF

OUT1A

PGND1A

BST1A

RESET

34

35

36

0x54

15

16

17

BST2B

MONITOR_2

C5808

50V

OUT2B

PGND2B

PVDD1A

32

33

18

19

PVDD2B

+13V_AMP

C5809 10uF 25V

PVDD1B

31

30 29 28 27 26 25 24 23 22 21

20

+13V_AMP

PVDD2A

OUT1B PGND1B BST1B VDR1 NC_5 AGND VDR2 BST2A PGND2A OUT2A

C5810 10uF 25V

C5811 22000pF 50V

C5812 22000pF 50V

R5807

3.3

R5808

3.3

R5809

3.3

R5810

3.3

1/10W

C5813 390pF

50V

C5814 390pF

50V

1/10W

C5815 390pF 50V

C5816 390pF 50V

1/10W

5%

C5817 1uF 10V

5%

NRS6045T100MMGK

L5802

10.0uH

NRS6045T100MMGK

L5805

10.0uH

C5818 1uF 10V

NRS6045T100MMGK

L5803

10.0uH

NRS6045T100MMGK

L5804

10.0uH

C5819

0.47uF 50V

C5820

0.47uF

50V

C5821

0.1uF 50V

C5822

0.1uF 50V

C5823

0.1uF 50V

C5824

0.1uF

50V

R5811

4.7K

R5812

4.7K

R5813

4.7K

R5814

4.7K

SPK_L+

SPEAKER_L

SPK_L-

SPK_R+

SPEAKER_R

SPK_R-

PVDD1B

PVDD1A

OUT1A

PGND1A

BST1A

RESET

CLK_I

GND_IO

VDD_IO

[EP]GND

31

32

33

34

35

36

37AD38

39

GND

WCK

SDA

1 2 3 4 5 6 7 8 9 10

40

THERMAL

11

12

SCL

FAULT

41

MONITOR_0

IC5800-*1

NTP7515D

AMP_NTP7515D

13

14

15

16

17

BST2B

PGND2B

MONITOR_1

MONITOR_2

18

19

OUT2B

PVDD2B20PVDD2A

OUT1B

30

PGND1B

29

BST1B

28

VDR1

27

NC_5

26

AGND

25

VDR2

24

BST2A

23

PGND2A

22

OUT2A

21

TP5801

TP5802

NC_1

VDD_PLL

NC_2

NC_3 DVDD

SDATA

NC_4

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

WOOFER_MUTE

I2S_AMP

SPK_L+

SPK_L-

SPK_R+

SPK_R-

MAIN_AMP

4P Box type

WAFER-ANGLE

4

3

2

1

P5800

SPK_WOOFER_NON

2014-10-17

58

HP_ROUT

HP_ROUT_AMP

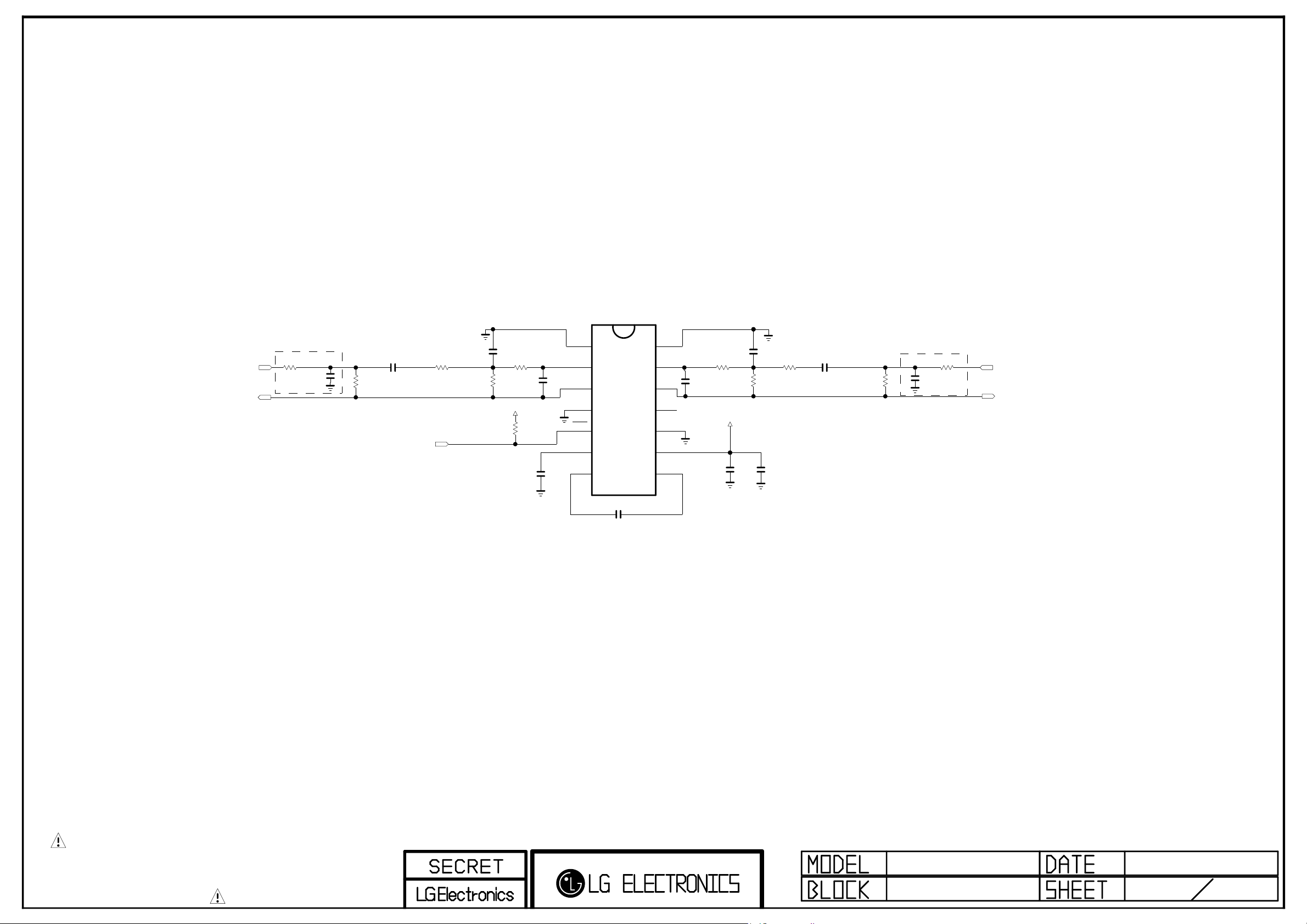

EARPHONE AMP

H/P out R/C filter Close to Main SOC (ready for debugging)

R6108 0

C6110

0.01uF OPT

HP_AMP_NON

R6107 0

HP_AMP C6100

2.2uF

10V

SIDE_HP_MUTE

HP_AMP

R6100 10K

HP_AMP

C6104

18pF

R6103

HP_AMP

+3.3V_NORMAL

43K

4.7K

R6105

HP_AMP

1%

HP_AMP

R6106 43K

1%

HP_AMP

C6102 1uF 10V

C6108 10pF 50V

+INR

-INR

OUTR

GND_1

MUTE

VSS

CN

IC6100

TPA6138A2

1

HP_AMP

2

3

4

5

6

7

HP_AMP

C6103 1uF

10V

R6104 43K

1%

HP_AMP

C6109 18pF

1%

R6102

43K

HP_AMP

+3.3V_NORMAL

C6105 1uF 10V

R6101 10K

HP_AMP

C6107

0.1uF

16V

HP_AMP

C6101

2.2uF

10V

HP_AMP_NON

R6110

+INL

14

-INL

13

OUTL

12

UVP

11

GND_2

10

VDD

9

CP

8

HP_AMP

C6106 10pF 50V

HP_AMP

H/P out R/C filter Close to Main SOC (ready for debugging)

C6111

0.01uF

0

OPT

R6109

0

HP_LOUT

HP_LOUT_AMP

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

K2H

2014-11-22

HP_AMP 61

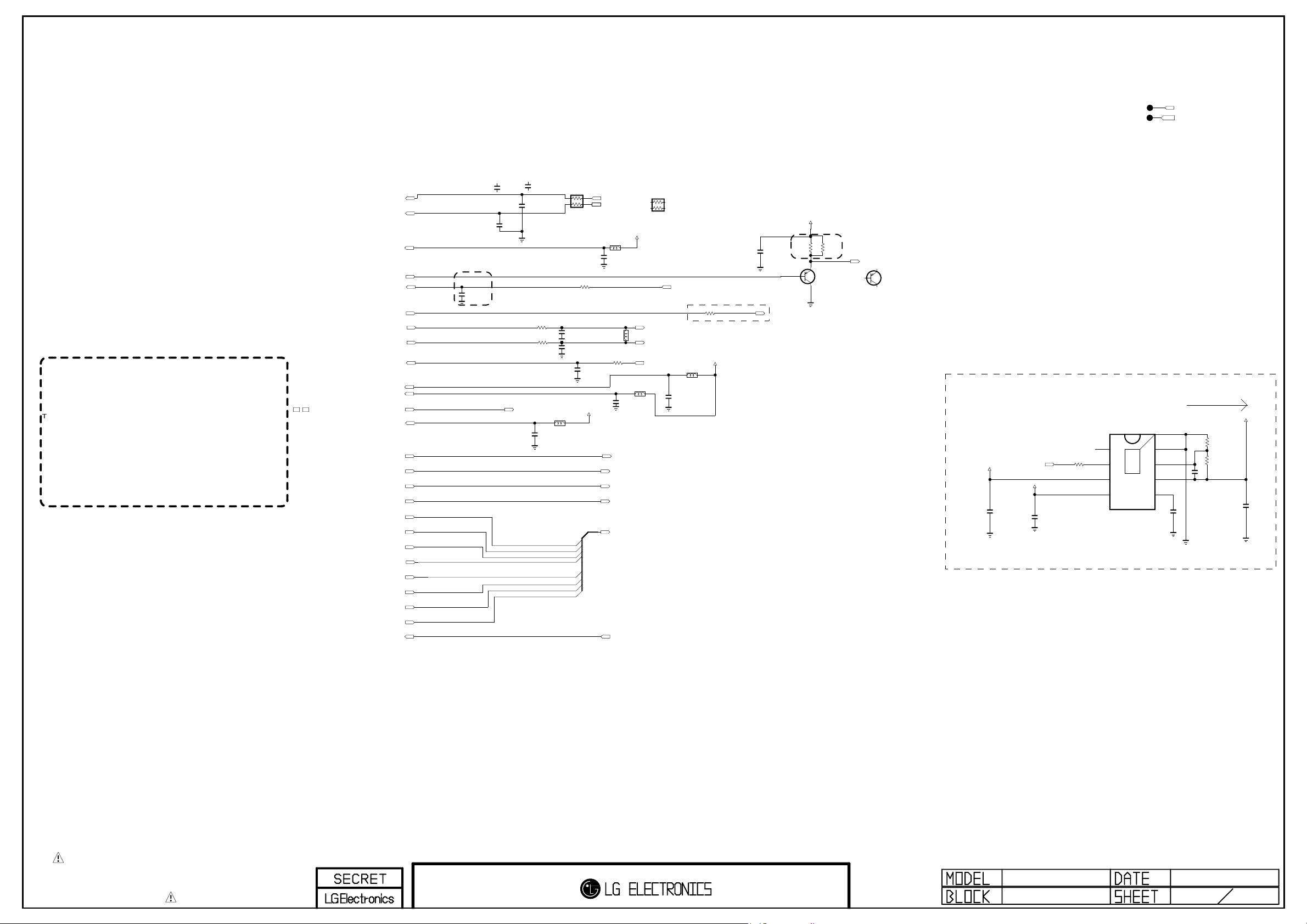

Global F/E Option Name

1. TU

2. Tuner Name = TDJ’H’,TDj’M’...

3. Country Name = KR,US,BR,EU ...

Example of Option name TU_ALL_IntDemod = All Tuner type for Internal demod TU_M/W = apply TDSM&TDSW Type Tuner

14’ Tuner Type for Global TDJ’H’-G101D : Half NIM for EU,AJJA TDJ’H’-H101F : Half NIM for US, KR TDJ’K’-T101F : Half NIM for TW TDJ’M’-C301D,F : FULL NIM for China TDJ’M’-B101F : Brazil NIM with Isolater Type TDJ’M’-K101F : colombia NIM TDJ’M’-G101D,G105D,G151D : EU Combo&Full NIM TDJ’M’-H101F,H151F : Korea PIP tuner TDJ’W’-A151D : AJJA T2 PIP

FE_DEMOD1_TS_ERROR

FE_DEMOD2_TS_ERROR

1. should be guarded by ground

2. No via on both of themclose to Tuner

3. Signal Width >= 12mils

TU_I2C_EU

C6505-*1

C6503-*1

47pF

50V

1

2

3

4

5

6

7

8

9

10

11



12

13

14

15

16

17

18

I2C_SCL5_TU

I2C_SDA5_TU

+3.3V_LNA_TU

TU_CVBS_TU

IF_AGC_TU

TU_SIF_TU

IF_P_TU

should be guarded by ground,Match GND VIA

IF_N_TU

/TU_RESET1_TU

+3.3V_TU_I2C

+3.3V_TU

LNB_TX

D_Demod_Core

FE_DEMOD1_TS_ERROR

FE_DEMOD1_TS_CLK

FE_DEMOD1_TS_SYNC

FE_DEMOD1_TS_VAL

FE_DEMOD1_TS_DATA[0]

TU_ALL_IntDemod

C6502

0.1uF

16V

TU_I2C_NON_EU

C6505 150pF 50V

TU_I2C_NON_EU C6503 150pF 50V

close to Tuner

TU_ALL_IntDemod

LNB_TX

TU_ALL

AR6500

33

R6506

TU_ALL_IntDemod

R6504 0

C6519 33pF

R6505

TU_N_KR_K2LP

0

C6520 33pF

TU_N_KR_K2LP

TU_N/D

L6505

PZ1608U121-2R0TF

TU_M/W

C6506

0.1uF

I2C_SCL2

PZ1608U121-2R0TF

1K

C6507

16V

0.1uF

Demod_Core

close to Tuner

I2C_SDA2

TU_ALL

L6501

C6510

0.1uF

TU_ALL

L6502

TU_N/D

19

20

21

22

23

24

25

26

FE_DEMOD1_TS_DATA[2]

FE_DEMOD1_TS_DATA[3]

FE_DEMOD1_TS_DATA[4]

FE_DEMOD1_TS_DATA[5]

FE_DEMOD1_TS_DATA[6]

FE_DEMOD1_TS_DATA[7]

LNB_OUT

FE_DEMOD1_TS_DATA[0] FE_DEMOD1_TS_DATA[1] FE_DEMOD1_TS_DATA[2] FE_DEMOD1_TS_DATA[3]

FE_DEMOD1_TS_DATA[4] FE_DEMOD1_TS_DATA[5]

FE_DEMOD1_TS_DATA[6] FE_DEMOD1_TS_DATA[7]

TU_W_BR/TW

+3.3V_NORMAL

IF_P_MAIN

OPT

IF_N_MAIN

R6501

/TU_RESET1

100

TU_N/D

L6503

PZ1608U121-2R0TF

C6511

0.1uF TU_N/D

FE_DEMOD1_TS_ERROR

FE_DEMOD1_TS_CLK

FE_DEMOD1_TS_SYNC

FE_DEMOD1_TS_VAL

FE_DEMOD1_TS_DATA[0-7]FE_DEMOD1_TS_DATA[1]

LNB_OUT

AR6500-*1 200 1/16W

IF_AGC

SIF pin only Ready for K2H

TU_EXT_ATV

R6513 0

TU_ALL

L6506

PZ1608U121-2R0TF

C6521

0.1uF TU_ALL

TU_I2C_EU

Signal to Signal Width = 12mils

Ground Width >= 24mils

C6512

0.1uF OPT

IF_P_MAIN

+3.3V_NORMAL

TU_EXT_ATV

R6516

200

E

B

C

1608 perallel because of derating

TU_EXT_ATV

R6517

200

TU_EXT_ATV_KEC_1

Q6502 2N3906S-RTK

TU_CVBS

B

E

TU_EXT_ATV_NXP_2

MMBT3906(NXP)

Q6502-*1

C

+3.5V_ST

POWER_ON/OFF2_2

C6500 10uF 10V

TU_N/D

POK

TU_N/D

10K

EN

R6500

IN

+5V_NORMAL

C6515 1uF 25V

TU_N/D

BIAS

Vout=0.6*(1+R1/R2)

TU_N/D

IC6500

TJ2132GDP

1

2

THERMAL

3

2A

4

T2 : Max 1.7A

else : Max 0.7A

Demod_Core

[EP]GND

GND

8

FB

9

7

OUT

6

SS

5

C6501

2700pF

50V

TU_N/D

OPT

C6504

16V

0.1uF

TU_N/D

10K

R2

R65 21

R1

R65 19

10. 5K

TU_N/D

C6518 10uF 10V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

K2H

TU_CIRCUIT

2014-10-17

18

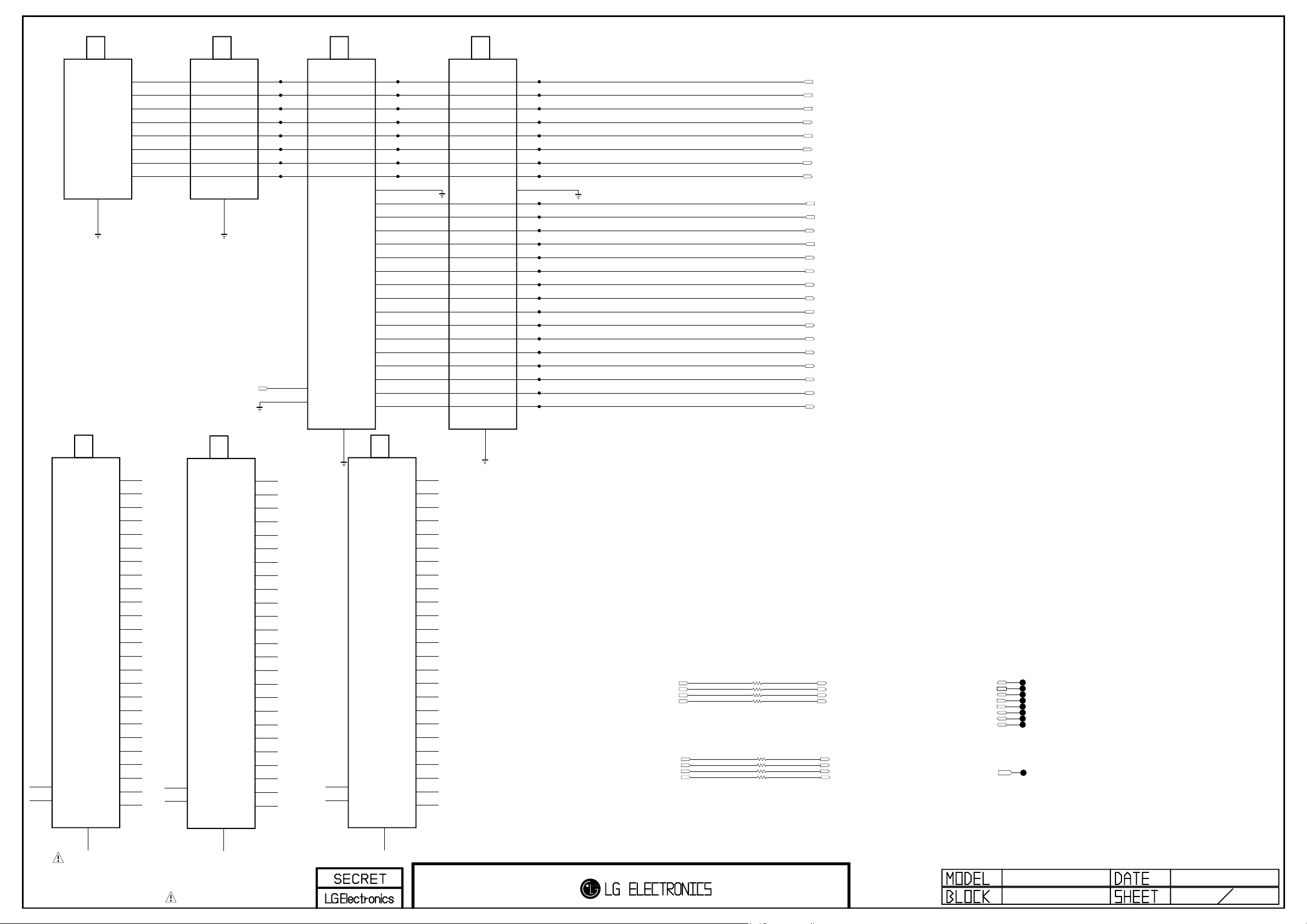

TU_A_BR

TU6703 TDJA-T301F

TU_S_US

TU6700 TDJS-H301F

TU_N_EU

TU6701 TDJN-G301D

TU_N_CH

TU6704 TDJN-C301D

SCL_RF

1

SDA_RF

2

B1[+3.3V_RF]

3

CVBS

4

IF_AGC

5

SIF

6

IF[N]

7

IF[P]

8

9

SHIELD

TU_N_KR

TU6701-*1 TDJN-H203F

1

2

3

4

5

6

7

8

9

SHIELD

26

LNB_OUT

27

TU_N_CO

TU6701-*2 TDJN-K301F

SCL_RF

SDA_RF

B1[+3.3V_RF]

CVBS

IF_AGC

SIF

IF[N]

IF[P]

LNB

GND_2

SCL_RF

1

SDA_RF

2

B1[+3.3V_RF]

3

CVBS

4

IF_AGC

5

SIF

6

IF[N]

7

IF[P]

8

GND_1

9

RESET_DEMOD

10

B2[+3.3V_DEMOD]

11

F22

12

B3[+1.2V_DEMOD]

13

ERROR

14

MCLK

15

SYNC

16

VALID

17

D0

18

D1

19

D2

20

D3

21

D4

22

D5

23

26

27

28

24

25

SHIELD

D6

D7

26

TU_N_AJ

TU6701-*3

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

SHIELD

SCL_RF

1

SDA_RF

2

B1[+3.3V_RF]

3

CVBS

4

IF_AGC

5

SIF

6

IF[N]

7

IF[P]

8

GND

9

RESET_DEMOD

B2[+3.3V_DEMOD]

NC

B3[+1.2V_DEMOD]

ERROR

MCLK

SYNC

VALID

D0

D1

D2

D3

D4

D5

D6

D7

I2C_SCL5_TU

I2C_SDA5_TU

+3.3V_LNA_TU

TU_CVBS_TU

IF_AGC_TU

TU_SIF_TU

IF_N_TU

IF_P_TU

/TU_RESET1_TU

+3.3V_TU

LNB_TX

D_Demod_Core

FE_DEMOD1_TS_ERROR

FE_DEMOD1_TS_CLK_1

FE_DEMOD1_TS_SYNC_1

FE_DEMOD1_TS_VAL_1

FE_DEMOD1_TS_DATA0_1

FE_DEMOD1_TS_DATA[1]

FE_DEMOD1_TS_DATA[2]

FE_DEMOD1_TS_DATA[3]

FE_DEMOD1_TS_1_DATA[4]

FE_DEMOD1_TS_1_DATA[5]

FE_DEMOD1_TS_1_DATA[6]

FE_DEMOD1_TS_1_DATA[7]

1

2

3

4

5

6

7

8

9

10

11

12

13

14

16

17

18

19

20

21

22

23

24

25

TDJN-G305D

LNB

GND_2

SCL_RF

1

SDA_RF

2

B1[+3.3V]

3

CVBS

4

AIF_AGC

5

SIF

6

AIF[N]

7

AIF[P]

8

GND_1

9

RESET_DEMOD

10

B2[+3.3V]

11

F22_OUTPUT

12

B3[+1.2V]

13

ERROR

14

MCLK

15

SYNC

16

VALID

17

DATA0

18

DATA1

19

DATA2

20

DATA3

21

DATA4

22

DATA5

23

26

27

DATA6

24

DATA7

25

28

LNB

GND_2

26

27

28

SHIELD

SCL_RF

1

SDA_RF

2

B1[+3.3V]

3

CVBS

4

AIF_AGC

5

SIF

6

AIF[N]

7

AIF[P]

8

GND_1

9

RESET_DEMOD

10

B2[+3.3V]

11

F22_OUTPUT

12

B3[+1.2V]

13

ERROR

14

MCLK

15

SYNC

16

VALID

17

DATA0

18

DATA1

19

DATA2

20

DATA3

21

DATA4

22

DATA5

23

DATA6

24

DATA7

25

LNB

GND_2

26

27

28

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

SHIELD

SCL_RF

SDA_RF

B1[+3.3V_RF]

CVBS

IF_AGC

SIF

IF[N]

IF[P]

GND_1

RESET_DEMOD

B2[+3.3V_DEMOD]

NC

B3[+1.2V_DEMOD]

ERROR

MCLK

SYNC

VALID

D0

D1

D2

D3

D4

D5

D6

D7

FE_DEMOD1_TS_CLK_1

FE_DEMOD1_TS_SYNC_1

FE_DEMOD1_TS_VAL_1

FE_DEMOD1_TS_DATA0_1

FE_DEMOD1_TS_1_DATA[4]

FE_DEMOD1_TS_1_DATA[5] FE_DEMOD1_TS_1_DATA[7] FE_DEMOD1_TS_1_DATA[6]

R67020 R67030 R67040 R67050

TU_N/D_NON_JP TU_N/D_NON_JP TU_N/D_NON_JP TU_N/D_NON_JP

R67120 R67130 R67140 R67150

Close to Tuner

FE_DEMOD1_TS_CLK FE_DEMOD1_TS_SYNC FE_DEMOD1_TS_VAL FE_DEMOD1_TS_DATA[0]

FE_DEMOD1_TS_DATA[4] FE_DEMOD1_TS_DATA[5] FE_DEMOD1_TS_DATA[7] FE_DEMOD1_TS_DATA[6]

PCM_5V_CTL

SMARTCARD_DATA

SMARTCARD_RST

CAM_IREQ_N

SMARTCARD_DET SMARTCARD_CLK

/TU_RESET2

SMARTCARD_PWR_SEL

FE_DEMOD2_TS_ERROR

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

K2H

TU_SYMBOL_H

2014-09-11

19

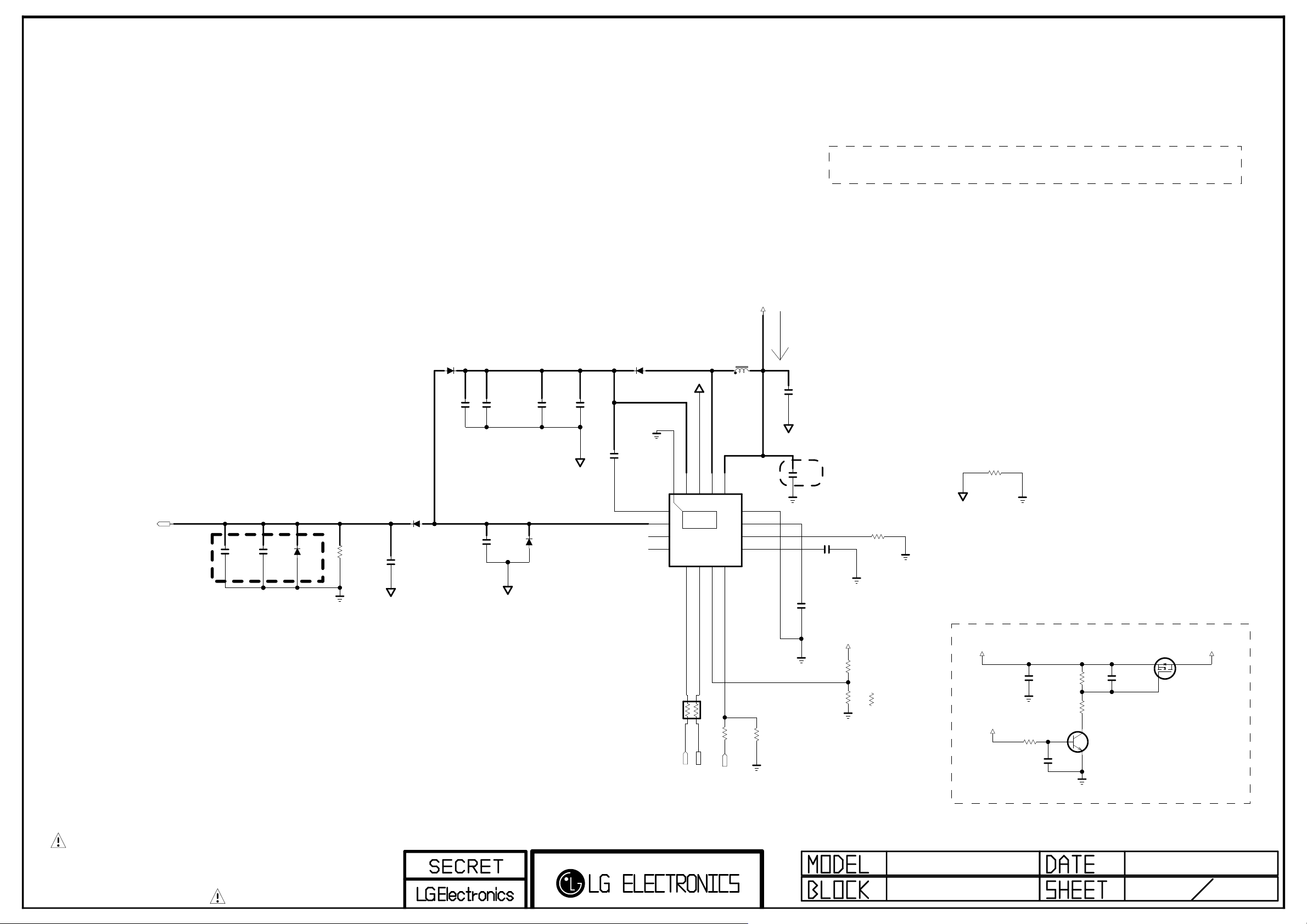

LNB PART (DVB-S2)

OPTION ; LNB

LNB_OUT

C6900

0.1uF LNB

C6901 33pF

Close to Tuner Surge Protection

LNB

D6900

LNB

R6900

2.2K 1W

LNB

2A

SS2040LL-LG

C6902

0.22uF

LNB

25V

A_GND

D6901

40V

LNB

D6902

LNB

40V

C6903

0.01uF 50V

LNB

Closed to Boost Pin (#1)

LNB

C6905 10uF 25V

LNB

C6904

0.1uF 50V

A_GND

SX34

D6903

40V

C6906 10uF 25V

LNB

A_GND

C6907 10uF 25V

LNB

C6908 0.1uF

D6904

LNB

SX34

40V

LNB

VCP

LNB

IRQ

Input trace widths should be sized to conduct at least 3A Ouput trace widths should be sized to conduct at least 2A

3A

+13V_M

Max 1.3A

14LX15

7

ADD

LNB_Tx

LNB

L6900

15uH

VIN

13

12

11

10

9

8

TONECTRL

0

R6905

GND

VREG

ISET

TCAP

0

R6908

LNB_NON_Tx

C6909 10uF 25V

LNB

A_GND

Close to VIN pin (#15)

C6910

0.1uF 50V

LNB

C6912

LNB

0.1uF

LNB

C6911 0.22uF

+13V_M

27K

R6901

LNB_JAPAN

R6902

10K

LNB_JAPAN

LNB R6903

39K

1/16W 1%

R6902-*1

0

NON_JAPAN_LNB

Need Isolated GND



R6904 0

A_GND

+13V

+3.3V_NORMAL

LNB R6909 10K

1/16W 5%

C6913

0.1uF 50V

LNB

OPT

B

C6914

4.7uF 10V

C6915

R6910

36K

0.1uF

LNB

50V

R6911

150K

LNB

EBK61012601

C

LNB Q6900 MMBT3904(NXP)

E

LNB

LNB Q6901

AO3435

S

G

+13V_M

D

LPH6050T-150M-R

A_GND

[EP]

GNDLX

BOOST

16

1

THERMAL

2

3

4

33

AR6900

17

IC6901

A8305SESTR

LNB

5

6

SCL

SDA

LNB

NC

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

I2C_SCL2

I2C_SDA2

LNB_TX

K2H

LNB

2014-08-25

20

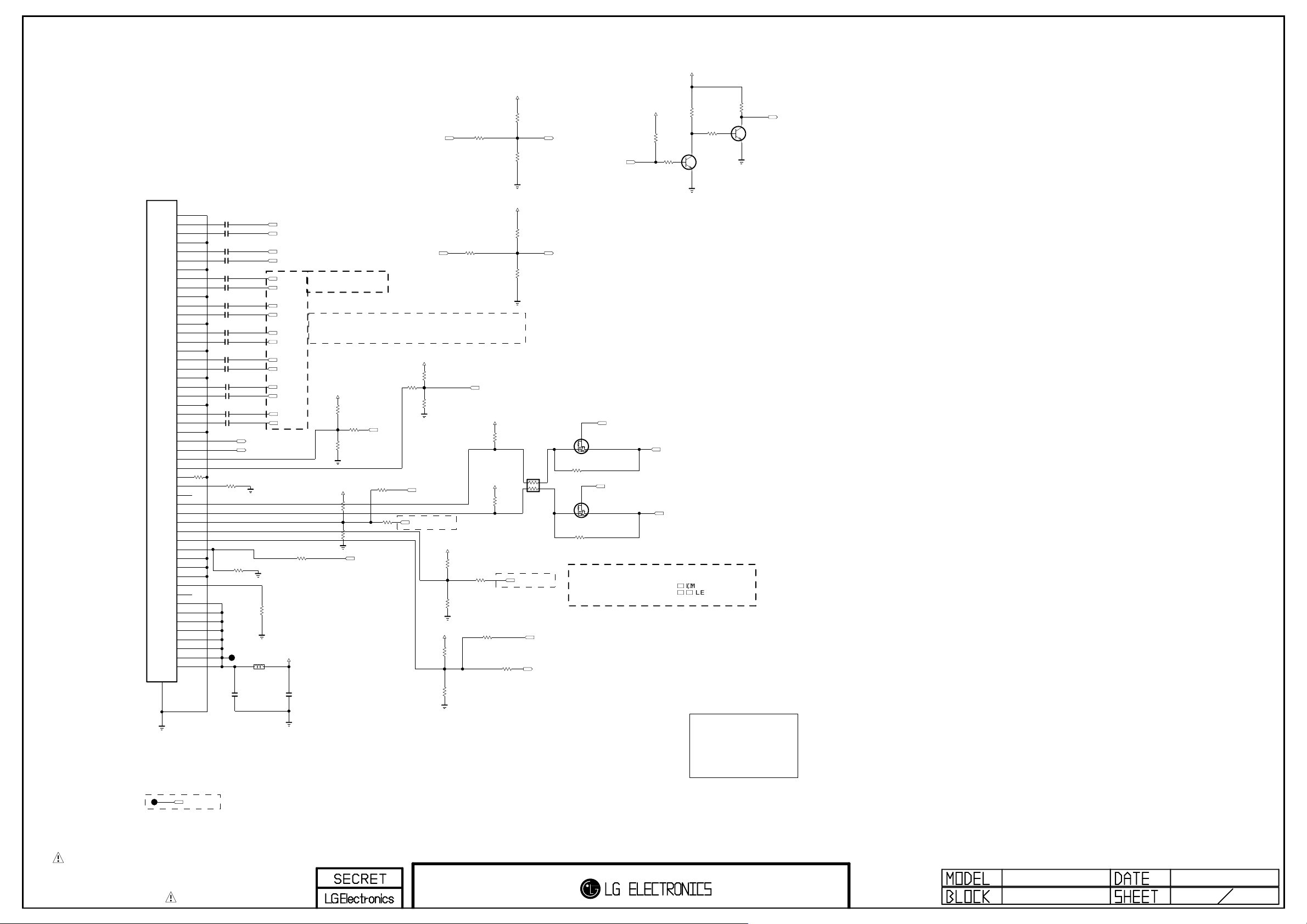

+3.3V_NORMAL

[51P Vx1 output wafer]

LGD/BOE_PANEL_VX1

P7100

SP14-11592-01-51Pin

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

C7102

C7103 0.1uF

C7104

C7105 0.1uF

C7106

C7107 0.1uF

C7108

C7109 0.1uF

C7110

C7111 0.1uF

C7112

C7113 0.1uF

C7114

C7115 0.1uF

C7116

C7117 0.1uF

R7125

0

NON_BOE MODULE

R7102 10K

R7123 10K

LGD/BOE_PANEL_VX1

0.1uF LGD/BOE_PANEL_VX1

LGD/BOE_PANEL_VX1

0.1uF LGD/BOE_PANEL_VX1

LGD/BOE_PANEL_VX1

0.1uF LGD/BOE_PANEL_VX1

LGD/BOE_PANEL_VX1

0.1uF LGD/BOE_PANEL_VX1

LGD/BOE_PANEL_VX1

0.1uF LGD/BOE_PANEL_VX1

LGD/BOE_PANEL_VX1

0.1uF LGD/BOE_PANEL_VX1

LGD/BOE_PANEL_VX1

0.1uF

LGD/BOE_PANEL_VX1

0.1uF

LGD/BOE_PANEL_VX1

LOCKAn_IN

HTPDAn_IN

OPT

Non_LGD_60Hz

L7100

MLB-201209-0120P-N2

PANEL_VX1_51P_VCC

C7100 10uF 25V

PANEL_VX1_51P_VCC

TXDBP0_L

TXDBN0_L

TXDBP1_L

TXDBN1_L

TXDBP2_L

TXDBN2_L

TXDBP3_L

TXDBN3_L

TXDBP4_L

TXDBN4_L

TXDBP5_L

TXDBN5_L

TXDBP6_L

TXDBN6_L

TXDBP7_L

TXDBN7_L

*Pin31(BIT_SEL) HIGH or NC : 10Bit LOW : 8Bit

VBY1_LGD_M+_MODULE

R7124

R71030

LGD/INX/BOE_Module

PANEL_VCC

C7101 10uF 25V

PANEL_VX1_51P_VCC

LOCKAn_IN

HTPDAn_IN

EPI Share Lane

C7102~C7117 Close to EPI Wafer!

+3.3V_NORMAL

OPT

R7104

AGP_CTRL

10K

R7101

VX1_MSE

0

VBY1_LGD/BOE_M+_MODULE R7105 1K 1/16W 5%

3D&L_DIM_EN

DATA_FORMAT_0

(MPLUS MODE 1)

+3.3V_NORMAL

VBY1_LGD/BOE_M+_MODULE

+3.3V_NORMAL

OPT

+3.3V_NORMAL

VBY1_LGD_M+_MODULE

R7130 1K

VBY1_LGD_M+_MODULE

R7107

+3.3V_NORMAL

VBY1_LGD/BOE_M+_MODULE

0

R7137 100

OPT

0

3D&L_DIM_EN_Micom

R7108 0

R7100 10K

R7131 0

VBY1_LGD/BOE_M+_MODULE

R7106 10K

OPT

PWM_DIM

LGD/BOE_PANEL_VX1

R7114 0

LGD/BOE_PANEL_VX1

R7113 0

M+ LGD_Module High : AGP & M+ BYPASS L & NC : NSB & M+ ENABLE

R7111 10K

R7132 0

VBY1_LGD/BOE_M+_MODULE

OPT

R7112 10K

R7109 10K

OPT

R7110 10K

+3.3V_NORMAL

LGD/BOE_PANEL_VX1 R7136 10K

OPT

R7117 0

+3.3V_NORMAL

OPT

R7126 0

AGP_CTRL

+3.3V_NORMAL

R7115

4.7K OPT

LGD_PANEL_VX1

+3.3V_NORMAL

R7116

4.7K OPT

DATA_FORMAT_1

(MPLUS MODE 0)

R7133 0

OPT

R7134

VBY1_LGD/BOE_M+_MODULE

0

LOCKAn

LGD/BOE_PANEL_VX1 R7118 10K

HTPDAn

AR7101 0 1/16W

DATA_FORMAT_0

PWM_TCON_OUT

OPT

OPT R7122

100

I2C_SCL6

I2C_SDA6

B



(MLE3)



(MLE1,2)

R7127 1K

C

Q7102 2N3904S

OPT

E



+1.8V

R7121 10K

LOCKAn_IN

TCON_I2C_EN

G

LGD_PANEL_VX1_FET

S

D Q7100 T2N7002AK

R7119

OPT

33

TCON_I2C_EN

G

LGD_PANEL_VX1_FET

S

D Q7101 T2N7002AK

R7120

OPT

33

Input Data Format[1:0]=[35pin:36pin] ’00’ : Low Power(MLE Off) ’01’ : High Luminance ’10’ : High Luminance ’11’ : PC Mode

OPT

R7128

100

OPT R7129 1K

C

B

E

Q7103 2N3904S

OPT

LOCKAn

Must be assigned at Vx1 51p wafer !!!

PWM_TCON_OUT

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

Data Input Format[1:0]

*Mode 1 (NON Division)

- Data Format 0(Pin37) = Low Data Format 1(Pin36) = Low

*Mode 3 (4 Division)

- Data Format 0(Pin37) = Low Data Format 1(Pin36) = High

K2H

Vx1 51P

2014-08-27

21

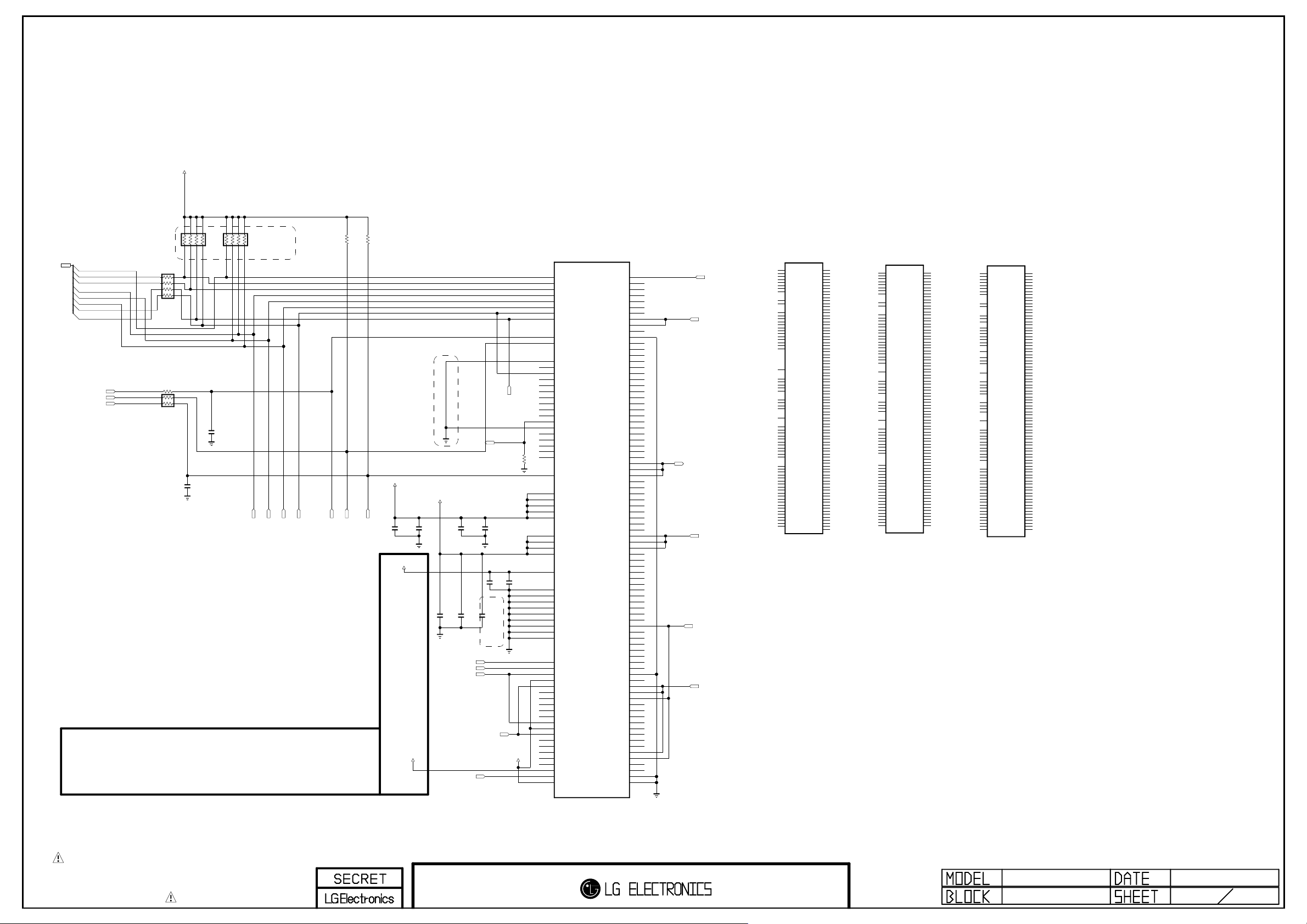

eMMC I/F

DVDD18_EMMC

3.3v power delete, 131120

10K

1/16W

AR8104

EMMC_DATA[0-7]

EMMC_DATA[0] EMMC_DATA[1] EMMC_DATA[2]

EMMC_DATA[3] EMMC_DATA[4] EMMC_DATA[5] EMMC_DATA[6]

AR8100 0 1/16W

EMMC_DATA[7]

EMMC_CLK EMMC_CMD EMMC_RST

R8120 0

AR8105 0

C8107 10pF

OPT

50V

C8100

0.1uF

OPT

16V

Don’t Connect Power At VDDI

(Just Interal LDO Capacitor)

10K

1/16W

AR8103

EMMC_DATA[4]

EMMC_DATA[3]

DAT6

EMMC_DATA[5]

10K

R8117

EMMC_CLK_BALL

EMMC_CMD_BALL

10K

R8116

DVDD18_EMMC

EMMC_RESET_BALL

OPT

C8108

0.1uF 16V

EMMC_VDDI

eMMC V5.0 GND

3.3V_EMMC

OPT

C8109

2.2uF 10V

C8102

0.1uF 16V

EMMC_DATA[3] EMMC_DATA[4]

EMMC_DATA[5]

EMMC_STRB

C8105

0.1uF 16V

C8103

2.2uF 10V

DAT7

OPT

C8111

4.7uF 10V

DAT6

C8106

2.2uF 10V

OPT C8101

1uF 25V

DAT7

R8103

C8104

2.2uF 10V

DVDD18_EMMC

IC8100

THGBMBG5D1KBAIL

A3

DAT0

A4

DAT1

A5

DAT2

B2

DAT3

B3

DAT4

B4

DAT5

B5

DAT6

B6

DAT7

M6

CLK

M5

CMD

A6

VSS_1

A7

RFU_2

C5

NC_21

E5

RFU_4

E8

RFU_5

E9

VSF_1

E10

VSF_2

F10

VSF_3

G3

RFU_9

G10

RFU_10

H5

DS

J5

VSS_5

K6

RFU_13

K7

RFU_14

K10

RFU_15

P7

RFU_16

P10

10K

RFU_17

K5

RSTN

C6

VCCQ_1

M4

VCCQ_2

N4

VCCQ_3

P3

VCCQ_4

P5

VCCQ_5

E6

VCC_1

F5

VCC_2

J10

VCC_3

K9

VCC_4

C2

VDDI

E7

VSS_2

G5

VSS_3

H10

VSS_4

K8

VSS_6

C4

VSSQ_1

N2

VSSQ_2

N5

VSSQ_3

P4

VSSQ_4

P6

VSSQ_5

A1

NC_1

A2

NC_2

A8

NC_3

A9

NC_4

A10

NC_5

A11

NC_6

A12

NC_7

A13

NC_8

A14

NC_9

B1

NC_10

B7

NC_11

B8

NC_12

B9

NC_13

B10

NC_14

B11

NC_15

B12

NC_16

B13

NC_17

B14

NC_18

C1

NC_19

C3

NC_20

C7

NC_22

EMMC_TOSHIBA

NC_23 NC_24 NC_25 NC_26 NC_27 NC_28 NC_29 NC_30 NC_31 NC_32 NC_33 NC_34 NC_35 NC_36 NC_37 NC_38 NC_39 NC_40 NC_41 NC_42 NC_43 NC_44 NC_45 NC_46 NC_47 NC_48 NC_49 NC_50 NC_51 NC_52 NC_53 NC_54 NC_55 NC_56 NC_57 NC_58 NC_59 NC_60 NC_61 NC_62 NC_63 NC_64 NC_65 NC_66 NC_67 NC_68 NC_69 NC_70 NC_71 NC_72 NC_73 NC_74 NC_75 NC_76 NC_77 NC_78 NC_79 NC_80 NC_81 NC_82 NC_83 NC_84 NC_85 NC_86 NC_87 NC_88 NC_89 NC_90 NC_91 NC_92 NC_93 NC_94 NC_95 NC_96 NC_97 NC_98

NC_99 NC_100 NC_101 NC_102 NC_103 NC_104 NC_105 NC_106 NC_107

C8 C9 C10 C11 C12 C13 C14 D1 D2 D3 D4 D12 D13 D14 E1 E2 E3 E12 E13 E14 F1 F2 F3 F12 F13 F14 G1 G2 G12 G13 G14 H1 H2 H3 H12 H13 H14 J1 J2 J3 J12 J13 J14 K1 K2 K3 K12 K13 K14 L1 L2 L3 L12 L13 L14 M1 M2 M3 M7 M8 M9 M10 M11 M12 M13 M14 N1 N3 N6 N7 N8 N9 N10 N11 N12 N13 N14 P1 P2 P8 P9 P11 P12 P13 P14

EMMC_RESET_BALL

DAT6

EMMC_DATA[5]

EMMC_STRB

EMMC_CLK_BALL

EMMC_CMD_BALL

A3 A4 A5 B2 B3 B4 B5 B6

M6 M5

A7 E5 G3 K6 K7 E8

E9 E10 F10 G10 K10 P10

H5

K5

C6

M4

N4

P3

P5

E6

F5 J10

K9

C2

C4

N2

N5

P4

P6

A6

E7

G5 H10

J5

K8

A1

A2

A8

A9 A10 A11 A12 A13 A14

B1

B7

B8

B9 B10 B11 B12 B13 B14

C1

C3

C5

EMMC_SAMSUNG

IC8100-*1

KLM4G1FEPD-B031

DAT0 DAT1 DAT2 DAT3 DAT4 DAT5 DAT6 DAT7

CLK CMD

RFU_1 RFU_2 RFU_3 RFU_4 RFU_5 RFU_6 RFU_7 RFU_8 RFU_9 RFU_10 RFU_11 RFU_13 DS

RSTN

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5

VDDF_1 VDDF_2 VDDF_3 VDDF_4

VDDI

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8 VSS_9 VSS_10 VSS_11

NC_1 NC_2 NC_3 NC_4 NC_5 NC_6 NC_7 NC_8 NC_9 NC_10 NC_11 NC_12 NC_13 NC_14 NC_15 NC_16 NC_17 NC_18 NC_19 NC_20 NC_21

EMMC_8G_TOSHIBA

IC8100-*2

C7

NC_22

C8

NC_23

C9

NC_24

C10

NC_25

C11

NC_26

C12

NC_27

C13

NC_28

C14

NC_29

D1

NC_30

D2

NC_31

D3

NC_32

D4

NC_33

D12

NC_34

D13

NC_35

D14

NC_36

E1

NC_37

E2

NC_38

E3

NC_39

E12

NC_40

E13

NC_41

E14

NC_42

F1

NC_43

F2

NC_44

F3

NC_45

F12

NC_46

F13

NC_47

F14

NC_48

G1

NC_49

G2

NC_50

G12

NC_51

G13

NC_52

G14

NC_53

H1

NC_54

H2

NC_55

H3

NC_56

H12

NC_57

H13

NC_58

H14

NC_59

J1

NC_60

J2

NC_61

J3

NC_62

J12

NC_63

J13

NC_64

J14

NC_65

K1

NC_66

K2

NC_67

K3

NC_68

K12

NC_69

K13

NC_70

K14

NC_71

L1

NC_72

L2

NC_73

L3

NC_74

L12

NC_75

L13

NC_76

L14

NC_77

M1

NC_78

M2

NC_79

M3

NC_80

M7

NC_81

M8

NC_82

M9

NC_83

M10

NC_84

M11

NC_85

M12

NC_86

M13

NC_87

M14

NC_88

N1

NC_89

N3

NC_90

N6

NC_91

N7

NC_92

N8

NC_93

N9

NC_94

N10

NC_95

N11

NC_96

N12

NC_97

N13

NC_98

N14

NC_99

P1

NC_100

P2

NC_101

P7

RFU_12

P8

NC_102

P9

NC_103

P11

NC_104

P12

NC_105

P13

NC_106

P14

NC_107

A3

DAT0

A4

DAT1

A5

DAT2

B2

DAT3

B3

DAT4

B4

DAT5

B5

DAT6

B6

DAT7

M6

CLK

M5

CMD

A6

VSS_1

A7

RFU_2

C5

NC_21

E5

RFU_4

E8

RFU_5

E9

VSF_1

E10

VSF_2

F10

VSF_3

G3

RFU_9

G10

RFU_10

H5

DS

J5

VSS_5

K6

RFU_13

K7

RFU_14

K10

RFU_15

P7

RFU_16

P10

RFU_17

K5

RSTN

C6

VCCQ_1

M4

VCCQ_2

N4

VCCQ_3

P3

VCCQ_4

P5

VCCQ_5

E6

VCC_1

F5

VCC_2

J10

VCC_3

K9

VCC_4

C2

VDDI

E7

VSS_2

G5

VSS_3

H10

VSS_4

K8

VSS_6

C4

VSSQ_1

N2

VSSQ_2

N5

VSSQ_3

P4

VSSQ_4

P6

VSSQ_5

A1

NC_1

A2

NC_2

A8

NC_3

A9

NC_4

A10

NC_5

A11

NC_6

A12

NC_7

A13

NC_8

A14

NC_9

B1

NC_10

B7

NC_11

B8

NC_12

B9

NC_13

B10

NC_14

B11

NC_15

B12

NC_16

B13

NC_17

B14

NC_18

C1

NC_19

C3

NC_20

C7

NC_22

THGBMFG6C1LBAIL

C8

NC_23

C9

NC_24

C10

NC_25

C11

NC_26

C12

NC_27

C13

NC_28

C14

NC_29

D1

NC_30

D2

NC_31

D3

NC_32

D4

NC_33

D12

NC_34

D13

NC_35

D14

NC_36

E1

NC_37

E2

NC_38

E3

NC_39

E12

NC_40

E13

NC_41

E14

NC_42

F1

NC_43

F2

NC_44

F3

NC_45

F12

NC_46

F13

NC_47

F14

NC_48

G1

NC_49

G2

NC_50

G12

NC_51

G13

NC_52

G14

NC_53

H1

NC_54

H2

NC_55

H3

NC_56

H12

NC_57

H13

NC_58

H14

NC_59

J1

NC_60

J2

NC_61

J3

NC_62

J12

NC_63

J13

NC_64

J14

NC_65

K1

NC_66

K2

NC_67

K3

NC_68

K12

NC_69

K13

NC_70

K14

NC_71

L1

NC_72

L2

NC_73

L3

NC_74

L12

NC_75

L13

NC_76

L14

NC_77

M1

NC_78

M2

NC_79

M3

NC_80

M7

NC_81

M8

NC_82

M9

NC_83

M10

NC_84

M11

NC_85

M12

NC_86

M13

NC_87

M14

NC_88

N1

NC_89

N3

NC_90

N6

NC_91

N7

NC_92

N8

NC_93

N9

NC_94

N10

NC_95

N11

NC_96

N12

NC_97

N13

NC_98

N14

NC_99

P1

NC_100

P2

NC_101

P8

NC_102

P9

NC_103

P11

NC_104

P12

NC_105

P13

NC_106

P14

NC_107

A3

DAT0

A4

DAT1

A5

DAT2

B2

DAT3

B3

DAT4

B4

DAT5

B5

DAT6

B6

DAT7

M6

CLK

M5

CMD

A7

RFU_2

E5

RFU_3

E8

RFU_4

G3

RFU_5

G10

RFU_6

K6

RFU_7

K7

RFU_8

K10

RFU_9

P7

RFU_10

P10

RFU_11

H5

DATASTROBE

E9

RFU_12

E10

RFU_13

F10

RFU_14

K5

RSTN

C6

VDD_1

M4

VDD_2

N4

VDD_3

P3

VDD_4

P5

VDD_5

E6

VDDF_1

F5

VDDF_2

J10

VDDF_3

K9

VDDF_4

C2

VDDI

C4

VSS_1

N2

VSS_2

N5

VSS_3

P4

VSS_4

P6

VSS_5

A6

VSS_6

E7

VSS_7

G5

VSS_8

H10

VSS_9

J5

VSS_10

K8

VSS_11

A1

NC_1

A2

NC_2

A8

NC_3

A9

NC_4

A10

NC_5

A11

NC_6

A12

NC_7

A13

NC_8

A14

NC_9

B1

NC_10

B7

NC_11

B8

NC_12

B9

NC_13

B10

NC_14

B11

NC_15

B12

NC_16

B13

NC_17

B14

NC_18

C1

NC_19

C3

NC_20

C5

NC_21

EMMC_8G_SAMSUNG

IC8100-*3

KLM8G1GEND-B031

C7

NC_22

C8

NC_23

C9

NC_24

C10

NC_25

C11

NC_26

C12

NC_27

C13

NC_28

C14

NC_29

D1

NC_30

D2

NC_31

D3

NC_32

D4

NC_33

D12

NC_34

D13

NC_35

D14

NC_36

E1

NC_37

E2

NC_38

E3

NC_39

E12

NC_40

E13

NC_41

E14

NC_42

F1

NC_43

F2

NC_44

F3

NC_45

F12

NC_46

F13

NC_47

F14

NC_48

G1

NC_49

G2

NC_50

G12

NC_51

G13

NC_52

G14

NC_53

H1

NC_54

H2

NC_55

H3

NC_56

H12

NC_57

H13

NC_58

H14

NC_59

J1

NC_60

J2

NC_61

J3

NC_62

J12

NC_63

J13

NC_64

J14

NC_65

K1

NC_66

K2

NC_67

K3

NC_68

K12

NC_69

K13

NC_70

K14

NC_71

L1

NC_72

L2

NC_73

L3

NC_74

L12

NC_75

L13

NC_76

L14

NC_77

M1

NC_78

M2

NC_79

M3

NC_80

M7

NC_81

M8

NC_82

M9

NC_83

M10

NC_84

M11

NC_85

M12

NC_86

M13

NC_87

M14

NC_88

N1

NC_89

N3

NC_90

N6

NC_91

N7

NC_92

N8

NC_93

N9

NC_94

N10

NC_95

N11

NC_96

N12

NC_97

N13

NC_98

N14

NC_99

P1

NC_100

P2

NC_101

P8

NC_102

P9

NC_103

P11

NC_104

P12

NC_105

P13

NC_106

P14

NC_107

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

K2H

eMMC

2014-11-17

81

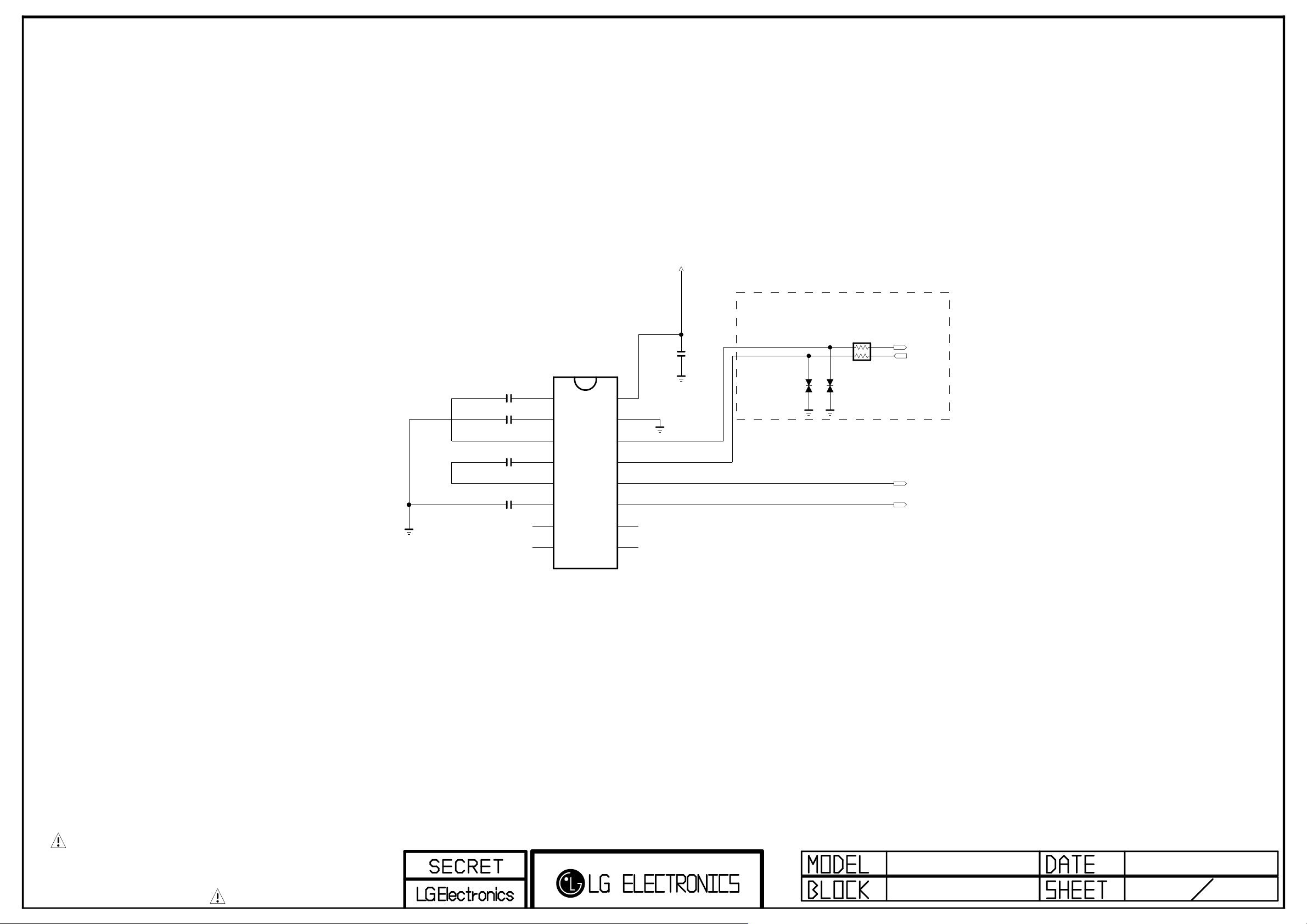

RS-232C Control INTERFACE

+3.5V_ST

RS232C

C11204

0.1uF

RS232C

C11200

0.1uF

C11201

0.1uF

C11202

0.1uF

C11203

0.1uF

C1+

C1-

C2+

C2-

DOUT2

RIN2

V+

V-

RS232C

IC11200

MAX3232CDR

1

2

3

4

5

6

7

8

EAN41348201

VCC

16

GND

15

DOUT1

14

RIN1

13

ROUT1

12

DIN1

11

DIN2

10

ROUT2

9

Closed to Jack side

AR11200

RS232C

100 1/16W

OPT

VA11200

EAF61630102

VA11201

EAF61630102

DOUT1 RIN1

SOC_RX

SOC_TX

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

UF71/7500

RS232C

2014-05-19

22

TROUBLE SHOOTING GUIDE

LGE Internal Use Only

Contents of Standard Repair Process

LGE Internal Use Only

No. Error symptom (High category) Error symptom (Mid category) Page Remarks

1

2 No video/No audio 2

3 Picture broken/ Freezing 3

4 Color error 4

5

6

7

8

9 Wrecked audio/discontinuation/noise 9

10

A. Video error

B. Power error

C. Audio error

No video/Normal audio 1

Vertical/Horizontal bar, residual image,

light spot, external device color error

No power 6

Off when on, off while viewing, power

auto on/off

No audio/Normal video 8

Remote control & Local switch

checking

5

7

10

11

12

13 Camera operating checking 13 Not used

14 External device recognition error 14

15 E. Noise Circuit noise, mechanical noise 15

16 F. Exterior error Exterior defect 16

D. Function error

First of all, Check whether there is SVC Bulletin in GCSC System for these model.

MR15 operating checking 11 Not used

Wifi operating checking 12

Standard Repair Process

LGE Internal Use Only

Established

date

Revised date

LCD TV

Error

symptom

A. Video error

No video/ Normal audio

First of all, Check whether all of cables between board is inserted properly or not.

(Main B/D↔ Power B/D, VX1 Cable, Speaker Cable, IR B/D Cable,,,)

☞A18 ☞A1

N

Y

Check Back Light On with naked eye

☞A18

On

Panel Vcc (12V) output

Normal voltage

Repair Power Board or parts

Y N Check Power

Y

N

Board +13V

Replace Inverter or module

Normal

voltage

N

Repair Power Board or parts

End

Replace T-con/Main

Y

Board or module And Adjust VCOM

No video Normal audio

Normal

audio

Move to No video/No audio

1/16

※Precaution

Always check & record S/W Version and White Balance value before replacing the Main Board

☞A4 & A2

Replace Main Board

1

Re-enter White Balance value

Standard Repair Process

LGE Internal Use Only

Error

symptom

No Video/ No audio

☞A18

Check various voltages of Power Board ( 13V)

A. Video error

No video/ No audio

Normal

voltage?

Replace Power Board and repair parts

Y

N

Check and replace MAIN B/D

Established

date

Revised date

End

2/16

2

Standard Repair Process

LGE Internal Use Only

☞ A3

Check RF Signal level

Normal

Signal?

N

Check RF Cable

Connection

1. Reconnection

2. Install Booster

Normal

Picture?

Y

Close

Y

N

Error

symptom

A. Video error

Picture broken/ Freezing

Established

date

Revised date

. By using Digital signal level meter . By using Diagnostics menu on OSD

( All Settings→ Channels→ Channel Tuning→ Manual Tuning → Signal Strength, Signal Quality)

- Signal strength (Normal : over 50%)

- Signal Quality (Normal: over 50%)

Check whether other equipments have problem or not.

(By connecting RF Cable at other equipment)

→ DVD Player ,Set-Top-Box, Different maker TV etc`

☞ A4

Normal

Picture?

Contact with signal distributor

or broadcaster (Cable or Air)

Y

S/W Version

N

Check

SVC

Bulletin?

S/W Upgrade

Normal

Picture?

Y

N

Check

Tuner soldering

N

Replace

Main B/D

3/16

Y

Close

3

Standard Repair Process

LGE Internal Use Only

☞A6

Check color by input

-External Input

-COMPONENT

-AV

-HDMI

☞A8

Check Test pattern

Error

symptom

Color

error?

N

Check error color input mode

A. Video error

☞ A7

※ Check

and replace

Y

Link Cable (V by one) and contact condition

External Input/

Component

error

Color error

Color

error?

N

Check external device and cable

Y

Replace Main B/D

Established

date

Revised date

External device

/Cable

normal

N

Color

error?

End

Y

4/16

Y

Replace module

N

Replace Main/T-con B/D

HDMI

error

Check external

device and cable

4

Request repair

for external

device/cable

N

External device

/Cable

normal

Y

Replace Main/T-con B/D

Standard Repair Process

LGE Internal Use Only

Error

symptom

Vertical / Horizontal bar, residual image,

A. Video error

light spot, external device color error

Vertical/Horizontal bar, residual image, light spot

☞A6

Check color condition by input

-External Input

-Component

-HDMI

☞A8

Check Test pattern

Screen

normal?

N

Replace module

Check external

Y

device connection condition

Normal?

N

Request repair

for external device

External device screen error-Color error

Check screen condition by input

Check S/W Version

Check

version

Y

S/W Upgrade

N

-External Input

-Component

-HDMI

Component

☞ A7

Check and

Y

replace Link Cable

External

Input

error

Established

date

Revised date

Y

N

Replace Main/T-con B/D (adjust VCOM)

For LGD panel

Replace Main B/D

Screen

normal?

End

For other panel

Connect other external device and cable

(Check normal operation of External Input, Component, and HDMI by connecting Jig, pattern Generator ,Settop Box etc.

Screen

N

normal?

Y

Request repair for external device

5/16

Replace Module

N

Screen

normal?

Y

End

Replace Main/T-con B/D

Normal

screen?

End

N

Y

5

HDMI/

DVI

Connect other external device and cable

(Check normal operation of External Input, Component, and HDMI by connecting Jig, pattern Generator ,Set-top

Box etc.

Y

Screen

normal?

N

Replace Main /T-con B/D

Standard Repair Process

LGE Internal Use Only

symptom

☞A17

Check Logo LED

. Stand-By: Red or Turn On . Operating: Turn Off

Power LED

Check Power cord was inserted properly

Error

On?

N

Normal?

Y

Close

Y

N

※

Check ST-BY 3.5V

☞A18

B. Power error

No power

DC Power on by pressing Power Key On Remote control

Normal

voltage?

Y

N

Established

date

Revised date

☞A18

Y

N

Check Power On ‘”High”

Replace Main B/D

Normal

operation?

☞A18

Measure voltage of each output of Power B/D

N

Y

Replace Main B/D

Normal

voltage?

Replace Power B/D

OK?

Y

6/16

Replace

Power B/D

Replace Power B/D

6

Standard Repair Process

LGE Internal Use Only

Check outlet

Check A/C cord

Check for all 3- phase power out

Error

symptom

Error?

Y

Fix A/C cord & Outlet and check each 3 phase out

B. Power error

Off when on, off while viewing, power auto on/off

☞A19

N

Check Power Off Mode

☞A18

(If Power Off mode is not displayed) Check Power B/D voltage

※ Caution Check and fix exterior of Power B/D Part

Abnormal

Established

date

Revised date

CPU

1

Normal

voltage?

Replace Power B/D

Replace Main B/D

Y

N

Replace Power B/D

Replace Main B/D

Normal?

N

7/16

Y

End

* Please refer to the all cases which can be displayed on power off mode.

Status Power off List Explanation

"POWEROFF_Remote KEY" Power off by Remote CONTROL

"POWEROFF_OFFTIMER" Power off by OFF TIMER

"POWEROFF_SLEEPTIMER" Power off by SLEEP TIMER "POWEROFF_INSTOP" Power off by INSTOP KEY "POWEROFF_AUTOOFF" Power off by AUTO OFF

Normal

Abnormal

"POWEROFF_ONTIMER" Power off by ON TIMER "POWEROFF_RS232C" Power off by RS232C "POWEROFF_RESREC" Power off by Reservated Record "POWEROFF_RECEND" Power off by End of Recording "POWEROFF_SWDOWN" Power off by S/W Download

"POWEROFF_UNKNOWN" Power off by unknown status except listed case

"POWEROFF_ABNORMAL1" Power off by abnormal status except CPU trouble "POWEROFF_CPUABNORMAL" Power off by CPU Abnormal

7

Standard Repair Process

LGE Internal Use Only

No audio Screen normal

Error

C. Audio error

symptom

No audio/ Normal video

☞A20 ☞A21+A18

Check user menu > Speaker off

Off

Y

Cancel OFF

Check audio B+

N

A13V of Power Board

Established

date

Revised date

Normal voltage

Replace Power Board and repair parts

Y

N

8/16

Check Speaker disconnection

Disconnection

Y

Replace Speaker

8

N

Replace MAIN Board

End

Standard Repair Process

LGE Internal Use Only

Check input signal

-RF

-External Input

signal

Error

symptom

C. Audio error

Wrecked audio/ discontinuation/noise

Established

date

Revised date

→ abnormal audio/discontinuation/noise is same after “Check input signal” compared to No audio

☞A21+A18

Check audio B+ Voltage (A13V)

Y

Normal

voltage?

N

Replace Power B/D

Replace Main B/D

N

Y

Signal

normal?

N

Y

(When RF signal is not received)

Request repair to external

cable/ANT provider

(In case of

External Input

signal error) Check and fix external device

Wrecked audio/

Discontinuation/

Noise for

all audio

Wrecked audio/ Discontinuation/

Noise only

for D-TV

Wrecked audio/ Discontinuation/

Noise only

for Analog

Wrecked audio/ Discontinuation/

Noise only

for External Input

Check and replace speaker and connector

Replace Main B/D

Connect and check other external device

Normal

audio?

9/16

End

Check and fix external device

9

Standard Repair Process

LGE Internal Use Only

Error

symptom

D. Function error

Remote control & Local switch checking

1. Remote control(R/C) operating error

☞A22

Check R/C itself

Operation

Check R/C Operating

When turn off light

in room

If R/C operate,

Explain the customer

cause is interference

from light in room.

operating?

Normal

Y

N

Check & Replace

Baterry of R/C

Normal

operating?

Replace R/C

Check & Repair

Cable connection

Connector solder

Y

Close

N

Normal

operating?

Y

Close

☞A22

N

Check B+

On Main B/D

Established

date

Revised date

Y

N

3.5V

Normal

Voltage?

☞A18

Check 3.5v on Power B/D

Replace Power B/D or

Replace Main B/D

(Power B/D don’t have problem)

☞A22

Check IR

Output signal

10/16

Replace

Main B/D

Normal Signal?

N

Repair/Replace

IR B/D

Y

10

Standard Repair Process

LGE Internal Use Only

Error

symptom

D. Function error

MR13 operating checking

Established

date

Revised date

2. MR15(Magic Remocon) operating error (UH61 Model doesn`t support Magic Remocon)

☞A4

Check the

INSTART menu

RF Receiver ver

is “00.00”?

☞A23

Check & Repair

connection

Y

RF assy

☞A4

RF Receiver ver

is “00.00”?

Y

N

Check MR15

itself Operation

N

Close

Normal

operating?

Check & Replace

Battery of MR15

Normal

operating?

Replace

MR13

Y

N

Y

N

Press the

wheel

Close

Is show ok

message?

Y

Close

Is show ok

message?

Y

Close

Turn off/on the

N

set and press

the wheel

N

11/16

Press the back key about 5sec

Down load the Firmware

* INSTART MENU14.RF

Remocon Test3. Firmware

download

* If you conduct the loop at 3times, change the M4.

11

Standard Repair Process

LGE Internal Use Only

Error

symptom

3.Wifi operating error

☞A4

Check the

INSTART menu

Wi-Fi Mac value

is “NG”?

☞A24

Check & Repair

Y

Wifi cable

connection

☞A4

Wi-Fi Mac value

is “NG”?

D. Function error

Wifi operating checking

☞A24

N

Check the Wifi wafer

N

Close

1pin

Established

Revised date

Normal

Voltage?

Y

Close

date

N

12/16

Replace

Main B/D

Change the Wifi

Y

assy

12

Standard Repair Process

LGE Internal Use Only

Error

symptom

D. Function error

Camera operating checking

4.Camera operating error (Camera operation is not support)

Check the

INSTART menu

☞A4

Camera Ver.

is “NULL”?

Change the

Camera module

N

Y

☞A25

Reconnect the

Camera module

Established

date

Revised date

Normal

operation?

Y

Close

N

13/16

Replace

Main B/D

13

Standard Repair Process

LGE Internal Use Only

Check input signal

Error

symptom

Y

Signal

input?

N

Check and fix

external device/cable

D. Function error

External device recognition error

Check technical information

- Fix information

- S/W Version

Technical

information?

Fix in

accordance

with technical

information

Y

External Input and

N

Component

Recognition error

HDMI/

DVI, Optical

Recognition error

Established

date

Revised date

14/16

Replace Main B/D

14

Standard Repair Process

LGE Internal Use Only

Identify nose type

Error

symptom

Circuit

noise

Mechanical

noise

Circuit noise, mechanical noise

Check location of noise

E. Noise

※ Mechanical noise is a natural phenomenon, and apply the 1st level description. When the customer does not agree, apply the process by stage. ※ Describe the basis of the description in “Part related to nose” in the Owner’s Manual.

Replace PSU

OR

Established

date

Revised date

※ When the nose is severe, replace the module (For models with fix information, upgrade the S/W or provide the description)

※ If there is a “Tak Tak” noise from the

cabinet, refer to the KMS fix information and

then proceed as shown in the solution manual (For models without any fix information, provide the description)

15/16

15

Standard Repair Process

LGE Internal Use Only

Error

symptom

Zoom part with exterior damage

Module

damage

Cabinet

damage

Remote

control

damage

F. Exterior defect

Exterior defect

Replace module

Replace cabinet

Replace Remote control

Established

date

Revised date

16/16

Stand

dent

Replace stand

16

Contents of Standard Repair Process Detail Technical Manual

LGE Internal Use Only

No. Error symptom Content Page Remarks

1

A. Video error_ No video/Normal audio

2 Check White Balance value A2

3

A. Video error_ video error /Video lag/stop

4 Version checking method A4

Check LCD back light with naked eye A1

TUNER input signal strength checking method

A3

5 Tuner Checking Part A5

A. Video error _Vertical/Horizontal bar,

6

residual image, light spot

7

Connection diagram A6

Check Link Cable reconnection condition A7

A. Video error_ Color error

8 Adjustment Test pattern - ADJ Key A8

9

Exchange Main Board (1) A-1/5

10 Exchange Main Board (2) A-2/5

11 Exchange Power Board (PSU) A-3/5

Defected Type caused by T-Con/ Inverter/ Module

12 Exchange Module (1) A-4/5

13 Exchange Module (2) A-5/5

Contents of Standard Repair Process Detail Technical Manual

LGE Internal Use Only

No. Error symptom Content Page Remarks

14

Check front display LED A17

B. Power error_ No power

15 Check power input Voltage & ST-BY 3.5V A18

16

17

18

19

20

B. Power error_Off when on, off while viewing

C. Audio error_ No audio/Normal video

D. Function error

POWER OFF MODE checking method A19

Checking method in menu when there is no audio

Voltage and speaker checking method

when there is no audio

Remote control operation checking method

Motion Remote operation checking method

A20

A21

A22

A23 Not Used

21 Wifi operation checking method A24

22 Camera operation checking method A25 Not Used

23 E. Etc Tool option changing method A26

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

Error

symptom

Content

<49UH6100>

A. Video error_No video/Normal audio

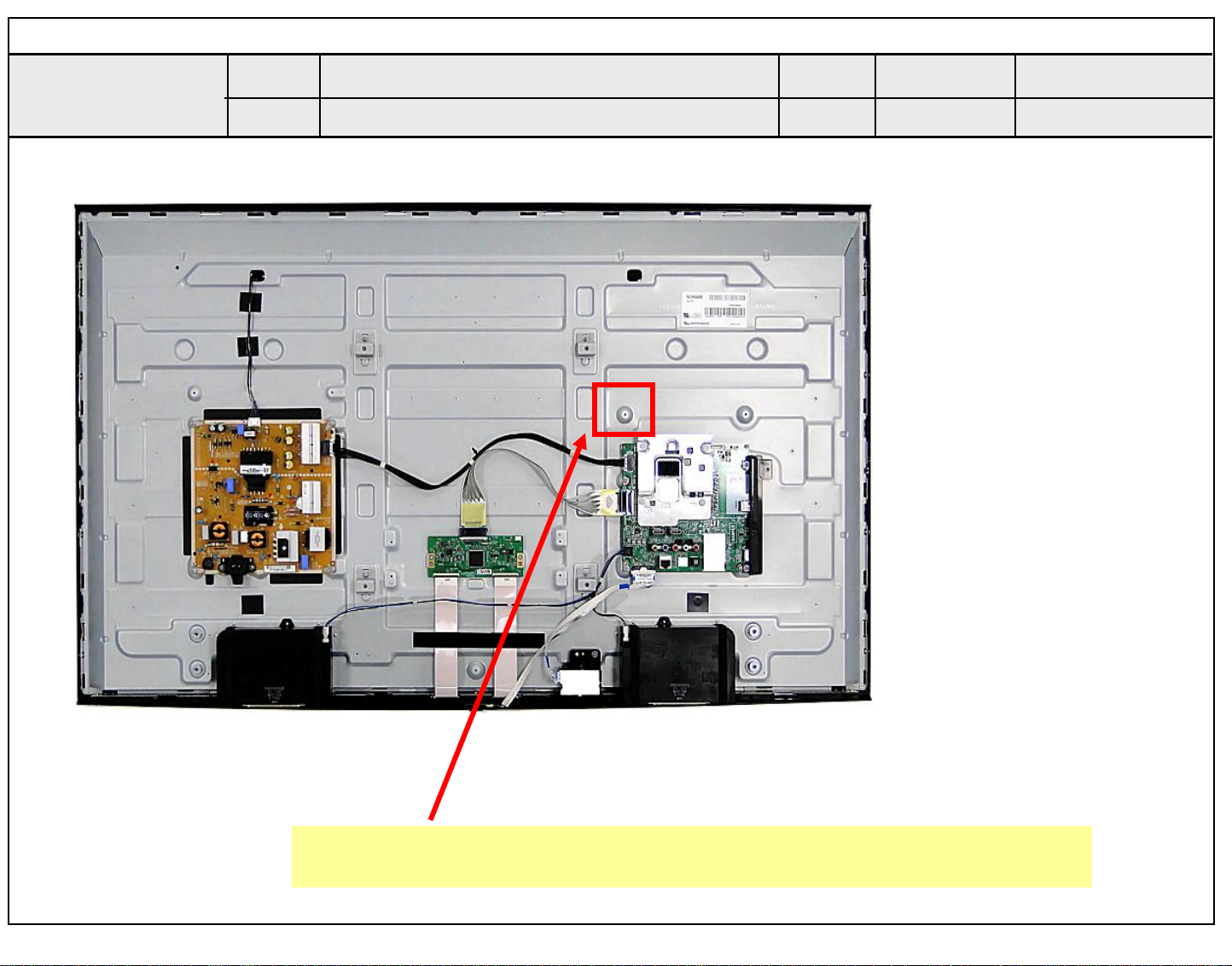

Check LCD back light with naked eye

Established

date

Revised

date

A1

After turning on the power and disassembling the case, check with the naked eye, whether you can see light from locations.

A1

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

Error

symptom

Content

A. Video error_No video/Normal audio

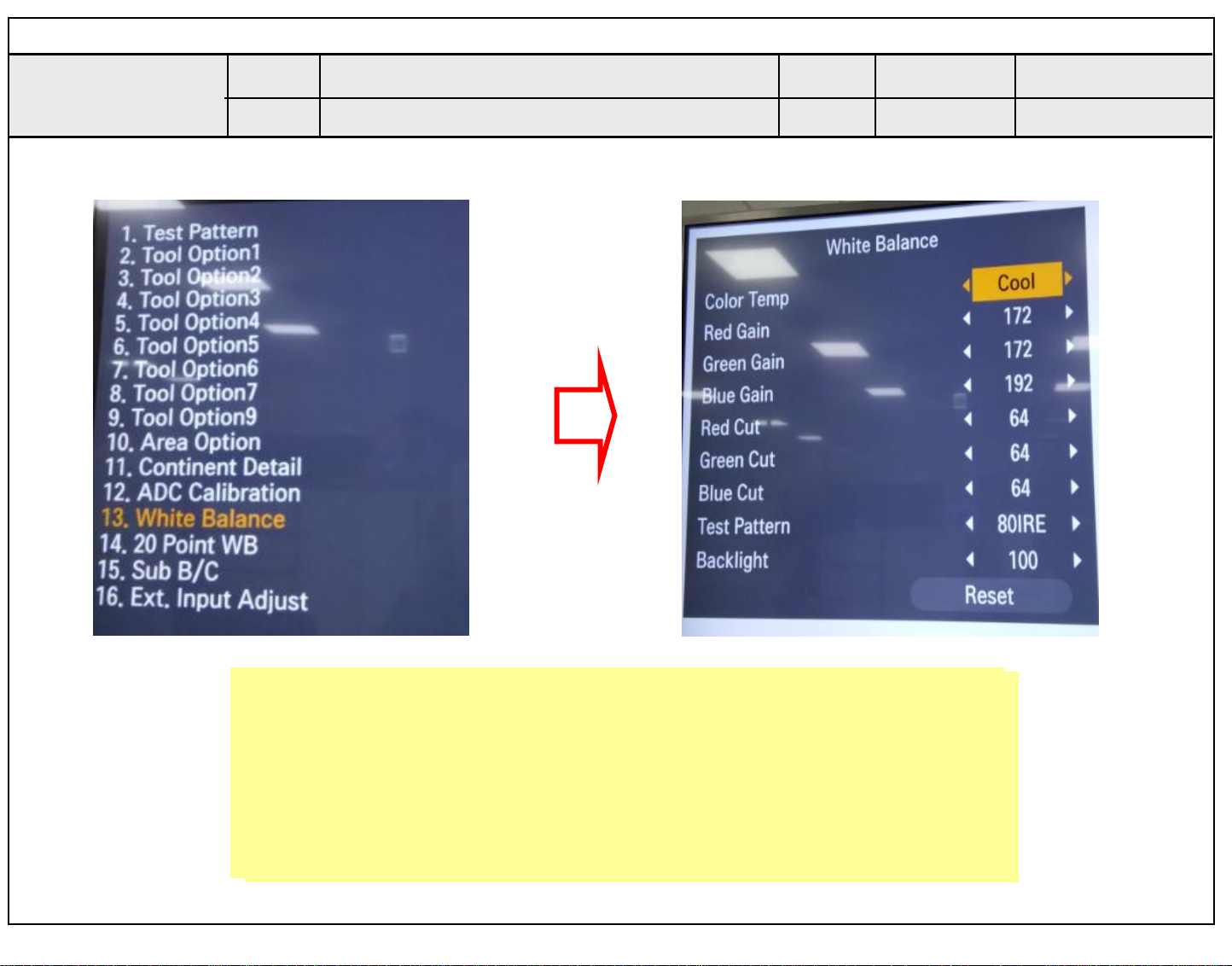

Check White Balance value

Established

date

Revised

date

A2

Entry method

1. Press the ADJ button on the Remote controlfor adjustment.

1. Press the ADJ button on the Remote control for adjustment.

2. Enter into White Balance of item 6.

2. Enter into White Balance of item 13.

3. After recording the R, G, B (GAIN, Cut) value of Color Temp

3. After recording the R, G, B (GAIN, Cut) value of Color Temp (Cool/Medium/Warm), re-enter the value after replacing the MAIN BOARD.

(Cool/Medium/Warm), re-enter the value after replacing the MAIN BOARD.

A2

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

Error

symptom

Content

A. Video error_Video error, video lag/stop

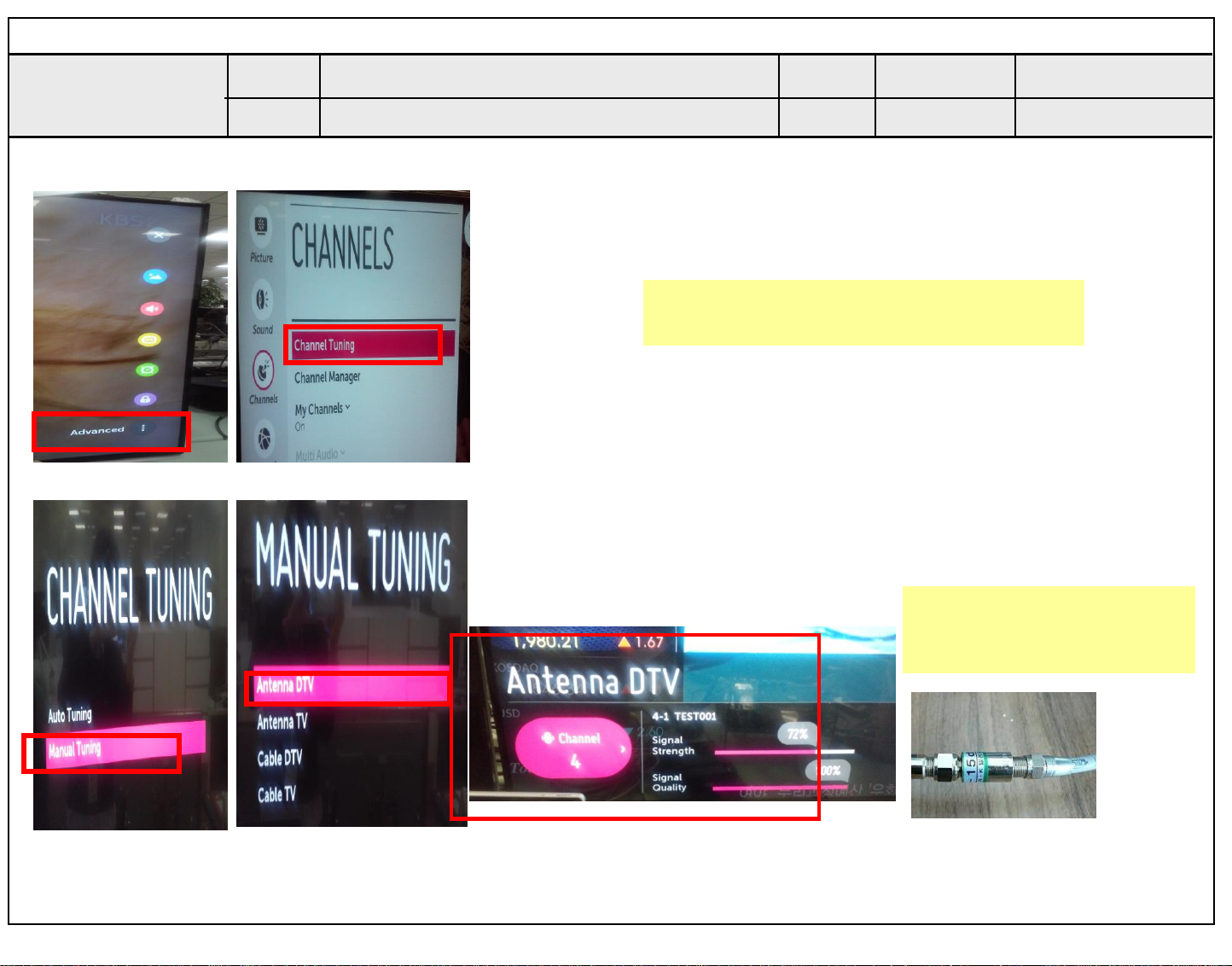

TUNER input signal strength checking method

Established

date

Revised

date

Advanced Channels  Channel Tuning Manual Tuning

A3

When the signal is strong,

use the attenuator (-10dB, -

15dB, -20dB etc.)

A3

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

Error

symptom

Content

A. Video error_Video error, video lag/stop

Version checking method

Established

date

Revised

date

A4

1. Checking method for Remote control for adjustment

Version

Press the IN-START with the Remote control for adjustment

A4

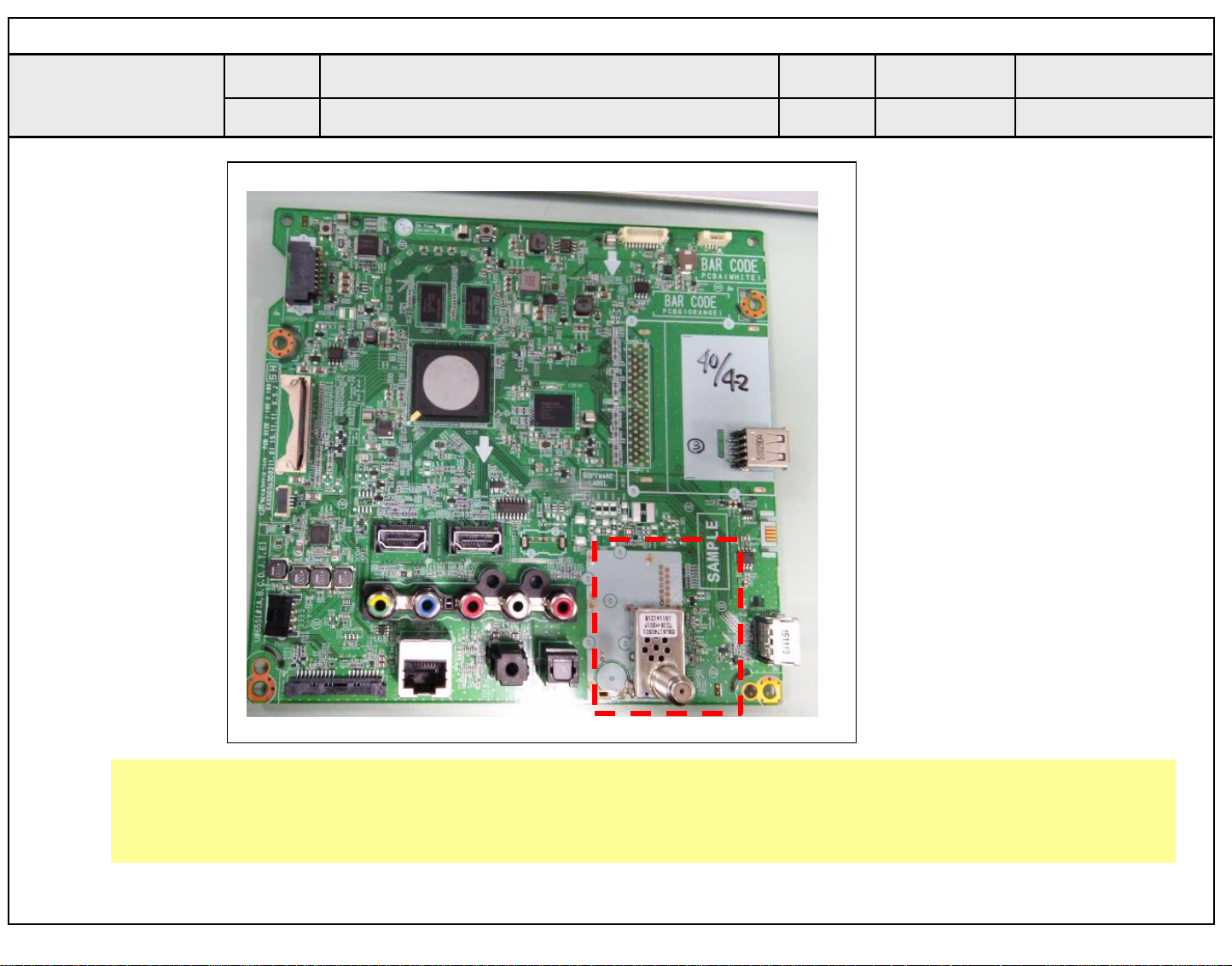

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

Error

symptom

Content

A. Video error_Video error, video lag/stop

TUNER checking part

Established

date

Revised

date

A5

Checking method:

1. Check the signal strength or check whether the screen is normal when the external device is connected.

2. After measuring each voltage from power supply, finally replace the MAIN BOARD.

3. If you can`t see the UHD live TV, please connect signal at left side of jack. (Korea model only)

A5

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

Error

symptom

Content

A. Video error _Vertical/Horizontal bar,

residual image, light spot

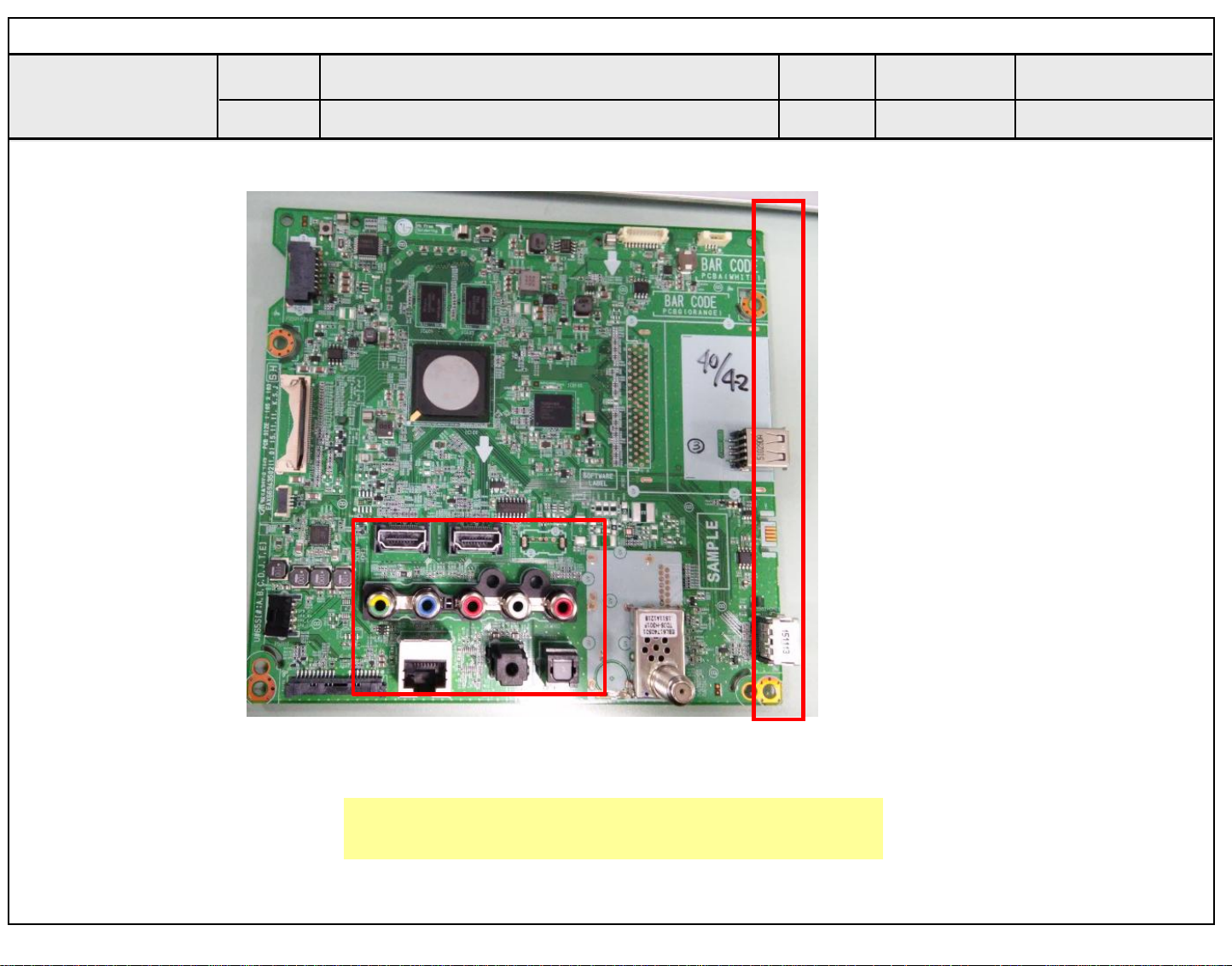

connection diagram (1)

Established

date

Revised

date

A6

As the part connecting to the external input, check the screen condition by signal

A6

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

Error

symptom

Content

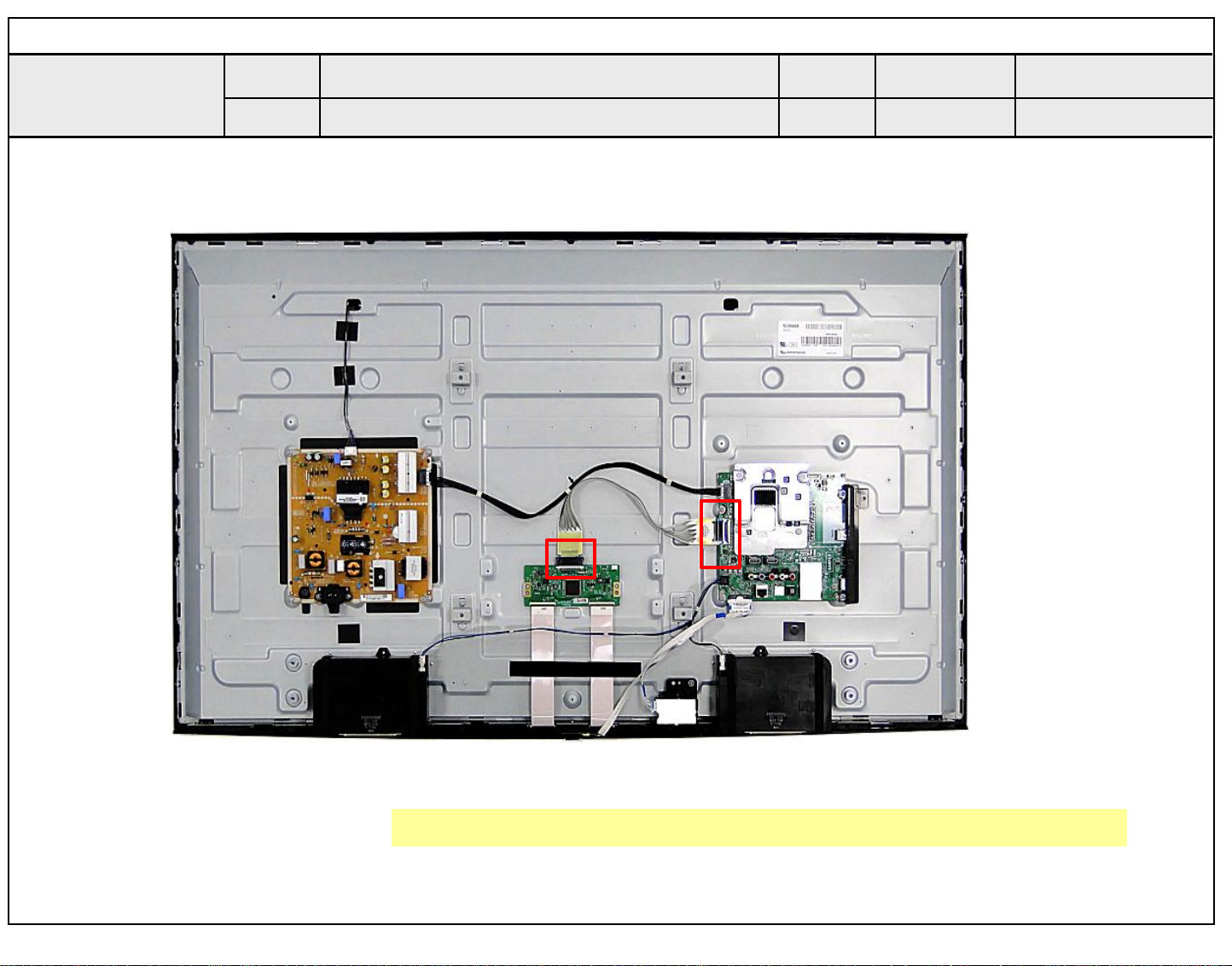

Check Link Cable(VX1) reconnection condition

A. Video error_Color error

Established

date

Revised

date

A7

Check the contact condition of the Link Cable, especially dust or mis insertion.

A7

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

Error

symptom

Content

A. Video error_Color error

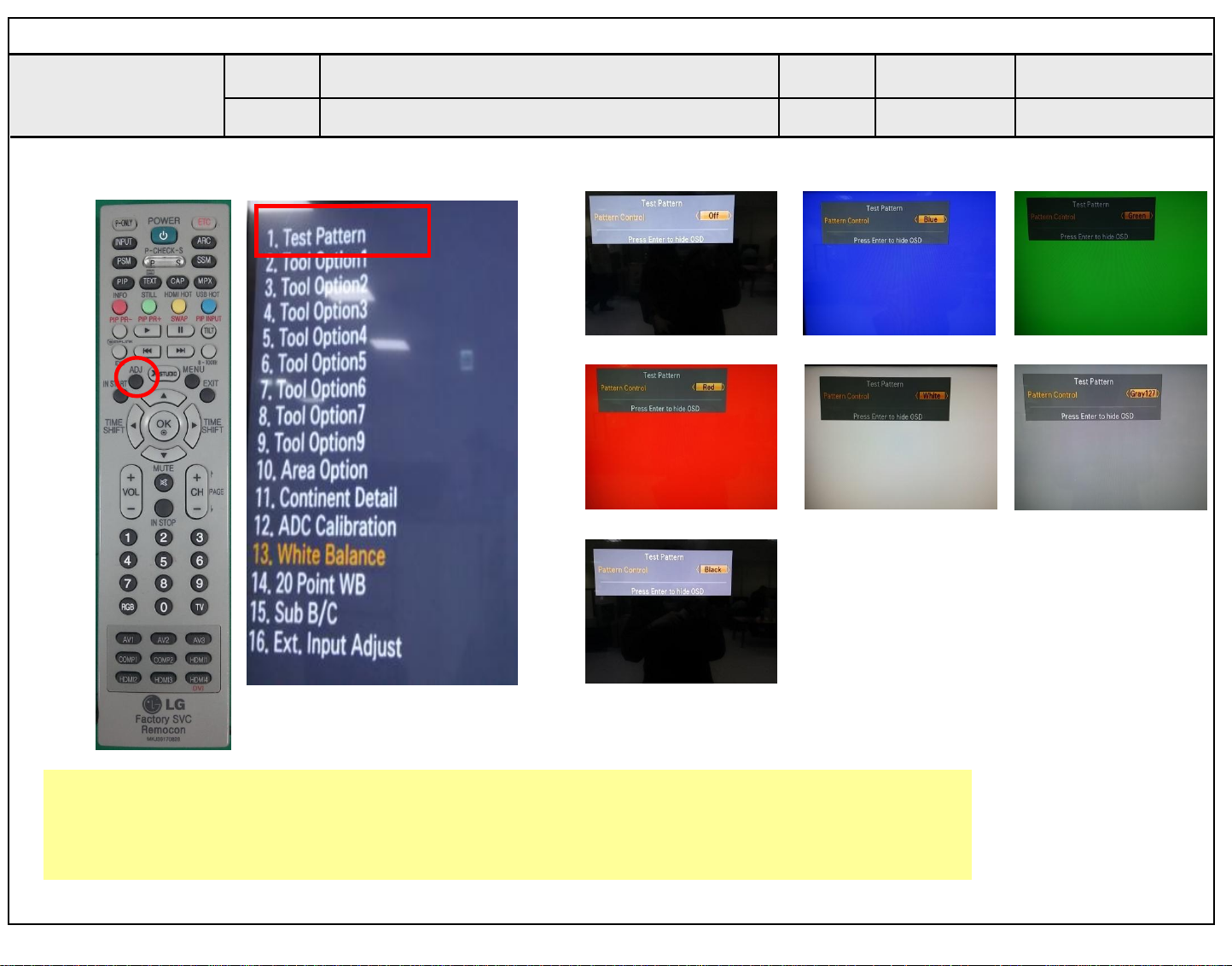

Adjustment Test pattern - ADJ Key

Established

date

Revised

date

A8

You can view 6 types of patterns using the ADJ Key Checking item : 1. Defective pixel 2. Residual image 3. MODULE error (ADD-BAR,SCAN BAR..)

4.Video error (Classification of MODULE or Main-B/D!)

A8

Appendix : Exchange Main Board (1)

LGE Internal Use Only

Solder defect, CNT Broken

T-Con Defect, CNT Broken

Solder defect, CNT Broken

T-Con Defect, CNT Broken

Solder defect, CNT Broken

Abnormal Power Section

Solder defect, Short/Crack

Abnormal Power Section Solder defect, Short/Crack

A - 1/5

Appendix : Exchange Main Board (2)

LGE Internal Use Only

Abnormal Power Section

Solder defect, Short/Crack

Abnormal Power Section

Fuse Open, Abnormal power section

Solder defect, Short/Crack

Abnormal Display

GRADATION

Noise

A - 2/5

GRADATION

Appendix : Exchange Power Board (PSU)

LGE Internal Use Only

No Light

Dim Light

No picture/Sound Ok

A - 3/5

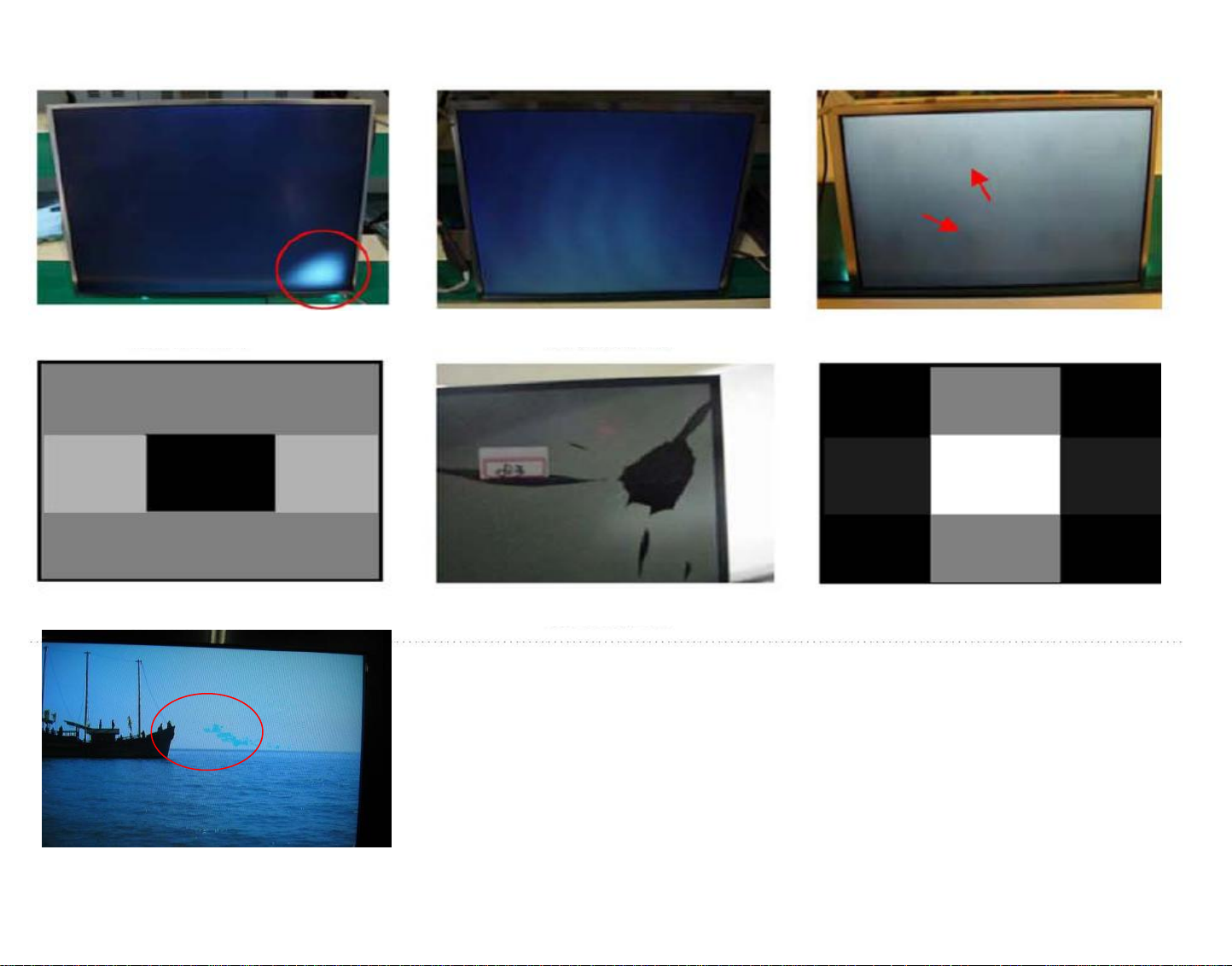

Appendix : Exchange the Module (1)

LGE Internal Use Only

Panel Mura, Light leakage

Crosstalk

Panel Mura, Light leakage

Press damage

Crosstalk

Un-repairable Cases In this case please exchange the module.

Press damage

A - 4/5

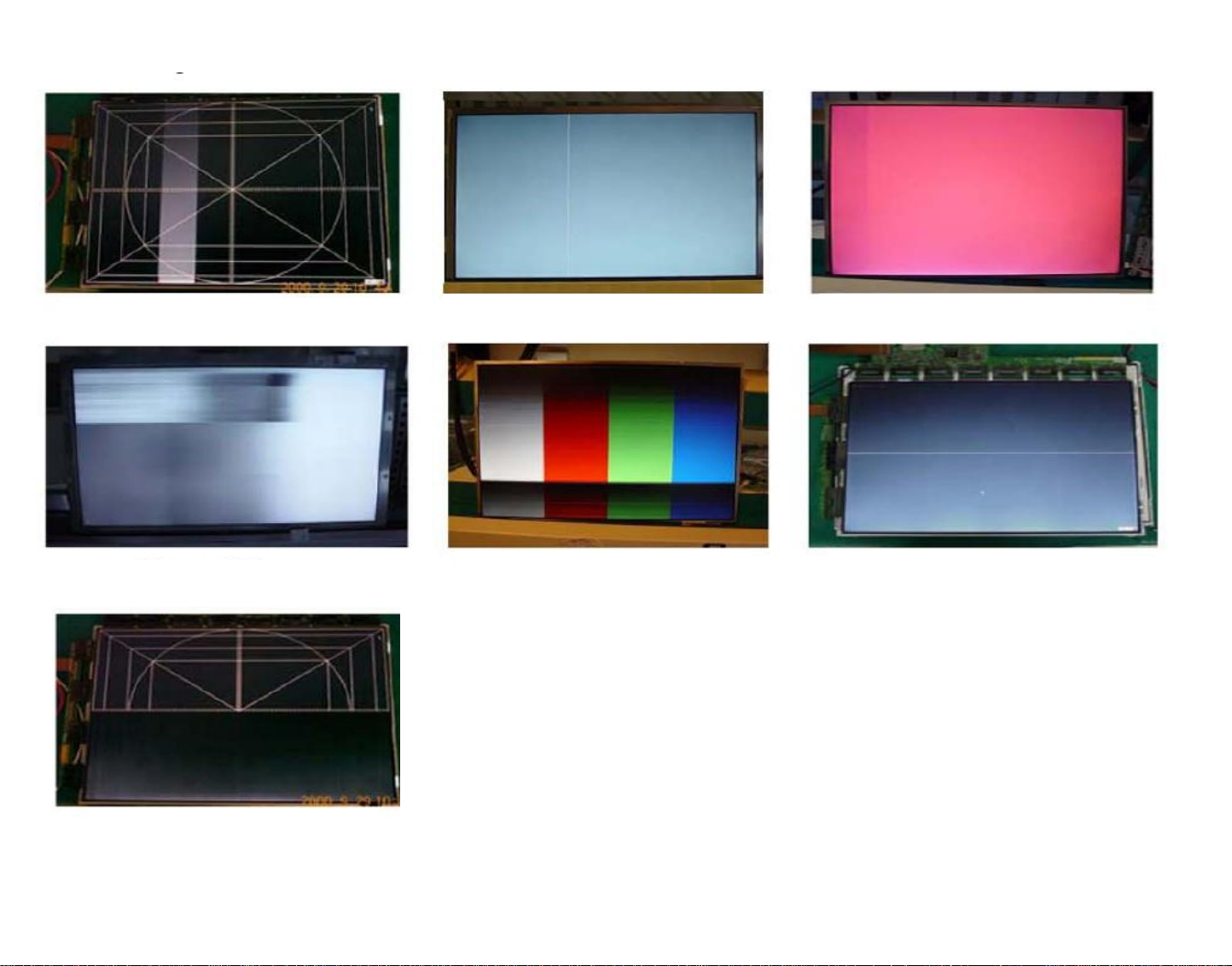

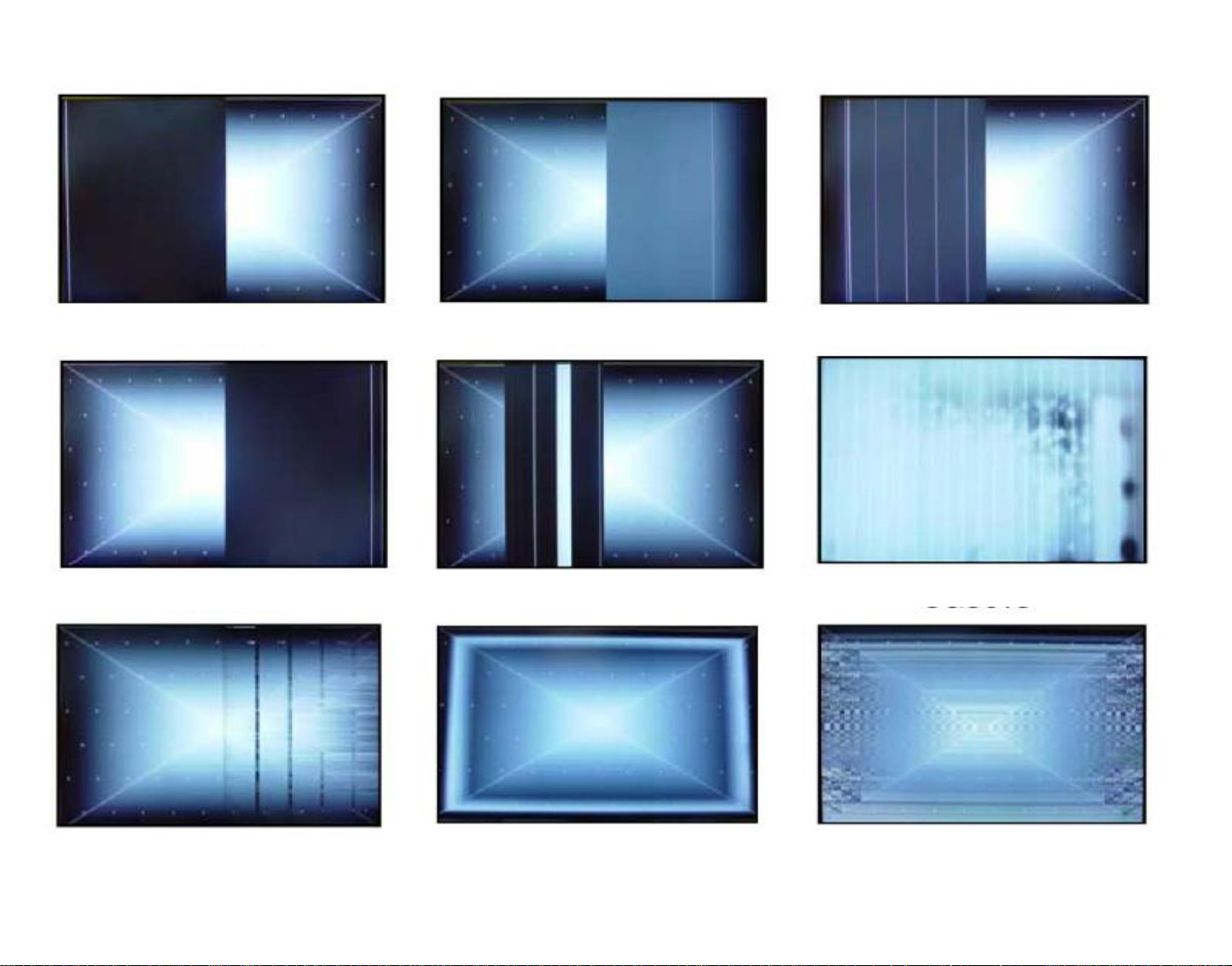

Appendix : Exchange the Module (2)

LGE Internal Use Only

Vertical Block

Source TAB IC Defect

Horizontal Block

Gate TAB IC Defect

Vertical Line

Source TAB IC Defect

Horizontal Block

Gate TAB IC Defect

Vertical Block

Source TAB IC Defect

Horizontal line

Gate TAB IC Defect Gate TAB IC Defect

Un-repairable Cases In this case please exchange the module.

Horizontal Block

Gate TAB IC Defect

A - 5/5

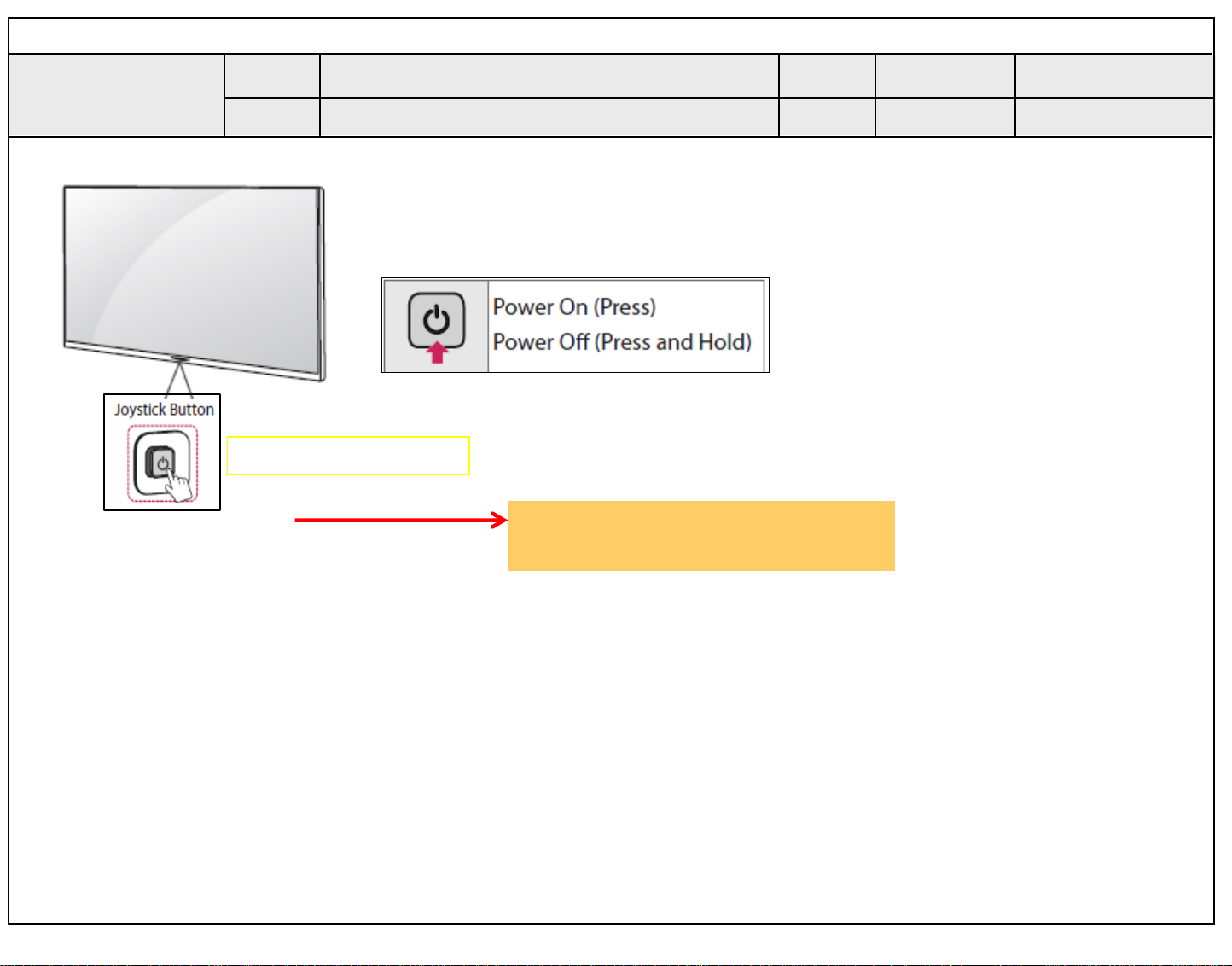

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

Error

symptom

Content

<49UH61>

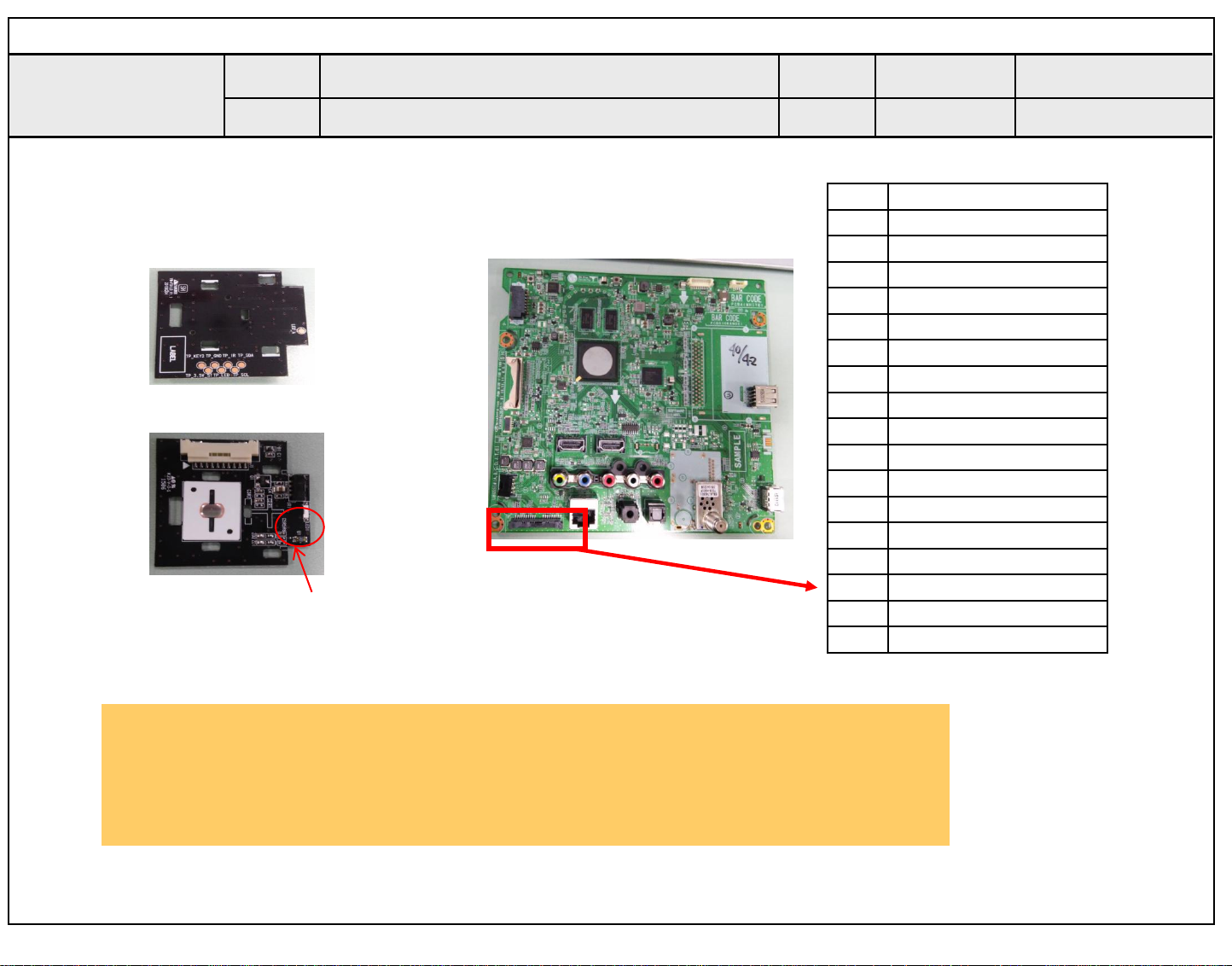

Joystick button

B. Power error _No power

Check front Power Indicator

ST-BY condition: On or Off Power ON condition: Turn Off

Established

date

Revised

date

A17

North America model doesn`t use lum.sensor

A17

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

Error

symptom

Content

B. Power error _No power

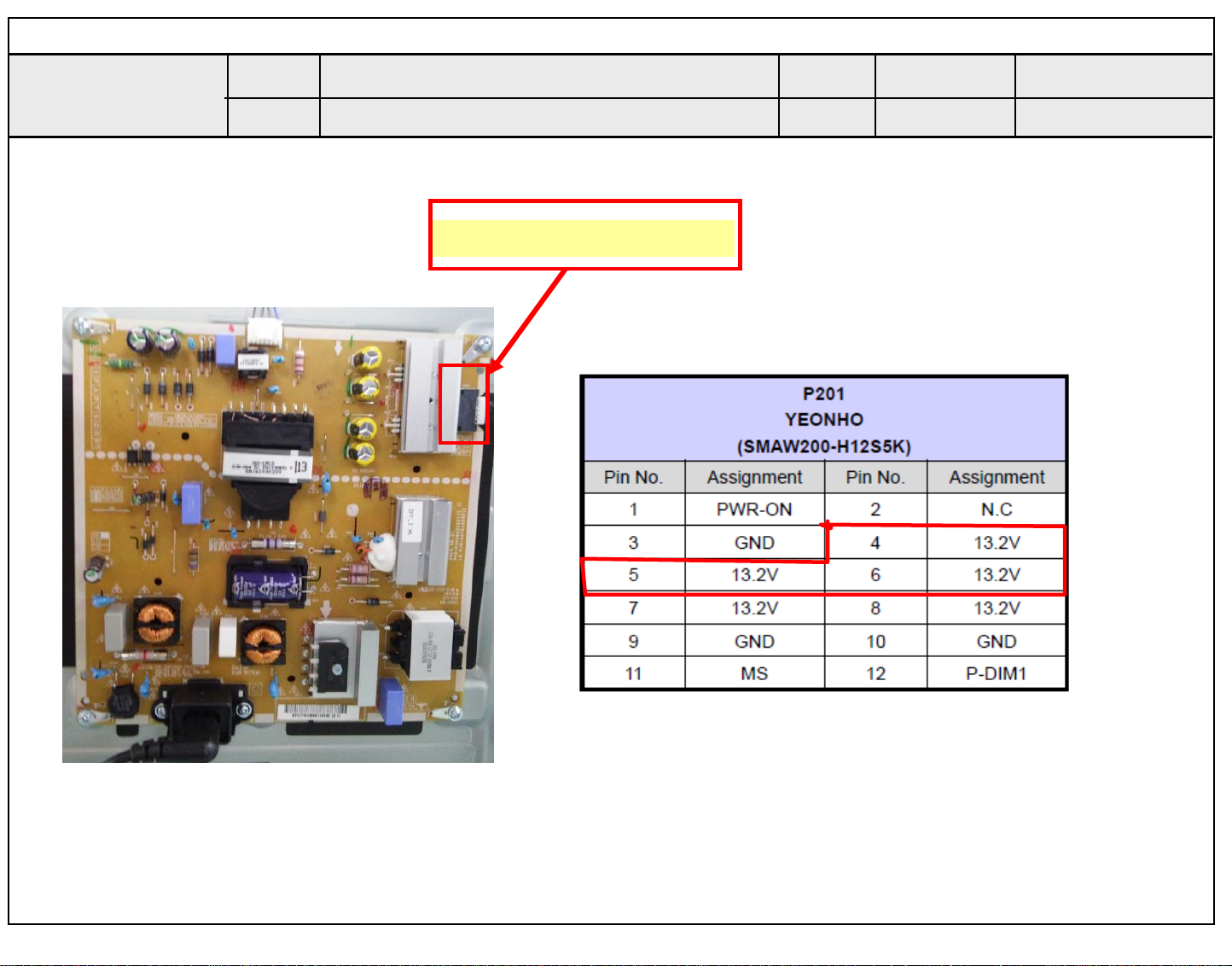

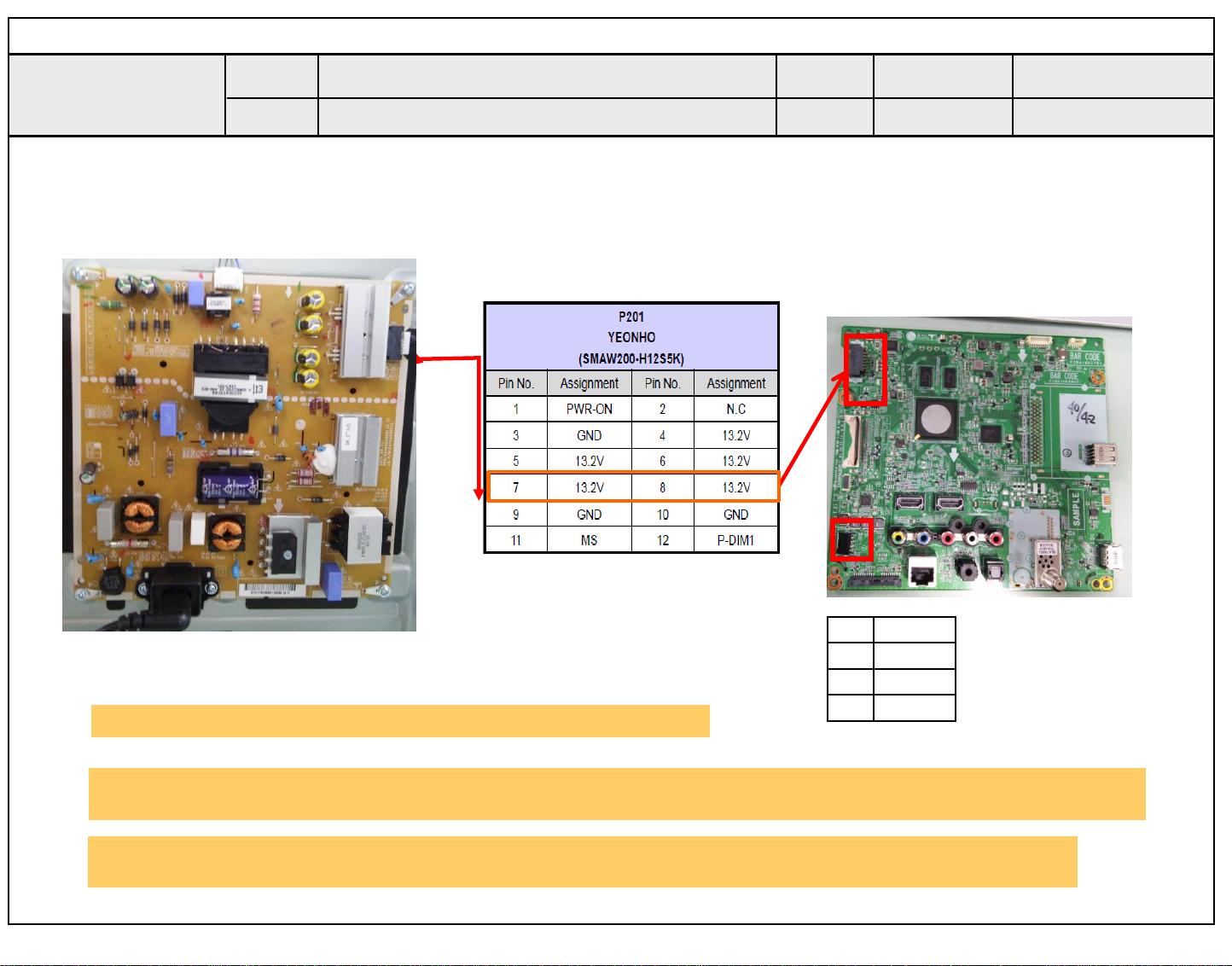

Check power input voltage and ST-BY 3.5V

Check the DC 13.2V

Established

date

Revised

date

A18

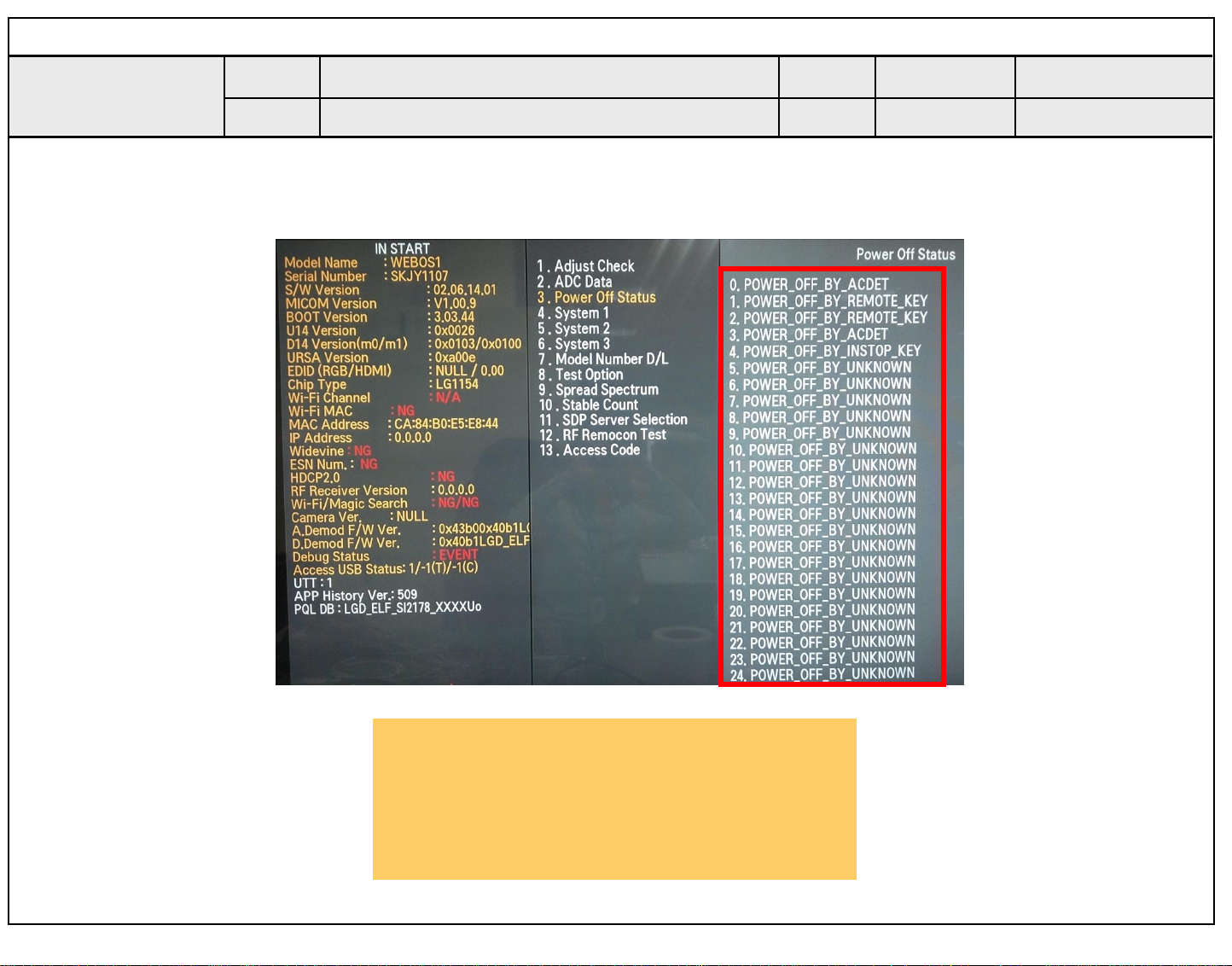

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

Error

symptom

Content

B. Power error _Off when on, off whiling viewing

POWER OFF MODE checking method

Established

date

Revised

date

A19

Entry method

1. Press the IN-START button of the Remote

control for adjustment

2. Check the entry into adjustment item 3

A19

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

Error

symptom

Content

C. Audio error_No audio/Normal video

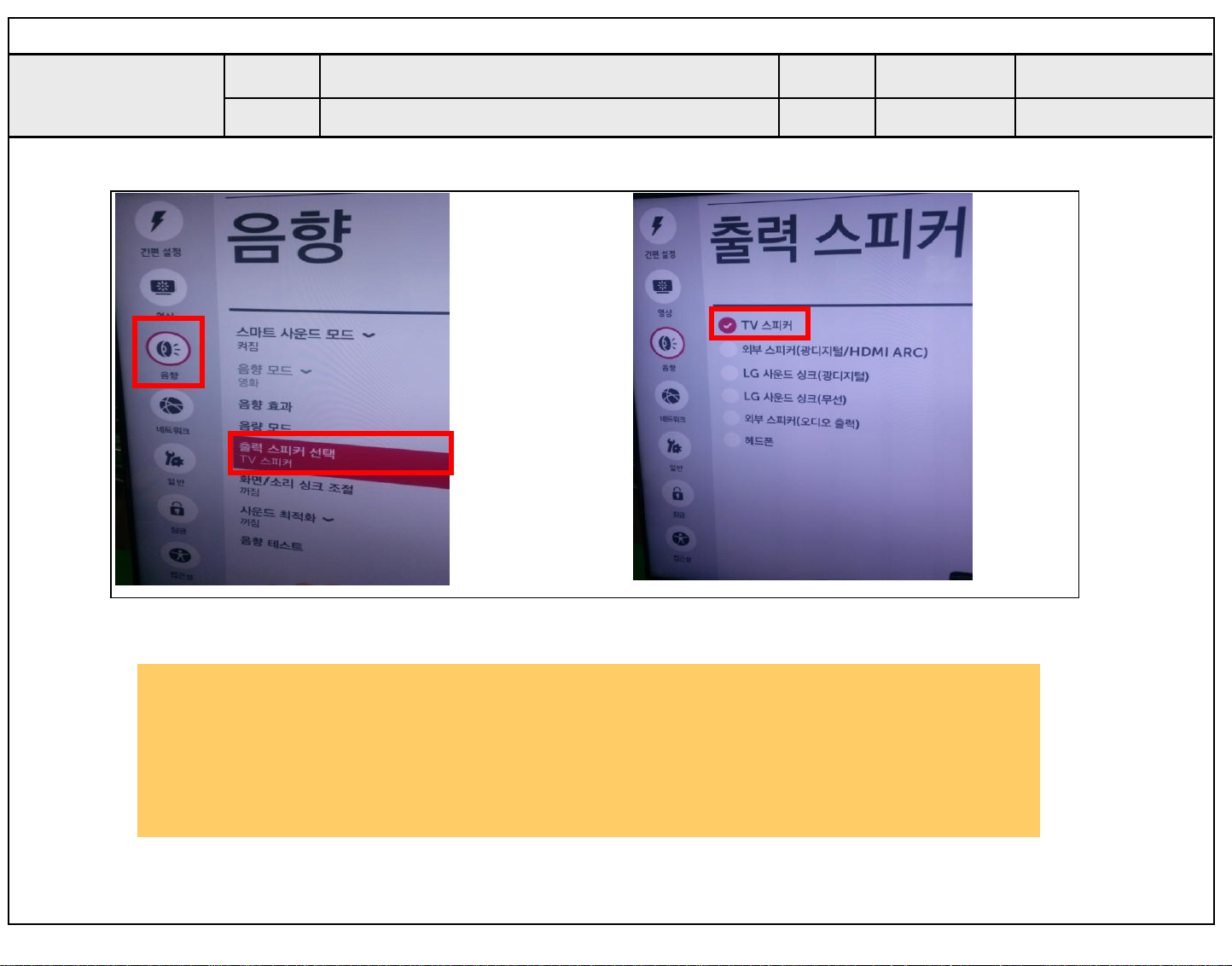

Checking method in menu when there is no audio

Established

date

Revised

date

A20

Checking method

1. Press the Setting button on the Remote control

2. Select the Sound function of the Menu

3. Select the Sound Out

4. Select TV Speaker

A20

Standard Repair Process Detail Technical Manual

1

SPK_R-

2

SPK_R+

3

SPK_L-

4

SPK_L+

LGE Internal Use Only

Error

symptom

Content

<49UH6100-UH>

C. Audio error_No audio/Normal video

Voltage and speaker checking method when there is no audio

②

Established

date

Revised

date

①

A21

Checking order when there is no audio

1.Check the contact condition of or 13V connector of Main Board

2. Measure the 13V input voltage supplied from Power Board (If there is no input voltage, remove and check the connector)

3.Connect the tester RX1 to the speaker terminal and if you hear the Chik Chik sound when you touch the

GND and output terminal, the speaker is normal.

③

A21

Standard Repair Process Detail Technical Manual

1

+3.5V_WIFI

2

WIFI_DM_JACK

3

WIFI_DP_JACK

4

GND

5

WOL/WIFI_POWER_ON_JACK

6

GND

7

M-Moudle_RESET

8

GND

12

EYE_SDA

13

EYE_SCL

14

GND

15

IR

16

LED_R_JACK

17

GND

18

+3.5V_ST

19

KEY2_JACK

20

GND

21

GND

LGE Internal Use Only

<49UH6100-UH>

① IR & Control Key front

IR & Control Key Rear

Error

symptom

Content

Remote control operation checking method

D. Function error

Established

date

Revised

date

A22

IR

Checking order to check Remote control

Checking order

1.Check IR cable condition between IR & Main board.( Check picture number① and ②)

2.Check the standby 3.5V on the terminal 18 pin (③)

3.AS checking the Pre-Amp(IR LED light) , the power is in ON condition, an Analog Tester needle should move slowly, otherwise, it’s defective.

②

③

A22

Standard Repair Process Detail Technical Manual

1

+3.5V_WIFI

2

WIFI_DM_JACK

3

WIFI_DP_JACK

4

GND

5

WOL/WIFI_POWER_ON_JACK

6

GND

7

M-Moudle_RESET

8

GND

12

EYE_SDA

13

EYE_SCL

14

GND

15

IR

16

LED_R_JACK

17

GND

18

+3.5V_ST

19

KEY2_JACK

20

GND

21

GND

LGE Internal Use Only

< 49UH6100-UH>

① Wifi Front

Wifi Rear

Error

symptom

Content

Remote controloperation checking method

D. Function error

Established

date

Revised

date

A22

Checking order to check wifi

Checking order

1.Check BT/Wifi cable condition between BT/Wifi assy & Main board.

2.Check the 3.5V on the terminal 1 (+3.5V_WIFI)

③

②

A23/A24
