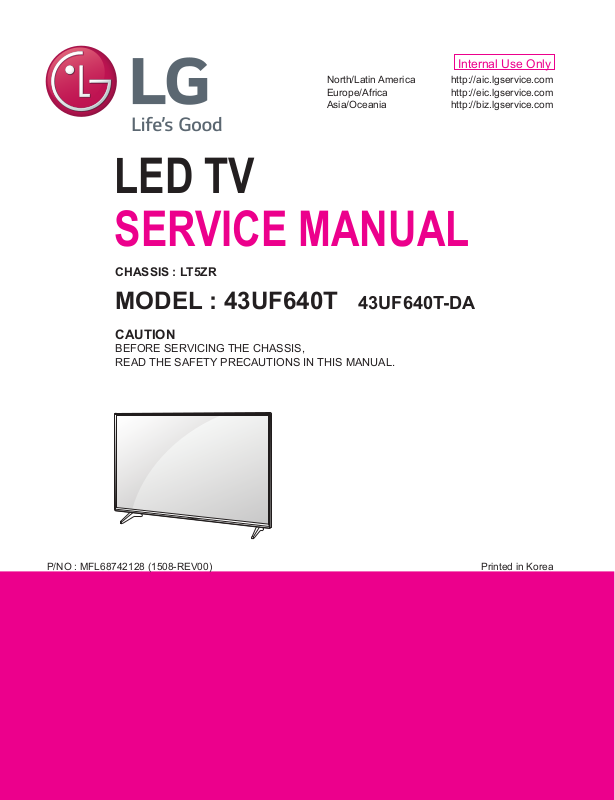

LG 43UF640T-DA Schematic

Internal Use Only

North/Latin America http://aic.lgservice.com
Europe/Africa http://eic.lgservice.com
Asia/Oceania http://biz.lgservice.com

LED TV

SERVICE MANUAL

CHASSIS : LT5ZR

MODEL : 43UF640T 43UF640T-DA

CAUTION

BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

Printed in KoreaP/NO : MFL68742128 (1508-REV00)

CONTENTS

CONTENTS .............................................................................................. 2

PRODUCT SAFETY ................................................................................. 3

SERVICING PRECAUTIONS ................................................................... 4

SPECIFICATION ....................................................................................... 6

ADJUSTMENT INSTRUCTION .............................................................. 14

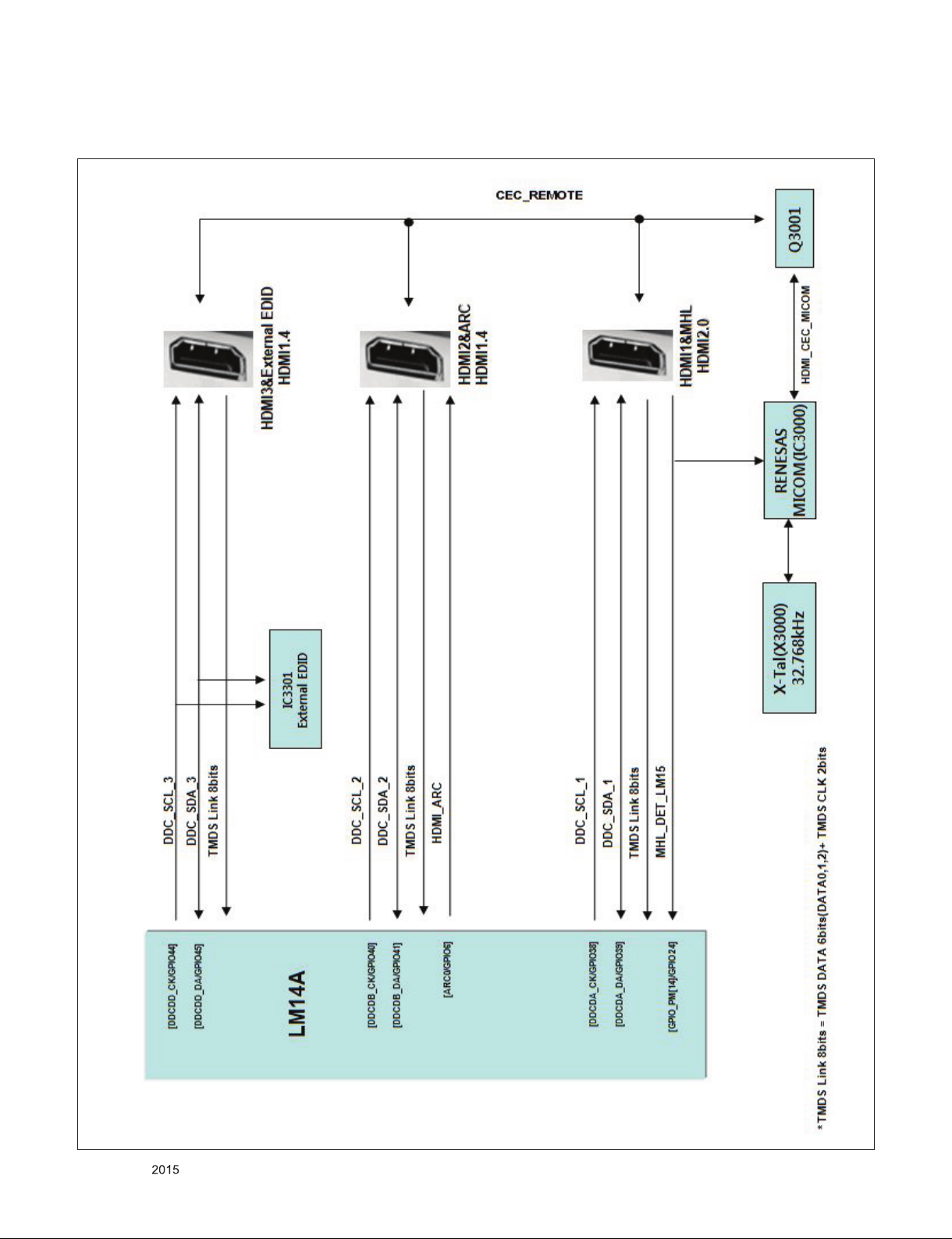

BLOCK DIAGRAM ................................................................................. 24

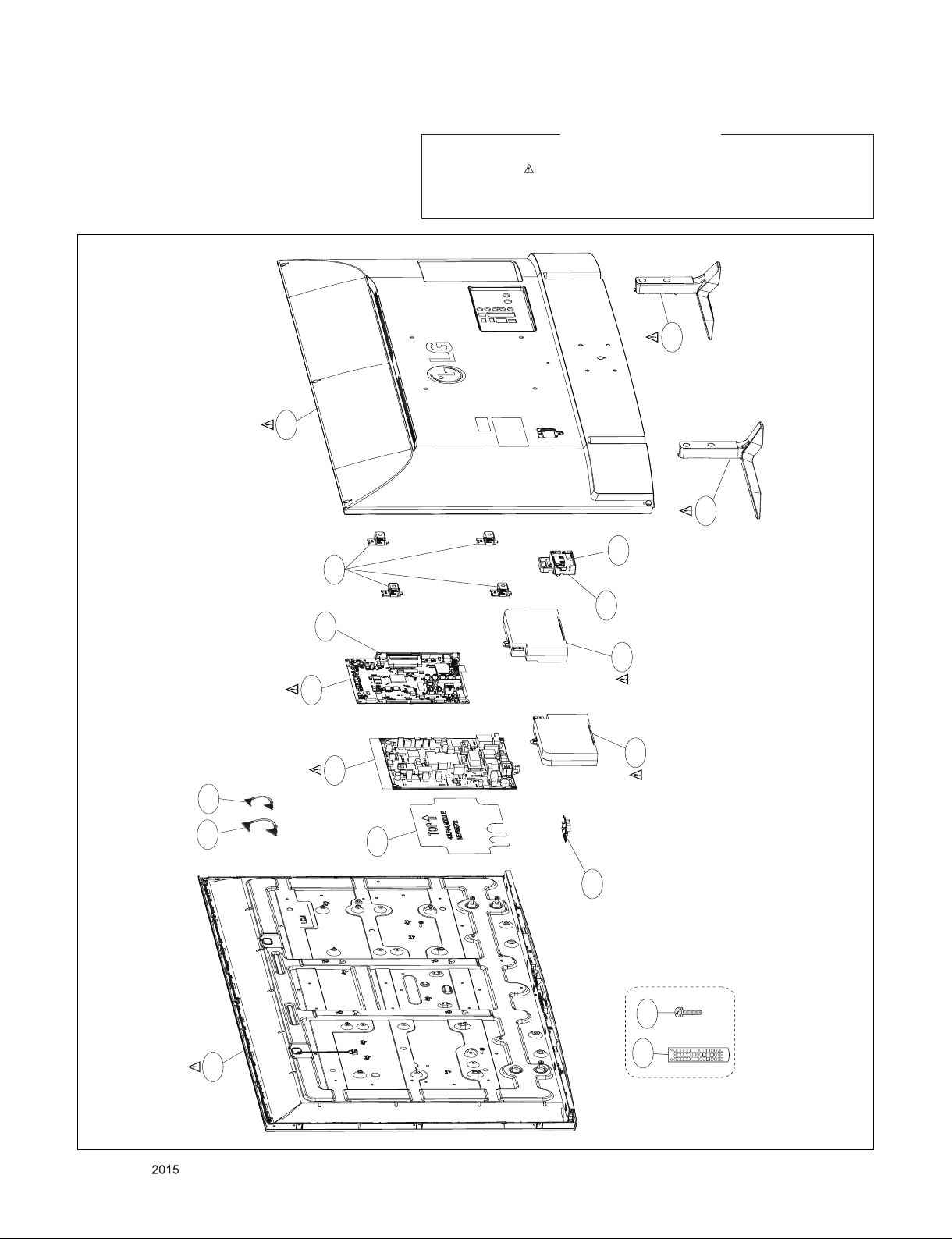

EXPLODED VIEW .................................................................................. 33

SCHEMATIC CIRCUIT DIAGRAM ........................................... APPENDIX

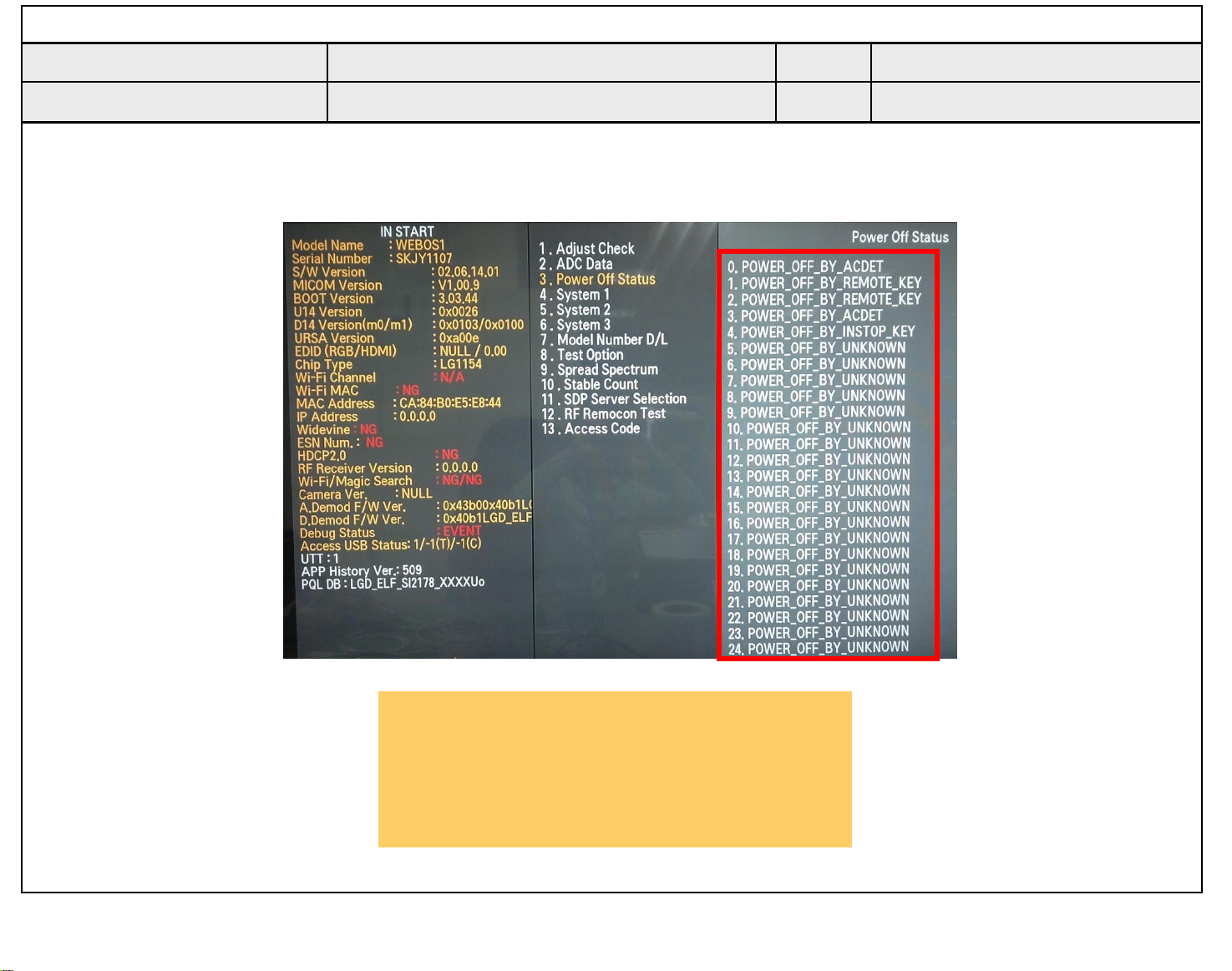

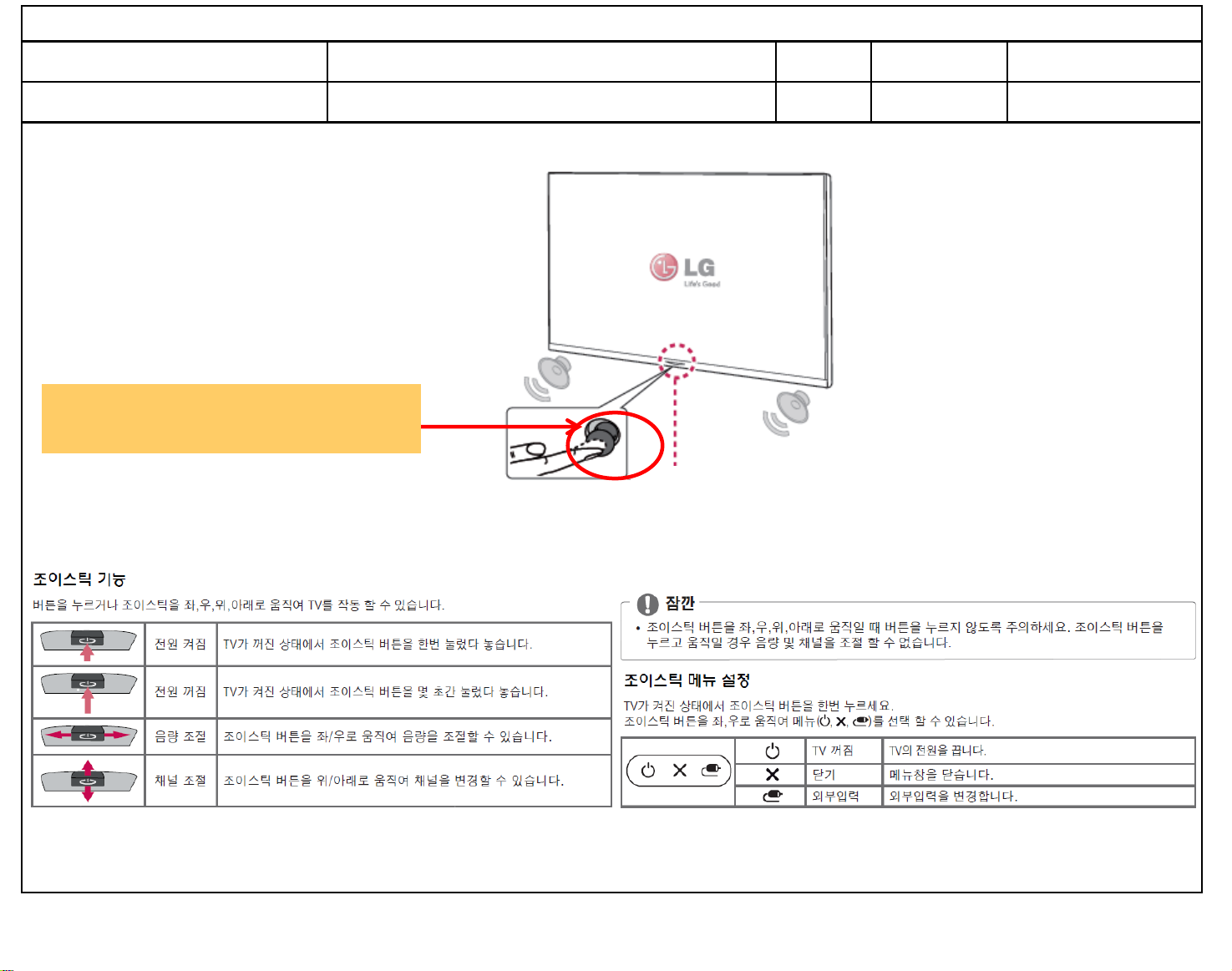

TROUBLESHOOTING GUIDE .................................................. APPENDIX

Only for training and service purposes

- 2 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

SAFETY PRECAUTIONS

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.

It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1 W), keep the resistor 10 mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩ and 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.
Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to

0.5 mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.

Leakage Current Hot Check circuit

Only for training and service purposes

- 3 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

SERVICING PRECAUTIONS

CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conict between the

following servicing precautions and any of the safety precautions
on page 3 of this publication, always follow the safety precautions.
Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power
source before;

a. Removing or reinstalling any component, circuit board mod-

ule or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug or

other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an explo­sion hazard.

2. Test high voltage only by measuring it with an appropriate
high voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its
assemblies.

4. Unless specied otherwise in this service manual, clean

electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10 % (by volume) Acetone and 90 %
(by volume) isopropyl alcohol (90 % - 99 % strength)

CAUTION: This is a ammable mixture.
Unless specied otherwise in this service manual, lubrication of

contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks are
correctly installed.

7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.

8. Use with this receiver only the test xtures specied in this

service manual.

CAUTION: Do not connect the test xture ground strap to any

heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged eas­ily by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES

devices are integrated circuits and some eld-effect transistors

and semiconductor “chip” components. The following techniques
should be used to help reduce the incidence of component dam­age caused by static by static electricity.

1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground. Alter­natively, obtain and wear a commercially available discharging
wrist strap device, which should be removed to prevent poten­tial shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or expo­sure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES
devices.

4. Use only an anti-static type solder removal device. Some solder

removal devices not classied as “anti-static” can generate
electrical charges sufcient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate

electrical charges sufcient to damage ES devices.

6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads electri­cally shorted together by conductive foam, aluminum foil or
comparable conductive material).

7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be
installed.
CAUTION: Be sure no power is applied to the chassis or circuit,
and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replace­ment ES devices. (Otherwise harmless motion such as the
brushing together of your clothes fabric or the lifting of your

foot from a carpeted oor can generate static electricity suf­cient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate
tip size and shape that will maintain tip temperature within the
range or 500 °F to 600 °F.

2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wire­bristle (0.5 inch, or 1.25 cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique

a. Allow the soldering iron tip to reach normal temperature.

(500 °F to 600 °F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature

(500 °F to 600 °F)

b. First, hold the soldering iron tip and solder the strand against

the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there
only until the solder ows onto and around both the compo­nent lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

Only for training and service purposes

- 4 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent at against the cir­cuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by
gently prying up on the lead with the soldering iron tip as the
solder melts.

2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing
the IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and
solder it.

3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor
Removal/Replacement

1. Remove the defective transistor by clipping its leads as close
as possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining
on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.

Power Output, Transistor Device
Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit
board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as pos­sible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit
board.

3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and if
necessary, apply additional solder.

3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed whenever
this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC connec­tions).

1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the
good copper pattern. Solder the overlapped area and clip off
any excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.

1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly con­nected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the lead
of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.

Fuse and Conventional Resistor
Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.

2. Securely crimp the leads of replacement component around
notch at stake top.

Only for training and service purposes

- 5 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

1. Application range

This spec sheet is applied to the LED TV used LT5ZR chassis

2. Test condition

Each part is tested as below without special notice.

(1) Temperature : 25 ºC ± 5 ºC(77±9ºF), CST : 40 ºC±5 ºC
(2) Relative Humidity: 65 % ± 10 %
(3) Power Voltage

Standard input voltage (100~240V@ 50/60Hz)
* Standard Voltage of each products is marked by models.

(4) Specification and performance of each parts are followed

each drawing and specification by part number in
accordance with BOM.

(5) The receiver must be operated for about 20 minutes prior

to the adjustment.

3. Test method

(1) Performance: LGE TV test method followed
(2) Demanded other specification

- Safety : CE, IEC specification

- EMC: CE, IEC

.

4. Model Specification

No Item Specication Remark

1 Market Colmbia/Panama/Taiwan

2 Broadcasting system Digital : DVB-T Colombia : DVB-T/T2

Analog : NTSC-M/PAL-M/PAL-N Colombia/Panama

Analog : NTSC-M Taiwan

3 Available Channel BAND NTSC

VHF
UHF
DTV

CATV

4 Receiving system Digital : COFDM (DVB-T)/DVB-T2(Colombia)

Analog : Upper Heterodyne

5 Input Voltage Taiwan : AC110V~60Hz

Except Taiwan : AC 100 ~ 240V 50/60Hz

2 ~ 13

14 ~ 69

2 ~ 69

1 ~ 135

► DBV-T

- Guard Interval(Bitrate_Mbit/s)
1/4, 1/8, 1/16, 1/32

- Modulation : Code Rate
QPSK/16-QAM/64-QAM

- Code Rate
1/2, 2/3, 3/4, 5/6, 7/8

► DBV-T2

- Guard Interval(Bitrate_Mbit/s)
1/4, 19/256, 1/8, 1/16, 1/32, 1/128

- Modulation
QPSK, 16-QAM, 64-QAM, 256QAM

- Code Rate
1/2, 3/5, 2/3, 3/4, 4/5, 5/6

Only for training and service purposes

- 6 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5. External input format

5.1. CVBS input

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed Remarks

1. 720*480i 15.73 59.94 13.50 SDTV, DVD 480I(525I) NTSC-M

2. 720*480i 15.73 60.00 13.51 SDTV, DVD 480I(525I) NTSC-M

3. 720*576i 15.63 50.00 13.50 SDTV, DVD 576I(625I) 50Hz PAL-BDGHI

5.2. Component input(Y, CB/PB, CR/PR)

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed

1. 720*480i 15.73 59.94 13.50 SDTV, DVD 480I(525I)

2. 720*480i 15.73 60.00 13.51 SDTV, DVD 480I(525I)

3. 720*576i 15.63 50.00 13.50 SDTV, DVD 576I(625I) 50Hz

4. 720*480p 31.47 59.94 27.00 SDTV 480P

5. 720*480p 31.50 60.00 27.03 SDTV 480P

6. 720*576p 31.25 50.00 27.00 SDTV 576P 50Hz

7. 1280*720 44.96 59.94 74.18 HDTV 720P

8. 1280*720 45.00 60.00 74.25 HDTV 720P

9. 1280*720 45.00 50.00 74.25 HDTV 720P 50Hz

10. 1920*1080 28.13 50.00 74.25 HDTV 1080I 50Hz,

11. 1920*1080 33.72 59.94 74.18 HDTV 1080I

12. 1920*1080 33.75 60.00 74.25 HDTV 1080I

13. 1920*1080 56.25 50.00 148.50 HDTV 1080P

14. 1920*1080 67.50 60.00 148.50 HDTV 1080P

Only for training and service purposes

- 7 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5.3. HDMI Input (DTV)

No Resolution H-freq(kHz) V-freq.(Hz)

1 640*480 31.46 59.94 25.13 SDTV 480P

2 640*480 31.50 60.00 25.13 SDTV 480P

3 720*480 15.73 59.94 13.50 SDTV, DVD 480I(525I) Spec. out but display

4 720*480 15.75 60.00 13.51 SDTV, DVD 480I(525I)

5 720*576 15.62 50.00 13.50 SDTV, DVD 576I(625I) 50Hz

6 720*480 31.47 59.94 27.00 SDTV 480P

7 720*480 31.50 60.00 27.03 SDTV 480P

8 720*576 31.25 50.00 27.00 SDTV 576P

9 1280*720 44.96 59.94 74.18 HDTV 720P

10 1280*720 45.00 60.00 74.25 HDTV 720P

11 1280*720 37.50 50.00 74.25 HDTV 720P

12 1920*1080 28.12 50.00 74.25 HDTV 1080I

13 1920*1080 33.72 59.94 74.18 HDTV 1080I

14 1920*1080 33.75 60.00 74.25 HDTV 1080I

15 1920*1080 26.97 23.97 63.30 HDTV 1080P

16 1920*1080 27.00 24.00 63.36 HDTV 1080P

17 1920*1080 33.71 29.97 79.12 HDTV 1080P

18 1920*1080 33.75 30.00 79.20 HDTV 1080P

19 1920*1080 56.25 50.00 148.50 HDTV 1080P

20 1920*1080 67.43 59.94 148.35 HDTV 1080P

21 1920*1080 67.50 60.00 148.50 HDTV 1080P

22 3840*2160 53.95 23.98 297.00 UDTV 2160P UHD only

23 3840*2160 54.00 24.00 297.00 UDTV 2160P UHD only

24 3840*2160 56.25 25.00 297.00 UDTV 2160P UHD only

25 3840*2160 61.43 29.97 297.00 UDTV 2160P UHD only

26 3840*2160 67.50 30.00 297.00 UDTV 2160P UHD only

27 3840*2160 112.50 50.00 594.00 UDTV 2160P(DVB) UHDonly(Port1,2)-LM15U Only

28 3840*2160 135.00 59.94 593.41 UDTV 2160P UHDonly(Port1,2)-LM15U Only

29 3840*2160 135.00 60.00 594.00 UDTV 2160P UHDonly(Port1,2)-LM15U Only

30 4096*2160 53.95 23.98 297.00 UDTV 2160P UHD only

31 4096*2160 54.00 24.00 297.00 UDTV 2160P UHD only

32 4096*2160 56.25 25.00 297.00 UDTV 2160P UHD only

33 4096*2160 61.43 29.97 297.00 UDTV 2160P UHD only

34 4096*2160 67.50 30.00 297.00 UDTV 2160P UHD only

35 4096*2160 112.50 50.00 594.00 UDTV 2160P(DVB) UHDonly(Port1,2)-LM15U Only

36 4096*2160 135.00 59.94 593.41 UDTV 2160P UHDonly(Port1,2)-LM15U Only

37 4096*2160 135.00 60.00 594.00 UDTV 2160P UHDonly(Port1,2)-LM15U Only

Pixel

clock(MHz)

Proposed Remark

Only for training and service purposes

- 8 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5.4. HDMI Input (PC)

No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed Remarks

1 640*350 31.46 70.09 25.17 EGA

2 720*400 31.46 70.08 28.32 DOS

3 640*480 31.46 59.94 25.17 VESA(VGA)

4 800*600 37.87 60.31 40.00 VESA(SVGA)

5 1024*768 48.36 60.00 65.00 VESA(XGA)

6 1152*864 54.34 60.05 80.00 VESA

7 1280*1024 63.98 60.02 109.00 VESA(SXGA) FHD only

8 1360*768 47.71 60.01 85.00 VESA(WXGA)

9 1920*1080 67.50 60.00 158.40 WUXGA(CEA 861D) FHD only

10 3840*2160 67.50 30.00 297.00 UDTV 2160P UHD only

11 3840*2160 56.25 25.00 297.00 UDTV 2160P UHD only

12 3840*2160 54.00 24.00 297.00 UDTV 2160P UHD only

13 4096*2160 53.95 23.97 296.703 UDTV 2160P UHD only

14 4096*2160 54.00 24.00 297.00 UDTV 2160P UHD only

Only for training and service purposes

- 9 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

6. 3D mode(3D MODEL Only)

6.1. RF Input

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode

1 1280*720 37.50 50 74.25 HDTV 720P 2D to 3D, Side by Side, Top & Bottom

2 1920*1080 28.13 50 74.25 HDTV 1080I 2D to 3D, Side by Side, Top & Bottom

6.2. HDMI Input (3D supported mode automatically)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock

(MHz)

1 640*480 31.46 / 31.50 59.94/ 60.00 25.13/25.20 1 Top-and-Bottom

31.46 / 31.50 59.94/ 60.00 50.35/50.40 1 Side-by-side(Full) (SDTV 480P)

62.93 / 63.00 59.94/ 60.00 50.35/50.40 1 Frame packing

2 720*480 31.46 / 31.50 59.94 / 60.00 27.00/27.03 2,3 Top-and-Bottom

31.46 / 31.50 59.94 / 60.00 27.00/27.03 2,3 Side-by-side(Full) (SDTV 480P)

62.93 /63.00 59.94 / 60.00 54.00/54.06 2,3 Frame packing

3 720*576 15.62 50.00 27.00 21 Top-and-Bottom

4 720*576 31.25 50.00 27.00 17,18 Top-and-Bottom

62.50 50.00 54.00 17,18 Frame packing

5 1280*720 37.50 50.00 74.25 19 Top-and-Bottom

37.50 50.00 148.50 19 Side-by-side(Full) (HDTV 720P)

44.96 / 45.00 59.94 / 60.00 74.17/74.25 4 Top-and-Bottom

44.96 / 45.00 59.94 / 60.00 148.35/148.50 4 Side-by-side(Full) (HDTV 720P)

75.00 50.00 148.50 19 Frame packing

89.91/90.00 59.94 / 60.00 148.35/148.50 4 Frame packing

6 1920*1080 28.12 50.00 74.25 20 Top-and-Bottom

28.12 50.00 148.50 20 Side-by-side(Full) (HDTV 1080I)

33.72 / 33.75 59.94 / 60.00 74.17/74.25 5 Top-and-Bottom

33.72 / 33.75 59.94 / 60.00 148.35/148.50 5 Side-by-side(Full) (HDTV 1080I)

56.25 50.00 148.50 20 Frame packing

67.43/67.50 59.94 / 60.00 148.35/148.50 5 Frame packing

VIC 3D input proposed

mode

Side-by-side(half)

Line alternative

Side-by-side(half)

Line alternative

Side-by-side(half)
Side-by-side(Full)
Frame packing
Field alternative

Side-by-side(half)
Side-by-side(Full)

Line alternative

Side-by-side(half)

Side-by-side(half)

Line alternative

Line alternative

Side-by-side(half)

Side-by-side(half)

Field alternative

Field alternative

Proposed

Secondary(SDTV 480P)
Secondary(SDTV 480P)

Secondary(SDTV 480P)
(SDTV 480P)

Secondary(SDTV 480P)
Secondary(SDTV 480P)

Secondary(SDTV 480P)
(SDTV 480P)

(SDTV 576I)
Secondary(SDTV 576I)
(SDTV 576I)
Secondary(SDTV 576I)
Secondary(SDTV 576I)

Secondary(SDTV 576P)
Secondary(SDTV 576P)
(SDTV 576P)

Secondary(SDTV 576P)
(SDTV 576P)

Primary(HDTV 720P)
Primary(HDTV 720P)

Primary(HDTV 720P)
Primary(HDTV 720P)

Primary(HDTV 720P)
(HDTV 720P)

Primary(HDTV 720P)
(HDTV 720P)

Secondary(HDTV 1080I)
Primary(HDTV 1080I)

Secondary(HDTV 1080I)
Primary(HDTV 1080I)

Primary(HDTV 1080I)
(HDTV 1080I)

Primary(HDTV 1080I)
(HDTV 1080I)

Only for training and service purposes

- 10 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock

(MHz)

7 1920*1080 26.97 / 27.00 23.97 / 24.00 74.17 / 74.25 32 Top-and-Bottom

26.97 / 27.00 23.97 / 24.00 148.35 /

148.50

28.12 25.00 74.25 33 Top-and-Bottom

28.12 25.00 148.50 33 Side-by-side(Full) (HDTV 1080P)

33.72 / 33.75 29.98 / 30.00 74.18/74.25 34 Top-and-Bottom

33.72 / 33.75 29.98 / 30.00 148.35/148.50 34 Side-by-side(Full) (HDTV 1080P)

43.94/54.00 23.97 / 24.00 148.35/148.50 32 Frame packing

56.25 25.00 148.50 33 Frame packing

67.43 / 67.5 29.98 / 30.00 148.35/148.50 34 Frame packing

56.25 50.00 148.50 31 Top-and-Bottom

67.43 / 67.50 59.94 / 60.00 148.35/148.50 16 Top-and-Bottom

VIC 3D input proposed

Side-by-side(half)

32 Side-by-side(Full) (HDTV 1080P)

Side-by-side(half)

Side-by-side(half)

Line alternative

Line alternative

Line alternative

Side-by-side(half)

Side-by-side(half)

6.3. Component Input ( 3D) (3D supported mode manually)

mode

Proposed

Primary(HDTV 1080P)
Primary(HDTV 1080P)

Secondary(HDTV 1080P)
Secondary(HDTV 1080P)

Primary(HDTV 1080P)
Secondary(HDTV 1080P)

Primary(HDTV 1080P)
(HDTV 1080P)

Secondary(HDTV 1080P)
(HDTV 1080P)

Primary(HDTV 1080P)
(HDTV 1080P)

Primary(HDTV 1080P)
Secondary(HDTV 1080P)

Primary(HDTV 1080P)
Secondary(HDTV 1080P)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode Proposed

1 1280*720 37.50 50.00 74.25 2D to 3D,

HDTV 720P

Side by Side(half), Top & Bottom

2 1280*720 45.00 60.00 74.25 2D to 3D,

HDTV 720P

Side by Side(half), Top & Bottom

3 1280*720 44.96 59.94 74.18 2D to 3D,

HDTV 720P

Side by Side(half), Top & Bottom

4 1920*1080 33.75 60.00 74.25 2D to 3D,

HDTV 1080I

Side by Side(half), Top & Bottom

5 1920*1080 33.72 59.94 74.18 2D to 3D,

HDTV 1080I

Side by Side(half), Top & Bottom

6 1920*1080 28.12 50.00 74.25 2D to 3D,

HDTV 1080I

Side by Side(half), Top & Bottom

7 1920*1080 67.50 60.00 148.50 2D to 3D,

HDTV 1080P

Side by Side(half), Top & Bottom

8 1920*1080 67.43 59.94 148.35 2D to 3D,

HDTV 1080P

Side by Side(half), Top & Bottom

9 1920*1080 27.00 24.00 74.25 2D to 3D,

HDTV 1080P

Side by Side(half), Top & Bottom

10 1920*1080 28.12 25.00 74.25 2D to 3D,

HDTV 1080P

Side by Side(half), Top & Bottom

11 1920*1080 56.25 50.00 74.25 2D to 3D,

HDTV 1080P

Side by Side(half), Top & Bottom

12 1920*1080 26.97 23.98 74.18 2D to 3D,

HDTV 1080P

Side by Side(half), Top & Bottom

13 1920*1080 33.75 30.00 74.25 2D to 3D,

HDTV 1080P

Side by Side(half), Top & Bottom

14 1920*1080 33.71 29.97 74.18 2D to 3D,

HDTV 1080P

Side by Side(half), Top & Bottom

Only for training and service purposes

- 11 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

6.4. HDMI-PC Input (3D) (3D supported mode manually)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel

1 1024*768 48.36 60.00 65.00 HDTV 768P 2D to 3D,

2 1360*768 47.71 60.00 HDTV 768P

3 1920*1080 67.50 60.00 148.50 HDTV 1080P 2D to 3D,

4 3840*2160

(Ultea HD model only)

5 4096*2160

(Ultea HD model only)

6 Others - - - 640*350

54.00 24.00 296.70 HDTV 2160P 2D to 3D,

56.25 25.00 297.00

67.50 30.00 296.70

54 24.00 297.00 HDTV 2160P

clock(MHz)

Proposed Proposed

Side by Side(half),

Top & Bottom

Side by Side(half),

Top & Bottom,

Checker Board,

Frame Sequential,

Row Interleaving,

Column Interleaving

Top & Bottom(half)

Side by Side(half)

720*400
640*480
800*600
1152*864

Side by Side(half),

Top & Bottom

2D to 3D,

6.5. HDMI-DTV (3D supported mode manually)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode

1 720*480 31.50 60.00 27.03 SDTV 480P 2D to 3D, Side by Side(Half), Top & Bottom,

2 720*576 31.25 50.00 27.00 SDTV 576P

3 1280*720 45.00 60.00 74.25 HDTV 720P

37.50 50.00 74.25 HDTV 720P

4 1920*1080 33.75 60.00 74.25 HDTV 1080I 2D to 3D, Side by Side(Half), Top & Bottom

28.13 50.00 74.25 HDTV 1080I

5 1920*1080 27.00 24.00 74.25 HDTV 1080P 2D to 3D, Side by Side(Half), Top & Bottom,

28.12 25.00 74.25 HDTV 1080P

33.75 30.00 74.25 HDTV 1080P

67.50 60.00 148.50 HDTV 1080P 2D to 3D, Side by Side(Half), Top & Bottom,

56.25 50.00 148.50 HDTV 1080P

6 3840*2160

4096*2160

53.95 23.98 297.00 HDTV 2160P 2D to 3D,

54.00 24.00 296.70

56.25 25.00 297.00

61.43 29.97 297.00

67.50 30.00 296.70

112.50 50.00 594.00 HDTV 2160P 2D to 3D,

135.00 60.00 594.00

Checker Board, Frame Sequential,
Row Interleaving, Column Interleaving

Checker Board, Row Interleaving,
Column Interleaving

Checker Board, Single Frame Sequential,
Row Interleaving, Column Interleaving

Top & Bottom(half), Side by Side(half),

Top & Bottom(half), Side by Side(half)
(8 bit, YCbCr 4:2:0)

Only for training and service purposes

- 12 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

6.6. USB – Movie (3D) (3D supported mode manually)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode

1 Under 704x480 - - - 2D to 3D

2 Over 704x480

Under 1080P

interlaced

3 Over 704x480

Under 1080P

progressive

4 - others - 2D to 3D, Side by Side(Half), Top & Bottom,

5 Over 2160P - 24/25/30 - 2D to 3D, Side by Side(Half), Top & Bottom

- - - 2D to 3D, Side by Side(Half), Top & Bottom

- 50 / 60 - 2D to 3D, Side by Side(Half), Top & Bottom,
Checker Board, Row Interleaving, Column Interleaving,
Frame Sequential

Checker Board, Row Interleaving, Column Interleaving

6.7. Miracast Intel WIDI (3D supported mode manually)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode

1 1024*768p - 30/60 - 2D to 3D, Side by Side(Half), Top & Bottom

2 1280*720p - 30/60 -

3 1920*1080p - 30/60 -

4 Others - - - 2D to 3D

6.8. USB, DLNA (3D) (3D supported mode automatically)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode

1 1080p 33.75 30.00 74.25 Side by Side(Half), Top & Bottom, Checker Board,

2 2160p 67.50 30.00 297.00

MPO(Photo), JPS(Photo)

**Remark: 3D Input mode

No. Side by Side Top & Bottom Checker-

board

1

Single Frame

Sequential

Frame Pack-

ing

Line

Interleaving

Column

Interleaving

2D to 3D

Only for training and service purposes

- 13 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

ADJUSTMENT INSTRUCTION

1. Application Range

This spec. sheet applies to LT5ZR Chassis applied TV all
models manufactured in TV factory

2. Specification.

(1) Because this is not a hot chassis, it is not necessary to use

an isolation transformer. However, the use of isolation

transformer will help protect test instrument
(2) Adjustment must be done in the correct order.
(3) The adjustment must be performed in the circumstance of

25 ±5ºC of temperature and 65±10% of relative humidity if

there is no specific designation
(4) The input voltage of the receiver must keep 100~240V,

50/60Hz
(5) The receiver must be operated for about 5 minutes prior to

the adjustment when module is in the circumstance of over

15ºC

▪ In case of keeping module is in the circumstance of 0°C, it

should be placed in the circumstance of above 15°C for 2
hours

▪ In case of keeping module is in the circumstance of below

-20°C, it should be placed in the circumstance of above 15°C
for 3 hours

* (Caution) When still image is displayed for a period of 20

minutes or longer (especially where W/B scale is
strong. Digital pattern 13ch and/or Cross hatch
pattern 09ch), there can some afterimage in the
black level area.

4. Automatic Adjustment

4.1. ADC Adjustment

(1) Enter the ADC Calibration in ADJ Menu
(2) Check the ‘Internal’ at ADC Type and push Start button.

(3) Check ‘ OK ‘

4.1.1. Equipment & Condition

(1) USB to RS-232C Jig
(2) MSPG-925 Series Pattern Generator(MSPG-925FA,

pattern -65)

- Resolution : 480i Comp1
1080P Comp1

- Pattern : Horizontal 100% Color Bar Pattern

- Pattern level : 0.7±0.1 Vp-p

- Image

3. Adjustment items

3.1. Main PCB check process

▪ MAC Address Download
▪ ADC adjustment : 480i Comp1, 1920*1080 Comp1
▪ EDID/DDC download

Above adjustment items can be also performed in Final
Assembly if needed. Both Board-level and Final assembly
adjustment items can be check using In-Start Menu 1.ADJUST
CHECK.

3.2. Final assembly adjustment

▪ White Balance adjustment
▪ RS-232C functionality check
▪ PING Test
▪ Factory Option setting per destination
▪ Ship-out mode setting (In-Stop)

3.3. Etc.

▪ Ship-out mode
▪ Service Option Default
▪ USB Download(S/W Update, Option, Service only)
▪ ISP Download (Option)

4.1.2. Adjustment method

Protocol Command Set ACK

Enter adj. mode aa 00 00 a 00 OK00x

Source change xb 00 04

xb 00 06

Begin adj. ad 00 10

Return adj. result OKx (Case of Success)

Read adj. data (main)

ad 00 20

(sub )
ad 00 21

Conrm adj. ad 00 99 NG 03 00x (Fail)

End adj. ad 00 90 a 00 OK90x

(Ref.) ADC Adj. RS232C Protocol_Ver1.0

Adj. order

▪ aa 00 00 [Enter ADC adj. mode]
▪ xb 00 04 [Change input source to Component1(480i&1080p)]
▪ ad 00 10 [Adjust 480i&1080p Comp1]
▪ xb 00 06 [Change input source to RGB(1024*768)]
▪ ad 00 10 [Adjust 1920*1080 RGB]
▪ aa 00 90 End adj.

b 00 OK04x (Adjust 480i, 1080p Comp1 )
b 00 OK06x (Adjust 1920*1080 RGB)

NGx (Case of Fail)

(main)
000000000000000000000000007c007b­006dx

(Sub)
000000070000000000000000007c0083
0077x

NG 03 01x (Fail)
NG 03 02x (Fail)
OK 03 03x (Success)

Only for training and service purposes

- 14 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

4.2. MAC address, ESN, Widevine, HDCP2.0
key D/L

4.2.1. Equipment & Condition

(1) Play file: keydownload.exe

4.2.2. Communication Port connection

(1) Key Write: Com 1,2,3,4 and 115200 (Baudrate)
(2) Barcode: Com 1,2,3,4 and 9600 (Baudrate)

4.2.3. Download process

(1) Select the download items.
(2) Mode check: Online Only
(3) Check the test process : DETECT -> MAC -> Widevine
(4) Play: START
(5) Check of result: Ready, Test, OK or NG

4.2.4. Communication Port connection

(1) Connect: PCBA Jig -> RS-232C Port == PC -> RS-232C

Port

4.3. LAN Inspection

4.3.1. Equipment & Condition

▪ Each other connection to LAN Port of IP Hub and Jig

4.3.2. LAN inspection solution

▪ LAN Port connection with PCB
▪ Network setting at MENU Mode of TV
▪ Setting automatic IP
▪ Setting state confirmation

- If automatic setting is finished, you confirm IP and MAC
Address.

4.2.5. Download

(1) TW/CO Models (15Y LCD TV + MAC + Widevine + ESN +

HDCP2.0)

4.3.3. LAN PORT INSPECTION (PING TEST)

(1) Play the LAN Port Test PROGRAM.
(2) Input IP set up for an inspection to Test

Program.
* IP Number : 12.12.2.2.

4.3.4. LAN PORT inspection (PING TEST)

(1) Play the LAN Port Test Program.
(2) connect each other LAN Port Jack.
(3) Play Test (F9) button and confirm OK Message.
(4) remove LAN CABLE

Only for training and service purposes

- 15 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

4.4. Model name & Serial number Download

4.4.1. Model name & Serial number D/L

▪ Press “Power on” key of service remocon.(Baud rate :

115200 bps)

▪ Connect RS-232C Signal to USB Cable to USB.
▪ Write Serial number by use USB port.
▪ Must check the serial number at Instart menu.

■ Method & Notice

A. Serial number D/L is using of scan equipment.
B. Setting of scan equipment operated by Manufacturing

Technology Group.

C. Serial number D/L must be conformed when it is produced

in production line, because serial number D/L is mandatory
by D-book 4.0

* Manual Download (Model Name and Serial Number)

If the TV set is downloaded By OTA or Service man,
sometimes model name or serial number is initialized. ( not
always)
It is impossible to download by bar code scan, so It need
Manual download.

a. Press the ‘INSTART’ key of ADJ remote control.
b. Go to the menu ‘7. Model Number D/L’ like below photo.
c. Input the Factory model name or Serial number like below

photo.

5. Manual Adjustment

5.1. ADC adjustment is not needed because of
OTP (Auto ADC adjustment)

5.2. EDID

(The Extended Display Identification Data)
/ DDC (Display Data Channel) download

5.2.1. Overview

It is a VESA regulation. A PC or a MNT will display an optimal
resolution through information sharing without any necessity of
user input. It is a realization of “Plug and Play”.

5.2.2. Equipment

▪ Since embedded EDID data is used, EDID download JIG,

HDMI cable and D-sub cable are not need.

▪ Adjust remocon

5.2.3. Download method

(1) Press Adj. key on the Adjust remocon, then select “12.EDID

D/L”.

By pressing Enter key, enter EDID D/L menu

d. Check the model name INSTART menu -> Factory name

displayed

e. Check the Diagnostics (DTV country only) -> Buyer model

displayed

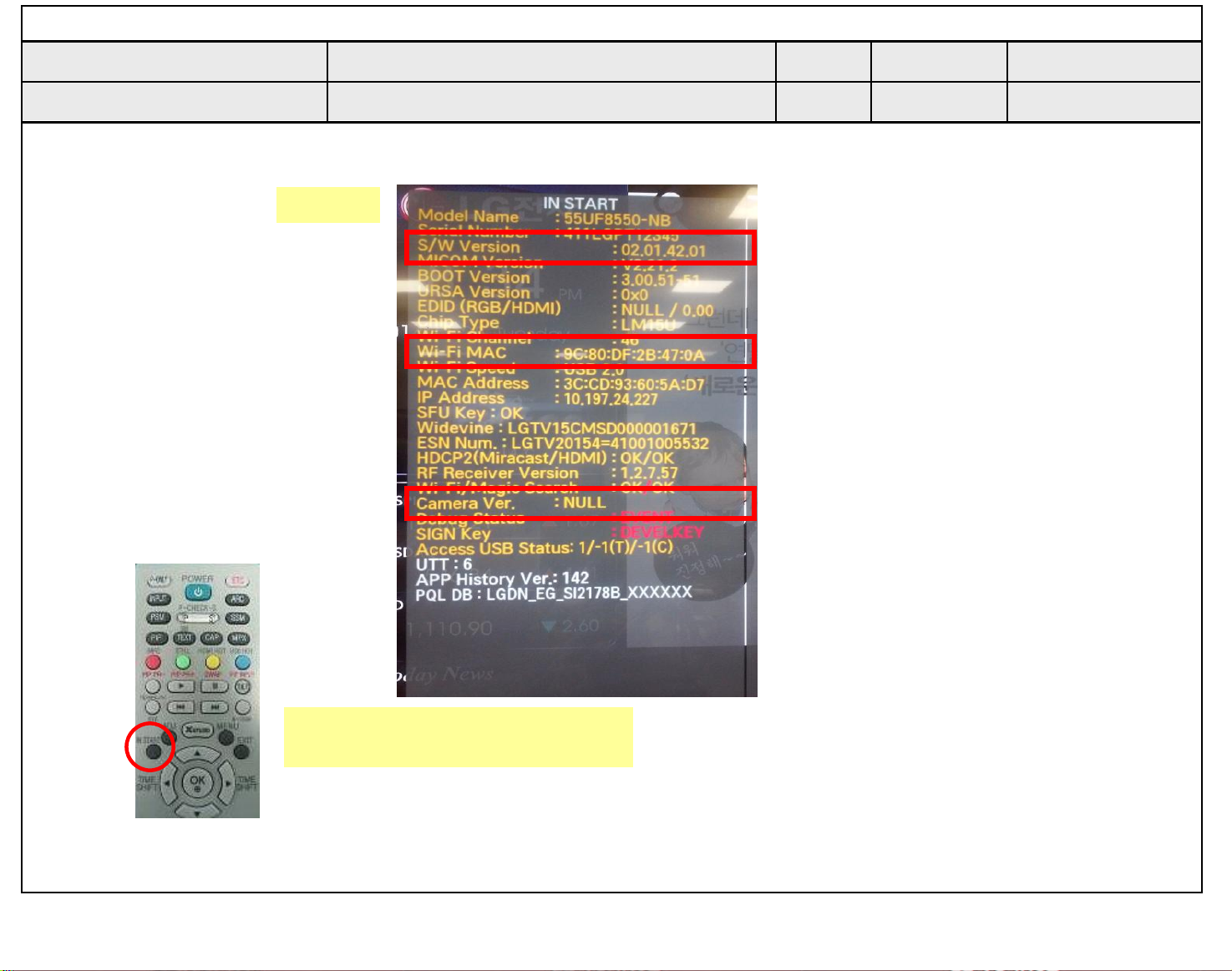

4.5. WIFI MAC ADDRESS CHECK

4.5.1. Using RS232 Command

Command Set ACK

Transmission [A][l][][Set ID][][20][Cr] [O][K][x] or [N][G]

■ Check the menu on in-start

Only for training and service purposes

- 16 -

(2) Select [Start] button by pressing Enter key, HDMI1 / HDMI2

/ HDMI3 / HDMI4 are Writing and display OK or NG.

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5.2.4. EDID DATA

▪ Reference

- HDMI1 ~ HDMI3

- In the data of EDID, bellows may be different by Input mode

# HDMI 1(C/S : A0 C7) – 6G

EDID Block 0, Bytes 0-127 [00H-7FH]

EDID Block 1, Bytes 128-255 [80H-FFH]

ⓐ Product ID
ⓑ Serial No: Controlled on production line.
ⓒ Month, Year: Controlled on production line:

ex) Monthly : ‘01’ -> ‘01’
Year : ‘2015’ -> ‘19

ⓓ Model Name(Hex): LGTV
ⓔ Checksum(LG TV): Changeable by total EDID data.
ⓕ Vendor Specific(HDMI)

5.2.4.1. EDID for 2D Model olny (UF64)
# HDMI 1(C/S : E6 1D) – 3G

EDID Block 0, Bytes 0-127 [00H-7FH]

EDID Block 1, Bytes 128-255 [80H-FFH]

# HDMI 2(C/S : E6 0D) -3G/6G

EDID Block 0, Bytes 0-127 [00H-7FH]

EDID Block 1, Bytes 128-255 [80H-FFH]

Only for training and service purposes

- 17 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

# HDMI 3(C/S : E6 0D) -3G/6G

EDID Block 0, Bytes 0-127 [00H-7FH]

EDID Block 1, Bytes 128-255 [80H-FFH]

* Checksum(HDMI 1/2/3)

Input FFh (Checksum)

3G

HDMI1 E6 1D A0 C7

HDMI2 E6 0D E6 0D

HDMI3 E6 FD E6 FD

FFh (Checksum)

6G(HDMI Deep Color)

5.3. Green Eye Inspection Guide

(Step 1) Turn on the TV set.
(Step 2) Press “EYE” button on the Adjustment remote control.

(Step 3) Block the Intelligent Sensor module on the front C/A

about 6 seconds. When the “Sensor Data” is lower
than 20, you can see the “OK” message

=> If it doesn’t show “OK” message, the Sensor Module is

defected one. You have to replace that with a good
one.

(Step 4) After check the “OK” message come out, take out

your hand from the Sensor module.

=> Check “Backlight” value change from “0” to “100” or

not. If it doesn’t change the value, the sensor is also
defected one. You have to replace it.

Only for training and service purposes

- 18 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5.4 V-COM Adjust

(Only for Taiwan EPI models, 43/49UF68/64)

5.4.1. Overview

▪ V-COM adj. Objective & How-it-works

- Objective : To reduce each Panel’s V-COM voltage deviation

- How-it-works : When V-COM gain in the adjust-OSD of each

SET is at default value, each SET can have
flicker by each Panel’s V-COM voltage
deviation. In order to prevent flicker of each
SET, find the desired each Panel’s V-COM
voltage value.

- Adj. condition : normal temperature

1) Surrounding Temperature: 25 ± 5 ºC

2) Warm-up time : About 5 Min

3) Surrounding Humidity: 20 % ~ 80 %

5.4.2. Equipment

(1) Color Analyzer: CA-310 (LED Module : CH 14) or CM-H505
(2) Adj. Computer (During auto adj., RS-232C protocol is

needed)
(3) Adjust Remocon
(4) Signal : internal flicker Pattern in SET

▪ Color Analyzer Matrix should be calibrated using CS-100

5.4.3. Equipment connection MAP

wG

୔pGGGGG

{}GGmGG

GG

|ziGGyzTYZYjG

zGzSGG

mGh¡G

yzTYZYjG

jG

5.4.5. Adj. method

5.4.5.1. Auto adj. method
(1) Set TV in POWER-ONLY mode using POWER ONLY key
(2) Zero calibrate probe then place it on the center of the

Display
(3) Connect Cable (RS-232C to USB)
(4) Select Model in “V-com adj. Program” and begin “V-com

adj.”
(5) When V-com adj. is complete (OK)
(6) Remove probe and RS-232C to USB cable to complete adj.

▪ V-com Adj. must begin as start command “va 00 00” , and

finish as end command “wb 00 ff”

▪ V-com adjust data

43” inch V-com Data

hex dec

Max B4 180

Default 96 150

Min 78 120

49” inch V-com Data

hex dec

Max 8B 139

Default 6D 109

Min 4F 79

5.5.5.2. Manual adj. method
(1) Set TV in POWER-ONLY mode using POWER ONLY key
(2) Press HDMI Hot Key(Yellow color), then check the V-com

pattern on TV.

5.4.4. Adj. Command (Protocol)

<Command Format>
CMD ID DATA CR RF

- CMD: Command

- ID : Command

- Data : Command

Ex) [Send: va 00 00\r\n]

▪ RS-232C Command used during auto-adj.

RS-232C COMMAND

CMD DATA ID

va 00 00 V-com pattern

vb 00 00 ~ FEV-com adj.(internal Flicker pattern)

wb 00 FF V-com adj. completed

Explanation

- 19 -

Only for training and service purposes

(3) Adjust V-com data using CH+/- key to reduce flicker.
(4) When the pattern is minimum flicker, press the OK.

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5.5. White Balance Adjustment

5.5.1. Overview

▪ W/B adj. Objective & How-it-works

(1) Objective: To reduce each Panel’s W/B deviation
(2) How-it-works: When R/G/B gain in the OSD is at 192, it

means the panel is at its Full Dynamic Range. In order to
prevent saturation of Full Dynamic range and data, one of
R/G/B is fixed at 192, and the other two is lowered to find
the desired value.

[Test condition ]

Temperature : 20 ± 5ºC
Heat run mode : Vivid
Measurement mode : Adjust > White Balance mode
Measurement Point : center
Measurement Device : CA-210 / CA-310
Heat run time : continue 24 hours(for new-born module)
2 hours(for module UTT is over 24 hrs)

[Spec]

- Color coordinate x, y ± 0.015 (after 24 hours aging)

- Color coordinate x ± 0.020, y ± 0.030 (within 24 hours aging)

5.5.2. Equipment

(1) Color Analyzer: CA-210 (LED Module : CH 14)
(2) Adj. Computer (During auto adj., RS-232C protocol is

needed)
(3) Adjust Remocon
(4) Video Signal Generator MSPG-925F 720p/216-Gray

(Model:217, Pattern:78)

-> Only when internal pattern is not available

※ Color Analyzer Matrix should be calibrated using CS-1000

5.5.4. Adj. Command (Protocol)

<Command Format>

START 6E A 50 A LEN A 03 A CMD A 00 A VAL A CS A STOP

- LEN: Number of Data Byte to be sent

- CMD : Command

- VAL : FOS Data value

- CS : Checksum of sent data

- A : Acknowledge

Ex) [Send: JA_00_DD] / [Ack: A_00_okDDX]

(1) RS-232C Command used during auto-adj.

RS-232C COMMAND

CMD DATA ID

wb 00 00 Begin White Balance adj.

wb 00 10 Gain adj.(internal white pattern)

wb 00 1f Gain adj. completed

wb 00 20 Offset adj.(internal white pattern)

wb 00 2f Offset adj. completed

wb 00 ff End White Balance adj.

(internal pattern disappears )

(Ex) wb 00 00 -> Begin white balance auto-adj.

wb 00 10 -> Gain adj.
ja 00 ff -> Adj. data
jb 00 c0
...
...

wb 00 1f -> Gain adj. complete
* (wb 00 20(start), wb 00 2f(endc)) -> Off-set adj.
wb 00 ff -> End white balance auto adj.

Explanation

5.5.3. Equipment connection MAP

(2) Adjustment Map
(Applied Model : LT5ZM Chassis ALL MODELS)

Adj. item Command

(lower caseASCII)

CMD1 CMD2 MIN MAX

Cool R Gain j g 00 C0

G Gain j h 00 C0

B Gain j i 00 C0

Medium R Gain j a 00 C0

G Gain j b 00 C0

B Gain j c 00 C0

Warm R Gain j d 00 C0

G Gain j e 00 C0

B Gain j f 00 C0

Data Range
(Hex.)

Only for training and service purposes

- 20 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5.5.5. Adjustment method

5.5.5.1. Auto WB calibration
(1) Set TV in adj. mode using POWER ONNY key
(2) Zero calibrate probe then place it on the center of the

Display
(3) Connect Cable (RS-232C to USB)
(4) Select mode in adj. Program and begin adj.
(5) When adj. is complete (OK Sign), check adj. status pre

mode(Warm, Medium, Cool)
(6) Remove probe and RS-232C to USB cable to complete adj.

▪ W/B Adj. must begin as start command “wb 00 00” , and

finish as end command “wb 00 ff”, and Adj. offset if need

5.5.6. Reference (White Balance Adj. coordinate and
color temperature)

▪ Luminance: 206 Gray
▪ Standard color coordinate and temperature using CS-1000

(over 26 inch)

Mode

Cool 0.271 0.270 13000K 0.0000

Medium 0.286 0.289 9300K 0.0000

Warm 0.313 0.329 6500K 0.0000

Coordinate

X Y

Temp △uv

5.5.5.2. Manual adj. method
(1) Set TV in Adj. mode using POWER ON
(2) Zero Calibrate the probe of Color Analyzer, then place it on

the center of LCD module within 10cm of the surface..

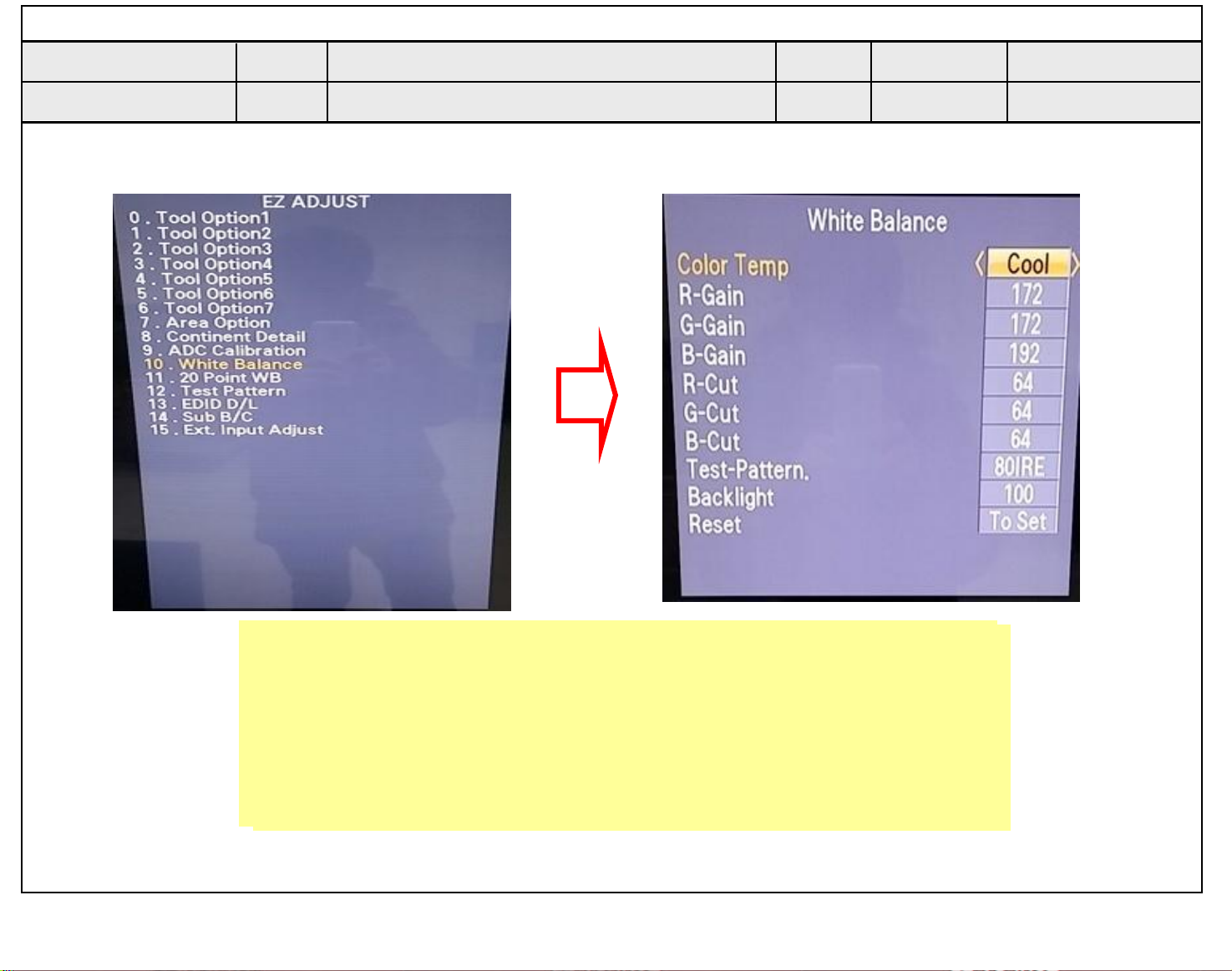

(3) Press ADJ key -> EZ adjust using adj. R/C -> 7. White-

Balance then press the cursor to the right (KEY►).

(When KEY(►) is pressed 216 Gray internal pattern will be

displayed)

(4) One of R Gain / G Gain / B Gain should be fixed at 192,

and the rest will be lowered to meet the desired value.

(5) Adj. is performed in COOL, MEDIUM, WARM 3 modes of

color temperature.

** G-fix adjustment
Adjust modes (Cool), Fix the G gain to 172 (default data) and
change the others (G/B Gain).
Adjust two modes(Medium / Warm), Fix the one of R/G/B gain
to 192 (default data) and decrease the others.

▪ If internal pattern is not available, use RF input. In EZ Adj.

menu 7.White Balance, you can select one of 2 Test-pattern:
ON, OFF. Default is inner(ON). By selecting OFF, you can
adjust using RF signal in 216 Gray pattern.

▪ Adj. condition and cautionary items

(1) Lighting condition in surrounding area
Surrounding lighting should be lower 10 lux. Try to isolate

adj. area into dark surrounding.

(2) Probe location

- PDP : Color Analyzer (CA-100, CA-100+, CA210) probe
should be firmly attached to the Module

- LCD : Color Analyzer (CA-210) probe should be within

10cm and perpendicular of the module surface
(90+/-2.5°)

(3) Aging time

- After Aging Start, Keep the Power ON status during 5

Minutes.

- In case of LCD, Back-light on should be checked using no

signal or Full-white pattern.

▪ Standard color coordinate and temperature using CA-210

(CH 14)

Mode

Cool 0.271±0.002 0.270±0.002 13000K 0.0000

Medium 0.286±0.002 0.289±0.002 9300K 0.0000

Warm 0.313±0.002 0.329±0.002 6500K 0.0000

Coordinate

X Y

Temp △uv

(Normal line) Edge & ALEF LED White balance table

- gumi & Global
Model : (normal line)

webOS

Aging time

(Min)

1 0-2 282 289 297 308 324 348

2 3-5 281 287 296 306 323 346

3 6-9 279 284 294 303 321 343

4 10-19 277 280 292 299 319 339

5 20-35 275 277 290 296 317 336

6 36-49 274 274 289 293 316 333

7 50-79 273 272 288 291 315 331

8 80-119 272 271 287 290 314 330

9 Over 120 271 270 286 289 313 329

Cool Medium Warm

X Y X Y X Y

271 270 286 289 313 329

(*) AUO, INX, Sharp, CSOT, BOE(Cool 1300K)

Cool Medium Warm

webOS

Target 278 280 293 299 320 339

x y x y x y

271 270 285 293 313 329

Only for training and service purposes

- 21 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5.6. Local Dimming Function Check

(Step 1) Turn on TV
(Step 2) At the Local Dimming mode, module Edge Backlight

moving right to left
Back light of IOP module moving
(Step 3) confirm the Local Dimming mode
(Step 4) Press “exit” Key

5.8. Option selection per country

5.8.1. Overview

▪ Option selection is only done for models in AJ/JA/IL

5.8.2. Method

(1) Press ADJ key on the Adj. R/C, then select Country Group

Meun

(2) Depending on destination, select Country Group Code or

Country Group then on the lower Country option, select

US, CA, MX. Selection is done using +, - or ►◄ KEY

5.9. HDMI ARC Function Inspection

5.9.1. Test equipment

- Optic Receiver Speaker

- MSHG-600 (SW: 1220 ↑)

- HDMI Cable (for 1.4 version)

5.9.2. Test method

(1) Insert the HDMI Cable to the HDMI ARC port from the

master equipment (HDMI1)

5.7. Magic Motion Remocon test

5.7.1. Automatically Test Using Golden remocon(for
line inspection)

(1) Place the Golden remocon in the line inspection step.
(2) check instart menu “ Wi-Fi/Magic Search : OK/OK “

5.7.2. Manually test

- Equipment : RF Remocon for test, IR-KEY-Code Remocon
for test

- You must confirm the battery power of RF-Remocon before

test

(recommend that change the battery per every lot)

- Sequence (test)

a) if you select the ‘start key(OK)’ on the controller, you can

pairing with the TV SET.

b) You can check the cursor on the TV Screen, when select

the ‘OK Key’ on the controller

c) You must remove the pairing with the TV Set by select

‘Mute + OK Key’ on the controller

(2) Check the sound from the TV Set

(3) Check the Sound from the Speaker or using AV & Optic

TEST program (It’s connected to MSHG-600)

5.10. Ship-out mode check (In-stop)

▪ After final inspection, press In-Stop key of the Adj. R/C and

check that the unit goes to Stand-by mode.

Only for training and service purposes

- 22 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

6. GND and Internal Pressure check

6.1. Method

(1) GND & Internal Pressure auto-check preparation

- Check that Power Cord is fully inserted to the SET. (If loose,

re-insert)

(2) Perform GND & Internal Pressure auto-check

- Unit fully inserted Power cord, Antenna cable and A/V arrive

to the auto-check process.

- Connect D-terminal to AV JACK TESTER

- Auto CONTROLLER(GWS103-4) ON

- Perform GND TEST

- If NG, Buzzer will sound to inform the operator.

- If OK, changeover to I/P check automatically.

(Remove CORD, A/V form AV JACK BOX)

- Perform I/P test

- If NG, Buzzer will sound to inform the operator.

- If OK, Good lamp will lit up and the stopper will allow the

pallet to move on to next process.

6.2. Checkpoint

(1) Test voltage

- GND: 1.5KV/min at 100mA

- SIGNAL: 3KV/min at 100mA
(2) TEST time: 1 second
(3) TEST POINT

- GND Test = POWER CORD GND and SIGNAL CABLE

GND.

- Hi-pot Test = POWER CORD GND and LIVE & NEUTRAL.
(4) LEAKAGE CURRENT: At 0.5mArms

8. USB S/W Download
(optional, Service only)

(1) Put the USB Stick to the USB socket
(2) Automatically detecting update file in USB Stick

- If your downloaded program version in USB Stick is lower
than that of TV set, it didn’t work. Otherwise USB data is
automatically detected.

(3) Show the message “Copying files from memory”

(4) Updating is staring

7. AUDIO output check

No Item Min Typ Max Unit Remark

1 Audio practi-

cal max
Output, L/R
(Distor­tion=10%
max Output)

2

Speaker
(8Ω Imped­ance)

*Measurement condition:
(1) RF input: Mono, 1KHz sine wave signal, 100% Modulation
(2) CVBS, Component: 1KHz sine wave signal (0.4Vrms)
(3) RGB PC: 1KHz sine wave signal (0.7Vrms)

10.0

12.0

8.10

10.8WVrms

10 12 W EQ On

EQ Off
AVL Off
Clear Voice Off

AVL On
Clear Voice On

(5) Updating Completed, The TV will restart automatically

(6) If your TV is turned on, check your updated version and

Tool option.

* If downloading version is more high than your TV have, TV

can lost all channel data. In this case, you have to channel
recover. If all channel data is cleared, you didn’t have a DTV/
ATV test on production line.

* After downloading, TOOL OPTION setting is needed again.
(1) Push "IN-START" key in service remote control.
(2) Select "Tool Option 1" and Push “OK” button.
(3) Punch in the number. (Each model has their number.)

Only for training and service purposes

- 23 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

Block Diagram

1. LM14A + URSA11 Circuit Block Diagram

Only for training and service purposes

- 24 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

2. LM14A I2C Block Diagram

Only for training and service purposes

- 25 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

3. URSA11 Block Diagram

Only for training and service purposes

- 26 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

4. LM14A + URSA11 Power Block Diagram

Only for training and service purposes

- 27 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5. Tuner/CI Block Diagram

Only for training and service purposes

- 28 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

6. Video/Audio In Block Diagram

Only for training and service purposes

- 29 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

7. Audio Out Block Diagram

Only for training and service purposes

- 30 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

8. HDMI

Only for training and service purposes

- 31 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

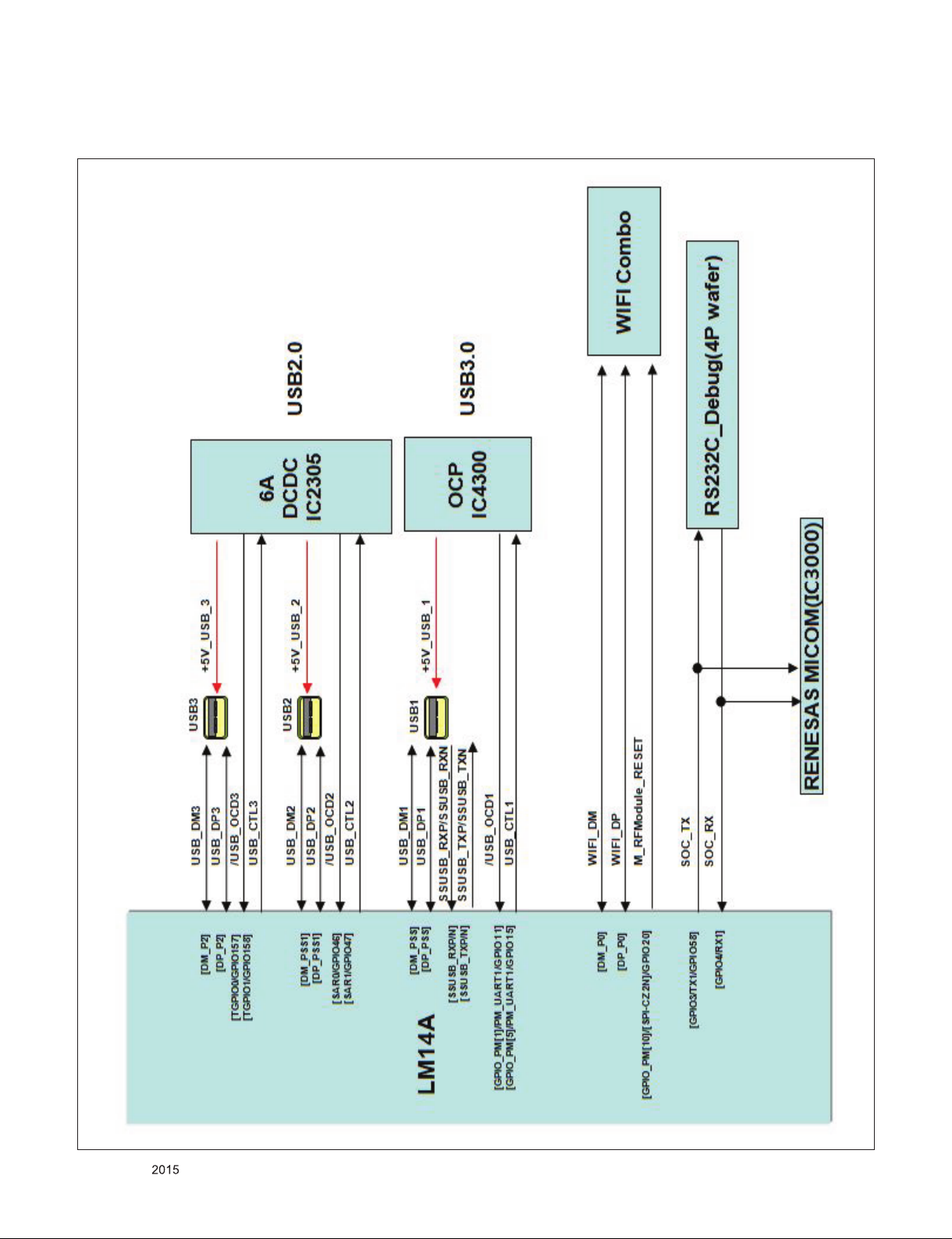

9. USB / WIFI / M-REMOTE / UART

Only for training and service purposes

- 32 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

900

200

400

800

540

530

820

500

120

571

570

121

LV1

LV2

521

A2

A10

Set + Stand

901

EXPLODED VIEW

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.

Only for training and service purposes

- 33 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

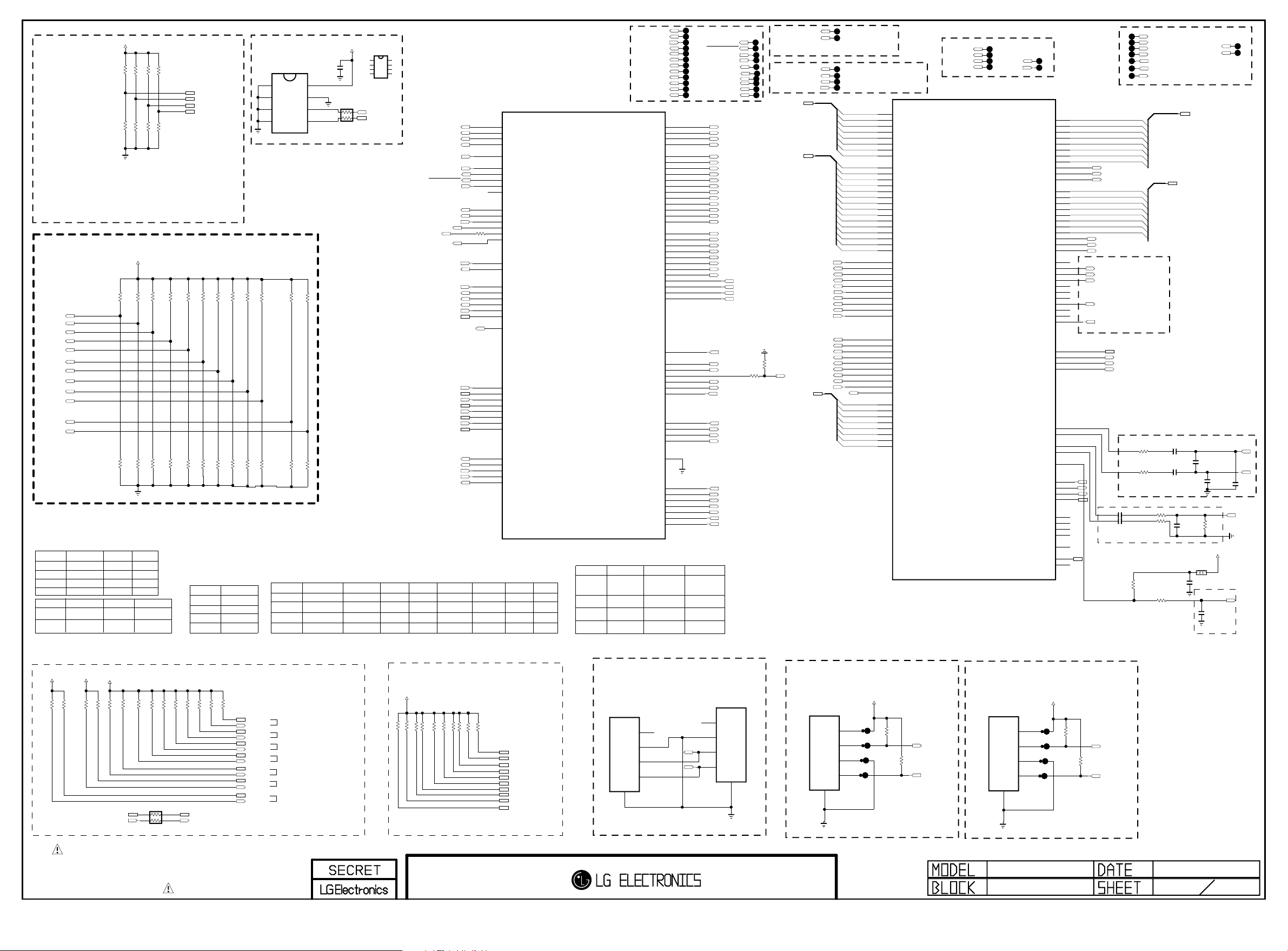

CHIP CONFIG

Copyright © 2015 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

CHIP_CONFIG[3:0]
{LED1, SPI_DI,LED0, PWM_PM}

Value Mode Description
4’b1000 SB51_ExtSPI 51 boot from SPI
4’b1001 HEMCU_ExtSPI ARM boot from SPI
4’b1010 HEMCU_ROM_EMMC ARM boot from ROM; outer storage is eMMC
4’b1011 HEMCU_ROM_NAND ARM boot from ROM; outer storage is NAND
4’b1100 DBUS for test only
4’b0000 SB51_ExtSPI + Authentication 51 boot from SPI with ARM authentication
4’b0001 SB51_ExtSPI + Authentication HEMCU_ExtSPI + Authentication
4’b0011 HEMCU_ROM_NAND + Authentication ARM boot from ROM with authentication;

+3.3V_NORMAL

OPT

R108 4.7K

R110 4.7K

OPT

R109 4.7K

R111 4.7K

OPT

R115 4.7K

R122 4.7K

OPT

R116 4.7K

R123 4.7K

LED1
SPI_DI_SOC
LED0
PWM_PM

LM14 HW Option

+3.3V_NORMAL

10K

BIT2_1

BIT0
BIT1

BIT2

BIT3

BIT4

BIT5

BIT6

BIT7

BIT8

BIT9

BIT10

BIT11

20150123 version

BIT(0/1)

00

TW/COL

CN/HK

01

10

11

Display

BIT4

Resolution

BIT5

DVB

EU

AJJA

BIT0_1

BIT0_0

ATSC

US

KR

BR

CI

Low

LCD

FHD

BIT1_1

R105 10K

BIT1_0

R106 10K

R112

10K

R113

JP

JP

High

OLED

UHD

R119 10K

BIT2_0

R120 10K

BIT3_1

BIT3_0

BIT5_1

BIT6_1

BIT4_1

R132 10K

R128 10K

BIT4_0

R129 10K

BIT5_0

R133 10K

BIT(6/7)

00

01

10

11

R135 10K

BIT6_0

R136 10K

LM14A+URSA11
4K@60Hz
LM14A+URSA11
4K@120Hz

R125 10K

R126 10K

BIT8_1

BIT7_1

R138 10K

BIT8_0

BIT7_0

R139 10K

B/E(FRC)

LM14A only

N/A

BIT9_1

R140 10K

BIT9_0

R141 10K

NVRAM

Atmel_NVRAM

IC101

AT24C256C-SSHL-T

EAN61133501

ATMEL CORPORATION

A0

1

A1

A2

GND

R142 10K

R143 10K

8

2

7

A0’h

3

6

4

5

BIT10_1

BIT11_1

R146 10K

R148 10K

BIT10_0

BIT11_0

R147 10K

R149 10K

BIT(2/3)

00

10

11 OS(DDR)

+3.3V_NORMAL

C100

0.1uF

VCC

Write Protection

WP

- Low : Normal Operation

- High : Write Protection

SCL

SDA

AR101

EU/CIS

T2/C/S2 PIP

T2/C/S2

T/C

33

AJJA

T2/C PIP

T2/C/S2

T

T2

Rohm_NVRAM

IC101-*1

BR24G256FJ-3

EAN62389502

ROHM Semiconductor KOREA CORPORATION

A0

VCC

1

8

WP

A1

7

2

SCL

A2

6

3

GND

SDA

4

5

I2C_SCL1

I2C_SDA1

M_RFModule_RESET

TW/COL KR

T2/C PIP

T2/C

T/C

PWM_DIM

PWM_DIM2

FAN_ON

AMP_RESET_N

PWM_PM

/USB_OCD2

USB_CTL2

FRC_FLASH_WP

DDTS_TX

SPI_CK_SOC
SPI_DI_SOC
SPI_DO_SOC

/TU_RESET1

/SPI_CS

DDCA_CK
DDCA_DA

SOC_TX

SOC_RX

FRC_FLASH_SEL_SOC

/TU_RESET2

I2C_SCL6
I2C_SDA6

I2C_SCL3
I2C_SDA3

I2C_SCL1

I2C_SDA1
I2C_SCL2
I2C_SDA2

I2C_SCL5

I2C_SDA5

CPU_VID0

CORE_VID0

LED0
LED1

WOL_WAKE_UP_SOC

CN/HK

ATSC NIM+T2

Default

ATSC+T201

ATSC

ATSC PIP

CPU_VID1

R167

D9

PWM0/GPIO152

F10

PWM1/GPIO153

F8

PWM2/GPIO154

E9

PWM3/GPIO155

N5

PWM_PM/GPIO7

F4

SAR0/GPIO46

G5

SAR1/GPIO47

E5

SAR2/GPIO48

E4

SAR3/GPIO49

G4

SAR5

W5

PM_SPI_CK/GPIO1

V4

PM_SPI_DI/GPIO2

V5

PM_SPI_DO/GPIO3

Y6

PM_SPI_CZ/GPIO0

0

Y4

GPIO_PM[6]/[SPI-CZ1N]/GPIO16

Y5

OPT

GPIO_PM[10]/[SPI-CZ2N]/GPIO20

AL8

DDCA_CK/GPIO8

AK8

DDCA_DA/GPIO9

AH28

GPIO3/TX1/GPIO58

AH29

GPIO4/RX1

AA4

GPIO23/[TX3]/GPIO78

W6

GPIO24/[RX3]/GPIO79

F14

DIM2/TX4/GPIO112

F12

DIM3/RX4/GPIO113

AJ27

GPIO2/GPIO57

AJ7

GPIO28/SCK0/GPIO83

AH8

GPIO29/SDA0/GPIO84

E11

DDCR_CK/SCK3/GPIO54

E10

DDCR_DA/SDA3/GPIO53

AJ6

GPIO30/SCK4/GPIO85

AG8

GPIO31/SDA4/GPIO86

AH7

GPIO32/SCK5/GPIO87

AJ8

GPIO33/SDA5/GPIO88

L6

VID0/GPIO50

M6

VID1/GPIO51

AD5

LED0/GPIO29

AD4

LED1/GPIO30

AB5

WOL_INT_OUT/[GPIO]/GPIO52

North.AM

ISDB PIP

Default

ISDB EXT

ISDB INT

BR

IC100

LGE5332(LM14A)

JP

Default

SPI_CK_SOC
SPI_DI_SOC
SPI_DO_SOC

LVSYNC/[VX1_0-]
LHSYNC/[VX1_0+]

LDE/[VX1_1-]
LCK/[VX1_1+]

R_ODD[7]/LVB0N/[VX1_2-]
R_ODD[6]/LVB0P/[VX1_2+]
R_ODD[5]/LVB1N/[VX1_3-]
R_ODD[4]/LVB1P/[VX1_3+]
R_ODD[3]/LVB2N/[VX1_4-]

R_ODD[2]/LVB2P/[VX1_4+]
R_ODD[1]/LVBCLKN/[VX1_5-]
R_ODD[0]/LVBCLKP/[VX1_5+]

G_ODD[7]/LVB3N/[VX1_6-]

G_ODD[6]/LVB3P/[VX1_6+]

G_ODD[5]/LVB4N/[VX1_7-]

G_ODD[4]/LVB4P/[VX1_7+]

G_ODD[3]/LVA0N/[OSD_0-]

G_ODD[2]/LVA0P/[OSD_0+]

G_ODD[0]/LVA1P/[OSD_1+]

G_ODD[1]/LVA1N/[OSD_1-]

B_ODD[7]/LVA2N/[OSD_2-]

B_ODD[6]/LVA2P/[OSD_2+]
B_ODD[5]/LVACLKN/[OSD_3-]
B_ODD[4]/LVACLKP/[OSD_3+]

B_ODD[3]/LVA3N/[LOCKN]

B_ODD[2]/LVA3P/[HTPDN]
B_ODD[1]/LVA4N/[OSD_LOCKN]
B_ODD[0]/LVA4P/[OSD_HTPDN]

GPIO_PM[0]/GPIO10

GPIO_PM[3]/GPIO13
GPIO_PM[4]/GPIO14
GPIO_PM[7]/GPIO17
GPIO_PM[8]/GPIO18
GPIO_PM[9]/GPIO19

GPIO_PM[13]/GPIO23

GPIO_PM[1]/PM_UART1/GPIO11
GPIO_PM[5]/PM_UART1/GPIO15

GPIO_PM[11]/PM_UART0/GPIO21
GPIO_PM[12]/PM_UART0/GPIO22

SPI1_DI/GPIO107
SPI1_CK/GPIO106
SPI2_DI/GPIO109
SPI2_CK/GPIO108

VSYNC_LIKE/GPIO105

DIM0/GPIO110
DIM1/GPIO111

T-con I2C

BIT8

Protocol

BIT9

Division

Interface

BIT10

BIT11

/SPI_CS

TXOSD_3P
TXOSD_3N
TXOSD_2P
TXOSD_2N
TXOSD_1P
TXOSD_1N
TXOSD_0P
TXOSD_0N

V-BY-ONE

AF32
AF31
AG32
AG31

AH31
AH30
AJ31
AJ32
AK32
AK31
AL32
AL31
AK30
AL30
AK29
AL29

AK28
AM28
AL28
AK27
AK26
AL26
AM26
AK25
AL25
AK24
AL24
AK23

AE2

U6
P4
U5
AE5
AJ5
AG6

P5
P6
AJ4
AH4

G7

TESTPIN

E13
D12
F11
D11
E12
D14
E14

Low

16Kbit

NON_Division

EPI

WebOS Lite WebOS

LM14A+URSA9

FRC_FLASH_SEL_SOC

FRC_FLASH_WP

LOCKAn_OSD
URSA9_CONNECT
Data_Format_1

Data_Format_0

URSA_RESET_SoC
L/D_VSYNC_SOC

L/D_CLK_SOC

L/D_DI_SOC

TXVBY1_0N
TXVBY1_0P
TXVBY1_1N
TXVBY1_1P

TXVBY1_2N
TXVBY1_2P
TXVBY1_3N
TXVBY1_3P
TXVBY1_4N
TXVBY1_4P
TXVBY1_5N
TXVBY1_5P
TXVBY1_6N
TXVBY1_6P
TXVBY1_7N
TXVBY1_7P

TXOSD_0N
TXOSD_0P
TXOSD_1N
TXOSD_1P
TXOSD_2N
TXOSD_2P
TXOSD_3N
TXOSD_3P

COMP1_DET

DDTS_RX

PCM_5V_CTL

PMIC_RESET

COMPENSATION_DONE

URSA9_CONNECT

/USB_OCD1
USB_CTL1

DATA_FORMAT_0_SOC
DATA_FORMAT_1_SOC

HP_DET

RF_SWITCH_CTL

L/D_DI_SOC

L/D_CLK_SOC
L/D_VSYNC_SOC
SC_DET
AV1_CVBS_DET

High

32Kbit

4_Division

Vx1

LOCKAn_Video
HTPDAn_Video
LOCKAn_OSD
HTPDAn_OSD

R175
22

COMPENSATION_DONE

DATA_FORMAT_1_SOC

DATA_FORMAT_0_SOC

HTPDAn_OSD

HTPDAn_Video

EB_DATA[0-7]

EB_ADDR[0-14]

SM_Vsel

SM_CLK

SM_RST

SM_IO

SM_VCC

SM_CD

1K

R176

TCON_I2C_EN

EMMC_DATA[0-7]

FAN_ON

CAM_IREQ_N

EB_OE_N
EB_BE_N1
/PCM_CE1

EB_WE_N

CAM_CD1_N
PCM_RESET
CAM_REG_N

EB_BE_N0

CAM_WAIT_N

EMMC_CMD

EMMC_CLK

EMMC_RST

EMMC_STRB

BIT0
BIT1

BIT2

BIT3

BIT4

EB_DATA[0]
EB_DATA[1]
EB_DATA[2]
EB_DATA[3]
EB_DATA[4]
EB_DATA[5]
EB_DATA[6]
EB_DATA[7]

EB_ADDR[0]
EB_ADDR[1]
EB_ADDR[2]
EB_ADDR[3]
EB_ADDR[4]
EB_ADDR[5]
EB_ADDR[6]
EB_ADDR[7]
EB_ADDR[8]
EB_ADDR[9]
EB_ADDR[10]
EB_ADDR[11]
EB_ADDR[12]
EB_ADDR[13]
EB_ADDR[14]

BIT5

EMMC_DATA[6]
EMMC_DATA[7]
EMMC_DATA[2]
EMMC_DATA[1]
EMMC_DATA[0]
EMMC_DATA[3]
EMMC_DATA[4]
EMMC_DATA[5]

OLED

LM14A_ONLY

AH14

PCM_D[0]/GPIO147

AG13

PCM_D[1]/GPIO148

AG12

PCM_D[2]/GPIO149

AK22

PCM_D[3]/GPIO119

AK21

PCM_D[4]/GPIO120

AL21

PCM_D[5]/GPIO121

AM23

PCM_D[6]/GPIO122

AH20

PCM_D[7]/GPIO123

AG14

PCM_A[0]/GPIO146

AL20

PCM_A[1]/GPIO145

AG15

PCM_A[2]/GPIO143

AH15

PCM_A[3]/GPIO142

AM19

PCM_A[4]/GPIO141

AJ17

PCM_A[5]/GPIO139

AJ16

PCM_A[6]/GPIO138

AH17

PCM_A[7]/GPIO137

AM20

PCM_A[8]/GPIO131

AH19

PCM_A[9]/GPIO129

AJ20

PCM_A[10]/GPIO125

AK20

PCM_A[11]/GPIO127

AG17

PCM_A[12]/GPIO136

AJ19

PCM_A[13]/GPIO132

AG18

PCM_A[14]/GPIO133

AH18

PCM_IRQA_N/GPIO135

AM22

PCM_OE_N/GPIO126

AG20

PCM_IORD_N/GPIO128

AL22

PCM_CE_N/GPIO124

AK19

PCM_WE_N/GPIO134

AG21

PCM_CD_N/GPIO151

AH16

PCM_RESET/GPIO150

AJ14

PCM_REG_N/GPIO144

AG19

PCM_IOWR_N/GPIO130

AG16

PCM_WAIT_N/GPIO140

C7

EMMC_IO15/[GPIO]/GPIO189

C6

EMMC_IO17/[GPIO]/GPIO188

C8

EMMC_IO9/[EMMC_CMD]/GPIO183

B8

EMMC_IO14/[GPIO]/GPIO185

A9

EMMC_IO10/[EMMC_CLK]/GPIO186

B7

EMMC_IO16/[GPIO]/GPIO187

B9

EMMC_IO11/[EMMC_RSTN]/GPIO190

A8

EMMC_IO12/[GPIO]/GPIO184

C9

EMMC_IO8/[NAND-DQS]/GPIO191

B6

EMMC_IO13/[GPIO]/GPIO217

C10

EMMC_IO6/[EMMC_D6]/GPIO221

B11

EMMC_IO7/[EMMC_D7]/GPIO220

A11

EMMC_IO2/[EMMC_D2]/GPIO219

C11

EMMC_IO1/[EMMC_D1]/GPIO218

A12

EMMC_IO0/[EMMC_D0]/GPIO194

B12

EMMC_IO3/[EMMC_D3]/GPIO193

C12

EMMC_IO4/[EMMC_D4]/GPIO192

B13

EMMC_IO5/[EMMC_D5]/GPIO222

GST_A
GCLK_A
MCLK_A

EO_A

IC100

LGE5332(LM14A)

LM14A UF74

PMIC_RESET

LOCKOUT12

TS1_D0/GPIO182
TS1_D1/GPIO181
TS1_D2/GPIO180
TS1_D3/GPIO179
TS1_D4/GPIO178
TS1_D5/GPIO177
TS1_D6/GPIO176

TS1_D7/GPIO175
TS1_CLK/GPIO172
TS1_VLD/GPIO174

TS1_SYNC/GPIO173

TS0_D0/GPIO161

TS0_D1/GPIO162

TS0_D2/GPIO163

TS0_D3
TS0_D4/GPIO165
TS0_D5/GPIO166
TS0_D6/GPIO167
TS0_D7/GPIO168

TS0_CLK/GPIO171
TS0_VLD/GPIO169

TS0_SYNC/GPIO170

TS3_D0/GPIO206
TS3_D1/GPIO207
TS3_D2/GPIO208
TS3_D3/GPIO209
TS3_D4/GPIO210
TS3_D5/GPIO211
TS3_D6/GPIO212
TS3_D7/GPIO213

TS3_CLK/GPIO216
TS3_VLD/GPIO214

TS3_SYNC/GPIO215

GPIO8/[TS4_D[0]]/GPIO63

GPIO5/[TS4_CLK]/GPIO60
GPIO7/[TS4_VLD]/GPIO62

GPIO6/[TS4_SYNC]/GPIO61

VIFP
VIFM

SIFP
SIFM

IFAGC

TGPIO0/GPIO157
TGPIO1/GPIO158

TGPIO2/SCK1/GPIO159
TGPIO3/SDA1/GPIO160

NC_1
NC_2
NC_3
NC_4

NC_5

GPIO34/GPIO89

NC_6

AH13
AG11
AG10
AJ11
AH10
AJ13
AG9
AH9
AH11
AJ10
AH12

AK17
AL18
AK18
AL15
AL16
AK15
AM16
AK16
AL19
AM17
AL17

AH23
AH27
AJ23
AG27
AH24
AH26
AJ25
AG26
AH25
AJ26
AG24

AJ28
AG28
AJ29
AG29

AL2
AM2

AK1
AK2

AK3

AJ1
AJ2
R4
R5

AM7
AL7
AM8
AK7

AL5

AM5
M7

FE_DEMOD1_TS_DATA[0]
FE_DEMOD1_TS_DATA[1]
FE_DEMOD1_TS_DATA[2]
FE_DEMOD1_TS_DATA[3]
FE_DEMOD1_TS_DATA[4]
FE_DEMOD1_TS_DATA[5]
FE_DEMOD1_TS_DATA[6]
FE_DEMOD1_TS_DATA[7]

FE_DEMOD1_TS_CLK
FE_DEMOD1_TS_VAL
FE_DEMOD1_TS_SYNC

TPI_DATA[0]
TPI_DATA[1]
TPI_DATA[2]
TPI_DATA[3]
TPI_DATA[4]
TPI_DATA[5]
TPI_DATA[6]
TPI_DATA[7]

TPI_CLK
TPI_VAL
TPI_SOP

POL

GST_A

GST

GCLK

GCLK_A

MCLK

MCLK_A

OPT_P

SOE

FB

EO_A

E/O

HCONV

DPM

LOCKOUT12

LOCK

FE_DEMOD3_TS_DATA
FE_DEMOD3_TS_CLK
FE_DEMOD3_TS_VAL
FE_DEMOD3_TS_SYNC

Close to MSTAR

/USB_OCD3
USB_CTL3

I2C_SCL7
I2C_SDA7

C101 0.1uF
C102 0.1uF

ANALOG SIF
Close to MSTAR

CORE_VID1

TXVBY1_0N
TXVBY1_0P
TXVBY1_1N
TXVBY1_1P

R183 100

R184 100

R182
10K

5V_DET_HDMI_1
/USB_OCD3
USB_CTL3

EPI

C103 0.1uF

C104 0.1uF

R185 47

R186 47

PZ1608U121-2R0TF

R187

0

LM14A UF68/64

/TU_RESET2

WOL_WAKE_UP_SOC

FE_DEMOD1_TS_DATA[0-7]

TPI_DATA[0-7]

OPT
C107

100pF

OPT
C109
33pF

R188

C105

300

1000pF

OPT

OPT

+3.3V_NORMAL

L100

C106

0.1uF

C108

0.047uF
25V

DTV_IF

IF_P

IF_N

OPT
C110
33pF

TU_SIF

IF_AGC

R100

1.8K

R101

1.8K

+3.3V_LNA_TU

+3.3V_NORMAL

R102

1.8K

R104

1.8K

R103

1.8K

I2C_SDA_MICOM
I2C_SCL_MICOM

R107

1.8K

I2C PULL UP

R124

1.8K

R114

1.8K

R121

1.8K

AR100
33

R127

1.8K

R130

1.8K

I2C_SDA3
I2C_SCL3

R131

1.8K

R134

1.8K

R137

1.8K

+3.3V_TU

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

I2C_SDA7
I2C_SCL7

I2C_SDA6
I2C_SCL6
I2C_SDA1
I2C_SCL1
I2C_SDA3
I2C_SCL3

I2C_SDA4
I2C_SCL4

I2C_SDA5
I2C_SCL5

I2C_SDA2
I2C_SCL2

I2C for URSA9 (URSA9 Only)

I2C for LCD Module

I2C for NAVRAM

I2C for Micom

I2C for Main Amp / Woofer AMP

I2C for tuner

I2C for tuner&LNB

GPIO PULL UP

+3.3V_NORMAL

OPT

R152 10K

R154 10K

R164 10K

R156 10K

R157 10K

R161 10K

Mstar Debug

MSTAR_DEBUG_OLD

MSTAR_DEBUG_NEW

P100

12507WS-04L

OPT

R165 10K

R170 10K

R166 10K

R168 10K

/TU_RESET1

RF_SWITCH_CTL

AMP_RESET_N

TCON_I2C_EN

/USB_OCD3

USB_CTL3

/USB_OCD2

USB_CTL2

M_RFModule_RESET

PCM_5V_CTL

1

2

DDCA_CK

3

DDCA_DA

4

5

P101

12505WS-04A00

1

2

3

4

5

RS232C_Debug

P102

12507WS-04L

5

+3.3V_NORMAL

1

2

3

4

OPT

DDTS_Debug

DDTS_Debug

P103

12507WS-04L

R178 10K

SOC_RX

OPT

R179 10K

SOC_TX

5

+3.3V_NORMAL

1

2

3

4

OPT

R180 10K

DDTS_RX

OPT

R181 10K

DDTS_TX

BSD-15Y-LM14A-001_00-HD

2015-01-23LM14A

MAIN1_SYSTEM

01

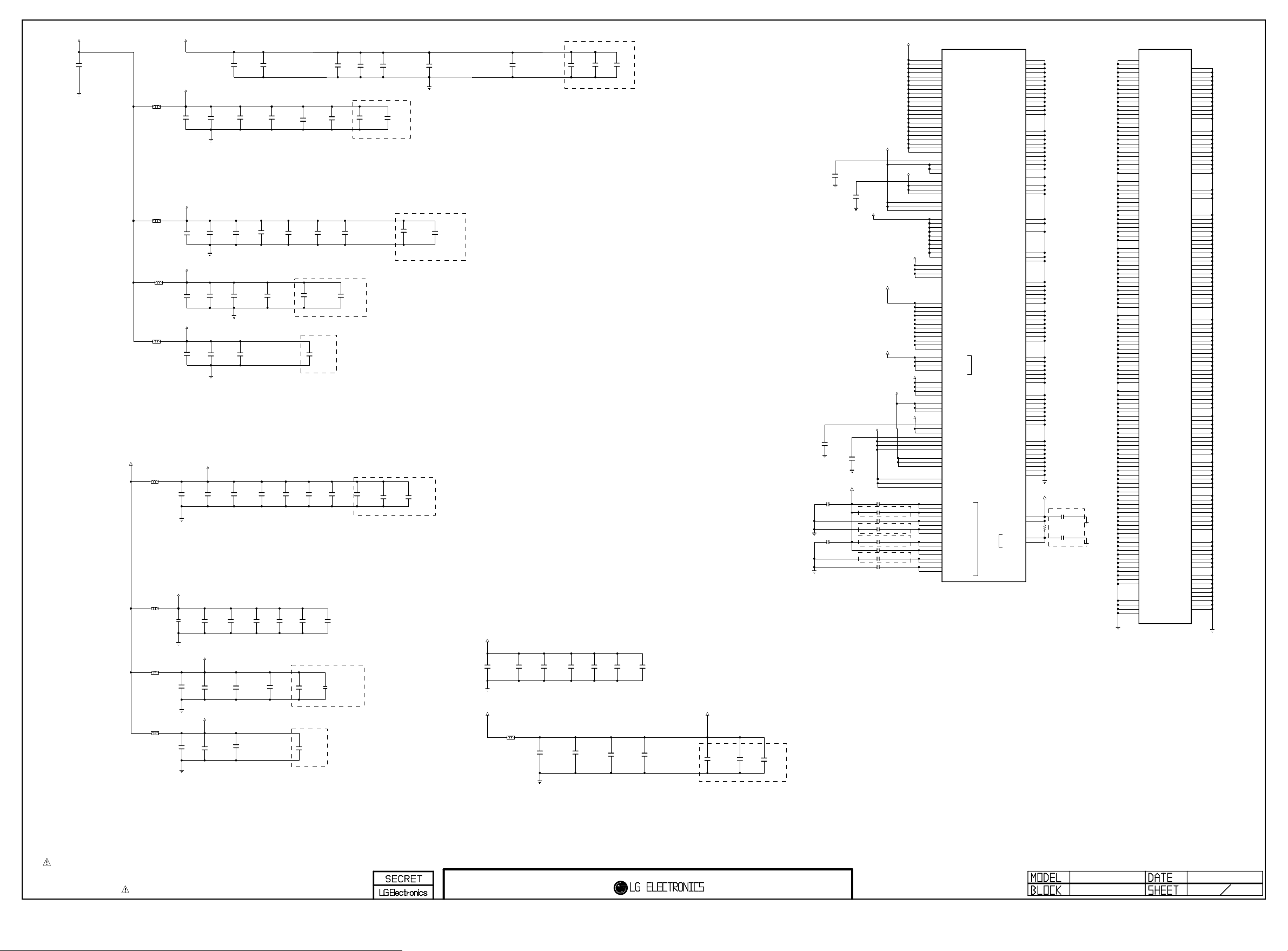

AVDDL_MOD11

Copyright © 2015 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

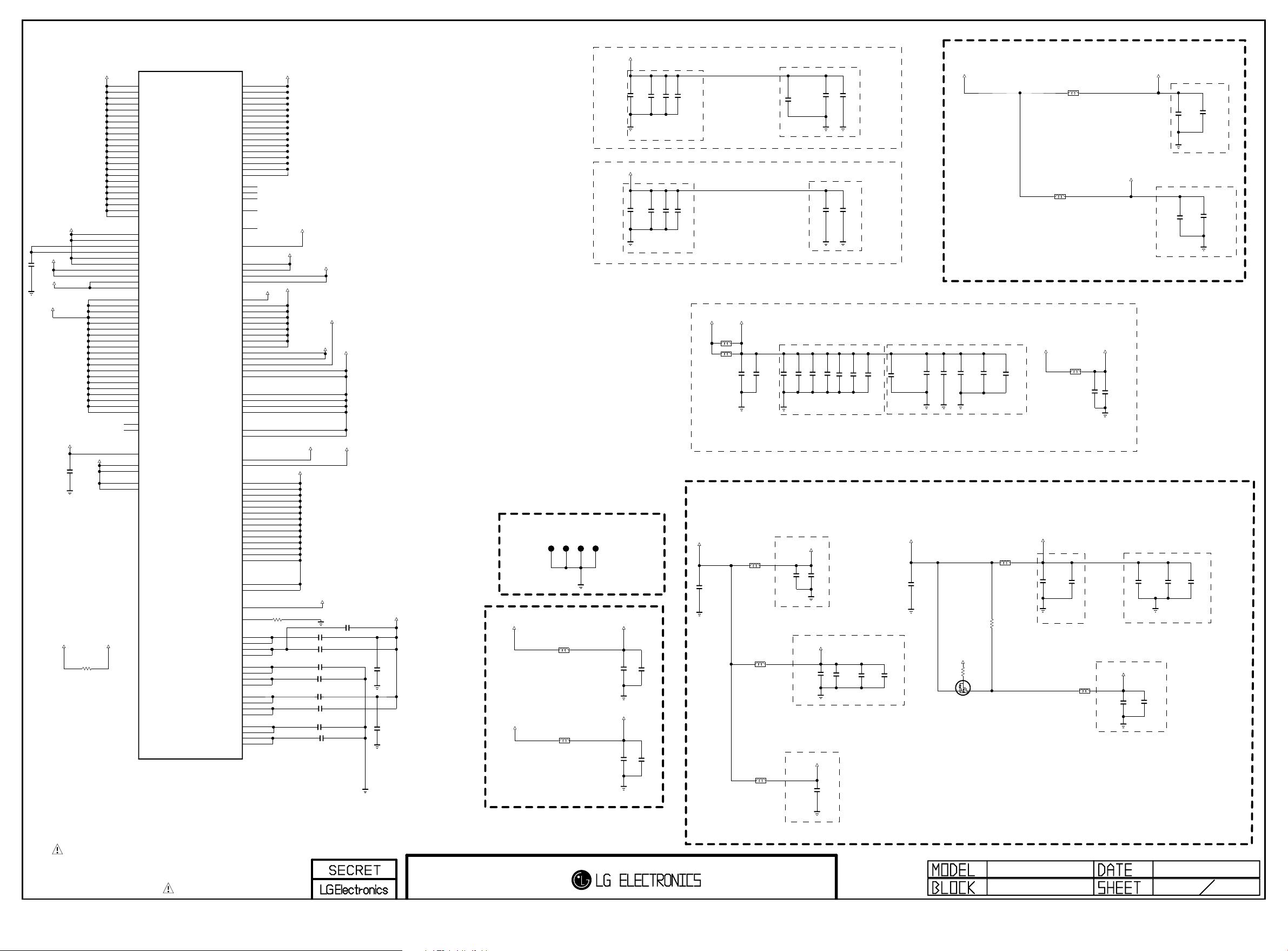

AVDD15_MOD

C227 0.1uF

DVDD_DDR11

+1.1V_VDDC_CPU

DVDD_NODIE

5V_HDMI_1

C200

1uF
25V

R200

+1.1V_VDDC

DVDD_DDR11

AVDD5V_MHL

10

AD29
AD30

AA13
AF11

AA22
AA23
AA24
AA25
AB24
AB25

AE16
AF16

J9
J10
J11
J12
J13

K9
K10
K11
K12
K13

L9
L10
L11
L12
R11
R12
R13
T11
T12
T13
U11
U12
U13

W21
Y21

W20
Y20
U19
V19

U21
U22
U23
U24
U25
V23
V24
V25
W23
W24
W25
Y23
Y24
Y25

L13

K21
N21

M21
L21

VDDC_1
VDDC_2
VDDC_3
VDDC_4
VDDC_5
VDDC_6
VDDC_7
VDDC_8
VDDC_9
VDDC_10
VDDC_11
VDDC_12
VDDC_13
VDDC_14
VDDC_15
VDDC_16
VDDC_17
VDDC_18
VDDC_19
VDDC_20
VDDC_21
VDDC_22
VDDC_23

AVDDL_PREDRV_1
AVDDL_PREDRV_2
AVDDL_PREDRV_3
AVDDL_MOD_1
AVDDL_MOD_2
AVDDL_MOD_3
AVDD15_MOD_1
AVDD15_MOD_2
AVDDL_USB3_1
AVDDL_USB3_2

VDDC_CPU_1
VDDC_CPU_2
VDDC_CPU_3
VDDC_CPU_4
VDDC_CPU_5
VDDC_CPU_6
VDDC_CPU_7
VDDC_CPU_8
VDDC_CPU_9
VDDC_CPU_10
VDDC_CPU_11
VDDC_CPU_12
VDDC_CPU_13
VDDC_CPU_14
VDDC_CPU_15
VDDC_CPU_16
VDDC_CPU_17
VDDC_CPU_18
VDDC_CPU_19
VDDC_CPU_20

MCP_VDDC_1
MCP_VDDC_2

DVDD_NODIE

DVDD_DDR_1
DVDD_DDR_2

DVDD_DDR_3
DVDD_DDR_4

IC100

LGE5332(LM14A)

AVDD3P3_MHL3_1
AVDD3P3_MHL3_2

AVDD3P3_DADC_1
AVDD3P3_DADC_2

AVDD3P3_USB3_1
AVDD3P3_USB3_2

VDDP_3318_A/[3.3V/1.8V]
VDDP_3318_C/[3.3V/1.8V]

AVDD_DDR_LDO_A
AVDD_DDR_LDO_B

AVDD_HDMI_5V_PA

AVDD_DDR_VBP_A_1
AVDD_DDR_VBP_A_2
AVDD_DDR_VBP_A_3
AVDD_DDR_VBP_A_4

AVDD_DDR_VBN_A_1
AVDD_DDR_VBN_A_2
AVDD_DDR_VBN_A_3
AVDD_DDR_VBN_A_4

AVDD_DDR_VBP_B_1
AVDD_DDR_VBP_B_2
AVDD_DDR_VBP_B_3
AVDD_DDR_VBP_B_4

AVDD_DDR_VBN_B_1
AVDD_DDR_VBN_B_2
AVDD_DDR_VBN_B_3
AVDD_DDR_VBN_B_4

VDDC_24
VDDC_25
VDDC_26
VDDC_27
VDDC_28
VDDC_29
VDDC_30
VDDC_31
VDDC_32
VDDC_33
VDDC_34
VDDC_35
VDDC_36
VDDC_37
VDDC_38
VDDC_39

VDD_SRAM_1
VDD_SRAM_2
VDD_SRAM_3

CTRL_SRAMLDO

EMMC_CTRL

AVDD_NODIE

AVDDL_MHL3_1
AVDDL_MHL3_2

AVDD3P3_ETH

AVDD3P3_ADC_1
AVDD3P3_ADC_2
AVDD3P3_USB_1
AVDD3P3_USB_2

AVDD_AU33

AVDD_EAR33

AVDD3P3_DMPLL

VDDP_1
VDDP_2

AVDD_MOD_1

AVDD_MOD_2
AVDD_LPLL_1
AVDD_LPLL_2

AVDD_PLL_A

AVDD_PLL_B

AVDD_DDR_A_1
AVDD_DDR_A_2
AVDD_DDR_A_3
AVDD_DDR_A_4
AVDD_DDR_A_5
AVDD_DDR_A_6
AVDD_DDR_A_7
AVDD_DDR_B_1
AVDD_DDR_B_2
AVDD_DDR_B_3
AVDD_DDR_B_4
AVDD_DDR_B_5
AVDD_DDR_B_6
AVDD_DDR_B_7

GND_EFUSE

AC17
AC18
AC19
AC20
AC21
AC22
AD17
AD18
AD19
AD20
AD21
AD22
AE19
AE20
AE21
AE22

AE31
AC24
AD23

AE30

A6

V7

L7
N12
R7
T7

AVDD_DMPLL

Y7
AB7
AB8
AA7
AA8
G9
G10
AB15
AF13
AD7
AE7
AF8
AE15
AF15

V17
V18
W19
Y19

N15
N16

H16
K16

J21
K17
K18
K19
L17
L19
L20
J23
K22
K23
M22
N22
N23
P23

L18
L22

H7

G8

C14
B14
J17
J18

B15
C15
J19
J20

AC30
AC31
K24
L24

AD31
AD32
L23
M24

+1.1V_VDDC

DVDD_DDR11

AVDD33_ADC

R201

0

AVDD_DMPLL

VDDP_NAND_A

AVDD_DDR

AVDDP3P3_MHL

AVDD_DMPLL

AVDD_AU33

AVDD5V_MHL

C2100.47uF

C2110.47uF

C2120.47uF

C2130.47uF

C2140.47uF

C2150.47uF

C216

0.47uF

0.47uF

C220

AVDDP3P3

VDDP_NAND_C

0.1uF
C229

C219

C221

AVDD_DDR

0.1uF

0.1uF

GND JIG POINT

+3.3V_NORMAL

+1.8V

JP204

JP202

JP203

L208

PZ1608U121-2R0TF

2A

L209

PZ1608U121-2R0TF

2A

+1.1V_VDDC_CPU

+1.1V_VDDC

JP205

VDDP_NAND_C

VDDP_NAND_A

C260
10uF
10V

C236
10uF
10V

C263
10uF
10V

C205
10uF
10V

1st layer

0.1uF

C276

C278

Close to chip side

1st layer

0.1uF

C230

C234

Close to chip side

C266

0.1uF

C239

0.1uF

0.1uF

C299

0.1uF

C235

0.1uF

0.1uF

+1.5V_DDR

PZ1608U121-2R0TF

PZ1608U121-2R0TF

+3.3V_NORMAL

C268
10uF
10V

+1.5V_Bypass Cap

AVDD_DDR

L227

L200

C207

4A

10uF
10V

C209 0.1uF

L213

PZ1608U121-2R0TF

2A

L221

PZ1608U121-2R0TF

2A

L219

PZ1608U121-2R0TF

2A

C208
10uF
10V

Close to chip side

Close to chip side

1st layer

C201
10uF
10V

C224 0.1uF

Close to chip side

4th layer

AVDD_DMPLL

0.1uF

C269

Close to chip side

4th layer

AVDD33_ADC

Close to chip side

4th layer

AVDD_AU33

C322

C250

C225 0.1uF

C293

0.47uF

6.3V

C292

0.47uF

6.3V

4th layer

10uF

4th layer

10uF

C226 0.1uF

C294
1uF
10V

C295
1uF
10V

C323

0.1uF
16V

C261

0.1uF
16V

C203 0.1uF

C204 0.1uF

C251

0.47uF

6.3V

C287 0.1uF

C247

0.47uF

6.3V

C252

0.47uF

6.3V

+3.3V_NORMAL

+1.1V_Bypass Cap(CLOSE TO CHIP SIDE)

+1.1V_VDDC

4th layer

C223

C316

0.47uF
10uF

10uF

10V

10V

C314

Close to chip side

+3.3V_Bypass Cap

C222
10uF
10V

+5V_NORMAL

R206
10K

G

S

D

RUE003N02

Q200

OPT

C248

C249

0.47uF

0.47uF

6.3V

6.3V

L215

PZ1608U121-2R0TF

2A

0

R207

OPT

L202

PZ1608U121-2R0TF

2A

AVDD_DDR

PZ1608U121-2R0TF

AVDDP3P3

1st layer

C256
10uF
10V

Close to chip side

L226

PZ1608U121-2R0TF

2A

AVDD15_MOD

2A

L224

0.1uF

C274

L201

PZ1608U121-2R0TF

Close to chip side

AVDDL_MOD11

C307 0.1uF

C308 0.1uF

Close to chip side

4th layer

AVDDP3P3_MHL

C240

0.1uF

DVDD_DDR11

4th layer

0.47uF

C311

C241

0.47uF

6.3V

4th layer

C324

0.47uF

6.3V

Close to chip side

4th layer

C238

0.47uF

6.3V

Close to chip side

0.1uF

C253

C217
10uF
10V

C257

0.47uF

6.3V

C320

0.47uF

6.3V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

Close to chip side

LM14A

MAIN2_POWER

2014-11-06

2

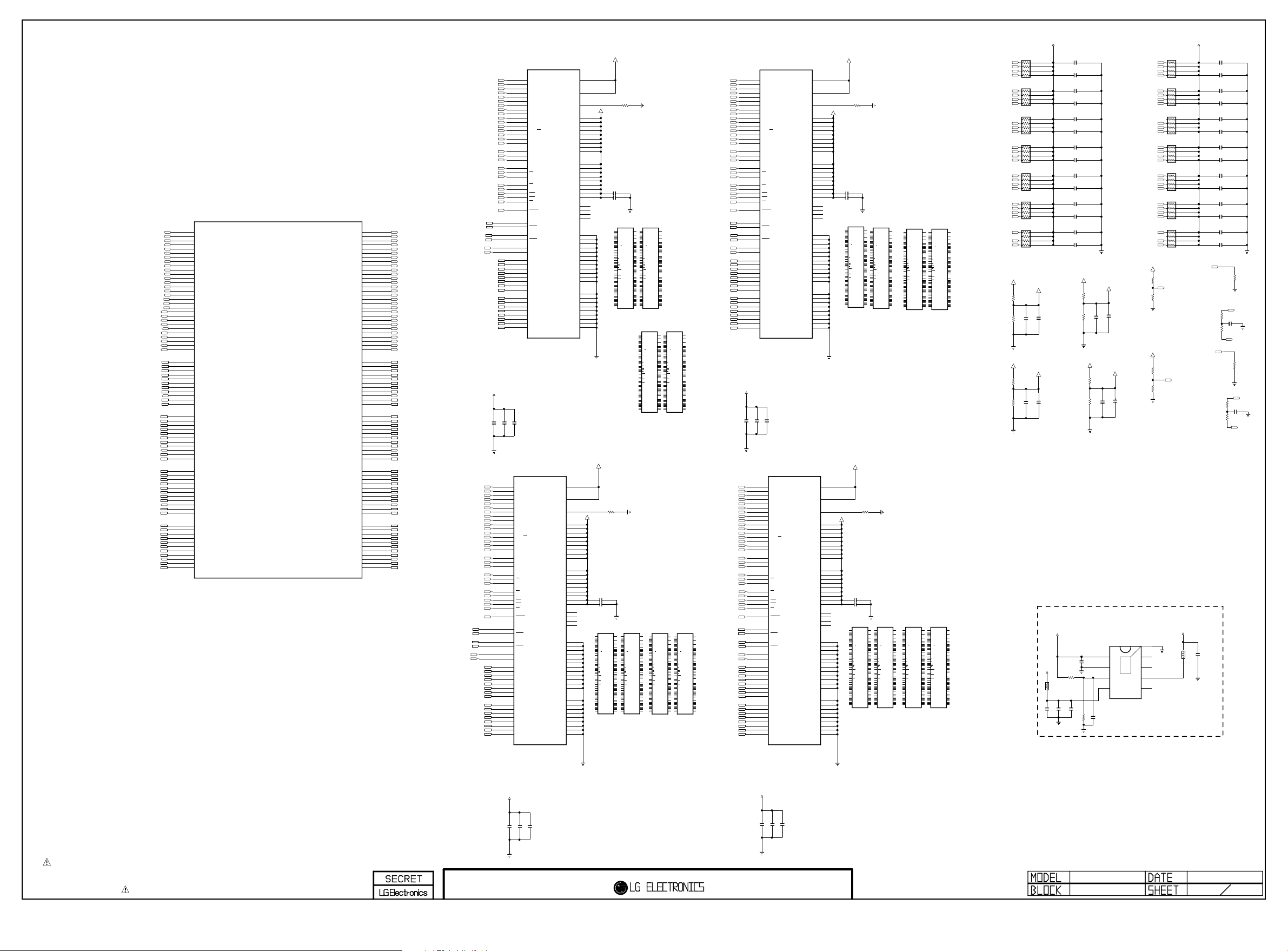

M0_DDR_A0

Copyright © 2015 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

M0_DDR_A1
M0_DDR_A2
M0_DDR_A3
M0_DDR_A4
M0_DDR_A5
M0_DDR_A6
M0_DDR_A7
M0_DDR_A8

M0_DDR_A9
M0_DDR_A10
M0_DDR_A11
M0_DDR_A12
M0_DDR_A13
M0_DDR_A14
M0_DDR_A15

M0_DDR_BA0
M0_DDR_BA1

M0_DDR_BA2
M0_DDR_RASN
M0_DDR_CASN

M0_DDR_WEN
M0_DDR_ODT

M0_DDR_CKE

M0_DDR_RESET_N

M0_D_CLK

M0_D_CLKN

M0_DDR_CS1
M0_DDR_CS2

M0_DDR_DQ0
M0_DDR_DQ1
M0_DDR_DQ2
M0_DDR_DQ3
M0_DDR_DQ4
M0_DDR_DQ5
M0_DDR_DQ6
M0_DDR_DQ7
M0_DDR_DM0

M0_DDR_DQS0

M0_DDR_DQS_N0

M0_DDR_DQ8

M0_DDR_DQ9
M0_DDR_DQ10
M0_DDR_DQ11
M0_DDR_DQ12
M0_DDR_DQ13
M0_DDR_DQ14
M0_DDR_DQ15

M0_DDR_DM1
M0_DDR_DQS1

M0_DDR_DQS_N1

M0_DDR_DQ16
M0_DDR_DQ17
M0_DDR_DQ18
M0_DDR_DQ19
M0_DDR_DQ20
M0_DDR_DQ21
M0_DDR_DQ22
M0_DDR_DQ23

M0_DDR_DM2
M0_DDR_DQS2

M0_DDR_DQS_N2

M0_DDR_DQ24
M0_DDR_DQ25
M0_DDR_DQ26
M0_DDR_DQ27
M0_DDR_DQ28
M0_DDR_DQ29
M0_DDR_DQ30
M0_DDR_DQ31

M0_DDR_DM3
M0_DDR_DQS3

M0_DDR_DQS_N3

F17

IO[3]/A-A0[AB-A0]/A-A6

C17

IO[2]/A-A1[AB-A1]/A-A5

E17

IO[8]/A-A2[AB-A2]/A-A8

F18

IO[12]/A-A3[AB-A3]/A-A4

B18

IO[11]/A-A4[AB-A4]/A-BA1

E18

IO[14]/A-A5[AB-A5]/A-A0

A17

IO[10]/A-A6[AB-A6]/A-A1

D17

IO[13]/A-A7[AB-A7]/A-A2

C16

IO[0]/A-A8[AB-A8]/A-A9

E16

IO[5]/A-A9[AB-A9]/A-A11

B19

IO[9]/A-A10[AB-A10]/A-RASZ

B17

IO[6]/A-A11[AB-A11]/A-A7

D20

IO[26]/A-A12[AB-A12]/A-BG0

F16

IO[4]/A-A13[AB-A13]/A-PARITY

B16

IO[7]/A-A14[AB-A14]/A-A13

E20

IO[19]/A-A15[AB-A15]/A-A3

E19

IO[24]/A-BA0[AB-BA0]/A-A10

C18

IO[20]/A-BA1[AB-BA1]/A-CASZ

F19

IO[21]/A-BA2[AB-BA2]/A-BA0

G22

IO[15]/A-RASZ[AB-RASZ]/A-ODT

F21

IO[17]/A-CASZ[AB-CASZ]/A-WEZ

E21

IO[16]/A-WEZ[AB-WEZ]/A-A12

F20

IO[25]/A-ODT[AB-ODT]/A-ACTZ

C19

IO[18]/A-CKE[AB-CKE]/A-CKE

F15

IO[1]/A-RST[AB-RST]/A-RST

A20

IO[28]/A-MCLK[AB-MCLK]/A-MCLKZ

B20

IO[27]/A-MCLKZ[AB-MCLKZ]/A-MCLK

E15

IO[23]/A-CSB1[AB-CSB1]/A-CSB1

D15

IO[22]/A-CSB2[AB-CSB2]/A-CSB2

C23

IO[47]/A-DQ[0][A-DQL0]/A-DQ[0]

B22

IO[31]/A-DQ[1][A-DQL1]/A-DQ[1]

B24

IO[48]/A-DQ[2][A-DQL2]/A-DQ[2]

C21

IO[29]/A-DQ[3][A-DQL3]/A-DQ[3]

B25

IO[50]/A-DQ[4][A-DQL4]/A-DQ[6]

C20

IO[30]/A-DQ[5][A-DQL5]/A-DQ[7]

C24

IO[49]/A-DQ[6][A-DQL6]/A-DQ[4]

B21

IO[32]/A-DQ[7][A-DQL7]/A-DQ[5]

C22

IO[33]/A-DQM[0][A-DML]/A-DQM[0]

A23

IO[42]/A-DQS[0][A-DQSL]/A-DQS[0]

B23

IO[41]/A-DQSB[0][A-DQSLB]/A-DQSB[0]

D23

IO[35]/A-DQ[8][A-DQU0]/A-DQ[15]

D26

IO[45]/A-DQ[9][A-DQU1]/A-DQ[10]

E22

IO[38]/A-DQ[10][A-DQU2]/A-DQ[13]

D27

IO[46]/A-DQ[11][A-DQU3]/A-DQM[1]

F23

IO[36]/A-DQ[12][A-DQU4]/A-DQ[9]

E26

IO[43]/A-DQ[13][A-DQU5]/A-DQ[12]

D22

IO[34]/A-DQ[14][A-DQU6]/A-DQ[11]

E25

IO[44]/A-DQ[15][A-DQU7]/A-DQ[8]

E24

IO[37]/A-DQM[1][A-DMU]/A-DQ[14]

D24

IO[40]/A-DQS[1][A-DQSU]/A-DQS[1]

E23

IO[39]/A-DQSB[1][A-DQSUB]/A-DQSB[1]

C28

IO[69]/A-DQ[16][B-DQL0]/A-DQ[16]

C26

IO[53]/A-DQ[17][B-DQL1]/A-DQ[17]

B29

IO[70]/A-DQ[18][B-DQL2]/A-DQ[18]

A26

IO[54]/A-DQ[19][B-DQL3]/A-DQ[19]

C29

IO[72]/A-DQ[20][B-DQL4]/A-DQ[22]

C25

IO[52]/A-DQ[21][B-DQL5]/A-DQ[23]

A29

IO[71]/A-DQ[22][B-DQL6]/A-DQ[20]

B26

IO[51]/A-DQ[23][B-DQL7]/A-DQ[21]

B27

IO[55]/A-DQM[2][B-DML]/A-DQM[2]

B28

IO[64]/A-DQS[2][B-DQSL]/A-DQS[2]

C27

IO[63]/A-DQSB[2]/[B-DQSLB]/A-DQSB[2]

E29

IO[58]/A-DQ[24][B-DQU0]/A-DQ[31]

C31

IO[67]/A-DQ[25][B-DQU1]/A-DQ[26]

E27

IO[56]/A-DQ[26][B-DQU2]/A-DQ[29]

D31

IO[66]/A-DQ[27][B-DQU3]/A-DQM[3]

D29

IO[59]/A-DQ[28][B-DQU4]/A-DQ[25]

D30

IO[65]/A-DQ[29][B-DQU5]/A-DQ[28]

E28

IO[57]/A-DQ[30][B-DQU6]/A-DQ[27]

C30

IO[60]/A-DQ[31][B-DQU7]/A-DQ[24]

B31

IO[68]/A-DQM[3][B-DMU]/A-DQ[30]

A31

IO[62]/A-DQS[3][B-DQSU]/A-DQS[3]

B30

IO[61]/A-DQSB[3][B-DQSUB]/A-DQSB[3]

IC100

LGE5332(LM14A)

IO[75]/B-A0[CD-A0]/B-A6
IO[80]/B-A1[CD-A1]/B-A5
IO[83]/B-A2[CD-A2]/B-A8
IO[79]/B-A3[CD-A3]/B-A4

IO[87]/B-A4[CD-A4]/B-BA1

IO[86]/B-A5[CD-A5]/B-A0
IO[90]/B-A6[CD-A6]/B-A1
IO[78]/B-A7[CD-A7]/B-A2
IO[77]/B-A8[CD-A8]/B-A9

IO[73]/B-A9[CD-A9]/B-A11

IO[93]/B-A10[CD-A10]/B-RASZ

IO[84]/B-A11[CD-A11]/B-A7

IO[85]/B-A12[CD-A12]/B-BG0

IO[74]/B-A13[CD-A13]/B-PARITY

IO[81]/B-A14[CD-A14]/B-A13

IO[96]/B-A15[CD-A15]/B-A3

IO[88]/B-BA0[CD-BA0]/B-A10

IO[92]/B-BA1[CD-BA1]/B-CASZ

IO[82]/B-BA2[CD-BA2]/B-BA0
IO[97]/B-RASZ[CD-RASZ]/B-ODT
IO[94]/B-CASZ[CD-CASZ]/B-WEZ

IO[89]/B-WEZ[CD-WEZ]/B-A12

IO[95]/B-ODT[CD-ODT]/B-ACTZ

IO[91]/B-CKE[CD-CKE]/B-CKE

IO[76]/B-RST[CD-RST]/B-RST

IO[101]/B-MCLK[CD-MCLK]/B-MCLKZ

IO[100]/B-MCLKZ[CD-MCLKZ]/B-MCLK

IO[99]/B-CSB1[CD-CSB1]/B-CSB1
IO[98]/B-CSB2[CD-CSB2]/B-CSB2

IO[120]/B-DQ[0][C-DQL0]/B-DQ[0]
IO[104]/B-DQ[1][C-DQL1]/B-DQ[1]
IO[121]/B-DQ[2][C-DQL2]/B-DQ[2]
IO[102]/B-DQ[3][C-DQL3]/B-DQ[3]
IO[123]/B-DQ[4][C-DQL4]/B-DQ[6]
IO[105]/B-DQ[5][C-DQL5]/B-DQ[7]
IO[122]/B-DQ[6][C-DQL6]/B-DQ[4]
IO[103]/B-DQ[7][C-DQL7]/B-DQ[5]

IO[106]/B-DQM[0][C-DML]/B-DQM[0]

IO[115]/B-DQS[0][C-DQSL]/B-DQS[0]

IO[114]/B-DQSB[0][C-DQSLB]/B-DQSB[0]

IO[109]/B-DQ[8][C-DQU0]/B-DQ[15]

IO[116]/B-DQ[9][C-DQU1]/B-DQ[10]
IO[107]/B-DQ[10][C-DQU2]/B-DQ[13]
IO[119]/B-DQ[11][C-DQU3]/B-DQM[1]

IO[111]/B-DQ[12][C-DQU4]/B-DQ[9]
IO[117]/B-DQ[13][C-DQU5]/B-DQ[12]
IO[108]/B-DQ[14][C-DQU6]/B-DQ[11]

IO[118]/B-DQ[15][C-DQU7]/B-DQ[8]

IO[110]/B-DQM[1][C-DMU]/B-DQ[14]
IO[113]/B-DQS[1][C-DQSU]/B-DQS[1]

IO[112]/B-DQSB[1][C-DQSUB]/B-DQSB[1]

IO[145]/B-DQ[16][D-DQL0]/B-DQ[16]
IO[126]/B-DQ[17][D-DQL1]/B-DQ[17]
IO[143]/B-DQ[18][D-DQL2]/B-DQ[18]
IO[127]/B-DQ[19][D-DQL3]/B-DQ[19]
IO[142]/B-DQ[20][D-DQL4]/B-DQ[22]
IO[124]/B-DQ[21][D-DQL5]/B-DQ[23]
IO[144]/B-DQ[22][D-DQL6]/B-DQ[20]
IO[125]/B-DQ[23][D-DQL7]/B-DQ[21]

IO[128]/B-DQM[2][D-DML]/B-DQM[2]
IO[137]/B-DQS[2][D-DQSL]/B-DQS[2]

IO[136]/B-DQSB[2][D-DQSLB]/B-DQSB[2]

IO[131]/B-DQ[24][D-DQU0]/B-DQ[31]
IO[141]/B-DQ[25][D-DQU1]/B-DQ[26]

IO[130]_/B-DQ[26][D-DQU2]/B-DQ[29]

IO[140]/B-DQ[27][D-DQU3]/B-DQM[3]
IO[129]/B-DQ[28][D-DQU4]/B-DQ[25]
IO[139]/B-DQ[29][D-DQU5]/B-DQ[28]
IO[132]/B-DQ[30][D-DQU6]/B-DQ[27]
IO[138]/B-DQ[31][D-DQU7]/B-DQ[24]

IO[133]/B-DQM[3][D-DMU]/B-DQ[30]
IO[135]/B-DQS[3][D-DQSU]/B-DQS[3]

IO[134]/B-DQSB[3][D-DQSUB]/B-DQSB[3]

DDR_VTT

AR400

M0_DDR_A14

M0_DDR_A8

M0_DDR_A11

M0_DDR_A6

M0_DDR_A1

M0_DDR_A4
M0_DDR_A12
M0_DDR_BA1

M0_DDR_A13

M0_DDR_A9

M0_DDR_A7

M0_DDR_A2

M0_DDR_A5

M0_DDR_A3

M0_DDR_A0

M0_DDR_BA0
M0_DDR_BA2
M0_DDR_A15
M0_DDR_A10

M0_DDR_WEN

M0_DDR_CASN

M0_DDR_ODT

M0_DDR_RASN

M0_DDR_CKE

M0_D_CLKN

M0_D_CLK

AVDD_DDR

R410

R411

AVDD_DDR

R408

R409

56
1/16W

AR401
56
1/16W

AR402
56
1/16W

AR403
56
1/16W

AR404
56
1/16W

AR405
56
1/16W

AR406
56
1/16W

1K 1%

1K 1%

1K 1%

1K 1%

M0_DDR_VREFDQ

C472

0.1uF
C474
1000pF
50V

M1_DDR_VREFDQ

C516

0.1uF
C517
1000pF
50V

DDR_VTT

AVDD_DDR

C414
10uF
10V

CIS2 1J121

C424 0.1uF

C425 0.1uF

C426 0.1uF

C427 0.1uF

C428 0.1uF

C429 0.1uF

C430 0.1uF

C431 0.1uF

C432 0.1uF

C433 0.1uF

C434 0.1uF

C435 0.1uF

C436 0.1uF

C437 0.1uF

* DDR_VTT

R443
10K

1/16W
1%

L400

C417
10uF
10V

C535
10uF
10V

AVDD_DDR

R416

R417

1%

1/16W

1K 1%

1K 1%

AVDD_DDR

R414

R415

C421
10uF
10V

10K

R444

M0_1_DDR_VREFDQ

C479

0.1uF

M1_1_DDR_VREFDQ

1K 1%

C518

0.1uF

1K 1%

AP2303MPTR-G1

VIN

GND

VREFEN

VOUT

C543

0.1uF
16V

C483
1000pF
50V

1

2

3

4

C519
1000pF
50V

IC402

THERMAL

9

M1_DDR_A14

M1_DDR_A8

M1_DDR_A11

M1_DDR_A6

M1_DDR_A1

M1_DDR_A4
M1_DDR_A12
M1_DDR_BA1

M1_DDR_A13

M1_DDR_A9

M1_DDR_A7

M1_DDR_A2

M1_DDR_A5

M1_DDR_A3

M1_DDR_A0

M1_DDR_BA0
M1_DDR_BA2
M1_DDR_A15
M1_DDR_A10

M1_DDR_WEN

M1_DDR_CASN

M1_DDR_ODT

M1_DDR_RASN

M1_DDR_CKE

M1_D_CLKN

M1_D_CLK

AVDD_DDR

[EP]

NC_3

8

NC_2

7

VCNTL

6

NC_1

5

AVDD_DDR

R446

10K

1K

1%
10K

R445

1K

M8

H1

L8

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

AVDD_DDR

AVDD_DDR

C410
C411

M1_DDR_VREFDQ

R404

C468

0.1uF

C469

0.1uF

SS_DDR3_4Gb_25n

IC403-*1

K4B4G1646D-BCMA

EAN63391401

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

M0_DDR_VREFDQ

R400

240

0.1uF

0.1uF

DDR3 1.5V bypass Cap - Place these caps near Memory

SS_DDR3_4Gb_25n

Hynix_DDR3_4Gb_25n

IC400-*1

IC400-*2

K4B4G1646D-BCMA

H5TQ4G63CFR_RDC

EAN63391401

EAN63053202

N3

M8

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

M8

VREFCA

A0

VREFCA

P7

A1

P3

A2

N2

H1

H1

A3

VREFDQ

VREFDQ

P8

A4

P2

A5

R8

L8

L8

A6

ZQ

ZQ

R2

A7

T8

A8

R3

B2

B2

A9

VDD_1

VDD_1

L7

D9

D9

A10/AP

VDD_2

VDD_2

R7

G7

G7

A11

VDD_3

VDD_3

N7

K2

K2

A12/BC

VDD_4

VDD_4

T3

K8

K8

A13

VDD_5

VDD_5

T7

N1

N1

A14

VDD_6

VDD_6

N9

M7

N9

VDD_7

NC_5

VDD_7

R1

R1

VDD_8

VDD_8

R9

R9

M2

VDD_9

VDD_9

BA0

N8

BA1

M3

BA2

A1

A1

VDDQ_1

VDDQ_1

A8

A8

J7

VDDQ_2

VDDQ_2

CK

C1

K7

C1

VDDQ_3

VDDQ_3

CK

C9

K9

C9

VDDQ_4

CKE

VDDQ_4

D2

D2

VDDQ_5

VDDQ_5

E9

E9

L2

VDDQ_6

VDDQ_6

CS

F1

F1

K1

VDDQ_7

VDDQ_7

ODT

H2

H2

J3

VDDQ_8

VDDQ_8

RAS

H9

H9

K3

VDDQ_9

VDDQ_9

CAS

L3

WE

J1

J1

NC_1

NC_1

J9

J9

T2

NC_2

NC_2

RESET

L1

L1

NC_3

NC_3

L9

L9

NC_4

NC_4

T7

F3

NC_6

DQSL

G3

DQSL

A9

A9

C7

VSS_1

VSS_1

DQSU

B3

B3

B7

VSS_2

VSS_2

DQSU

E1

E1

VSS_3

VSS_3

G8

G8

E7

VSS_4

VSS_4

DML

J2

J2

D3

VSS_5

VSS_5

DMU

J8

J8

VSS_6

VSS_6

M1

M1

E3

VSS_7

VSS_7

DQL0

M9

M9

F7

VSS_8

VSS_8

DQL1

P1

P1

F2

VSS_9

VSS_9

DQL2

P9

P9

F8

VSS_10

VSS_10

DQL3

T1

T1

H3

VSS_11

VSS_11

DQL4

T9

T9

H8

VSS_12

VSS_12

DQL5

G2

DQL6

H7

DQL7

B1

B1

VSSQ_1

VSSQ_1

B9

B9

D7

VSSQ_2

VSSQ_2

DQU0

D1

D1

C3

VSSQ_3

VSSQ_3

DQU1

D8

D8

C8

VSSQ_4

VSSQ_4

DQU2

E2

E2

C2

VSSQ_5

VSSQ_5

DQU3

E8

E8

A7

VSSQ_6

VSSQ_6

DQU4

F9

F9

A2

VSSQ_7

VSSQ_7

DQU5

G1

G1

B8

VSSQ_8

VSSQ_8

DQU6

G9

G9

A3

VSSQ_9

VSSQ_9

DQU7

Hynix_DDR3_2Gb

SS_DDR3_2Gb

IC400-*4

IC400-*3

H5TQ2G63FFR-RDC

K4B2G1646Q-BCMA

EAN63648701

EAN63667401

M8

N3

N3

VREFCA

A0

A0

P7

P7

A1

A1

P3

P3

A2

A2

H1

N2

N2

VREFDQ

A3

A3

P8

P8

A4

A4

P2

P2

A5

A5

R8

R8

L8

A6

A6

ZQ

R2

R2

A7

A7

T8

T8

A8

A8

R3

R3

B2

A9

A9

VDD_1

L7

L7

D9

A10/AP

A10/AP

VDD_2

R7

R7

G7

A11

A11

VDD_3

K2

N7

N7

A12/BC

A12/BC

VDD_4

K8

T3

T3

VDD_5

A13

A13

T7

N1

A14

VDD_6

N9

M7

M7

VDD_7

NC_5

NC_5

R1

VDD_8

R9

M2

M2

VDD_9

BA0

BA0

N8

N8

BA1

BA1

M3

M3

BA2

BA2

A1

VDDQ_1

A8

J7

J7

VDDQ_2

CK

CK

C1

K7

K7

VDDQ_3

CK

CK

C9

K9

K9

VDDQ_4

CKE

CKE

D2

VDDQ_5

E9

L2

L2

VDDQ_6

CS

CS

F1

K1

K1

VDDQ_7

ODT

ODT

H2

J3

J3

VDDQ_8

RAS

RAS

H9

K3

K3

VDDQ_9

CAS

CAS

L3

L3

WE

WE

J1

NC_1

J9

T2

T2

NC_2

RESET

RESET

L1

NC_3

L9

NC_4

T7

F3

F3

NC_6

DQSL

DQSL

G3

G3

DQSL

DQSL

A9

C7

C7

VSS_1

DQSU

DQSU

B3

B7

B7

VSS_2

DQSU

DQSU

E1

VSS_3

G8

E7

E7

VSS_4

DML

DML

J2

D3

D3

VSS_5

DMU

DMU

J8

VSS_6

M1

E3

E3

VSS_7

DQL0

DQL0

M9

F7

F7

VSS_8

DQL1

DQL1

P1

F2

F2

VSS_9

DQL2

DQL2

P9

F8

F8

VSS_10

DQL3

DQL3

T1

H3

H3

VSS_11

DQL4

DQL4

T9

H8

H8

VSS_12

DQL5

DQL5

G2

G2

DQL6

DQL6

H7

H7

DQL7

DQL7

B1

VSSQ_1

B9

D7

D7

VSSQ_2

DQU0

DQU0

D1

C3

C3

VSSQ_3

DQU1

DQU1

D8

C8

C8

VSSQ_4

DQU2

DQU2

E2

C2

C2

VSSQ_5

DQU3

DQU3

E8

A7

A7

VSSQ_6

DQU4

DQU4

F9

A2

A2

VSSQ_7

DQU5

DQU5

G1

B8

B8

VSSQ_8

DQU6

DQU6

G9

A3

A3

VSSQ_9

DQU7

DQU7

240

DDR3 1.5V bypass Cap - Place these caps near Memory

Hynix_DDR3_4Gb_25n

SS_DDR3_2Gb

IC403-*2

IC403-*3

H5TQ4G63CFR_RDC

K4B2G1646Q-BCMA

EAN63053202

EAN63667401

M8

M8

N3

VREFCA

A0

P7

A1

P3

A2

H1

N2

VREFDQ

A3

P8

A4

P2

A5

R8

L8

A6

ZQ

R2

A7

T8

A8

R3

B2

A9

VDD_1

L7

D9

A10/AP

VDD_2

R7

G7

A11

VDD_3

K2

N7

A12/BC

VDD_4

K8

T3

VDD_5

A13

T7

N1

A14

VDD_6

N9

M7

VDD_7

NC_5

R1

VDD_8

R9

M2

VDD_9

BA0

N8

BA1

M3

BA2

A1

VDDQ_1

A8

J7

VDDQ_2

CK

C1

K7

VDDQ_3

CK

C9

K9

VDDQ_4

CKE

D2

VDDQ_5

E9

L2

VDDQ_6

CS

F1

K1

VDDQ_7

ODT

H2

J3

VDDQ_8

RAS

H9

K3

VDDQ_9

CAS

L3

WE

J1

NC_1

J9

T2

NC_2

RESET

L1

NC_3

L9

NC_4

T7

F3

NC_6

DQSL

G3

DQSL

A9

C7

VSS_1

DQSU

B3

B7

VSS_2

DQSU

E1

VSS_3

G8

E7

VSS_4

DML

J2

D3

VSS_5

DMU

J8

VSS_6

M1

E3

VSS_7

DQL0

M9

F7

VSS_8

DQL1

P1

F2

VSS_9

DQL2

P9

F8

VSS_10

DQL3

T1

H3

VSS_11

DQL4

T9

H8

VSS_12

DQL5

G2

DQL6

H7

DQL7

B1

VSSQ_1

B9

D7

VSSQ_2

DQU0

D1

C3

VSSQ_3

DQU1

D8

C8

VSSQ_4

DQU2

E2

C2

VSSQ_5

DQU3

E8

A7

VSSQ_6

DQU4

F9

A2

VSSQ_7

DQU5

G1

B8

VSSQ_8

DQU6

G9

A3

VSSQ_9

DQU7

M8

N3

VREFCA

VREFCA

A0

P7

A1

P3

A2

H1

H1

N2

VREFDQ

VREFDQ

A3

P8

A4

P2

A5

L8

R8

L8

ZQ

A6

ZQ

R2

A7

T8

A8

B2

R3

B2

VDD_1

A9

VDD_1

D9

L7

D9

VDD_2

A10/AP

VDD_2

G7

R7

G7

VDD_3

A11

VDD_3

K2

K2

N7

VDD_4

A12/BC

VDD_4

K8

K8

T3

VDD_5

VDD_5

A13

N1

N1

VDD_6

VDD_6

N9

N9

M7

VDD_7

VDD_7

NC_5

R1

R1

VDD_8

VDD_8

R9

R9

M2

VDD_9

VDD_9

BA0

N8

BA1

M3

BA2

A1

A1

VDDQ_1

VDDQ_1

A8

A8

J7

VDDQ_2

VDDQ_2

CK

C1

C1

K7

VDDQ_3

VDDQ_3

CK

C9

C9

K9

VDDQ_4

VDDQ_4

CKE

D2

D2

VDDQ_5

VDDQ_5

E9

E9

L2

VDDQ_6

VDDQ_6

CS

F1

F1

K1

VDDQ_7

VDDQ_7

ODT

H2

H2

J3

VDDQ_8

VDDQ_8

RAS

H9

H9

K3

VDDQ_9

VDDQ_9

CAS

L3

WE

J1

J1

NC_1

NC_1

J9

J9

T2

NC_2

NC_2

RESET

L1

L1

NC_3

NC_3

L9

L9

NC_4

NC_4

T7

F3

NC_6

DQSL

G3

DQSL

A9

A9

C7

VSS_1

VSS_1

DQSU

B3

B3

B7

VSS_2

VSS_2

DQSU

E1

E1

VSS_3

VSS_3

G8

G8

E7

VSS_4

VSS_4

DML

J2

J2

D3

VSS_5

VSS_5

DMU

J8

J8

VSS_6

VSS_6

M1

M1

E3

VSS_7

VSS_7

DQL0

M9

M9

F7

VSS_8

VSS_8

DQL1

P1

P1

F2

VSS_9

VSS_9

DQL2

P9

P9

F8

VSS_10

VSS_10

DQL3

T1

T1

H3

VSS_11

VSS_11

DQL4

T9

T9

H8

VSS_12

VSS_12

DQL5

G2

DQL6

H7

DQL7

B1

B1

VSSQ_1

VSSQ_1

B9

B9

D7

VSSQ_2

VSSQ_2

DQU0

D1

D1

C3

VSSQ_3

VSSQ_3

DQU1

D8

D8

C8

VSSQ_4

VSSQ_4

DQU2

E2

E2

C2

VSSQ_5

VSSQ_5

DQU3

E8

E8

A7

VSSQ_6

VSSQ_6

DQU4

F9

F9

A2

VSSQ_7

VSSQ_7

DQU5

G1

G1

B8

VSSQ_8

VSSQ_8

DQU6

G9

G9

A3

VSSQ_9

VSSQ_9

DQU7

N3
P7
P3
N2
P8
P2
R8
R2
T8
R3
L7
R7
N7
T3
T7
M7

M2
N8
M3

J7
K7
K9

L2
K1
J3
K3
L3

T2

F3
G3

C7
B7

E7
D3

E3
F7
F2
F8
H3
H8
G2
H7

D7
C3
C8
C2
A7
A2
B8
A3

VREFCA

VREFDQ

ZQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

NC_1
NC_2
NC_3
NC_4

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

Hynix_DDR3_2Gb

IC403-*4

H5TQ2G63FFR-RDC

EAN63648701

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12/BC
A13
A14
NC_5

BA0
BA1
BA2

CK
CK
CKE

CS
ODT
RAS
CAS
WE

RESET

DQSL
DQSL

DQSU
DQSU

DML
DMU

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7

DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

M0_DDR_A0
M0_DDR_A1
M0_DDR_A2
M0_DDR_A3
M0_DDR_A4
M0_DDR_A5
M0_DDR_A6
M0_DDR_A7
M0_DDR_A8

M0_DDR_A9
M0_DDR_A10
M0_DDR_A11
M0_DDR_A12
M0_DDR_A13
M0_DDR_A14
M0_DDR_A15

M0_DDR_BA0
M0_DDR_BA1
M0_DDR_BA2

M0_D_CLK

M0_D_CLKN
M0_DDR_CKE

M0_DDR_CS2
M0_DDR_ODT

M0_DDR_RASN
M0_DDR_CASN

M0_DDR_WEN

M0_DDR_RESET_N

M0_DDR_DQS2

M0_DDR_DQS_N2

M0_DDR_DQS3

M0_DDR_DQS_N3

M0_DDR_DM2
M0_DDR_DM3

M0_DDR_DQ16
M0_DDR_DQ17
M0_DDR_DQ18
M0_DDR_DQ19
M0_DDR_DQ20
M0_DDR_DQ21
M0_DDR_DQ22
M0_DDR_DQ23

M0_DDR_DQ24
M0_DDR_DQ25
M0_DDR_DQ26
M0_DDR_DQ27
M0_DDR_DQ28
M0_DDR_DQ29
M0_DDR_DQ30
M0_DDR_DQ31

M8

H1

L8

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

M1_DDR_A10
M1_DDR_A11
M1_DDR_A12
M1_DDR_A13

M1_DDR_A14

M1_DDR_A15

M1_DDR_BA0
M1_DDR_BA1

M1_DDR_BA2

M1_DDR_CKE

M1_DDR_CS2

M1_DDR_ODT
M1_DDR_RASN
M1_DDR_CASN

M1_DDR_WEN

M1_DDR_RESET_N

M1_DDR_DQS2

M1_DDR_DQS_N2

M8

VREFCA

H1

VREFDQ

M1_DDR_DQS3

L8

ZQ

M1_DDR_DQS_N3

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

M1_DDR_DM2

VDD_7

R1

VDD_8

R9

VDD_9

M1_DDR_DM3

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

M1_DDR_DQ16

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

M1_DDR_DQ17

J1

NC_1

J9

NC_2

L1

M1_DDR_DQ18

NC_3

L9

NC_4

M1_DDR_DQ19

A9

VSS_1

B3

VSS_2

M1_DDR_DQ20

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

M1_DDR_DQ21

VSS_6

M1

VSS_7

M9

VSS_8

P1

M1_DDR_DQ22

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

M1_DDR_DQ23

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

M1_DDR_DQ24

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

M1_DDR_DQ25

G9

VSSQ_9

M1_DDR_DQ26
M1_DDR_DQ27
M1_DDR_DQ28
M1_DDR_DQ29
M1_DDR_DQ30
M1_DDR_DQ31

Hynix_DDR3_4Gb_29n

IC400

H5TQ4G63AFR-RDC

EAN63053201

N3

M0_DDR_A0
M0_DDR_A1
M0_DDR_A2
M0_DDR_A3
M0_DDR_A4
M0_DDR_A5
M0_DDR_A6
M0_DDR_A7
M0_DDR_A8

M0_DDR_A9
M0_DDR_A10
M0_DDR_A11
M0_DDR_A12
M0_DDR_A13
M0_DDR_A14
M0_DDR_A15

M0_DDR_BA0
M0_DDR_BA1
M0_DDR_BA2

M0_D_CLK

M0_D_CLKN
M0_DDR_CKE

M0_DDR_CS1
M0_DDR_ODT

M0_DDR_RASN
M0_DDR_CASN

M0_DDR_WEN

M0_DDR_RESET_N

M0_DDR_DQS0

H28
K31
J29
K27
K30
J28
K32
H31
J32
G30
L30
J30
L29
G31
J31
M28
L28
L31
K28
N28
N27
L27
M27
M31
G32
N32
M30
G29
F32

T31
P30
T30
P31
U30
N31
U31
N30
R31
T32
R30

P27
U29
P28
U27
R28
V28
P29
U28
T28
T27
R27

AA31
W31
AA30
W32
AB31
V31
AB32
V30
W30
Y30
Y31

Y28
AB27
V27
AB29
W28
AB28
W27
AA27
Y27
AA28
Y29

M1_DDR_A0
M1_DDR_A1
M1_DDR_A2
M1_DDR_A3
M1_DDR_A4
M1_DDR_A5
M1_DDR_A6
M1_DDR_A7
M1_DDR_A8
M1_DDR_A9
M1_DDR_A10
M1_DDR_A11
M1_DDR_A12
M1_DDR_A13
M1_DDR_A14
M1_DDR_A15
M1_DDR_BA0
M1_DDR_BA1
M1_DDR_BA2
M1_DDR_RASN
M1_DDR_CASN
M1_DDR_WEN
M1_DDR_ODT
M1_DDR_CKE
M1_DDR_RESET_N
M1_D_CLK
M1_D_CLKN
M1_DDR_CS1
M1_DDR_CS2

M1_DDR_DQ0
M1_DDR_DQ1
M1_DDR_DQ2
M1_DDR_DQ3
M1_DDR_DQ4
M1_DDR_DQ5
M1_DDR_DQ6
M1_DDR_DQ7
M1_DDR_DM0
M1_DDR_DQS0
M1_DDR_DQS_N0

M1_DDR_DQ8
M1_DDR_DQ9
M1_DDR_DQ10
M1_DDR_DQ11
M1_DDR_DQ12
M1_DDR_DQ13
M1_DDR_DQ14
M1_DDR_DQ15
M1_DDR_DM1
M1_DDR_DQS1
M1_DDR_DQS_N1

M1_DDR_DQ16
M1_DDR_DQ17
M1_DDR_DQ18
M1_DDR_DQ19
M1_DDR_DQ20
M1_DDR_DQ21
M1_DDR_DQ22
M1_DDR_DQ23
M1_DDR_DM2
M1_DDR_DQS2
M1_DDR_DQS_N2

M1_DDR_DQ24
M1_DDR_DQ25
M1_DDR_DQ26
M1_DDR_DQ27
M1_DDR_DQ28
M1_DDR_DQ29
M1_DDR_DQ30
M1_DDR_DQ31
M1_DDR_DM3
M1_DDR_DQS3
M1_DDR_DQS_N3

M0_DDR_DQS_N0

M0_DDR_DQS_N1

M1_DDR_RESET_N

M1_DDR_DQS0

M1_DDR_DQS_N0

M1_DDR_DQS1

M1_DDR_DQS_N1

M1_DDR_DM0
M1_DDR_DM1

M0_DDR_DQS1

M0_DDR_DM0
M0_DDR_DM1

M0_DDR_DQ0
M0_DDR_DQ1
M0_DDR_DQ2
M0_DDR_DQ3
M0_DDR_DQ4
M0_DDR_DQ5
M0_DDR_DQ6
M0_DDR_DQ7

M0_DDR_DQ8
M0_DDR_DQ9

M0_DDR_DQ10
M0_DDR_DQ11
M0_DDR_DQ12
M0_DDR_DQ13
M0_DDR_DQ14
M0_DDR_DQ15

+1.5V_Bypass Cap
Close to DDR Power Pin

AVDD_DDR

C400 0.1uF

C401 0.1uF

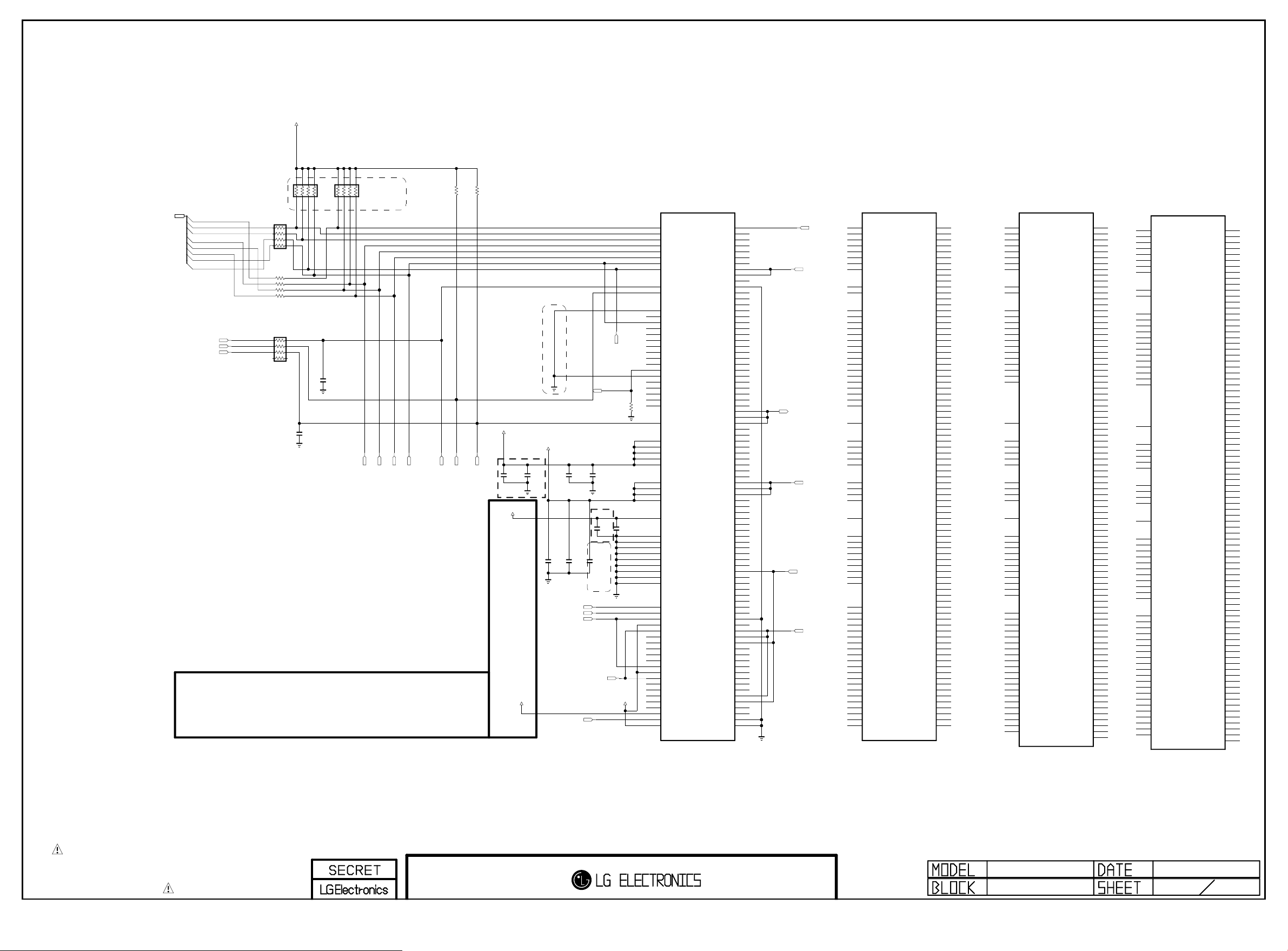

Hynix_DDR3_4Gb_29n

M1_DDR_A0

M1_DDR_A1

M1_DDR_A2
M1_DDR_A3

M1_DDR_A4

M1_DDR_A5
M1_DDR_A6

M1_DDR_A7

M1_DDR_A8

M1_DDR_A9
M1_DDR_A10
M1_DDR_A11
M1_DDR_A12
M1_DDR_A13
M1_DDR_A14
M1_DDR_A15

M1_DDR_BA0
M1_DDR_BA1
M1_DDR_BA2

M1_D_CLK

M1_D_CLKN
M1_DDR_CKE

M1_DDR_CS1
M1_DDR_ODT

M1_DDR_RASN
M1_DDR_CASN

M1_DDR_WEN

M1_DDR_DQ0
M1_DDR_DQ1
M1_DDR_DQ2
M1_DDR_DQ3
M1_DDR_DQ4
M1_DDR_DQ5
M1_DDR_DQ6
M1_DDR_DQ7

M1_DDR_DQ8
M1_DDR_DQ9

M1_DDR_DQ10
M1_DDR_DQ11
M1_DDR_DQ12
M1_DDR_DQ13
M1_DDR_DQ14
M1_DDR_DQ15

N3
P7
P3
N2
P8
P2
R8
R2
T8
R3
L7
R7
N7
T3
T7
M7

M2
N8
M3

J7
K7
K9

L2
K1
J3
K3
L3

T2

F3
G3

C7
B7

E7
D3

E3
F7
F2
F8
H3
H8
G2
H7

D7
C3
C8
C2
A7
A2
B8
A3

DDR3

A0

P7

4Gbit

A1

P3

(x16)

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

C402 0.1uF

IC403

H5TQ4G63AFR-RDC

EAN63053201

DDR3

A0

4Gbit

A1

(x16)

A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12/BC
A13
A14
NC_5

BA0
BA1
BA2

CK
CK
CKE

CS
ODT
RAS
CAS
WE

RESET

DQSL
DQSL

DQSU
DQSU

DML
DMU

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7

DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

VREFCA

VREFDQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

VREFCA

VREFDQ

ZQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

NC_1
NC_2
NC_3
NC_4

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

M8

H1

L8

ZQ

B2

D9

G7

K2

K8

N1

N9

R1

R9

A1

A8

C1

C9

D2

E9

F1

H2

H9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

A9

B3

E1

G8

J2

J8

M1

M9

P1

P9

T1

T9

B1

B9

D1

D8

E2

E8

F9

G1

G9

Hynix_DDR3_4Gb_29n

IC401

H5TQ4G63AFR-RDC

EAN63053201

N3

DDR3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

+1.5V_Bypass Cap
Close to DDR Power Pin

4Gbit
(x16)

VREFCA

VREFDQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

AVDD_DDR

C403 0.1uF

C404 0.1uF

C405 0.1uF

Hynix_DDR3_4Gb_29n

IC404

H5TQ4G63AFR-RDC

EAN63053201

N3

M1_DDR_A0
M1_DDR_A1
M1_DDR_A2
M1_DDR_A3
M1_DDR_A4
M1_DDR_A5
M1_DDR_A6
M1_DDR_A7
M1_DDR_A8
M1_DDR_A9

M1_D_CLK

M1_D_CLKN

DDR3

A0

P7

4Gbit

A1

P3

(x16)

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

M0_1_DDR_VREFDQ

M8

H1

L8

R403

ZQ

AVDD_DDR
B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

240

C440

0.1uF

C441

0.1uF

DDR3 1.5V bypass Cap - Place these caps near Memory

SS_DDR3_4Gb_25n

Hynix_DDR3_4Gb_25n

N3
P7
P3
N2
P8
P2
R8
R2
T8
R3
L7
R7
N7
T3

M7

M2
N8
M3

J7
K7
K9

L2
K1
J3
K3
L3

T2

F3
G3

C7
B7

E7
D3

E3
F7
F2
F8
H3
H8
G2
H7

D7
C3
C8
C2
A7
A2
B8
A3

IC401-*1

K4B4G1646D-BCMA

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12/BC
A13

NC_5

BA0
BA1
BA2

CK
CK
CKE

CS
ODT
RAS
CAS
WE

RESET

DQSL
DQSL

DQSU
DQSU

DML
DMU

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7

DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

IC401-*2

H5TQ4G63CFR_RDC

EAN63391401

EAN63053202

M8

VREFCA

N3

M8

A0

VREFCA

P7

A1

P3

H1

A2

VREFDQ

N2

H1

A3

VREFDQ

P8

A4

P2

L8

A5

ZQ

R8

L8

A6

ZQ

R2

A7

T8

B2

A8

VDD_1

R3

B2

D9

A9

VDD_1

VDD_2

L7

D9

G7

A10/AP

VDD_2

VDD_3

R7

G7

K2

A11

VDD_3

VDD_4

N7

K2

K8

A12/BC

VDD_4

VDD_5

T3

K8

N1

A13

VDD_5

VDD_6

T7

N1

N9

A14

VDD_6

VDD_7

M7

N9

R1

NC_5

VDD_7

VDD_8

R1

R9

VDD_8

VDD_9

R9

M2

VDD_9

BA0

N8

BA1

M3

A1

BA2

VDDQ_1

A1

A8

VDDQ_1

VDDQ_2

A8

J7

C1

VDDQ_2

CK

VDDQ_3

K7

C1

C9

VDDQ_3

CK

VDDQ_4

K9

C9

D2

CKE

VDDQ_4

VDDQ_5

D2

E9

VDDQ_5

VDDQ_6

E9

L2

F1

VDDQ_6

CS

VDDQ_7

F1

K1

H2

VDDQ_7

ODT

VDDQ_8

H2

J3

H9

VDDQ_8

RAS

VDDQ_9

H9

K3

VDDQ_9

CAS

L3

J1

WE

NC_1

J1

J9

NC_1

NC_2

J9

T2

L1

NC_2

RESET

NC_3

L1

L9

NC_3

NC_4

L9

T7

NC_4

NC_6

F3

DQSL

G3

DQSL

A9

VSS_1

A9

C7

B3

VSS_1

DQSU

VSS_2

B3

B7

E1

VSS_2

DQSU

VSS_3

E1

G8

VSS_3

VSS_4

G8

E7

J2

VSS_4

DML

VSS_5

J2

D3

J8

VSS_5

DMU

VSS_6

J8

M1

VSS_6

VSS_7

M1

E3

M9

VSS_7

DQL0

VSS_8

M9

F7

P1

VSS_8

DQL1

VSS_9

P1

F2

P9

VSS_9

DQL2

VSS_10

P9

F8

T1

VSS_10

DQL3

VSS_11

T1

H3

T9

VSS_11

DQL4

VSS_12

T9

H8

VSS_12

DQL5

G2

DQL6

H7

B1

DQL7

VSSQ_1

B1

B9

VSSQ_1

VSSQ_2

B9

D7

D1

VSSQ_2

DQU0

VSSQ_3

D1

C3

D8

VSSQ_3

DQU1

VSSQ_4

D8

C8

E2

VSSQ_4

DQU2

VSSQ_5

E2

C2

E8

VSSQ_5

DQU3

VSSQ_6

E8

A7

F9

VSSQ_6

DQU4

VSSQ_7

F9

A2

G1

VSSQ_7

DQU5

VSSQ_8

G1

B8

G9

VSSQ_8

DQU6

VSSQ_9

G9

A3

VSSQ_9

DQU7

N3
P7
P3
N2
P8
P2
R8
R2
T8
R3
L7
R7
N7
T3

M7

M2
N8
M3

J7
K7
K9

L2
K1
J3
K3
L3

T2

F3
G3

C7
B7

E7
D3

E3
F7
F2
F8
H3
H8
G2
H7

D7
C3
C8
C2
A7
A2
B8
A3

SS_DDR3_2Gb

K4B2G1646Q-BCMA

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12/BC
A13

NC_5

BA0
BA1
BA2

CK
CK
CKE

CS
ODT
RAS
CAS
WE

RESET

DQSL
DQSL

DQSU
DQSU

DML
DMU

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7

DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

Hynix_DDR3_2Gb

IC401-*4

IC401-*3

H5TQ2G63FFR-RDC

EAN63648701

EAN63667401

M8

M8

N3

VREFCA

VREFCA

A0

P7

A1

P3

A2

N2

H1

H1

A3

VREFDQ

VREFDQ

P8

A4

P2

A5

R8

L8

L8

A6

ZQ

ZQ

R2

A7

T8

A8

R3

B2

B2

A9

VDD_1

VDD_1

L7

D9

D9

A10/AP

VDD_2

VDD_2

R7

G7

G7

A11

VDD_3

VDD_3

K2

K2

N7

A12/BC

VDD_4

VDD_4

K8

K8

T3

VDD_5

VDD_5

A13

T7

N1

N1

A14

VDD_6

VDD_6

N9

N9

M7

VDD_7

VDD_7

NC_5

R1

R1

VDD_8

VDD_8

R9

R9

M2

VDD_9

VDD_9

BA0

N8

BA1

M3

BA2

A1

A1

VDDQ_1

VDDQ_1

A8

A8

J7

VDDQ_2

VDDQ_2

CK

C1

C1

K7

VDDQ_3

VDDQ_3

CK

C9

C9

K9

VDDQ_4

VDDQ_4

CKE

D2

D2

VDDQ_5

VDDQ_5

E9

E9

L2

VDDQ_6

VDDQ_6

CS

F1

F1

K1

VDDQ_7

VDDQ_7

ODT

H2

H2

J3

VDDQ_8

VDDQ_8

RAS

H9

H9

K3

VDDQ_9

VDDQ_9

CAS

L3

WE

J1

J1

NC_1

NC_1

J9

J9

T2

NC_2

NC_2

RESET

L1

L1

NC_3

NC_3

L9

L9

NC_4

NC_4

T7

F3

NC_6

DQSL

G3

DQSL

A9

A9

C7

VSS_1

VSS_1

DQSU

B3

B3

B7

VSS_2

VSS_2

DQSU

E1

E1

VSS_3

VSS_3

G8

G8

E7

VSS_4

VSS_4

DML

J2

J2

D3

VSS_5

VSS_5

DMU

J8

J8

VSS_6

VSS_6

M1

M1

E3

VSS_7

VSS_7

DQL0

M9

M9

F7

VSS_8

VSS_8

DQL1

P1

P1

F2

VSS_9

VSS_9

DQL2

P9

P9

F8

VSS_10

VSS_10

DQL3

T1

T1

H3

VSS_11

VSS_11

DQL4

T9

T9

H8

VSS_12

VSS_12

DQL5

G2

DQL6

H7

DQL7

B1

B1

VSSQ_1

VSSQ_1

B9

B9

D7

VSSQ_2

VSSQ_2

DQU0

D1

D1

C3

VSSQ_3

VSSQ_3

DQU1

D8

D8

C8

VSSQ_4

VSSQ_4

DQU2

E2

E2

C2

VSSQ_5

VSSQ_5

DQU3

E8

E8

A7

VSSQ_6

VSSQ_6

DQU4

F9

F9

A2

VSSQ_7

VSSQ_7

DQU5

G1

G1

B8

VSSQ_8

VSSQ_8

DQU6

G9

G9

A3

VSSQ_9

VSSQ_9

DQU7

M1_1_DDR_VREFDQ

M8

VREFCA

H1

VREFDQ

L8

R419

240

C490

0.1uF

C491

0.1uF

DDR3 1.5V bypass Cap - Place these caps near Memory

Hynix_DDR3_4Gb_25n

SS_DDR3_4Gb_25n

IC404-*2

IC404-*1

H5TQ4G63CFR_RDC

K4B4G1646D-BCMA

EAN63053202

EAN63391401

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

M8

M8

N3

N3

VREFCA

VREFCA

A0

P7

P7

A1

P3

P3

A2

H1

H1

N2

N2

VREFDQ

VREFDQ

A3

P8

P8

A4

P2

P2

A5

R8

L8

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

R8

A6

ZQ

R2

R2

A7

T8

T8

A8

R3

R3

B2

A9

VDD_1

L7

L7

D9

A10/AP

VDD_2

R7

R7

G7

A11

VDD_3

K2

N7

N7

A12/BC

VDD_4

K8

T3

T3

VDD_5

A13

T7

N1

A14

VDD_6

N9

M7

M7

VDD_7

NC_5

R1

VDD_8

R9

M2

M2

VDD_9

BA0

N8

N8

BA1

M3

M3

BA2

A1

VDDQ_1

A8

J7

J7

VDDQ_2

CK

C1

K7

K7

VDDQ_3

CK

C9

K9

K9

VDDQ_4

CKE

D2

VDDQ_5

E9

L2

L2

VDDQ_6

CS

F1

K1

K1

VDDQ_7

ODT

H2

J3

J3

VDDQ_8

RAS

H9

K3

K3

VDDQ_9

CAS

L3

L3

WE

J1

NC_1

J9

T2

T2

NC_2

RESET

L1

NC_3

L9

NC_4

F3

F3

DQSL

G3

G3

DQSL

A9

C7

C7

VSS_1

DQSU

B3

B7

B7

VSS_2

DQSU

E1

VSS_3

G8

E7

E7

VSS_4

DML

J2

D3

D3

VSS_5

DMU

J8

VSS_6

M1

E3

E3

VSS_7

DQL0

M9

F7

F7

VSS_8

DQL1

P1

F2

F2

VSS_9

DQL2

P9

F8

F8

VSS_10

DQL3

T1

H3

H3

VSS_11

DQL4

T9

H8

H8

VSS_12

DQL5

G2

G2

DQL6

H7

H7

DQL7

B1

VSSQ_1

B9

D7

D7

VSSQ_2

DQU0

D1

C3

C3

VSSQ_3

DQU1

D8

C8

C8

VSSQ_4

DQU2

E2

C2

C2

VSSQ_5

DQU3

E8

A7

A7

VSSQ_6

DQU4

F9

A2

A2

VSSQ_7

DQU5

G1

B8

B8

VSSQ_8

DQU6

G9

A3

A3

VSSQ_9

DQU7

SS_DDR3_2Gb

K4B2G1646Q-BCMA

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12/BC
A13

NC_5

BA0
BA1
BA2

CK
CK
CKE

CS
ODT
RAS
CAS
WE

RESET

DQSL
DQSL

DQSU
DQSU

DML
DMU

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7

DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

Hynix_DDR3_2Gb

IC404-*4

IC404-*3

H5TQ2G63FFR-RDC

EAN63648701

EAN63667401

M8

M8

N3

VREFCA

VREFCA

A0

P7

A1

P3

A2

H1

H1

N2

VREFDQ

VREFDQ

A3

P8

A4

P2

A5

R8

L8

L8

A6

ZQ

ZQ

R2

A7

T8

A8

R3

B2

B2

A9

VDD_1

VDD_1

L7

D9

D9

A10/AP

VDD_2

VDD_2

R7

G7

G7

A11

VDD_3

VDD_3

K2

K2

N7

A12/BC

VDD_4

VDD_4

K8

K8

T3

VDD_5

VDD_5

A13

T7

N1

N1

A14

VDD_6

VDD_6

N9

N9

M7

VDD_7

VDD_7

NC_5

R1

R1

VDD_8

VDD_8

R9

R9

M2

VDD_9

VDD_9

BA0

N8

BA1

M3

BA2

A1

A1

VDDQ_1

VDDQ_1

A8

A8

J7

VDDQ_2

VDDQ_2

CK

C1

C1

K7

VDDQ_3

VDDQ_3

CK

C9

C9

K9

VDDQ_4

VDDQ_4

CKE

D2

D2

VDDQ_5

VDDQ_5

E9

E9

L2

VDDQ_6

VDDQ_6

CS

F1

F1

K1

VDDQ_7

VDDQ_7

ODT

H2

H2

J3

VDDQ_8

VDDQ_8

RAS

H9

H9

K3

VDDQ_9

VDDQ_9

CAS

L3

WE

J1

J1

NC_1

NC_1

J9

J9

T2

NC_2

NC_2

RESET

L1

L1

NC_3

NC_3

L9

L9

NC_4

NC_4

T7

F3

NC_6

DQSL

G3

DQSL

A9

A9

C7

VSS_1

VSS_1

DQSU

B3

B3

B7

VSS_2

VSS_2

DQSU

E1

E1

VSS_3

VSS_3

G8

G8

E7

VSS_4

VSS_4

DML

J2

J2

D3

VSS_5

VSS_5

DMU

J8

J8

VSS_6

VSS_6

M1

M1

E3

VSS_7

VSS_7

DQL0

M9

M9

F7

VSS_8

VSS_8

DQL1

P1

P1

F2

VSS_9

VSS_9

DQL2

P9

P9

F8

VSS_10

VSS_10

DQL3

T1

T1

H3

VSS_11

VSS_11

DQL4

T9

T9

H8

VSS_12

VSS_12

DQL5

G2

DQL6

H7

DQL7

B1

B1

VSSQ_1

VSSQ_1

B9

B9

D7

VSSQ_2

VSSQ_2

DQU0

D1

D1

C3

VSSQ_3

VSSQ_3

DQU1

D8

D8

C8

VSSQ_4

VSSQ_4

DQU2

E2

E2

C2

VSSQ_5

VSSQ_5

DQU3

E8

E8

A7

VSSQ_6

VSSQ_6

DQU4

F9

F9

A2

VSSQ_7

VSSQ_7

DQU5

G1

G1

B8

VSSQ_8

VSSQ_8

DQU6

G9

G9

A3

VSSQ_9

VSSQ_9

DQU7

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

ZQ

AVDD_DDR
B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

AR407
56
1/16W

AR408
56
1/16W

AR409
56
1/16W

AR410
56
1/16W

AR411
56
1/16W

AR412
56
1/16W

AR413
56
1/16W

OPT

R405

M0_DDR_RESET_N

OPT

R422

1%

+3.3V_NORMAL

M1_DDR_RESET_N

CIS2 1J121

DDR_VTT

M0_DDR_CKE

M1_DDR_CKE

C544
10uF

L401

10V

C453 0.1uF

C454 0.1uF

C455 0.1uF

C456 0.1uF

C457 0.1uF

C458 0.1uF

C459 0.1uF

C460 0.1uF

C461 0.1uF

C462 0.1uF

C463 0.1uF

C464 0.1uF

C465 0.1uF

C466 0.1uF

R412
56
1%

R413
56
1%

R427
56
1%

R428
56
1%

C477

0.01uF
50V

1K

M0_D_CLK

M0_D_CLKN

1K

C497

0.01uF
50V

M1_D_CLKN

R418

R433

M1_D_CLK

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

+1.5V_Bypass Cap
Close to DDR Power Pin

AVDD_DDR

C446 0.1uF

C444 0.1uF

C445 0.1uF

+1.5V_Bypass Cap
Close to DDR Power Pin

AVDD_DDR

C475 0.1uF

C480 0.1uF

C476 0.1uF

LM14A

LM14A DDR

BSD-15Y-LM14A-004_00-HD

2014-12-30

04

COMPENSATION_DONE_1

Copyright © 2015 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

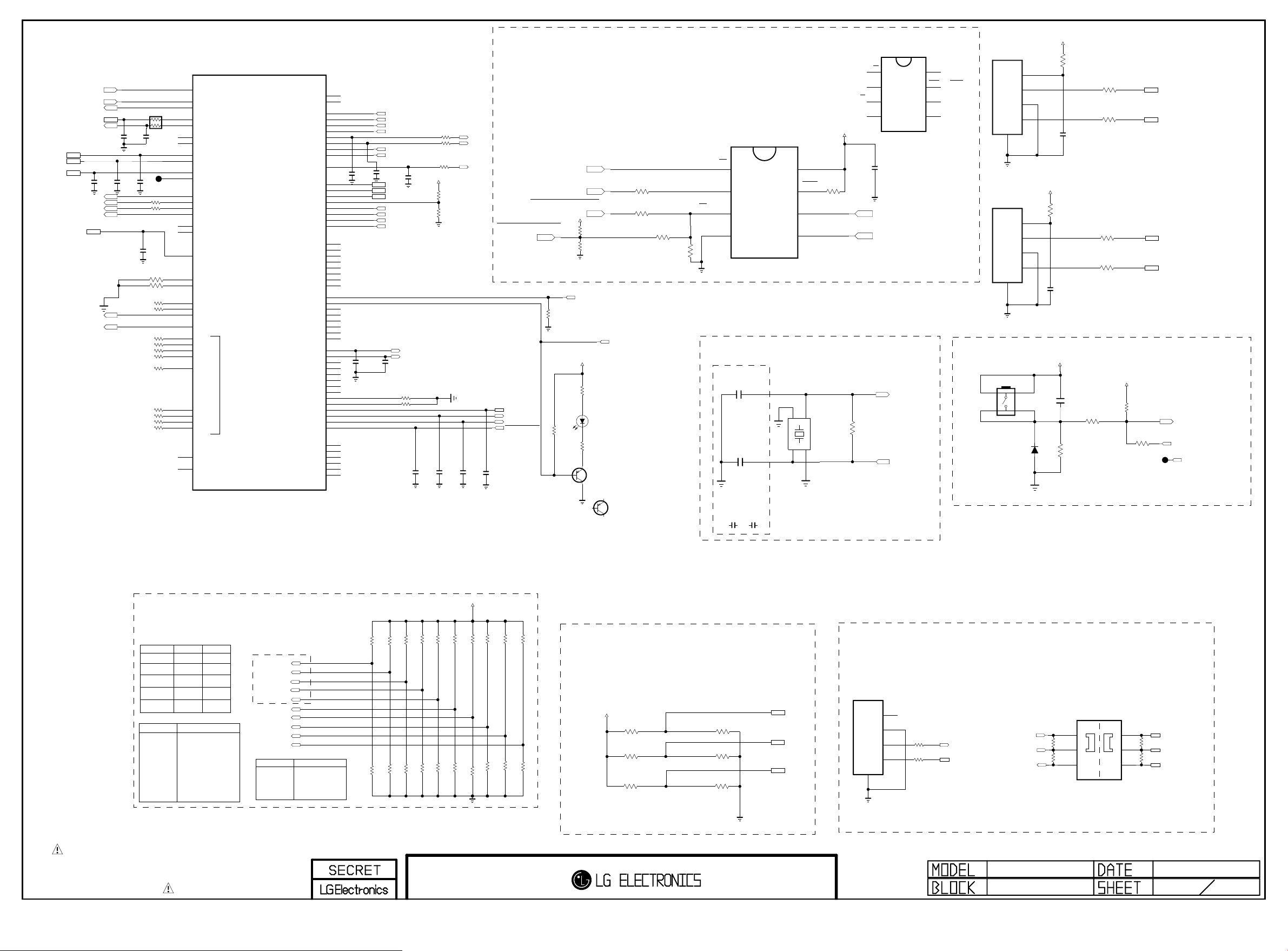

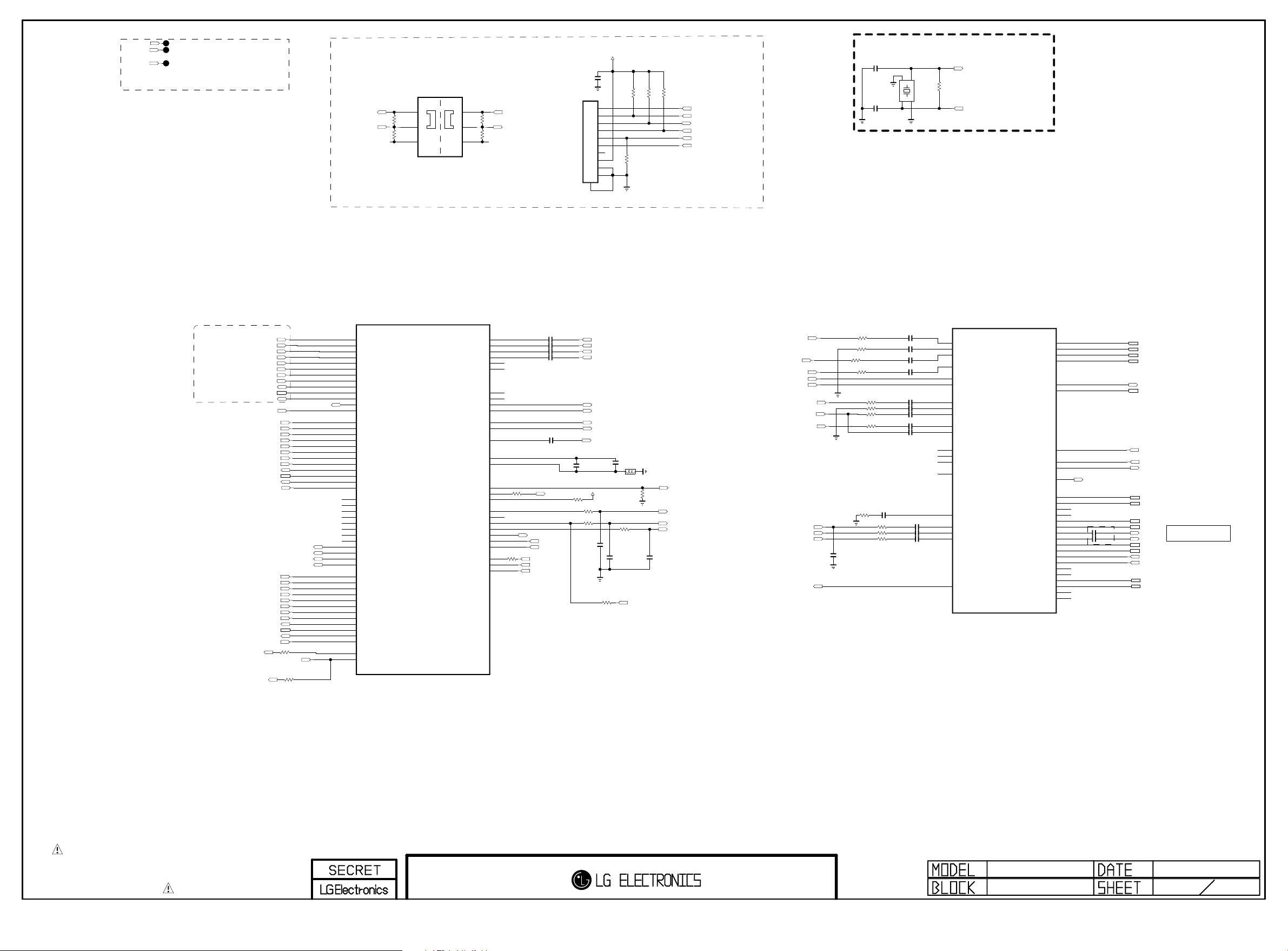

DPC_CTRL

12V_ON

OLED

TDI0

TDI0_1

R602
0

R603
0
OPT

+3.3V_NORMAL

Jtag I/F

JTAG

1K

R614

For Main

JTAG

1K

R616

TRST_N0
TDI0
TDO0
TMS0
TCK0
SOC_RESET

C600

0.1uF

SW600

JS2235S

1

OPT

2

3

JTAG

6

5

4

R604
0

R605
0
OPT

TDO0

OPT

TDO0_1

JTAG

P600

12505WS-10A00

JTAG

11

1

2

3

4

5

6

7

8

9

10

JTAG

1K

R612

1K

JTAG

R609

Clock for MSD808KWD

MAIN Clock(24Mhz)

5pF

C614

5pF

C615

System Clock for Analog block(24Mhz)

GND_1

2

3

X-TAL_2

X-TAL_1

1

4

GND_2

X600

24MHz

R635

1M

XIN_MAIN

XOUT_MAIN

HDMI 1.4b &2.0
MHL OPT

D0-_HDMI1
D0+_HDMI1
D1-_HDMI1
D1+_HDMI1
D2-_HDMI1
D2+_HDMI1
CK-_HDMI1
CK+_HDMI1
DDC_SCL_1
DDC_SDA_1

HDMI_HPD_1

5V_DET_HDMI_1

D0-_HDMI2
D0+_HDMI2
D1-_HDMI2
D1+_HDMI2
D2-_HDMI2
D2+_HDMI2
CK-_HDMI2
CK+_HDMI2
DDC_SCL_2
DDC_SDA_2

HDMI_HPD_2

5V_DET_HDMI_2

D0-_HDMI3
D0+_HDMI3
D1-_HDMI3
D1+_HDMI3
D2-_HDMI3
D2+_HDMI3
CK-_HDMI3
CK+_HDMI3
DDC_SCL_3
DDC_SDA_3

HDMI_HPD_3

5V_DET_HDMI_3

TMS0

TDI0_1

R600

0

SPDIF_OUT

JTAG
R601

URSA_RESET_SoC

BIT6
BIT7
BIT8
BIT9

JTAG

0

LGE5332(LM14A)

T2

A_RX0N

T3

A_RX0P

U1

A_RX1N

V2

A_RX1P

V3

A_RX2N

W2

A_RX2P

R1

A_RXCN

R2

A_RXCP

R6

DDCDA_CK/GPIO38

T5

DDCDA_DA/GPIO39

Y2

HOTPLUGA

V6

CEC0/GPIO5

U4

HOTPLUGA_HDMI20_5V/GPIO34

L1

B_RX0N

M2

B_RX0P

M3

B_RX1N

N2

B_RX1P

P2

B_RX2N

P1

B_RX2P

K2

B_RXCN

K3

B_RXCP

L4

DDCDB_CK/GPIO40

L5

DDCDB_DA/GPIO41

M4

HOTPLUGB/GPIO31

M5

HOTPLUGB_HDMI20_5V/GPIO35

D2

C_RX0N

D3

C_RX0P

E2

C_RX1N

E3

C_RX1P

F2

C_RX2N

F1

C_RX2P

C3

C_RXCN

D1

C_RXCP

H6

DDCDC_CK/GPIO42

H5

DDCDC_DA/GPIO43

K6

HOTPLUGC/GPIO32

J6

HOTPLUGC_HDMI20_5V/GPIO36

G2

D_RX0N

G3

D_RX0P

H2

D_RX1N

H3

D_RX1P

J2

D_RX2N

J1

D_RX2P

F3

D_RXCN

G1

D_RXCP

J4

DDCDD_CK/GPIO44

K5

DDCDD_DA/GPIO45

H4

HOTPLUGD/GPIO33

J5

HOTPLUGD_HDMI20_5V/GPIO37

B5

SPDIF_IN/GPIO96

A5

SPDIF_OUT/GPIO97

IC100

LINEIN_L0
LINEIN_R0
LINEIN_L1
LINEIN_R1
LINEIN_L2
LINEIN_R2

MICCM0

MICIN0
LINEOUT_L2
LINEOUT_R2

EARPHONE_OUTL
EARPHONE_OUTR

ARC0/GPIO6

AVSS_VRM_ADC

I2S_IN_BCK/GPIO94

I2S_IN_SD/GPIO95
I2S_IN_WS/GPIO93

I2S_OUT_BCK/GPIO100

I2S_OUT_MCK/GPIO99

I2S_OUT_WS/GPIO98

I2S_OUT_SD/GPIO101
I2S_OUT_SD1/GPIO102
I2S_OUT_SD2/GPIO103
I2S_OUT_SD3/GPIO104

GPIO_PM[14]/GPIO24

GPIO_PM[15]/GPIO25

GPIO_PM[16]/GPIO26

IC100

LGE5332(LM14A)

0.047uF

0.047uF

0.047uF

0.047uF

0.047uF

0.047uF

0.047uF

0.047uF
1000pF

C620

C621

C622

C624

C627
C628
C629

C631
C632

0.047uF

C616
C617 0.047uF
C618 0.047uF

AA2
AA1

AA6
AA5

AA3
AC1
AC2

AB2
AB3

AD3
AD2
AD1

AC3

AD6

AC6
AC5
AB6

AC4

Y3

Y1

RIN0P
GIN0M
GIN0P

BIN0P

HSYNC0
VSYNC0

RIN1P
GIN1M
GIN1P

BIN1P
SOGIN1

RIN2P
GIN2M
GIN2P

BIN2P

VCOM

CVBS0
CVBS1
CVBS2

CVBS_OUT1

GPIO19/[LED0]/GPIO74
GPIO20/[LED1]/GPIO75

RESET

XTAL_IN

XTAL_OUT

IRIN/GPIO4

DM_P0
DP_P0
DM_P1
DP_P1
DM_P2

DP_P2
SSUSB_TXP
SSUSB_TXN

DM_PSS

DP_PSS
SSUSB_RXP
SSUSB_RXN

SSUSB_TXP1
SSUSB_TXN1

DM_PSS1

DP_PSS1
SSUSB_RXP1
SSUSB_RXN1

TN
TP
RN
RP

B1
C1
A2
B2

D4
T6

D5

AM4
AK4

F5

A4
B4
C4
B3
AL6
AK6
AM14
AL14
AM13
AK13
AK12
AL13
AK9
AL10
AM10
AK10
AM11
AL11

BIT11

C633 0.1uF
C634 0.1uF

EPHY_TDN
EPHY_TDP
EPHY_RDN
EPHY_RDP

I2C_SCL4
I2C_SDA4

SOC_RESET

XIN_MAIN
XOUT_MAIN

WIFI_DM
WIFI_DP

USB_DM3

USB_DP3
SSUSB_TXP
SSUSB_TXN
USB_DM1
USB_DP1
SSUSB_RXP
SSUSB_RXN

USB_DM2

USB_DP2

AC-coupling CAP

Place near by MST

C612

1000pF

OPT

R624 33

R625

R626

R628 33

50V

33

R630 33
R631
R632

R634 33

R619 68

68

68
33

C613 0.047uF

R620 33
R621 33
R622 33

AF6
AE6
AF2
AF1
AG5
AG4

AF3
AG1
AH2
AH3

AF4
AF5

P3

AG3

VAG

AG2

D8

0

JTAG

D6

R606

C5

G6
E6
F6
E8
F9
E7
F7

R6440

AG7
AH6
AH5

C601

2.2uF
C602

2.2uF
C603

2.2uF
C604

2.2uF

C605 1uF

TCK0

JTAG

BIT10

DPC_CTRL
12V_ON

MHL_DET_LM15
COMPENSATION_DONE_1
/MHL_OCP

C606
10uF
10V

1K

R608

R610
22

R611
22

COMP1/AV1/DVI_L_IN
COMP1/AV1/DVI_R_IN
SC_L_IN
SC_R_IN

SCART_Lout
SCART_Rout

HP_LOUT
HP_ROUT

HDMI_ARC

1uF

C609

+3.3V_NORMAL

R618
22

C607

22pF

C608
22pF

JTAG

R613
0

L60 0

PZ1 608U 121- 2R0T F

47K

R615

JTAG

C611
22pF

TDO0_1

TRST_N0

AUD_SCK

AUD_LRCK
AUD_LRCH

SC_R

SC_G

SC_B

SC_ID
SC_FB

COMP1_Pr

COMP1_Y

COMP1_Pb

TU_CVBS

AV1_CVBS_IN

SC_CVBS_IN

DTV/MNT_V_OUT

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LM14A

MAIN4_EXT_IN/OUTPUT

BSD-15Y-LM14A-006_00-HD

2015-01-08

06

LGE5332(LM14A)

Copyright © 2015 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

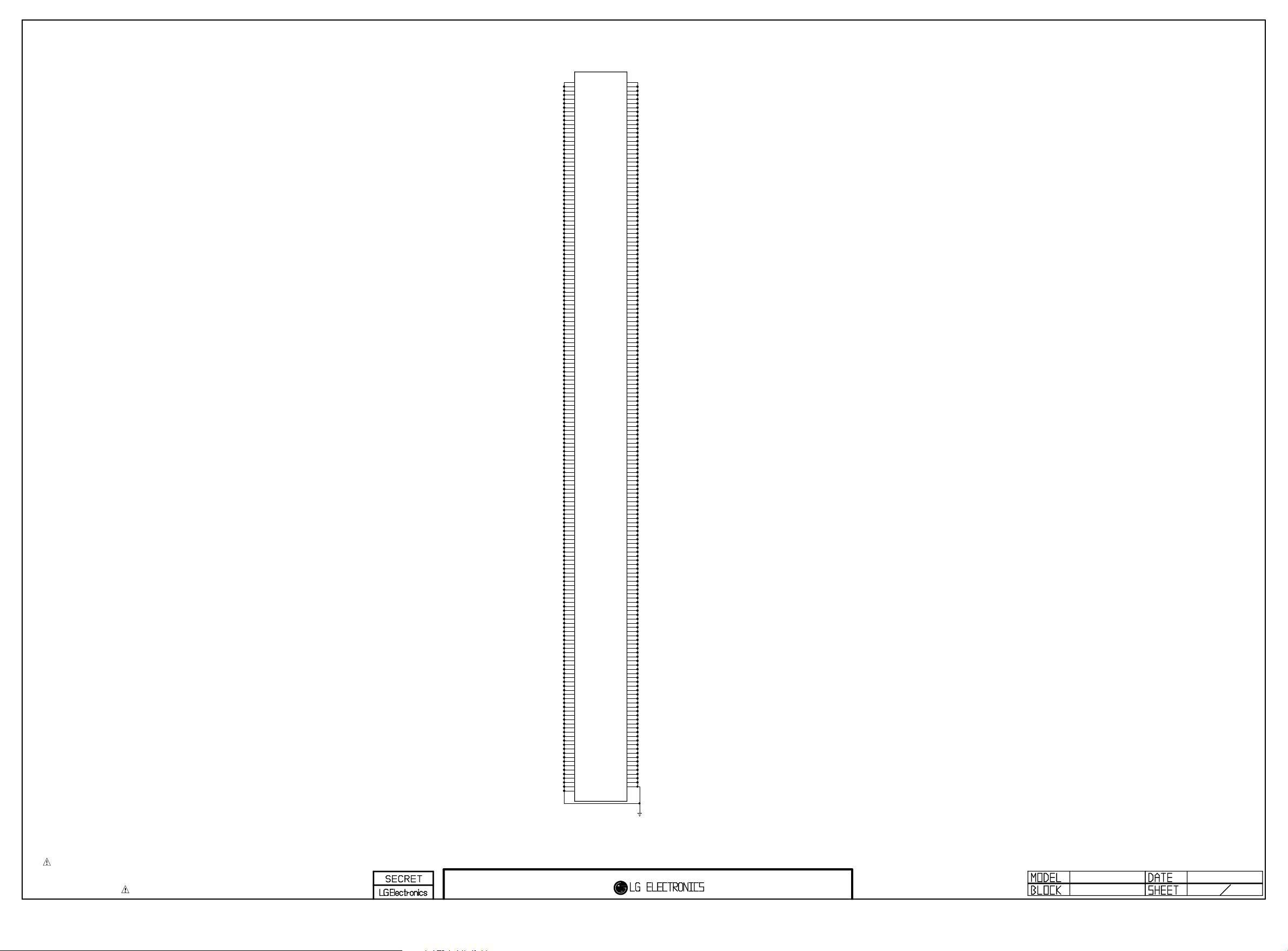

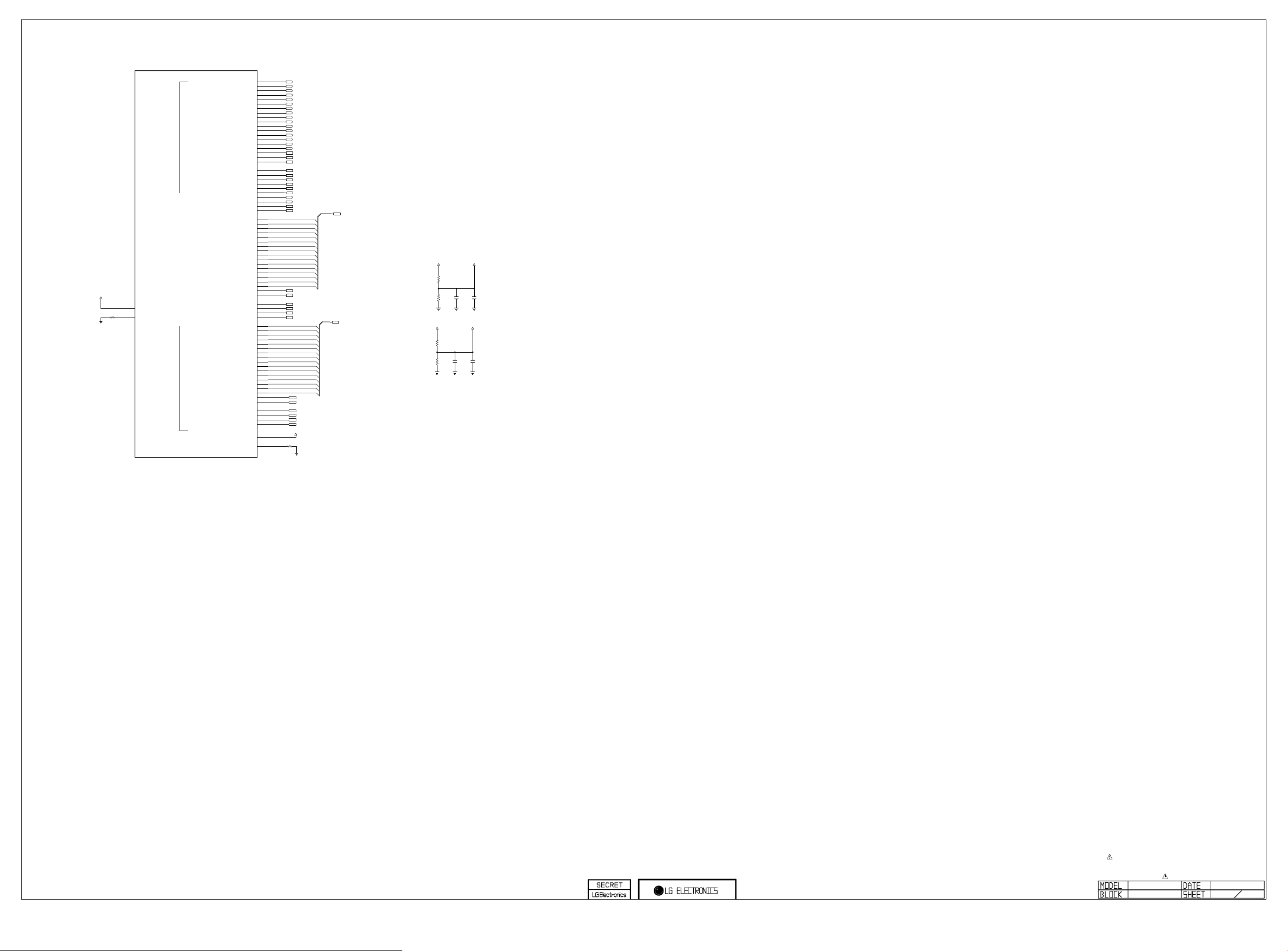

A15

GND_1

A18

GND_2

A21

GND_3

A24

GND_4

A27

GND_5

A30

GND_6

B10

GND_7

B32

GND_8

C2

GND_9

C13

GND_10

C32

GND_11

D18

GND_12

D21

GND_13

D25

GND_14

D28

GND_15

D32

GND_16

E30

GND_17

E31

GND_18

E32

GND_19

F22

GND_20

F24

GND_21

F25

GND_22

F26

GND_23

F27

GND_24

F28

GND_25

F29

GND_26

F30

GND_27

F31

GND_28

G11

GND_29

G12

GND_30

G13

GND_31

G14

GND_32

G15

GND_33

G16

GND_34

G17

GND_35

G18

GND_36

G19

GND_37

G20

GND_38

G21

GND_39

G23

GND_40

G24

GND_41

G25

GND_42

G26

GND_43

G27

GND_44

G28

GND_45

H8

GND_46

H9

GND_47

H10

GND_48

H11

GND_49

H12

GND_50

H13

GND_51

H14

GND_52

H15

GND_53

H17

GND_54

H18

GND_55

H19

GND_56

H20

GND_57

H21

GND_58

H22

GND_59

H23

GND_60

H24

GND_61

H25

GND_62

H26

GND_63

H27

GND_64

H30

GND_65

J3

GND_66

J7

GND_67

J8

GND_68

J14

GND_69

J15

GND_70

J16

GND_71

J22

GND_72

J24

GND_73

J25

GND_74

J26

GND_75

J27

GND_76

K7

GND_77

K8

GND_78

K14

GND_79

K15

GND_80

K25

GND_81

K26

GND_82

L2

GND_83

L3

GND_84

L8

GND_85

L14

GND_86

L15

GND_87

L16

GND_88

L25

GND_89

L26

GND_90

M1

GND_91

M8

GND_92

M9

GND_93

M10

GND_94

M11

GND_95

M12

GND_96

M13

GND_97

M14

GND_98

M15

GND_99

M16

GND_100

M17

GND_101

M18

GND_102

M19

GND_103

M20

GND_104

M25

GND_105

M26

GND_106

M29

GND_107

M32

GND_108

N3

GND_109

N7

GND_110

N8

GND_111

N9

GND_112

N10

GND_113

N11

GND_114

N13

GND_115

N14

GND_116

N17

GND_117

N18

GND_118

N19

GND_119

N20

GND_120

N24

GND_121

N25

GND_122

N26

GND_123

P8

GND_124

P9

GND_125

P10

GND_126

P11

GND_127

P12

GND_128

P13

GND_129

P14

GND_130

P15

GND_131

P16

GND_132

P17

GND_133

P18

GND_134

P19

GND_135

P20

GND_136

P24

GND_137

P25

GND_138

P26

GND_139

R3

GND_140

R8

GND_141

R9

GND_142

R10

GND_143

R14

GND_144

R15

GND_145

R16

GND_146

R17

GND_147

R18

GND_148

R19

GND_149

R20

GND_150

R21

GND_151

R22

GND_152

R23

GND_153

R24

GND_154

R25

GND_155

R26

GND_156

R29

GND_157

R32

GND_158

T8

GND_159

T9

GND_160

T10

GND_161

T14

GND_162

T15

GND_163

T16

GND_164

T17

GND_165

T18

GND_166

T19

GND_167

T20

GND_168

T21

GND_169

T22

GND_170

IC100

GND_171
GND_172
GND_173
GND_174
GND_175
GND_176
GND_177
GND_178
GND_179
GND_180
GND_181
GND_182
GND_183
GND_184
GND_185
GND_186
GND_187
GND_188
GND_189
GND_190
GND_191
GND_192
GND_193
GND_194
GND_195
GND_196
GND_197
GND_198
GND_199
GND_200
GND_201
GND_202
GND_203
GND_204
GND_205
GND_206
GND_207
GND_208
GND_209
GND_210
GND_211
GND_212
GND_213
GND_214
GND_215
GND_216
GND_217
GND_218
GND_219
GND_220
GND_221
GND_222
GND_223
GND_224
GND_225
GND_226
GND_227
GND_228
GND_229
GND_230
GND_231
GND_232
GND_233
GND_234
GND_235
GND_236
GND_237
GND_238
GND_239
GND_240
GND_241
GND_242
GND_243
GND_244
GND_245
GND_246
GND_247
GND_248
GND_249
GND_250
GND_251
GND_252
GND_253
GND_254
GND_255
GND_256
GND_257
GND_258
GND_259
GND_260
GND_261
GND_262
GND_263
GND_264
GND_265
GND_266
GND_267
GND_268
GND_269
GND_270
GND_271
GND_272
GND_273
GND_274
GND_275
GND_276
GND_277
GND_278
GND_279
GND_280
GND_281
GND_282
GND_283
GND_284
GND_285
GND_286
GND_287
GND_288
GND_289
GND_290
GND_291
GND_292
GND_293
GND_294
GND_295
GND_296
GND_297
GND_298
GND_299
GND_300
GND_301
GND_302
GND_303
GND_304
GND_305
GND_306
GND_307
GND_308
GND_309
GND_310
GND_311
GND_312
GND_313
GND_314
GND_315
GND_316
GND_317
GND_318
GND_319
GND_320
GND_321
GND_322
GND_323
GND_324
GND_325
GND_326
GND_327
GND_328
GND_329
GND_330
GND_331
GND_332
GND_333
GND_334
GND_335
GND_336
GND_337
GND_338
GND_339

T23
T24
T25
T26
U2
U3
U8
U9
U10
U14
U15
U16
U17
U18
U20
U26
V1
V8
V9
V10
V11
V12
V13
V14
V15
V16
V20
V21
V22
V26
V29
V32
W3
W8
W9
W10
W11
W12
W13
W14
W15
W16
W17
W18
W22
W26
Y8
Y9
Y10
Y11
Y12
Y13
Y14
Y15
Y16
Y17
Y18
Y22
Y26
AA9
AA10
AA11
AA12
AA14
AA15
AA16
AA17
AA18
AA21
AA26
AA29
AA32
AB9
AB10
AB11
AB12
AB13
AB14
AB16
AB17
AB18
AB19
AB20
AB21
AB22
AB23
AB26
AB30
AC7
AC8
AC9
AC10
AC11
AC12
AC13
AC16
AC23
AC25
AC26
AC27
AC28
AD8
AD9
AD10
AD11
AD12
AD13
AD14
AD15
AD16
AD24
AD25
AD26
AD27
AD28
AE3
AE8
AE9
AE10
AE11
AE12
AE13
AE14
AE17
AE18
AE23
AE24
AE25
AE26
AE27
AE28
AE29
AF9
AF10
AF17
AF18
AF19
AF20
AF21
AF22
AF23
AF24
AF25
AF26
AF27
AF28
AF29
AF30
AG22
AG23
AG30
AH21
AH22
AJ3
AJ22
AJ30
AK5
AK11
AK14
AL1
AL3
AL4
AL9
AL12
AL23
AL27
AM25
AM29
AM31

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LM14A

LM14A_GND

BSD-15Y-LM14A-007_00-HD

2014-11-13

07

CI Region

Copyright © 2015 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

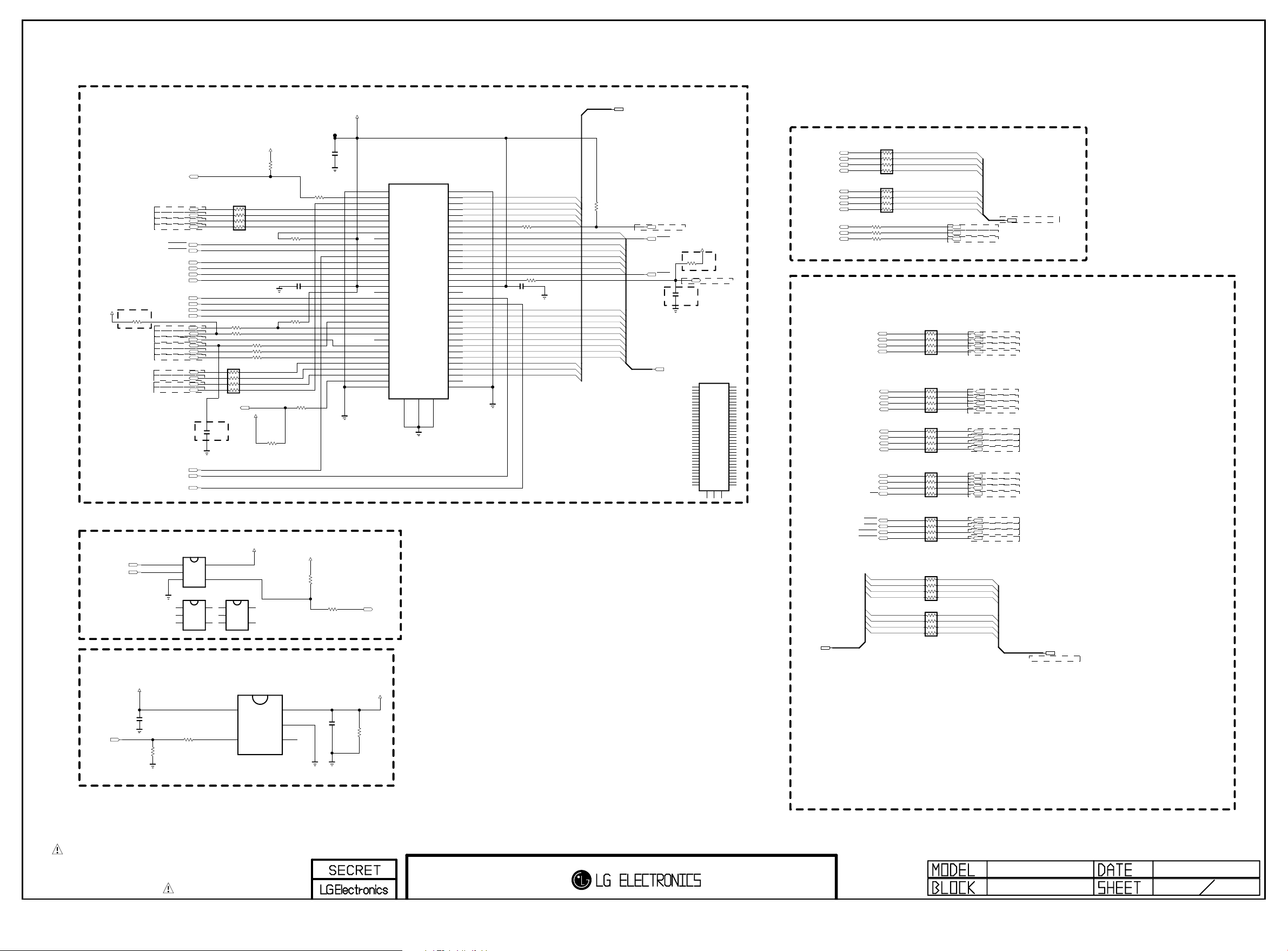

CI SLOT

+5V_CI_ON

CI_DATA[0-7]

* Option name of this page : CI_SLOT

(because of Hong Kong)

CI TS INPUT

+5V_NORMAL

R900
10K

CI_SLOT

CLOSE TO MSTAR

CI DETECT

/CI_CD2

/CI_CD1

/CI_CD1

TPI_DATA[4]
TPI_DATA[5]
TPI_DATA[6]
TPI_DATA[7]

CI_IORD
CI_IOWR

CI_MDI[0]
CI_MDI[1]
CI_MDI[2]
CI_MDI[3]

CI_MDI[4]
CI_MDI[5]
CI_MDI[6]
CI_MDI[7]

PCM_RESET

CAM_WAIT_N

TPI_CLK
TPI_VAL

TPI_SOP

TPI_DATA[0]
TPI_DATA[1]
TPI_DATA[2]
TPI_DATA[3]

CLOSE TO MSTAR

CI_MISTRT

CI_MIVAL_ERR

GND

REG

CI_SLOT

IC900

74LVC1G32GW

1B 5 VCC

3GND2A4 Y

OR_GATE_CI_TI

IC900-*1

SN74LVC1G32DCKR

1A5

B

2

3

CI_SLOT

R901
R902

CI_SLOT

AR900 33

/CI_CD2

CI_SLOT

C900
2pF
50V

+3.3V_NORMAL

OR_GATE_CI_TOSHIBA

IC900-*2

TOSHIBA ELECTRONICS KOREA CORPORATION

VCC

IN_B

1

IN_A

2

Y

GND

4

3

AR901

33

47
47

R903 33
R904 33
R905 33

+5V_NORMAL

5

4

+5V_NORMAL

CI_SLOT

R906

CI_SLOT
CI_SLOT

VCC

OUT_Y

10K

CI_SLOT

CI_SLOT

R907

CI_SLOT

CI_SLOT

GND

CI_SLOT
CI_SLOT
CI_SLOT

10K

R908 10K

CI_SLOT

C902

CI_SLOT

R912

100

C901

0.1uF

R909

10K

R910

100

CI_SLOT

+3.3V_NORMAL

R911

10K

10uF

10V

R913
47

CI_SLOT

R918 33
R919 33
R920 100

CI_ADDR[0]
CI_ADDR[1]
CI_ADDR[2]
CI_ADDR[3]

CI_ADDR[4]
CI_ADDR[5]
CI_ADDR[6]
CI_ADDR[7]

CI_ADDR[8]

CI_ADDR[9]
CI_ADDR[10]
CI_ADDR[11]

CI_ADDR[13]
CI_ADDR[14]

CI_OE

CI_WE
CI_IORD
CI_IOWR

@netLa

AR903 33

CI_SLOT

AR902 33

REG

CI_DATA[0]

CI_DATA[1]
CI_DATA[2]
CI_DATA[3]

CI_DATA[4]
CI_DATA[5]
CI_DATA[6]
CI_DATA[7]

CI_SLOT
CI_SLOT

CI_SLOT

CI_MDI[7]
CI_MDI[6]

CI_SLOT

JK900

10125901-115LF

35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59

65
66
67
68

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
2660
2761
2862
2963
3064
31
32
33
34

G1G2

69

R914

R915

C903

0.1uF

CI_SLOT

47

CI_SLOT

CI_SLOT

100

GND

GND

GND

GND

CI_DATA[3]
CI_DATA[4]
CI_DATA[5]
CI_DATA[6]
CI_DATA[7]

CI_DATA[0]
CI_DATA[1]
CI_DATA[2]

@netLa

R916

10K

CI_ADDR[10]

CI_ADDR[11]

CI_ADDR[9]

CI_ADDR[8]
CI_ADDR[13]
CI_ADDR[14]

CI_ADDR[12]

CI_ADDR[7]

CI_ADDR[6]

CI_ADDR[5]

CI_ADDR[4]

CI_ADDR[3]

CI_ADDR[2]

CI_ADDR[1]

CI_ADDR[0]

/PCM_CE1

CI_OE

CI_WE

GND

CI_ADDR[0-14]

+5V_NORMAL

R917
10K

CI_SLOT

CAM_IREQ_N

C904

0.1uF

CI_SLOT

CLOSE TO MSTAR

OLED_CI_SLOT

JK900-*1

10125901-015LF

35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59

65
66
67
68

69

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
2660
2761
2862
2963
3064
31
32
33
34

G1G2

CI_MDI[5]

CI_MDI[4]

CI_MDI[3]

CI_MDI[2]
CI_MDI[1]
CI_MDI[0]

CI_MISTRT

CI_MIVAL_ERR

CI_MCLKI

CI HOST I/F

CAM_CD1_N

FE_DEMOD1_TS_DATA[7]
FE_DEMOD1_TS_DATA[6]
FE_DEMOD1_TS_DATA[5]
FE_DEMOD1_TS_DATA[4]

FE_DEMOD1_TS_DATA[3]
FE_DEMOD1_TS_DATA[2]
FE_DEMOD1_TS_DATA[1]
FE_DEMOD1_TS_DATA[0]

CI_SLOT

AR906

33

CI_SLOT

AR907
33

CI_SLOT

AR908 33

CI_SLOT

AR909 33

CI_SLOT

AR913 33

CI_SLOT

AR904 33

CI_SLOT

AR905

33

FE_DEMOD1_TS_DATA[0-7]

FE_DEMOD1_TS_SYNC
FE_DEMOD1_TS_VAL

FE_DEMOD1_TS_CLK

EB_ADDR[0]
EB_ADDR[1]
EB_ADDR[2]
EB_ADDR[3]

EB_ADDR[4]
EB_ADDR[5]
EB_ADDR[6]
EB_ADDR[7]

EB_ADDR[8]
EB_ADDR[9]
EB_ADDR[10]
EB_ADDR[11]

EB_ADDR[12]CI_ADDR[12]
EB_ADDR[13]
EB_ADDR[14]CI_MCLKI
CAM_REG_N

EB_OE_N
EB_WE_N
EB_BE_N1
EB_BE_N0

EB_DATA[0]
EB_DATA[1]
EB_DATA[2]
EB_DATA[3]

EB_DATA[4]
EB_DATA[5]
EB_DATA[6]
EB_DATA[7]

FE_DEMOD1_TS_DATA[0-7]

EB_DATA[0-7]

CI POWER ENABLE CONTROL

+5V_NORMAL

C905

0.1uF
50V

CI_SLOT

R922

PCM_5V_CTL

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

R921
10K

CI_SLOT

100

IN

EN

AP2151WG-7

5

CI_SLOT

4

IC901

CI_DATA[0-7]

EB_DATA[0-7]

+5V_CI_ON

OUT

1

GND

2

FLG

3

C906
1uF
25V

CI_SLOT

R923
10K

CI_SLOT

BSD-15Y-LM14A-009_00-HD

LM14A

PCMCI

2014-11-13

9

+3.5V_ST

Copyright © 2015 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

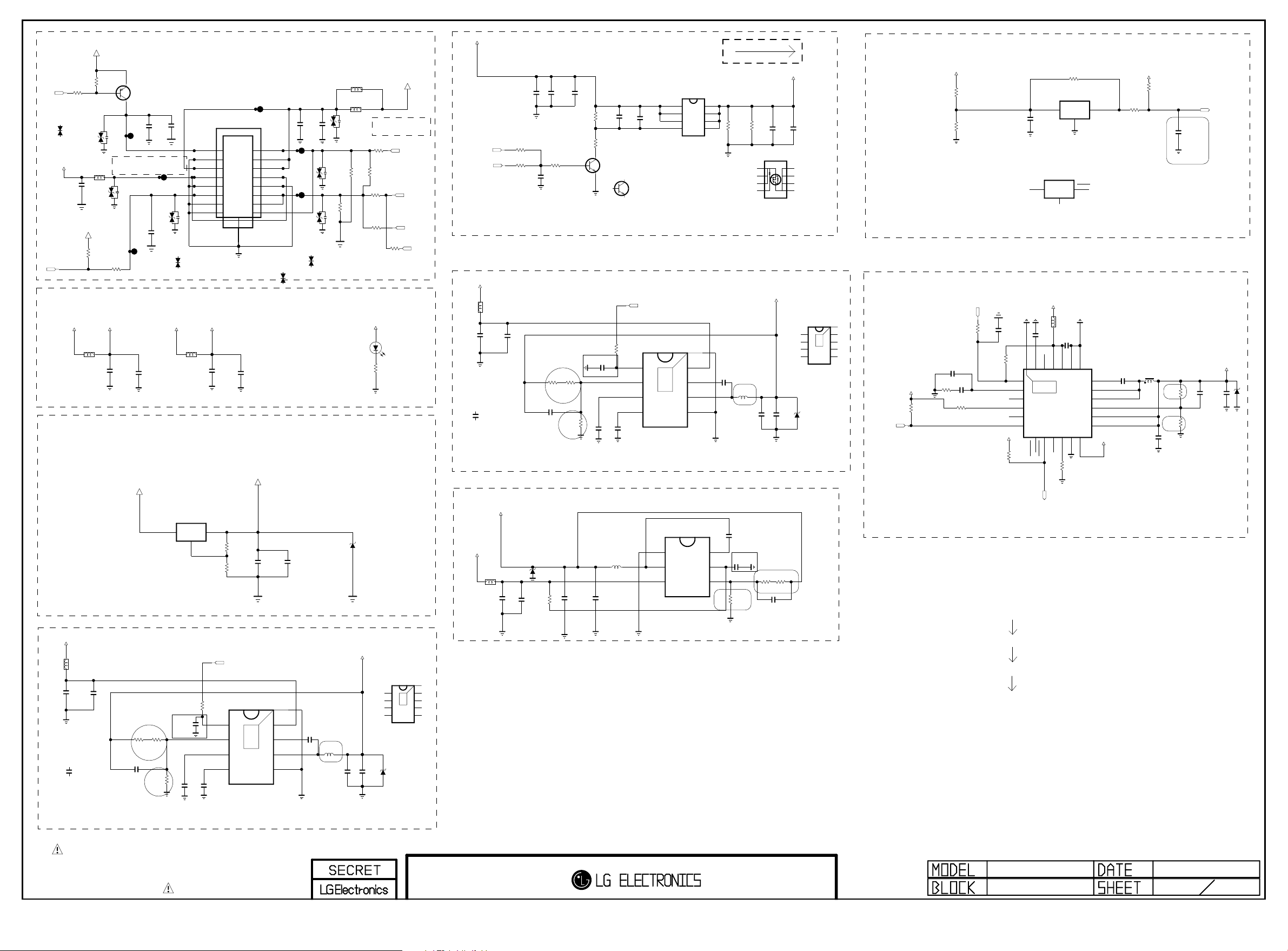

’15 UHD 13V ONLY POWER

+12V

PANEL_POWER

TYP 6000mA

Power_DET

RL_ON

R2301

10K

Default_Amotech

VA2301-*1

ICVS0505201FR

AMOTECH CO., LTD.

Multi_Innochips

+24V_AMP

C2348

0.1uF
50V

+3.3V_NORMAL

INV_CTL

R2306

10K

MMBT3906(NXP)

VA2301

5.6V

UBW2012-121F

2

Q2300

UF77:24V_AMP

L2313

UF68/64:13V_AMP

ADUC 20S 02 010L

OPT

R2300
1K

R2304
100

1

3

20V

VA2305

C2335

10uF

10V

Default_Amotech

AMOTECH CO., LTD.

C2302

0.1uF
50V

+3.3V - eMMC

+3.3V_NORMAL

3.3V_EMMC

L2304

PZ1608U121-2R0TF

C2308

0.1uF
16V

C2309
22uF
10V

+1.8V - LM15U, eMMC
& Vx1 pull-up

+3.3V_NORMAL

C2345

0.1uF
50V

VA2300

5.6V

Multi_Innochips

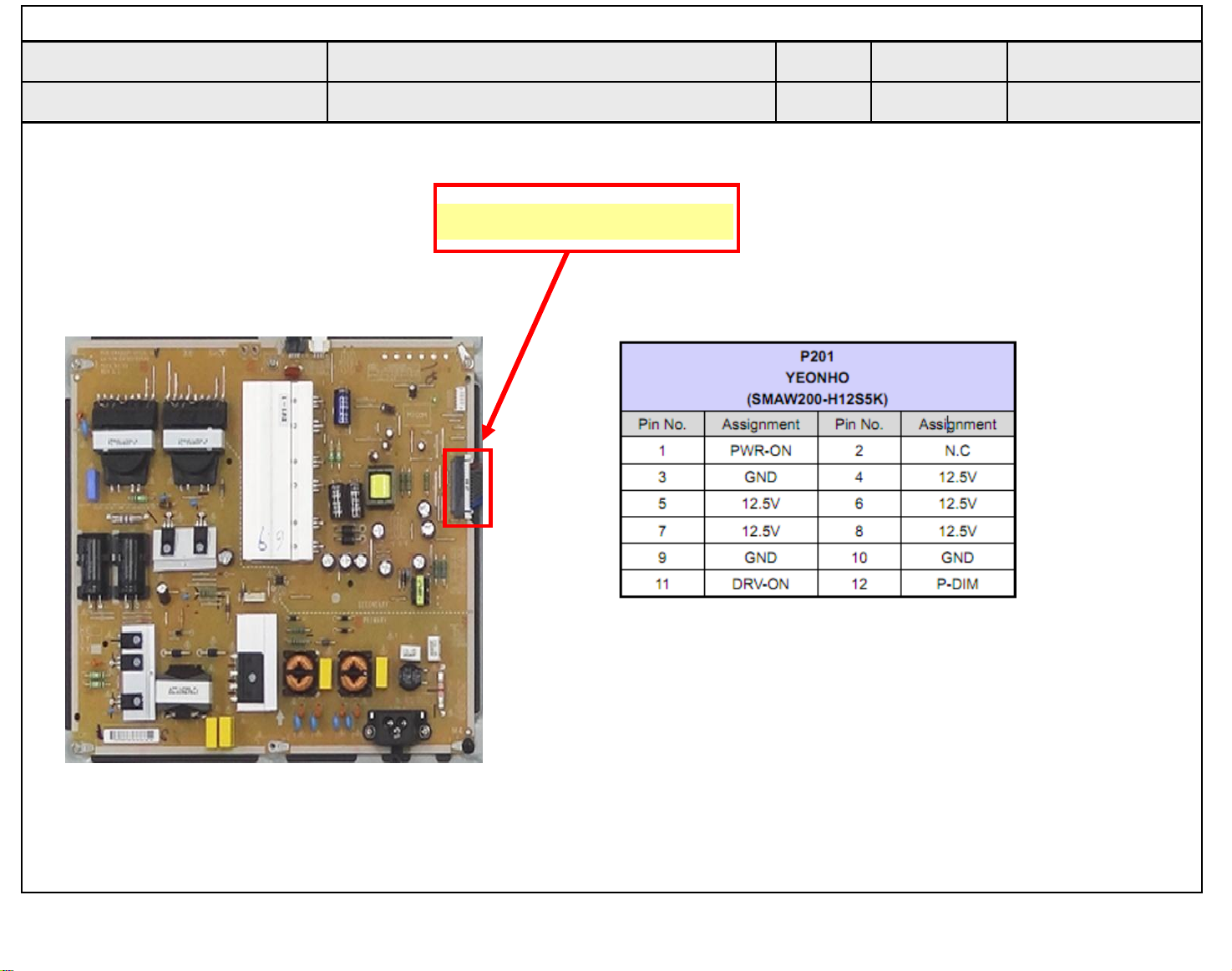

12P_POWER_WAFER

SMAW200-H12S5K(BK)(LTR)

VA2300-*1

ICVS0505201FR

+1.8V

DVDD18_EMMC

L2305

PZ1608U121-2R0TF

P2301

1

3

5

7

9

11

13

15

SMAW200-H16S5K(BK)(LTR)

C2307

0.1uF
16V

2

4

6

8

10

12

14

16

17

16P_POWER_WAFER

P2302

C2312
22uF
10V

+1.8V

C2304

0.1uF
50V

Default_Amotech

VA2303

AMOTECH CO., LTD.

Default_Amotech

VA2304

AMOTECH CO., LTD.

Multi_Innochips

VA2303-*1

ICVS0505201FR

Multi_Innochips

C23 47

10u F

25V

5.6V

5.6V

VA2304-*1

ICVS0505201FR

L2311

UBW2012-121F

L2302

UBW2012-121F

ADUC 20S 02 010L

20V

VA2302

OPT

R2312

4.7K
OPT

R2311

4.7K
OPT

+3.3V_NORMAL

3.3V_LED

3.3V_LED

UF77:12V
UF68/64:13V

100

R2341

EPI

R2363
0
OPT

100

R2309

EPI

R2310
33
OPT

R2340
33
Vx1

LD2300

R23 15

3.3 K

+12V

PWM_DIM2

PWM_DIM

PWM_TOUT

PWM_TIN

OPT
R2361

C2322
10uF
25V

C2324

0.1uF
25V

0

R2362
0

RL_ON

PANEL_CTL

+12V

L2309

PZ1608U121-2R0TF

1.5V_DCDC_TI
C2332-*1

3300pF
50V

Switching freq: 700K

C23 27
10u F
25V
OPT

C2371
10uF
10V

R2328
10K

C2330

0.1uF
25V

DDR +1.5V

R2321

R2320

4.7K

18K

R1

C2325
100pF

50V

1%

1%

R2322
22K

1%

R2

C2331

0.01uF
50V

R2329

R2331

1.8K

B

10K

ESD_DCDC

C

E

0.1uF

C2349

OPT
C2367
10uF

25V

Q2321
2N3904S
KEC_PANEL_CTL_TR

C

Q2321-*1

B

MMBT3904(NXP)

NXP_PANEL_CTL_TR

E

ROHM_BD9D321_1.5V_DDR_DCDC

R2326
10K

VREG

C2332

C2328

2200pF

1uF

50V

10V

1.5V_DCDC_ROHM

OPT
C2315

+12V

1uF
25V

POWER_ON/OFF2_3

BD9D321EFJ

EN

1

FB

2

3

SS

4

IC2303

THERMAL

3A

9

AOS_PANEL_POWER_FET

IC2309

AO4447A

S_1

1

S_2

2

S_3

3

G

4

8

7

6

5

[EP]

VIN

BOOT

SW

GND

D_4

8

D_3

7

D_2

6

D_1

5

Vout=0.765*(1+R1/R2)=1.554V

R2359
2K
OPT

C2336

0.1uF
25V

L2312

2.2uH

PS064T-2R2MS

C2338

22uF

10V

R2360

2K

OPT

ROHM_PANEL_POWER_FET

S_1

S_2

S_3

C23 69
10u F
25V

IC2309-*1

RRH140P03TB

1

2

3

4G5

+1.5V_DDR

PANEL_VCC

D_4

8

D_3

7

D_2

6

D_1

C2339
22uF
10V

C2370

0.1uF
25V

TI_TPS54327_1.5V_DDR_DCDC

IC2303-*1

TPS54327DDAR

EN

1

VFB

2

VREG5

3

SS

4

DCDC_Diode

ZD2302

2.5V

THERMAL

+12V

R2324

15K

R2325

5.6K

1/16W

1%

1/16W

1%

C2333

0.1uF
25V

RESET_IC_DIODES(MULTI)

VCC

R2327
100K

RESET_IC_KEC(MULTI)

IC2306

KIC7529M2

VCC

3

1

GND

IC2306-*1

APX803E29

RESET

2

3

1

GND

+3.5V_ST

R2332
10K
OPT

R2330

OUT

2

100

POWER_DET

C2334

0.1uF
16V

not to RESET at 8kV ESD

13V-->3.53V

+5V_Normal & +5V_USB with OCP

+12V

EN

COMP

SS

ROSC

OPT

L2308

C2337

10uF

[EP]GND

PGOOD

V7V

23

24

1

THERMAL

25

2

3

IC2302

4

TPS65282REGR

5

4A

6

7

8

FAULT2

FAULT1

SW_OUT2

VIN_122VIN_2

9

RLIM11AGND

10u F

21

10

25V

R2336
15K

5%

C23 40

PGND_2

20

PGND_1

19

18

17

16

15

14

13

12

SW_OUT1

BST

LX_2

LX_1

FB

SW_IN_2

SW_IN_1

+5V_USB_3

C2341

0.047uF
25V

L2310

4.7uH

C2342

10uF

+5V_NORMAL

DCDC_Diode

R2337

C2343

18K

82pF

1%

50V

R1
R2

R2339

3.3K
1%

10V

C2344
22uF
16V

ZD2303

[EP]GND

VIN

8

VBST

9

7

SW

6

GND

5

+3.3V_NORMAL

OPT

R2317

4.7K

USB_CTL3

R2318

4.7K

OPT

C2320

100pF

50V

C2326

4700pF

50V

OPT

R2333

0

POWER_ON/OFF1

10K

R2338

R2334
100K

OPT

+3.3V_NORMAL

R2335

10K

50V

0.0068uF
C2346

EN_SW2

EN_SW1

+12V

L2300

PZ1608U121-2R0TF

C2300

C2301

10uF

0.1uF

25V

25V

3.3V_DCDC_TI
C2306-*1

3300pF
50V

Switching freq: 700K

IC2301

AZ1117EH-ADJTRG1

OUTIN

ADJ/GND

+3.3V_NORMAL

R2314

10K

ESD_DCDC

C2372

R2302

18K

R1

1%

C2303
100pF

50V

0.1uF

R2303

1K

1%

R2305

5.6K
1%

R2

C2305
1uF
10V

C2306
2200pF
50V

3.3V_DCDC_ROHM

Vout=0.765*(1+R1/R2)=3.36V

75

1%

1/16W

R2307

C2310
10uF

33

1%

1/16W

POWER_ON/OFF2_1

ROHM_BD9D321_1.5V_DDR_DCDC

EN

FB

VREG

SS

R2308

IC2300

BD9D321EFJ

1

9

2

THERMAL

3

4

3A

10V

8

7

6

5

[EP]

VIN

BOOT

SW

GND

C2311
10uF
10V

16V

0.1uF
C2313

PS064T-2R2MS

L2306

2.2uH

C2314
22uF

10V

2.5V

ZD2304

DCDC_Diode

+3.3V_NORMAL

C2317
22uF
10V

TI_TPS54327_1.5V_DDR_DCDC

IC2300-*1

TPS54327DDAR

EN

1

VFB

9

2

THERMAL

VREG5

3

SS

4

DCDC_Diode
ZD2300

+3.5V_ST

PS064T-2R2MS

C2321

C2319

22uF

10V

22uF

10V

L2307

2.2uH

IC2304

TPS563200

GND

1

SW

2

VIN

3

3A

6

5

4

VBST

EN

VFB

1%

ESD_DCDC

1/1 6W

C2323

51K

0.1uF

16V

0.1uF
C2350

R2

R23 16

1%
1/1 6W

150 K

R23 19

50V

1%
1/1 6W

33K
R23 23

10pF

C2329

R1

LM15 Power SEQUENCE

POWER_ON/OFF1(5V)

/USB_OCD3

Vout=0.8*(1+R1/R2)

+12V

+3.5V_ST

C2316

L2303

10uF
25V

BLM18PG121SN1D

DCDC_Diode

ZD2301

C2318

0.1uF
25V

R2313

10K

Vout=0.765*(1+R1/R2)

POWER_ON/OFF2_1(3.3V)

[EP]GND

VIN

8

VBST

7

SW

6

GND

5

POWER_ON/OFF2_3(1.5V)

POWER_ON/OFF2_4(1.1V)

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LM14A(UF68/UF64)

LM14A_PWR_1_13V_only

2015-01-23

23

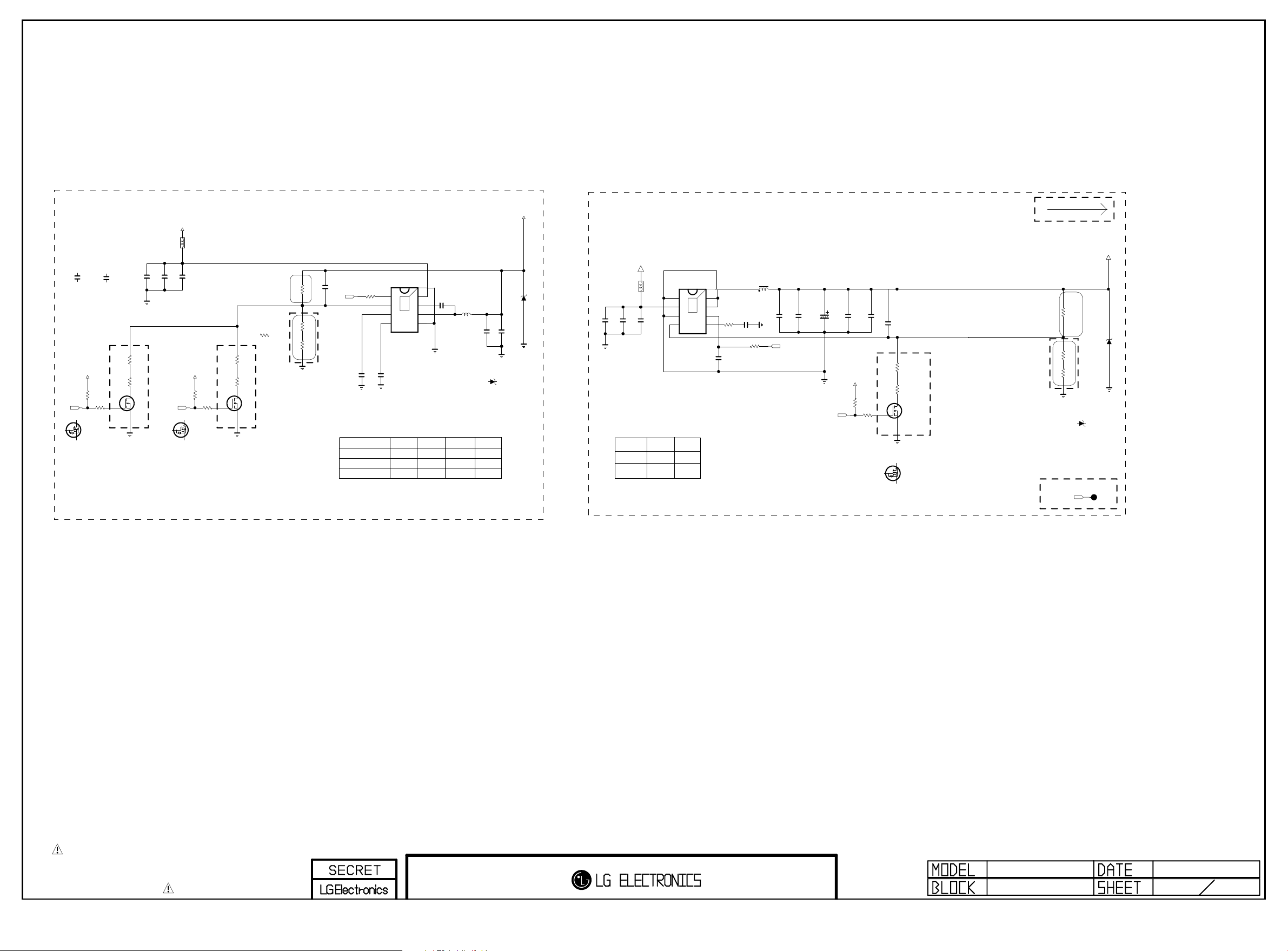

LM14A CPU

Copyright © 2015 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

UF64/68
C2510-*1
10uF
25V

+3.3V_NORMAL

R2513
10K

CPU_VID0

DIODEDS_CPU_CORE_VID_FET(SUB)

R2514

0 5%

D

Q2502-*1

G

2N7002K

S

UF64/68
C2512-*1
10uF
25V

G

PZ1608U121-2R0TF

Placed on SMD-TOP

UF77/83/84

C2510
10uF
16V

R25 15

22K

1%

R25 16

75K

1%

D

CPU_VID1

S

2N7002KA

Q2502

KEC_CPU_CORE_VID_FET(MAIN)

+12V

L2502

UF77/83/84

C2513

C2512

0.1uF

10uF
16V

16V
OPT

R1

R2521

5.6K

C2514
100pF
50V

1%

R2

R2519-*1

27K

CPU_VID_LM14_A0

1/16W

1%

R25 19

75K

1/1 6W

+3.3V_NORMAL C2515

R2517

10K

R2518

0 5%

D

Q2503-*1

G

2N7002K

S

DIODEDS_CPU_CORE_VID_FET(SUB)

1%

1%

R25 20

1.6 K

CPU_VID_LM14_A1

D

G

S

2N7002KA

Q2503

KEC_CPU_CORE_VID_FET(MAIN)

R25 22

11K

1%

R25 23

10K

1%

IC2502

TPS54427DDA

1

2

3

4

4A

R2-1

High

High

THERMAL

[EP]GND

VIN

8

0.1uF

VBST

9

7

SW

6

GND

5

R2-2

High

Low

LowLow

R2524

POWER_ON/OFF2_4

1uF
10V

Boot

Kernel

Kernel

10K

EN

VFB

VREG5

SS

C2516
2200pF
50V

Vout=0.765*(1+R1/R2)

+1.1V_VDDC_CPU

16V

C2517

L2503

2.2uH

PS064T-2R2MS

C2518
22uF

10V

DCDC_DIODE_0DR050008AA(SEMTECH)

0DR050008AA

ZD2501-*1

LM14_A1

LM14_A0

V_out

V_out

1.06

1.163

1.01

1.013

0.96

0.969

0DTKE00018A

C2519
22uF

DCDC_DIODE_0DTKE00018A(KEC)

10V

ZD2501

LM14A CORE

+12V

L2500

PZ1608U121-2R0TF

Placed on SMD-TOP

C2500
10uF
25V

OPT
C2502

C2501

0.1uF

10uF

25V

25V

LM14_A1
V_out

0.98

Boot

Kernel

0.98

Vout=0.8*(1+R1/R2)

PGND

VIN

AGND

FB

LM14_A0
V_out

IC2501

BD86106EFJ

EAN62653301

1

2

THERMAL

3

4

6A

1.15

0.98

MAX 3A

+1.1V_VDDC

L2501

C2504

0.0068uF
50V

R2501

10K

2uH

OPT

C2505

C2506

10uF

10uF

10V

10V

POWER_ON/OFF2_4

C2507
100uF

+3.3V_NORMAL

LM14A_A0_ONLY

CORE_VID0

OPT

C2508
10uF
10V

LM14A_A0_ONLY

LM14A_A0_ONLY

R2502

10K

R2503

0 5%

LM14A_A0_ONLY

OPT

C2509
10uF
10V

R2-1.13V

R2504

15K

R2505

G

1%

56K
1%

C2511
47pF
50V

D

S

1/1 6W

1/1 6W

2N7002KA

Q2500

KEC_CPU_CORE_VID_FET

R2510

R1

15K

1%

ZD2500

1/16W

1%

1/1 6W

1%

0DR050008AA

ZD2500-*1

0DTKE00018A

DCDC_DIODE_0DTKE00018A(KEC)

R2

R2511

56K

R25 12

6.2 K

DCDC_DIODE_0DR050008AA(SEMTECH)

[EP]

SW_2

8

SW_1

9

7

EN

6

R2500

6.8K

COMP

5

C2503

0.1uF
16V

Delete this part when LM14A0 used all.

D

Q2500-*1

G

2N7002K

S

DIODEDS_CPU_CORE_VID_FET

LM14A1 CORE_VID1 NOT USE.

CORE_VID1

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LM14A

LM15U_PWR_2_ALL

BSD-15Y-LM14A-025_00-HD

2015-01-21

25

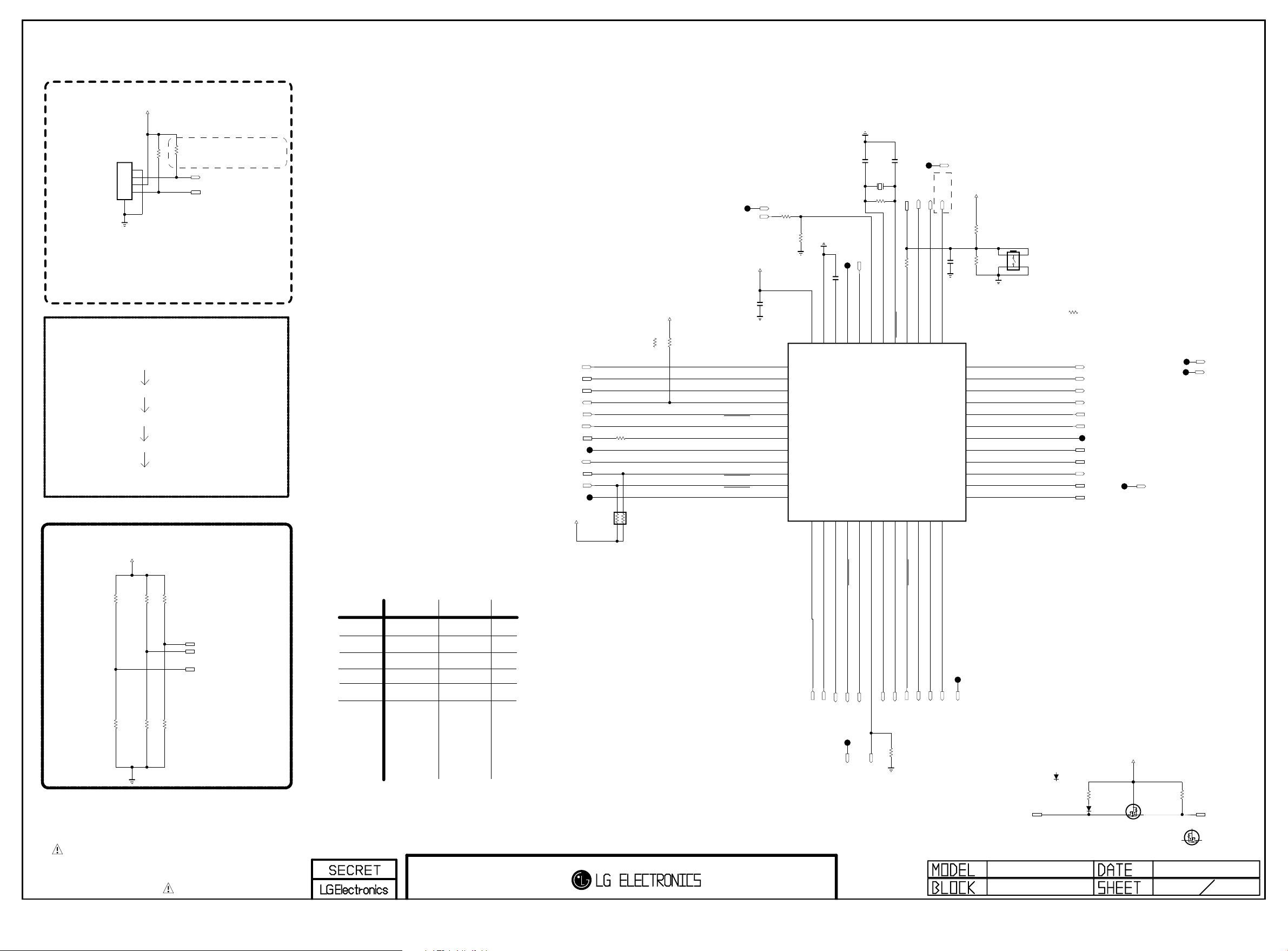

Renesas MICOM

Copyright © 2015 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

For Debug

+3.5V_ST

MICOM_DEBUG

P3000

12507WS-04L

5

1

2

3

4

Don’t remove R3016,
not making float P40

R3016 1K

R3014 10K

MICOM_DEBUG

LM14A Power SEQUENCE

POWER_ON/OFF1(5V)

POWER_ON/OFF2_1(3.3V)

POWER_ON/OFF2_3(1.5V)

POWER_ON/OFF2_4(1.1V)

SOC_RESET

MICOM MODEL OPTION

+3.5V_ST

MICOM_DEBUG

MICOM_RESET

I2C_SCL_MICOM

I2C_SDA_MICOM

3D&L_DIM_EN

PANEL_CTL

WOL/WIFI_POWER_ON

HDMI_CEC_MICOM

POWER_ON/OFF2_3

EYE_SDA

EYE_SCL

+3.5V_ST

C3002

C3003

18pF

15pF

50V

50V

EAW30067102

X3000

HDMI_WAUP:HDMI_INIT

MHL_DET_LM15

+3.5V_ST

C3000

0.1uF

P62
P63

R30370

10K

GND

R3032

C3001 0.47uF

REGC

VSS

VDD

46

47

48

1
2
3
4
5
6
7
8
9
10
11
12

13

14

15

MHL_DET_LM15

+3.5V_ST

R3021

LCD

5%

10K

R3021-*1

1K

OLED

1/16W

P60/SCLA0
P61/SDAA0

P31/TI03/TO03/INTP4

IR

R3000
100

P75/KR5/INTP9/SCK01/SCL01

P74/KR4/INTP8/SI01/SDA01

P73/KR3/SO01
P72/KR2/SO21

P71/KR1/SI21/SDA21

P70/KR0/SCK21/SCL21

P30/INTP3/RTC1HZ/SCK11/SCL11

AR3000

3.3K

EYE_Q

32.768KHz
R3028

4.7M

SEIKO EPSON CORPORATION

OPT

POWER_DET_1

MICOM_RESET_22OHM

RESET

P124/XT2/EXCLKS

P123/XT1

P137/INTP0

P122/X2/EXCLK

P121/X1

41

42

43

44

45

IC3000

R5F100GEAFB#30

16

17

18

19

20

MICOM_RESET

R3029 33

P40/TOOL0

39

40

21

LOGO_LIGHT

MICOM_DEBUG

LOGO_LIGHT

WIFI_EN

C3004

0.1uF
16V

P120/ANI19

P41/TI07/TO07

37

38

36
35
34
33
32
31
30
29
28
27
26
25

22

23

24

+3.5V_ST

10K

MICOM_RESET_SW

SW3000

R3030

JTP-1127WEM

1%

R3031

1/1 6W

270K

OPT

12

4 3

MICOM_RESET_33OHM

P140/PCLBUZ0/INTP6
P00/TI00/TXD1
P01/TO00/RXD1
P130
P20/ANI0/AVREFP
P21/ANI1/AVREFM
P22/ANI2
P23/ANI3
P24/ANI4
P25/ANI5
P26/ANI6
P27/ANI7

R3029-*1 33

RL_ON

SCART_MUTE

POWER_ON/OFF2_4

POWER_ON/OFF2_1

KEY2

KEY1

MODEL1_OPT_3

MODEL1_OPT_0

SIDE_HP_MUTE

MHL_EN

MODEL1_OPT_1

SCART_MUTE

POWER_ON/OFF2_4

MHL_EN

P146

MICOM MODEL OPTION

MICOM_H15

MICOM_LM15U/LM14A

R3008 10K

MICOM_OLED

MICOM_LCD

R3009 10K

R3013 10K

MICOM_LOGO

R3012 10K

MICOM_NON_LOGO

MODEL1_OPT_0
MODEL1_OPT_1

MODEL1_OPT_3

MODEL_OPT_0

MODEL_OPT_1

MODEL_OPT_3 H15

R3006 10K

R3004 10K

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

0

NON LOGO

LCD

LM15U/LM14A

P147/ANI18

P17/TI02/TO02

1

LOGO

OLED

P51/INTP2/SO11

P50/INTP1/SI11/SDA11

P16/TI01/TO01/INTP5

P13/TXD2/SO20

P10/SCK00/SCL00

P14/RXD2/SI20/SDA20

P12/SO00/TXD0/TOOLTXD

P15/PCLBUZ1/SCK20/SCL20

P11/SI00/RXD0/TOOLRXD/SDA00

LED_R

POWER_DET

WOL_WAKE_UP

WOL_CTL

POWER_ON/OFF1

LED_R

SOC_RESET

LM14A : Active high reset

INV_CTL

R3015
10K
MICOM_LM14A

SOC_TX

SOC_RX

AMP_MUTE

EDID_WP

URSA_RESET_MICOM

URSA_RESET_MICOM

CEC_REMOTE

30V

D3000-*1

EAH62792701

CEC_DIODE(SUB)

BAT54_TSC

D3000

BAT54_SUZHO

CEC_DIODE(MAIN)

EAH61433701

For CEC

R3033
27K

+3.5V_ST

G

S

D

Q3001
RUE003N02

ROHM_CEC_FET(MAIN)

EBK61731401

R3034

120K

S

G

D

HDMI_CEC_MICOM

Q3001-*1
SI1012CR-T1-GE3

VISHAY_CEC_FET(SUB)

EBK61731301

BSD-15Y-LM14A-030_00-HD

LM14A

MICOM

2015-01-21

30

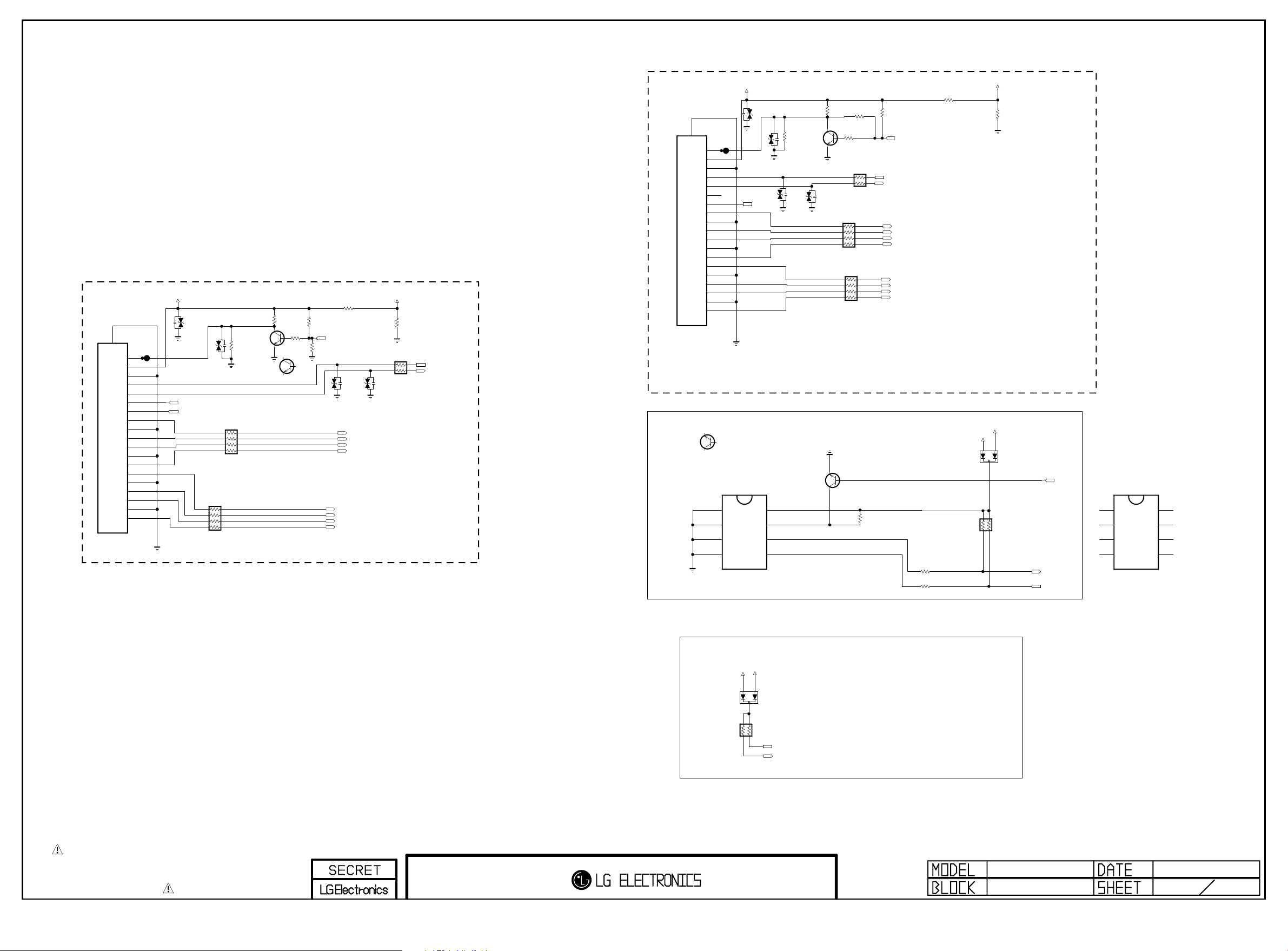

SHIELD

Copyright © 2015 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

YKF45-7058V

20

JK3300

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

HPD

+5V_POWER

DDC/CEC_GND

SDA

SCL

NC

CEC

CLK-

CLK_SHIELD

CLK+

DATA0-

DATA0_SHIELD

DATA0+

DATA1-

DATA1_SHIELD

DATA1+

DATA2-

DATA2_SHIELD

DATA2+

5V_HDMI_3

HDMI_ARC

CEC_REMOTE

VA3301

ESD_HDMI

VA3303

AR3303

5.1
1/16W

ESD_HDMI

AR3304

5.1
1/16W

Q3301

2N3904S

R3301

100K

KEC_HDMI_HPD_TR

Q3301-*1

MMBT3904(NXP)

NXP_HDMI_HPD_TR

R3335

HDMI1(6G)

+5V_NORMAL

5V_HDMI_3

A2CA1

MMBD6100
D3309

AR3305
1/16W
47K

5V_DET_HDMI_1

3.3K

EDID_WP

DDC_SCL_3

DDC_SDA_3

ATMEL_HDMI_EXT_EDID

IC3301-*1

AT24C02C-SSHM-T

A0

1

A1

2

A2

3

GND

4

VCC

8

WP

7

SCL

6

SDA

5

5V_HDMI_1

OPT

R3302

R3336

1K

VA3308

ESD_HDMI

SHIELD

20

19

HPD

18

+5V_POWER

17

DDC/CEC_GND

16

SDA

15

SCL

14

NC

13

CEC

12

CLK-

11

CLK_SHIELD

10

CLK+

9

DATA0-

8

DATA0_SHIELD

7

DATA0+

6

DATA1-

5

DATA1_SHIELD

4

DATA1+

3

2

1

YKF45-7058V

JK3302

E

C

DATA2-

DATA2_SHIELD

DATA2+

B

ROHM_HDMI_EXT_EDID

A0

A1

A2

GND

VA3307

ESD_HDMI

5V_DET_HDMI_3

R3310

3.3K

AR3300
33
1/16W

DDC_SDA_3

DDC_SCL_3

EDID external EEPROM

MMBT3904(NXP)

Q3302-*1

NXP_HDMI_EXT_EDID_TR

R3308

R3304

1K

C

R3306
1K

B

E

C

B

E

1.8K

R3307

4.7K

NON_HDMI_EXT_EDID

HDMI_HPD_3

R3339

4.7K

HDMI_EXT_EDID

VA3305
ESD_HDMI

D1-_HDMI3
D1+_HDMI3

D2-_HDMI3
D2+_HDMI3

CK-_HDMI3
CK+_HDMI3
D0-_HDMI3
D0+_HDMI3

CEC_REMOTE

IC3301

BR24G02FJ-3GTE2

1

2

3

4

OPT

R3300

100K

VA3312

ESD_HDMI

VA3309

ESD_HDMI

KEC_HDMI_EXT_EDID_TR

VCC

8

WP

7

SCL

6

SDA

5

Q3300

2N3904S

2N3904S

Q3302

VA3311

ESD_HDMI

C

E

E

C

33

OPT

R3303
1K

B

OPT

AR3301
33
1/16W

AR3306

5.1
1/16W

AR3307

5.1
1/16W

B

HDMI_EXT_EDID

R3323

4.7K

OPT

R3305

4.7K

HDMI_HPD_1

DDC_SDA_1

DDC_SCL_1

CK-_HDMI1
CK+_HDMI1
D0-_HDMI1
D0+_HDMI1

D1-_HDMI1
D1+_HDMI1

D2-_HDMI1
D2+_HDMI1

HDMI_EXT_EDID

HDMI_EXT_EDID

R3321
22

R3322
22

R3324

1.8K

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

DDC pull-up

5V_HDMI_1

AR3302

47K

1/16W

+5V_NORMAL

A2CA1
MMBD6100
D3305

DDC_SDA_1

DDC_SCL_1

LM14A(UF64/68)_5.1ohm

HDMI

2015-01-14

33

SPDIF_OUT

Copyright © 2015 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

SPDIF OUT

+3.3V_NORMAL

VA3807

C3800

5.5V

18pF
50V

OPT

C3818

0.1uF
16V

SOLTEAM_OPTIC_JACK(MAIN)

GND

Fiber Optic

1

VCC

2

VINPUT

JST1223-001

3

4

FIX_POLE

JK3800

HON_HAI_OPTIC_JACK(SUB)

JK3800-*1

2F01TC1-CLM97-4F

GND

1

VCC

2

VIN

3

Fiber OpticFiber Optic

4

SHIELD

FOXCONN_OPTIC_JACK

JK3800-*2

2F01TC1-CLM97-4F

GND

1

VCC

2

VIN

3

4

SHIELD

PPJ245-31

JK3802-*1

6E

5E

4E

5D

4C

5C

7C

5B

4A

5A

6A

Non_shield_Component jack

[RD2]E-LUG

[RD2]O-SPRING

[RD2]CONTACT

[WH]O-SPRING

[RD1]CONTACT

[RD1]O-SPRING

[RD1]E-LUG-S

[BL]O-SPRING

[GN/YL]CONTACT

[GN/YL]O-SPRING

[GN/YL]E-LUG

AV/COMPONENT REAR

PPJ245N2-01

JK3802

[GN/YL]E-LUG

6A

5A

[GN/YL]O-SPRING

4A

[GN/YL]CONTACT

5B

[BL]O-SPRING

7C

5C

4C

5D

4E

5E

6E

shield_Component jack

[RD1]E-LUG-S

[RD1]O-SPRING

[RD1]CONTACT

[WH]O-SPRING

[RD2]CONTACT

[RD2]O-SPRING

[RD2]E-LUG

VA3804

5.5V

VA3805

5.5V

VA3801

5.6V

R3800

470K

VA3806

5.5V

SIGN380006

VA3802

5.6V

R3801

Place JACK Side

1608 sizs For EMI/ESD

R3832

C3803
100pF
50V
OPT

C3804
100pF
50V
OPT

C3805
27pF
50V
OPT

3.3

C3806
100pF

R3808751/4W

50V
OPT

1608 sizs For EMI/ESD

1608 sizs For EMI/ESD

C3810
27pF
50V
OPT

1608 sizs For EMI/ESD

C3809
27pF
50V

OPT

C3807
1000pF
50V
OPT

C3808
1000pF
50V
OPT

C3822
150pF
OPT

+3.3V_NORMAL

R3807

10K

R3803
1K

VA3803

5.6V

470K

+3.3V_NORMAL

R3810
10K

VA3800

5.6V

AV1_CVBS_DET

R3802
1K

1608 sizs For EMI

R3805

0

C3801
560pF
50V

OPT

1608 sizs For EMI

R3806

0

C3802
560pF
50V

OPT

COMP1_DET

1%

3.3

3.3

FOR EMI

R3812
10K

R3813
10K

R3809

R3811

C3811
47pF
50V

C3812
27pF
50V
OPT

C3813
27pF
50V
OPT

@netLa

R3814
12K

R3815
12K

R3816
75

R3817
75

1%

1%

R3831
0

C3815
10pF
50V

C3814
10pF
50V

COMP1/AV1/DVI_L_IN

COMP1/AV1/DVI_R_IN

AV1_CVBS_IN

COMP1_Y

COMP1_Pb

COMP1_Pr

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LM15U

JACK_COMMON_H_W/O HP

2015-01-23

38

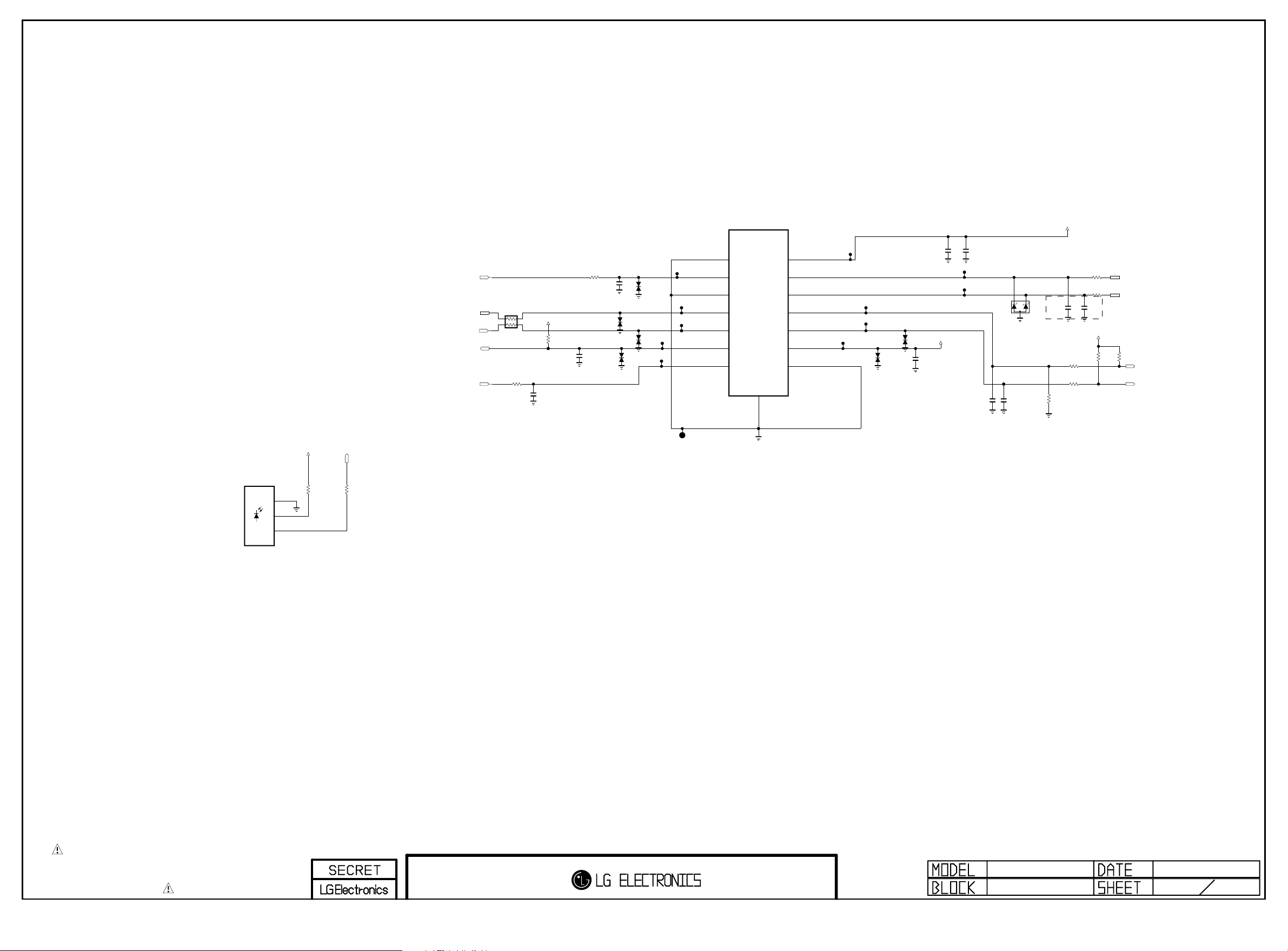

M_RFModule_RESET

Copyright © 2015 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

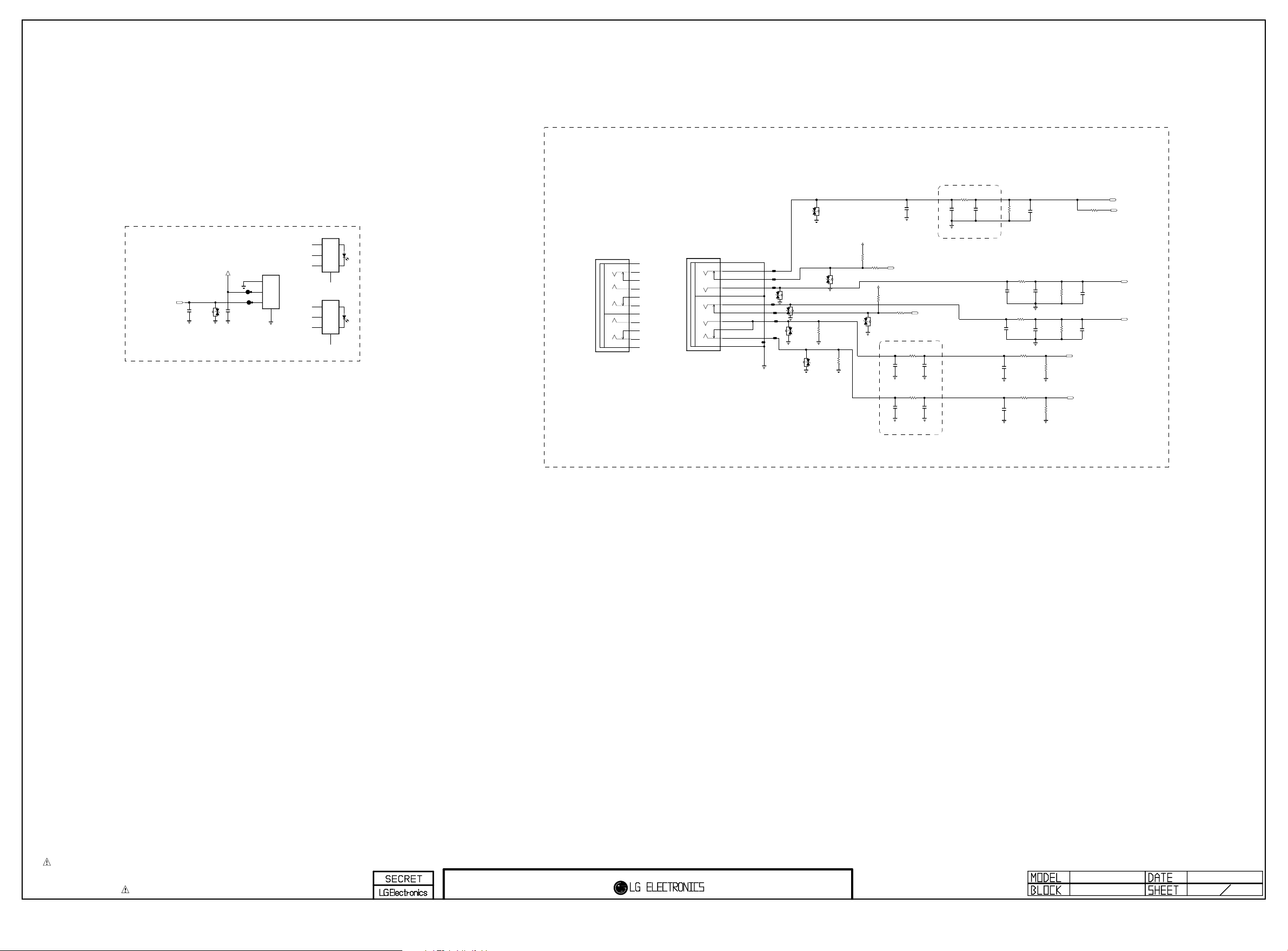

EYE_SDA

EYE_SCL

LED_R

P4100

SMAW200-H14S5K

C4110

+3.5V_ST

22uF

10V

D4100

RCLAMP0502BA

WIFI_DMDP_ESD

C4111

C4112

0.1uF

0.1uF

OPT

OPT

C4108

0.1uF

VA4105

ESD_WIFI_COMBO

C4106
1000pF
50V

OPT

15

10

12

14

2

2

4

4

6

6

8

8

10

12

14

VA4104

ESD_WIFI_COMBO

1

11

13

1

3

3

5

5

7

7

9

9

11

13

15

WIFI_BT_COMBO

R4111

100

C4103

0.1uF

+3.5V_ST

C4105
100pF

WIFI_BT_COMBO

50V

EYE_SENSOR

AR4100
100
1/16W

R4110

10K

LED_R

R4109

1.8K

OPT

C4102

0.1uF
16V

5%

IR

VA4102

ESD_WIFI_COMBO

VA4100
ESD_WIFI_COMBO

VA4103

ESD_WIFI_COMBO

VA4101
ESD_WIFI_COMBO

+3.3V_NORMAL

Place Near Wafer
C4107
5pF
50V

R4100

0

UF64

UF68

R4117
100

R4118
100

C4109
5pF
50V

+3.5V_ST

R4115

10K

1%

R4113
0

R4114
0

R4116

10K
1%

WIFI_DM

WIFI_DP

KEY1

KEY2

IC4101

AO-R123C7G-LG

GND

G

VS

V

OUT

O

IR_PROTO

R4103

330

IR_PROTO

+3.5V_ST

1/16W

5%

R4105471/10W

IR_PROTO

IR

5%

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

UF64/6800

IR/KEY

2015-01-21

41

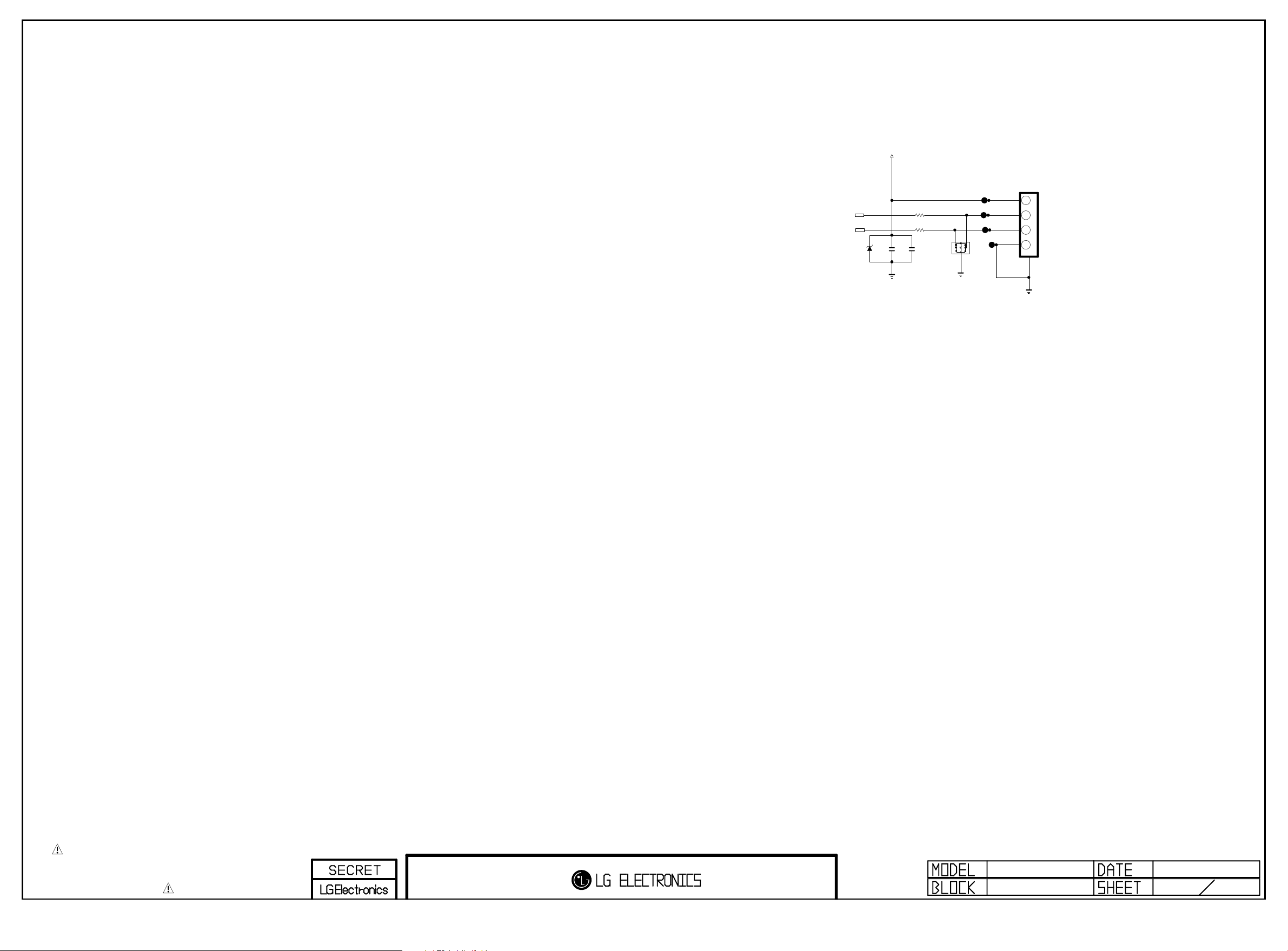

+5V_USB_3

Copyright © 2015 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

USB1

MAX 1.0A

USB_DM3

USB_DP3

D4301

C4322

10uF

R4300

2.2

R4301

2.2

C4323

22uF

10V

10V

D4302

DF3D6.8MS

1234

JK4302

USB DOWN STREAM

3AU04S-305-ZC-(LG)

5

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

UF64/6800

USB

2015-01-21

43

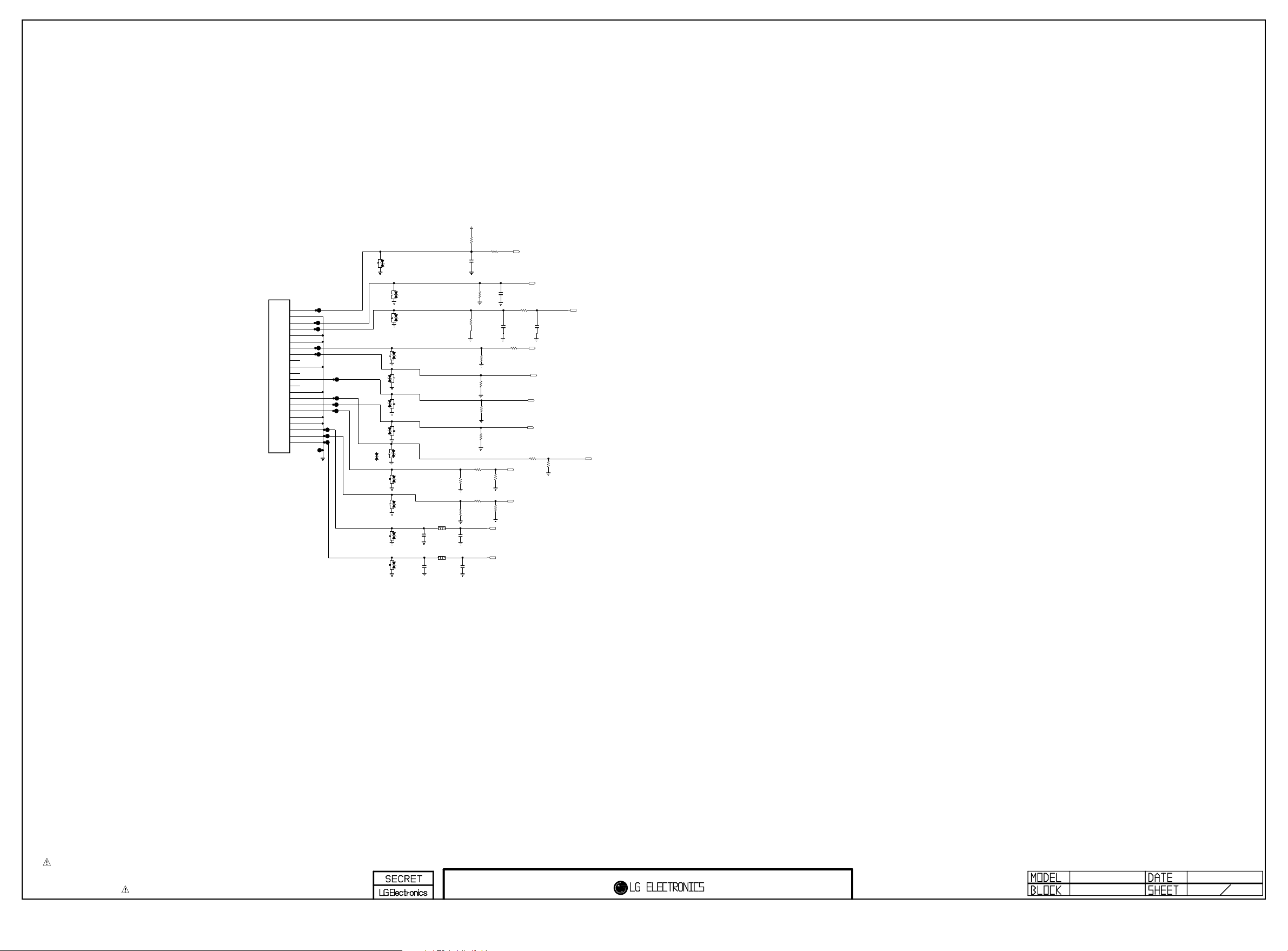

Full Scart

Copyright © 2015 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

EU

PSC008-01

JK4600

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

AV_DET

COM_GND

SYNC_IN

SYNC_OUT

SYNC_GND2

SYNC_GND1

RGB_IO

R_OUT

RGB_GND

R_GND

D2B_OUT

G_OUT

D2B_IN

G_GND

ID

B_OUT

AUDIO_L_IN

B_GND

AUDIO_GND

AUDIO_L_OUT

AUDIO_R_IN

AUDIO_R_OUT

VA4601

5.6V

VA4609

5.5V
EU

VA4610

5.5V
EU

VA4600-*1

ICVL0518100Y500FR_

EU_ESD_SC_ID(SUB)

VA4606

5.6V
EU

VA4607

5.6V
EU

VA4608

5.6V

EU

EU

VA4602

5.6V
EU

VA4603

5.5V
EU

VA4604

5.5V
EU

VA4605

5.5V
EU

VA4600
20V

EU_ESD_SC_ID(MAIN)

VA4611

5.6V
EU

EU

BLM18PG121SN1D

EU
C4600
1000pF
50V

EU

BLM18PG121SN1D

EU

C4601
1000pF
50V

L4600

L4601

+3.3V_NORMAL

EU

75
R4604

SIGN460005

EU
R4600
470K

EU
R4603
470K

EU
C4602
4700pF

EU
C4603
4700pF

EU
R4601

10K

EU

R4605
10K

EU
R4606

10K

C4604

0.1uF

1%

EU

1/4W

CLOSE TO JUNCTION

EU
R4602
100

75

EU

R460 7

EU
R4610
75

EU

R4608
75

EU
R4611
75

EU

R4609
75

EU
C4605
47pF
50V

EU
C4606
68pF
50V

R4612
12K

EU

R4613
12K
EU

DTV/MNT_L_OUT

DTV/MNT_R_OUT

R4614

EU
22

R4615
0

SC_L_IN

SC_R_IN

EU

SC_DET

R4616

15K

EU

SC_CVBS_IN

OPT
C4607
68pF
50V

SC_FB

SC_R

SC_G

SC_B

R4617

3.9K

DTV/MNT_V_OUT

SC_ID

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

SCART_JACK_H

LM14A

SCART JACK_H

BSD-15Y-LM14A-046_00-HD

2015-01-21

46

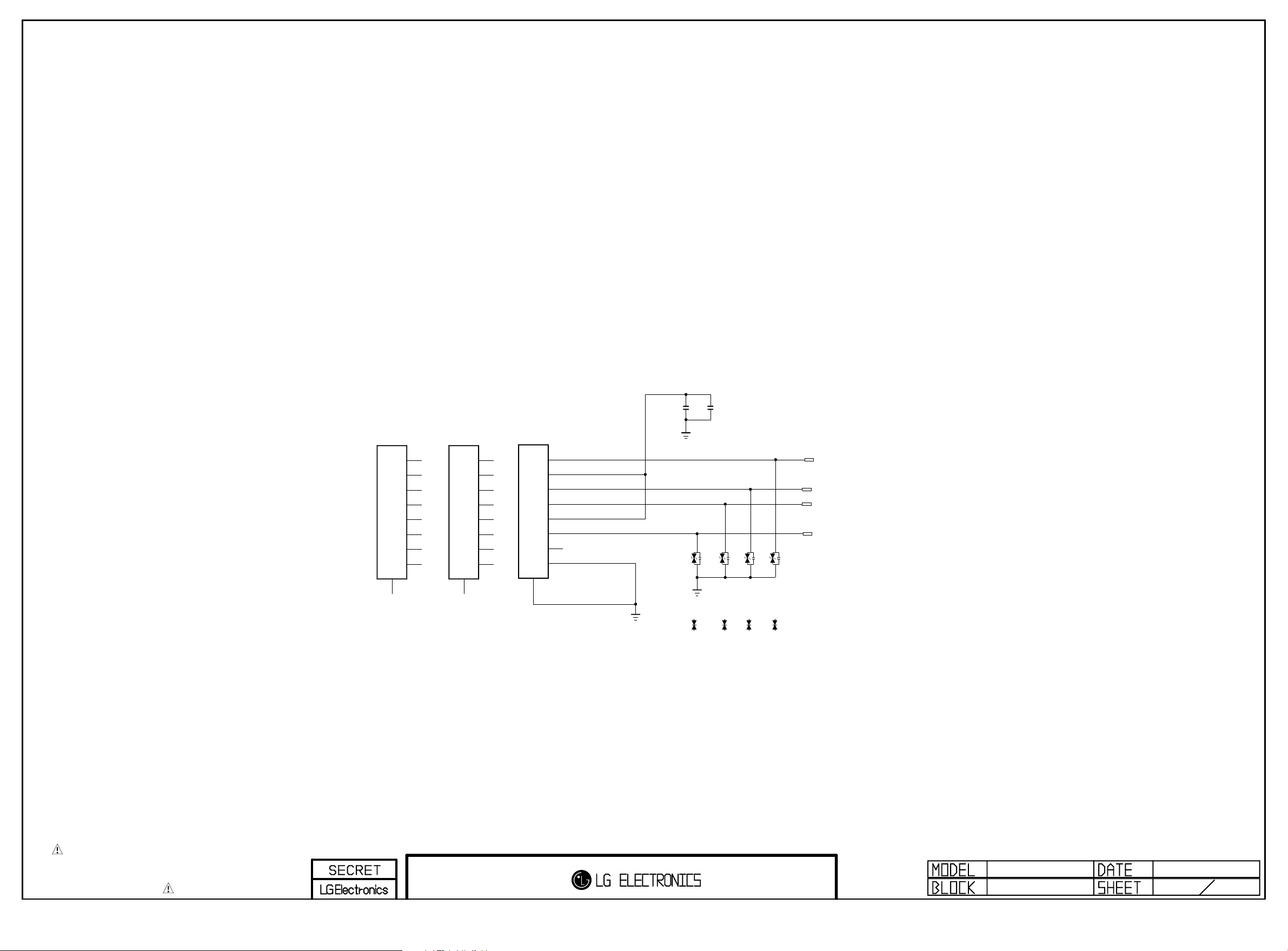

T-36TM9G_30150_02HF

Copyright © 2015 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

NEW_LAN_JACK_3SIM

JK5000-*2

36TM9G-30150-02HF

FREEPORT RESOURCES ENTERPRISES CORP.

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

SHIELD

EAG35781015

NEW_LAN_JACK_ESD(1st)

JK5000-*1

BS-RV30330

U.D. ELECTRONIC CORP

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

Ethernet Block

C5001

C5000

0.01uF

0.1uF
50V

VA5000

5.5V

LAN_ESD(MAIN)

LAN_ESD(MAIN)

16V

VA5002

VA5001

5.5V

5.5V

LAN_ESD(MAIN)

EAG35781010

OLD_LAN_JACK

JK5000

RJ45VT-01SN002

XML KOREA CO., LTD

1

2

3

4

5

6

7

8

9

9

1

2

3

4

5

6

7

8

VA5003

5.5V

LAN_ESD(MAIN)

EPHY_TDP

EPHY_TDN

EPHY_RDP

EPHY_RDN

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

VA5000-*1

ICVS0518150FR_

LAN_ESD(SUB)

VA5001-*1

ICVS0518150FR_

LAN_ESD(SUB)

VA5002-*1

ICVS0518150FR_

LAN_ESD(SUB)

VA5003-*1

ICVS0518150FR_

LAN_ESD(SUB)

LM14A

LAN_H

BSD-15Y-LM14A-050_00-HD

2015-01-21

50

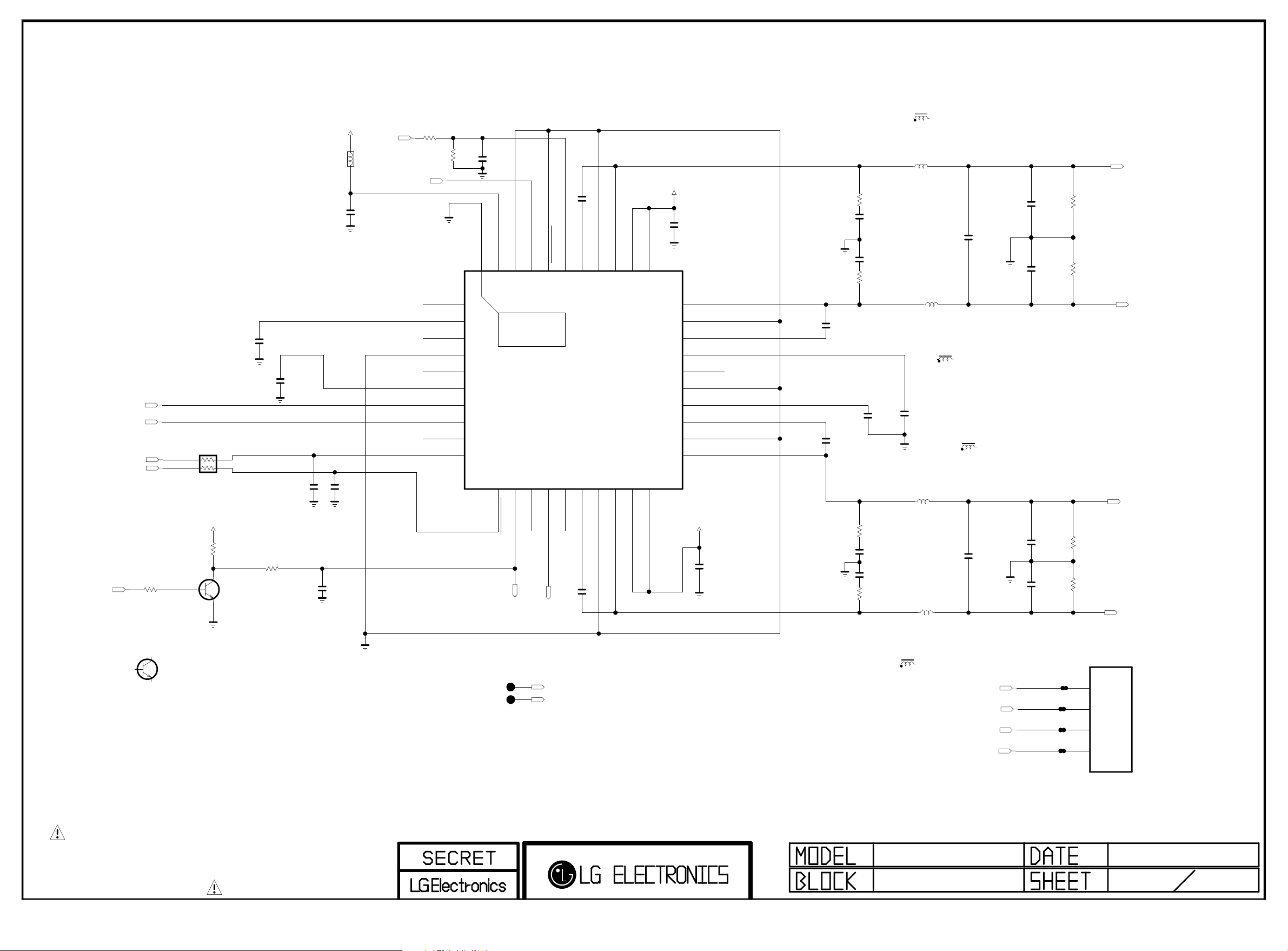

AUDIO AMP(NTP7515)

Copyright © 2015 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

PZ1608U121-2R0TF

C5800

1uF

10V

C5801
1uF
10V

AUD_LRCH

AUD_LRCK

AR5800

100

+3.3V_NORMAL

R5801

10K

C

B

Q5800

2N3904S

KEC_AMP_MUTE_TR

E

R5804

100

C5802
33pF
50V

1000pF

AMP_MUTE

I2C_SDA4
I2C_SCL4

B

R5800

10K

C

Q5800-*1

MMBT3904(NXP)

NXP_AMP_MUTE_TR

E

C5803

50V

+3.3V_NORMAL

L5801

C5805

0.1uF
16V

C5804
33pF
50V

AMP_RESET_N

AUD_SCK

VDD_PLL

R5805
100

1/16W

NC_1

NC_2

GND
NC_3
DVDD

SDATA

WCK
NC_4

SDA

R5806

4.7K

[EP]GND

1
2
3
4
5
6
7
8
9
10

TP5801

TP5802

C5806
1000pF
50V

GND_IO

VDD_IO

39

40

THERMAL

11

12

SCL

FAULT

WOOFER_MUTE

C5807

RESET

AD

CLK_I

36

37

38

41

IC5800

NTP7515

0x54

13

14

15

MONITOR_0

MONITOR_1

MONITOR_2

C5808

22000pF

50V

I2S_AMP

WOOFER_MUTE

I2S_AMP

50V

22000pF

PGND1A

BST1A

34

35

16

17

BST2B

PGND2B

PVDD1A

OUT1A

32

33

18

19

OUT2B

PVDD2B

+24V_AMP

C5809
10uF
35V

PVDD1B

31

30
29
28
27
26
25
24
23
22
21

20

+24V_AMP

PVDD2A

OUT1B
PGND1B
BST1B
VDR1
NC_5
AGND
VDR2
BST2A
PGND2A
OUT2A

C5810
10uF
35V

C5811
22000pF
50V

C5812
22000pF
50V

R5807

3.3

R5808

3.3

R5809

3.3

R5810

3.3

1/10W

C5813
390pF

50V

C5814
390pF

50V

1/10W

1/10W

C5815
390pF
50V

C5816
390pF
50V

1/10W

5%

5%

C5817
1uF
10V

5%

5%

SM-6045-100

GET_AMP_COIL

L5804-*1

10.0uH

SM-6045-100

GET_AMP_COIL

L5802-*1

10.0uH

TAIYO_AMP_COIL

NRS6045T100MMGK

L5802

10.0uH

TAIYO_AMP_COIL

NRS6045T100MMGK

L5805

10.0uH

SM-6045-100

GET_AMP_COIL

L5805-*1

10.0uH

C5818
1uF
10V

TAIYO_AMP_COIL

NRS6045T100MMGK

L5803

10.0uH

TAIYO_AMP_COIL

NRS6045T100MMGK

L5804

10.0uH

C5819

0.47uF
50V

SM-6045-100

GET_AMP_COIL

L5803-*1

10.0uH

C5820

0.47uF

50V

SPK_L+

SPK_L-

SPK_R+

SPK_R-

C5821

0.1uF
50V

C5822

0.1uF

50V

C5823

0.1uF

50V

C5824

0.1uF

50V

SPK_L+

R5811

4.7K

R5812

4.7K

SPK_L-

SPK_R+

R5813

4.7K

R5814

4.7K

SPK_R-

4P Box type

WAFER-ANGLE

4

3

2

1

P5800

SPEAKER_L

SPEAKER_R

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LM14A

NTP_AMP

BSD-15Y-LM14A-058_00-HD

2015-01-08

58

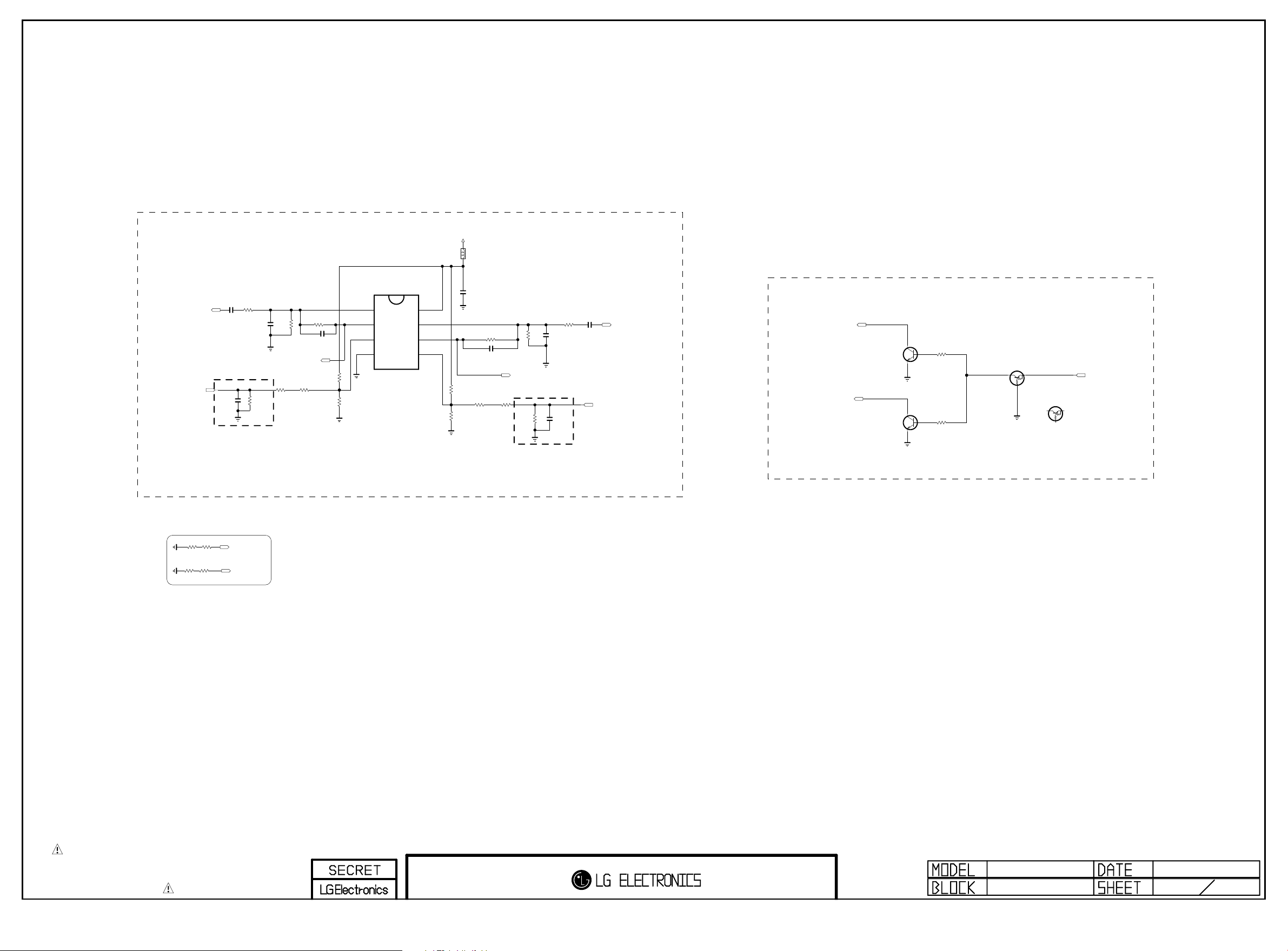

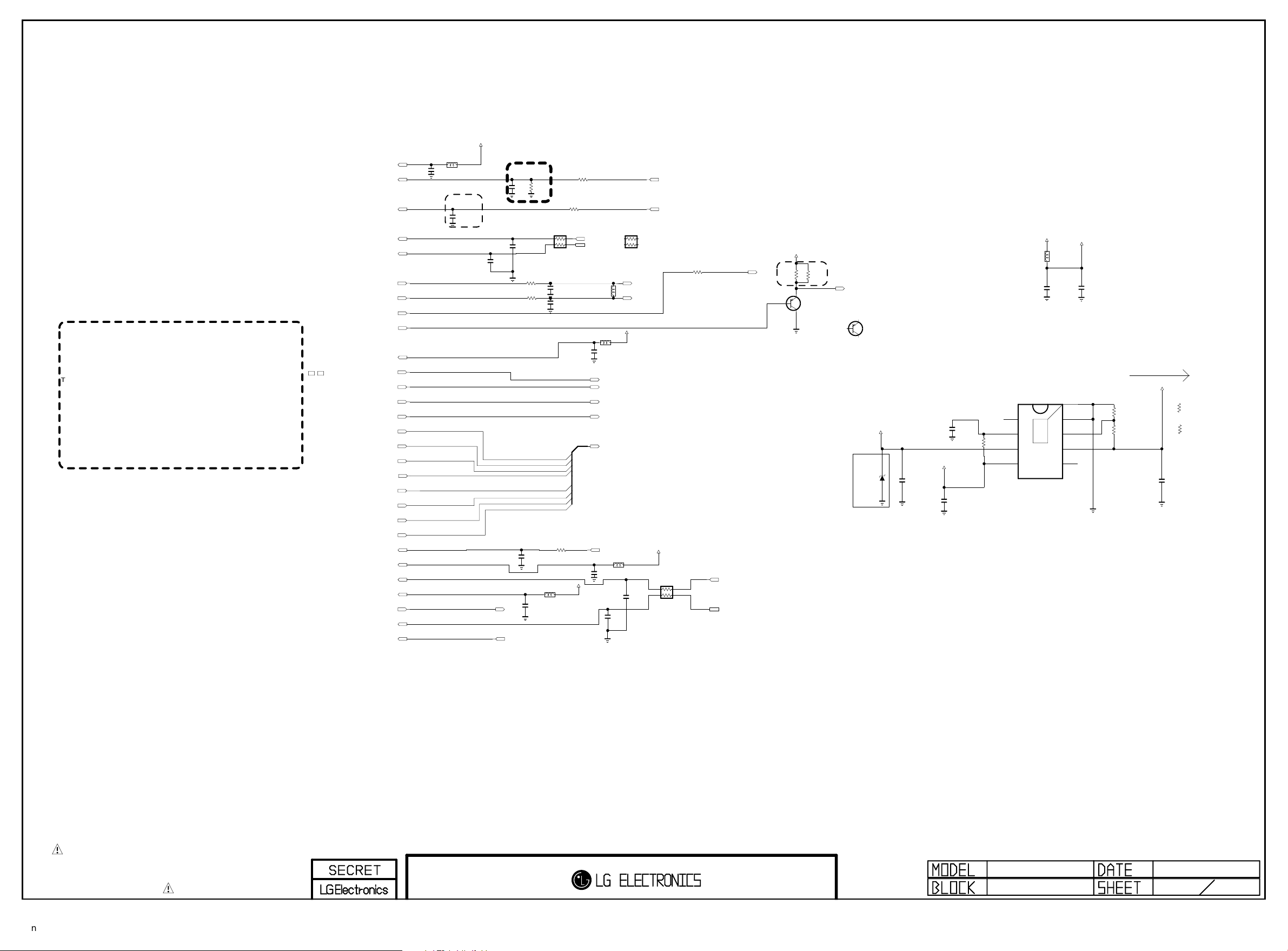

+12V

Copyright © 2015 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

EU

L6000

AUD_OUT >> EU/CHINA_HOTEL_OPT

EU

330pF
C6009

EU

C6000

10uF

DTV/MNT_L_OUT

SCART_Lout

CLOSE TO MSTAR

Near Place Scart AMP

EU

R6019

EU

0

10K

1/16W

5%

R60 03

EU

R6018

EU

0

1/16W

10K
R6001

5%

EU

R6000

2.2K
OPT

C6002

6800pF

220K

R6005

EU

SCART_AMP_R_FB

SCART_AMP_L_FB

OPT

R6002

470K

SCART_AMP_L_FB

EU

R6006

5.6K

EU

R6004 33K

C6003 33pF

EU

EU

R6020
0

1/16W
5%

IC6000

AZ4580MTR-E1

EU

VCC

8

OUT2

7

IN2-

6

IN2+

5

OPT

OPT

OUT1

1

IN1-

2

IN1+

3

VEE

4

R6007

100K

1/16W

5%

OPT

R6009

100K

1/16W

5%

OPT

R6012

100K

R6015

100K

1/16W

5%

1/16W

5%

EU
C6004

0.1uF
50V

SIGN600007

R6008 33K

C6005

EU

EU

R6021
0

1/16W
5%

EU

33pF

EU

R6016

5.6K

OPT
R6010

470K

SCART_AMP_R_FB

EU

R6017

220K

OPT
C6007
6800pF

C6012
330pF

EU

R6011

2.2K

EU

EU

C6008

DTV/MNT_R_OUT

10uF

SCART_Rout

[SCART AUDIO MUTE]

DTV/MNT_L_OUT

Q6000

MMBT3904(NXP)

DTV/MNT_R_OUT

Q6001

MMBT3904(NXP)

C

E

C

E

EU

R6013

1K

B

EU

EU

R6014

1K

B

EU

EU_SCART_MUTE_ISAHAYA

Q6002
RT1P141C-T112

E

C

B

EU_SCART_MUTE_NXP

SCART_MUTE

PDTA114ET

Q6002-*1

E

C

B

CLOSE TO MSTAR

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BSD-15Y-LM14A-060_00-HD

SCART AMP

Global F/E Option Name

Copyright © 2015 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

1. TU

2. Tuner Name = TDJ’H’,TDj’M’...

3. Country Name = KR,US,BR,EU ...

Example of Option name
TU_ALL_IntDemod = All Tuner type for Internal demod
TU_M/W = apply TDSM&TDSW Type Tuner

14’ Tuner Type for Global
TDJ’H’-G101D : Half NIM for EU,AJJA
TDJ’H’-H101F : Half NIM for US, KR
TDJ’K’-T101F : Half NIM for TW
TDJ’M’-C301D,F : FULL NIM for China
TDJ’M’-B101F : Brazil NIM with Isolater Type
TDJ’M’-K101F : colombia NIM
TDJ’M’-G101D,G105D,G151D : EU Combo&Full NIM
TDJ’M’-H101F,H151F : Korea PIP tuner
TDJ’W’-A151D : AJJA T2 PIP

1

2

3

4

5

6

7

8

9

10

11





12

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

close to Tuner

L6500

+3.3V_LNA_TU

RF_SWITCH_CTL_TU

IF_AGC_TU

I2C_SCL5_TU

I2C_SDA5_TU

IF_P_TU

should be guarded by ground,Match GND VIA

IF_N_TU

TU_SIF_TU

TU_CVBS_TU

+3.3V_TU

FE_DEMOD1_TS_ERROR

FE_DEMOD1_TS_CLK

FE_DEMOD1_TS_SYNC

FE_DEMOD1_TS_VAL

FE_DEMOD1_TS_DATA[0]

FE_DEMOD1_TS_DATA[1]

FE_DEMOD1_TS_DATA[2]

FE_DEMOD1_TS_DATA[3]

FE_DEMOD1_TS_DATA[4]

FE_DEMOD1_TS_DATA[5]

FE_DEMOD1_TS_DATA[6]

FE_DEMOD1_TS_DATA[7]

/TU_RESET1_TU

+3.3V_DEMOD_TU

I2C_SCL2_TU

D_Demod_Core

LNB_TX

I2C_SDA2_TU

LNB_OUT

PZ1608U121-2R0TF

C6501

0.1uF

TU_ALL_IntDemod

C6502

0.1uF

16V

+3.3V_TUNER

close to Tuner

close to TUNER

TU_K/M/W_TW/BR/CO

TU_K/M/W_TW/BR/CO

R6503

C6504

10K

0.1uF

C6505
47pF
50V
OPT

C6503
47pF
50V
OPT

R6504
10

TU_ALL_IntDemod

R6505
10

TU_ALL_IntDemod

FE_DEMOD1_TS_DATA[3]

TU_M/W

C6507

16V

0.1uF

PZ1608U121-2R0TF

TU_M/W

C6506

0.1uF

LNB_TX

LNB_OUT

R6507

R6506

TU_ALL_IntDemod

TU_ALL

AR6500
33
1/16W

C6519

33pF

TU_H/M_EU/BR/TW/CO/KR

C6520

33pF

TU_H/M_EU/BR/TW/CO/KR

close to Tuner

@netLa
@netLa
@netLa

@netLa
@netLa

@netLa
@netLa

TU_M/W

R6501
100

TU_M/W

L6505

1K

TU_K/M/W_TW/BR/CO

1K

I2C_SCL5
I2C_SDA5

L6502

OPT

TU_M_KR/EU // W_ALL

L6501

PZ1608U121-2R0TF

C6510

0.1uF

TU_M_KR/EU // W_ALL

FE_DEMOD1_TS_ERROR
FE_DEMOD1_TS_CLK

FE_DEMOD1_TS_SYNC

FE_DEMOD1_TS_VAL

FE_DEMOD1_TS_DATA[0-7]

/TU_RESET1

TU_M/W

L6503

PZ1608U121-2R0TF

C6511

TU_M/W

0.1uF

Demod_Core

OPT

C6512
18pF
50V

TU_W_BR/TW

AR6500-*1
200
1/16W

IF_P

IF_N

+3.3V_TUNER

OPT
C6513

18pF
50V

RF_SWITCH_CTL

IF_AGC

+3.3V_TUNER

TU_M/W

AR6501
33
1/16W

1. should be guarded by ground

2. No via on both of them

3. Signal Width >= 12mils
Signal to Signal Width = 12mils

TU_ALL_2178B

R6513 0

Ground Width >= 24mils

TU_SIF

TU_ALL_2178B

I2C_SCL2

I2C_SDA2

+3.3V_TUNER

R6516
200

E

KEC_TU_ALL_2178B_TR

B

Q6502
2N3906S-RTK

C

1608 perallel
because of derating

TU_ALL_2178B

R6517

200

TU_CVBS

E

NXP_TU_ALL_2178B_TR

B

Q6502-*1
MMBT3906(NXP)

C

+3.3V_NORMAL

ESD_TU_M/W

ZD6501

5V

TU_M/W

C6500

0.1uF
16V

+5V_NORMAL

TU_M/W

C6515
1uF
25V

+3.3V_NORMAL

C6517

22uF

10V

TU_M/W

IC6500

AP2132MP-2.5TRG1

R6500

10K

TU_M/W

VCTRL

PG

1

EN

2

VIN

3

2A

4

TU_M/W
C6516

0.1uF

Vout=0.6*(1+R1/R2)

L6504

PZ1608U121-2R0TF

[EP]

GND

8

ADJ

9

7

THERMAL

VOUT

6

NC

5

+3.3V_TUNER

C6508

0.1uF
16V

T2 : Max 1.7A

else : Max 0.7A

TU_M/W_1.2V

10K

R2

R65 21

R1

R65 19

10. 5K

TU_M/W_1.2V

Demod_Core

R6521-*1

18K

R6519-*1

16K

TU_M/W
C6518
10uF
10V

TU_M/W_1.1V

TU_M/W_1.1V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

UF64/6800

TU_CIRCUIT

2014-11-06

65

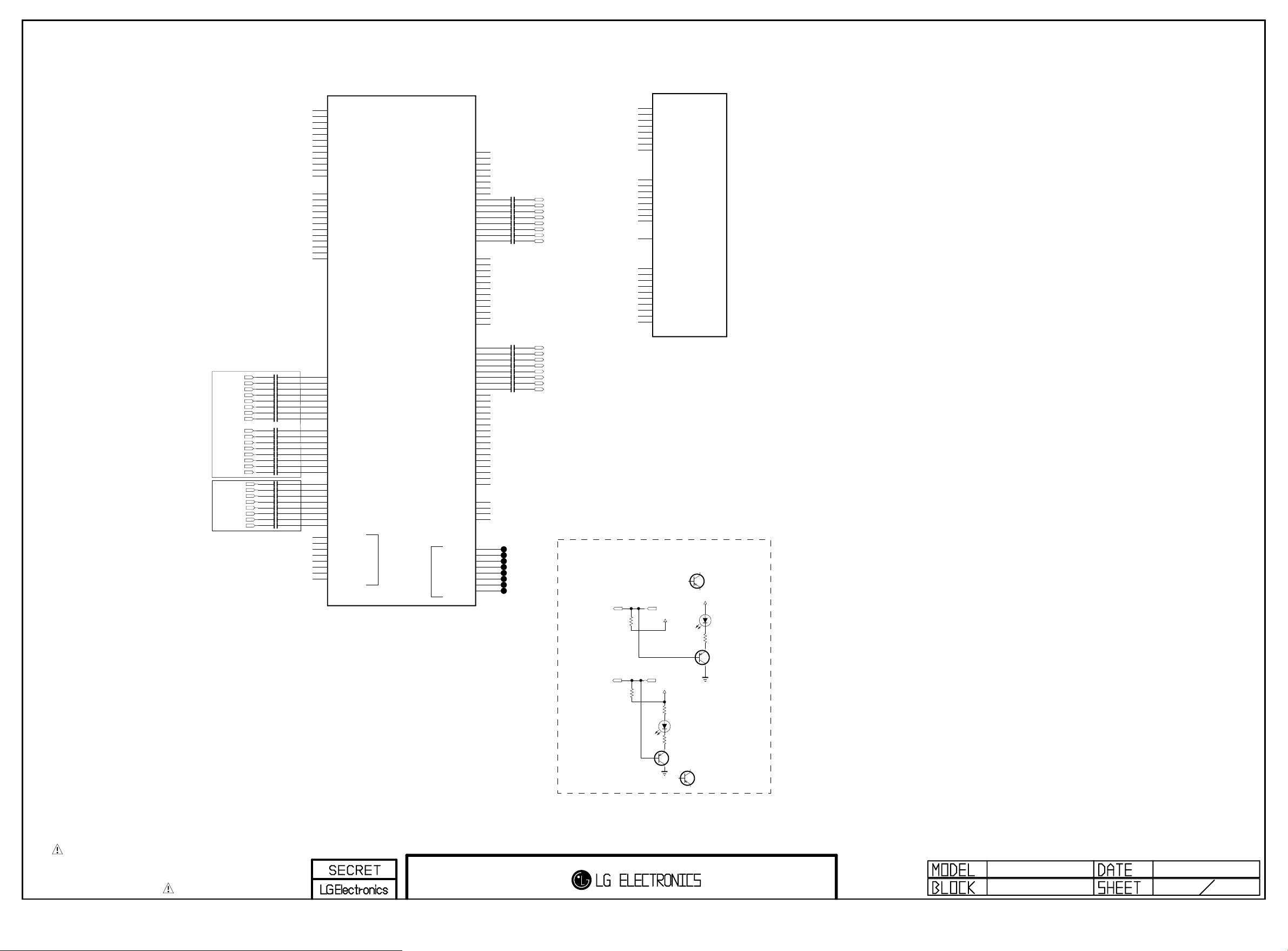

TU_H_US

Copyright © 2015 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

TU6705
TDJH-H301F

TU_H_BR

TU6701
TDJK-T301F

TU_H_T2_KR

TU6704
TDJM-H401F

TU_M_EU

TU6702
TDJM-G301D

+3.3V

1

NC_1

2

DIF_AGC

3

SCL_RF

4

SDA_RF

5

DIF[P]

6

DIF[N]

7

SIF

47

SHIELD

8

CVBS

9

B1

B1

A1

A1

47

SHIELD

TU_GND_B

TU_GND_A

TDJH-G301D

TU6705-*1
TDJH-G301D

+3.3V

1

NC_1

2

IF_AGC

3

SCL_RF

4

SDA_RF

5

IF[P]

6

IF[N]

7

SIF

8

CVBS

9

A1

A1

B1

B1

47

A1

TU_GND_A

A1

SHIELD

EMS Page --> Sheet : 135

TU_H_MEXICO

TU6705-*2
TDJH-H302F

+3.3V

1

NC_1

2

IF_AGC

3

SCL

4

SDA

5

IF[P]

6

IF[N]

7

SIF

8

CVBS

9

A1

A1

B1

B1

47

SHIELD

B1

TU_H_T2_CO

A1

1

2

3

4

5

6

7

8

9

47

+3.3V

NC

DIF_AGC

SCL_RF

SDA_RF

DIF[P]

DIF[N]

SIF

CVBS

B1

TU6704-*1
TDJM-K301F

+3.3V

1

NC_1

2

NC_2

3

SCL_RF

4

SDA_RF

5

NC_3

6

NC_4

7

SIF

8

CVBS

9

NC_5

10

+3.3V_RF

11

ERROR

12

GND_1

13

MCLK

14

SYNC

15

VAILD

16

D0

17

D1

18

D2

19

D3

20

D4

21

D5

22

D6

23

D7

24

RESET_DEMOD

25

+3.3V_DEMOD

26

SCL_DEMOD

27

+1.2V_DEMOD

28

NC_6

29

SDA_DEMOD

30

B1B1A1

SHIELD

TU_GND_B

A1

TU_GND_A

+3.3V

1

NC_1

2

NC_2

3

SCL_RF

4

SDA_RF

5

NC_3

6

NC_4

7

SIF

8

CVBS

9

NC_5

10

+3.3V_RF

11

ERROR

12

GND_1

13

MCLK

14

SYNC

15

VAILD

16

D0

17

D1

18

D2

19

D3

20

D4

21

D5

22

D6

23

D7

24

RESET_DEMOD

25

+3.3V_DEMOD

26

SCL_DEMOD

27

+1.2V_DEMOD

28

NC_6

29

SDA_DEMOD

30

B1

A1

B1

47

A1

SHIELD

A1

47

TU_GND_B

SHIELD

TU_GND_A

+3.3V

1

NC_1

2

AIF_AGC

3

SCL_RF

4

SDA_RF

5

AIF[P]

6

AIF[N]

7

SIF

8

CVBS

9

NC_2

10

+3.3V_RF

11

ERROR

12

GND_1

13

MCLK

14

SYNC

15

VALID

16

D0

17

D1

18

D2

19

D3

20

D4

21

D5

22

D6

23

D7

24

RESET_DEMOD

25

+3.3V_DEMOD

26

SCL_DEMOD

27

+1.2V_DEMOD

28

NC_3

29

SDA_DEMOD

30

LNB

31

GND

32

B1

B1

TU_GND_B

+3.3V_LNA_TU

RF_SWITCH_CTL_TU

IF_AGC_TU

I2C_SCL5_TU

I2C_SDA5_TU

IF_P_TU

IF_N_TU

TU_SIF_TU

TU_CVBS_TU

+3.3V_TU

FE_DEMOD1_TS_ERROR

FE_DEMOD1_TS_CLK

FE_DEMOD1_TS_SYNC

FE_DEMOD1_TS_VAL

FE_DEMOD1_TS_DATA[0]

FE_DEMOD1_TS_DATA[1]

FE_DEMOD1_TS_DATA[2]

FE_DEMOD1_TS_DATA[3]

FE_DEMOD1_TS_DATA[4]

FE_DEMOD1_TS_DATA[5]

FE_DEMOD1_TS_DATA[6]

FE_DEMOD1_TS_DATA[7]

/TU_RESET1_TU

+3.3V_DEMOD_TU

I2C_SCL2_TU

D_Demod_Core

LNB_TX

I2C_SDA2_TU

LNB_OUT

1

2

3

4

5

6

7

8

9

10

11

12

13

14

16

17

18

19

20

21

22

23

24

25

26

27

30

31

32

33

34

35

36

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

40

41

TDJM-C401D

TU6702-*4
TDJM-C401D

+3.3V

1

NC_1

2

NC_2

3

SCL_RF

4

SDA_RF

5

NC_3

6

NC_4

7

SIF

8

CVBS

9

NC_5

10

+3.3V_RF

11

ERROR

12

GND_1

13

MCLK

14

SYNC

15

VAILD

16

D0

17

D1

18

D2

19

D3

20

D4

21

D5

22

D6

23

D7

24

RESET_DEMOD

25

+3.3V_DEMOD

26

SCL_DEMOD

27

+1.2V_DEMOD

28

NC_6

29

SDA_DEMOD

30

A1

B1B1A1

47

SHIELD

TDJM-B301F

TU6702-*3
TDJM-B301F

+3.3V

1

NC_1

2

NC_2

3

SCL_RF

4

SDA_RF

5

NC_3

6

NC_4

7

SIF

8

CVBS

9

NC_5

10

+3.3V_RF

11

ERROR

12

GND_1

13

MCLK

14

SYNC

15

VAILD

16

D0

17

D1

18

D2

19

D3

20

D4

21

D5

22

D6

23

D7

24

RESET_DEMOD

25

+3.3V_DEMOD

26

SCL_DEMOD

27

+1.2V_DEMOD

28

NC_6

29

SDA_DEMOD

30

A1

B1B1A1

47

SHIELD

TU_M_AJ

TU6702-*2
TDJM-G305D

+3.3V

1

NC_1

2

NC_2

3

SCL_RF

4

SDA_RF

5

NC_3

6

NC_4

7

SIF

8

CVBS

9

NC_5

10

+3.3V_RF

11

ERROR

12

GND_1

13

MCLK

14

SYNC

15

VAILD

16

D0

17

D1

18

D2

19

D3

20

D4

21

D5

22

D6

23

D7

24

RESET_DEMOD

25

+3.3V_DEMOD

26

SCL_DEMOD

27

+1.2V_DEMOD

28

NC_6

29

SDA_DEMOD

30

A1

B1B1A1

47

SHIELD

TU_M_CN

TU6702-*1
TDJM-C301D

B1[+3.3V]

1

RF_SW_CTL

2

NC_1

3

SCL_RF

4

SDA_RF

5

NC_2

6

NC_3

7

SIF

8

CVBS

9

NC_4

10

NC_5

11

ERROR

12

GND_1

13

MCLK

14

SYNC

15

VAILD

16

D0

17

D1

18

D2

19

D3

20

D4

21

D5

22

D6

23

D7

24

RESET_DEMOD

25

B2[+3.3V]

26

SCL_DEMOD

27

B3[+1.1V]

28

NC_6

29

SDA_DEMOD

30

A1

B1B1A1

47

SHIELD

UF64/6800

TU_SYMBOL_H

2015-01-05

67

42

43

44

45

46

47

48

49

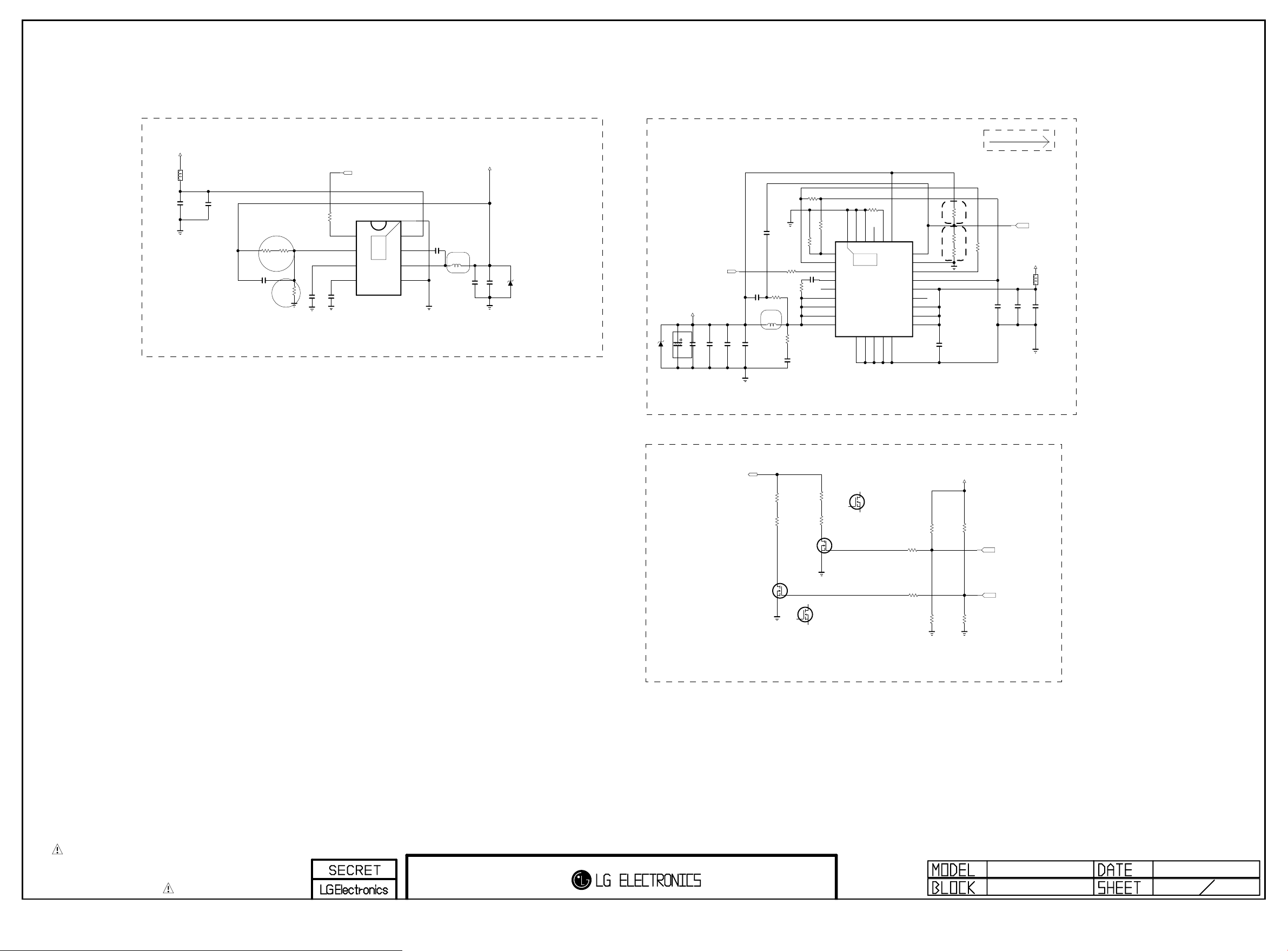

DVB-S2 LNB Part

Copyright © 2015 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

(Option:LNB)

LNB_OUT

C6900

0.1uF
LNB

C6901
33pF

LNB

Close to Tuner

Surge protectioin

D6900

LNB

R6900

2.2K
1W

LNB

LNB_SUZHOU

D6902-*2

SS2040LL-LG

40V

SS23L
D6901-*1

MBR230LSFT1G

LNB_ONSEMI

2A

LNB_TSC

D6902-*1
SS23L

30V

40V

SS2040LL-LG
D6901-*2
LNB_SUZHOU

30V

LNB_TSC

D6901

30V

D6902

LNB_ONSEMI

30V

C6903

0.01uF
50V
LNB

LNB

C6902

0.22uF
25V

LNB

C6906
10uF
25V

C6905
10uF
25V

LNB

close to Boost pin(#1)

C6904

0.1uF
50V

LNB

A_GND

D6903
LNB_SMAB34

40V

D6903-*1
LNB_SX34

40V

NC_1

LNB

NC_2

TDI

TDO

C6907
10uF
25V

LNB

LNB_DMBT

[EP]

1

THERMAL

2

3

IC6900-*1

4

5

21

DT1803

7

8

SCL9ADD

SDA6IRQ

D6904-*1

LNB_SX34

LNB_SMAB34

C6908 0.1uF

LNB_Allegro

PGND18NC_319NC_420BOOST

16LX17

VIN

15

GND

14

VREG

13

ISET

12

TCAP

11

10

TONECTRL

40V

D6904

40V

[EP]GND

VCP

1

LNB

2

NC_1

3

TDI

A8303SESTR-T

4

TDO

5

A_GND

NC_3

BOOST

19

20

THERMAL

21

IC6900

7

6

SCL9ADD

IRQ

LNB

R6901 33

I2C_SCL2

LPH6050T-150M-R

L6900

GNDLX

NC_2

16LX17

18

15

14

13

8

LNB

I2C_SDA2

12

11

10

+3.3V_NORMAL

TONECTRL

LNB_TX

LNB

SDA

R6902 33

LNB

3.5A

15uH

LNB

0

R6905

3A

+12V_M

VIN

GND

VREG

ISET

TCAP

OPT

R6906

0

LNB_Tx

3.3K

R6907

Input trace widths should be sized to conduct at least 3A
Ouput trace widths should be sized to conduct at least 2A

Max 1.3A

C6909
10uF
25V
LNB

A_GND

close to VIN pin(#15)

C6910

0.1uF
50V

LNB

C6912

LNB

0.1uF

LNB

C6911 0.22uF

0

R6908

LNB_NON_Tx

LNB
R6903

39K

1/16W
1%

Caution!! need isolated GND



R6904
0

A_GND

+12V

+3.3V_NORMAL

R6910
10K

1/16W
5%

C6913

0.1uF
50V

OPT

C6915

4.7uF
10V

B

C6914

R6911

36K

0.1uF
50V

R6909

150K

C

Q6902
MMBT3904(NXP)

E

NXP_Obsolete

Q6901

PMV48XP

S

G

Q6901-*1

D

AOS

AO3435

S

+12V_M

D

G

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LM14A(UF64/68)

LNB

2015-01-21

69

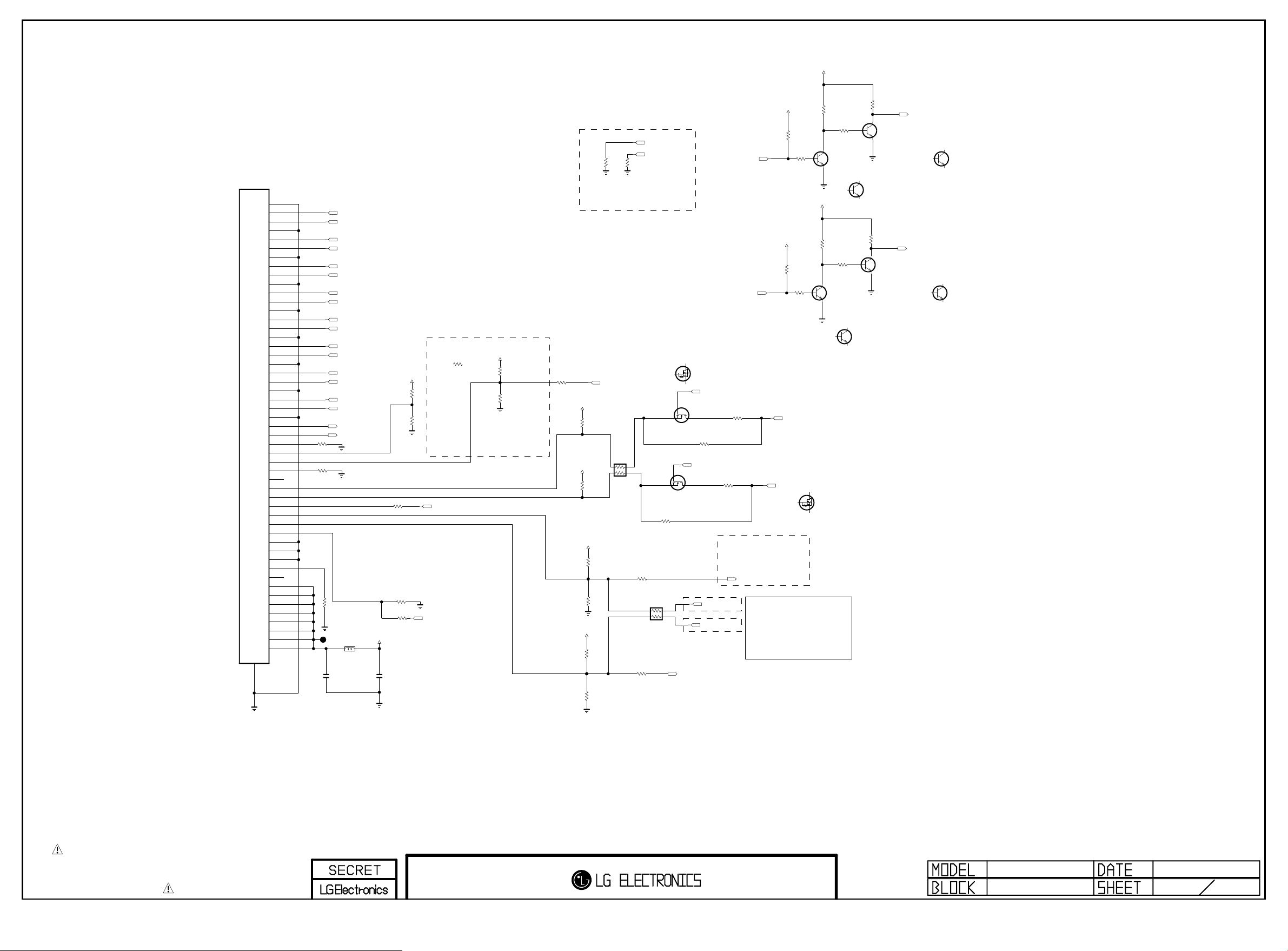

+3.3V_NORMAL

Copyright © 2015 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

[51P Vx1
output wafer]

51pin_Wafer

P7100

SP14-11592-01-51Pin

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

Module_LGD_SHARP_CSHOT&UF84(M+)

R7101 10K

R7102 10K

TXDAP7_L

TXDAN7_L

TXDAP6_L

TXDAN6_L

TXDAP5_L

TXDAN5_L

TXDAP4_L

TXDAN4_L

TXDAP3_L

TXDAN3_L

TXDAP2_L

TXDAN2_L

TXDAP1_L

TXDAN1_L

TXDAP0_L

TXDAN0_L

LOCKAn_IN

HTPDAn_IN

OPT

R71030

L7100

MLB-201209-0120P-N2

51pin_12V

C7100
10uF
25V

51pin_12V

+3.3V_NORMAL

*Pin31(BIT_SEL)
HIGH or NC : 10Bit
LOW : 8Bit

R7108 0

OPT

*Pin38
CSOT, LGD60Hz,INX: N/C
SHARP,LGD120Hz: GND
GPLUS : PWM_TIN

Module_LGD120Hz_SHARP

R7123 10K

R7113 0

Module_MPLUS&NON_UF84(M+)

PANEL_VCC

C7101
10uF
25V
51pin_12V

R7107-*1
10K

Module_MPLUS&NON_UF84(M+)

R7104
10K

OPT

R71051K1/16W

5%

Module_LGD_MPLUS&UF84(M+)

3D&L_DIM_EN

PWM_TIN

+3.3V_NORMAL

3D&L_DIM_EN_Micom

R7106
1K

L_DIM_EN_pulldown
R7107
1K

M+ MODULE : low

*Pin30(DATA_FORMAT)
HIGH : 2 DIVISION
LOW : NON DIVISION

R173

R7125 0

3D&L_DIM_EN_Micom

+3.3V_NORMAL

R7115

4.7K

40_INCH_INX_I2C_PULL_UP

Module_LGD_INX_CSHOT_MPLUS&UF84(M+)

+3.3V_NORMAL

R7116

4.7K

40_INCH_INX_I2C_PULL_UP

+3.3V_NORMAL

R7109
10K

OPT

LGD_Module_120Hz

R7110
10K

+3.3V_NORMAL

R7111
10K
OPT

Module_LGD120HZ_MPLUS&NON_UF84(M+)
R7112
10K

R174

10K

10K

HTPDAn_Video_Pull_down

HTPDAn_OSD_Pull_down

3D&L_DIM_EN

AR7101
0
1/16W

R7126 0

Module_MPLUS&UF84(M+)

Module_LGD120Hz

R7100 0

Module_MPLUS&NON_UF84(M+)

HTPDAn_Video

HTPDAn_OSD

*moved from SHT1.

D

DIODES_LGD/INX_Module_TCON_I2C_EN_FET(SUB)
Q7100-*1

G

2N7002K

EBK42767801

S

TCON_I2C_EN

EBK62072501

KEC_LGD/INX_Module_TCON_I2C_EN_FET(MAIN)

KEC_LGD/INX_Module_TCON_I2C_EN_FET(MAIN)

G

Module_LGD_INX_CSHOT_MPLUS&UF84(M+)

D

S

Q7100

2N7002KA

R7119

33

TCON_I2C_EN

G

Module_LGD_INX_CSHOT_MPLUS&UF84(M+)

D

S
Q7101

2N7002KA

EBK62072501

R7120

OPT

33

R7121 0

OPT

R7122 0

M+ MODULE

*Pin36(GPLUS_MODE)
HIGH : High luminance
LOW or NC : Low Power
LM14A : INTERNAL PULL-UP.

DATA_FORMAT_1_SOC

AR7100
0
1/16W

Data_Format_1

Data_Format_0

PWM_TOUT

+1.8V

LOCKAn_HTPDAn_3.3VPullup

R7128
10K

LOCKAn_HTPDAn_3.3VPullup

R7130

LOCKAn_IN

HTPDAn_IN

100

LOCKAn_HTPDAn_3.3VPullup

+1.8V

LOCKAn_HTPDAn_3.3VPullup

R7127
10K

LOCKAn_HTPDAn_3.3VPullup

R7129
100

I2C_SCL6

I2C_SDA6

G

Data Input Format[1:0]

*Mode 1 (NON Division)

- Data Format 0(Pin37) = Low
Data Format 1(Pin36) = Low

*Mode 3 (4 Division)

- Data Format 0(Pin37) = Low
Data Format 1(Pin36) = High

LOCKAn_HTPDAn_3.3VPullup

LOCKAn_HTPDAn_3.3VPullup

B

+3.3V_NORMAL

LOCKAn_HTPDAn_3.3VPullup

B

D

DIODES_LGD/INX_Module_TCON_I2C_EN_FET(SUB)

Q7101-*1
2N7002K
EBK42767801

S

LOCKAn_HTPDAn_3.3VPullup

R7132
10K

R7134

10K

C

Q7103
2N3904S

KEC_LOCKAn_HTPDAn_3.3VPullup_TR

E

R7131
10K

R7133

10K

C

Q7102
2N3904S

KEC_LOCKAn_HTPDAn_3.3VPullup_TR

E

B

R7136
10K

C

Q7105

B

2N3904S
KEC_LOCKAn_HTPDAn_3.3VPullup_TR

E

C

Q7103-*1

B

MMBT3904(NXP)
NXP_LOCKAn_HTPDAn_3.3VPullup_TR

E

LOCKAn_HTPDAn_3.3VPullup

R7135
10K

C

Q7104

B

2N3904S

KEC_LOCKAn_HTPDAn_3.3VPullup_TR

E

C

Q7102-*1
MMBT3904(NXP)

NXP_LOCKAn_HTPDAn_3.3VPullup_TR

E

LOCKAn

HTPDAn

C

Q7105-*1

B

MMBT3904(NXP)

NXP_LOCKAn_HTPDAn_3.3VPullup_TR

E

C

Q7104-*1

B

MMBT3904(NXP)

NXP_LOCKAn_HTPDAn_3.3VPullup_TR

E

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LM14A

Vx1 51P

BSD-15Y-LM14A-071_00-HD

2015-01-29

71

eMMC I/F

Copyright © 2015 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

DVDD18_EMMC

3.3v power delete, 131120

10K

1/16W

AR8104

EMMC_DATA[0-7]

EMMC_DATA[0]
EMMC_DATA[1]
EMMC_DATA[2]

EMMC_DATA[3]
EMMC_DATA[4]
EMMC_DATA[5]
EMMC_DATA[6]

EMMC_DATA[7]

EMMC_CLK
EMMC_CMD
EMMC_RST

AR8100
0
1/16W

R81040
R81050
R81060
R81070

AR8102
0 1/16W

C8107
10pF

OPT

50V

C8100

0.1uF

OPT

16V

Don’t Connect Power At VDDI

(Just Interal LDO Capacitor)

10K

1/16W

DAT3

AR8103

DAT4

DAT5

DAT6

10K

R8117

EMMC_CMD_BALL

EMMC_CLK_BALL

10K

R8116

DVDD18_EMMC

EMMC_RESET_BALL

Bottom

OPT

C8108

0.1uF
16V

EMMC_VDDI

EMMC_VDDI

eMMC V5.0 GND

3.3V_EMMC

OPT

C8109

2.2uF
10V

C8102

0.1uF
16V

EMMC_STRB

C8105

0.1uF
16V

C8103

2.2uF
10V

DAT3
DAT4
DAT7

DAT5

C8106

2.2uF
10V

Bottom

C8111

4.7uF
10V

OPT

DAT6

OPT

C8101
1uF
10V

DVDD18_EMMC

DAT7

10K

R8103

pattern 0.2mm

C8104

2.2uF
10V

THGBMBG5D1KBAIL

A3

DAT0

A4

DAT1

A5

DAT2

B2

DAT3

B3

DAT4

B4

DAT5

B5

DAT6

B6

DAT7

M6

CLK

M5

CMD

A6

VSS_1

A7

RFU_2

C5

NC_21

E5

RFU_4

E8

RFU_5

E9

VSF_1

E10

VSF_2

F10

VSF_3

G3

RFU_9

G10

RFU_10

H5

DS

J5

VSS_5

K6

RFU_13

K7

RFU_14

K10

RFU_15

P7

RFU_16

P10

RFU_17

K5

RSTN

C6

VCCQ_1

M4

VCCQ_2

N4

VCCQ_3

P3

VCCQ_4

P5

VCCQ_5

E6

VCC_1

F5

VCC_2

J10

VCC_3

K9

VCC_4

C2

VDDI

E7

VSS_2

G5

VSS_3

H10

VSS_4

K8

VSS_6

C4

VSSQ_1

N2

VSSQ_2

N5

VSSQ_3

P4

VSSQ_4

P6

VSSQ_5

A1

NC_1

A2

NC_2

A8

NC_3

A9

NC_4

A10

NC_5

A11

NC_6

A12

NC_7

A13

NC_8

A14

NC_9

B1

NC_10

B7

NC_11

B8

NC_12

B9

NC_13

B10

NC_14

B11

NC_15

B12

NC_16

B13

NC_17

B14

NC_18

C1

NC_19

C3

NC_20

C7

NC_22

IC8100

C8

NC_23

C9

NC_24

C10

NC_25

C11

NC_26

C12

NC_27

C13

NC_28

C14

NC_29

D1

NC_30

D2

NC_31

D3

NC_32

D4

NC_33

D12

NC_34

D13

NC_35

D14

NC_36

E1

NC_37

E2

NC_38

E3

NC_39

E12

NC_40

E13

NC_41

E14

NC_42

F1

NC_43

F2

NC_44

F3

NC_45

F12

NC_46

F13

NC_47

F14

NC_48

G1

NC_49

G2

NC_50

G12

NC_51

G13

NC_52

G14

NC_53

H1

NC_54

H2

NC_55

H3

NC_56

H12

NC_57

H13

NC_58

H14

NC_59

J1

NC_60

J2

NC_61

J3

NC_62

J12

NC_63

J13

NC_64

J14

NC_65

K1

NC_66

K2

NC_67

K3

NC_68

K12

NC_69

K13

NC_70

K14

NC_71

L1

NC_72

L2

NC_73

L3

NC_74

L12

NC_75

L13

NC_76

L14

NC_77

M1

NC_78

M2

NC_79

M3

NC_80
NC_81
NC_82
NC_83
NC_84
NC_85
NC_86
NC_87
NC_88
NC_89
NC_90
NC_91
NC_92
NC_93
NC_94
NC_95
NC_96
NC_97
NC_98

NC_99
NC_100
NC_101
NC_102
NC_103
NC_104
NC_105
NC_106
NC_107

M7
M8
M9
M10
M11
M12
M13
M14
N1
N3
N6
N7
N8
N9
N10
N11
N12
N13
N14
P1
P2
P8
P9
P11
P12
P13
P14

EMMC5.0_4G_TOSHIBA

DAT5

EMMC_STRB

EMMC_RESET_BALL

EMMC_CLK_BALL

EMMC_CMD_BALL

DAT6

THGBMBG6D1KBAIL

A3

DAT0

A4

DAT1

A5

DAT2

B2

DAT3

B3

DAT4

B4

DAT5

B5

DAT6

B6

DAT7

M6

CLK

M5

CMD

A6

VSS_1

A7

RFU_2

C5

NC_21

E5

RFU_4

E8

RFU_5

E9

VSF_1

E10

VSF_2

F10

VSF_3

G3

RFU_9

G10

RFU_10

H5

DS

J5

VSS_5

K6

RFU_13

K7

RFU_14

K10

RFU_15

P7

RFU_16

P10

RFU_17

K5

RSTN

C6

VCCQ_1

M4

VCCQ_2

N4

VCCQ_3

P3

VCCQ_4

P5

VCCQ_5

E6

VCC_1

F5

VCC_2

J10

VCC_3

K9

VCC_4

C2

VDDI

E7

VSS_2

G5

VSS_3

H10

VSS_4

K8

VSS_6

C4

VSSQ_1

N2

VSSQ_2

N5

VSSQ_3

P4

VSSQ_4

P6

VSSQ_5

A1

NC_1

A2

NC_2

A8

NC_3

A9

NC_4

A10

NC_5

A11

NC_6

A12

NC_7

A13

NC_8

A14

NC_9

B1

NC_10

B7

NC_11

B8

NC_12

B9

NC_13

B10

NC_14

B11

NC_15

B12

NC_16

B13

NC_17

B14

NC_18

C1

NC_19

C3

NC_20

C7

NC_22

IC8100-*1

C8

NC_23

C9

NC_24

C10

NC_25

C11

NC_26

C12

NC_27

C13

NC_28

C14

NC_29

D1

NC_30

D2

NC_31

D3

NC_32

D4

NC_33

D12

NC_34

D13

NC_35

D14

NC_36

E1

NC_37

E2

NC_38

E3

NC_39

E12

NC_40

E13

NC_41

E14

NC_42

F1

NC_43

F2

NC_44

F3

NC_45

F12

NC_46

F13

NC_47

F14

NC_48

G1

NC_49

G2

NC_50

G12

NC_51

G13

NC_52

G14

NC_53

H1

NC_54

H2

NC_55

H3

NC_56

H12

NC_57

H13

NC_58

H14

NC_59

J1

NC_60

J2

NC_61

J3

NC_62

J12

NC_63

J13

NC_64

J14

NC_65

K1

NC_66

K2

NC_67

K3

NC_68

K12

NC_69

K13

NC_70

K14

NC_71

L1

NC_72

L2

NC_73

L3

NC_74

L12

NC_75

L13

NC_76

L14

NC_77

M1

NC_78

M2

NC_79

M3

NC_80

M7

NC_81

EMMC5.0_8G_TOSHIBA

NC_82
NC_83
NC_84
NC_85
NC_86
NC_87
NC_88
NC_89
NC_90
NC_91
NC_92
NC_93
NC_94
NC_95
NC_96
NC_97
NC_98

NC_99
NC_100
NC_101
NC_102
NC_103
NC_104
NC_105
NC_106
NC_107

M8
M9
M10
M11
M12
M13
M14
N1
N3
N6
N7
N8
N9
N10
N11
N12
N13
N14
P1
P2
P8
P9
P11
P12
P13
P14

A3
A4
A5
B2
B3
B4
B5
B6

M6
M5

A7
E5
G3
K6
K7
E8

E9
E10
F10
G10
K10
P10

H5

K5

C6

M4

N4

P3

P5

E6

F5
J10

K9

C2

C4

N2

N5

P4

P6

A6

E7

G5
H10

J5

K8

A1

A2

A8

A9
A10
A11
A12
A13
A14

B1

B7

B8

B9
B10
B11
B12
B13
B14

C1

C3

C5

IC8100-*2

H26M41103HPR

DAT0
DAT1
DAT2
DAT3
DAT4
DAT5
DAT6
DAT7

CLK
CMD

RFU_1
RFU_2
RFU_3
RFU_4
RFU_5
VSF_1
VSF_2
VSF_3
VSF_4
VSF_5
VSF_6
VSF_7
DS

RSTN

VCCQ_1
VCCQ_2
VCCQ_3
VCCQ_4
VCCQ_5

VCC_1
VCC_2
VCC_3
VCC_4

VDDI

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6

NC_1
NC_2
NC_3
NC_4
NC_5
NC_6
NC_7
NC_8
NC_9
NC_10
NC_11
NC_12
NC_13
NC_14
NC_15
NC_16
NC_17
NC_18
NC_19
NC_20
NC_21

C7

NC_22

C8

NC_23

C9

NC_24

C10

NC_25

C11

NC_26

C12

NC_27

C13

NC_28

C14

NC_29

D1

NC_30

D2

NC_31

D3

NC_32

D4

NC_33

D12

NC_34

D13

NC_35

D14

NC_36

E1

NC_37

E2

NC_38

E3

NC_39

E12

NC_40

E13

NC_41

E14

NC_42

F1

NC_43

F2

NC_44

F3

NC_45

F12

NC_46

F13

NC_47

F14

NC_48

G1

NC_49

G2

NC_50

G12

NC_51

G13

NC_52

G14

NC_53

H1

NC_54

H2

NC_55

H3

NC_56

H12

NC_57

H13

NC_58

H14

NC_59

J1

NC_60

J2

NC_61

J3

NC_62

J12

NC_63

J13

NC_64

J14

NC_65

K1

NC_66

K2

NC_67

K3

NC_68

K12

NC_69

K13

NC_70

K14

NC_71

L1

NC_72

L2

NC_73

L3

NC_74

L12

NC_75

L13

NC_76

L14

NC_77

M1

NC_78

M2

NC_79

M3

NC_80
NC_81
NC_82
NC_83
NC_84
NC_85
NC_86
NC_87
NC_88
NC_89
NC_90
NC_91
NC_92
NC_93
NC_94
NC_95
NC_96
NC_97
NC_98

NC_99
NC_100
NC_101
NC_102
NC_103
NC_104
NC_105
NC_106
NC_107
NC_108

M7
M8
M9
M10
M11
M12
M13
M14
N1
N3
N6
N7
N8
N9
N10
N11
N12
N13
N14
P1
P2
P7
P8
P9
P11
P12
P13
P14

EMMC5.0_8G_HYNIX

E10
F10
G10
K10
P10

J10

H10

A10
A11
A12
A13
A14

B10
B11
B12
B13
B14

SAMSUNG ELECTRONIC CO.,LTD

EAN63829501

IC8100-*3

KLM4G1FEPD-B031

A3

DAT0

A4

DAT1

A5

DAT2

B2

DAT3

B3

DAT4

B4

DAT5

B5

DAT6

B6

DAT7

M6

CLK

M5

CMD

A7

RFU_1

E5

RFU_2

G3

RFU_3

K6

RFU_4

K7

RFU_5

E8

RFU_6

E9

RFU_7
RFU_8
RFU_9
RFU_10
RFU_11
RFU_13

H5

DS

K5

RSTN

C6

VDD_1

M4

VDD_2

N4

VDD_3

P3

VDD_4

P5

VDD_5

E6

VDDF_1

F5

VDDF_2
VDDF_3

K9

VDDF_4

C2

VDDI

C4

VSS_1

N2

VSS_2

N5

VSS_3

P4

VSS_4

P6

VSS_5

A6

VSS_6

E7

VSS_7

G5

VSS_8
VSS_9

J5

VSS_10

K8

VSS_11

A1

NC_1

A2

NC_2

A8

NC_3

A9

NC_4
NC_5
NC_6
NC_7
NC_8
NC_9

B1

NC_10

B7

NC_11

B8

NC_12

B9

NC_13
NC_14
NC_15
NC_16
NC_17
NC_18

C1

NC_19

C3

NC_20

C5

NC_21

EMMC5.0_4G_SAMSUNG

NC_22
NC_23
NC_24
NC_25
NC_26
NC_27
NC_28
NC_29
NC_30
NC_31
NC_32
NC_33
NC_34
NC_35
NC_36
NC_37
NC_38
NC_39
NC_40
NC_41
NC_42
NC_43
NC_44
NC_45
NC_46
NC_47
NC_48
NC_49
NC_50
NC_51
NC_52
NC_53
NC_54
NC_55
NC_56
NC_57
NC_58
NC_59
NC_60
NC_61
NC_62
NC_63
NC_64
NC_65
NC_66
NC_67
NC_68
NC_69
NC_70
NC_71
NC_72
NC_73
NC_74
NC_75
NC_76
NC_77
NC_78
NC_79
NC_80
NC_81
NC_82
NC_83
NC_84
NC_85
NC_86
NC_87
NC_88
NC_89
NC_90
NC_91
NC_92
NC_93
NC_94
NC_95
NC_96
NC_97
NC_98

NC_99
NC_100
NC_101
RFU_12
NC_102
NC_103
NC_104
NC_105
NC_106
NC_107

C7
C8
C9
C10
C11
C12
C13
C14
D1
D2
D3
D4
D12
D13
D14
E1
E2
E3
E12
E13
E14
F1
F2
F3
F12
F13
F14
G1
G2
G12
G13
G14
H1
H2
H3
H12
H13
H14
J1
J2
J3
J12
J13
J14
K1
K2
K3
K12
K13
K14
L1
L2
L3
L12
L13
L14
M1
M2
M3
M7
M8
M9
M10
M11
M12
M13
M14
N1
N3
N6
N7
N8
N9
N10
N11
N12
N13
N14
P1
P2
P7
P8
P9
P11
P12
P13
P14

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BSD-15Y-LM14A-081_00-HD

LM14A

eMMC

LM14A+URSA11(UF68/64)

Copyright © 2015 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

CLIP Top Side for Covershield

M13501

EAG64250901

OPT

M13502

EAG64250901

CLIP 1 - PUSH TYPE

Heatsink guide cap

C13500
22uF

C13501

22uF

OPT

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LM14A

2015-01-23

CLIP&Vx1_CAP 135

LM14A UF64/68

Copyright © 2015 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

UF64/68 Error Pin TP - page 30.

TU_GND_A6_3.3nF

C6710

3300pF

630V

TUNER EMS GND SEPERATION

TU_GND_A

TU_GND_A1_0ohm

TU_GND_A1_1nF

R6701-*1
1000pF

GND A_1

GND A_2

GND A_3

GND A_4

GND A_5

R6701

630V

0

EU/CIS

0 ohm

X

X

TU_GND_A2_1nF

C6706
1000pF

TU_GND_A2_22nF

X

X

630V

C6706-*1

0.022uF
630V

AJJA

0 ohm

X

0 ohm

X

X

TU_GND_A3_0ohm

R6700

0

TU_GND_A3_22nF

R6700-*1

0.022uF
630V

GND_A

TW/COL

TU_GND_A4_22nF

C6700

0.022uF

R6703

TU_GND_A4_1nF

CN/HK

630V

22

C6700-*1
1000pF

TU_GND_A5_22ohm

22 nF

22 nF

22 ohm

630V

KR

X

X

TU_GND_B1_22nF

C6703

0.022uF
630V

TU_GND_B2_22ohm

R6704
22

North.AM

0 ohm

X

0 ohm

X

X

TU_GND_B

TU_GND_B2_0ohm

0

R6704-*1

GND_B

BR

X

22 nF

22 nF

22 nF

22 ohm

TU_GND_B3_1nF

C6707
1000pF
630V

TU_GND_B3_22nF

C6707-*1

0.022uF
630V

JP

0 ohm

1 nF
0 ohm

1 nF

22 ohm

TU_GND_B4_1nF

C6708
1000pF
630V

TU_GND_B4_22nF

C6708-*1

0.022uF
630V

TU_GND_B

GND B_1

GND B_2

GND B_3

GND B_4

TU_EU
C6709

3300pF

EU/CIS

X

X

1 nF

1 nF

630V

AJJA

X

X

1 nF

1 nF

Only 13V DET

POWER_DET_1

Delete WOL

WIFI_EN

WOL/WIFI_POWER_ON

WOL_WAKE_UP

WOL_CTL

UF64/68 Error Pin TP - page 6.

Delete USB1/2 Delete HDMI2

SSUSB_TXP

SSUSB_TXN

SSUSB_RXP

SSUSB_RXN

USB_DM1

TW/COLTU_GND_A

CN/HK

KR

22 nF

22 ohm

22 nF

22 nF

North.AM

X

X

1 nF

1 nF

BR

22 nF

22 ohm

22 nF

22 nF

JP

X

X

1 nF

1 nF

USB_DP1

USB_DP2

USB_DM2

D2-_HDMI2

D1+_HDMI2

D0-_HDMI2

HDMI_HPD_2

/MHL_OCP

CK+_HDMI2

DDC_SCL_2

DDC_SDA_2

D0+_HDMI2

D2+_HDMI2

D1-_HDMI2

Non_URSA_UF68 920Mhz EMI Improvement

SMD_BOT_1

GASKET_8.0X6.0X10.5H

M13700

MDS62110225

SMD_BOT

GASKET_8.0X6.0X10.5H

M13701

MDS62110225

SMD_BOT_COMP_10.5T

GASKET_8.0X6.0X10.5H

M13713

MDS62110225

SMD_BOT_1_10.5T

GASKET_8.0X6.0X10.5H

M13705

MDS62110225

SMD_BOT_1_9T

GASKET_8.0X6.0X9.0H

M13705-*1

MDS62110226

SMD_BOT_2

GASKET_8.0X6.0X10.5H

M13707

MDS62110225

SMD_BOT

GASKET_8.0X6.0X10.5H

M13709

MDS62110225

SMD_BOT

GASKET_8.0X6.0X10.5H

M13714

MDS62110225

SMD_BOT_EPI1_10.5H

GASKET_8.0X6.0X10.5H

MDS62110225

SMD_BOT_EPI1_9.0H

GASKET_8.0X6.0X9.0H

MDS62110226

M13702

M13702-*1

SMD_BOT

GASKET_8.0X6.0X10.5H

M13715

MDS62110225

SMD_BOT_TU1_10.5H

GASKET_8.0X6.0X10.5H

M13716

MDS62110225

SMD_BOT_TU1_9.0H

GASKET_8.0X6.0X9.0H

M13716-*1

MDS62110226

SMD_BOT_EPI2_10.5H

GASKET_8.0X6.0X10.5H

M13704

MDS62110225

SMD_BOT_EPI2_9.0H

GASKET_8.0X6.0X9.0H

M13704-*1

MDS62110226

SMD_BOT

GASKET_8.0X6.0X10.5H

M13717

MDS62110225

SMD_BOT_TU2_10.5H

GASKET_8.0X6.0X10.5H

M13718

MDS62110225

SMD_BOT_TU2_9.0H

GASKET_8.0X6.0X9.0H

M13718-*1

MDS62110226

SMD_BOT_EPI3_10.5H

GASKET_8.0X6.0X10.5H

M13708

MDS62110225

SMD_BOT_EPI3_9.0H

GASKET_8.0X6.0X9.0H

M13708-*1

MDS62110226

SMD_BOT_TU

TU1

TU2

TU3

SMD_BOT_HDMI2_10.5T

GASKET_8.0X6.0X10.5H

MDS62110225

SMD_BOT_HDMI2_8.5H

GASKET_8.0X6.0X8.5H

M13703-*1

MDS62110216

EU/CIS

M13703

O
O

X

SMD_BOT_HDMI1_10.5T

GASKET_8.0X6.0X10.5H

MDS62110225

SMD_BOT_HDMI1_8.5H

GASKET_8.0X6.0X8.5H

M13706-*1

MDS62110216

AJJA

M13706

TW/COL

GASKET_8.0X6.0X10.5H

GASKET_8.0X6.0X8.5H

CN/HK

SMD_BOT_2_10.5T

M13710

MDS62110225

SMD_BOT_2_8.5H

M13710-*1

MDS62110216

KR

GASKET_8.0X6.0X10.5H

GASKET_8.0X6.0X8.5H

North.AM

SMD_BOT_LAN_10.5T

M13711

MDS62110225

SMD_BOT_LAN_8.5H

M13711-*1

MDS62110216

BR

SMD_BOT_USB_10.5T

GASKET_8.0X6.0X10.5H

SMD_BOT_USB_8.5H

GASKET_8.0X6.0X8.5H

JP

M13712

MDS62110225

M13712-*1

MDS62110216

CK-_HDMI2

5V_DET_HDMI_2

UF64/68 Error Pin TP - page 1.

Delete JP Tuner Delete USB1

USB_CTL1 FE_DEMOD3_TS_CLK

/USB_OCD1 FE_DEMOD3_TS_SYNC

FE_DEMOD3_TS_VAL

FE_DEMOD3_TS_DATA

Delete EARPHONE AMP

HP_ROUT_MAIN

HP_ROUT_MAIN

SIDE_HP_MUTE

SMD_BOT_HDMI2_9.0H

GASKET_8.0X6.0X9.0H

M13703-*2

MDS62110226

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

SMD_BOT_HDMI1_9.0H

GASKET_8.0X6.0X9.0H

M13706-*2

MDS62110226

SMD_BOT_2_9.0H

GASKET_8.0X6.0X9.0H

M13710-*2

MDS62110226

SMD_BOT_LAN_9.0H

GASKET_8.0X6.0X9.0H

M13711-*2

MDS62110226

SMD_BOT_USB_7.5H

GASKET_8.0X6.0X7.5H

M13712-*2

MDS62110215

LM14A(UF64/68)

Tuner_GND_for UF64

2015-01-12

137

AG10

Copyright © 2015 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

AH10
AF10
AH11
AG11
AF11
AG12
AF12
AG13
AH13
AF13

AH5
AG5
AF5
AG6
AF6
AG7
AH7
AF7
AH8
AG8
AF8
AG9

AF9

PAD_RA0N
PAD_RA0P
PAD_RA1N
PAD_RA1P
PAD_RA2N
PAD_RA2P
PAD_RACKN
PAD_RACKP
PAD_RA3N
PAD_RA3P
PAD_RA4N
PAD_RA4P

PAD_RB0N
PAD_RB0P
PAD_RB1N
PAD_RB1P
PAD_RB2N
PAD_RB2P
PAD_RBCKN
PAD_RBCKP
PAD_RB3N
PAD_RB3P
PAD_RB4N
PAD_RB4P

IC12800

LGE5352(URSA11)

PAD_A0P/VBY0­PAD_A0M/VBY0+
PAD_A1P/VBY1­PAD_A1M/VBY1+
PAD_A2P/VBY2-

PAD_A2M/VBY2+
PAD_ACKP/VBY3­PAD_ACKM/VBY3+

PAD_A3P/VBY4-

PAD_A3M/VBY4+

PAD_A4P/VBY5-

PAD_A4M/VBY5+

PAD_B0P/VBY6-

PAD_B0M/VBY6+

PAD_B1P/VBY7-

PAD_B1M/VBY7+

PAD_MOD_GPIO0

PAD_MOD_GPIO1

PAD_B2P

PAD_B2M
PAD_BCKP
PAD_BCKM

PAD_B3P

PAD_B3M

PAD_B4P

PAD_B4M

PAD_C0P

PAD_C0M

IC12800

LGE5352(URSA11)

N3

PAD_RXCP_P0

M2

PAD_RXCN_P0

P1

PAD_RX0P_P0

N1

PAD_RX0N_P0

R2

PAD_RX1P_P0

R3

PAD_RX1N_P0

T1

PAD_RX2P_P0

L1
L3
K2
K3
J3
H2
H3
G1
G3
F2
E2
E1
D1
D2
C2
C3

K5
K4
L5
L6
J6
H6
J5
J4
G5
G4
H5
G6

R128040.1uF

TXDAN0_L

R128050.1uF

TXDAP0_L

R128060.1uF

TXDAN1_L
TXDAP1_L

R128070.1uF
R128080.1uF

TXDAN2_L

R128090.1uF

TXDAP2_L
TXDAN3_L

R128100.1uF

TXDAP3_L

R128110.1uF

T2

PAD_RX2N_P0

U2

PAD_RXCP_P1

U1

PAD_RXCN_P1

W3

PAD_RX0P_P1

V2

PAD_RX0N_P1

Y1

PAD_RX1P_P1

W1

PAD_RX1N_P1

AA2

PAD_RX2P_P1

AA3

PAD_RX2N_P1

AA6

NC_9

AF4

PAD_HDMI_SCL_P0/[TX]

AE4

PAD_HDMI_SDA_P0/[TX]

AC1

PAD_TXCP_P0

AB1

PAD_TXCN_P0

AD2

PAD_TX0P_P0

AD3

PAD_TX0N_P0

AE1

PAD_TX1P_P0

AE2

PAD_TX1N_P0

AF2

PAD_TX2P_P0

AF1

PAD_TX2N_P0

VIDEOOSD

TXVBY1_0N
TXVBY1_0P
TXVBY1_1N
TXVBY1_1P
TXVBY1_2N
TXVBY1_2P
TXVBY1_3N
TXVBY1_3P

TXVBY1_4N
TXVBY1_4P
TXVBY1_5N
TXVBY1_5P
TXVBY1_6N
TXVBY1_6P
TXVBY1_7N
TXVBY1_7P

TXOSD_0N
TXOSD_0P
TXOSD_1N
TXOSD_1P
TXOSD_2N
TXOSD_2P
TXOSD_3N
TXOSD_3P

PAD_F4P

PAD_F4M

PAD_G0P

PAD_G0M

PAD_E1P

PAD_E1M

PAD_E2M

PAD_ECKM

B3
A3
A4
B4
B5
C5
A6
C6
B7
C7
C8
B9
C9
A10
C10
B11
B12
A12
A13
B13
B14
C14
A15
C15

E9
D9
F8
F9

F10
E11
E10
D10
E12
D12
F11
F12

PAD_E0P/VBY8­PAD_E0M/VBY8+
PAD_E1P/VBY9­PAD_E1M/VBY9+

C128220.1uF
C128230.1uF
C128200.1uF
C128210.1uF
C128180.1uF
C128190.1uF
C128160.1uF
C128170.1uF

C128140.1uF
C128150.1uF
C128120.1uF
C128130.1uF
C128100.1uF
C128110.1uF
C128080.1uF
C128090.1uF

C128060.1uF
C128070.1uF
C128040.1uF
C128050.1uF
C128020.1uF
C128030.1uF
C128000.1uF
C128010.1uF

AH14

PADA_VBY1_RXM[0]

AG14

PADA_VBY1_RXP[0]

AF14

PADA_VBY1_RXM[1]

AG15

PADA_VBY1_RXP[1]

AG16

PADA_VBY1_RXM[2]

AH16

PADA_VBY1_RXP[2]

AF16

PADA_VBY1_RXM[3]

AH17

PADA_VBY1_RXP[3]

AF17

PADA_VBY1_RXM[4]

AG18

PADA_VBY1_RXP[4]

AF18

PADA_VBY1_RXM[5]

AG19

PADA_VBY1_RXP[5]

AF19

PADA_VBY1_RXM[6]

AH20

PADA_VBY1_RXP[6]

AG20

PADA_VBY1_RXM[7]

AF20

PADA_VBY1_RXP[7]

AF21

PADA_VBY1_RXM[8]

AG22

PADA_VBY1_RXP[8]

AH22

PADA_VBY1_RXM[9]

AF22

PADA_VBY1_RXP[9]

AG23

PADA_VBY1_RXM[10]

AF23

PADA_VBY1_RXP[10]

AG24

PADA_VBY1_RXM[11]

AF24

PADA_VBY1_RXP[11]

AH25

PADA_VBY1_RXM[12]

AF25

PADA_VBY1_RXP[12]

AG26

PADA_VBY1_RXM[13]

AF26

PADA_VBY1_RXP[13]

AF27

PADA_VBY1_RXM[14]

AF28

PADA_VBY1_RXP[14]

AE27

PADA_VBY1_RXM[15]

AE28

PADA_VBY1_RXP[15]

U11 ONLY, NC FOR U11P

PAD_E2P/VBY10-

PAD_E2M/VBY10+
PAD_ECKP/VBY11­PAD_ECKM/VBY11+

PAD_E3P/VBY12-

PAD_E3M/VBY12+

PAD_E4P/VBY13-

PAD_E4M/VBY13+

PAD_F0P/VBY14-

PAD_F0M/VBY14+

PAD_F1P/VBY15-

PAD_F1M/VBY15+

PAD_MOD_GPIO8/VBY16­PAD_MOD_GPIO9/VBY16+

PAD_F2P/VBY17-

PAD_F2M/VBY17+
PAD_FCKP/VBY18­PAD_FCKM/VBY18+

PAD_F3P/VBY19-

PAD_F3M/VBY19+

RESERVED FOR U11P TEST

PAD_E0P/[TEST]

PAD_E0M/[TEST]

PAD_E2P/[TEST]

PAD_ECKP/[TEST]

TXDAN4_L

C128240.1uF
C128250.1uF

TXDAP4_L

C128260.1uF

TXDAN5_L
TXDAP5_L

C128270.1uF
C128280.1uF

TXDAN6_L

C128290.1uF

TXDAP6_L
TXDAN7_L

C128300.1uF

TXDAP7_L

C128310.1uF

URSA9 VIDEO/OSD LOCKn

(DELETE_MP)NXP_VBY1_LOCK_LED_TR

Q14000-*1

C

MMBT3906(NXP)

B

E

+3.3V_NORMAL

LOCKAn_Video

LOCKAn_OSD

10K

R12800

10K

R12801

LOCKAn_Video

+3.3V_NORMAL

LOCKAn_OSD

+3.3V_NORMAL

22

R12802

LD1 4000

19- 21/R 6C-F R1S1 L/3T

10K

(DELETE_MP)VBY1_LOCK_LED

R14 000

E

2N3906S-RTK

C

Q14000

(DELETE_MP)VBY1_LOCK_LED

B

(DELETE_MP)KEC_VBY1_LOCK_LED_TR

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

10K

E

B

Q12800

MMBT3906(NXP)

(DELETE_MP)NXP_BY1_LOCK_LED

C

LD1 2800

SML -512 UW

(DELETE_MP)_VB1_LOCK_LED

R12 803

(DELETE_MP)VBY1_LOCK_LED

(DELETE_MP)VBY1_LOCK_LED

C

Q12800-*1

B

2N3906S-RTK

E

(DELETE_MP)KEC_VBY1_LOCK_LED

BSD-15Y-LM14A-140_00-HD

URSA11 INPUT

A-MVREFDQ_U

Copyright © 2015 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

IC12800

LGE5352(URSA11)

DRAM_VREF_B

DRAM_ZQ_B

E24
G27
F25
G23
G26
F24
G28
E27
F28
D26
H26
F26
H25
D27
F27
J24
H24
H27
G24

K24
K23
H23
J23
J27
D28
K28
J26
D25
C28

N27
L26
N26
L27
P26
K27
P27
K26
L23
P25
L24
P23
M24
R24
L25
P24
M27
N24

N28
M26
N23
M23

V27
T27
V26
T28
W27
R27
W28
R26
U24
W23
R23
W25
T24
W24
T23
V23
T26
U23

U26
U27
V24
U25

B25

A25

PAD_IO[78]/B-A0/[CD-A0]
PAD_IO[89]/B-A1/[CD-A1]
PAD_IO[80]/B-A2/[CD-A2]
PAD_IO[75]/B-A3/[CD-A3]
PAD_IO[86]/B-A4/[CD-A4]
PAD_IO[74]/B-A5/[CD-A5]
PAD_IO[96]/B-A6/[CD-A6]
PAD_IO[87]/B-A7/[CD-A7]
PAD_IO[92]/B-A8/[CD-A8]

PAD_IO[73]/B-A9/[CD-A9]
PAD_IO[90]/B-A10/[CD-A10]
PAD_IO[83]/B-A11/[CD-A11]
PAD_IO[84]/B-A12/[CD-A12]
PAD_IO[77]/B-A13/[CD-A13]
PAD_IO[82]/B-A14/[CD-A14]
PAD_IO[88]/B-A15/[CD-A15]
PAD_IO[85]/B-BA0/[CD-BA0]
PAD_IO[93]/B-BA1/[CD-BA1]
PAD_IO[81]/B-BA2/[CD-BA2]

PAD_IO[97]/B-RASZ/[CD-RASZ]
PAD_IO[94]/B-CASZ/[CD-CASZ]

PAD_IO[79]/B-WEZ/[CD-WEZ]
PAD_IO[95]/B-ODT/[CD-ODT]
PAD_IO[91]/B-CKE/[CD-CKE]
PAD_IO[76]/B-RST/[CD-RST]

PAD_IO[101]/B-MCLK/[CD-MCLK]

PAD_IO[100]/B-MCLKZ/[CD-MCLKZ]

PAD_IO[99]/B-CSB1/[C-CSB1]
PAD_IO[98]/B-CSB2/[D-CSB2]

PAD_IO[121]/B-DQ[0]/[C-DQL0]
PAD_IO[103]/B-DQ[1]/[C-DQL1]
PAD_IO[120]/B-DQ[2]/[C-DQL2]
PAD_IO[104]/B-DQ[3]/[C-DQL3]
PAD_IO[123]/B-DQ[4]/[C-DQL4]
PAD_IO[102]/B-DQ[5]/[C-DQL5]
PAD_IO[122]/B-DQ[6]/[C-DQL6]
PAD_IO[105]/B-DQ[7]/[C-DQL7]
PAD_IO[110]/B-DQ[8]/[C-DQU0]

PAD_IO[117]/B-DQ[9]/[C-DQU1]
PAD_IO[107]/B-DQ[10]/[C-DQU2]
PAD_IO[119]/B-DQ[11]/[C-DQU3]
PAD_IO[111]/B-DQ[12]/[C-DQU4]
PAD_IO[118]/B-DQ[13]/[C-DQU5]
PAD_IO[109]/B-DQ[14]/[C-DQU6]
PAD_IO[116]/B-DQ[15]/[C-DQU7]

PAD_IO[106]/B-DQM[0]/[C-DML]

PAD_IO[108]/B-DQM[1]/[C-DMU]

B19

DRAM_VREF_A

R13000240

A19

DRAM_ZQ_A

1%

PAD_IO[115]/B-DQS[0]/[C-DQSL]

PAD_IO[114]/B-DQSB[0]/[C-DQSLB]

PAD_IO[113]/B-DQS[1]/[C-DQSU]

PAD_IO[112]/B-DQSB[1]/[C-DQSUB]

MIU1 (U11 ONLY)

PAD_IO[143]/B-DQ[16]/[D-DQL0]
PAD_IO[126]/B-DQ[17]/[D-DQL1]
PAD_IO[142]/B-DQ[18]/[D-DQL2]
PAD_IO[127]/B-DQ[19]/[D-DQL3]
PAD_IO[144]/B-DQ[20]/[D-DQL4]
PAD_IO[125]/B-DQ[21]/[D-DQL5]
PAD_IO[145]/B-DQ[22]/[D-DQL6]
PAD_IO[124]/B-DQ[23]/[D-DQL7]
PAD_IO[129]/B-DQ[24]/[D-DQU0]
PAD_IO[141]/B-DQ[25]/[D-DQU1]

PAD_IO[139]_/B-DQ[26]/[D-DQU2]

PAD_IO[138]/B-DQ[27]/[D-DQU3]

NPAD_IO[130]/B-DQ[28]/[D-DQU4]

PAD_IO[133]/B-DQ[29]/[D-DQU5]
PAD_IO[132]/B-DQ[30]/[D-DQU6]
PAD_IO[140]/B-DQ[31]/[D-DQU7]

PAD_IO[128]/B-DQM[2]/[D-DML]

PAD_IO[131]/B-DQM[3]/[D-DMU]

PAD_IO[137]/B-DQS[2]/[D-DQSL]

PAD_IO[136]/B-DQSB[2]/[D-DQSLB]

PAD_IO[135]/B-DQS[3]/[D-DQSU]

PAD_IO[134]/B-DQSB[3]/[D-DQSUB]

B-MVREFDQ_U

R13003 240

1%

A_DDR3_A[0]
A_DDR3_A[1]
A_DDR3_A[2]
A_DDR3_A[3]
A_DDR3_A[4]
A_DDR3_A[5]
A_DDR3_A[6]
A_DDR3_A[7]
A_DDR3_A[8]
A_DDR3_A[9]
A_DDR3_A[10]
A_DDR3_A[11]
A_DDR3_A[12]
A_DDR3_A[13]
A_DDR3_A[14]
A_DDR3_A[15]
A_DDR3_BA[0]
A_DDR3_BA[1]
A_DDR3_BA[2]

A_DDR3_RASZ
A_DDR3_CASZ
A_DDR3_WEZ
A_DDR3_ODT
A_DDR3_CKE
A_DDR3_RESET
A_DDR3_MCLK
A_DDR3_MCLKZ
A_DDR3_CSB1
A_DDR3_CSB2

A_DDR3_DQ[0]

A_DDR3_DQ[1]

A_DDR3_DQ[2]

A_DDR3_DQ[3]

A_DDR3_DQ[4]

A_DDR3_DQ[5]

A_DDR3_DQ[6]

A_DDR3_DQ[7]

A_DDR3_DQ[8]

A_DDR3_DQ[9]

A_DDR3_DQ[10]

A_DDR3_DQ[11]

A_DDR3_DQ[12]

A_DDR3_DQ[13]

A_DDR3_DQ[14]

A_DDR3_DQ[15]

A_DDR3_DM0
A_DDR3_DM1

A_DDR3_DQS0
A_DDR3_DQS0B
A_DDR3_DQS1
A_DDR3_DQS1B

A_DDR3_DQ[16]

A_DDR3_DQ[17]

A_DDR3_DQ[18]

A_DDR3_DQ[19]

A_DDR3_DQ[20]

A_DDR3_DQ[21]

A_DDR3_DQ[22]

A_DDR3_DQ[23]

A_DDR3_DQ[24]

A_DDR3_DQ[25]

A_DDR3_DQ[26]

A_DDR3_DQ[27]

A_DDR3_DQ[28]

A_DDR3_DQ[29]

A_DDR3_DQ[30]

A_DDR3_DQ[31]

A_DDR3_DM2
A_DDR3_DM3

A_DDR3_DQS2
A_DDR3_DQS2B
A_DDR3_DQS3
A_DDR3_DQS3B

A_DDR3_DQ[0-15]

A_DDR3_DQ[16-31]

URSA11_DDR_60Hz

+1.5V_U_DDR

A-MVREFDQ_U

R13007
1K
1%

C13058

C13054

R13008
1K
1%

+1.5V_U_DDR

URSA11P

R13005
1K
1%

URSA11P

R13006
1K
1%

0.1uF

B-MVREFDQ_U

URSA11P

C13053

0.1uF

1000pF

URSA11P

C13057

1000pF

15/01/21

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

URSA11_DDR_60Hz

15.01.22
142 01

URSA_RESET

Copyright © 2015 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

XIN_URSA

XO_URSA

I2CS_SDA
I2CS_SCL

URSA_UART2_TX

URSA_UART2_RX

URSA_UART1_TX

SPI_CZ
SPI_CK
SPI_DI
SPI_DO

C13200
56pF
50V
OPT

OPT

OPT

0.01uF

0.01uF

25V

25V

C13217

C13218

URSA_UART1_RX

R13211 0

R13212 0

VID1
VID0

AR13200

OPT

R14402 33
R14403 33

R13200

OPT

R13201

OPT

R13202 33

OPT

R13203 33

OPT

R13204 33

OPT

R13205 33

OPT

R13206 33

OPT

R13207 33

OPT

R13208 33

OPT

R13209 33

OPT

R13210 33

OPT

33

0.01uF
25V
C13219

OPT

C13201
56pF
50V
OPT

0.01uF
25V
C13220

10K

IC13200-*1

W25Q32FVSSIG

WINBOND ELECTRONICS CORP.

URSA11_SERIAL_FLASH_MEMORY_WINBOND(SUB)

IC12800

LGE5352(URSA11)

AD26

PAD_RESET

AH4

PAD_XOUT

AH3

PAD_XIN

AE9

PAD_I2C_S_SDA

AD9

PAD_I2C_S_SCL

AD10

PAD_I2C_M_SDA

AE10

PAD_I2C_M_SCL/[VSYNC_LIKE_SP1]

E8

PAD_GPIO00/[UART2_TX]

F7

PAD_GPIO01/[UART2_RX]

E7

PAD_GPIO02/[UART1_TX]

F6

PAD_GPIO03/[CHIP_VDET]

AD27

PAD_SPI_CZ

AC27

PAD_SPI_CK

AC28

PAD_SPI_DI

AC26

PAD_SPI_DO

AE25

PAD_INTERUPT_R21

AD25

PAD_INTERUPT_R20

D7

PAD_IRE/[UART1_RX]

AC25

PAD_TESTPIN

AC9

GND_EFUSE

AC19
AD19
AC18

AE19

GPIO[09]
GPIO[08]
GPIO[07]

GPIO[06]

AD7

GPIO[64]

AE7

GPIO[65]

AC7

GPIO[66]

AD8

GPIO[67]

AC8

GPIO[63]

M4

GPIO[70]

M5

GPIO[72]

N4

GPIO[73]

N5

GPIO[71]

AE6

NC_1

AD6

NC_2

10K

PAD_I2C_HSC_SDA/[VSYNC_LIKE_SPI2]
PAD_I2C_HSC_SCL/[VSYNC_LIKE_SPI3]

PAD_SPI1_CK/GPIO58
PAD_SPI1_DI/GPIO59
PAD_SPI2_CK/GPIO56
PAD_SPI2_DI/GPIO57
PAD_SPI3_CK/GPIO54
PAD_SPI3_DI/GPIO55
PAD_SPI4_CK/GPIO52
PAD_SPI4_DI/GPIO53

PAD_VSYNC_LIKE/GPIO40

PAD_DIM00/GPIO32
PAD_DIM01/GPIO33
PAD_DIM02/GPIO34
PAD_DIM03/GPIO35
PAD_DIM04/GPIO36
PAD_DIM05/GPIO37
PAD_DIM06/GPIO38
PAD_DIM07/GPIO39

PAD_TCON0/STV2

PAD_TCON1/OE

PAD_TCON2/YV1C

PAD_TCON3/CPV

PAD_TCON4/STV1

PAD_TCON5/SFT
PAD_TCON6/TPV
PAD_TCON7/POL

PAD_TCON8/[VX1T_HTPDN]

PAD_TCON9/[VX1T_LOCKN]
PAD_TCON10/[HDMI_R_DDC_CLK3]
PAD_TCON11/[HDMI_R_DDC_DAT3]

PAD_TCON12/[HDMI_R_HP3]

PAD_TCON13/[HDMI_R_CEC3]

GPIO (RESERVED FOR U11)

U11 ONLY, NC FOR U11P

PAD_TCON14/[HDMI_T_CEC]
PAD_TCON15/[HDMI_T_HPD]

PAD_GPIO12/[VX1_RX_HTPD_O]
PAD_GPIO13/[VX1_RX_HTPD_V]

PAD_GPIO15/[VX1_RX_LOCK_O]
PAD_GPIO16/[VX1_RX_LOCK_V]

PAD_GPIO04
PAD_GPIO05

PAD_GPIO10
PAD_GPIO11

PAD_GPIO14

PAD_GPIO17

GPIO[74]
GPIO[75]
GPIO[76]
GPIO[69]

NC_3
NC_4
NC_5
NC_6
NC_7
NC_8

AD11
AC10

AC23
AD24
AD23
AC22
AE24
AE22
AD22
AC21

AC24

AE13
AD13
AC13
AE15
AC14
AD14
AD15
AC15

E4
D5
E6
E5
F5
F4
D6
D4

AC4
AD4
AA4
AB5
AB4
AA5
AD5
AE5

AD21
AD20
AC6
AC5
AB7
AB6
AE21
AC20
AE12
AD12
AD18
AC11
AC12
AE18

B1
AG1
AH2
AH27
B28
AG28

C13214
5pF
50V

0.01uF
25V
C13202

URSA_OPT_0
Div_BIT0
Div_BIT1
URSA_OPT_4

URSA_L/D_ctrl

URSA_OPT_5
URSA_OPT_6

C13215
5pF
50V

DIM0
DIM1
DIM2

URSA_OPT_1

URSA_BIT0
URSA_BIT1
URSA_BIT2

Data_Format_1
Data_Format_0

0.01uF
25V
C13205

URSA_RX_Vx1_HTPDn

R13218 10K

URSA_RX_Vx1_HTPDn

R13219 10K

URSA_L/D_ctrl

R13228 33
R13229 33

URSA_L/D_ctrl

R13215 33

C13216
5pF

+3.3V_NORMAL

50V

C13204

0.01uF
25V

OPT
R13226
10K

R13227
10K

C13203

0.01uF
25V

L/D_CLK

L/D_DI

L/D_VSYNC

C13213

0.01uF
25V

SPI Flash

FLASH_WP_URSA

FRC_FLASH_WP

URSA9_CONNECT
LOCKAn_OSD
LOCKAn_Video
FLASH_WP_URSA

C13206

0.01uF
25V

SPI_CZ

SPI_DO

+3.3V_NORMAL

R14400

10K

OPT

R14401

10K

U_SPI_WP_f_SoC

HTPDAn

R13243
10K

+3.3V_NORMAL

R13241

(DELETE_MP)VBY1_LOCK_LED

R13238

(DELETE_MP)VBY1_LOCK_LED

10K

(DELETE_MP)VBY1_LOCK_LED

(DELETE_MP)VBY1_LOCK_LED

E

B

C

(DELETE_MP)KEC_LOCKAN_LED_TR

R13245

R13244

U_SPI_WP_f_URSA

R13248

U_SPI_WP_f_SoC

LOCKAn

22

LD1 3200

SML -512 UW

10K
R13242

Q13200

MMBT3906(NXP)

(DELETE_MP)NXP_LOCKAN_LED_TR

E

B

C

Q13 200- *1

2N3 906S -RTK

33

1K

URSA11_SERIAL_FLASH_MEMORY_MXIC(MAIN)

IC13200

MX25L3235E

CS

GND

EAN62459501

1

2

3

4

1K

R13250

10K

OPT

MACRONIX INTERNATIONAL CO., LTD.

SO/SIO1

WP/SIO2

Clock for URSA11

C13207

8pF

50V

NON_OLED

C13208

8pF

50V

NON_OLED

C13208-*1

6.8pF

50V

C13207-*1

6.8pF

OLED_55EG9200

50V

OLED_55EG9200

VCC

8

HOLD/SIO3

7

SCLK

6

SI/SIO0

5

GND_1

2

3

X-TAL_2

X-TAL_1

1

24MHz

4

GND_2

+3.3V_NORMAL

X13200

R1325510K

R13254

1M

DO[IO1]

WP[IO2]

CS

1

2

3

GND

4

C13209

0.1uF
16V

SPI_CK

SPI_DI

EAN62459301

XIN_URSA

XO_URSA

VCC

8

HOLD_OR_RESET[IO3]

7

CLK

6

DI[IO0]

5

URSA_PQ_DEBUG

P13201

12507WS-04L

1

2

3

4

5

URSA_SYS_DEBUG

P13202

12507WS-04L

1

2

3

4

5

DEBUG_SW_URSA

SW13200

1 2

43

D13200

1N4148W

100V

OPT

+3.3V_NORMAL

R13263

10K

C13212

0.1uF
16V

URSA_PQ_DEBUG

+3.3V_NORMAL

R13260
10K

URSA_SYS_DEBUG

C13211

0.1uF
16V

URSA_SYS_DEBUG

+3.3V_NORMAL

C13210
1uF
10V

OPT

R13258
470K
OPT

URSA_PQ_DEBUG

R13269

URSA_PQ_DEBUG

R13268 33

URSA_PQ_DEBUG

R13267

URSA_SYS_DEBUG

R13266

URSA_SYS_DEBUG

0

R13259

DEBUG_SW_URSA

33

33

33

URSA Reset

+3.3V_NORMAL

R13264
10K

OPT

0

R13265

URSA_UART2_RX

URSA_UART2_TX

URSA_UART1_RX

URSA_UART1_TX

URSA_RESET

URSA_RESET_MICOM

URSA_RESET_SoC

URSA Option

10K

High

URSA_OPT_0

URSA_OPT_1

URSA_OPT_4

URSA_OPT_5

URSA_OPT_6

BIT [2/1/0]

0/0/0
0/0/1
0/1/0
0/1/1
1/0/0

1/0/1

1/1/0

1/1/1

Low

Rx_LVDS

Rx_Vx1

OS_Moudule

LGD_Module

PRINT_ON

PRINT_OFF

Reserverd

Reserverd

Reserverd

Reserverd

Tx Lane

4K@120 (4 DDR)
4k@60 (2 DDR)

4K@120 8K(98UF8K 4DDR)

OLED 4K@120(4 DDR)

FHD@120 (4 DDR)

FHD@60 (2 DDR)
FHD@60 (4 DDR)
Reserved

4K@60(4 DDR)

URSA_OPT_6

URSA_OPT_5

URSA_OPT_4

Div_BIT0

Div_BIT1

URSA_OPT_0

URSA_OPT_1

URSA_BIT0

URSA_BIT1

URSA_BIT2

BIT [1/0]

0/0
0/1
1/0
1/1

Reserved

Reserved

Division Type

Rx Interface

Module Type

Tx Lane

Module Division

Non Division

2 Division
4 Division
8 Division

R13213 10K

URSA_OPT_6_1

URSA_OPT_5_1

R1321410K

URSA_OPT_6_0

URSA_OPT_5_0

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

R13216

R1322010K

Debug Print OFF

10K

OPT

R13221

R1321710K

Div_BIT0_1

R13222 10K

10K

R13223

Div_BIT0_0

R1322410K

Div_BIT1_1

URSA_RX_LVDS

10K

Div_BIT1_0

R13225

URSA_RX_Vx1

+3.3V_NORMAL

10K

LGD_Module

R13233

URSA_OPT_0_1

R13230 10K

URSA_OPT_1_1

10K

OS_Module

URSA_OPT_0_0

R13231 10K

URSA_OPT_1_0

R13232

R13234 10K

URSA_BIT0_1

URSA_BIT1_1

URSA_BIT1_0

URSA_BIT0_0

R13235 10K

R13236 10K

R13237 10K

R13239 10K

URSA_BIT2_1

URSA_BIT2_0

R13240 10K

Chip Config

Debug/ISP ADDR
Slave (Debug Port:0XB4,ISP:0X98)
CHIP_CONF:{DIM2,DIM1,DIM0}
CHIP_CONF=3’d7:111:boot from SPI Flash

+3.3V_NORMAL

OPT

10K

R13249

10K

R13247

10K

R13246

R13253

OPT

R13252

OPT

R13251

10K

10K

10K

DIM0

DIM1

DIM2

Debugging for URSA11

I2C_S Port

URSA_DEBUG_WAFER

P13200

12507WS-04L

5

WAFER-STRAIGHT

1

2

3

4

R

132 57

URSA_DEBUG

R

132 56
URSA_DEBUG

33

SCL2_+3.3V_DB

33

SDA2_+3.3V_DB

I2C_SCL7

I2CS_SCL

SCL2_+3.3V_DB

URSA11_GPIO

SW13201
JS2235S

R13261
0
URSA_MP

R13262
0

OPT

1

2

URSA_DEBUG_SW

3

6

R13270
0
URSA_MP

5

R13271
0
OPT

4

BSD-15Y-LM14A-144_00-HD

I2C_SDA7

I2CS_SDA

SDA2_+3.3V_DB

URSA11_DCDC_60Hz

Copyright © 2015 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

+12V

L13411

BLM18PG121SN1D

C13443
10uF
25V

C13617

0.1uF
25V

+1.5V URSA DDR

R13424

10K

EN

C13445
1uF
10V

C13446
2200pF
50V

FB

VREG

SS

R13421

R13422

R1

18K

3.6K

1%

1%

C13444

100pF

50V

R13423
22K
1%

R2

Vout=0.765*(1+R1/R2)=1.516V

POWER_ON/OFF2_1

IC13403

BD9D321EFJ

1

9

2

THERMAL

3

4

3A

+1.5V_U_DDR

[EP]

VIN

8

BOOT

7

SW

6

GND

5

16V

0.1uF
C13447

PS064T-2R2MS

L13412

2.2uH

C13448

22uF

10V

C13449

22uF
10V

ZD13401

2.5V

+0.95V URSA11 Core

R13404
10K

1%

0.1uF

C13405

4.7

R13403

5%

91K

1/1 6W

R13 406

1%

27K

1/1 6W

RF

R13 405

PGOOD

EN

16V

VBST

NC_1

SW_1

SW_2

SW_3

SW_4

2.5V

ZD13400

C13451

150uF

6.3V

POWER_ON/OFF2_3

VDDC

C13450

C13400

0.1uF

22uF

C13401

22uF

C13402

0.1uF
16V

C13411
22uF

C13403
1000pF
50V

R13401 1K

R13400
2K

1/16W
5%

L13403

1.0uH

R13402

3.3

1/10W

C13404
470pF
50V

Vout=0.6*(1+R1/R2)=0.98V_FOR 0.95V at URSA11 VIA

[EP]

1

THERMAL

2

29

3

IC13402

4

TPS53513RVER

5

6

7

8

8A

9

10

PGND_111PGND_212PGND_313PGND_414PGND_5

R13407
39K

1/16W
5%

TRIP26NC_327GND128GND2

24VO25

FB

23

GND

22

MODE

21

VREG

20

VDD

19

NC_2

18

VIN_3

17

VIN_2

16

VIN_1

15

MAX 4.7A

R1

R13408

10K

1/16W

1%

VID_CTRL

R2

12K

R13409

1/16W

1%

1%

20K

R13411

C13406
2200pF
50V

5.1K
1/16W

R13410

1/16W

1%

C13408
1uF
25V

L13402

C13407
10uF
25V

+12V

C13409
10uF
25V

VID_CTRL

VID_CTRL

D

URSA11_VID

R13414

100K

1/16W

R13412

100K

1/16W

1%

URSA11_VID

1%

20K

R13413

1/16W

URSA11_VID

D

Q13400
2N7002KA

URSA11_VID_FET_KEC(MULTI)

G

S

G

R1:10K/R2:17.1K, V=0.95V(VID0=L,VID1=L)

R1:10K/R2:17.1K//120K, V=1.008V(VID0=H,VID1=L)
R1:10K/R2:17.1K//120K, V=1.008V(VID0=L,VID1=H)

R1:10K/R2:17.1K//120K//120K, V=1.05V(VID0=H,VID1=H)

1%

G

URSA11_VID_FET_DIODES(MULTI)
S

1%

20K

R13415

1/16W

URSA11_VID

Q13401

D

2N7002KA
URSA11_VID_FET_KEC(MULTI)

G

S

D

Q13400-*1
2N7002KA

URSA11_VID_FET_DIODES(MULTI)

S

Q13401-*1
2N7002KA

R13416 0

URSA11_VID

R13417 0

URSA11_VID

URSA11_VID_PULLDOWN

R13418

10K

OPT

R13419
10K

+3.3V_NORMAL

OPT

R13420

10K

R13425
10K

URSA11_VID_PULLDOWN

VID0

VID1

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

15/01/21

URSA11_DCDC_60Hz

146

01

VDDC

Copyright © 2015 LG Electronics Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

C14800
10uF
10V

+3.3V_NORMAL

L14804

BLM18PG121SN1D

L14805

BLM18PG121SN1D

L14807

BLM18PG121SN1D

L14806

BLM18PG121SN1D

L14800

BLM18PG121SN1D

L14801

BLM18PG121SN1D

L14802

BLM18PG121SN1D

L14803

BLM18PG121SN1D

AVDD_MOD

VDDC

AVDDL_DRV_MOD

DVDD_DDR

AVDDL_DVI_RX

AVDDL_HDMITX

C14803
10uF
10V

C14802
10uF
10V

AVDD_DVI_ALLRX

C14804
10uF
10V

AVDD_HDMITX

C14805
10uF
10V

C14807
10uF
10V

OPT

C14808

0.1uF
16V

C14809

0.1uF
16V

C14810

0.1uF
16V

VDDP_AVDD_PLL

C14818

0.1uF
16V

C14816

0.1uF
16V

C14817

0.1uF
16V

C14819
10uF
10V

C14814
10uF
10V

C14811
10uF
10V

C14812

0.1uF
16V

C14813

0.1uF
16V

C14821
10uF
10V

C14824
10uF
10V

C14822
10uF
10V

C14823
10uF
10V

C14820
10uF
10V

C14825

0.1uF
16V

C14826

0.1uF
16V

OPT

C14827

0.1uF
16V

C14828

0.1uF
16V

OPT

C14832
10uF
10V

C14830
10uF
10V

C14831
1uF
10V

C14829

0.1uF
16V

C14835

C14843

0.1uF

0.1uF

16V

16V

C14848

C14839

1uF

0.1uF
10V

16V

OPT

C14833

0.1uF
16V

OPT

C14844

0.1uF
16V

Close to Chip side

C14846

0.1uF
16V

Close to Chip side

C14837

C14845

0.1uF

0.1uF

16V

16V

4th Layer

C14849

C14842

C14834

0.1uF
16V

C14836

0.1uF
16V

0.1uF
16V

C14840

0.1uF
16V

C14905

0.47uF

6.3V

0.1uF
16V

4th Layer

Close to Chip side

C14841

0.1uF
16V

4th Layer

Close to Chip side

C14852

0.1uF
16V

C14850

0.1uF
16V

C14856

0.1uF
16V

C14857

0.1uF
16V

C14858

0.1uF
16V

C14904

0.47uF

6.3V

4th Layer

Close to Chip side

C14854

0.1uF
16V

Close to Chip side

C14853

0.47uF

6.3V

4th Layer

4th Layer

C14855

C14851

0.1uF
16V

0.47uF

6.3V

C14859
10uF
10V

Close to Chip side

C14860
1uF
10V

C14862

0.47uF

6.3V

C14863

0.1uF
16V

C14864

0.1uF
16V

C14876

C14868
10uF
10V

C14872

0.1uF
16V

C14878

1uF

10uF

10V

10V

4th Layer

Close to Chip side

4th Layer

+1.5V_U_DDR

C14867
10uF
10V

C14869
10uF
10V

C14871
10uF
10V

C14873

0.1uF
16V

C14875

0.1uF
16V

+1.5V_U_DDR AVDD_15_MOD

L14808

BLM18PG121SN1D

URSA11

C14870
10uF
10V

C14874

0.1uF
16V

C14879

0.1uF
16V

C14877

0.1uF
16V

C14880

0.1uF
16V

C14881

0.1uF
16V

C14882

C14883
10uF
10V

C14884

0.1uF
16V

0.47uF

6.3V

4th Layer

Close to Chip side

C14885

0.1uF
16V

C14886 0.1uF 16V

C14887 0.1uF 16V

C14888

0.1uF
16V

4th Layer

4th Layer

4th Layer

4th Layer

AVDDL_DVI_RX

C14890

0.1uF
16V

AVDDL_DRV_MOD

VDDP_AVDD_PLL

AVDD_DVI_ALLRX

C14889

0.1uF
16V

+1.5V_U_DDR

C14891 0.47uF 6.3V

C14892 0.22uF 16V

C14893 0.47uF 6.3V

C14894 0.22uF 16V

C14895 0.22uF 16V

C14896 0.47uF 6.3V

C14897 0.22uF 16V

C14898 0.47uF 6.3V

VDDC

AVDDL_HDMITX

DVDD_DDR

+1.5V_U_DDR

AVDD_15_MOD

AVDD_MOD

AVDD_HDMITX

OPT

OPT

OPT

OPT

LGE5352(URSA11)

N7

VDDC_1

N8

VDDC_2

P7

VDDC_3

P8

VDDC_4

P9

VDDC_5

R5

VDDC_6

R6

VDDC_7

R7

VDDC_8

R8

VDDC_9

R9

VDDC_10

T5

VDDC_11

T6

VDDC_12

T7

VDDC_13

T8

VDDC_14

T9

VDDC_15

T10

VDDC_16

U4

VDDC_17

U5

VDDC_18

U6

VDDC_19

U7

VDDC_20

U8

VDDC_21

U9

VDDC_22

U10

VDDC_23

M3

AVDDL_HDMIRX_1

W6

AVDDL_HDMIRX_2

W7

AVDDL_HDMIRX_3

W8

AVDDL_HDMIRX_4

AB3

AVDDL_HDMITX_4

Y7

AVDDL_HDMITX_1

Y8

AVDDL_HDMITX_2

Y9

AVDDL_HDMITX_3

W9

AVDDL_LVDSRX/AVDDL_VBY1RX_1

W10

AVDDL_LVDSRX/AVDDL_VBY1RX_2

Y10

AVDDL_LVDSRX/AVDDL_VBY1RX_3

J8

AVDDL_MOD_1

J9

AVDDL_MOD_2

J10

AVDDL_MOD_3

K8

AVDDL_MOD_4

K9

AVDDL_MOD_5

K10

AVDDL_PREDRV_1

L8

AVDDL_PREDRV_2

L9

AVDDL_PREDRV_3

L10

AVDDL_PREDRV_4

M10

AVDDL_PREDRV_5

T16

DVDD_DDR_1

U16

DVDD_DDR_3

U17

DVDD_DDR_4

T17

DVDD_DDR_2

P15

AVDD_DDR0_1

P16

AVDD_DDR0_2

P17

AVDD_DDR0_3

R15

AVDD_DDR0_4

R16

AVDD_DDR0_5

R17

AVDD_DDR0_6

P19

AVDD_DDR1_1

P20

AVDD_DDR1_2

R19

AVDD_DDR1_3

R20

AVDD_DDR1_4

T19

AVDD_DDR1_5

T20

AVDD_DDR1_6

J12

AVDD_15_MOD_1

K12

AVDD_15_MOD_2

L12

AVDD_15_MOD_3

M12

AVDD_15_MOD_4

Y14

AVDD_MOD_1

Y15

AVDD_MOD_2

AA14

AVDD_MOD_3

AA15

AVDD_MOD_4

W20

VDDP_1

Y20

VDDP_2

AA20

VDDP_3

AC3

AVDD_HDMITX_1

Y13

AVDD_HDMITX_2

AA13

AVDD_HDMITX_3

P3

AVDD_HDMIRX_1

W12

AVDD_HDMIRX_2

Y12

AVDD_HDMIRX_3

AA12

AVDD_HDMIRX_4

AA19

AVDD_XTAL

W19

AVDD_PLL_1

Y19

AVDD_PLL_2

Y16

AVDD_LVDSRX/AVDD_VBY1RX_1

AA16

AVDD_LVDSRX/AVDD_VBY1RX_2

AA17

AVDD_LVDSRX/AVDD_VBY1RX_3

A18

AVDD_DDR_VBP_A_1

B18

AVDD_DDR_VBP_A_2

R13

AVDD_DDR_VBP_A_3

R14

AVDD_DDR_VBP_A_4

A16

AVDD_DDR_VBN_A_1

B16

AVDD_DDR_VBN_A_2

P13

AVDD_DDR_VBN_A_3

P14

AVDD_DDR_VBN_A_4

U18

AVDD_DDR_VBP_B_1

U19

AVDD_DDR_VBP_B_2

Y27

AVDD_DDR_VBP_B_3

Y28

AVDD_DDR_VBP_B_4

V18

AVDD_DDR_VBN_B_1

V19

AVDD_DDR_VBN_B_2

AB27

AVDD_DDR_VBN_B_3

AB28

AVDD_DDR_VBN_B_4

IC12800

NC FOR U11P

U11 ONLY

U11 MIU POWER ONLY

U11P MIU

POWER ONLY

GND_10
GND_11
GND_12
GND_13
GND_14

GND_15
GND_16
GND_17
GND_18
GND_19
GND_20
GND_21
GND_22
GND_23
GND_24

GND_25

GND_26
GND_27
GND_28

GND_29
GND_30

GND_31

GND_32
GND_33
GND_34

GND_35
GND_36
GND_37
GND_38
GND_39
GND_40

GND_41
GND_42
GND_43
GND_44
GND_45
GND_46
GND_47
GND_48

GND_49
GND_50
GND_51
GND_52
GND_53
GND_54
GND_55

GND_56
GND_57
GND_58
GND_59
GND_60
GND_61
GND_62
GND_63

GND_64
GND_65
GND_66
GND_67
GND_68
GND_69
GND_70
GND_71
GND_72

DRAM_VDD_A_1
DRAM_VDD_A_2

DRAM_VDD_B_1
DRAM_VDD_B_2

GND_1
GND_2
GND_3
GND_4
GND_5
GND_6
GND_7
GND_8
GND_9

URSA11P

H1
K1
A2
B2
G2
J2
L2
N2
P2
W2
Y2
AB2
AC2
AG2

D3
E3
F3
T3
U3
V3
Y3
AE3
AF3
AG3

C4

P4
R4
T4

V4
W4

AG4

P5
V5
W5

B6
K6
M6
N6
P6
V6

A7
G7
H7
J7
K7
L7
M7
V7

B8
G8
H8
M8
V8
AA8
AB8

A9
G9
H9
M9
N9
V9
AA9
AB9

B10
G10
H10
N10
P10
R10
V10
AA10
AB10

+1.5V_U_DDR

C14899 0.1uF 16V

A20
B20

R14800

0

C14900 0.1uF 16V

A26
B26

Close to Chip

URSA11P

IC12800

LGE5352(URSA11)

C11

GND_73

G11

GND_74

H11

GND_75

J11

GND_76

K11

GND_77

L11

GND_78

M11

GND_79

N11

GND_80

P11

GND_81

R11

GND_82

T11

GND_83

U11

GND_84

V11

GND_85

W11

GND_86

Y11

GND_87

AA11

GND_88

AB11

GND_89

C12

GND_90

G12

GND_91

H12

GND_92

N12

GND_93

P12

GND_94

R12

GND_95

T12

GND_96

U12

GND_97

V12

GND_98

AB12

GND_99

C13

GND_100

D13

GND_101

E13

GND_102

F13

GND_103

G13

GND_104

H13

GND_105

J13

GND_106

K13

GND_107

L13

GND_108

M13

GND_109

N13

GND_110

T13

GND_111

U13

GND_112

V13

GND_113

W13

GND_114

AB13

GND_115

D14

GND_116

E14

GND_117

F14

GND_118

G14

GND_119

H14

GND_120

J14

GND_121

K14

GND_122

L14

GND_123

M14

GND_124

N14

GND_125

T14

GND_126

U14

GND_127

V14

GND_128

W14

GND_129

AB14

GND_130

B15

GND_131

D15

GND_132

E15

GND_133

F15

GND_134

G15

GND_135

H15

GND_136

J15

GND_137

K15

GND_138

L15

GND_139

M15

GND_140

N15

GND_141

T15

GND_142

U15

GND_143

V15

GND_144

W15

GND_145

AB15

GND_146

AF15

GND_147

C16

GND_148

D16

GND_149

E16

GND_150

F16

GND_151

G16

GND_152

H16

GND_153

J16

GND_154

K16

GND_155

L16

GND_156

M16

GND_157

N16

GND_158

V16

GND_159

W16

GND_160

AB16

GND_161

AC16

GND_162

AD16

GND_163

AE16

GND_164

B17

GND_165

C17

GND_166

D17

GND_167

E17

GND_168

F17

GND_169

G17

GND_170

H17

GND_171

J17

GND_172

K17

GND_173

L17

GND_174

M17

GND_175

N17

GND_176

V17

GND_177

W17

GND_178

Y17

GND_179

AB17

GND_180

AC17

GND_181

AD17

GND_182

AG17

GND_183

C18

GND_184

D18

GND_185

E18

GND_186

F18

GND_187

G18

GND_188

H18

GND_189

J18

GND_190

K18

GND_191

L18

GND_192

M18

GND_193

N18

GND_194

W18

GND_195

Y18

GND_196

AA18

GND_197

AB18

GND_198

GND_199
GND_200
GND_201
GND_202
GND_203
GND_204
GND_205
GND_206
GND_207
GND_208
GND_209
GND_210
GND_211

GND_212
GND_213
GND_214
GND_215
GND_216
GND_217
GND_218
GND_219
GND_220
GND_221
GND_222

GND_223
GND_224
GND_225

GND_226
GND_227
GND_228
GND_229
GND_230
GND_231
GND_232
GND_233
GND_234
GND_235
GND_236
GND_237
GND_238
GND_239
GND_240
GND_241
GND_242
GND_243
GND_244
GND_245
GND_246
GND_247
GND_248

GND_249
GND_250
GND_251
GND_252
GND_253
GND_254
GND_255
GND_256
GND_257
GND_258
GND_259
GND_260
GND_261
GND_262
GND_263
GND_264
GND_265
GND_266
GND_267
GND_268
GND_269
GND_270

GND_271
GND_272
GND_273
GND_274
GND_275
GND_276
GND_277
GND_278
GND_279
GND_280

GND_281
GND_282
GND_283
GND_284
GND_285
GND_286
GND_287

GND_288
GND_289
GND_290
GND_291
GND_292
GND_293
GND_294
GND_295
GND_296

GND_297
GND_298
GND_299
GND_300
GND_301
GND_302
GND_303

GND_304
GND_305
GND_306
GND_307
GND_308
GND_309
GND_310
GND_311
GND_312

C19
D19
E19
F19
G19
H19
J19
K19
L19
M19
N19
AB19
AH19

C20
D20
E20
F20
G20
H20
J20
K20
L20
M20
N20

U20
V20
AB20

A21
B21
C21
D21
E21
F21
G21
H21
J21
K21
L21
M21
N21
P21
R21
T21
U21
V21
W21
Y21
AA21
AB21
AG21

A22
B22
C22
D22
E22
F22
G22
H22
J22
K22
L22
M22
N22
P22
R22
T22
U22
V22
W22
Y22
AA22
AB22

A23
B23
C23
D23
E23
F23
Y23
AA23
AB23
AH23

A24
B24
C24
D24
Y24
AA24
AB24

C25
J25
M25
R25
V25
Y25
AA25
AB25
AG25

C26
E26
W26
Y26
AA26
AB26
AE26

A27
B27
C27
AA27
AG27
J28
M28
R28
V28

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BSD-15Y-LM14A-148_00-HD

URSA11_Power

TROUBLE SHOOTING

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Contents of Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

No. Error symptom (High category) Error symptom (Mid category) Page Remarks

1

No video/Normal audio 1

2 No video/No audio 2

3 Picture broken/ Freezing 3

A. Video error

4 Color error 4

5

6

B. Power error

7

8

Vertical/Horizontal bar, residual image,
light spot, external device color error

No power 6

Off when on, off while viewing, power
auto on/off

No audio/Normal video 8

C. Audio error

9 Wrecked audio/discontinuation/noise 9

10

11

Remote control & Local switch checking

MR15 operating checking 11

5

7

10

12

D. Function error

13 Camera operating checking 13

14 External device recognition error 14

15 E. Noise Circuit noise, mechanical noise 15

16 F. Exterior error Exterior defect 16

First of all, Check whether there is SVC Bulletin in GCSC System for these model.

Wifi operating checking 12

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

symptom

A. Video error

No video/ Normal audio

Established

date

Revised date

First of all, Check whether all of cables between board is inserted properly or not.

(Main B/D↔ Power B/D, LVDS Cable, Speaker Cable, IR B/D Cable,,,)

☞A18 ☞A1

N

Y

Check Back Light
On with naked eye

☞A18

Check Power Board 12V output

On

Normal
voltage

N

Repair Power
Board or parts

Y N Check Power

Board
12V,3.5V,3.3V etc.

Replace Inverter

Y

or module

Normal

voltage

N

Repair Power
Board or parts

End

Replace T-con/Main

Y

Board or module
And Adjust VCOM

No video
Normal audio

Normal

audio

Move to No
video/No audio

1/16

※Precaution

Always check & record S/W Version and White
Balance value before replacing the Main Board

☞A4 & A2

Replace Main Board

1

Re-enter White Balance value

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

symptom

No Video/
No audio

☞A18

Check various
voltages of Power
Board ( 3.3V,

3.5V,12V…)

A. Video error

No video/ No audio

Normal

voltage?

Replace Power
Board and repair
parts

Y

N

Check and
replace
MAIN B/D

Established

date

Revised date

End

2/16

2

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

symptom

☞ A3

Check RF Signal level

Normal

Signal?

N

Check RF Cable

Connection

1. Reconnection

2. Install Booster

Normal

Picture?

Y

Close

Y

N

A. Video error

Picture broken/ Freezing

Established

date

Revised date

. By using Digital signal level meter
. By using Diagnostics menu on OSD

( Advanced→ Channels→ Channel Tuning→ Manual Tuning → Check the Signal )

- Signal strength (Normal : over 50%)

- Signal Quality (Normal: over 50%)

Check whether other equipments have problem or not.

(By connecting RF Cable at other equipment)

→ DVD Player ,Set-Top-Box, Different maker TV etc`

☞ A4

Normal

Picture?

Contact with signal distributor

or broadcaster (Cable or Air)

Y

S/W Version

N

Check

SVC

Bulletin?

S/W Upgrade

Normal

Picture?

Y

N

Tuner soldering

Y

N

Check

N

Replace

Main B/D

3/16

Y

Close

Close

3

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

symptom

☞A6

Check color by input

-External Input

-COMPONENT

-AV

-HDMI

☞A8

Check Test pattern

Color

error?

N

Check error
color input
mode

A. Video error

☞ A7

※ Check and

replace Link

Y

Cable
(V by one)
and contact
condition

External Input/

Component

error

Color error

Color

error?

N

Check
external
device and
cable

Y

Replace Main B/D

Established

date

Revised date

External device

/Cable

normal

N

Color

error?

End

Y

4/16

Y

Replace module

N

Replace Main/T-con B/D

HDMI

error

Check external

device and
cable

4

Request repair

for external

device/cable

N

External device

/Cable

normal

Y

Replace Main/T-con B/D

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

symptom

Vertical / Horizontal bar, residual image,

A. Video error

light spot, external device color error

Vertical/Horizontal bar, residual image, light spot

☞A6

Check color condition by input

-External Input

-Component

-HDMI

☞A8

Check Test pattern

Screen

normal?

N

Replace
module

Check external

Y

device
connection
condition

Normal?

N

Request repair
for external
device

External device screen error-Color error

Check screen
condition by input

Check S/W Version

Check

version

Y

S/W Upgrade

N

-External Input

-Component

-HDMI/DVI

Component

☞ A7

Check and

Y

replace Link
Cable

External

Input
error

error

Established

date

Revised date

Y

N

Replace Main/T-con B/D
(adjust VCOM)

For LGD panel

Replace Main B/D

Screen

normal?

End

For other panel

Connect other external

device and cable

(Check normal operation of
External Input, Component,
RGB and HDMI/DVI by
connecting Jig, pattern
Generator ,Set-top Box etc.

Screen

N

normal?

Y

Request repair for
external device

5/16

Replace

Module

N

Screen

normal?

Y

End

Replace
Main/T-con
B/D

Normal

screen?

End

N

Y

5

HDMI/

DVI

Connect other external
device and cable

(Check normal operation of
External Input, Component,
RGB and HDMI/DVI by
connecting Jig, pattern
Generator ,Set-top Box etc.

Y

Screen

normal?

N

Replace
Main /T-con

B/D

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

symptom

☞A17

Check
Logo LED

. Stand-By: Red or Turn On
. Operating: Turn Off

Power LED

Check Power cord
was inserted properly

On?

N

Normal?

Y

Close

Y

N

Check ST-BY 3.5V

☞A18

B. Power error

No power

DC Power on
by pressing Power Key
On Remote control

Normal

voltage?

Y

Y

N

Established

date

Revised date

☞A18

Y

N

Check Power
On ‘”High”

Replace Main B/D

Normal

operation?

☞A18

Measure voltage of each output of Power B/D

N

Y

Replace Main B/D

Normal

voltage?

Replace Power B/D

OK?

Y

6/16

Replace

Power
B/D

Replace Power
B/D

6

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

symptom

Check outlet

Check A/C cord

Check for all 3- phase
power out

Off when on, off while viewing, power auto on/off

N

Error?

Y

Fix A/C cord & Outlet
and check each 3
phase out

B. Power error

☞A19

Check Power Off
Mode

☞A18

(If Power Off mode is
not displayed)
Check Power B/D
voltage

※ Caution
Check and fix exterior
of Power B/D Part

Established

date

Revised date

CPU

Abnormal

Abnormal

1

Normal

voltage?

N

Replace Power B/D

Replace Main B/D

Y

Replace Main B/D

7/16

Normal?

Replace Power B/D

Y

N

End

* Please refer to the all cases which
can be displayed on power off mode.

Status Power off List Explanation

"POWEROFF_REMOTEKEY" Power off by REMOTE CONTROL

"POWEROFF_OFFTIMER" Power off by OFF TIMER
"POWEROFF_SLEEPTIMER" Power off by SLEEP TIMER
"POWEROFF_INSTOP" Power off by INSTOP KEY
"POWEROFF_AUTOOFF" Power off by AUTO OFF

Normal

Abnormal

"POWEROFF_ONTIMER" Power off by ON TIMER
"POWEROFF_RS232C" Power off by RS232C
"POWEROFF_RESREC" Power off by Reservated Record
"POWEROFF_RECEND" Power off by End of Recording

"POWEROFF_SWDOWN" Power off by S/W Download

"POWEROFF_UNKNOWN" Power off by unknown status except listed case

"POWEROFF_ABNORMAL1" Power off by abnormal status except CPU trouble
"POWEROFF_CPUABNORMAL" Power off by CPU Abnormal

7

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

symptom

No audio
Screen normal

C. Audio error

No audio/ Normal video

☞A20 ☞A21+A18

Check user
menu >
Speaker off

Off

Y

Cancel OFF

Check audio B+

N

12V of Power
Board

Established

date

Revised date

Normal
voltage

Replace Power Board and repair parts

Y

N

8/16

Check
Speaker
disconnection

Disconnection

Y

Replace Speaker

8

N

Replace MAIN Board

End

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Check input
signal

-RF

-External Input

signal

Error

symptom

C. Audio error

Wrecked audio/ discontinuation/noise

Established

date

Revised date

→ abnormal audio/discontinuation/noise is same after “Check input signal” compared to No audio

☞A21+A18

Check audio
B+ Voltage (12V)

Y

Normal

voltage?

N

Replace Power B/D

Replace Main B/D

N

Y

Signal

normal?

N

Y

(When RF signal is not
received)

Request repair to external

cable/ANT provider

(In case of

External Input

signal error)
Check and fix
external device

Wrecked audio/

Discontinuation/

Noise for

all audio

Wrecked audio/

Discontinuation/

Noise only

for D-TV

Wrecked audio/

Discontinuation/

Noise only

for Analog

Wrecked audio/

Discontinuation/

Noise only

for External Input

Check and replace
speaker and
connector

Replace Main B/D

Connect and check
other external
device

Normal

audio?

9/16

End

Check and fix external device

9

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

symptom

D. Function error

Remote control & Local switch checking

1. Remote control(R/C) operating error

☞A22

Check R/C itself

Operation

Check R/C Operating

When turn off light

in room

If R/C operate,
Explain the customer
cause is interference

from light in room.

Normal

operating?

N

Check & Replace

Baterry of R/C

operating?

Replace R/C

Y

Normal

Check & Repair

Cable connection

Connector solder

Y

N

Close

Normal

operating?

Y

Close

☞A22

N

Check B+ 3.5V

On Main B/D

Established

date

Revised date

☞A22

Normal

Voltage?

Y

Output signal

N

☞A18

Check 3.5v on Power B/D

Replace Power B/D or

Replace Main B/D

(Power B/D don’t have problem)

Check IR

10/16

Replace

Main B/D

Normal
Signal?

N

Repair/Replace

IR B/D

Y

10

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

symptom

D. Function error

2. MR15(Magic Remocon) operating error

☞A4

Check the

INSTART menu

RF Receiver ver

is “00.00”?

☞A23

Check & Repair

Y

RF assy

connection

☞A4

RF Receiver ver

is “00.00”?

Y

N

Check MR15

itself Operation

N

Close

MR13 operating checking

Normal

operating?

Check & Replace

Battery of MR15

Normal

operating?

Replace

MR13

Y

N

Y

N

Press the

wheel

Close

Established

date

Revised date

Is show ok

message?

Y

Close

Is show ok

message?

Close

Y

Turn off/on the set

N

and press the

wheel

N

Press the back key

11/16

about 5sec

Down load the Firmware

* INSTART MENU14.RF

Remocon Test3. Firmware

download

* If you conduct the loop at 3times, change the M4.

11

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

symptom

3.Wifi operating error

☞A4

Check the

INSTART menu

Wi-Fi Mac value

is “NG”?

☞A24

Check & Repair

Wifi cable

connection

☞A4

Wi-Fi Mac value

is “NG”?

D. Function error

Wifi operating checking

☞A24

N

Y

N

Check the Wifi wafer

Close

1pin

Established

date

Revised date

Normal

Voltage?

Y

Close

N

12/16

Replace

Main B/D

Change the Wifi

Y

assy

12

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

symptom

4.Camera operating error

☞A4

Check the

INSTART menu

D. Function error

Camera Ver.

is “NULL”?

Y

Change the

Camera module

Camera operating checking

☞A25

N

Reconnect the

Camera module

Established

Revised date

Normal

operation?

Y

Close

date

N

13/16

Replace

Main B/D

13

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

symptom

Check
input
signal

Y

Signal

input?

N

Check and fix

external device/cable

D. Function error

External device recognition error

Check technical
information

- Fix information

- S/W Version

Technical

information?

Fix in

accordance

with technical

information

Y

External Input and

N

Component

Recognition error

HDMI/

DVI, Optical

Recognition error

Established

date

Revised date

14/16

Replace Main B/D

Replace Main B/D

14

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

symptom

Identify
nose
type

E. Noise

Circuit noise, mechanical noise

Circuit

noise

Mechanical

noise

※ Mechanical noise is a natural
phenomenon, and apply the 1st level
description. When the customer does not
agree, apply the process by stage.
※ Describe the basis of the description
in “Part related to nose” in the Owner’s
Manual.

Check
location of
noise

Check location of
noise

Replace PSU

OR

OR

Established

date

Revised date

※ When the nose is severe, replace the module
(For models with fix information, upgrade the
S/W or provide the description)

※ If there is a “Tak Tak” noise from the
cabinet, refer to the KMS fix information and
then proceed as shown in the solution manual
(For models without any fix information,
provide the description)

15/16

15

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

symptom

Zoom part with
exterior damage

Module

damage

Cabinet

damage

Remote

controller

damage

F. Exterior defect

Exterior defect

Replace module

Replace cabinet

Replace remote controller

Established

date

Revised date

16/16

Stand

dent

Replace stand

16

Contents of Standard Repair Process Detail Technical Manual

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

No. Error symptom Content Page Remarks

1

A. Video error_ No video/Normal
audio

2 Check White Balance value A2

4

A. Video error_ video error /Video
lag/stop

5 TV Version checking method A4

6 Tuner Checking Part A5

A. Video error _Vertical/Horizontal bar,

7

residual image, light spot

8

A. Video error_ Color error

9 Adjustment Test pattern - ADJ Key A8

10

11 Exchange Main Board (2) A-2/5

<Appendix>

12 Exchange Power Board (PSU) A-3/5

Defected Type caused by T-Con/
Inverter/ Module

13 Exchange Module (1) A-4/5

Check LCD back light with naked eye A1

TUNER input signal strength checking
method

TV connection diagram A6

Check Link Cable (EPI) reconnection
condition

Exchange Main Board (1) A-1/5

A3

A7

14 Exchange Module (2) A-5/5

Continue to the next page

Contents of Standard Repair Process Detail Technical Manual

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

No. Error symptom Content Page Remarks

16

B. Power error_ No power

17 Check power input Voltage & ST-BY 3.5V A18

18

19

20

21

22

23 Wifi operation checking method A24

24 Camera operation checking method A25 Not Used

25 E. Etc Tool option changing method A26

B. Power error_Off when on, off
while viewing

C. Audio error_ No audio/Normal
video

D. Function error

Check front display LED A17

POWER OFF MODE checking method A19

Checking method in menu when there is
no audio

Voltage and speaker checking method

when there is no audio

Remote controller operation checking
method

Motion Remote operation checking
method

A20

A21

A22

A23

Continued from previous page

Standard Repair Process Detail Technical Manual

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error symptom

Content

A. Video error_No video/Normal audio

Check LCD back light with naked eye

Established

date

Revised

date

A1

After turning on the power and disassembling the case, check with the naked eye,
whether you can see light from locations.

A1

Standard Repair Process Detail Technical Manual

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error symptom

Content

<ALL MODELS>

A. Video error_No video/Normal audio

Check White Balance value

Established

date

Revised

date

A2

Entry method

Entry method

1. Press the ADJ button on the remote controller for adjustment.

1. Press the ADJ button on the remote controller for adjustment.

2. Enter into White Balance of item 6.

2. Enter into White Balance of item 10.

3. After recording the R, G, B (GAIN, Cut) value of Color Temp

3. After recording the R, G, B (GAIN, Cut) value of Color Temp
(Cool/Medium/Warm), re-enter the value after replacing the MAIN BOARD.

(Cool/Medium/Warm), re-enter the value after replacing the MAIN BOARD.

A2

Standard Repair Process Detail Technical Manual

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error symptom

Content

<ALL MODELS>

A. Video error_Video error, video lag/stop

TUNER input signal strength checking method

Established

date

Revised

date

Advanced Channels  Channel Tuning
Manual Tuning

A3

When the signal is strong,

use the attenuator (-10dB, -

15dB, -20dB etc.)

A3

Standard Repair Process Detail Technical Manual

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error symptom

Content

A. Video error_Video error, video lag/stop

TV Version checking method

Established

date

Revised

date

A4

<ALL MODELS>

1. Checking method for remote controller for adjustment

Version

v

Press the IN-START with the remote
controller for adjustment

A4

Standard Repair Process Detail Technical Manual

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error symptom

Content

<ALL MODELS>

A. Video error_Video error, video lag/stop

TUNER checking part

Established

date

Revised

date

A5

Checking method:

1. Check the signal strength or check whether the screen is normal when the external device is connected.

2. After measuring each voltage from power supply, finally replace the MAIN BOARD.

3. If you can`t see the UHD live TV, please connect signal at left side of jack. (Korea model only)

A5

Standard Repair Process Detail Technical Manual

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error symptom

Content

<ALL MODELS>

A. Video error _Vertical/Horizontal bar,

residual image, light spot

TV connection diagram (1)

Established

date

Revised

date

A6

As the part connecting to the external input, check
the screen condition by signal

A6

Standard Repair Process Detail Technical Manual

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error symptom

Content

<ALL MODELS>

Check Link Cable(VX1) reconnection condition

A. Video error_Color error

Established

date

Revised

date

A7

Check the contact condition of the Link Cable, especially dust or mis insertion.

A7

Standard Repair Process Detail Technical Manual

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error symptom

Content

A. Video error_Color error

Adjustment Test pattern - ADJ Key

Established

date

Revised

date

A8

You can view 6 types of patterns using the ADJ Key
Checking item : 1. Defective pixel 2. Residual image 3. MODULE error (ADD-BAR,SCAN BAR..)

4.Video error (Classification of MODULE or Main-B/D!)

A8

Appendix : Exchange Main Board (1)

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Solder defect, CNT Broken

Solder defect, CNT Broken

Solder defect, CNT Broken

T-Con Defect, CNT Broken

T-Con Defect, CNT Broken

Solder defect, CNT Broken

T-Con Defect, CNT Broken

Solder defect, CNT Broken

Abnormal Power Section

Solder defect, Short/Crack

Abnormal Power Section Solder defect, Short/Crack

A - 1/5

Appendix : Exchange Main Board (2)

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Abnormal Power Section

Solder defect, Short/Crack

Abnormal Power Section

Fuse Open, Abnormal power section

Solder defect, Short/Crack

Abnormal Display

GRADATION

Noise

A - 2/5

GRADATION

Appendix : Exchange Power Board (PSU)

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

No Light

Dim Light

Dim Light

Dim Light

No picture/Sound Ok

A - 3/5

Appendix : Exchange the Module (1)

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Panel Mura, Light leakage

Crosstalk

Panel Mura, Light leakage

Press damage

Press damage

Crosstalk

Un-repairable Cases
In this case please exchange the module.

Press damage

A - 4/5

Appendix : Exchange the Module (2)

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Vertical Block

Source TAB IC Defect

Horizontal Block

Gate TAB IC Defect

Vertical Line

Source TAB IC Defect

Horizontal Block

Gate TAB IC Defect

Gate TAB IC Defect

Vertical Block

Source TAB IC Defect

Horizontal line

Gate TAB IC Defect
Gate TAB IC Defect

Un-repairable Cases
In this case please exchange the module.

Horizontal Block

Gate TAB IC Defect

Gate TAB IC Defect

A - 5/5

Standard Repair Process Detail Technical Manual

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error symptom

Content

<55UF8550-NB>

ST-BY condition: On or Off
Power ON condition: Turn Off

B. Power error _No power

Check front Power Indicator

Established

date

Revised

date

A17

A17

Standard Repair Process Detail Technical Manual

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error symptom

Content

B. Power error _No power

Check power input voltage and ST-BY 3.5V

Check the DC 12.5V.

Established

date

Revised

date

A18

A18

Standard Repair Process Detail Technical Manual

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error symptom

Content

<ALL MODELS>

B. Power error _Off when on, off whiling viewing

POWER OFF MODE checking method

Established

date

Revised

date

A19

Entry method

1. Press the IN-START button of the remote

controller for adjustment

2. Check the entry into adjustment item 3

A19

Standard Repair Process Detail Technical Manual

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error symptom

Content

<ALL MODELS>

C. Audio error_No audio/Normal video

Checking method in menu when there is no audio

Established

date

Revised

date

A20

Checking method

1. Press the Setting button on the remote controller

2. Select the Sound function of the Menu

3. Select the Sound Out

4. Select TV Speaker

A20
