Page 1
PICTORIAL INDEX
xi
INSTRUMENT PANEL (vehicles with navigation system)
ill−full
Page 2
For detailed information, refer to the description given in each Section.
PICTORIAL INDEX
xii
Page
1
Driving position memory switches 224. . . . . . . . . . .
2
Power window switches 62. . . . . . . . . . . . . . . . . . . . . . .
3
Power door lock switch 29. . . . . . . . . . . . . . . . . . . . . . .
4
Window lock switch 63. . . . . . . . . . . . . . . . . . . . . . . . . . .
5
Cupholder 112. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6
Side vents 257. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
Instrument panel light control knob 90. . . . . . . . . . . .
8
“ODO/TRIP” button 73. . . . . . . . . . . . . . . . . . . . . . . . . . .
9
Ignition switch 385. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10
Automatic air conditioning controls 242. . . . . . . . . .
11
Emergency flasher switch 66. . . . . . . . . . . . . . . . . . . . .
12
Security indicator light 16, 43. . . . . . . . . . . . . . . . . . . .
13
Rear view monitor/navigation system including air
conditioning controls (For the navigation system,
see the separate “Navigation System Owner’s
Manual”.) 408. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14
Front passenger’s seat belt reminder light 77. . . . . .
15
“AIRBAG ON” and “AIRBAG OFF”
indicator lights 193. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
16
Rear window and outside rear view
mirror defogger, and windshield wiper
de−icer switch 61. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page
17
Glove box 106. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18
Power back door off switch 38. . . . . . . . . . . . . . . . . . . .
19
Automatic transmission selector lever 389, 398. . . .
20
Power outlet (12 VDC) 101. . . . . . . . . . . . . . . . . . . . . . .
21
Height select switch 441. . . . . . . . . . . . . . . . . . . . . . . . .
22
Headlight cleaner switch 60. . . . . . . . . . . . . . . . . . . . . .
23
Driving pattern selector switch 397, 408. . . . . . . . . . .
24
Seat heater switches 67. . . . . . . . . . . . . . . . . . . . . . . . . .
25
Audio system 262, 282. . . . . . . . . . . . . . . . . . . . . . . . . . .
26
Traction control system off switch 451. . . . . . . . . . .
27
Tire pressure warning system reset switch 464. . . .
28
Height control switch 446. . . . . . . . . . . . . . . . . . . . . . .
29
Power outlet (115 VAC) main switch 102. . . . . . . . . .
30
Hood lock release lever 124. . . . . . . . . . . . . . . . . . . . .
31
Parking brake pedal 387. . . . . . . . . . . . . . . . . . . . . . . . .
32
Power back door opener/closer switch 39. . . . . . . . .
33
Easy access mode switch 444. . . . . . . . . . . . . . . . . . .
34
Fuel filler door opener 125. . . . . . . . . . . . . . . . . . . . . . .
35
Adaptive front−lighting system
off switch 51. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
36
Power rear view mirror control switches 231. . . . . .
Page 3
PICTORIAL INDEX
xiii
INSTRUMENT PANEL (vehicles without navigation system)
ill−full
Page 4
For detailed information, refer to the description given in each Section.
PICTORIAL INDEX
xiv
Page
1
Driving position memory switches 224. . . . . . . . . . .
2
Power window switches 62. . . . . . . . . . . . . . . . . . . . . . .
3
Power door lock switch 29. . . . . . . . . . . . . . . . . . . . . . .
4
Window lock switch 63. . . . . . . . . . . . . . . . . . . . . . . . . . .
5
Cupholder 112. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6
Side vents 257. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
Instrument panel light control knob 90. . . . . . . . . . . .
8
“ODO/TRIP” button 73. . . . . . . . . . . . . . . . . . . . . . . . . . .
9
Ignition switch 385. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10
Automatic air conditioning controls 242. . . . . . . . . .
11
Emergency flasher switch 66. . . . . . . . . . . . . . . . . . . . .
12
Multi−display light control button 91. . . . . . . . . . . . . .
13
Security indicator light 16, 43. . . . . . . . . . . . . . . . . . . .
14
Clock buttons 99. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15
Front passenger’s seat belt reminder light 77. . . . . .
16
Multi−display
Cruise information display 87. . . . . . . . . . . . . . . . . . .
Outside temperature display 100. . . . . . . . . . . . . . . .
Clock display 99. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic air conditioning display 242. . . . . . . . . .
17
Cruise information display control button 87. . . . . . .
18
“AIRBAG ON” and “AIRBAG OFF”
indicator lights 193. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page
19
Rear window and outside rear view
mirror defogger, and windshield wiper
de−icer switch 61. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
20
Glove box 106. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
21
Power back door off switch 38. . . . . . . . . . . . . . . . . . . .
22
Automatic transmission selector lever 389, 398. . . .
23
Power outlet (12 VDC) 101. . . . . . . . . . . . . . . . . . . . . . .
24
Height select switch 441. . . . . . . . . . . . . . . . . . . . . . . . .
25
Headlight cleaner switch 60. . . . . . . . . . . . . . . . . . . . . .
26
Driving pattern selector switch 397, 408. . . . . . . . . . .
27
Seat heater switches 67. . . . . . . . . . . . . . . . . . . . . . . . . .
28
Audio system 262, 282. . . . . . . . . . . . . . . . . . . . . . . . . . .
29
Traction control system off switch 451. . . . . . . . . . .
30
Tire pressure warning system reset switch 464. . . .
31
Height control switch 446. . . . . . . . . . . . . . . . . . . . . . .
32
Power outlet (115 VAC) main switch 102. . . . . . . . . .
33
Hood lock release lever 124. . . . . . . . . . . . . . . . . . . . .
34
Parking brake pedal 387. . . . . . . . . . . . . . . . . . . . . . . . .
35
Power back door opener/closer switch 39. . . . . . . . .
36
Easy access mode switch 444. . . . . . . . . . . . . . . . . . .
37
Fuel filler door opener 125. . . . . . . . . . . . . . . . . . . . . . .
38
Adaptive front−lighting system
off switch 51. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
39
Power rear view mirror control switches 231. . . . . .
Page 5
PICTORIAL INDEX
xv
INSTRUMENT CLUSTER (vehicles sold in U. S. A.)
Page 6
For detailed information, refer to the description given in each Section.
PICTORIAL INDEX
xvi
Page
1
Tachometer 72. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
Rear light failure warning light 82. . . . . . . . . . . . . . . . .
3
Driver’s seat belt reminder light 77. . . . . . . . . . . . . . . .
4
SRS warning light 77. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
Automatic headlight leveling system
warning light 84. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6
Adaptive front−lighting system off
indicator light 51. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
Charging system warning light 78. . . . . . . . . . . . . . . . .
8
Low engine oil pressure warning light 78. . . . . . . . . .
9
Malfunction indicator lamp 80. . . . . . . . . . . . . . . . . . . .
10
Headlight high beam indicator light 52. . . . . . . . . . . .
11
Low washer fluid warning light 83. . . . . . . . . . . . . . . . .
12
Automatic transmission fluid temperature
warning light 83. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13
Anti−lock brake system warning light 81. . . . . . . . . . .
14
Brake system warning light 76. . . . . . . . . . . . . . . . . . . .
15
Automatic transmission
indicator lights 389, 398. . . . . . . . . . . . . . . . . . . . . . . . .
16
Fuel gauge 70. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17
Low fuel level warning light 84. . . . . . . . . . . . . . . . . . . .
18
Engine coolant temperature gauge 71. . . . . . . . . . . . .
Page
19
Low tire pressure warning light 84. . . . . . . . . . . . . . . .
20
Slip indicator light 450, 453, 456. . . . . . . . . . . . . . . . . .
21
Snow mode indicator light 397, 408. . . . . . . . . . . . . . .
22
Traction control system off
indicator light 451. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
23
Vehicle stability control system
warning light 83. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
24
Headlight indicator light 48. . . . . . . . . . . . . . . . . . . . . . .
25
Turn signal indicator lights 52. . . . . . . . . . . . . . . . . . . .
26
Dynamic laser cruise control master
warning light 431. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27
Odometer and trip meter 73. . . . . . . . . . . . . . . . . . . . . .
28
Dynamic laser cruise control display 416. . . . . . . . .
29
Conventional cruise control mode
indicator light 433. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30
Cruise control indicator light 412. . . . . . . . . . . . . . . .
31
Ready mode indicator light 423. . . . . . . . . . . . . . . . . .
32
Easy access mode indicator light 444. . . . . . . . . . . .
33
Height control “OFF” indicator light 446. . . . . . . . . .
34
Height control indicator lights 441. . . . . . . . . . . . . . .
35
Open door warning light 82. . . . . . . . . . . . . . . . . . . . . . .
36
Engine oil replacement reminder light 79. . . . . . . . . .
Page 7
PICTORIAL INDEX
xvii
INSTRUMENT CLUSTER (vehicles sold in Canada)
Page 8
For detailed information, refer to the description given in each Section.
PICTORIAL INDEX
xviii
Page
1
Tachometer 72. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
Rear light failure warning light 82. . . . . . . . . . . . . . . . .
3
Driver’s seat belt reminder light 77. . . . . . . . . . . . . . . .
4
SRS warning light 77. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
Automatic headlight leveling system
warning light 84. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6
Adaptive front−lighting system off
indicator light 51. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
Charging system warning light 78. . . . . . . . . . . . . . . . .
8
Low engine oil pressure warning light 78. . . . . . . . . .
9
Malfunction indicator lamp 80. . . . . . . . . . . . . . . . . . . .
10
Headlight high beam indicator light 52. . . . . . . . . . . .
11
Low washer fluid warning light 83. . . . . . . . . . . . . . . . .
12
Automatic transmission fluid temperature
warning light 83. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13
Anti−lock brake system warning light 81. . . . . . . . . . .
14
Brake system warning light 76. . . . . . . . . . . . . . . . . . . .
15
Automatic transmission
indicator lights 389, 398. . . . . . . . . . . . . . . . . . . . . . . . .
16
Fuel gauge 70. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17
Low fuel level warning light 84. . . . . . . . . . . . . . . . . . . .
18
Engine coolant temperature gauge 71. . . . . . . . . . . . .
Page
19
Low tire pressure warning light 84. . . . . . . . . . . . . . . .
20
Slip indicator light 450, 453, 456. . . . . . . . . . . . . . . . . .
21
Snow mode indicator light 397, 408. . . . . . . . . . . . . . .
22
Traction control system off
indicator light 451. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
23
Vehicle stability control system
warning light 83. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
24
Tail light indicator light 48. . . . . . . . . . . . . . . . . . . . . . . .
25
Turn signal indicator lights 52. . . . . . . . . . . . . . . . . . . .
26
Dynamic laser cruise control master
warning light 431. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27
Odometer and trip meter 73. . . . . . . . . . . . . . . . . . . . . .
28
Dynamic laser cruise control display 416. . . . . . . . .
29
Conventional cruise control mode
indicator light 433. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30
Cruise control indicator light 412. . . . . . . . . . . . . . . .
31
Ready mode indicator light 423. . . . . . . . . . . . . . . . . .
32
Easy access mode indicator light 444. . . . . . . . . . . .
33
Height control “OFF” indicator light 446. . . . . . . . . .
34
Height control indicator lights 441. . . . . . . . . . . . . . .
35
Open door warning light 82. . . . . . . . . . . . . . . . . . . . . . .
Page 9
PICTORIAL INDEX
xix
FRONT SEAT
Page
1
Seat position, seat cushion
angle and height control
switch 144, 145. . . . . . . . . . . . . . . . . . . .
2
Seatback angle control
switch 144. . . . . . . . . . . . . . . . . . . . . . . . .
3
Lumbar support control
switch 146. . . . . . . . . . . . . . . . . . . . . . . . .
For detailed information, refer to the
description given in each Section.
Page 10
PICTORIAL INDEX
xx
STEERING WHEEL AND COLUMN
Page
1
Headlight, turn signal and
fog light switches 48, 52, 53. . . . . . . .
2
Audio remote control
switches 304. . . . . . . . . . . . . . . . . . . . . . .
3
Distance switch 416. . . . . . . . . . . . . . . .
4
Speech command button (See the
separate “Navigation System
Owner’s Manual”.)
5
Telephone button (See the separate
“Navigation System Owner’s
Manual”.)
6
Wiper and washer switches 53, 59. .
7
Cruise control switch 412, 416. . . . . .
8
Tilt steering lock release
lever or tilt and telescopic
steering control switch 228, 229. . . .
For detailed information, refer to the
description given in each Section.
Page 11
PICTORIAL INDEX
xxi
EXTERIOR VIEW
Page
1
Rear window defogger 61. . . . . . . . . . .
2
Back door 32, 35. . . . . . . . . . . . . . . . . .
3
Fuel filler door 125. . . . . . . . . . . . . . . . .
4
Moon roof 128, 132. . . . . . . . . . . . . . . .
5
Wiper and washer 53, 609. . . . . . . . . .
6
Outside rear view mirror 230. . . . . . . .
7
Side door 27. . . . . . . . . . . . . . . . . . . . . . .
8
Tire and wheel 570. . . . . . . . . . . . . . . . .
9
Headlights 48, 611. . . . . . . . . . . . . . . . . .
10
Hood 124. . . . . . . . . . . . . . . . . . . . . . . . . .
For detailed information, refer to the
description given in each Section.
Page 12
HOW TO USE THIS MANUAL
viii
HOW TO USE THIS MANUAL
The contents of this manual are explained briefly on this
page to help you make the best use of the manual. Please
read this page and the rest of the Owner’s Manual
carefully to make sure you fully understand the operation
of your vehicle.
This will help you enjoy safe and comfortable driving.
TABLE OF CONTENTS
The table of contents and the pictorial index provide easy
reference to the appropriate pages.
BASIC OPERATION — QUICK REFERENCE
Operation of basic equipment is briefly explained in an easily
understandable way for quick reference.
SECTION 1 — INSTRUMENTS AND
CONTROLS
The vehicle’s equipment is divided into the 7 groups listed
below. Use of the equipment is explained, including any points
you should pay particular attention to.
1. Keys and doors
2. Switches
3. Gauges, meters and service reminder indicators
4. Interior equipment
5. Exterior equipment
6. Occupant restraint systems
7. Steering wheel and mirrors
SECTION 2 — AIR CONDITIONING AND
AUDIO
The features of the vehicle’s air conditioning and audio are
explained in detail. Be sure to read this Section so that you can
make full use of them.
SECTION 3 — STARTING AND DRIVING
Starting the engine, driving, stopping, operation of features
affecting vehicle handling, hints on vehicle safety and safe
driving techniques are all explained. Please read everything
in this Section, and remember — drive safely!
Page 13
HOW TO USE THIS MANUAL
ix
SECTION 4 — IN CASE OF AN EMERGENCY
This Section explains what to do in the event of an urgent
situation such as the engine not starting or getting a flat tire,
etc. If such a problem occurs, check the contents of this
Owner’s Manual and follow the instructions given.
SECTION 5 — MAINTENANCE
This Section explains the importance of regular maintenance.
Regular and periodic inspection and maintenance of your
Lexus will help to keep your vehicle in its best condition.
SECTION 6 — SERVICE PROCEDURES AND
SPECIFICATIONS
Simple maintenance procedure and service data are provided
here for your reference should you wish to perform inspection
and maintenance yourself.
INDEX
The page number is listed for each item in the Owner’s Manual
so that you can rapidly find the item and page you are
searching for.
GAS STATION INFORMATION
The information you need to know for appropriate servicing at
the gas station is provided here.
QUICK INDEX
This is designed so that you can quickly find the needed
information when an urgent situation arises.
Your Lexus Owner’s Manual provides you with a
considerable amount of information. To use this
information most effectively, please take the time to
familiarize yourself with the contents and use of the
manual.
Page 14
HOW TO USE THIS MANUAL
x
Page 15
IMPORTANT INFORMATION ABOUT THIS MANUAL
ii
IMPORTANT INFORMATION
ABOUT THIS MANUAL
Safety and vehicle damage warnings
In this manual you will see CAUTION and NOTICE warnings.
These are used in the following ways:
CAUTION
This is a warning against anything which may cause
injury to people if the warning is ignored. You are
informed about what you must or must not do in order
to reduce the risk of injury to yourself and others.
NOTICE
This is a warning against anything which may cause
damage to the vehicle or its equipment if the warning is
ignored. You are informed about what you must or must
not do in order to avoid or reduce the risk of damage to
your Lexus and its equipment.
Safety symbol
In this manual, you will also see a circle with a slash through
it. This means “Do not”, “Do not do this”, or “Do not let this
happen”.
Page 16
IMPORTANT INFORMATION ABOUT YOUR LEXUS
iii
IMPORTANT INFORMATION
ABOUT YOUR LEXUS
Occupant restraint systems
Lexus encourages you and your family to take the time to read
Section 1−6 of this Owner’s Manual carefully. In terms of
helping you understand how you can receive the maximum
benefit of the occupant restraint systems this vehicle provides,
Section 1−6 of this Owner’s Manual is the most important
Section for you and your family to read.
Section 1−6 describes the function and operation concerning
seats, seat belts, SRS airbags and child restraint systems of
this vehicle and some potential hazards you should be aware
of. These systems work together along with the overall
structure of this vehicle in order to provide occupant restraint
in the event of a crash. The effect of each system is enhanced
when it is used properly and together with other systems. No
single occupant restraint system can, by itself, provide you or
your family with the equal level of restraint which these
systems can provide when used together. That is why it is
important for you and your family to understand the purpose
and proper use of each of these systems and how they relate
to each other.
The purpose of all occupant restraint systems is to help reduce
the possibility of death or serious injury in the event of a
collision. None of these systems, either individually or
together, can ensure that there is no injury in the event of
collision. However, the more you know about these systems
and how to use them properly, the greater your chances
become of surviving an accident without death or serious
injury.
Seat belts provide the primary restraint to all occupants of the
vehicle, and every occupant of the vehicle should wear seat
belts properly at all times. Children should always be secured
in child restraint systems that are appropriate for their age and
size. SRS (Supplemental Restraint System) airbags are, as
their names imply, designed to work with, and be supplemental
to, seat belts and are not substitutes for them. SRS airbags
can be very effective in reducing the risk of head, chest and
knee injuries by preventing contact of the head, chest and knee
with interior portions of the vehicle.
In order to be effective, the SRS airbags must deploy with
tremendous speed. The rapid deployment of the SRS airbags
makes the SRS airbags themselves potential sources of
serious injury if an occupant is too close to an airbag, or if an
object or some part of his or her body has been placed between
the occupant and the airbag at the time of deployment. This
is just one example of how the instructions in Section 1−6 of
this Owner’s Manual will help ensure proper use of the
occupant restraint systems, and increase the safety they can
provide to you and your family in the event of an accident.
Lexus recommends you to read the provisions in Section 1−6
carefully and refer to them as needed during your time of
ownership of this vehicle.
Page 17
IMPORTANT INFORMATION ABOUT THIS MANUAL
iv
Event data recorder
Your vehicle has computers that monitor and control certain
aspects of your vehicle. These computers assist in driving and
maintaining optimal vehicle performance. Besides storing
data useful for troubleshooting, there is a system to record data
in a crash or a near car crash event. This is called an Event
Data Recorder (EDR).
The SRS airbag sensor assembly contains the EDR. In a
crash or a near car crash event, this device may record some
or all of the following information:
D Engine speed
D Whether the brake pedal was applied or not
D Vehicle speed
D To what extent the accelerator pedal was depressed
D Position of the transmission selector lever
D Whether the driver and front passenger wore the seat belts
or not
D Driver’s seat position
D Front passenger’s occupant classification
D SRS airbag deployment data
D SRS airbag system diagnostic data
If your vehicle is equipped with a vehicle stability control (VSC)
system, its Electronic Control Unit (ECU) may contain another
EDR. There are a variety of driving situations which include
activating the VSC under which the VSC EDR will record
certain information. The VSC EDR may record some or all of
the following information:
D Behavior of the vehicle
D Steering wheel angle
D Vehicle speed
D To what extent the accelerator pedal was depressed
D To what extent the brake pedal was applied
D To what extent the ECU controlled the condition of the 4
wheels
D Vehicle stability control system diagnostic data
The information above is intended to be used for the purpose
of improving vehicle safety performance. Unlike general data
recorders, the EDR does not record sound data such as
conversation between passengers.
Page 18
IMPORTANT INFORMATION ABOUT YOUR LEXUS
v
Lexus will not disclose the data recorded in an EDR to a third
party except when:
D An agreement from the vehicle’s owner (or the leasing
company for a leased vehicle) is obtained
D Officially requested by the police or other authorities
D Used as a defense for Lexus in a law suit
D Ordered by the court
However, if necessary Lexus will:
D Use the data for research on Lexus vehicle safety
performance
D Disclose the data to a third party for research purposes
without disclosing details of the vehicle owner, and only
when it is deemed necessary
D Disclose summarized data cleared of vehicle identification
information to a non−Lexus organization for research
purposes
New vehicle warranty
Your new vehicle is covered by the following Lexus limited
warranties:
D New vehicle warranty
D Emission control systems warranty
D Others
For further information, please refer to the “Owner’s Guide”,
“Owner’s Manual Supplement” or “Warranty Booklet”.
Your responsibility for maintenance
It is the owner’s responsibility to make sure the specified
maintenance is performed. Section 5 of this Owner’s Manual
gives details of these maintenance requirements. Included in
Section 6 is general maintenance. For scheduled
maintenance information, please refer to the “Owner’s Manual
Supplement / Scheduled Maintenance”.
Page 19
IMPORTANT INFORMATION ABOUT THIS MANUAL
vi
Important health and safety information about
your Lexus
CAUTION
D WARNING: Engine exhaust, some of its constituents,
and a wide variety of automobile components
contain or emit chemicals known to the State of
California to cause cancer and birth defects and
other reproductive harm. In addition, oils, fuels and
fluids contained in vehicles as well as waste
produced by component wear contain or emit
chemicals known to the State of California to cause
cancer and birth defects or other reproductive harm.
D Battery posts, terminals and related accessories
contain lead and lead compounds. Wash your hands
after handling. Used engine oil contains chemicals
that have caused cancer in laboratory animals.
Always protect your skin by washing thoroughly with
soap and water.
Accessories, spare parts and modification of
your Lexus
A wide variety of non−genuine spare parts and accessories for
Lexus vehicles are currently available in the market. You
should know that Toyota does not warrant these products and
is not responsible for their performance, repair or replacement,
or for any damage they may cause to, or adverse effect they
may have on, your Lexus vehicle.
This vehicle should not be modified with non−genuine Lexus
products. Modification with non−genuine Lexus products
could affect its performance, safety or durability, and may even
violate governmental regulations. In addition, damage or
performance problems resulting from the modification may not
be covered under warranty.
Spark ignition system of your Lexus
The spark ignition system in your Lexus meets all
requirements of the Canadian Interference−Causing
Equipment Standard.
Installation of a mobile two−way radio system
As the installation of a mobile two−way radio system in your
vehicle could affect electronic systems such as the multiport
fuel injection system/sequential multiport fuel injection system,
cruise control system, anti−lock brake system, SRS airbag
system and seat belt pretensioner system, be sure to check
with your Lexus dealer for precautionary measures or special
instructions regarding installation.
Page 20
IMPORTANT INFORMATION ABOUT YOUR LEXUS
vii
Tires and loading on your Lexus
Underinflated or overinflated tire pressure and the
excess load may result in the deterioration of steering
ability and braking ability, leading to an accident.
Check the tire inflation pressure periodically and be
sure to keep the load limits given in this Owner’s
Manual. For details about tire inflation pressure and
load limits, see pages 570 and 489.
Scrapping of your Lexus
The SRS airbag and seat belt pretensioner devices in your
Lexus contain explosive chemicals. If the vehicle is scrapped
with the airbags and seat belt pretensioners left as they are,
this may cause an accident such as fire. Be sure to have the
system of the SRS airbag and seat belt pretensioner removed
and disposed of by a qualified service shop or by your Lexus
dealer before you scrap your vehicle.
On−pavement and off−road driving tips
This vehicle belongs to the utility vehicle class. Utility vehicles
have a significantly higher rollover rate than other types of
vehicles. This vehicle will handle and maneuver differently
from an ordinary passenger car because it is designed for
off−road use also. In addition, this vehicle has a higher ground
clearance and center of gravity than that of an ordinary
passenger car. This vehicle design feature causes this type of
vehicle to be more likely to rollover. Failure to operate this
vehicle correctly may result in loss of control, accidents or
vehicle rollover causing death or serious injury. Be sure to read
“Off−road vehicle precautions” on page 468 and “Off−road
driving precautions” on page 472.
Page 21
FOREWORD
i
Congratulations on your selection of this Lexus. In Lexus vehicles we have invested all our engineering and design resources; all
the know− how we have gained in over 60 years of making automobiles; the highest motivation of our most talented employees; and
our tradition of incessant striving toward ever greater quality.
This Owner’s Manual explains the features of your new Lexus. Please read it and follow the instructions carefully so that
you can enjoy many years of safe motoring.
When it comes to service, remember that your Lexus dealer knows your vehicle very well and is interested in your complete
satisfaction. Your Lexus dealer will provide quality maintenance and any other assistance you may require.
If there is not a Lexus dealer near you, please call the following number:
U.S. OWNERS
If you need emergency assistance for any reason, please call the following number.
D When traveling in the U.S. mainland or Canada:
Lexus Roadside Assistance Toll−free:1−800−25−LEXUS or 1−800−255−3987
D Hawaii:
Servco Automotive Roadside Assistance/Customer Services Toll−free:1−800−25−LEXUS or 1−800−255−3987
CANADIAN OWNERS
D When traveling in Canada or the U.S. mainland:
Lexus Roadside Assistance/Customer Service Toll−free:1−800−26−LEXUS or 1−800−265−3987
Please leave this Owner’s Manual in this vehicle at the time of resale. The next owner will need this information also.
All information and specifications in this manual are current at the time of printing. However, because of the Lexus policy of continual
product improvement, we reserve the right to make changes at any time without notice.
Please note that this manual applies to all models and explains all equipment, including options. Therefore, you may find
some explanations for equipment not installed on your vehicle.
Please access our websites for further information.
D The U.S. mainland www.lexus.com
D Hawaii www.servcolexus.com
D Canada www.lexus.ca
Page 22
cm−1
You should know as much about the quality and
importance of proper maintenance of your new
vehicle as the people who built it.
The Lexus authorized Repair Manual tells you
how to maintain your vehicle and enables you to
correctly perform your own maintenance.
The best way to keep your new vehicle in top running
order is to maintain it properly from the moment you
drive it off the showroom floor.
The Lexus authorized Repair Manual is packed with
literally everything you need to know to perform your
own maintenance in virtually every area of your new
vehicle.
Page 23
cm−2
Maintenance procedures for the engine, chassis,
body, electrical system, and more, are clearly
explained and illustrated.
Periodic maintenance and tune−up
Periodic maintenance and tune−up helps to prevent small
problems from growing into larger ones later on. The repair
manual outlines exactly what maintenance is required and
clearly explains how to do the work yourself step−by−step.
Areas covered include such things as spark plug replacement,
valve clearance adjustment and engine oil and filter
replacement.
Where to obtain the
Repair Manual
The repair manual for RX330 may be purchased from any
Lexus dealer or the Material Distribution Center. To purchase
the repair manual, please contact your Lexus dealer or call the
Material Distribution Center toll−free at 1−800−622−2033.
Page 24
BASIC OPERATION
1
QUICK REFERENCE
Quick reference
Driver’s seat 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Steering wheel (tilt type) 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Steering wheel (tilt and telescopic type) 3. . . . . . . . . . . . . . . . . . . . . . .
Automatic transmission (standard type) 4. . . . . . . . . . . . . . . . . . . . . . .
Automatic transmission (multi−mode type) 6. . . . . . . . . . . . . . . . . . . . .
Headlight and turn signal switch 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiper and washer switch 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 25
BRY069
(c/0)
Seat position
Head restraint
angle
Head restraint
height
Lumbar support
Seatback angle
Seat cushion
height
Seat cushion angle
BRY036
To tilt the steering wheel up or down to the desired angle:
1. Pull the lever up while holding the steering wheel.
2. Tilt the steering wheel to the desired angle.
3. Release the lever.
QUICK REFERENCE
2
1. DRIVER’S SEAT 2. STEERING WHEEL (tilt type)
Page 26
BRY091
(7.2/7)
D TILT OPERATION
To tilt the steering wheel up or down to the desired angle,
push the control switch in the required direction and
release the button when the steering wheel reaches the
desired angle.
BRY092
(7.2/7)
D TELESCOPIC OPERATION
To move the steering wheel to the desired position, push
the control switch away from you or pull it toward you until
the steering wheel reaches the desired position.
QUICK REFERENCE
3
2. STEERING WHEEL (tilt and telescopic type)
Page 27
BRY010
BRY055
(95.8/15)
K Shift while pressing the brake pedal.
(Ignition switch must be in the “ON” position.)
OPERATION OF SELECTOR LEVER
SELECTOR LEVER POSITION
P: Parking, engine starting and key removal
position
R: Reverse position
N: Neutral position
D: Normal driving position
(shifting into overdrive possible)
4: Position for engine braking
(shifting into overdrive not possible)
3, 2: Position for more powerful engine braking
L: Position for maximum engine braking
QUICK REFERENCE
4
3. AUTOMATIC TRANSMISSION (standard type)
Page 28
QUICK REFERENCE
5
NOTE:
Vehicles with the cruise control: When the cruise control is being used, even if you downshift from “D” to “4”, engine braking will not
be enabled because the cruise control is not cancelled. For vehicle speed reduction, see page 415.
Vehicles with the dynamic laser cruise control: When the cruise control is being used in the conventional (fixed speed) cruise control
mode or in the vehicle−to−vehicle distance control mode, even if you downshift from “D” to “4”, engine braking will not be applied
because the cruise control is not cancelled. For vehicle speed reduction, see pages 427 and 436.
Page 29
BRY012
(25/4)
BRY063
(96/15)
K Shift while pressing the brake pedal.
(Ignition switch must be in the “ON” position.)
OPERATION OF SELECTOR LEVER
SELECTOR LEVER POSITION
P: Parking, engine starting and key removal
position
R: Reverse position
N: Neutral position
D: Normal driving position
(shifting into overdrive possible)
S: “S” mode driving
+: Upshifting
−: Downshifting
QUICK REFERENCE
6
3. AUTOMATIC TRANSMISSION (multi−mode type)
Page 30
QUICK REFERENCE
7
NOTE:
Vehicles with the cruise control: When the cruise control is being used, even if you downshift from “D” or “5” (fifth range) to “4” (fourth
range), engine braking will not be enabled because the cruise control is not cancelled. For vehicle speed reduction, see page 415.
Vehicles with the dynamic laser cruise control: When the cruise control is being used in the conventional (fixed speed) cruise control
mode or in the vehicle−to−vehicle distance control mode, even if you downshift from “D” or “5” (fifth range) to “4” (fourth range), engine
braking will not be applied because the cruise control is not cancelled. For vehicle speed reduction, see pages 427 and 436.
Page 31
BRY114
(4/70)
BRY113
(4/7)
Parking, tail, license plate,
side marker and instrument
panel lights turn on.
D HEADLIGHT SWITCH
Automatic light control
turns on.
Headlights also turn on.
High beam
Headlight flasher
D HEADLIGHT DIMMER SWITCH
BRY115
(c/7)
Right or left turn
Lane change (right or left)
D TURN SIGNAL SWITCH
QUICK REFERENCE
8
4. HEADLIGHT AND TURN SIGNAL SWITCH
Page 32
BRY116
(c/10)
D Front
(Variable intermittent windshield wipers)
Variable intermittent
operation
Washer on
Mist operation
High speed operation
Low speed operation
BRY117
(c/7)
D Front (Rain−sensing windshield wipers)
Automatic operation
Washer on
Mist operation
High speed operation
Low speed operation
QUICK REFERENCE
9
5. WIPER AND WASHER SWITCH
Page 33
BRY118
(c/7)
D Rear
1
Wiper on
(intermittent operation)
2
Wiper on
(normal operation)
3
Washer also on
4
Washer on
QUICK REFERENCE
10
Page 34
GAS STATION INFORMATION
D Fuel selection:
Premium unleaded gasoline with an Octane Rating of 91
(Research Octane Number 96) or higher required for
optimum engine performance. However, if such premium
type cannot be obtained, you may use unleaded gasoline
with an Octane Rating as low as 87 (Research Octane
Number 91).
D Fuel tank capacity:
72.5 L (19.2 gal., 15.9 Imp. gal.)
D Engine oil:
“Toyota Genuine Motor Oil” or equivqlent
Oil grade: ILSAC multigrade engine oil
Recommended oil viscosity: SAE 5W−30
Oil capacity: L (qt., Imp. qt.)
Drain and refill
With filter 4.7 (5.0, 4.1)
Without filter 4.5 (4.8, 4.0)
See page 556 for detailed information.
D Engine coolant:
Capacity: 9.5 L (10.0 qt., 8.4 Imp. qt.)
Coolant type — “Toyota Super Long Life Coolant” or similar
high quality ethylene glycol based non−silicate, non−amine,
non−nitrite, and non−borate coolant with long−life hybrid
organic acid technology (Coolant with long−life hybrid
organic acid technology is a combination of low phosphates
and organic acids.)
Do not use plain water alone.
For checking the engine coolant, see page 559.
D Automatic transaxle:
Fluid type — Toyota Genuine ATF Type T−IV
See page 564 for detailed information.
D Tire information:
See pages 570 through 591 for detailed information.
D Tire inflation pressure:
Tire size: 225/65R17 101S or P235/55R18 99V
Tire inflation pressure: cold tires
kPa (kgf/cm
2
or bar, psi)
225/65R17 101S* P235/55R18 99V
Front tires 210 (2.1, 30) 210 (2.1, 30). . . . . . . . . . . .
Rear tires 210 (2.1, 30) 210 (2.1, 30). . . . . . . . . . .
Spare tire 210 (2.1, 30) 210 (2.1, 30). . . . . . . . . . . .
*: For sustained high speeds above 160 km/h (100 mph),
in countries where such speeds are permitted by law, add
10 kPa (0.1 kgf/cm
2
or bar, 1.5 psi) to the front tires and
rear tires, but never exceed the maximum cold tire
pressure molded on the tire sidewall.
Page 35
WE REALLY CARE ABOUT YOU − PLEASE BUCKLE UP
Lexus has made a special effort to encourage use of seat belts.
Lexus belts are:
D Comfortable
D Easy to use
D Convenient
We encourage you to use your belts every time you drive.
2006 RX330 from Aug. ’05 Prod. (OM48579U)
Page 36
SECTION 1 – 1
11
INSTRUMENTS AND CONTROLS
Keys and doors
Keys 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine immobilizer system 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Back door 32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power back door 35. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft deterrent system 43. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 37
KEYS AND DOORS
12
KEYS
" Vehicles with power back door system
" Vehicles without power back door system
1
Master keys (black) — These keys work in every lock.
For your Lexus dealer to make a new key with a
built−in transponder chip, your dealer will need one
of them.
2
Valet key (gray) — This key will not open the glove
box.
3
Key number plate — Keep the plate in a safe place
such as your wallet, not in the vehicle.
A transponder chip for the engine immobilizer system has been
placed in the head of the master and valet keys. These chips
are required for the system to function correctly, so be careful
not to lose these keys. If you make your own duplicate key, you
will not be able to cancel the system or start the engine.
To protect items locked in the glove box when using valet
parking, leave the valet key with the attendant.
Since the side doors and back door can be locked without a
key, you should always carry a spare master key in case you
accidentally lock your keys inside the vehicle.
If you should lose your keys or if you need additional keys,
duplicates can be made by a Lexus dealer using the key
number.
We recommend writing down the key number and storing it in
a safe place.
Page 38
KEYS AND DOORS
13
Flat key
As a transponder chip is built in its key case, you can start
the engine with this key.
The flat key works in every lock.
A transponder chip for engine immobilizer system has been
placed in the key case of the flat key. This chip is needed to
enable the system to function correctly, so be careful not to lose
this key. If you make your own duplicate key, you will not be
able to cancel the system or start the engine.
Insert your flat key plate in its key case as shown. We
recommend that you always carry this with you for emergency
use. Do not leave it in your vehicle.
Starting the engine using a flat key
1. Remove the key plate from the key case.
2. Insert the key plate into the ignition switch. The indicator
light keeps flashing.
3. Bring the key case closer to the ignition switch within 10
seconds as indicated by the arrow head. The indicator light
goes out. This means the engine immobilizer system is
automatically canceled. (For details, see “Engine immobilizer
system” on page 16.) You can put the key case away then. You
cannot cancel the engine immobilizer system if 10 seconds
have past after you inserted the key plate. You need to remove
the key plate from the ignition switch and try it again from the
step 2.
Page 39
KEYS AND DOORS
14
4. Start the engine within 60 seconds after the security
indicator light goes out. You cannot start the engine if 60
seconds have past after the security indicator went off. You
need to remove the key plate from the ignition switch and try
it again from the step 2.
NOTICE
D Do not let the key case become bent as the key plate
may fall out or become bent also.
D The flat key is designed for emergency use only. So
do not use it regularly instead of other master keys.
When using a key containing a transponder chip,
observe the following precautions:

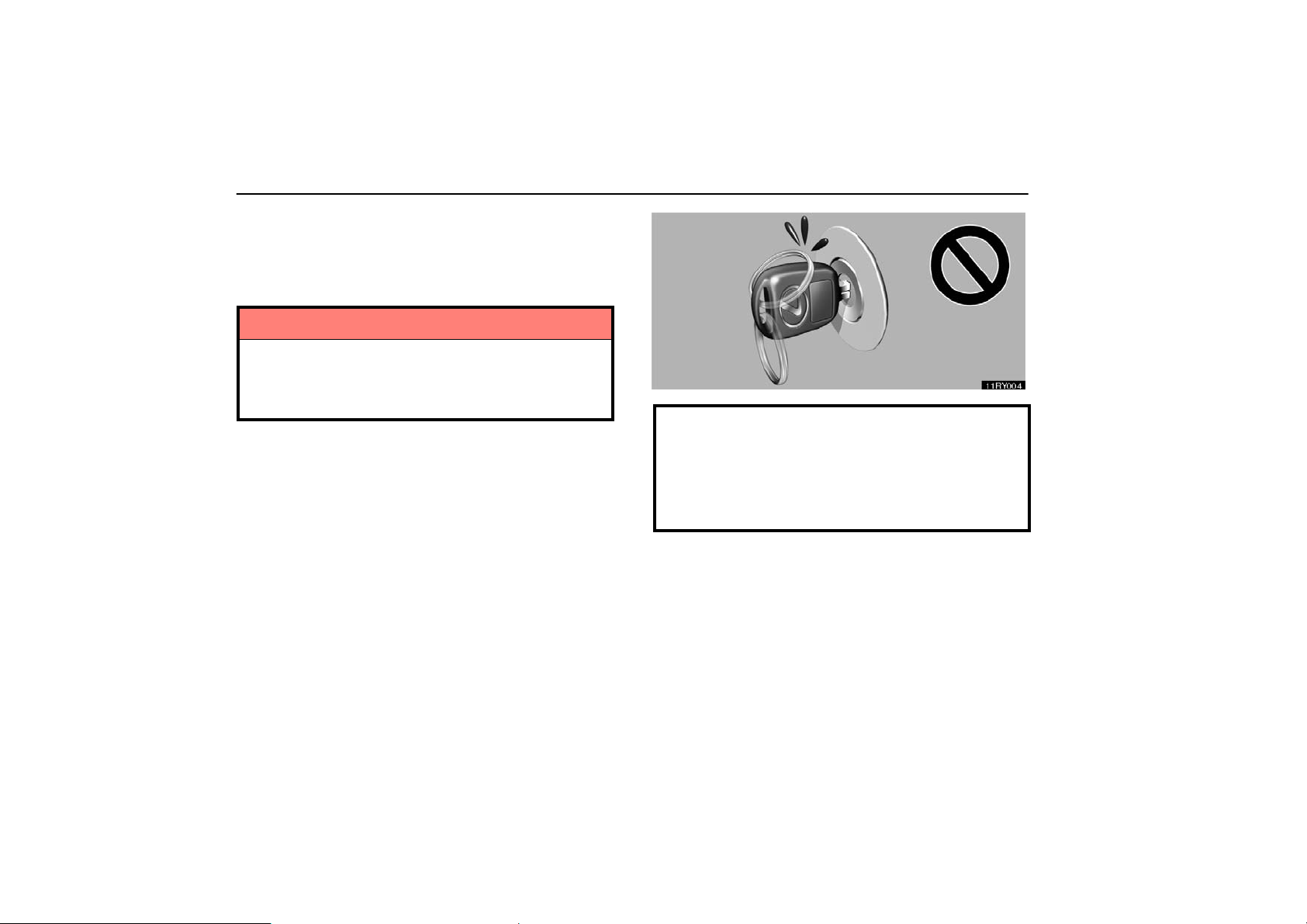

D When starting the engine, do not use the key with a
key ring resting on the key grip and do not press the
key ring against the key grip. Doing so may prevent
the engine from starting, or may cause the engine to
stop soon after it starts.
Page 40
KEYS AND DOORS
15
D When starting the engine, do not use the key in
proximity with other transponder keys (including the
flat key and keys of other vehicles), and do not press
other key plates against the key grip. Doing so may
prevent the engine from starting, or may cause the
engine to stop soon after it starts. If this happens,
remove the key once and then insert it again after
removing other transponder keys (including the flat
key and keys of other vehicles) from the ring or while
gripping or covering them with your hand to start the
engine.
D Do not bend the key grip or flat key.
D Do not cover the key grip or flat key with any material
that cuts off electromagnetic waves.
D Do not knock the key or flat key hard against other
objects.
D Do not leave the key or flat key exposed to high
temperatures for a long period, such as on the
dashboard or hood under direct sunlight.
D Do not put the key or flat key in water or wash it in an
ultrasonic washer.
D Do not use the key or flat key with electromagnetic
materials.
Page 41
KEYS AND DOORS
16
ENGINE IMMOBILIZER SYSTEM
The engine immobilizer system is a theft prevention
system. When you insert the key in the ignition switch, the
transponder chip in the key’s head transmits an electronic
code to the vehicle. The engine will start only when the
electronic code in the chip corresponds to the registered
ID code for the vehicle.
The system is automatically set when the key is removed from
the ignition switch. At this time, the security indicator light
flashes. When you insert the key in the ignition switch, the
security indicator light goes out and the system is canceled
automatically, which enables the engine to start.
The transponder chip of the flat key is in its key case. You can
cancel the engine immobilizer system using the flat key. (For
details, see “Flat key” on page 13.)
For your Lexus dealer to make you a new key with built−in
transponder chip, your dealer will need your key number and
master key or the flat key. However, there is a limit to the
number of additional keys your Lexus dealer can make for you.
If you make your own duplicate key, you will not be able to
cancel the system or start the engine.
Page 42
KEYS AND DOORS
17
For vehicles sold in U.S.A.
FCC ID: MOZRI−20BTY
MADE IN JAPAN
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
CAUTION
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
For vehicles sold in Canada
This device complies with RSS−210 of Industry
Canada.
Operation is subject to the following two conditions:
(1) This device may not cause interference, and (2)
this device must accept any interference, including
interference that may cause undesired operation of
the device.
Page 43
KEYS AND DOORS
18
WIRELESS REMOTE CONTROL*
" Vehicles with power back door system
1
Locking the doors and sounding an alarm
2
Unlocking the doors
3
Indicator light
4
Opening or closing the power back door
" Vehicles without power back door system
1
Locking the doors
2
Unlocking the doors
3
Indicator light
4
Sounding an alarm
NOTE:
* This feature can be set inoperative as vehicle theft
deterrent measure in case of the loss of the wireless remote
control key.
Ask your Lexus dealer for details.
When you operate any button on the key, push it slowly and
surely. At this time, the indicator light on the key grip flashes
once.
Page 44
KEYS AND DOORS
19
The operational range of the wireless remote control is
approximately 1 meter (3 ft.). The effective range may vary
with different conditions. To activate the wireless remote
control without fail, do it approximately 1 meter (3 ft.) from your
Lexus.
In the following cases, the battery in the key may be
discharged. If this is the case, replace it using a special
screwdriver.
D The remote control does not work.
D The operational range of wireless remote control becomes
extremely short.
D The indicator light on the key is dimmed or does not come
on.
For the replacement of the battery, see “Replacing the battery”
on page 25. You can also have the battery of the key replaced
by your Lexus dealer.
If you lose the wireless key, contact your Lexus dealer as soon
as possible to avoid the possibility of theft, or an accident. (See
“If you lose your keys or lock yourself out” on page 525.)
You can use up to 4 wireless remote control keys for the same
vehicle. Contact your Lexus dealer for detailed information.
The wireless remote control key is an electronic
component. Observe the following instructions in order
not to cause damage to the key.
D Do not leave the wireless remote control key in places
where the temperature becomes high such as on the
dashboard.
D Do not disassemble it.
D Avoid knocking it hard against other objects or dropping it.
D Avoid putting it in water.
Page 45
KEYS AND DOORS
20
Locking/unlocking the doors
When you push the “LOCK” button on the key briefly, all
the side doors and back door can be locked from outside
the vehicle.
At this time, one beep sounds and the turn signal lights flash
once.* However, when you push the “LOCK” button with any
door not closed securely, the buzzer sounds for 10 seconds.**
To stop the buzzer, close all the side doors and back door
securely or push the “UNLOCK” button. If the key is in the
ignition switch, locking cannot be done.
Make sure all the side doors and back door are locked when
you leave the vehicle. Push the “LOCK” button once again.
NOTE:
* The turn signal lights can be set not to flash and the beep
can be set not to sound.
** The buzzer can be set not to sound if a door is not closed
securely.
Ask your Lexus dealer for details.
NOTICE
Vehicles with power back door system — Do not push
the “LOCK” button any longer than 2 to 3 seconds.
Pushing the button longer activates an alarm. For
details, see page 21.
When you push the “UNLOCK” button, the driver’s door
is unlocked. Pushing that button once again within 3
seconds from the first push, all other side doors and back
door are also unlocked.*
NOTE:
* The 2−step unlocking function can be changed.
Ask your Lexus dealer for details.
At this time, two beeps sound and the turn signal lights flash
twice.* Together with the activation of unlocking, some interior
lights will come on. For further information, see “Illuminated
entry system” on page 97.
Page 46
KEYS AND DOORS
21
You have 30 seconds to open a door after using the wireless
remote unlock feature.** If a door is not opened by then, all the
side doors and back door will be automatically locked again.
Even if the “LOCK” or “UNLOCK” button is kept pressed in, the
locking or unlocking operation is not repeated. Release the
button and then push again.
NOTE:
* The turn signal lights can be set not to flash and the beep
can be set not to sound.
** The time before automatic re−locking can be changed.
Ask your Lexus dealer for details.
Sounding an alarm*
" Vehicles with power back door system
" Vehicles without power back door system
Page 47
KEYS AND DOORS
22
Vehicles with power back door system — When you push
the “PANIC” button for about 2 to 3 seconds, an alarm
sounds to deter any person trying to break into or damage
your vehicle.
Vehicles without power back door system — When you
push the “PANIC” button for about 1 second, an alarm
sounds to deter any person trying to break into or damage
your vehicle.
If you want to stop the alarm, push any button.
This function does not work when the ignition key is in the “ON”
position.
NOTE:
* The alarm can be set not to sound.
Ask your Lexus dealer for details.
Operating the windows and moon roof*
Vehicles with normal type moon roof —
The windows and moon roof can be opened using a
wireless key from outside the vehicle.
Others —
The windows can be opened using a wireless key from
outside the vehicle.
NOTE:
* The windows and moon roof can be set inoperative.
Ask your Lexus dealer for details.
Push the “UNLOCK” button until the windows and moon roof
start to move. A beep sounds just before opening. When you
release the button, the windows and moon roof stop opening.
Page 48
KEYS AND DOORS
23
Opening and closing the power back door*
To open the back door: Push the “PWR DOOR” button for
about 1 second.** At this time, the turn signal lights flash
twice, two beeps sound*** and the back door fully opens
automatically.****
When pushing the button while the opening operation is being
performed, the back door will close. At this time, a beep
sounds.***
To close the back door: Push the “PWR DOOR” button
once again for about 1 second.** At this time, the turn
signal lights flash twice, two beeps sound*** and the back
door fully closes automatically.****
When pushing the button while the closing operation is being
performed, the back door will open. At this time, a beep
sounds.***
NOTE:
* This feature can be set inoperative.
** The operation method can be changed.
*** The beep will sound from both the front and rear of the
vehicle. The front beep can be set not to sound.
**** It is possible to set the beep to sound while the back
door opens or closes and adjust its volume.
Ask your Lexus dealer for details.
Opening or closing operation can be performed by the button
under the following conditions:
D The key is not in the ignition switch.
D The vehicle is stopped.
D The back door is unlocked.*
D The power back door system is on. (The power back door
off switch is pushed in.) For details, see page 38.
D To open — The back door is between in the fully−closed
position and half−opened position.
D To close — The back door is between in the fully−opened
position and half−opened position.
NOTE:
* The back door can be set to be opened without being
unlocked first.
Ask your Lexus dealer for details.
Page 49
KEYS AND DOORS
24
For vehicles sold in U.S.A.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
NOTICE:
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses and
can radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee
that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which
can be determined by turning the equipment off and
on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
D Reorient or relocate the receiving antenna.
D Increase the separation between the equipment
and receiver.
D Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
D Consult the dealer or an experienced radio / TV
technician for help.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the
equipment.
For vehicles sold in Canada
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2)
this device must accept any interference, including
interference that may cause undesired operation of
the device.
Page 50
KEYS AND DOORS
25
Replacing the battery
When you replace the battery, prepare a lithium battery
CR2016 or equivalent and a special screwdriver.
CAUTION
Special care should be taken to prevent small children
from swallowing the removed battery or components.
NOTICE
D When replacing the battery, be careful not lose the
components.
D Replace only with the same or equivalent type
recommended by a Lexus dealer.
D Dispose of used batteries according to the local laws.
1. Remove the screw, and then the cover while pushing it in the
arrow direction.
2. Remove the module from the key frame.
Page 51
KEYS AND DOORS
26
3. Open and remove the battery case cover using a coin.
4. Remove the discharged battery and put in a new battery
with the positive side up.
NOTICE
D Make sure the positive side and negative side of the
battery are faced correctly.
D Do not replace the battery with wet hands. Water may
cause unexpected rust.
D Do not touch or move any components inside the
transmitter, or it may interfere with proper operation.
D Be careful not to bend the electrode when inserting
the battery and that dust or oils do not adhere to the
inside of the module.
D Take care not to lose the screw.
5. Replace the battery case cover.
6. Install the module into the key frame and secure the cover
with the screw.
7. When pushing any button on the wireless key, make sure
the indicator light comes on.
Page 52
KEYS AND DOORS
27
SIDE DOORS
Locking with key
"1Lock
2
Unlock
Turn the key towards the front of the vehicle to lock and
towards the back to unlock.
All the side doors and back door lock and unlock
simultaneously with the driver’s door. Turning the key once will
unlock the driver’s door and twice in succession will unlock all
the side doors and back door simultaneously.*
NOTE:
* The 2−step unlocking function can be changed.
Ask your Lexus dealer for details.
If a wrong key is used, the key cylinder rotates freely to isolate
inside mechanism. So, door locking is protected from thieves.
Together with the activation of unlocking, some interior lights
will come on. For further information, see “Illuminated entry
system” on page 97.
The windows and moon roof (normal type) can be opened and
closed from outside the vehicle using the key. For details, see
“Power window switches” on page 62 and “Moon roof (normal
type)” on page 128.
Page 53
KEYS AND DOORS
28
Locking with inside lock button
"1Lock
2
Unlock
Push the button forward to lock and pull the button
backward to unlock.
The front doors can be opened by pulling the inside handles
even if the lock buttons are in the locked position.
CAUTION
Do not pull the inside handle of the front doors while
driving. The doors will open and an accident may occur.
Lexus strongly recommends that all children be placed
in the rear seat of the vehicle.
Closing the door with the lock button pushed in will also lock the
door. Be careful not to lock your keys in the vehicle. Doors
cannot be locked when either front door is open and the key is
in the ignition.
If the vehicle is subjected to a severe frontal, rear or side impact
with the ignition switch turned to the “ON” position, all the side
doors and back door will unlock automatically after a few
seconds.
CAUTION
Before driving, make sure the doors are closed and
locked, especially when small children are in the
vehicle. Along with the proper use of seat belts, locking
the doors helps prevent the driver and passengers from
being thrown out from the vehicle in an accident. It also
helps prevent the doors from being opened
unintentionally.
Page 54
KEYS AND DOORS
29
Locking with power door lock switch
"1Lock
2
Unlock
To lock all the side doors and back door simultaneously,
push the power door lock switch down on the front side.
Pushing down on the rear side will unlock them.
The same switch is also located on the front passenger’s side.
If you do any of the following, no door can be unlocked with the
power door lock switch.
D Lock all the side doors and back door with the key or
wireless remote control when all the side doors and back
door are closed.
D Open the driver’s door or front passenger’s door and move
the inside lock buttons of both front doors to the lock
position, then close the front doors.
The power door lock switch can be reset in the following ways.
D Turn the ignition key to the “ON” position.
D Unlock all the side doors and back door with the key or
wireless remote control.
D Unlock the driver’s door or front passenger’s door with the
inside lock button, and then unlock all the side doors and
back door with the power door lock switch.
Automatic door locking and unlocking
functions
AUTOMATIC DOOR LOCKING
You can select the following functions:
D Locking linked with the shift position
All doors are automatically locked when the selector lever
is moved out of “P” position.
D Locking linked with vehicle speed
All doors are automatically locked when the vehicle speed
goes above about 20 km/h (12 mph).
You can set or cancel the automatic door locking
functions:
Be sure to apply the parking brake when performing the
following operations.
Page 55
KEYS AND DOORS
30
To select the locking linked with the shift position:
1. Close all doors and turn the ignition switch to the “ON”
position.
2. Shift the selector lever to the “P” position.
3. Within 10 seconds of turning the ignition switch to the “ON”
position, press and hold the driver’s side power door lock
switch in the lock position for 5 seconds and then release.
The doors will be locked and unlocked to indicate that the
function is set.
To cancel the function, do the above operation again.
To select the locking linked with the vehicle speed:
1. Close all doors and turn the ignition switch to the “ON”
position.
2. Shift the selector lever from “P” to the ”N” position.
3. Within 10 seconds of turning the ignition switch to the “ON”
position, press and hold the driver’s side power door lock
switch in the lock position for 5 seconds and then release.
The doors will be locked and unlocked to indicate that the
function is set.
To cancel the function, do the above operation again.
AUTOMATIC DOOR UNLOCKING
You can select the following functions:
D Unlocking linked with the shift position
All doors are automatically unlocked when the selector lever
is moved to “P” position.
D Unlocking linked with the ignition switch
All doors are automatically unlocked when the driver’s door
is opened within 10 seconds after the ignition switch is
turned to the “ACC” or “LOCK” position, or the key is
removed.
You can set or cancel the automatic door unlocking
functions:
Be sure to apply the parking brake when performing the
following operations.
To select the unlocking linked with the shift position:
1. Close all doors and turn the ignition switch to the “ON”
position.
2. Shift the selector lever to the “P” position.
3. Within 10 seconds of turning the ignition switch to the “ON”
position, press and hold the driver’s side power door lock
switch in the unlock position for 5 seconds and then release.
The doors will be locked and unlocked to indicate that the
function is set.
To cancel the function, do the above operation again.
Page 56
KEYS AND DOORS
31
To select the unlocking linked with the ignition switch:
1. Close all doors and turn the ignition switch to the “ON”
position.
2. Shift the selector lever from “P” to the “N” position.
3. Within 10 seconds of turning the ignition switch to the “ON”
position, press and hold the driver’s side power door lock
switch in the unlock position for 5 seconds and then release.
The doors will be locked and unlocked to indicate that the
function is set.
To cancel the function, do the above operation again.
Locking with rear door child−protector
"1Unlock
2
Lock
Whenever small children are in the vehicle, lock the rear
door so that it does not open by the inside door handle.
To do this, move the lever to the “LOCK” position as
shown and then close the door.
Page 57
KEYS AND DOORS
32
BACK DOOR
Opening and closing
"1Push
2
Open
To open the back door, push up the back door opener and
raise the door.
If the back door will not open even pushing up the back door
opener, push it up again.
When opening the back door, make sure that the back door will
not come down by itself.
The back door can be opened when the vehicle is stopped.
The back door can be locked or unlocked in the following ways.
D Operate the power door lock switch. (See “Side doors” on
page 27.)
D Operate the wireless remote control. (See “Wireless remote
control” on page 18.)
D All the side doors and back door are locked and unlocked
simultaneously with the driver’s door. (See “Side doors” on
page 27.)
If the battery is disconnected or run down, the back door will be
automatically locked after you reconnect, replace or recharge
the battery. Be careful not to lock your keys in the vehicle.
See “Stowage precautions” on page 490 for precautions when
loading luggage.
Page 58
KEYS AND DOORS
33
When closing the back door, the inside handle can be used
to make the reach easier.
To close the back door, lower it and press down on it. After
closing the back door, try pulling it up to make sure it is securely
closed.
CAUTION
D Keep the back door closed while driving. This not
only keeps the luggage from being thrown out but
also prevents exhaust gases from entering the
vehicle.
D If the open back door hides the rear stop and tail
lights or rear turn signal lights while you are parked,
other road users must be warned of the presence of
your vehicle by a warning triangle or other device.
NOTICE
To prevent damage to the back door dampers, do not
apply any force, paint or let any other foreign matter on
them.
Page 59
KEYS AND DOORS
34
If the back door opener does not operate
If the back door opener does not operate, you can open the
back door from the inside.
To open the back door from the inside, do the following.
1. Remove the cover with a key.
2. Push the lever and open the back door.
Have your vehicle checked/repaired by your Lexus dealer if the
back door opener does not operate.
Page 60
KEYS AND DOORS
35
POWER BACK DOOR
Opening and closing by hand
"1Push
2
Open
To open the back door, push up the back door opener and
raise the door.
If the back door will not open even pushing up the back door
opener, push it up again.
When opening the back door, make sure that the back door will
not come down by itself.
The back door can be opened when the vehicle is stopped.
The back door can be locked or unlocked in the following ways.
D Operate the power door lock switch. (See “Side doors” on
page 27.)
D Operate the wireless remote control. (See “Wireless remote
control” on page 18.)
D All the side doors and back door are locked and unlocked
simultaneously with the driver’s door. (See “Side doors” on
page 27.)
If the battery is disconnected or run down, the back door will be
automatically locked after you reconnect, replace or recharge
the battery. Be careful not to lock your keys in the vehicle.
See “Stowage precautions” on page 490 for precautions when
loading luggage.
Page 61
KEYS AND DOORS
36
When closing the back door, the inside handle can be used
to make the reach easier.
To close the back door, lower it and press down on it. After
closing the back door, try pulling it up to make sure it is securely
closed.
CAUTION
D Keep the back door closed while driving. This not
only keeps the luggage from being thrown out but
also prevents exhaust gases from entering the
vehicle.
D If the open back door hides the rear stop and tail
lights or rear turn signal lights while you are parked,
other road users must be warned of the presence of
your vehicle by a warning triangle or other device.
NOTICE
To prevent damage to the back door dampers, do not
apply any force, paint or let any other foreign matter on
them.
Page 62
KEYS AND DOORS
37
Back door closer
When the back door has not been fully closed, it is fully
closed automatically even if the power back door system
is off.
CAUTION
D Careful attention is needed so as not to get your
fingers trapped as the back door automatically
closes when it has not been fully closed.
D Never allow a child to operate the back door.
NOTICE
Do not apply excessive force when the back door closer
is operating. Otherwise, the back door closer may
become defective.
If the back door opener does not operate
If the back door opener does not operate, you can open the
back door from the inside.
To open the back door from the inside, do the following.
1. Remove the cover with a key.
Page 63
KEYS AND DOORS
38
2. Push the lever and open the back door.
Have your vehicle checked/repaired by your Lexus dealer if the
back door opener does not operate.
Power back door off switch
"1Power back door off switch
2
Operative
3
Inoperative
This switch is used to turn on and off the power back door
system. In order to operate the power back door, the
switch in the glove box must be pushed in. To disable the
power back door feature, push out the switch.
Page 64
KEYS AND DOORS
39
CAUTION
Do not leave small children or pets unattended in your
vehicle. They could operate the power back door, and
anyone around the back door could be injured. Turn off
the power back door system when the power back door
is not in use.
NOTICE
When your vehicle goes through an automatic car wash,
make sure the power back door system is off.
Power back door switches
" Power back door opener/closer switch
" Power back door closer switch
Page 65
KEYS AND DOORS
40
Pull down the switch cover.
To open the back door, push the power back door
opener/closer switch on the instrument panel for about 1
second.* At this time, the turn signal lights flash twice,
two beeps sound** and the back door fully opens
automatically.***
When pushing the switch while the opening operation is being
performed, the back door will close. At this time, a beep
sounds.**
To close the back door, push the power back door
opener/closer switch once again for about 1 second* or
push the power back door closer switch on the back door.
At this time, the turn signal lights flash twice, two beeps
sound** and the back door fully closes automatically.***
When pushing the switch while the closing operation is being
performed, the back door will open. At this time, a beep
sounds.**
NOTE:
* The time required to push the switch can be changed.
** The beep will sound from both the front and rear of the
vehicle. The front beep can be set not to sound.
*** It is possible to set the beep to sound while the back door
opens or closes and adjust its volume.
Ask your Lexus dealer for details.
Opening or closing operation can be performed by the
switches under the following conditions:
D The vehicle is stopped.
D The back door is unlocked.*
D The power back door system is on. (The power back door
off switch is pushed in.)
D To open — When the ignition key is in the “ON” position, the
transmission selector lever must be in “P”.
D To open — The back door is between in the fully−closed
position and half−opened position.
D To close — The back door is between in the fully−opened
position and half−opened position.
The power back door can be opened and closed using the
wireless remote control. For details, see “Wireless remote
control” on page 18.
NOTE:
* The back door can be set to be opened without being
unlocked first.
Ask your Lexus dealer for details.
Page 66
KEYS AND DOORS
41
Jam protection function
If anything with sufficient resistance obstructs the power back
door while it is closing or opening, the back door will
automatically reverse to the opposite direction.
If the jam protection function operates continuously at the
closing operation more than 2 times, the back door will be
stopped at that position.
Before operating the power back door, make sure there is
nobody near the back door.
The resistance must be as strong as the force of the moving
door, or stronger. As the back door approaches the
fully−closed or fully−opened position, its moving force
increases significantly.
If the back door receives a strong impact, this function may
operate even if nothing is caught.
Falling down protection function
When you open the back door with the switch or the wireless
remote control, if some loads such as snow on the back door
make the back door fall down, the back door will automatically
close. The beeps sound intermittently while closing the back
door.
Before opening the power back door, make sure there is no
load on the back door.
If you close the back door by hand right after the back door
opening, this function may work even there is no load on the
back door.
Page 67
KEYS AND DOORS
42
CAUTION
The power back door could injure people if they are
caught in the door path. When using the power back
door, observe the following:
D Before you close the power back door, always make
sure there is nobody around it. If someone’s neck,
head or hands get caught in a closing door, it could
result in death or serious injury. When anyone closes
the power back door, make sure he or she operates
the door safely.
D Do not leave small children or pets unattended in
your vehicle. They could operate the power back
door, and anyone around the back door could be
injured. Turn off the power back door system when
the power back door is not in use.
D Never try jamming any part of your body to activate
the jam protection function intentionally, as it could
result in a serious injury.
D The jam protection function may not work if
something gets caught just before the back door is
fully closed.
NOTICE
D Do not apply excessive force when the back door is
operated automatically. Otherwise, the power back
door system may become defective.
D Objects caught in the path of the back door may be
damaged. Make sure there is nothing in the doorway
before closing the back door.
If the power back door does not work
If the power back door does not work, you should normalize the
power back door.
To normalize the power back door, close the back door
completely by hand.
If the power back door system does not operate properly after
the above procedure, there may be a problem in the system.
Contact your Lexus dealer.
Page 68
KEYS AND DOORS
43
THEFT DETERRENT SYSTEM
To deter theft of the vehicle, this system is designed to
sound an alarm if any of the doors or hood is forcibly
unlocked or the battery terminal is disconnected and then
reconnected while the vehicle is locked.
The alarm blows the horn intermittently and flashes the
headlights, tail lights and turn signal lights.
Further more when the interior light switch is in the “DOOR”
position, the interior light turns on.
" Security indicator light
Setting the system
1. Turn the ignition key to the “LOCK” position and
remove it.
The engine immobilizer system causes the indicator light to
flash.
2. Close and lock all the doors and hood using an ignition
key or wireless remote control.
The flashing indicator light will remain on when all the doors
and hood are closed and locked.
3. After 30 seconds, the indicator starts flashing and the
system is set.
Page 69
KEYS AND DOORS
44
Cancelling the system
When you unlock any door using an ignition key or
wireless remote control, the system is cancelled.
Also, the system will be cancelled when the ignition key is
turned to the “ON” position.
Activating the system
The alarm sounds for about 1minute if any of the following are
operated:
D Unlocking any door without using an ignition key or wireless
remote control.
D Opening hood and any doors forcibly.
D Reconnecting the battery.
D Hotwiring the ignition.
If the battery becomes discharged due to the vehicle being
unused for a long time, etc., when the battery is recharged or
replaced, the system will give the alarm. If this happens,
immediately unlock any of the doors with the key or the
wireless remote control, and the alarm will stop.
If any door is unlocked and the ignition key is not in the ignition
switch during the alarm sounding, the door is automatically
locked.
To stop the alarm: Use either of the following methods.
D Unlock the door using an ignition key or wireless remote
control.
D Turn the ignition switch on.
Page 70
KEYS AND DOORS
45
Testing the system
1. Open all the windows.
2. Set the system as described above.
The side doors and back door should be locked with the ignition
key or wireless remote control. Be sure to wait until the
indicator light starts flashing.
3. Unlock one of the doors from the inside.
The system should activate the alarm.
4. Unlock any of the doors with a key or the wireless
remote control to cancel the system.
5. Repeat this operation for the other doors and hood.
When testing the hood, also check that the system is activated
when the battery terminal is disconnected and then
reconnected.
If the system does not work properly, have it checked by your
Lexus dealer.
NOTICE
Disconnecting the battery may result in the erasure of
information you have set in the computer memory. After
reconnecting the battery, check that the memorized
data has been retained. If it has been erased, input it into
the computer once more.
Page 71
KEYS AND DOORS
46
Page 72
SECTION 1 – 2
47
INSTRUMENTS AND CONTROLS
Switches
Headlight switch 48. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight dimmer and turn signal switch 52. . . . . . . . . . . . . . . . . . . . .
Fog light switch 53. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield wiper and washer switch 53. . . . . . . . . . . . . . . . . . . . . . . . .
Rear window wiper and washer switch 59. . . . . . . . . . . . . . . . . . . . . . .
Headlight cleaner switch 60. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window and outside rear view mirror
defogger, and windshield wiper de−icer switch 61. . . . . . . . . . . . . . . .
Power window switches 62. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flasher switch 66. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seat heater switches 67. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 73
SWITCHES
48
HEADLIGHT SWITCH
"1U.S.A.
2
Canada
To turn the lights on, twist the knob on the end of the lever.
FIRST CLICKSTOP: Only the parking, tail, license plate, side
marker and instrument panel lights turn on.
SECOND CLICKSTOP: Headlights also turn on.
THIRD CLICKSTOP (“AUTO”): The headlights and all other
lights automatically turn on depending on the darkness of the
surroundings.
Vehicles sold in U.S.A.: When the headlights are on, the
headlight indicator lights up in the instrument cluster.
Vehicles sold in Canada: When the tail lights are on, the tail
light indicator lights up in the instrument cluster.
With the knob in the “AUTO” position, there may be a case
that the headlights do not turn on immediately, even when
the vehicle enters a dark place such as a tunnel or parking
lot according to lighting conditions. In this case, we
recommend you to twist the knob manually to the second
clickstop to turn on the headlights immediately.
When the headlight switch is turned to the first or second
clickstop, the brightness of the instrument cluster will be
reduced slightly unless the instrument panel light control knob
is turned fully on.
However, the brightness of the instrument cluster will not be
reduced in daytime even when the headlight switch is turned
to first or second clickstop.
Page 74
SWITCHES
49
The automatic light control sensor is on the top of the driver’s
side instrument panel.
Do not place anything on the instrument panel, and/or do not
affix anything on the windshield to block this sensor.
When the headlights come on: The lights automatically turn off
about 30 seconds after any of the side doors and back door is
opened and closed with the ignition key turned to the “ACC” or
“LOCK” position. Additionally, the lights can be turned off
immediately by pushing the “LOCK” button on the wireless
remote control key with all the side doors and back door locked.
When only the tail lights come on: The lights automatically turn
off with the driver’s door opened and the ignition key turned to
the “ACC” or “LOCK” position. To turn them on again, turn the
ignition key to the “ON” position, or turn the headlight switch off
and then twist the knob until the first or second clickstop.
If you are going to park for over one week, make sure the
headlight switch is off.
Daytime Running Light System
The headlights turn on at reduced intensity when the parking
brake is released with the engine started, even with the light
switch in the “OFF” position. They will not go off until the
ignition switch is turned off.
To turn on the other exterior lights and instrument panel lights,
twist the knob to the first clickstop.
Page 75
SWITCHES
50
Twist the knob to the second clickstop to turn on the headlights
to full intensity for driving at night.
When setting the knob to the third clickstop (“AUTO”), the
headlights will automatically adjust to full intensity and/or turn
on the other lights depending on the darkness of the
surroundings. Likewise, as the surroundings become brighter,
the headlights will turn to reduced intensity, ultimately turning
off the other lights.
NOTICE
To prevent the battery from being discharged, do not
leave the lights on longer than necessary when the
engine is not running.
Automatic headlight leveling system
(vehicles with discharge headlight only)
Vehicle position changes according to loading condition,
passengers getting on and off, vehicle acceleration and
deceleration, etc. However, the headlight beam level is always
maintained automatically by the system at the proper level so
that your headlights do not dazzle other road users.
If this system fails, the warning light in the instrument cluster
comes on. If this occurs, have your vehicle checked by your
Lexus dealer.
If you replace the rear suspension, contact your Lexus dealer
to check the automatic headlight leveling system and headlight
beam level.
Page 76
SWITCHES
51
Adaptive front−lighting system
Adaptive front−lighting system (AFS) provides the proper
headlight beam level according to the current driving
conditions. This system moves the headlight beam left or right
according to the turning angle of the steering wheel. The
synergy of this system and the automatic headlight leveling
system improves visibility at the intersections and curves.
The system operates when the vehicle speed rises above 30
km/h (18 mph), and stops when the vehicle speed drops below
5 km/h (3 mph).
The system can operate within the limited range of the steering
wheel turning angle.
"1Adaptive front−lighting system off switch
2
Inoperative
3
Operative
If you do not want to activate the system, push in the
switch to turn off the system. To turn it on, push it again.
When the system is turned off, the “AFS OFF” indicator lights
up in the instrument cluster.
If the system fails, the indicator light in the instrument cluster
will flash. If this occurs, have your vehicle checked by your
Lexus dealer.
Page 77
SWITCHES
52
HEADLIGHT DIMMER AND TURN
SIGNAL SWITCH
For high beam, push the lever forward. Pull it back for low
beam. For the headlight flasher, pull it further back.
A blue light in the instrument cluster indicates high beam or
headlight flasher is on.
The headlight flasher works even when the headlight switch is
off.
For signaling turns, move the lever up or down in the
conventional manner.
The ignition key must be in the “ON” position.
The turn signal is self−cancelling after a turn, but after a lane
change, you may have to cancel it by hand. You can also signal
a lane change by moving the turn signal lever partway and
holding it there.
If the green light in the instrument cluster flashes faster than
normal, it indicates that the front or rear turn signal bulb has
burned out. If this indicator light does not come on, the fuse
or the indicator light itself has probably failed.
Page 78
SWITCHES
53
FOG LIGHT SWITCH
To turn on the fog lights, twist the band of the headlight
switch lever to the position of the fog light. The fog lights
come on only when the headlights are on low beam.
WINDSHIELD WIPER AND WASHER
SWITCH
Variable intermittent windshield wipers
"1Interval adjuster
2
Washer on
To turn the wipers on, move the lever down until you reach
the desired speed setting.
The ignition key must be in the “ON” position.
There are 3 settings:
“INT” position — Variable intermittent operation
“LO” position — Low speed operation
“HI” position — High speed operation
Page 79
SWITCHES
54
Twist the interval adjuster upward to increase the wiping
time interval between sweeps, and downward to decrease
it.
The wiper lever must be in the “INT” position.
For mist wiper operations (a single wipe), pull the lever up
and release it.
To make the washer squirt, pull the lever toward you and
release it.
Also, the wipers will automatically operate a couple of times
after the washer squirts even with the lever in the “OFF”
position.
Vehicles with headlight cleaner — If you pull the windshield
washer lever toward you with the headlights on, the headlight
cleaner operates once automatically together with the
windshield washer fluid.
The low washer fluid warning light in the instrument cluster
comes on when the fluid level in the tank becomes nearly
empty. For information on adding washer fluid, see “Adding
washer fluid” on page 609.
In cold weather, warm the windshield with the defroster before
using the washer. This will help prevent icing, which could
block your vision.
NOTICE
Do not operate the wipers if the windshield is dry. It may
scratch the glass.
When waxing your vehicle, make sure that the washer nozzles
do not become blocked. If a nozzle becomes blocked, contact
your Lexus dealer to have the vehicle serviced.
NOTICE
If a nozzle becomes blocked, do not try to clear it with
a pin or other object. The nozzle will be damaged.
Page 80
SWITCHES
55
Rain−sensing windshield wipers
"1Automatic control adjuster
2
Washer on
To turn the wipers on, move the lever down until you reach
the desired speed setting.
The ignition key must be in the “ON” position.
There are 3 settings:
“AUTO” position — Automatic operation
“LO” position — Low speed operation
“HI” position — High speed operation
Automatic operation
The wiper speed is determined by the amount of raindrops
and sunlight detected by the automatic wiper control
sensor.
You may adjust the automatic wiper control sensitivity by
twisting the automatic control adjuster in the “−”
direction, which requires more raindrop volume to start
the wiper, or in the “+” direction, which requires less
raindrop volume to start the wiper.
The sensor is on the inside of the windshield as shown above.
Page 81
SWITCHES
56
Even if the wiper lever is in the “AUTO” position, the system will
switch to variable intermittent operations in the following
conditions:
D When the windshield gets extremely cold (at less than
–10_C [14_F])
D When the system malfunctions
However, when the windshield gets extremely hot (at more
than 90_C [194_F]), the wipers do not operate even if the wiper
lever is in the “AUTO” position.
When the ignition switch is turned off with the wiper lever in the
“AUTO” position, and then the ignition switch is turned on
again, the automatic operation may not work even if raindrops
are on the windshield.
In this case, move the lever to another position and return it to
the “AUTO” position again.
If you stop the vehicle with the wiper switch in the “LO” position,
the wiper speed automatically changes from low speed to
intermittent operation speed.* This function does not work
when the automatic control adjuster is in the “+” position.
NOTE:
* This feature can be deactivated.
Ask your Lexus dealer for details.
CAUTION
Be careful not to get your fingers caught between the
wipers and windshield.
When the wiper lever is in the “AUTO” position with the
ignition switch on, the wipers could operate
automatically in the following cases:
D If you touch the upper center of the windshield
adjacent to the sensor.
D If you wipe the upper center of the windshield
(adjacent to which the sensor is located) with a towel.
D If the windshield vibrates.
D If you touch the sensor.
NOTICE
Do not apply detergent to or wet the automatic wiper
control sensor when cleaning the inside of the
windshield.
Page 82
SWITCHES
57
For mist wiper operations (a single wipe), pull the lever up
and release it.
To make the washer squirt, pull the lever toward you and
release it.
Also, the wipers will automatically operate a couple of times
after the washer squirts even with the lever in the “OFF”
position.
Vehicles with headlight cleaner — If you pull the windshield
washer lever toward you with the headlights on, the headlight
cleaner operates once automatically together with the
windshield washer fluid.
The low washer fluid warning light in the instrument cluster
comes on when the fluid level in the tank becomes nearly
empty. For information on adding washer fluid, see “Adding
washer fluid” on page 609.
In cold weather, warm the windshield with the defroster before
using the washer. This will help prevent icing, which could
block your vision.
NOTICE
Do not operate the wipers if the windshield is dry. It may
scratch the glass.
When waxing your vehicle, make sure that the washer nozzles
do not become blocked. If a nozzle becomes blocked, contact
your Lexus dealer to have the vehicle serviced.
NOTICE
If a nozzle becomes blocked, do not try to clear it with
a pin or other object. The nozzle will be damaged.
Page 83
SWITCHES
58
Lifting the windshield wiper arms
When lifting the windshield wiper arms away from the
window, follow the procedure in the order indicated.
1
Pull the driver side wiper arm upward.
2
Pull the passenger side wiper arm upward.
When returning the wiper arms to their original position, push
the passenger side wiper arm down first, and then push the
driver side wiper arm down.
NOTICE
To prevent damage to the wipers, pull the driver side
wiper arm upward first, and repeat for the passenger
side. When returning the wipers to their original position, do so from the passenger side first.
Page 84
SWITCHES
59
REAR WINDOW WIPER AND
WASHER SWITCH
"1Washer on during wiping
2
Washer on
To turn the wipers on, twist the knob at the end of the lever.
The ignition key must be in the “ON” position.
There are 2 settings:
“HI” position — Normal operation
“LO” position — Intermittent operation
To make the washer squirt, twist the knob downward to
position 2.
To make the washer squirt while operating in “ON”
position, twist the knob upward to position 1.
The knob automatically returns from these positions after you
release it.
The rear window wiper operates while the washer squirts.
The low washer fluid warning light in the instrument cluster
comes on when the fluid level in the tank becomes nearly
empty. For information on adding washer fluid, see “Adding
washer fluid” on page 609.
NOTICE
Do not operate the rear window wiper if the rear window
is dry. It may scratch the glass.
Page 85
SWITCHES
60
HEADLIGHT CLEANER SWITCH
To spray fluid on the headlights, push the switch with the
headlights on.
The ignition key must be in the “ON” position.
The low washer fluid warning light in the instrument cluster
comes on when the fluid level in the tank becomes nearly
empty. For information on adding washer fluid, see “Adding
washer fluid” on page 609.
NOTICE
Do not turn the headlight cleaner on with the washer
fluid tank empty. It may cause the cleaner motor to
overheat.
Page 86
SWITCHES
61
REAR WINDOW AND OUTSIDE
REAR VIEW MIRROR DEFOGGER,
AND WINDSHIELD WIPER DE−ICER
SWITCH
To turn the electric rear window and outside rear view
mirror defogger on, push the switch.
The ignition key must be in the “ON” position.
The thin heater wires on the inside of the rear window and the
heater panels in the outside rear view mirrors will quickly clear
the surface. An indicator light is on when the defogger is
operating.
Vehicles sold in Canada — The windshield wiper de−icers are
equipped to deice the windshield wiper blades by operating
simultaneously with defogger.
The system will automatically shut off when the defogger has
operated about 15 minutes.
CAUTION
Since the mirror surfaces can get hot, do not touch them
when the switch is on.
If further defrosting or defogging is desired, simply actuate the
switch again. When the surface has cleared, push the switch
once again to turn the defogger off. Continuous use may cause
the battery to discharge, especially during stop−and−go
driving. The defogger is not designed to dry rain water or to
melt snow.
If the outside rear view mirrors are heavily coated with ice, use
a spray de−icer before operating the switch.
Page 87
SWITCHES
62
NOTICE
D When cleaning the inside of the rear window, be
careful not to scratch or damage the heater wires or
connectors.
D To prevent the battery from being discharged, turn
the switch off when the engine is not running.
POWER WINDOW SWITCHES
"1For driver’s window
2
For front passenger’s window
3
For left rear window
4
For right rear window
To raise or lower the windows, use the switch on each
door. The passengers’ windows can also be controlled by
the switches on the driver’s door.
The power windows work when the ignition key is in the “ON”
position.
Retained accessory power operation: Even if the ignition
key is turned to the “ACC” or “LOCK” position with all the side
doors and back door closed, the window can be operated until
either front door is opened (or for 43 seconds).
Page 88
SWITCHES
63
Operating the switches
To lower the window, push the switch halfway down. Pull
it up to raise the window. The window glass moves as long
as the switch is operated.
Automatic operation: To fully raise or lower the window
automatically, pull the switch fully up or push it fully down.
To stop the window partway, lightly push or pull the switch in the
opposite direction and then release it.
Operating the window lock switch
" Indicator lights
With the window lock switch pressed in, only the driver’s
window can be raised or lowered.
The indicator lights on the switches tell you which of the
switches can be operated.
Page 89
SWITCHES
64
Operating the windows from outside the
vehicle
The windows can be operated using an ignition key.*
NOTE:
* This feature can be deactivated.
Ask your Lexus dealer for details.
" Close " Open
Insert the ignition key into the key hole on the driver’s
door.
To close the windows: Turn the key in the locking direction
and hold it.
After the doors are locked, the windows begin to close. To stop
in the middle, return the key.
To open the windows: Turn the key in the unlocking direction
and hold it.
After the door is unlocked, the windows begin to open. To stop
in the middle, return the key.
The windows also can be opened using the wireless remote
control. For details, see page 22.
Jam protection function
During automatic raising operation, retained accessory power
raising operation or raising operation using the ignition key
from the outside, the window stops and is lowered if something
gets caught between the window and window frame.
If the window receives a strong impact, this function may work
even if nothing is caught.
Page 90
SWITCHES
65
If the power window does not operate
automatically
If the power window does not operate automatically or the jam
protection function does not operate correctly, you should
normalize the power window on each door. At this time, the
indicator lights of the switches will flash.
To normalize the power windows:
1. Push down the power window switch of each door and lower
the windows halfway.
2. Pull up the switch until the windows close and hold the
switch for a second.
Make sure that the windows open and close automatically. If
the power windows cannot be operated properly, have it
checked by your Lexus dealer.
CAUTION
To avoid serious personal injury, you must do the
following.
D Before you close the power windows, always make
sure there is nobody around the power windows. You
must also make sure the heads, hands and other
parts of the bodies of all occupants are kept
completely inside the vehicle. If someone’s neck,
head or hands get caught in a closing window, it
could result in death or serious injury. When anyone
closes the power windows, make sure he or she
operates the windows safely.
D When small children are in the vehicle, never let them
use the power window switches without supervision.
Use the window lock switch to prevent them from
making unexpected use of the switches.
D Be sure to remove the ignition key when you leave
your vehicle.
D Never leave anyone (particularly a small child) alone
in your vehicle, especially with the ignition key still
inserted. Otherwise, he/she could use the power
window switches and get trapped in a window.
Unattended person (particularly a small child) can be
involved in a serious accident.
Page 91
SWITCHES
66
D Never try jamming any part of your body to activate
the jam protection function intentionally, as it could
result in a serious injury.
D The jam protection function may not work if
something gets caught just before the window is fully
closed.
EMERGENCY FLASHER SWITCH
" Vehicles with navigation system
" Vehicles without navigation system
Page 92
SWITCHES
67
To turn on the emergency flashers, push the switch. To
turn them off, push the switch again.
All the turn signal lights will flash. The emergency flashers will
work with the engine running or off and with or without the
ignition key.
Turn on the emergency flashers to warn other drivers if you
must stop your vehicle where it might be a traffic hazard.
Always pull your vehicle as far off the road as possible.
The turn signal light switch will not work when the emergency
flashers are in operation.
NOTICE
To prevent the battery from being discharged, do not
leave the switch on longer than necessary when the
engine is not running.
SEAT HEATER SWITCHES
"1For driver’s seat
2
For front passenger’s seat
The front seat heater has two switches: one marked “L”
(for driver’s seat) and the other marked “R” (for front
passenger’s seat).
The ignition key must be in the “ON” position to operate seat
heaters.
To use the seat heater:
1. Push the knob to pop it out.
2. Turn the knob clockwise. The indicator light turns on.
3. Adjust the knob to the desired temperature.
Page 93
SWITCHES
68
To turn off the seat heater, turn the knob counterclockwise until
it stops.
Push the knob into the recessed position when not in use.
CAUTION
Occupants must use caution when operating the seat
heater because they may experience minor burns even
at low temperatures. Use extra caution for;
D Babies, small children, elderly persons, sick persons
or persons with physical disabilities
D Persons who have sensitive skin
D Persons who are exhausted
D Persons who have taken alcohol or drugs which
induce sleep (sleeping drug, cold remedy, etc.).
To prevent the seat from overheating, do not use the
seat heater with a blanket, cushion, or other insulating
objects which cover the seat.
NOTICE
D Do not put unevenly weighted objects on the seat and
do not stick sharp objects (needles, nails, etc.) into
the seat.
D When cleaning the seats, do not use organic
substances (paint thinner, benzine, alcohol,
gasoline, etc.). They may damage the heater and seat
surface.
D To prevent the battery from being discharged, turn
the switch off when the engine is not running.
Page 94
SECTION 1 – 3
69
INSTRUMENTS AND CONTROLS
Gauges, meters and service reminder indicators
Fuel gauge 70. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine coolant temperature gauge 71. . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 72. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Odometer and trip meter 73. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers 74. . . . . . . . . . . . . .
Cruise information display 87. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument panel light control 90. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Multi−display light control 91. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 95
GAUGES, METERS AND SERVICE REMINDER INDICATORS
70
FUEL GAUGE
" Low fuel level warning light
The gauge indicates the approximate quantity of fuel
remaining in the tank when the ignition switch is on.
It is a good idea to keep the tank over 1/4 full.
If the fuel level approaches “E” or the low fuel level warning light
comes on, fill the fuel tank as soon as possible.
On inclines or curves, due to the movement of fuel in the tank,
the fuel gauge needle may fluctuate or the low fuel level
warning light may come on earlier than usual.
If the fuel tank is completely empty, the malfunction indicator
lamp comes on. Fill the fuel tank immediately.
The indicator lamp goes off after driving several times. If the
indicator lamp does not go off, contact your Lexus dealer as
soon as possible.
See the inner back cover for fuel capacity and recommended
fuel selection.
Page 96
GAUGES, METERS AND SERVICE REMINDER INDICATORS
71
ENGINE COOLANT
TEMPERATURE GAUGE
" Normal range
The gauge indicates the engine coolant temperature when
the ignition switch is on. The engine operating
temperature will vary with changes in weather and engine
load.
If the needle points to the red zone or higher, stop your vehicle
and allow the engine to cool.
Your vehicle may overheat during severe operating conditions,
such as:
D Driving up a long hill on a hot day.
D Reducing speed or stopping after high speed driving.
D Idling for a long period with the air conditioning on in
stop−and−go traffic.
D Towing a trailer.
NOTICE
D Do not remove the thermostat in the engine cooling
system as this may cause the engine to overheat. The
thermostat is designed to control the flow of coolant
to keep the temperature of the engine within the
specified operating range.
D Do not continue driving with an overheated engine.
See “If your vehicle overheats” on page 499.
Page 97
GAUGES, METERS AND SERVICE REMINDER INDICATORS
72
TACHOMETER
The tachometer indicates engine speed in thousands of
rpm (revolutions per minute). Use it while driving to
prevent engine over−revving.
Driving with the engine running too fast causes excessive
engine wear and poor fuel economy. Remember, in most
cases the slower the engine speed, the greater the fuel
economy.
NOTICE
Do not let the indicator needle get into the red zone. This
may cause severe engine damage.
Page 98
GAUGES, METERS AND SERVICE REMINDER INDICATORS
73
ODOMETER AND TRIP METER
" Vehicles with dynamic laser cruise control
" Vehicles without dynamic laser cruise control
This meter displays the odometer and two trip meters. To
change the mode indication, push the “ODO/TRIP” button
briefly. Each time you push the button, the mode changes
in order from the odometer to trip meter A to trip meter B,
then back to the odometer, etc.
The odometer records the total distance the vehicle has
been driven. The twin trip meter records two different
distances independently.
For example, you can use one meter to calculate the fuel
economy and the other to measure the distance on each trip.
To set the A trip meter to zero, display the A meter reading,
push the button and hold it. The same applies for the B trip
meter.
The data of trip meters will be cancelled if the electrical power
source is disconnected.
Page 99
GAUGES, METERS AND SERVICE REMINDER INDICATORS
74
SERVICE REMINDER INDICATORS
AND WARNING BUZZERS
IF THIS INDICATOR OR
BUZZER COMES ON...
DO THIS.
(a)
or
(indicator and buzzer)
If parking brake is off,
stop immediately and
contact Lexus dealer.
(b)
(indicator and buzzer)
Fasten driver’s seat
belt.
(c)
Fasten front
passenger’s seat belt.
(d)
Take vehicle to Lexus
dealer immediately.
(e)
Stop immediately and
contact Lexus dealer.
IF THIS INDICATOR OR
BUZZER COMES ON...
DO THIS.
(f)
Stop and check.
(g)
Replace engine oil.
(h)
or
Take vehicle to Lexus
dealer.
(i)
or
Take vehicle to Lexus
dealer.
If brake system
warning light is also
on, stop immediately
and contact Lexus
dealer.
(j)
13RY028
(indicator and buzzer)
Close all side doors
and back door.
Page 100
GAUGES, METERS AND SERVICE REMINDER INDICATORS
75
IF THIS INDICATOR OR
BUZZER COMES ON...
DO THIS.
(k)
Replace bulb.
(l)
Take vehicle to Lexus
dealer.
(m)
Stop and check.
(n)
Add washer fluid.
(o)
Low fuel level
warning light
Fill up tank.
(p)
Take vehicle to Lexus
dealer.
IF THIS INDICATOR OR
BUZZER COMES ON...
DO THIS.
(q)
Adjust tire inflation
pressure.
If light remains,
contact Lexus dealer.
(r)
Dynamic laser cruise
control master warning
light
Check condition
according to warning
code. If system
malfunctions, contact
Lexus dealer.
(s)
Key reminder buzzer
Remove key.
(t)
Open moon roof
reminder buzzer
Close moon roof.
Loading...
